MP: A544.250 |
Created August 25, 2020
Total Accidents: 8
Crossing
DOT #: 732175A
TOTAL
DAILY TRAINS: 20 (AS OF 2019)
Page created by: Ethan the Railfanner
This crossing is located on the NS Memphis West End District.
At the time I was there, someone called me in and thought I was a terrorist, even though I'm only just trying to get photos of the crossings on this line. Because of the officer I talked to, I had to zoom in on the railroad crossing equipment I needed to photograph on the side walk, or just stay in the car. I still got good photos of the crossings despite this. If you decide to come to this area, take increased caution and only stay on the sidewalk if you don't want to be called in.
1 |
2 |
3 |
4 |

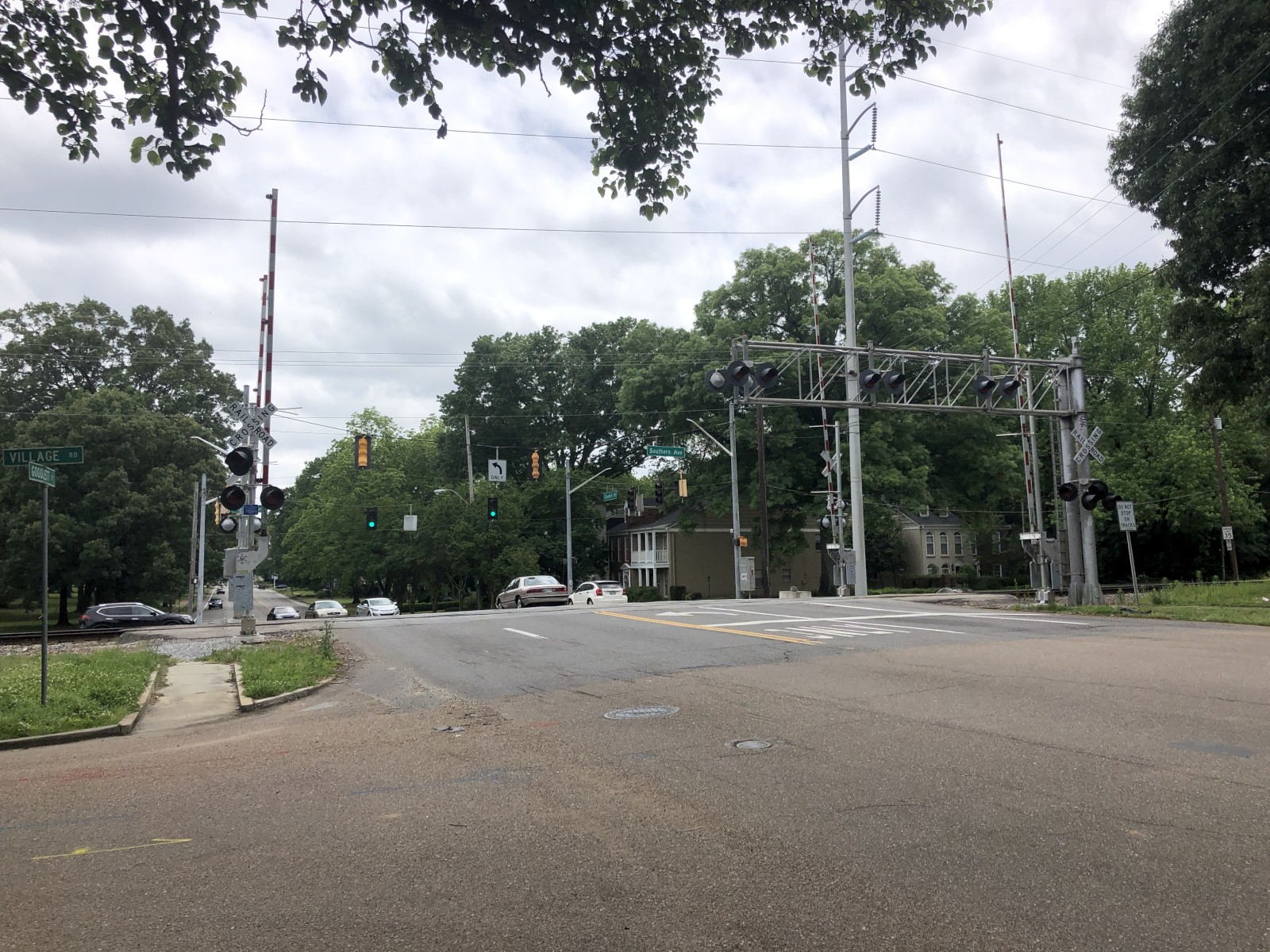

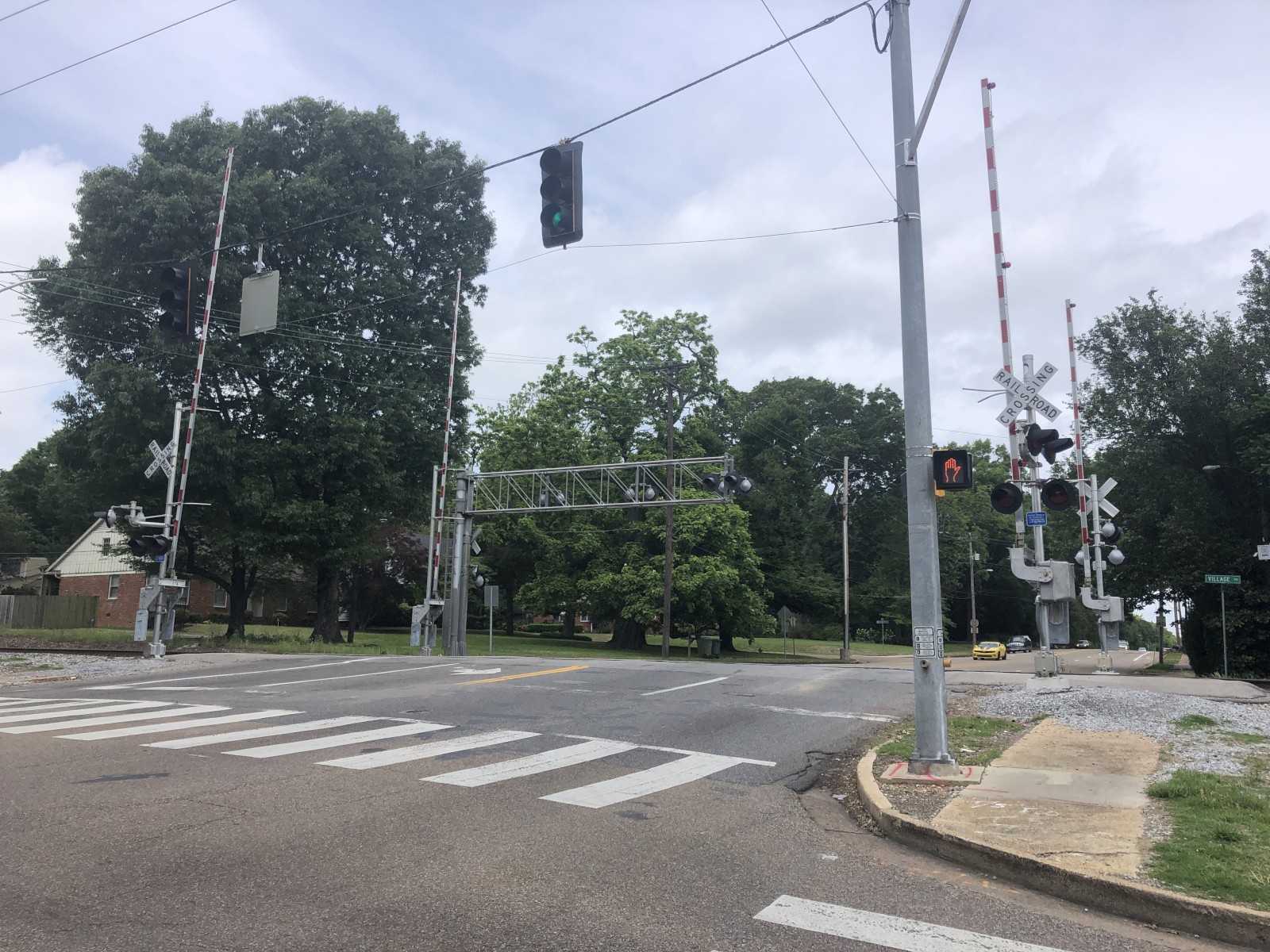

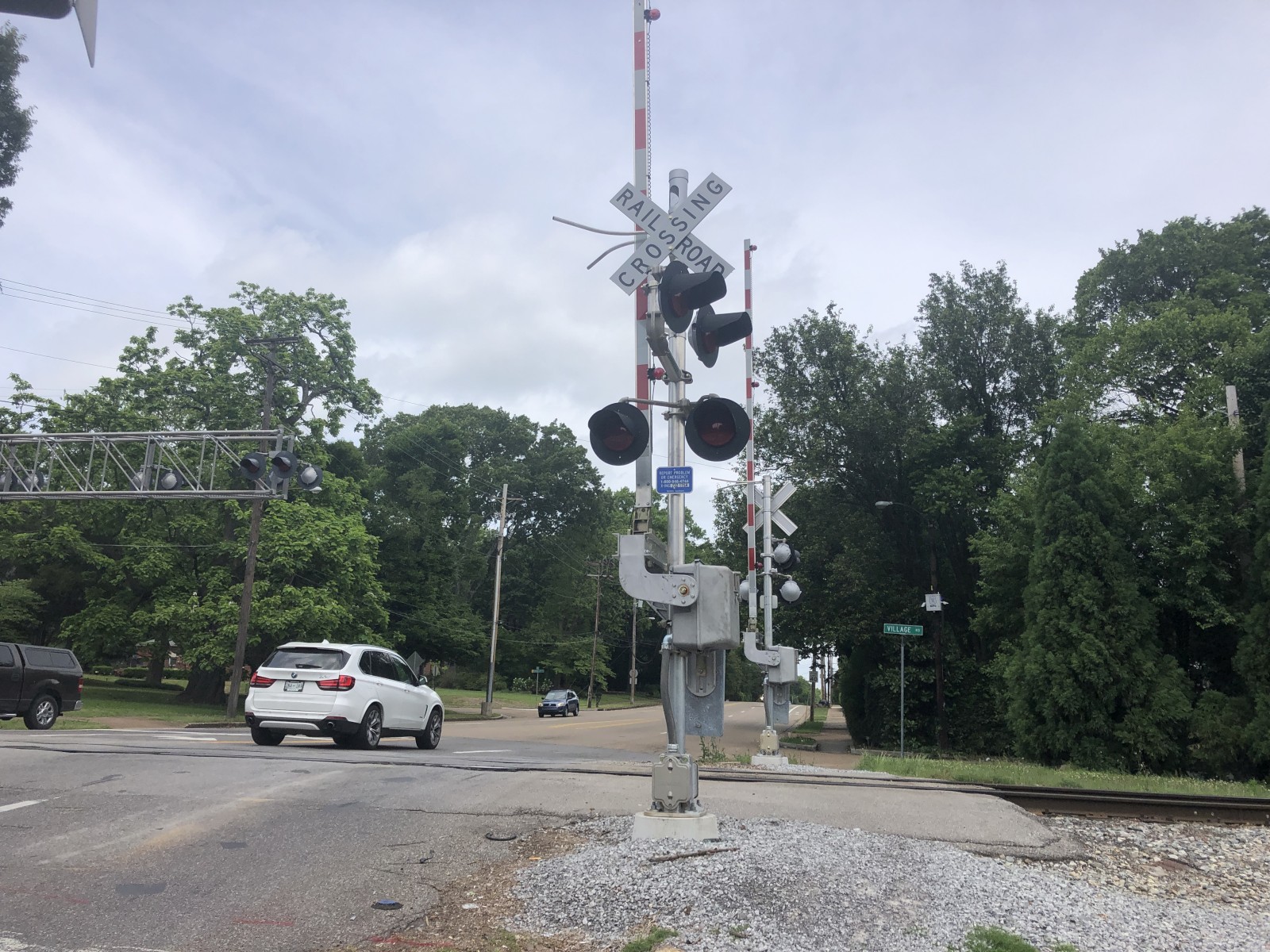

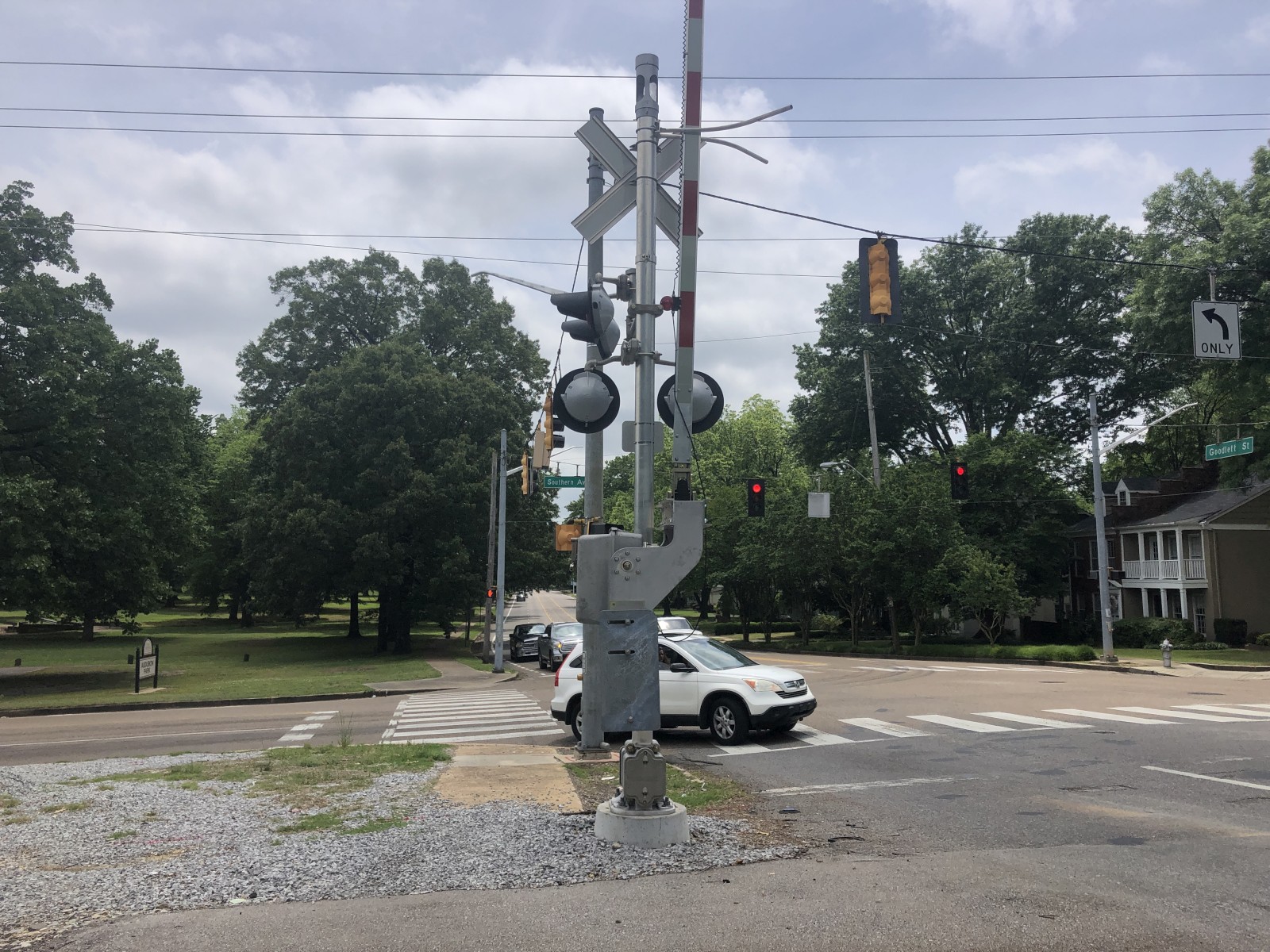

Overviews of this crossing. |
The southern main signal. |
||
5 |
6 |
7 |
8 |

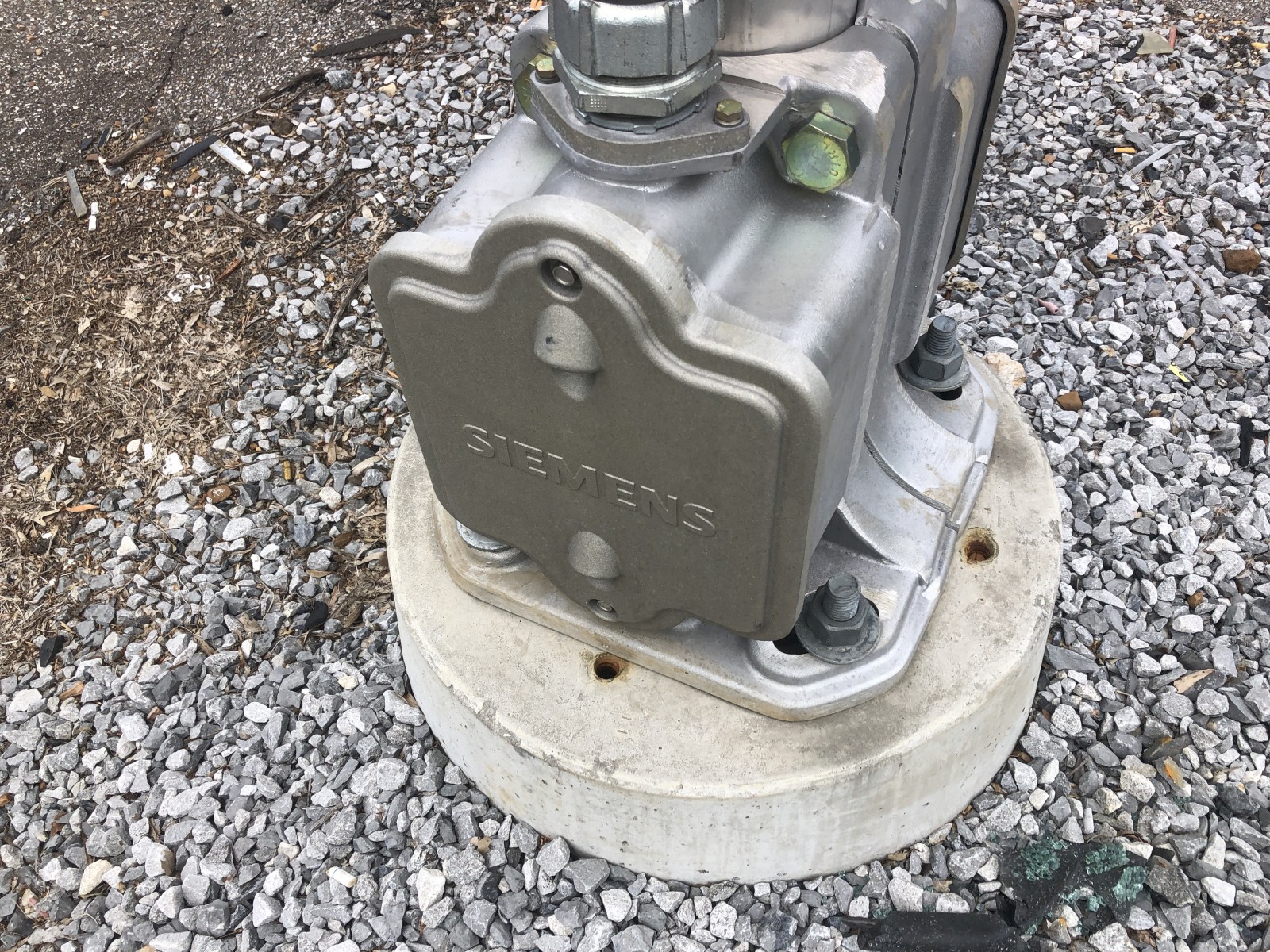

It has a Siemens base. |

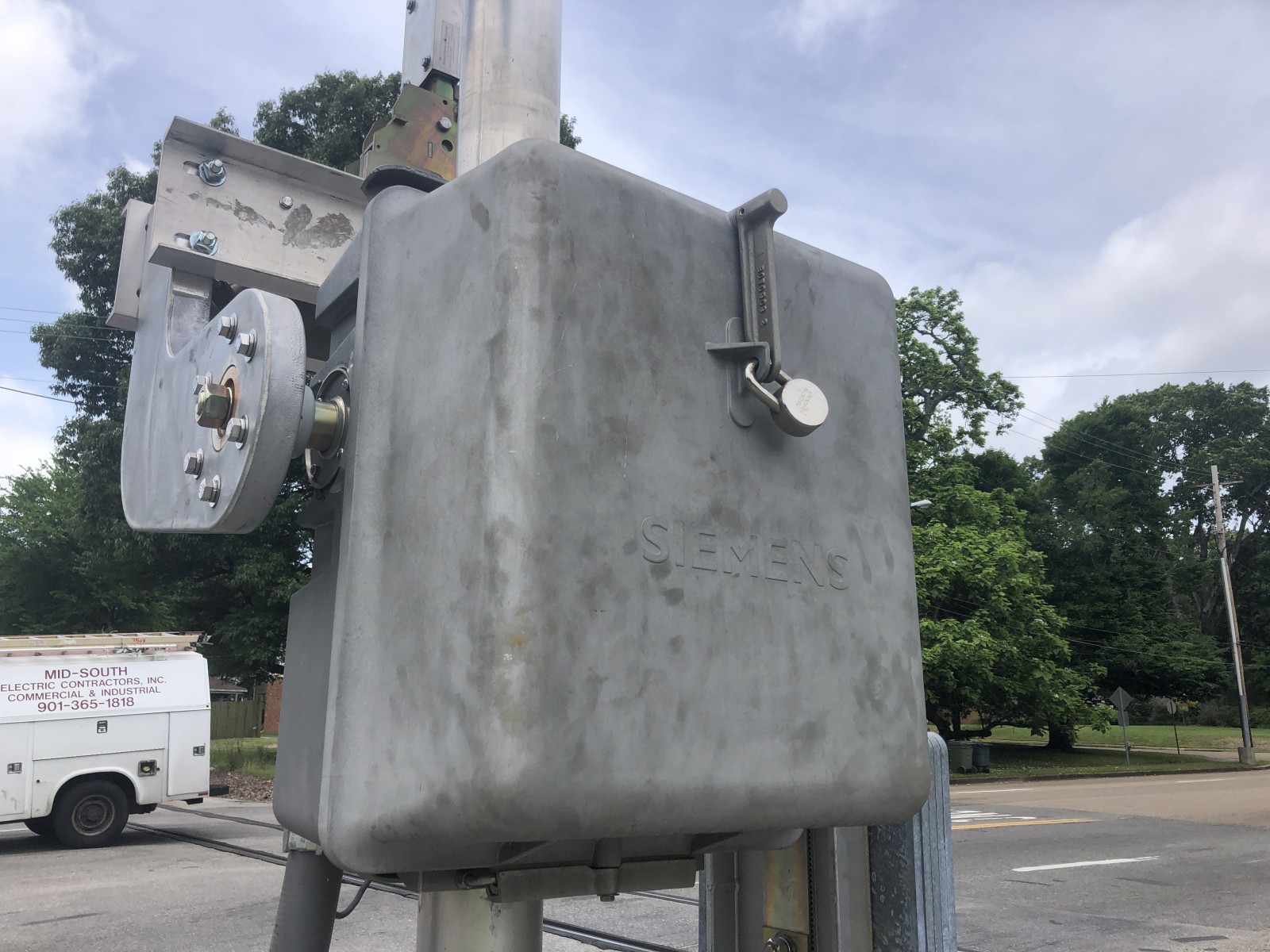

A Siemens gate mechanism. |

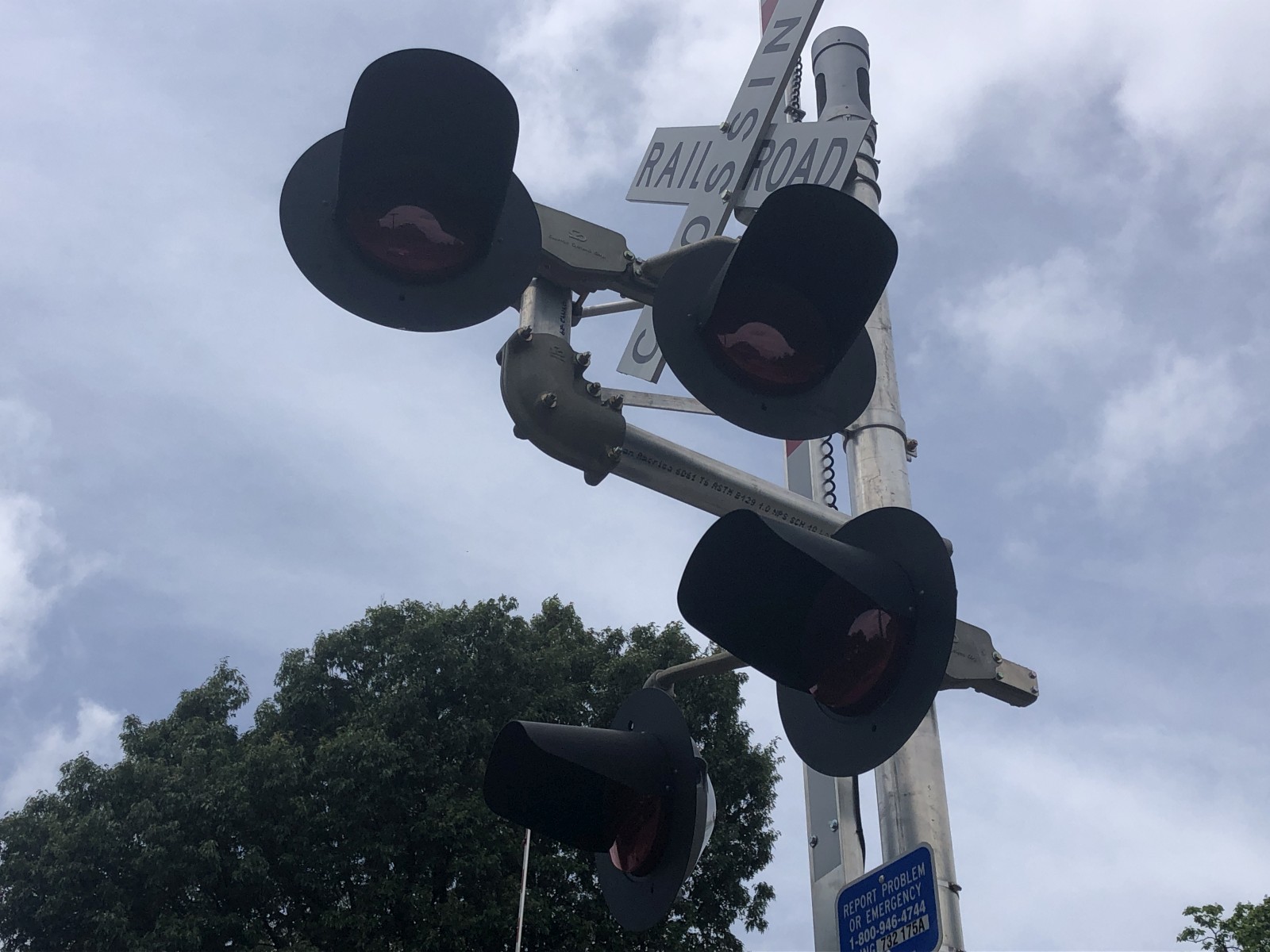

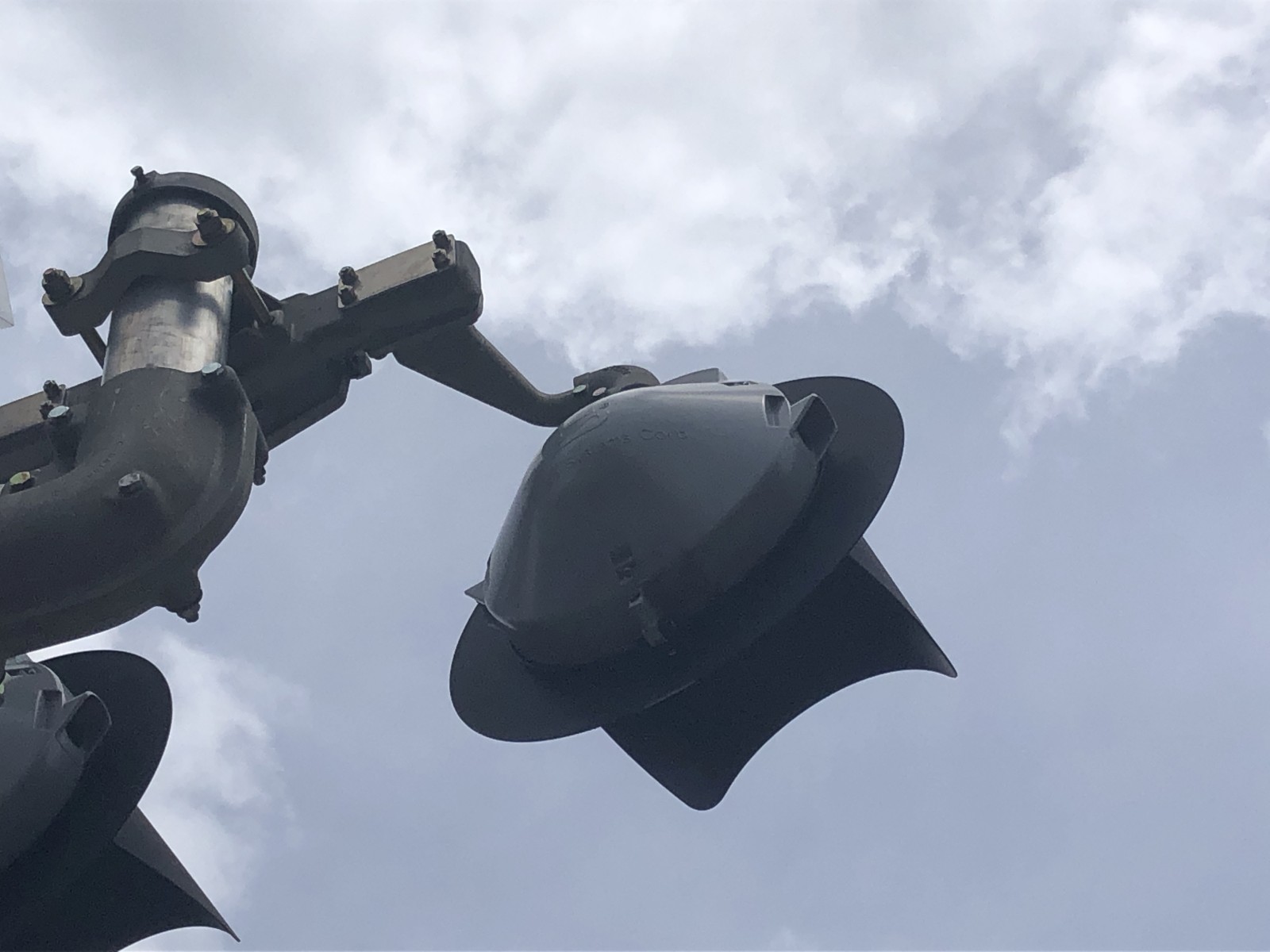

The lights are Safetran 12x20s with GE Fading LEDs. |
|
9 |
10 |
11 |
12 |

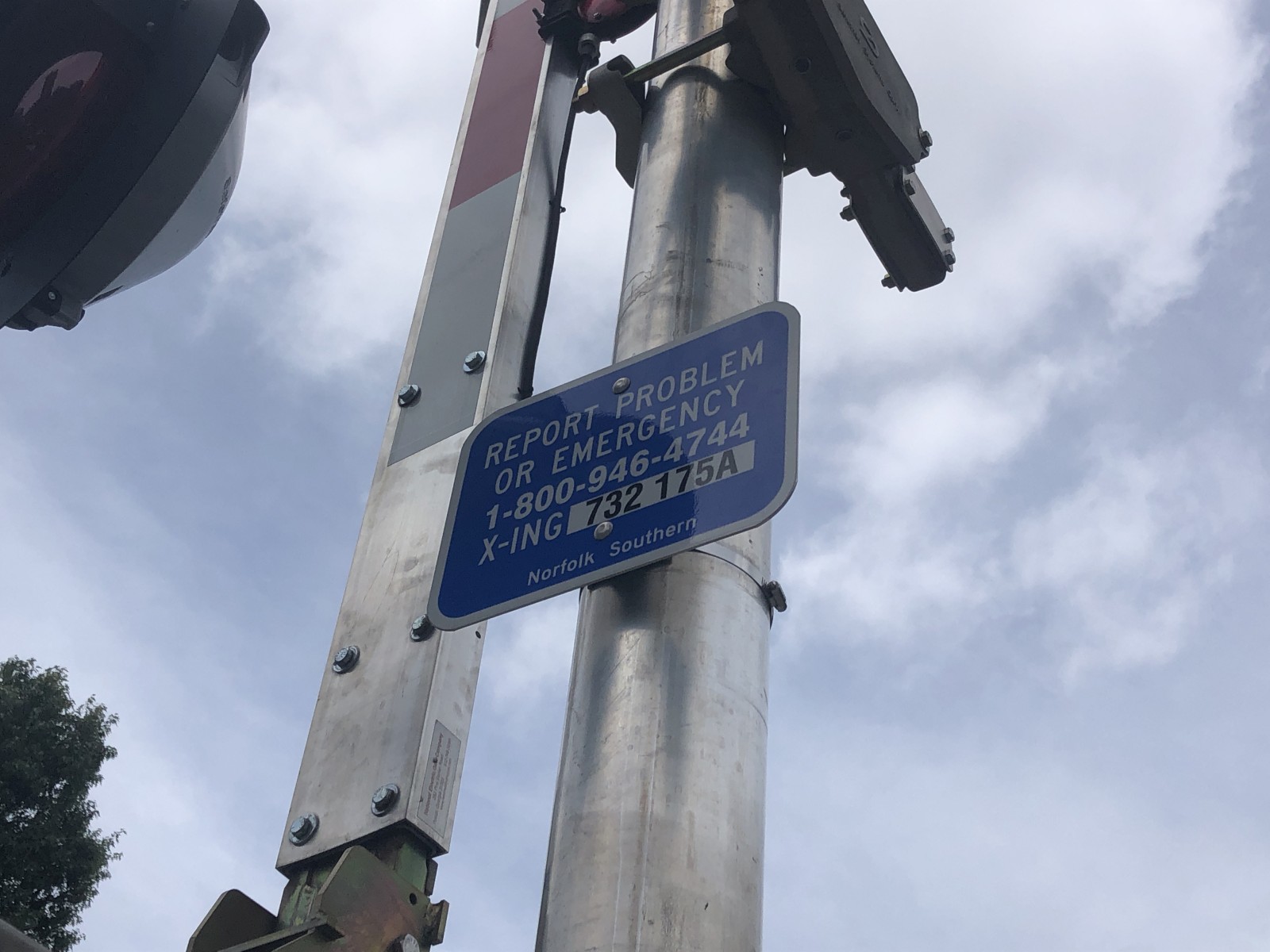

The emergency information. |

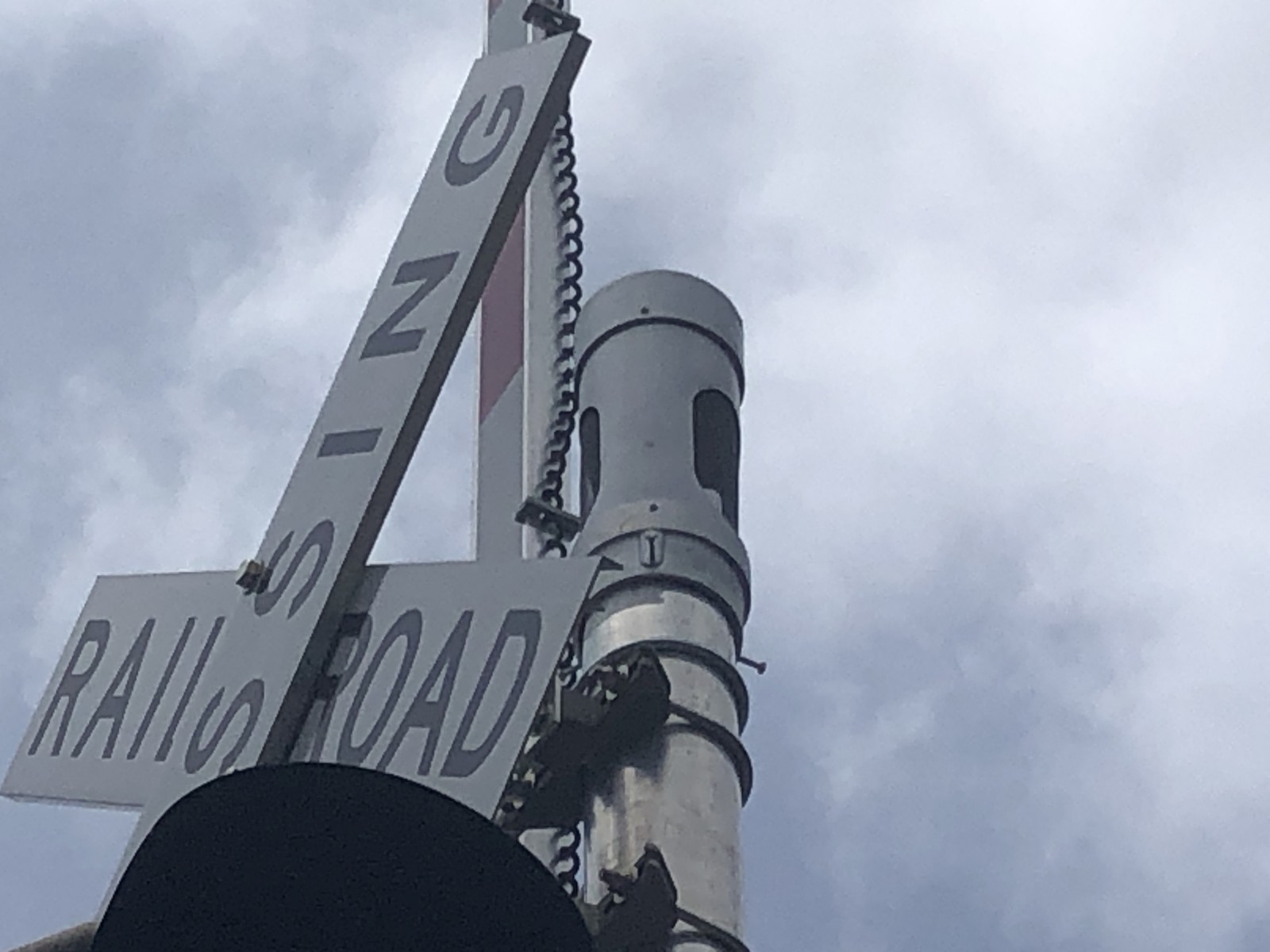

The bell on this signal is a General Signals Type 1 E-Bell. |

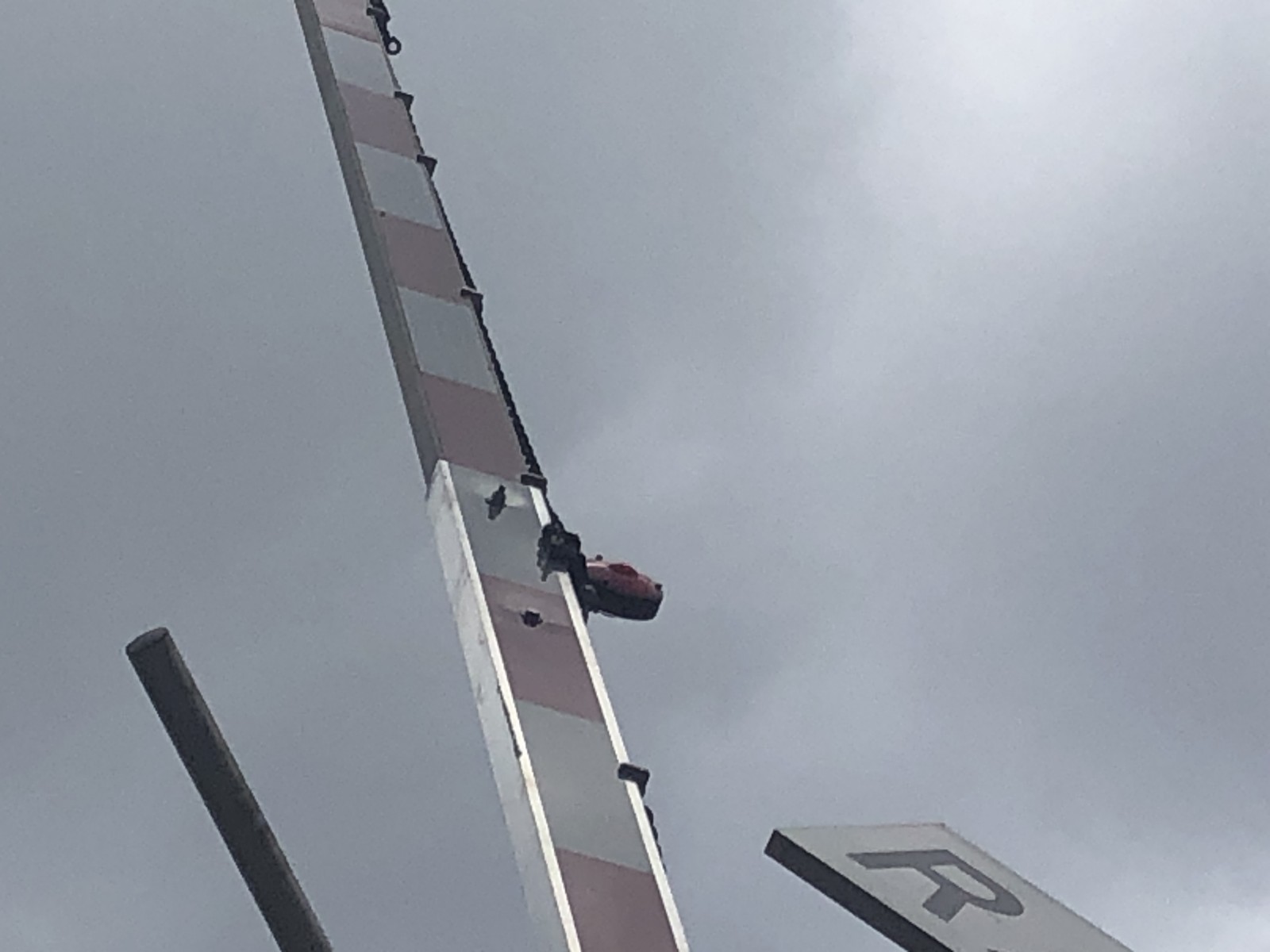

RECO gatelights on this signal. |

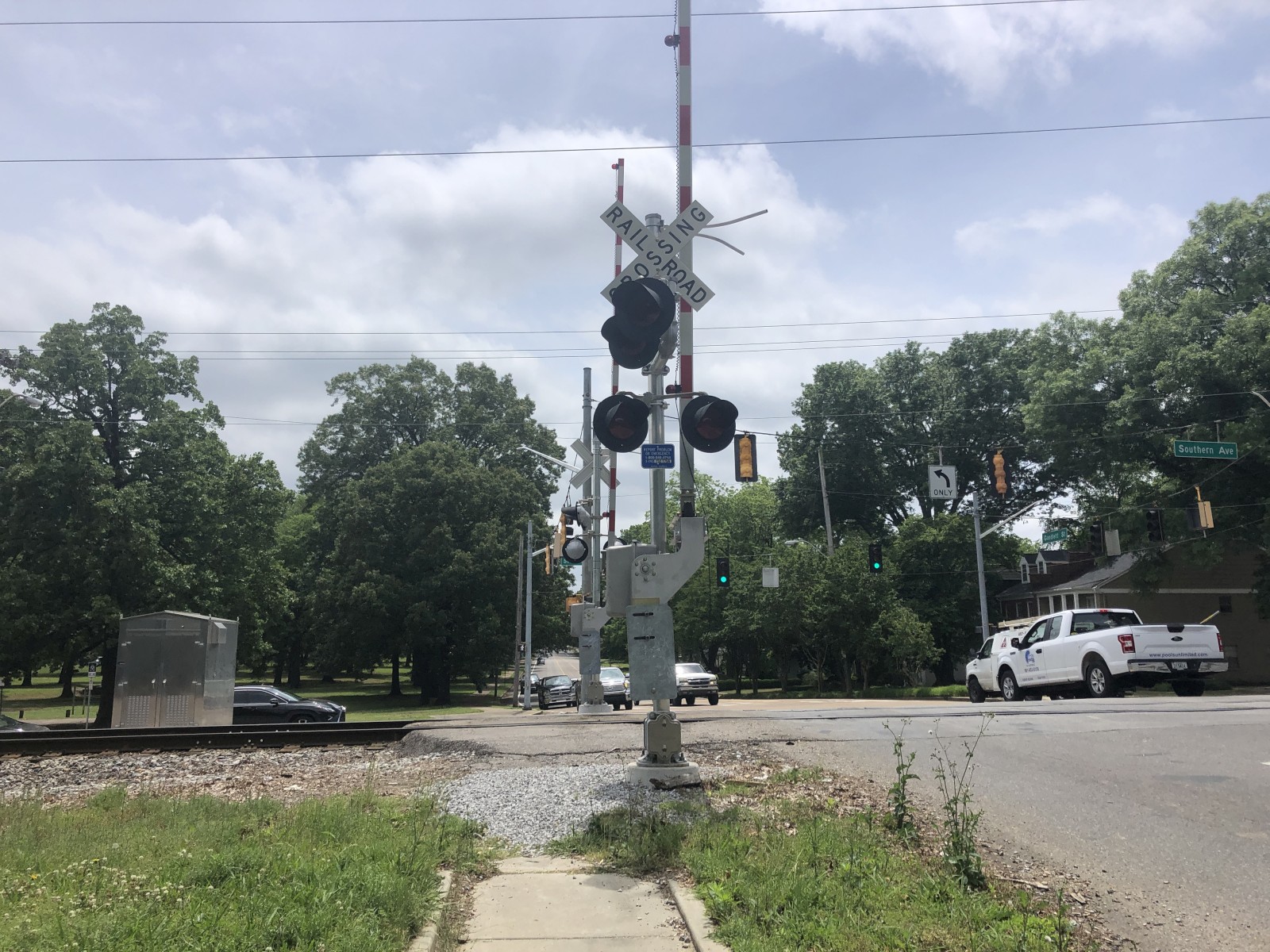

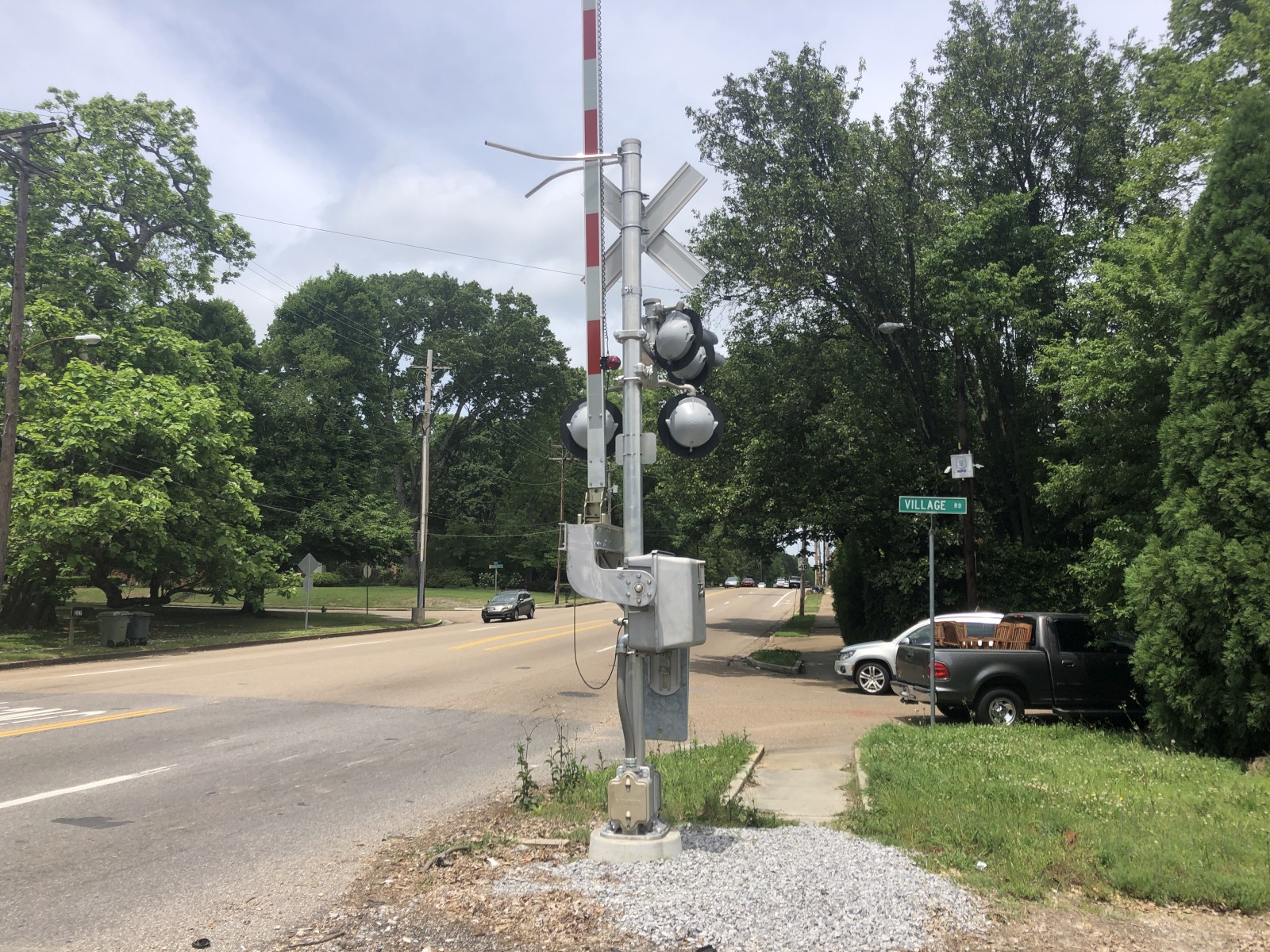

The northern exit signal. |
13 |
14 |
15 |
16 |

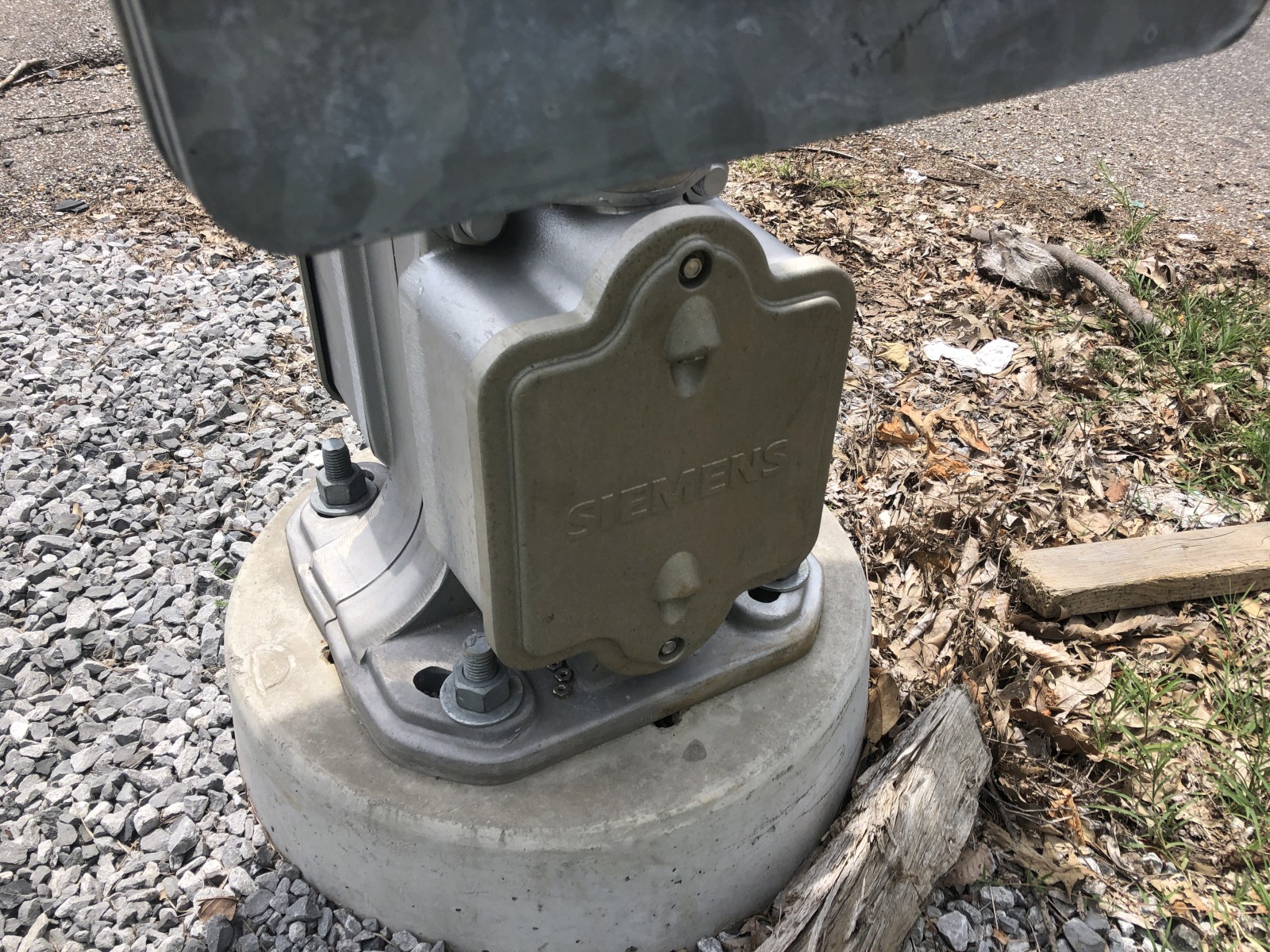

It has another Siemens base. |

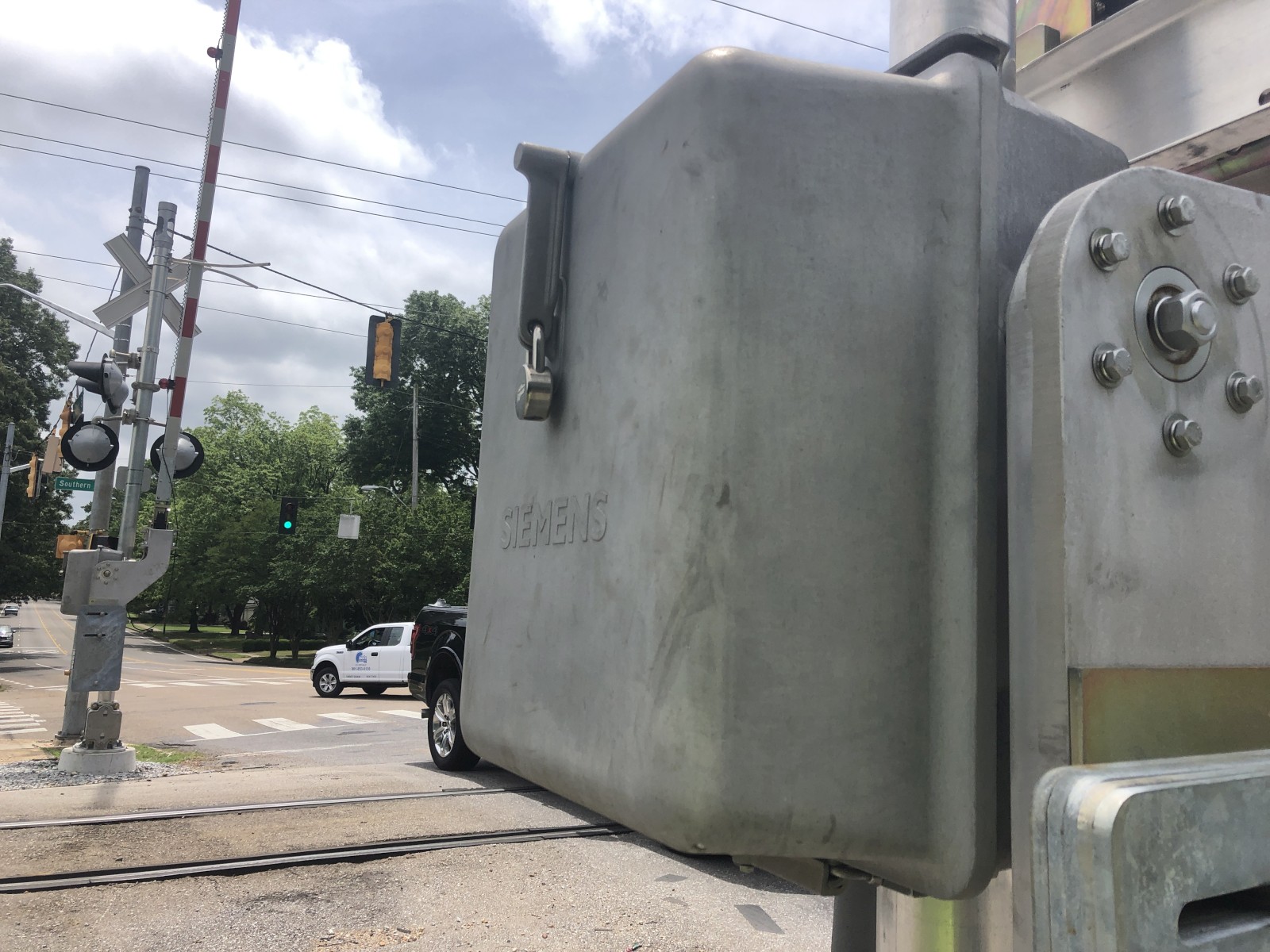

Another Siemens gate mechanism. |

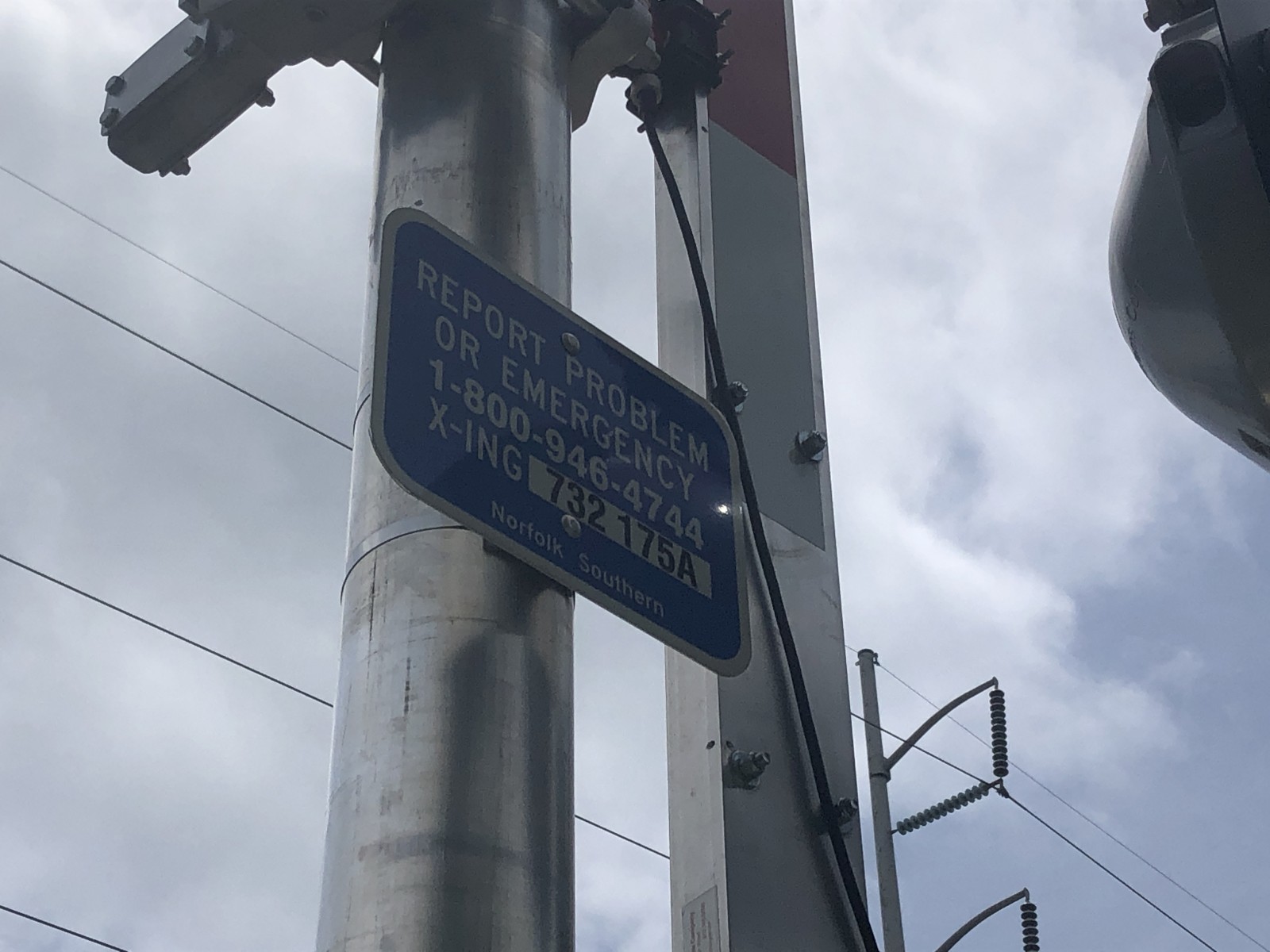

The emergency information. |
17 |
18 |
19 |
20 |

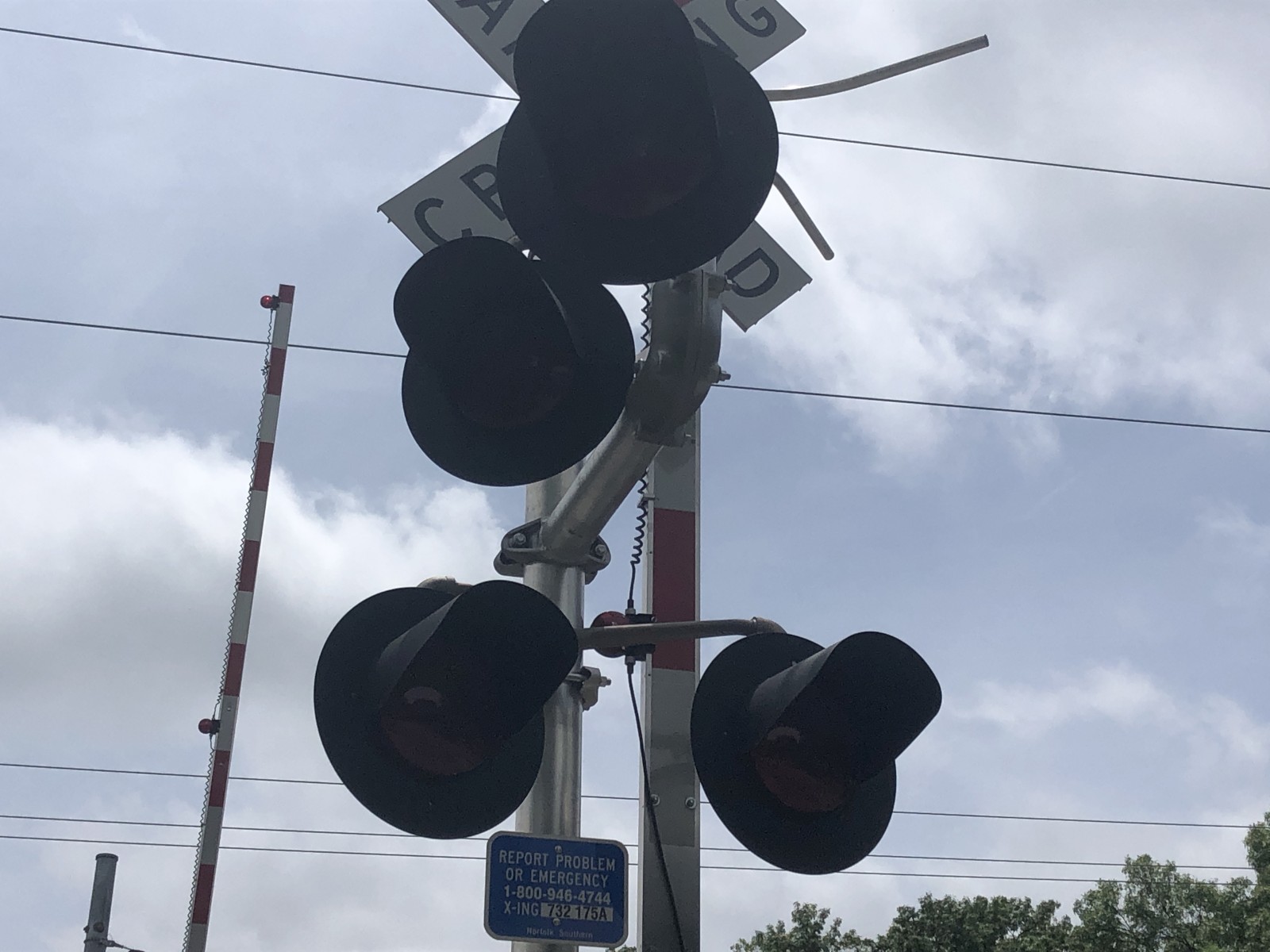

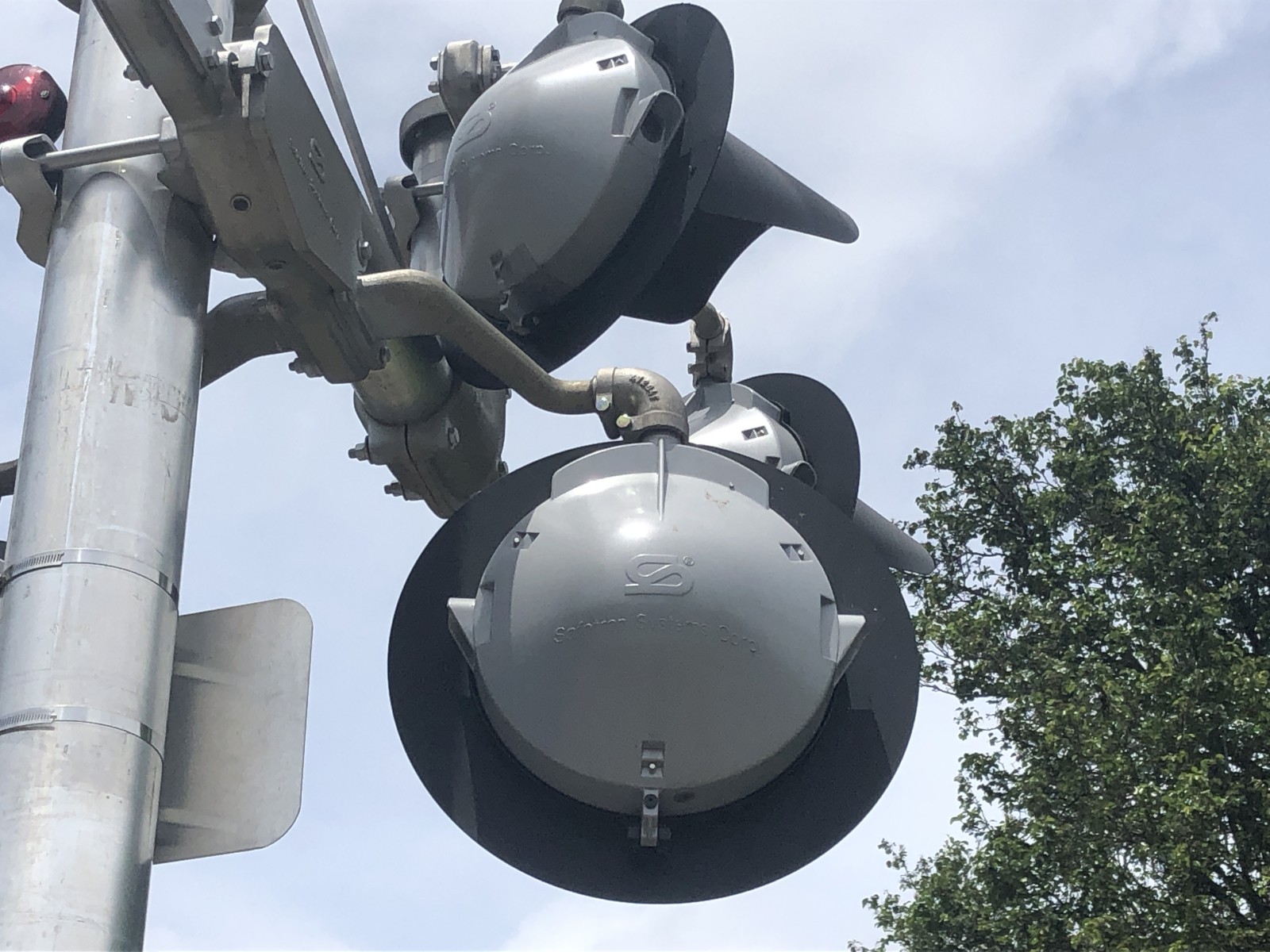

It has more Safetran 12x20 lights with GE Fading LEDs. |

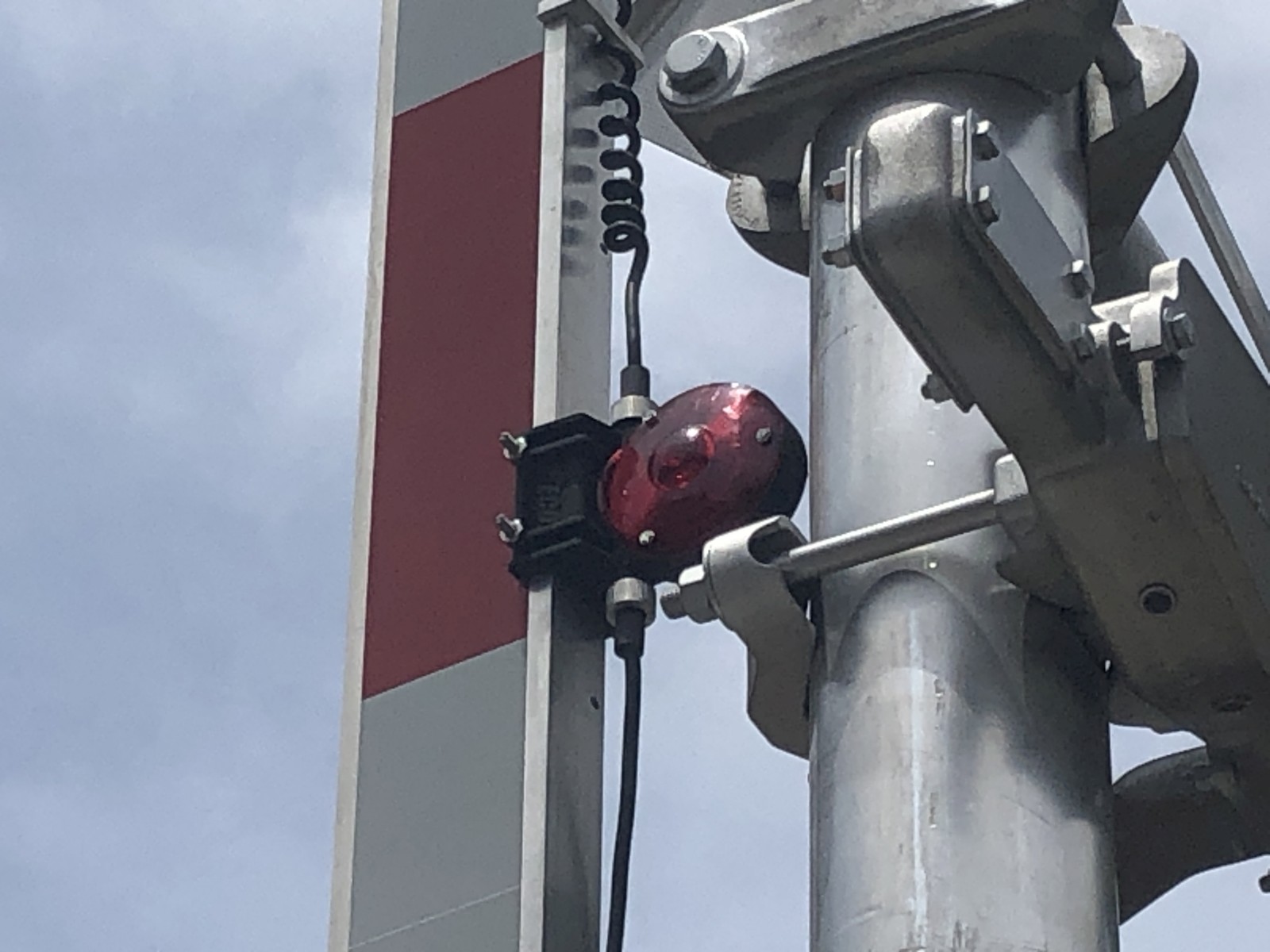

More RECO gatelights on this signal. |

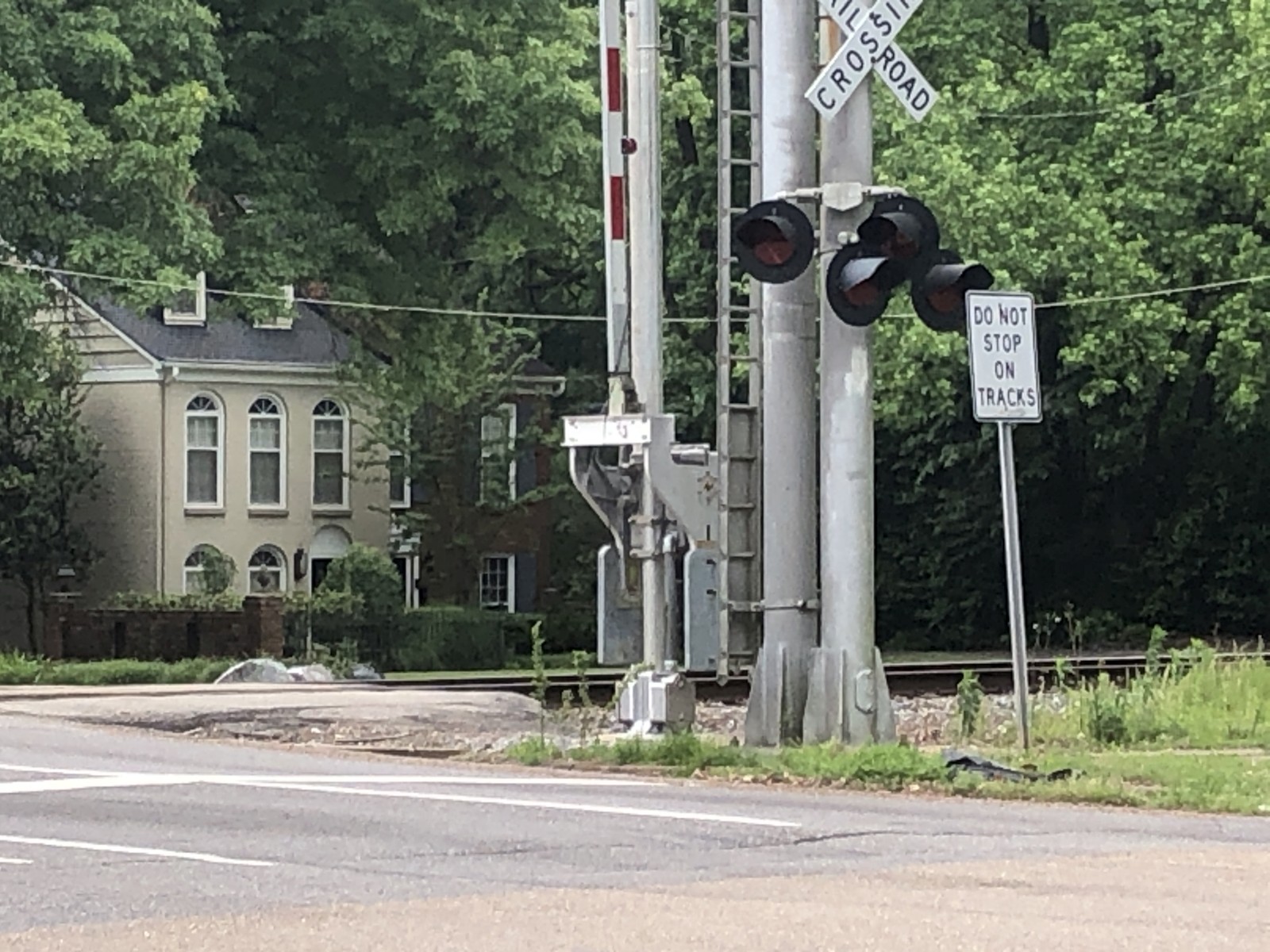

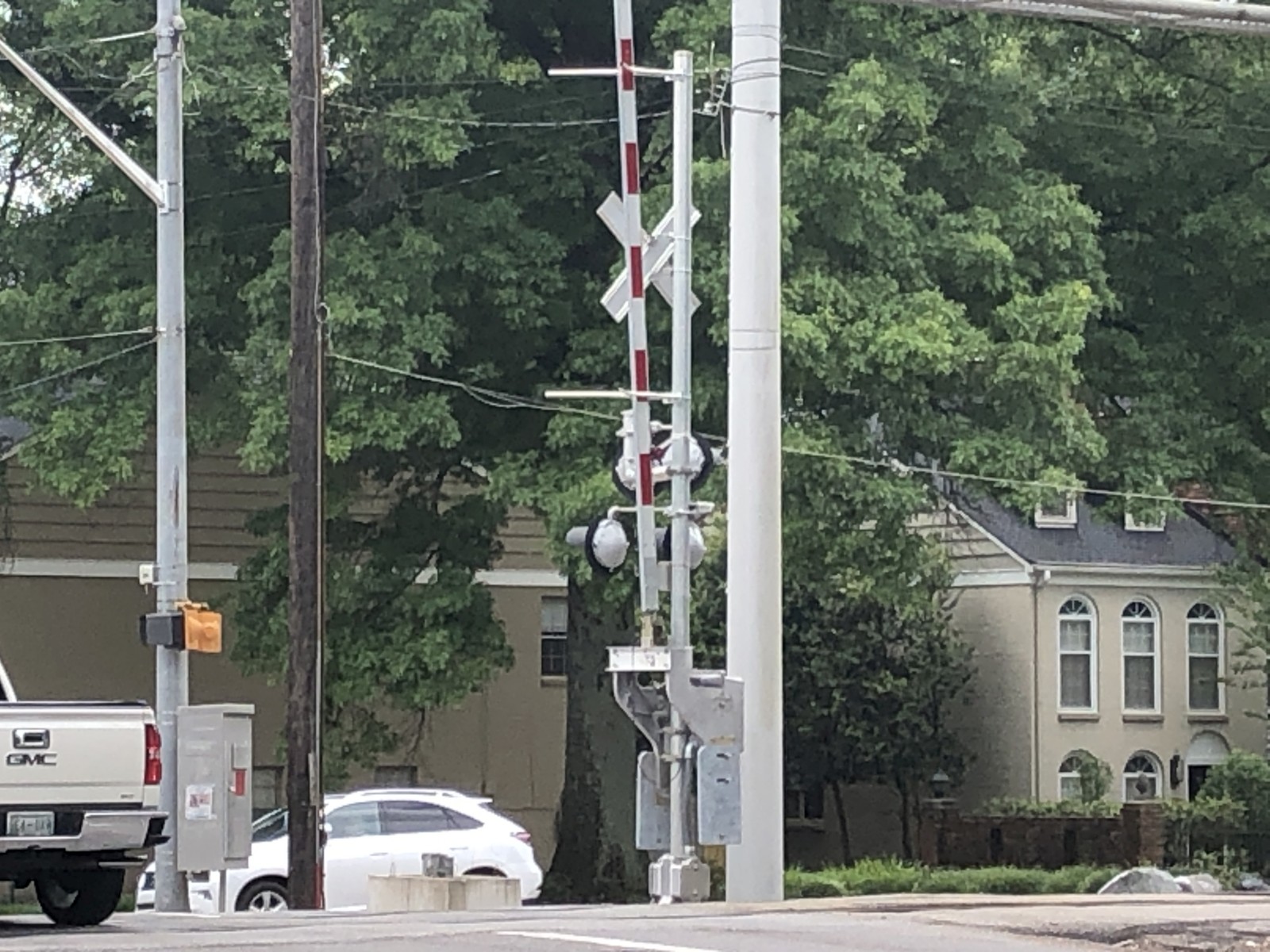

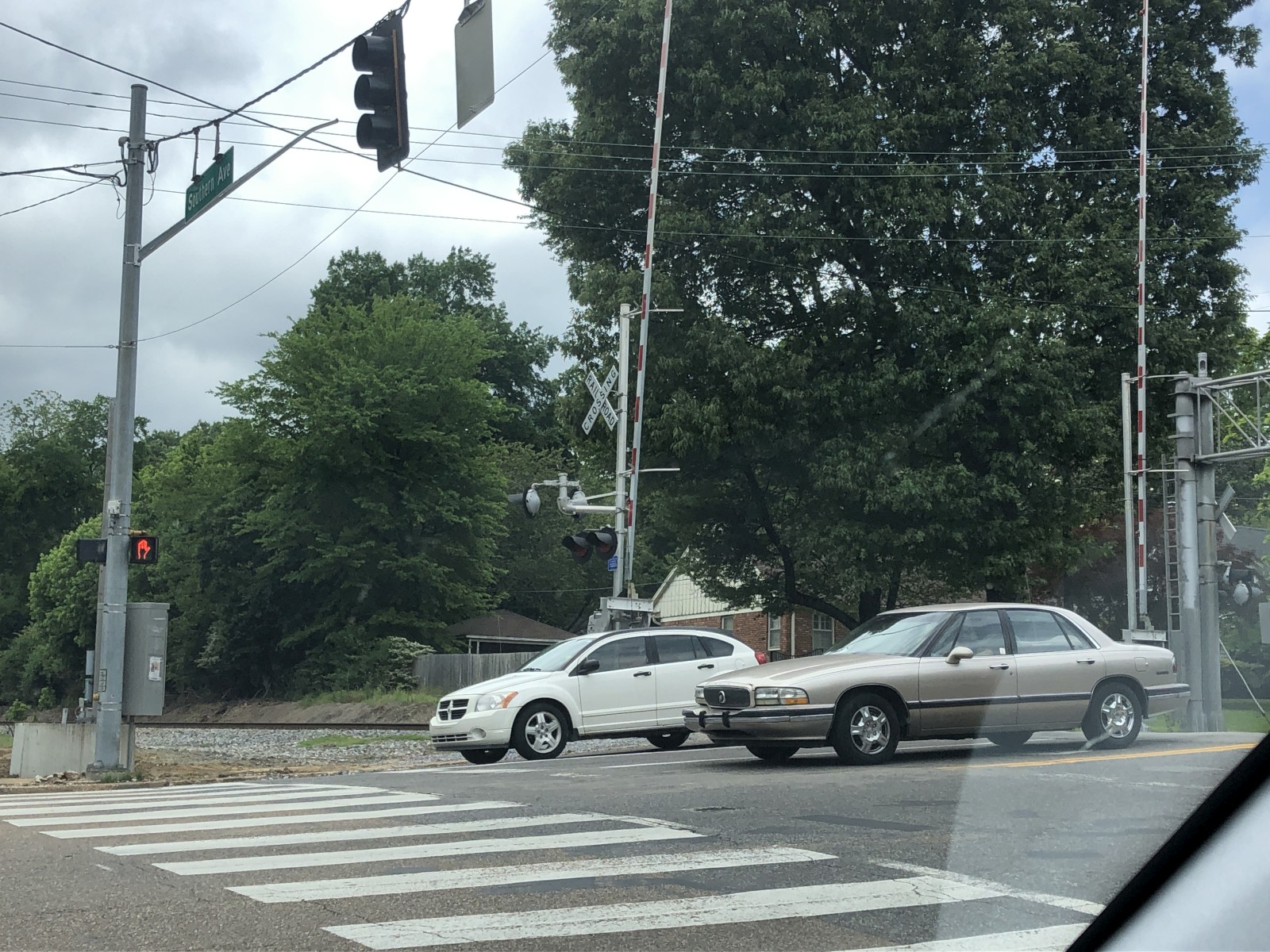

The southern exit signal. |
|
21 |
22 |
23 |
24 |

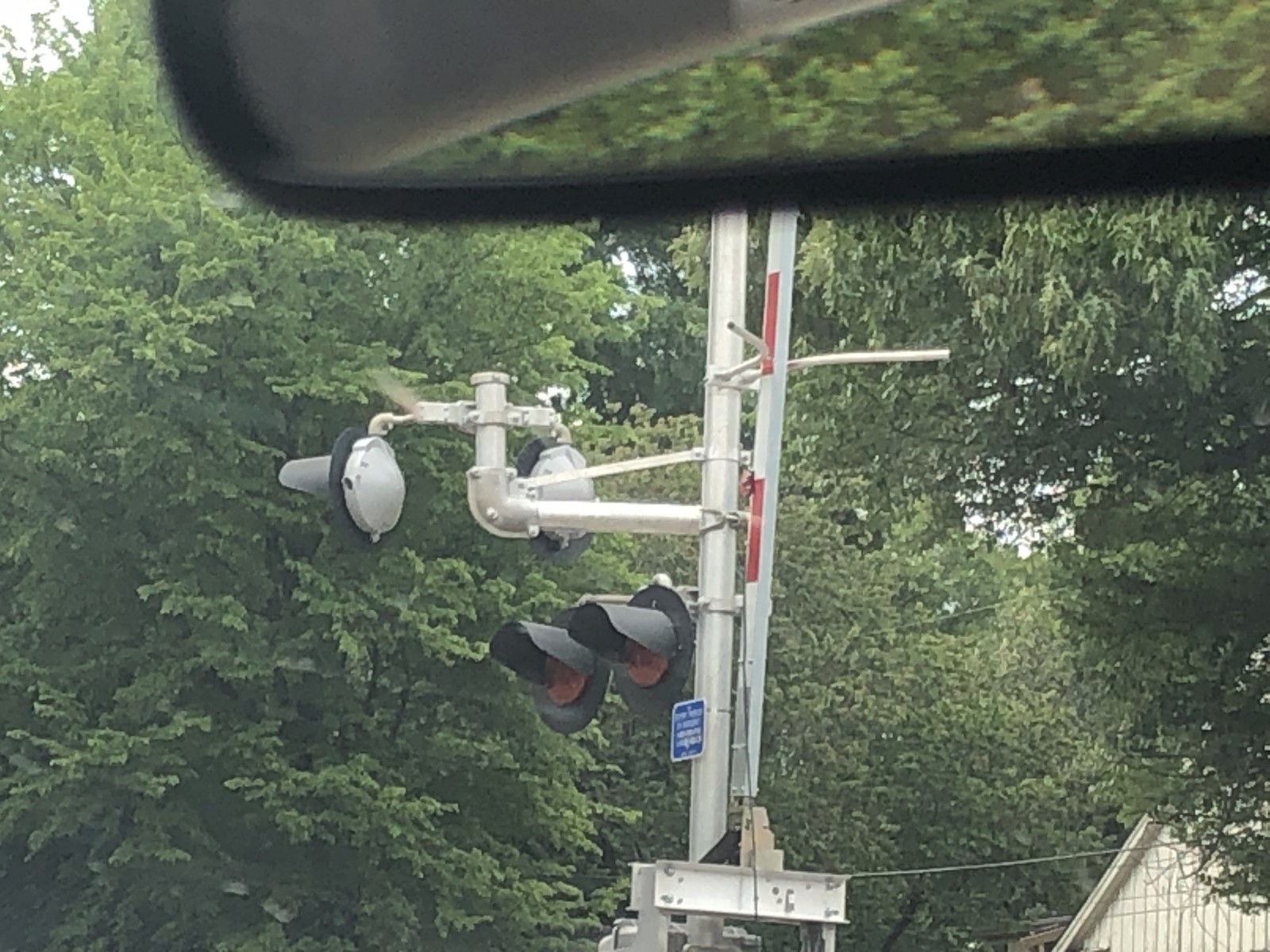

It appears to have a third Siemens gate mechanism with another set of RECO gatelights. |
The lights are even more Safetran 12x20s with GE Fading LEDs. |

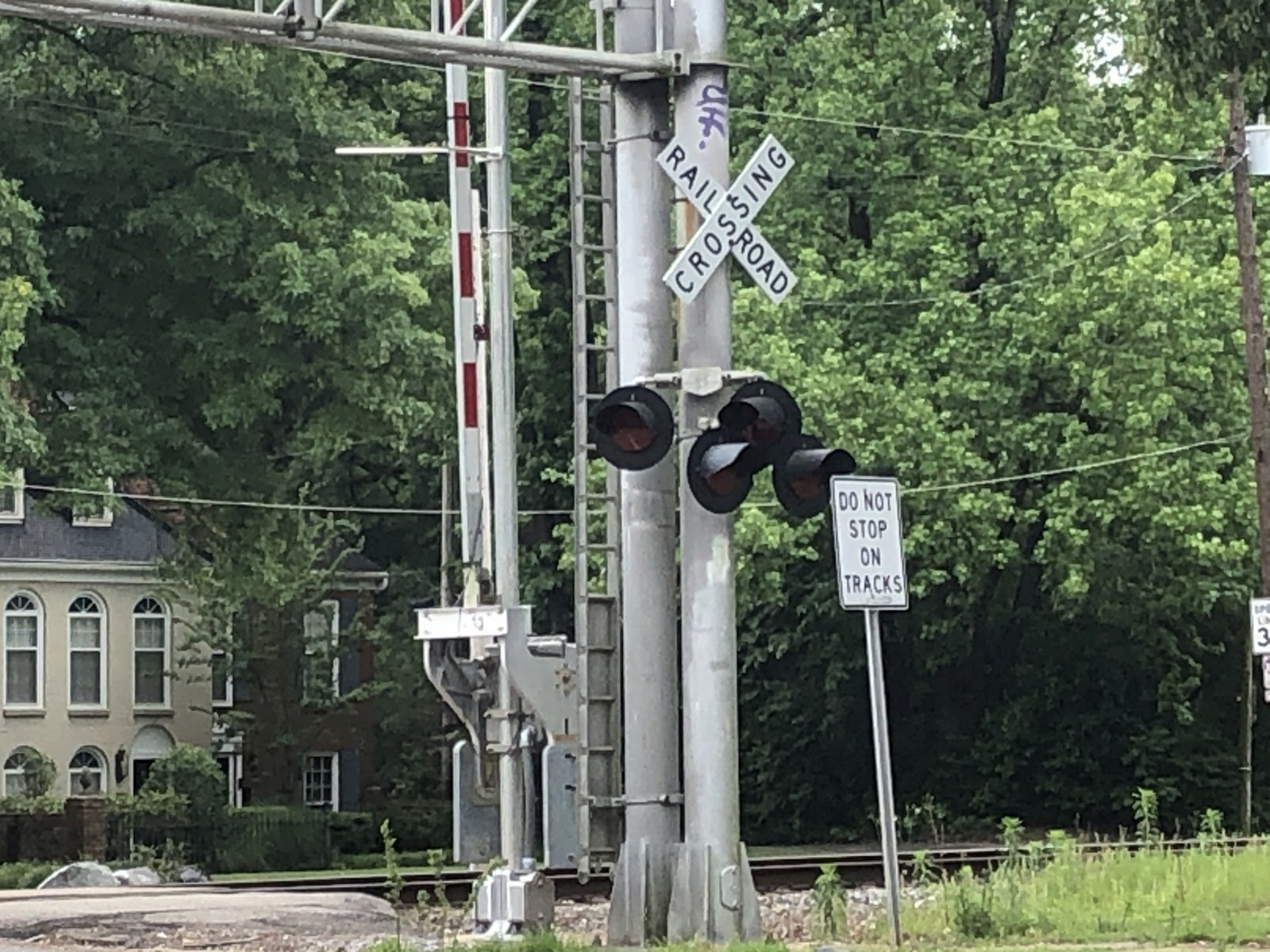

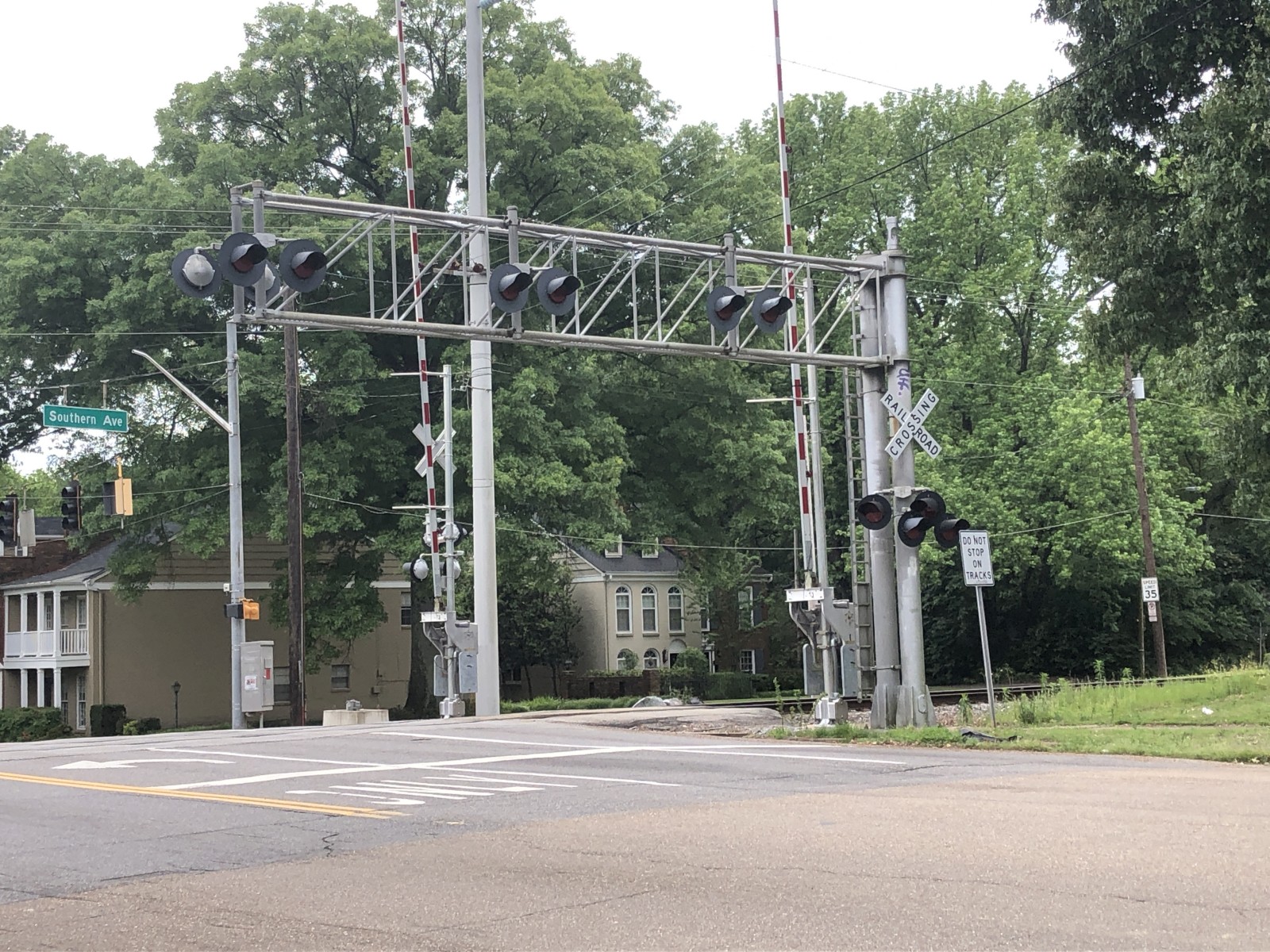

The cantilever signal. |
The lights on the mast are even more Safetran 12x20s with GE Fading LEDs. |
25 |
26 |
27 |
28 |

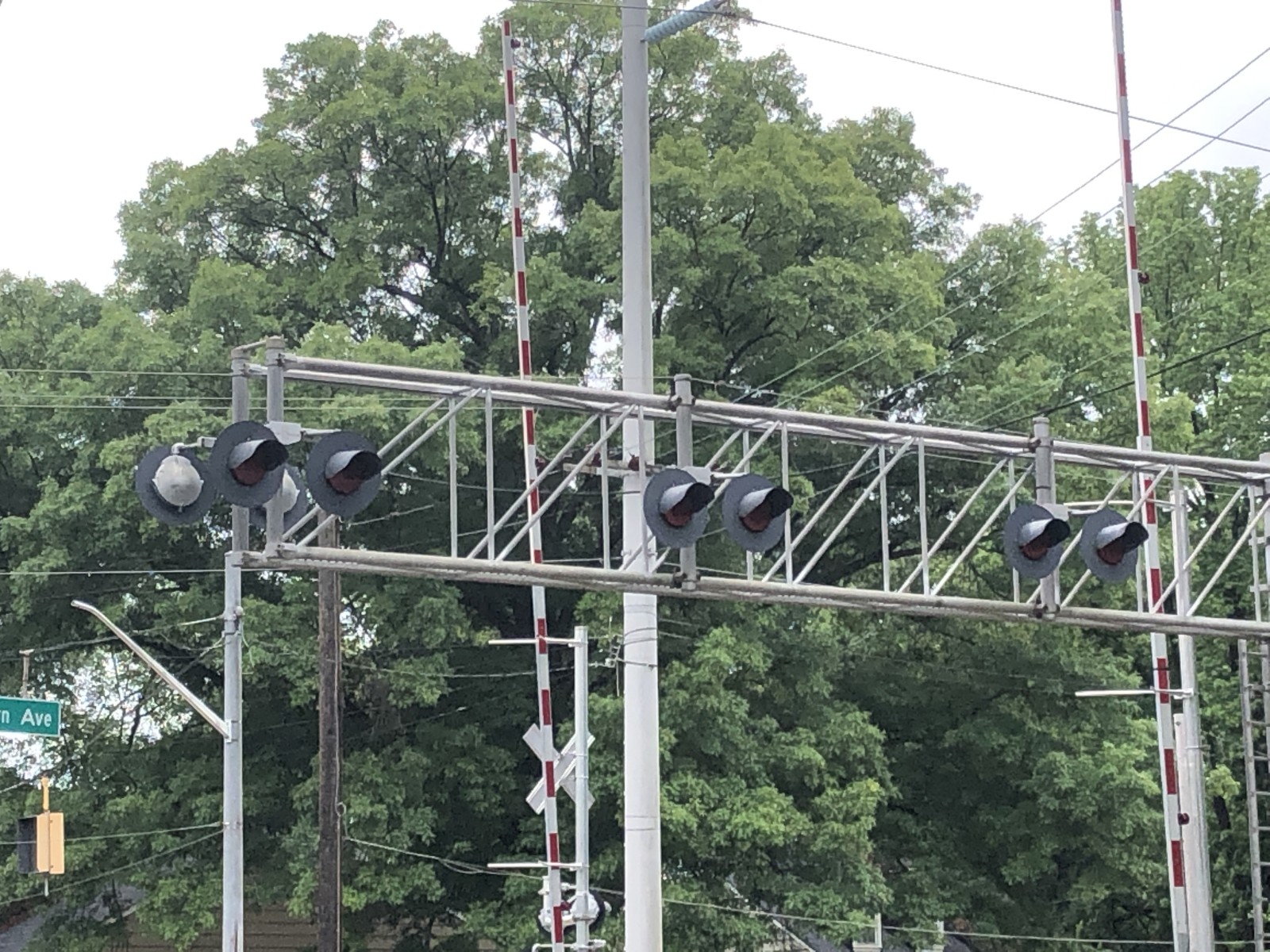

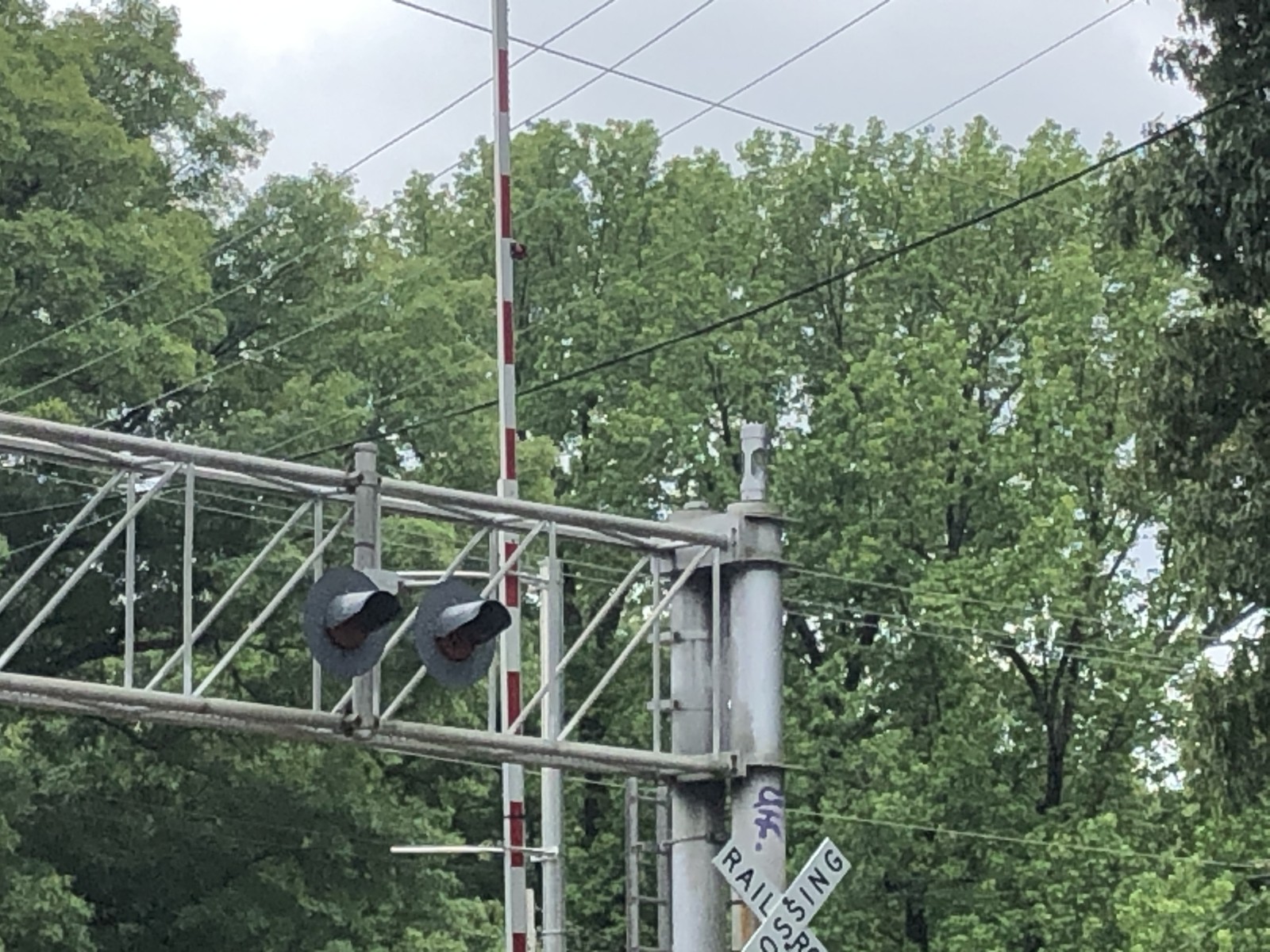

The overhead lights are Safetran 12x24s with GE Fading LEDs. |
The bell on top of the cantilever is another General Signals E-Bell. |
A fourth Siemens gate mechanism. |

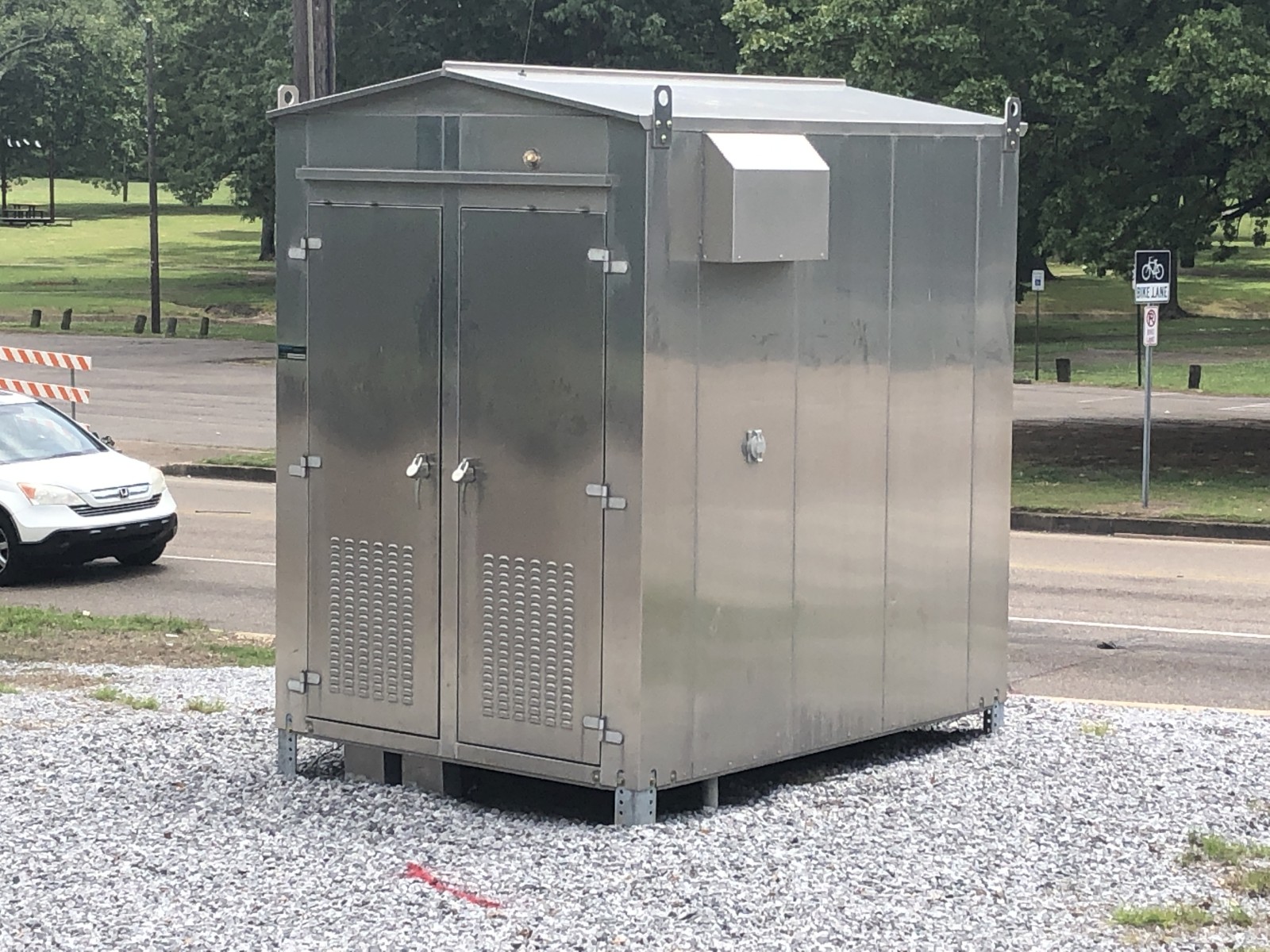

The relay bungalow. |
29 |

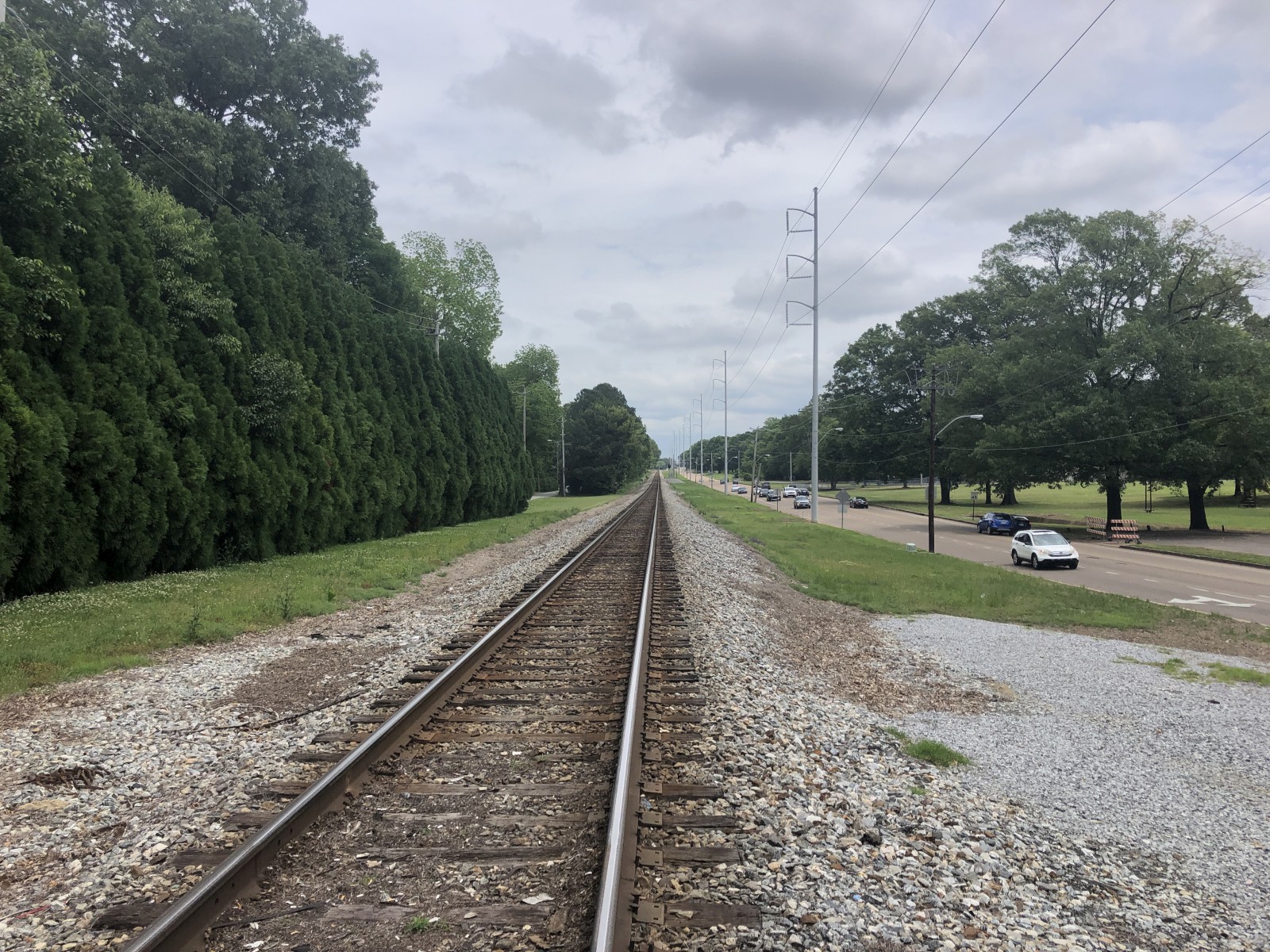

Track view facing east towards Oak Court Drive. To the west is Pedestrian Crossing #3. |
All pictures were taken on 5-15-20.
