MP: A549.030 |
Created August 25, 2020
Total Accidents: 5
Crossing
DOT #: 732192R
TOTAL
DAILY TRAINS: 20 (AS OF 2020)
Page created by: Ethan the Railfanner
This crossing is located on the NS Memphis West End District.
1 |
2 |
3 |
4 |

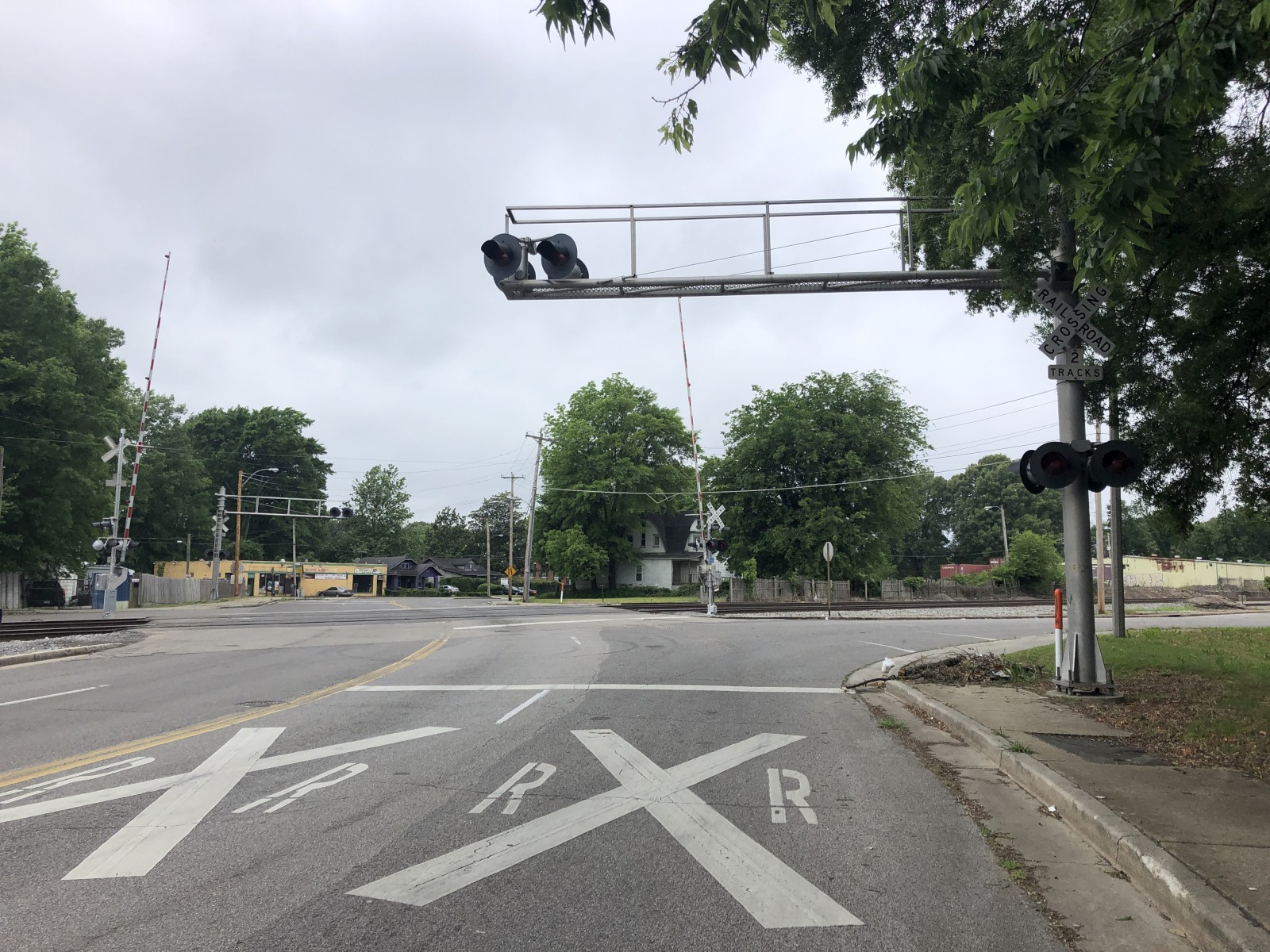

Overviews of the cantilevers at this crossing. |
The eastern signal. |
||
5 |
6 |
7 |
8 |
The cantilever is from Safetran cantilever. |
The lights on this signal are all Hawker-Safetran 12x24 incandescents. |
||
9 |
10 |
11 |
The western signal. |
It has another Safetran cantilever. |
|
12 |
13 |
14 |
15 |
This signal has more Hawker-Safetran 12x24 incandescents. |
|||
16 |
17 |
18 |
19 |
Overviews of the gated mast signals at the crossing. |
The northern signal. |
||
20 |
21 |
22 |
23 |
It has a Safetran base. |
An Invensys Rail gate mechanism. |
This signal has normal Safetran 12x20 incandescents. |
|
24 |
25 |
26 |
27 |
The emergency information. |
The gatelights are from RECO. |

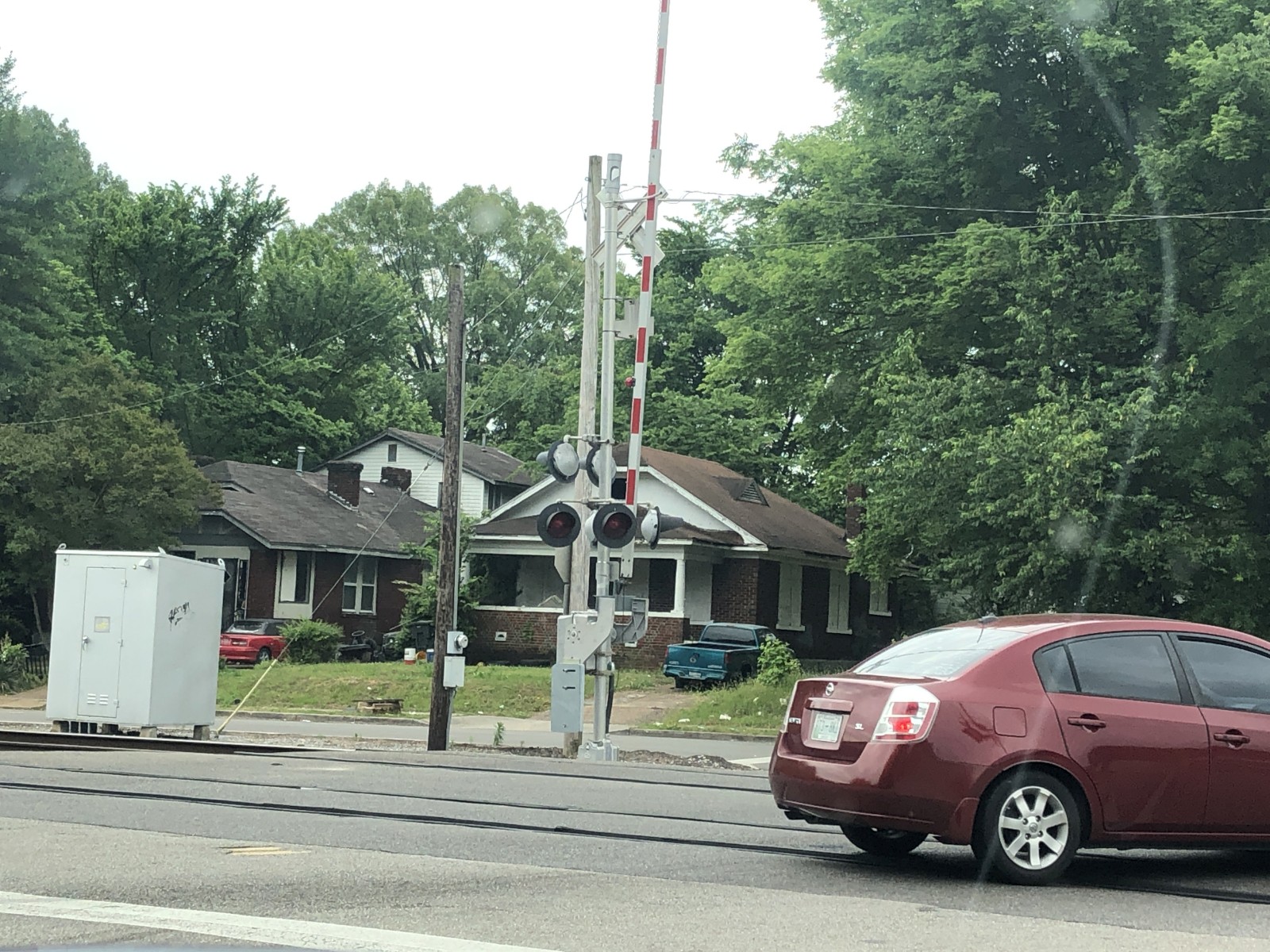

The southern signal. |
|
28 |
29 |
30 |
31 |
It has another Safetran base. |
A Siemens gate mechanism. |
More Safetran 12x20 incandescent lights on this signal. |
|
32 |
33 |
34 |
35 |
The emergency information. |
The bell on this signal is a General Singals E-Bell. |
More RECO gatelights. |
The relay bungalow. |
36 |
37 |
Track view facing east towards Rozelle Street. |
Track view facing west. |
All pictures were taken on 5-16-20.
