MP: 33.02 |
     |
 |
       |
   |
Pictures 1-32 were taken August 28, 2010 by TrainmanKight.
Pictures 33-72 were taken on October 7, 2016 by freebrickproductions.
Pictures 73-91 were taken on June 14, 2020 by Ethan the Railfanner.
This crossing is located on the CSX Chattanooga Subdivision.
1 |
2 |
3 |

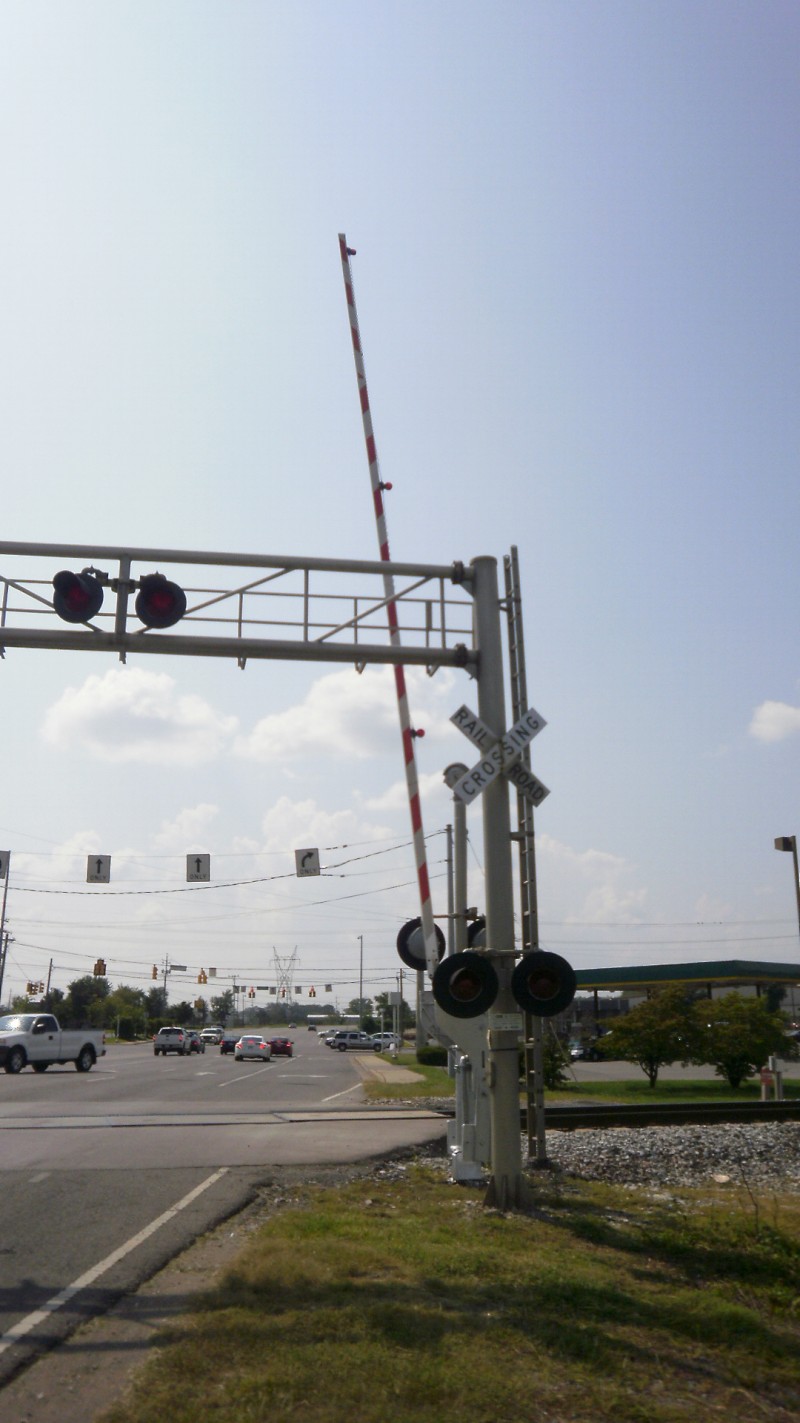

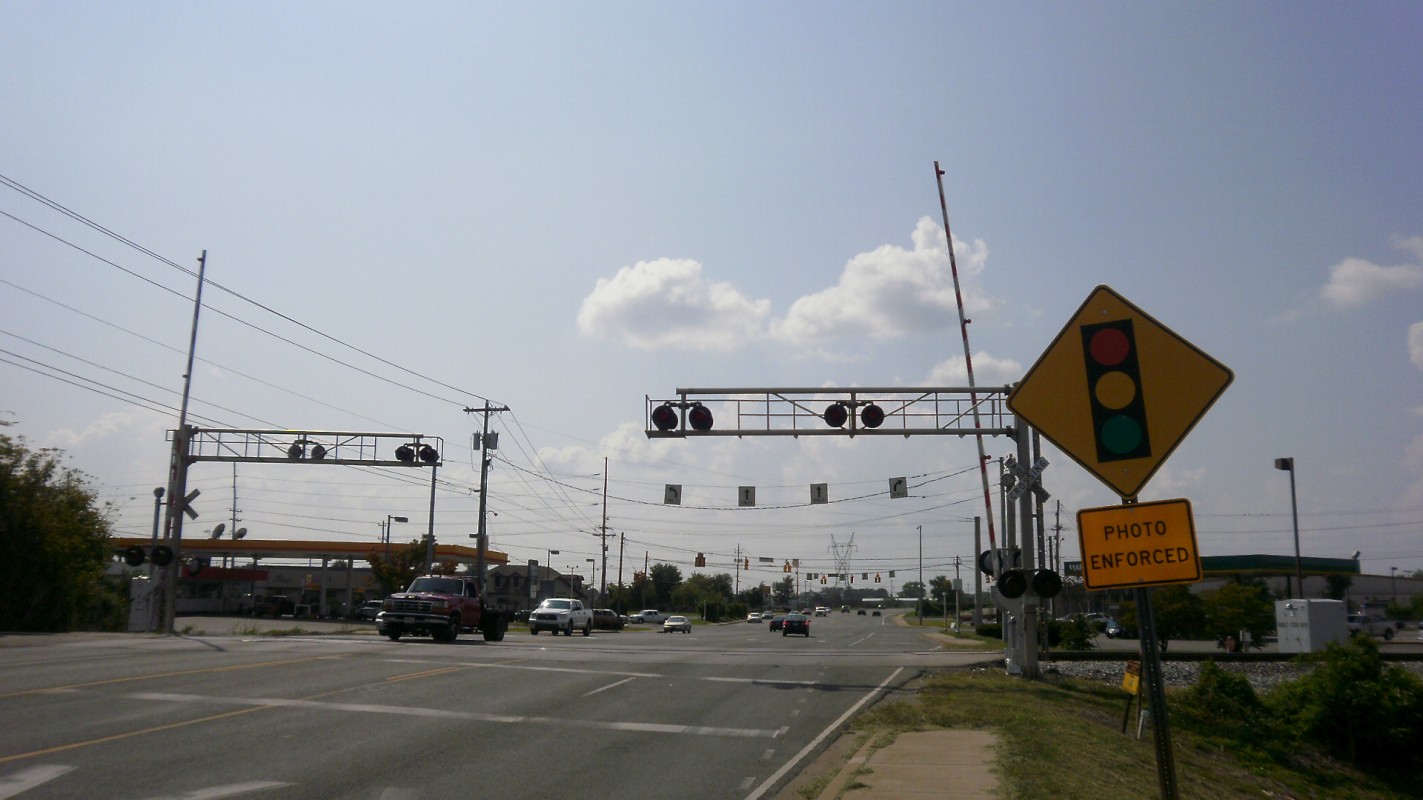

| Overviews of the crossing. | Note how the mast lights are a lot lower in height than the rear lights on the gate mast. | |
4 |
5 |
6 |

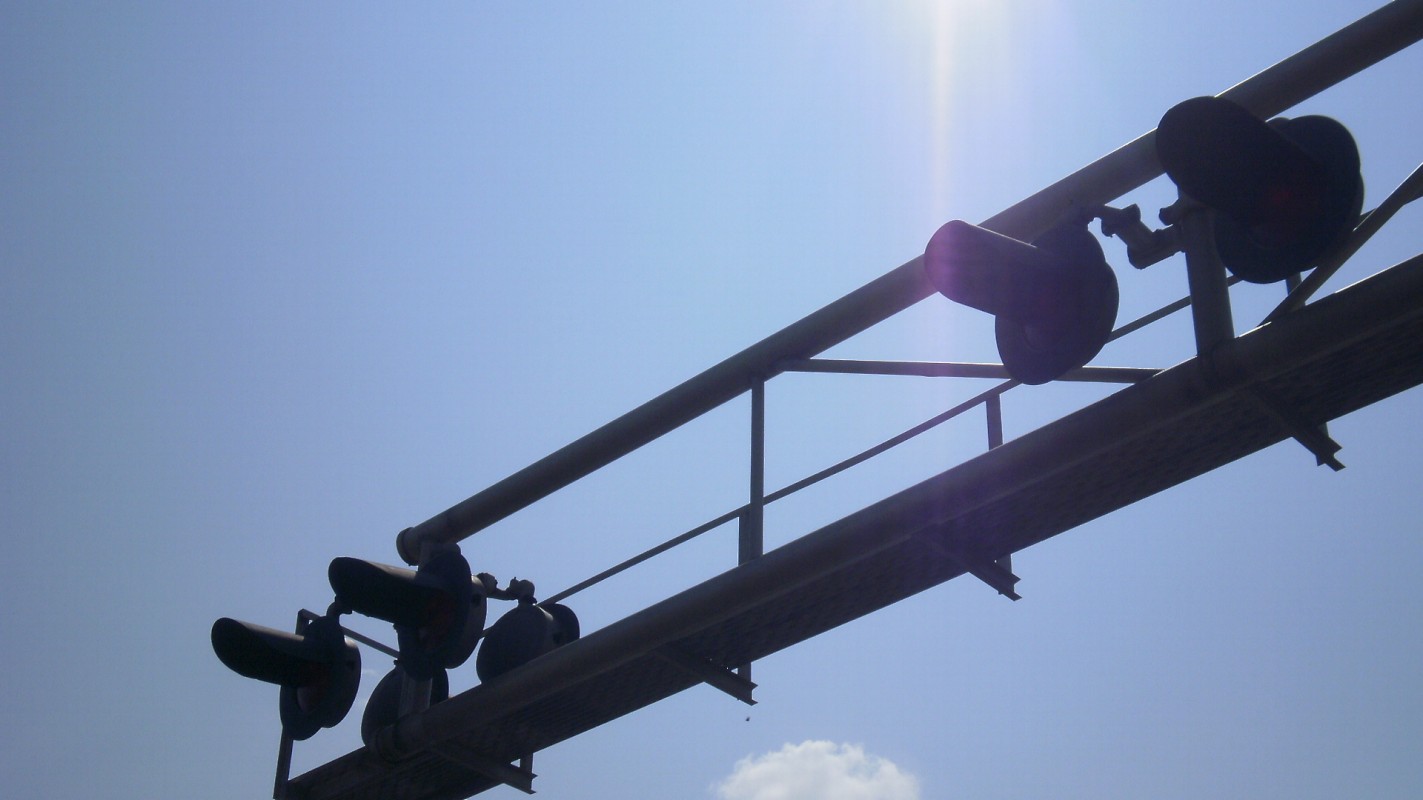

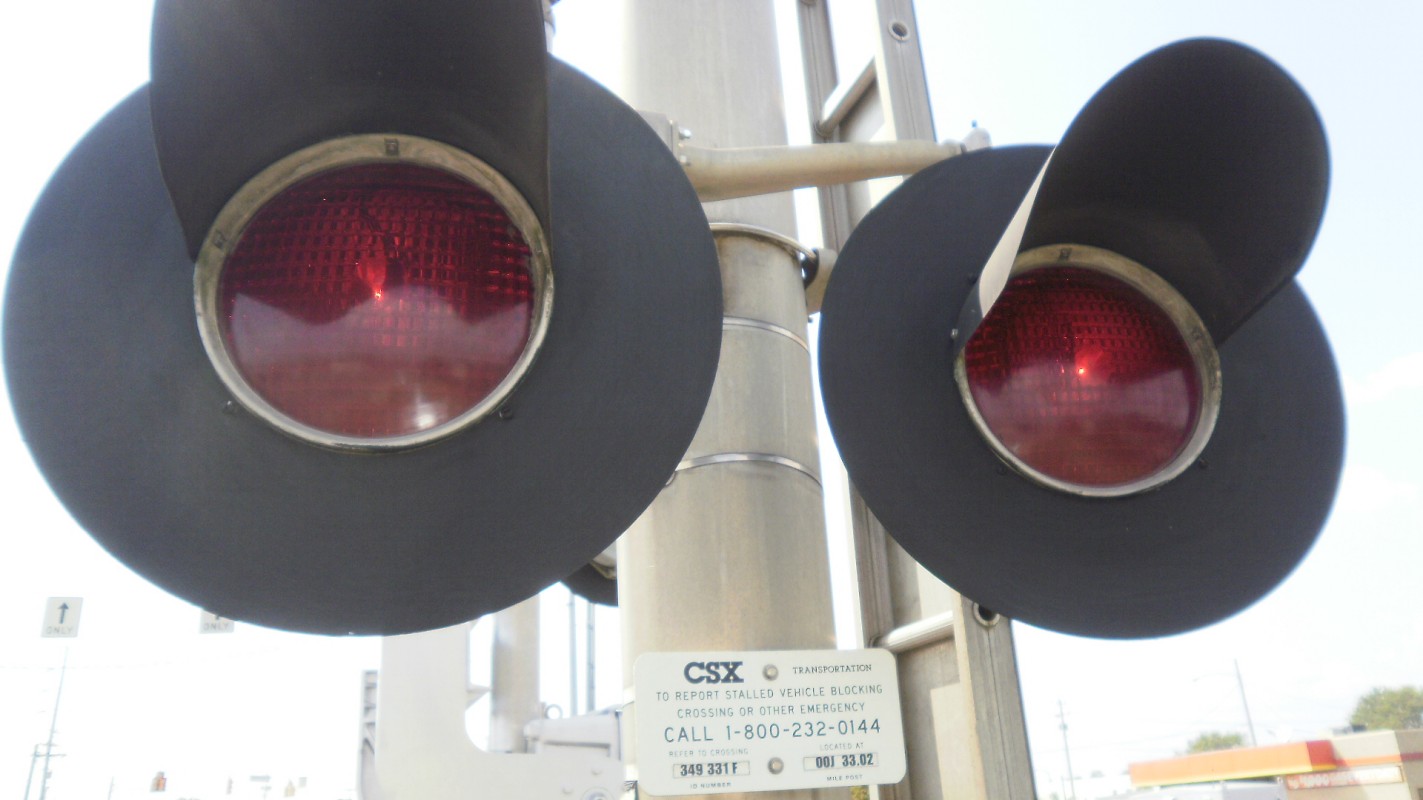

| Both cantilevers have 12"x20" incandescent frames. | All 12"x24" light frames also have incandescent frames inside. | An emergency sign provided by CSX. |
7 |
8 |
9 |

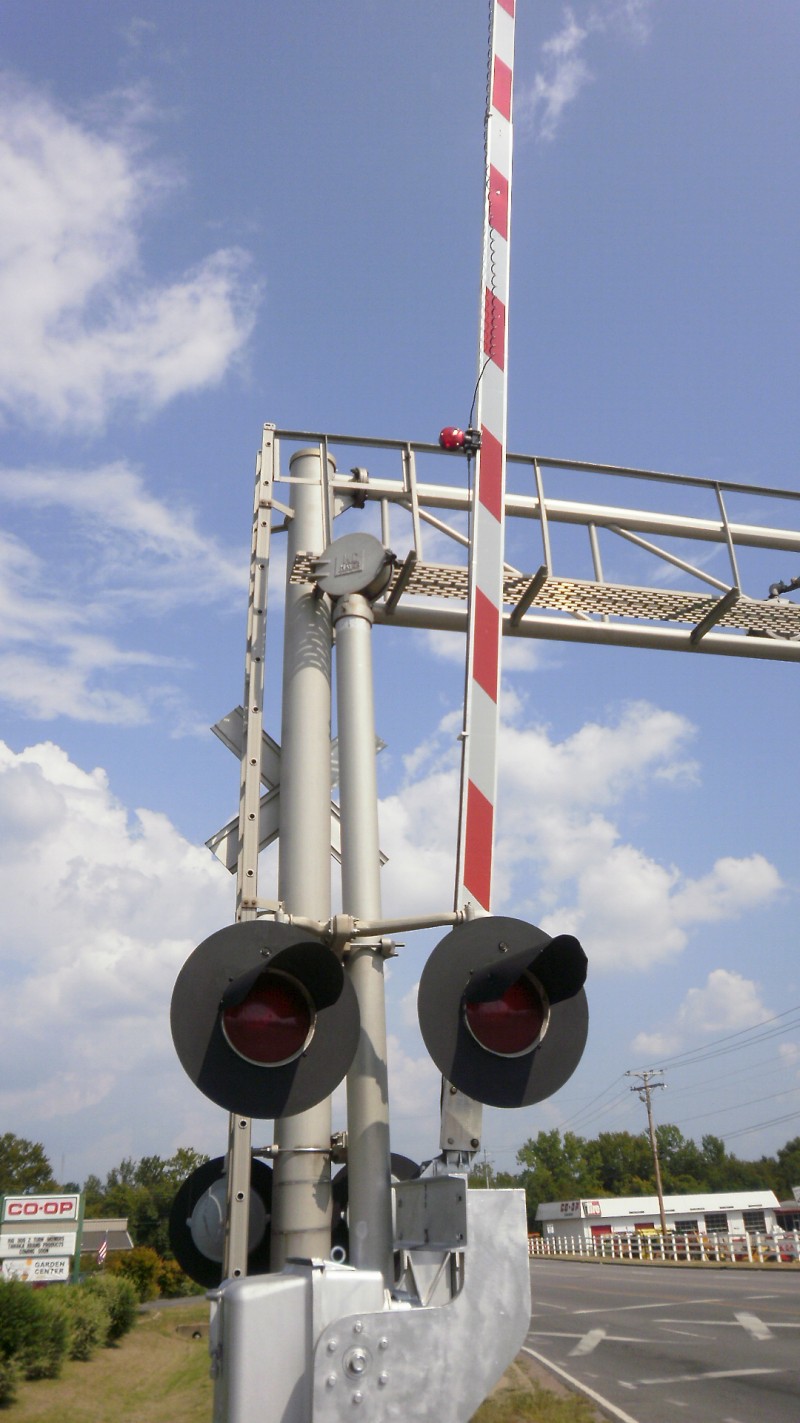

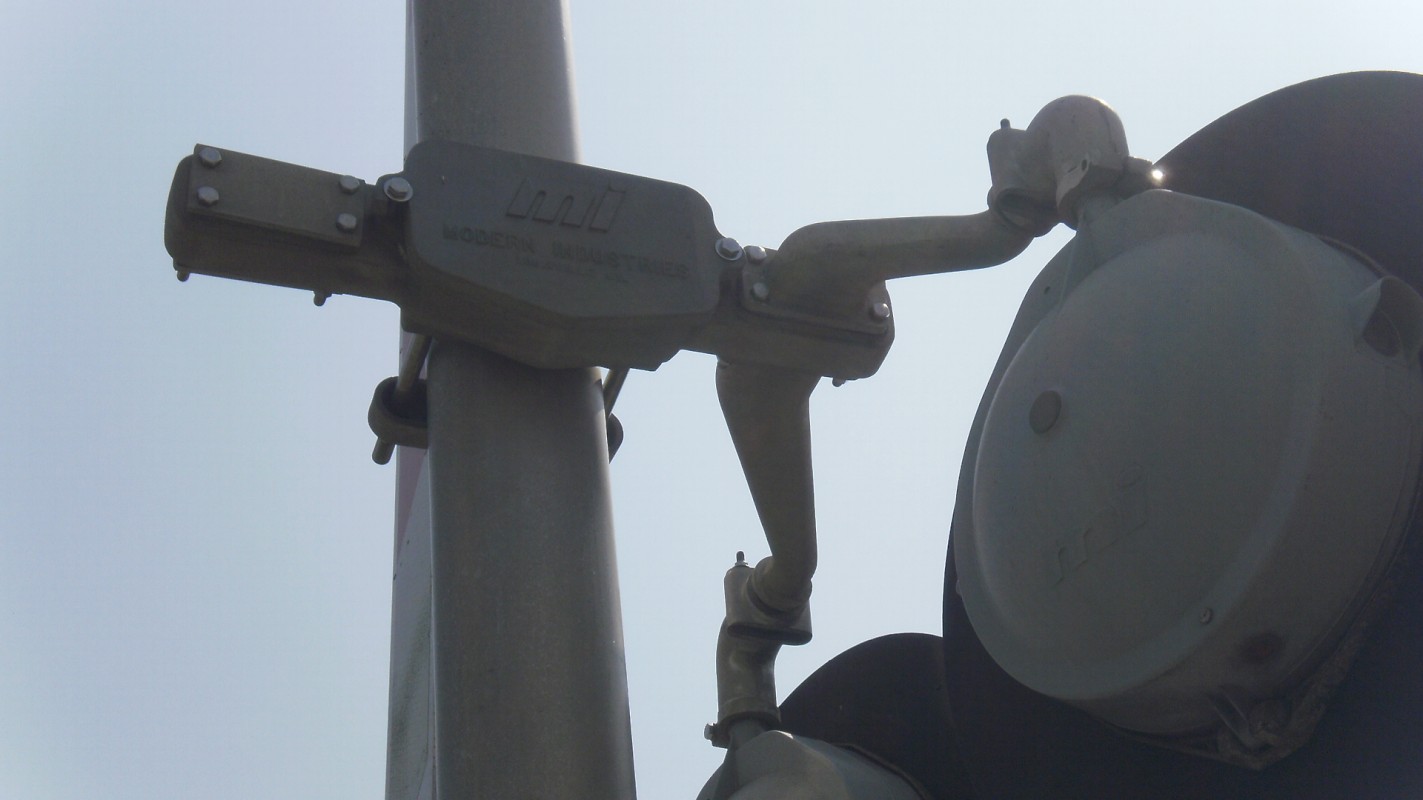

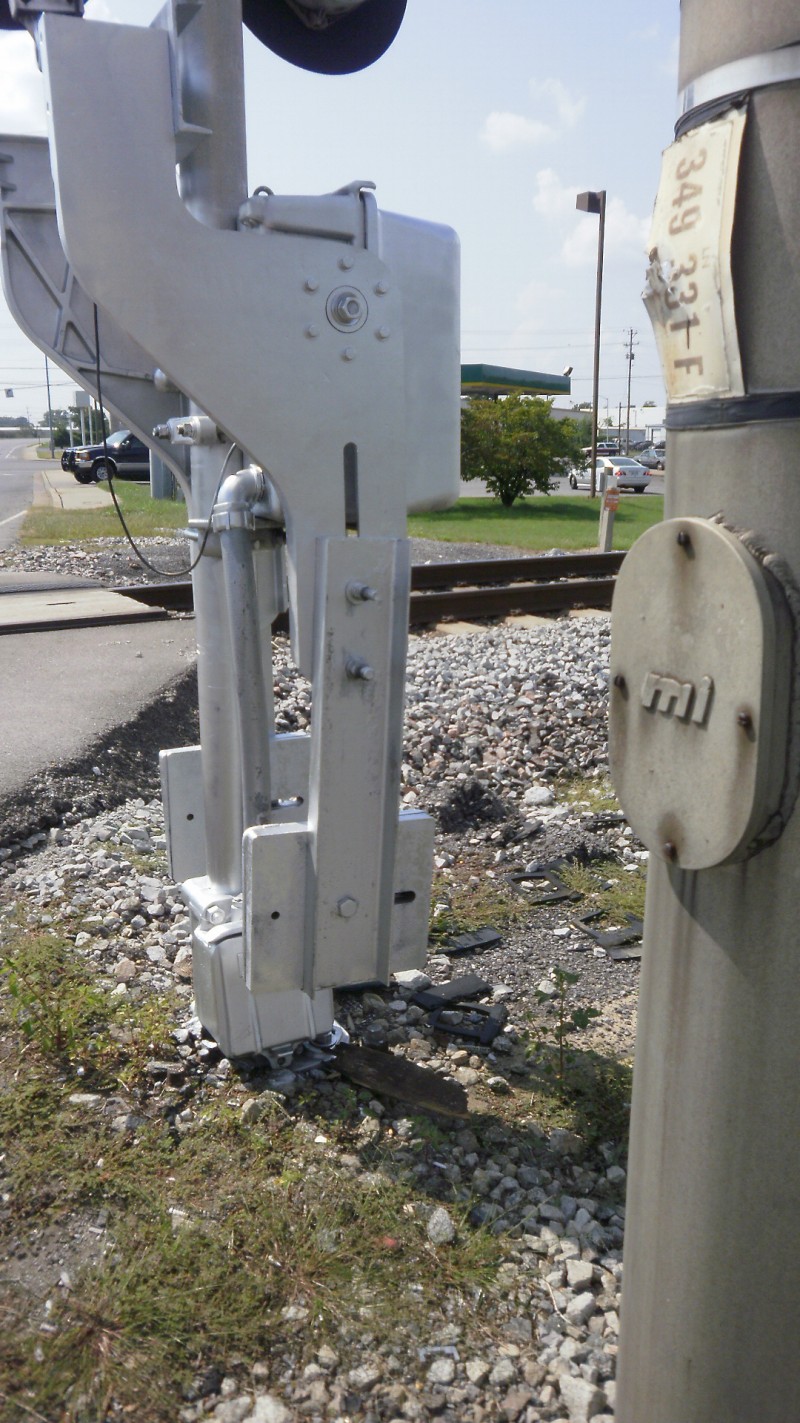

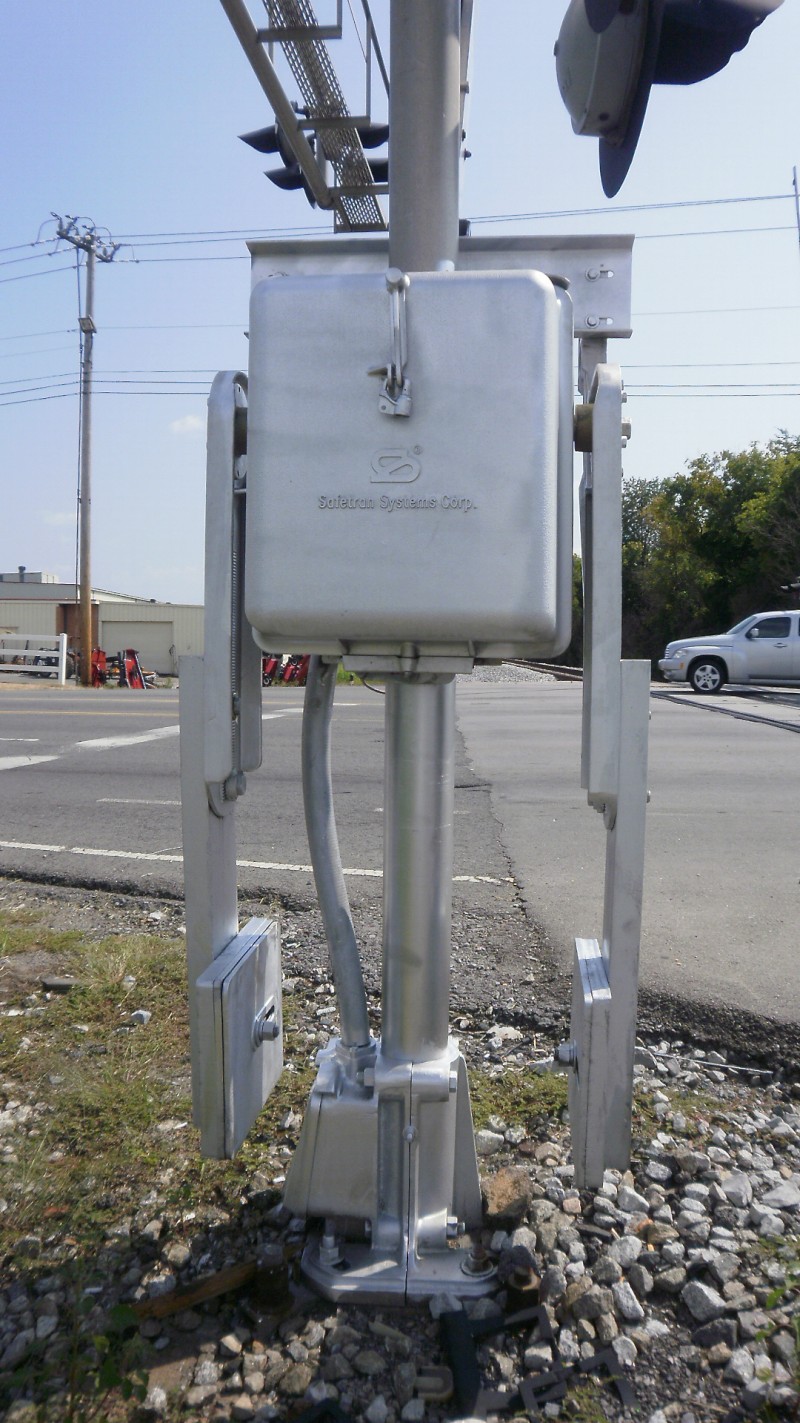

| Both cantilever frames are from Modern Industries. | This gate motor is from Safetran. | The rear 12"x24" lights on the gate mast are from Modern Industries. |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |

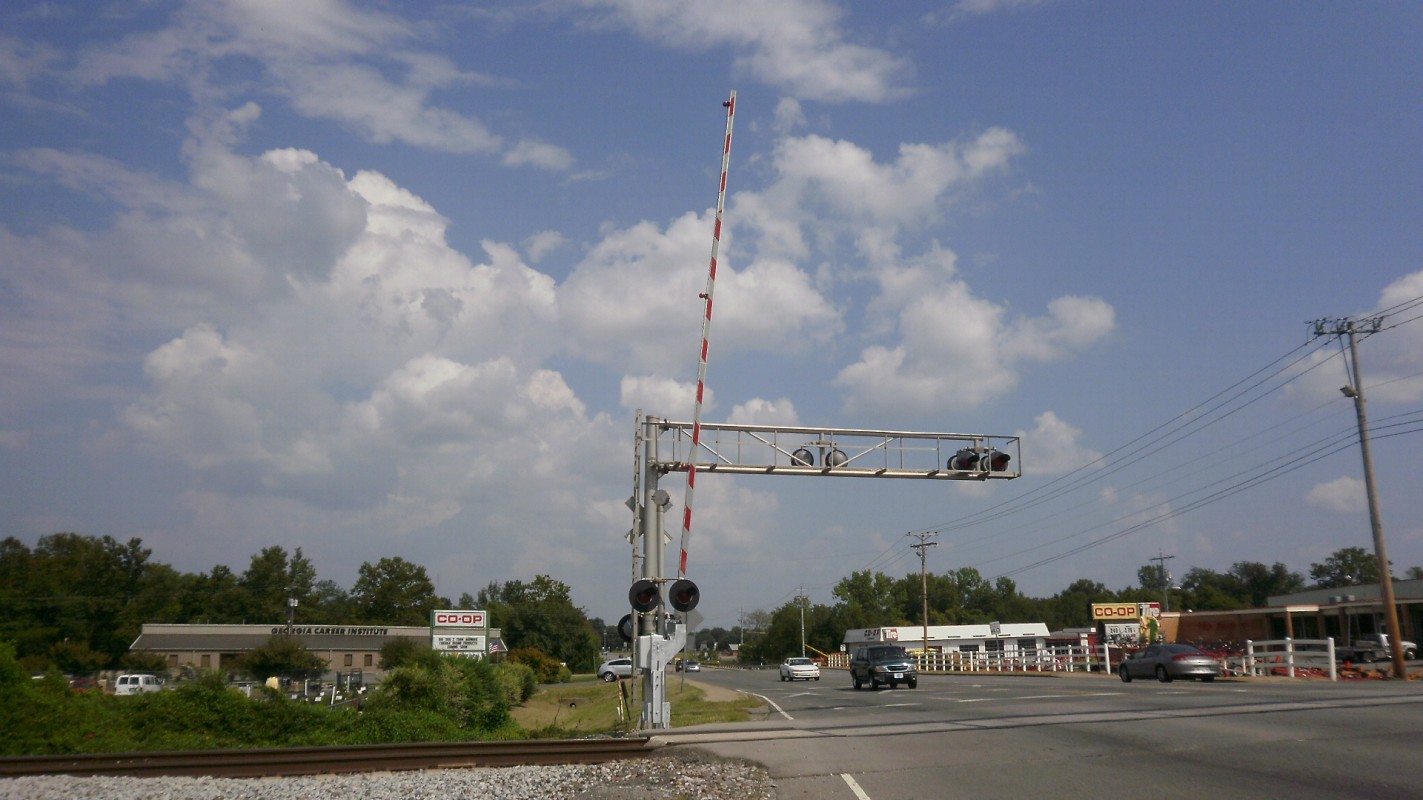

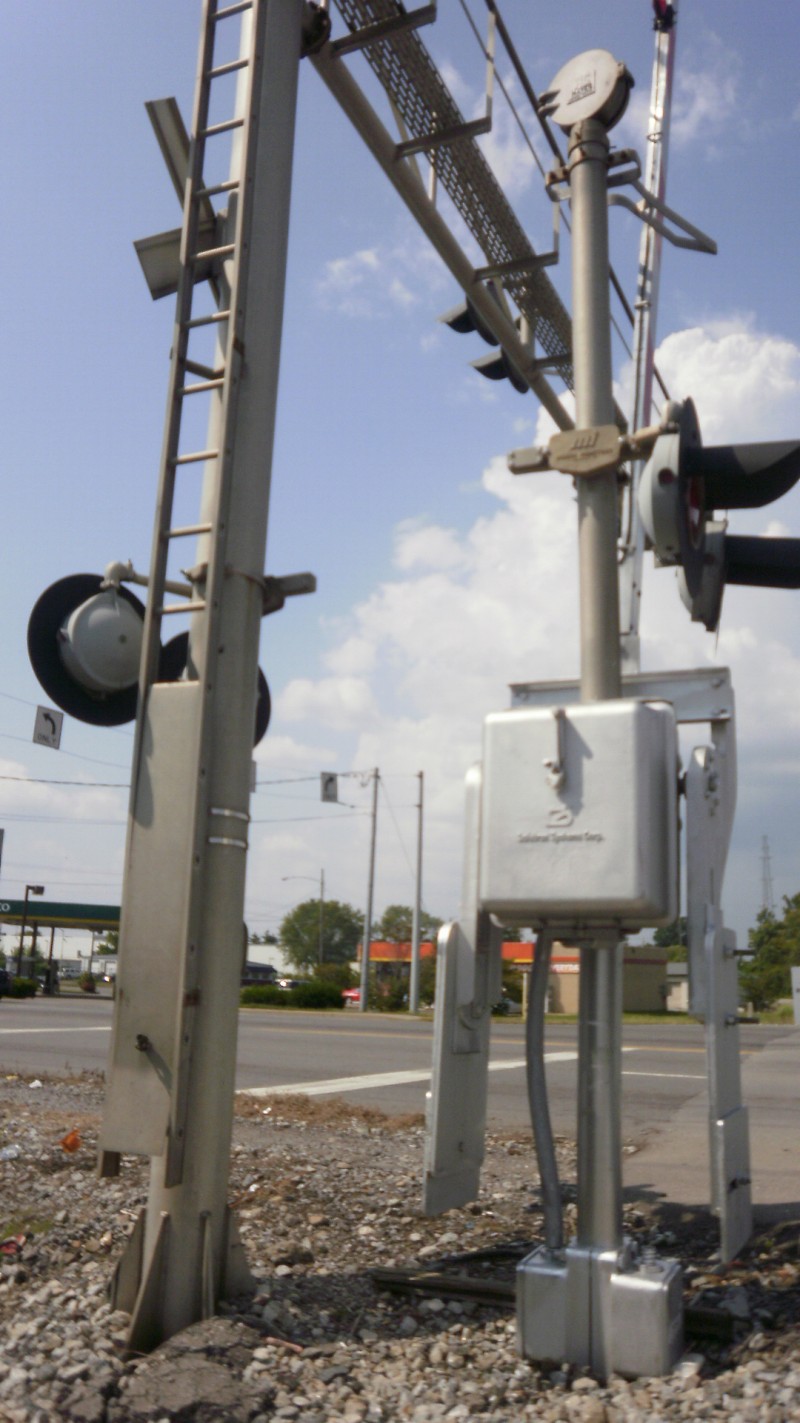

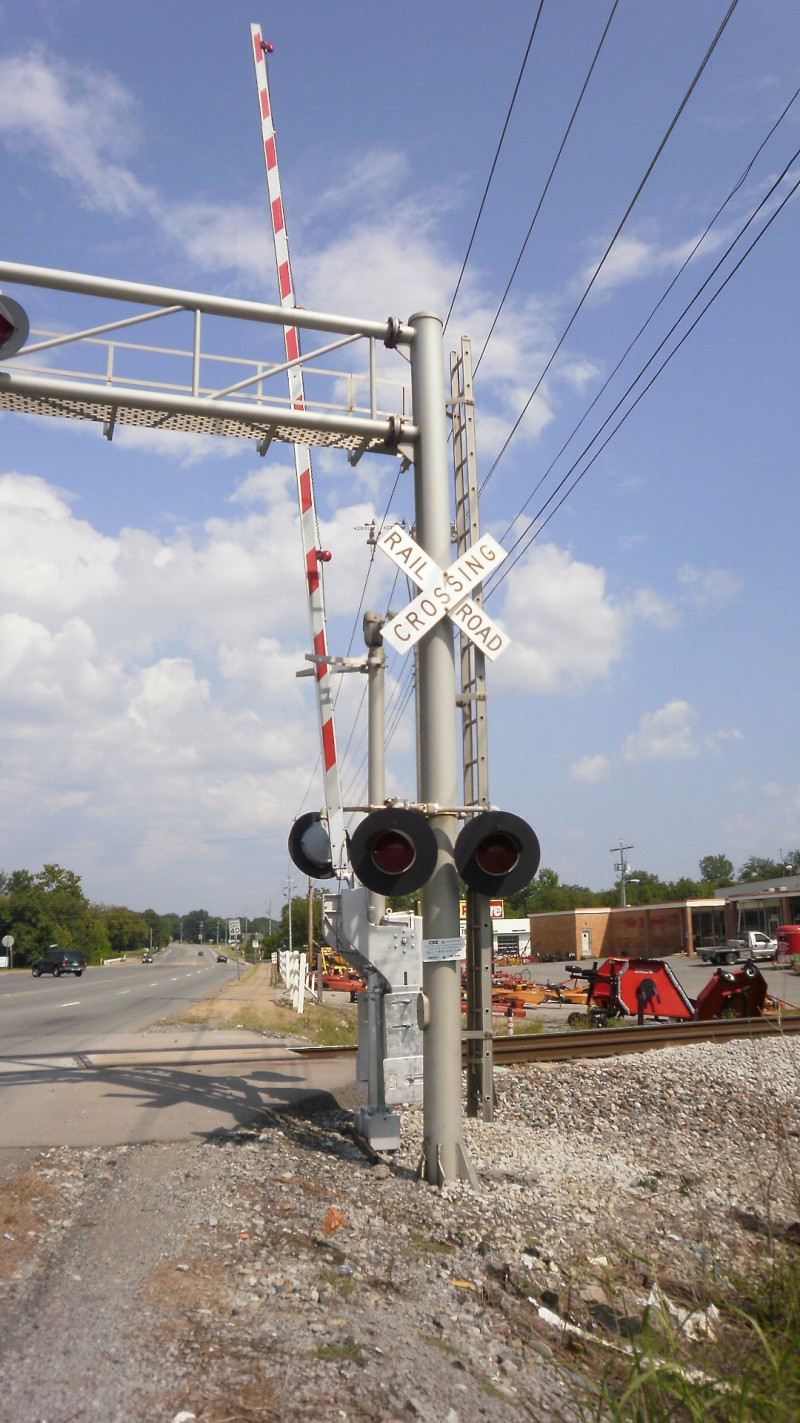

| The other side of the crossing is similar in appearance. | ||
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |

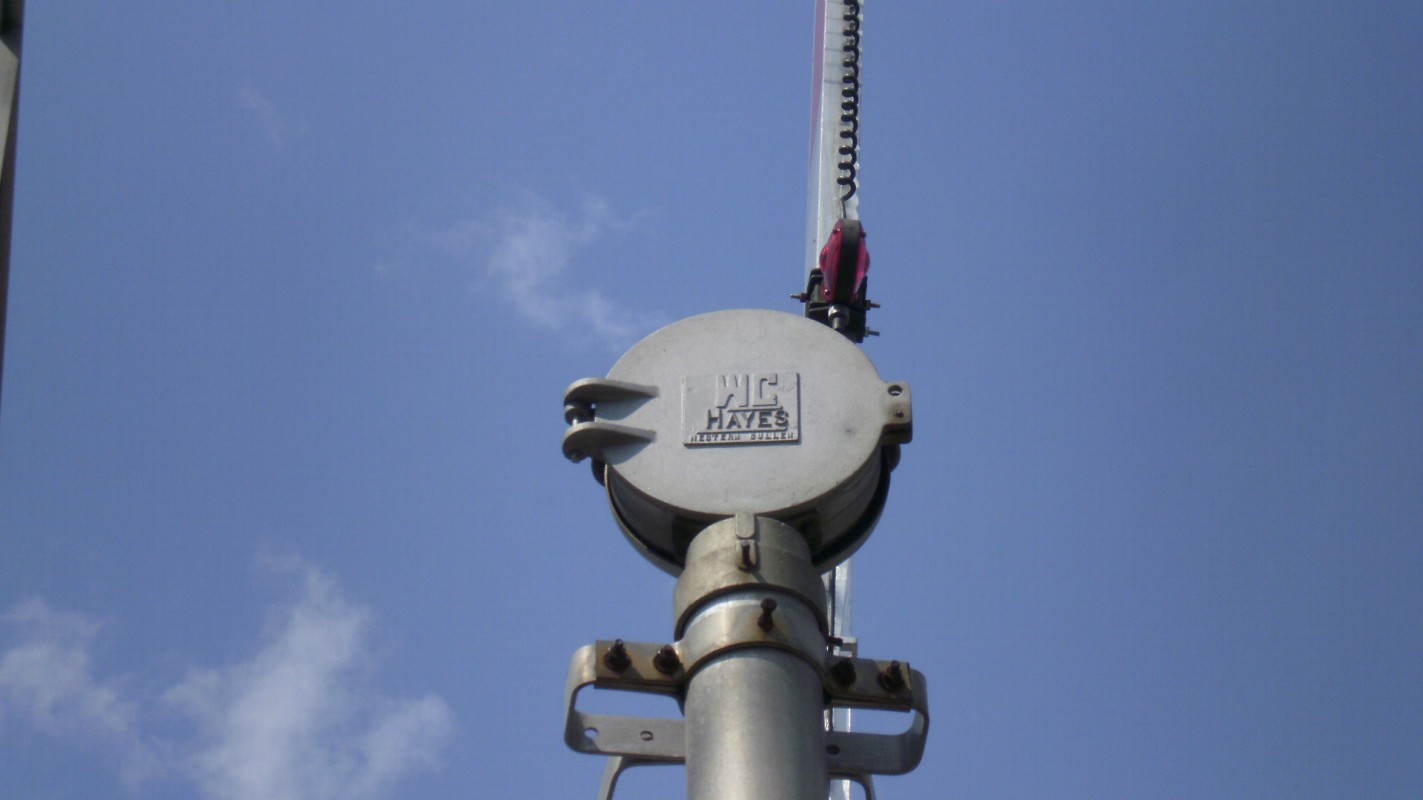

Note: Both WCH mechanical bells silence when the gates fully lower. They sound for about 23.5 seconds because the gates would lower 13.5 seconds after activating. |
||
28 |
29 |
30 |

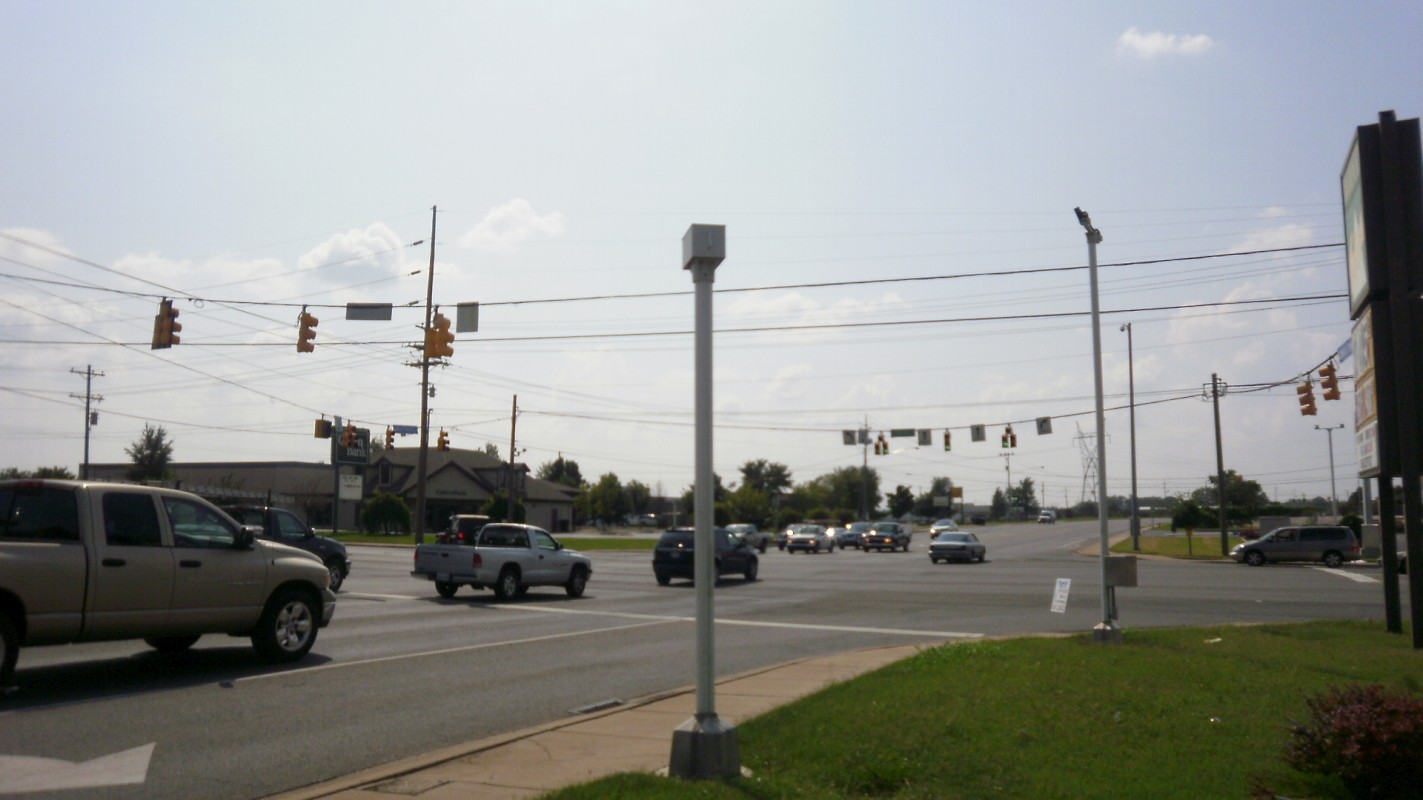

| The traffic lights near the crossing have cameras, as shown in the following pictures. | ||
31 |
32 |
33 |
34 |
35 |
36 |
A return trip on 10-7-16 by freebrickproductions shows quite a few changes here! |

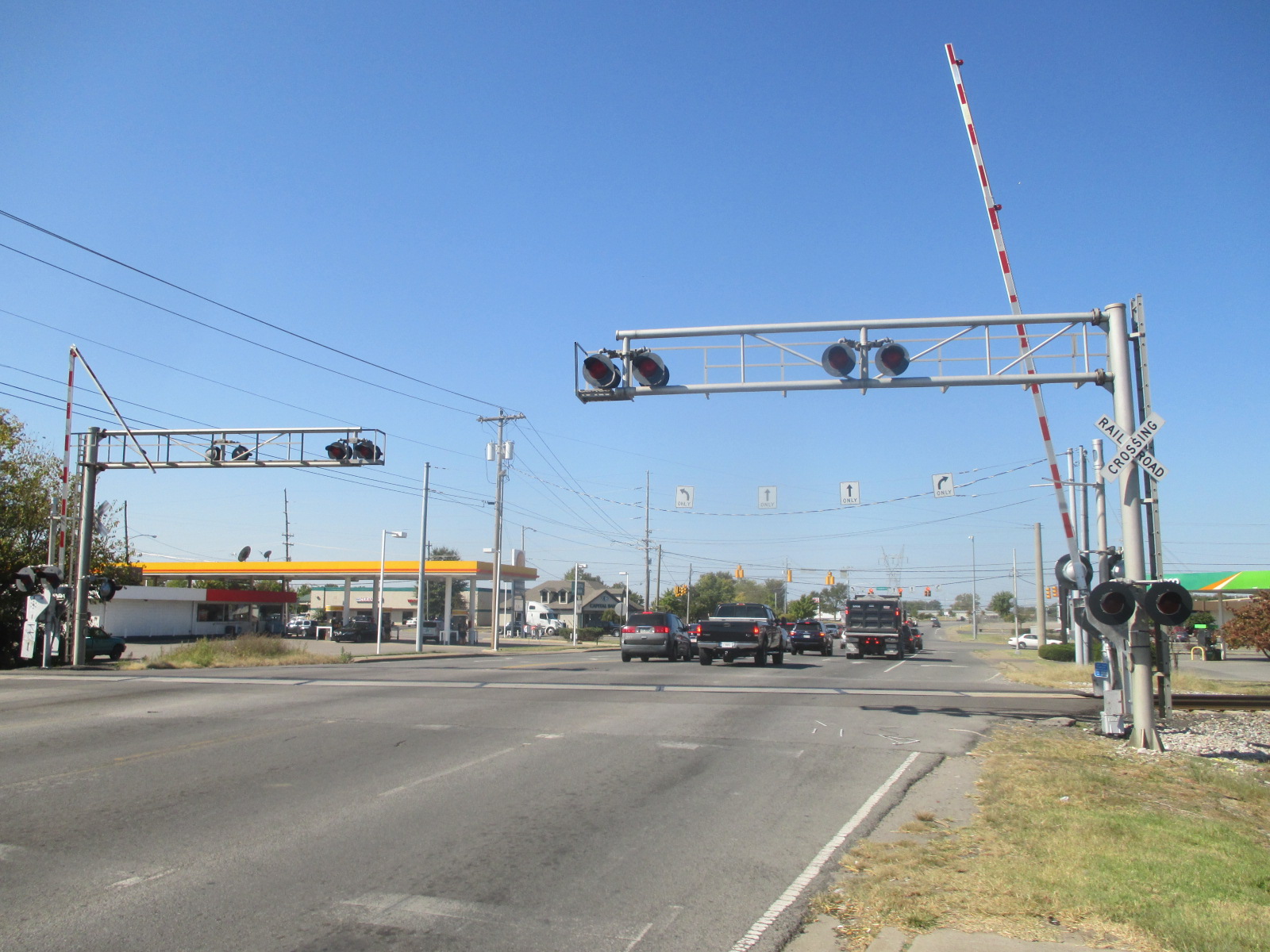

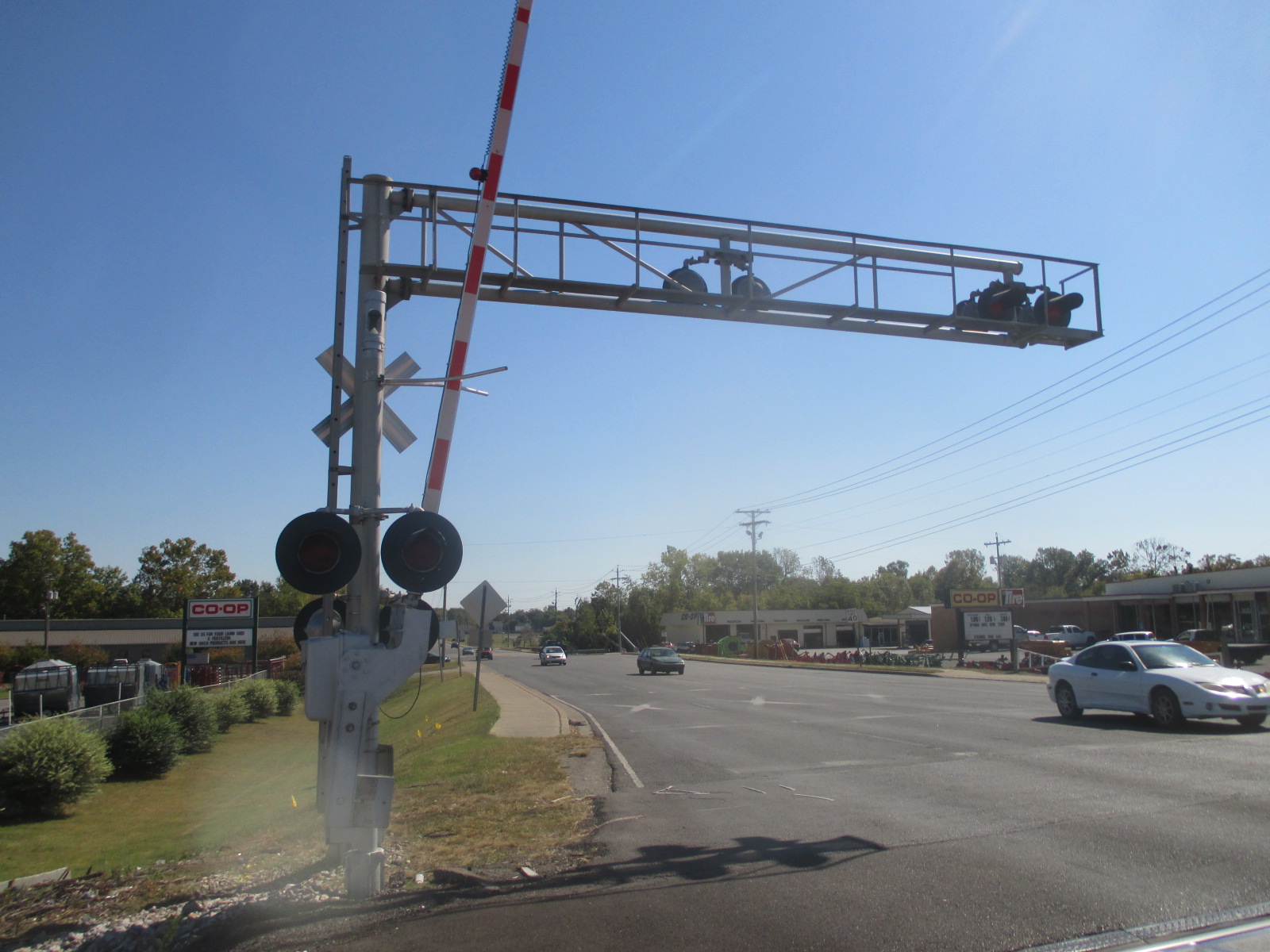

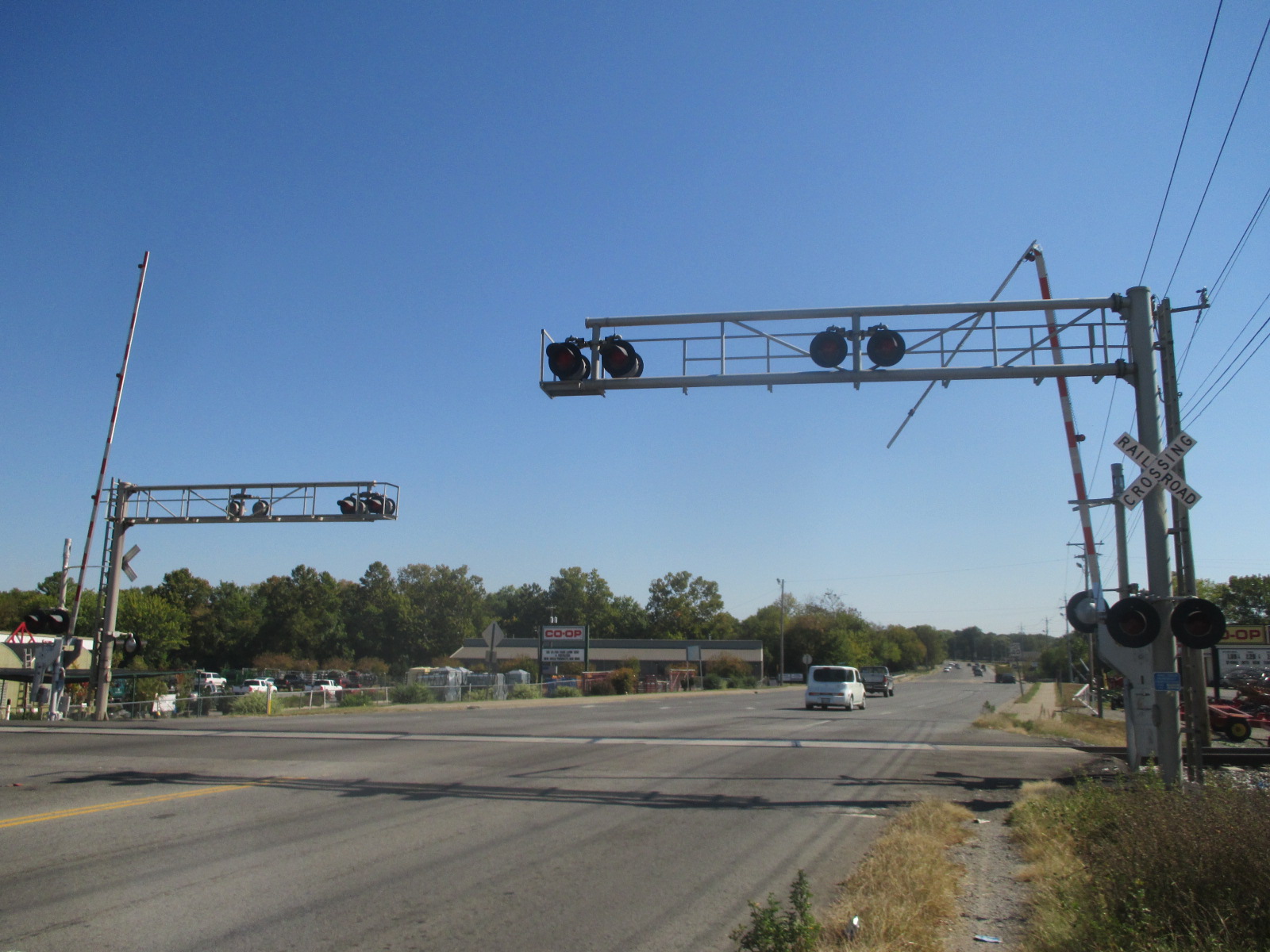

The first signal. |
||
37 |
38 |
39 |
40 |
The cantilever is still from Modern Industries. |
A couple of old L&N DOT tags on the mast. |
||
41 |
42 |
43 |
44 |

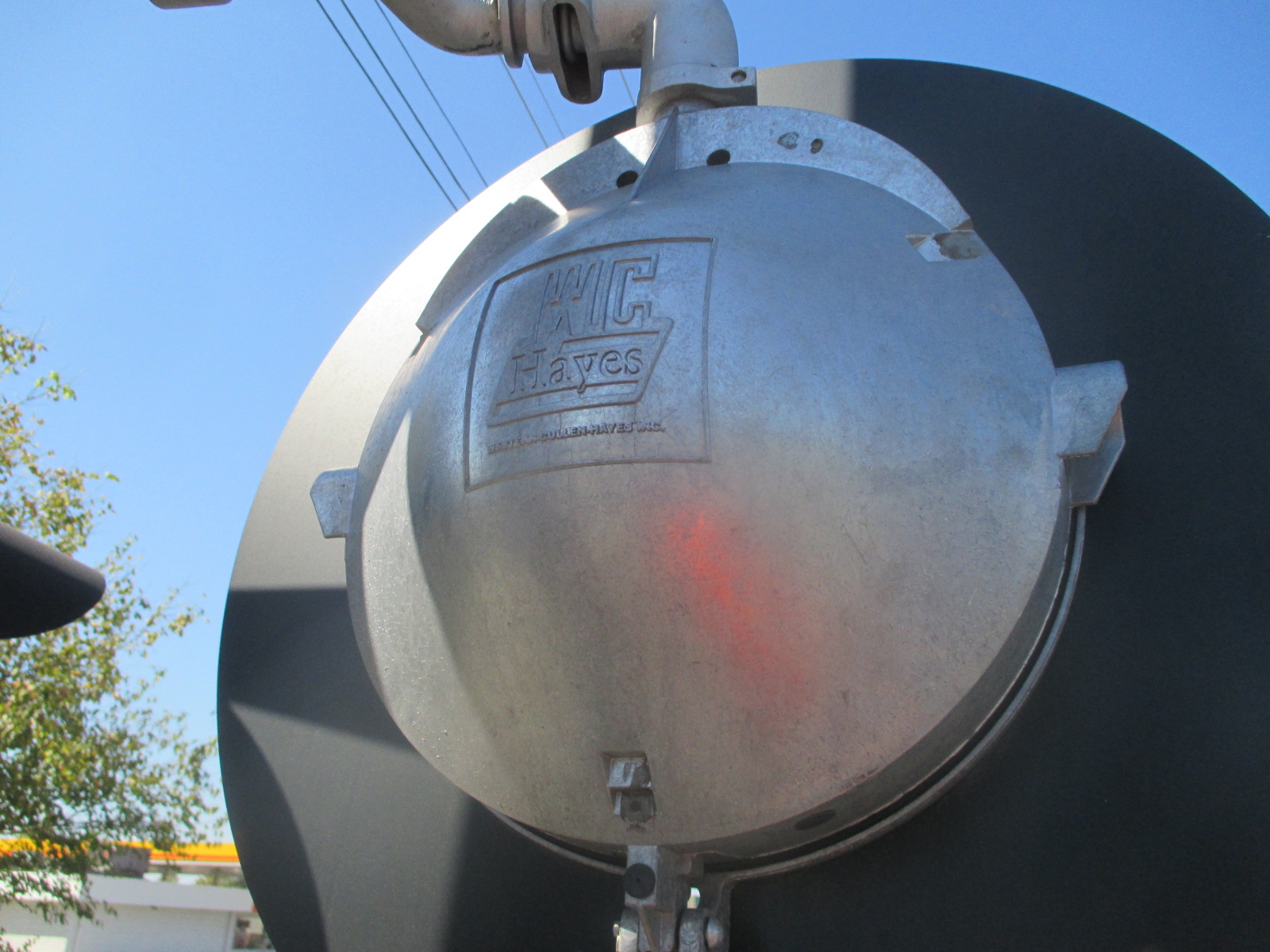

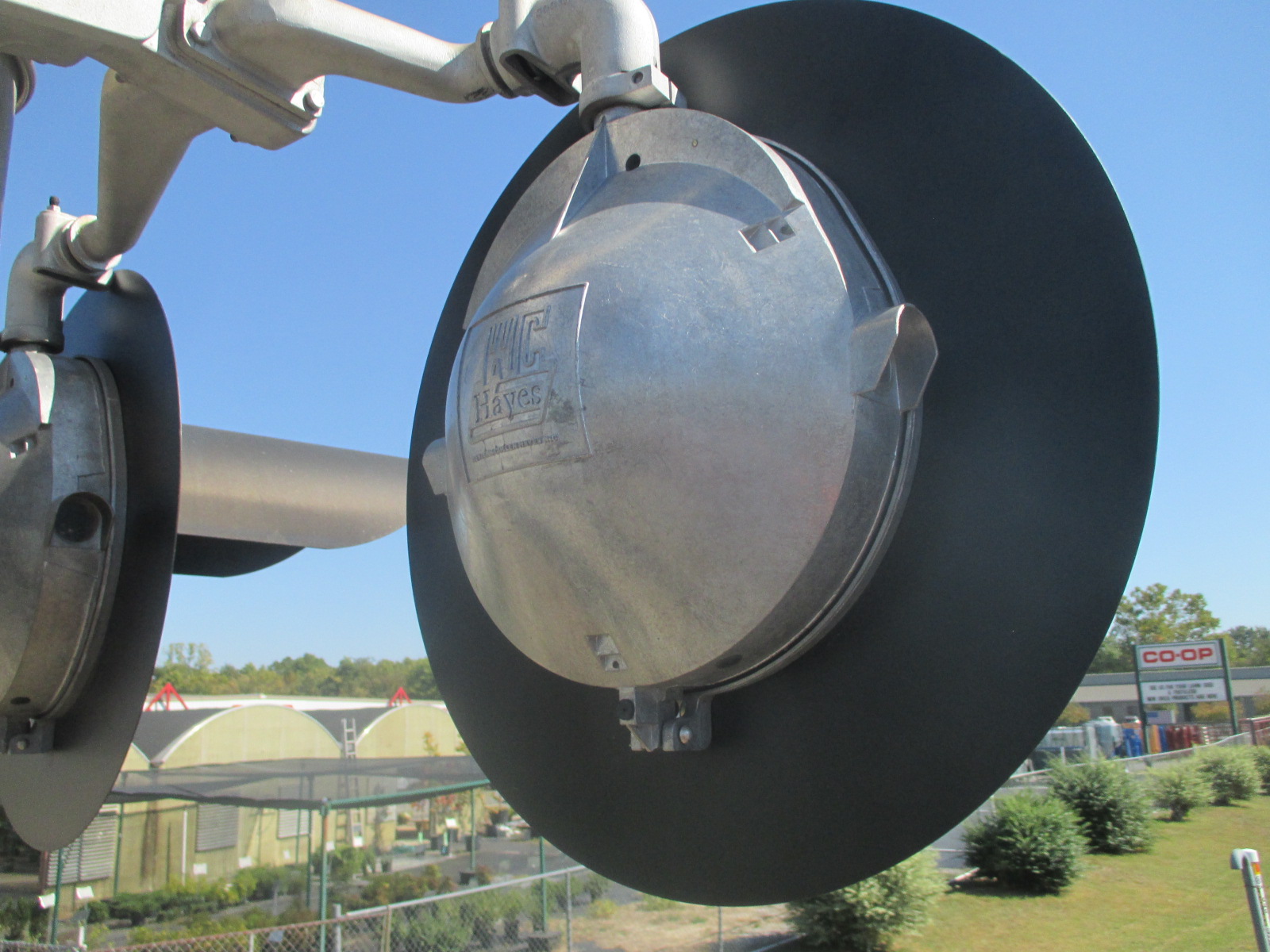

The front mast lights are now WCH 12x24 inch lights with WCH 2nd Generation LEDs. |

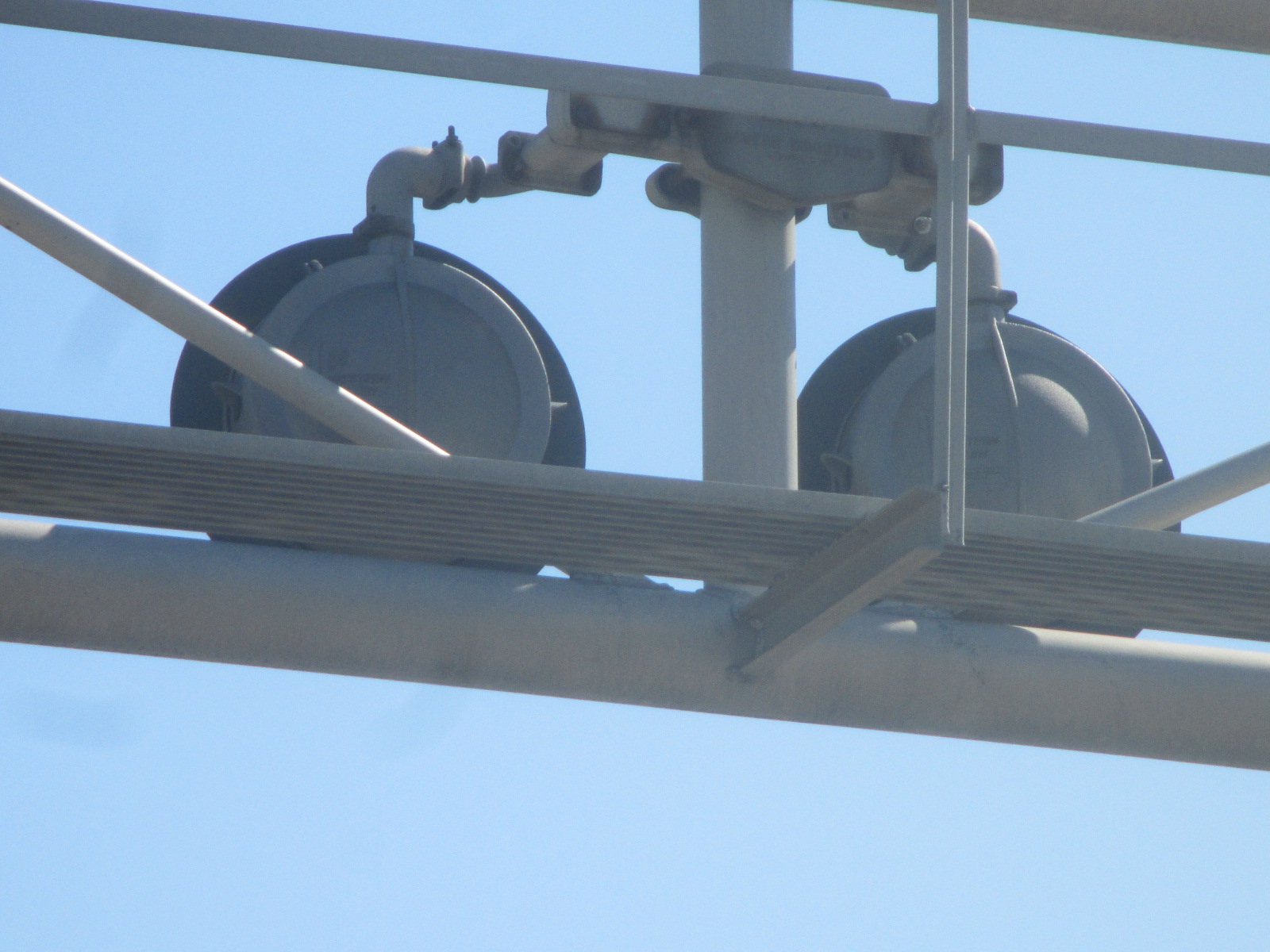

The overhead lights are Federal Signal 12x20 inch incandescent lights still! |
||
45 |
46 |
47 |
48 |

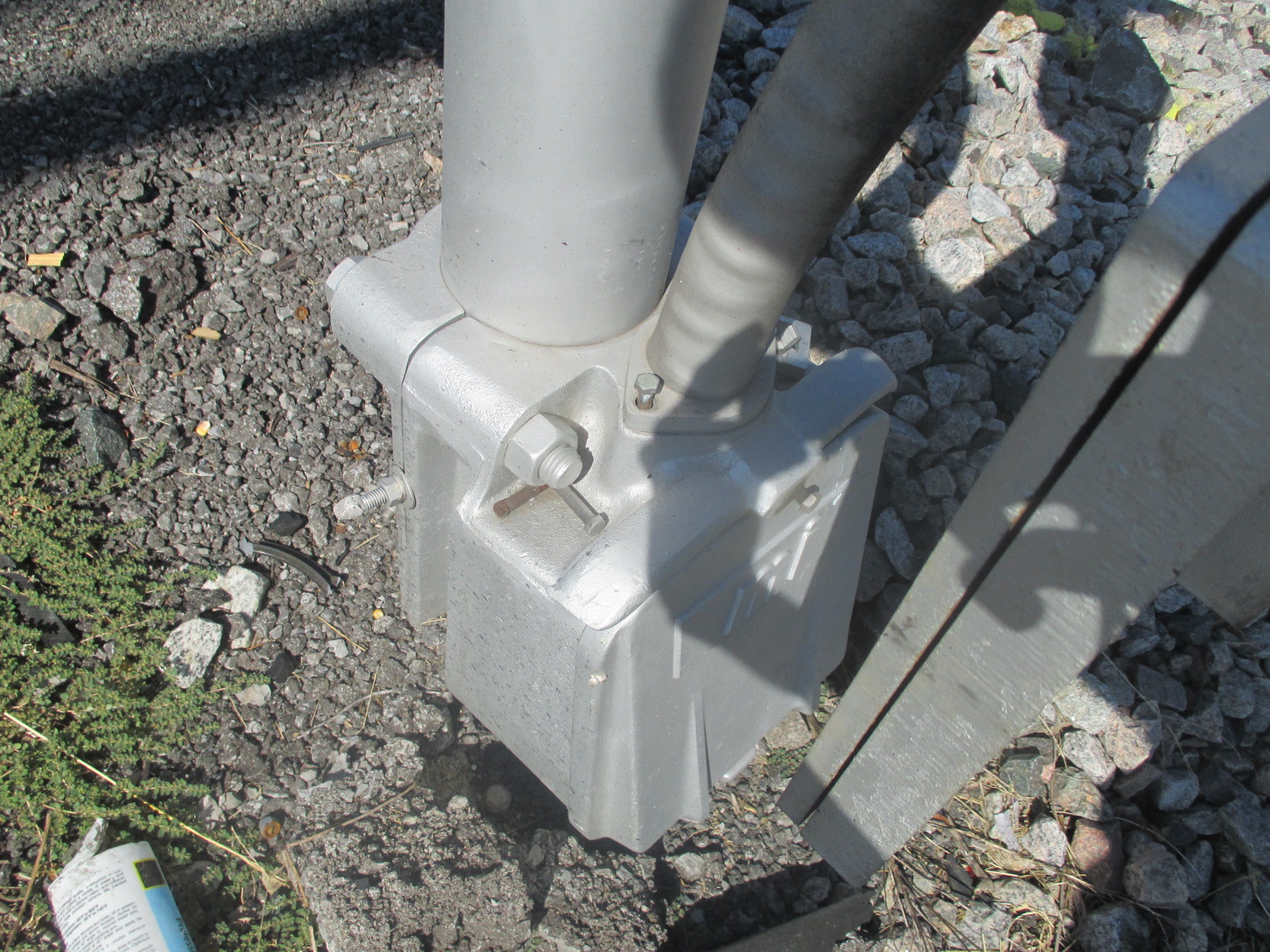

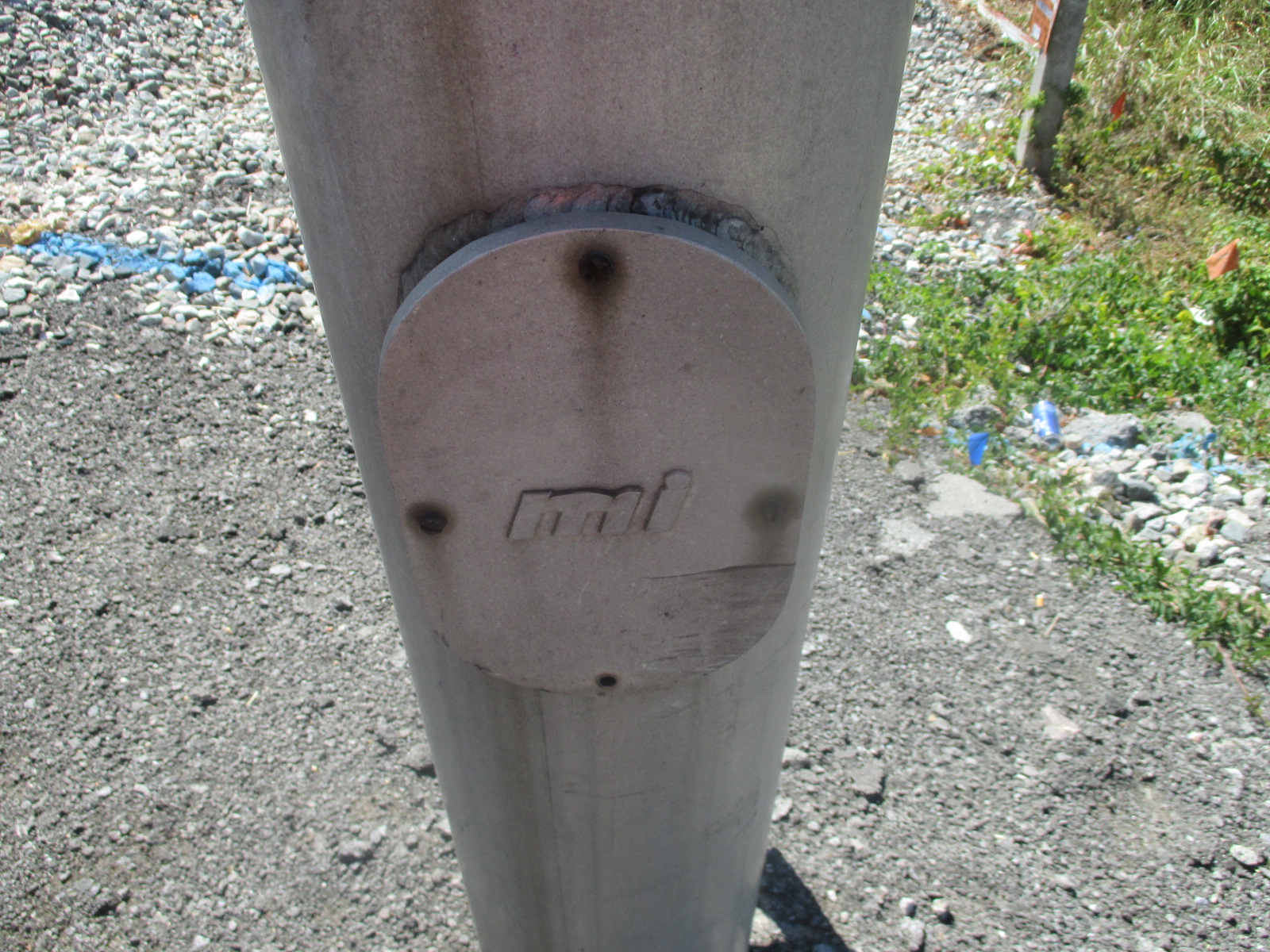

A Modern Industries base. |

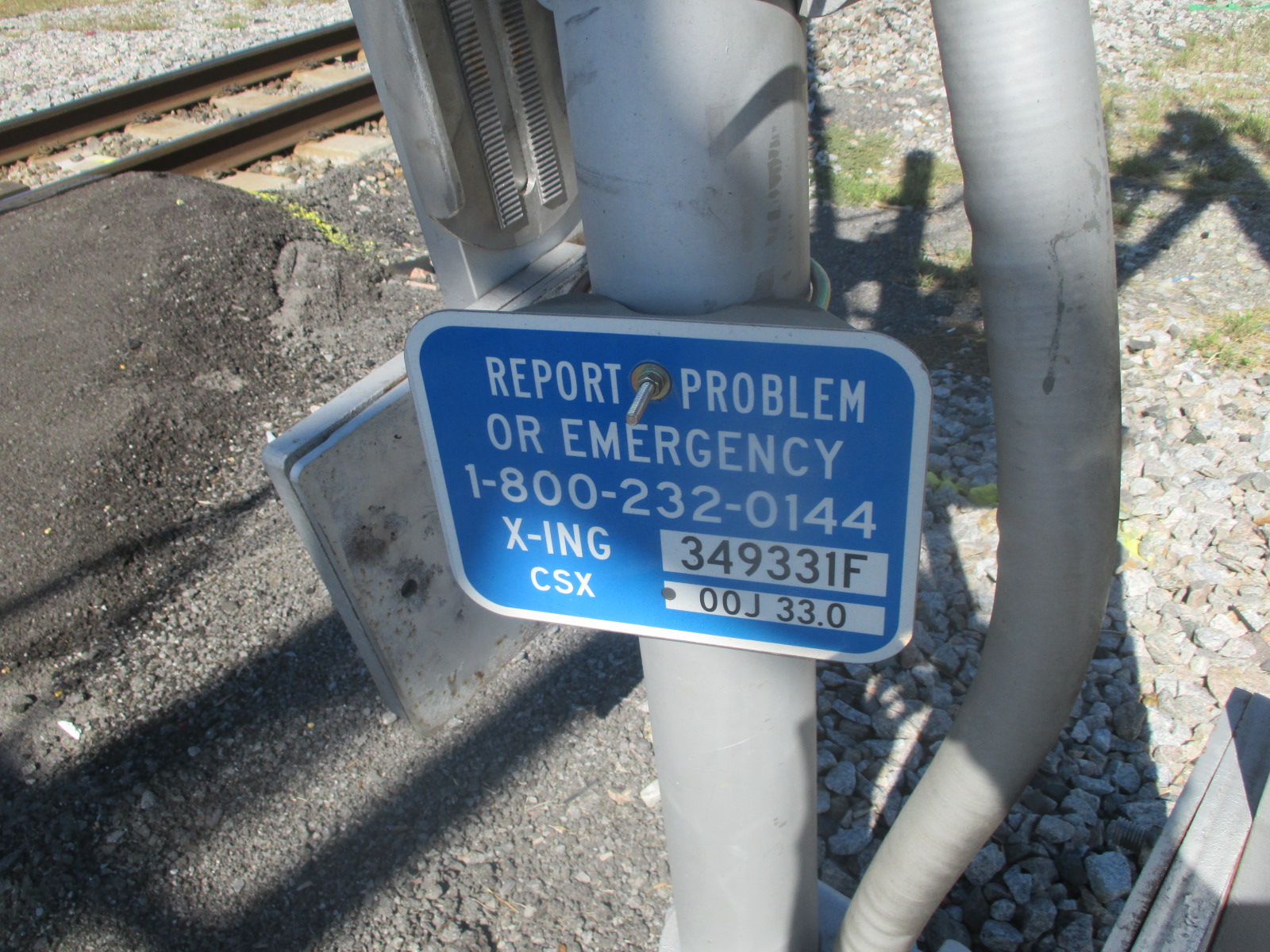

The new blue emergency information. |
This signal still has a Safetran gate mechanism. |
49 |
50 |
51 |
52 |

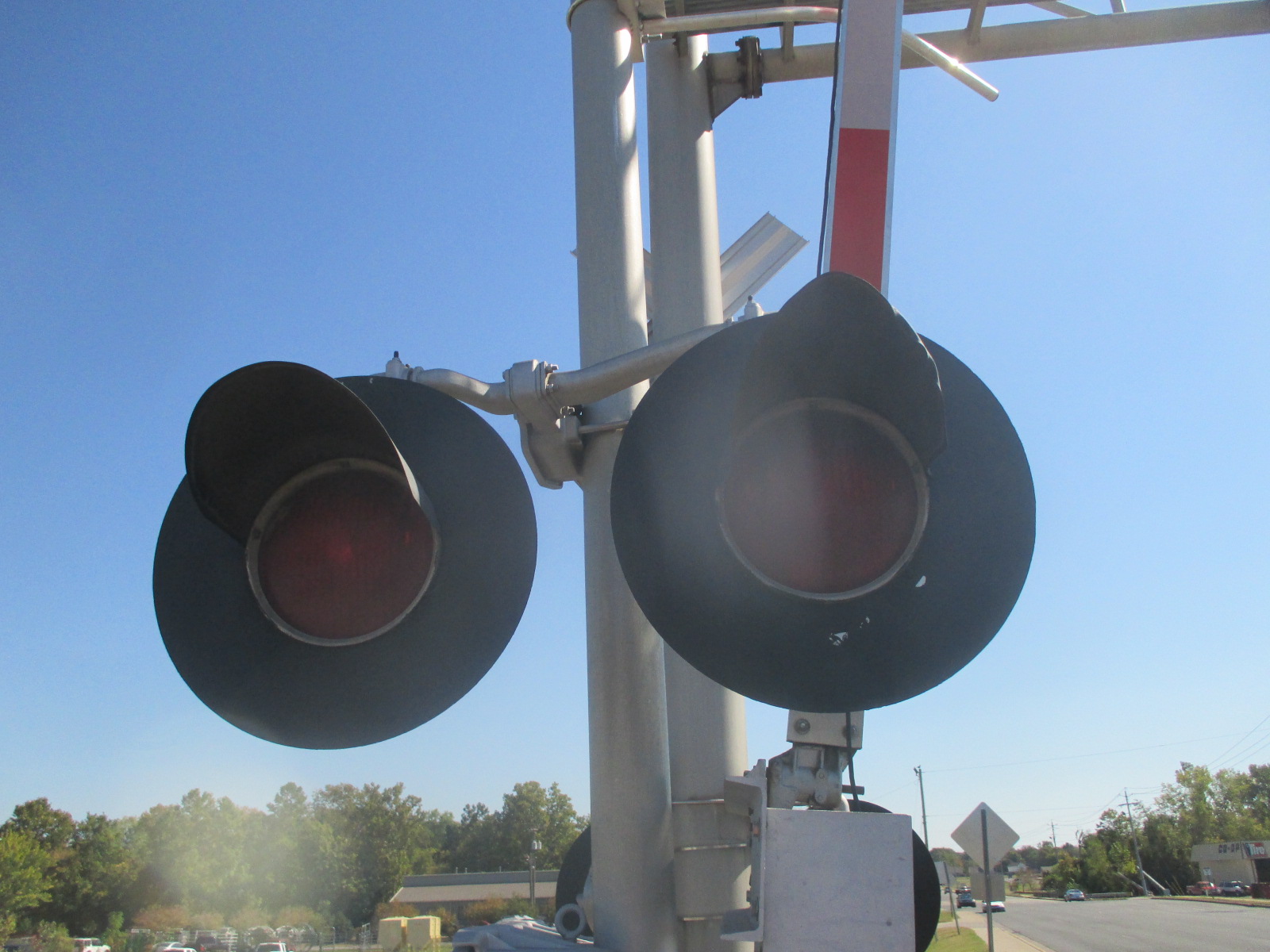

The rear lights are still incandescent Modern Industries 12x24 inch lights. |
This signal now has a General Signals Type 2electronic bell. |
This signal has RECO gate lights. |
|
53 |
54 |
55 |
56 |

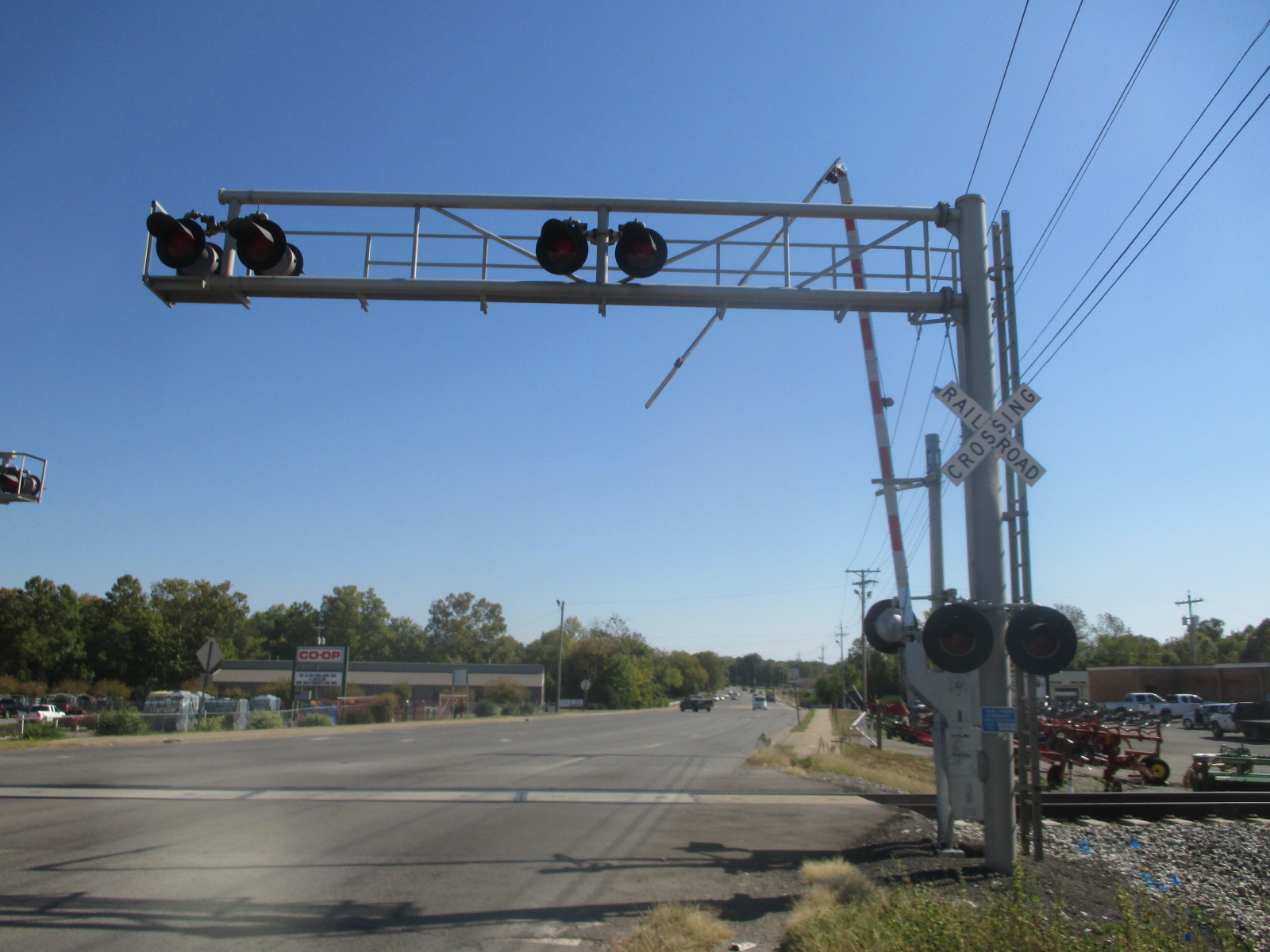

The second signal. |
It's still another Modern Industries cantilever. |
More new blue emergency information. |
|
57 |
58 |
59 |
60 |
The front mast lights on this signal are now more WCH 12x24 inch lights with WCH 2nd Generation LEDs in them. |
The overhead lights are still more Federal Signal 12x20 inch lights! |
||
61 |
62 |
63 |
64 |

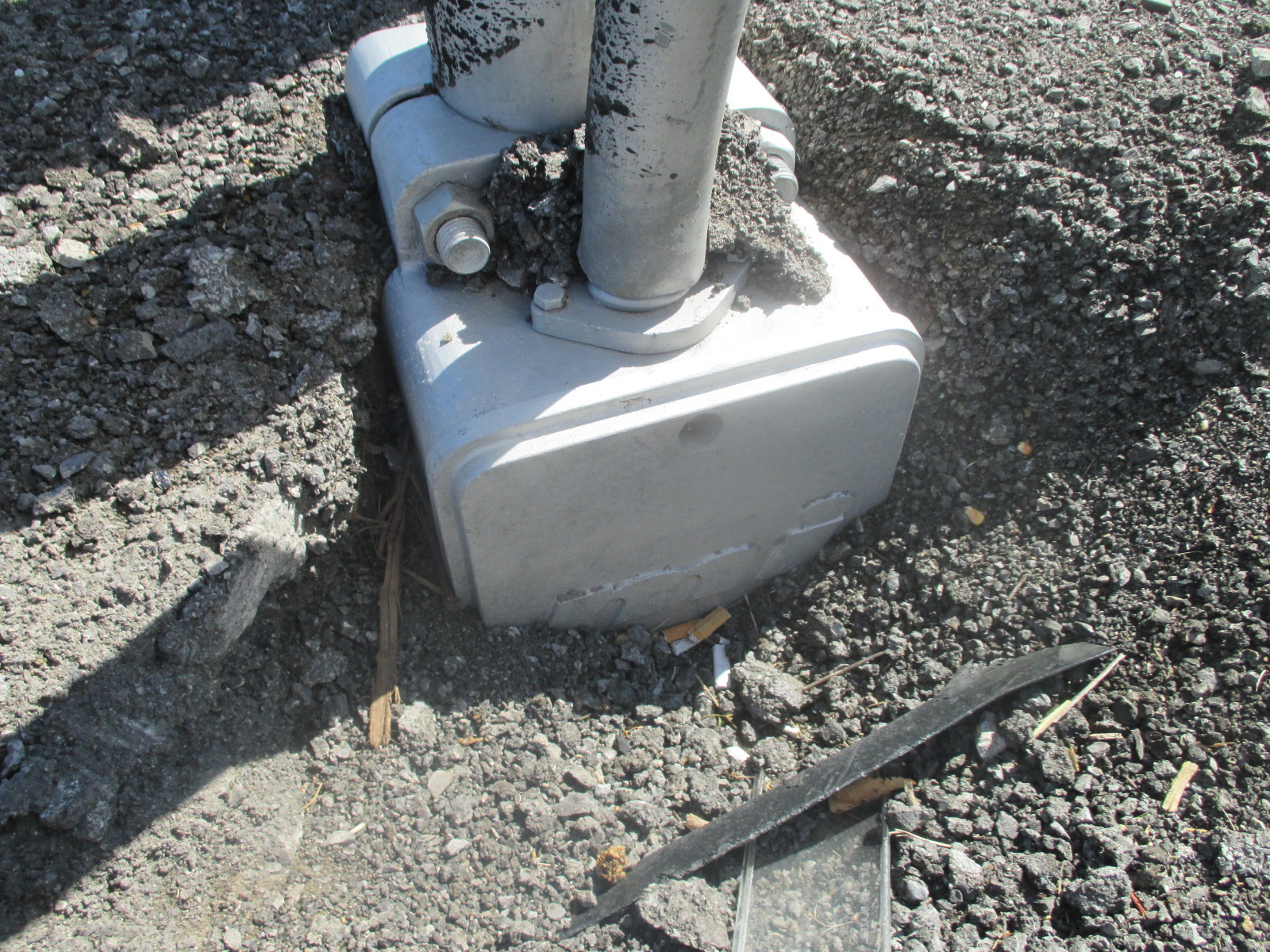

A partially-burried newer Modern Industries base. |
This signal still has a Safetran gate mechanism. |

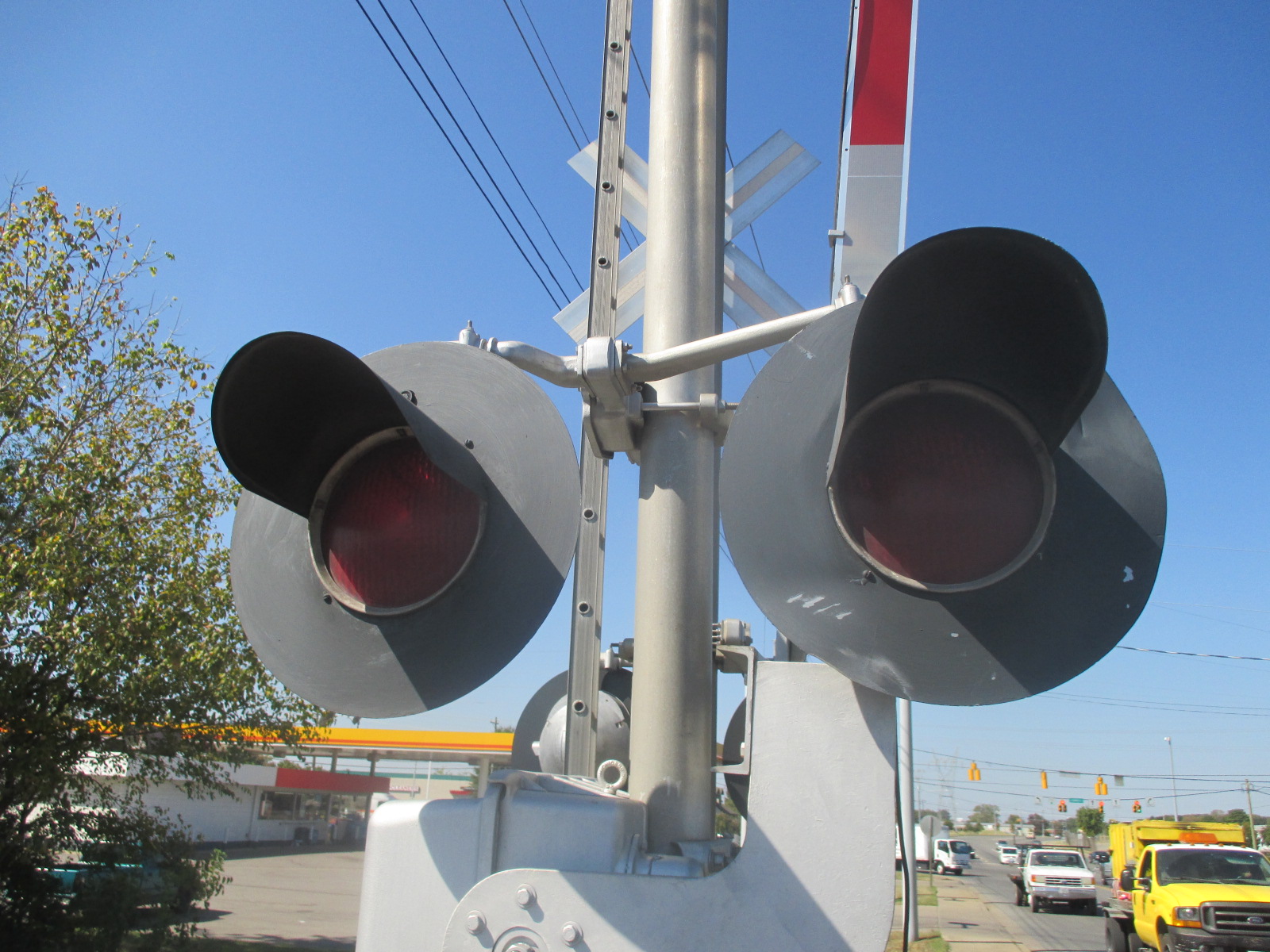

The rear mast lights are still Modern Industries 12x24 inch incandescnet lights as well. |
|
65 |
66 |
67 |
68 |
This signal now has a Safetran Type-2 electronic bell. |
This signal has more RECO gate lights. |

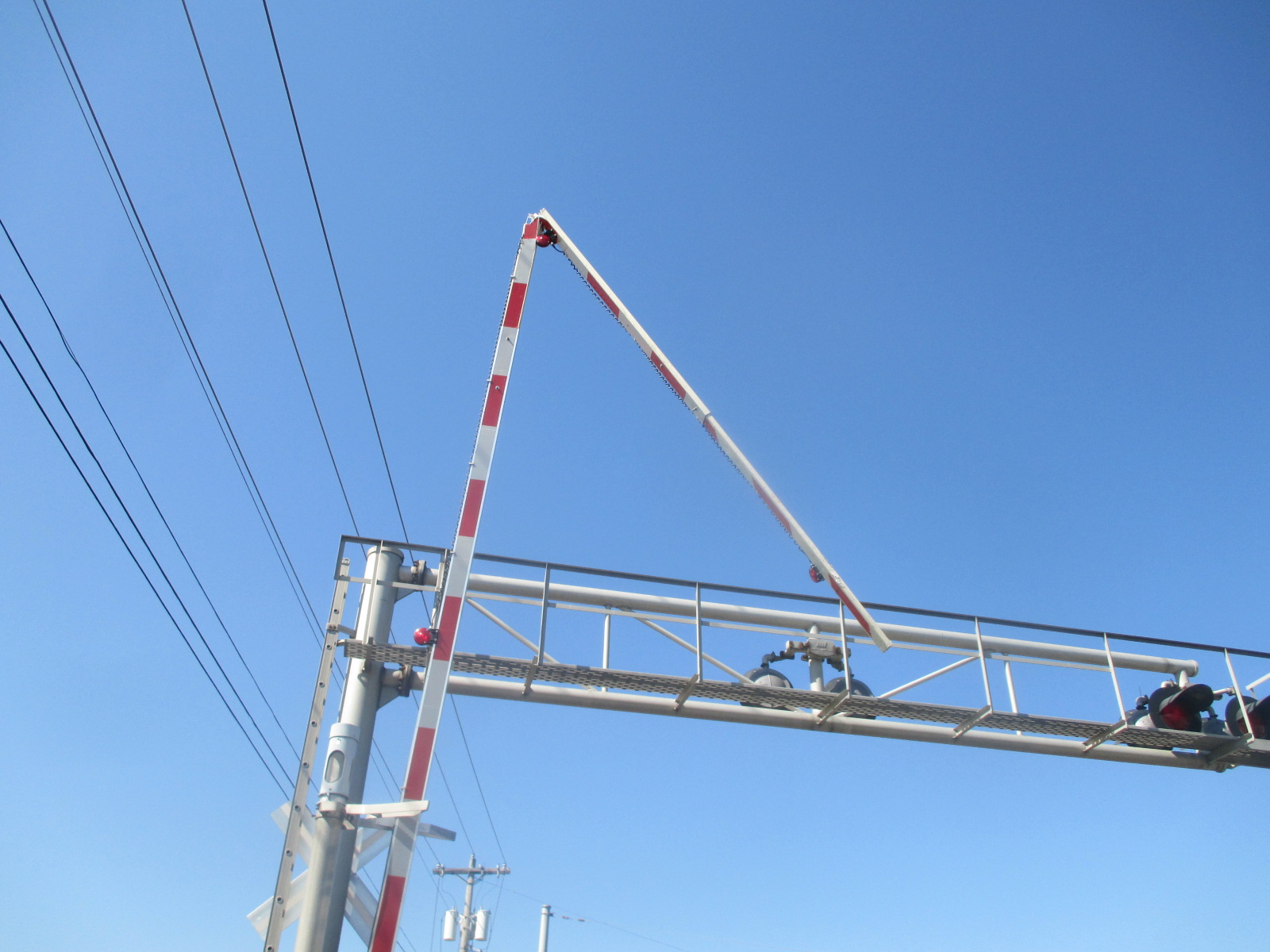

This gate arm has been broken! |
|
69 |
70 |
71 |
72 |
Close-up of the break. |

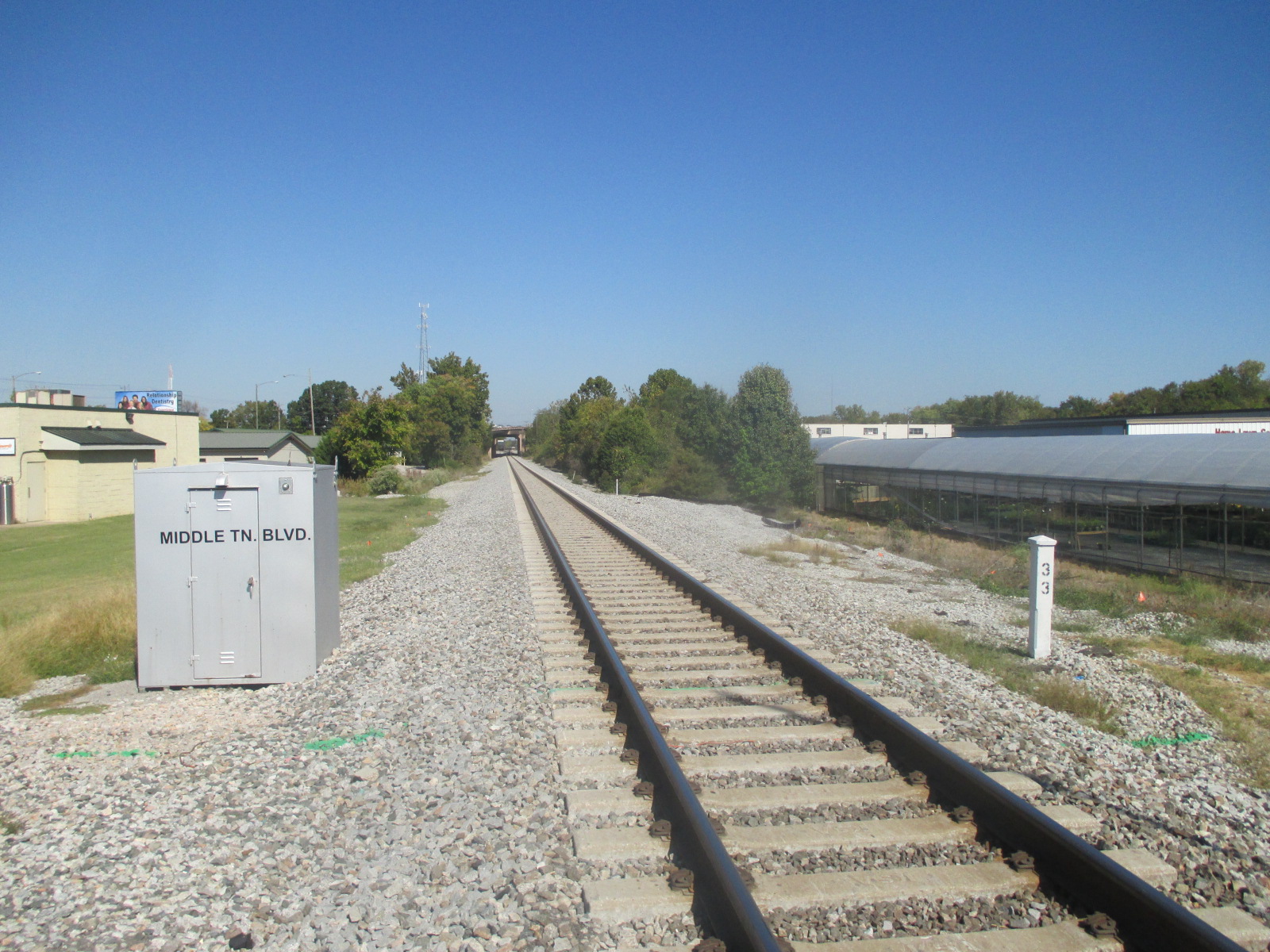

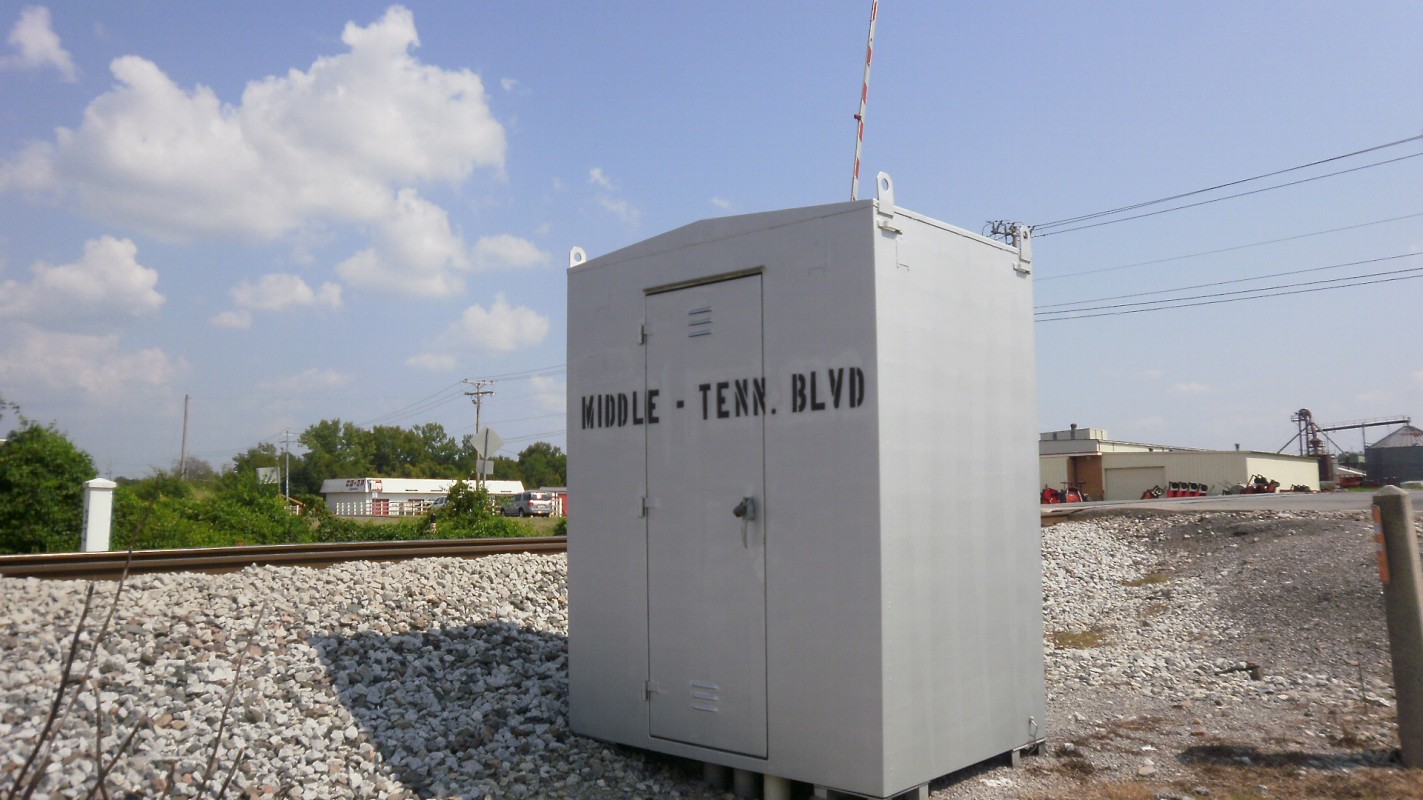

The relay case. |

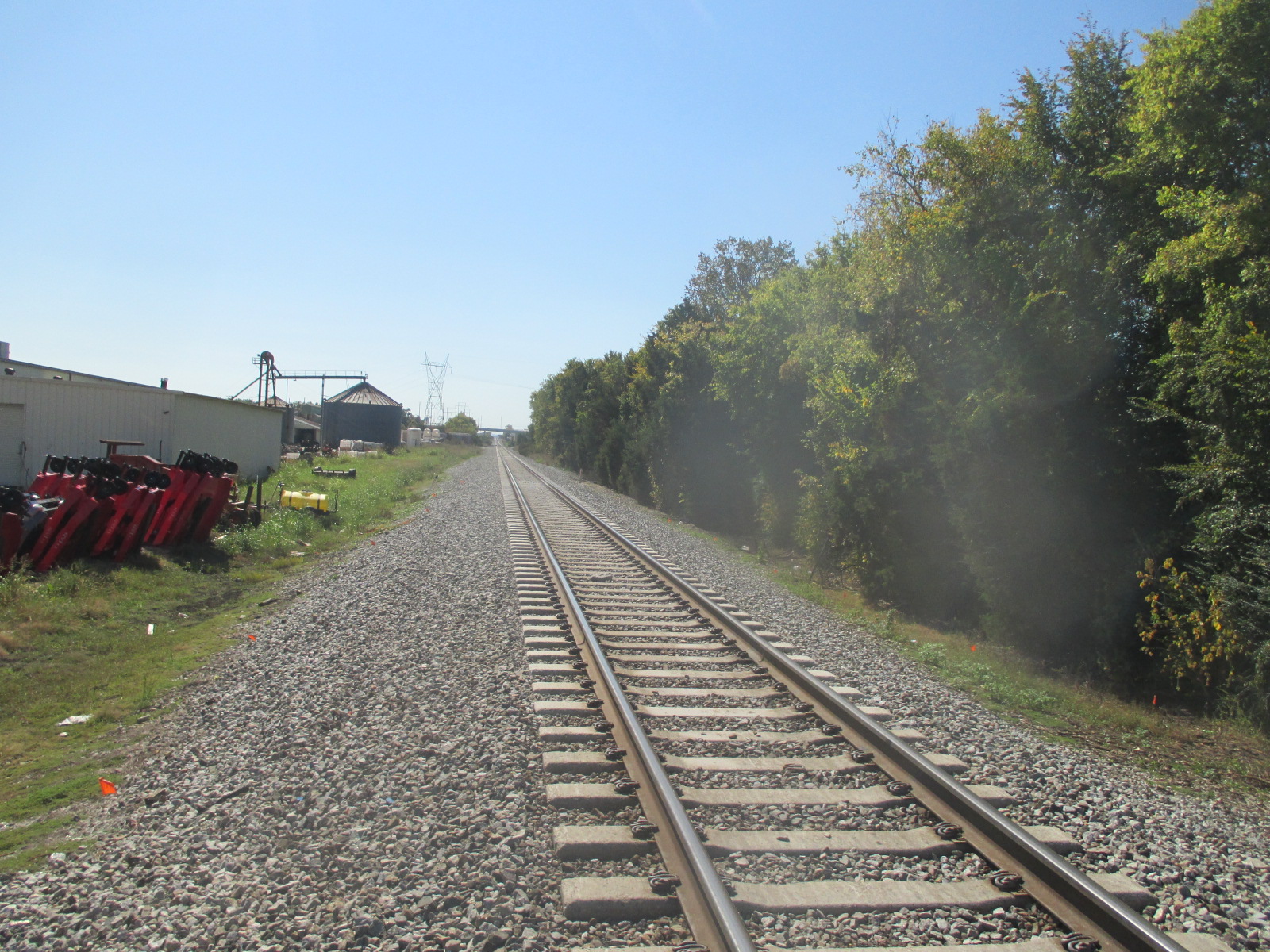

Track views. |
|
73 |
74 |
75 |
76 |
Another return trip on 6-14-20 by Ethanthe Railfanner shows even more changes. |

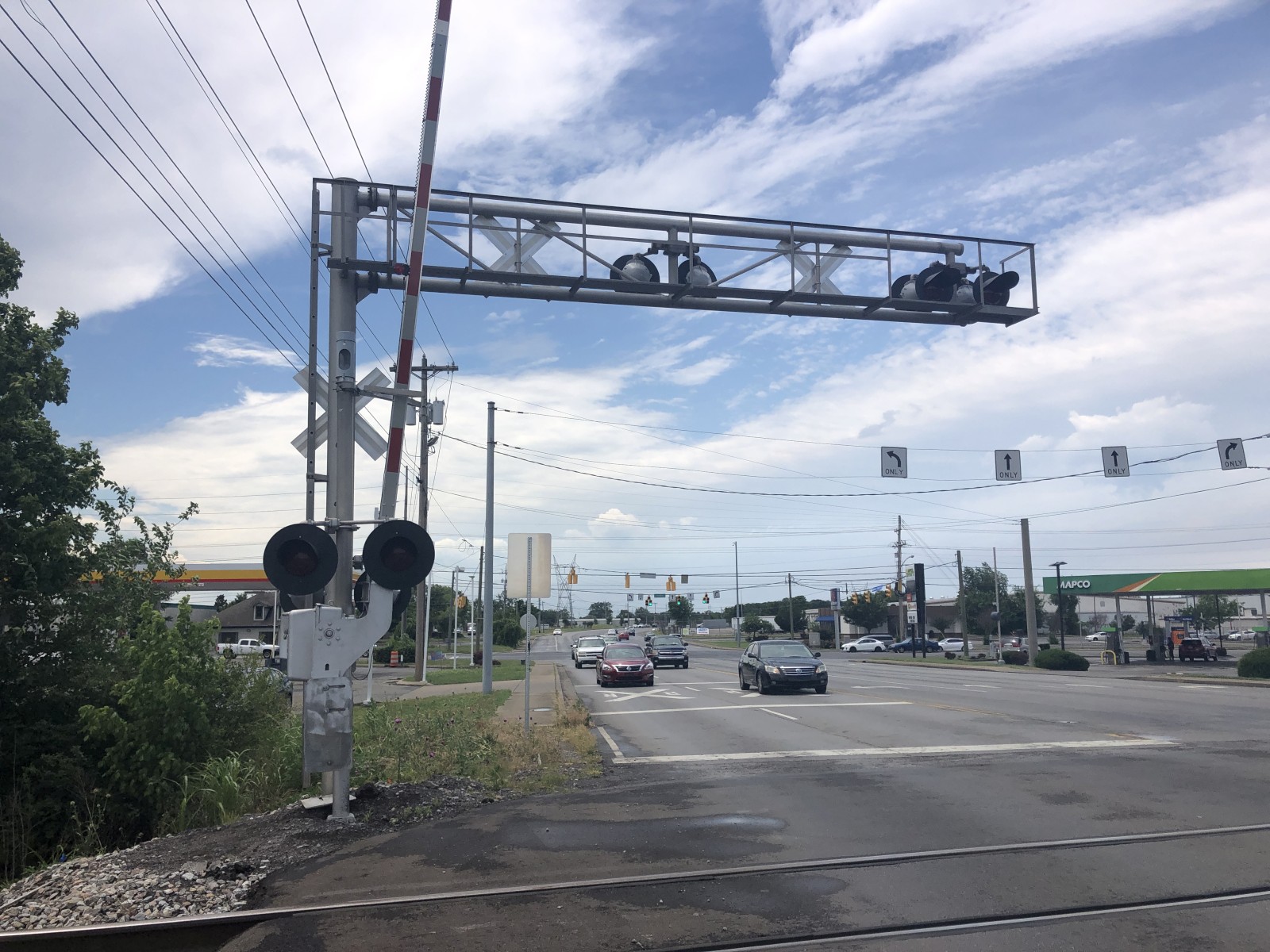

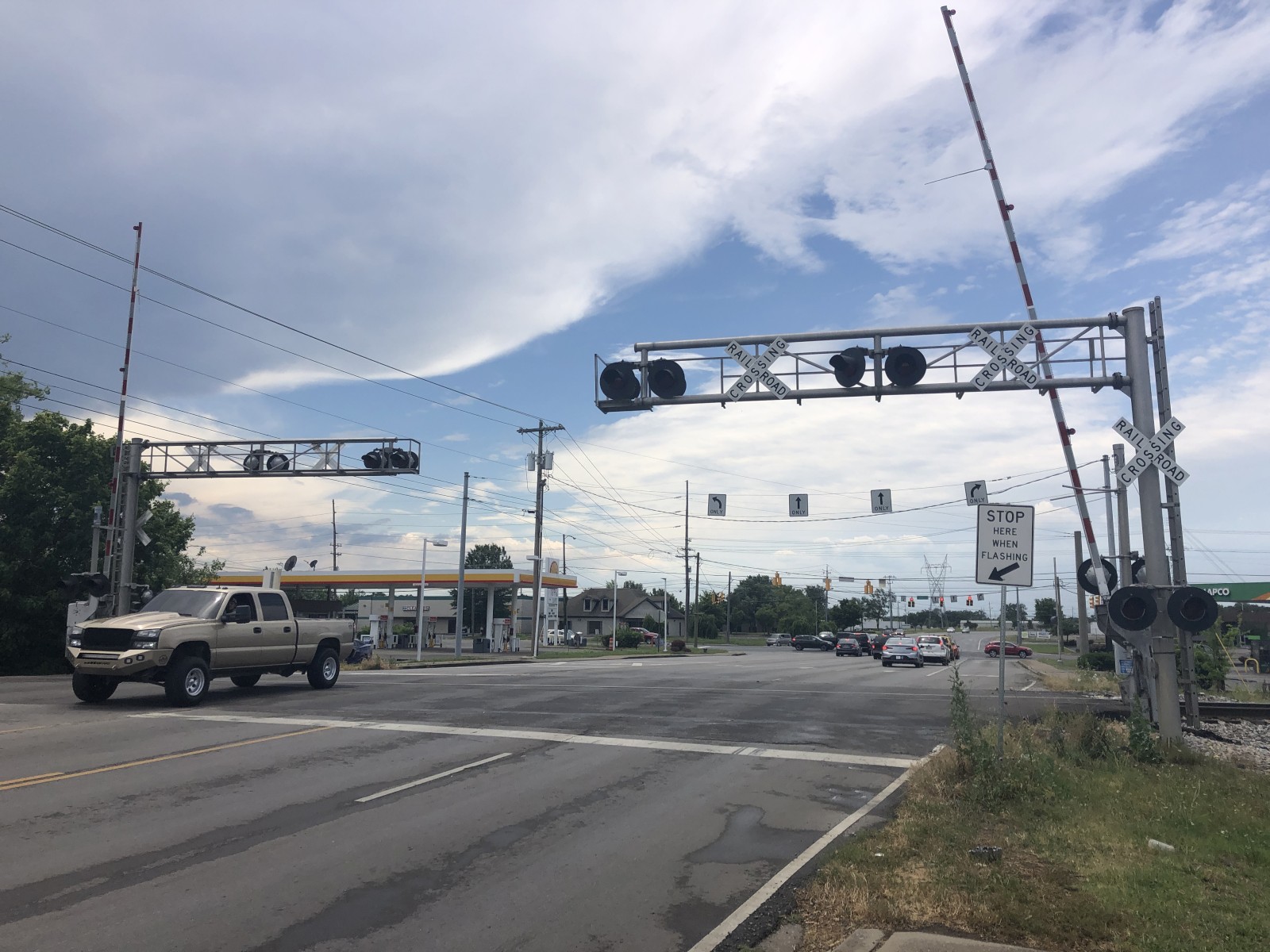

The western signal. |
||
77 |
78 |
79 |
80 |

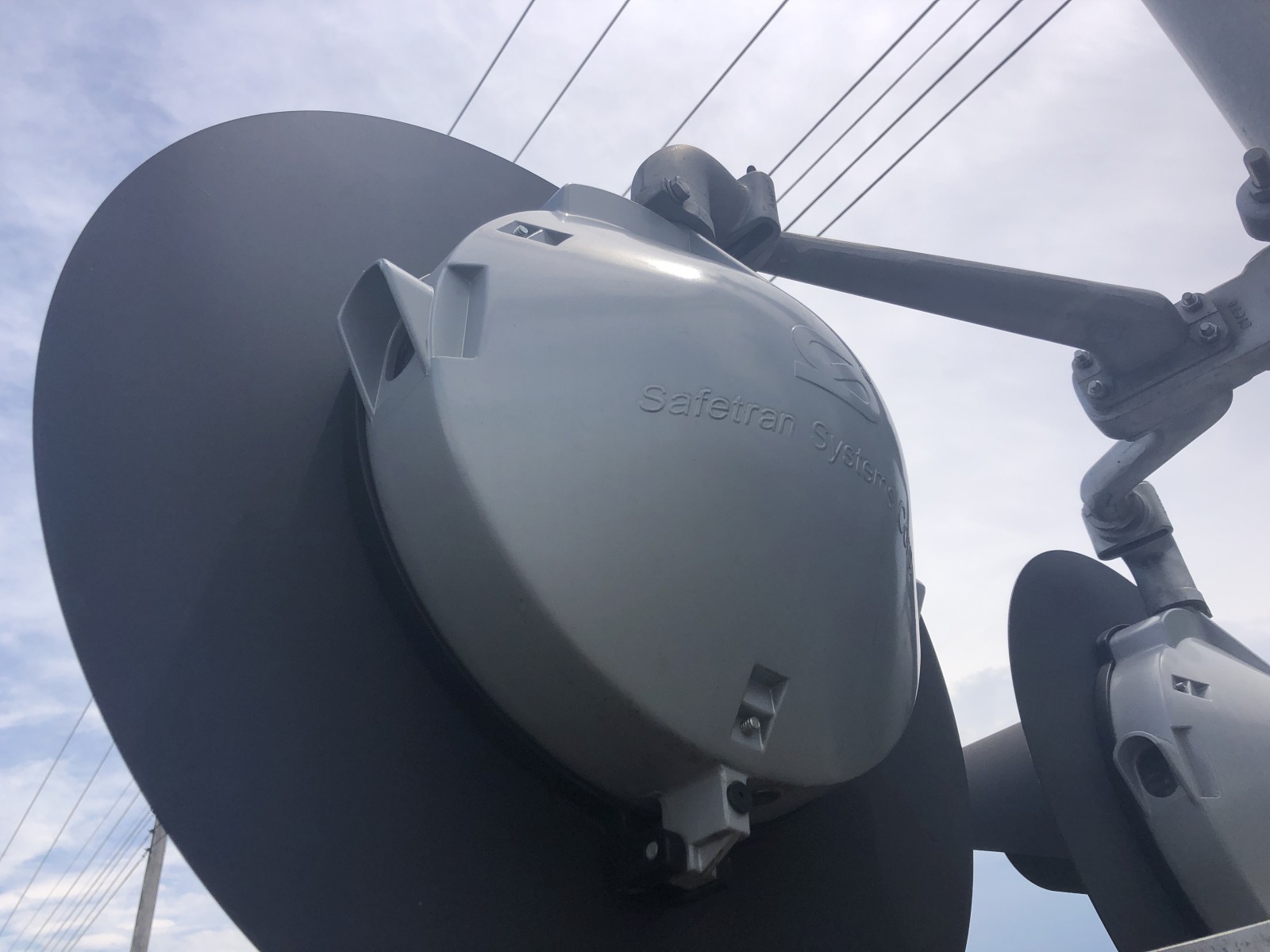

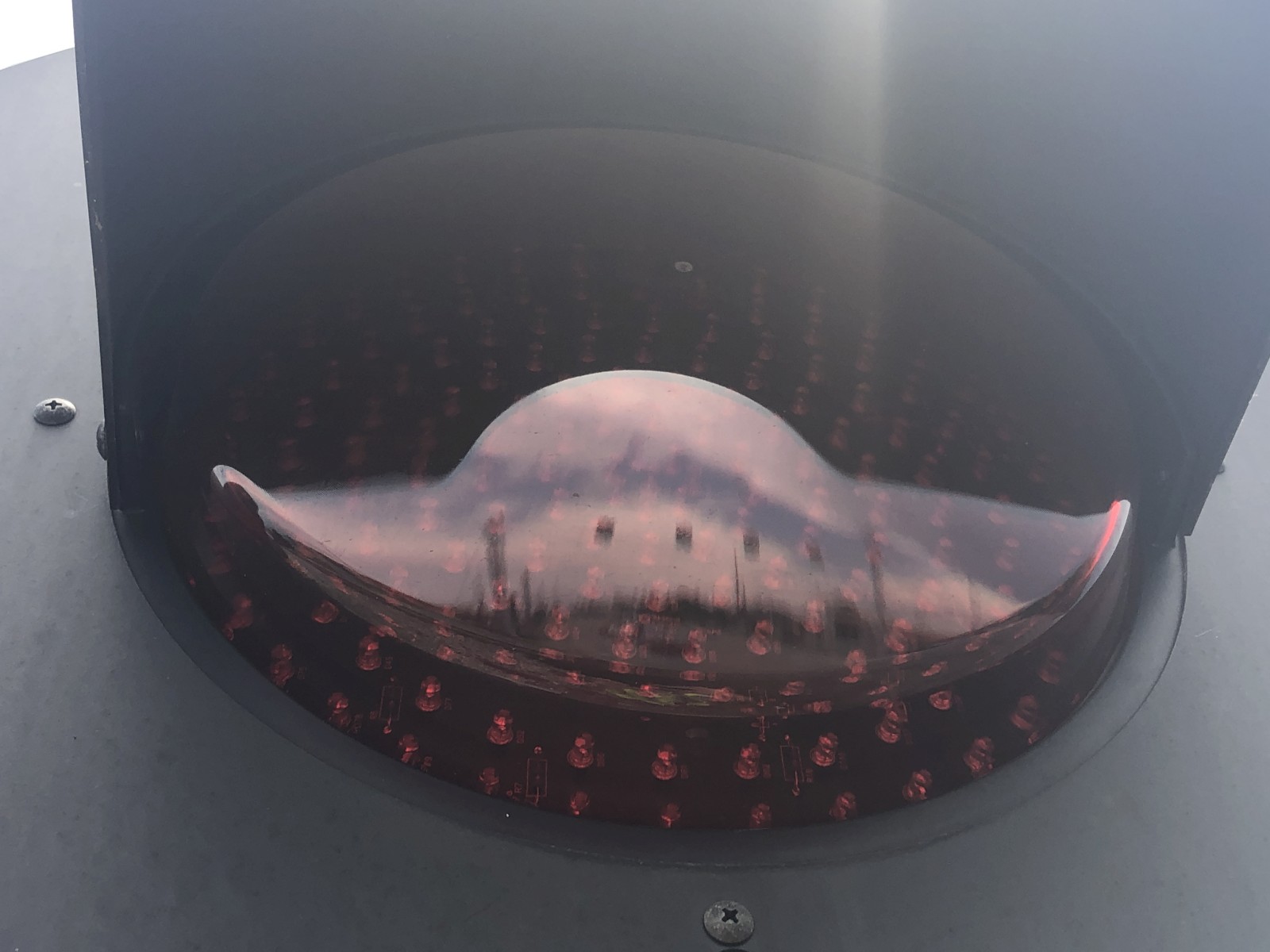

The rear mast lights are now Safetran 12x24s with WCH 2nd Gen. LEDs. |

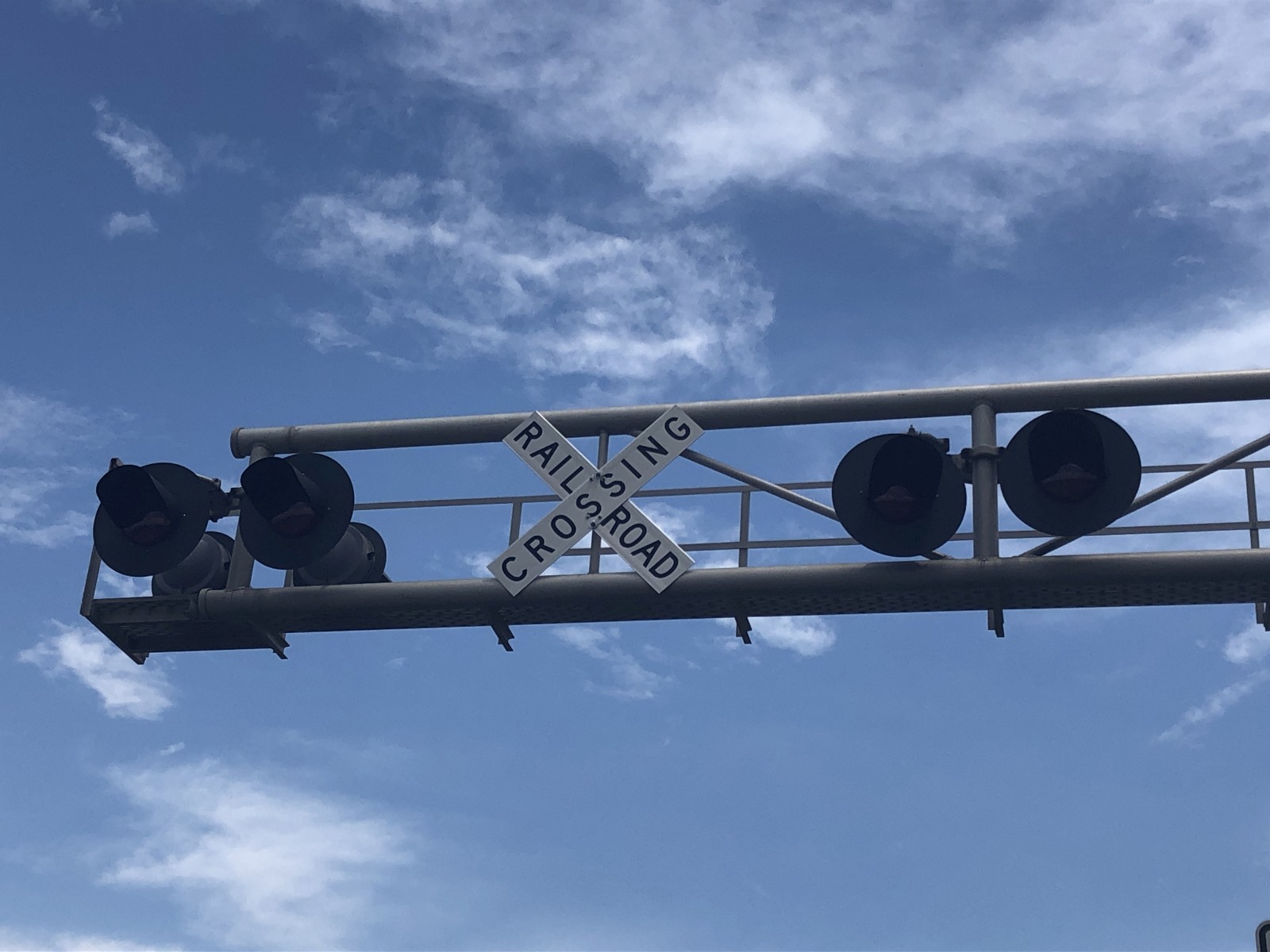

The front overhead lights are now Safertan 12x24s with WCH 2nd Gen. LEDs. |
||
81 |
82 |
83 |
84 |

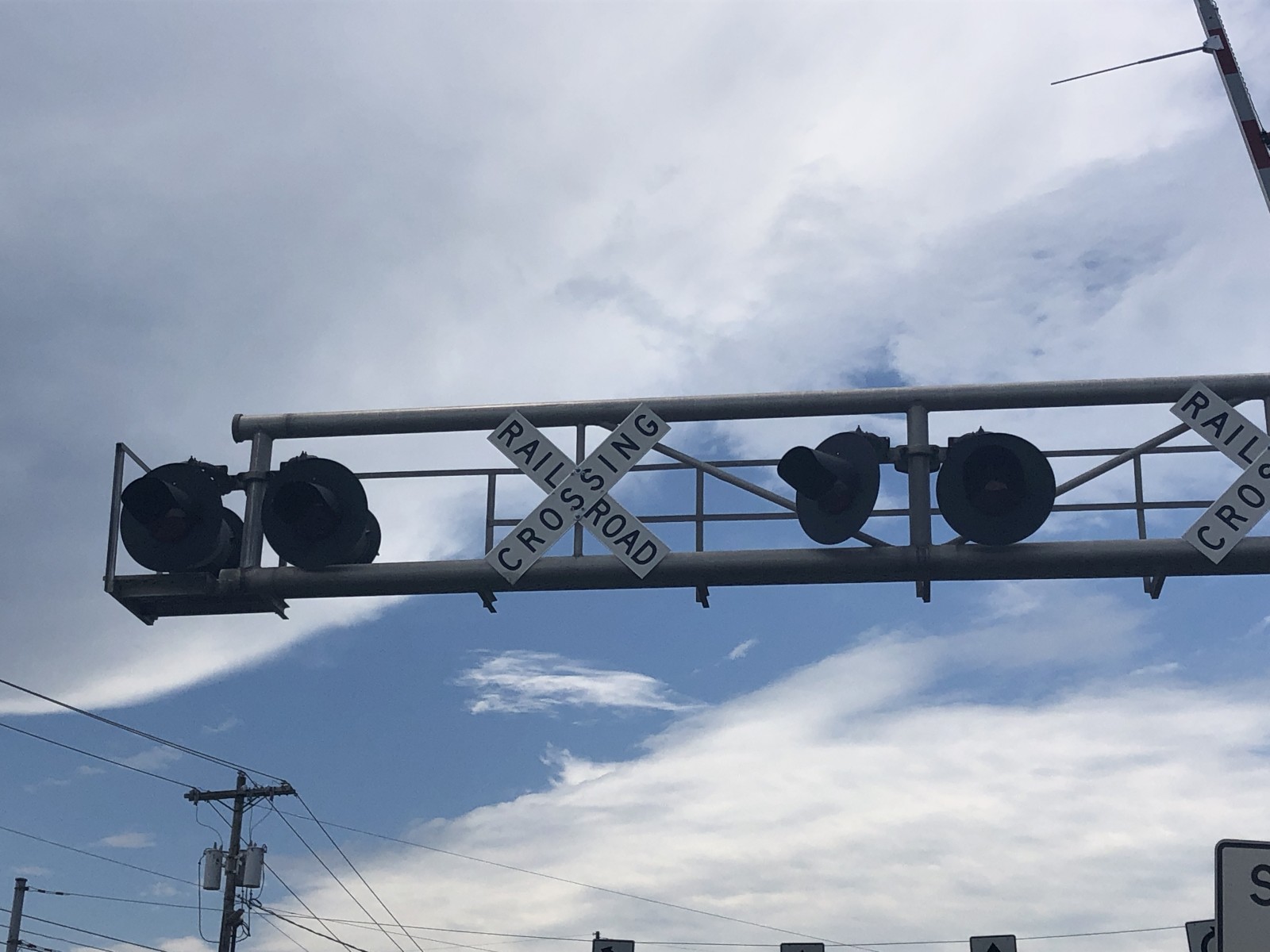

The rear overhead lights are still Federal Signal 12x20s, but now have Leotek EV series LEDs. |
The gate has also been replaced and restriped, plus with NEG LED gatelights. |

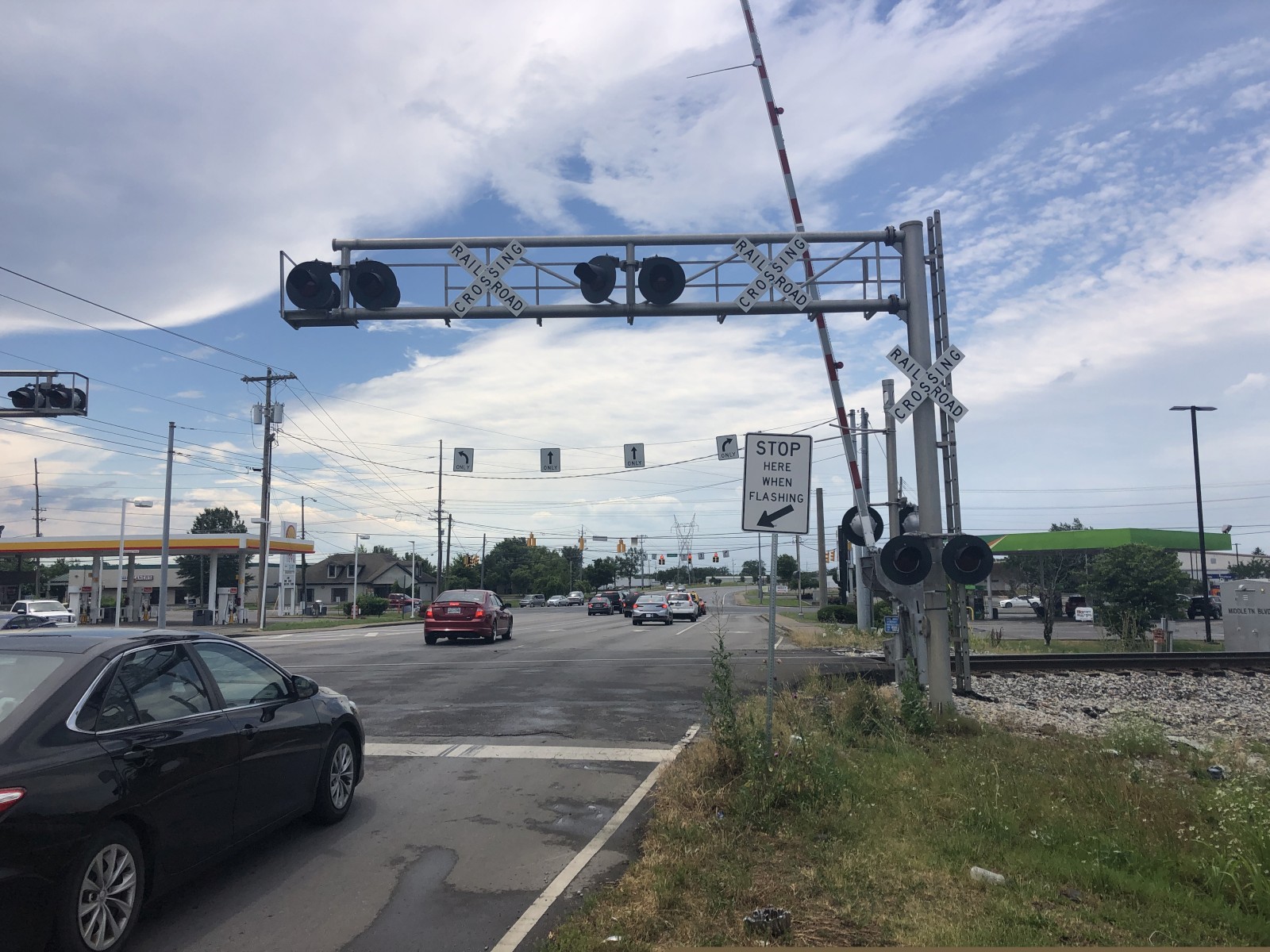

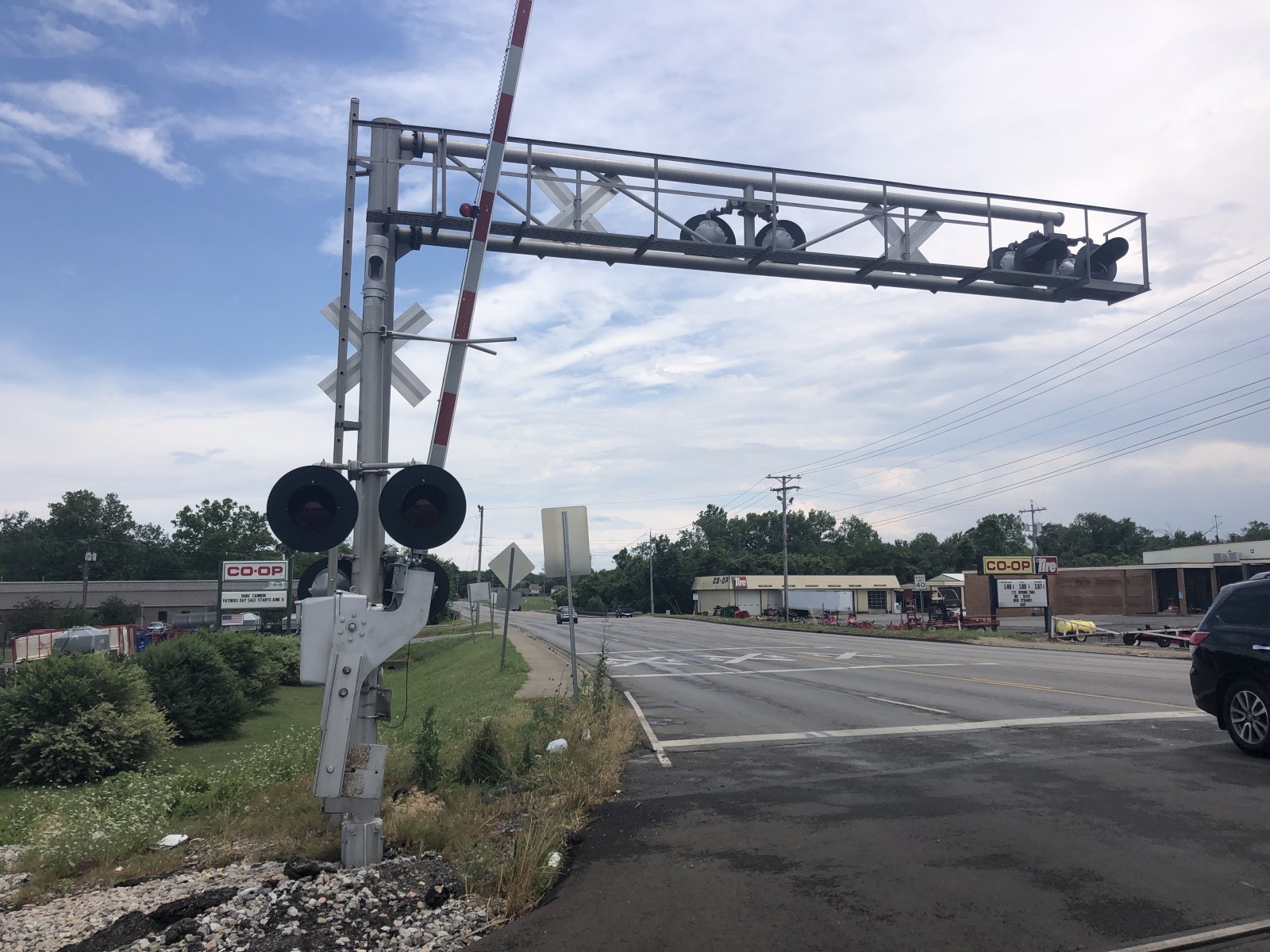

The eastern signal. |
|
85 |
86 |
87 |
88 |

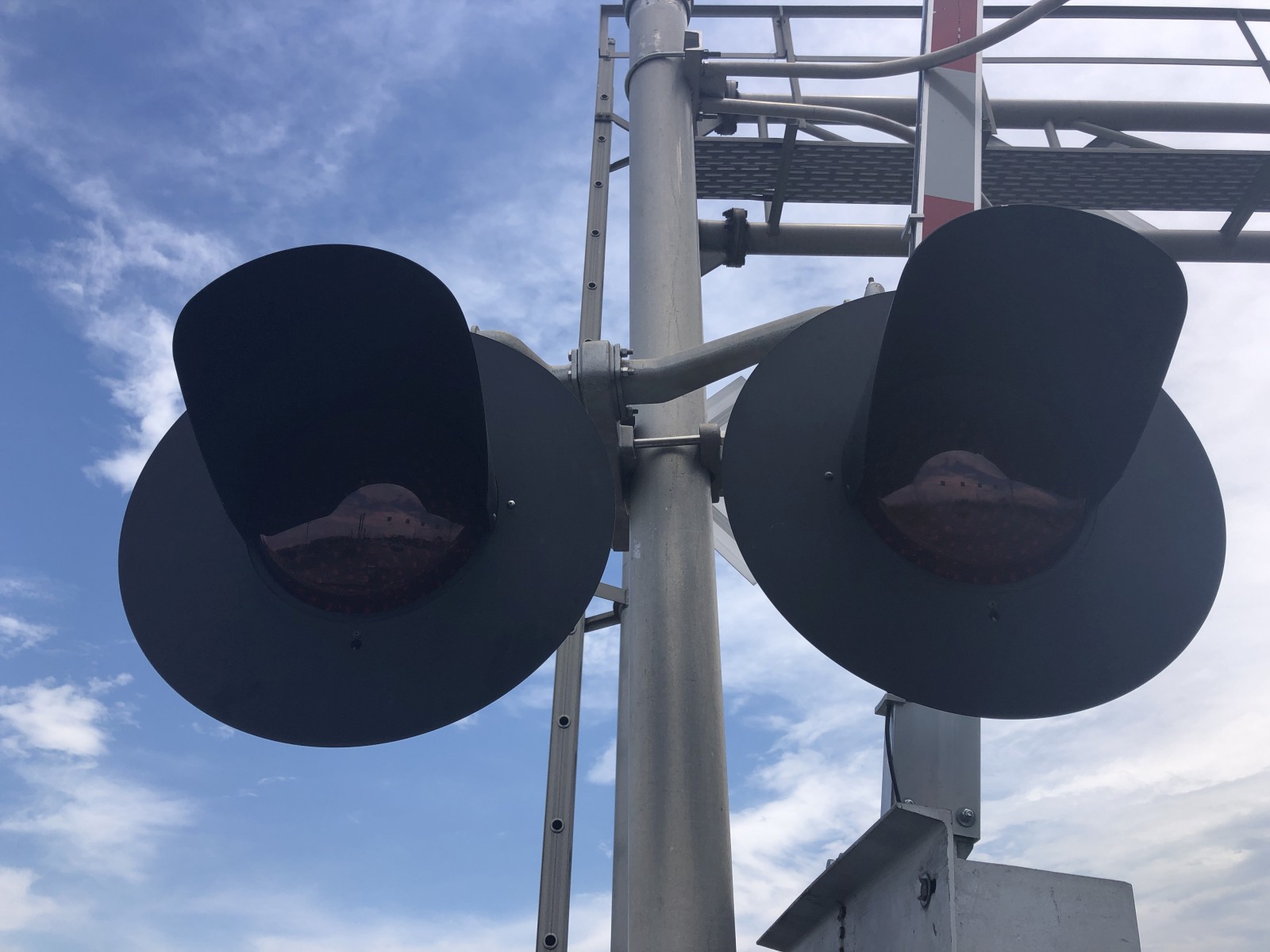

The rear mast lights are now more Safetran 12x24s with WCH 2nd Gen. LEDs in them. |

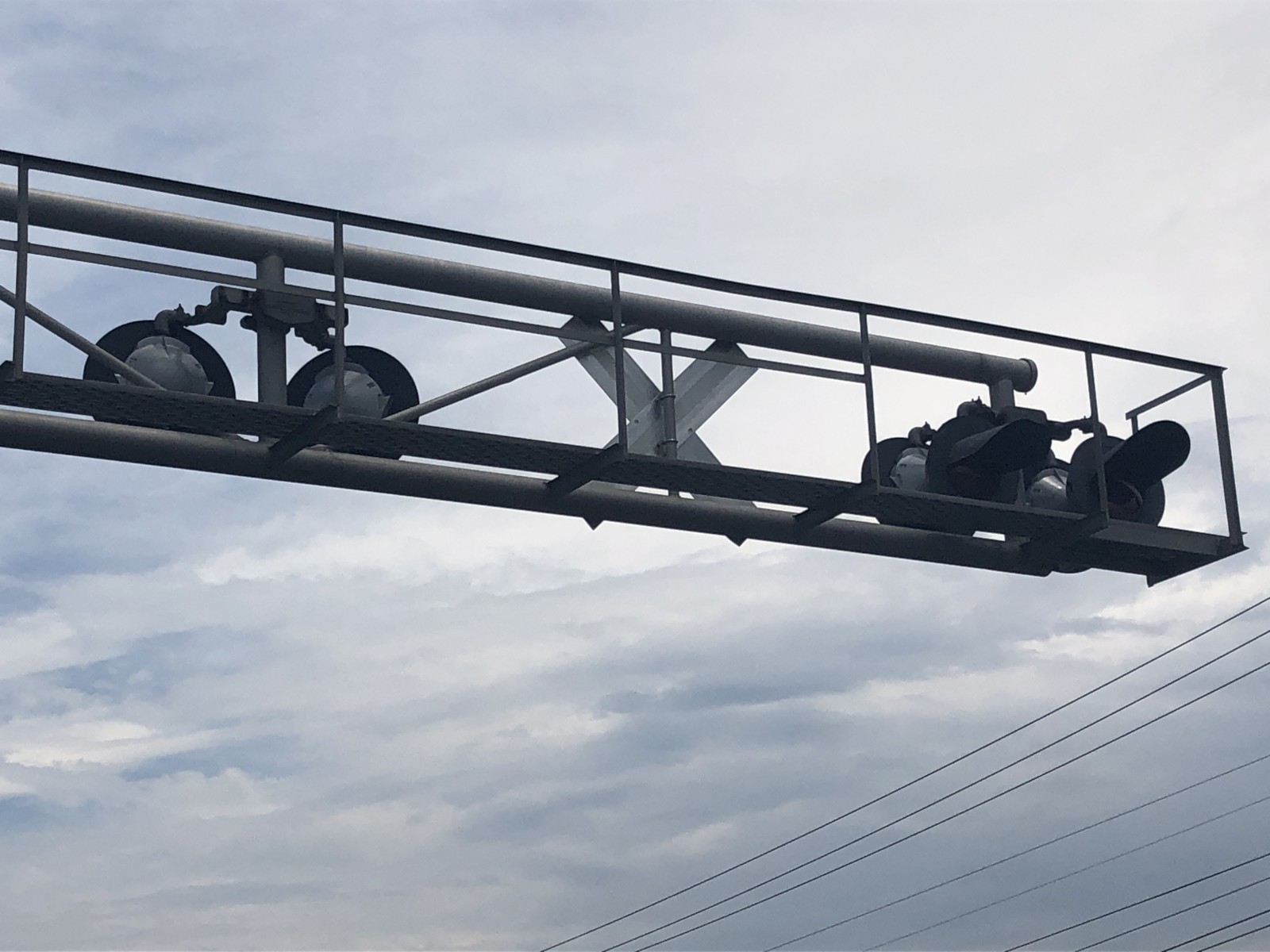

The front overhead lights are now more Safetran 12x24s with WCH 2nd Gen. LEDs |
||
89 |
90 |
91 |
The rear overhead lights are still Fedral Signal 12x20s, but now have more Leotek EV series LEDs. |

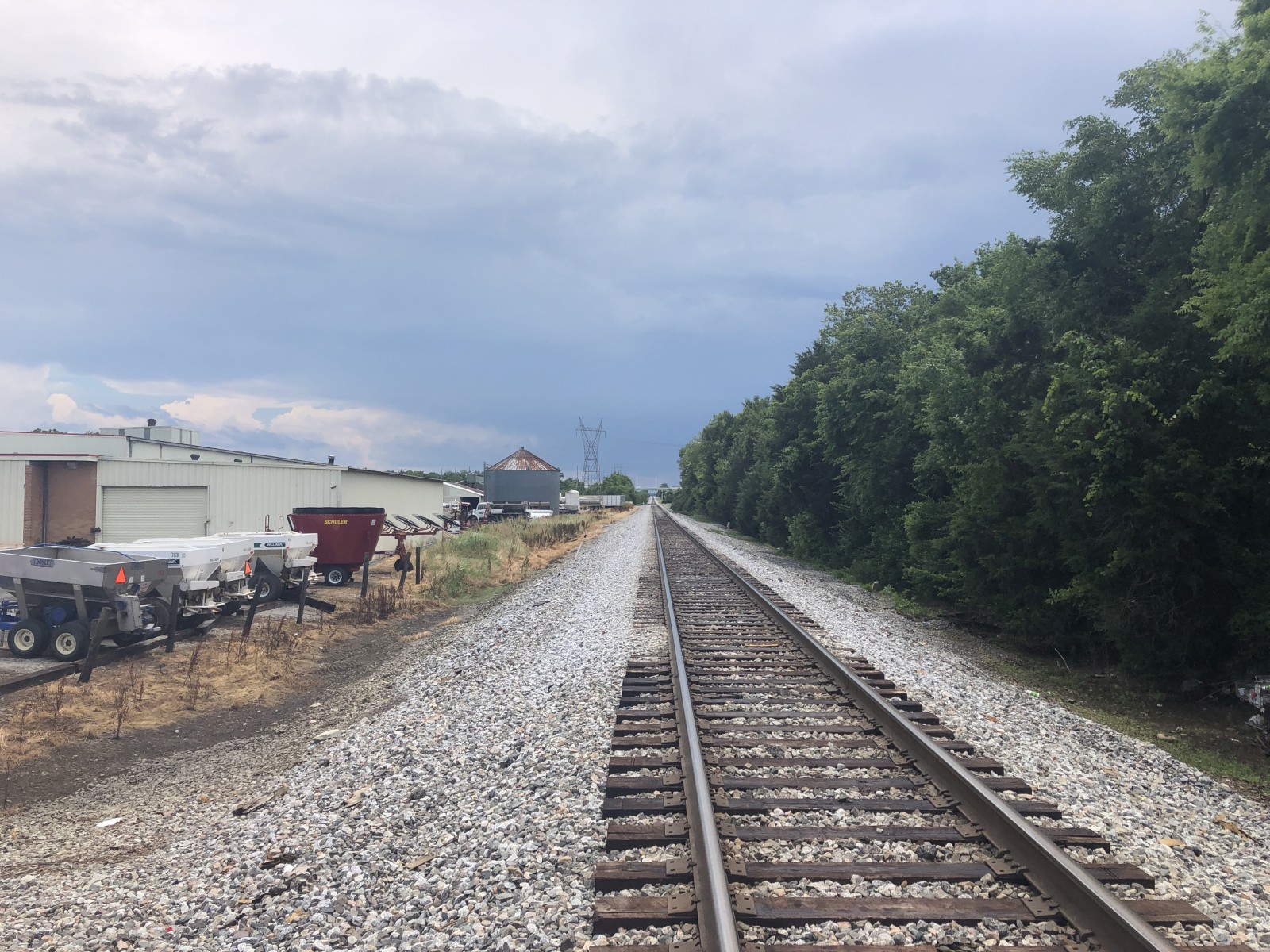

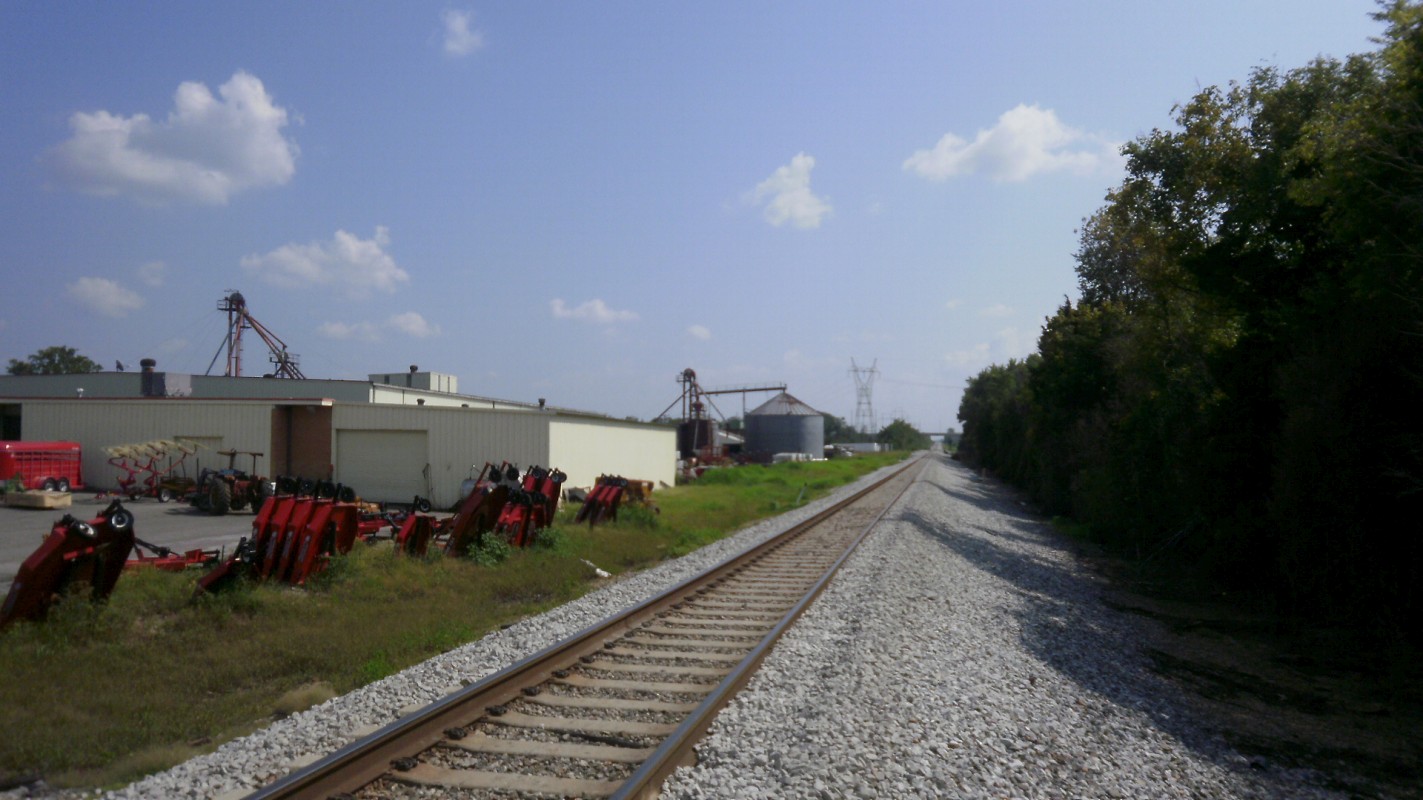

Track view facing north towards Old Salem Road. |
Track view facing south towards Butler Road. |
