MP:  00H197.060



Created September 25, 2019



Total Accidents:   12
Crossing DOT #:  348124H
TOTAL DAILY TRAINS:   26   (AS OF 1975)



Page created by: Ethan the Railfanner.



This crossing is located on the CSX Henderson Subdivison.



1

2

3

4

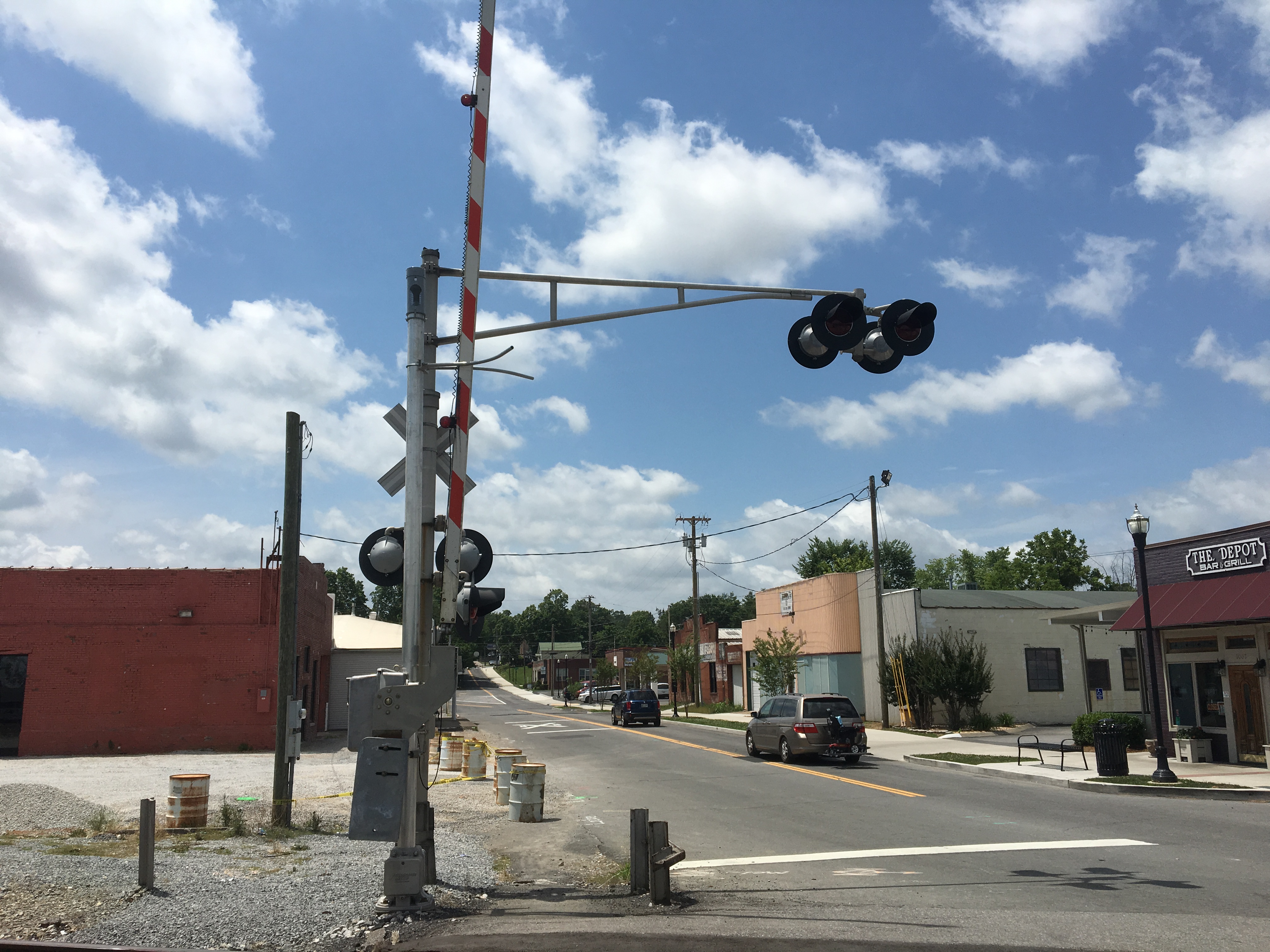

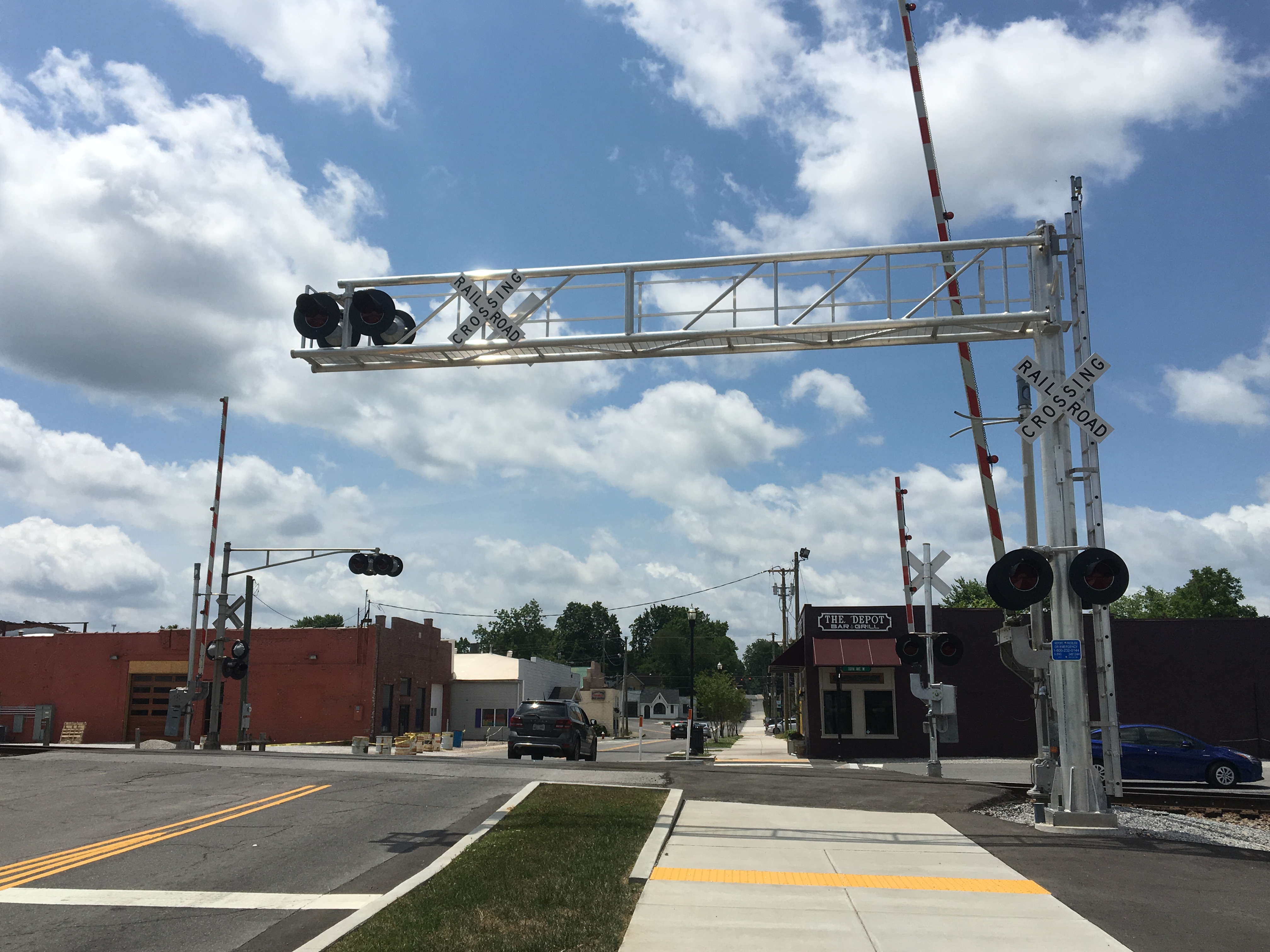

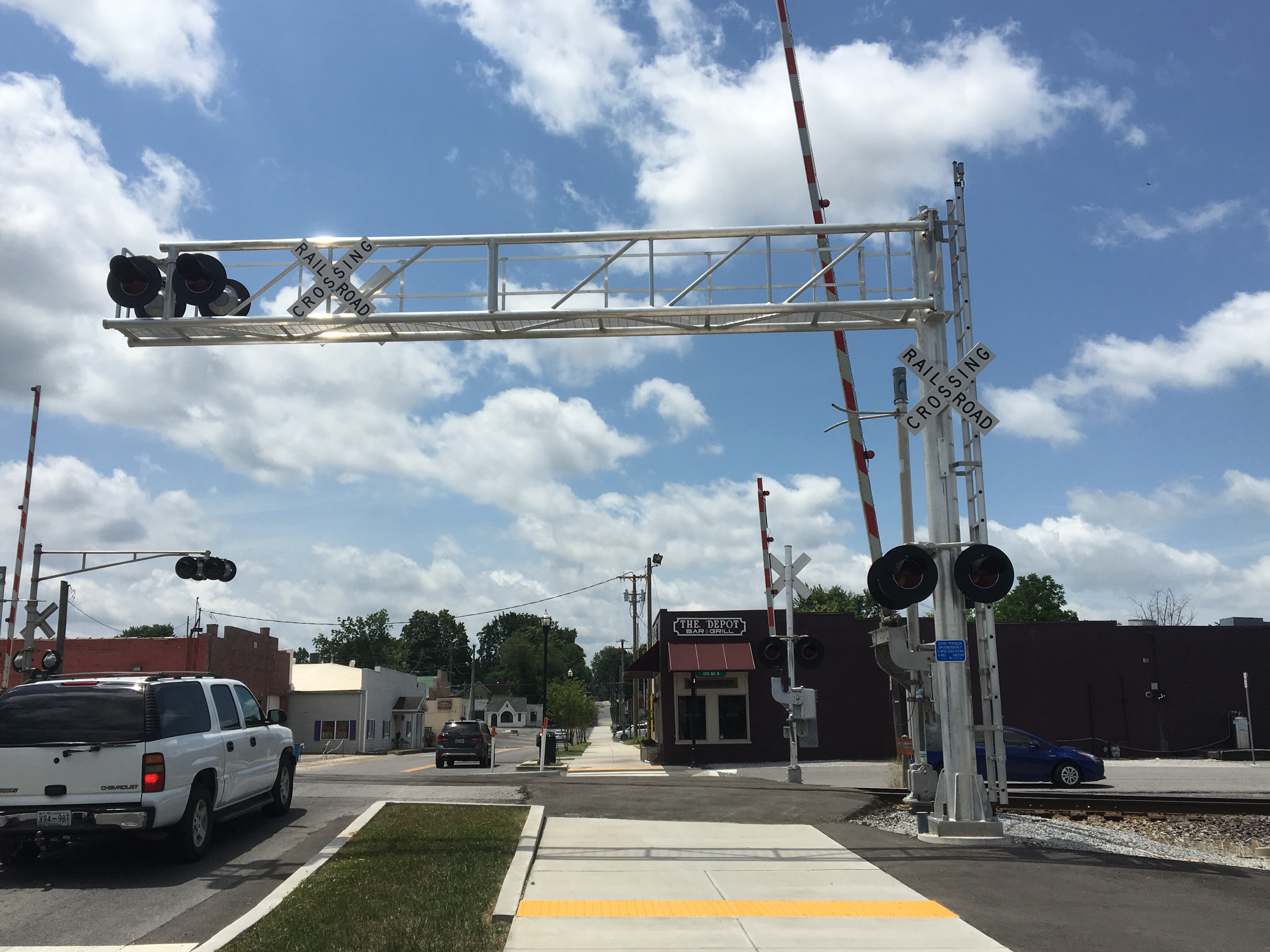

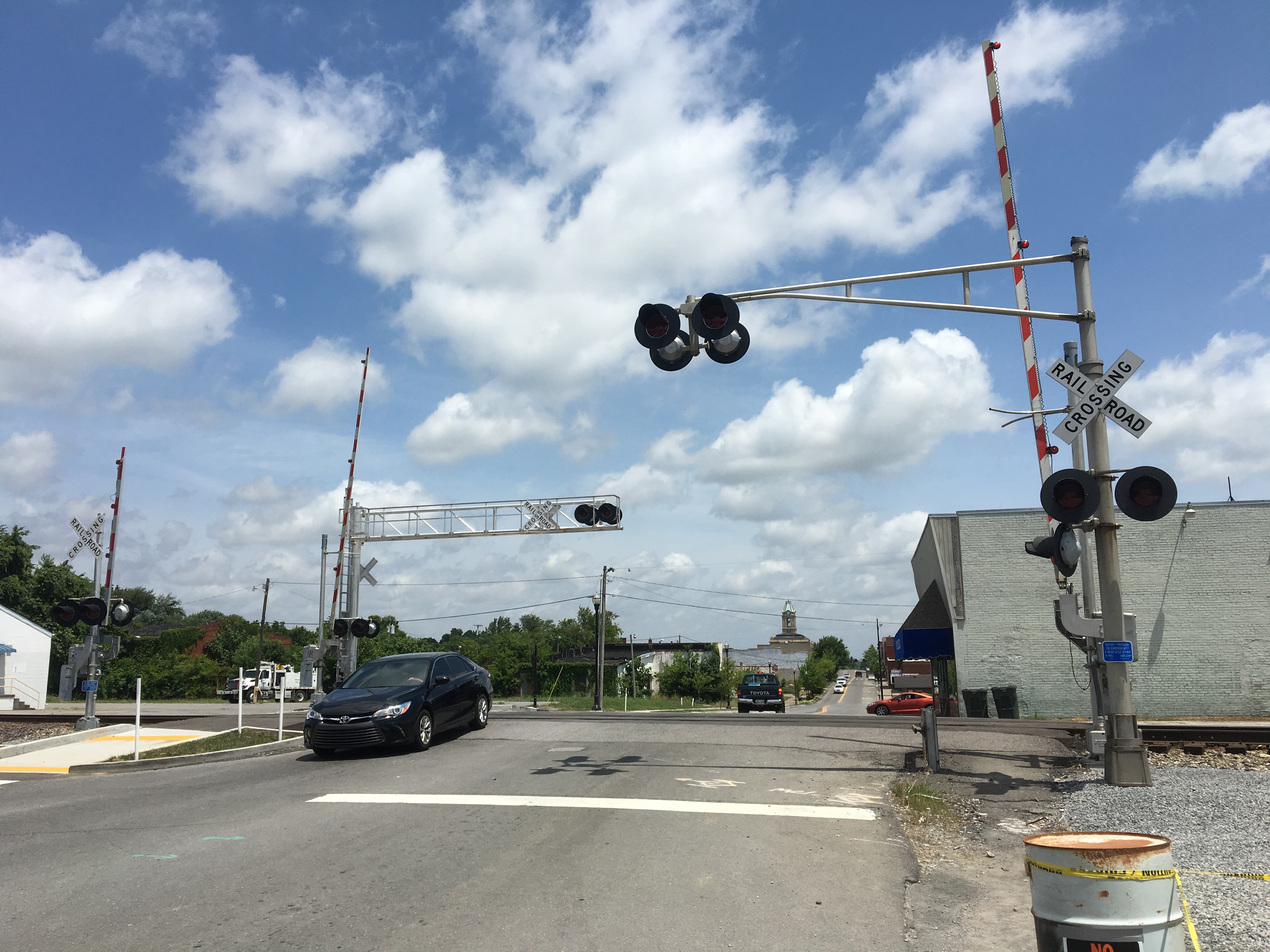

Overviews of this crossing.
The northern signal

5

6

7

8
It has a WCH cantilever!

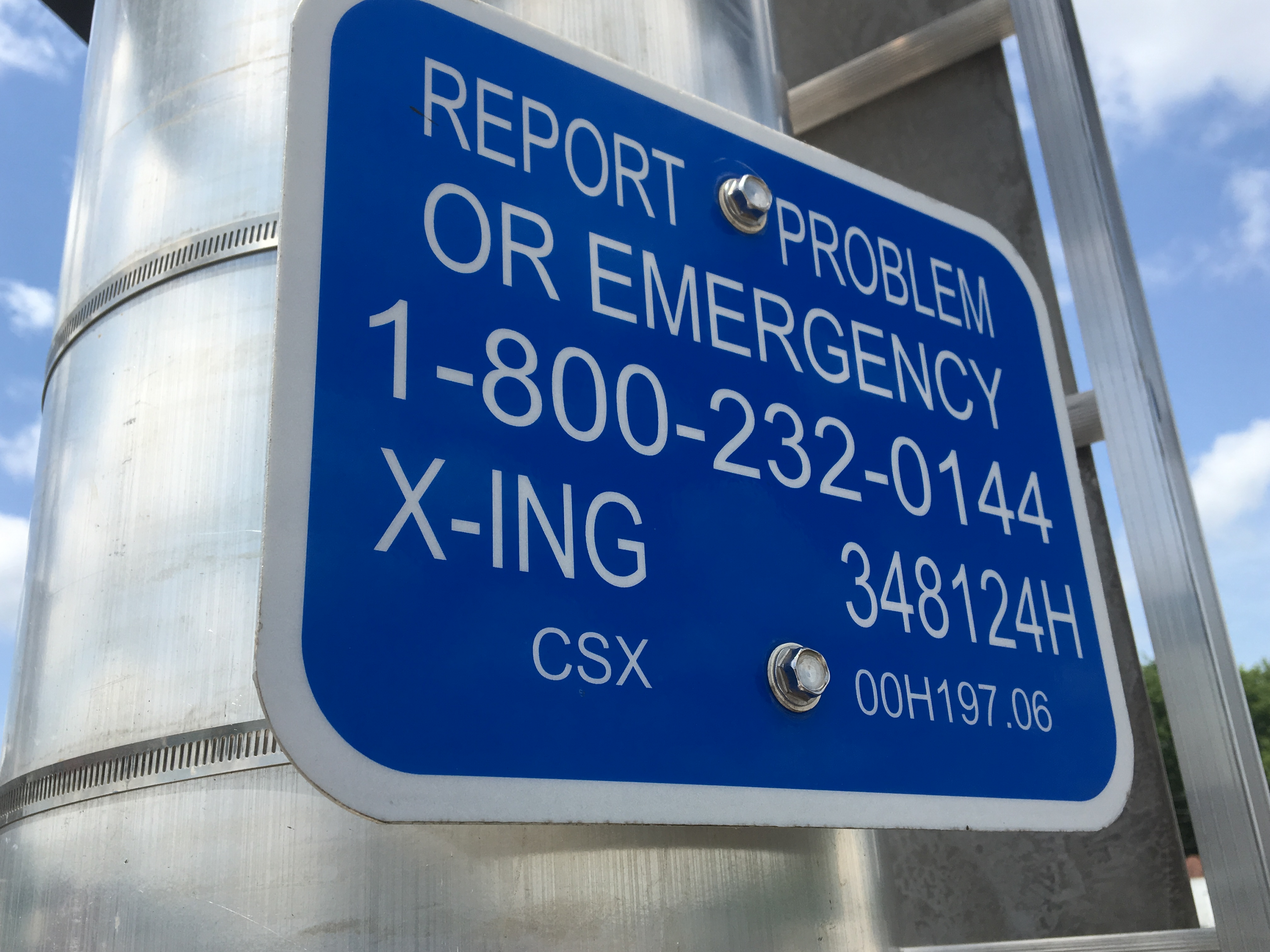

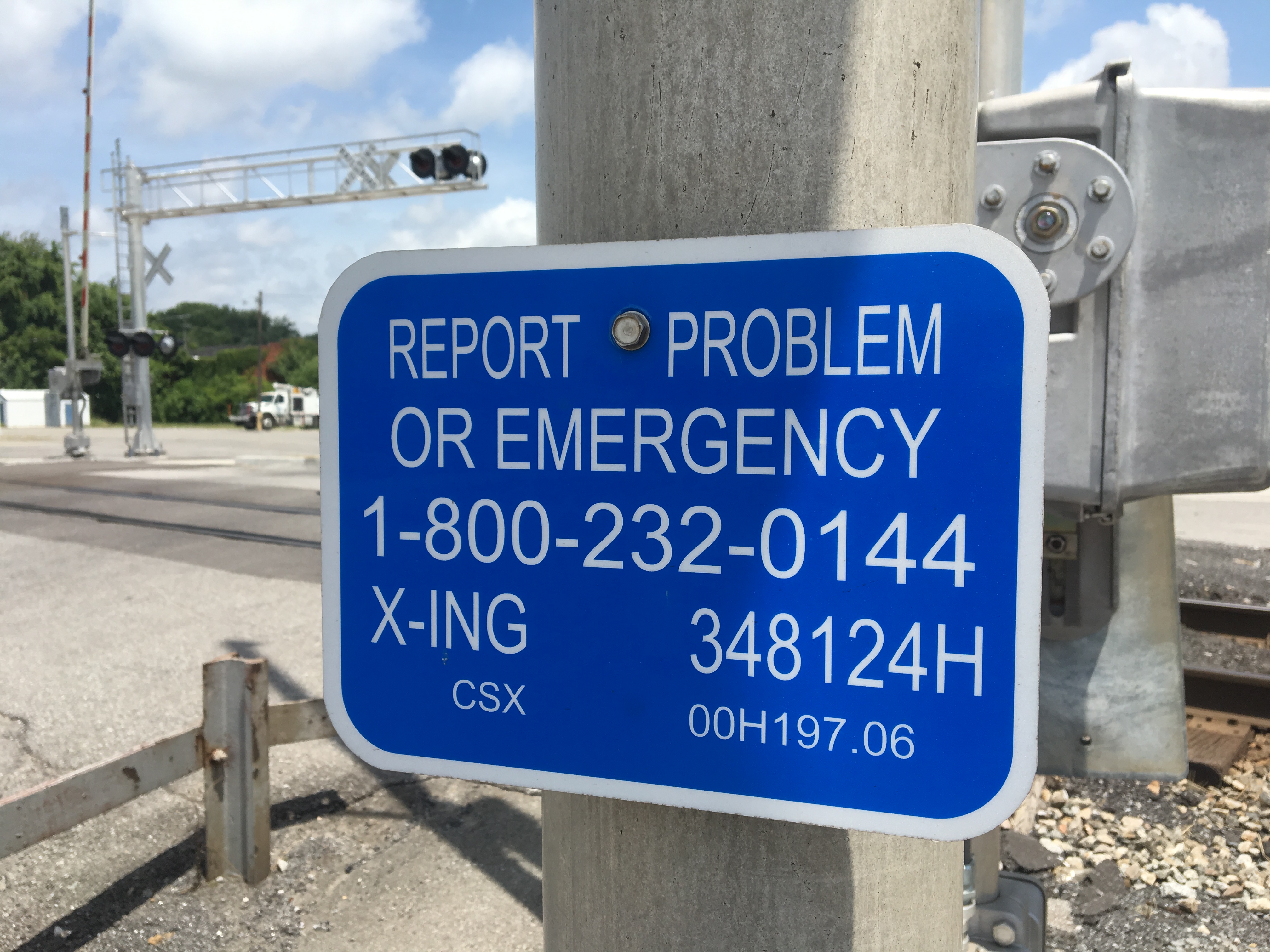

The emergency information.

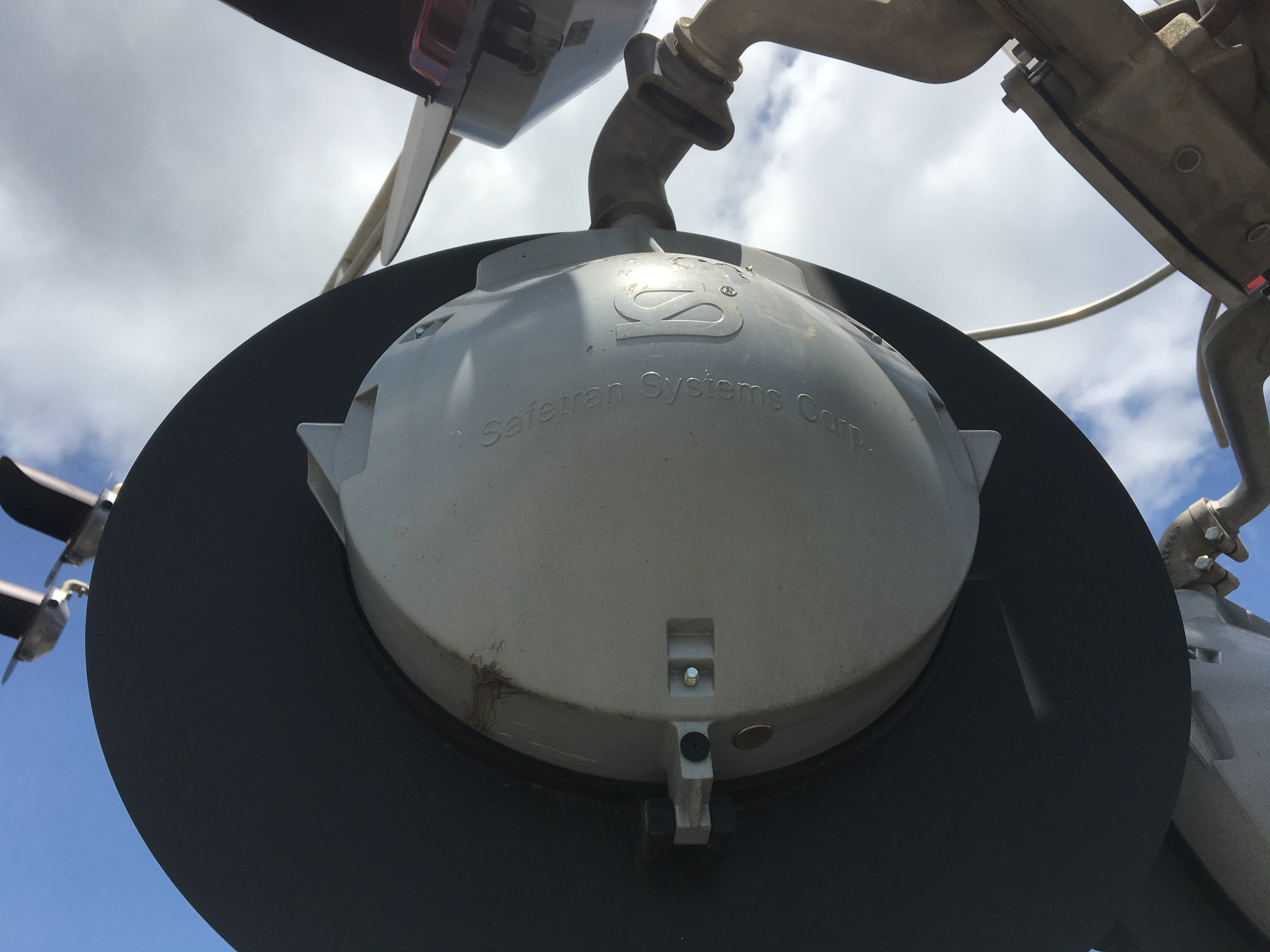

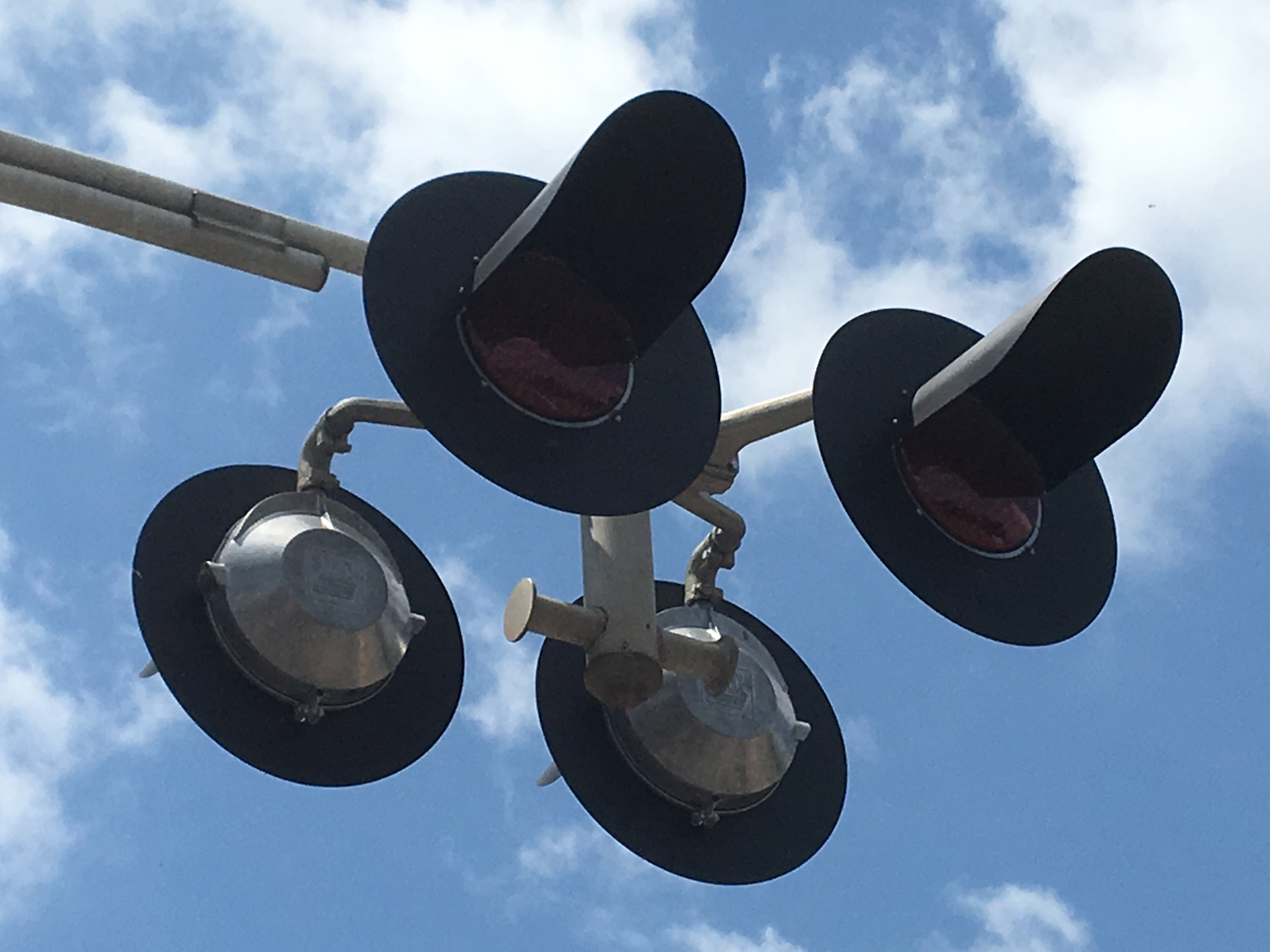

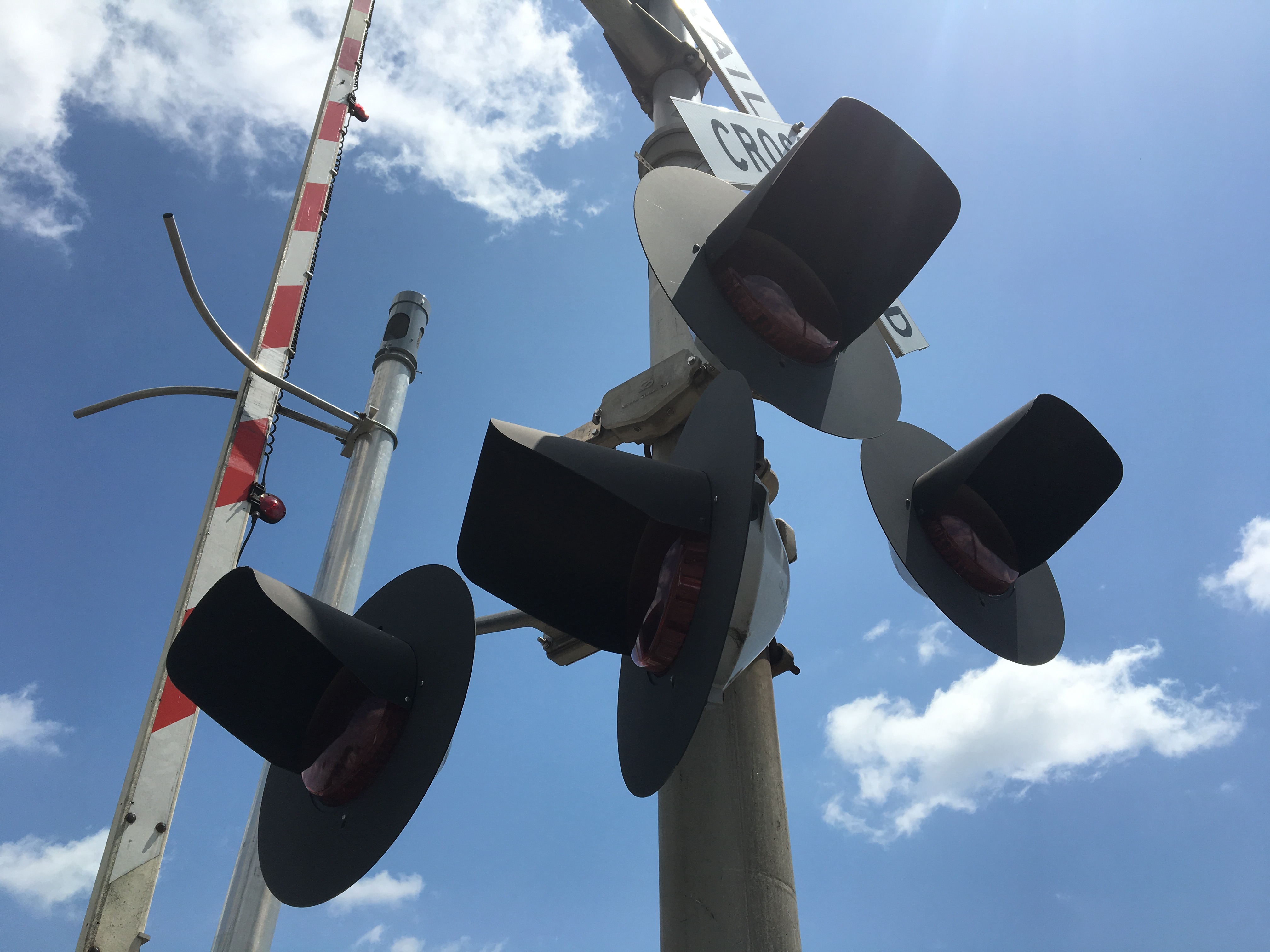

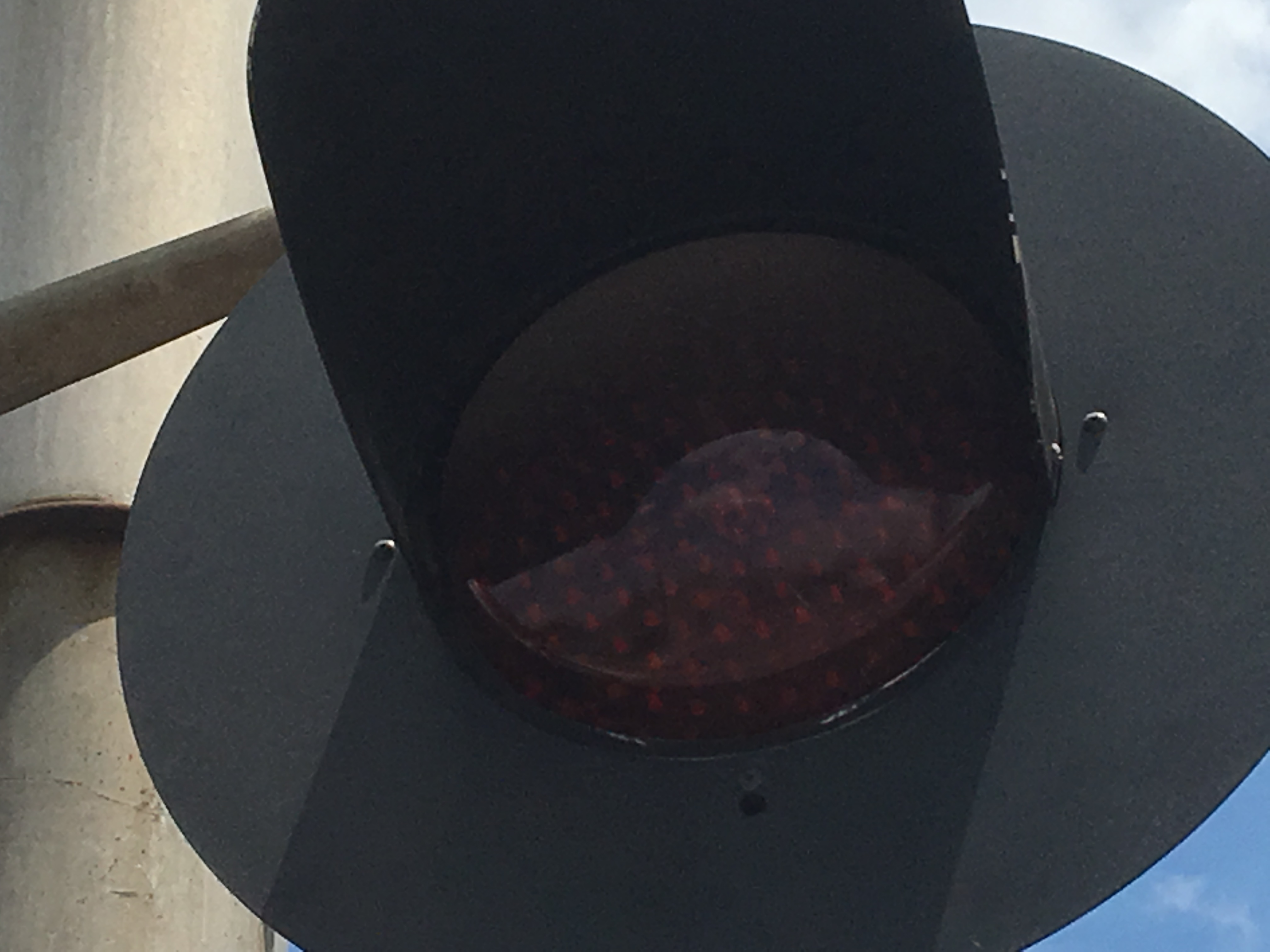

The mast lights on this signal are all Safetran 12x24s with WCH 2nd Gen. LEDs.

9

10

11

12

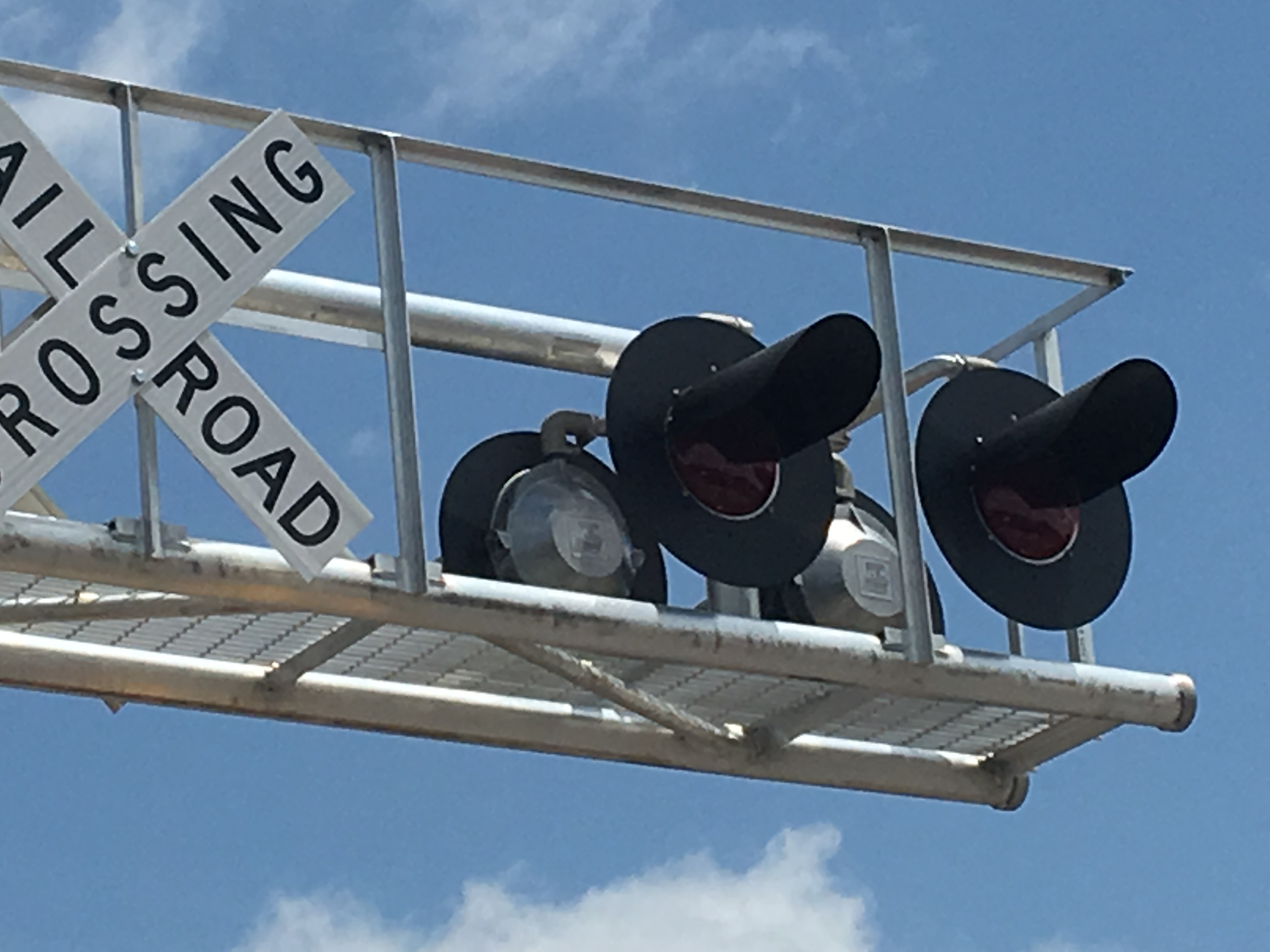

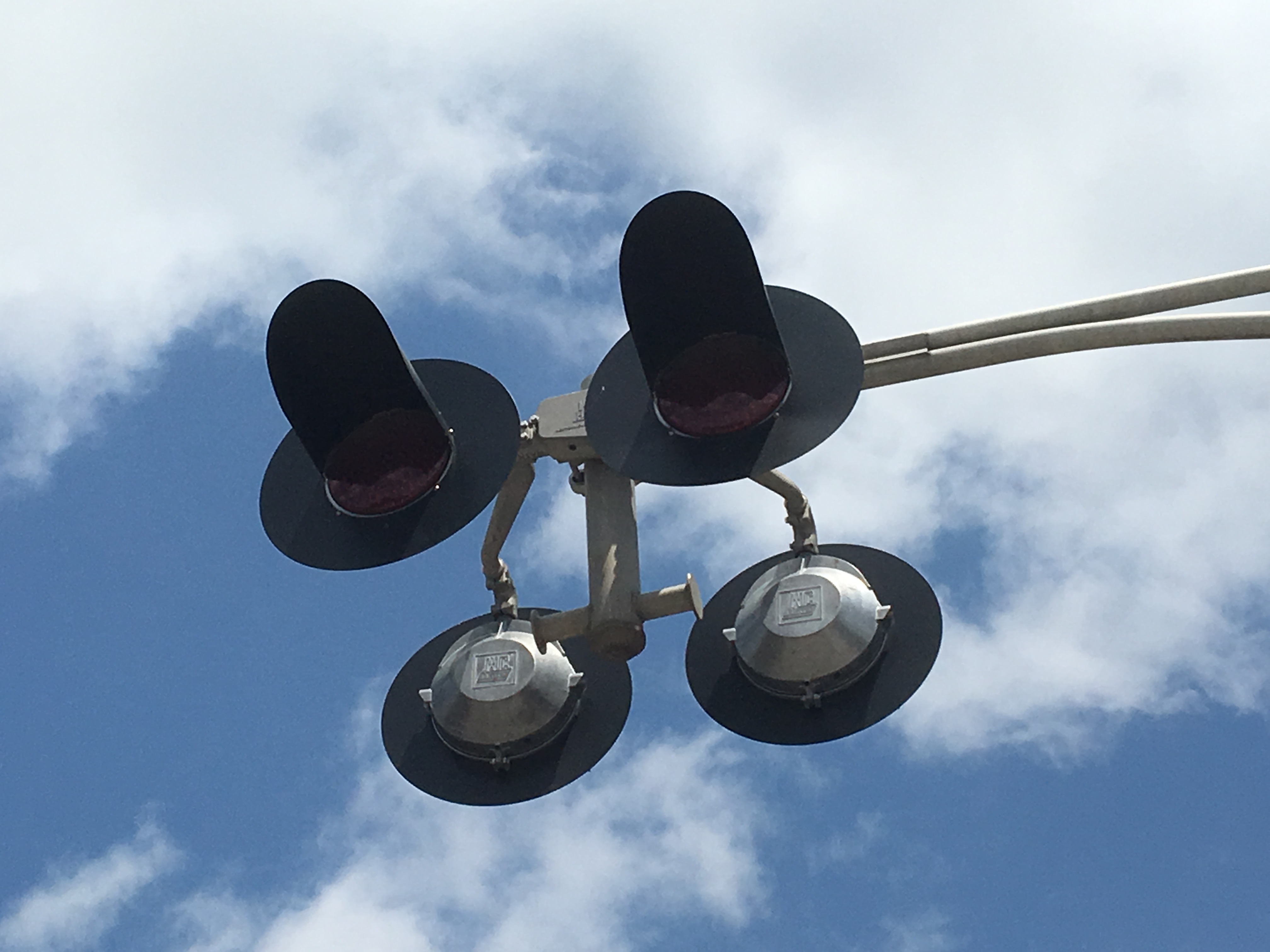

The overhead lights are WCH 12x24s with Leotek EV series LEDs.

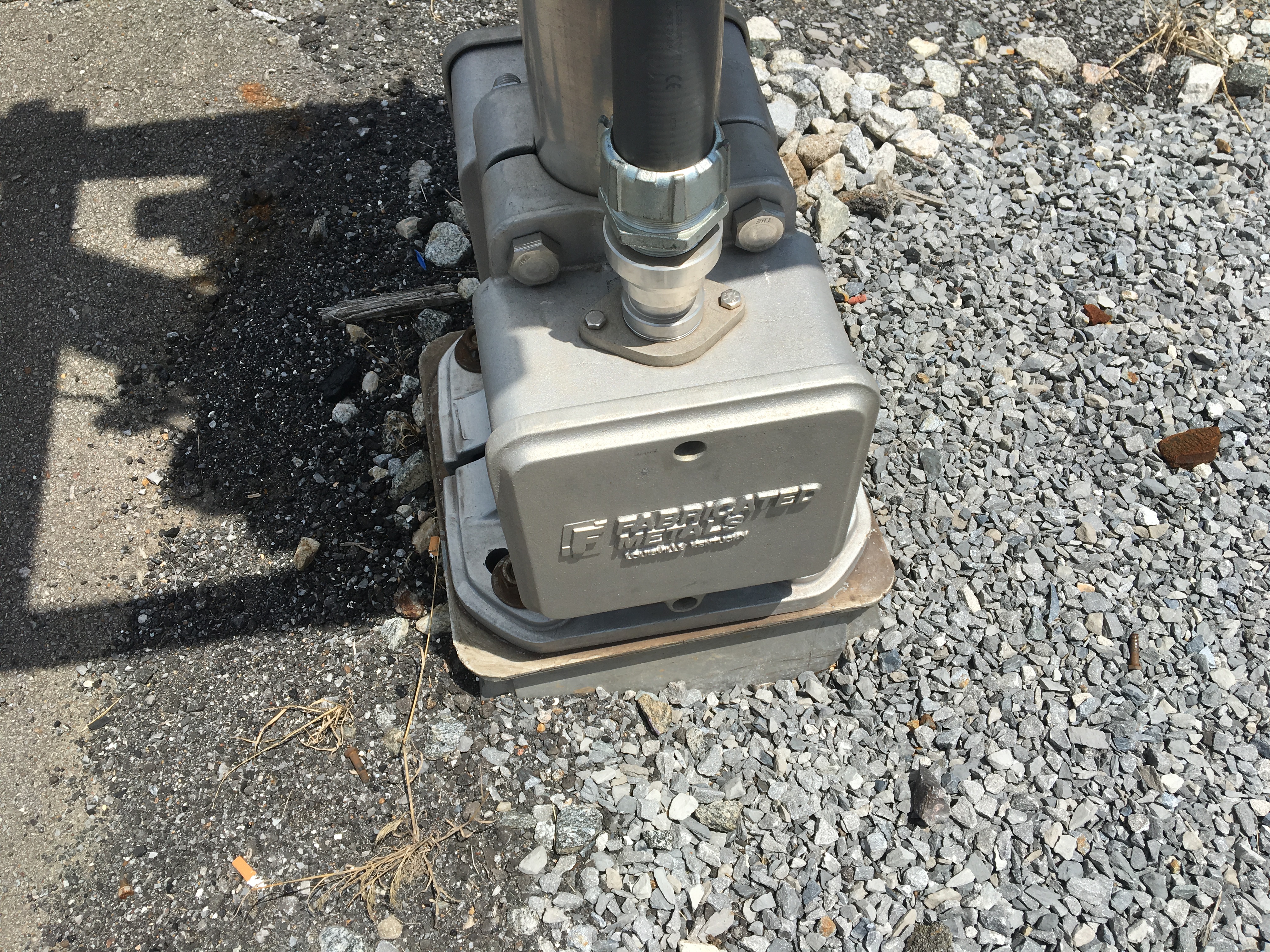

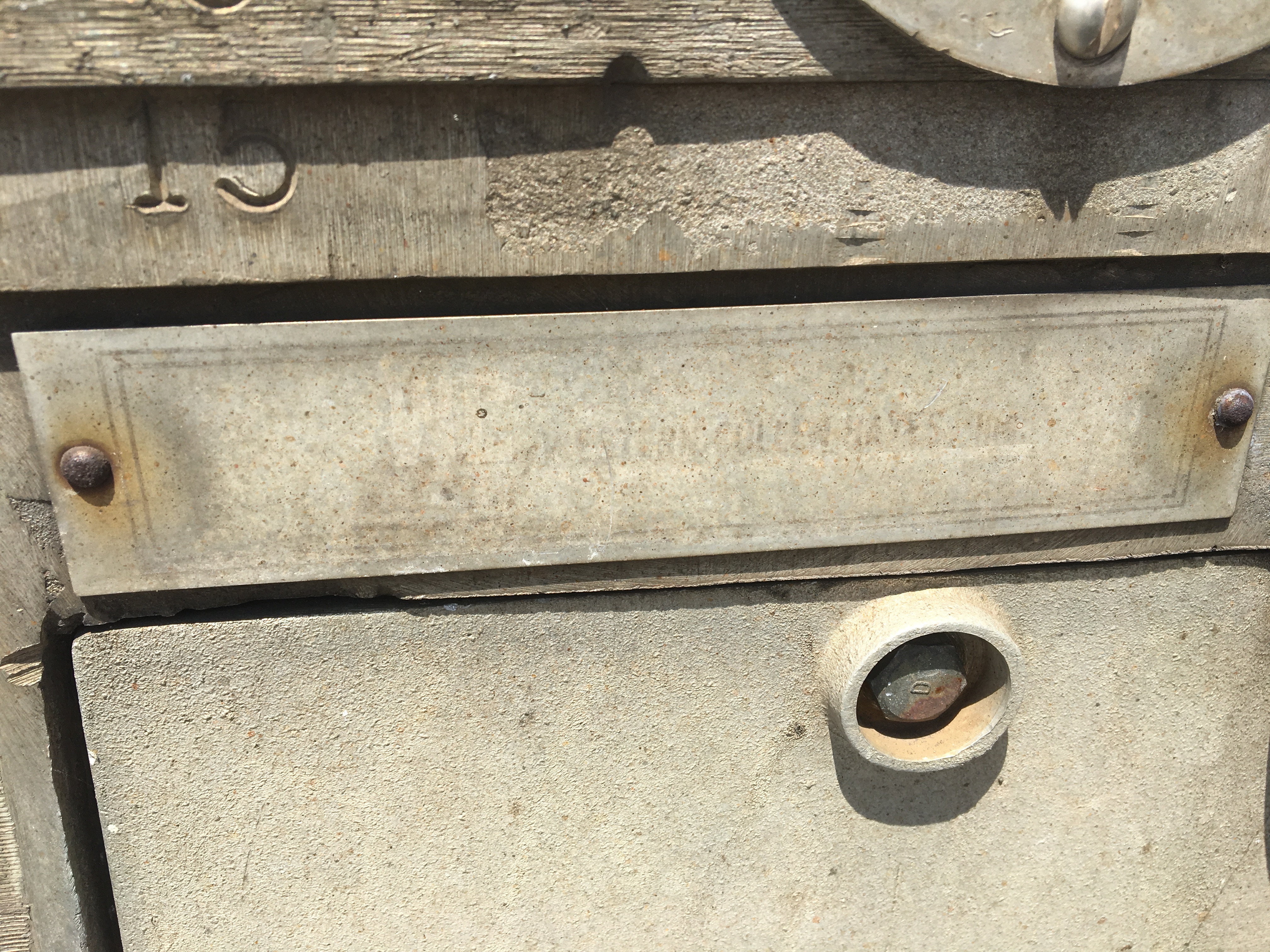

A Fabricated Medals base.

13

14

15

16

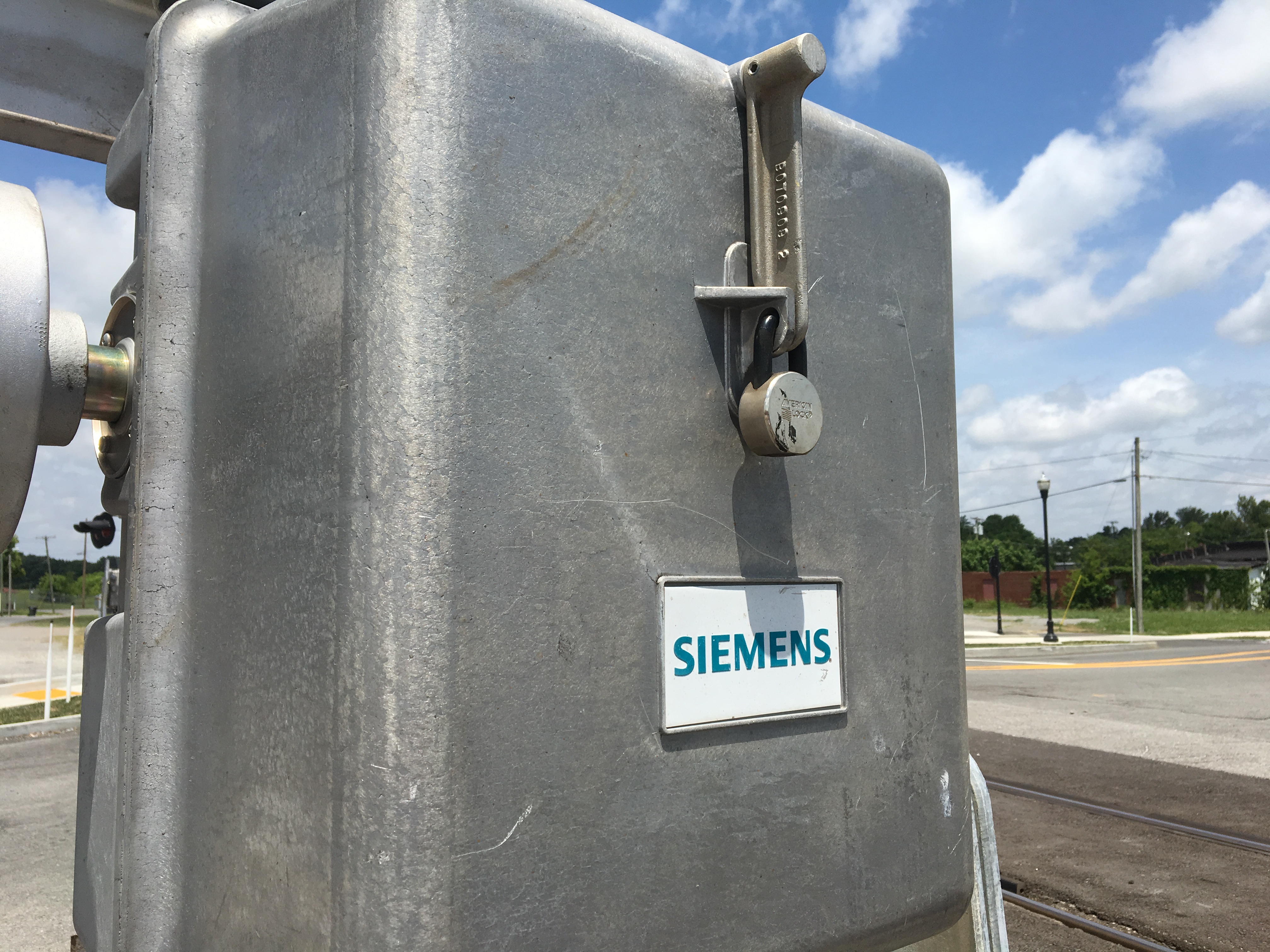

A Siemens gate mechanism.

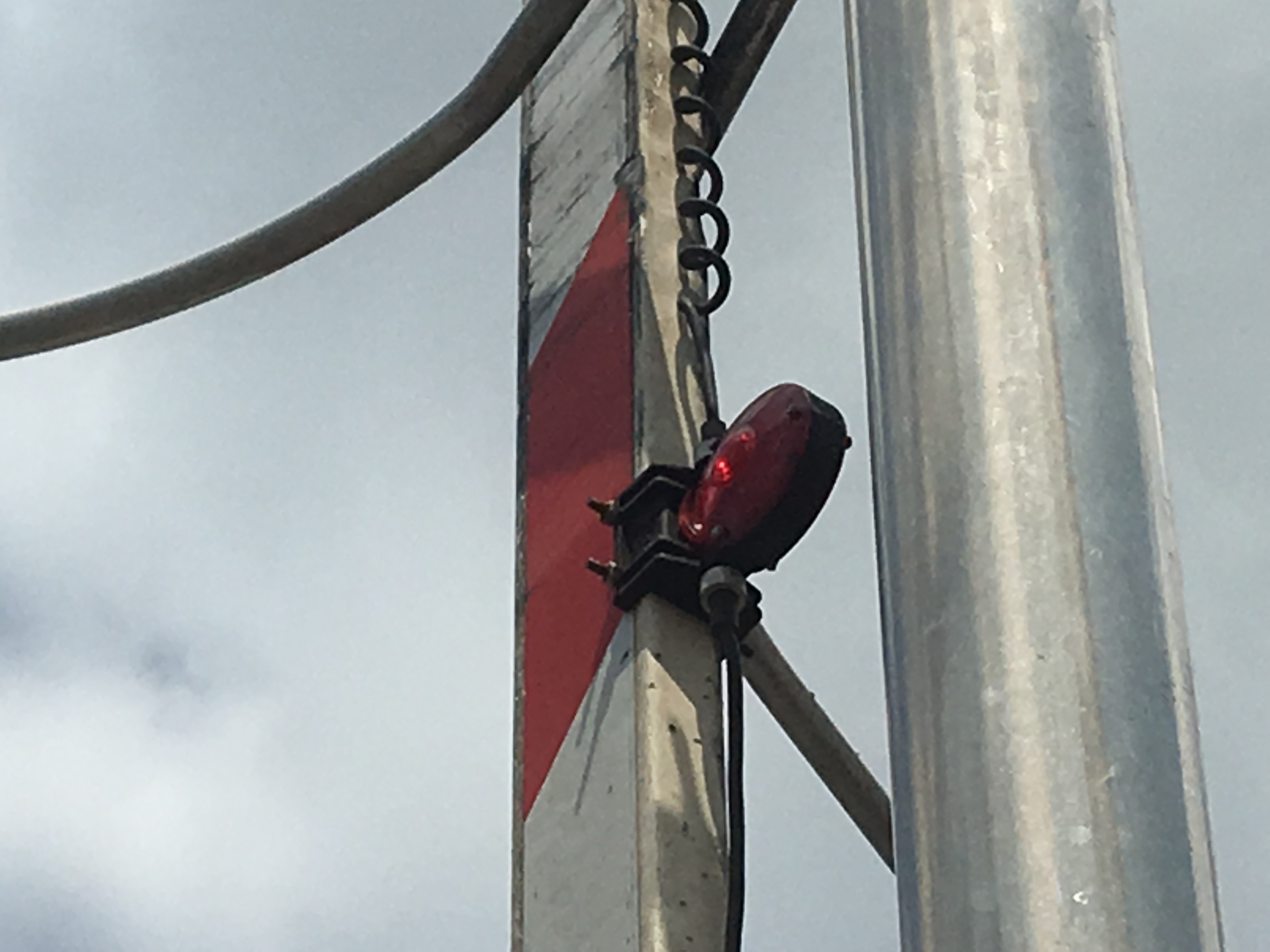

This signal has RECO LED gatelights.

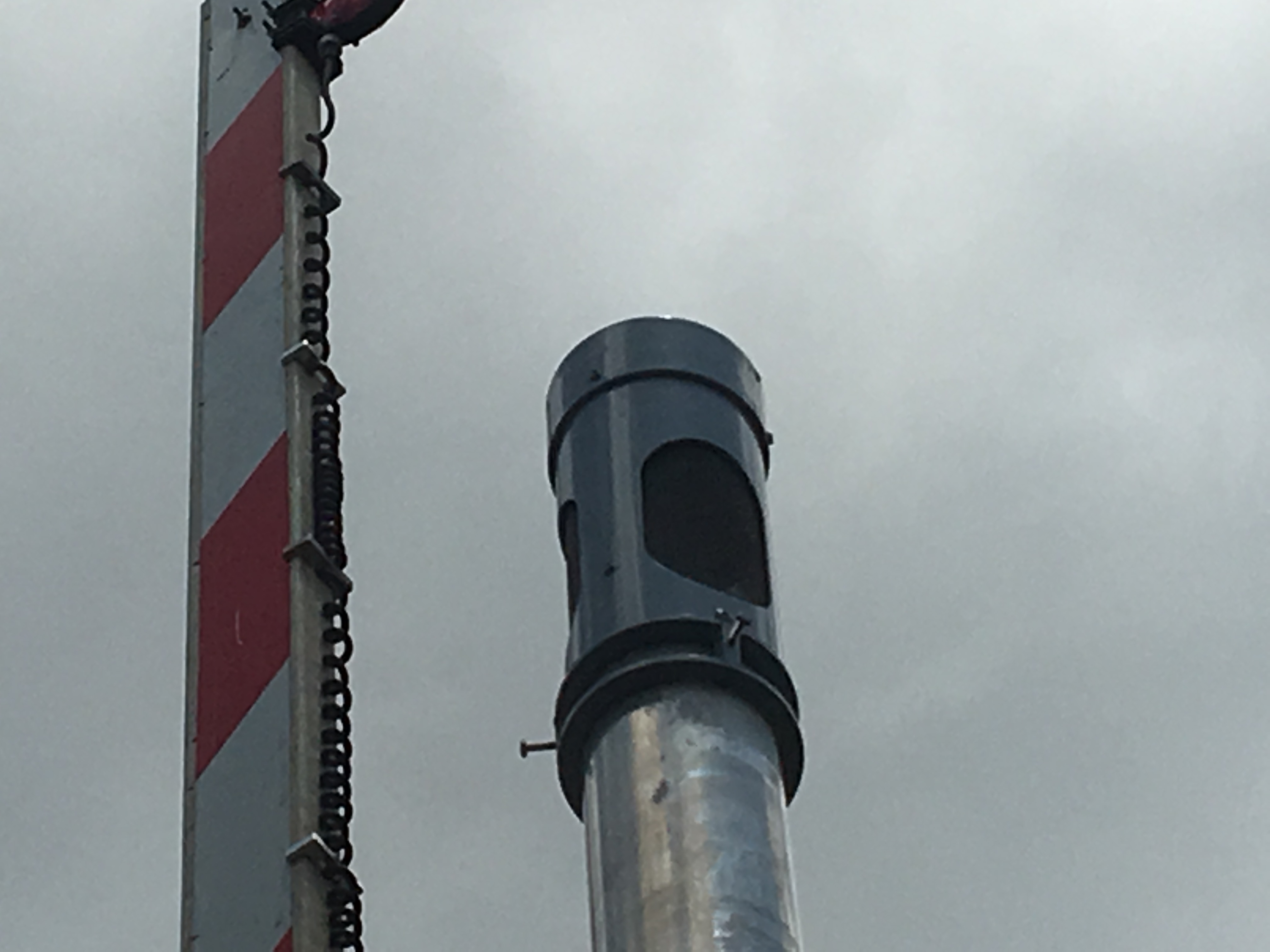

The bell is an NEG E-Bell.

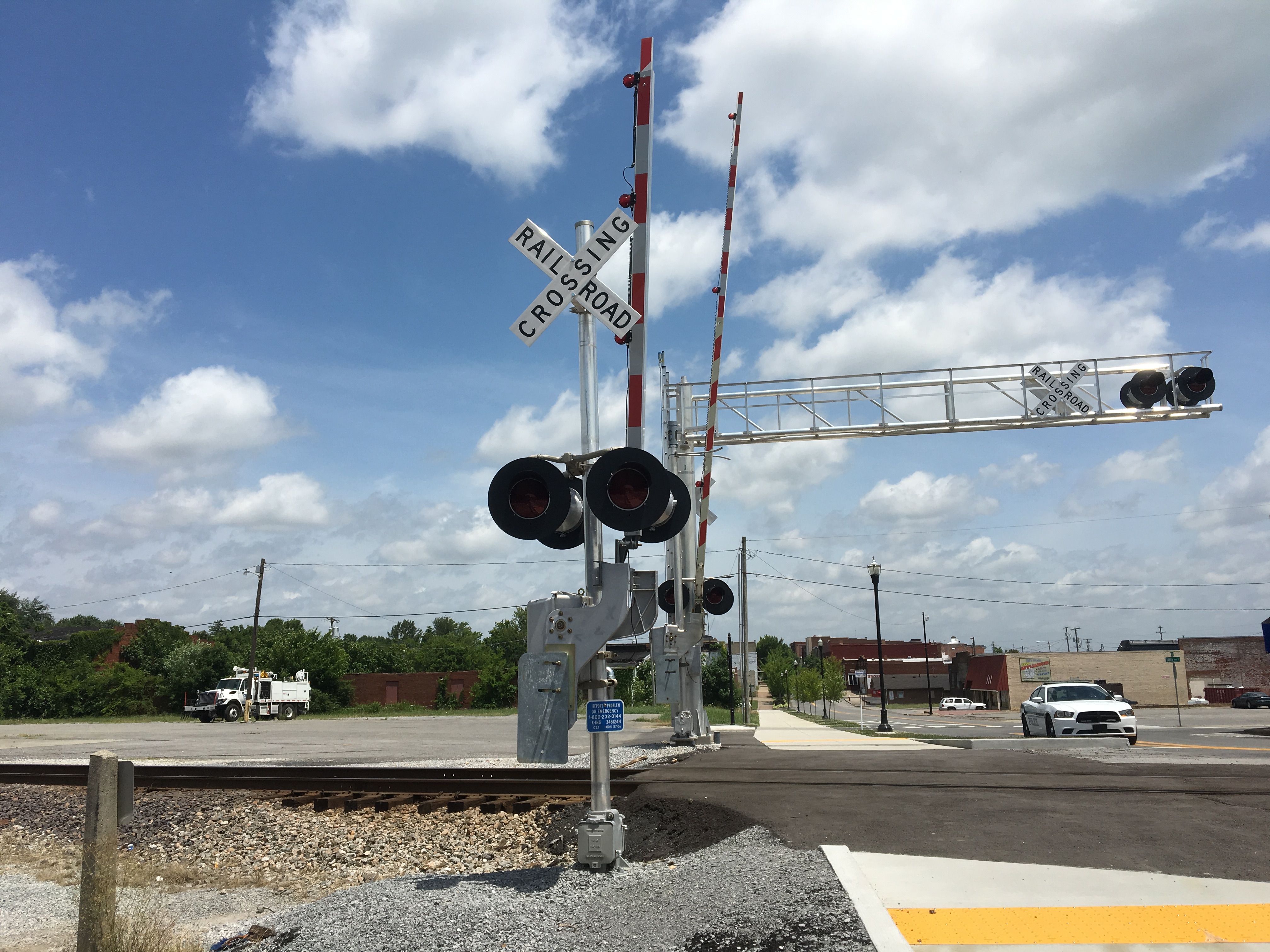

The southern signal.

17

18

19

20

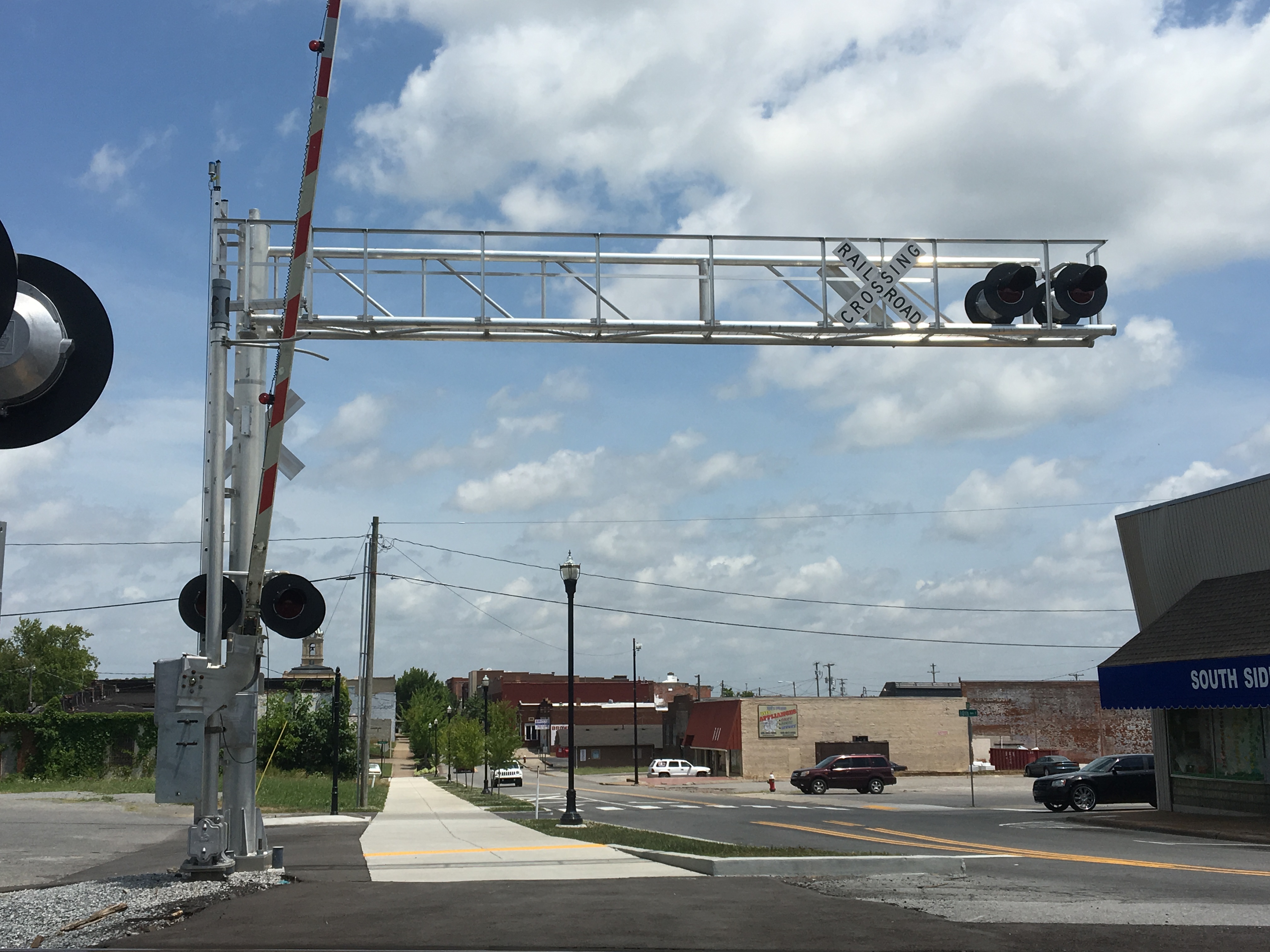

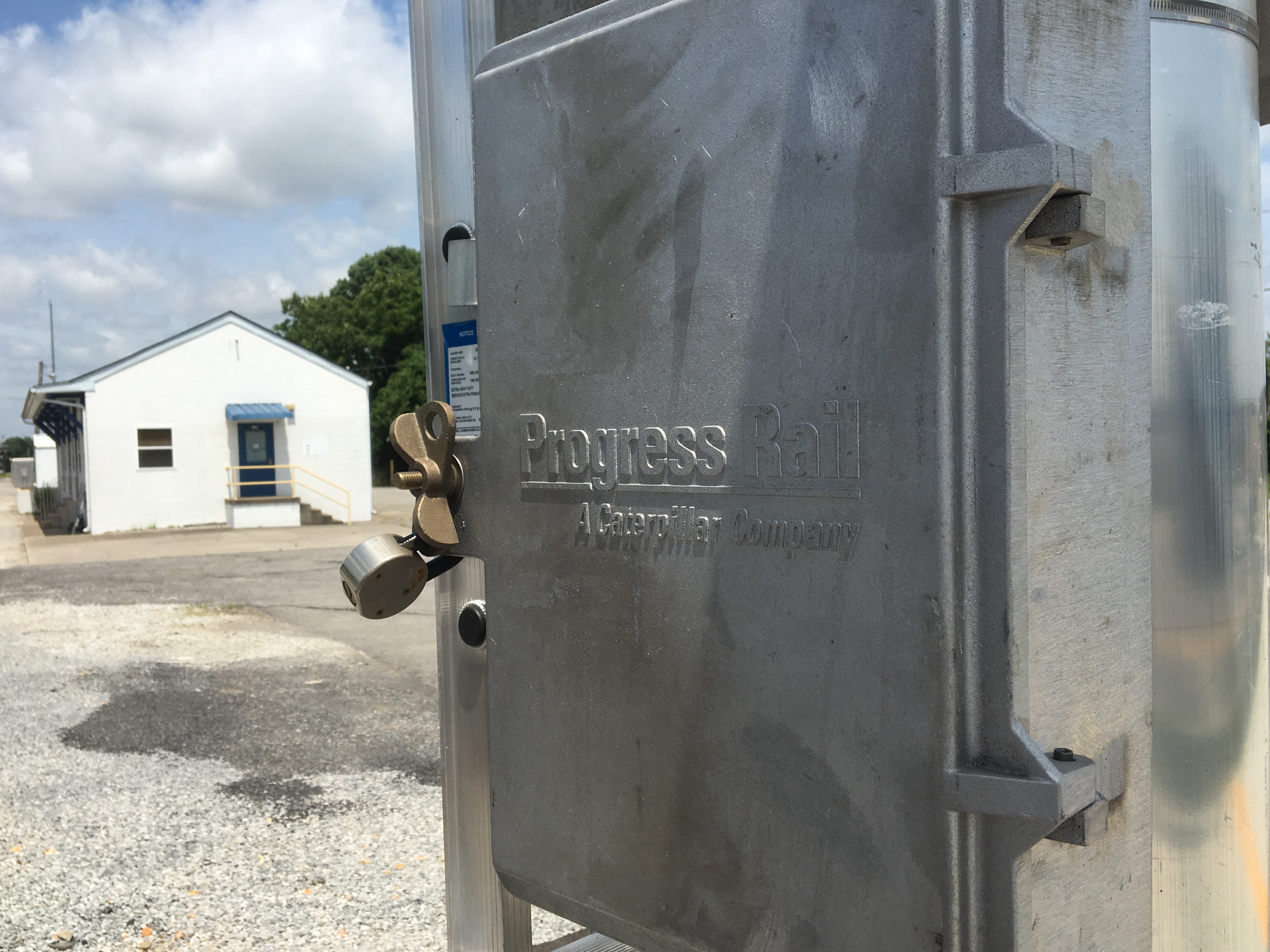

It is a Progress Rail Cantilever.
The emergency information.

21

22

23

24

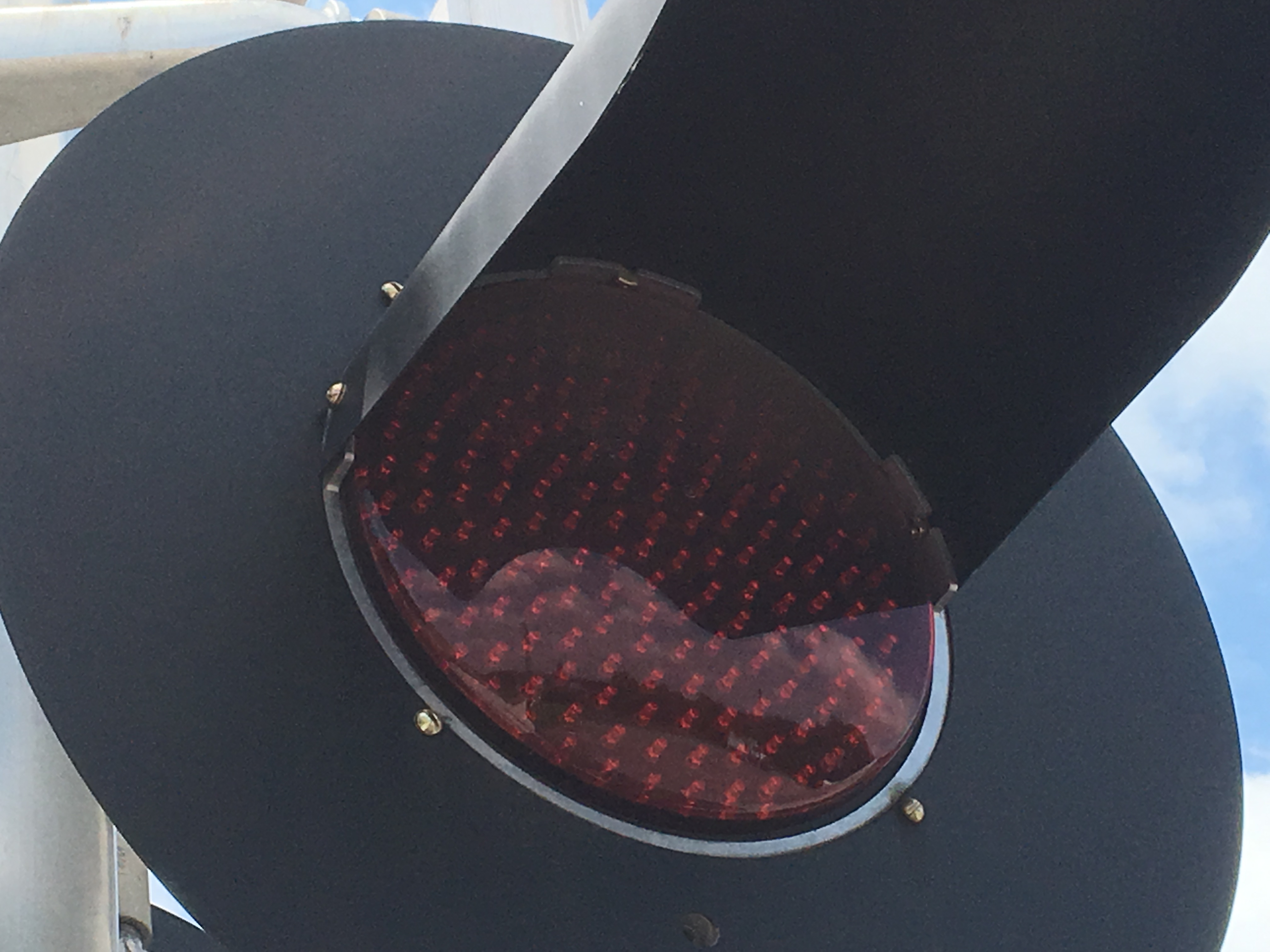

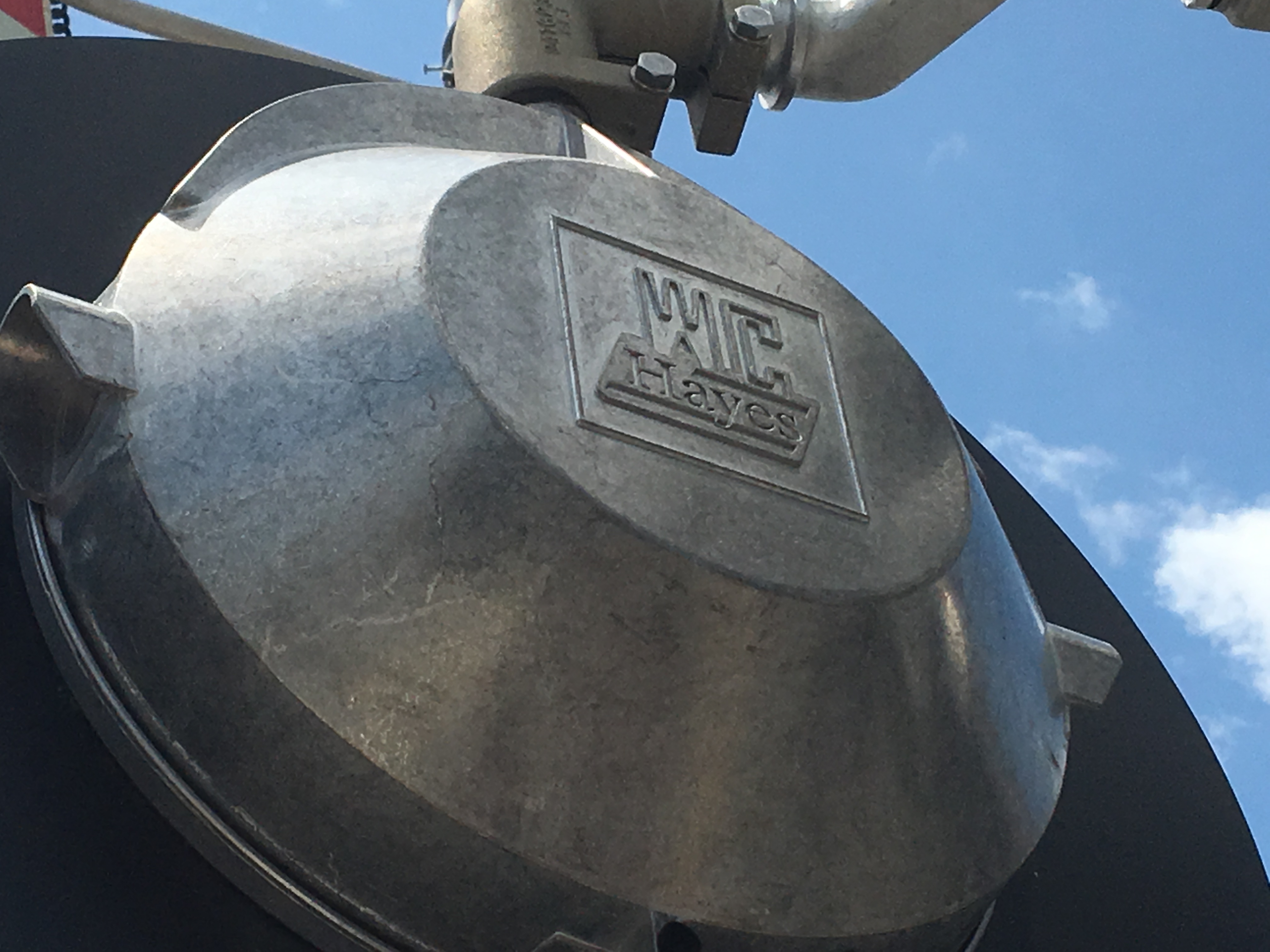

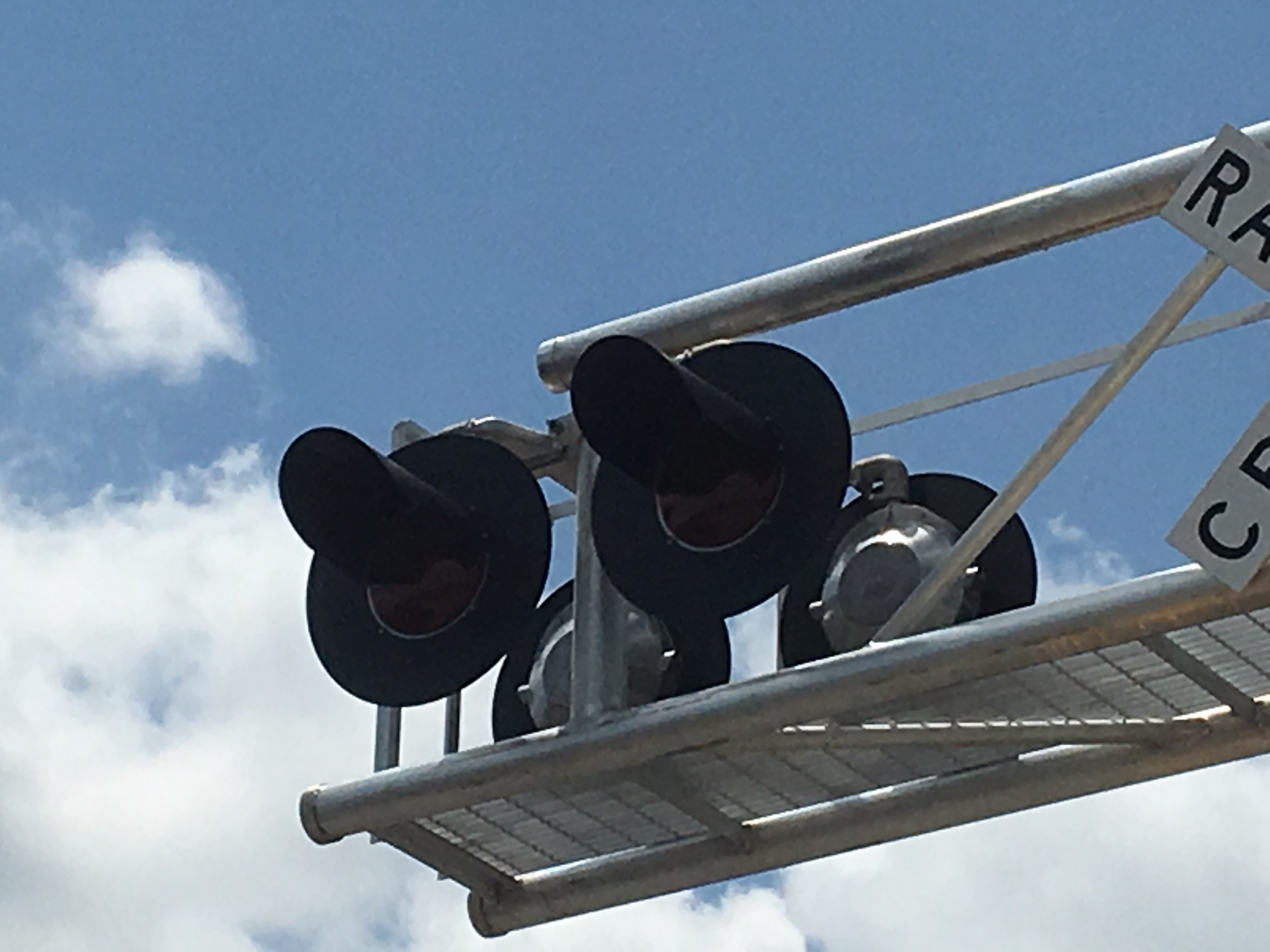

This signal has all WCH 12x24 lights with Leotek EV series LEDs.

25

26

27

28

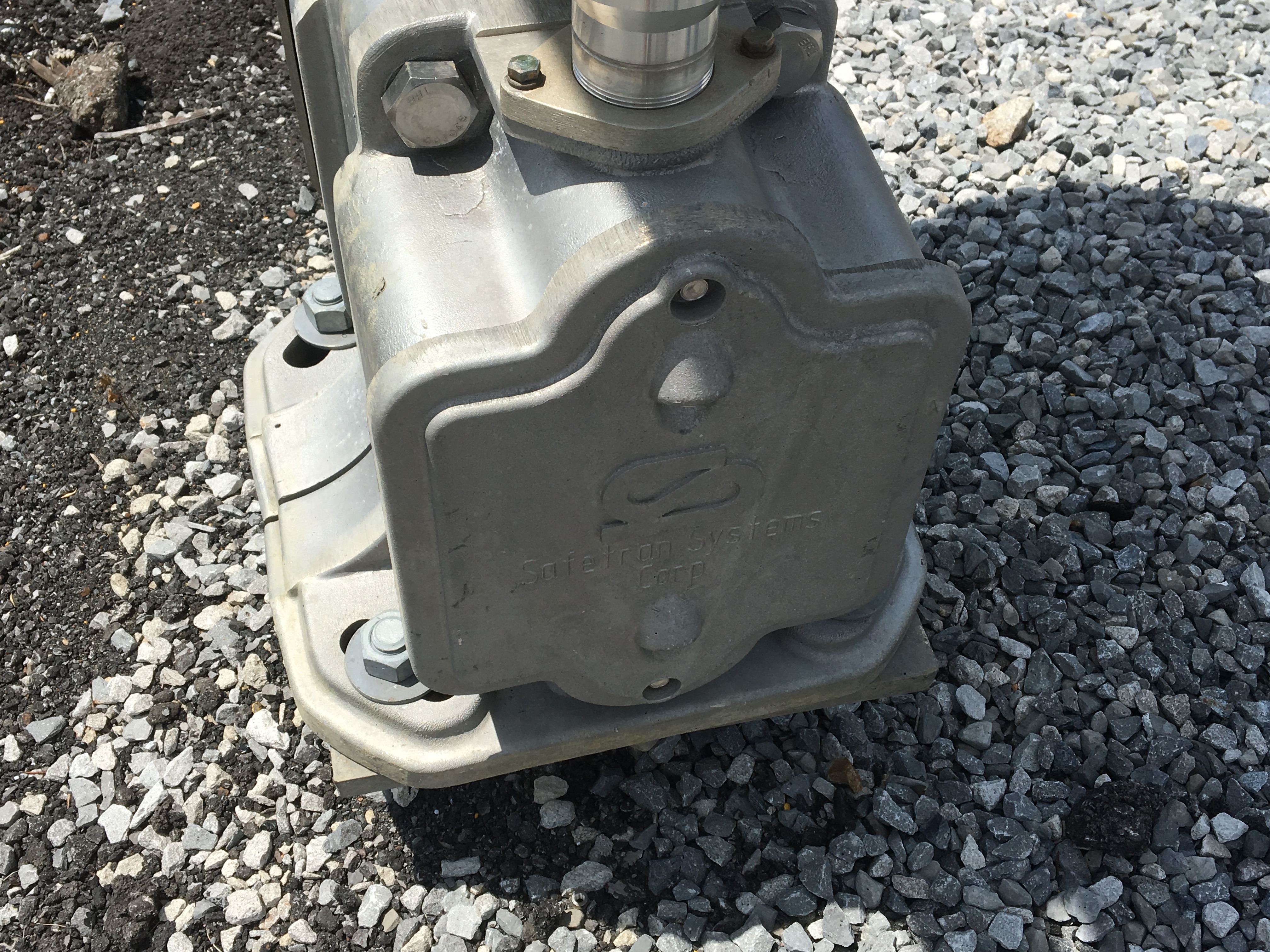

A Safetran base.

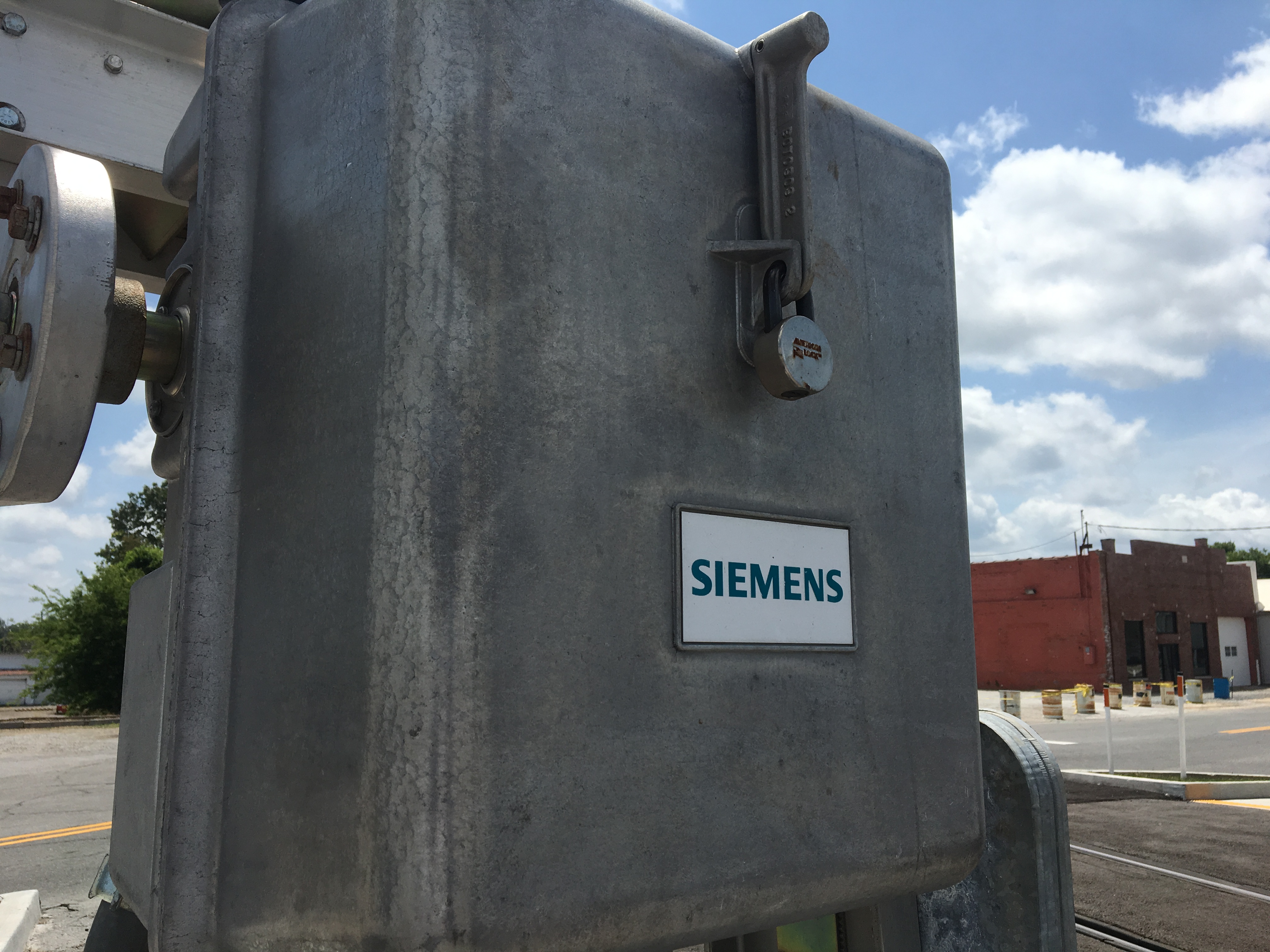

Another Siemens gate mechanism.

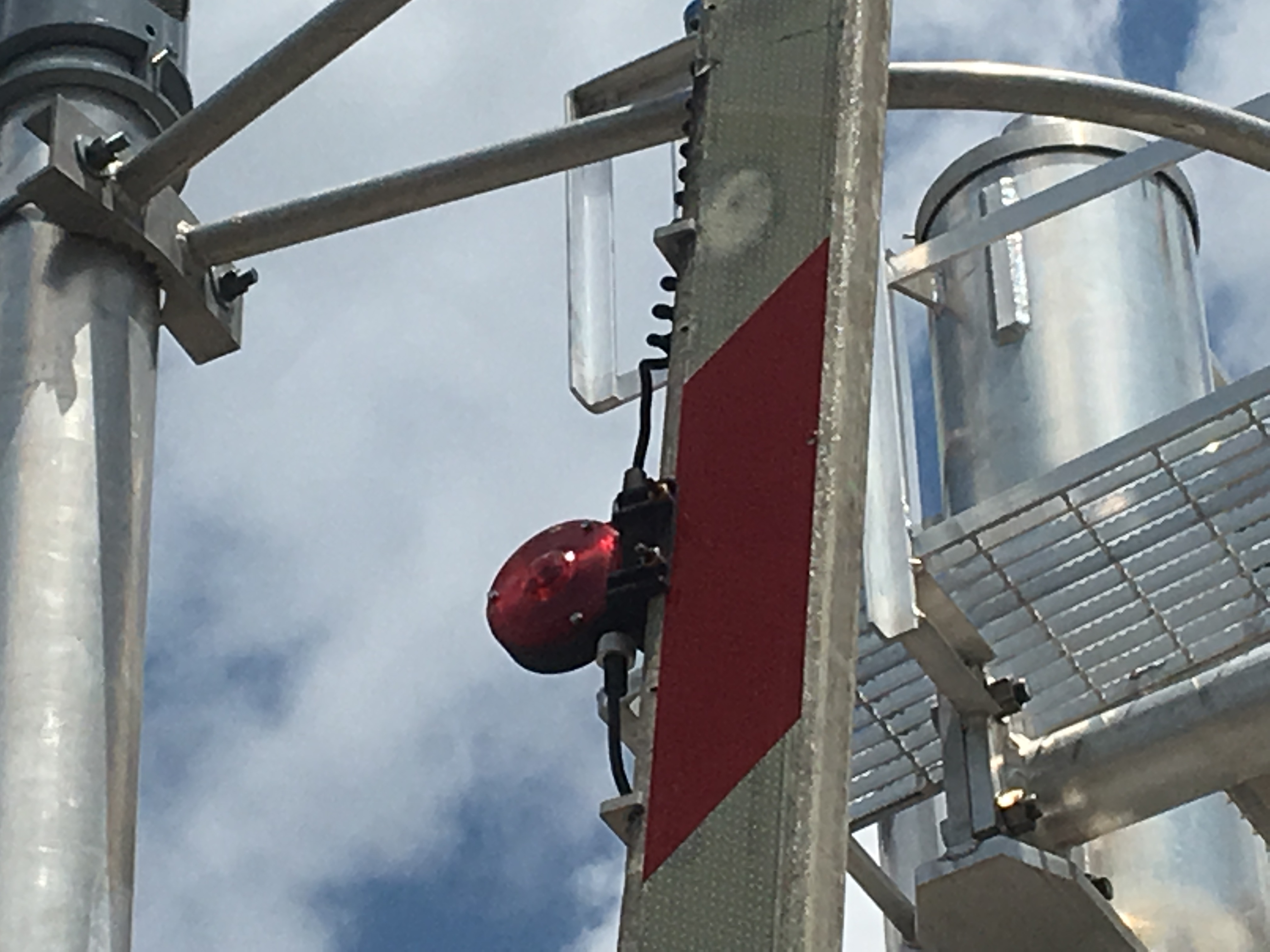

More RECO LED gatelights over here.

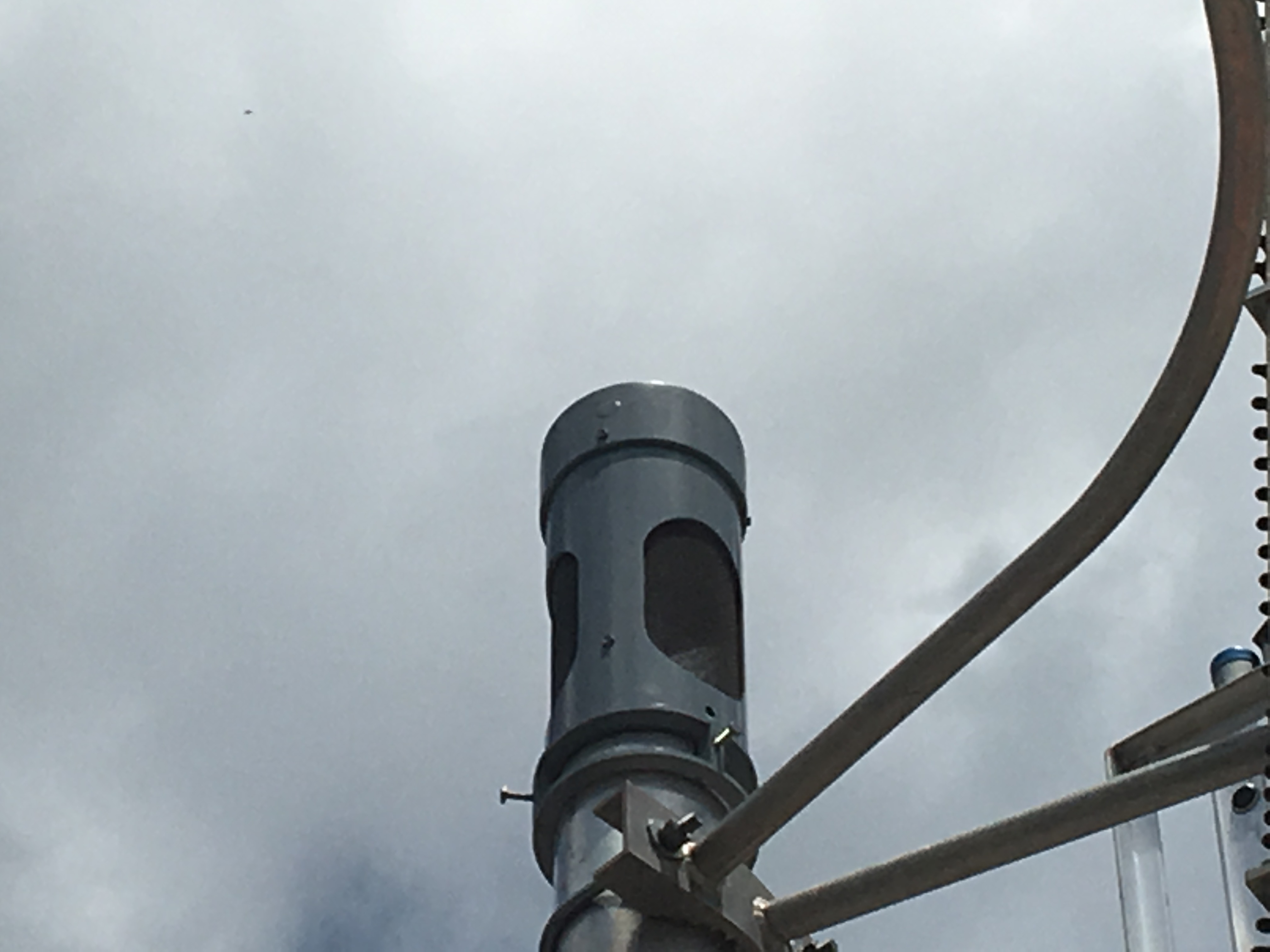

This signal has another NEG E-Bell.

29

30

31

32

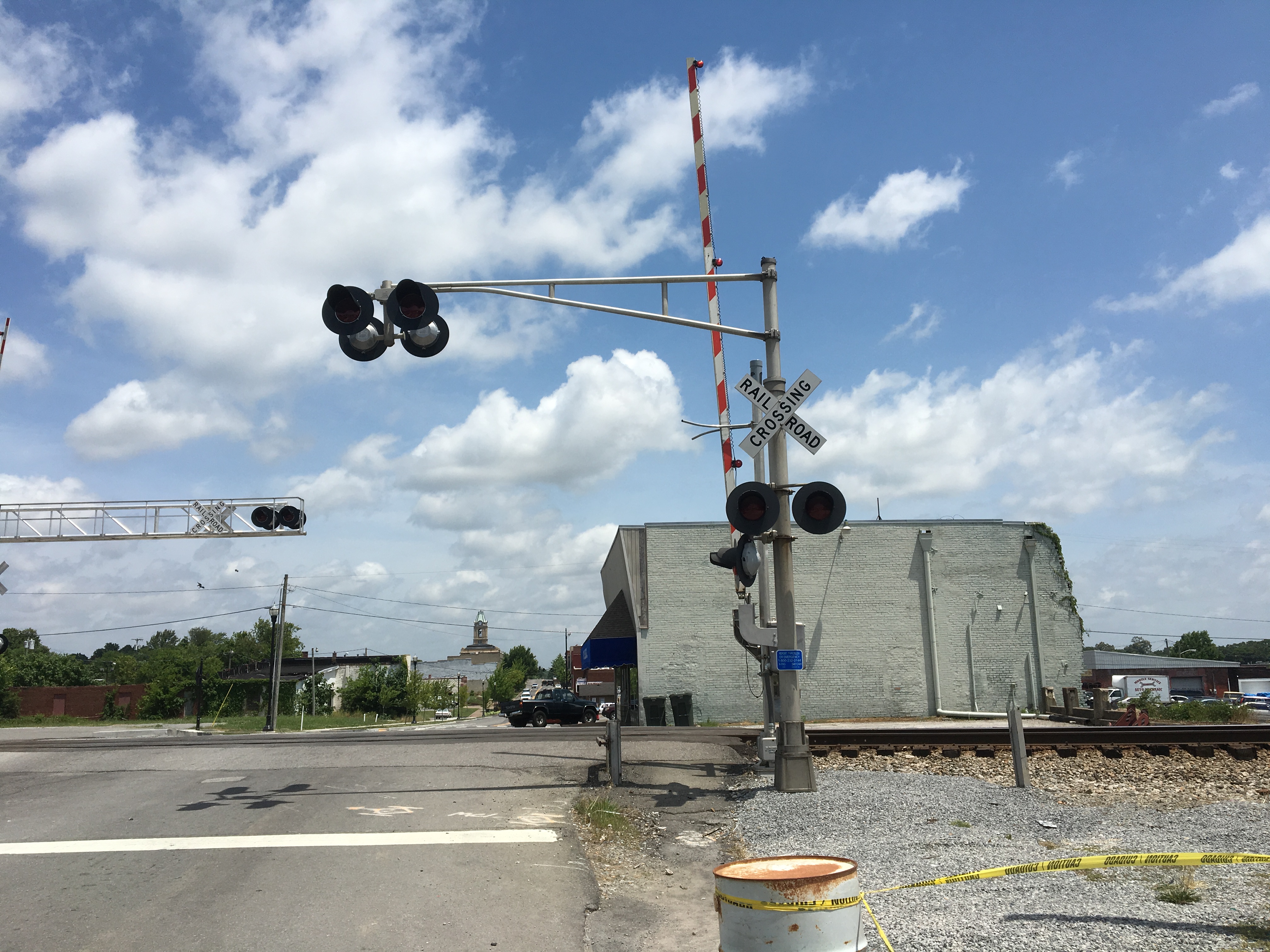

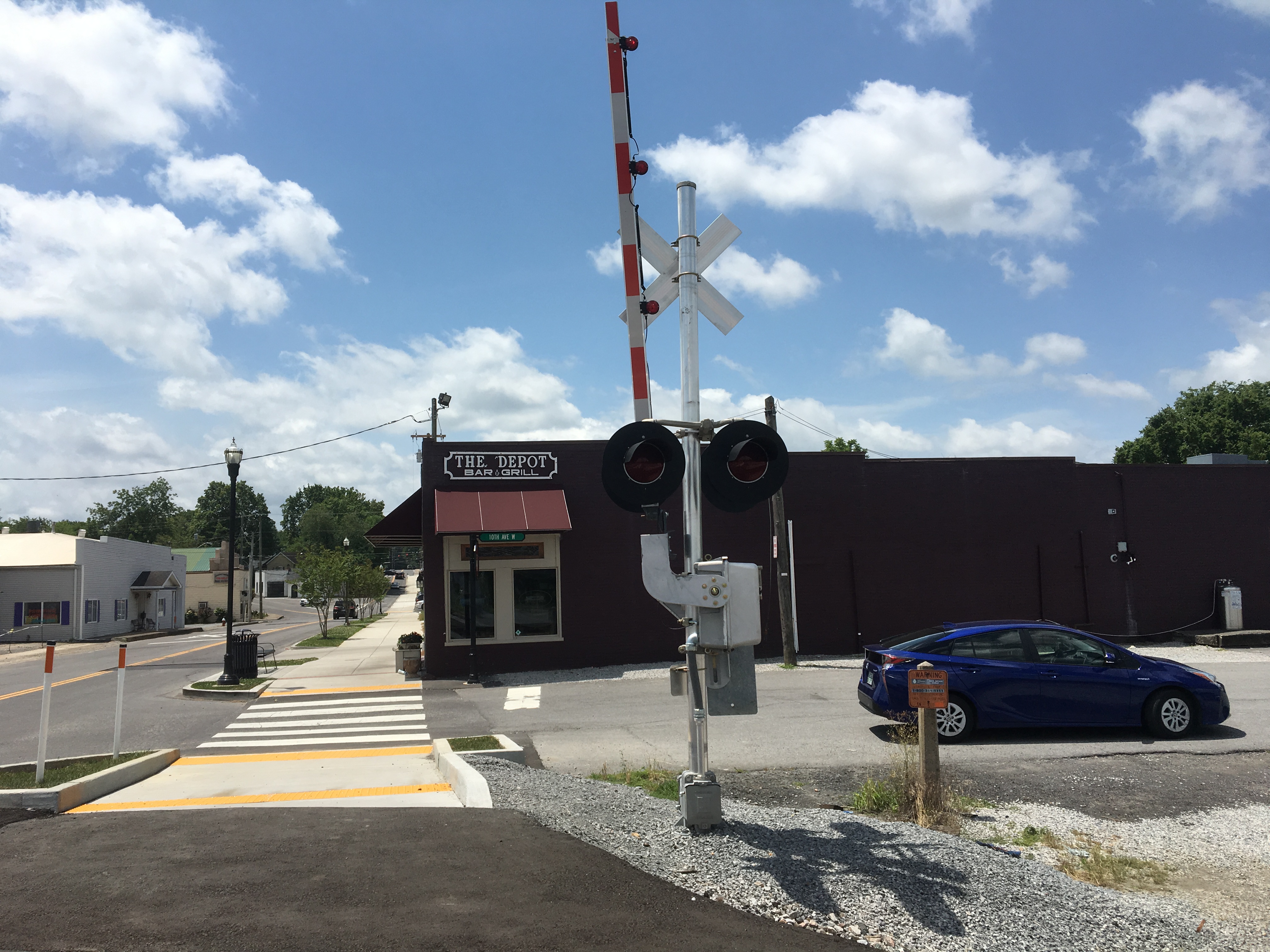

The pedestrian signal.

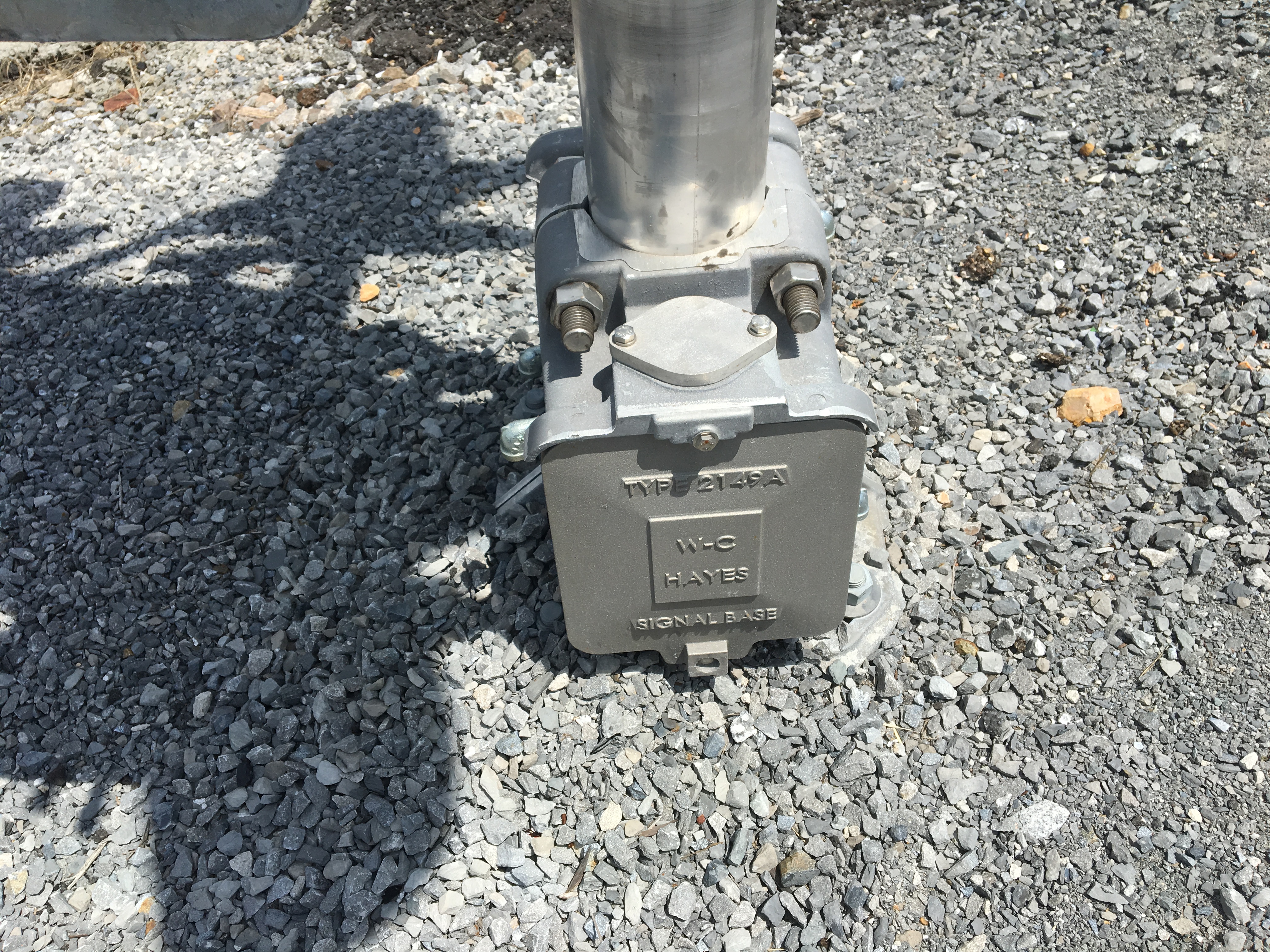

It has a WCH base.

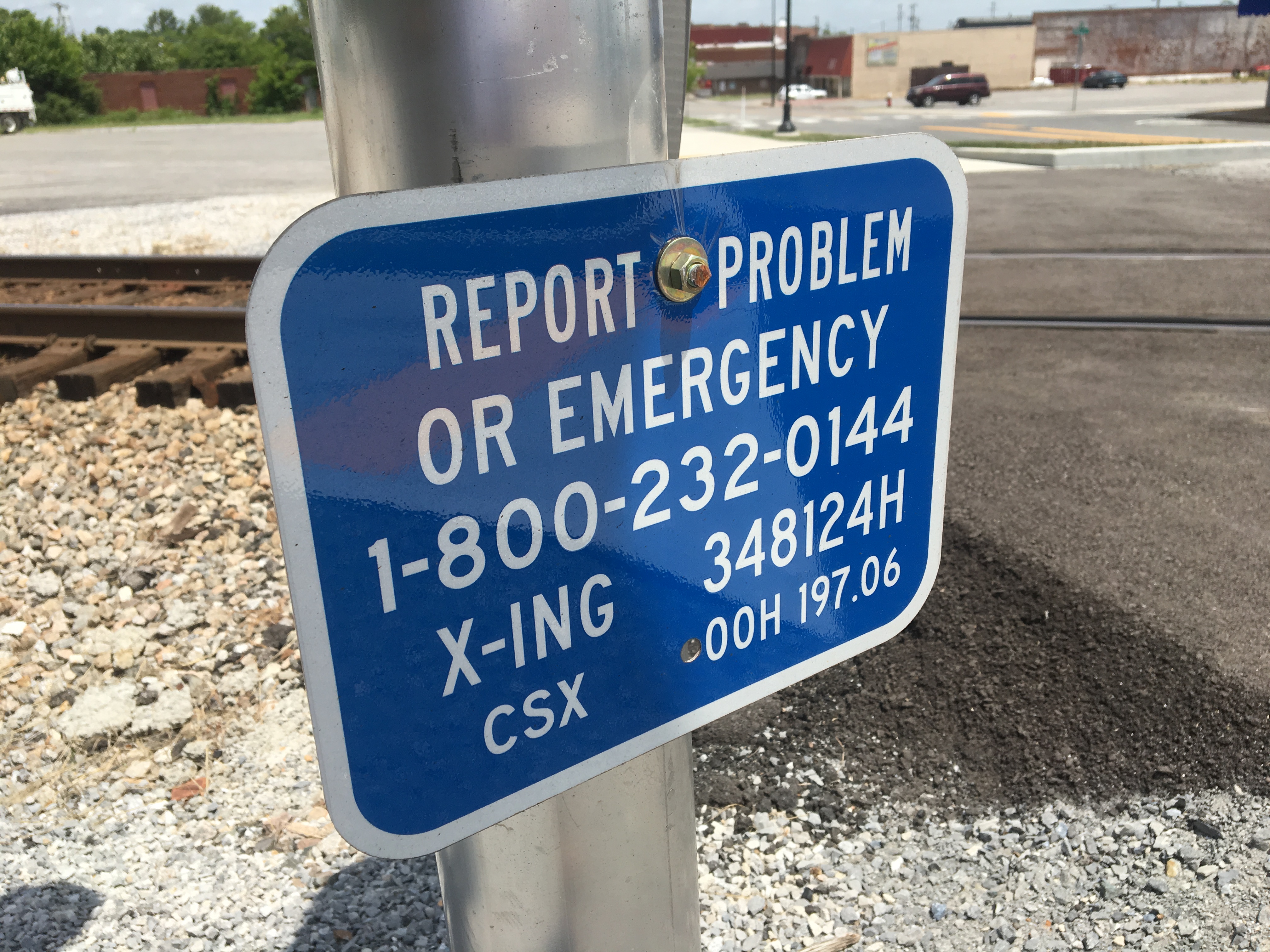

The emergency information.

33

34

35

36

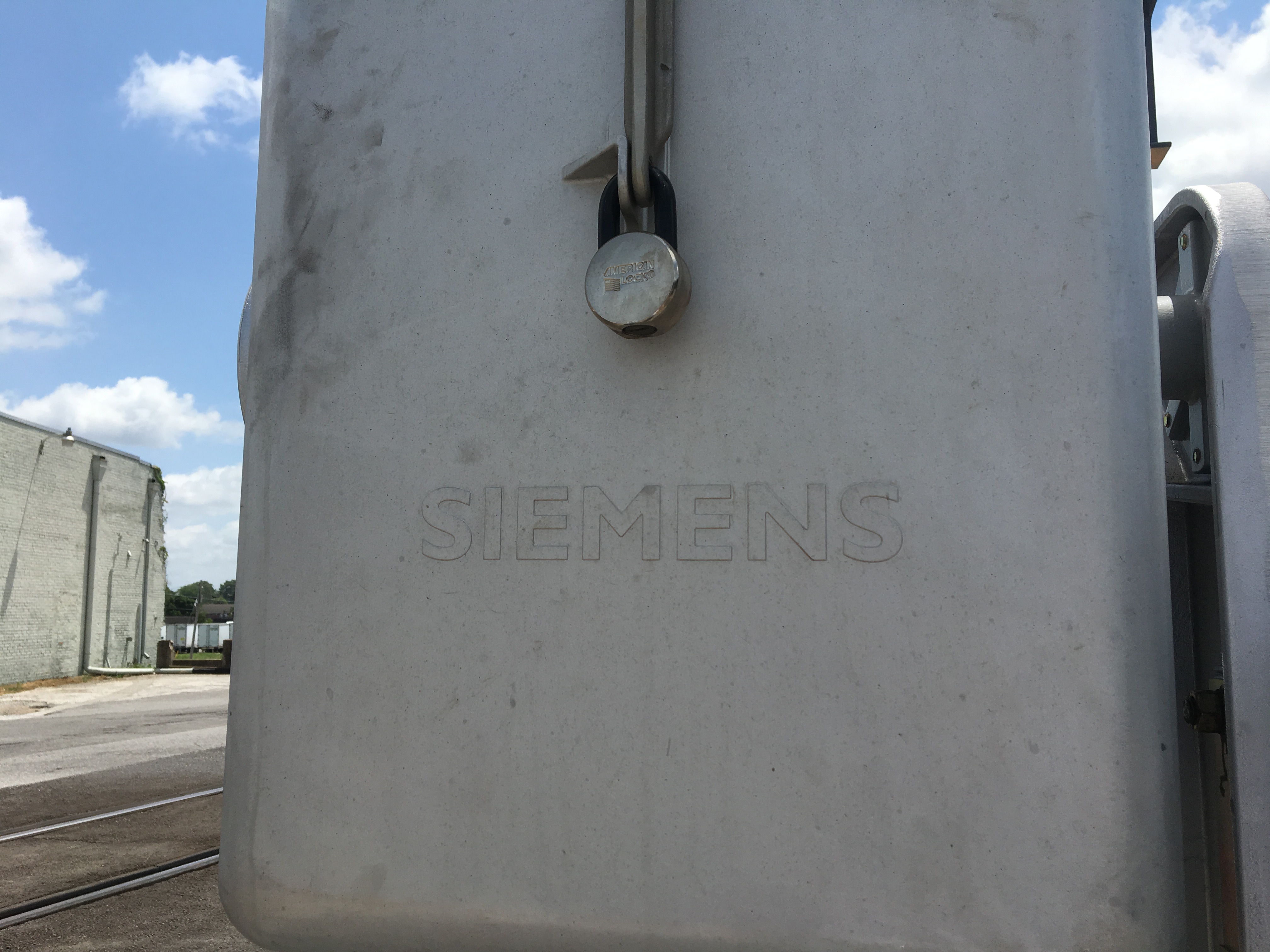

Yet another Siemens gate mechanism with their logo-cast on.

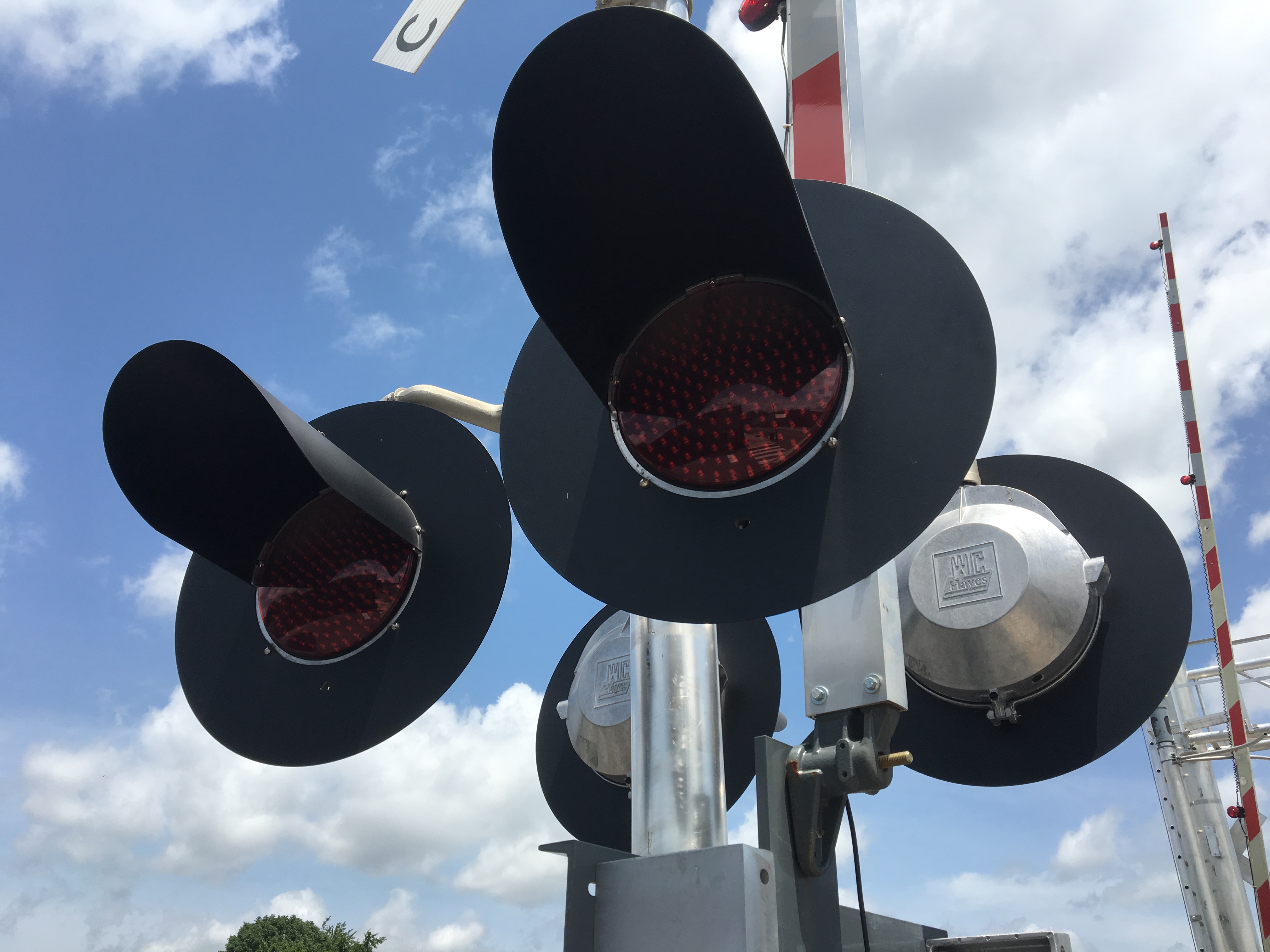

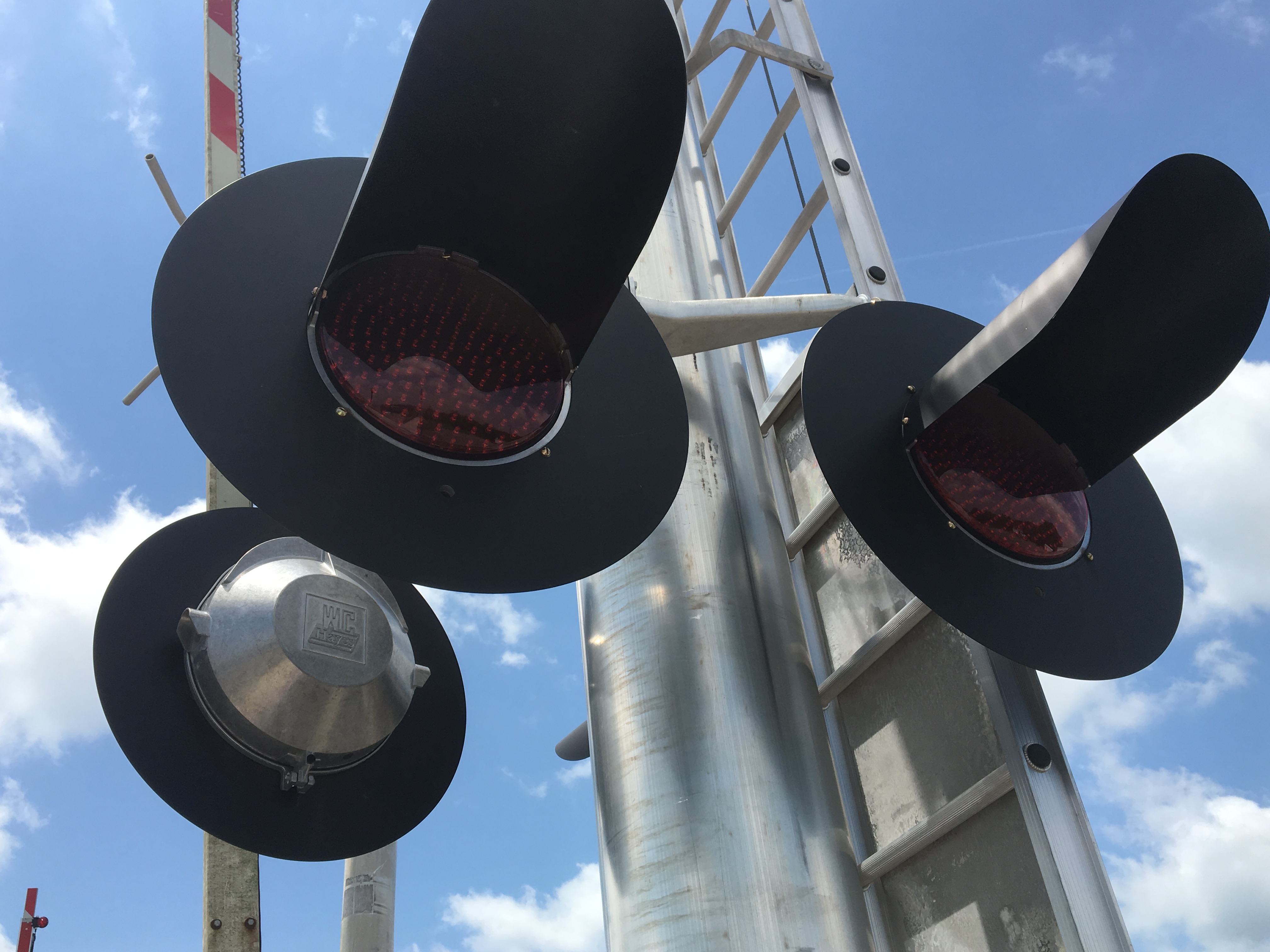

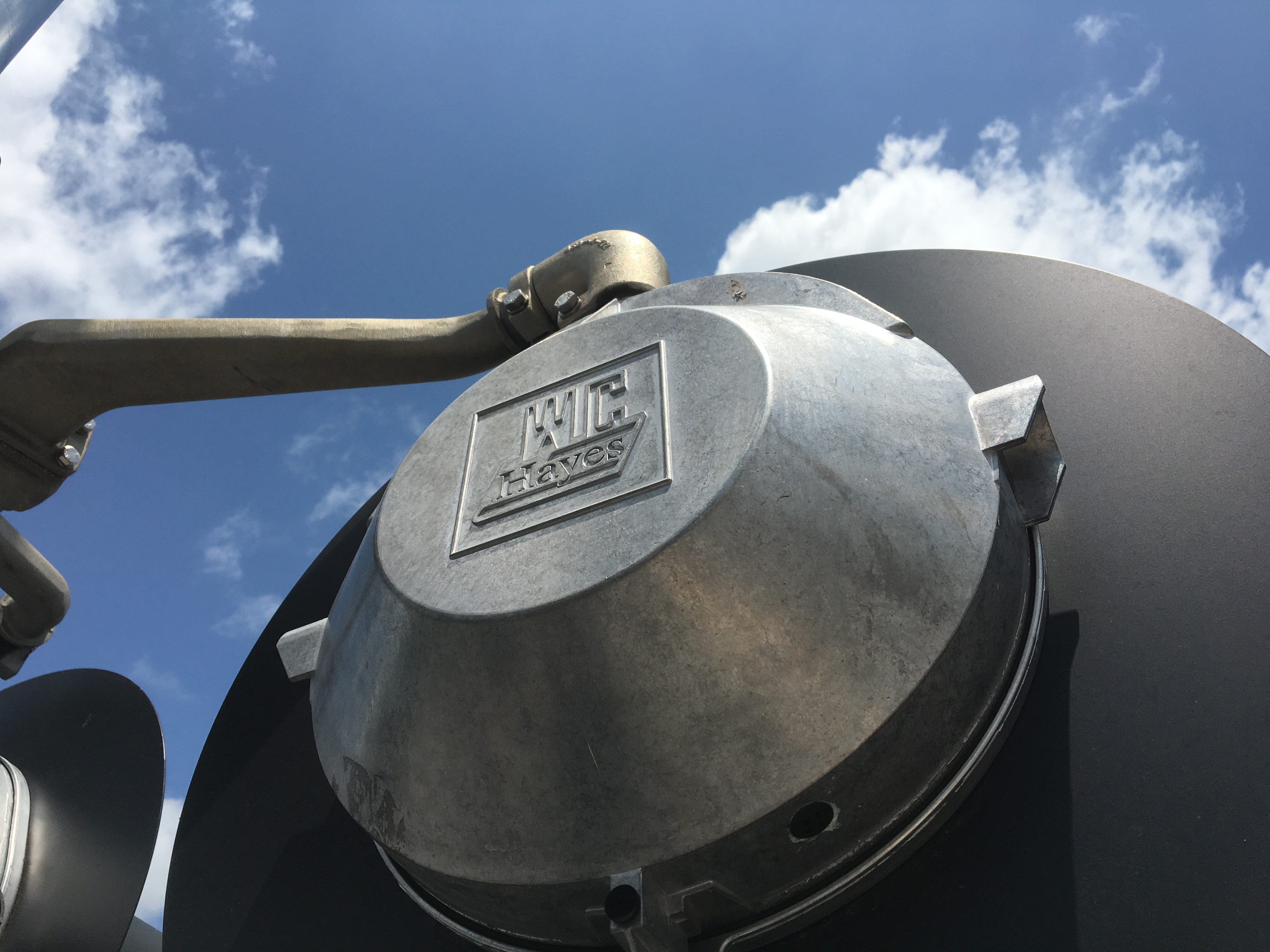

This signal has all WCH 12x24 lights with Leotek EV series LEDs.

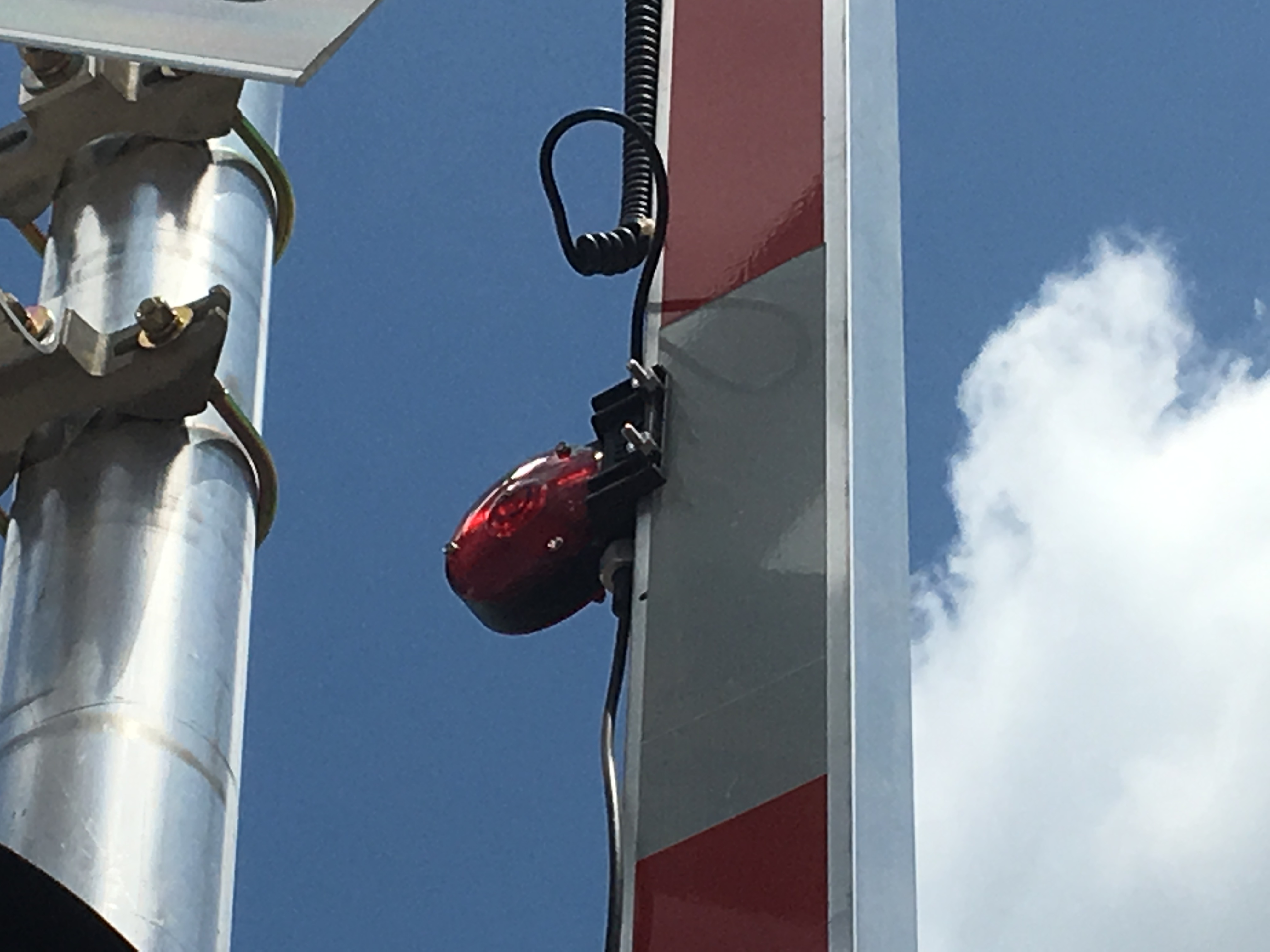

This signal has NEG gatelights.

37

38

39

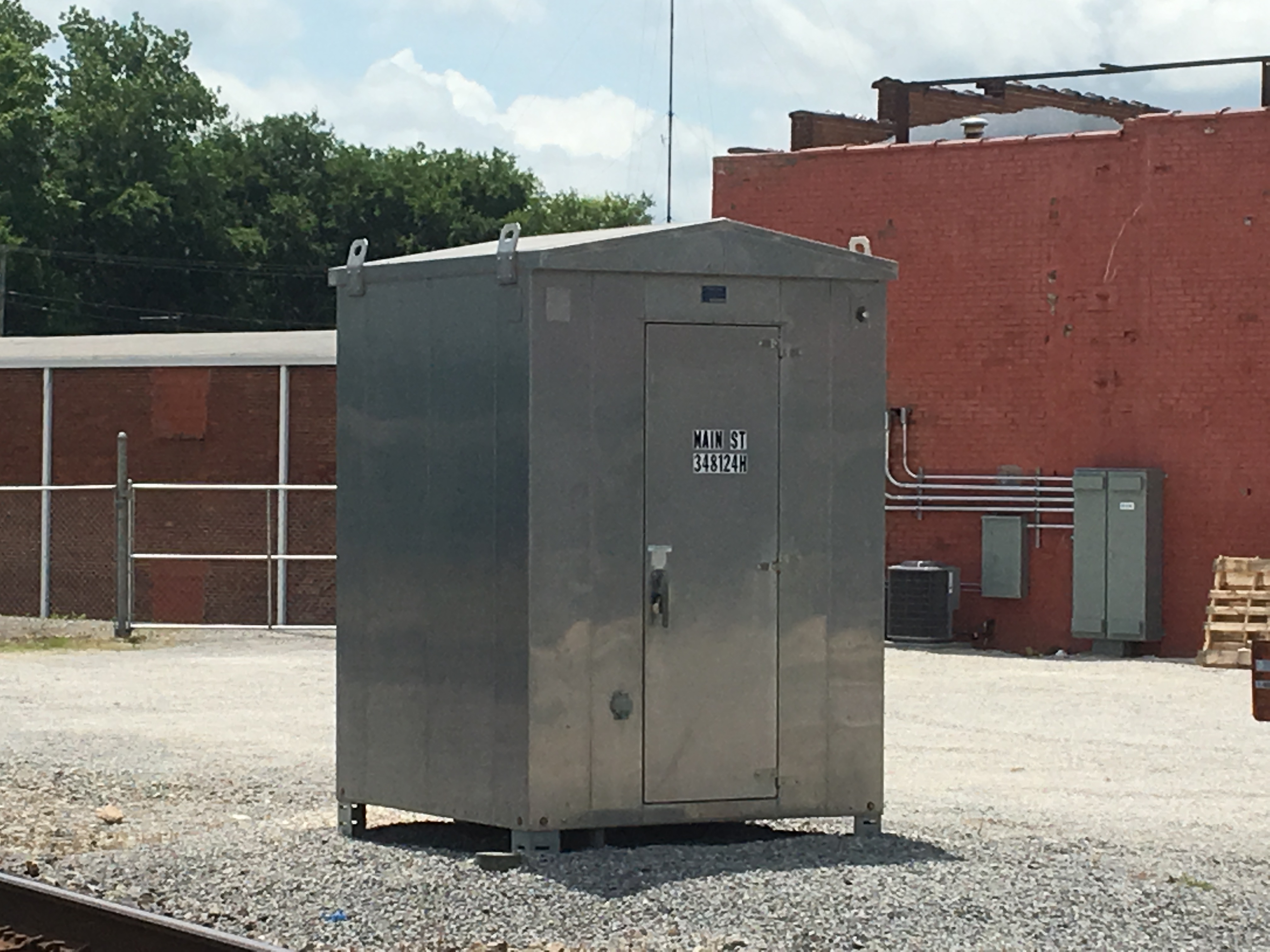

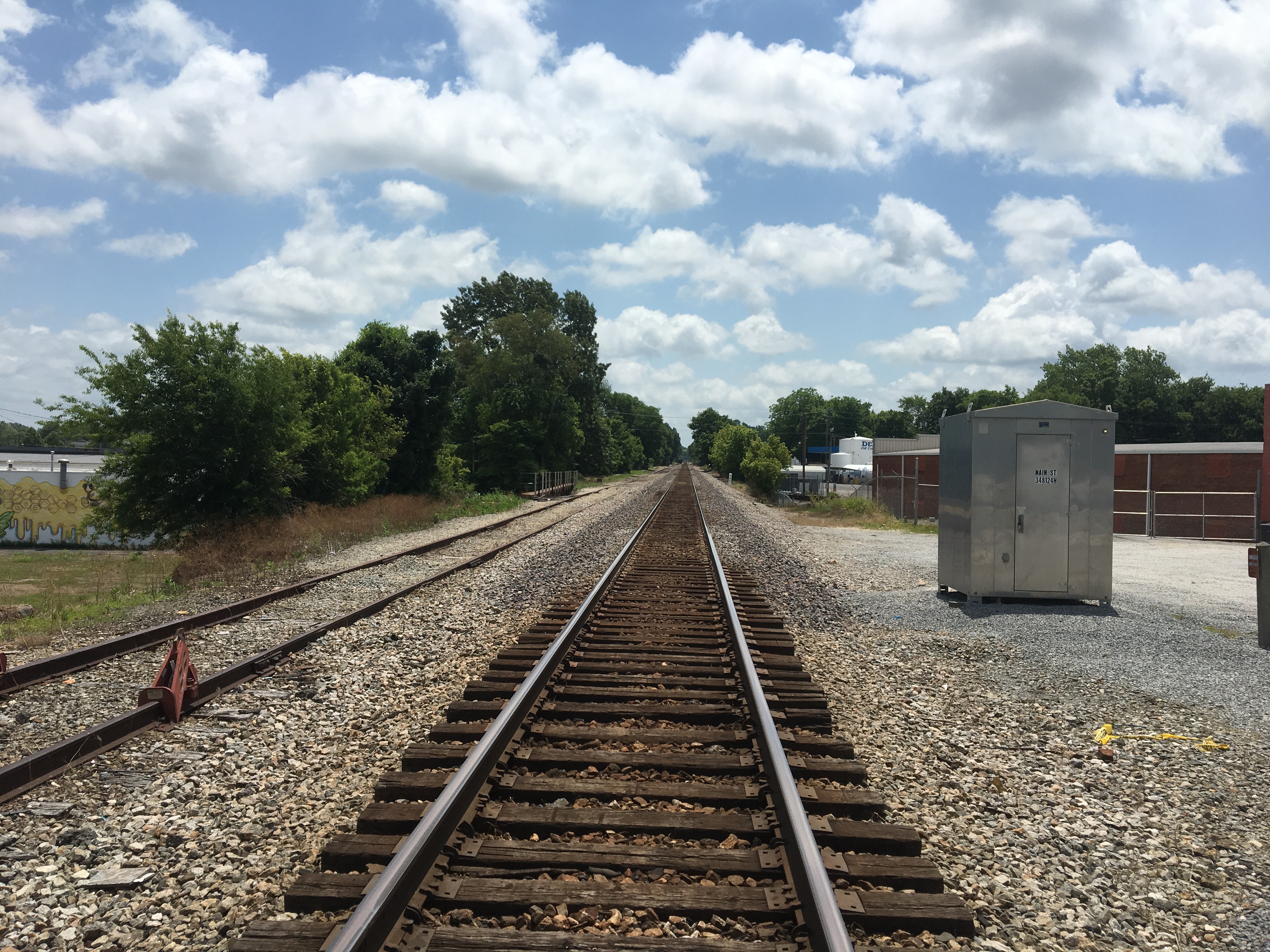

The relay bungalow.

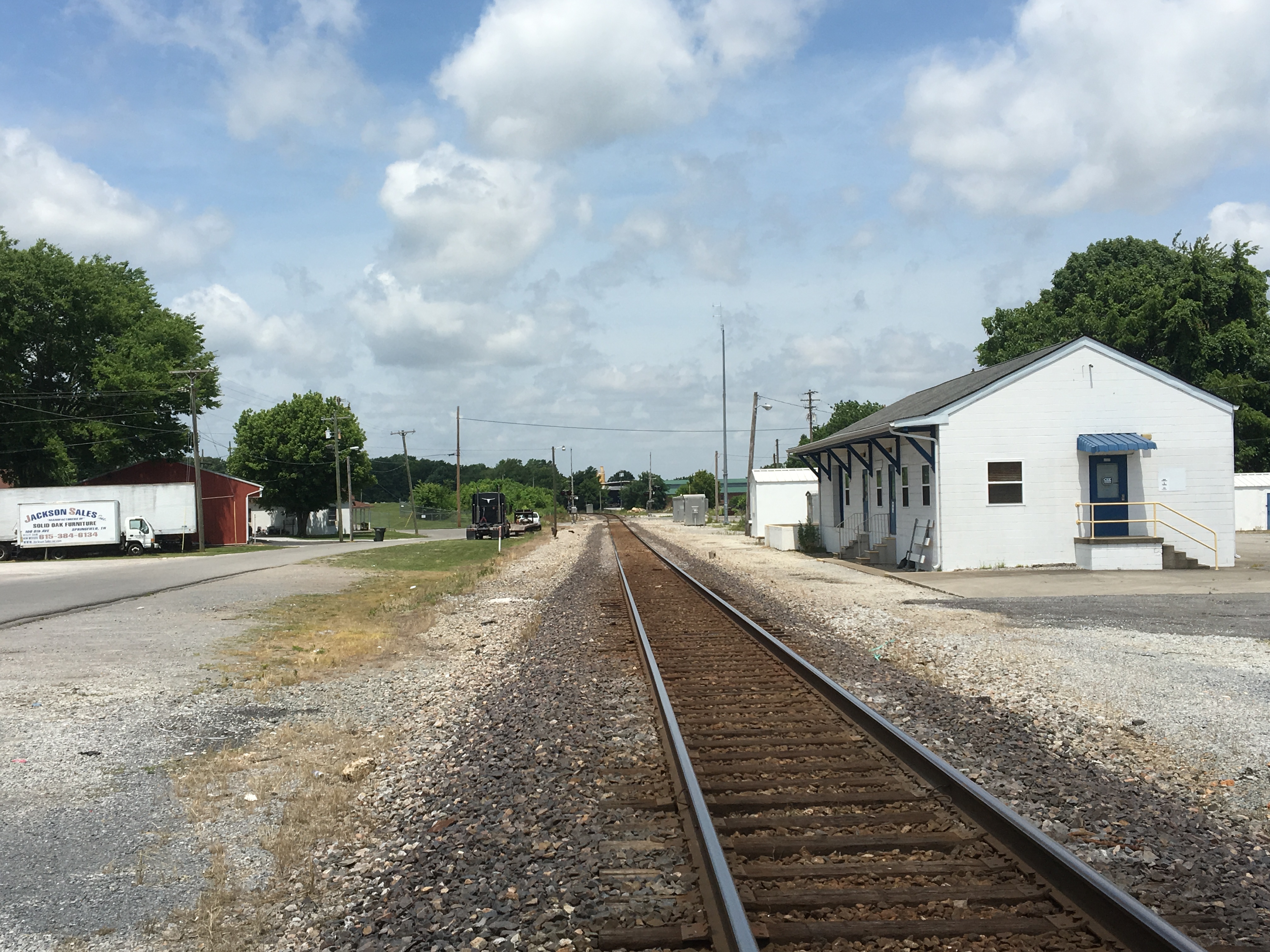

Track view facing west towards Cheatham Street.
Track view facing east towards West Hillcrest Road.

40

41

42

43

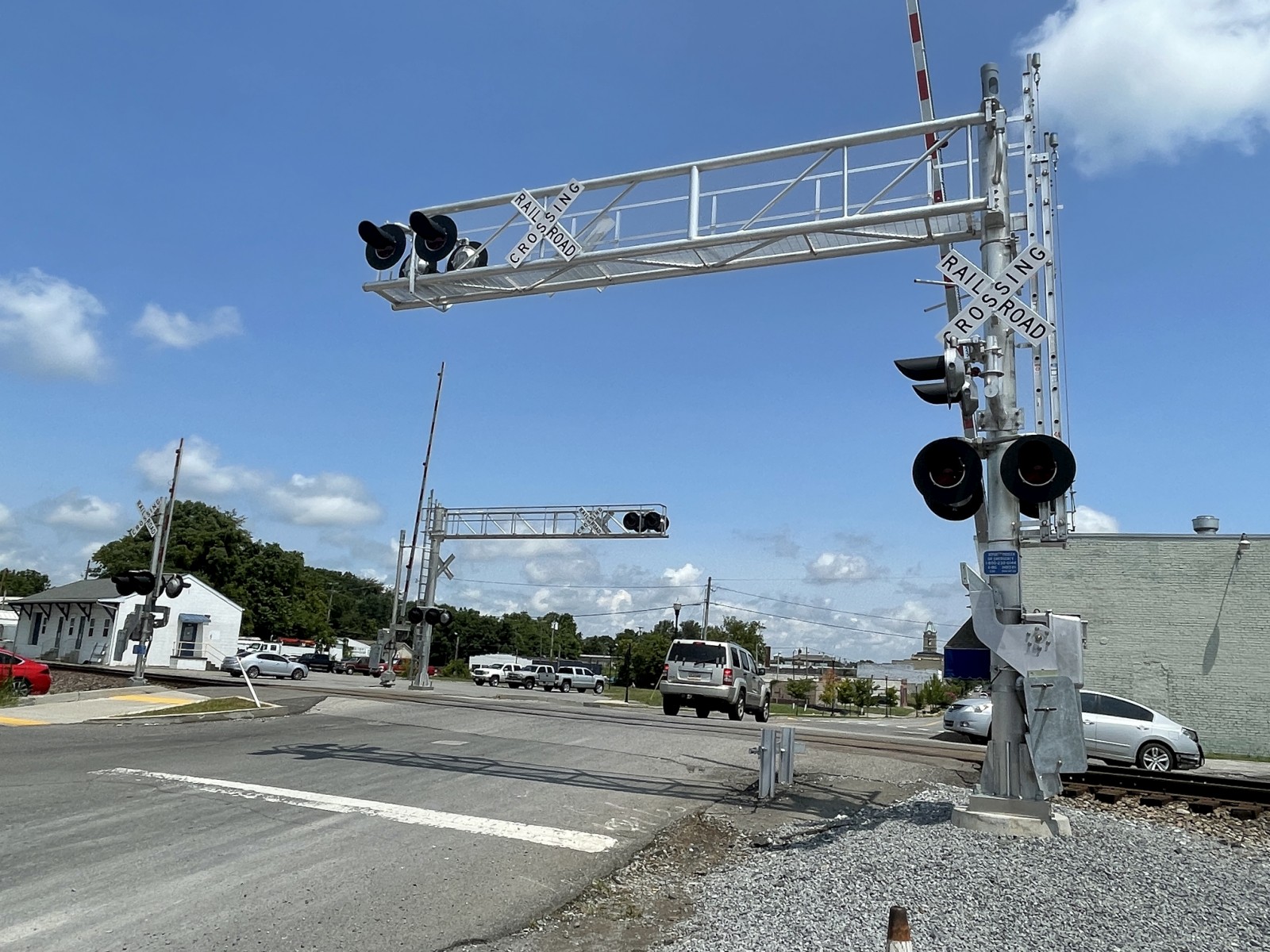

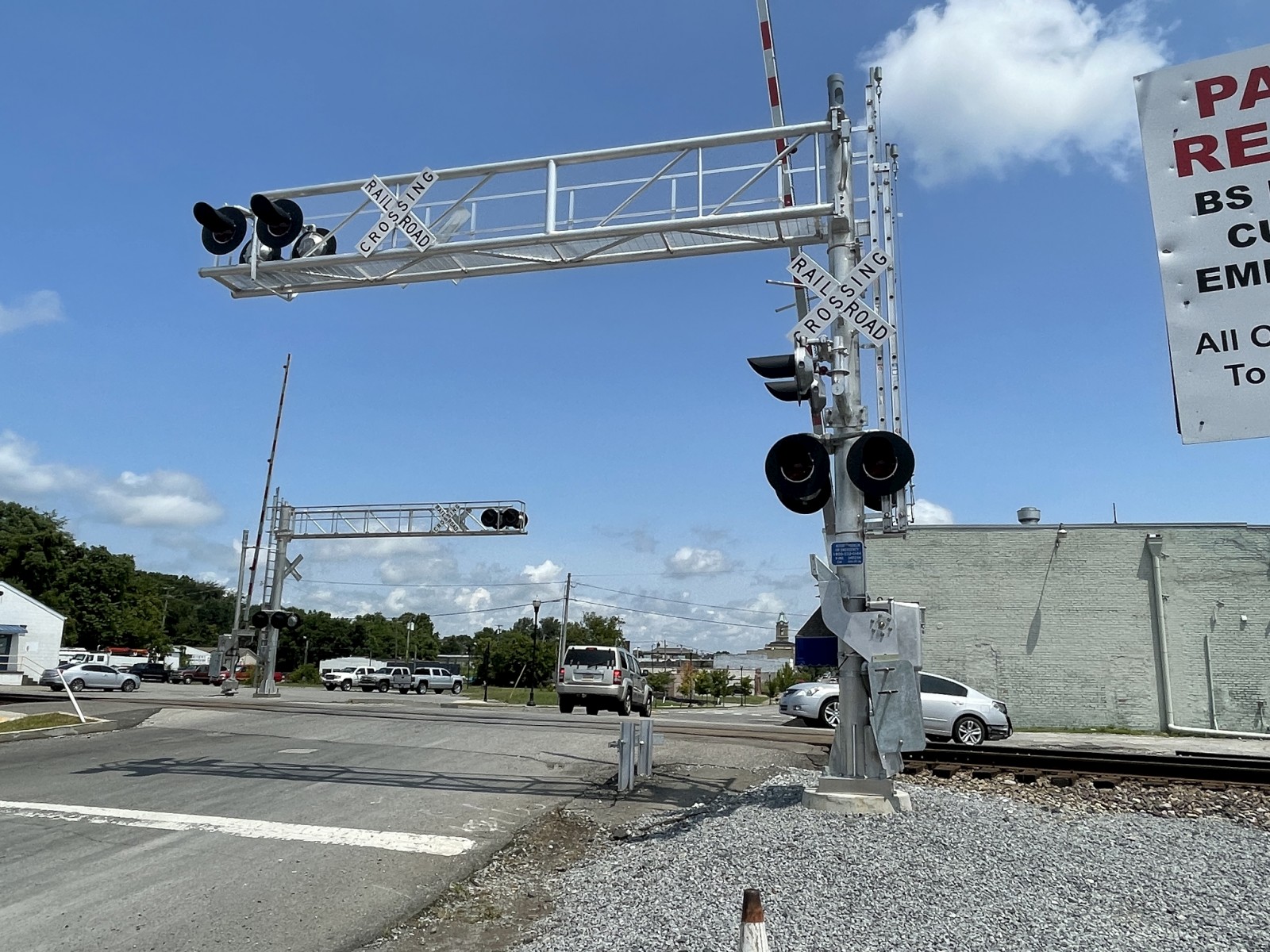

A return trip on 7-14-21 shows that the old cantilever at this crossing has been replaced.

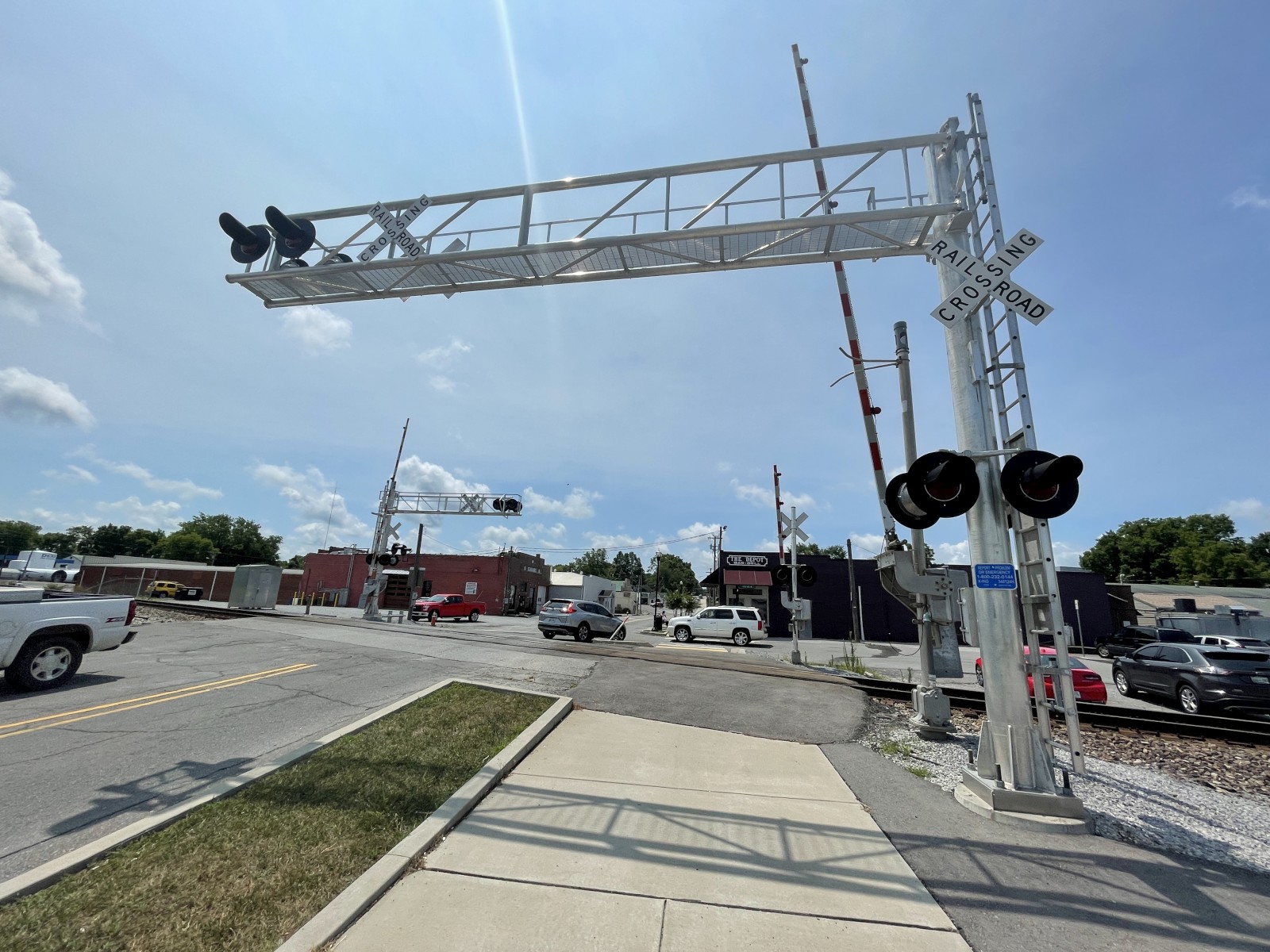

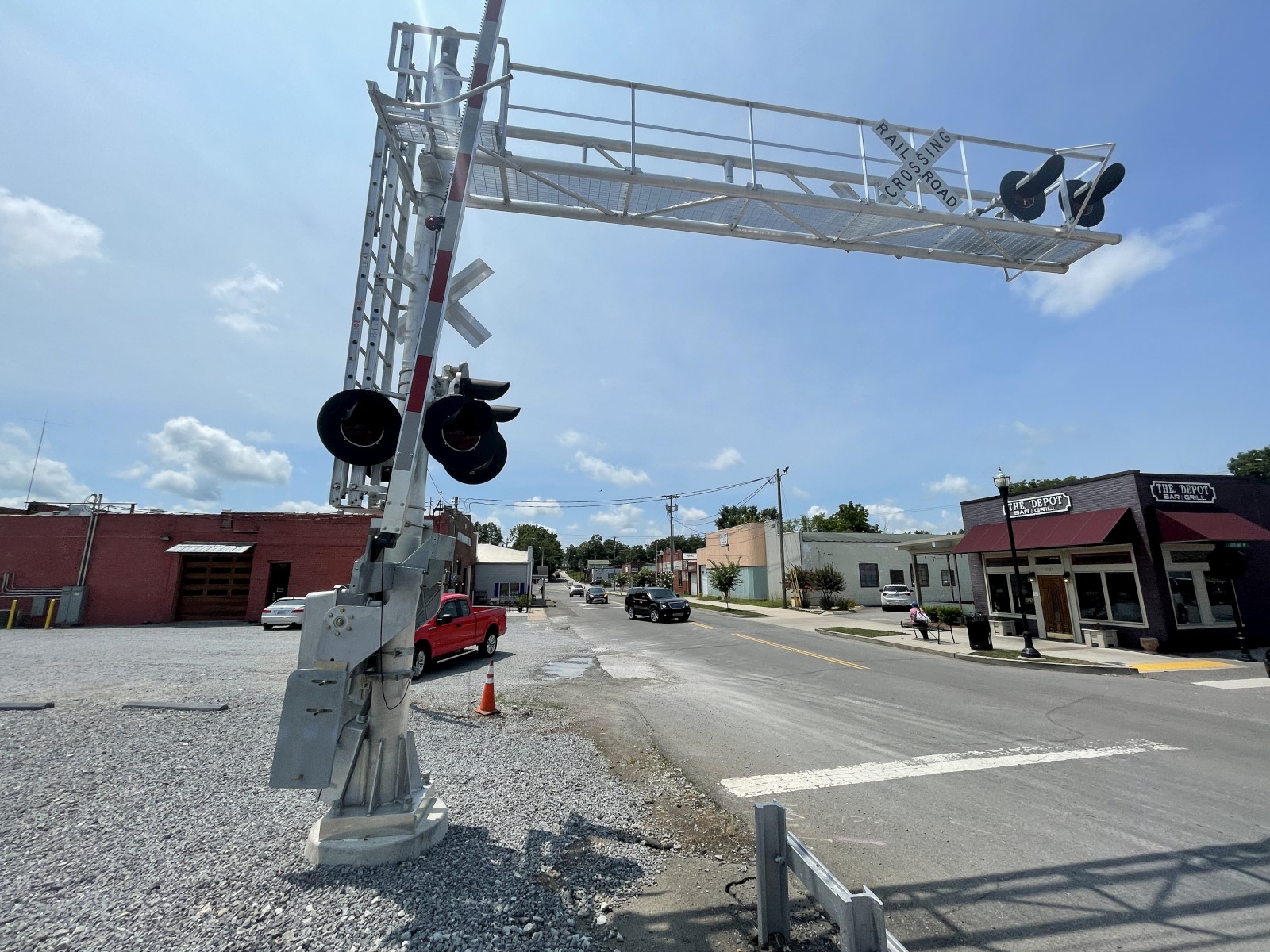

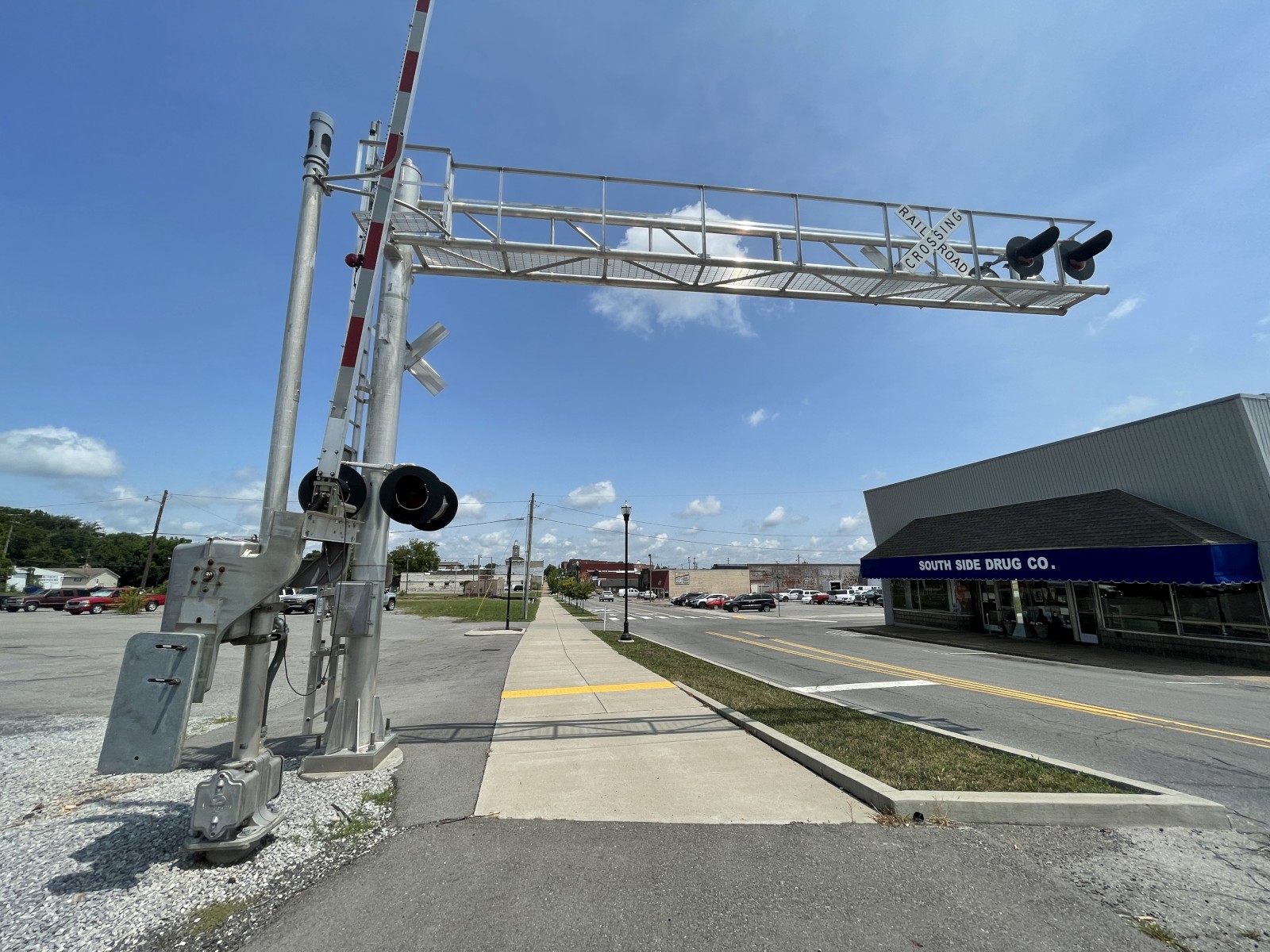

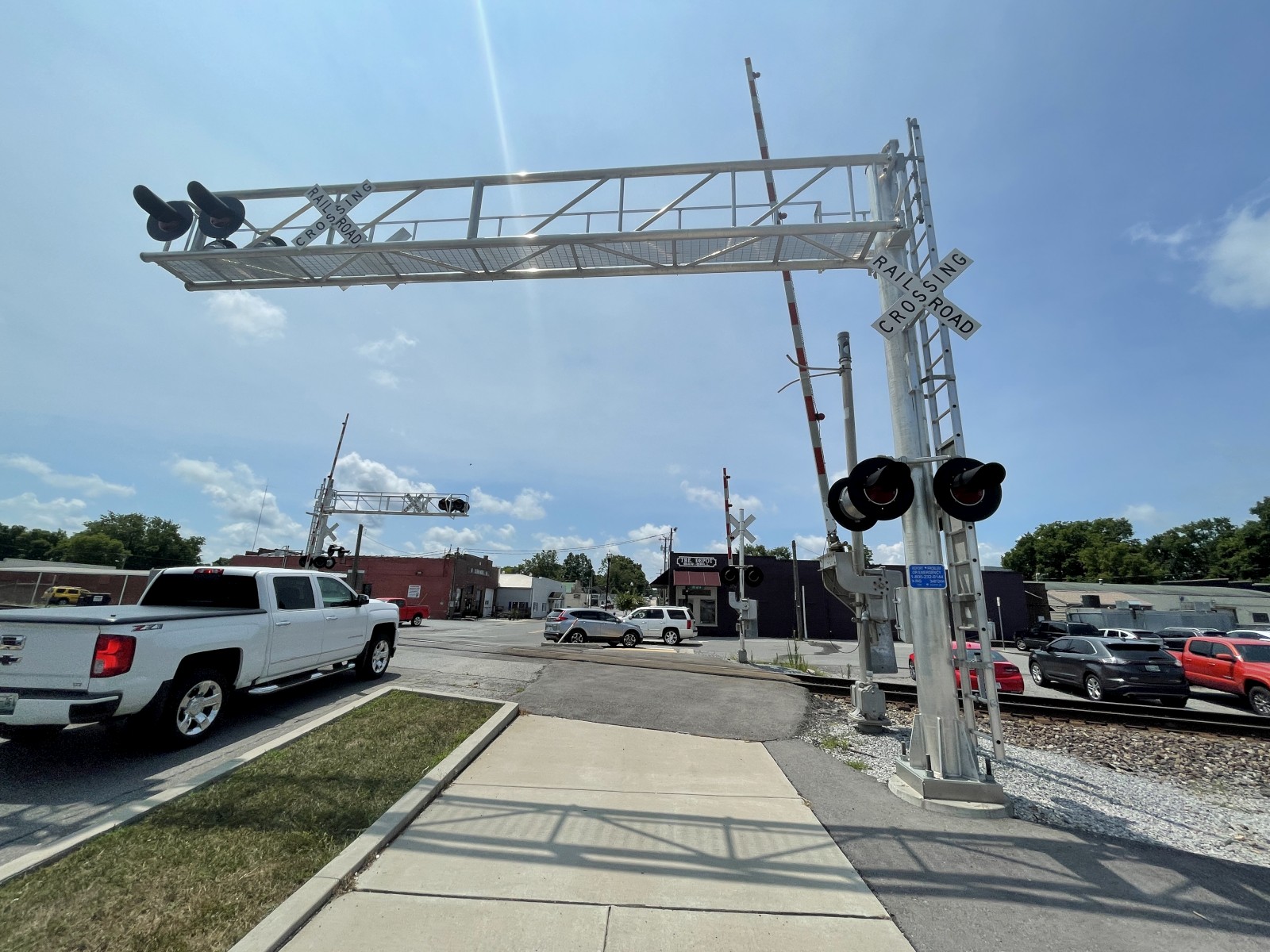

The new cantilever.

44

45

46

47

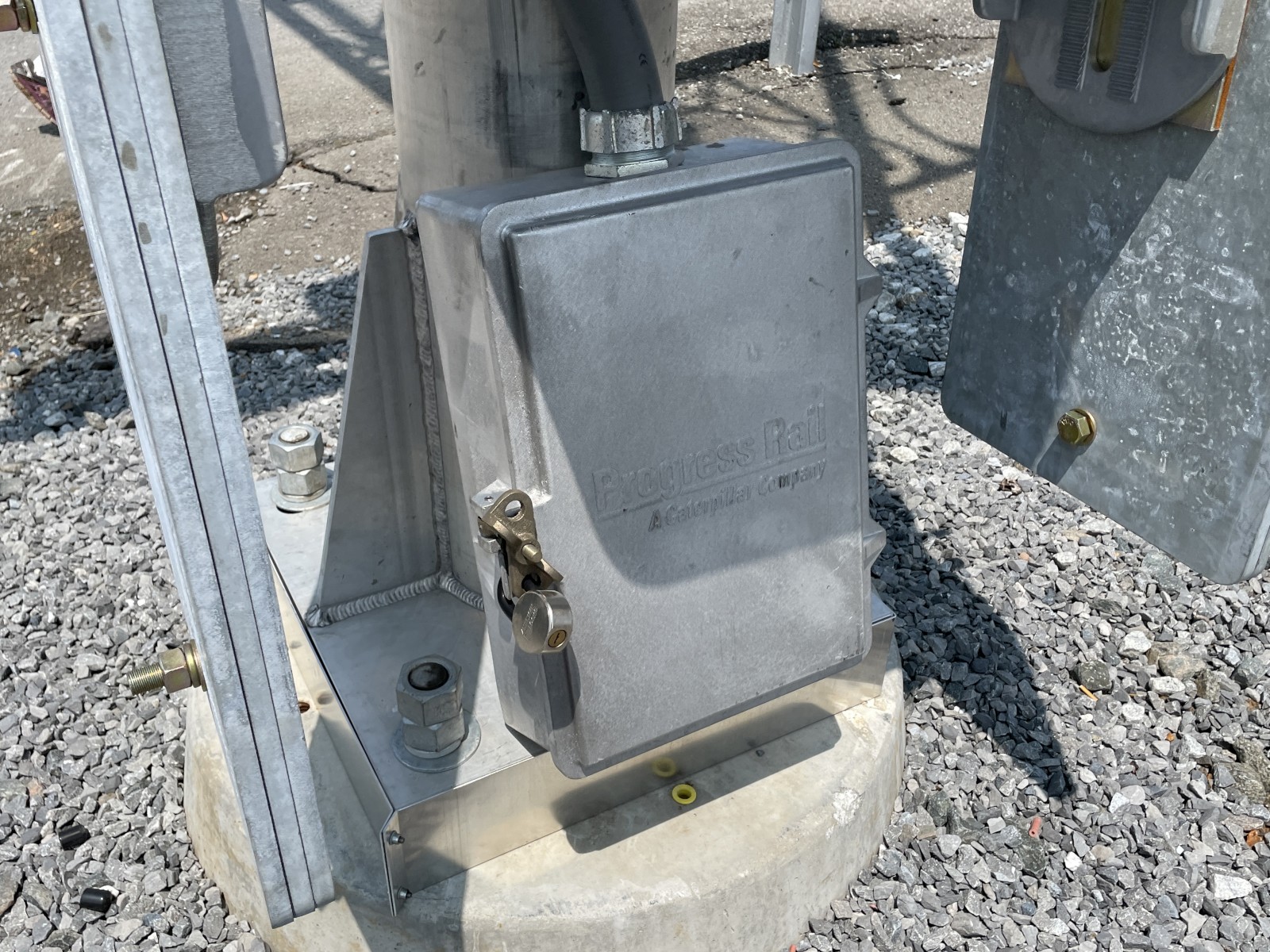

The cantilever base is from Progress Rail.

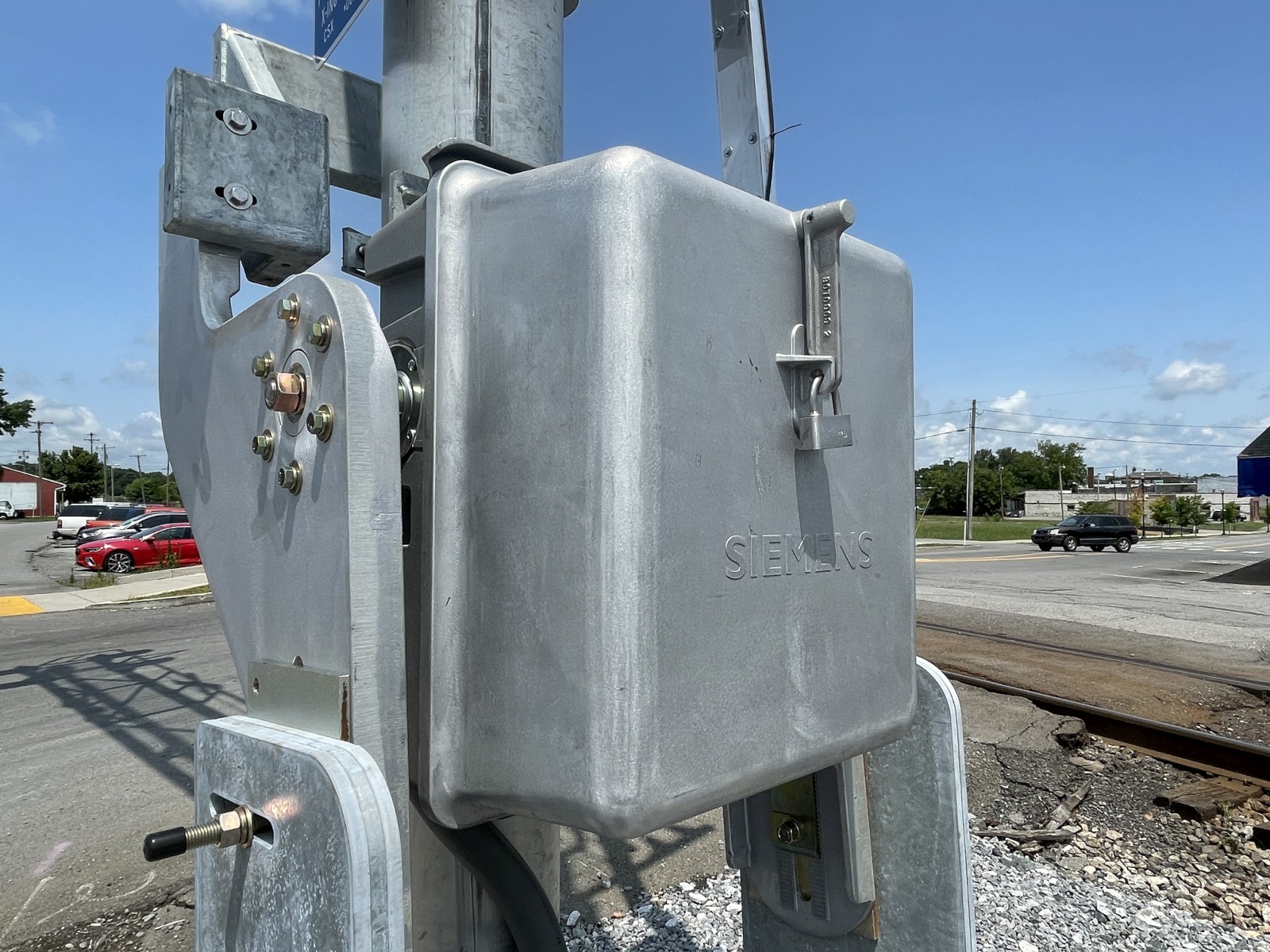

A Siemens gate mechanism.

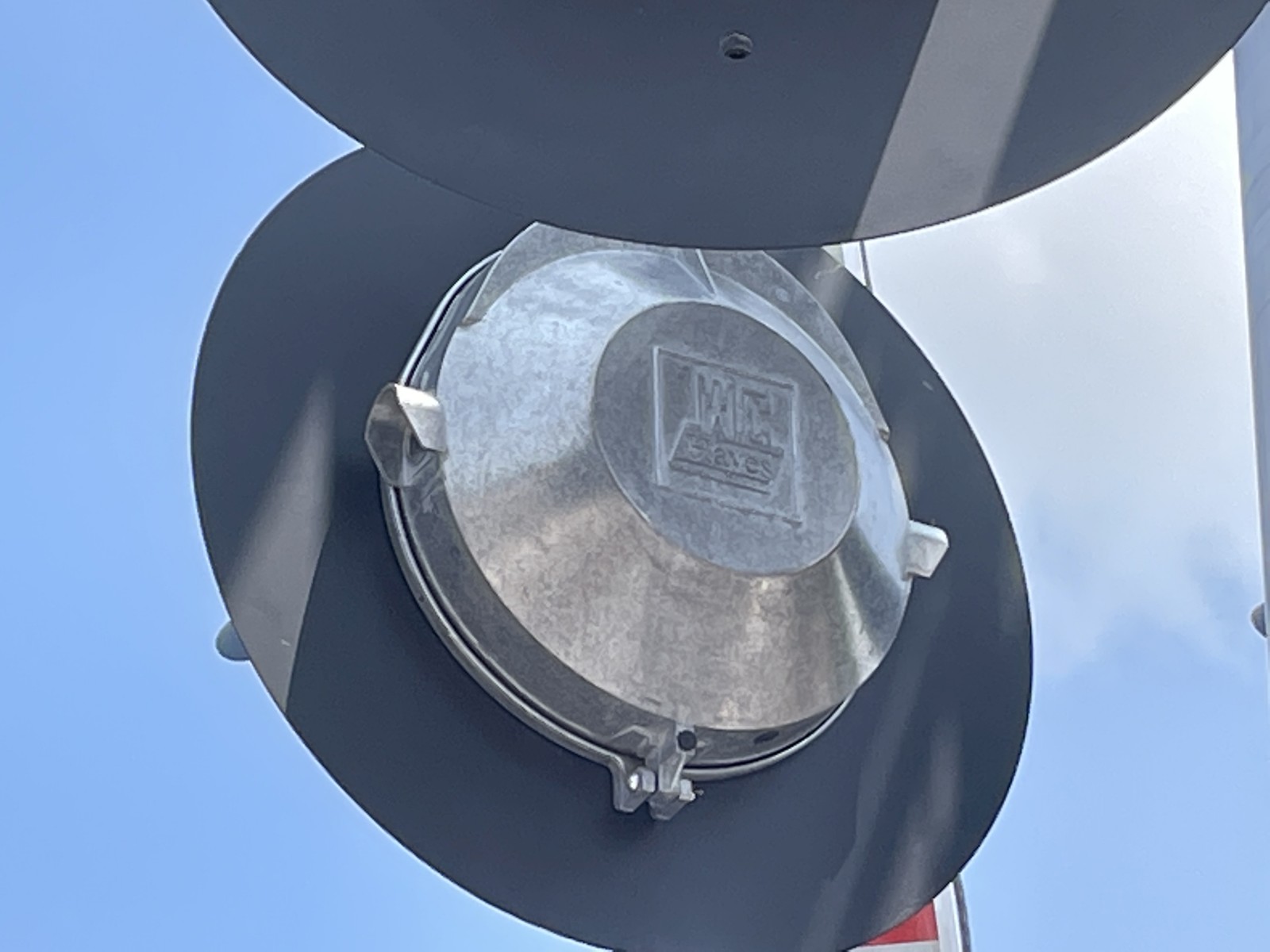

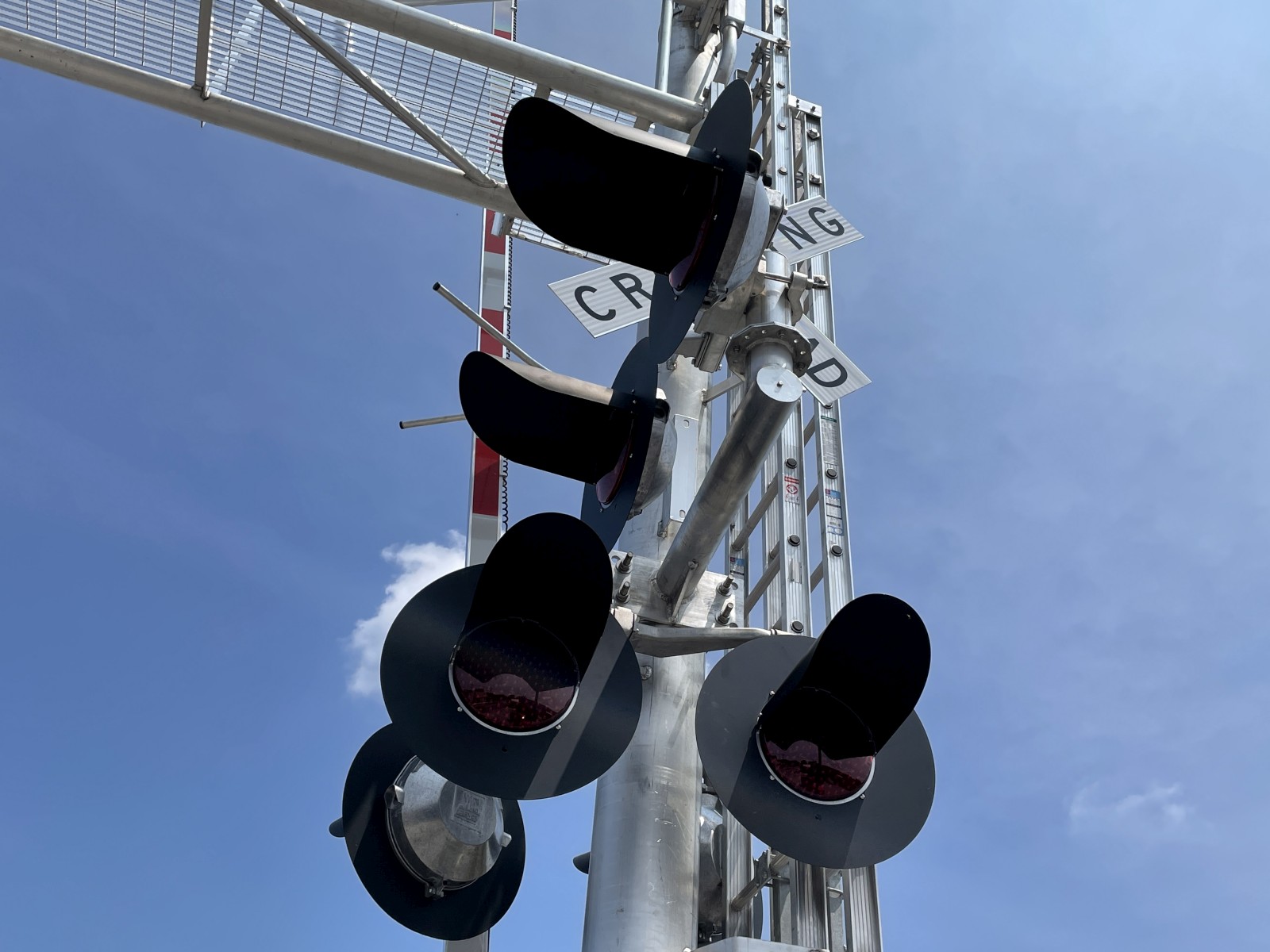

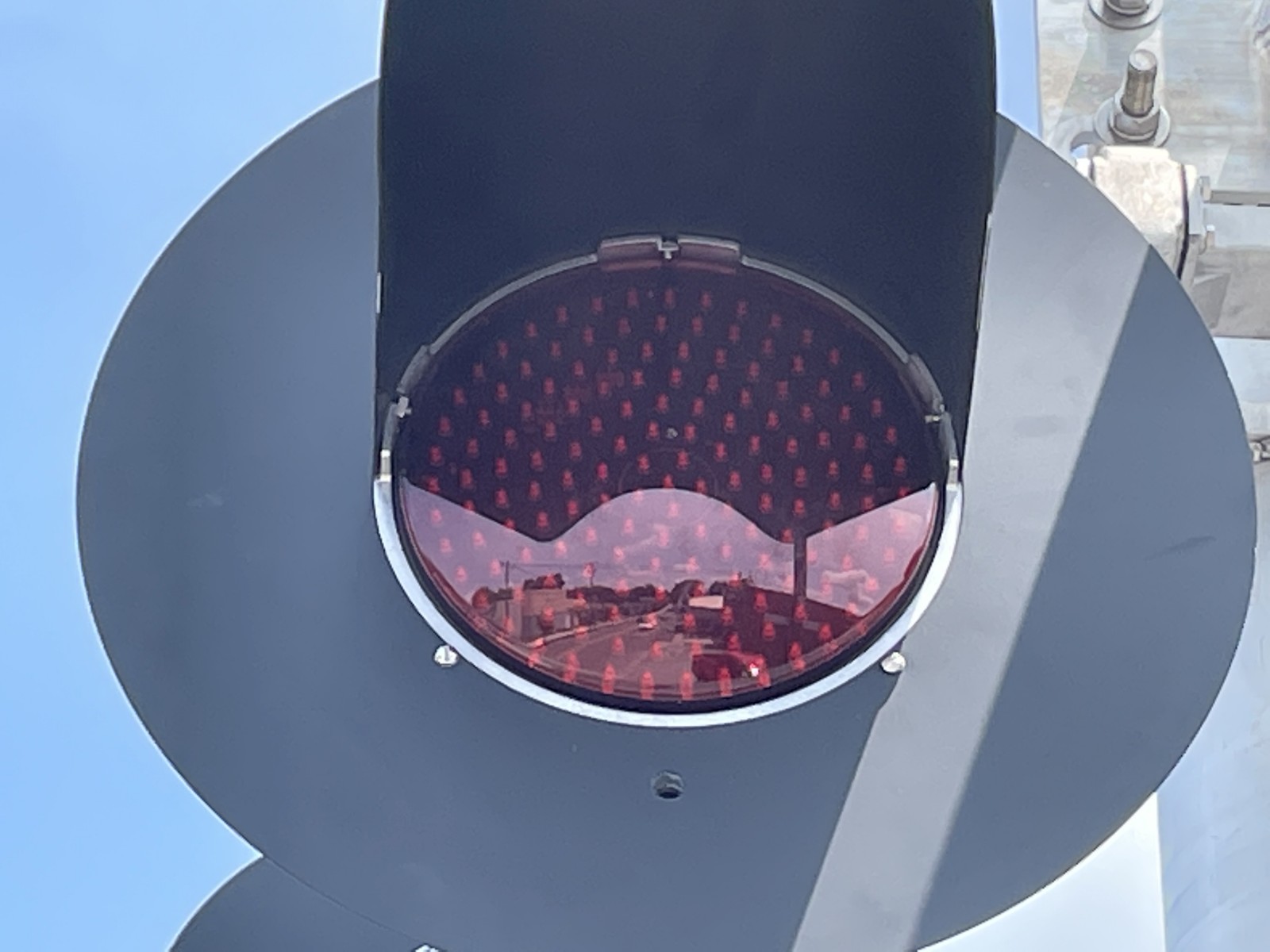

The lights on the mast are now WCH 12x24 Flatbacks with Leotek EV series LEDs.

48

49

50

51

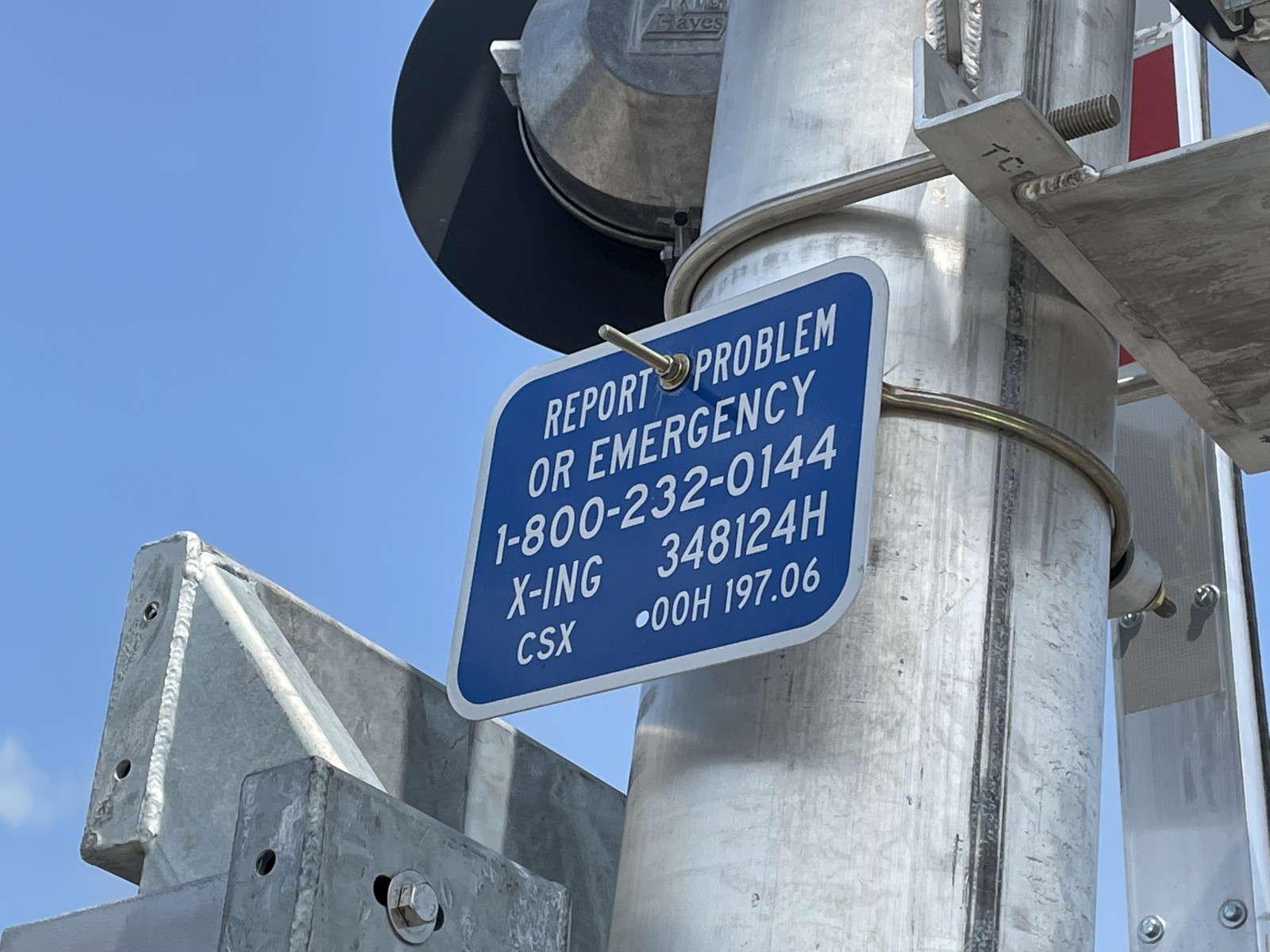

The emergency information.

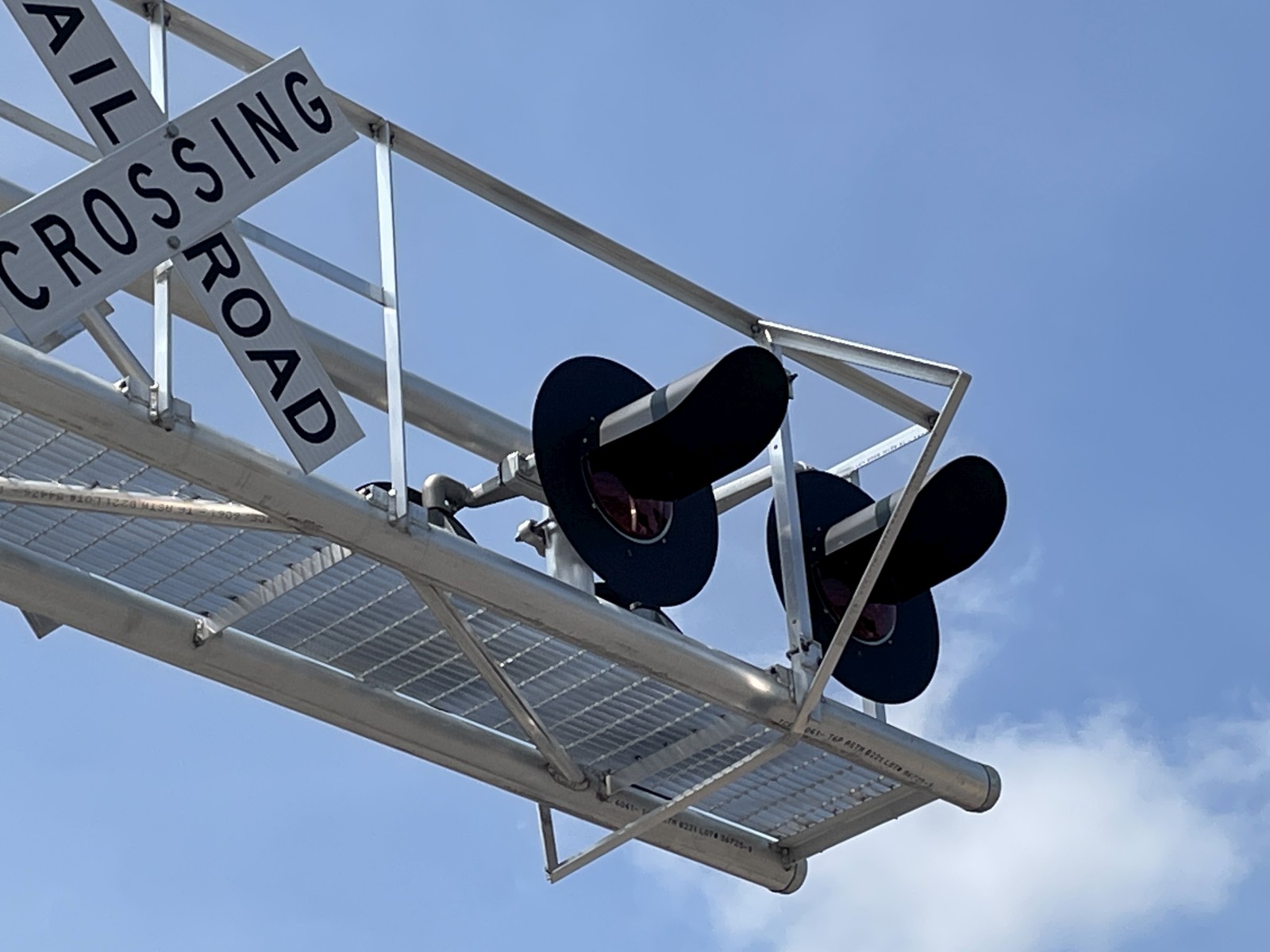

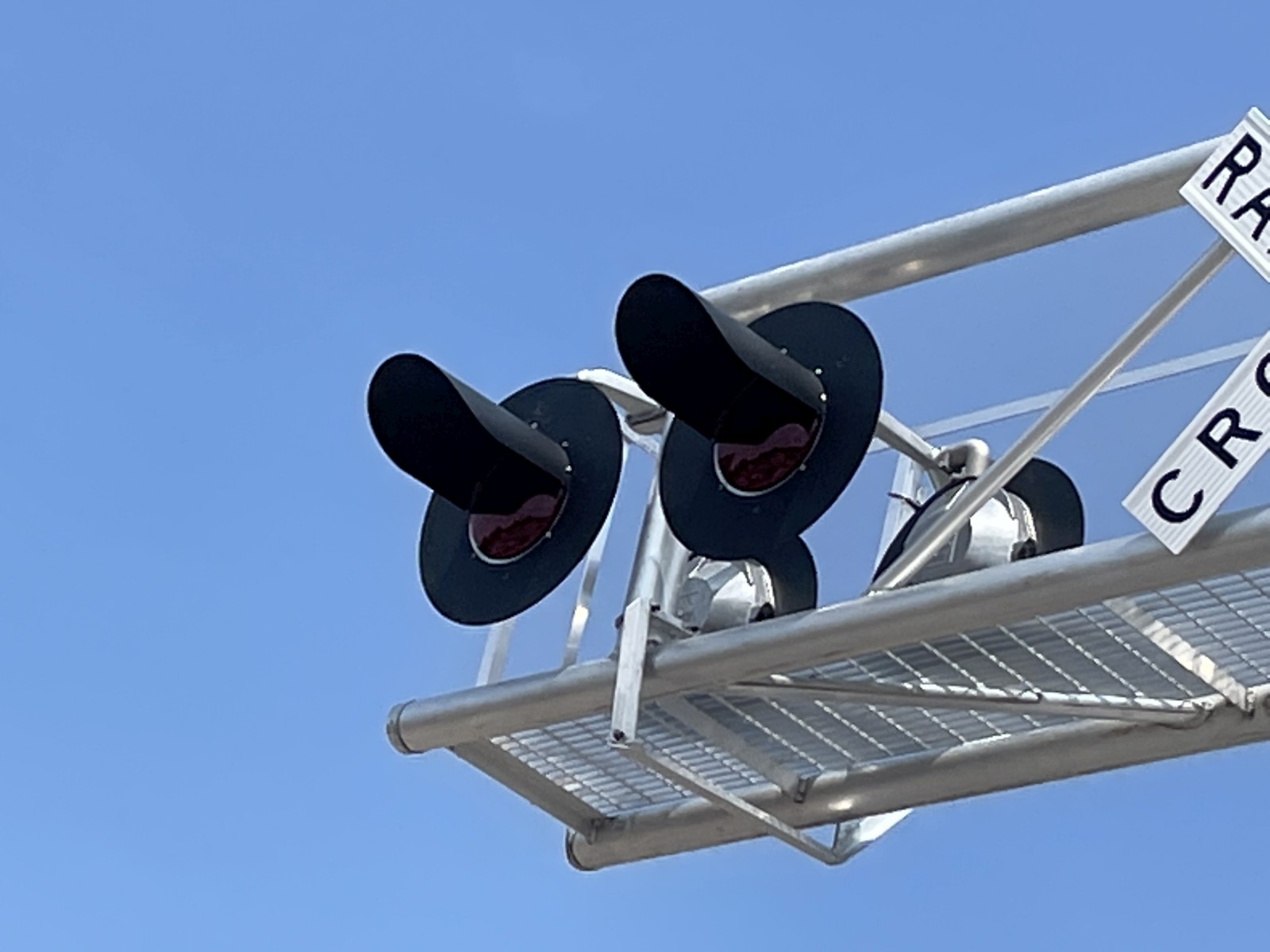

The overhead lights are more of the same.

52

53

54

55

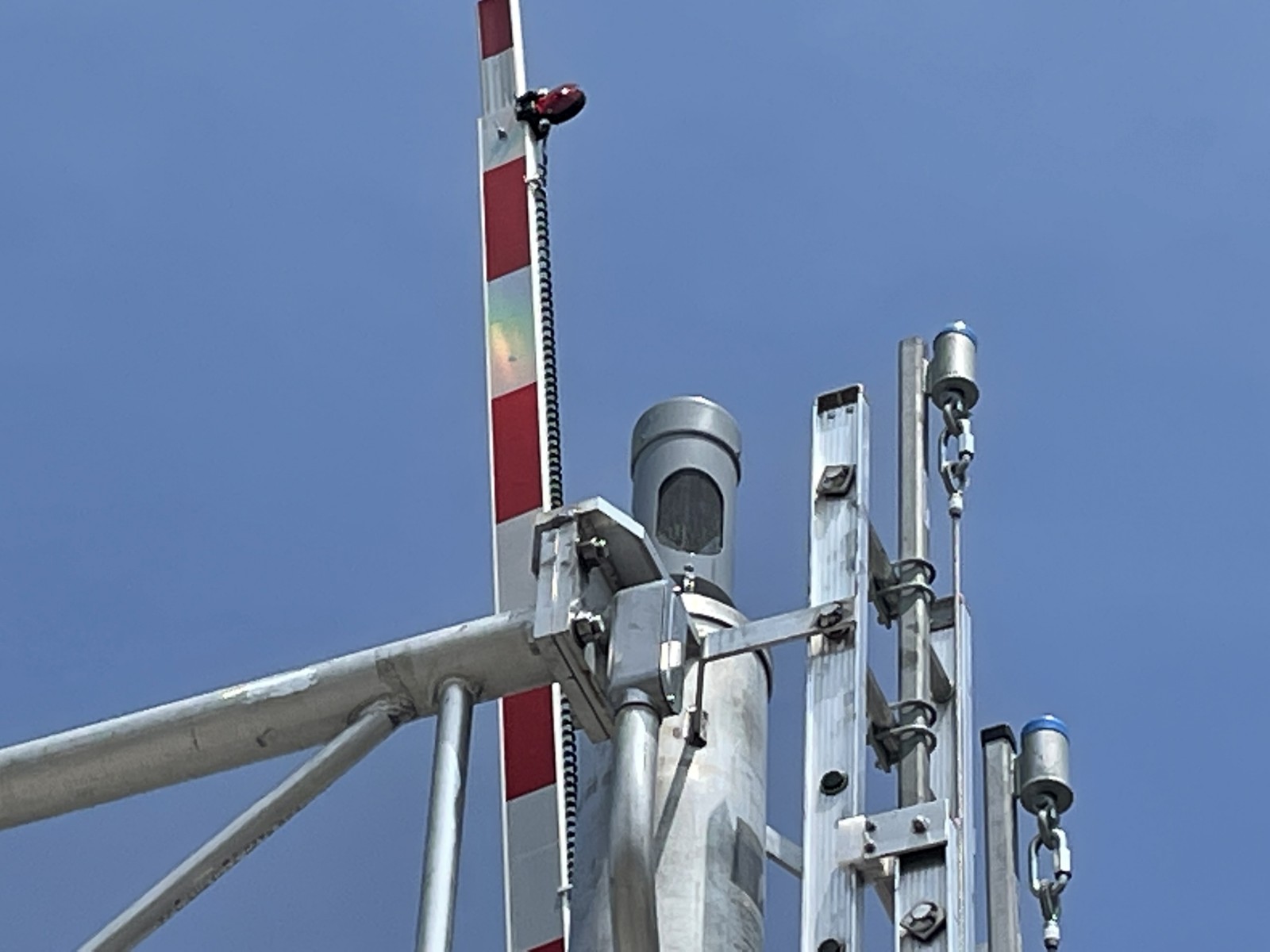

The bell on it is now another NEG E-Bell.

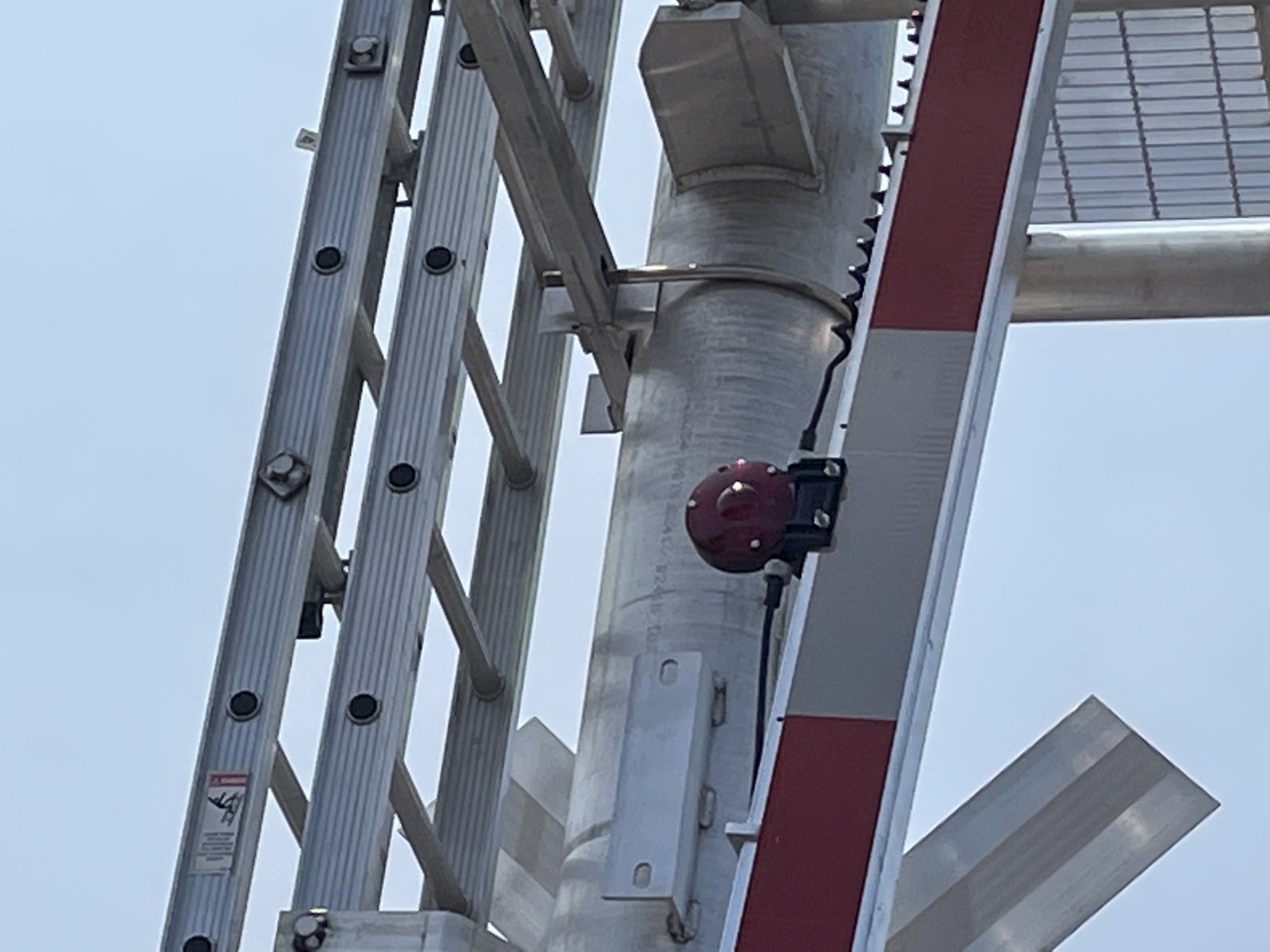

NEG LED gatelights now in use here.
The other cantilever signal remains unchanged.

56

57

58

59

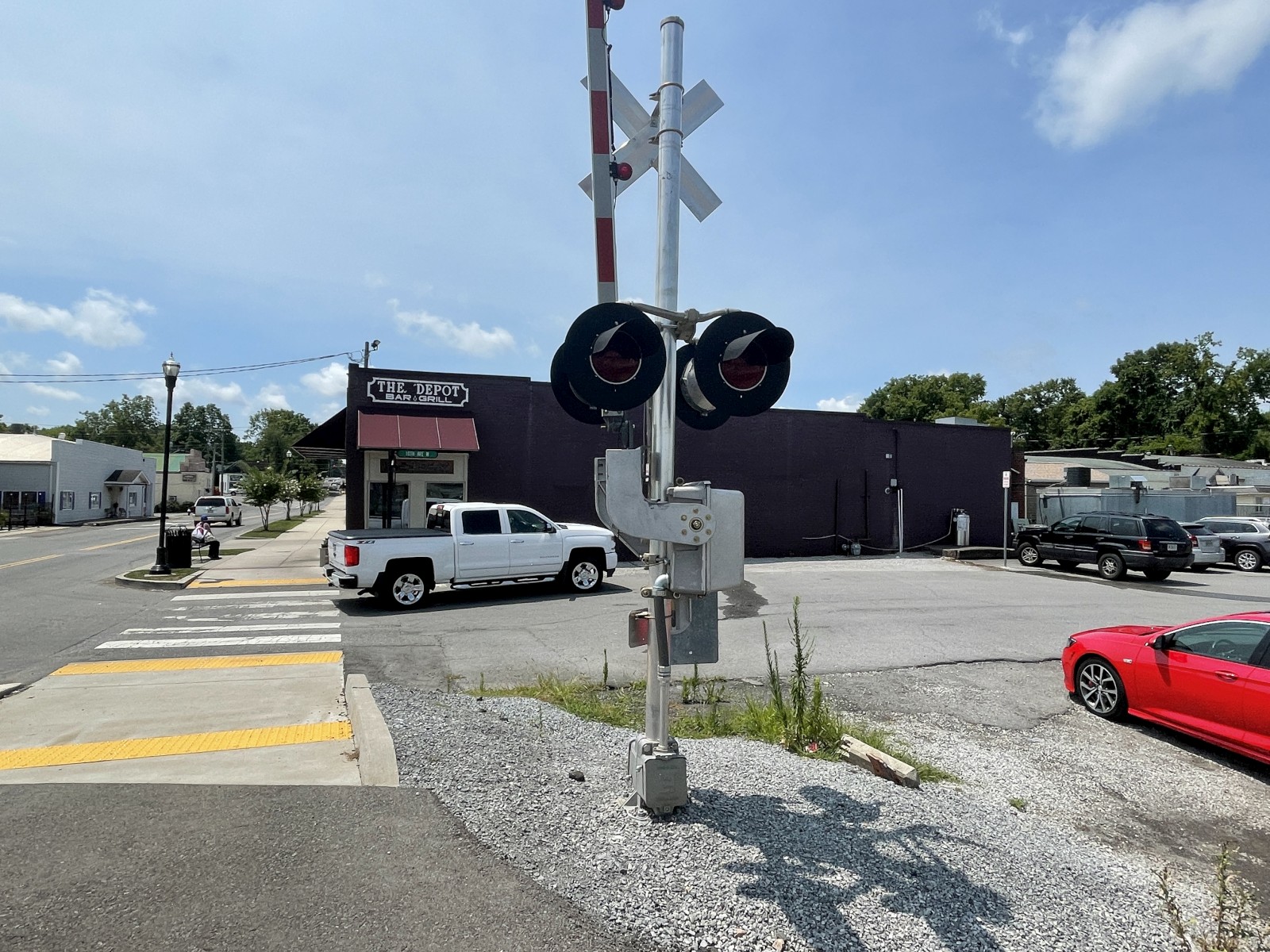

The pedestrian signal also remains unchanged.

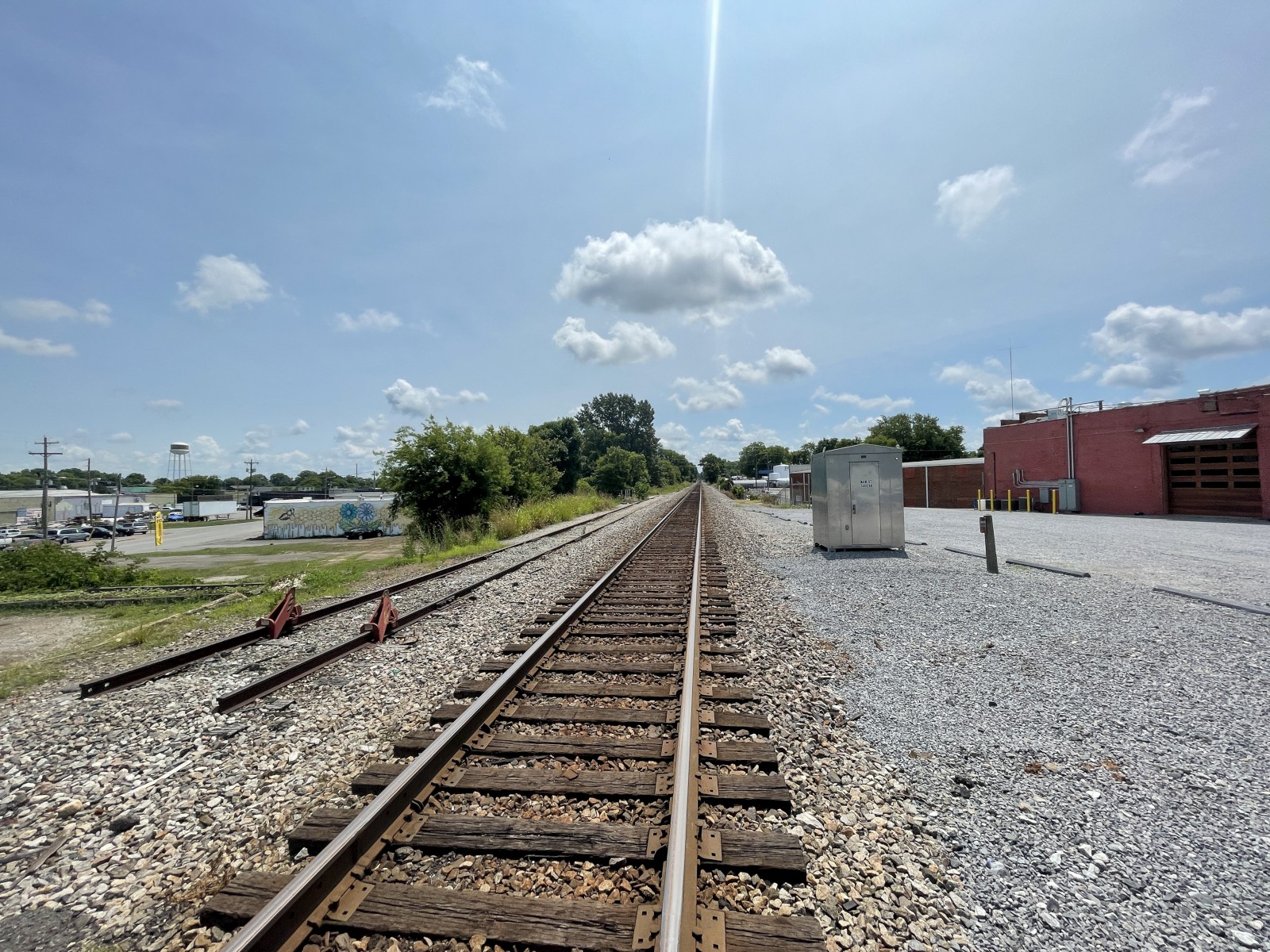

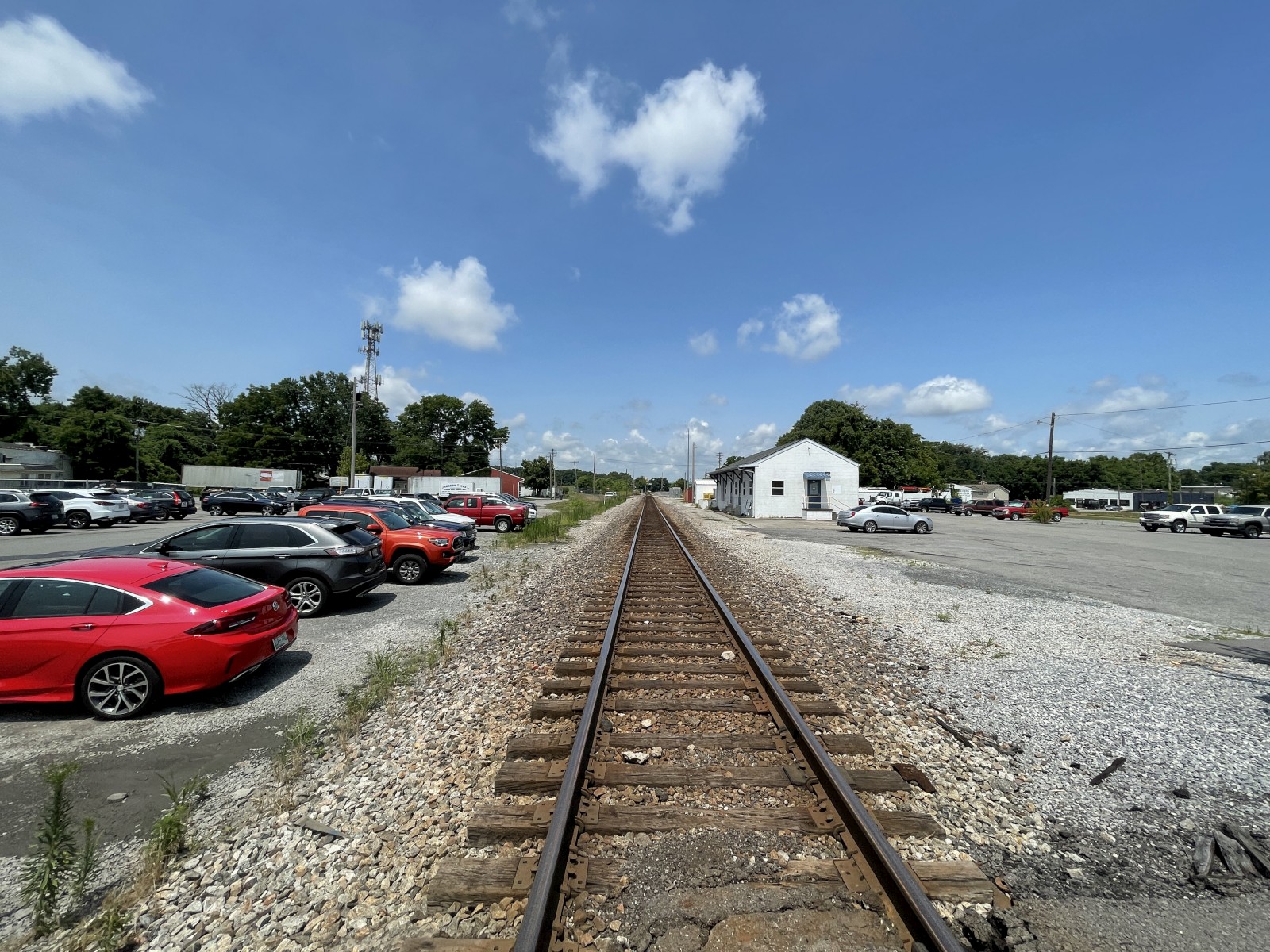

Track views.



In the first video below, this signal once used to have Modern Industries 12x20 incandescent lights on the northern signal's overhead, Safetran gate mechanisms, and a WCH Mechanical Bell. The southern signal was likely a replacement for a knock down that had the same equipment as the northern signal, except without the bell, and the remaining 8 inch lights on the northern signal were replaced sometime within 2013 and 2017. The WCH Mechanical Bell was also the last remaining mechanical bell left in Springfield, suprisingly enough.







Pictures 1-39 were taken on 6-16-19.

Pictures 40-59 were taken on 7-14-21.

The first video was taken on 4-29-18.

The second video was taken on 12-16-18.
