MP: 00H197.340 |
Created September 25, 2019
Total Accidents: 4
Crossing
DOT #: 348126W
TOTAL
DAILY TRAINS: 26 (AS OF 2019)
Page created by: Ethan the Railfanner
This crossing is located on the CSX Henderson Subdivision.
1 |
2 |
3 |
4 |

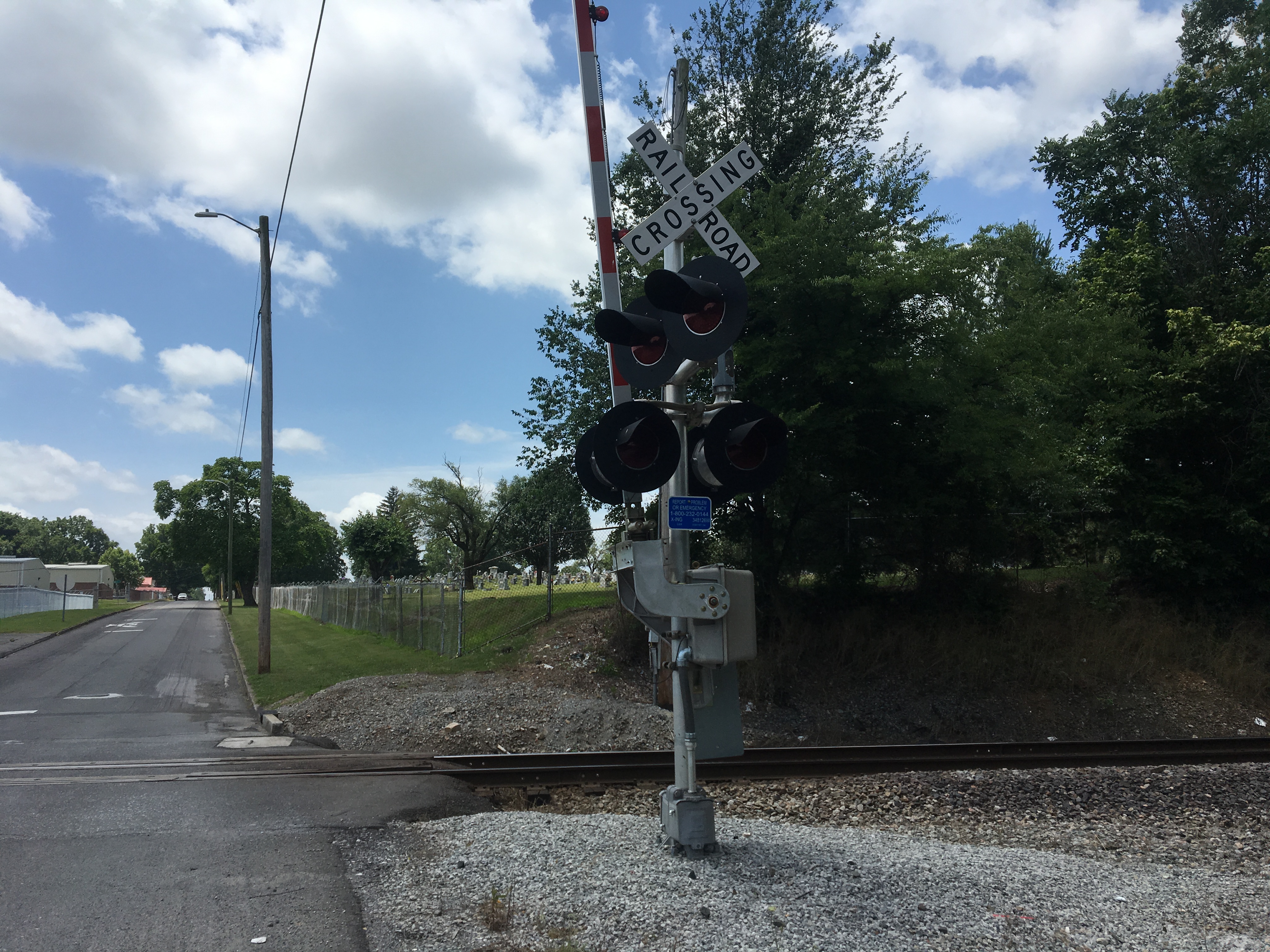

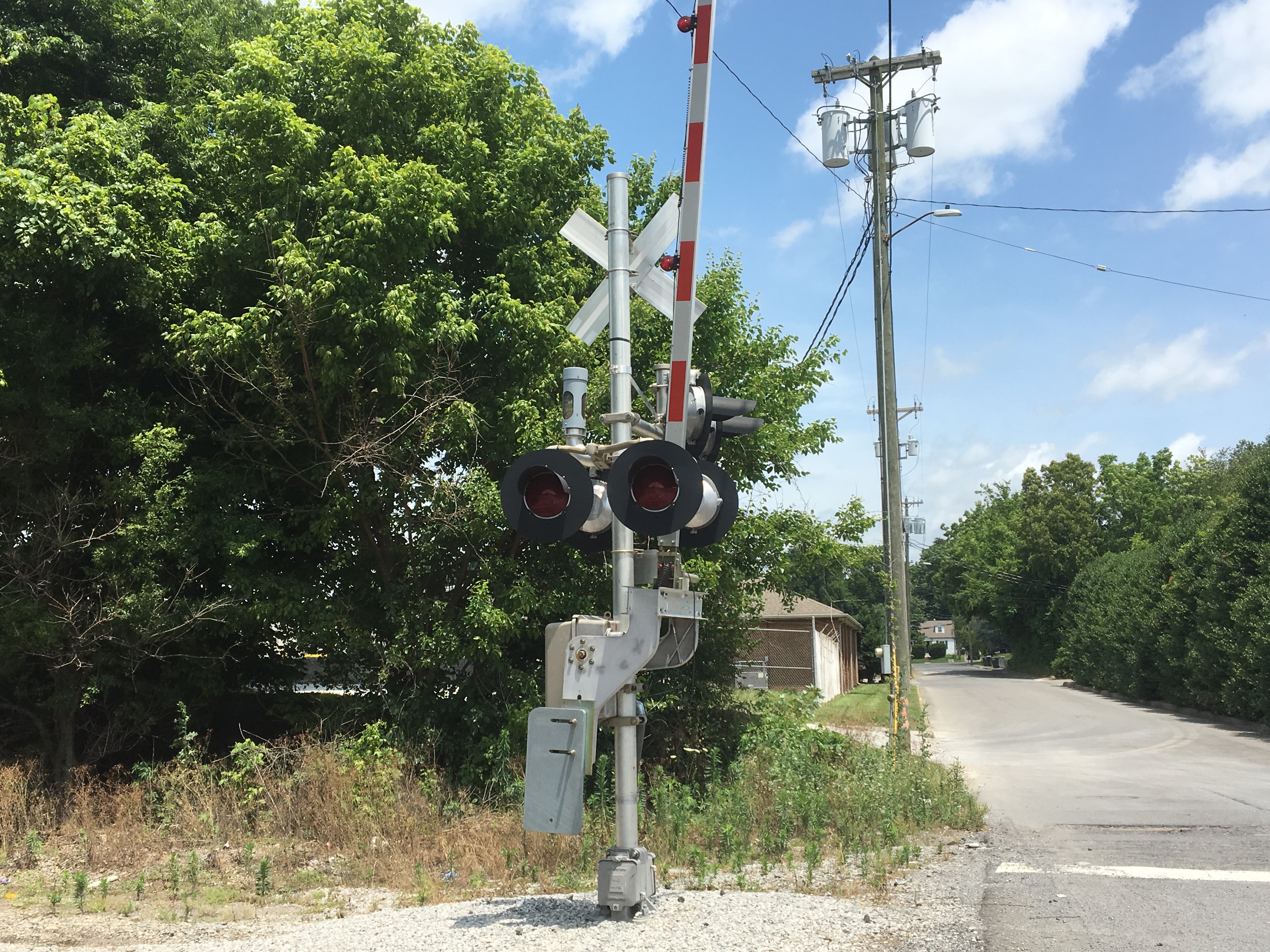

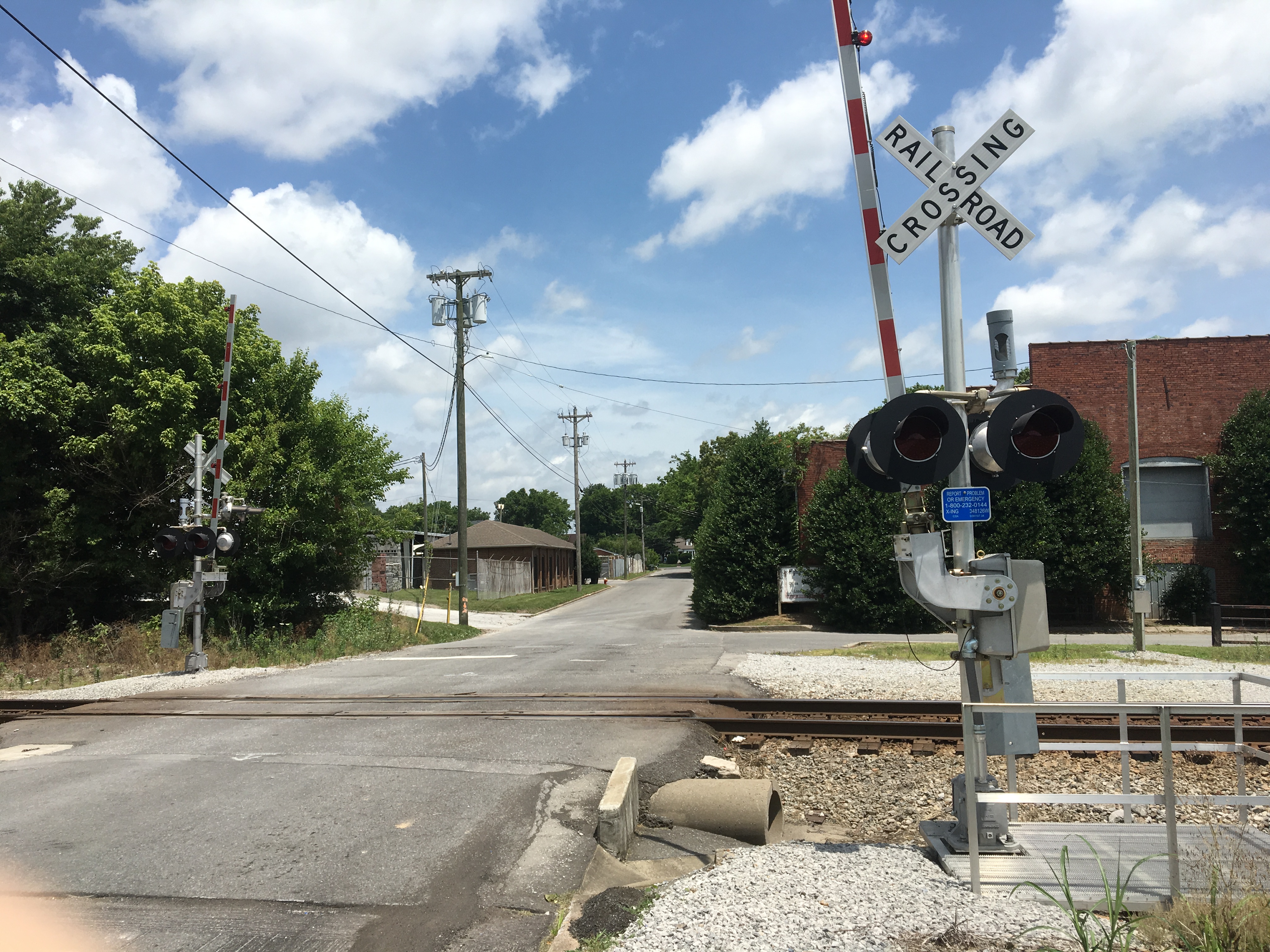

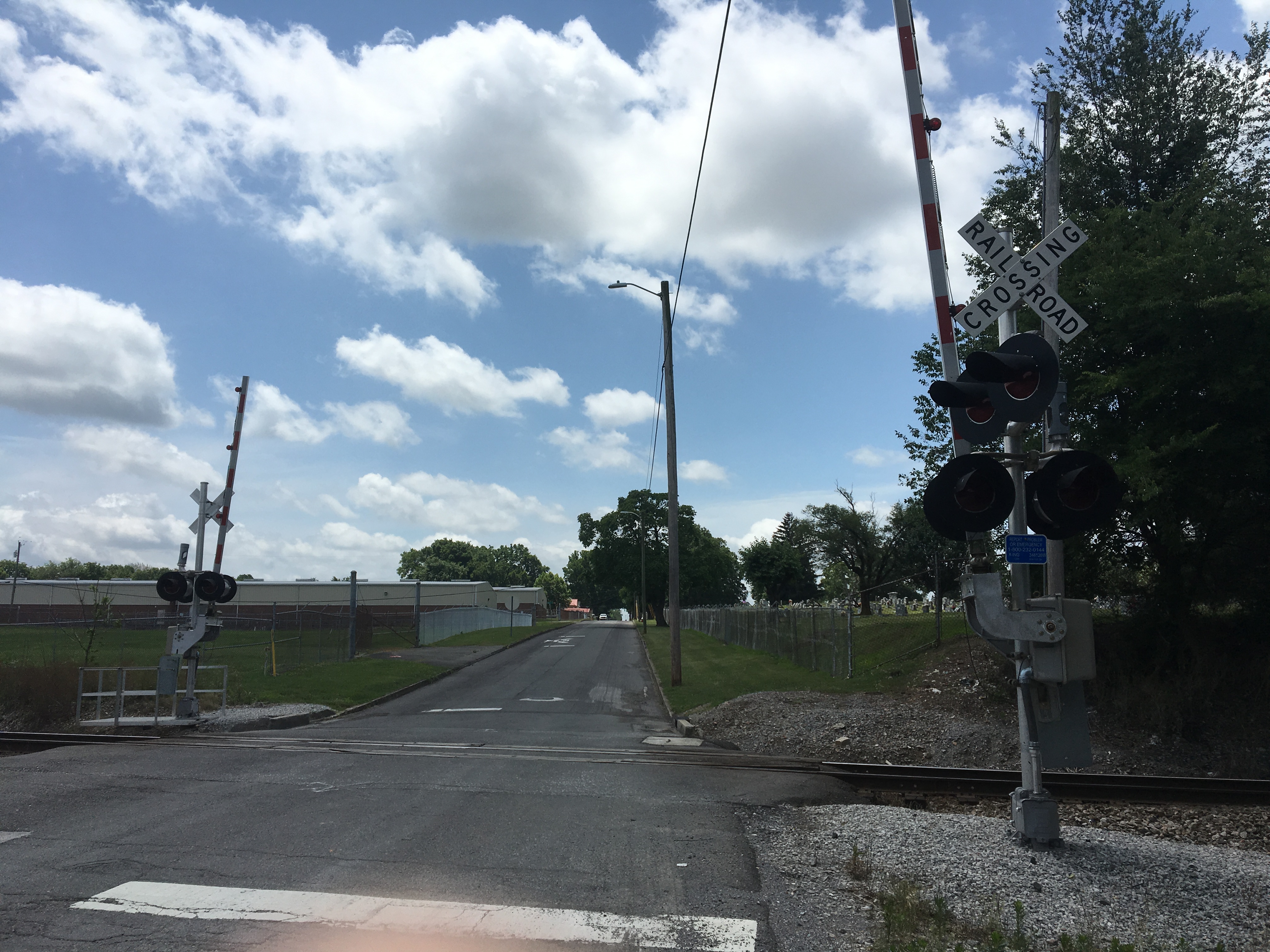

Overviews of this new crossing, which replaced a pair of gateless, bell-less signals in 2016. (More info below.) |

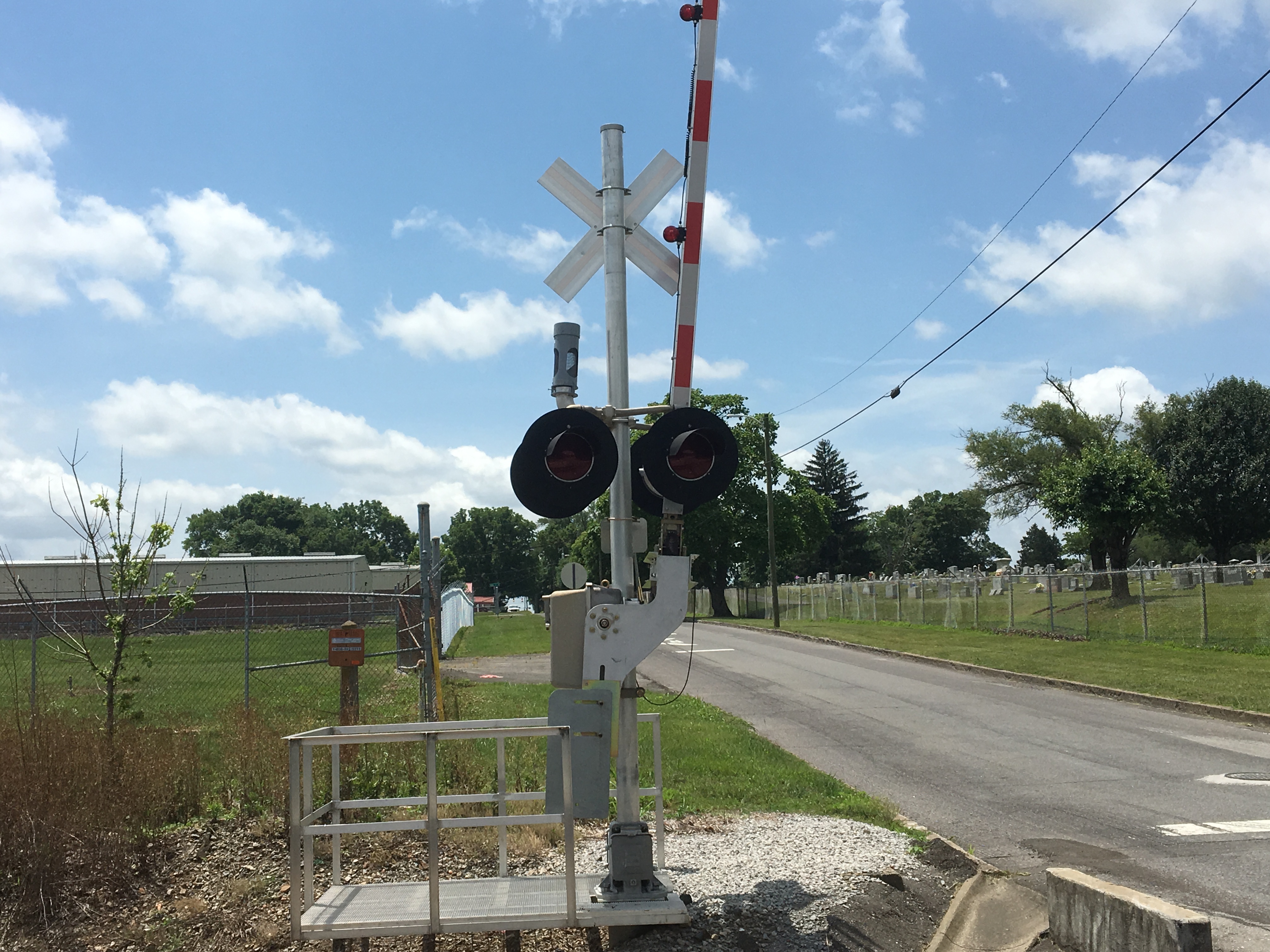

The northern signal. |
||
5 |
6 |
7 |
8 |

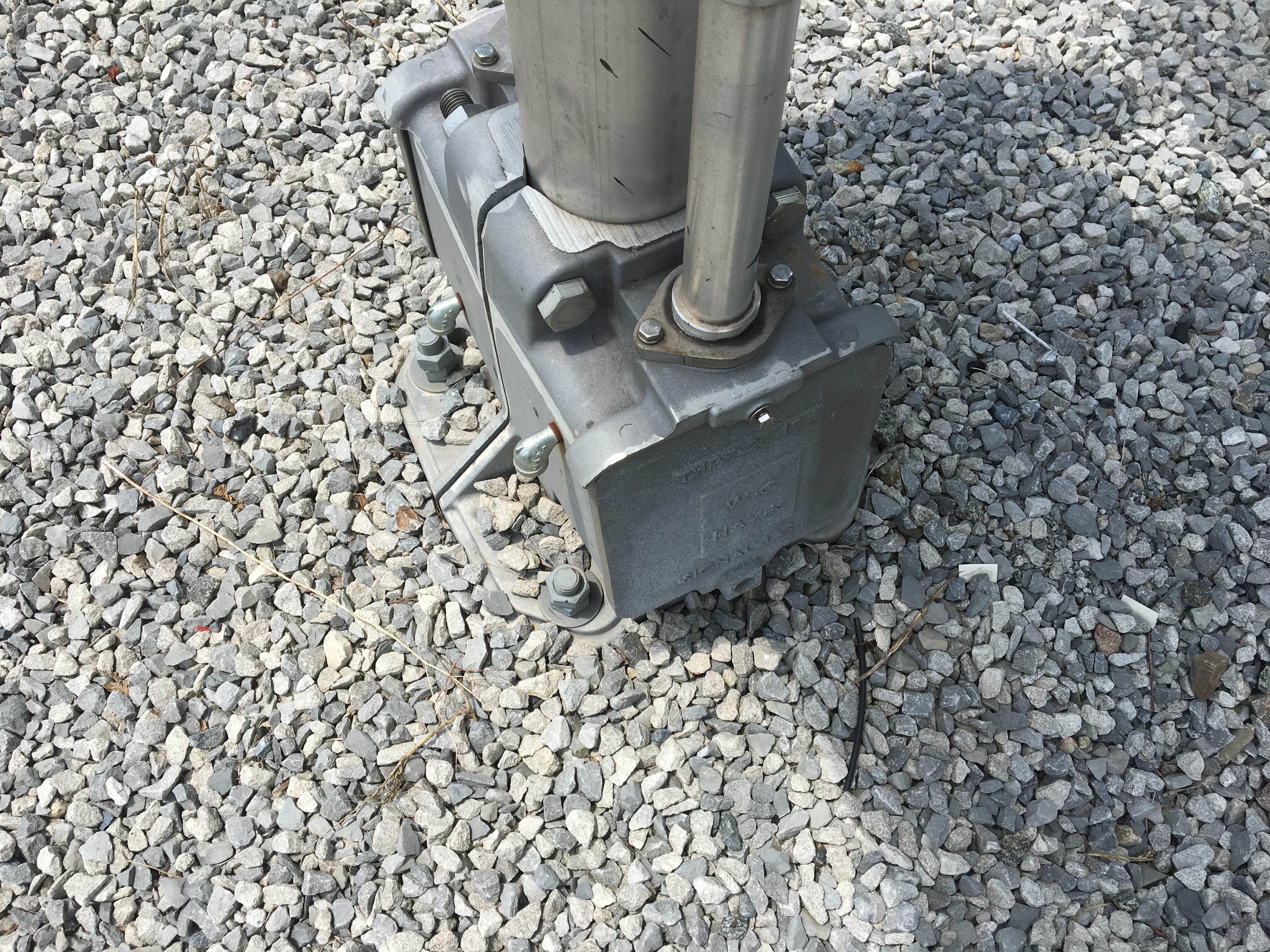

It has a WCH base. |

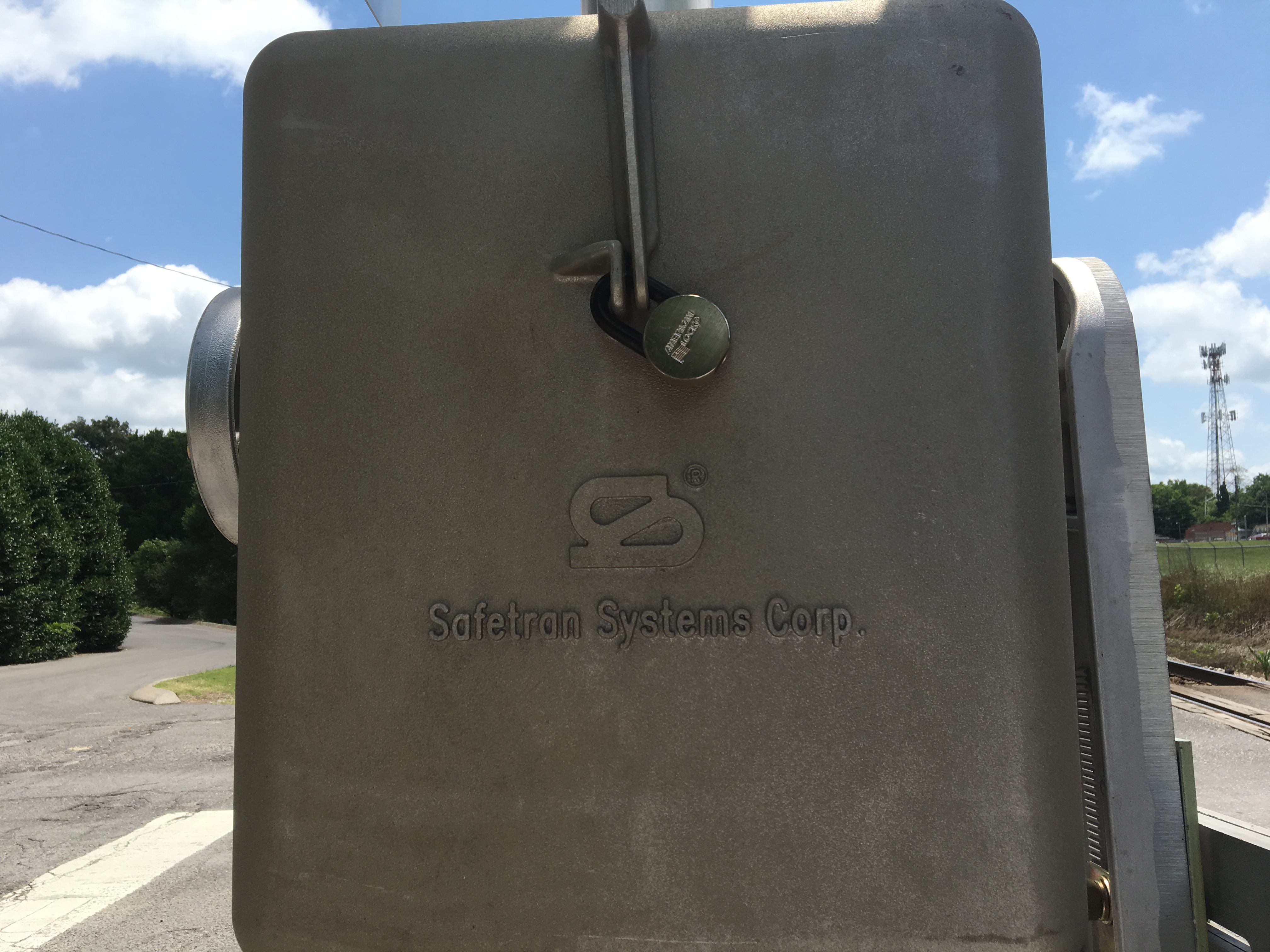

A Safetran gate mechanism. |

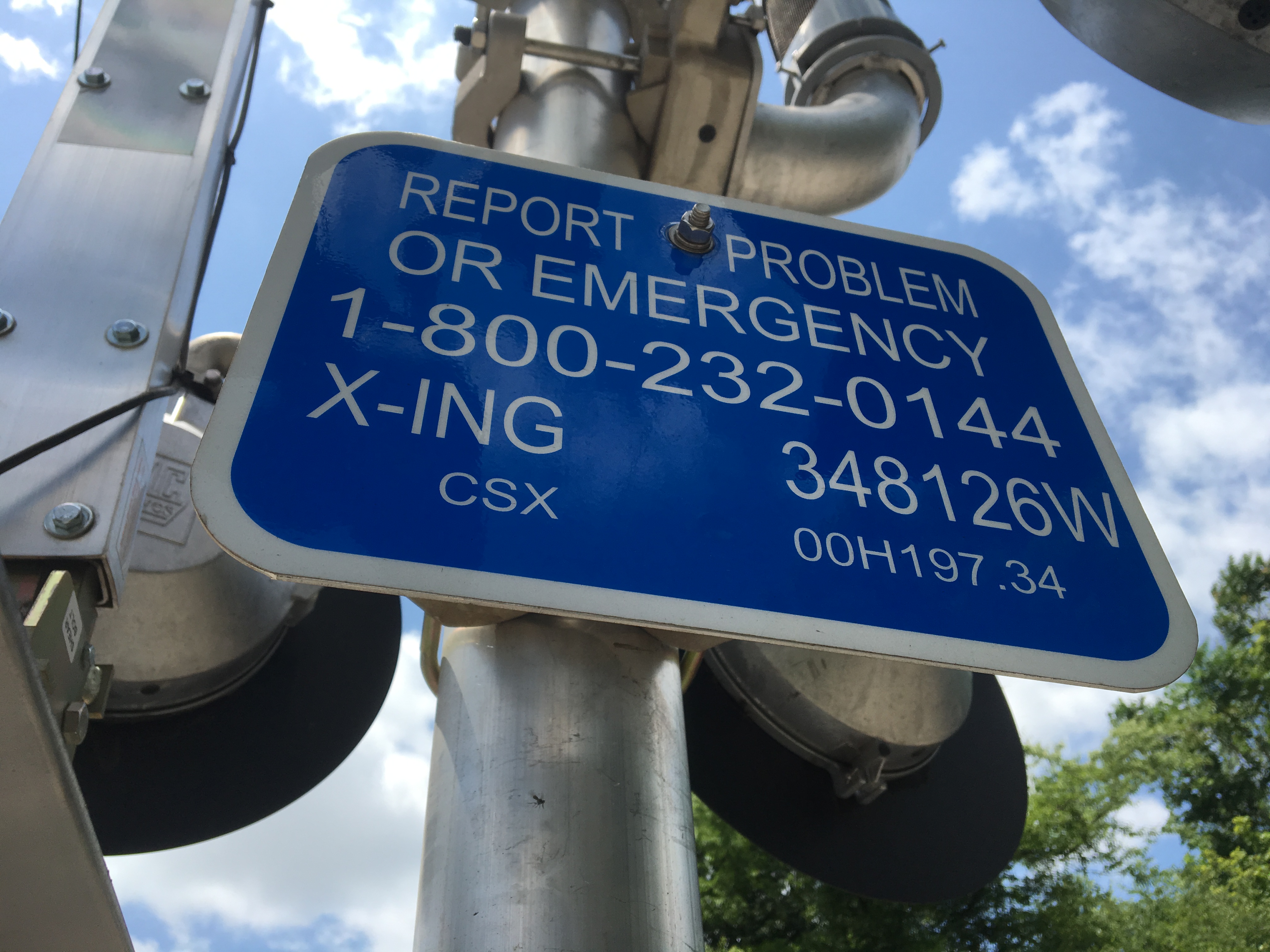

The emergency information. |
9 |
10 |
11 |
12 |

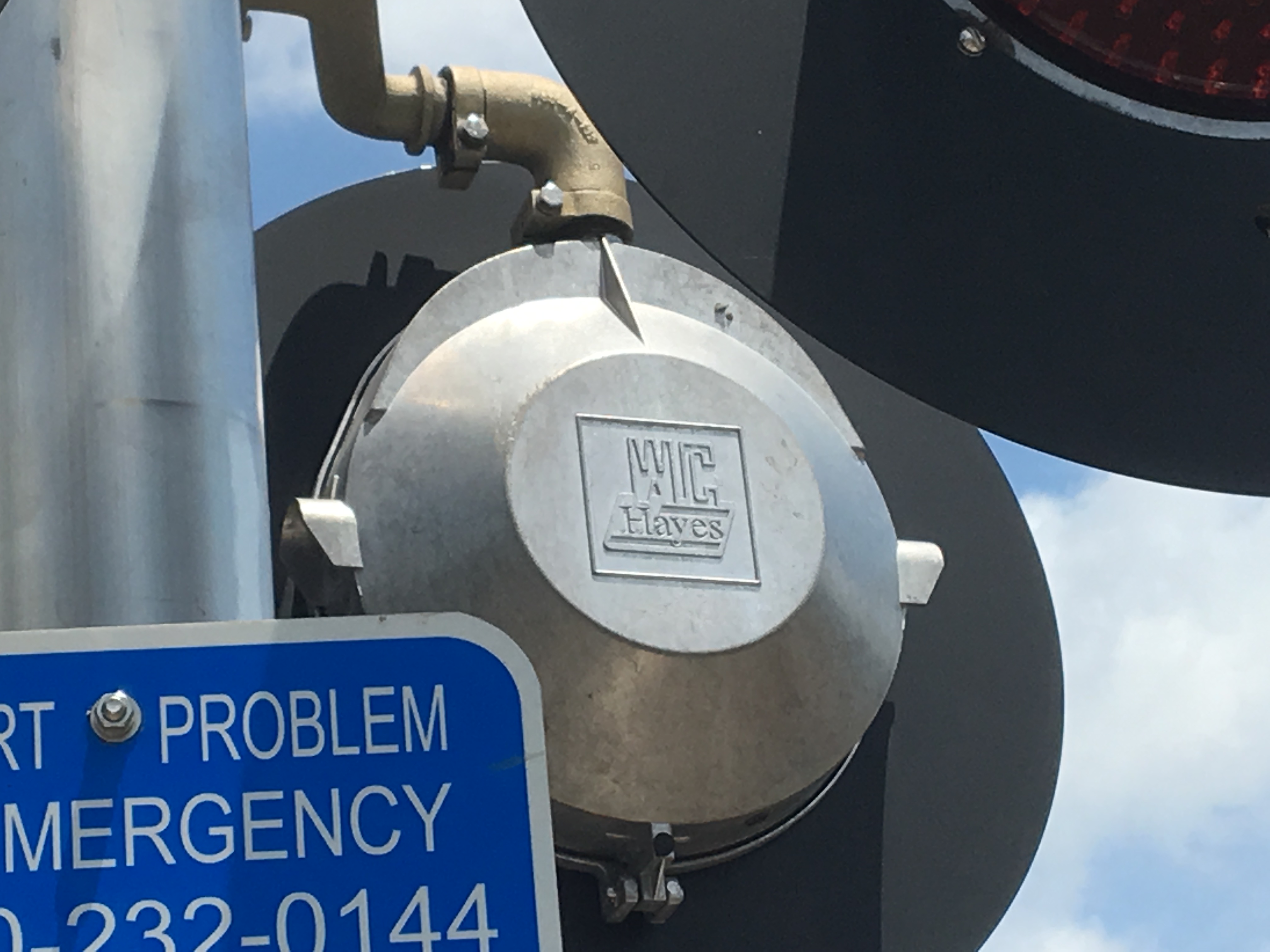

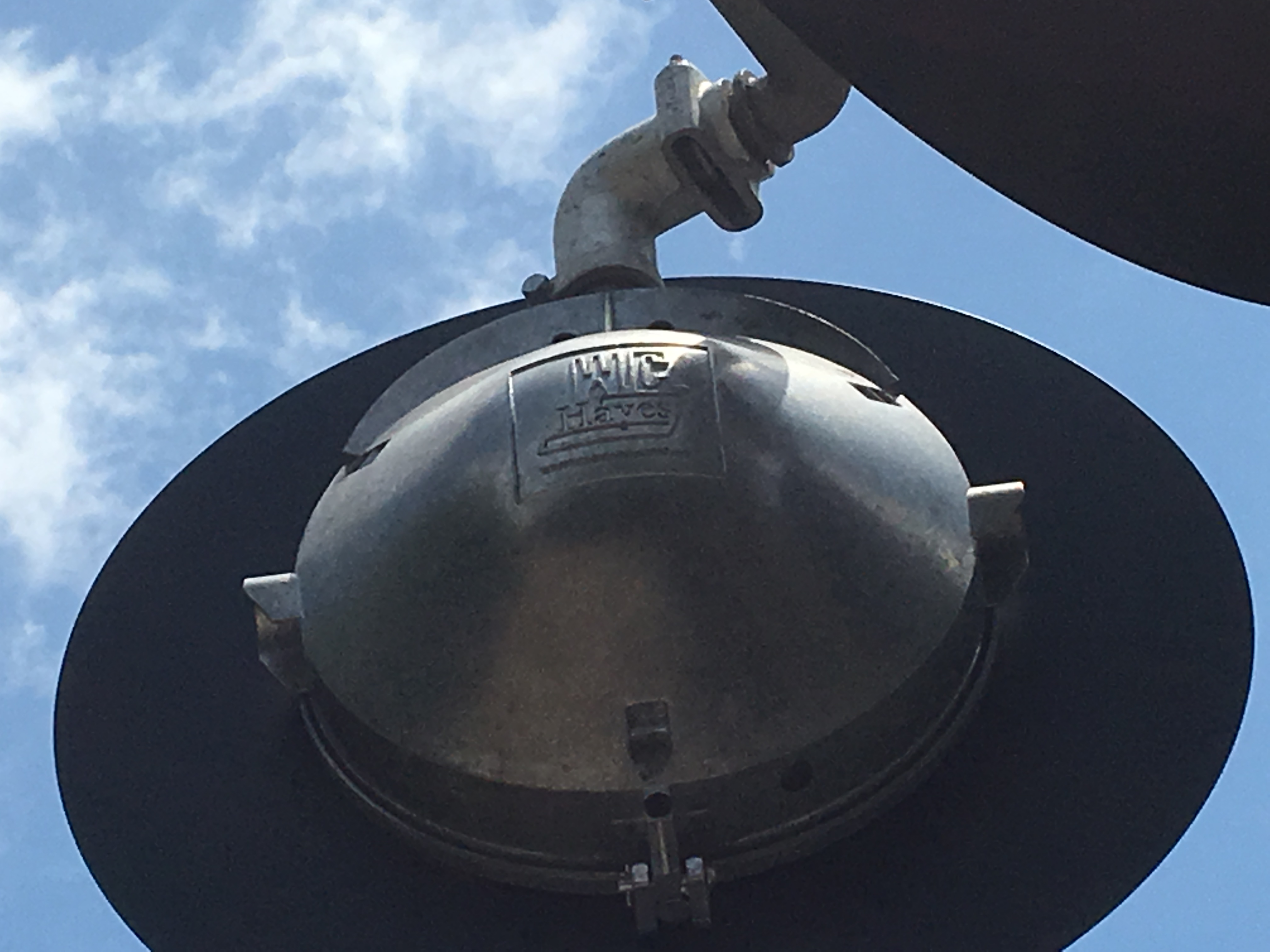

This signal has a mixture of older and newer WCH 12x24 lights, all with Leotek EV series LEDs. |

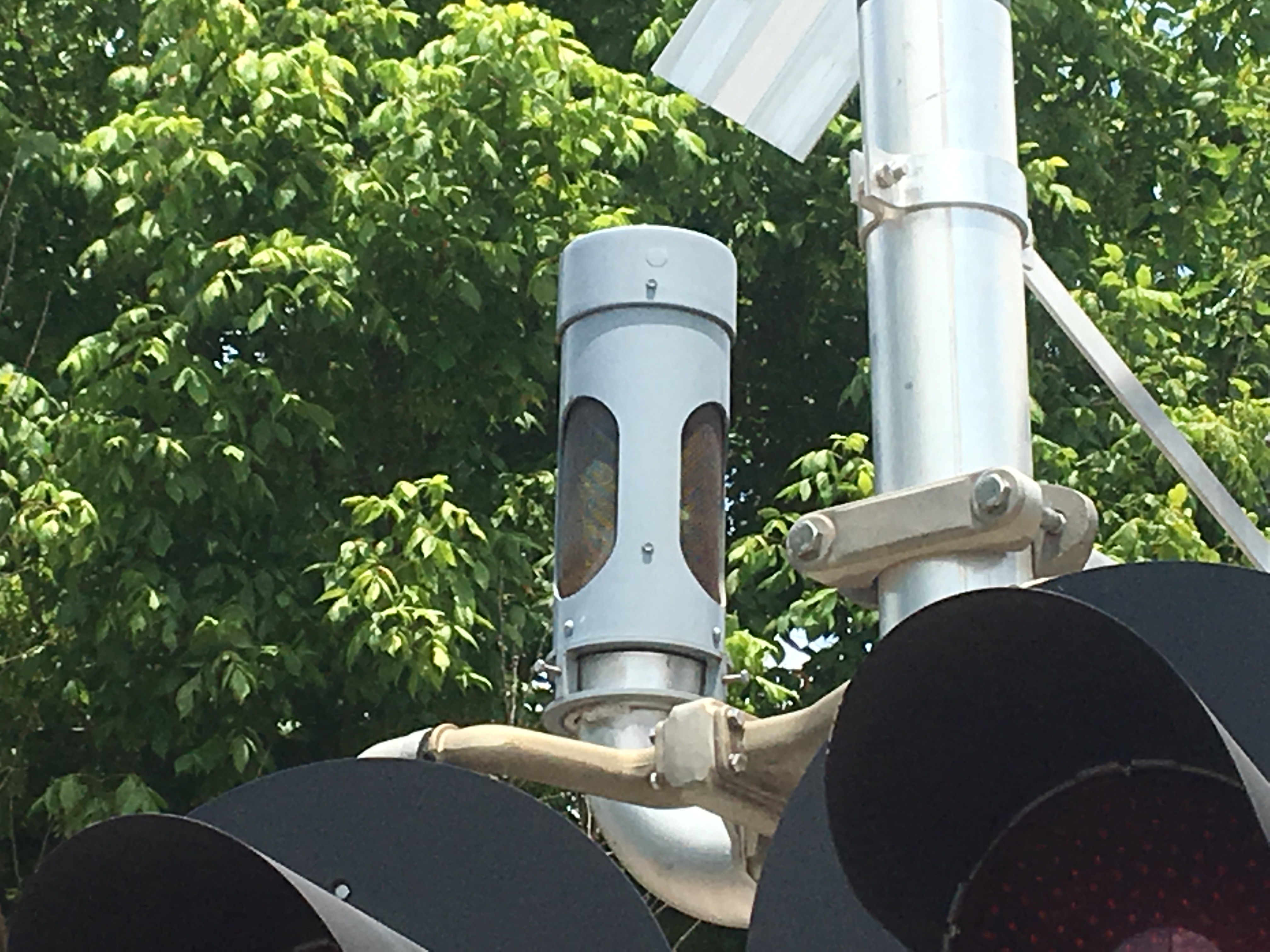

The bell on this signal is an NEG E-Bell. |

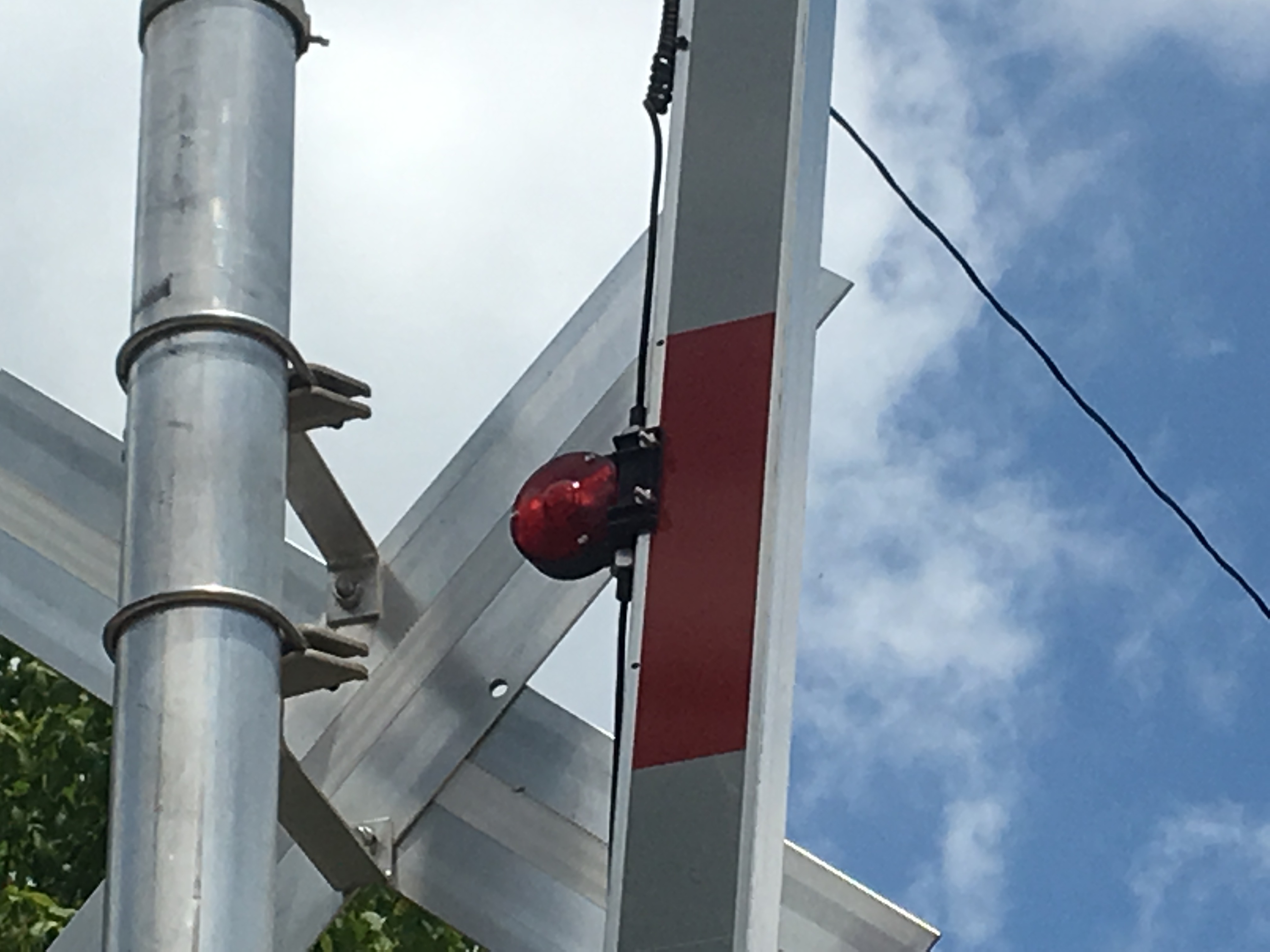

The gatelights are from NEG. |
|
13 |
14 |
15 |
16 |

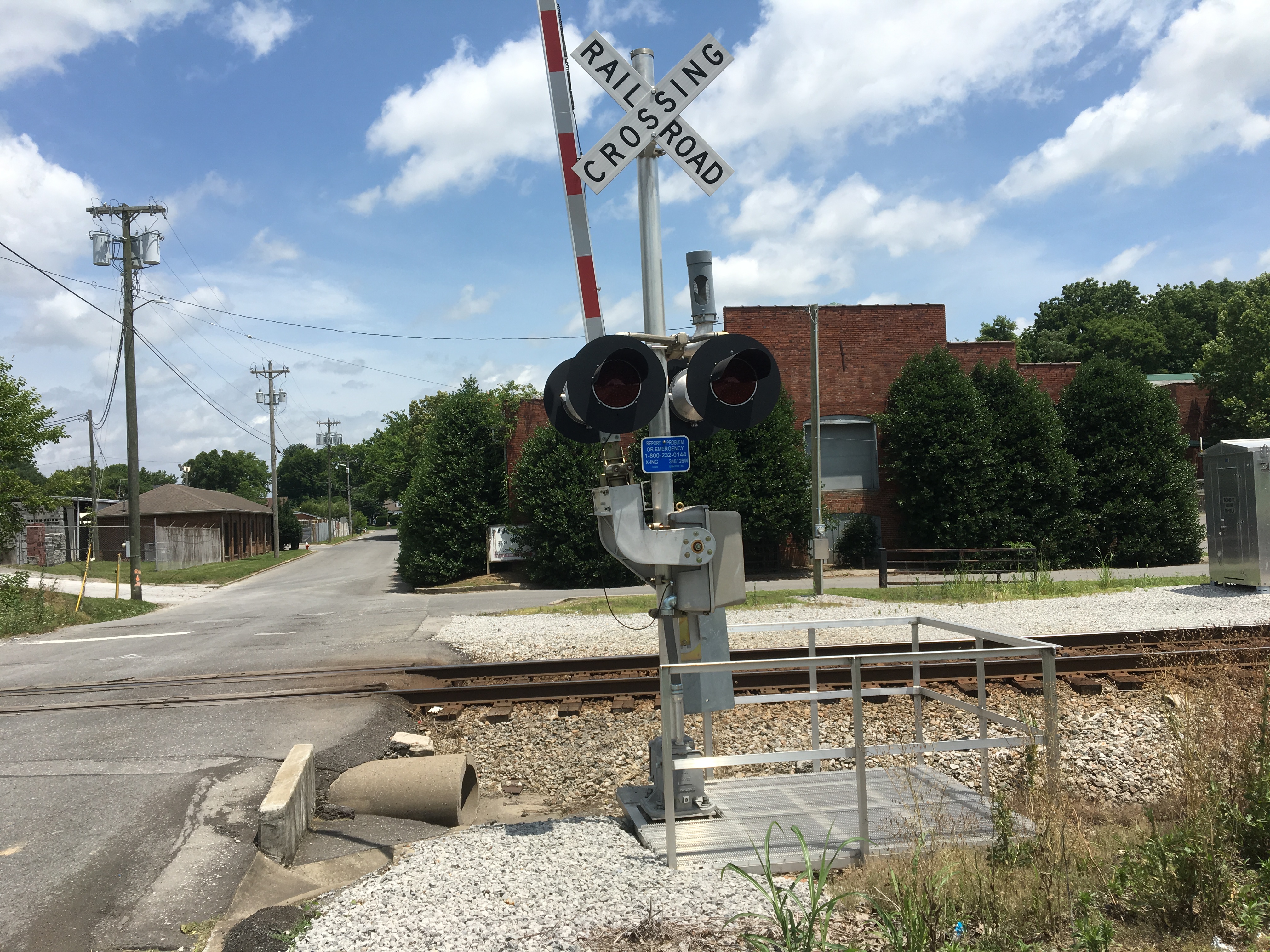

The southern signal. |

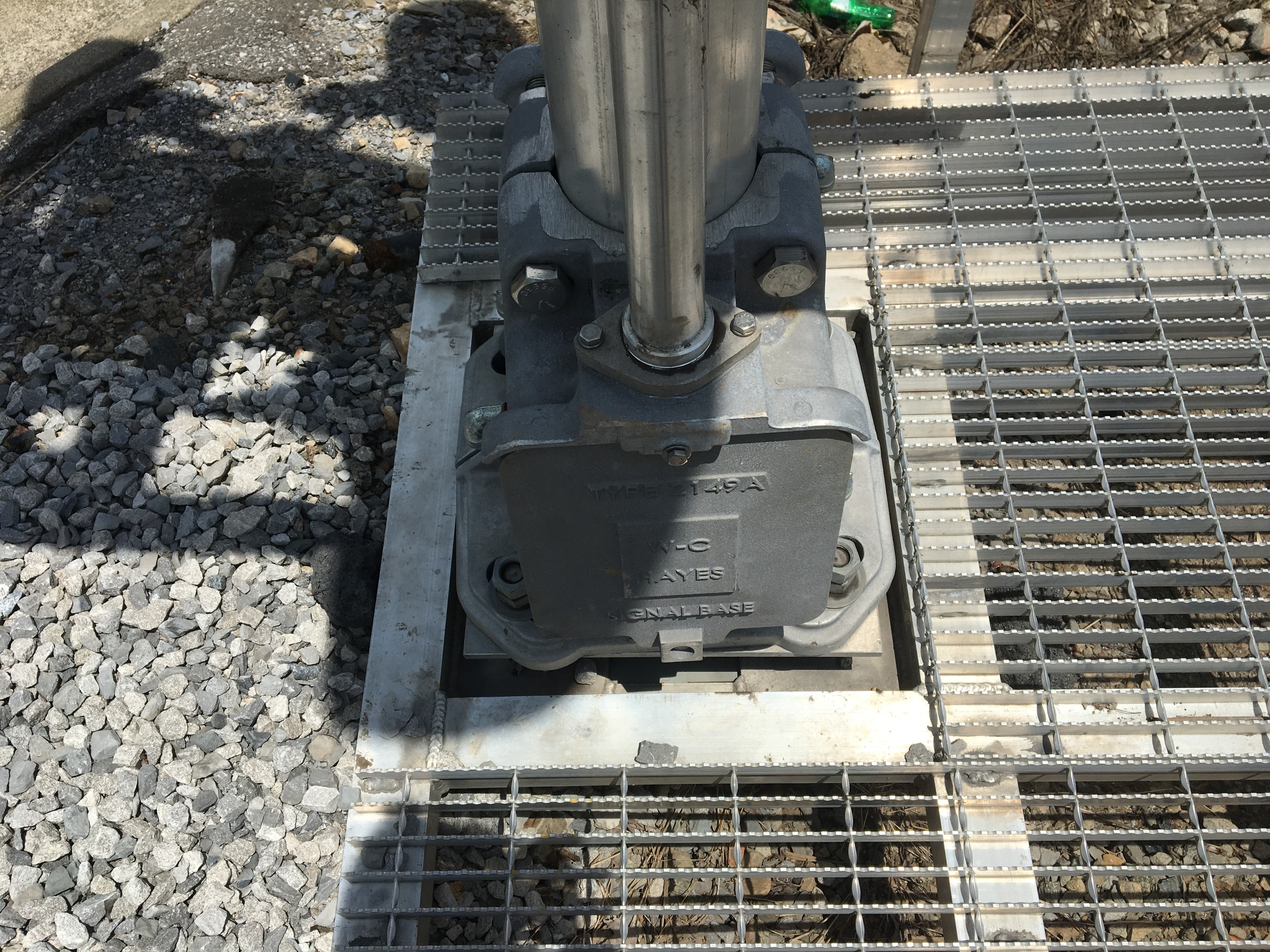

It has a WCH base. |

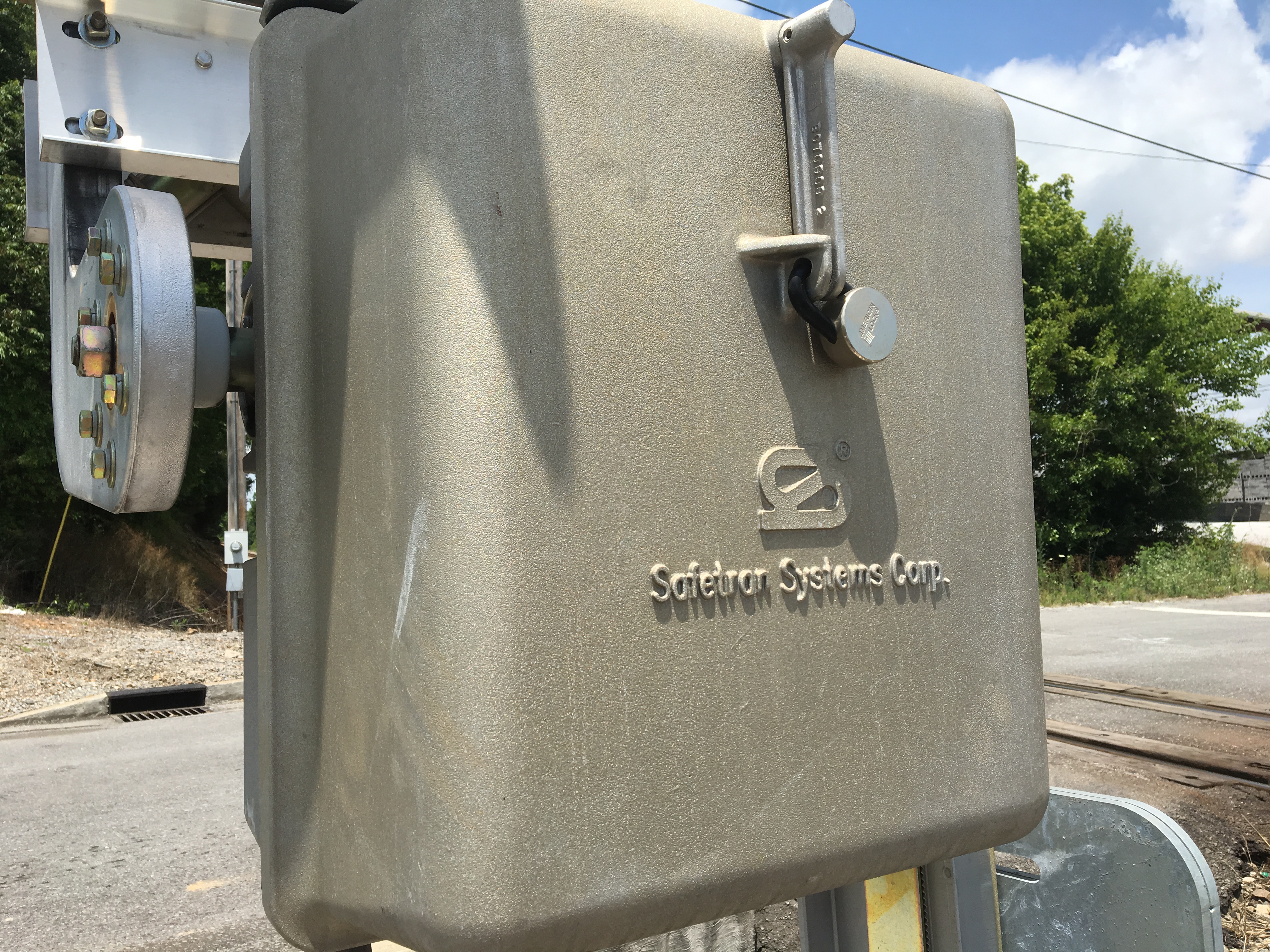

A Safetran gate mechanism. |
|
17 |
18 |
19 |
20 |

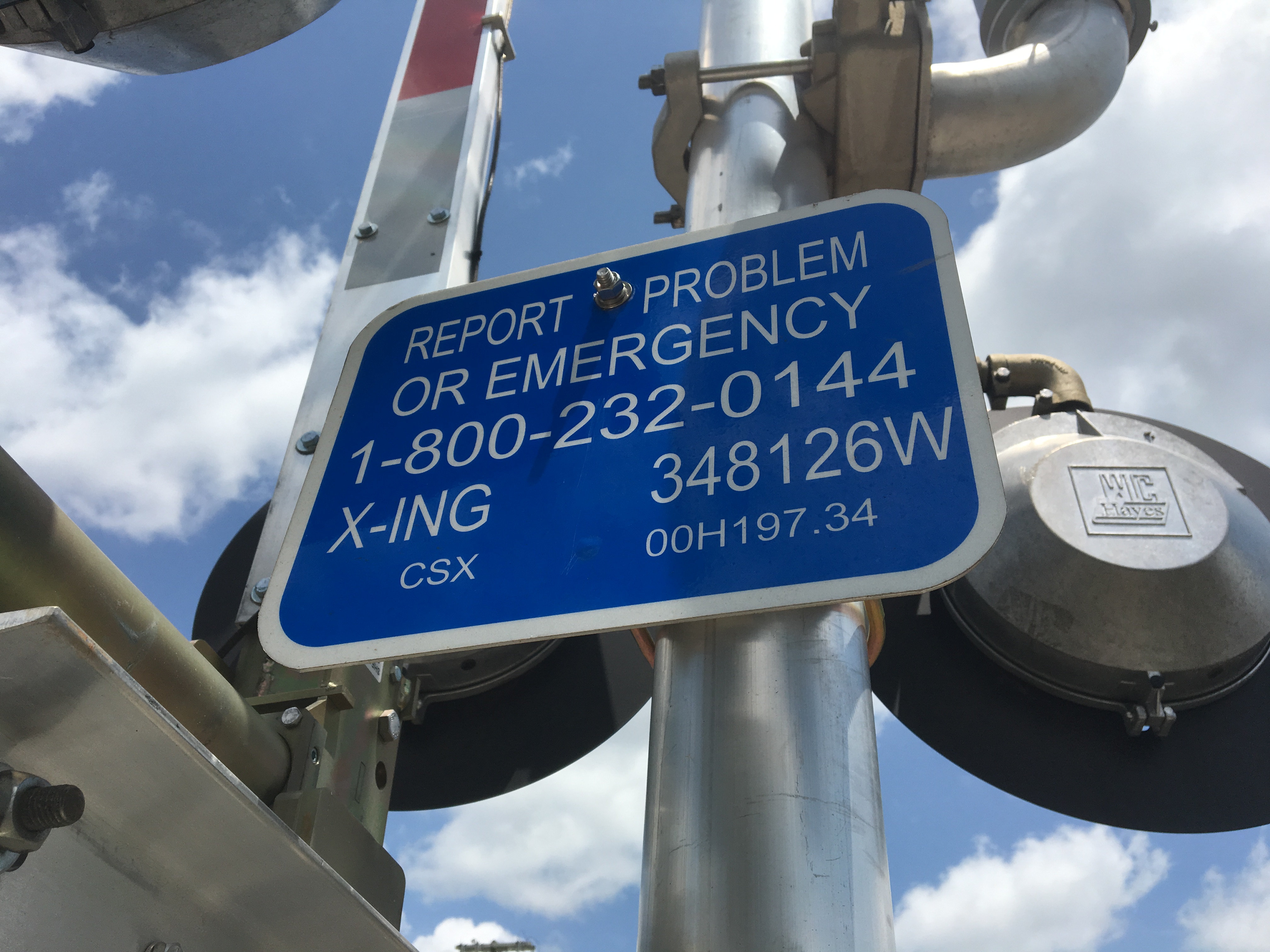

The emergency information. |

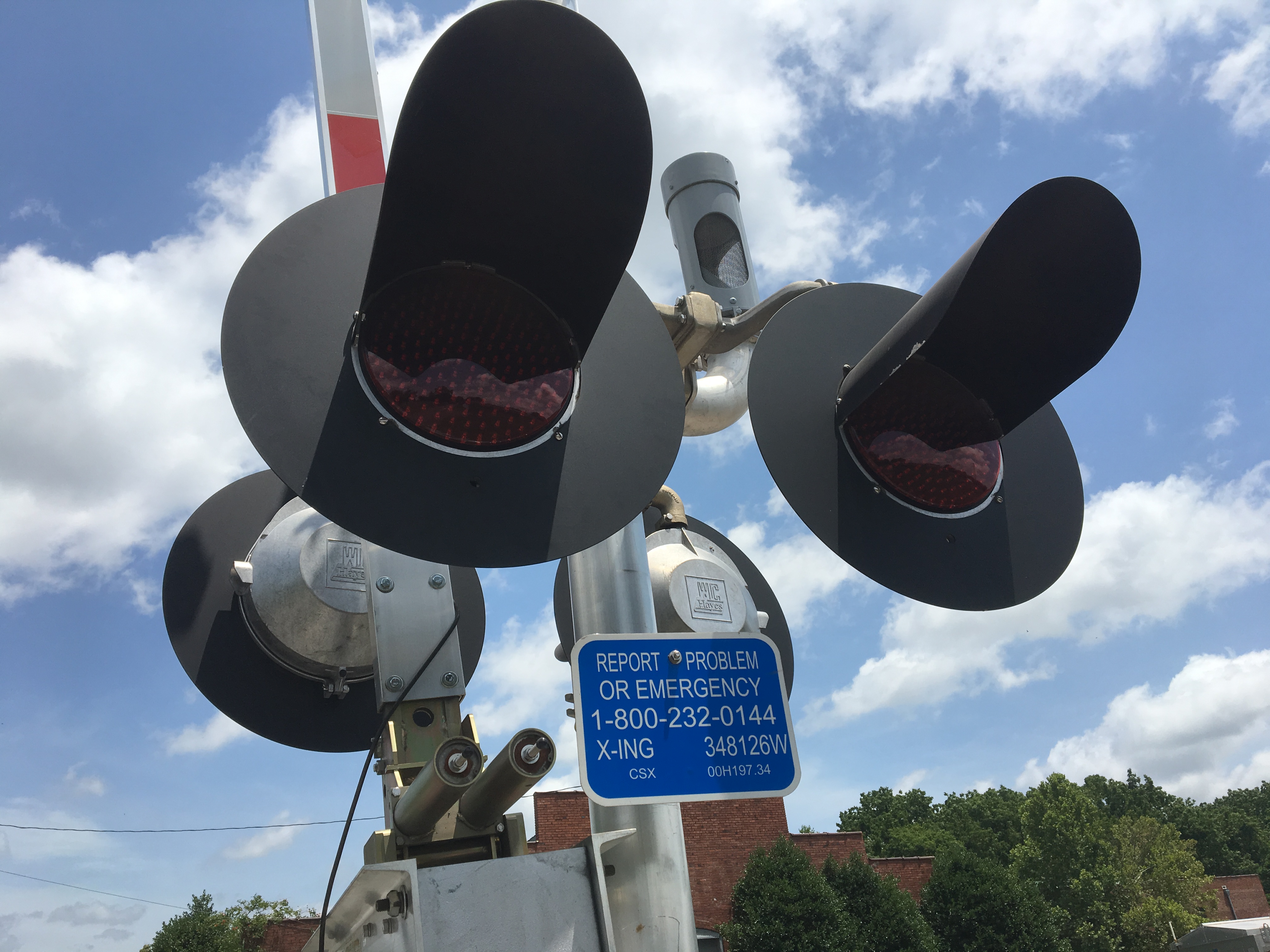

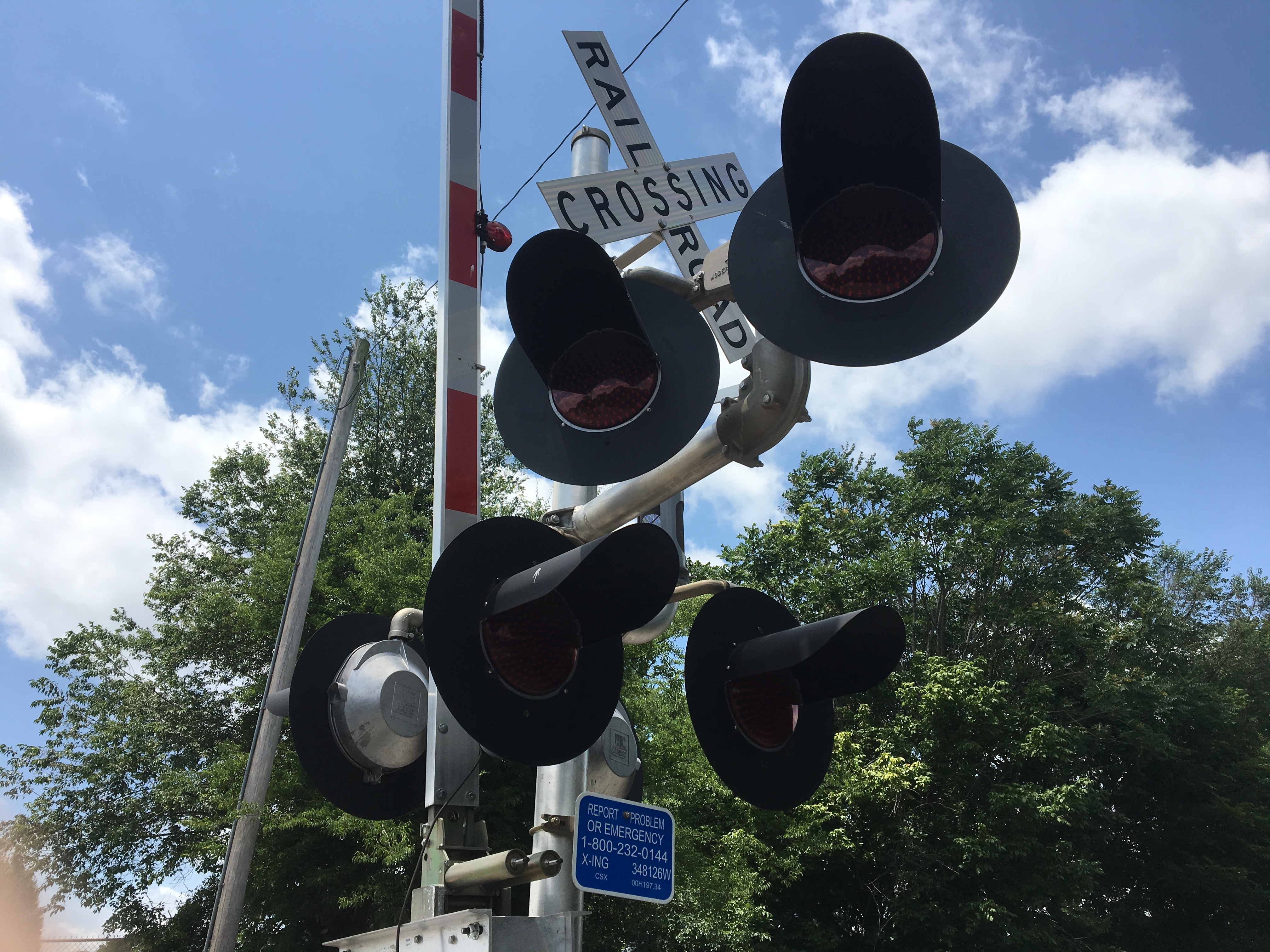

This signal more WCH 12x24 lights with Leotek EV series LEDs. |

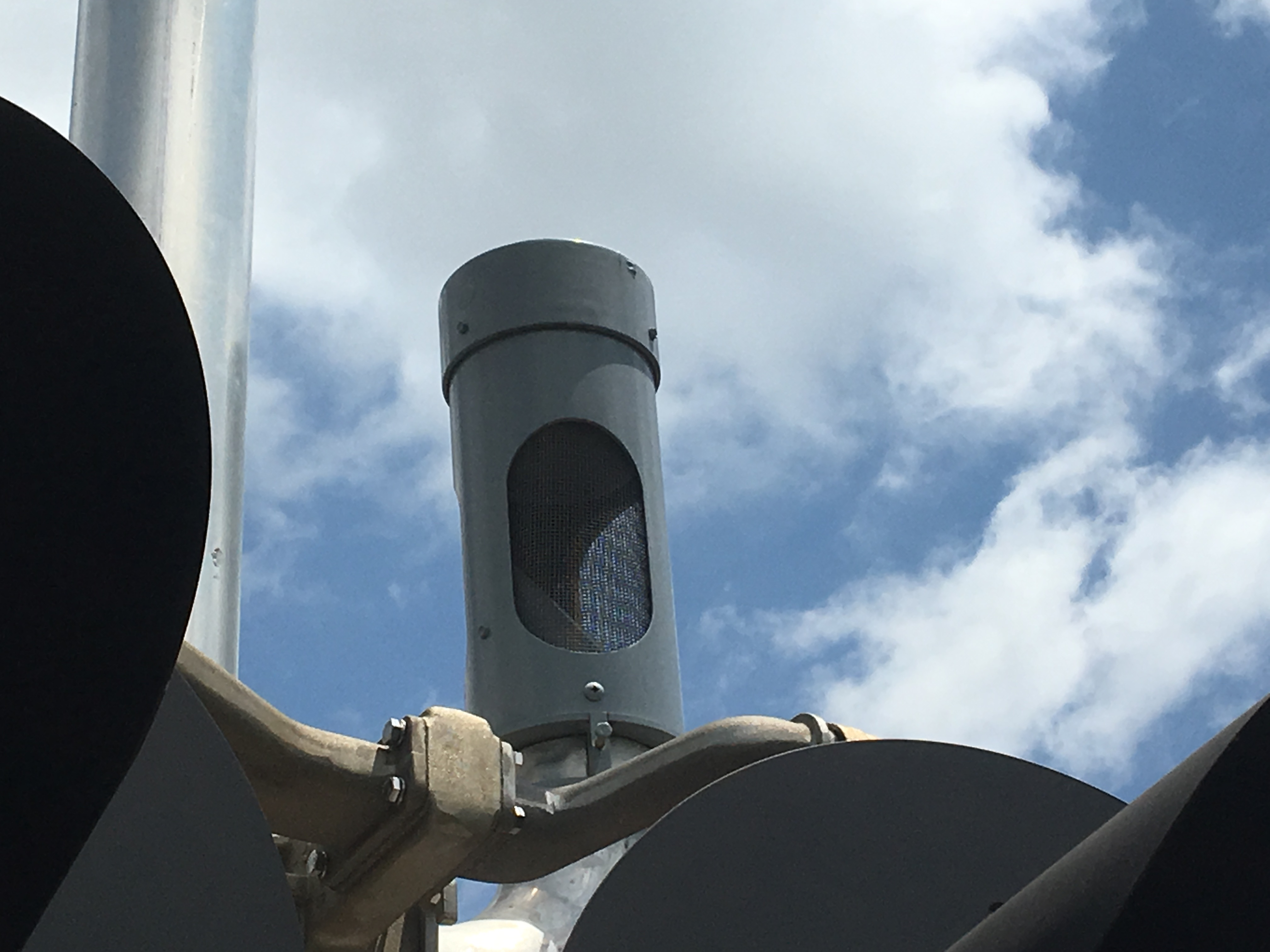

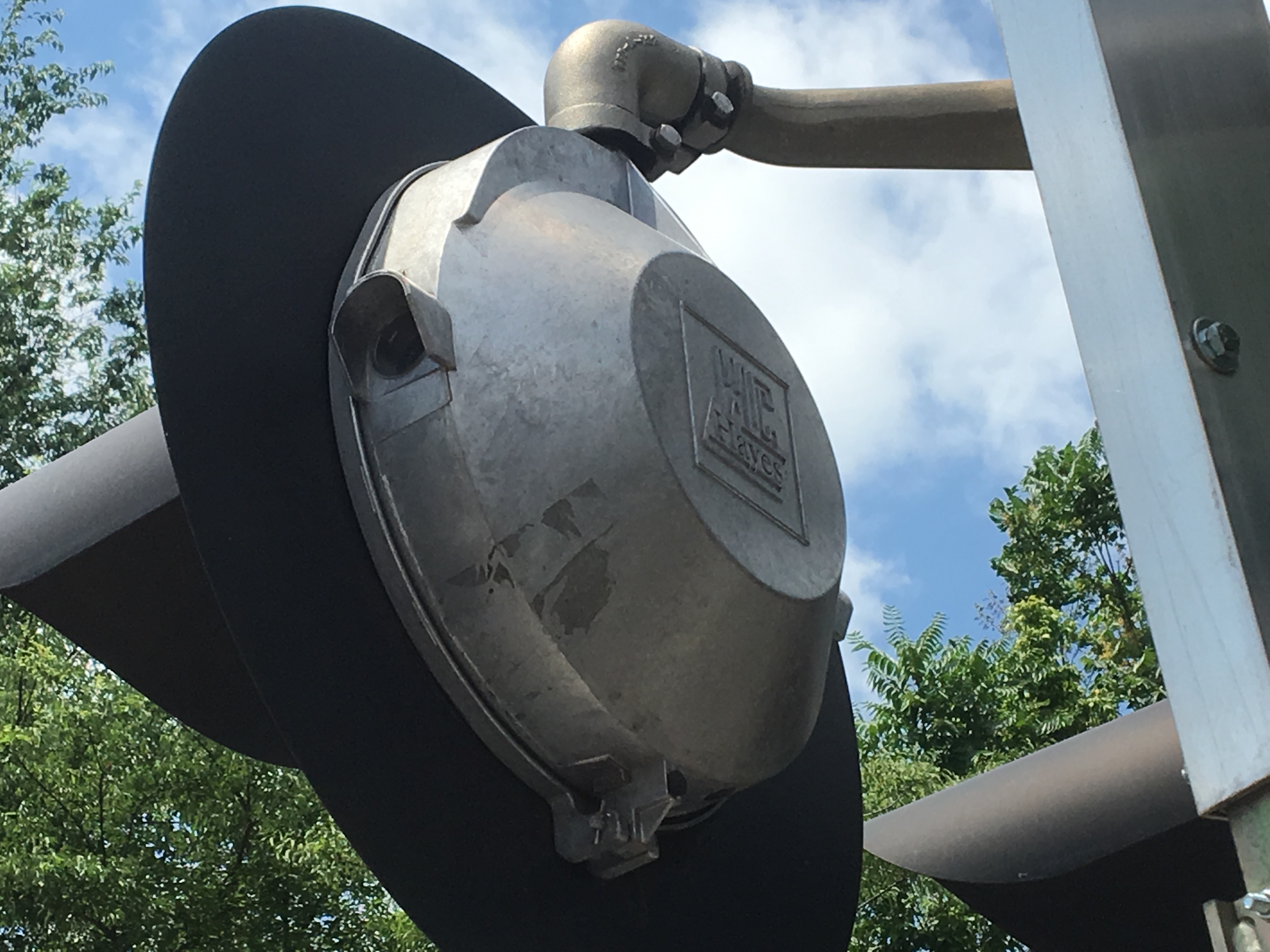

Another NEG E-Bell over here. |
|
21 |
22 |
23 |
24 |

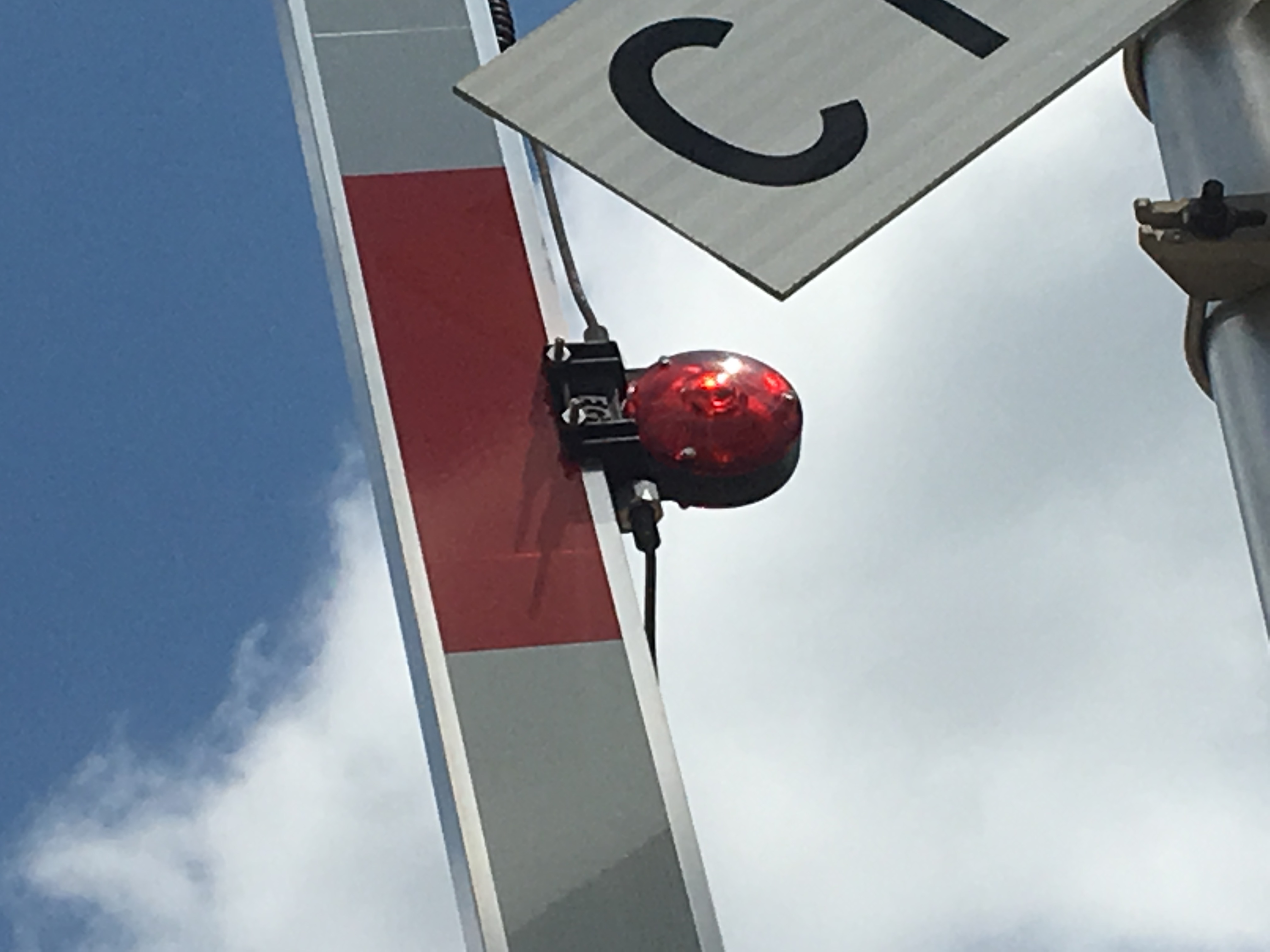

This signal has more NEG gatelights. |

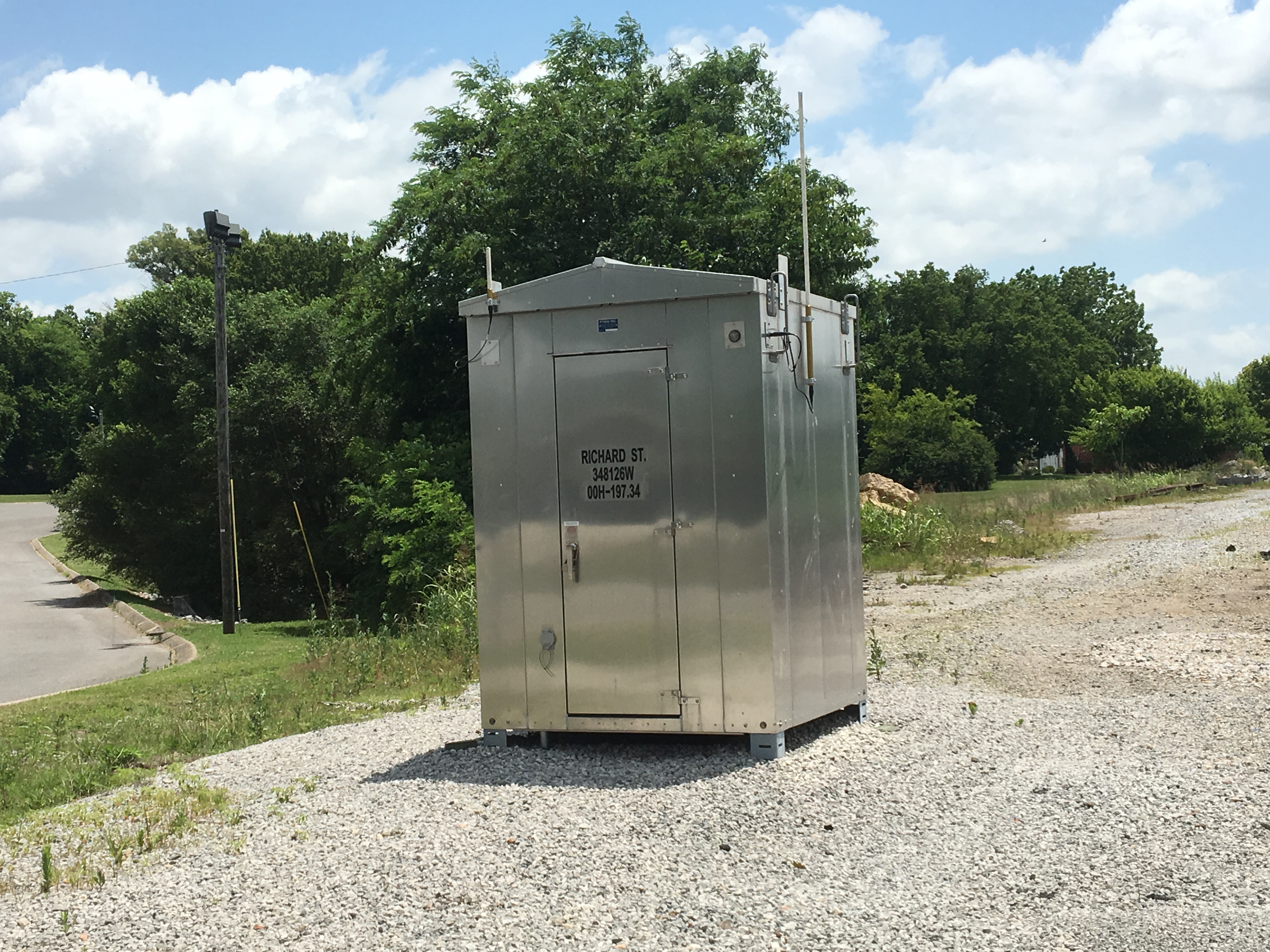

The relay bungalow. |

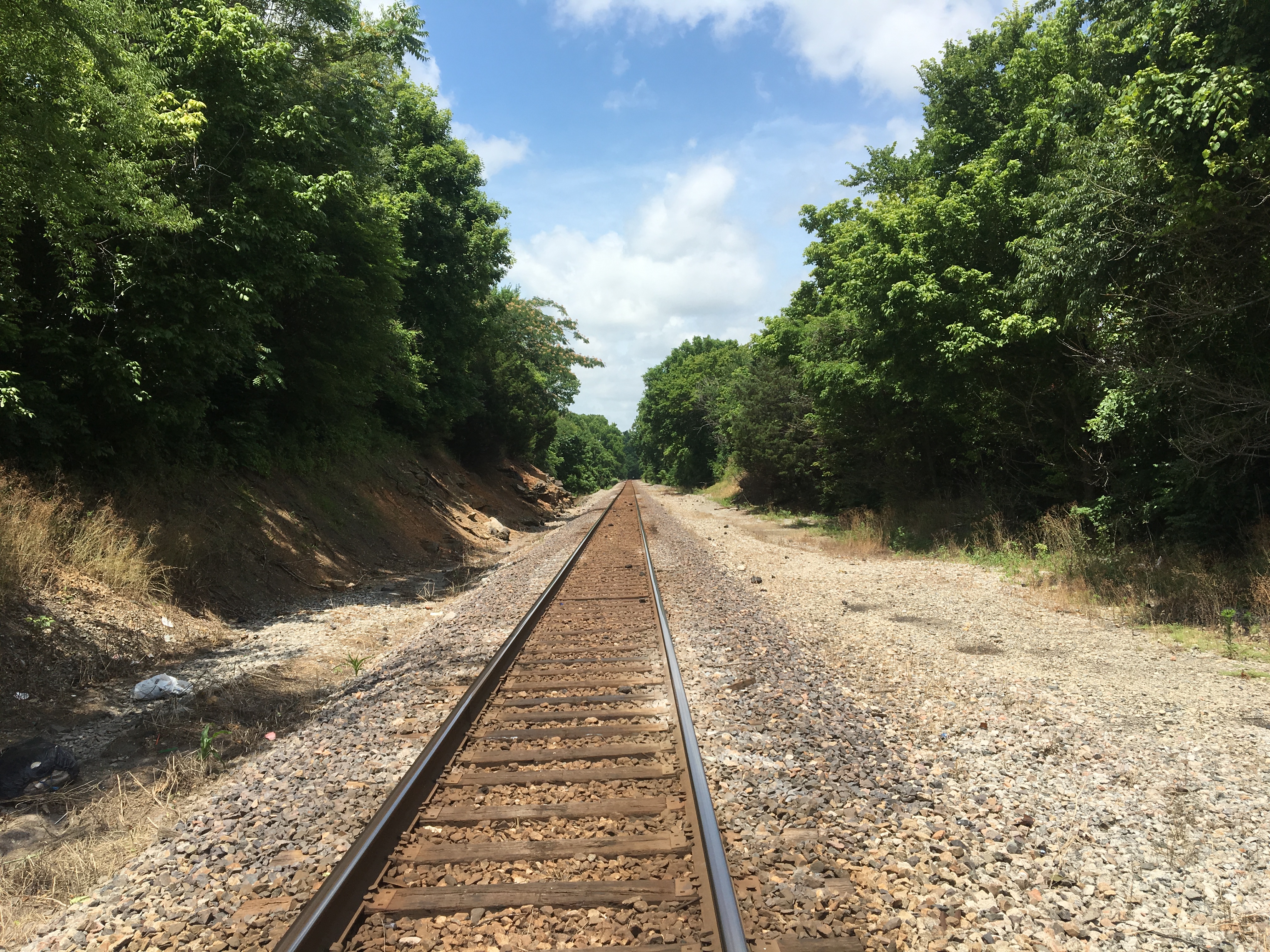

Track view facing east towards Cheatham Street. |

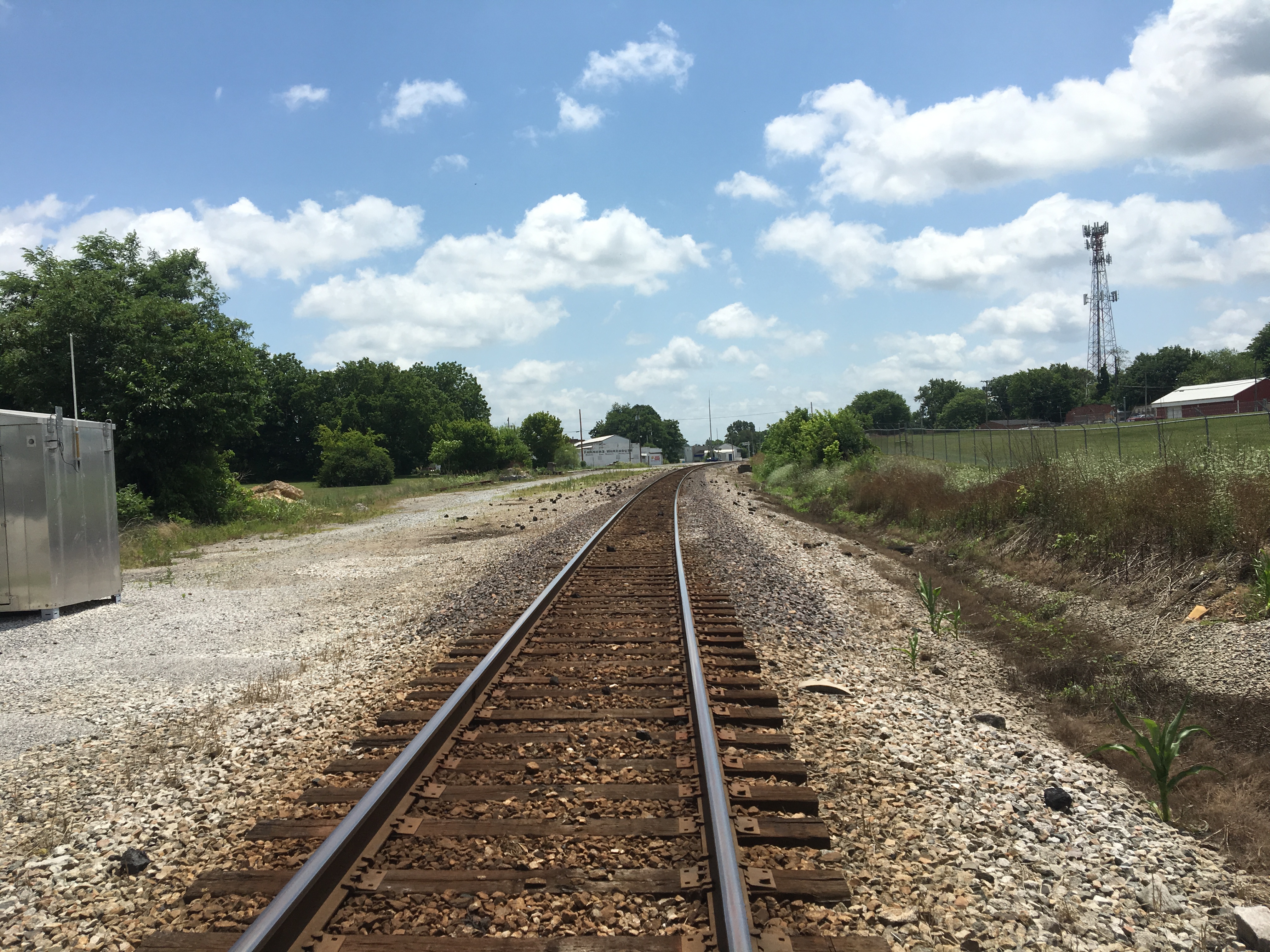

Track view facing west towards Matthews Rd near Cedar Hill. |
The gateless northern signal had WRRS(?) 8 inch incandecent lights while the southern gateless signal had Safetran 12x24 lights with WCH 2nd Gen. LEDs. The southern gateless signal was likely a knock down replacement, as the original gateless southern signal had more WRRS(?) 8 inch incandecent lights. Click here to see the gateless signals before the upgrade.
All pictures were taken on 6-16-19.
