MP:  00J68.520



Created March 25, 2017



Total Accidents:   3
Crossing DOT #:  349385L
TOTAL DAILY TRAINS:   21   (AS OF 2016)



>>>>>>>>>>>>>> First Signal Second Signal
Bell: N/A NEG E-Bell
Base: Modern Industries (Both) Modern Industries (Both)
Lights: 4 - 12"x24" Safetran w/ Leotek EV series LEDs 6 - 12"x24" Safetran w/ Leotek EV series LEDs
Gate Lights: 4" NEG LEDs 4" NEG LEDs
Gate Mechanism: Siemens Imprinted Siemens Imprinted
Gate Striping: Vertical Striping Vertical Striping



Page created by: freebrickproductions

This crossing is located on the CSX Chattanooga Subdivision.



1

2

3

4

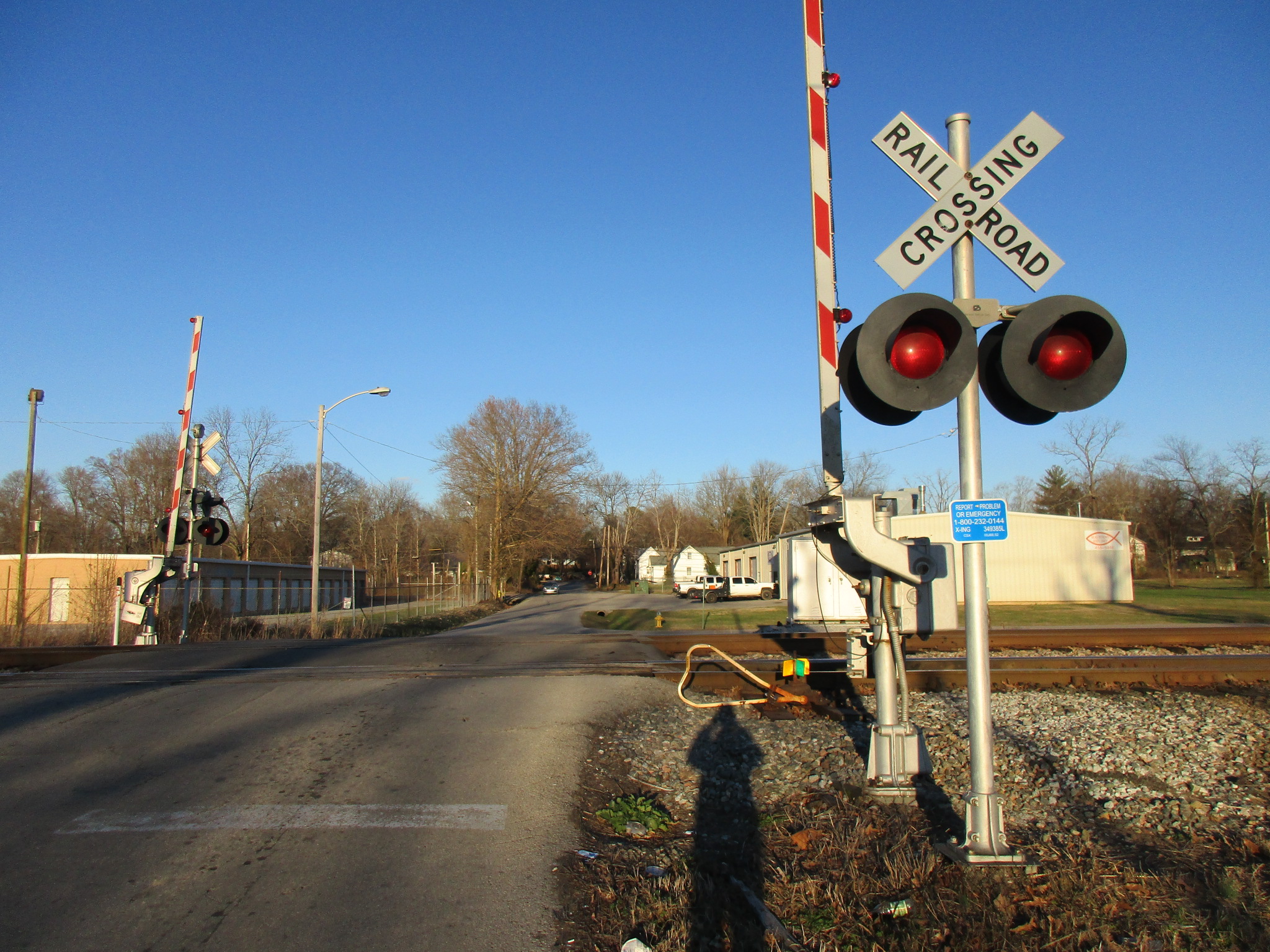

Overviews of the crossing.

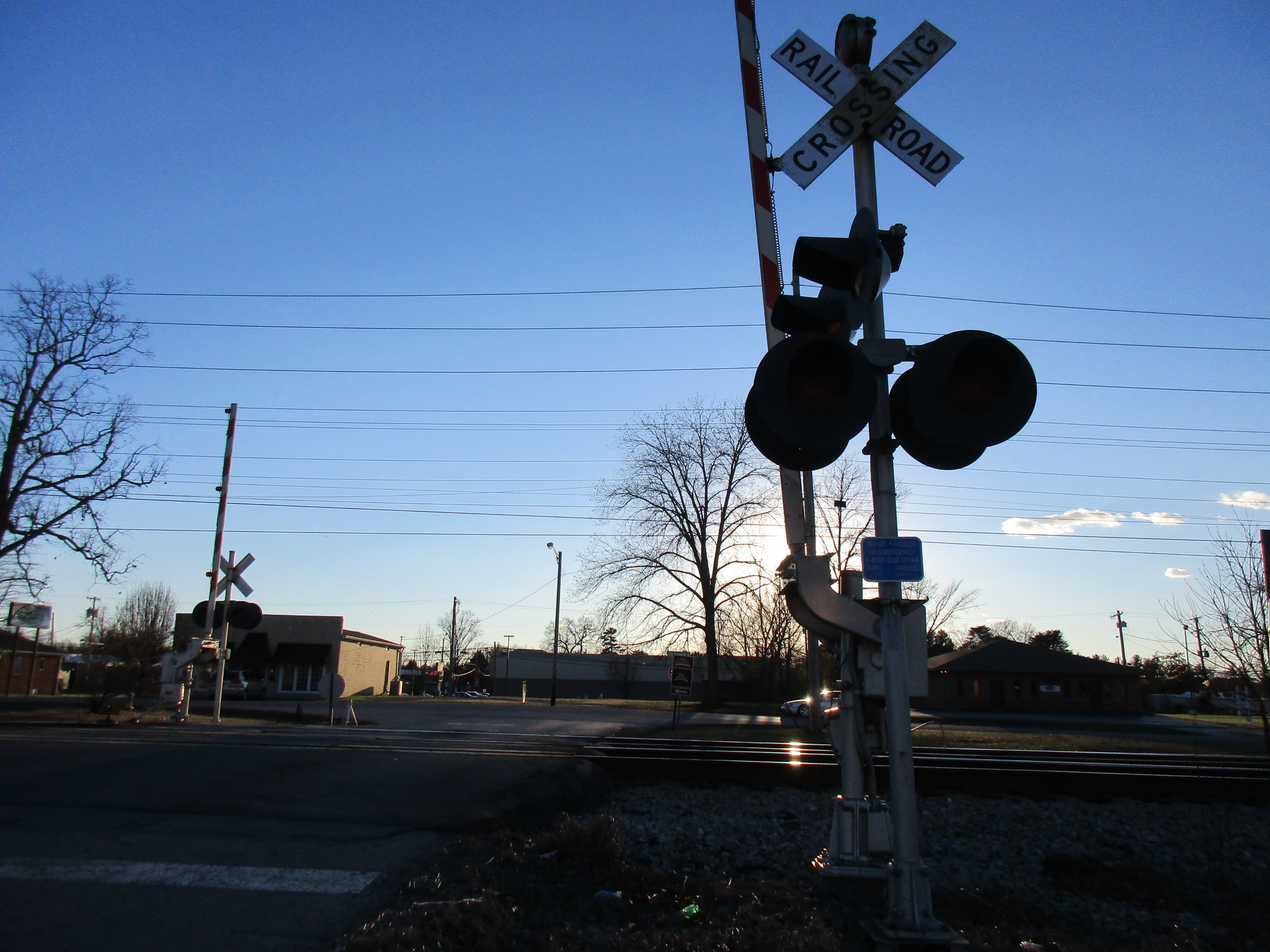

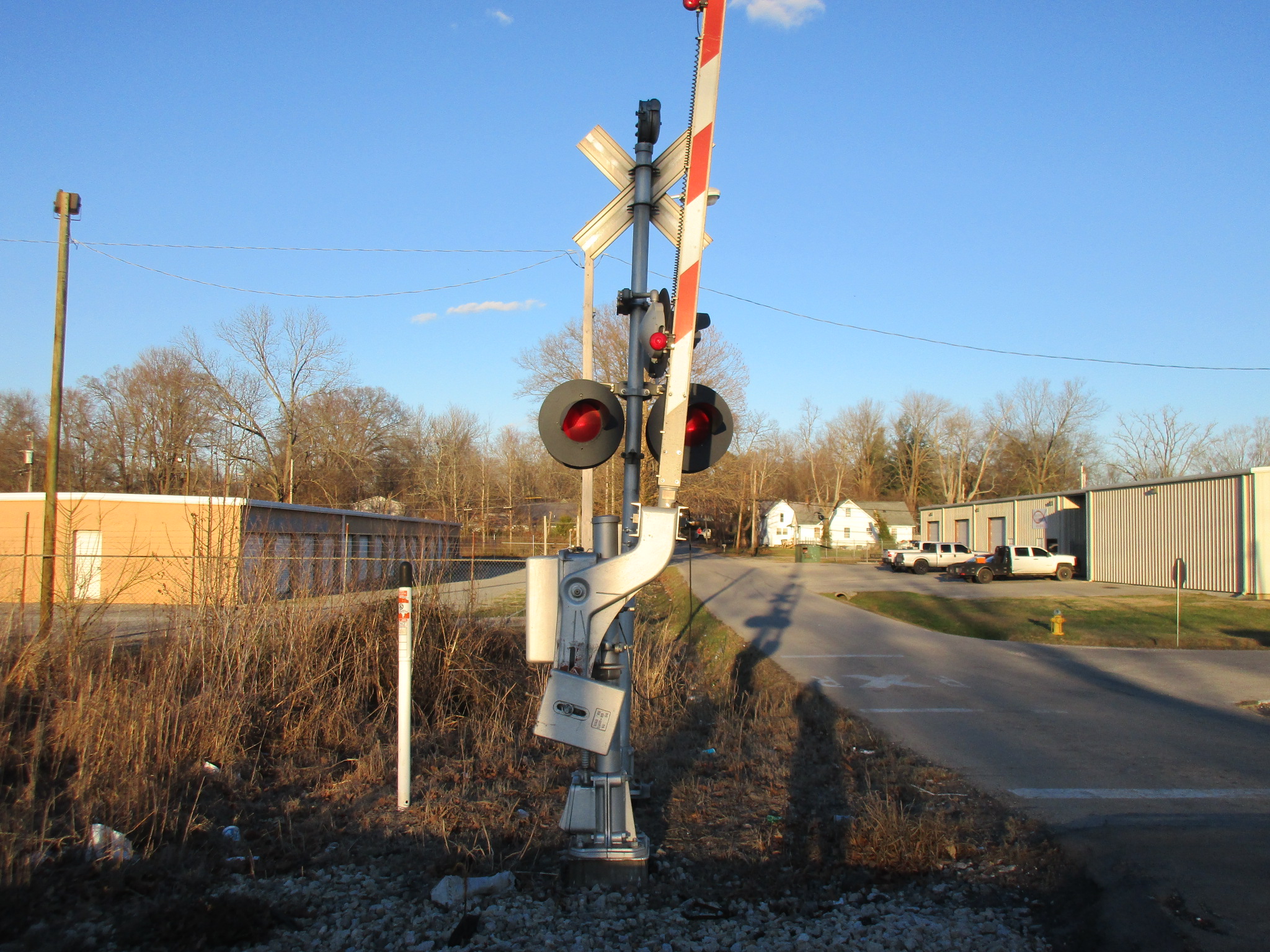

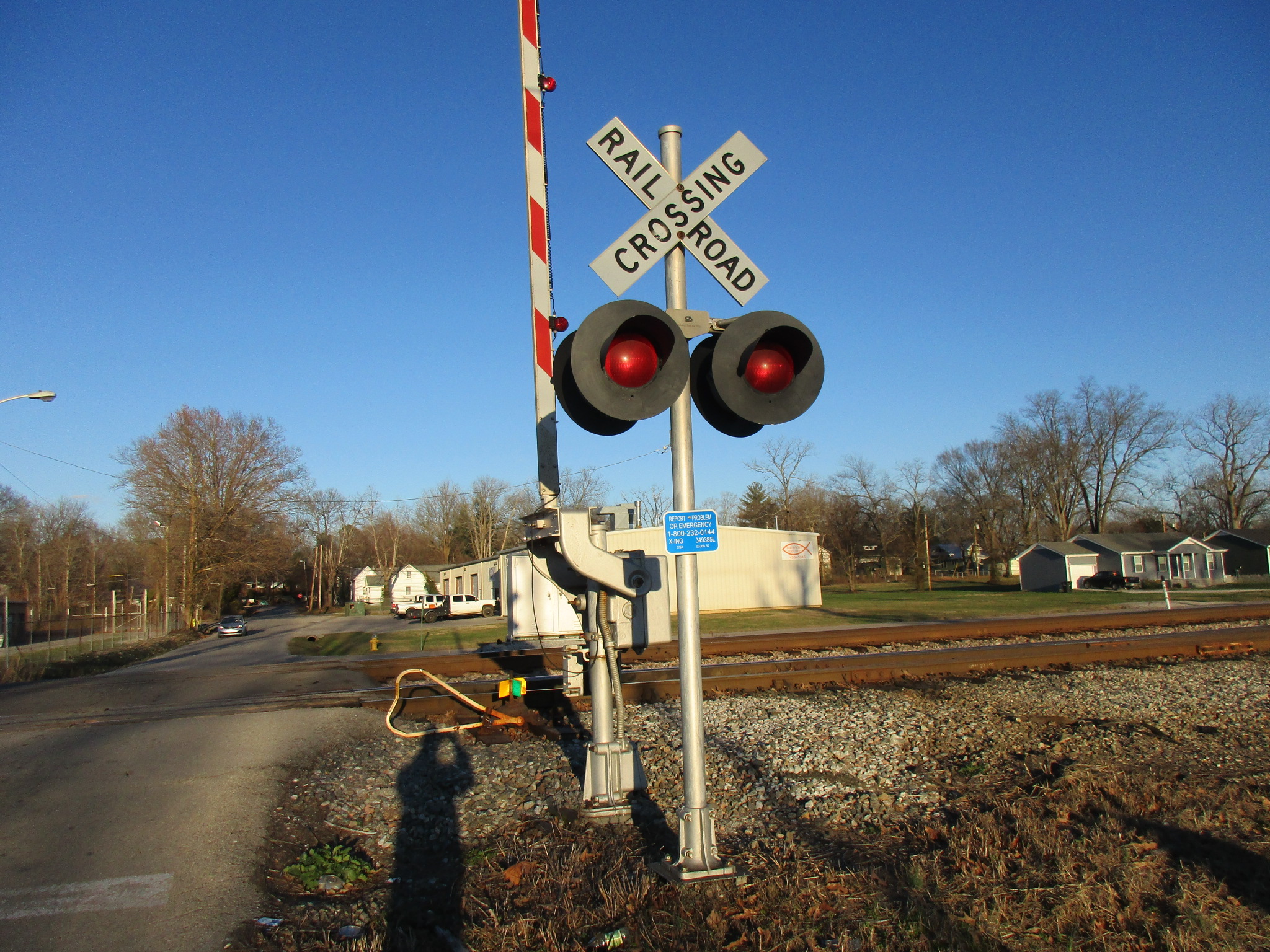

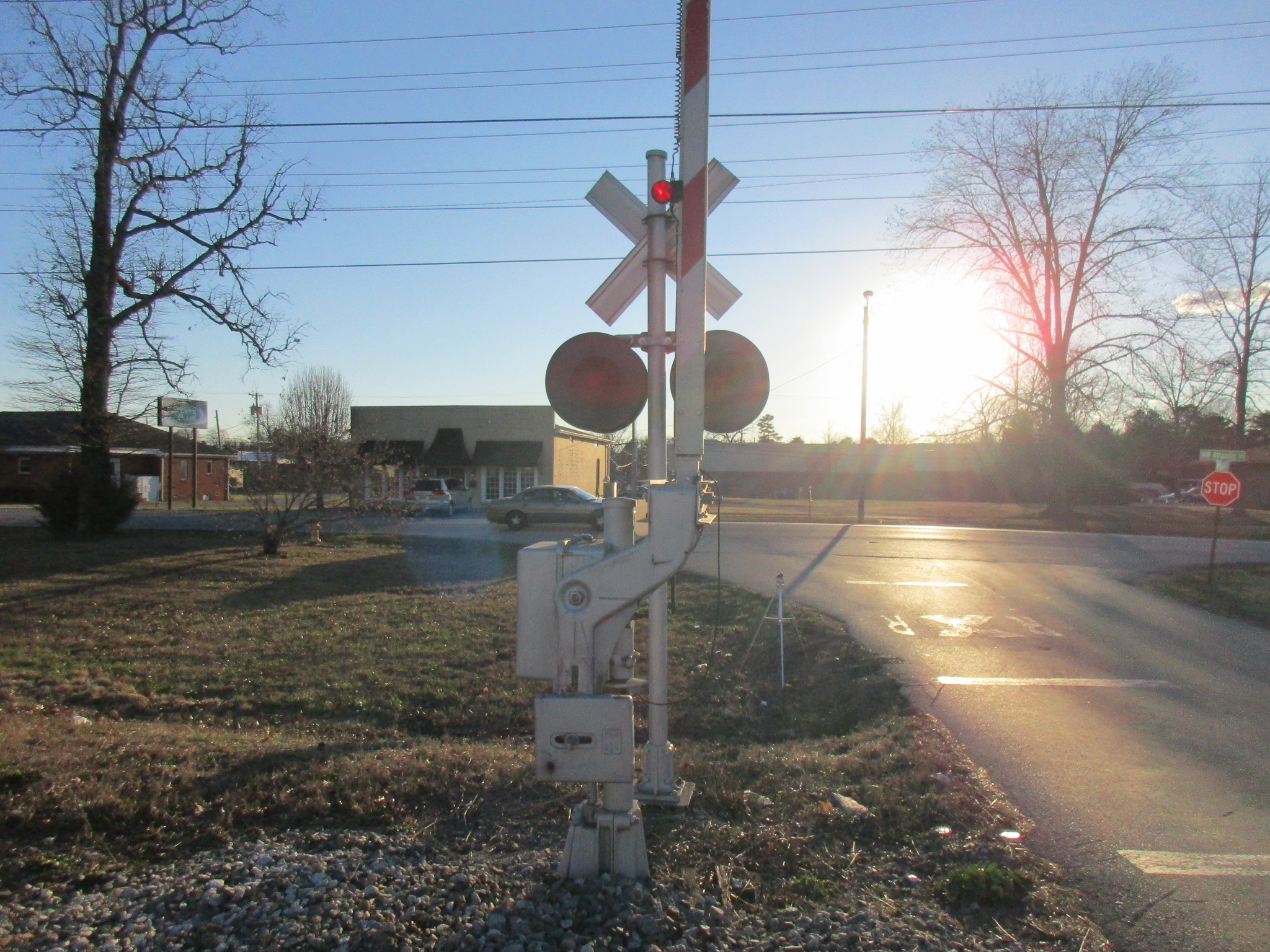

The first signal.

5

6

7

8

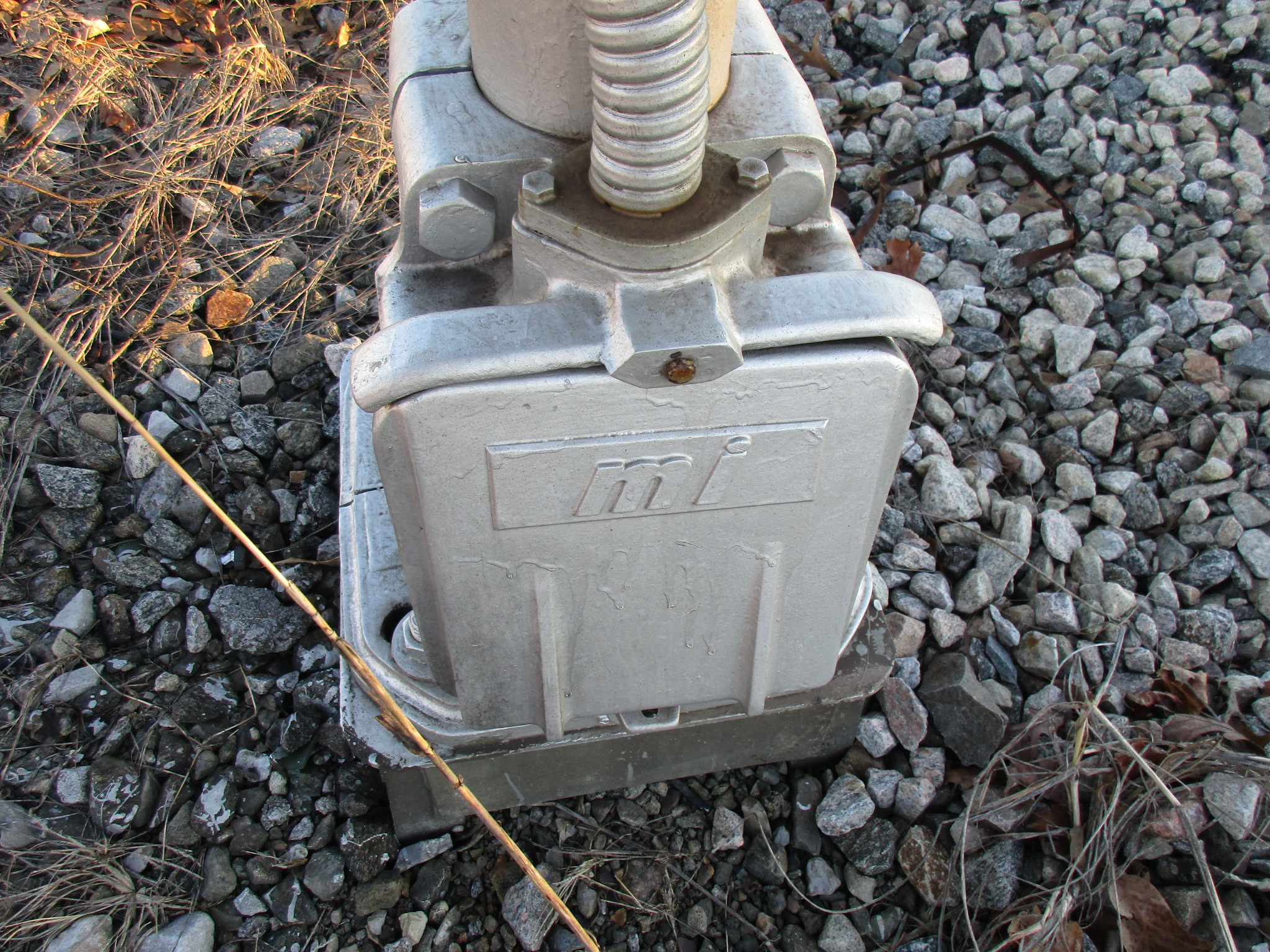

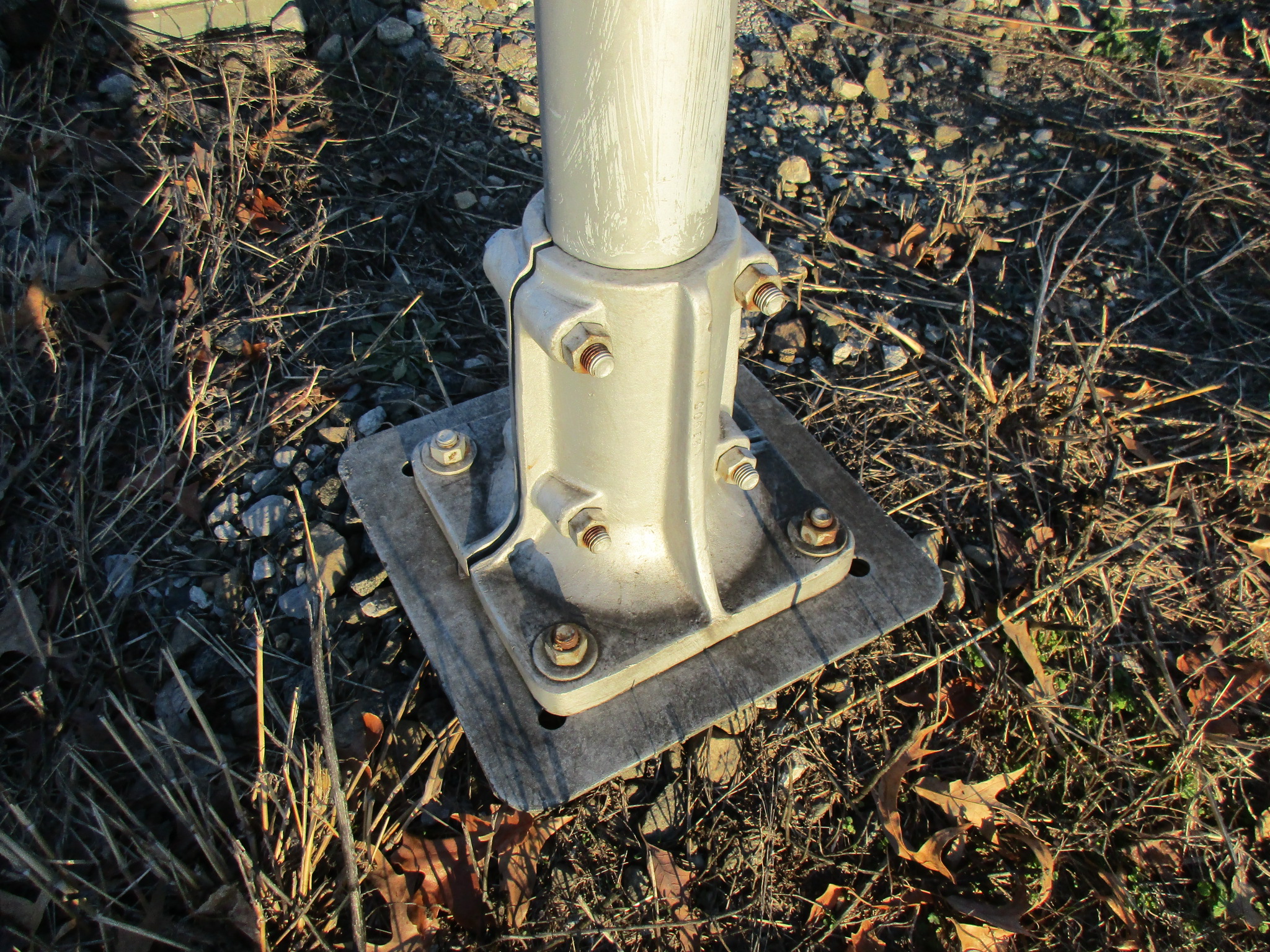

It has a Modern Industries clamp-style base.

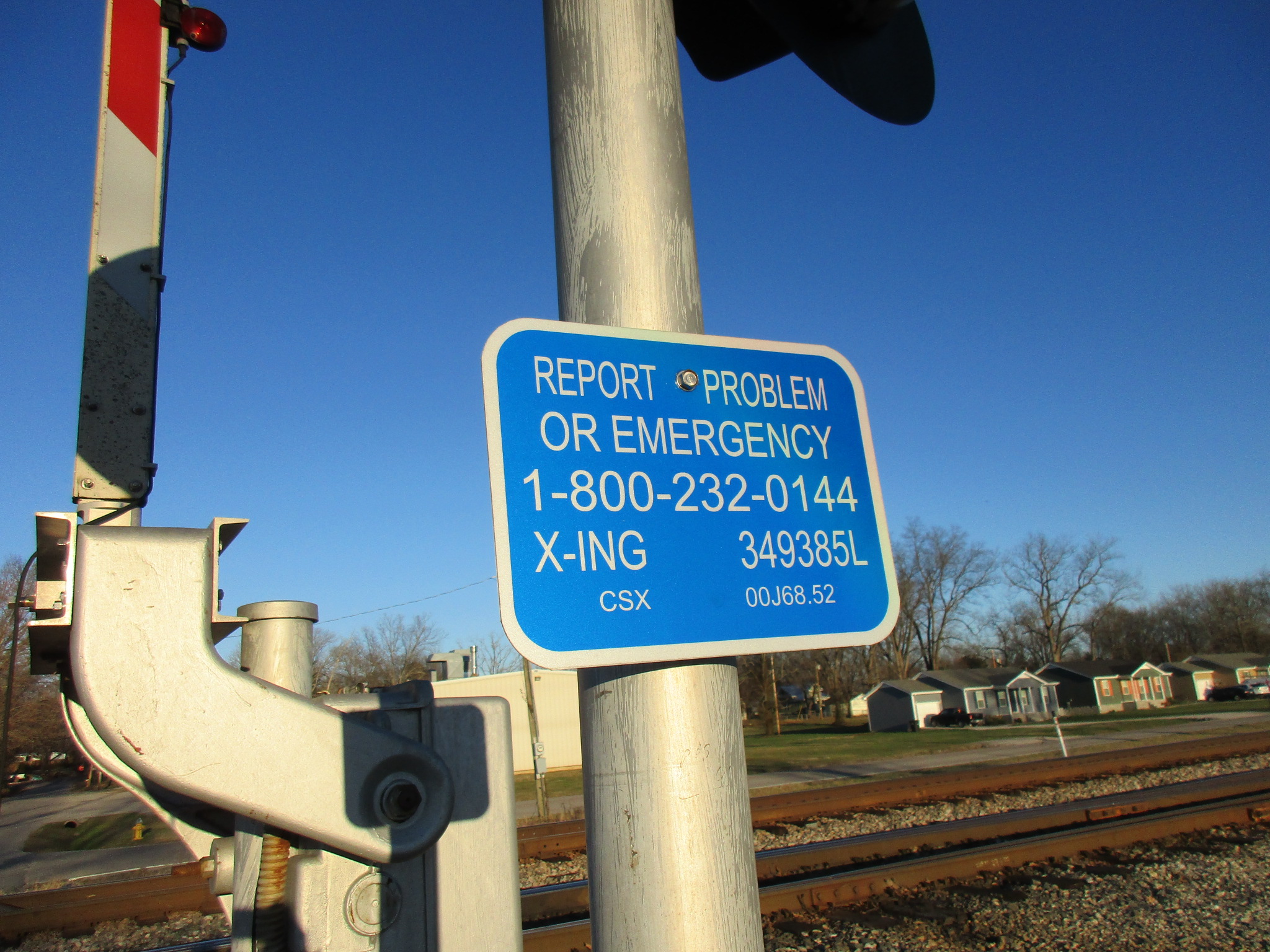

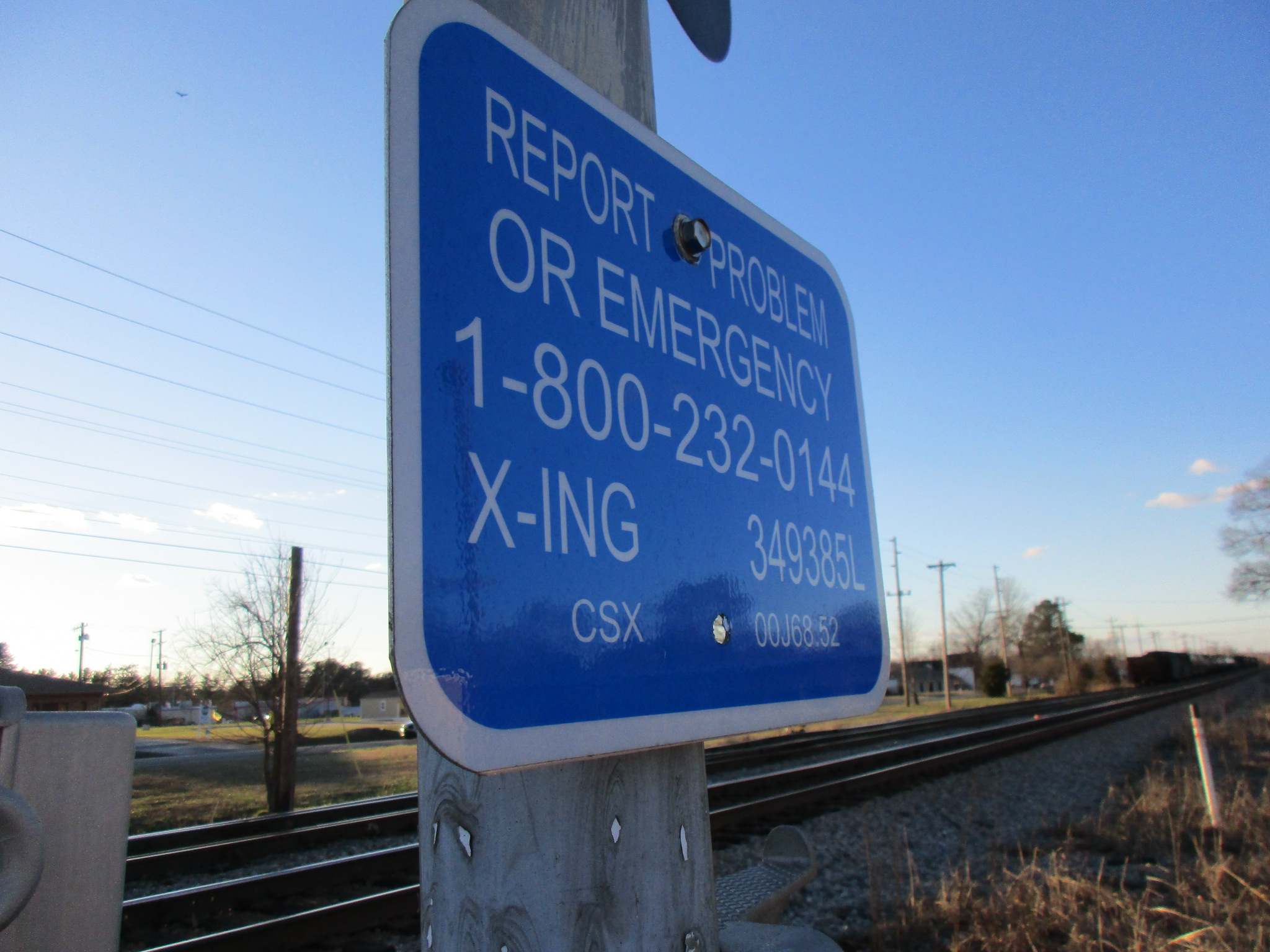

The emergency information.

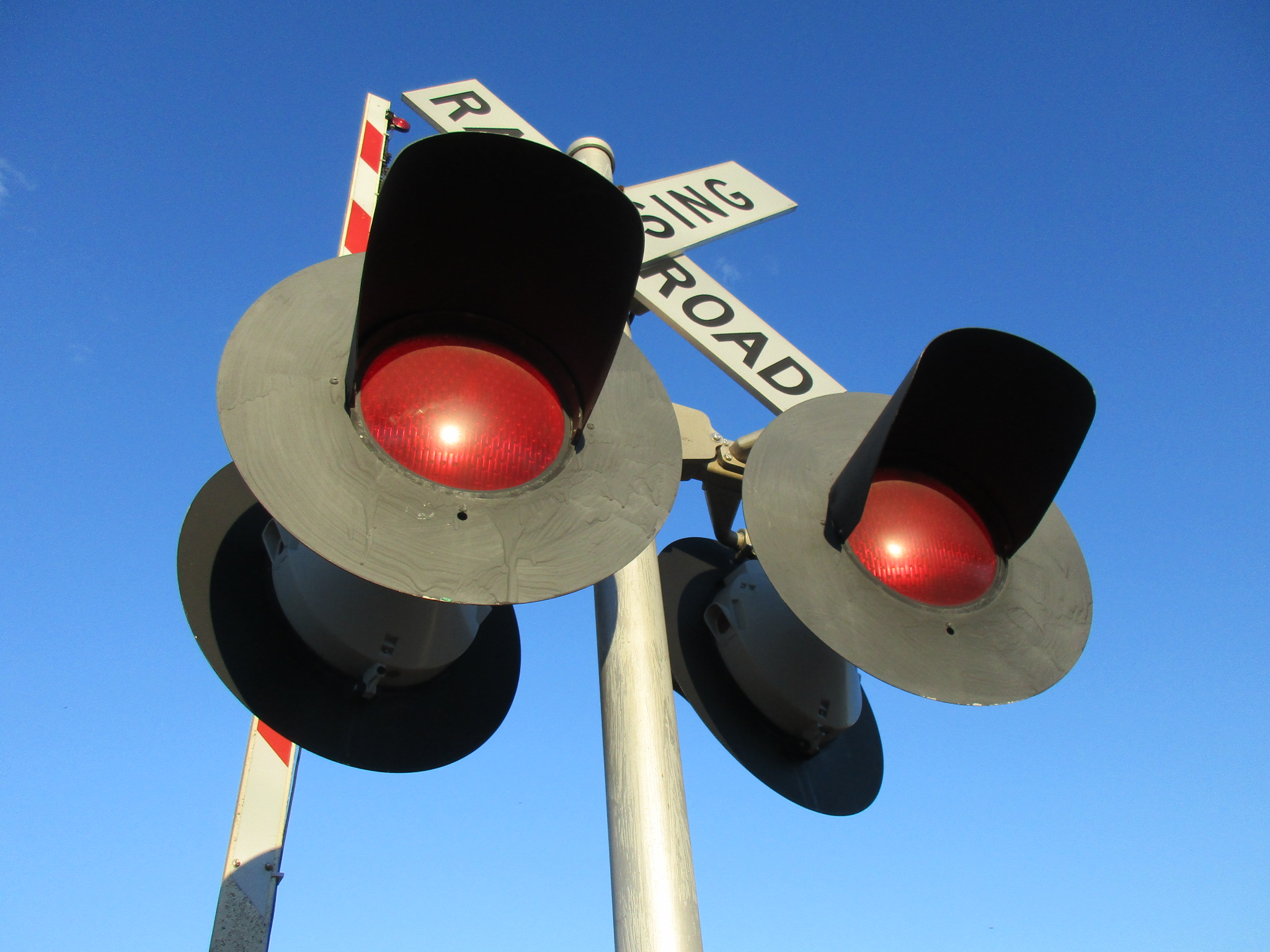

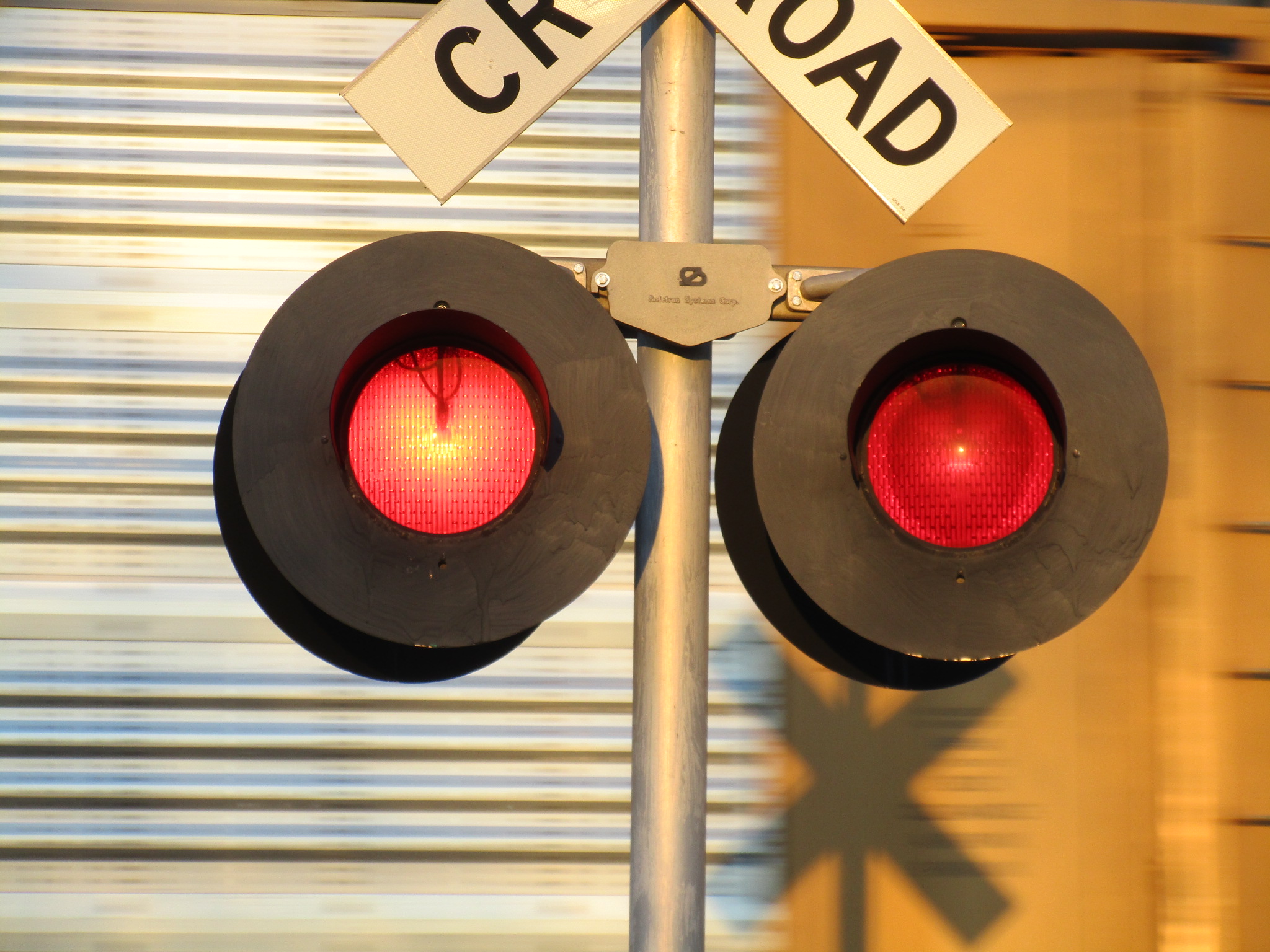

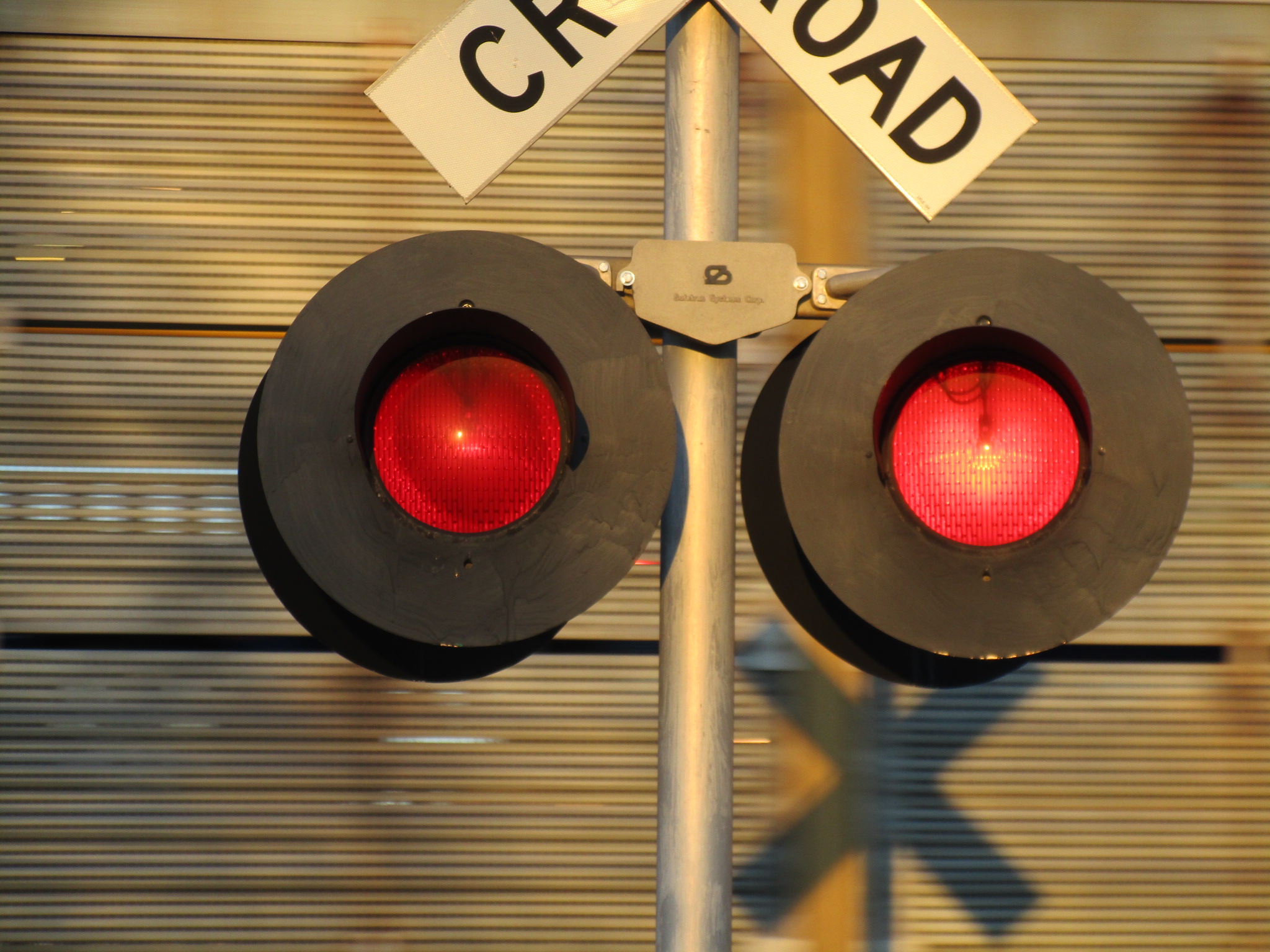

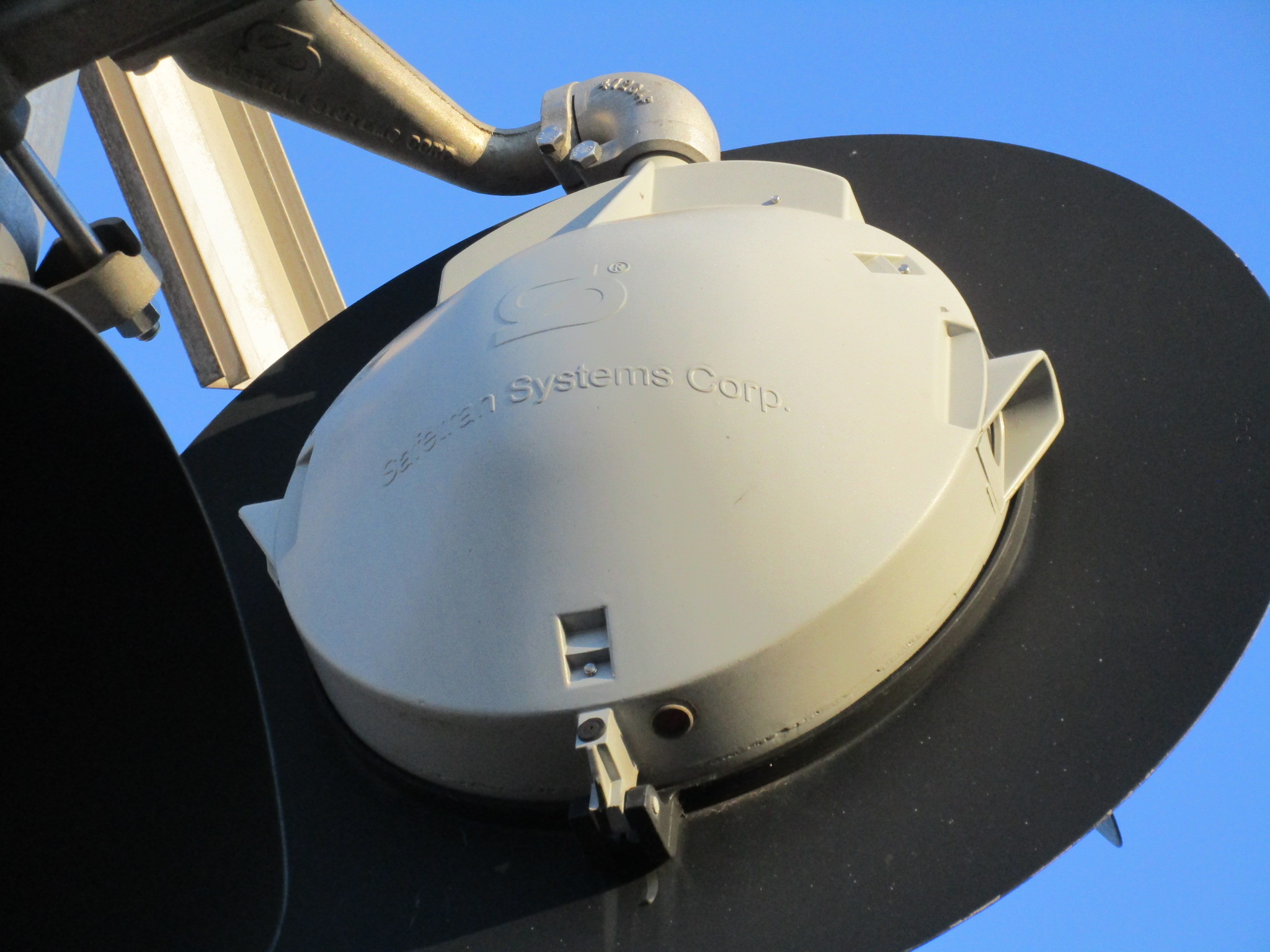

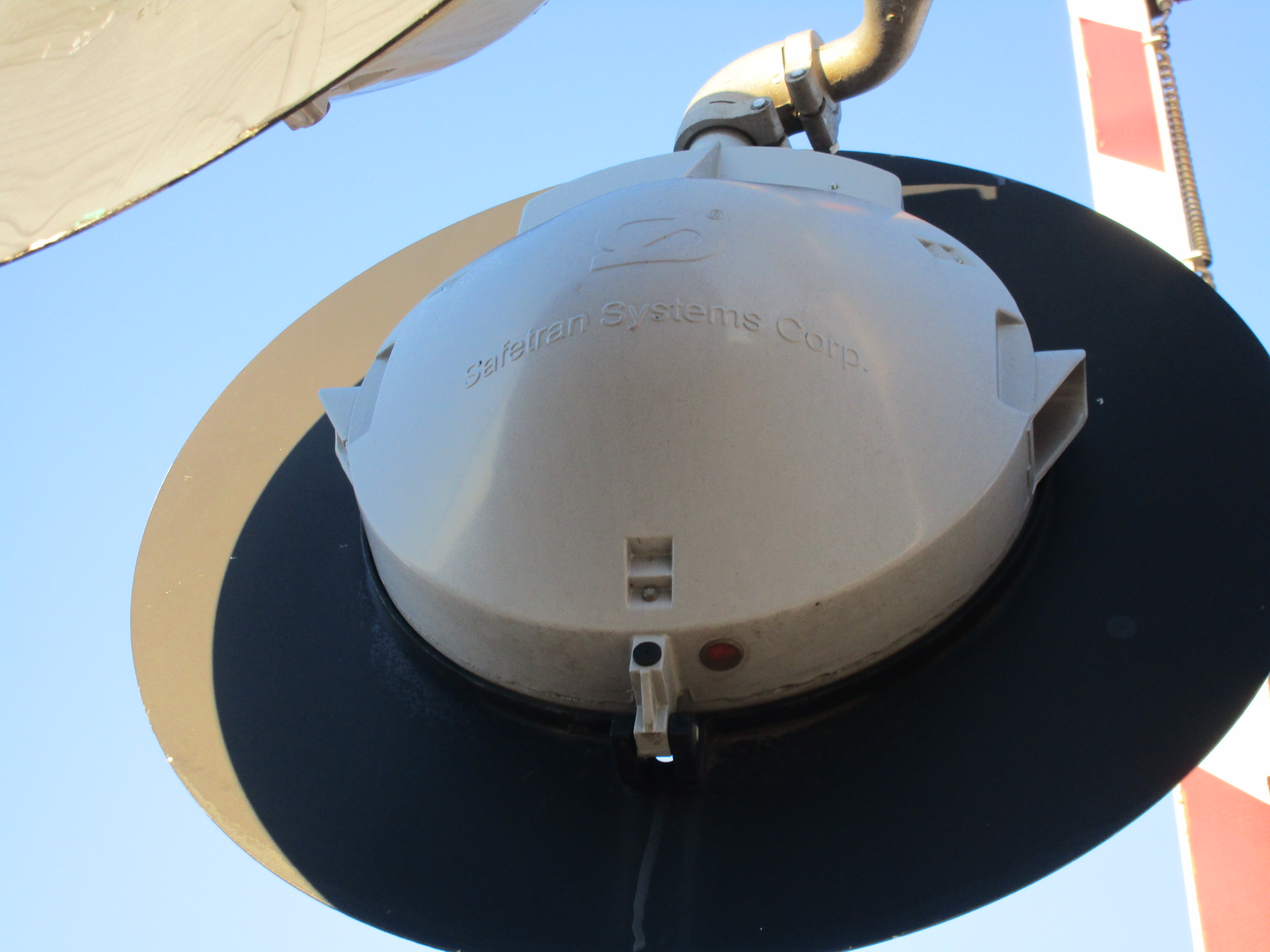

The lights are all Safetran 12x24 inch lights.

9

10

11

12

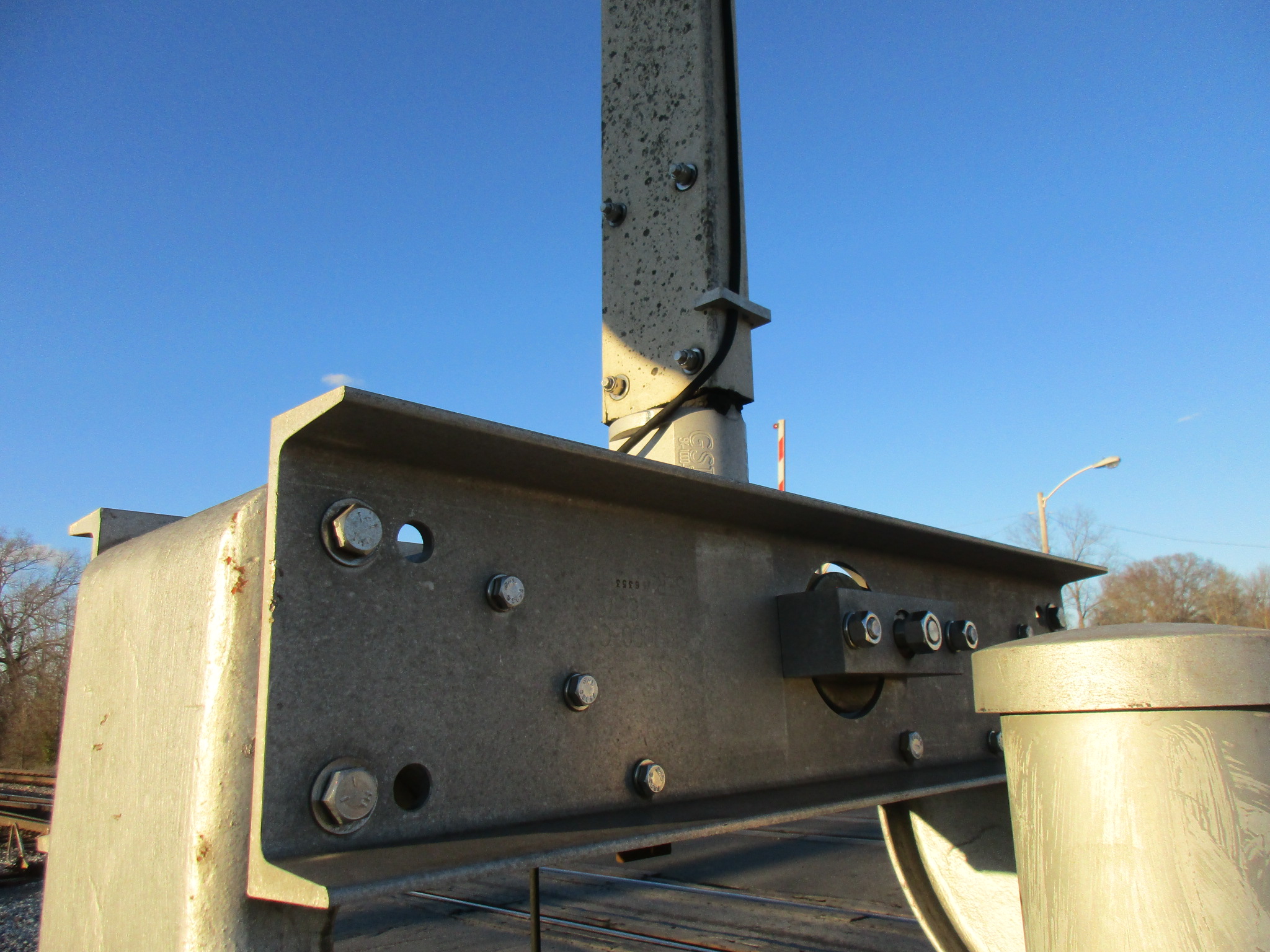

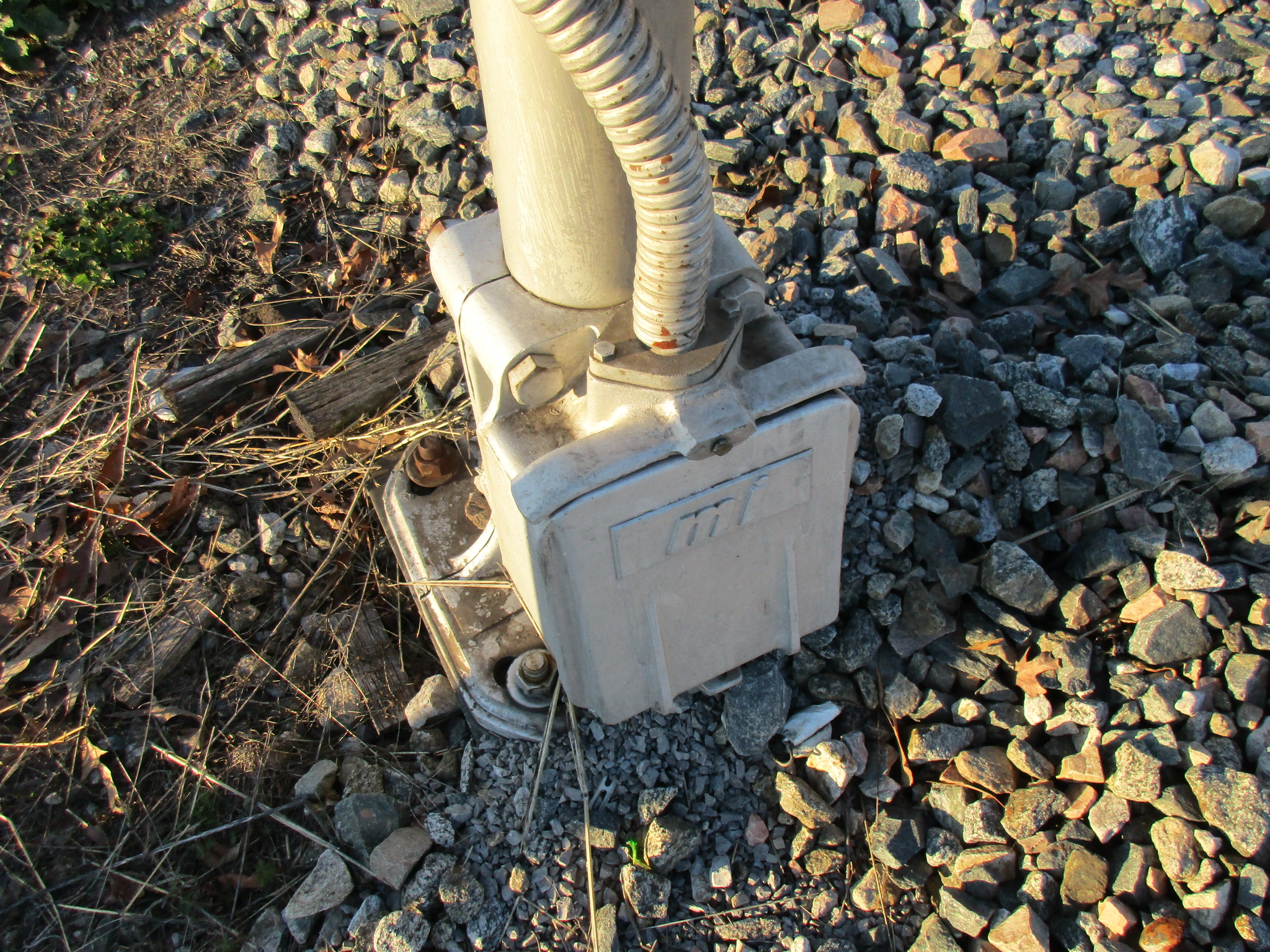

A 5 inch Modern Industries base on the gate mast.

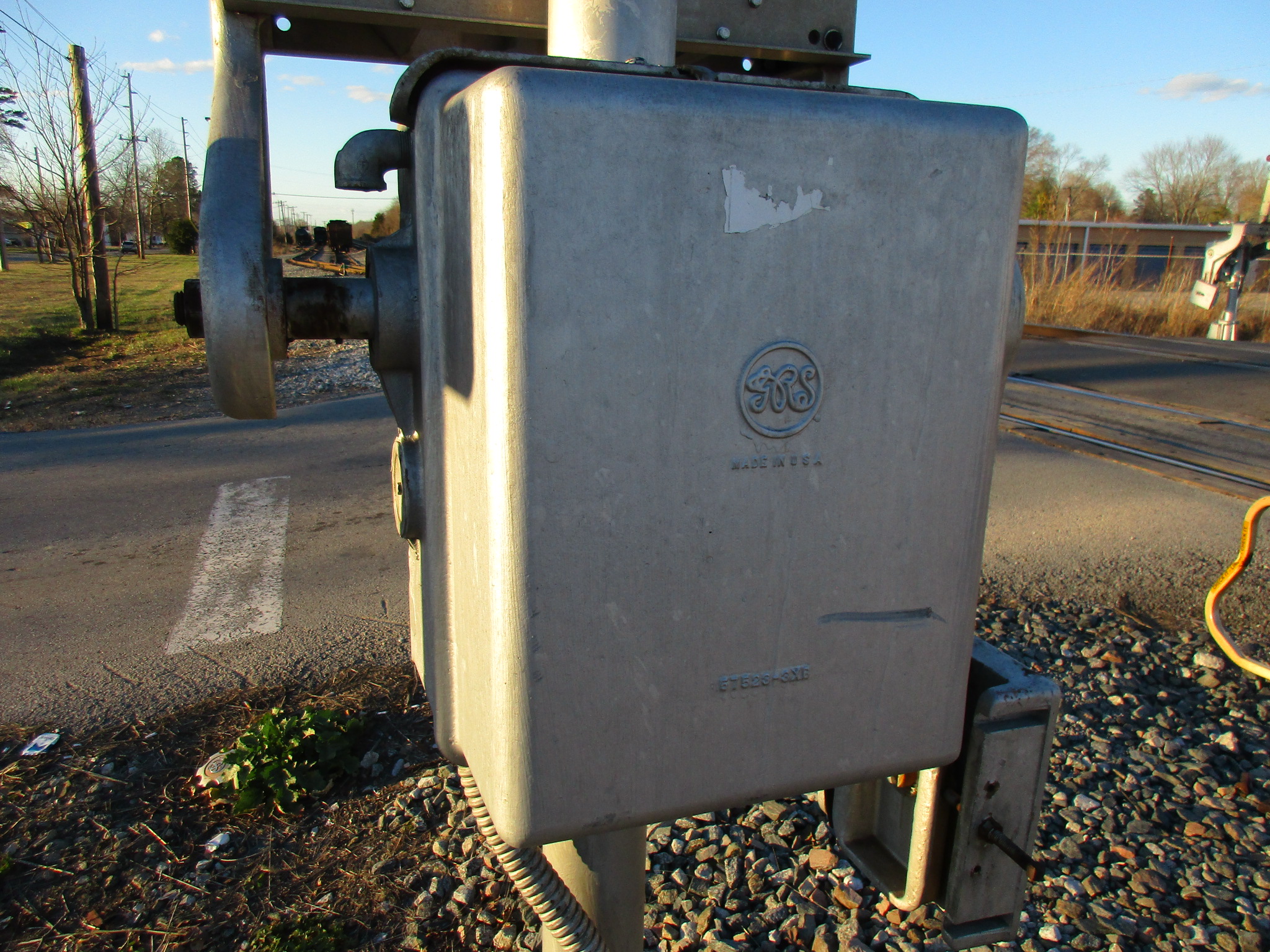

The gate mechanism is a GRS gate mechanism with a General Signals gate saver!

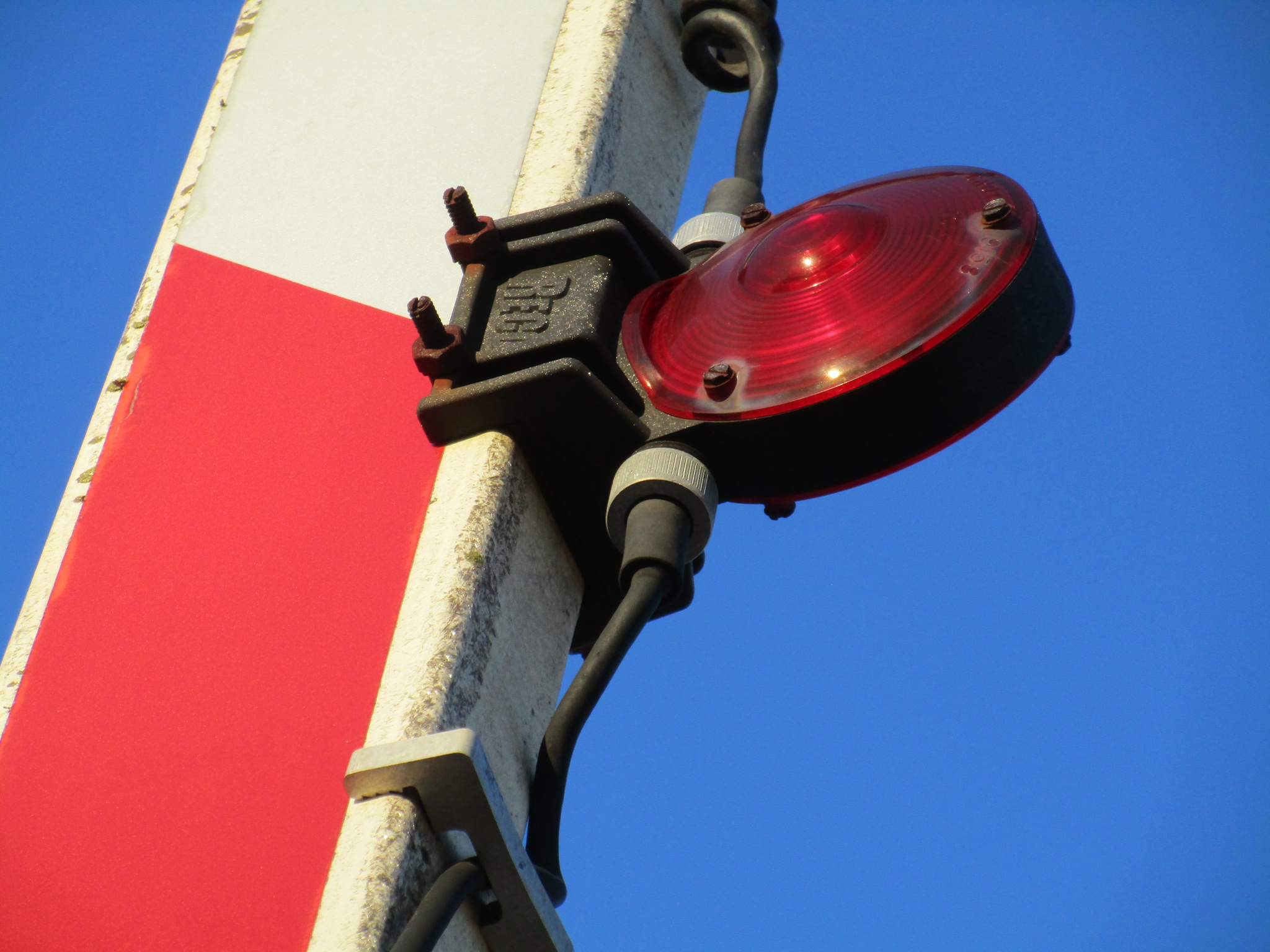

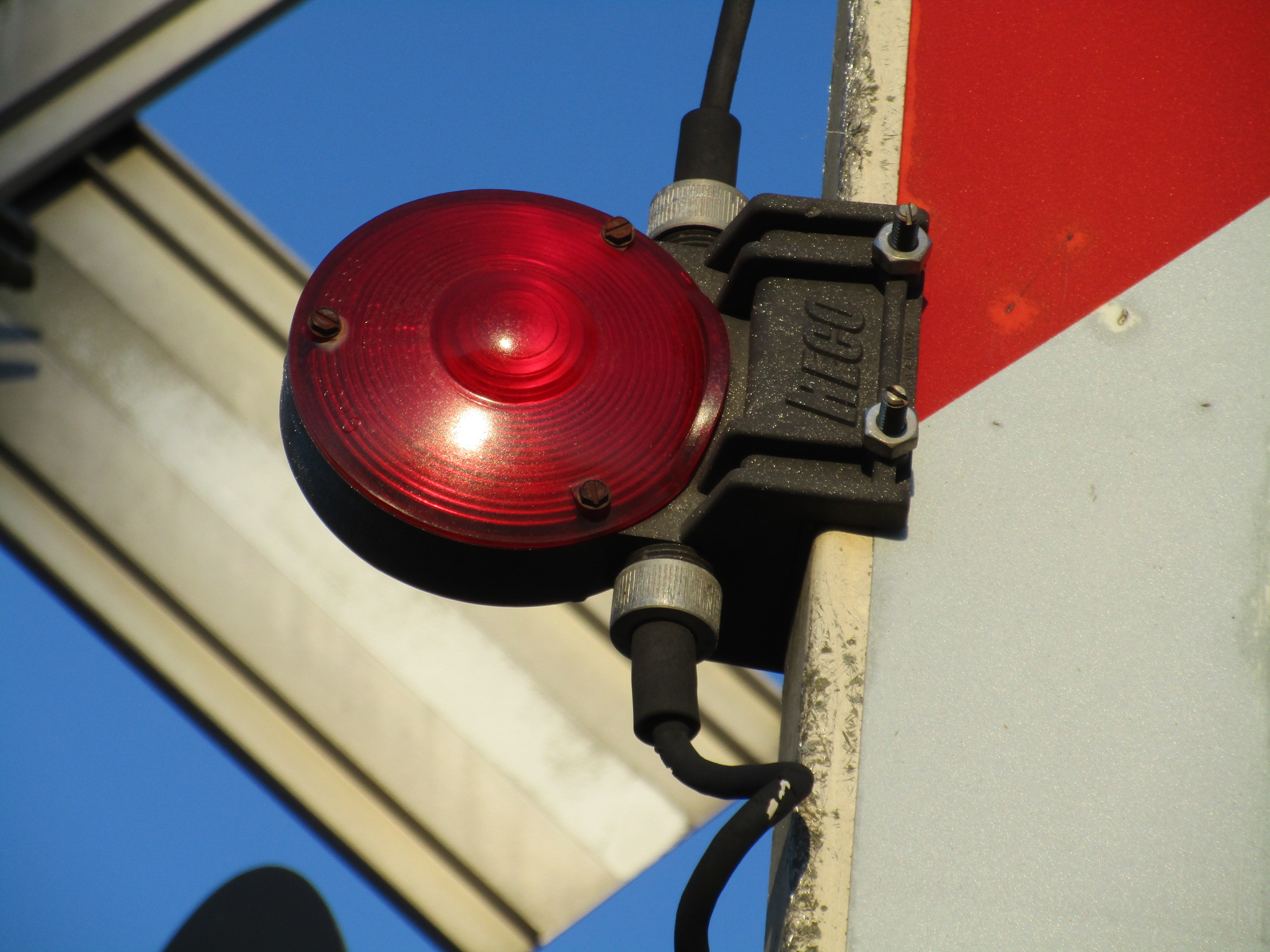

This signal has incandescent and LED RECO gate lights.

13

14

15

16

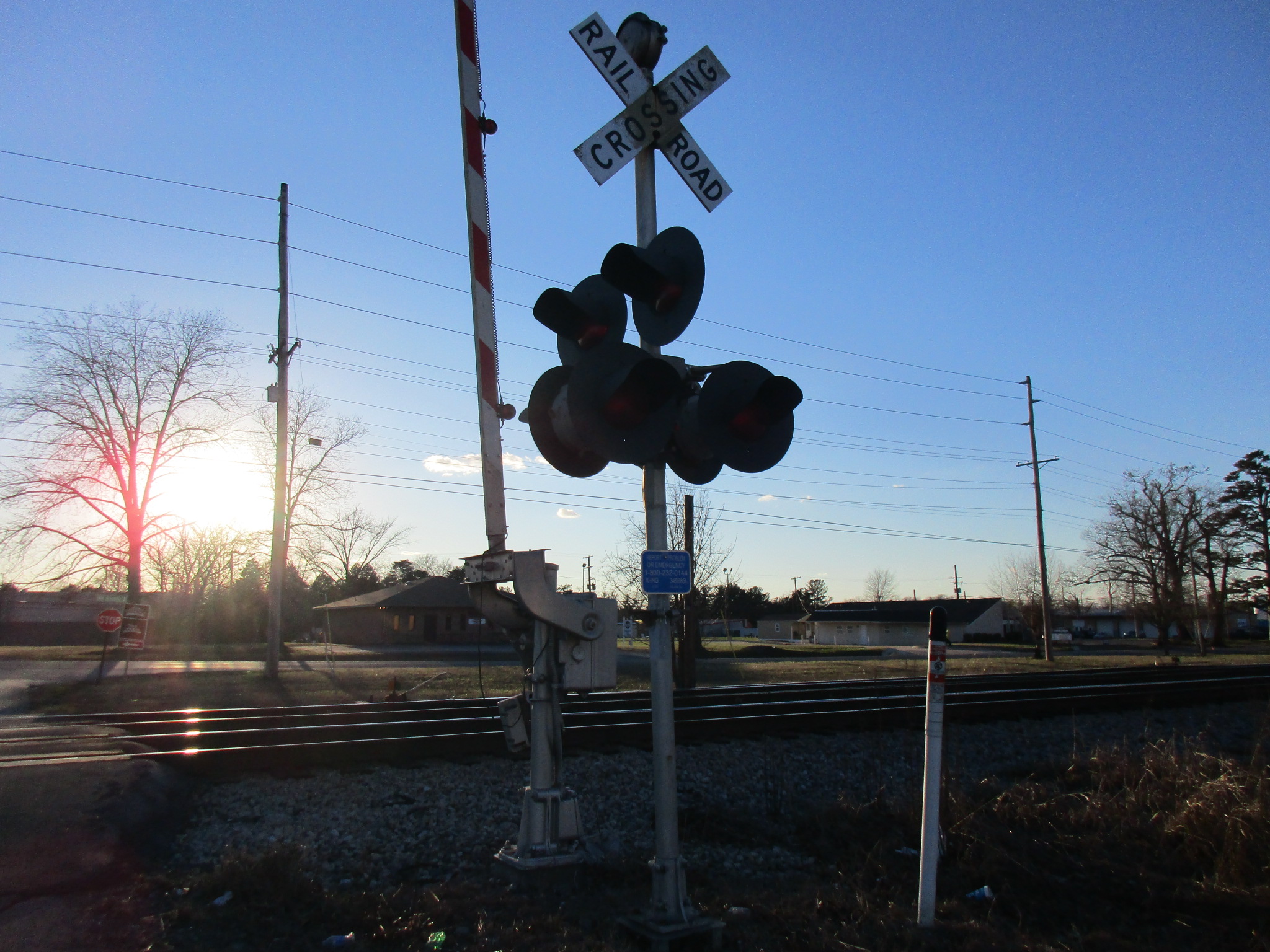

The second signal.

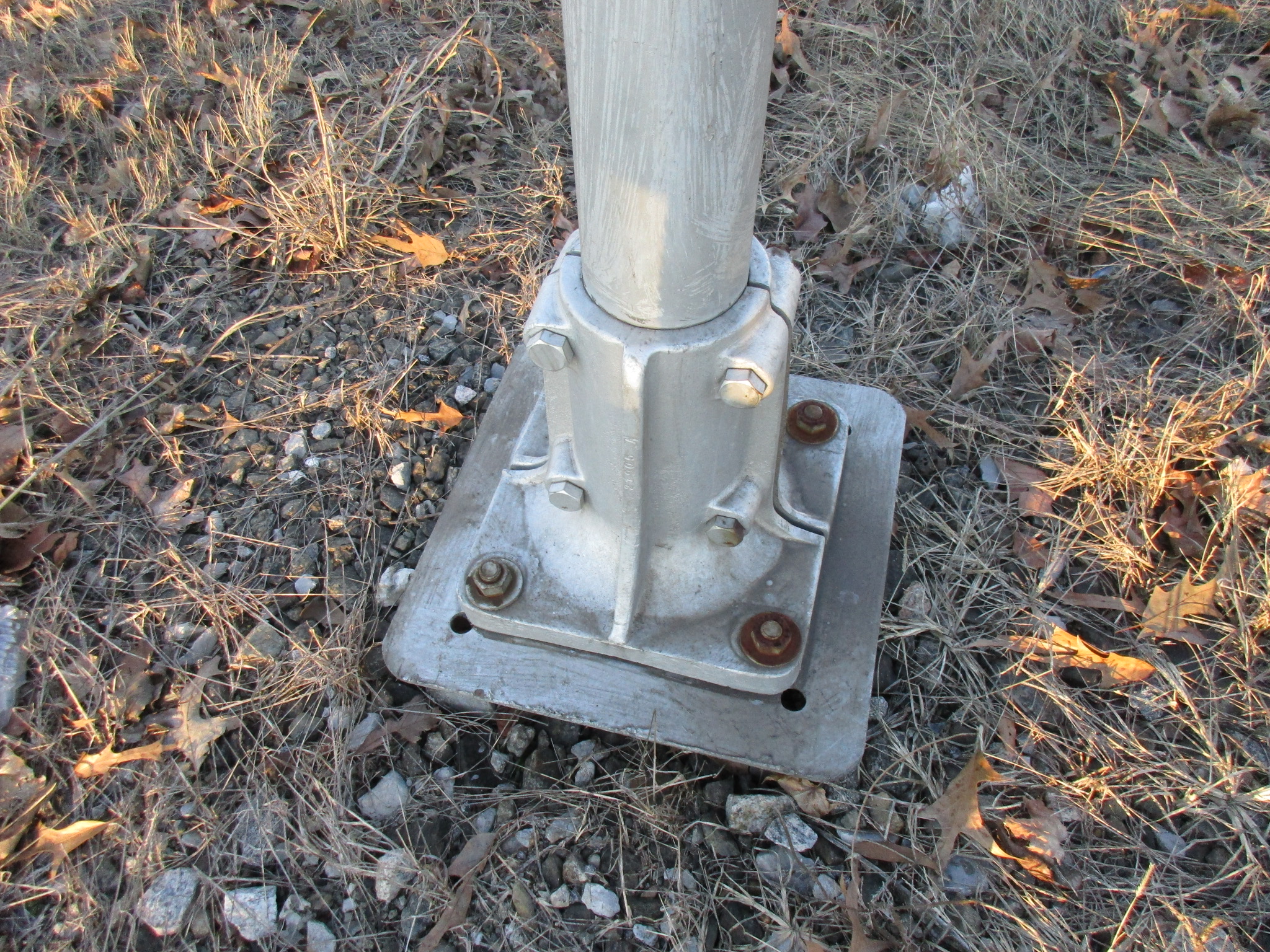

It has another Modern Industries clamp-style base.

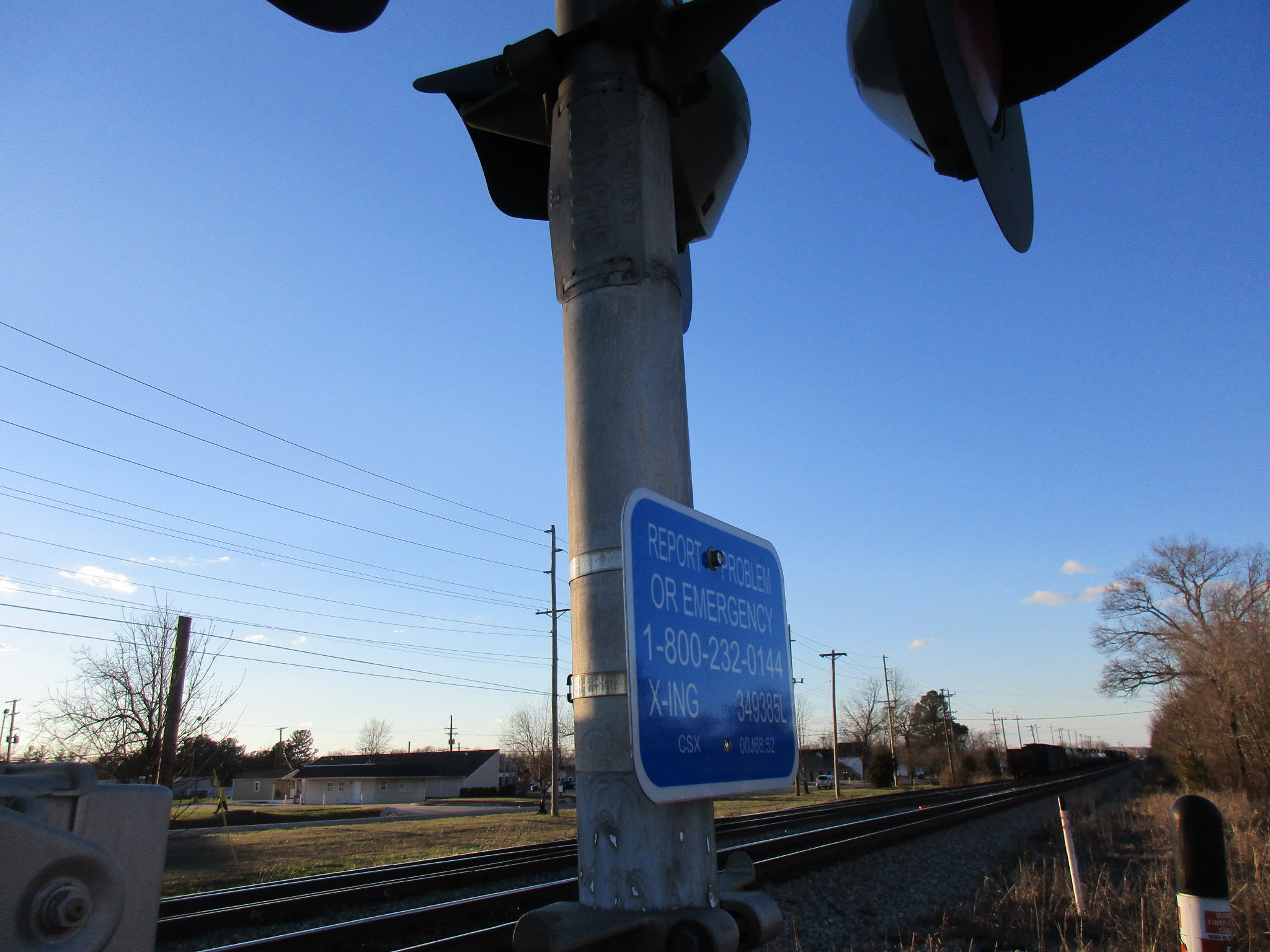

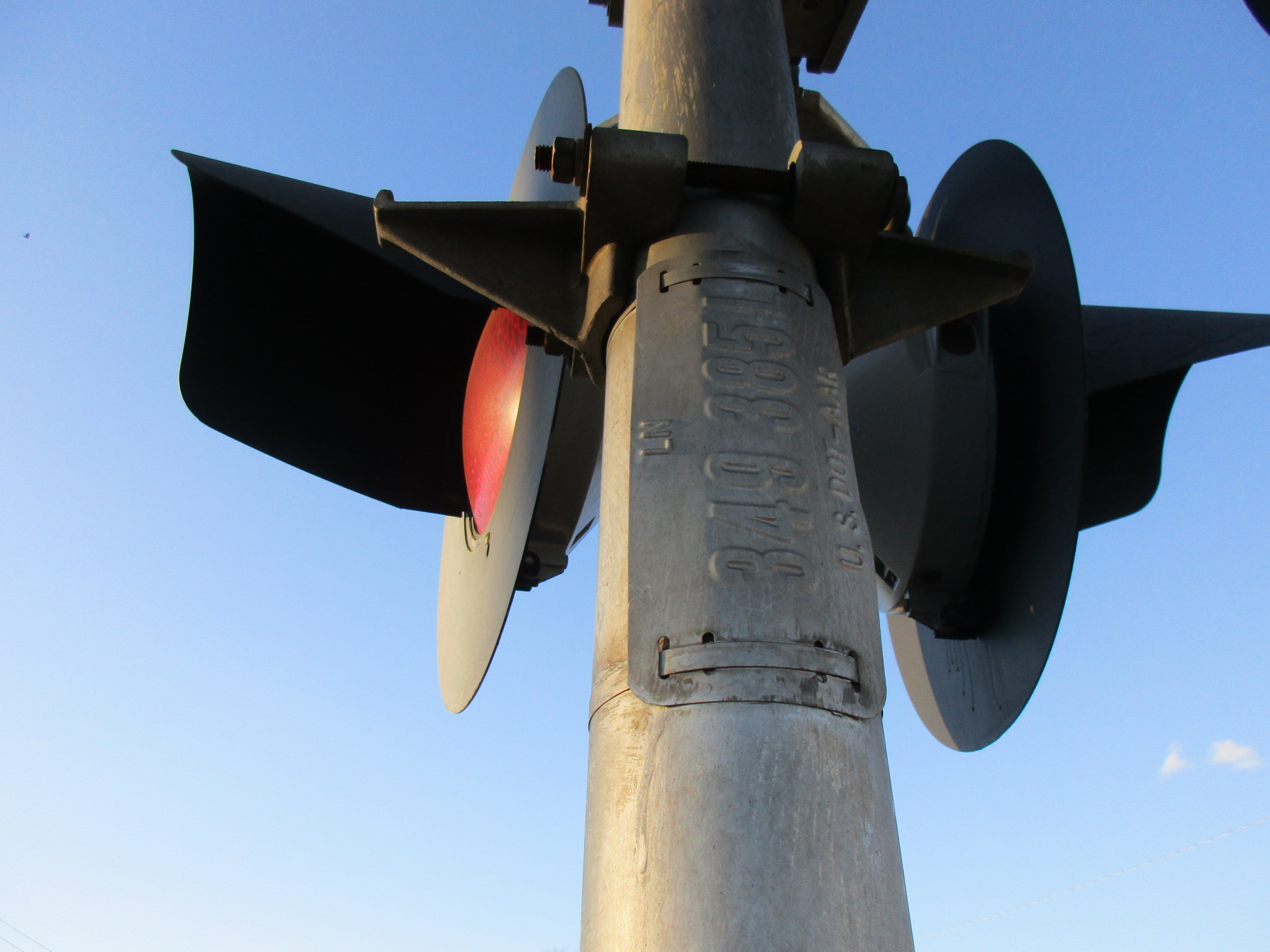

The emergency information and an old L&N DOT tag!

17

18

19

20
Close-ups of the emergency information and old L&N DOT tag.

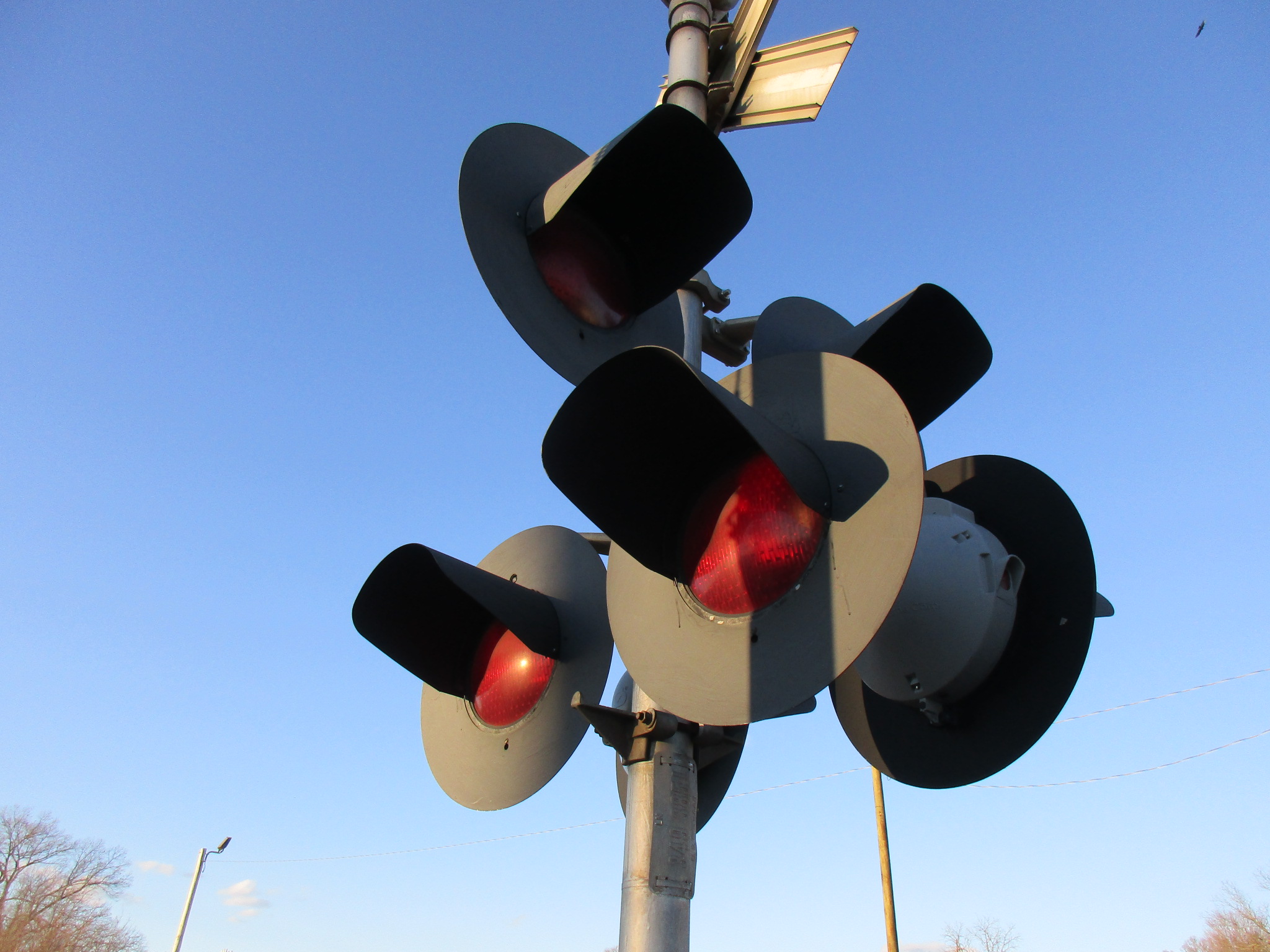

The lights on this signal are more Safetran 12x24 inch lights.

21

22

23

24

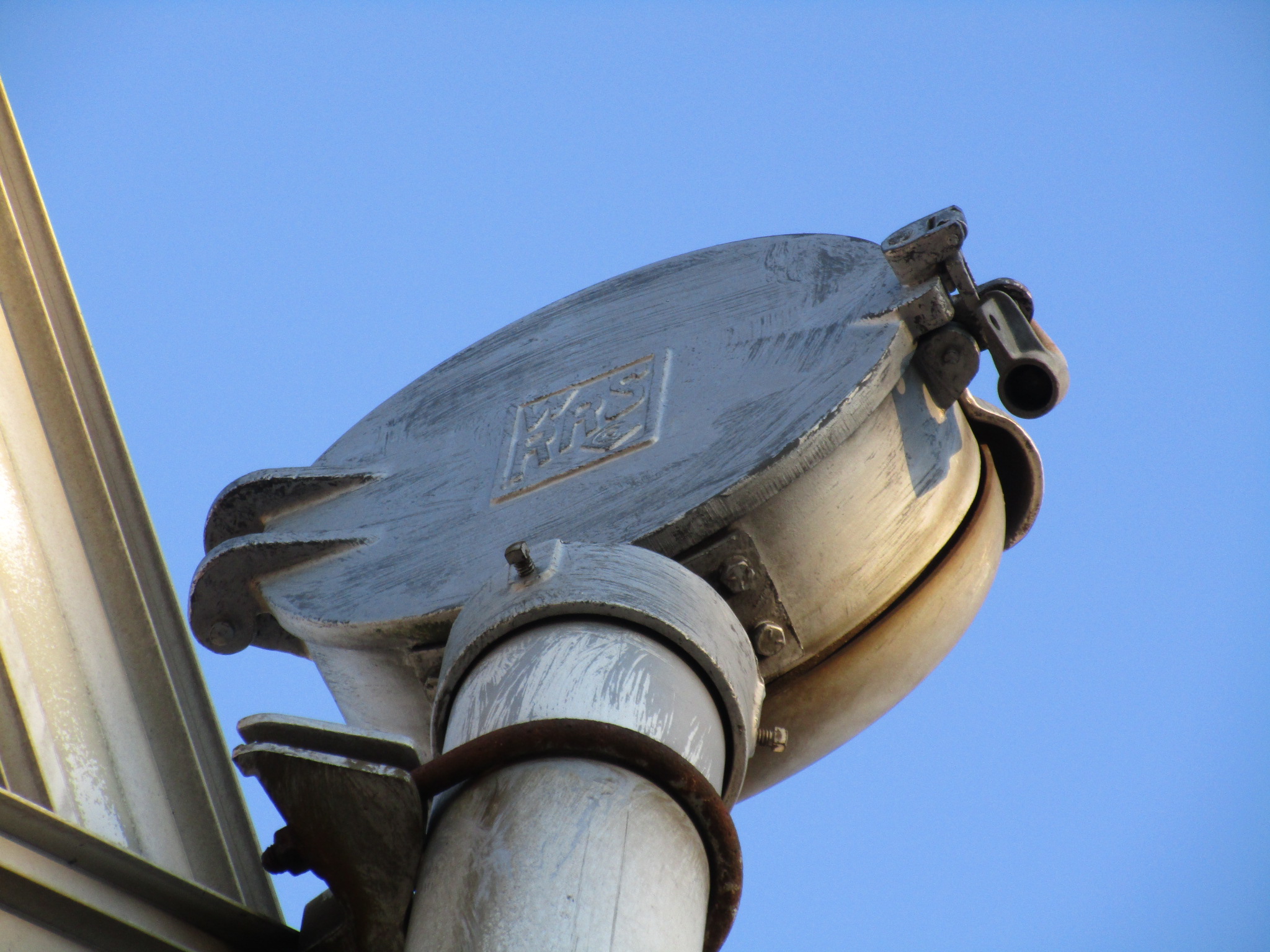

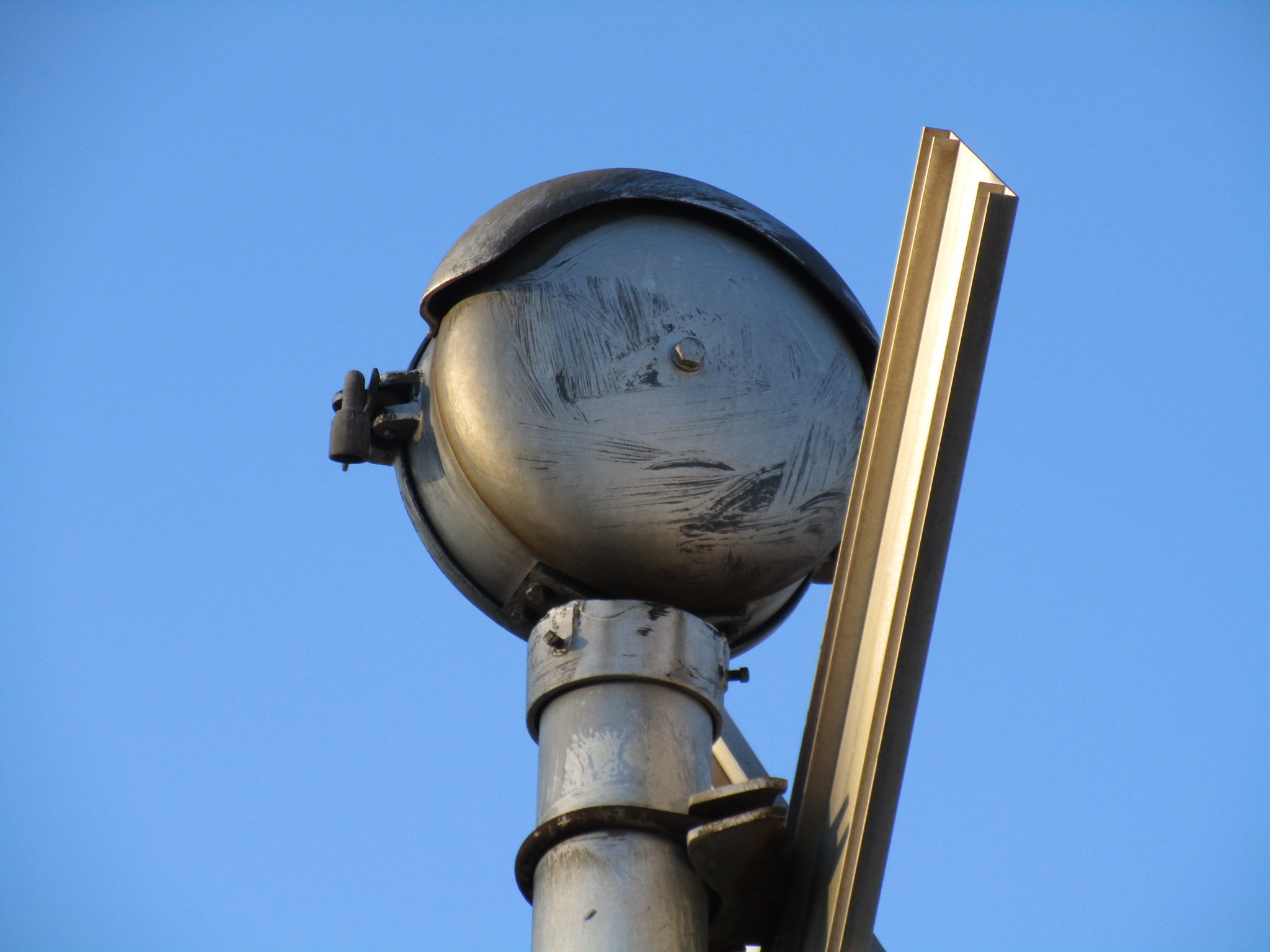

The bell here is a WRRS mechanical bell!
Another 5 inch Modern Industries base on the gate mast.
Another GRS gate mechanism over here!

25

26

27

28

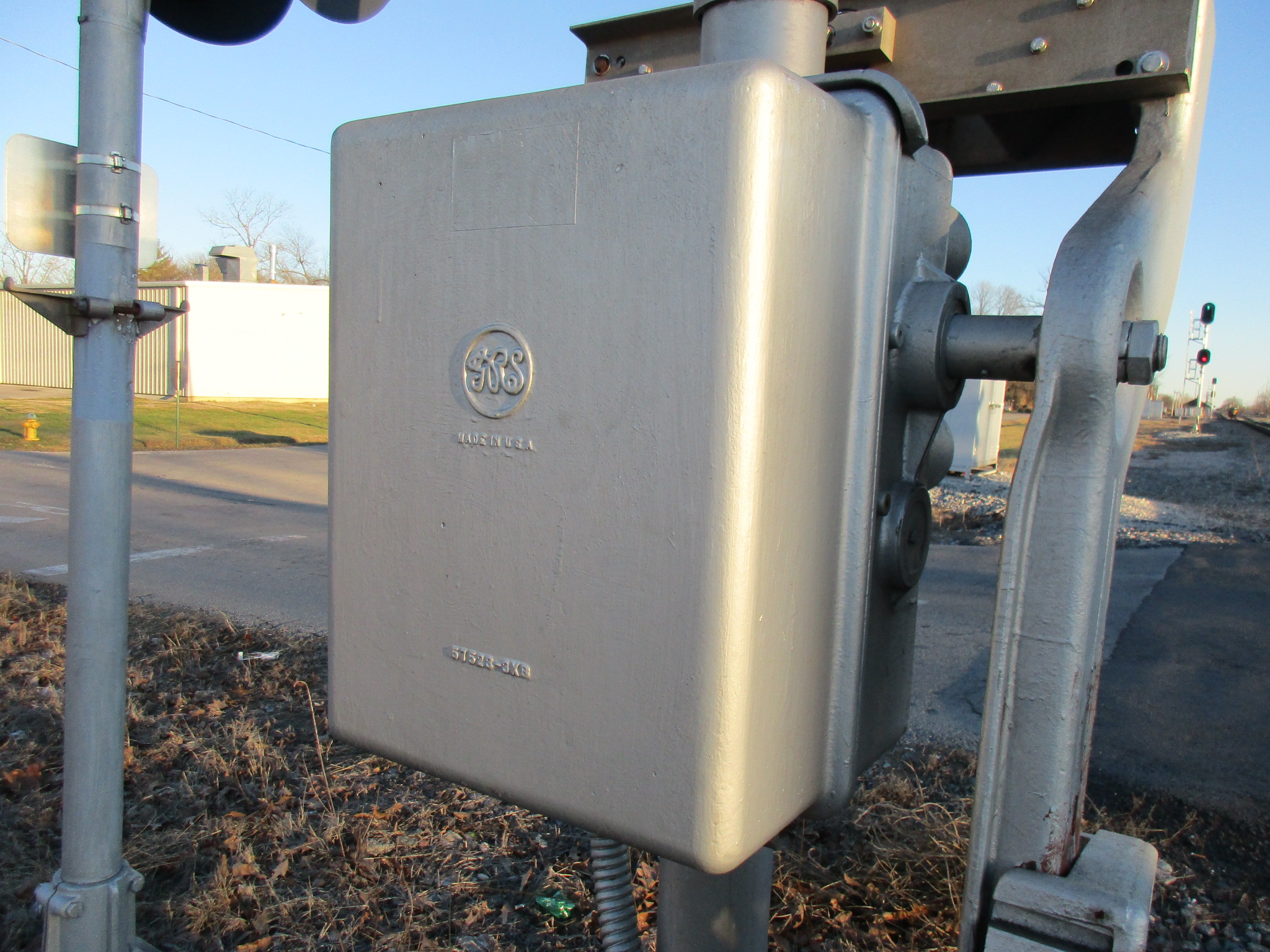

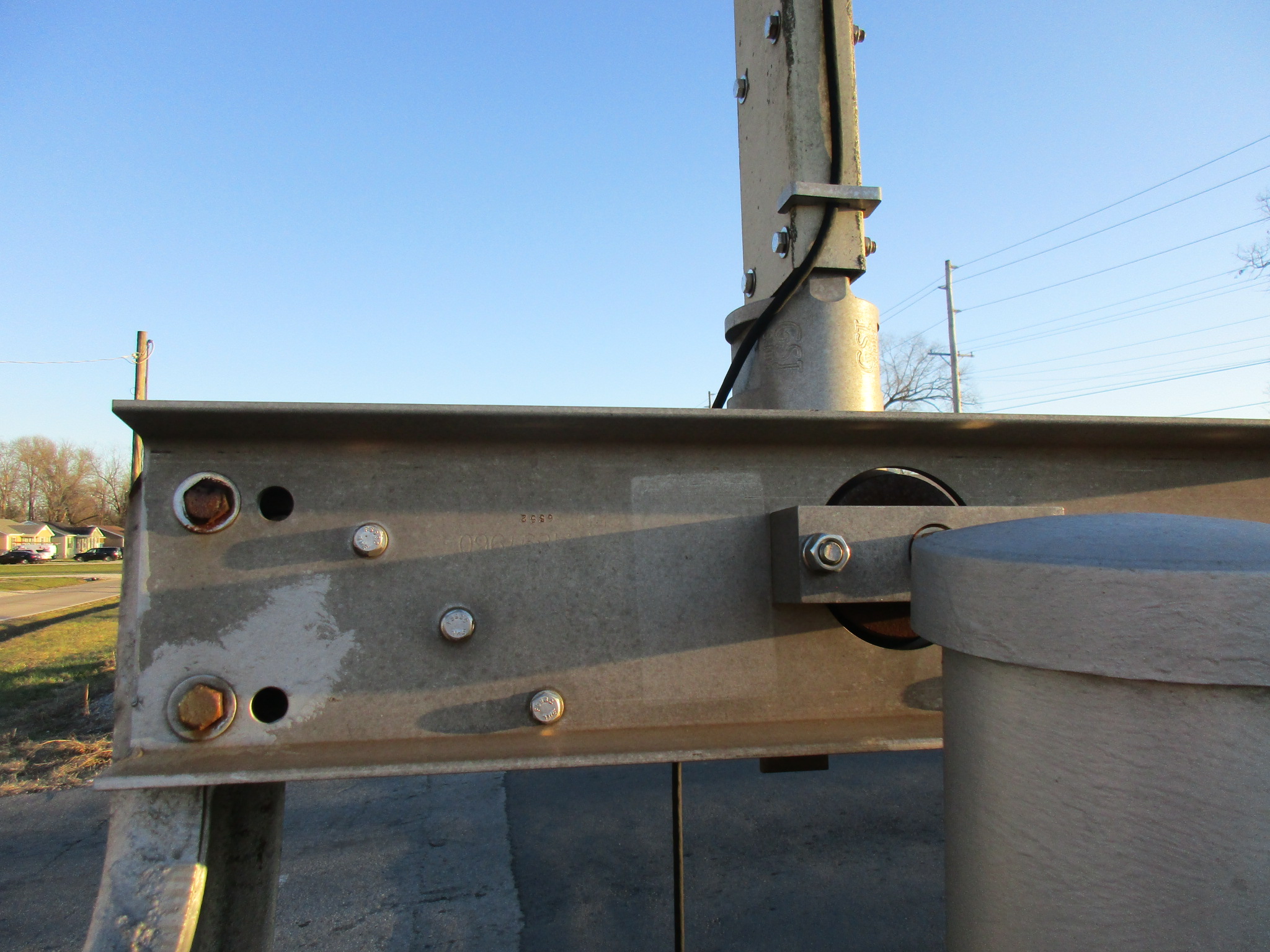

Another General Signals gate saver.
This signal uses all RECO LED gate lights.

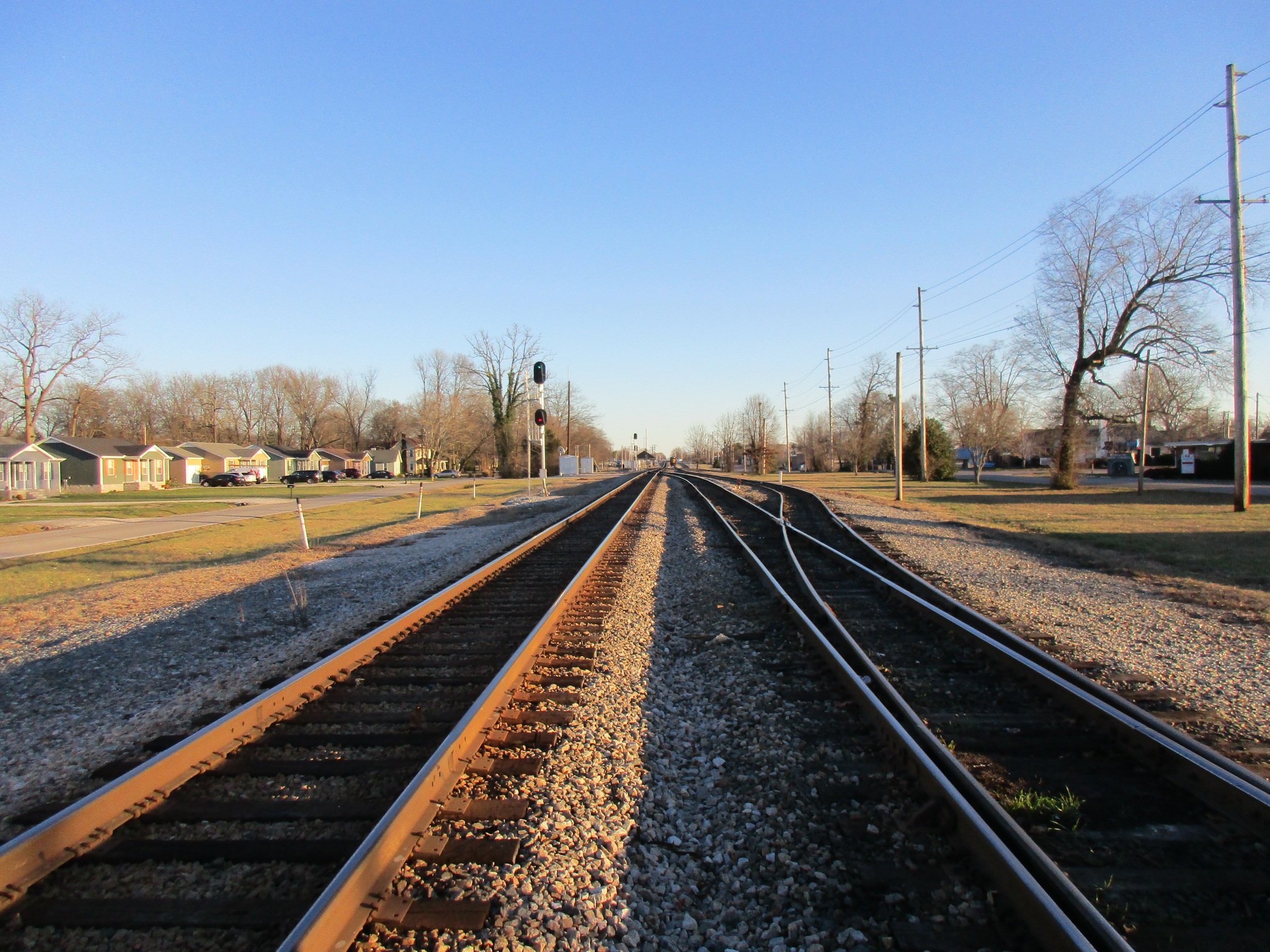

Looking south towards Hogan Street.

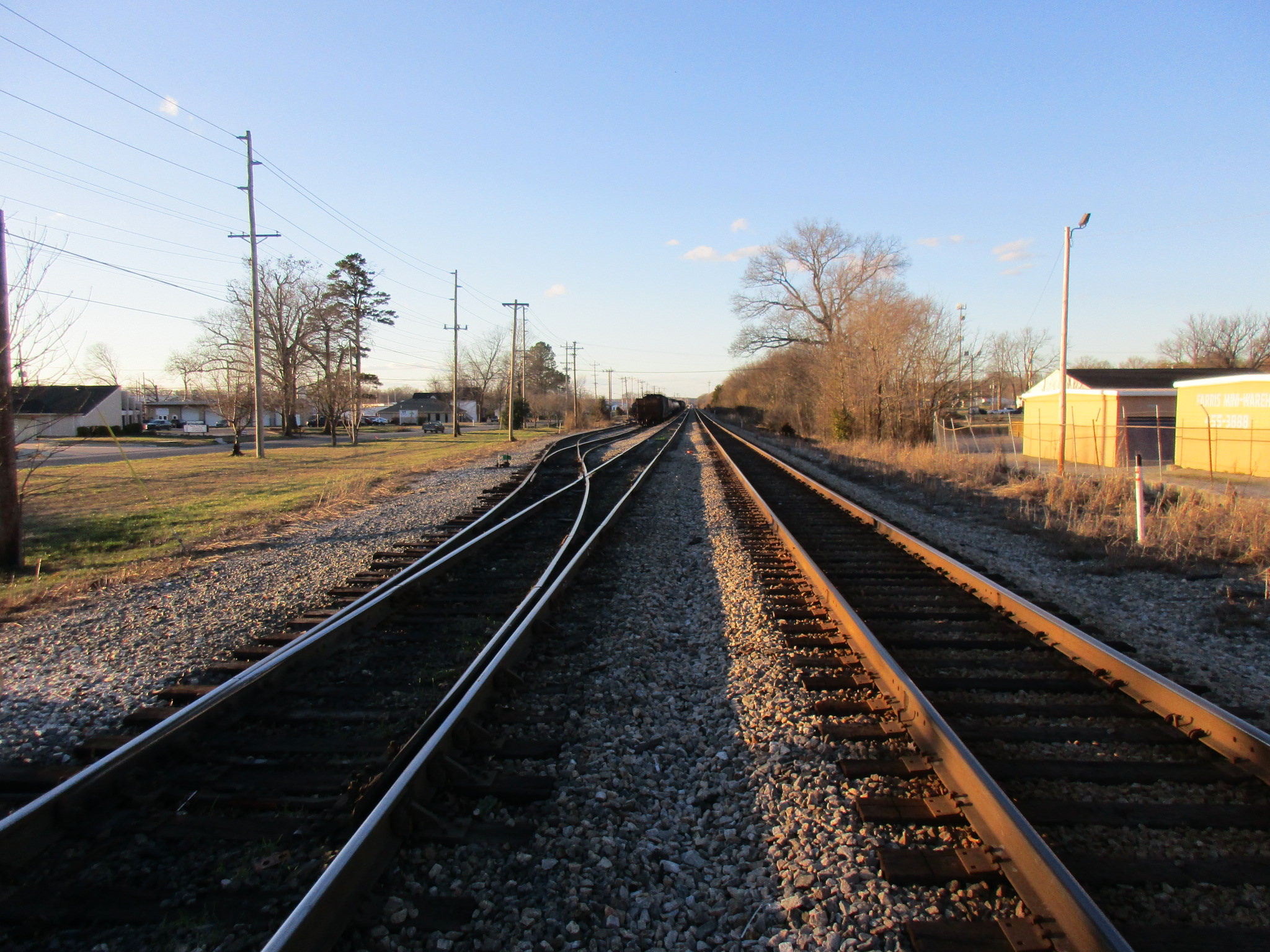

Looking north towards Ralph Broadwick Road.

29

30

31

32

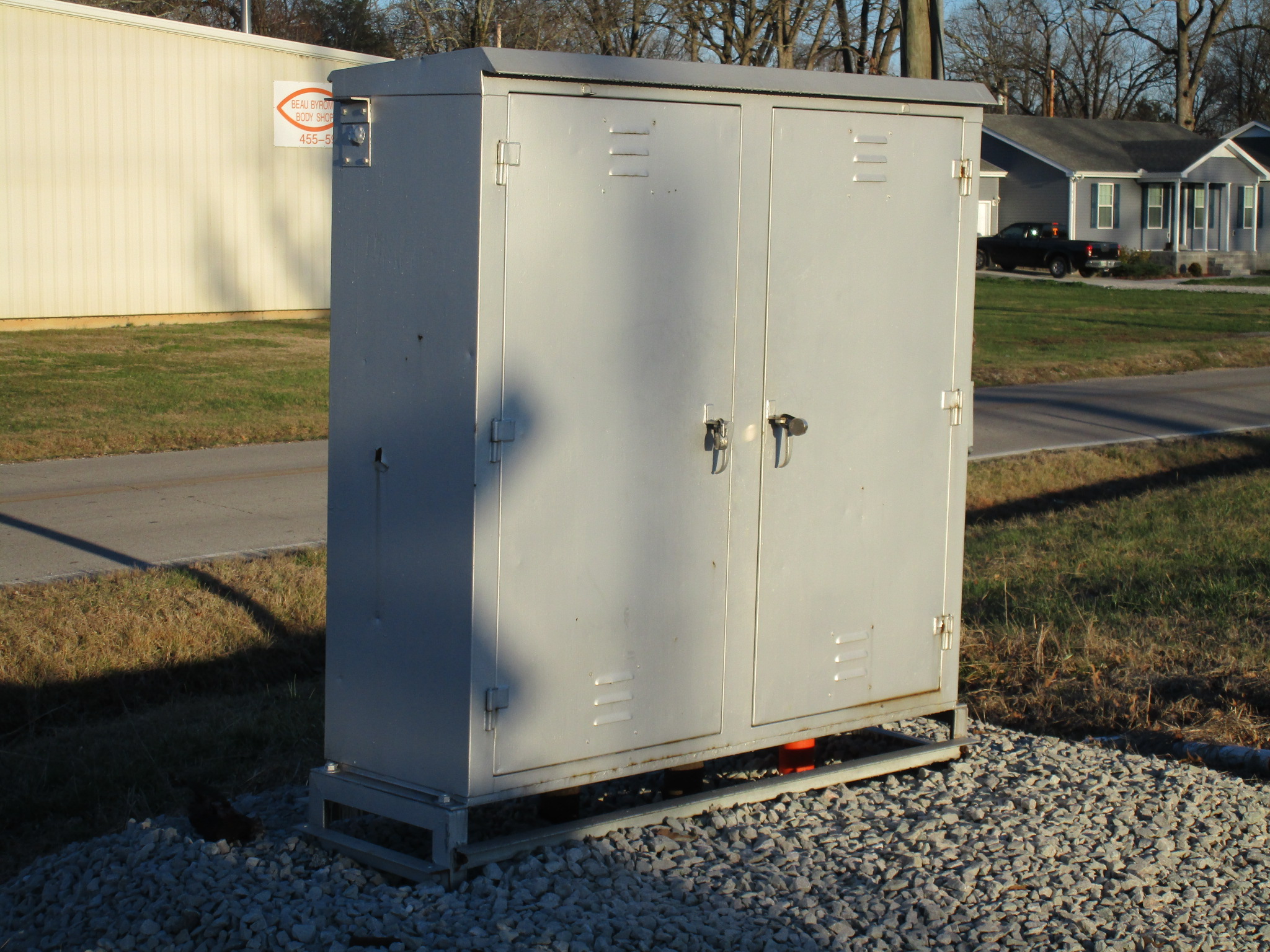

The relay case.

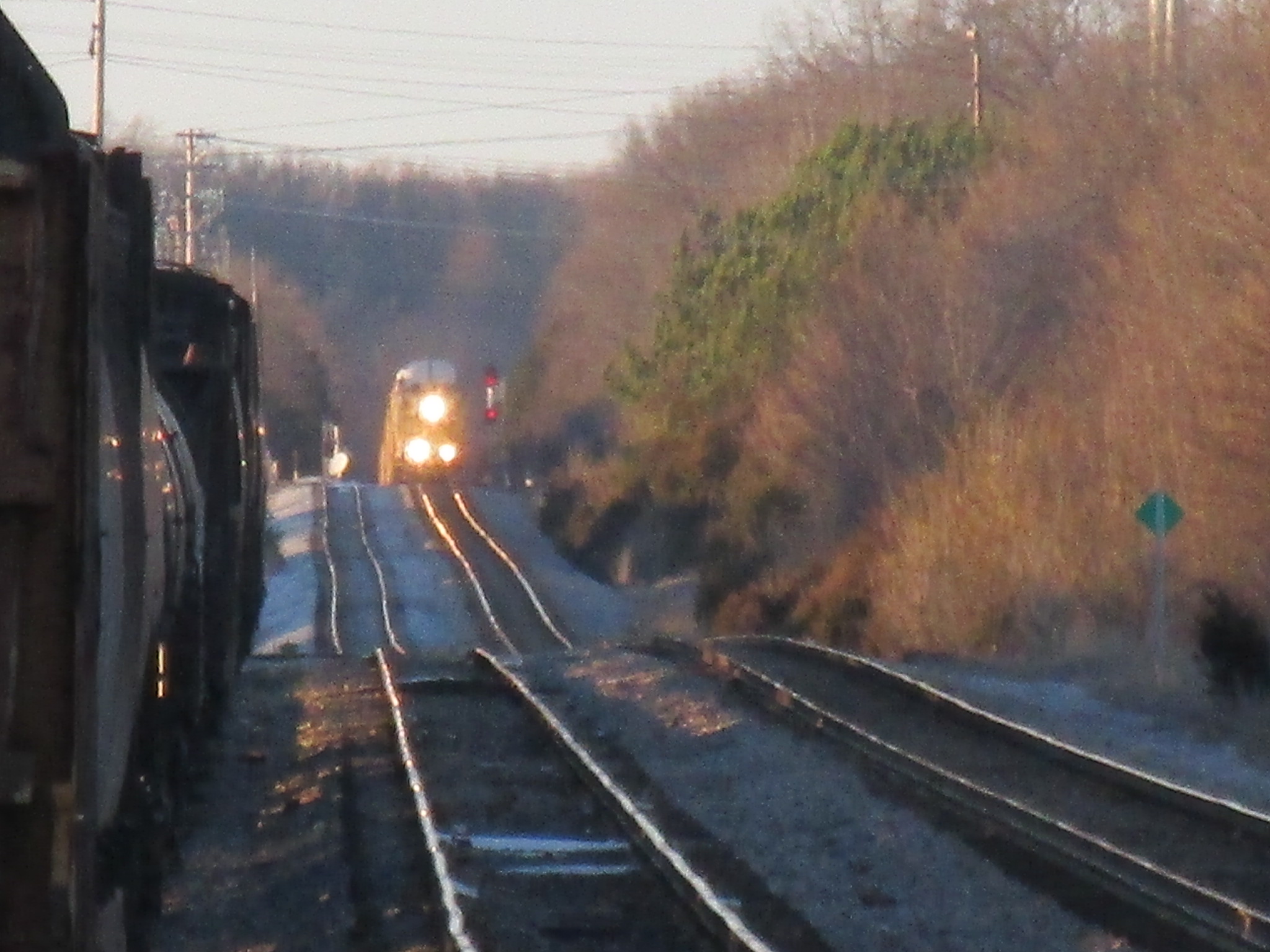

A train is coming!

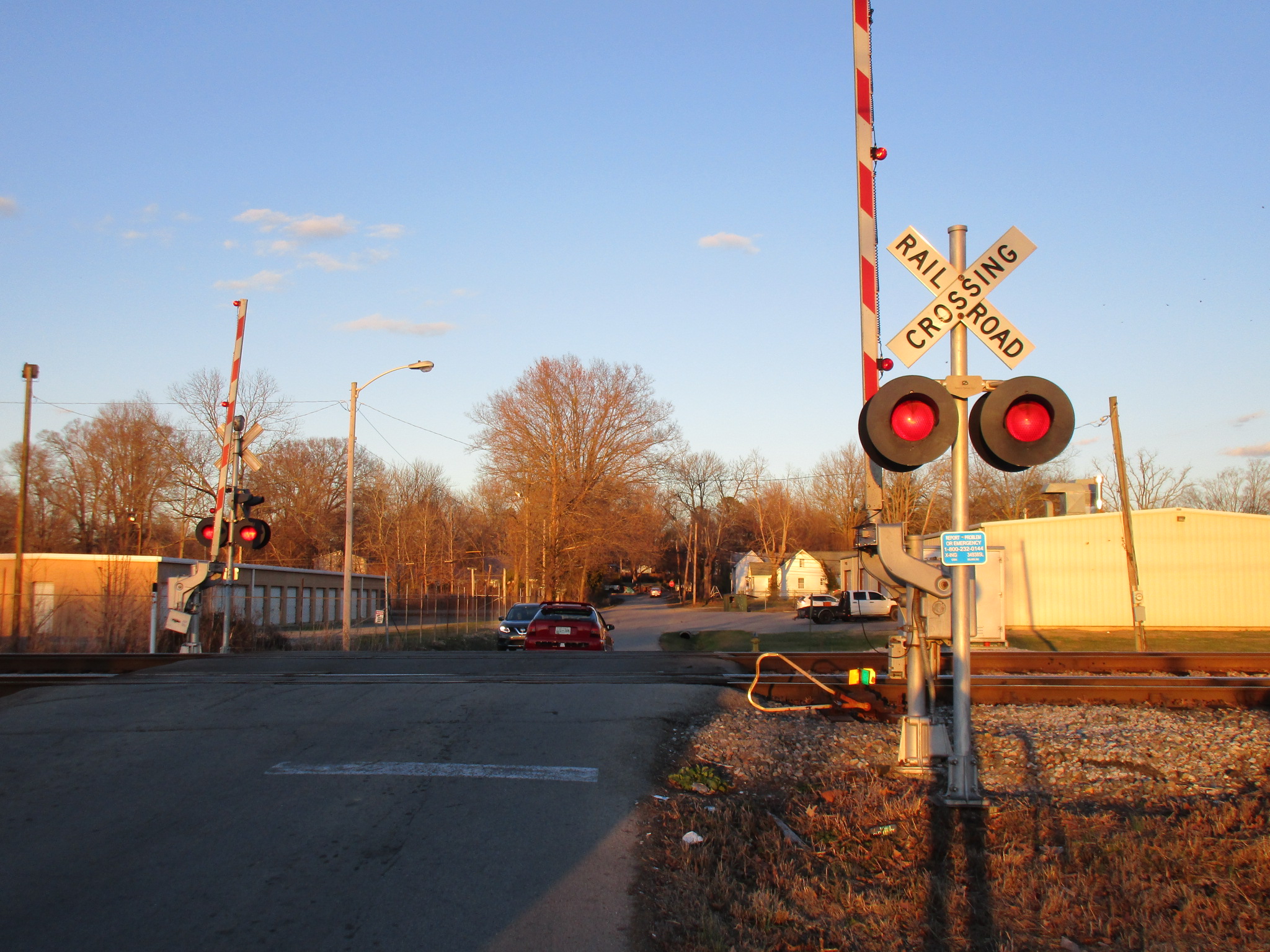

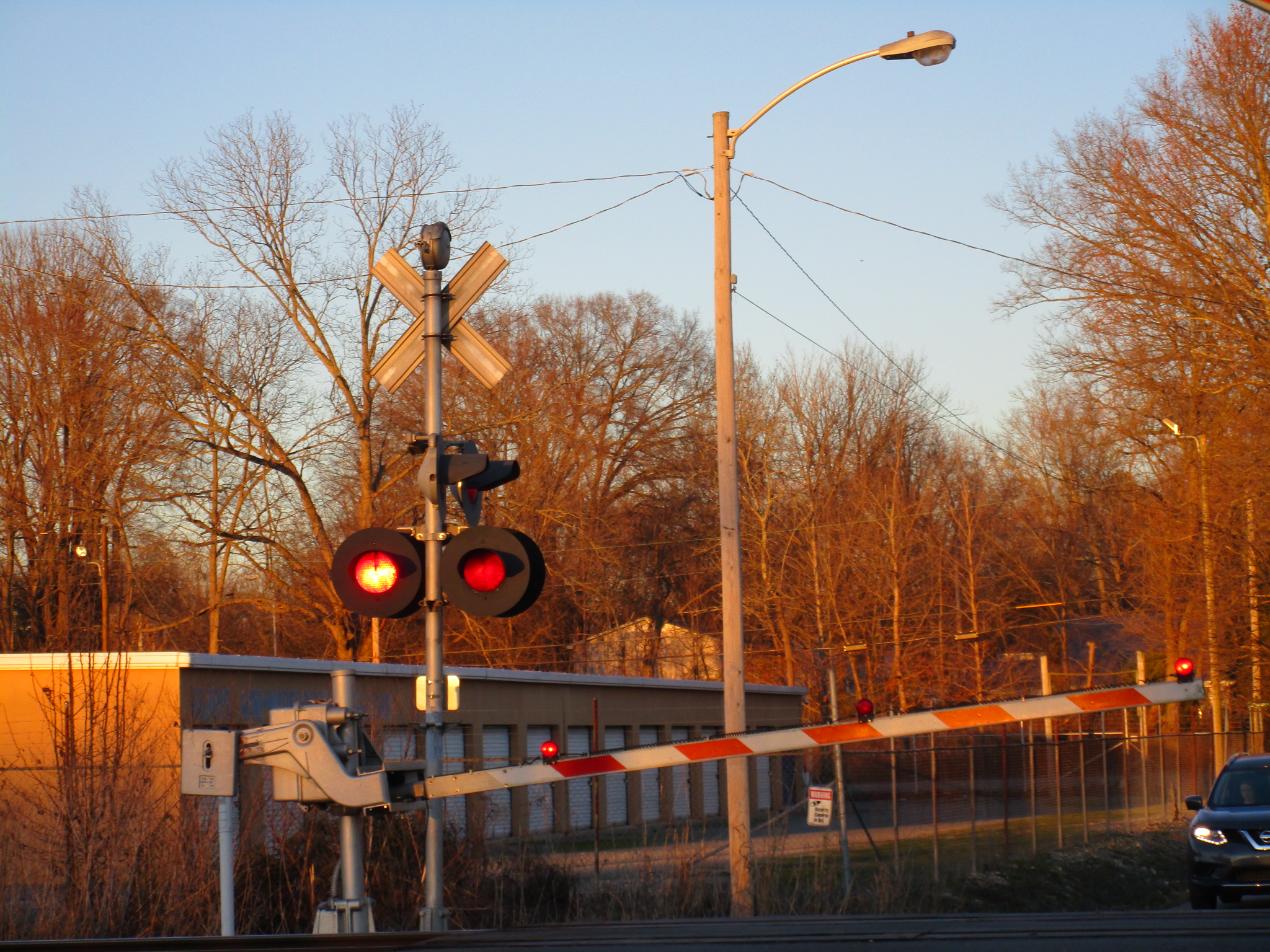

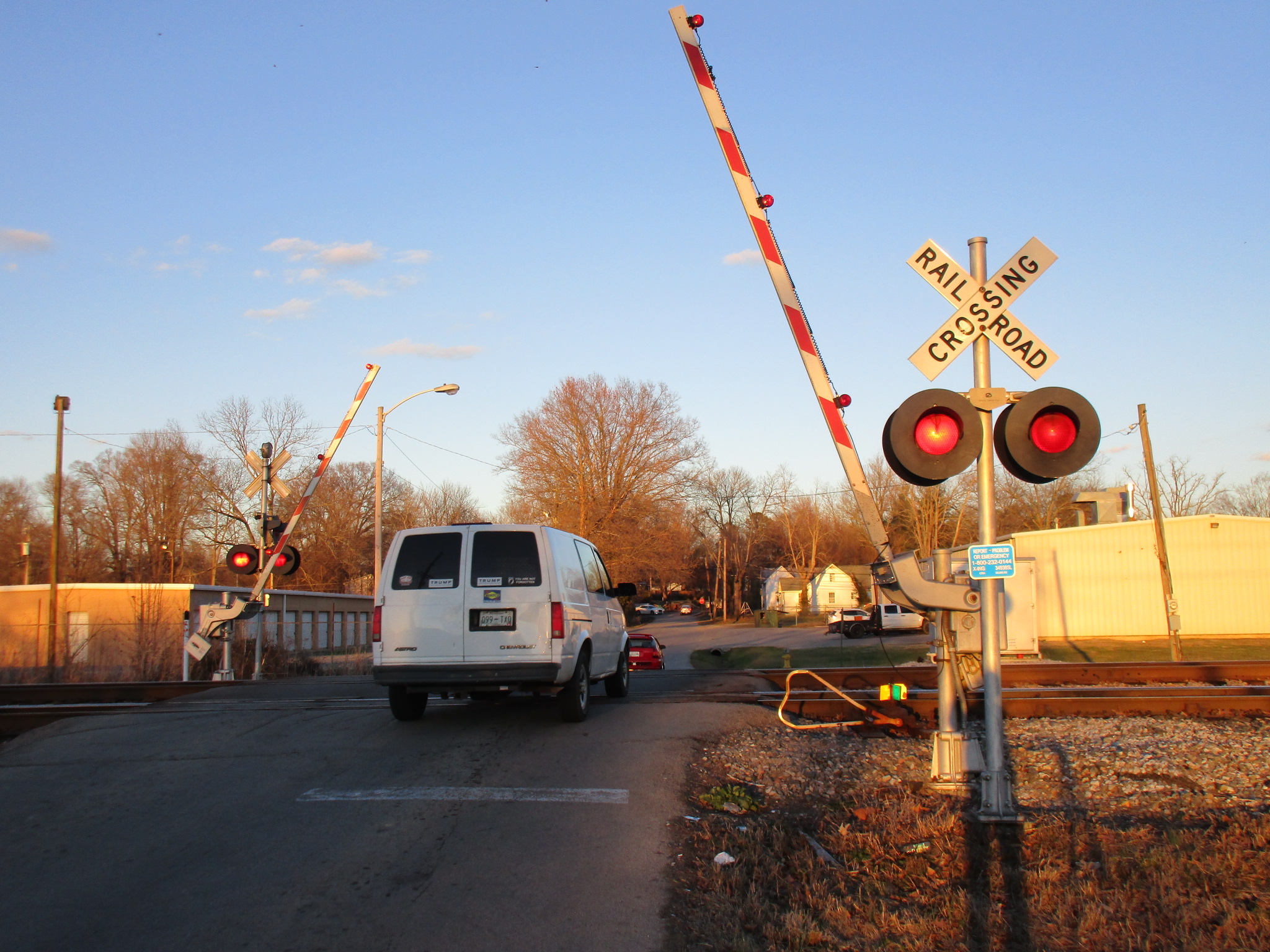

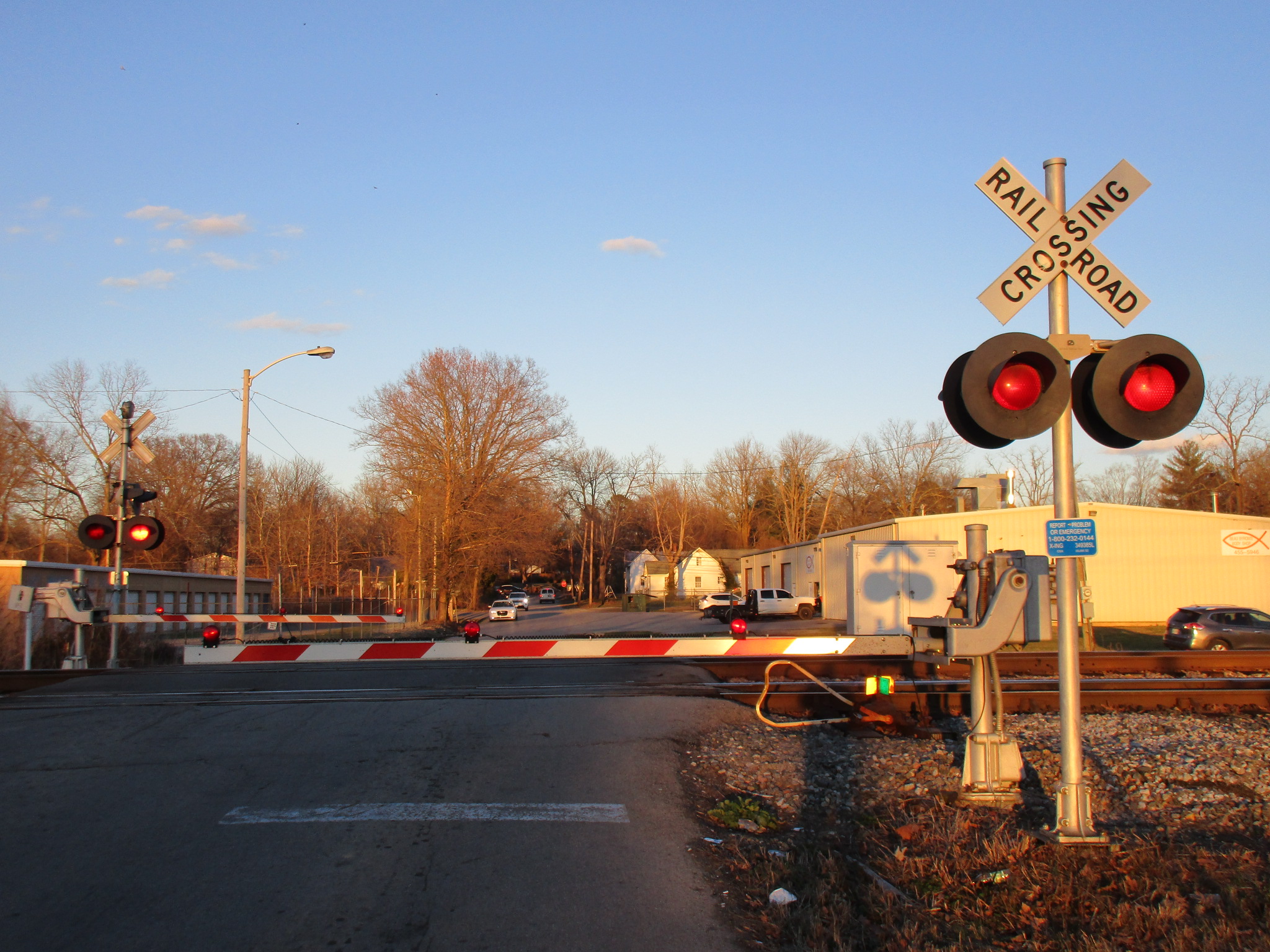

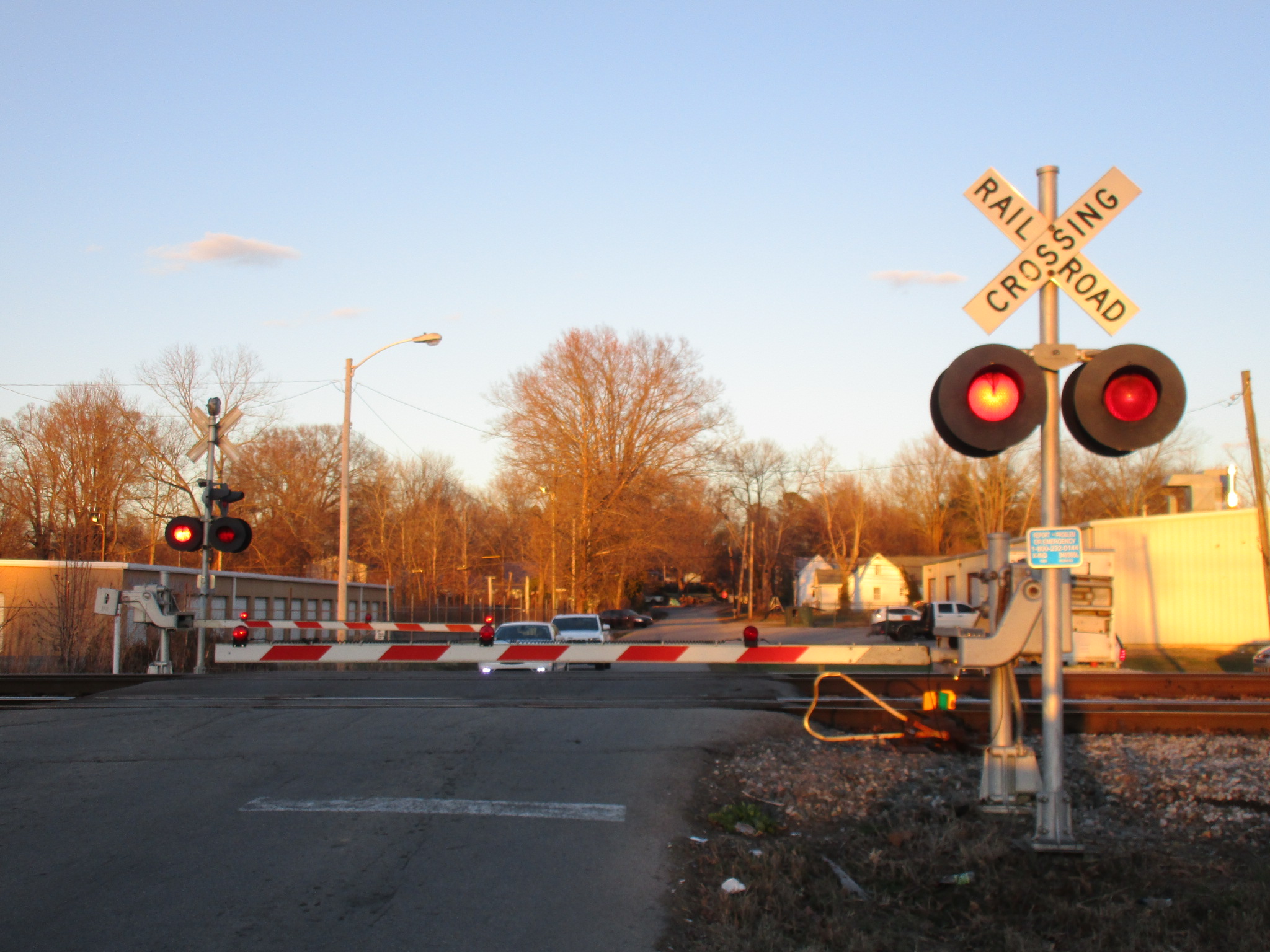

The crossing activates!

33

34

35

36

37

38

39

40

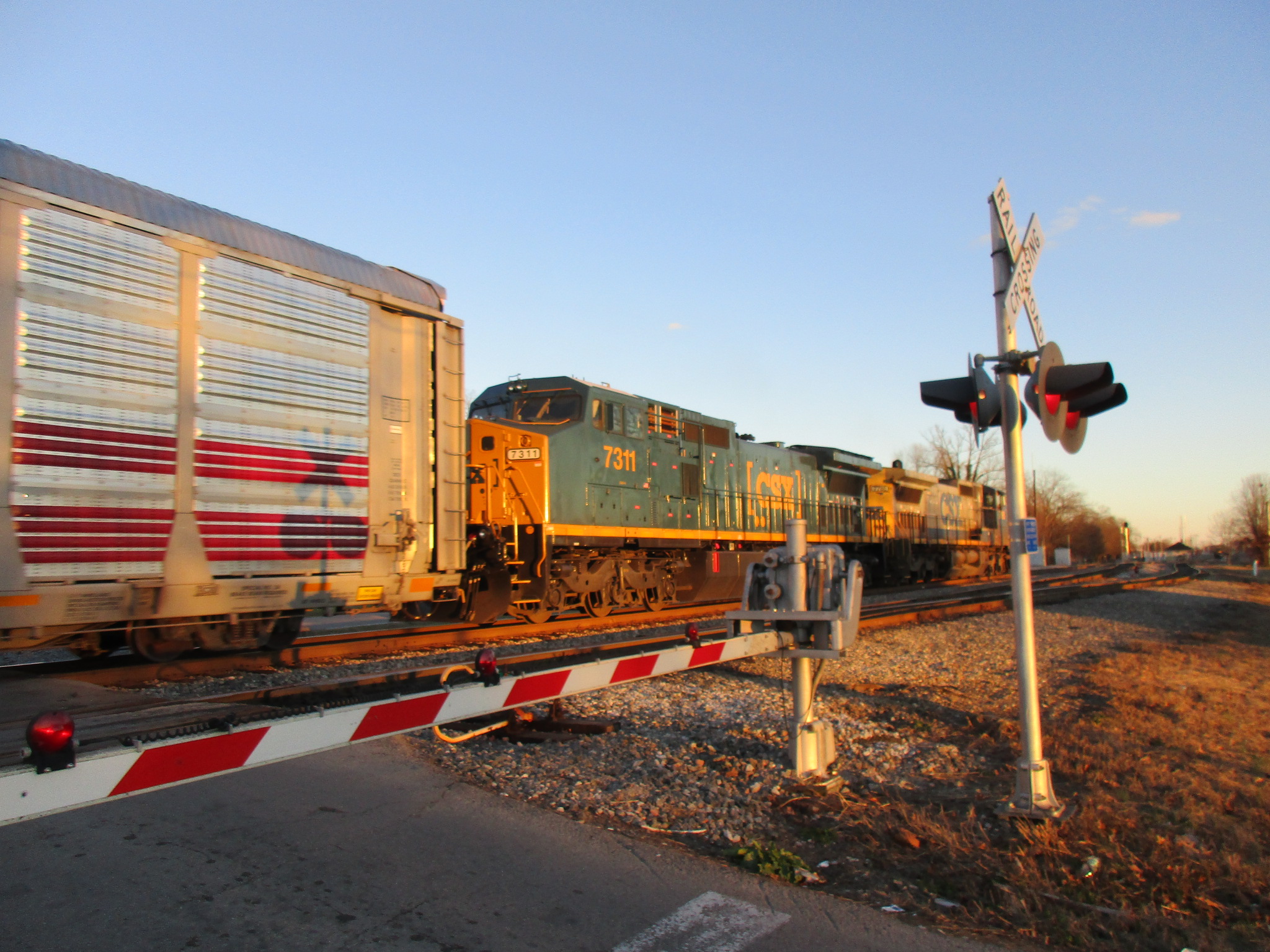

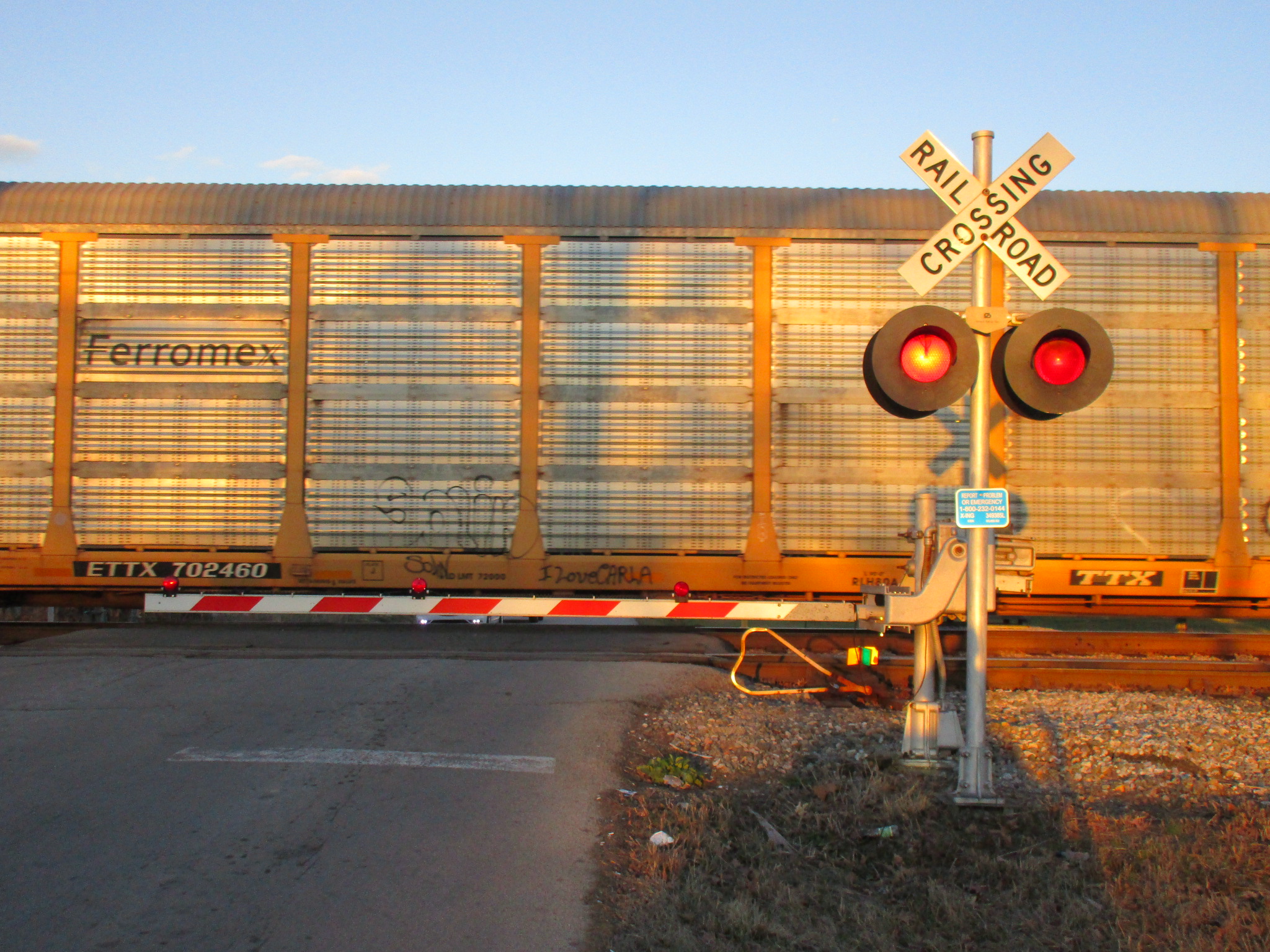

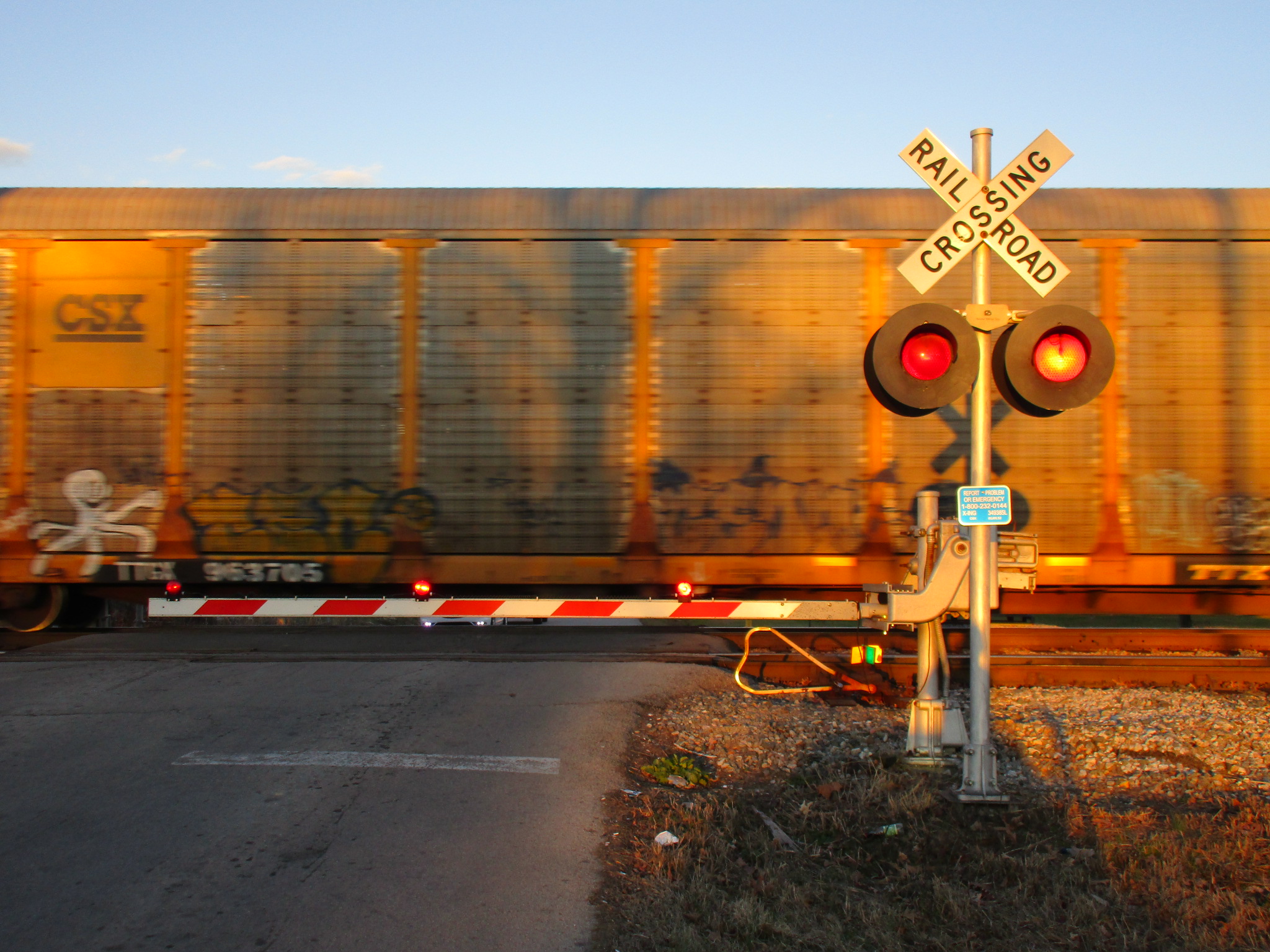

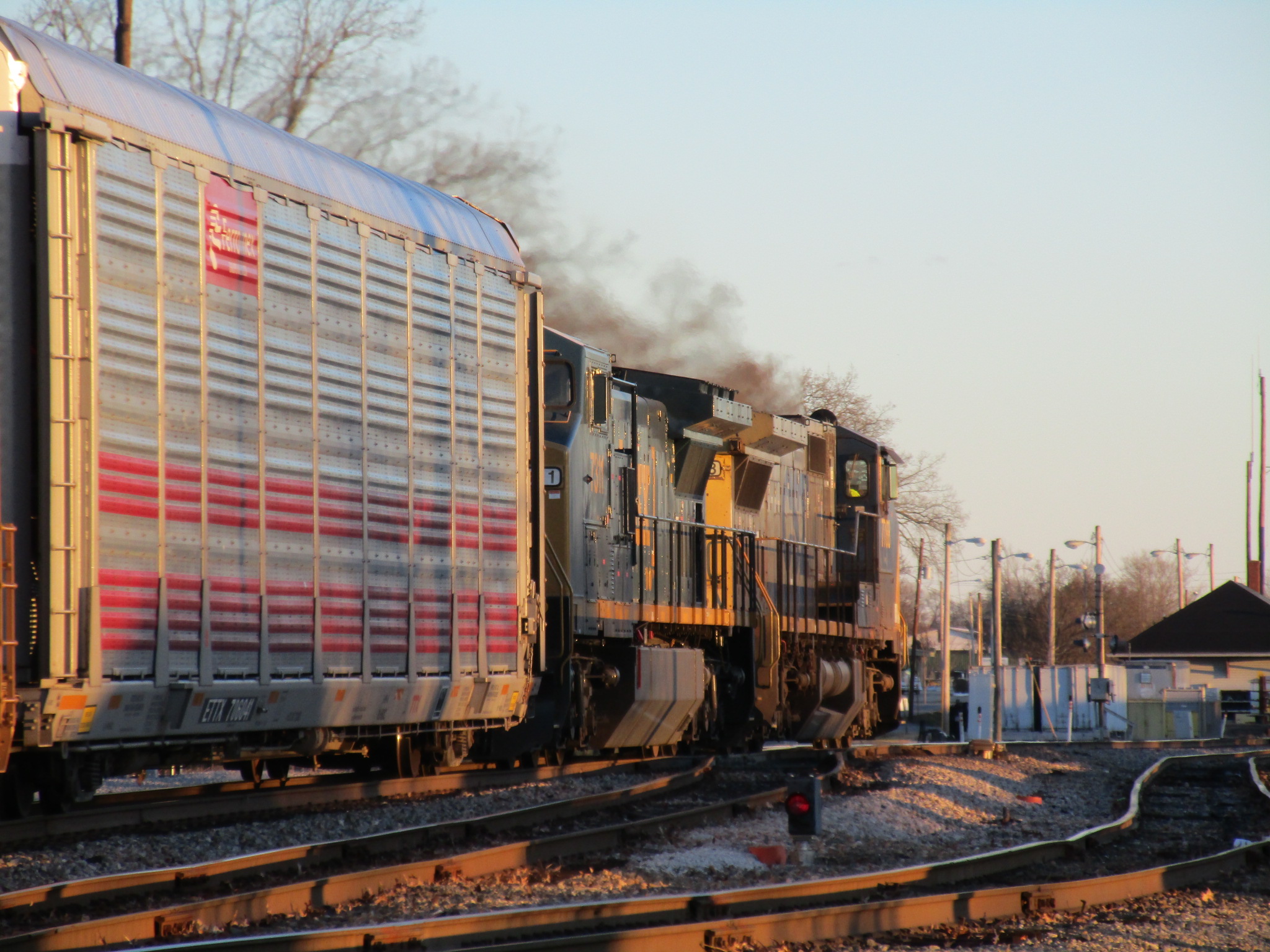

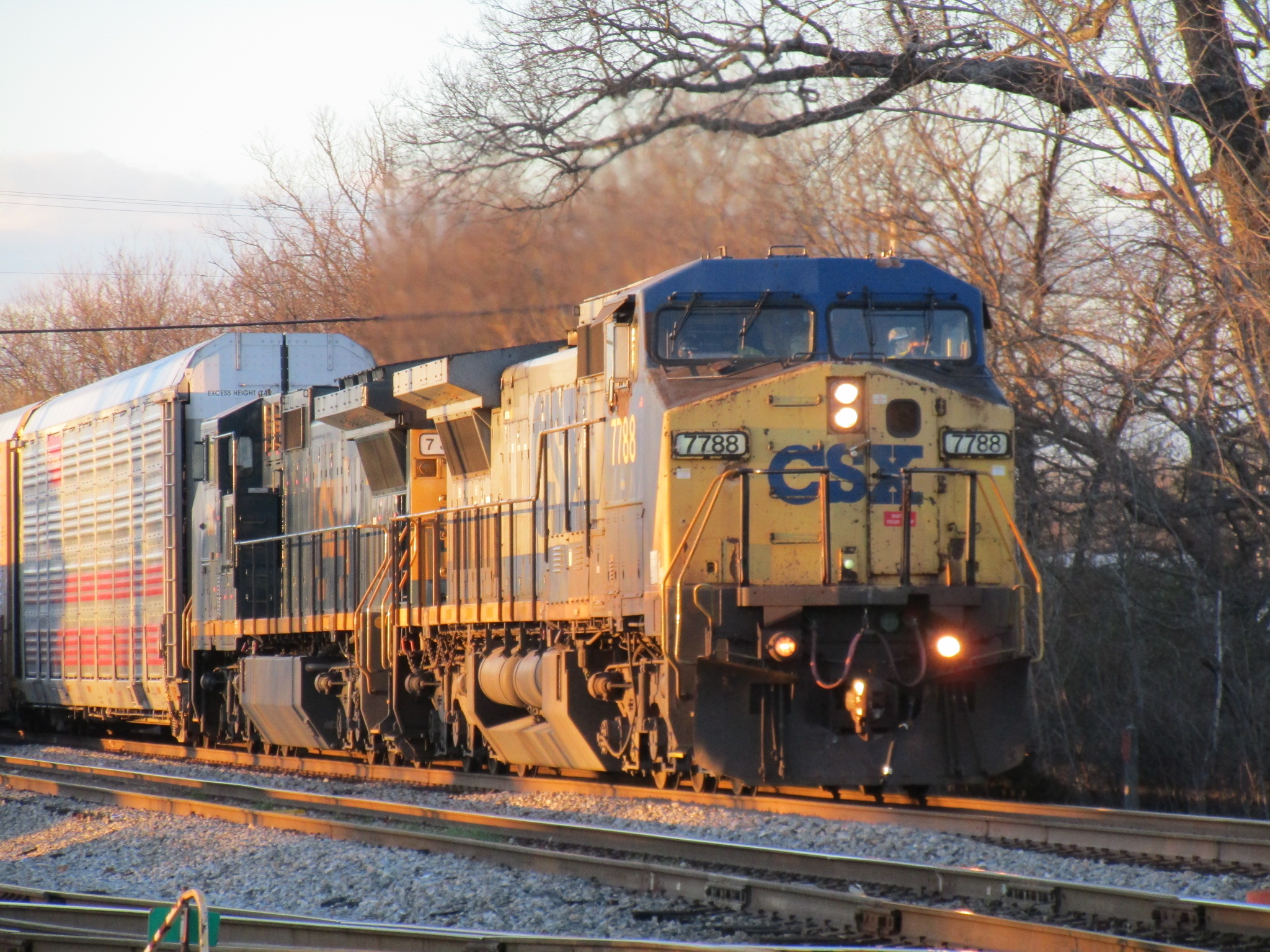

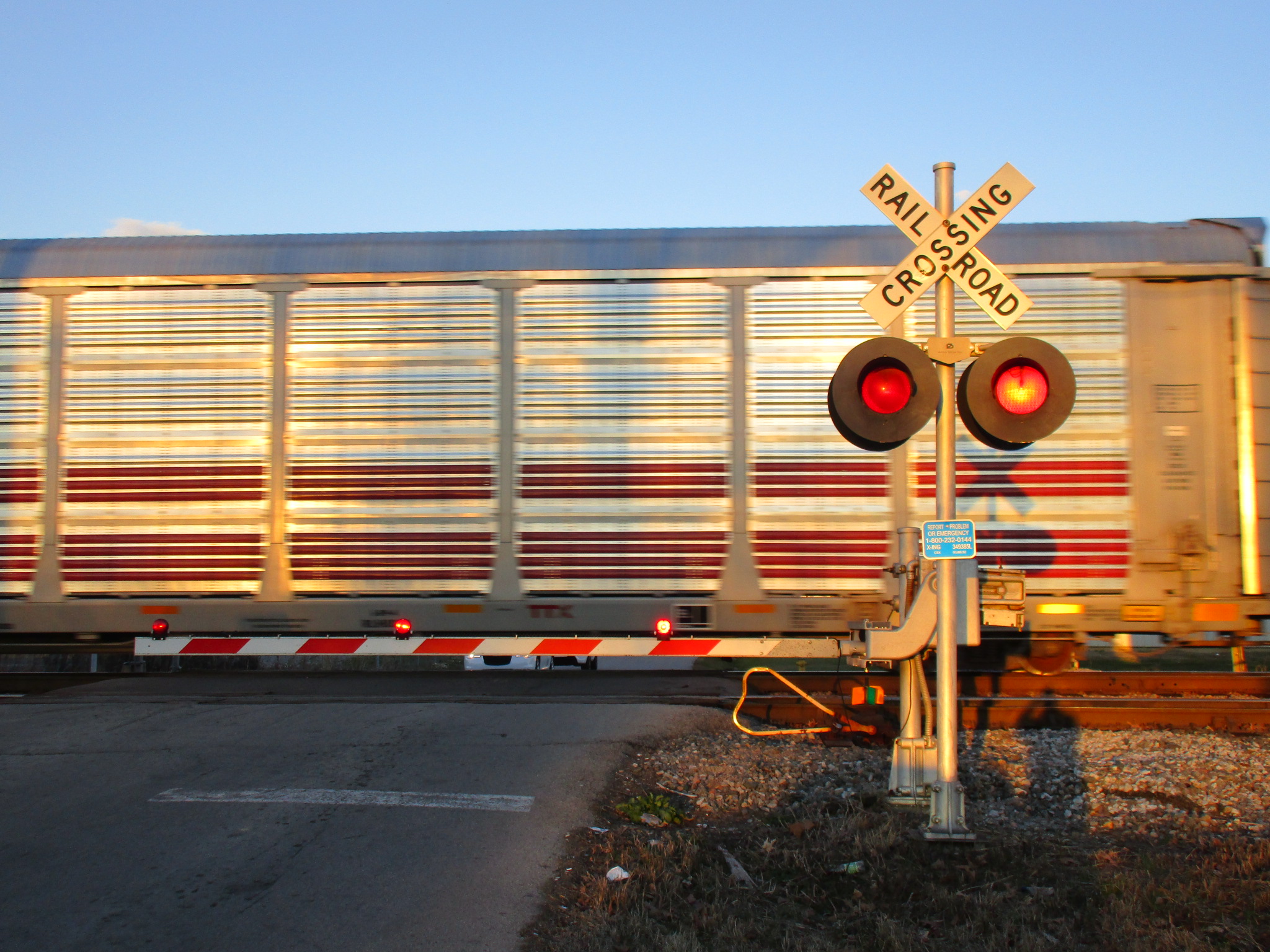

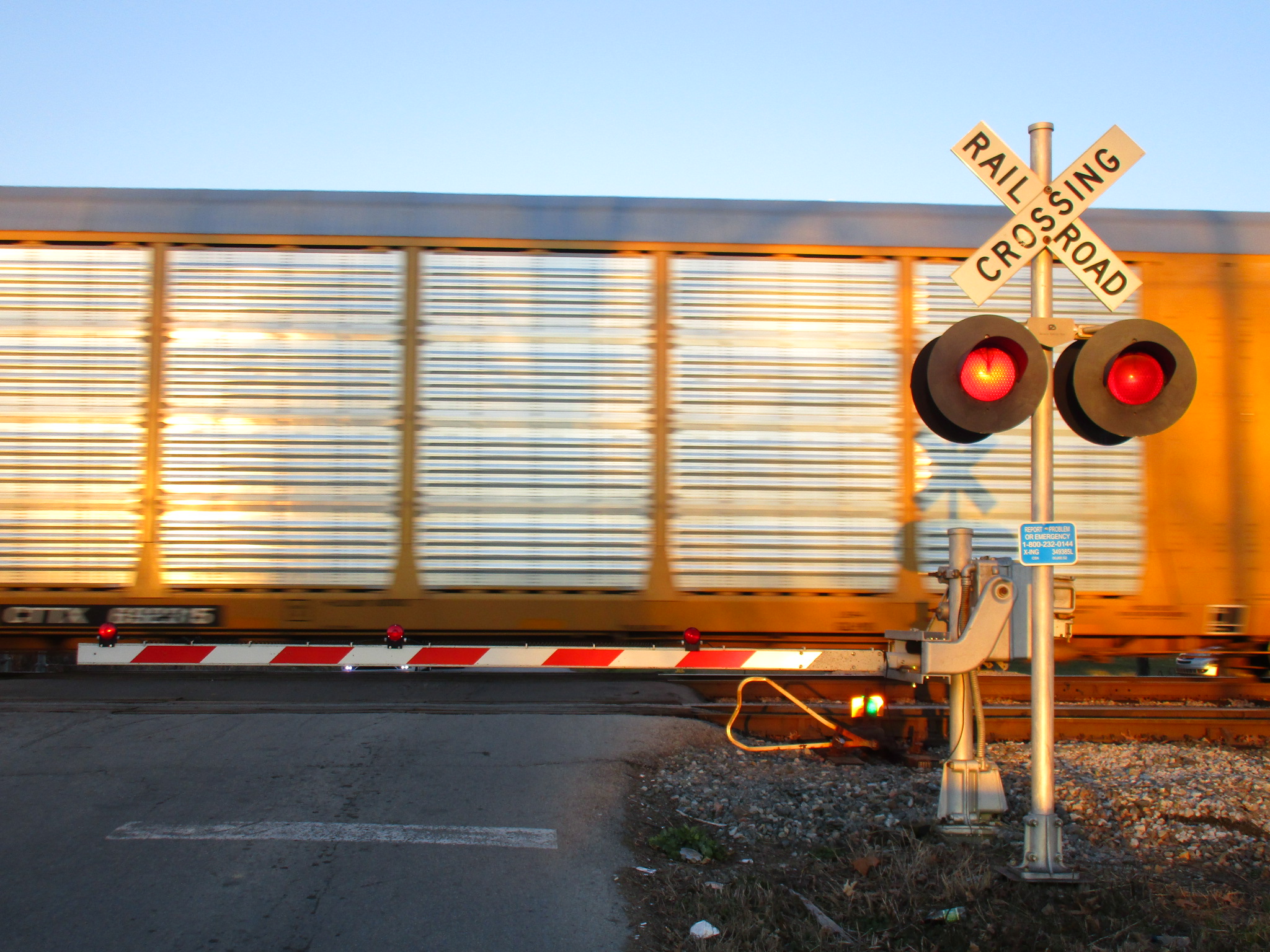

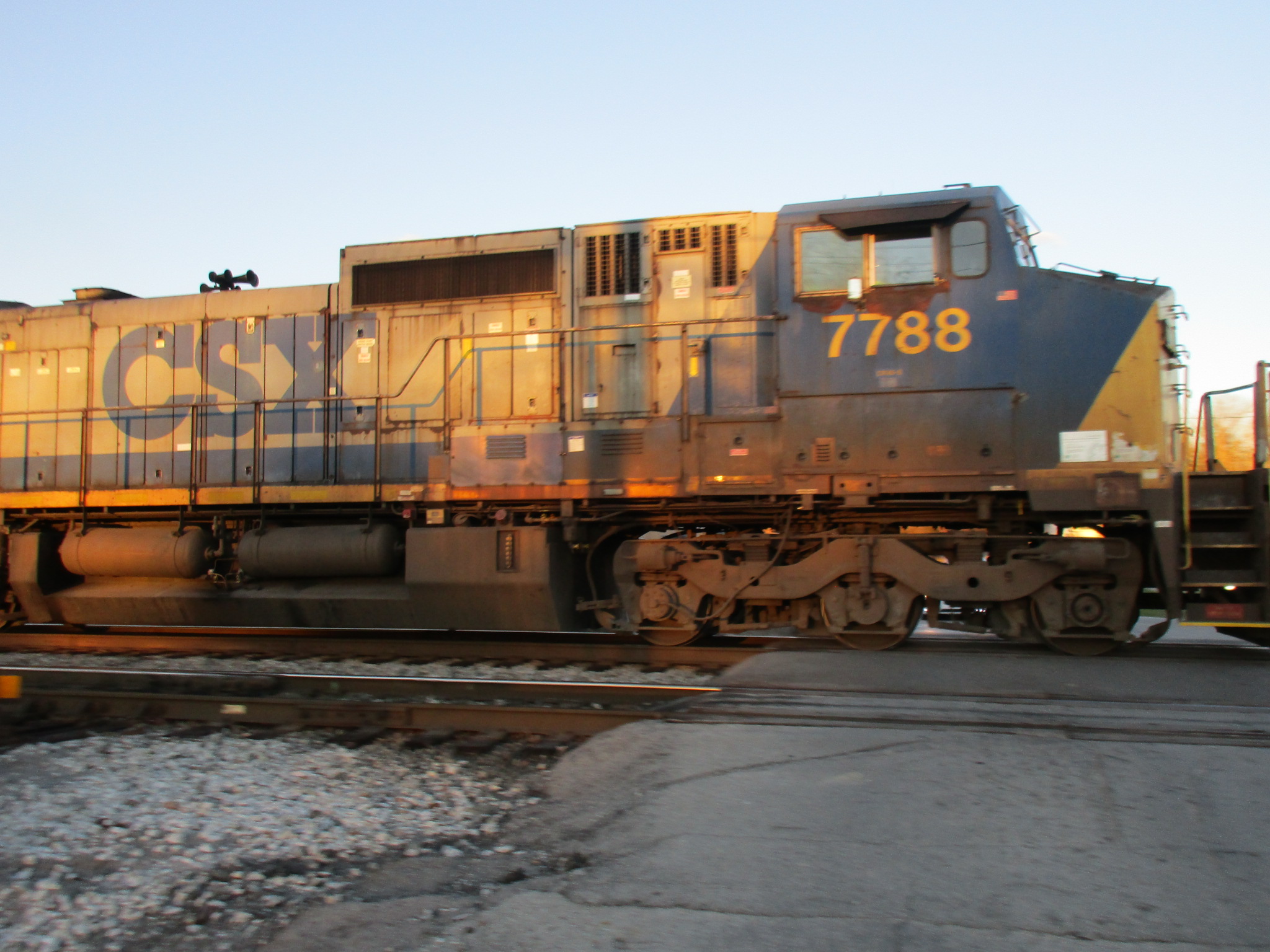

CSX 7788 and CSX 7311 pull an autorack train south through the crossing!

41

42

43

44

45

46

47

48

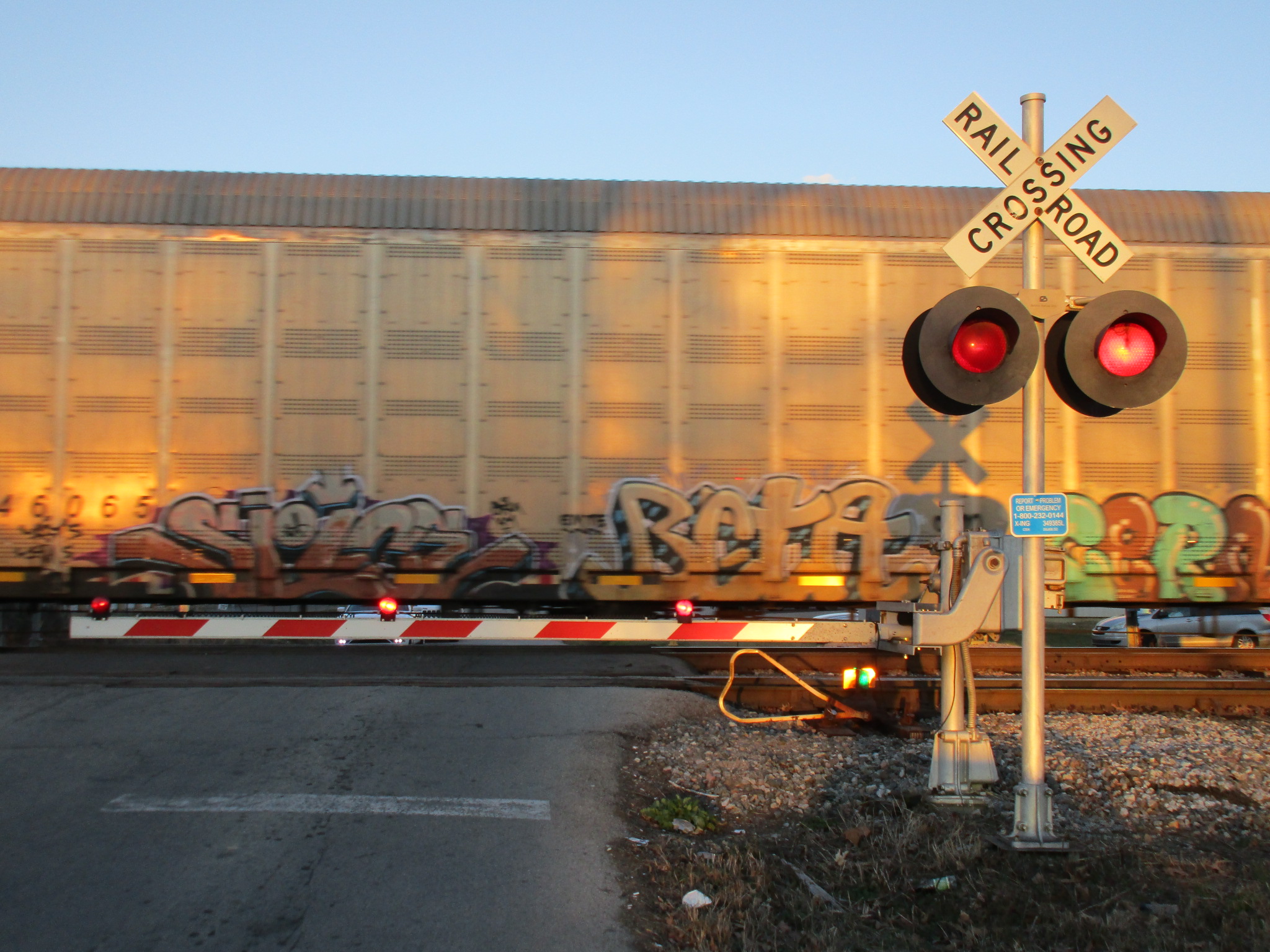

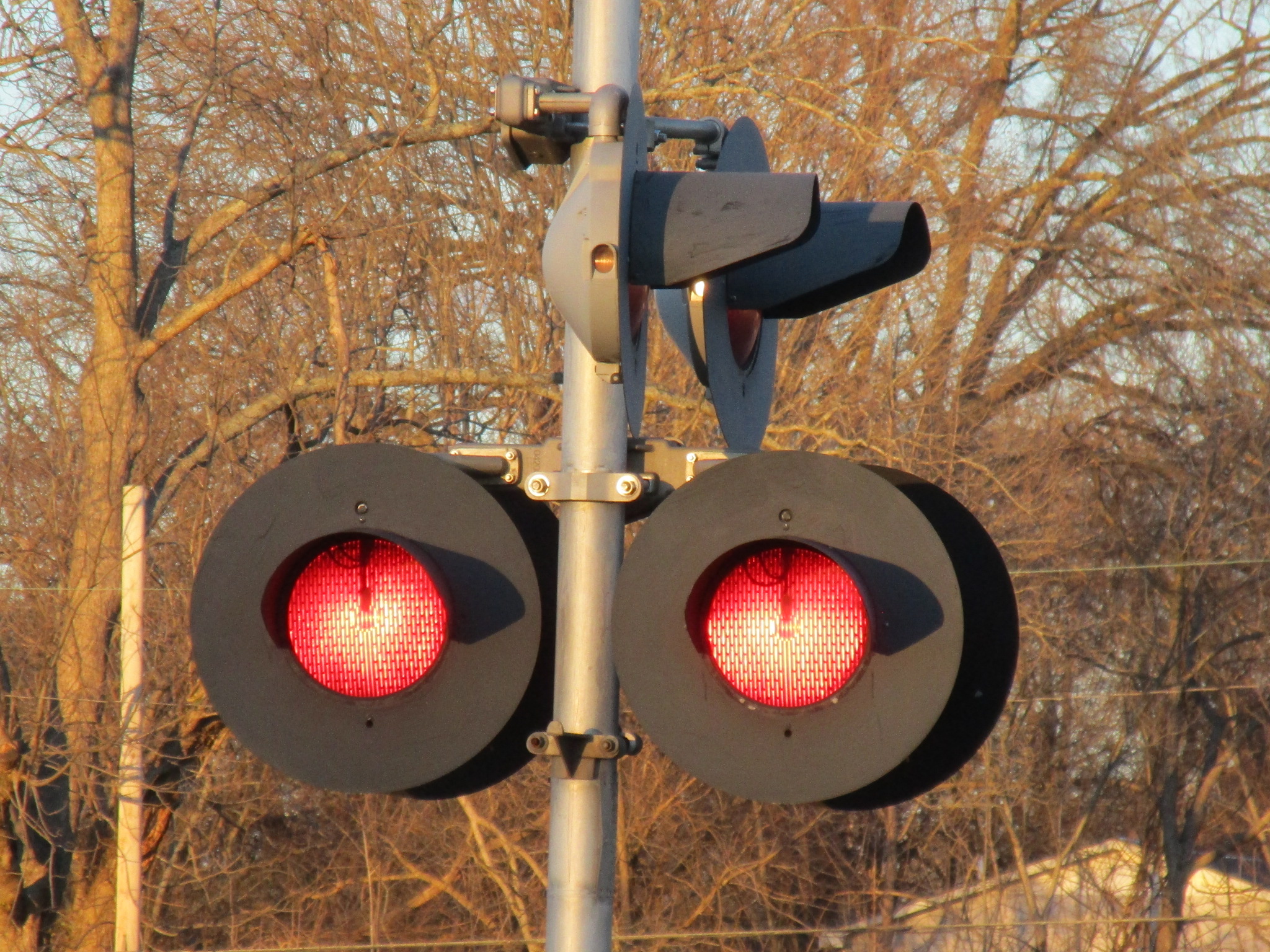

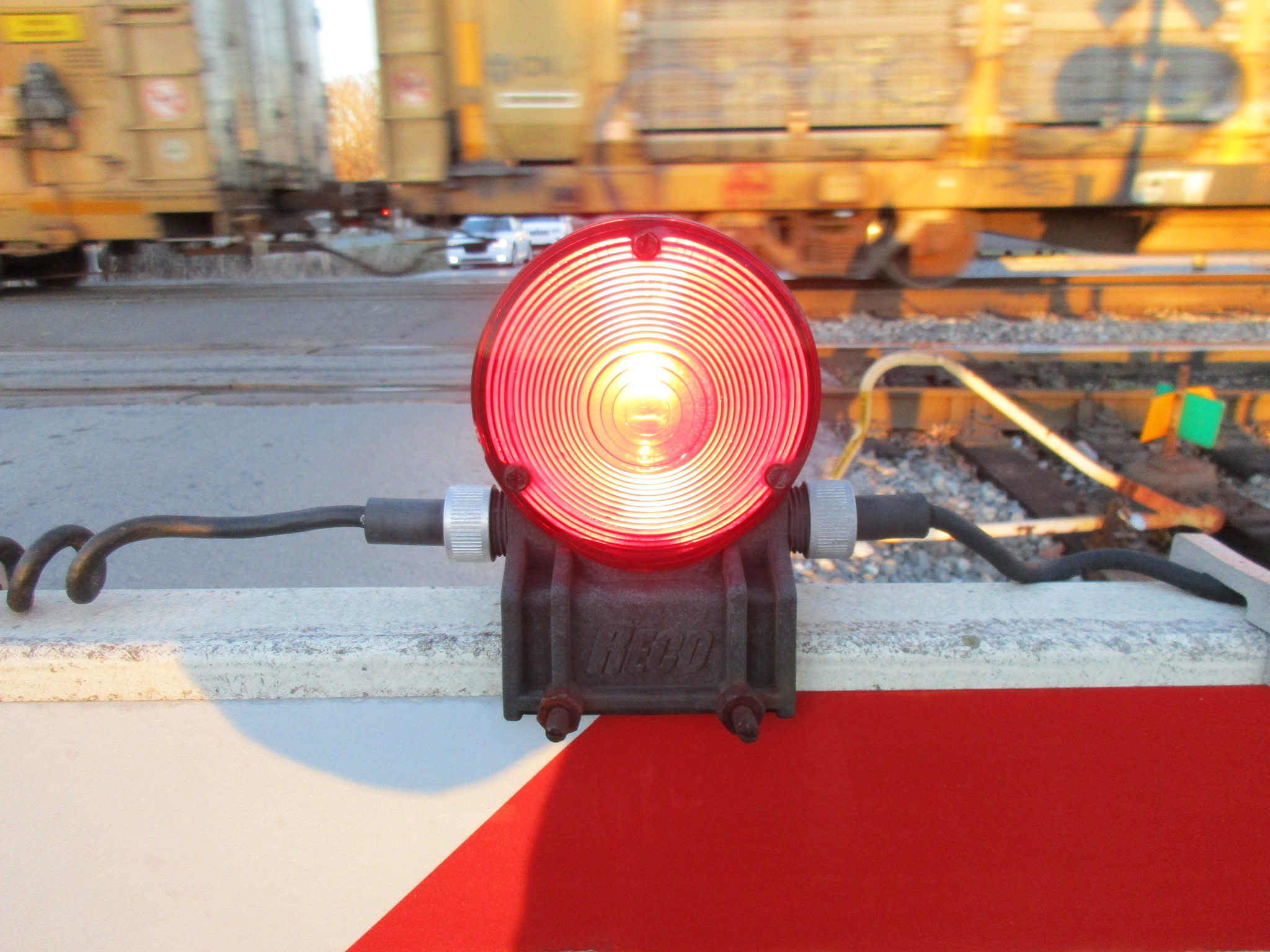

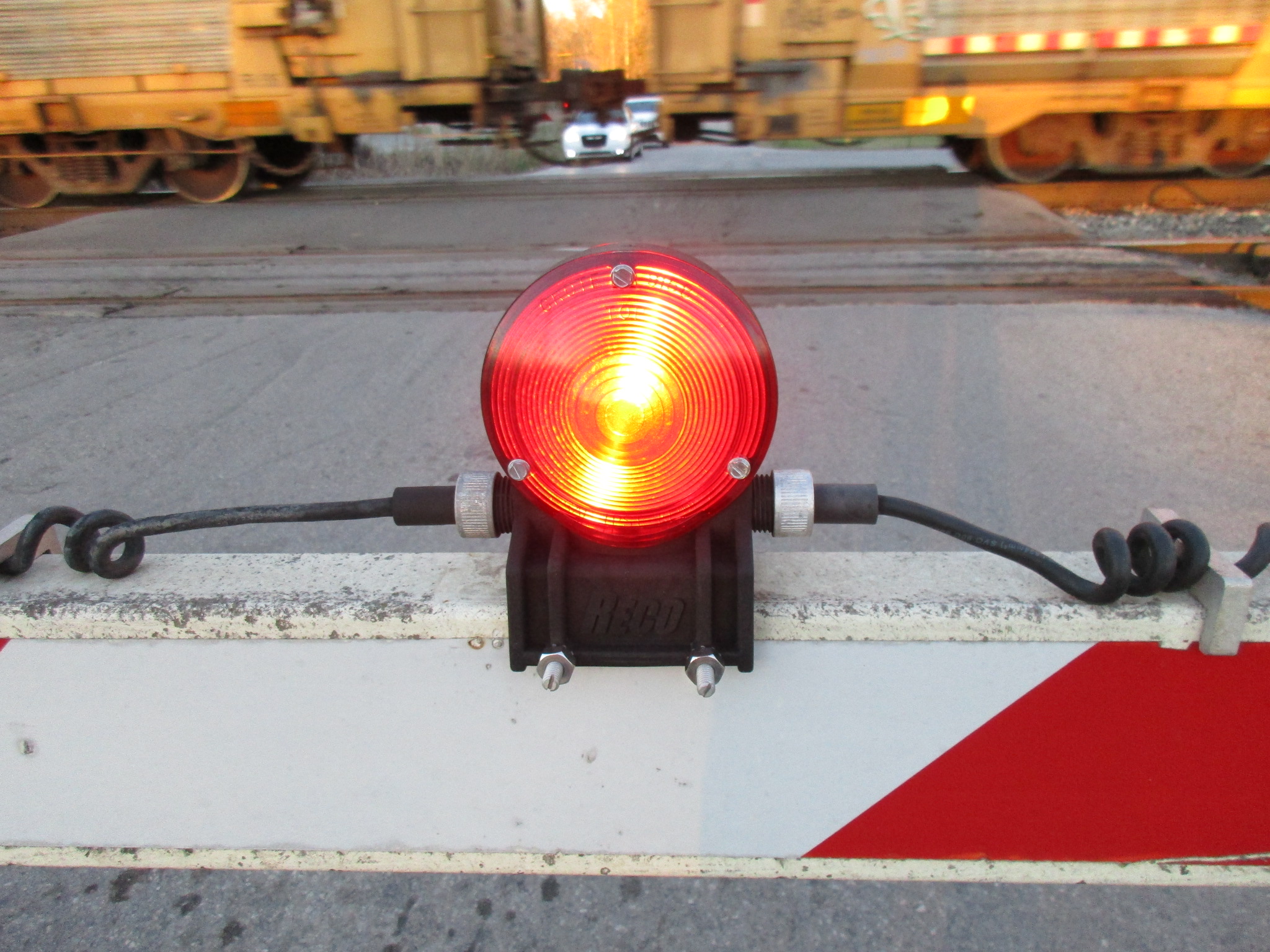

Two of the gate lights on this signal flash together!

49

50

51

52

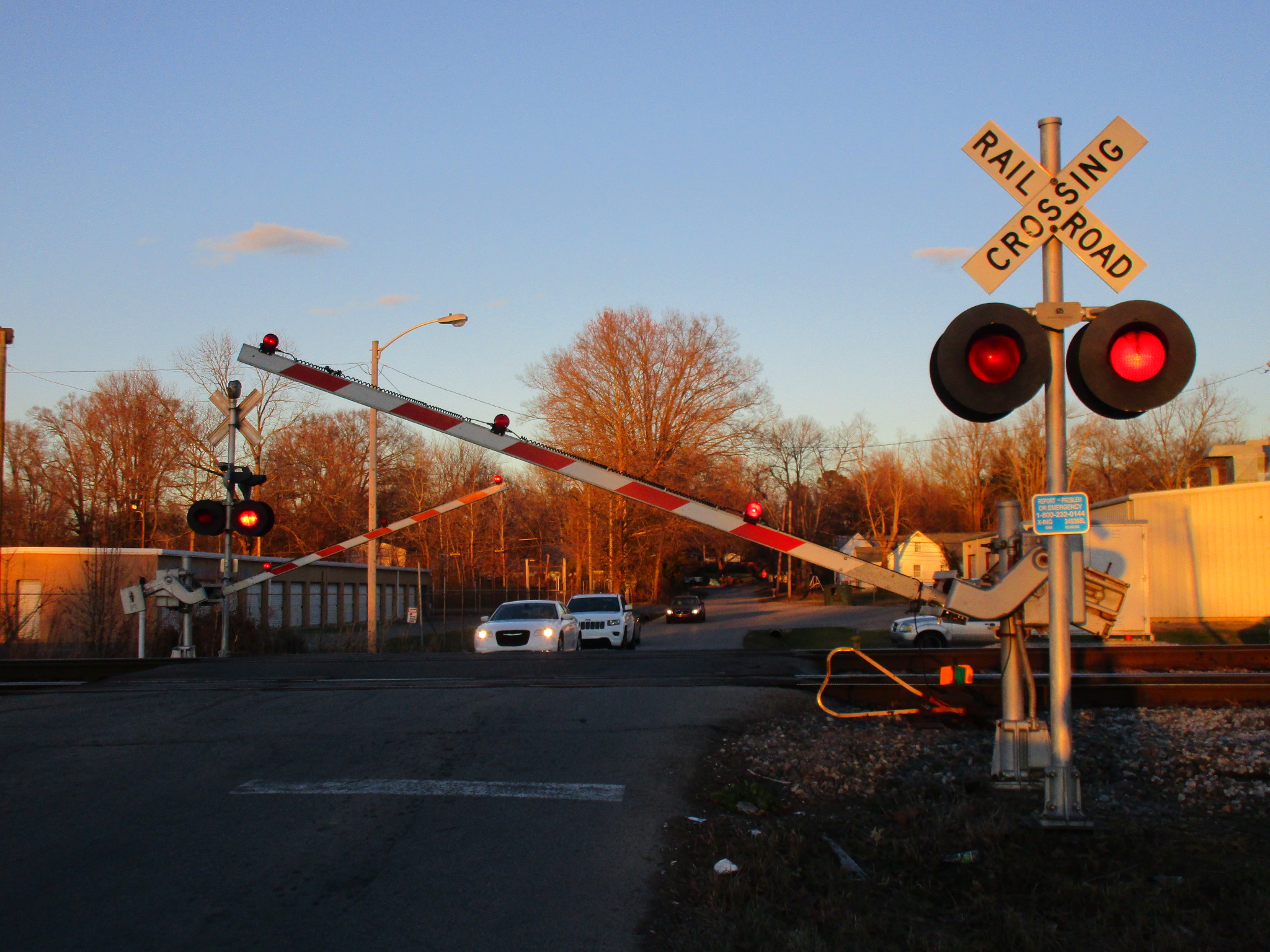

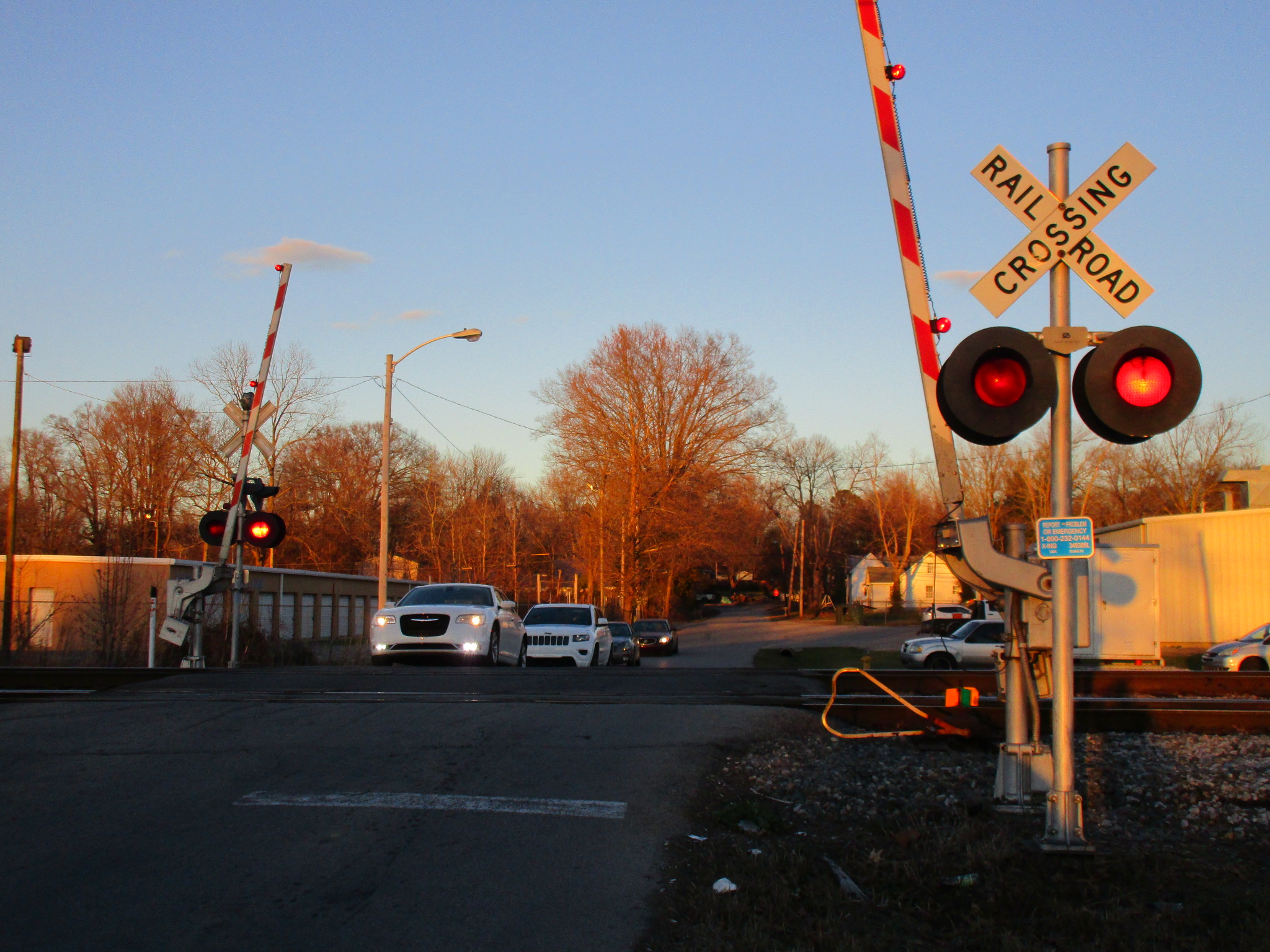

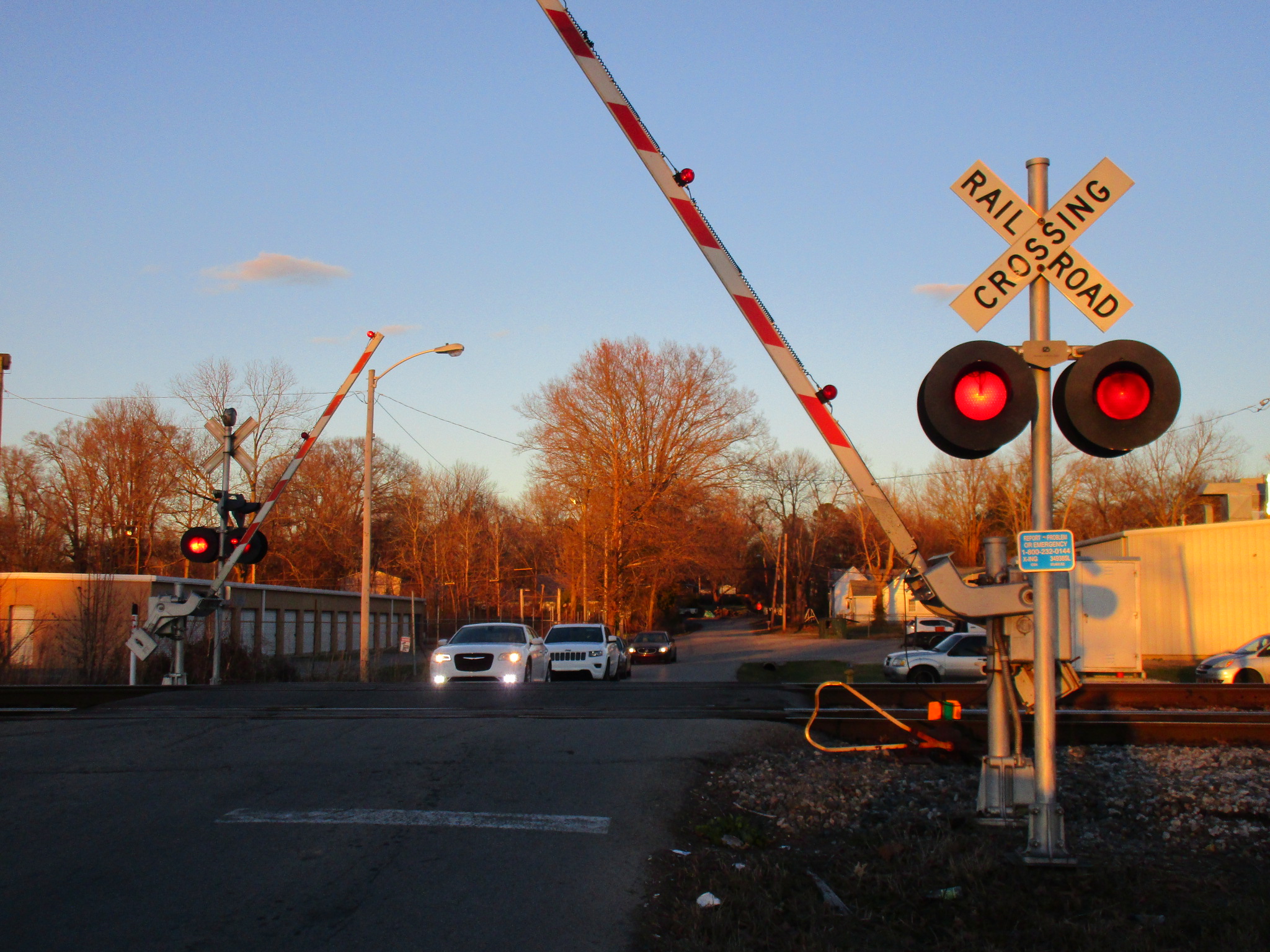

The train pases and the gates rise.

53

54

55

56

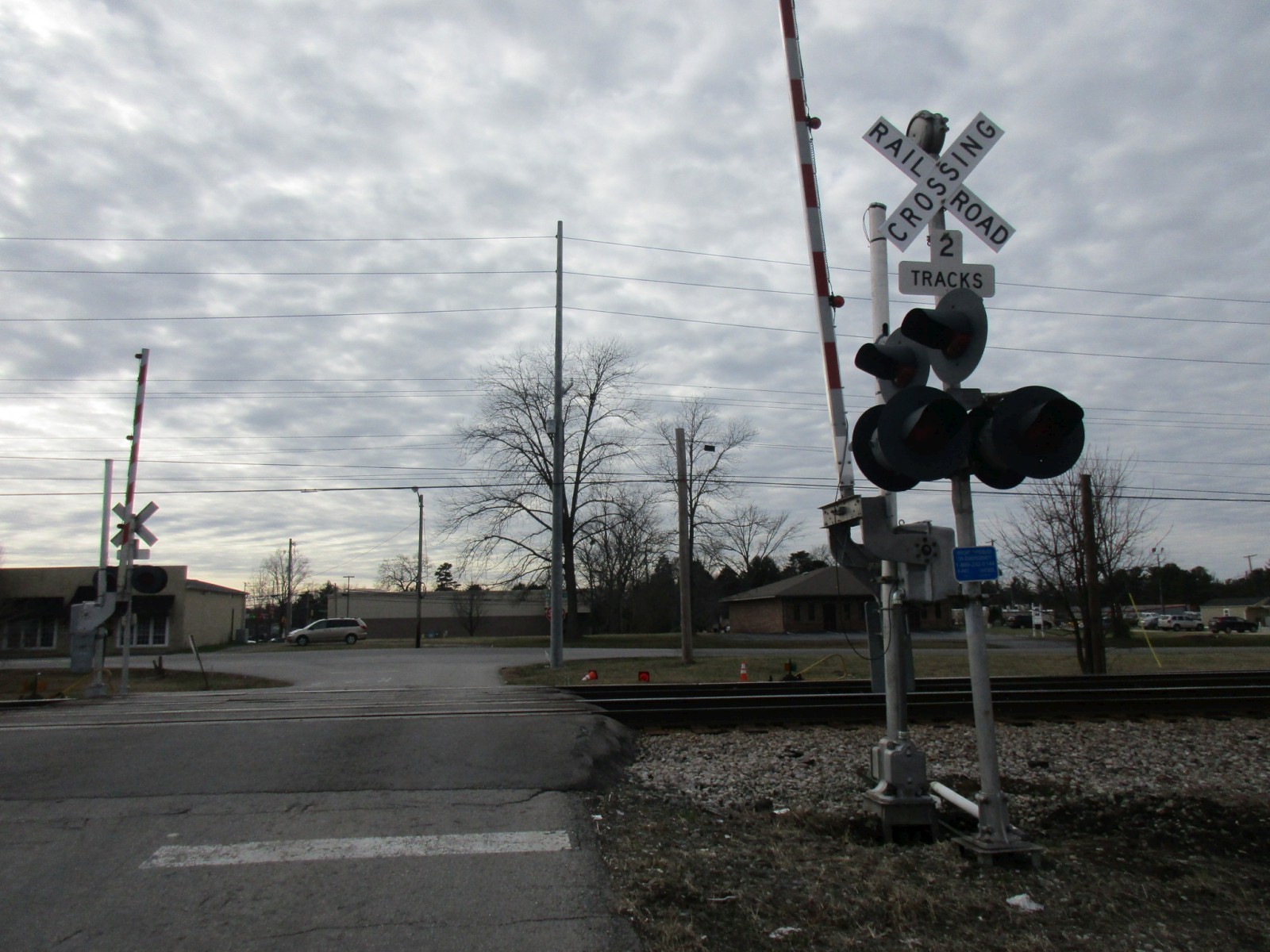

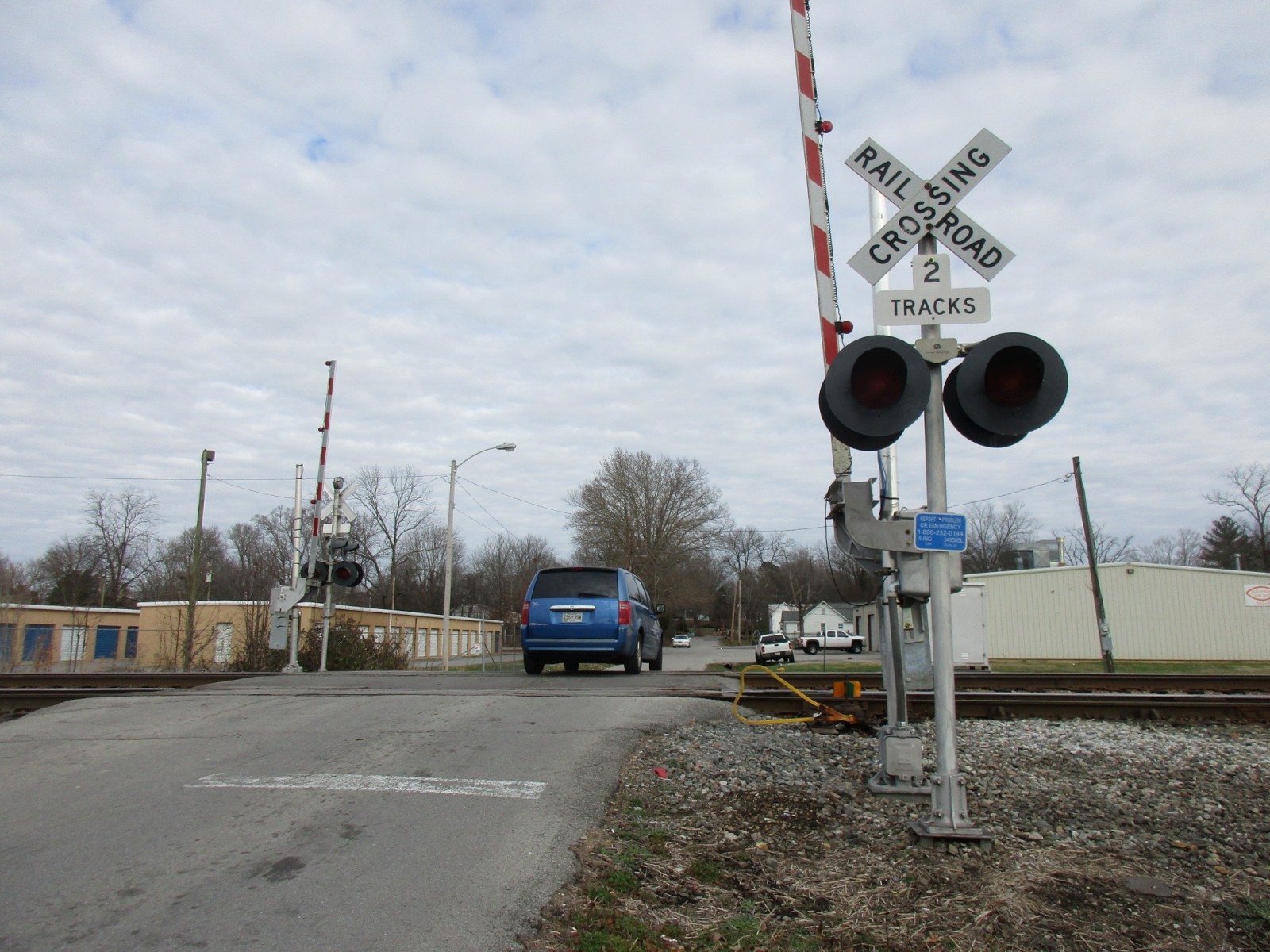

A return trip on 12-26-17 by freebrickproductions shows some changes to this crossing.

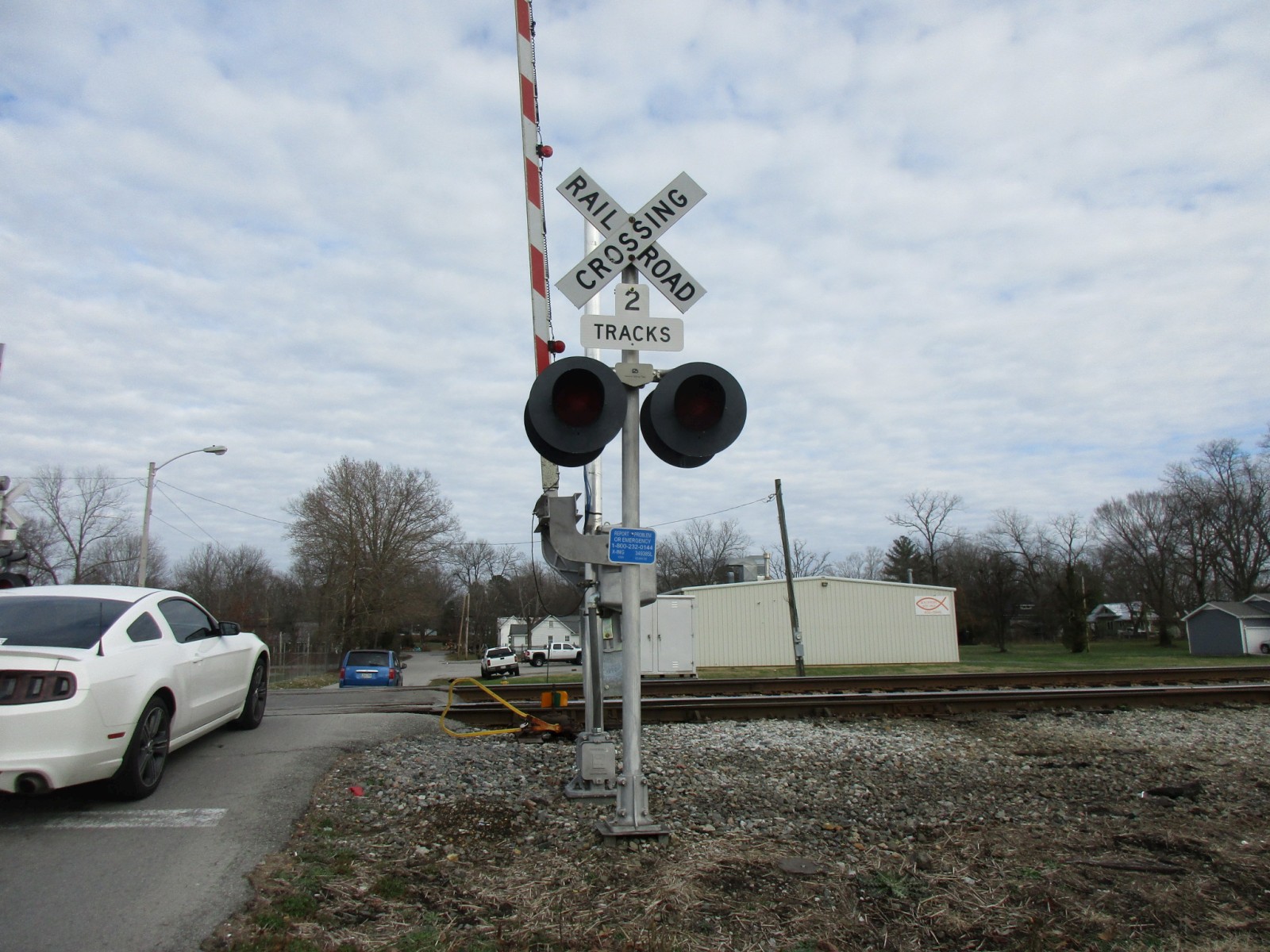

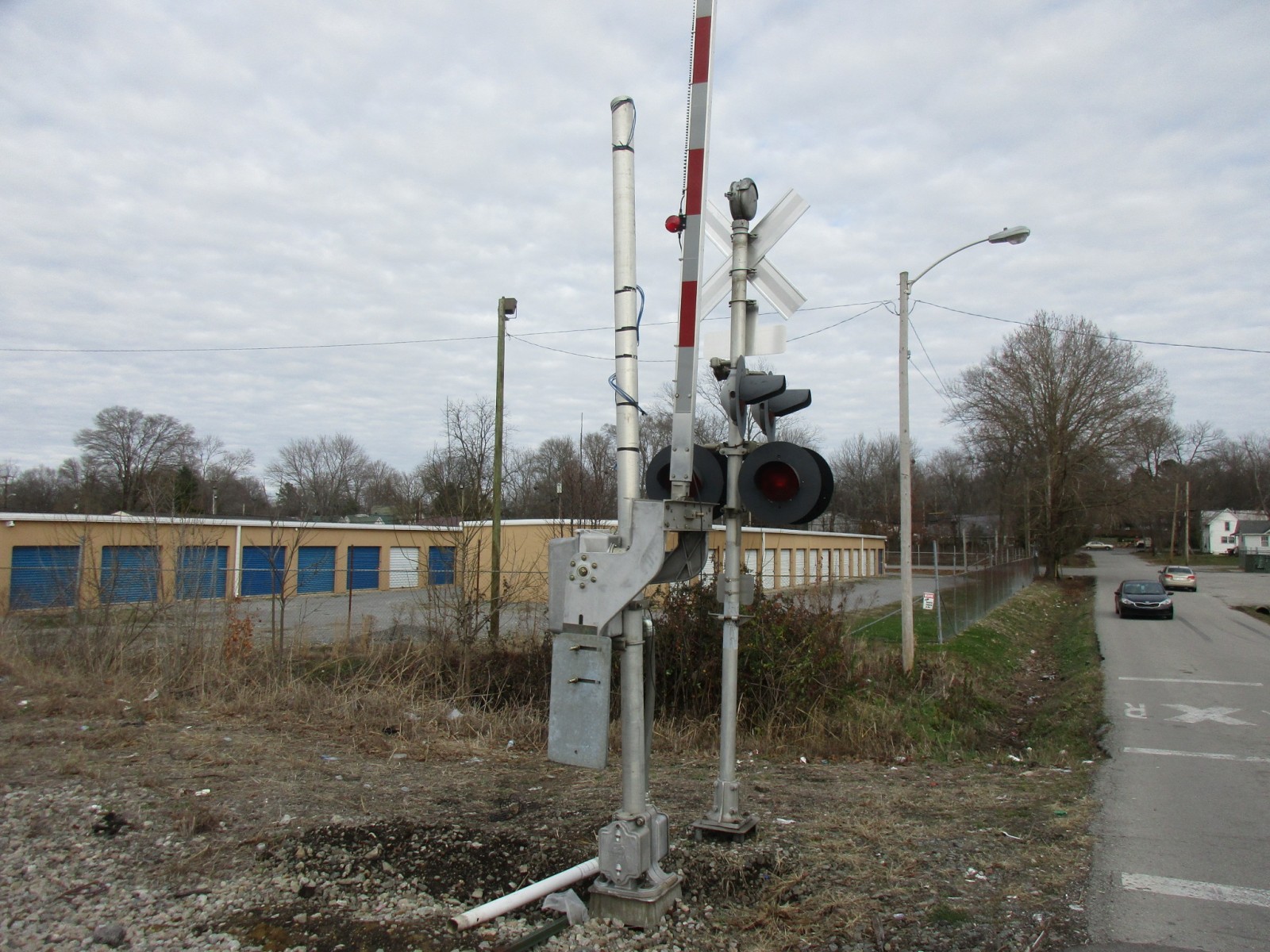

The western signal.

57

58

59

60

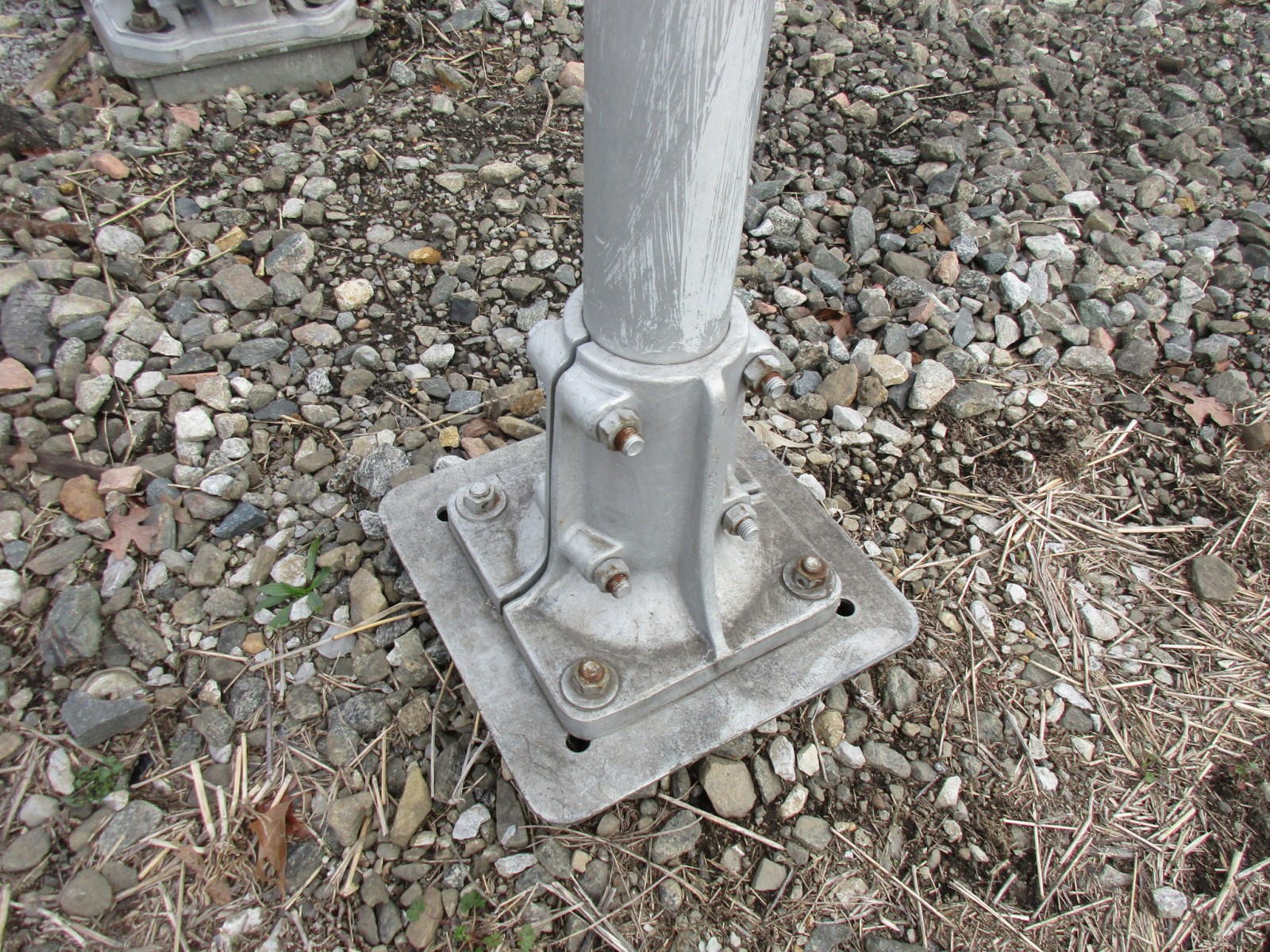

This is still a clamp-styled Modern Industries base.

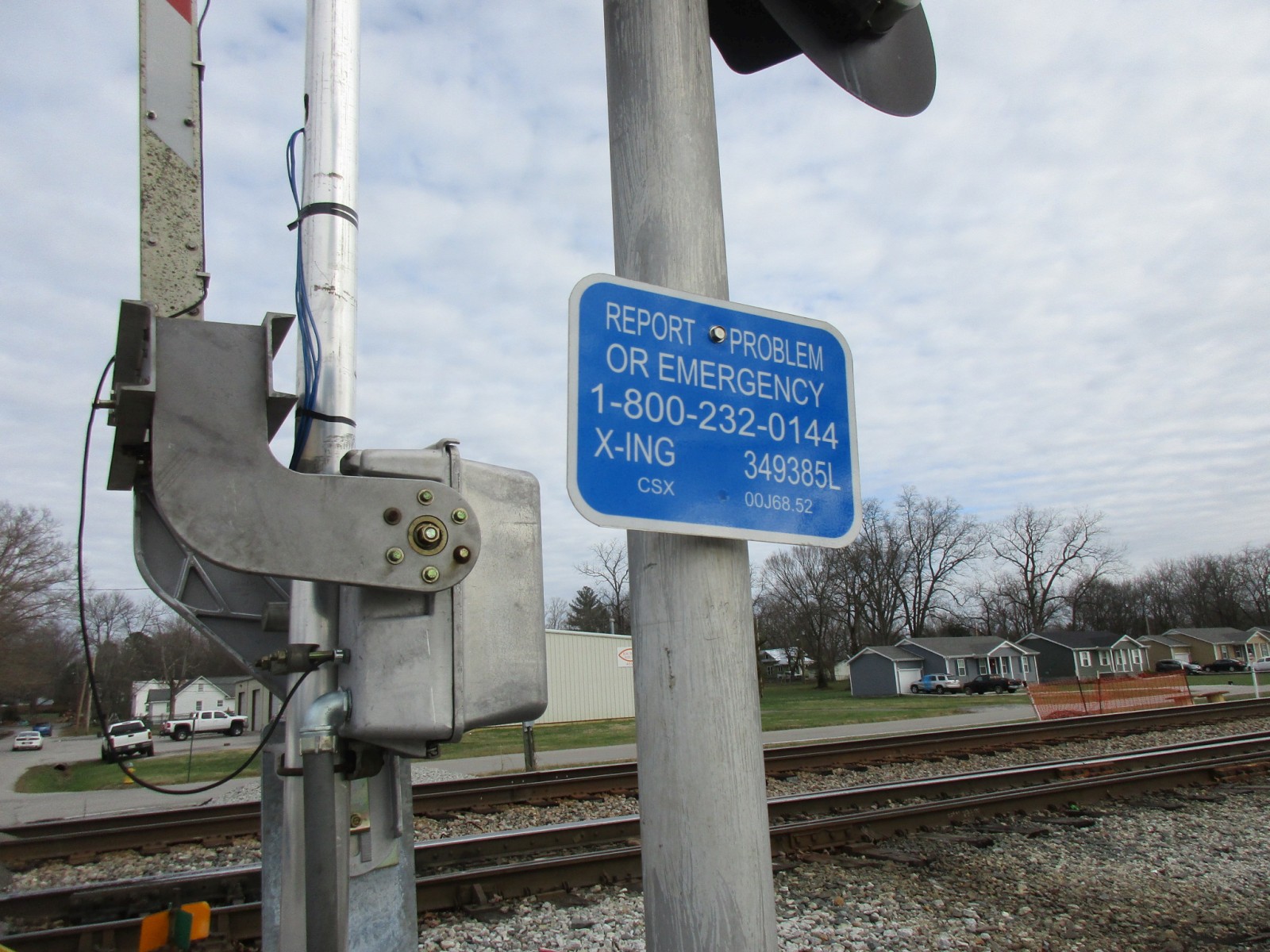

The emergency information.

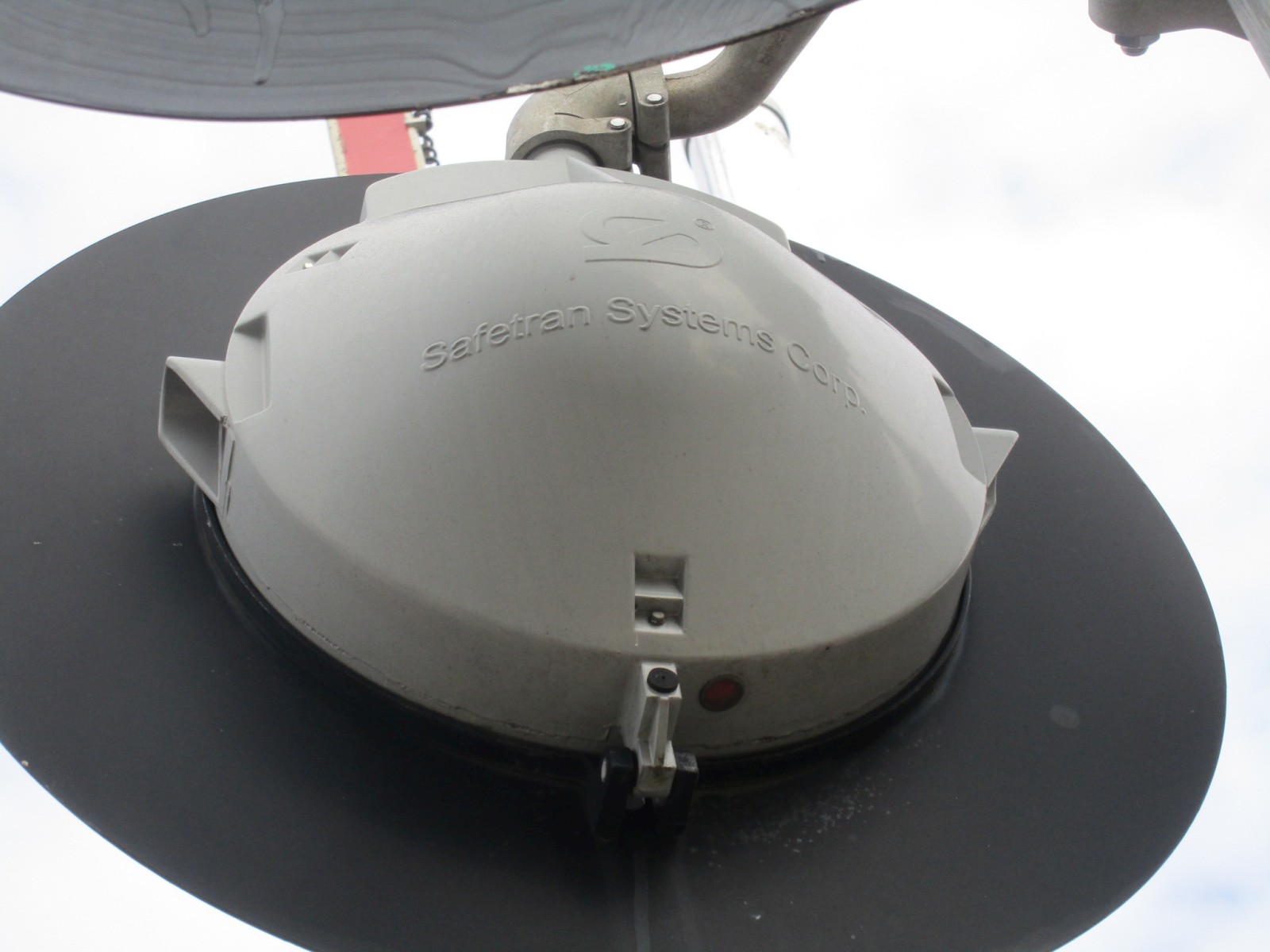

The lights were still Safetran 12x24 incandescents at the time.

61

62

63

64

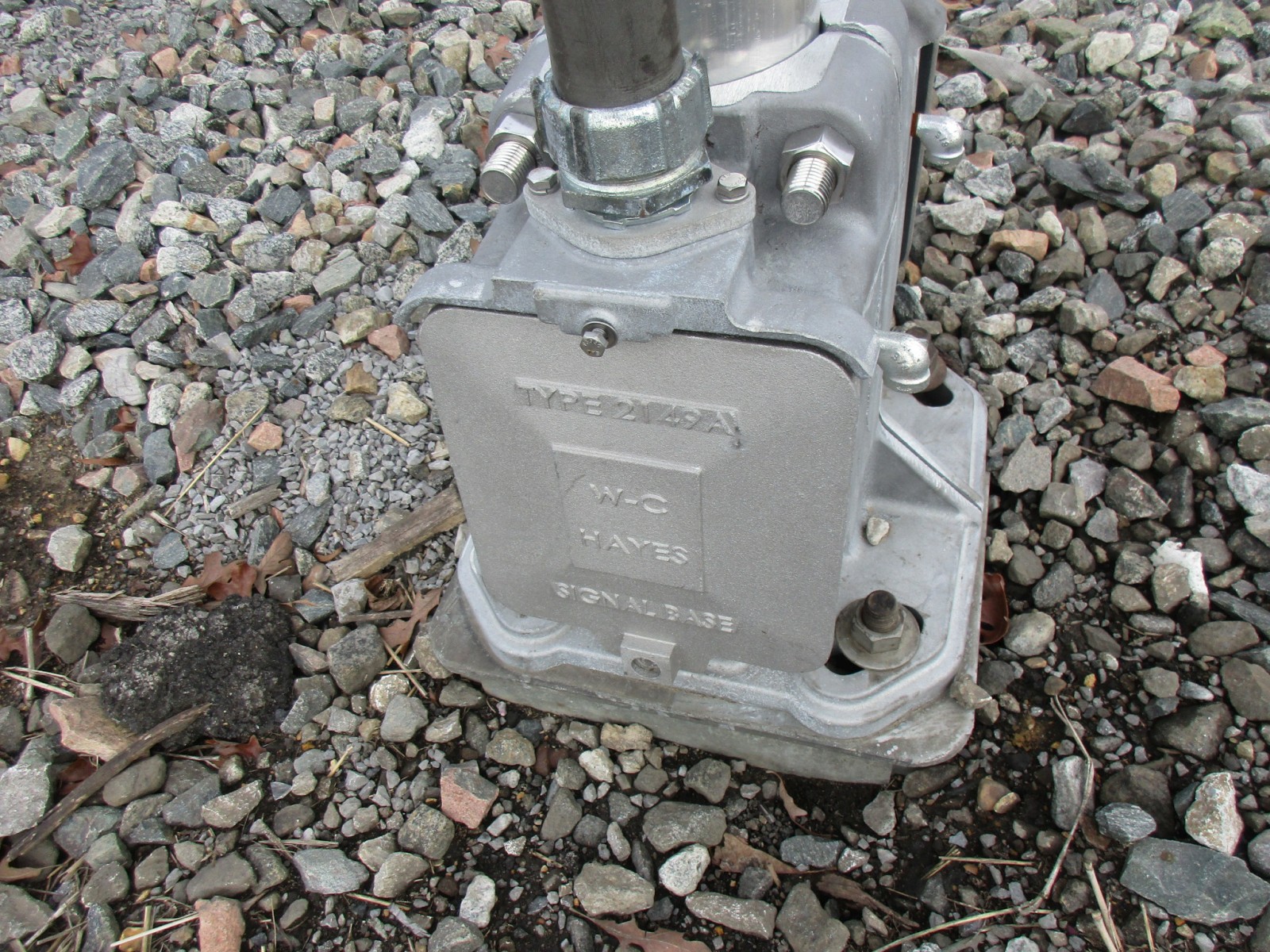

A WCH base.

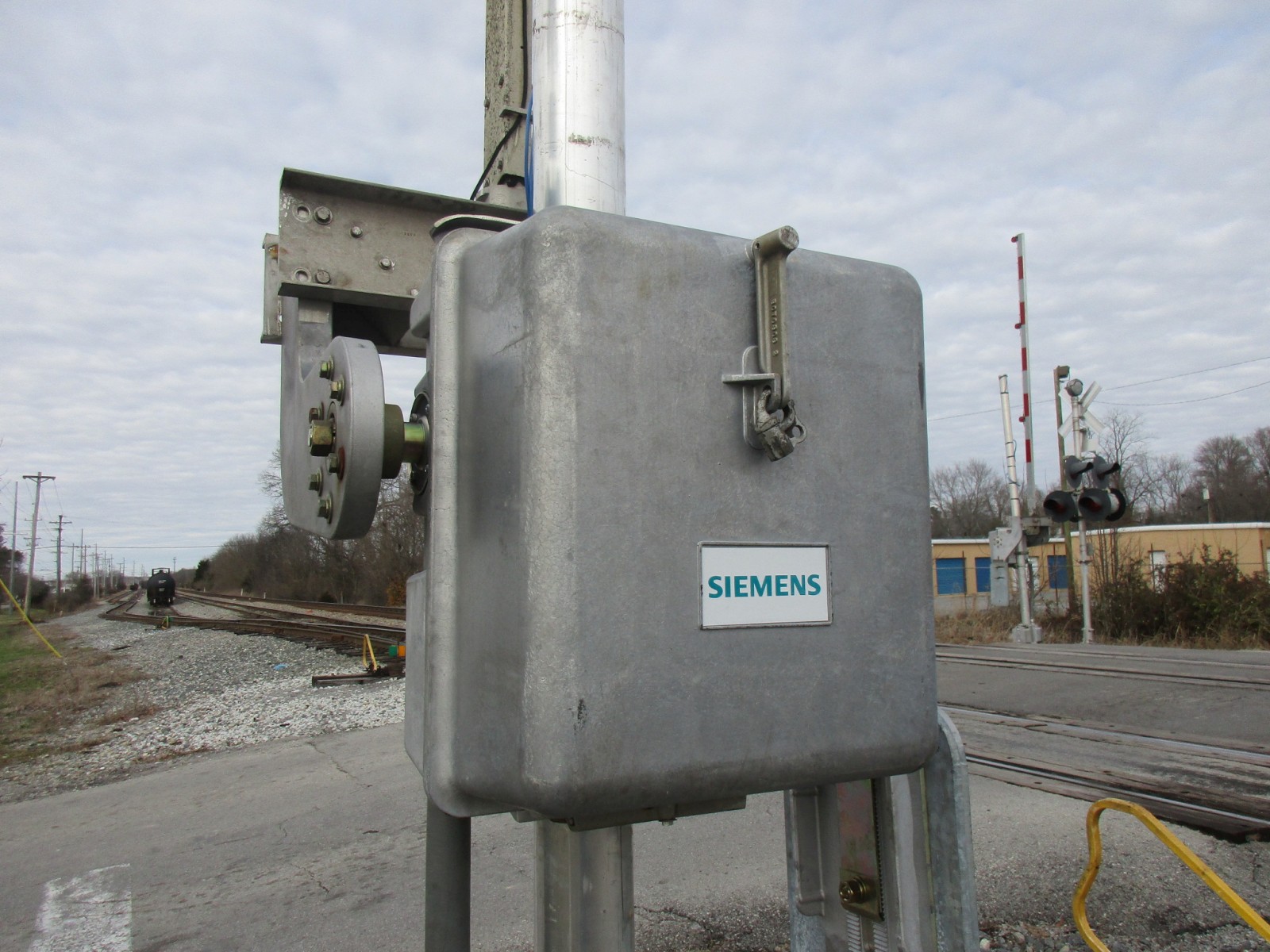

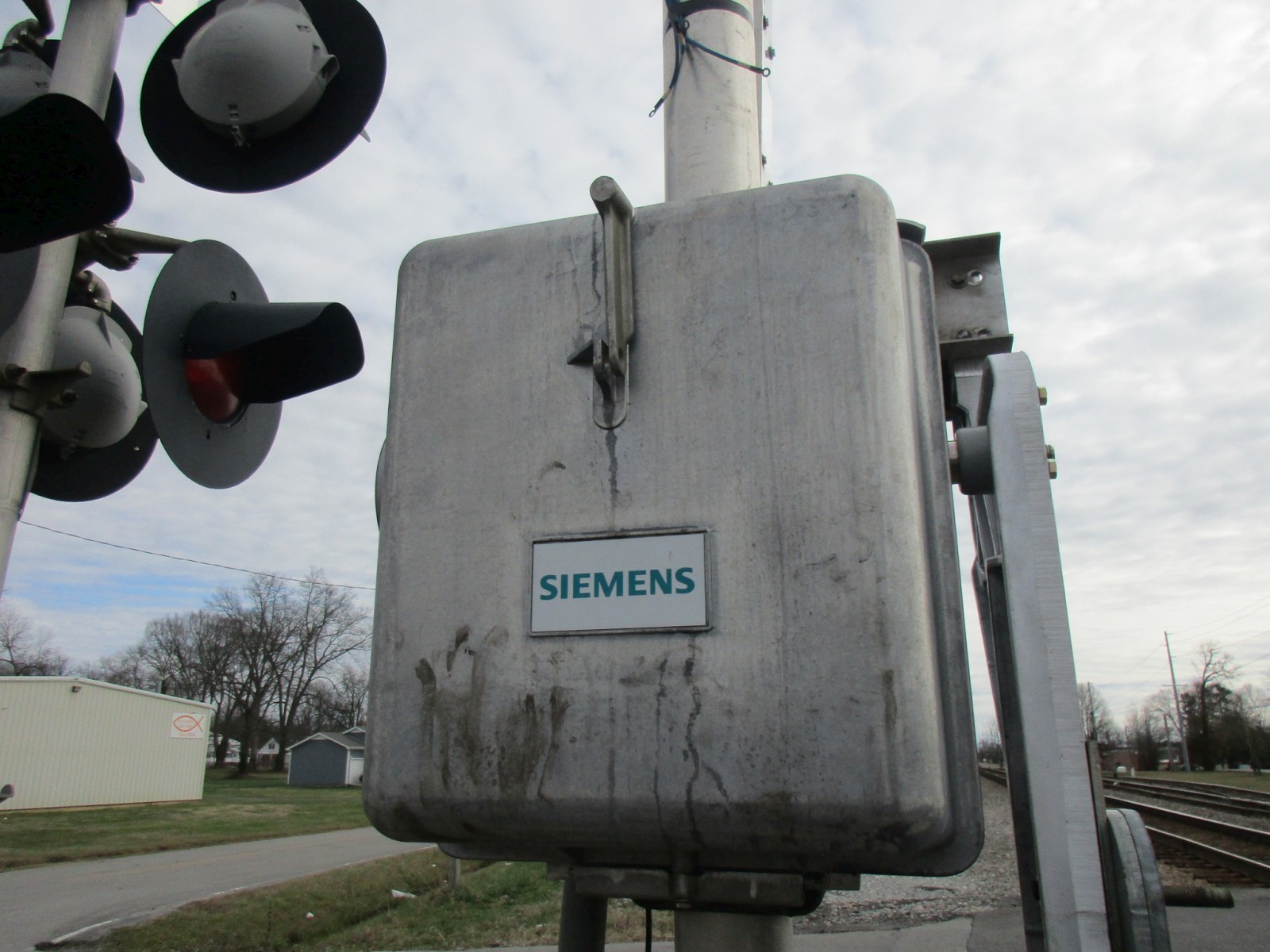

The GRS gate mechanism has been replaced with a Siemens gate mechanism.

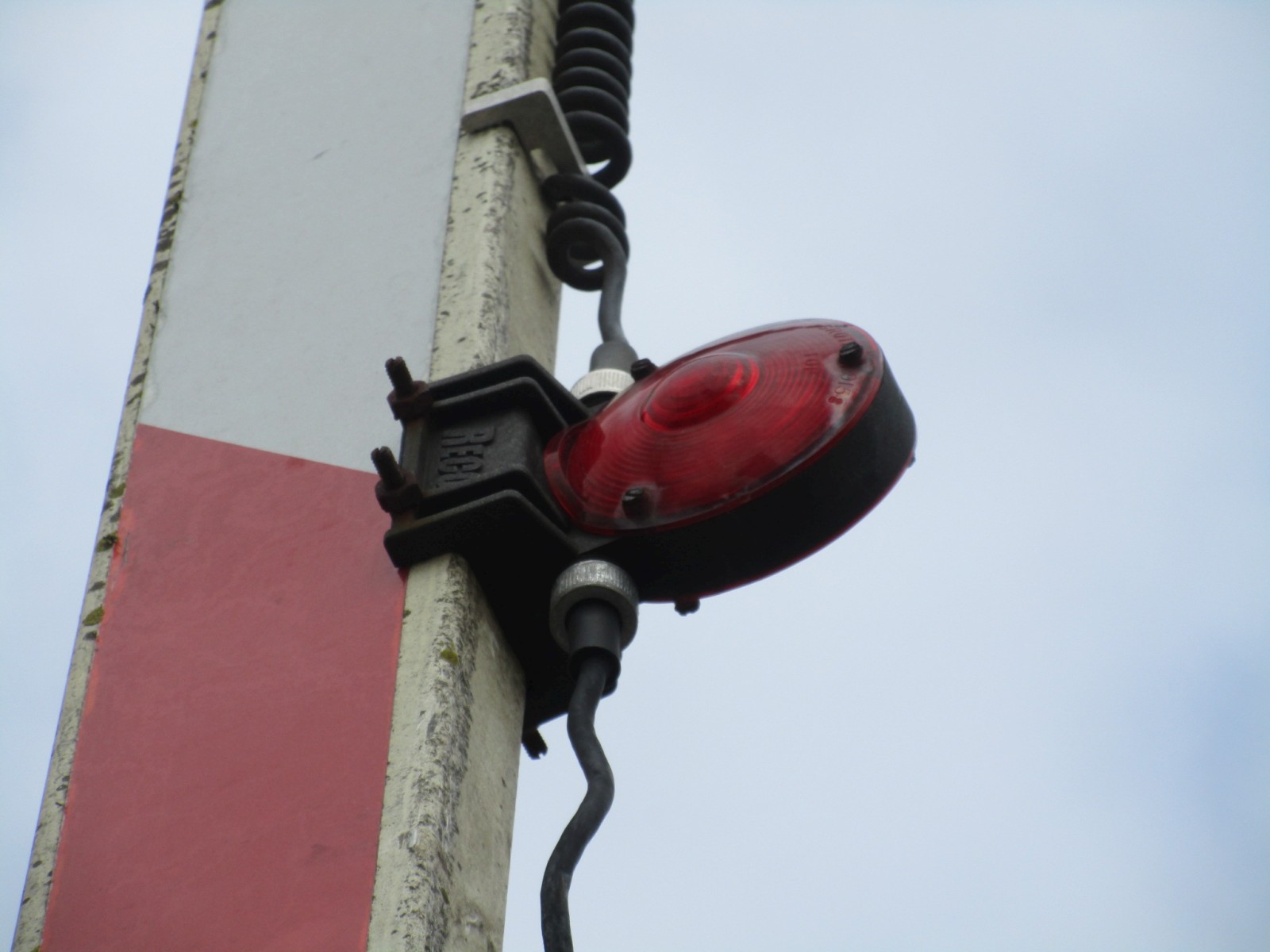

The gatelights were still a mixture of RECO incandescent and LEDs.

65

66

67

68

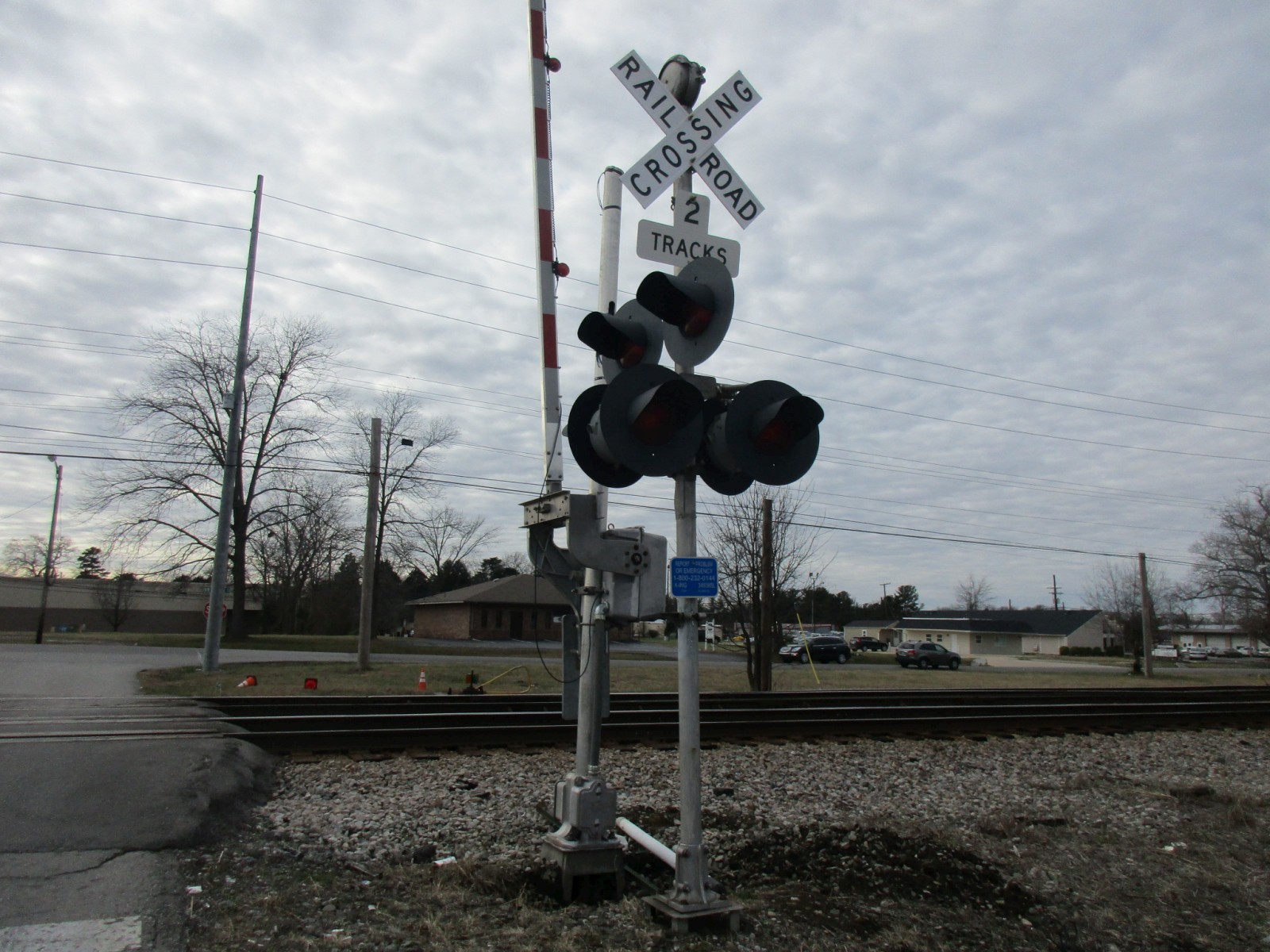

The eastern signal.
This is also still a clamp-styled Modern Industries base.

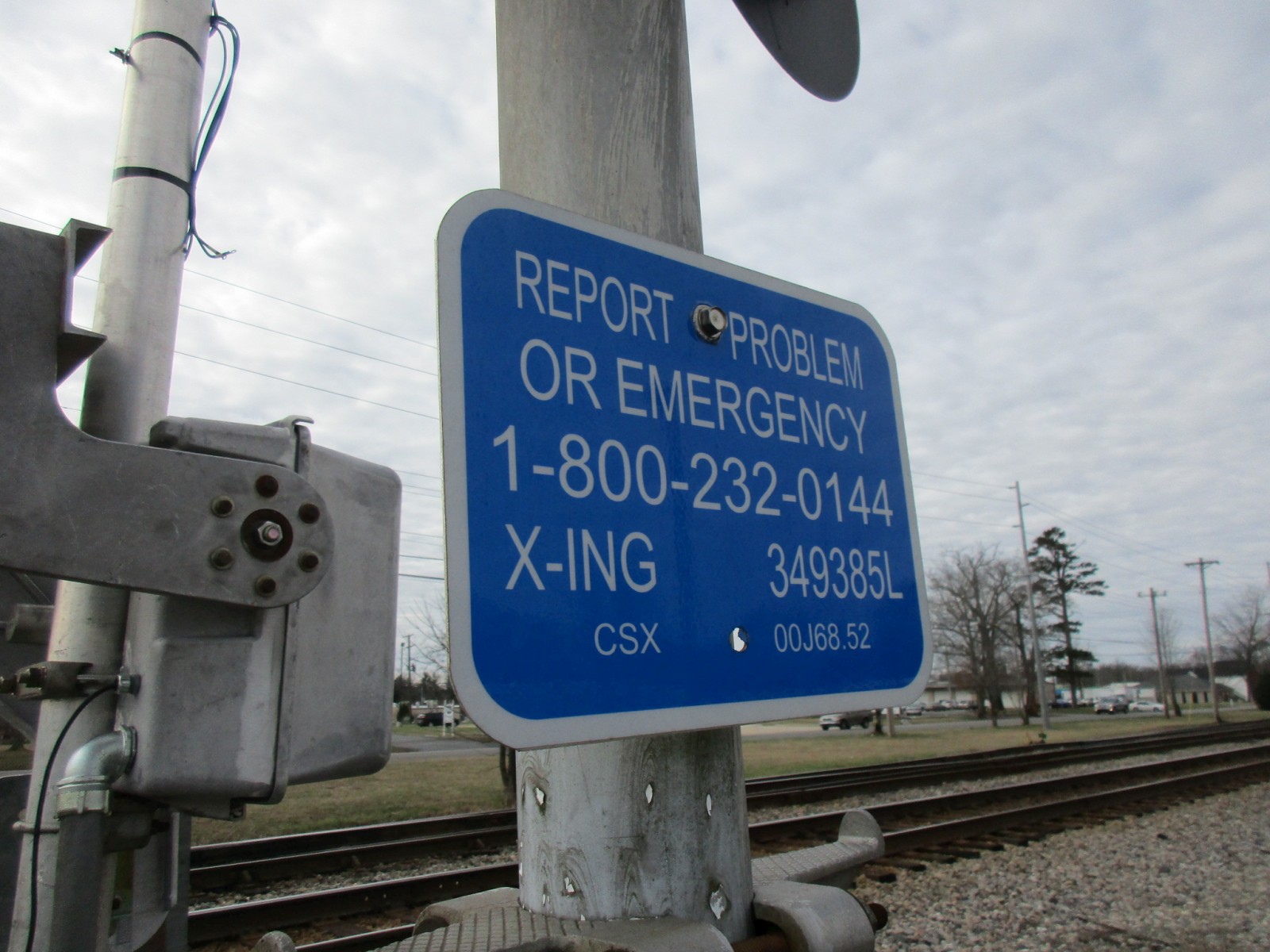

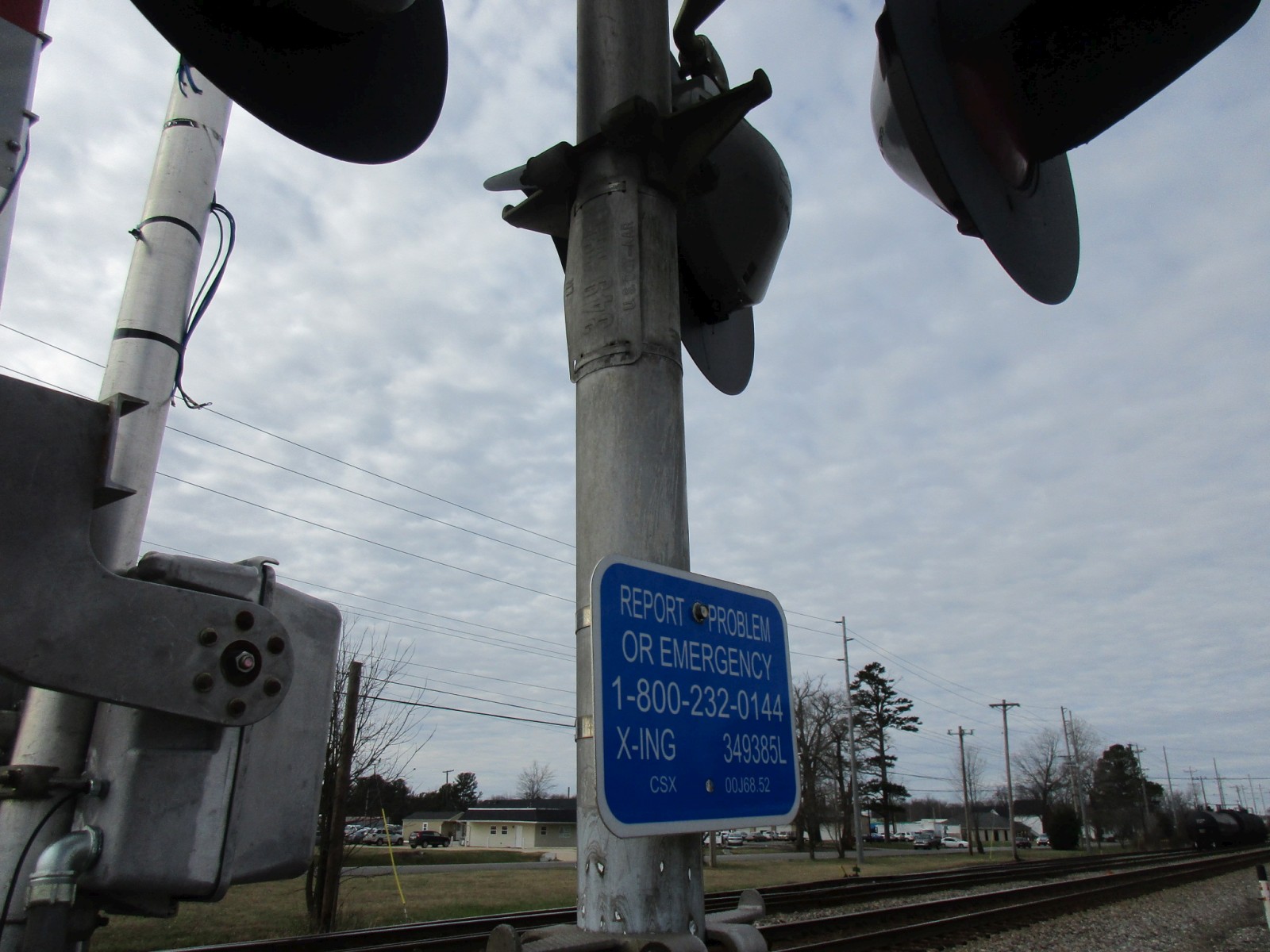

The emergency information and an old L&N DOT tag.

69

70

71

72

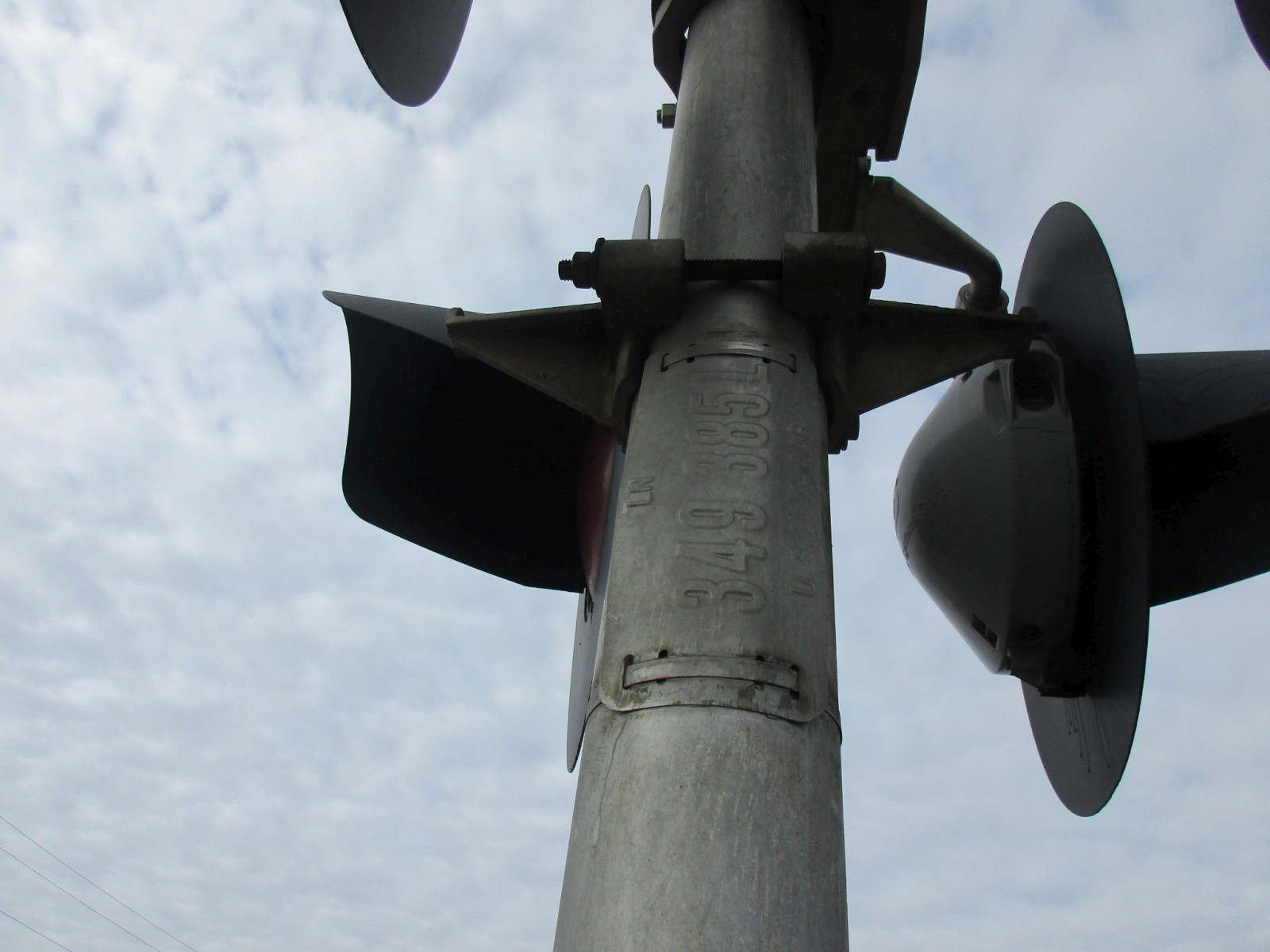

Close up of both.

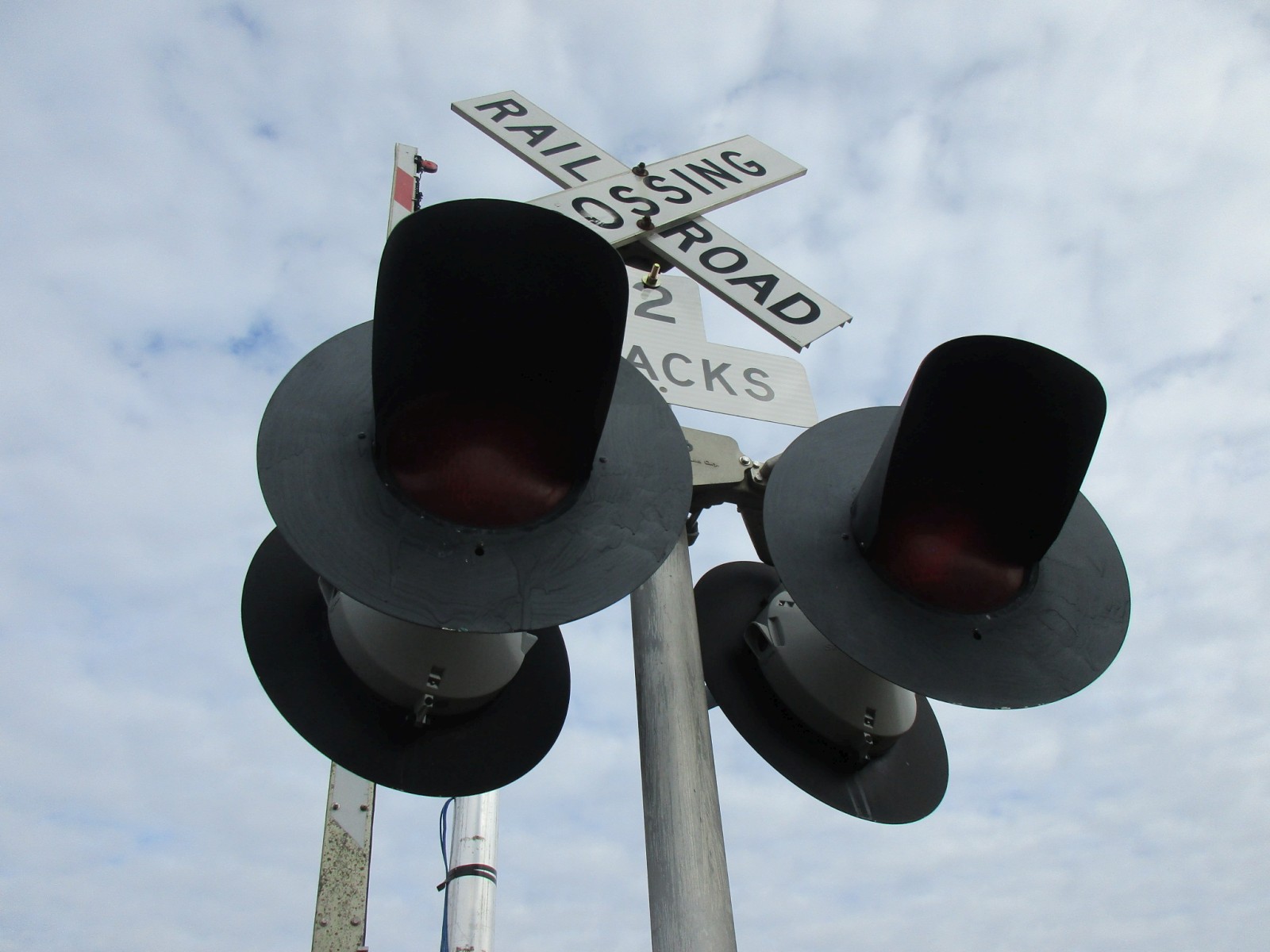

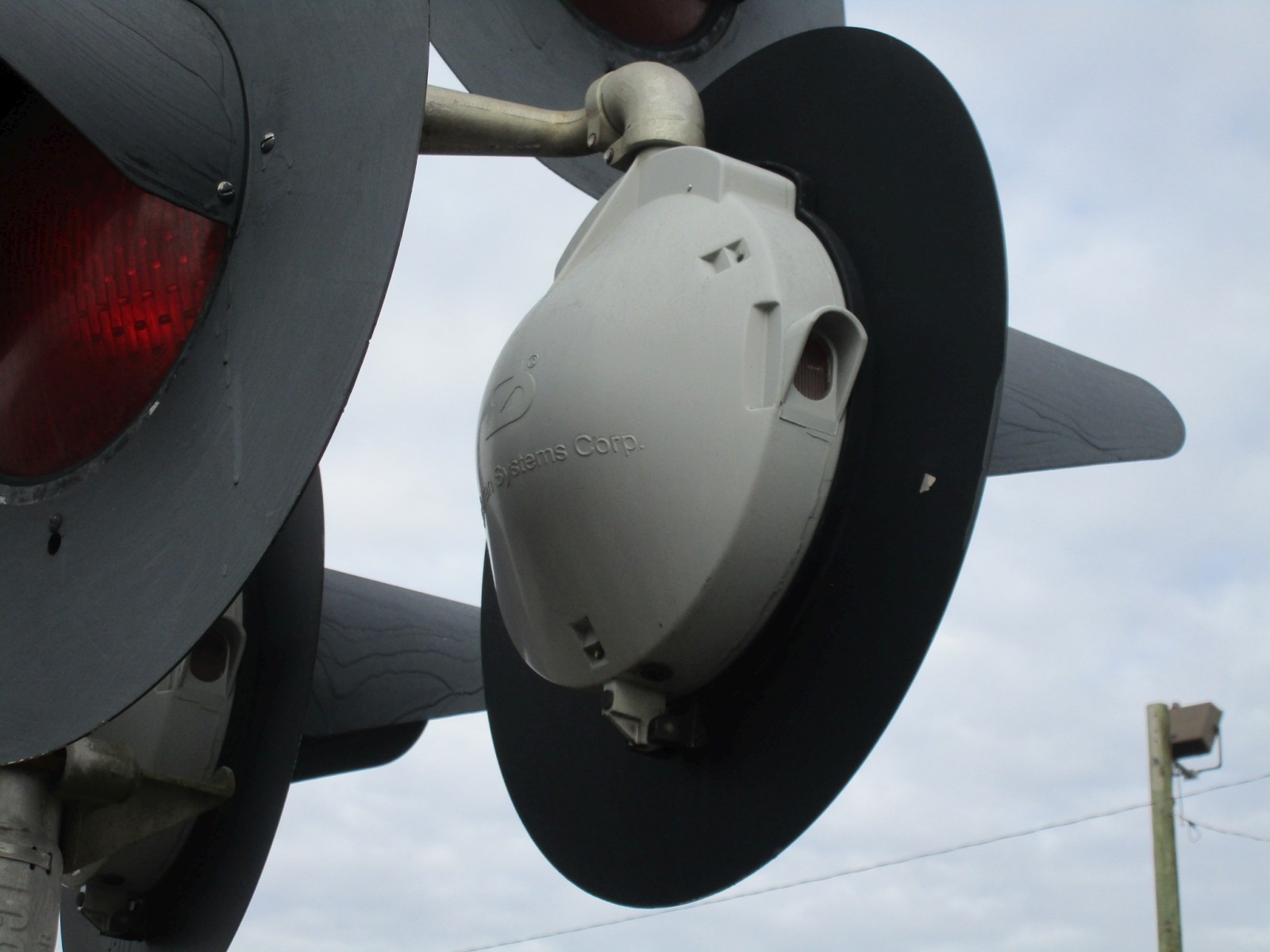

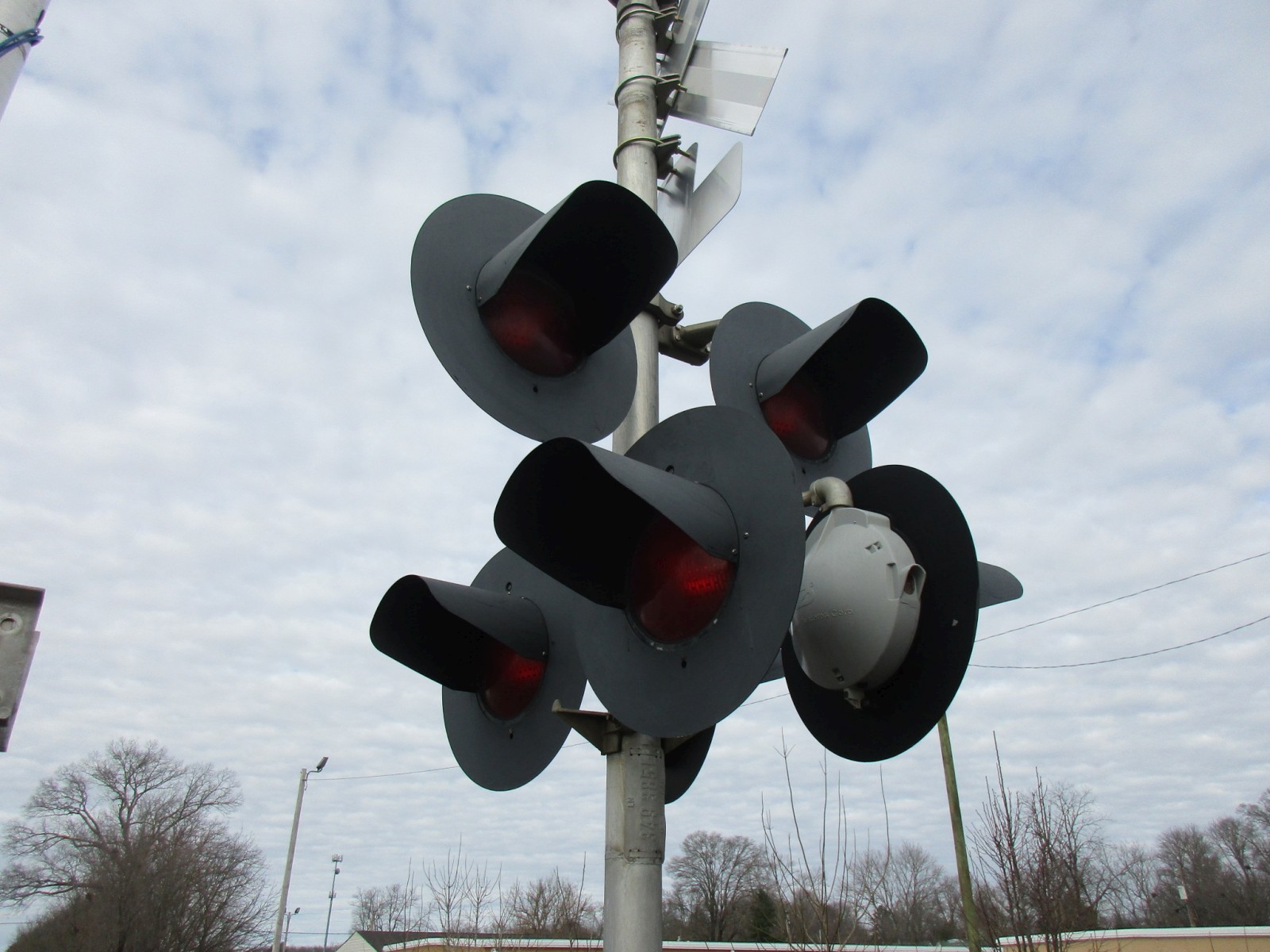

The lights were still more Safetran 12x24 incandescents on this signal.

73

74

75

76

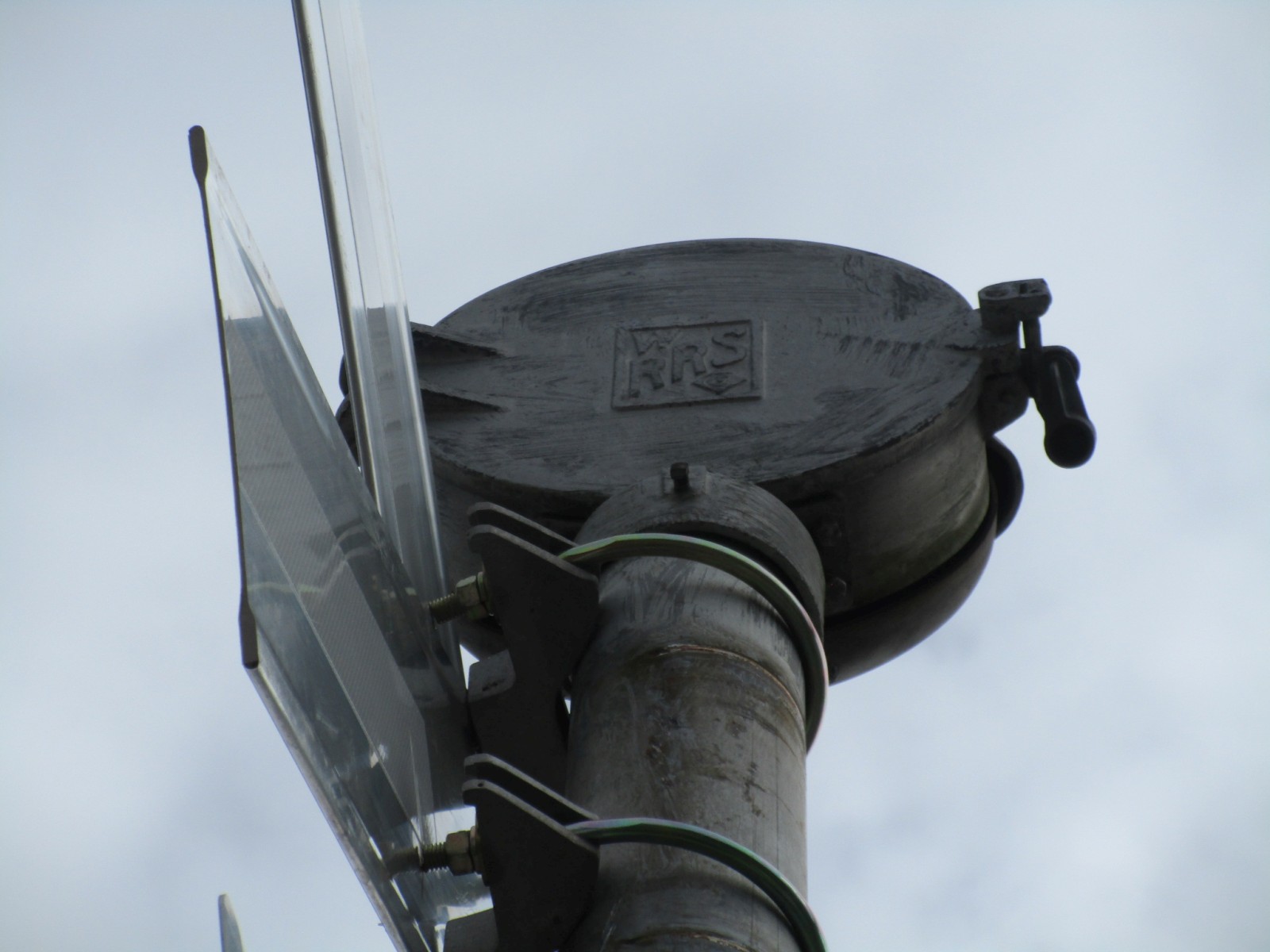

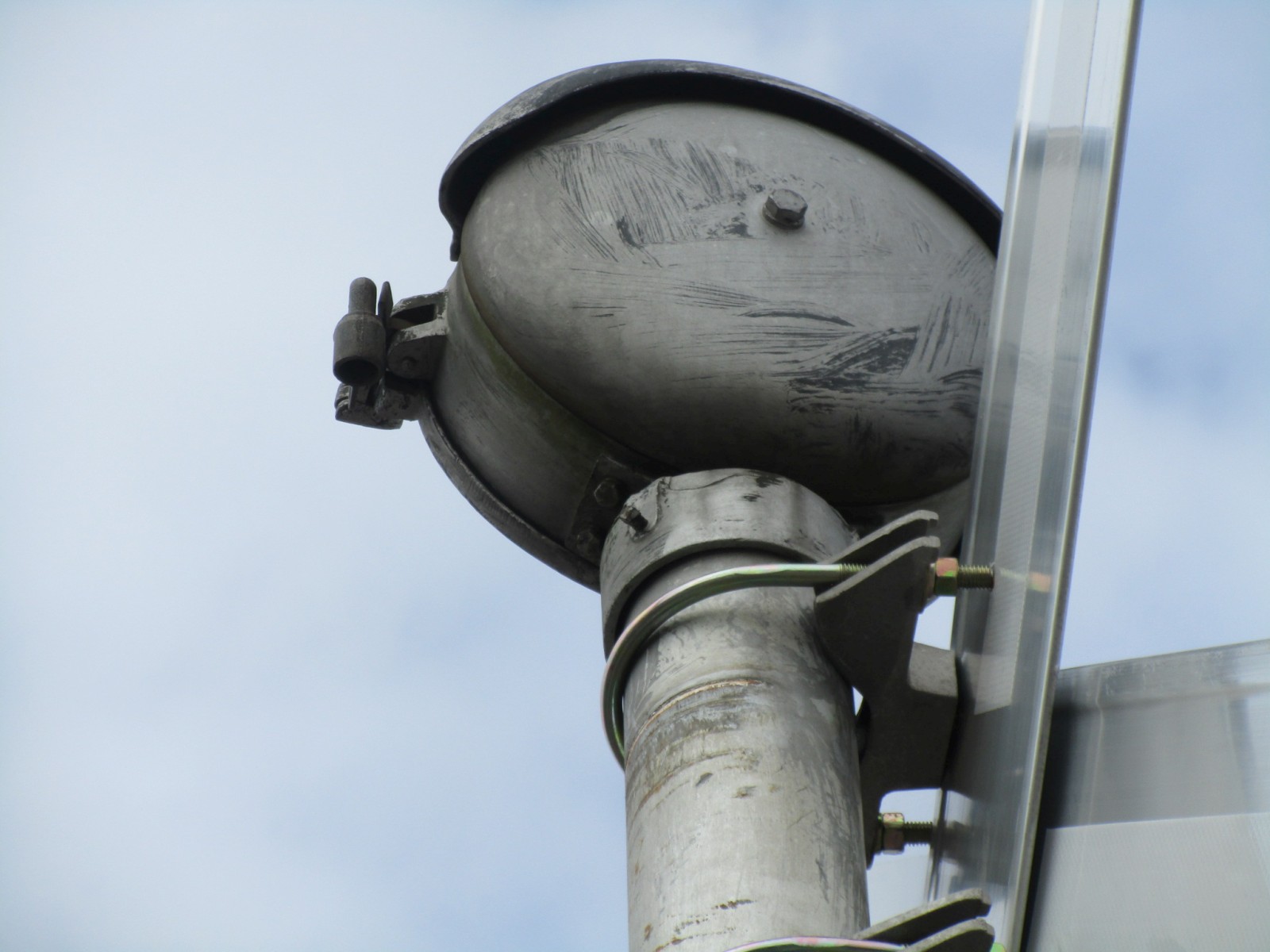

The WRRS mechanical bell still remains!

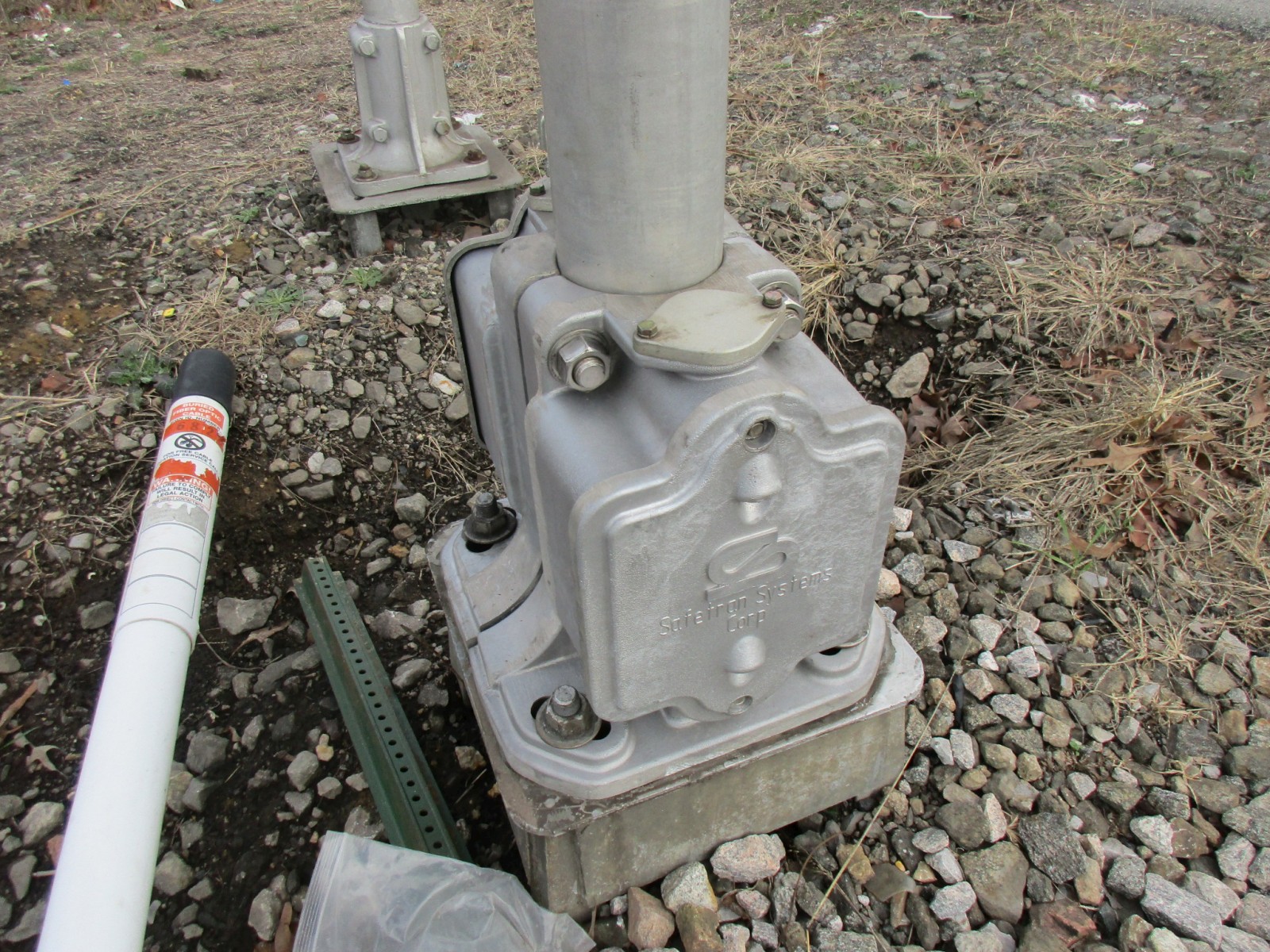

A Safetran base.
The GRS gate mechanism here was also replaced with a Siemens gate mechansim.

77

78

79

80

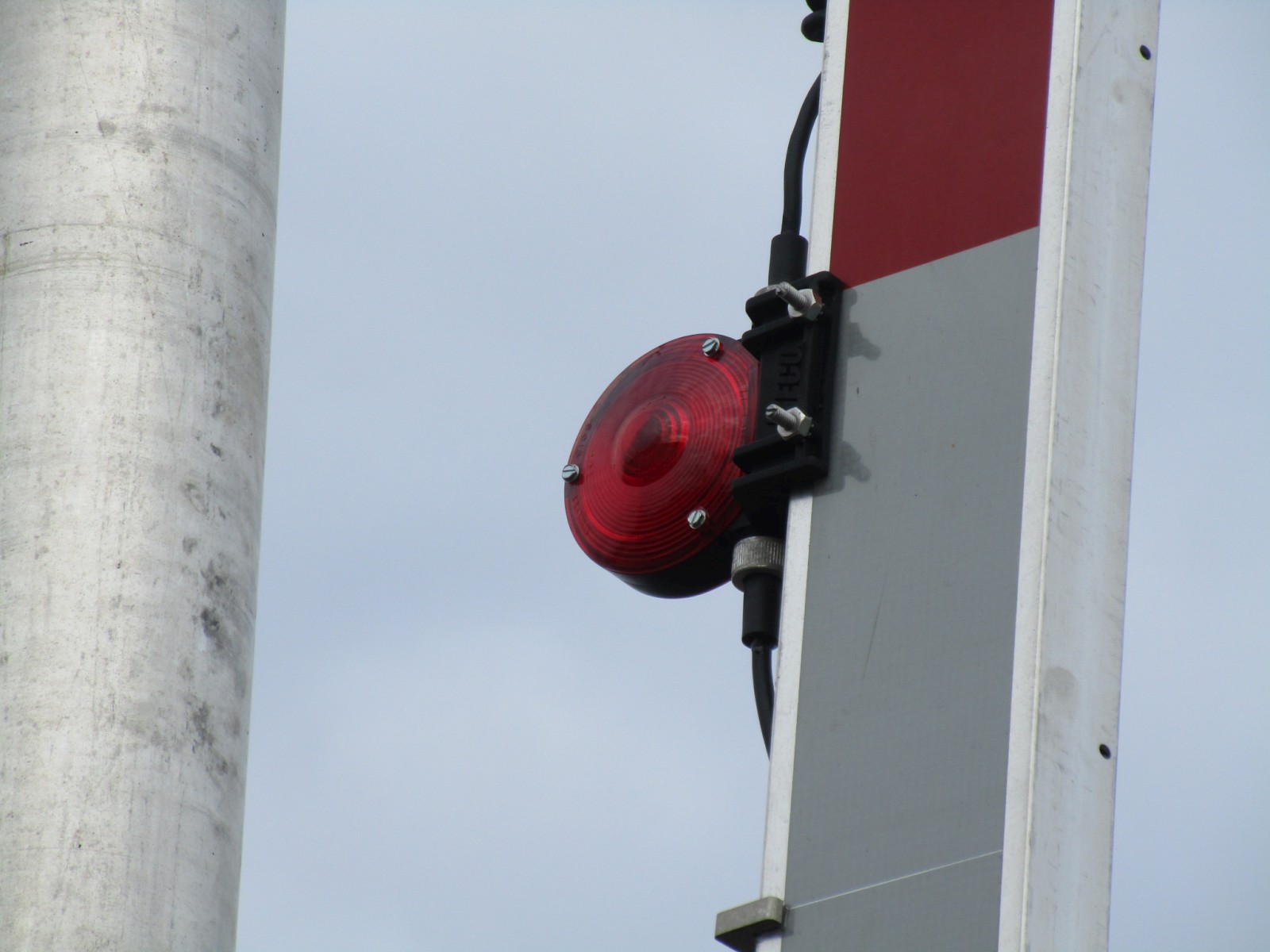

This signal still uses RECO gatelights. The gate was also restriped.

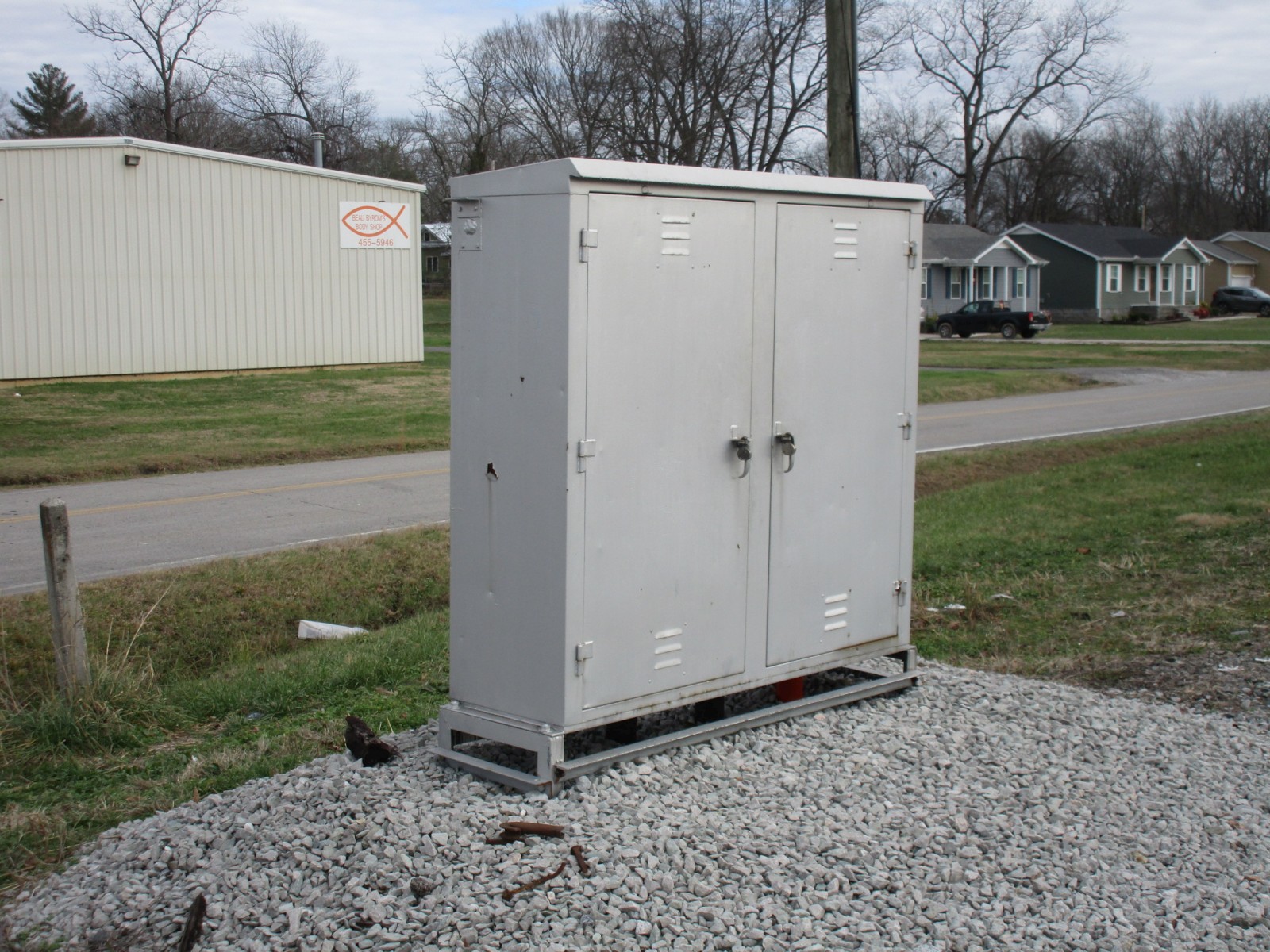

The relay case.

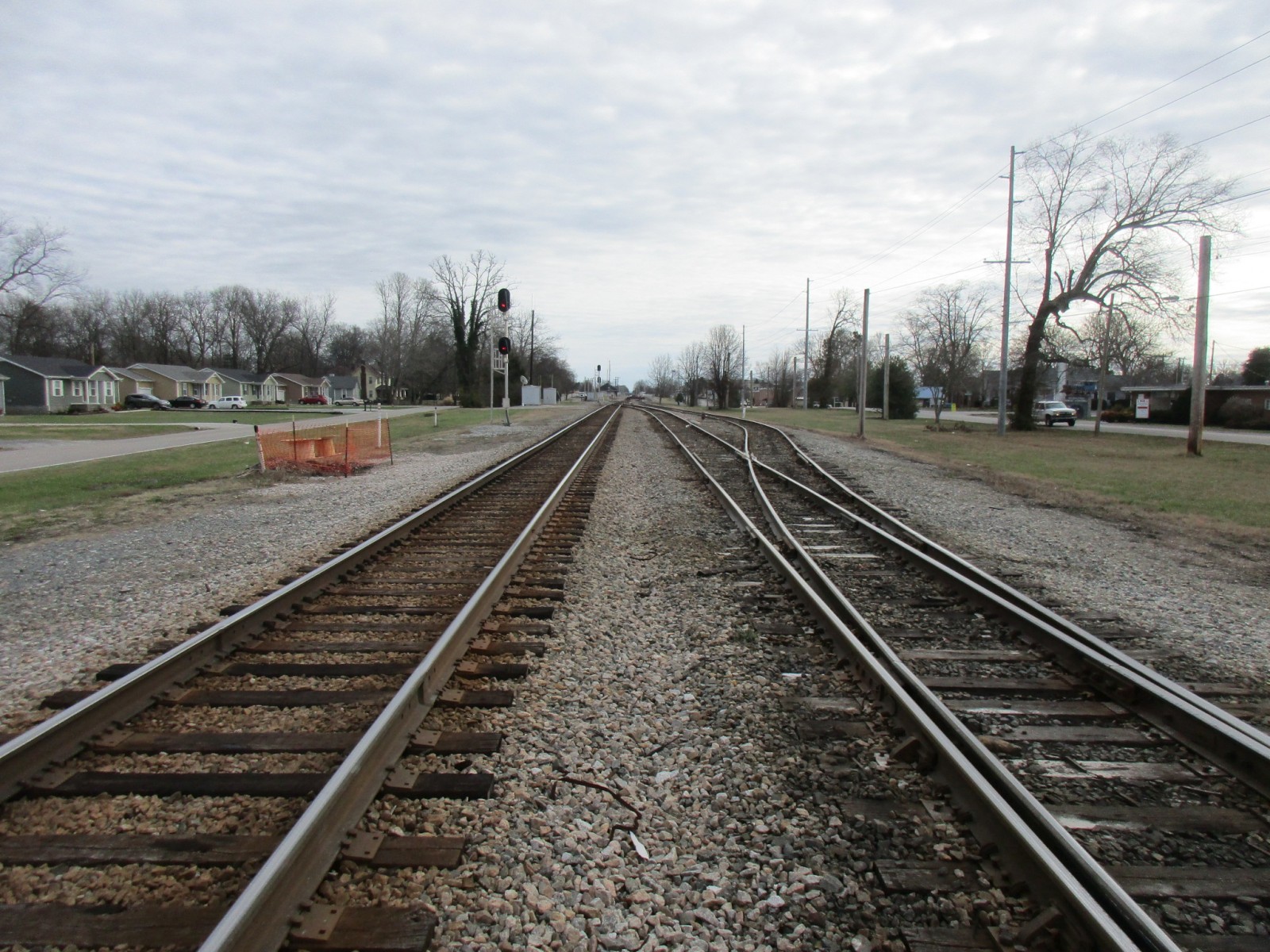

Track view facing south towards Hogan Street.

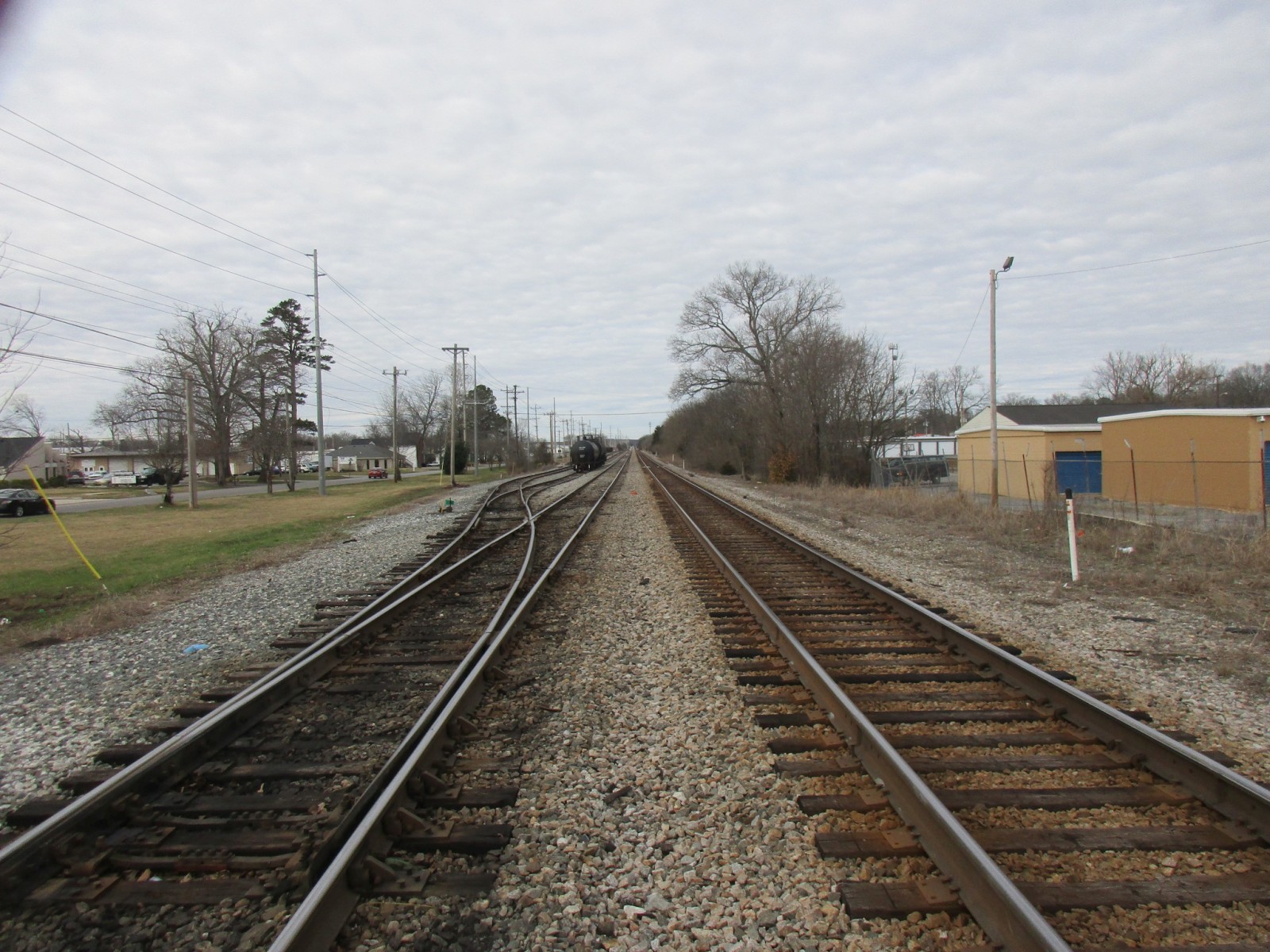

Track view facing north towards Ralph Broadwick Road.

81

82

83

84
A return trip by Ethan the Railfanner on 6-13-20 shows more changes to the crossing.

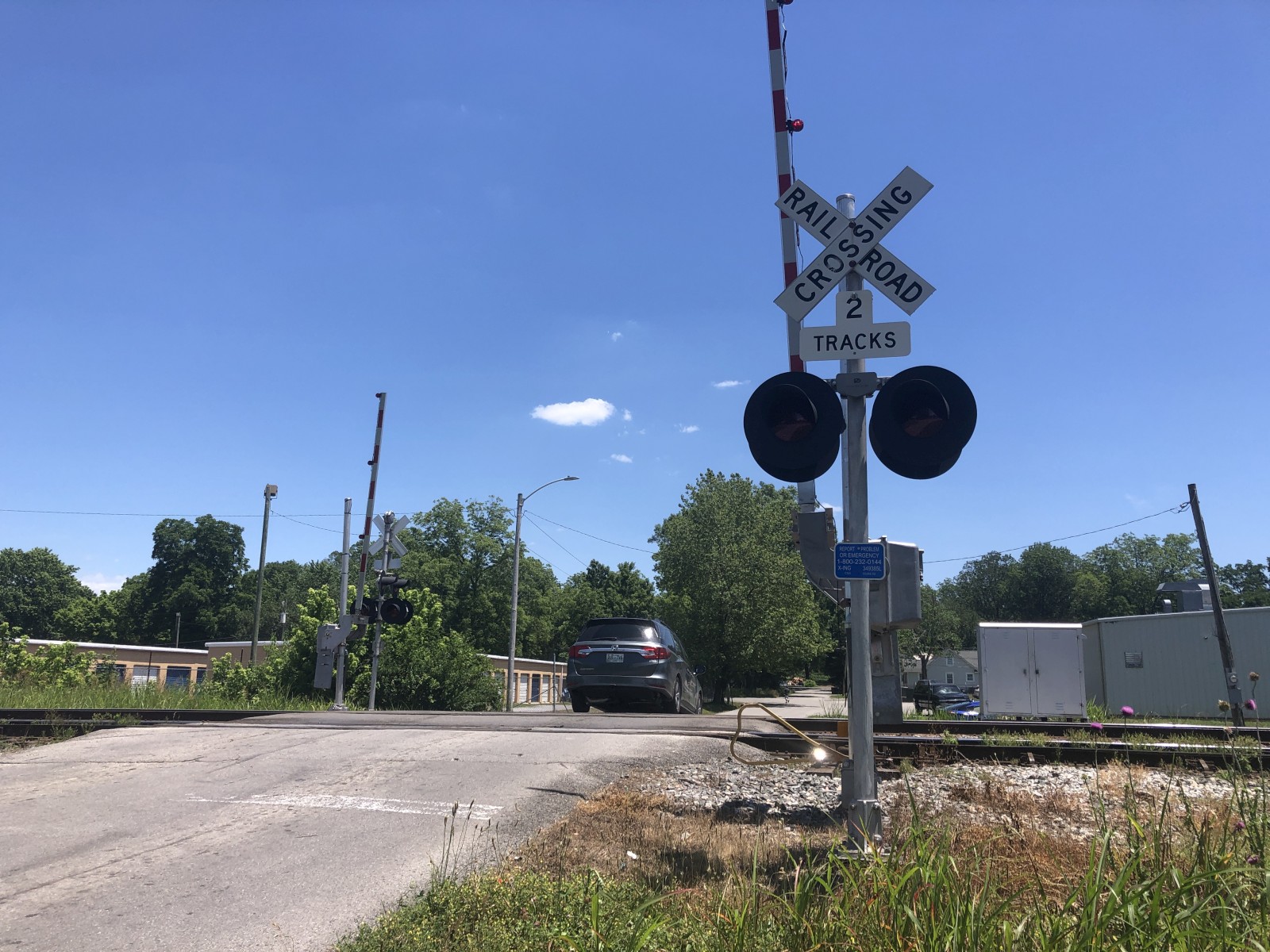

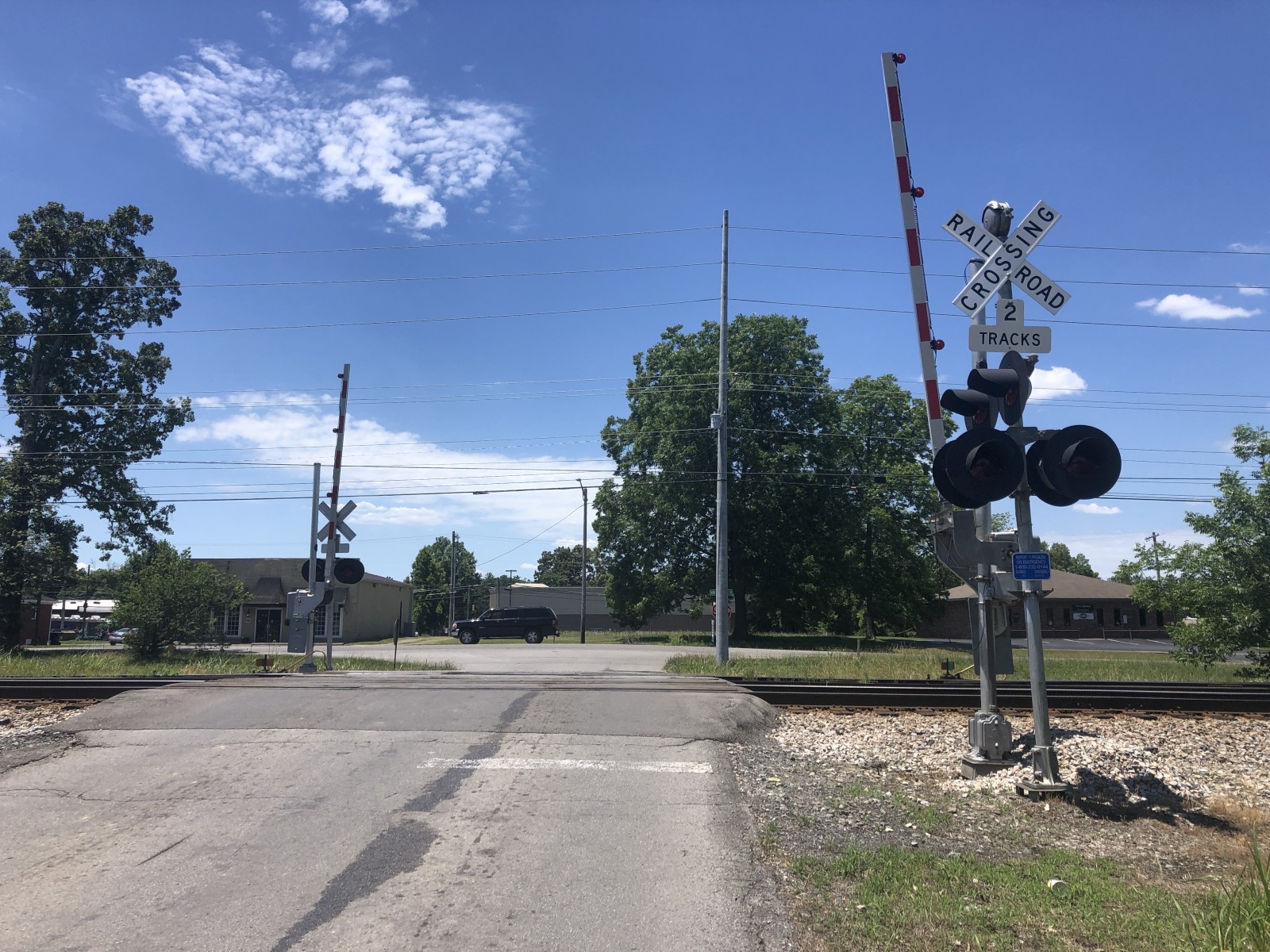

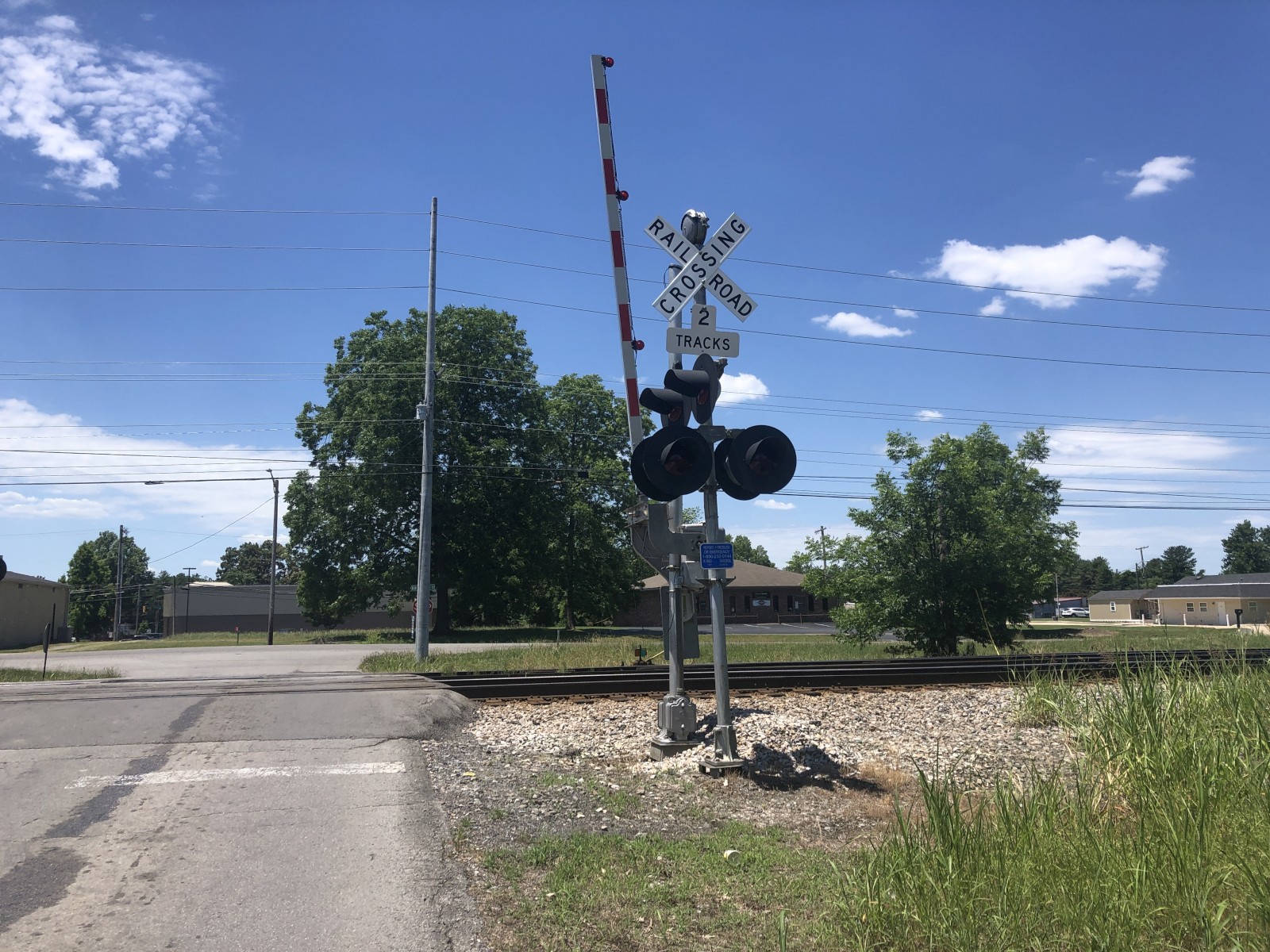

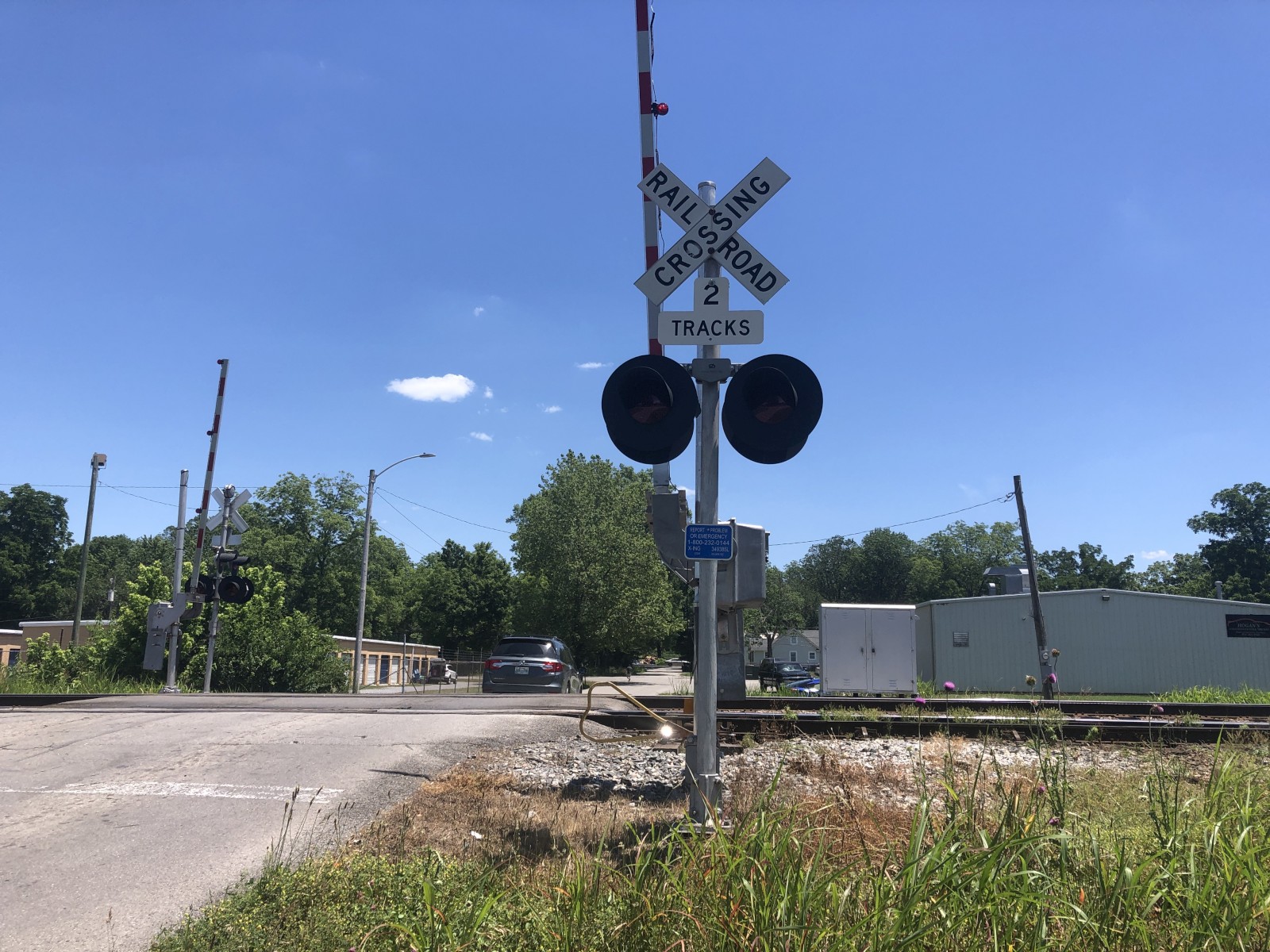

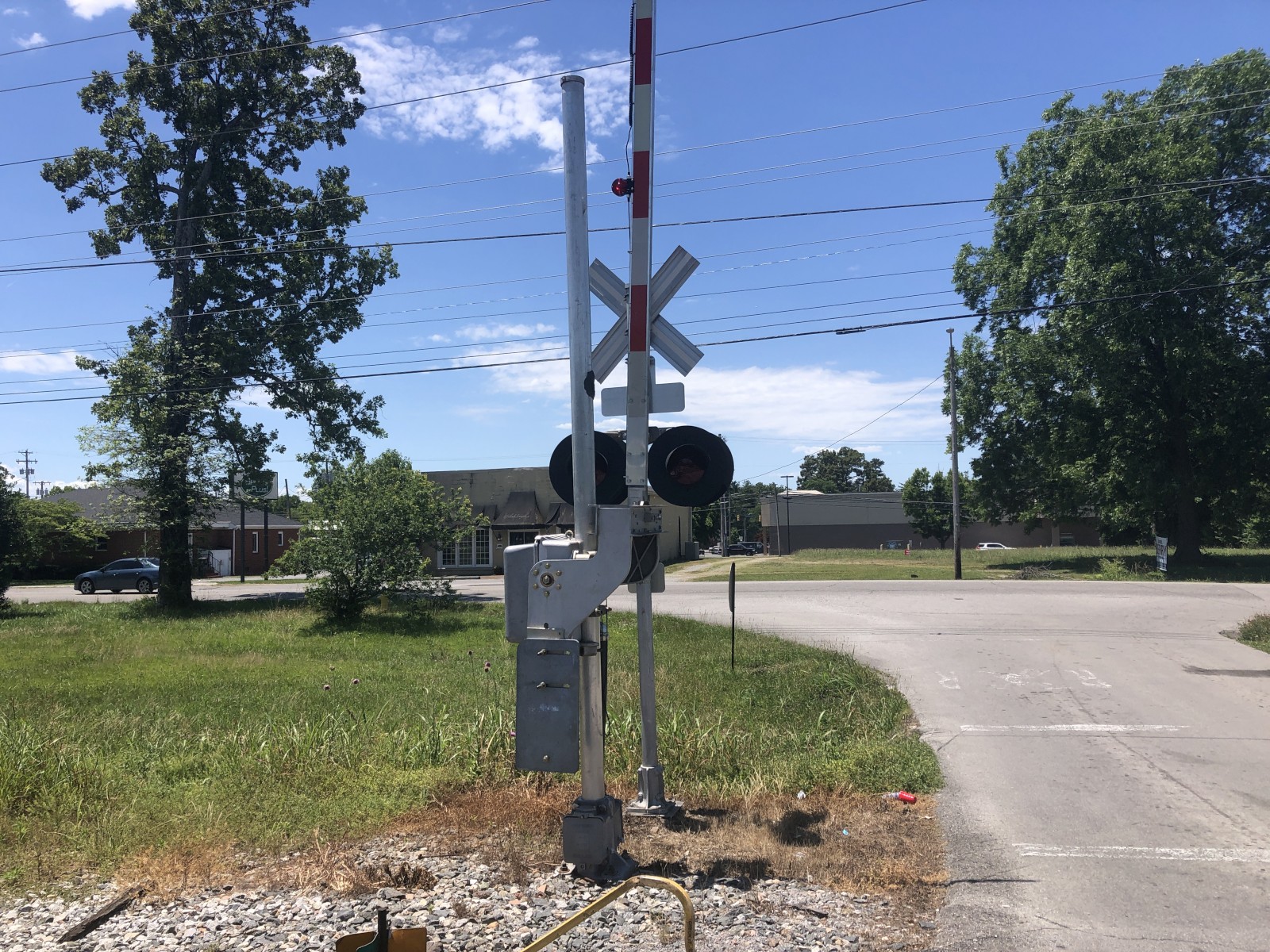

The western signal.

85

86

87

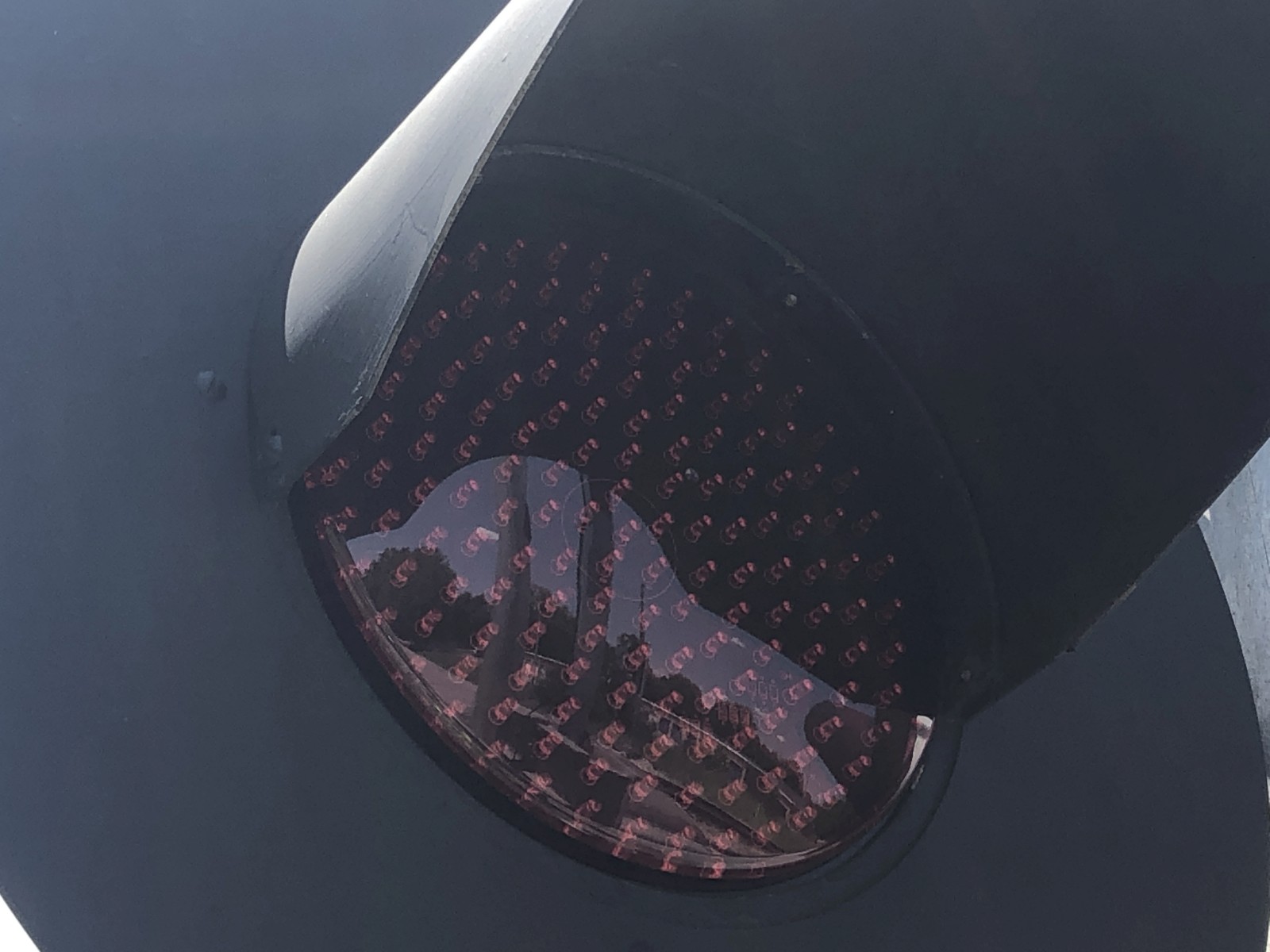

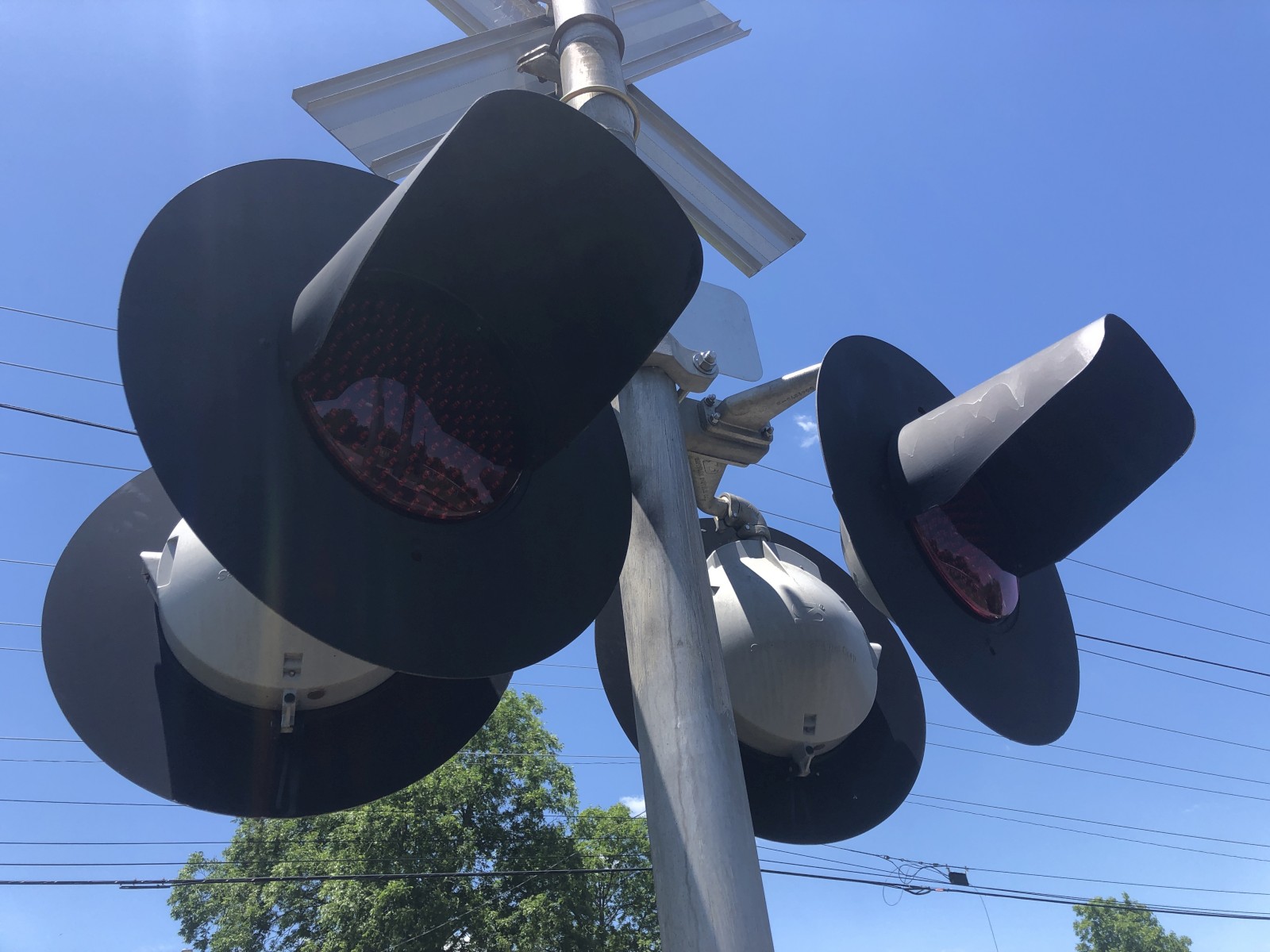

The lights are still Safetran 12x24s, but have been upgraded to Leotek EV series LEDs!

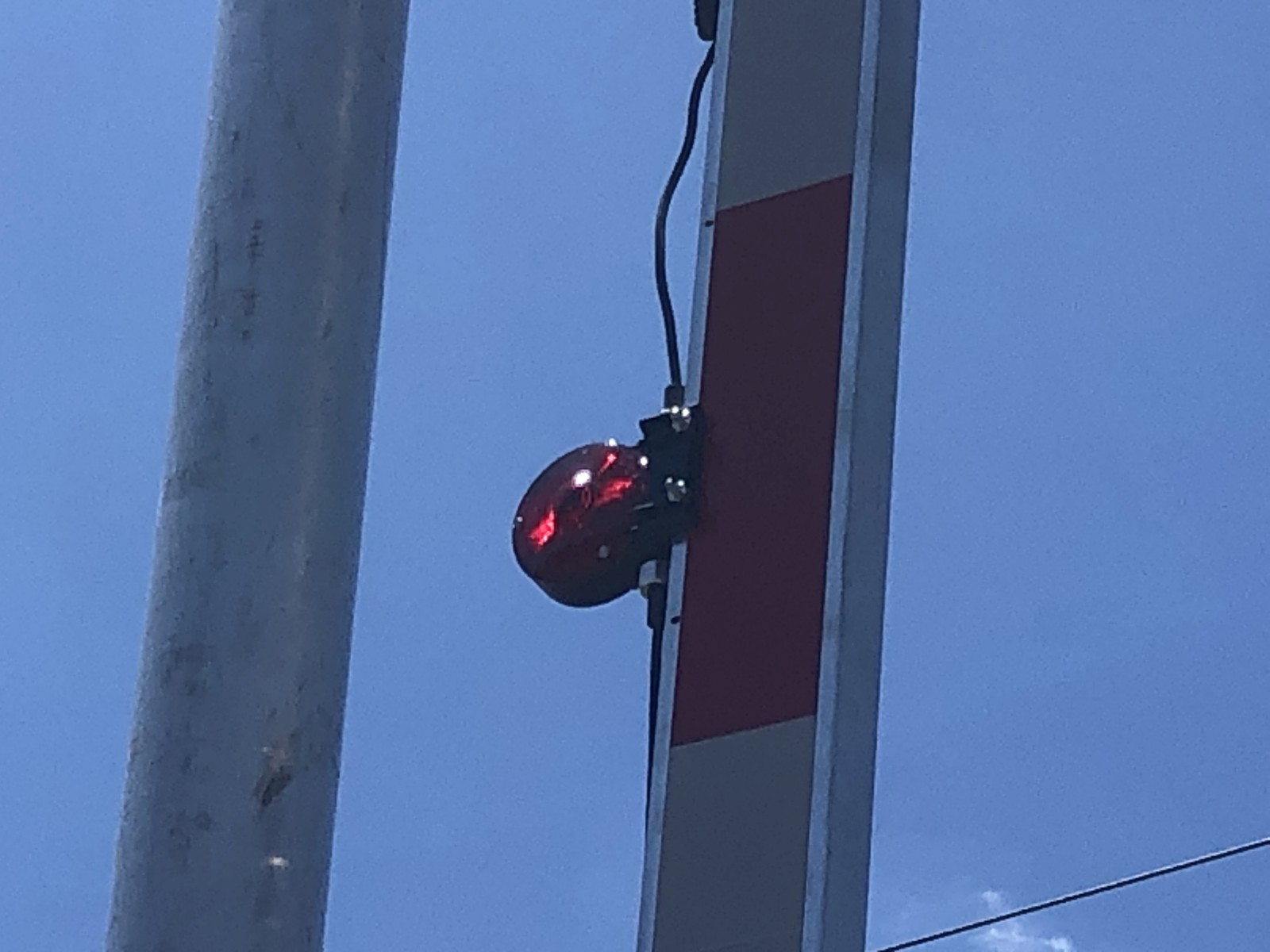

This signal now uses all NEG LED gatelights. The gate was also restriped.

88

89

90

91

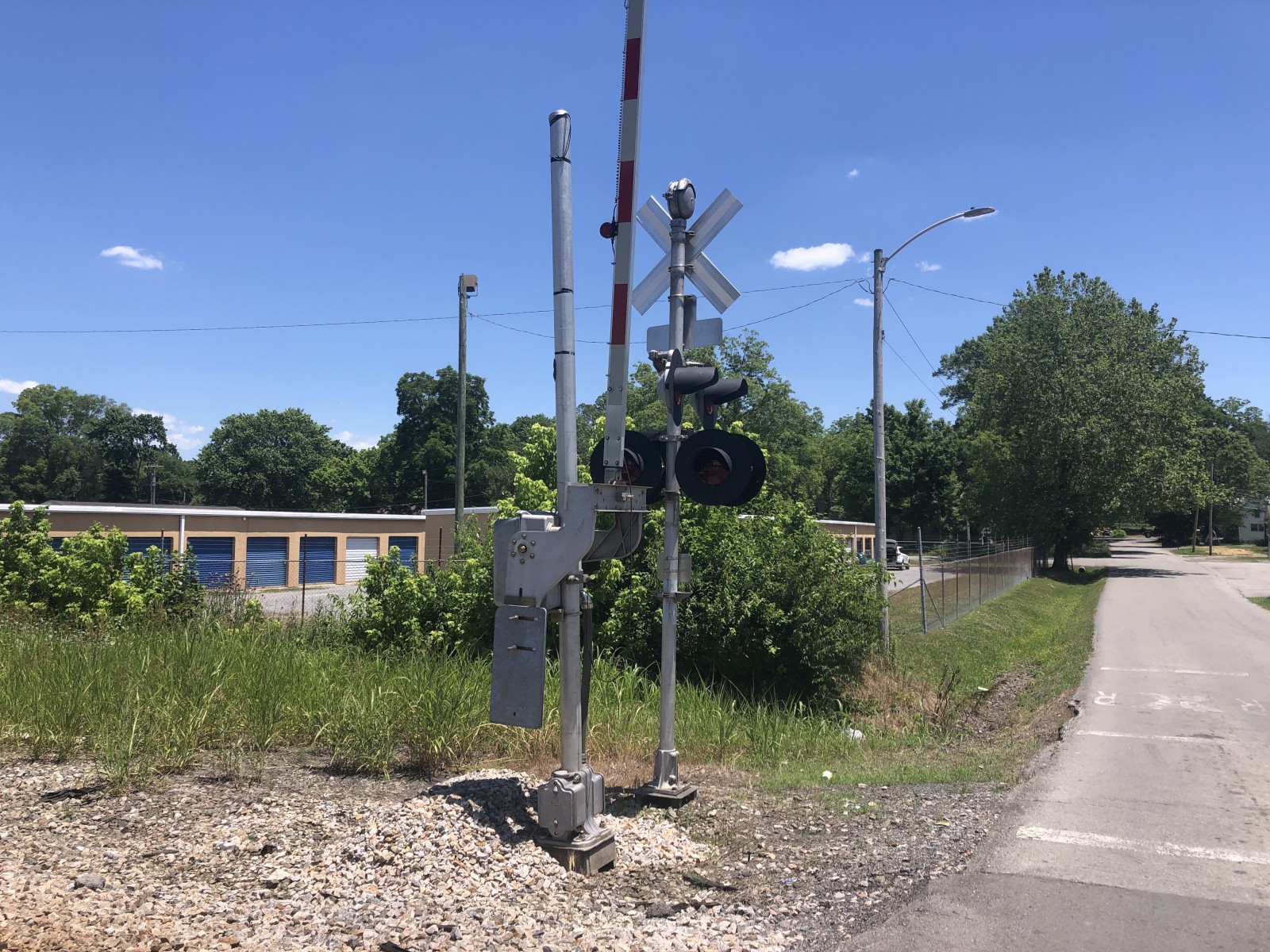

The eastern signal.

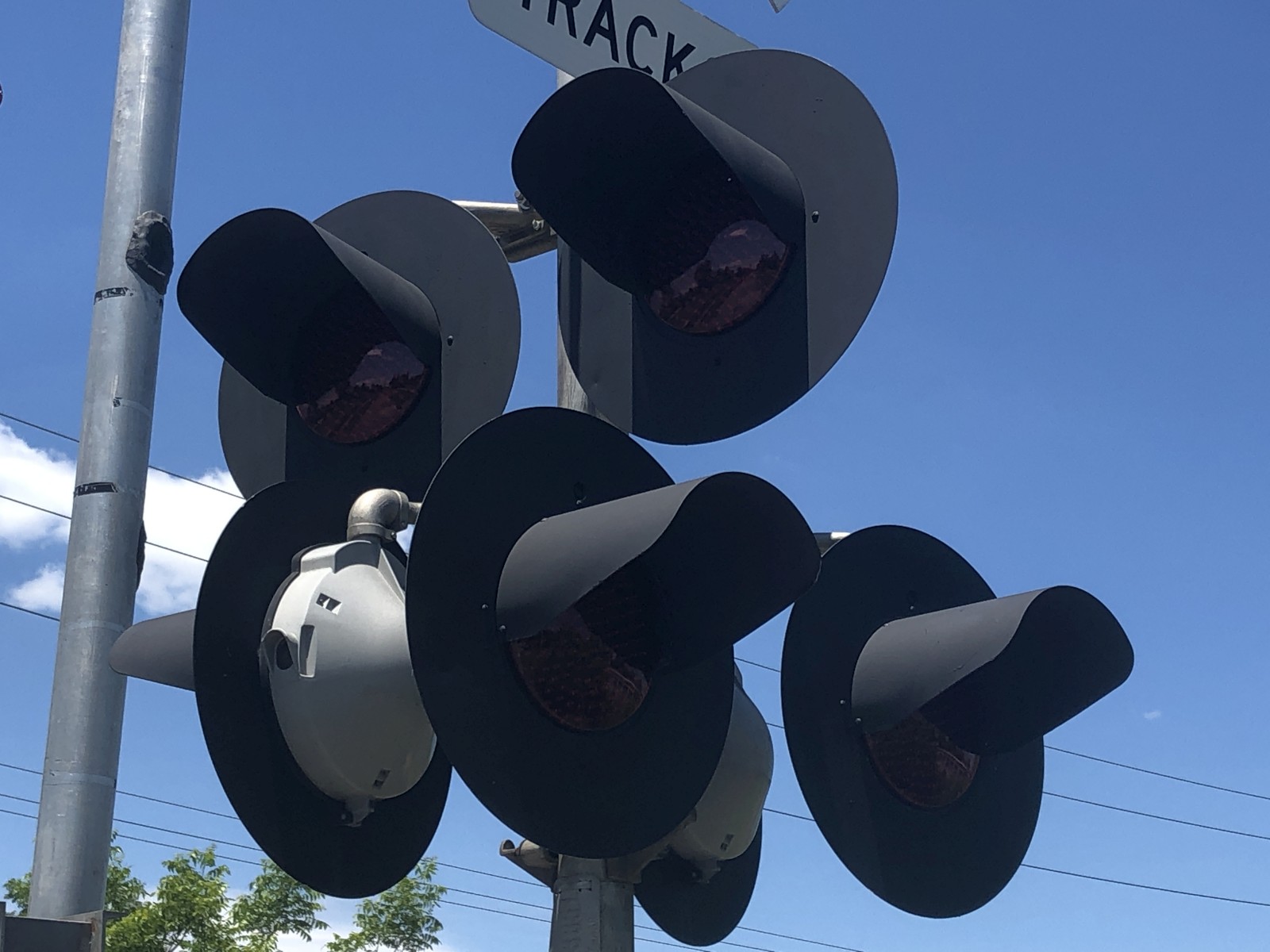

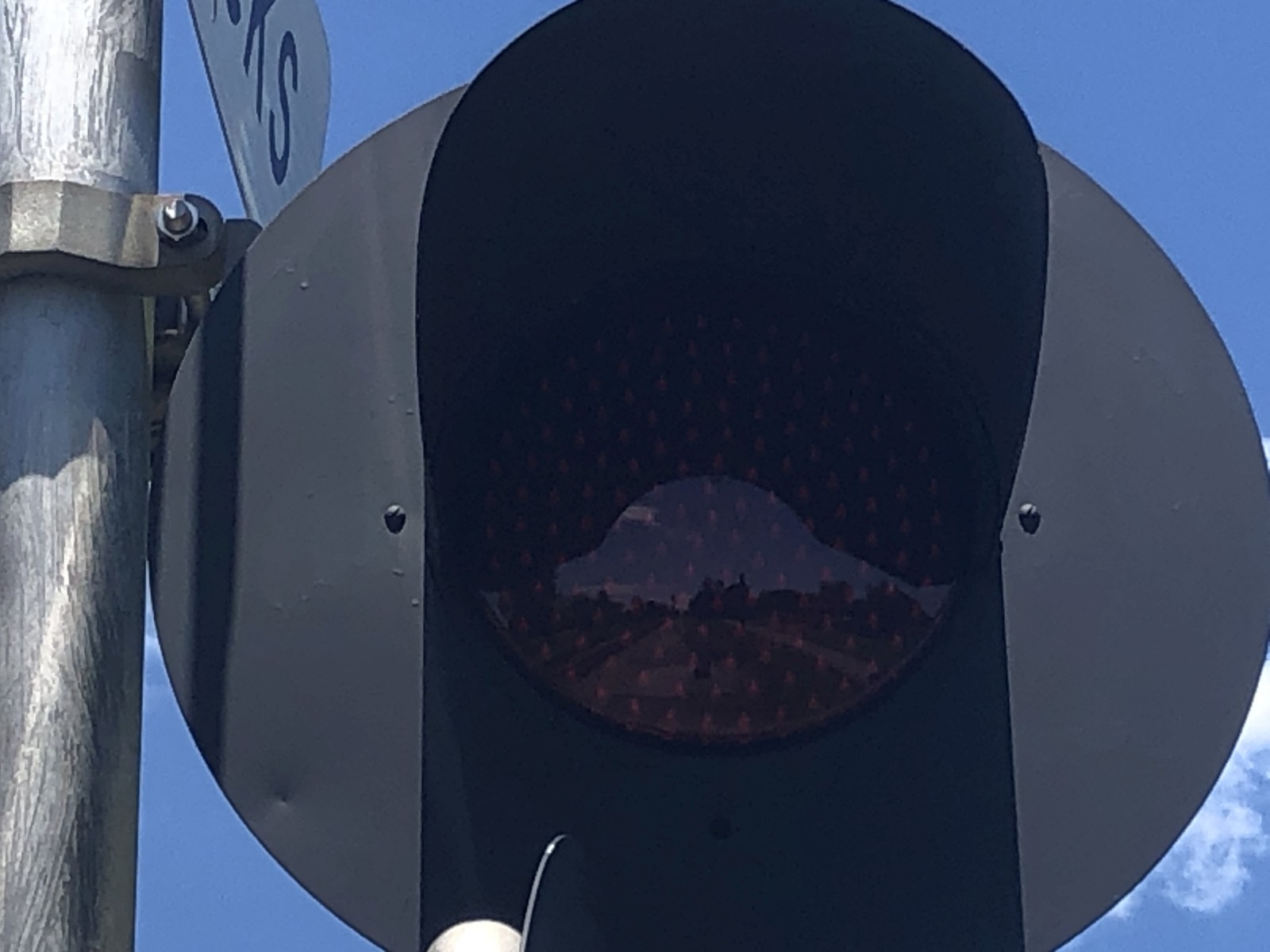

The lights on this signal still remain as Safetran 12x24s, but have also been upgraded to Leotek EV series LEDs!

92

93

94

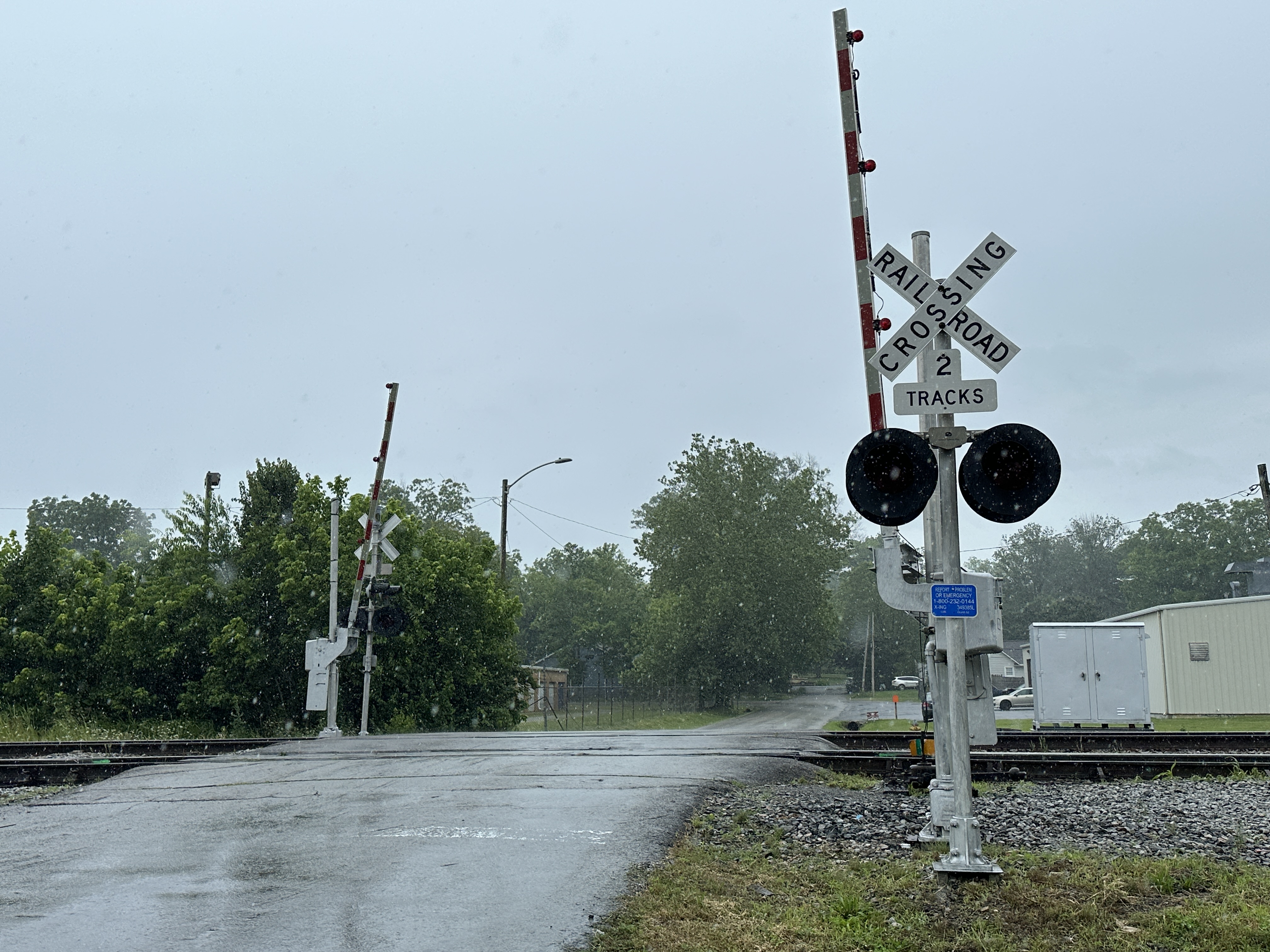

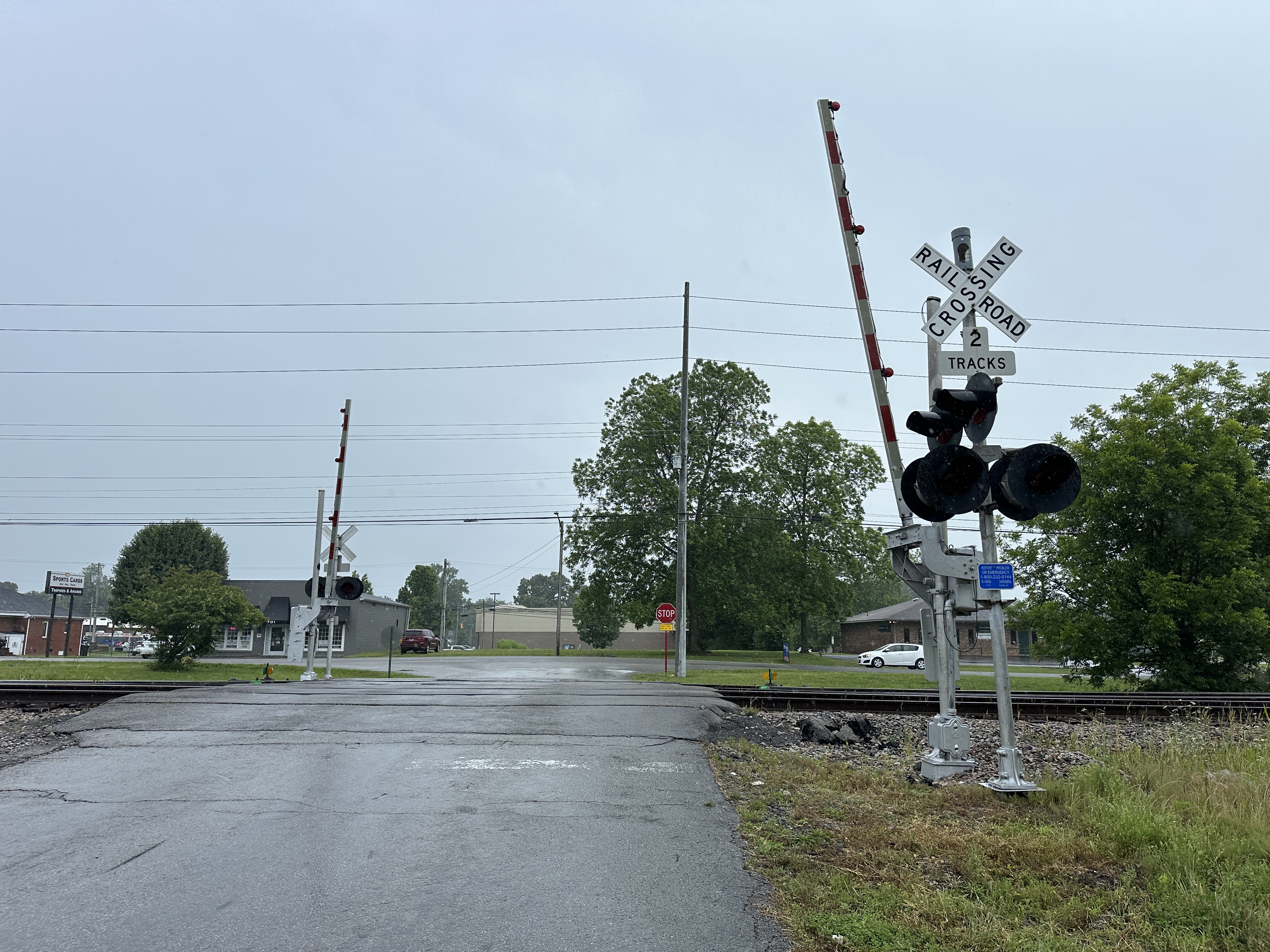

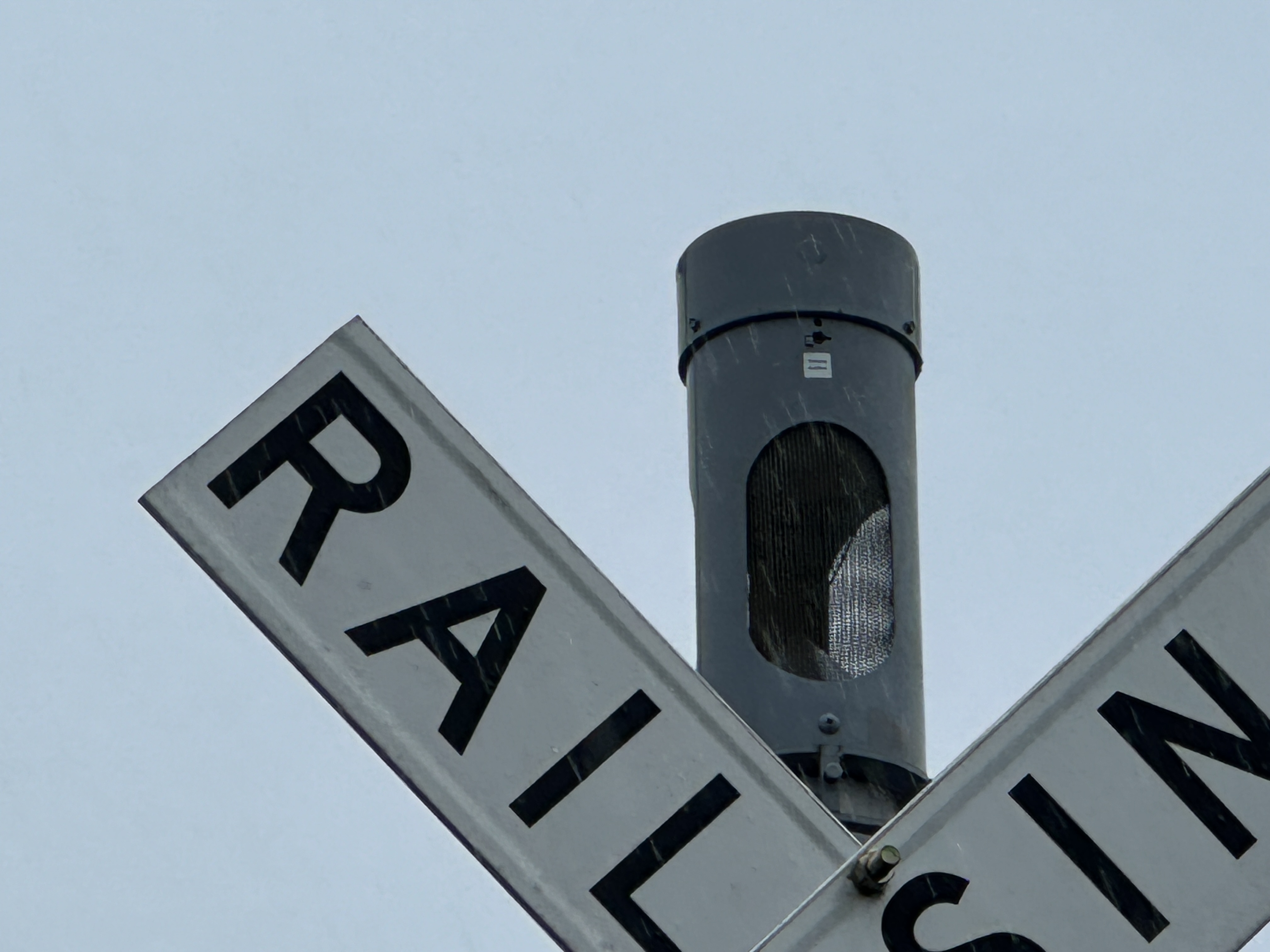

On June 1, 2024, Ethan the Railfanner made a return trip to this crossing to find that the WRRS Mechanical Bell was replaced with an NEG E-Bell.







Pictures 1-53 and the first video were taken on 1-28-17 by freebrickproductions.

Pictures 54-80 were taken on 12-26-17 by freebrickproductions.

Pictures 81-91 were taken on 6-13-20 by Ethan the Railfanner.

Pictures 92-94 and the second video were taken on 6-1-24 by Ethan the Railfanner.
