This crossing was built in late 2003, but for some reason it is not in the FRA database.
Page created by: Josh Baumann.
|
1
|
2
|
3
|
4
|
||||||||
|

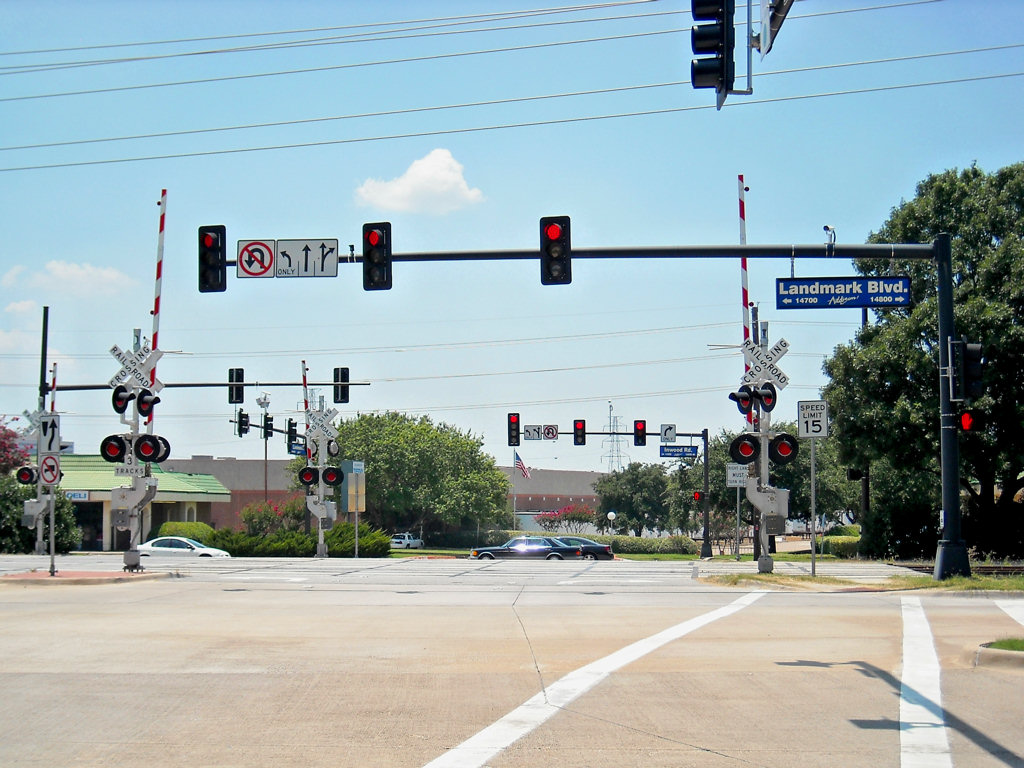

Looking west. This crossing is kind of
unusual, it is sandwiched between two signalized street intersections.
|

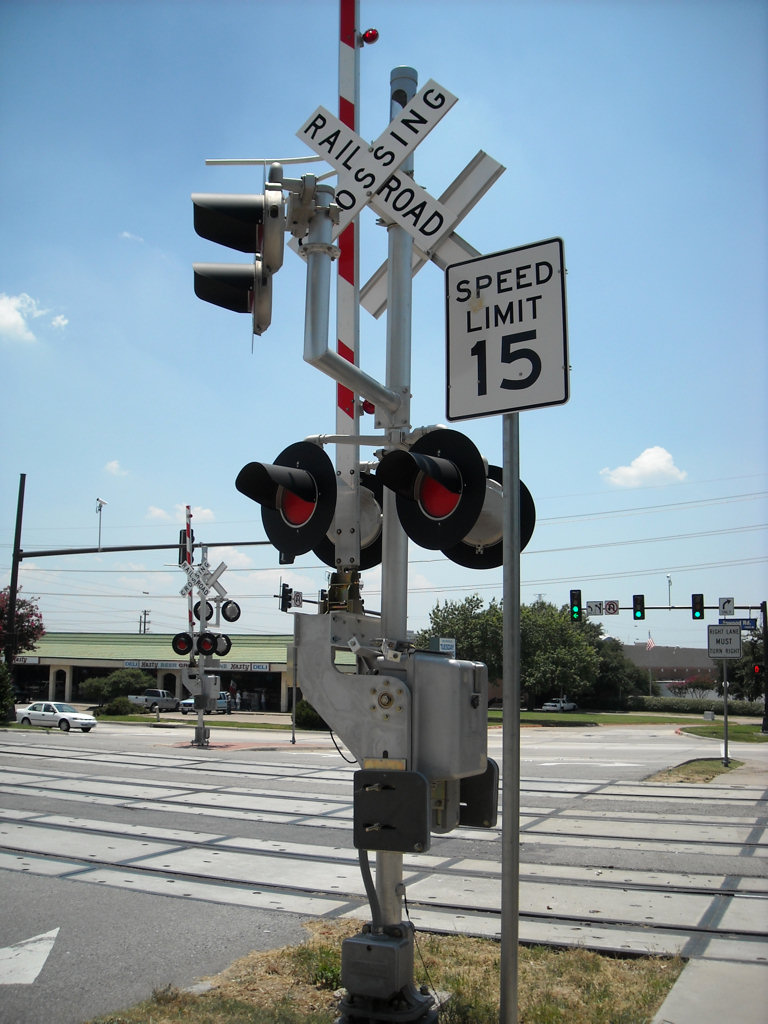

One of the westbound signals, showing 12"x24"
RSI/Progress LED lights, Safetran gate mechanism, and GS electronic
bell.
|
Back side of the westbound signals.
|
|||||||||
|
5
|
6
|
7
|
8
|
||||||||
|

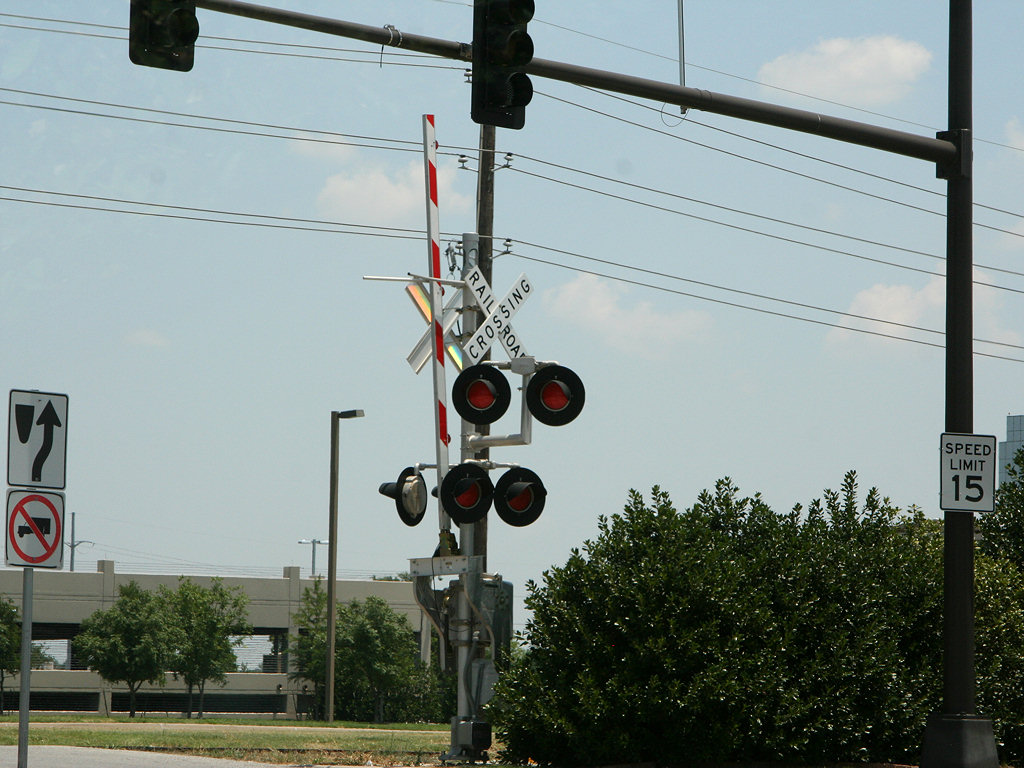

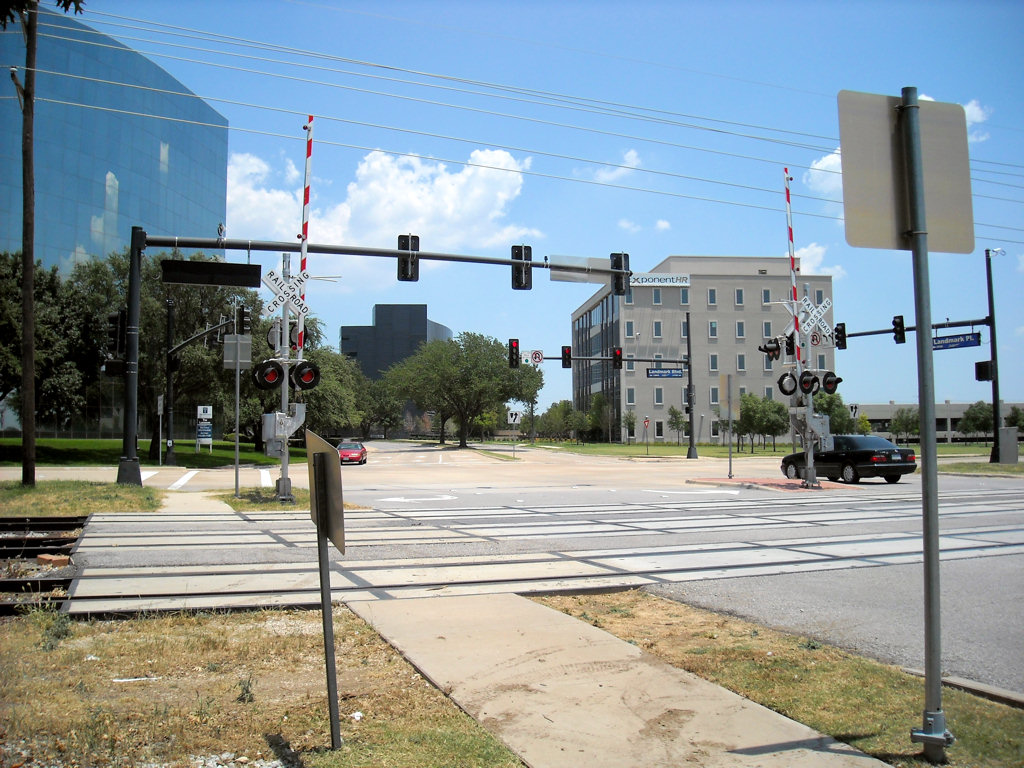

Looking east. The only "3 Tracks" sign is on
the median signal, and it's mounted below the lights.
|

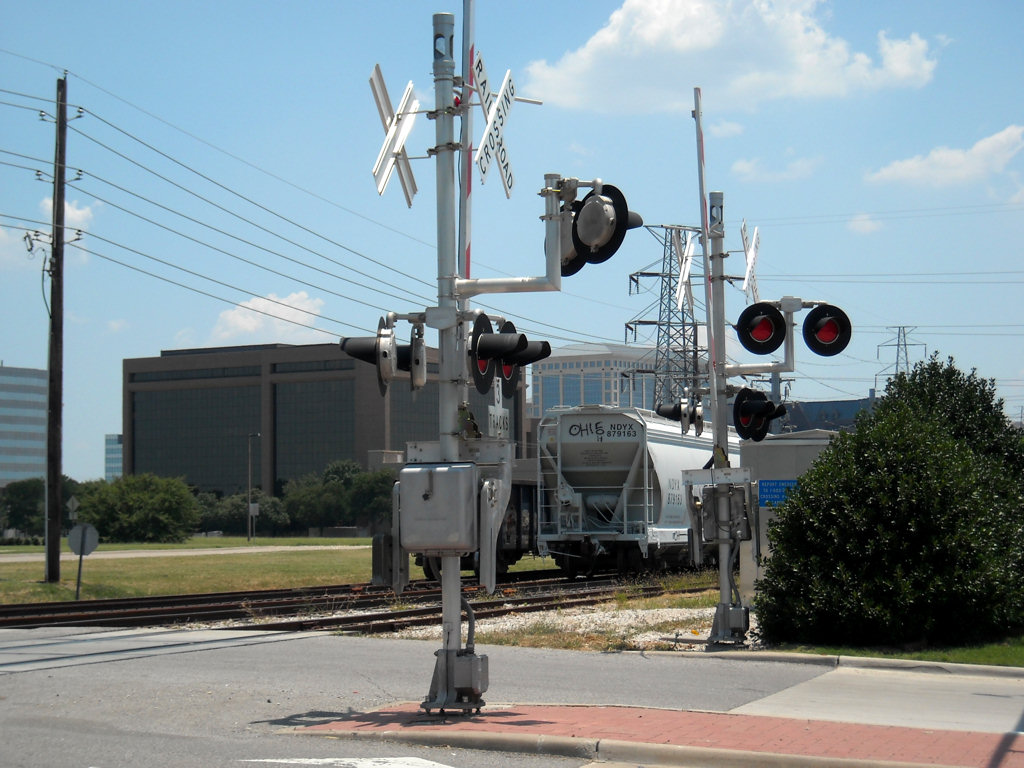

The eastbound signals.
|
||||||||||
|
9
|
10
|
11
|
12
|
13
|
||||||||||
|
Track view looking north.
|

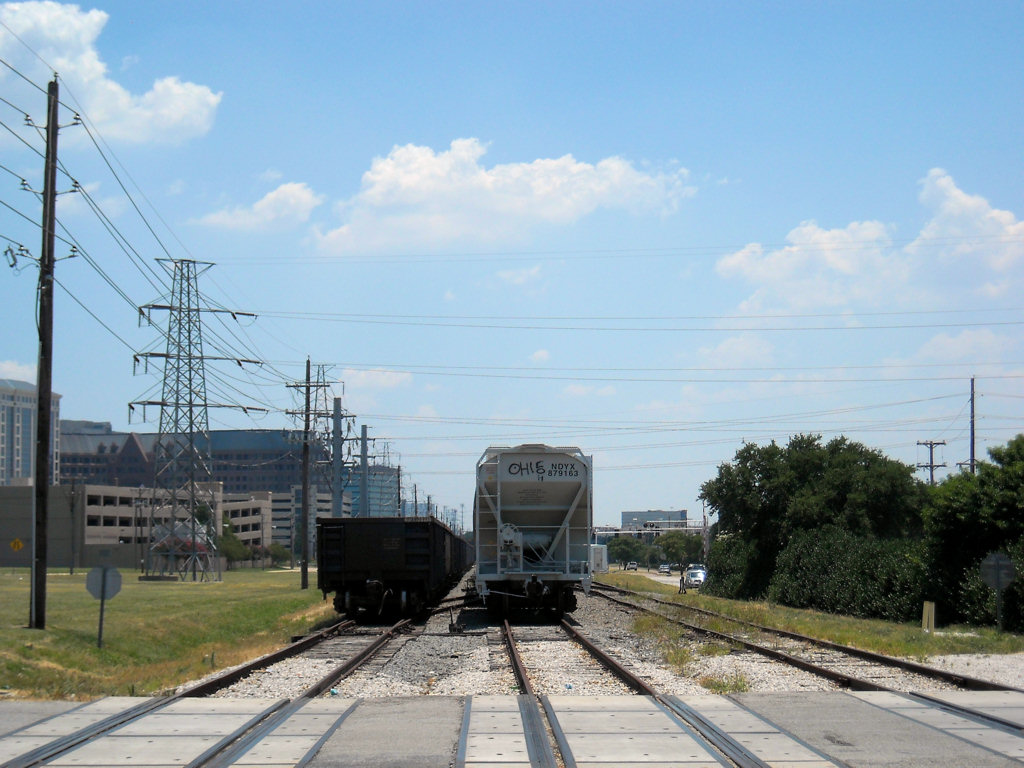

Track views looking south. In photo #11,
notice the stop signs on the sides of the tracks. This is so train
crews can stop and give the federally-mandated 20 second warning time
at the crossing. The freight cars are parked just outside the crossing
signal activation zone. Also in the right backgound of photo #11, you
can see the Inwood Road (Farmer's Branch) crossing.
|

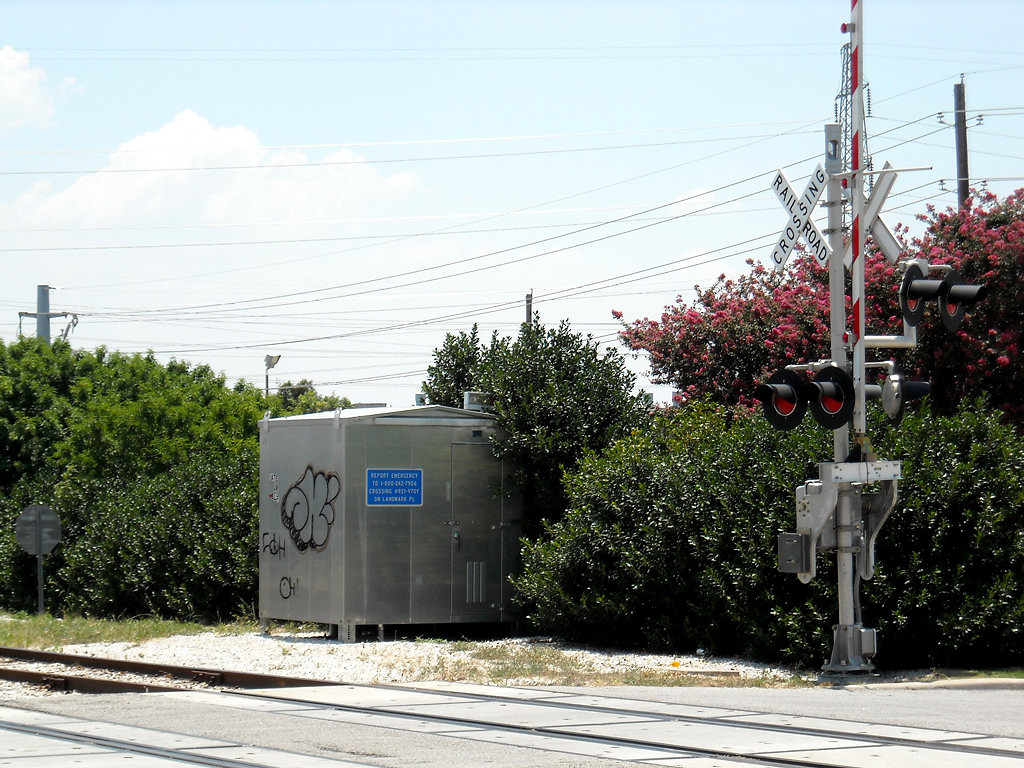

The equipment bungalow.
|
||||||||||||
Photo #8 was taken by Chad Huth. All remaining photos were taken by Josh Baumann.
All photos were taken on June 27, 2009.
