| >>>>>>>>>>>>>> | Eastern Signal | Western Signal |
| Bell: | WCH E-Bell | WCH E-Bell |

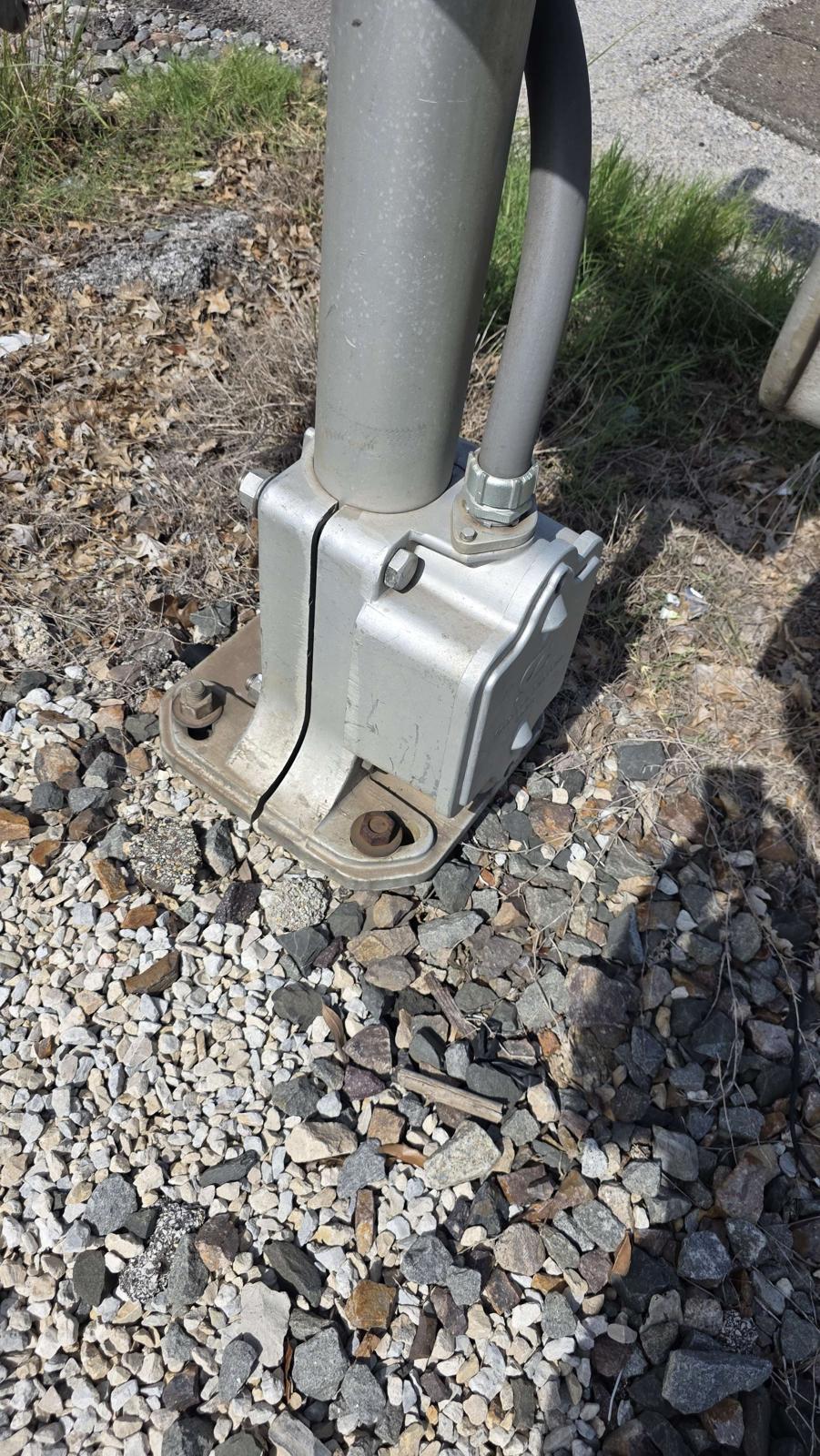

| Base: | Safetran 5" Single Sided | WCH 5" Single Sided |
| Light Brackets: | WRRS | WRRS |
| Lights: | 2 - 12"x24" Harmon w/ Electro-Tech LEDs | 1 - 12"x24" Harmon w/ Electro-Tech LEDs 1 - 12"x24" WCH w/ Electro-Tech LEDs |
| Gate Lights: | 3 - NEG Clear LEDs | 3 - NEG Clear LEDs |
| Gate Mechanism: | WCH Style 3 | WCH Style 3.5 |
| Gate Striping: | Vertical Striping | Vertical Striping |
Page created by: Josh Baumann.
Pictures 1-9 were taken on April 18, 2009, by Josh Baumann.
Pictures 10-31 were taken on July 17, 2025, by Morrison & Friends.
This crossing is located on the UP Dallas Subdivision.
|
1
|
2
|
3
|
||||||
|

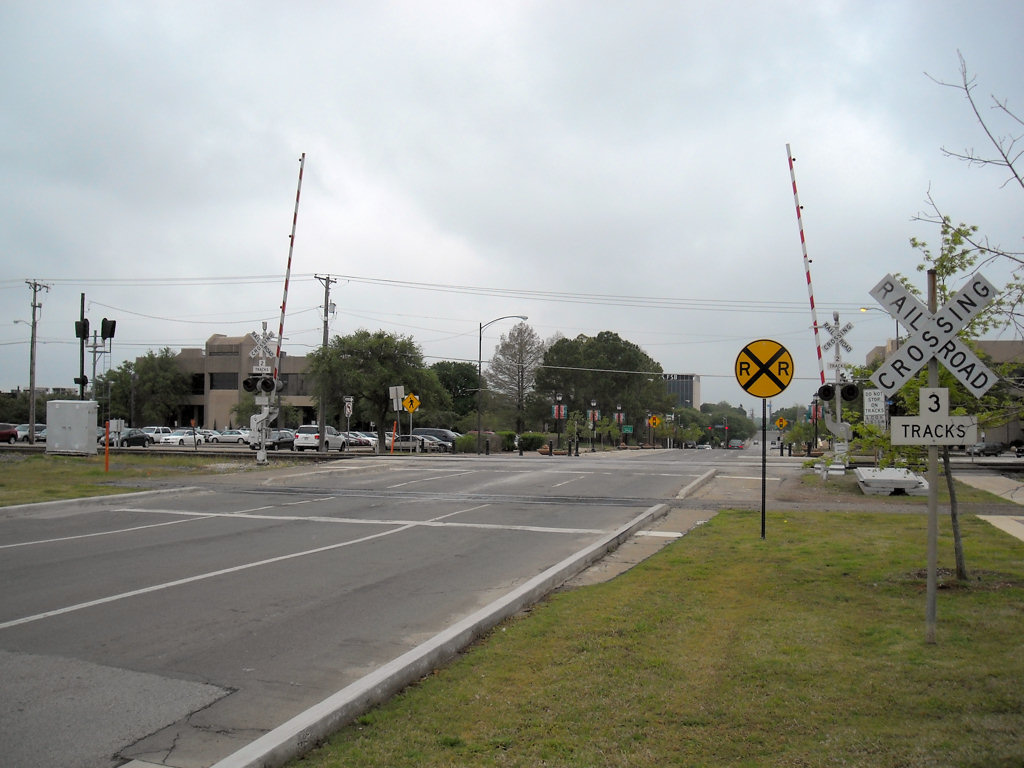

Overall view facing south. There are only
signals on this side of the track because it is a one-way road. Notice
the separate crossbuck to the right - there is one defunct track
between the crossbuck and the signals.
|

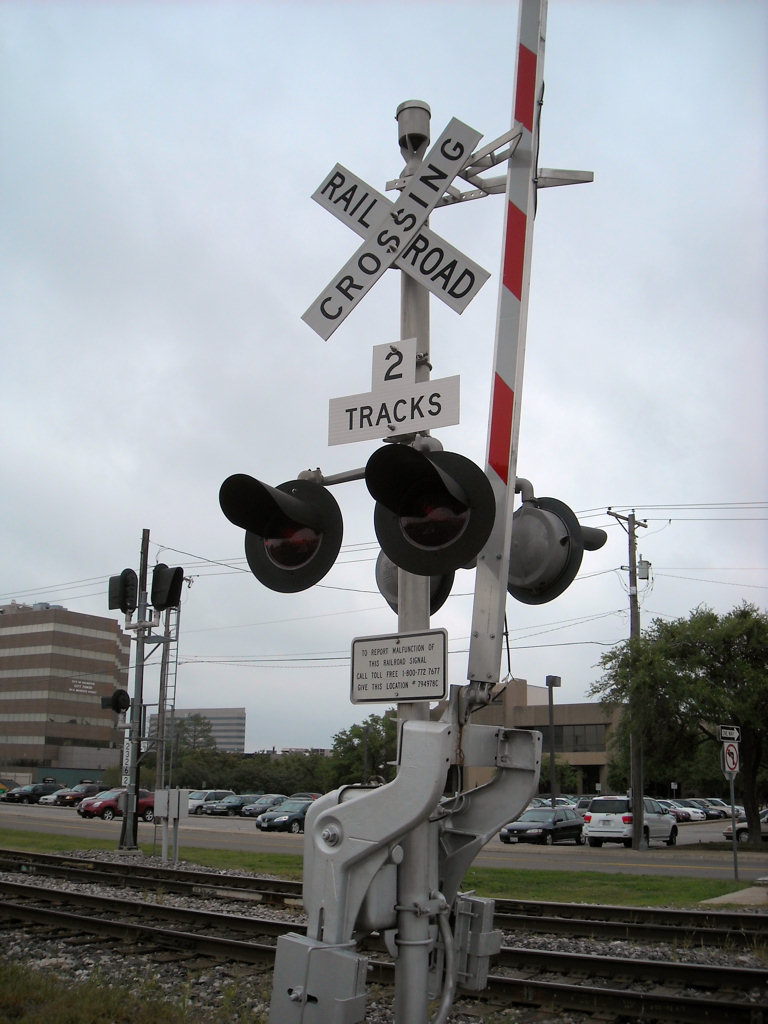

The right signal, which has a mechanical
bell.
|

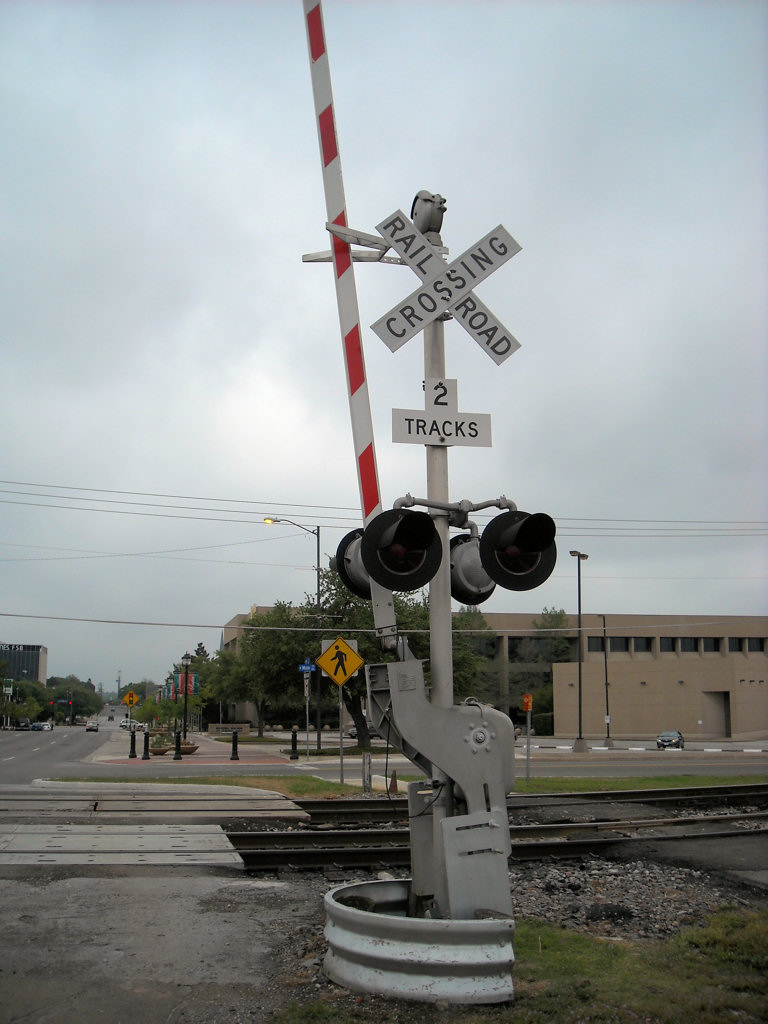

The left signal, which has a WCH electronic
bell.
|
|
4
|
5
|
6
|
||||||
|

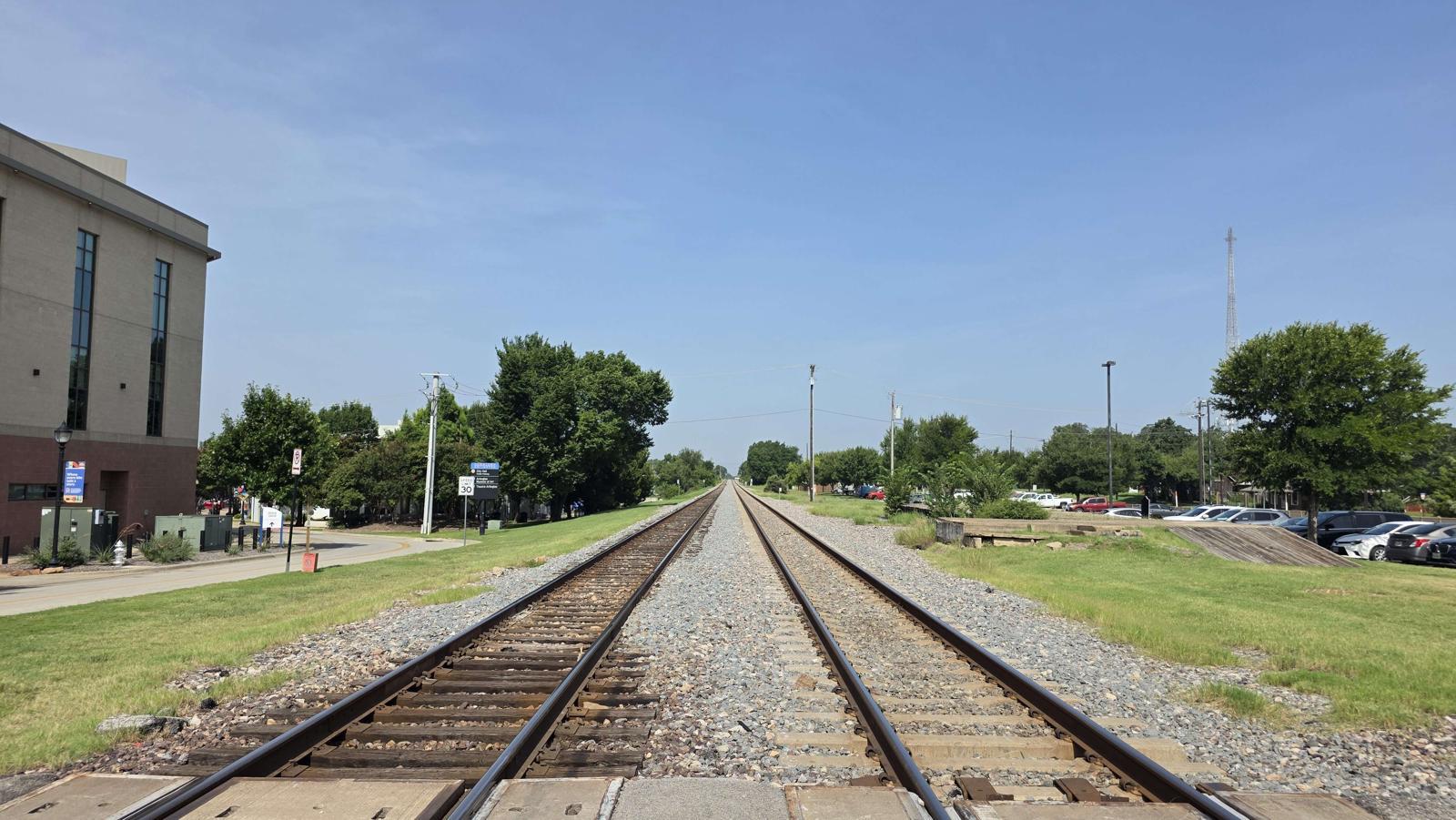

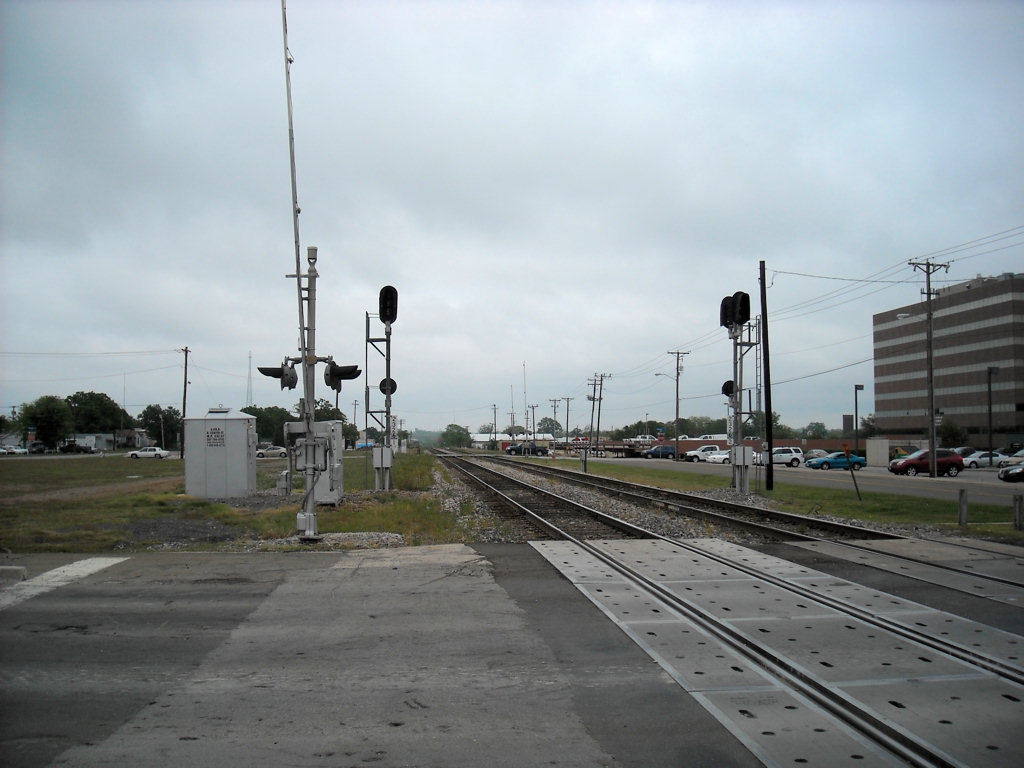

Track view facing west (towards the Cooper St. crossing) |

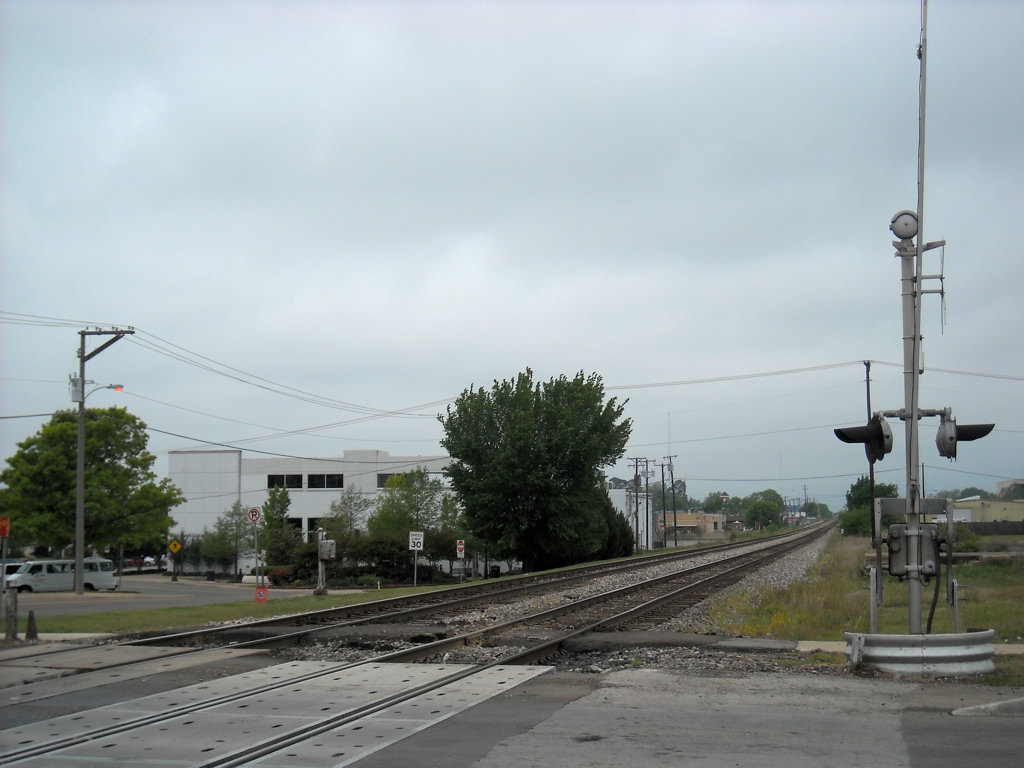

Track view facing east.
|

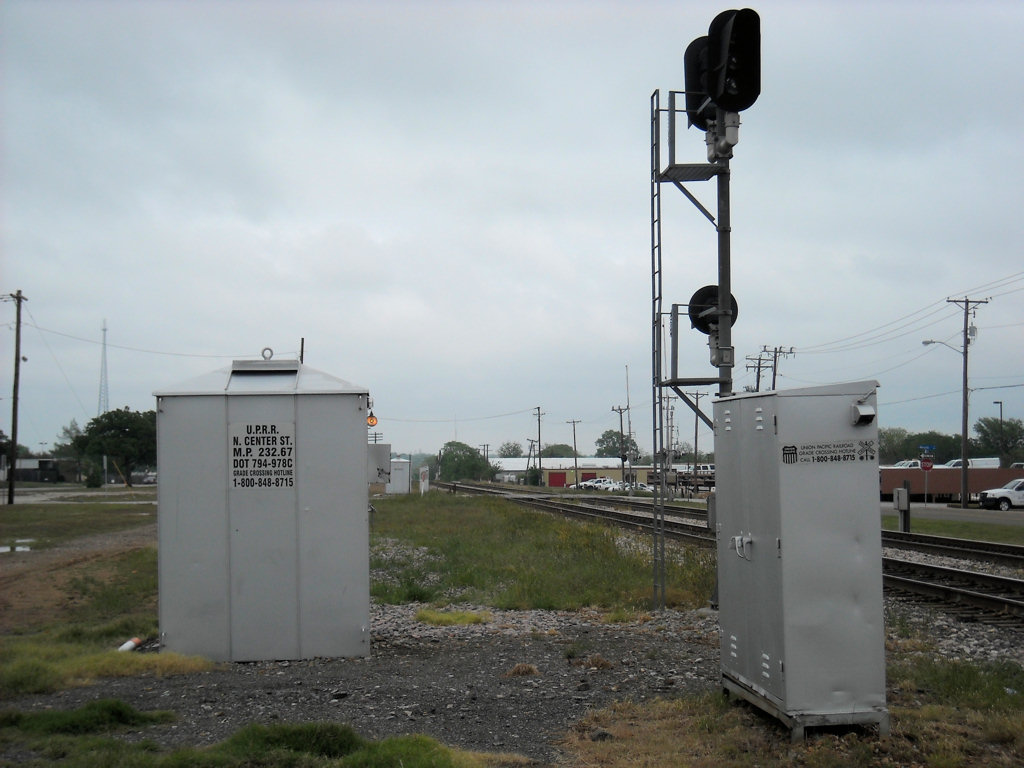

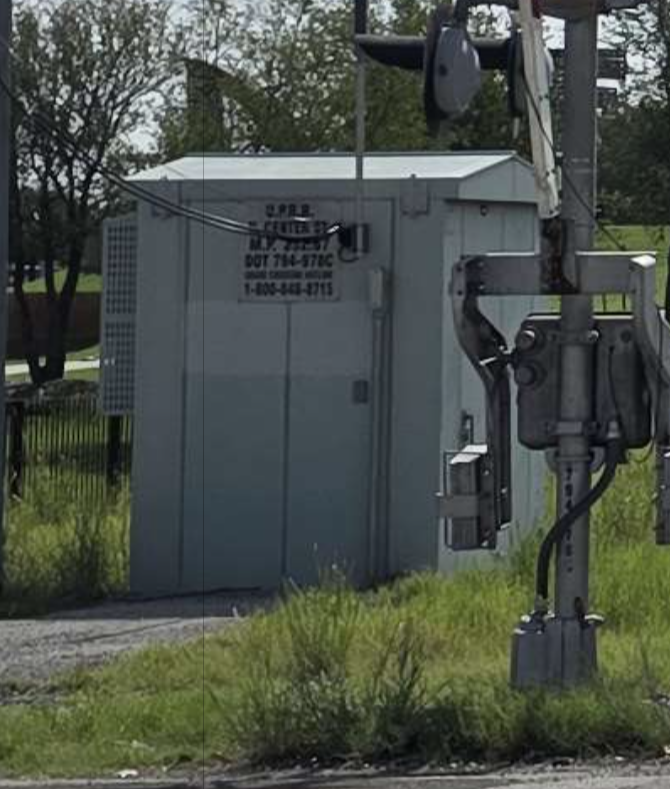

The equipment bungalow.
|
|
7
|
8
|
9
|
||||||
|
A rough-looking pedestrian crossing next to
the road. The ped xing does not have any crossing signs or signals.
|

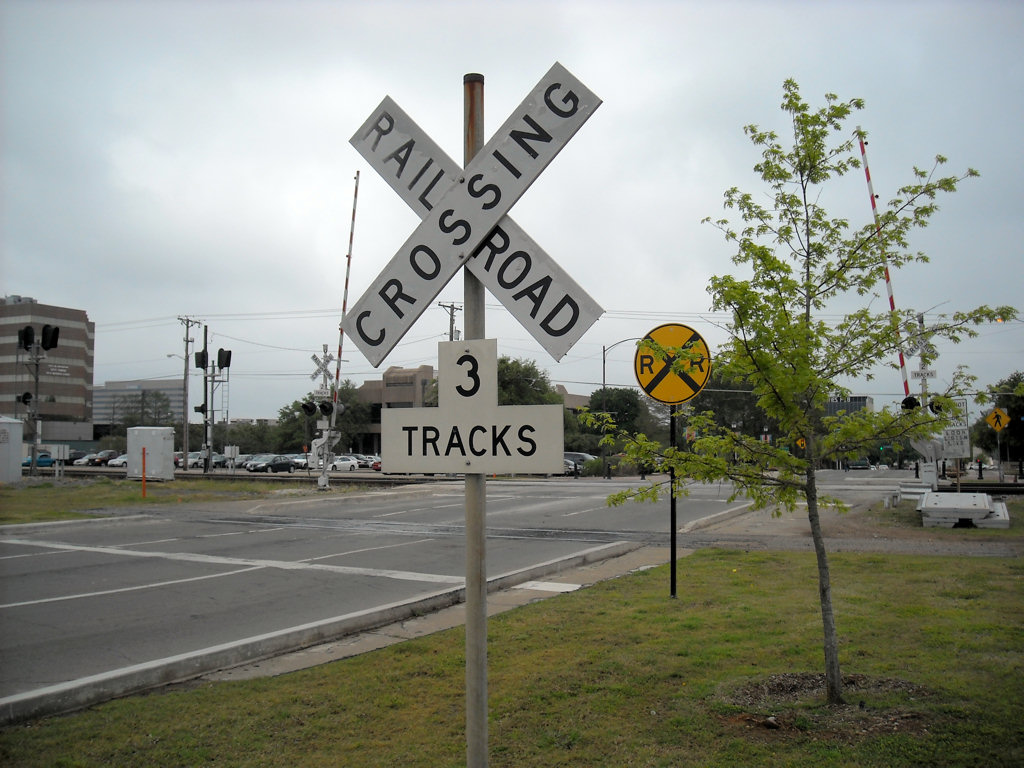

The 3-tracks crossbuck sign.
|

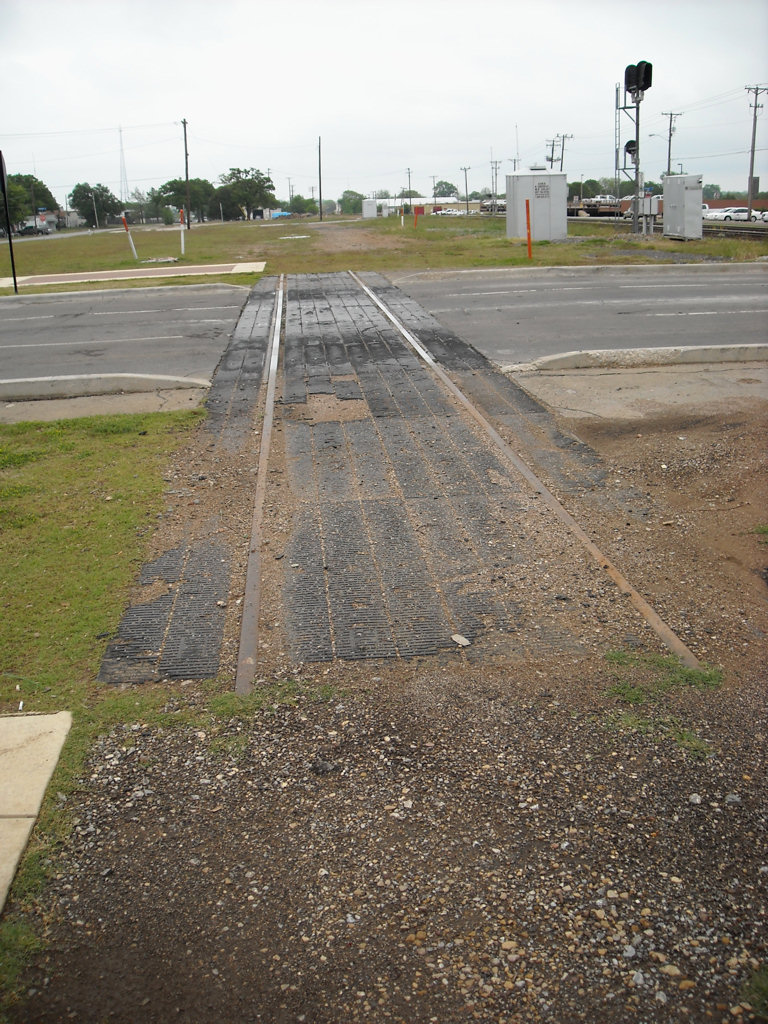

The defunct 3rd track.
|
