>>>>>>>>>>>>>> Northeastern SignalNorthwestern Signal Southeastern Signal Southwestern Signal
Bell: N/A1 - MI Mechanical (Disconnected)
1 - GS Type 3 E-Bell		 Siemens E-Bell N/A
Cantilever: N/AMI N/A N/A
Base: Siemens 5" Double SidedMI 5" Single Sided Siemens 5" Single Sided Siemens 5" Double Sided
Light Brackets: Safetran2 - MI
1 - Safetran		 1 - Safetran
1 - WRRS		 Safetran
Lights: 2 - 12"x24" Safetran w/ Leotek IL Series LEDs8 - 12"x24" Safetran w/ Leotek EV Series LEDs 4 - 12"x24" Safetran w/ Leotek EV Series LEDs
2 - 12"x24" Safetran w/ Safetran Fading LEDs		 2 - 12"x24" Safetran w/ Leotek EV Series LEDs
Gate Lights: 3 - NEG 4" LEDs3 - NEG 4" LEDs 3 - NEG 4" LEDs 3 - NEG 4" LEDs
Gate Mechanism: Siemens ImprintedSafetran 2000s Siemens Imprinted Siemens Imprinted
Gate Striping: Vertical StripingVertical Striping Vertical Striping Vertical Striping


>>>>>>>>>>>>>> Northeastern Pedestrian Signal
 Northwestern Pedestrian Signal Southeastern Pedestrian Signal Southwestern Pedestrian Signal
Base: Siemens 5" Single Sided Siemens 5" Single Sided Siemens 5" Single Sided Siemens 5" Single Sided
Gate Lights: 1 - NEG 4" LEDs 1 - NEG 4" LEDs 1 - NEG 4" LEDs 1 - NEG 4" LEDs
Gate Mechanism: Siemens Imprinted Siemens Imprinted Siemens Imprinted Siemens Imprinted
Gate Striping: Vertical Striping Vertical Striping Vertical Striping Vertical Striping

Pictures 1-69 were taken on August 16, 2025, by Morrison & Friends.
Pictures 70-76 were taken on September 5, 2025, by Morrison & Friends.
This crossing is located on the DART Silver Line.
Page created by Vivaan The Railfanner (using HopenRXRTools 1.3.0).

SV1 SV2

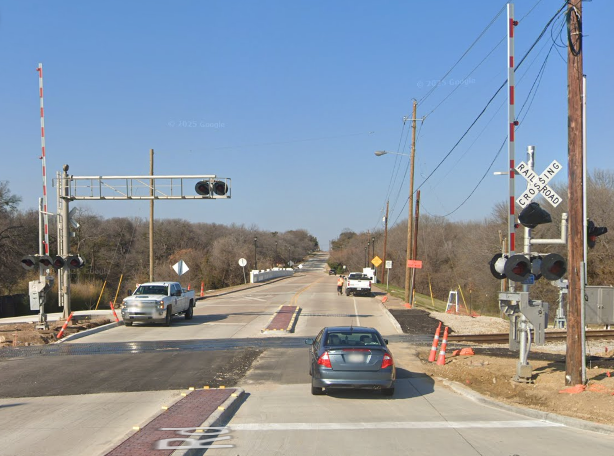

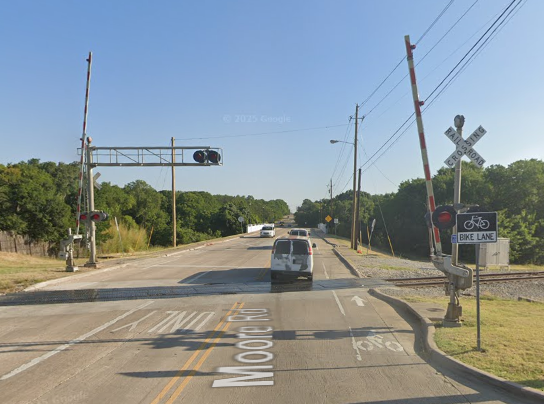

Street View from July 2022 shows an older WCH Setup with some MI equipment. In Feb 2024, they were replaced with reused RSI signals from Coppell Rd. The MI cantilever was also reused, but all of the incandescents were replaced with Leotek EV Series LEDs.
1

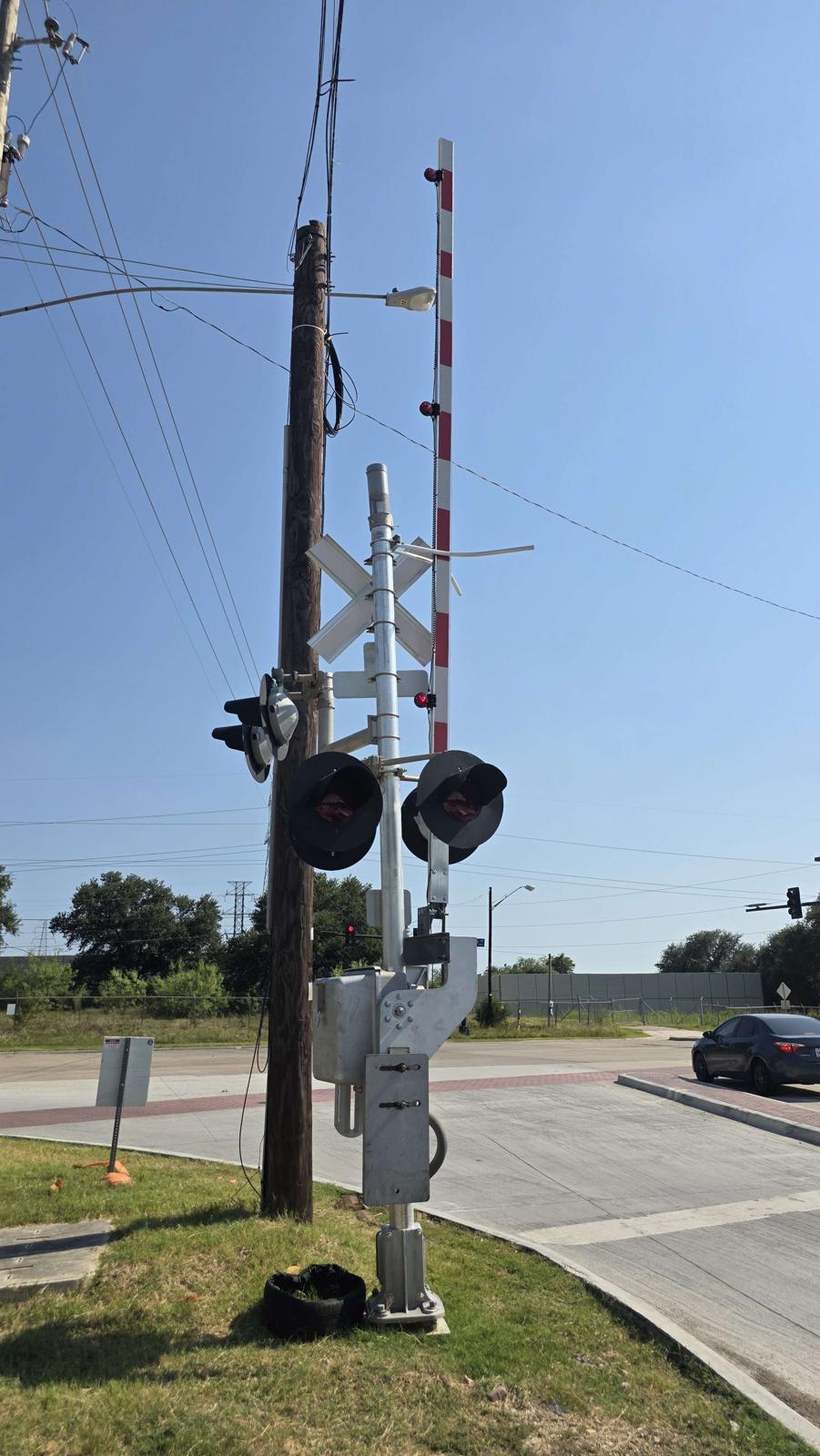

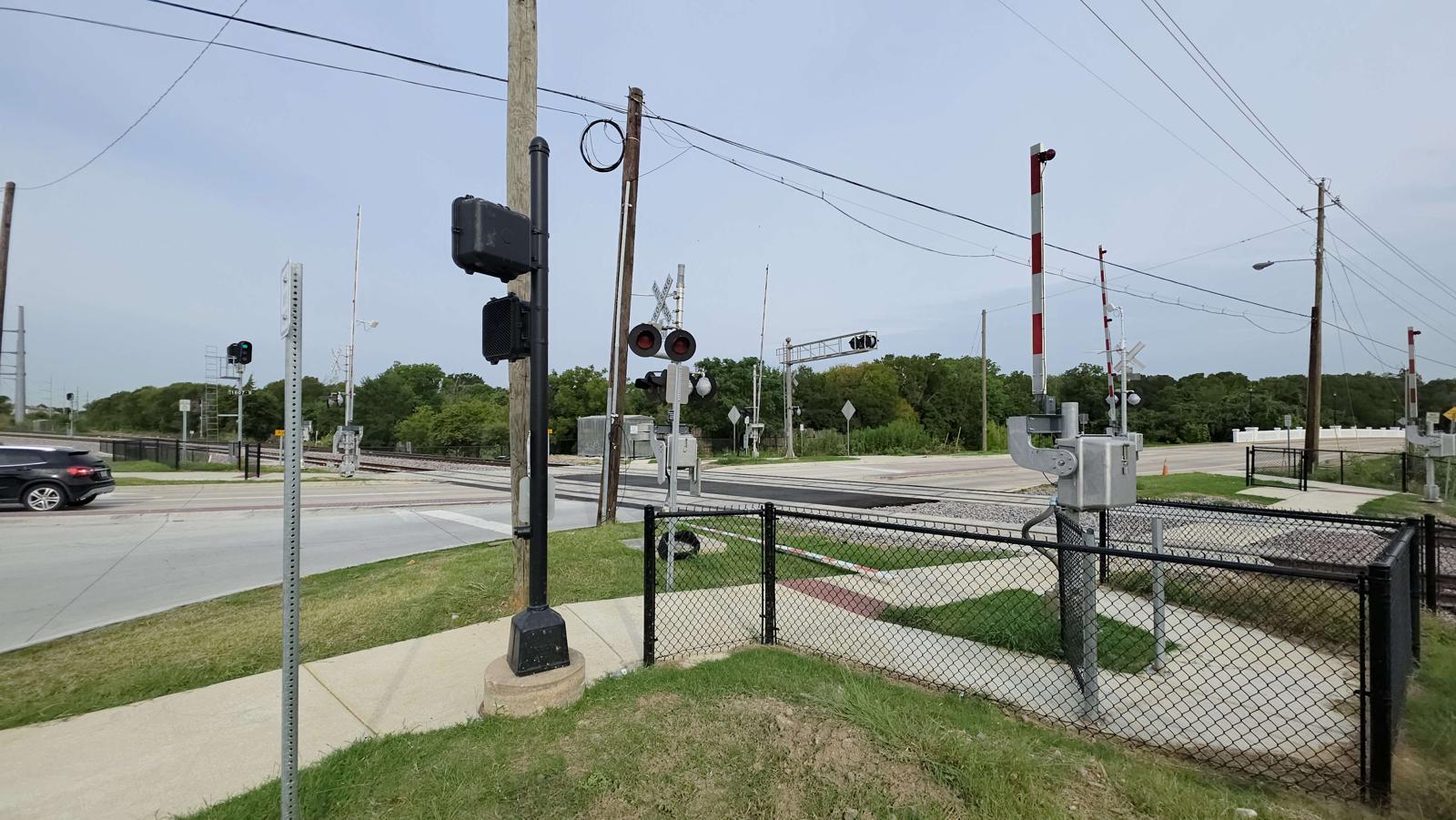

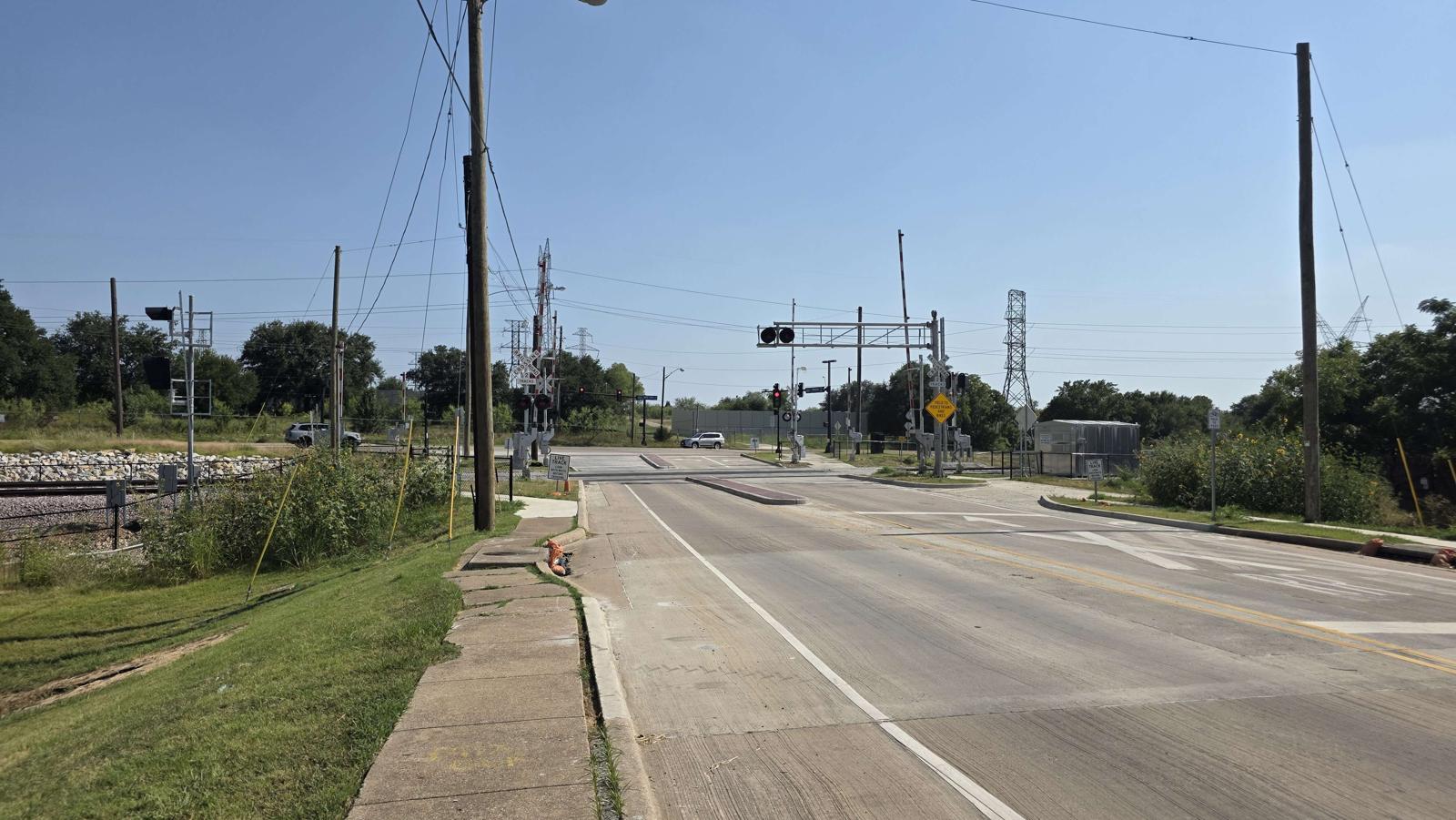

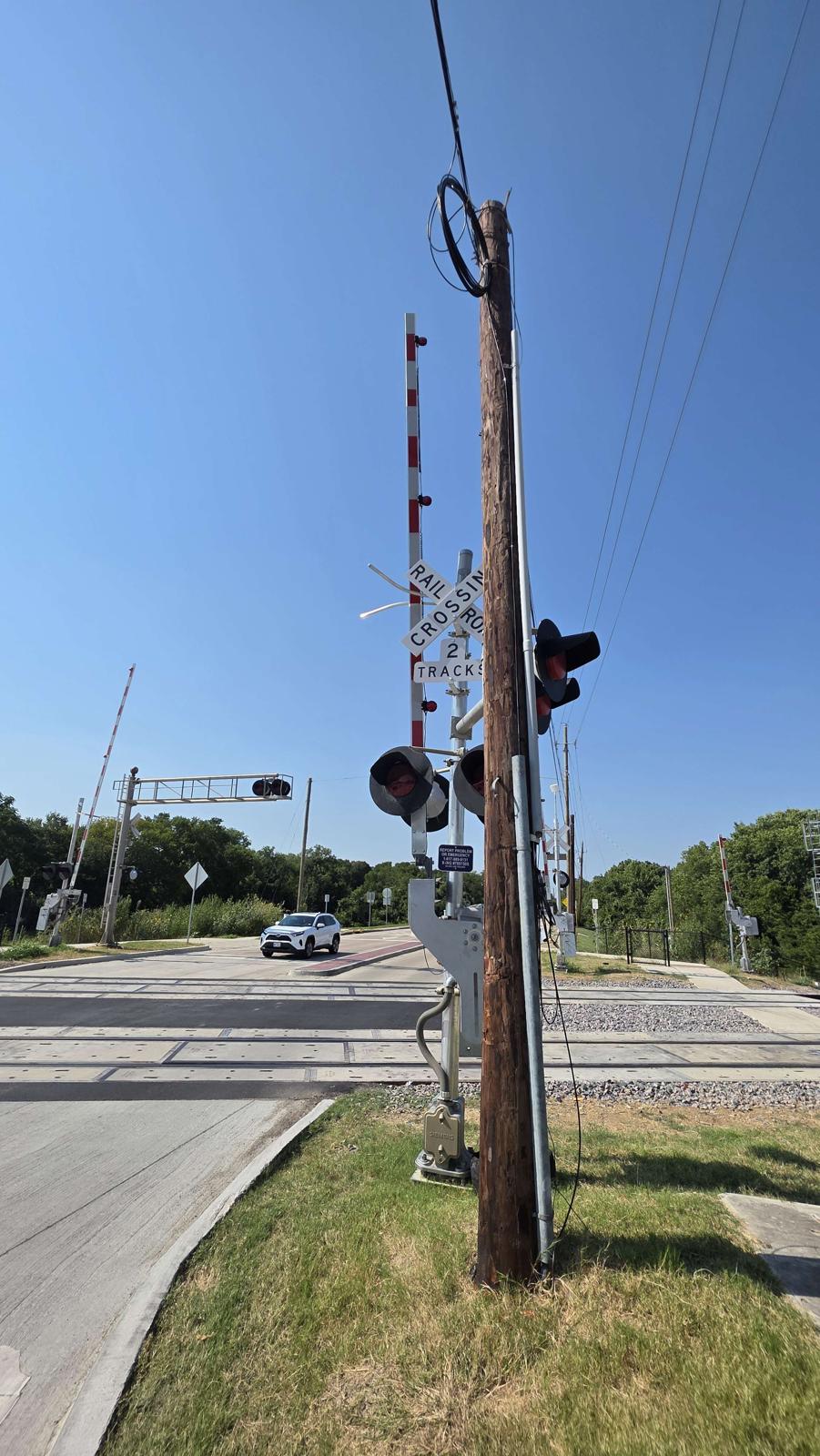

Overview facing south.
2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
17 18 19 20

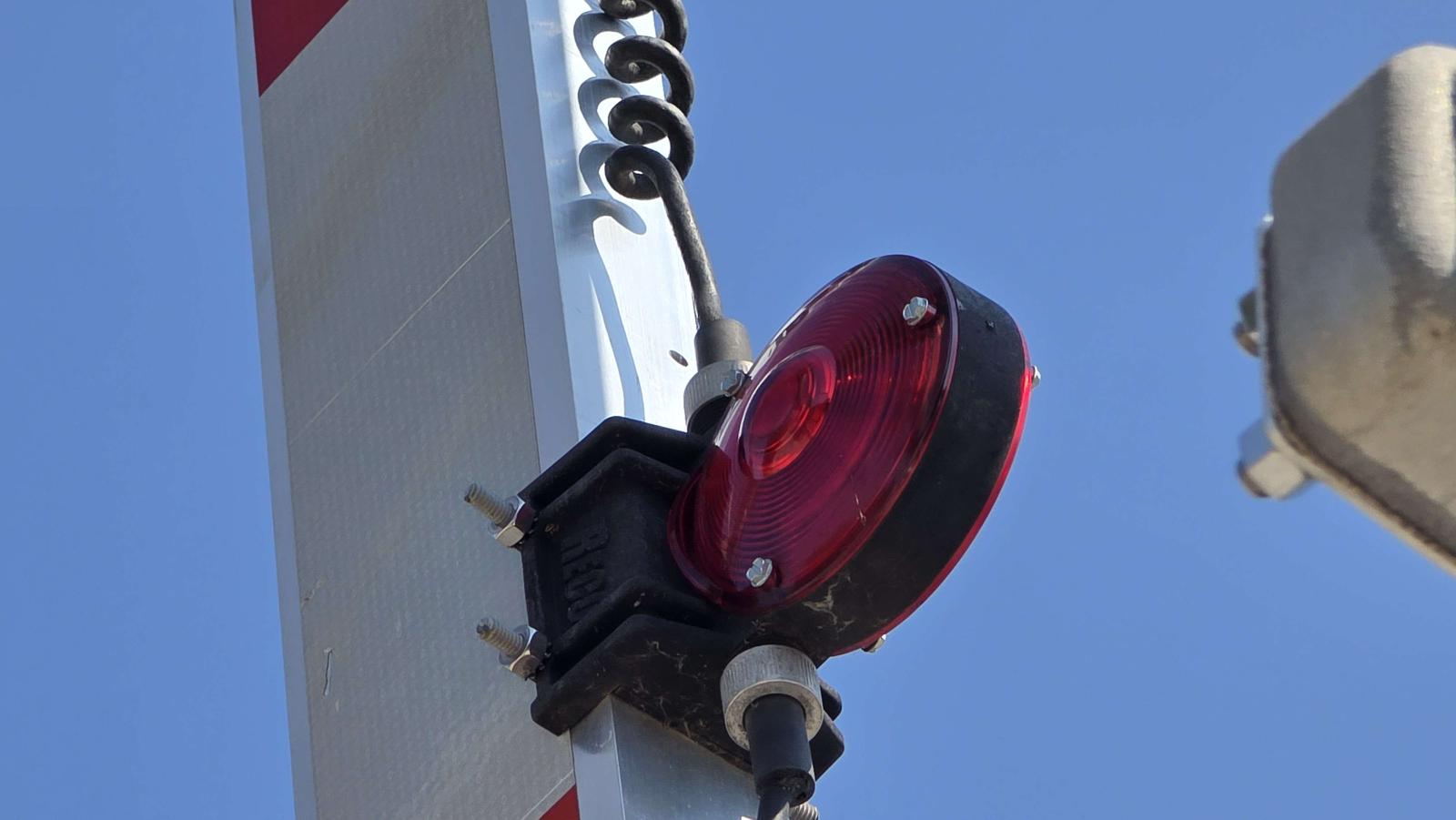

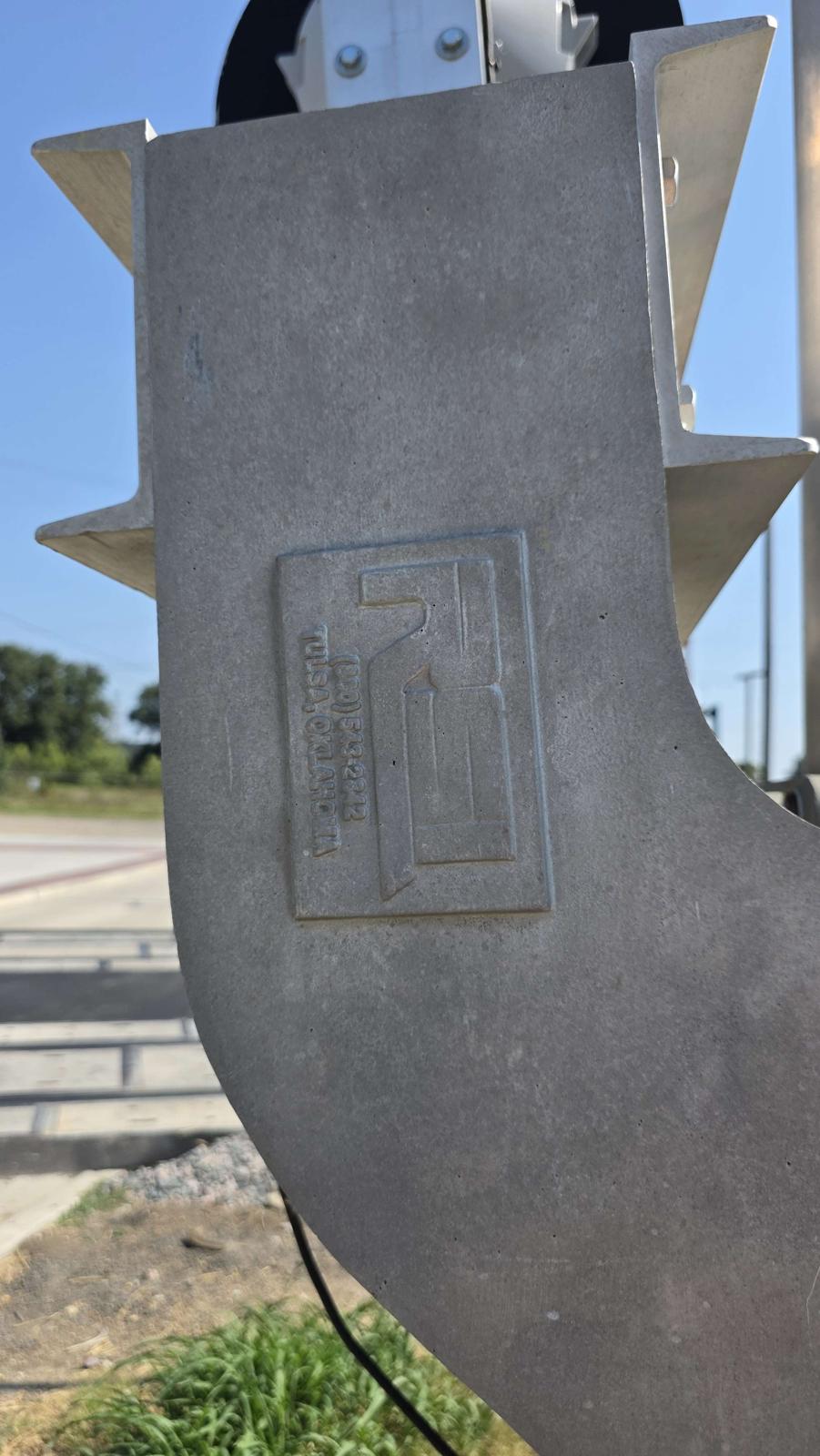

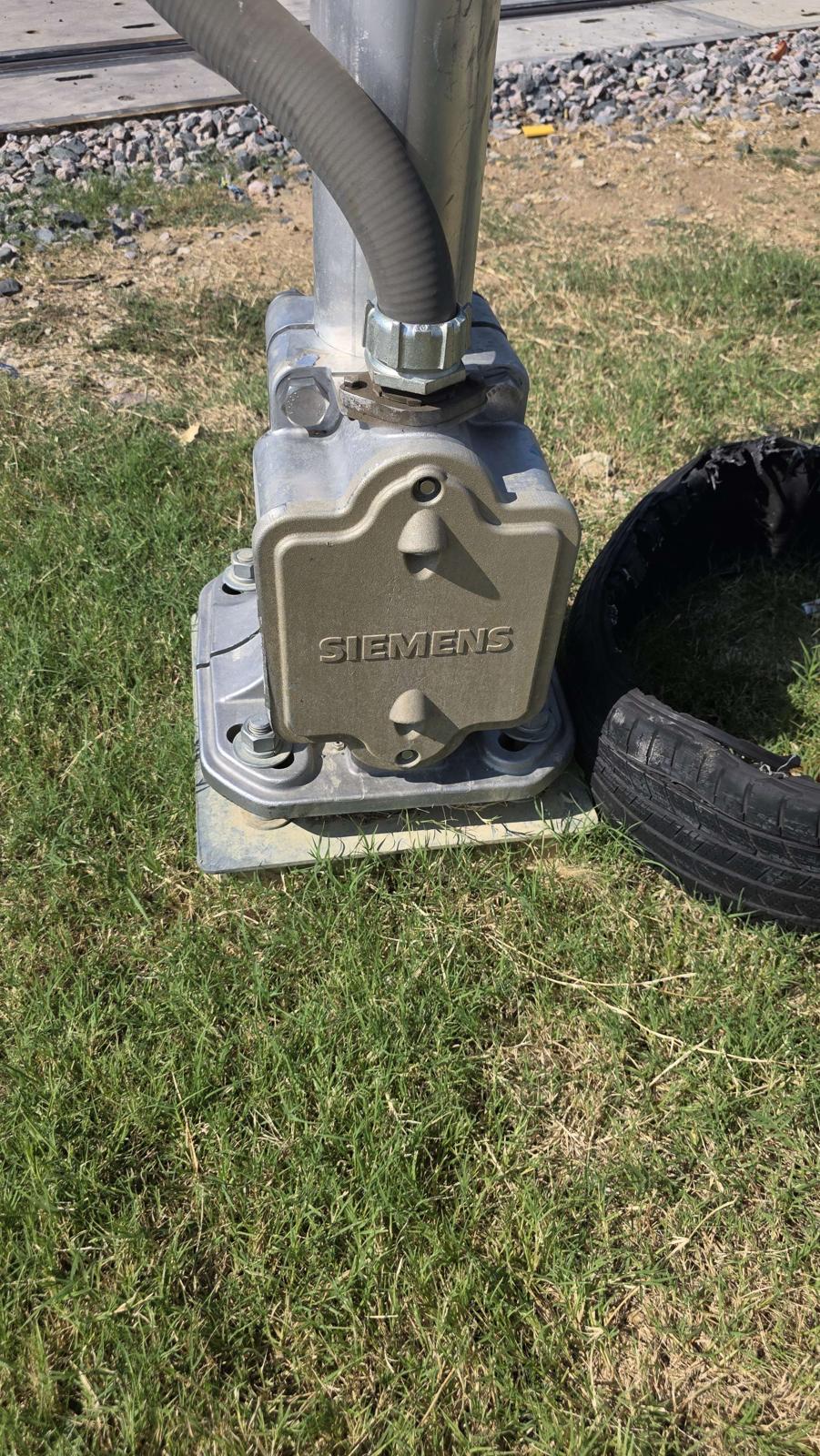

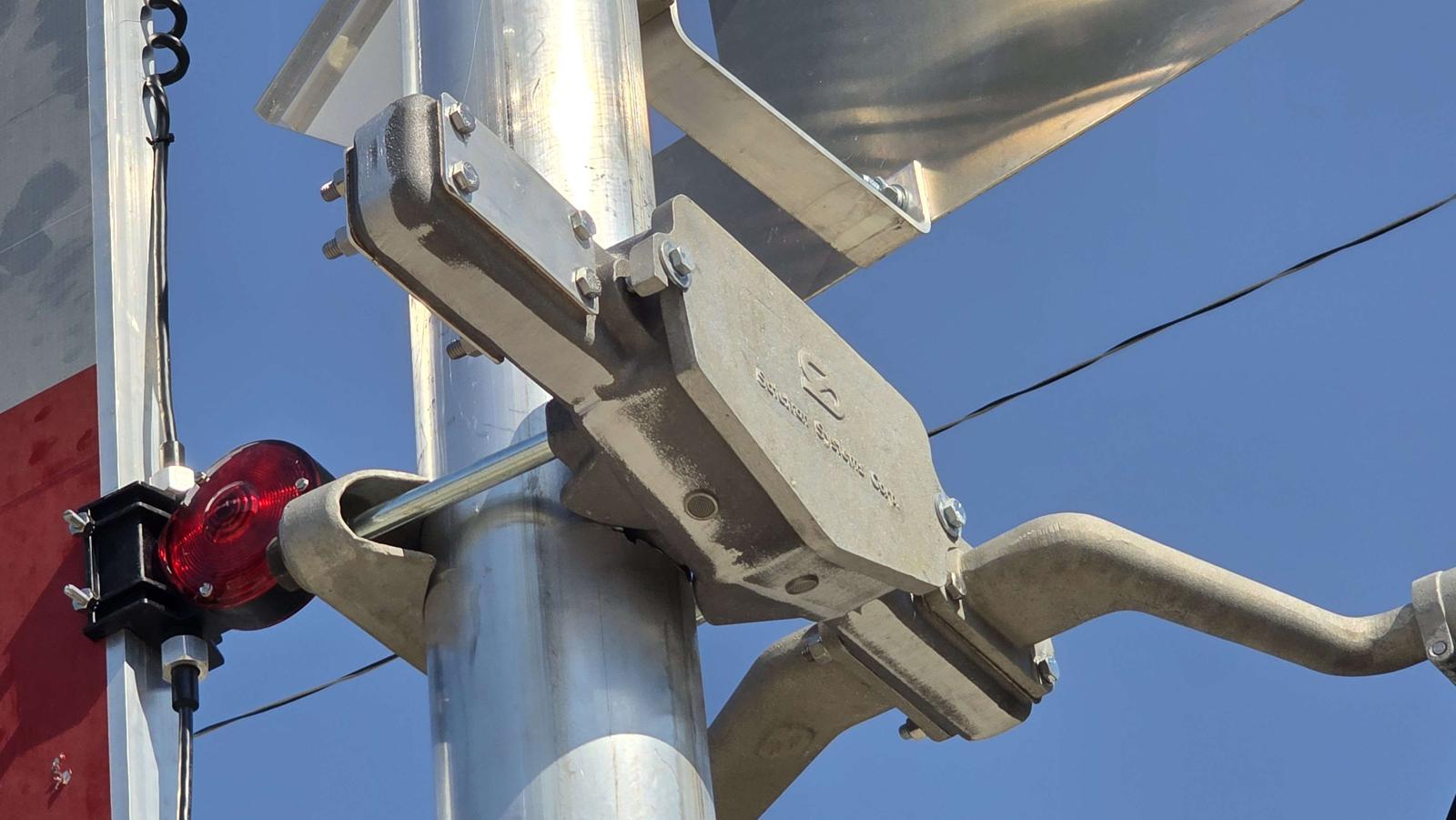

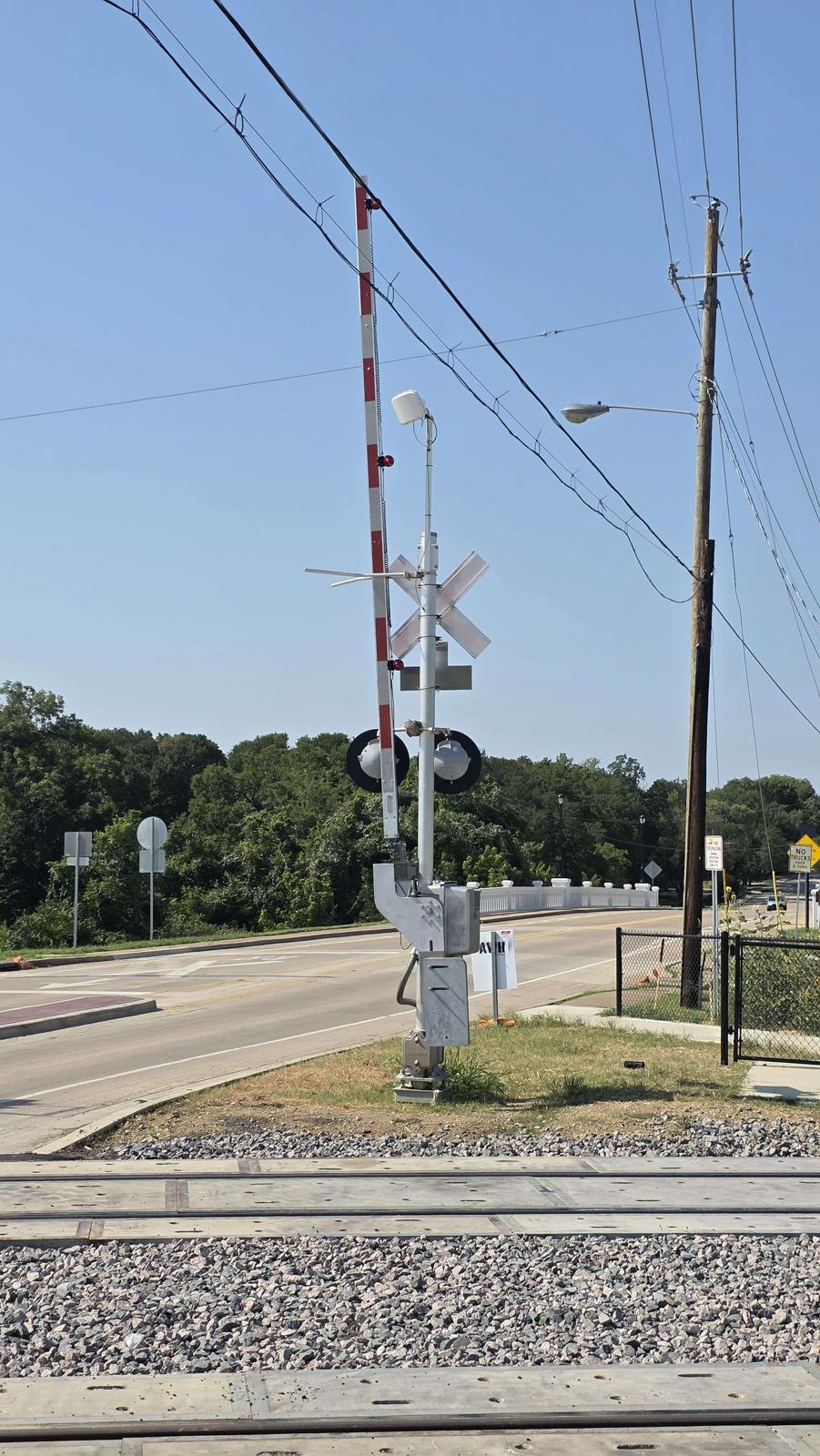

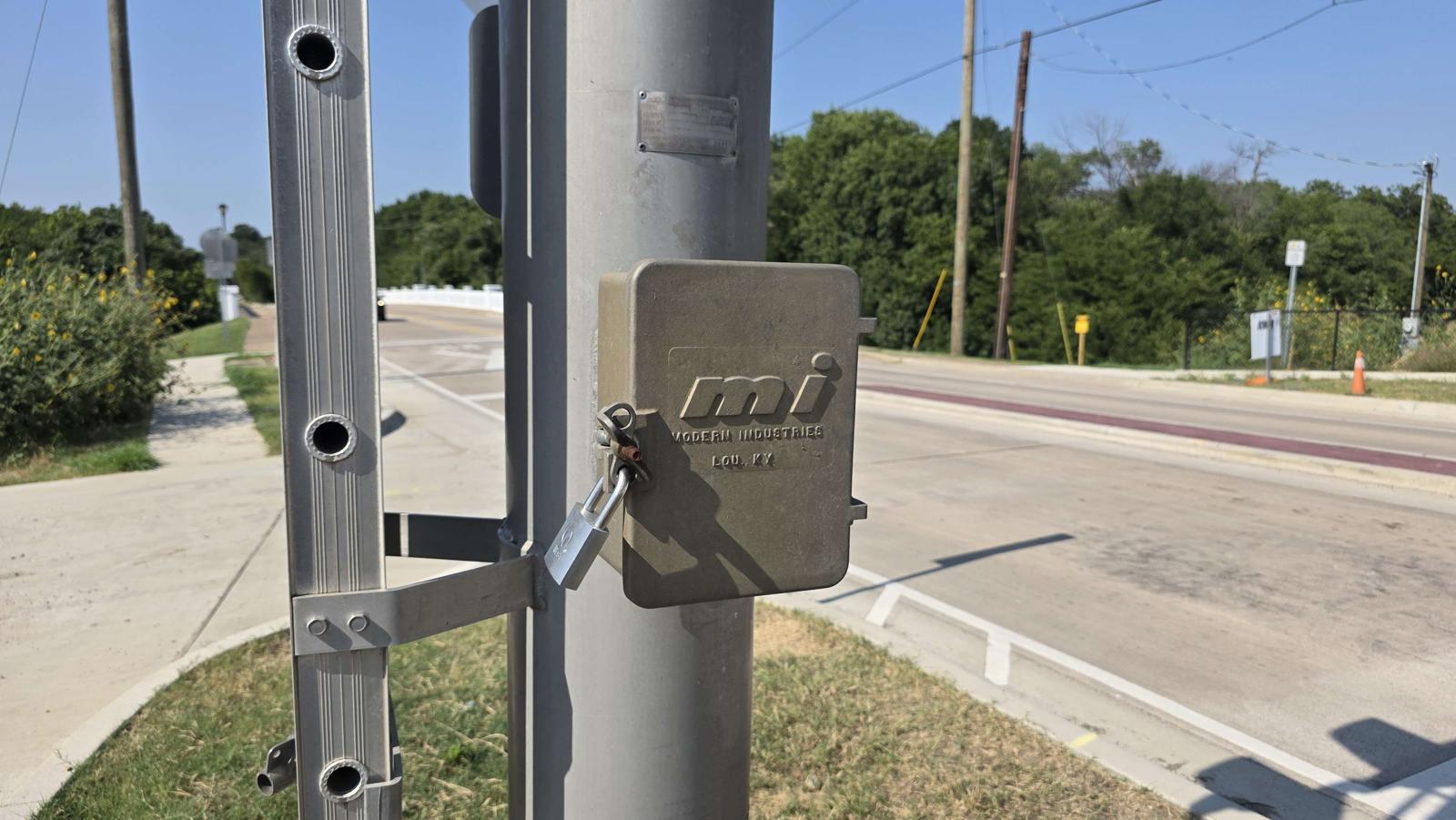

The northwestern signal.
21 22 23
24 25 26
27 28 29 30

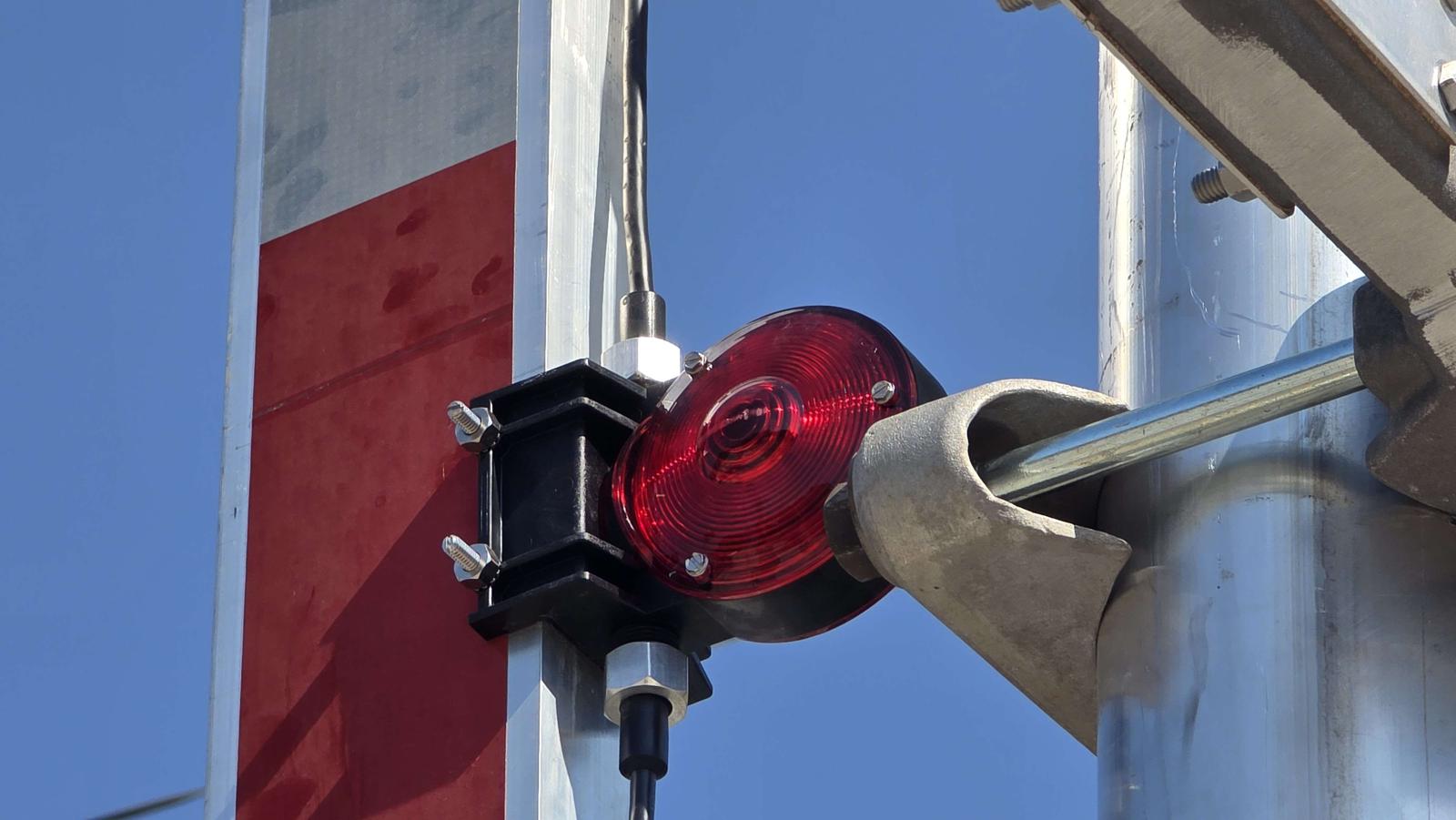

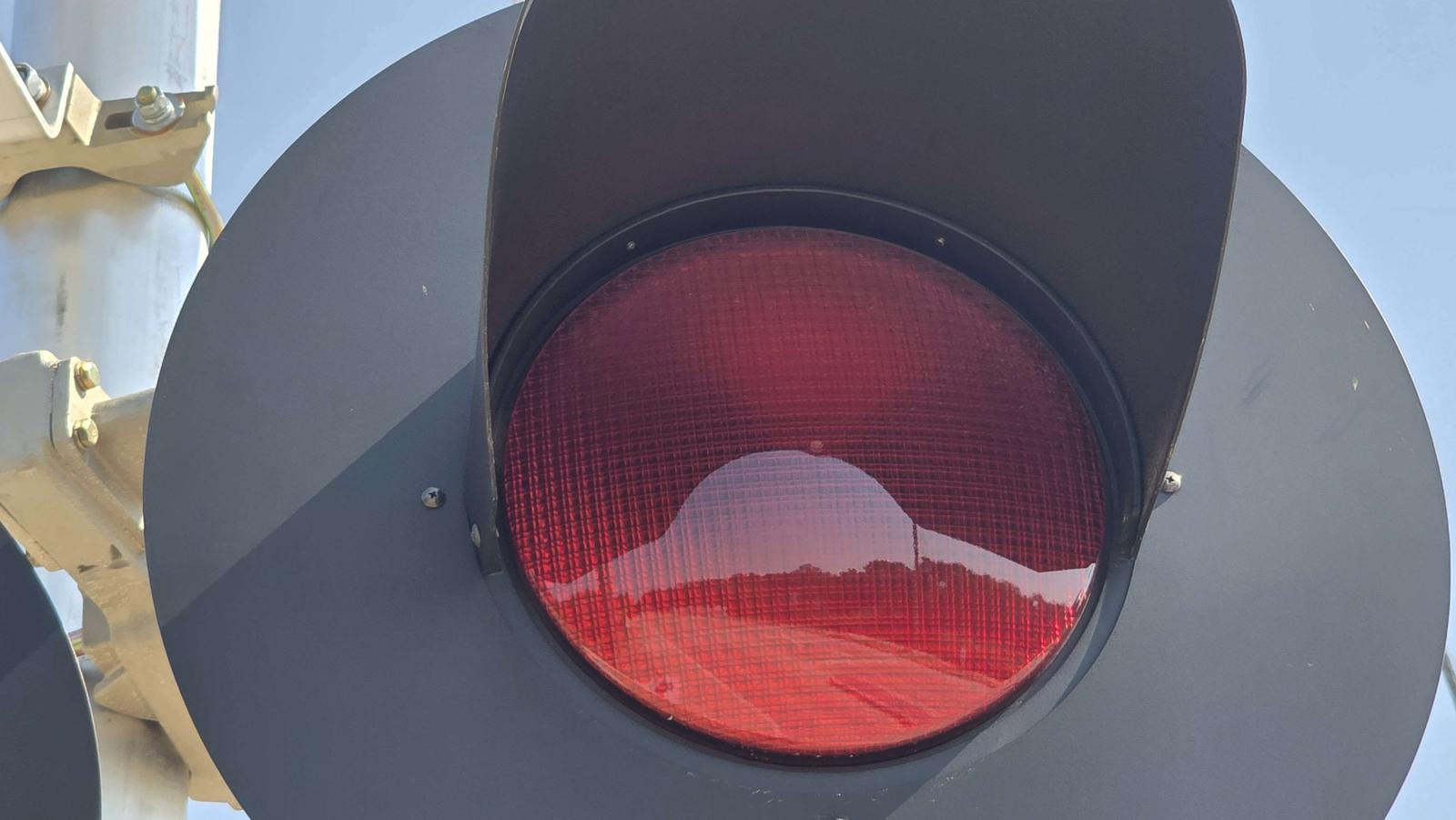

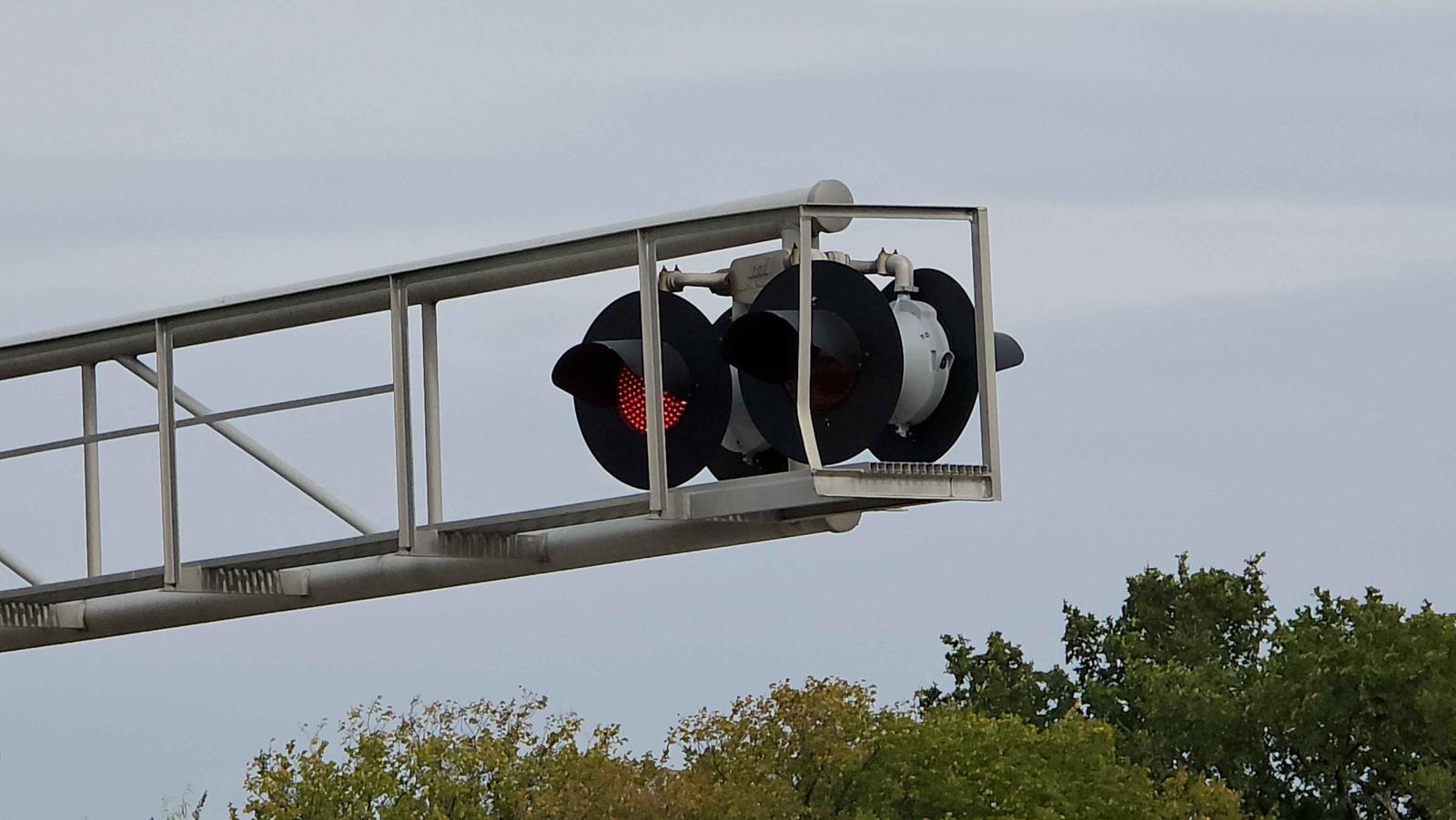

The northeastern signal.
31 32 33 34
35 36 37 38
39 40 41 42

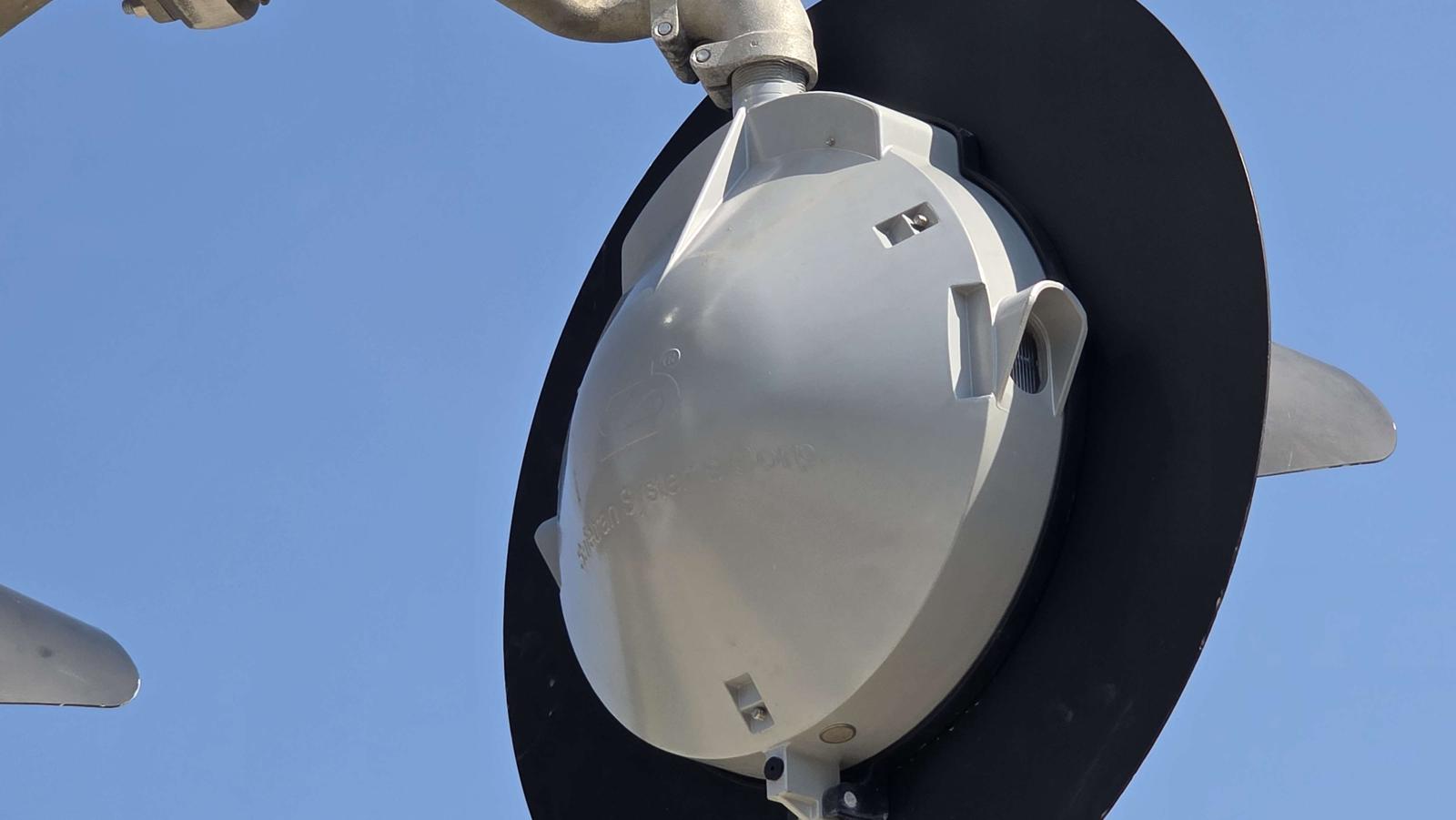

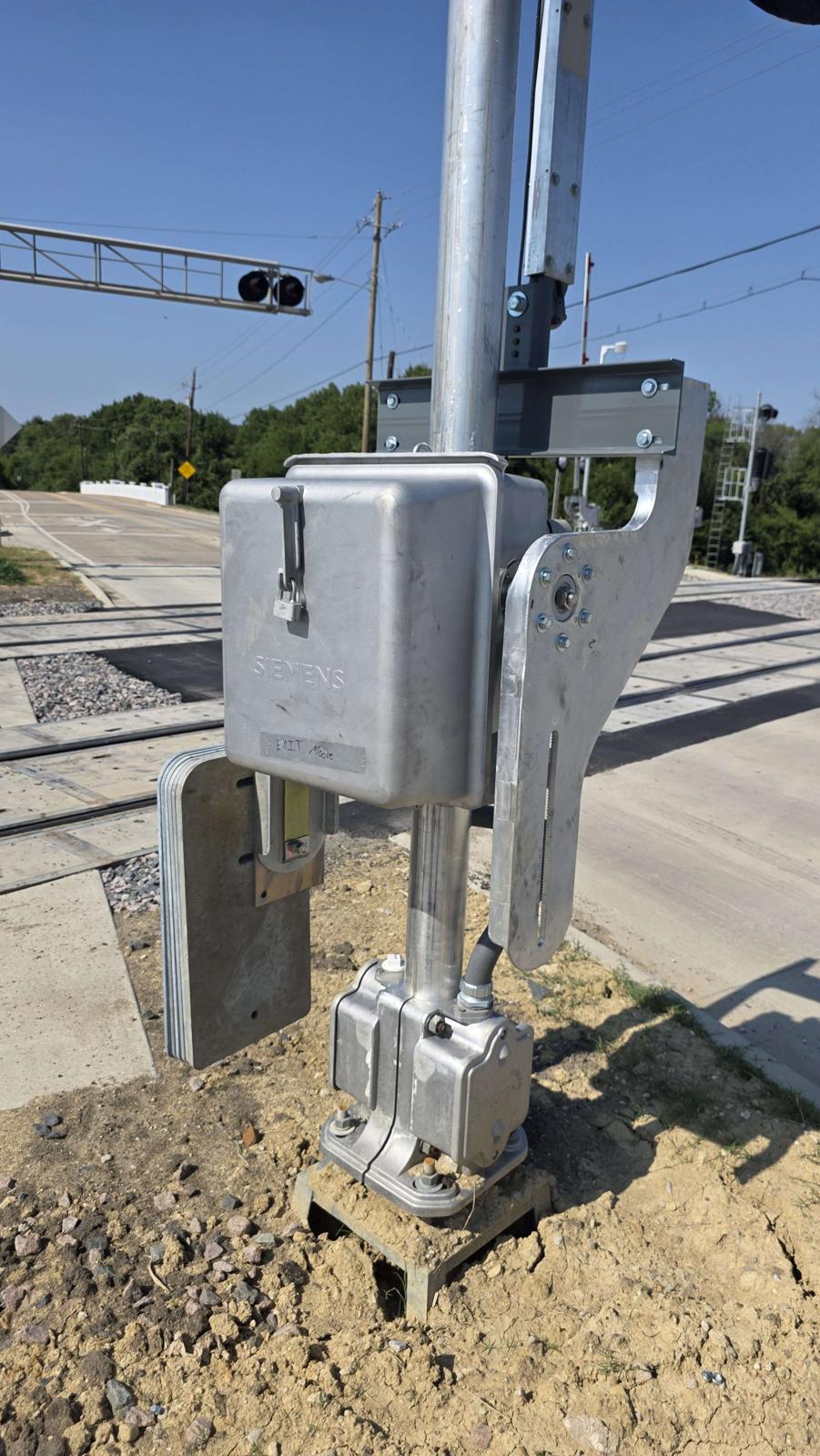

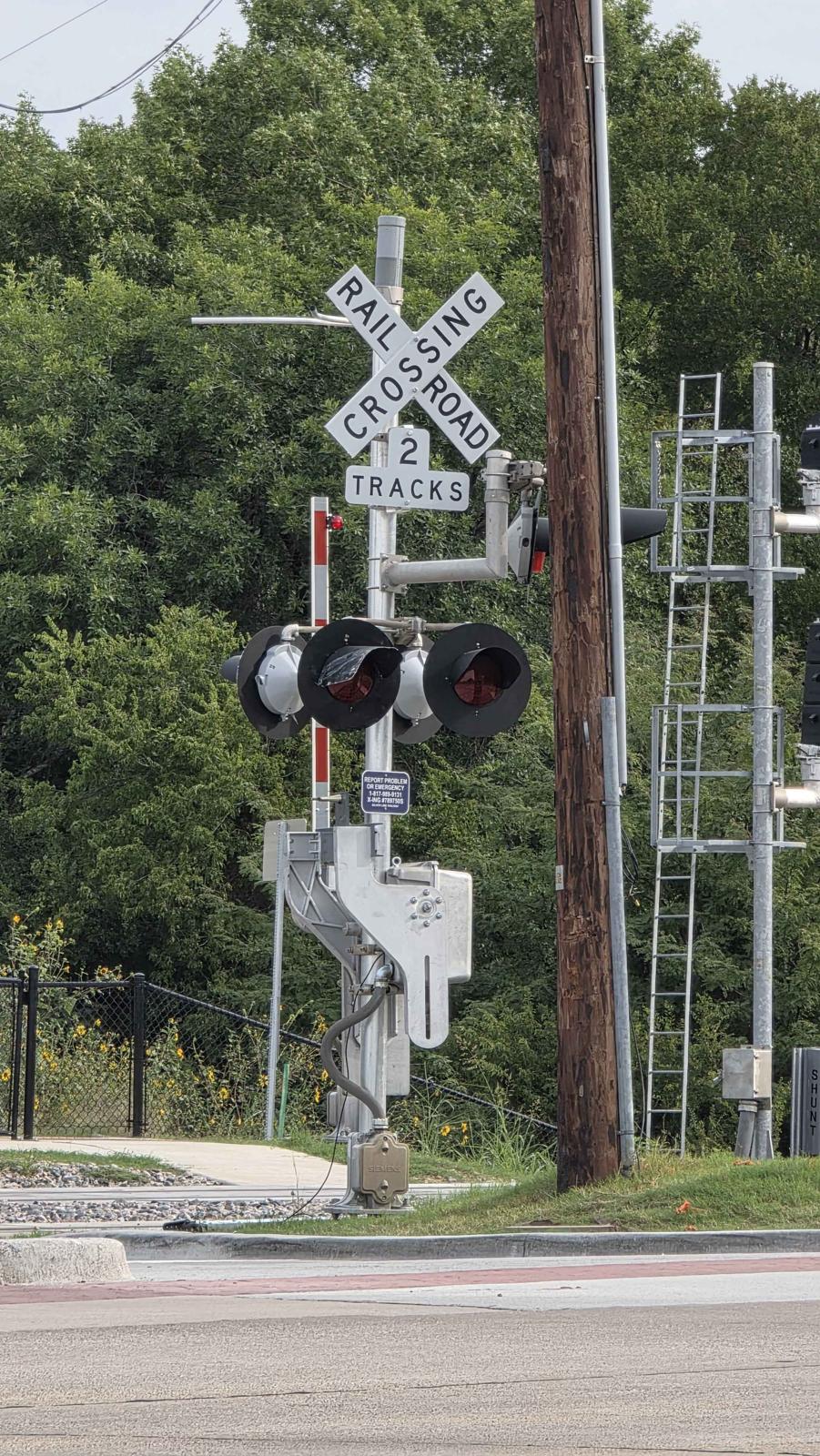

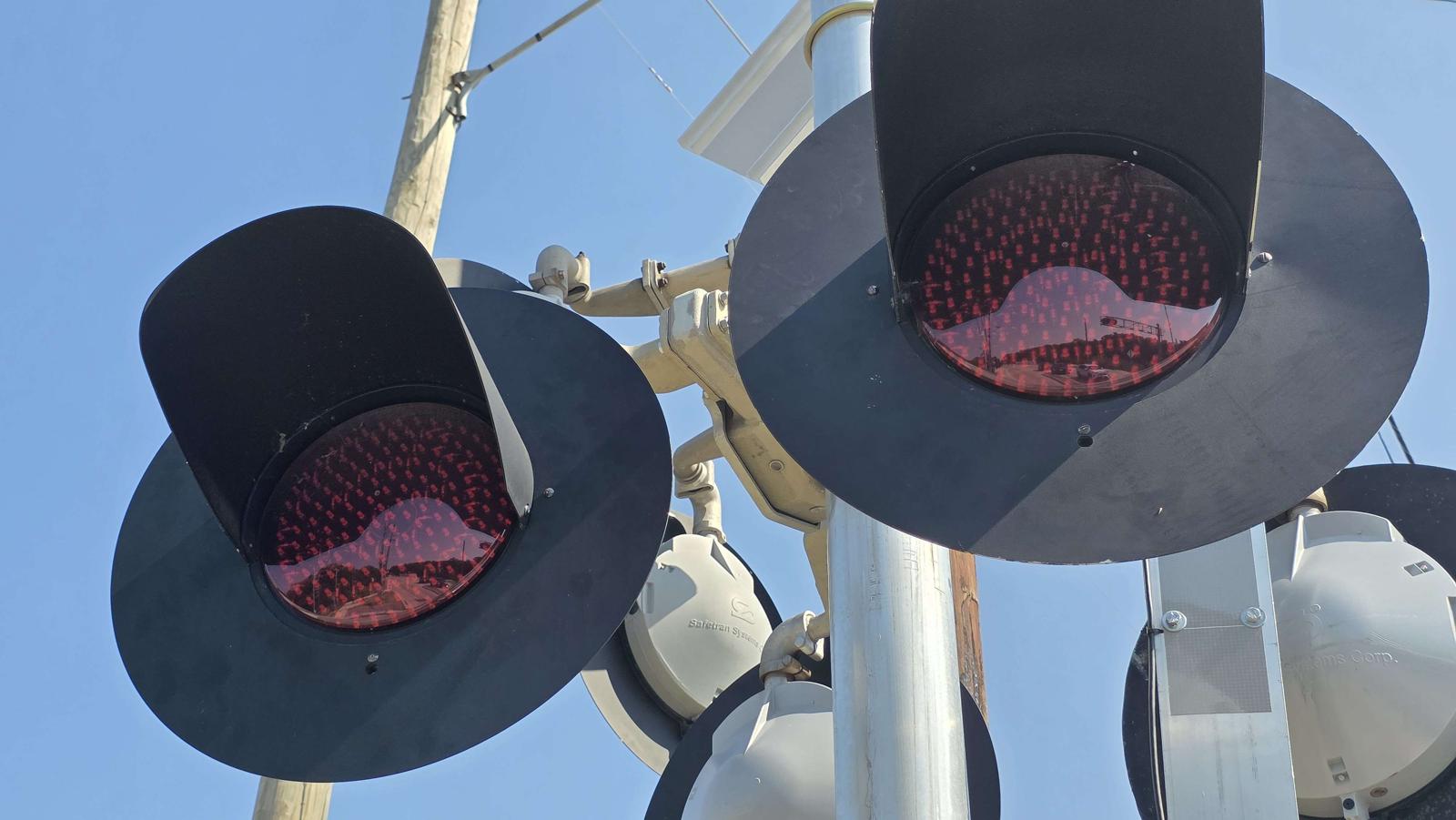

The southeastern signal.
43 44 45
46 47 48
49 50 51

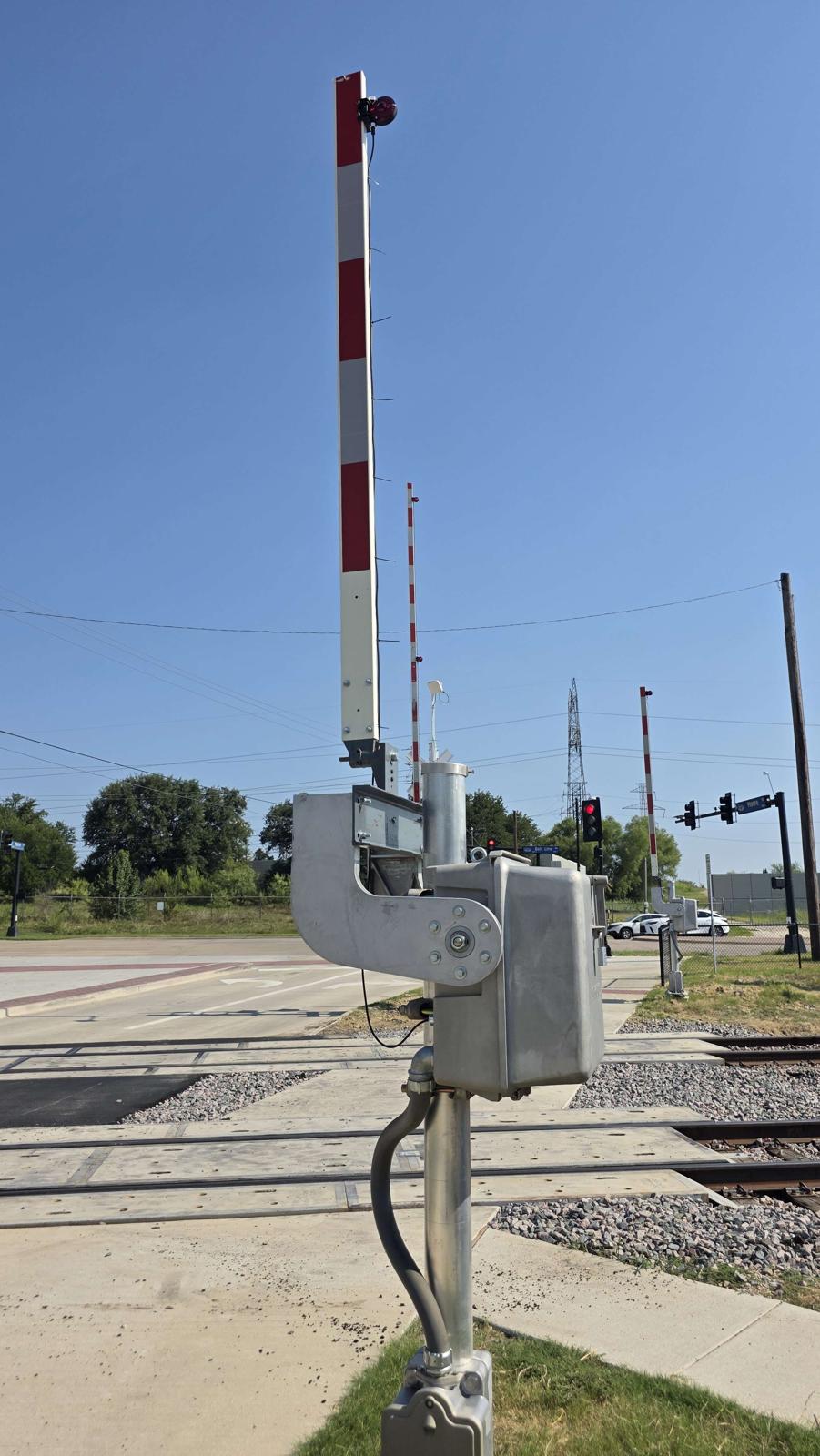

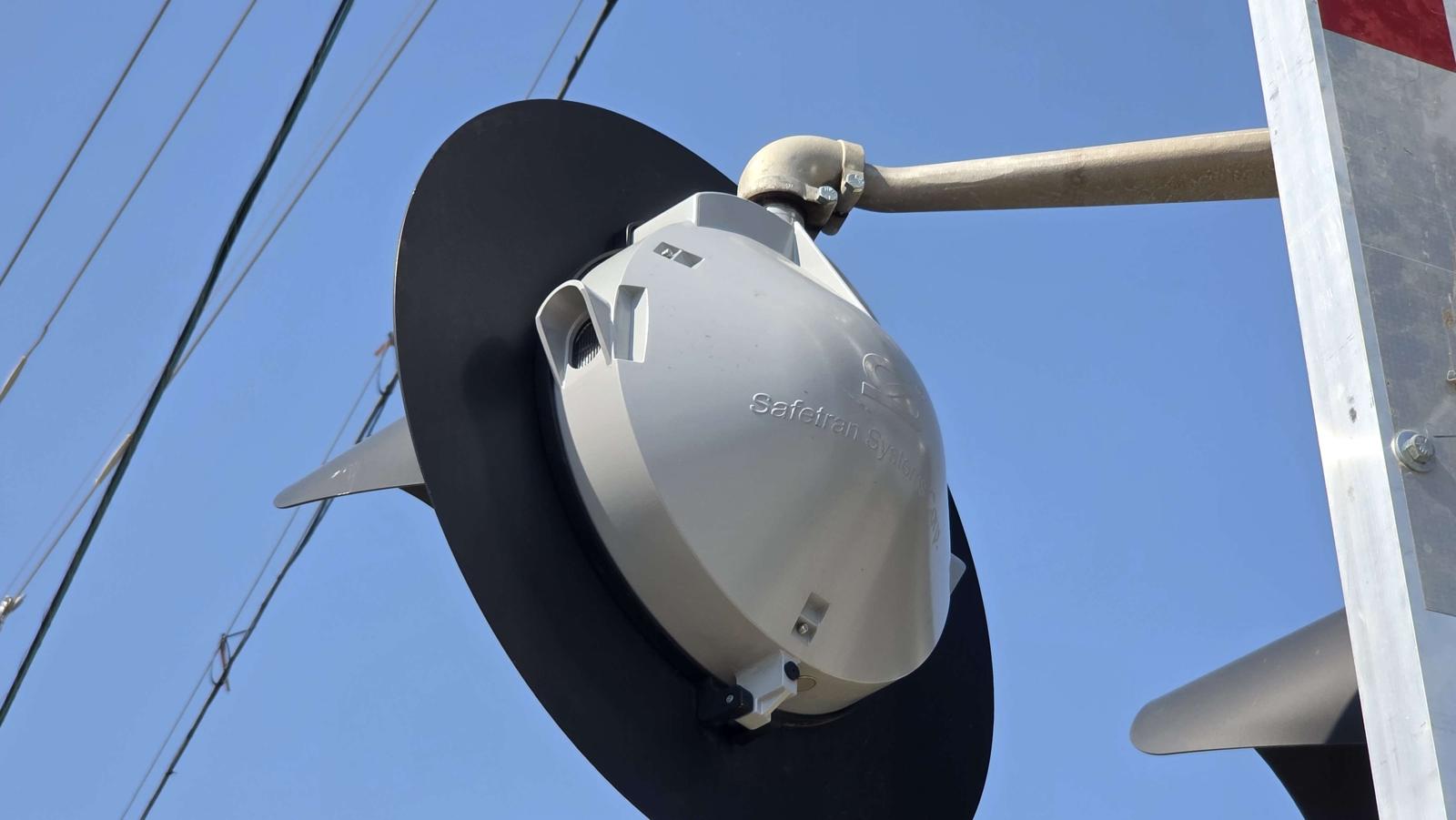

The southwestern signal.
52 53 54

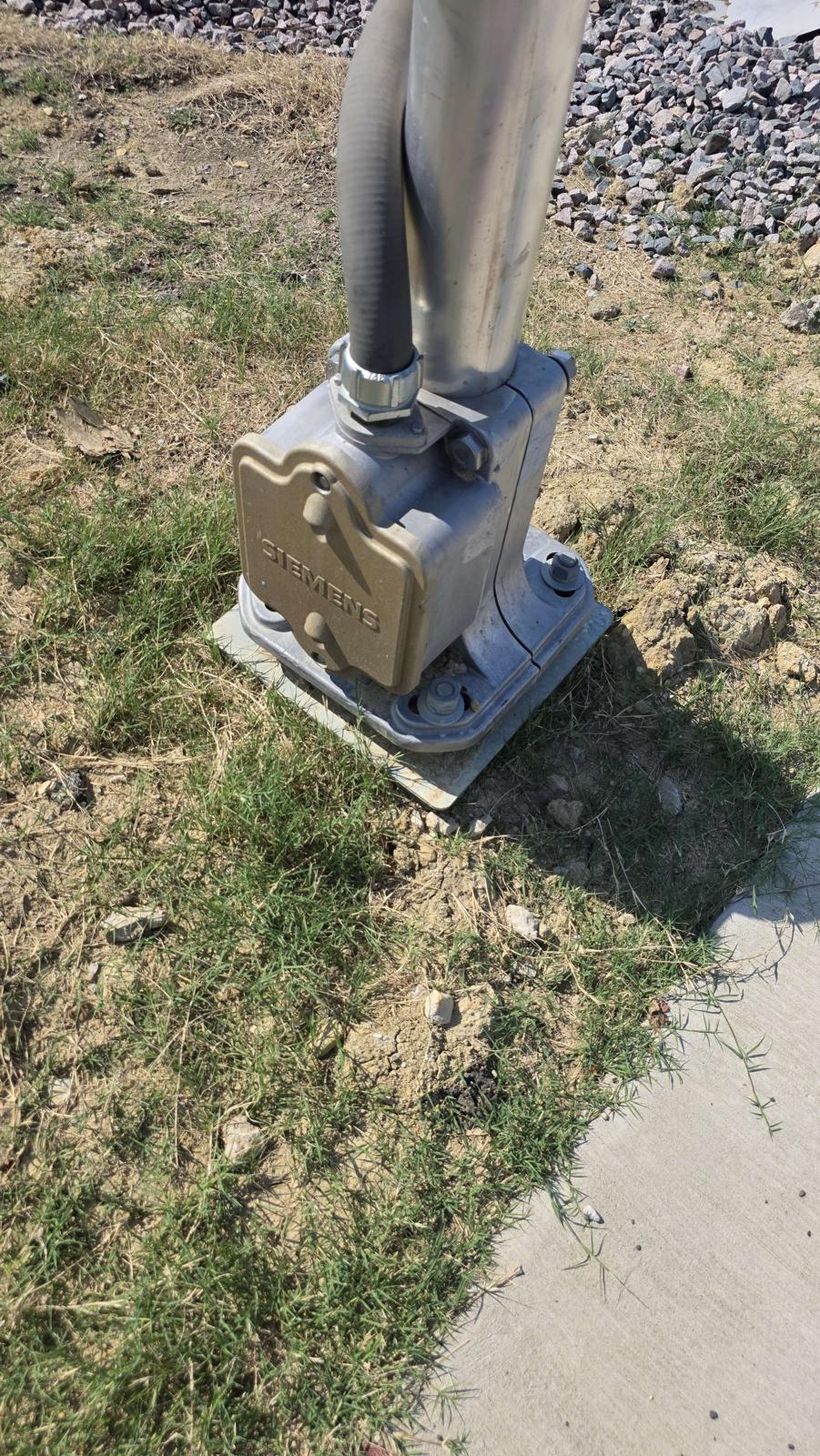

The southeastern pedestrian signal.
55 56 57 58
The southwestern pedestrian signal.
59 60
61 62 63
The northeastern pedestrian signal.
64 65 66
The northwestern pedestrian signal.
67
 68
 69

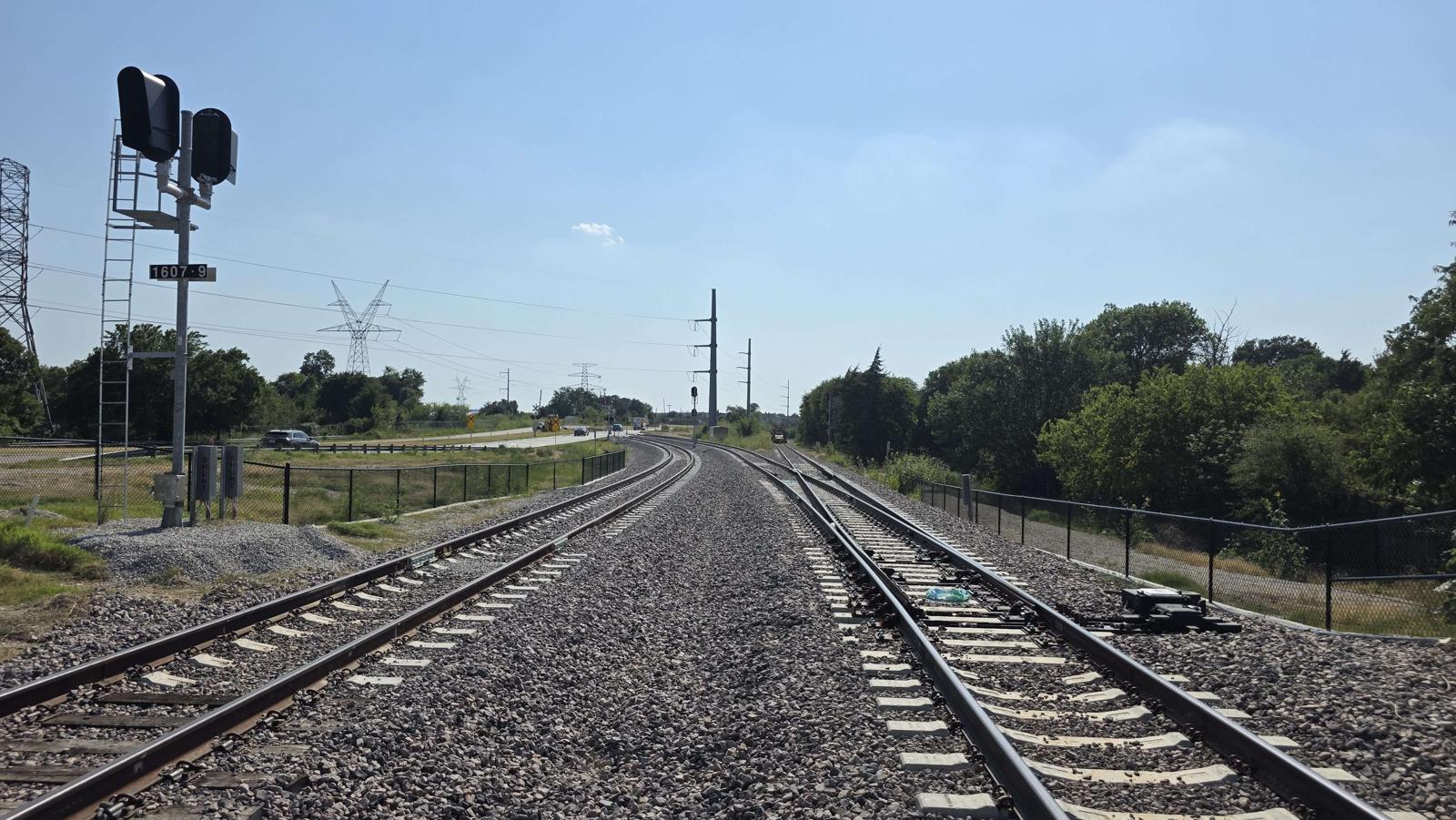

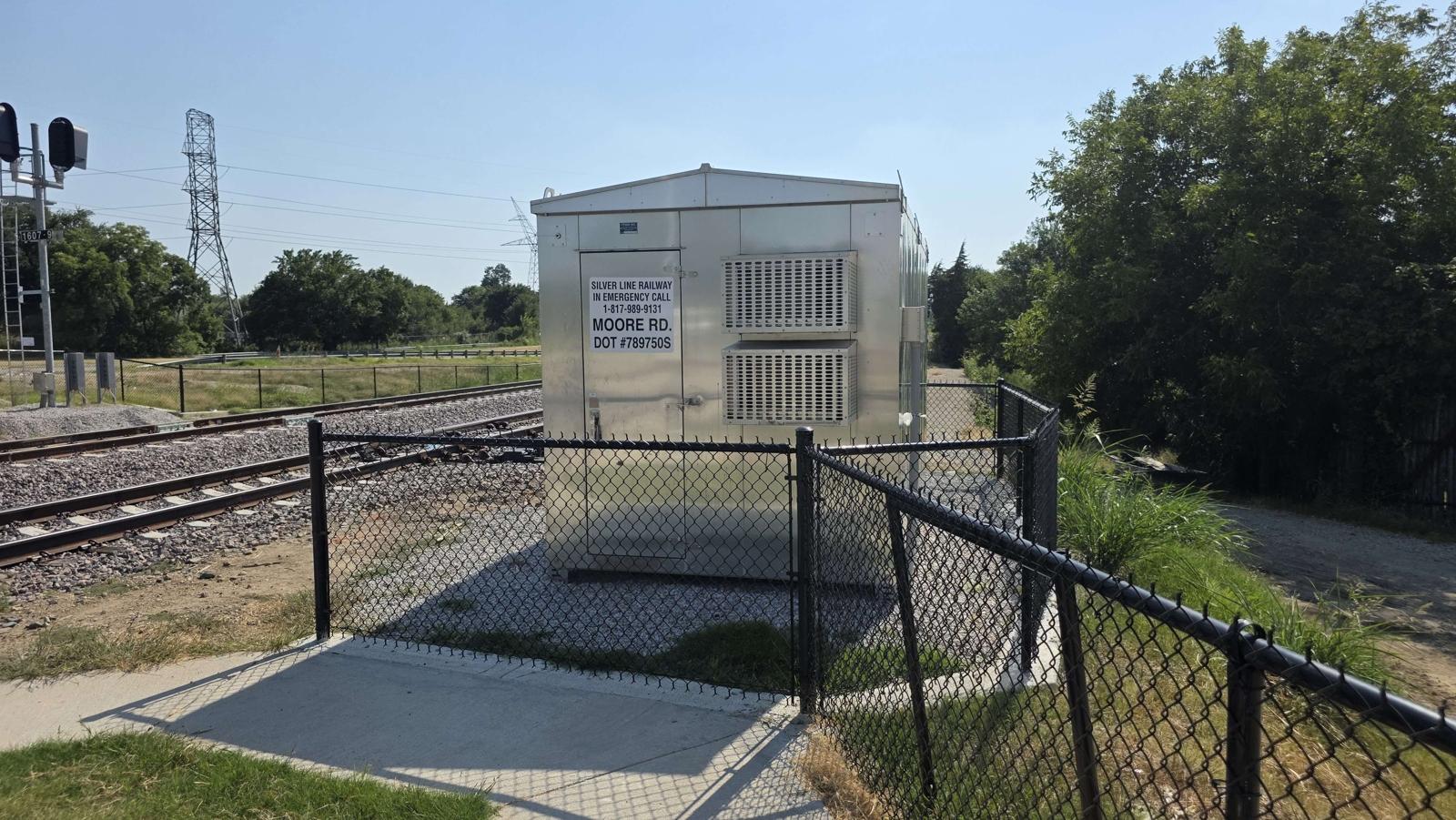

The relay bungalow.Track view facing east towards Mockingbird Ln.Track view facing west towards Denton Tap Rd.
70 71 72
73 74 75 76

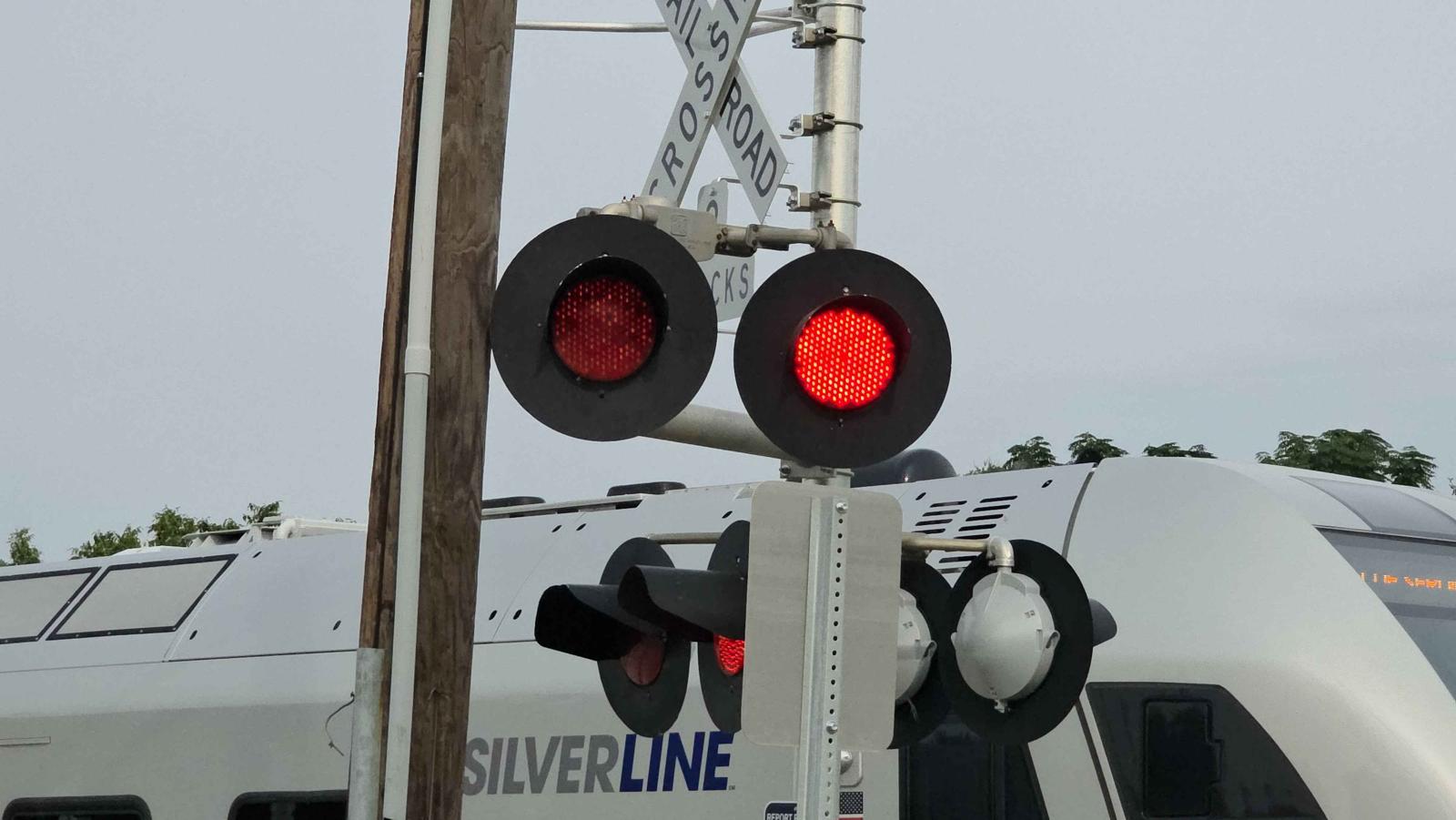

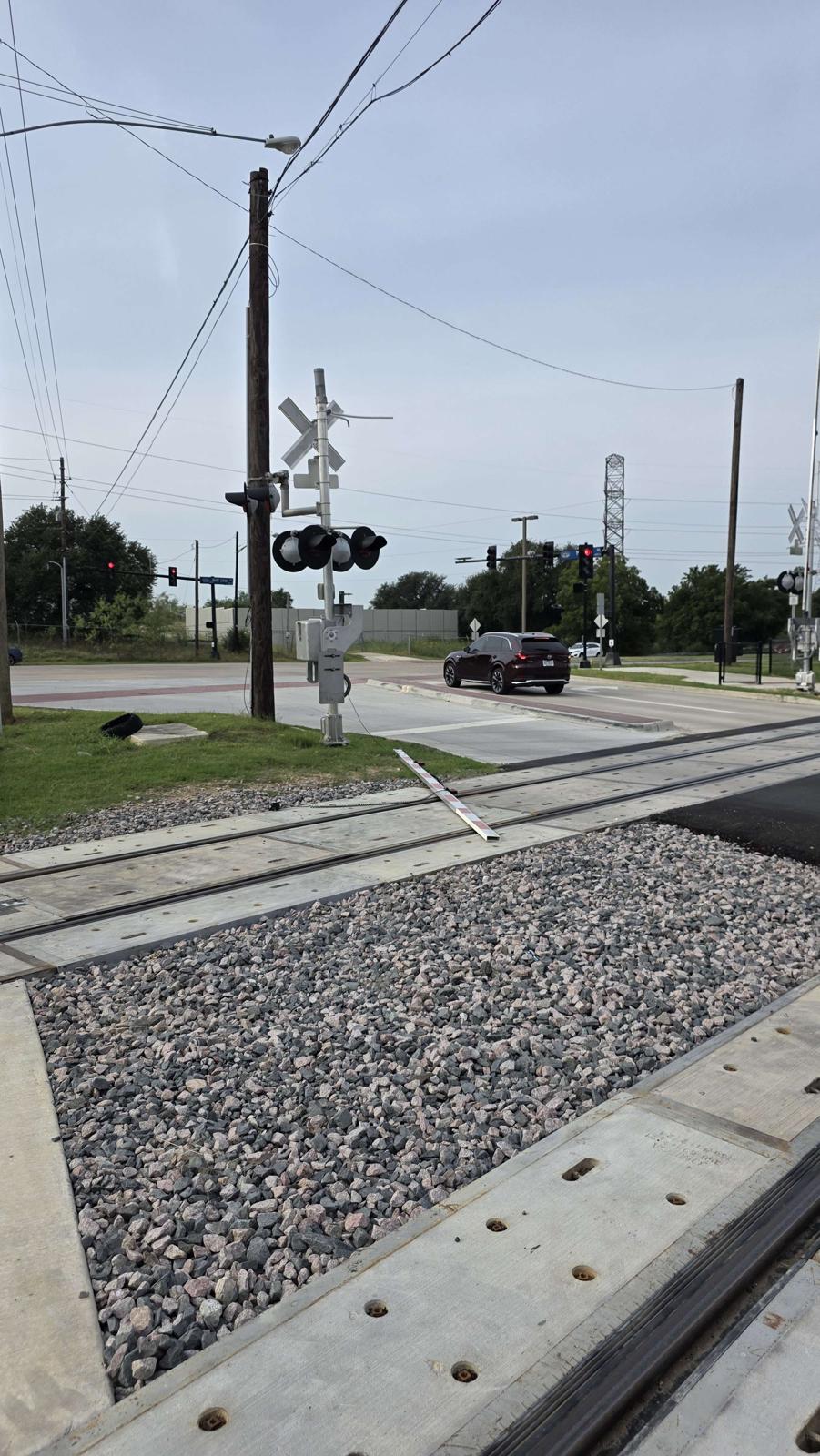

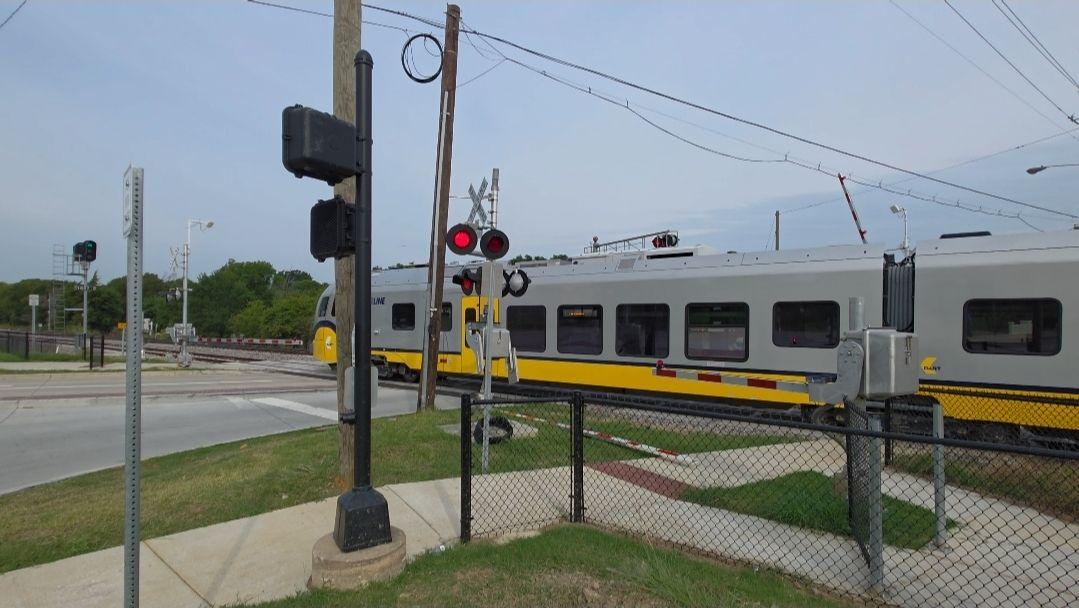

A return visit in September 2025 shows the crossing in action. The southern entrance signal's gate also broke off!
