Overviews of the crossing. There's one Safetran cantilever and one mast signal with 12"x20" Safetran incandescent lights. There's one WCH Mechanical Bell on the signal seen in picture 2.

A view of the tracks going Southbound. The tracks take a wide turn at the crossing,

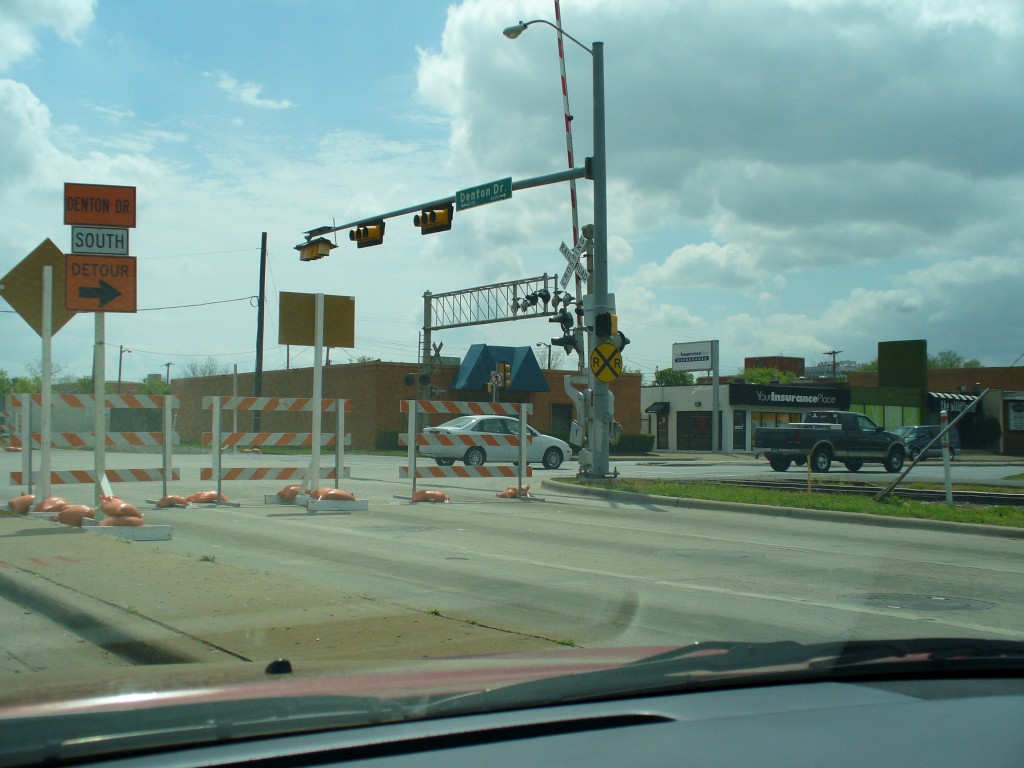

Overview looking southwest on Mockingbird Ln.

A crossbuck for NorthBound Denton Dr.

Back of mast signal that replaces the cantilever. It's on a portable base. It cannot be seen by traffic traveling NorthEast on Mockingbird Ln. because it's hidden from view.

Facing NorthEast on Mockingbird Ln.

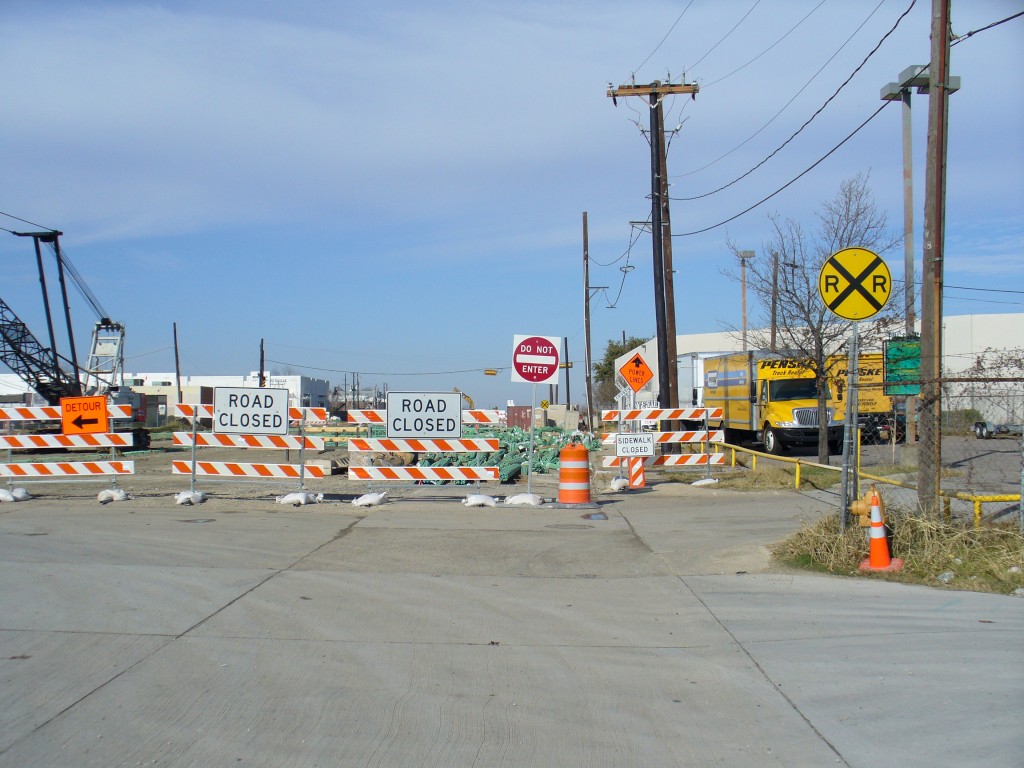

Looking North on Denton Dr. It's closed because the spur track is being redone.

A closer view from what's seen in picture 9.

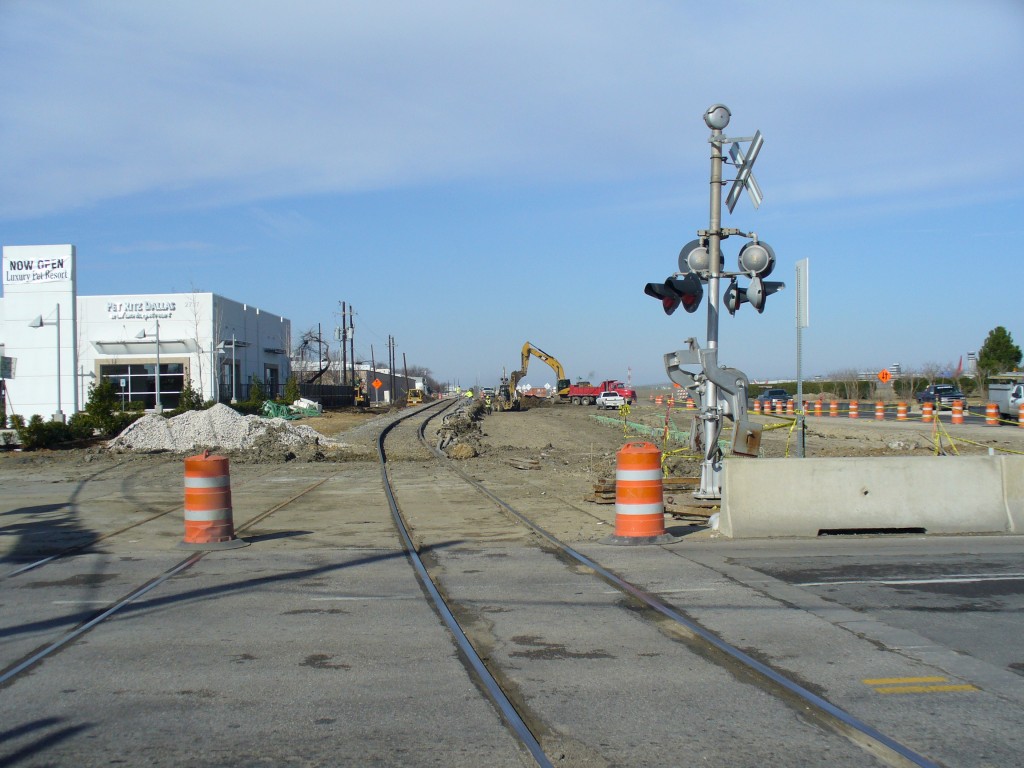

Facing North on the main track. The gate on this signal has been removed, and a 24" background is on one of the side lights.

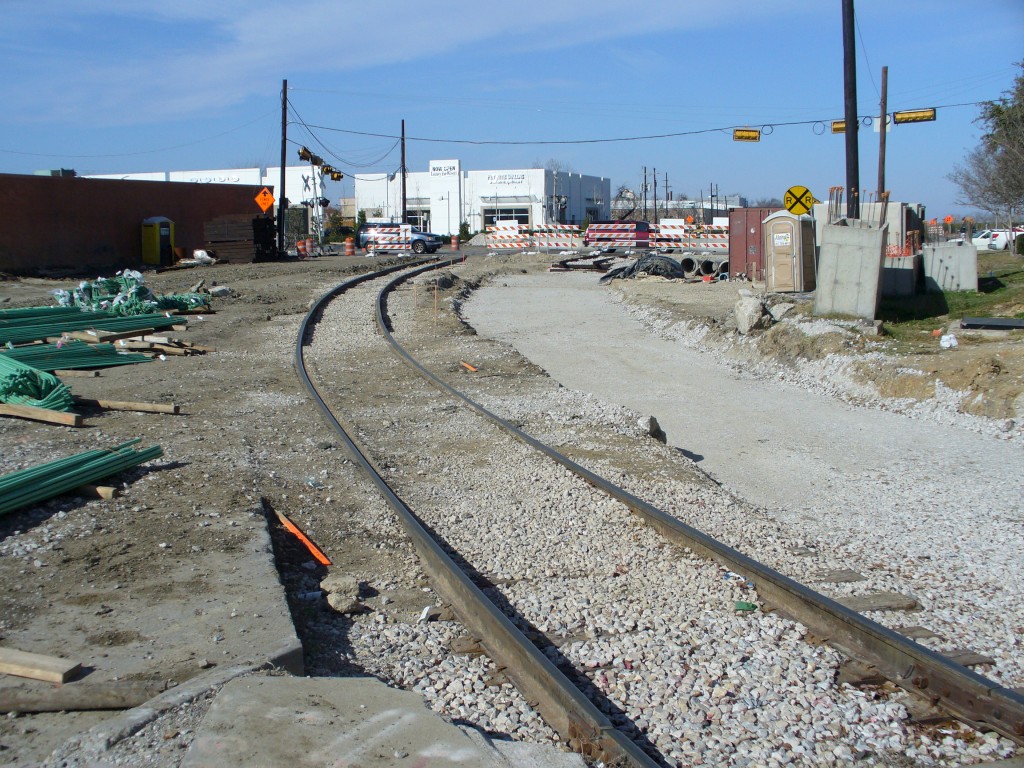

Facing South on the Spur track. It's being redone-the new one is being laid next to the old one.

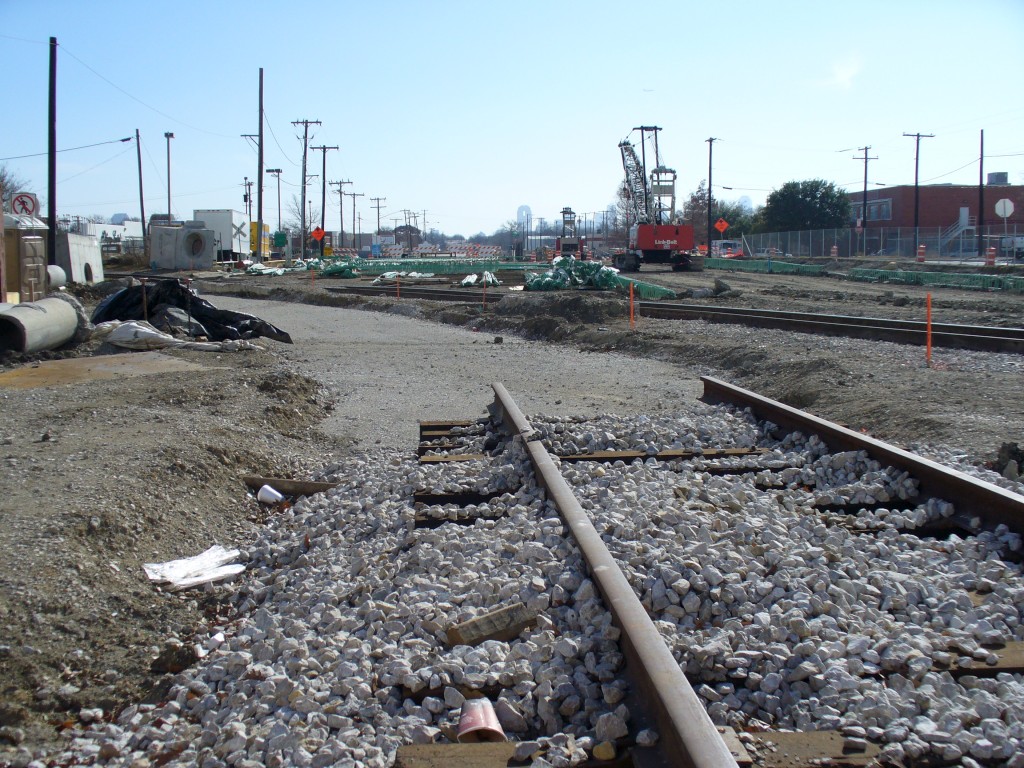

Looking North on the spur track-there is supposed to be a crossing here-but it's temporarily torn out.

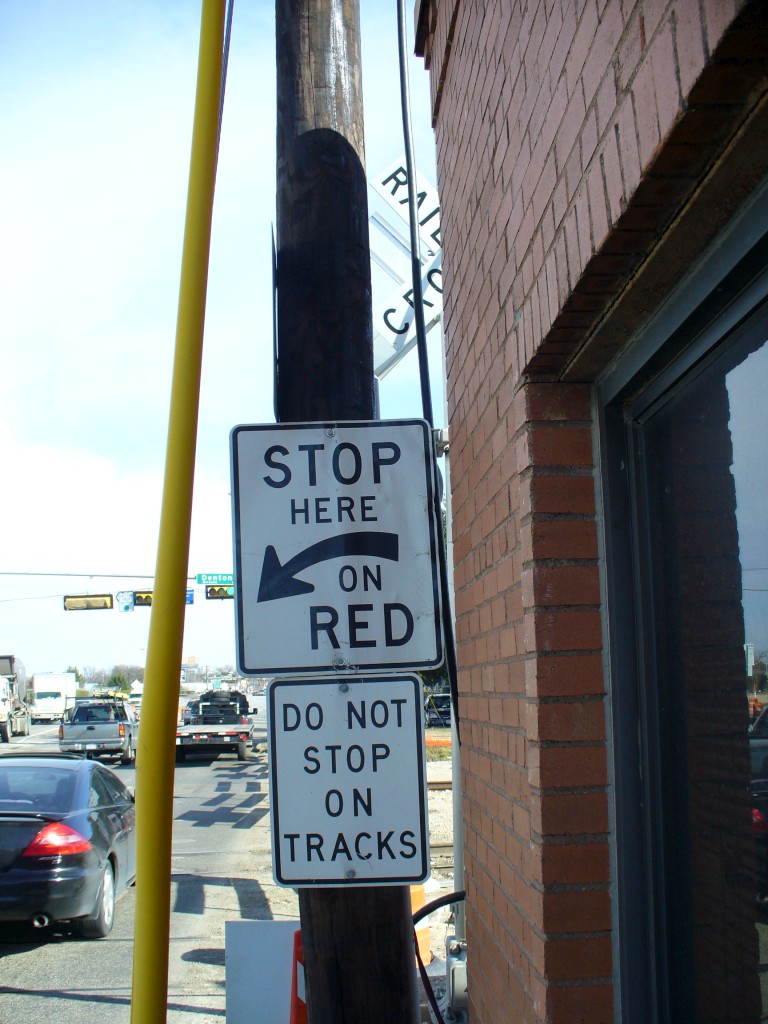

A Stop here on red sign. Notice the mast signal is not visible because it's hidden from view.

On April 11, 2010, we see that some newer signals are going up, even though construction still continues out here.

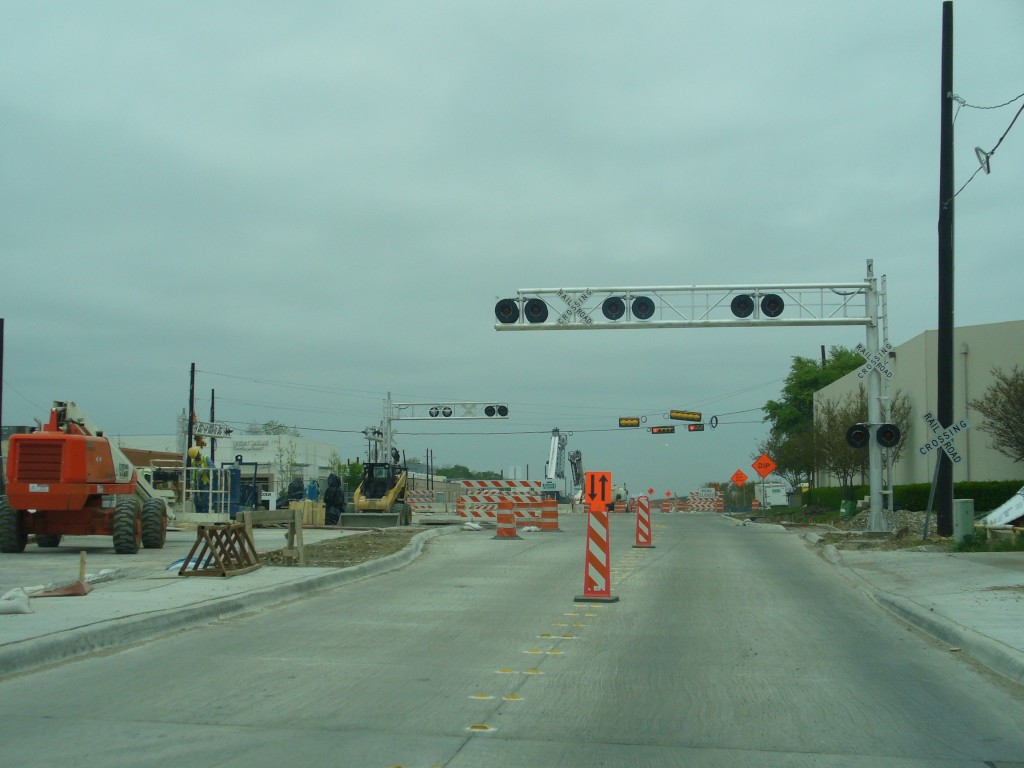

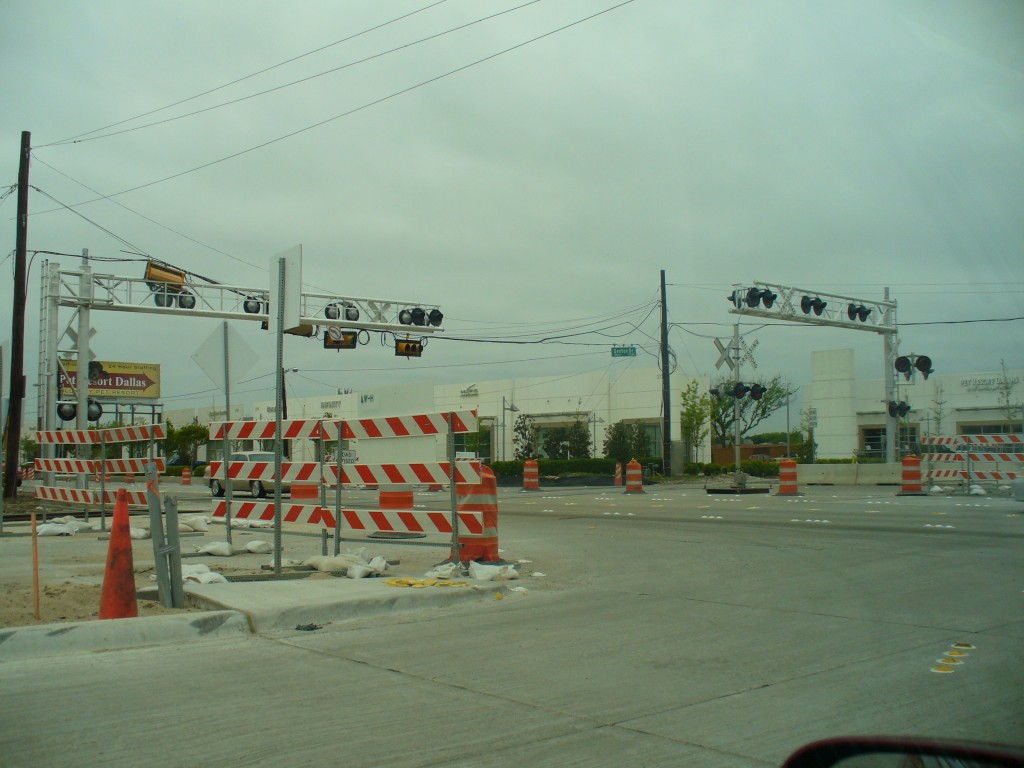

Picture 15 shows Mockingbird Lane's newest signals, 13 pairs of 12"x24" lighting, and is now gateless, when it used to be gated! It's not known if the crossing has gates now though. A temporary 12"x20" signal exists for the time being.



Picture 16 shows Denton Street, as seen in pictures 12 and 13 has changed a bit, and now has cantilever signals, when before the upgrade, the crossing was only passive. All four signals now have GS electronic bells.



More pictures may follow in 2011...
