At this crossing, the tracks cross diagonally through the intersection of two streets. There are 4 identical crossing signals, one for each corner of the intersection (in photos #1 and #6 you can see the position of all 4 signals). Each signal has 12"x20" incandescent lights, gate motor and bell all manufactured by WCH. With 4 mechanical bells, it would be interesting to hear this crossing when activated...
|
1 |
2 |
3 |
4 |
|

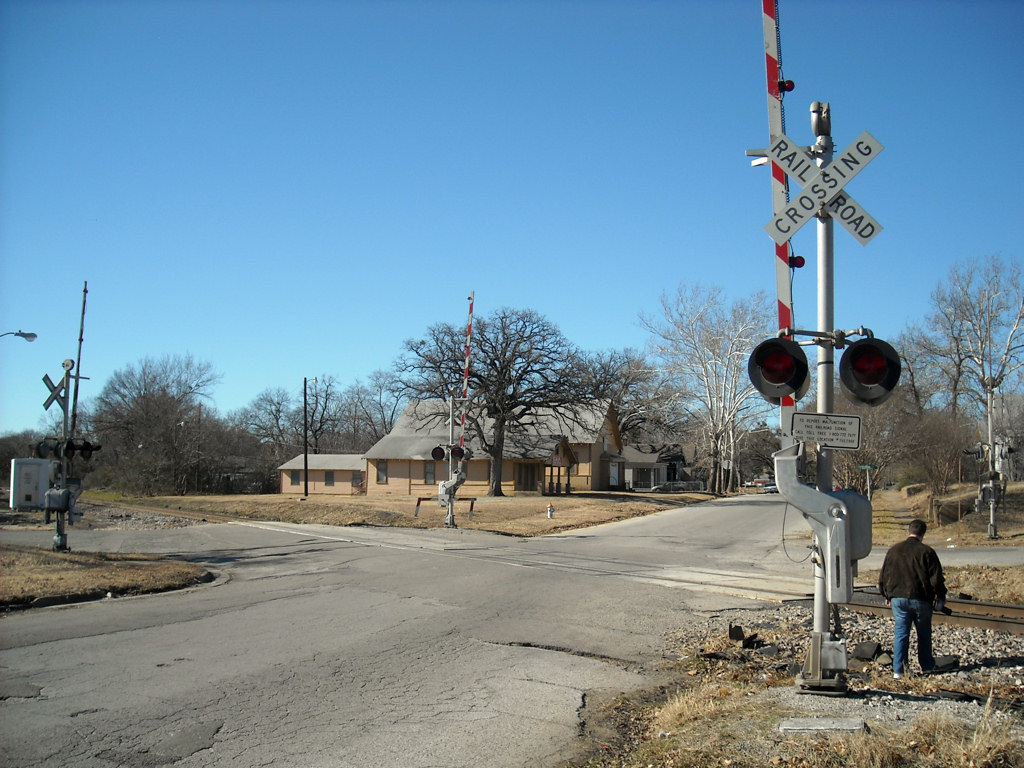

Overall view looking west on Hull St.
|

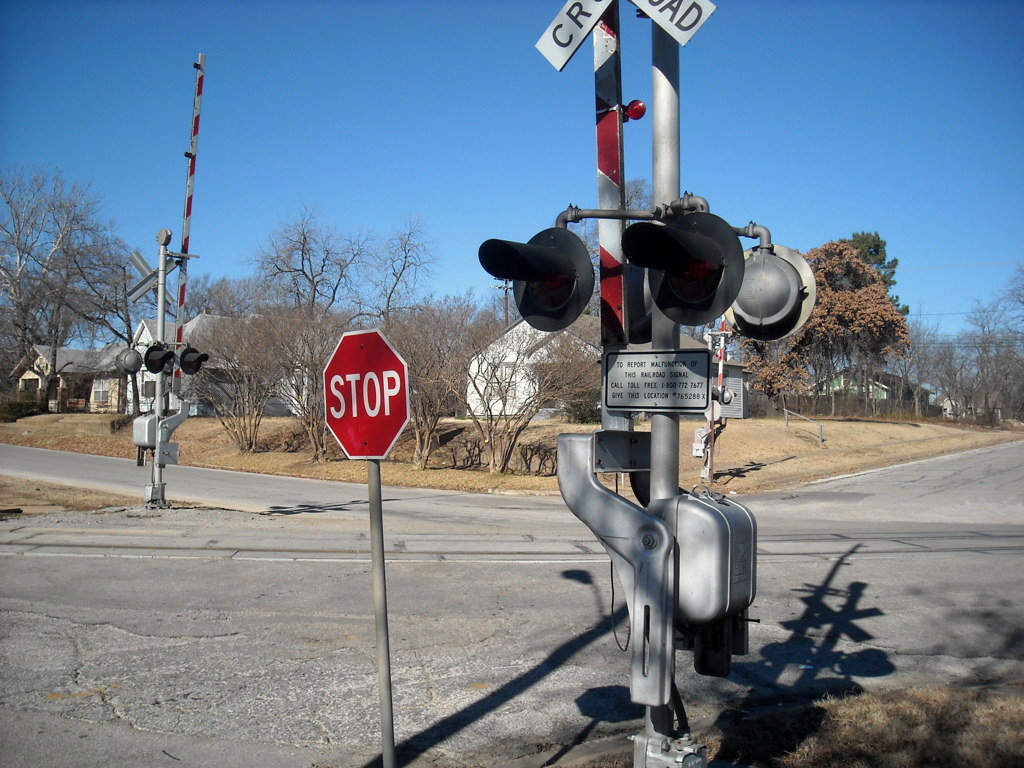

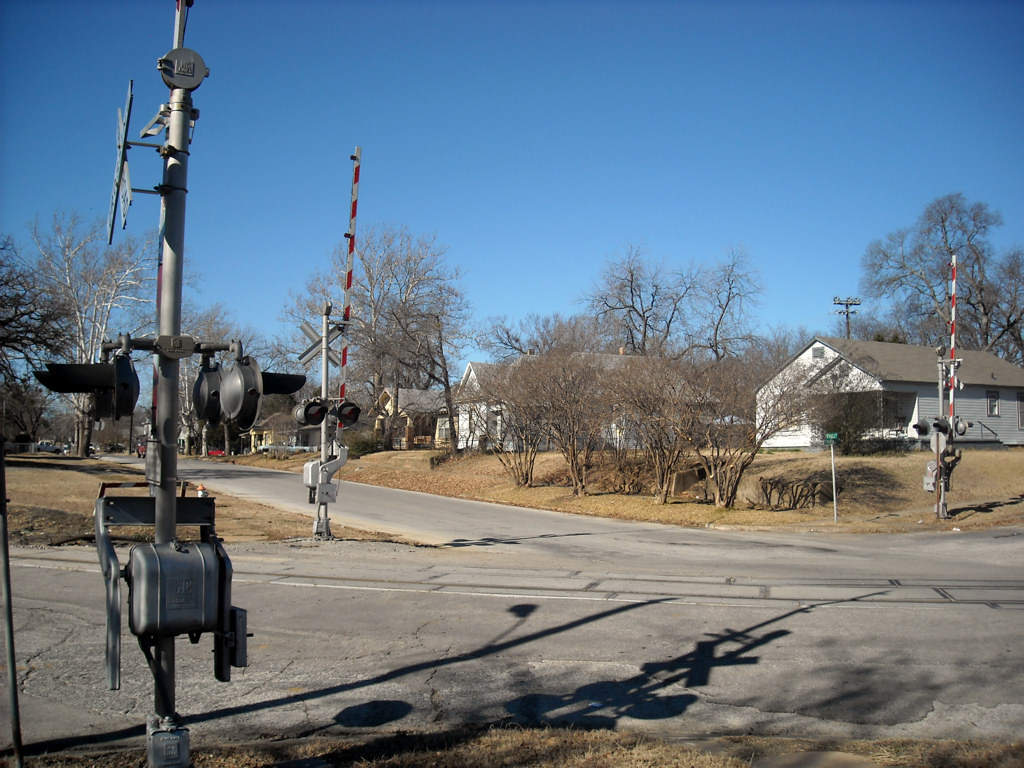

Looking west from the southeast corner of the
intersection.
|

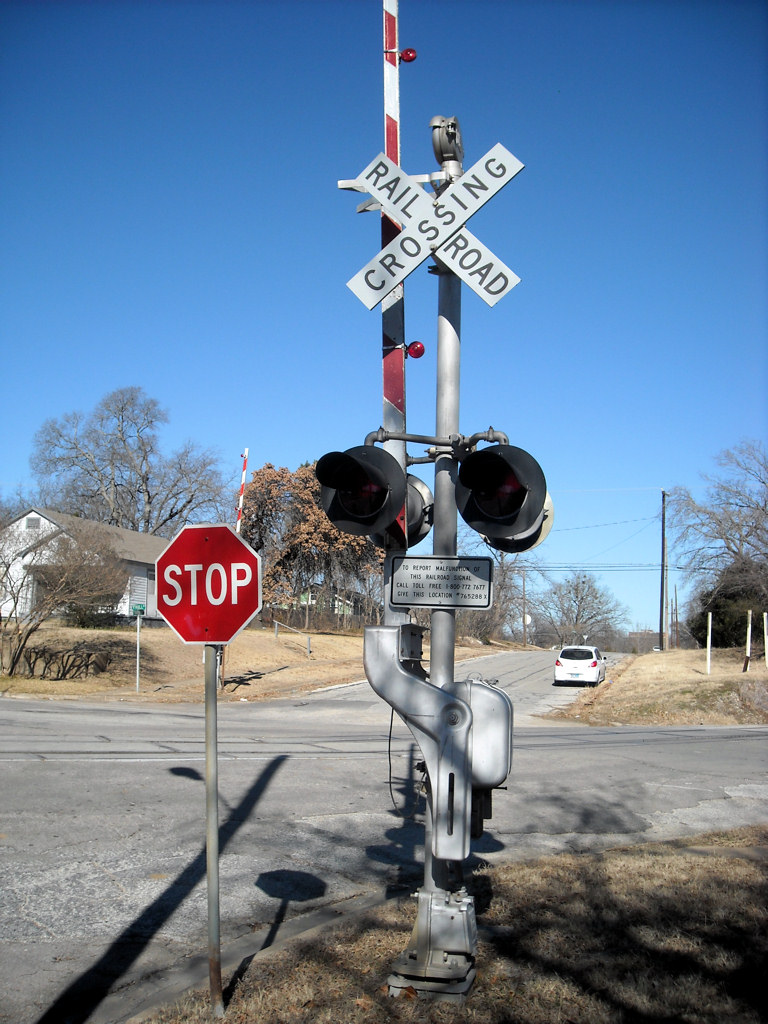

The signal at the southeast corner of the intersection. Hull St. has the right-of-way, Burnett Ave. has stop signs. |
|
|
5 |
6 |
7 |
8 |
|

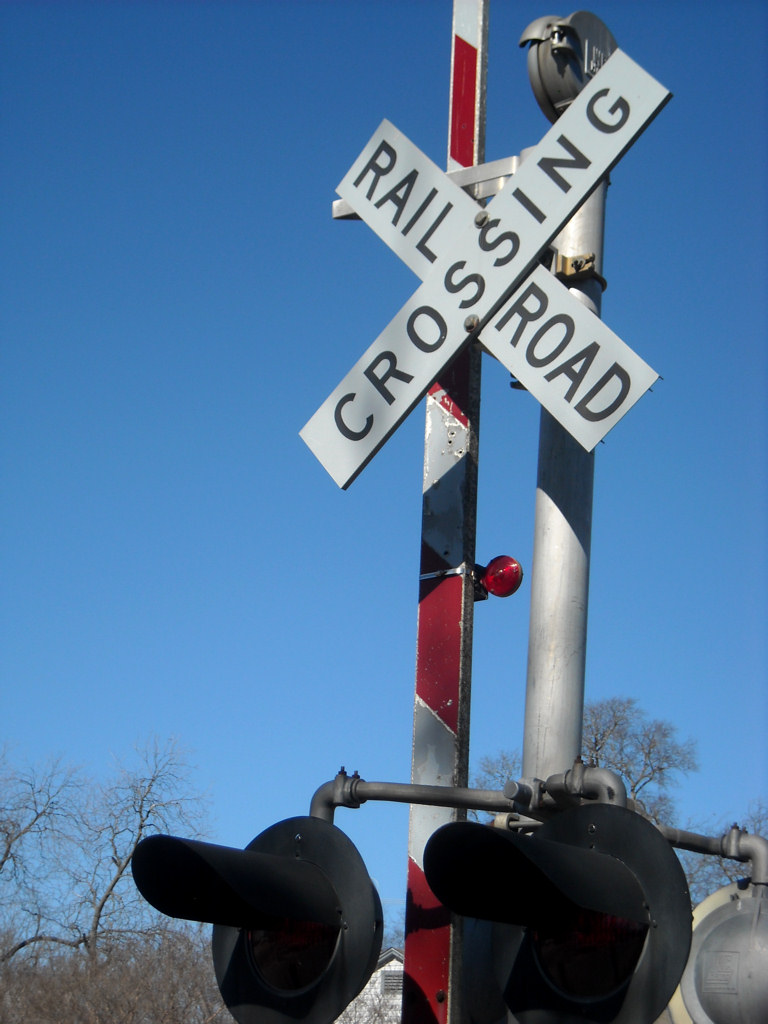

Close-up of the top half of the southeast
signal.
|

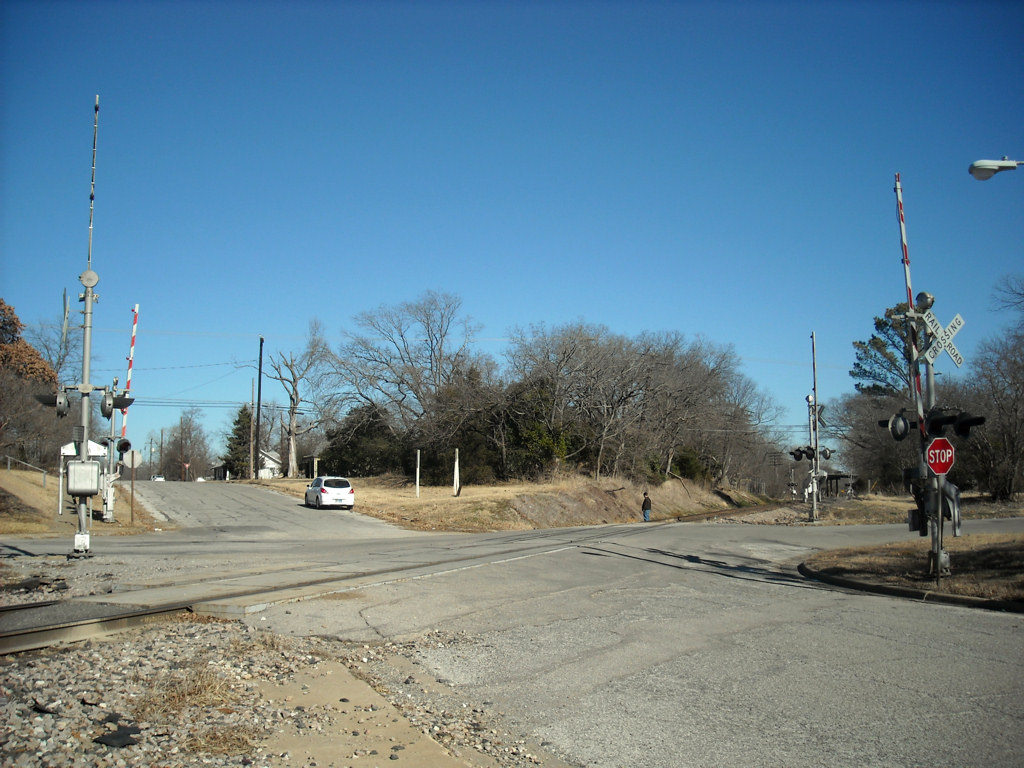

Overall view looking north on Burnett Ave.
|

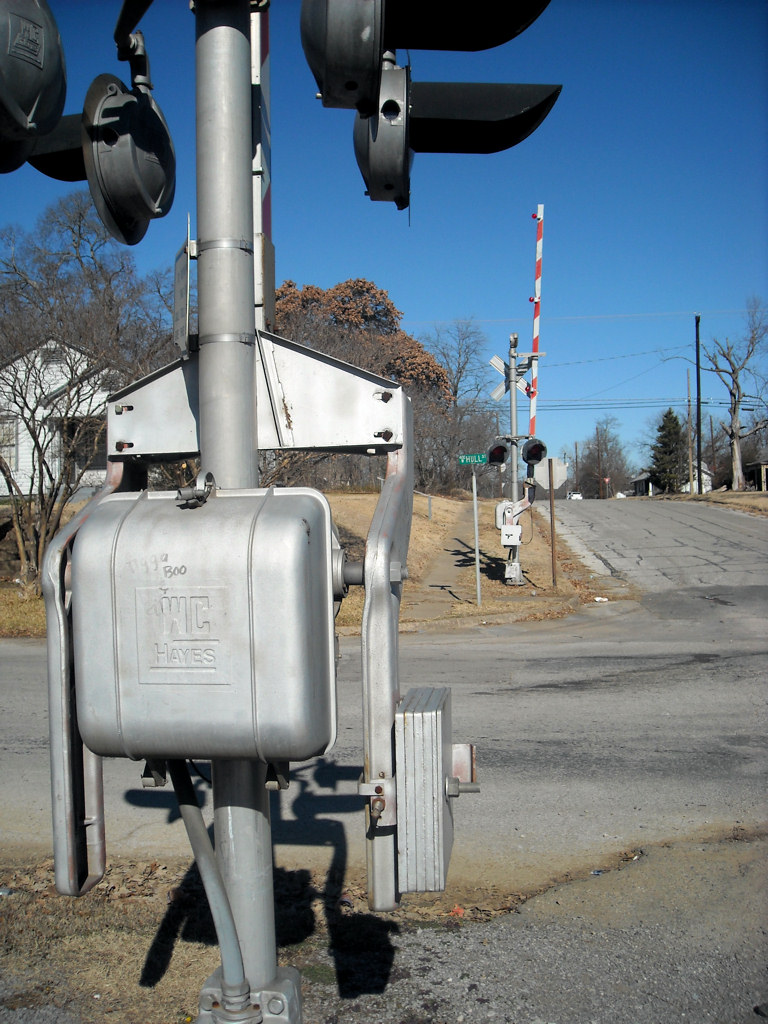

The gate motor on the southwest signal.
|

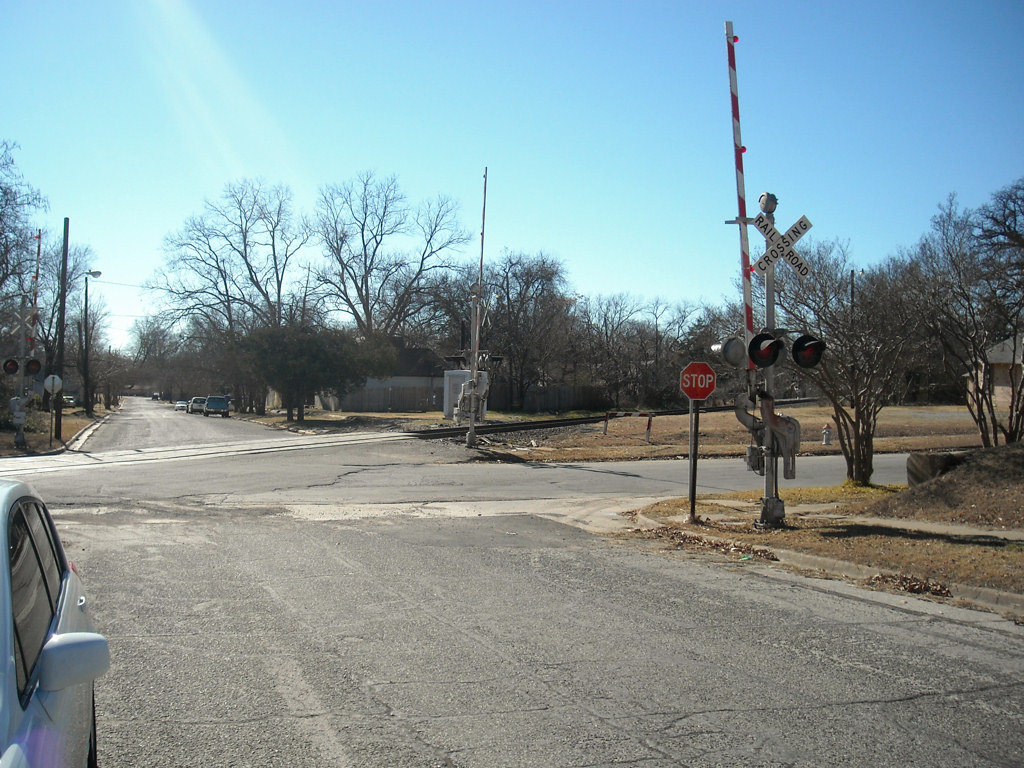

Looking south on Burnett Ave.
|
|
9 |
10 |
11 |
12 |
|

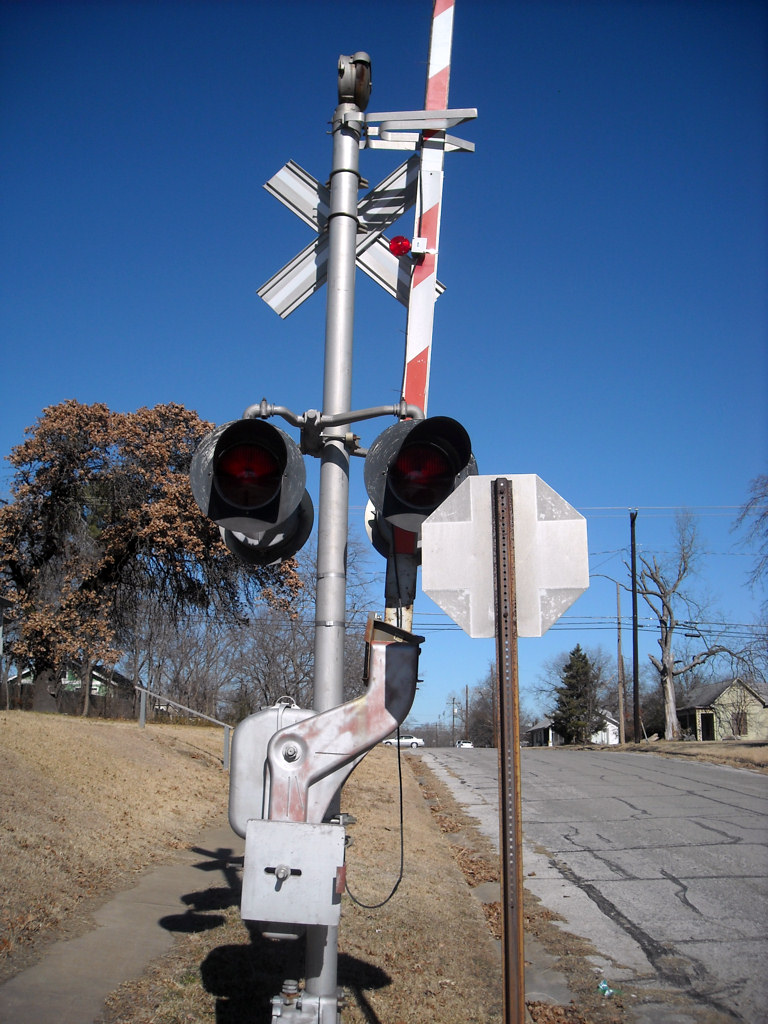

Back side of the northwest signal.
|

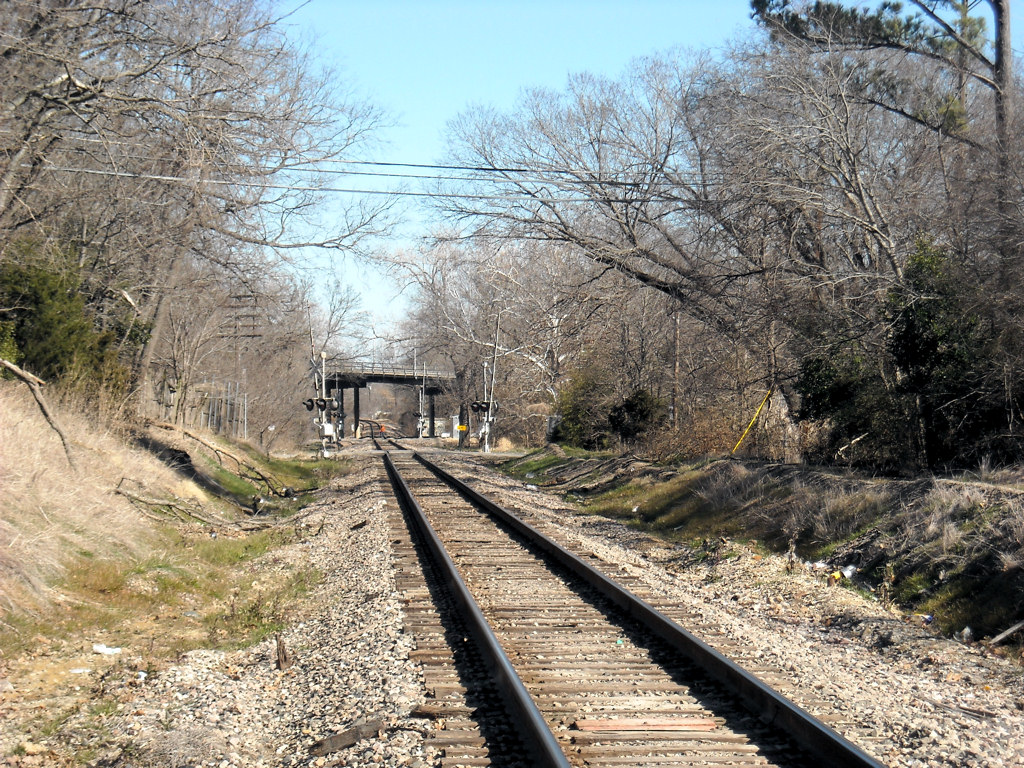

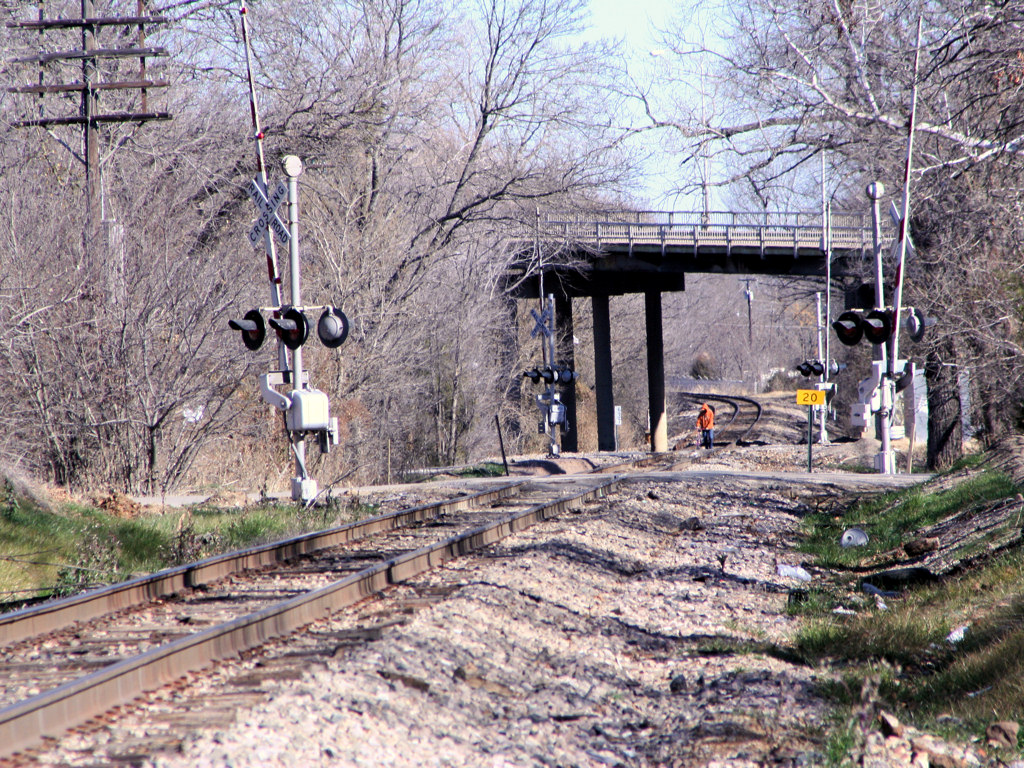

Track views facing northeast.
|

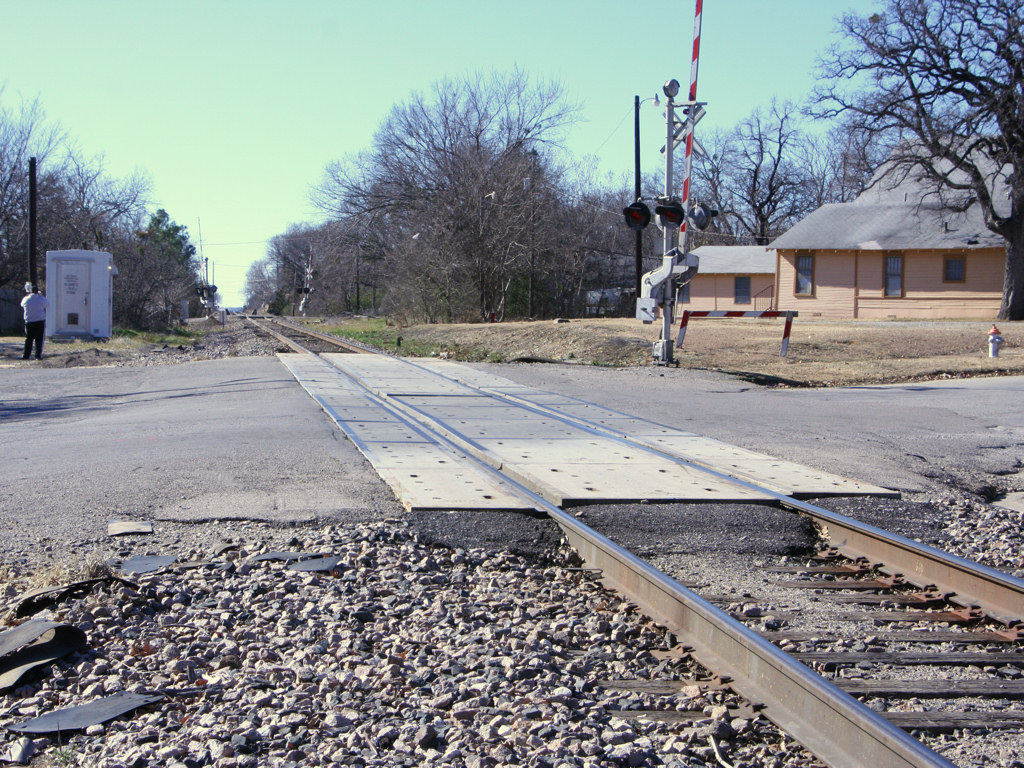

Track view facing southwest across the
crossing grade.
|
|
|
13 |
14 |
15 |
|

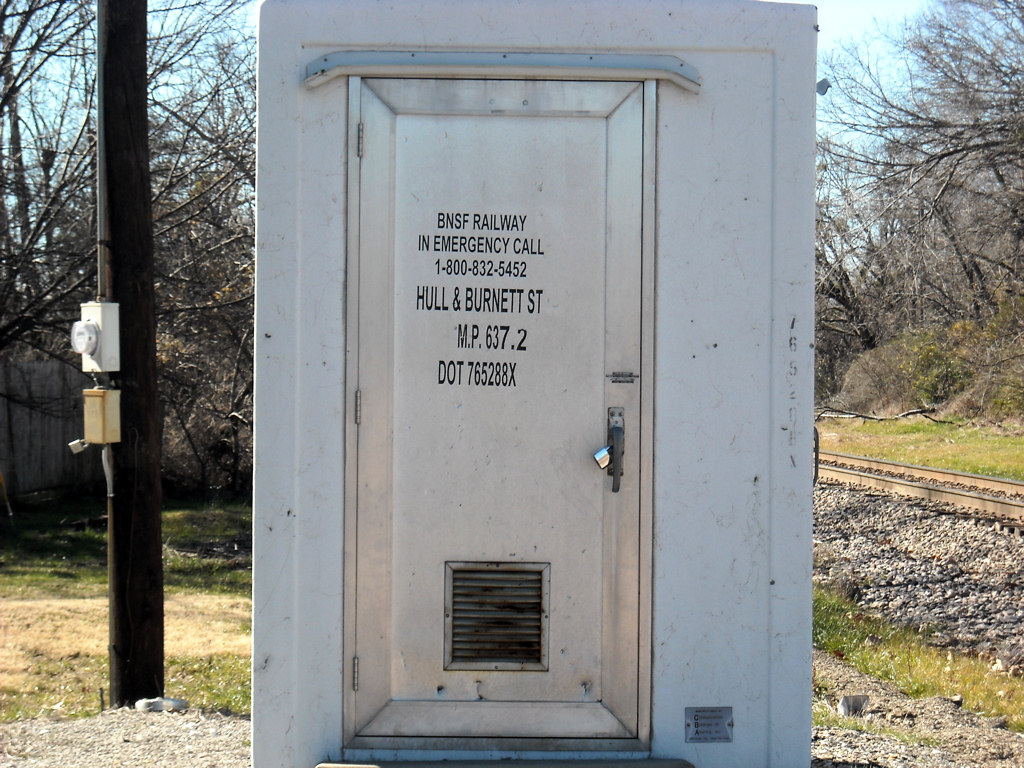

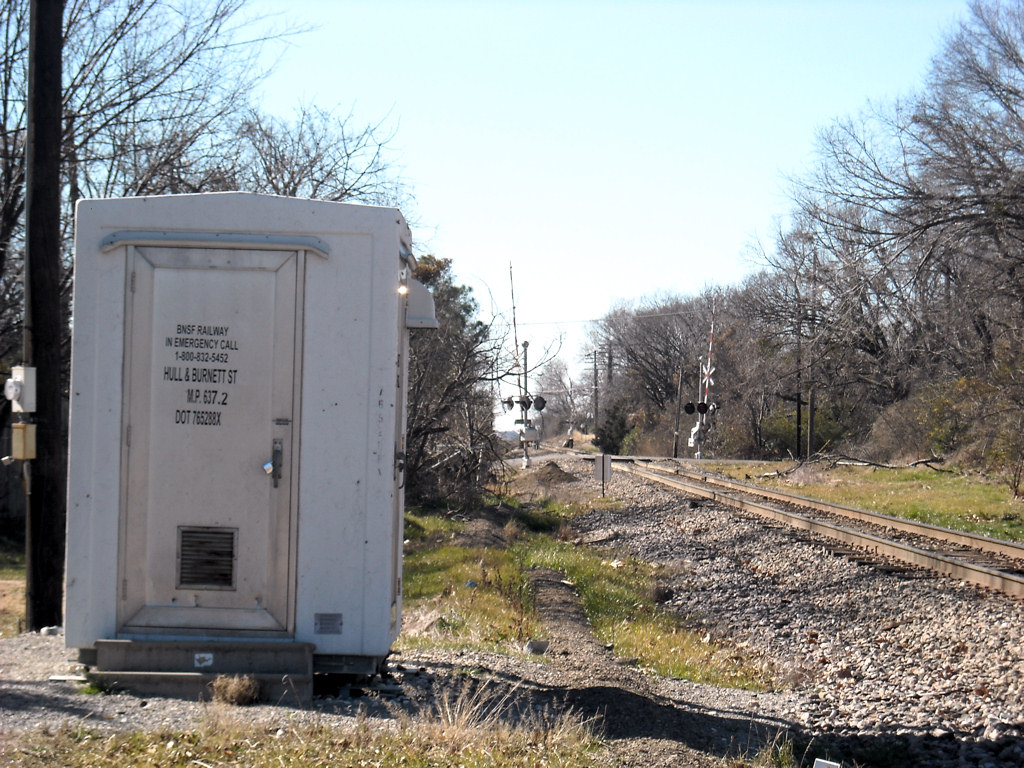

The equipment bungalow.
|

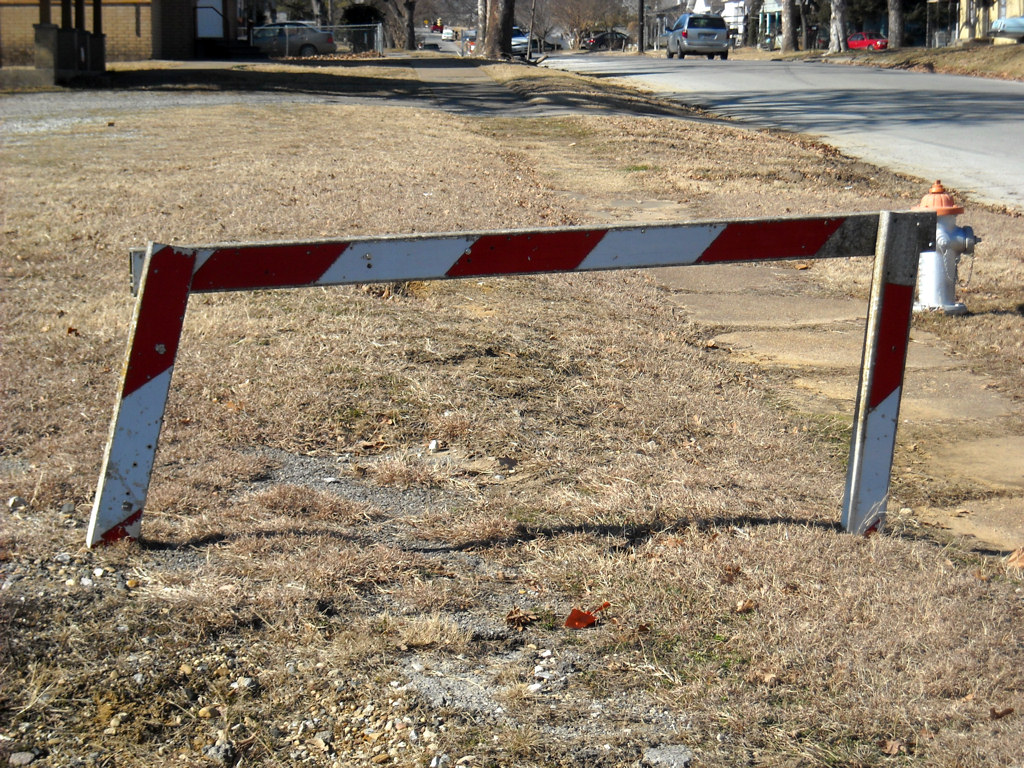

A barricade (on the southwest corner of the
intersection) that looks like it has been made from broken crossing
gates.
|
|
Photos #11 & 12 taken by Chad Huth. Photos #1-10 and 13-15 taken by Josh Baumann. All photos were taken on January 8, 2011.
