| >>>>>>>>>>>>>> | Eastern UP Signal | Western UP Signal | Eastern TEXRail Signal | Western TEXRail Signal |
| Bell: | WCH E-Bell | WCH E-Bell | GS E-Bell | GS E-Bell |
| Base: | Siemens 5" Single Sided | Siemens 5" Single Sided | Lincoln Industries 5" Single Sided | Safetran 5" Single Sided |
| Light Brackets: | Harmon | WCH | WCH | Safetran |
| Lights: | 4 - 12"x20" Harmon w/ Electro-Tech LEDs | 4 - 12"x20" WCH w/ Electro-Tech LEDs | 3 - 12"x24" Safetran w/ Dialight Low Wattage LEDs 1 - 12"x24" Safetran w/ Dialight Low Wattage LEDs |
2 - 12"x20" Safetran w/ Dialight Low Wattage LEDs 2 - 12"x20" Safetran w/ Harmon Fading LEDs |
| Gate Lights: | 3 - NEG Clear LEDs | 3 - NEG Clear LEDs | 3 - RECO 4" LEDs | 3 - RECO 4" LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 | WCH Style 3.5 | Safetran 2000s | Safetran 2000s |
| Gate Striping: | Vertical Striping | Vertical Striping | Vertical Striping | Vertical Striping |
1 |
2 |
3 |
4 |

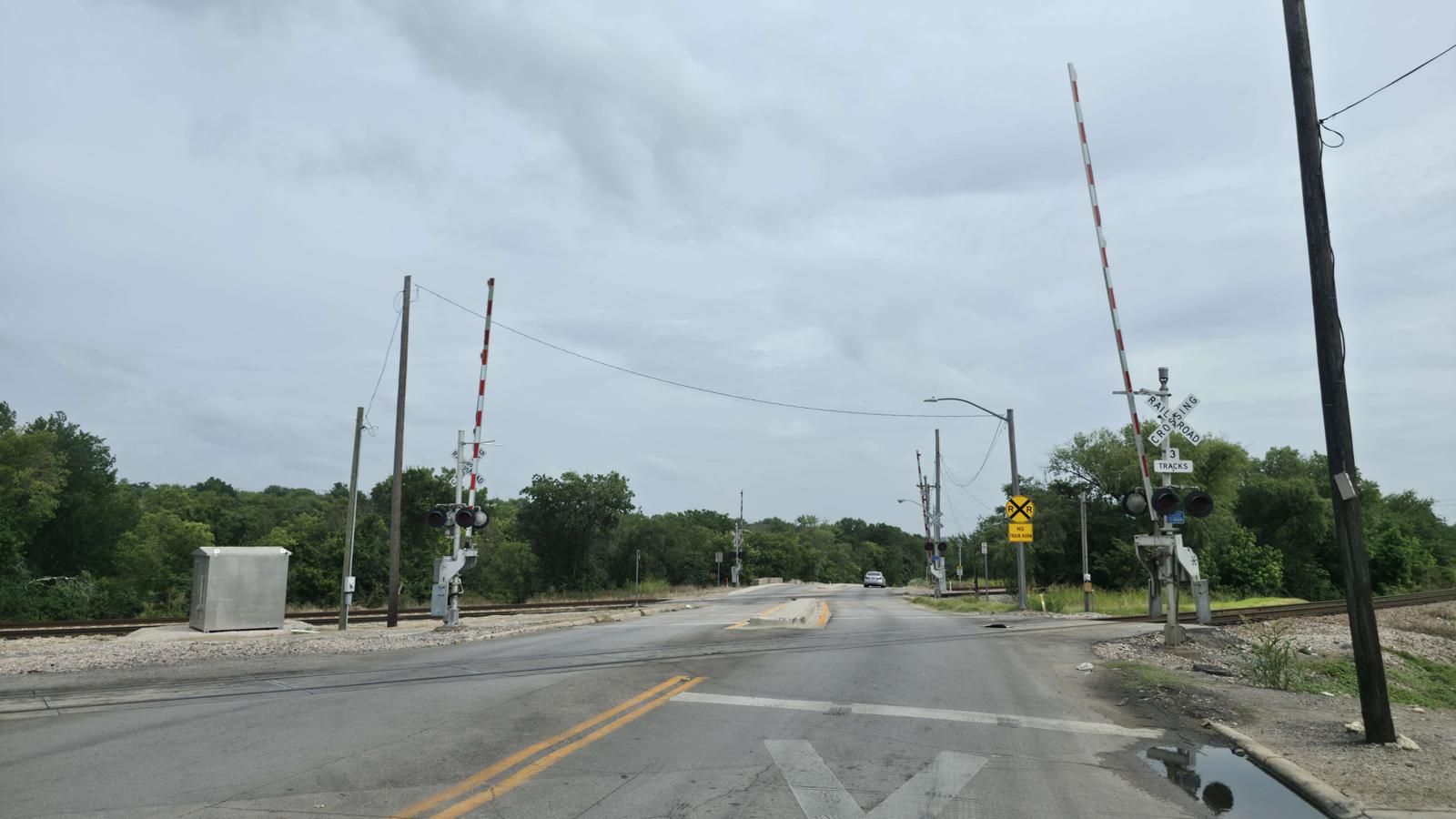

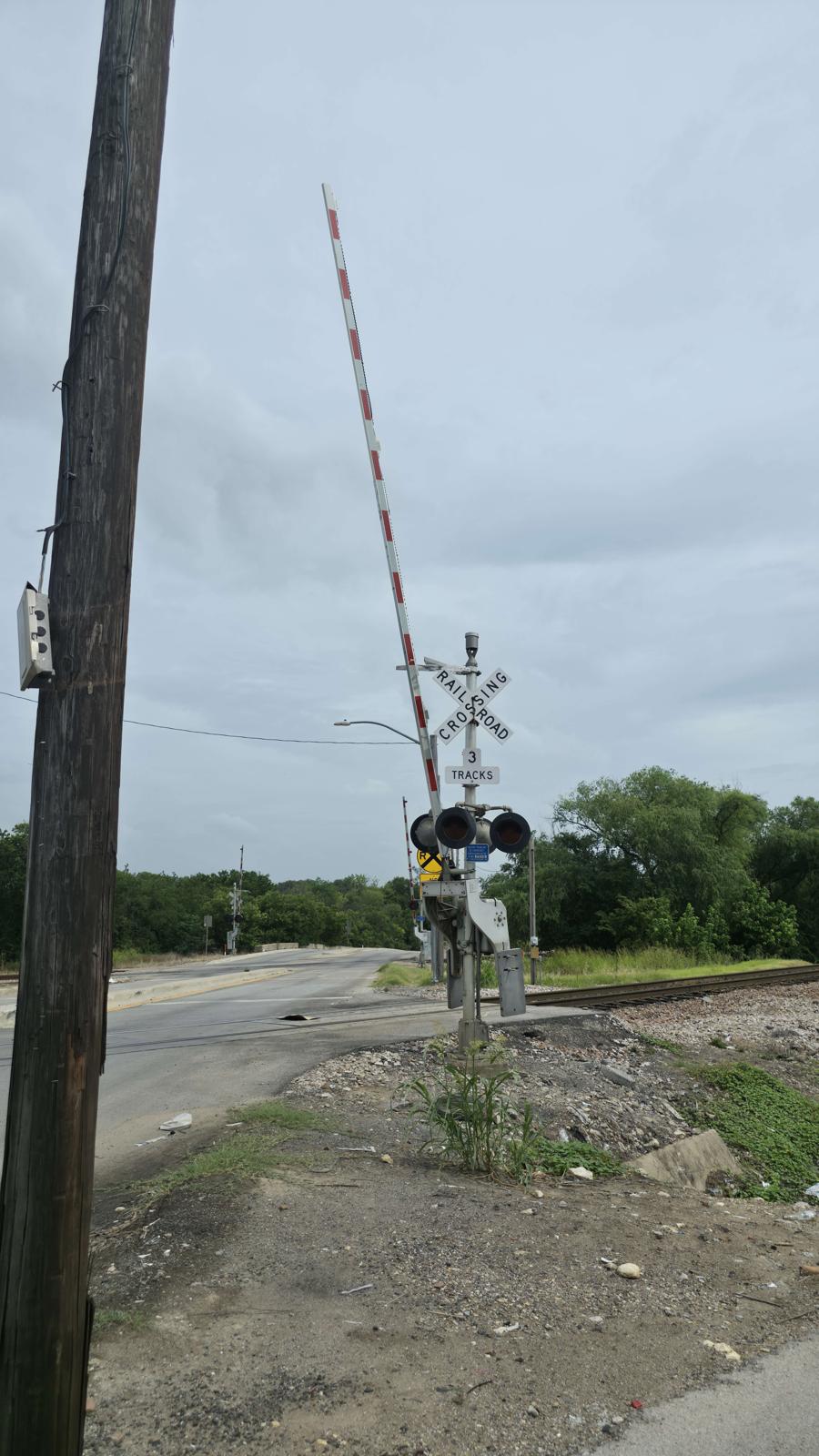

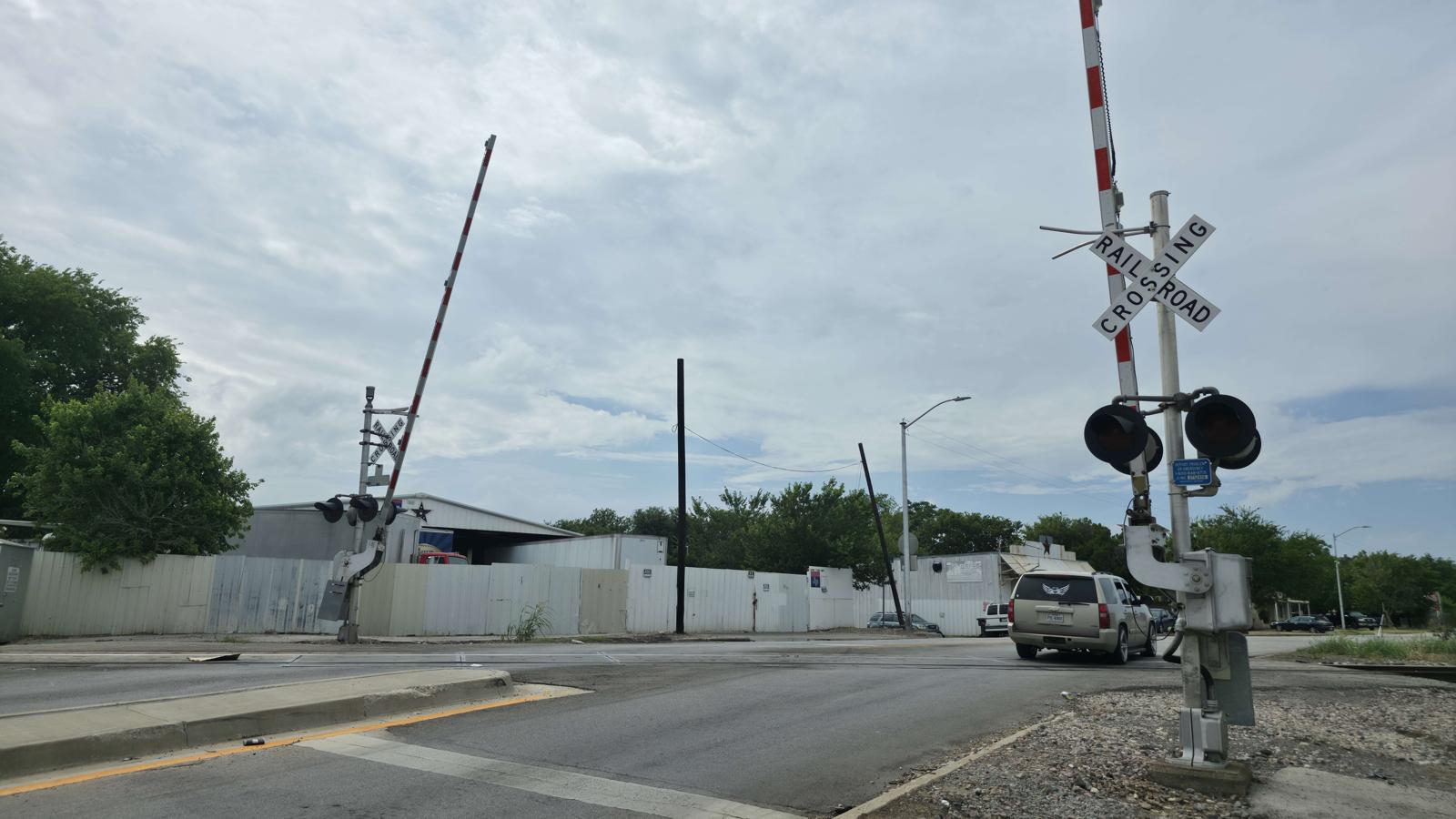

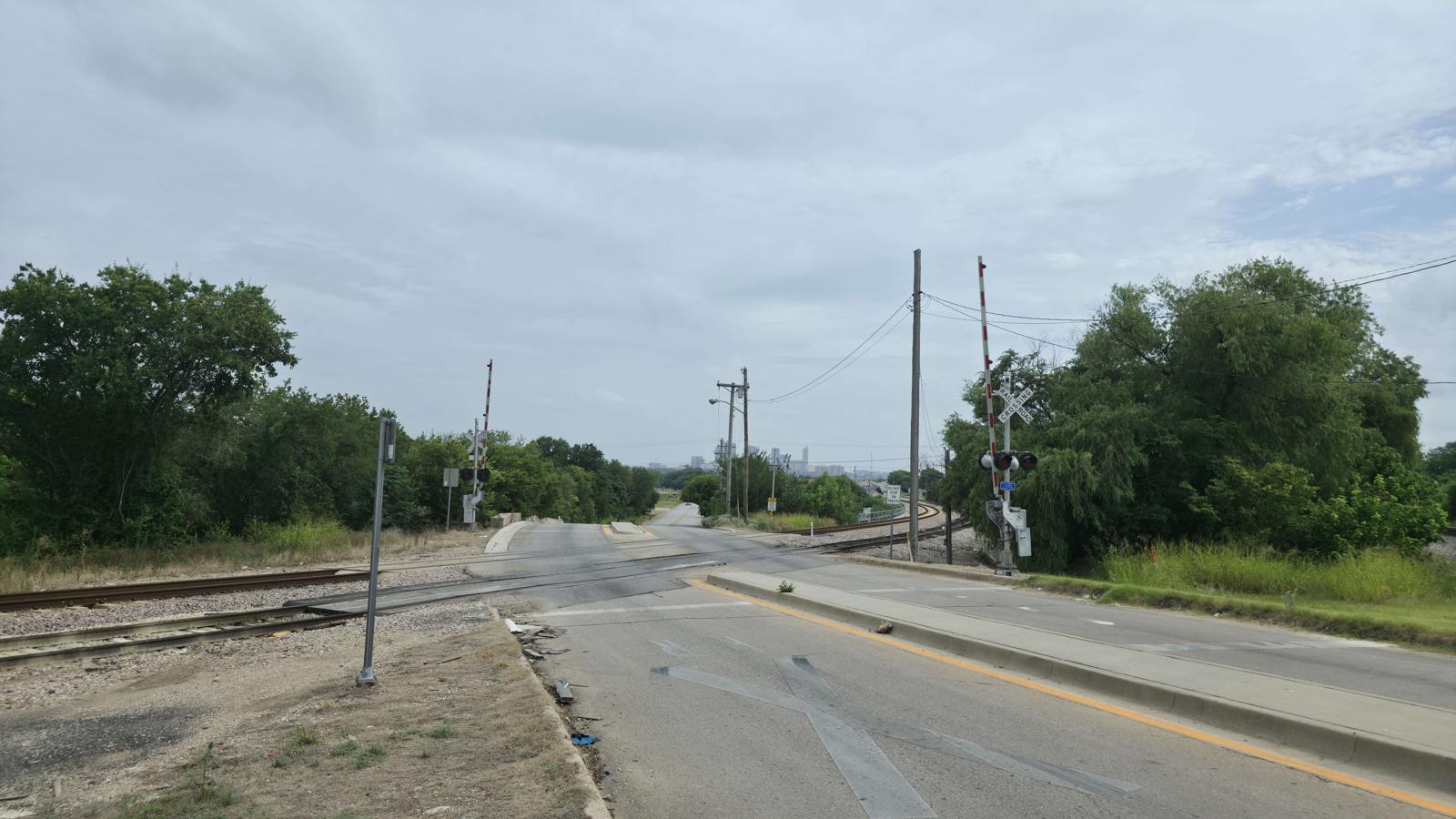

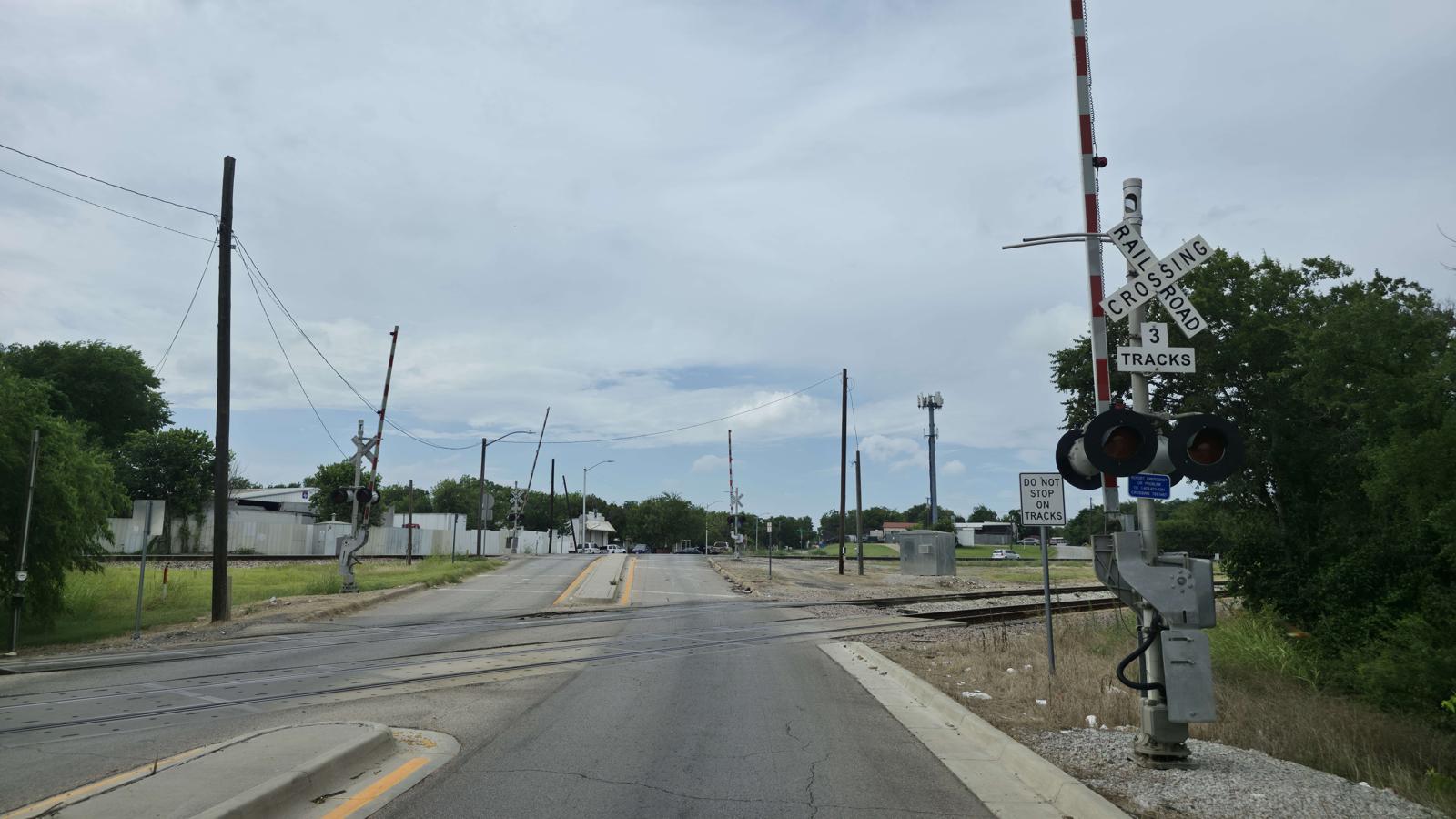

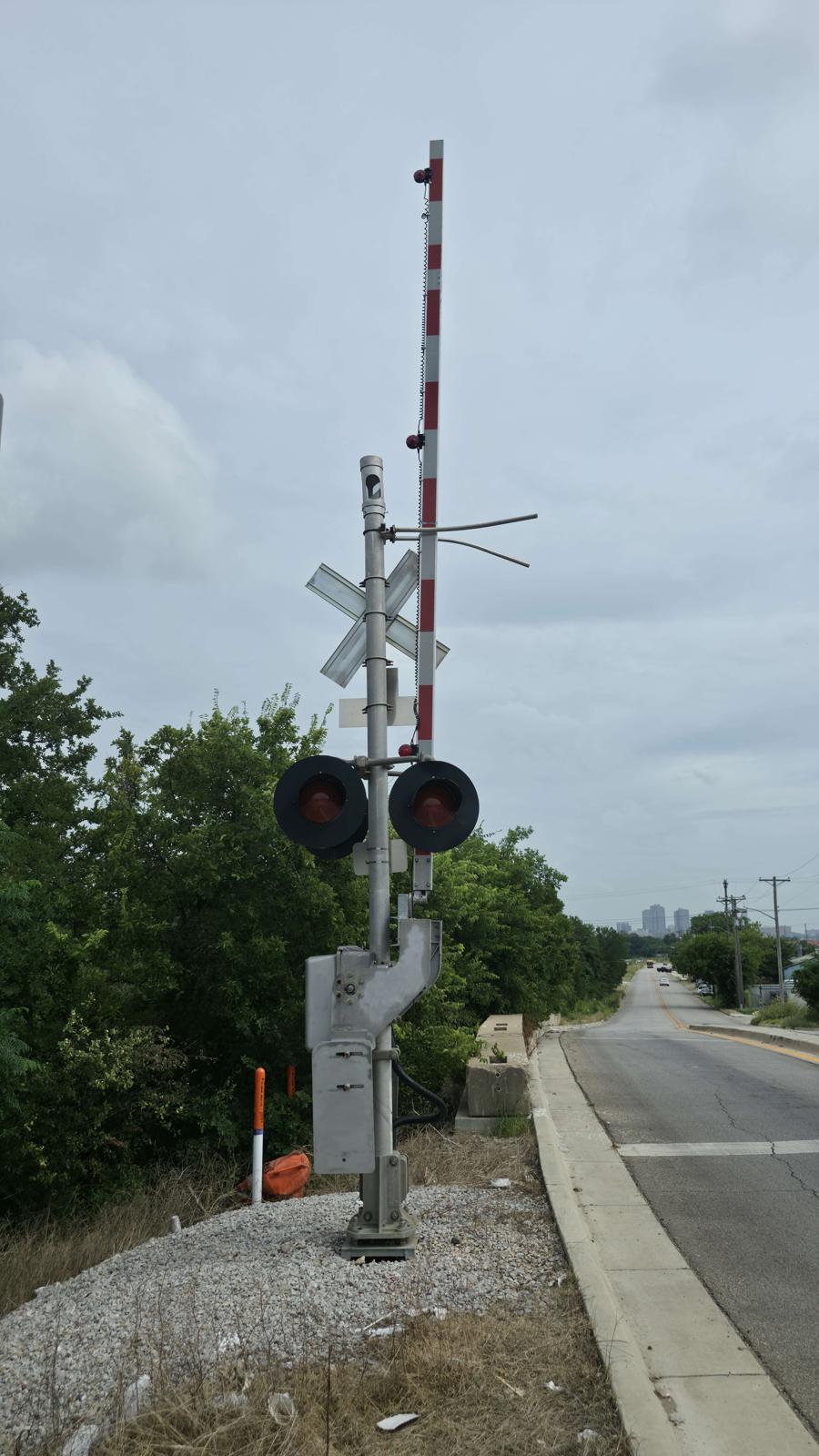

| Overview facing east of the UP signals. | Overview facing west of the UP signals. | Overview facing east of the TEXRail signals. | Overview facing west of the TEXRail signals. |
5 |

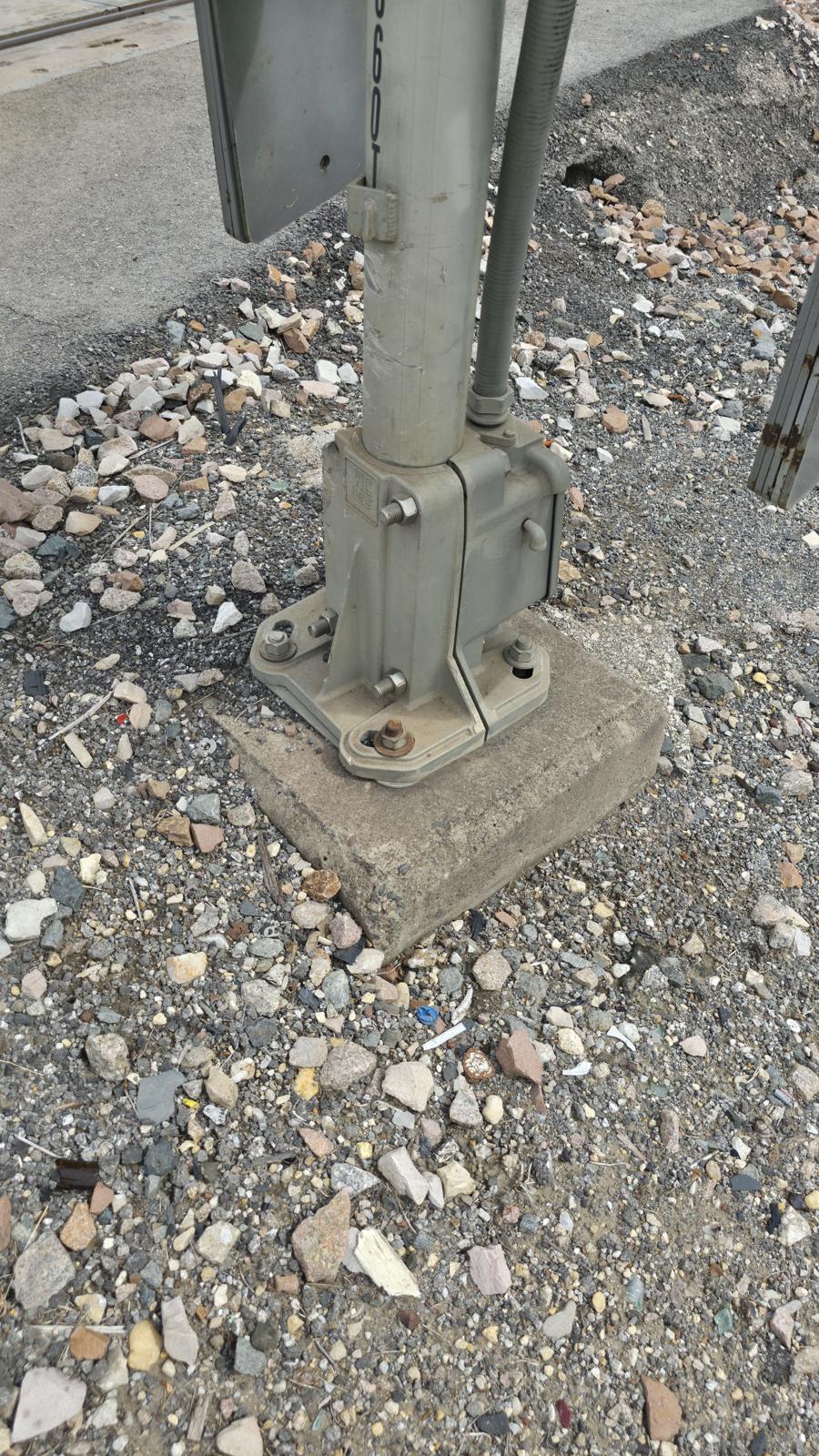

6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |

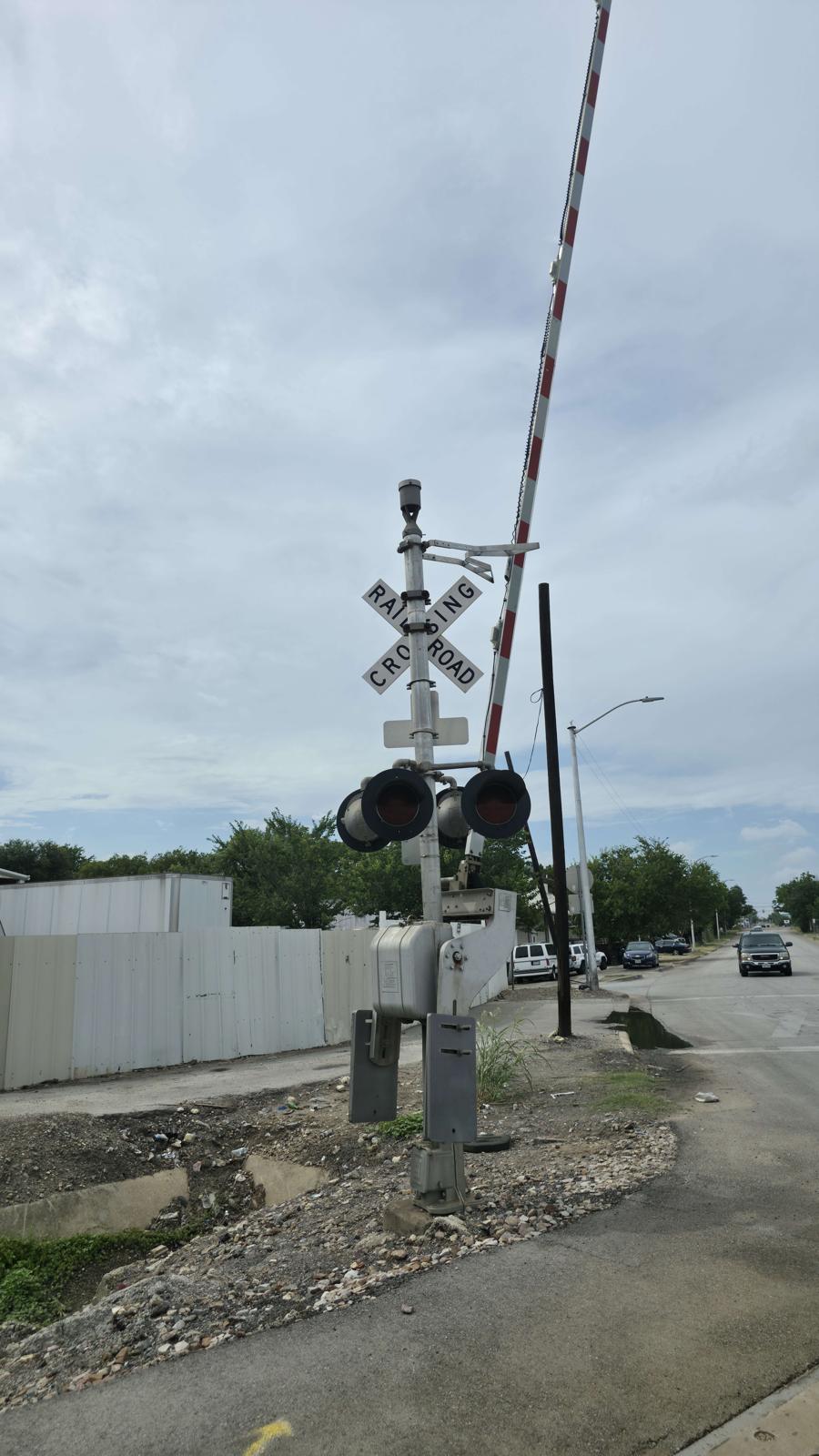

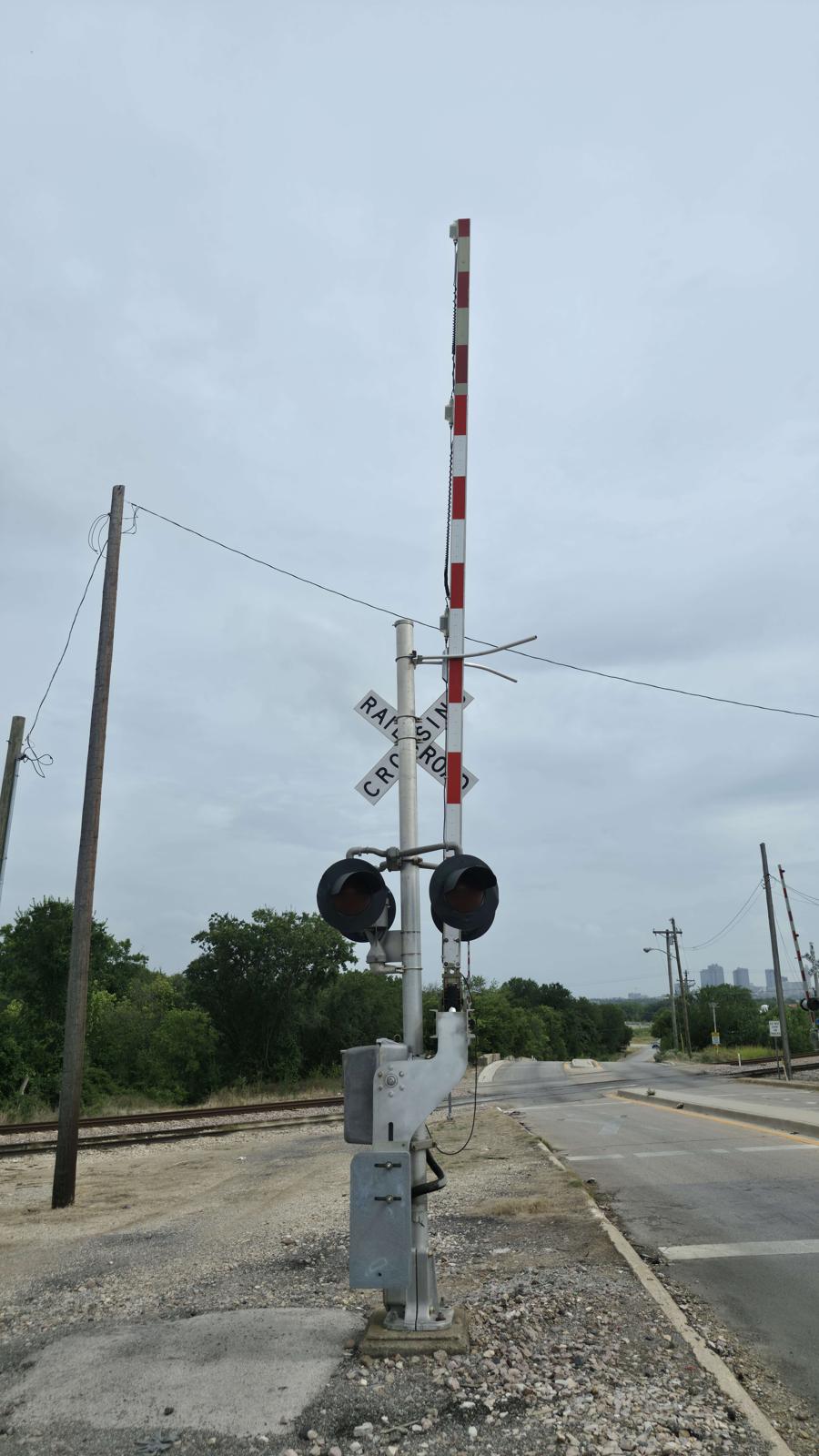

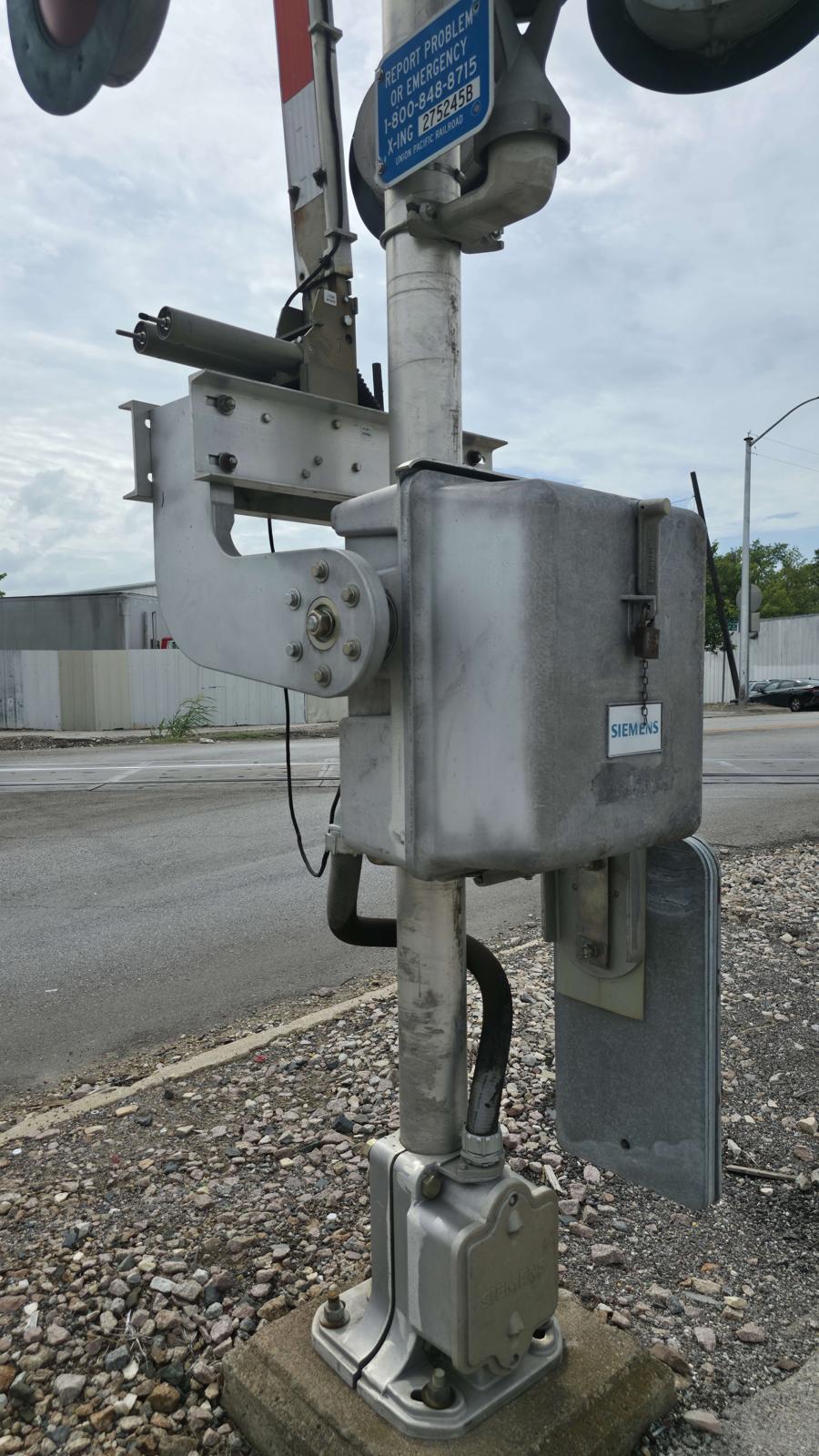

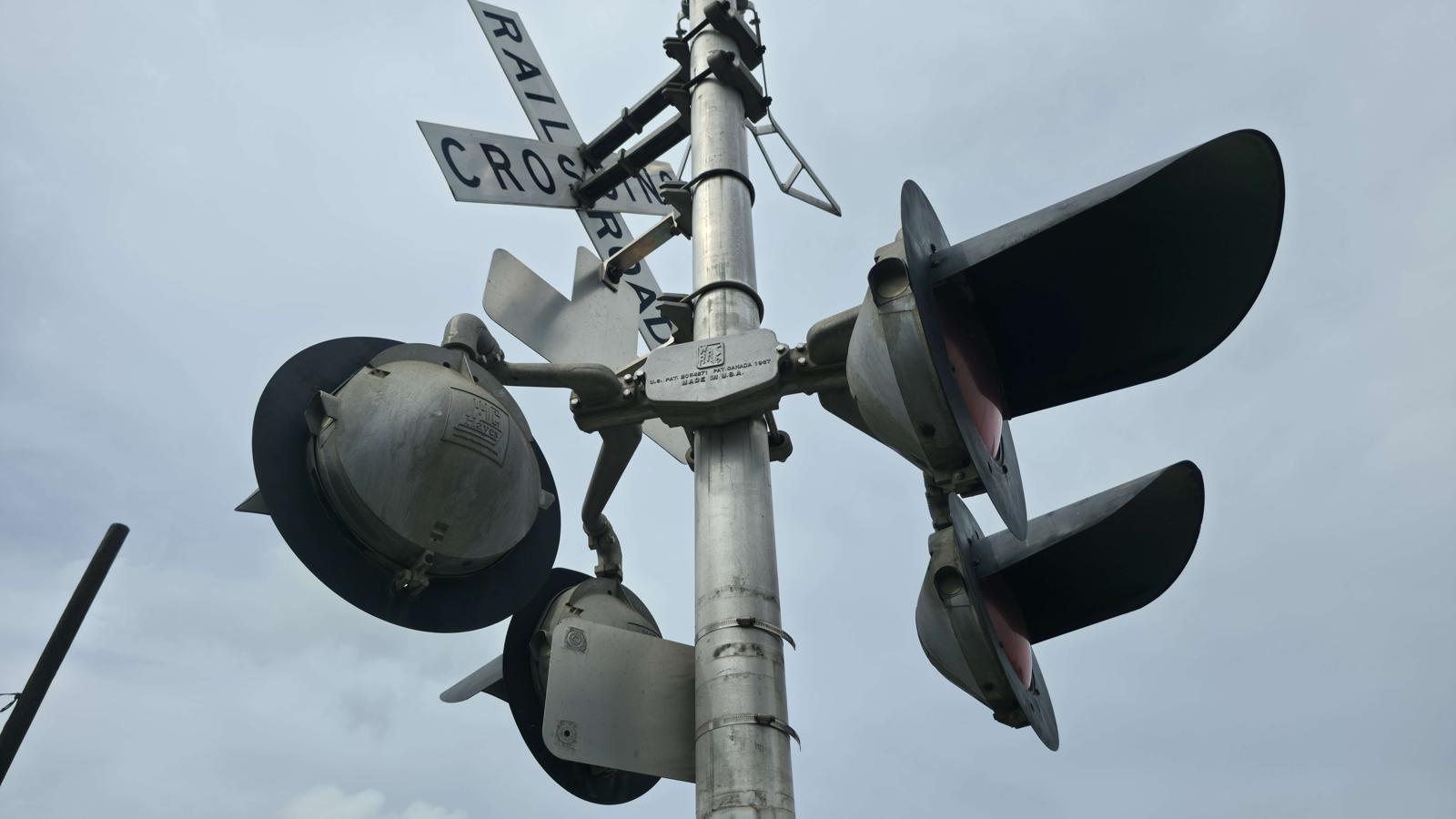

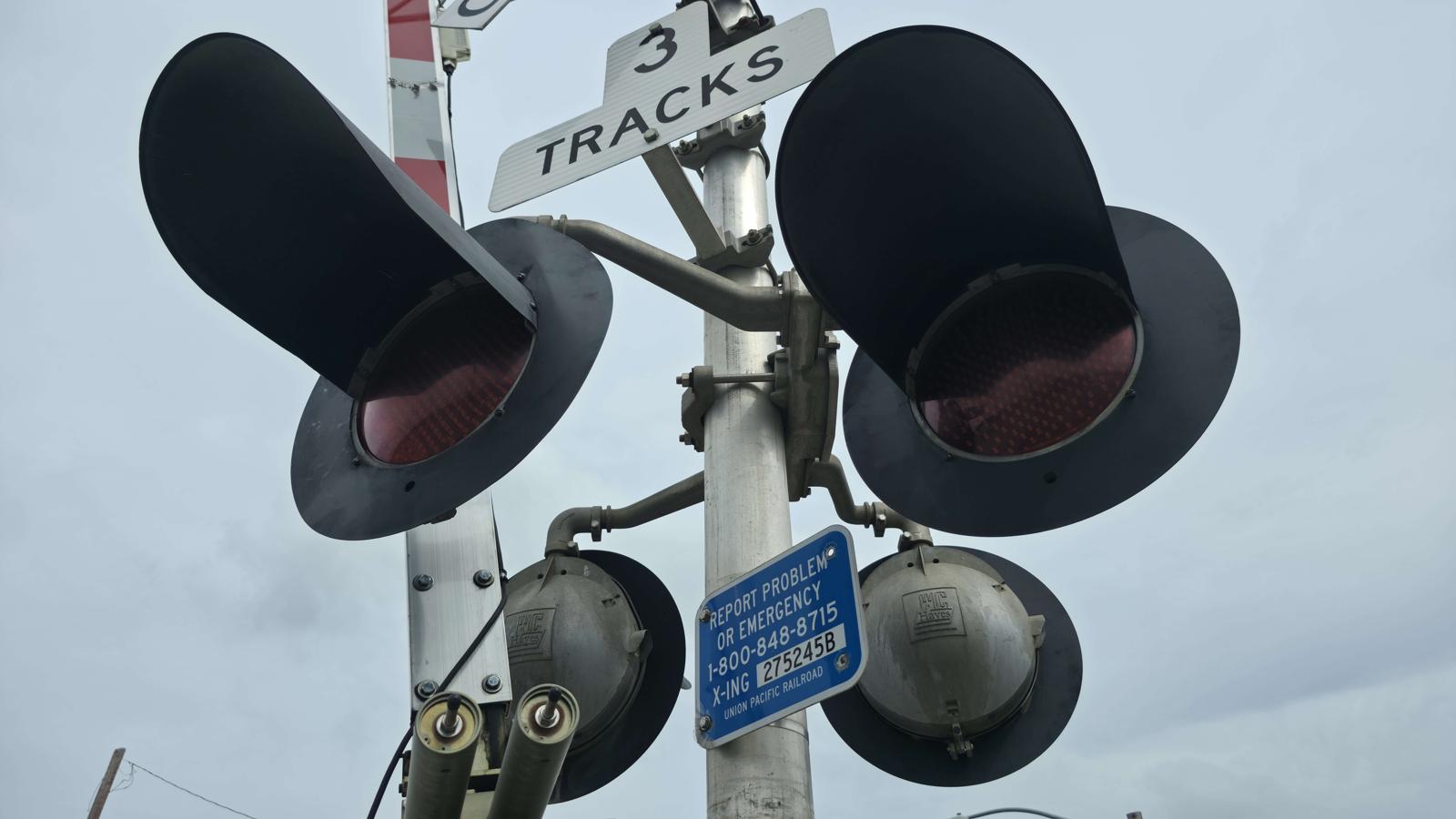

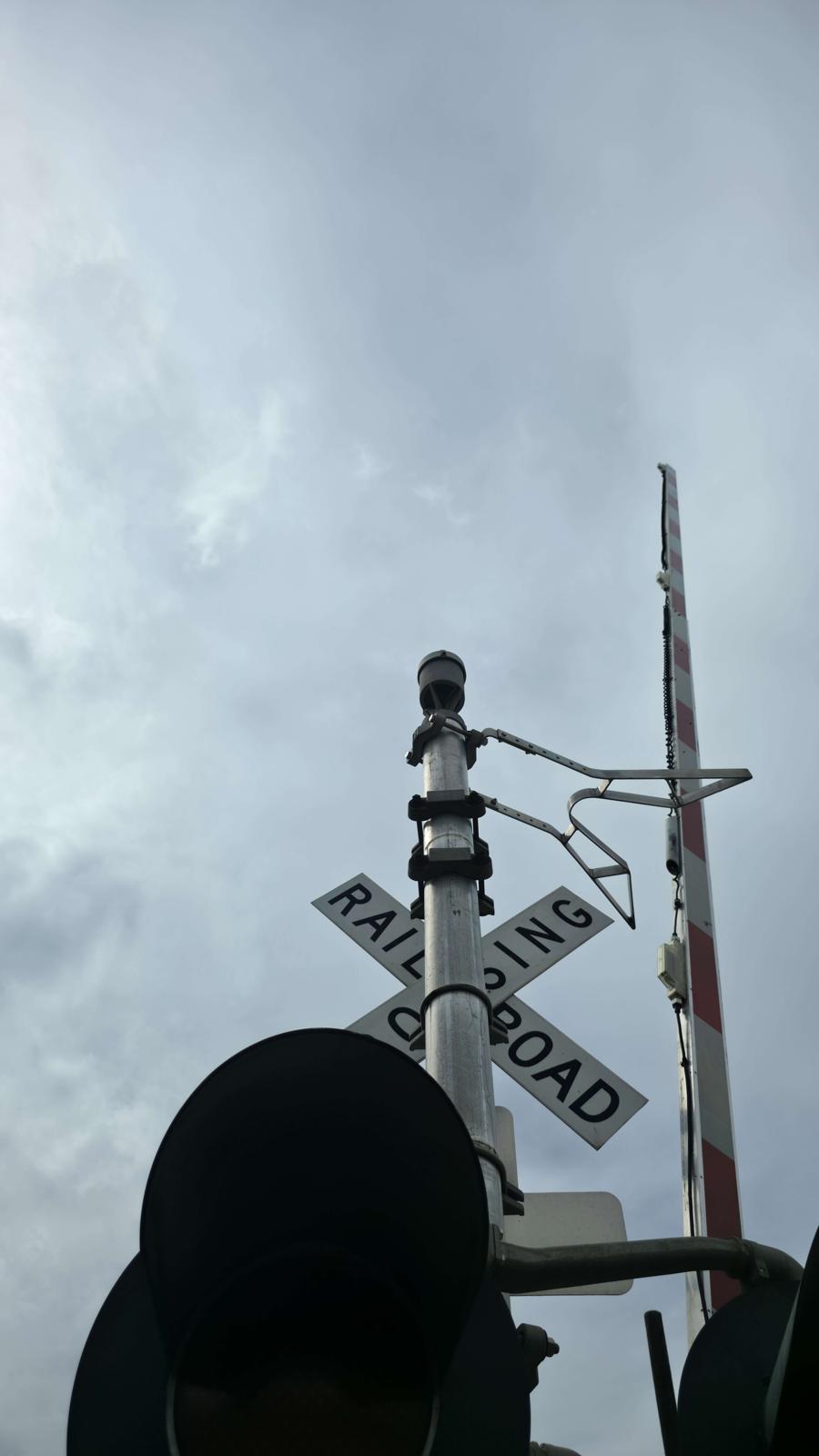

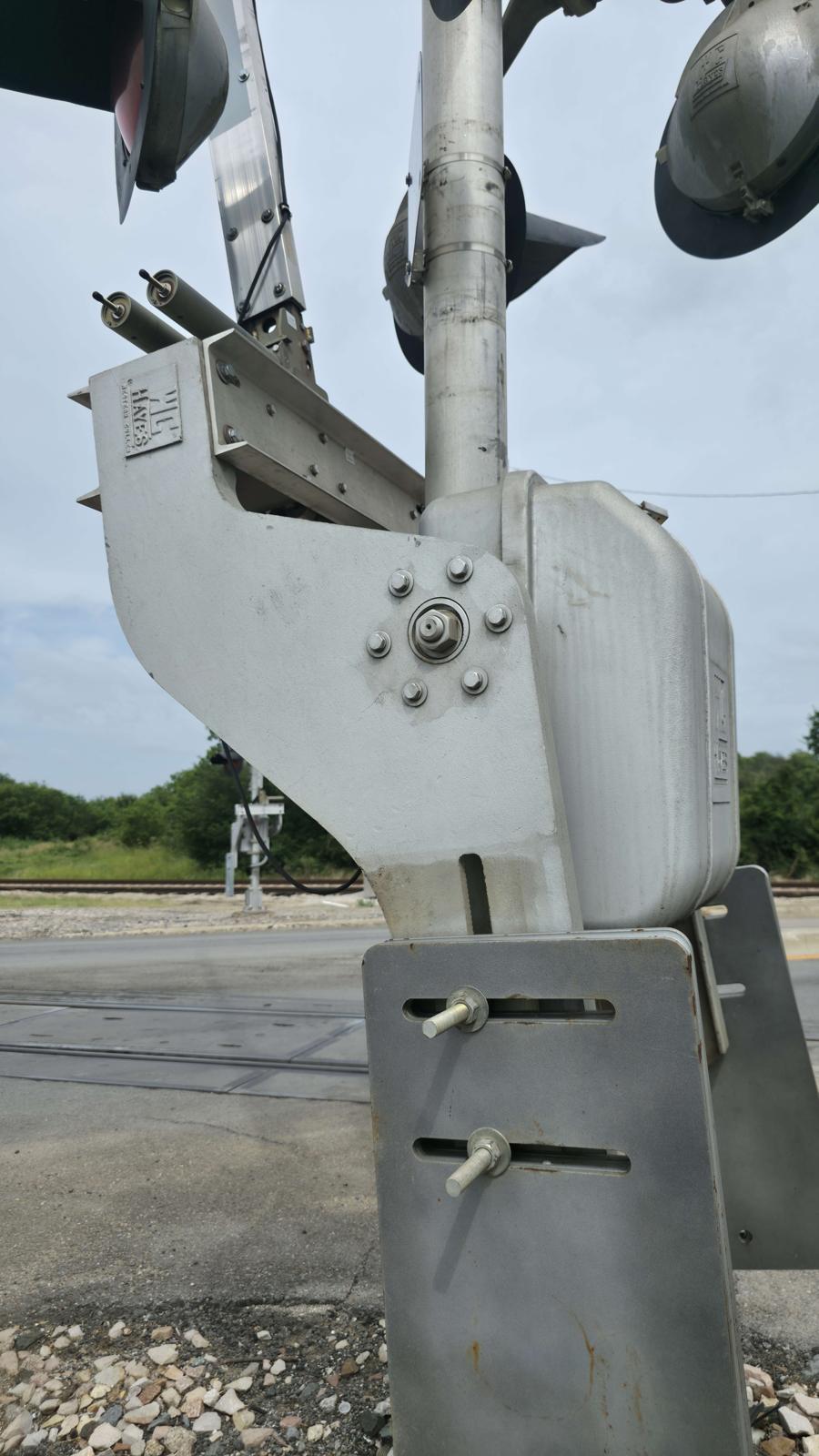

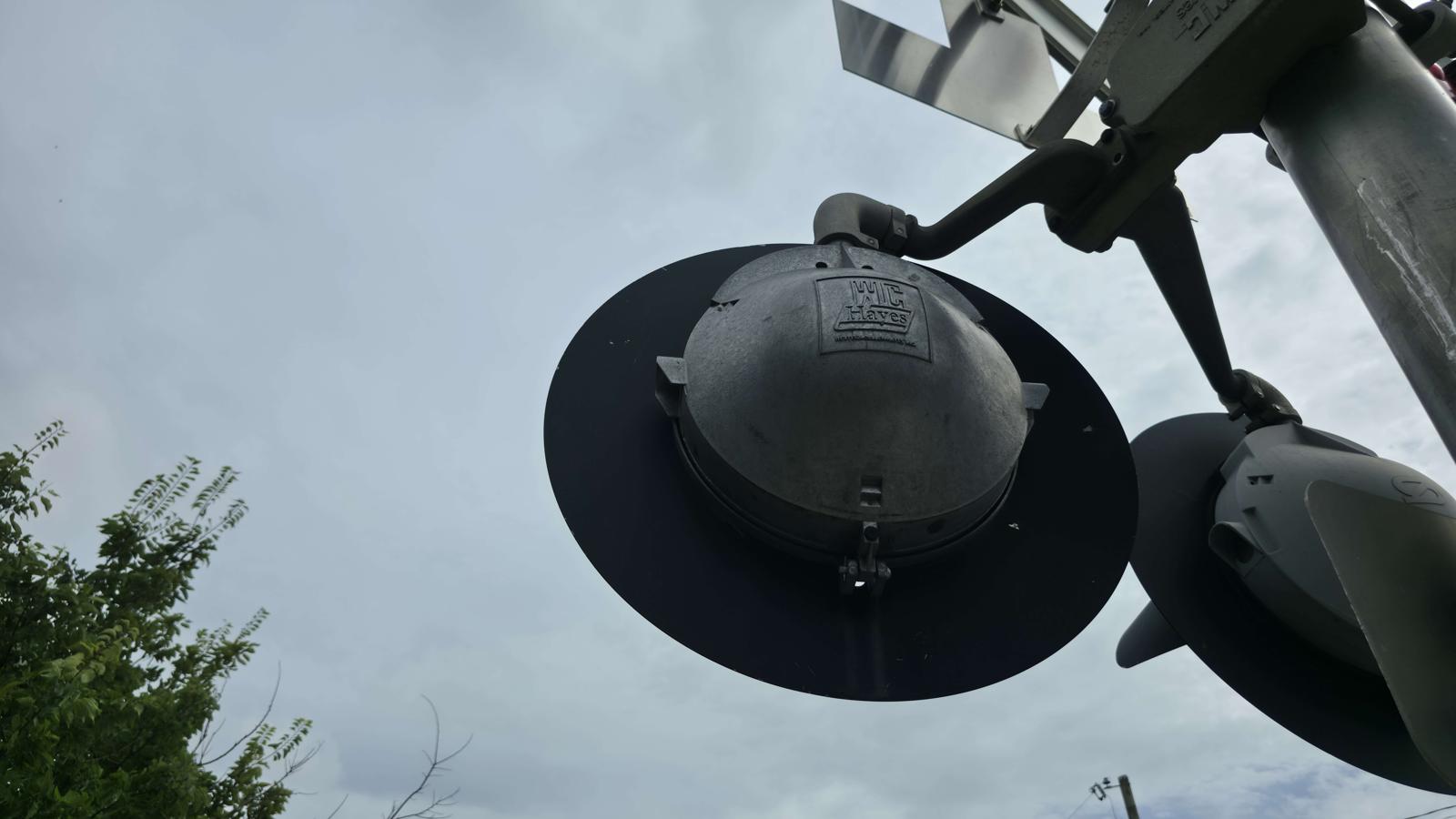

| The western UP signal. | ||
14 |
15 |

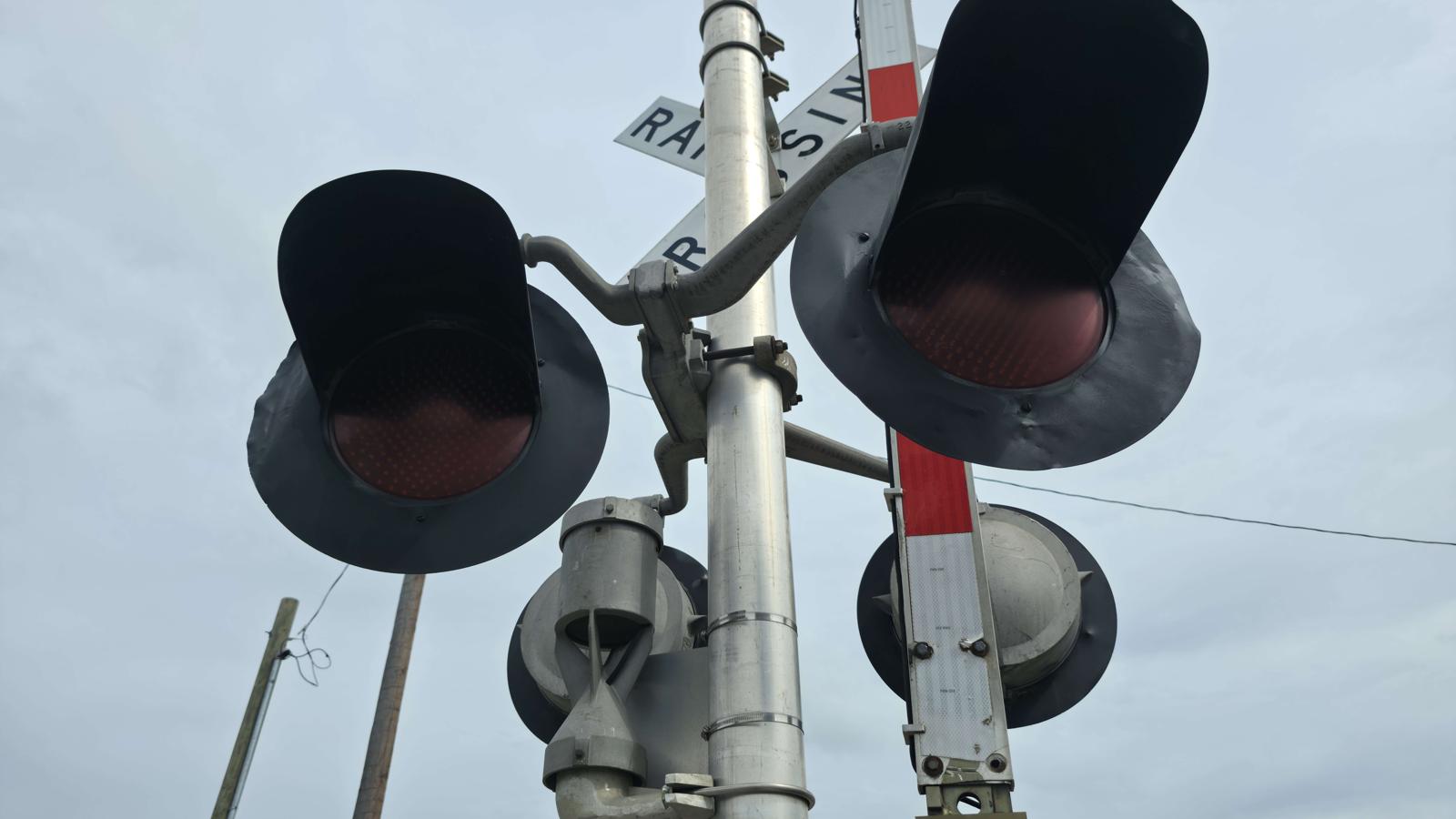

16 |
17 |
18 |
19 |
20 |
21 |

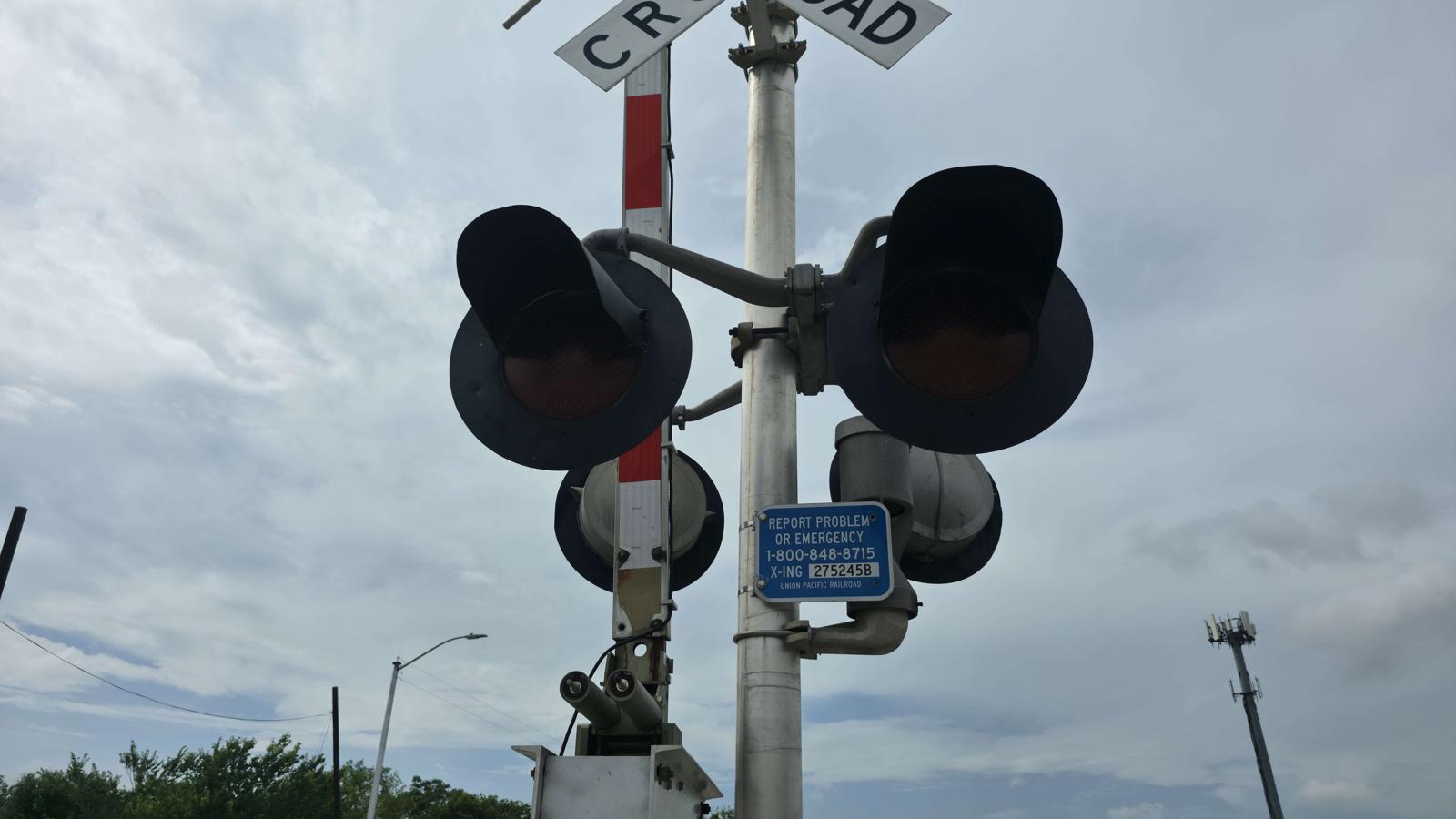

22 |

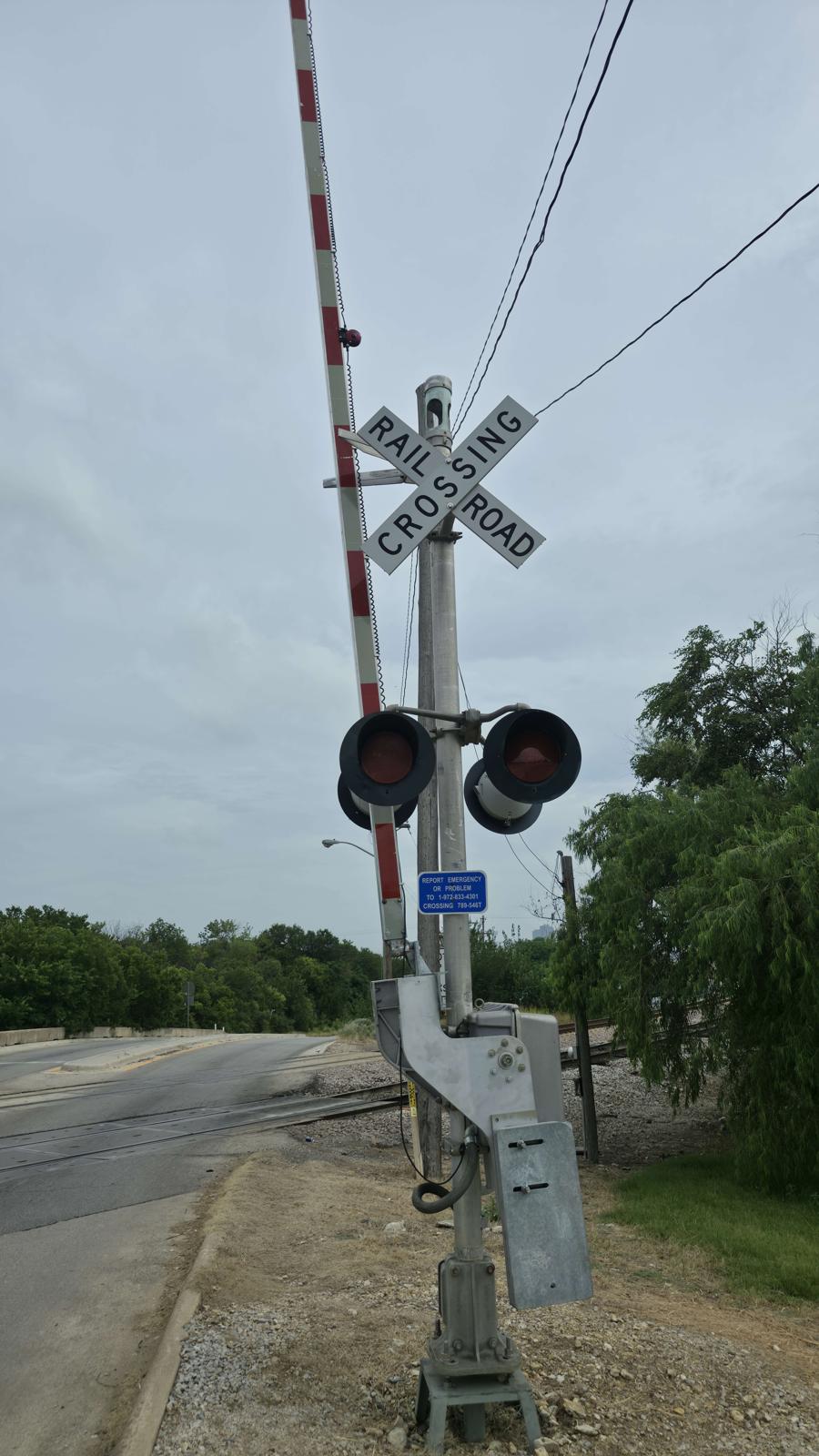

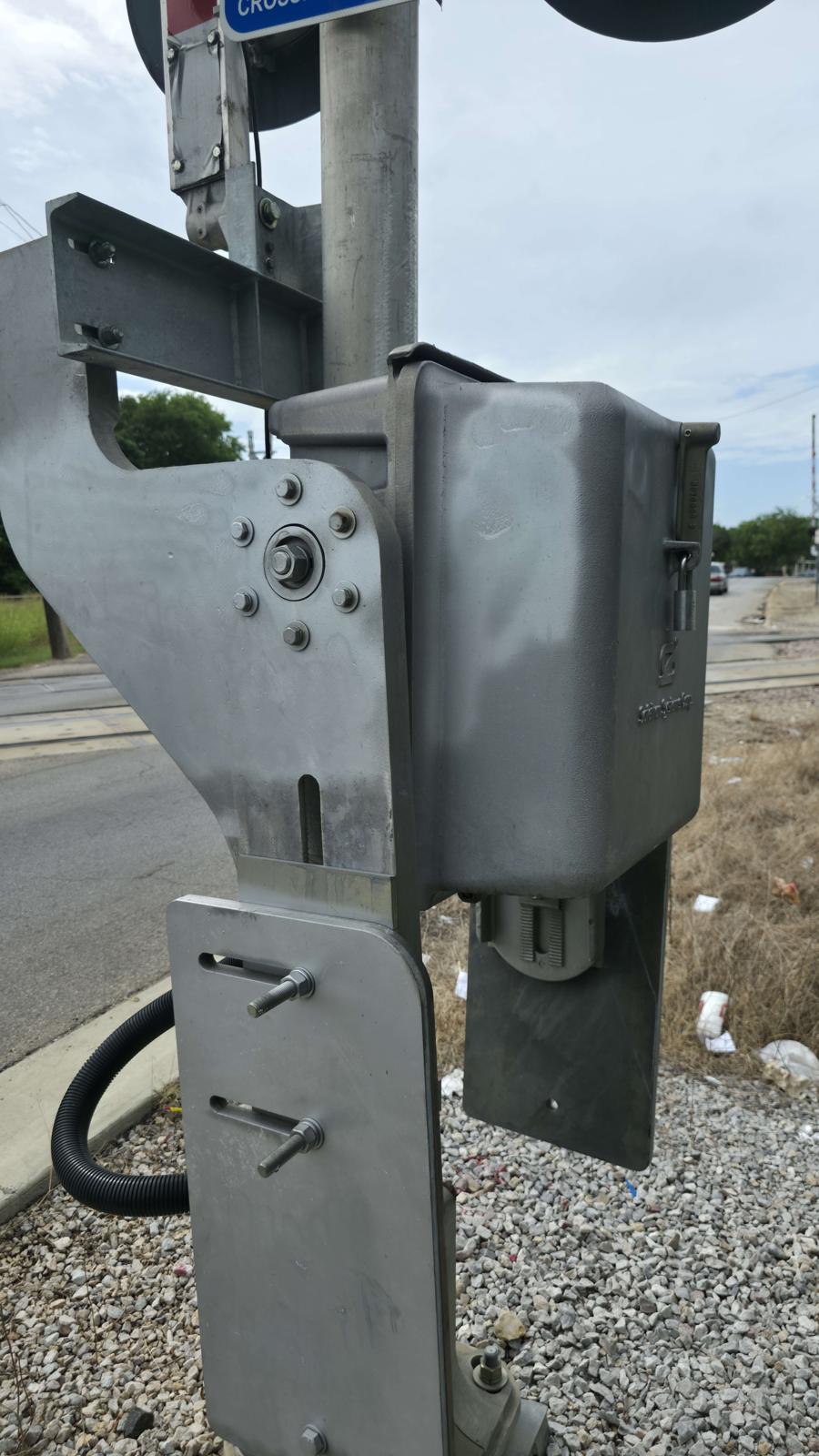

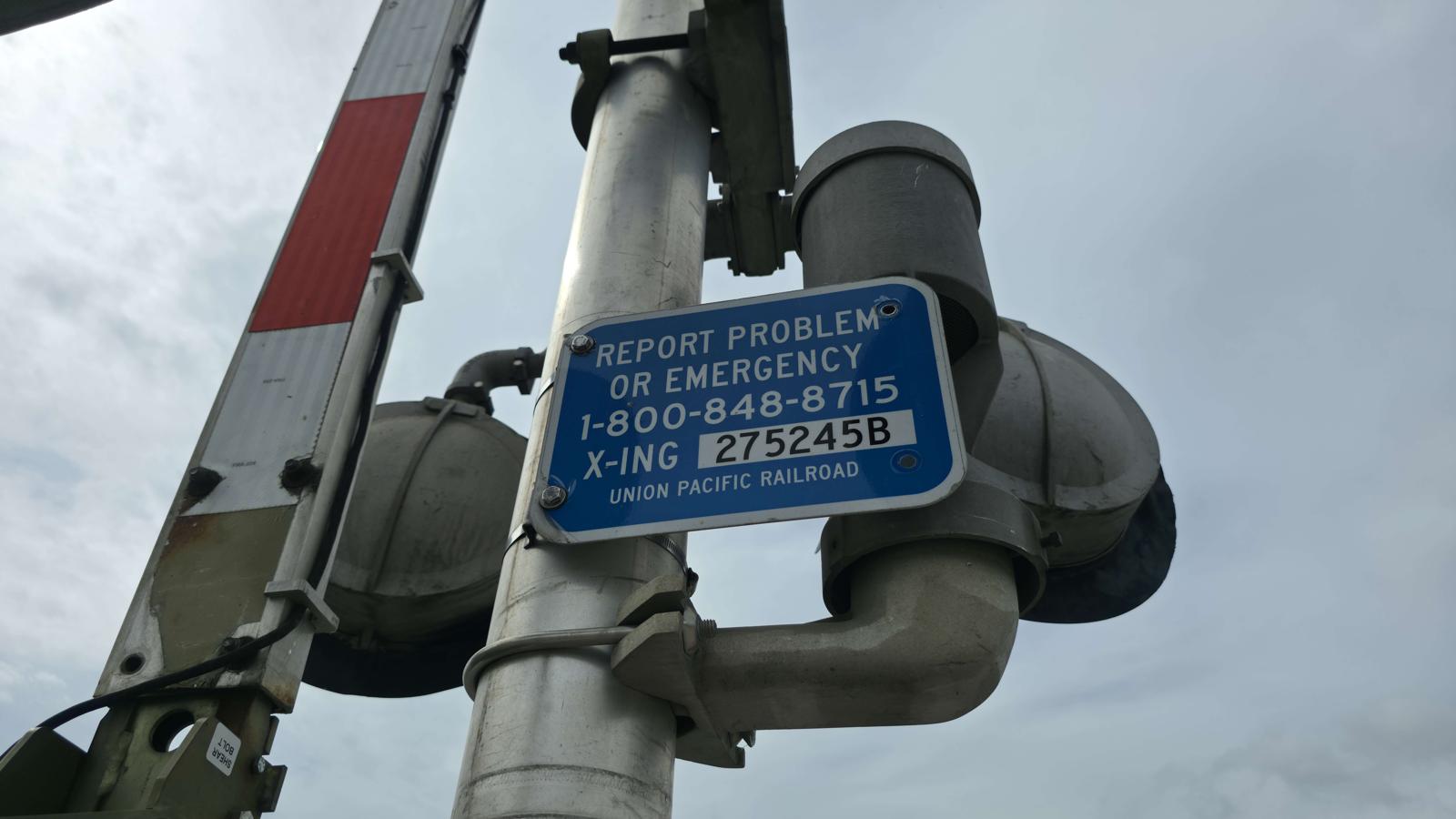

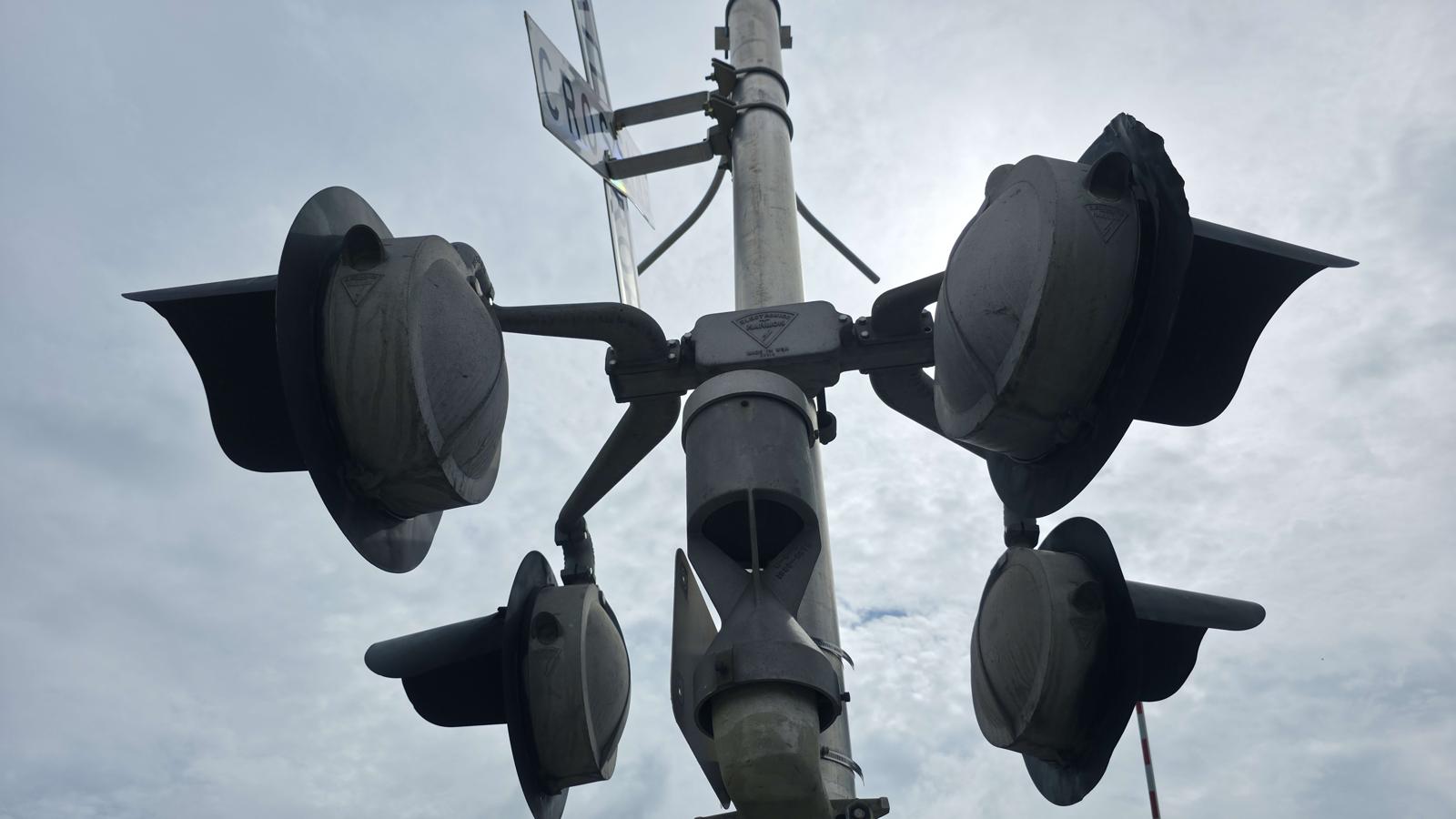

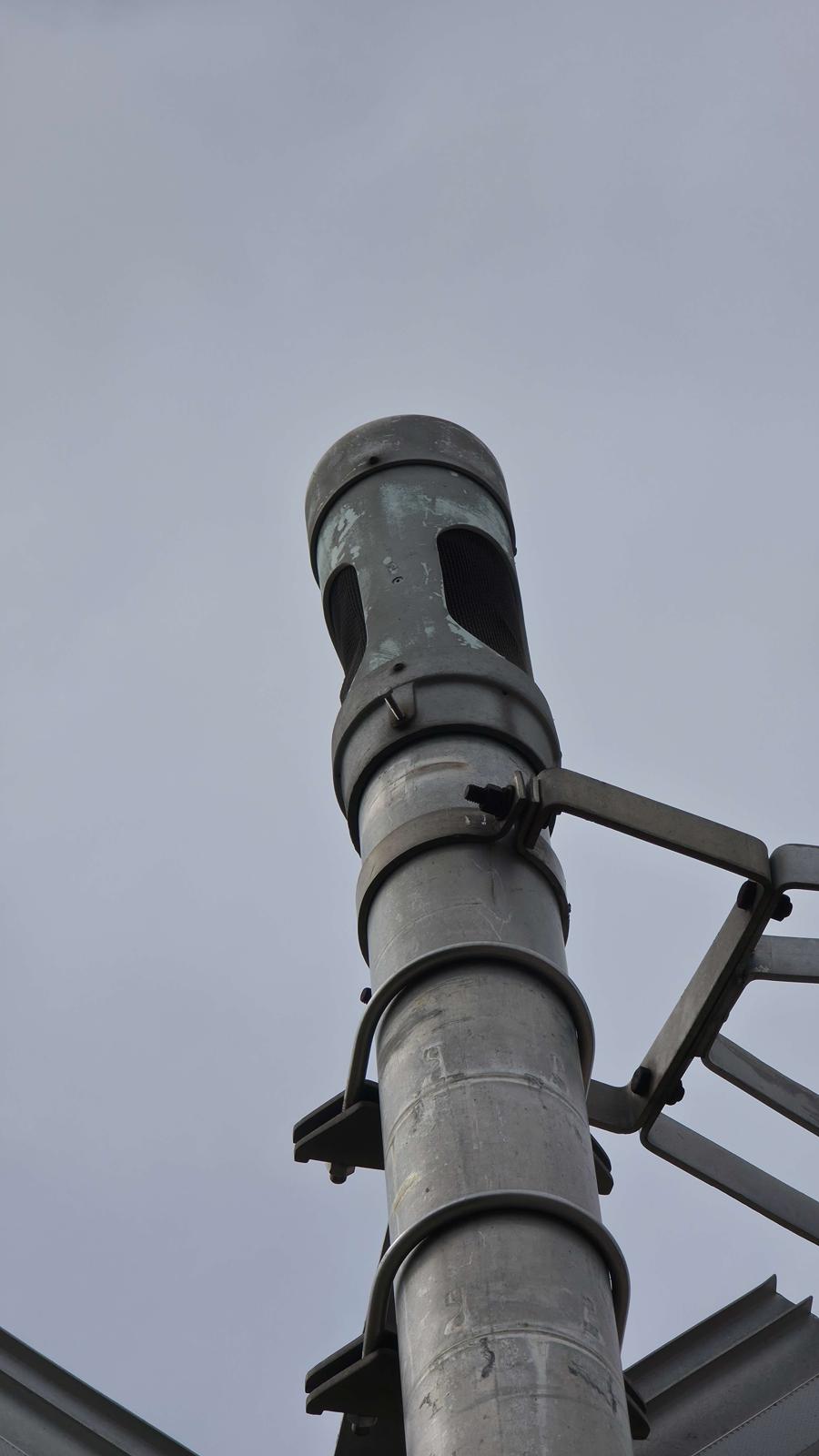

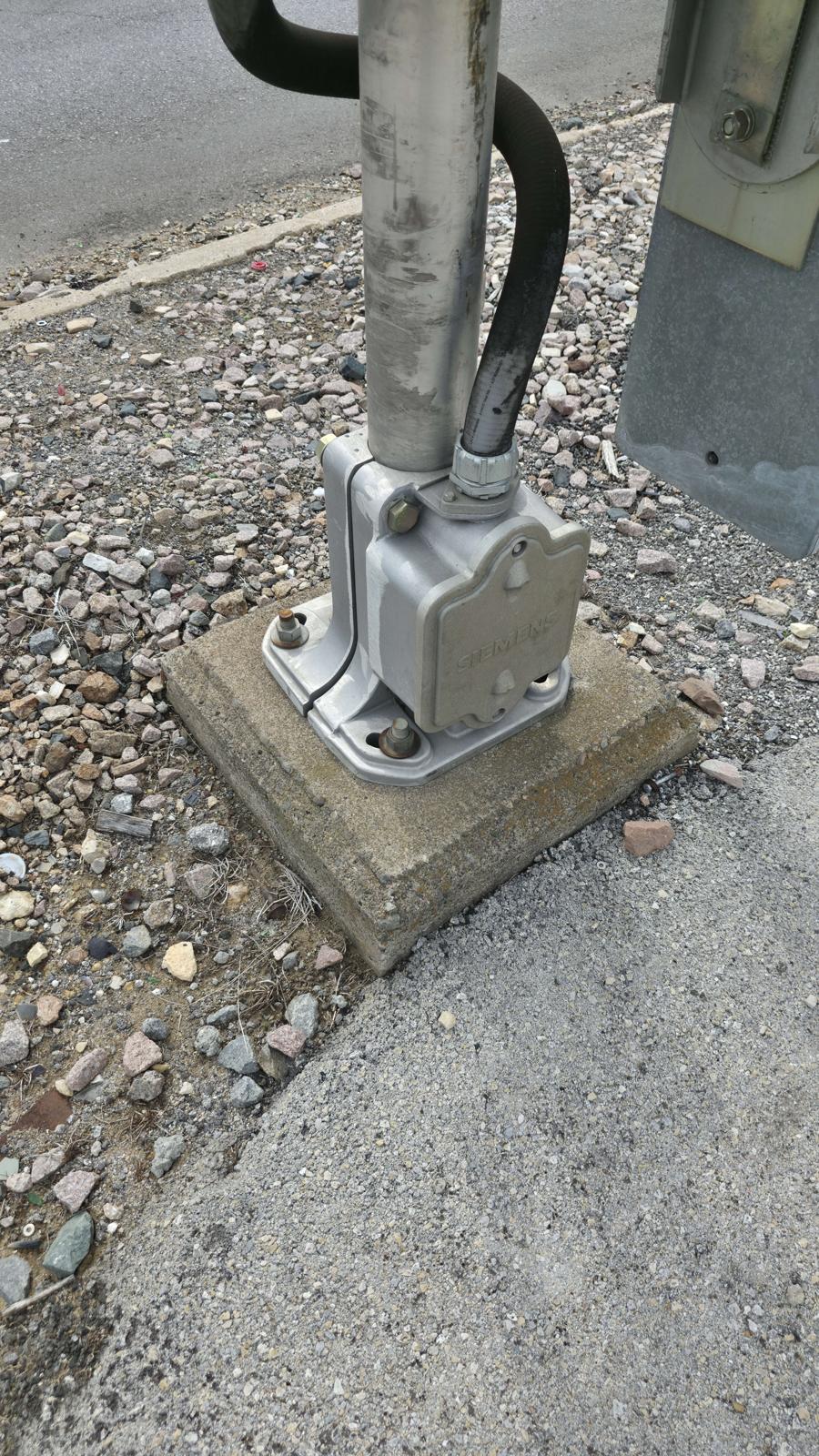

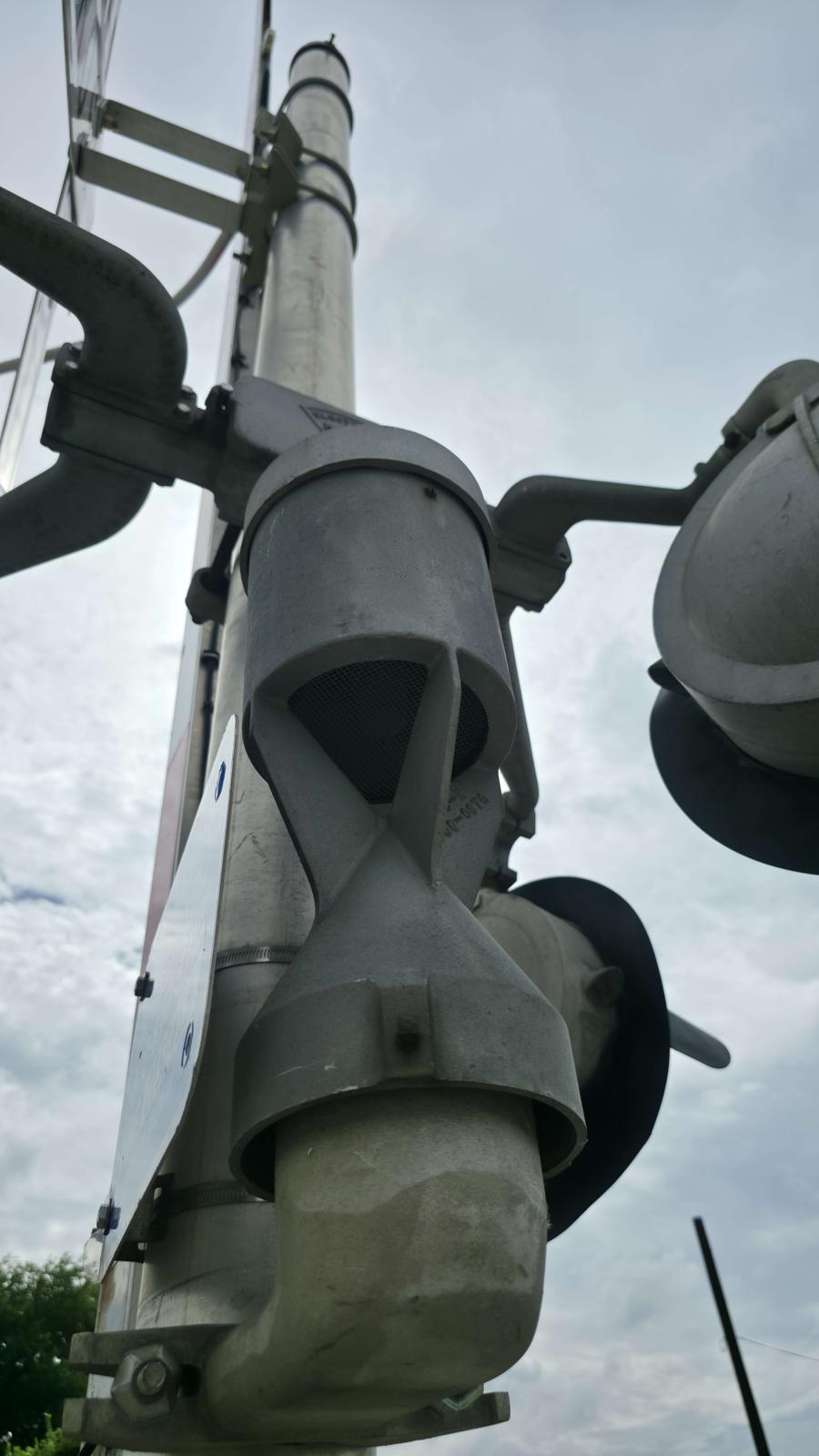

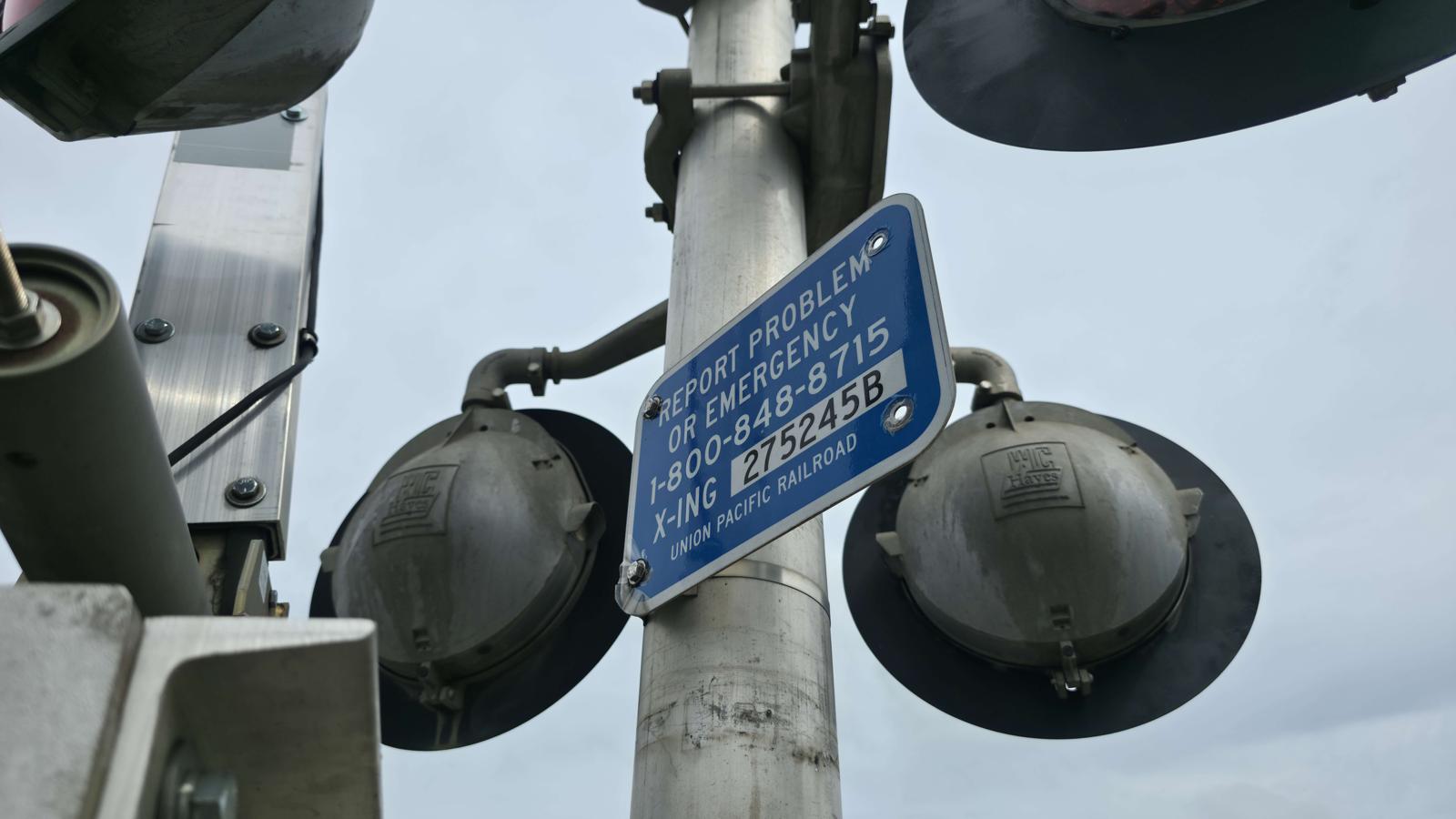

| The eastern UP signal. | ||
23 |
24 |

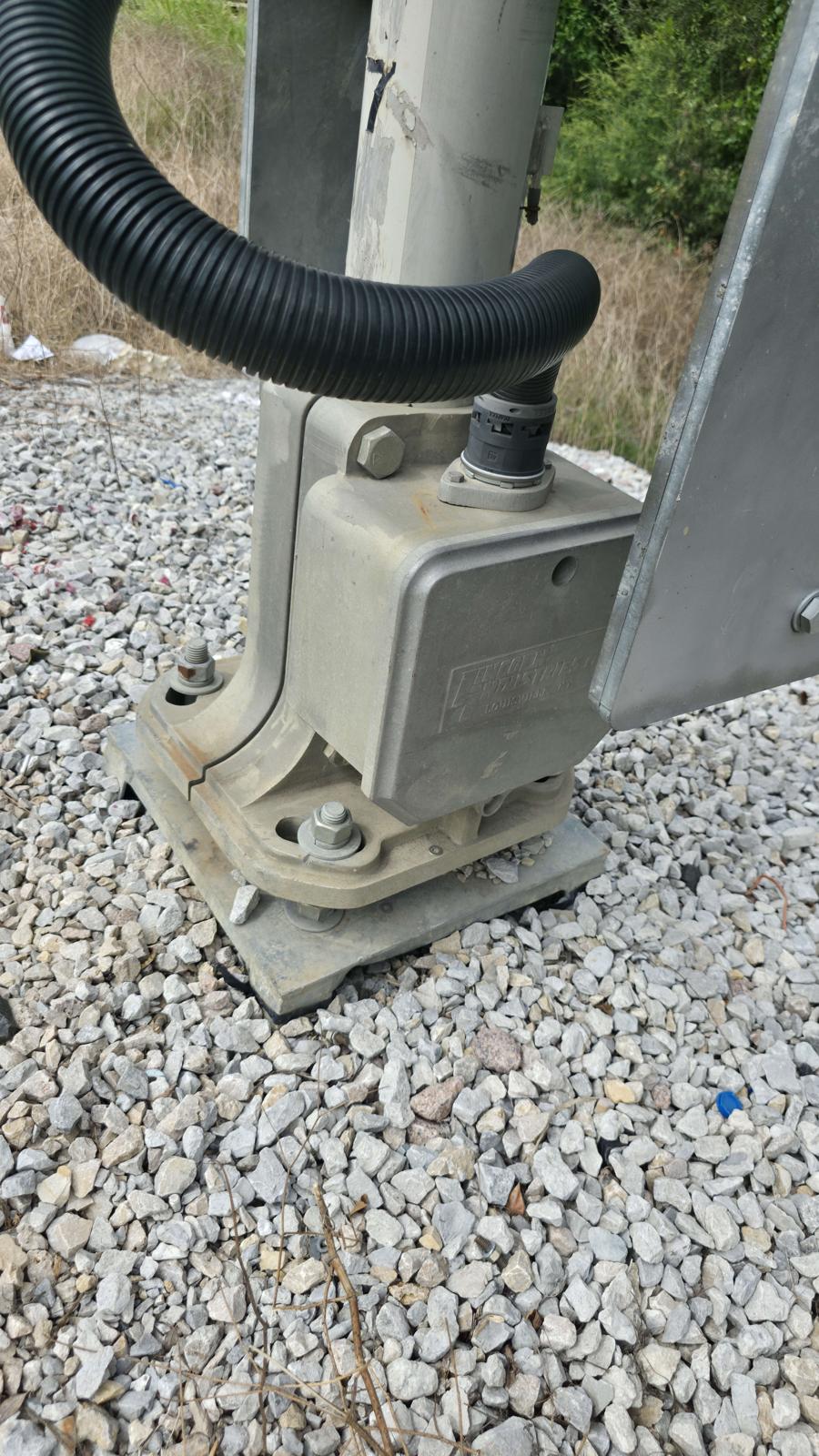

25 |
26 |

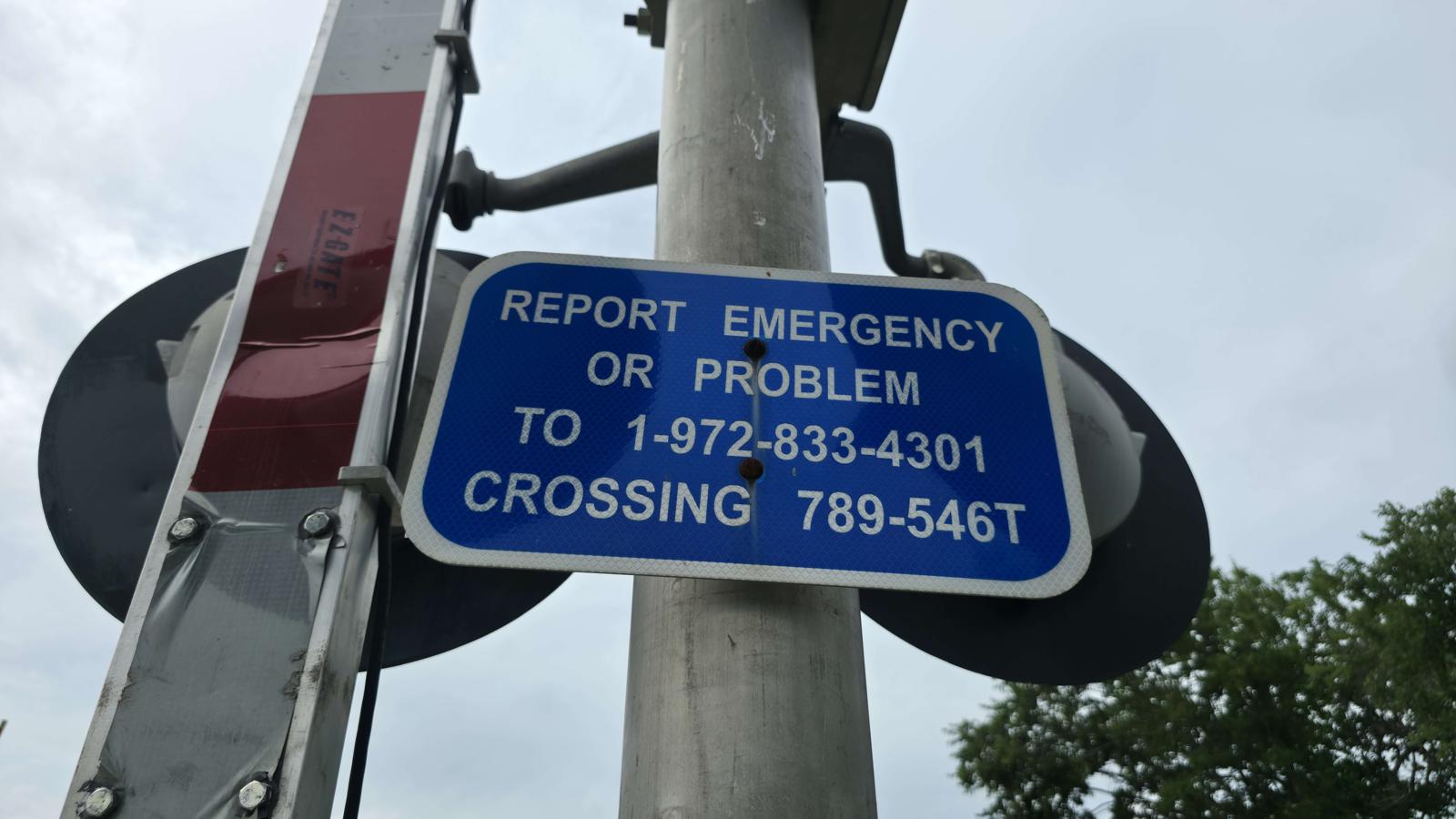

27 |

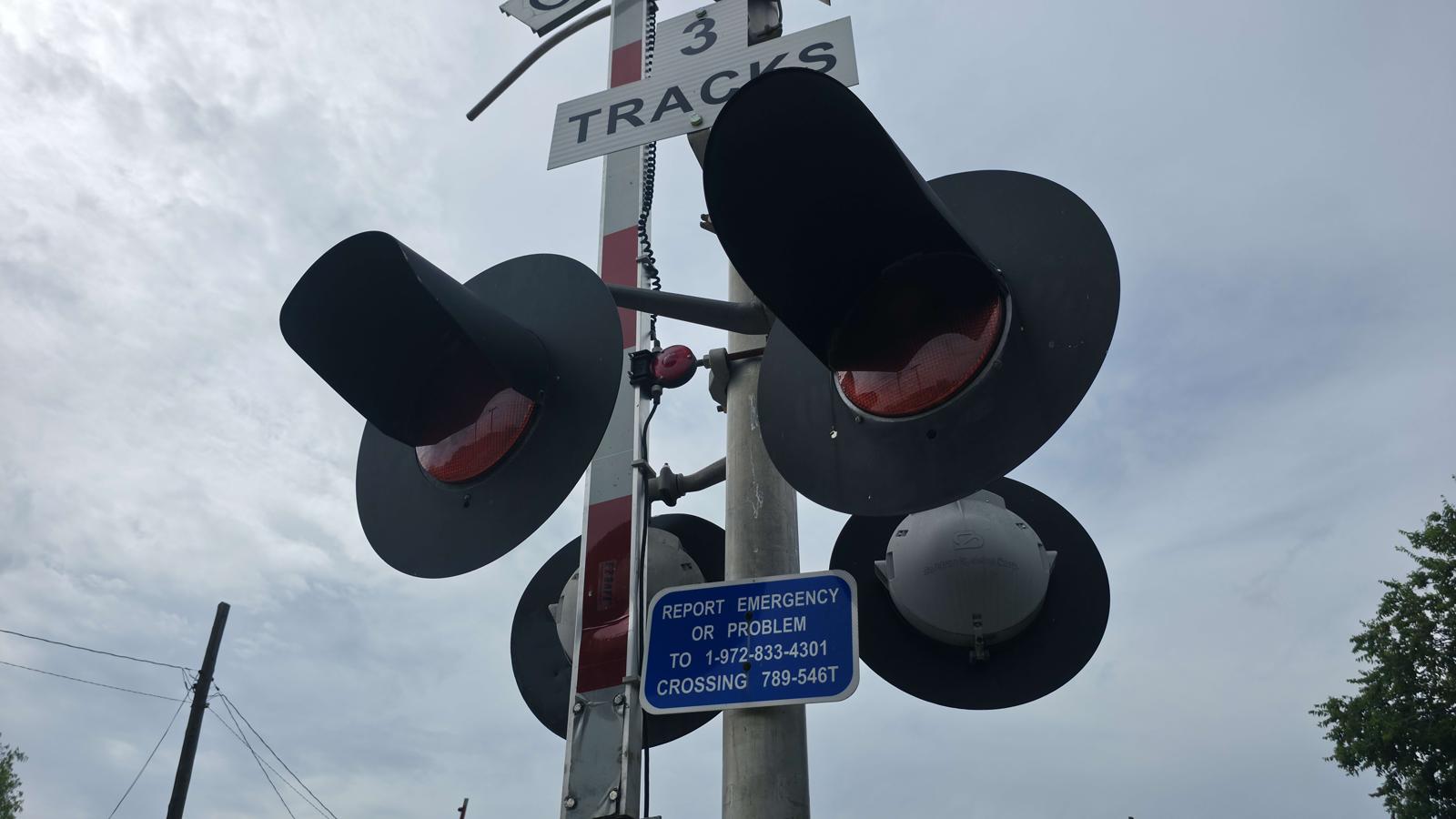

28 |
29 |
30 |

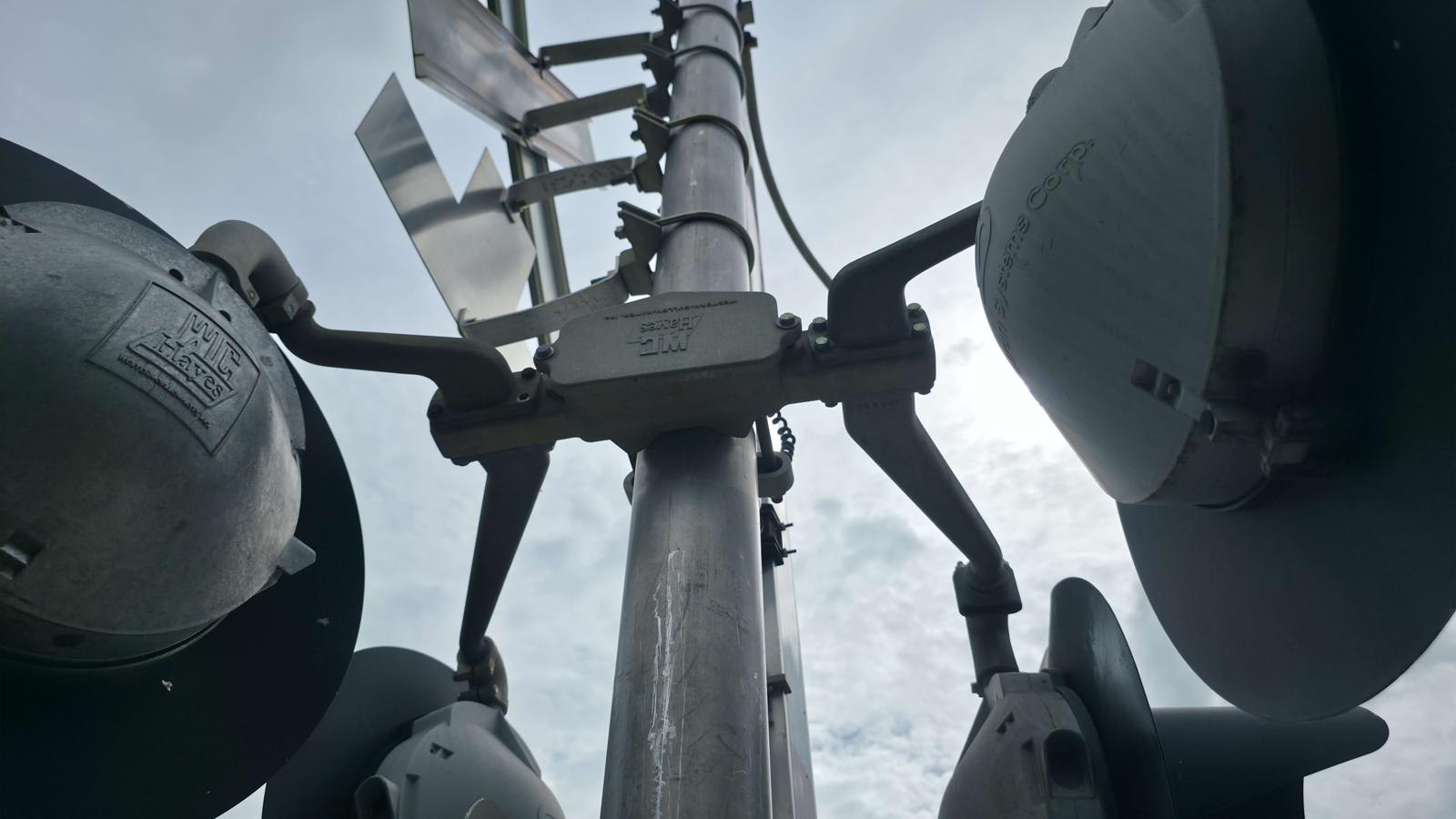

31 |
32 |
33 |

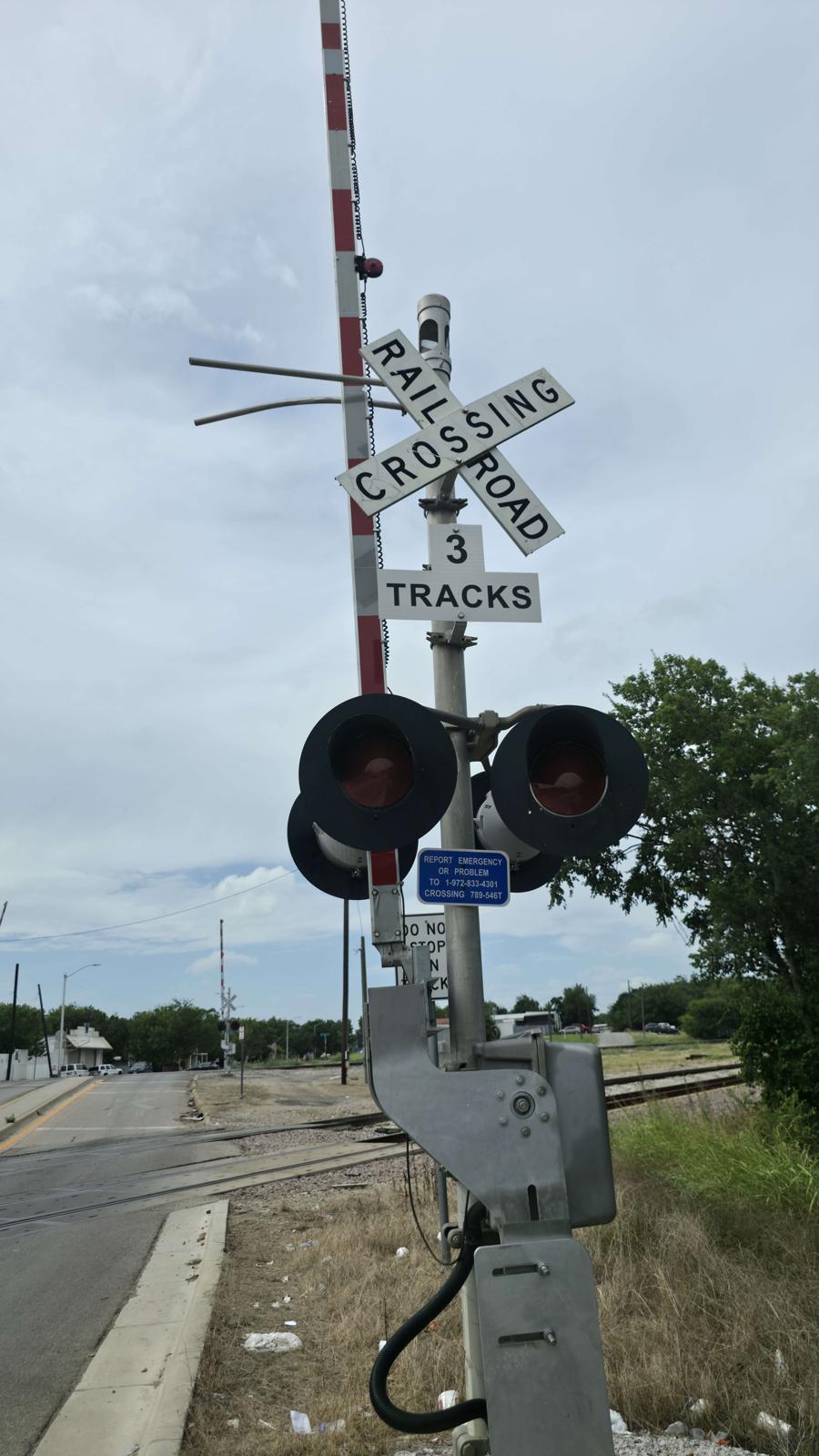

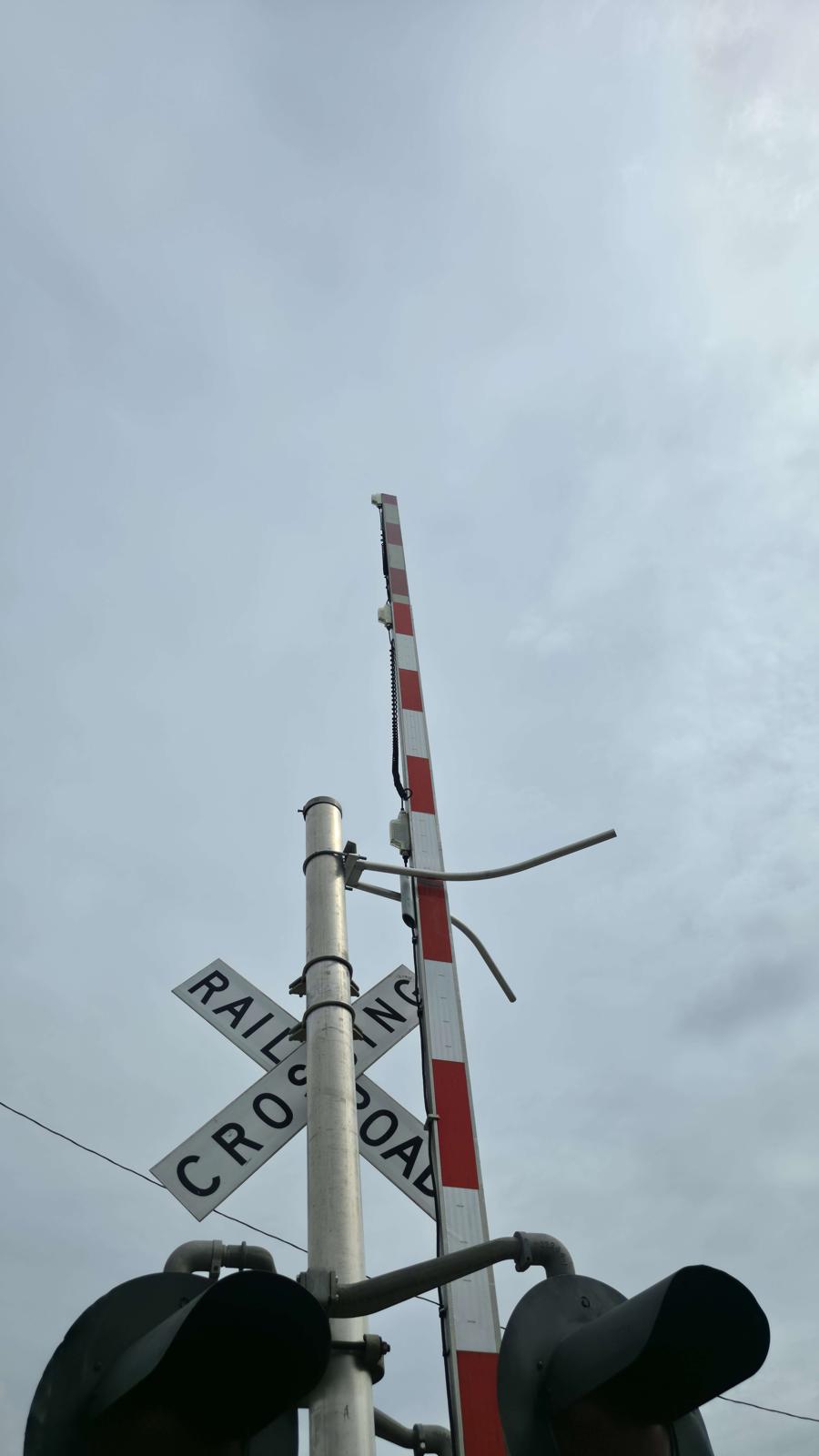

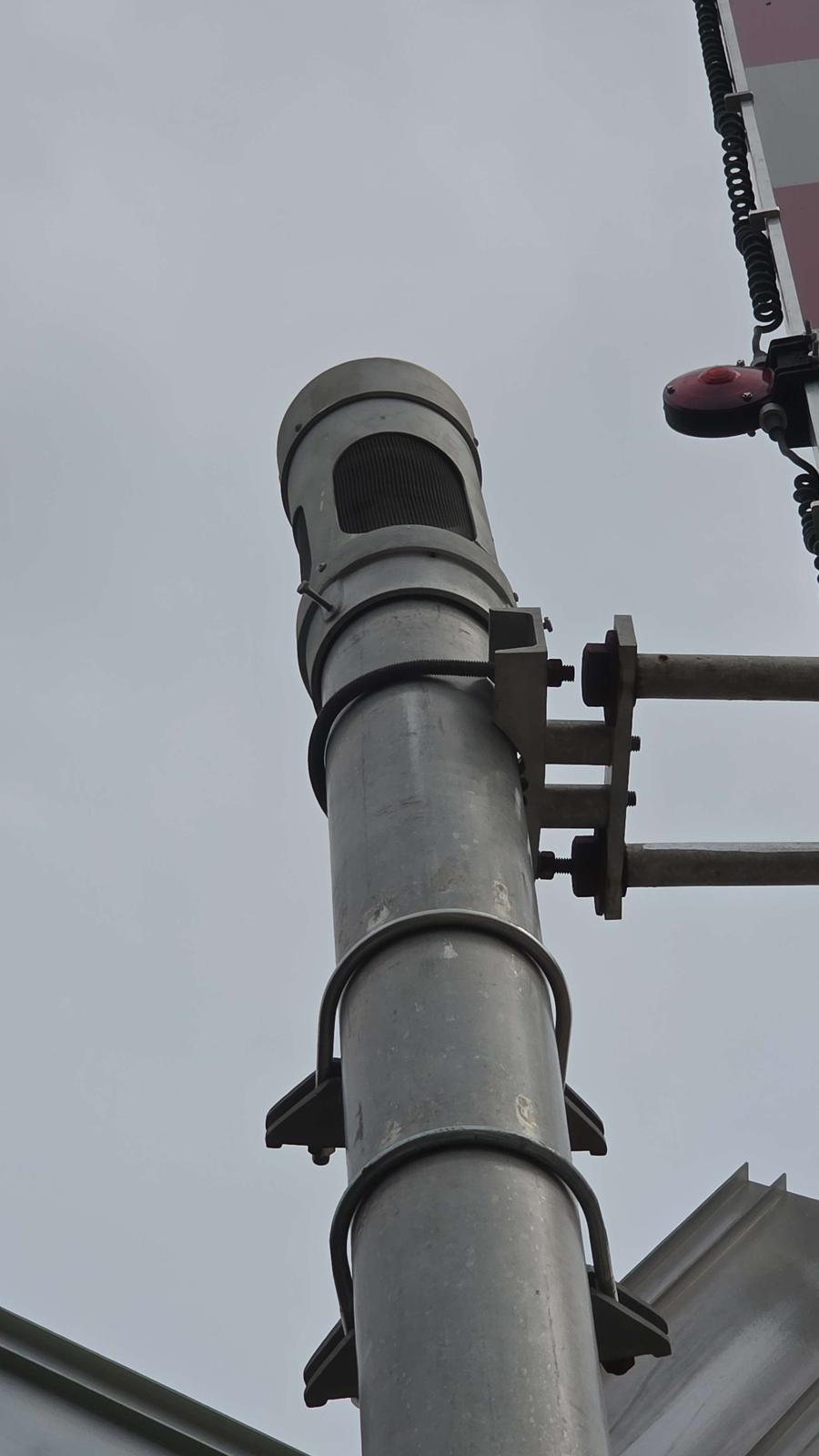

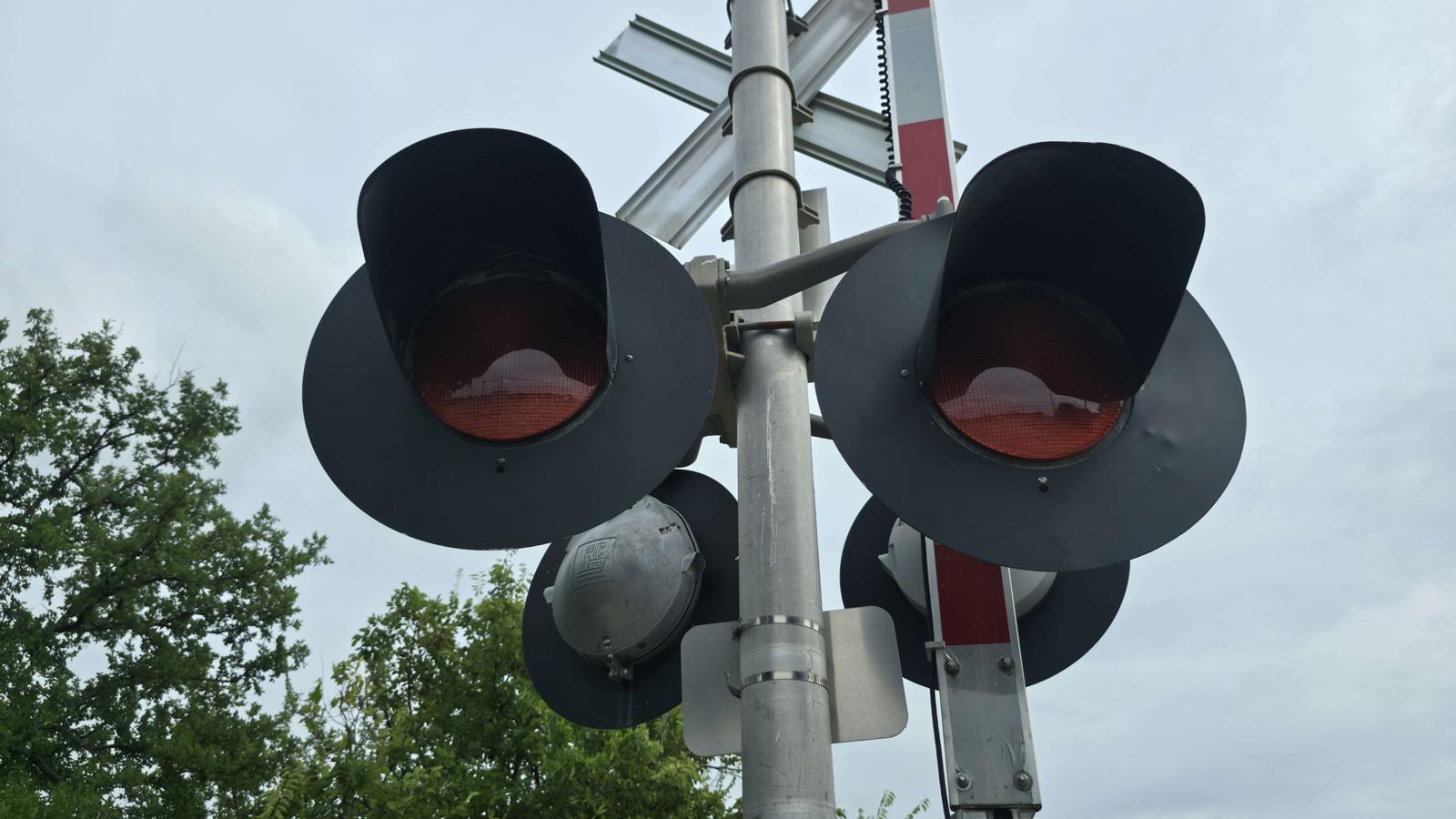

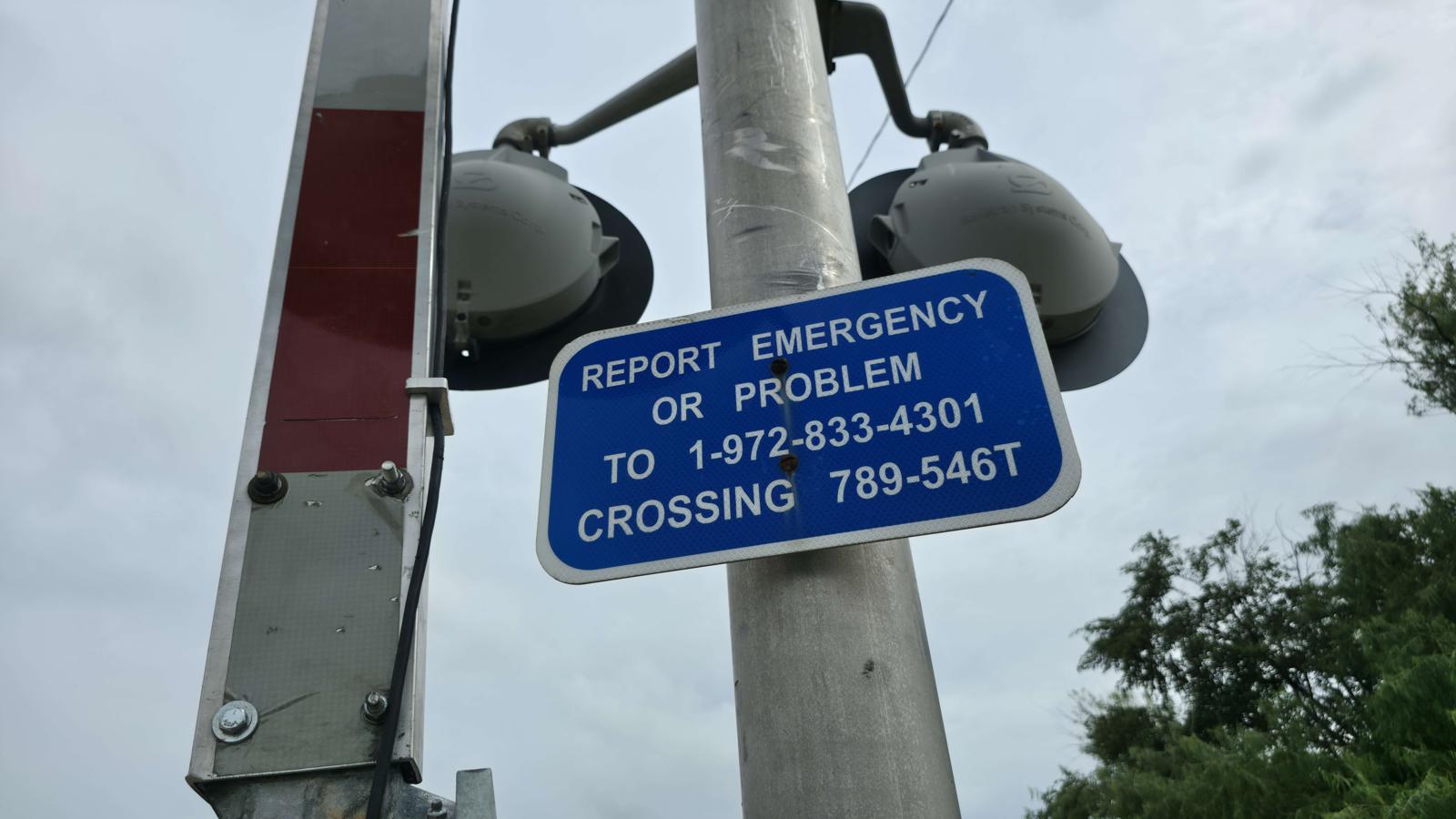

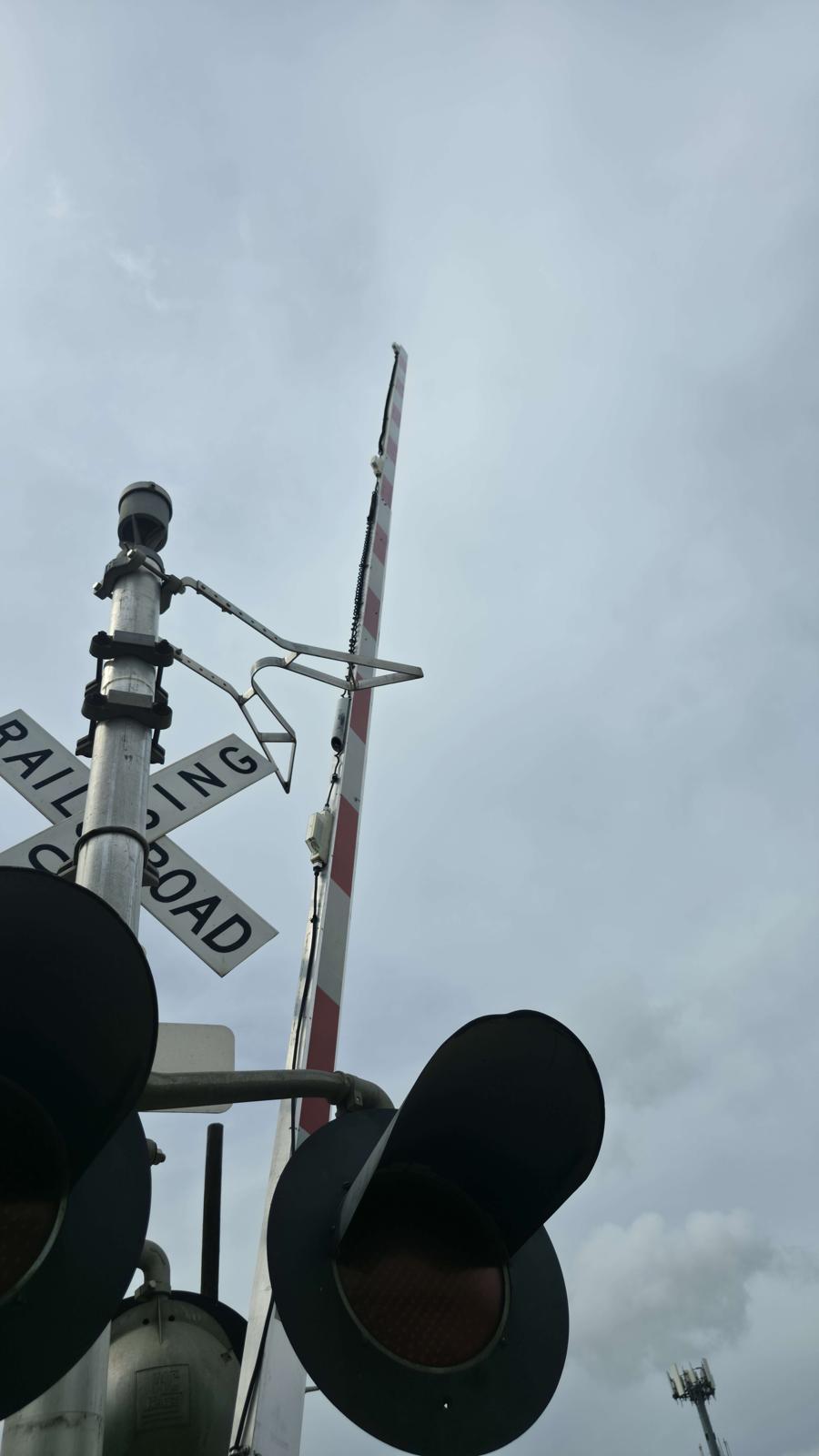

| The eastern TEXRail signal. | |||
34 |
35 |
36 |
37 |
38 |
39 |
40 |

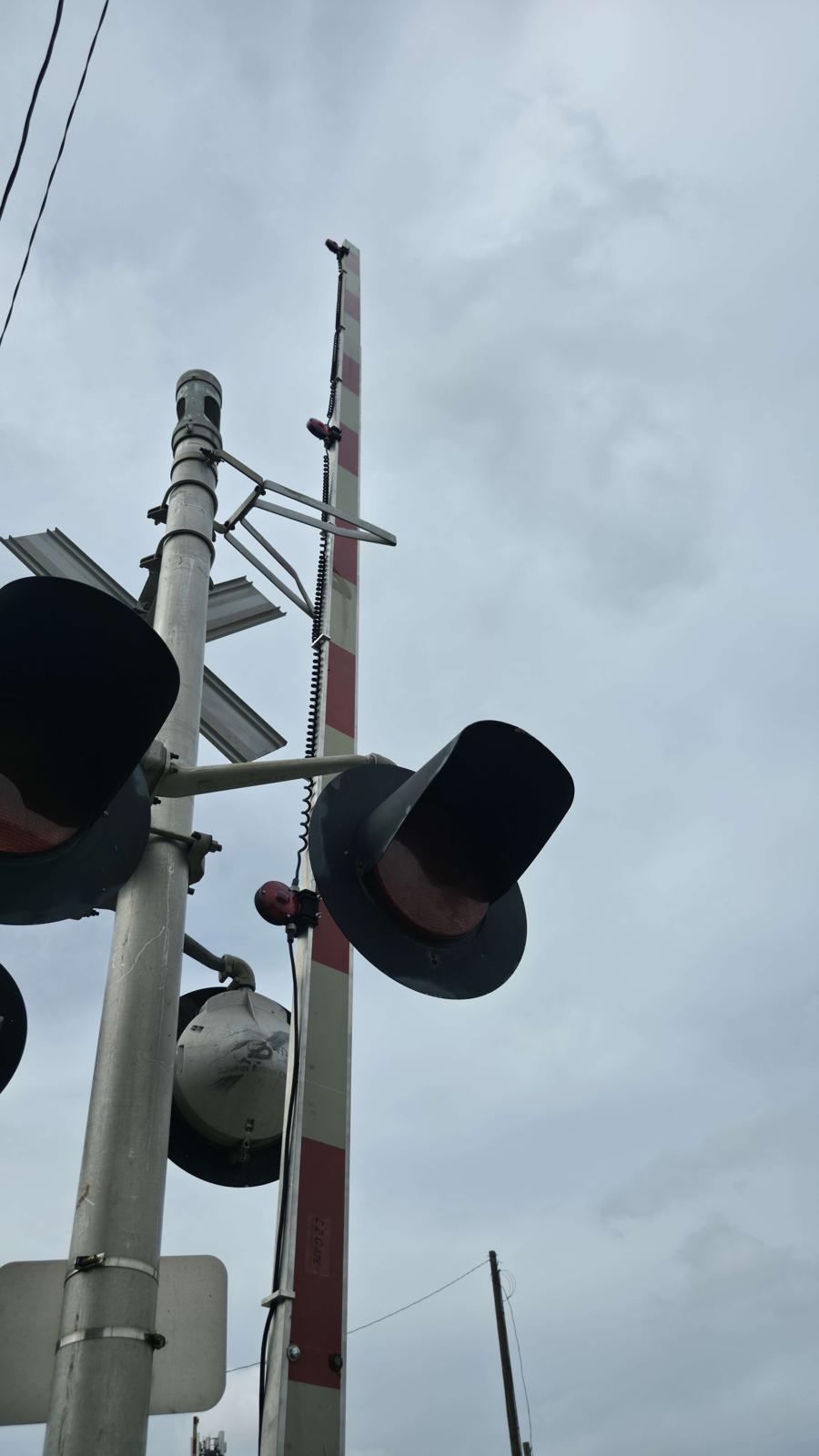

41 |
42 |
43 |

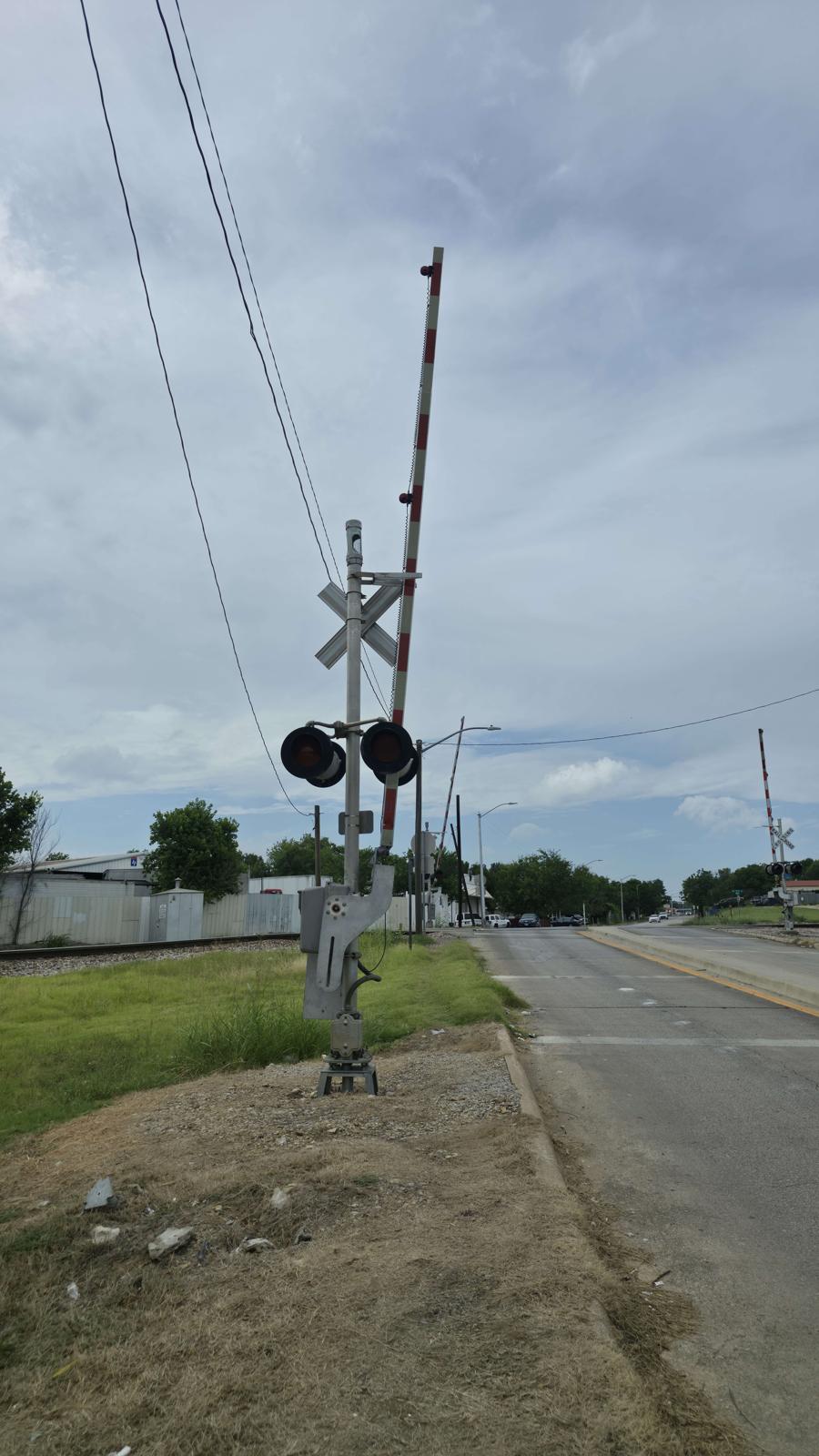

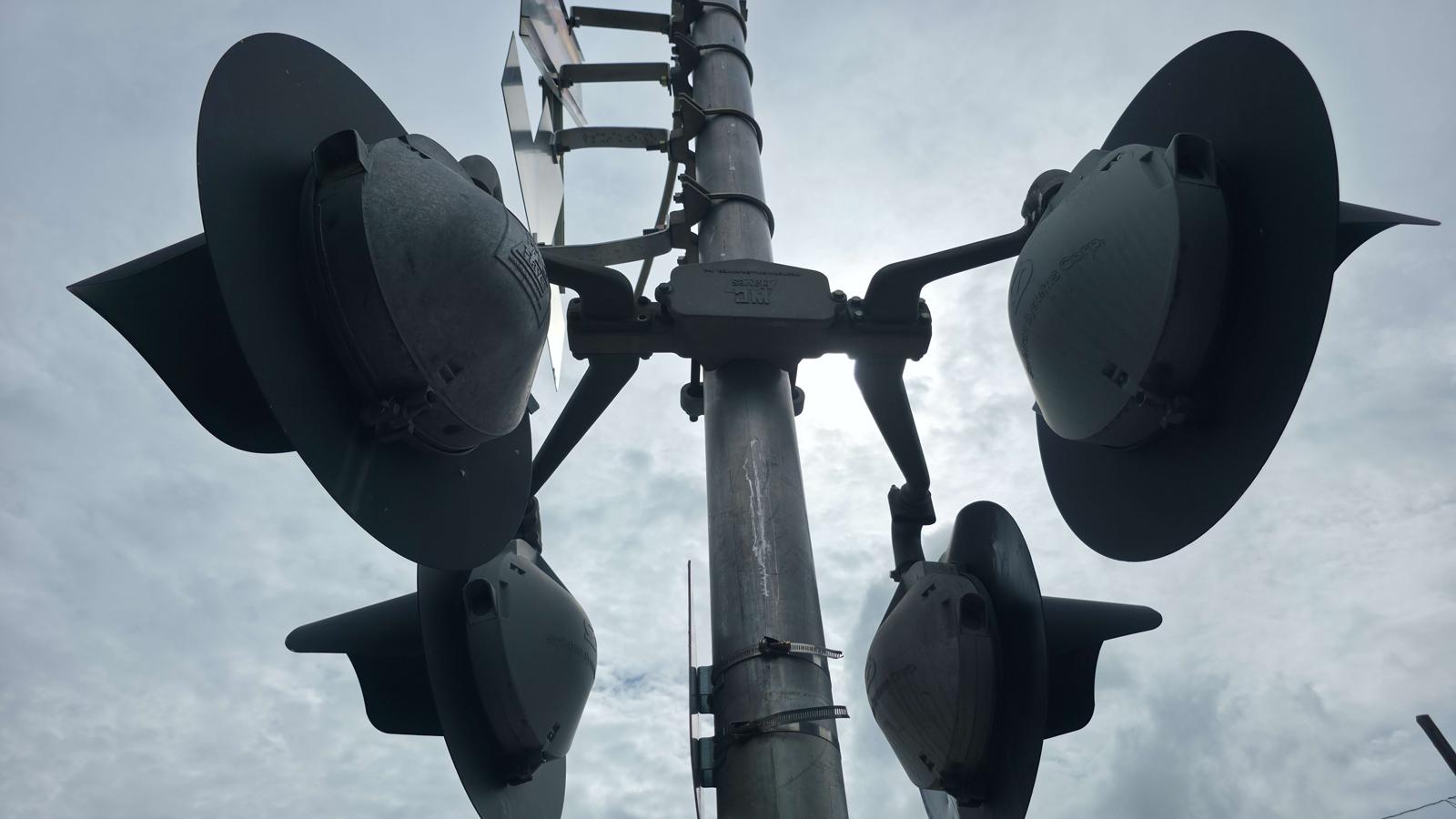

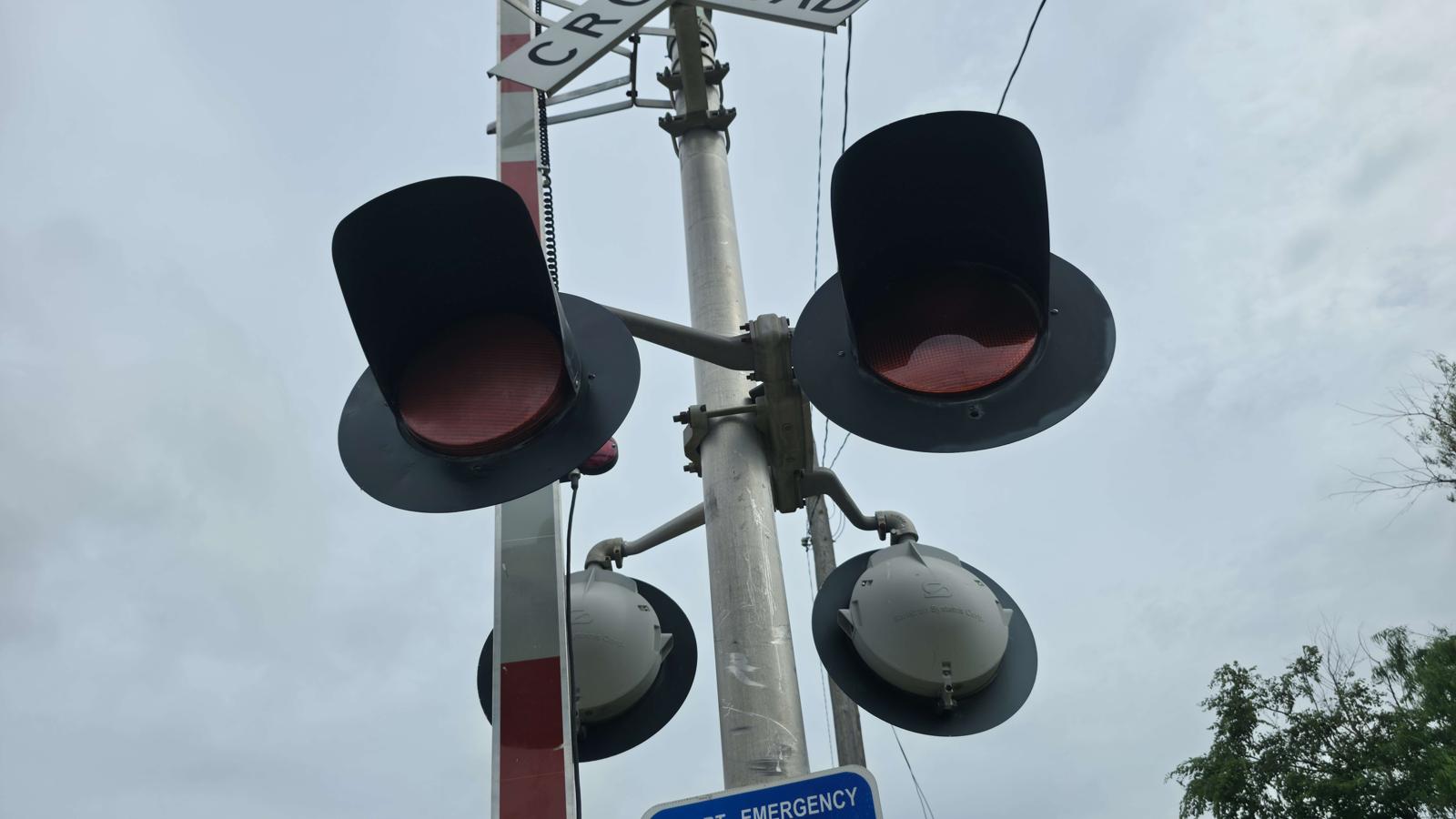

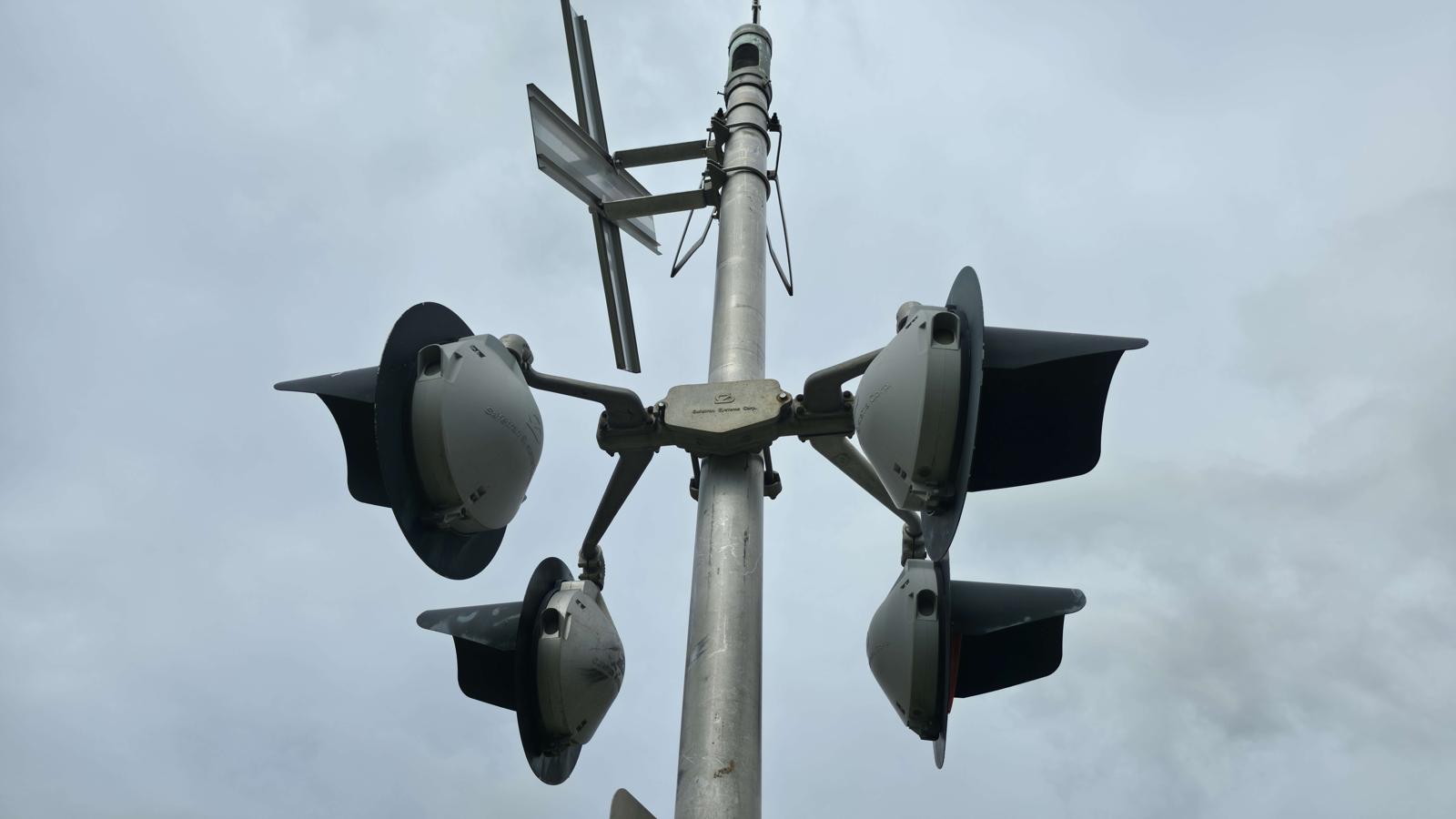

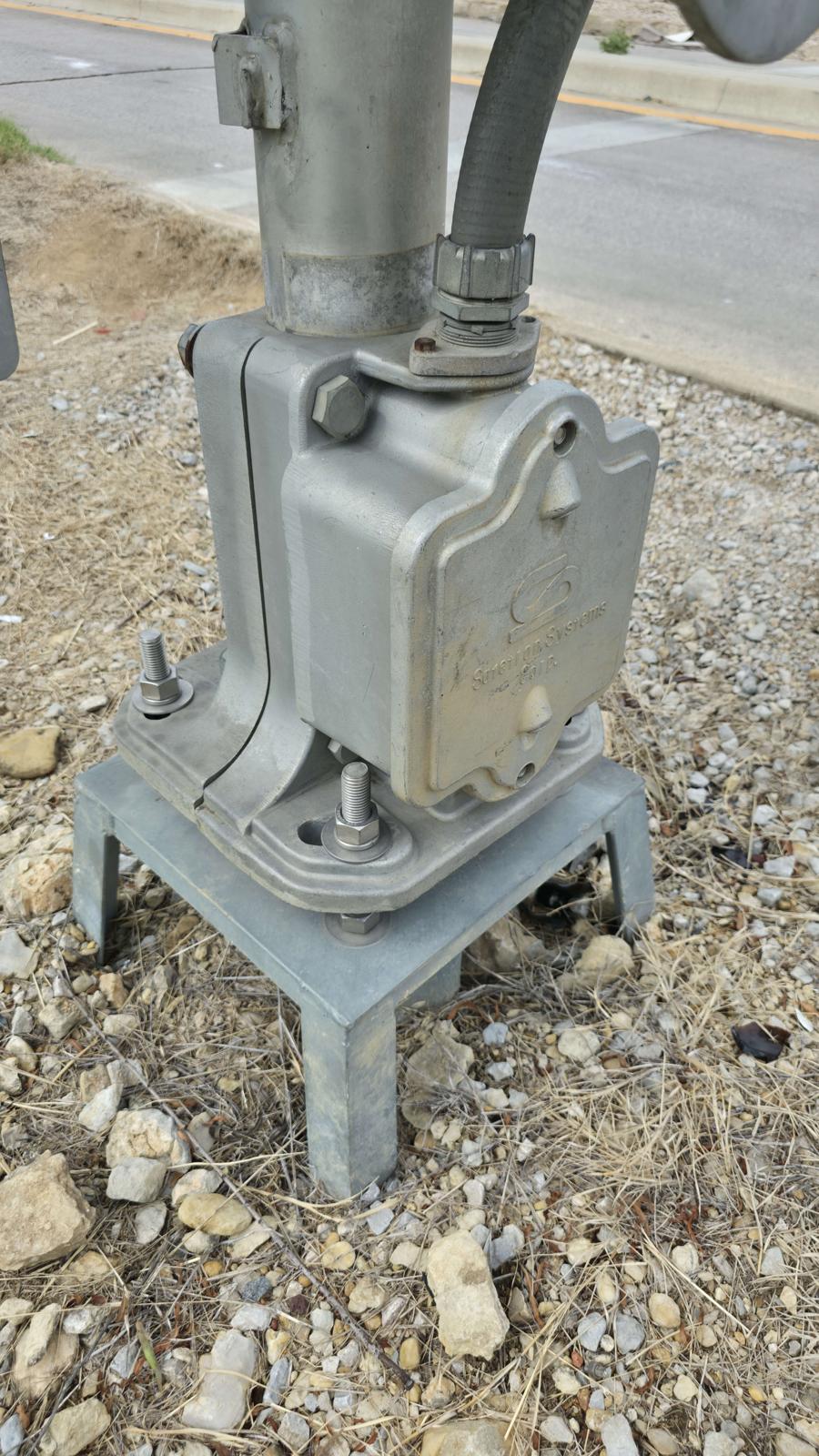

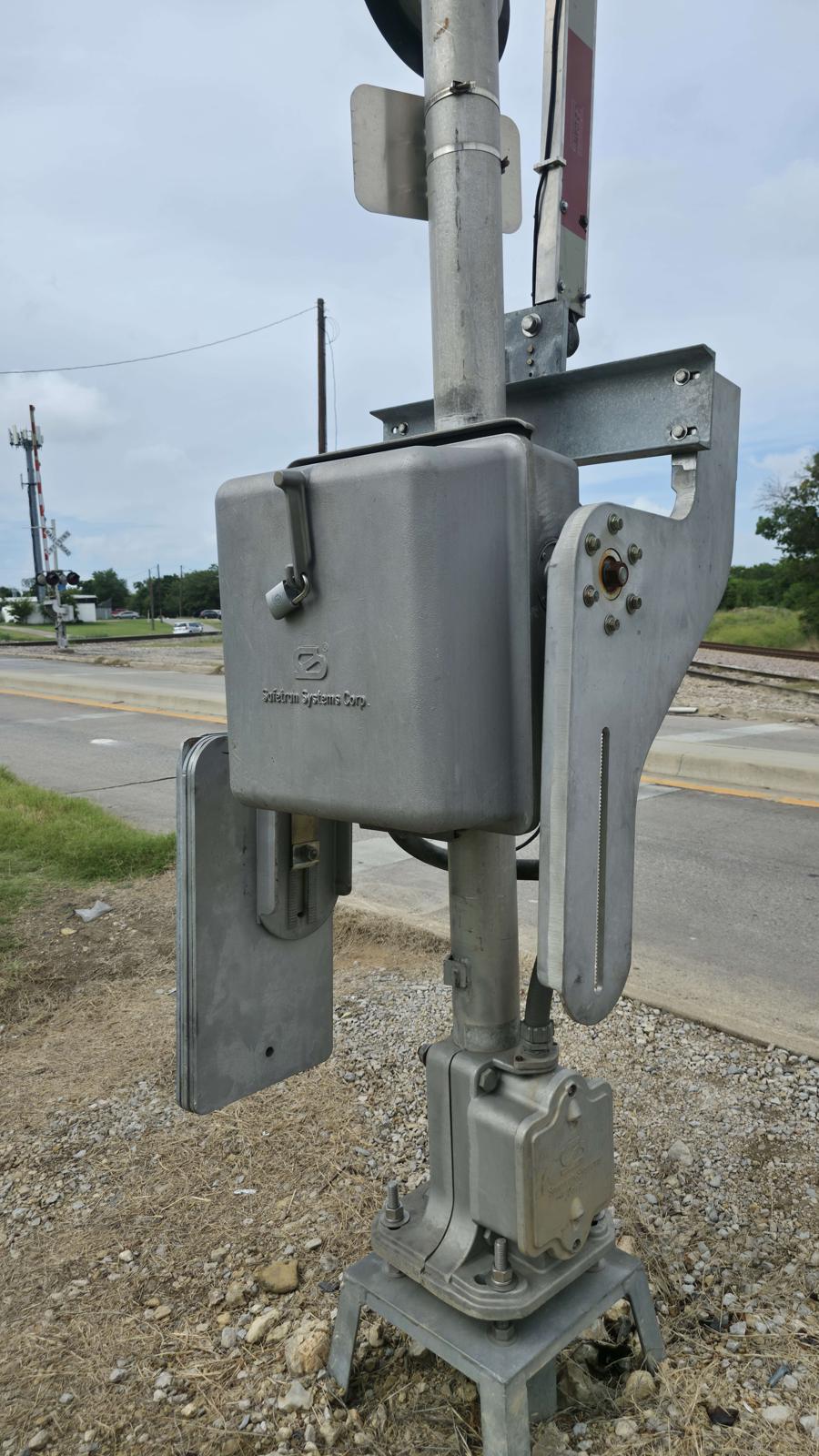

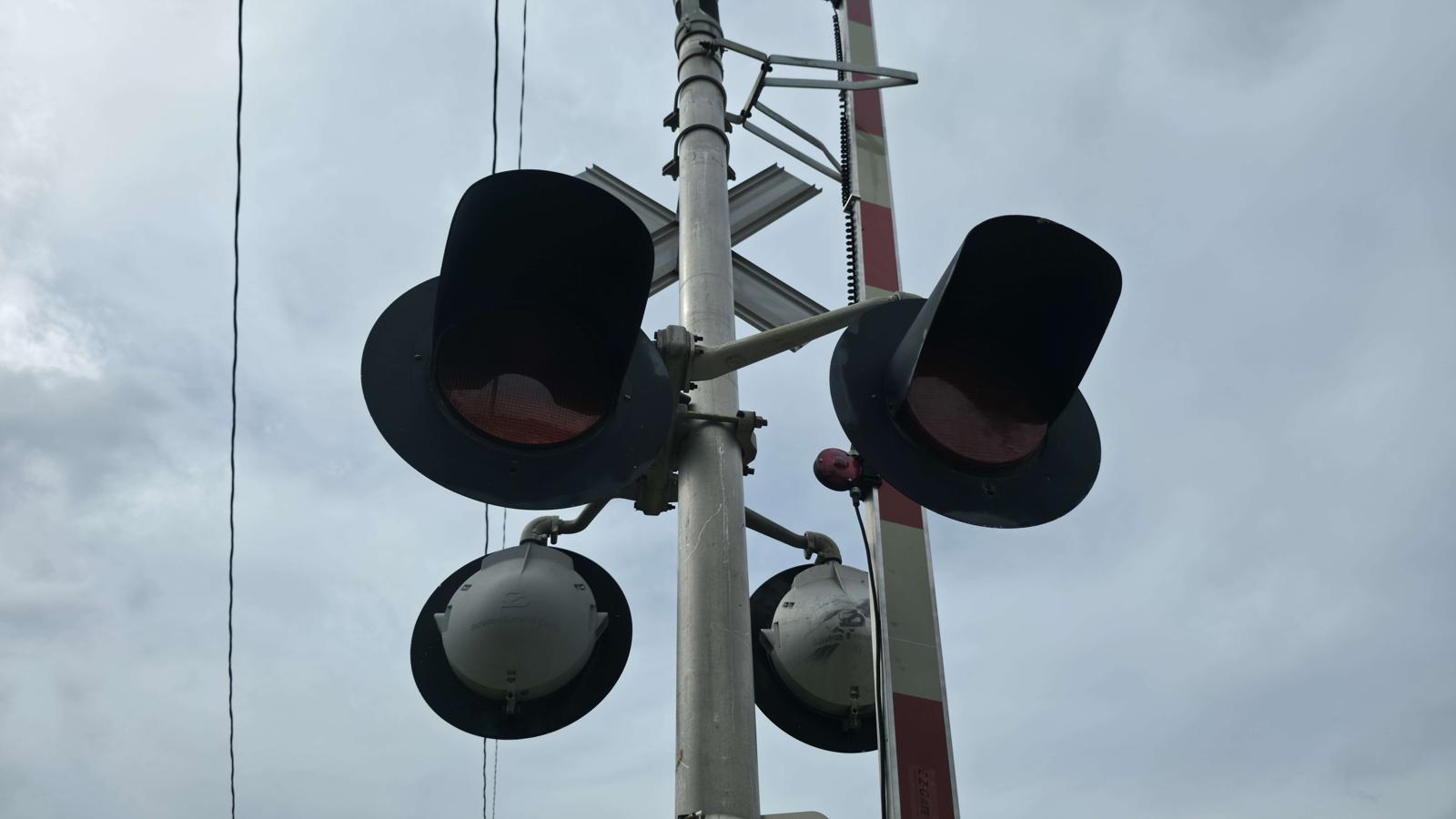

| The western TEXRail signal. | |||
44 |
45 |

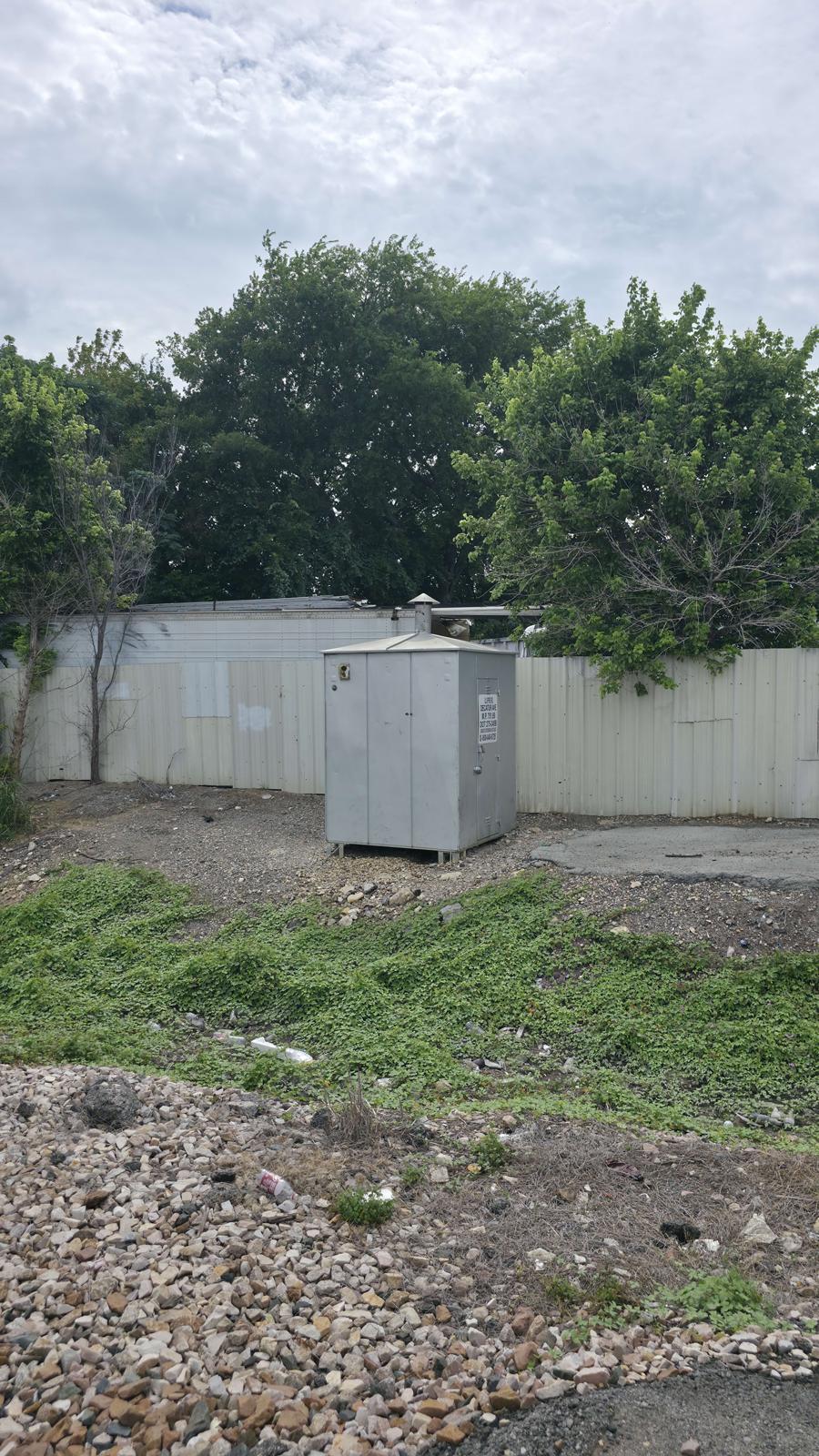

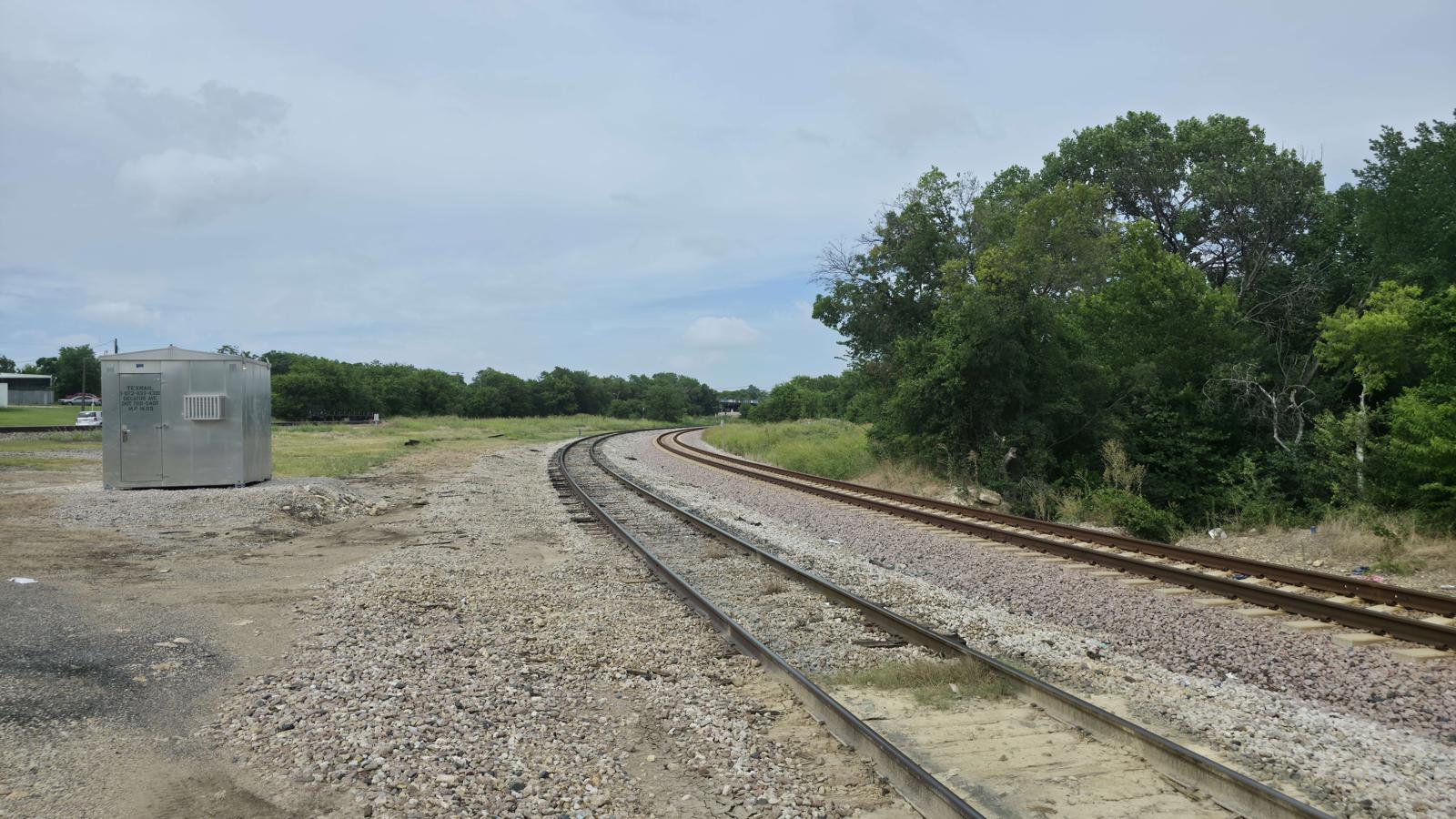

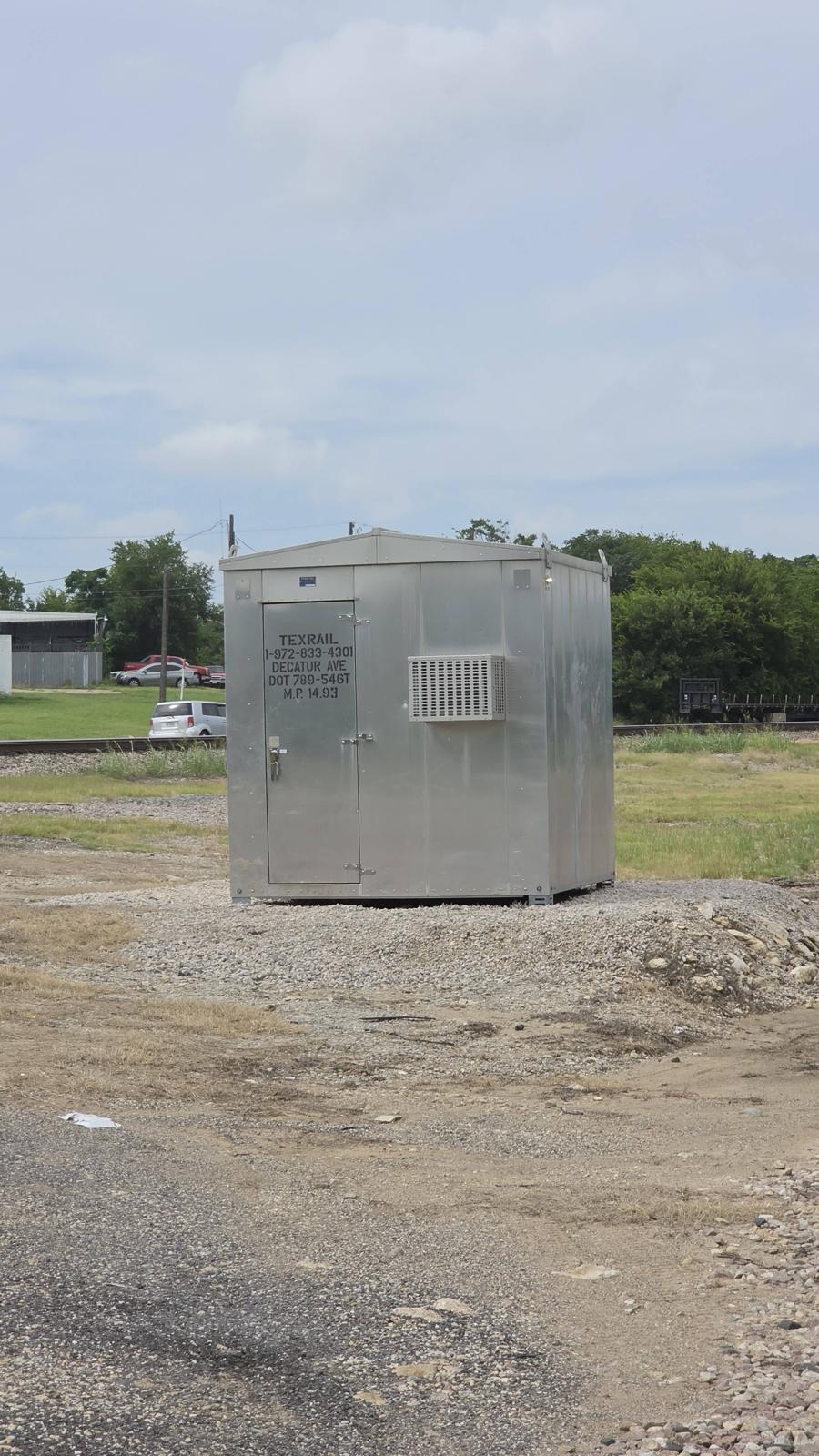

| The UP relay bungalow in the southwest quadrant. | The TEXRail relay bungalow to the north. |
46 |
47 |
48 |
49 |

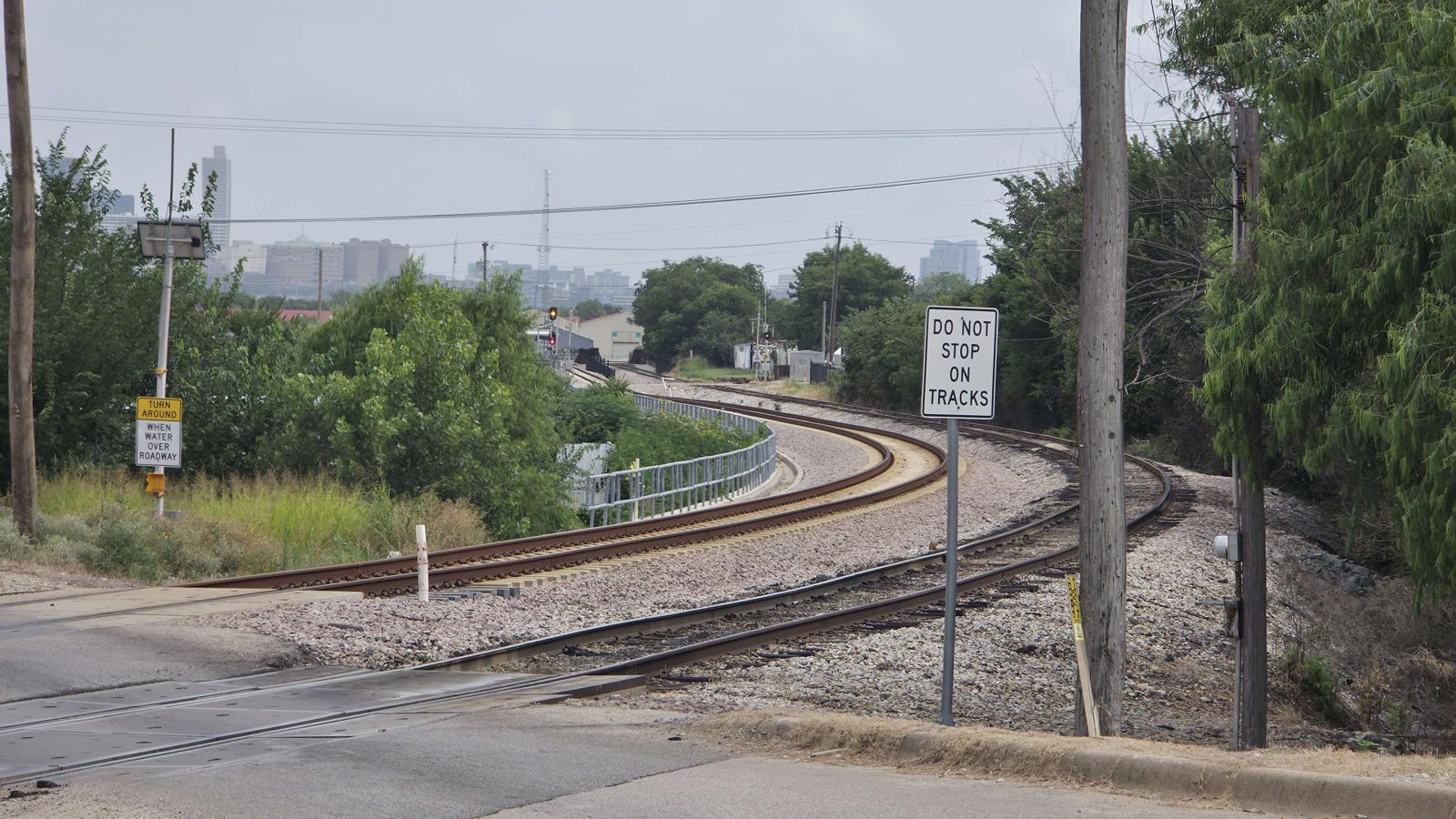

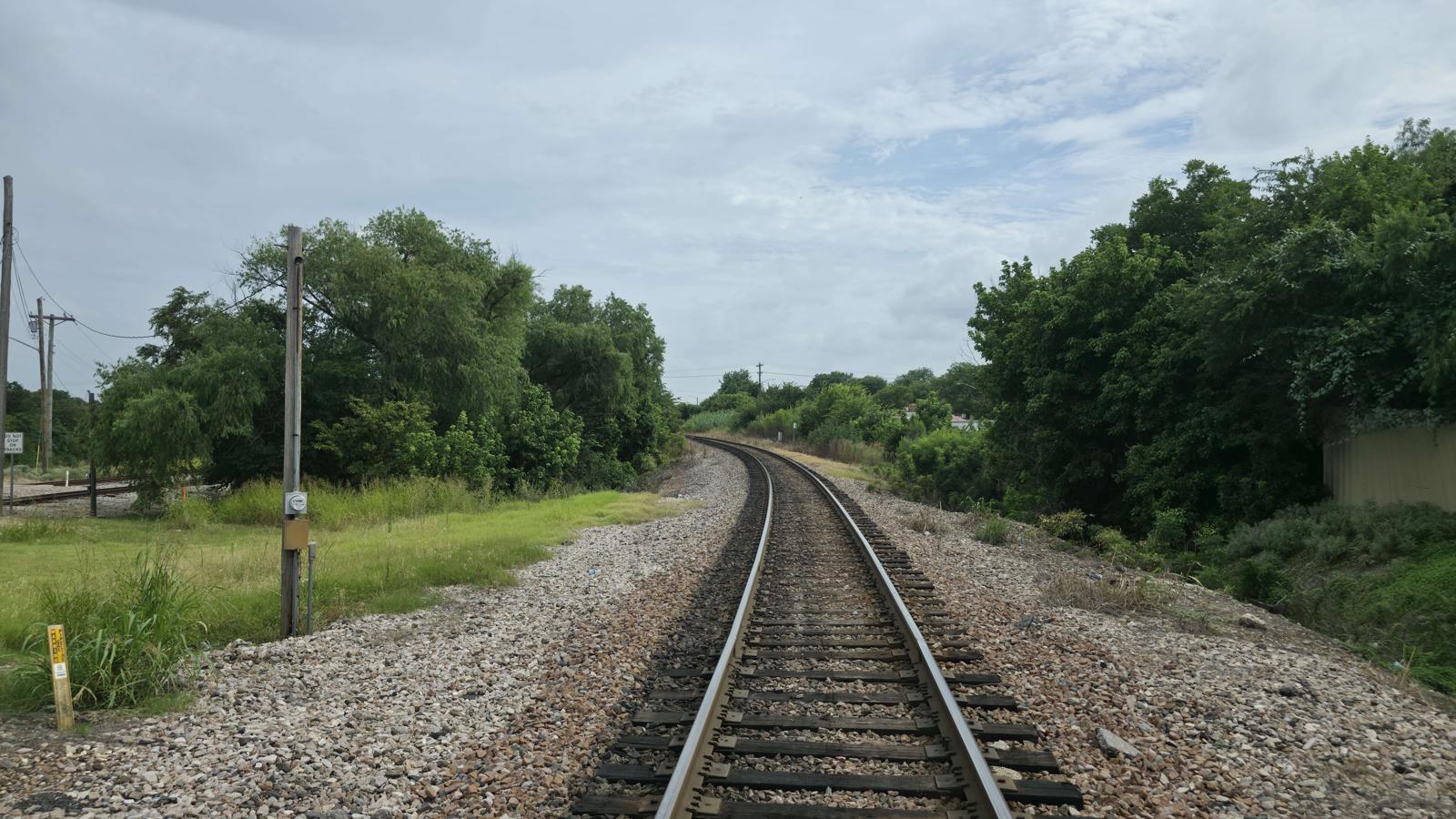

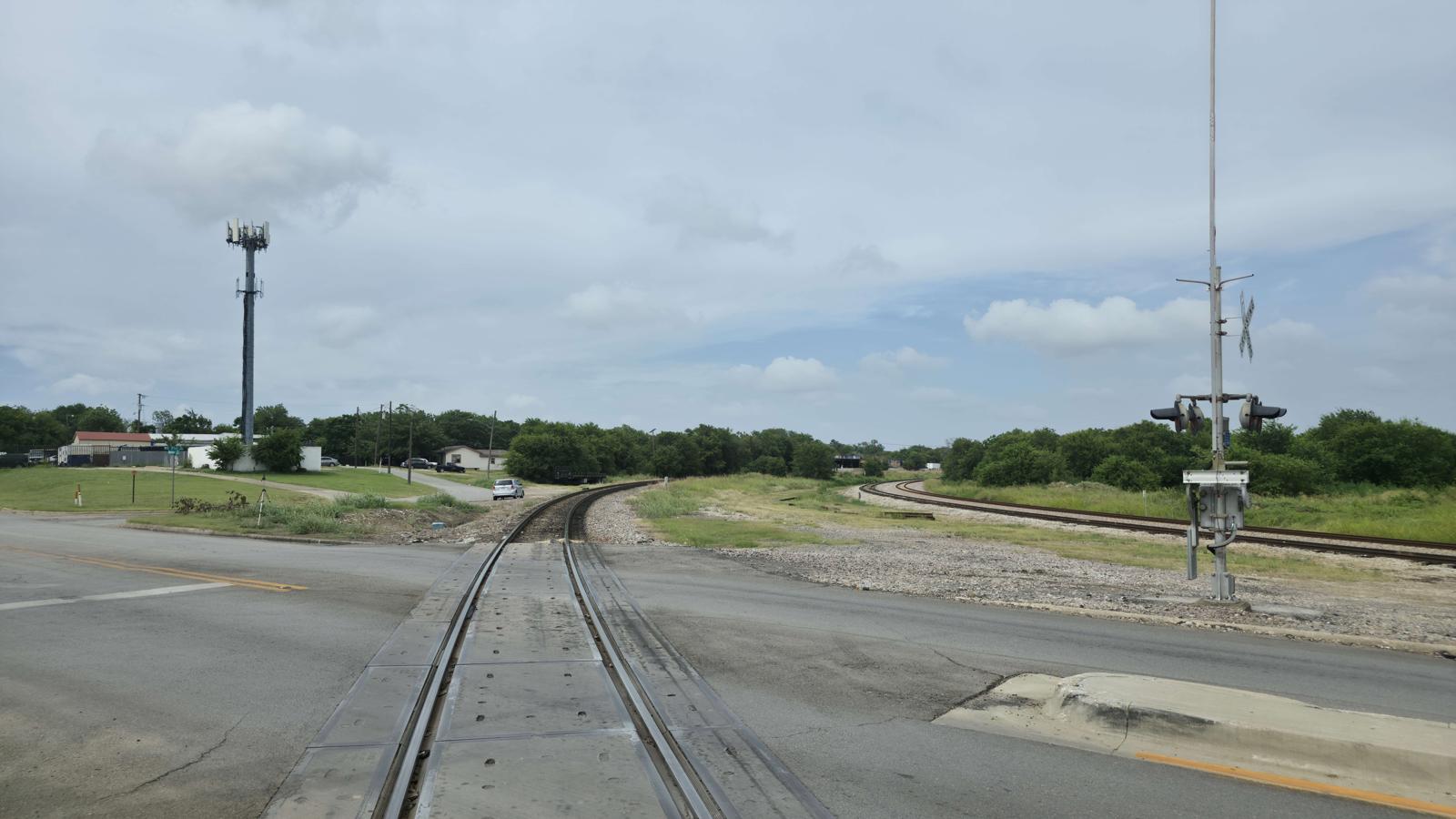

| UP track view facing north towards Schwartz Ave. | UP track view facing south towards 29th St. #4. | TEXRail track view facing north towards Schwartz Ave. | TEXRail track view facing south towards 29th St. #5. |
