Pictures were taken by CSXRailfan2 on March 7, 2010.

This crossing is from the Kanawha Railroad Corporation.



1

1024x768   250 KB

2

1024x768   174 KB

3

1024x768   134 KB

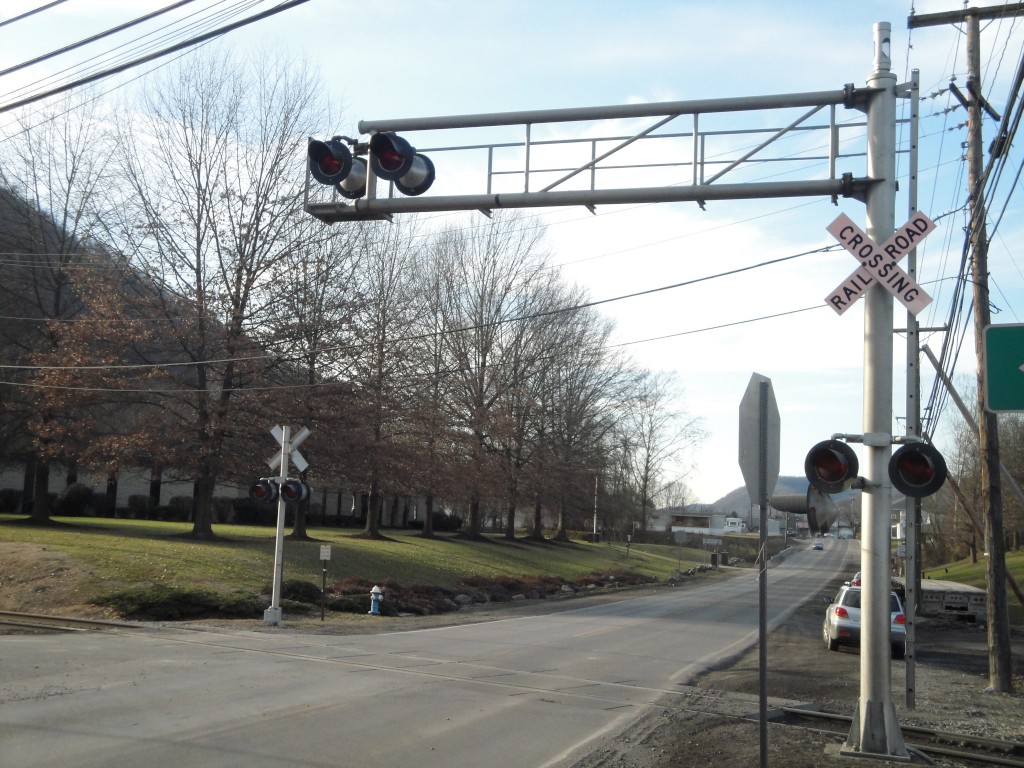

An Overview.
An MI junction box on the cantilever.
The light bracket is from WABCO.

4

1024x768   128 KB

5

1024x768   122 KB

6

1024x768   176 KB

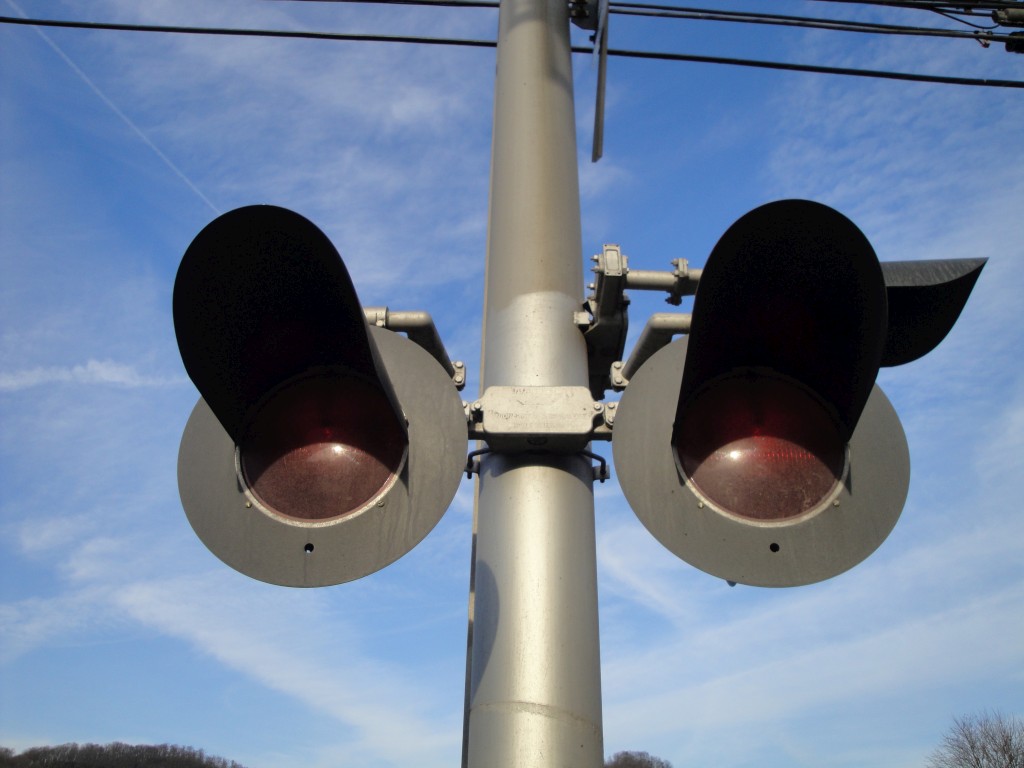

So is this one...

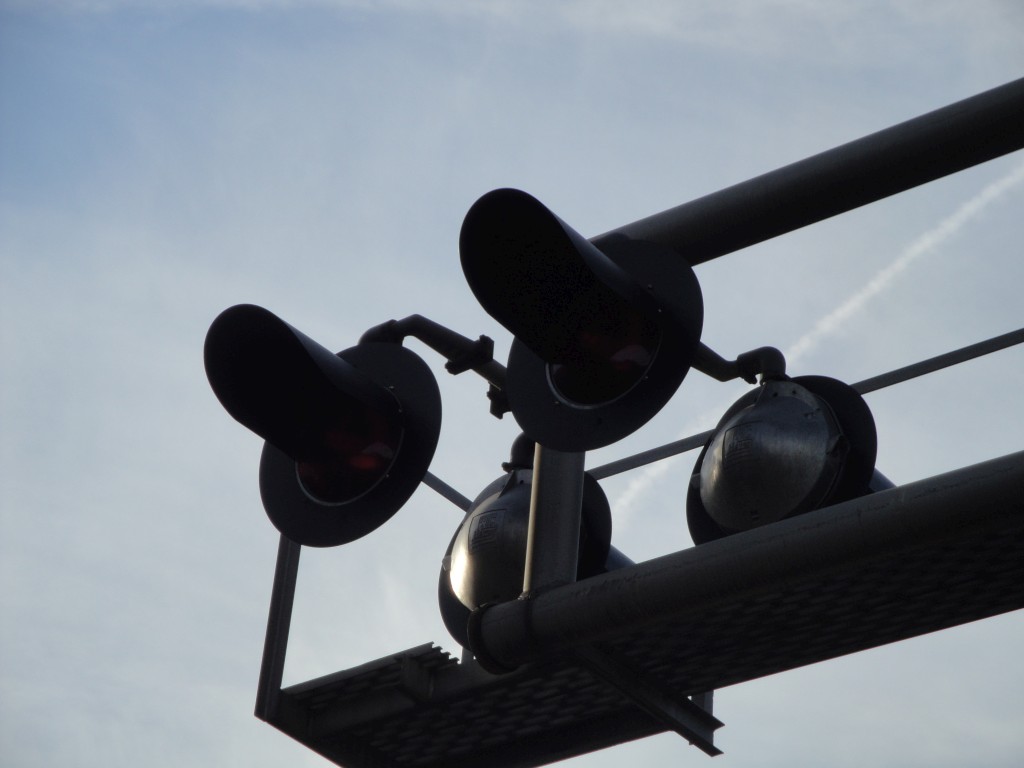

All 12"x20" frames are from WCH.

7

1024x768   133 KB

8

1024x768   94.8 KB

9

1024x768   86.5 KB

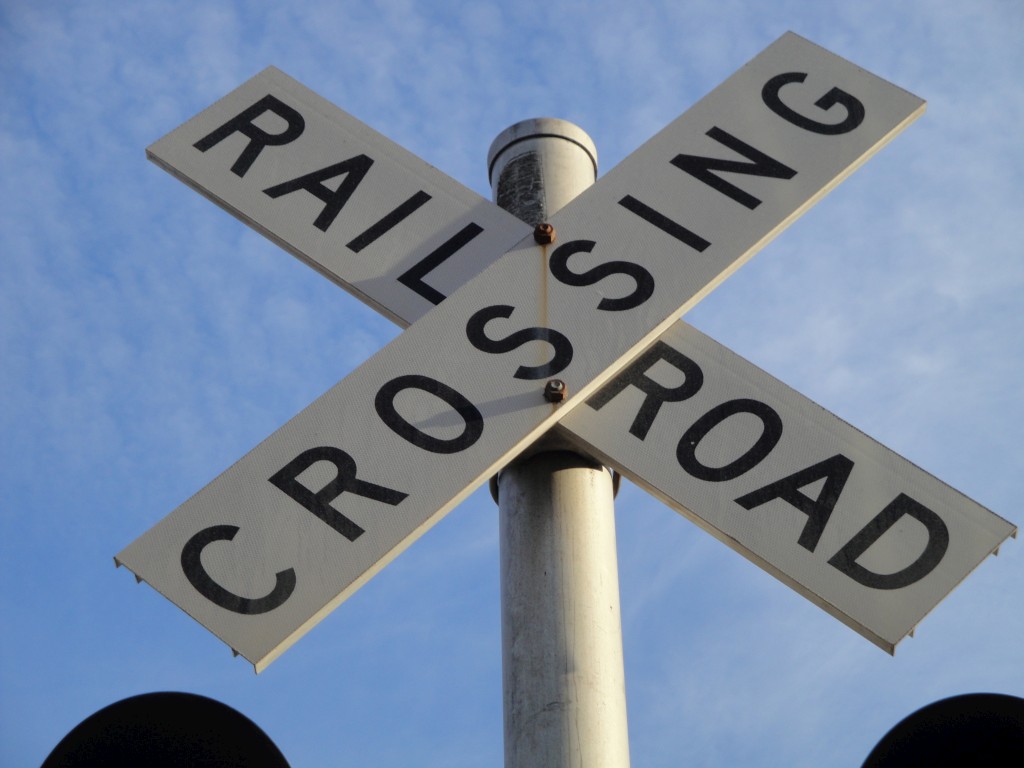

The railroad installed the crossbuck incorrectly...
These are WCH too.
The only bell at the crossing...

10

1024x768   185 KB

11

1024x768   153 KB

12

1024x768   283 KB
No rear mast lights is the only flaw I see with this setup IMO.
Here's the gateless mast signal with no bell.

13

1024x768   159 KB

14

1024x768   115 KB

15

1024x768   131 KB

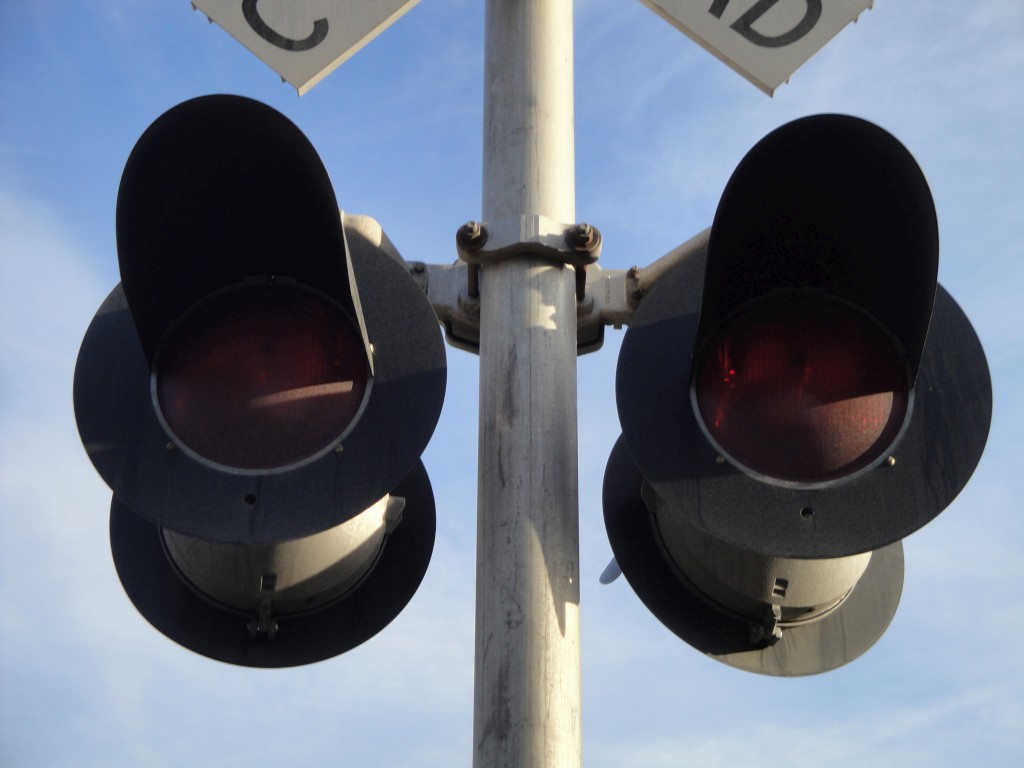

All light frames are 12"x20" from WCH as well.

16

1024x768   243 KB

17

1024x768   252 KB

18

1024x768   173 KB
Track views.

19

1024x768   269 KB

20

1024x768   267 KB

21

1024x768   159 KB
No useful information on the relay case.

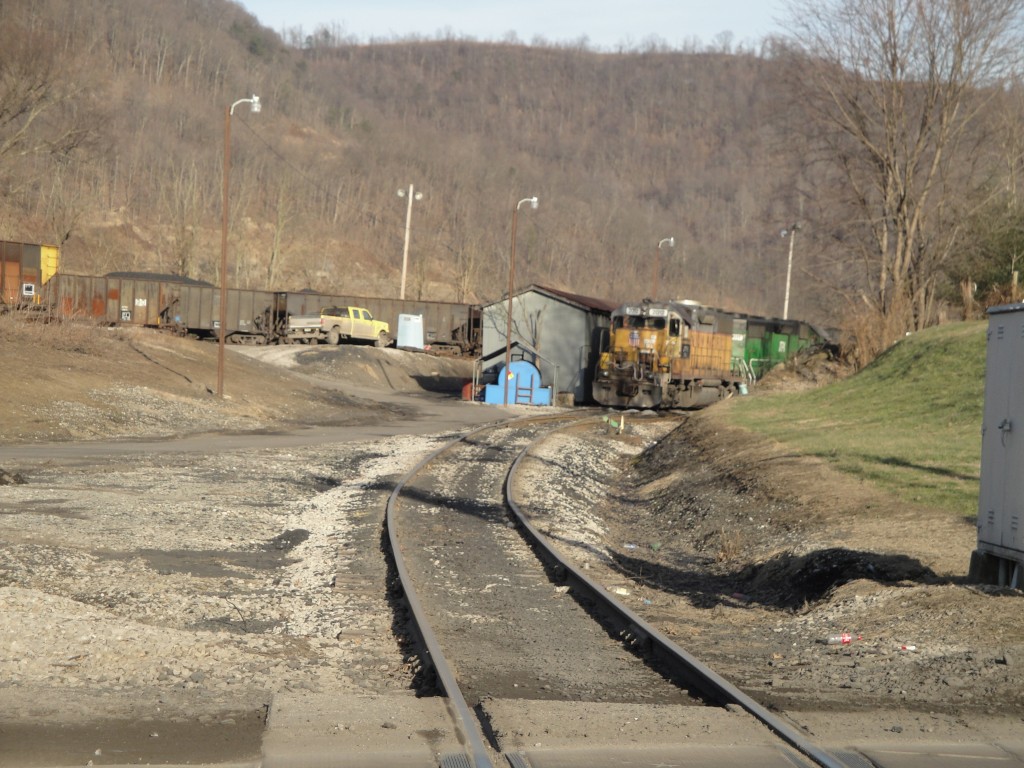

A train is parked nearby the crossing.

Note the locmotive is a former UP unit.

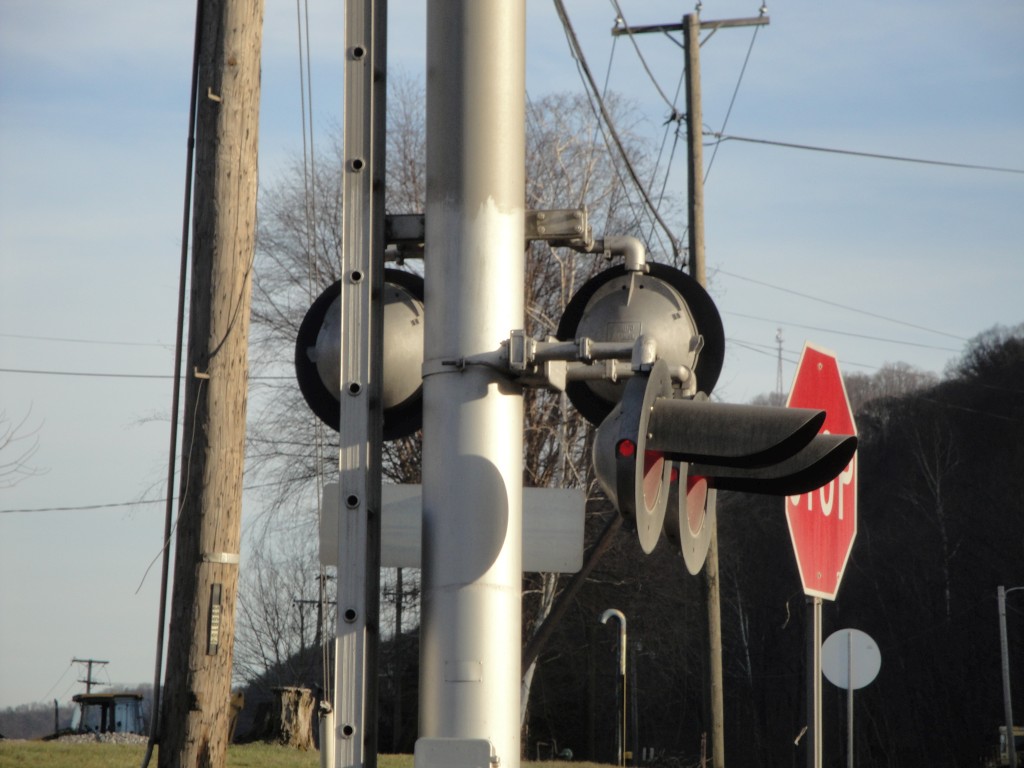

Another view of the weird setup of the side lights and stop sign.

22

1024x768   242 KB

23

1024x768   192 KB

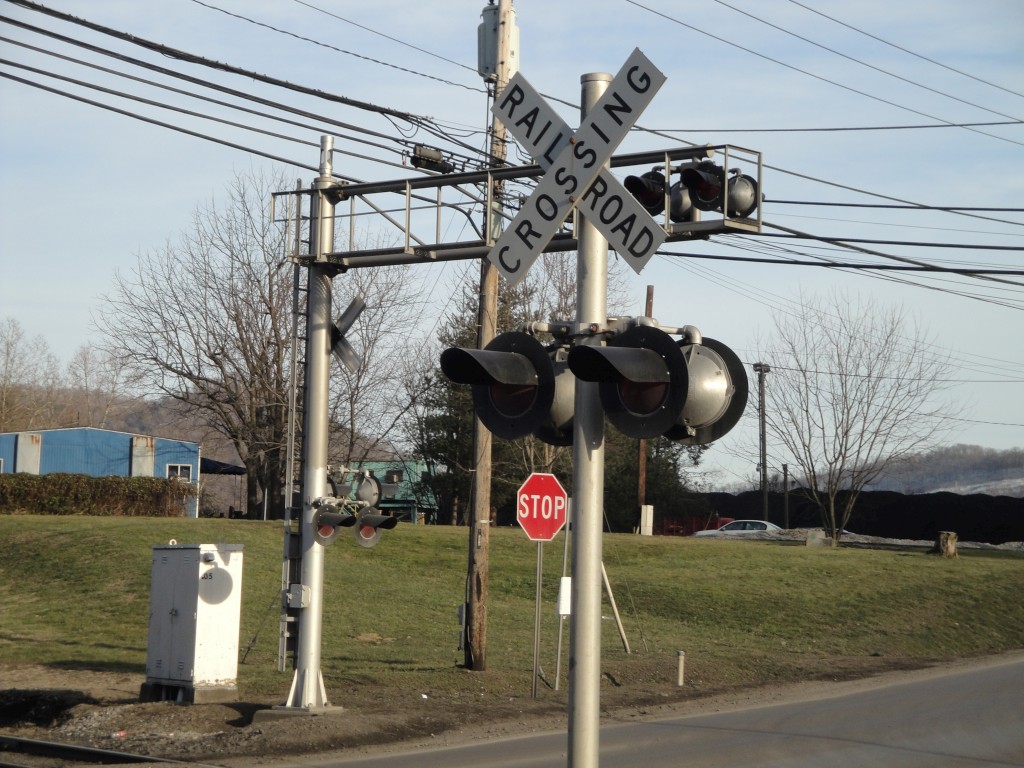

More angles of the crossing setup.
