172.71


178119R

>>>>>>>>>>>>>> Eastern Signal Western Signal
Bell: GS E-Bell GS E-Bell
Base: WCH 5" Single Sided WCH 5" Single Sided
Light Brackets: Progress Rail Progress Rail
Lights: 4 - 12"x24" Safetran w/ Harmon Fading LEDs 4 - 12"x24" Safetran w/ Harmon Fading LEDs
Gate Lights: 3 - RECO 4" LEDs 3 - RECO 4" LEDs
Gate Mechanism: WCH Style 4 WCH Style 4
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-26 were taken on May 26, 2024, by Rus.
This crossing is located on the WSOR Reedsburg Subdivision.
Page created by Rus (using HopenRXRTools 1.3.0).

1
 2
Overview of 2 gated signals facing east.Overview facing west.
3 4 5 6
7 8 9 10
11 12 13 14

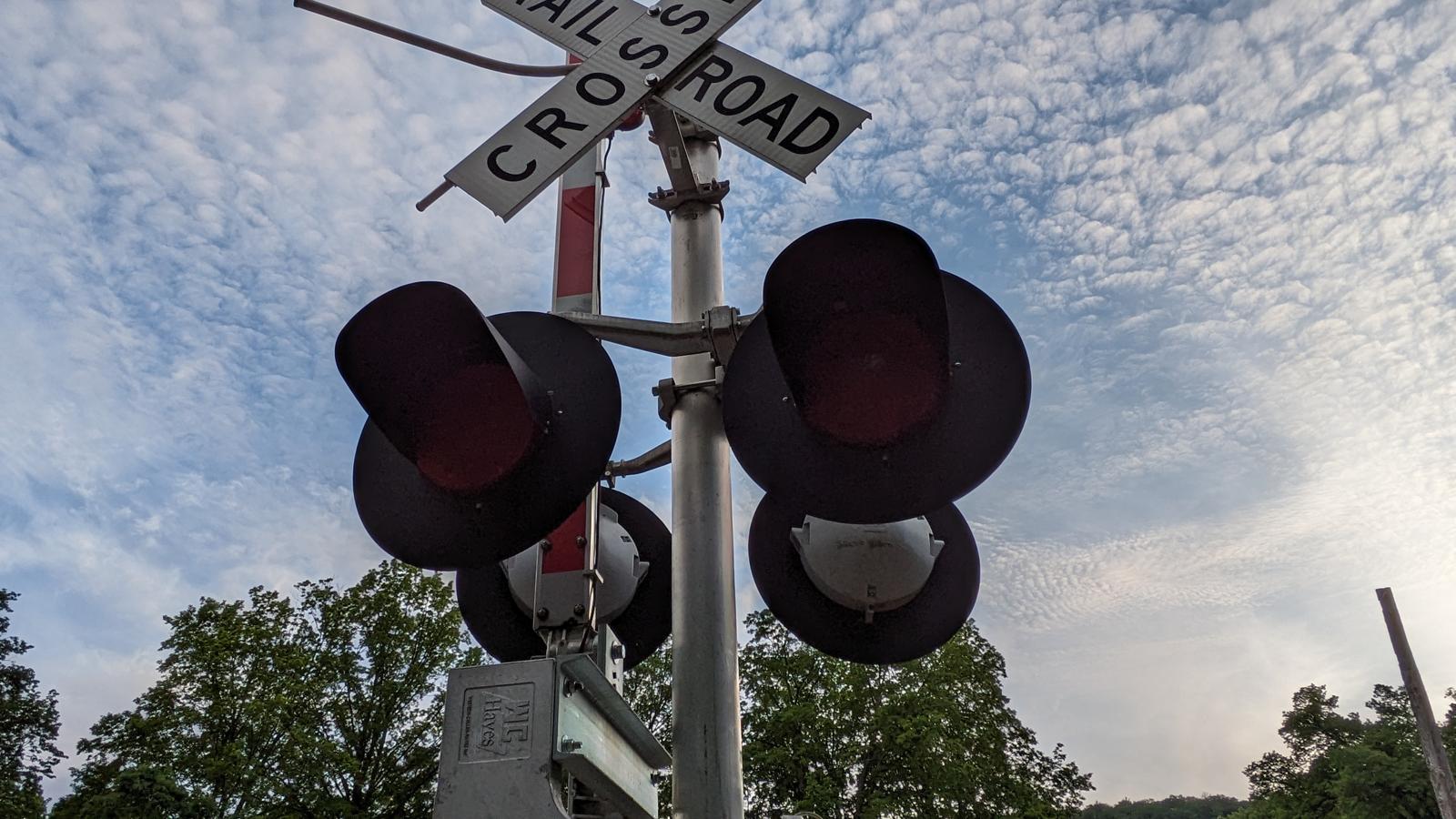

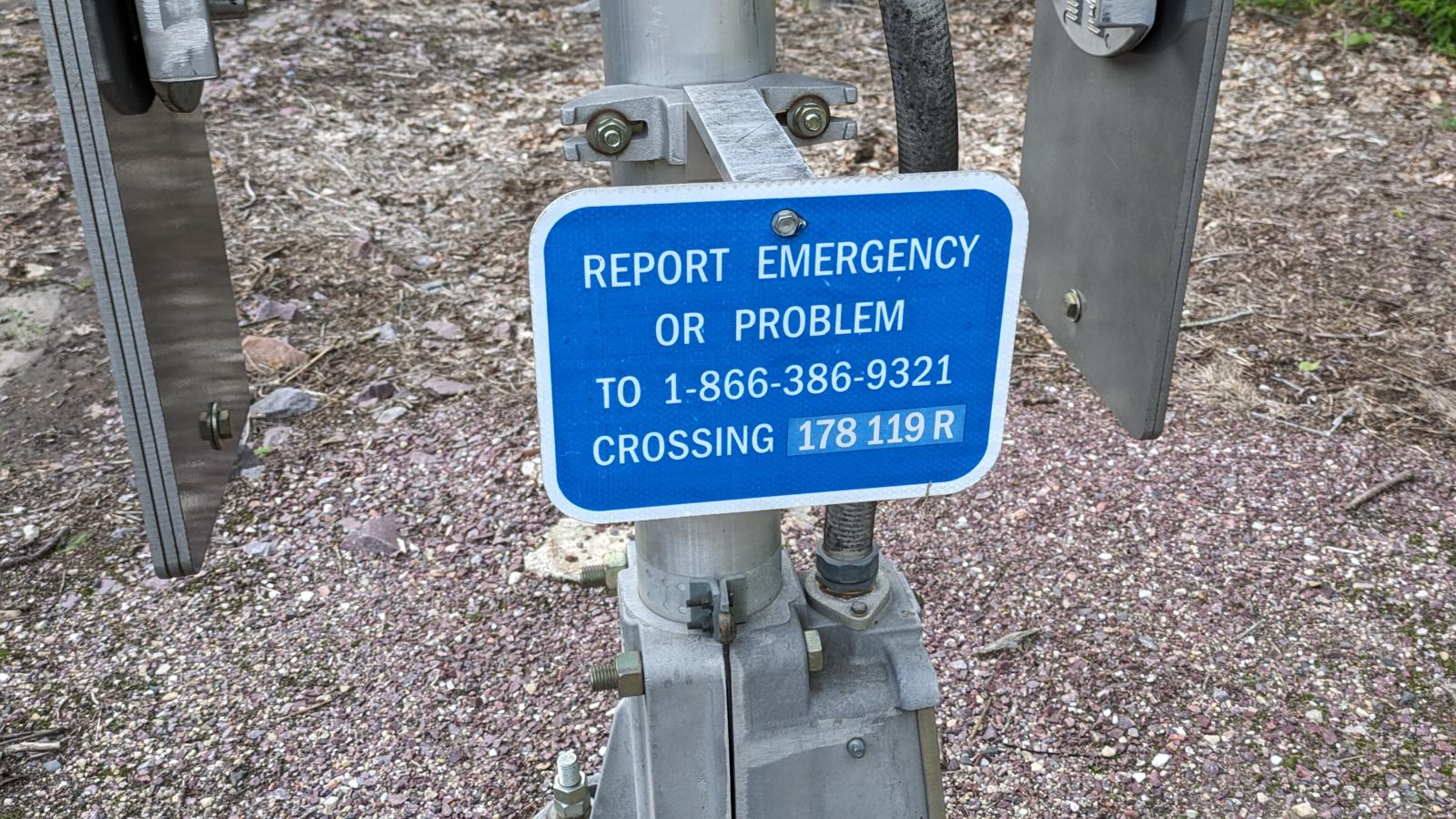

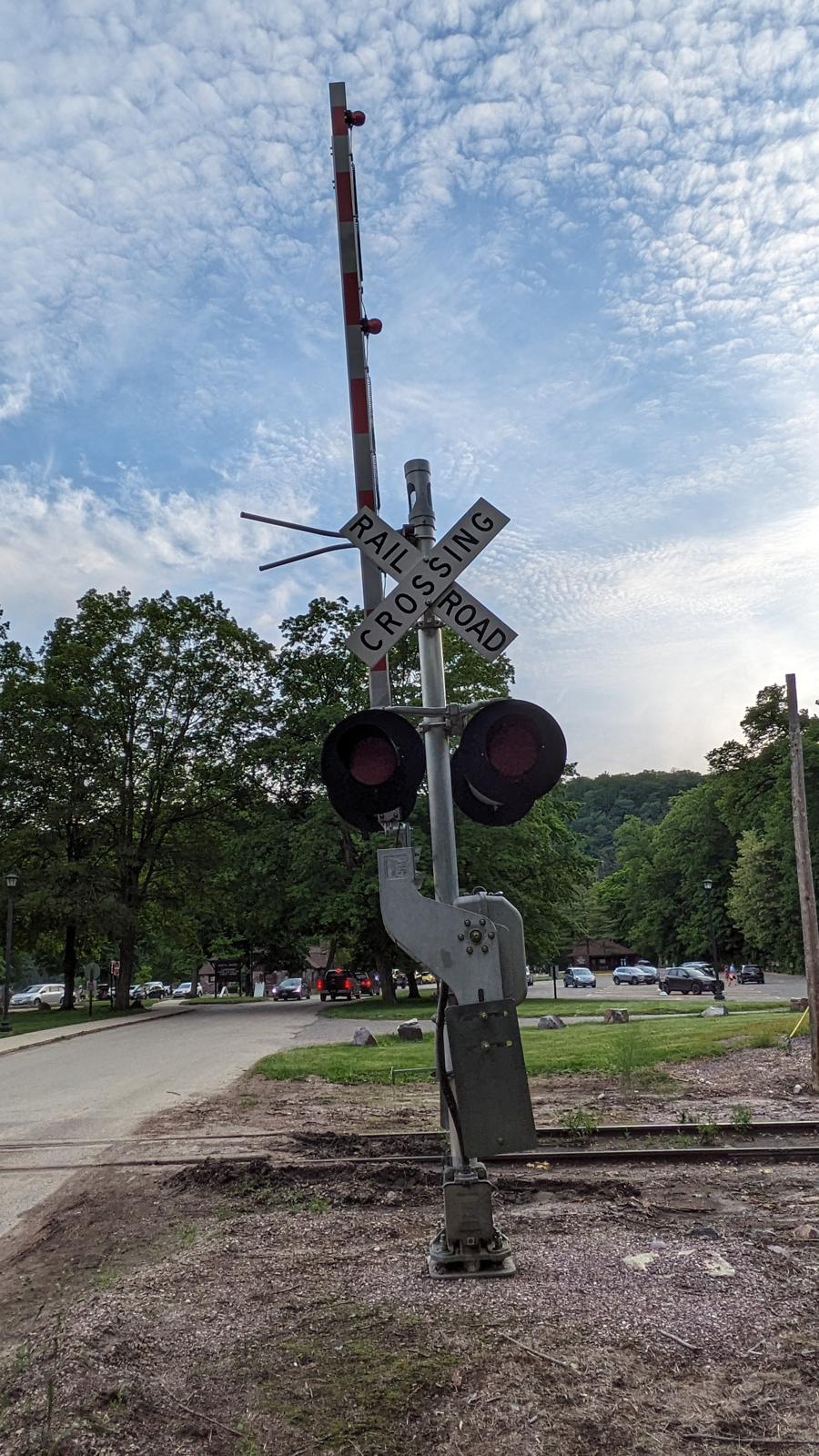

The eastern signal.
15 16 17 18
19 20 21 22
23 24 25 26

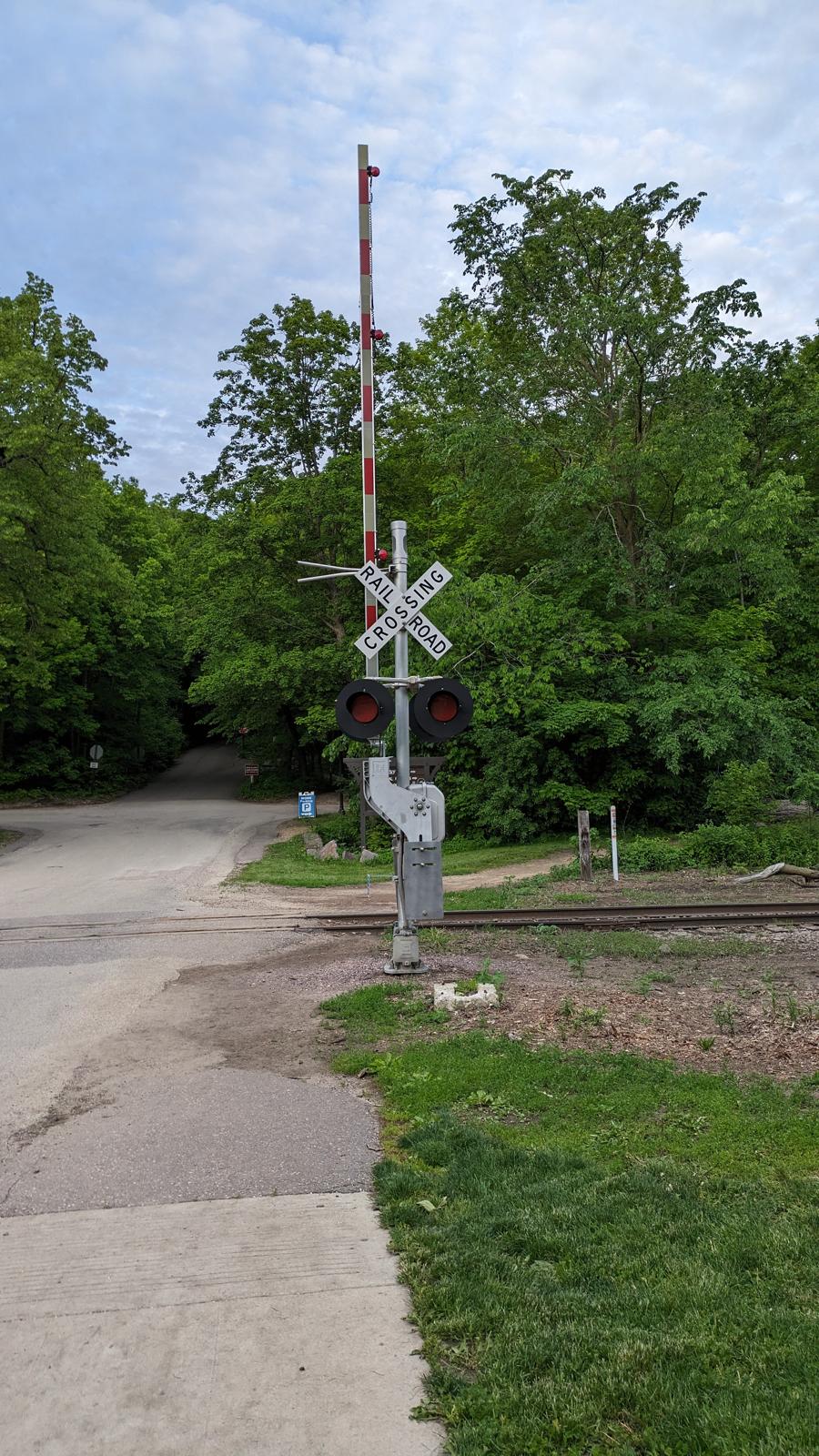

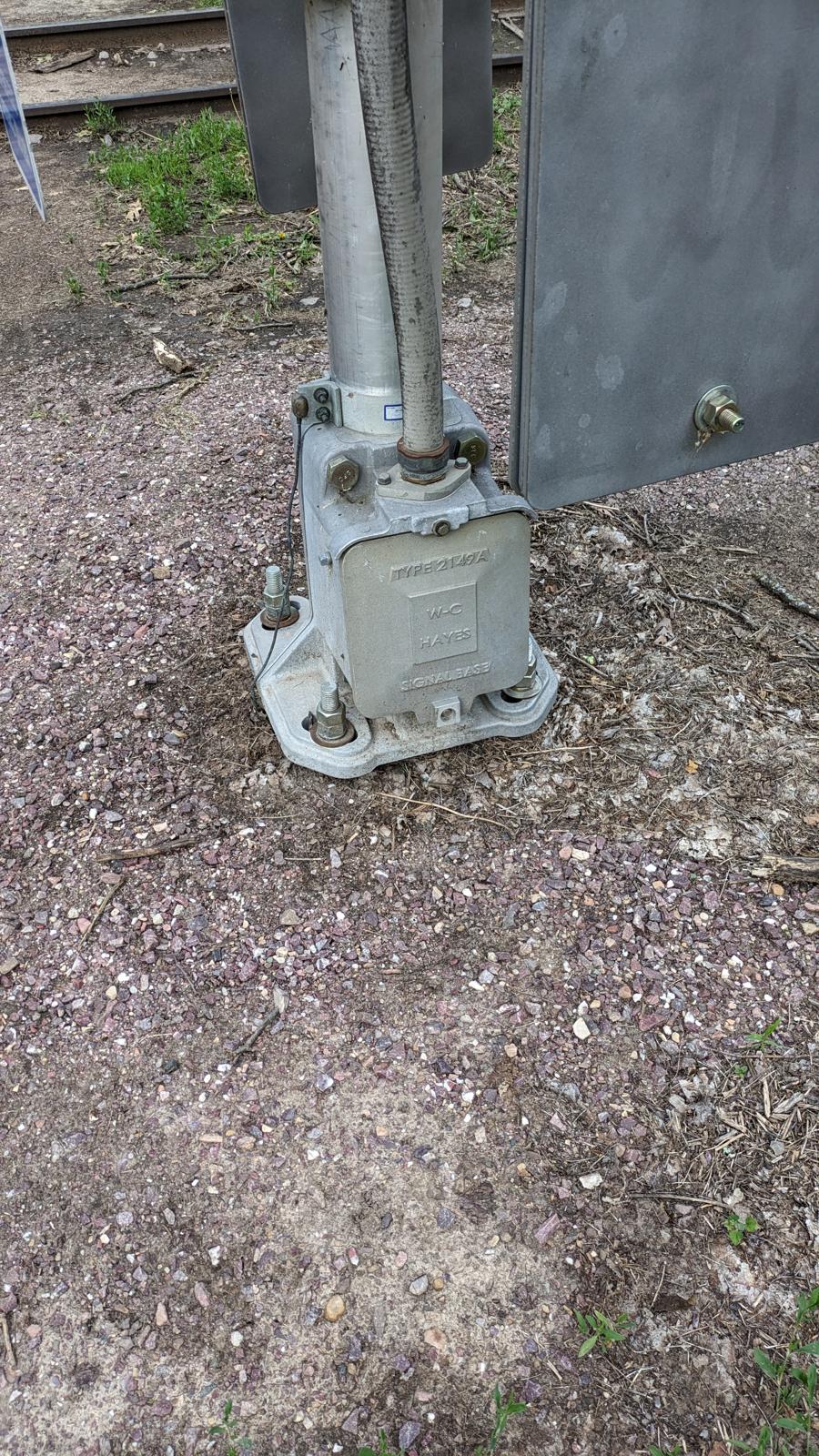

The western signal. Both signals replaced wig wags.

I forgot relay bungalow, grade, and track views. The relay bungalow is in the northwest quadrant. The grade is wood and asphalt. County Hwy. DL is to the north and Pedestrian Crossing is to the south.
