| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | WCH Type 4 E Bell | WCH Type 3 E Bell |
| Base: | WCH 5" Single Sided ^ | WCH 5" Single Sided ^ |
| Lights: | 4 - 12"x24" WCH w/ 2nd Gen WCH LEDs | 4 - 12"x24" WCH w/ 2nd Gen WCH LEDs |
| Junction Box: | WCH | WCH |
| Gate Lights: | 4" NEG LEDs | 4" NEG LEDs |
| Gate Mechanism: | WCH Style 4 w/ WCH Gate Saver | WCH Style 4 w/ WCH Gate Saver |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
G1 |
G2 |

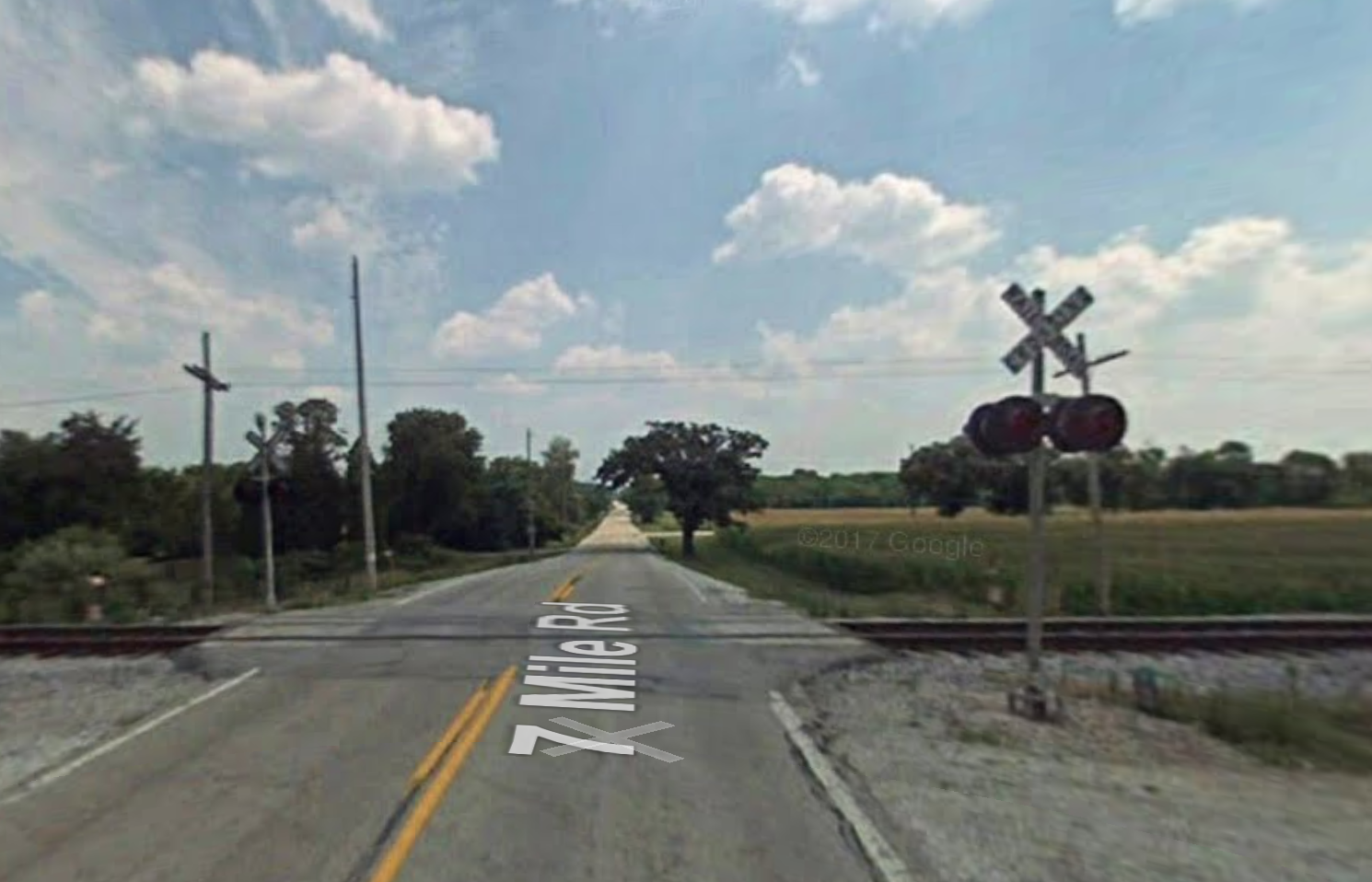

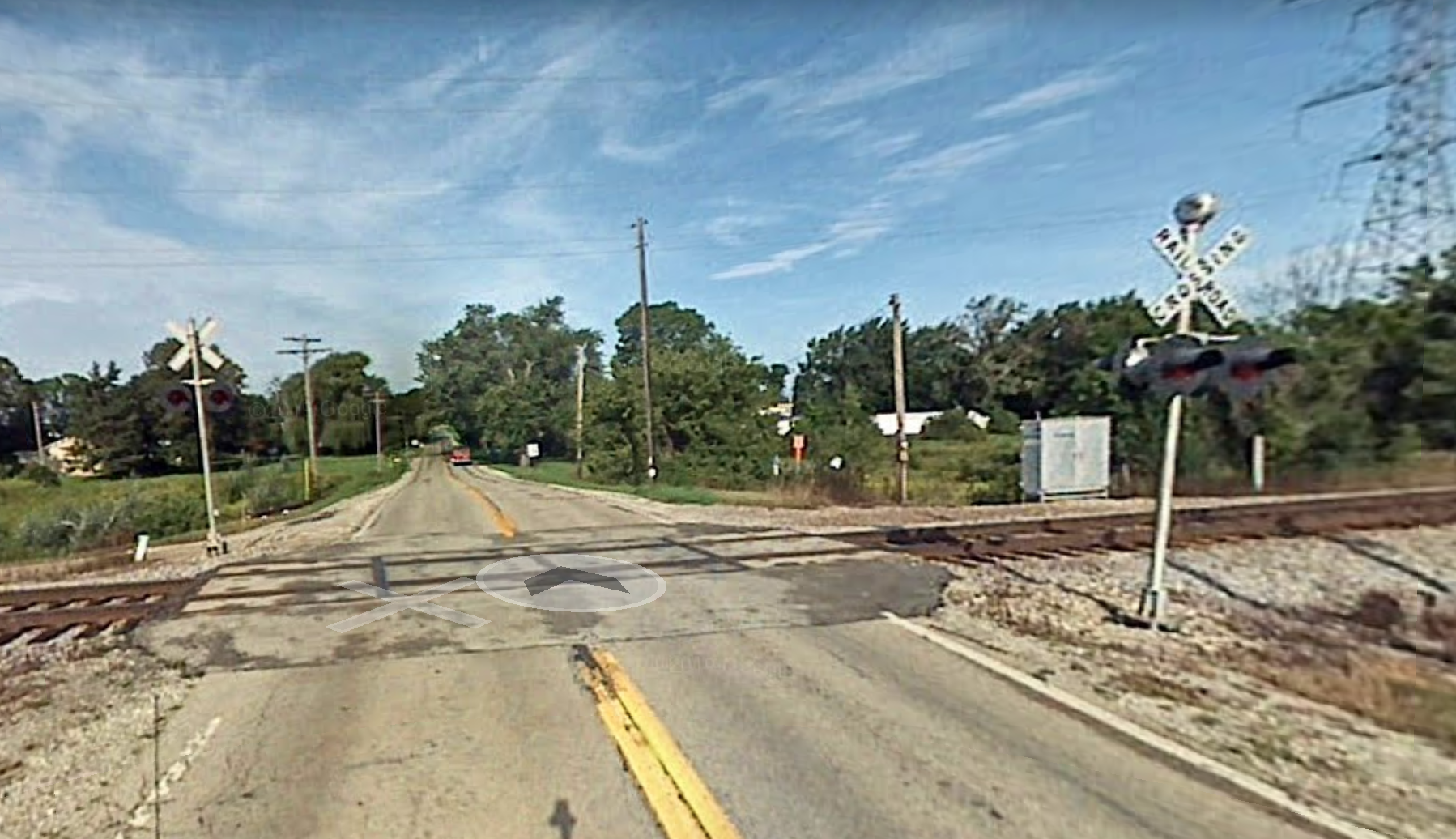

| Low quality Streetview pictures from 2007 showing two gateless signals with 12"x24" lights and a Safetran Mechanical Bell. In the late 2000s, these were replaced with new WCH signals. |
1 |
2 |

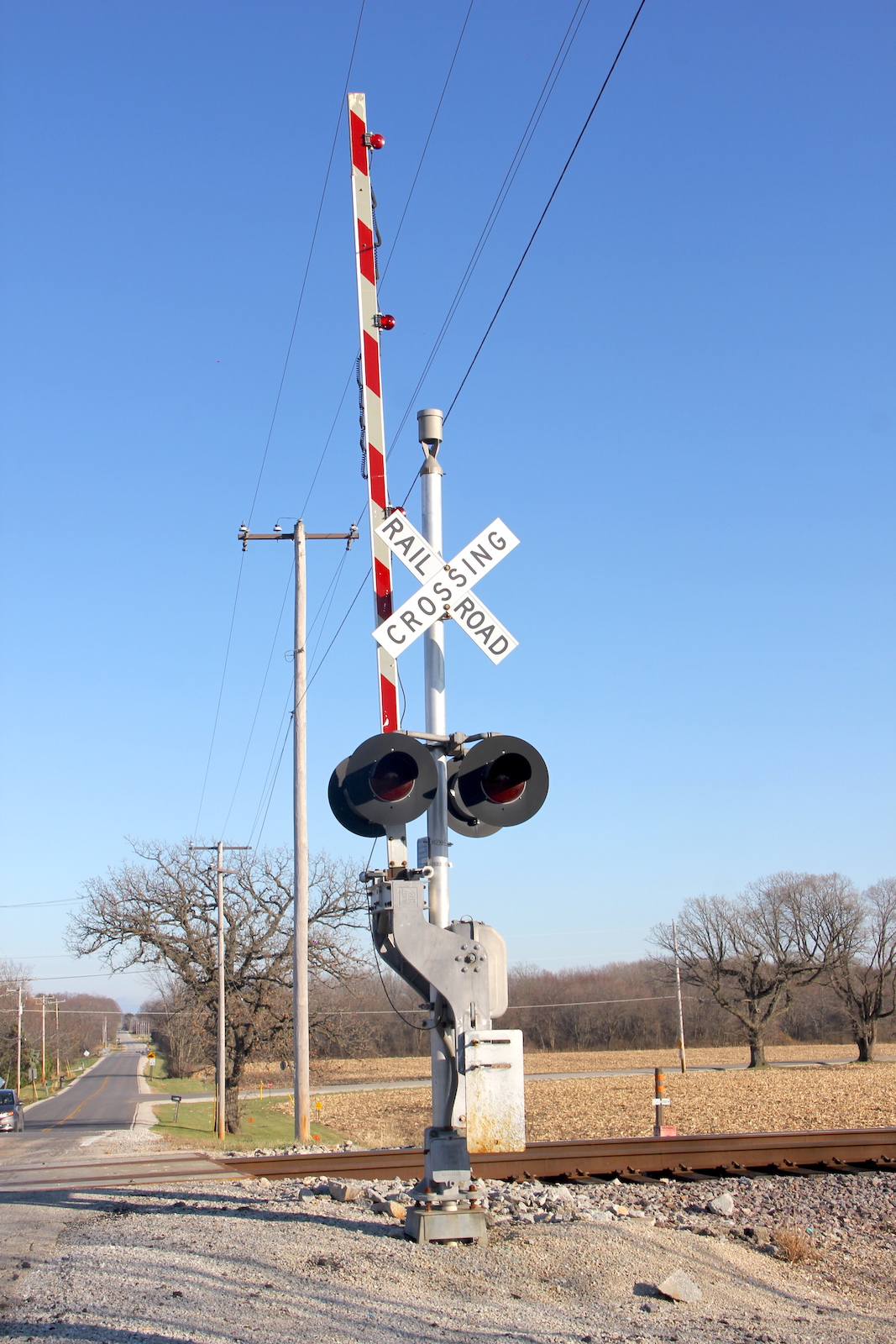

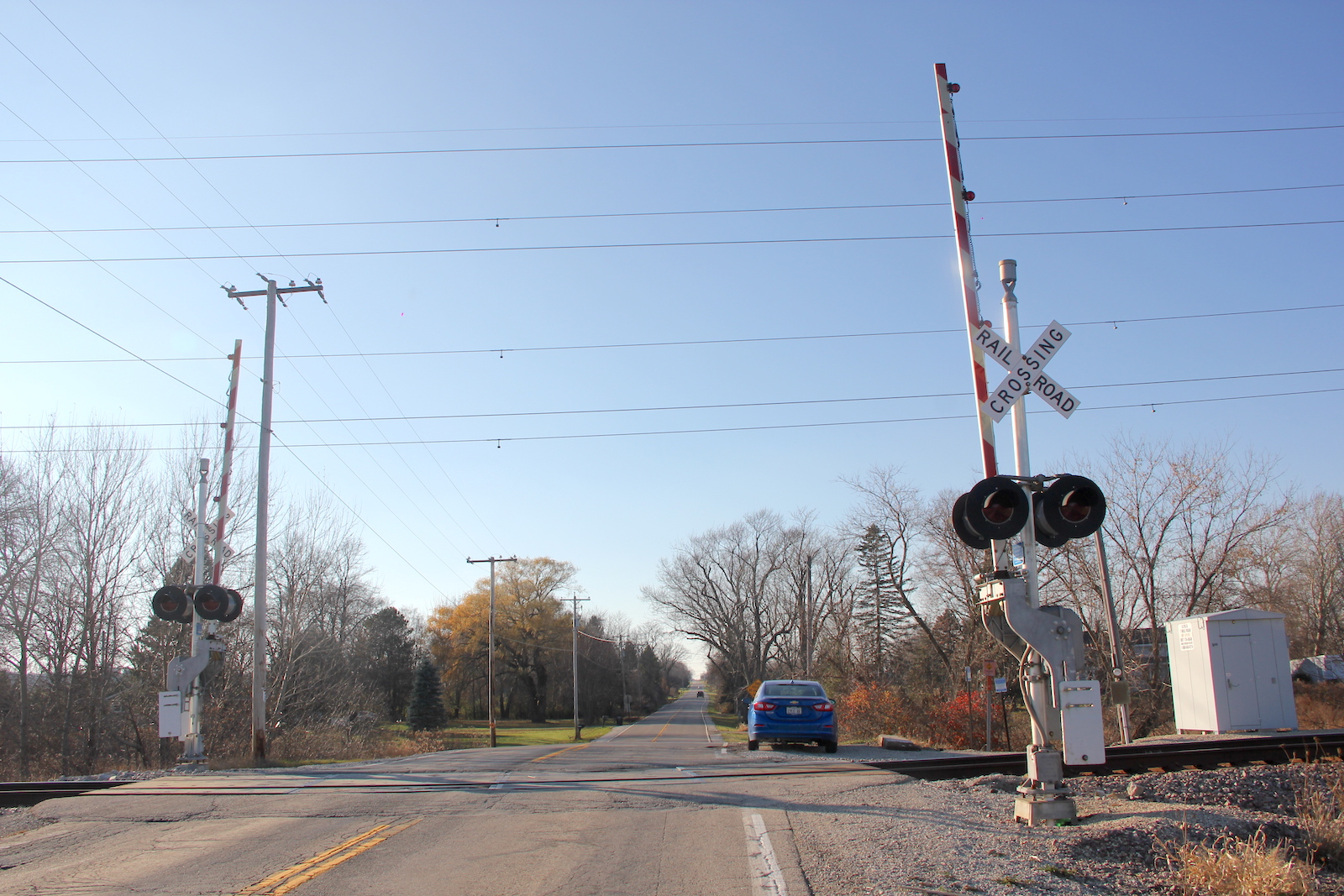

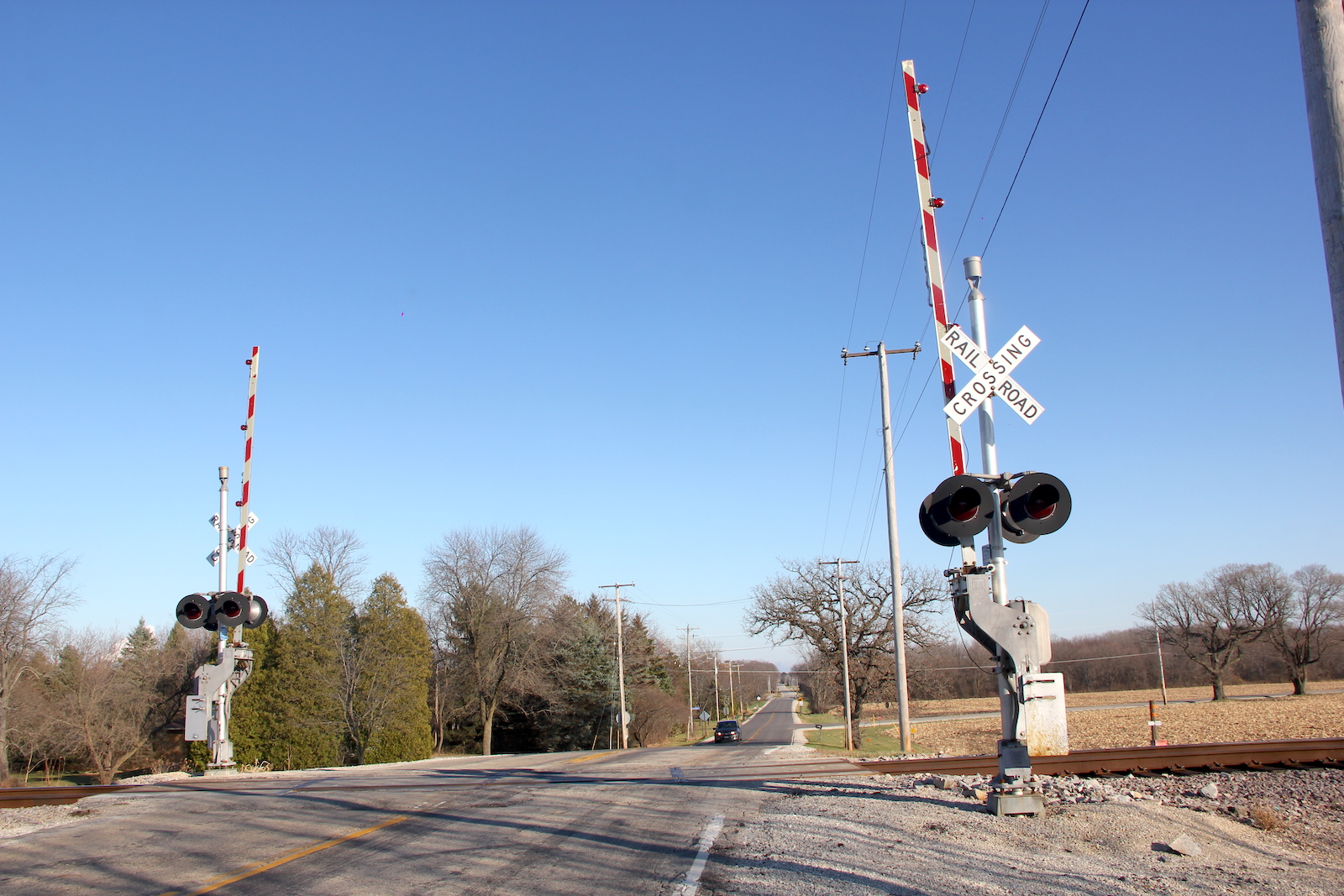

| Overview of the newer WCH signals facing east. | Overview facing west. |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |

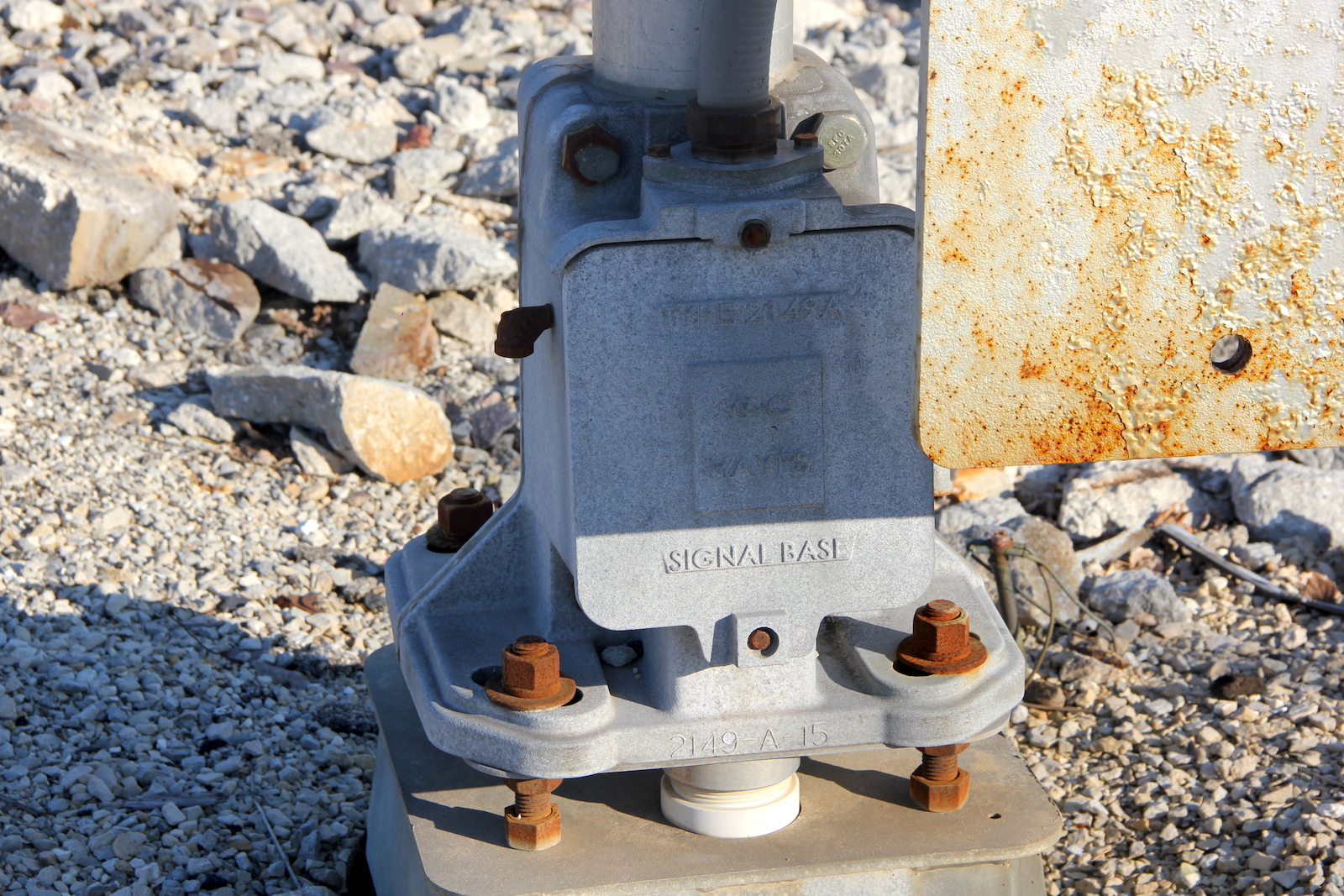

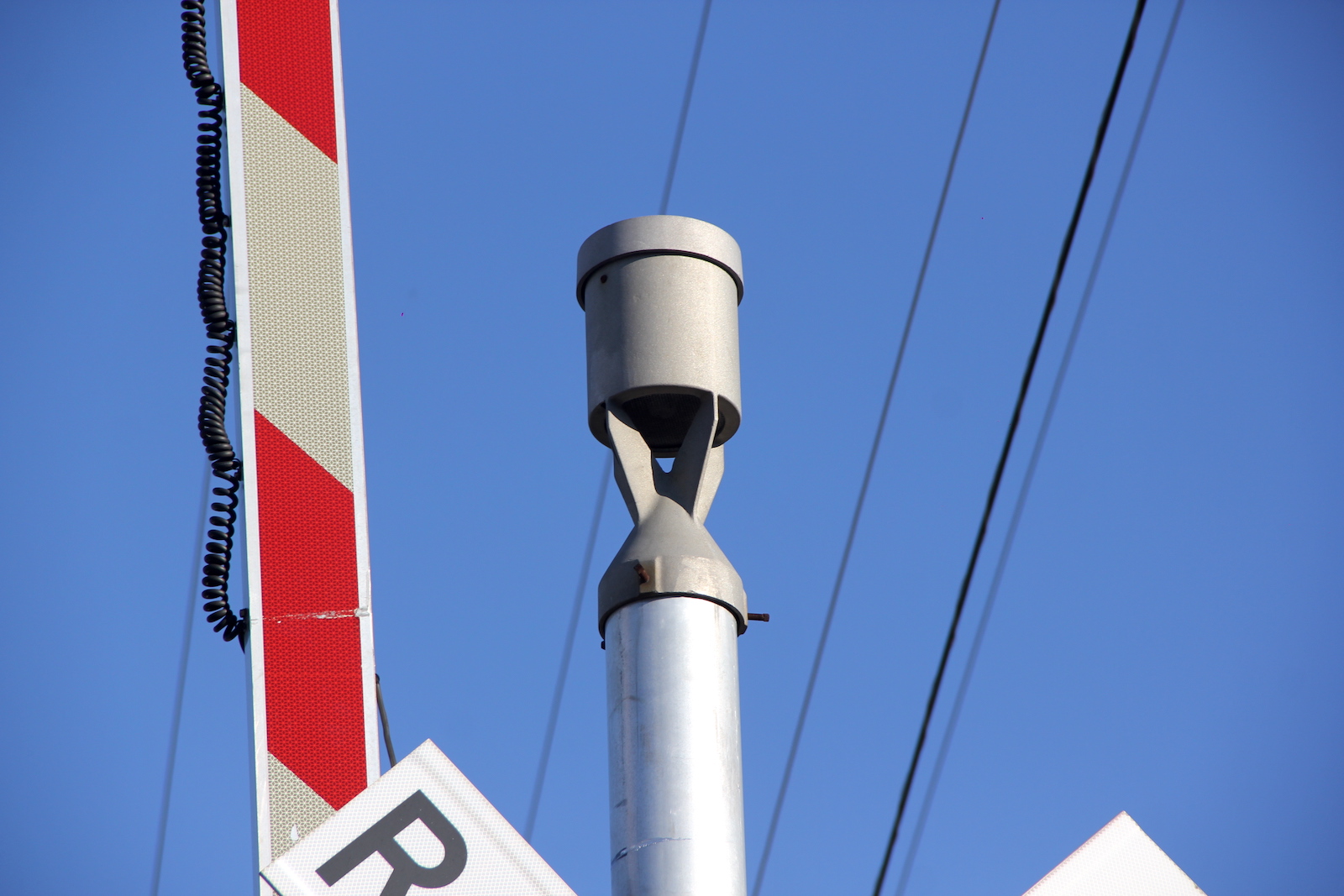

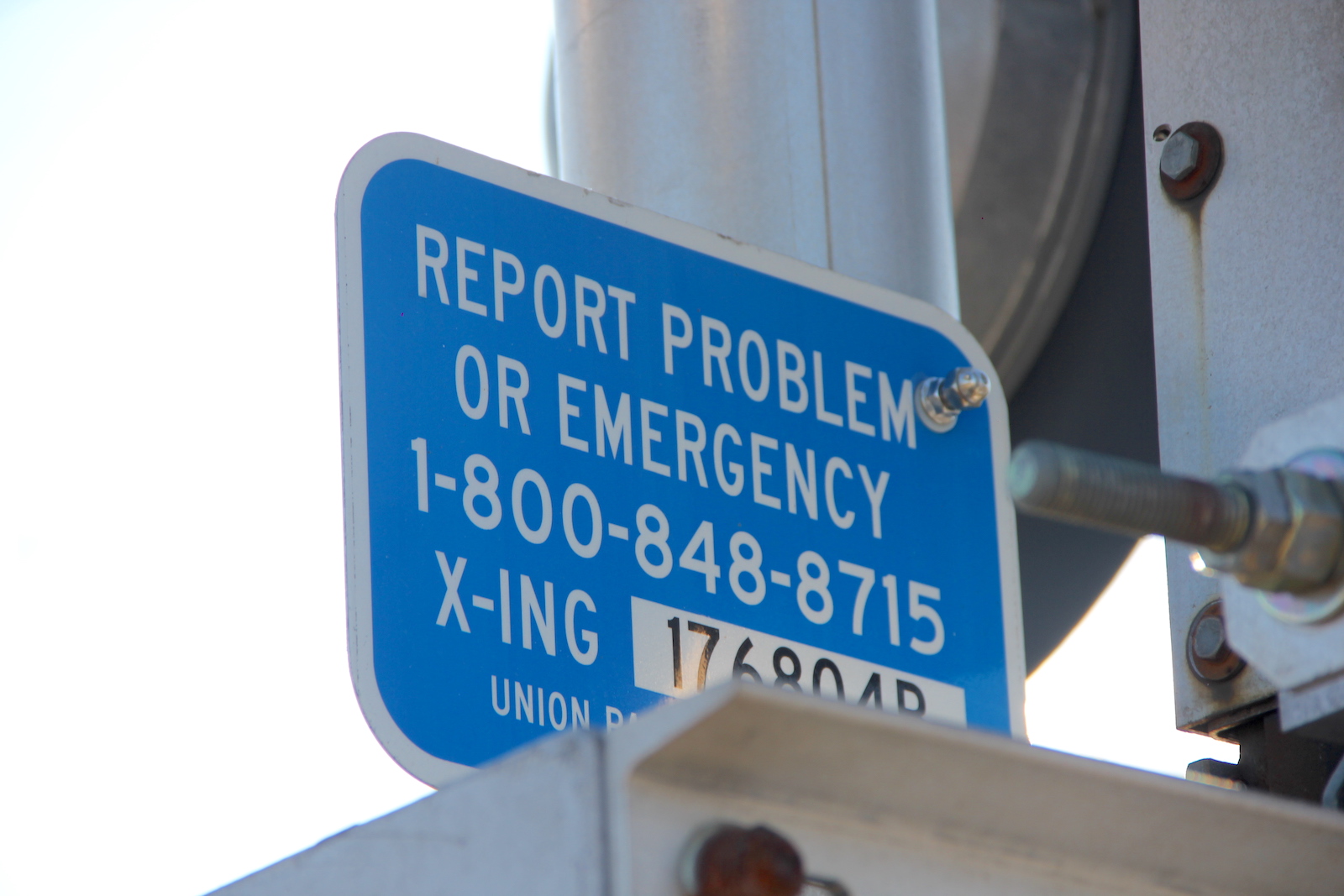

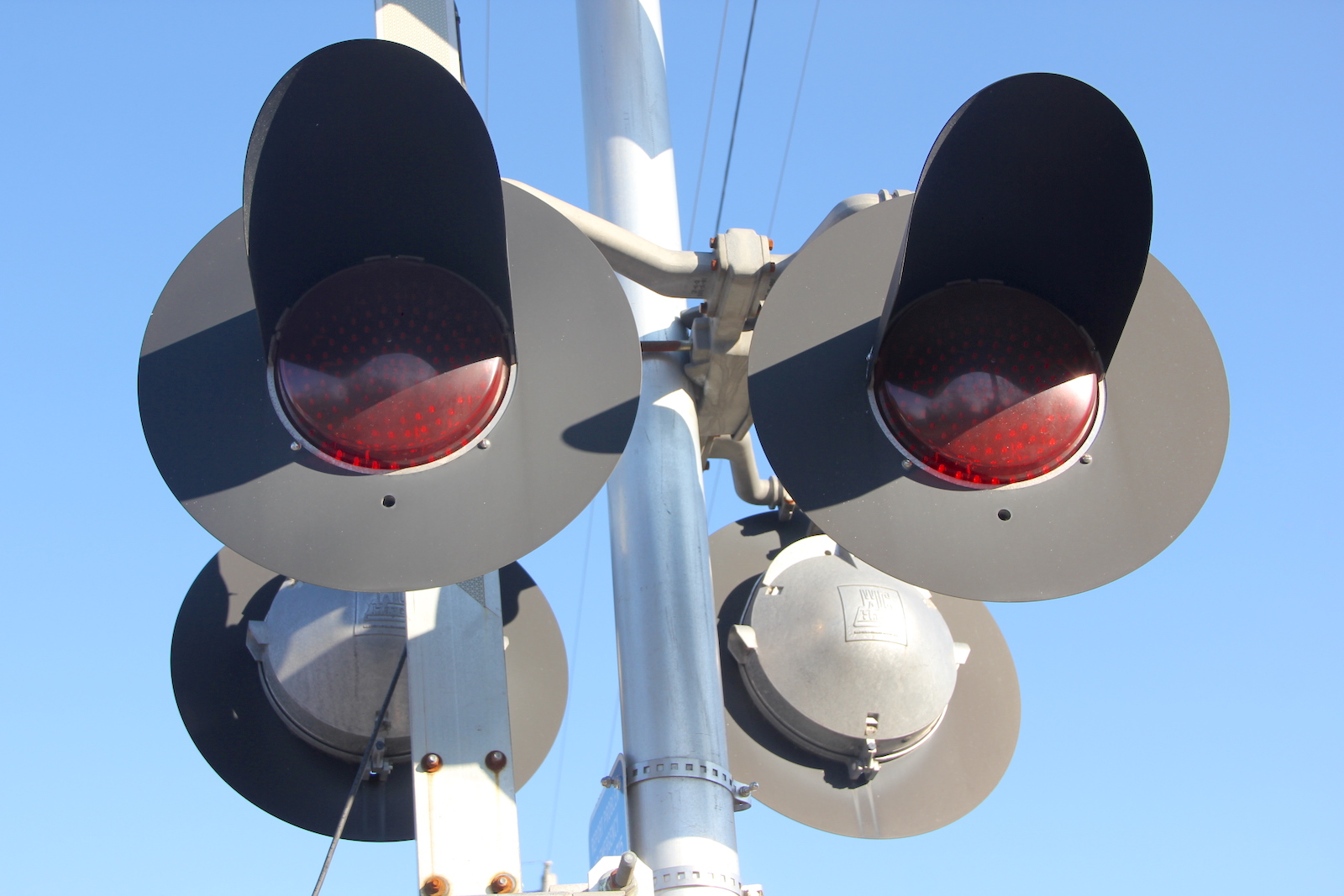

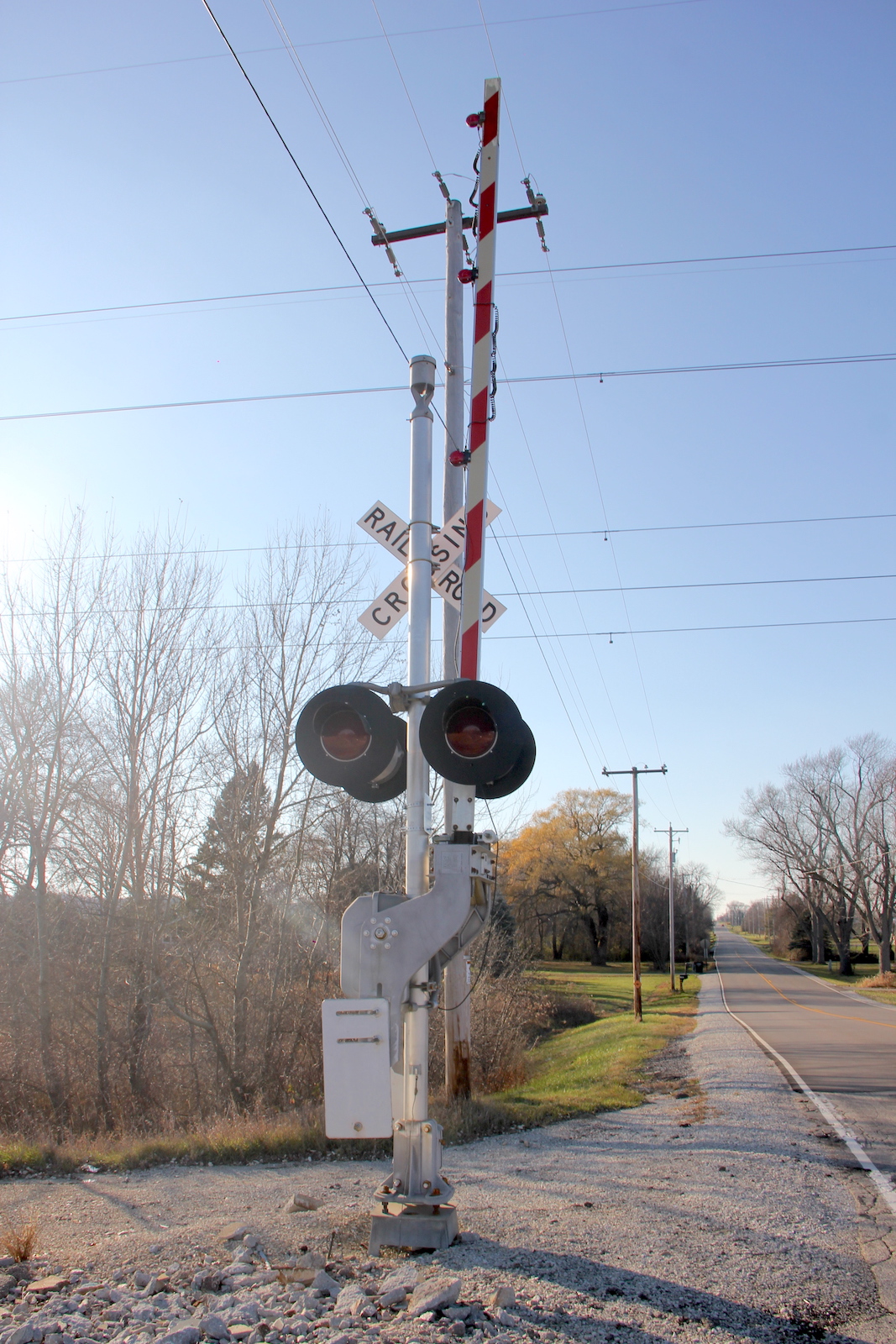

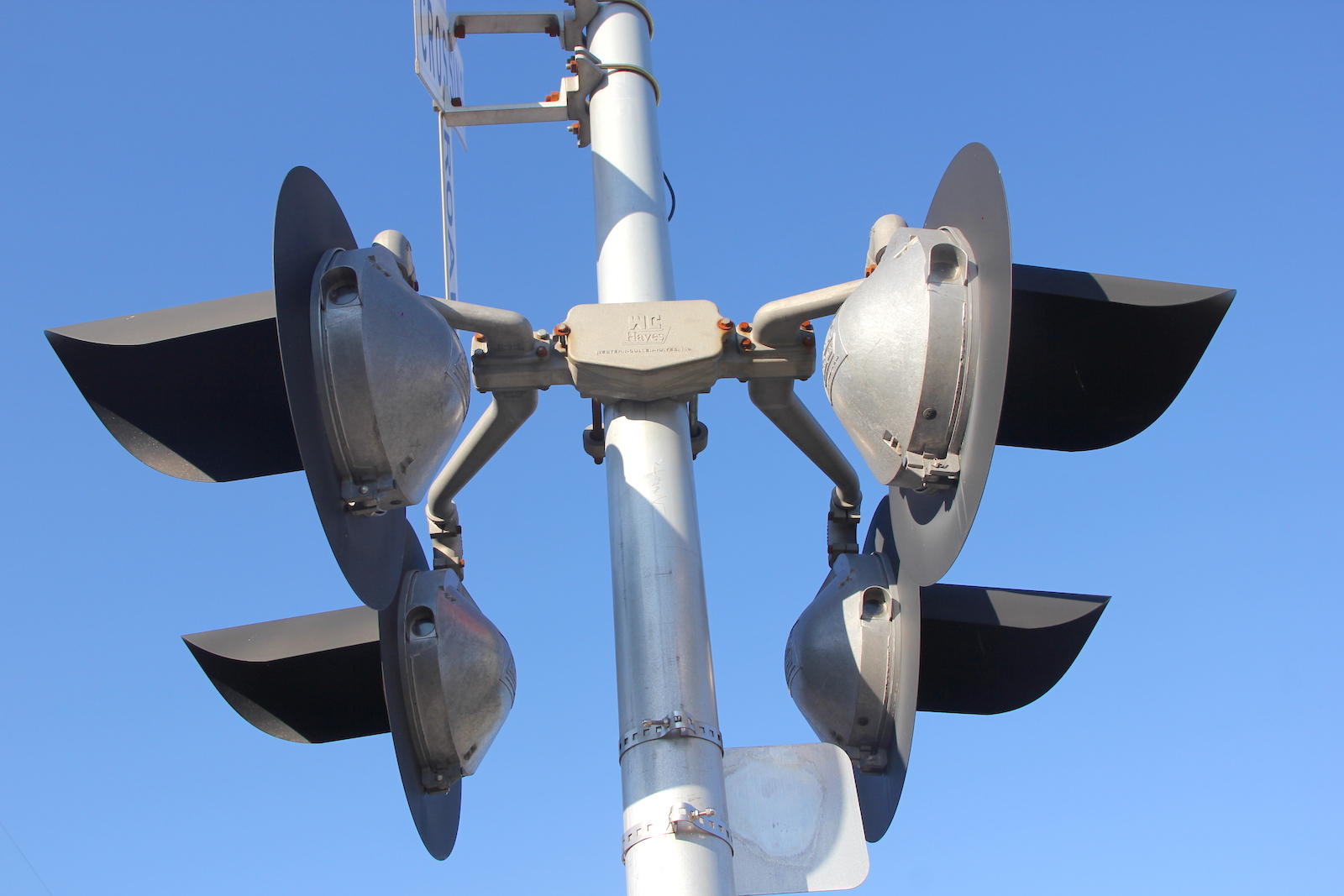

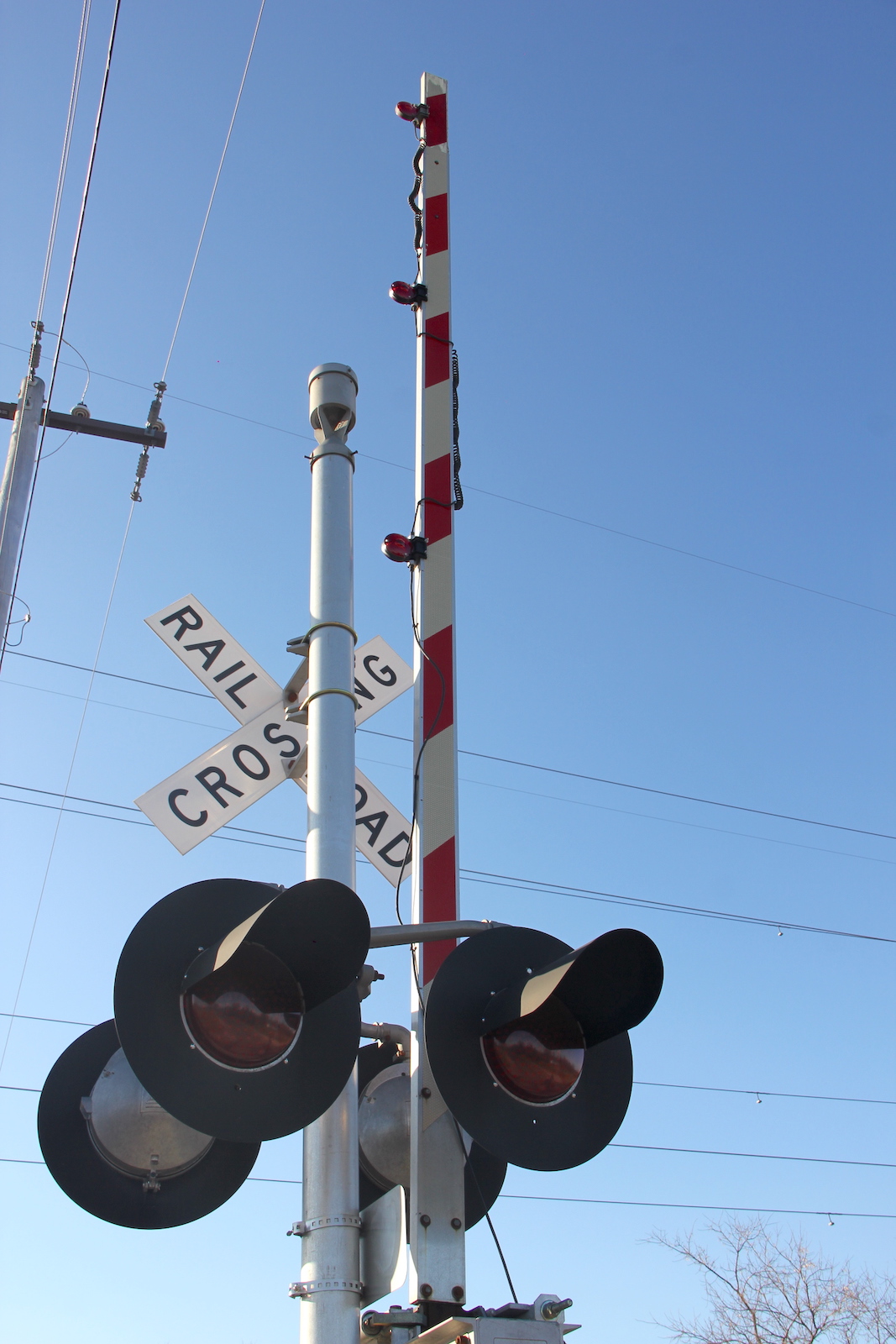

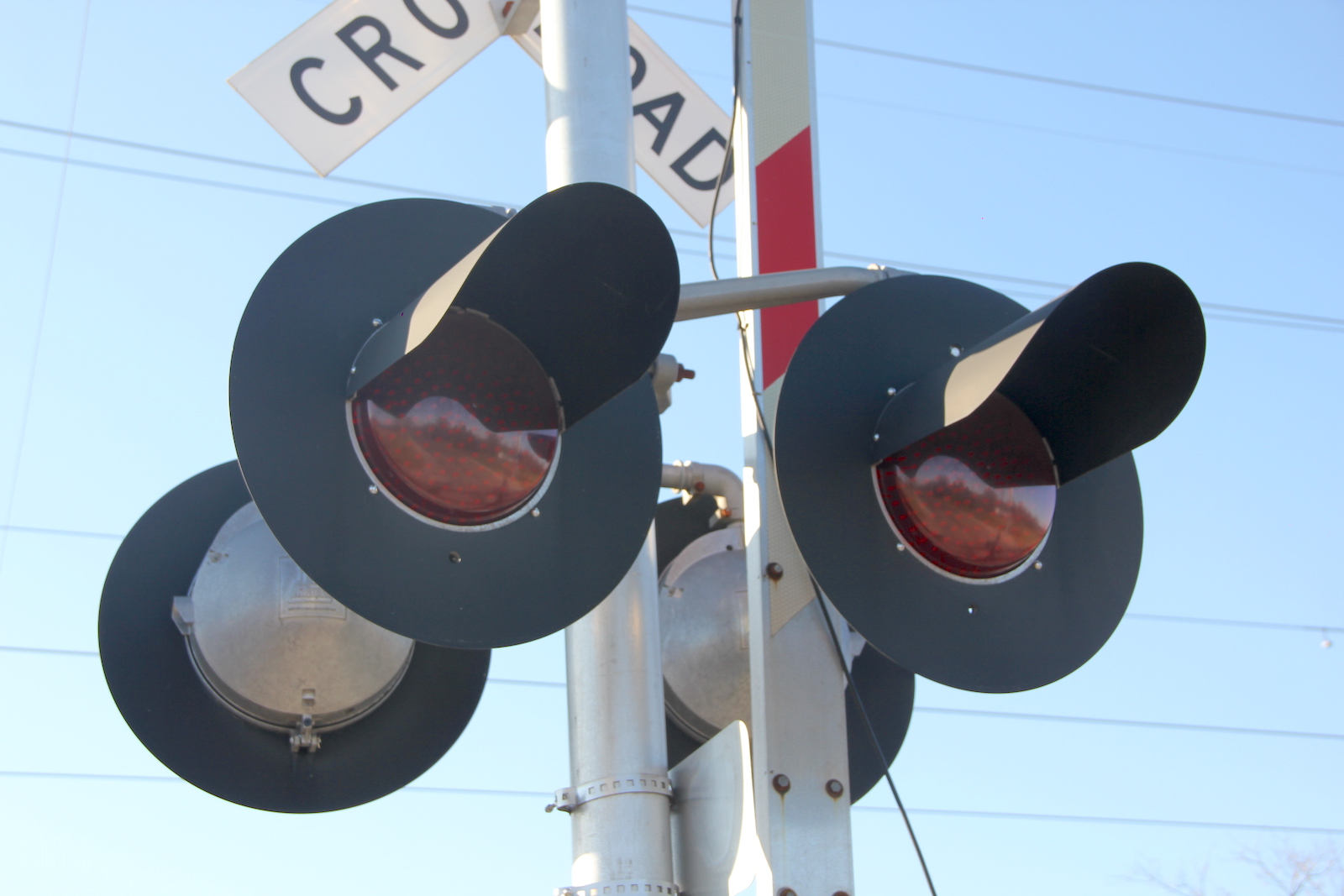

| The western signal. |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |

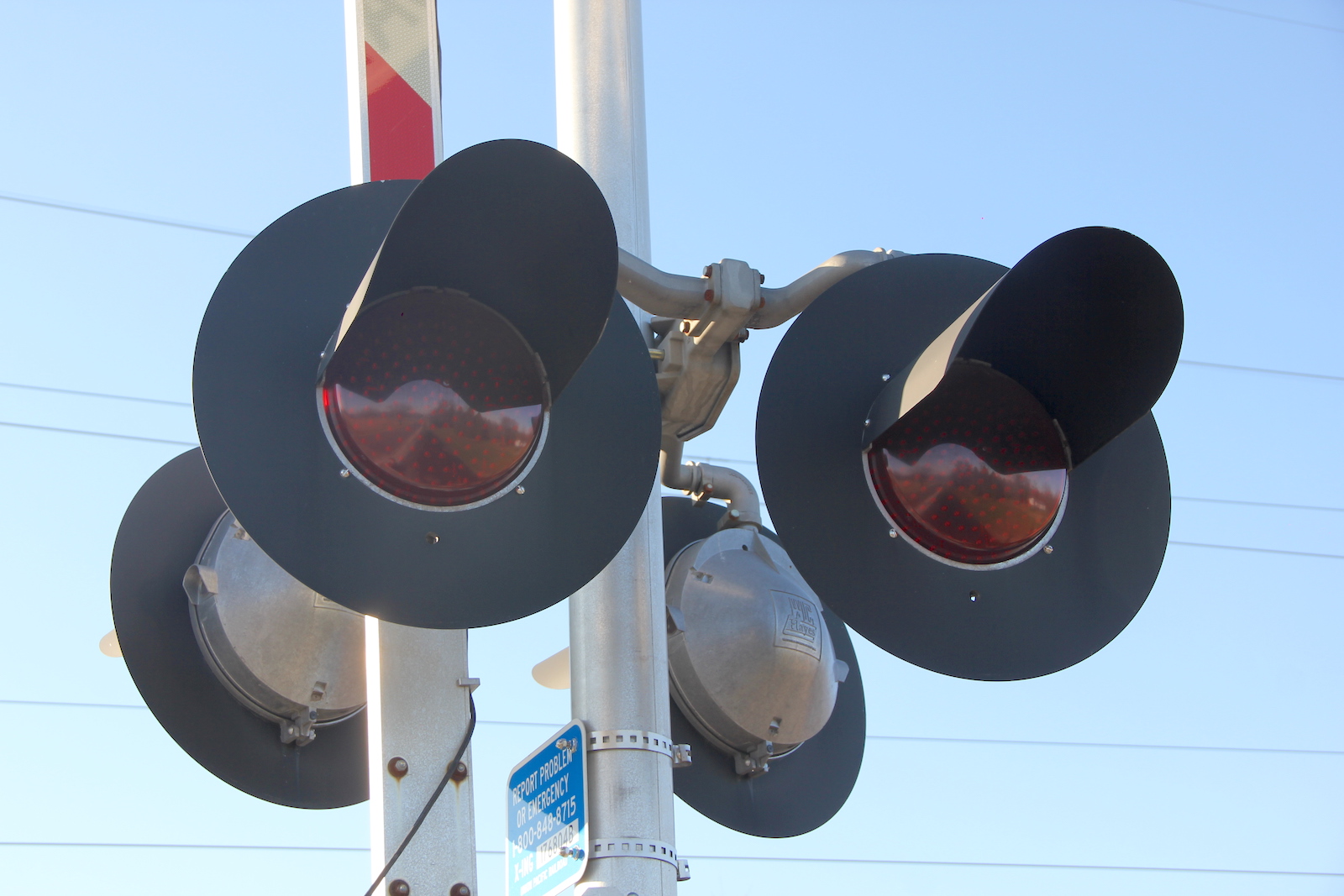

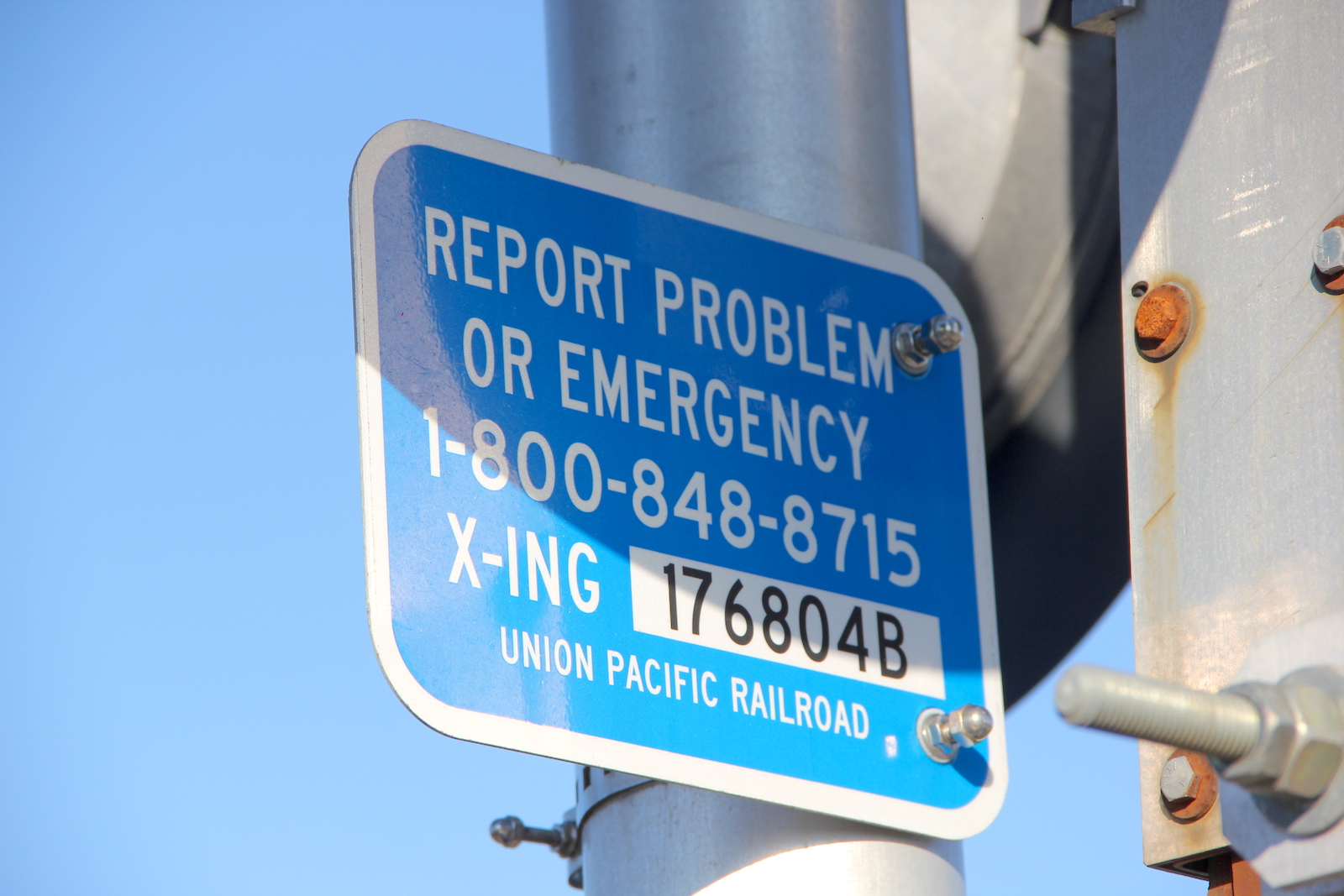

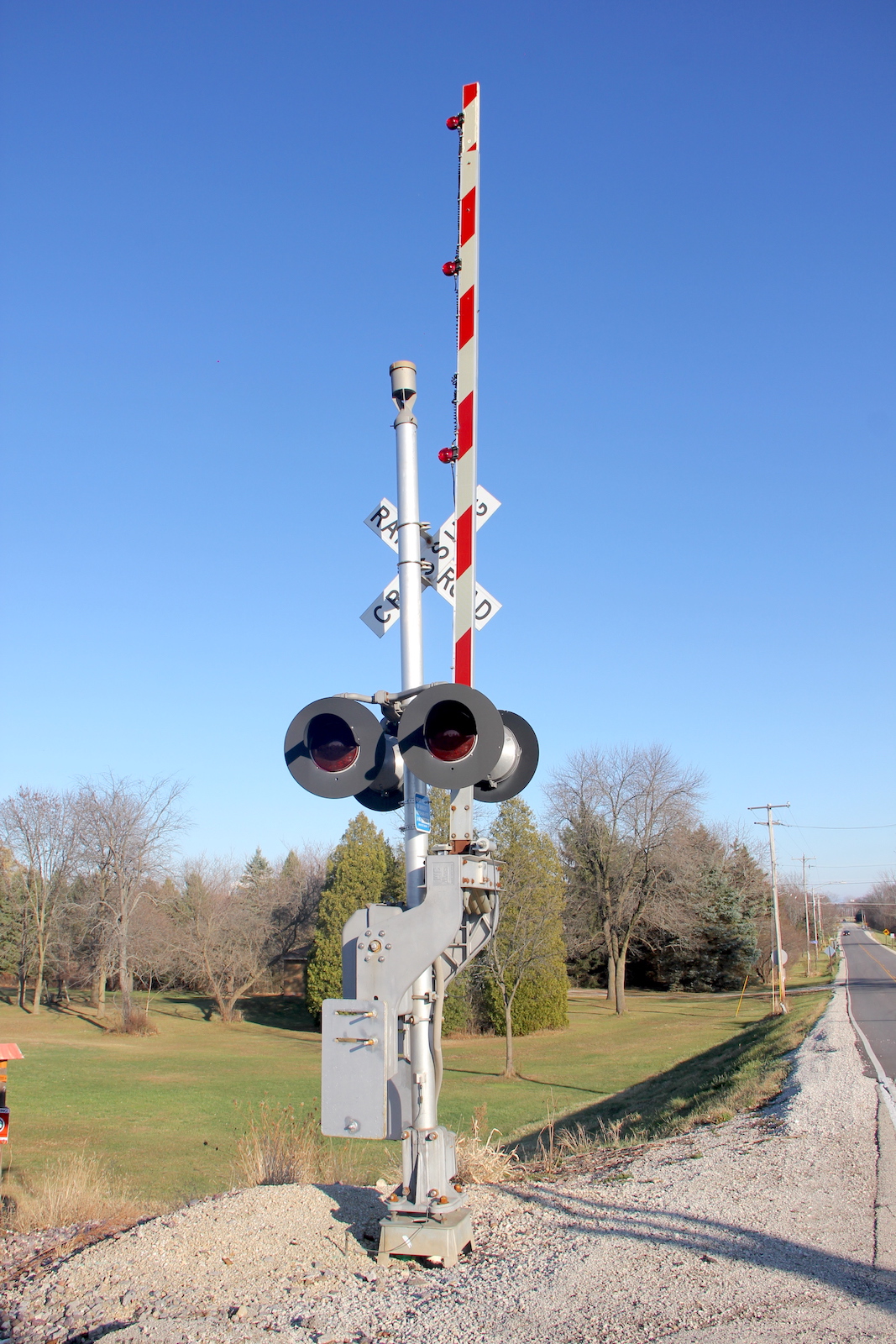

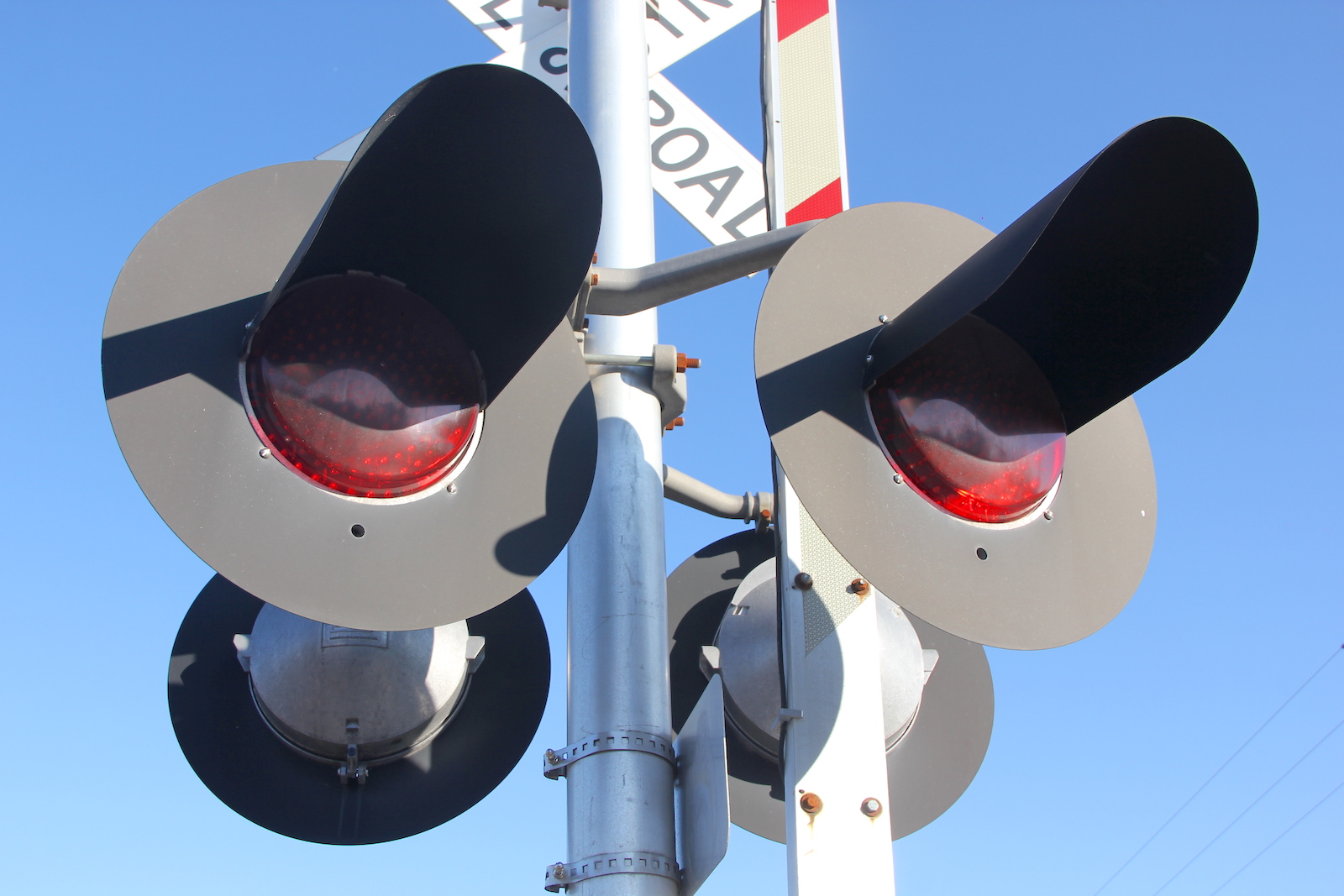

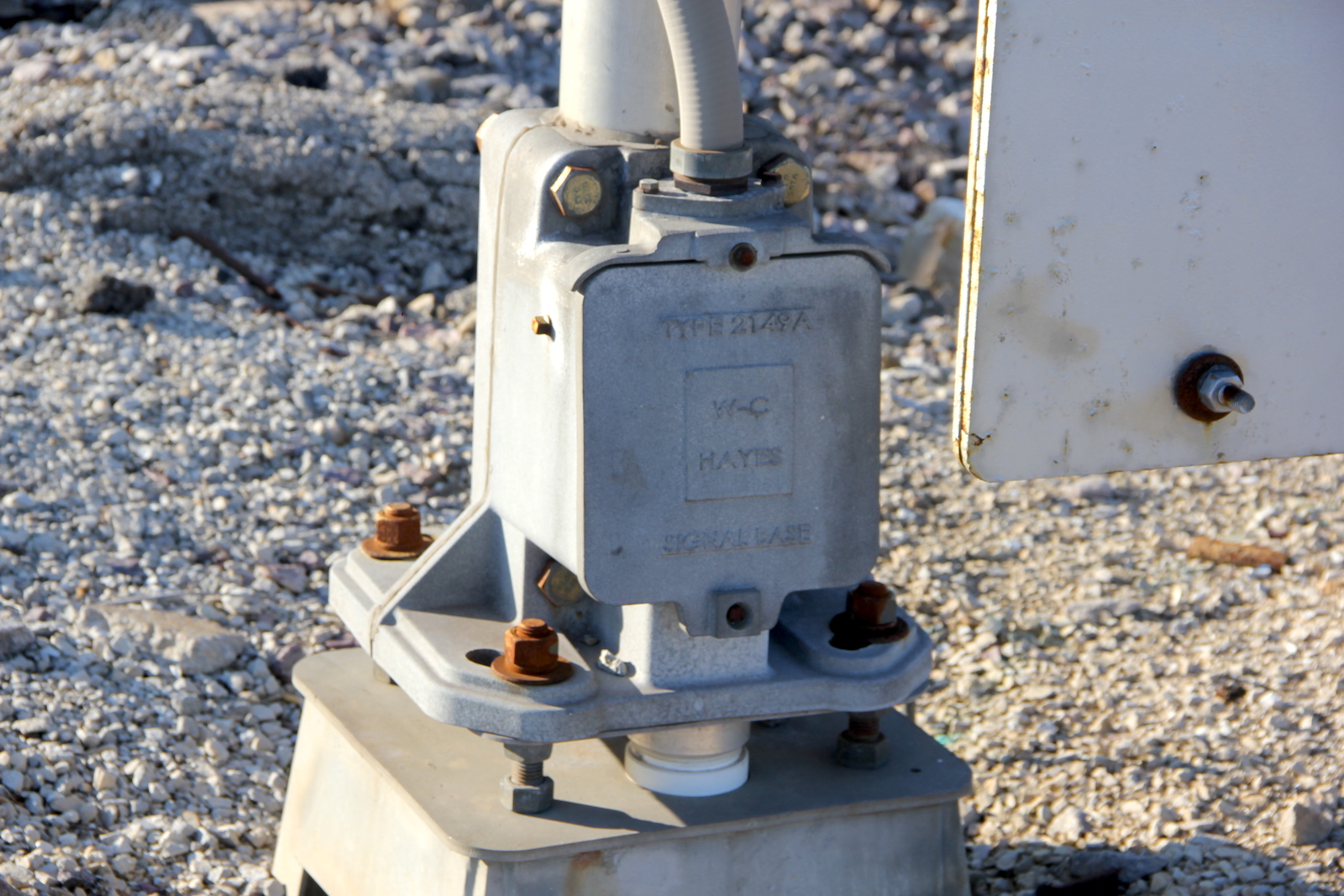

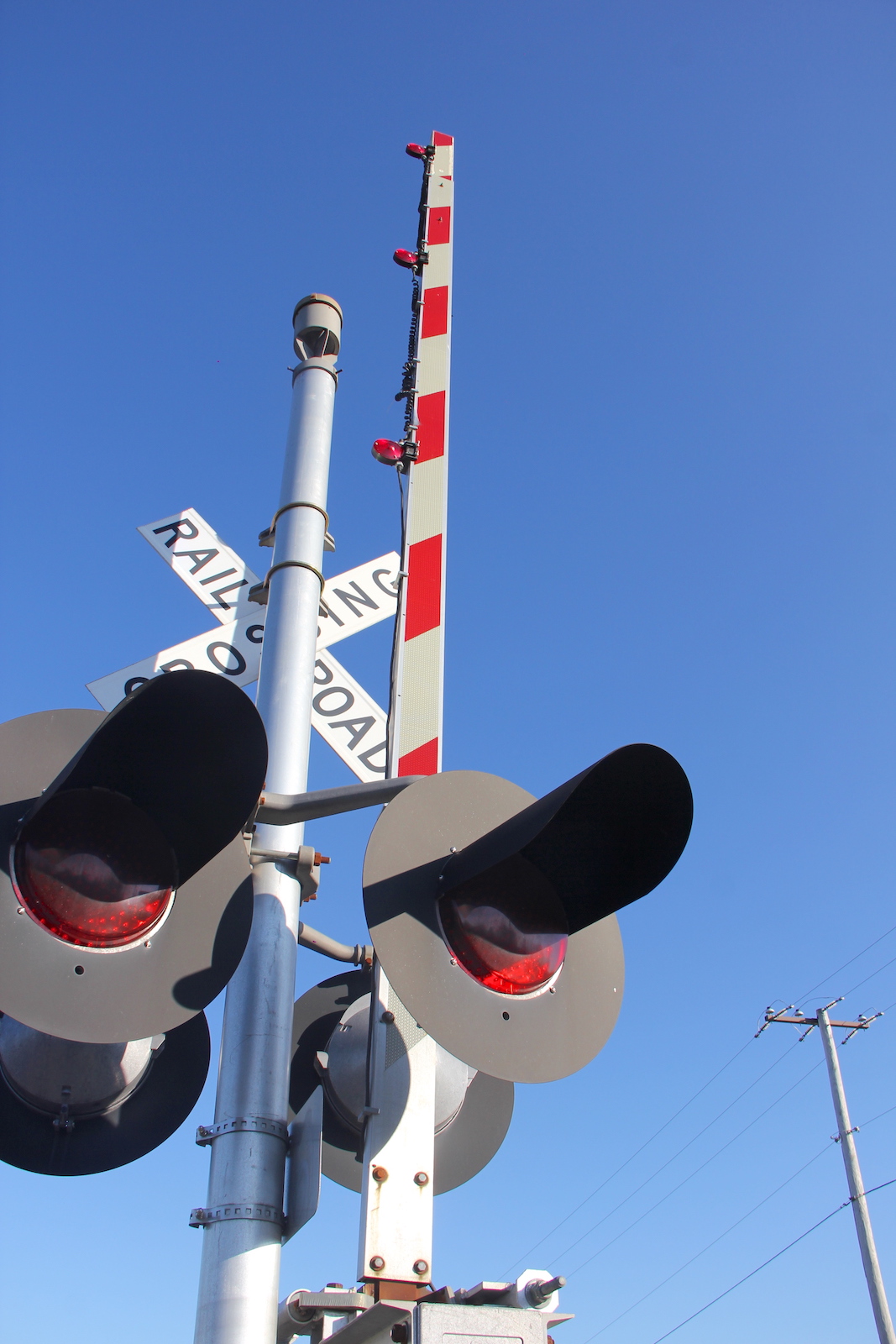

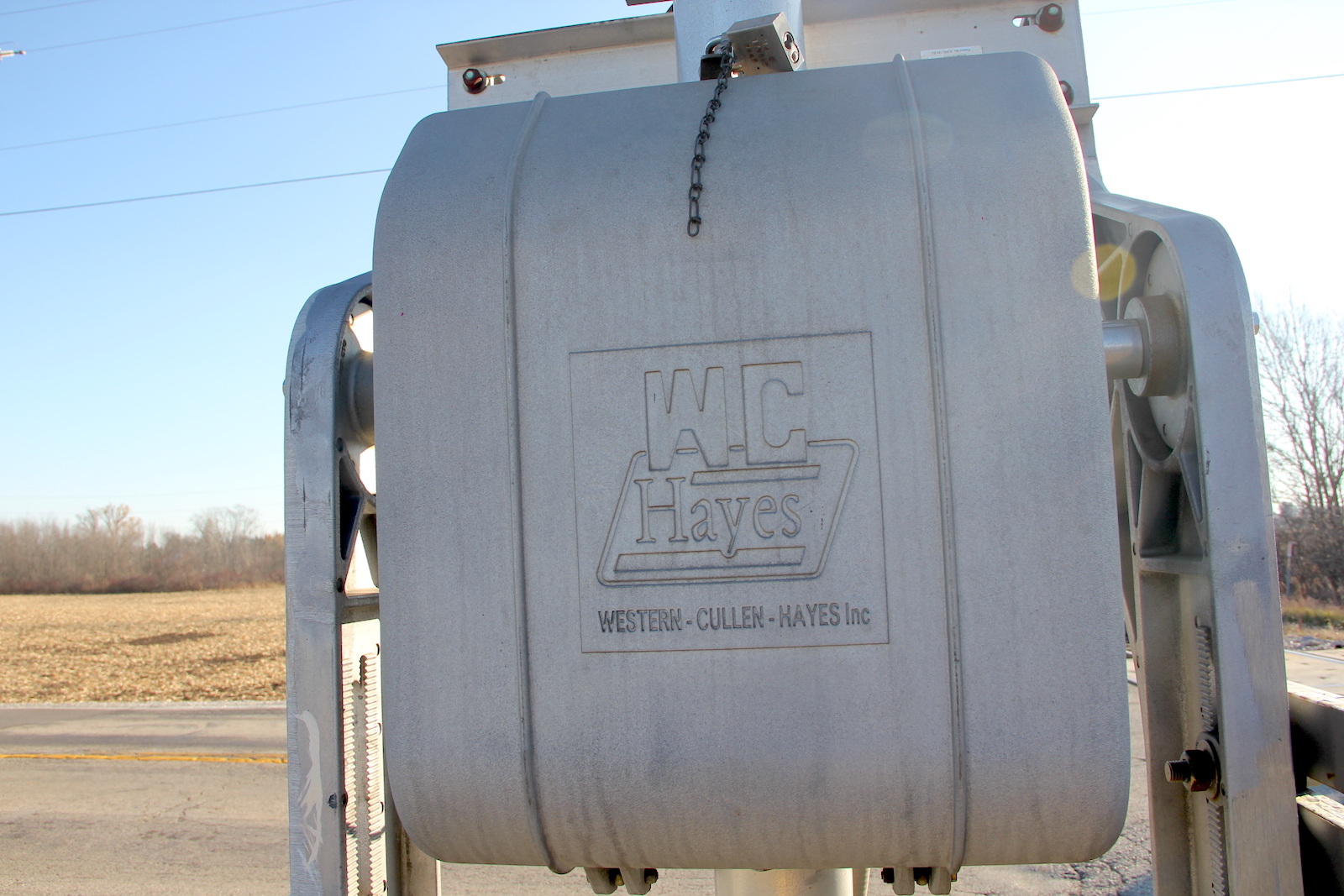

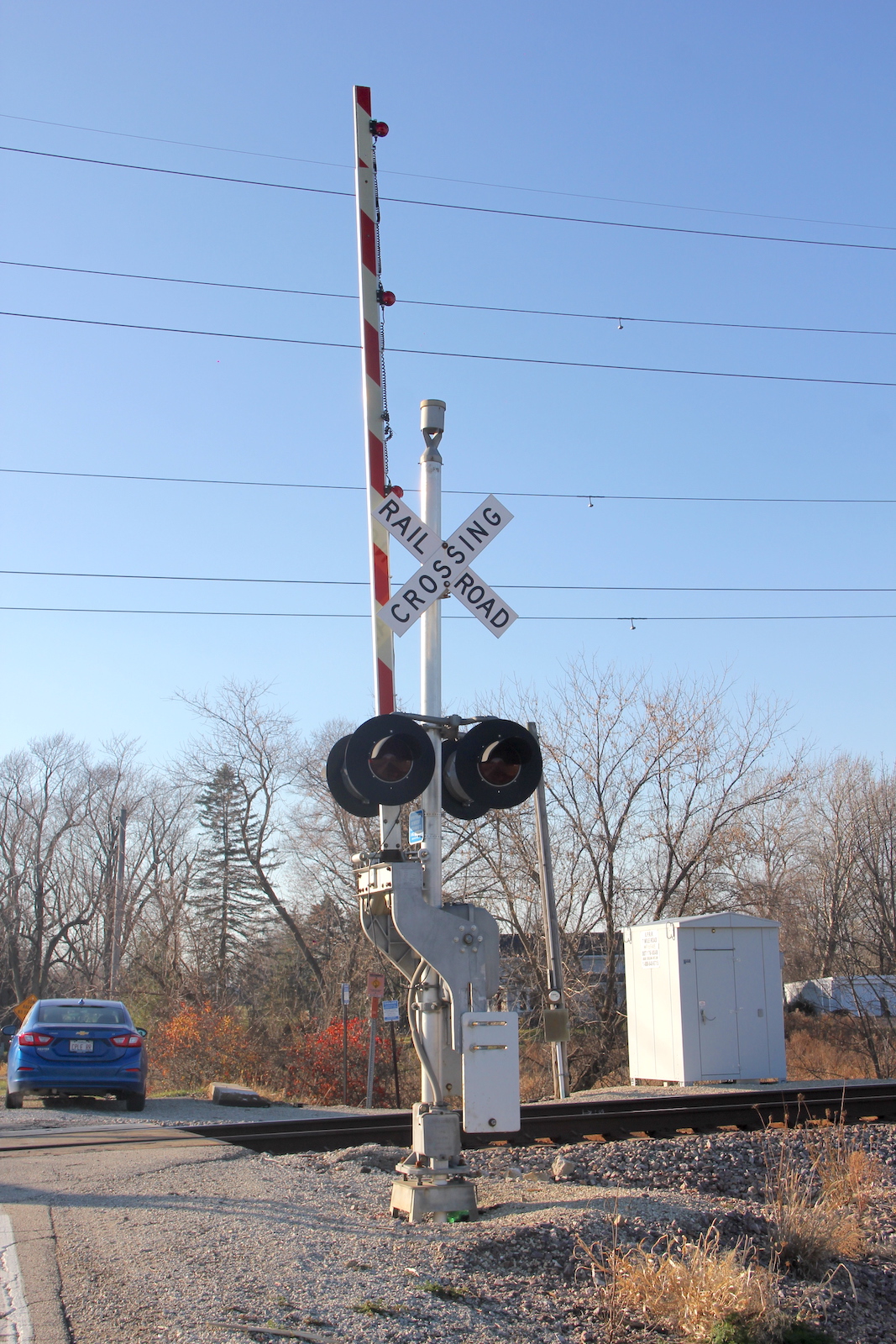

| The eastern signal. |
23 |
24 |
25 |
26 |

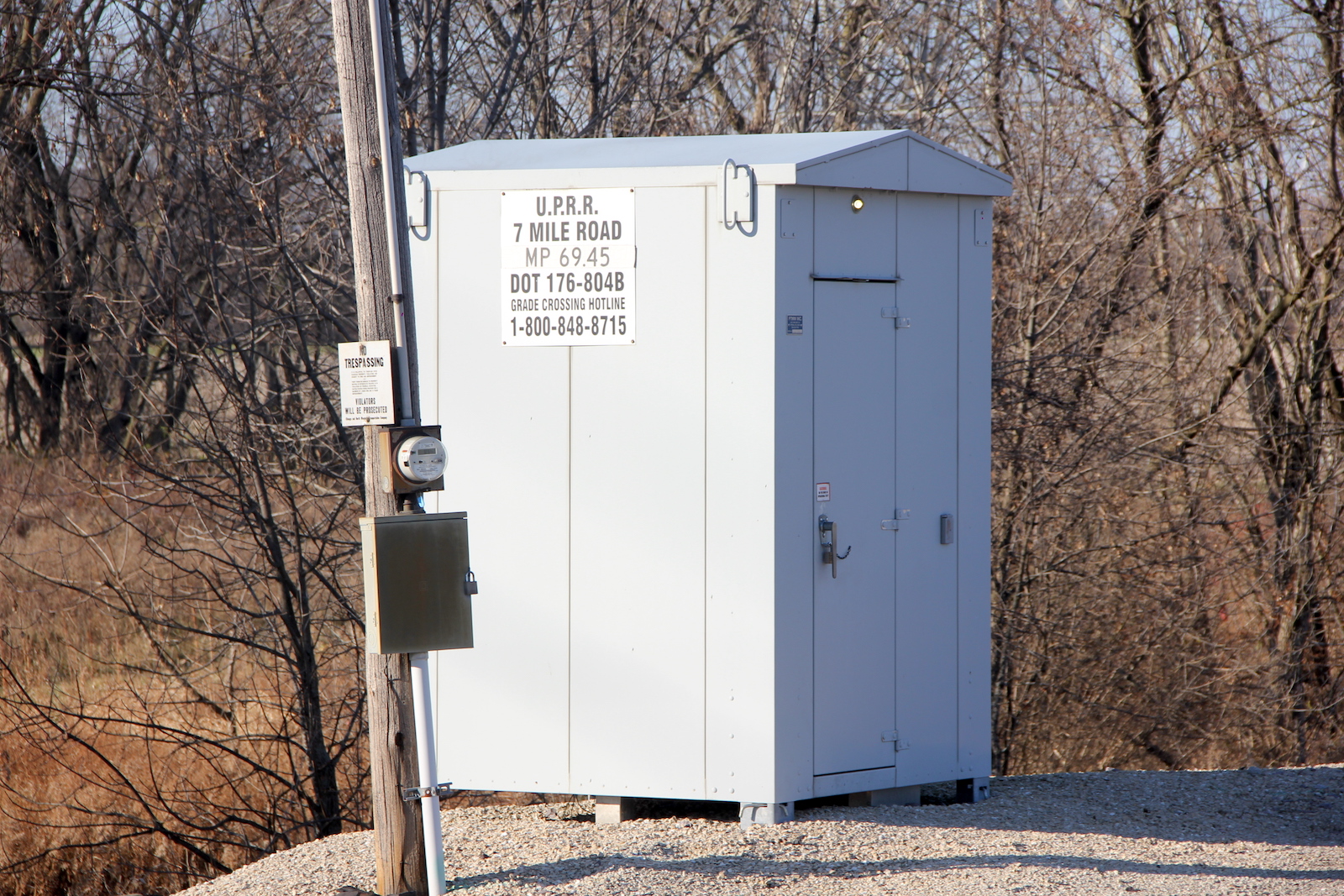

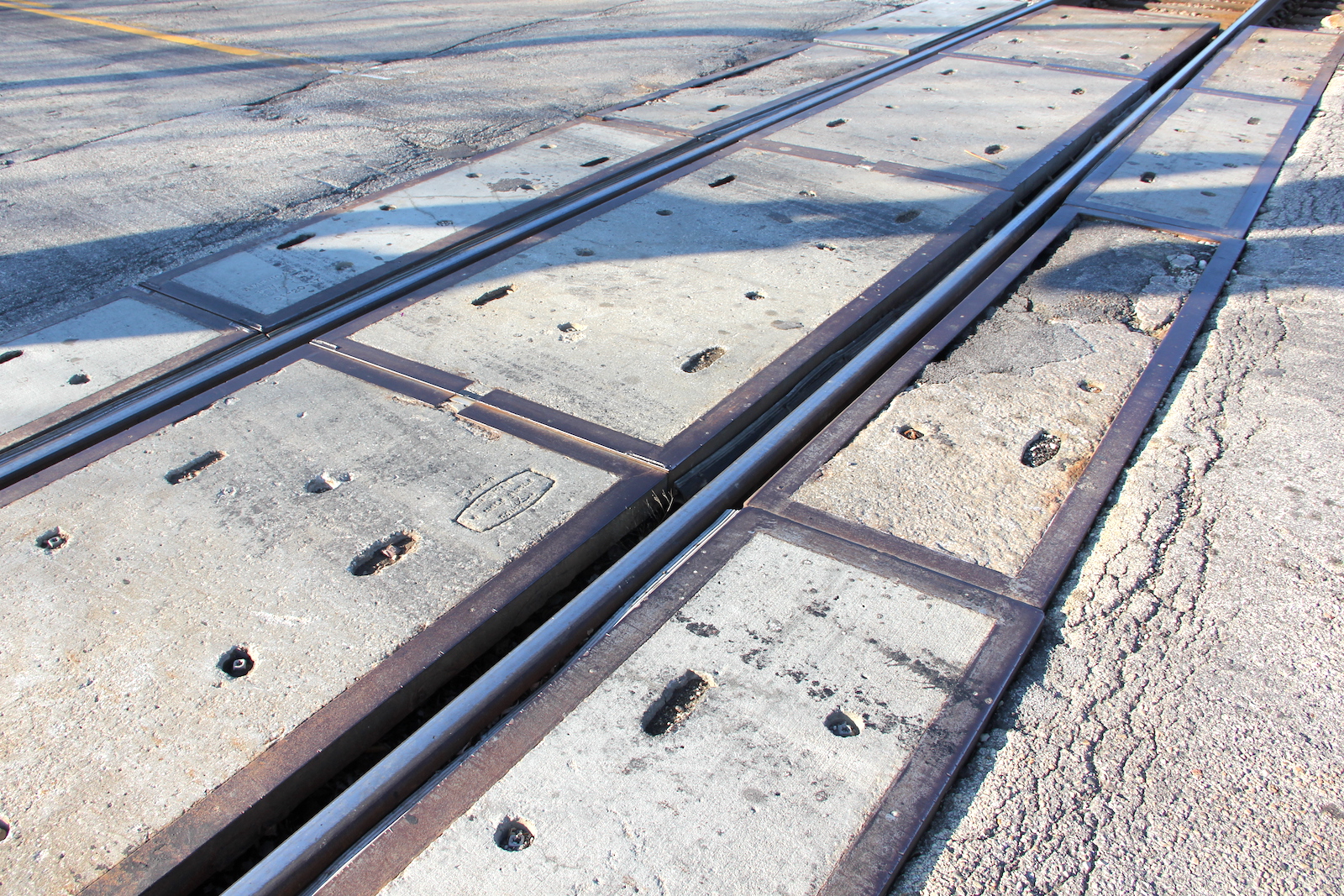

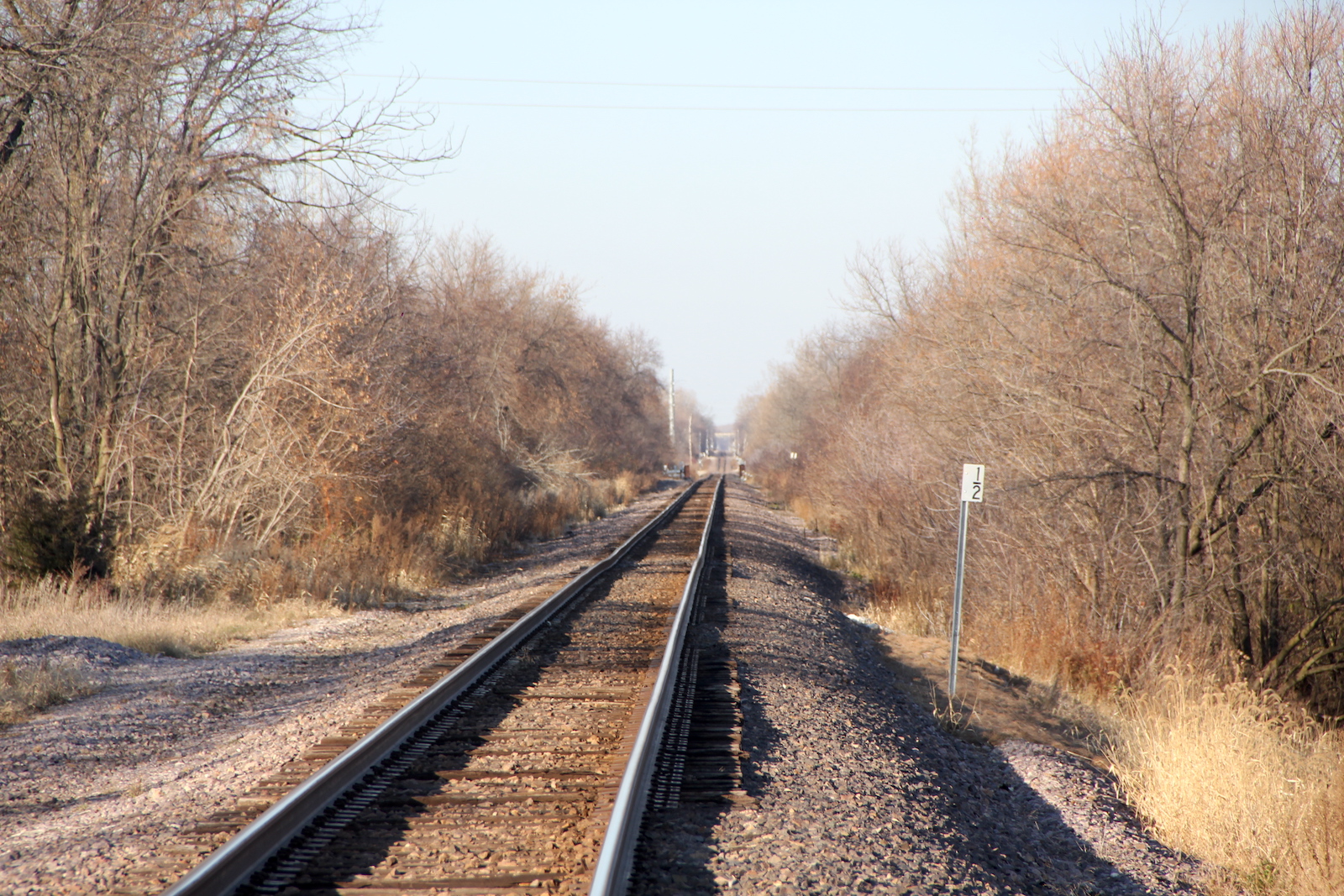

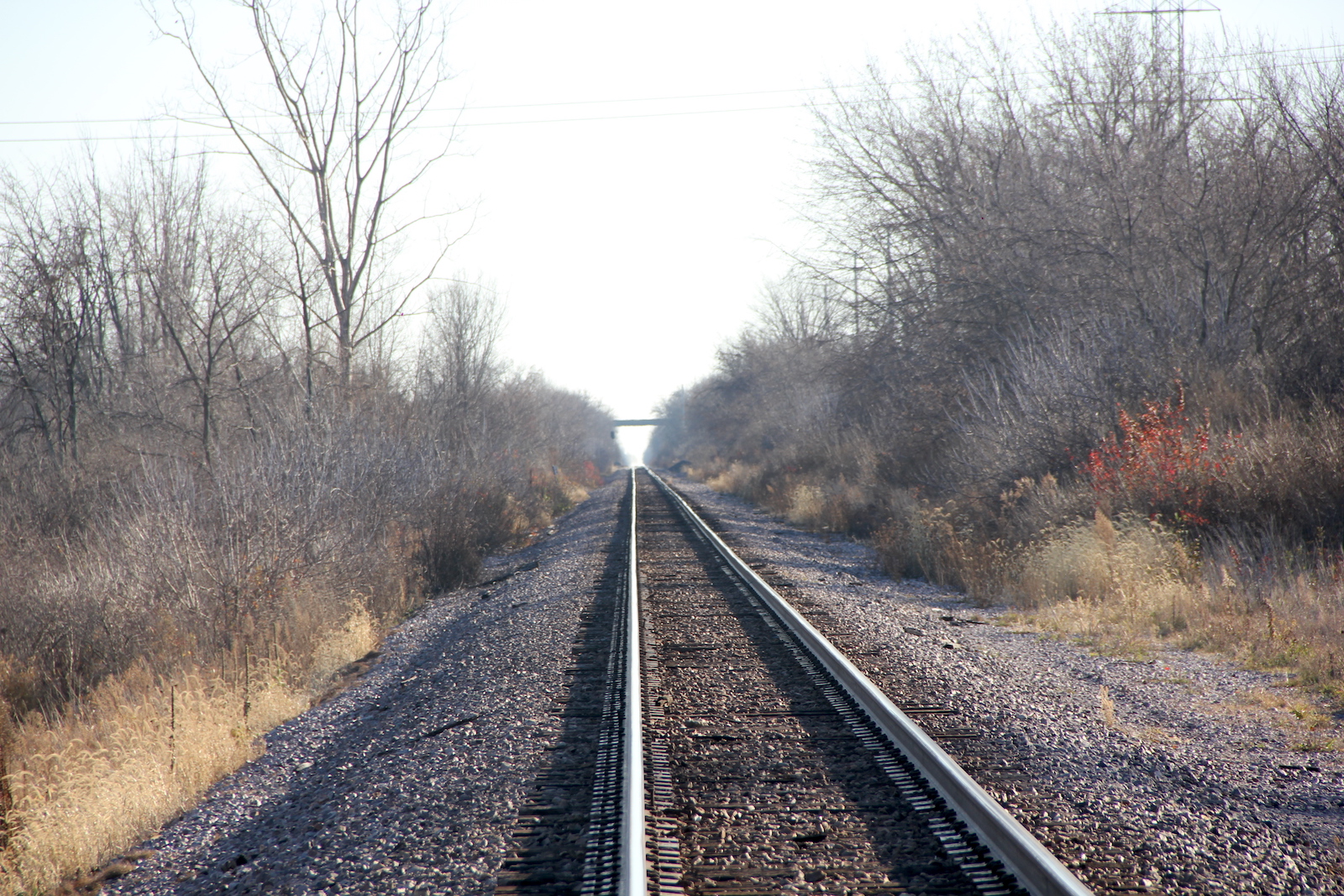

| The relay bungalow in the northwest quadrant. | The grade is all concrete. | Track view facing north towards County Line Rd. in Oak Creek. | Track view facing south towards 4 Mile Rd. #2. |
