| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | None | WCH E Bell |
| Base: | WCH 5" Single Sided ^ | WCH 5" Single Sided ^ |
| Lights: | 4 - 12"x24" WCH w/ 1st Gen WCH LEDs | 4 - 12"x24" WCH w/ 2nd Gen WCH LEDs |
| Junction Box: | WRRS | WRRS |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | WCH Style 3.5 w/ WCH Gate Saver | WCH Style 3.5 w/ WCH Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
1 |
2
|

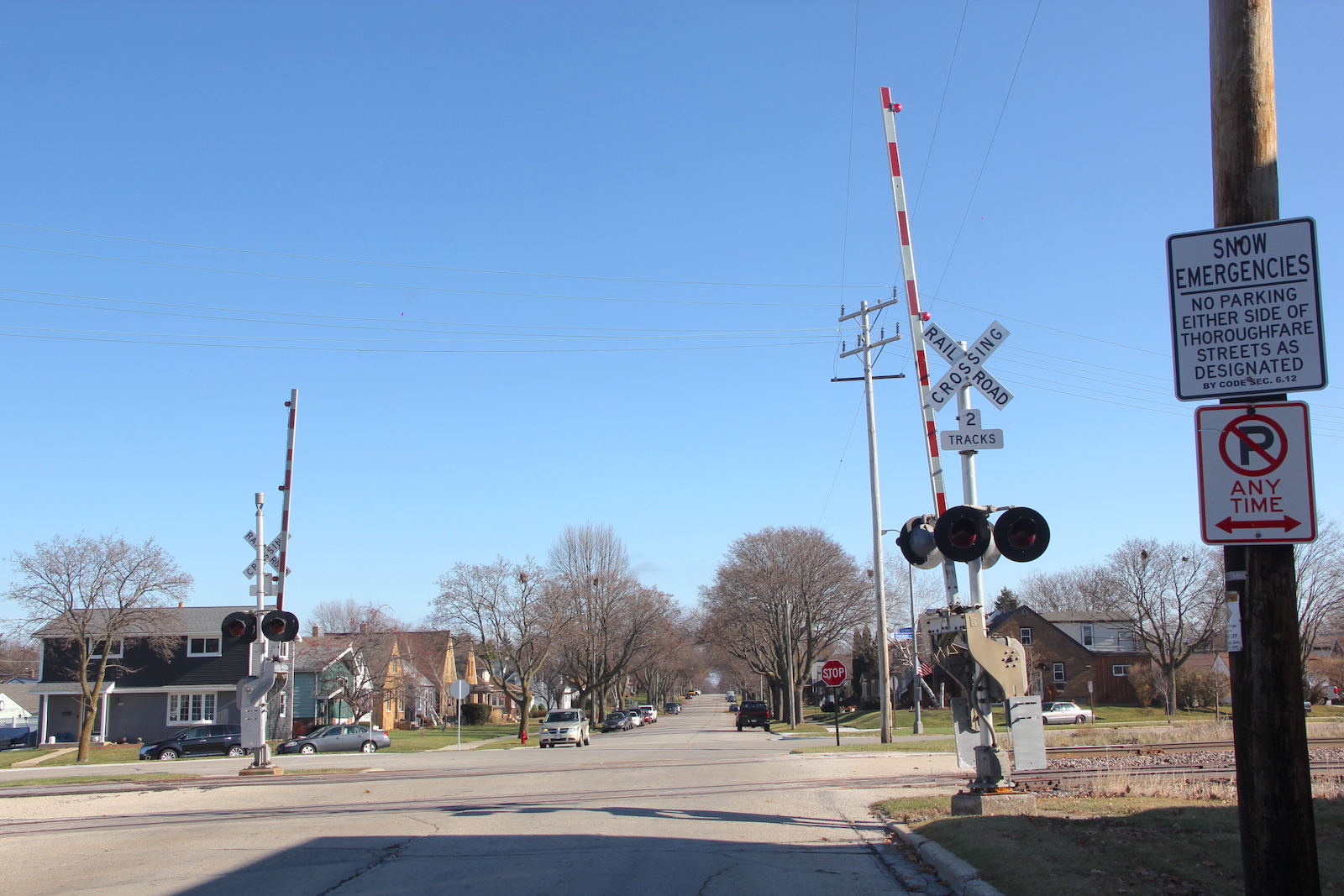

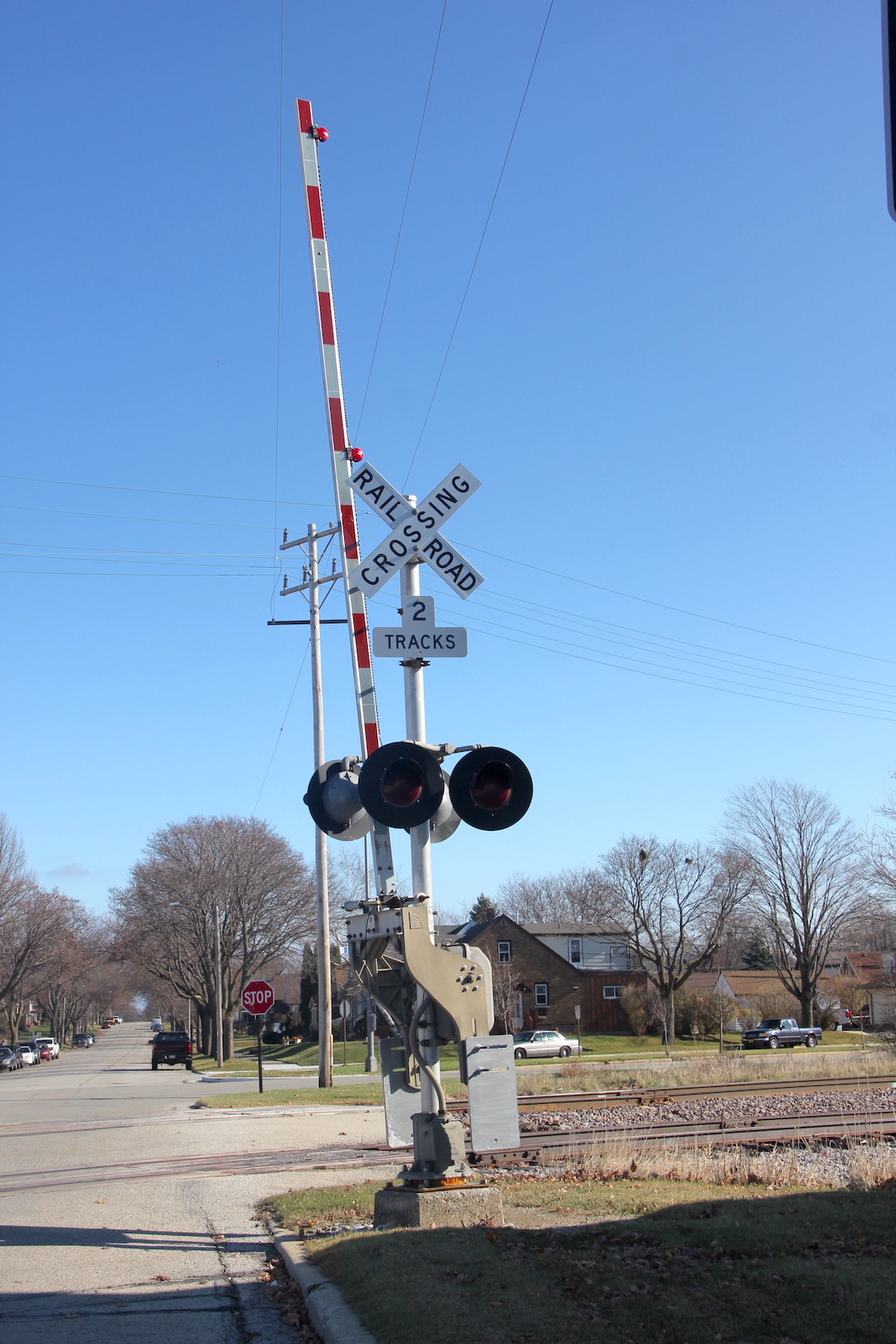

| Overview of 2 gated signals facing east. | Overview facing west. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

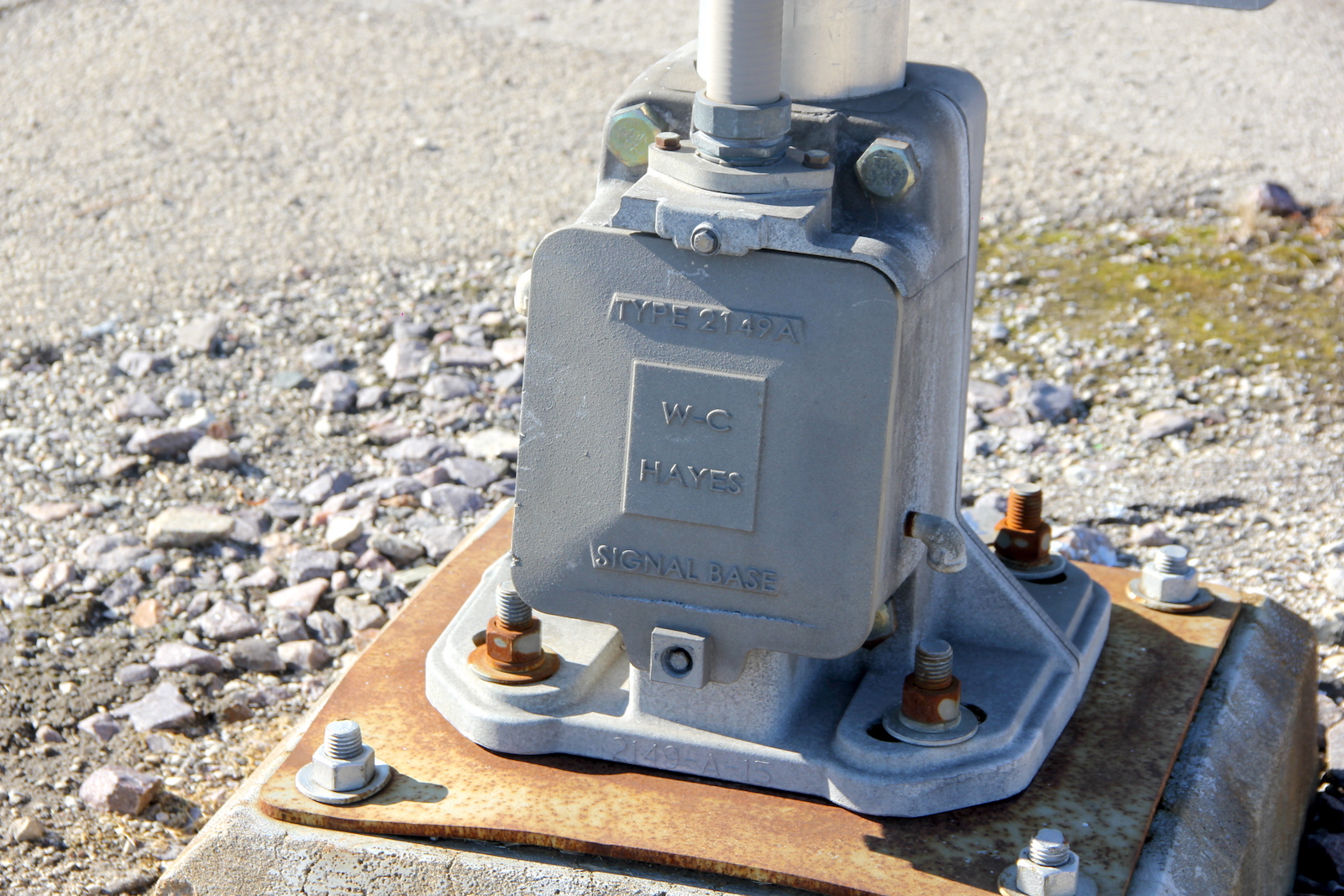

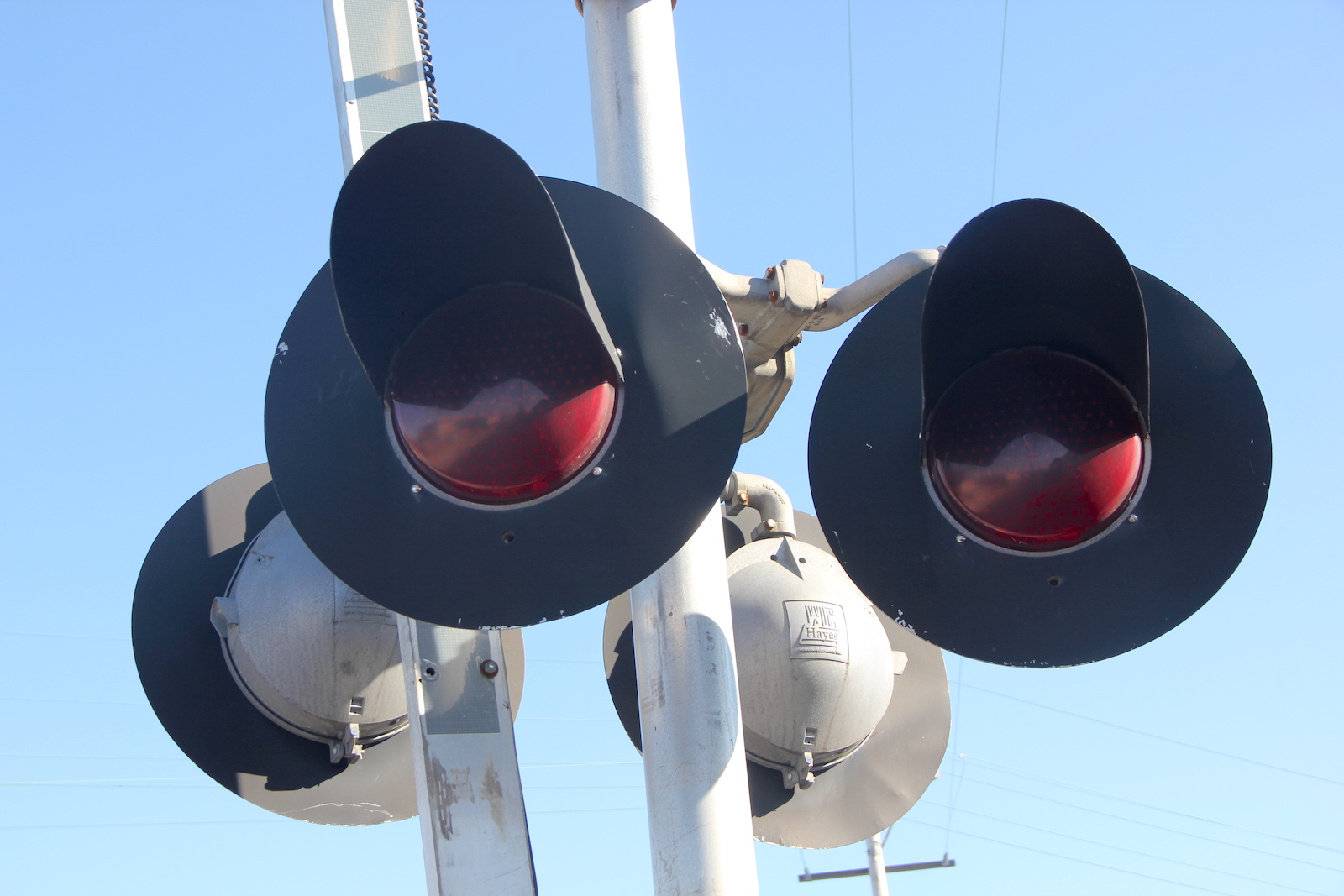

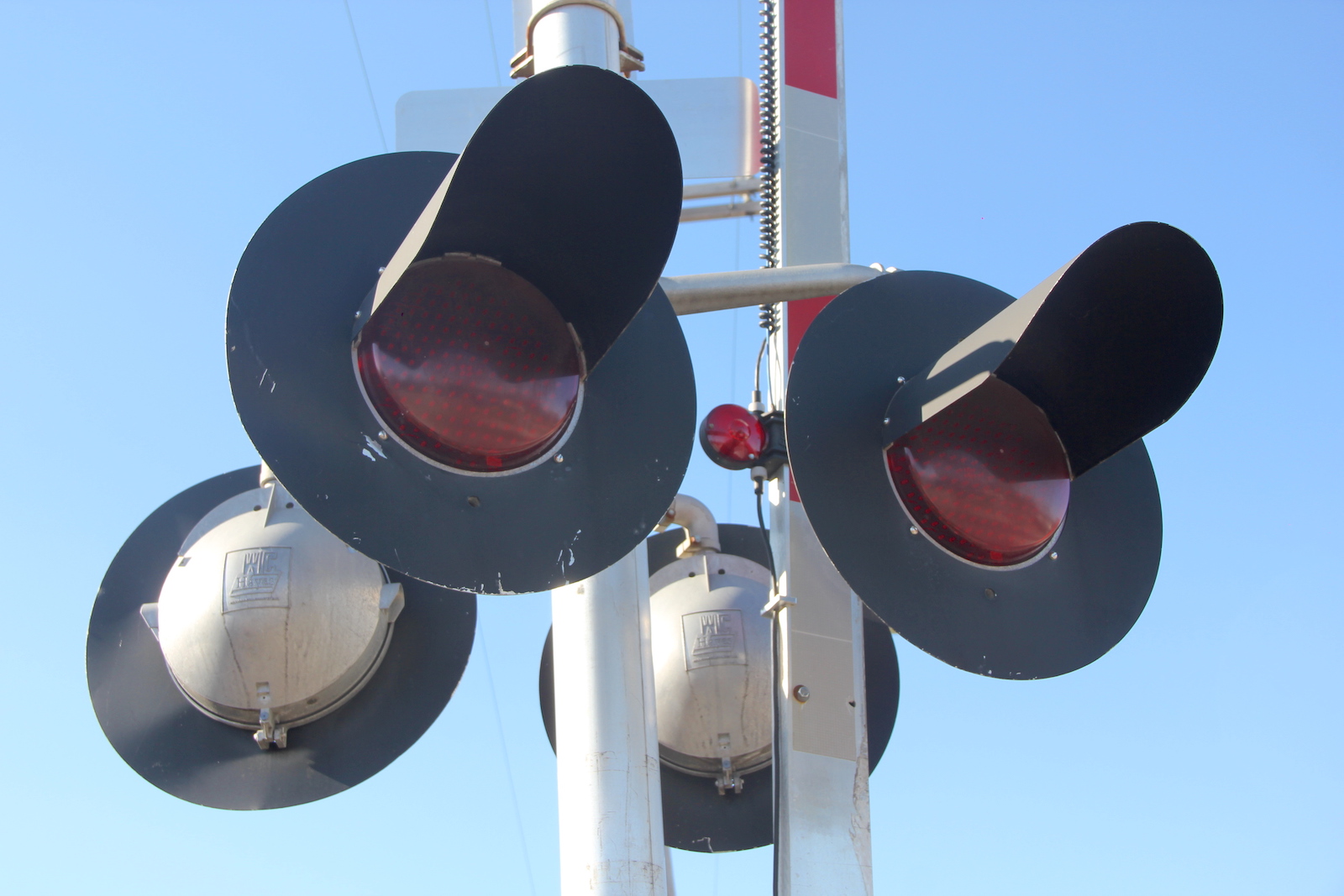

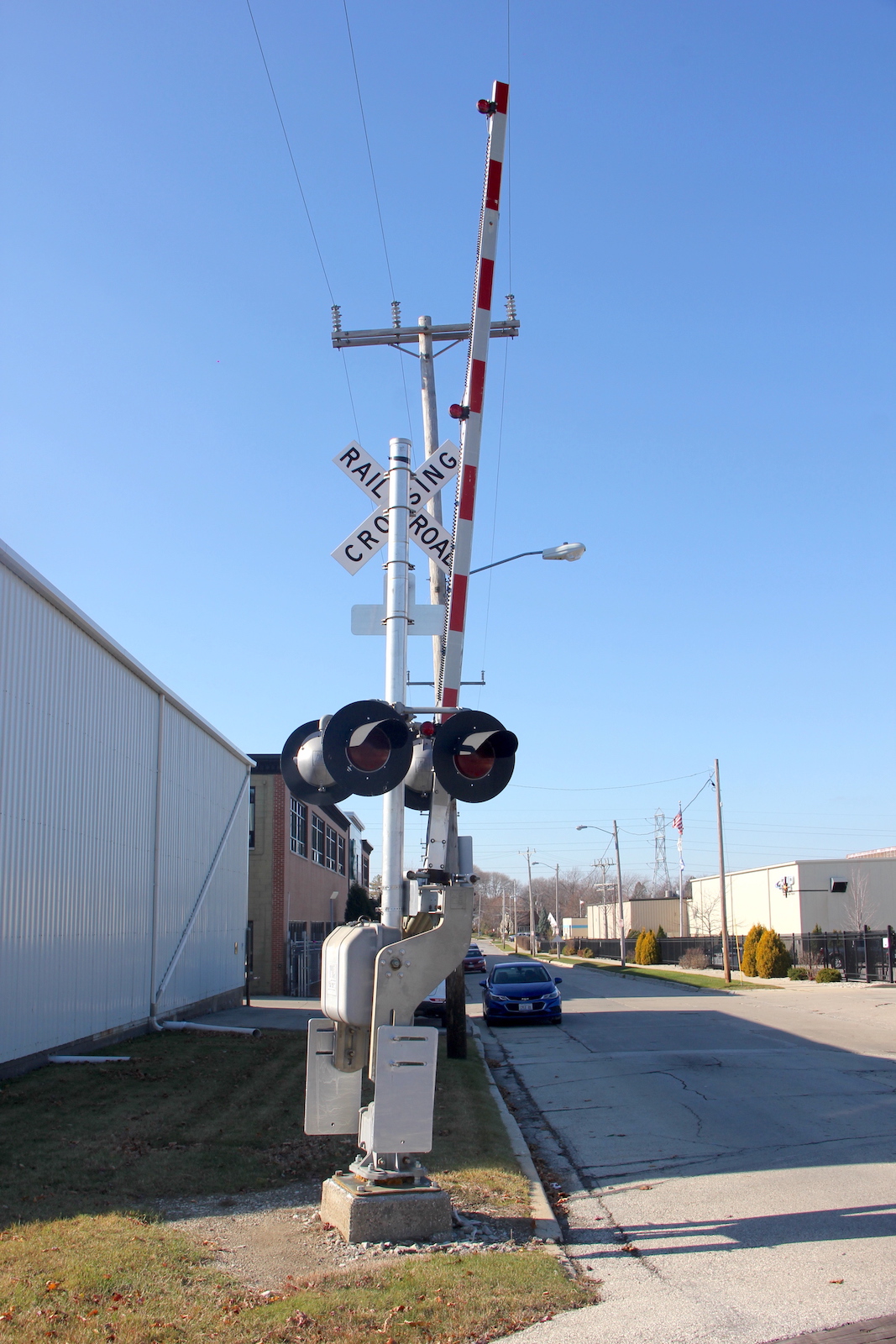

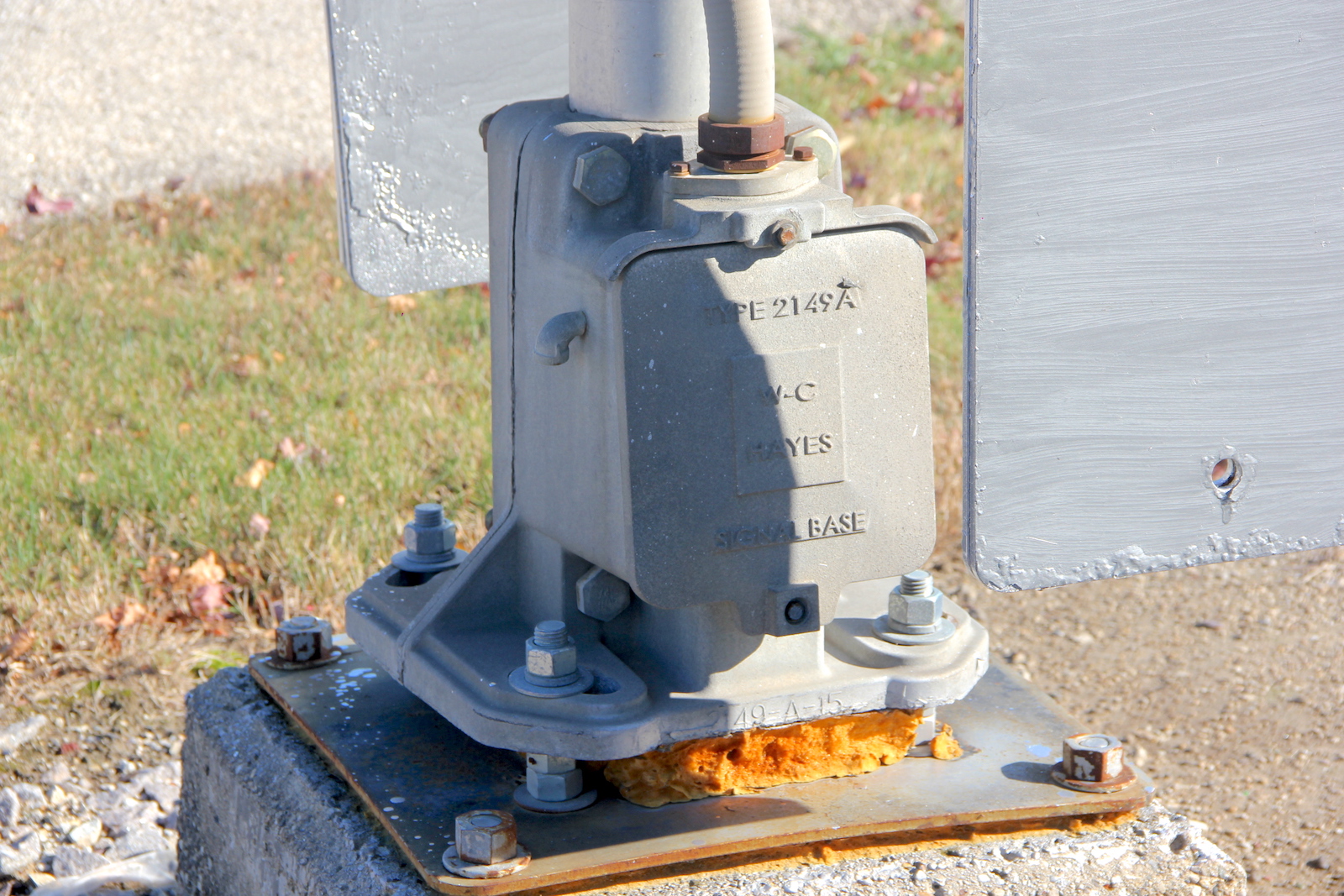

| The western signal. This was installed in the mid 2010s replacing an EM signal. | ||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20 | 21
|

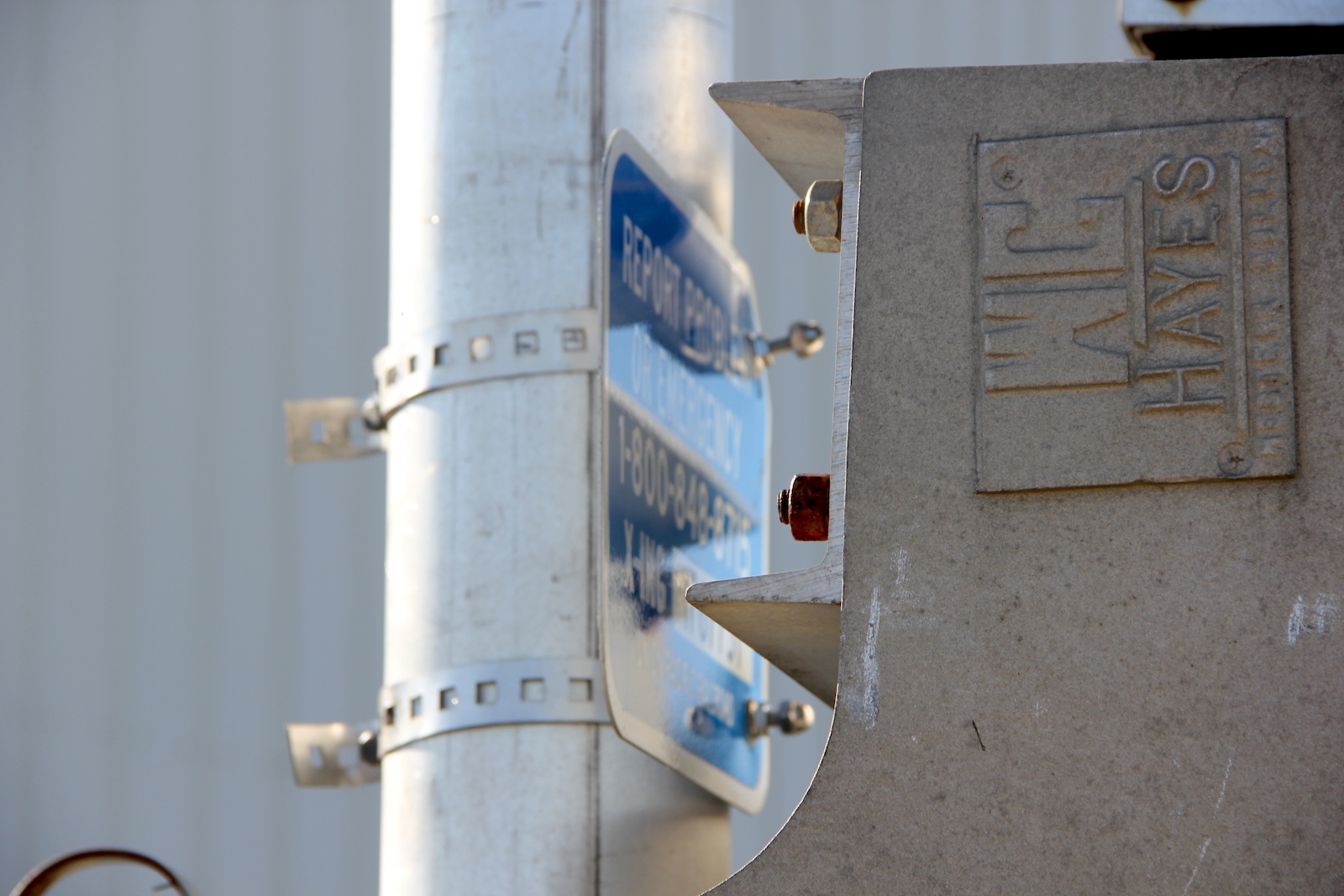

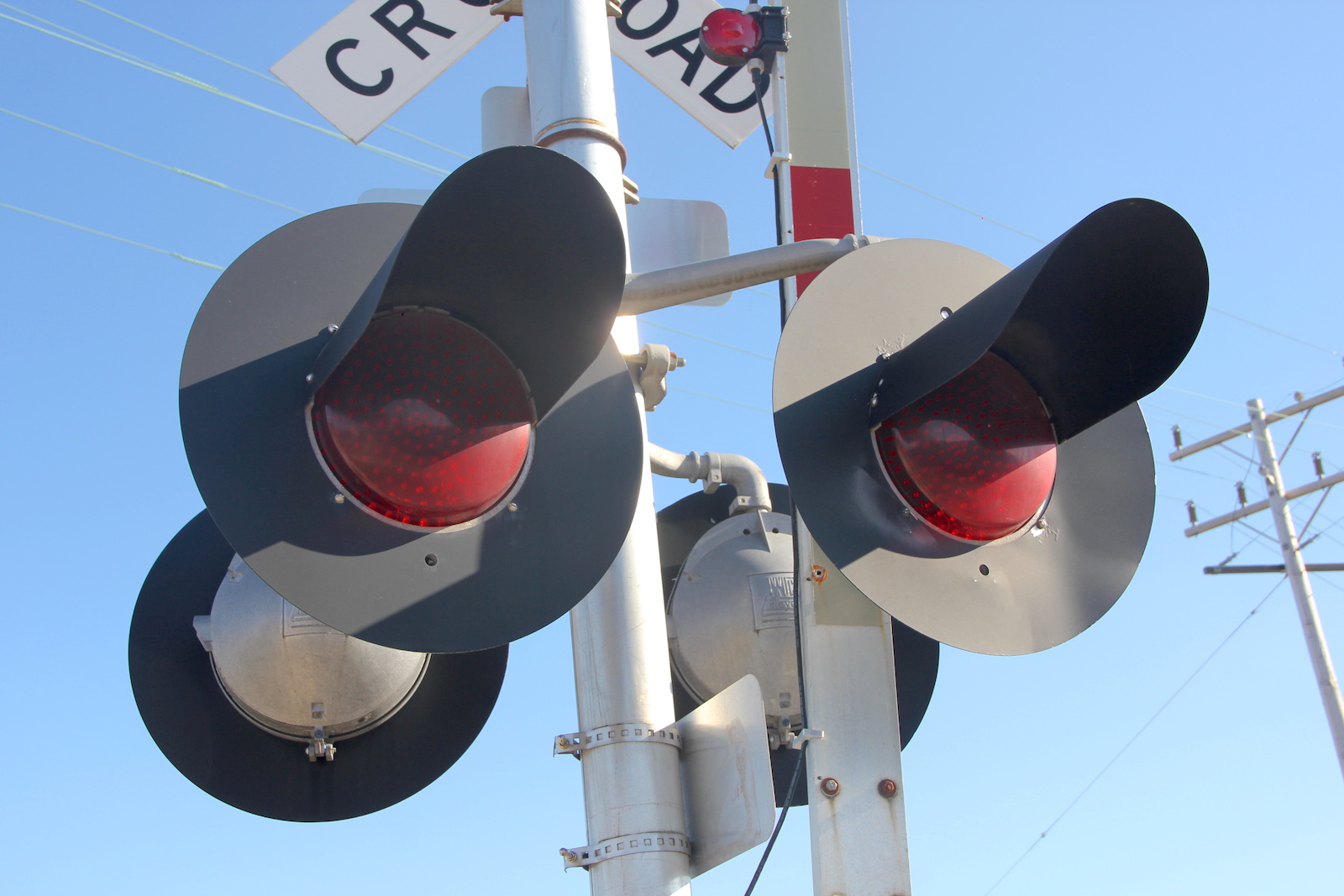

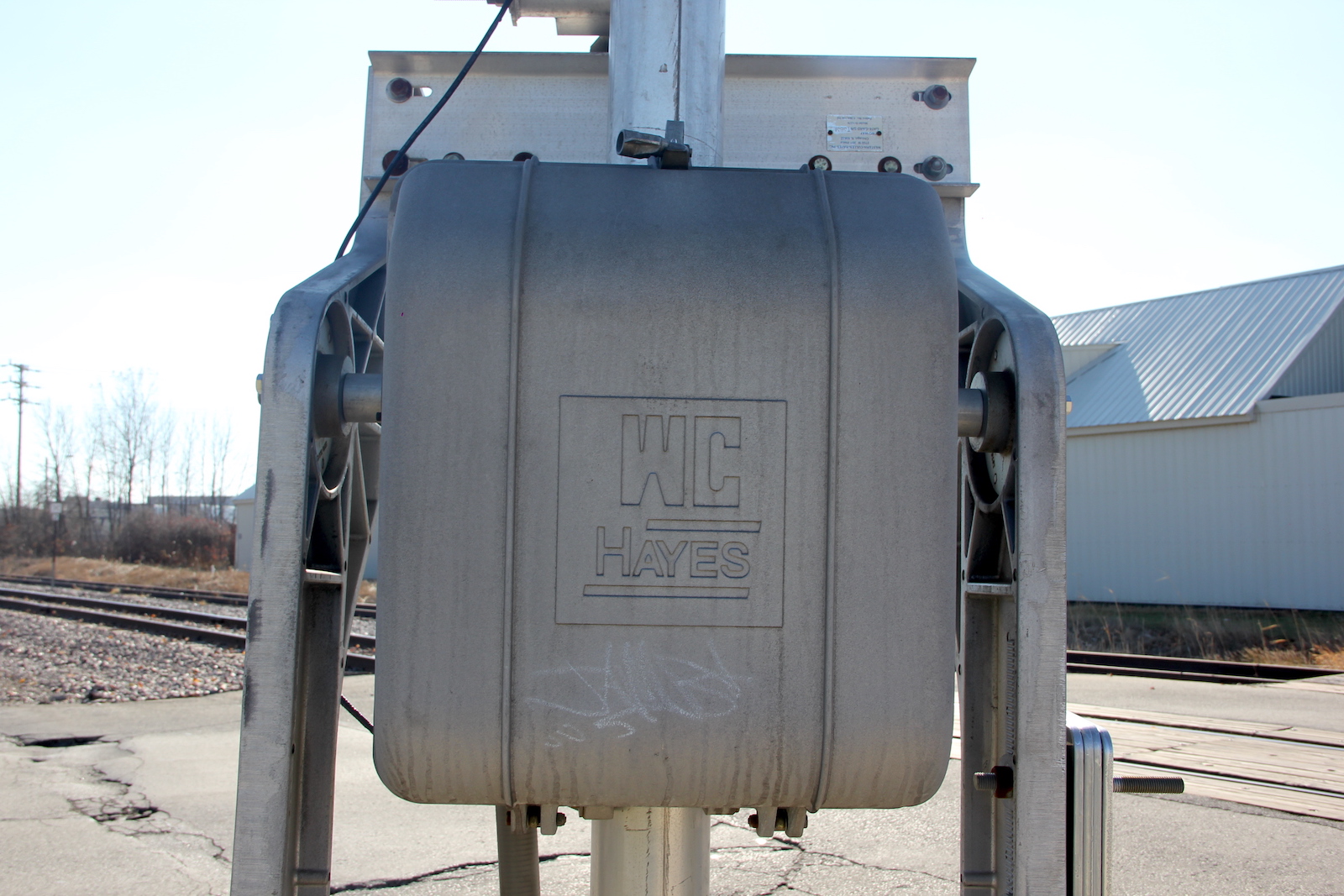

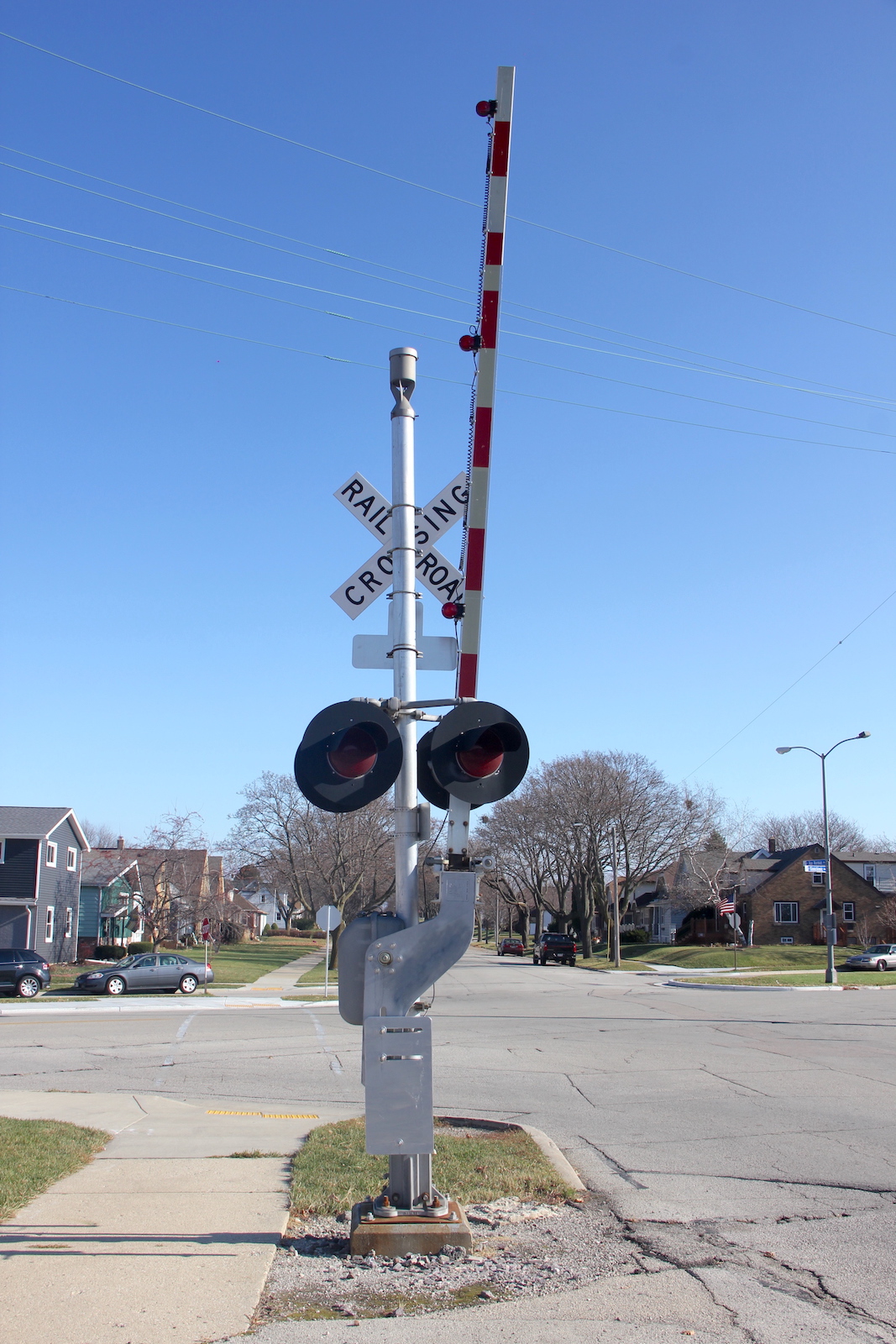

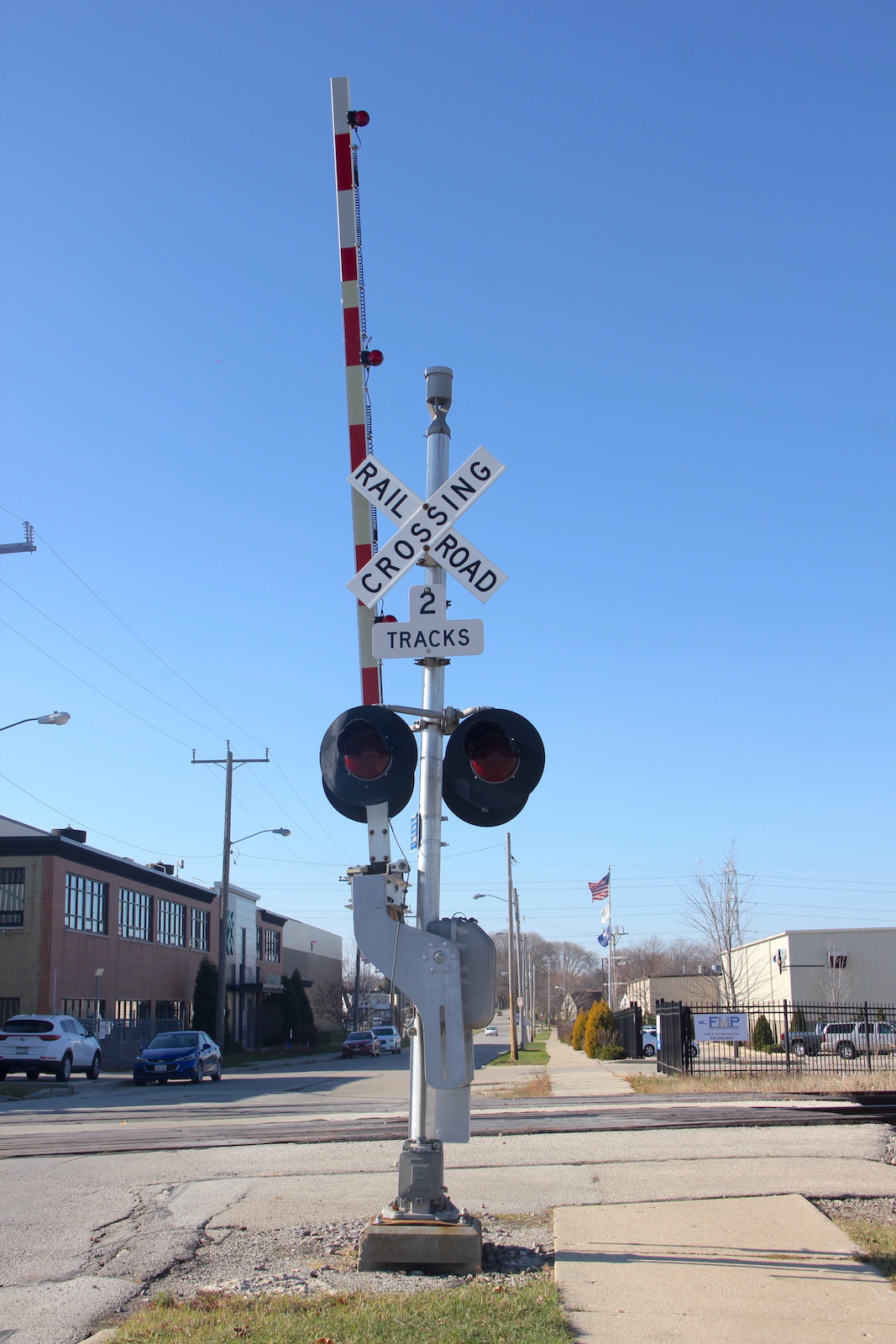

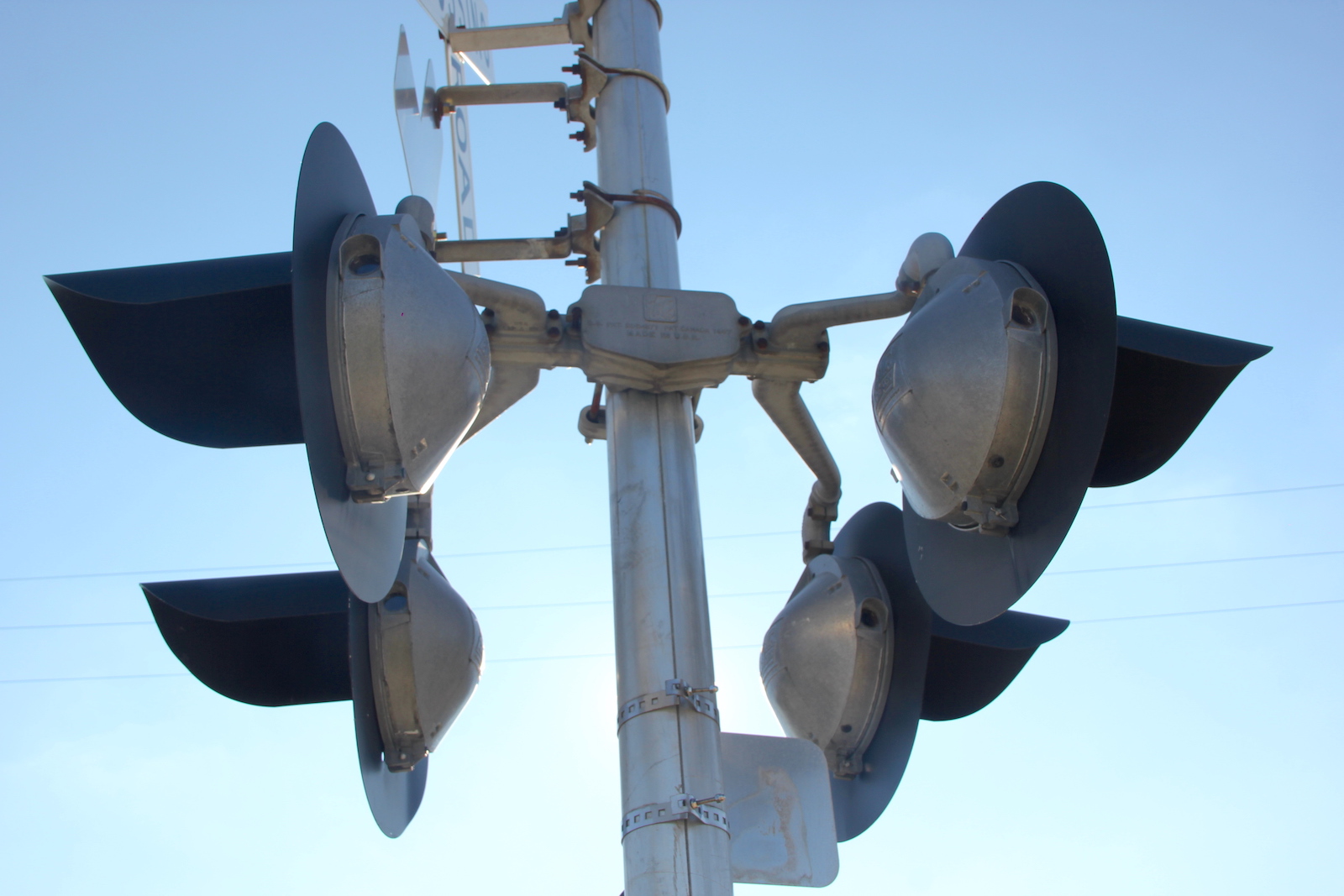

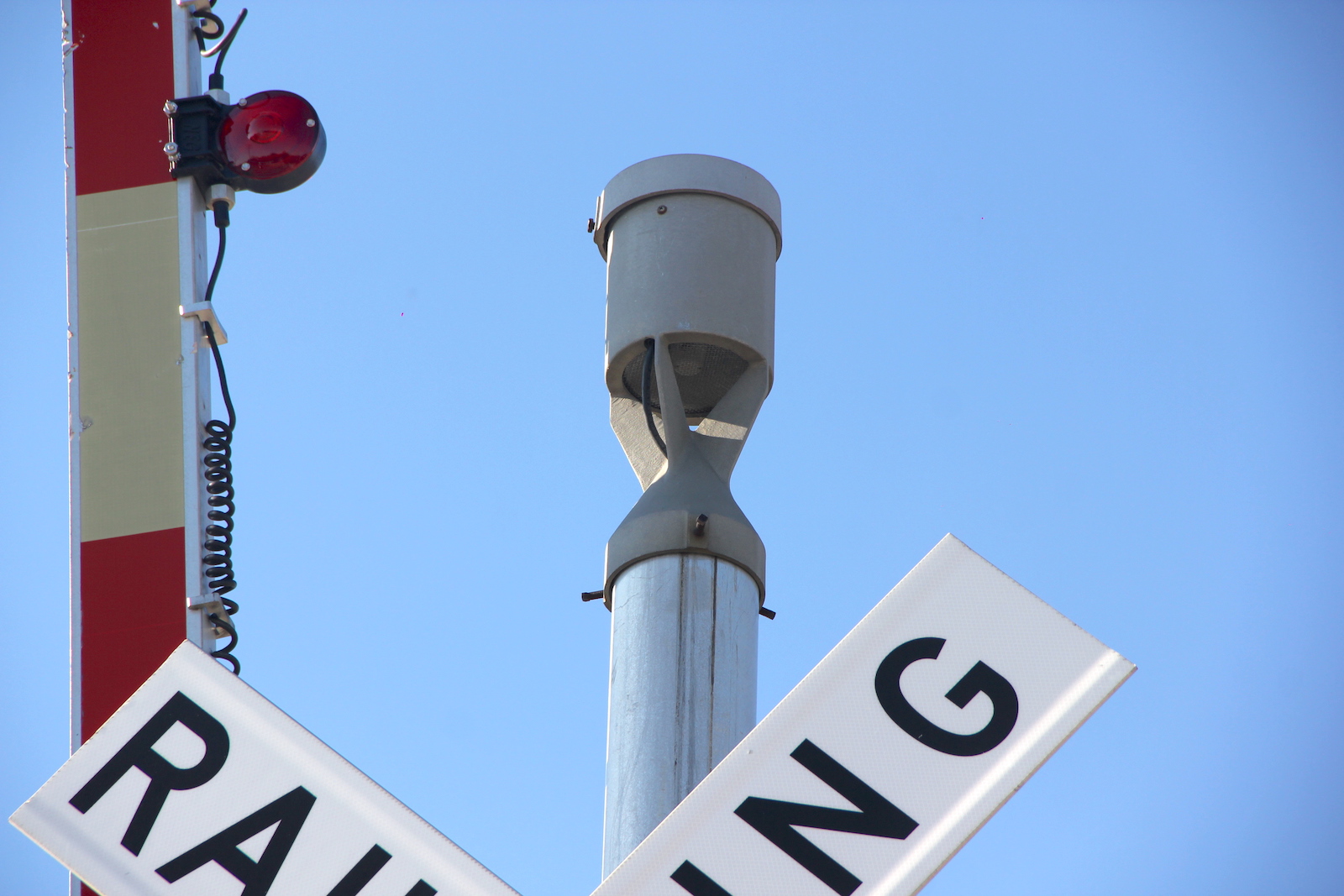

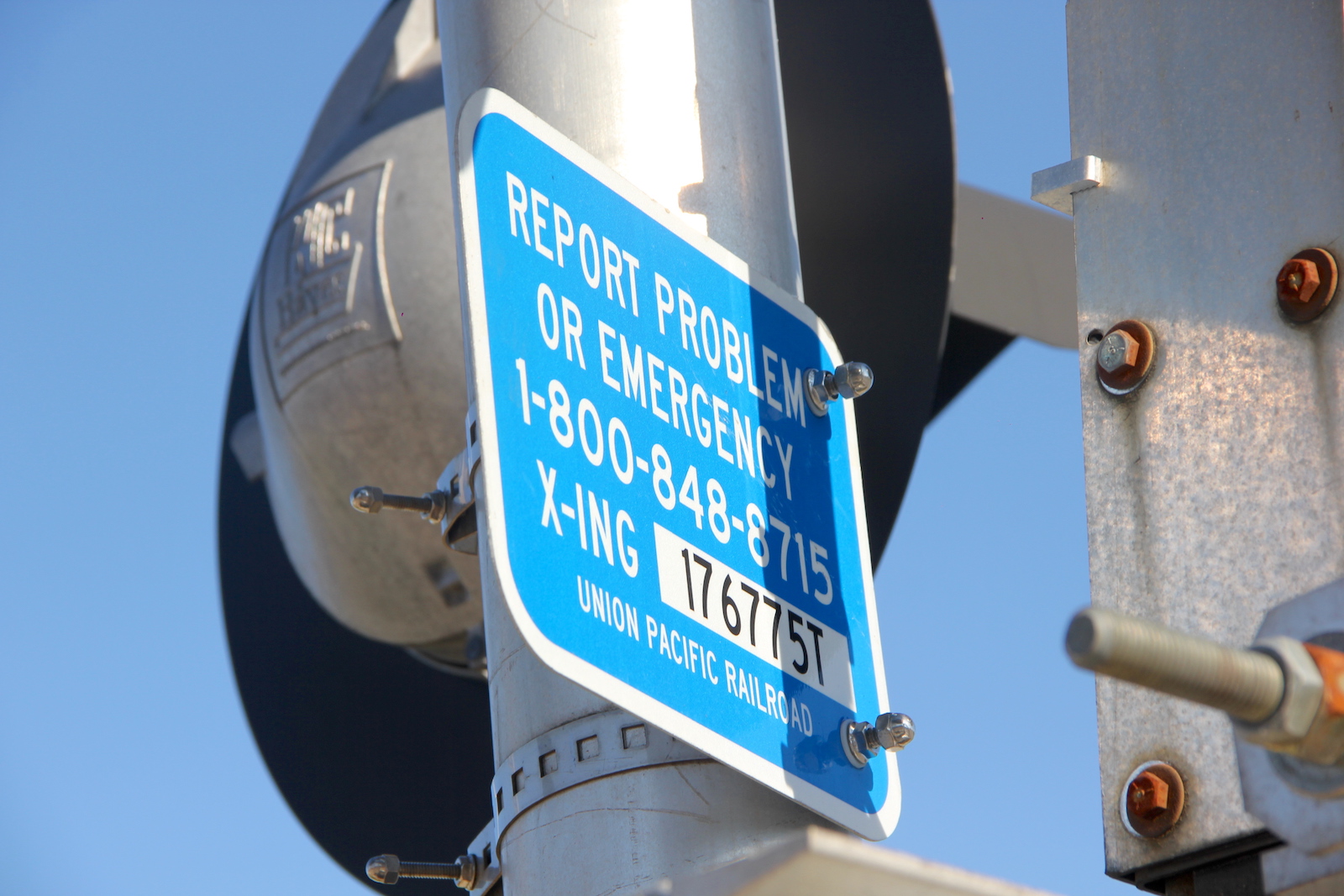

| The eastern signal. Despite the fact this has 2nd Gen WCH LEDs and the other signal has 1st Gens, this was actually installed first in the early 2010s or late 2000s, also replacing an EM signal. |
22
|
23
|
24
|
25
|

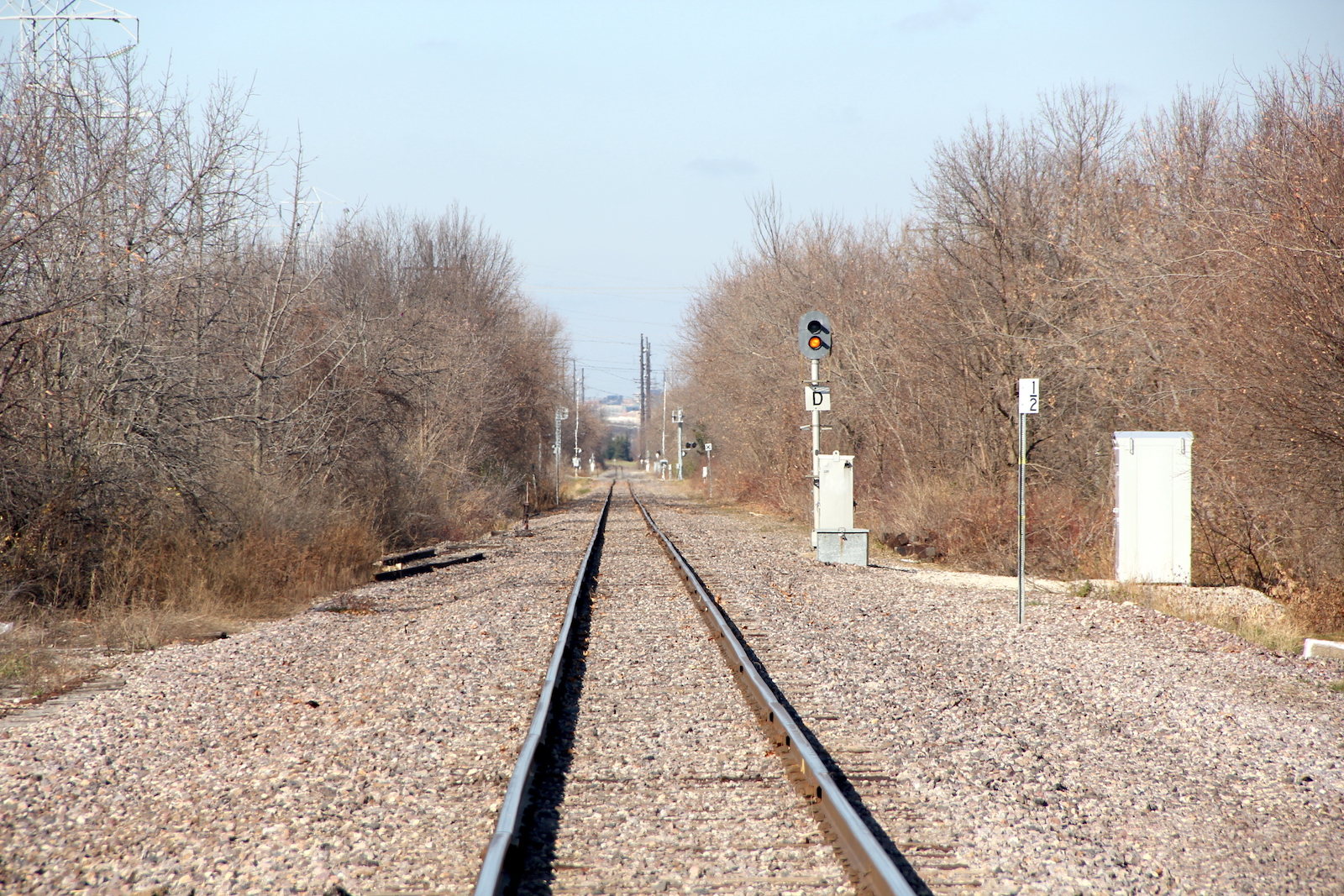

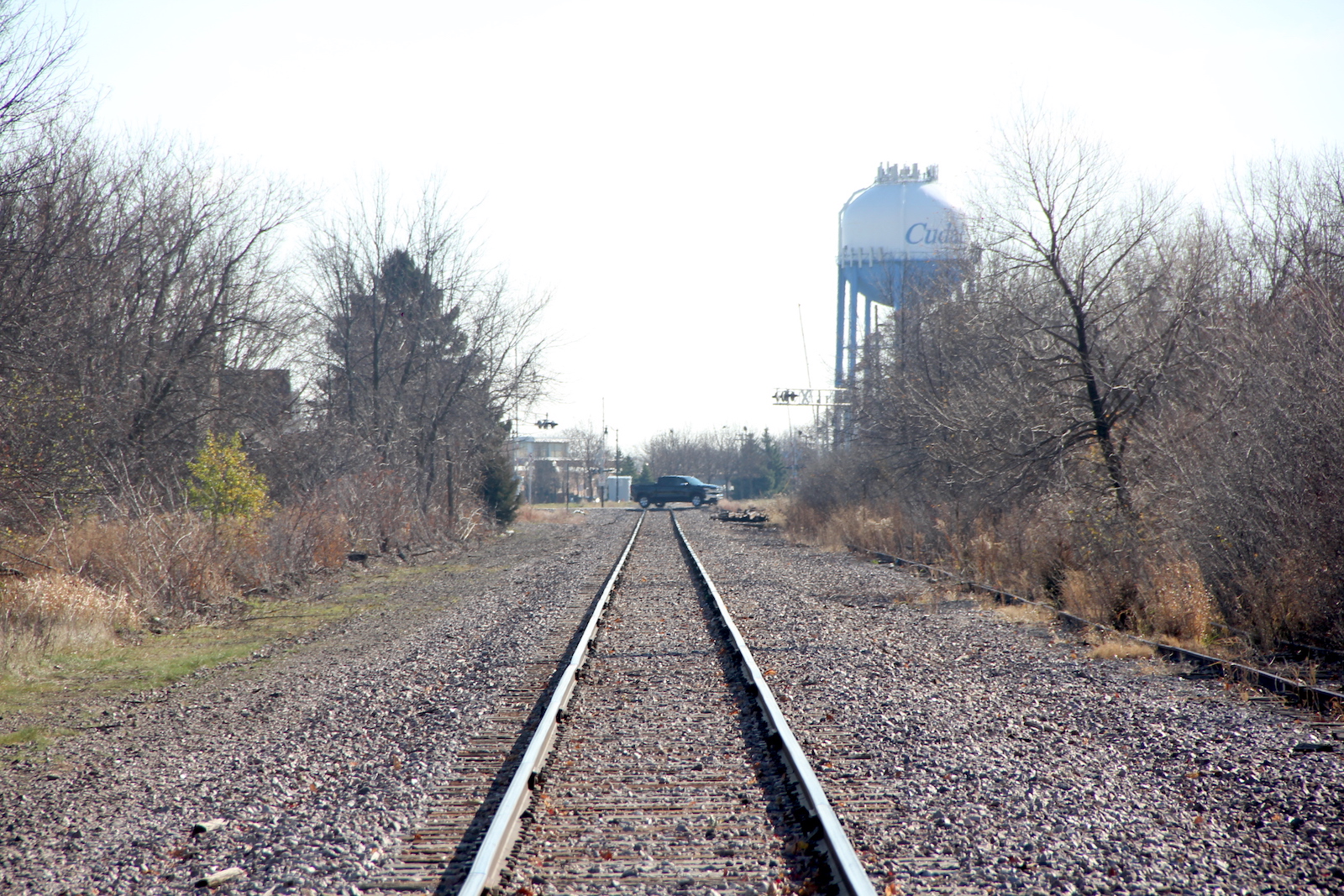

| The relay case in the northeast quadrant. | The grade is all wood. | Track view facing north towards Denton Ave. in St. Francis. | Track view facing south towards Layton Ave. |
26 |

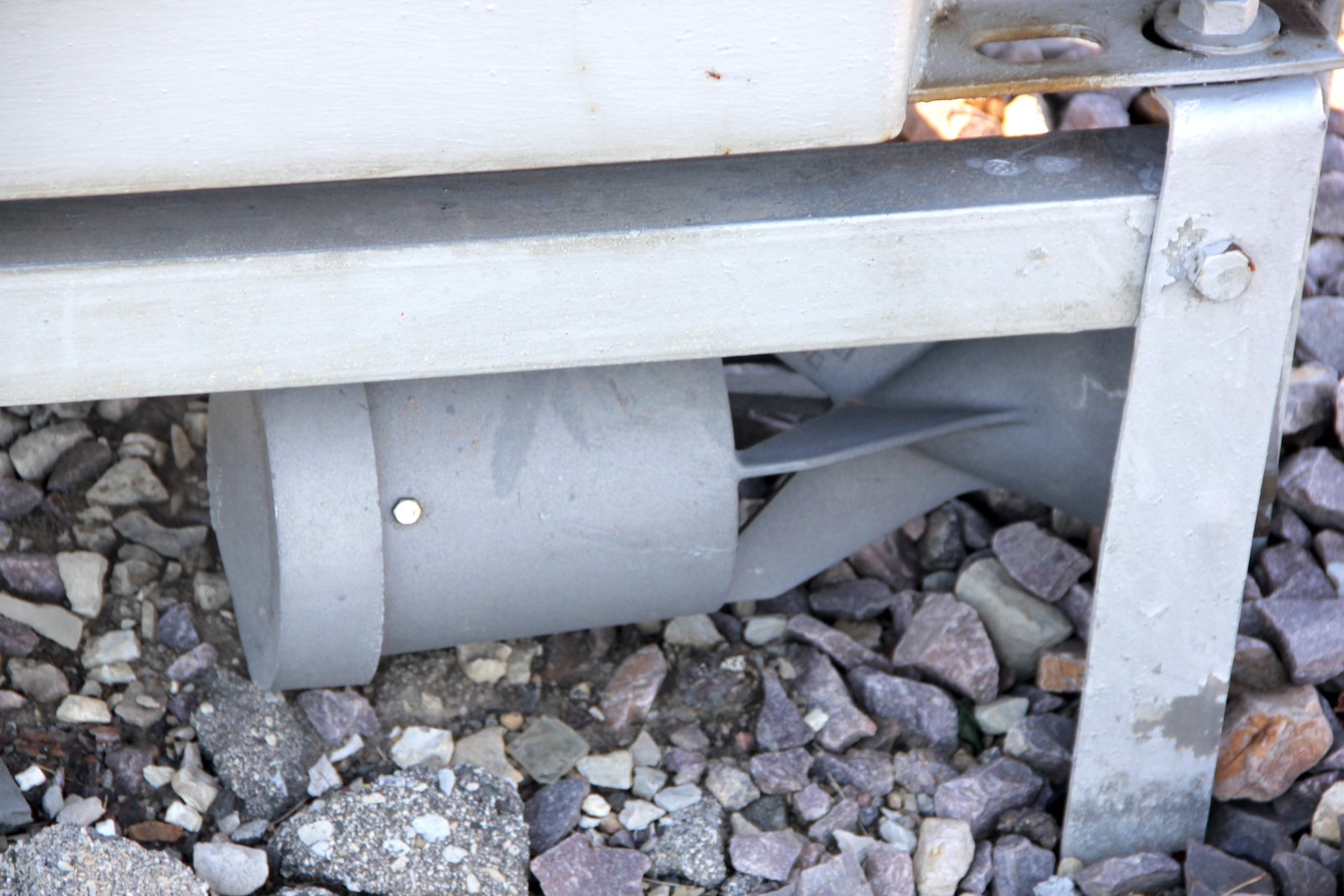

| There was a WCH E Bell laying underneath the relay case. I'd be lying if I said I wasn't thinking about taking this. |
