MP: 139.36 |
Created September 25, 2007
Total Accidents: 1
Crossing DOT #: 177839F
TOTAL
DAILY TRAINS: 10 (AS OF 2006)
Page written by WEHRAR17.
1 800x600 84.7 KB |
2 600x800 87.2 KB |
3 600x800 71.9 KB |
4 600x800 59.2 KB |

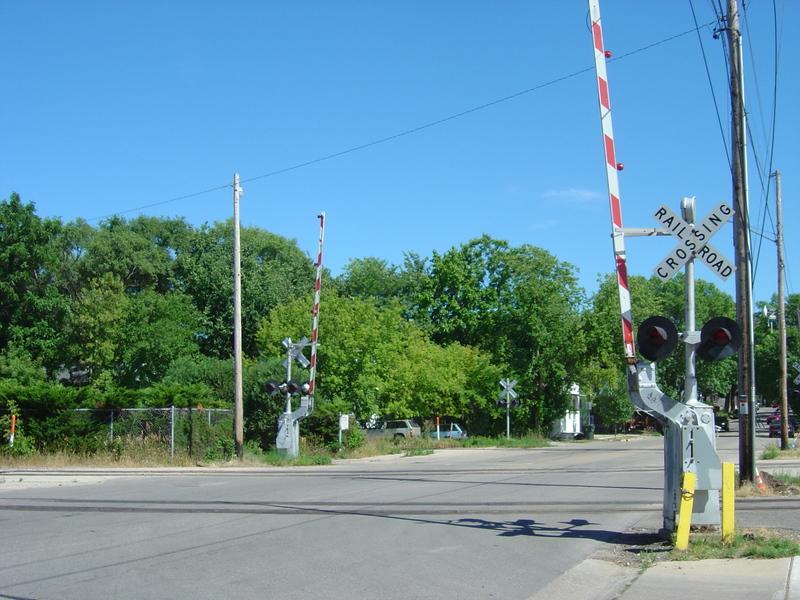

Facing southeast. Baldwin #2 can be seen in the background. |

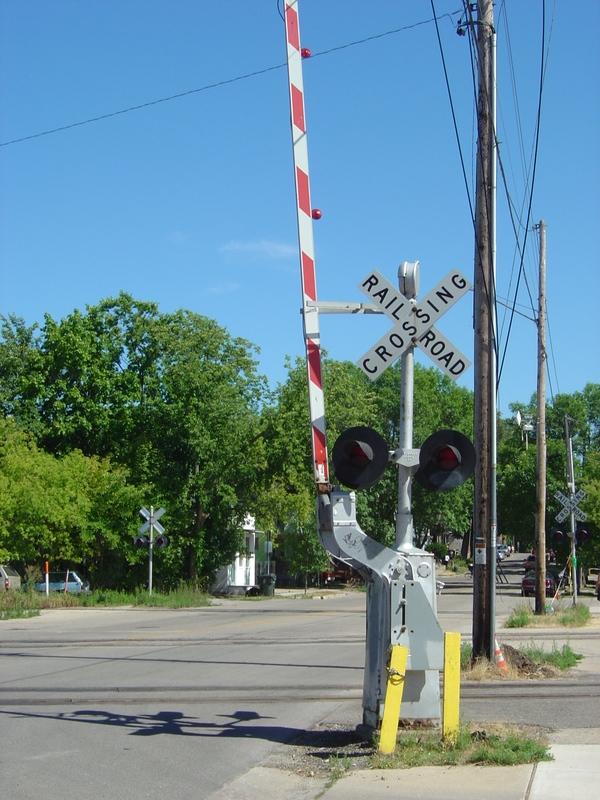

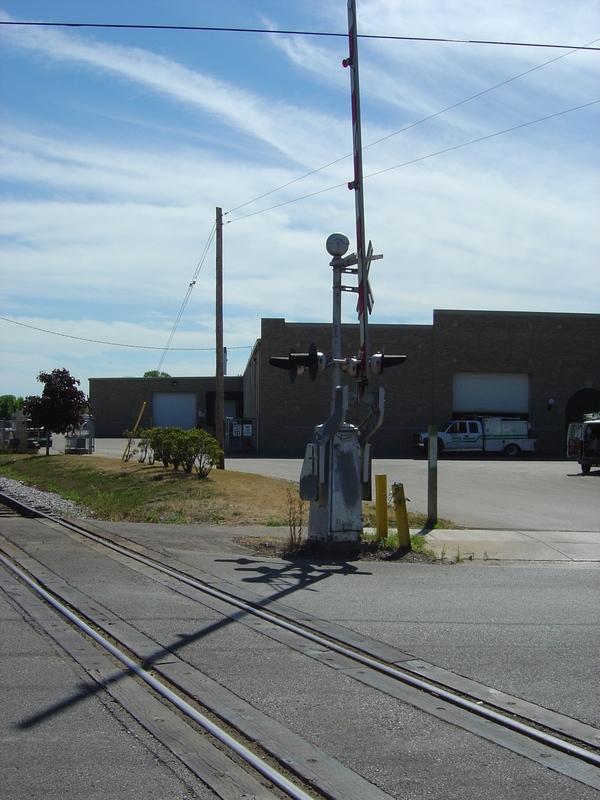

The southeastbound signal with the bell.
|
Side view of the signal.
|

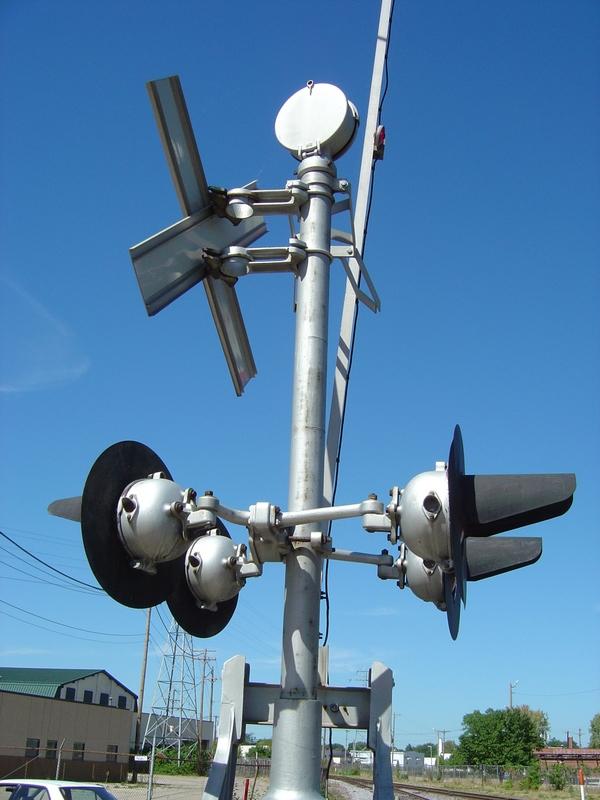

Closeup side view of the Griswold lights and RACO mechanical bell. |
Here's a crossing with two 8" Griswold gated signals, right next to a crossing with non-gated Griswold Type B signals (Baldwin St. #2)!
The two crossings do not function as a double crossing. When the gated signals are active, the gateless signals are inactive, and vice versa.
There is a RACO mechanical bell on the signal seen in pictures 1-4.
5 800x600 77.1 KB |
6 600x800 90.2 KB |
7 800x600 63.6 KB |
8 800x600 61.4 KB |

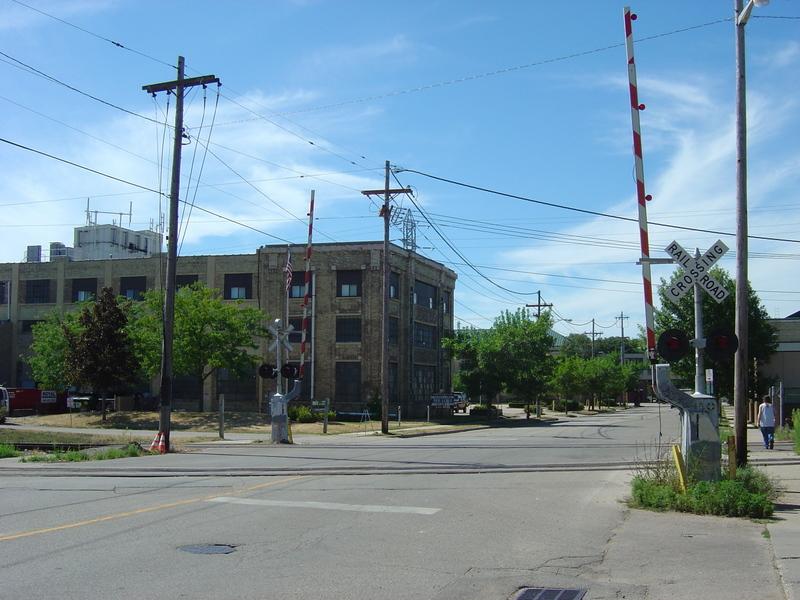

Facing northwest. |

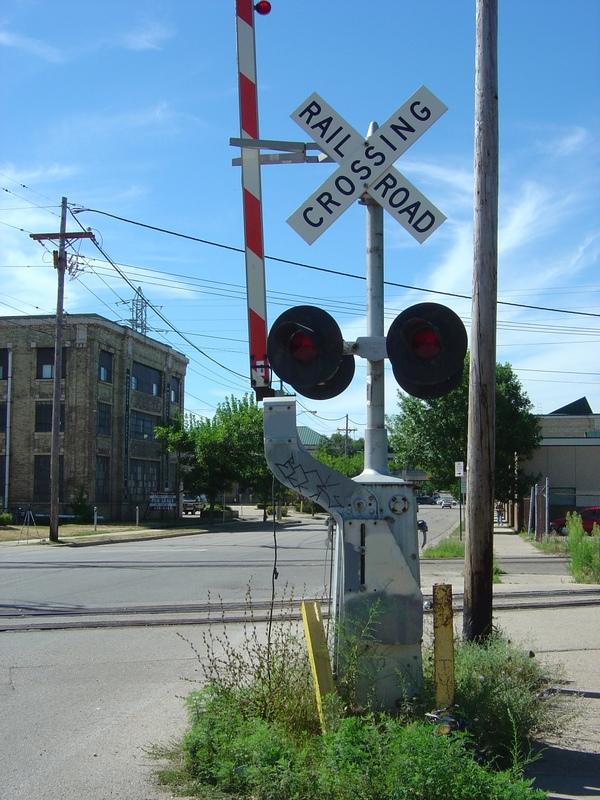

The northwestbound signal.
|

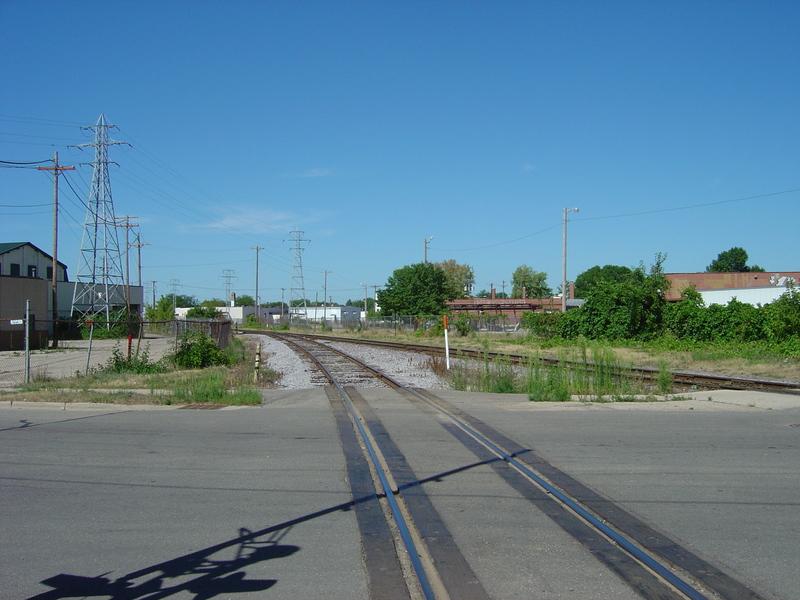

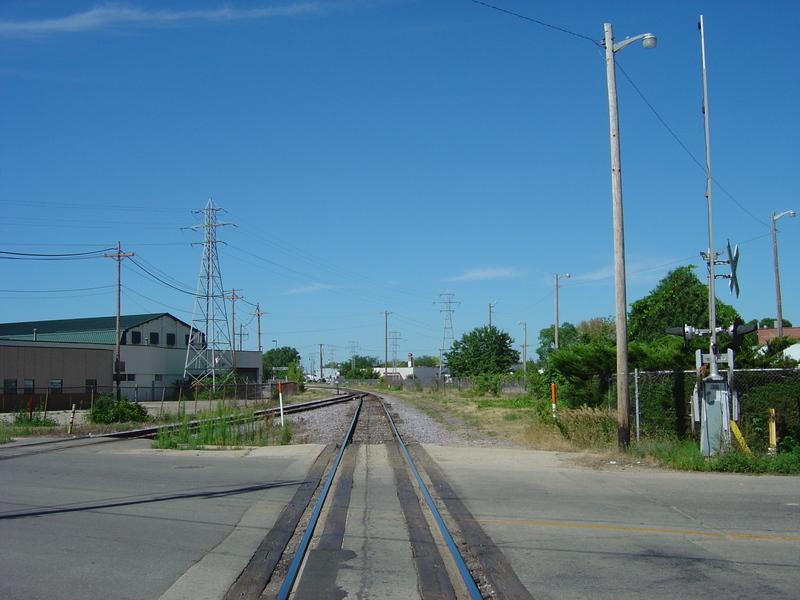

Views down both tracks looking northeast. |
|
9 800x600 67.2 KB |
|

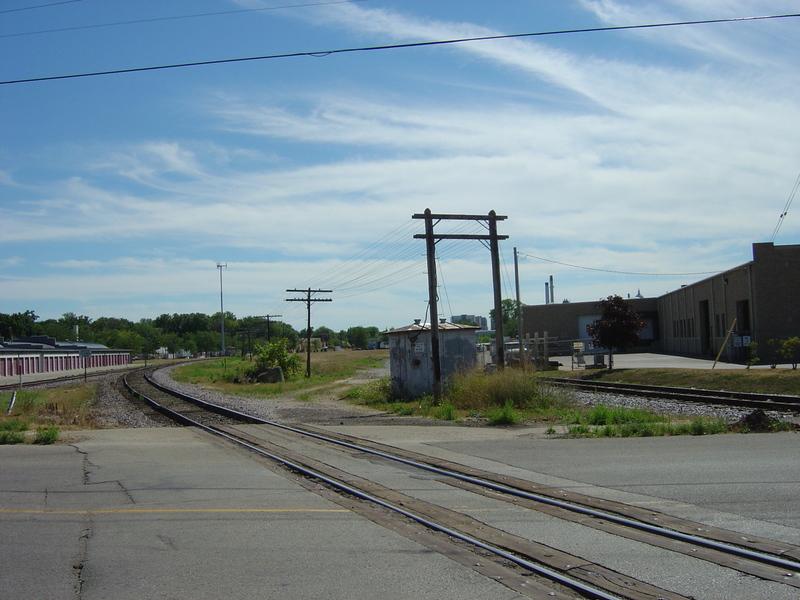

Picture 9 is a track view southwest.
I recall that there used to be 2 TRACKS signs here. If you look closely at pictures 2, 4 and 6 you can see discolorations on the masts between the lights and crossbucks that seem to confirm this, even though the FRA history does not mention them. They really should be reinstalled, since both tracks are still active. The track in pictures 8 and 9 is the main line through Madison. The track in picture 7, and on the far right of picture 9 is the beginning of a spur for delivering coal to the Madison Gas & Electric power plant, whose smokestacks can be seen in the distance of picture 9. |
|
10 600x800 85.6 KB |
11 800x600 92.7 KB |
12 800x600 91.1 KB |
13 800x600 74.0 KB |

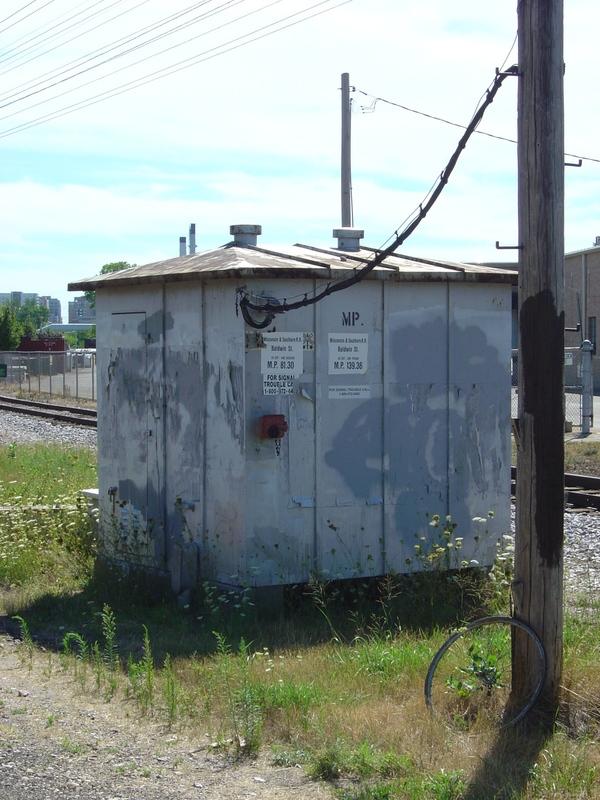

The relay case. It serves for both this crossing and Baldwin #2. |

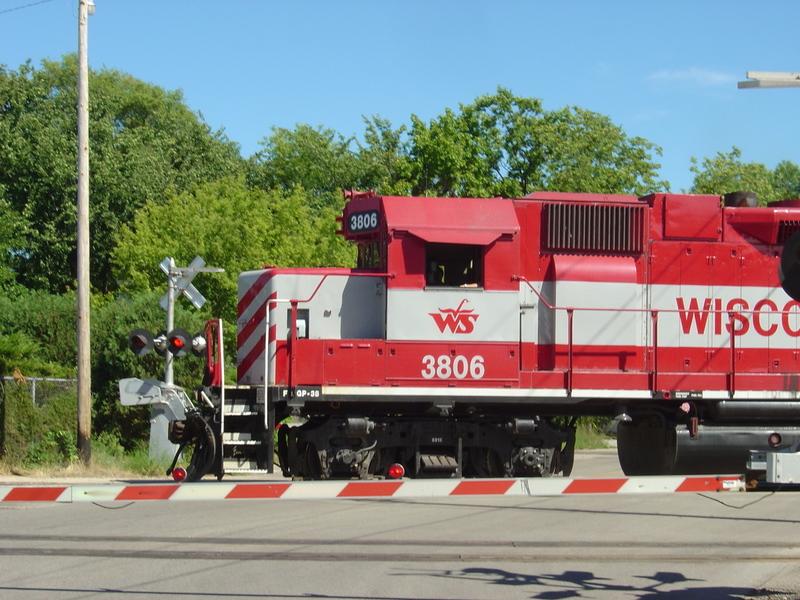

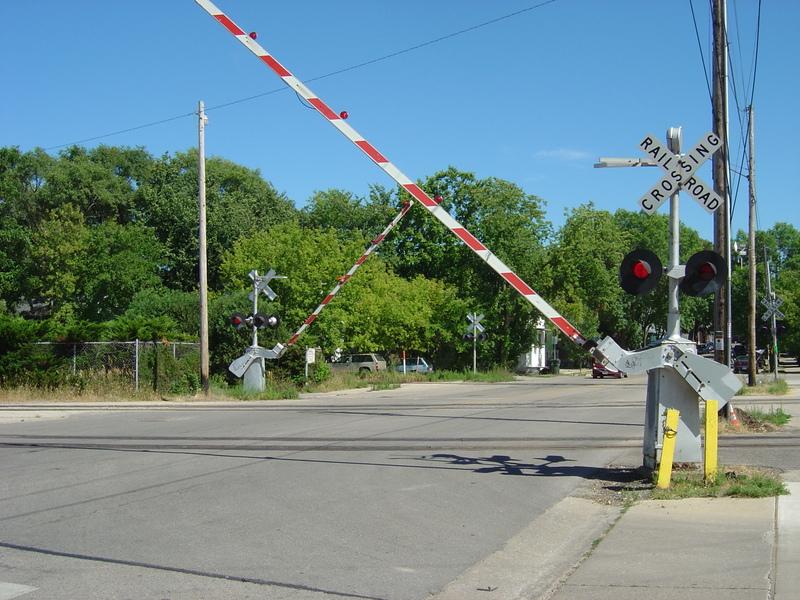

The crossing is in action for a WSOR train! This was the same train seen at Whitney Way. |
||
14 600x800 81.3 KB |
15 800x600 77.2 KB |

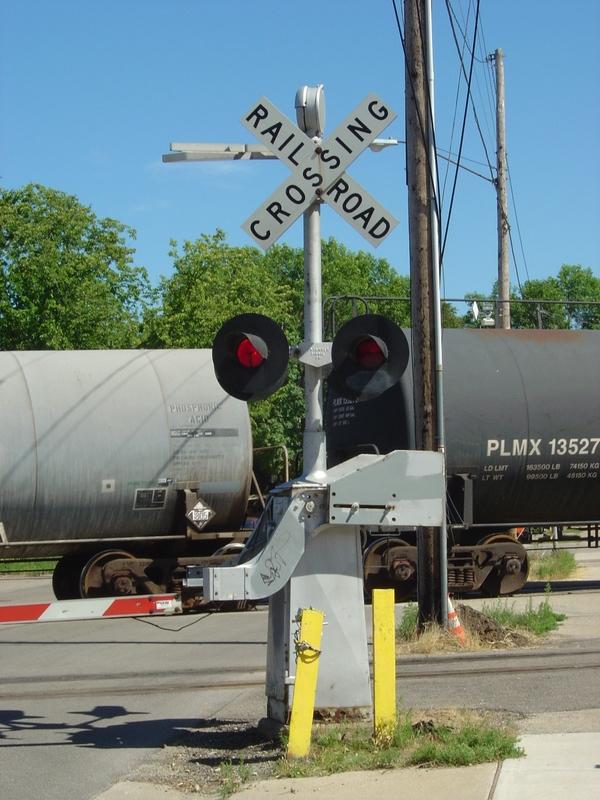

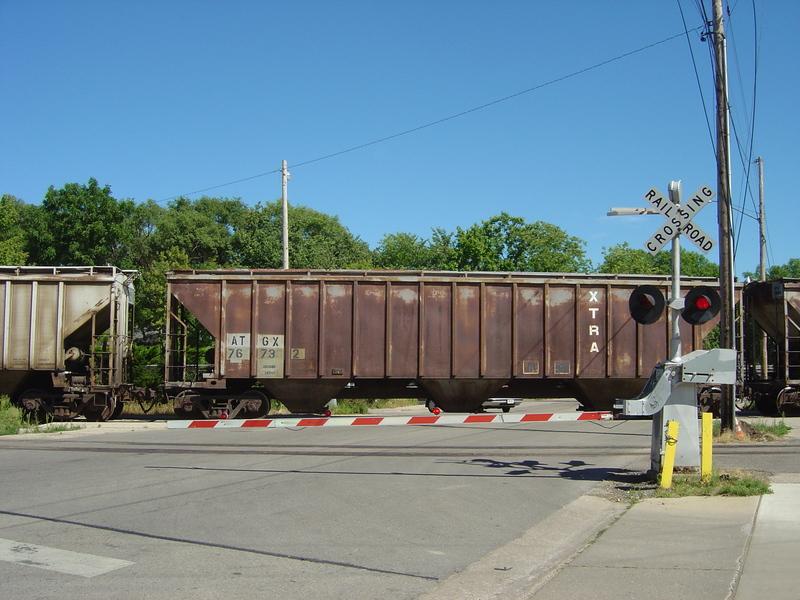

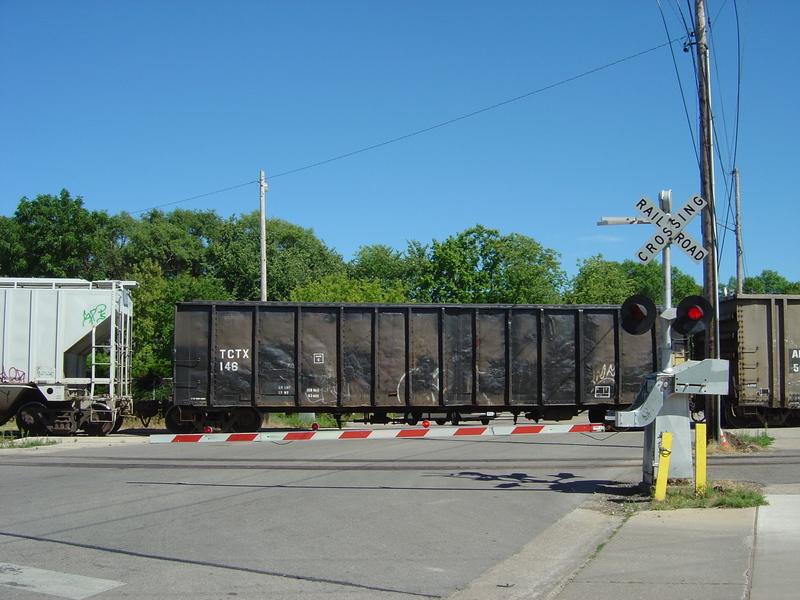

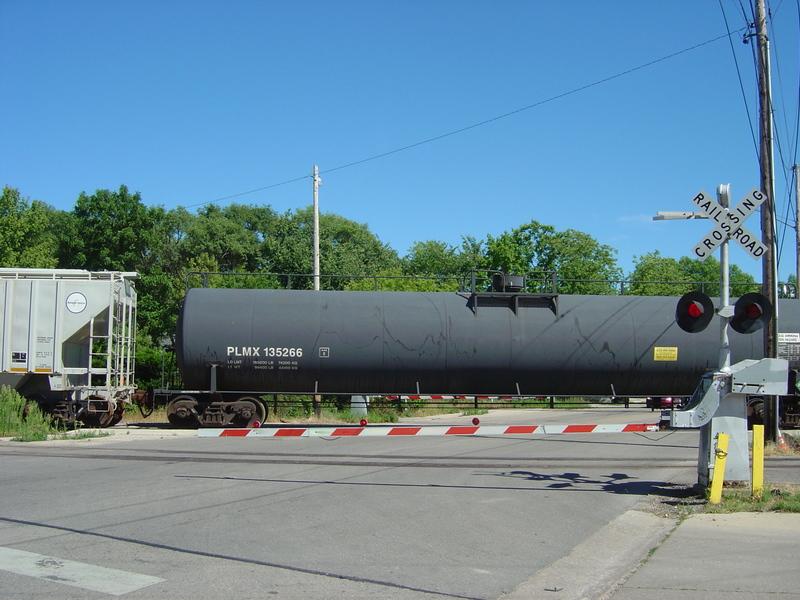

The train crosses.
|
|
16 800x600 76.9 KB |
17 800x600 77.9 KB |
18 600x800 77.3 KB |
19 800x600 87.0 KB |

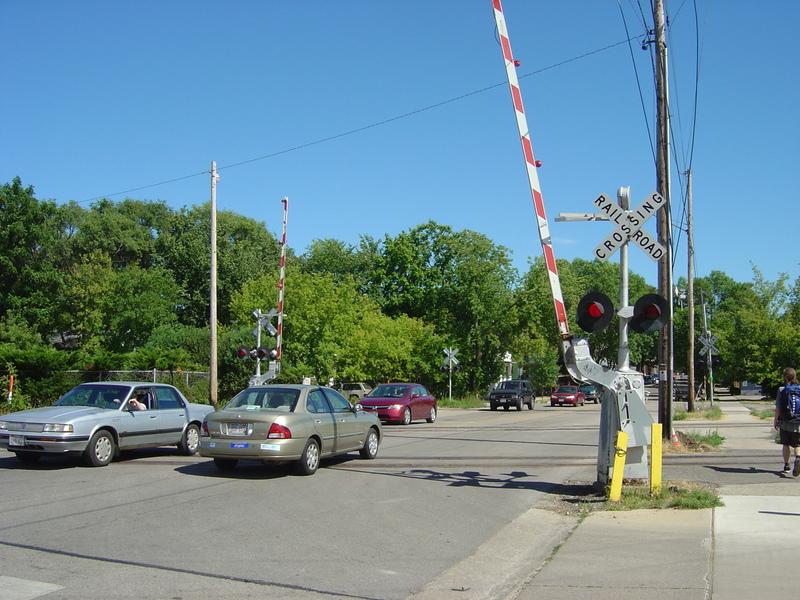

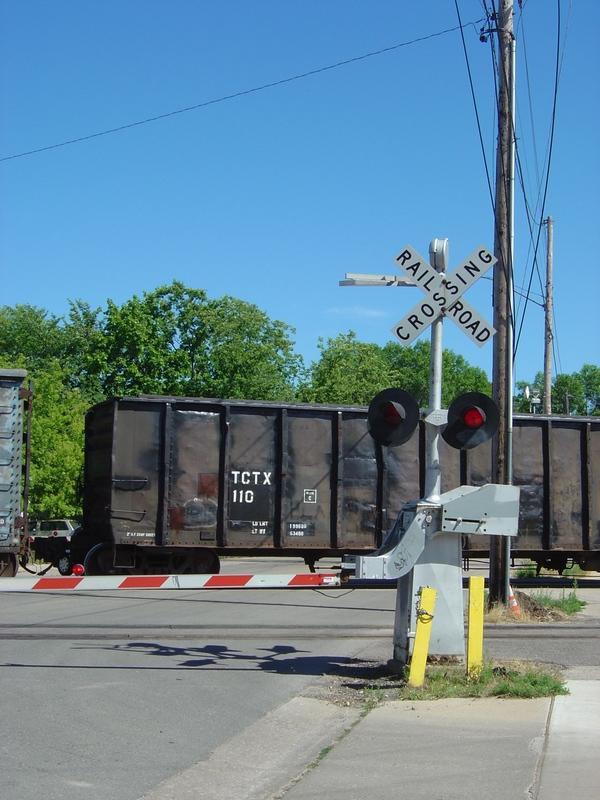

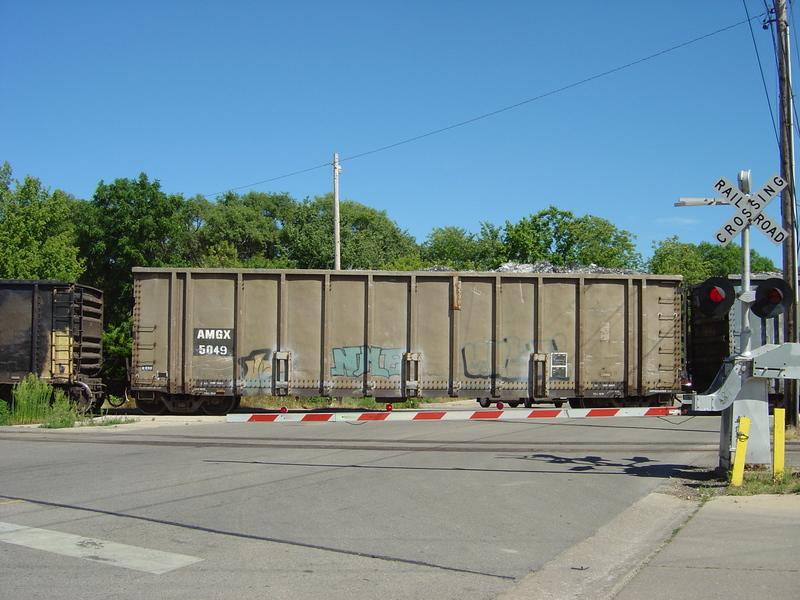

The train finishes, and the signals are just about to deactivate in picture 19.
|
|
All pictures were taken on August 3, 2007.
A little personal history related to this crossing: When I attended Marquette Elementary School and Georgia O'Keeffe Middle School from 1994 through 1998, some days I would walk home from school through this crossing. Consequently these (and Baldwin #2) were the first crossing signals I examined up close when I was old enough to remember clearly. In this way, Griswold became the first signal manufacturer that I learned of. This is also how I recall that there used to be 2 TRACKS signs here.
 |
CLICK THE ICON TO THE LEFT TO HEAR THE CROSSING IN ACTION. (RECORDED AUGUST 3, 2007) |
|
