All pictures were taken by WEHRAR17.
1     |
2   |
3   |
4   |
Crossing overview looking northeast. |

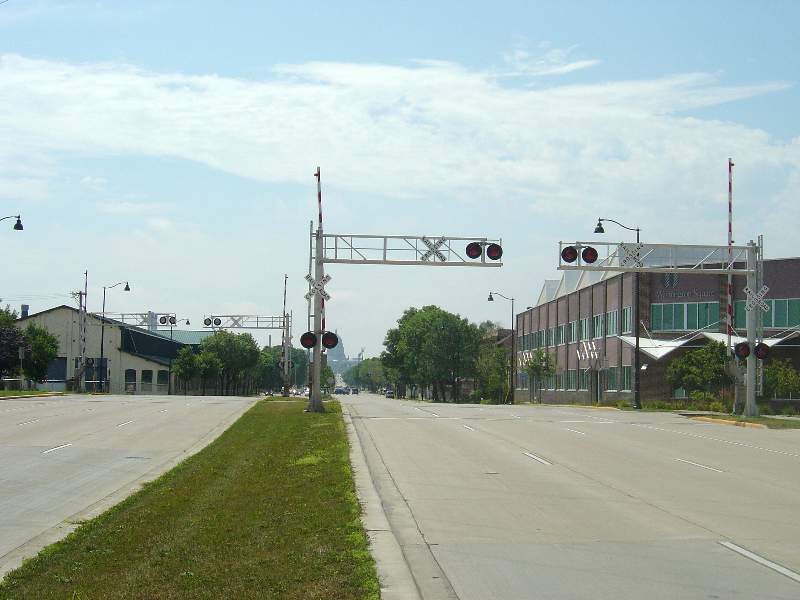

Looking southwest. |
Looking west. |

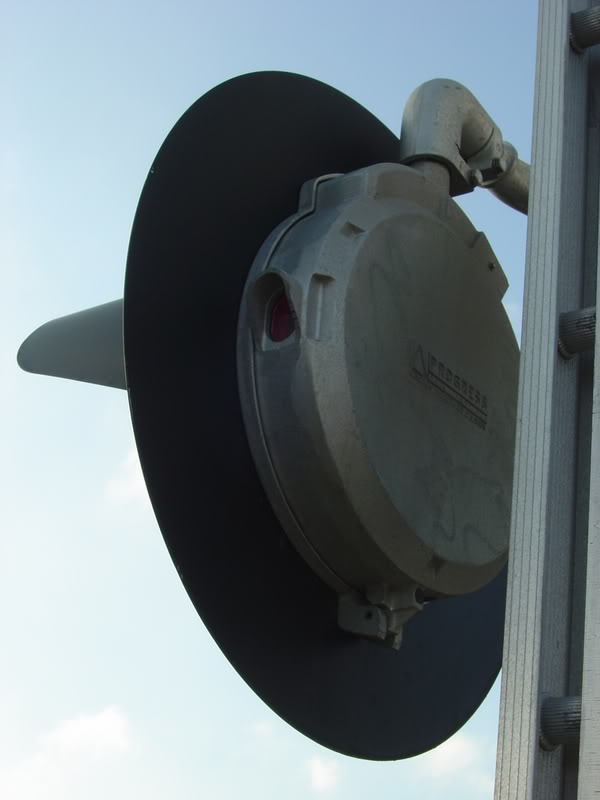

A rear closeup of one of the Progress lights. |
This crossing setup has four cantilevers with 12" x 24" Progress L.E.D. lights, four gates, and 2 WCH mechanical bells. The bells are mounted low on the shoulder gates.
5   |
6   |
7   |
8  |
WCH gate mechanisms. |

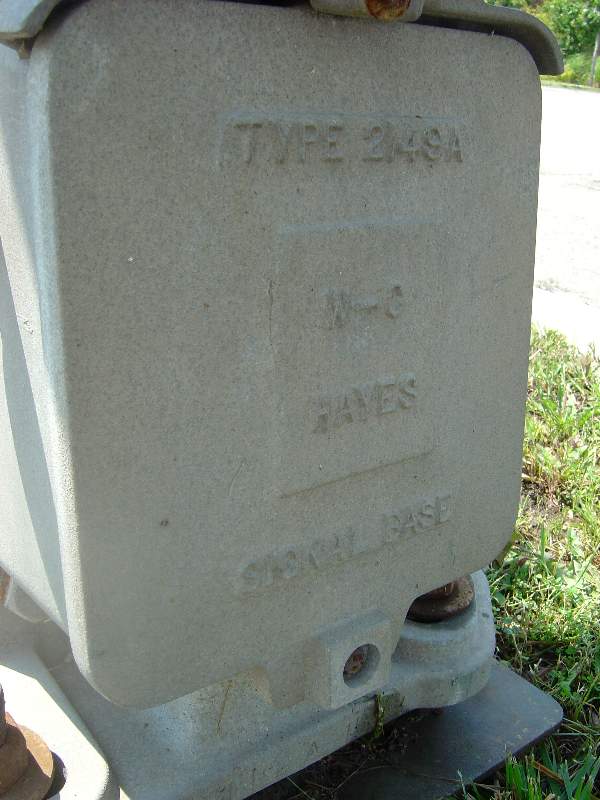

A WCH signal base supporting one of the median gates. |
Track view north toward Yahara Pkwy. #1. |
Track view south toward Dickinson St. #1. |
9
 |
10   |
11  |
12   |

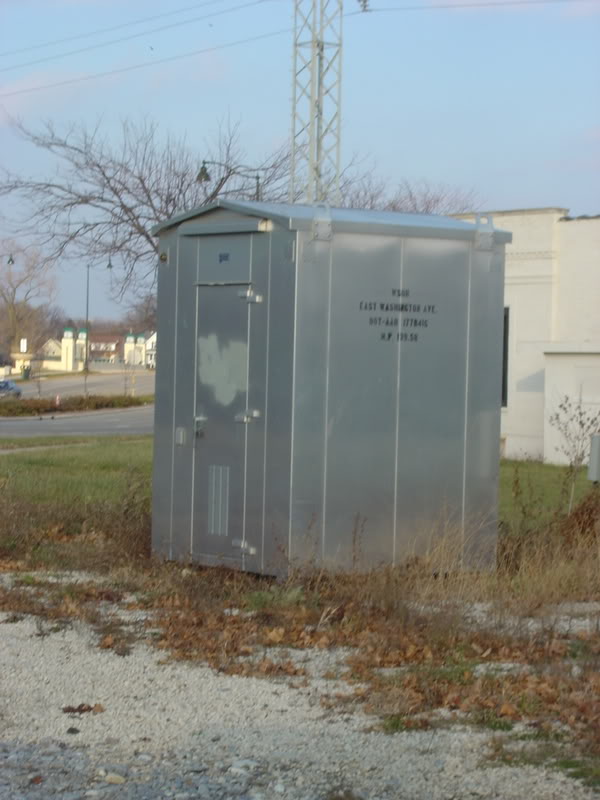

The relay case. |

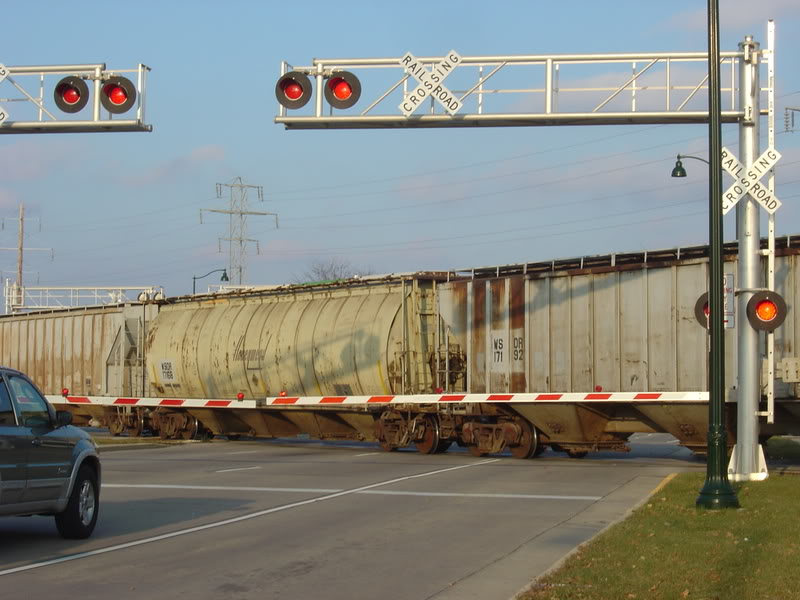

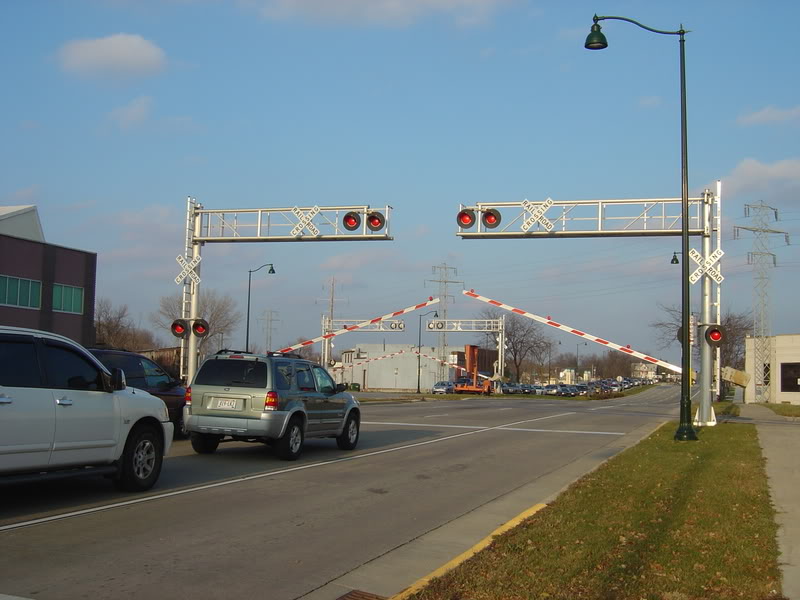

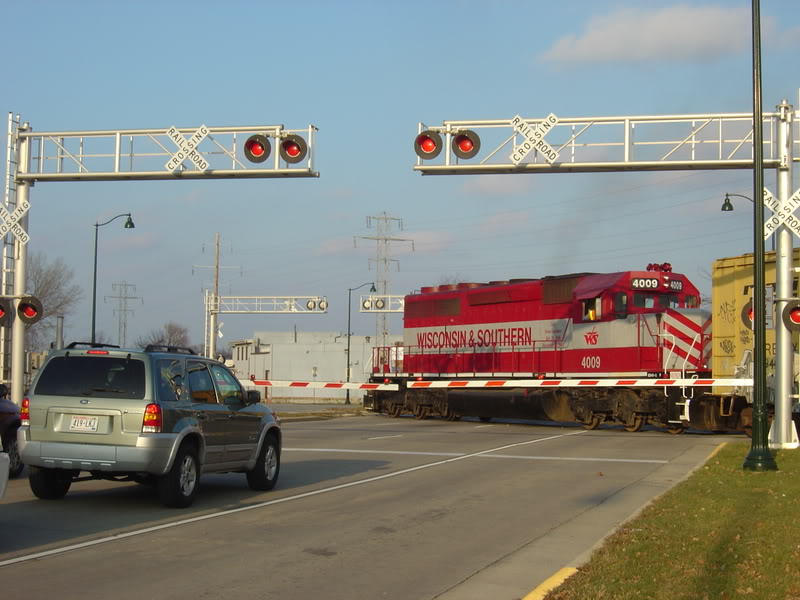

Action shots. |
||
13  |
14  |
15  |
Pictures 1, 4, 5, 7, and 9-15 were taken on November 25, 2007. All other pictures were taken on August 8, 2009.
 |
CLICK THE ICON TO THE LEFT TO HEAR THE CROSSING IN ACTION. (RECORDED NOVEMBER 16, 2007) |
|
