| >>>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | WCH E Bell | None |
| Base: | Safetran 5" Single Sided ^ | WCH 5" Single Sided ^ |
| Lights: | 4 - 12"x24" Safetran w/ Electro-Tech's LEDs | 4 - 12"x24" WCH w/ 1st Gen WCH LEDs |
| Junction Box: | Safetran | WRRS |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | Safetran 1980s w/ Wishbone Mount | WCH Style 3.5 w/ WCH Gate Saver |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2
|

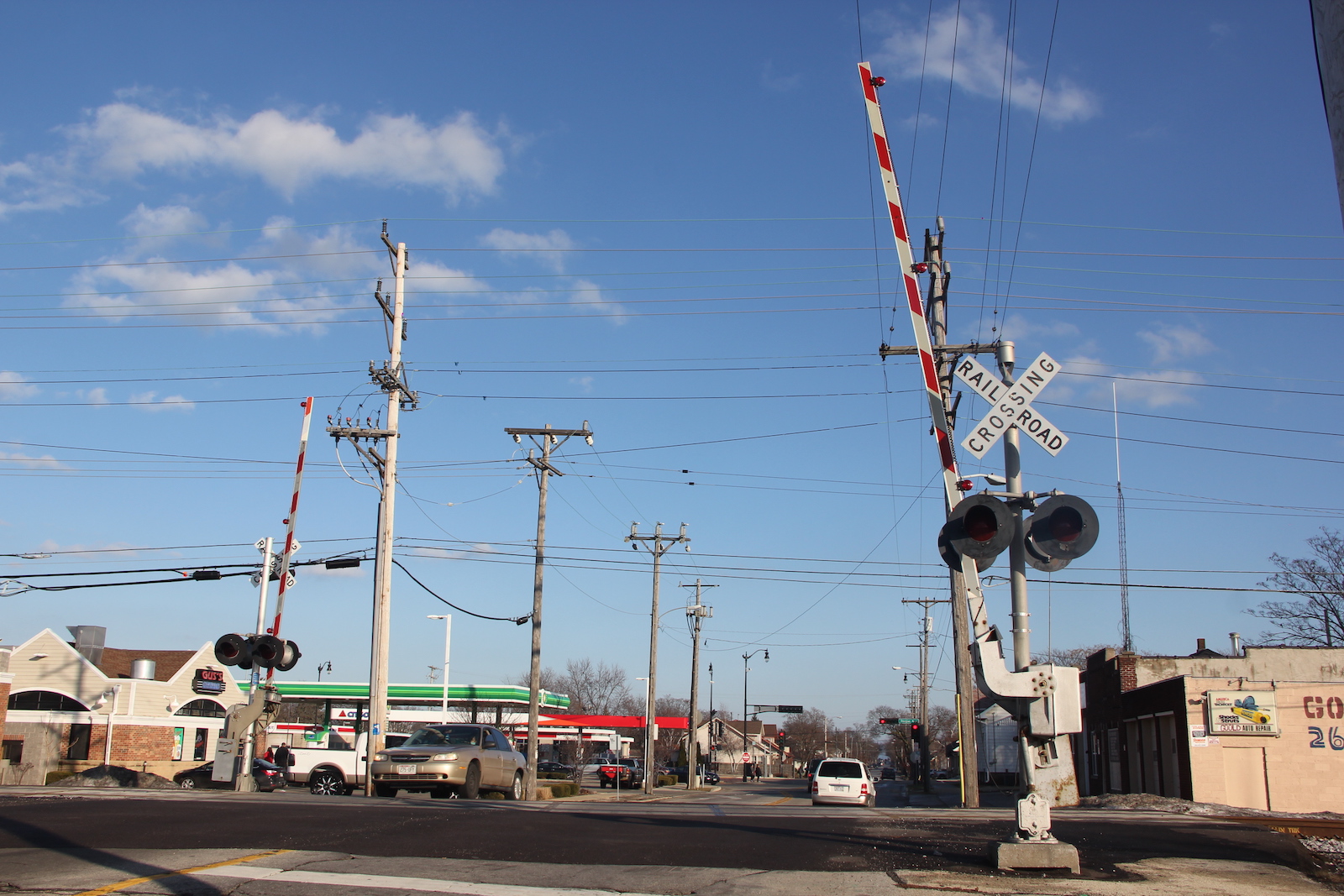

| Overview of 2 gated signals facing west. |
Overview facing east. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

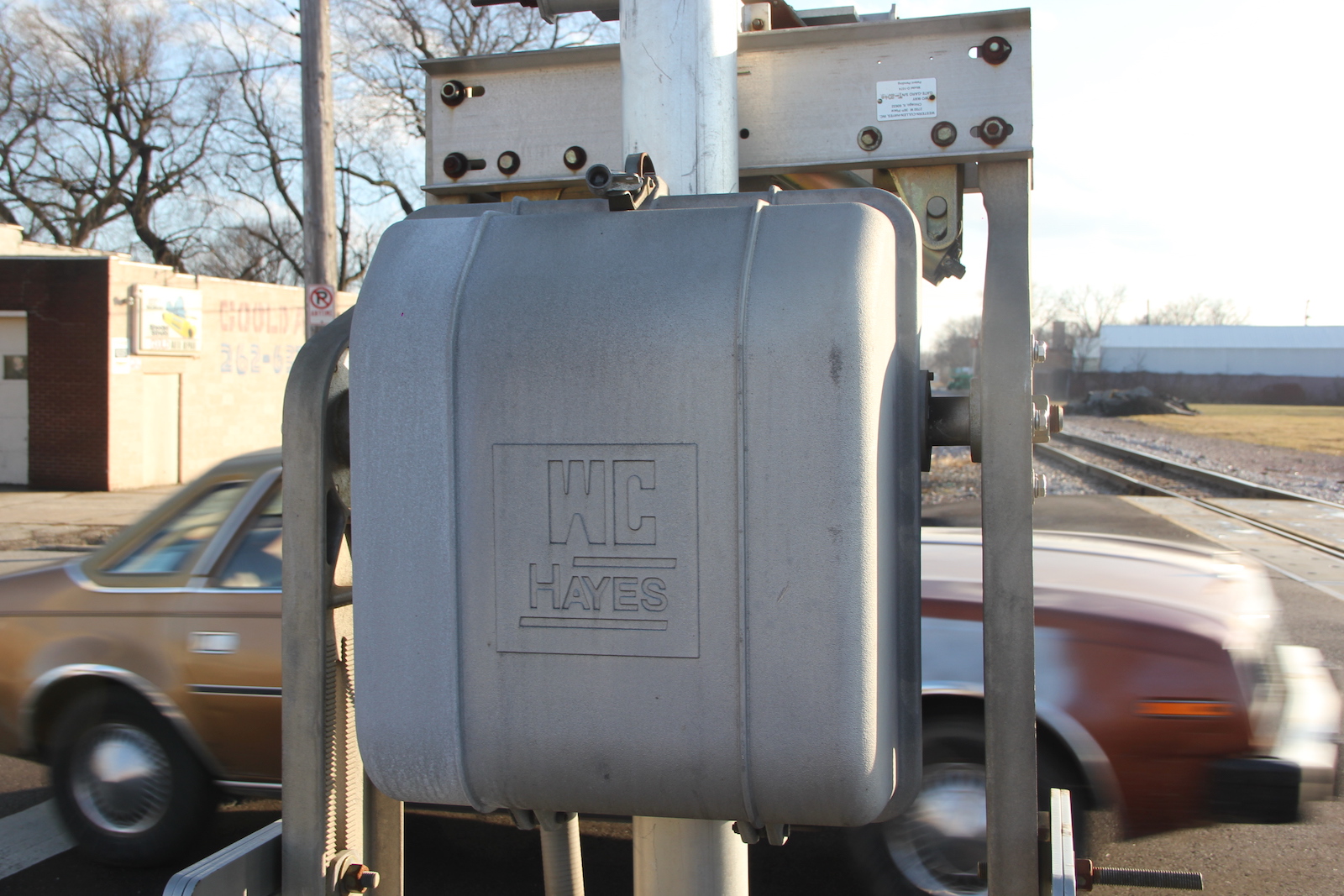

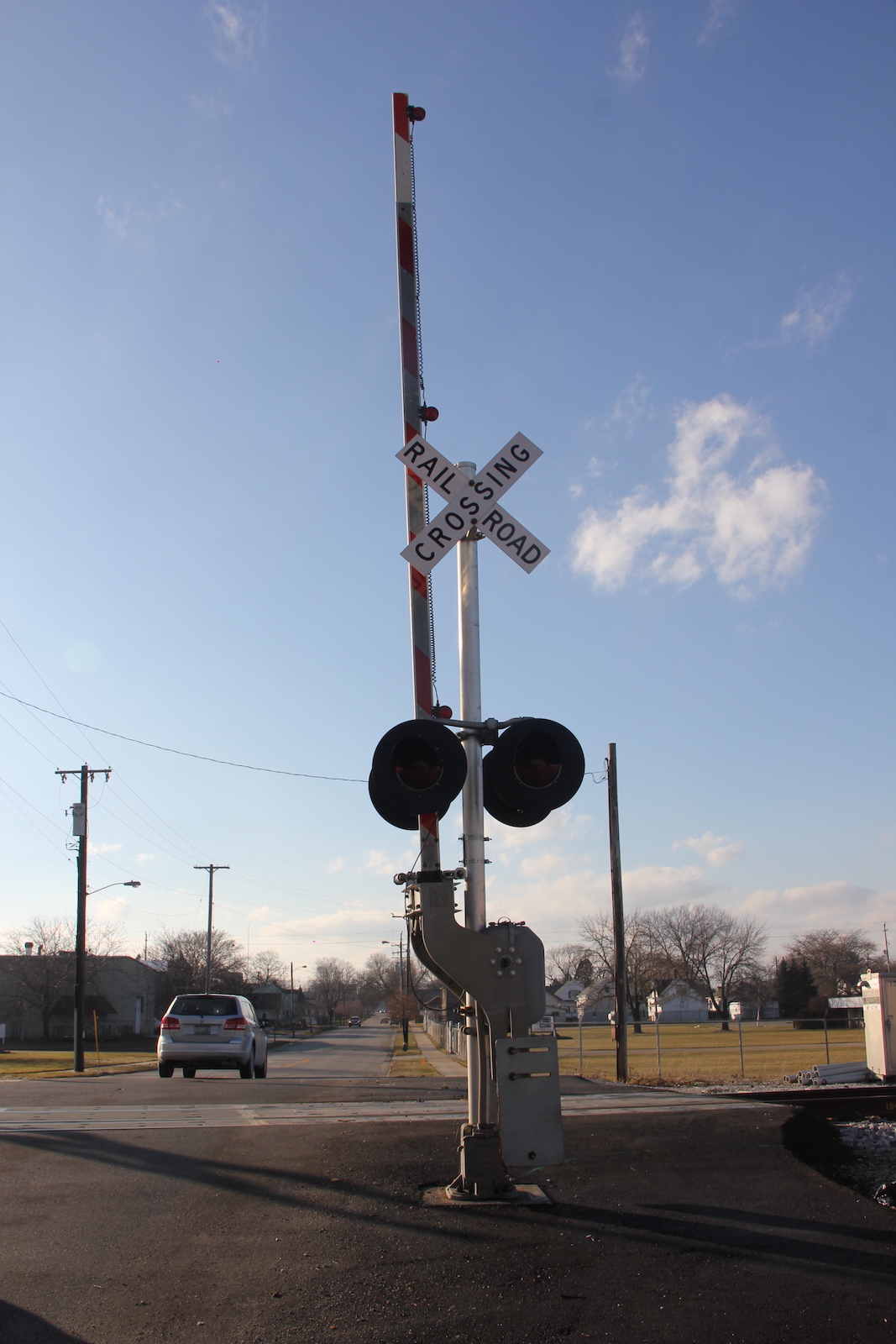

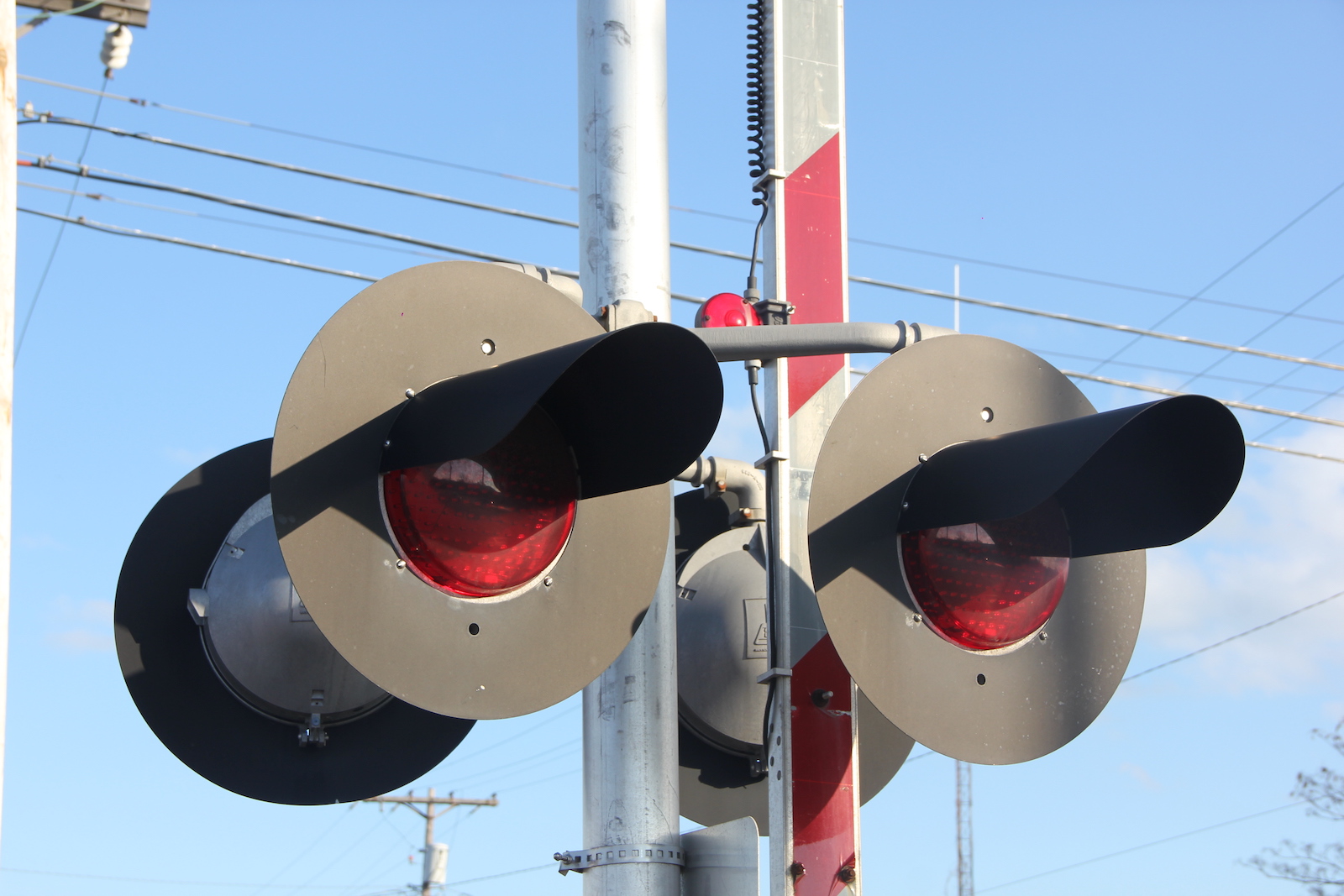

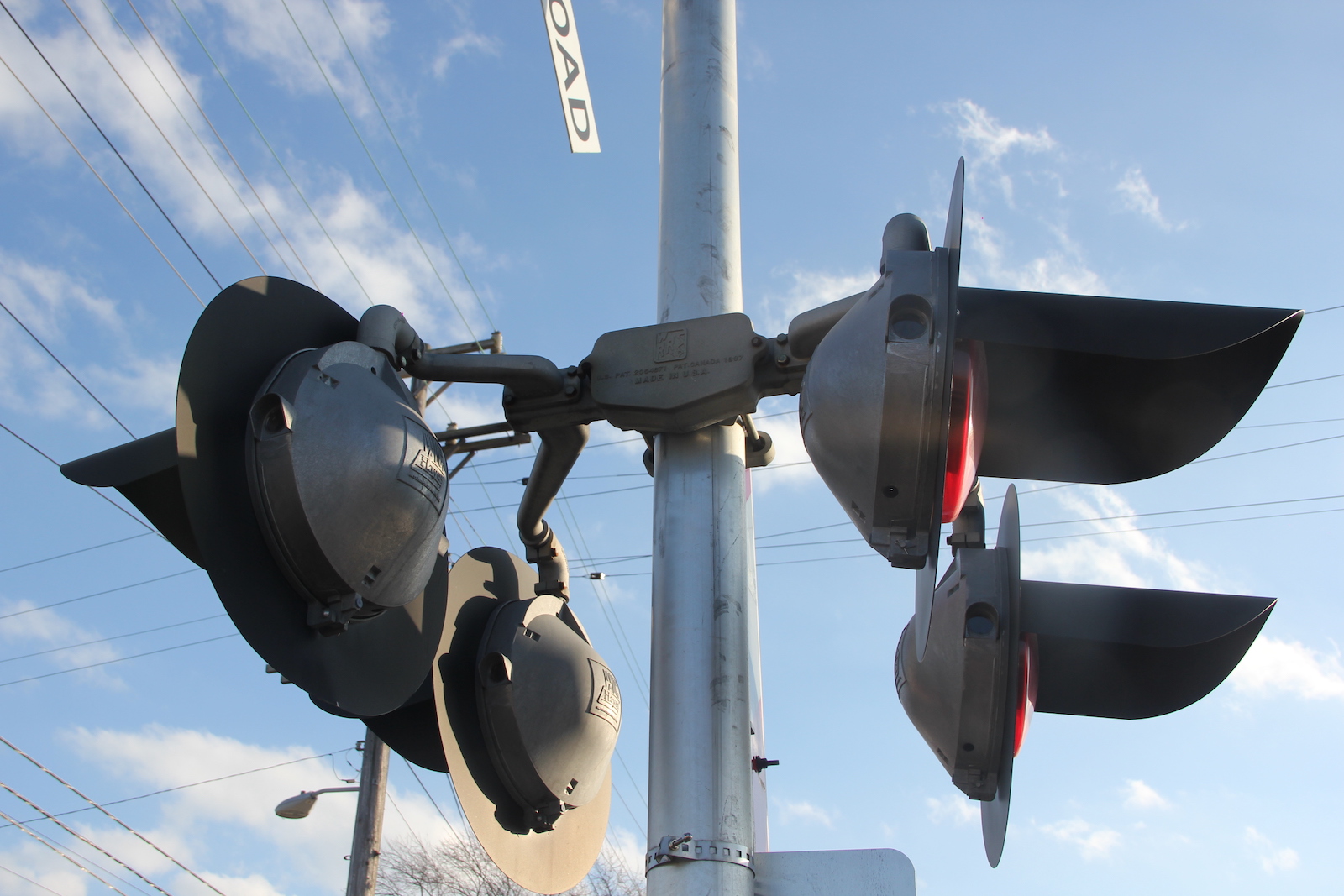

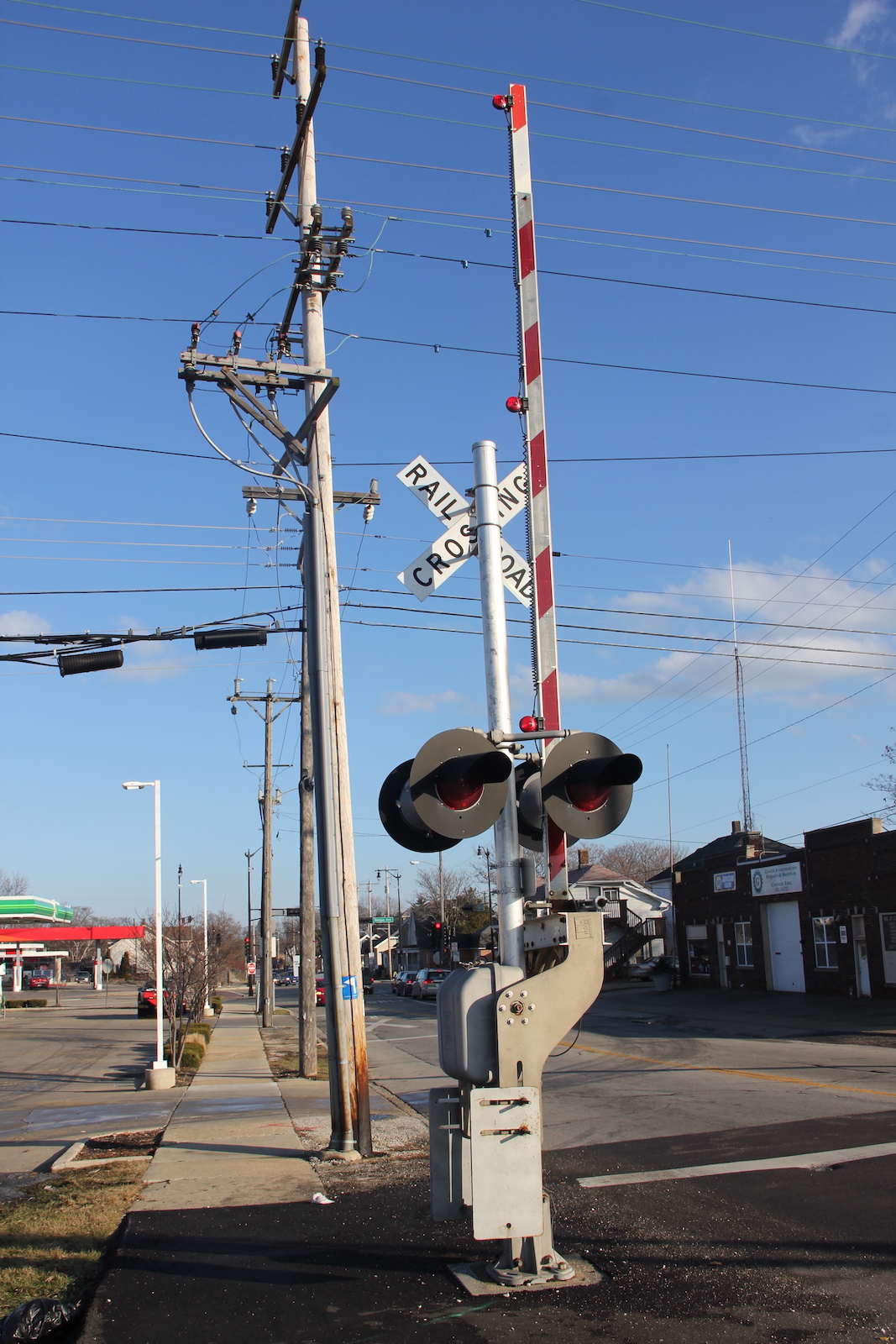

| The eastern signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20
|

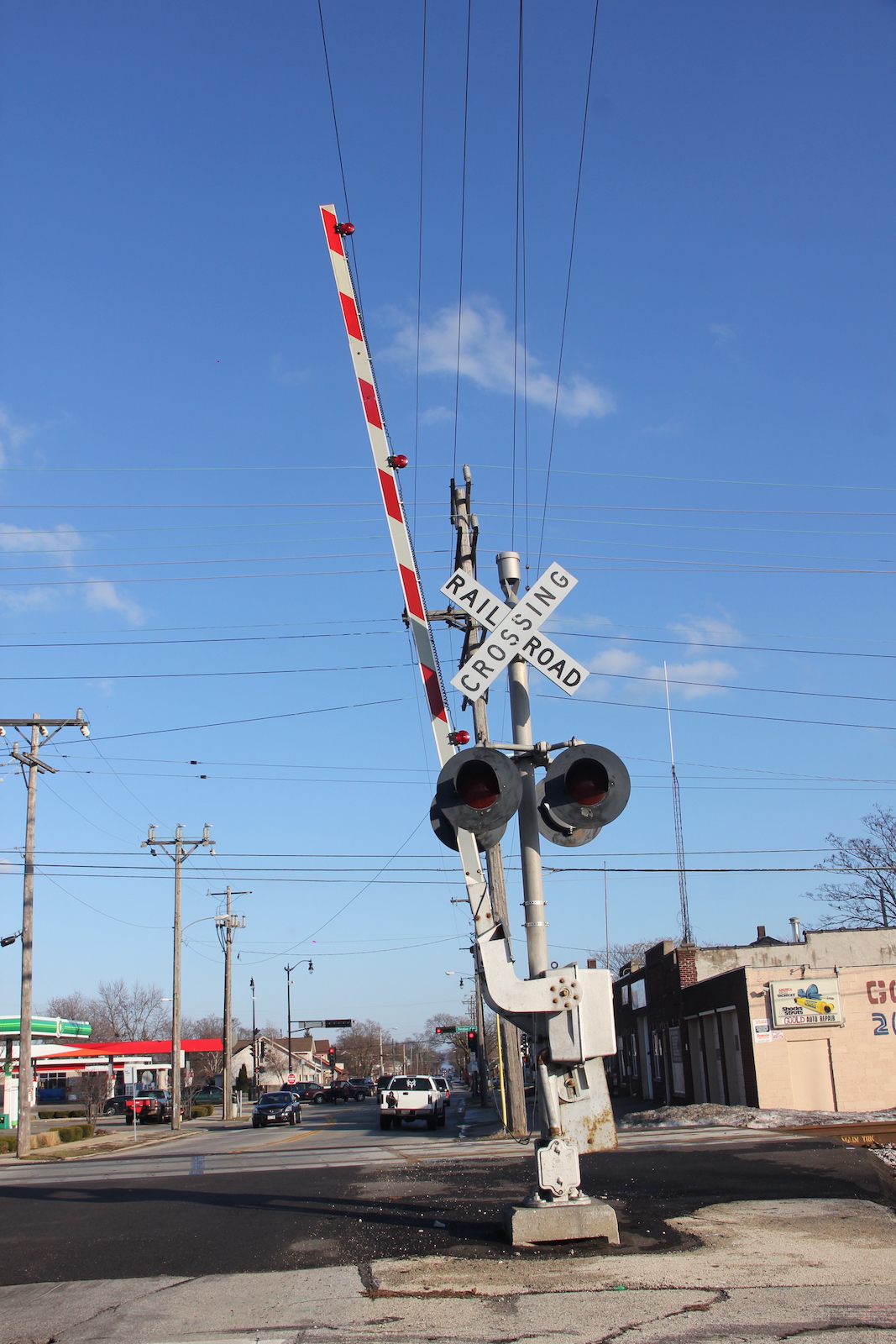

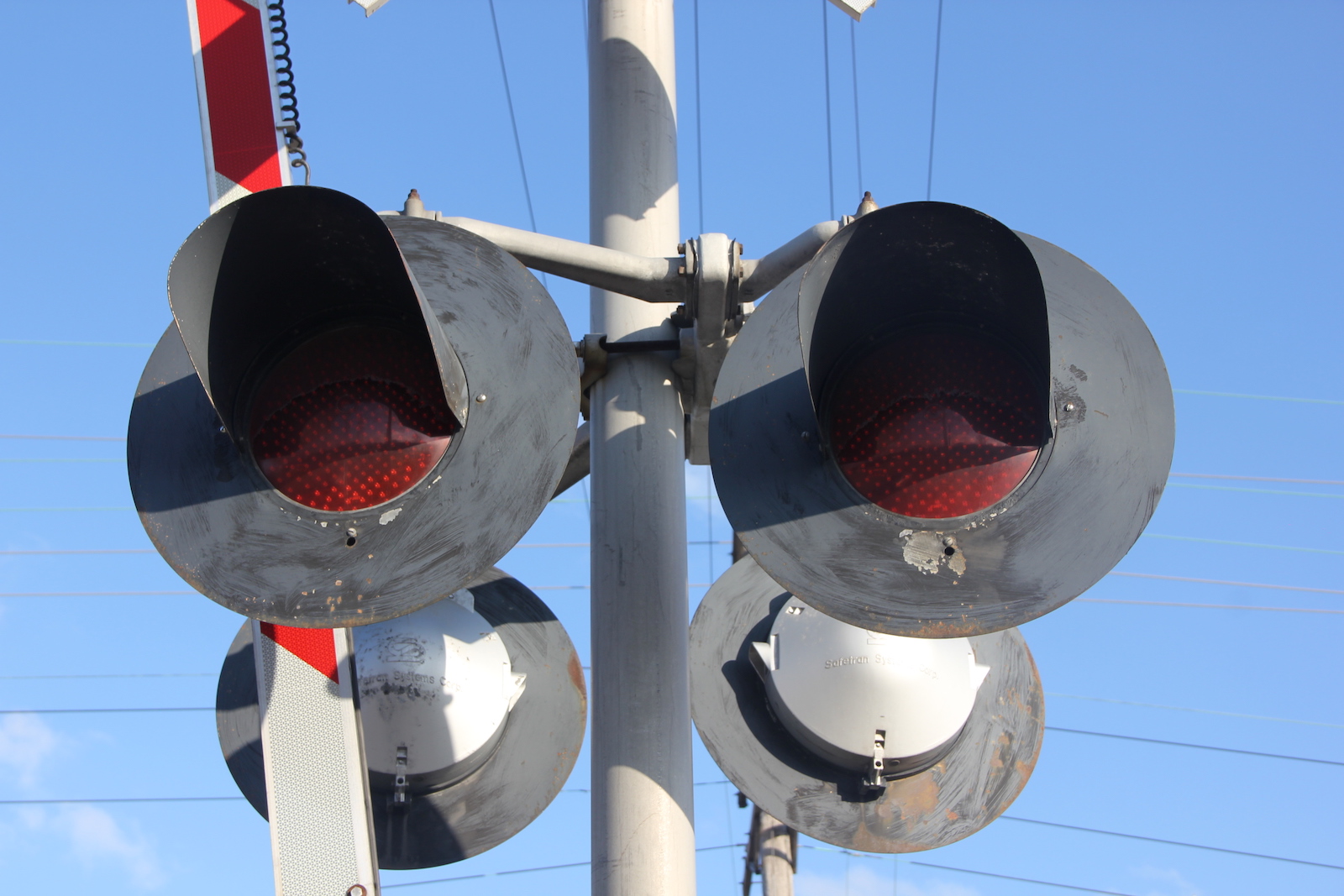

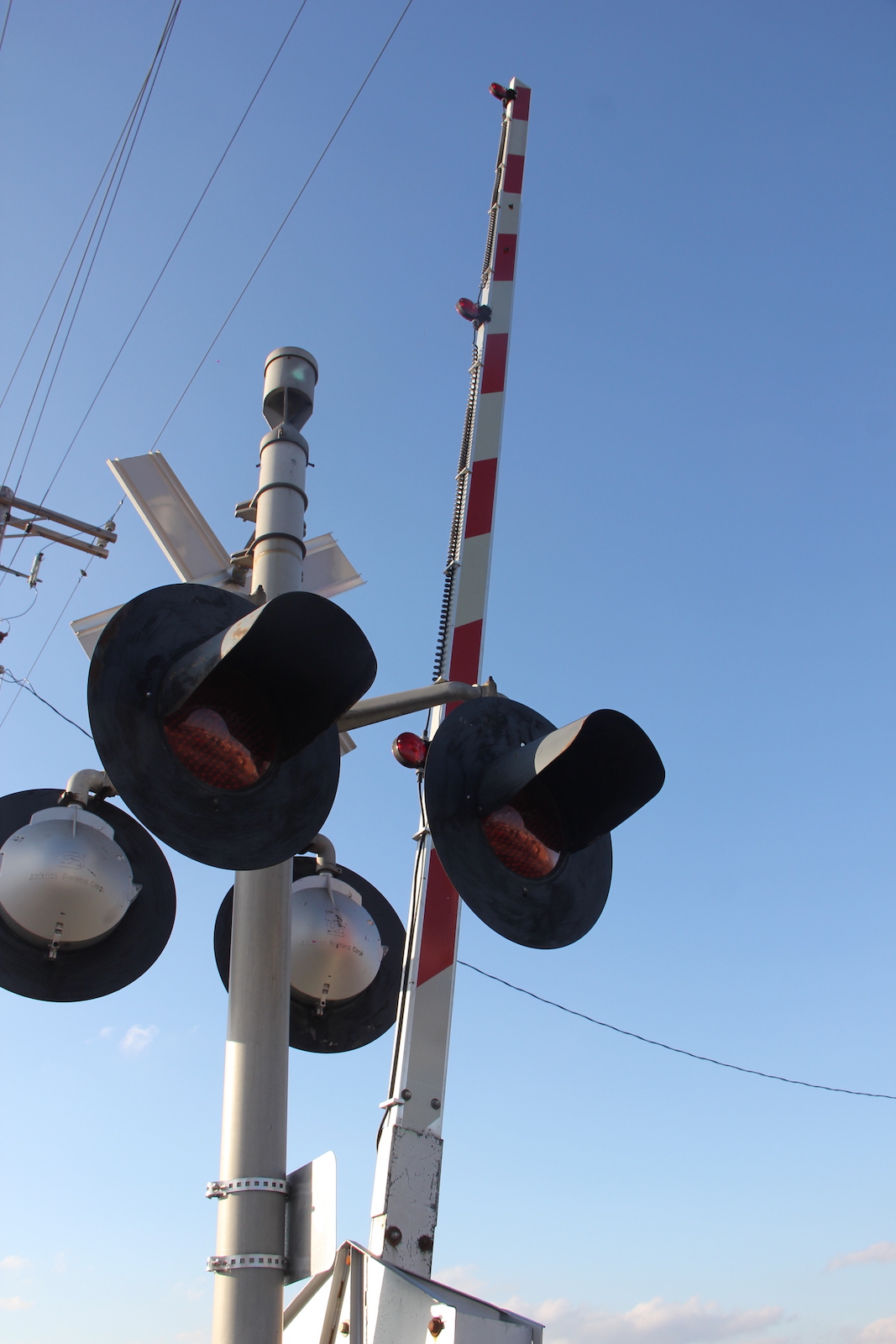

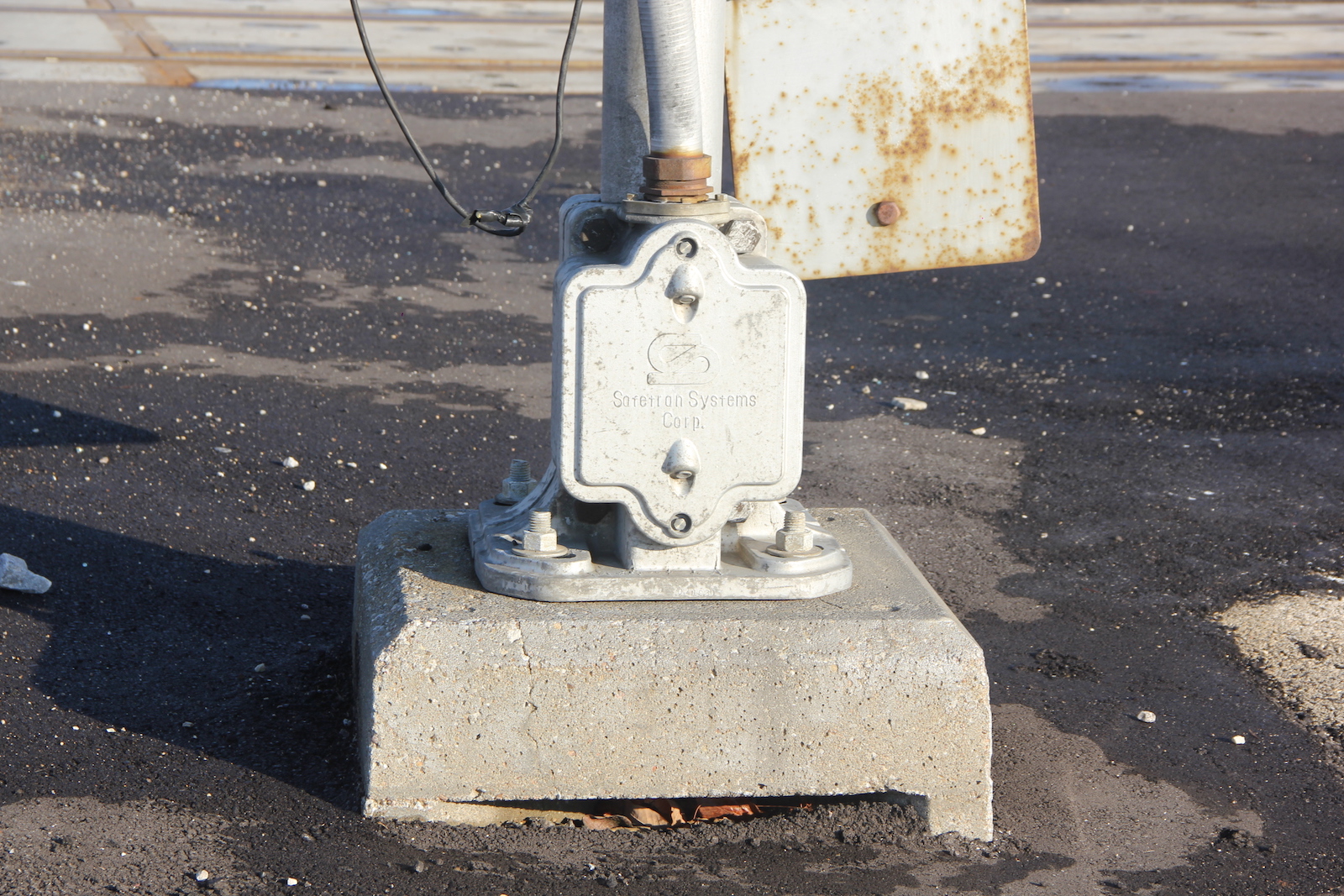

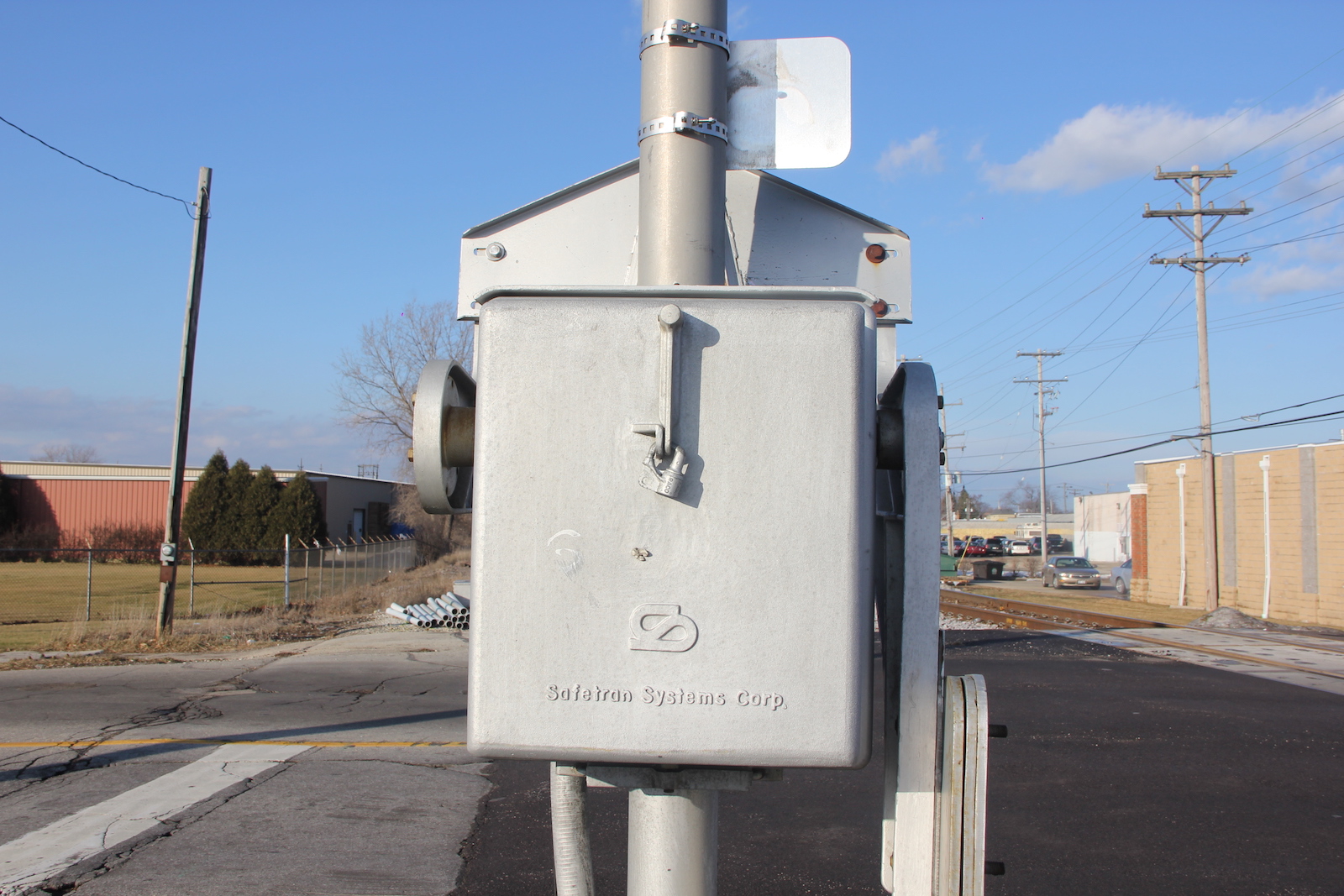

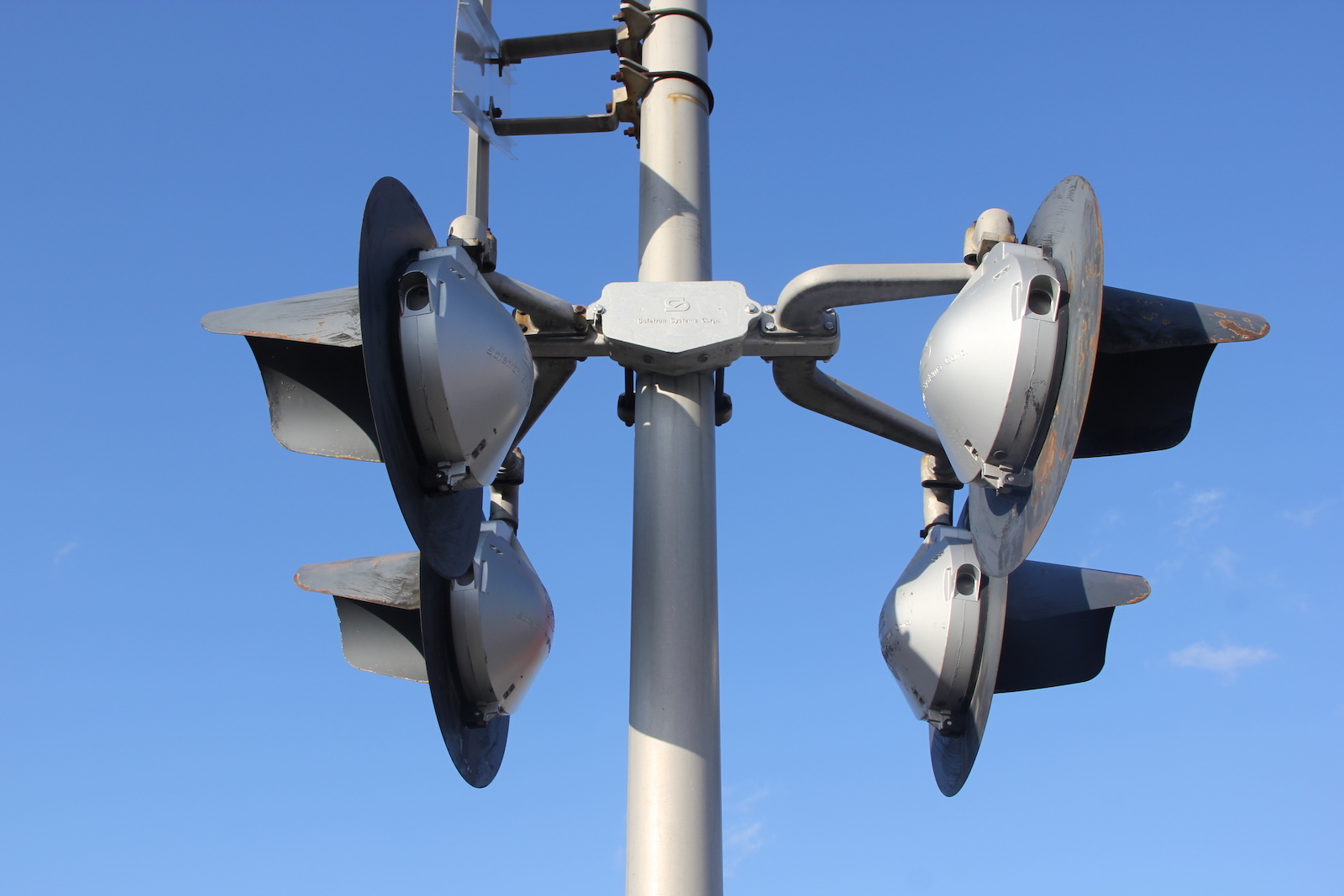

| The western signal. The WCH E Bell replaced a Safetran M bell sometime between 2011 and 2016. |
21
|
22
|
23
|
24
|

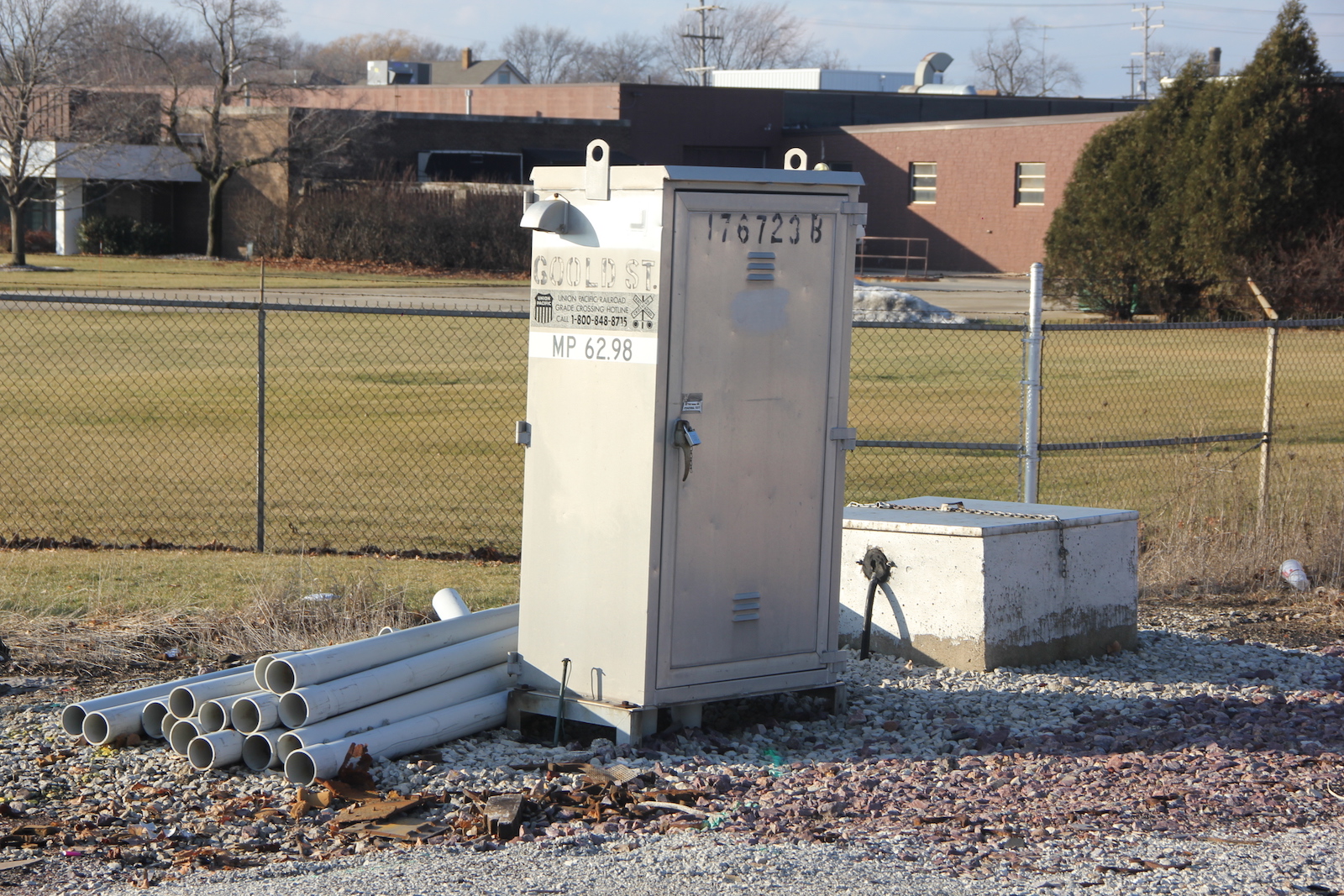

| The relay case in the northwest quadrant. |
The grade is all concrete. |

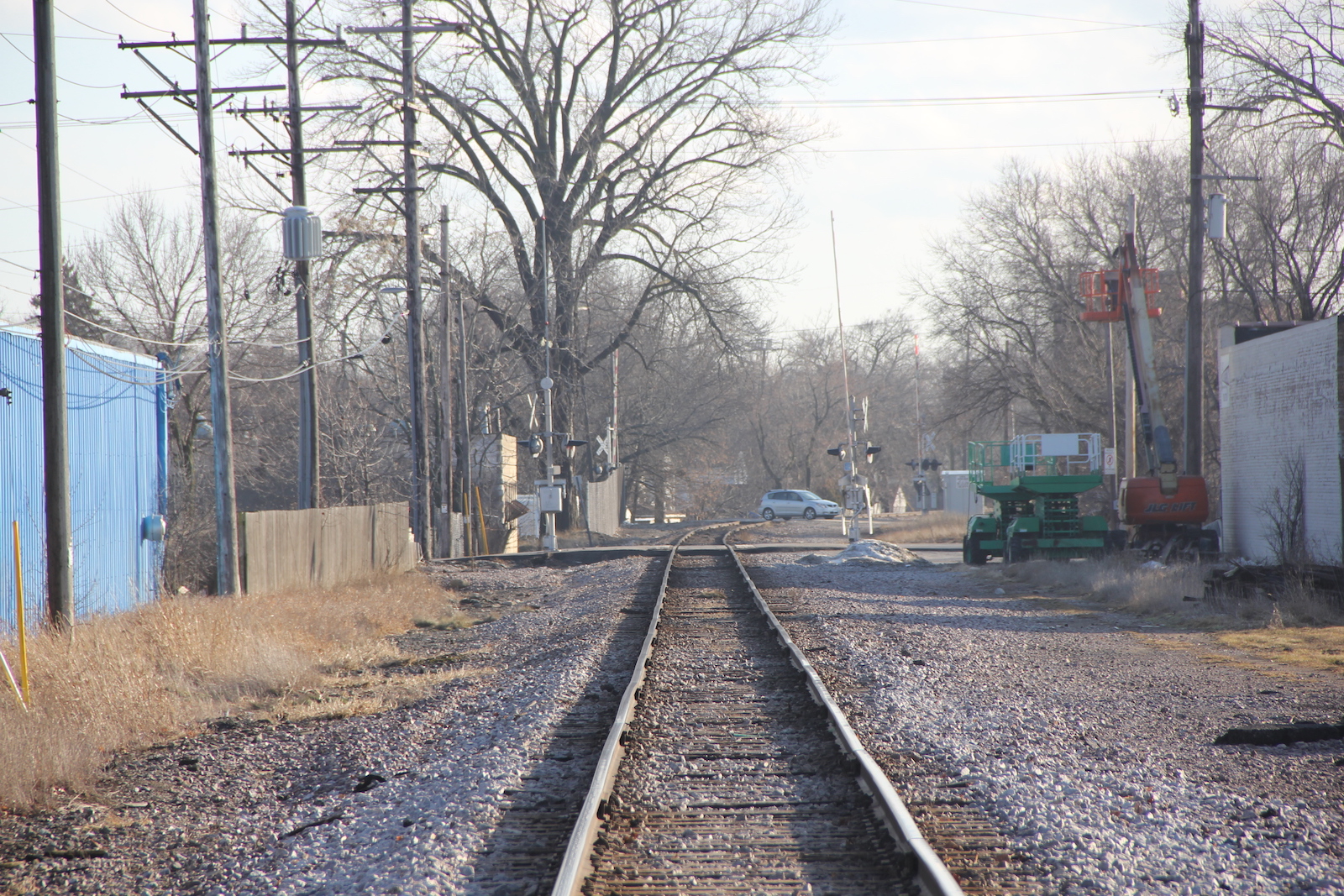

Track view facing north at Layard Ave. |
Track view facing south at Yout St. |
