| >>>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | NEG E Bell | None |
| Base: | Safetran 5" Single Sided > | Safetran 5" Single Sided ^ |
| Lights: | 4 - 12"x24" Safetran w/ GE Dotted LEDs | 4 - 12"x24" Safetran w/ 2nd Gen WCH LEDs |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" NEG LEDs | 4" RECO |
| Gate Mechanism: | Siemens Sticker Style 2 w/ Old NEG 2 Way | Safetran 2000s w/ Old NEG 2 Way Saver |
| Gate Striping: | Vertical Striping | Diagonal Striping |
G1 |
G2 |
| Streetview images from 2011 showing two classic EM signals with 12"x24" LEDs and a Safetran Mechanical Bell. |
1
|
2 |
| Overview of 2 newer gated signals facing west. |
Overview facing east. |
3
| 4
| 5
| 6
|
7
| 8
| 9
| 10
|

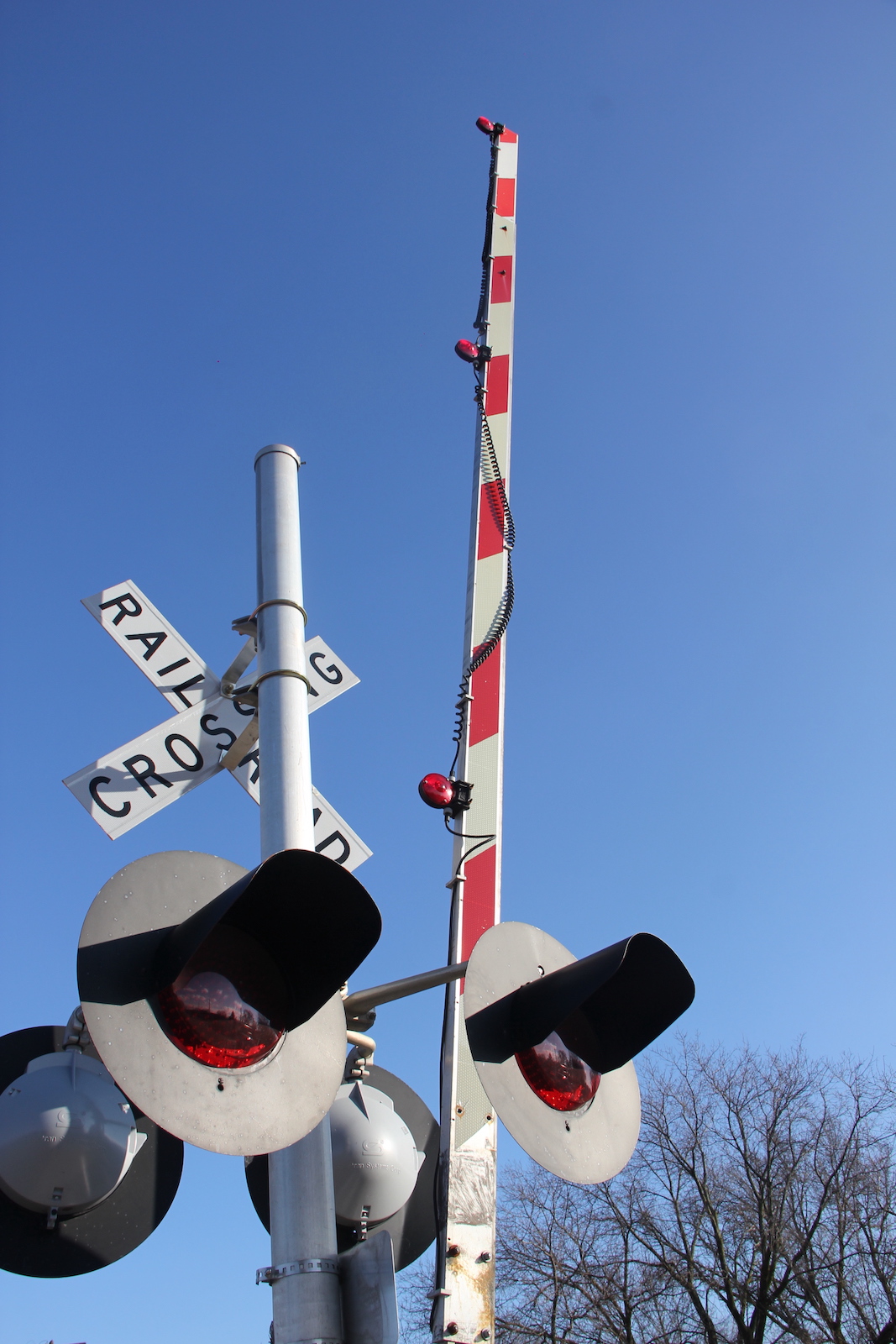

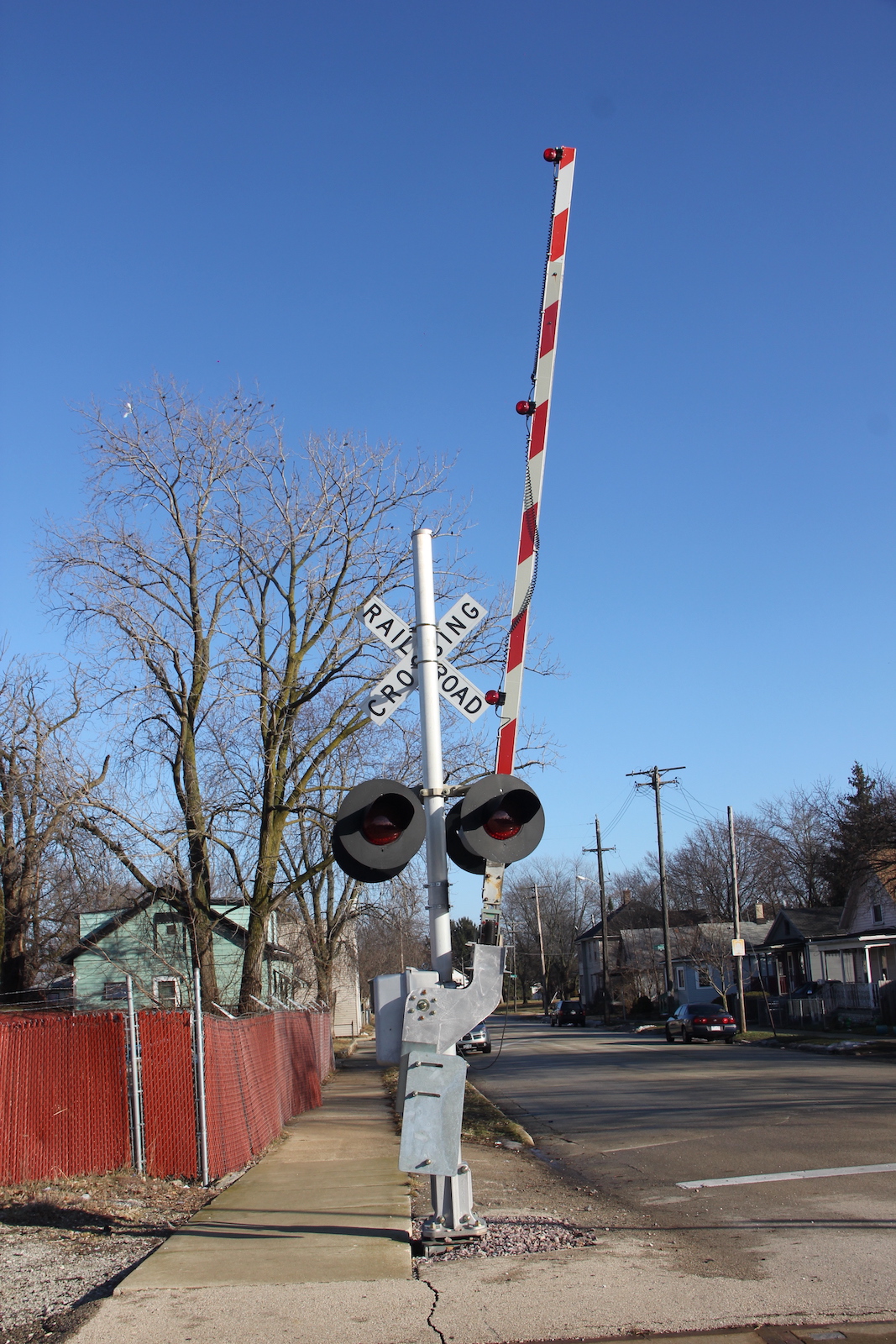

| The
eastern signal. This was installed sometime in 2014 or 2015
replaced an EM signal. It's odd to see a newer signal with the
light junction box on the front instead of the side. |
11
| 12
| 13
|
14
| 15
| 16
|
17
| 18
| 19
|
| The western signal. This was installed in 2016 also replacing an EM signal with a Safetran M bell. |
20
|
21
|
22
|
23
|

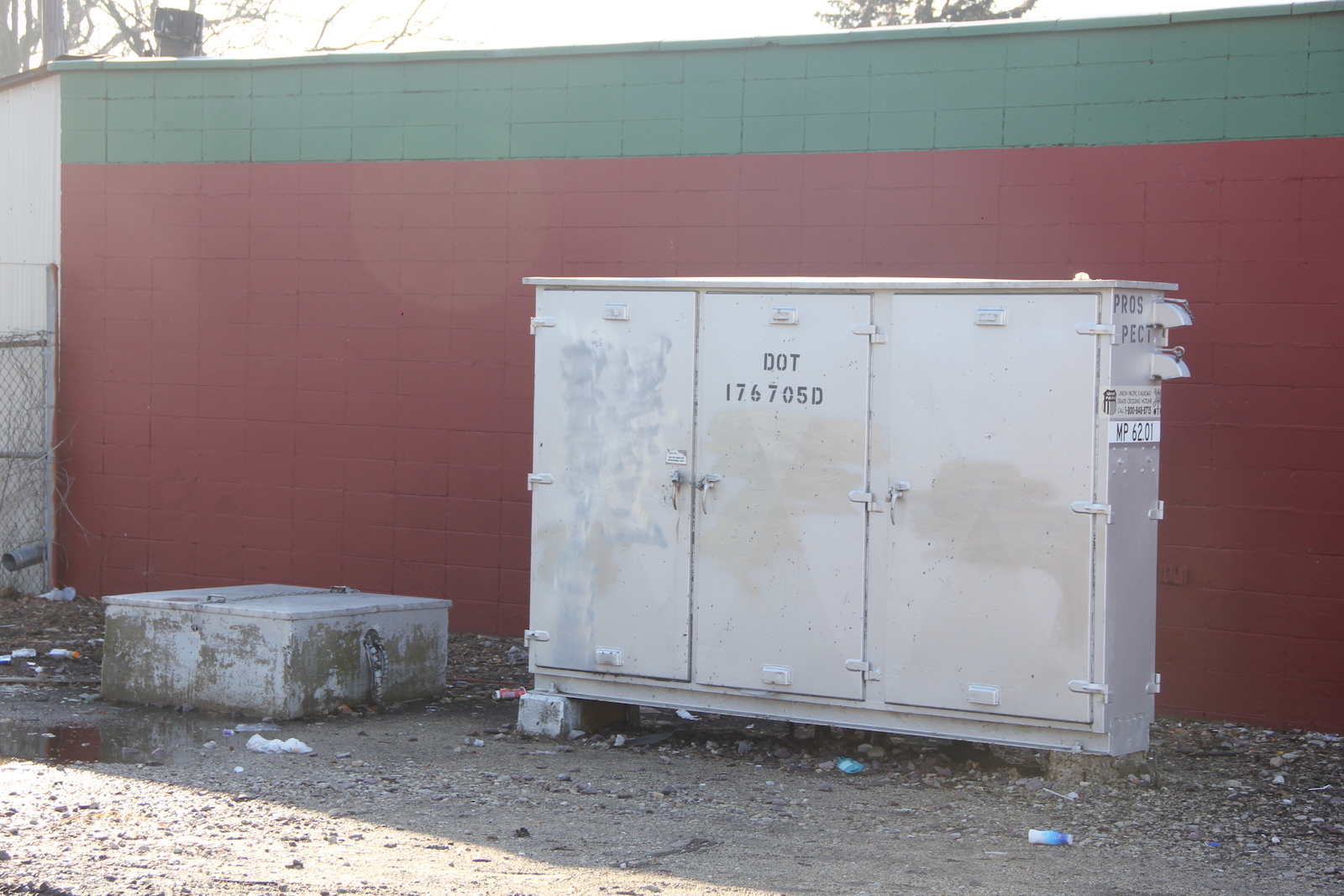

| The relay case in the southwest quadrant. |

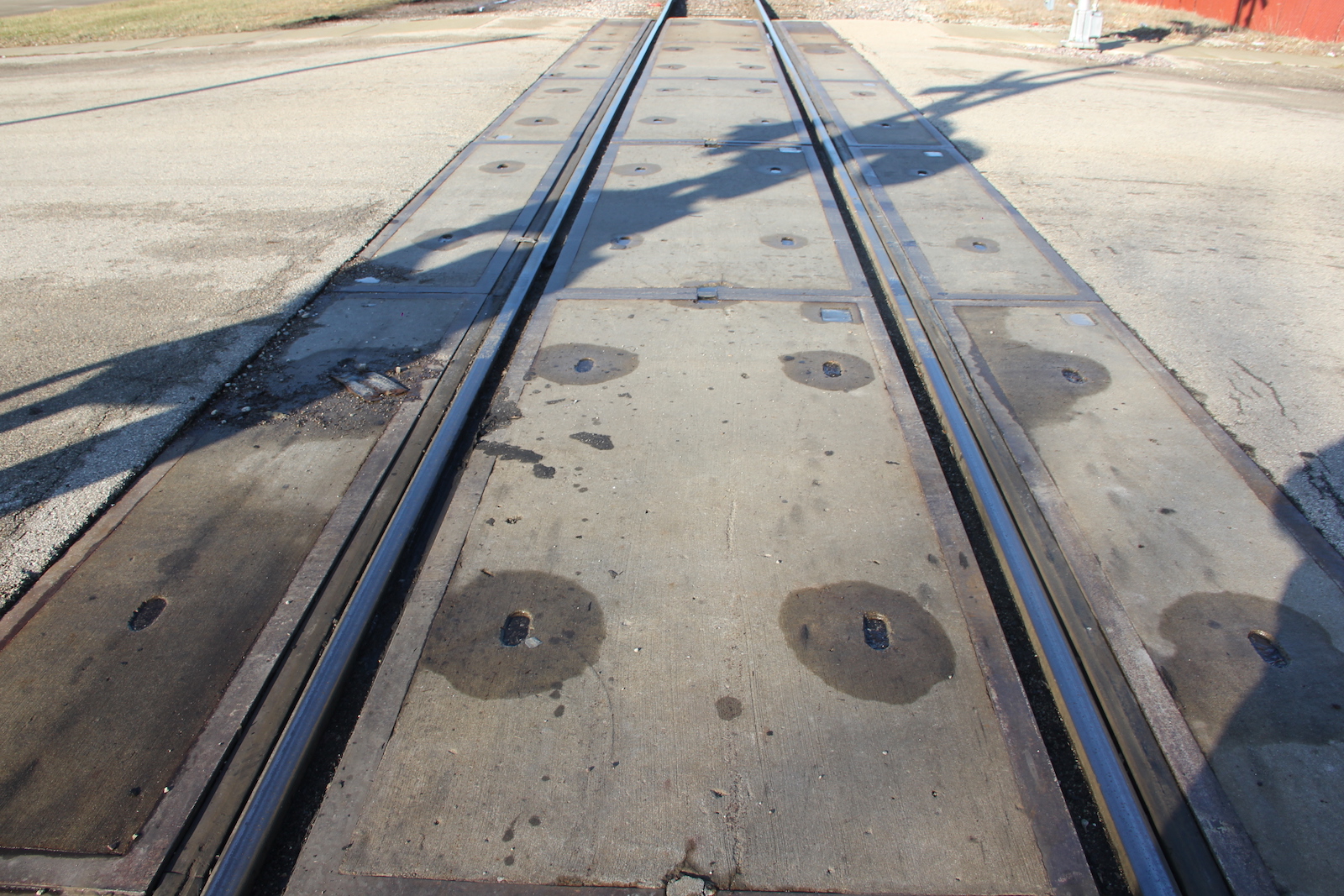

The grade is all concrete. |
Track view facing north at Hamilton St. |

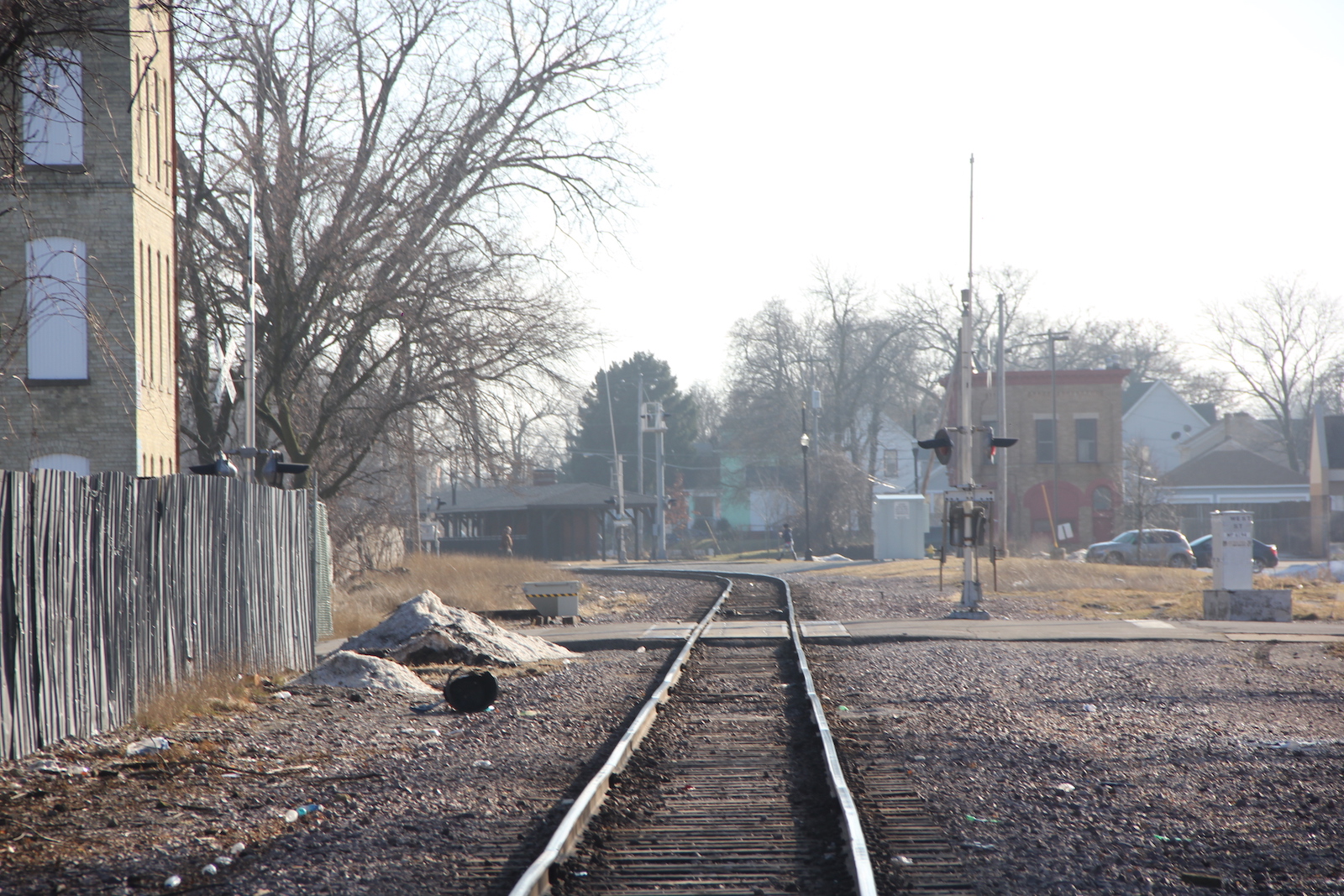

Track view facing south at West St. |
