| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | None | WCH E Bell |
| Cantilever: | PPI Cantilever | PPI Cantilever |

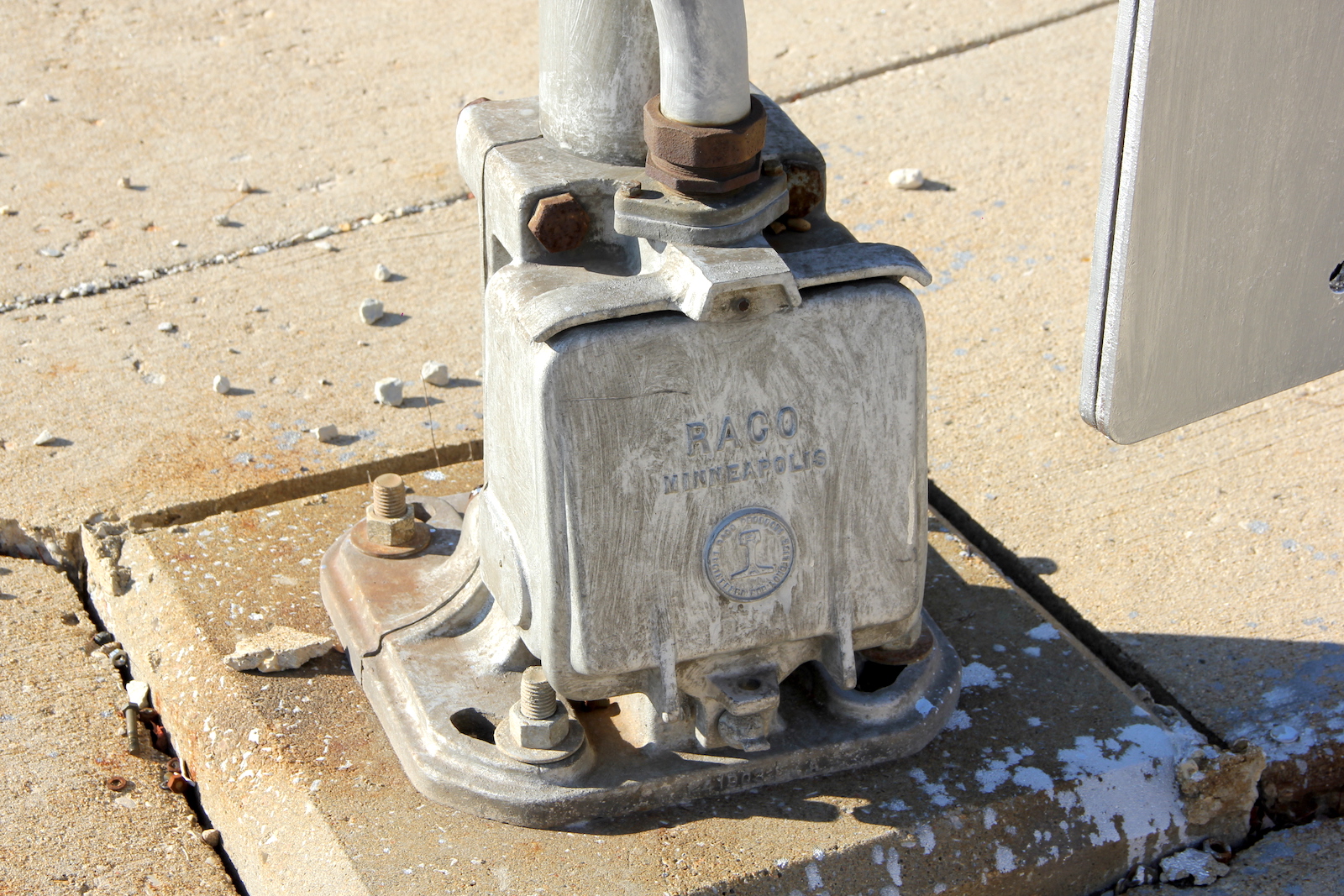

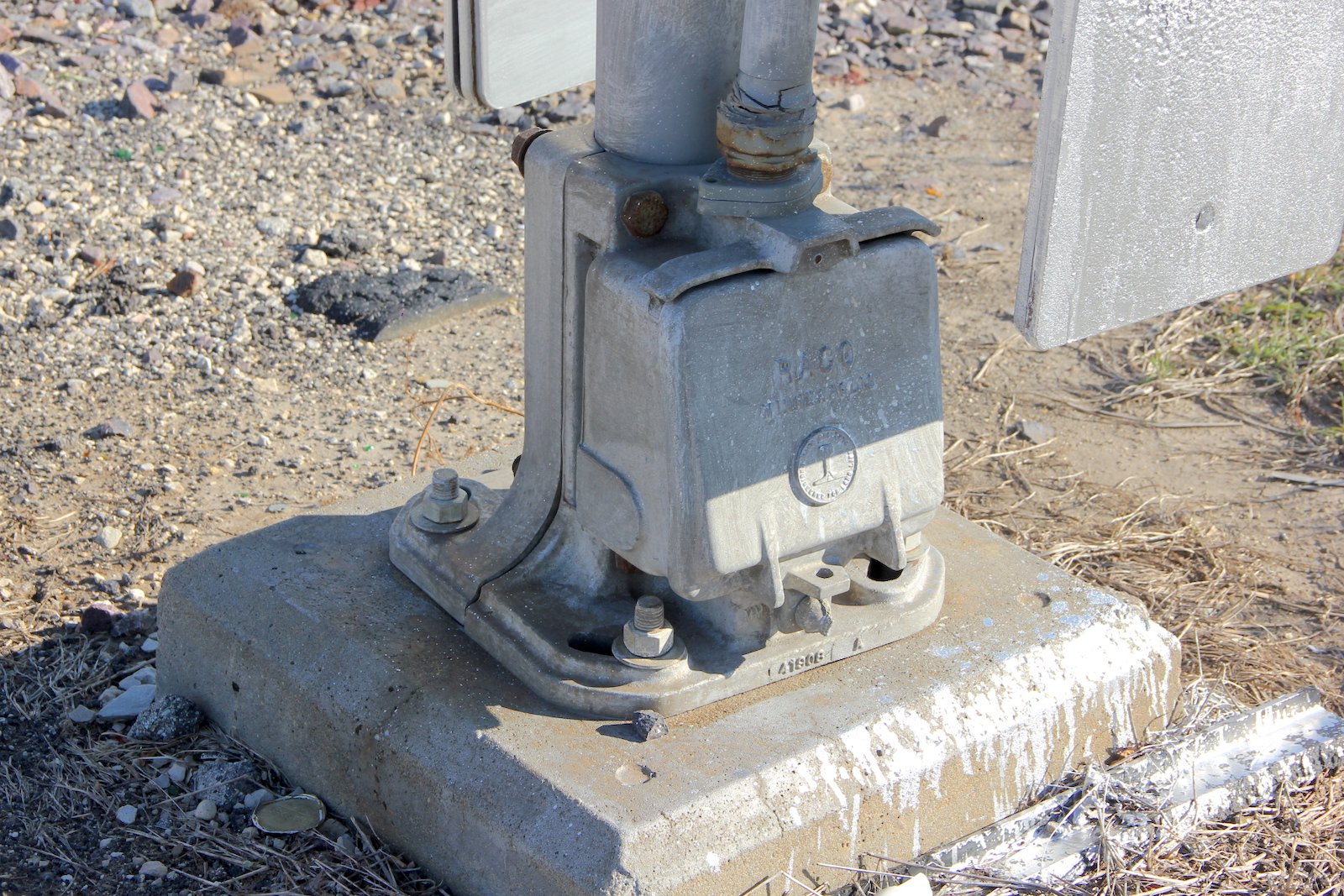

| Mast Base: | RACO 5" Single Sided ^ | RACO 5" Single Sided ^ |

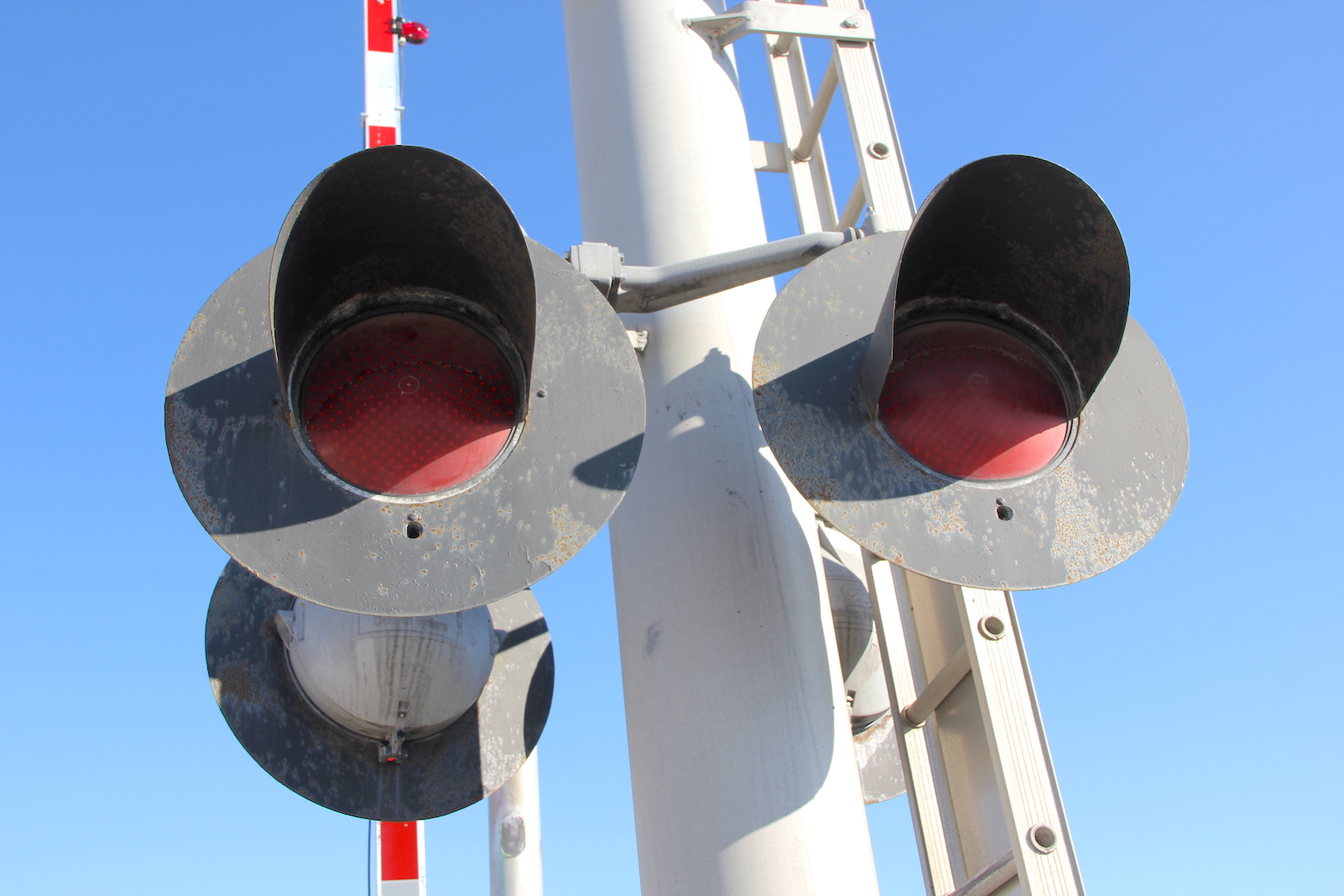

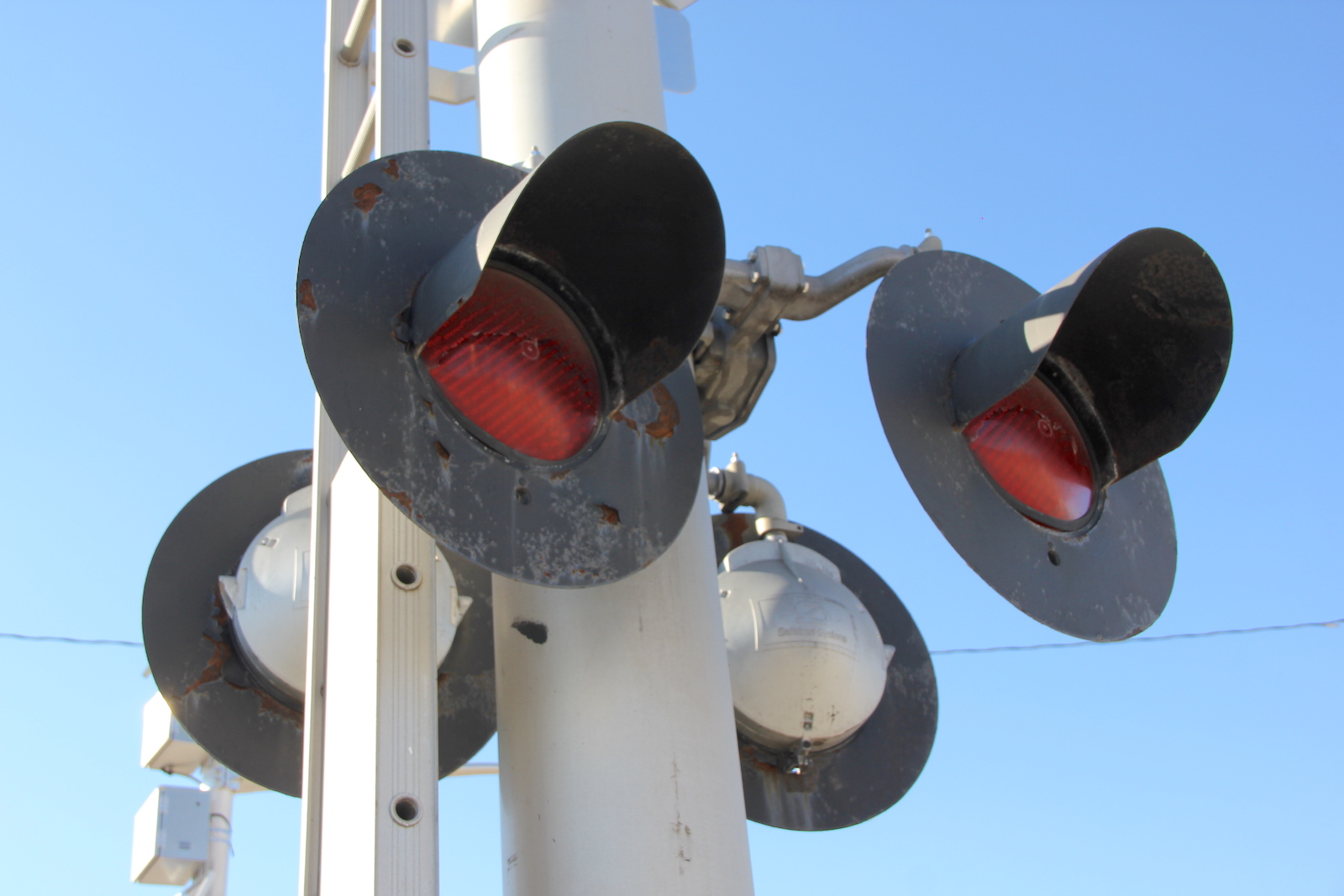

| Lights: | 8 - 12"x24" Hawker Safetran w/ Electro-Tech's LEDs | 8 - 12"x24" Hawker Safetran w/ Electro-Tech's LEDs |

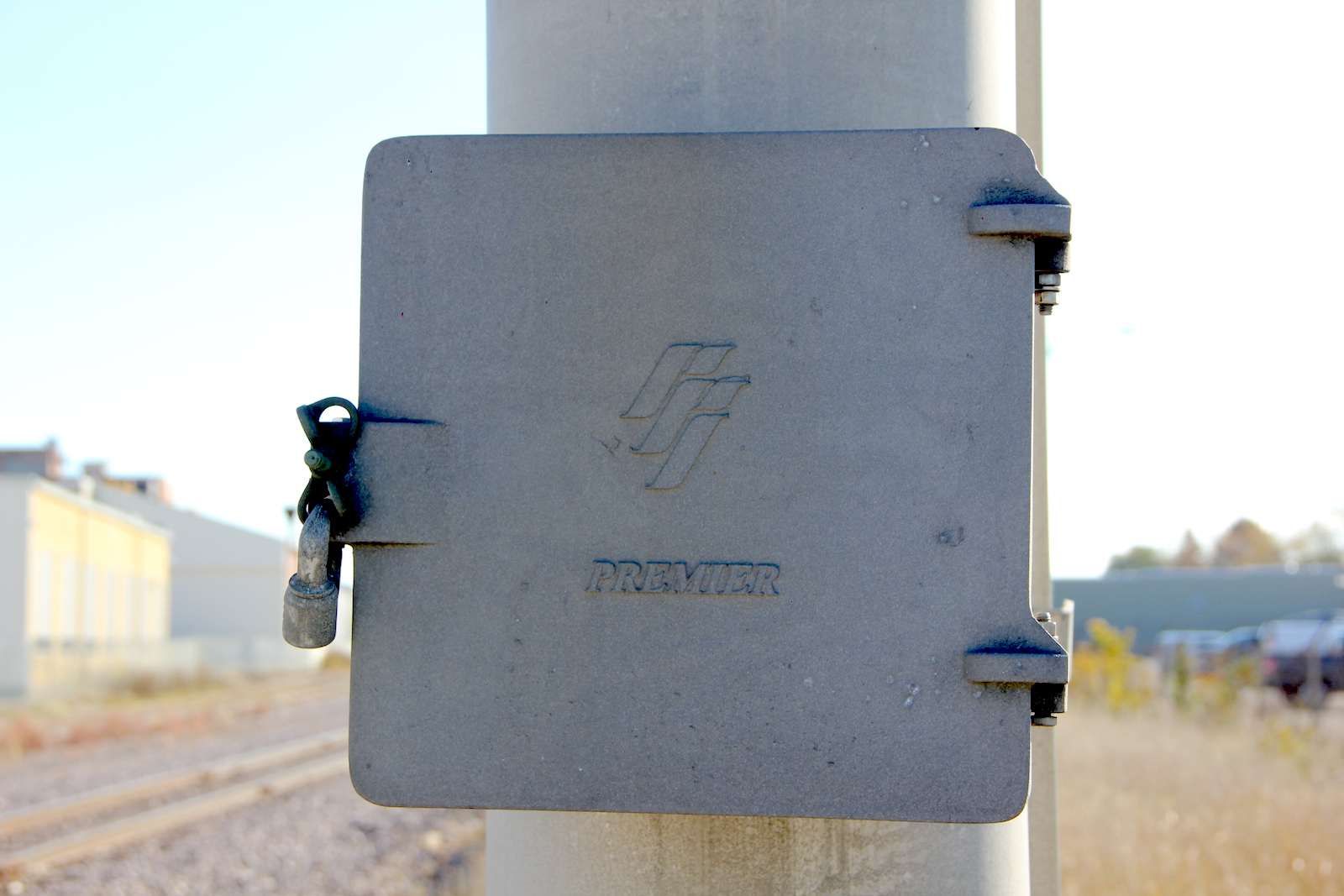

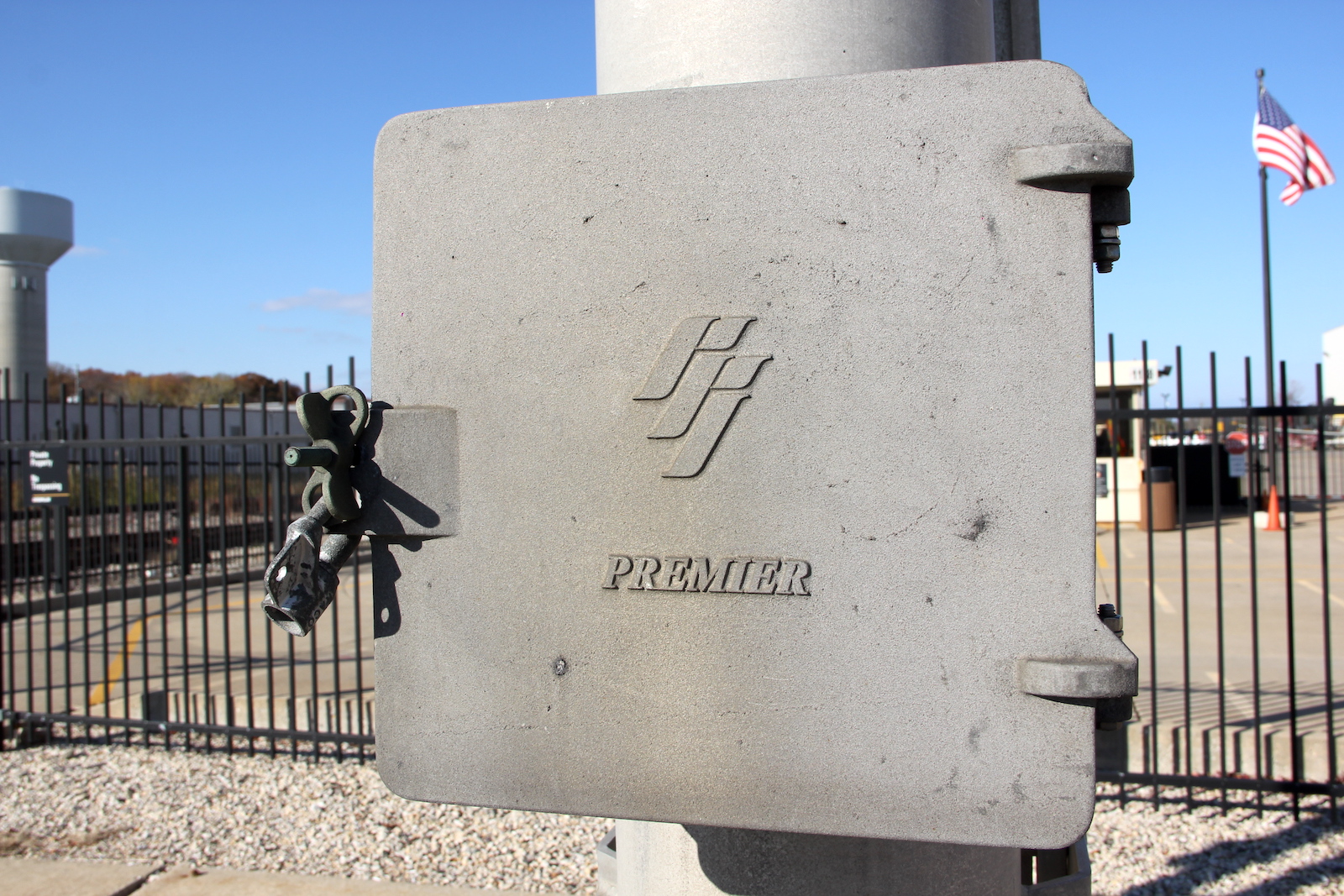

| Junction Boxes: | PPI | 1 PPI, 1 Safetran |
| Gate Lights: | 4" RECO | 4" RECO |
| Gate Mechanism: | Safetran Early 1970s w/ Wishbone Mount | Safetran Early 1970s w/ Standard Mount |
| Gate Striping: | Vertical Striping | Diagonal Striping |
1 |
2
|

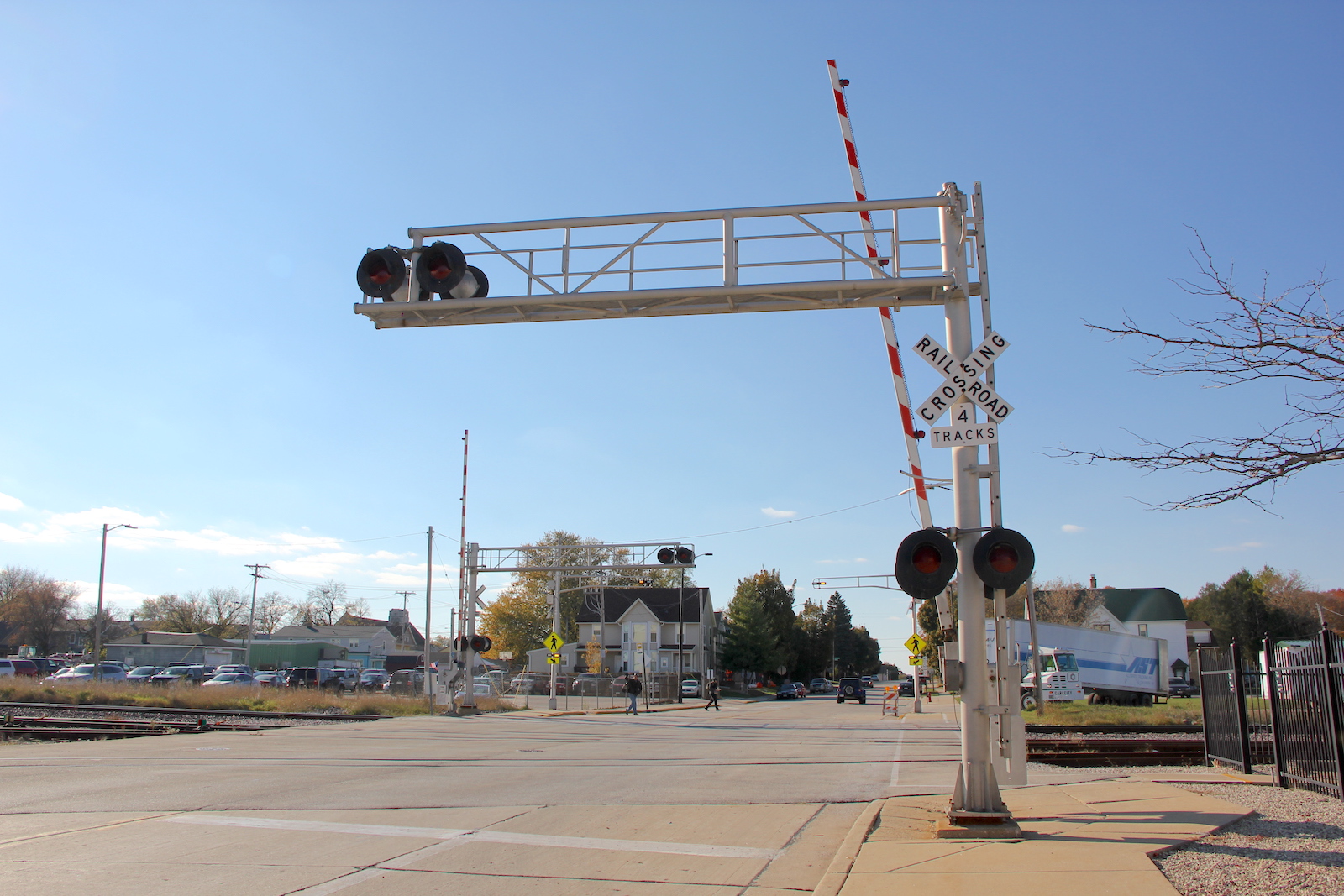

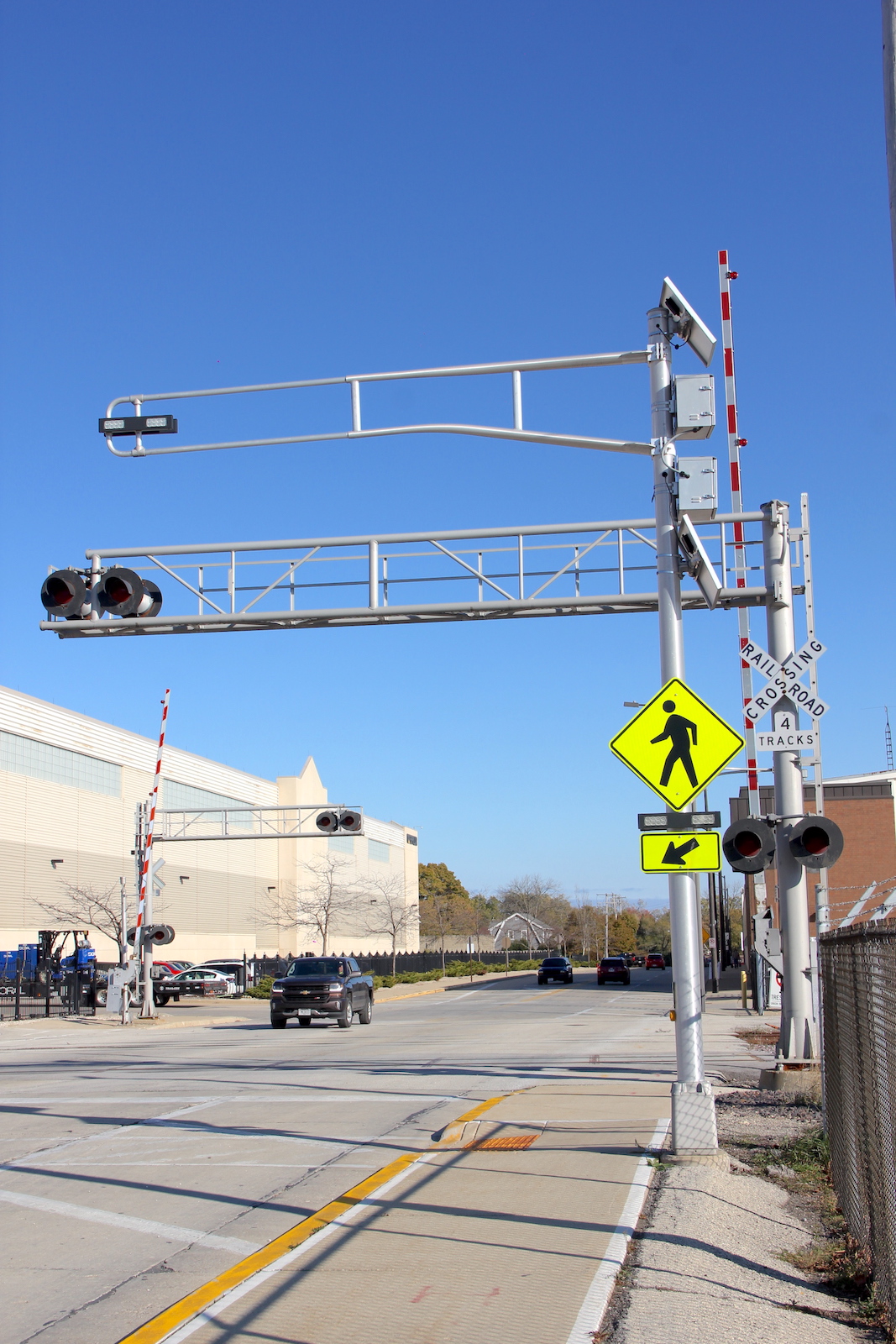

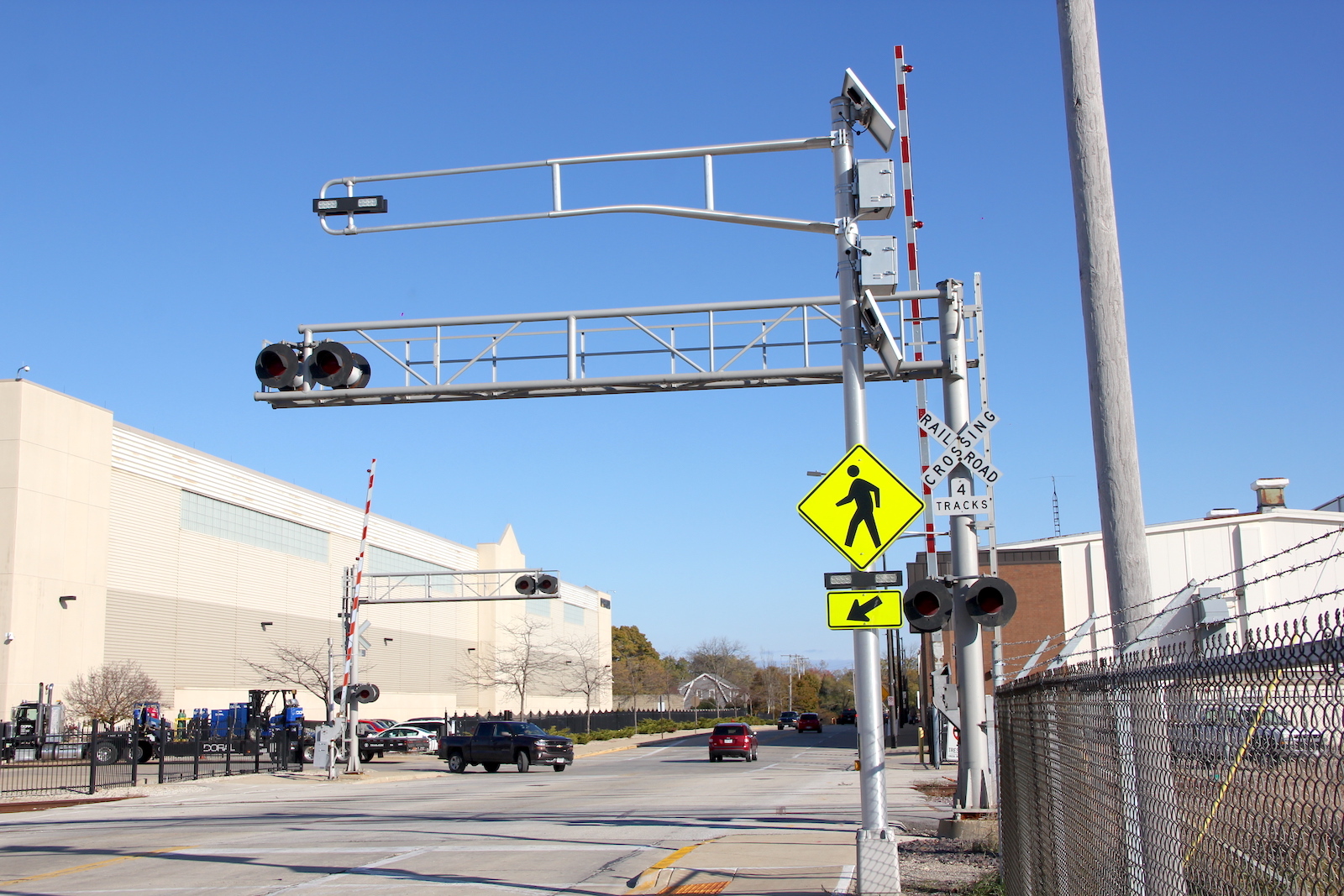

| Overview of 2 gated cantilevers facing east. | Overview facing west. |
3
| 4
| 5
|
6
| 7
| 8
|
9
| 10
| 11
|
12
| 13
| 14
| 15
|

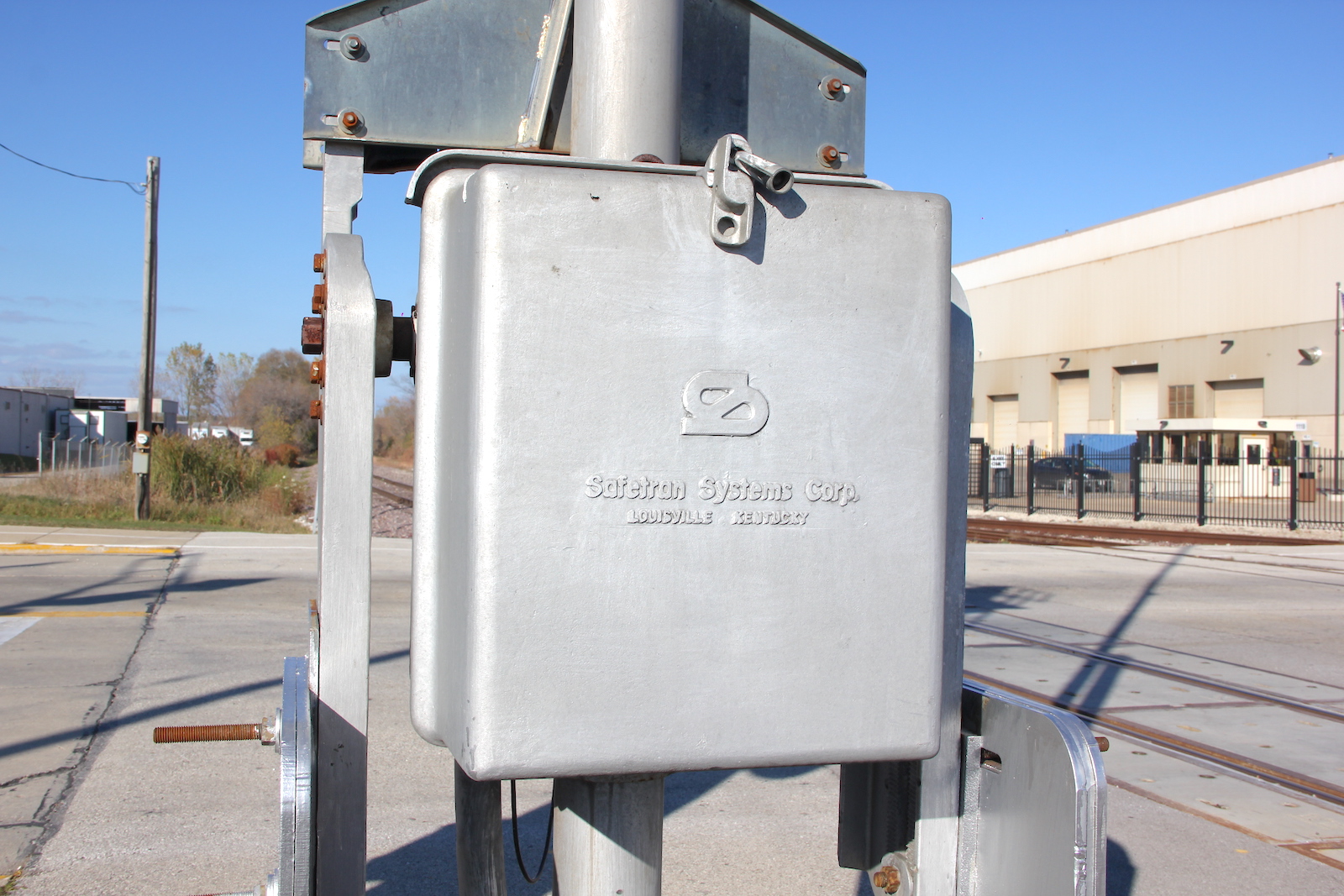

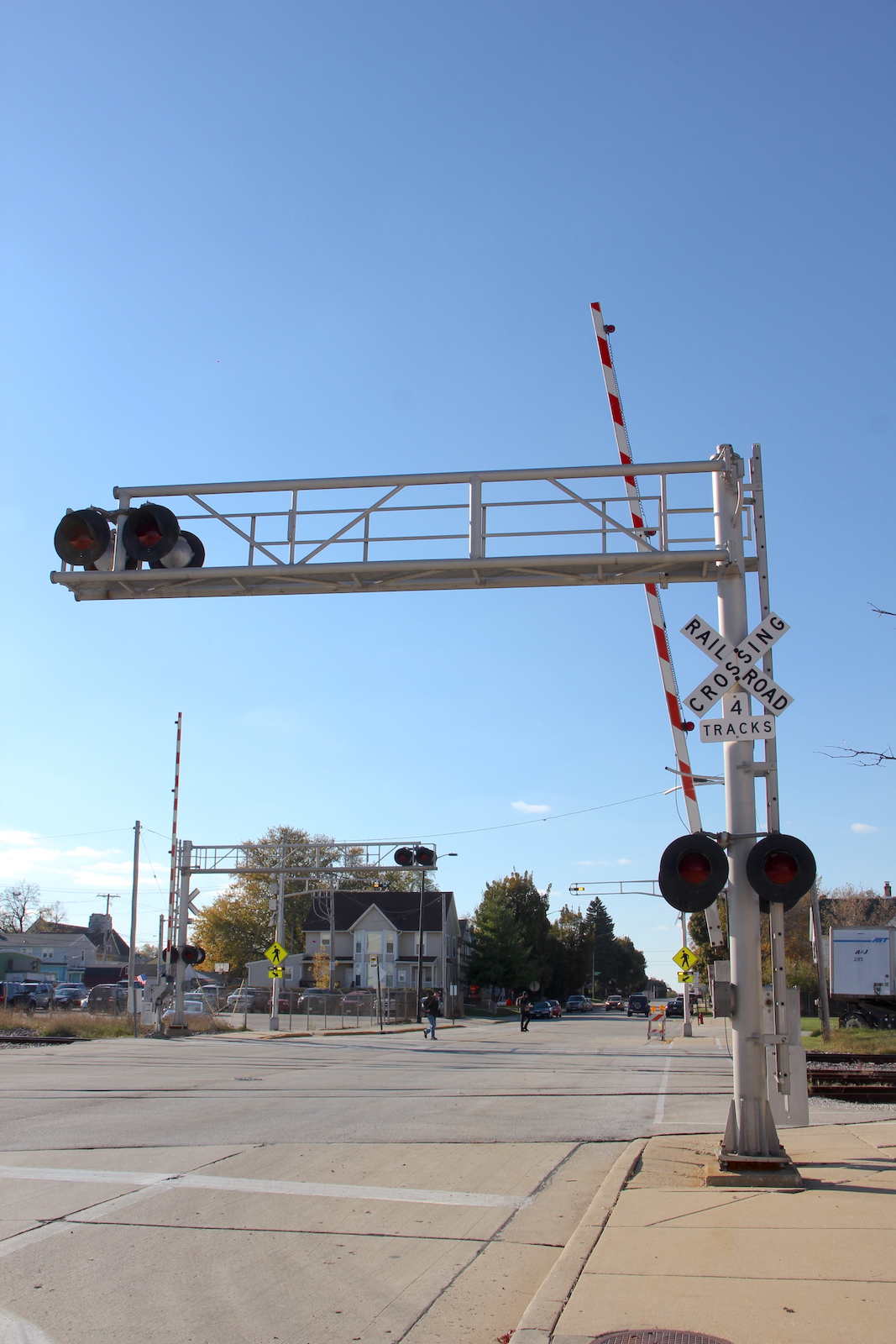

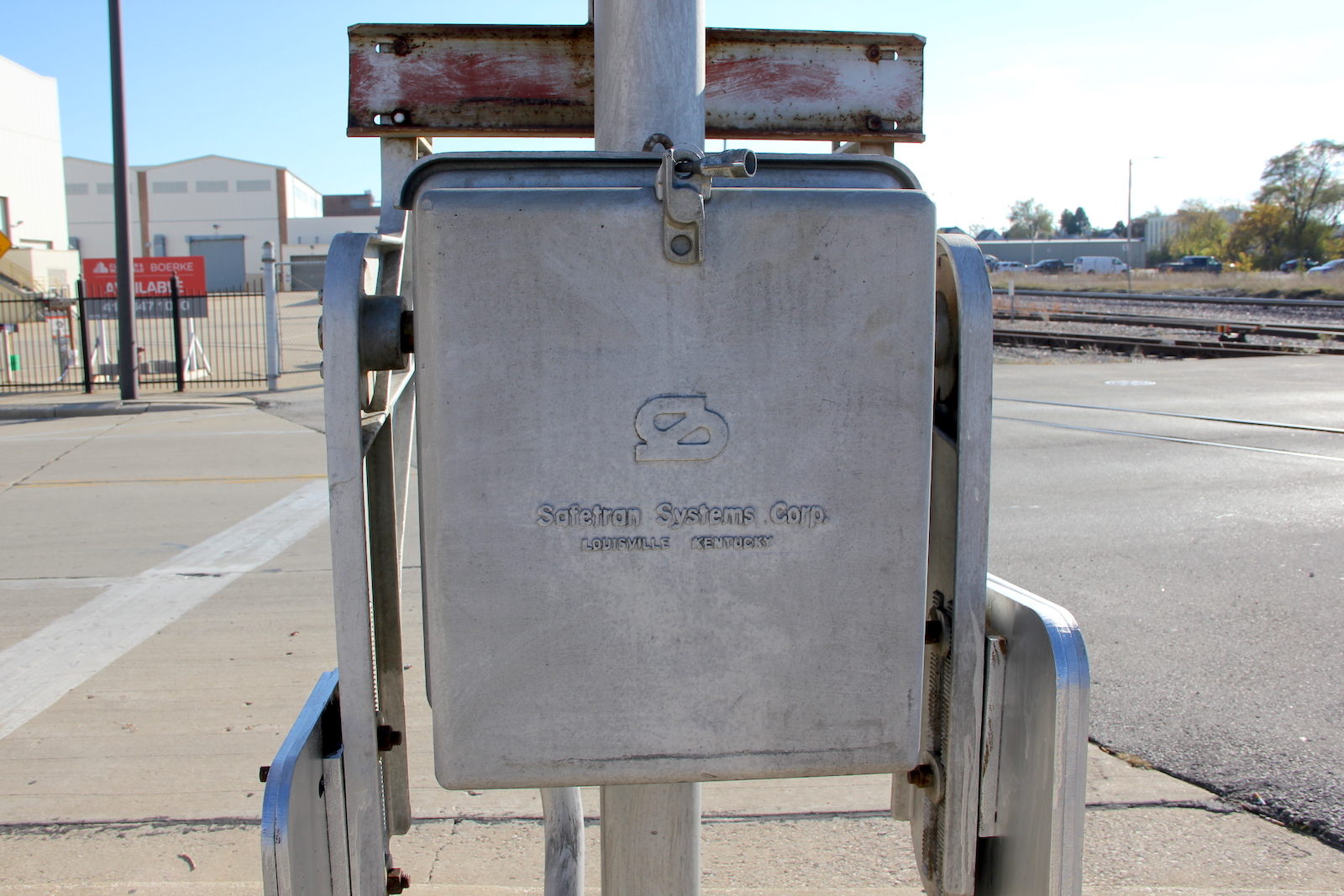

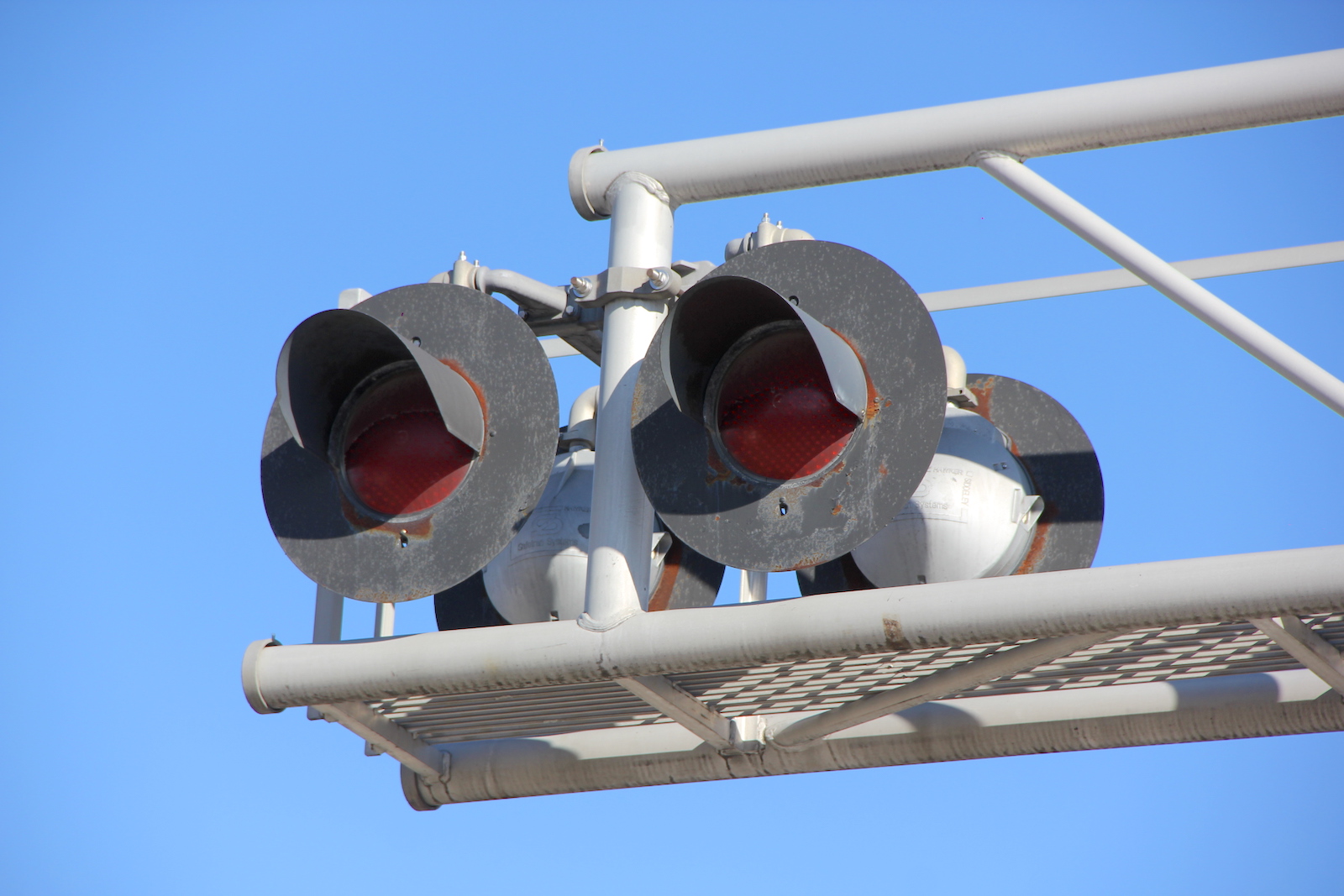

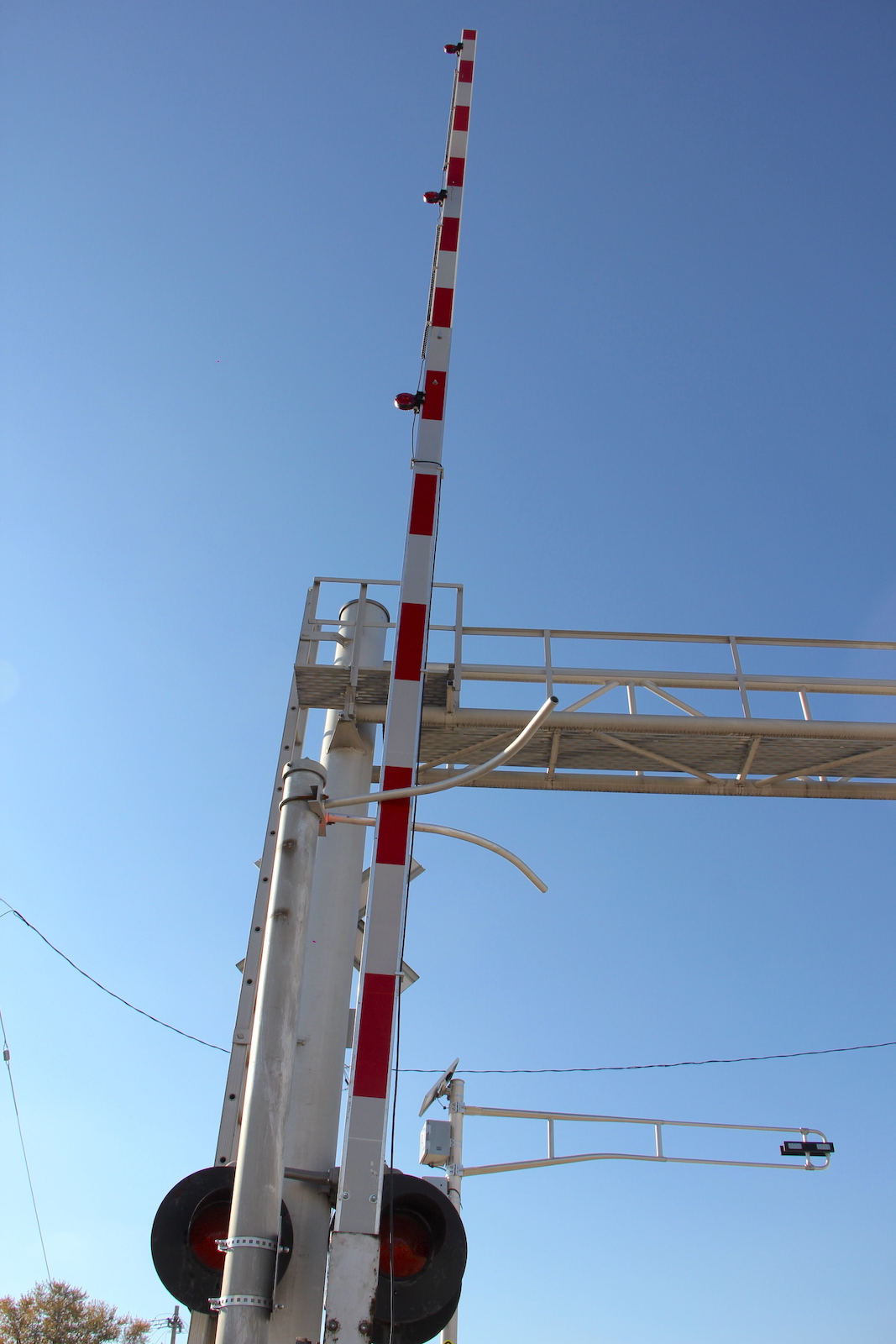

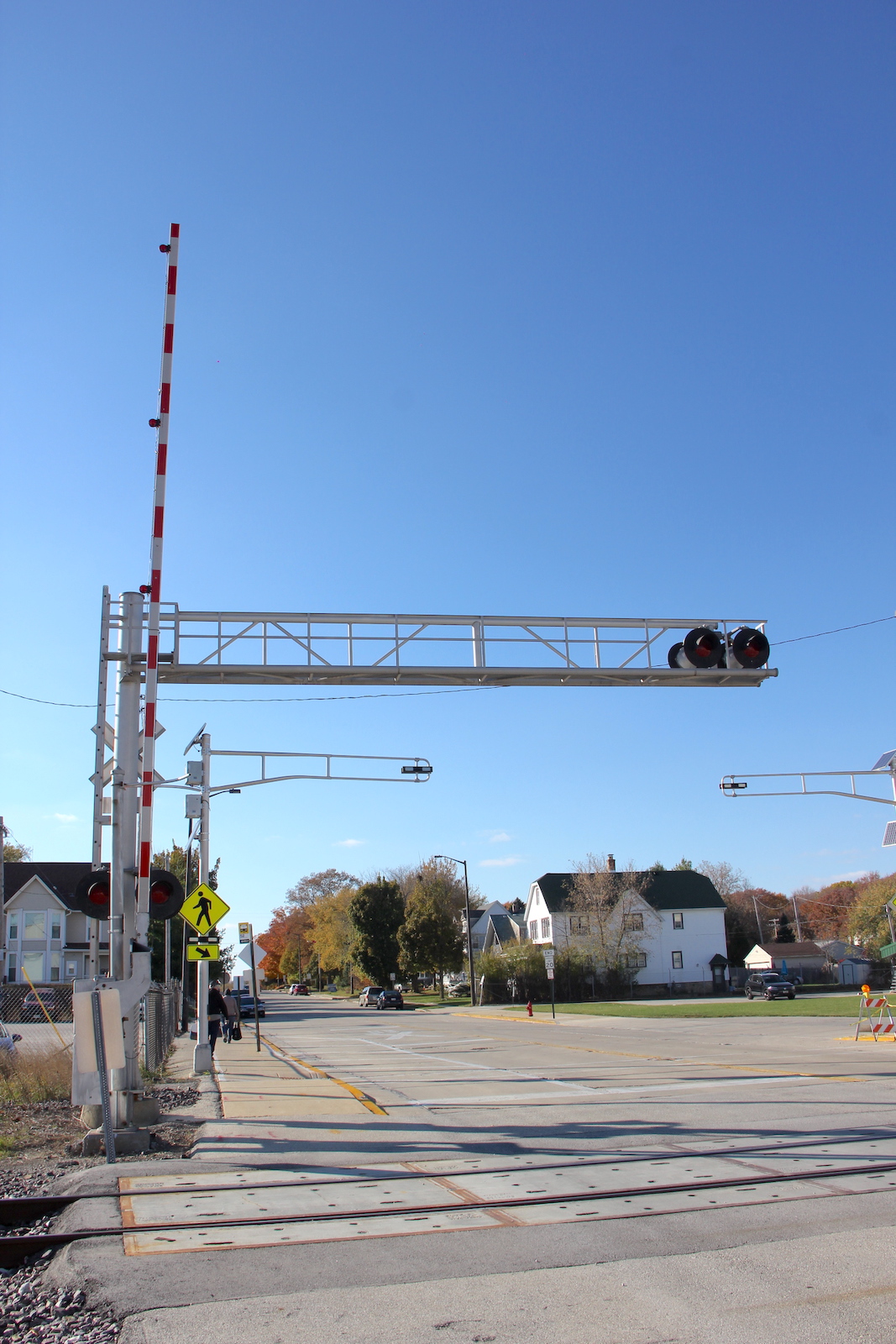

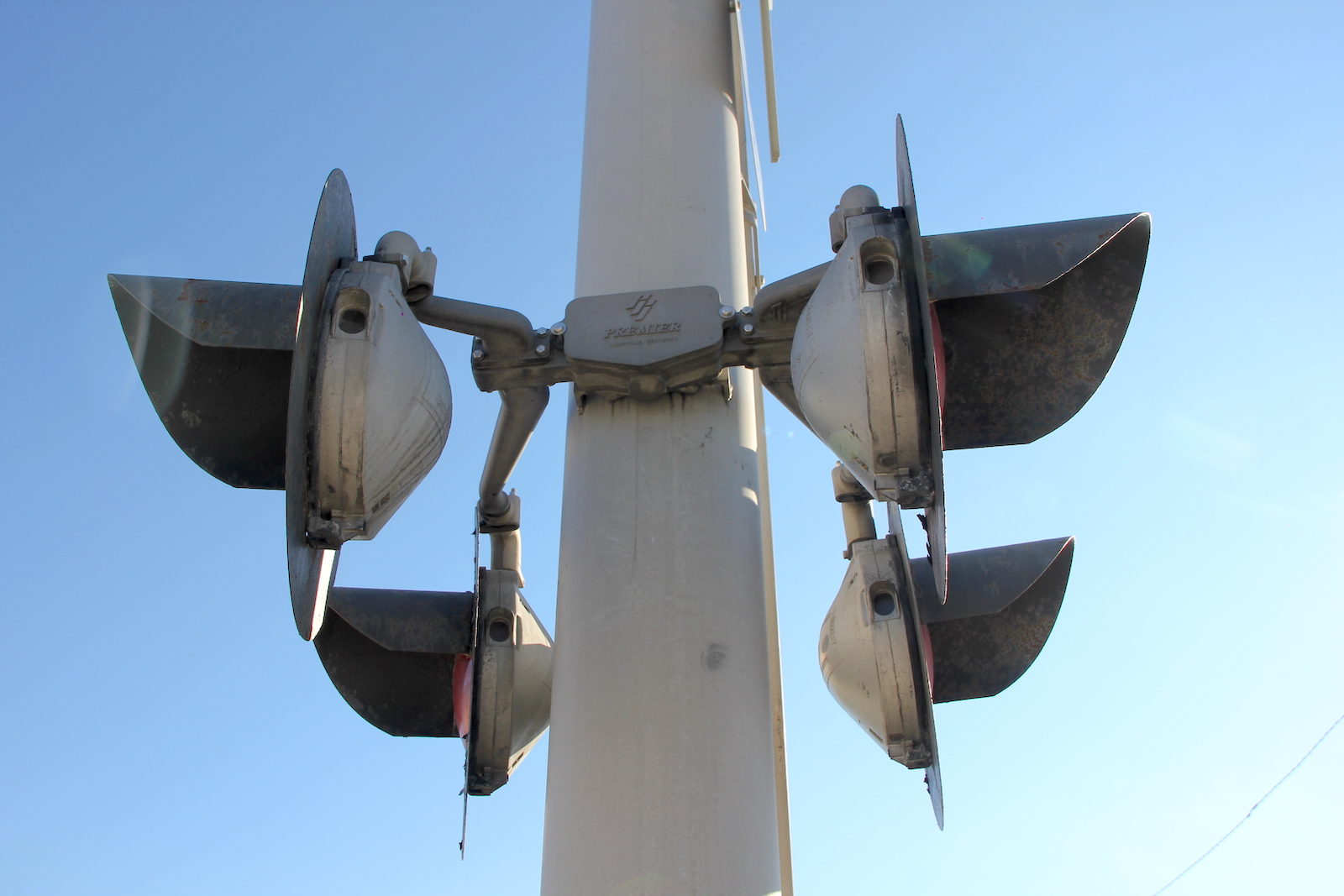

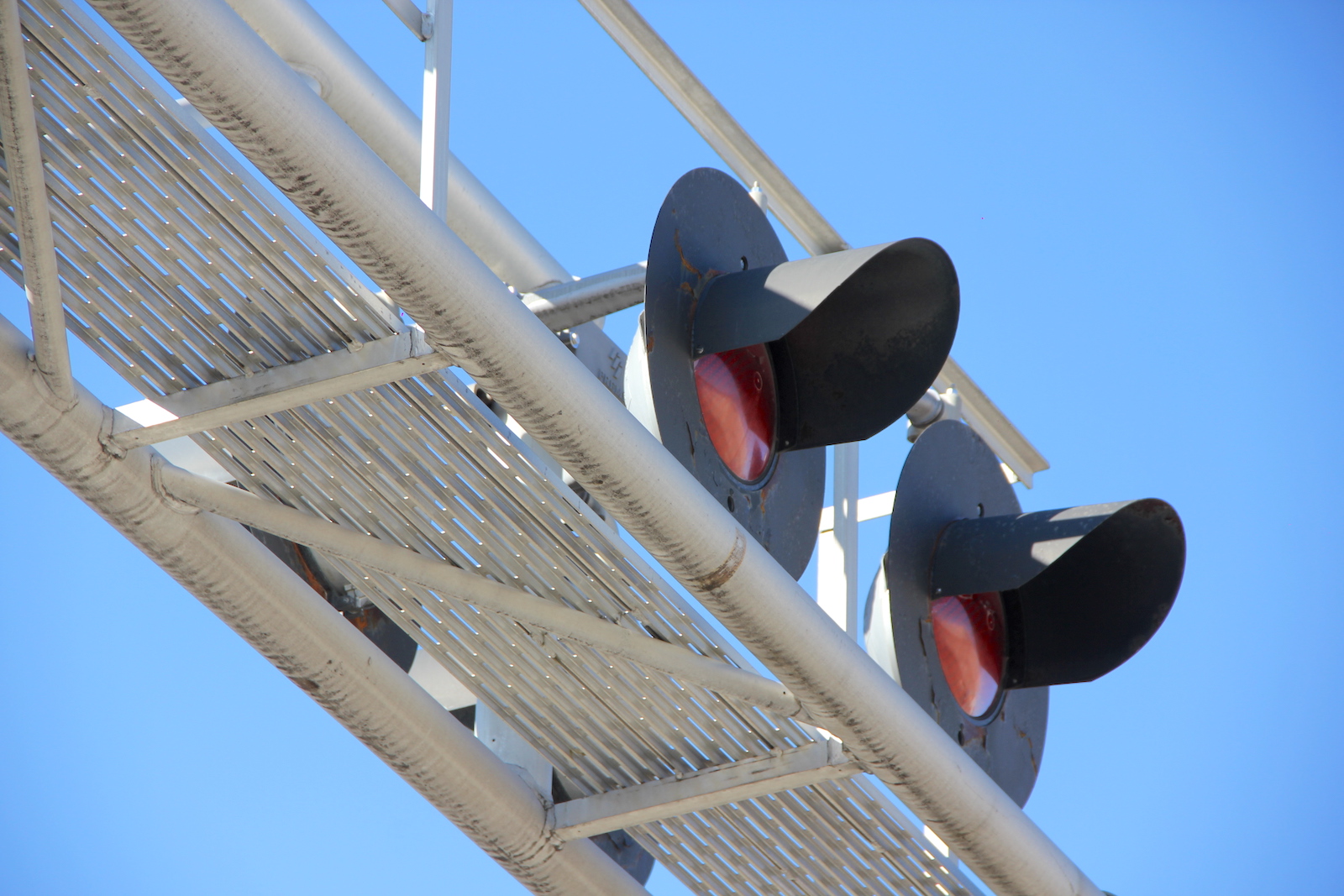

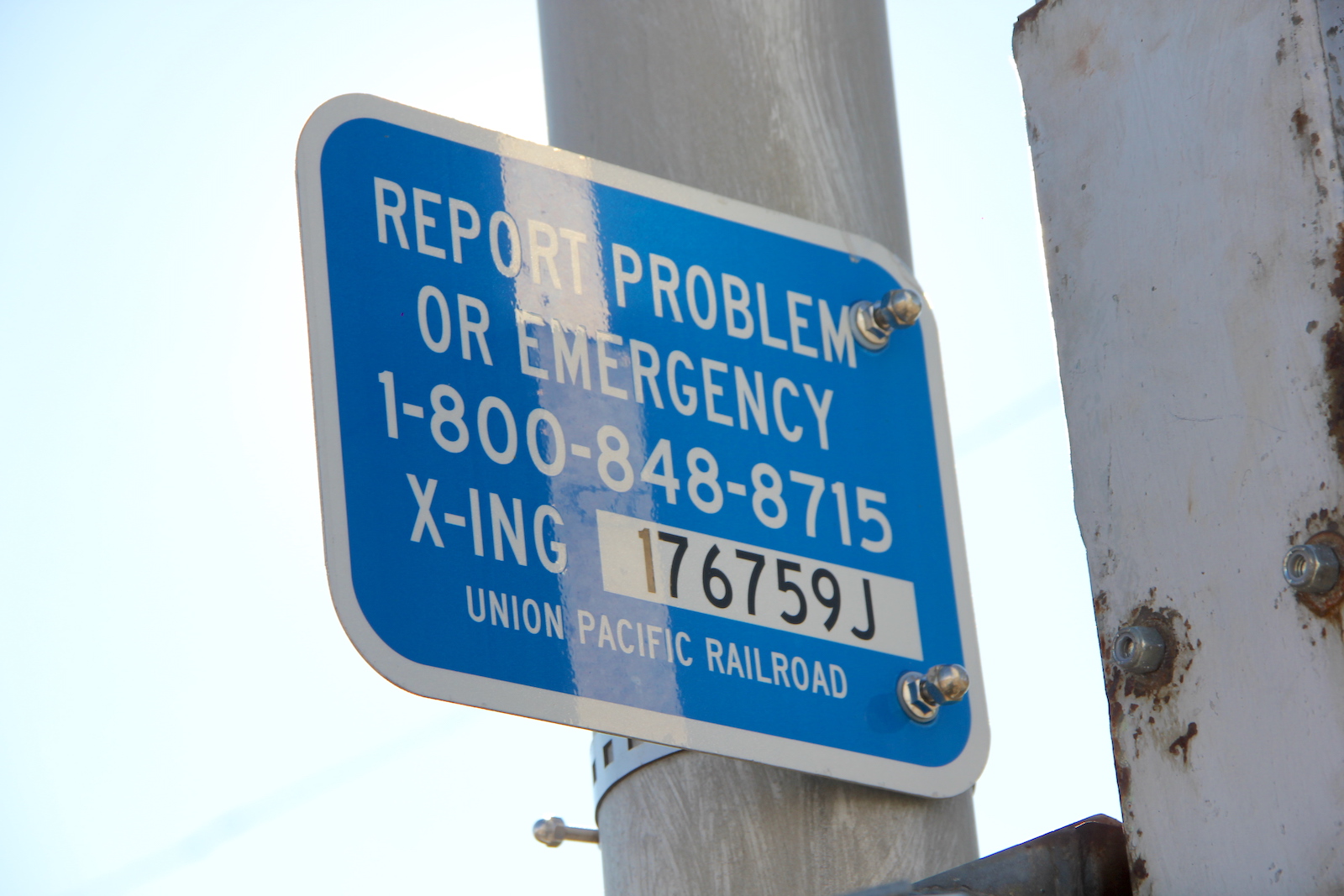

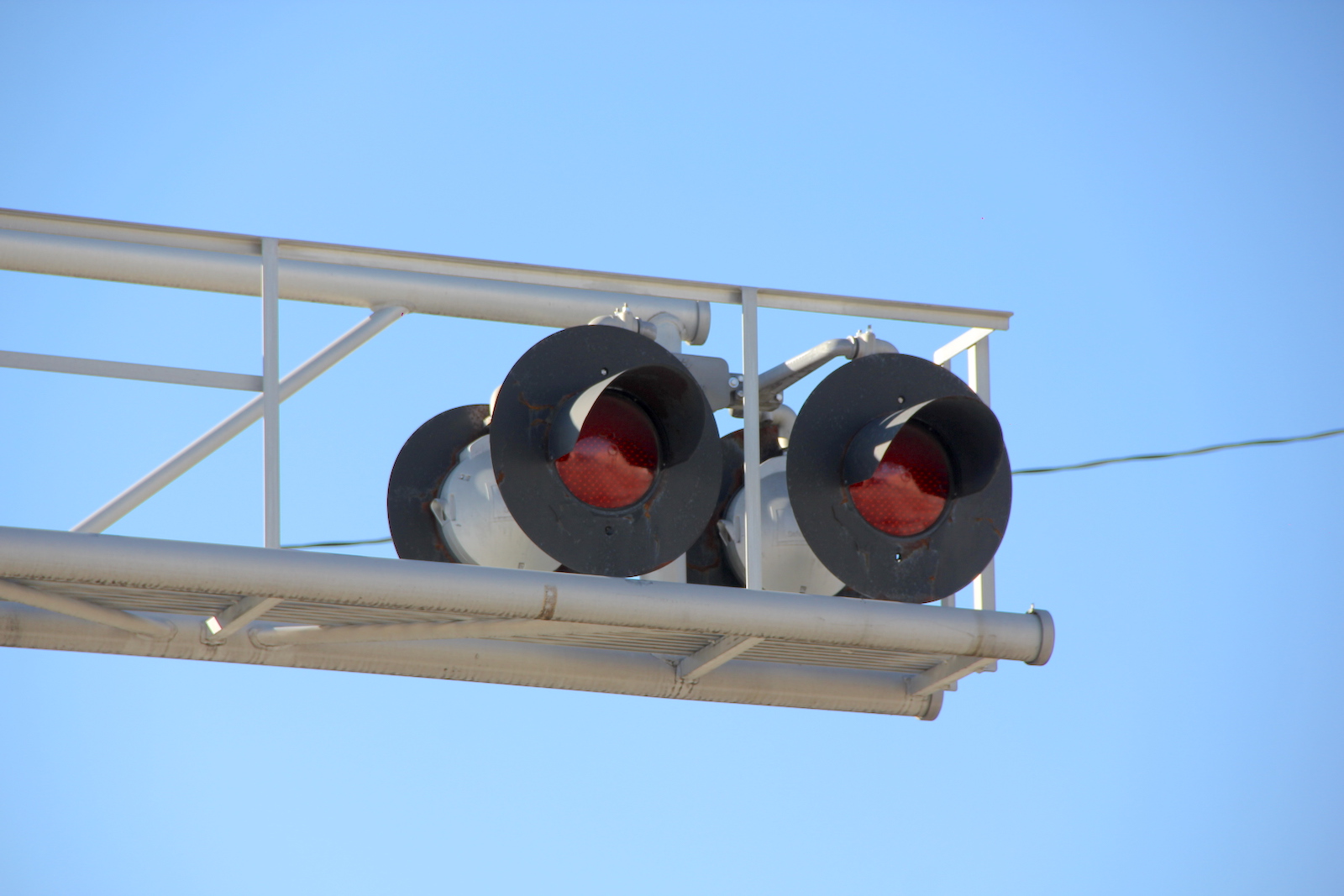

| The western signal. The early Safetran gate mechanisms were very nice to see, and I believe this is the first CNW install I've seen with this style. |
16
| 17
| 18
|
19
| 20
| 21
|
22
| 23
| 24
| 25
|
26
| 27
| 28
| 29
|

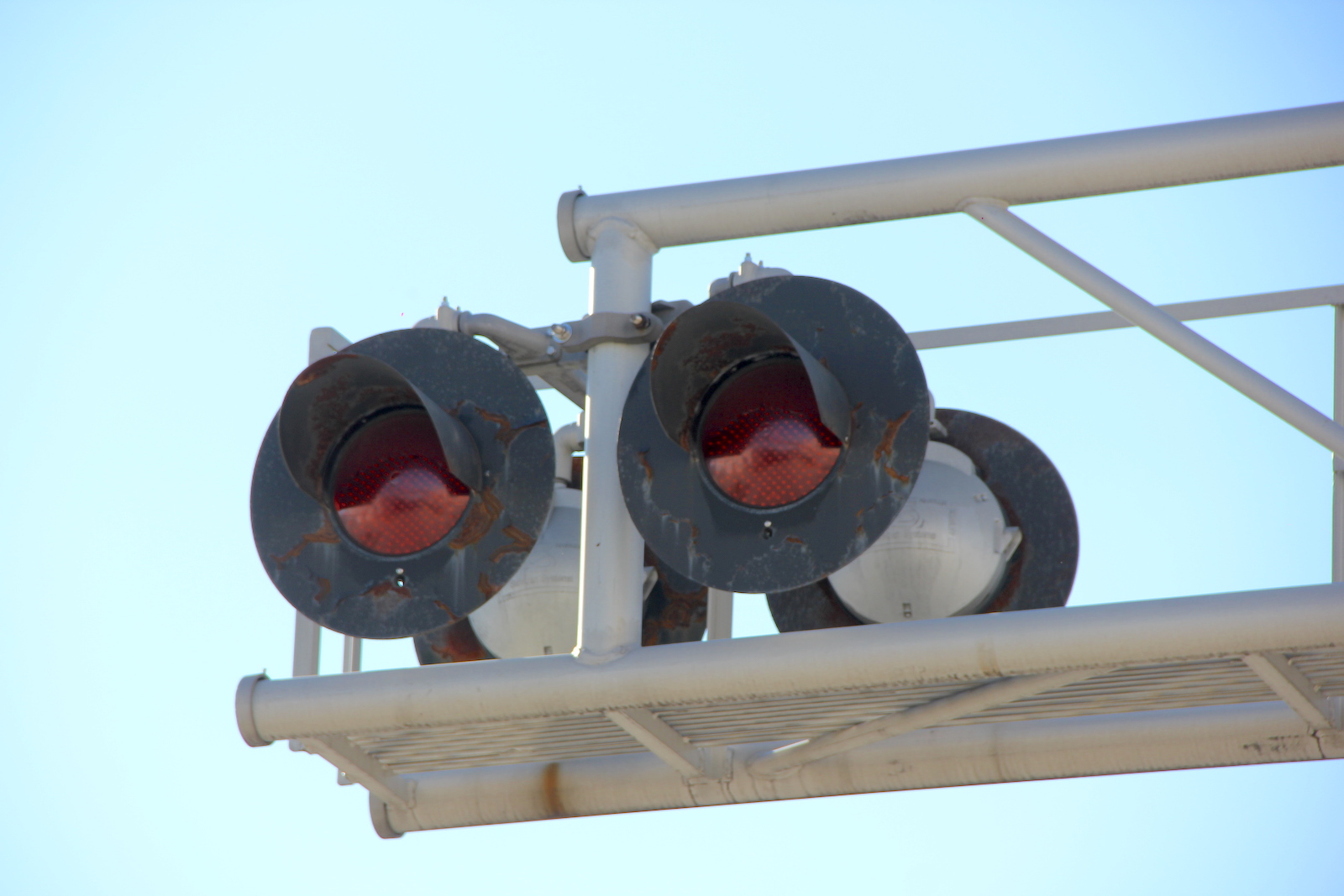

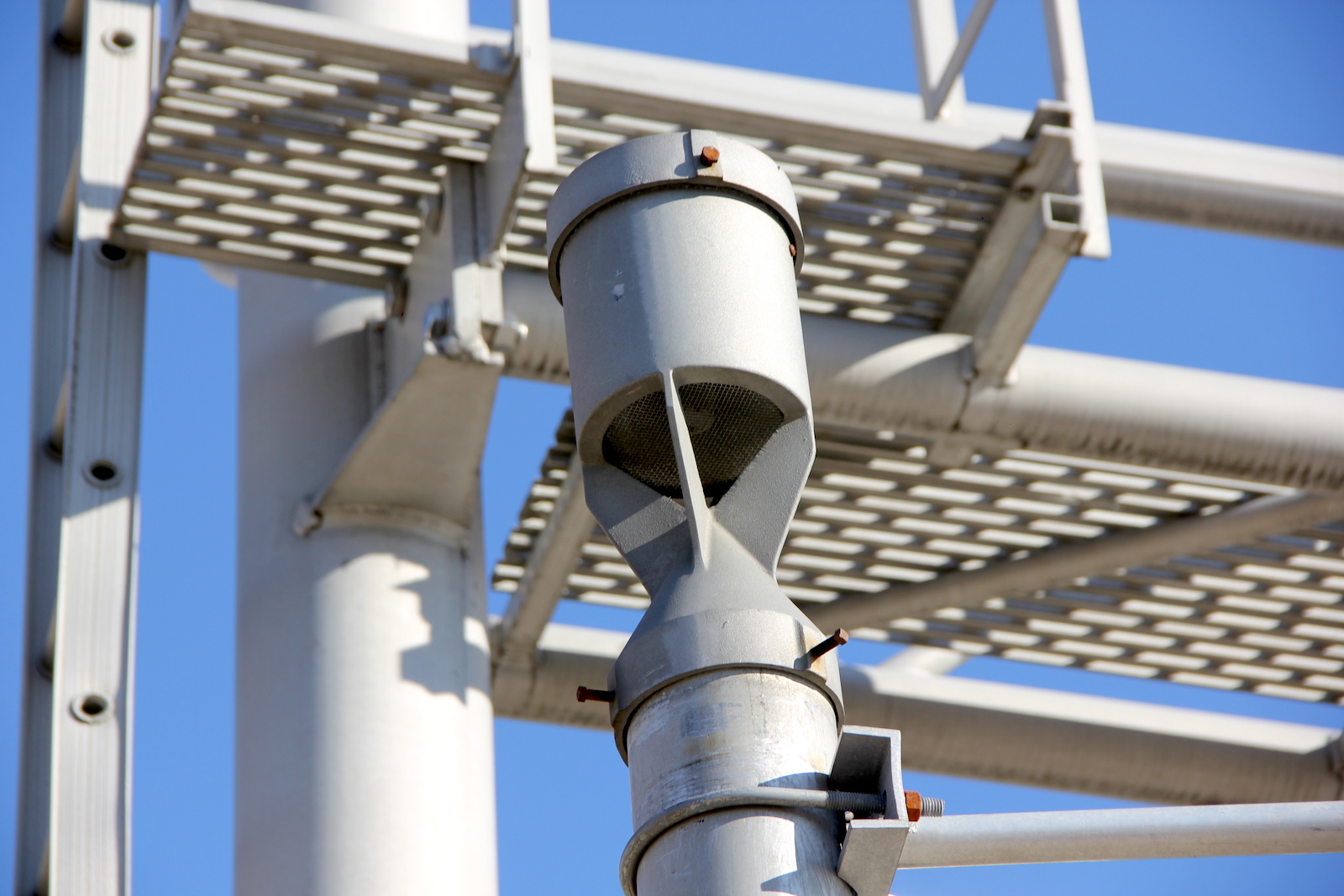

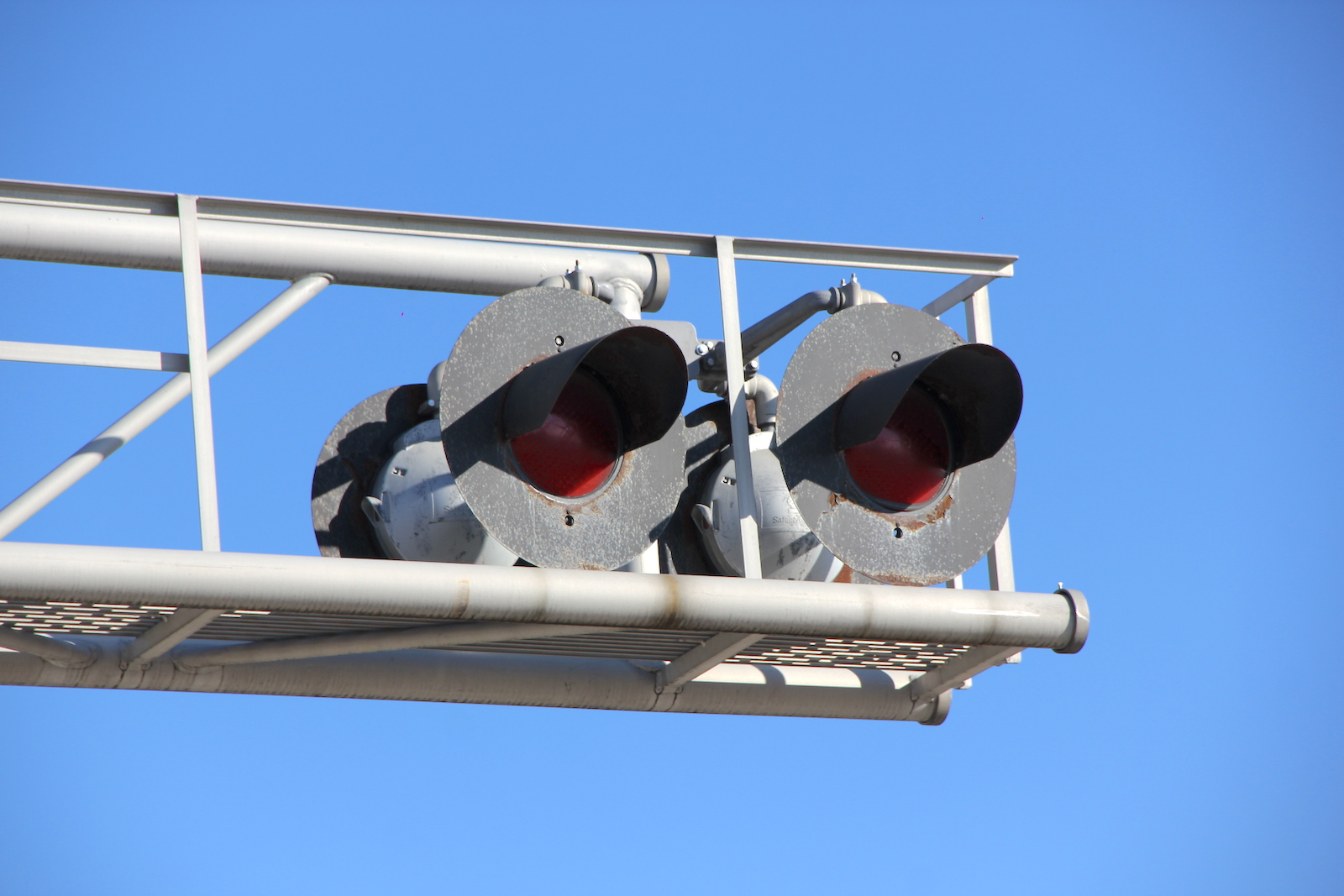

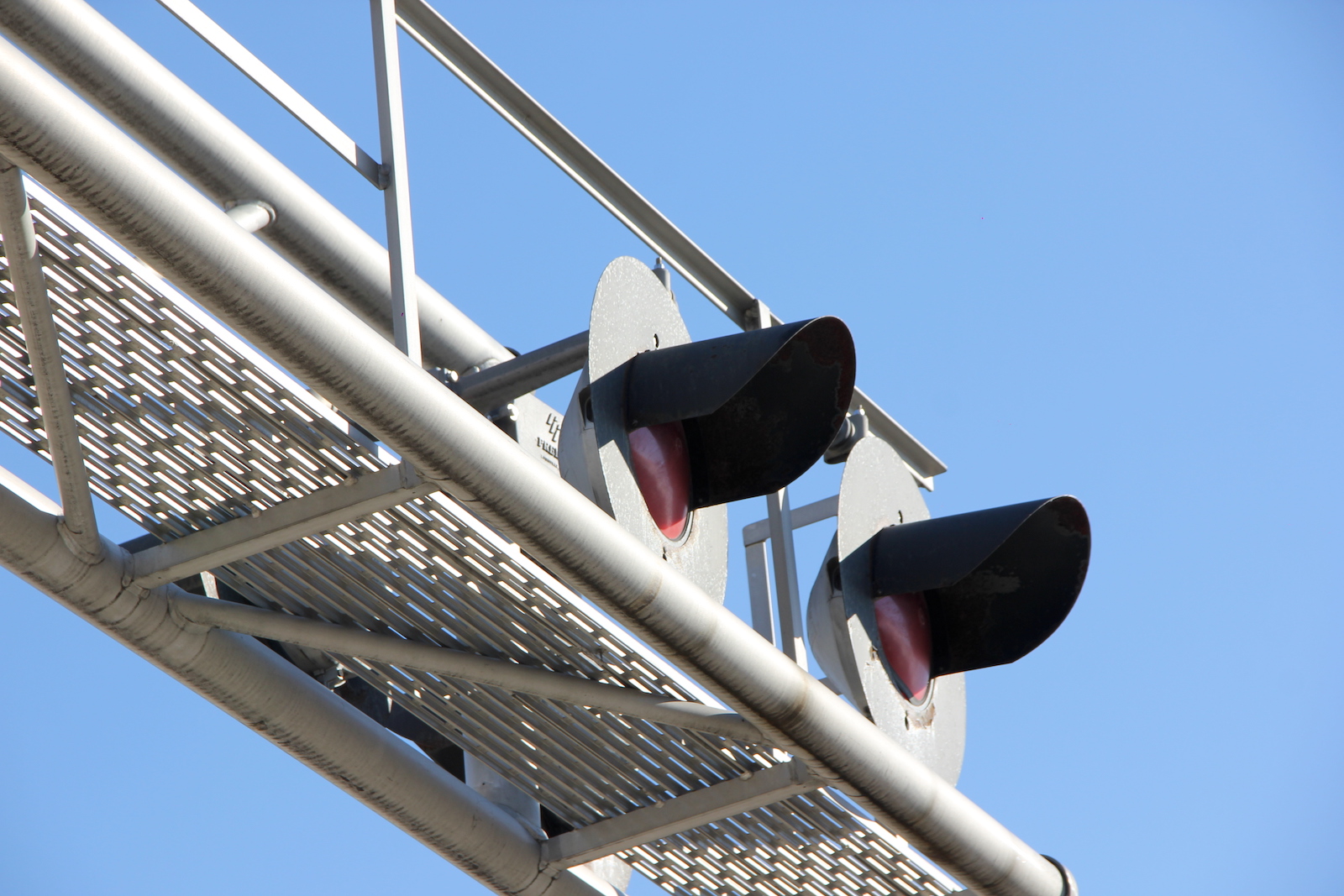

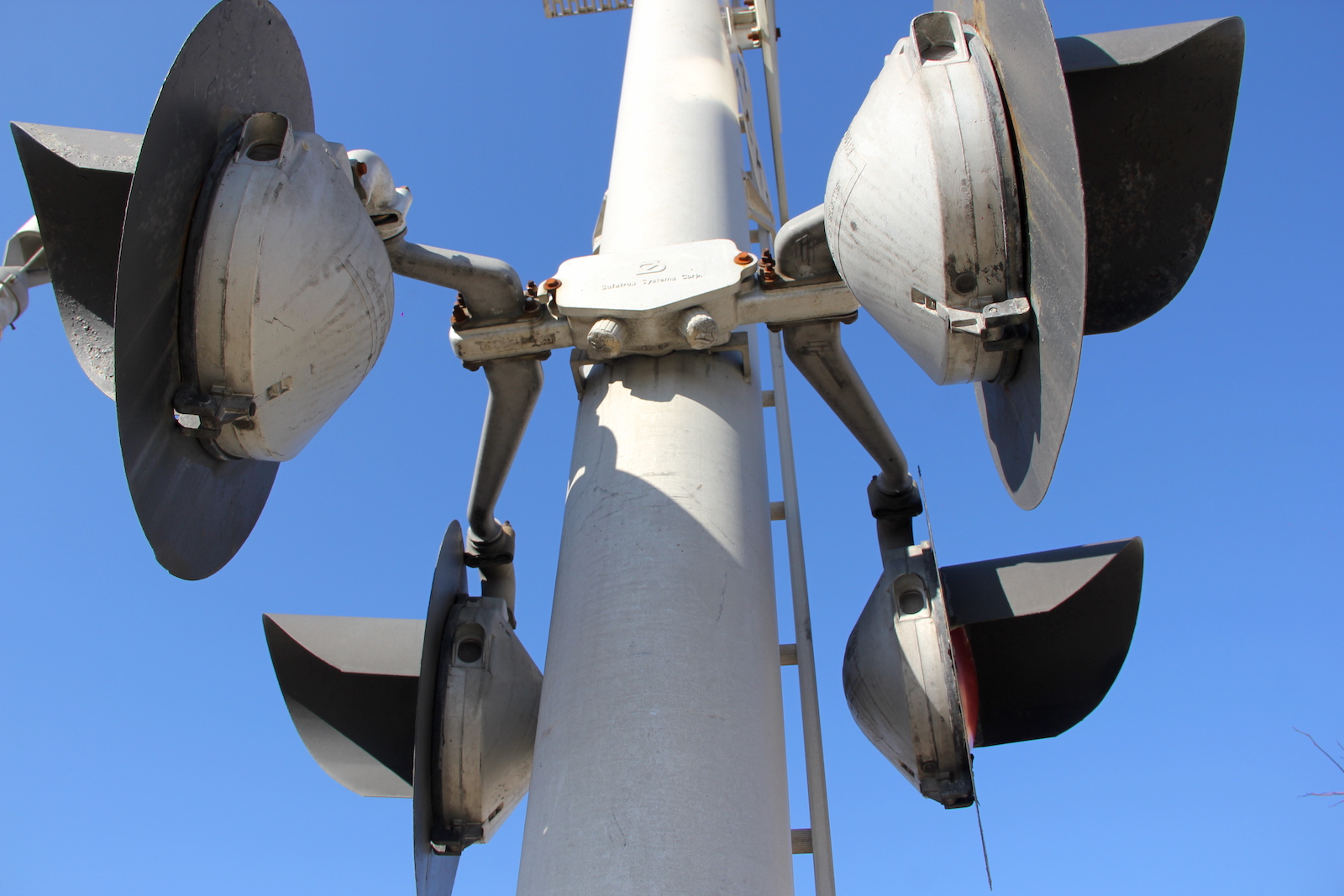

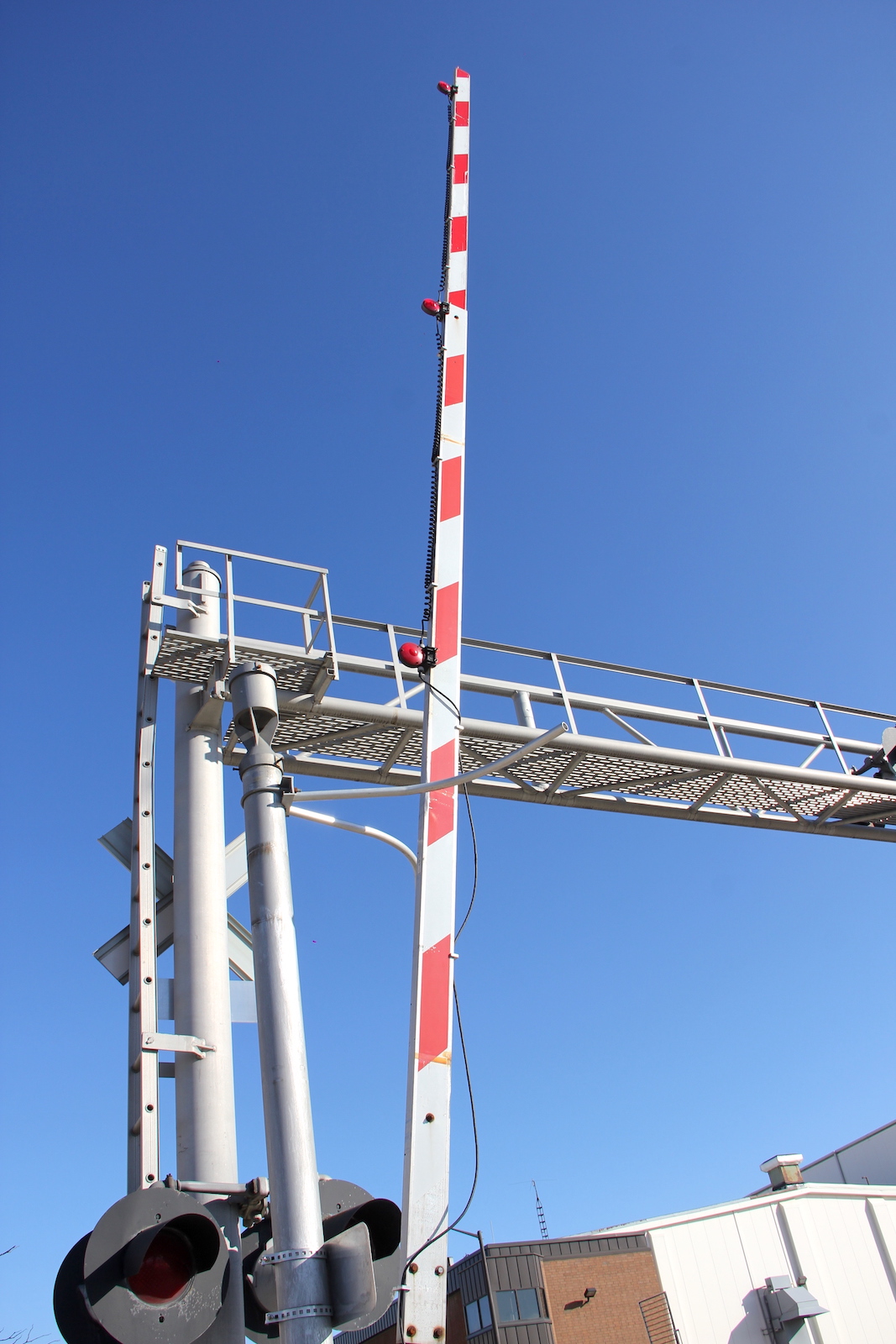

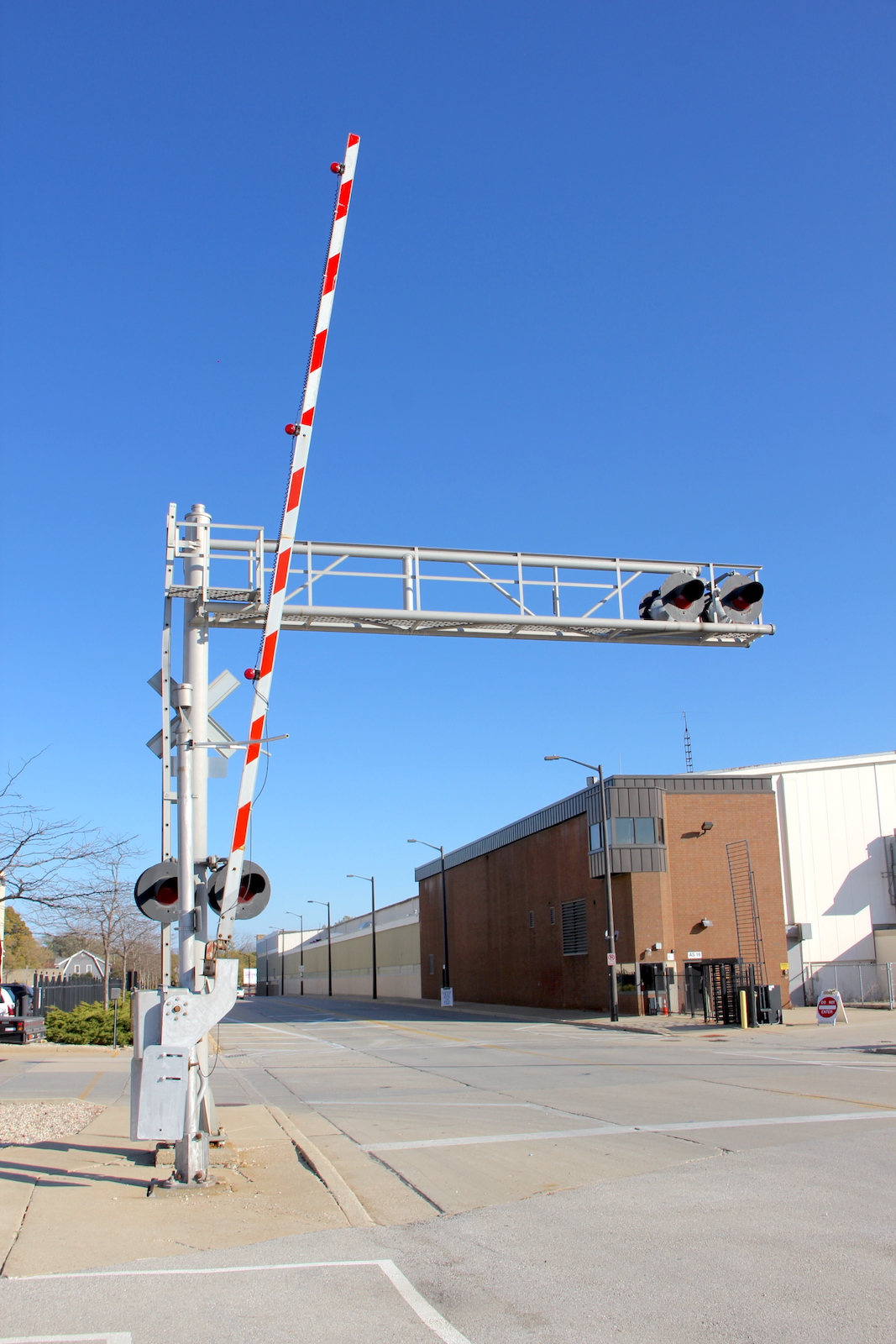

| The eastern signal. |
30
|
31
|
32
|
33
|

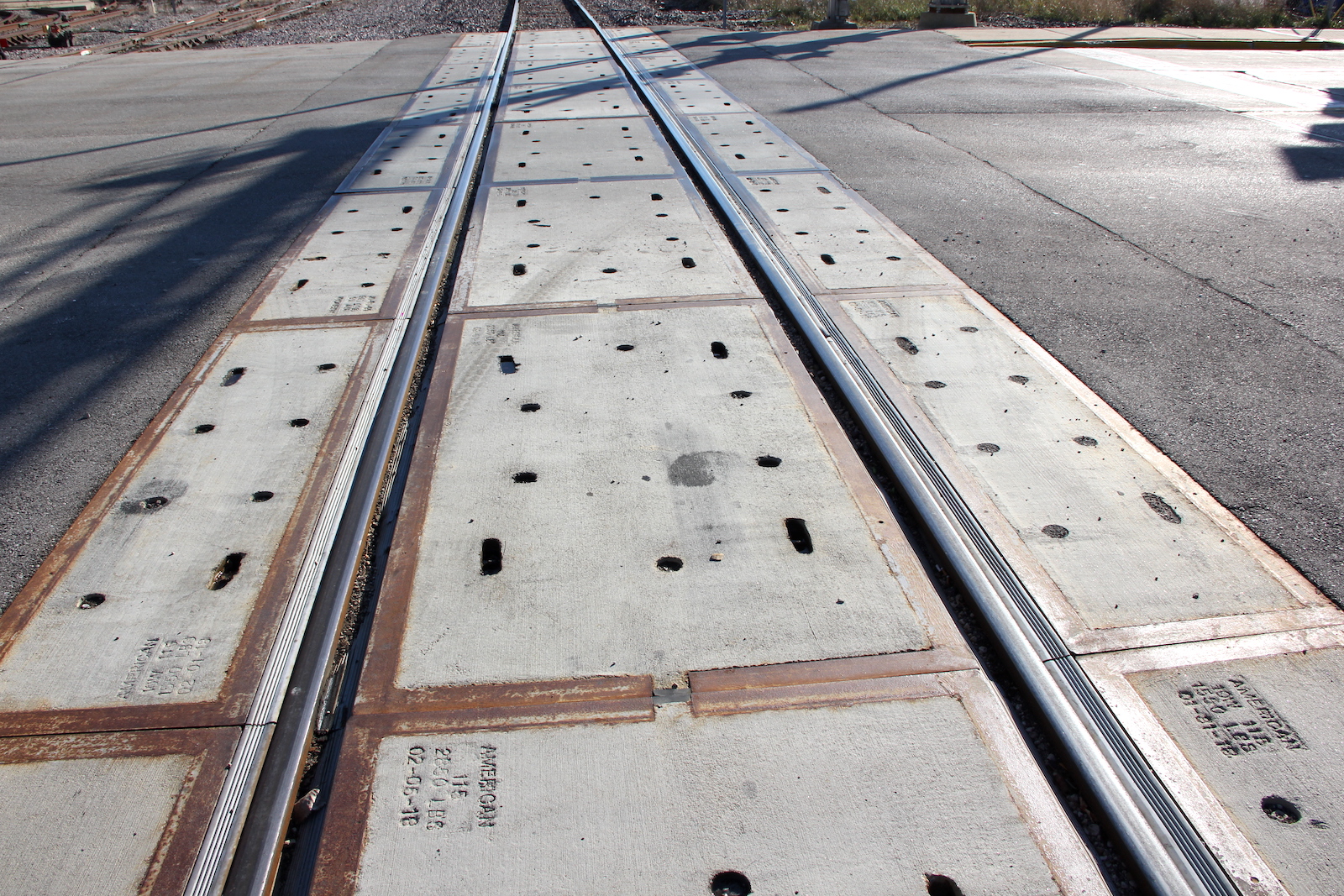

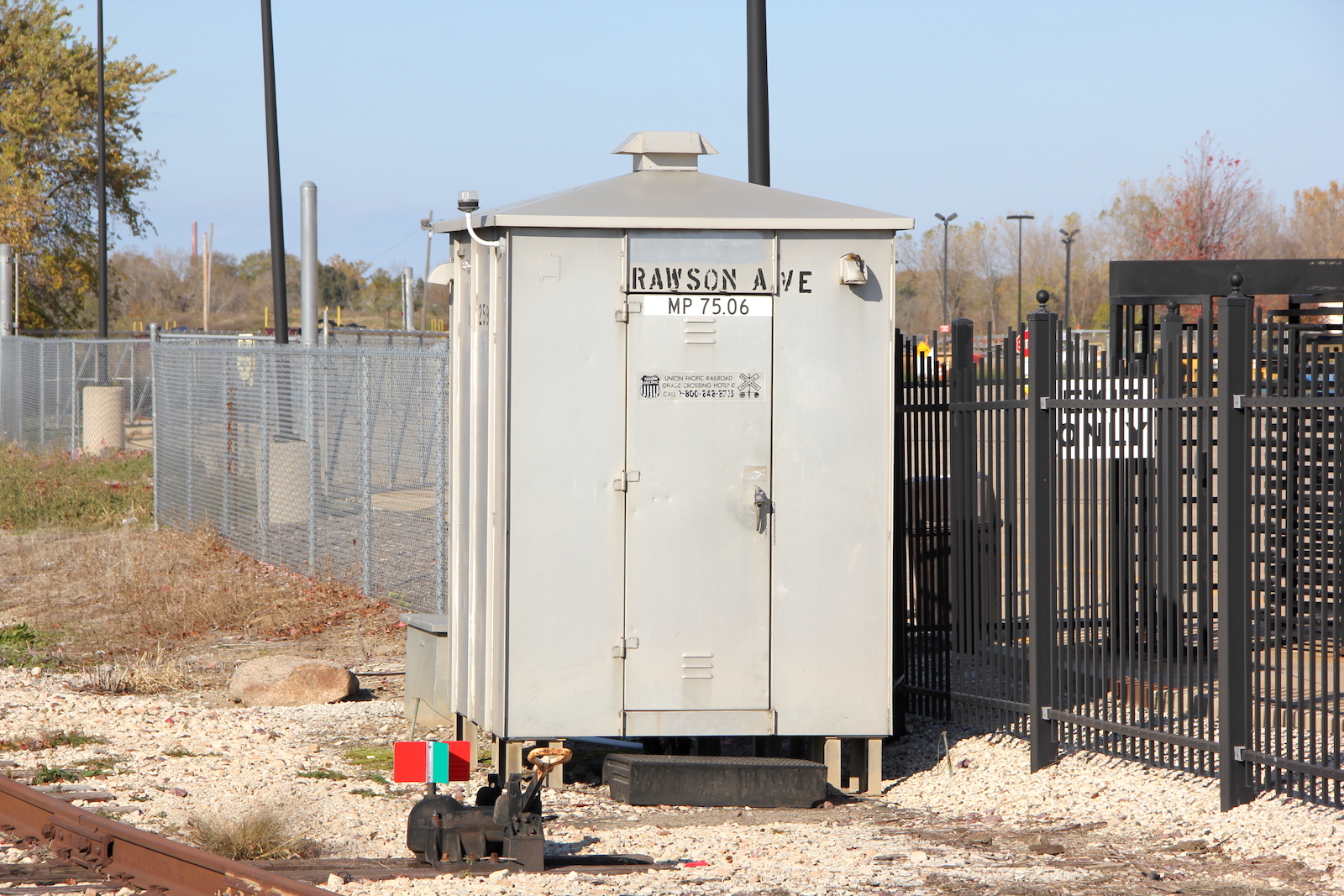

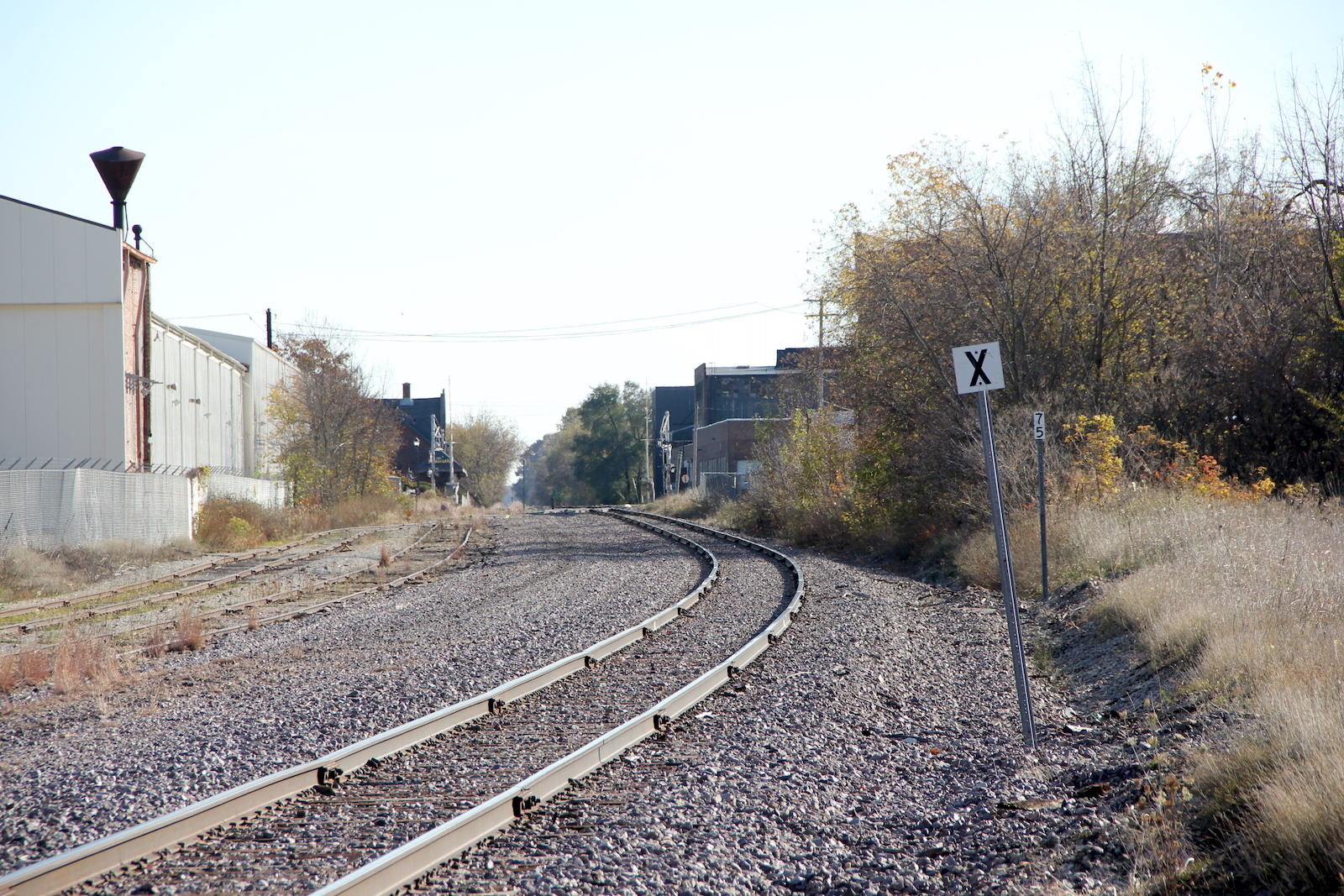

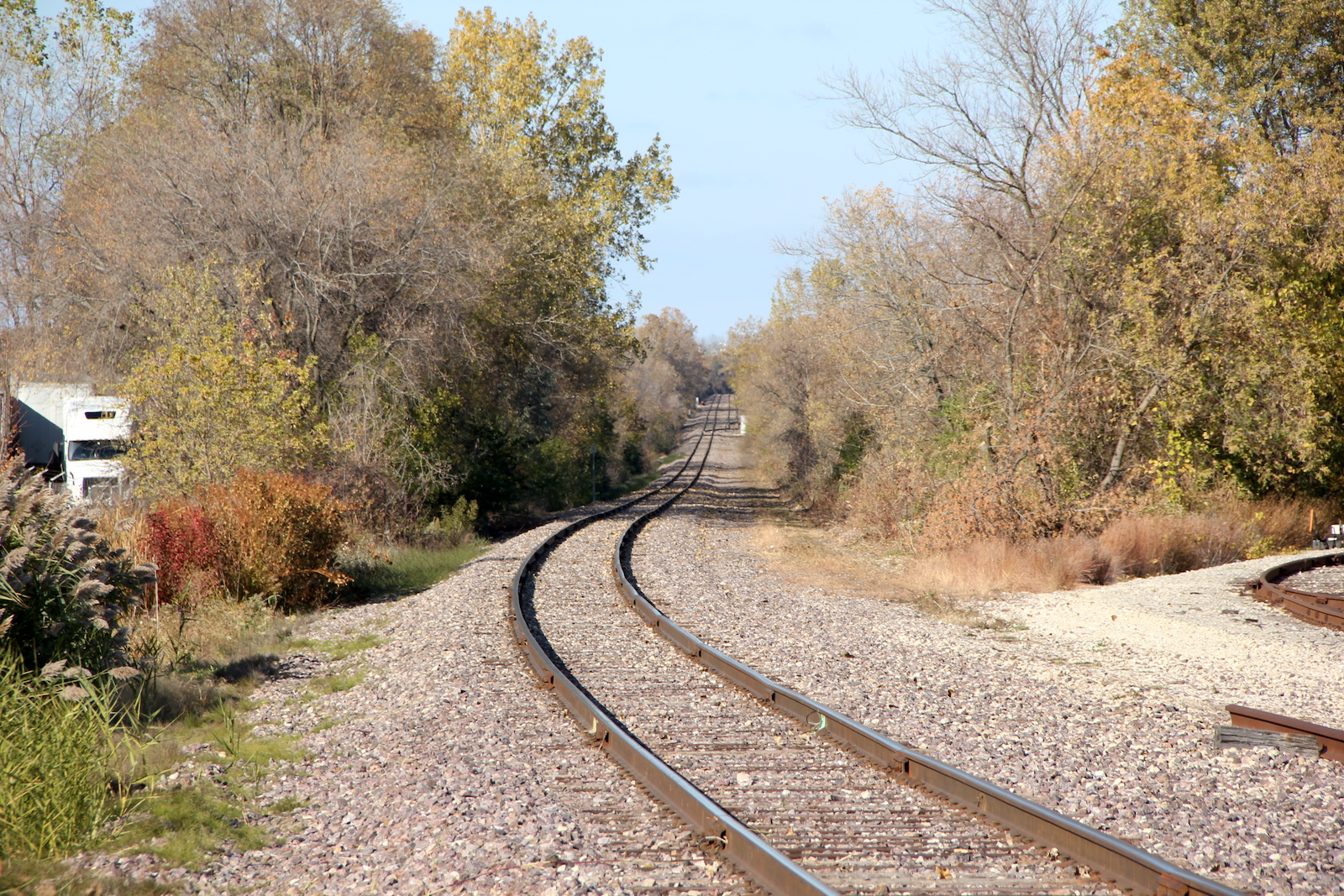

| The relay bungalow in the northeast quadrant. | The main track's grade is all concrete. | Track view facing north towards Ramsey Ave. in Cudahy. | Track view facing south towards Milwaukee Ave. |
34 |
35 |
36 |

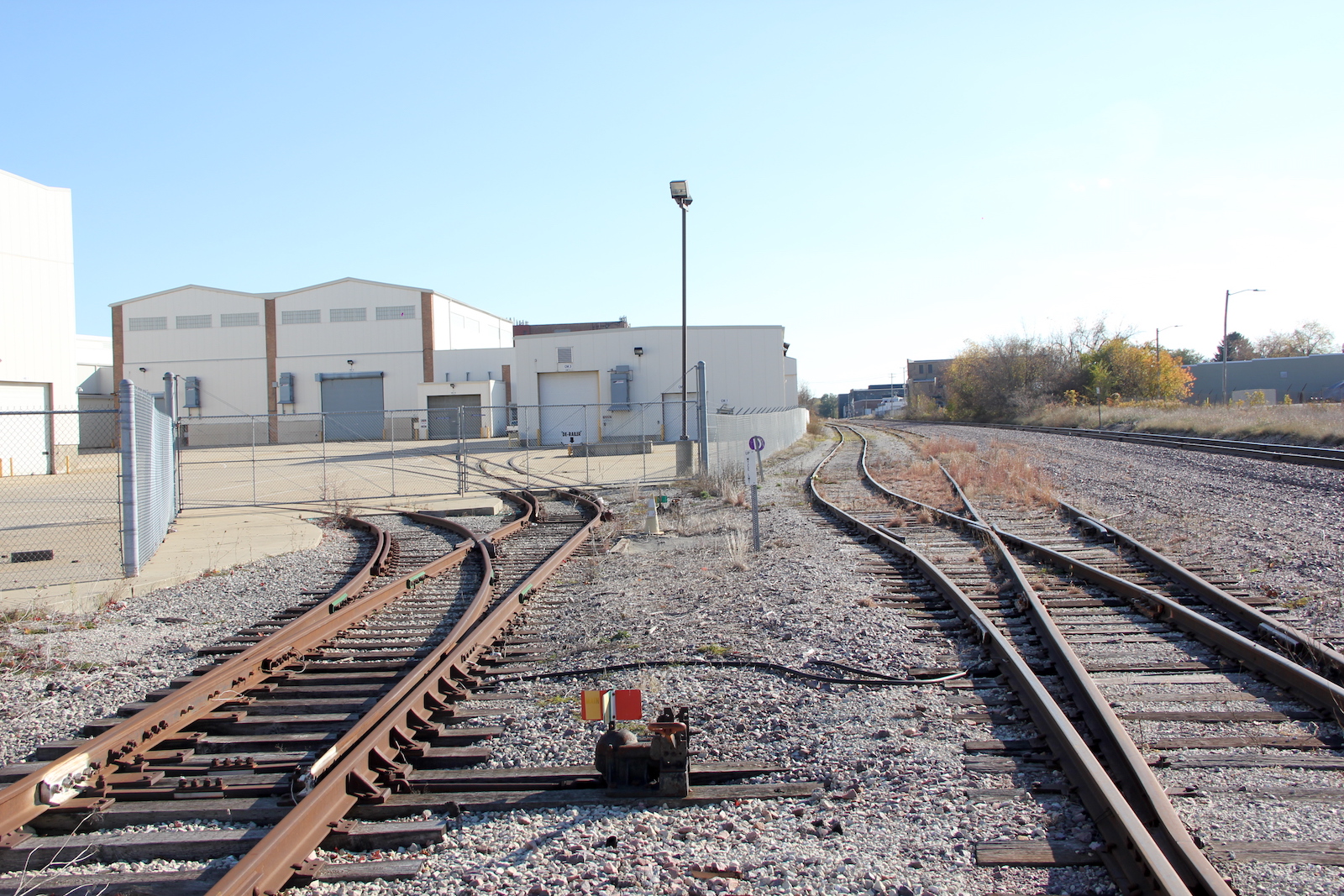

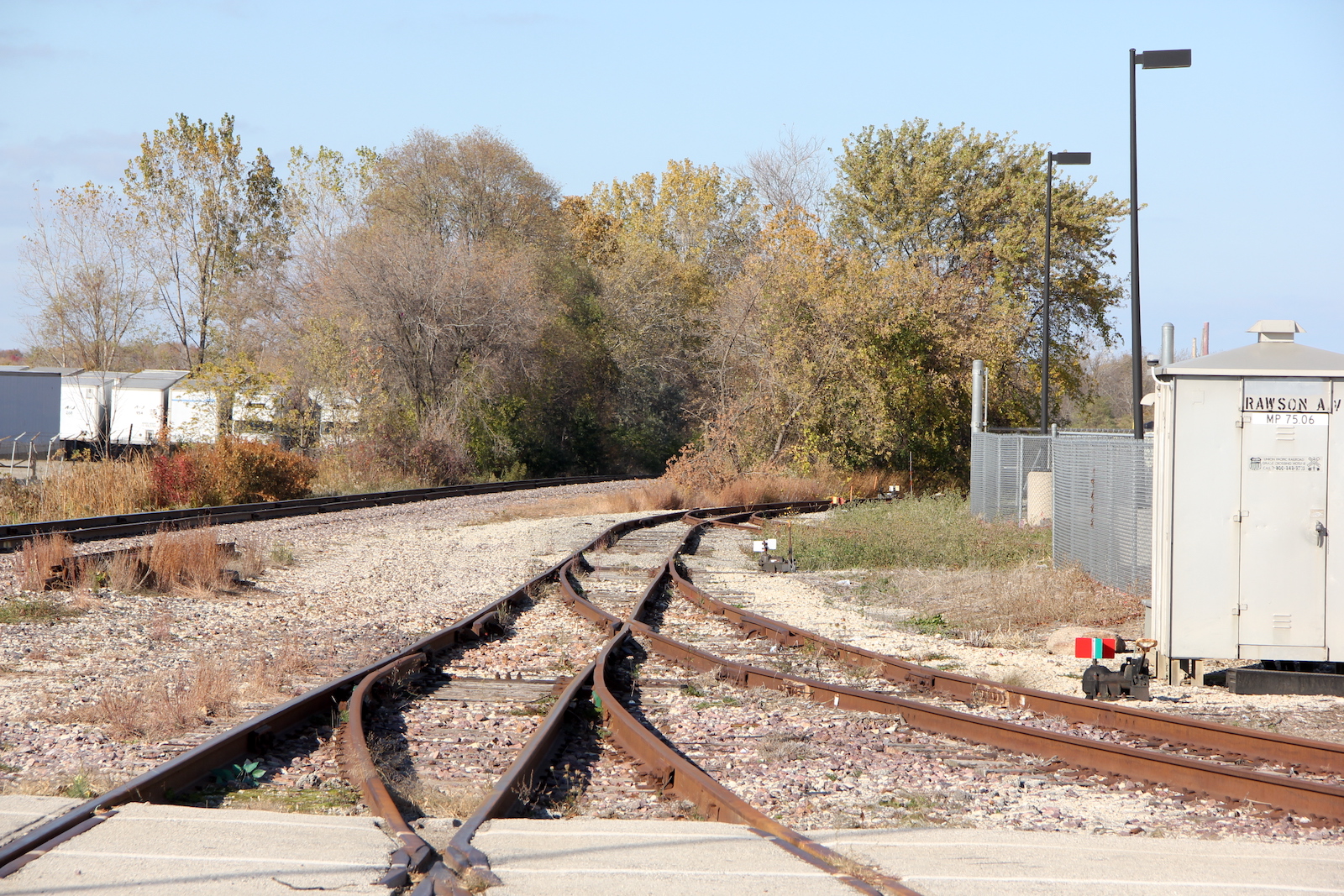

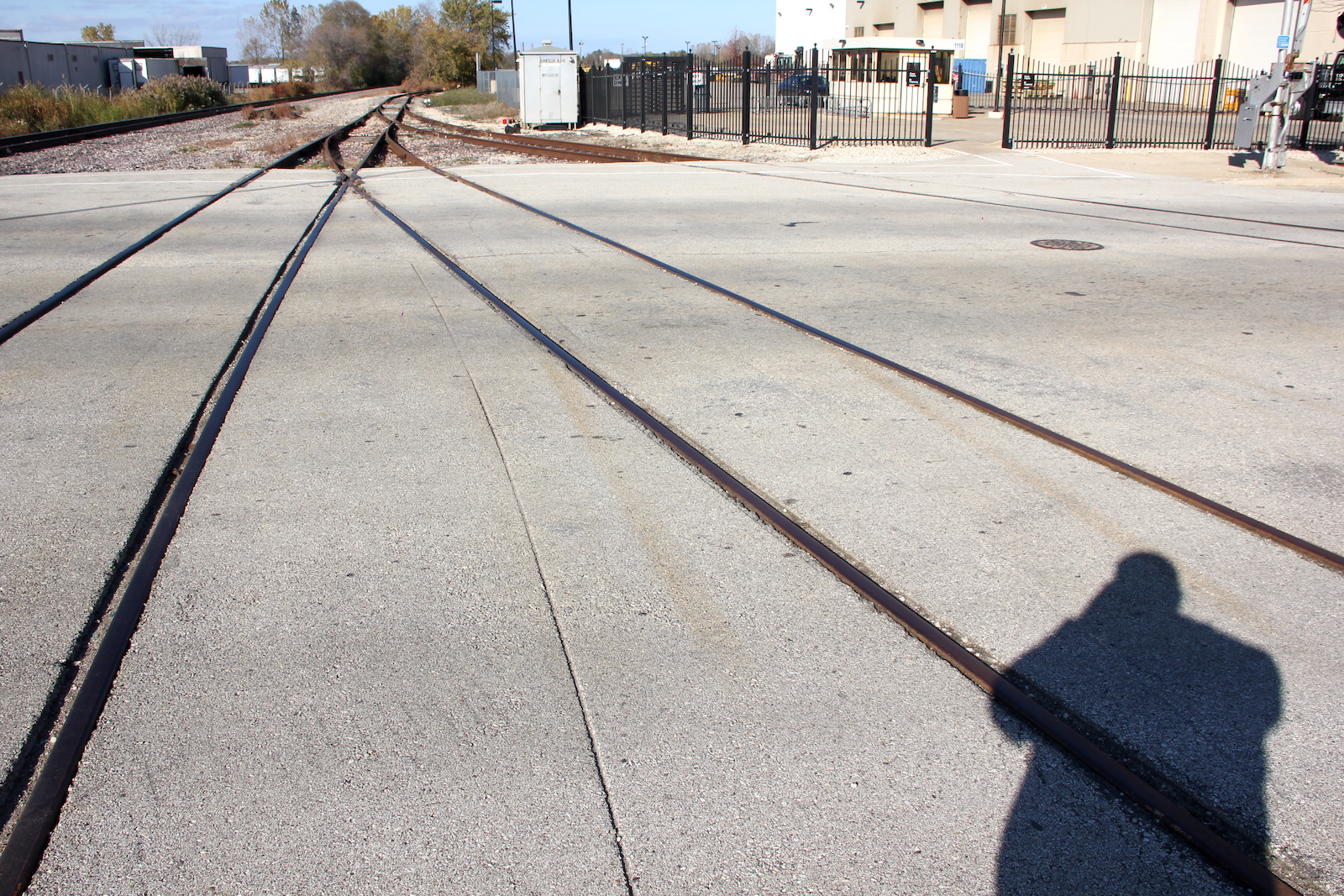

| The side tracks' grade is all asphalt. | Track view facing north on the side tracks. | Track view facing south on the side tracks. |
