>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: None Safetran Type 3 E Bell Low Tone
Base: Safetran Cantilever Safetran Cantilever
Lights: 10 - 12"x24" Safetran w/ Dialight Ball LEDs 10 - 12"x24" Safetran w/ Dialight Ball LEDs
Junction Boxes: Safetran Safetran
Gate Lights: 4" RECO LEDs 4" RECO LEDs
Gate Mechanism: US&S Model 95 Style 1 w/ WCH Gate Saver US&S Model 95 Style 1 w/ WCH Gate Saver
Gate Striping: Vertical & Diagonal Striping Vertical & Diagonal Striping

Pictures 1-6 were taken on May 25, 2008.
Pictures 7-14 were taken on December 30, 2008.
Pictures 15-44 and the video were taken on February 14, 2018.
All pictures and video were taken by Tommy McGowan.
This crossing is located on the CN Waukesha Sub.

1

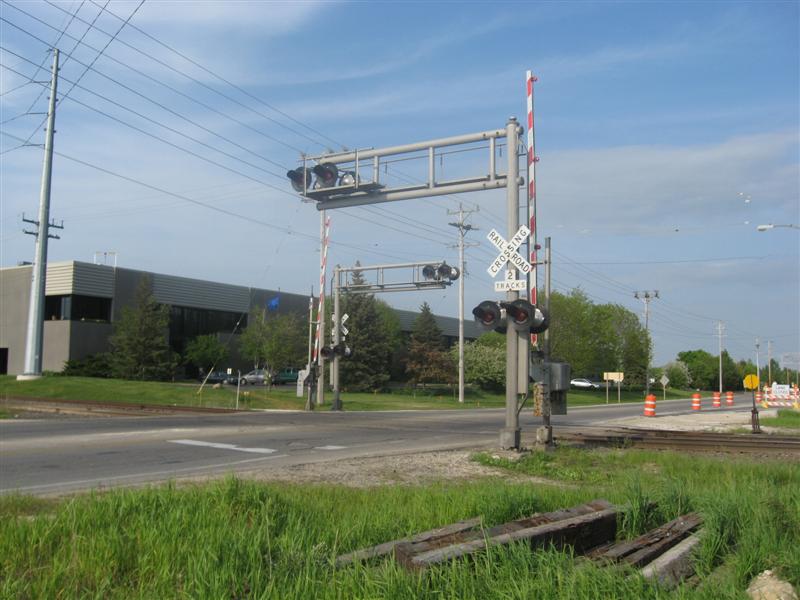

Overview of the crossing.
2 3 4 5

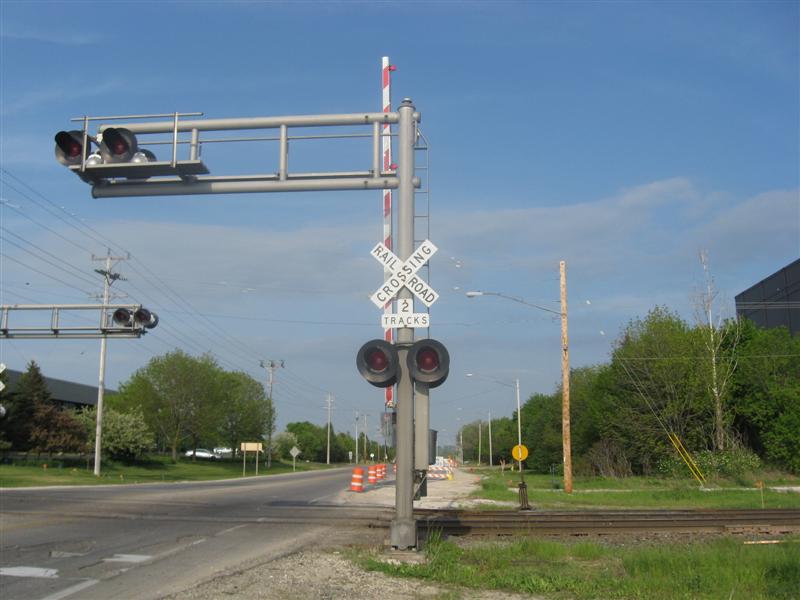

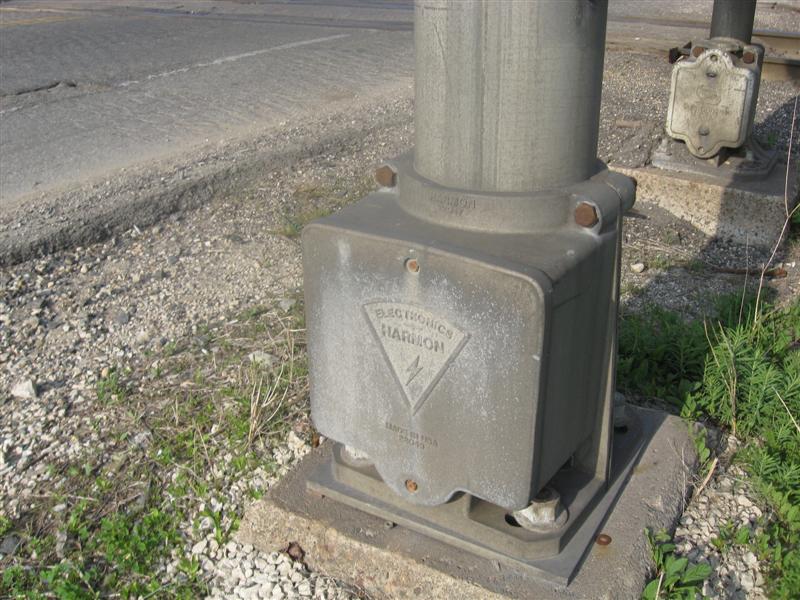

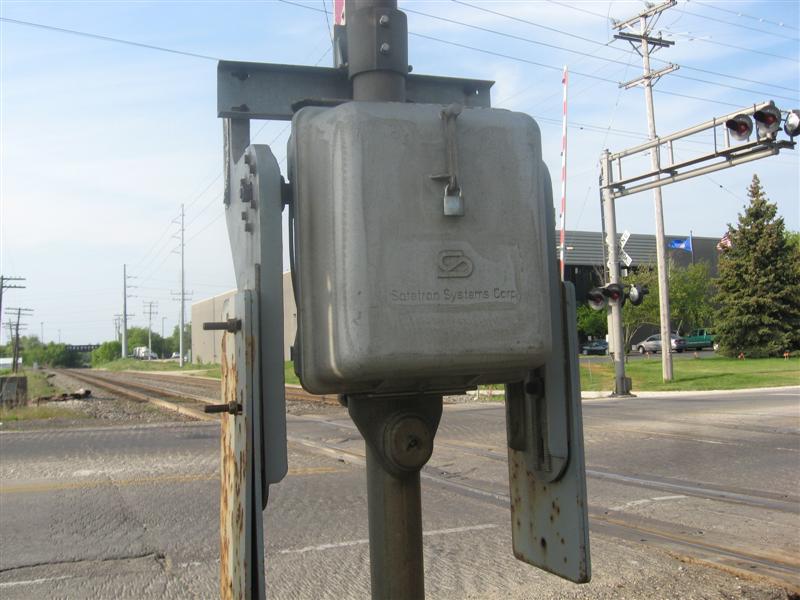

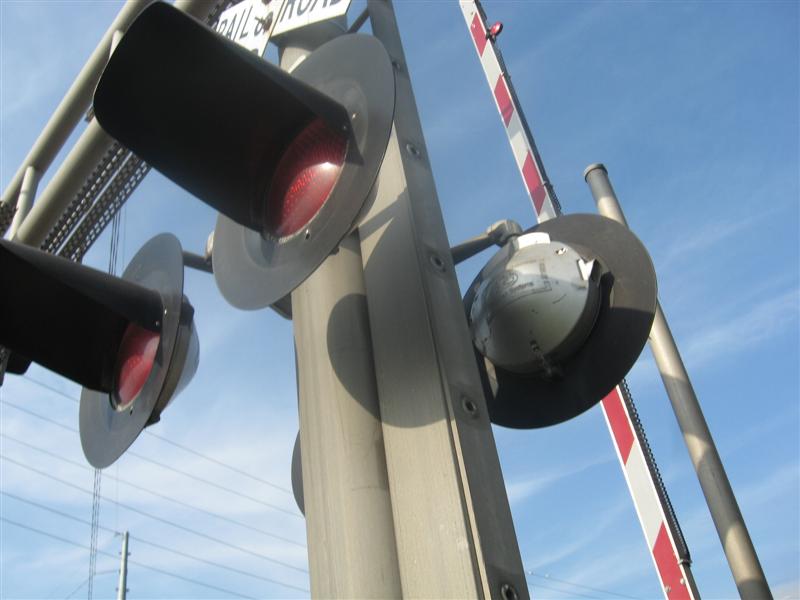

The western signal has a Harmon cantilever with Safetran 12"x24" incandescants and a Safetran gate mechanism.
6

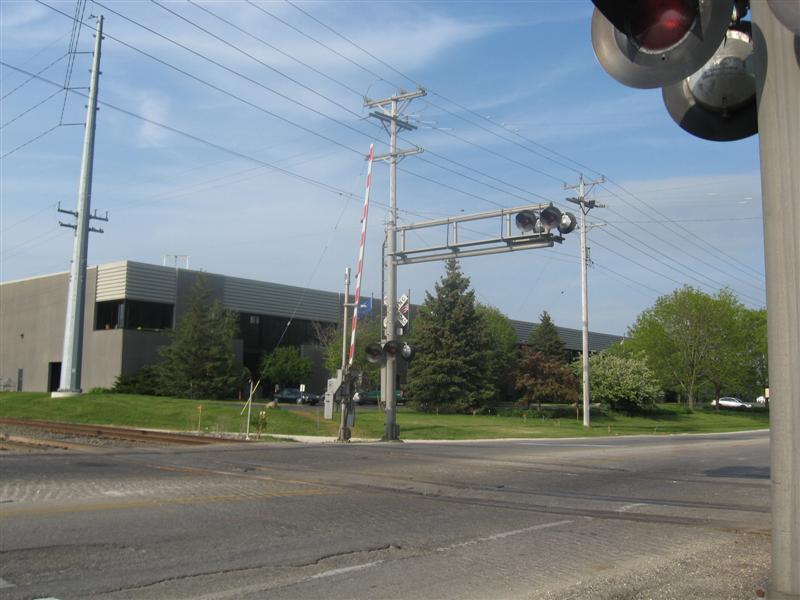

The eastern signal is the same but also has a GS Type 2 E Bell.

Note in Pictures 1 and 2 some construction going on to the west.  The road was in the process of being widened, and later in 2008, the signals were replaced with brand new cantilevers.

7 8 9 10
11 12 13 14

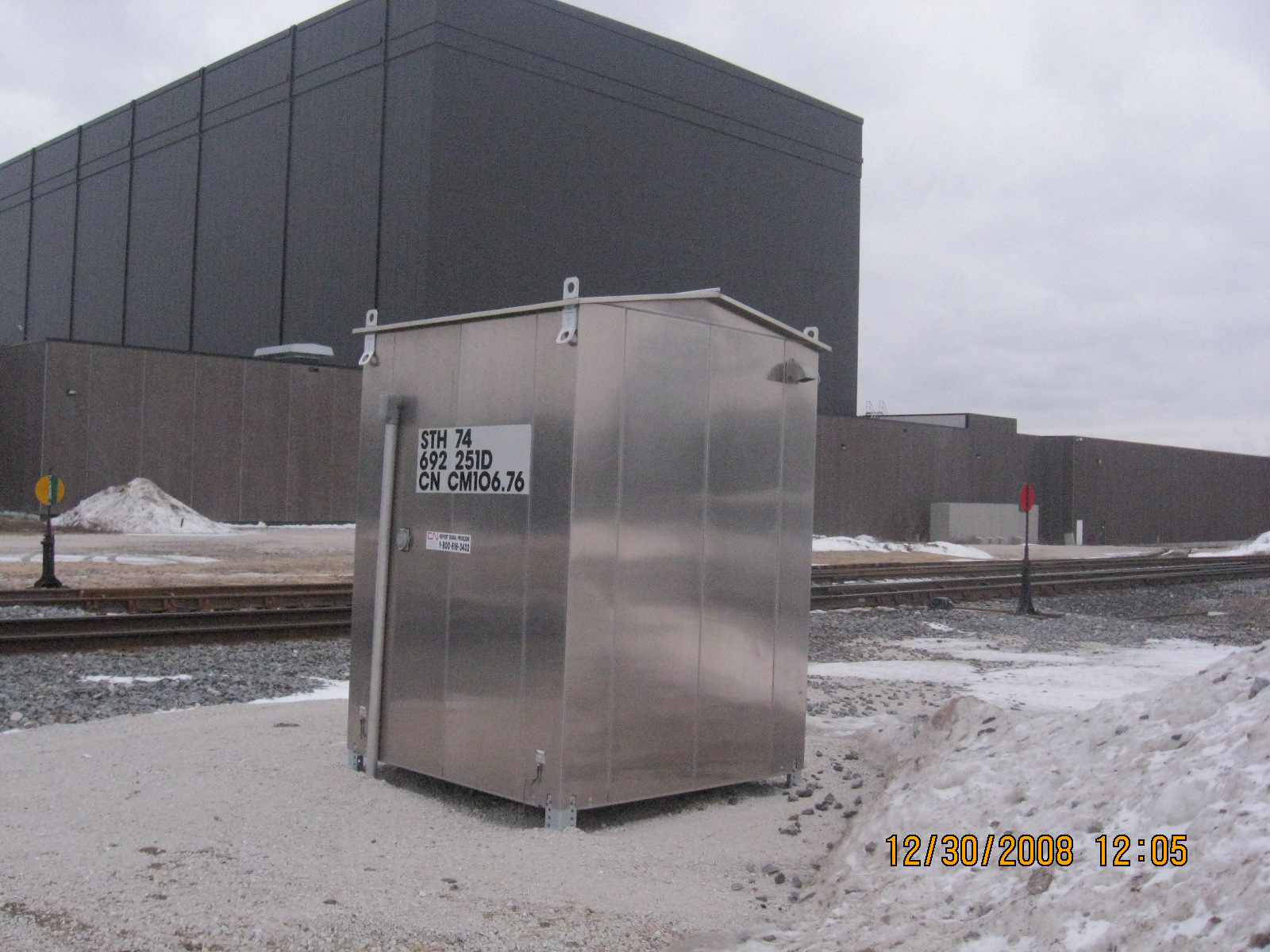

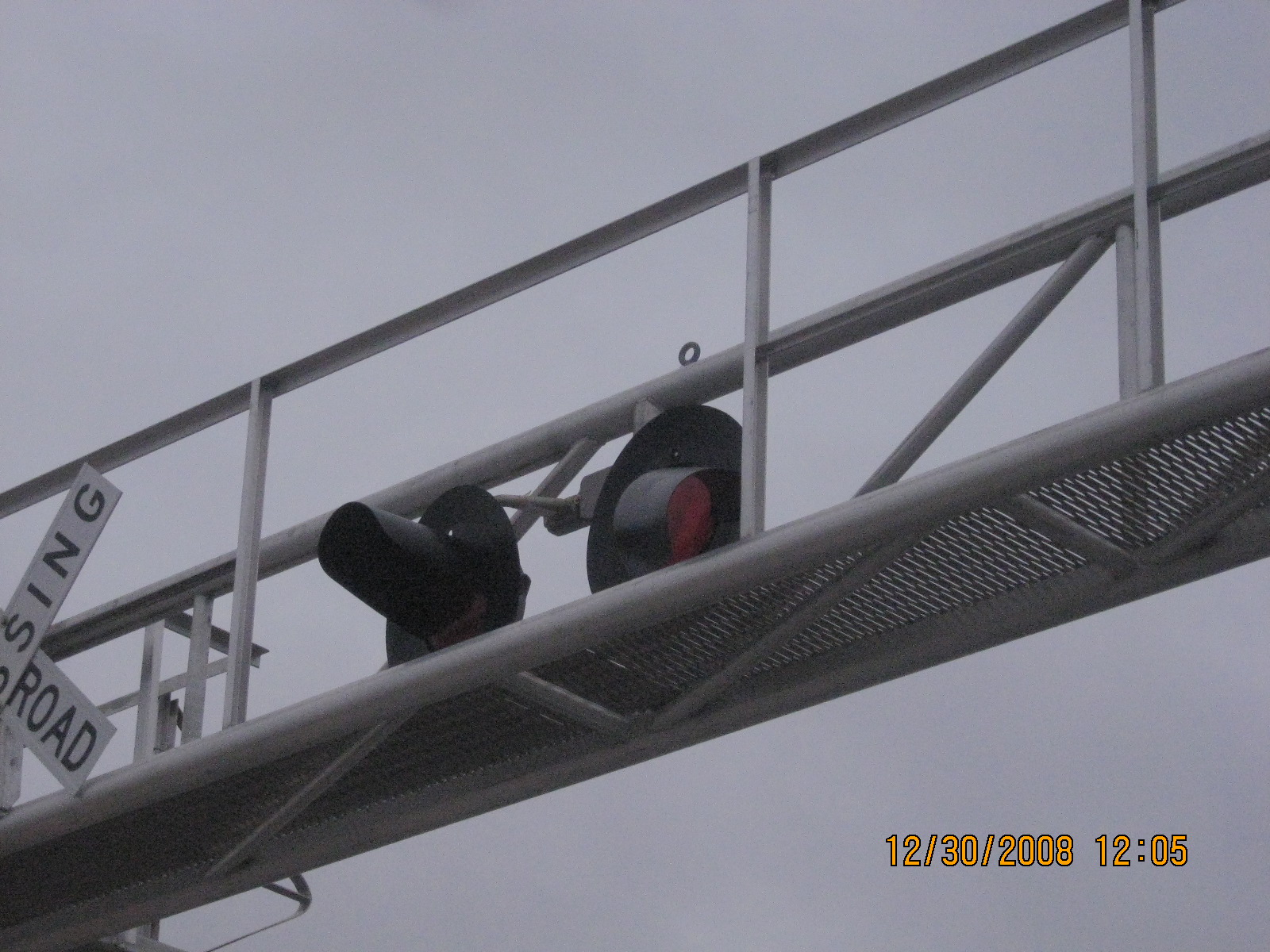

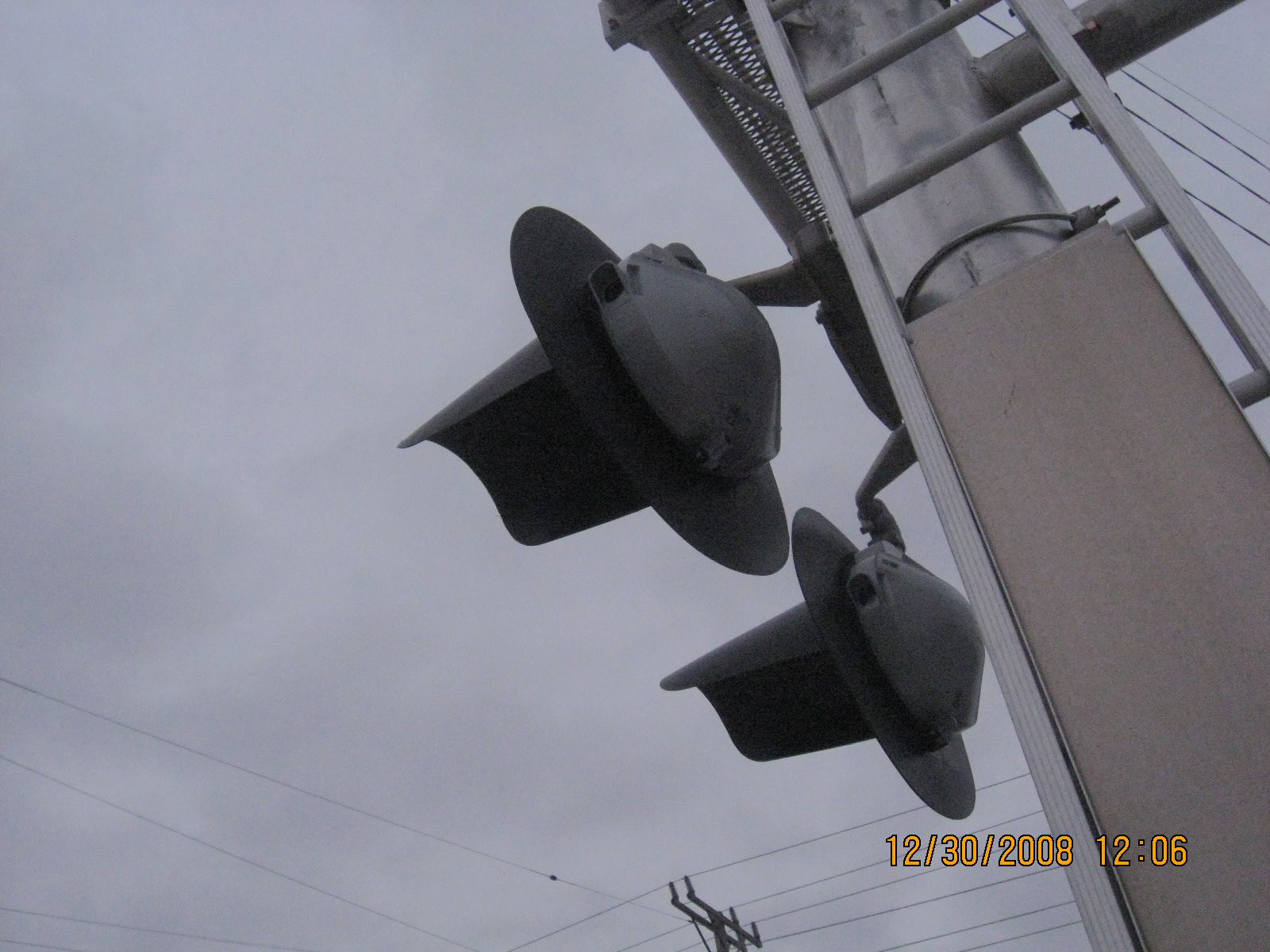

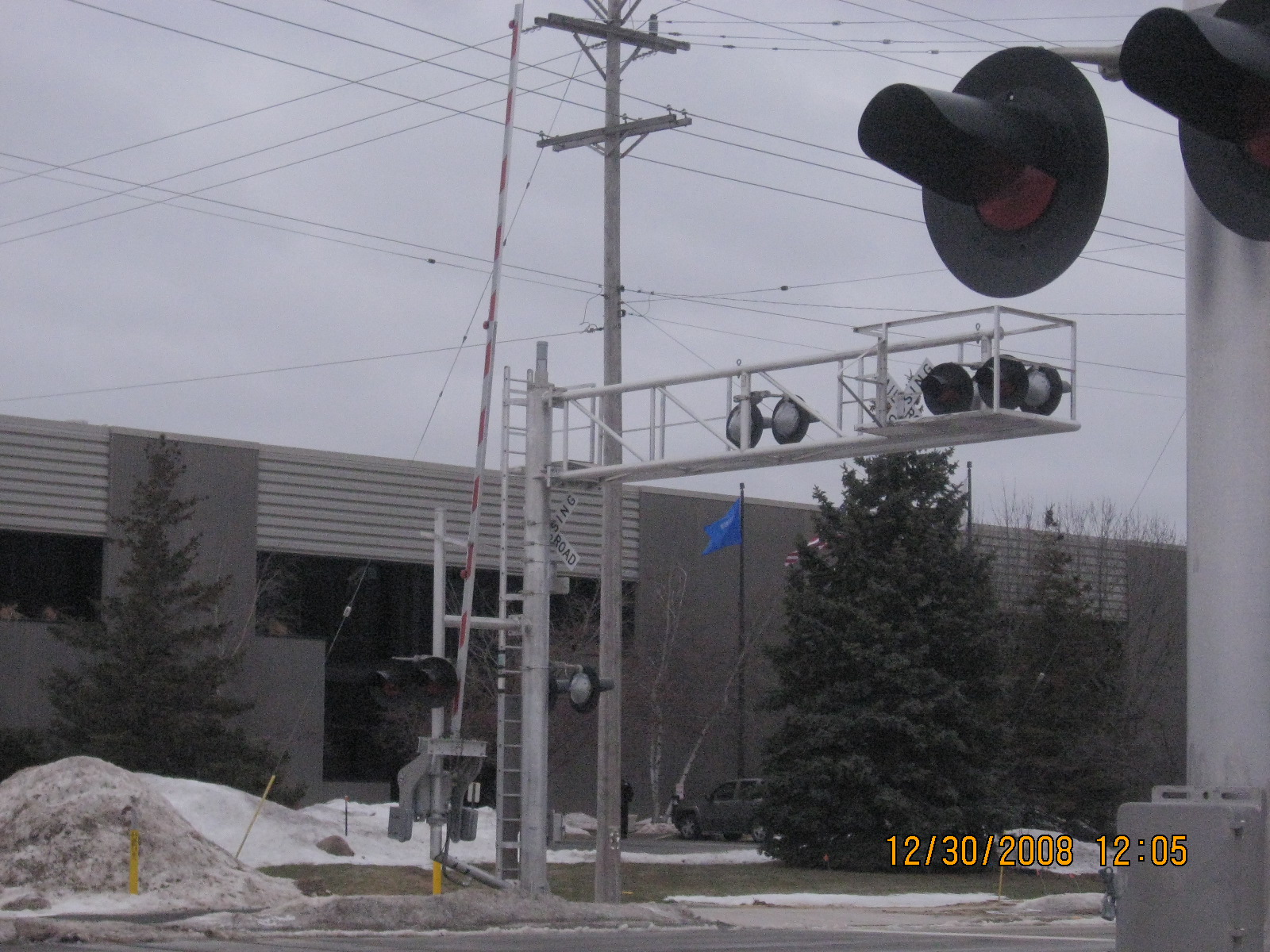

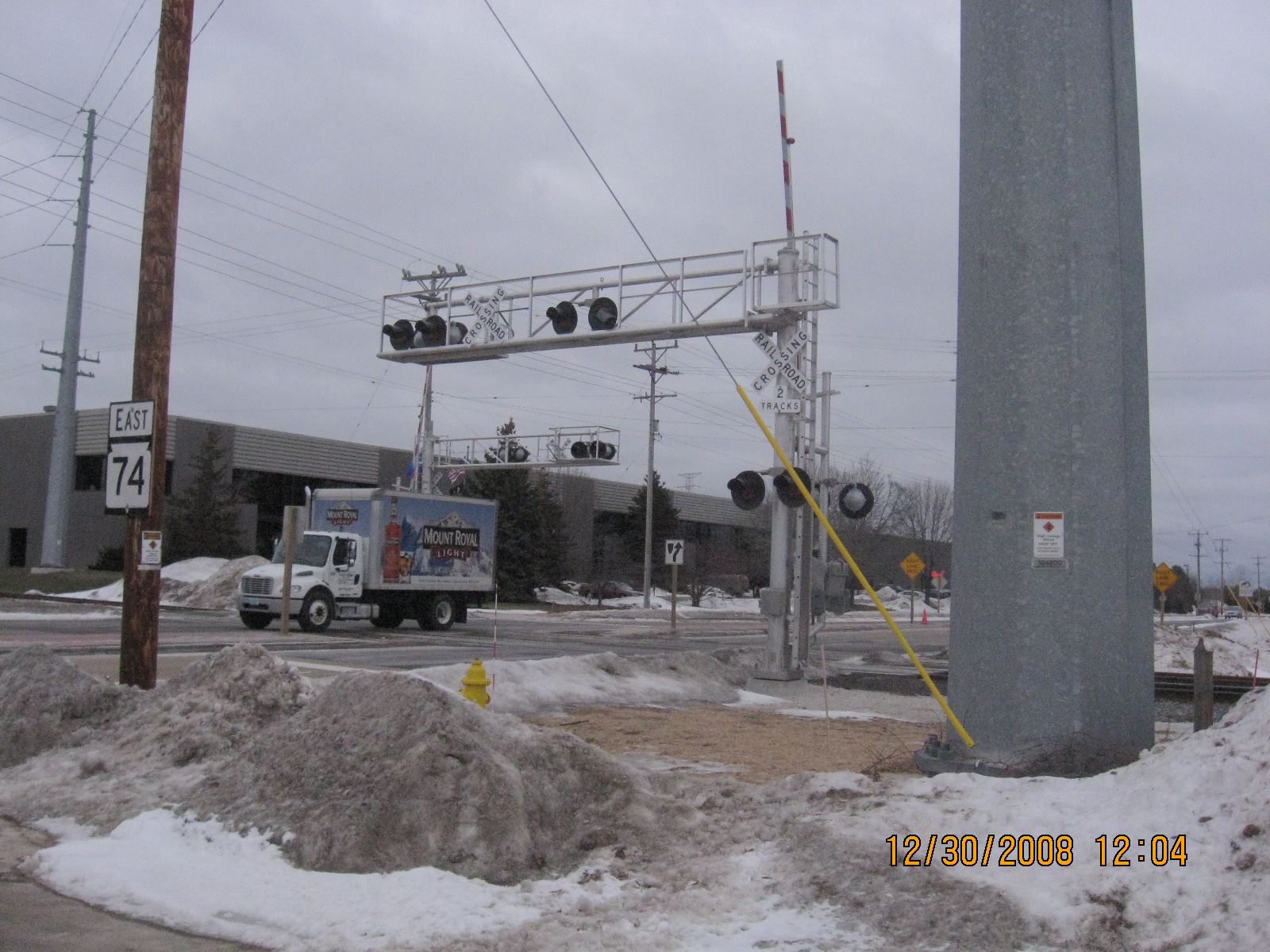

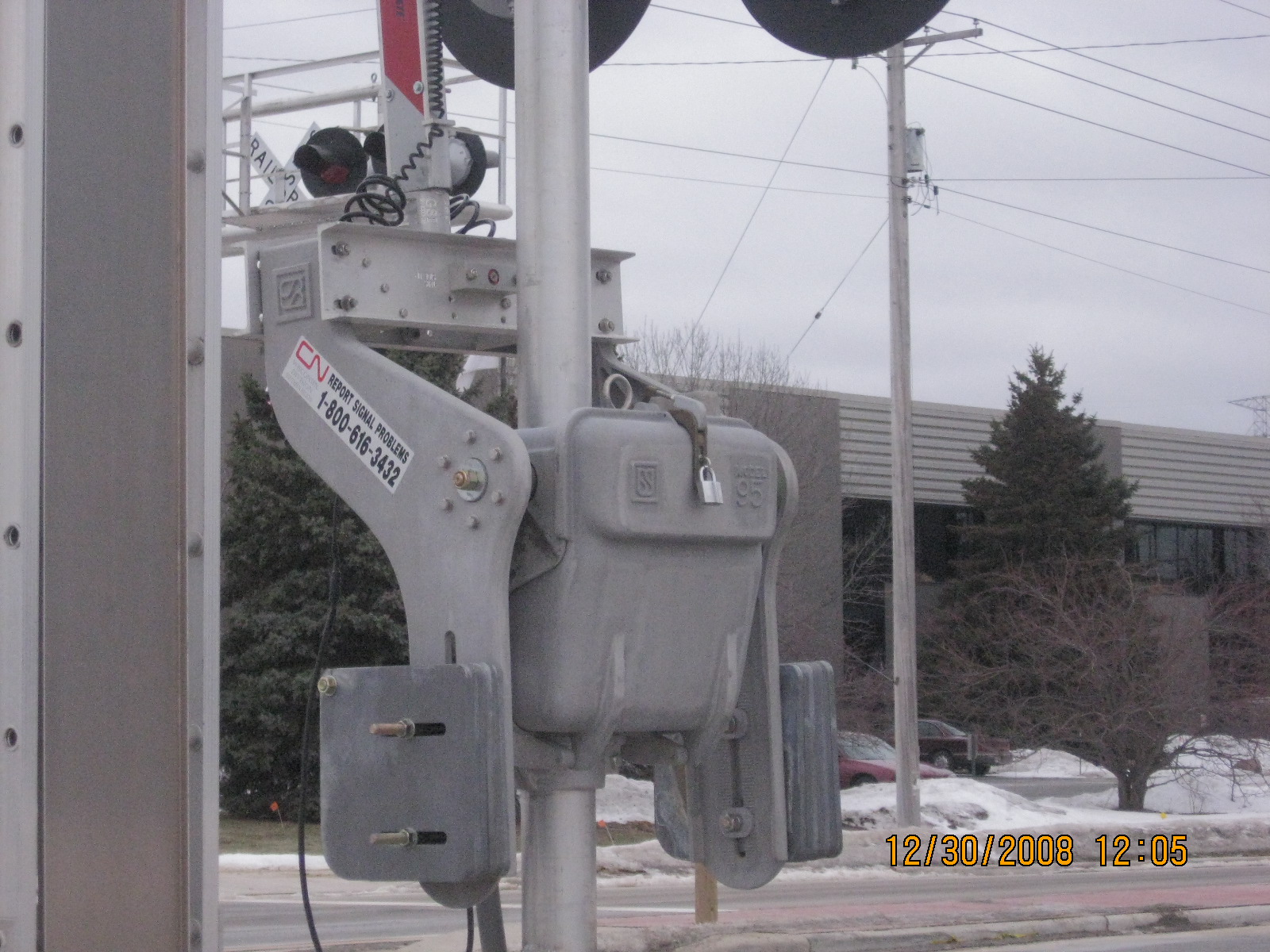

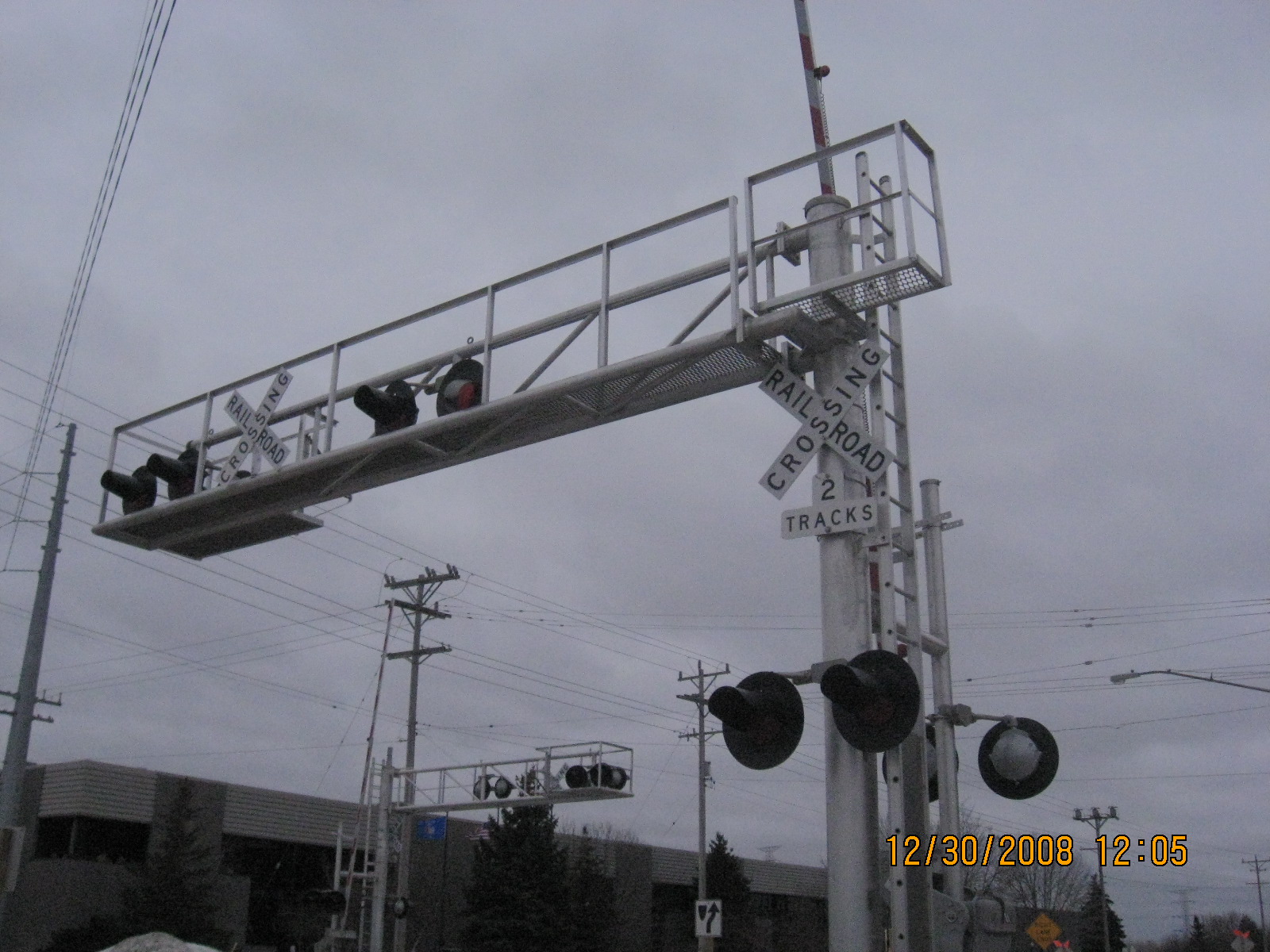

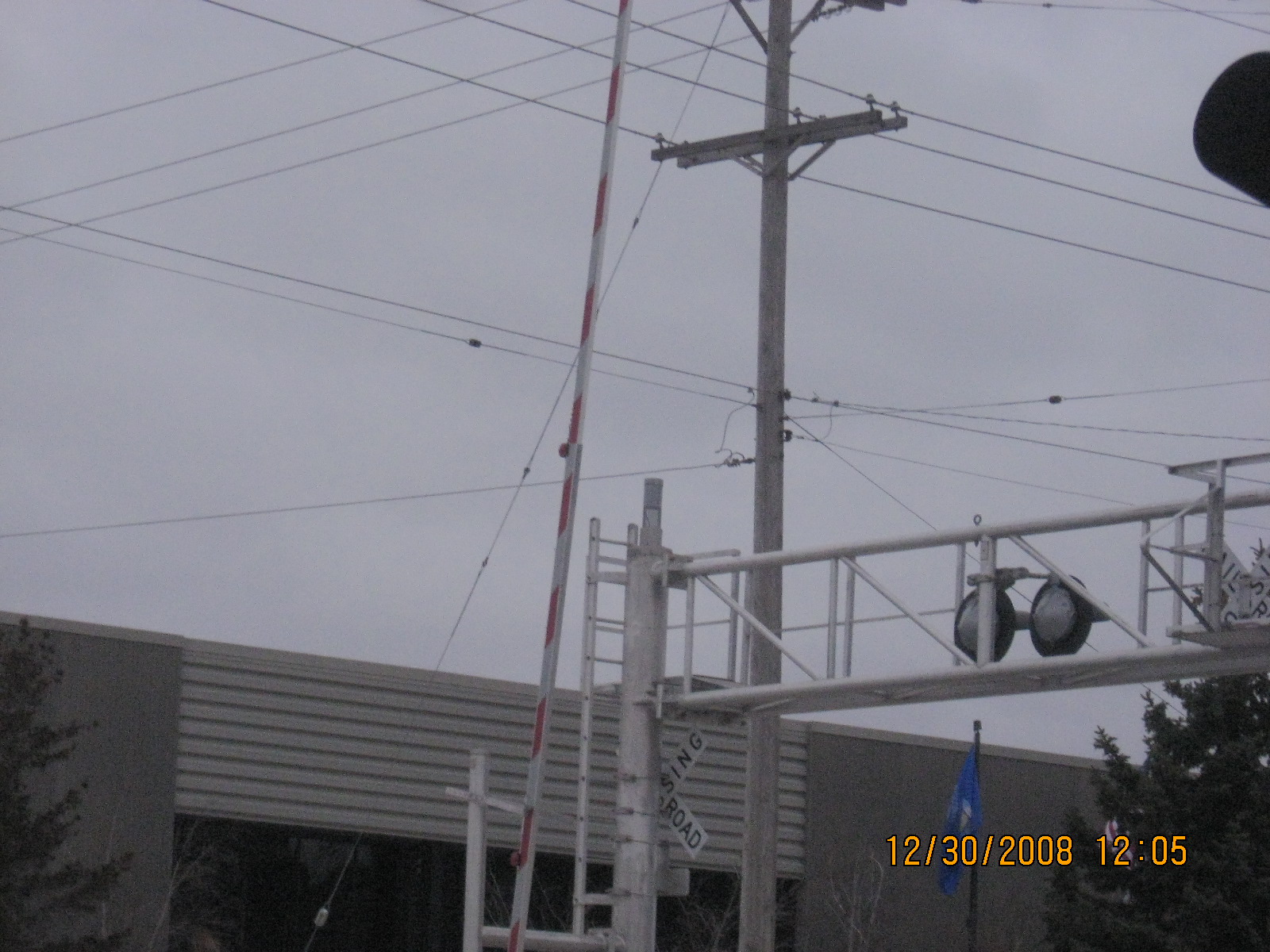

Photos of the new setup. I didn't get full photos at the time, but I returned in 2018 to get those. By that point, the gates were partially restriped.
15 16

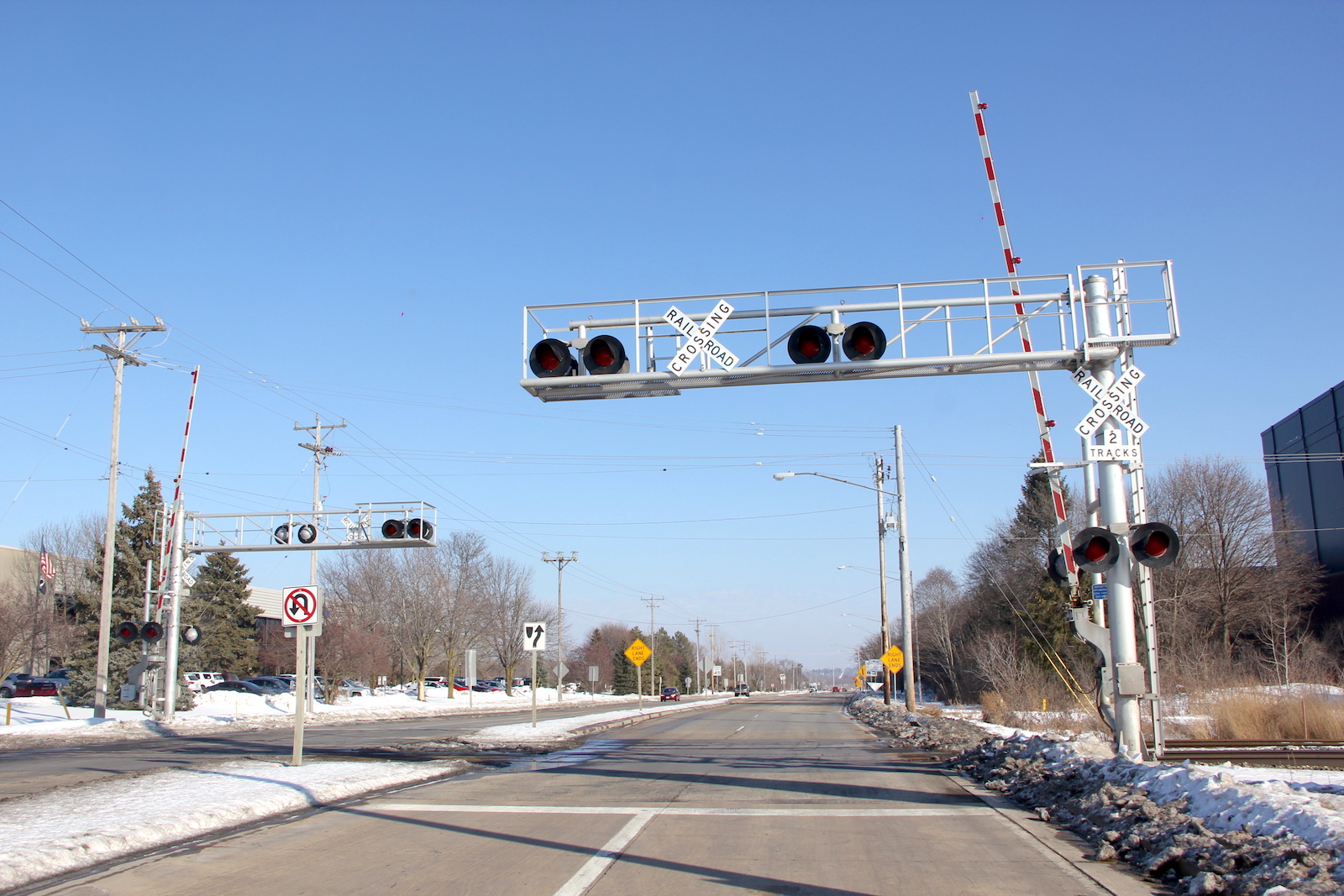

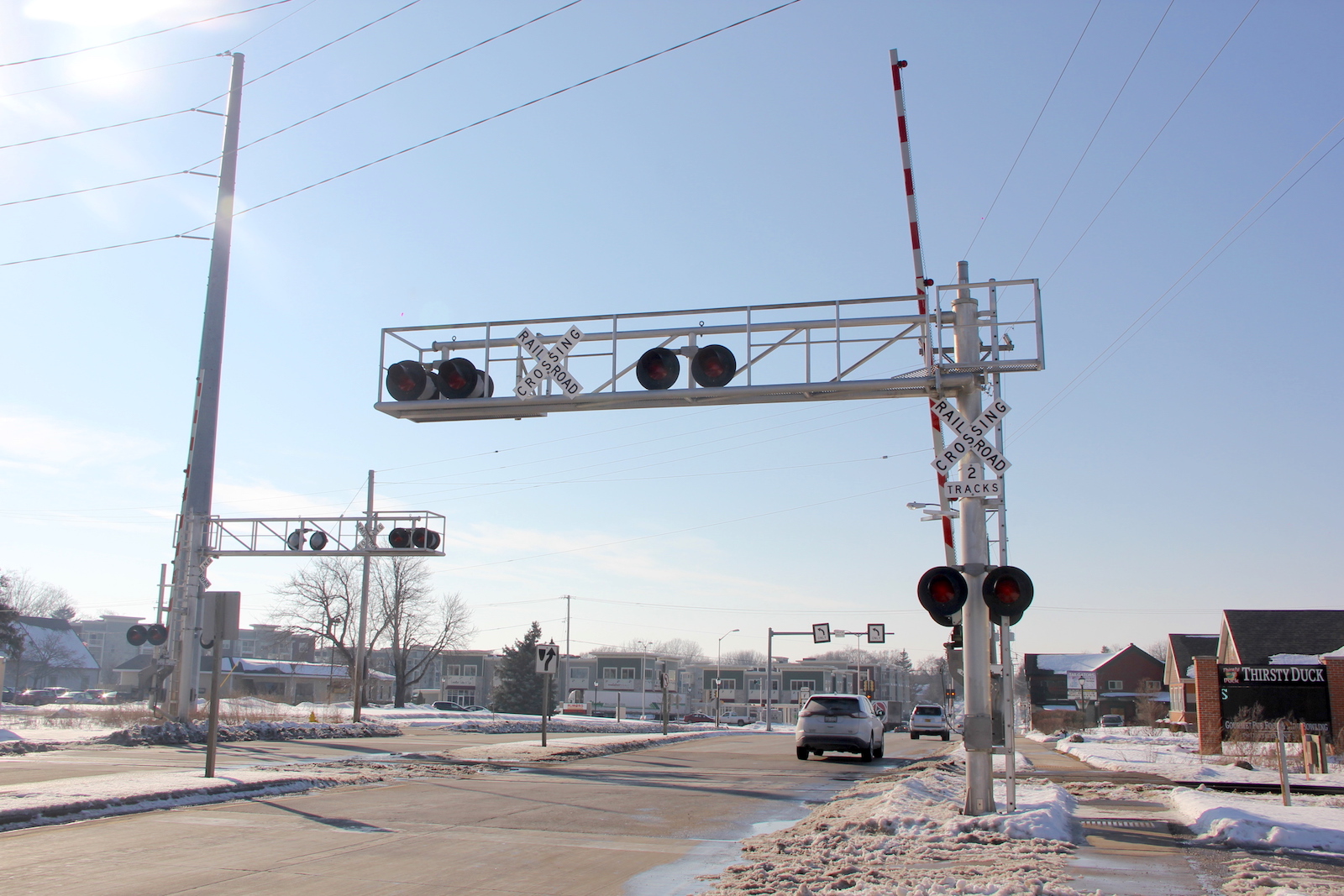

Overview facing east. Overview facing west.
17 18 19 20
21 22 23 24
25 26 27 28

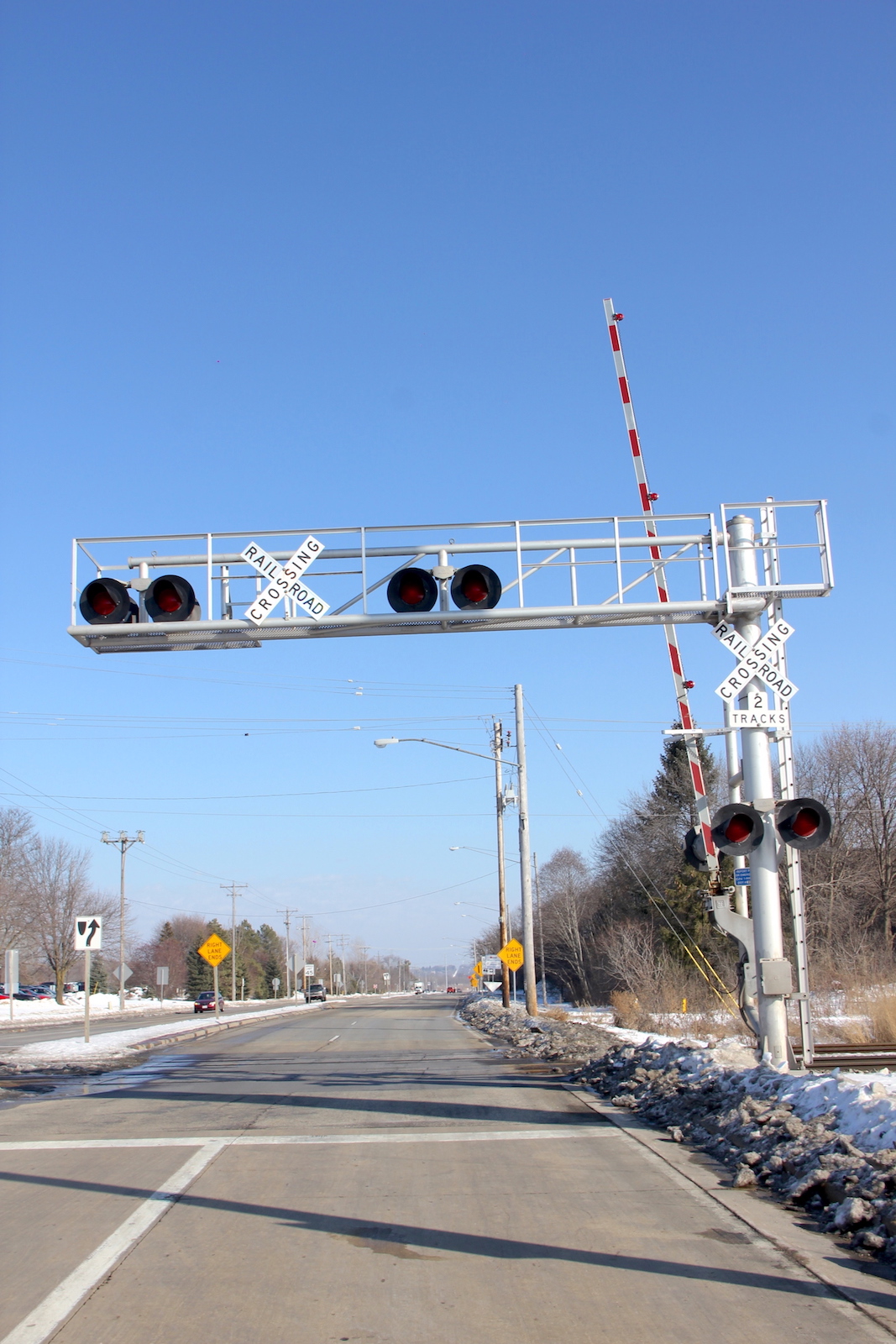

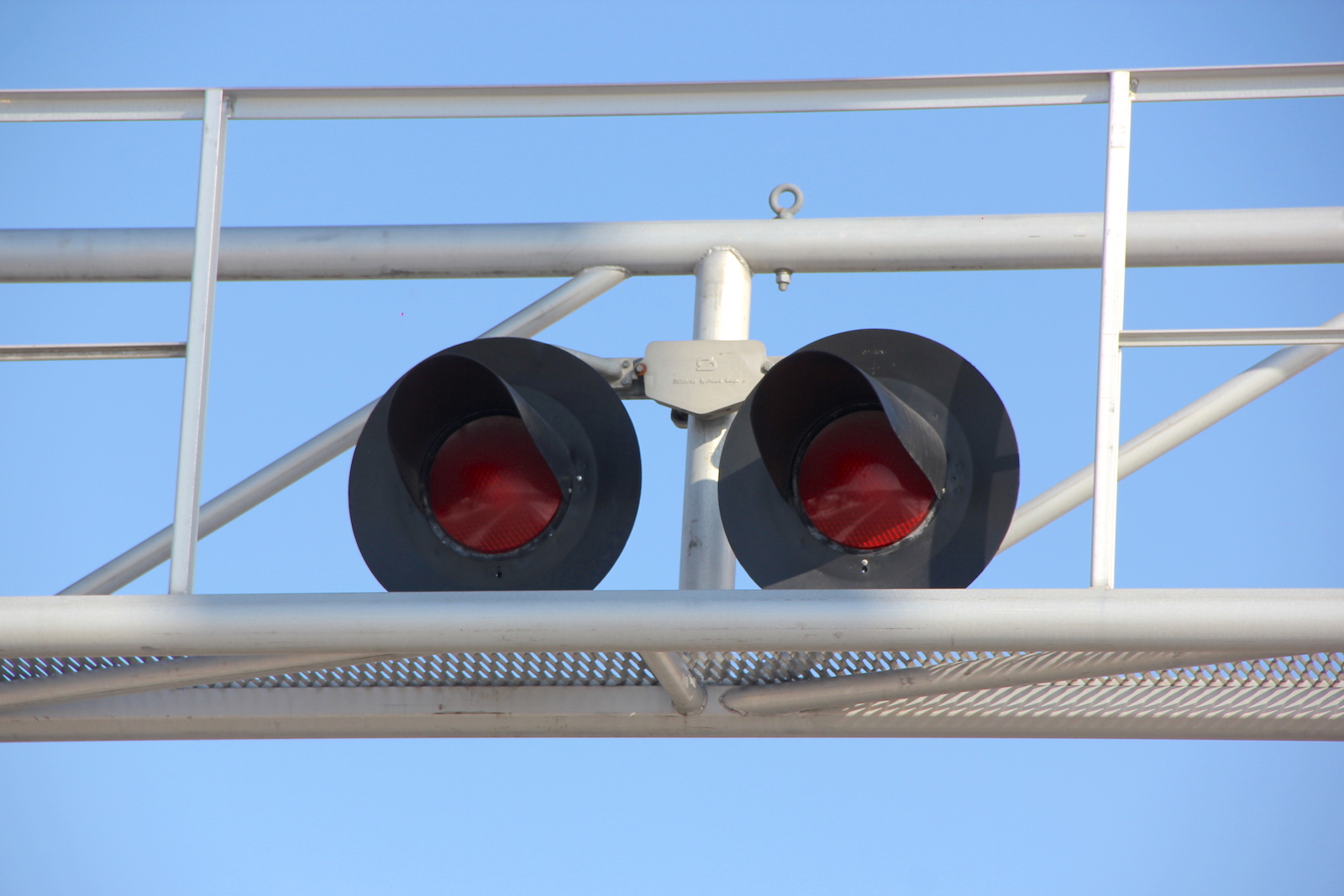

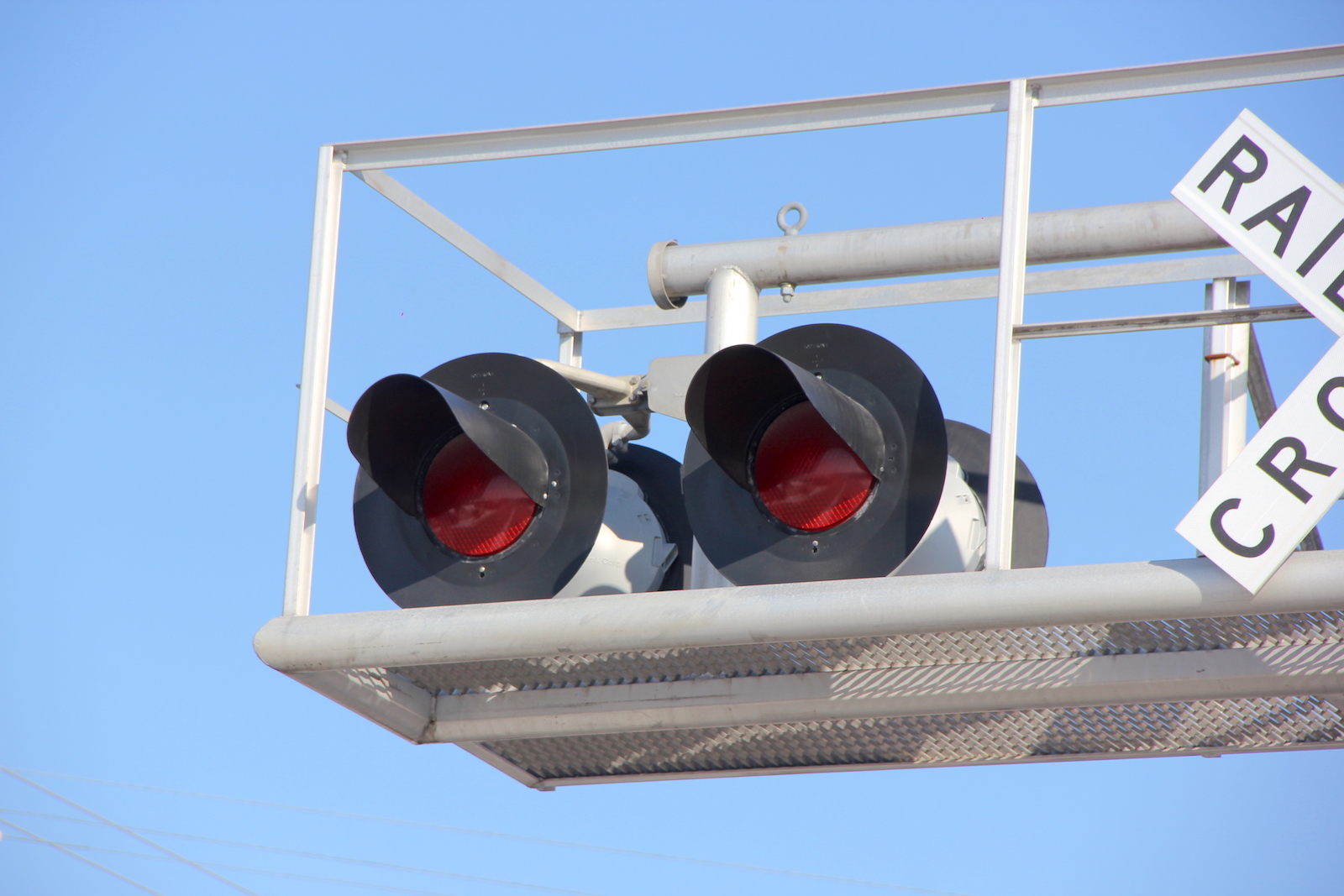

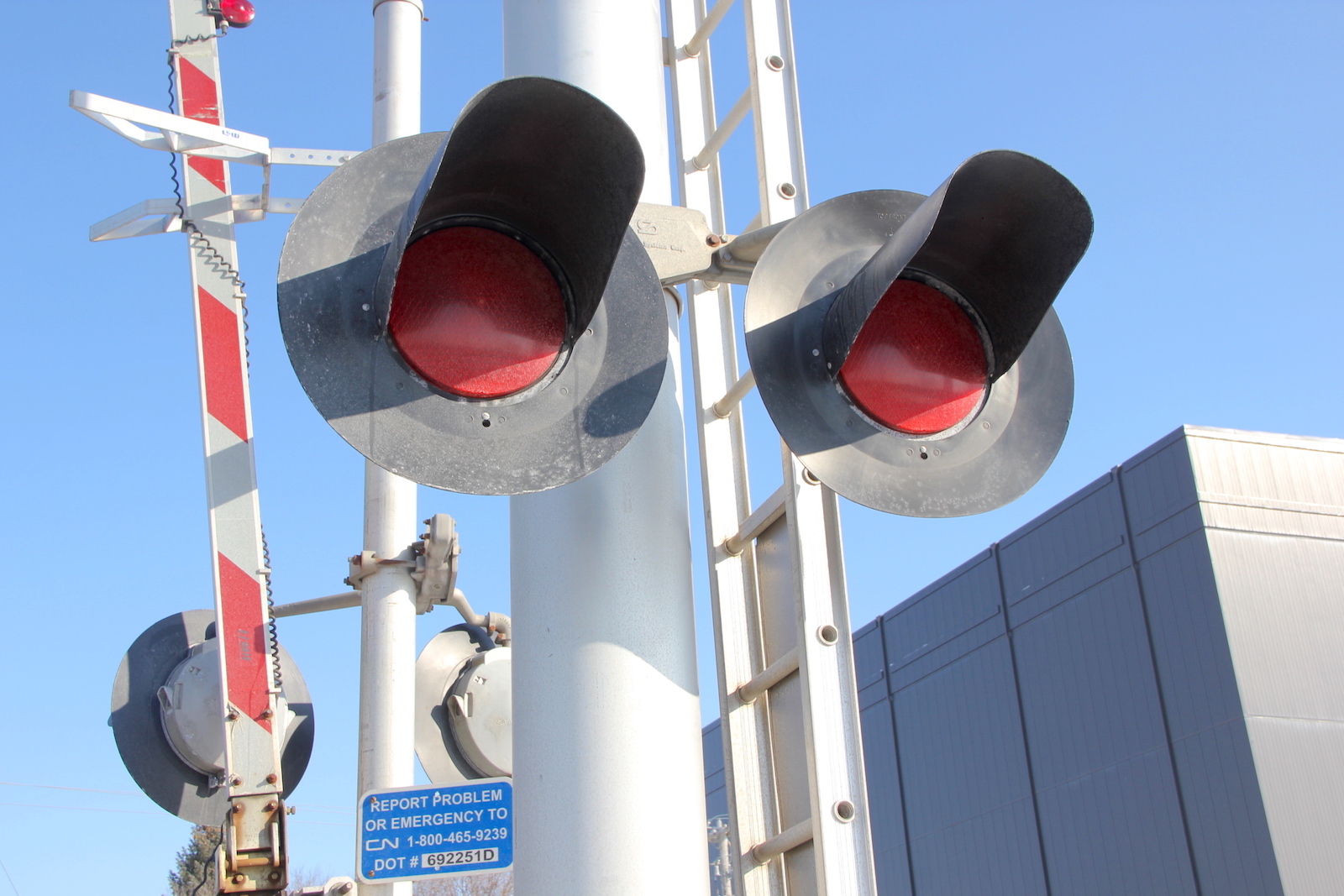

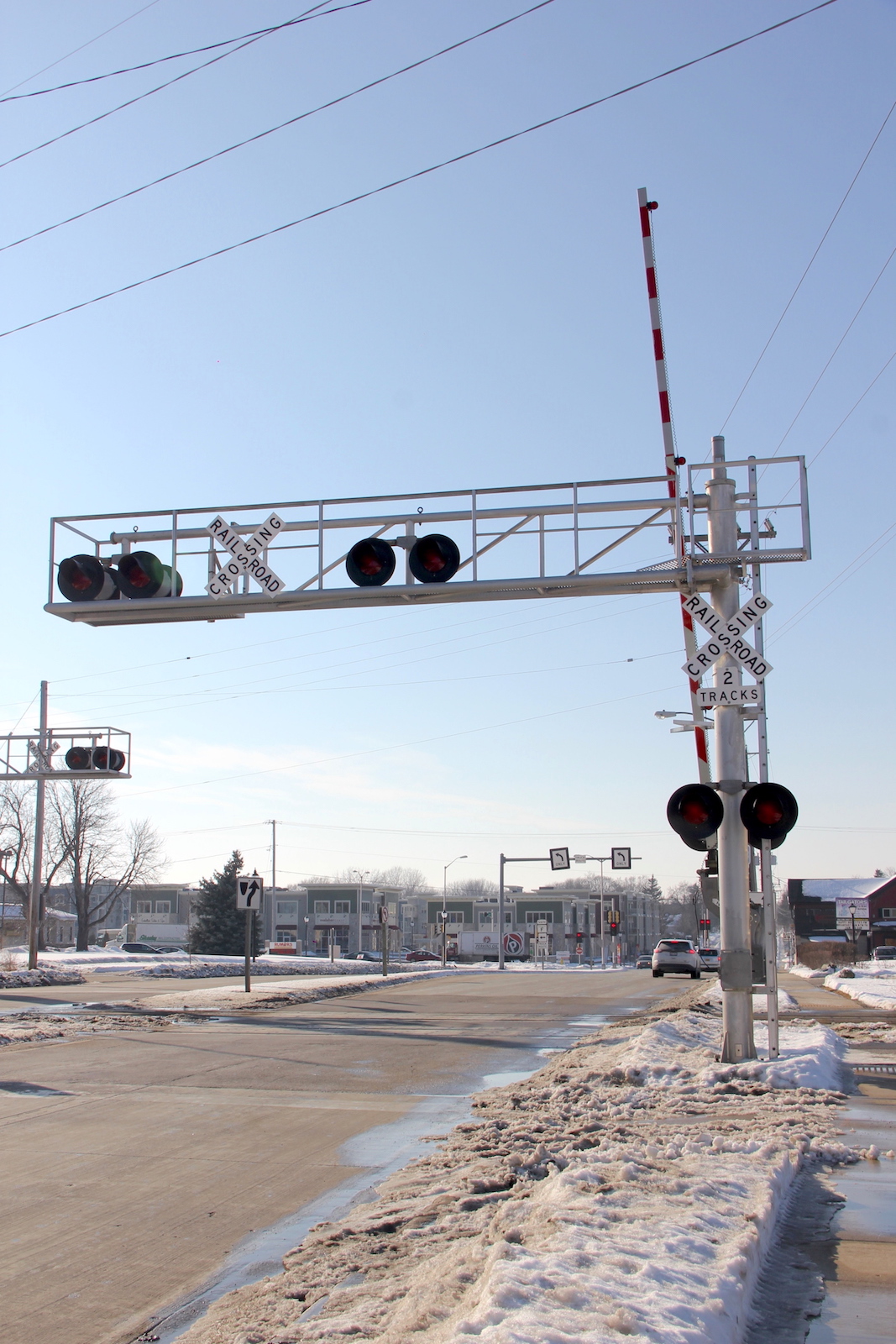

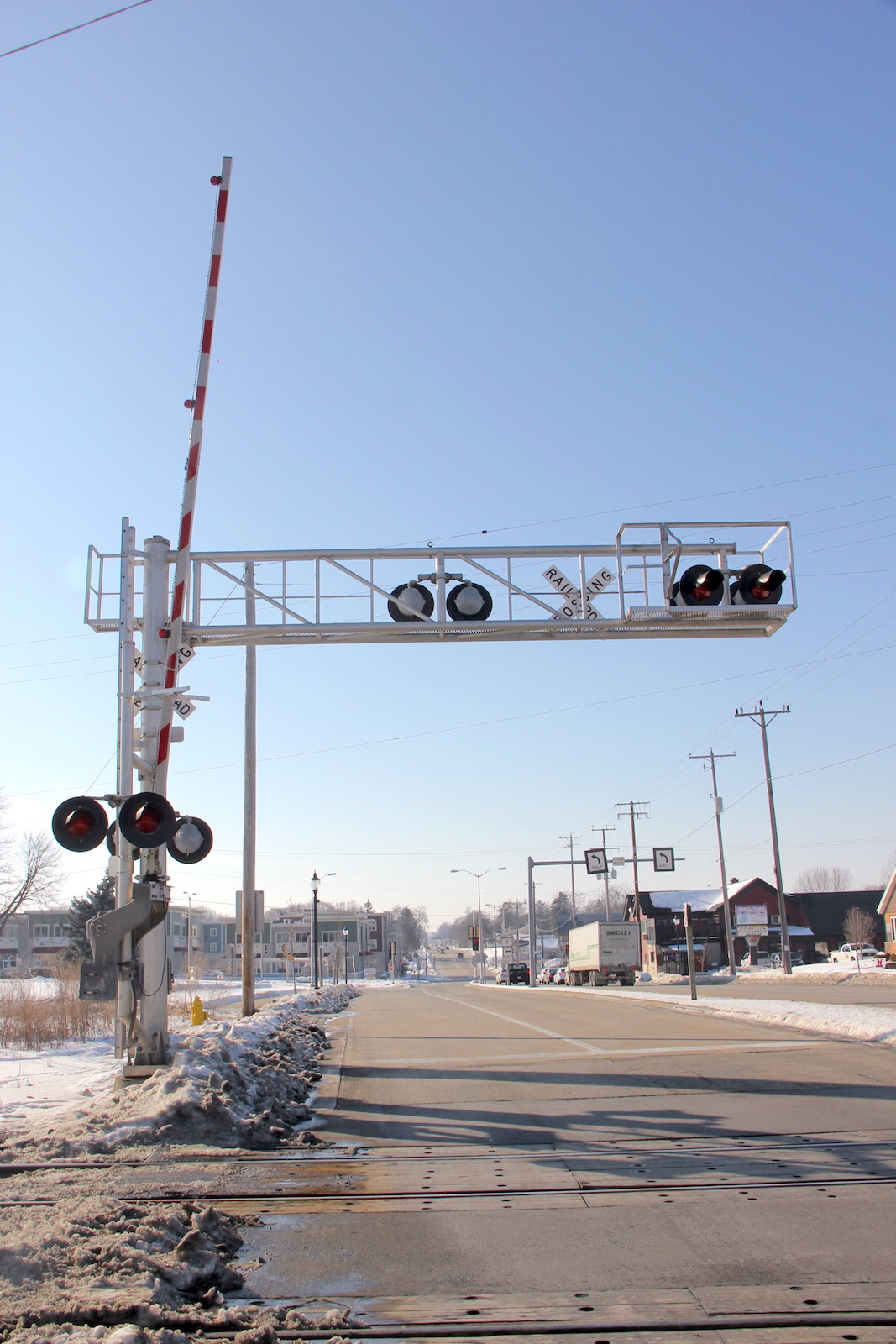

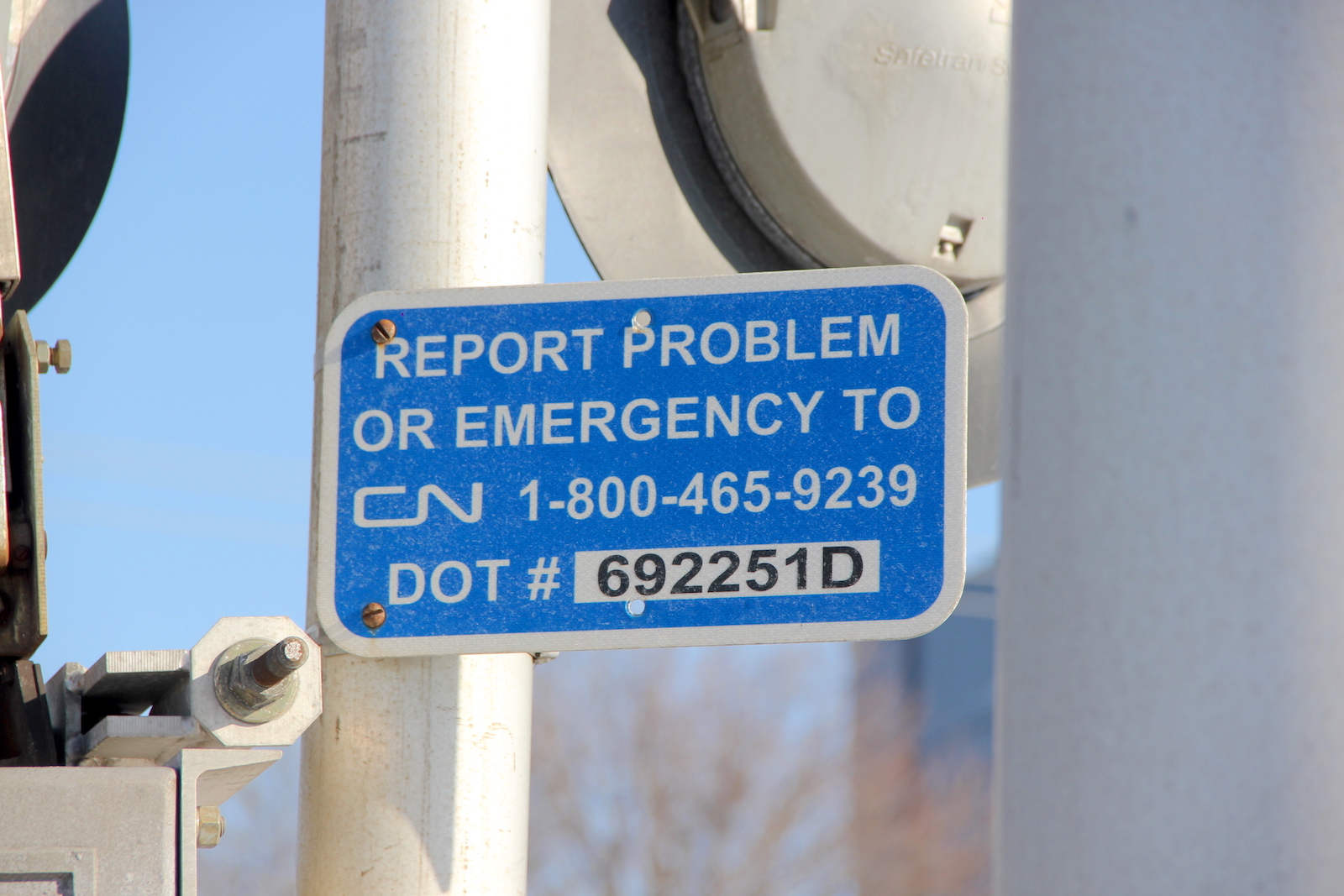

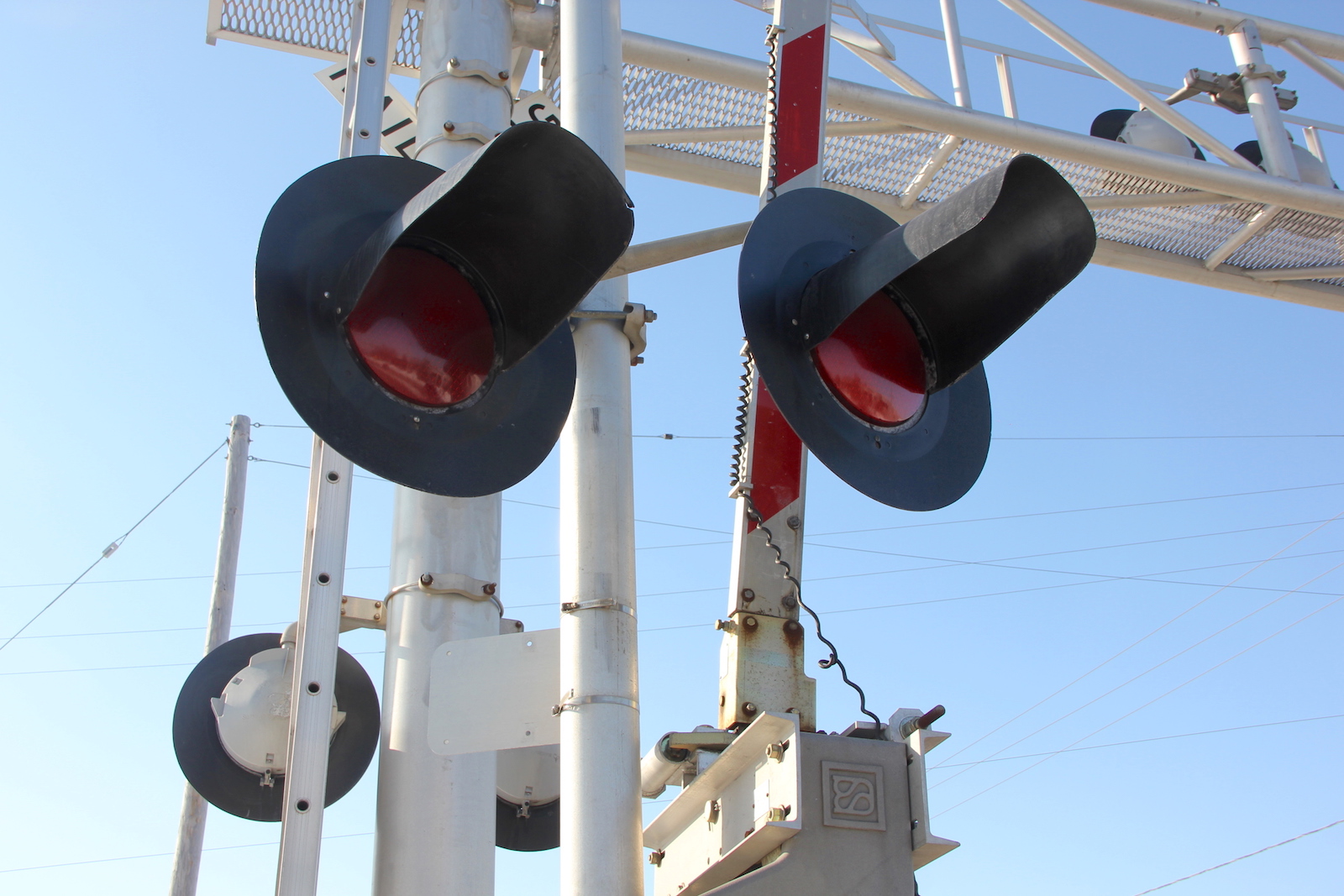

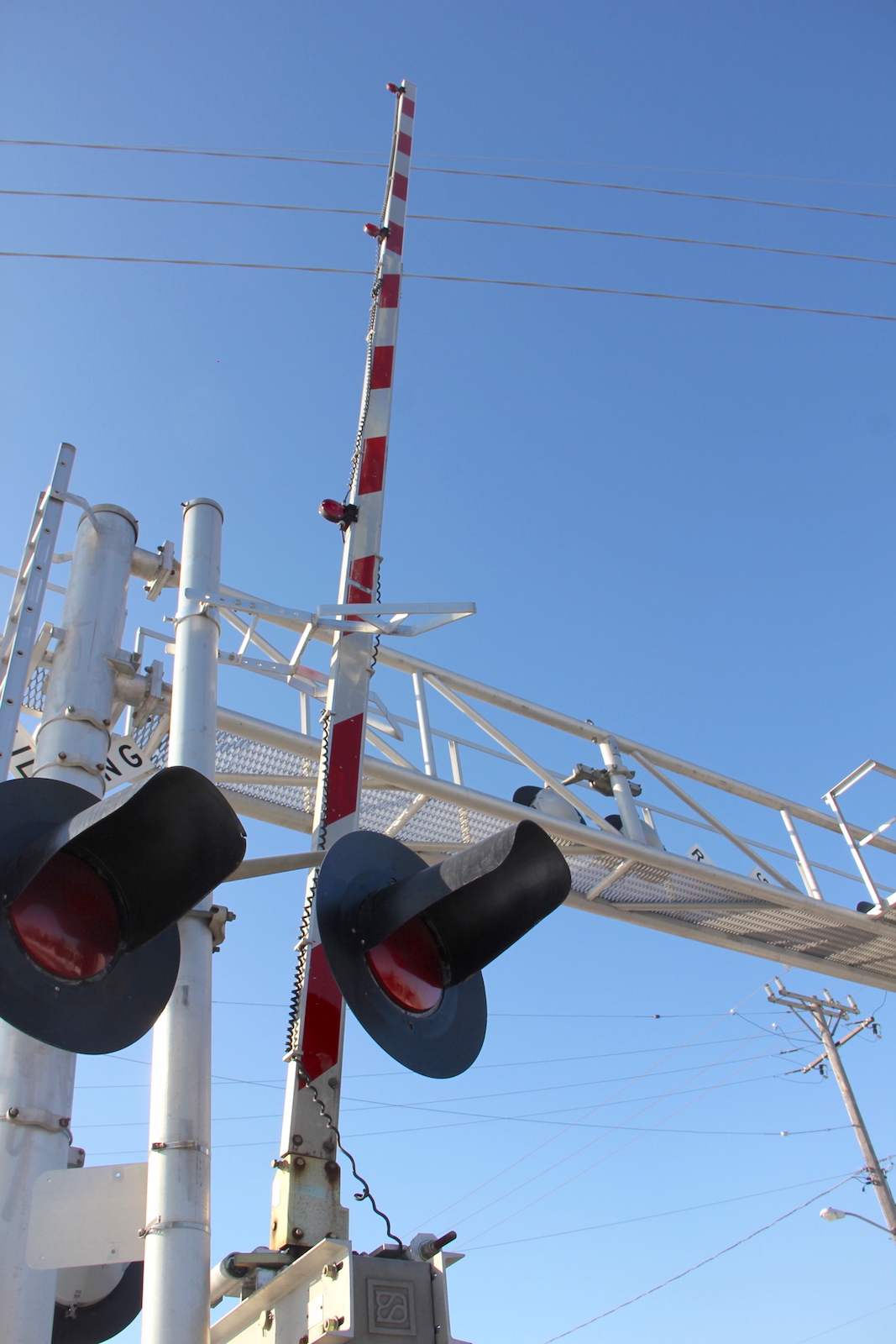

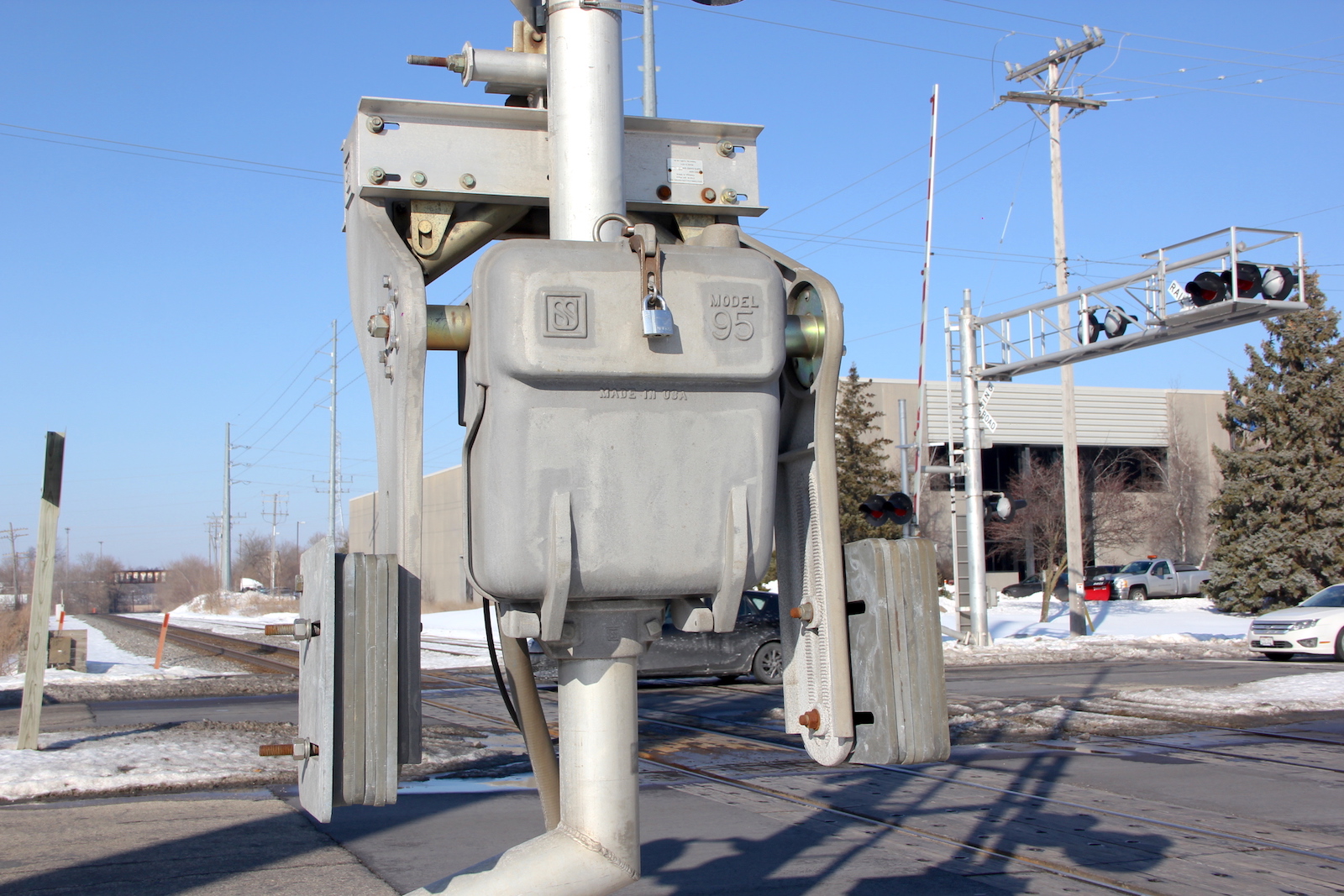

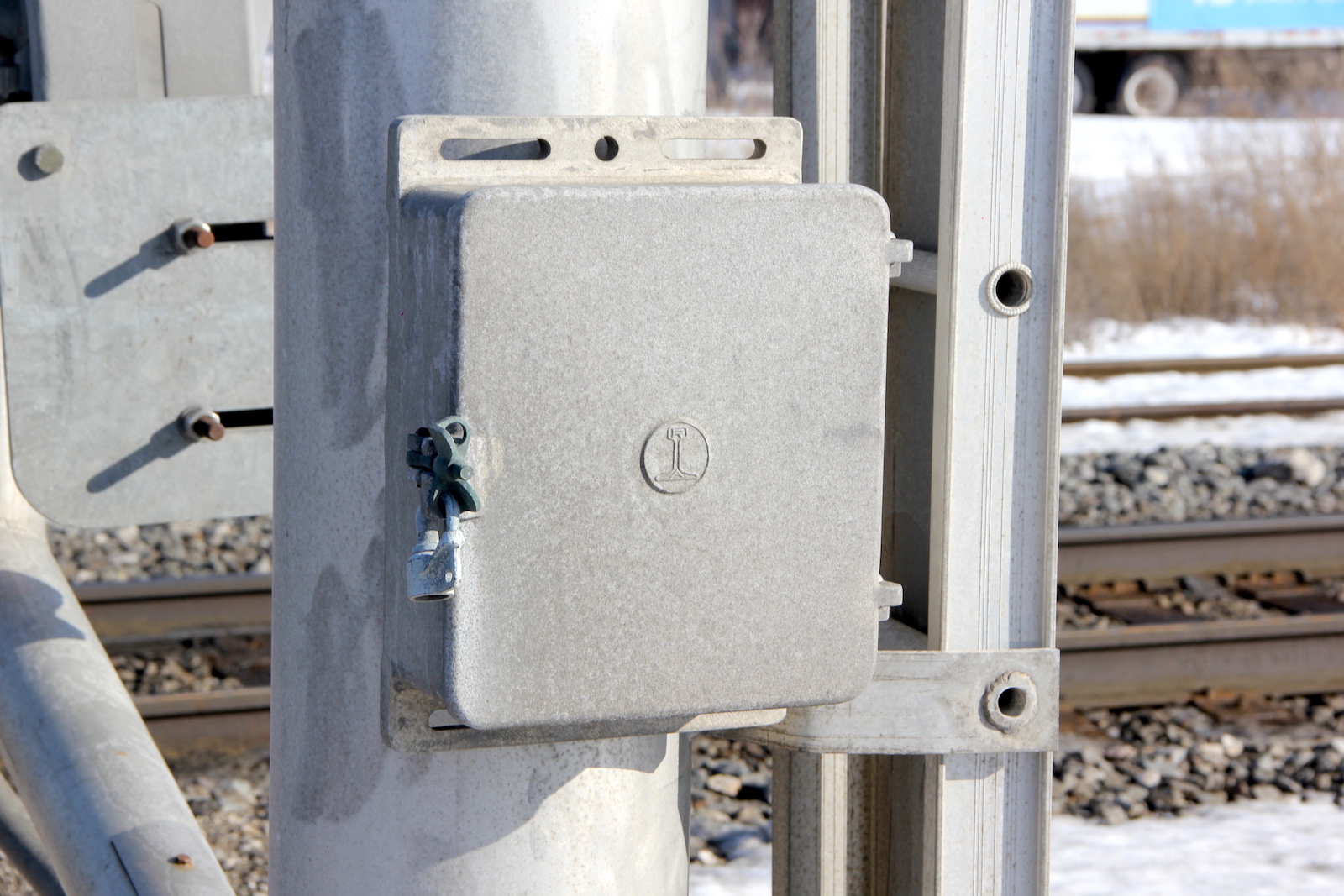

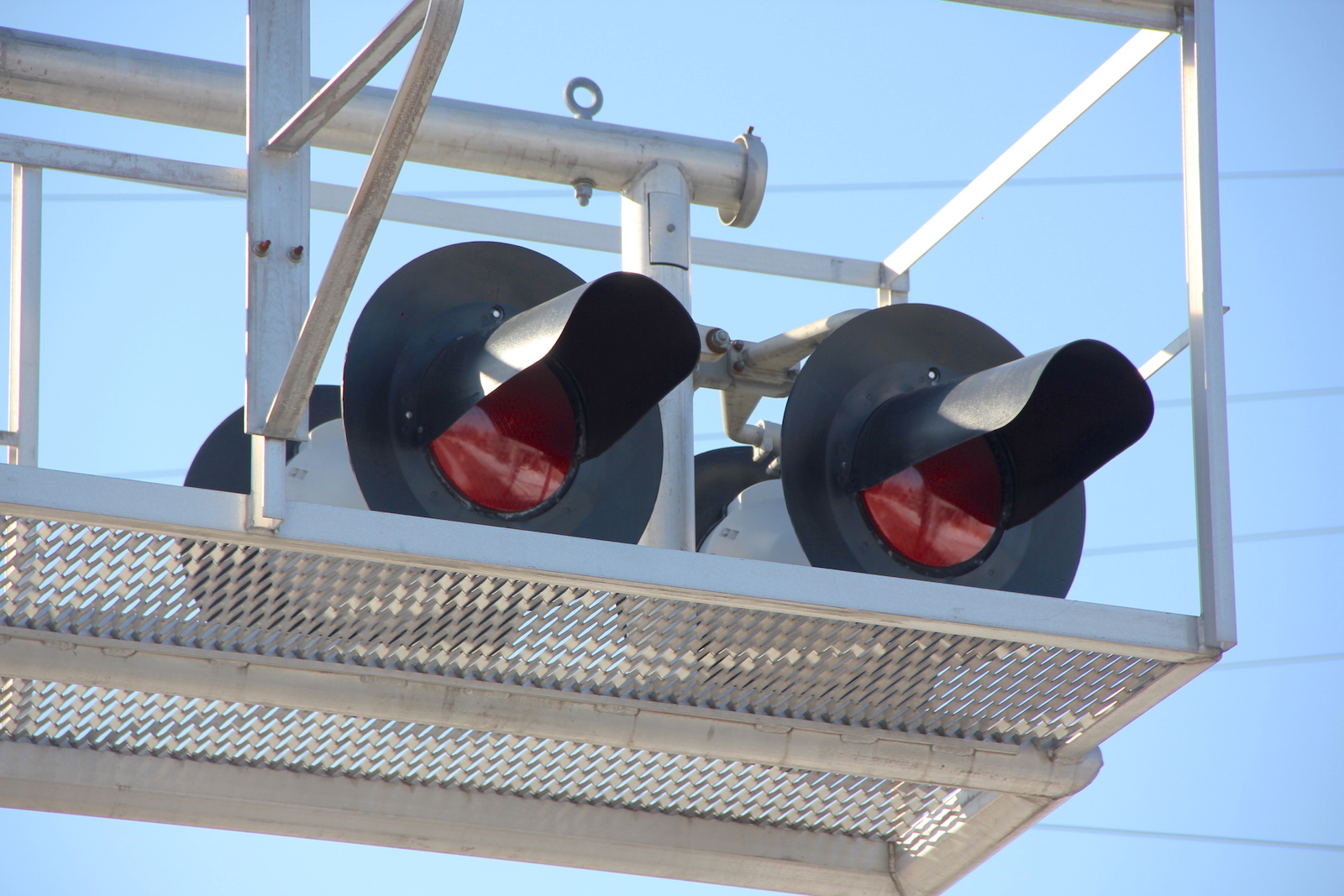

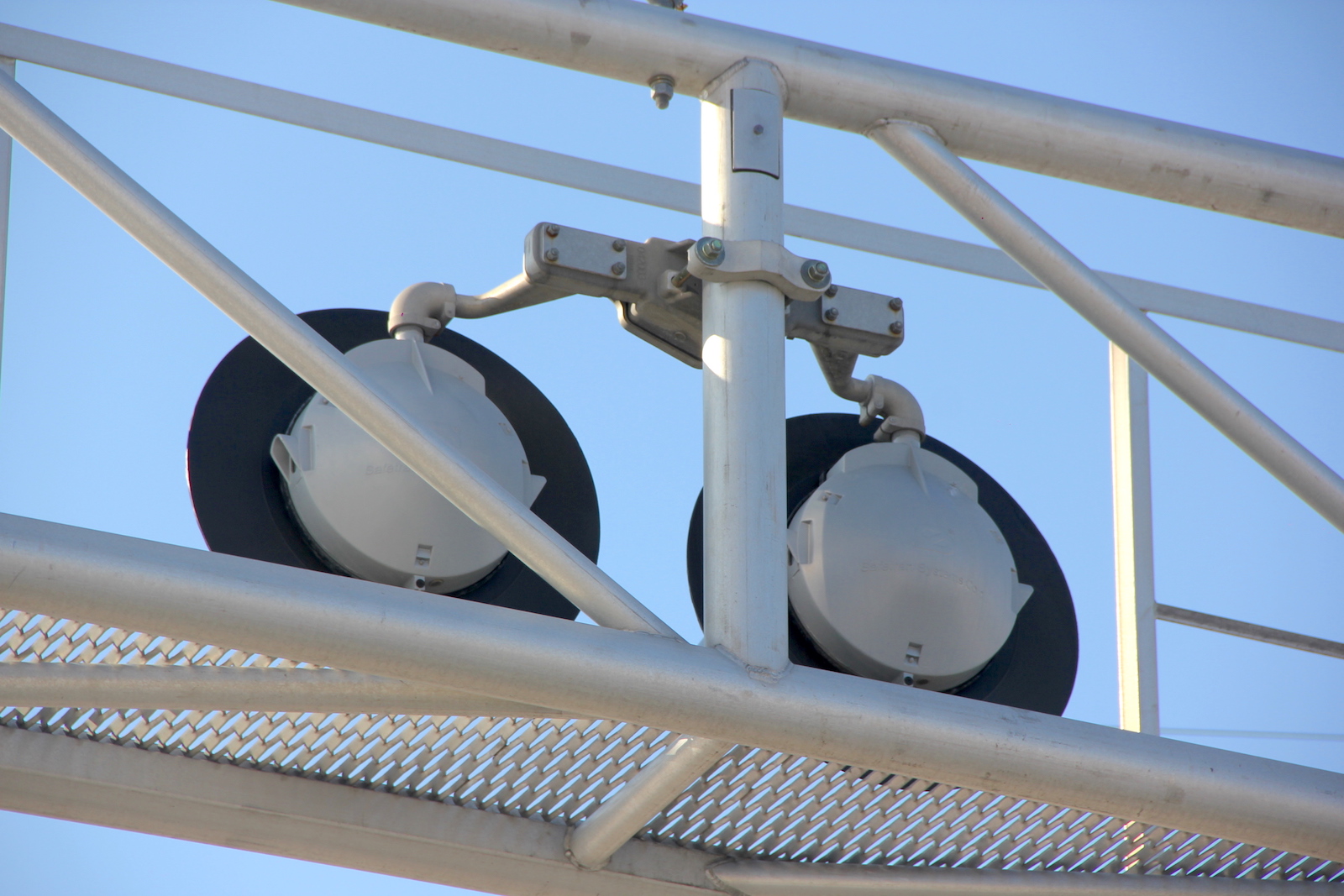

The western signal.
29 30 31 32
33 34 35 36
37 38 39 40

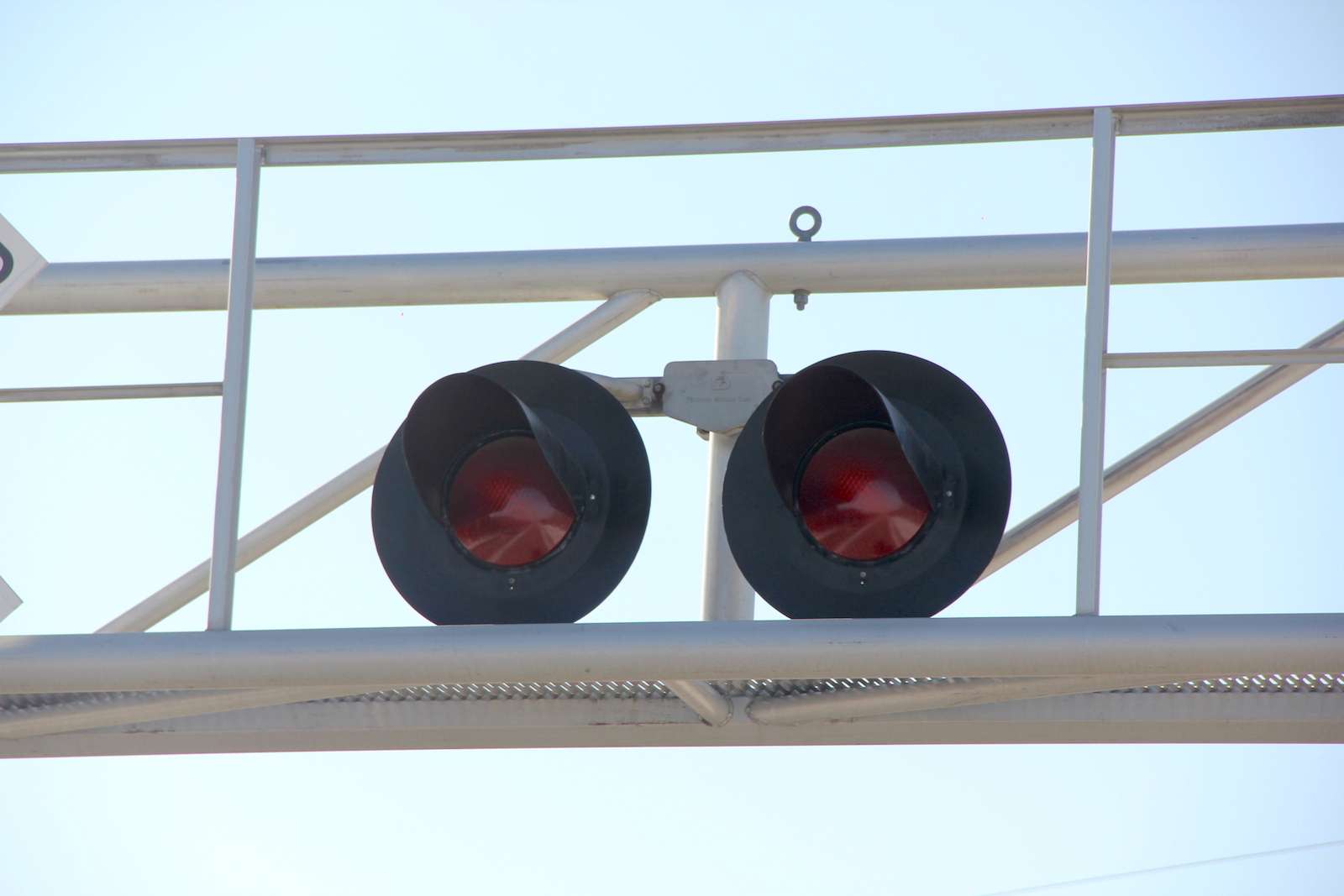

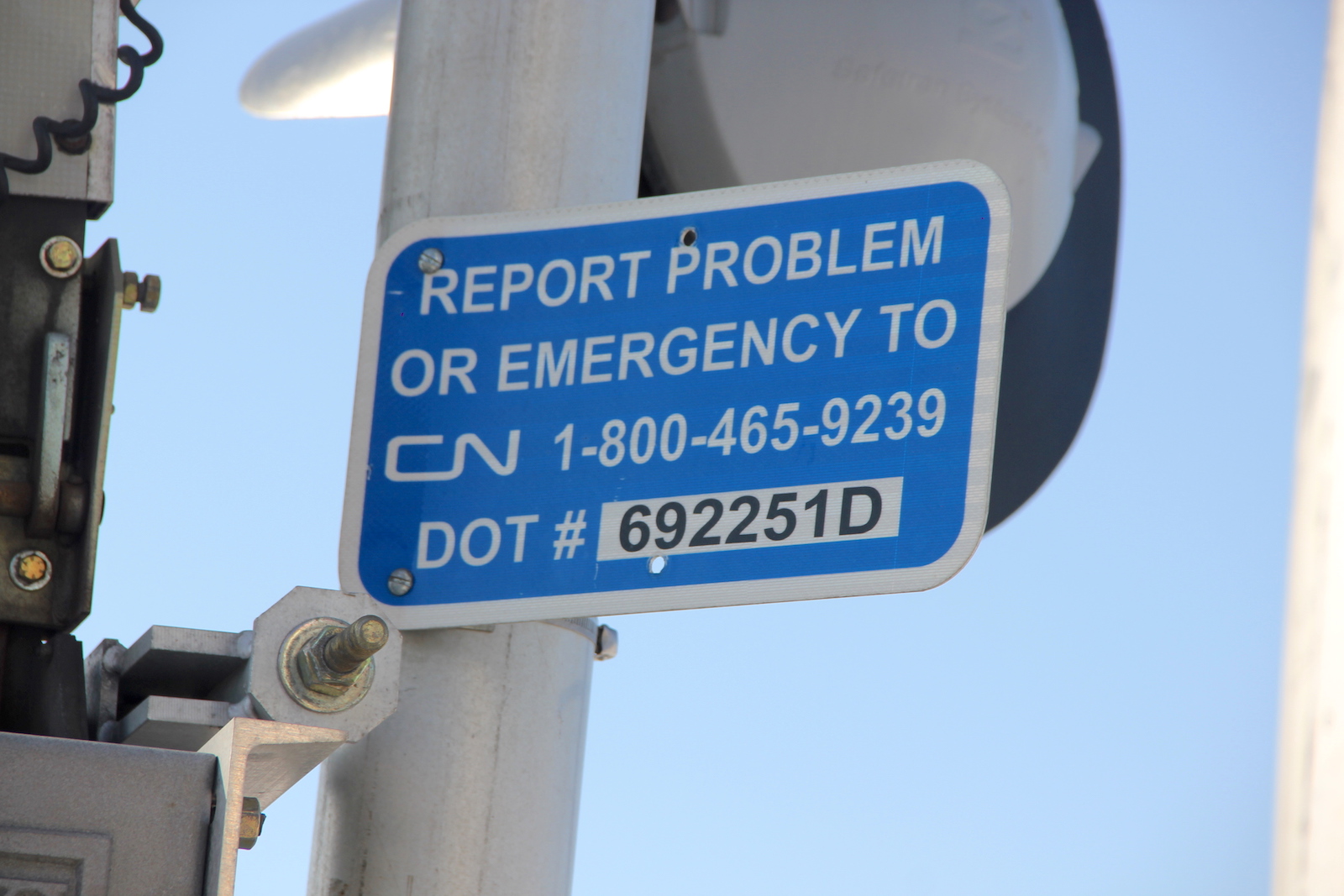

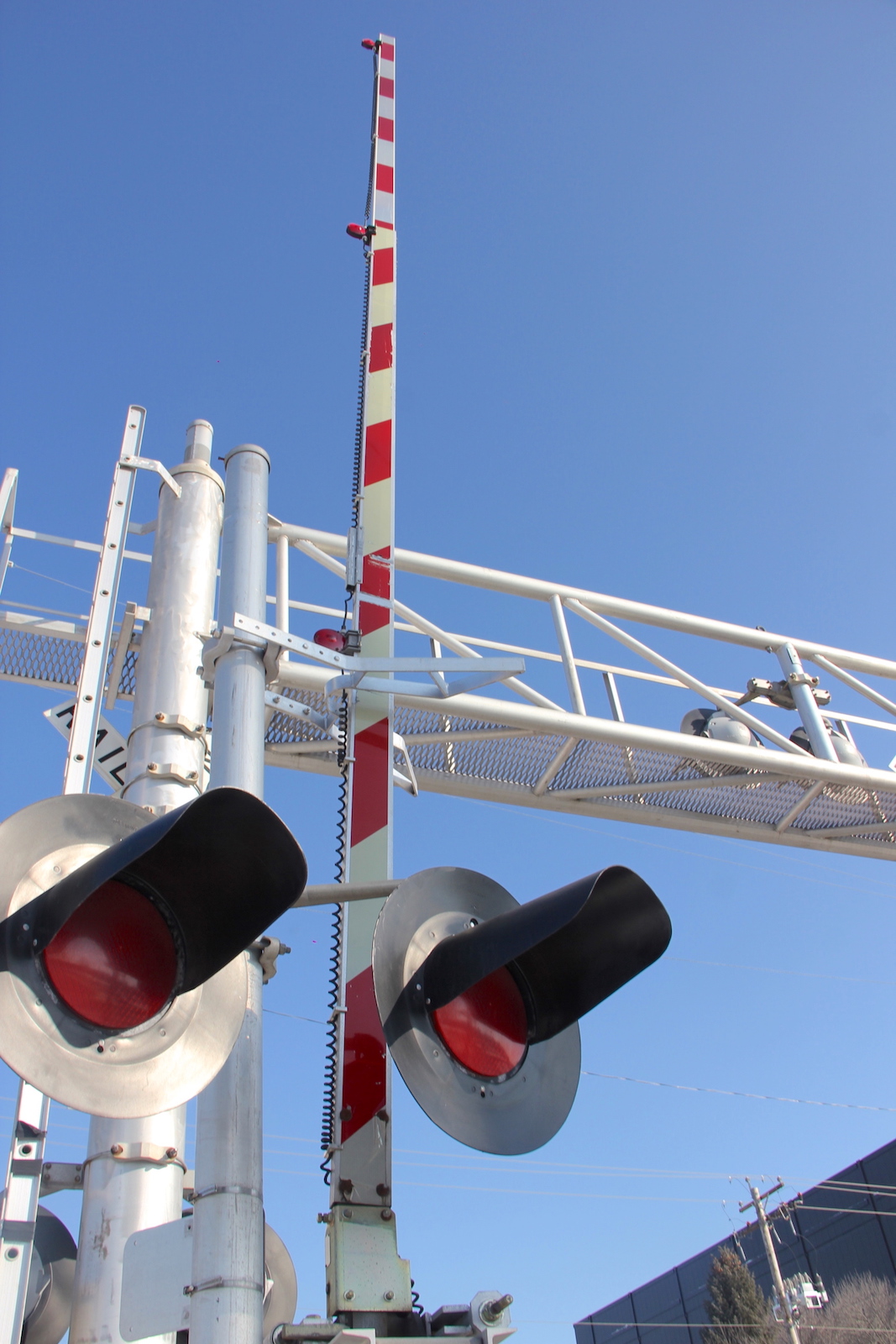

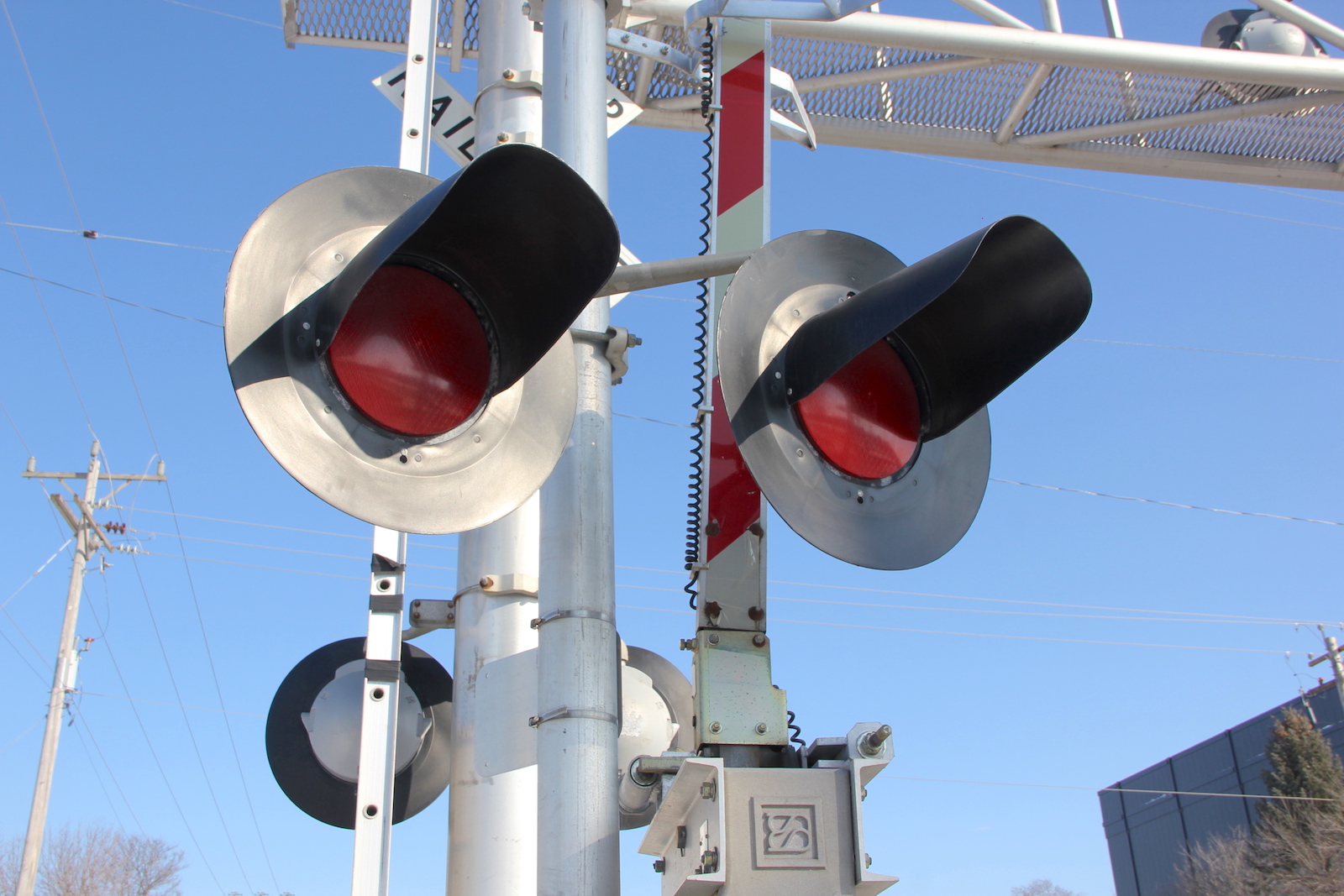

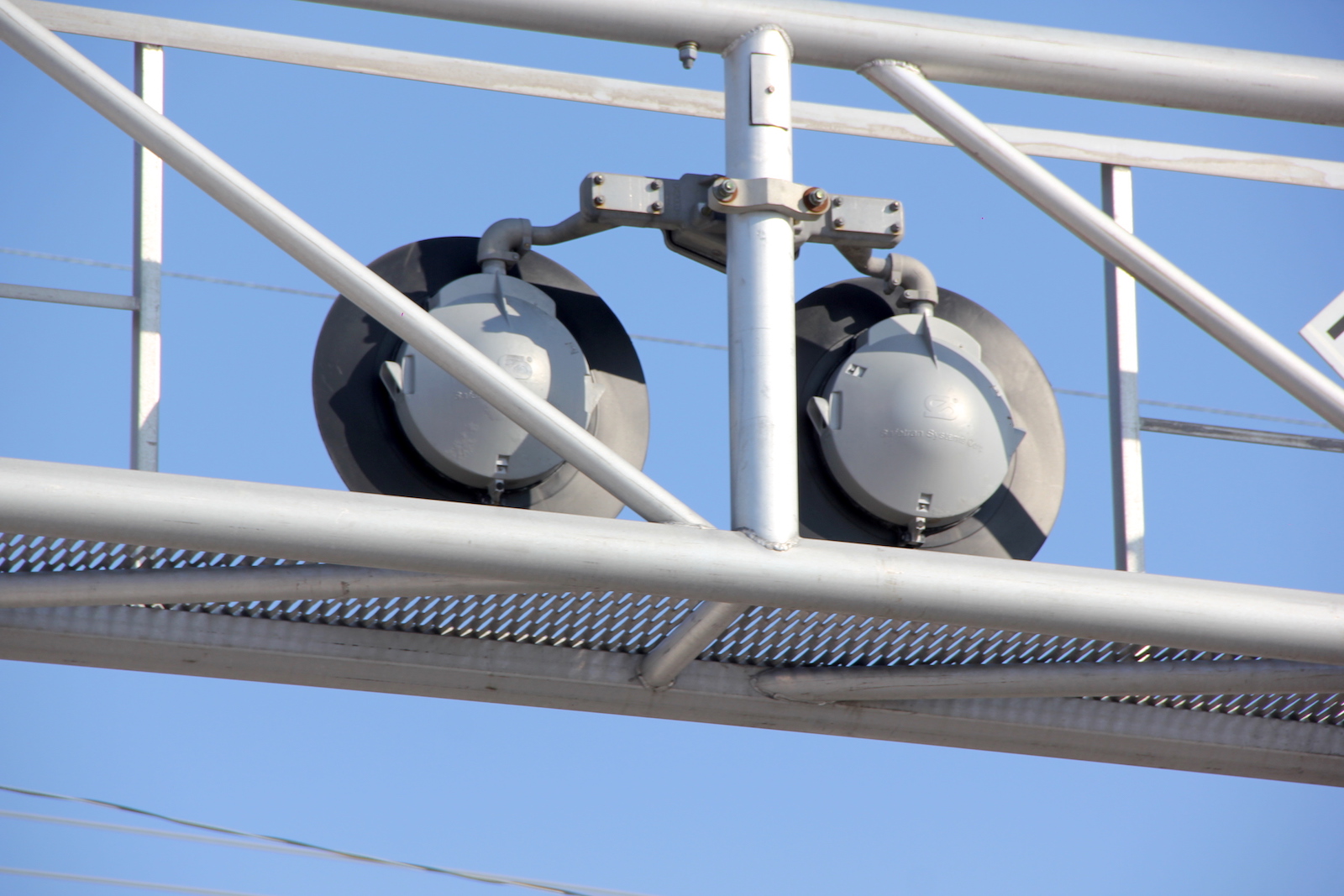

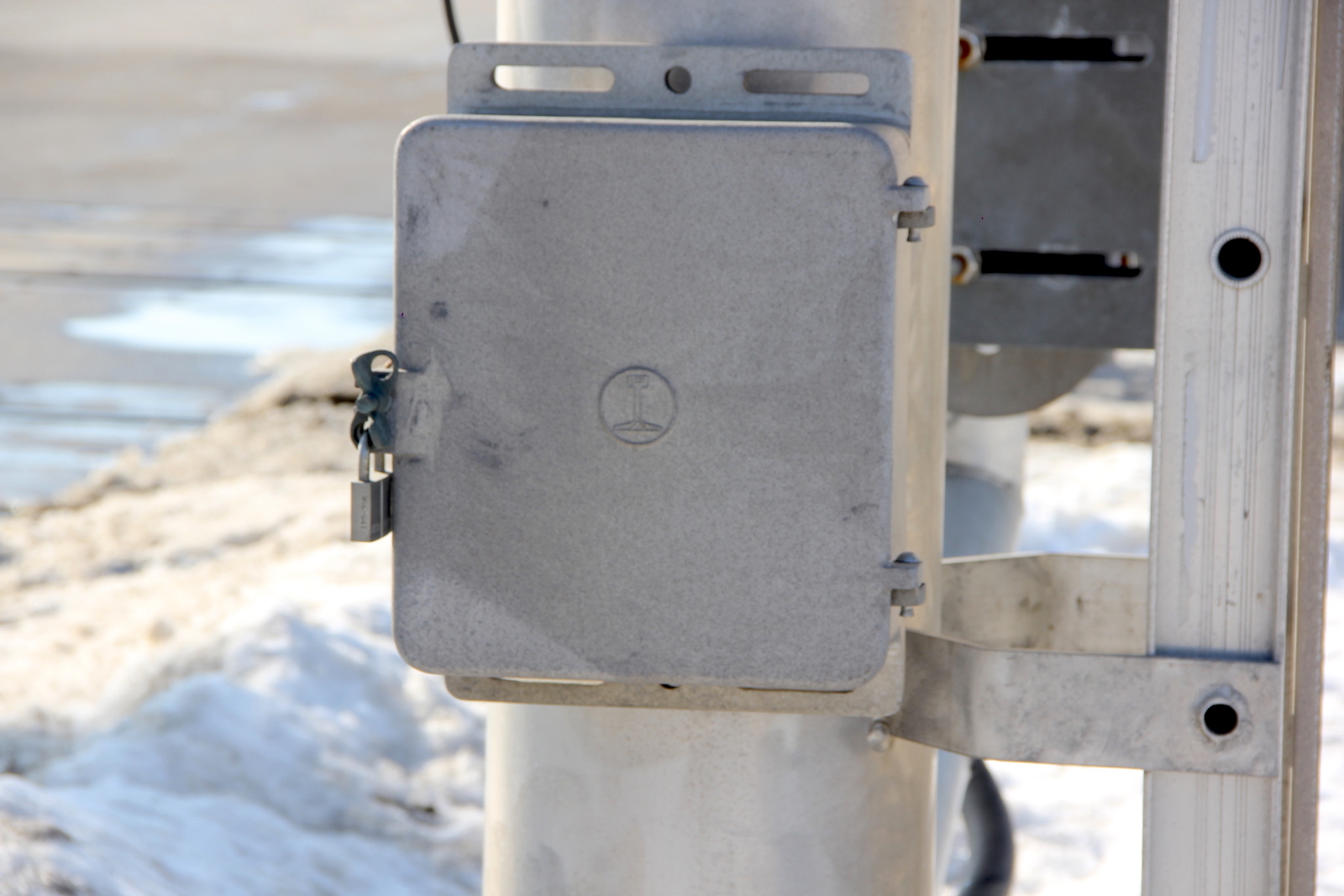

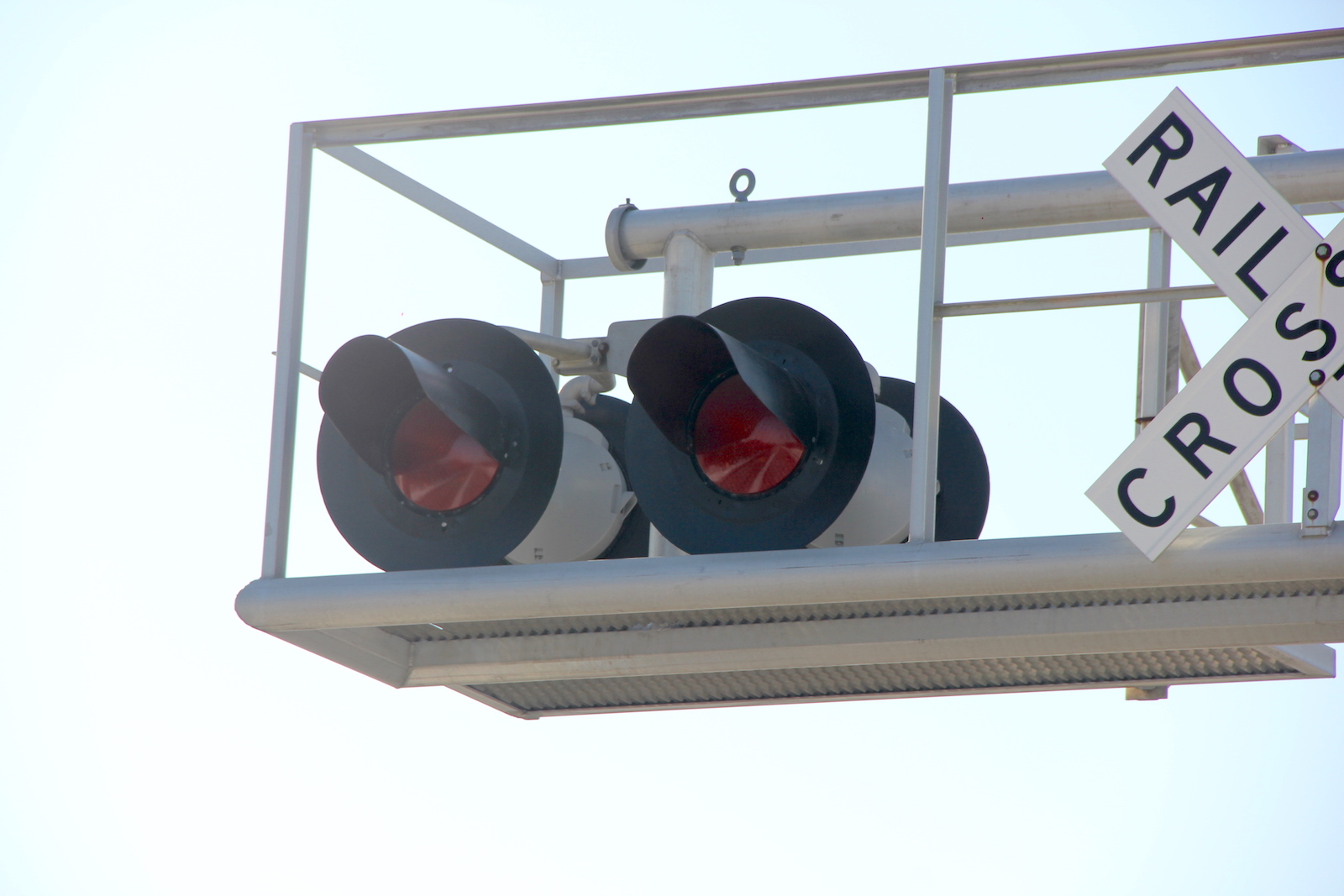

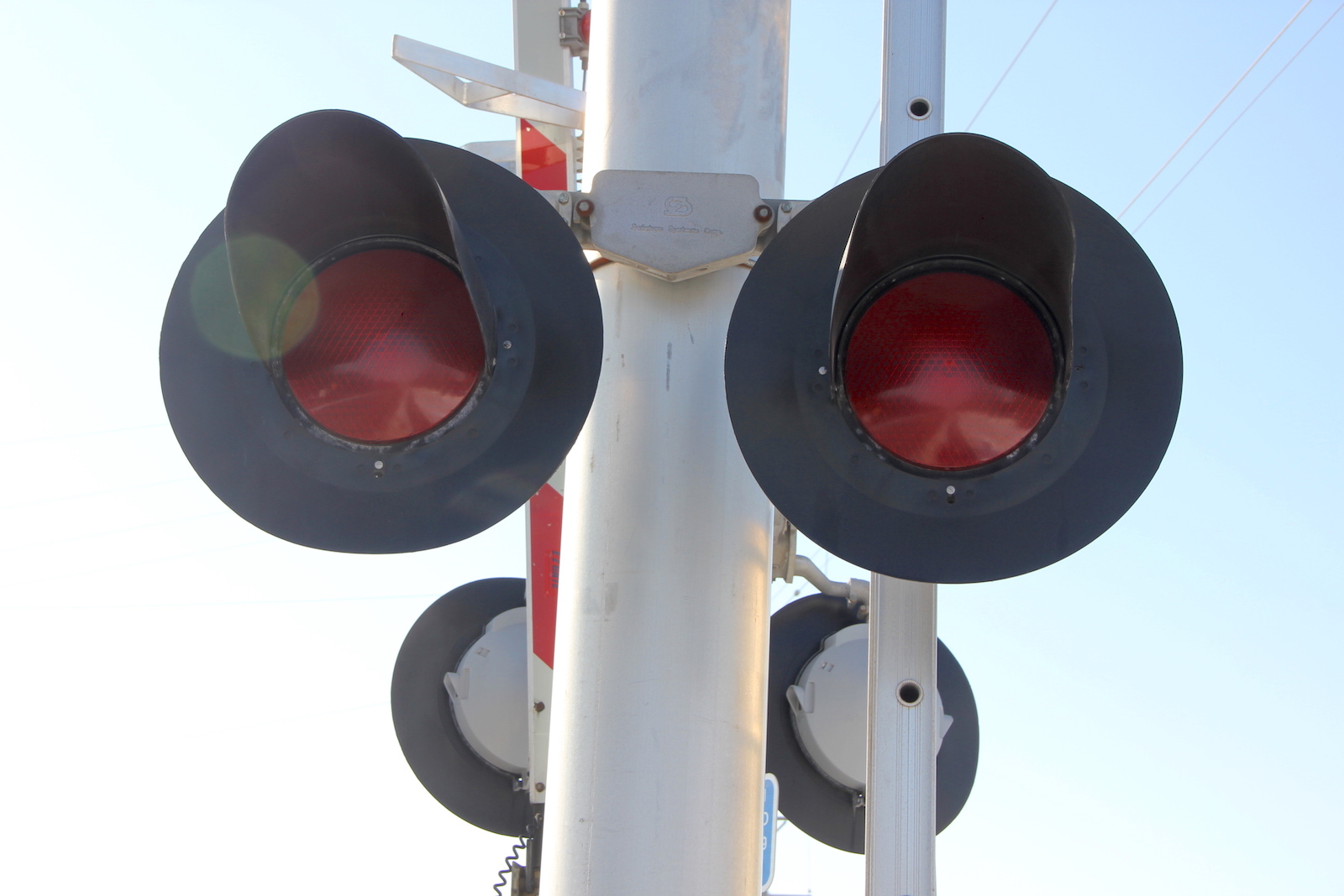

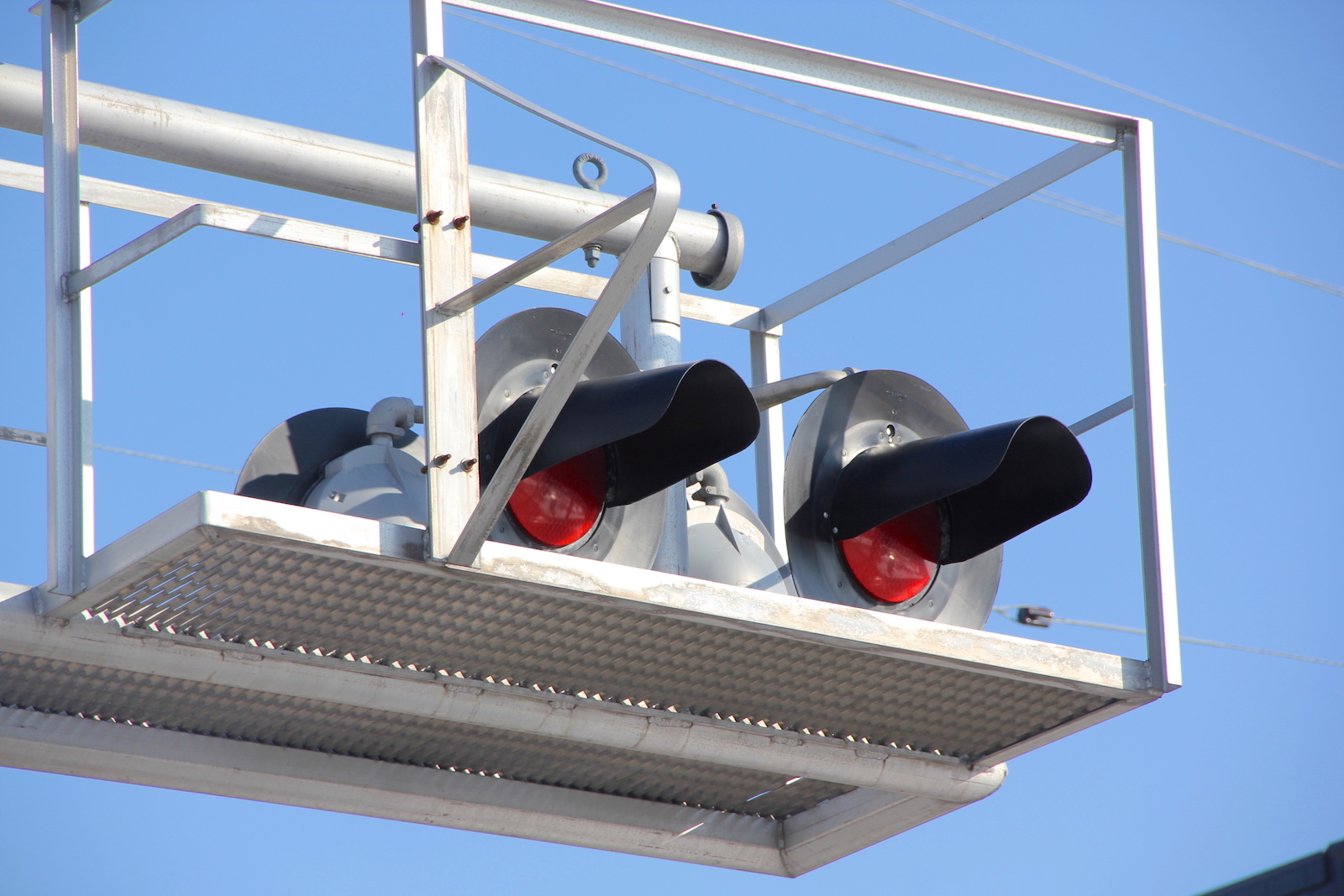

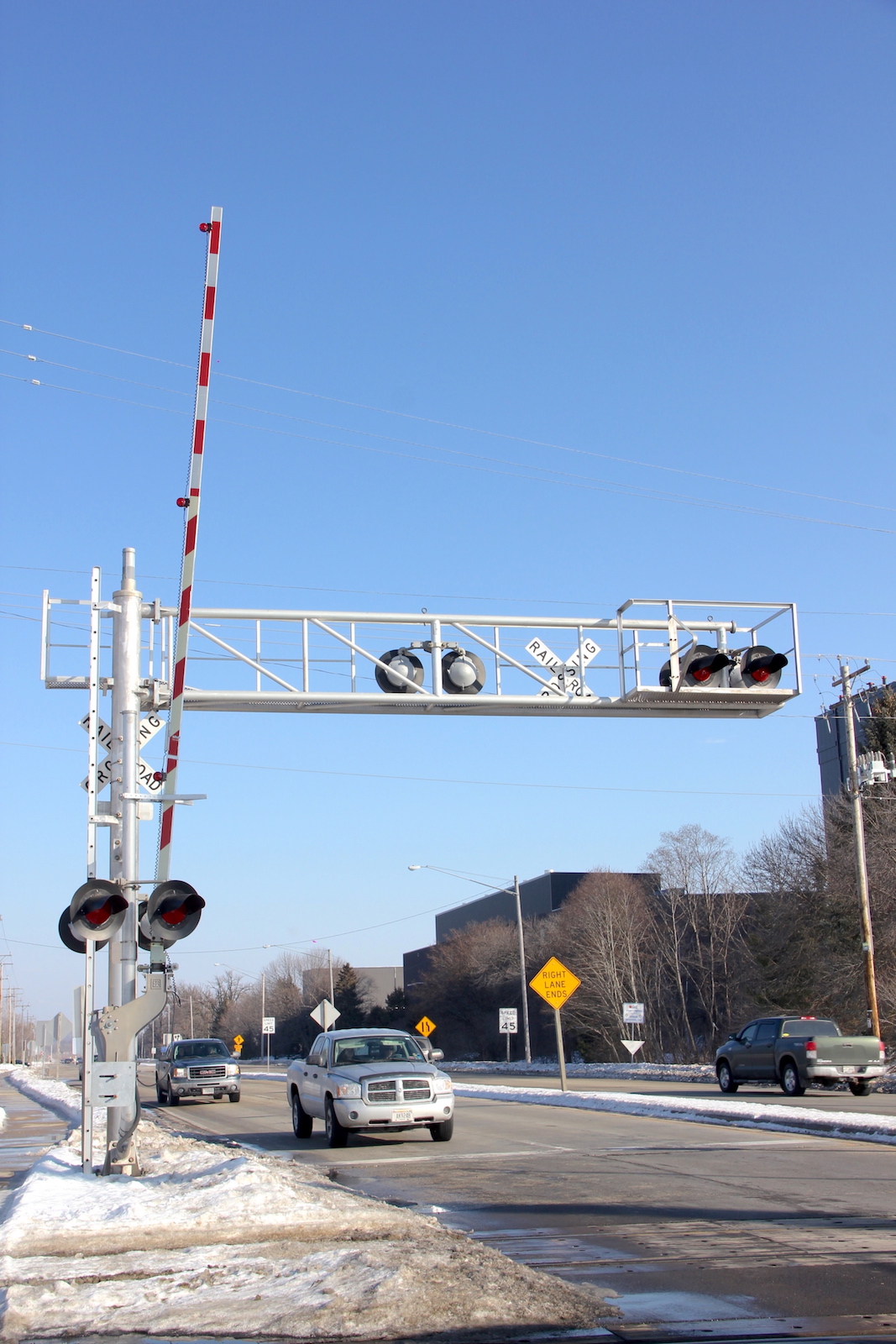

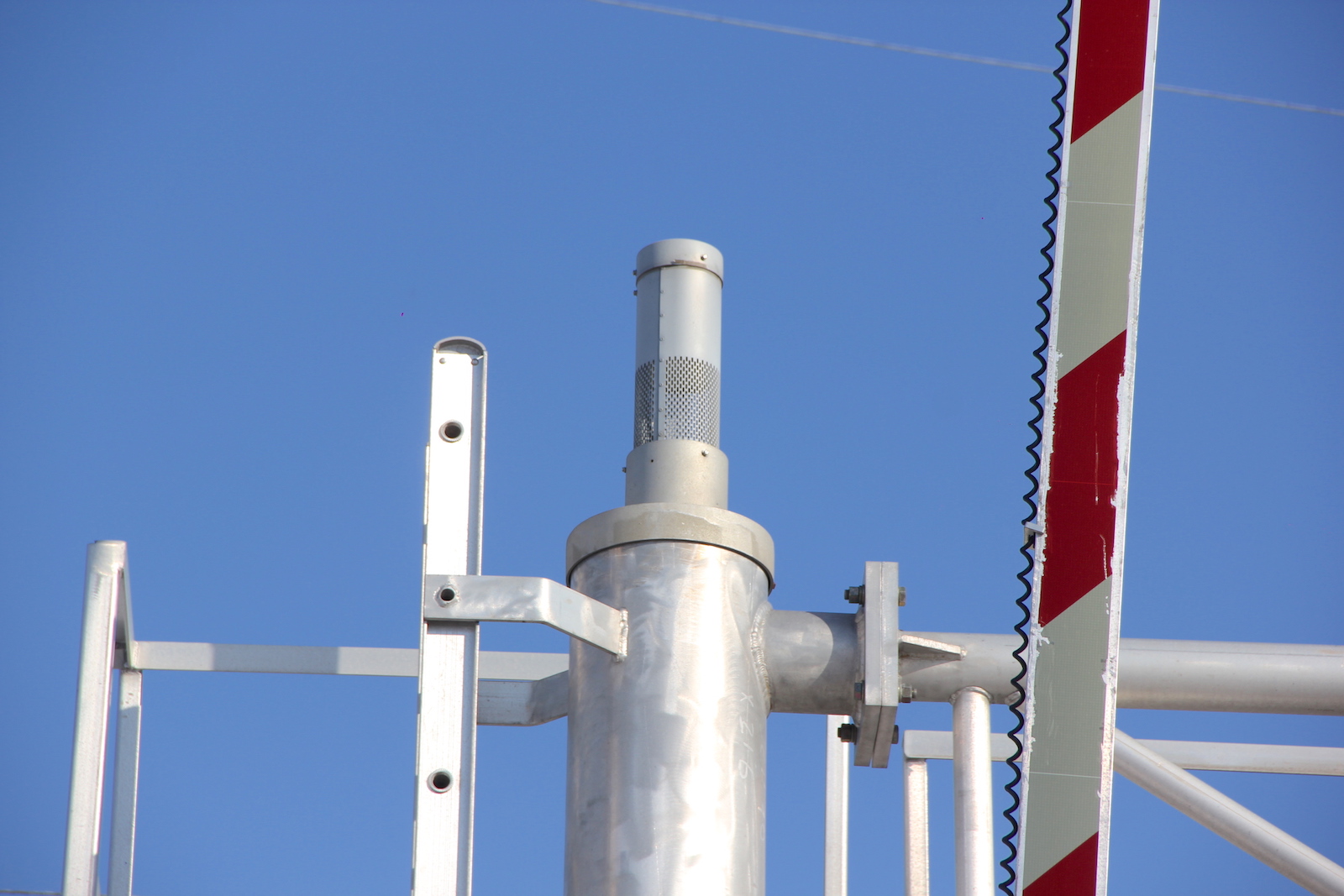

The eastern signal.
41 42 43 44

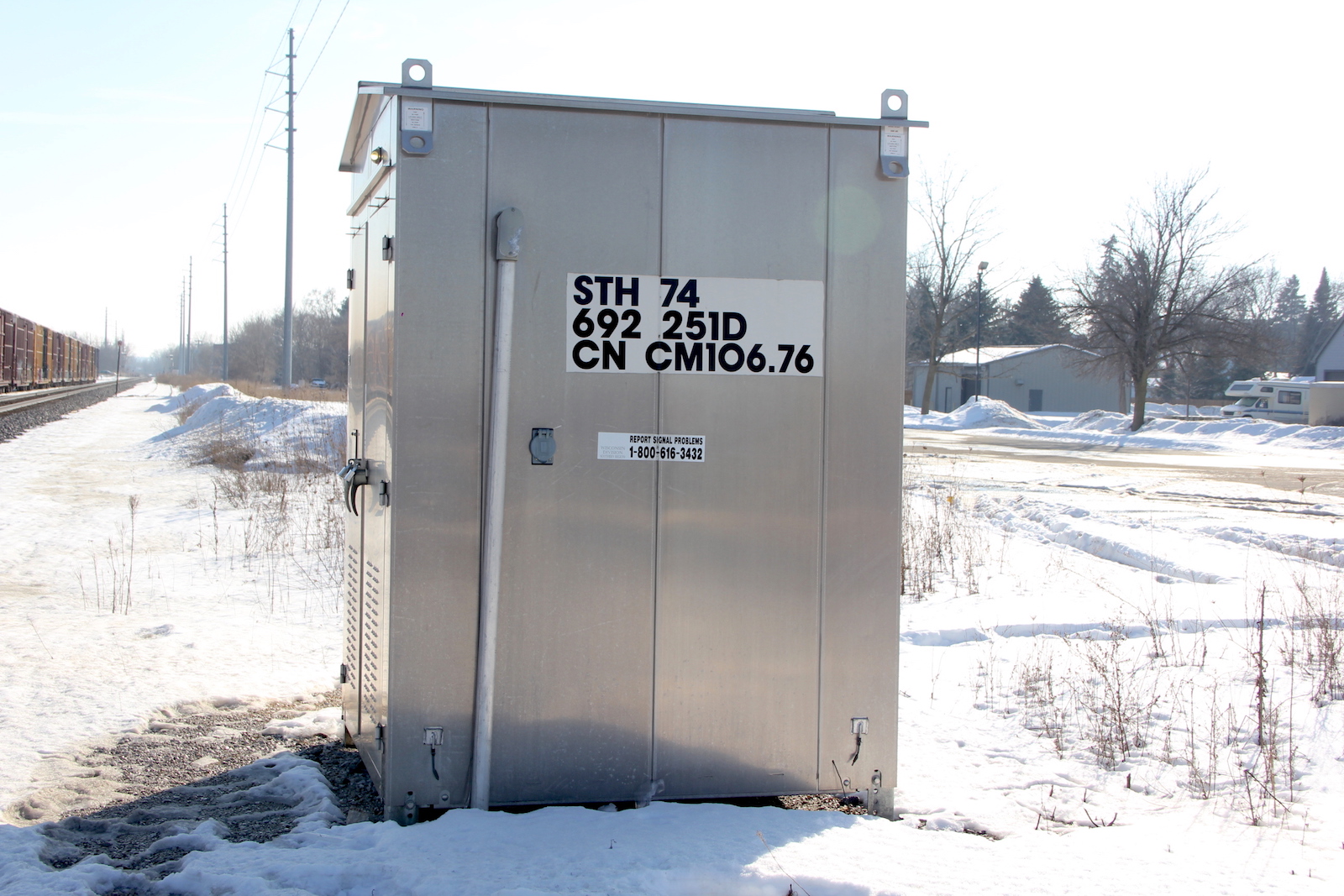

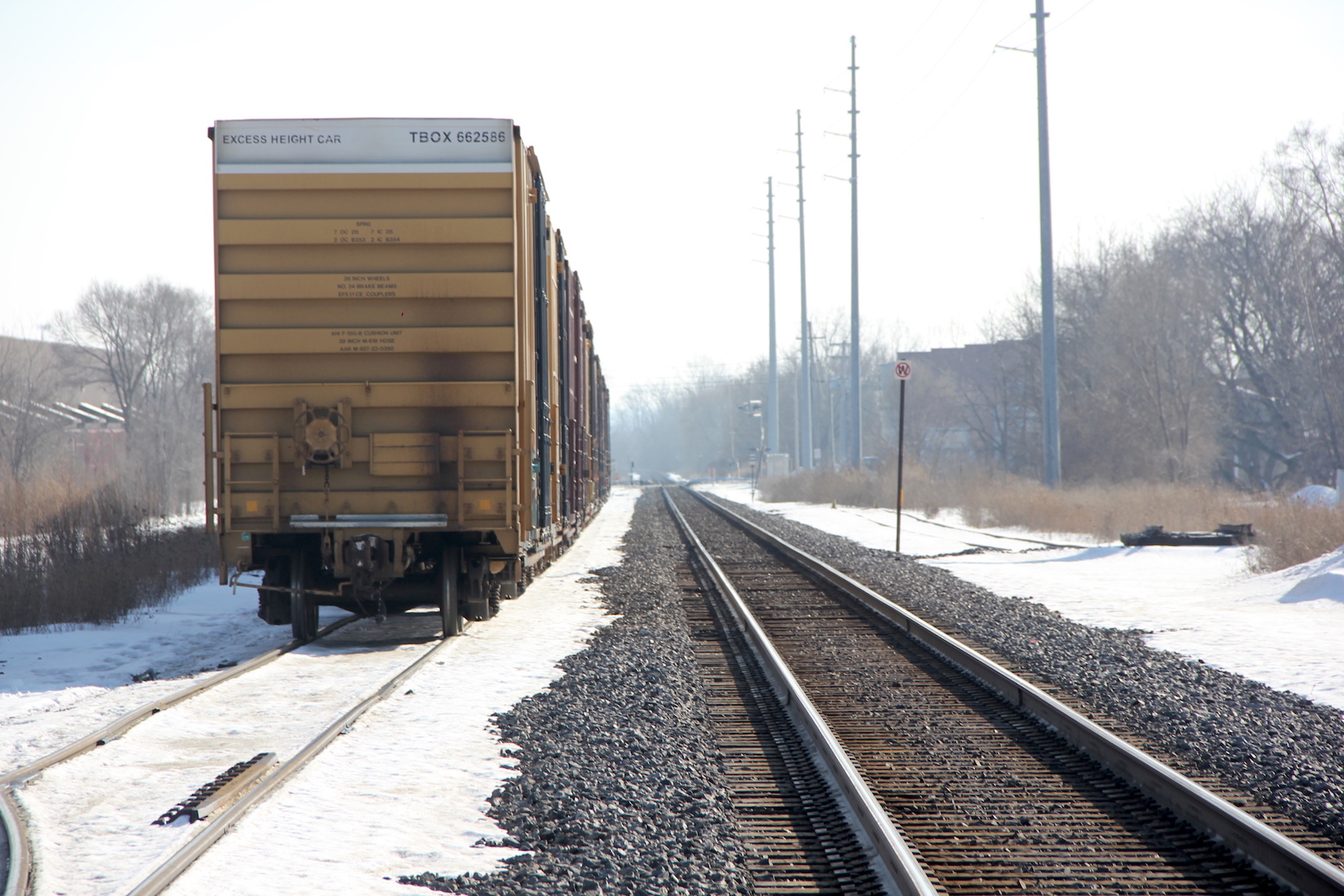

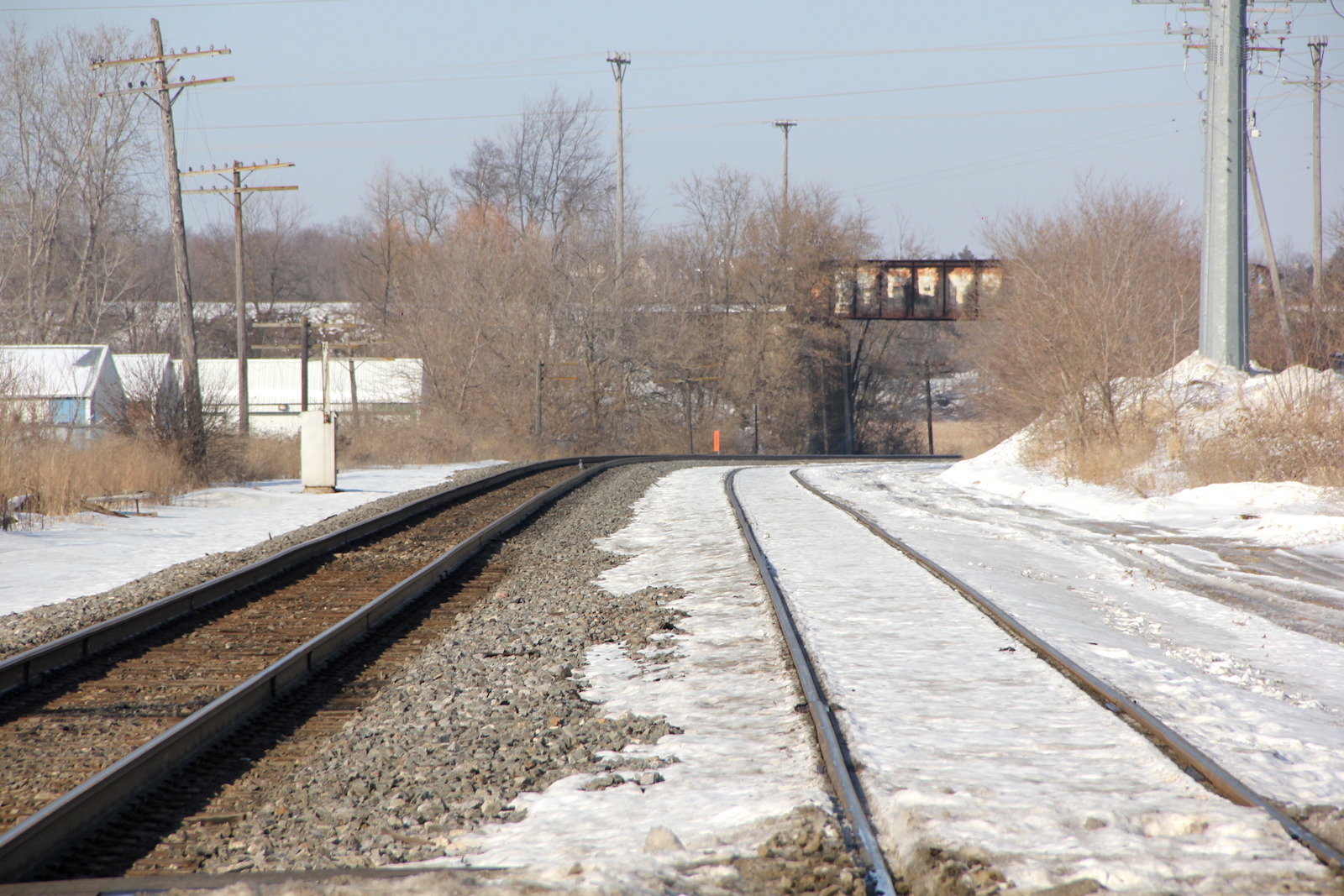

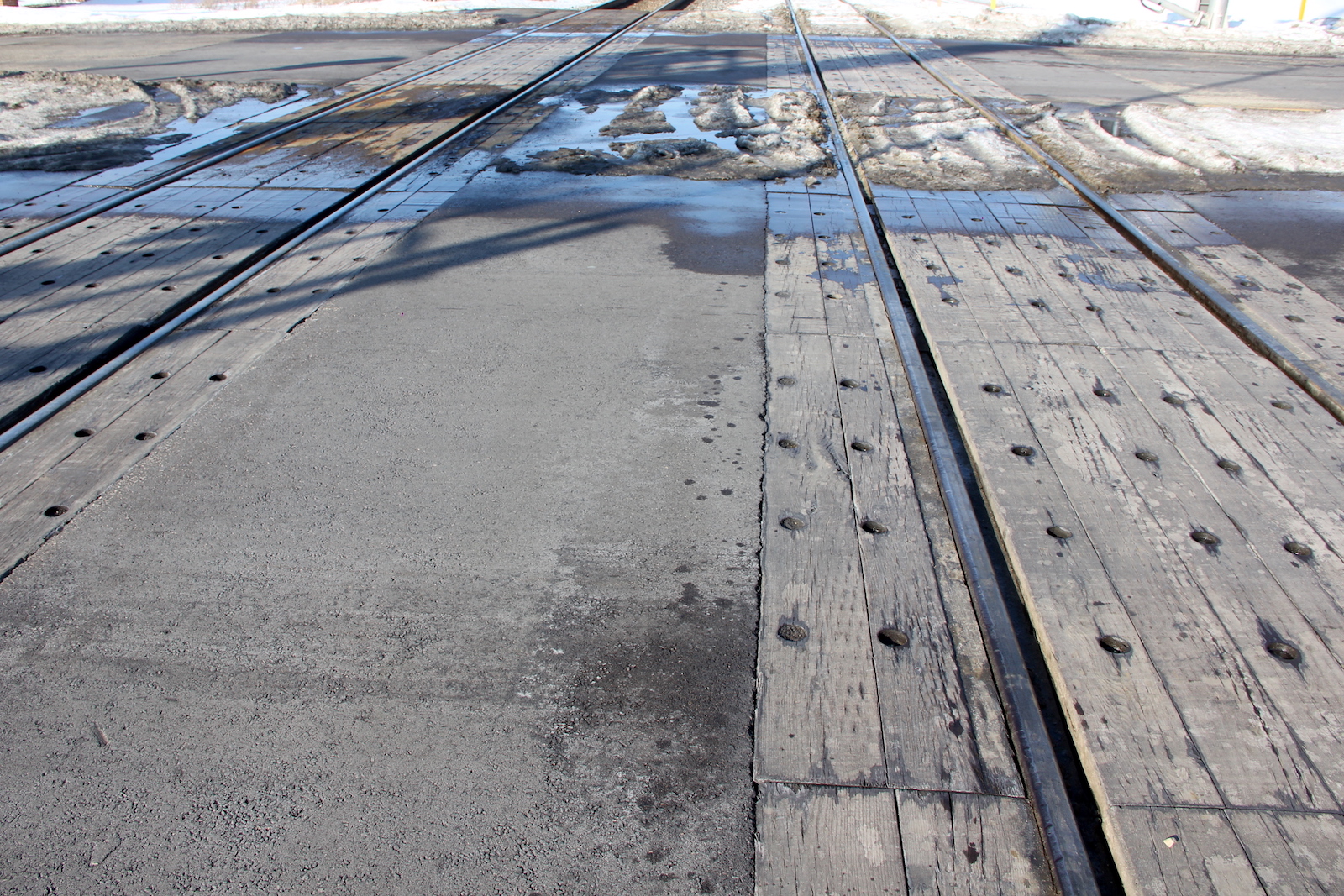

The relay bungalow in the southwest quadrant. The grade is all wood. Track view facing north towards Good Hope Rd. Track view facing south towards Silver Spring Dr.
