87.34


177248C

>>>>>>>>>>>>>> Northern Signal Southern Signal Northern Side Signal
Bell: NEG E Bell Loud Tone Dead Safetran Mechanical Bell None
Base: Griswold EM Griswold EM Unmarked 5" Clamp Base
Lights: 6 - 8"x20" Safetran w/ Electro-Tech's LEDs 6 - 8"x20" Safetran w/ Electro-Tech's LEDs 2 - 8"x20" Safetran w/ Electro-Tech's LEDs
Junction Boxes: Safetran 1 Griswold, 1 WRRS Safetran
Gate Lights: 4" RECO LEDs 4" NEG LEDs None
Gate Mechanism: Griswold EM w/ Wishbone Mount Griswold EM w/ Wishbone Mount None
Gate Striping: Vertical Striping Vertical Striping N/A

Pictures 1-40 were taken on October 30, 2020, by Tommy McGowan.
The 1st video was taken in July 2015 by Brenton81.
The 2nd video was taken in August 2019 by Brenton81.
Pictures 41-66 and the 3rd video were taken on November 16, 2023, by freebrickproductions.
This crossing is located on the UP Milwaukee Sub.

1 2

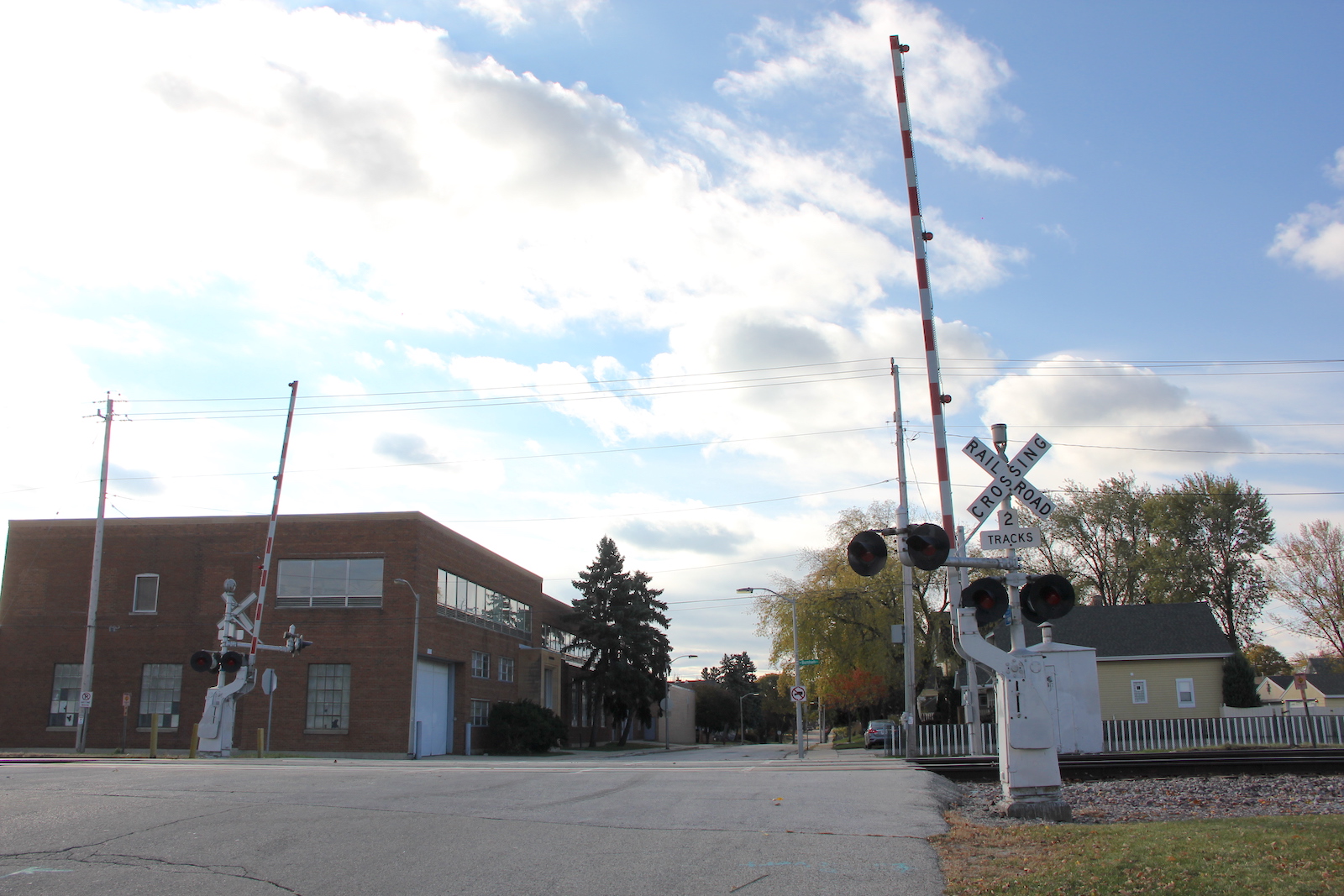

Overview of a classic Griswold EM gated setup facing north. Overview facing south.
3 4 5
6 7 8
9 10 11 12
13 14 15 16

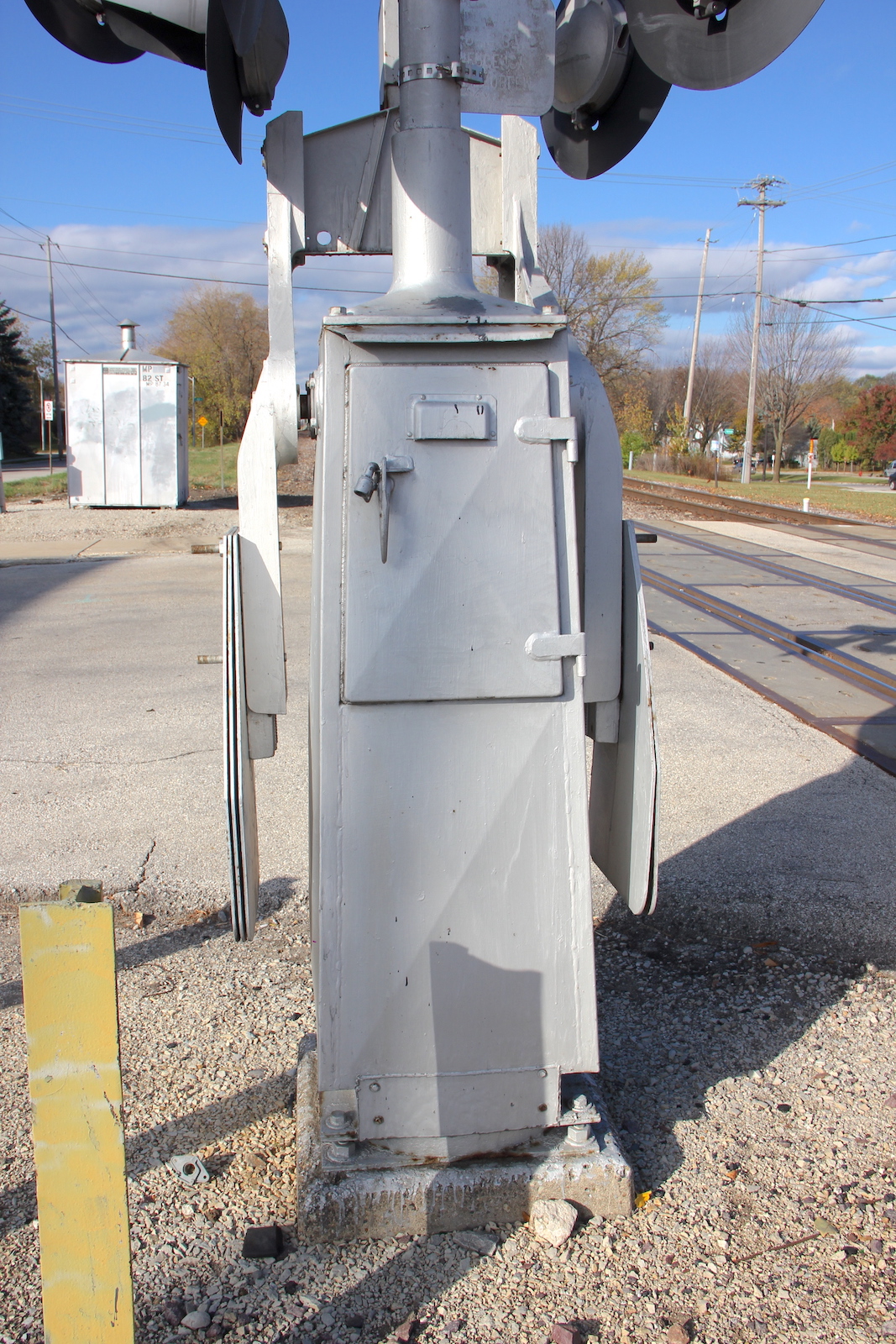

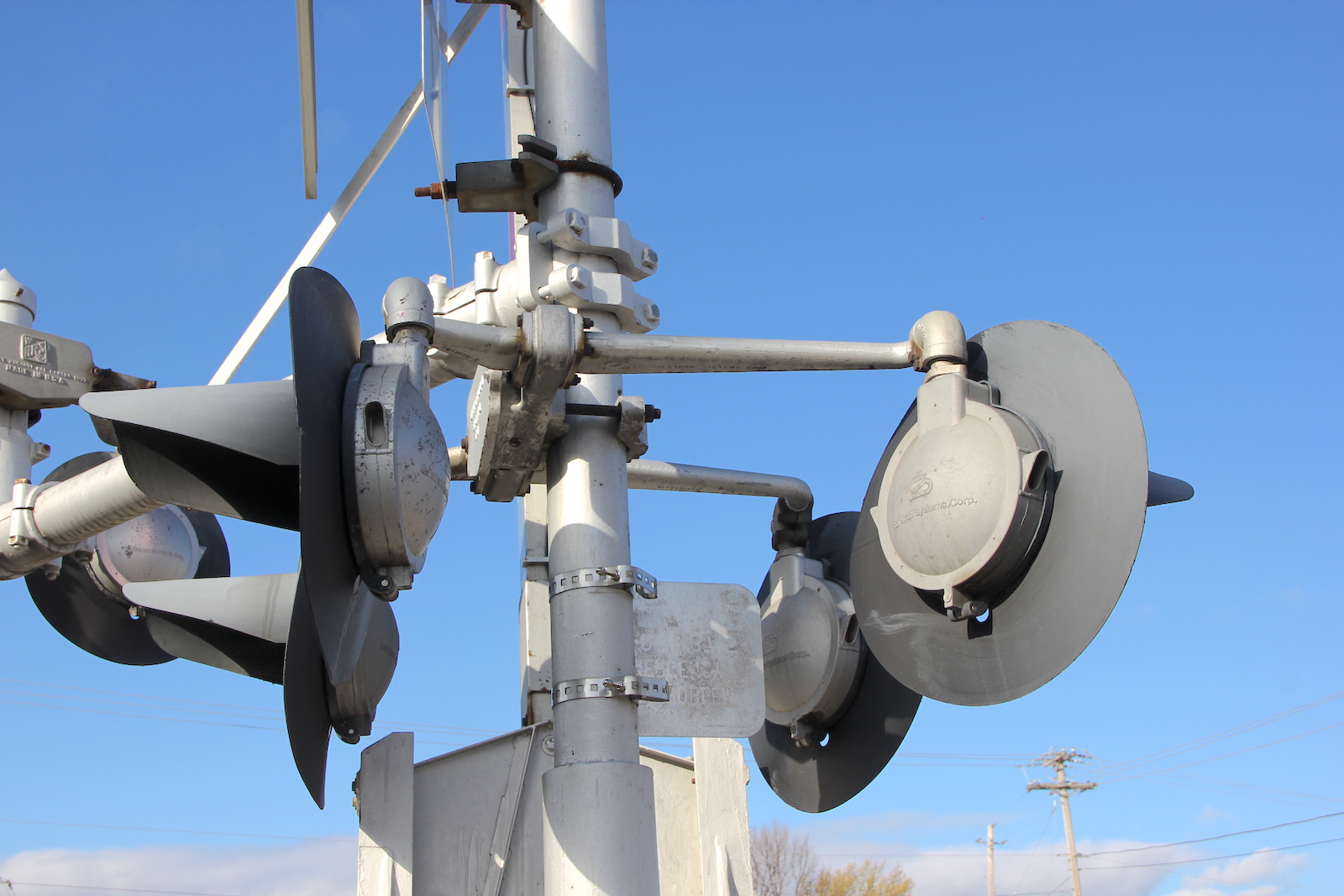

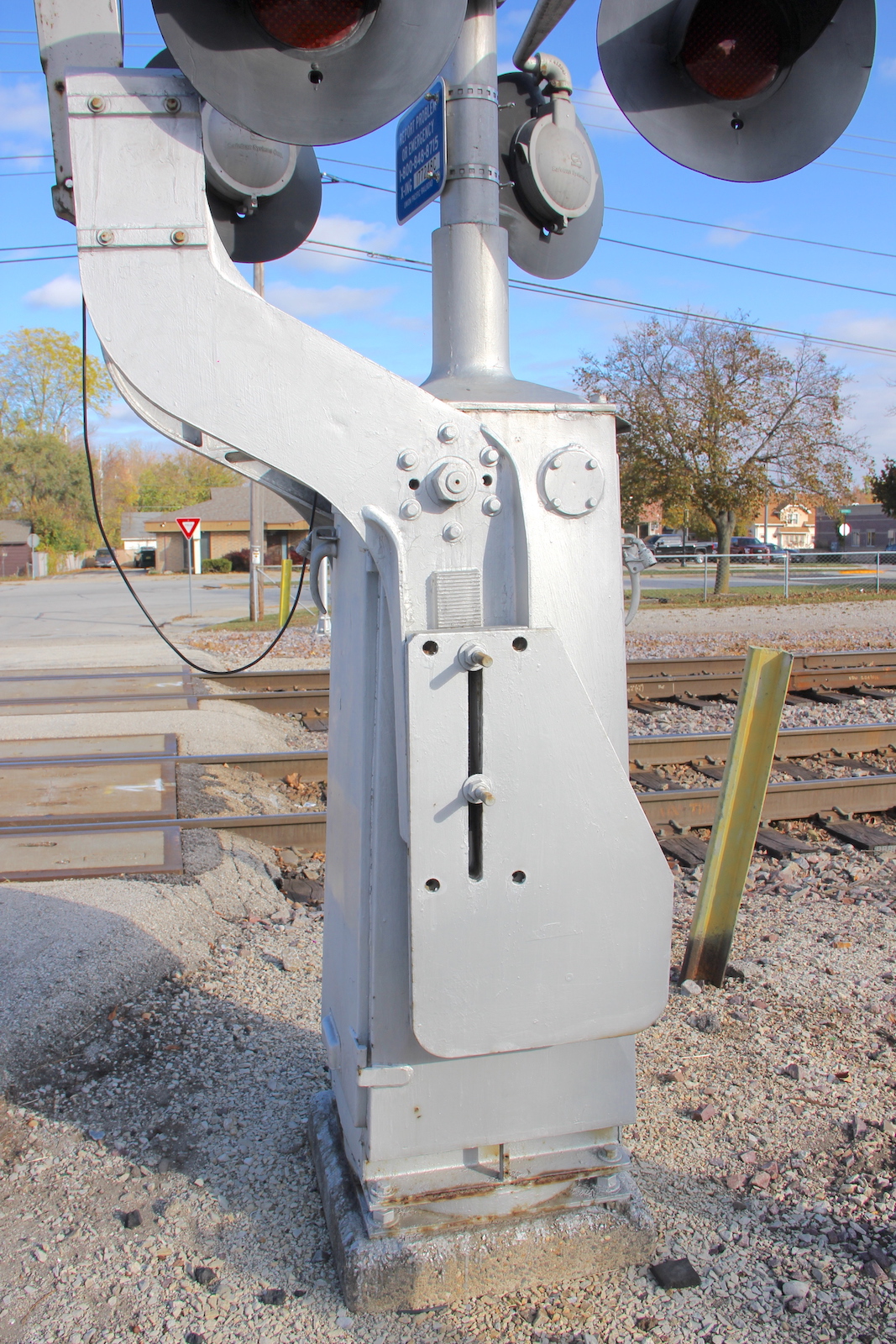

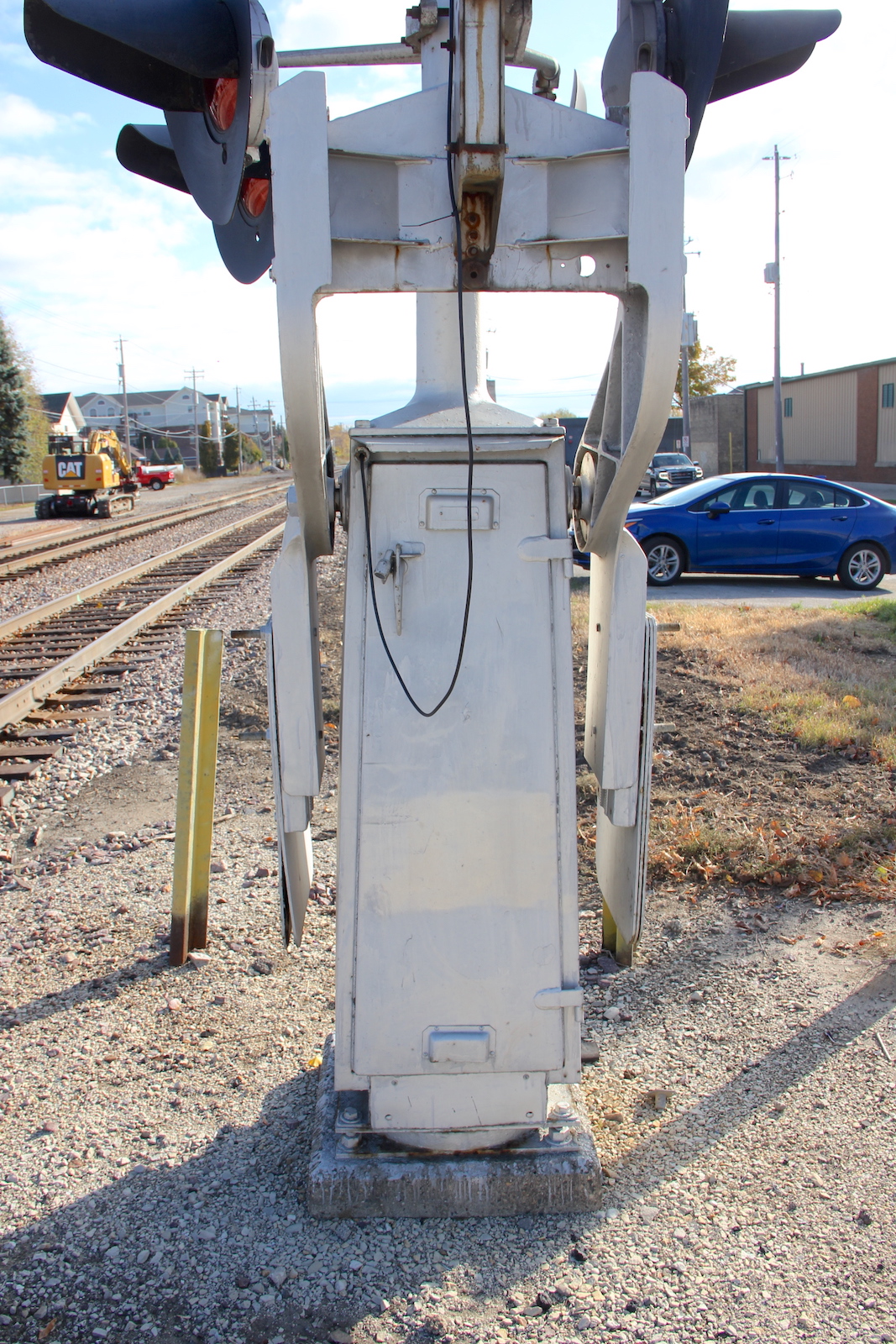

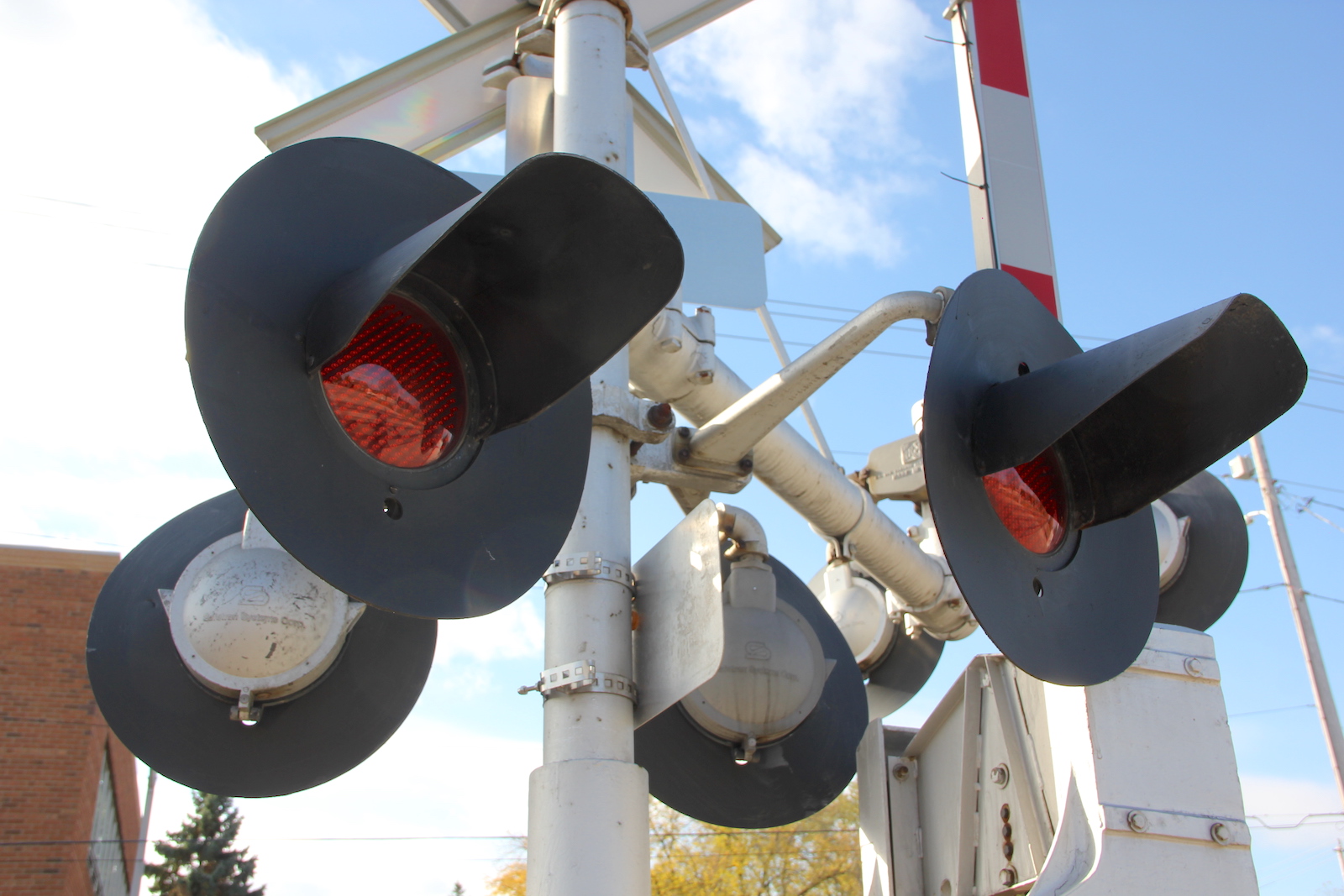

The southern signal.
17 18 19
20 21 22
23 24 25 26
27 28 29 30

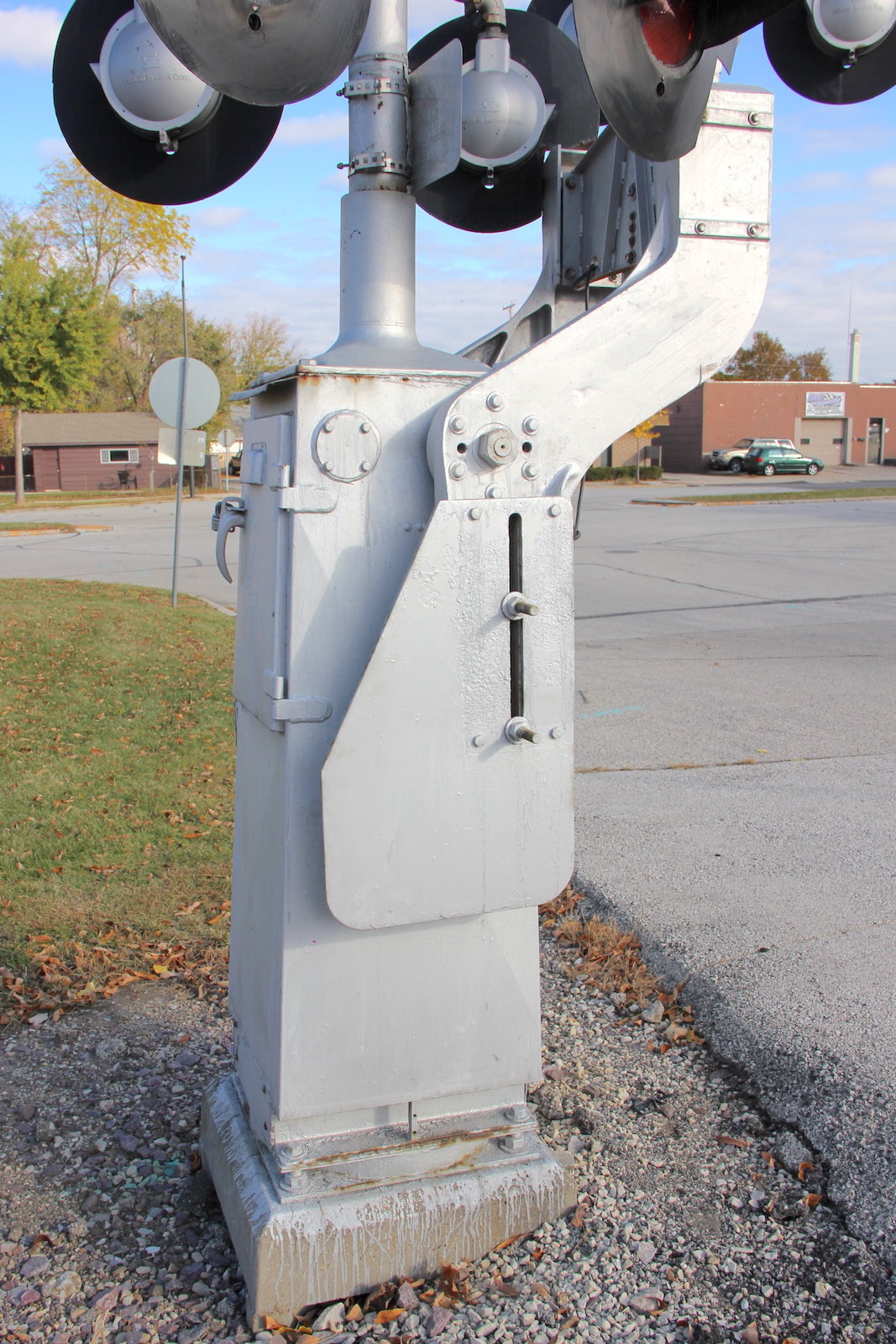

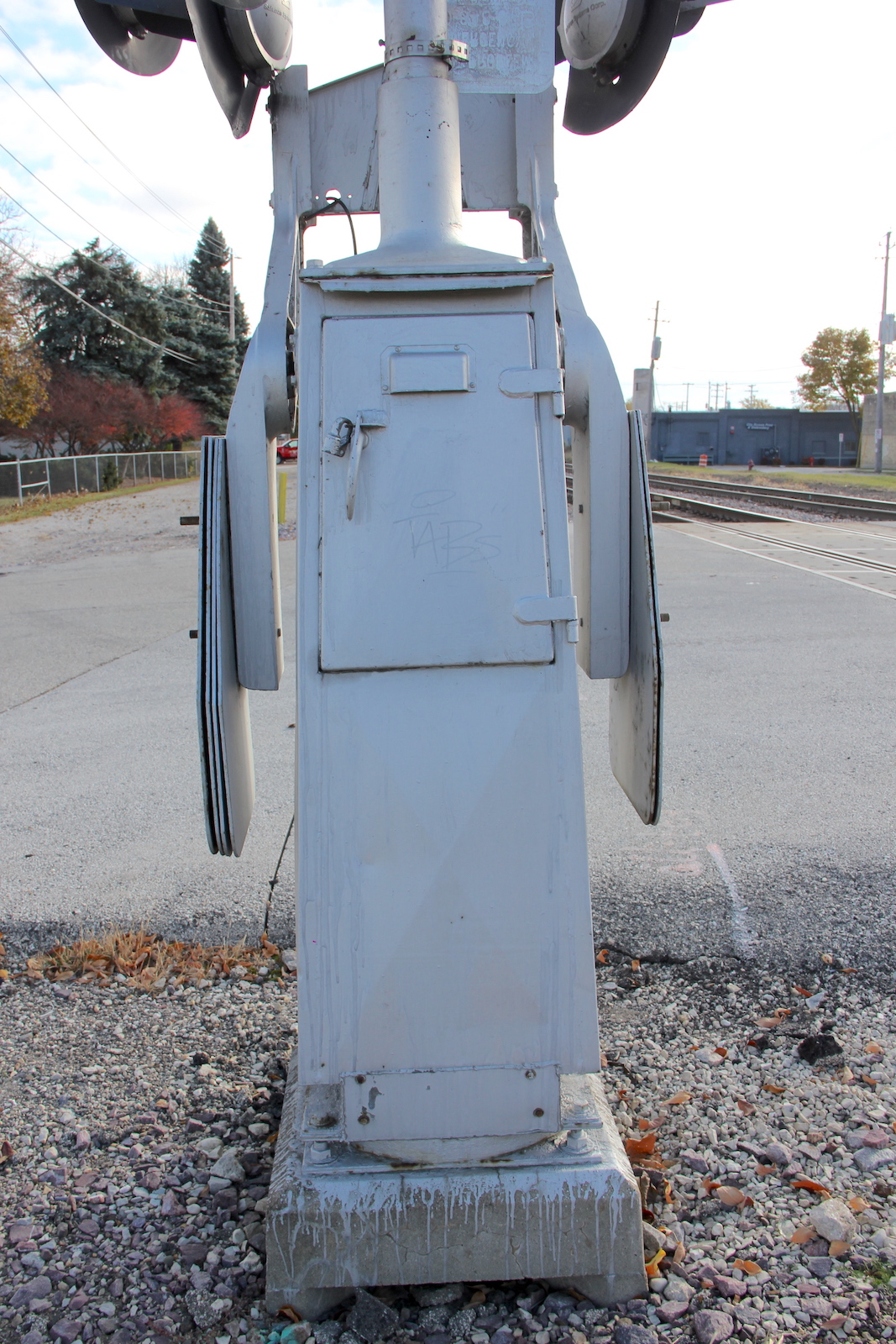

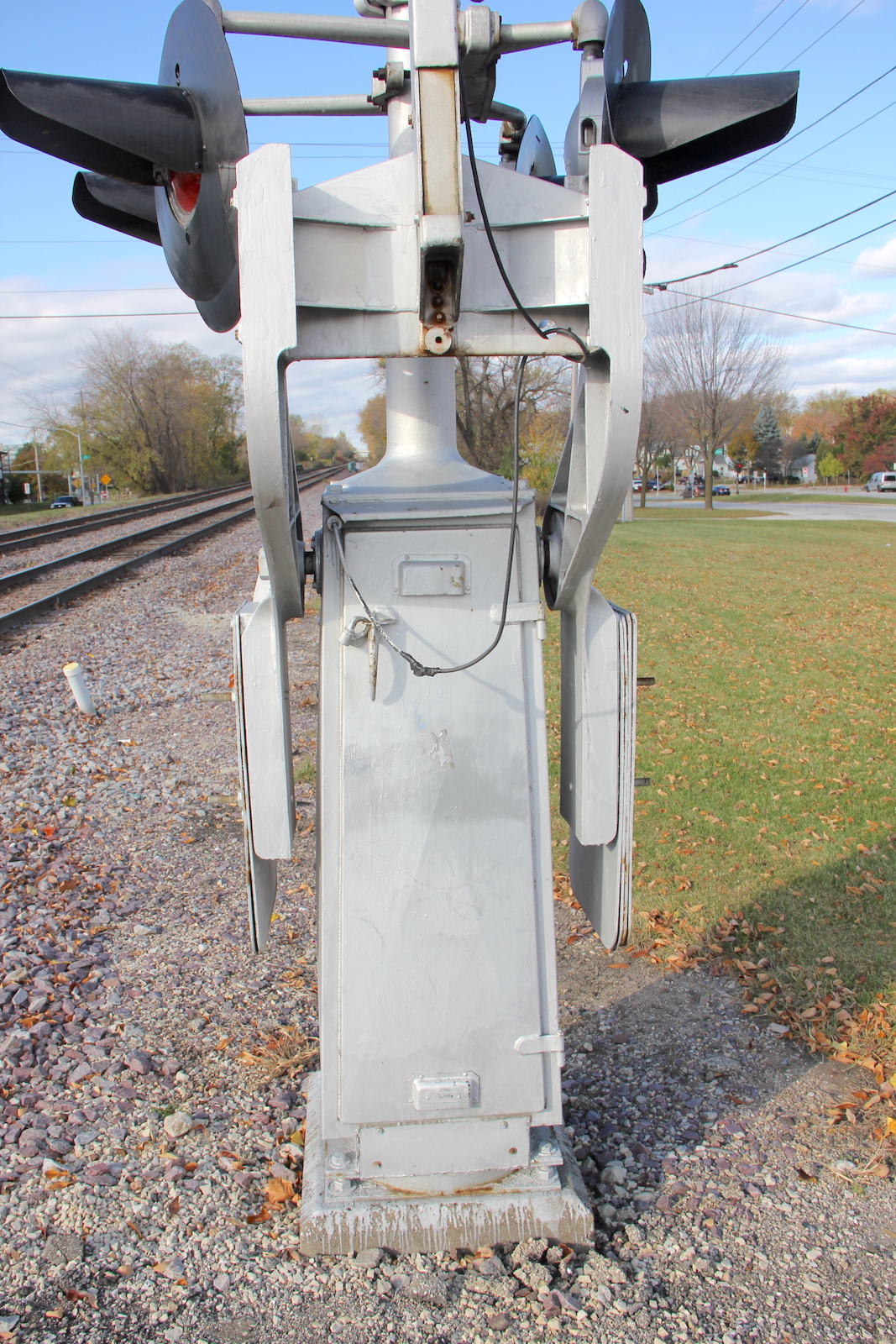

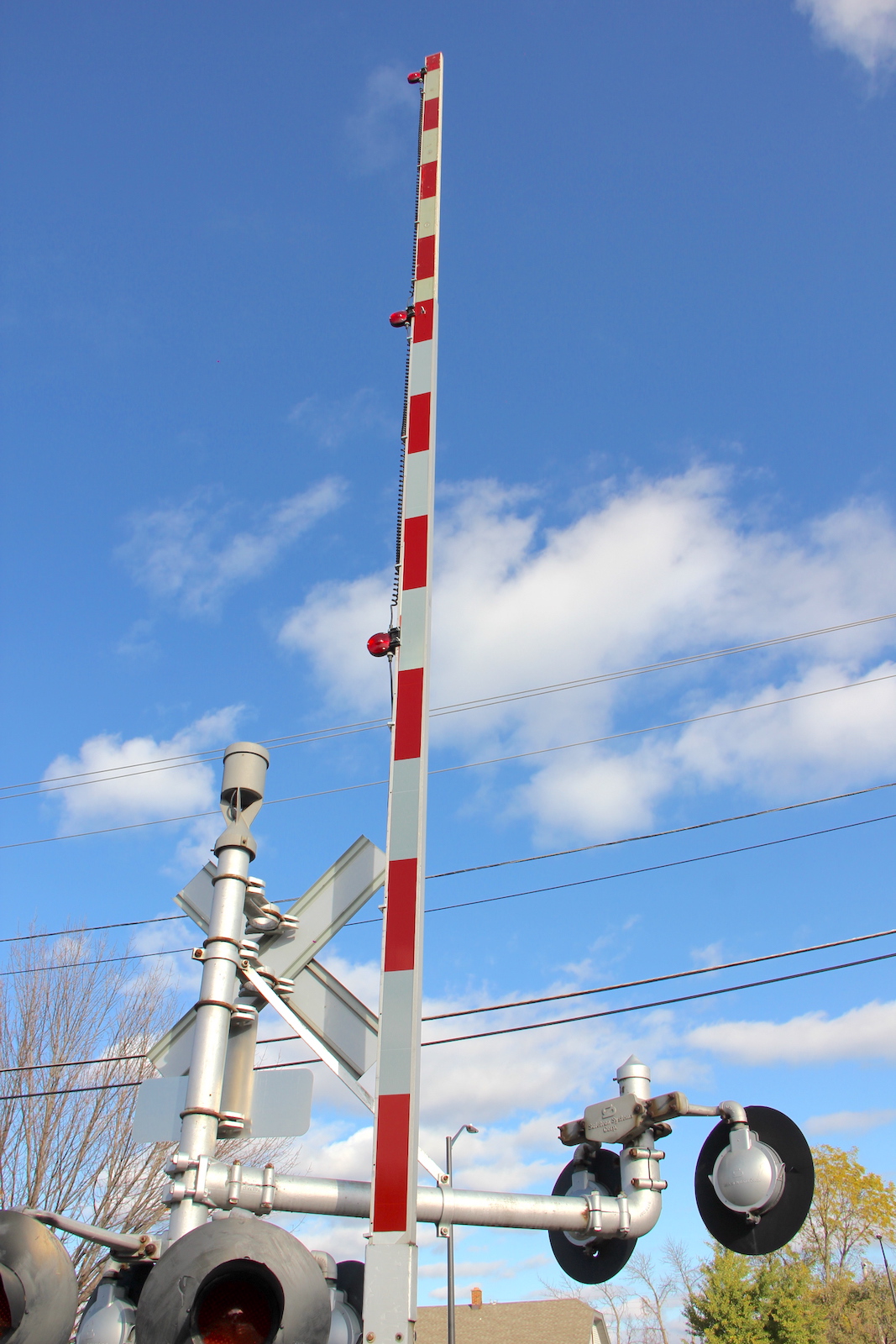

The northern signal.
31 32
33 34 35

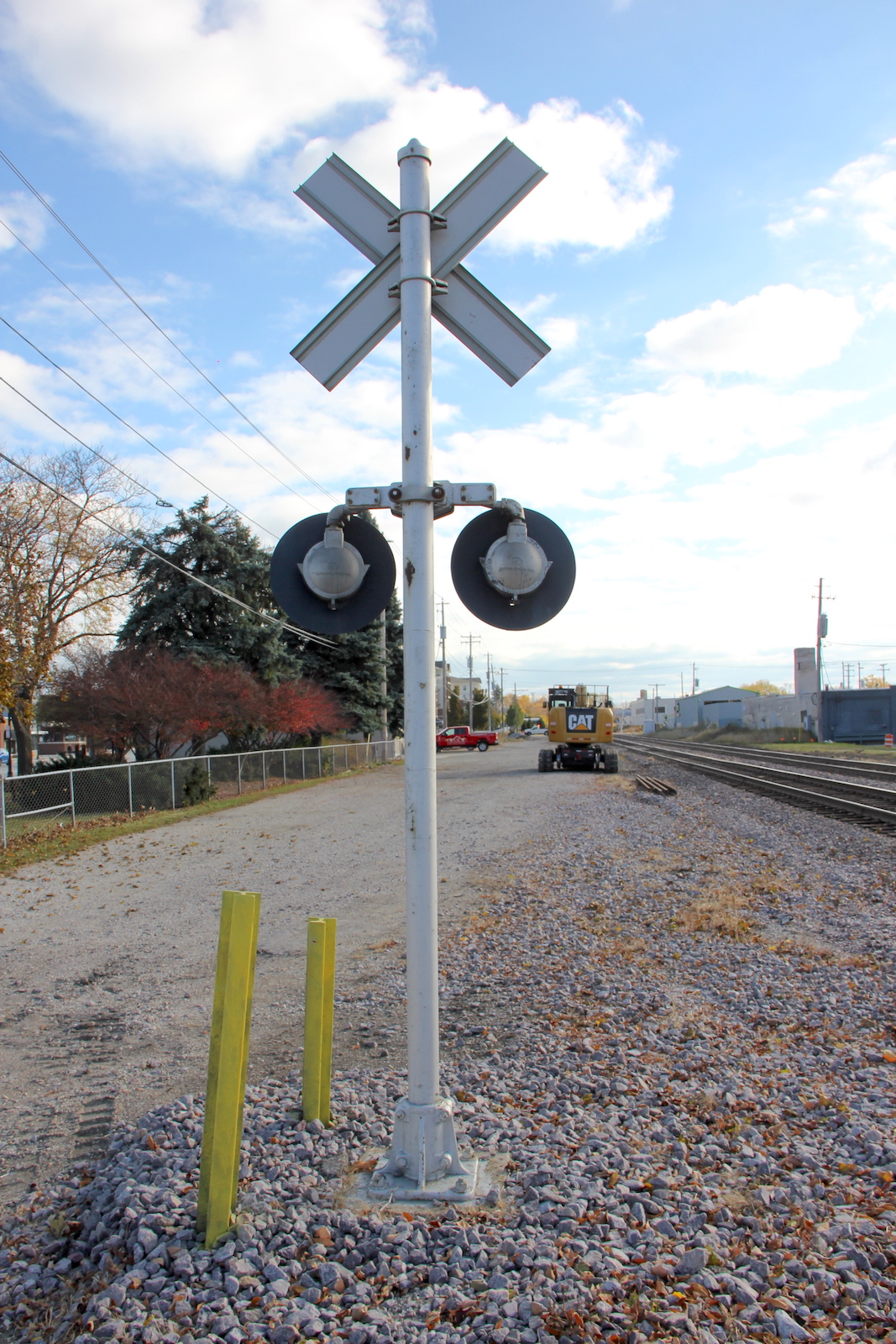

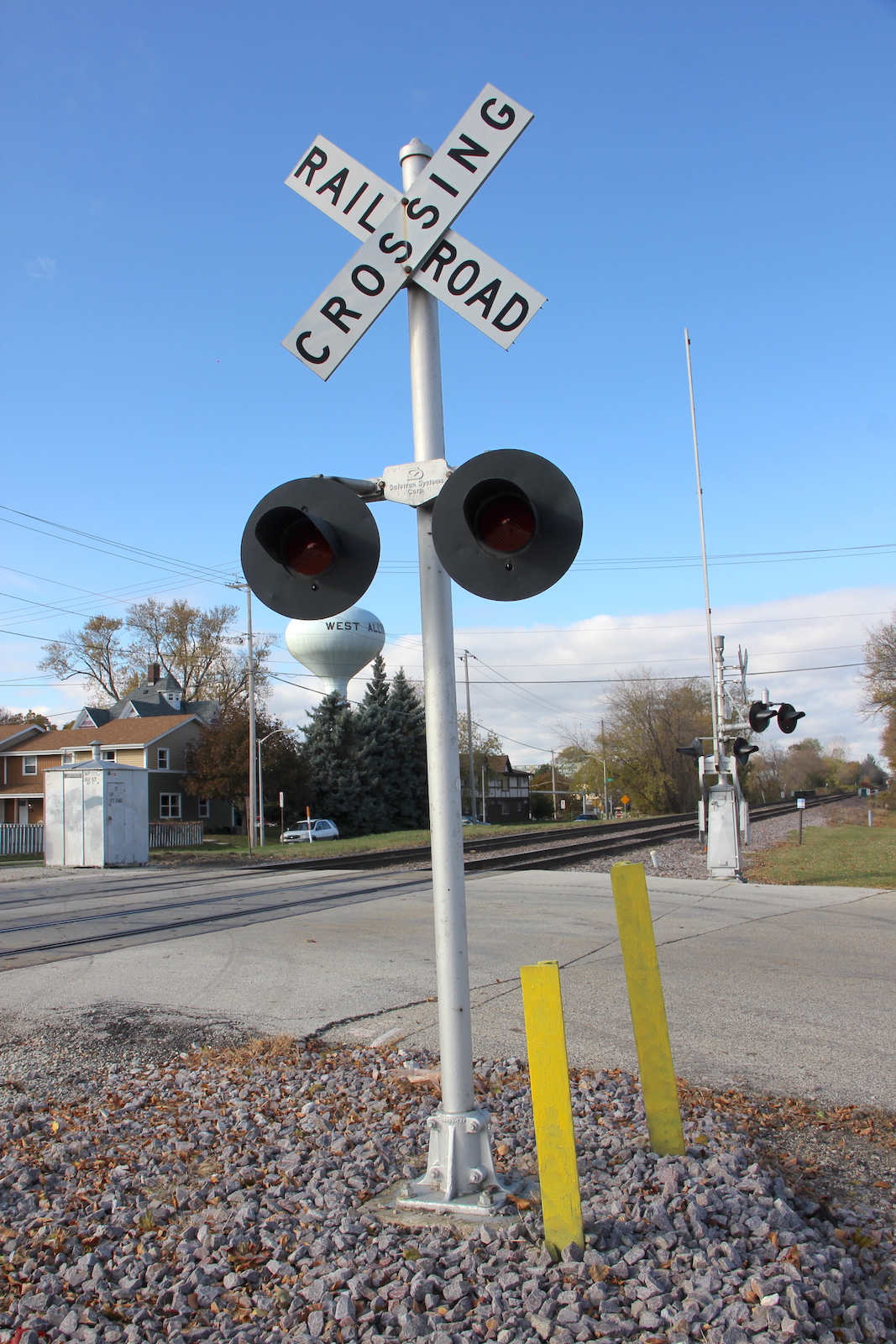

The northern side signal. This protects an alley paralleling National Ave.
36 37 38 39

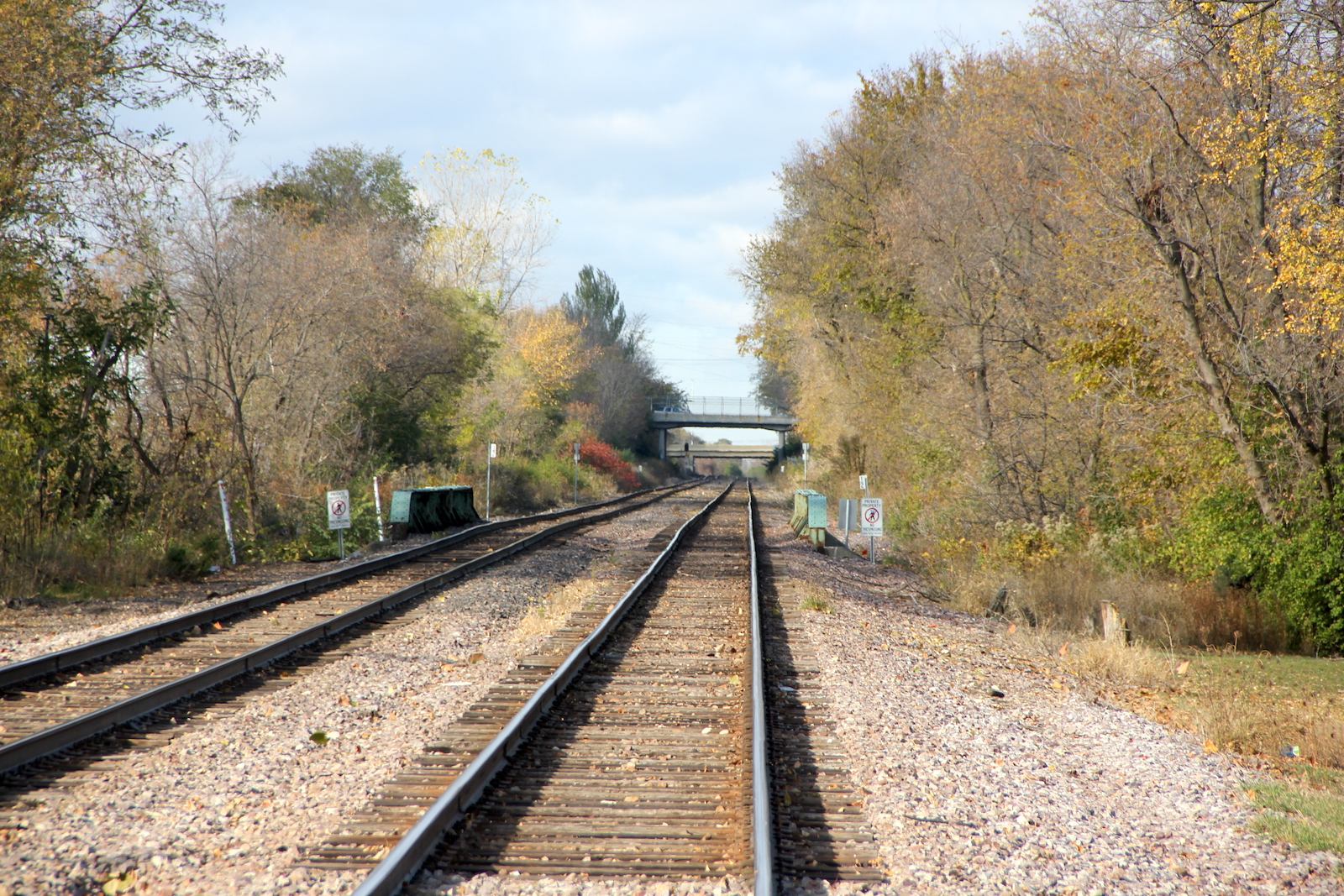

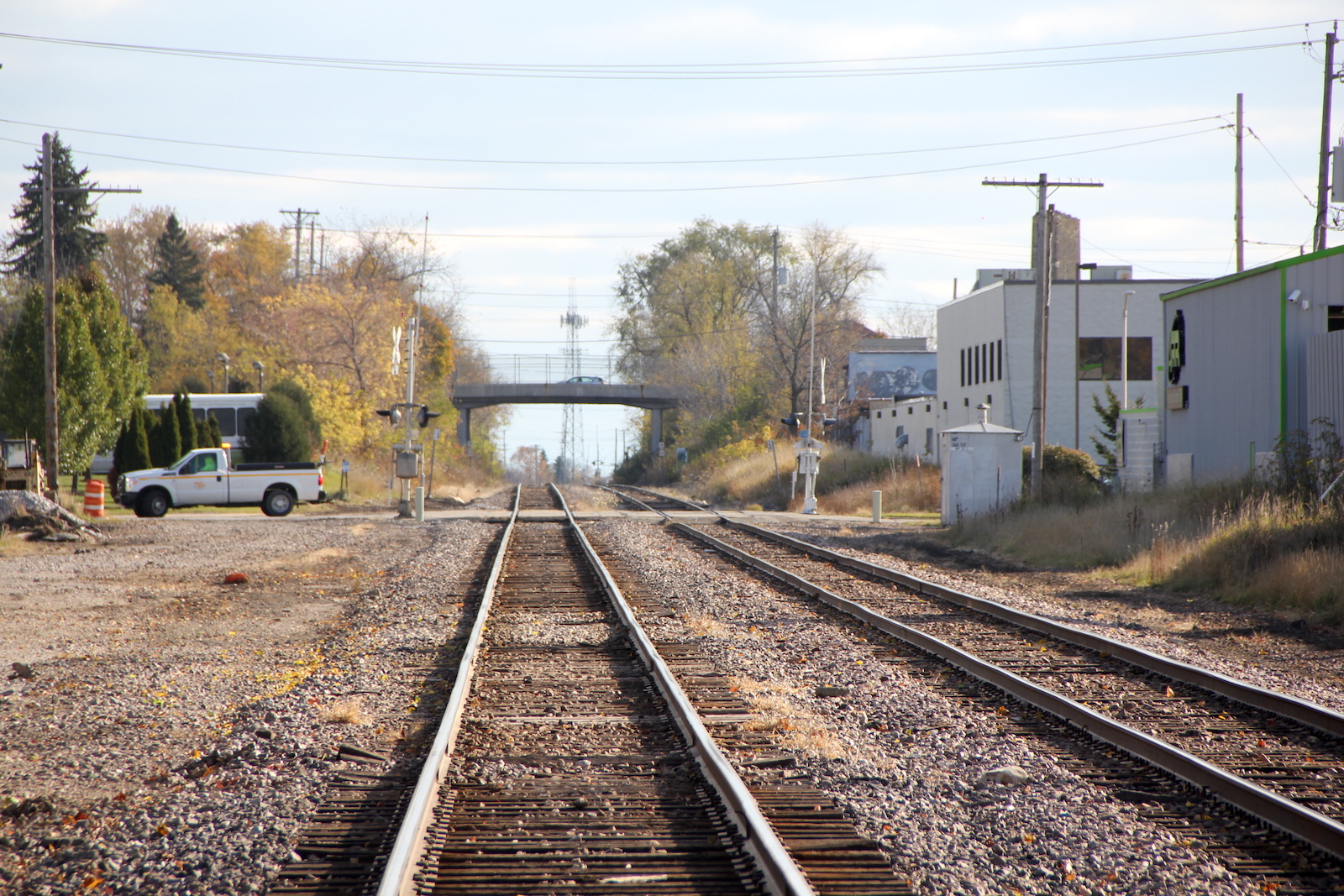

The relay bungalow in the southwest quadrant. The grade is all concrete. Track view facing west towards Potter Rd. in Wauwatosa. Track view facing east at 80th St.
40
Side view of the signals.
41 42
43 44 45
46 47 48

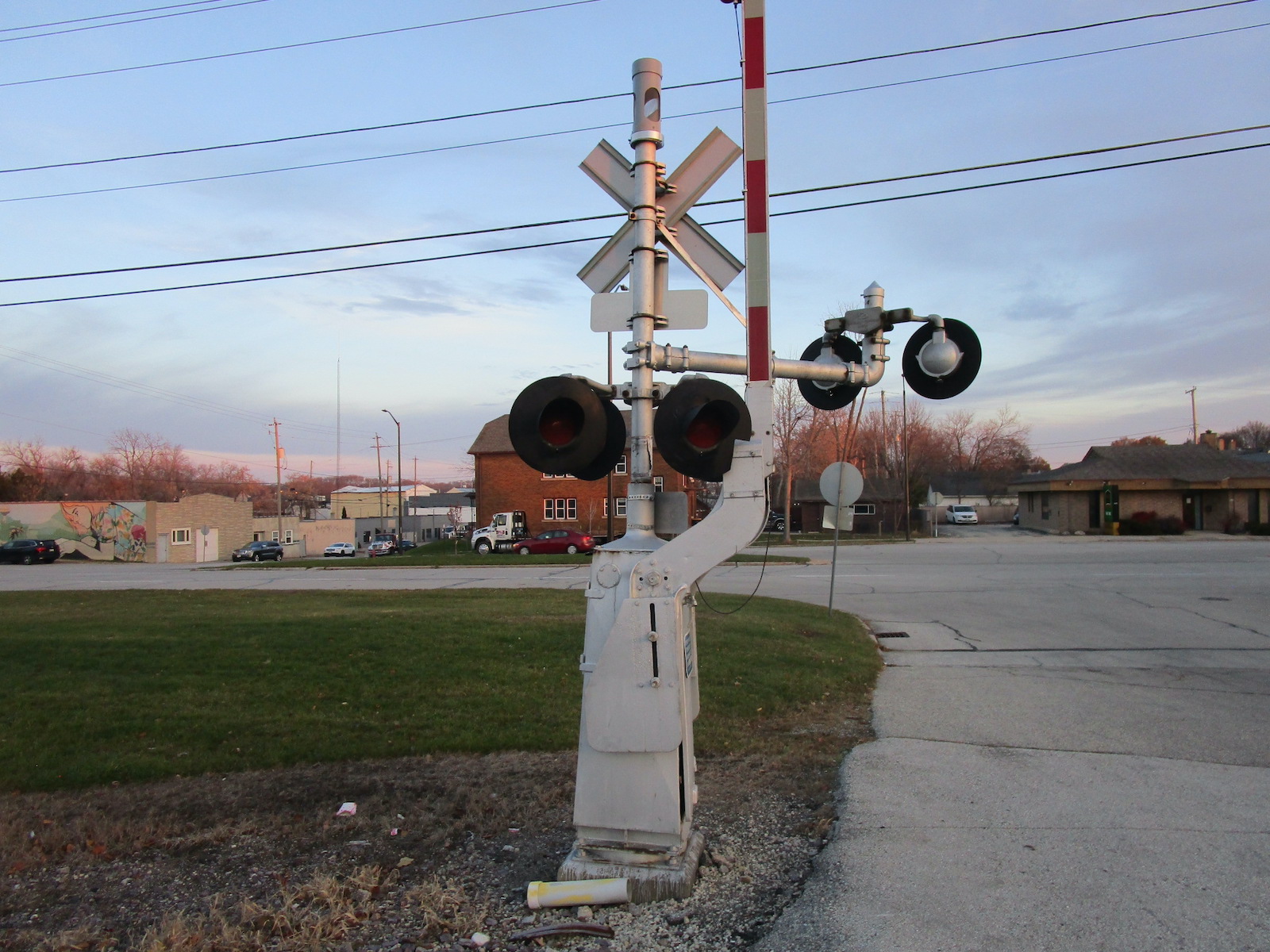

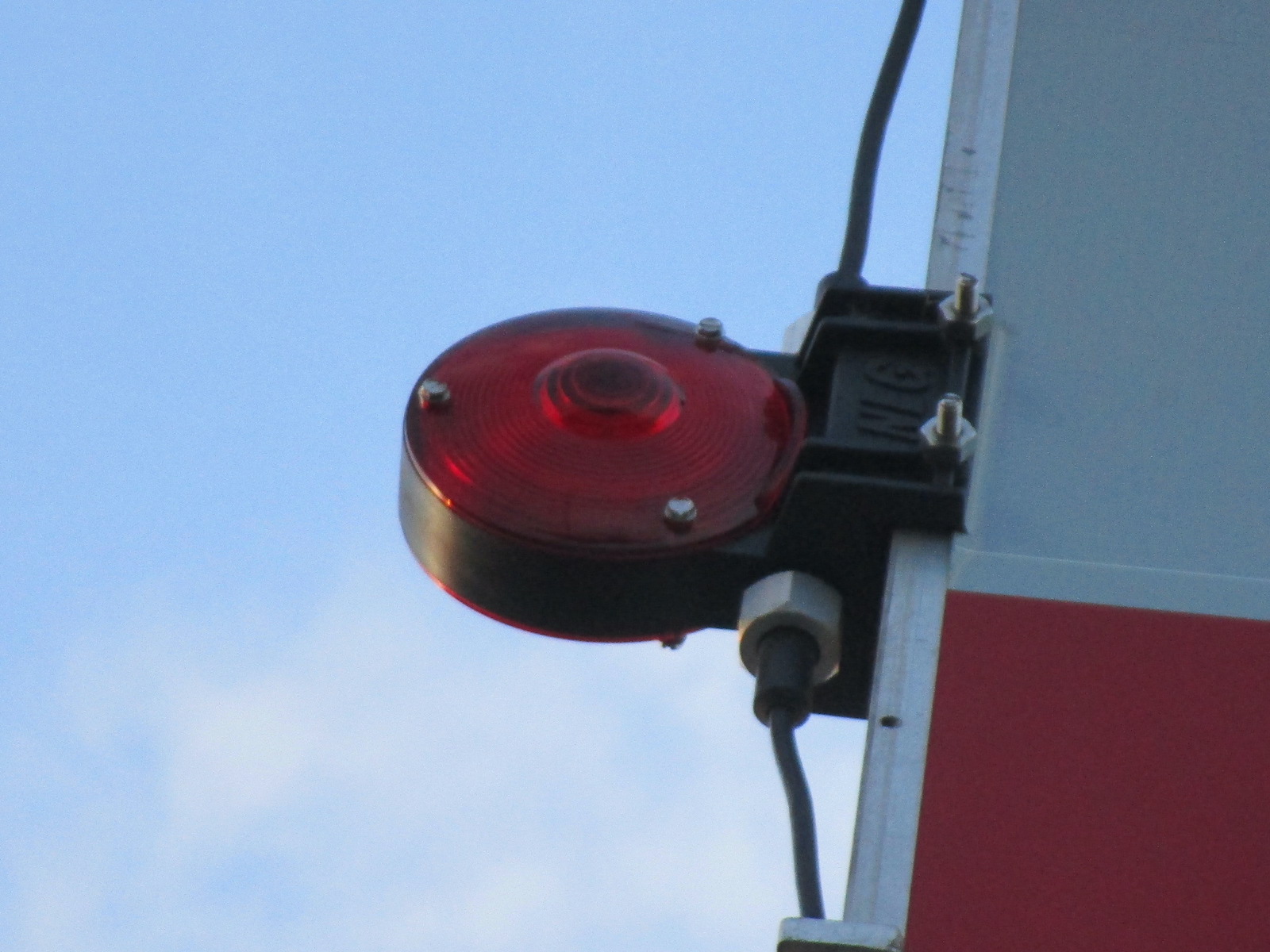

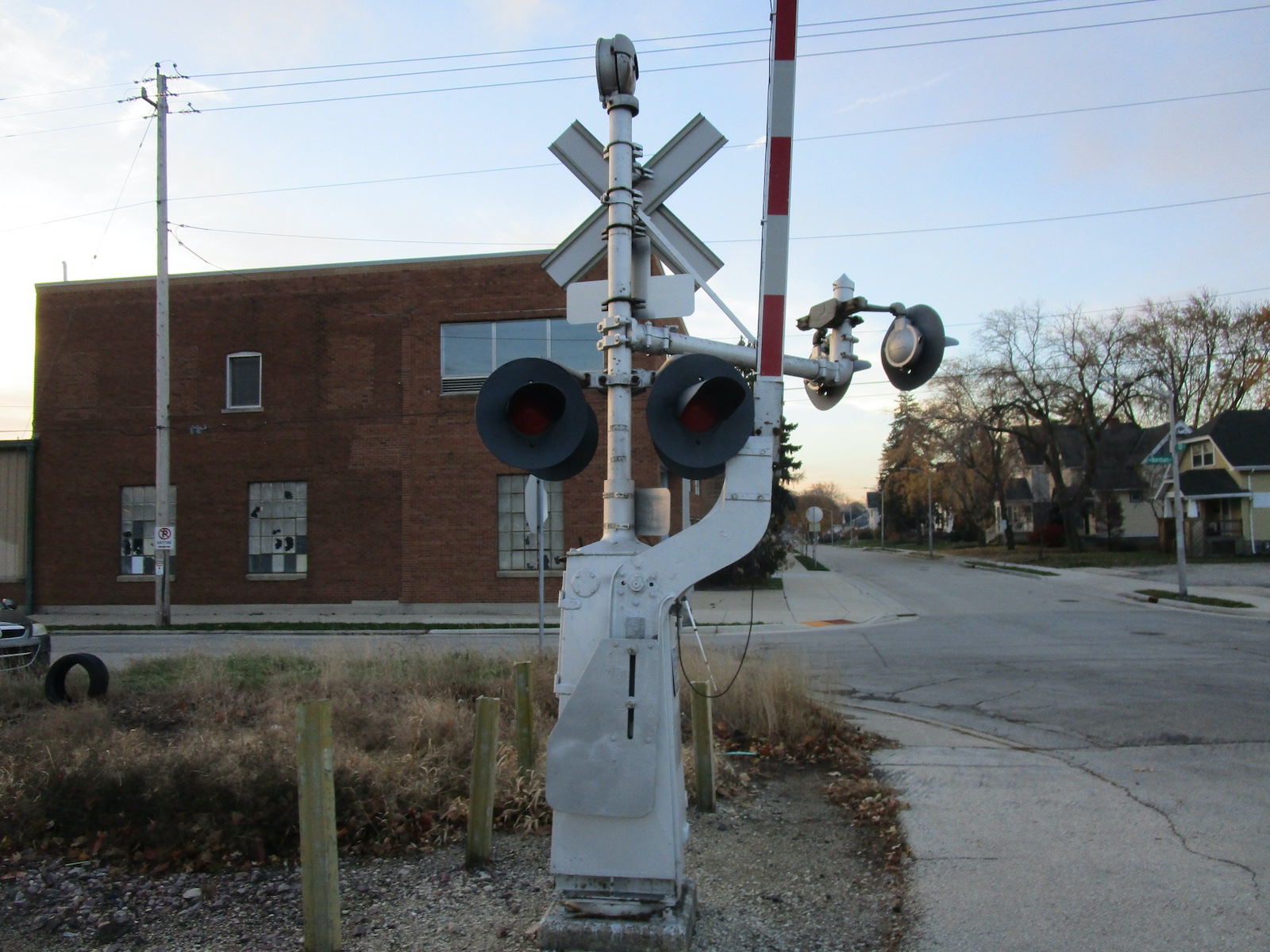

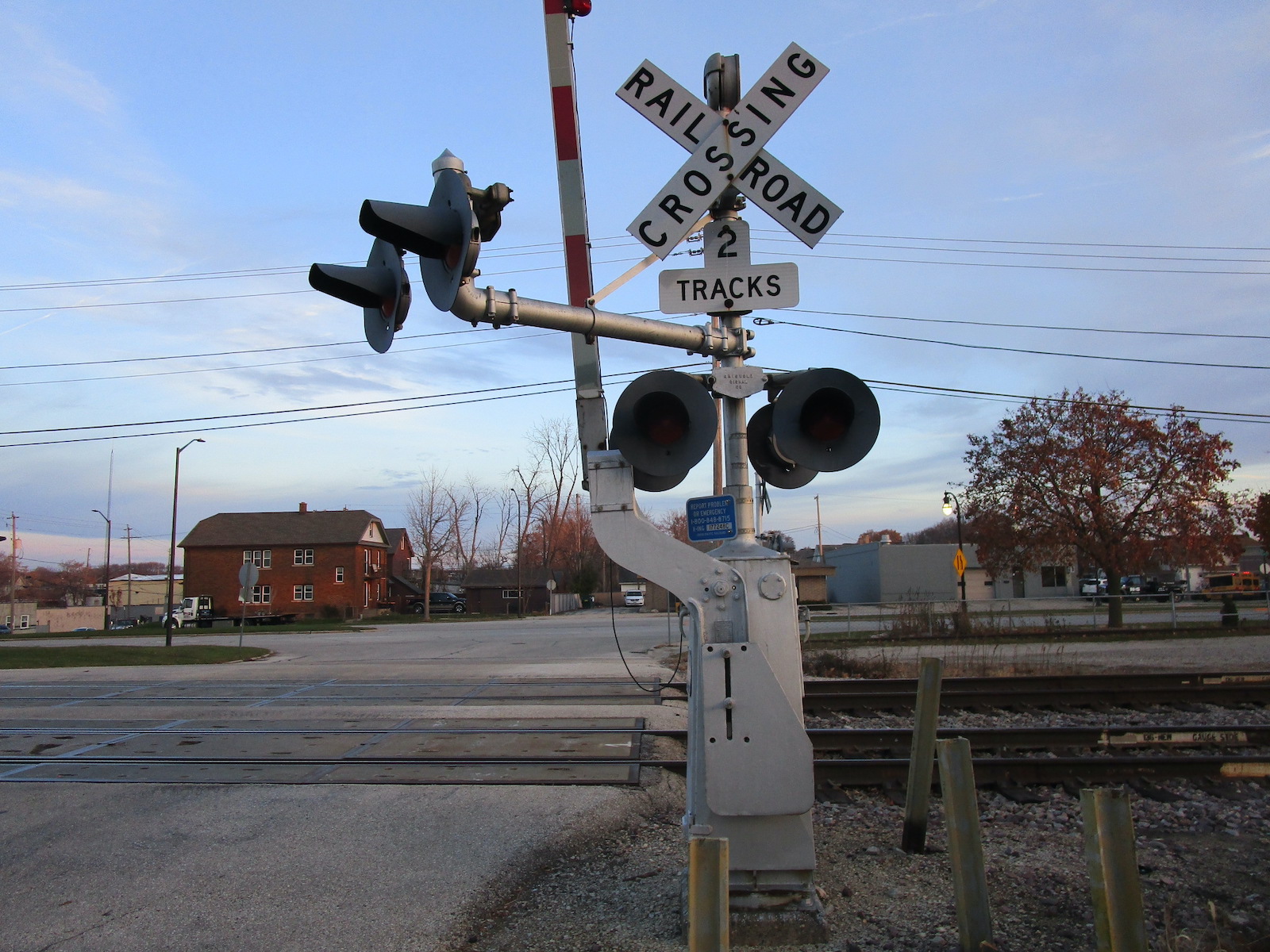

In November 2023, we see the WCH E Bell was replaced with an NEG E Bell, while the Safetran bell is still here, albeit dead. The southern signal's gate was also replaced.
49 50 51 52 53 54
55 56 57 58 59 60
61 62 63 64 65 66

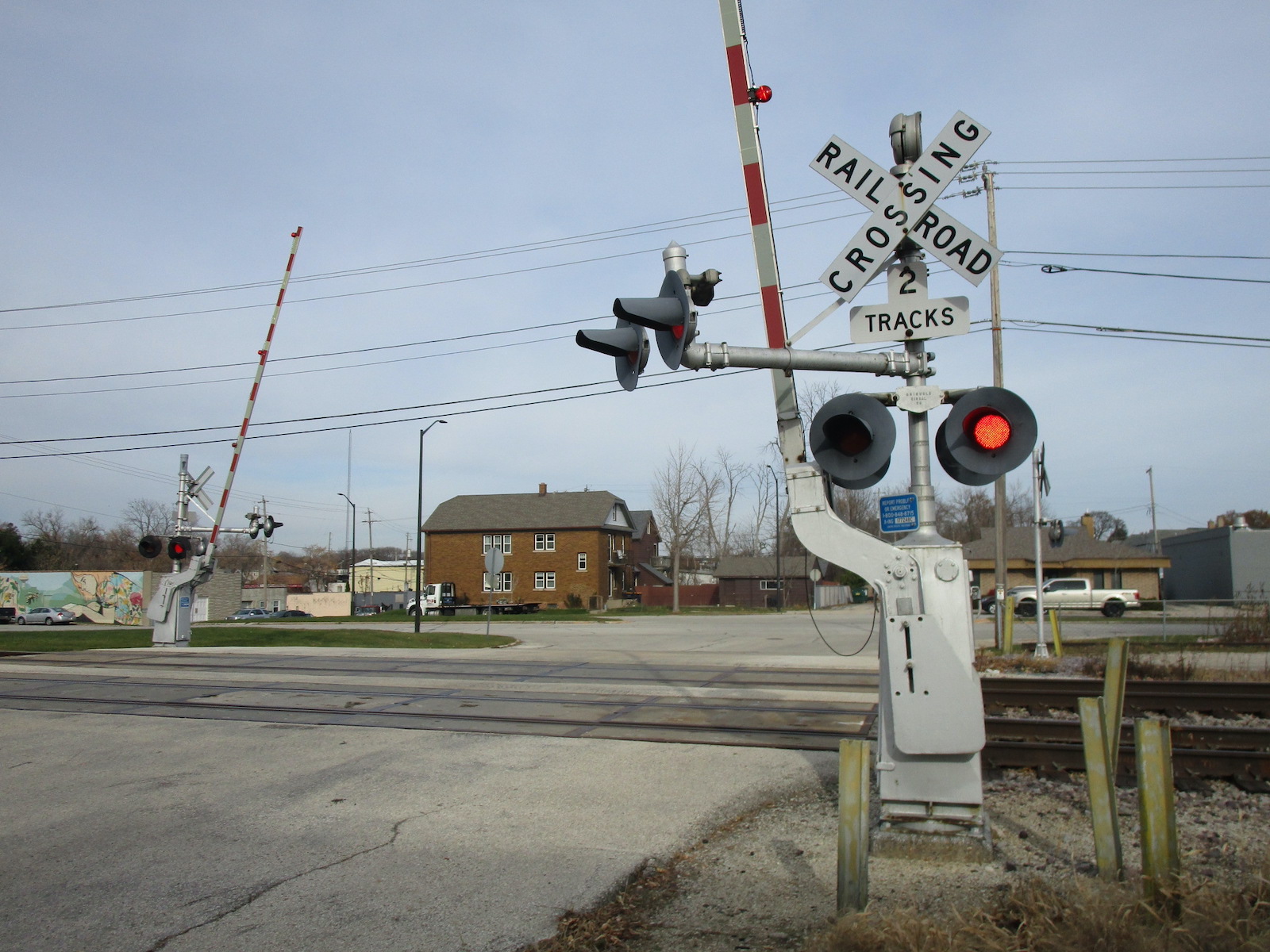

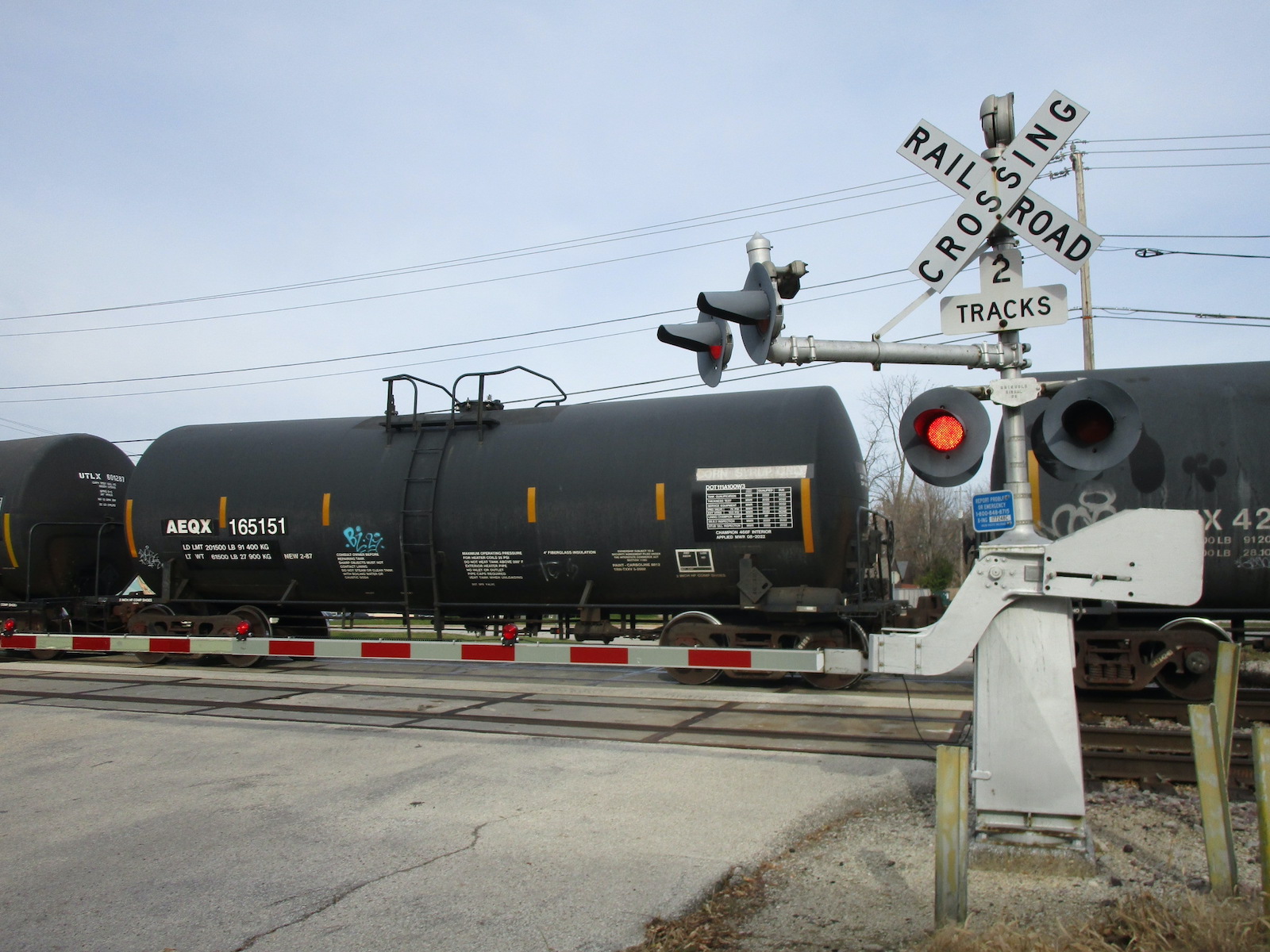

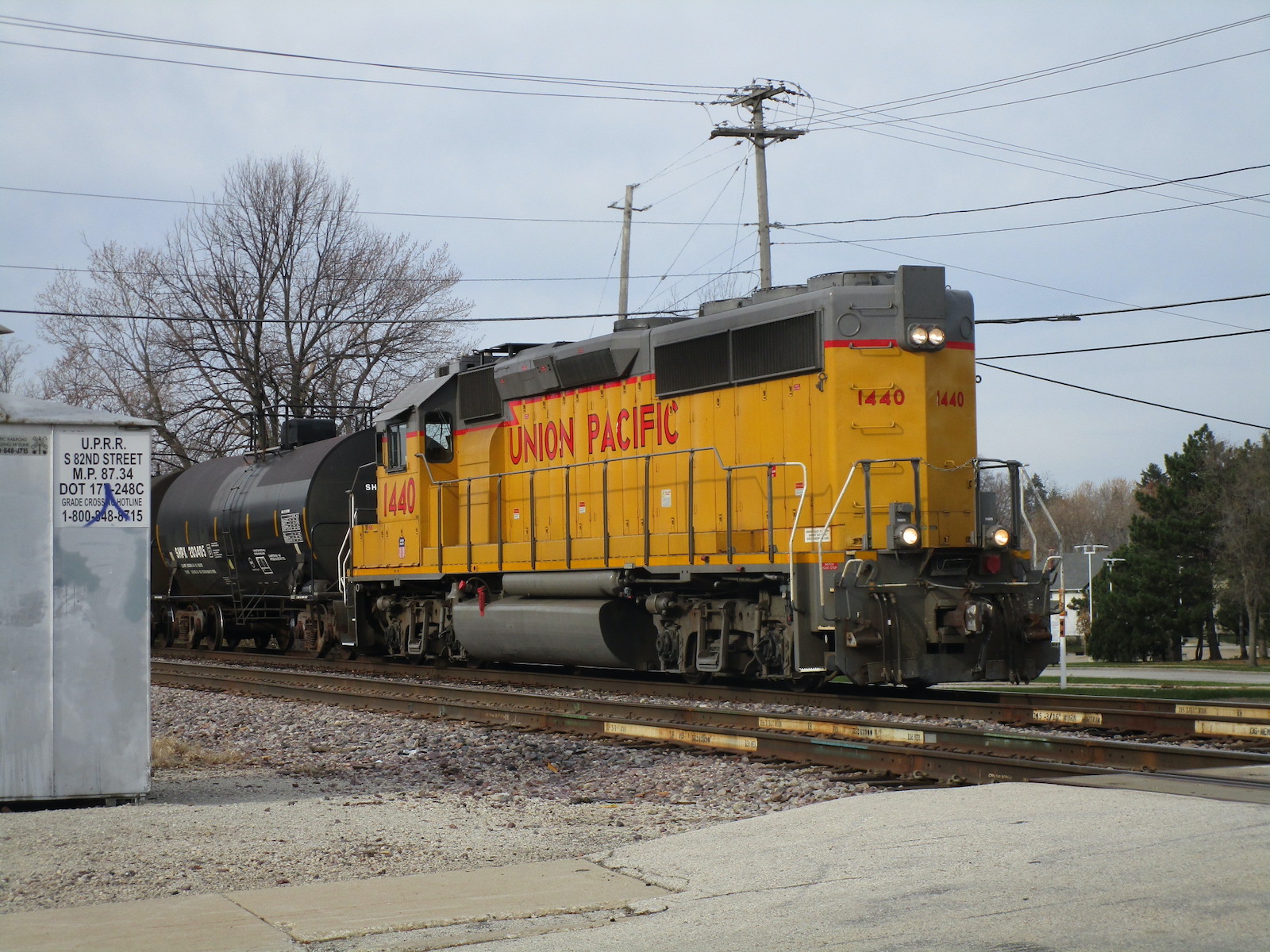

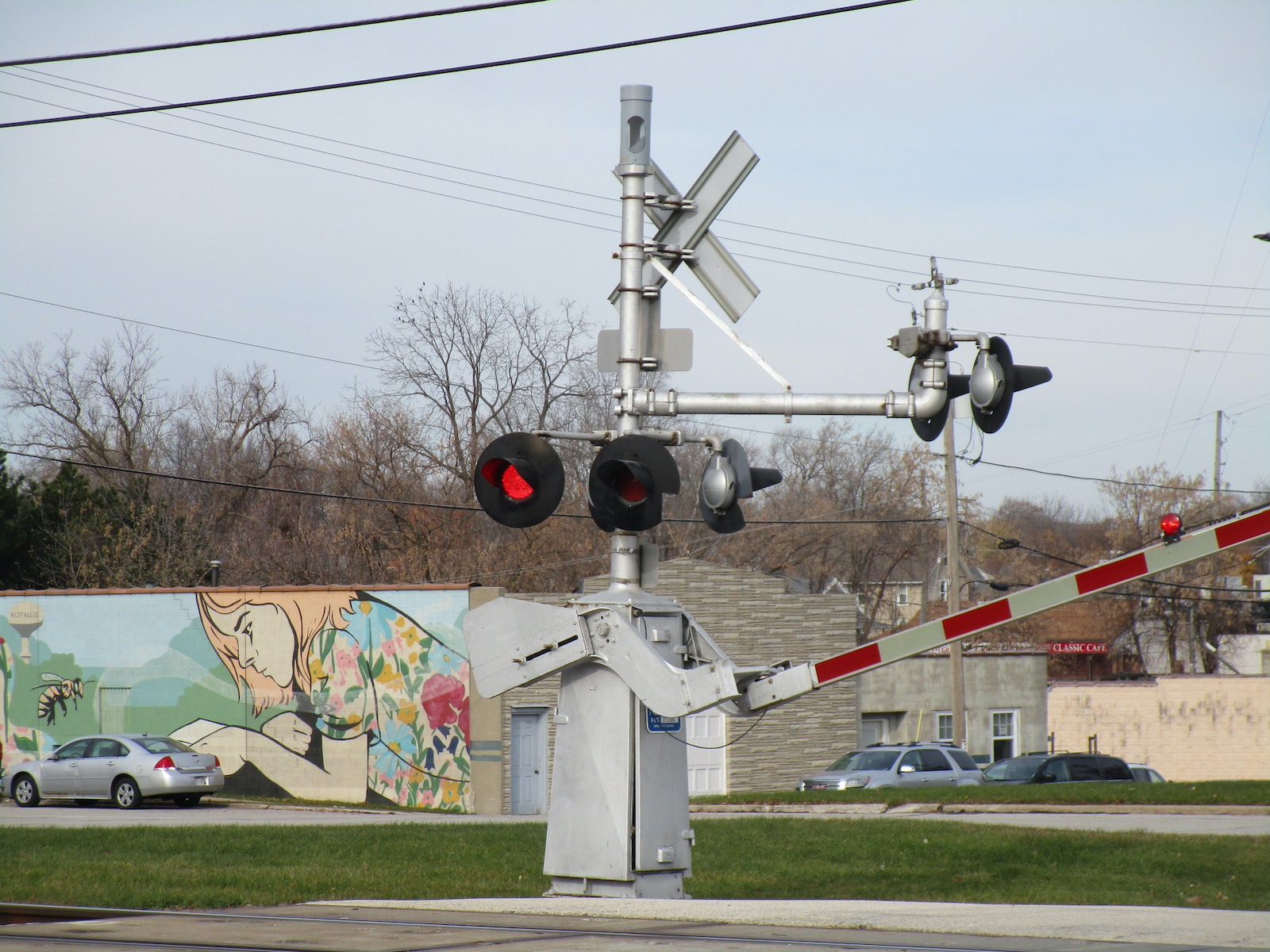

Action shots from the train seen in the 3rd video below.
