| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS Type 2 E-Bell | N/A |
| Base: | Safetran 5" Single Sided | Safetran 5" Single Sided |
| Light Brackets: | Safetran | Safetran |
| Lights: | 4 - 12"x24" Safetran w/ Harmon Fading LEDs | 4 - 12"x24" Safetran w/ Harmon Fading LEDs |
| Gate Lights: | 3 - RECO 4" LEDs | 3 - RECO 4" LEDs |
| Gate Mechanism: | Siemens Sticker Style 2 w/ GSI Gate Saver | Siemens Sticker Style 2 w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
Pictures 1-14 were taken on August 16, 2008, by WEHRAR17.
Pictures 15-41 were taken on August 10, 2026, by Rus.
This crossing is located on the CPKC Tomah Sub.
1
|
2
|
3
|
4
|
||||||||

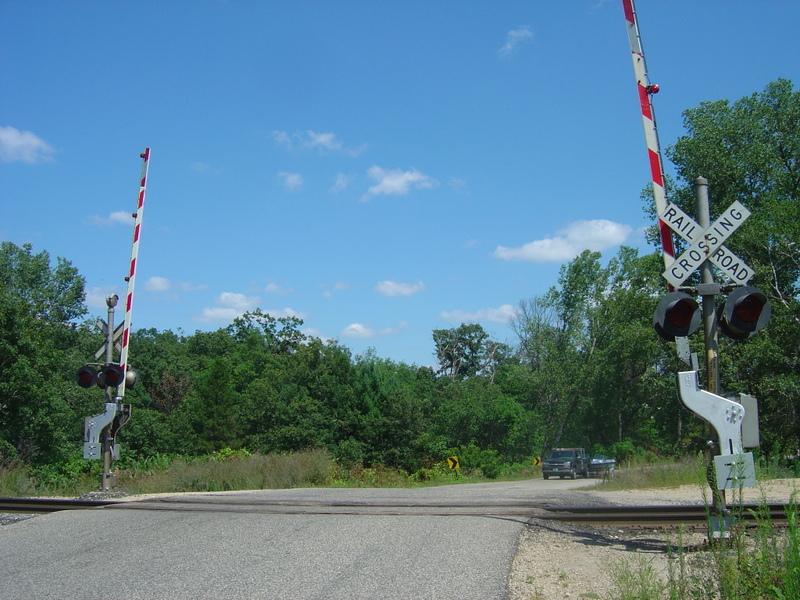

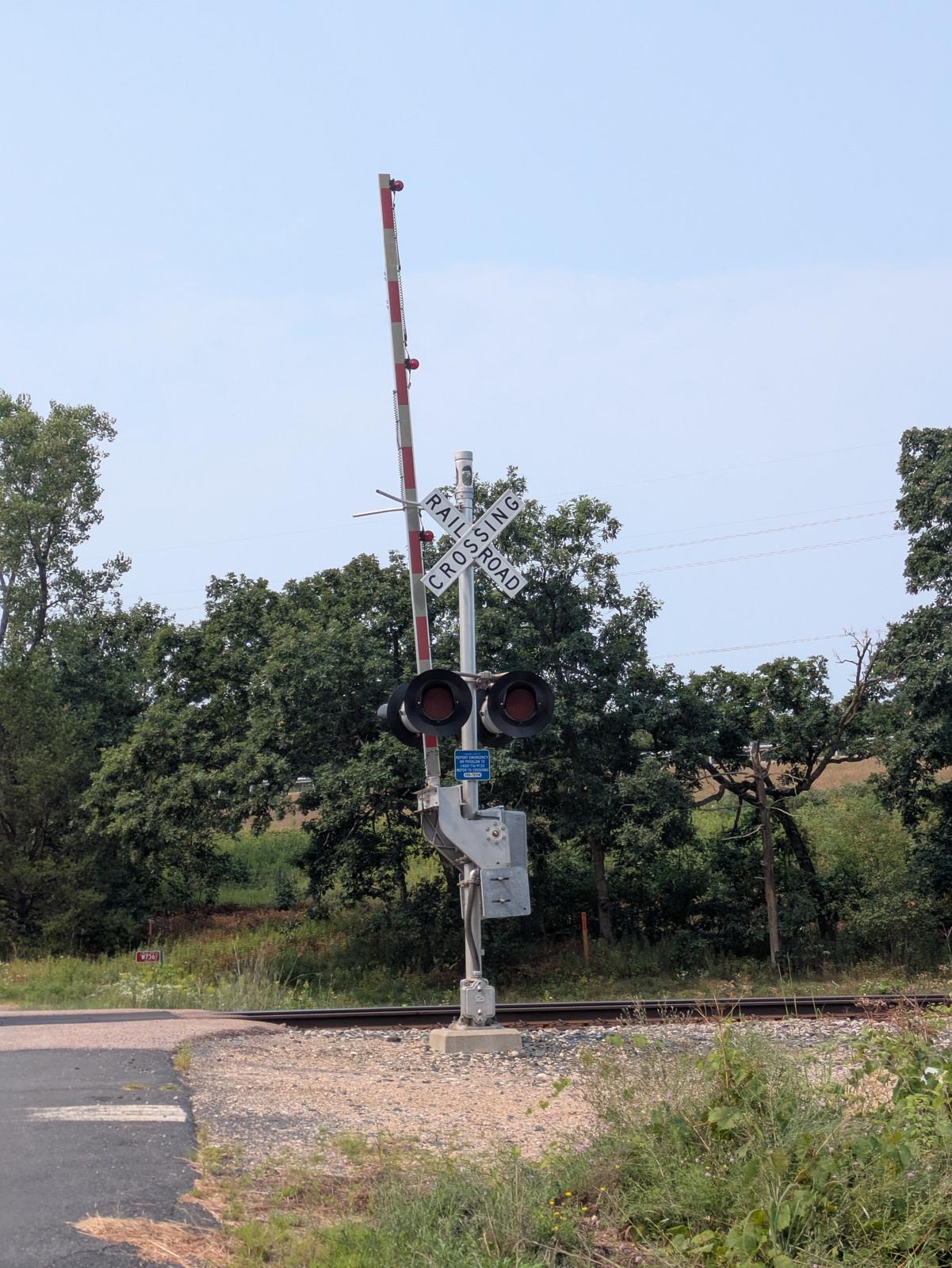

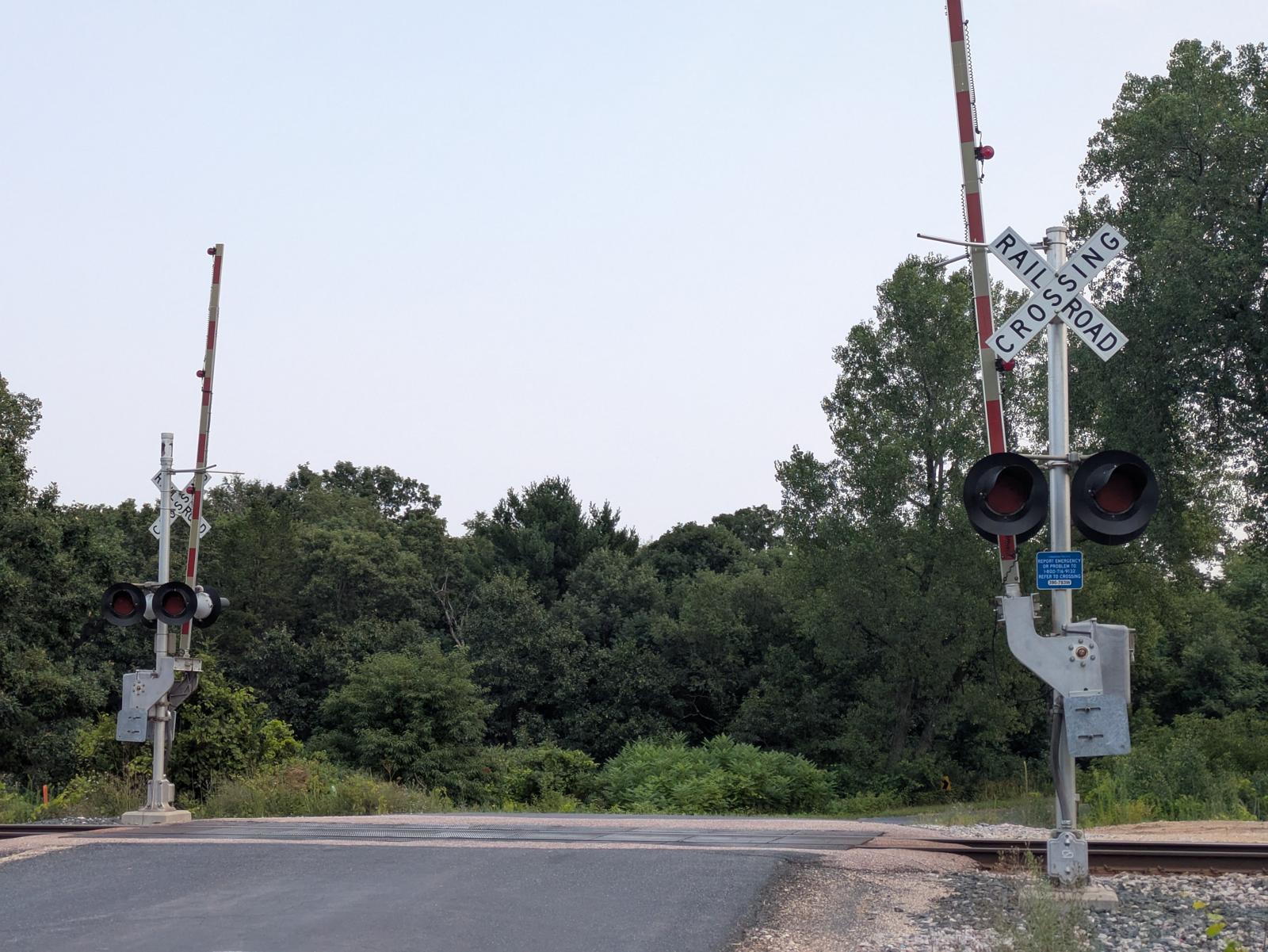

Crossing overview looking northeast. |

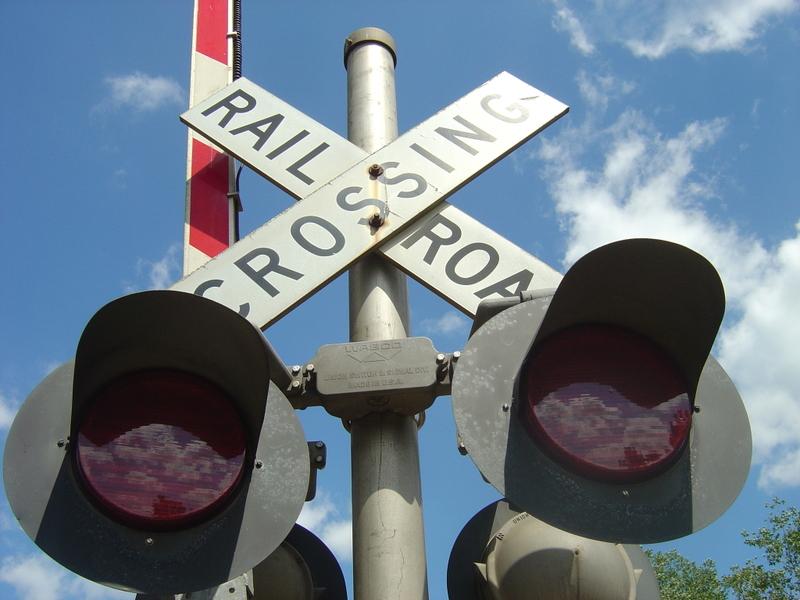

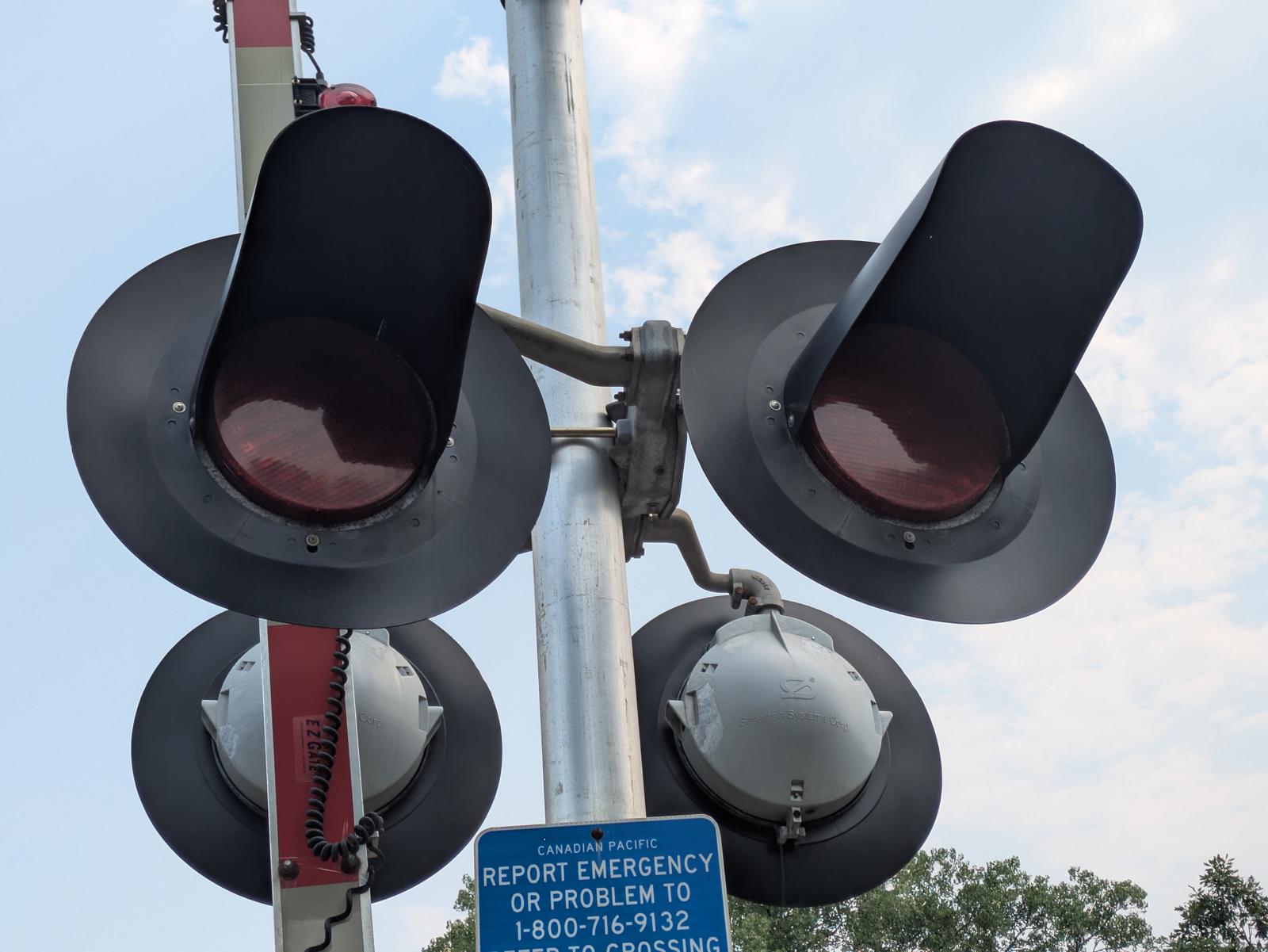

Closeup of the US&S/WABCO lights and bracket.
|

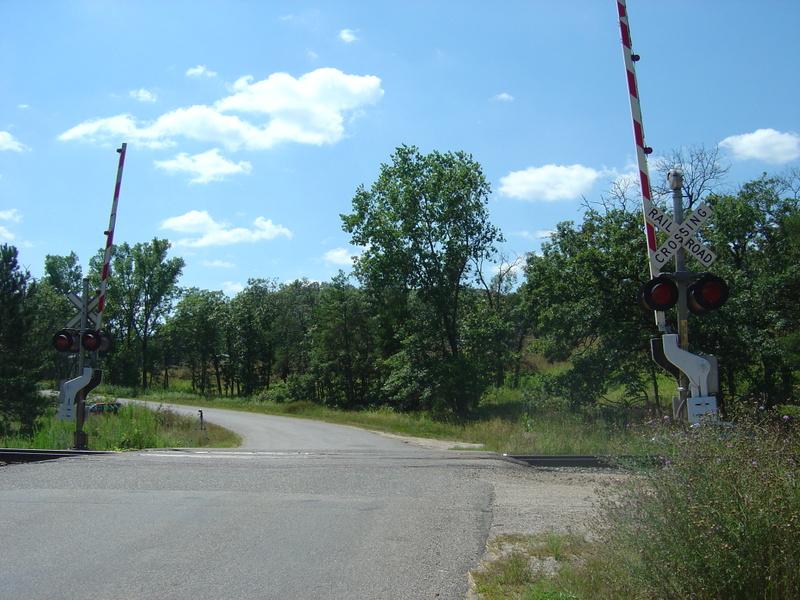

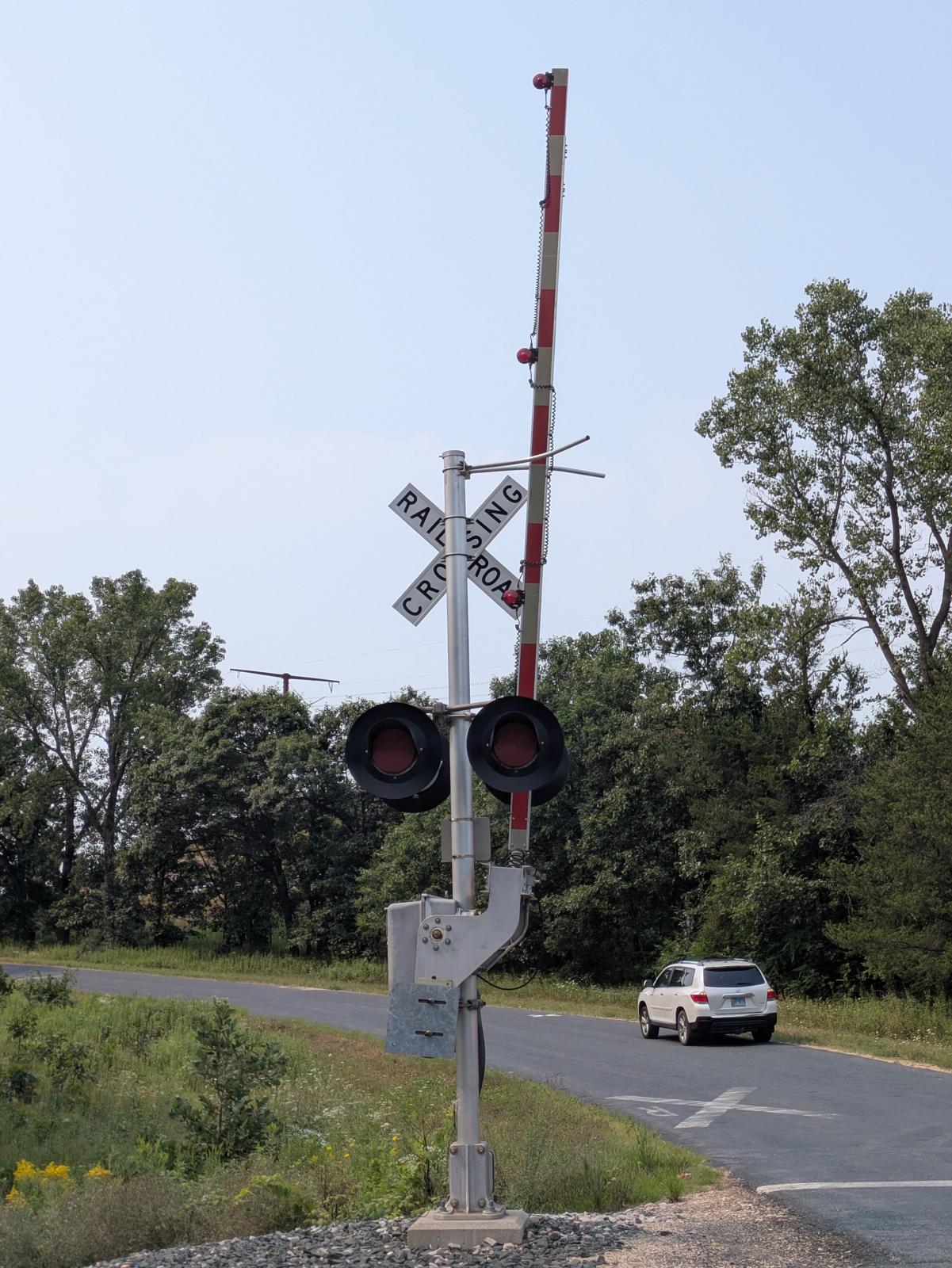

Looking southwest. |

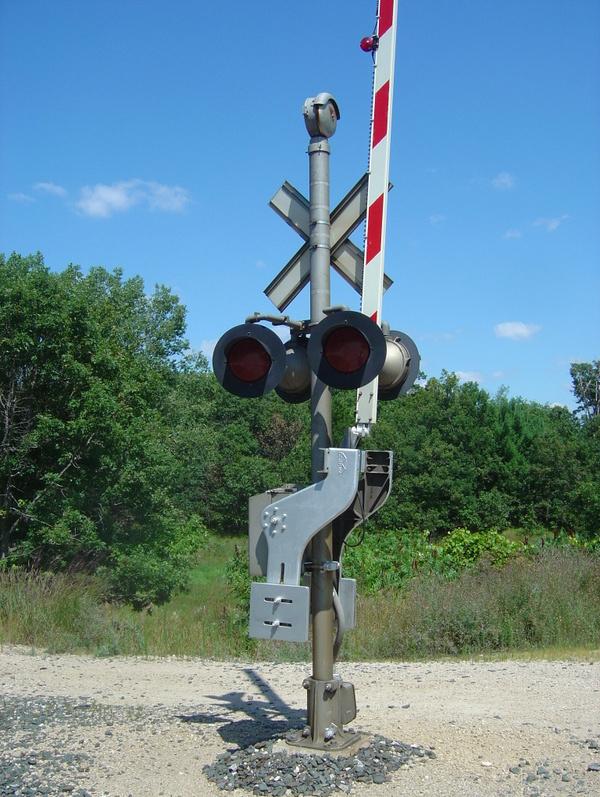

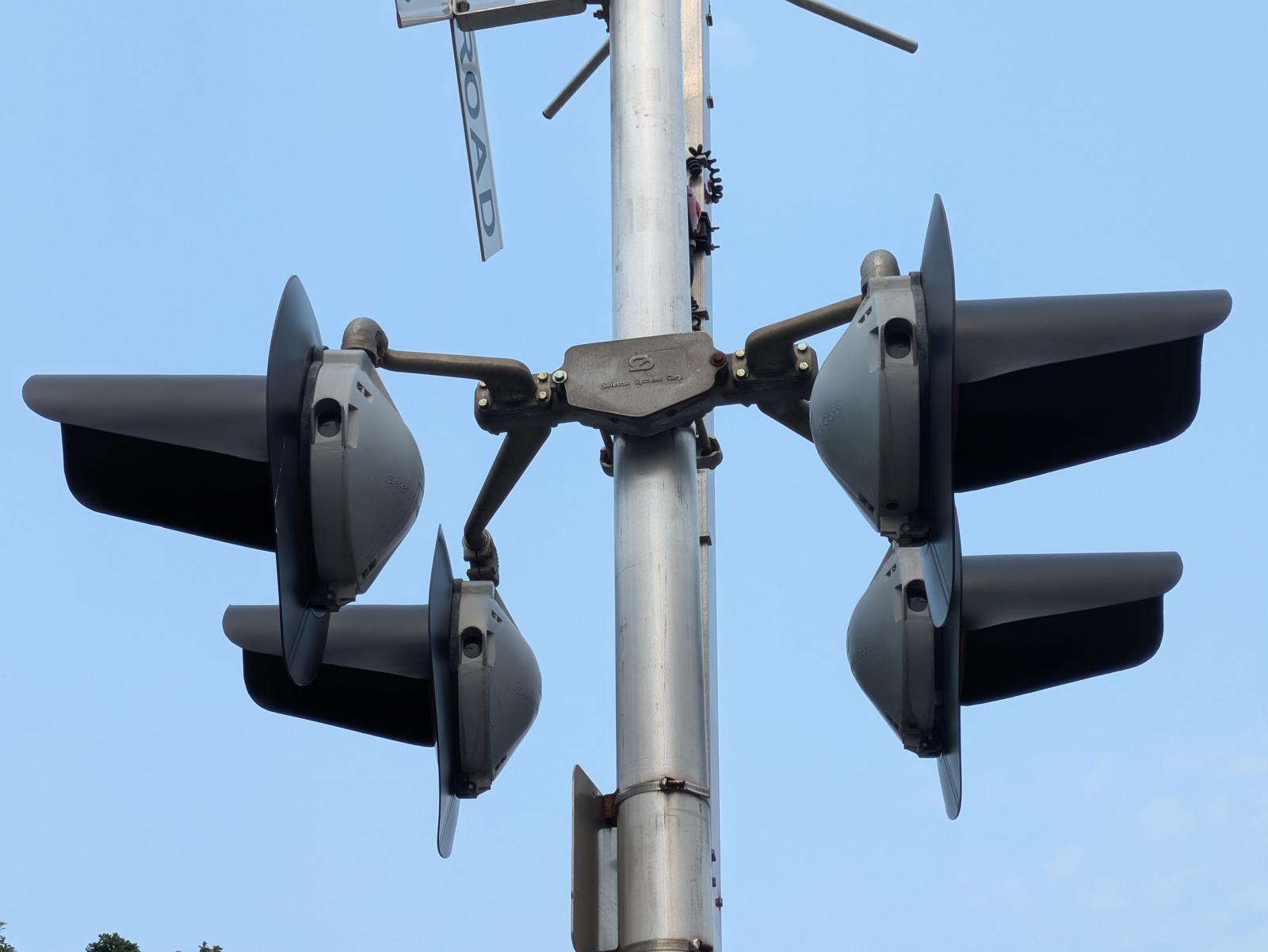

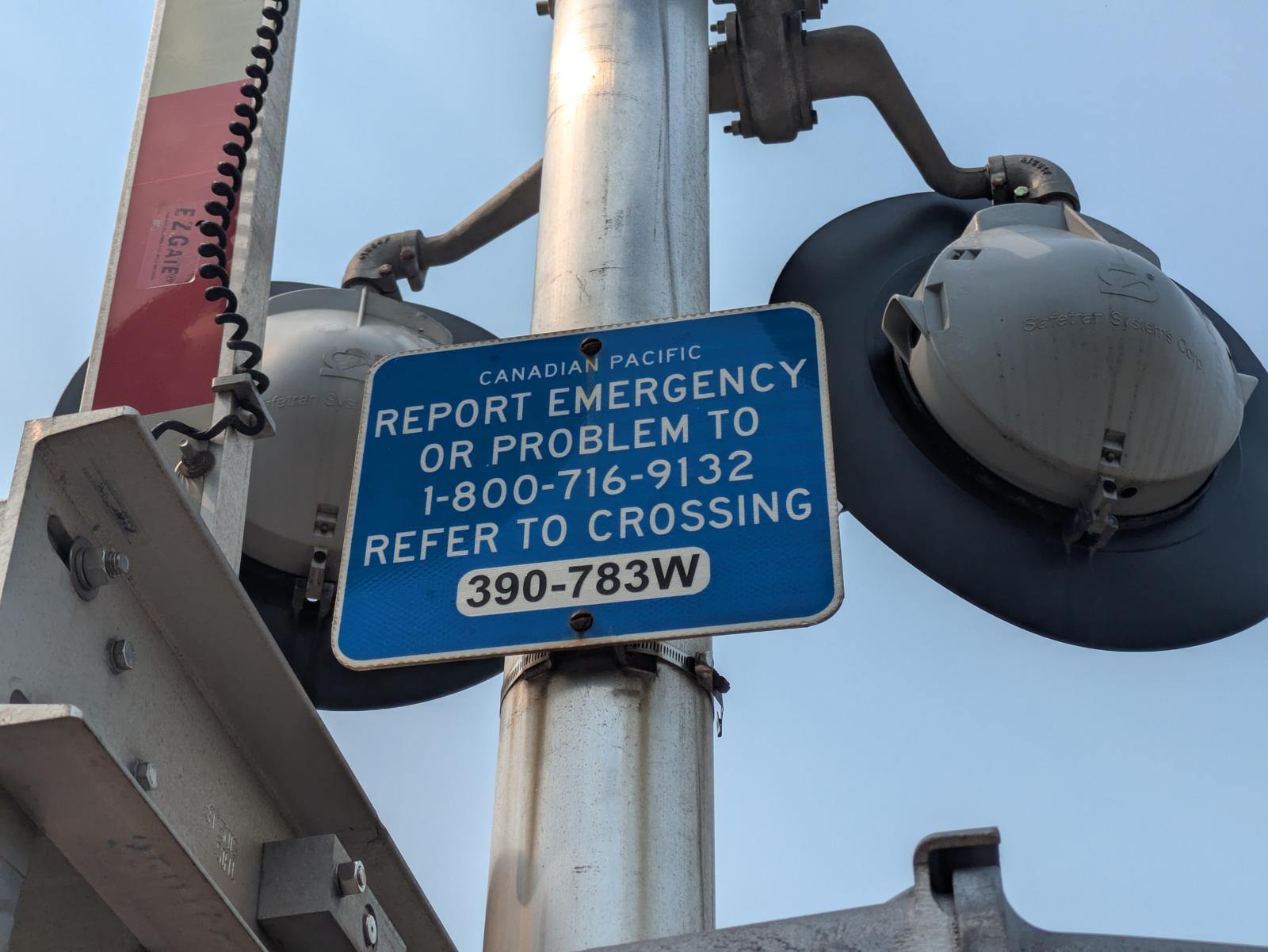

A Rear view of the northwest signal. |
This crossing has 12" x 20" US&S frames with Harmon fading L.E.Ds. The northwest signal has a WCH mechanical bell that rings from startup to shutdown, rather unusual for this line.
5
|
6
|
7
|
8
|
||||||||

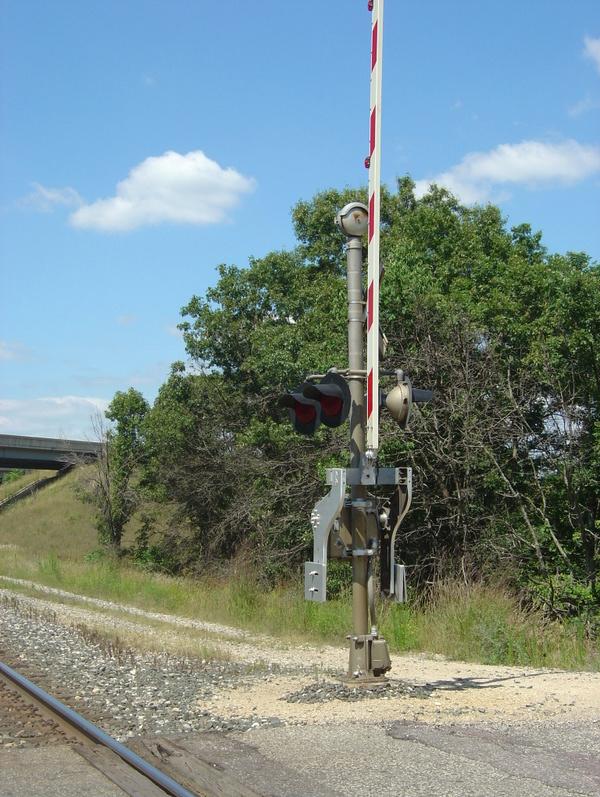

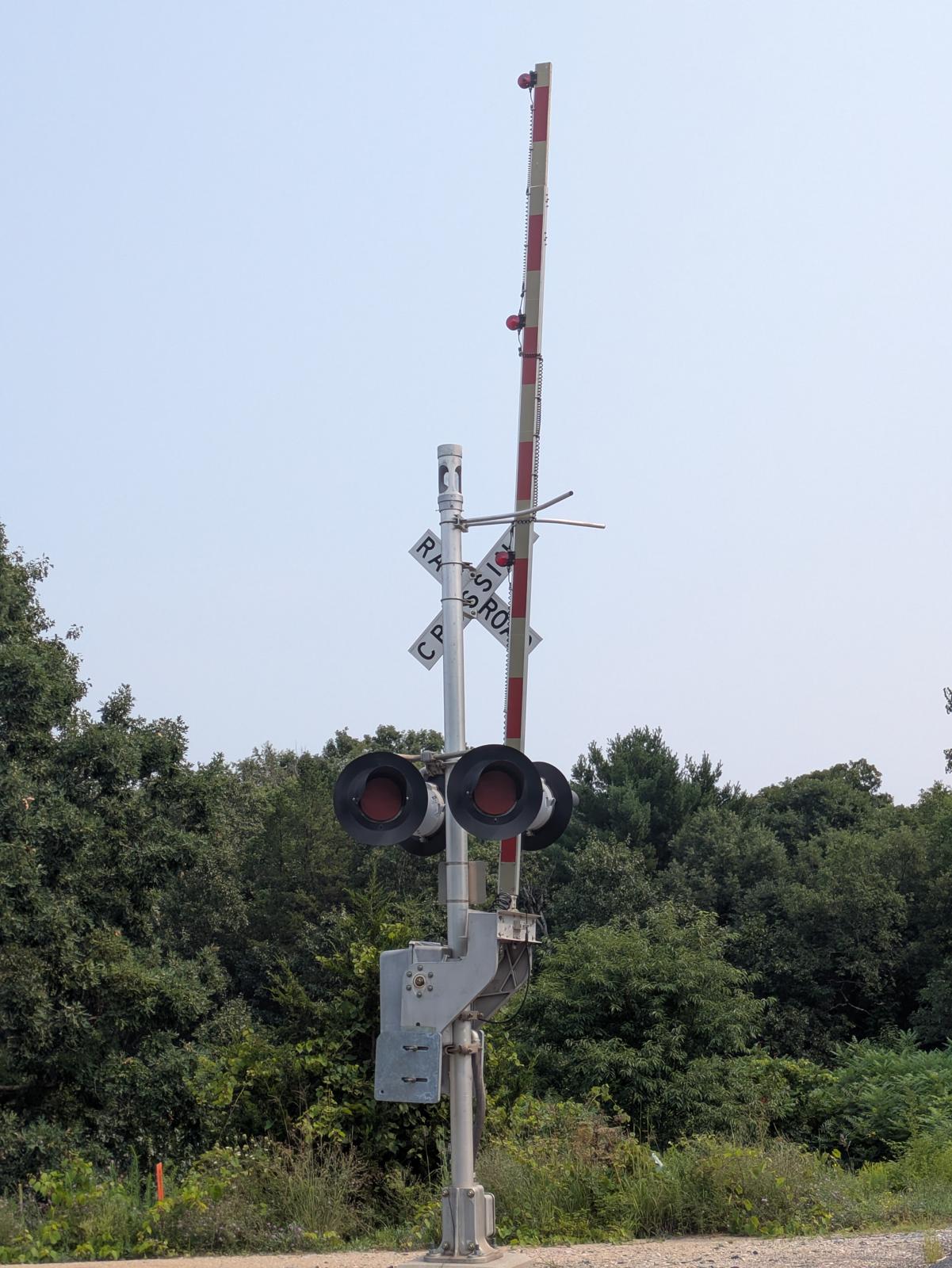

A side view of the northwest signal. |

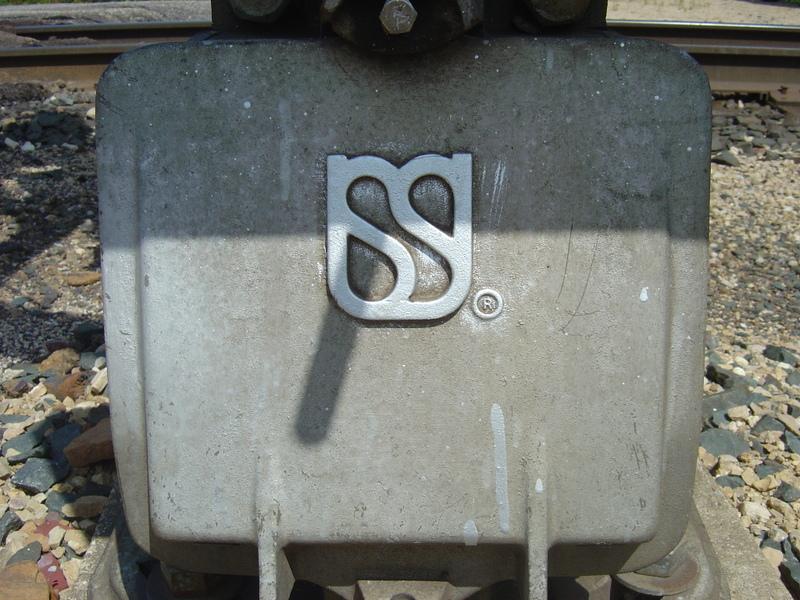

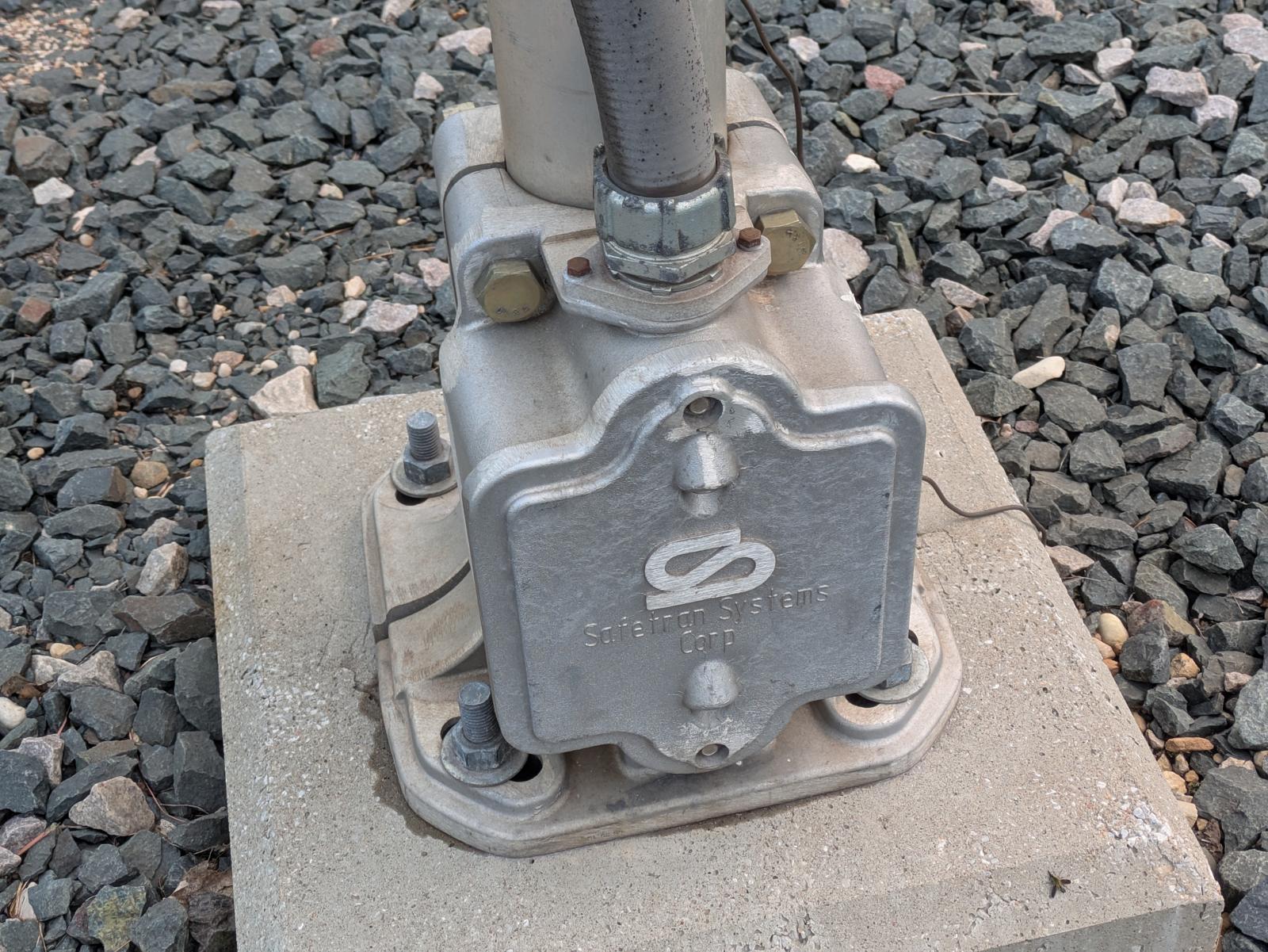

A US&S signal base. |

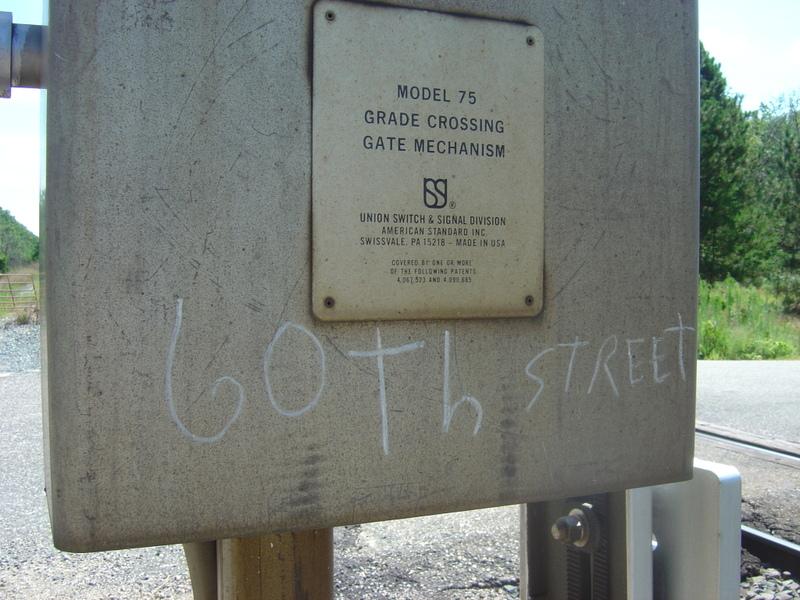

A US&S Model 75 gate mechanism with the street name scrawled on it for some unknown reason. |

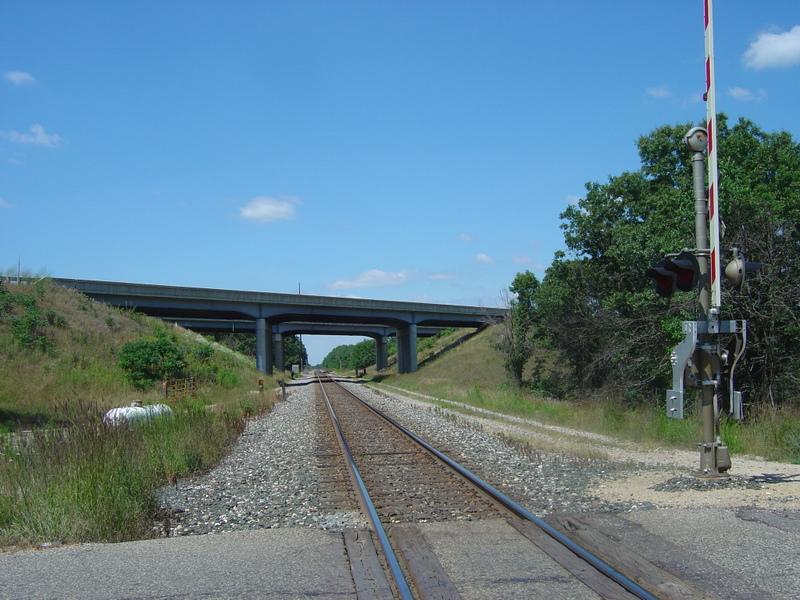

Track view northwest. |
||||||||
9
|
10
|
11
|
12
|
||||||||

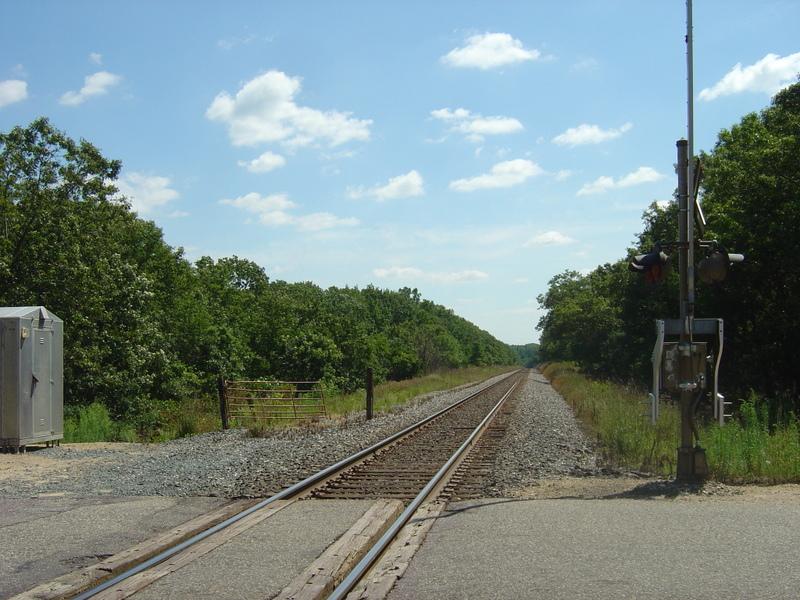

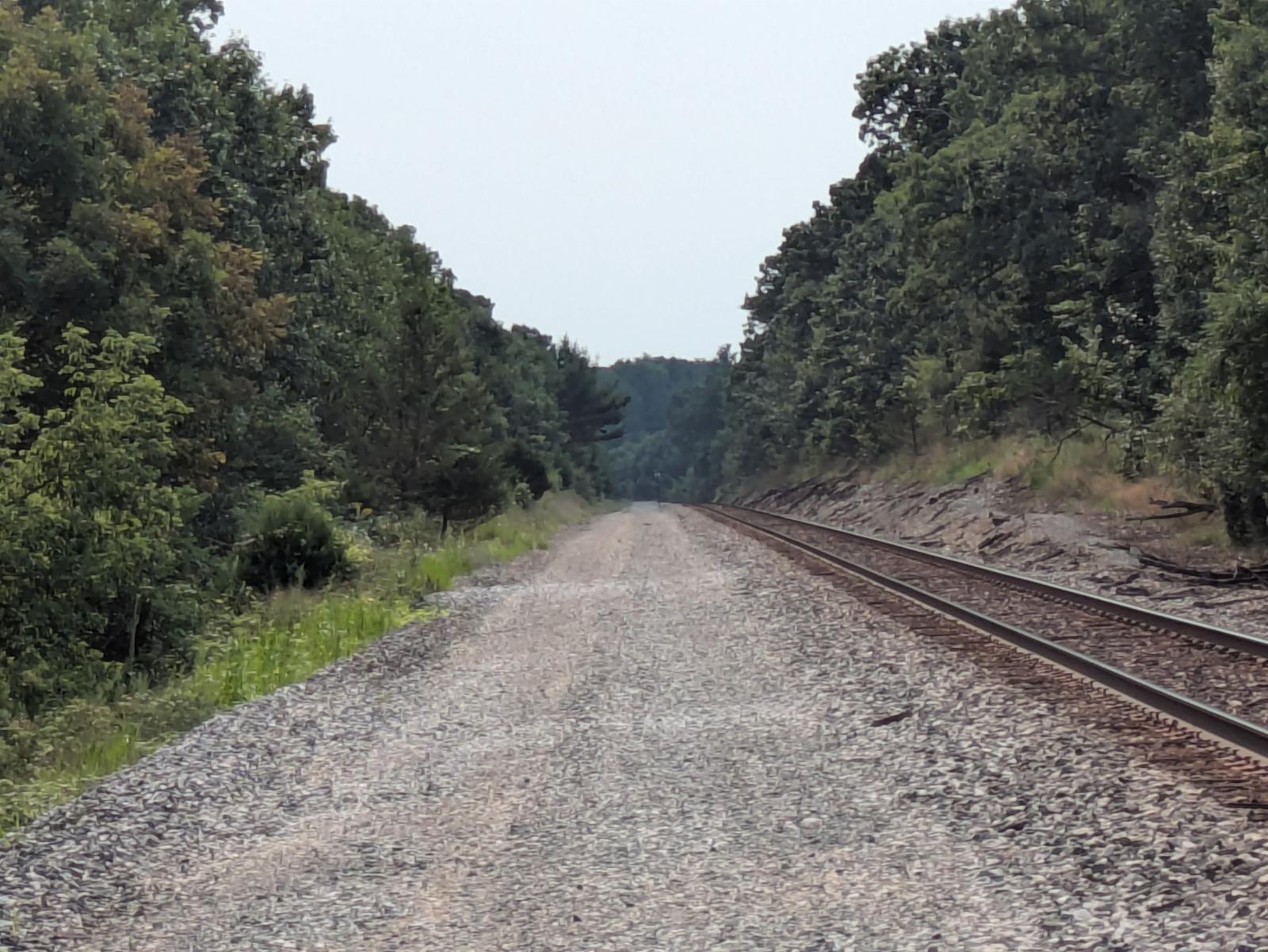

Track view southeast. |

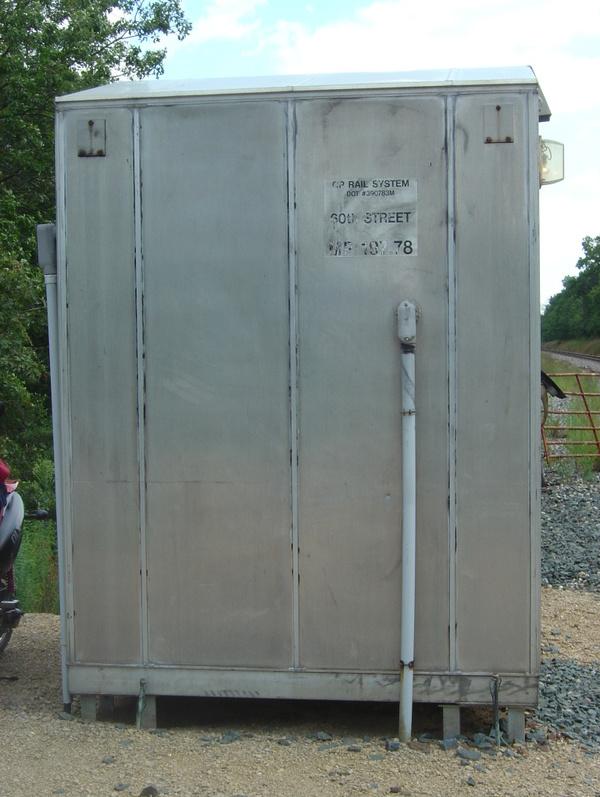

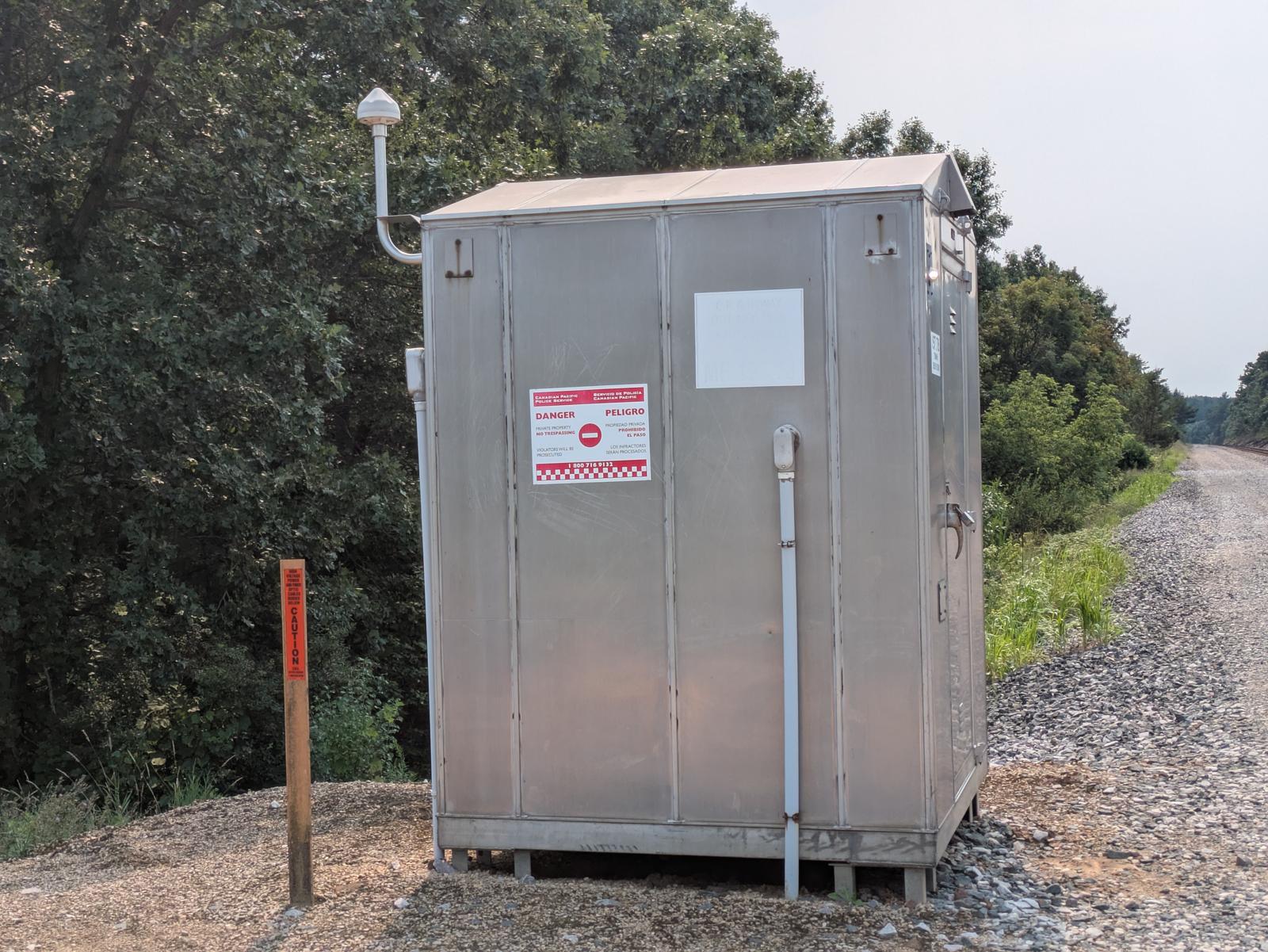

The relay case. |

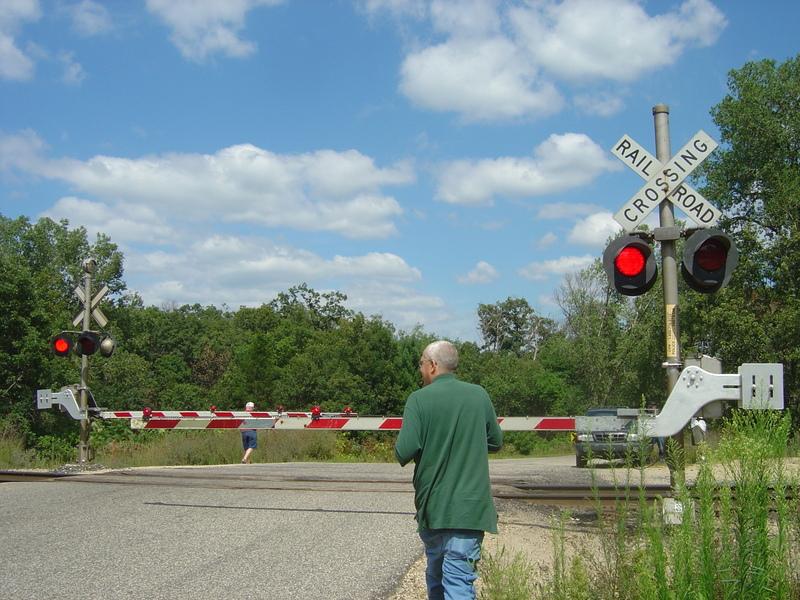

The crossing active! |
|||||||||
13
|
14
|
||||||||||

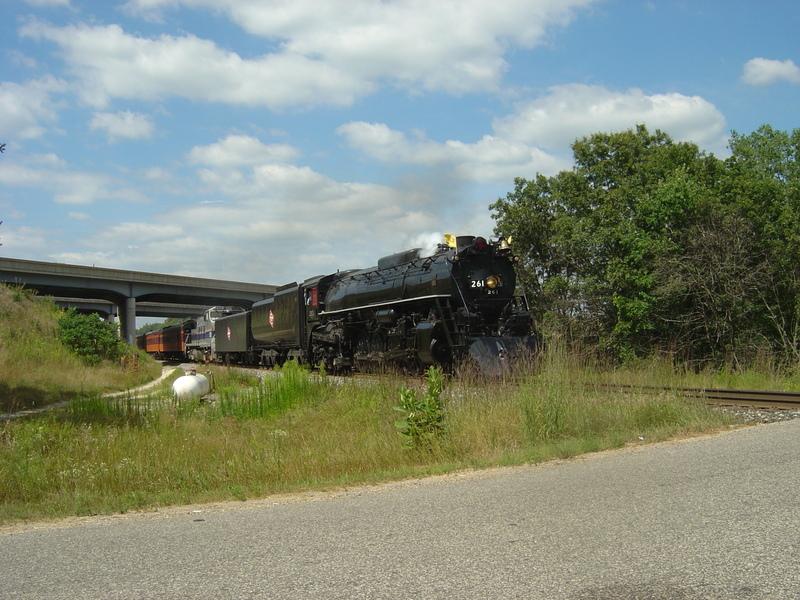

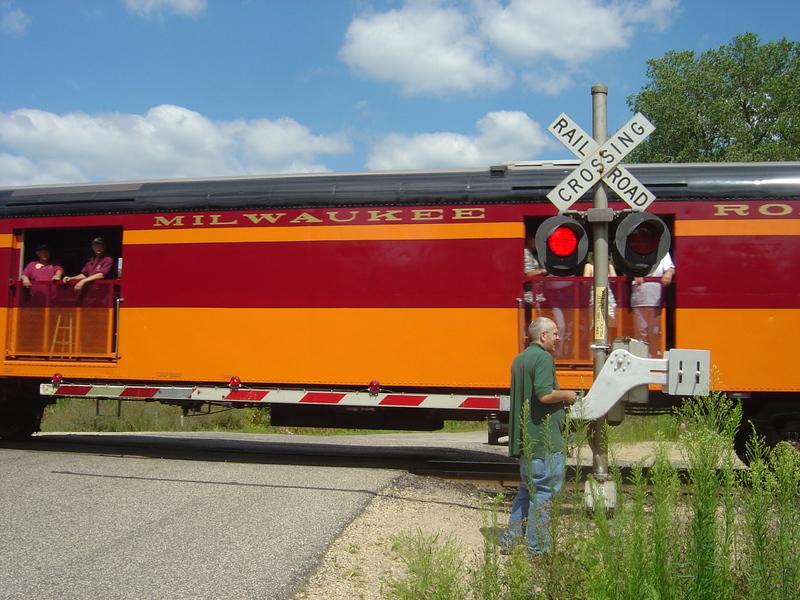

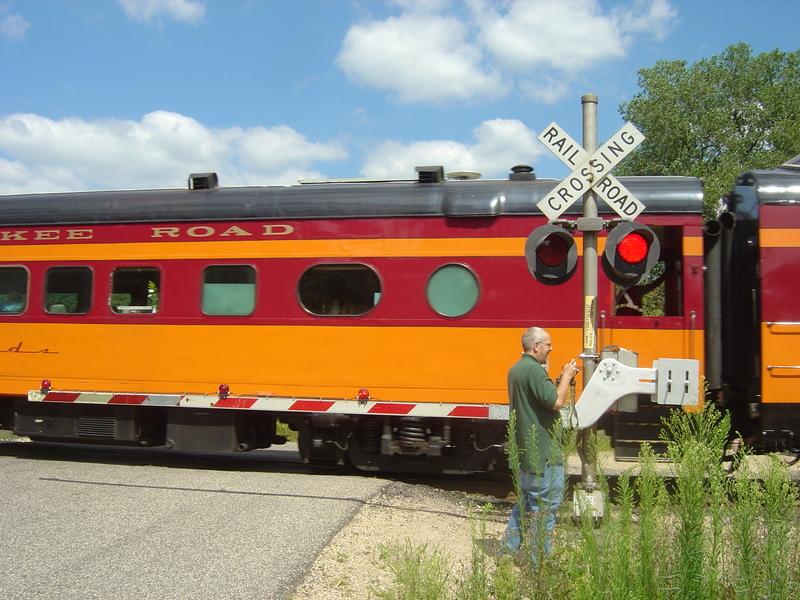

Restored Milwaukee Road 4-8-4 #261 was operating a special excursion on the CP on this day. The man in green is Paul Knutson, who owns the signal collection in Lodi (http://www.rxrsignals.com/Wisconsin/L-P/Lodi/Paul/). This crossing is located near the northern terminus of the Riverside & Great Northern Railway, pictured in Phil's section. |
|||||||||||
 |
CLICK THE ICON TO THE LEFT TO HEAR THE CROSSING IN ACTION. (RECORDED AUGUST 16, 2008) |
|
