MP: 118.57 |
Created September 10, 2024
Total Accidents:
0
Crossing DOT #: 245695R
TOTAL DAILY TRAINS: 3 (AS
OF 2020)
Page created by: PlyingKibbles89
This crossing is located on the BNSF Track 80 Branch with UP having trackage rights over it.
| >>>>>>>>>>>>> | Western
Signal |
Eastern
Signal |
| Bell: | None | General Signals Electronic |
| Base: | WCH | WCH |
| Light Frames: | 4 - WCH 12x20 inch with Dialight Ball LEDs | 4 - WCH 12x20 inch with Dialight Ball LEDs |
| Gate Lights: | 3 - RECO | 3 - RECO |
| Gate Mechanism: | WCH Style 3 | WCH Style 3 |
| Gate Striping: | Vertical | Vertical |
|
1 |
2 |
|

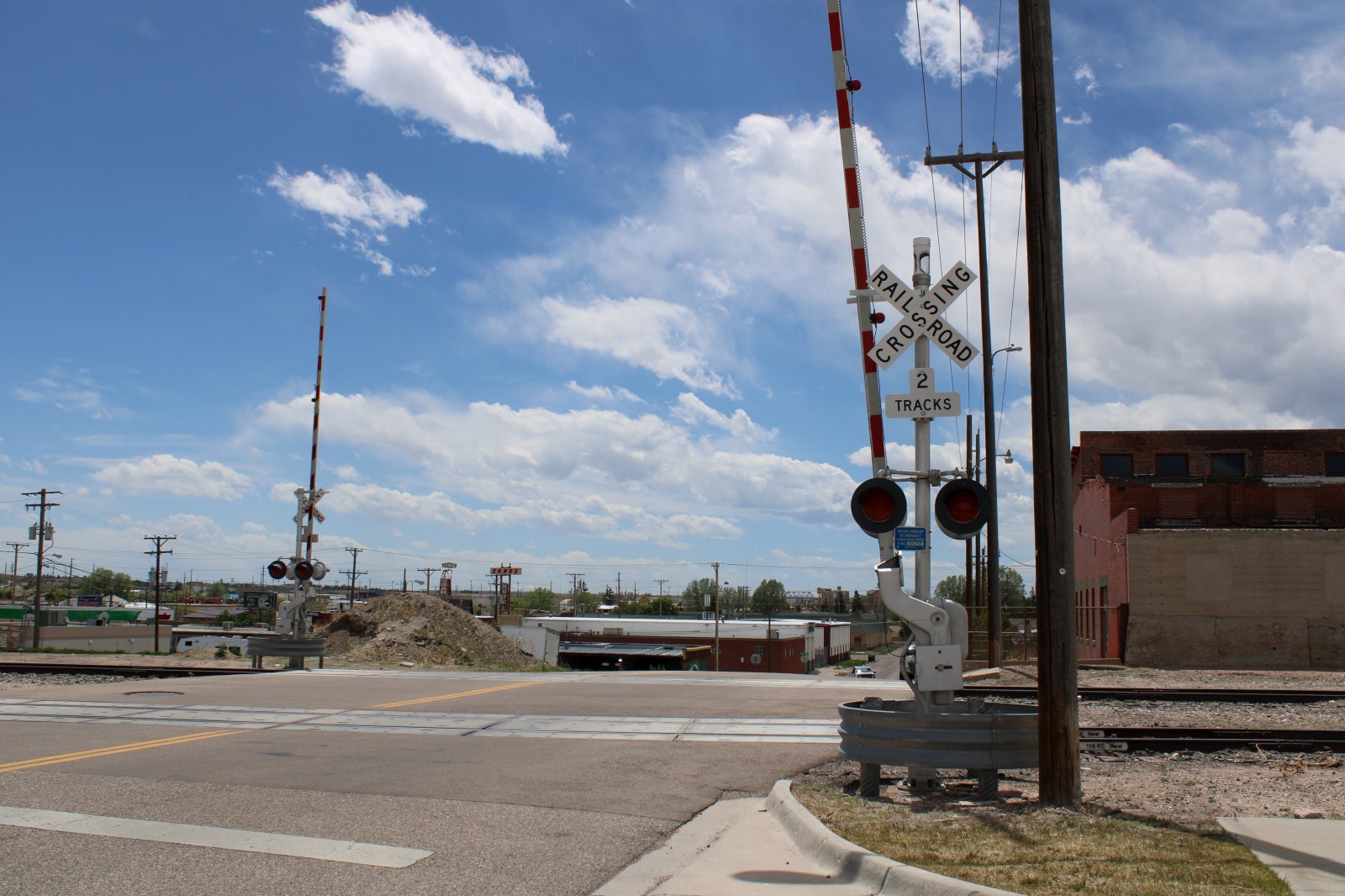

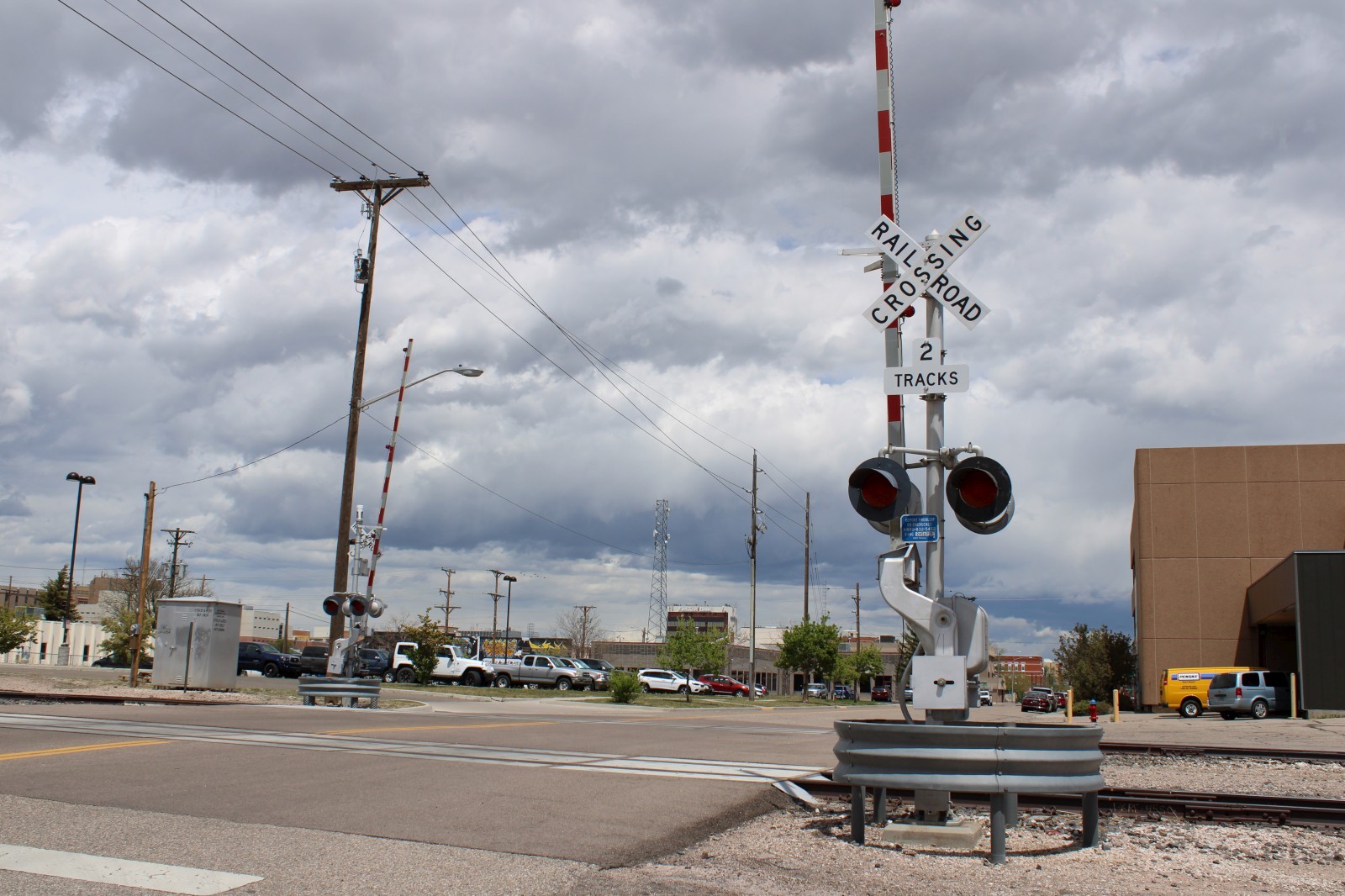

Overviews of the crossing.
|
|
|
3 |
4 |
|
5 |
6 |
7 |
8 |
|
9 |
10 |
11 |
|

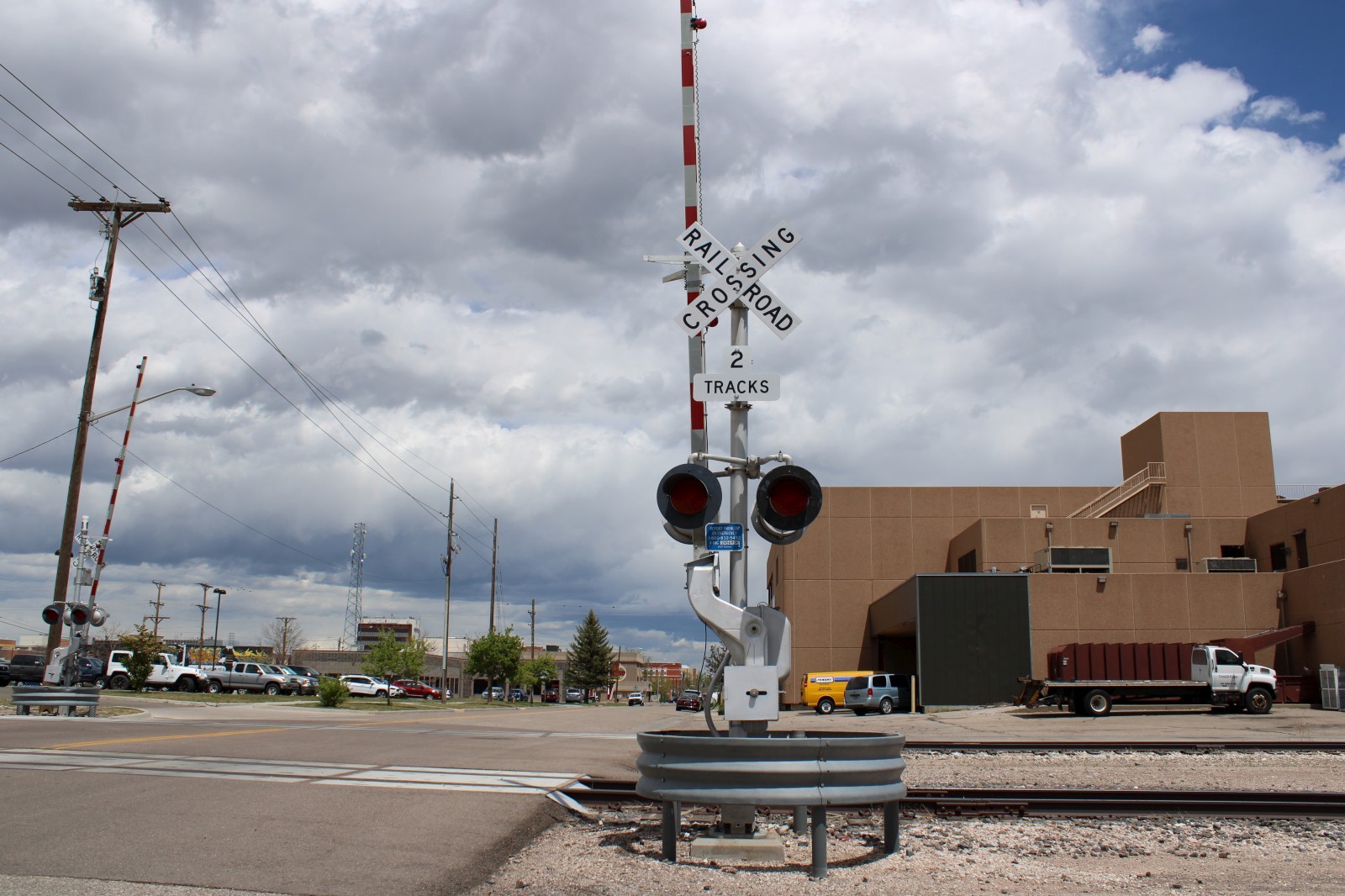

The western signal.
|
||
|
12 |
13 |
|
14 |
15 |
16 |
17 |
|
18 |
19 |
20 |
21 |
|

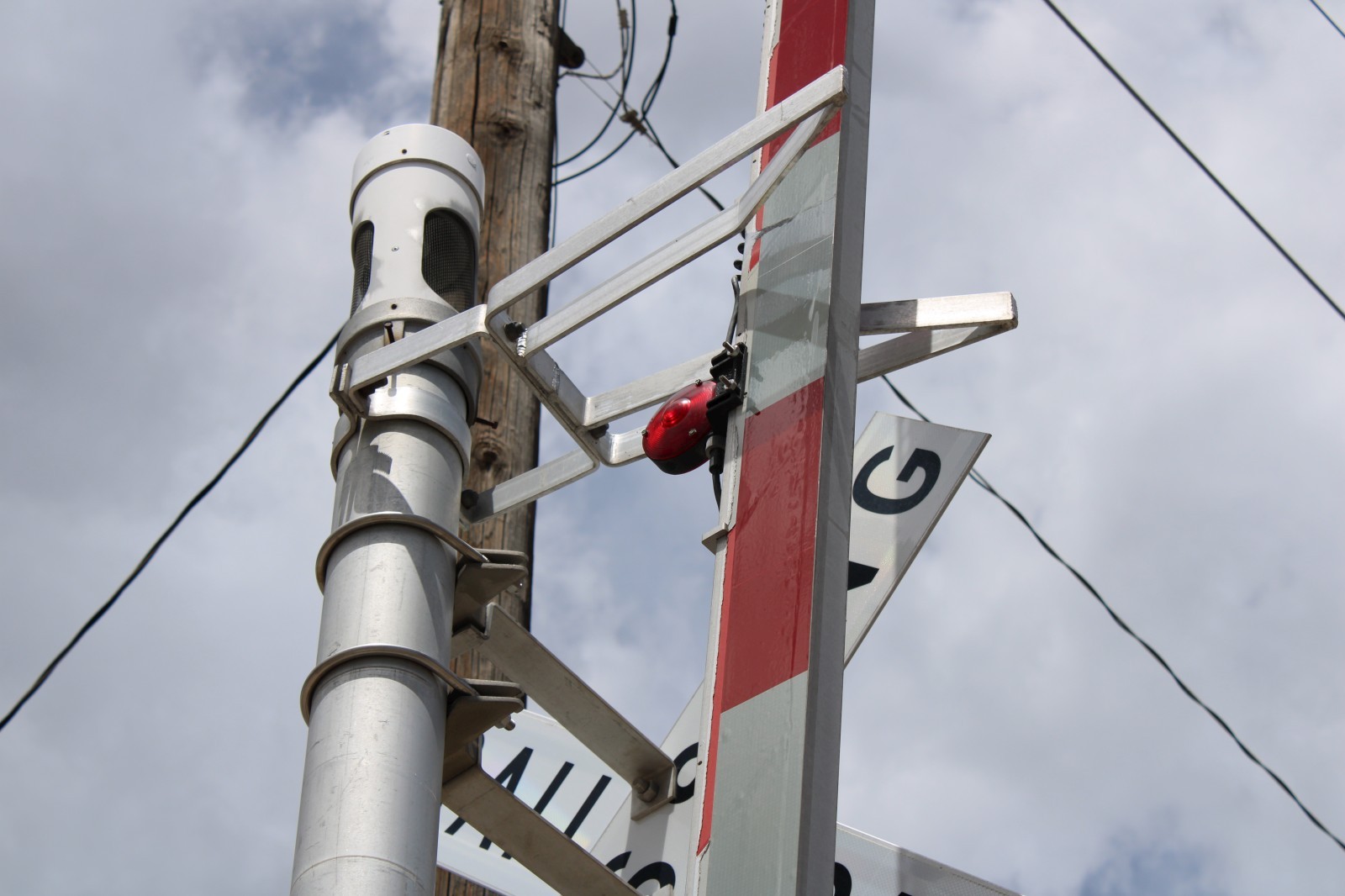

The eastern signal.
|
|||
|
22 |
23 |
24 |

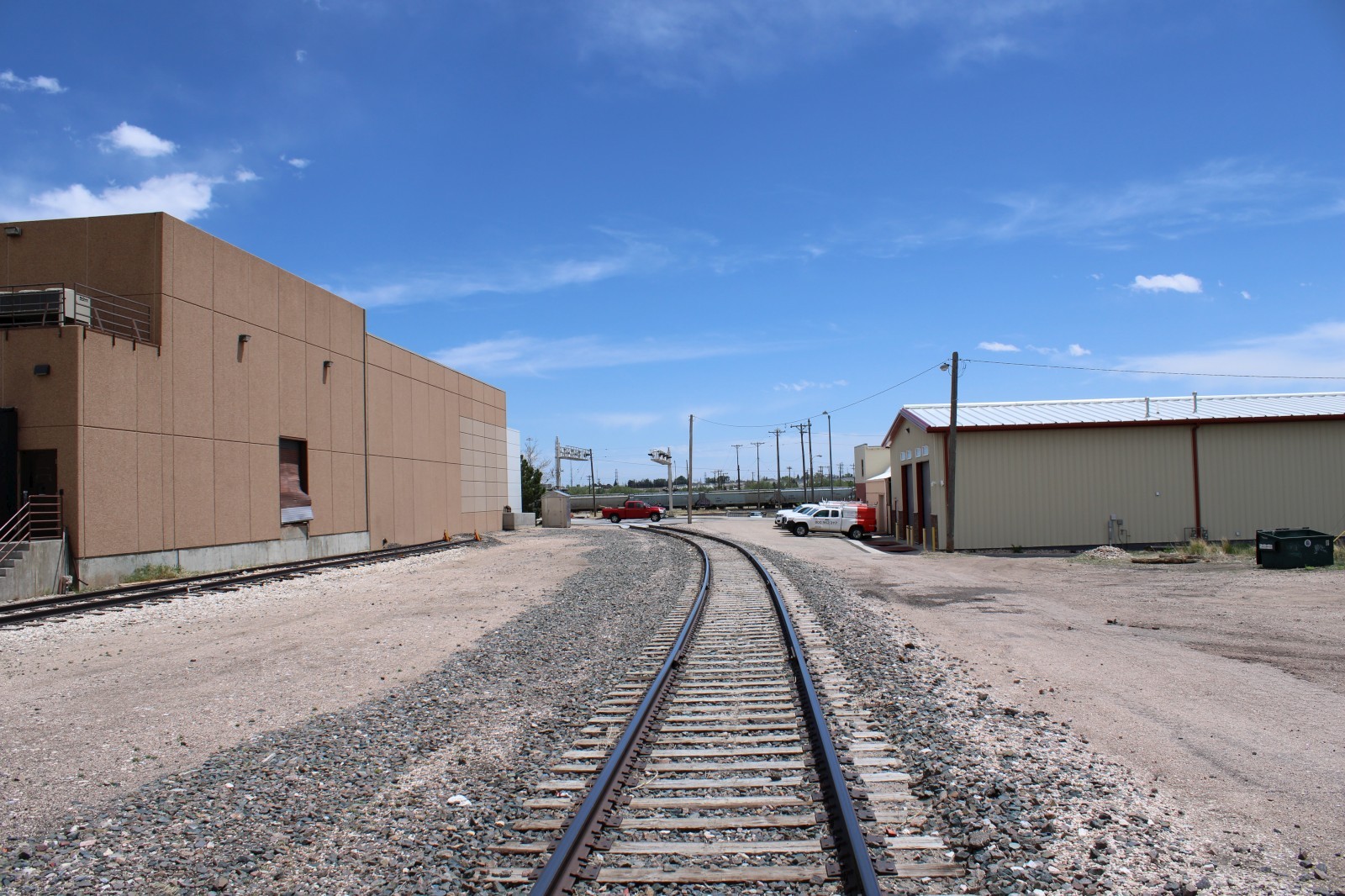

| Track view looking south towards Lincolnway. | Track view looking north towards 18th St. | The relay case. |
