Northern Side Track Signal |
Southern Side Track Signal |
Northern Mainline Signal |
Southern Mainline Signal |

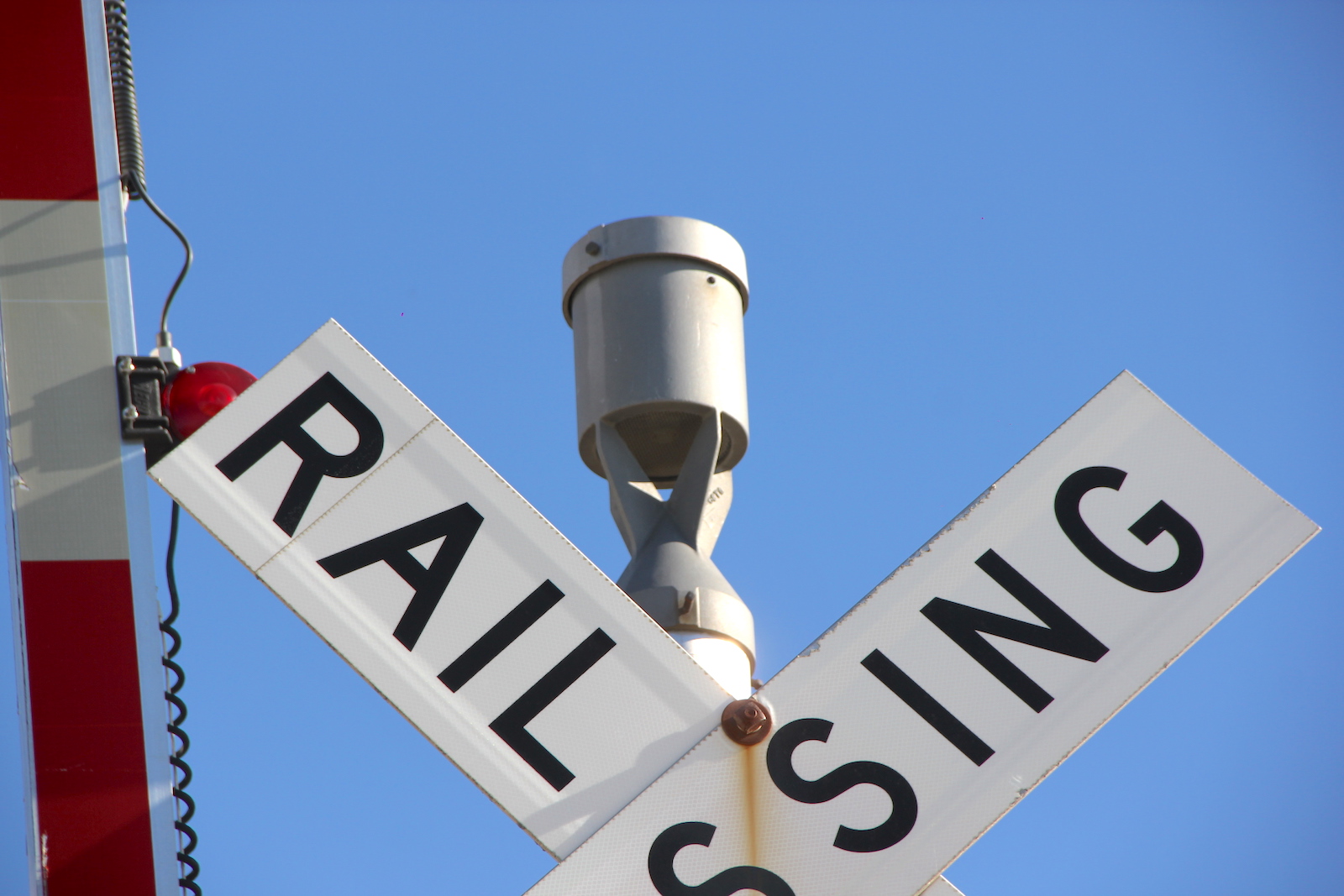

| Bell: |

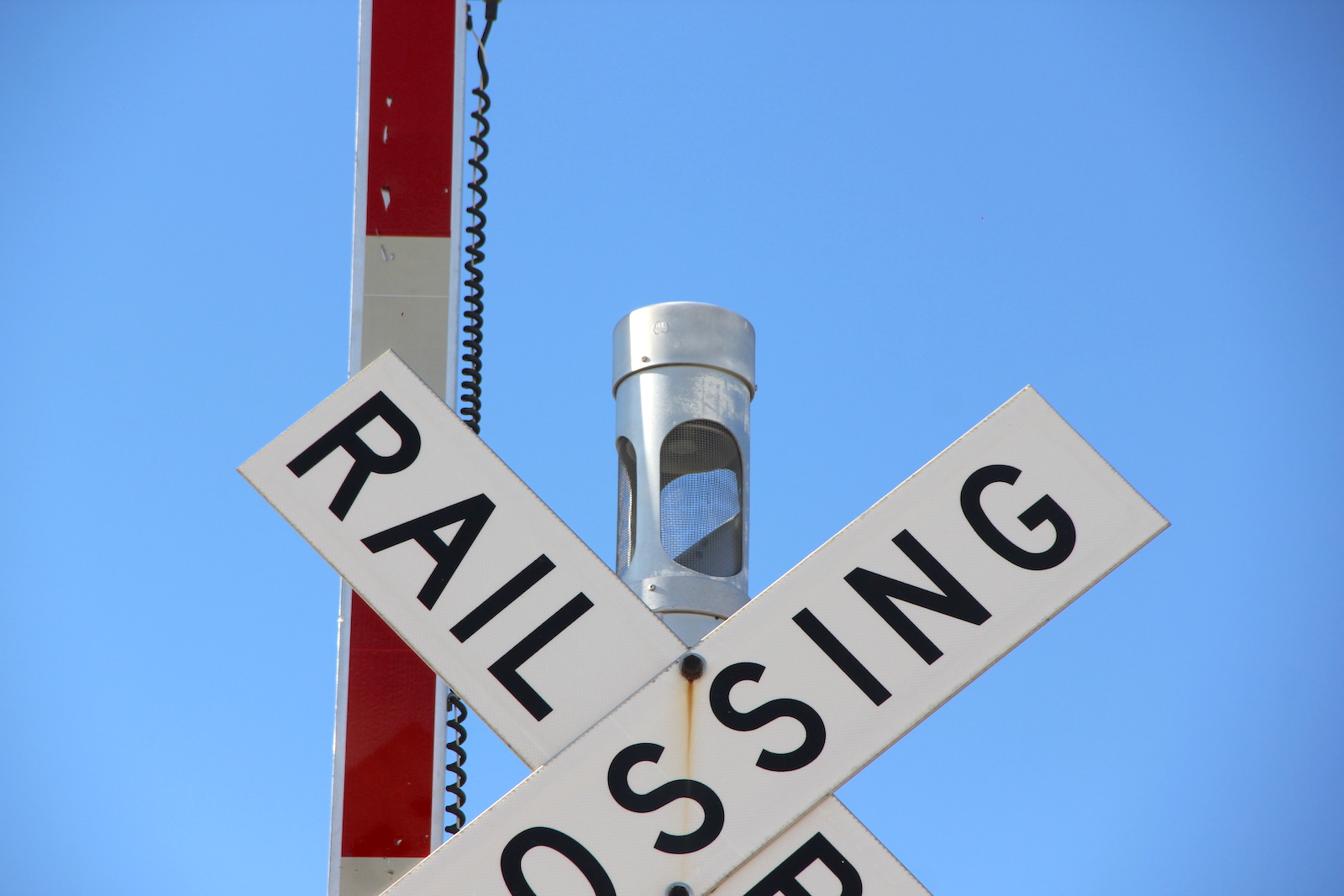

WCH Type 1.5 E Bell |
None |
None |
GS Type 2 E Bell |

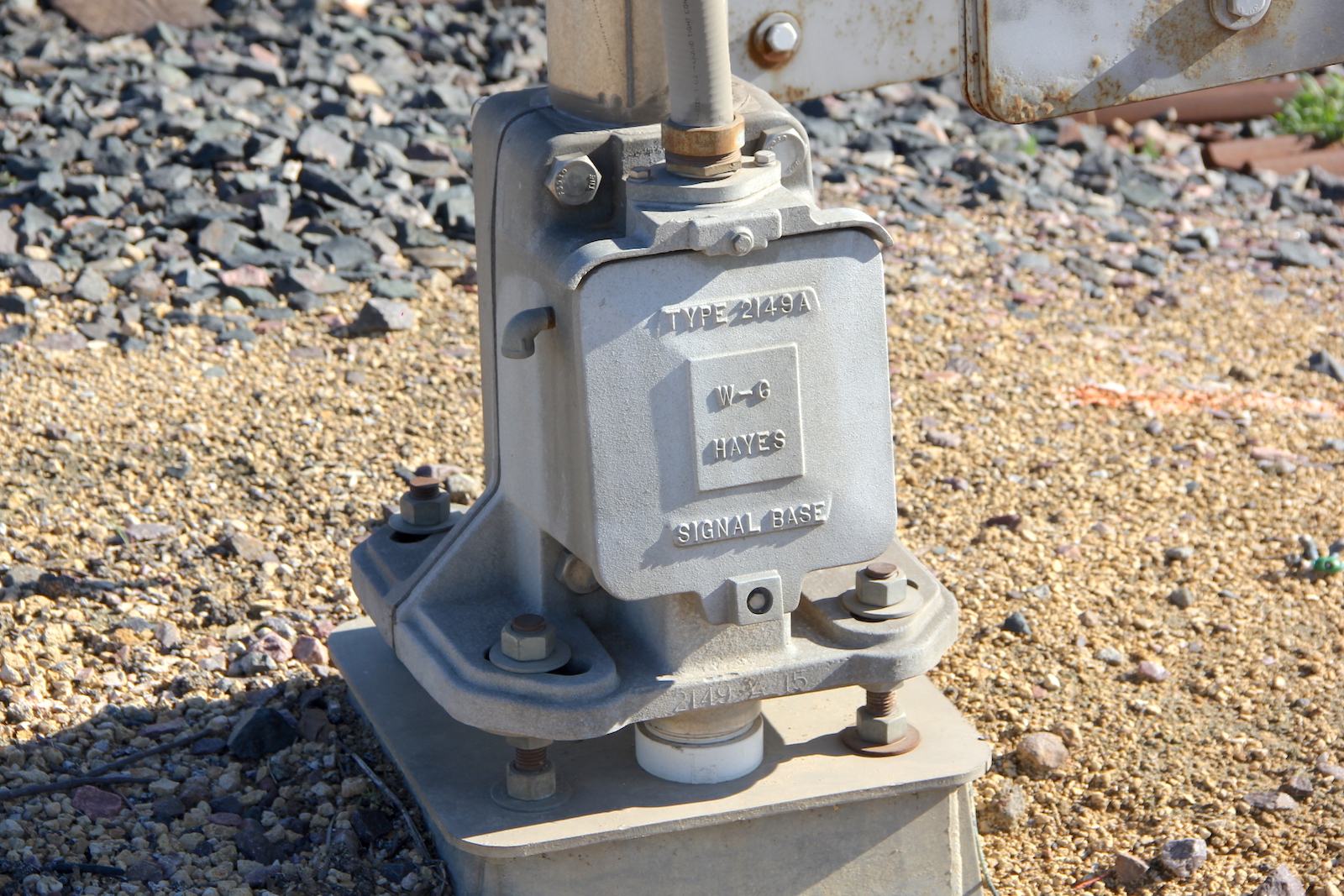

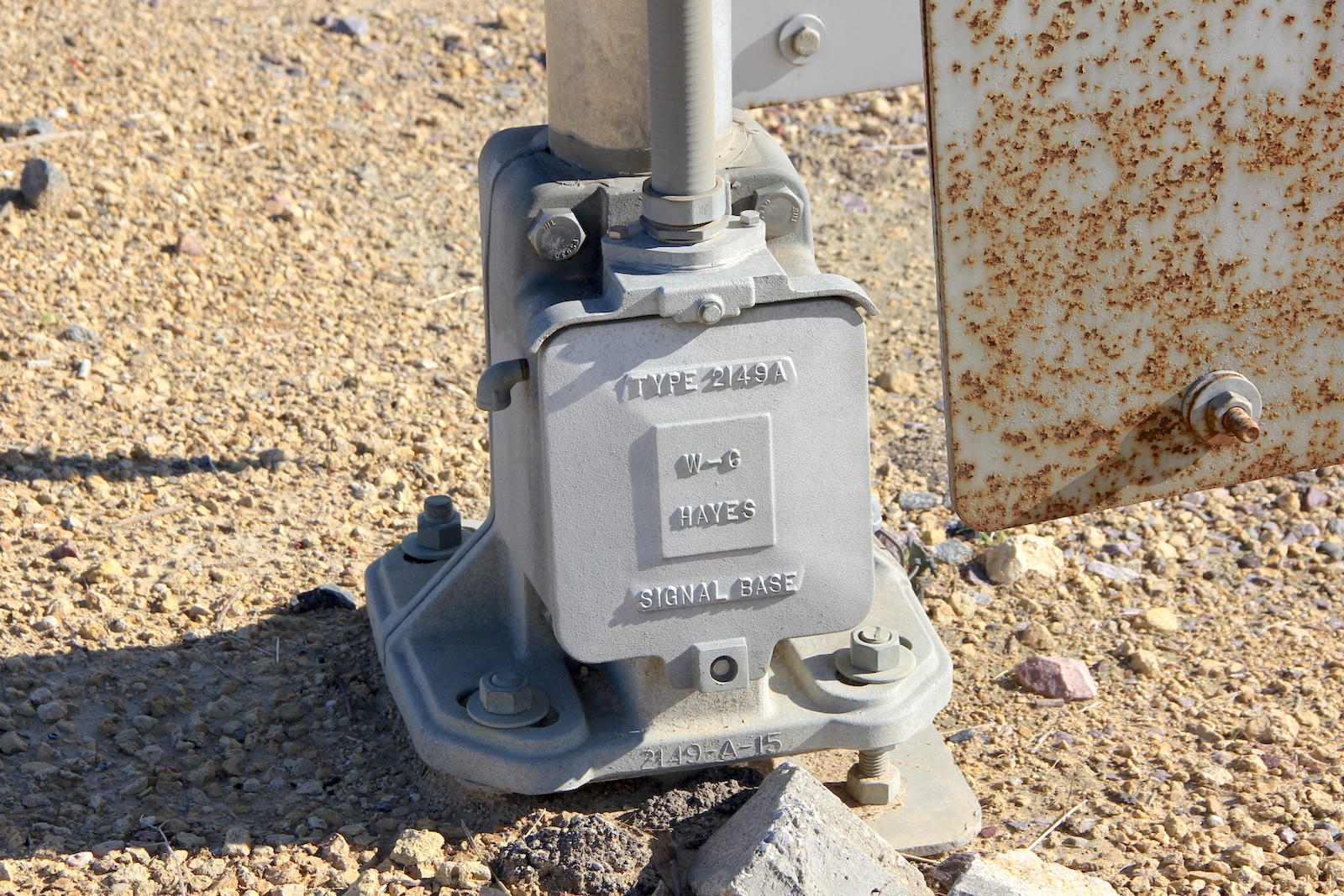

| Base: |
WCH Single Sided |
Harmon Single Sided |
WCH Single Sided |
WCH Single Sided |

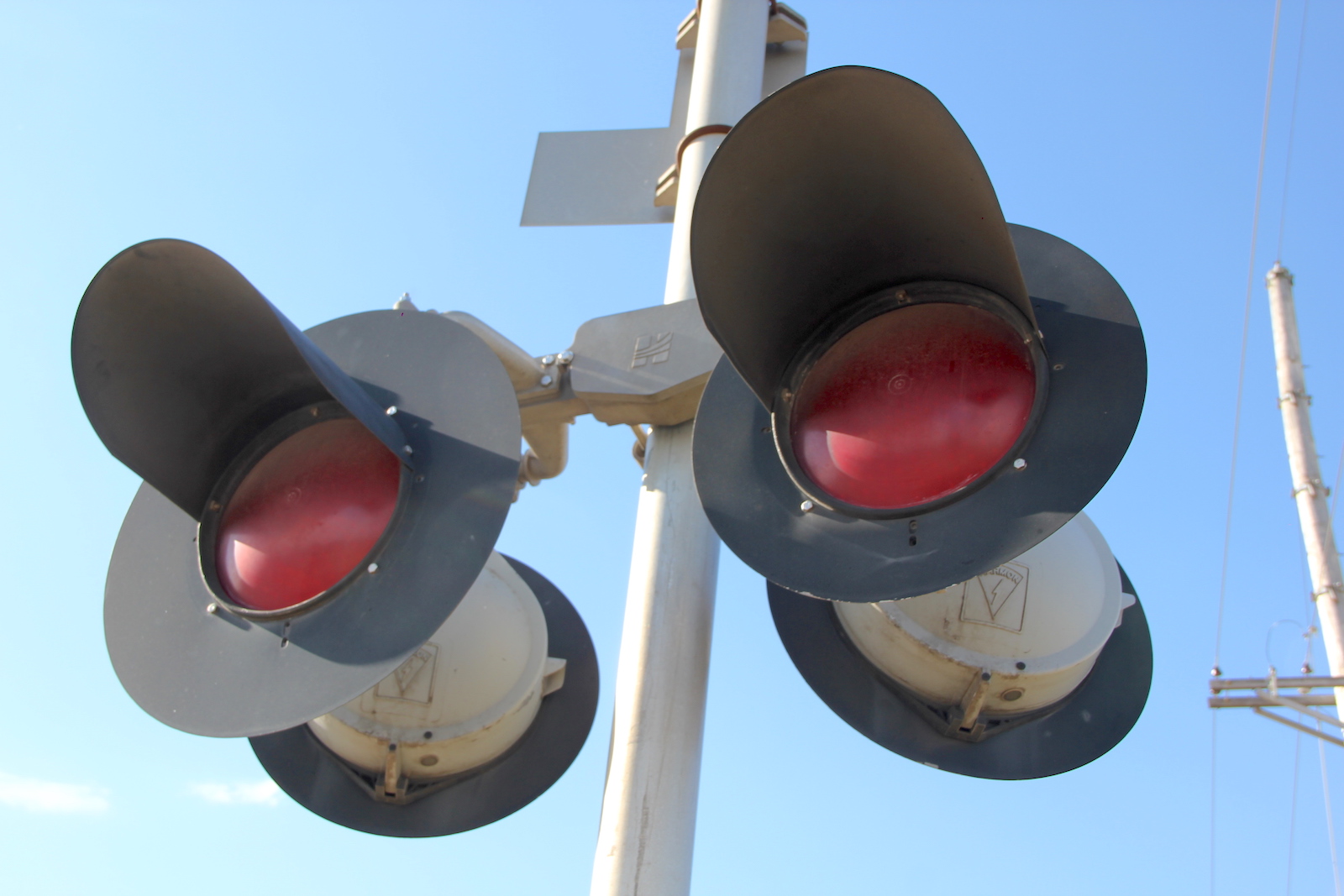

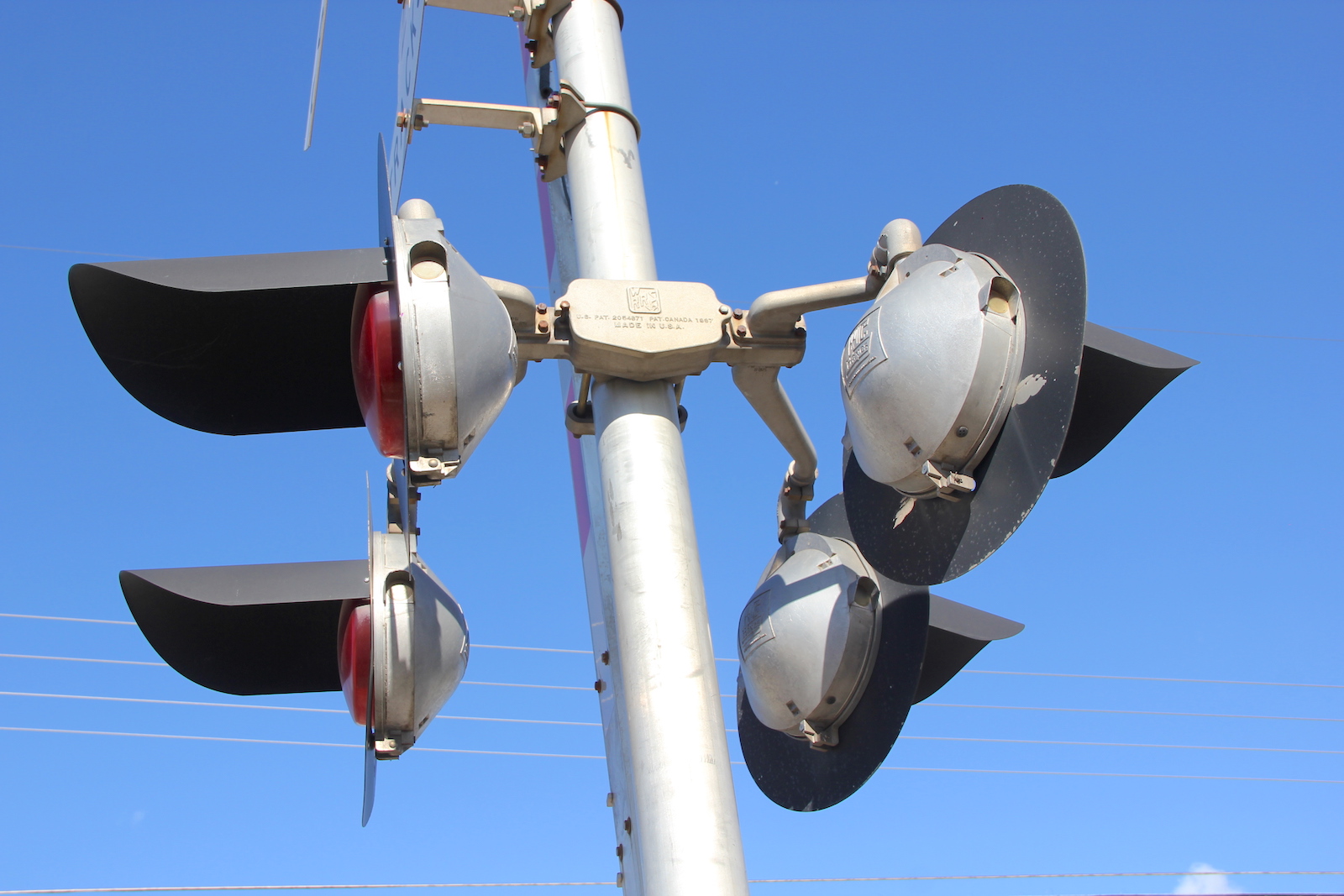

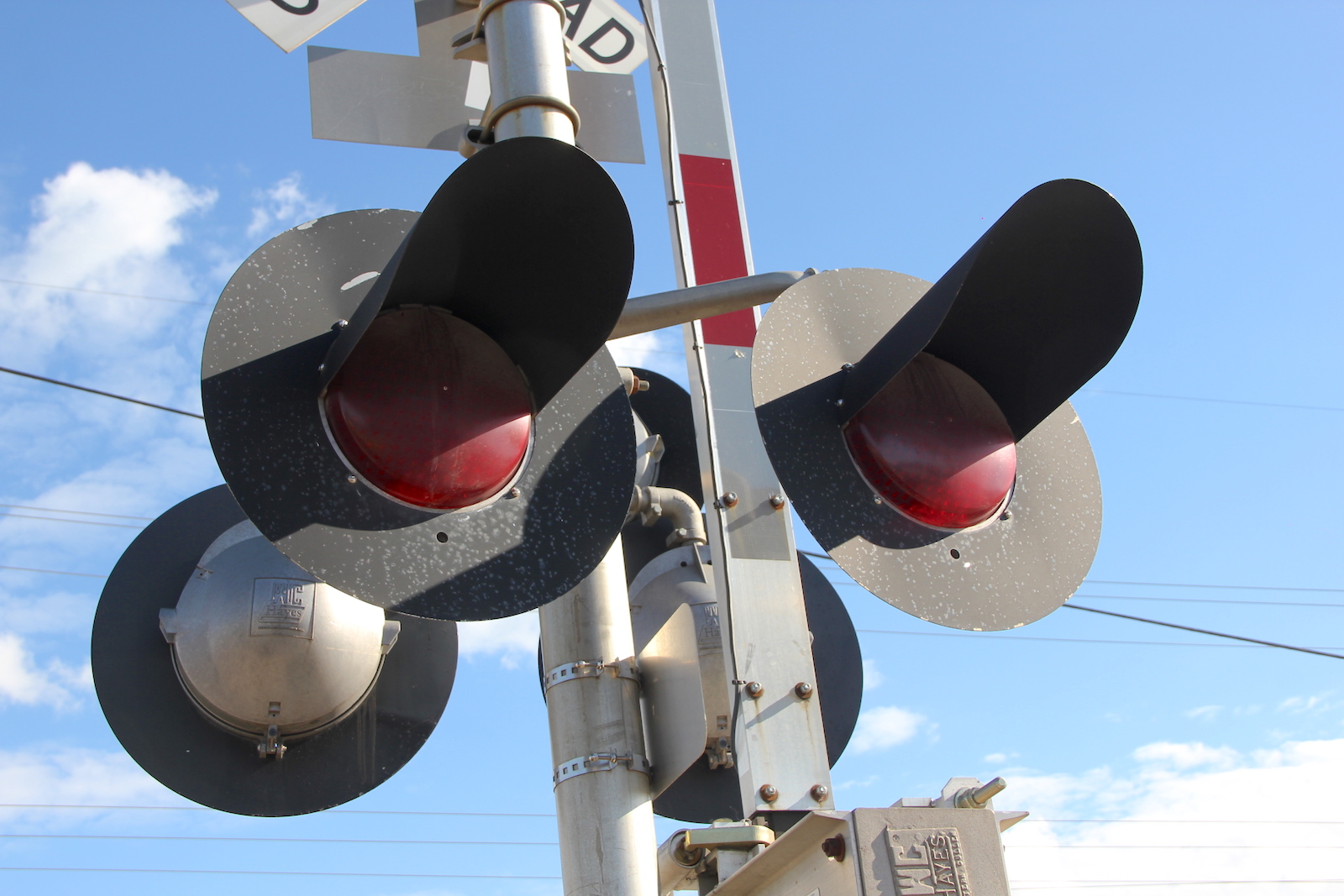

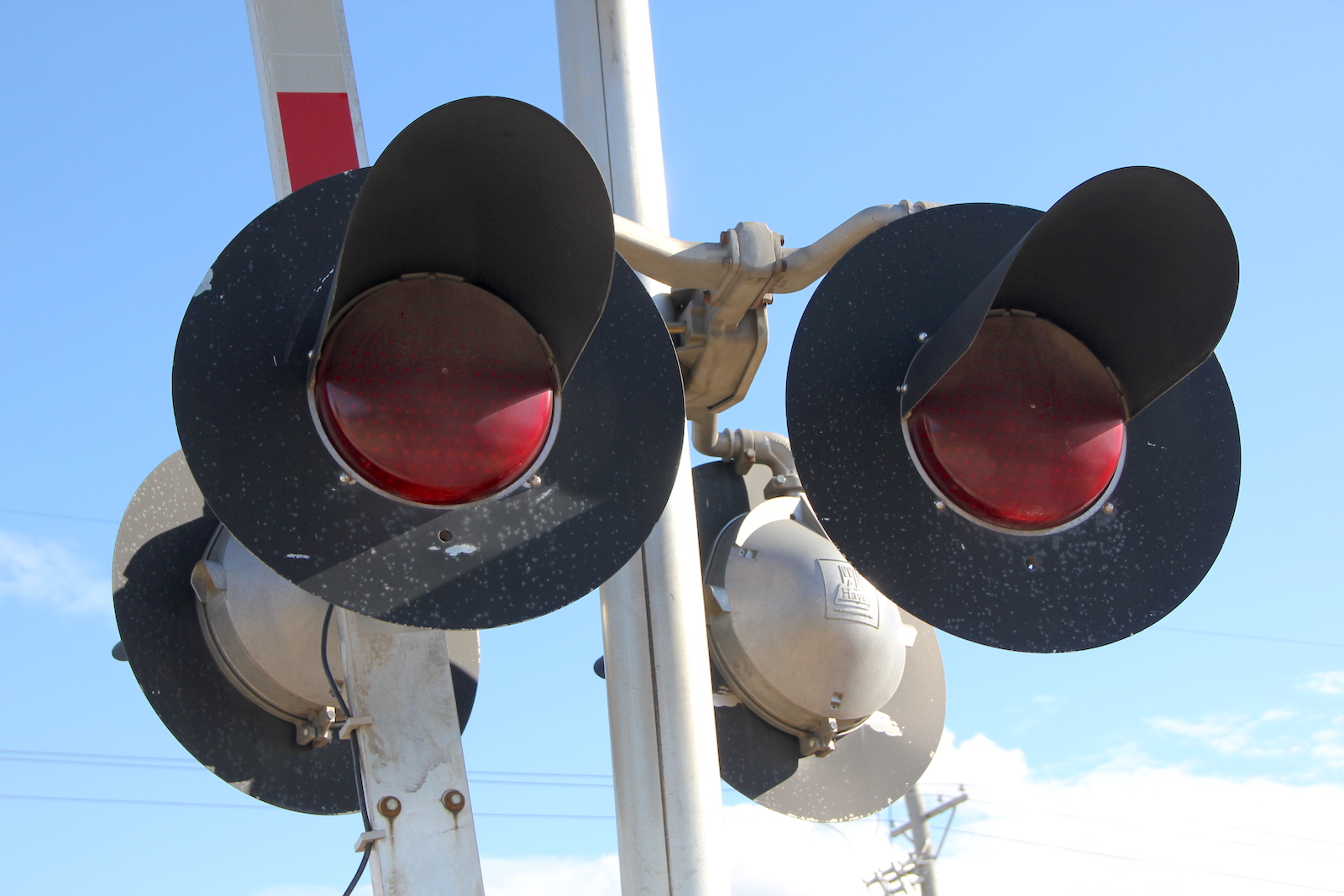

| LED Types: |

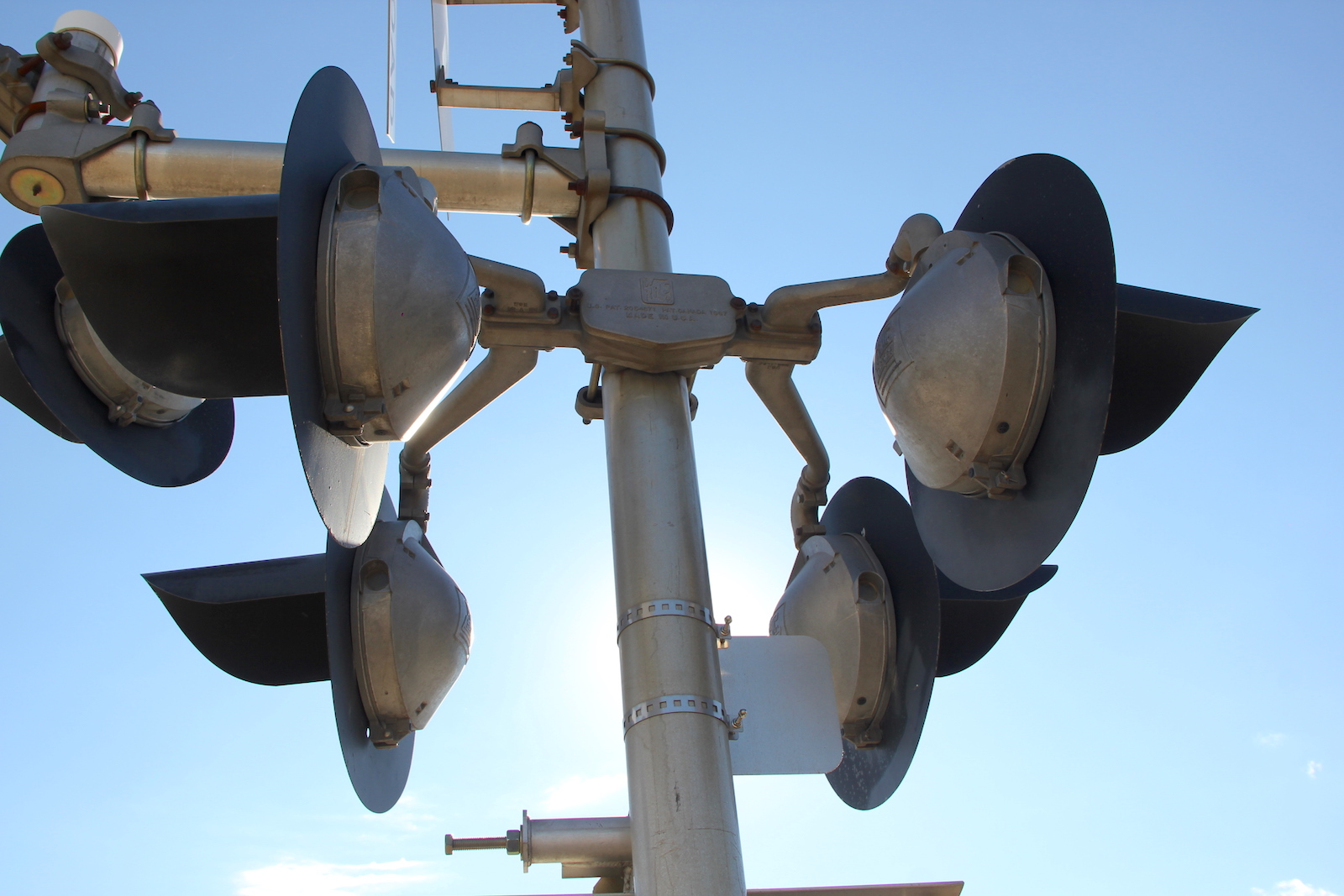

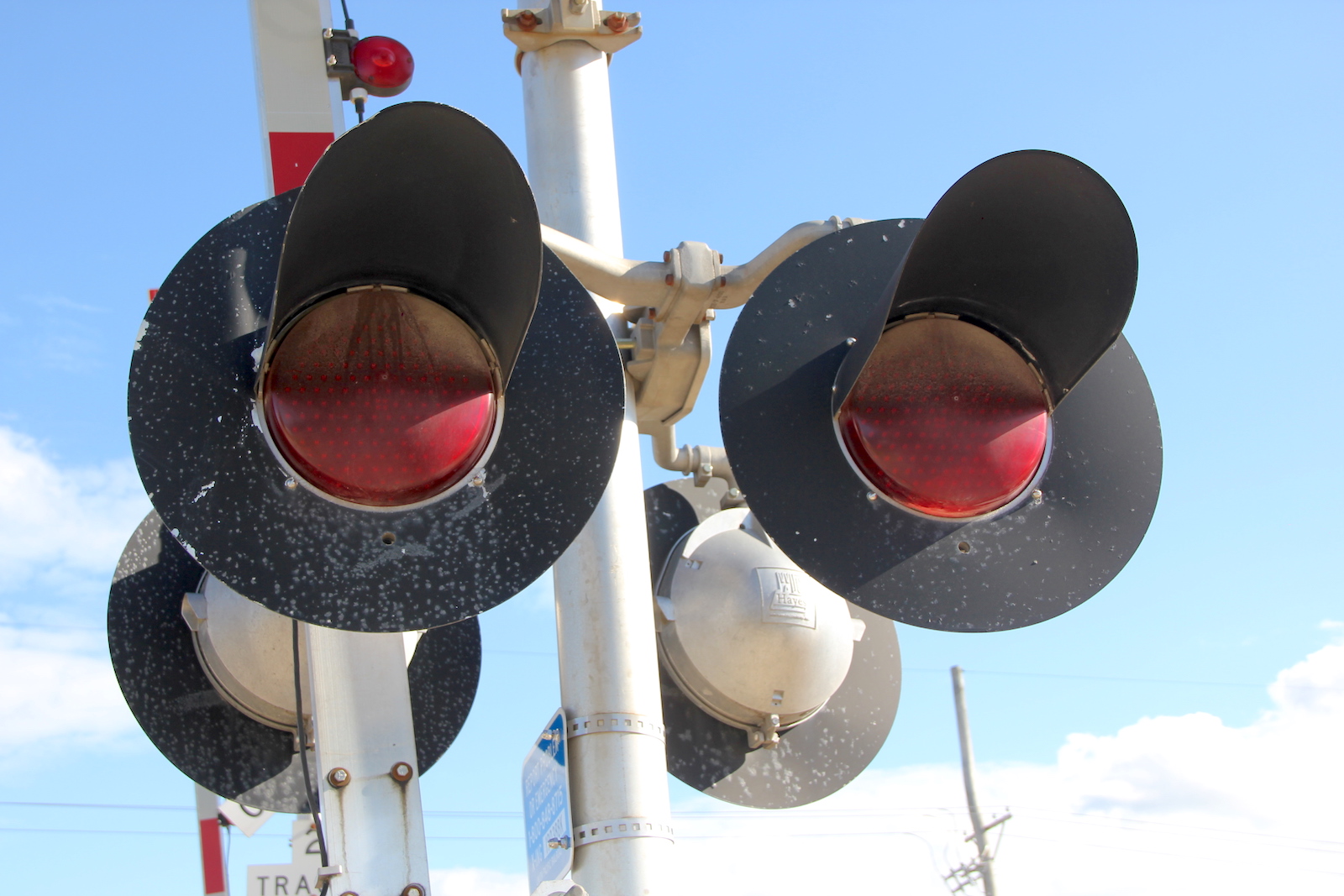

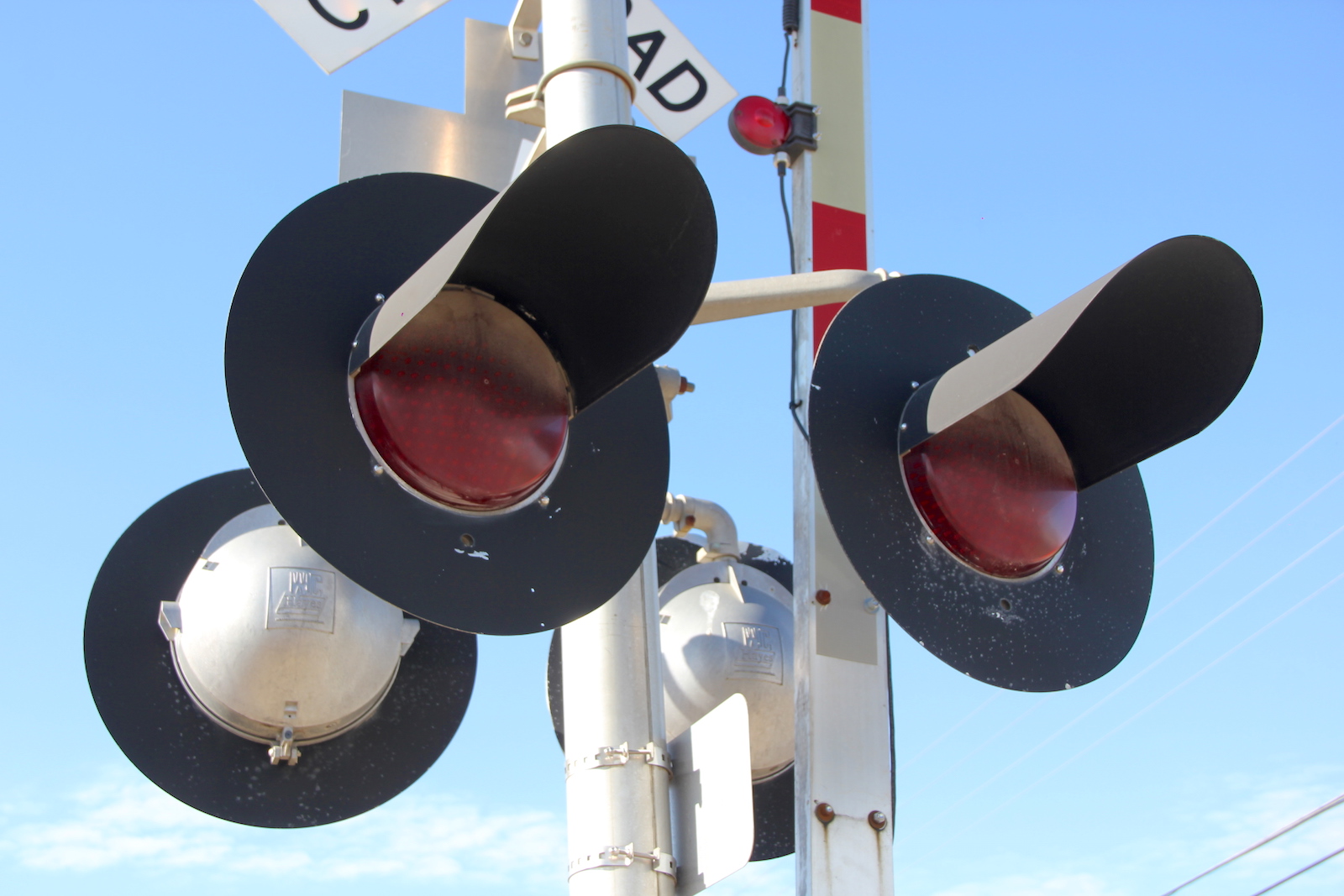

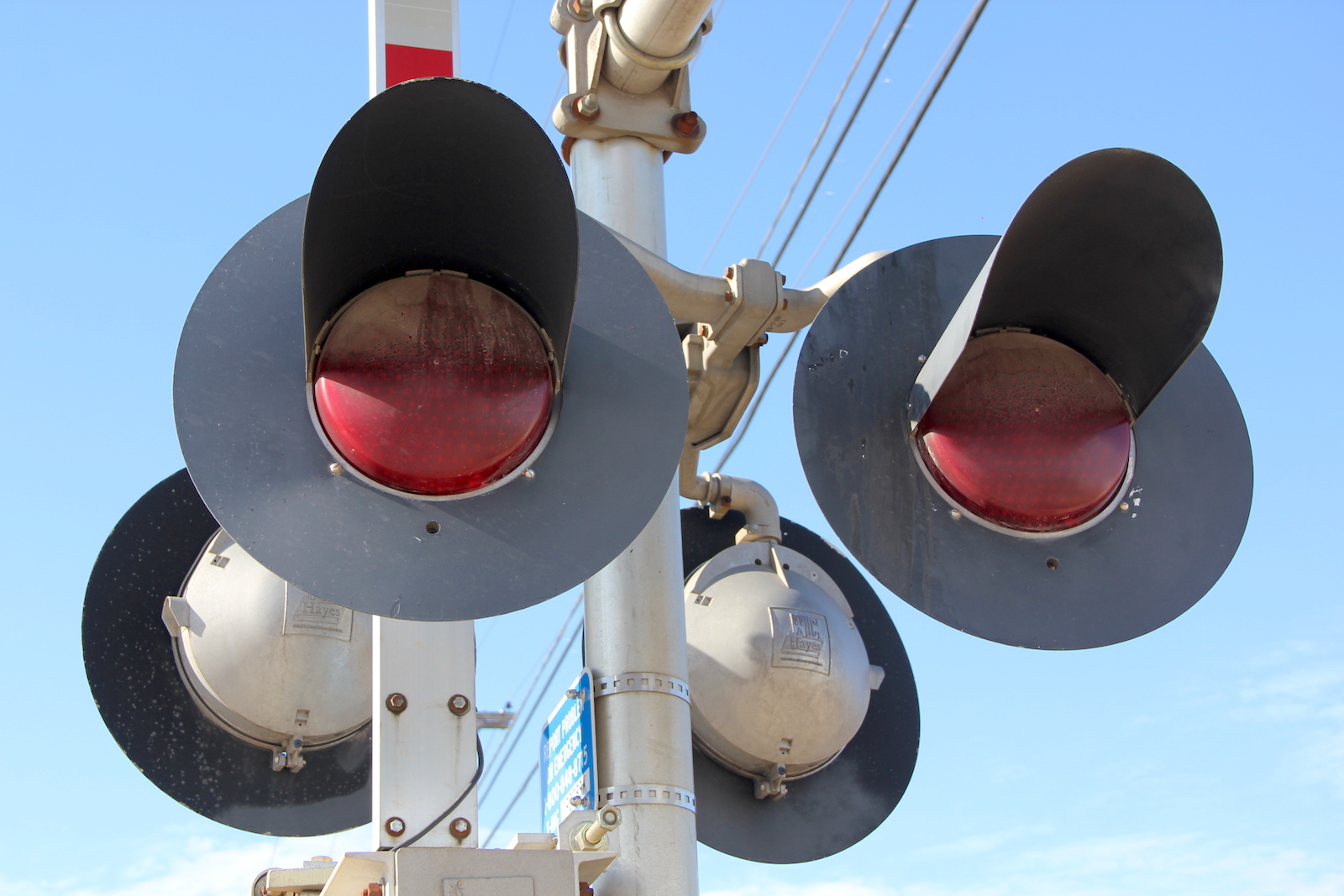

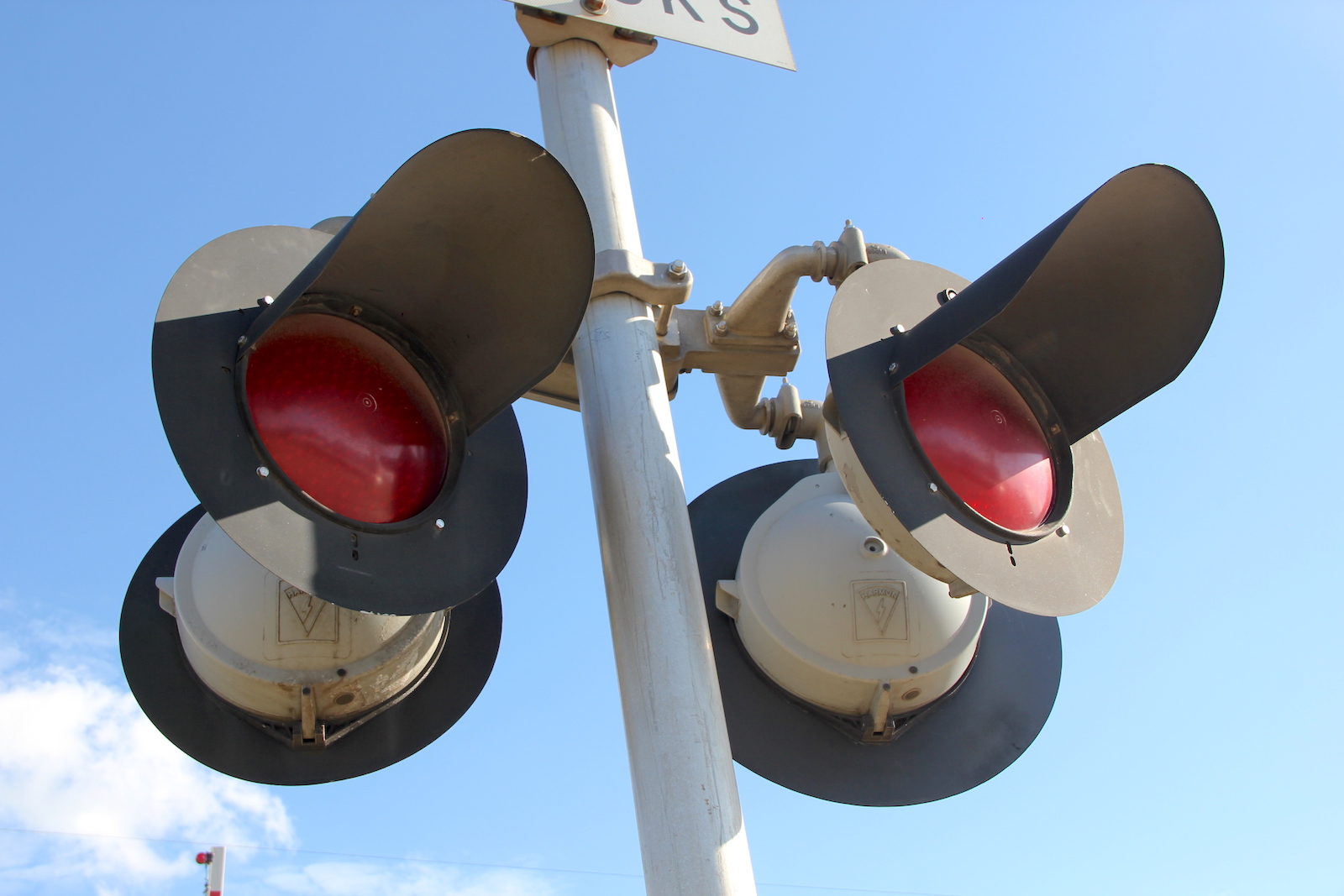

Four 1st Gen WCH LEDs |
Four Harmon Dotted LEDs |
Four 1st Gen WCH LEDs |
Six 1st Gen WCH LEDs |

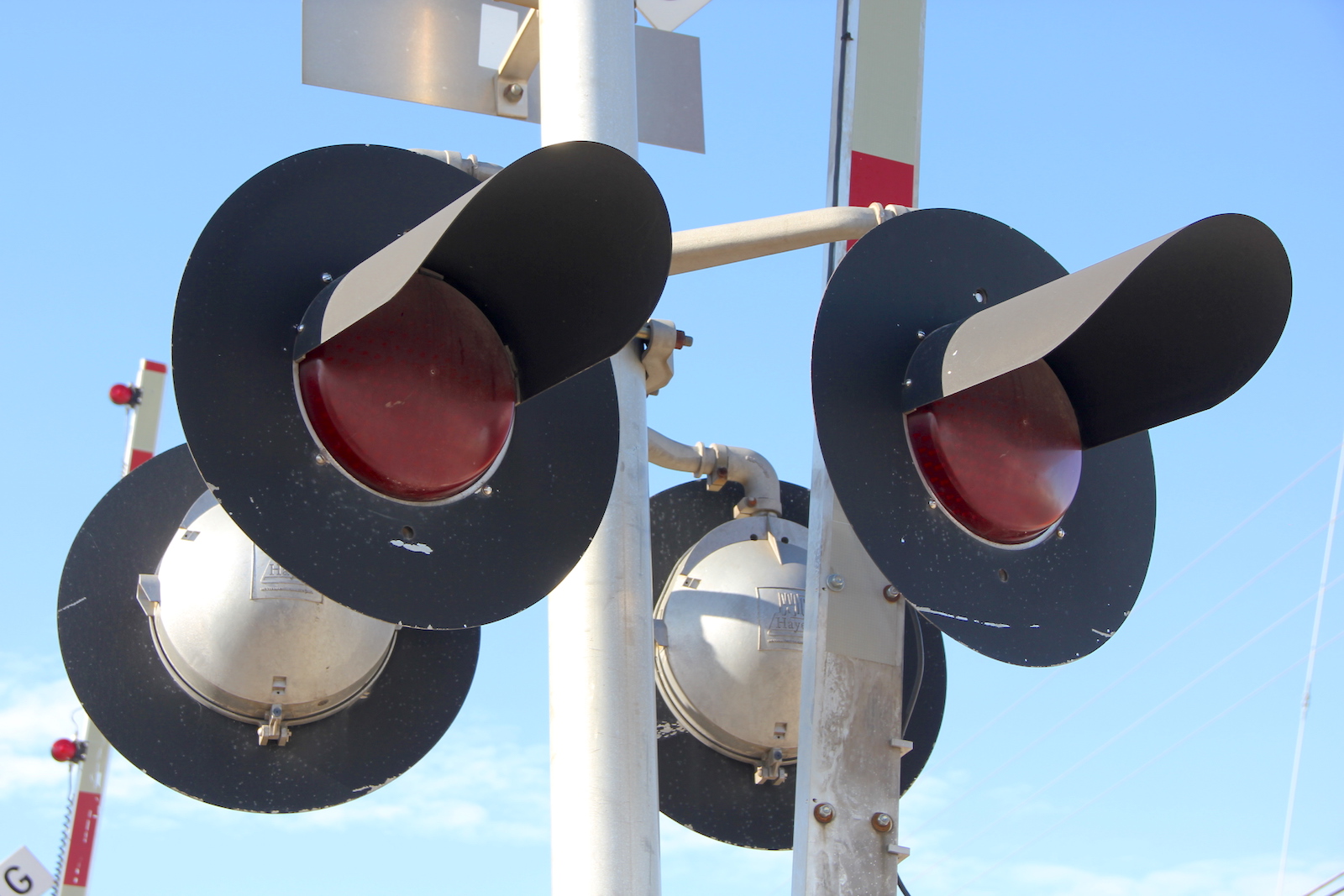

| Light Frames: |
Four 12"x24" WCH frames |
Three 12"x20" Harmon frames
One 12"x24" Harmon frame |
Four 12"x24" WCH frames |
Six 12"x24" WCH frames |

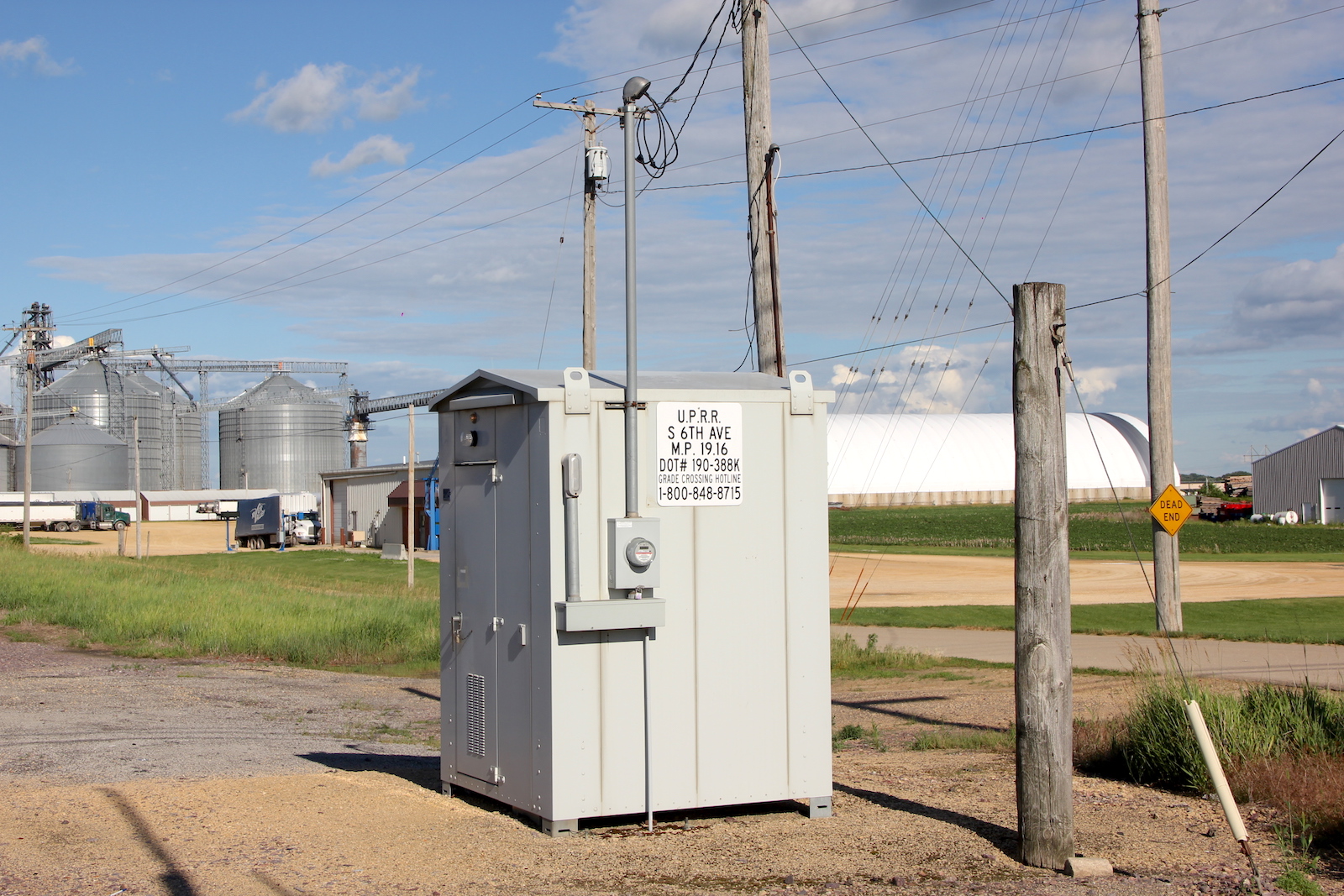

| Junction Box: |
WRRS |
Harmon |
WRRS |
WRRS |
| Gate Lights: |
4" RECO LEDs |
None |
4" RECO LEDs |
4" RECO LEDs |

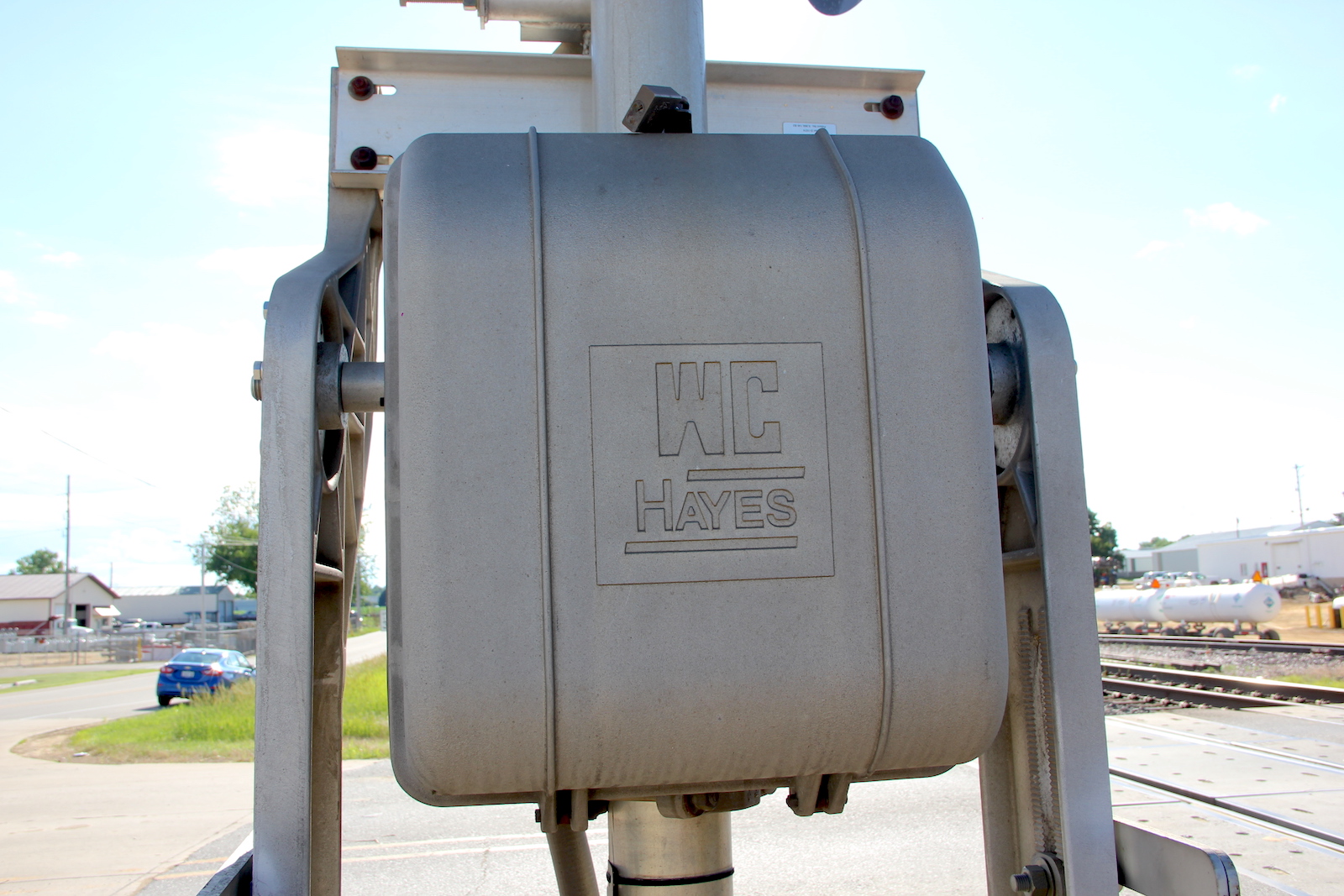

| Gate Mechanism: |

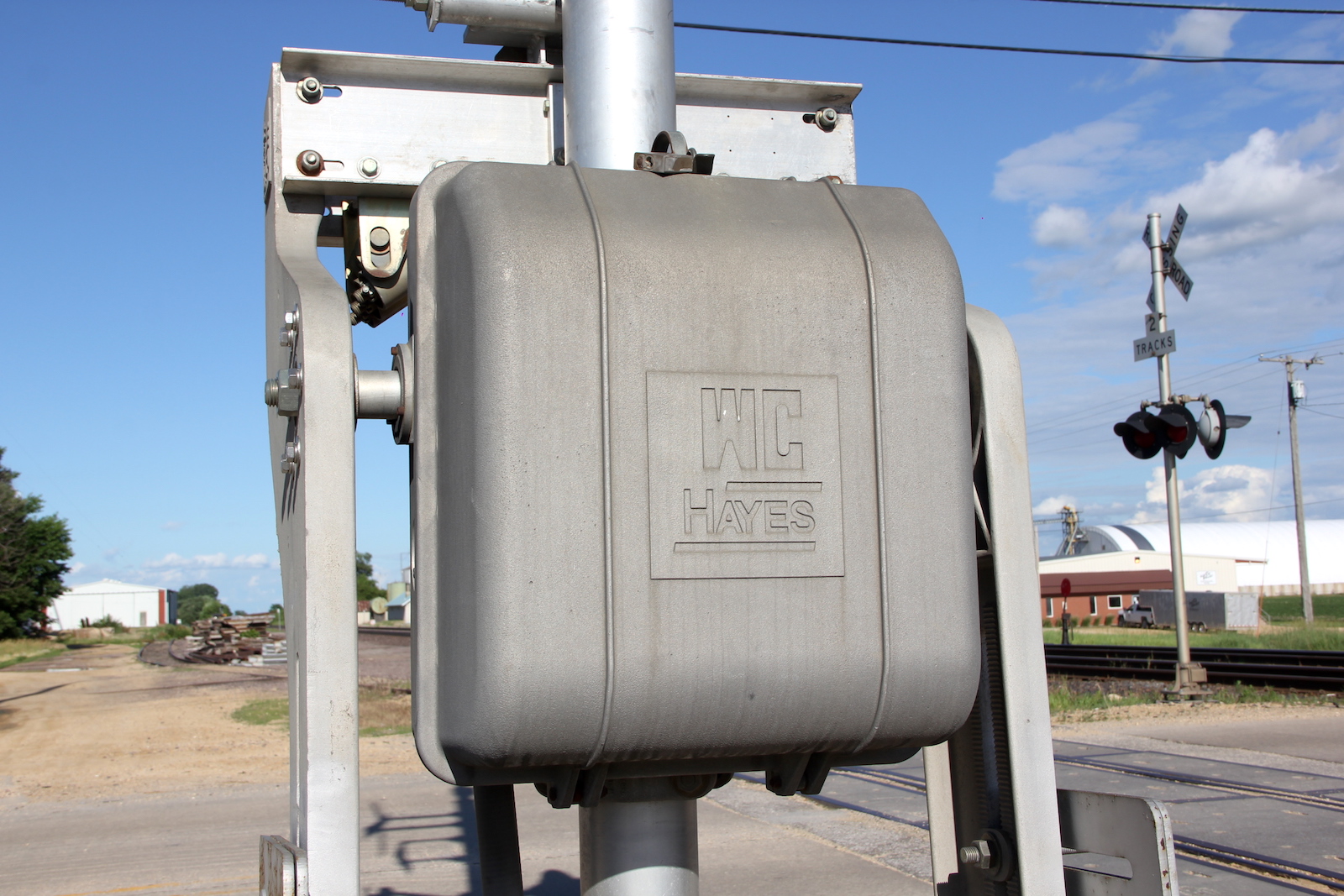

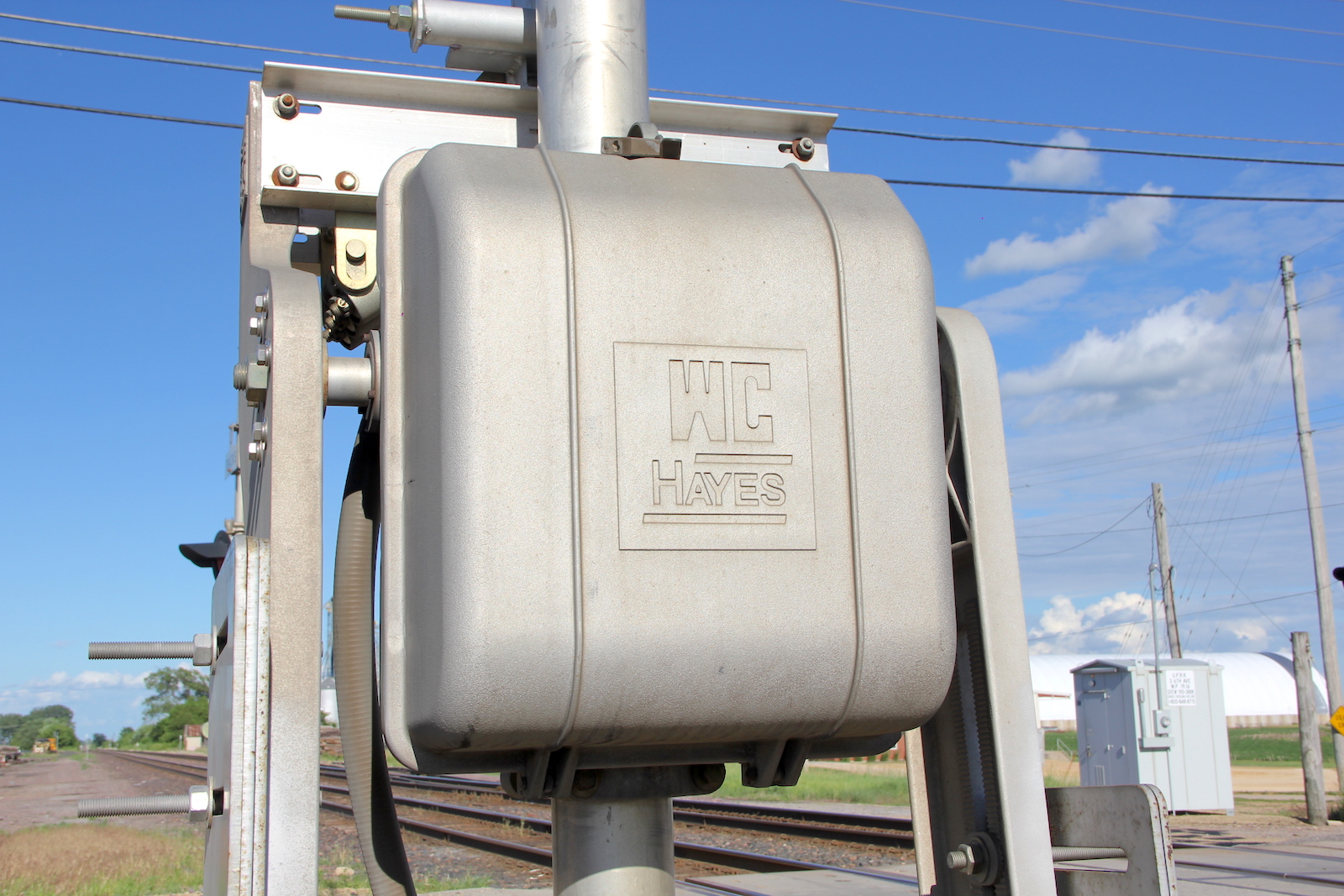

WCH Style 3.5 |
None |
WCH Style 3.5 |
WCH Style 3.5 |
| Gate Saver: |
WCH Gate Saver |
N/A |
WCH Gate Saver |
WCH Gate Saver |
| Gate Striping: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| |
N/A |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| |
| Crossbuck font: |
WCH, double sided |
WCH, double sided |
WCH, double sided |
WCH, double sided |
| Bell Cycle: |
Rings for the whole duration |
N/A |
N/A |
Rings for the whole duration |
All pictures were taken on June 23, 2020, by Tommy McGowan.
The video was taken on June 25, 2020, by Tommy McGowan.

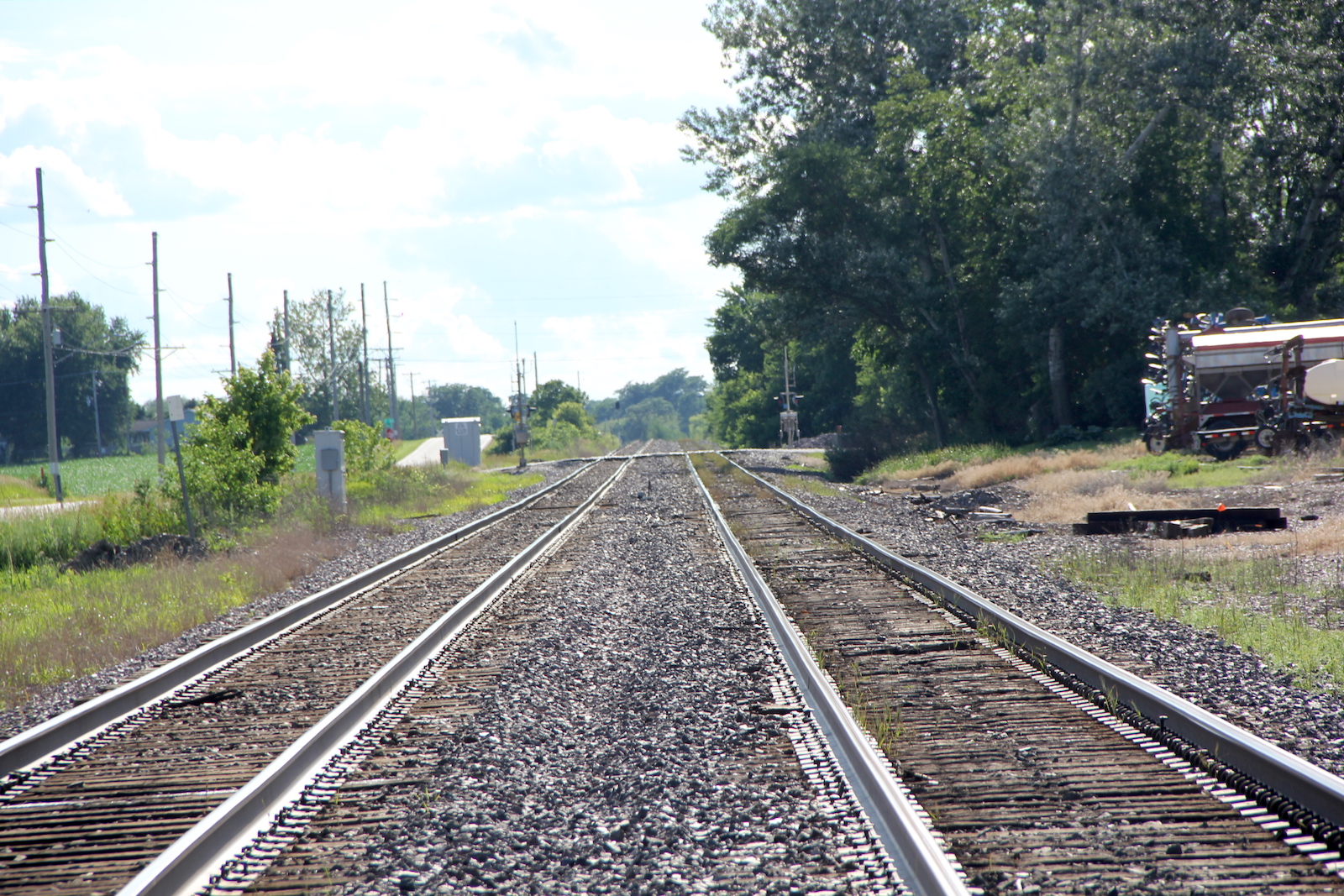

These crossings are located on the UP Clinton Sub.

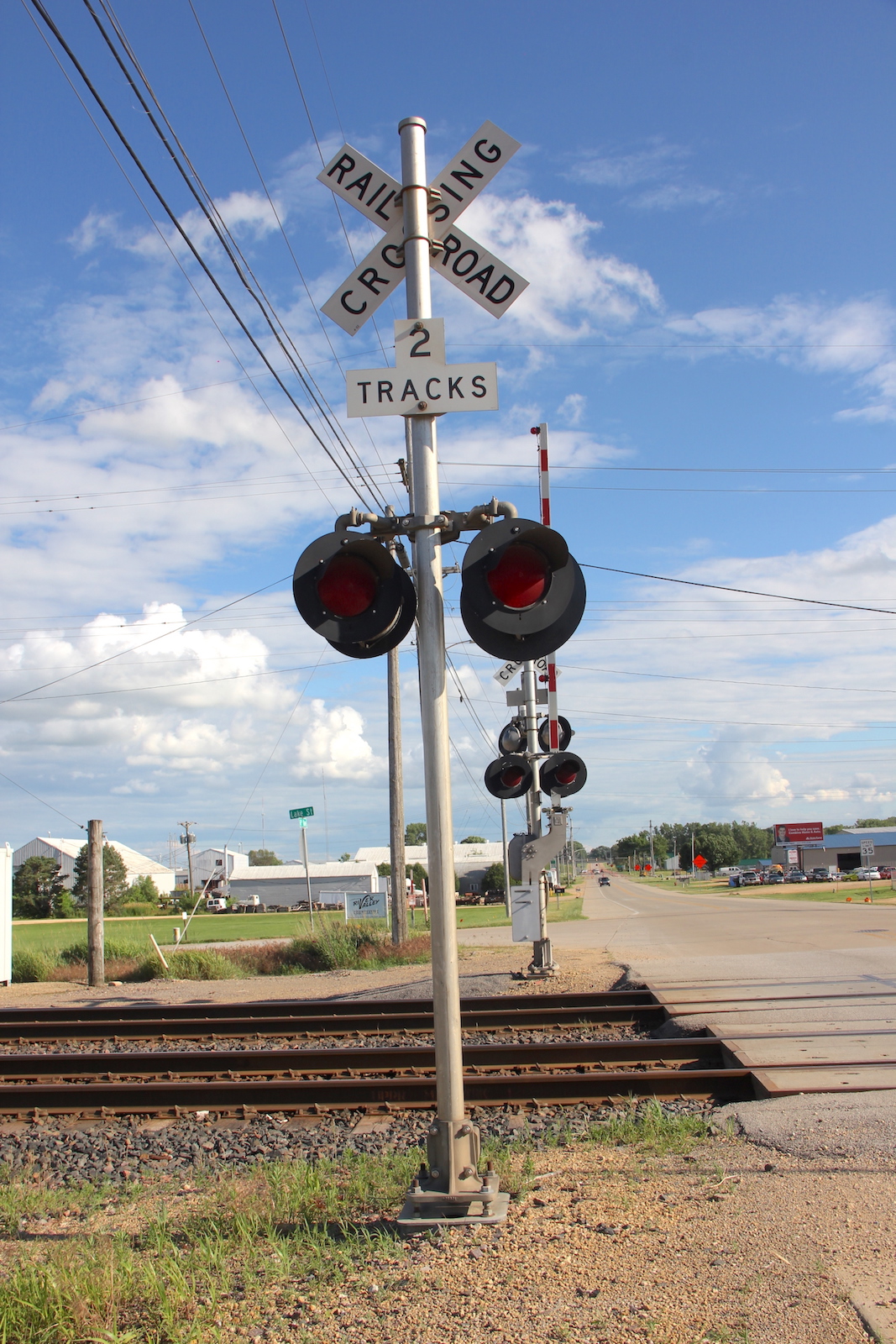

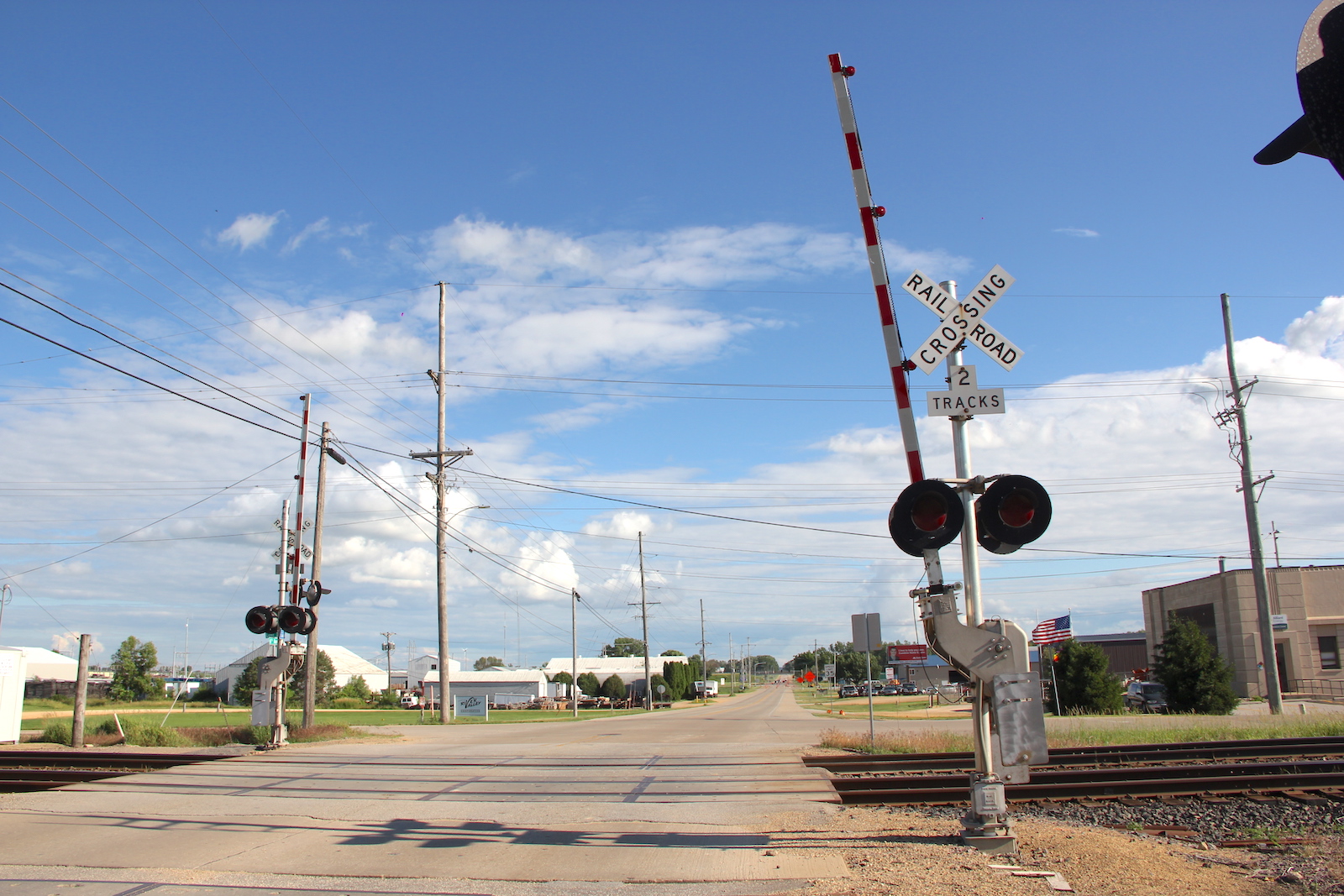

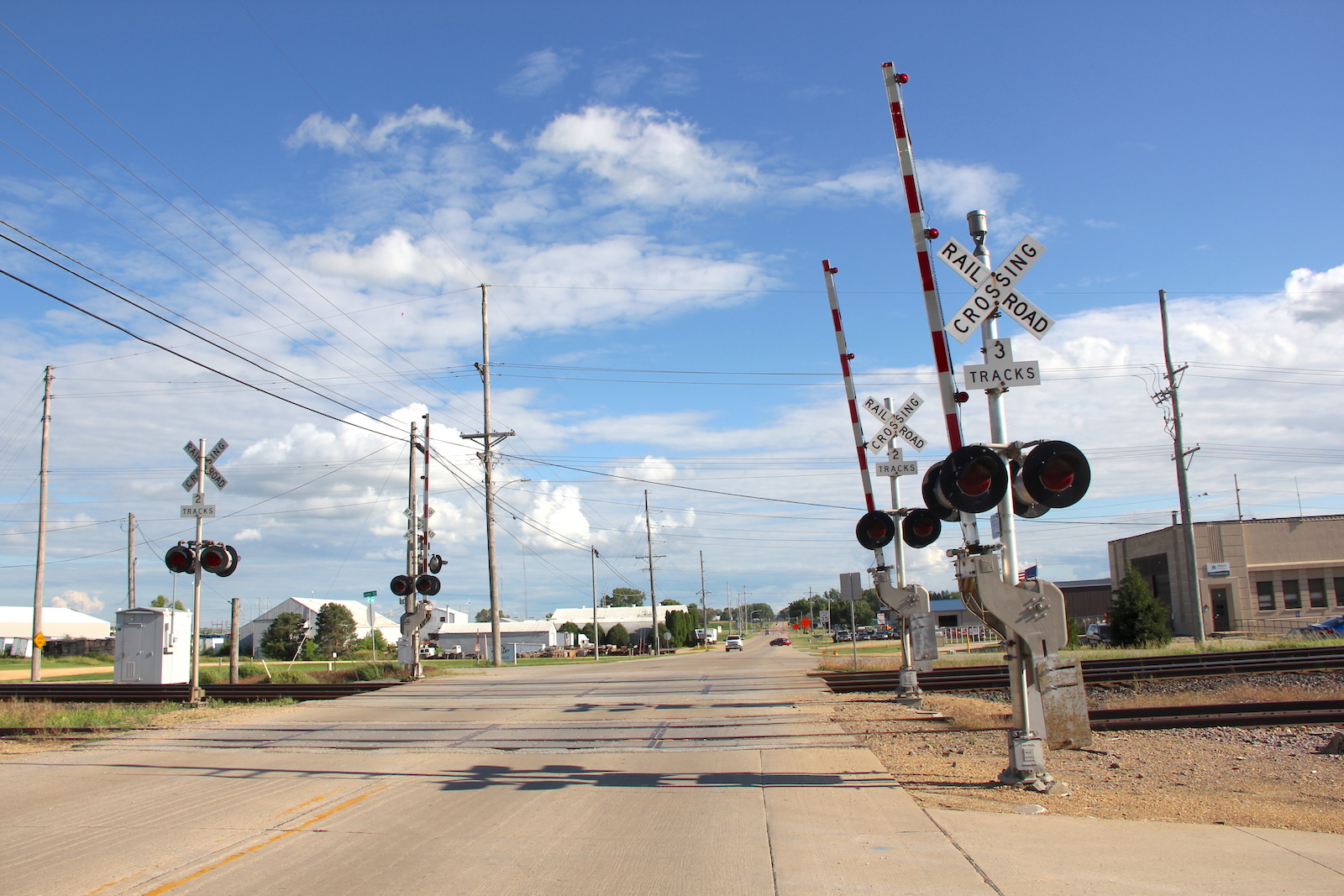

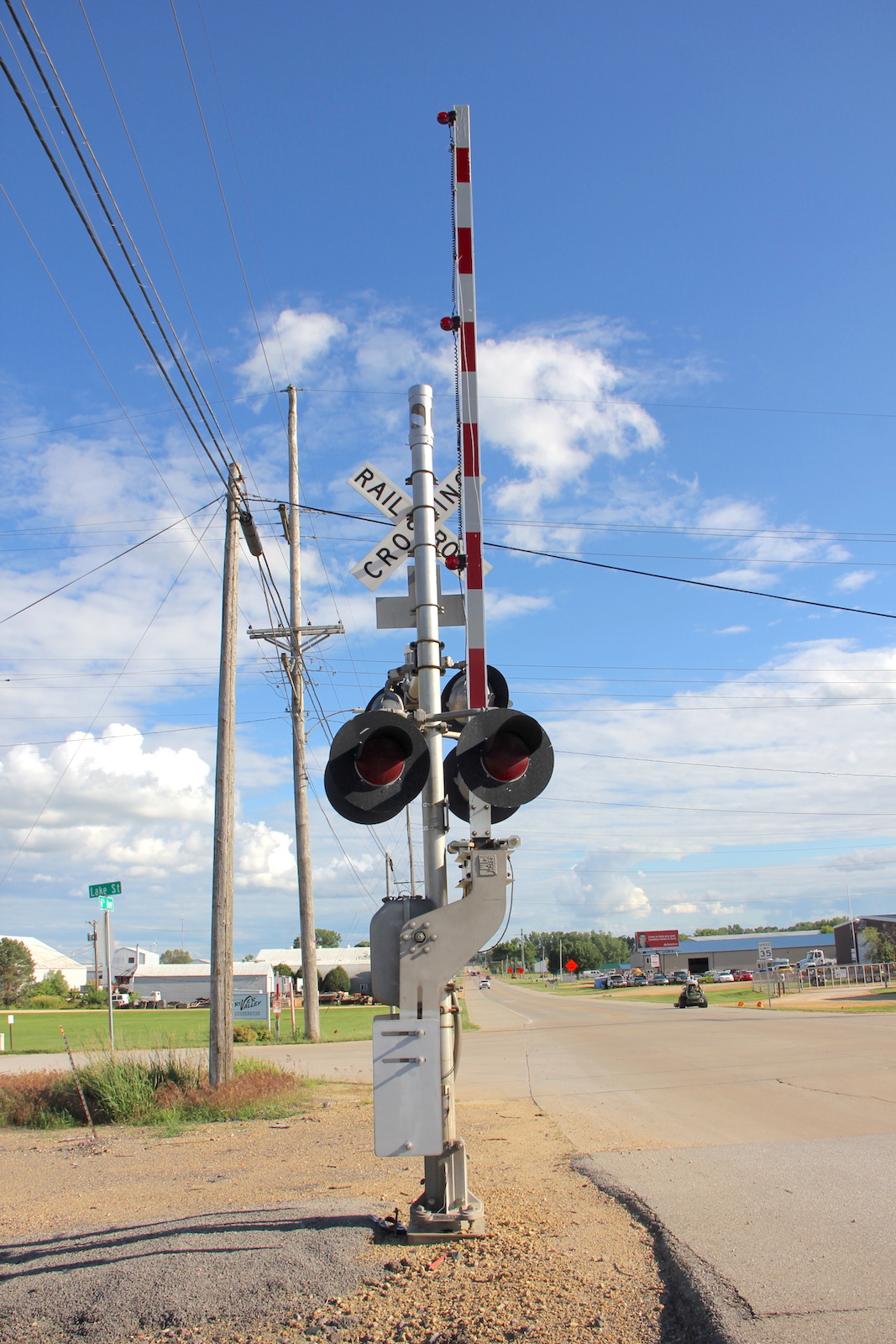

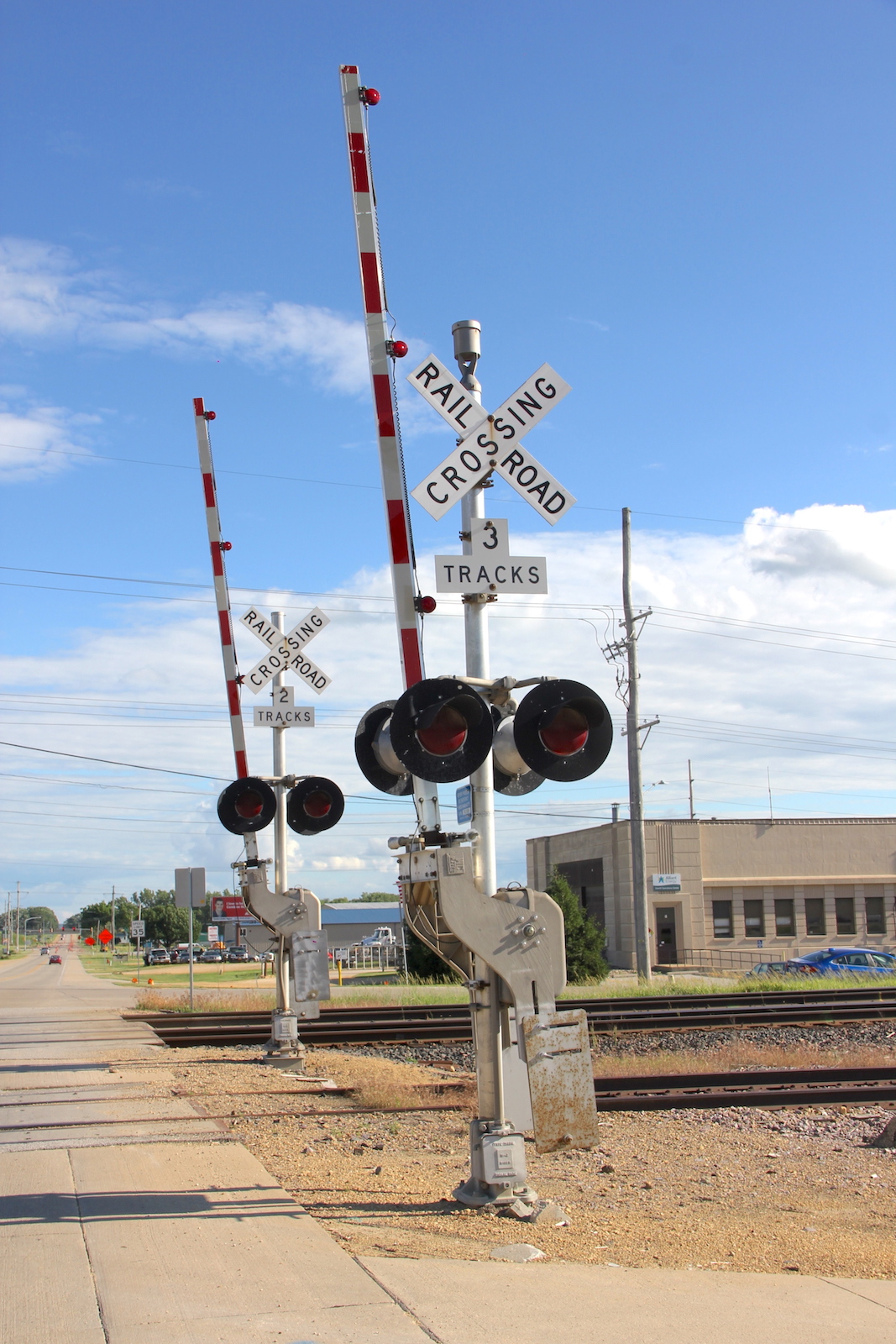

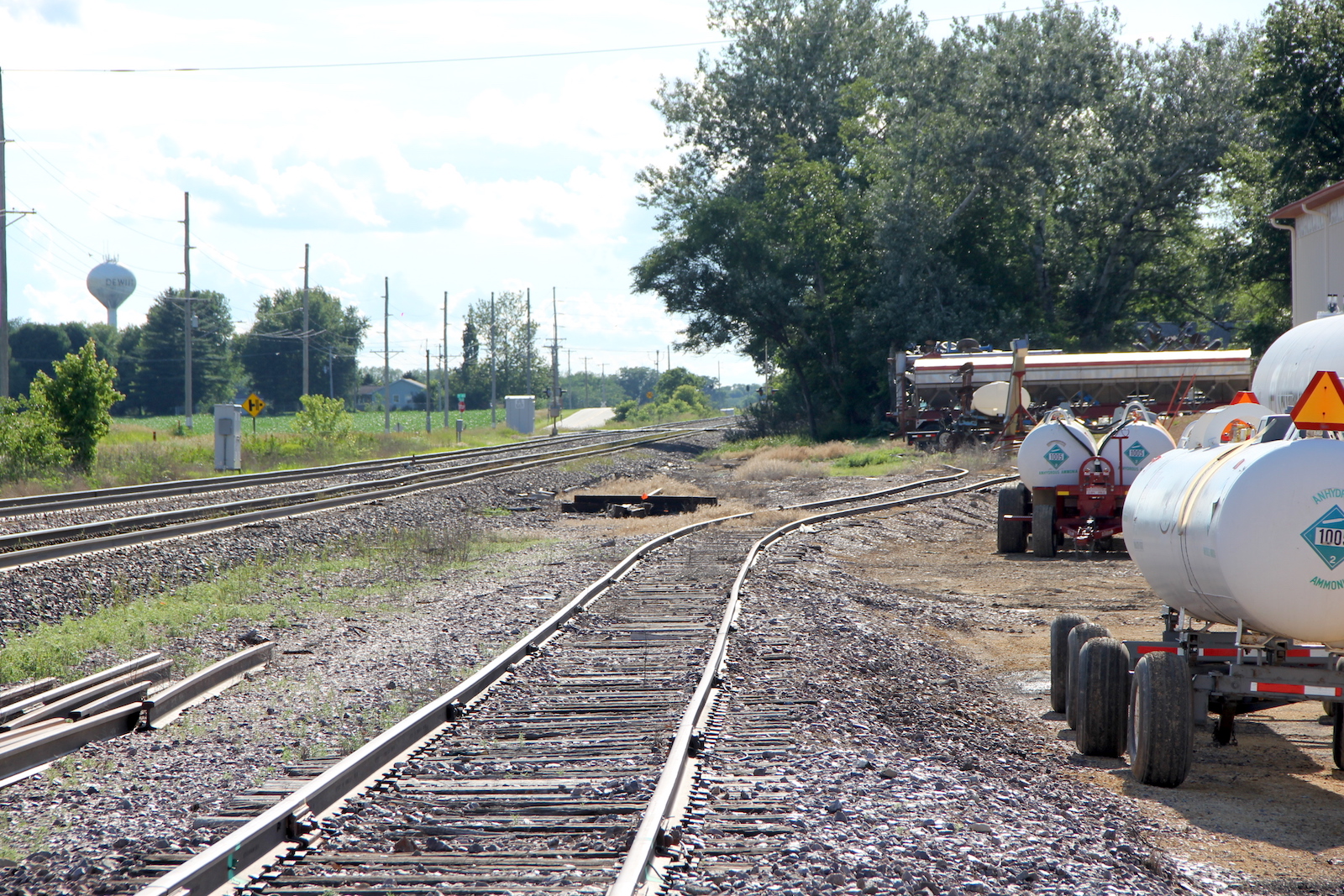

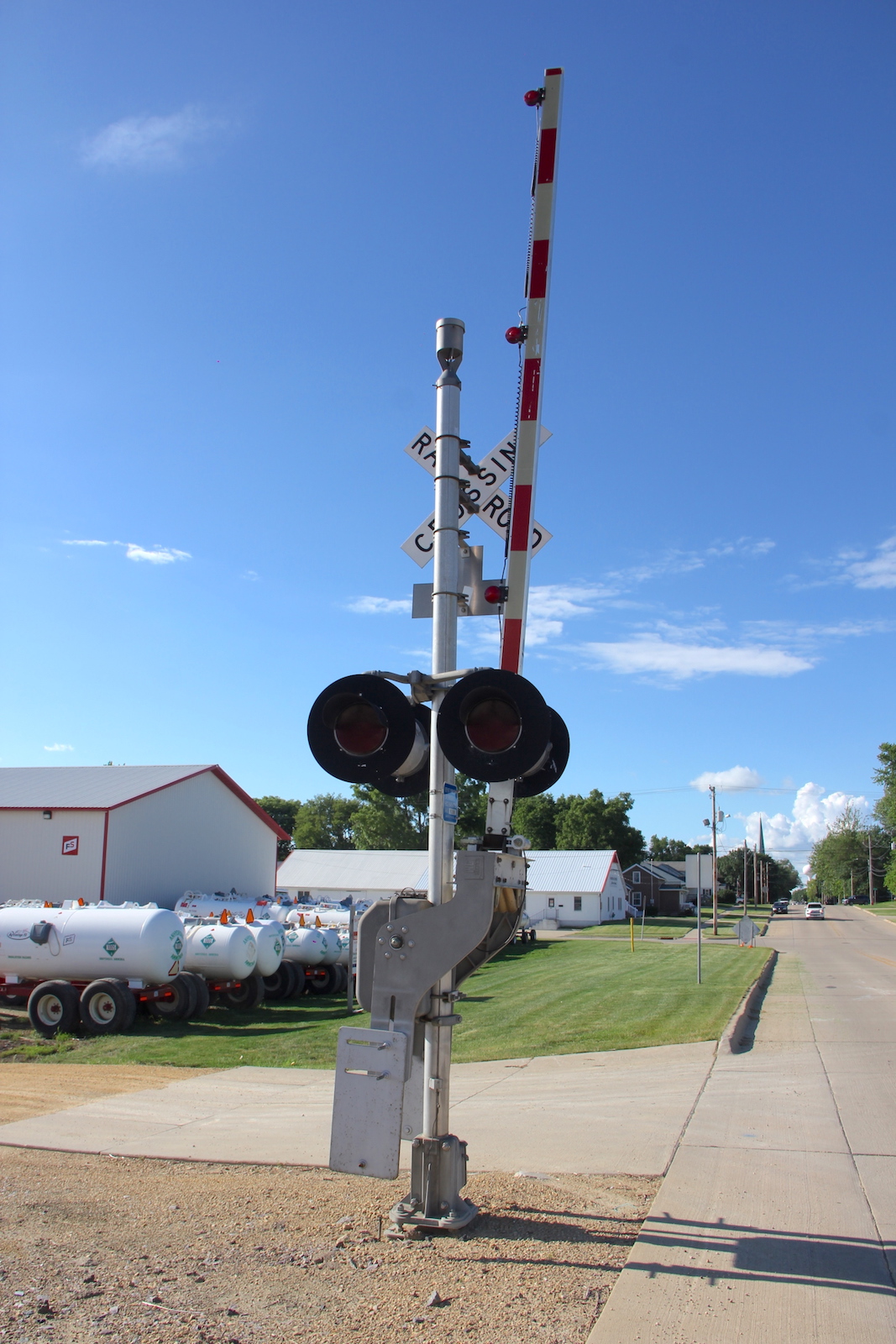

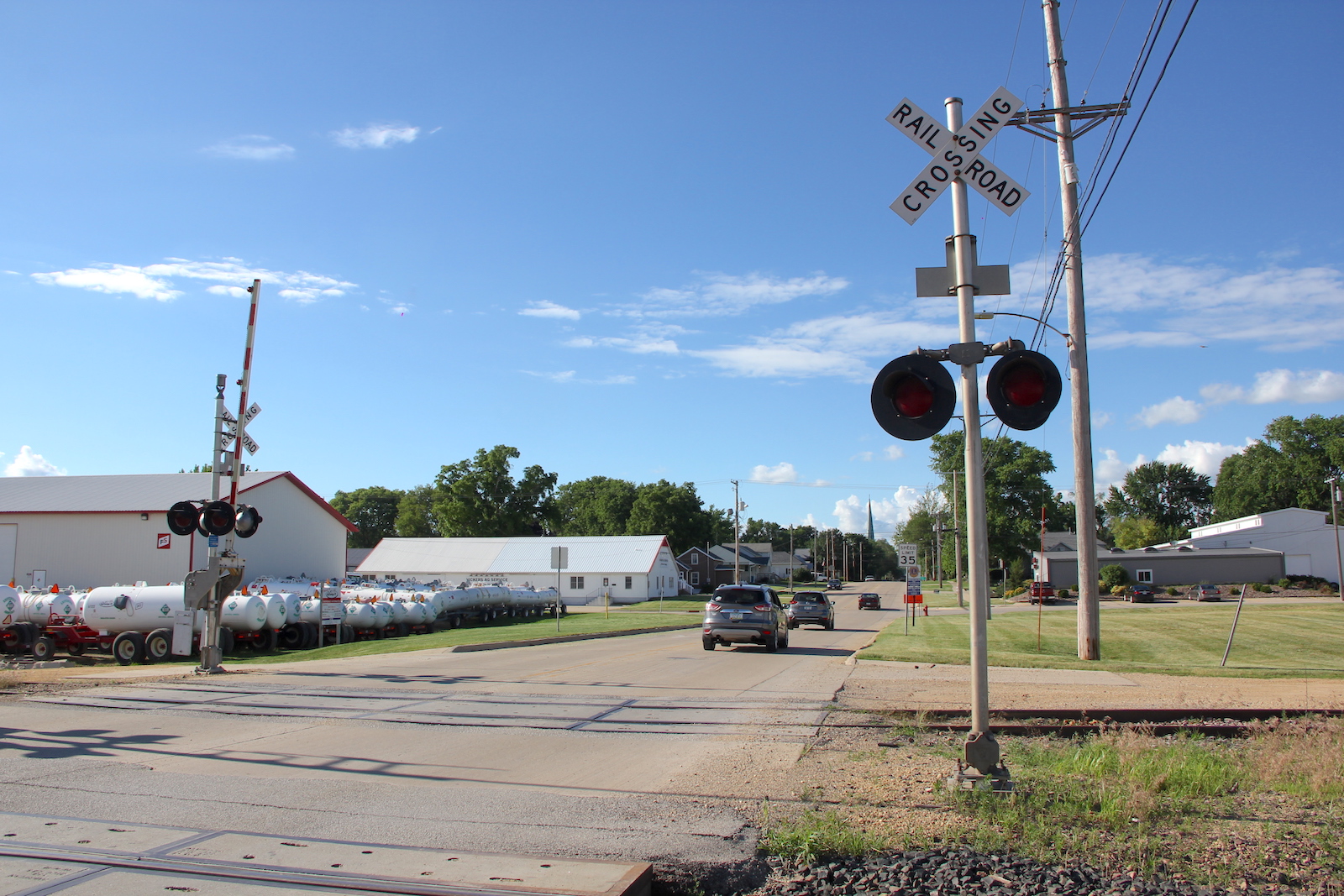

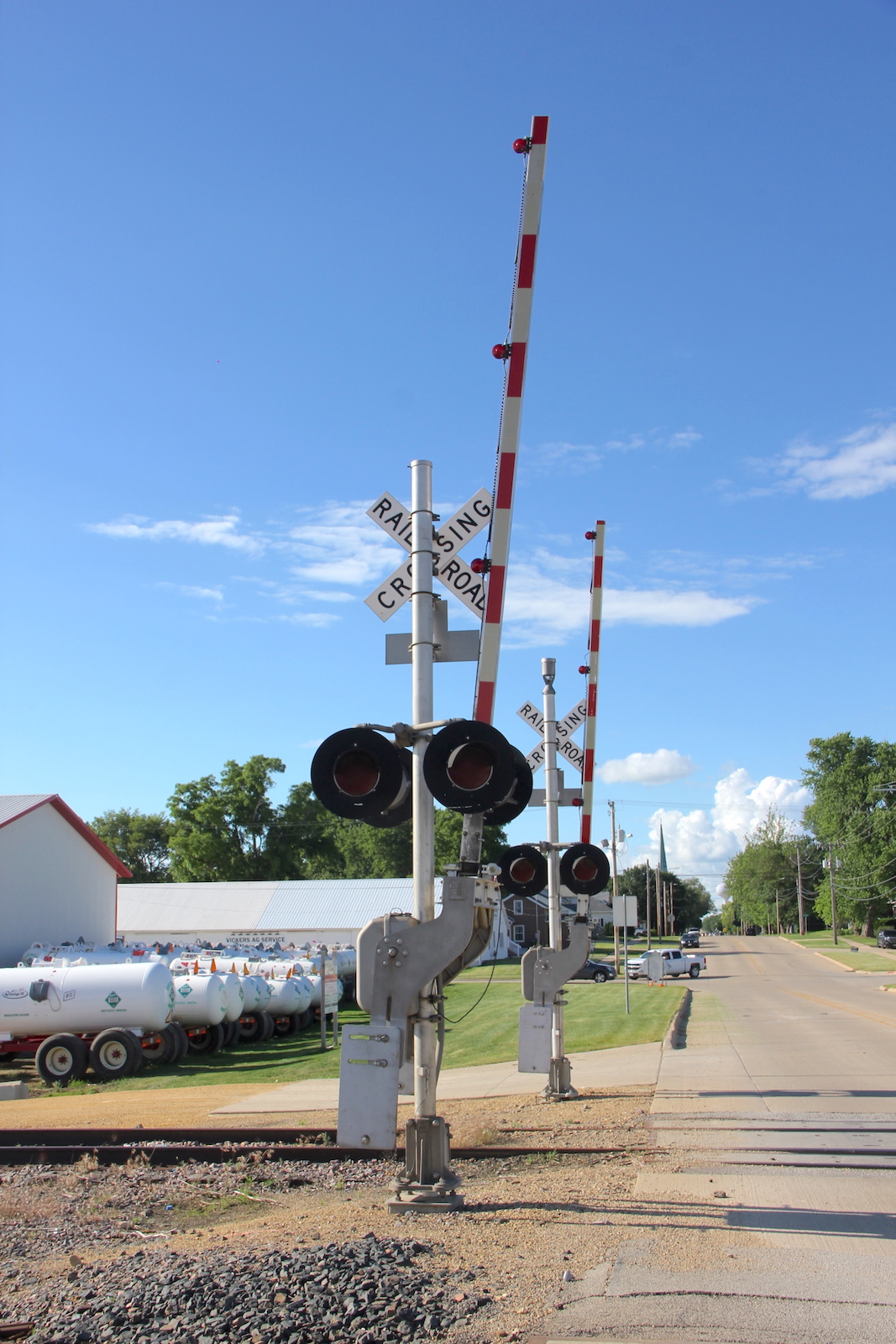

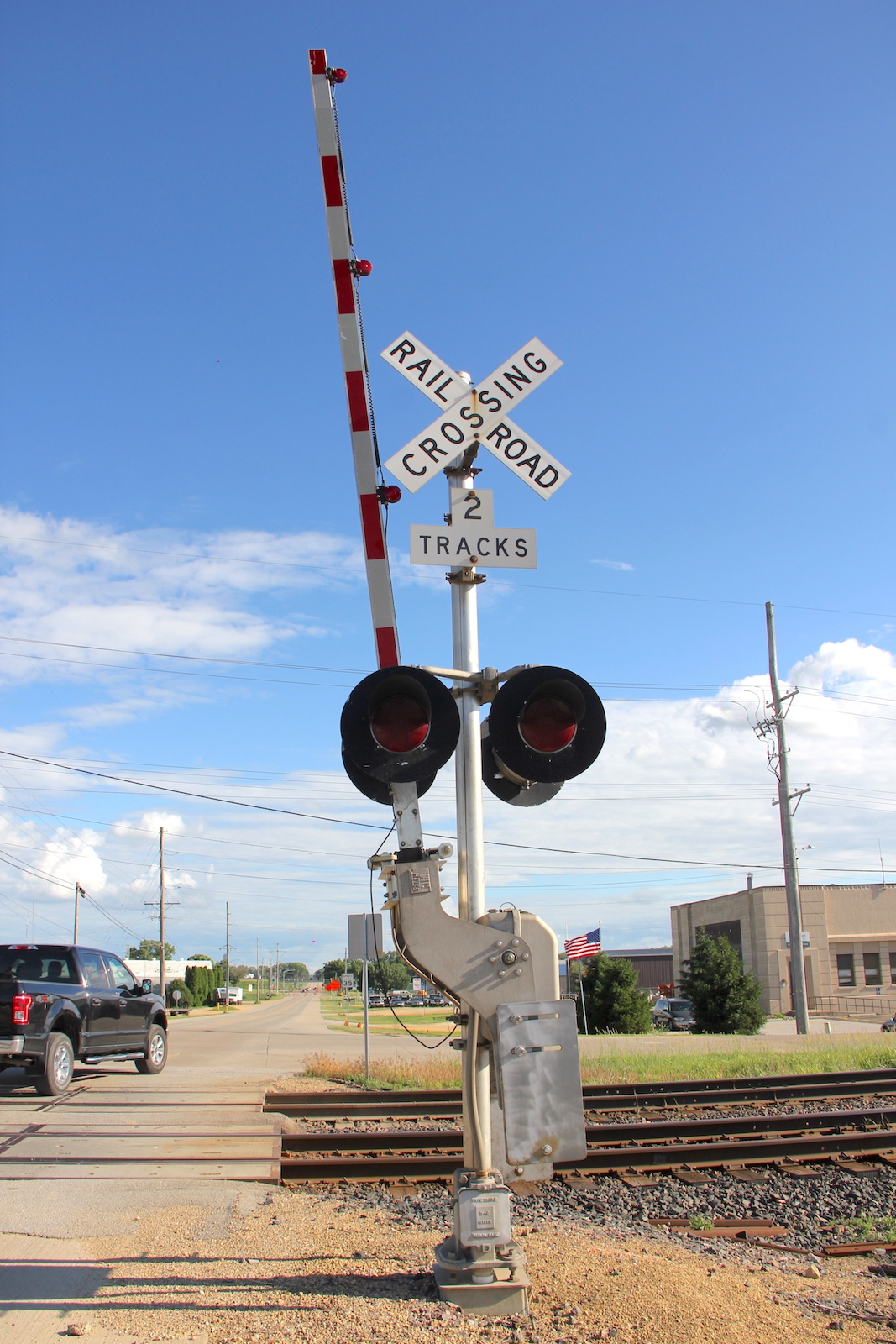

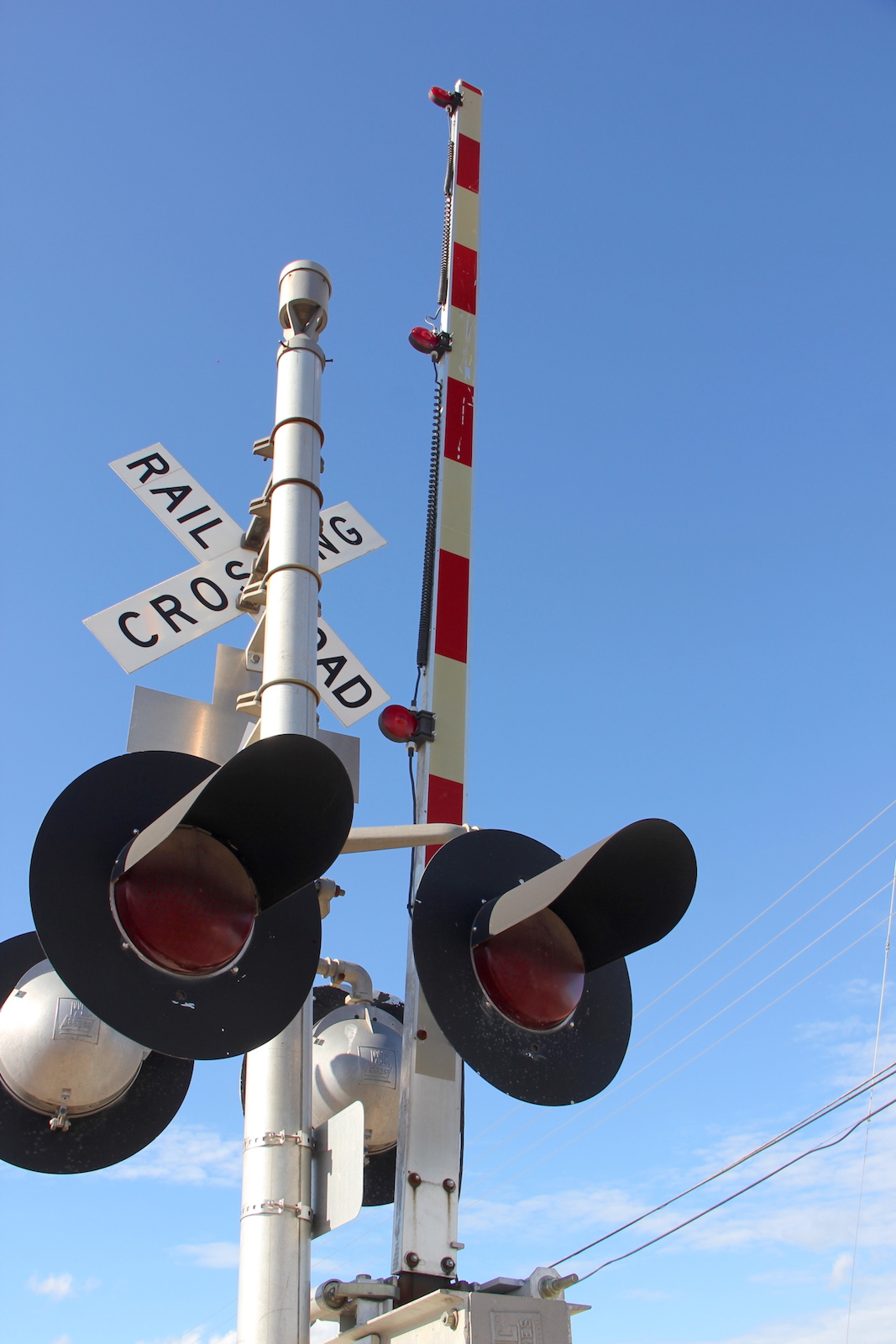

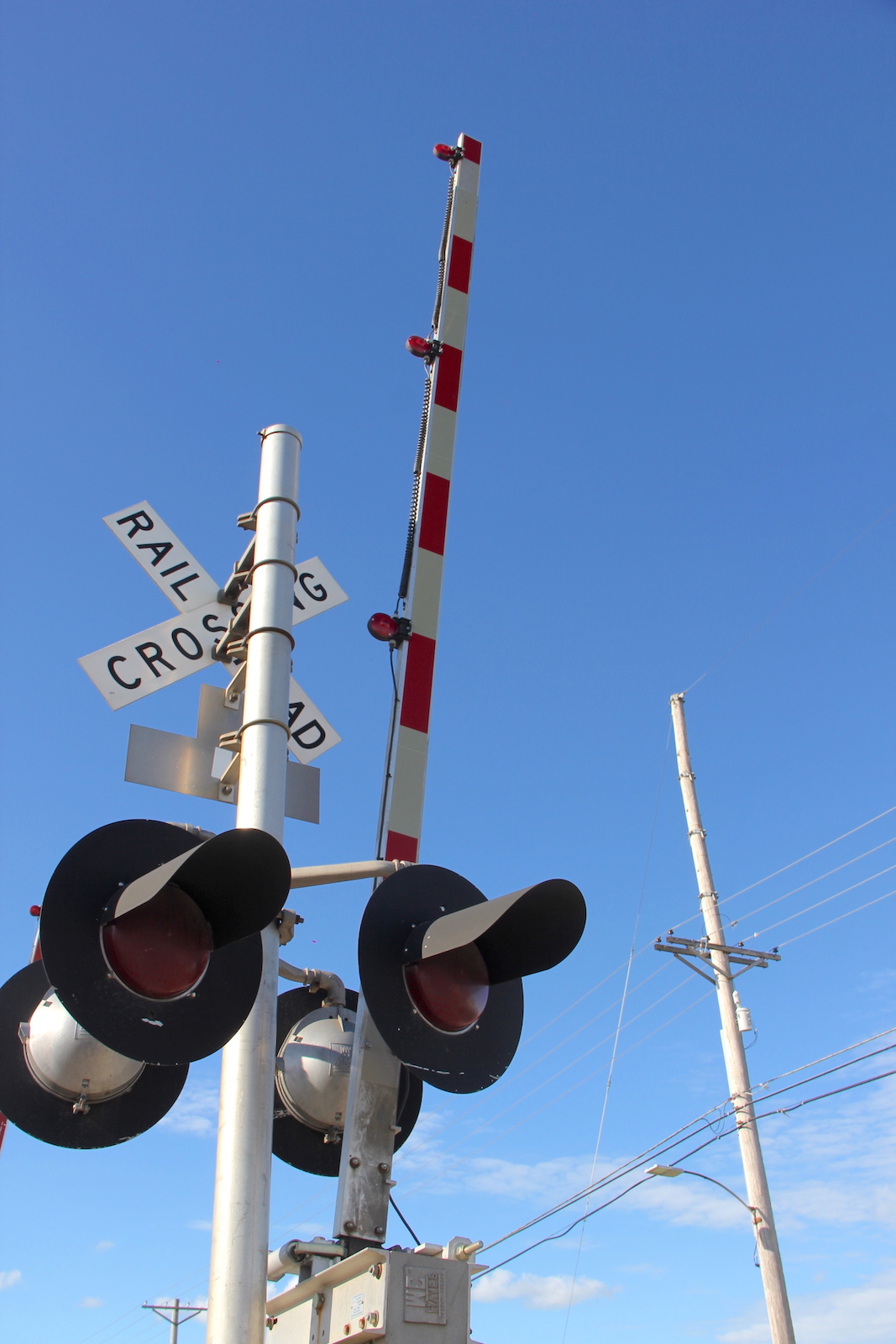

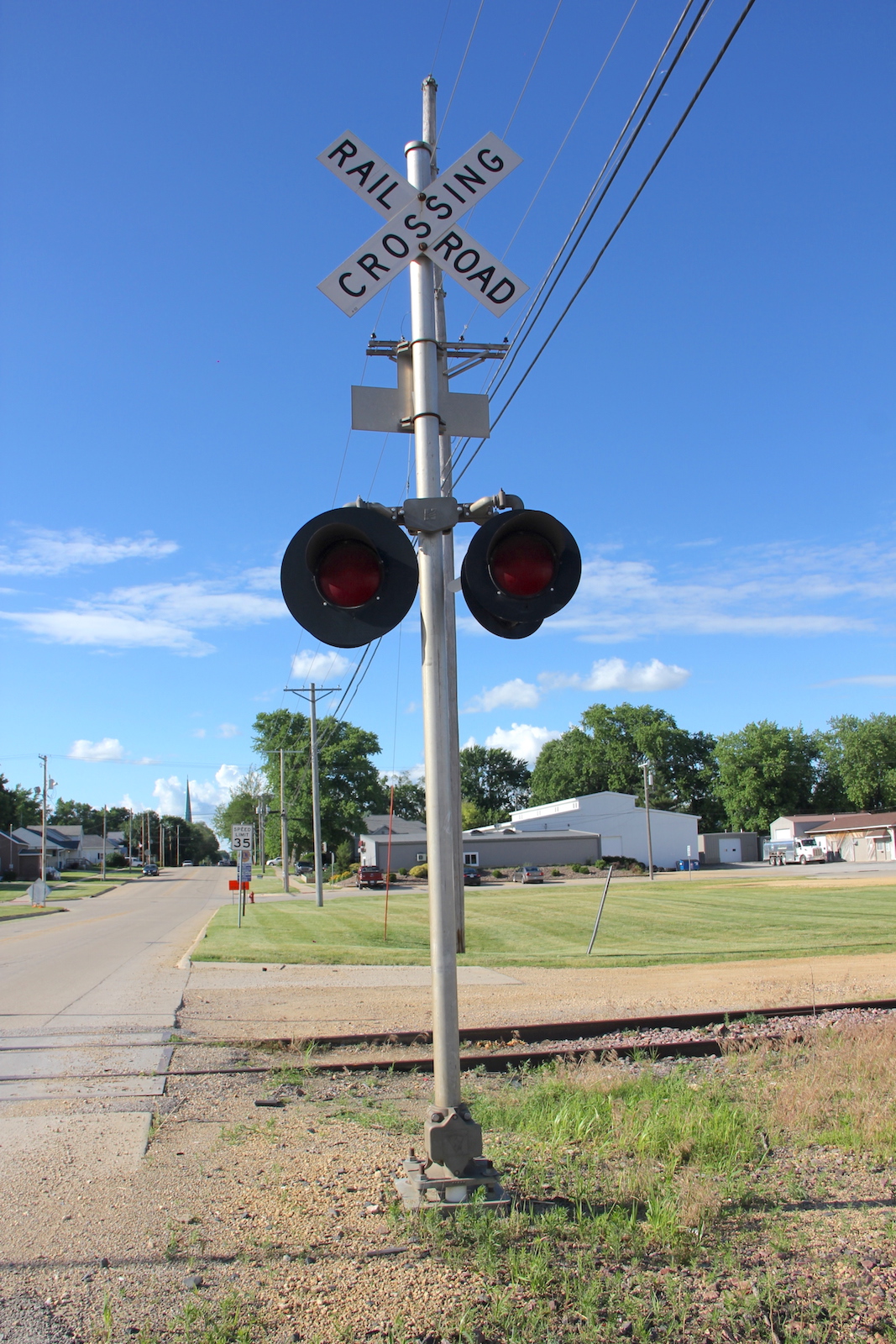

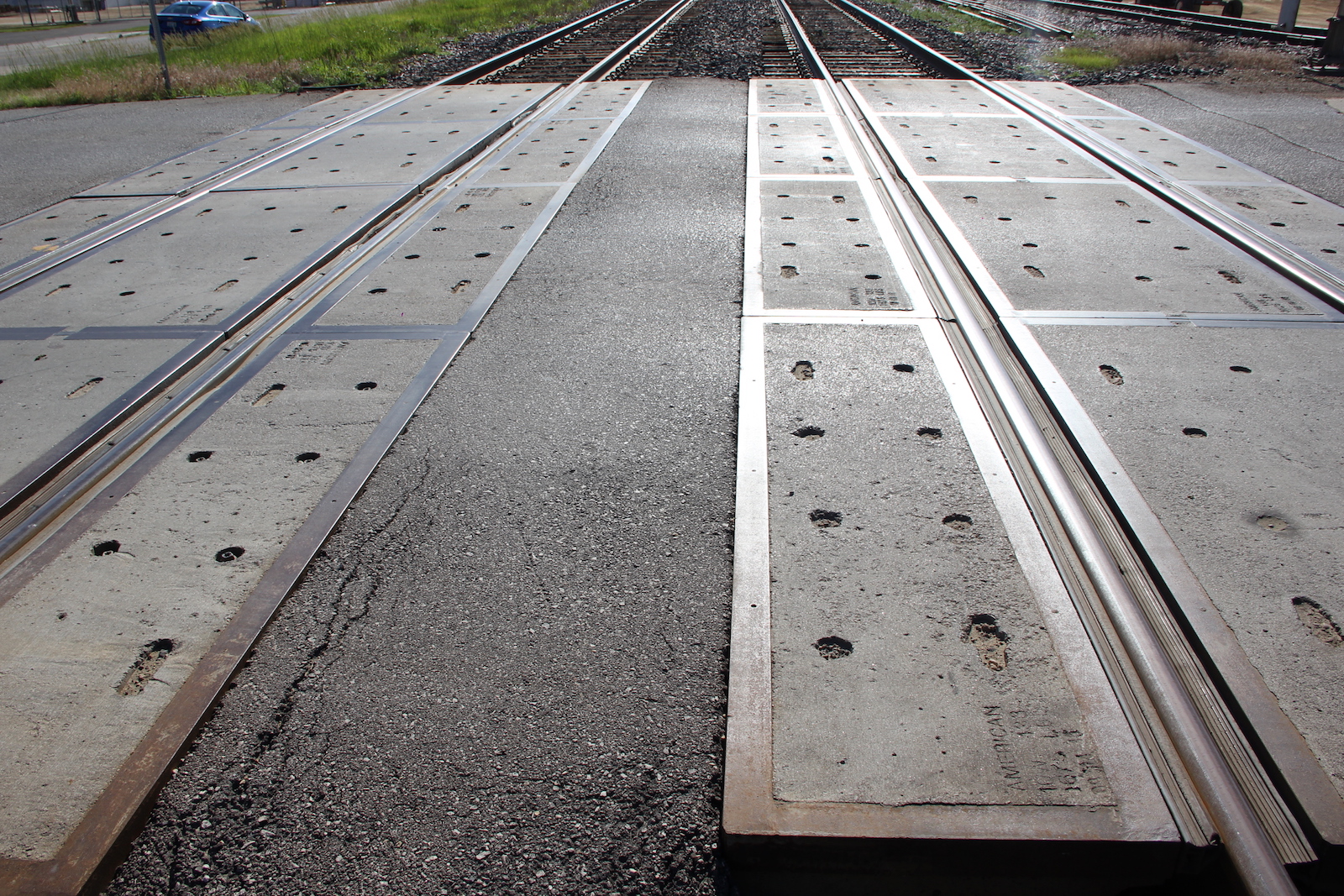

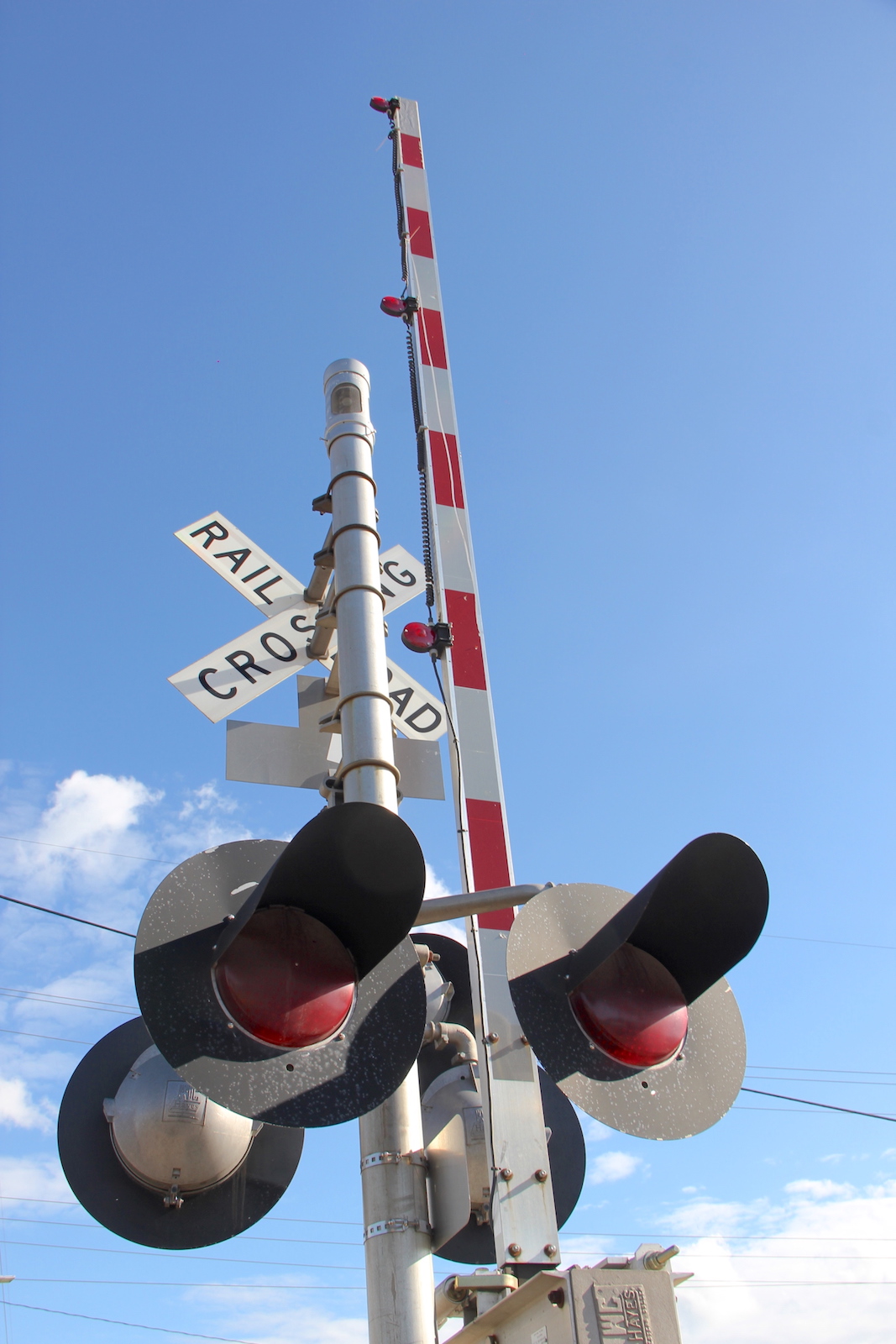

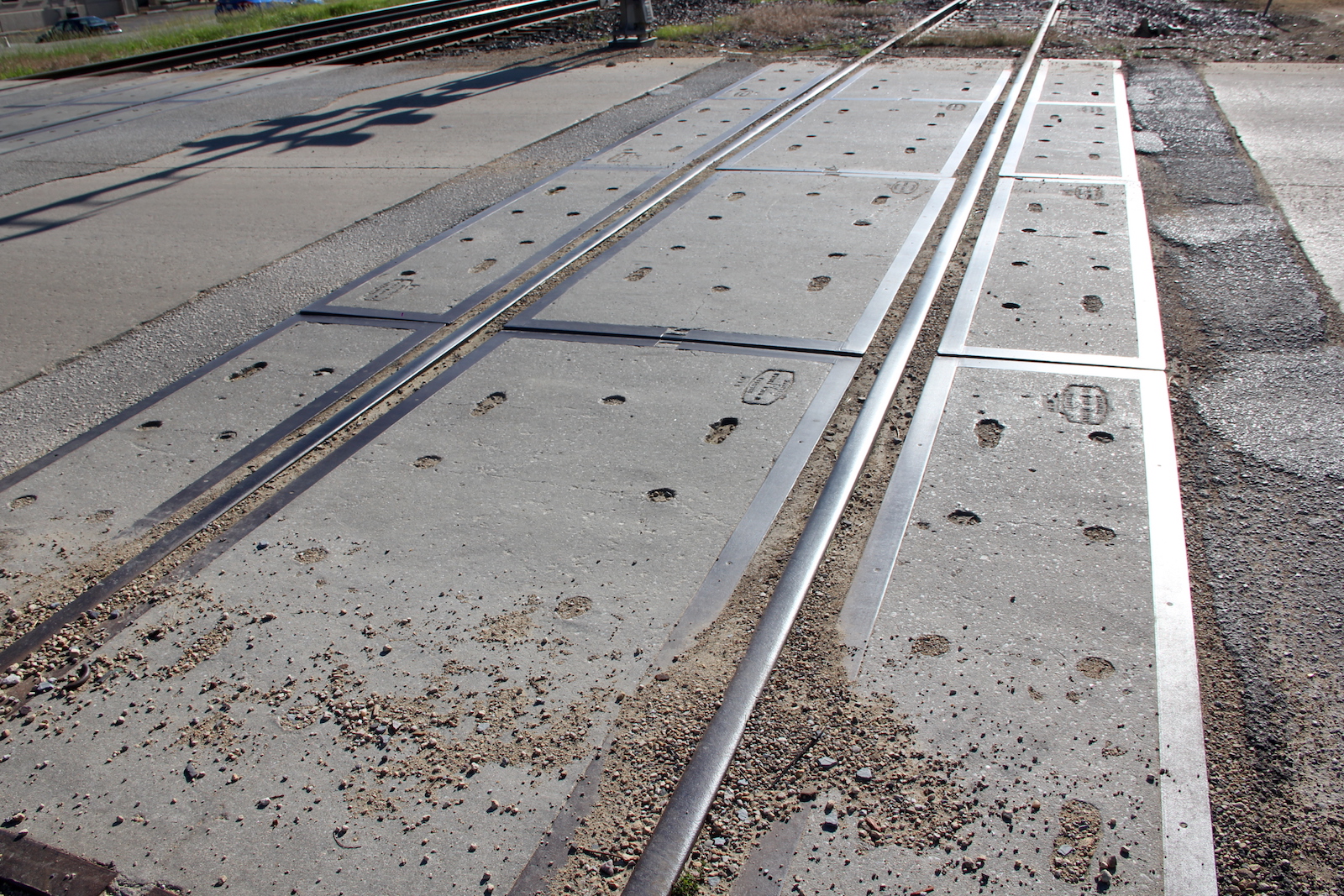

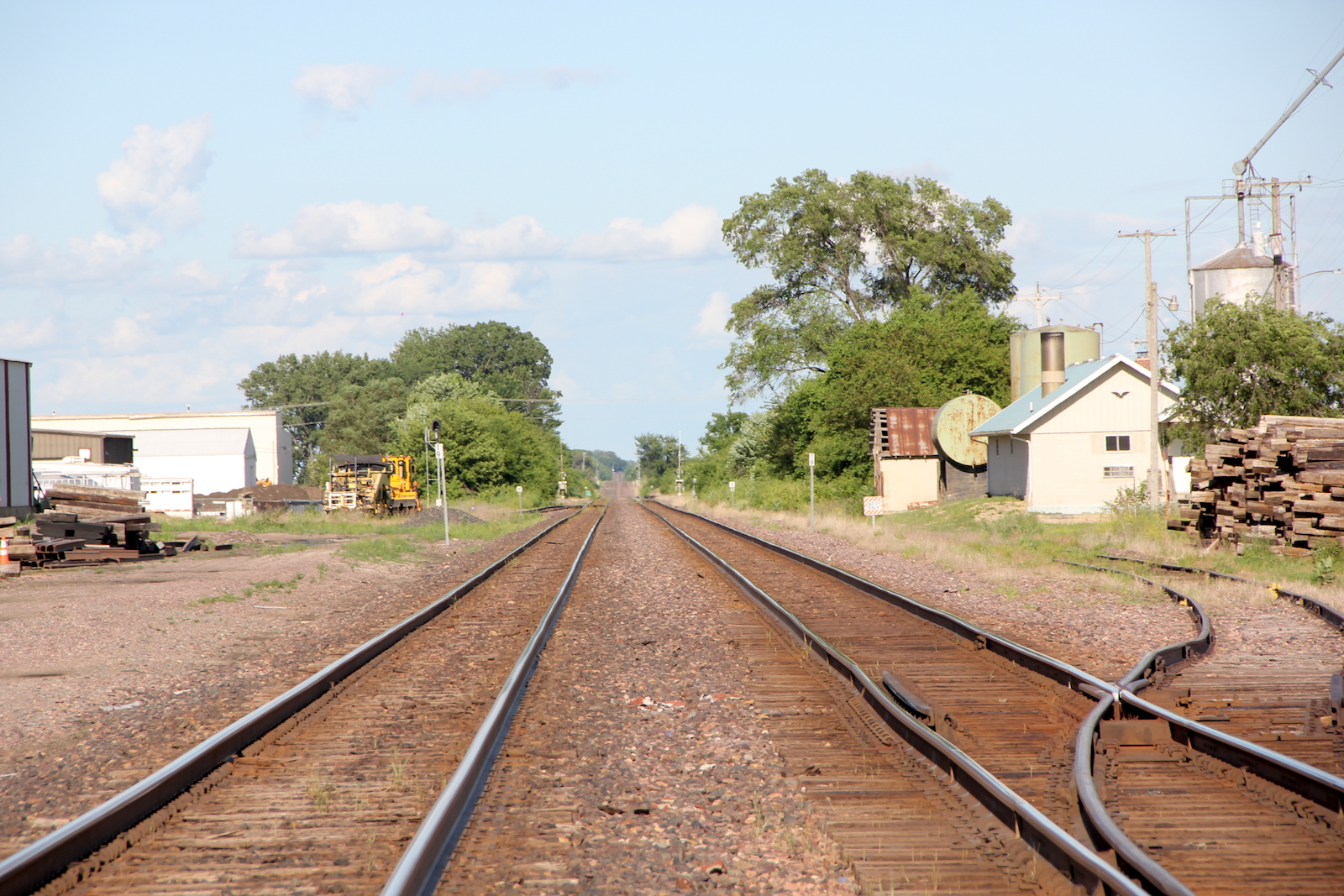

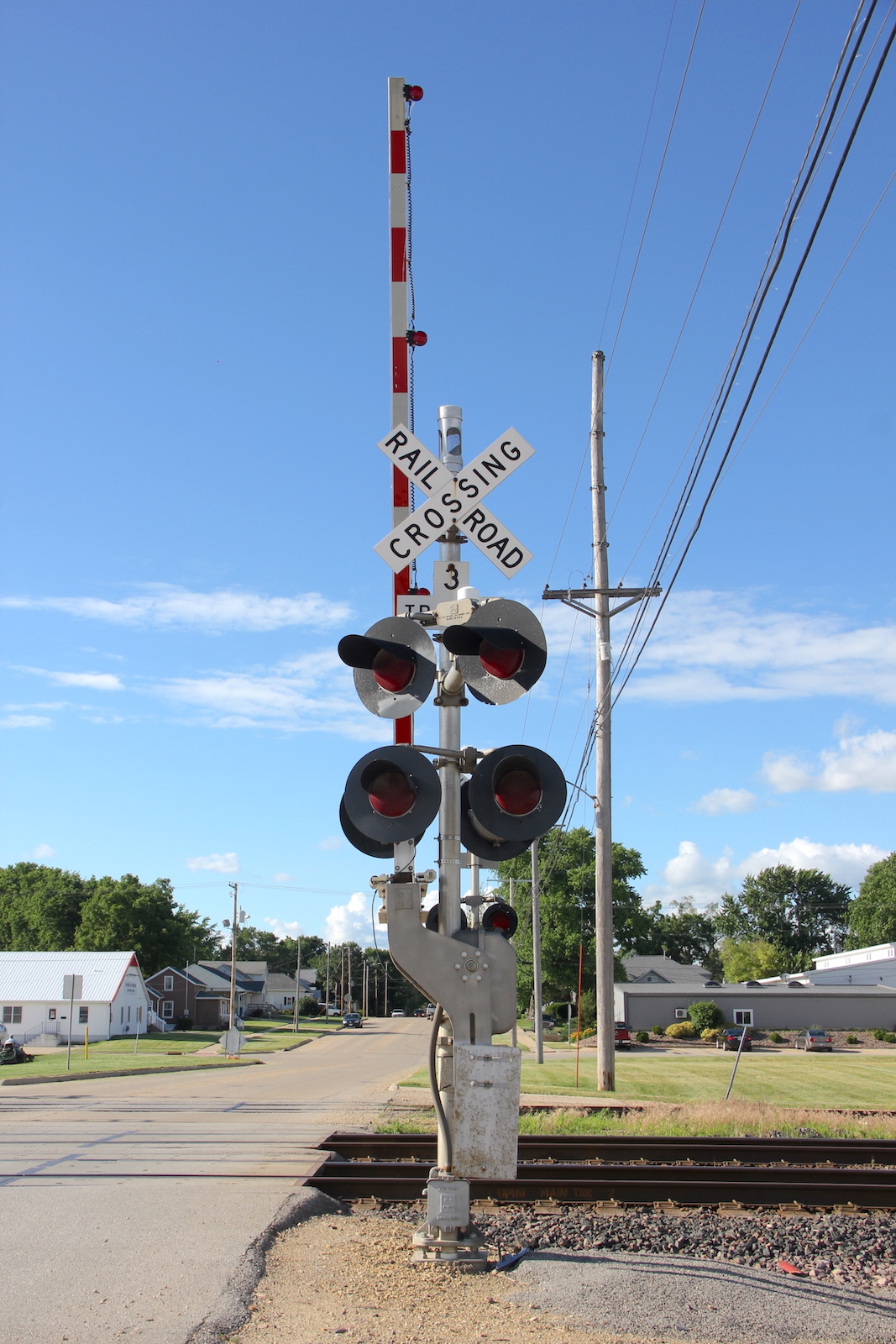

This is double crossing with the mainline and a side track. The mainline has 2 gated signals and the side track has 1 gated and 1 gateless signal.
