34.82


190406F

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: GS E Bell None
Base: Harmon Double Sided Harmon Double Sided
LED Types: Six Harmon Fading LEDs Two Harmon Fading LEDs
Two General Signals LEDs
Light Frames: Six 12"x24" Harmon frames Four 12"x24" Harmon frames
Junction Box: 1 Harmon, 1 WRRS Harmon
Gate Lights: NEG Clear LEDs NEG Clear LEDs
Gate Mechanism: WCH Style 3.5 WCH Style 3.5
Gate Striping: ////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////
Crossbuck font: Normal font, double sided Normal font, double sided
Bell Cycle: Unknown N/A

All pictures were taken on June 23, 2020, by Tommy McGowan.
This crossing is located on the UP Clinton Sub.

1
 2

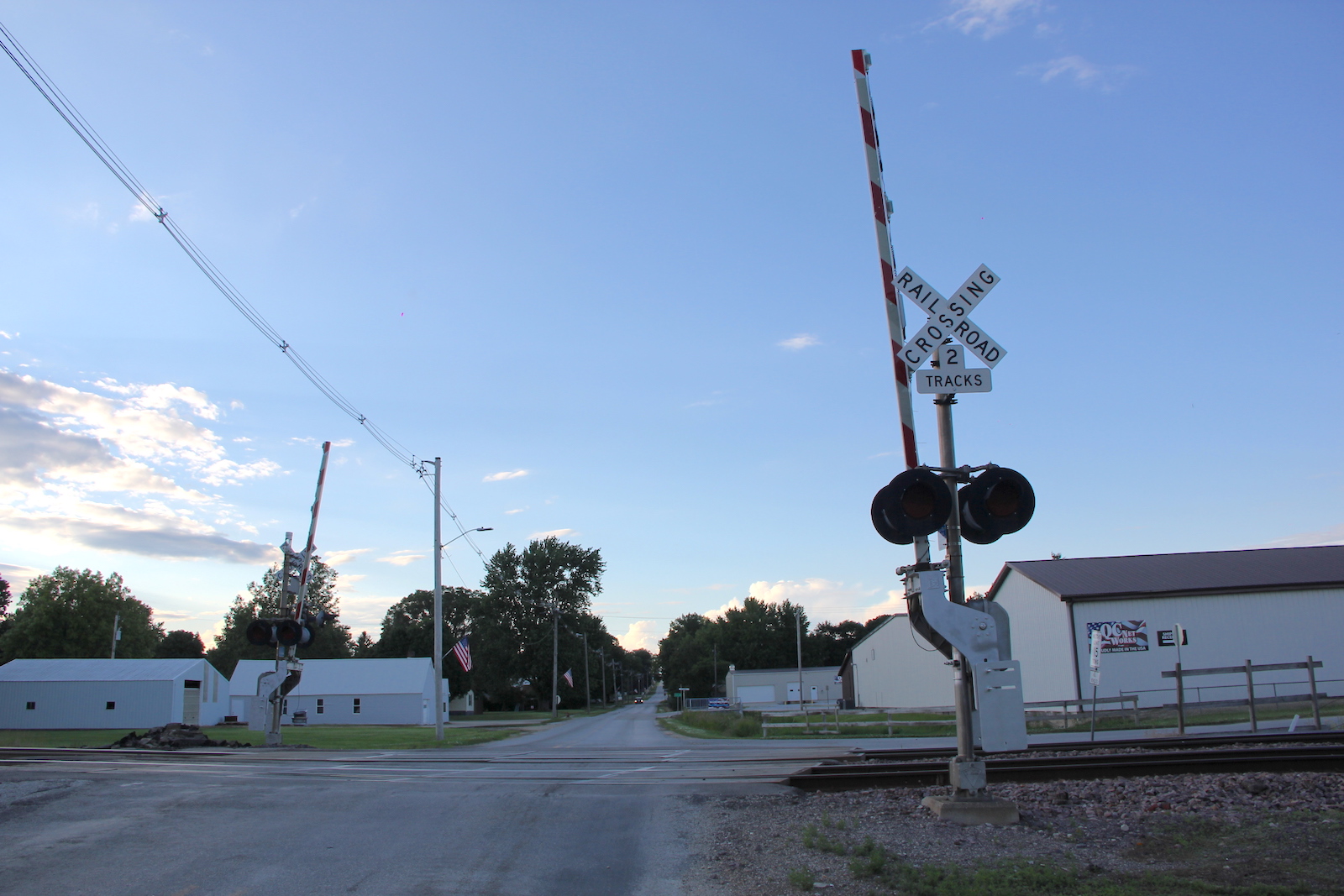

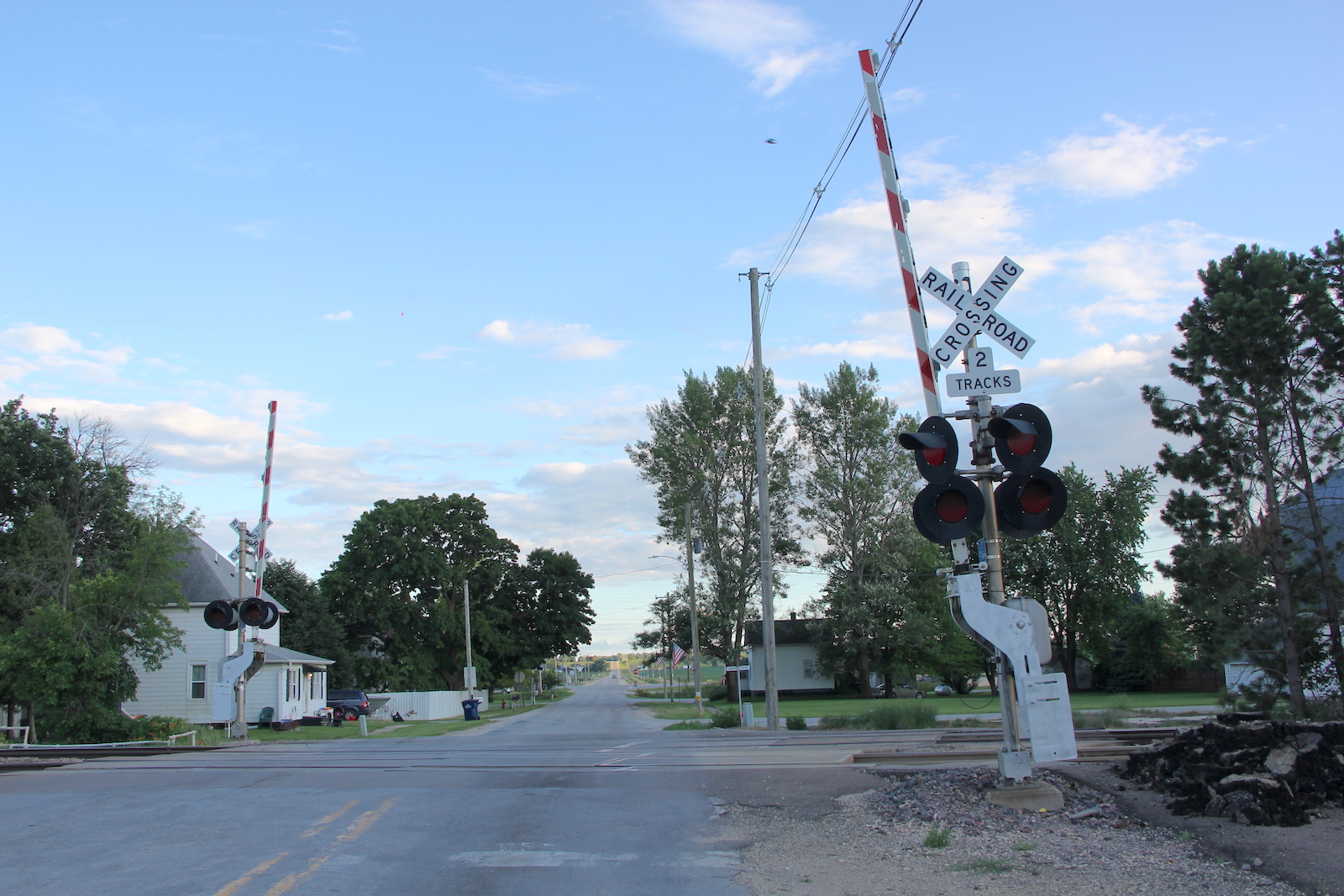

Overview of 2 gated signals facing north. Overview facing south.
3 4 5
6 7 8
9 10 11

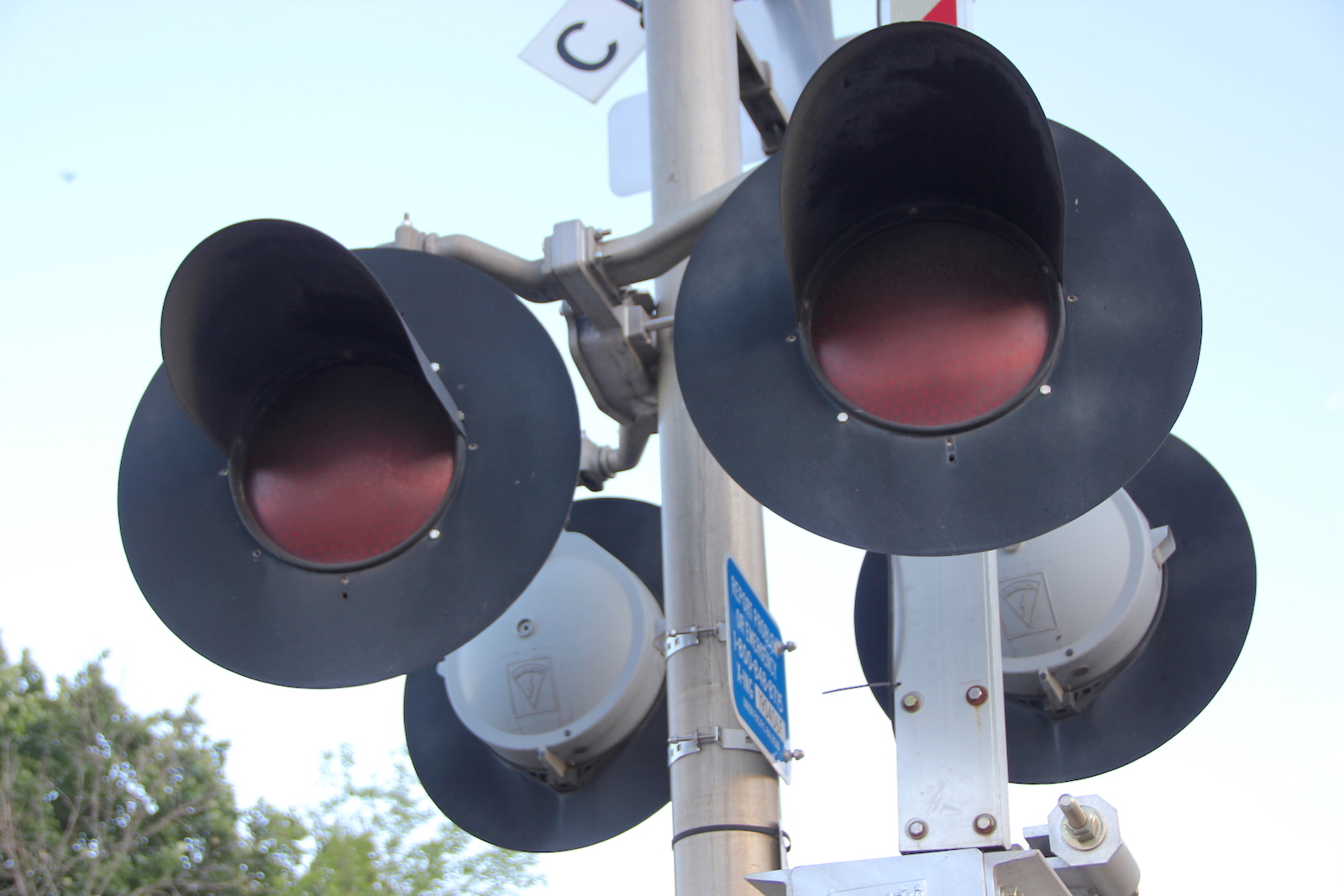

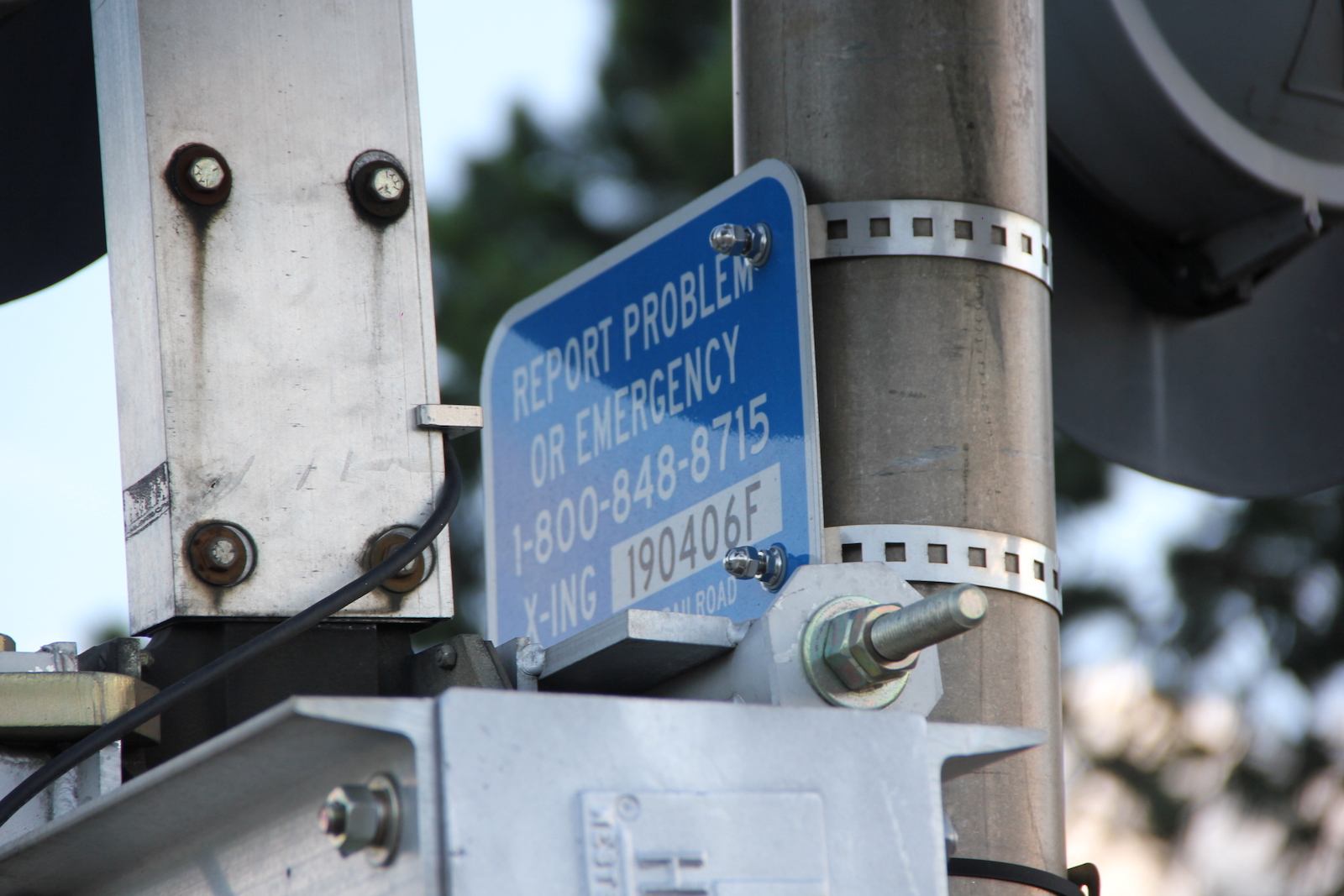

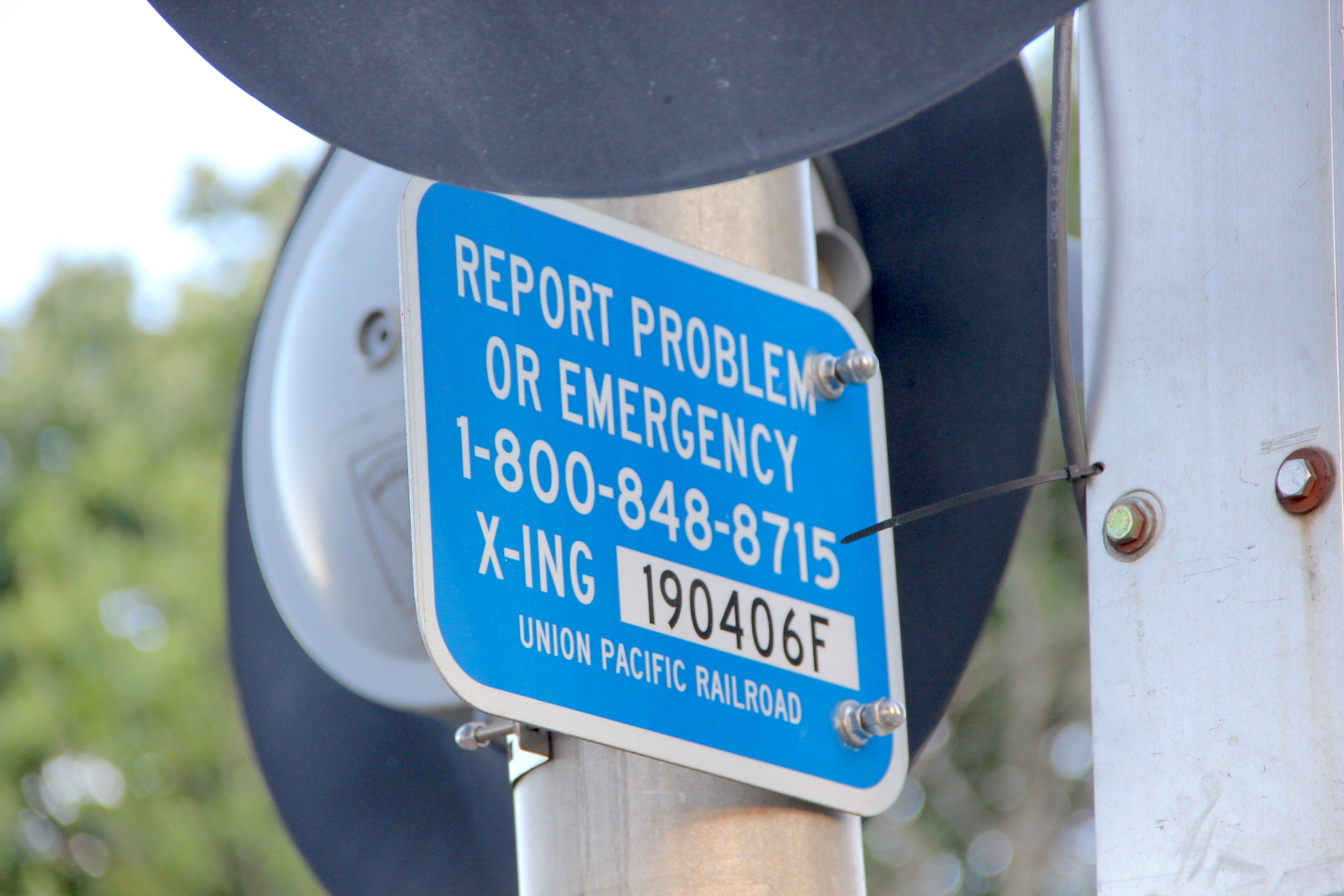

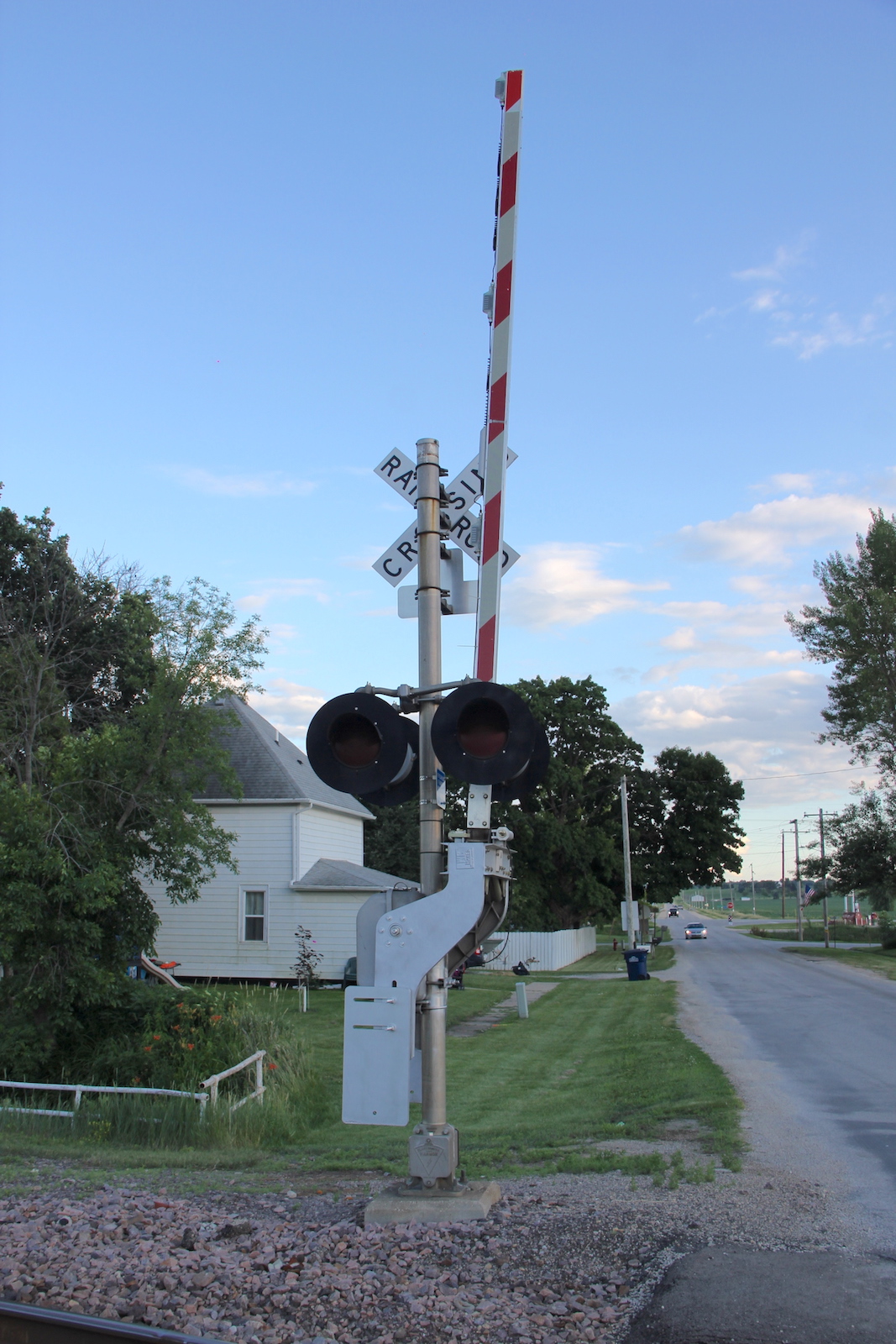

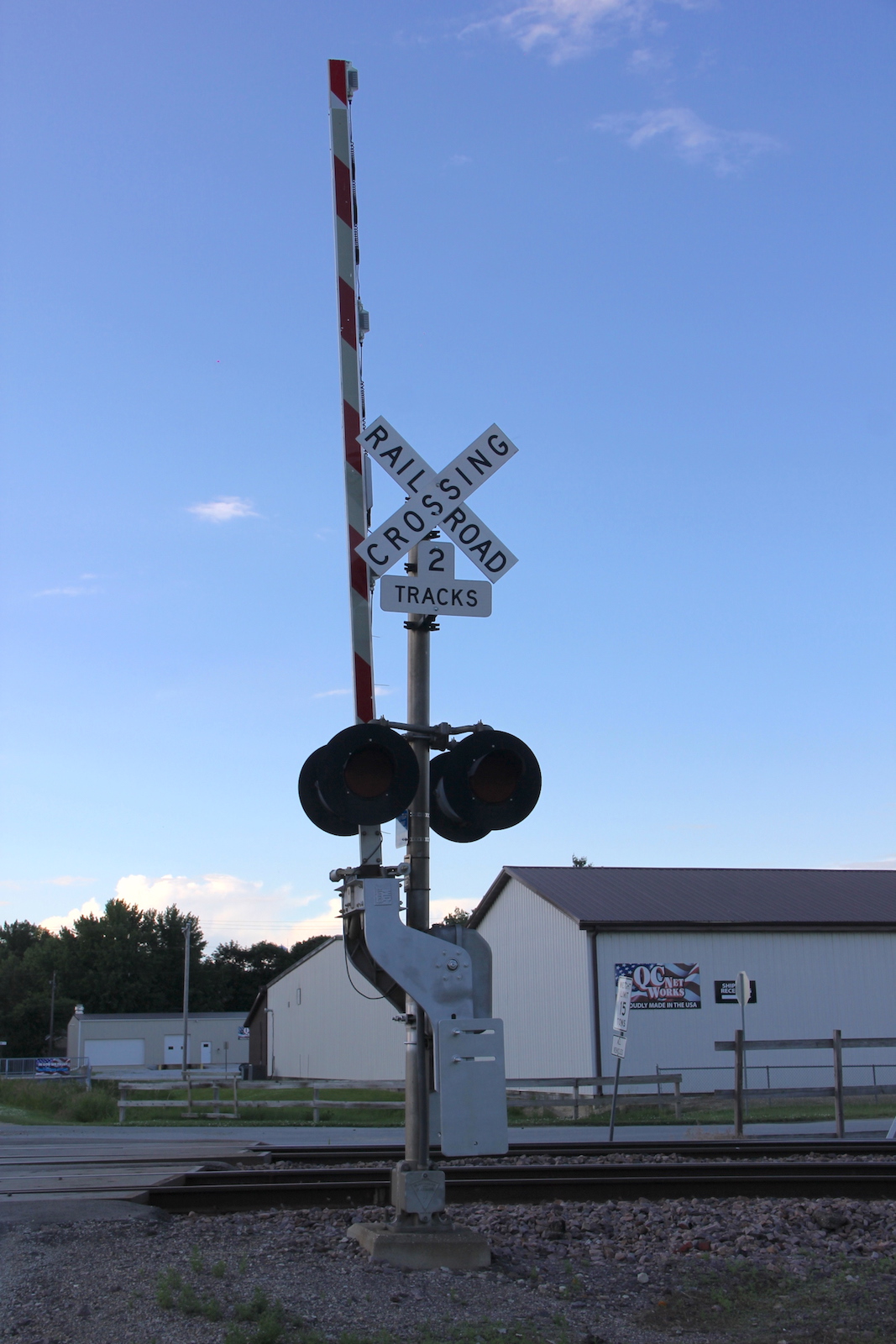

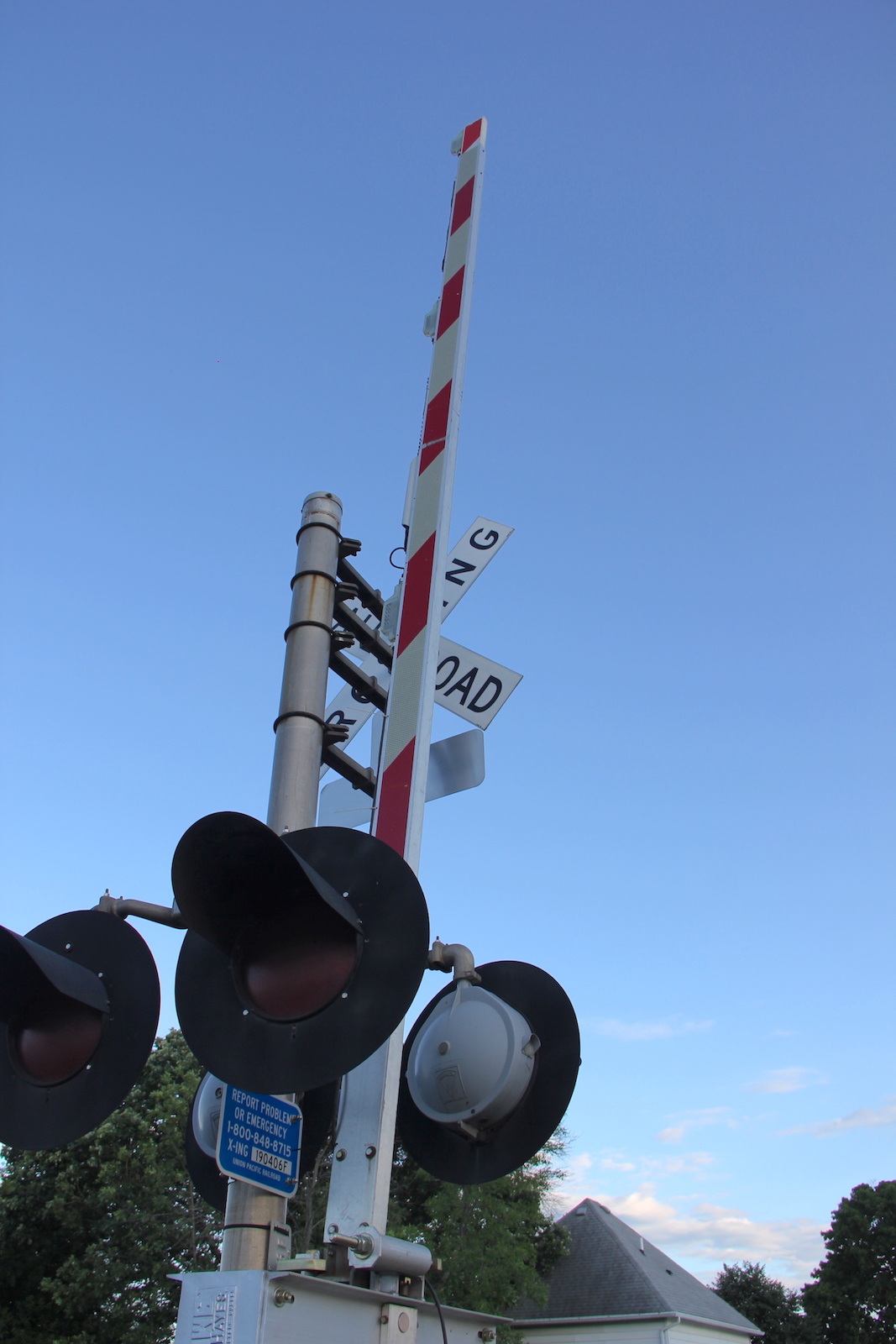

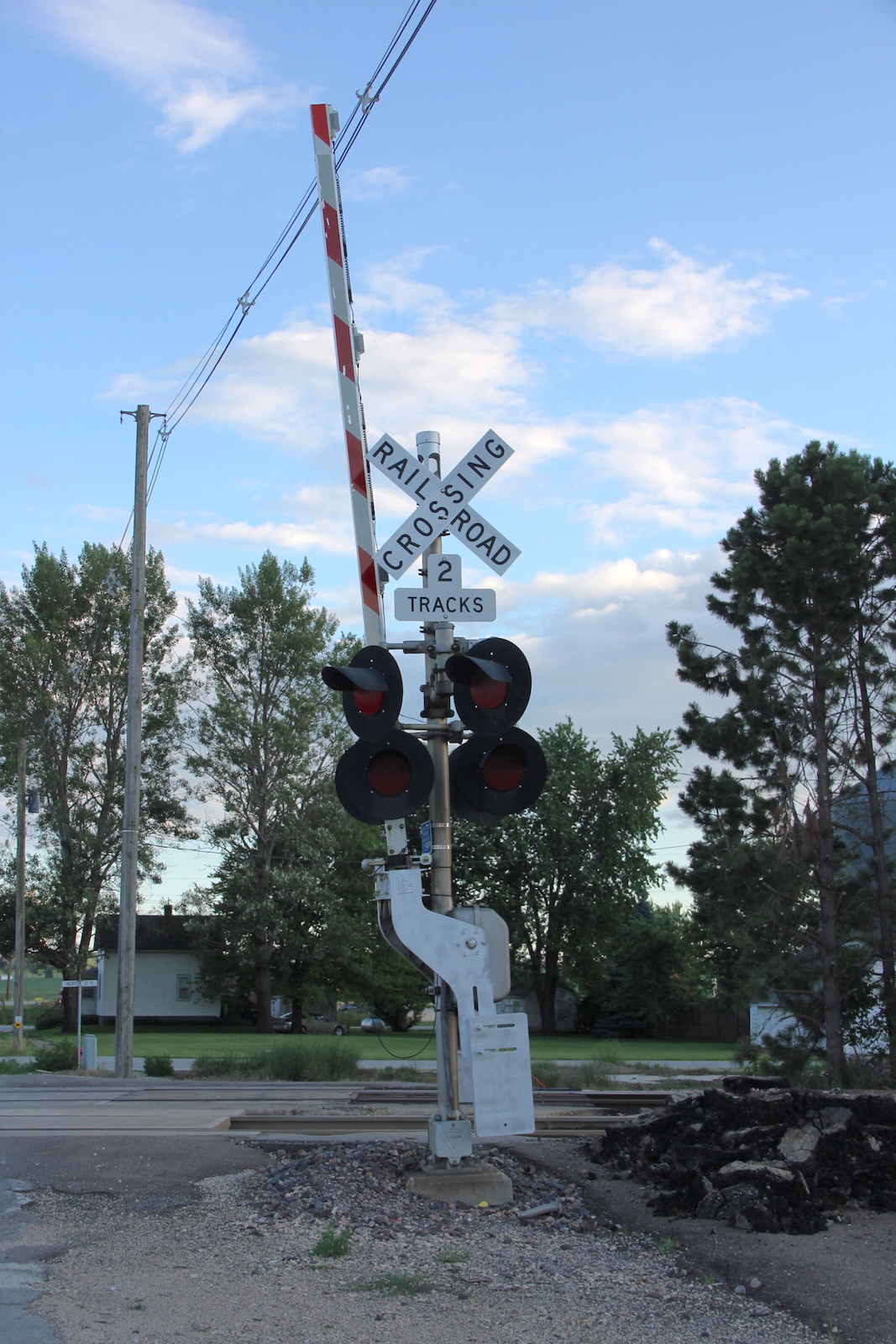

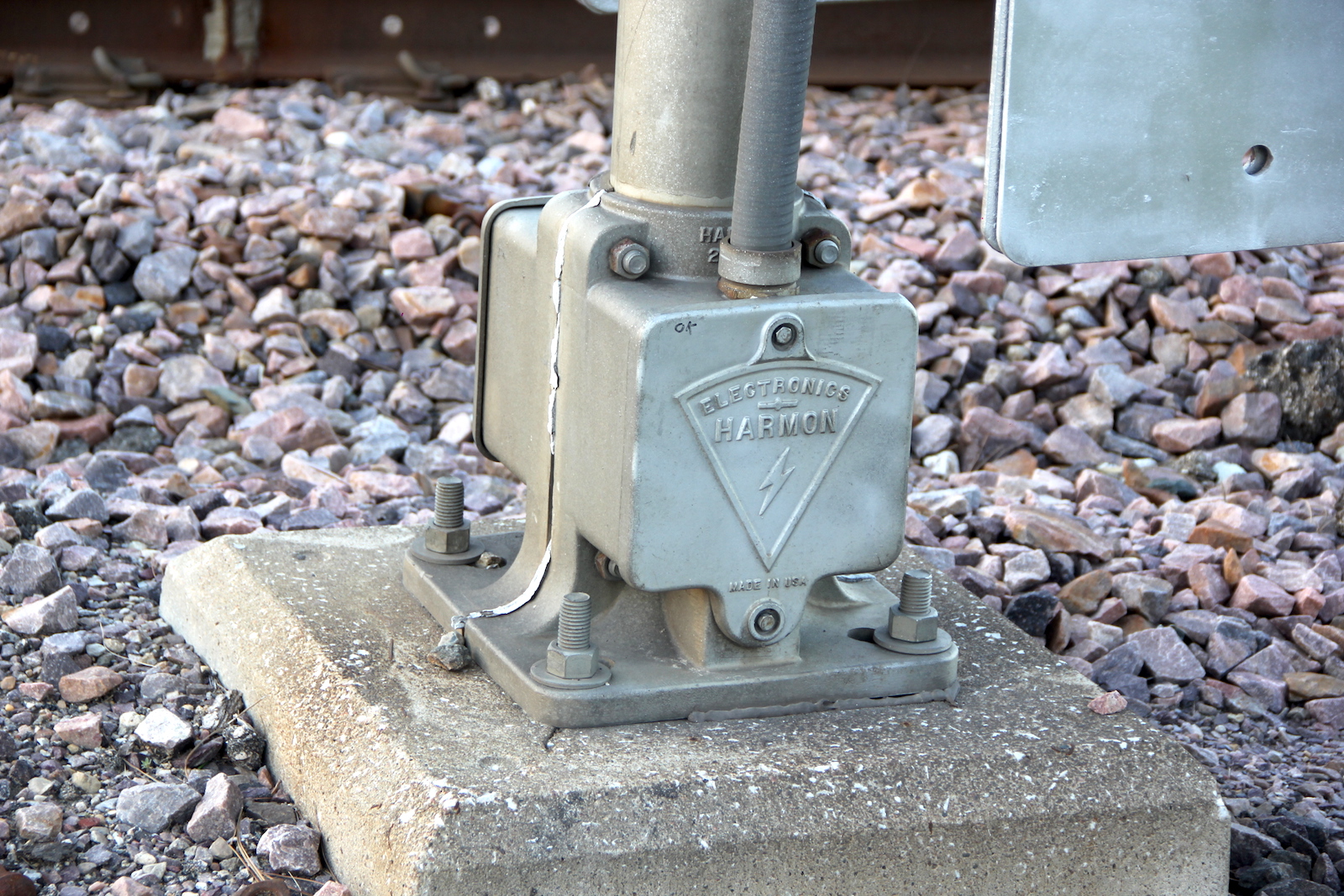

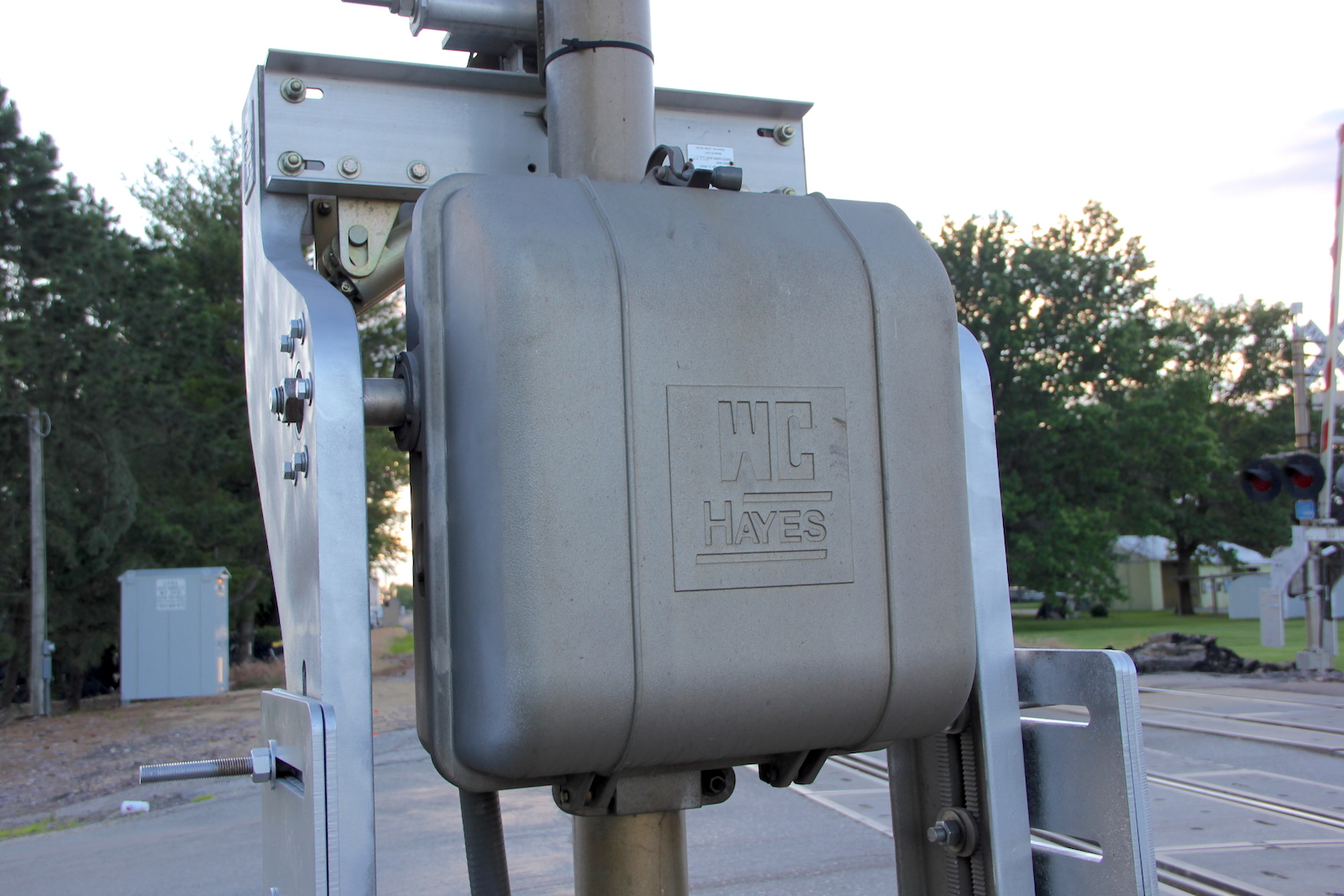

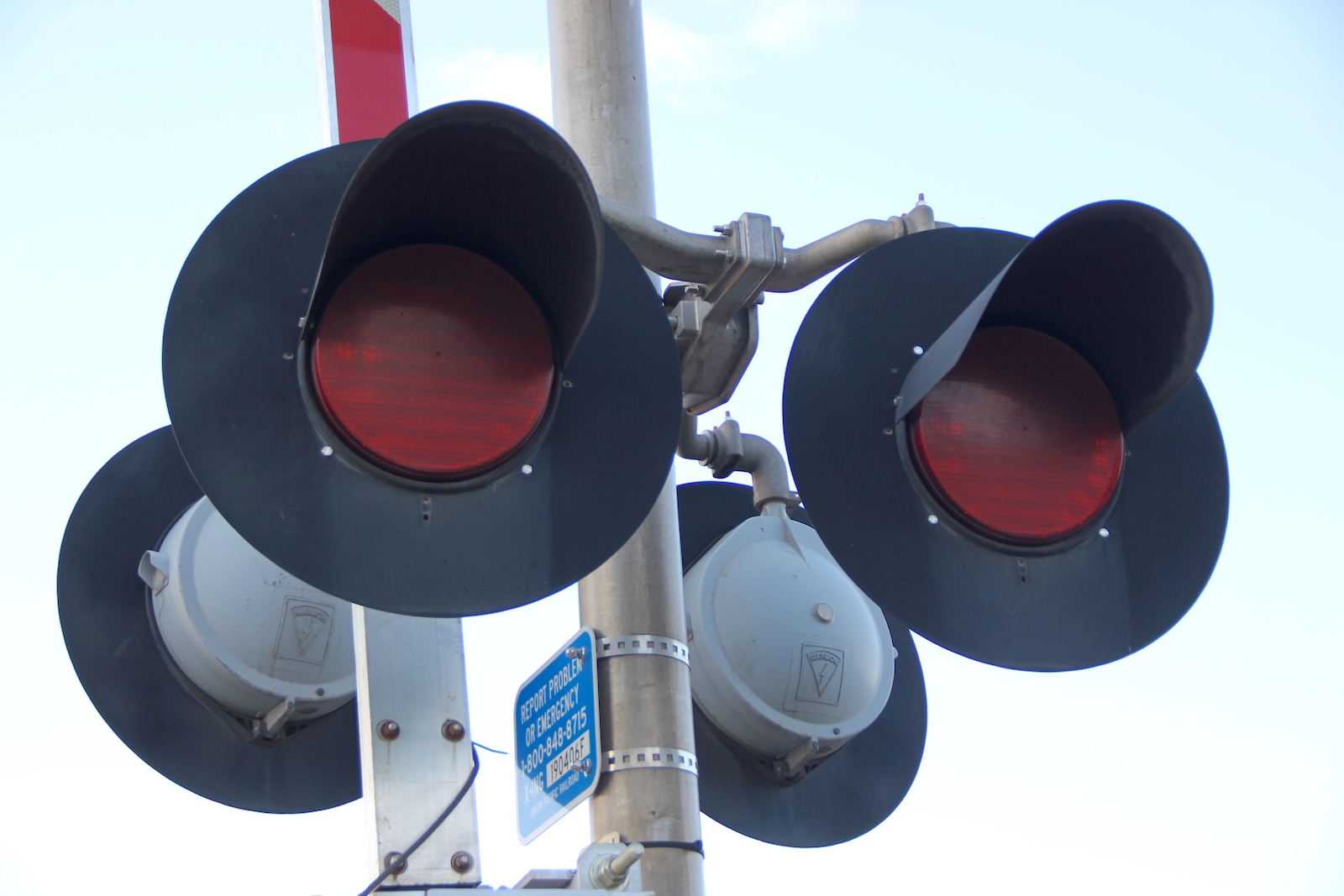

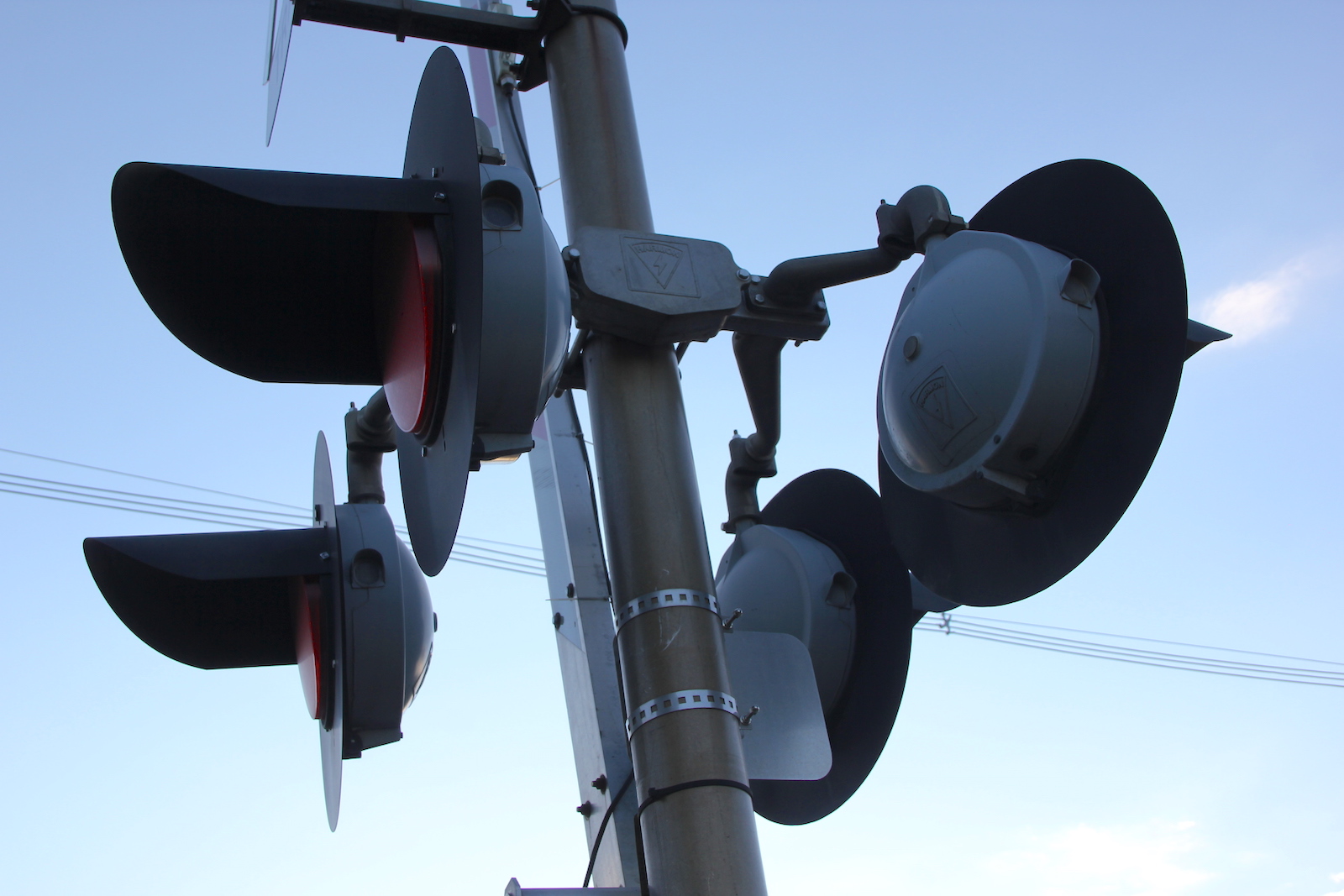

The southern signal.
12 13 14 15
16 17 18 19
20 21 22 23

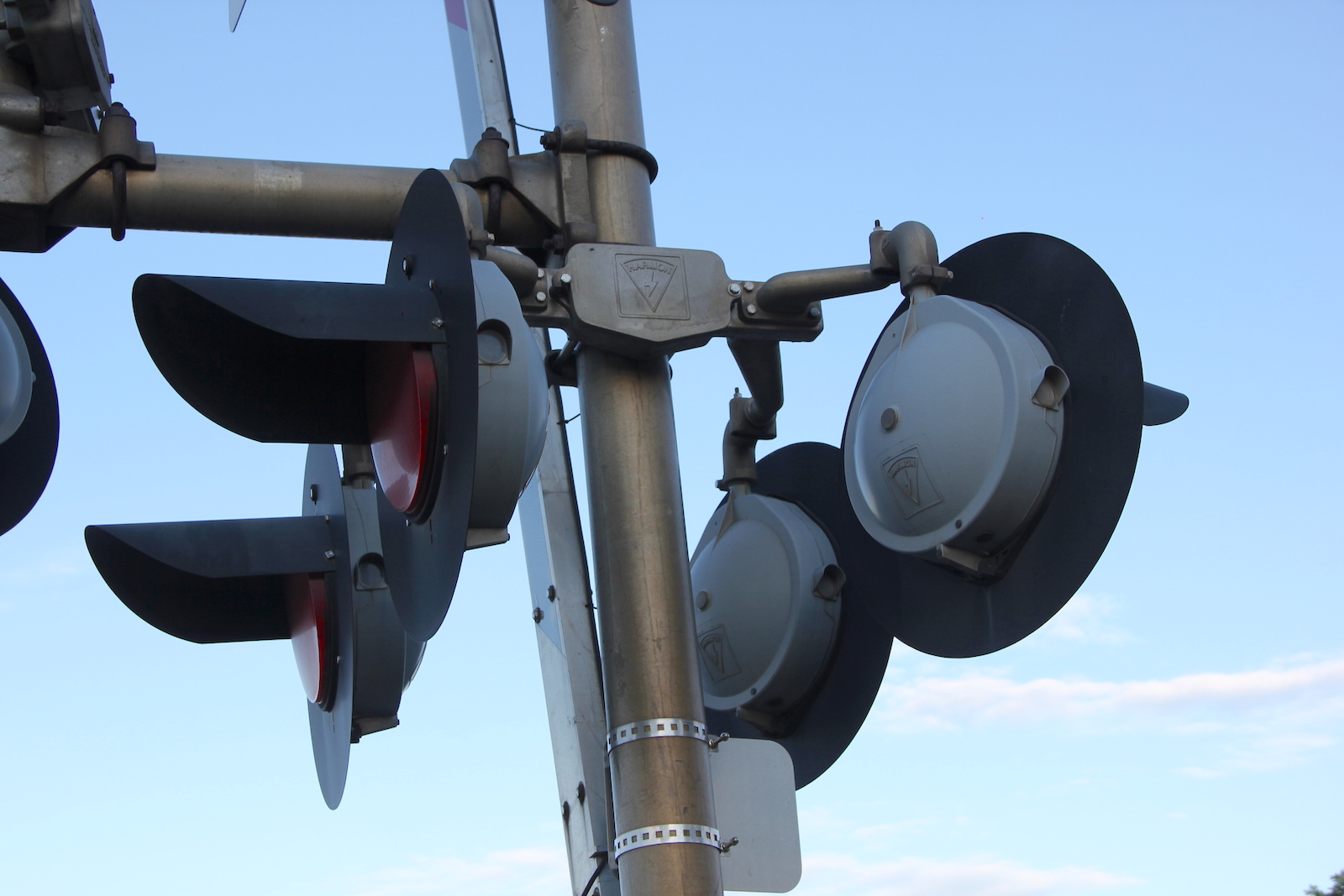

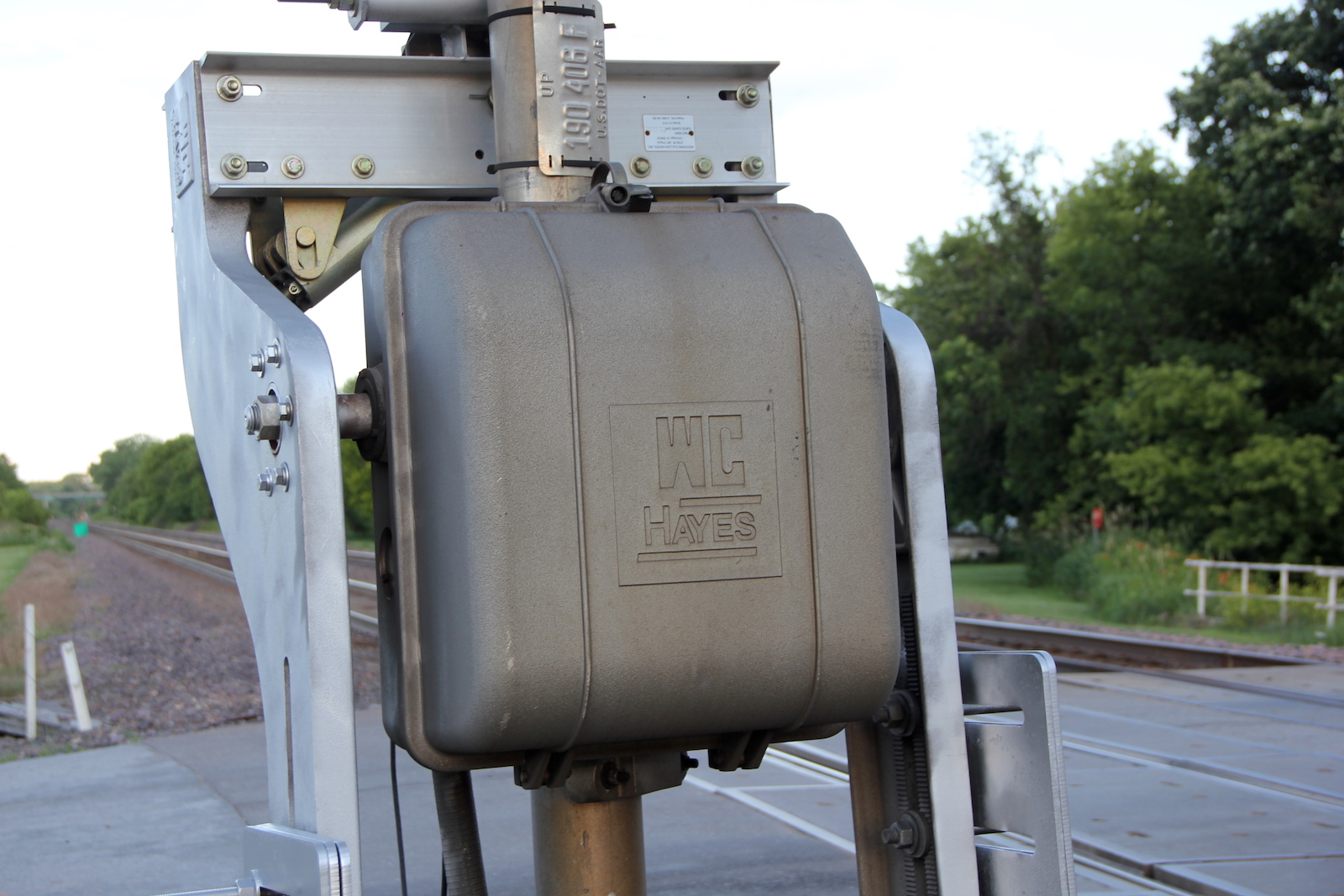

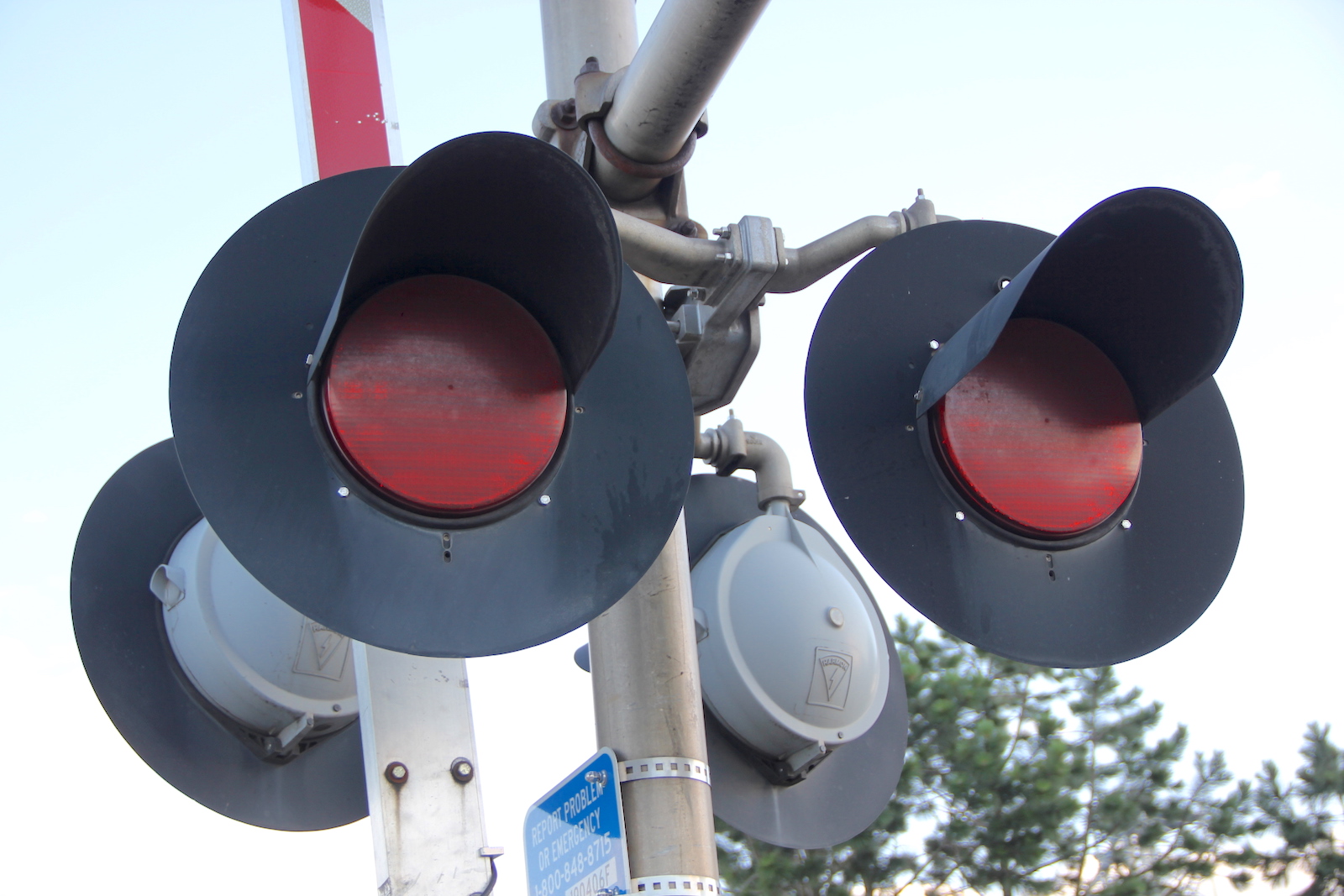

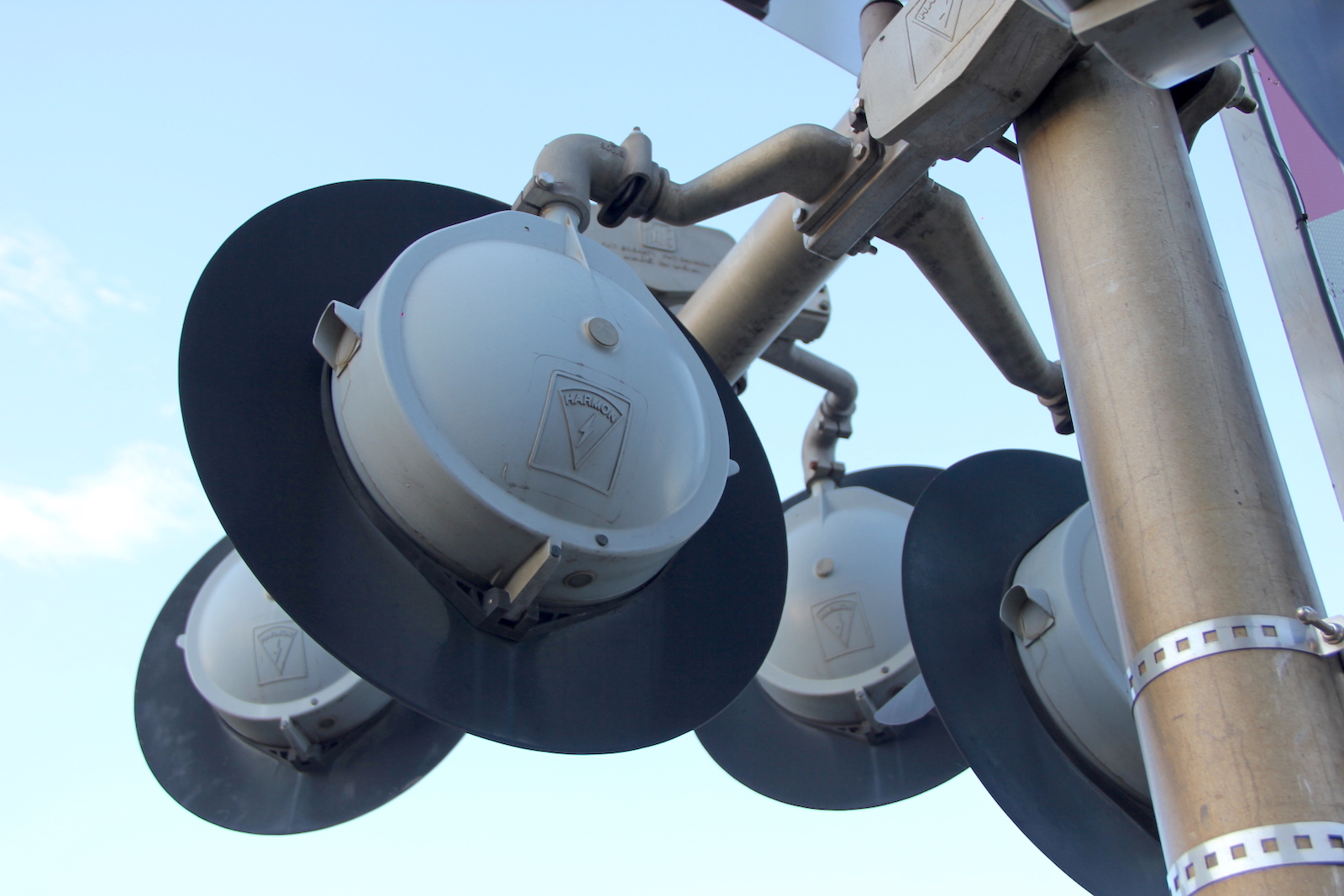

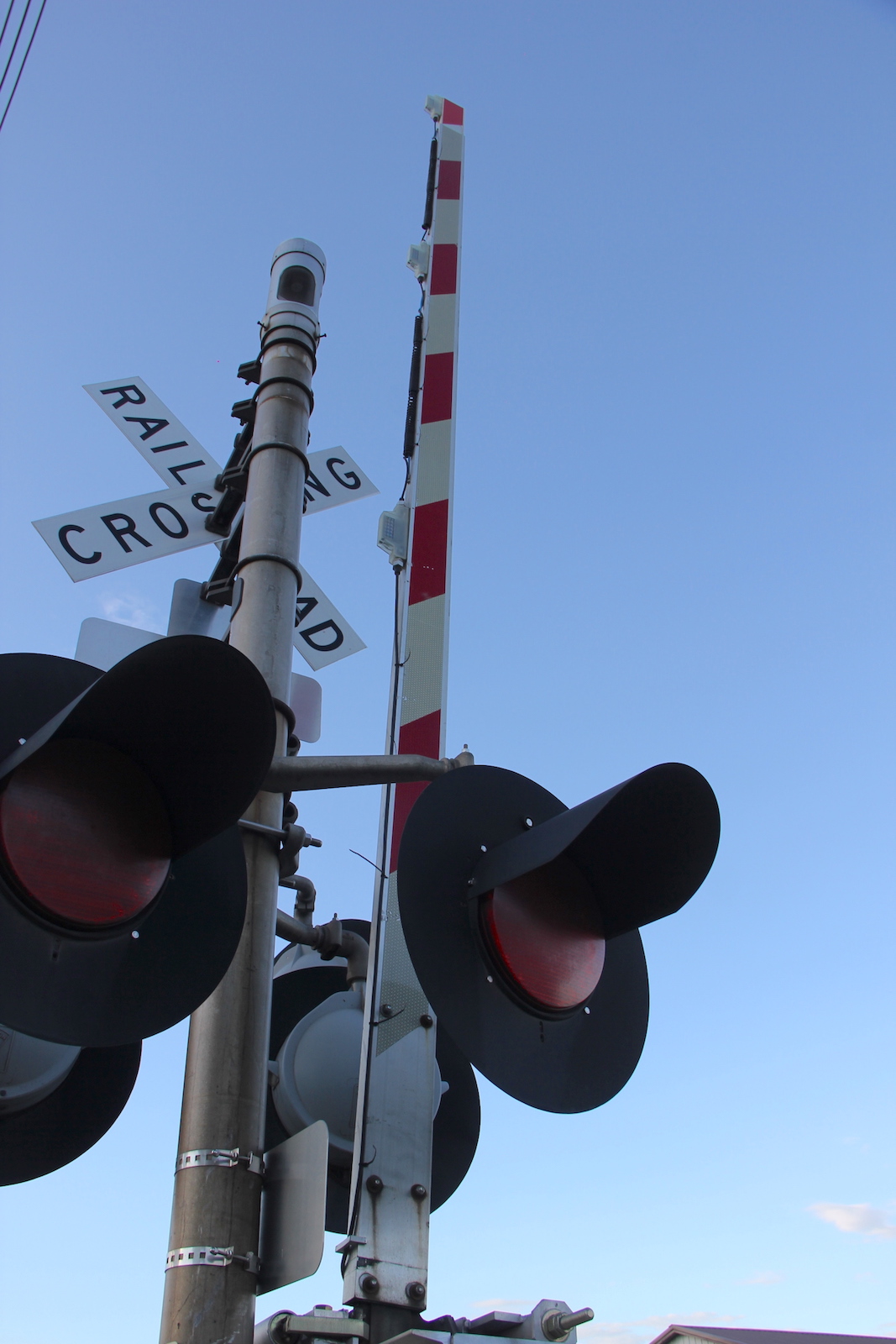

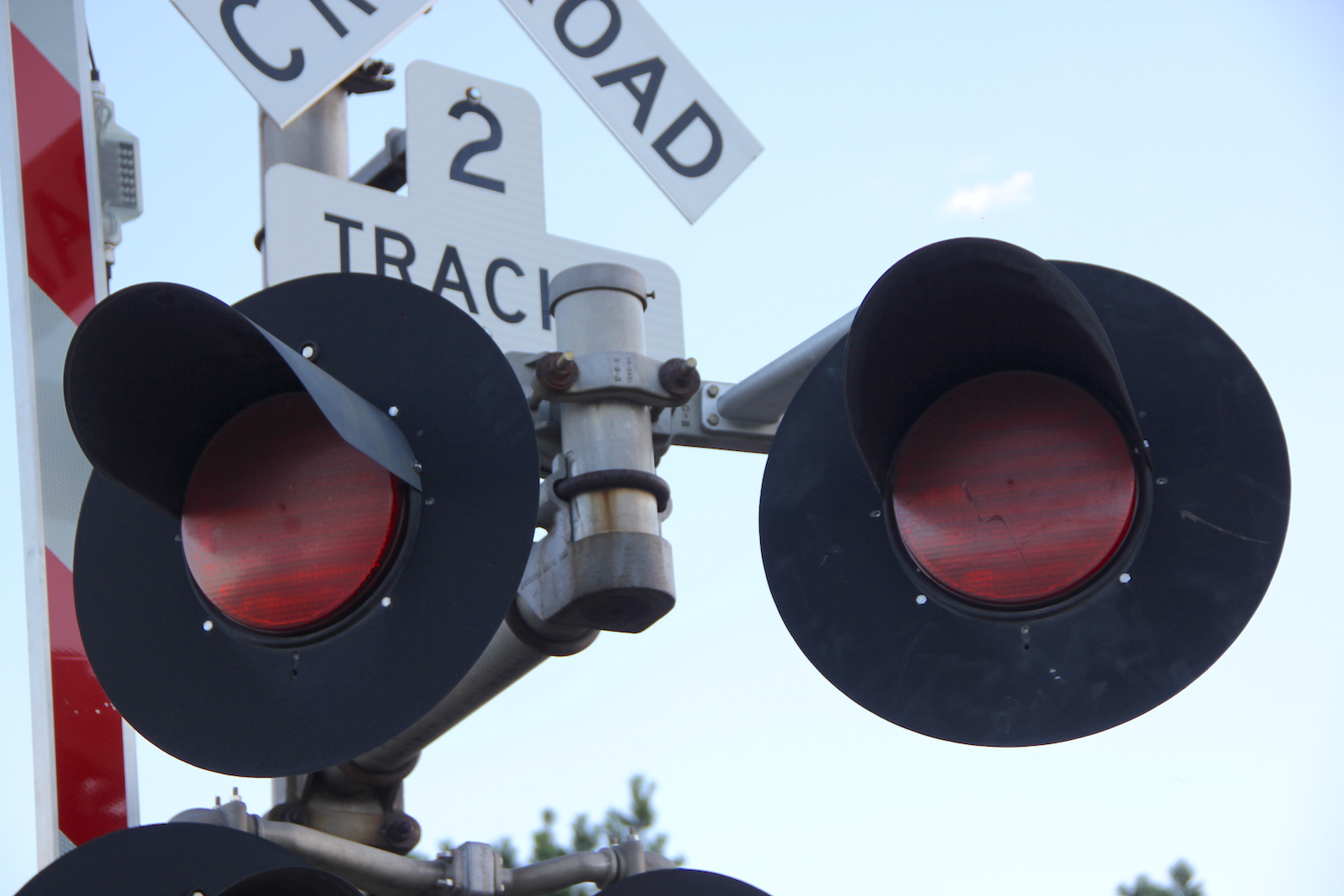

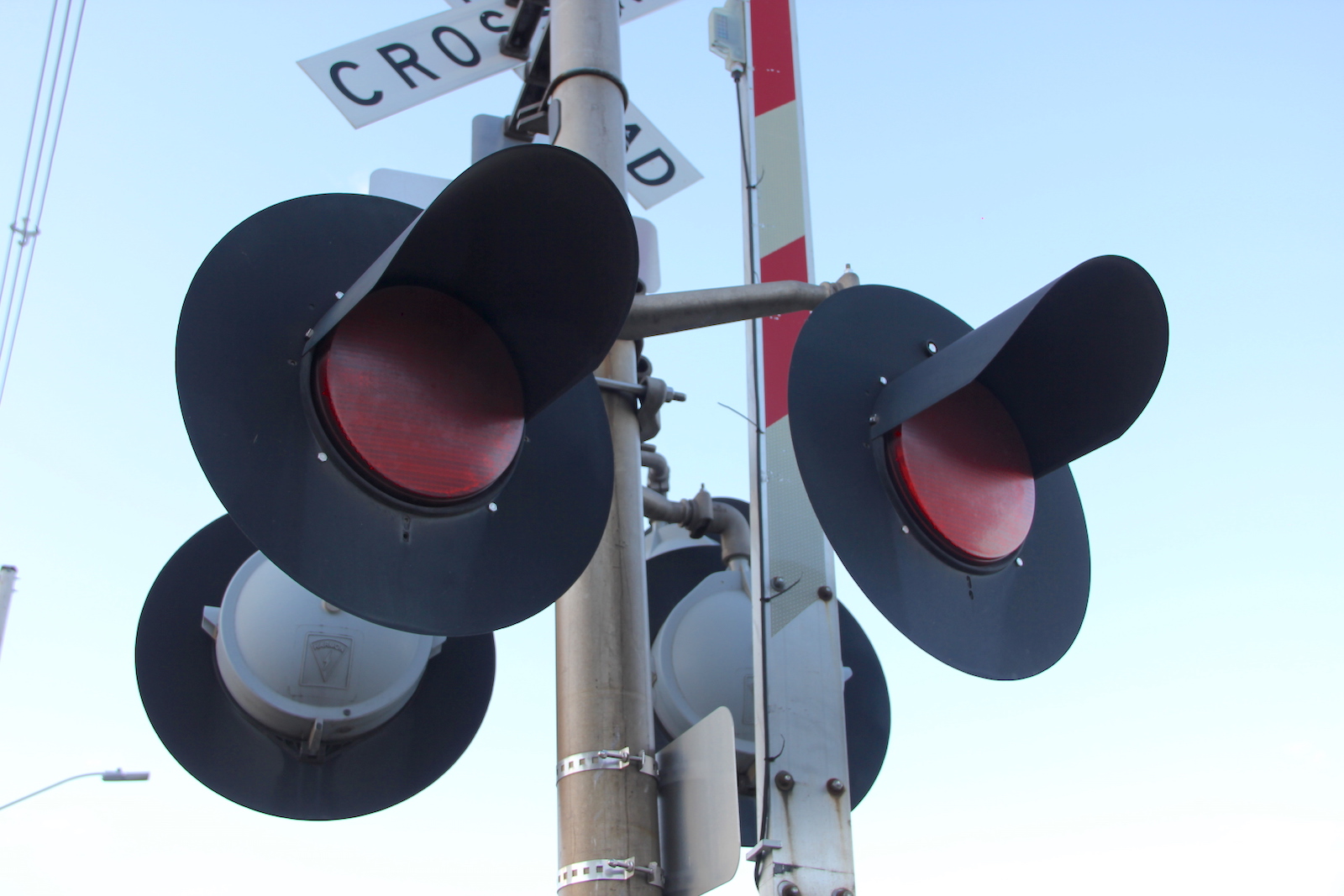

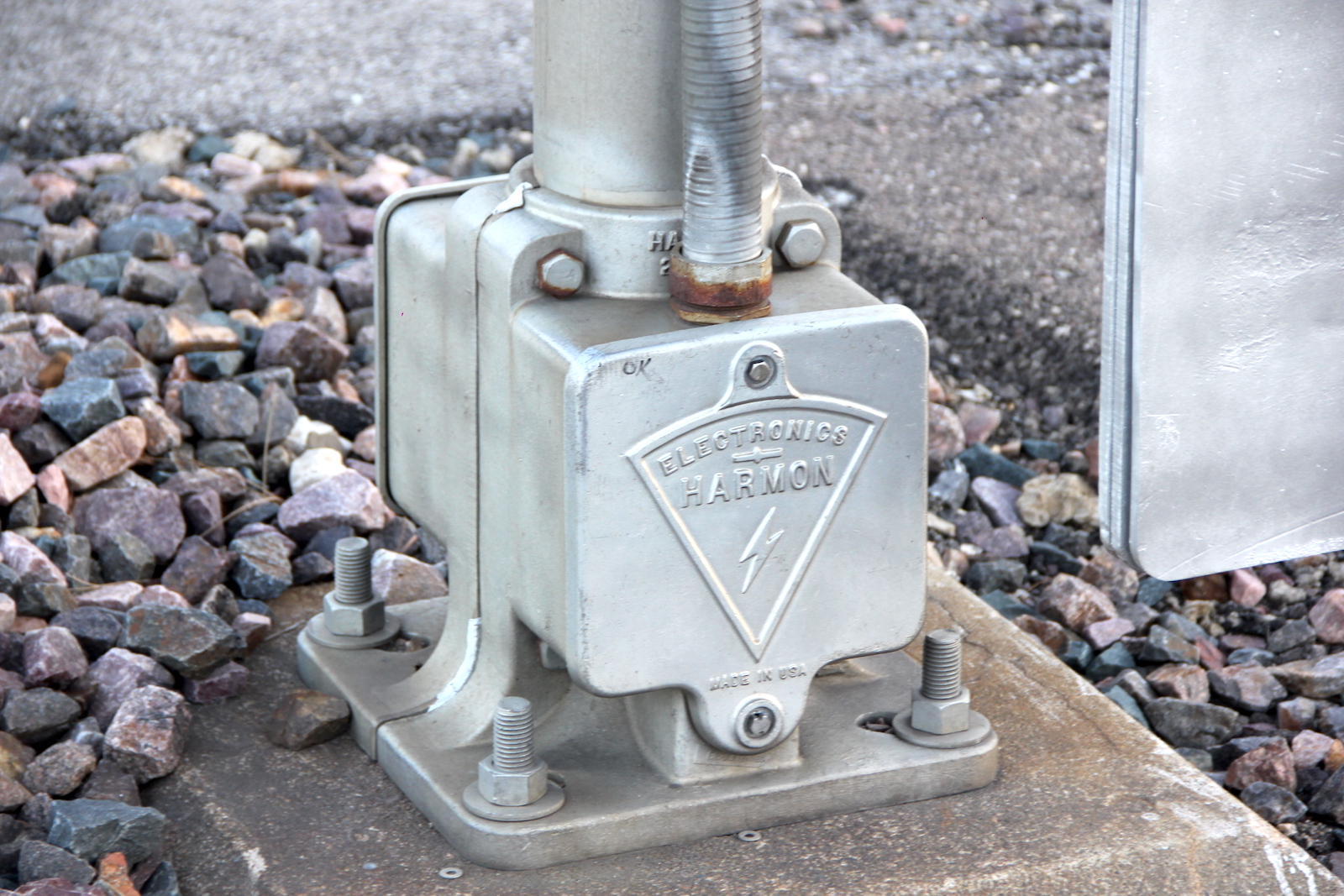

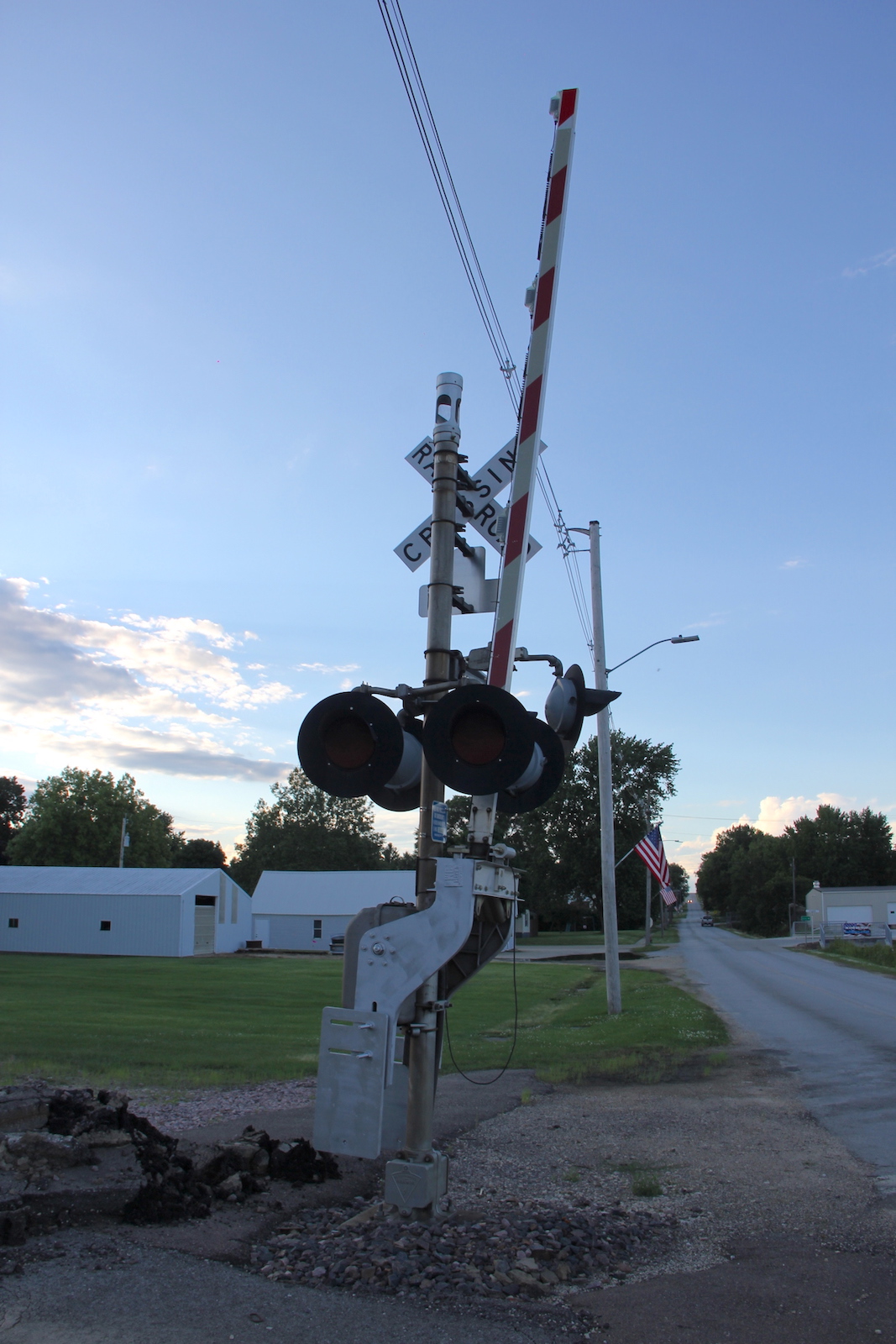

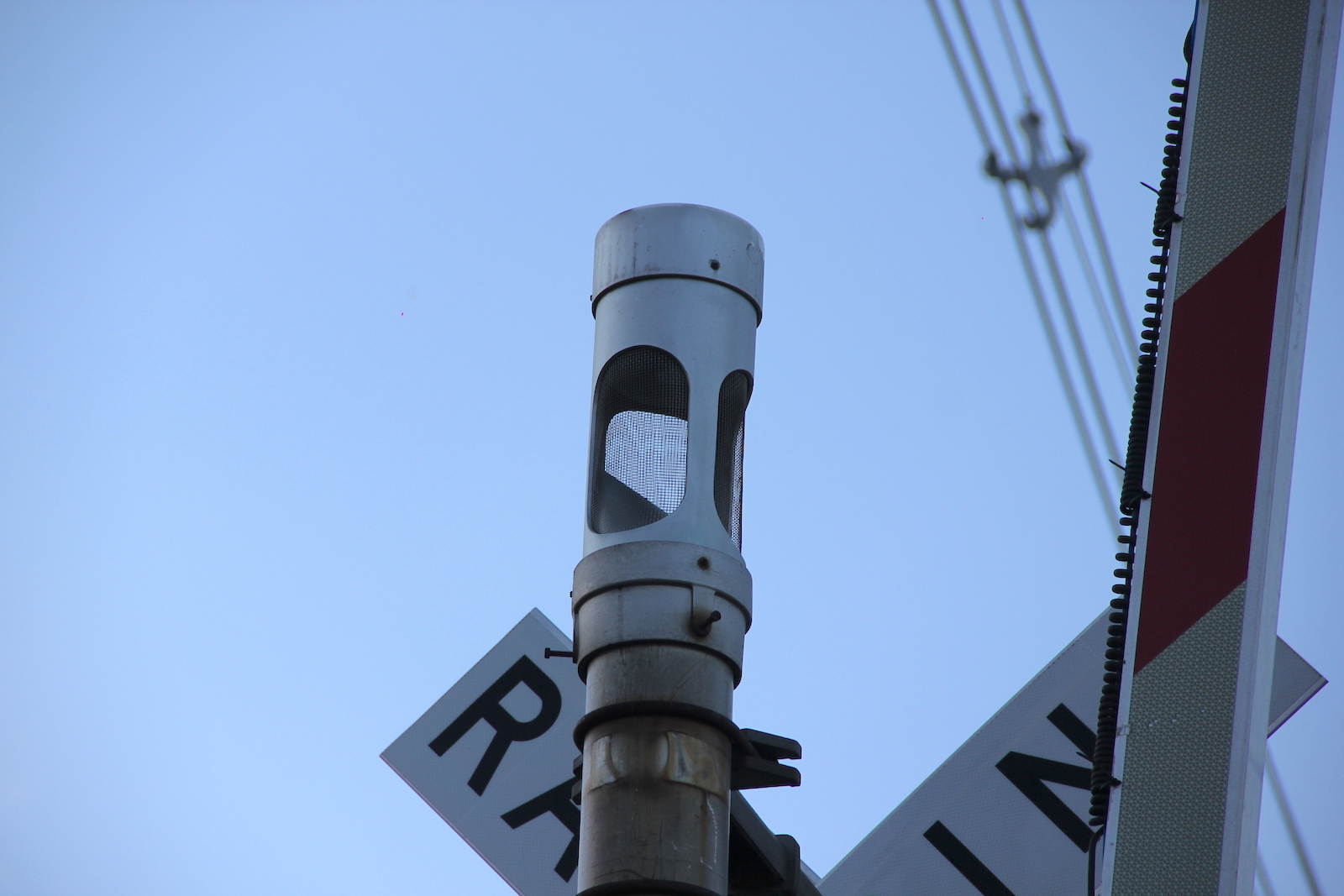

The northern signal.
24 25 26 27

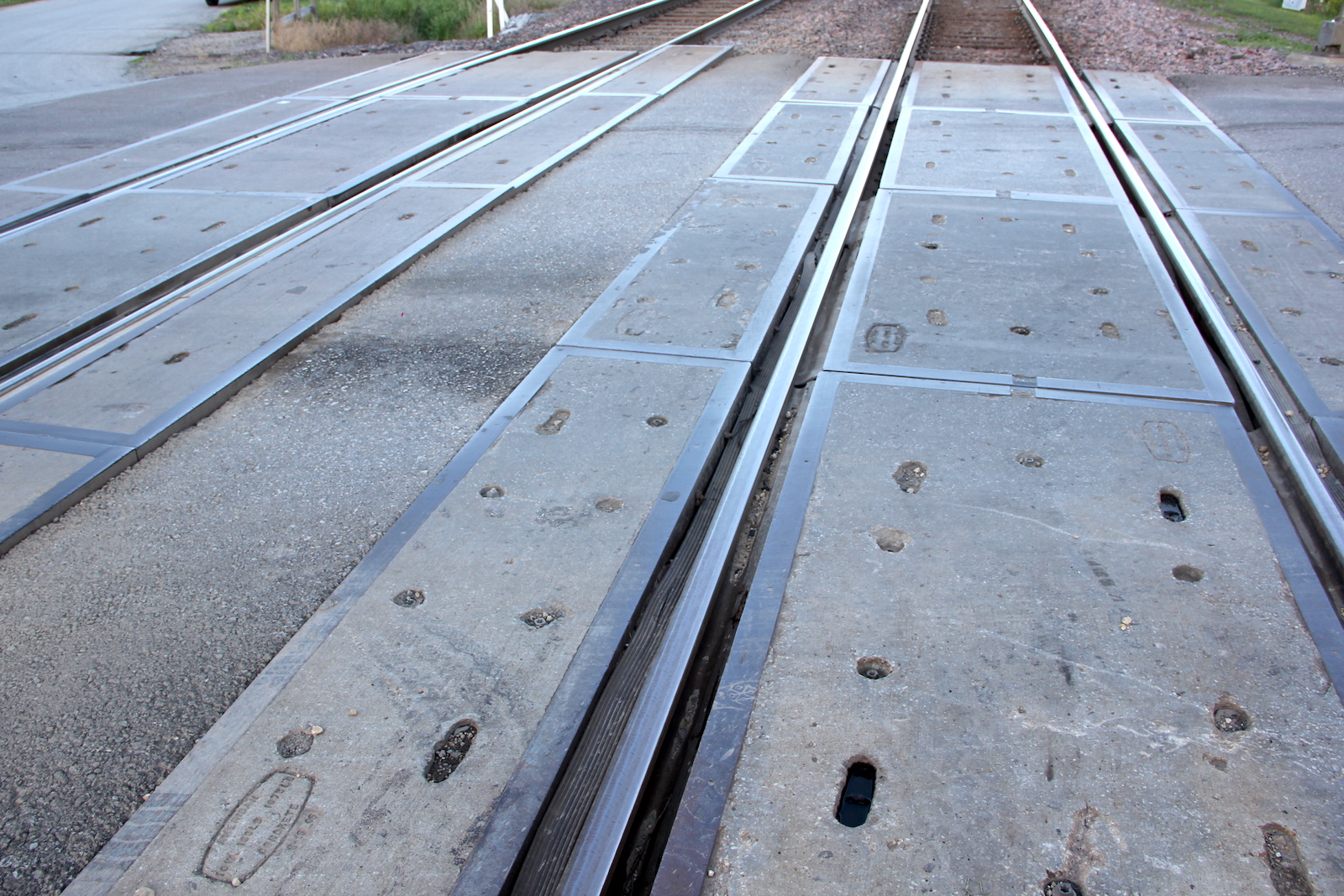

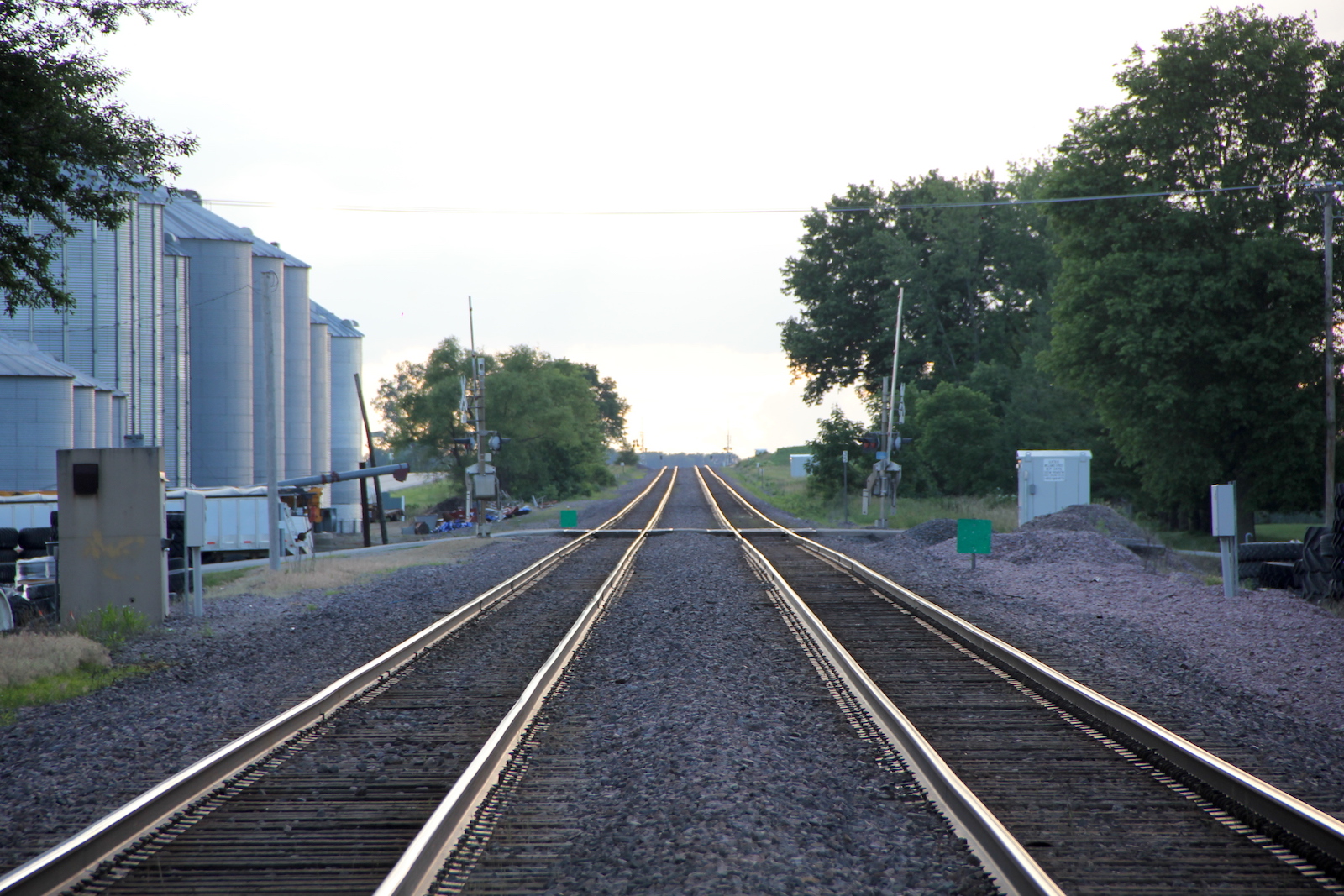

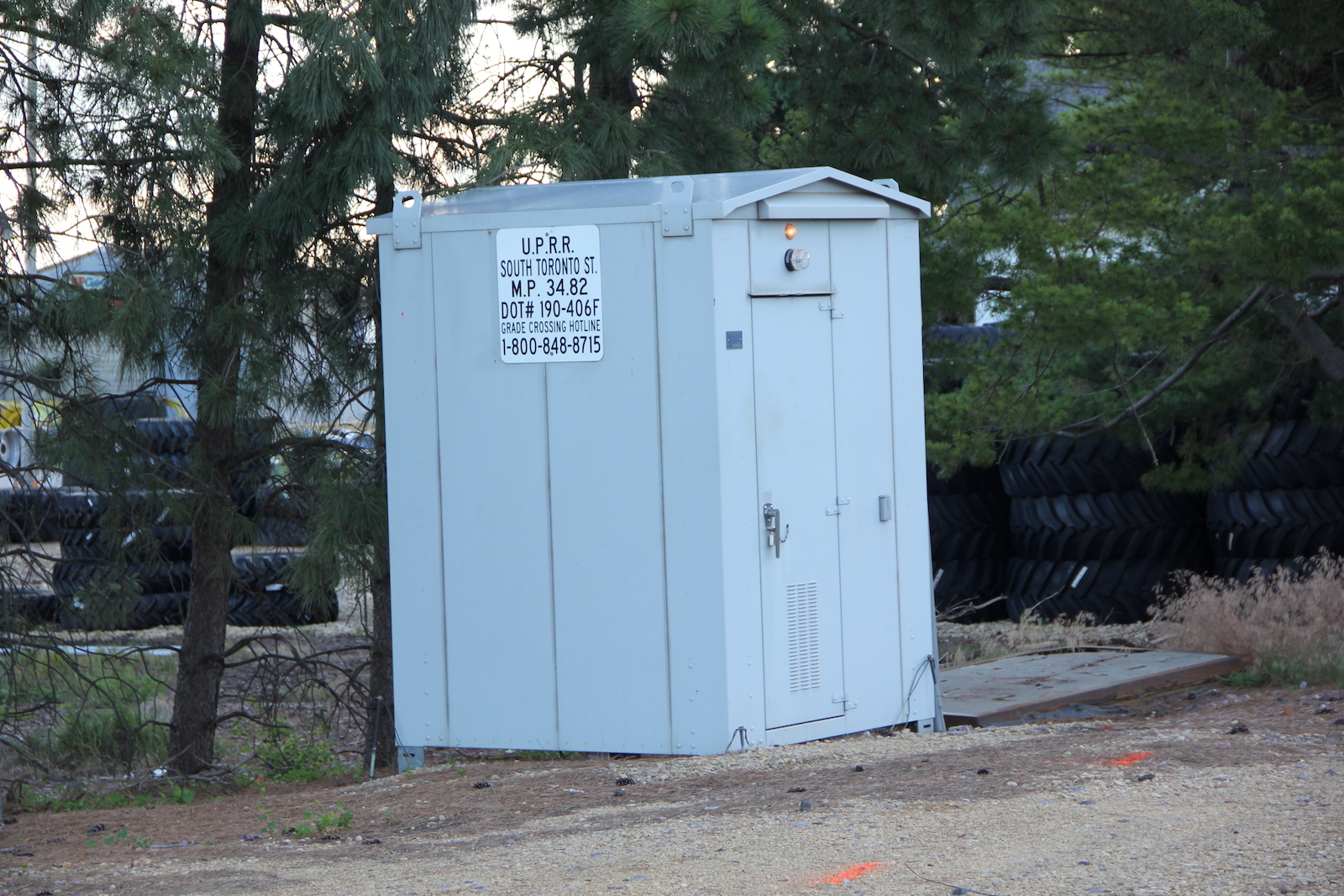

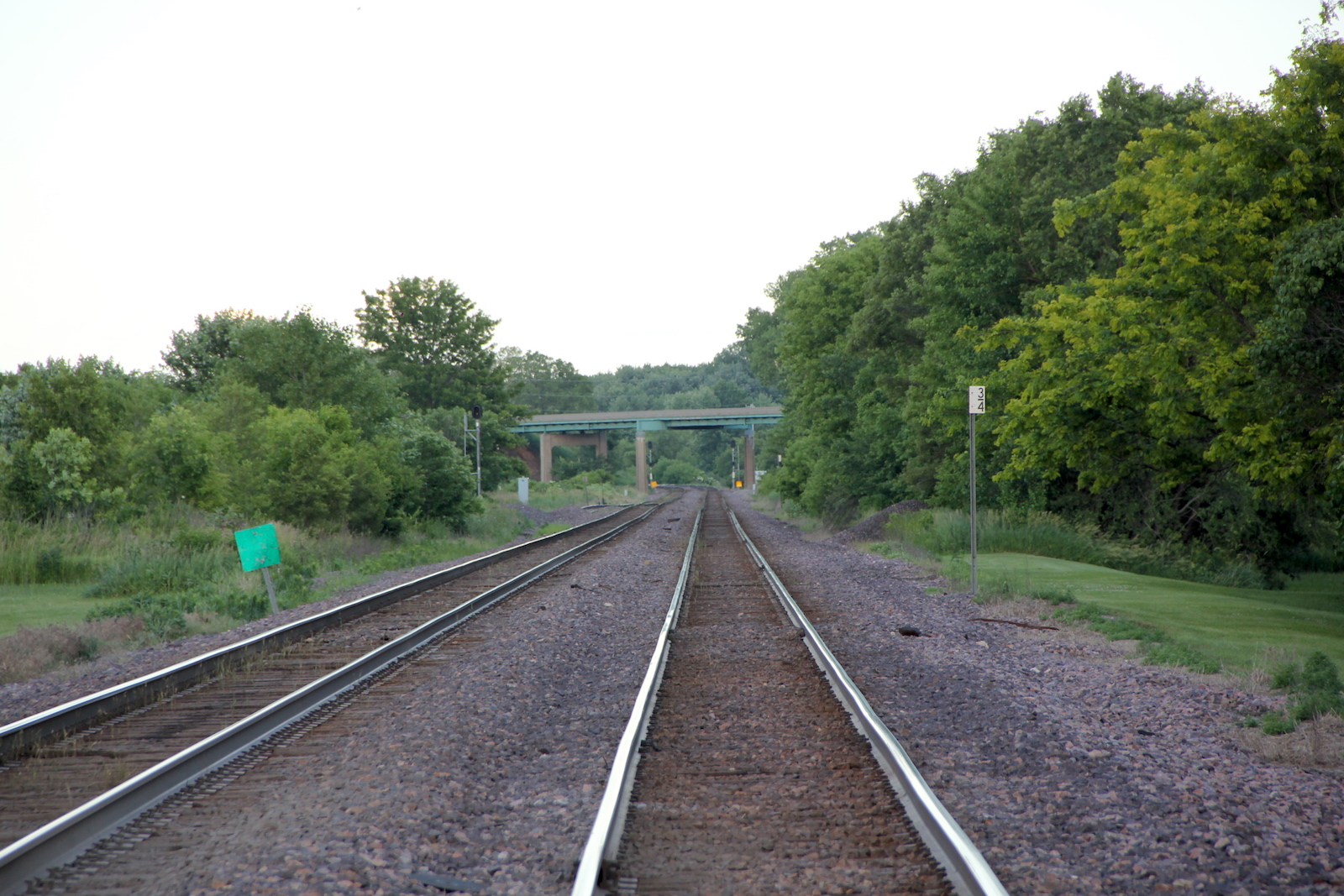

The relay bungalow in the southwest quadrant. The grade is all concrete. Track view facing west at Williams St. Track view facing east towards 158th Ave. in Calamus.
28

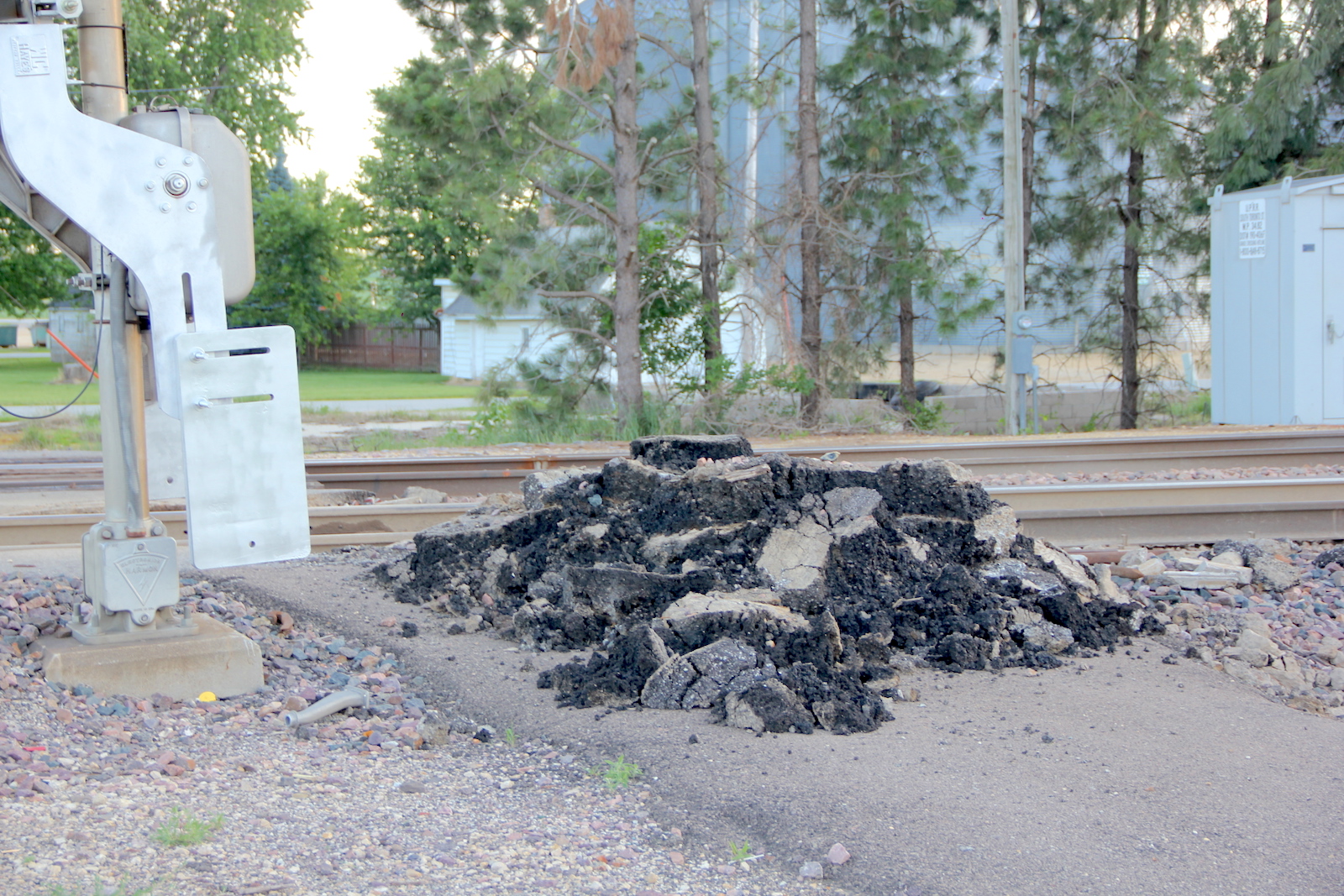

The sidewalk grade was torn up when I was here.

.
