34.96


190407M

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: None GS E Bell

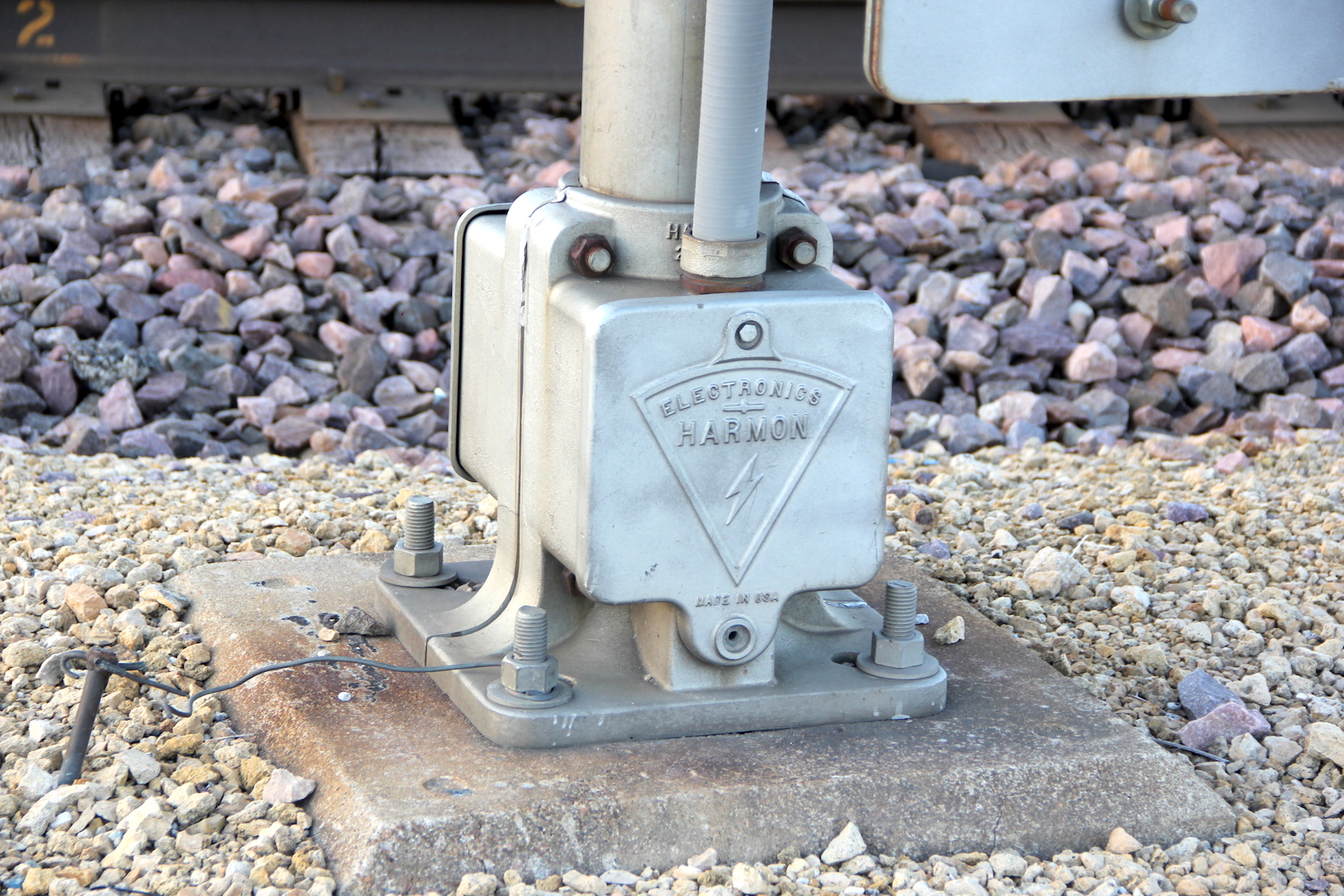

Base: Harmon Double Sided Harmon Double Sided

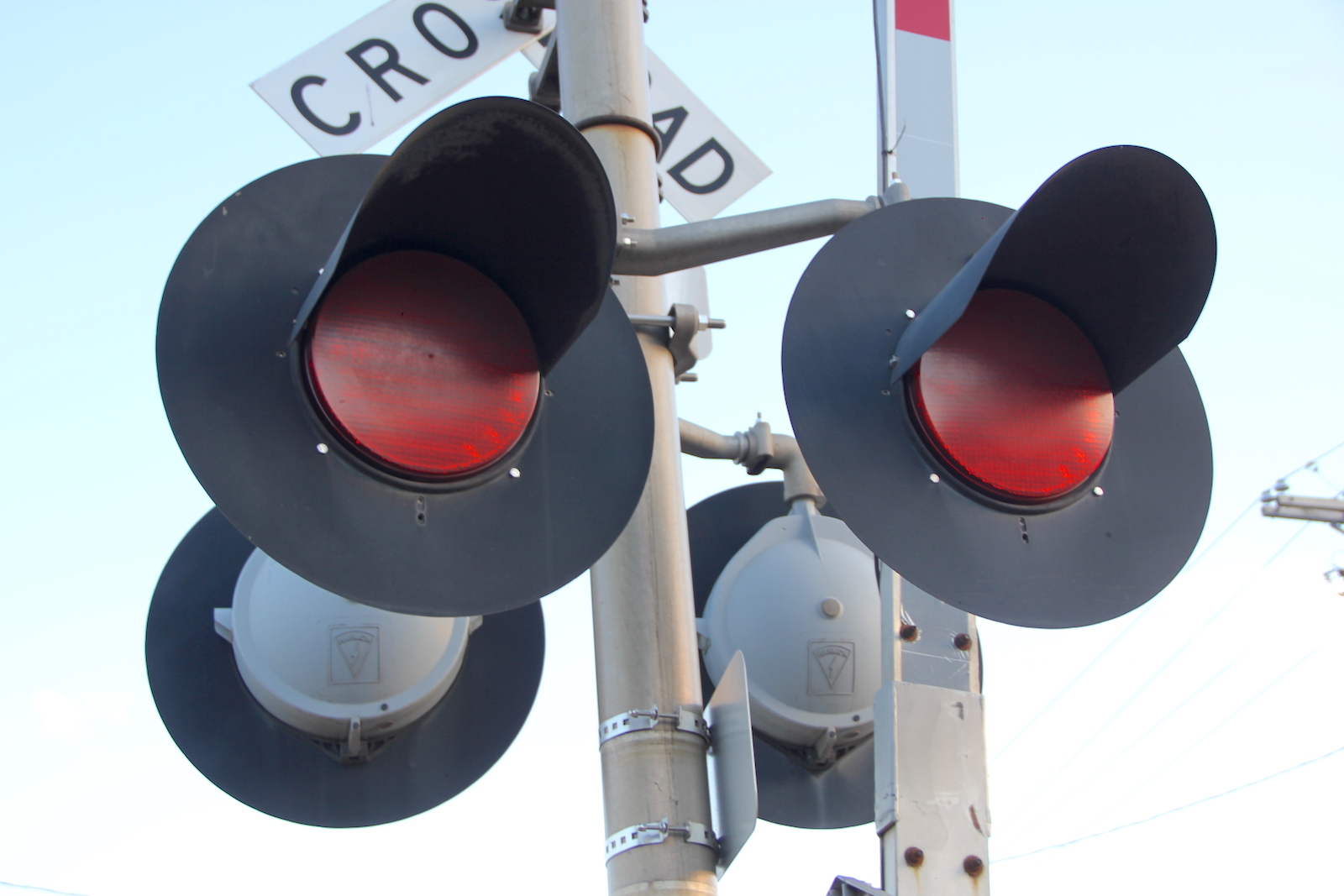

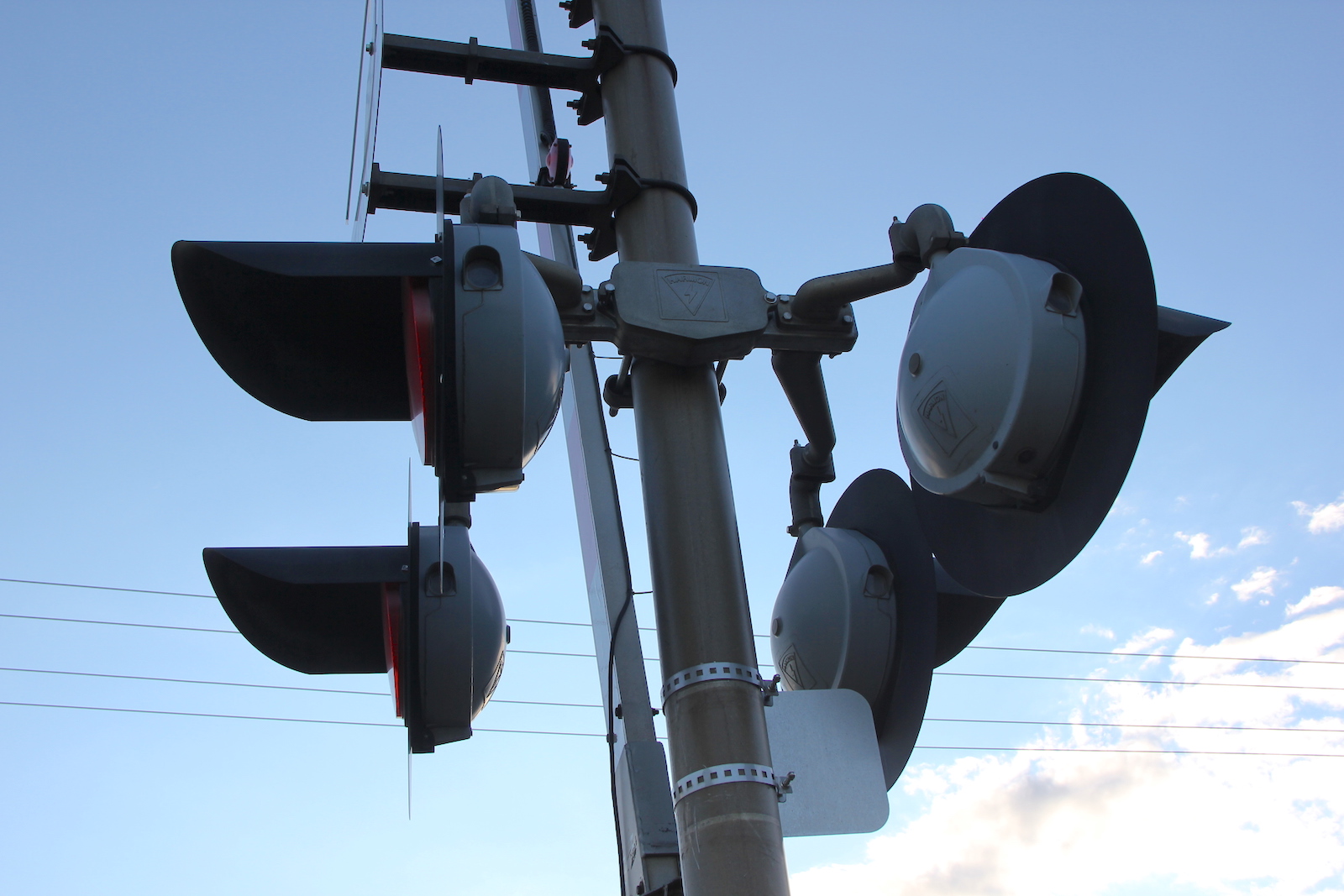

LED Types: Four Harmon Fading LEDs Four Harmon Fading LEDs
Light Frames: Four 12"x24" Harmon frames Four 12"x24" Harmon frames
Junction Box: Harmon Harmon
Gate Lights: 4" RECO 4" RECO

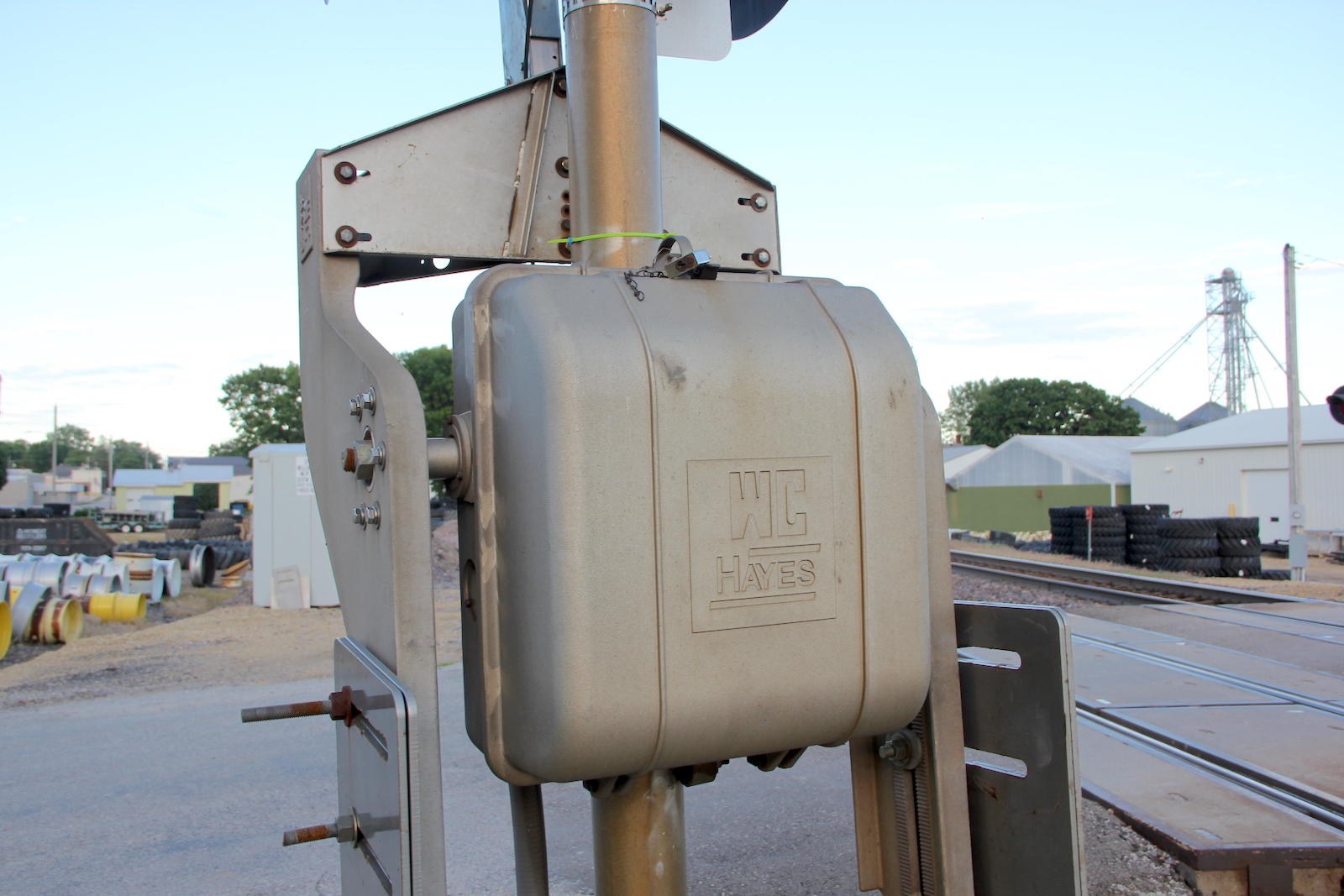

Gate Mechanism: WCH Style 3.5 WCH Style 3.5
Gate Striping: ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crossbuck font: Normal font, double sided Normal font, double sided
Bell Cycle: N/A Unknown

All pictures were taken on June 23, 2020, by Tommy McGowan.
This crossing is located on the UP Clinton Sub.

1
 2
Overview of 2 gated signals facing south. Overview facing north.
3 4 5
6 7 8
9 10 11

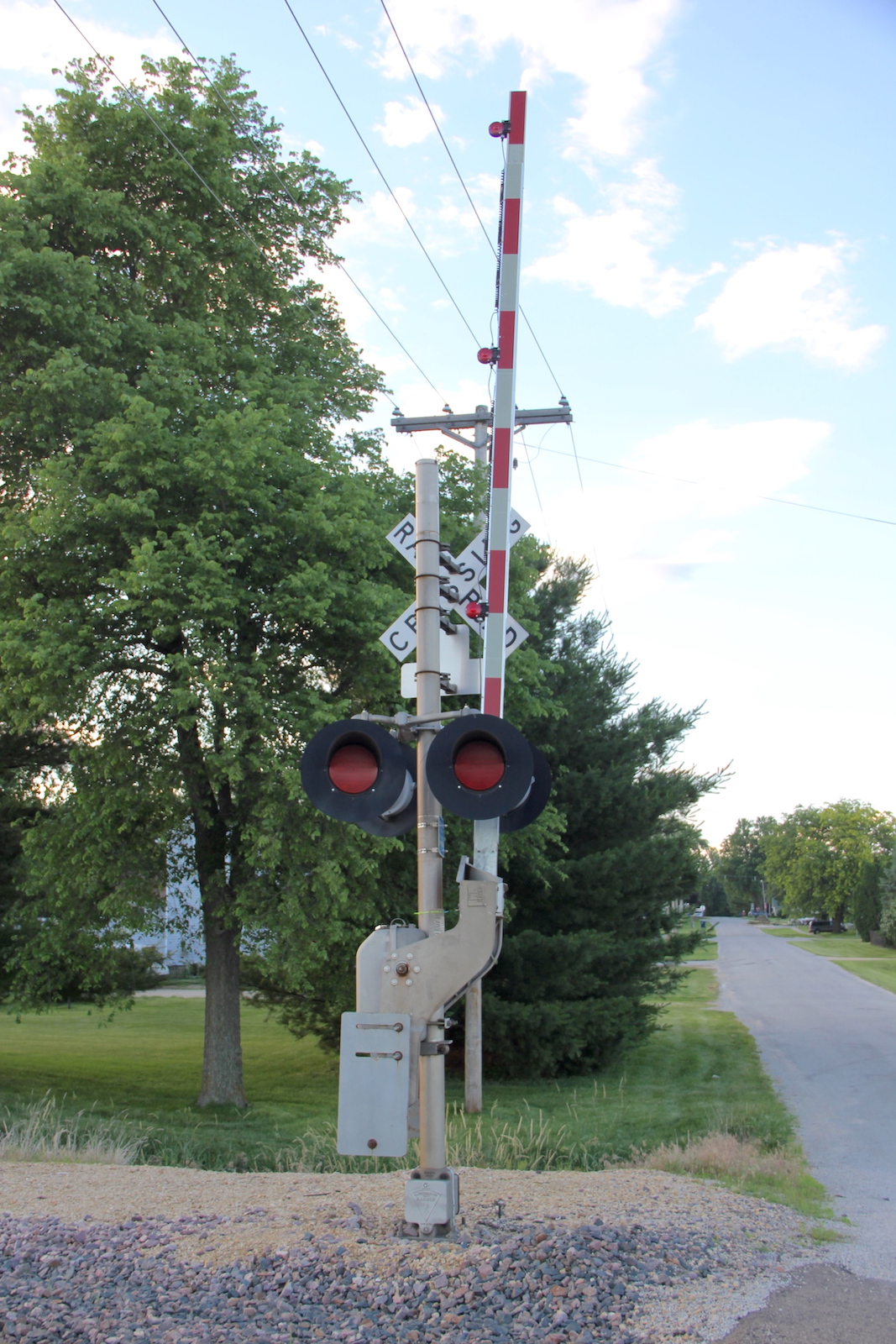

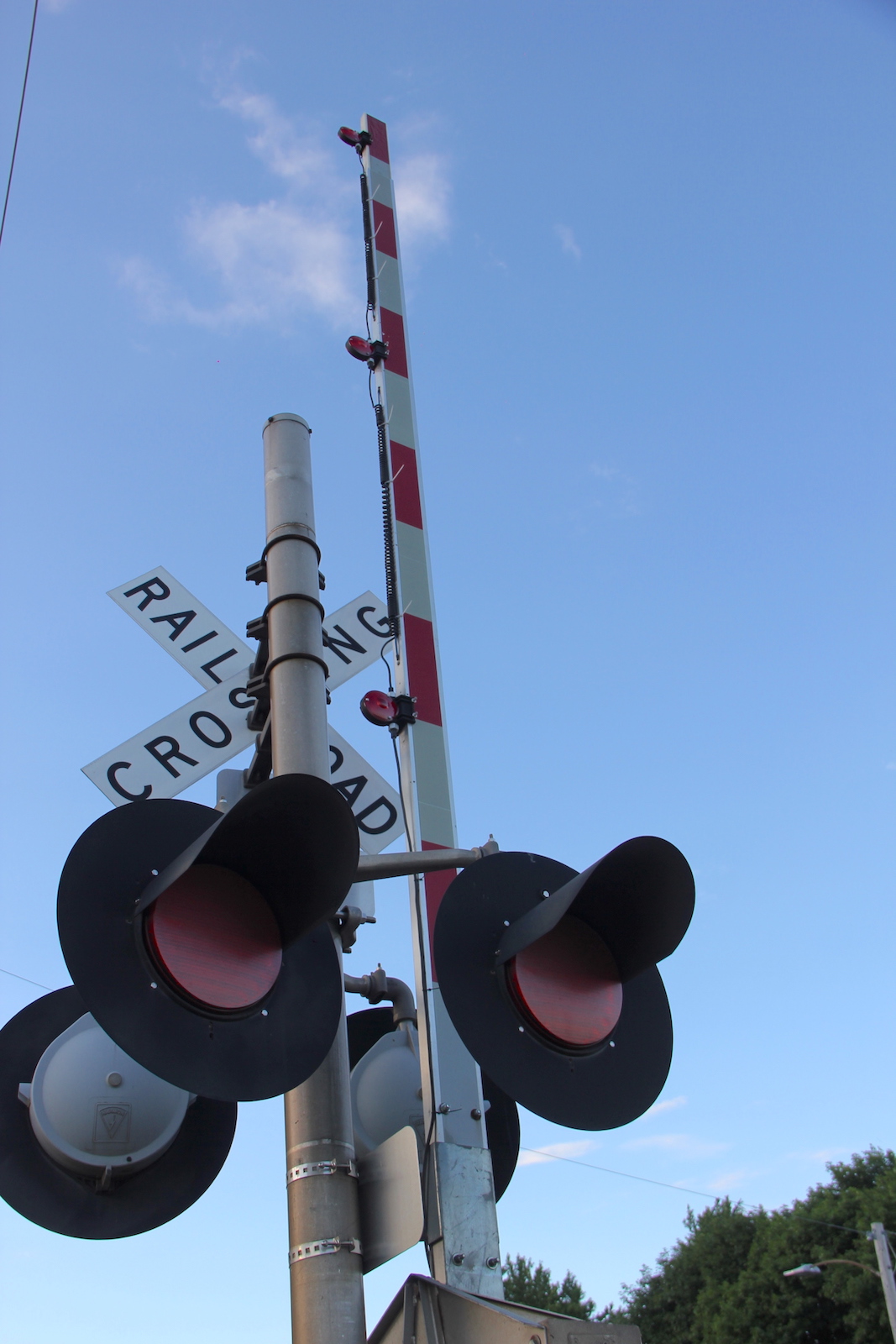

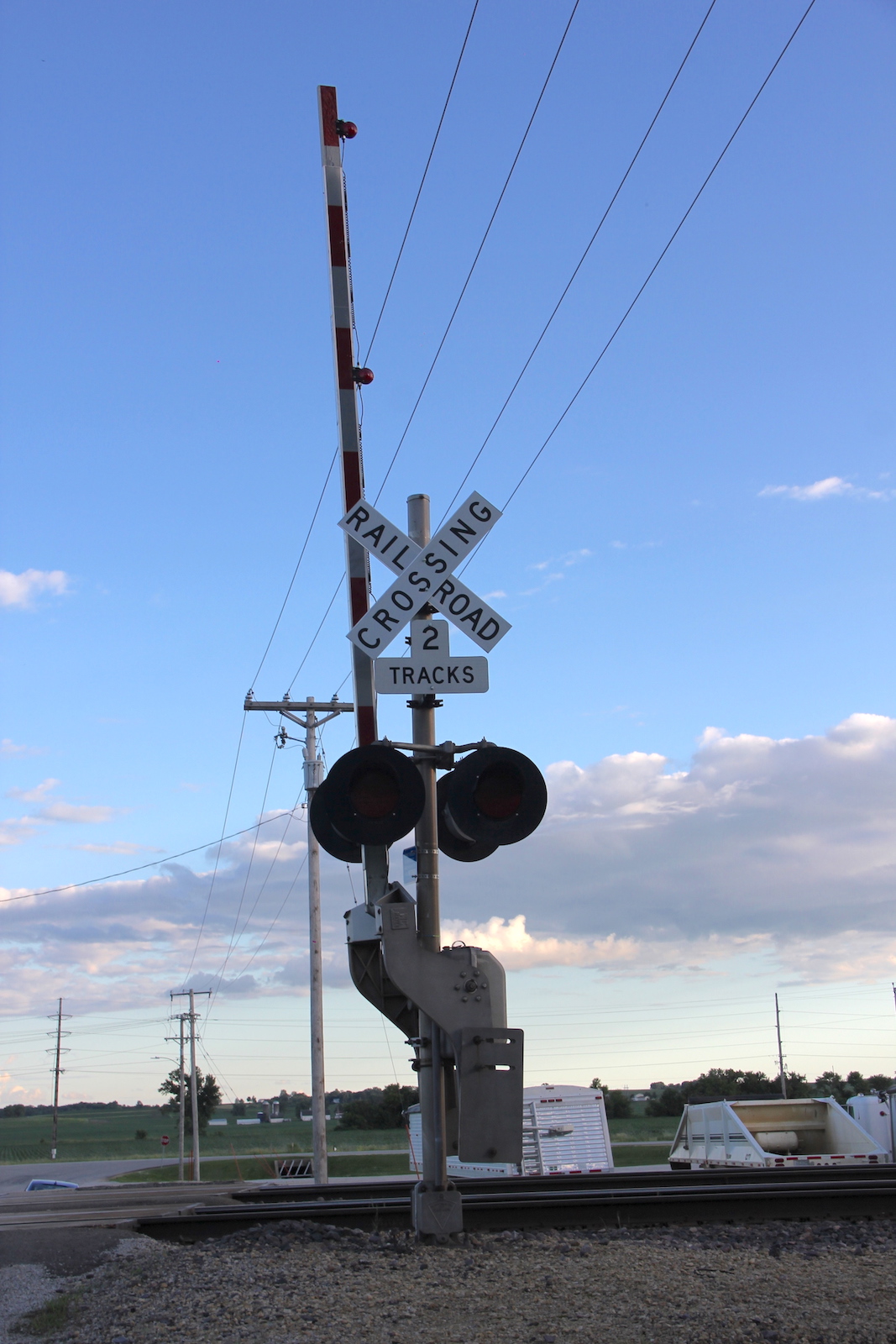

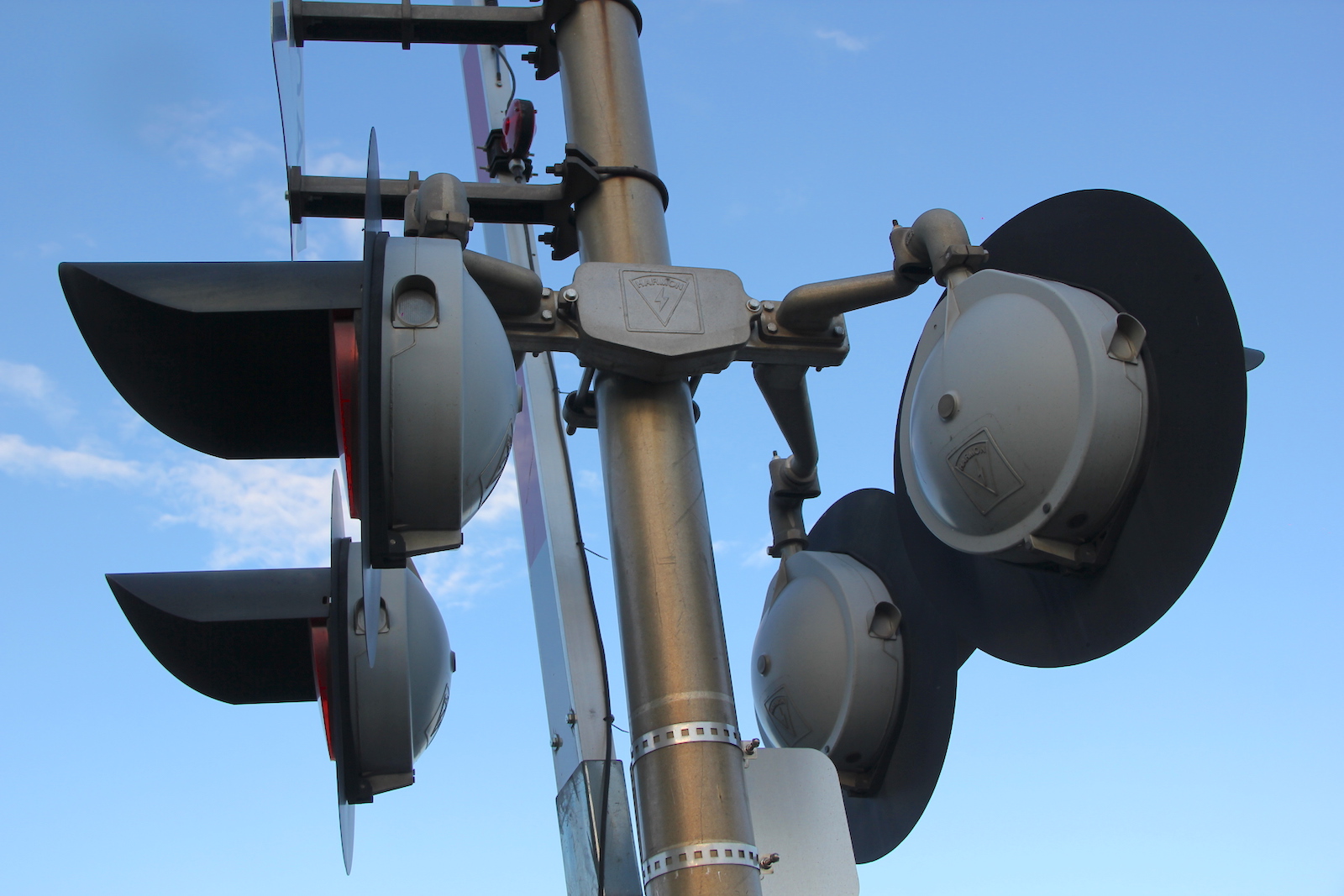

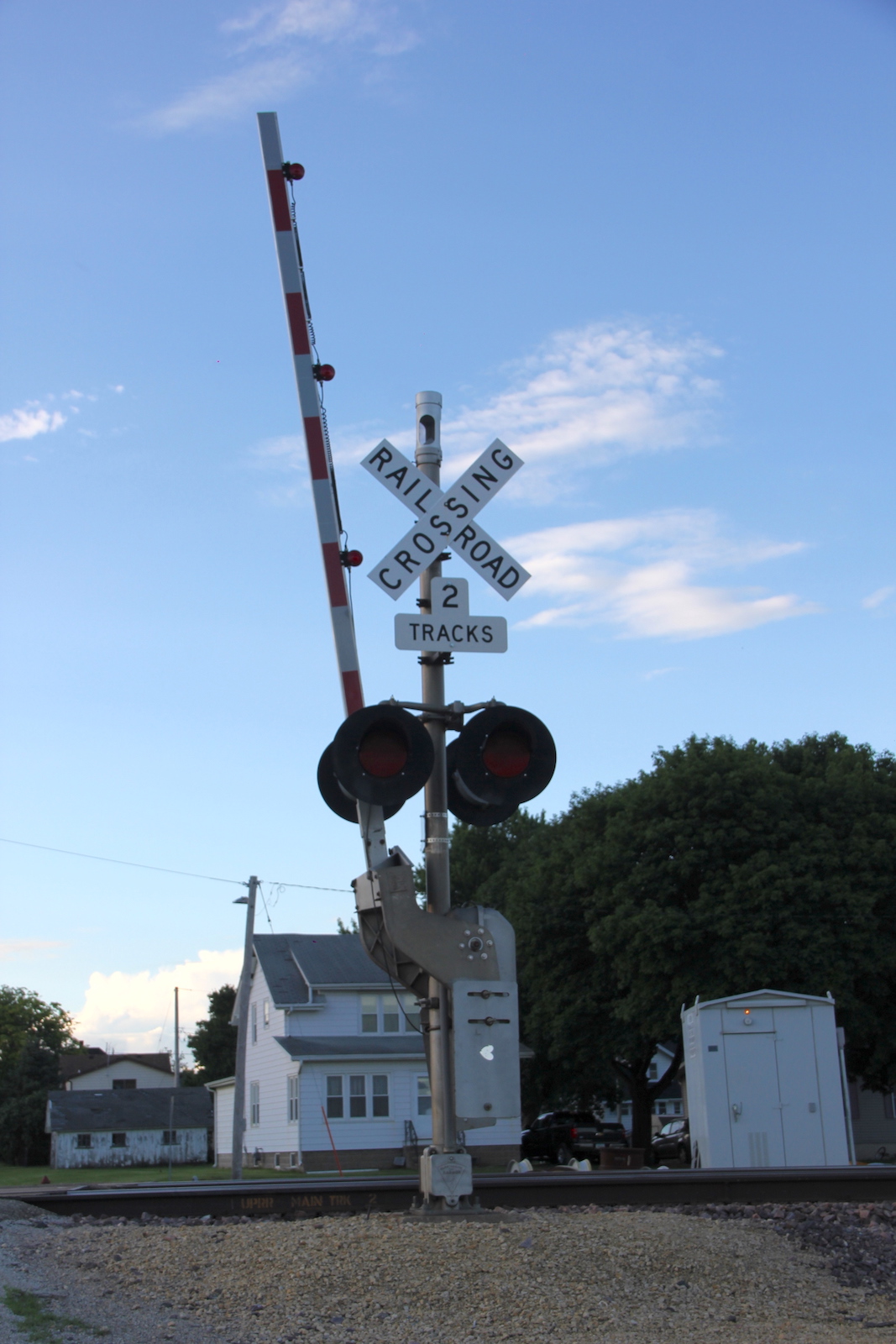

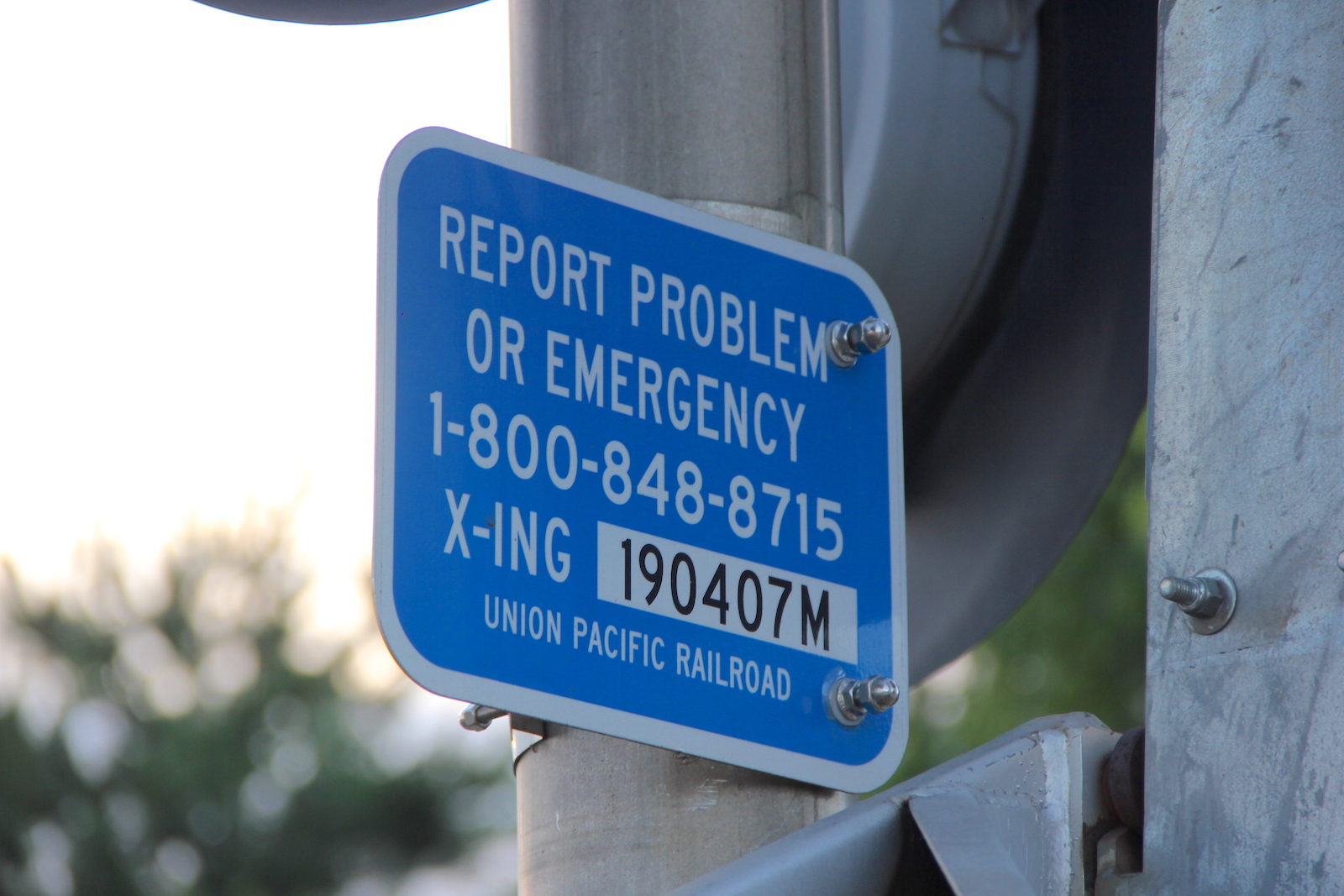

The northern signal.
12 13 14
15 16 17
18 19 20
21

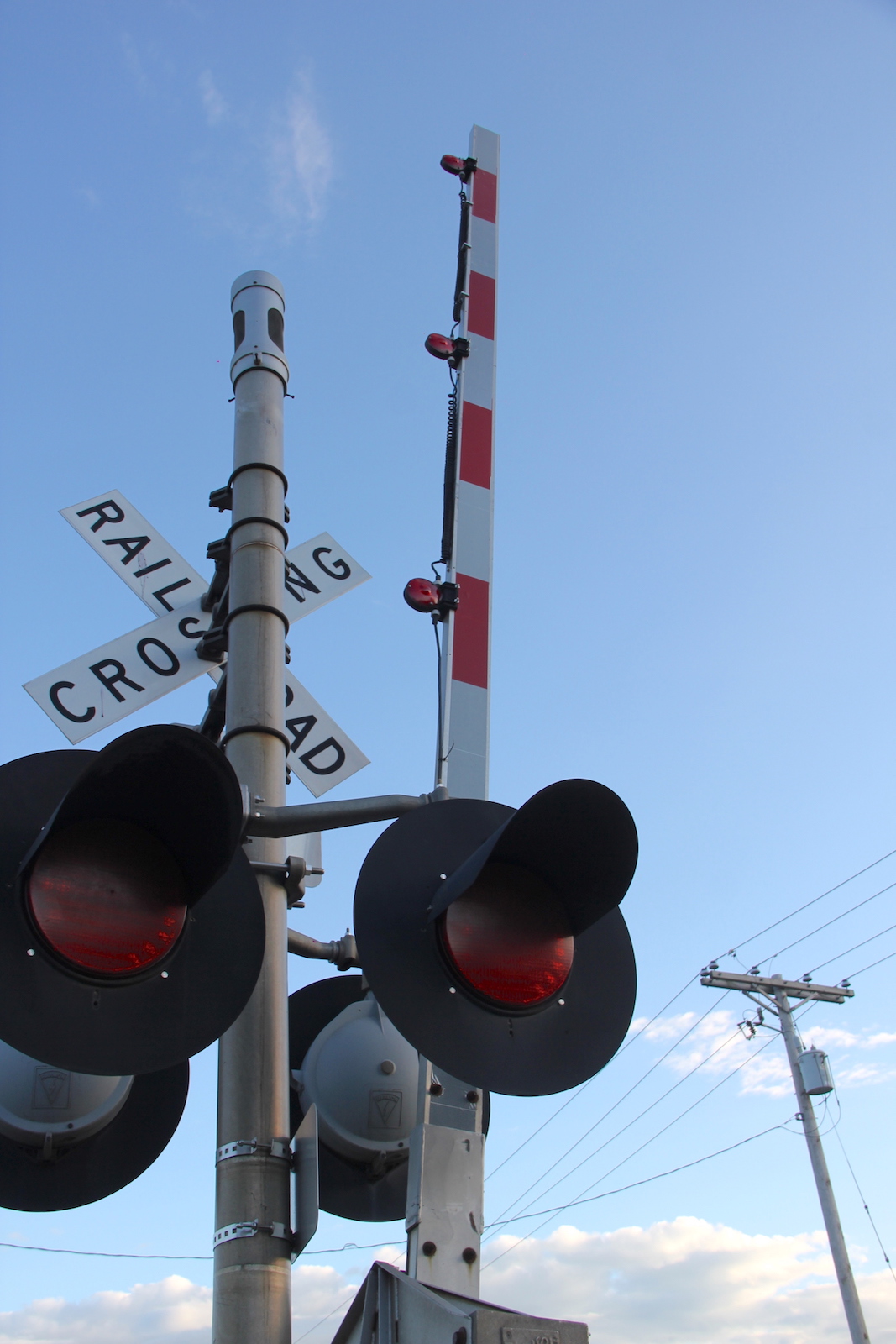

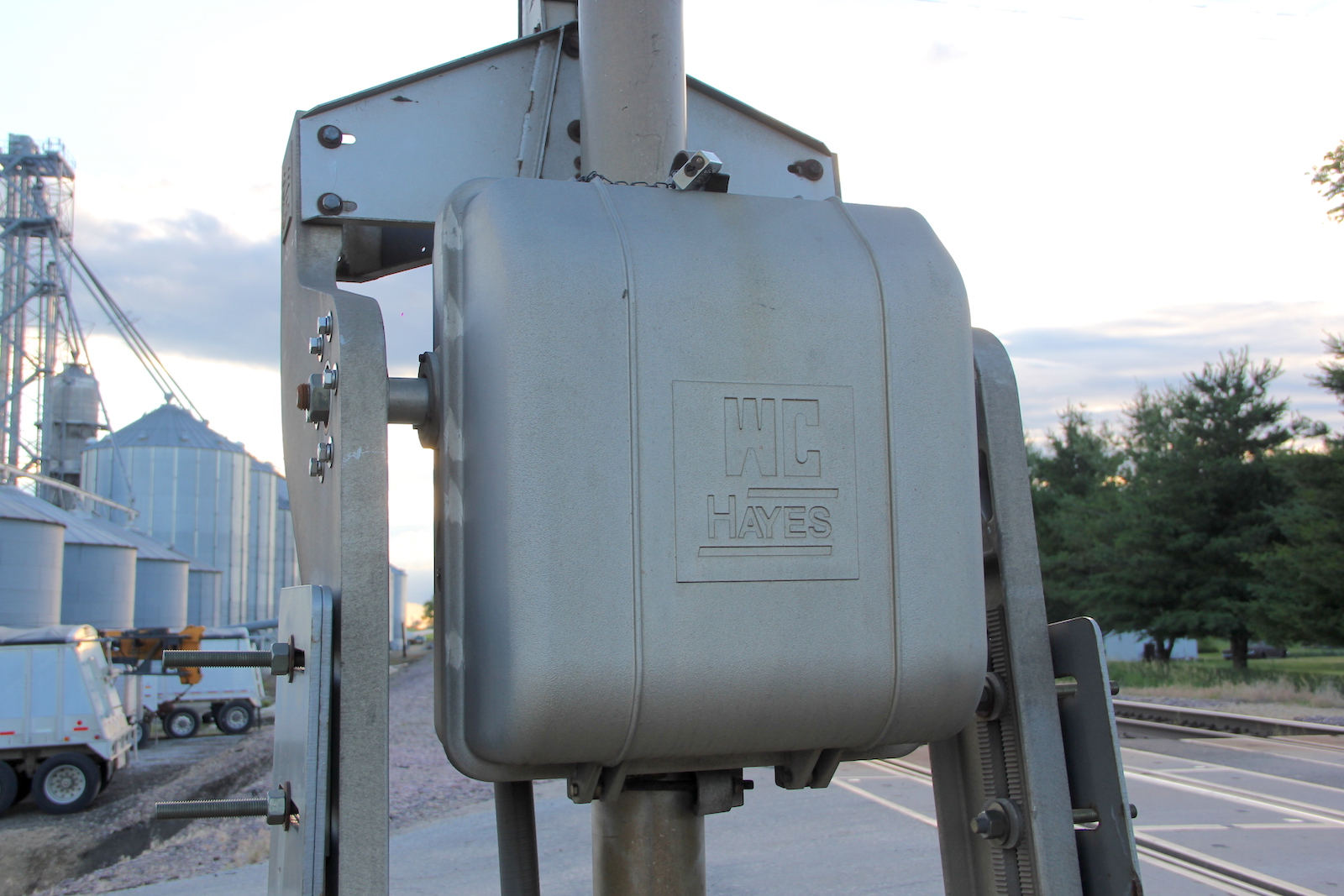

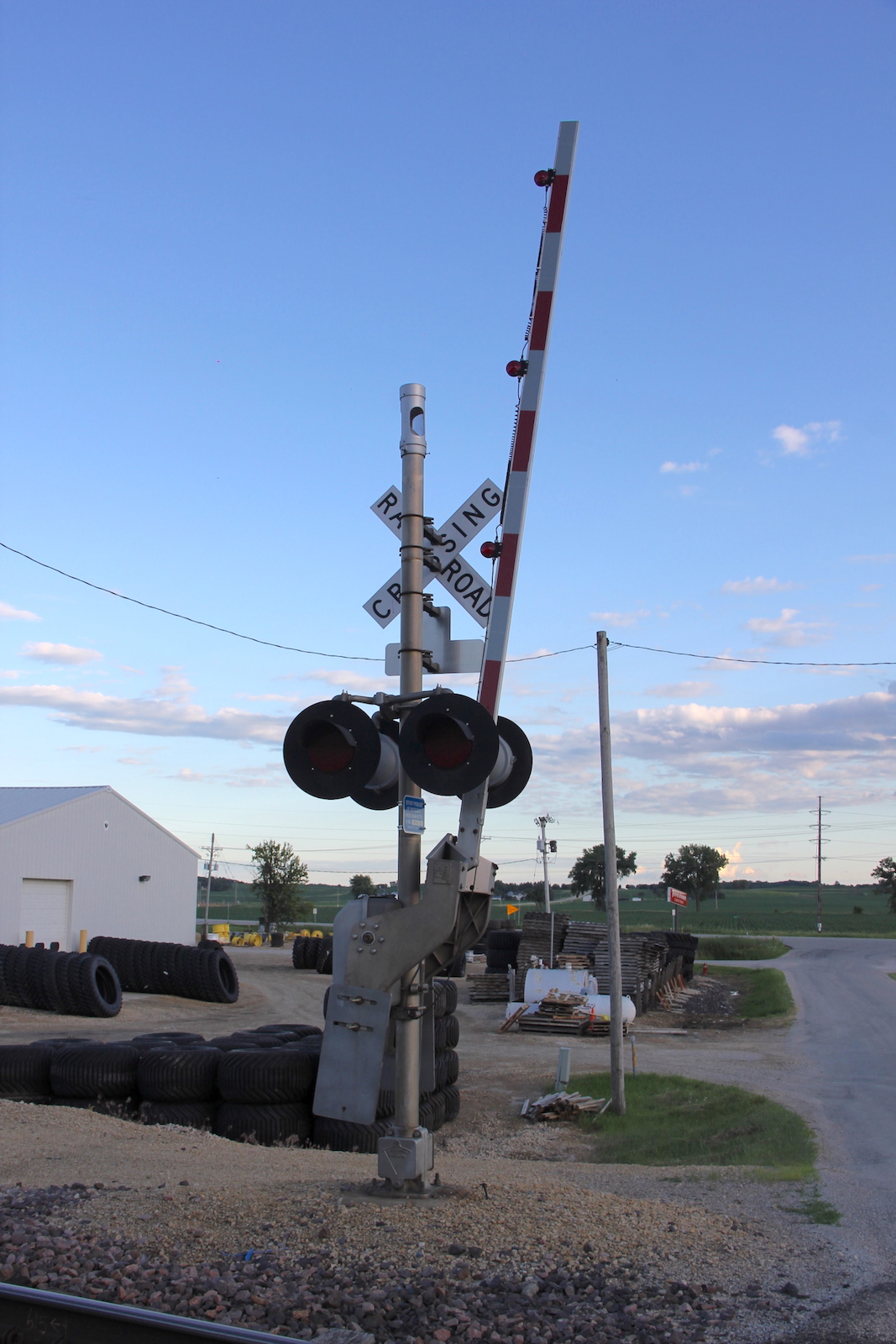

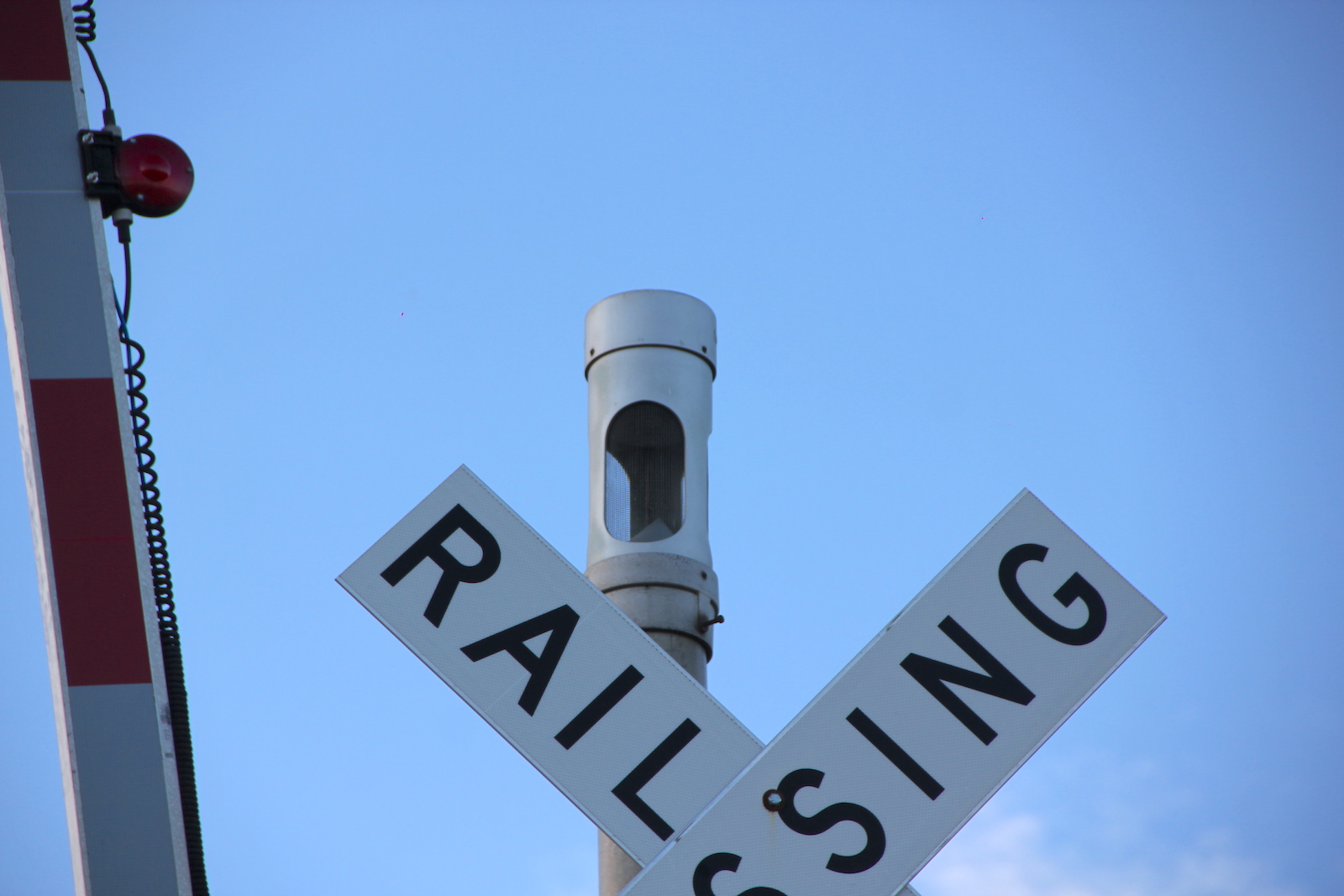

The southern signal.
22 23 24 25

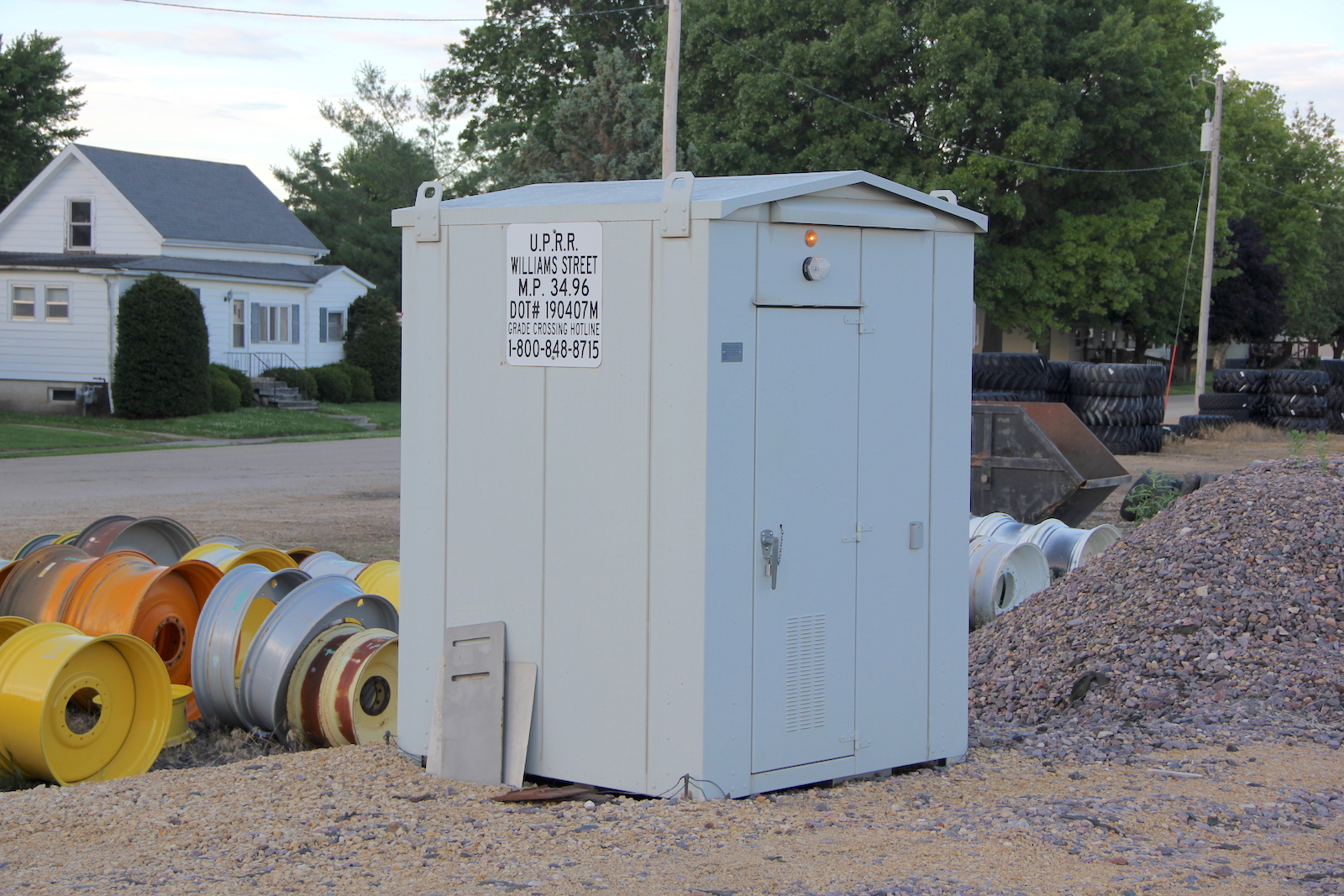

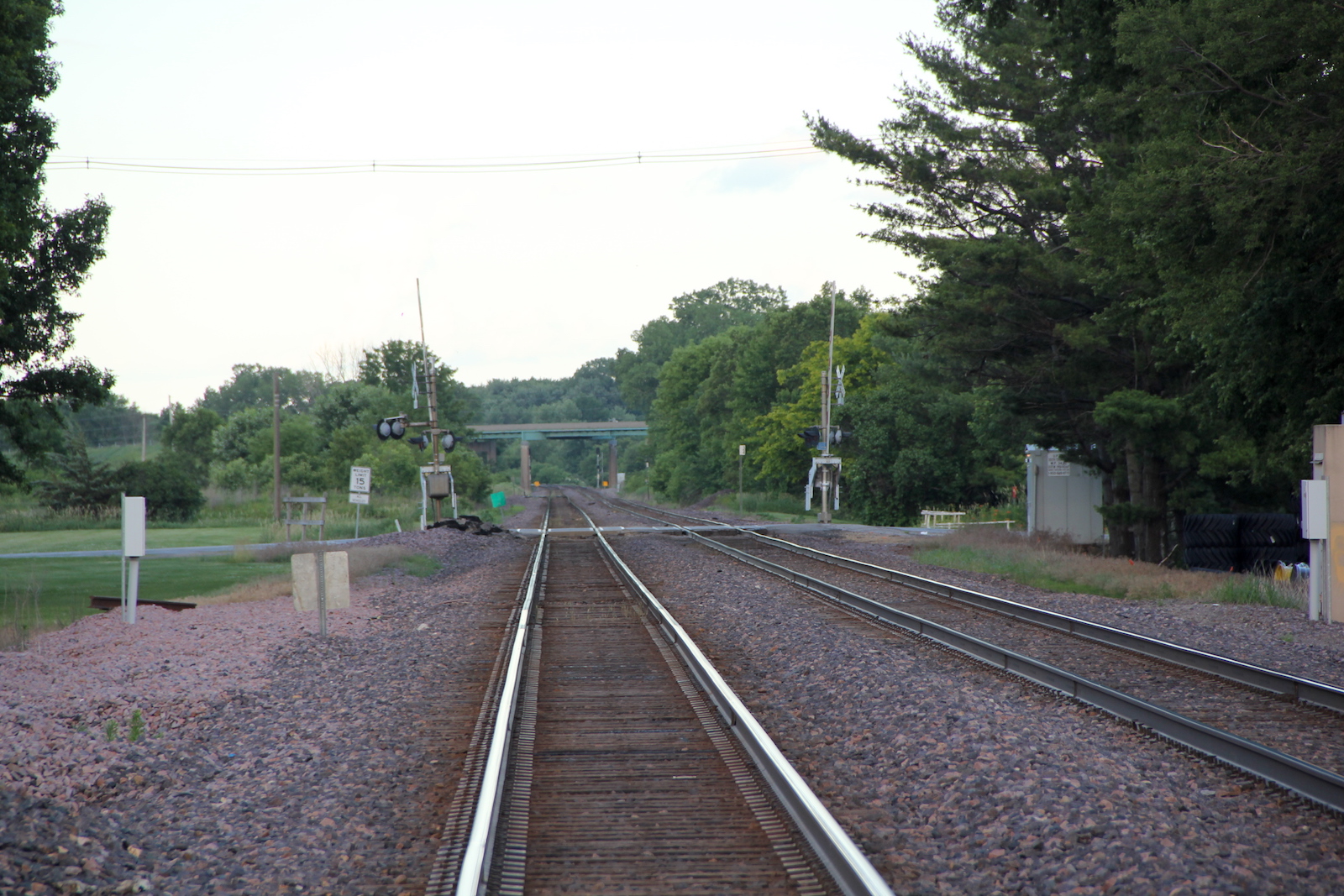

The relay bungalow in the northeast quadrant. The grade is all concrete. Track view facing west towards 105th Ave. Track view facing east at Toronto St.

.
