| >>>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | FS Mechanical Bell | None |
| Base: | Safetran 5" Single Sided ^ | Safetran 5" Single Sided ^ |
| Lights: | 6 - 12"x20" Hawker Safetran incandescents | 4 - 12"x20" Hawker Safetran incandescents |
| Junction Boxes: | Safetran | Safetran |
| Gate Lights: | 4" NEG incandescents | 4" NEG incandescents |
| Gate Mechanism: | Safetran 1990s w/ Standard Mount | Safetran 1990s w/ Standard Mount |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |

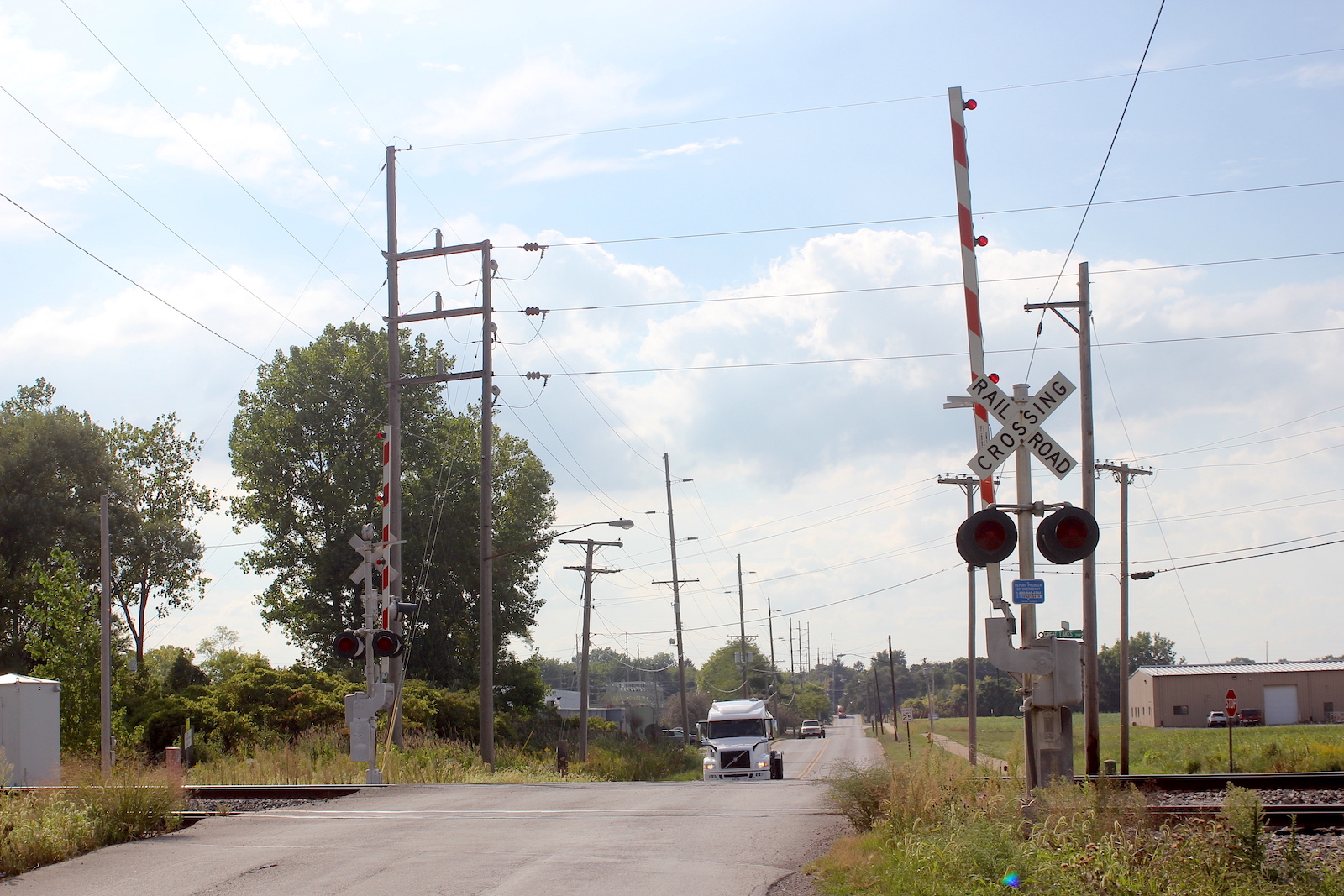

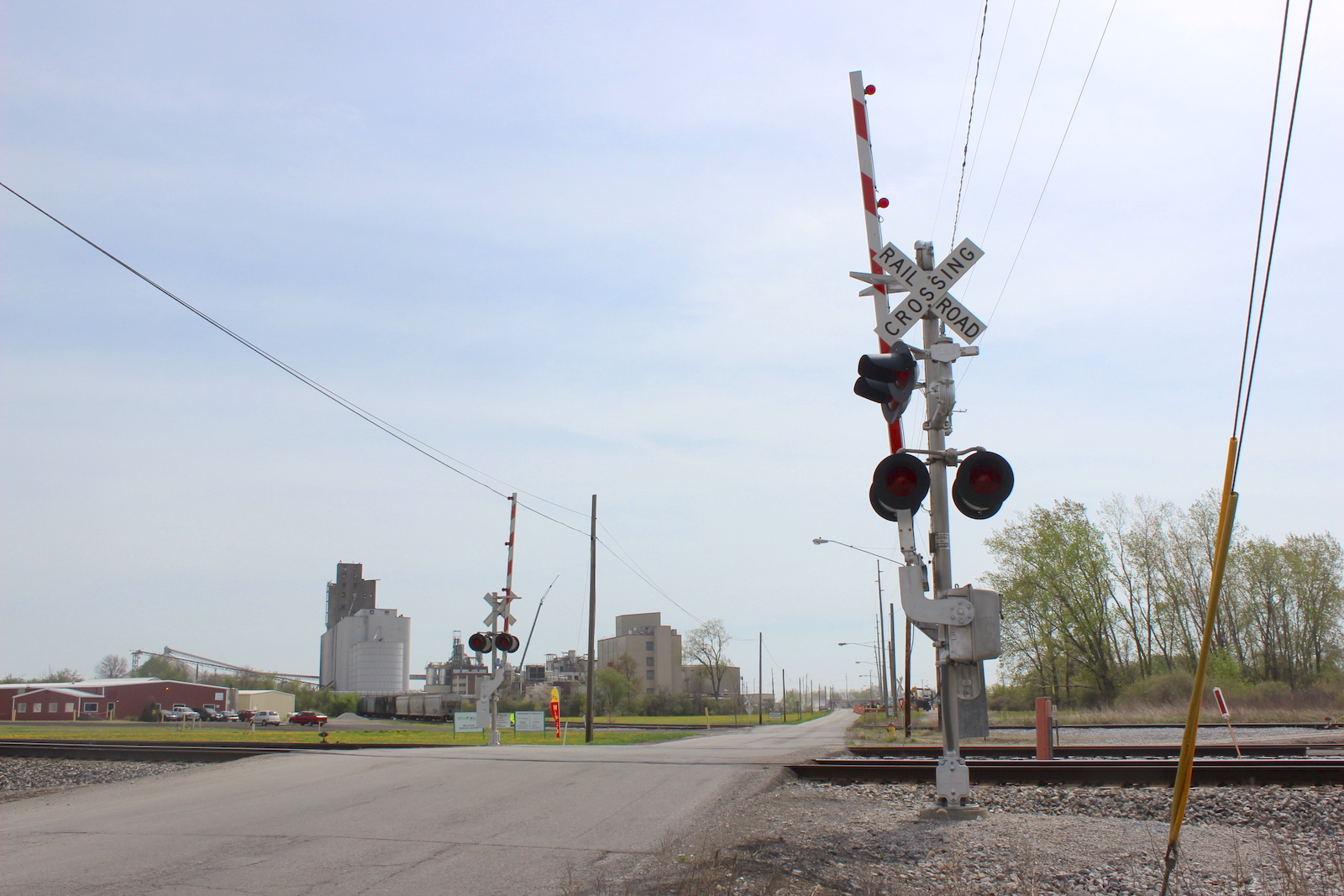

| Overview of 2 gated signals facing east. Somehow I forgot to take one facing west. |
2
| 3
| 4
|
5
| 6
| 7
|
8
|
9
|
10
|

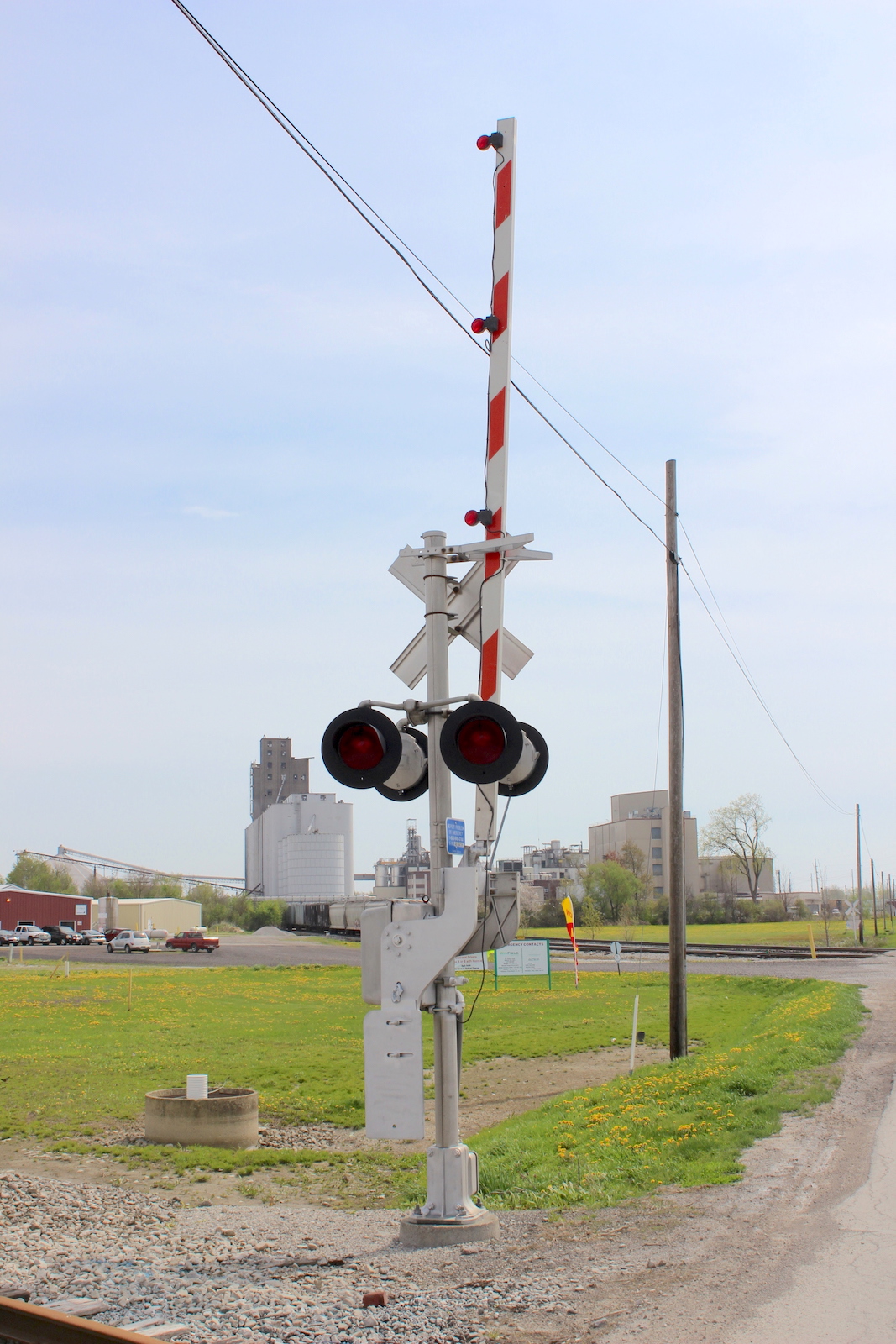

| The eastern signal. |
||
11
| 12
| 13
| 14
|
15
| 16
| 17
| 18
|
19
| 20
| 21
| 22
|
| The western signal. |
23
| 24
| 25
| 26
|

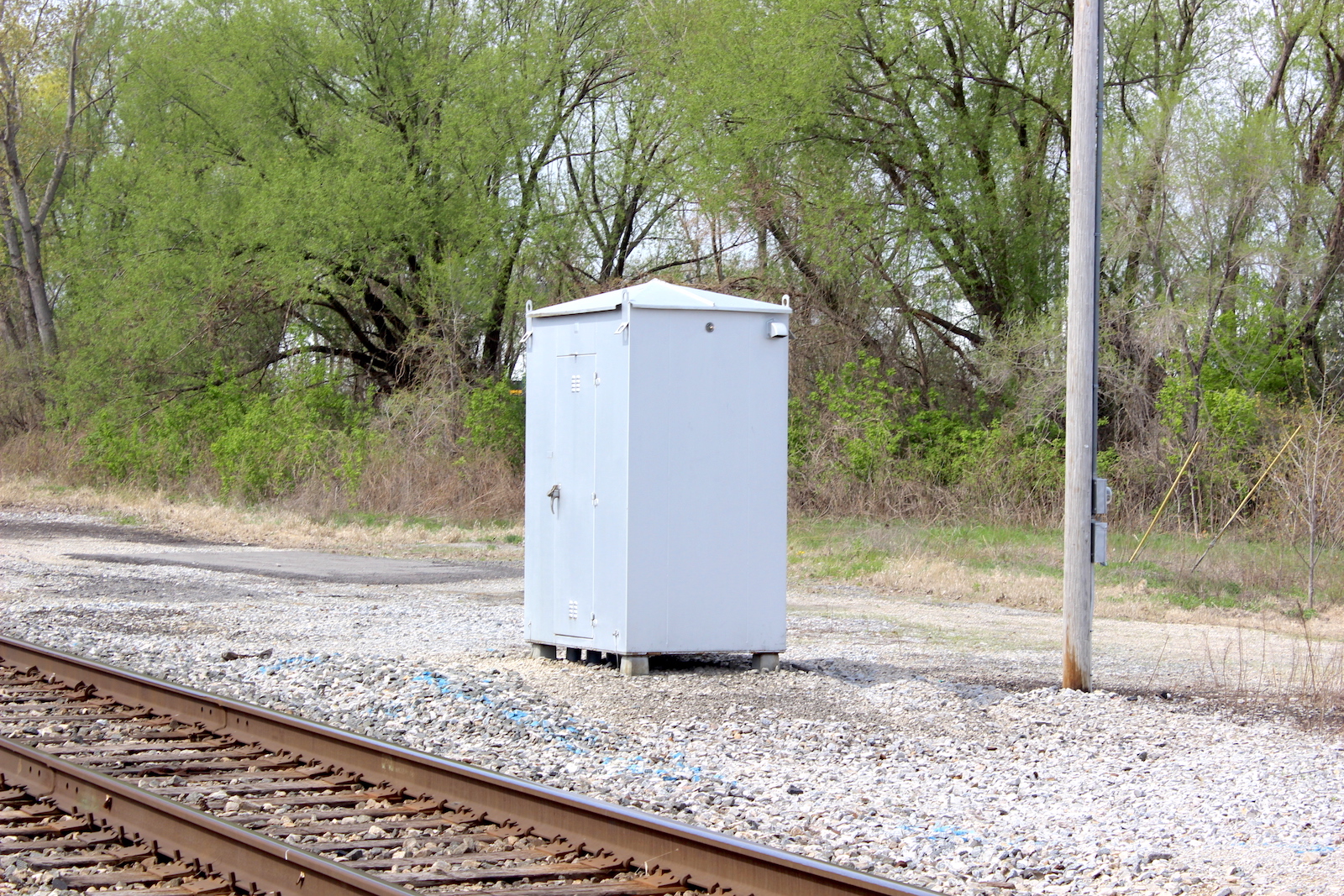

| The relay bungalow in the southwest quadrant. |

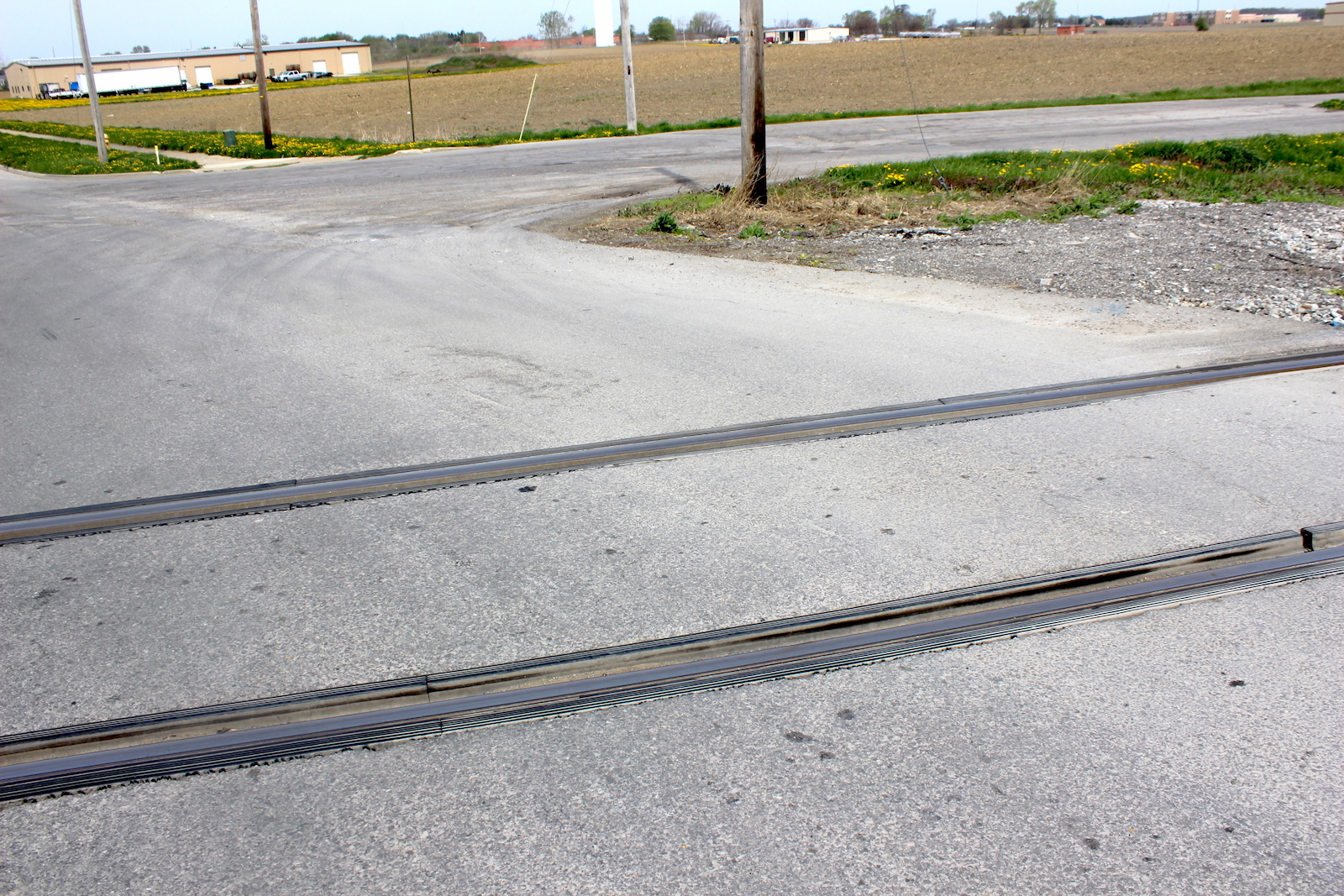

The grade is rubber and asphalt. |

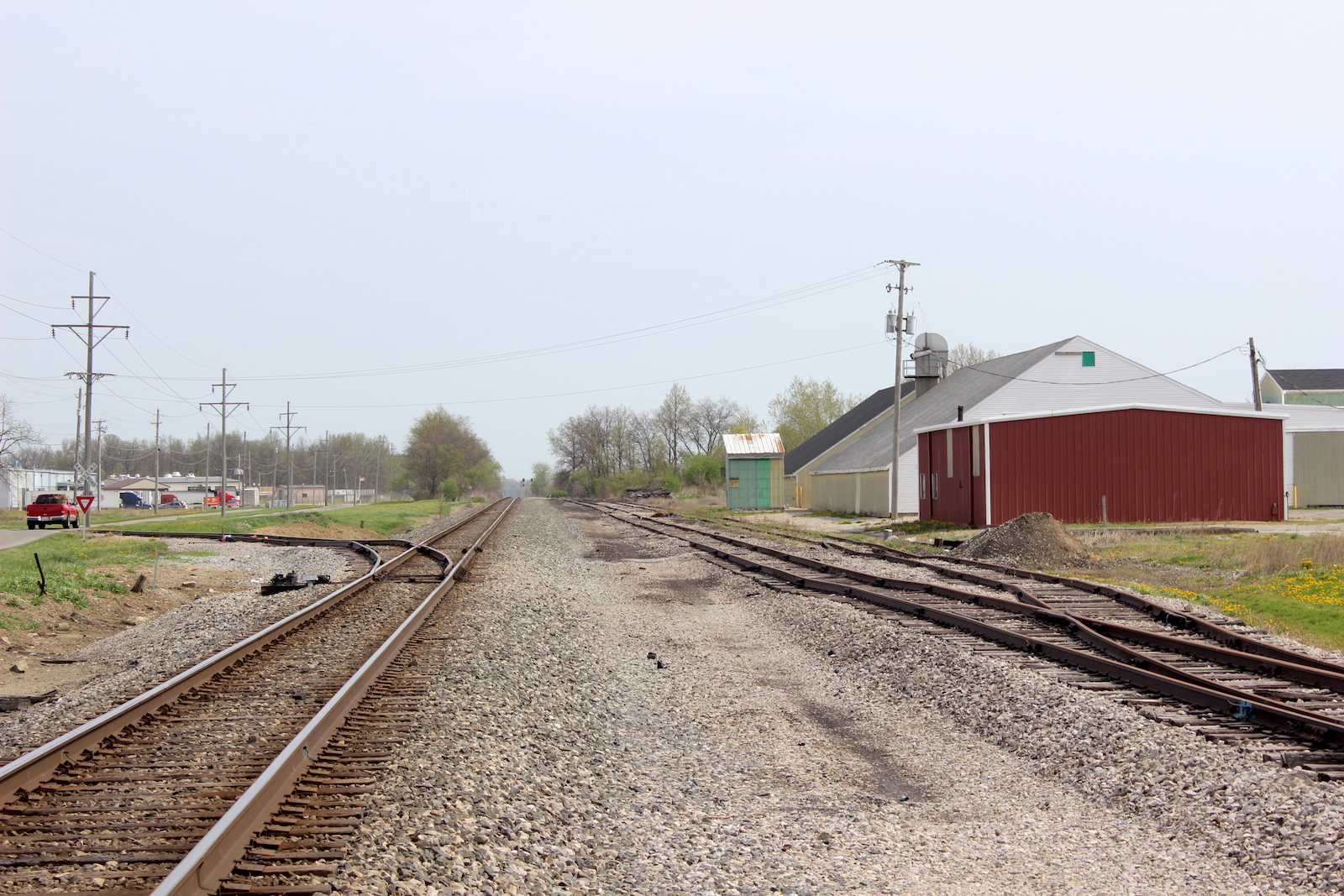

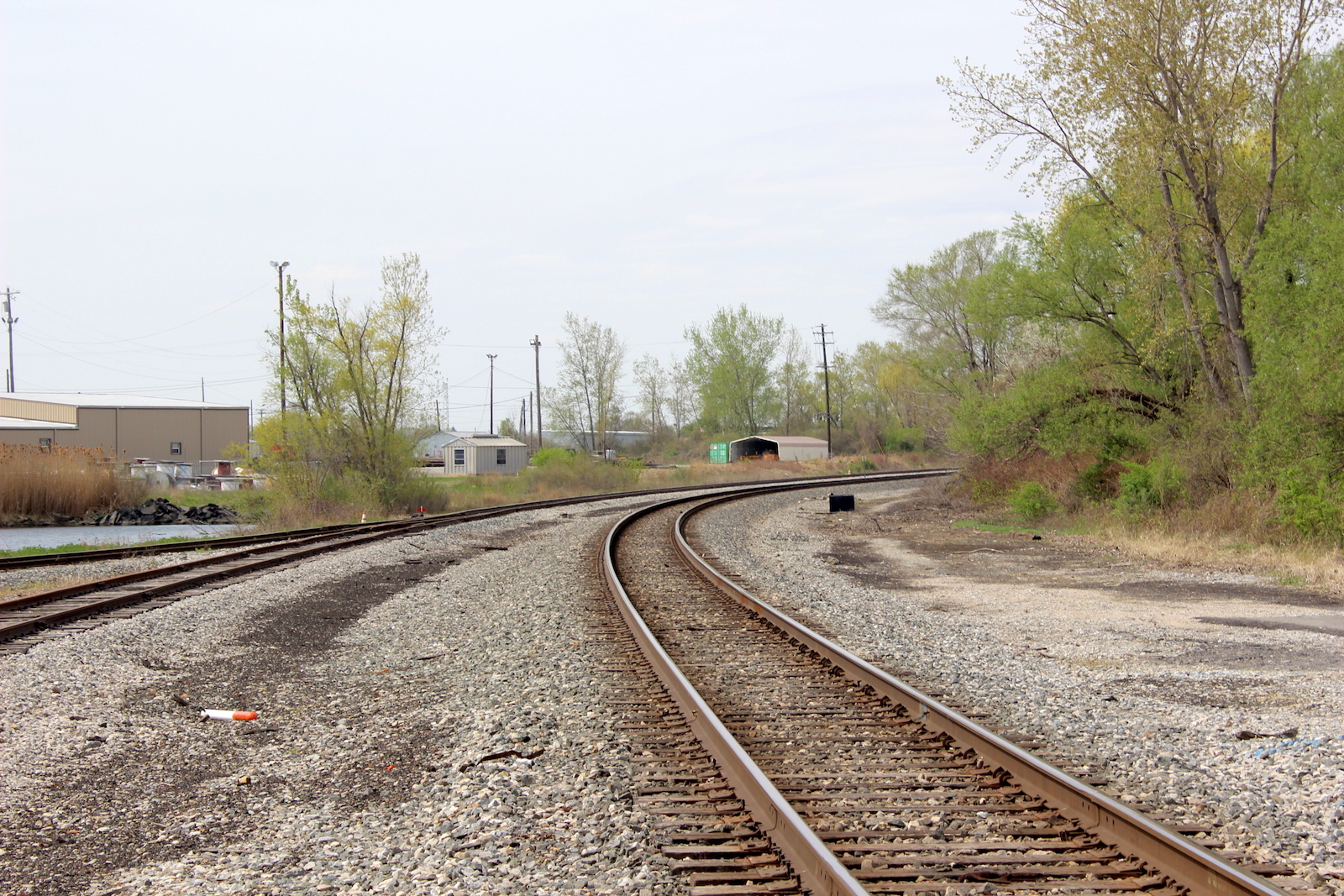

Track view facing north towards Potter Rd. Great Lakes Parkway is off to the left. |
Track view facing south towards Monroe St. #2. |
27
| 28
| 29
| 30
|

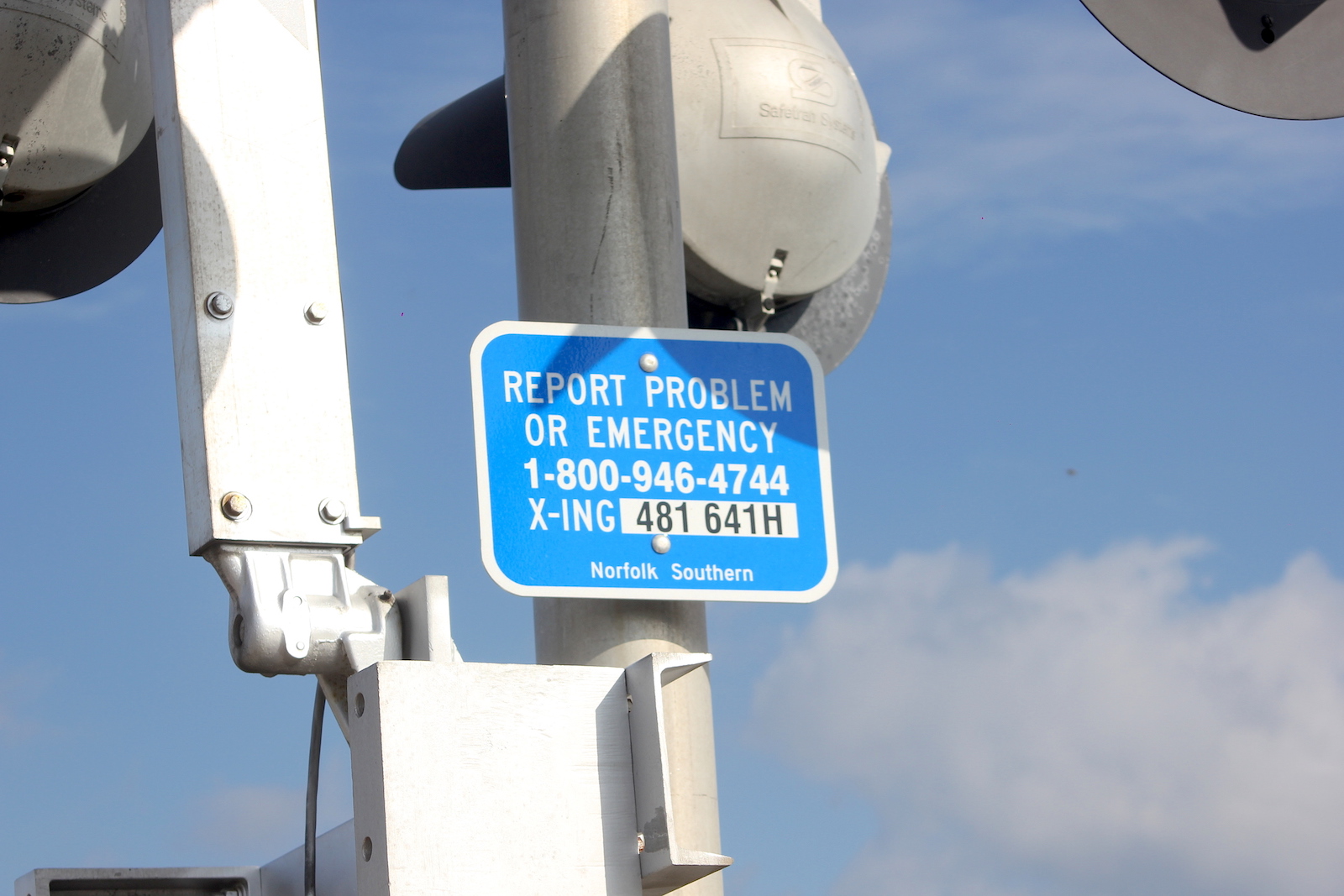

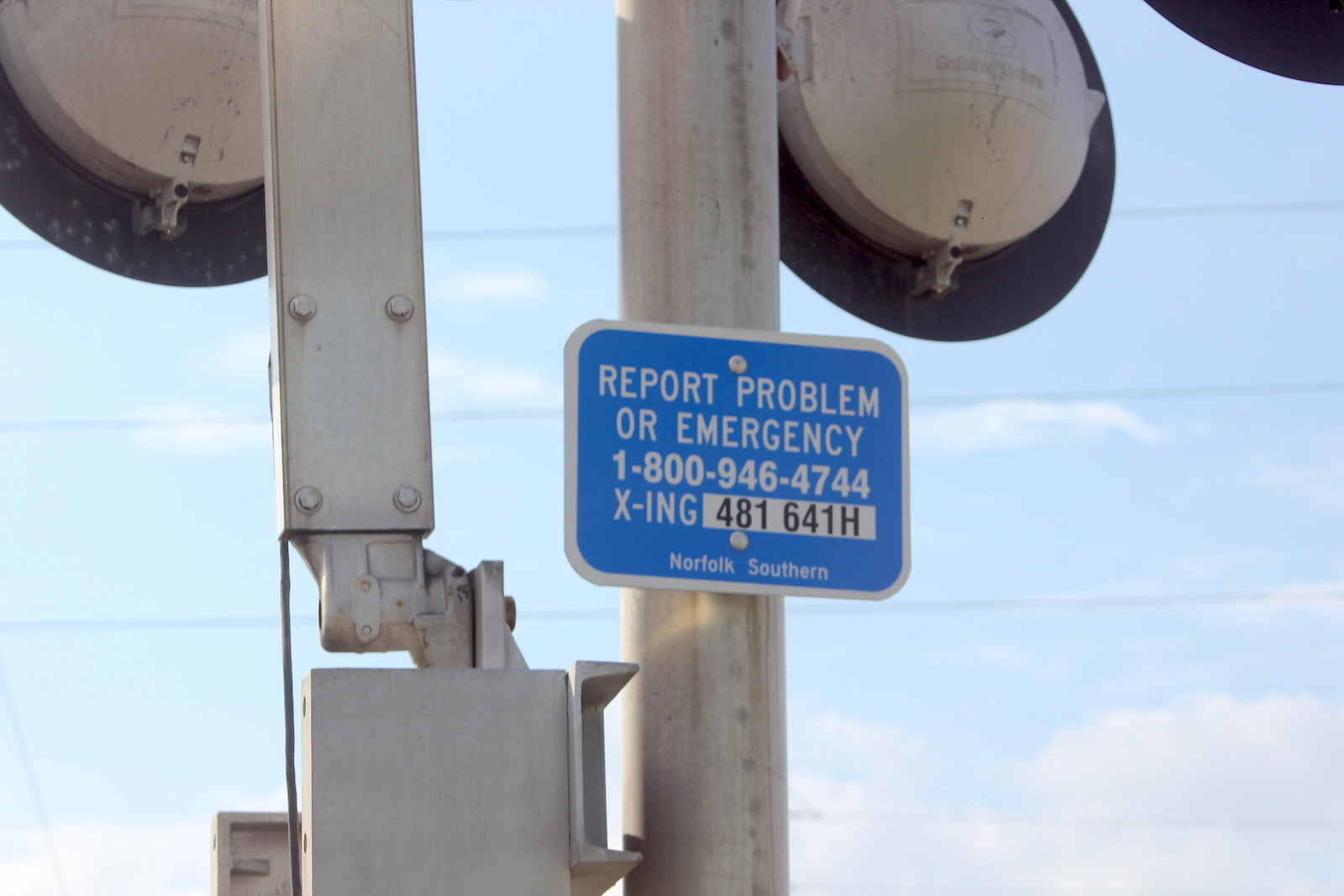

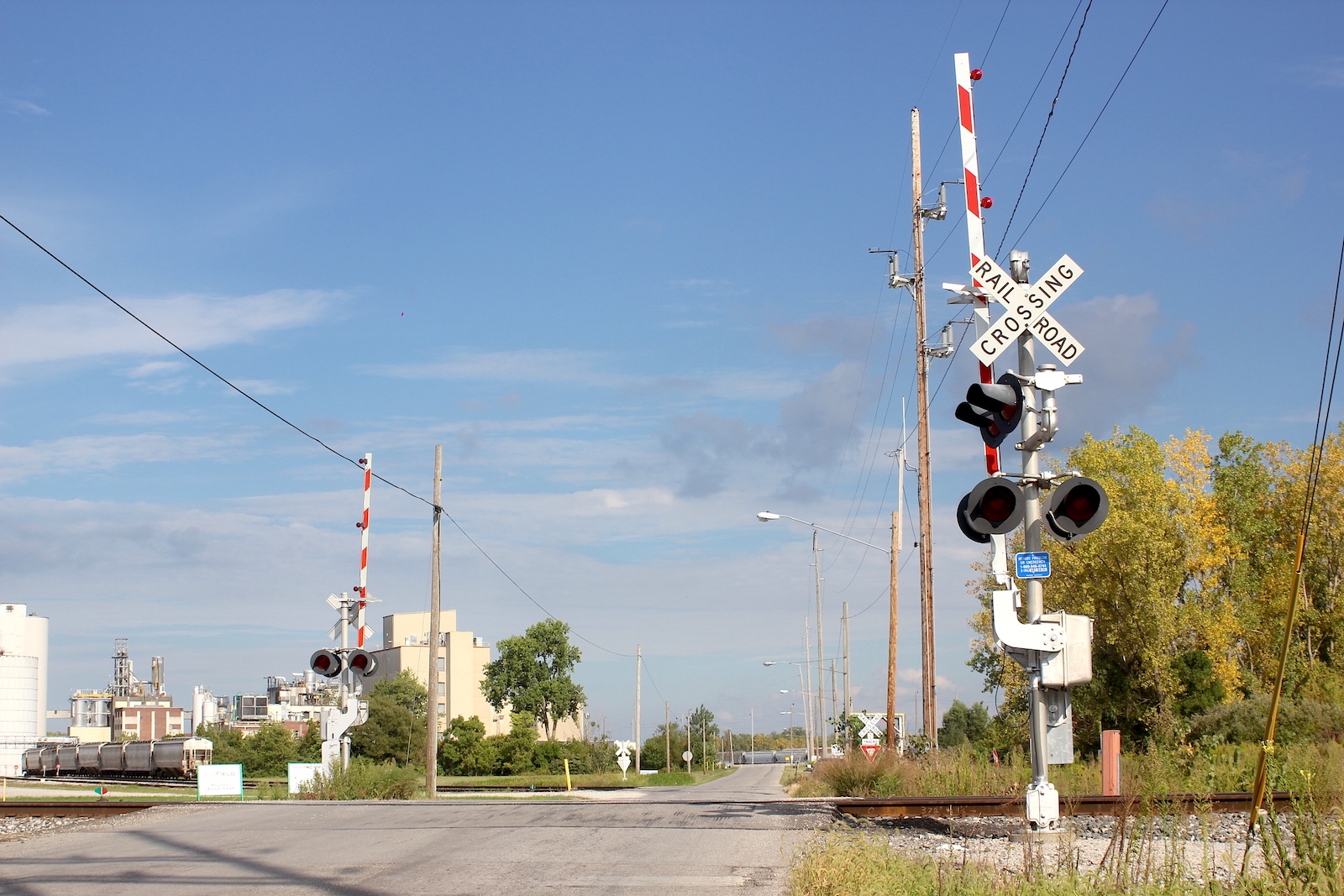

| In September 2016, we see the DOT signs were turned to face forward. |
