231.80


472329N

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: Safetran Type 3 E Bell None

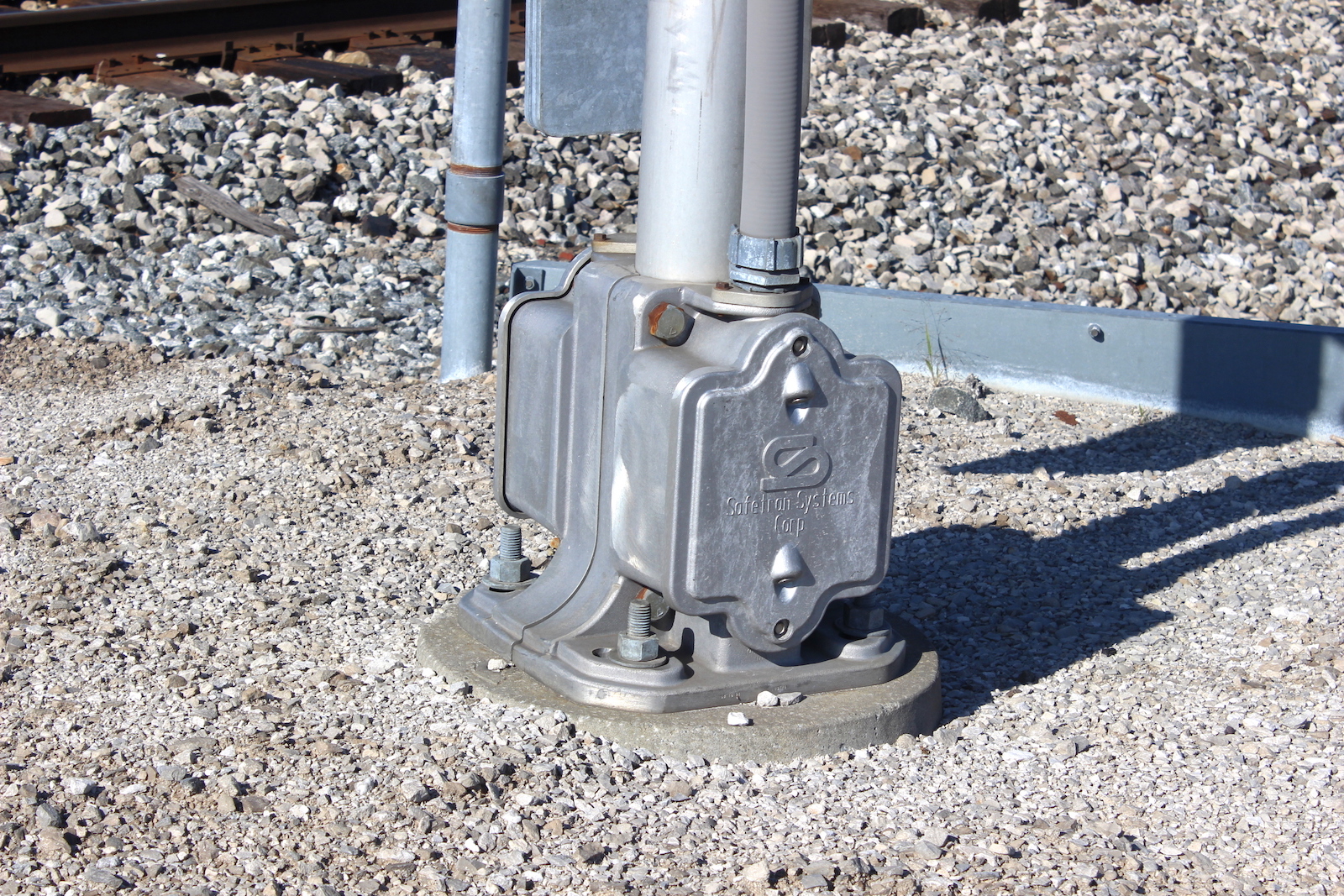

Base: Safetran 5" Double Sided ^ Safetran 5" Double Sided ^
Lights: 4 - 12"x20" Safetran incandescents 4 - 12"x20" Safetran incandescents

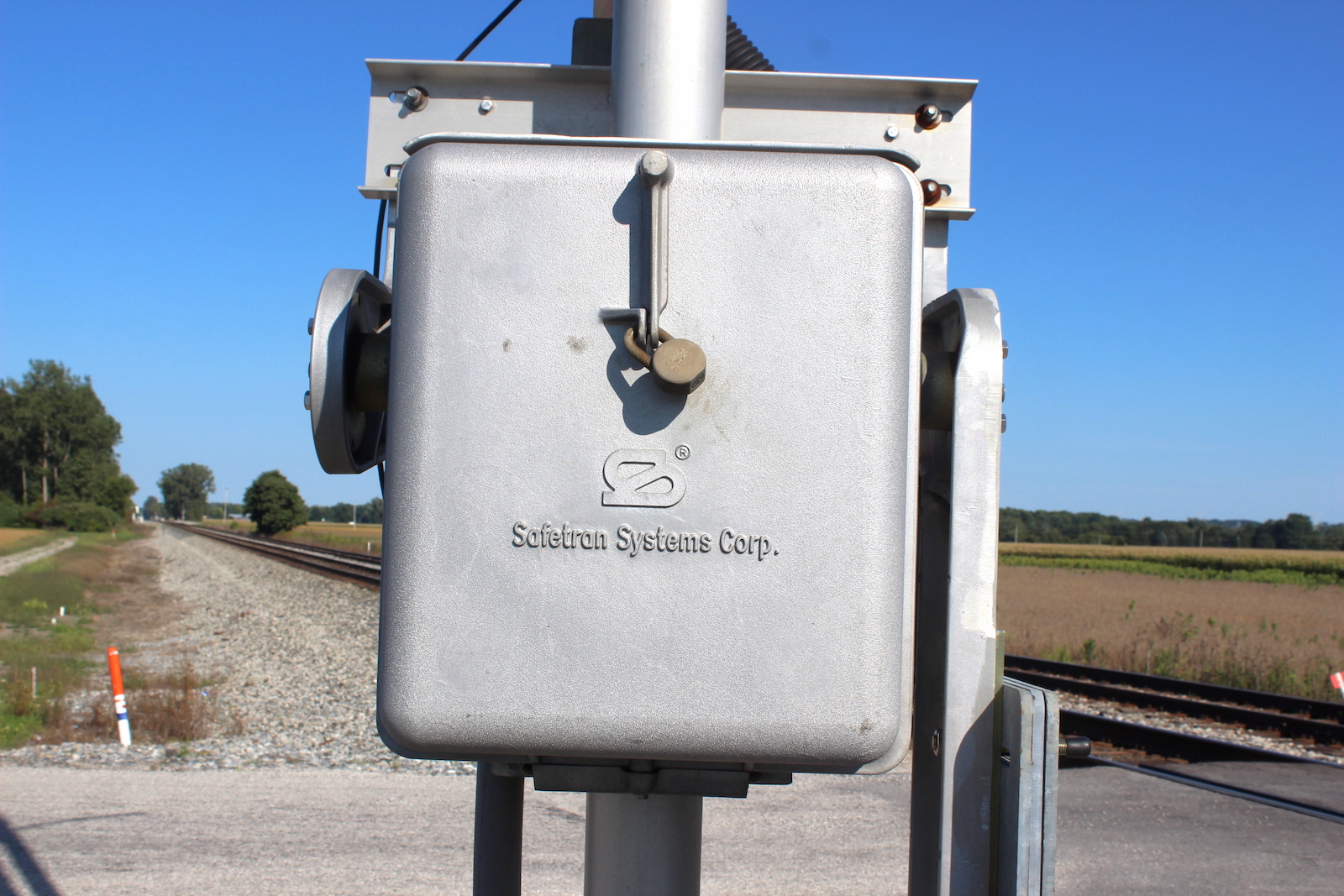

Junction Box: Safetran Safetran
Gate Lights: 4" NEG incandescents 4" NEG incandescents
Gate Mechanism: Safetran 2000s w/ NEG 1 Way Saver Safetran 2000s w/ NEG 1 Way Saver
Gate Striping: Diagonal Striping Diagonal Striping

Pictures 1-25 were taken on September 15, 2015.
Pictures 26-29 were taken on May 26, 2016.
The video was taken on May 19, 2016.
All pictures and video were taken by Tommy McGowan.
This crossing is located on the NS Cleveland District.

1
 2

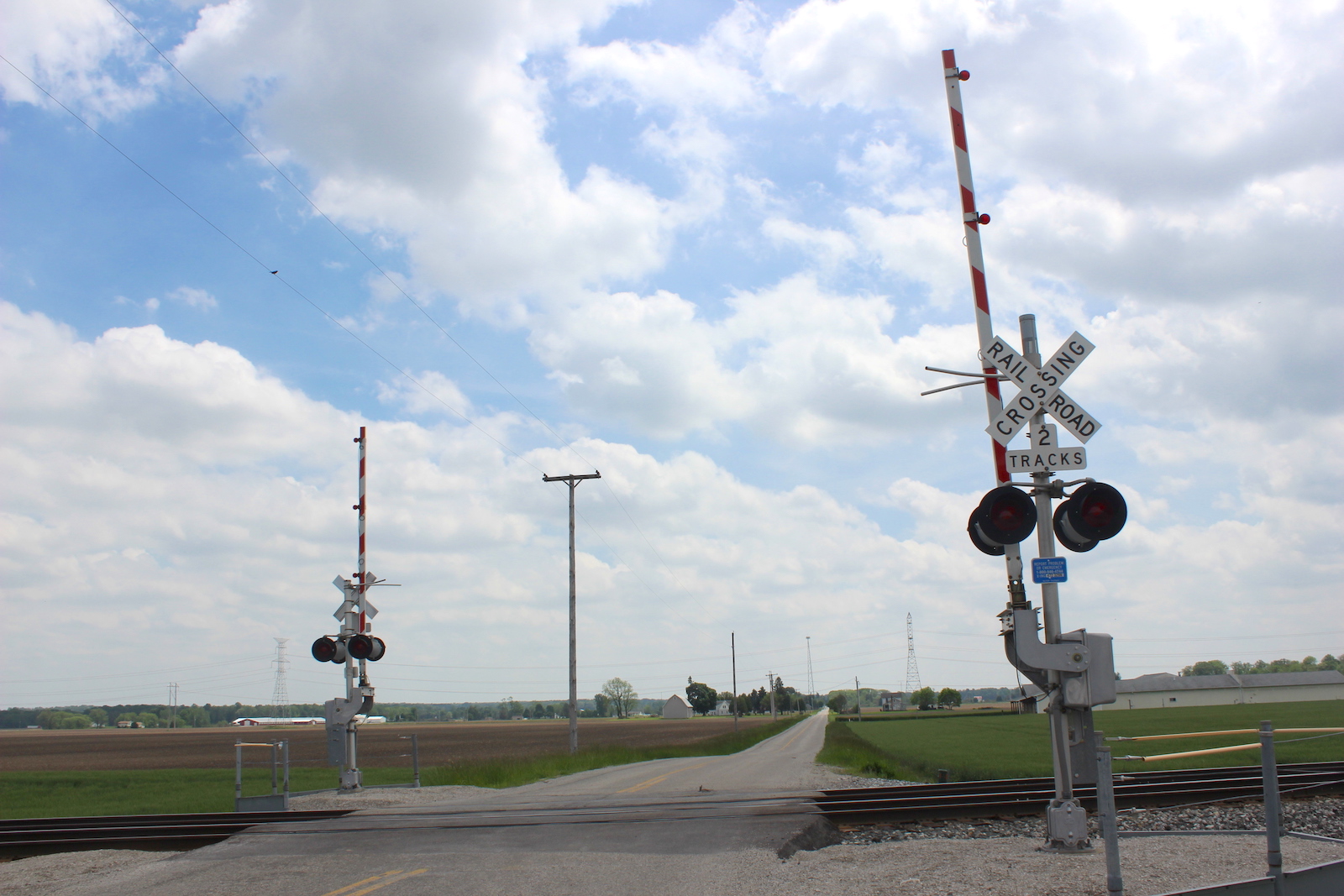

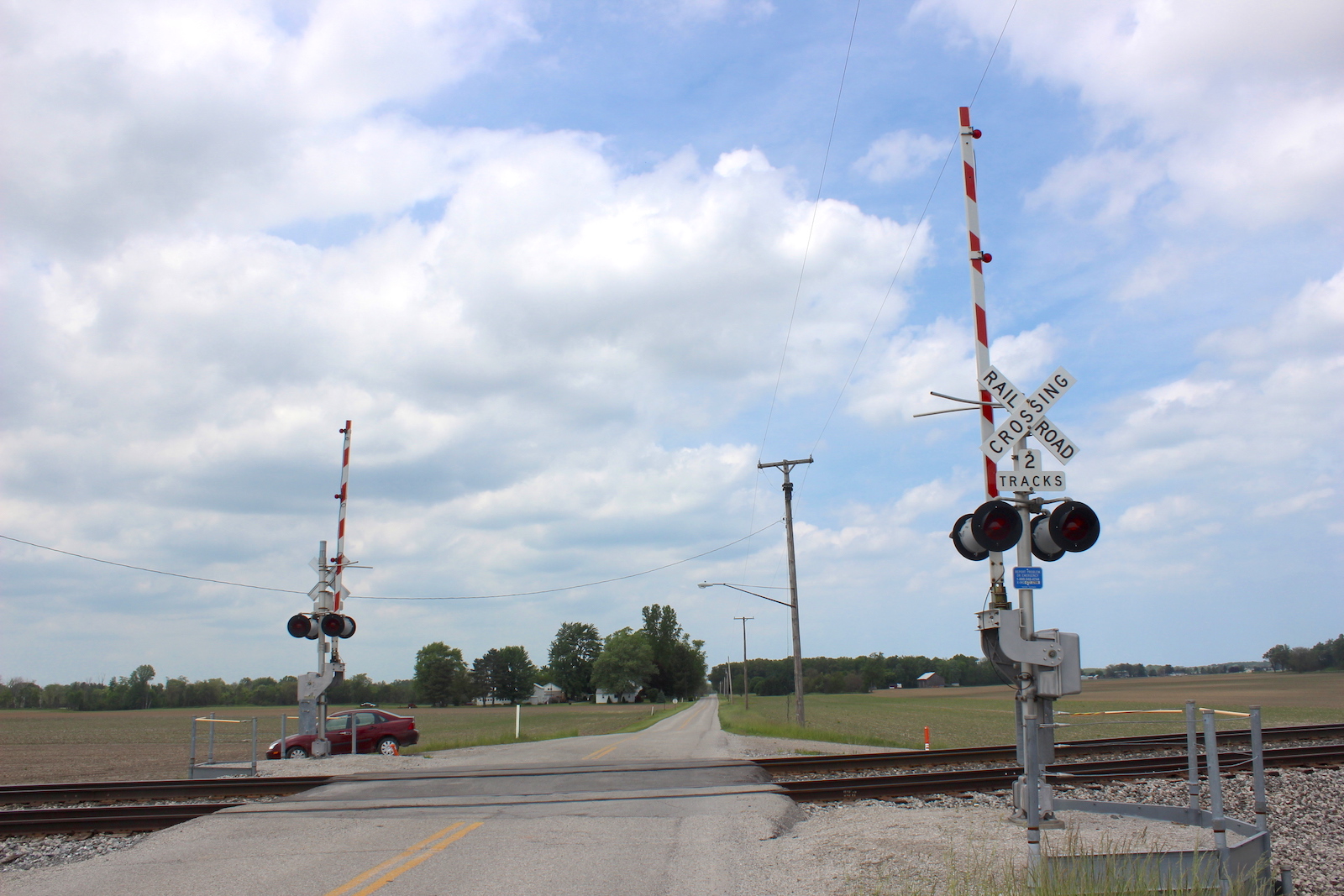

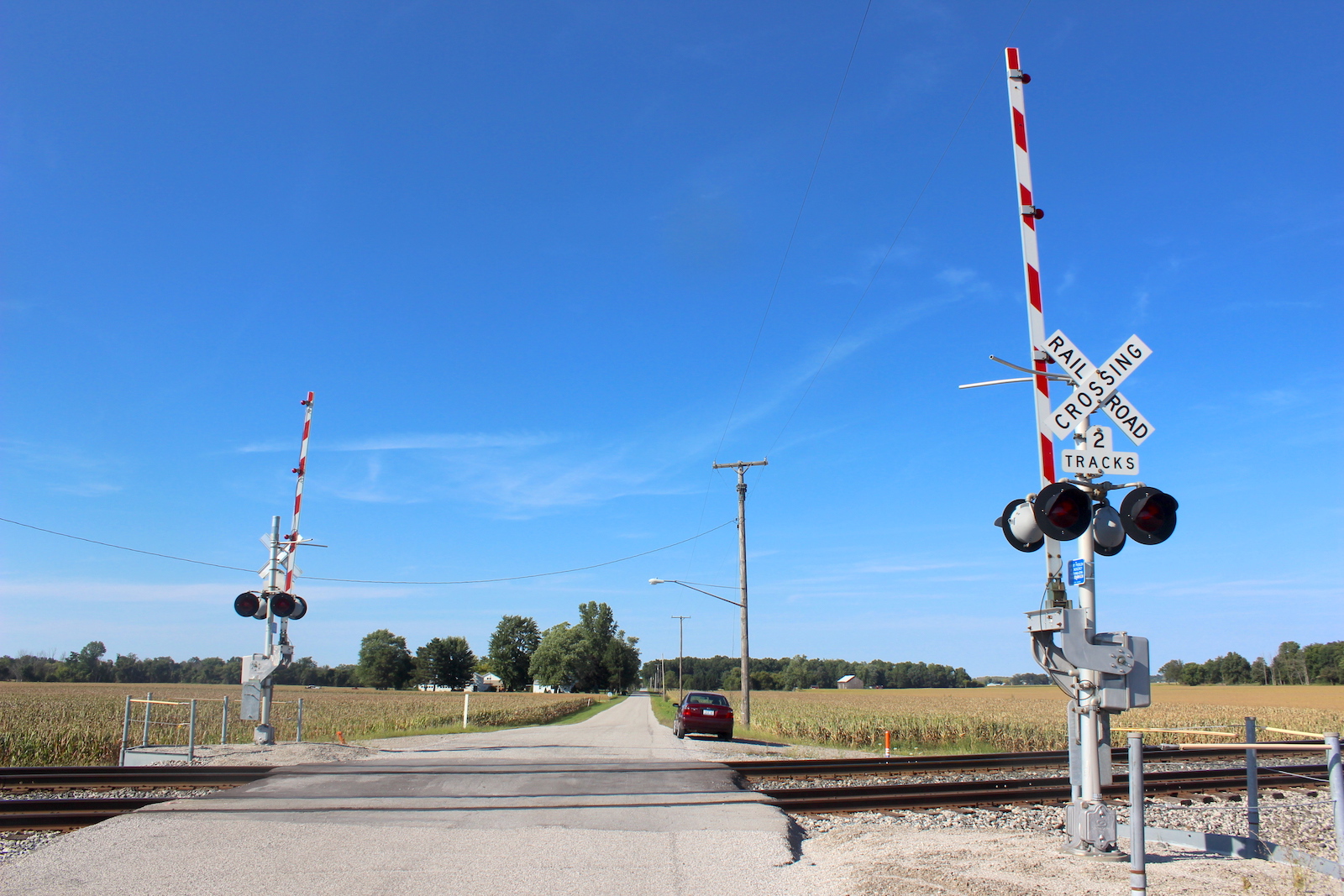

Overview of 2 gated signals facing north.

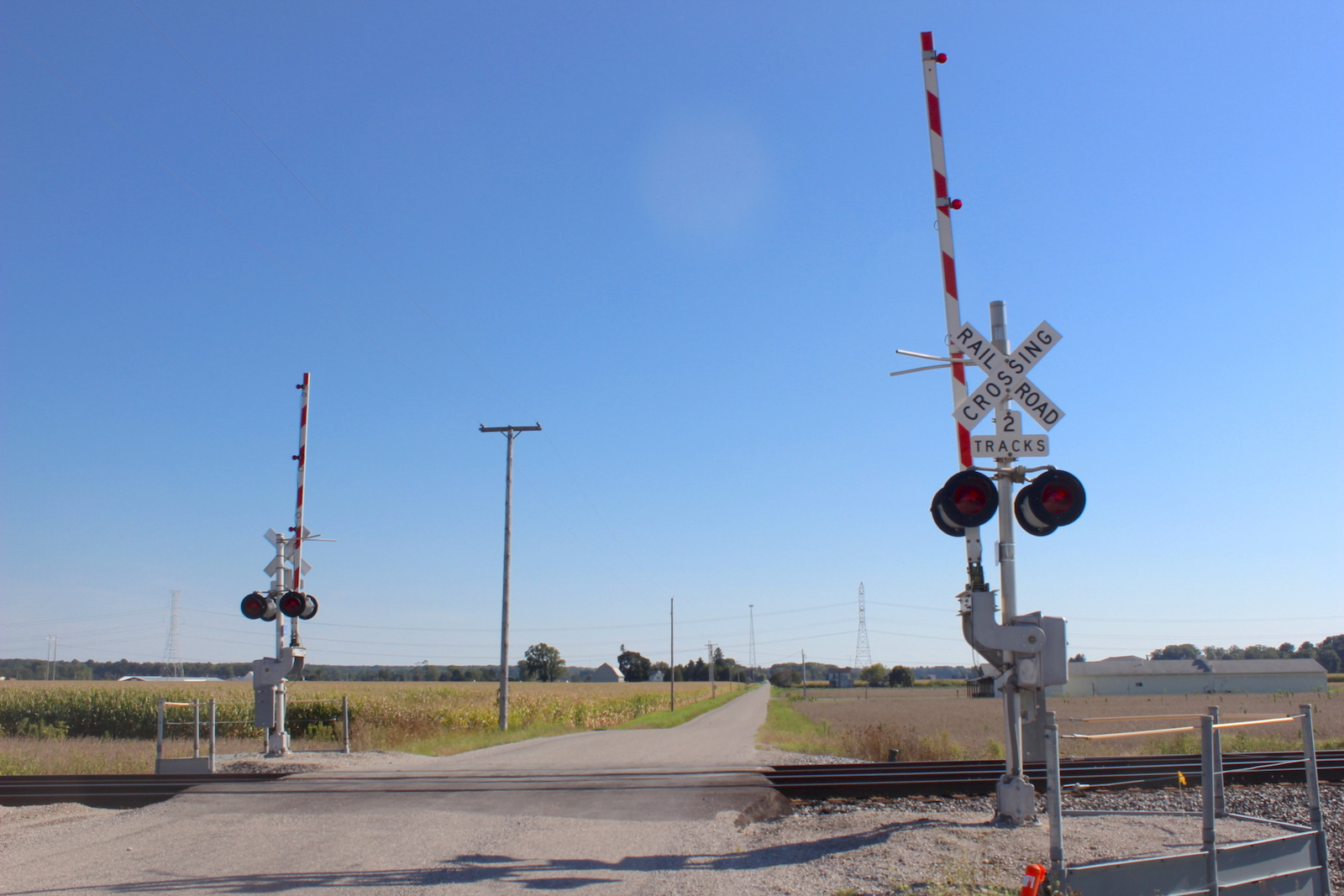

 Overview facing south.
3 4 5
6 7 8
9 10 11

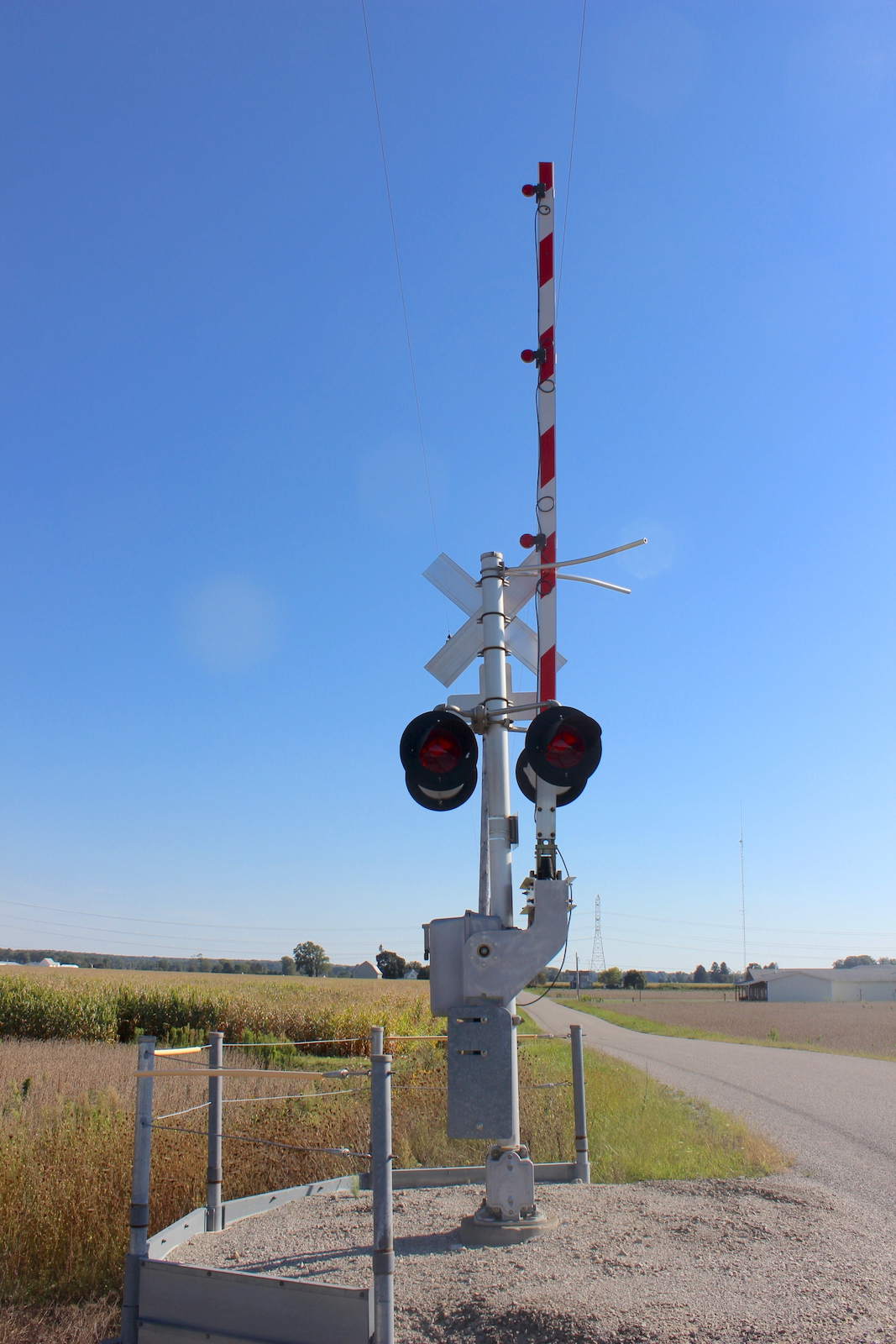

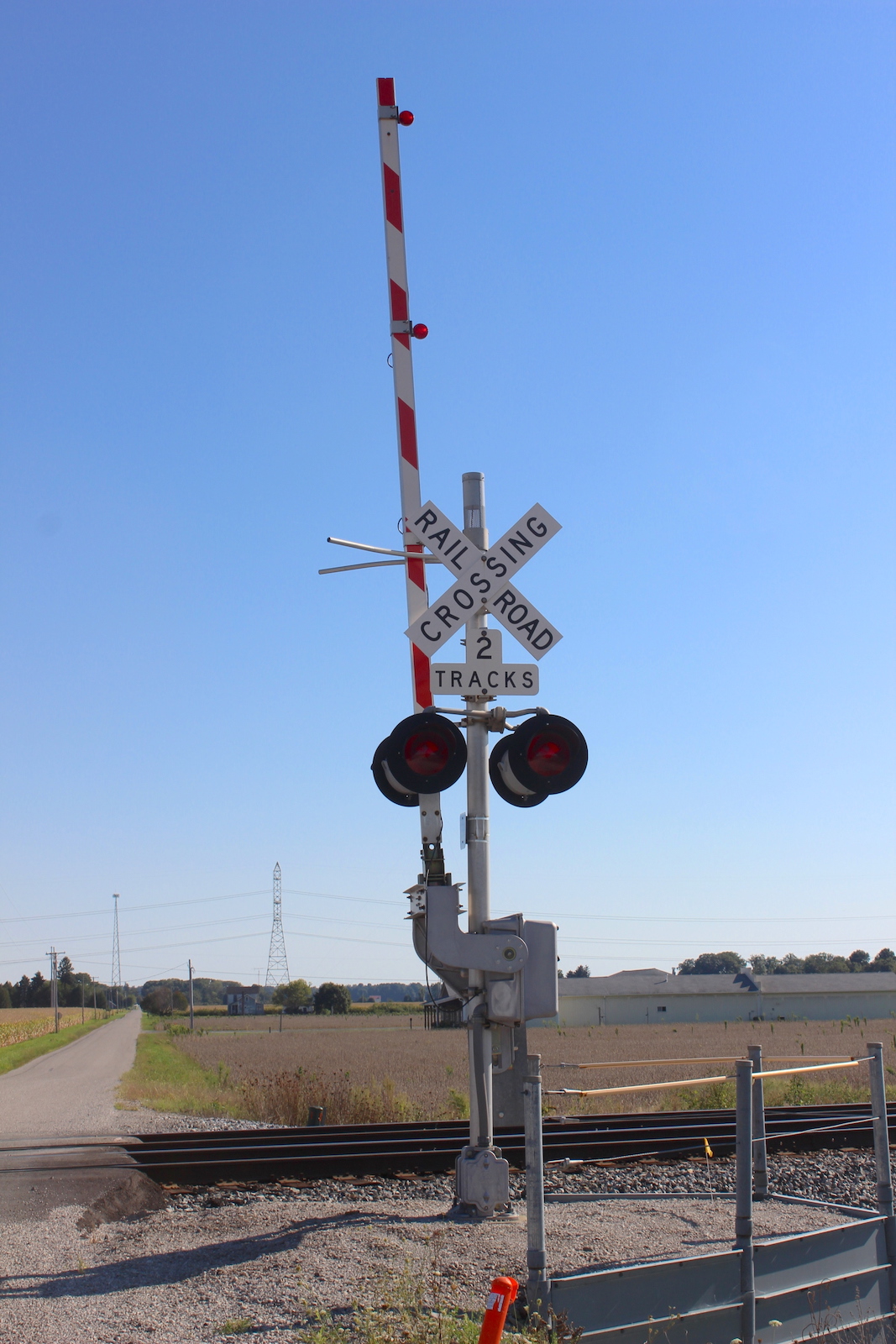

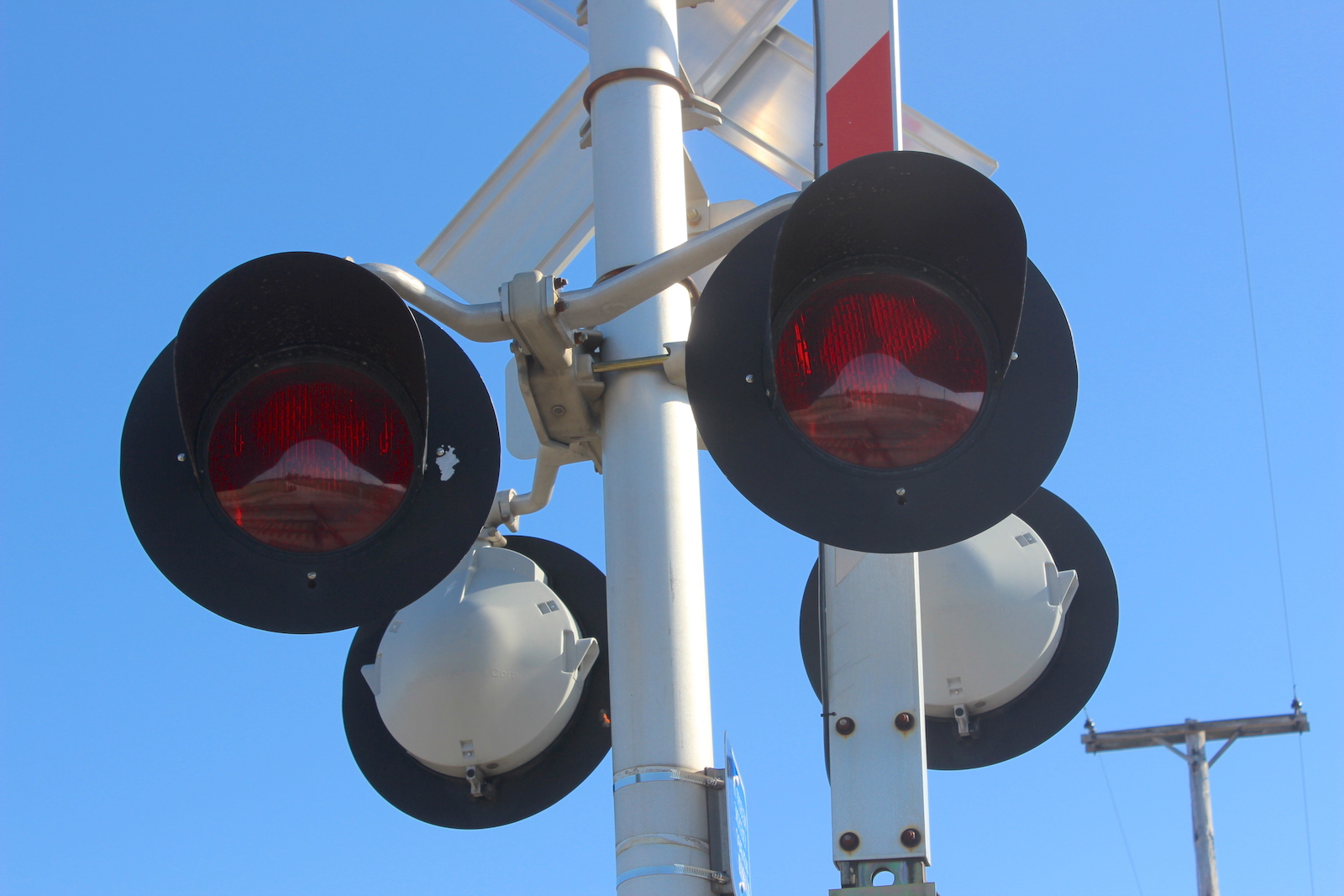

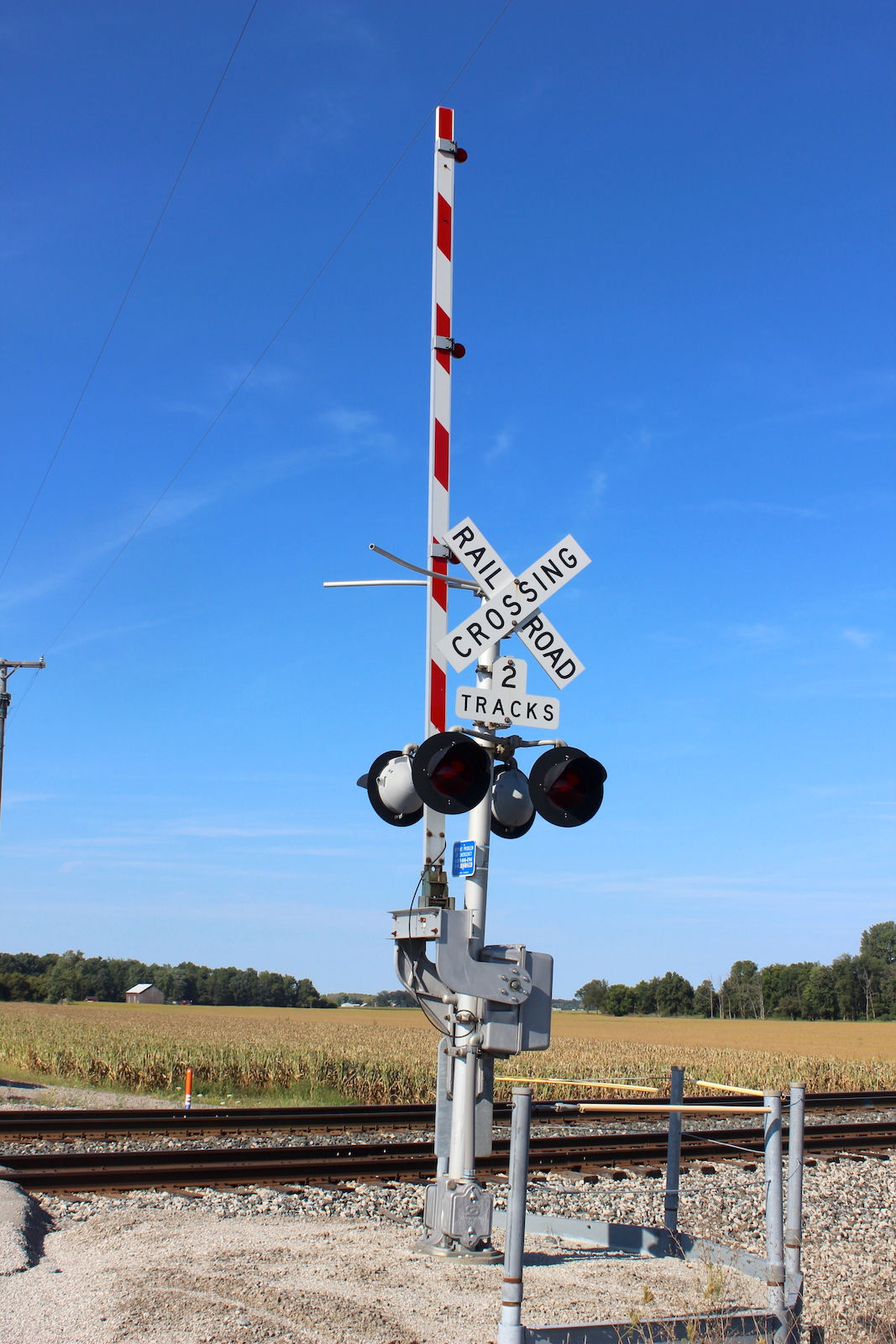

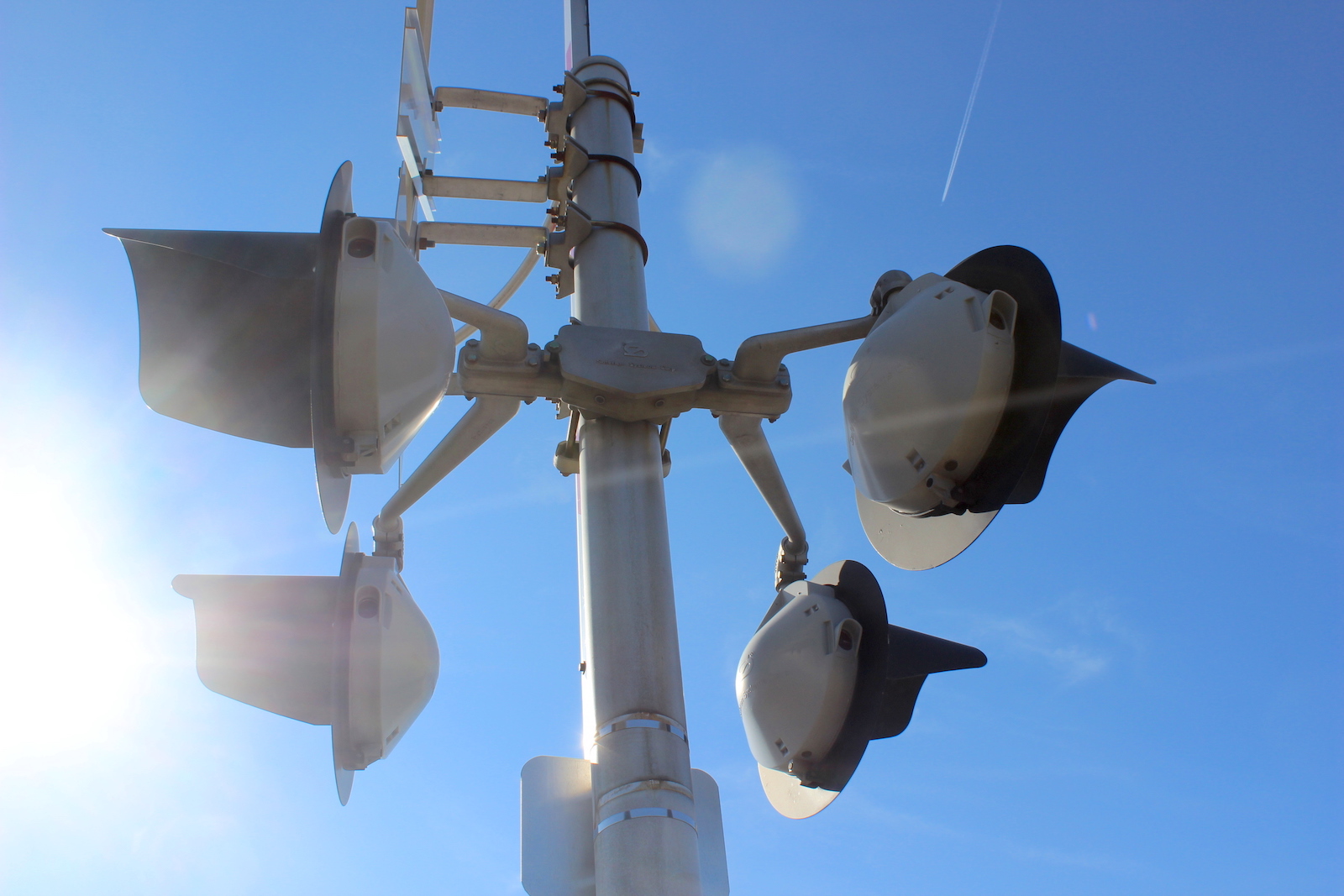

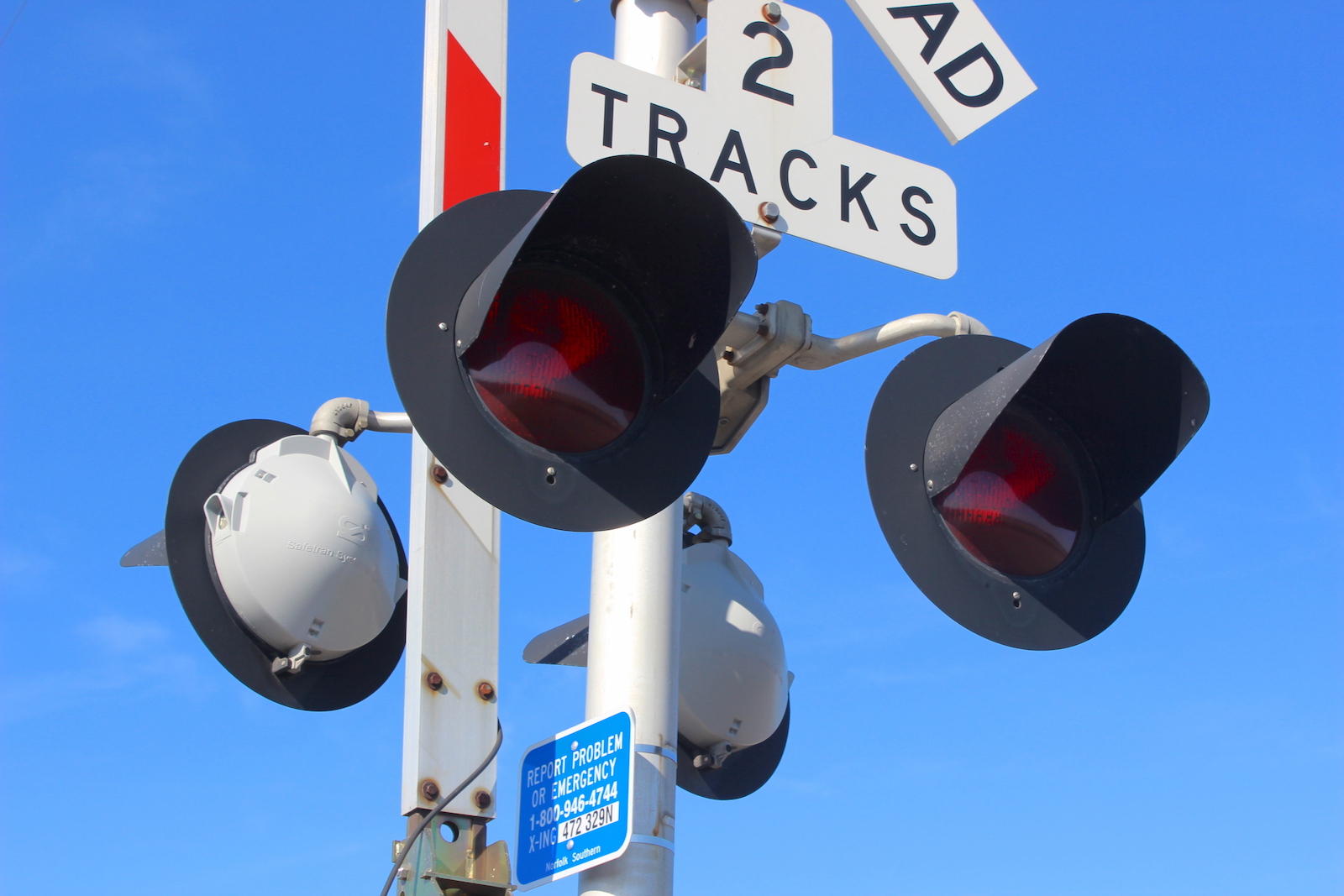

The southern signal.
12 13 14
15 16 17
18 19 20
21

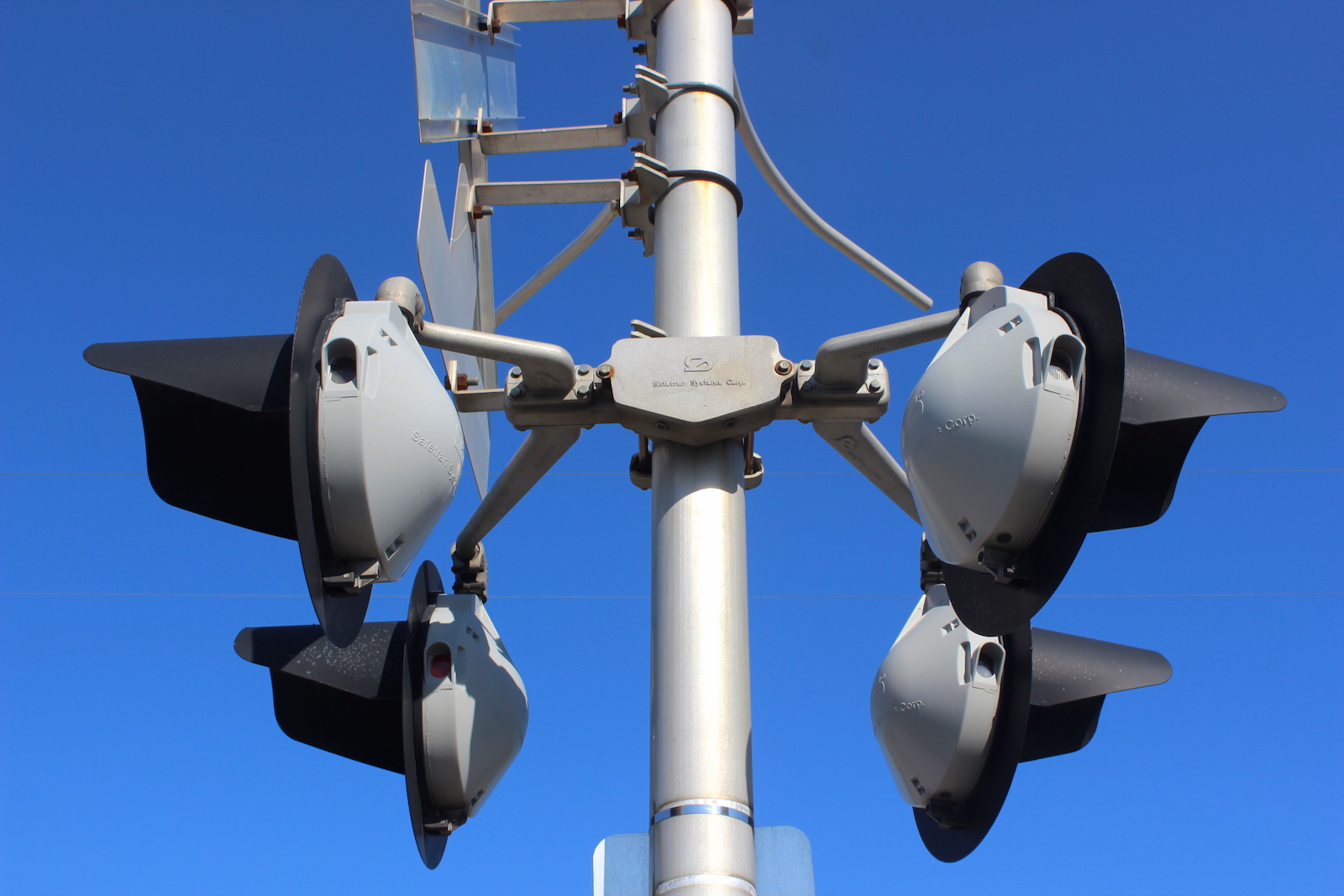

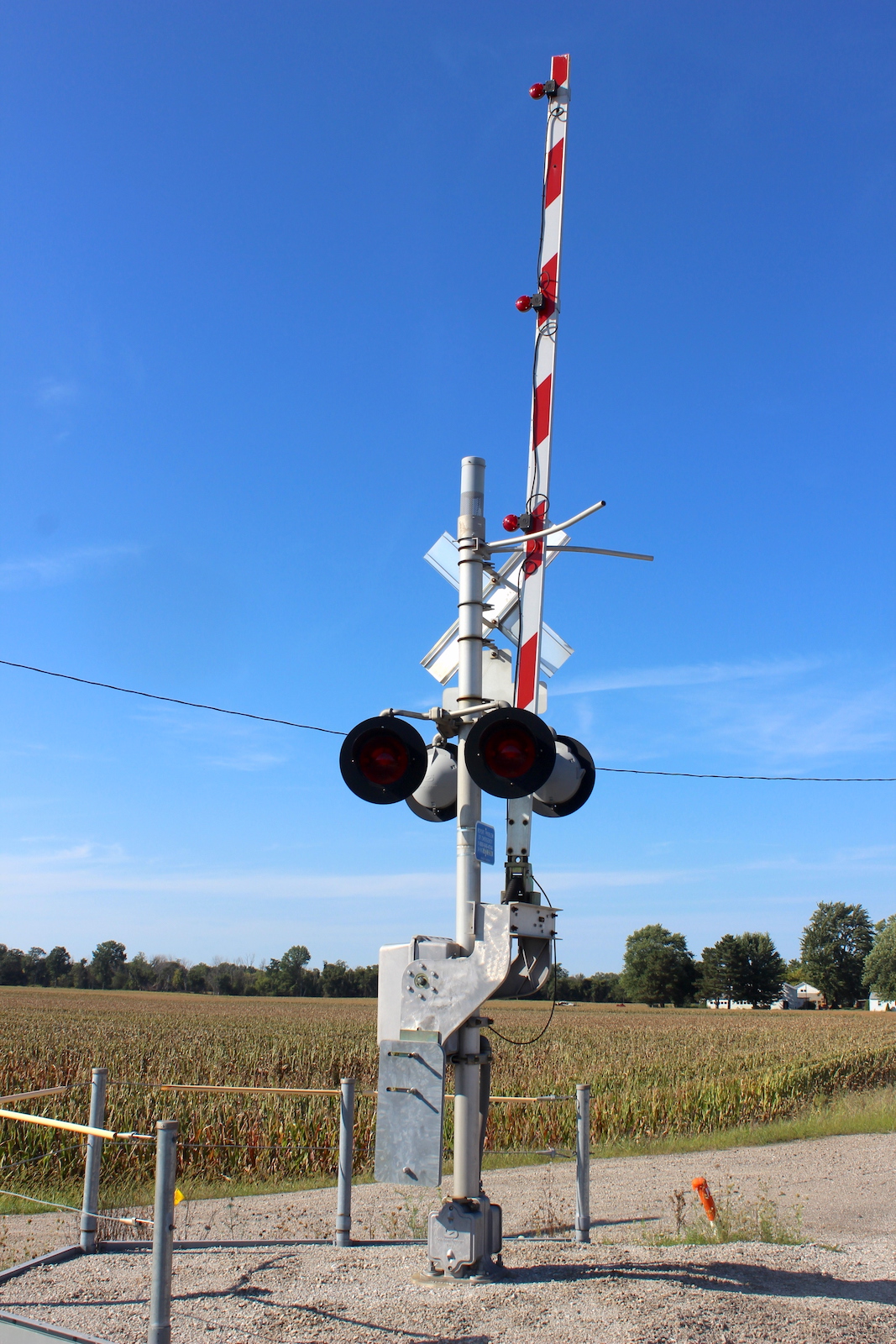

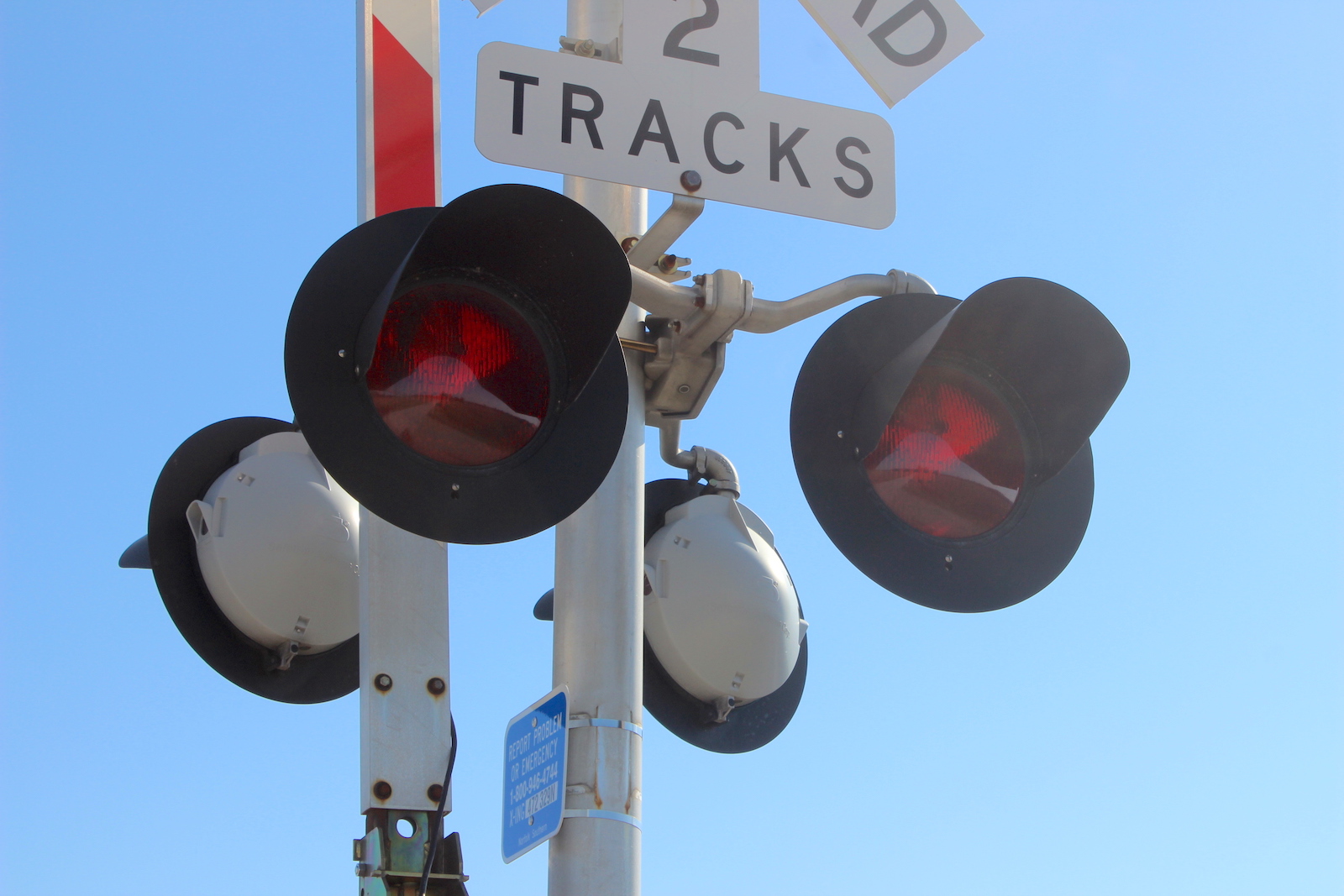

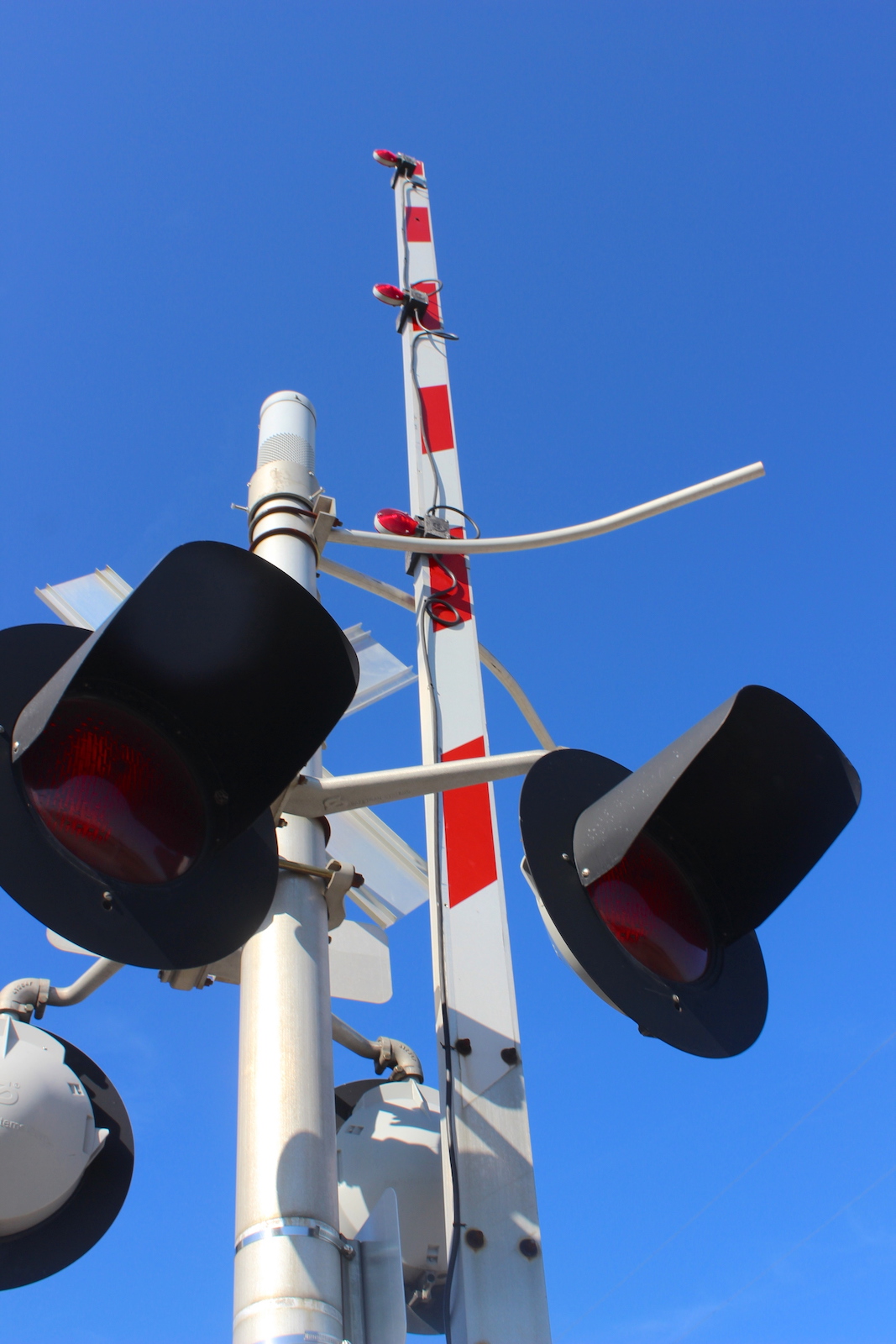

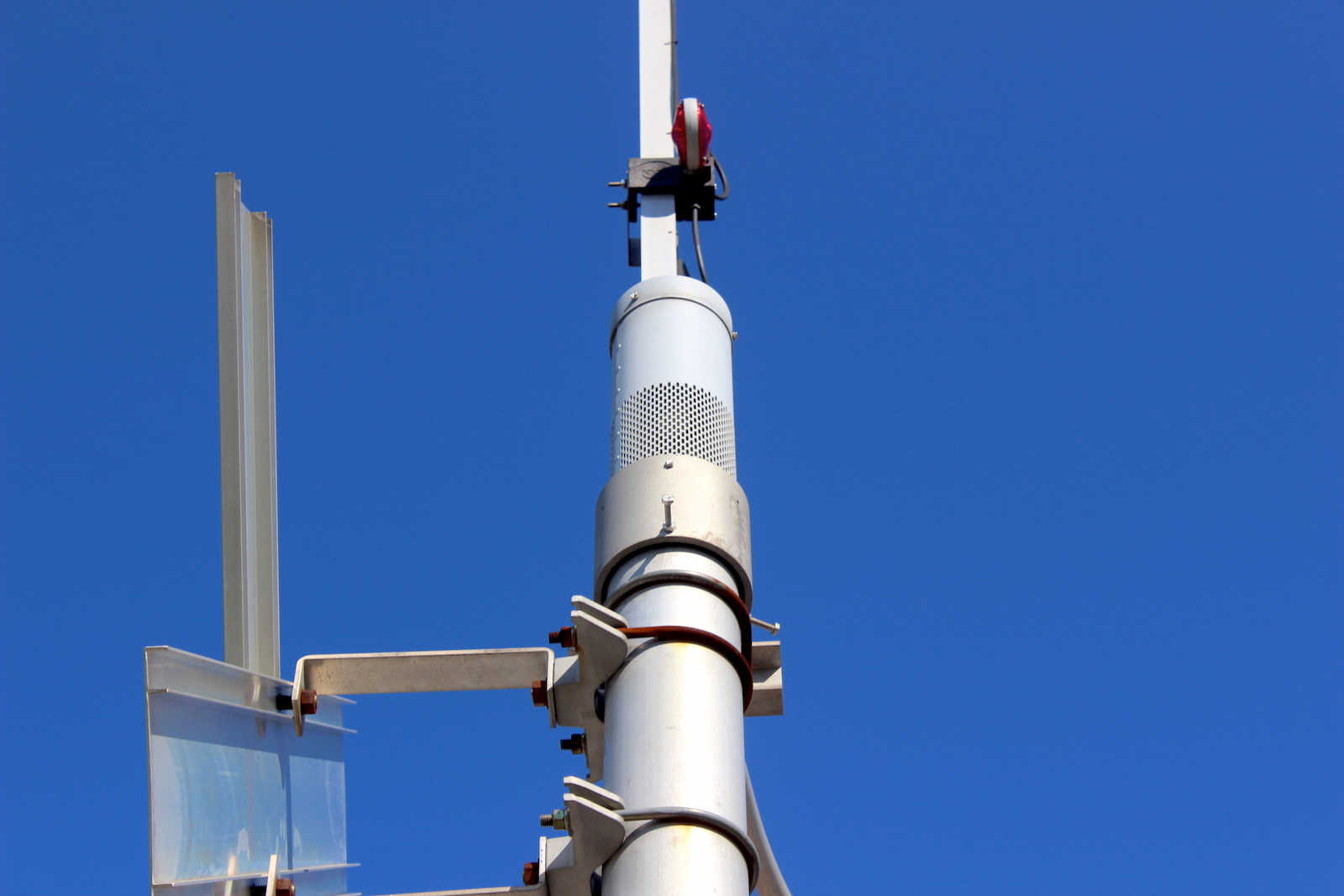

The northern signal.
22 23 24 25

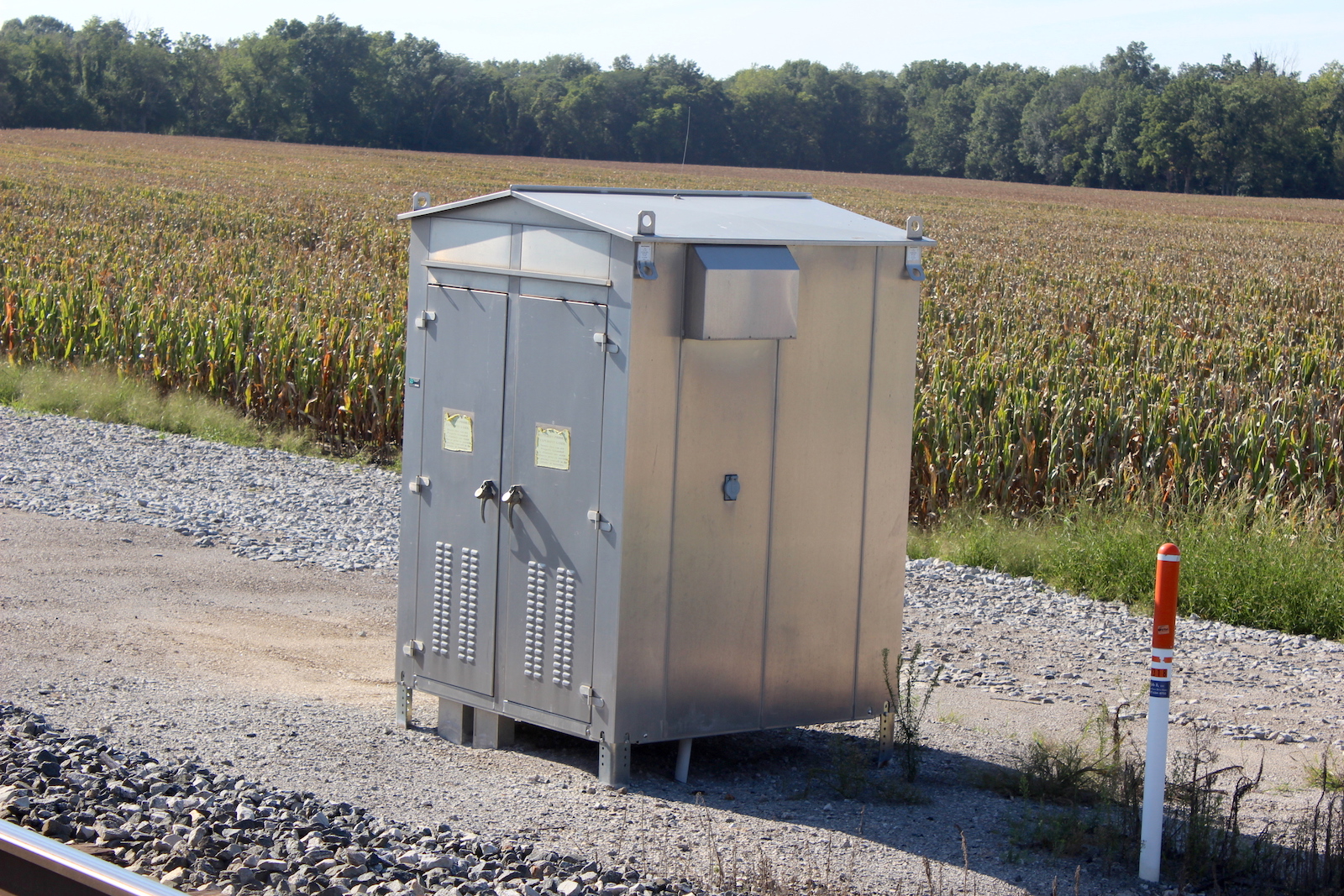

The relay bungalow in the northwest quadrant.

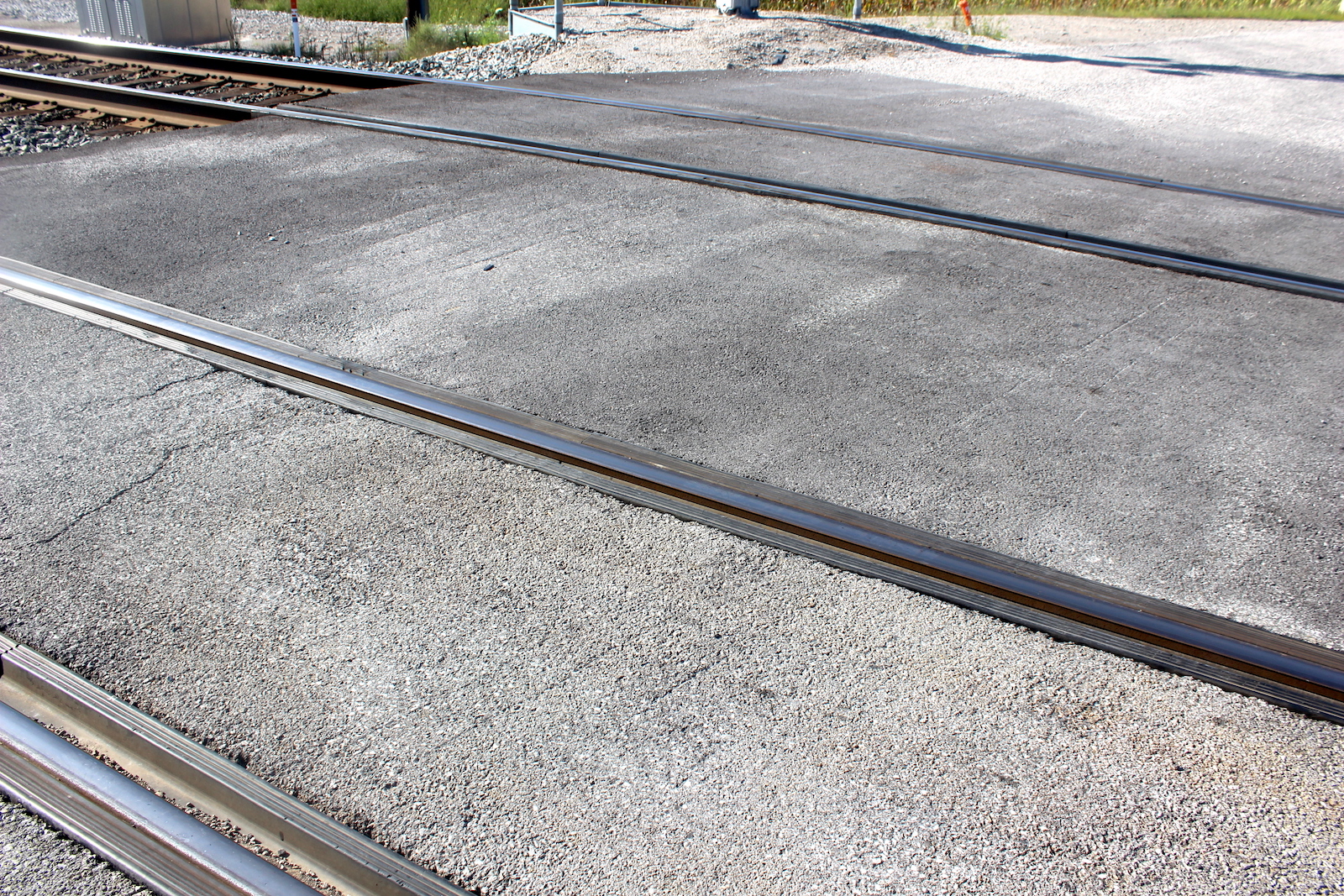

The grade is rubber and asphalt.

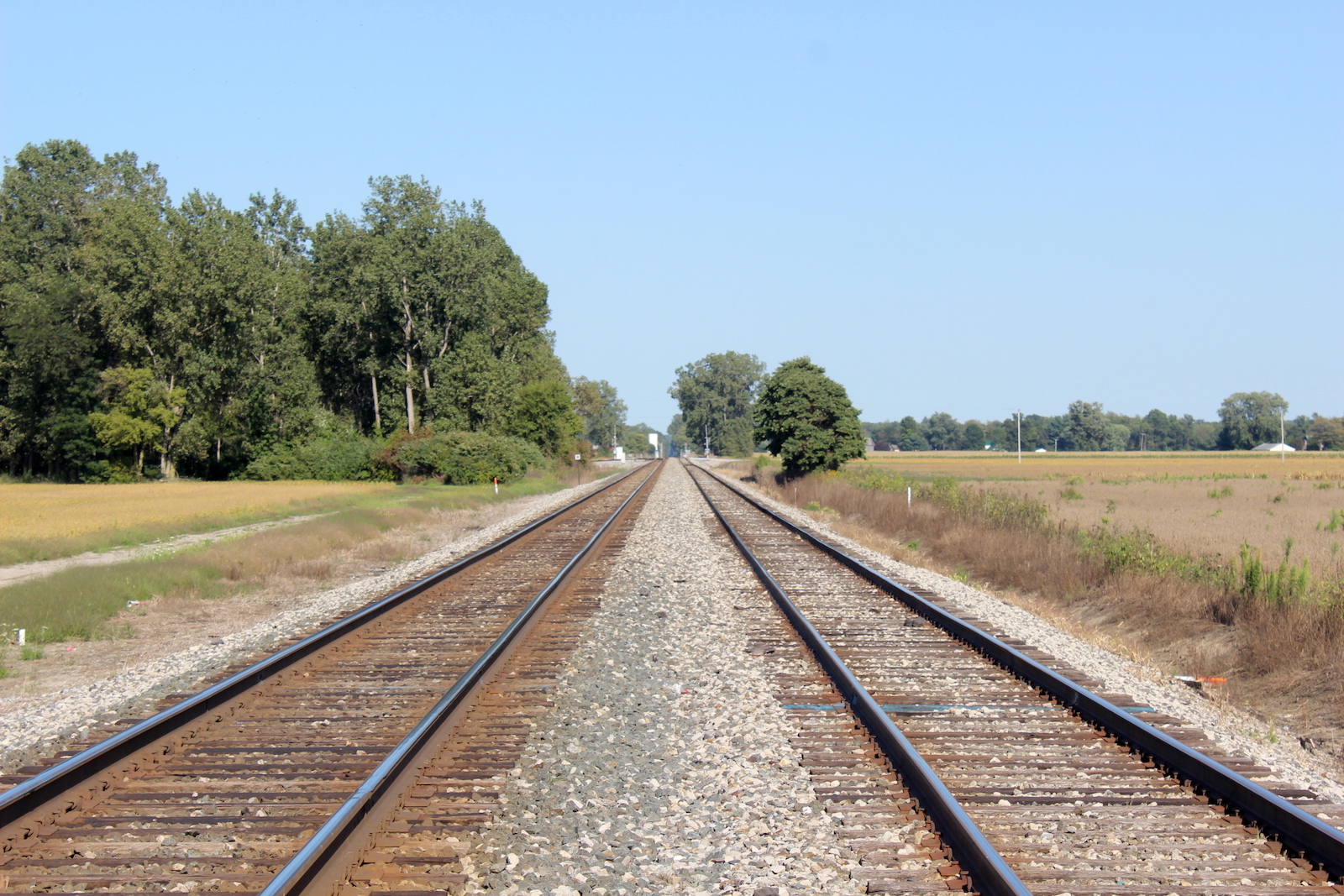

Track view facing west towards Hoover Rd. in Milan.

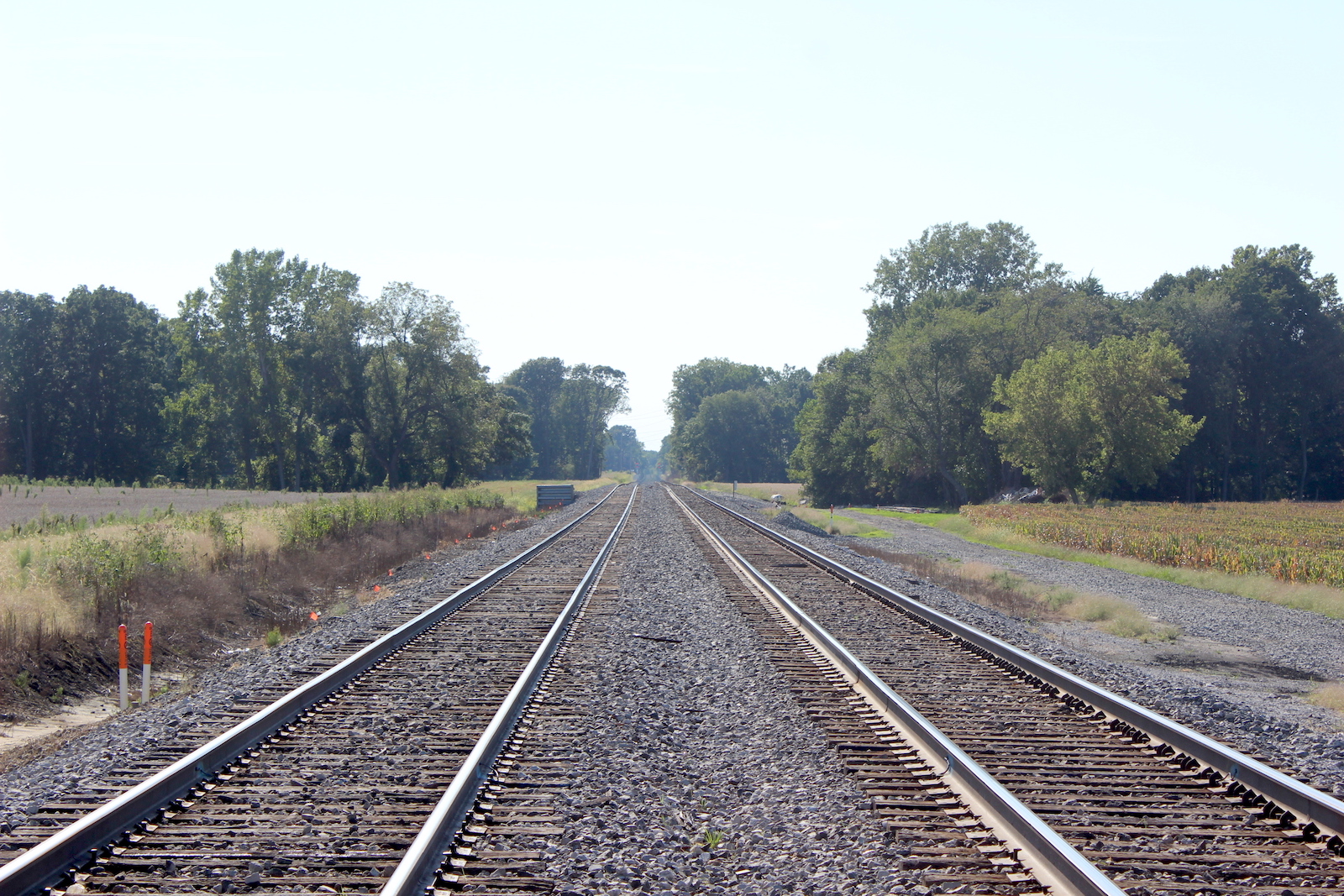

Track view facing east towards Jeffries Rd.
26 27 28 29
The relay bungalow in the northwest quadrant.
 The grade is rubber and asphalt.
 Track view facing west towards Hoover Rd. in Milan.
 Track view facing east towards Jeffries Rd.
