Total Accidents:
6 Crossing DOT #: 524054E TOTAL DAILY
TRAINS: 94 (AS OF 2014)
>>>>>>>>>>>>>>
Northern Signal
Southern Signal
Bell:
Safetran Type 3 E-Bell
None
Base:
Siemens 5" Single Sided ^
Siemens 5" Single Sided ^
Lights:
4 - 12"x20" Safetran incandescents
4 - 12"x20" Safetran incandescents
Junction Box:
Safetran
Safetran
Gate Lights:
3 - 4" NEG LEDs
3 - 4" NEG LEDs
Gate Mechanism:
Siemens Imprinted w/ NEG 1 Way Saver
Siemens Imprinted w/ NEG 1 Way Saver
Gate Striping:
Vertical Striping
Vertical Striping
Pictures 1-19 were taken on April 20, 2014.
Pictures 20-22 were taken on June 10, 2015.
The 1st video was taken on October 9, 2015.
Pictures 23-29 and the 2nd video were taken on October 12, 2016.
Pictures 30-54 were taken on April 26, 2021.
All pictures and videos were taken by Tommy McGowan.
This crossing is located on the NS Chicago Lien.
O1
O2
O3
O4

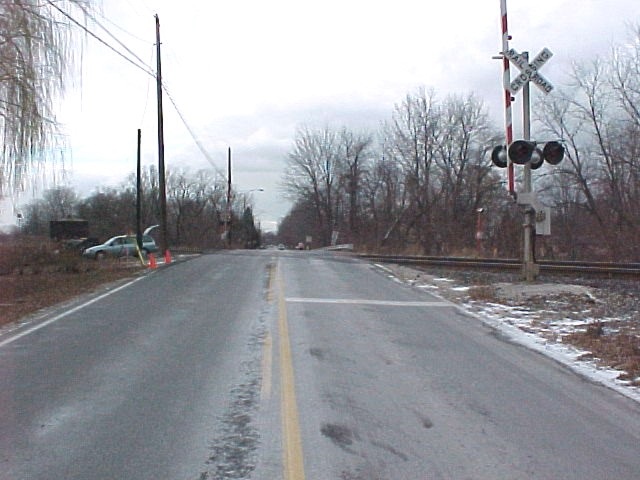

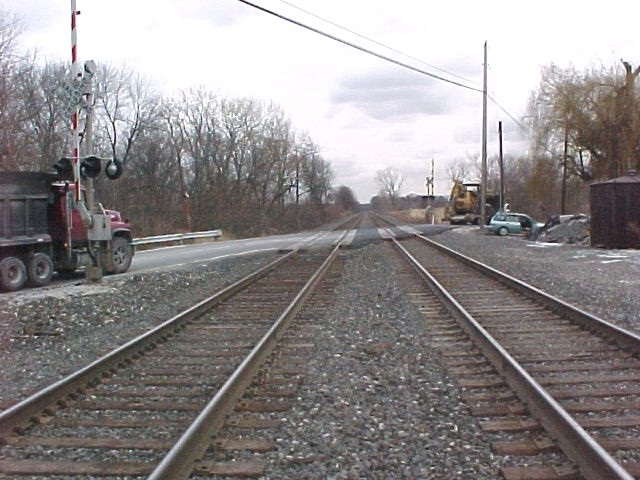

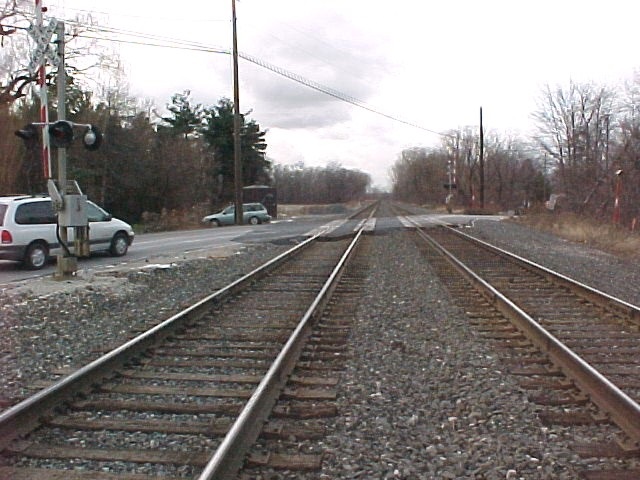

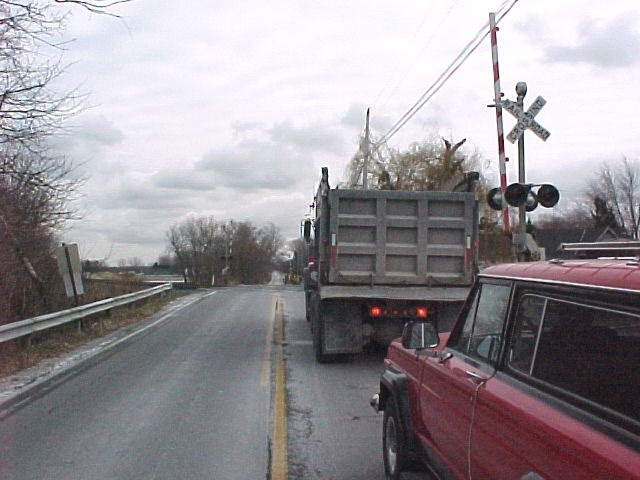

PUCO pictures from the late 90s or early 2000s showing a Conrail setup with 8" lights, Safetran Model 85 gate mechanisms, and a Safetran Mechanical Bell. By 2014, both gates were replaced, and the Safetran bell was replaced by a GS Type 2.
1
2

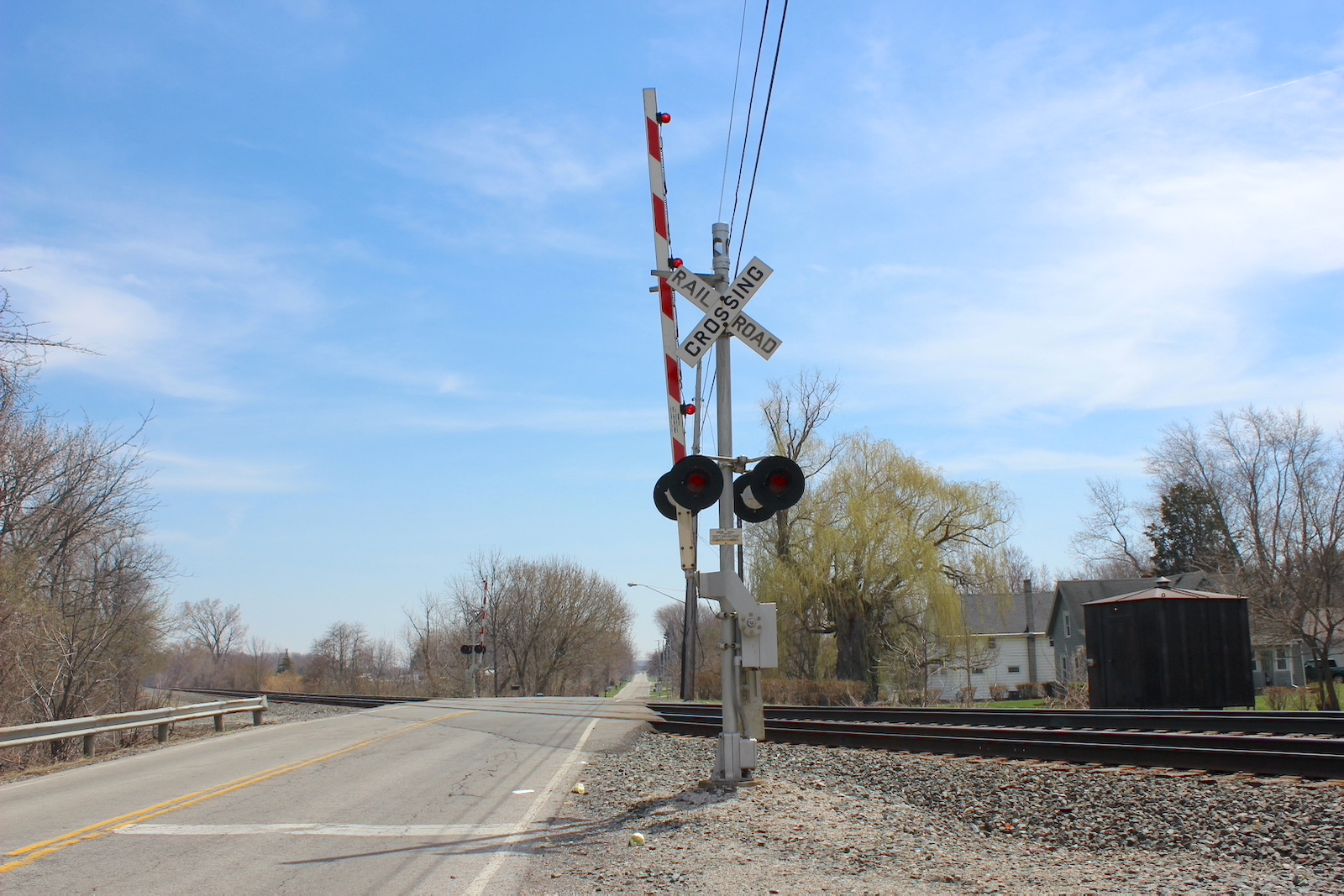

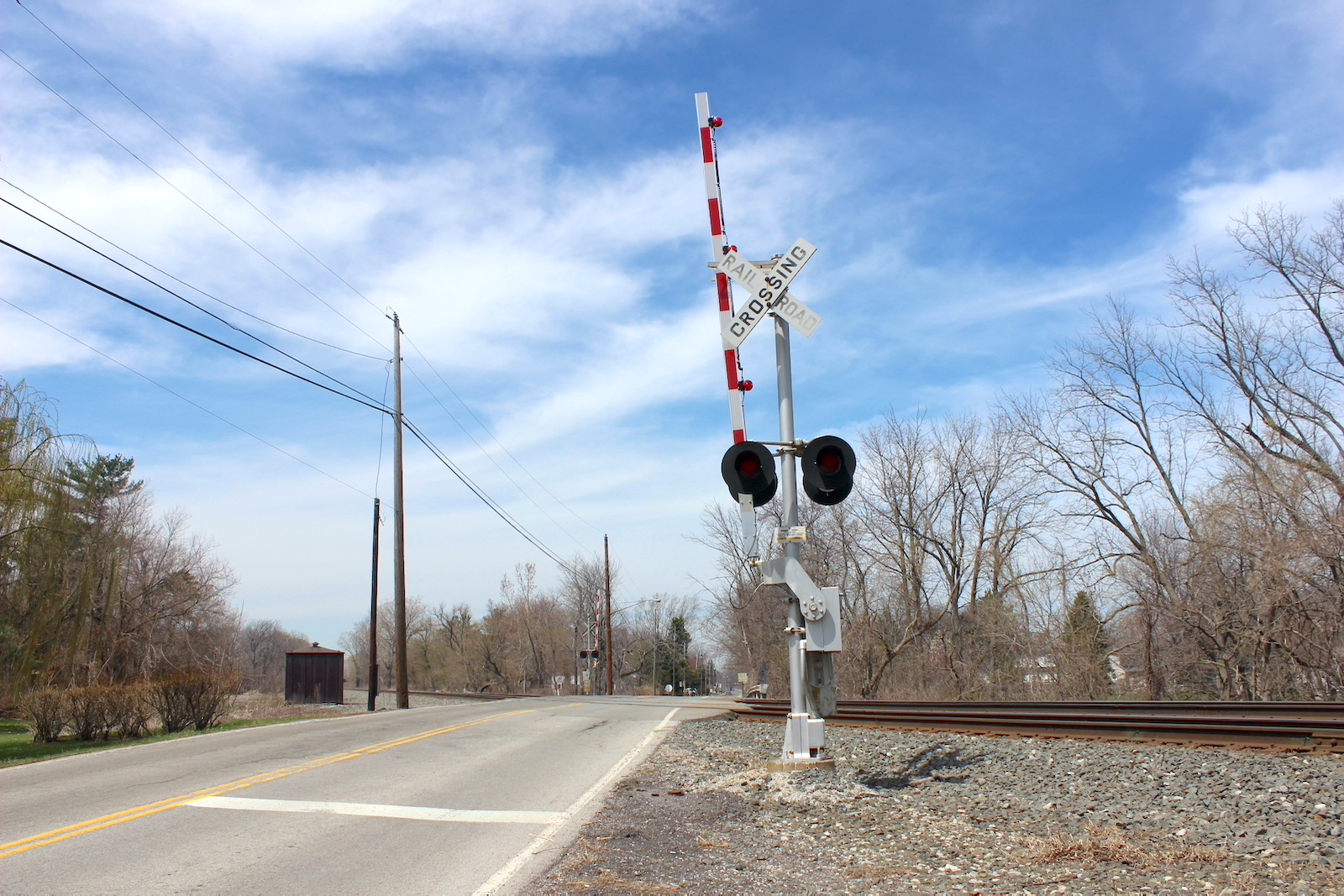

Overview of 2 gated signals facing south.
Overview facing north.
3
4
5
6
7
8
9

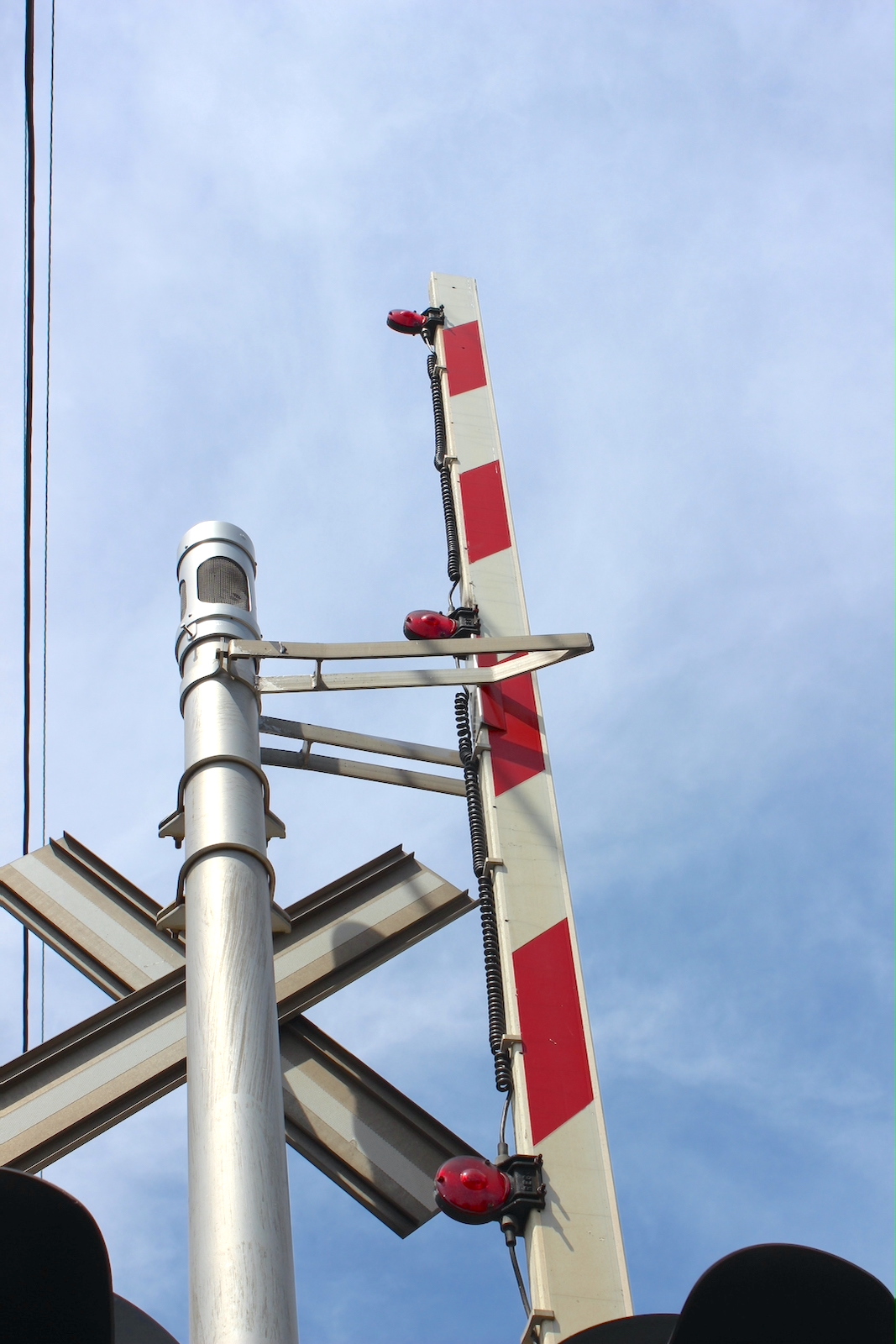

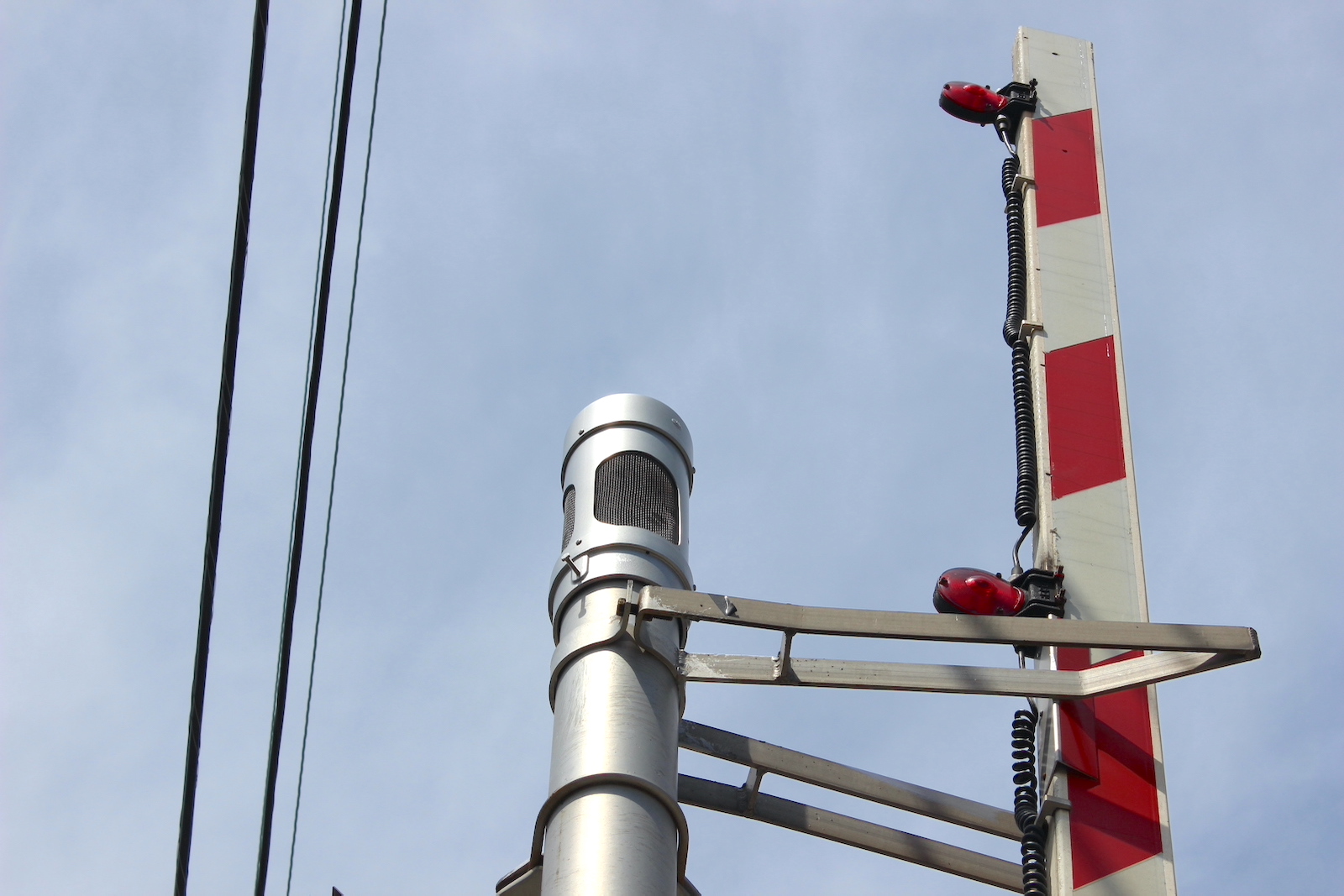

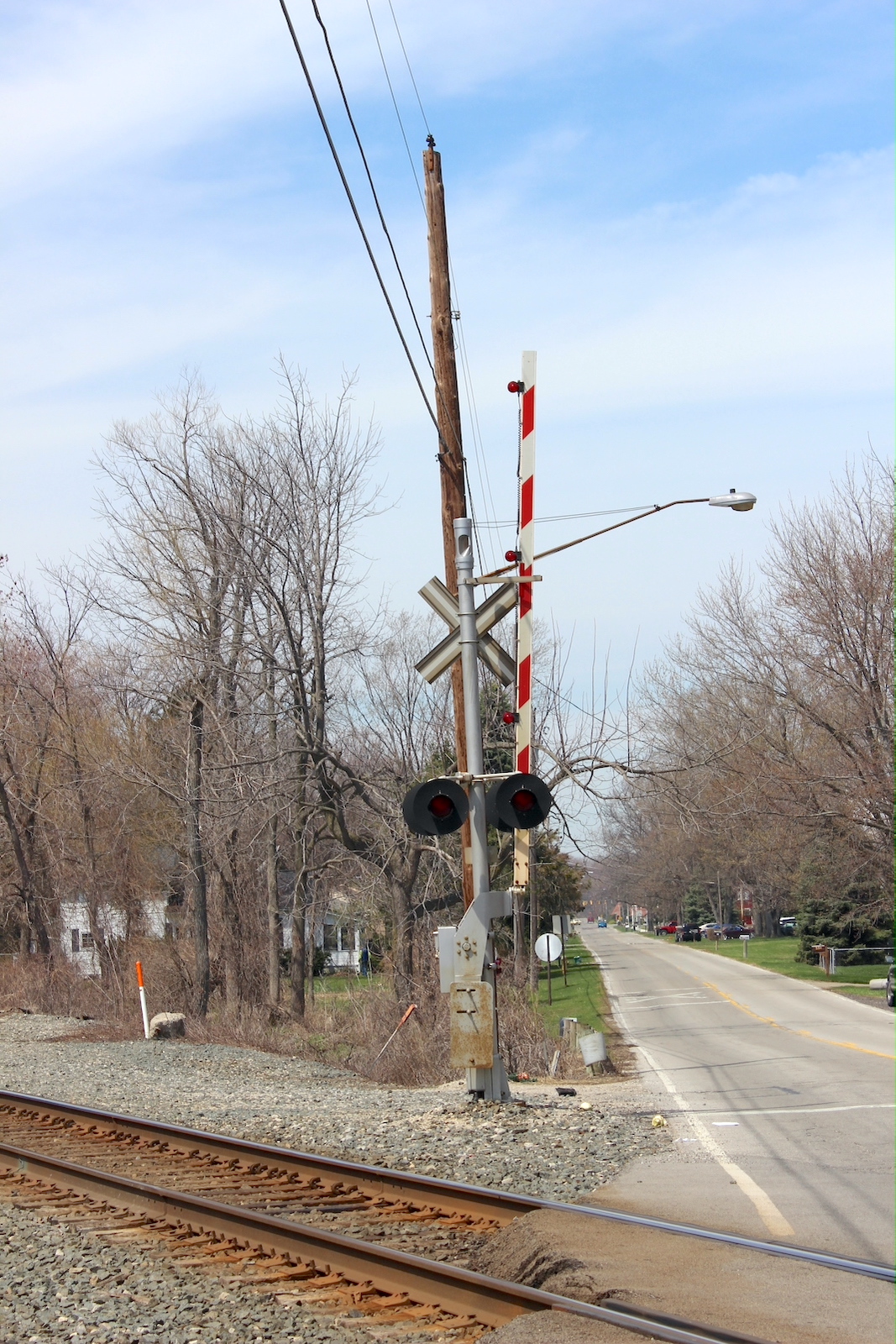

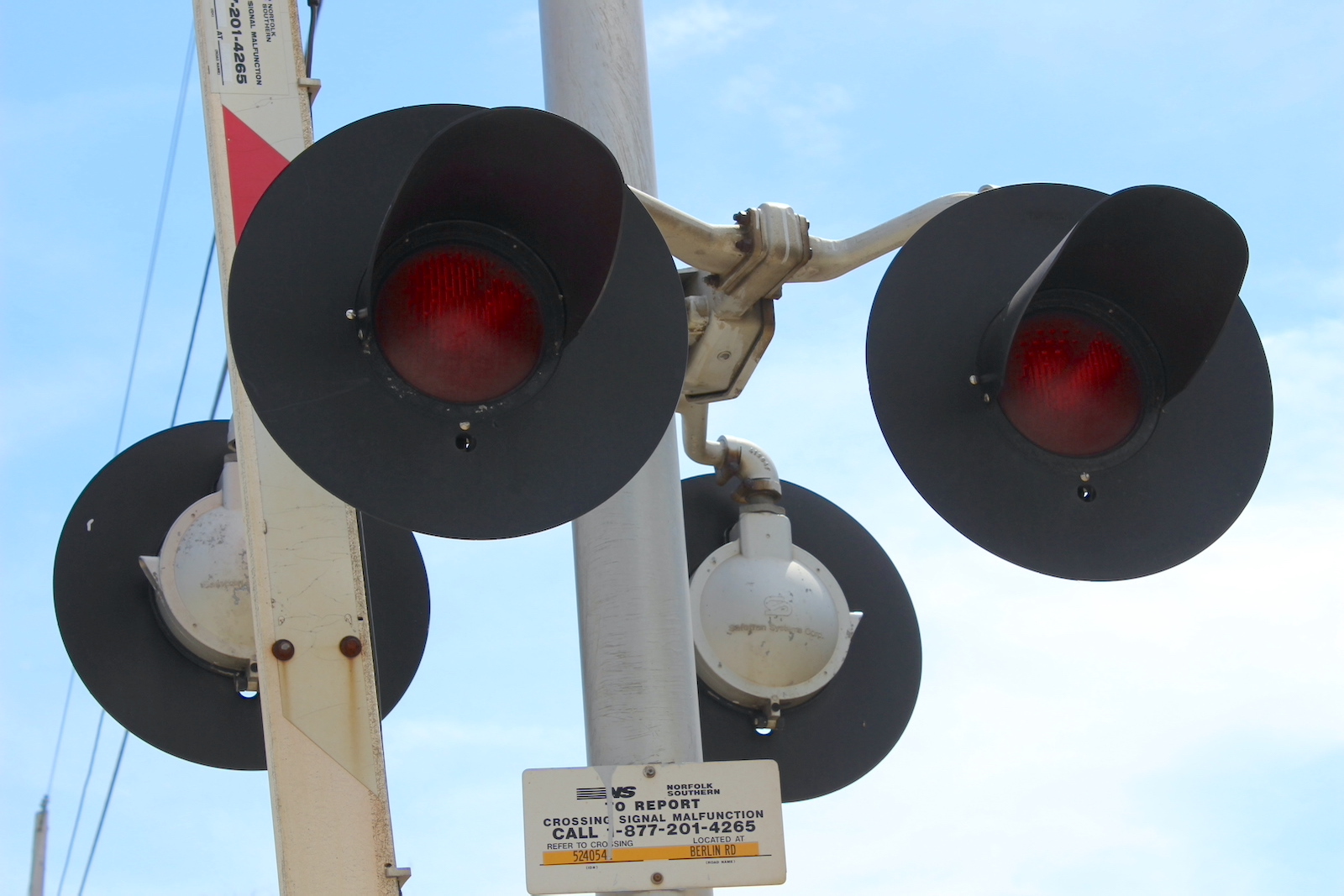

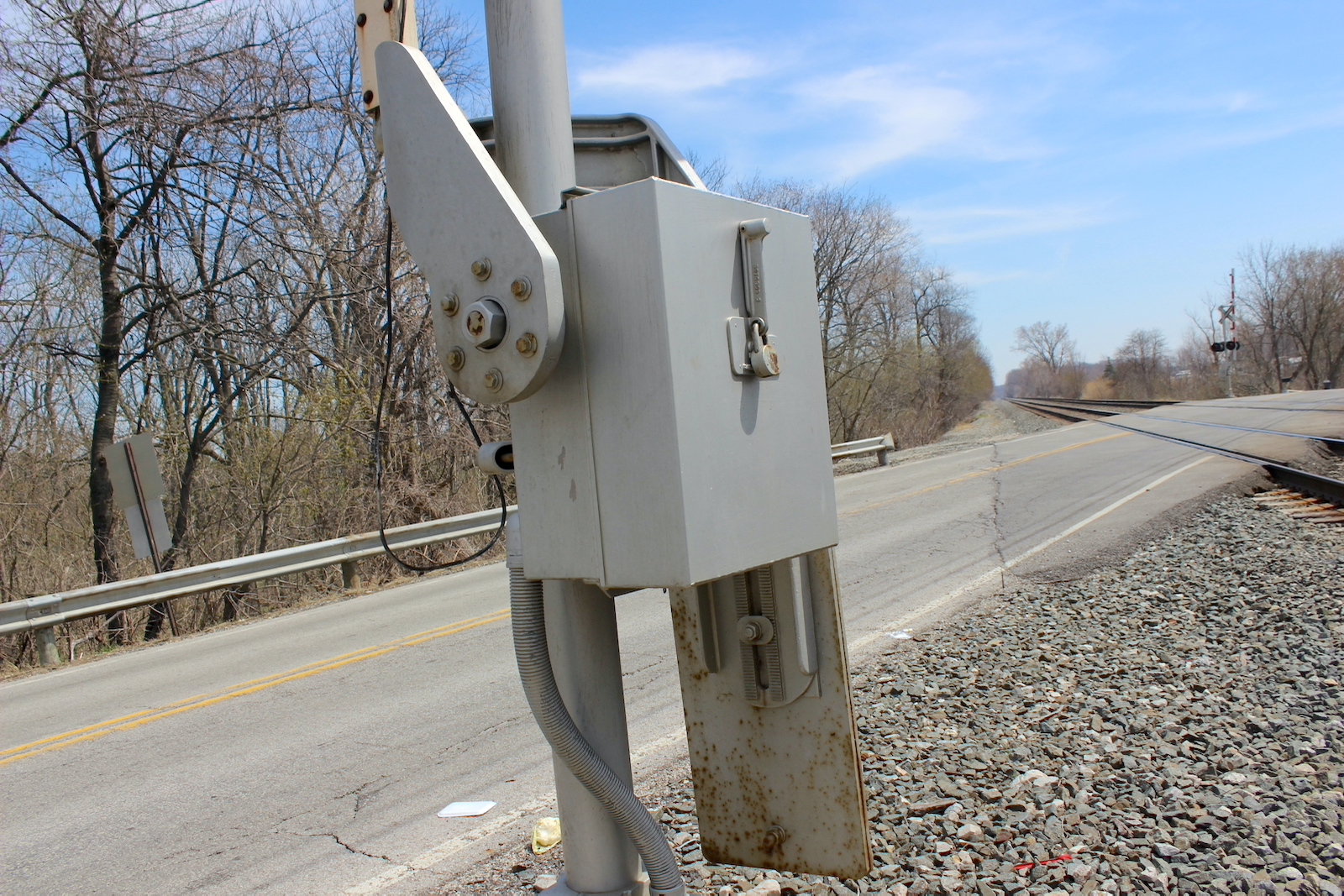

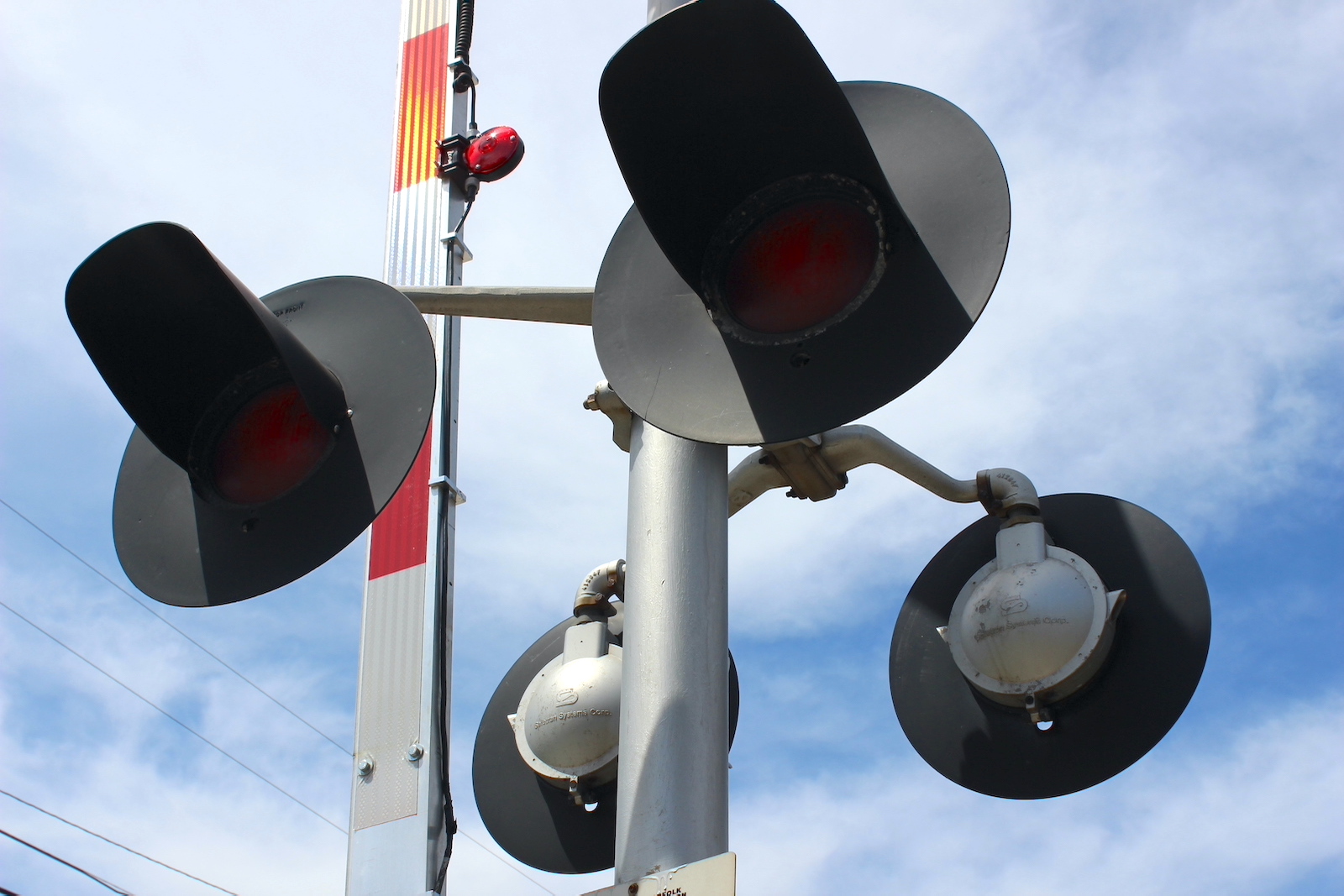

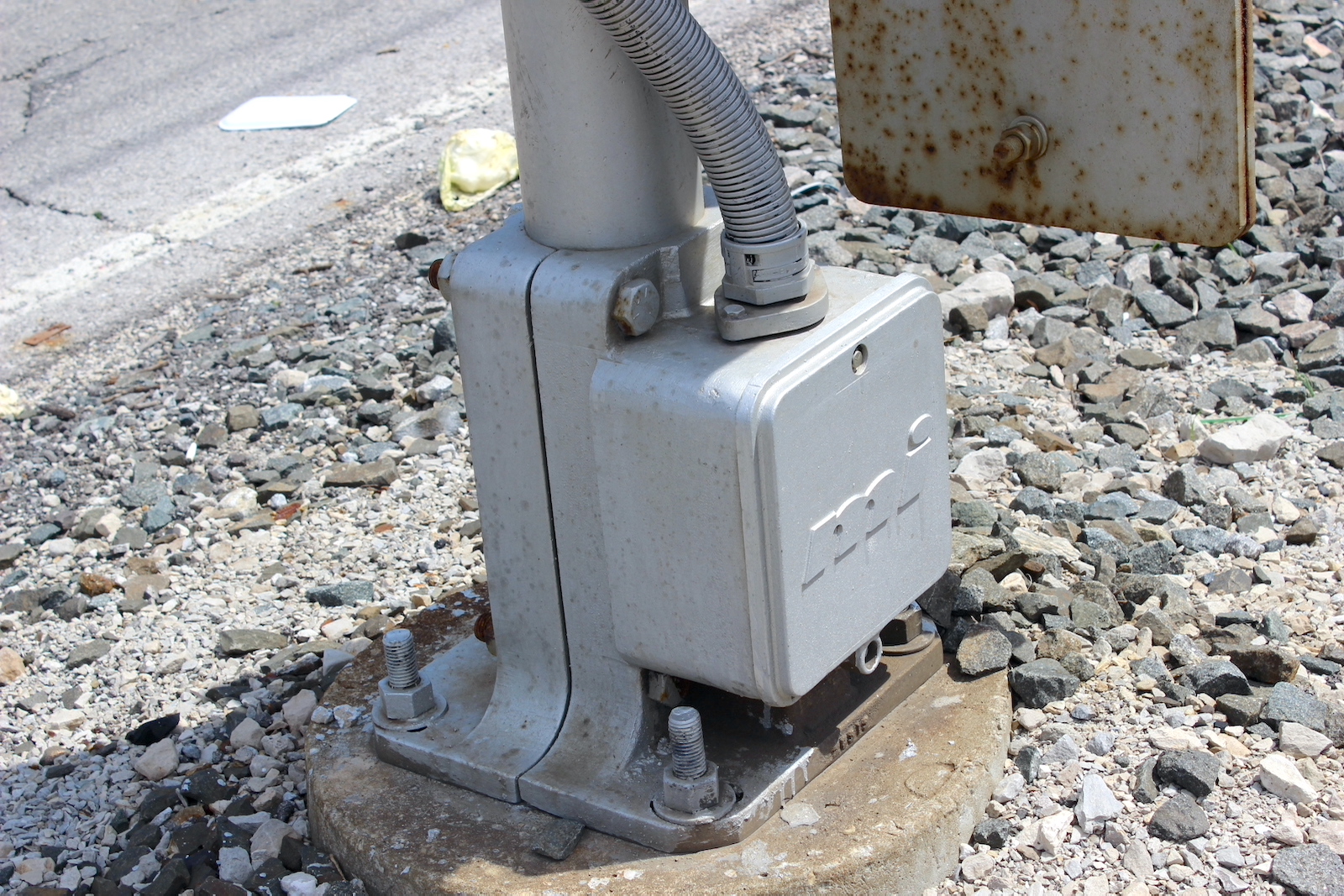

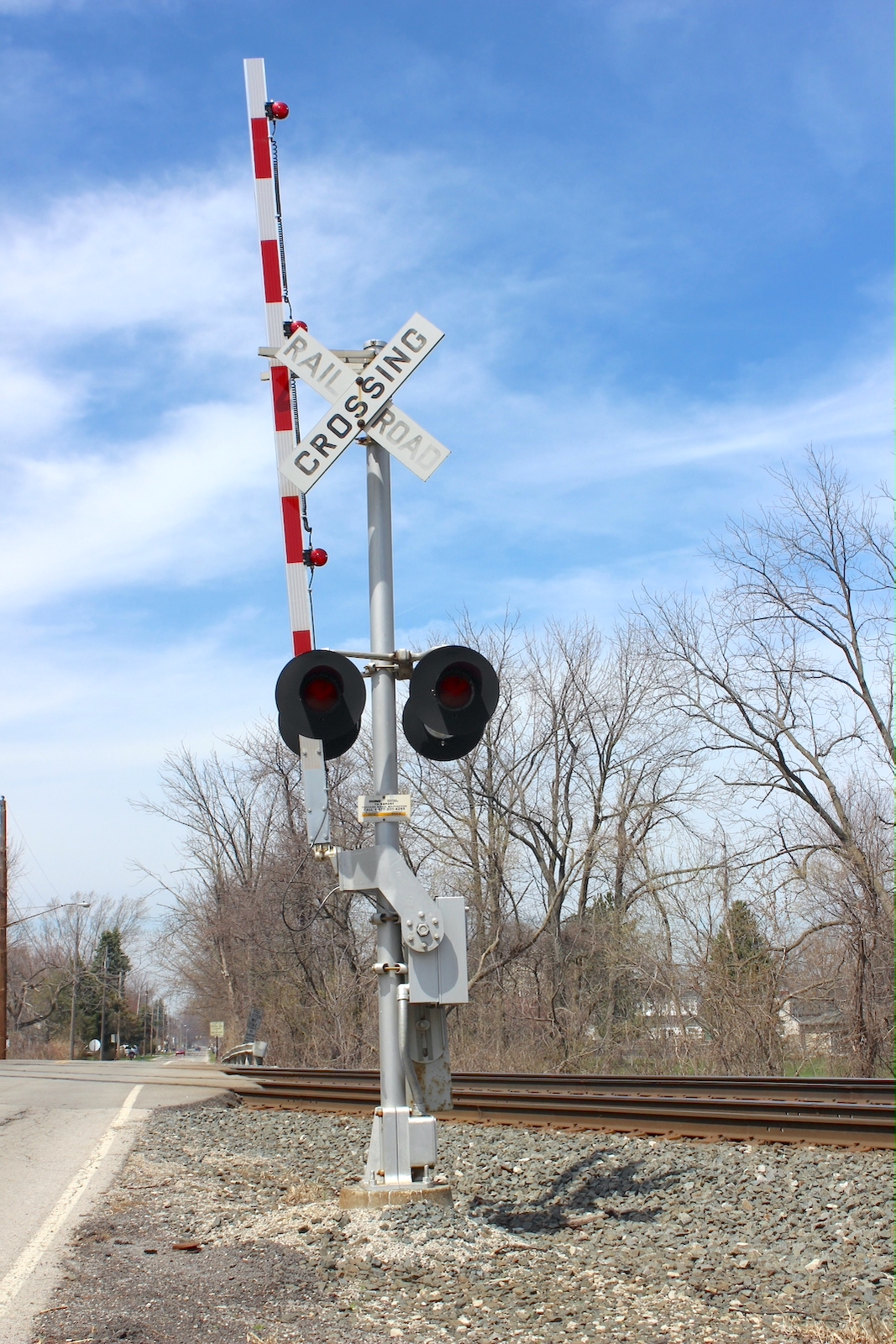

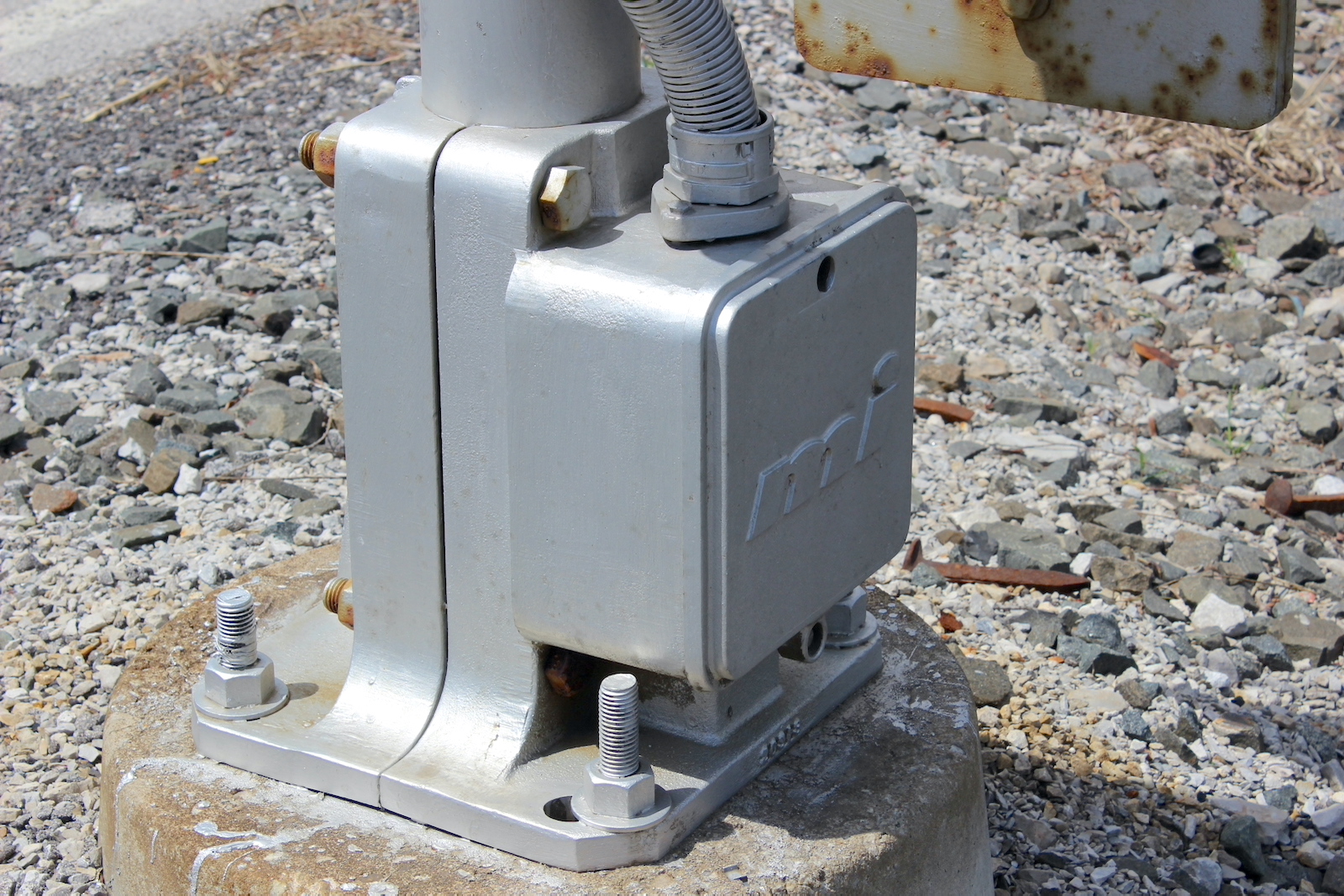

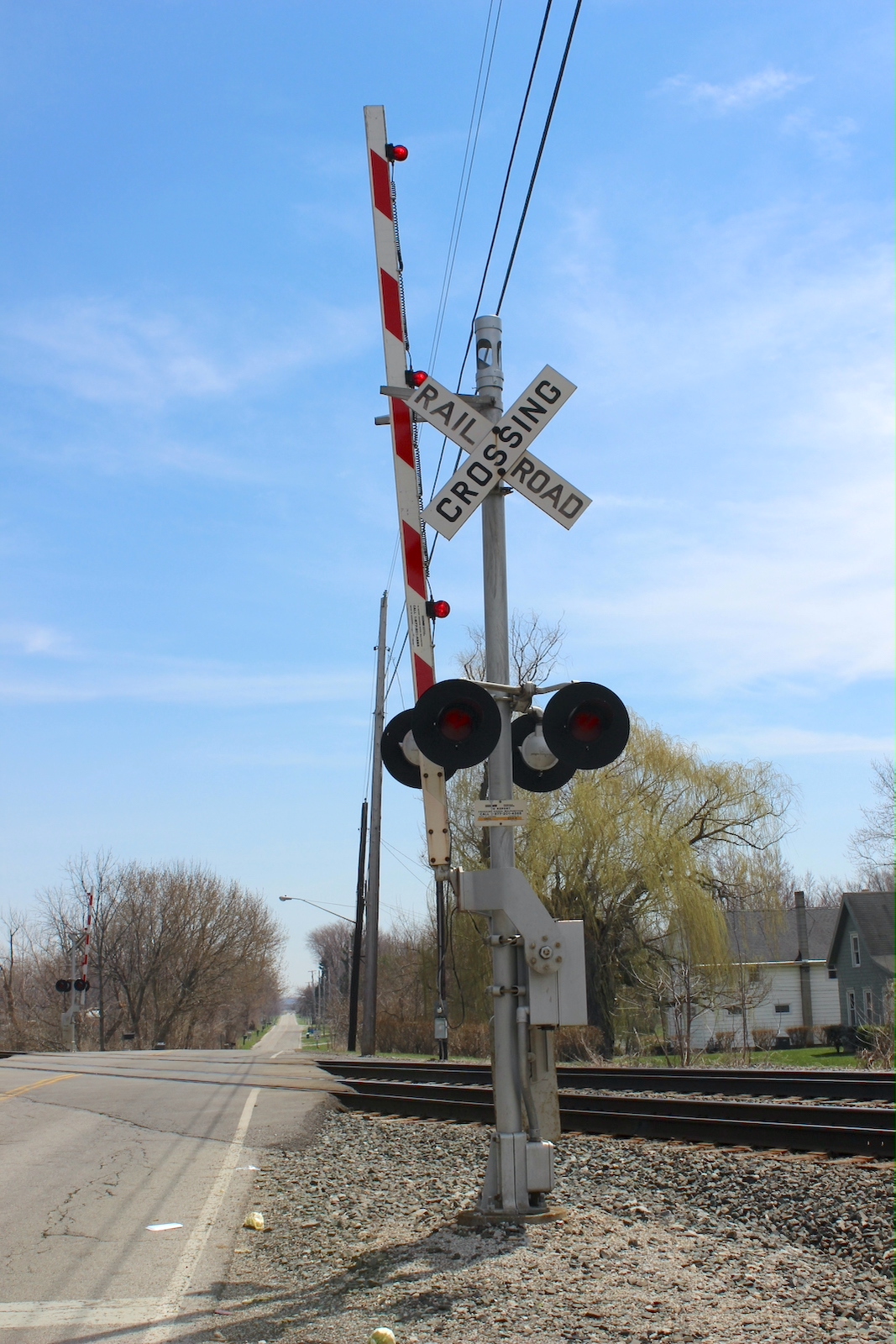

The northern signal. This had a MI base, 8" Safetran incandescents, 4" RECO incandescents, a Safetran Model 85 gate mechanism, and a GS Type 2 E-Bell.
10
11
12
13
14
15

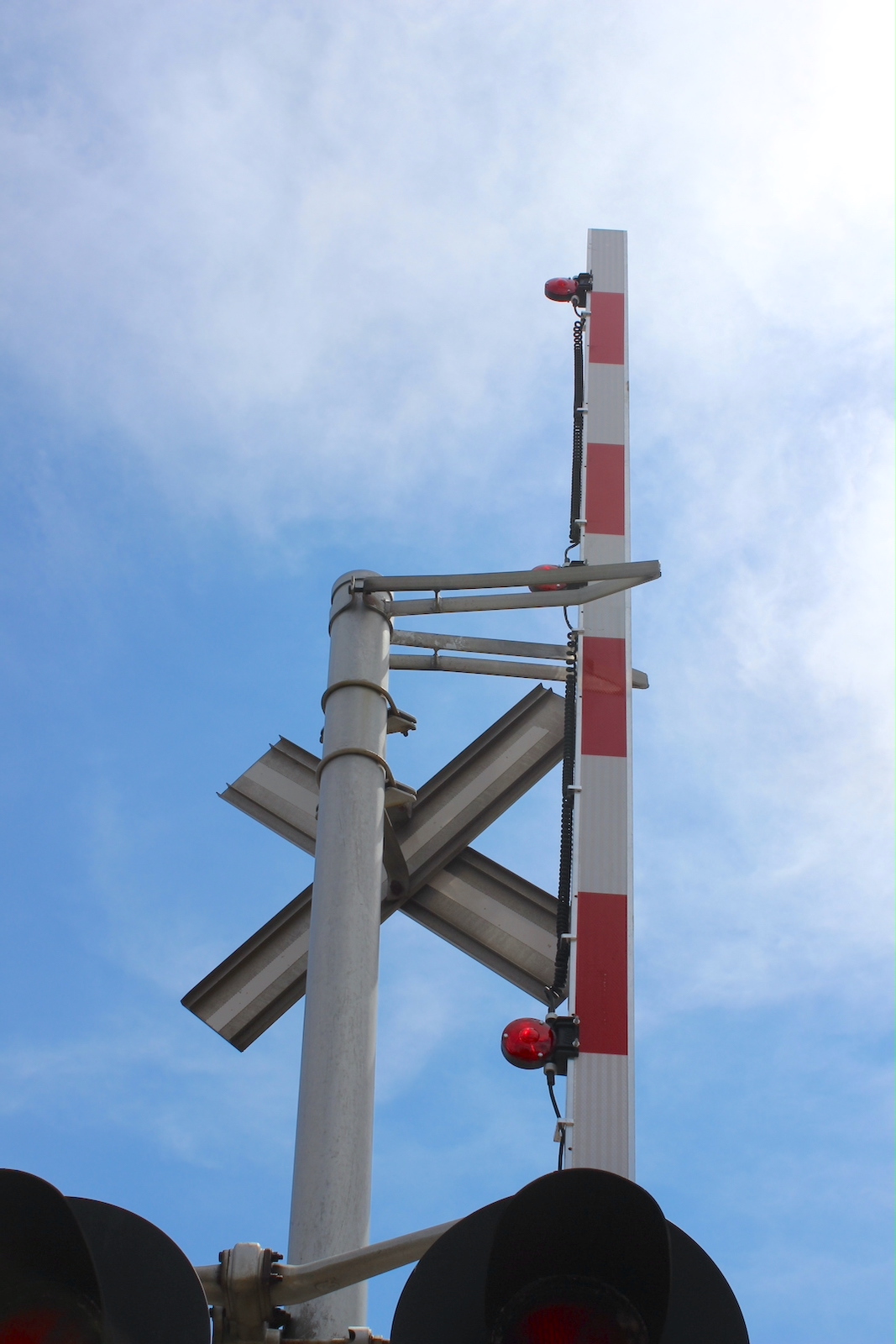

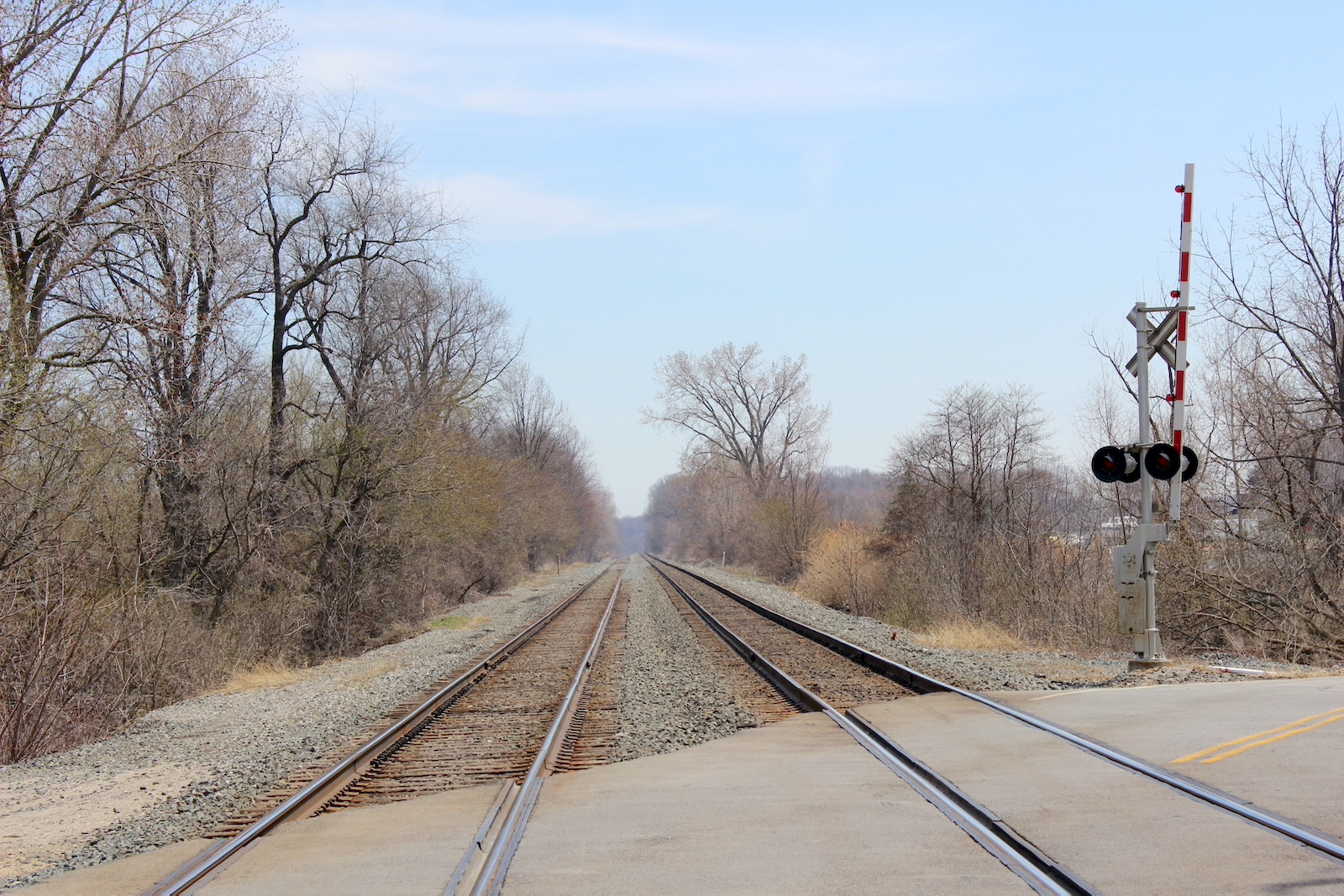

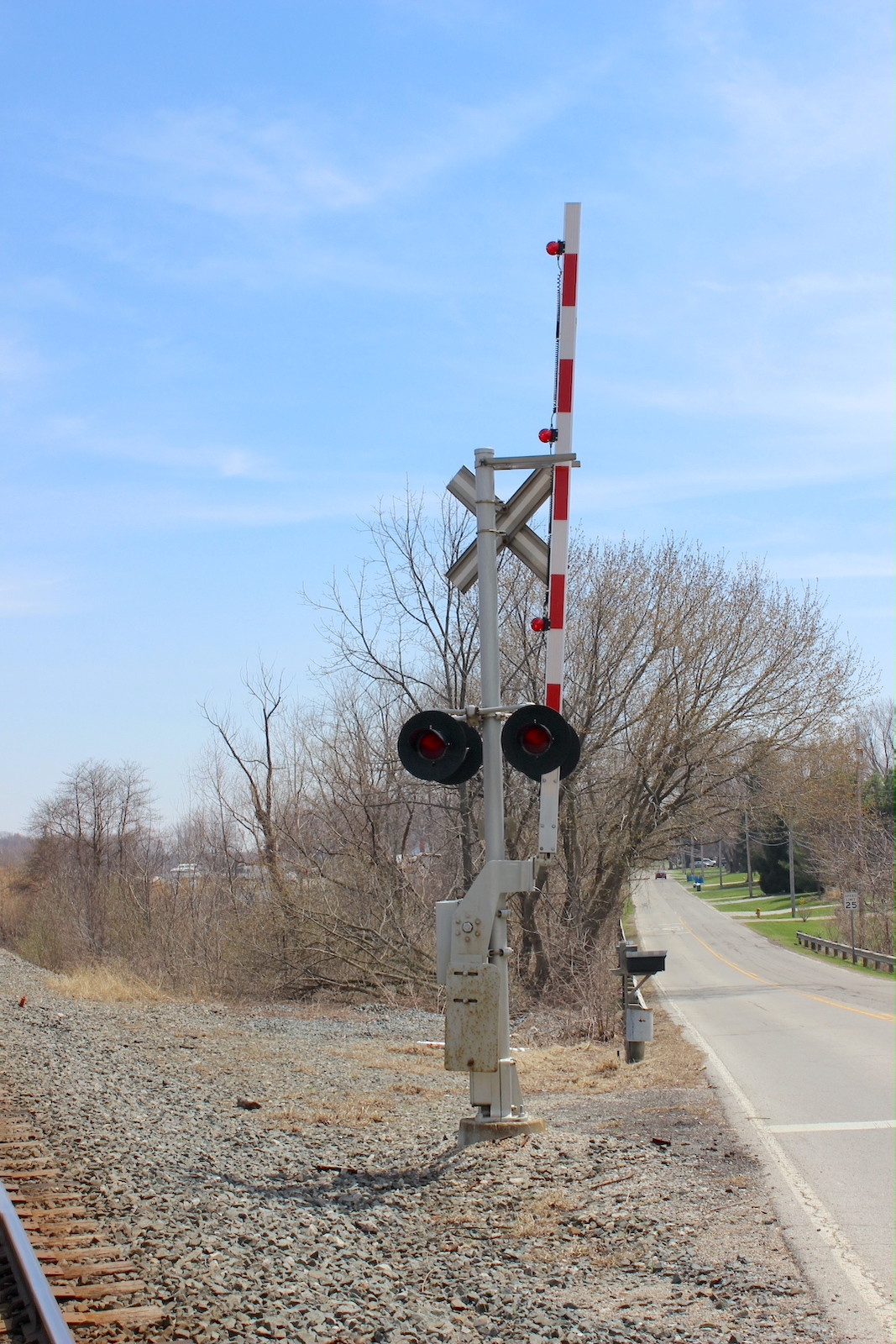

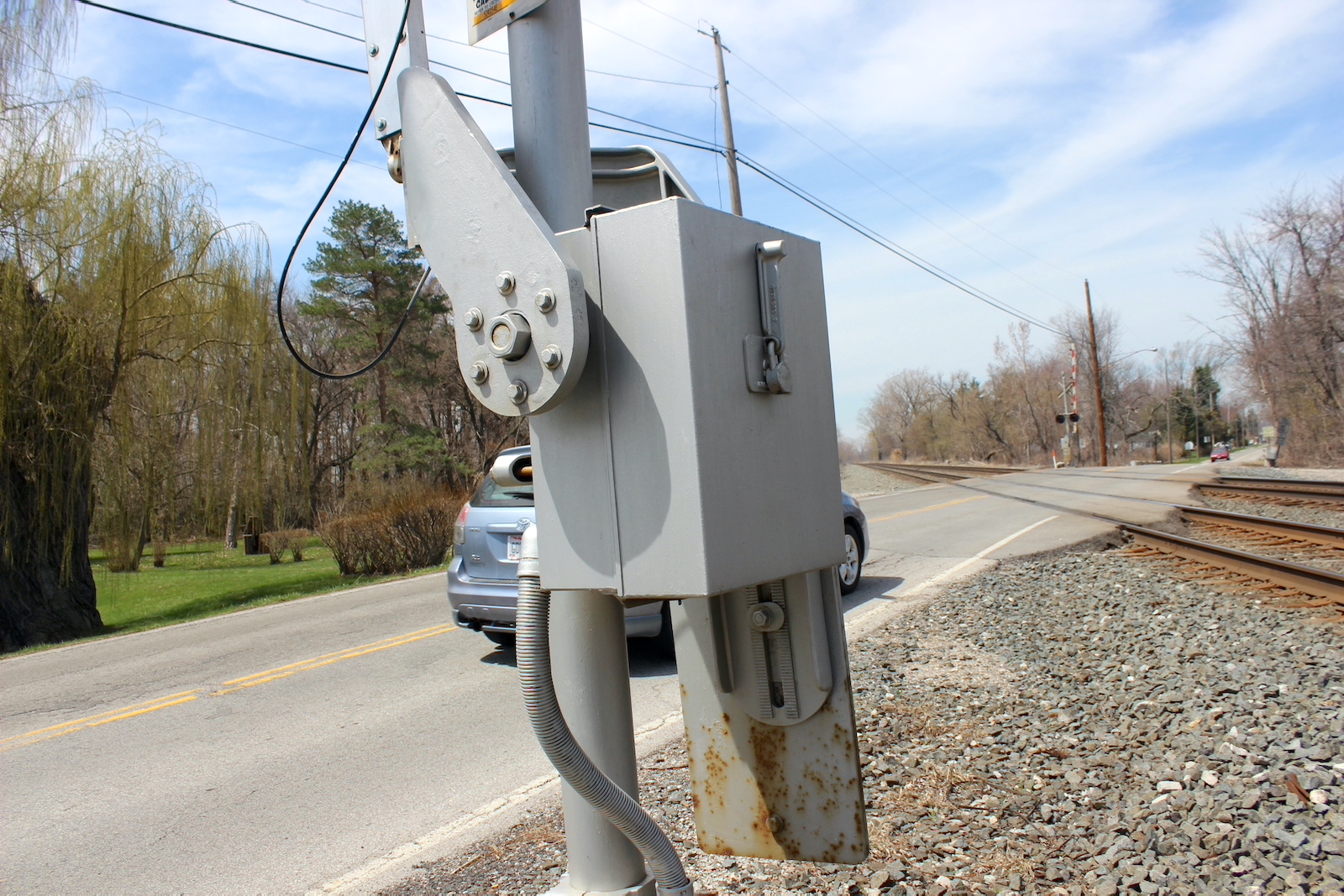

The southern signal. This had the same parts, but with no bell.

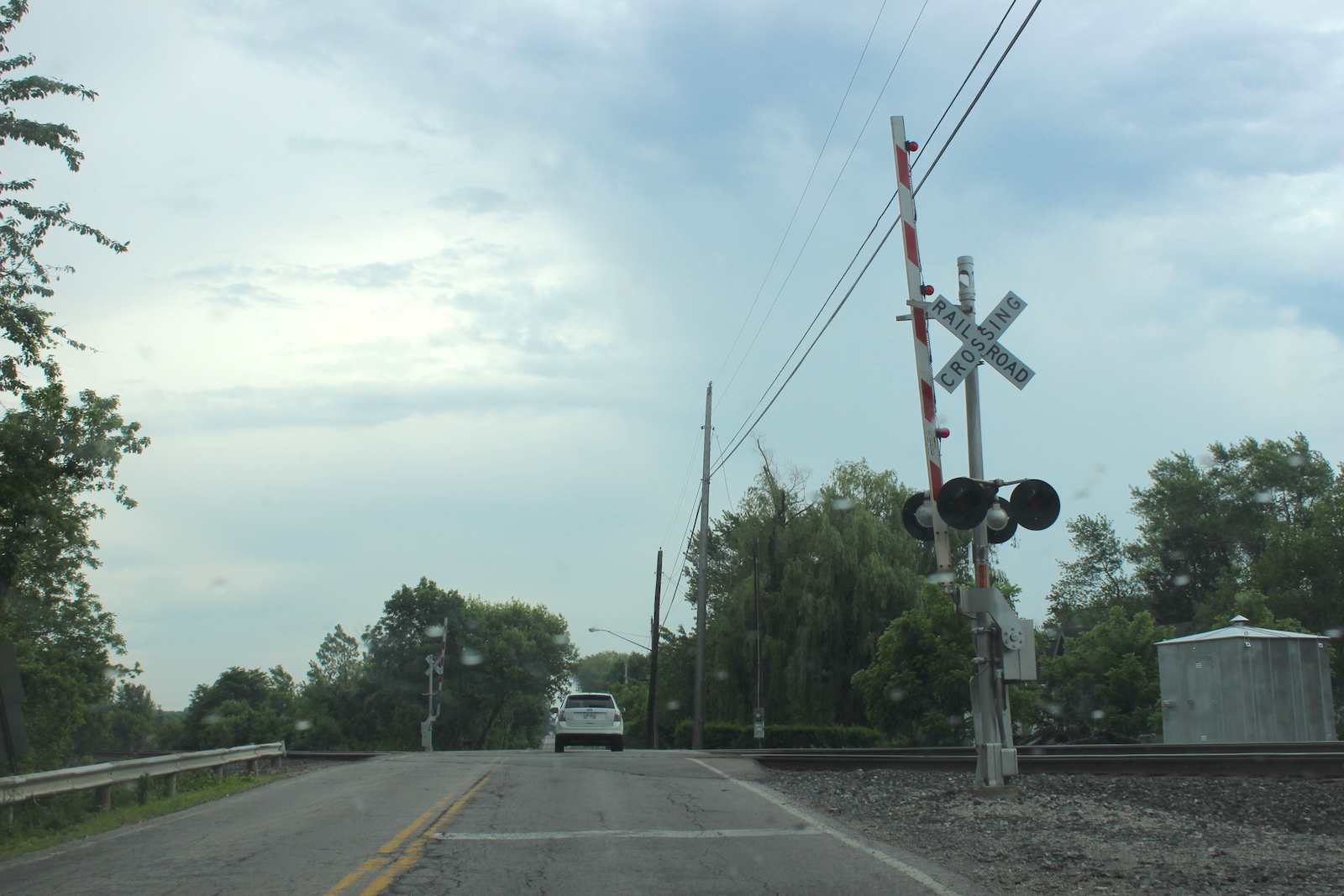

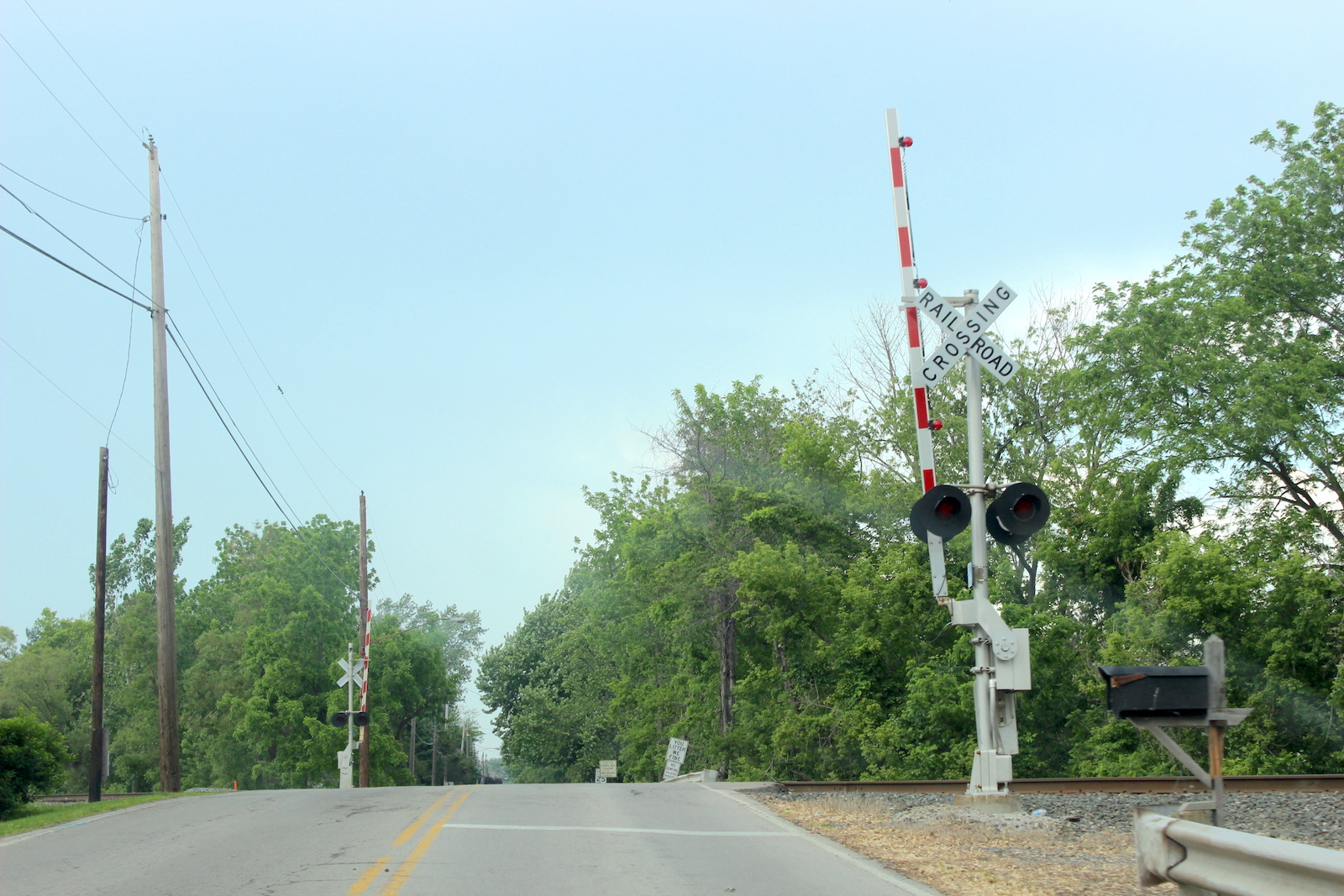

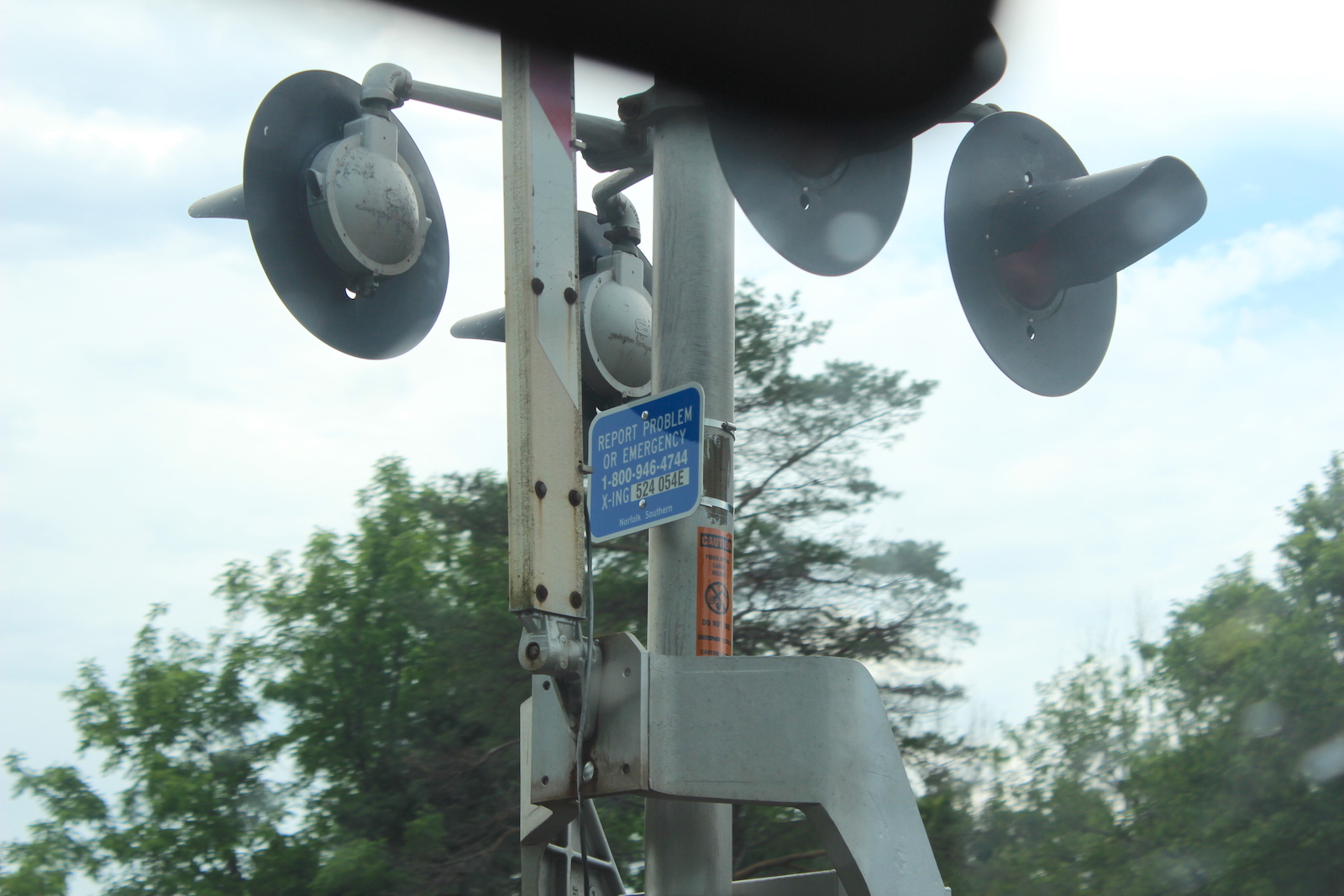

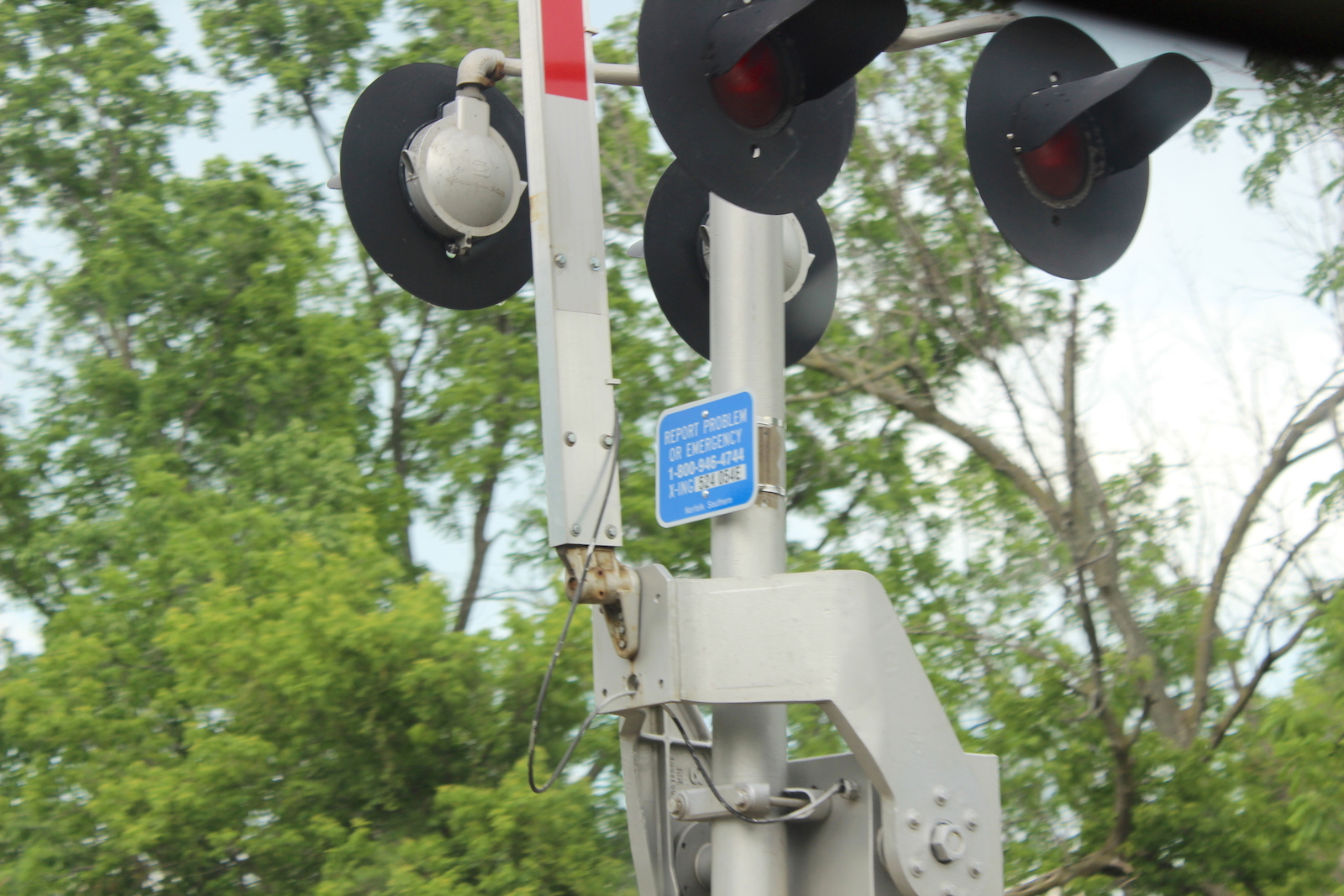

In

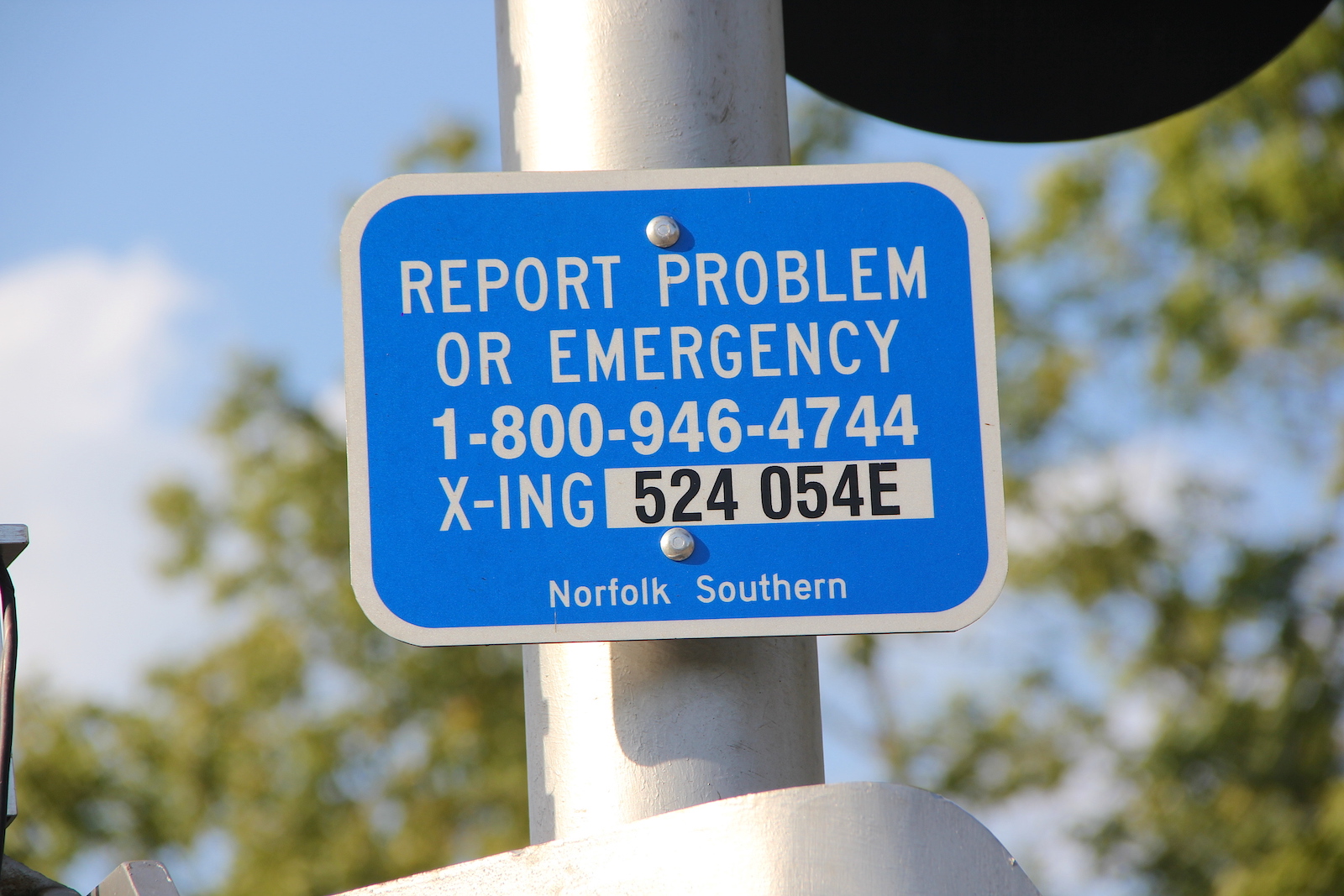

June 2015, we see the white DOT signs with new blue ones. The
crossbucks were also replaced. In mid 2014, the relay bungalow
was repainted as well.
23
24
25
26
27
28
29

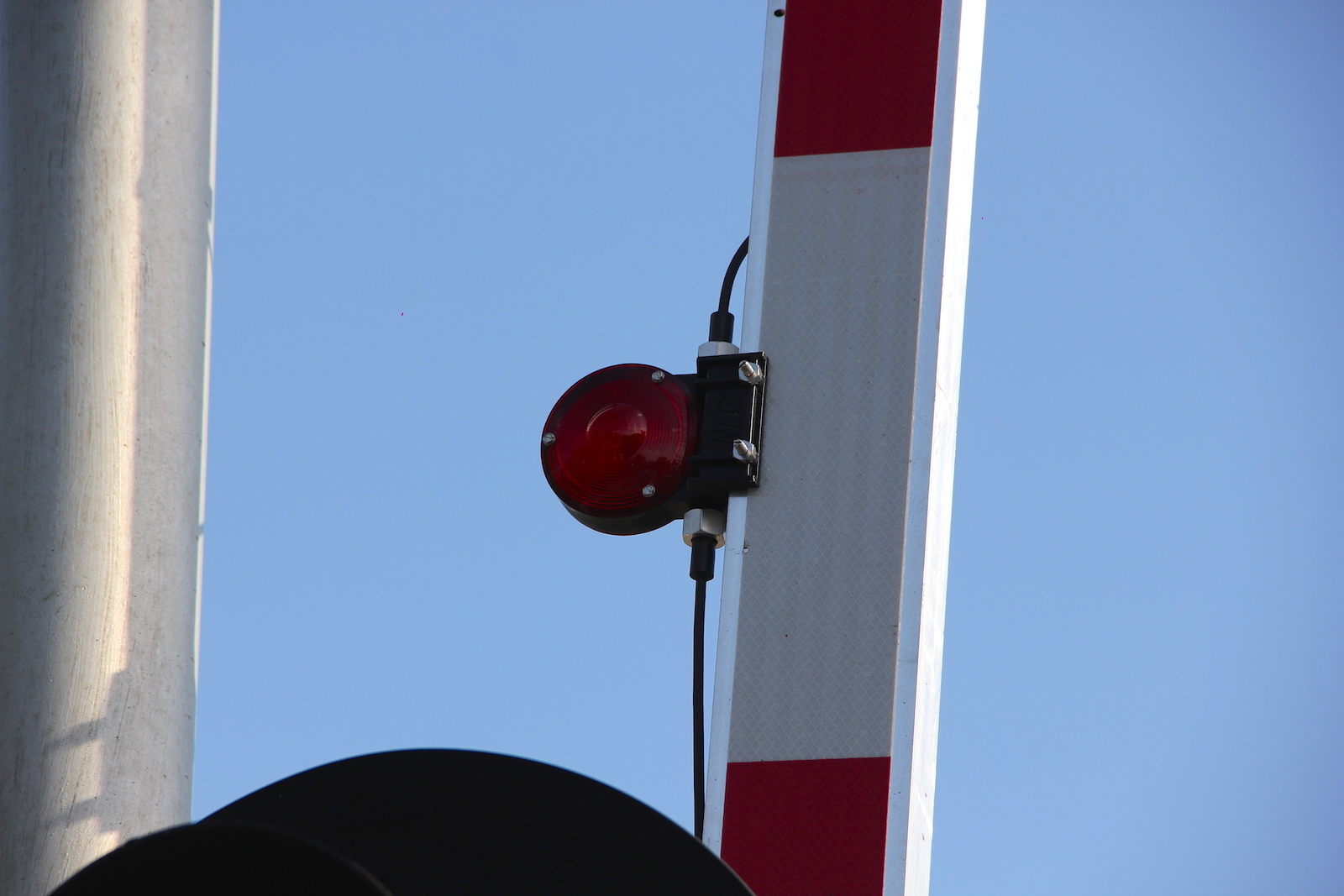

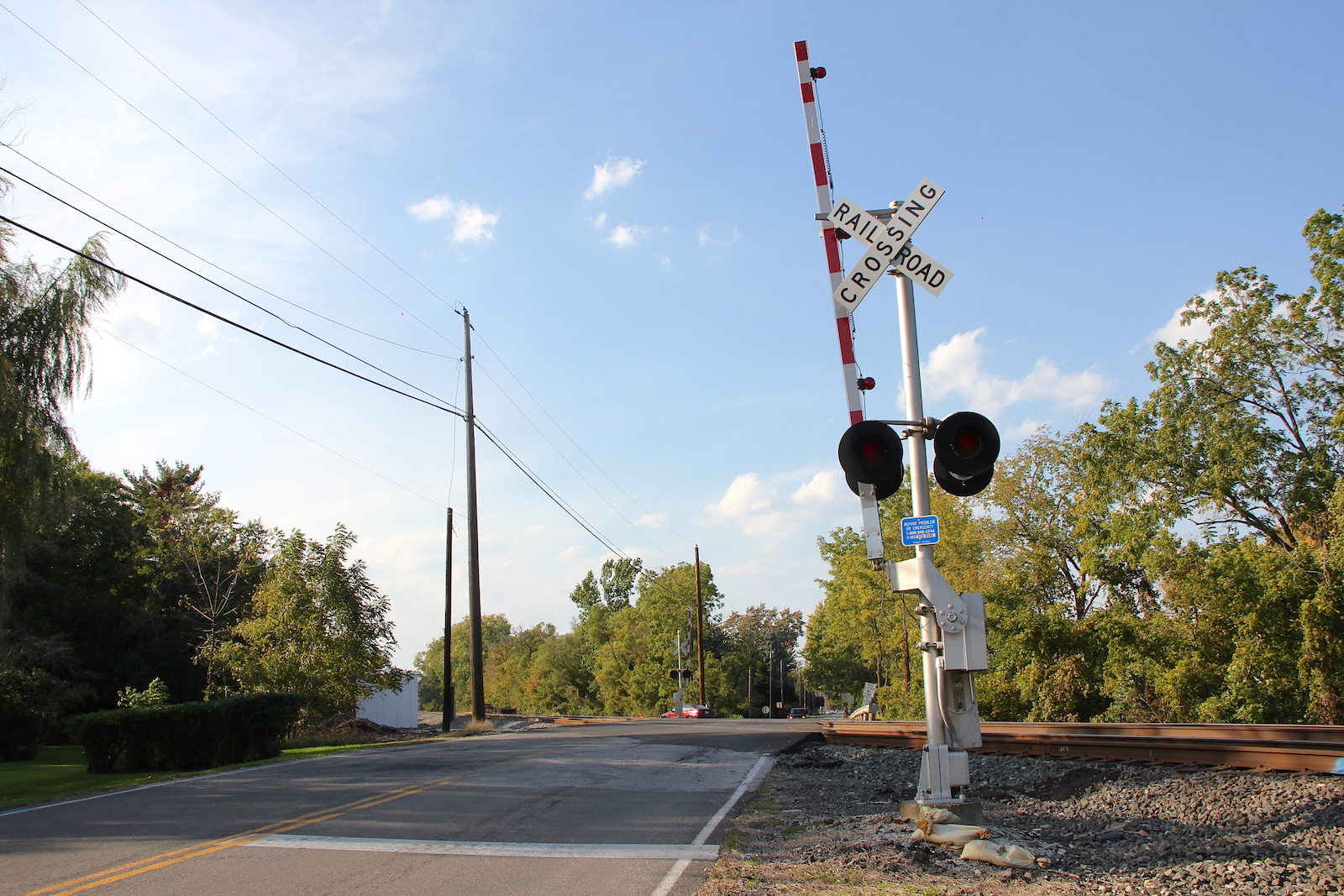

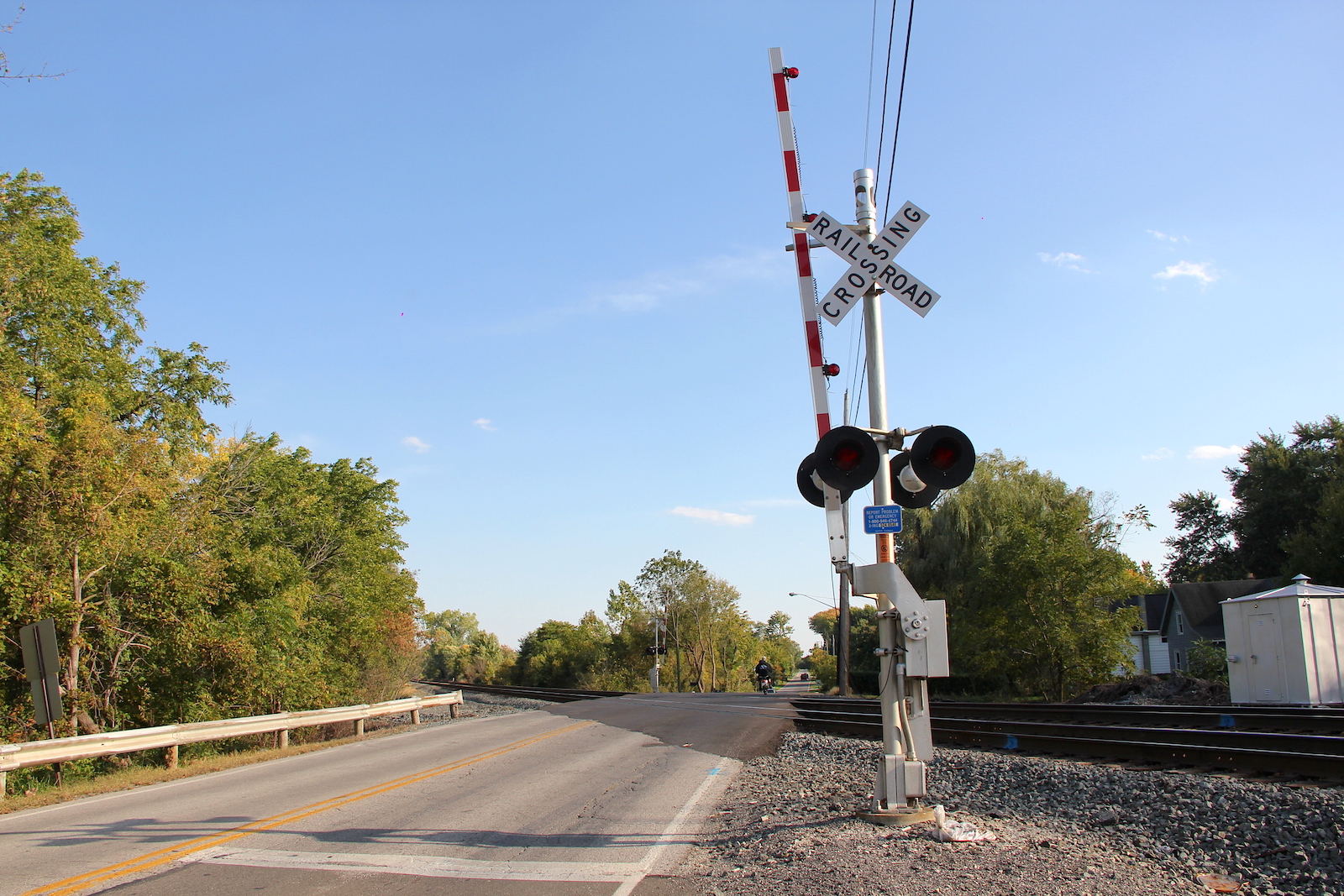

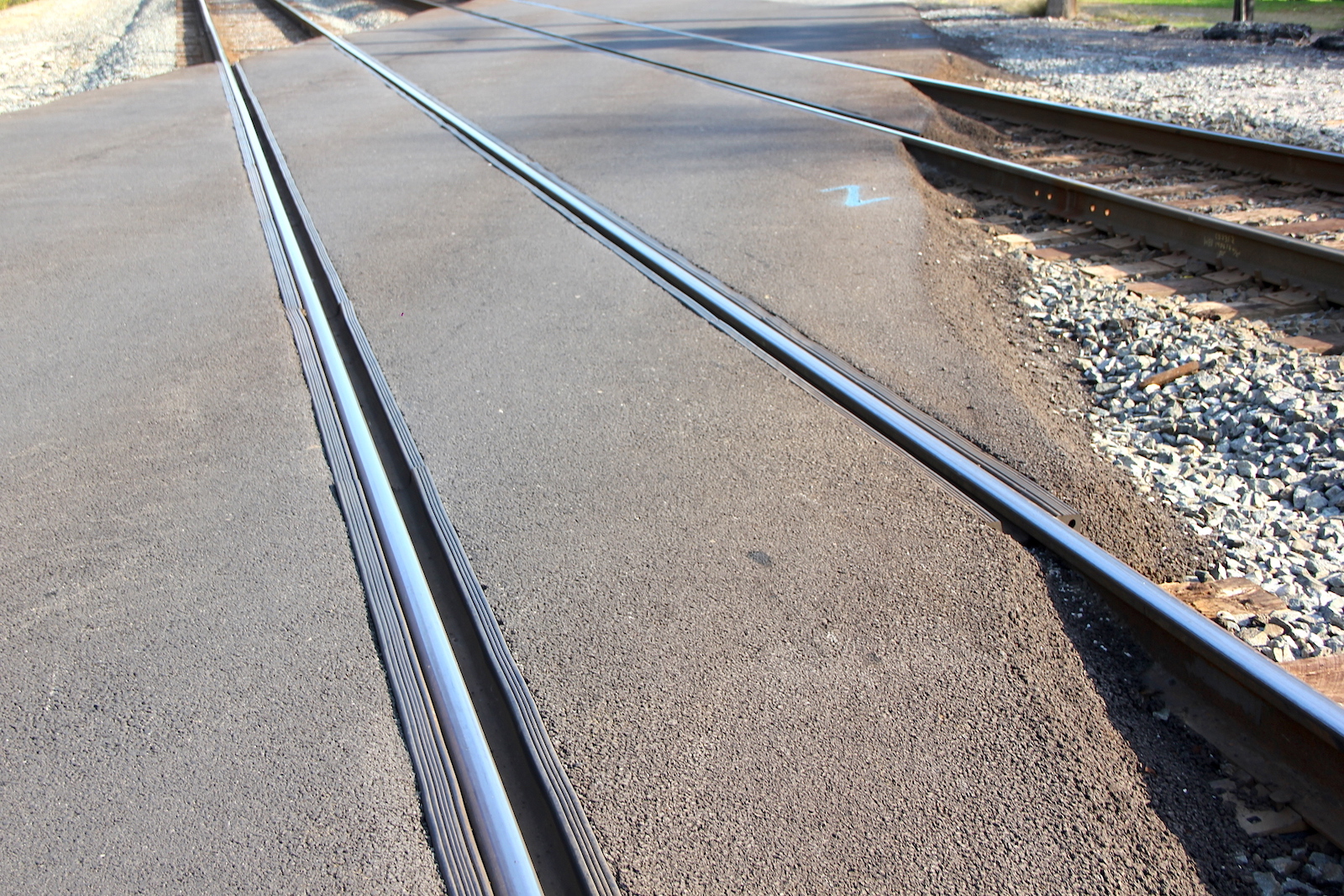

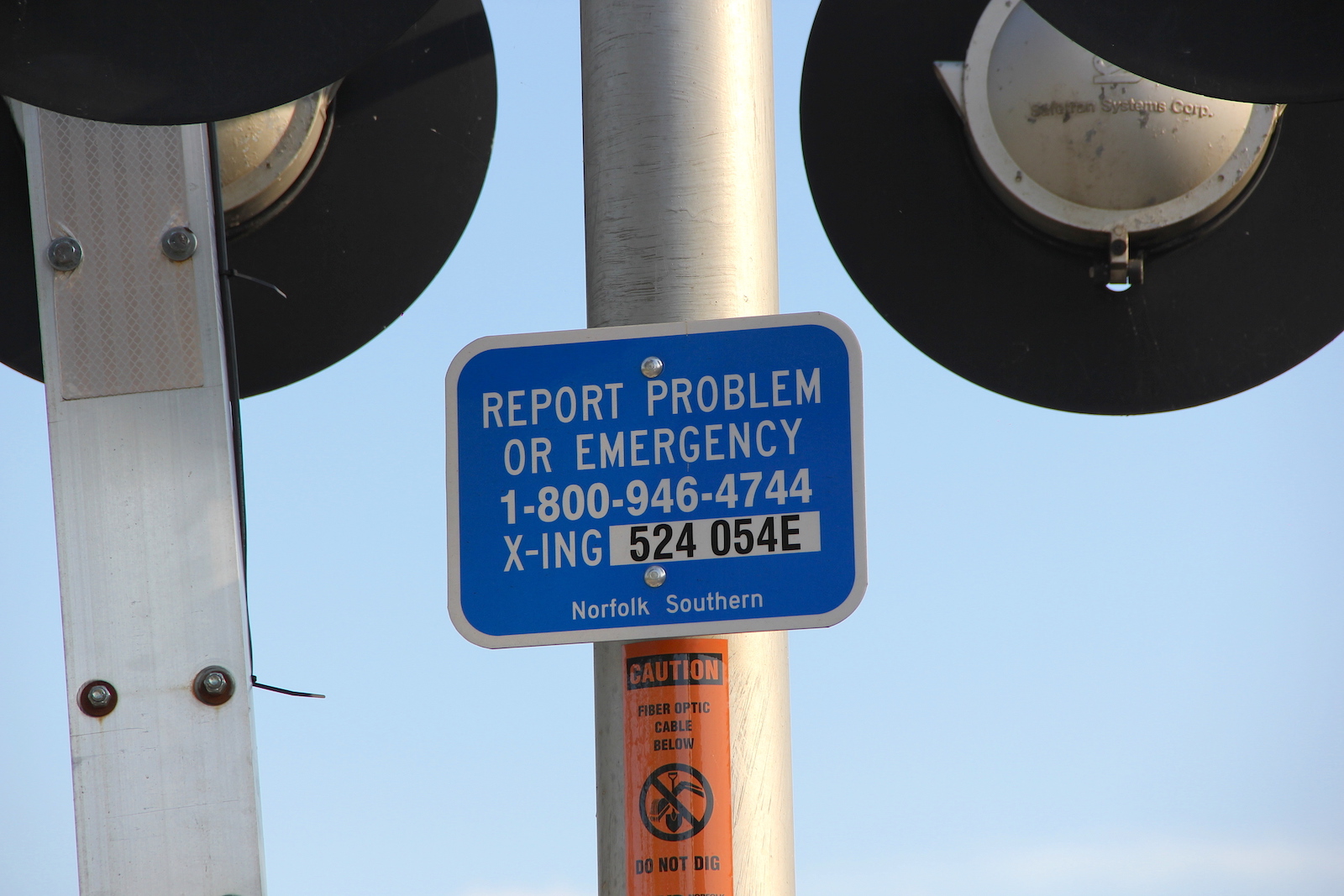

In October 2016, we see the DOT signs were turned to face forward.
Both gates were replaced (the northern in 2015 and the southern in
2016) and both have NEG LED gate lights now. The grade was
also resurfaced.
Sometime between 2018 and 2020, these signals were replaced with newer Siemens signals, still with incandescent lights, plus an older Safetran Type 3 E Bell.
30
31

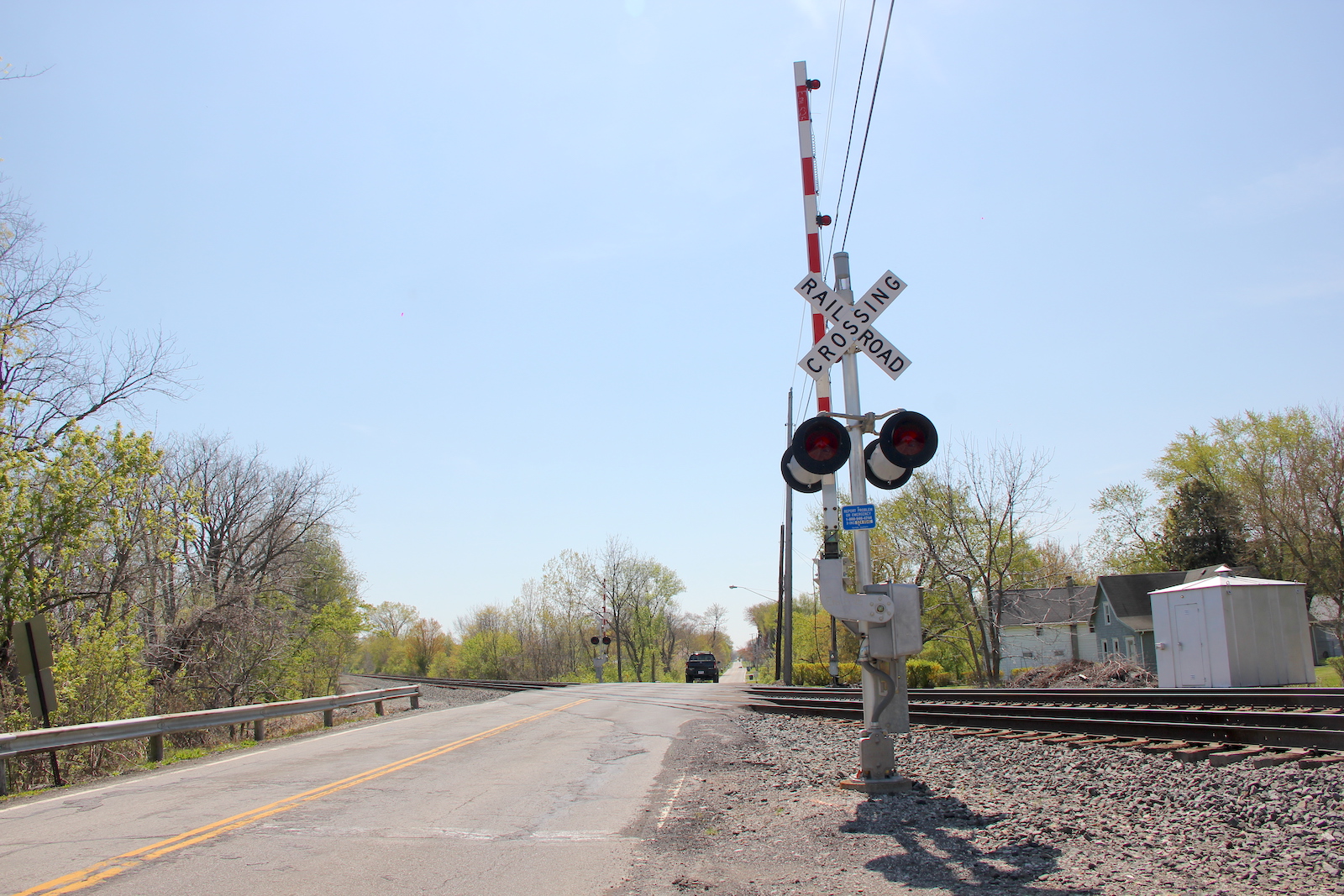

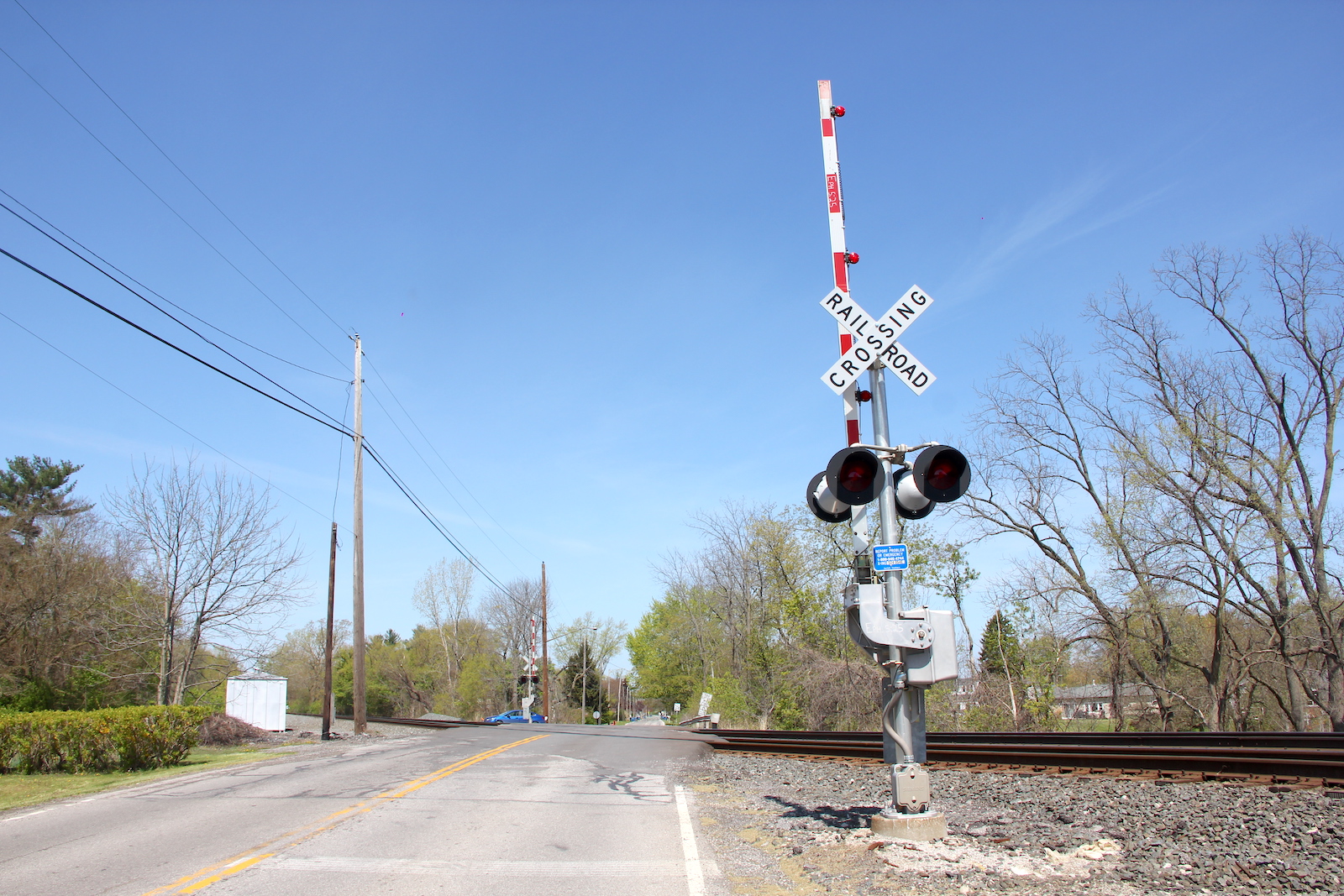

Overview of the new signals facing south.
Overview facing north.
32
33
34
35
36
37
38
39
40
41

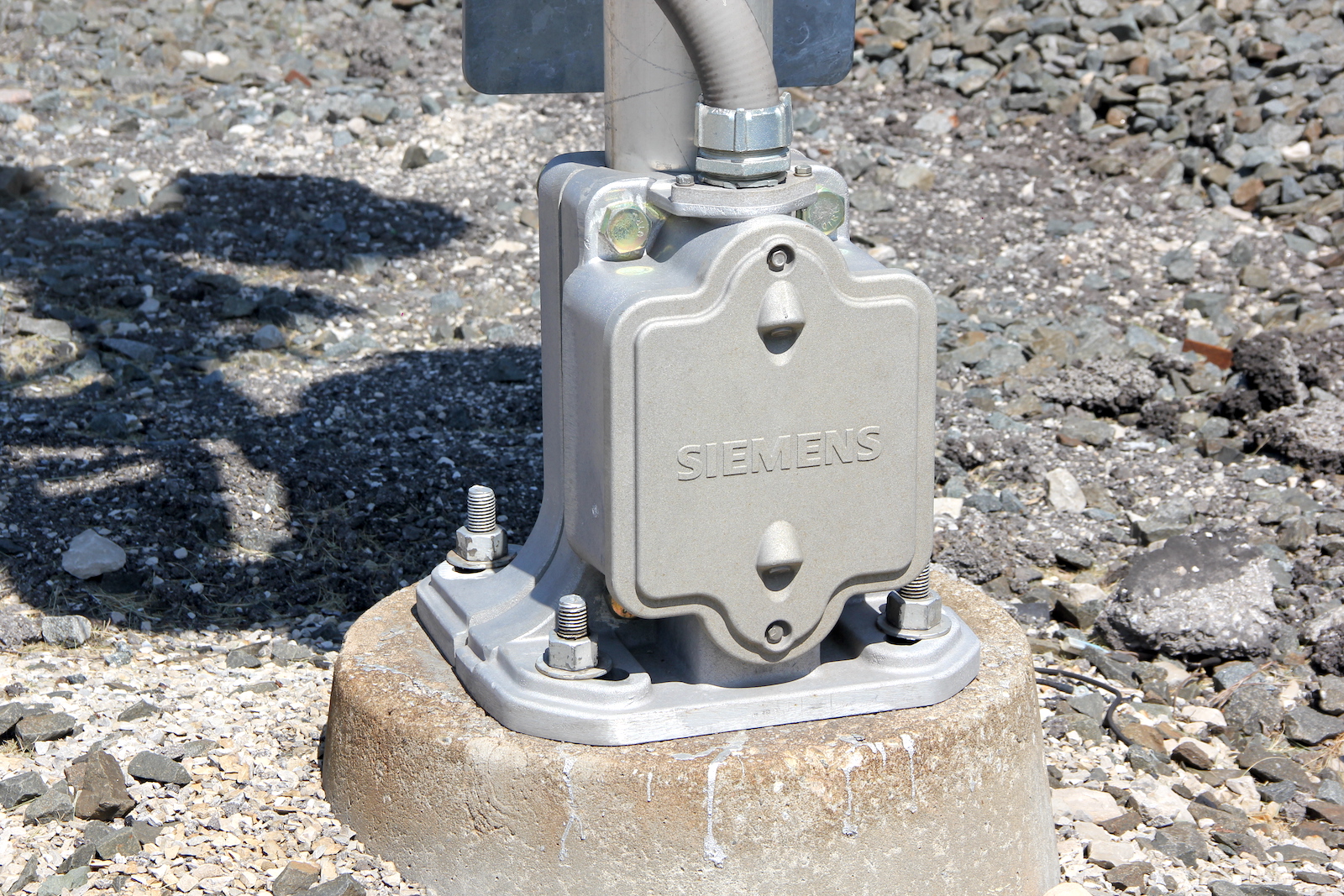

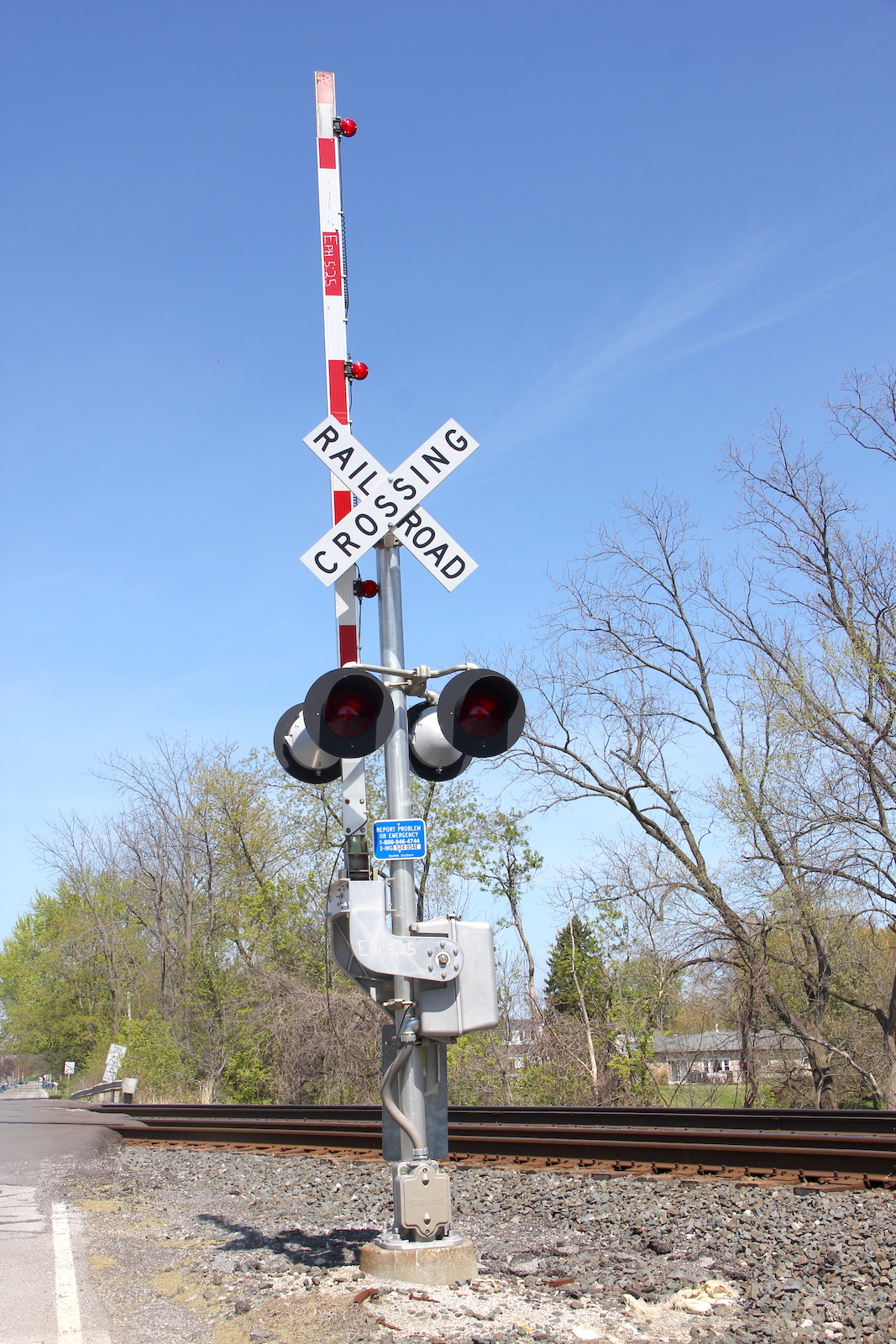

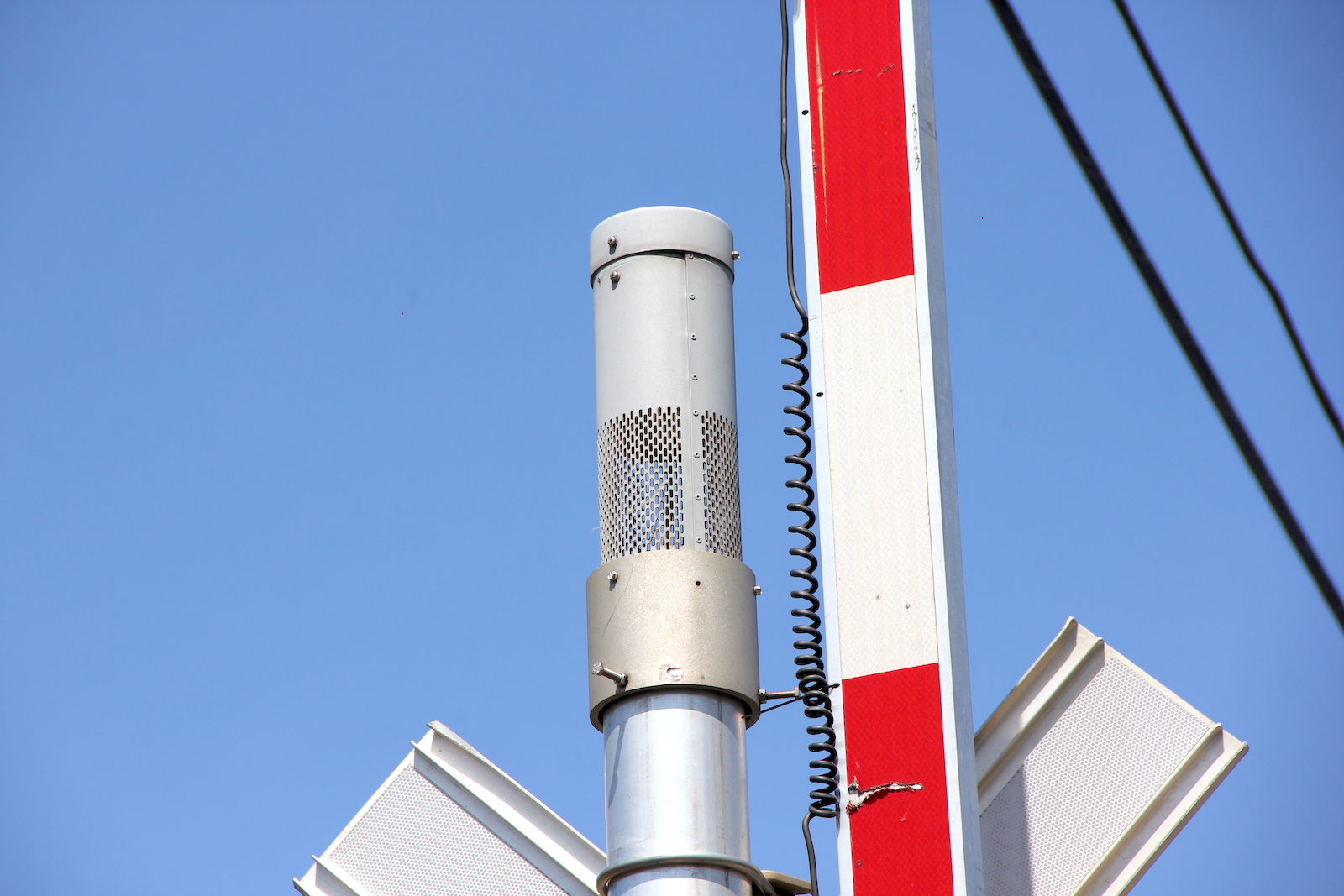

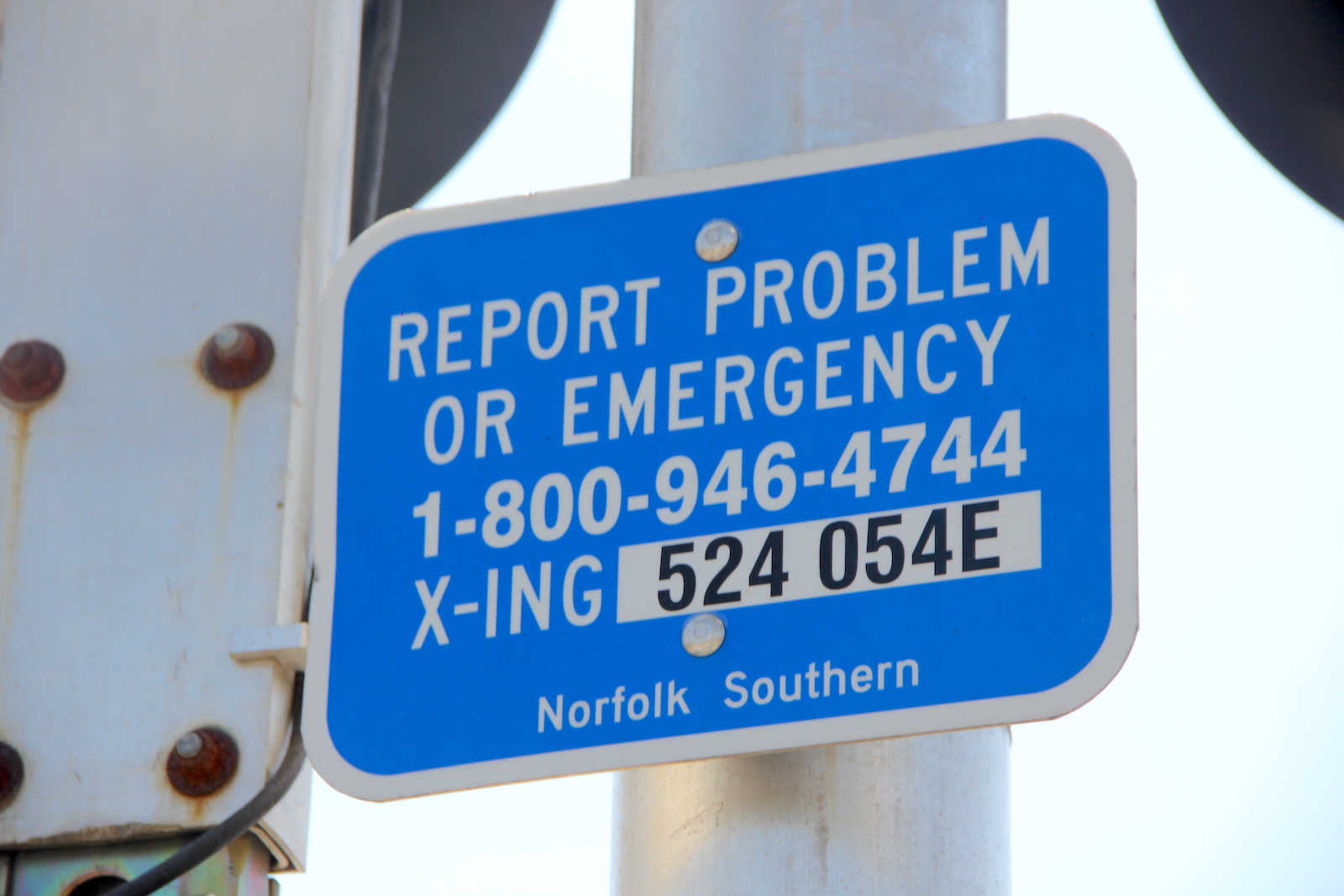

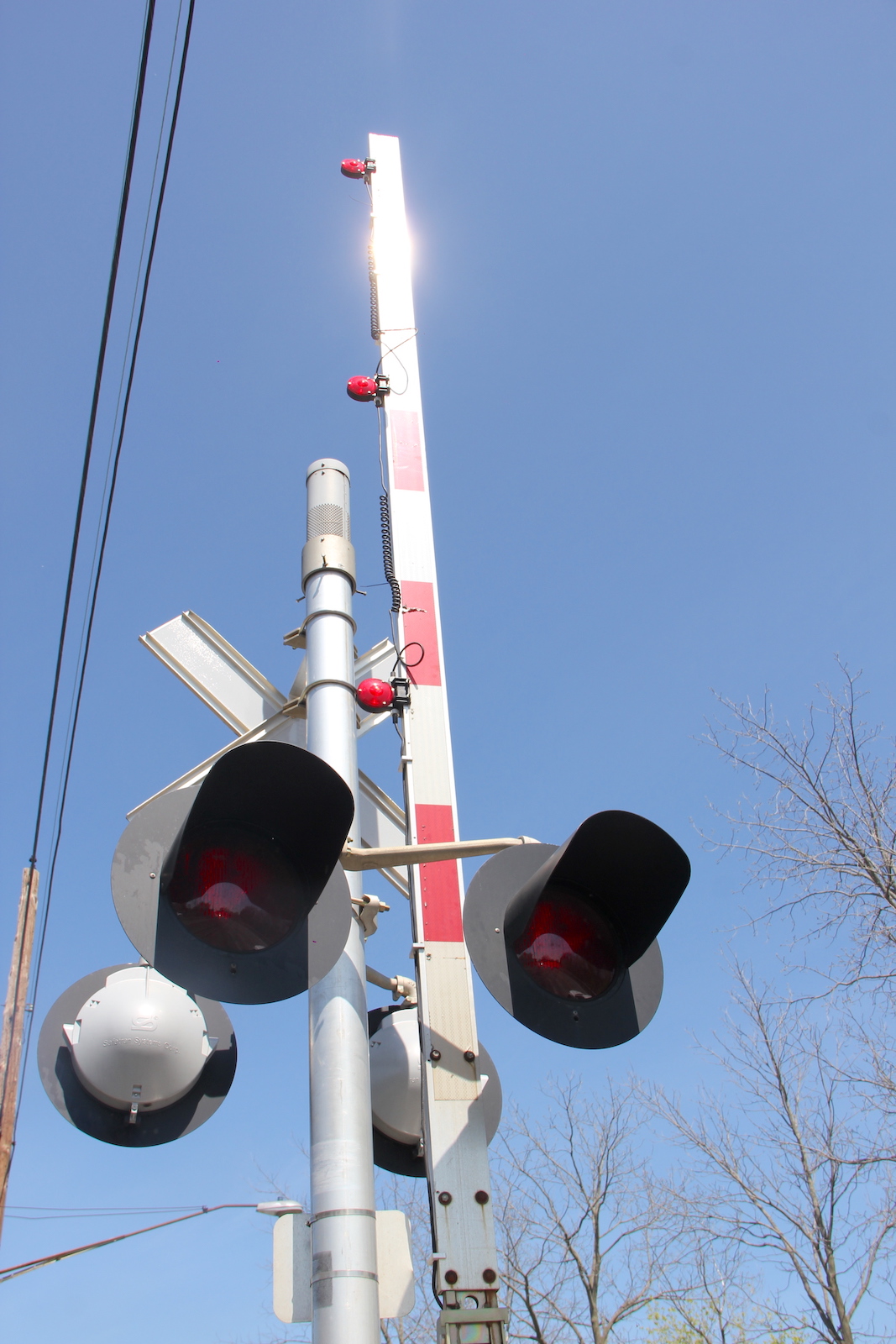

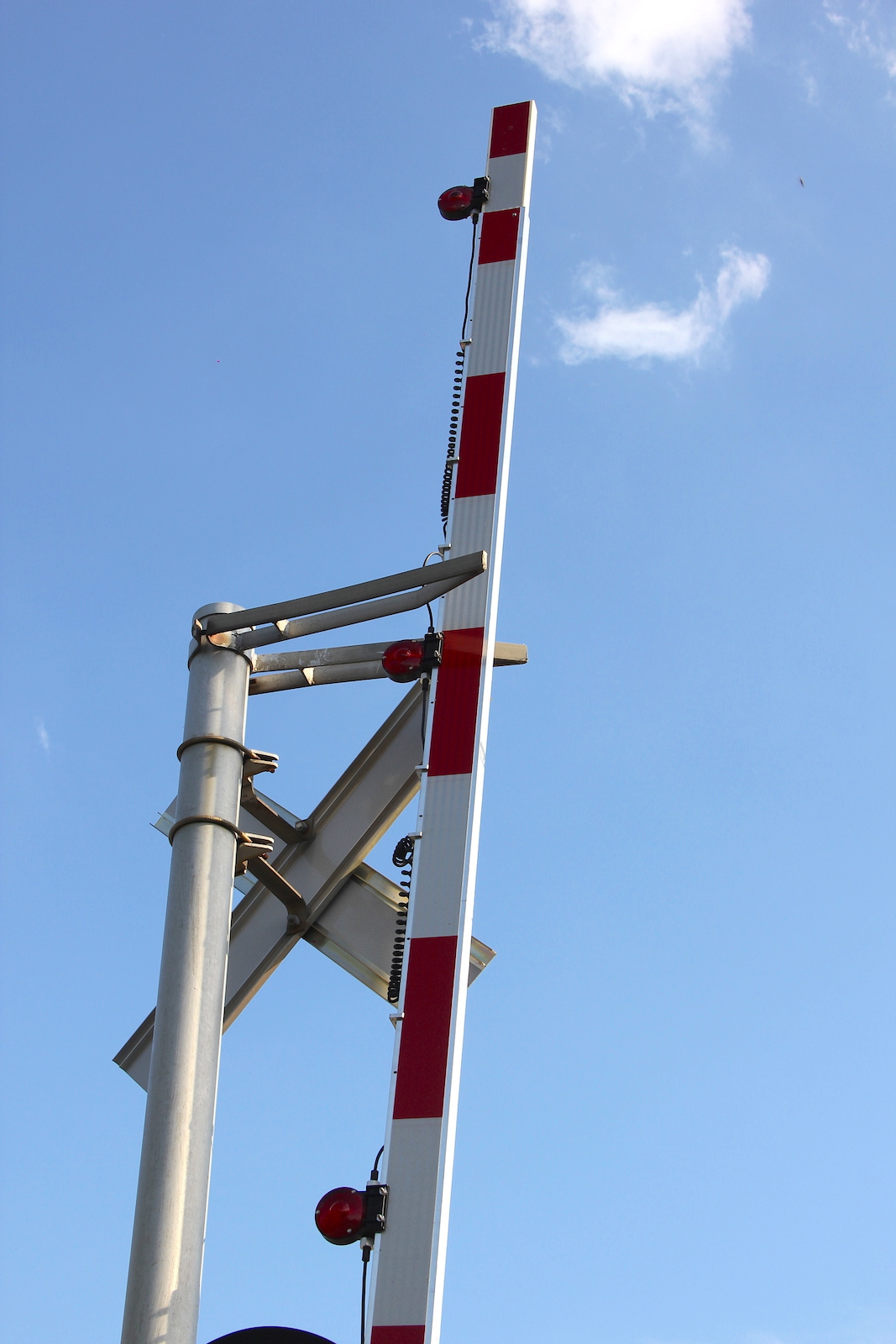

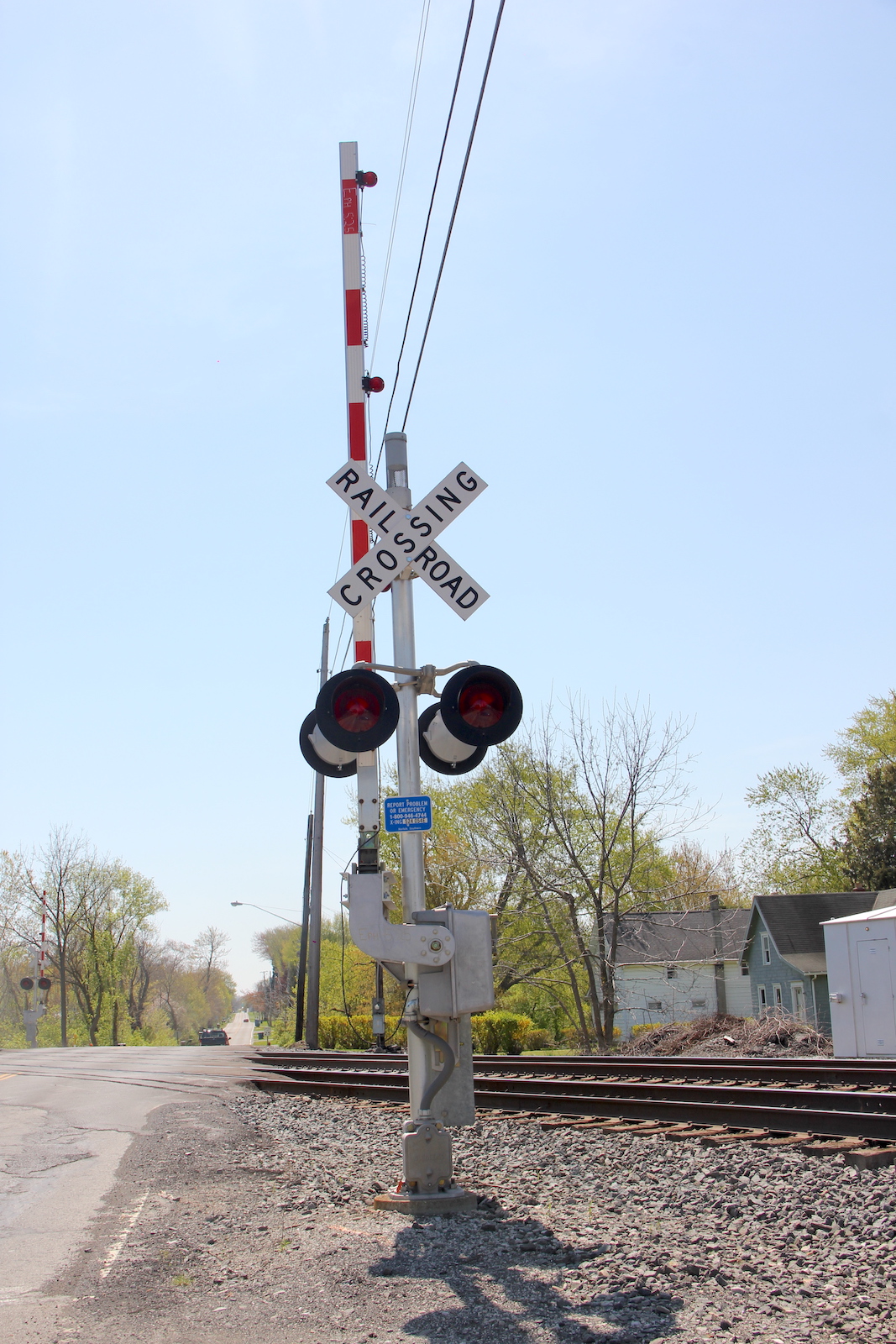

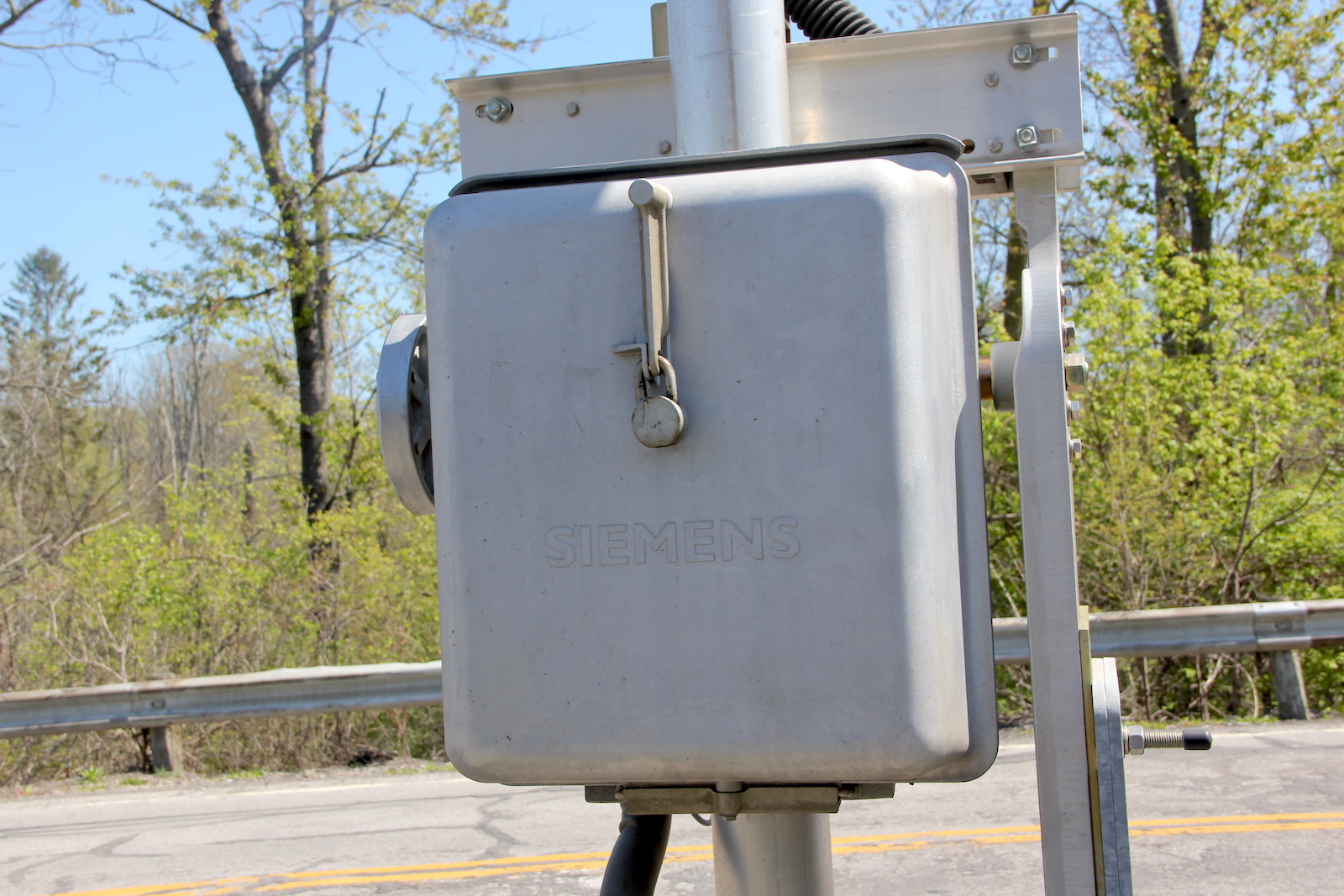

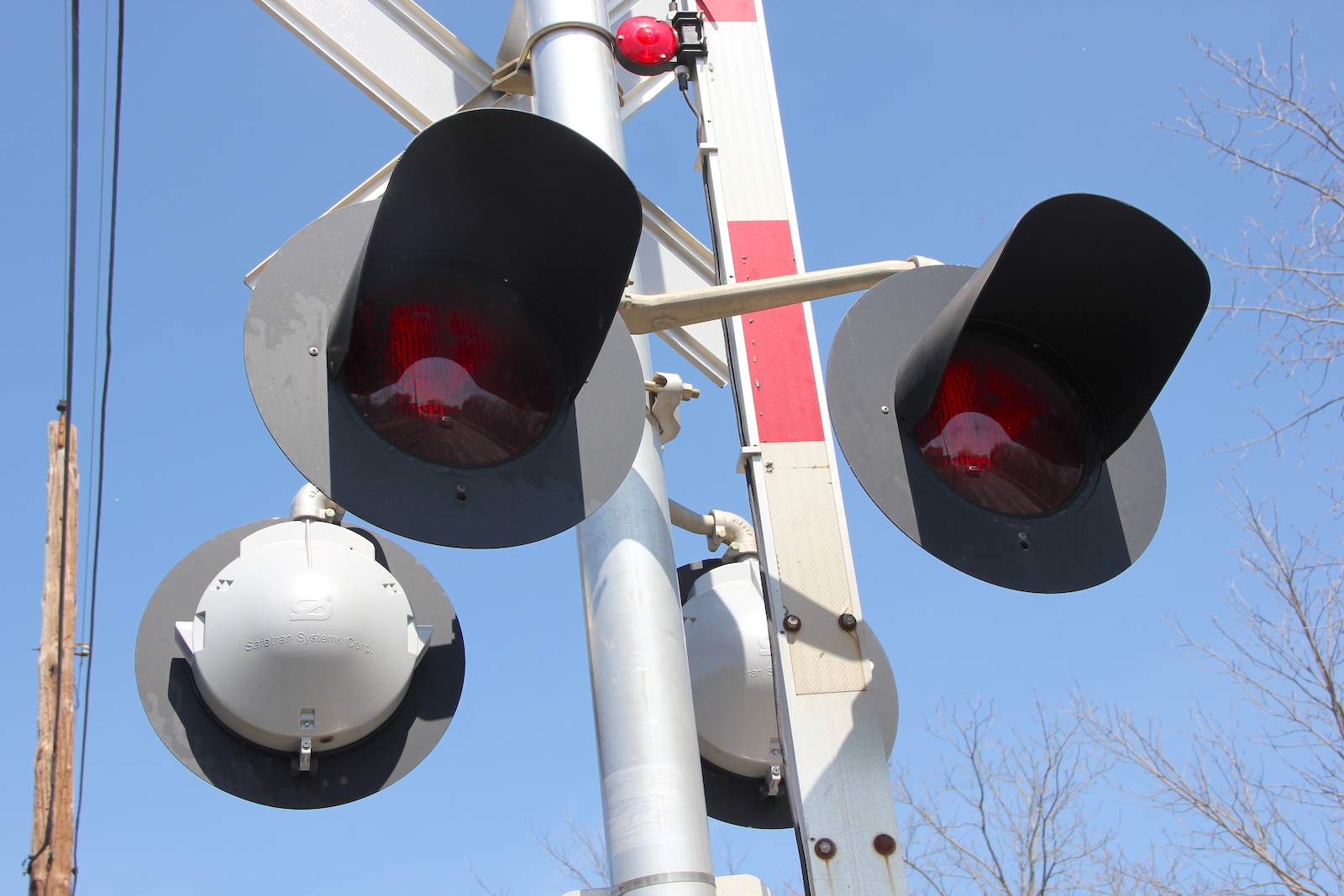

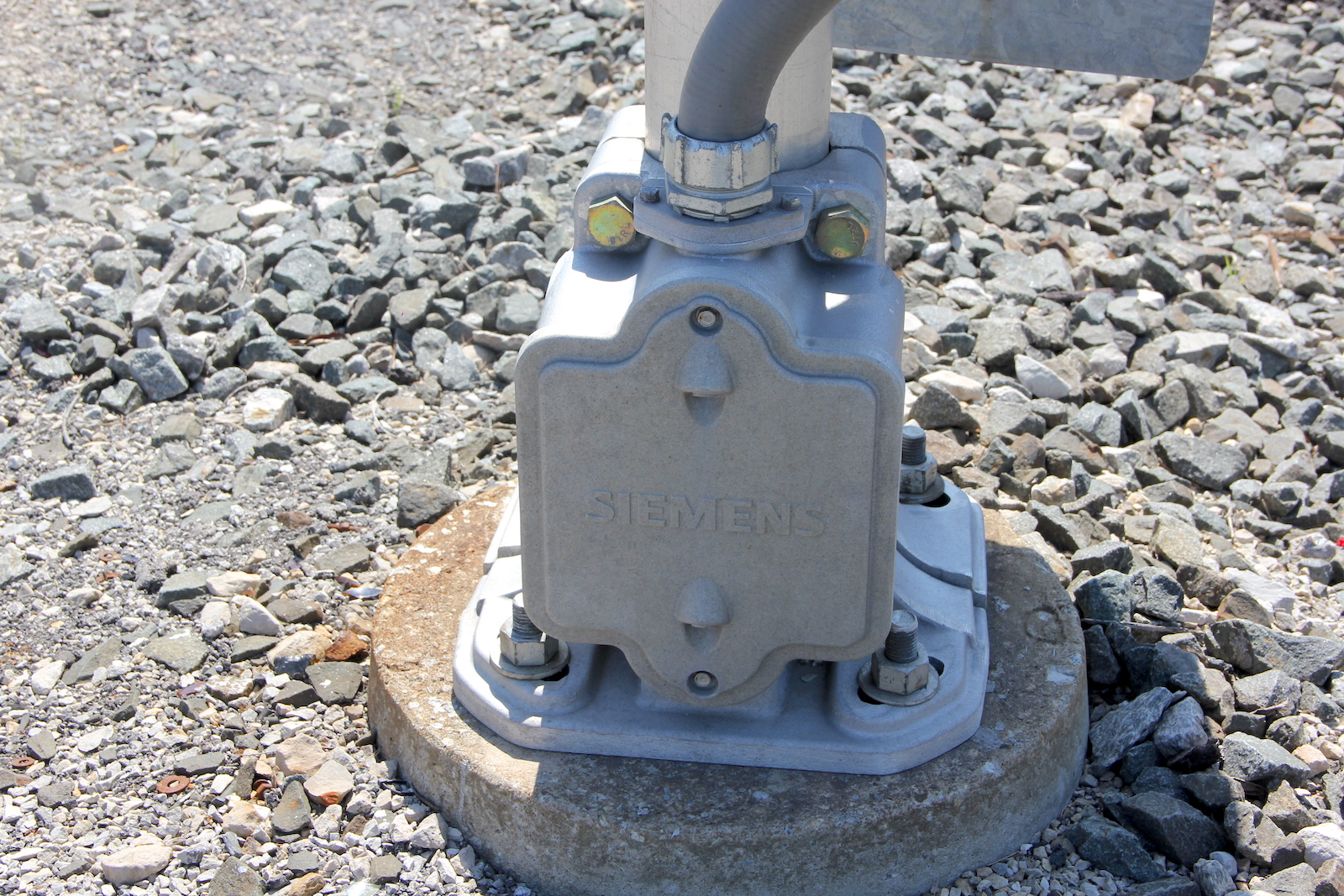

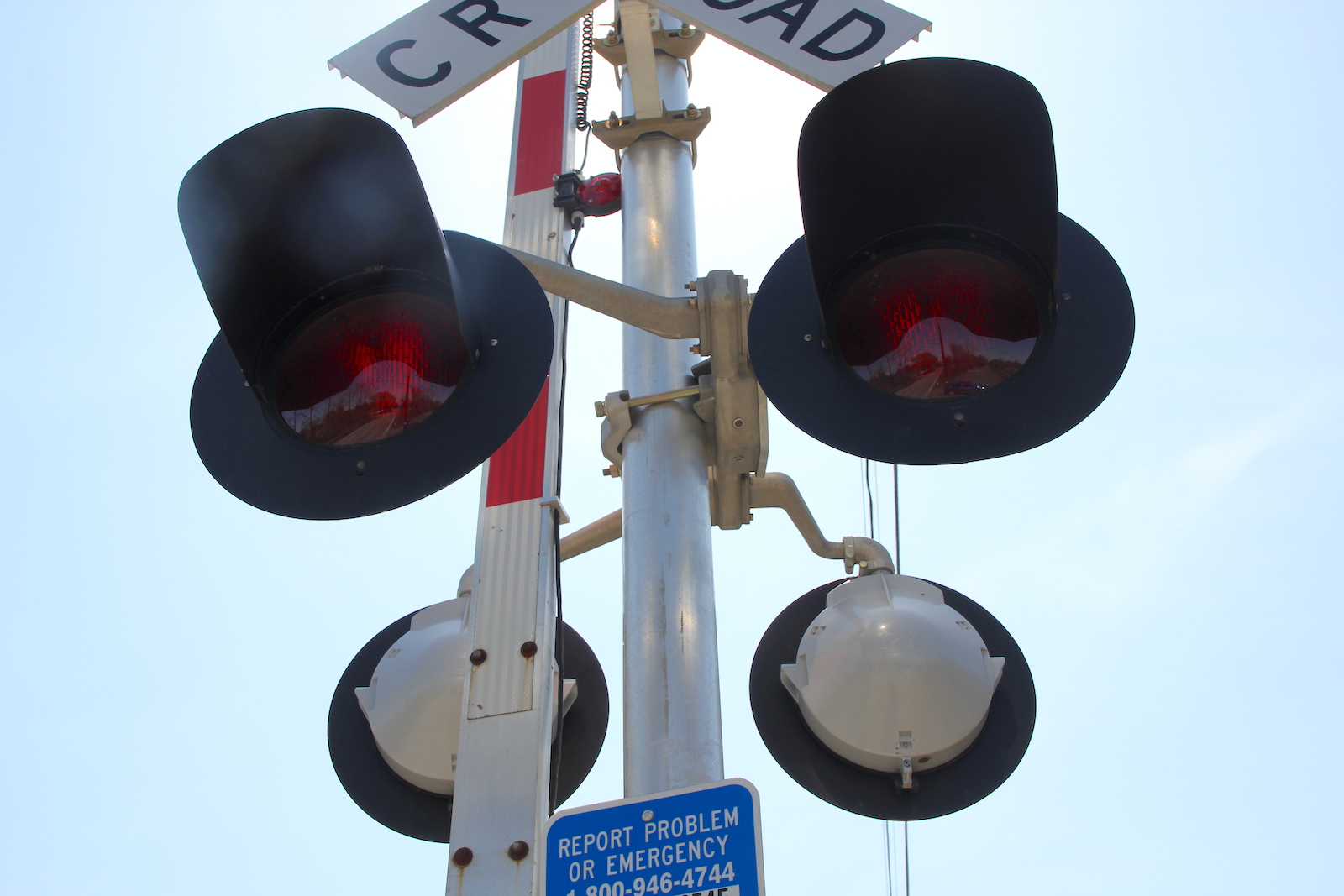

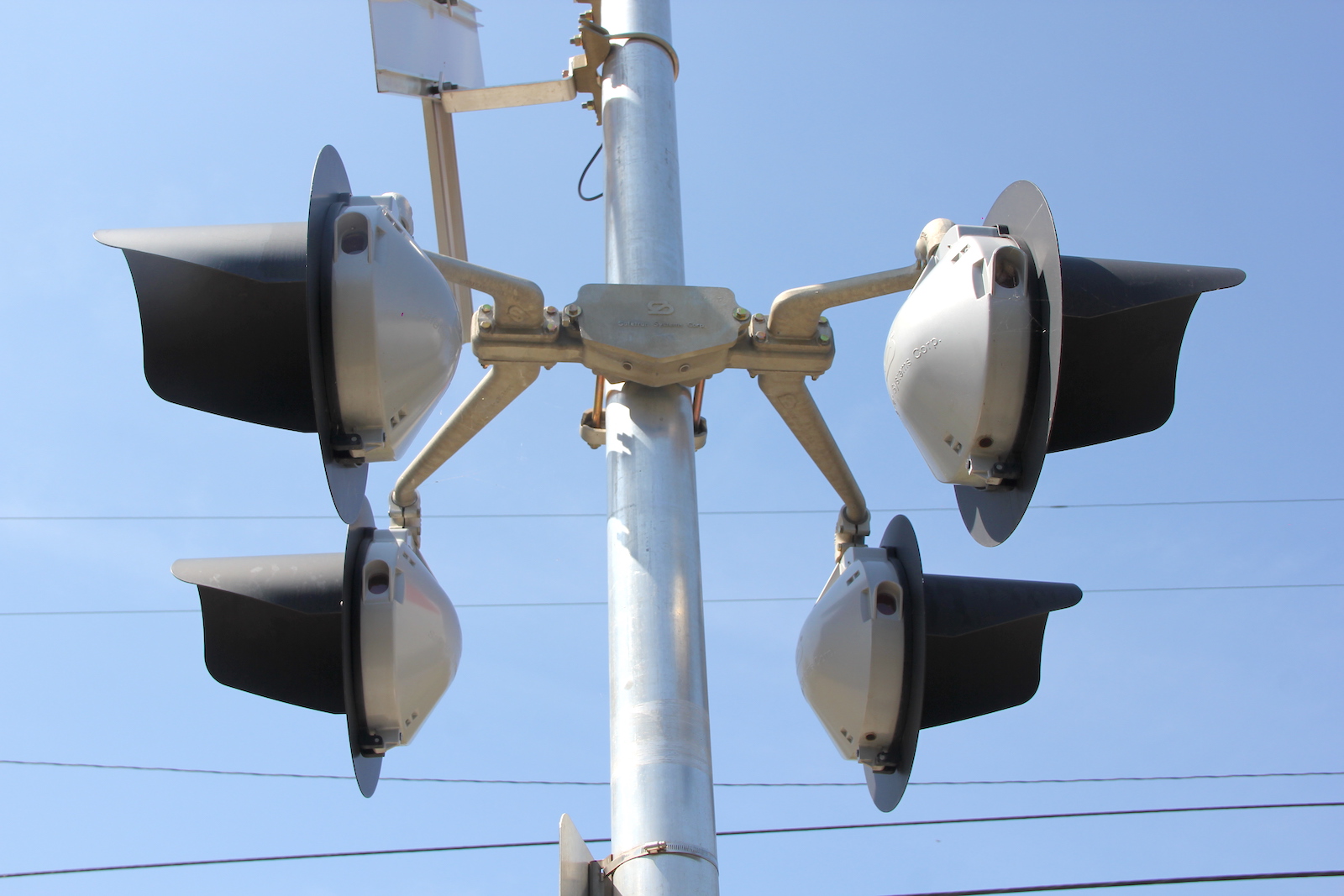

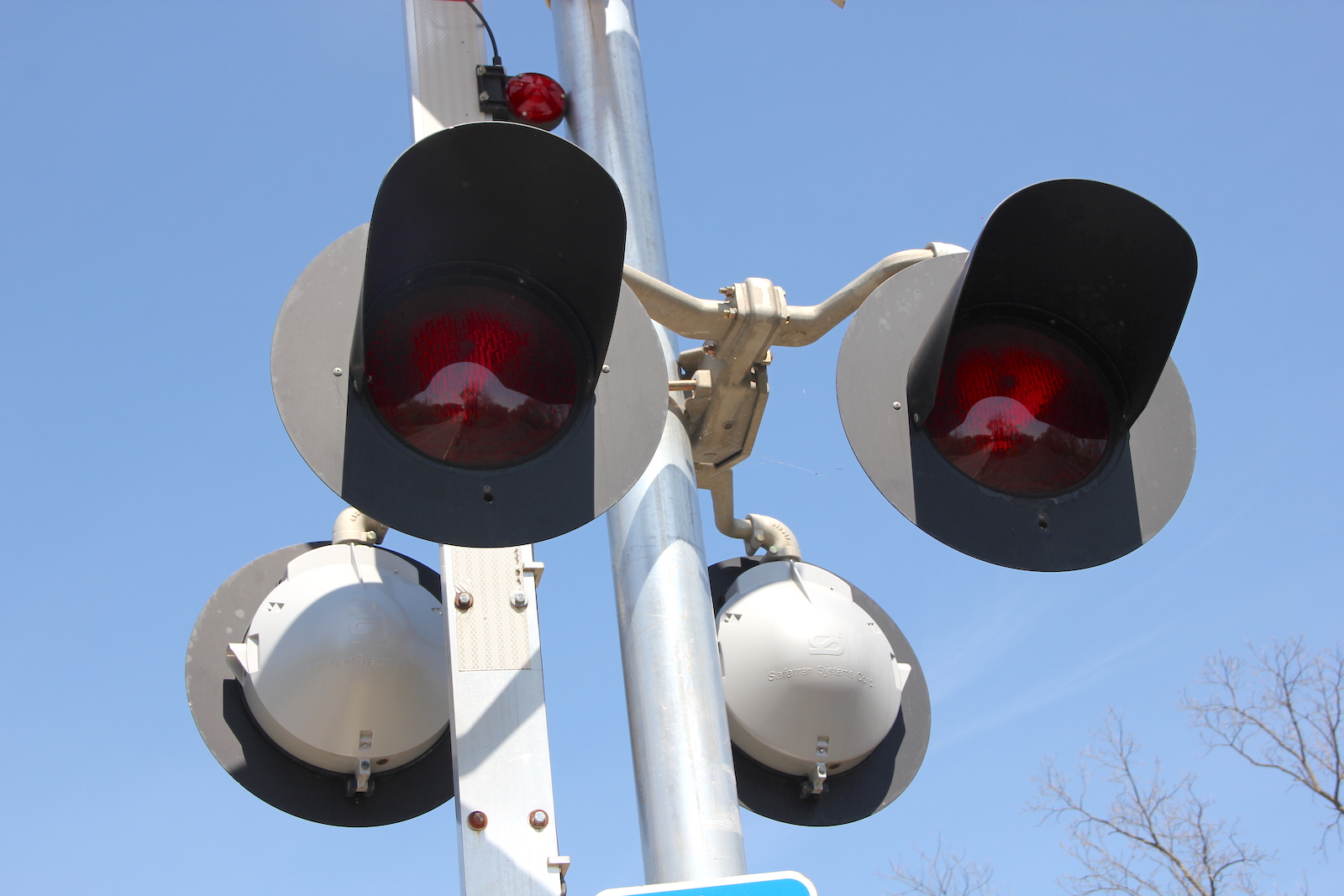

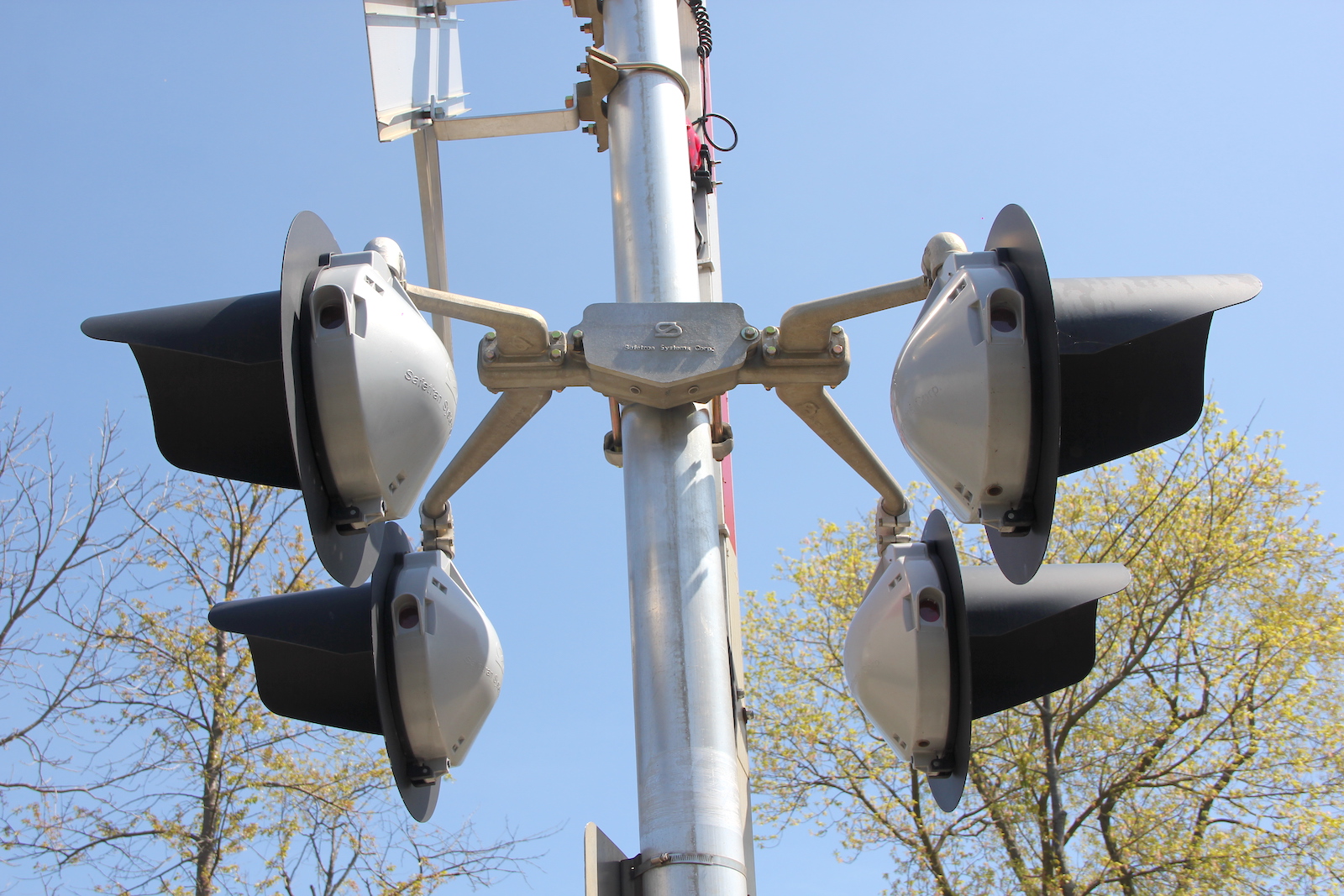

The new northern signal.
42
43
44
45
46
47
48
49
50

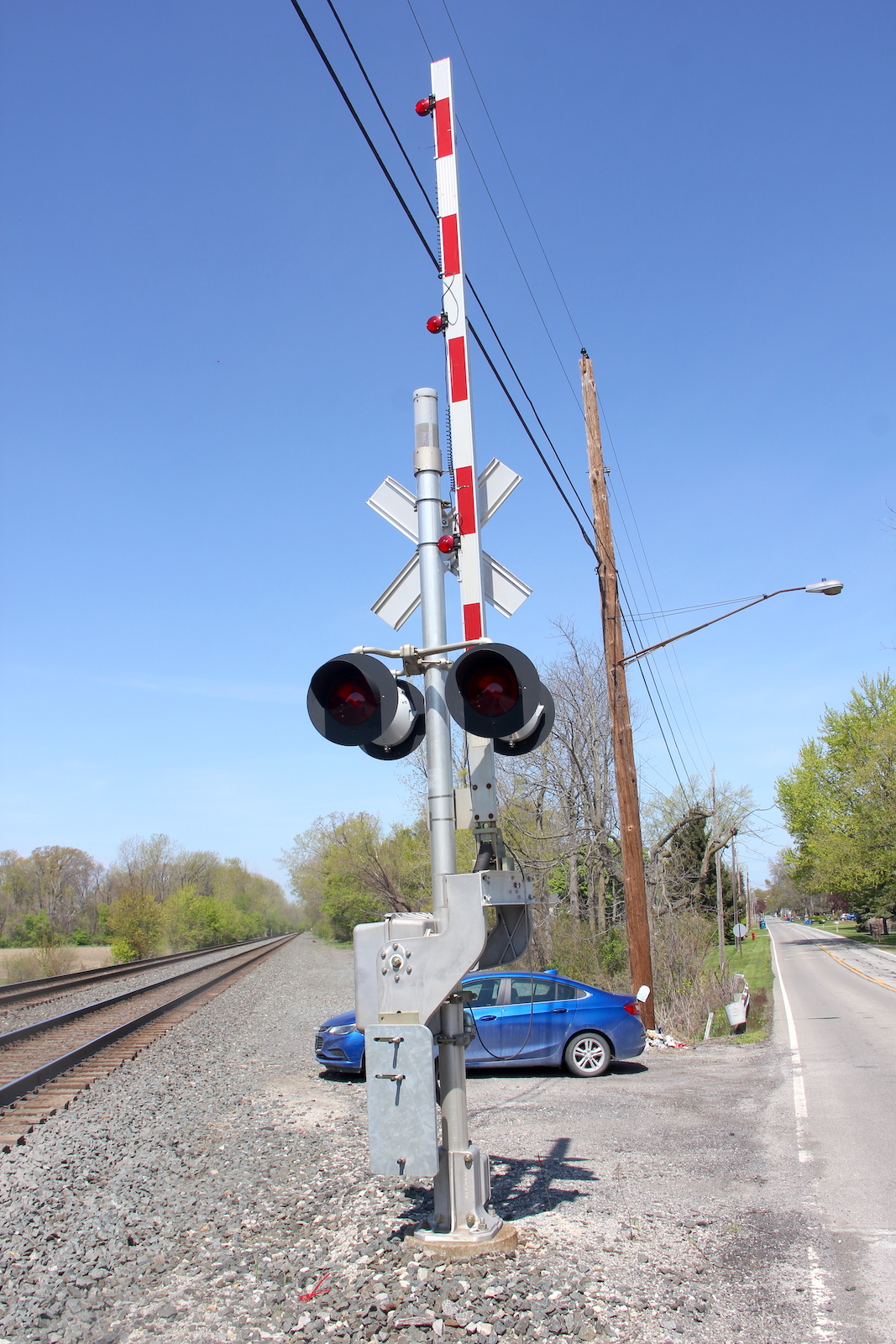

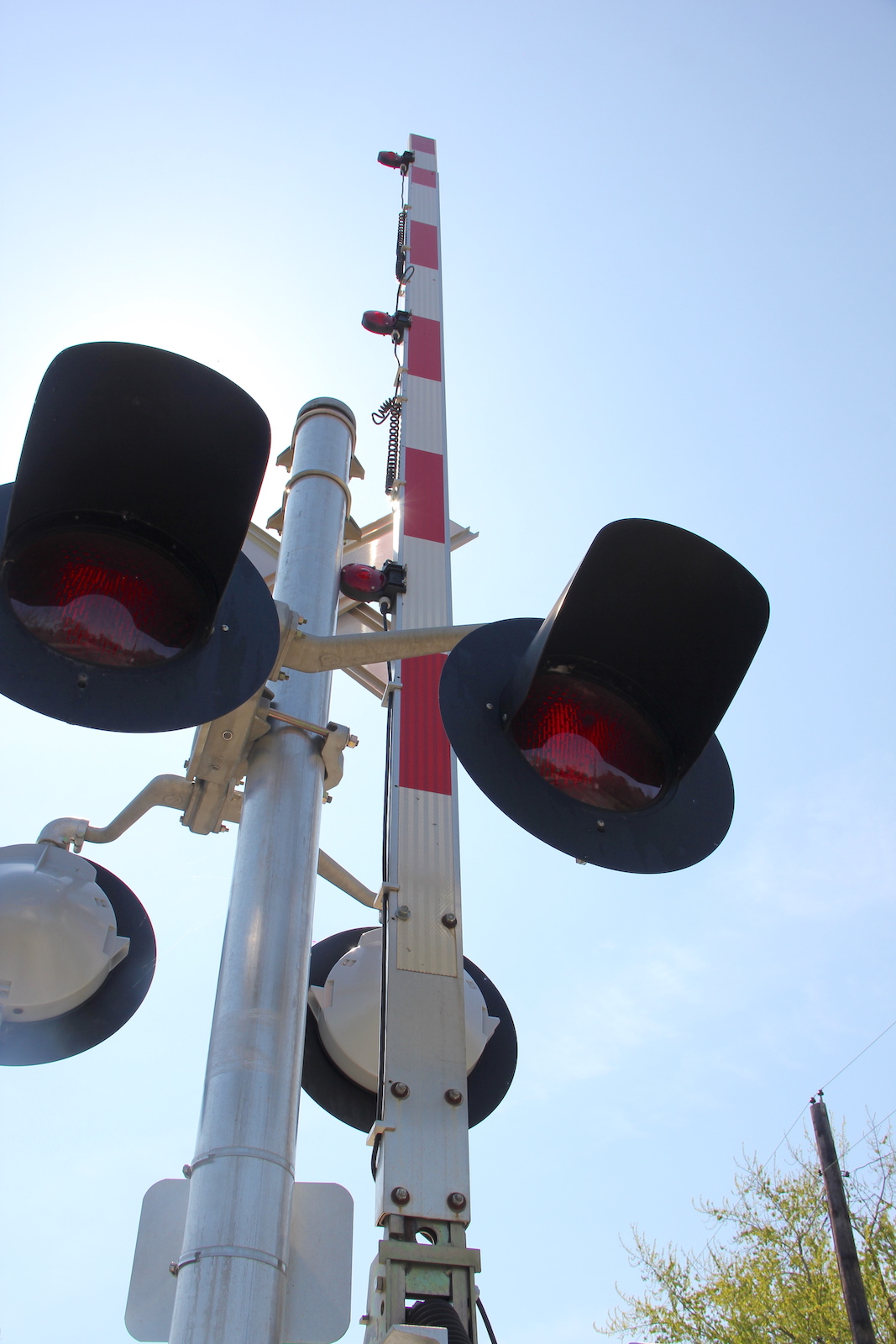

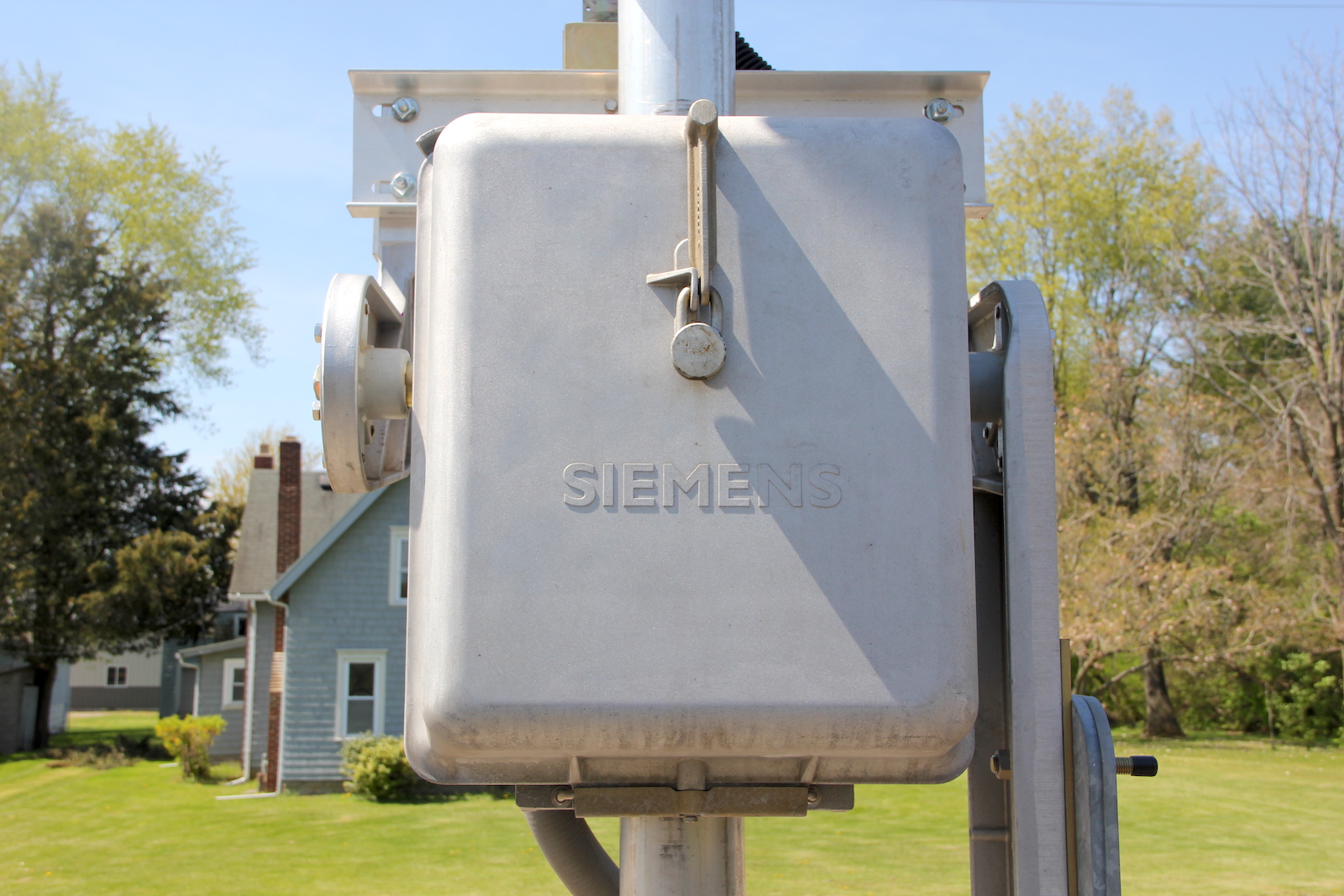

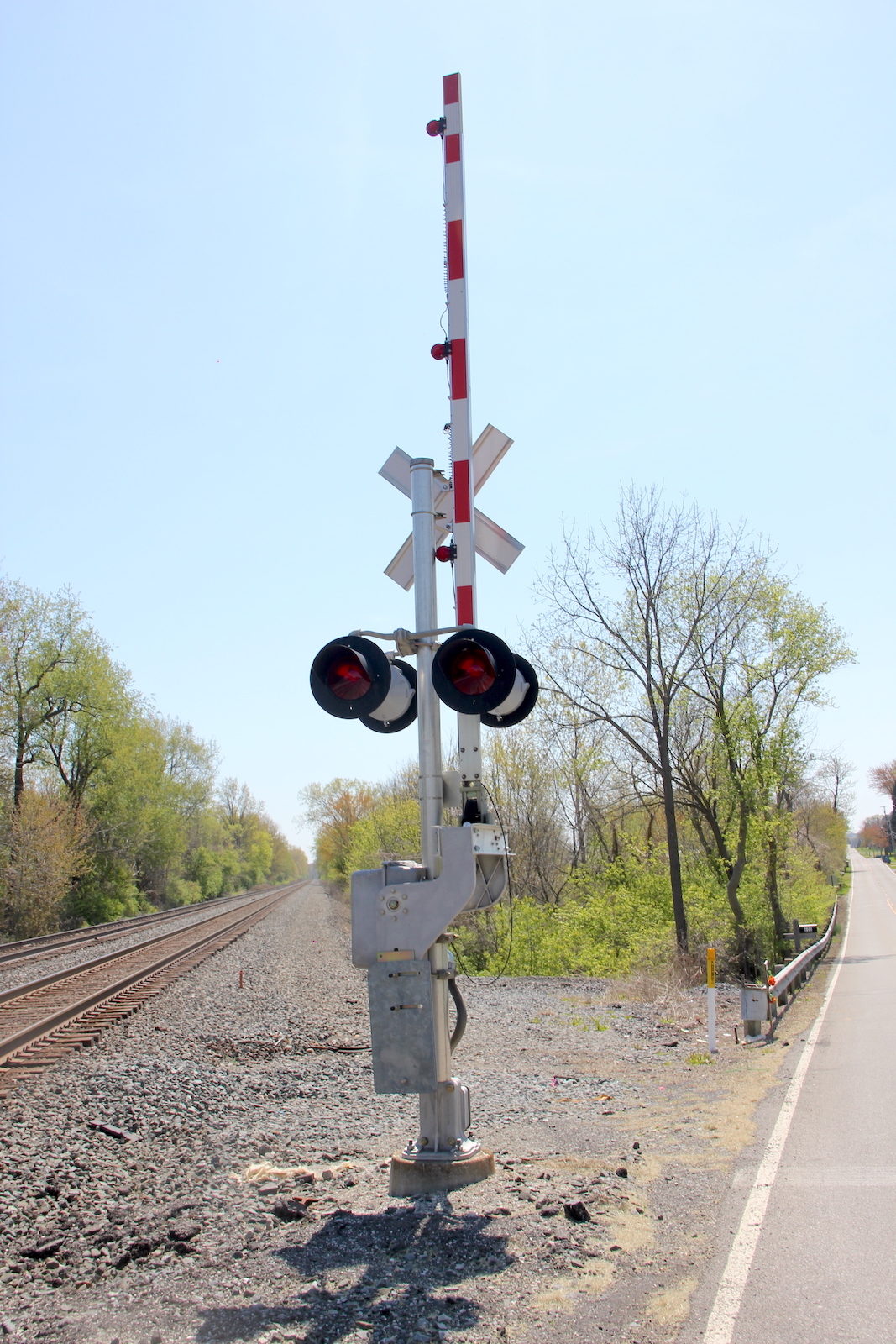

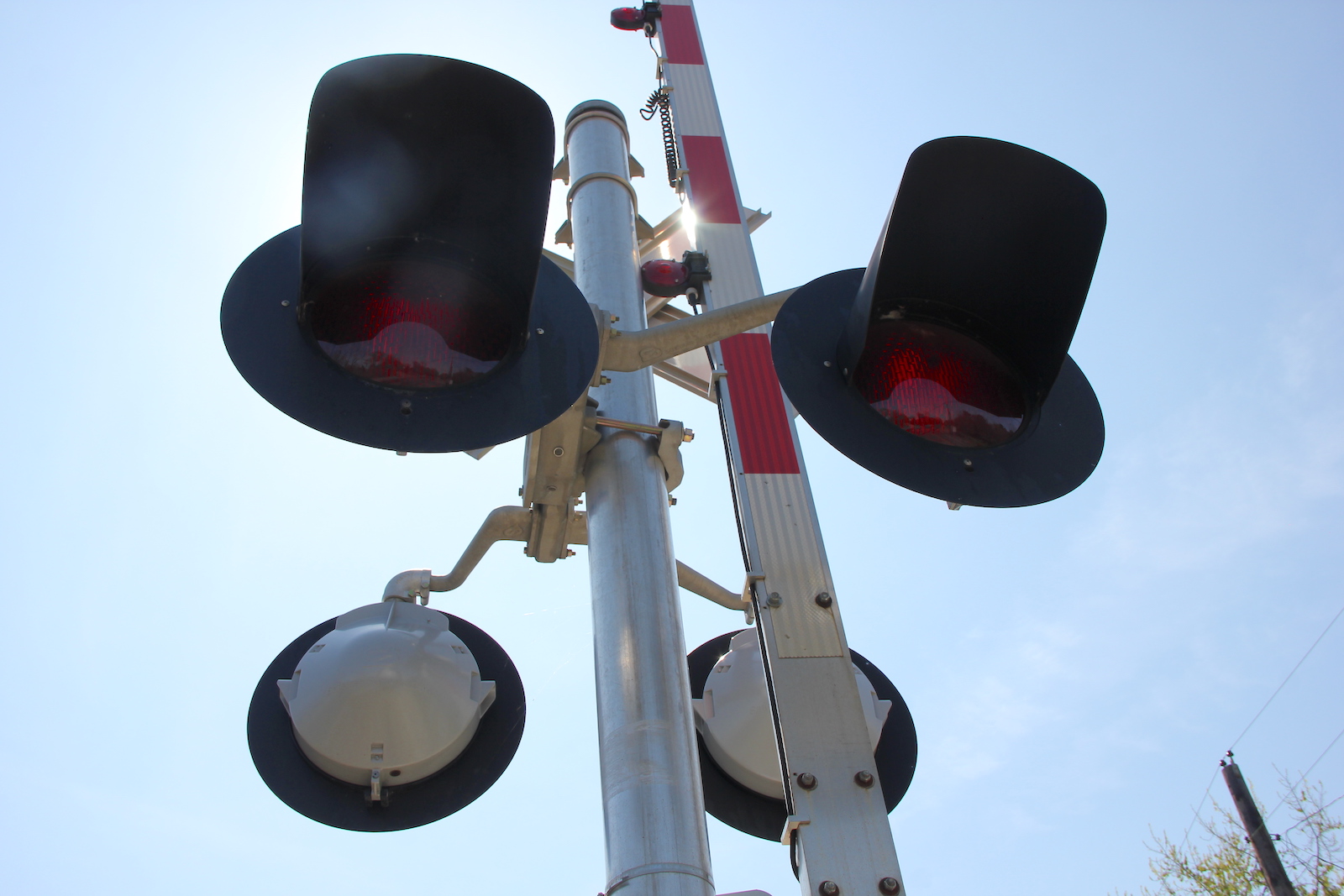

The new southern signal.

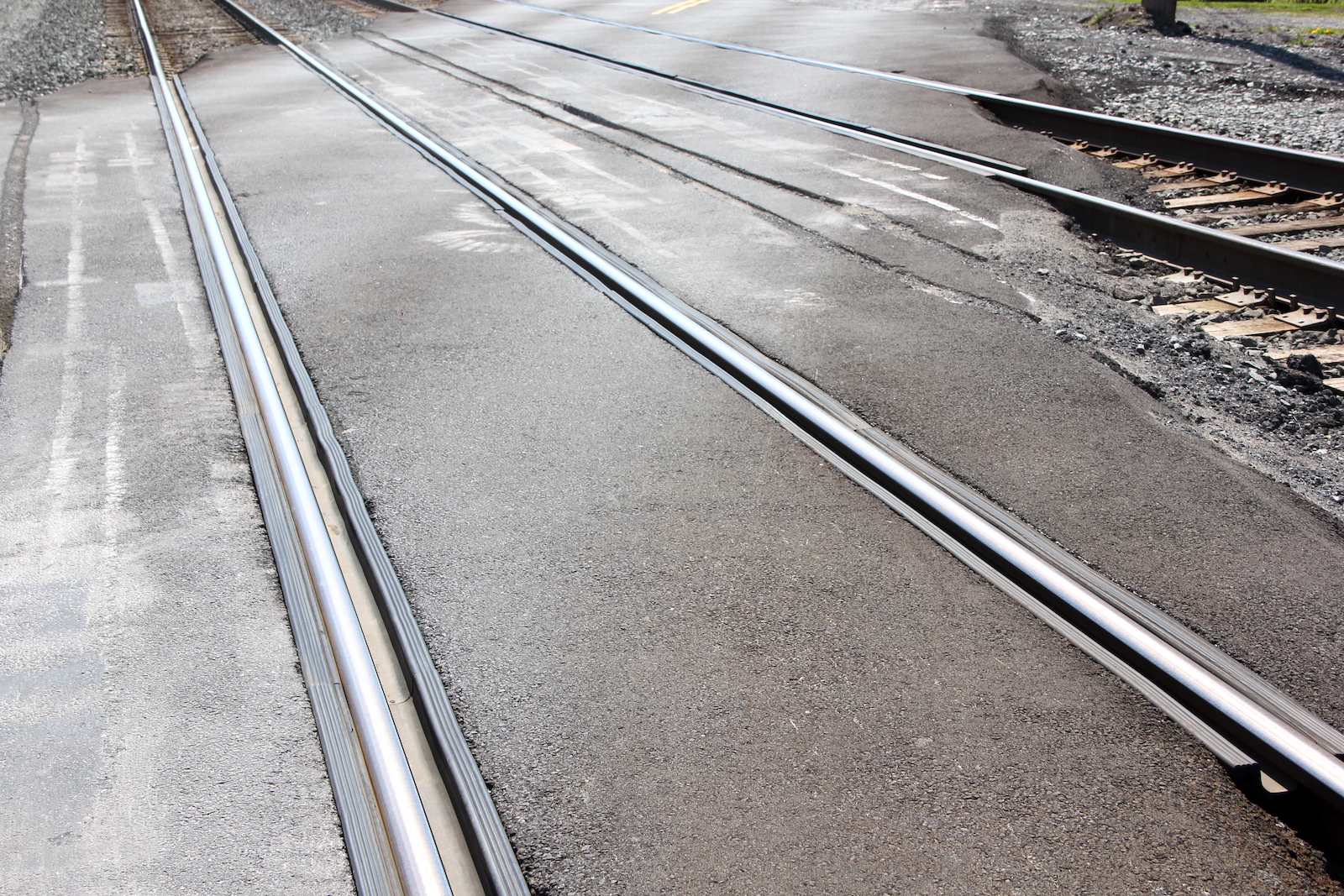

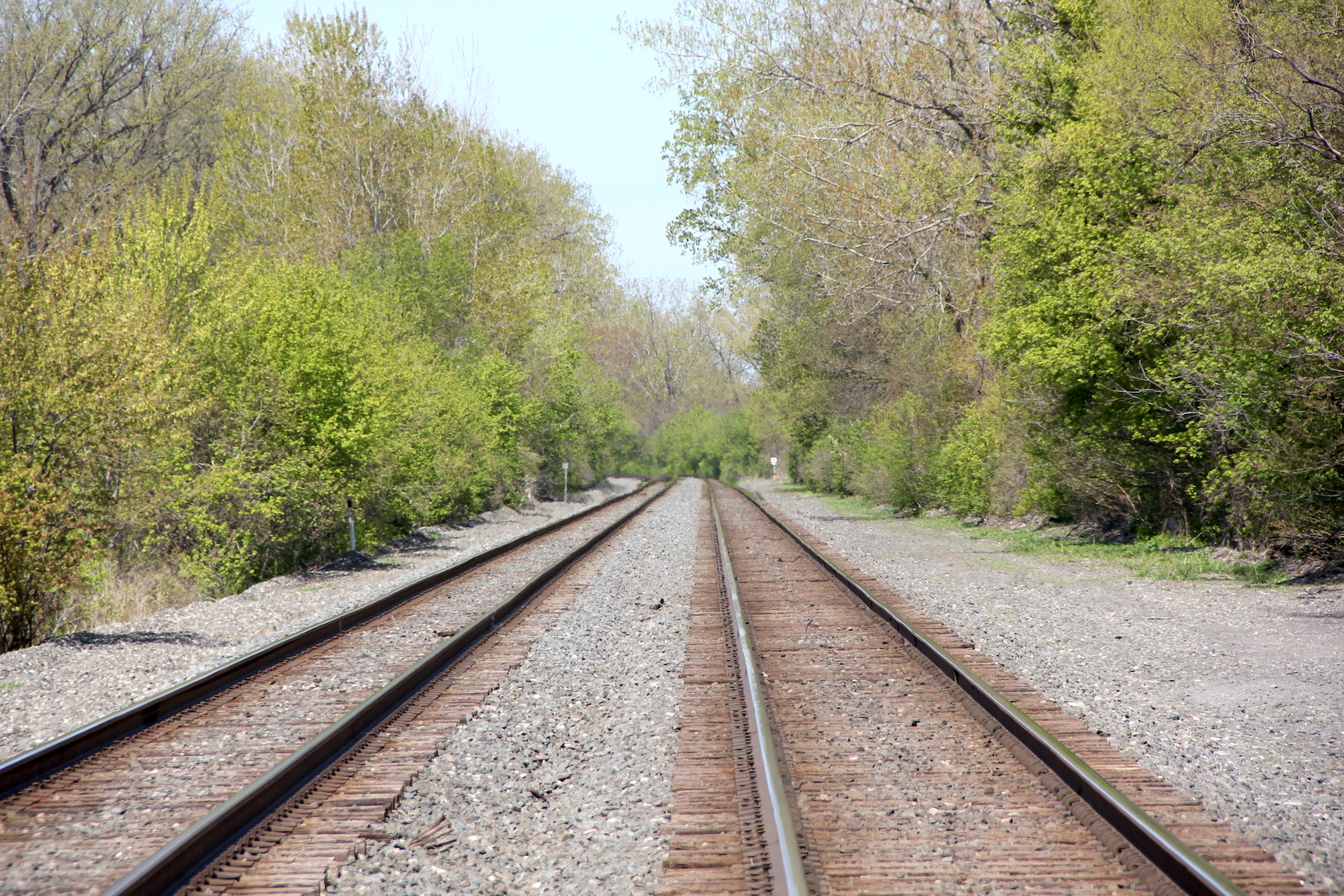

51
52
53
54

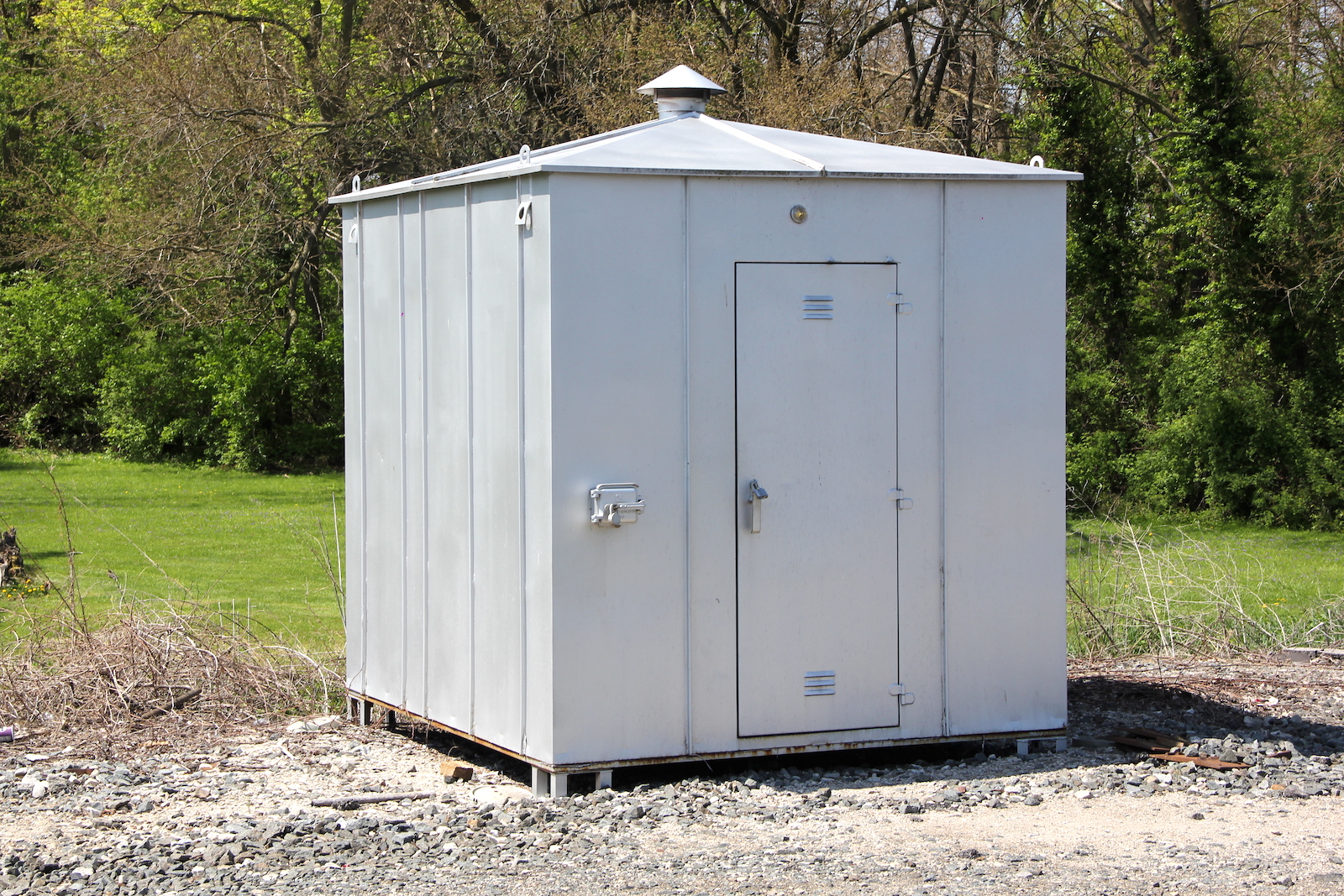

The same relay bungalow in the southwest quadrant.
