| >>>>>>>>>>>>>>> | Western Signal | Eastern Signal |
| Bell: | None | Safetran Mechanical Bell |
| Base: | WRRS 5" Single Sided ^ | Safetran 5" Single Sided ^ |
| Lights: | 4 - 8"x20" Safetran incandescents | 6 - 8"x20" Safetran incandescents |
| Junction Boxes: | Safetran | Safetran |
| Gate Lights: | 4" RECO incandescents | 4" RECO LEDs |
| Gate Mechanism: | Safetran 1980s w/ Standard Mount | Safetran 1980s w/ Standard Mount |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2
|

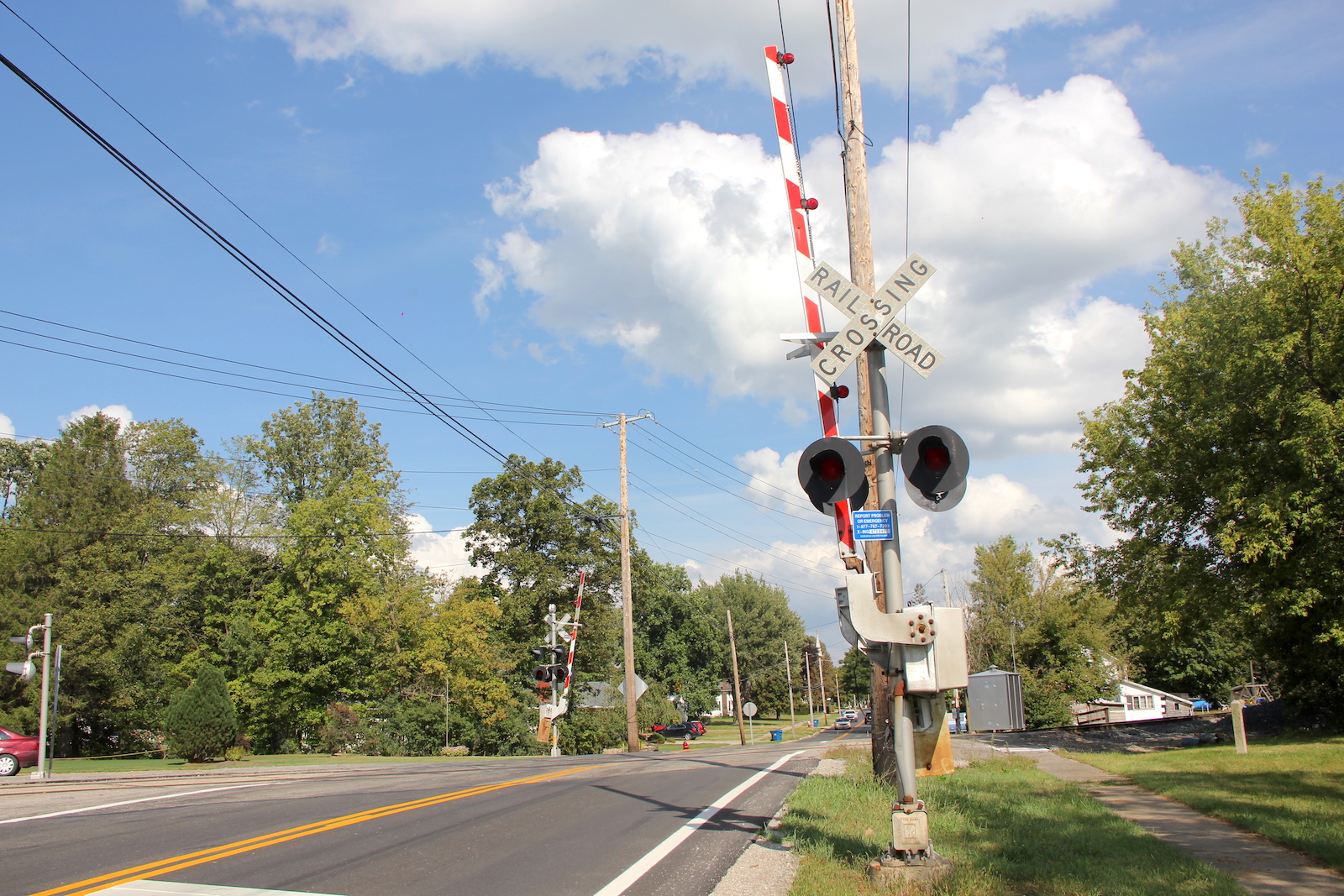

| Overview of 2 gated signals and a "No Right Turn" signal facing east. |

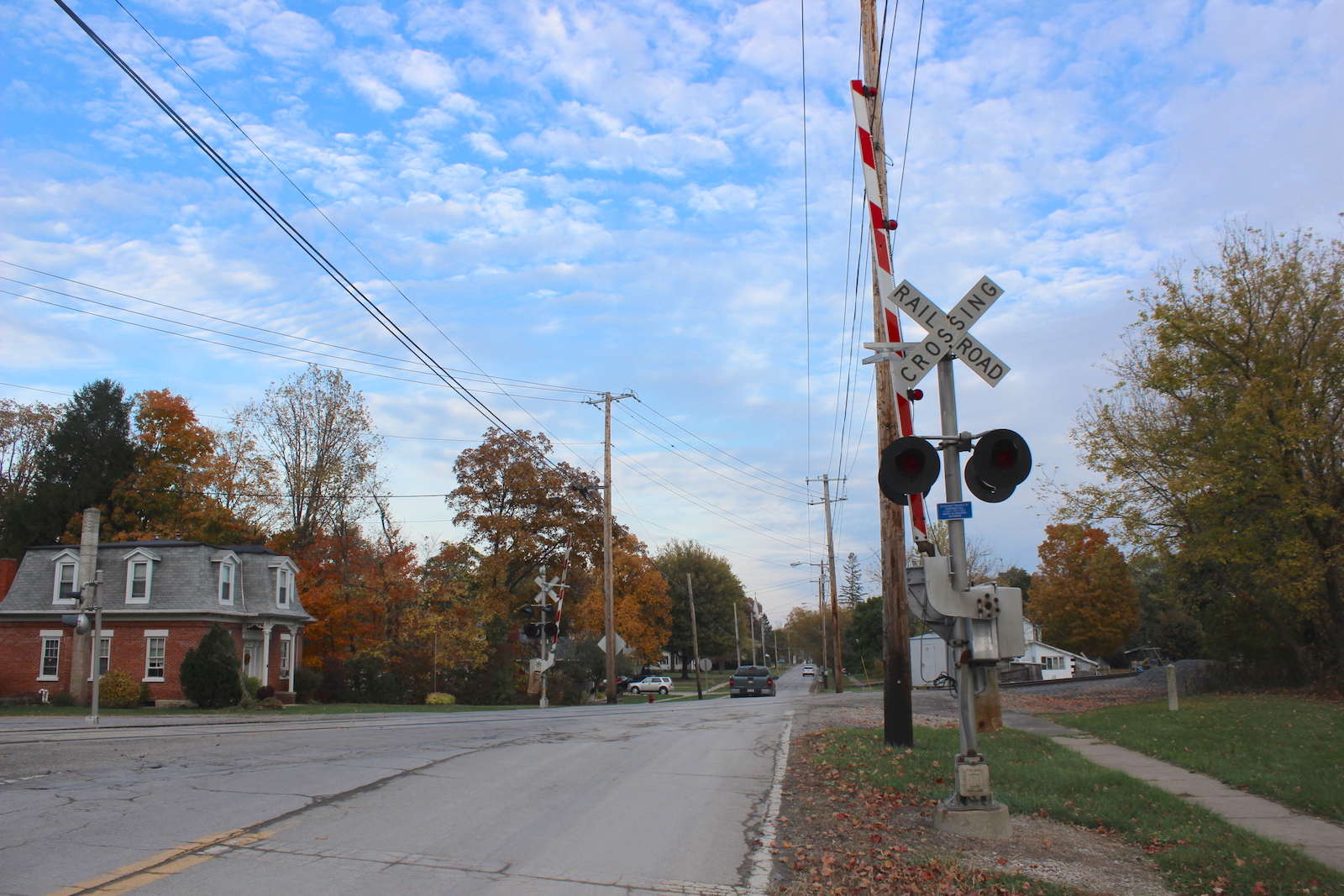

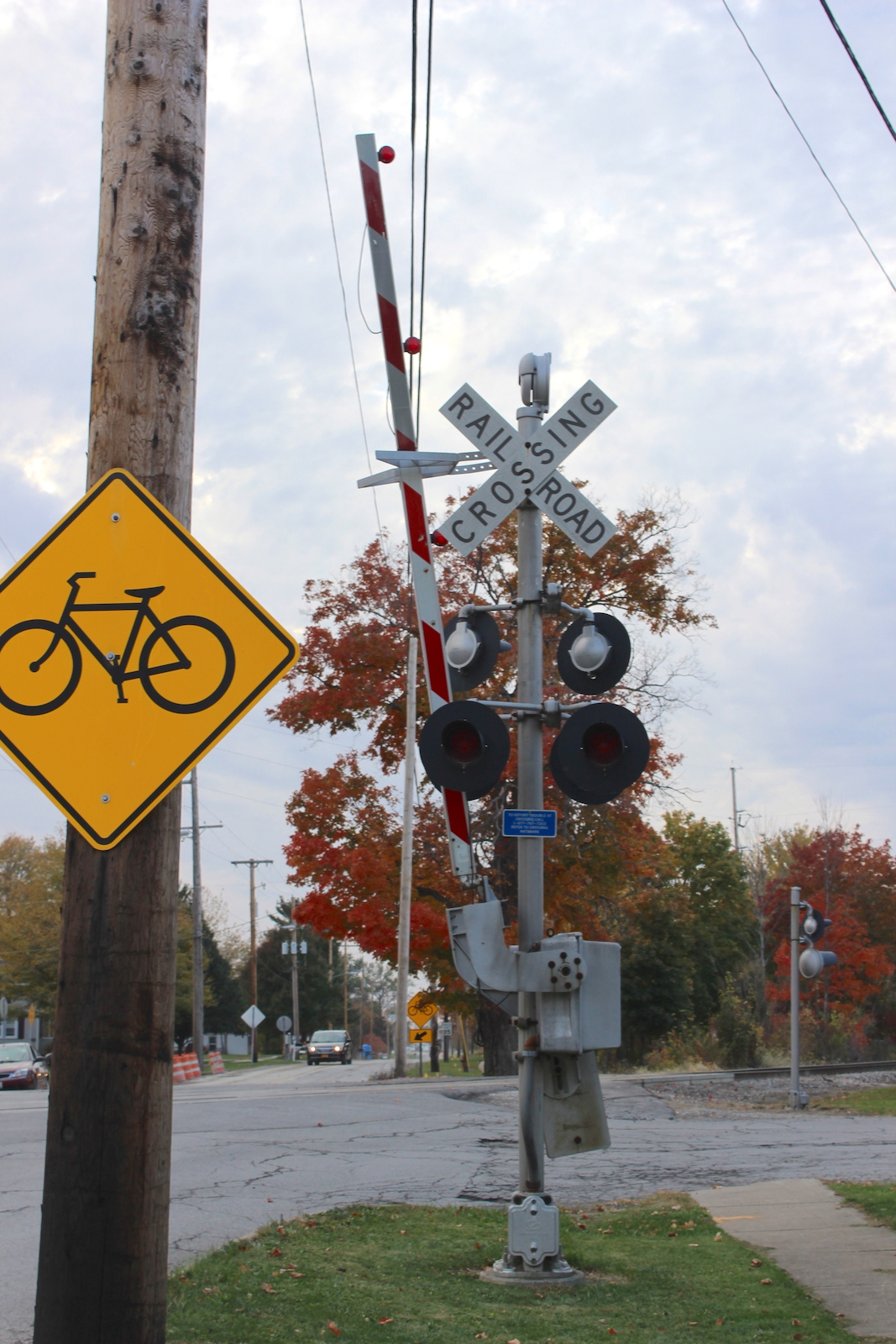

Overview facing west. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

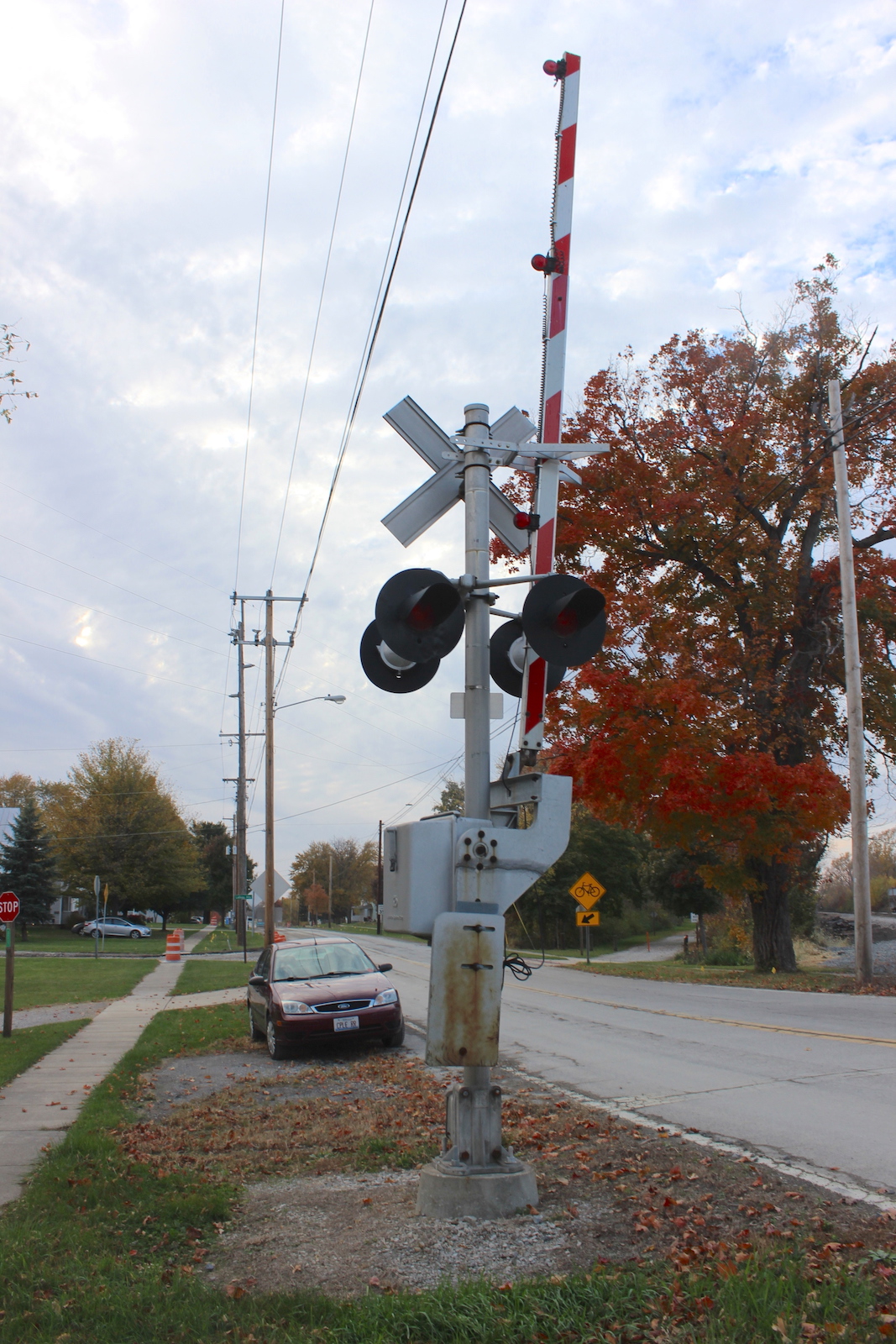

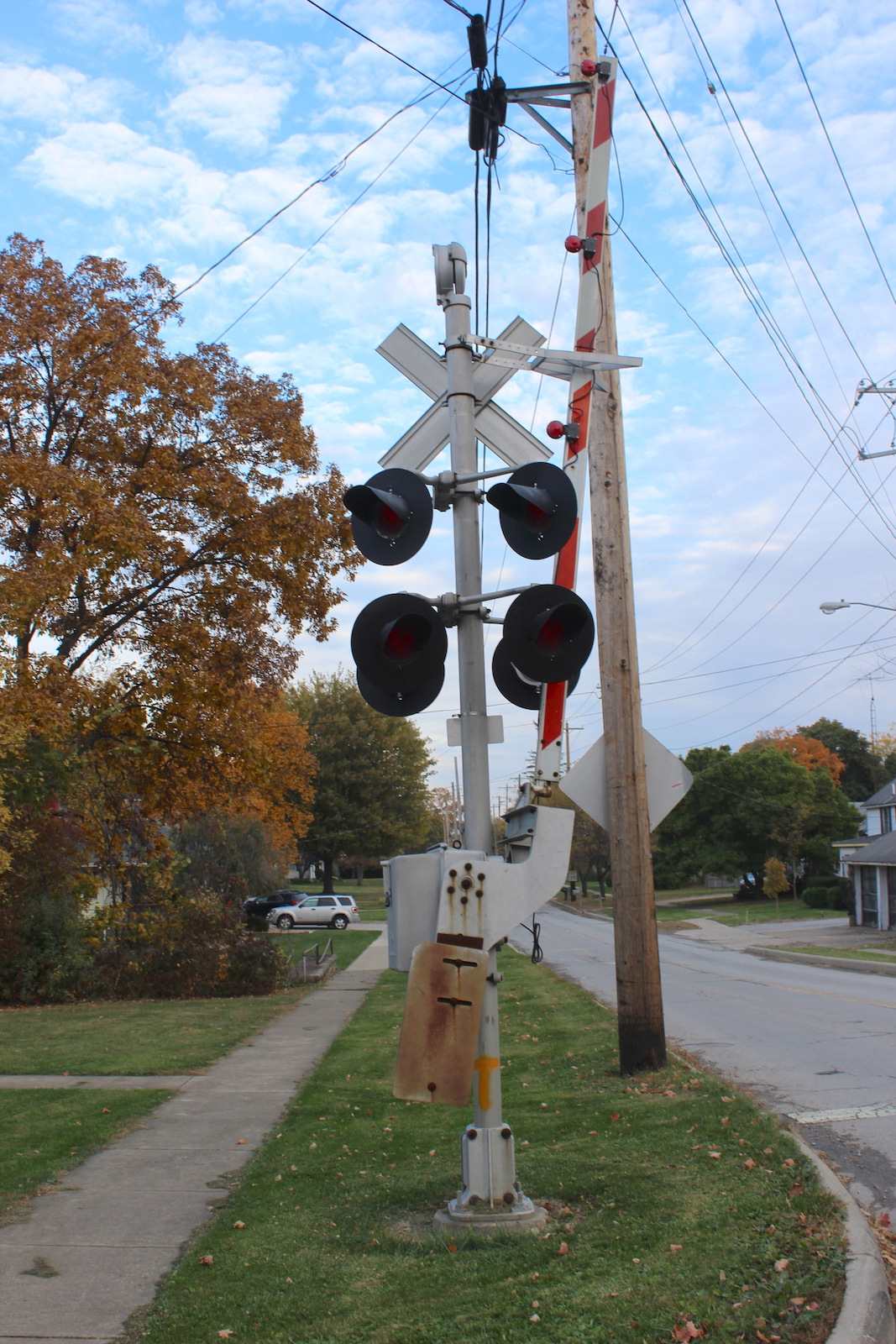

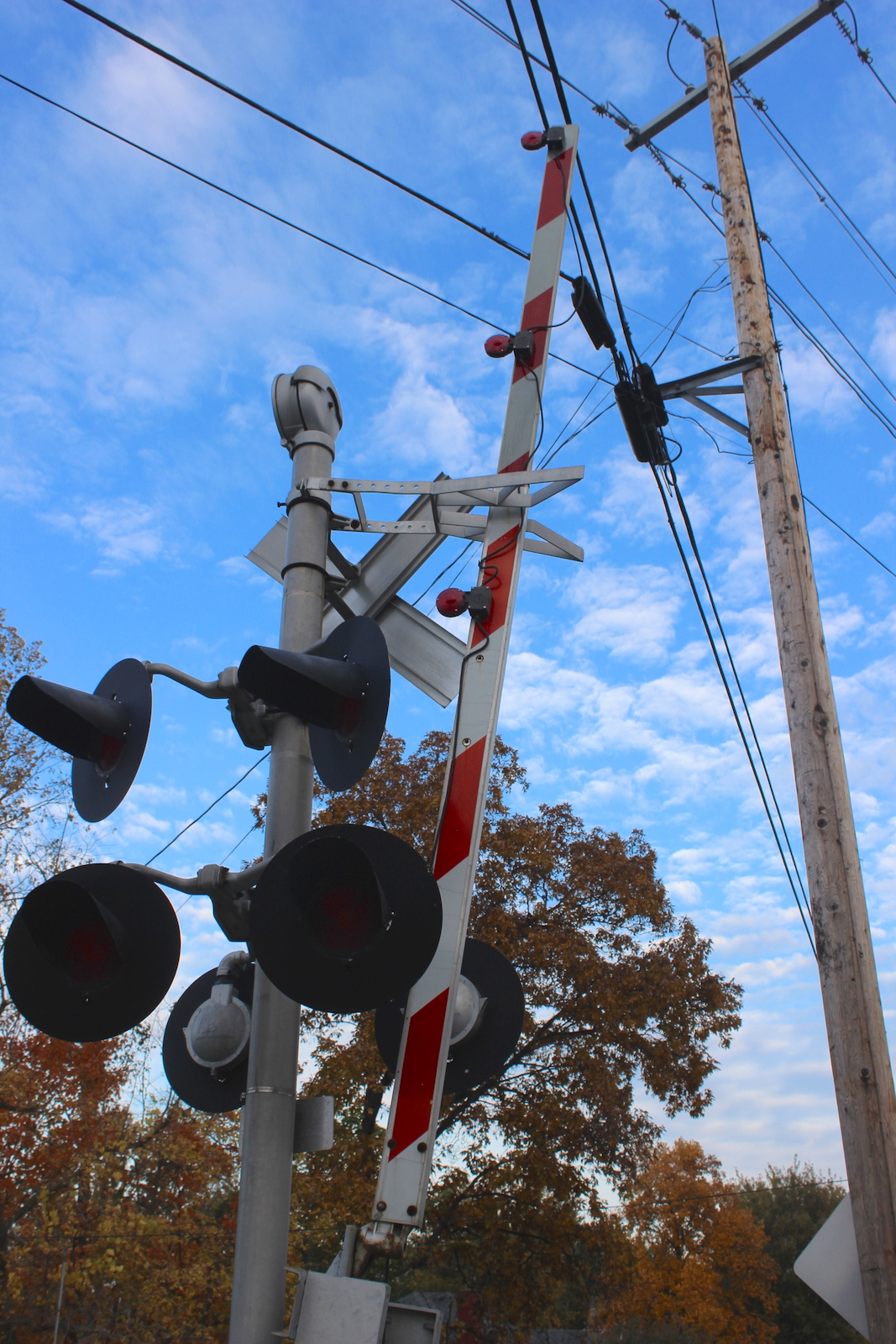

| The western signal. |
||
12
| 13
| 14
| 15
|
16
| 17
| 18
| 19
|
20
| 21
| 22
| 23
|

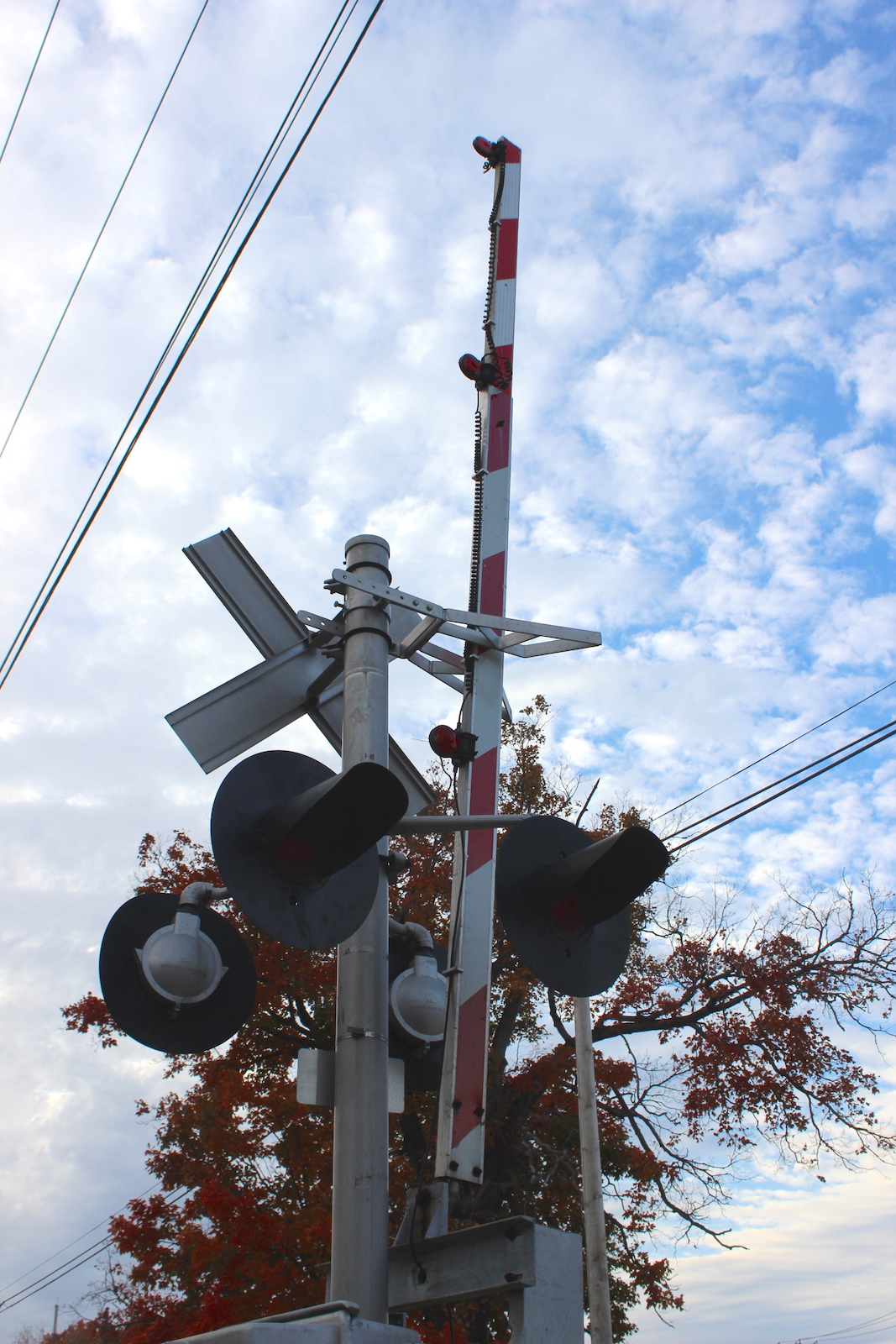

| The eastern signal. |
24
| 25
| 26
|
27
| 28
| 29
|

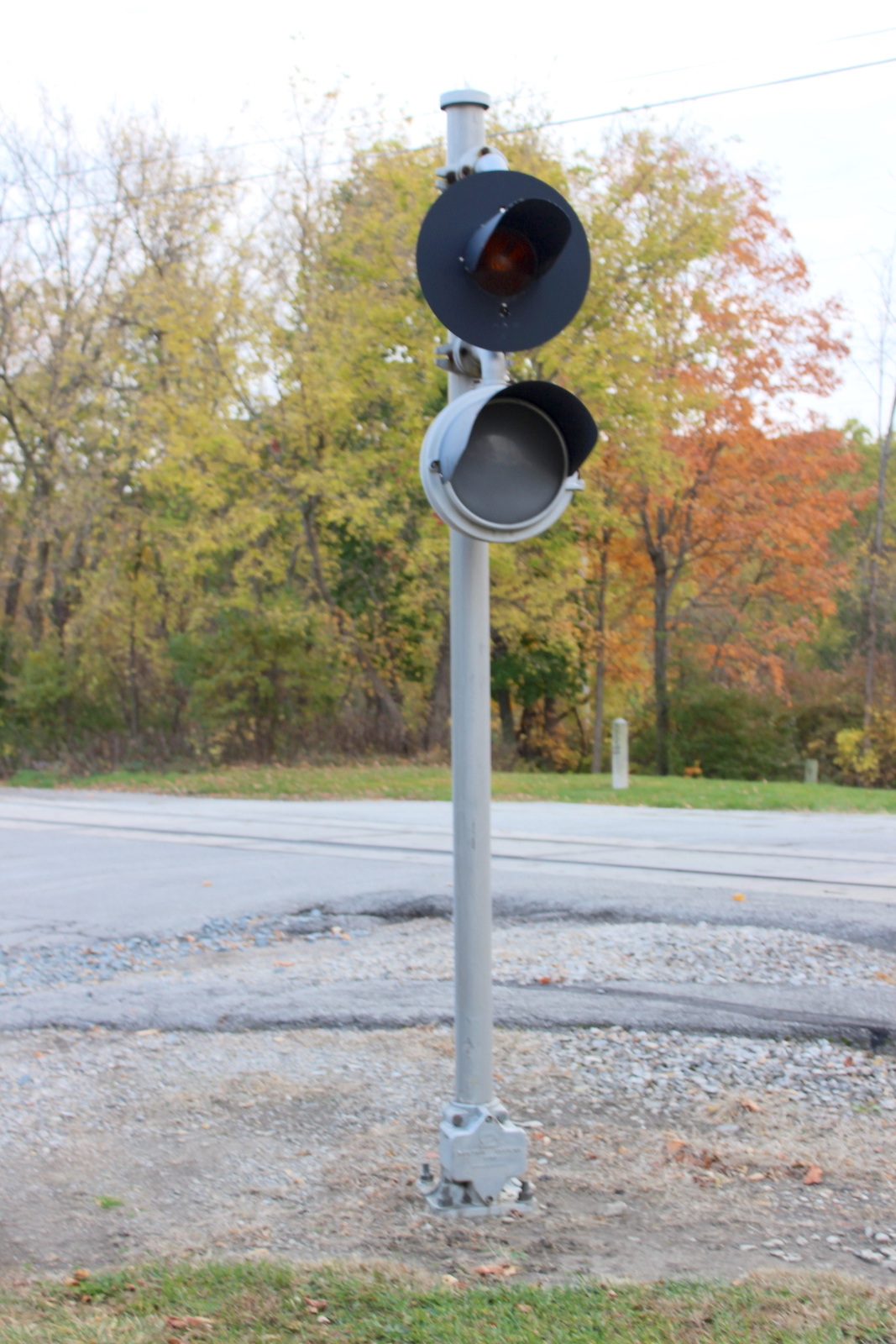

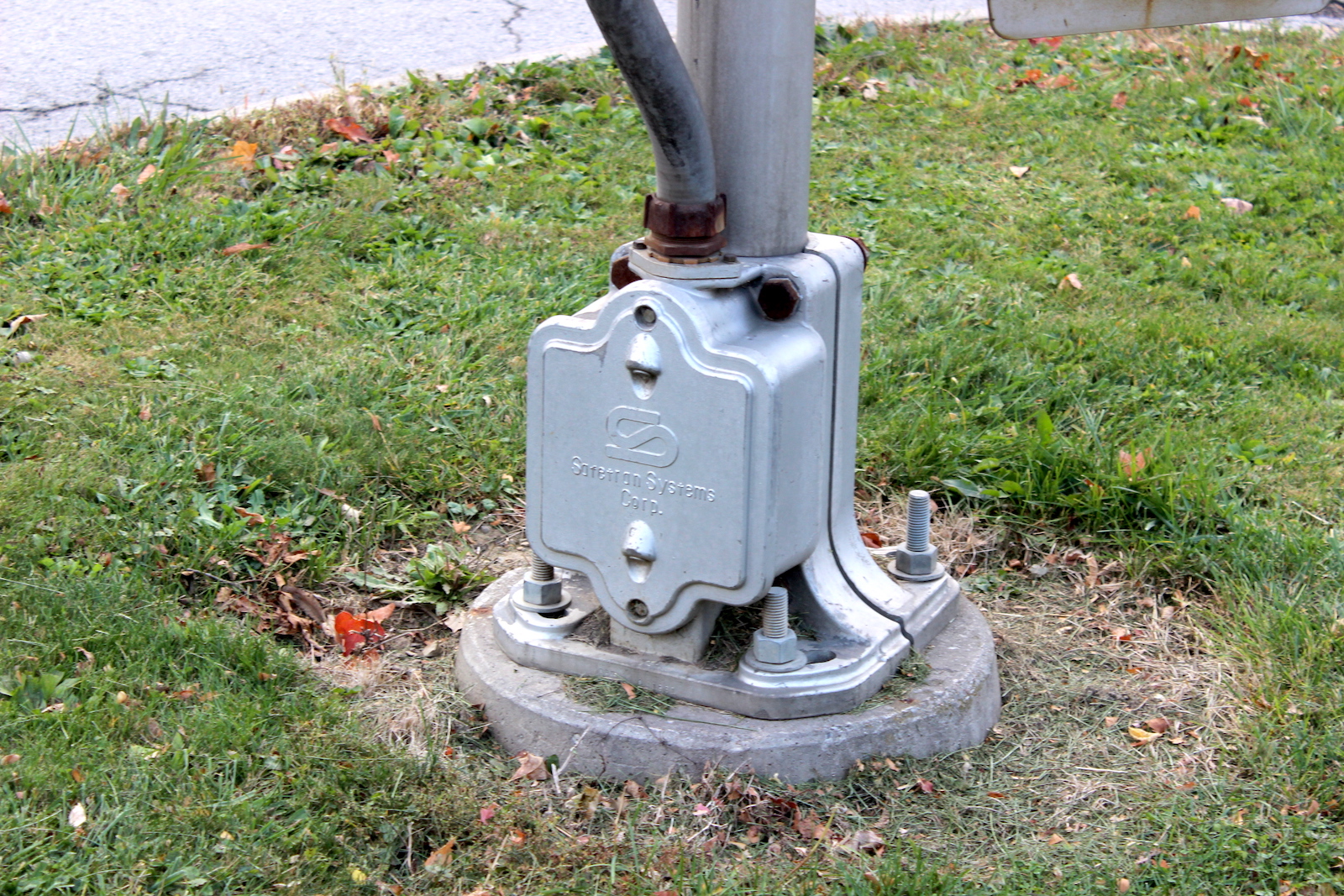

| The "No Right Turn" signal protecting a side street. It has a Safetran base, Safetran 8" yellow incandescent, and an unmarked turn light. |
30
|
31
|
32
|
33
|

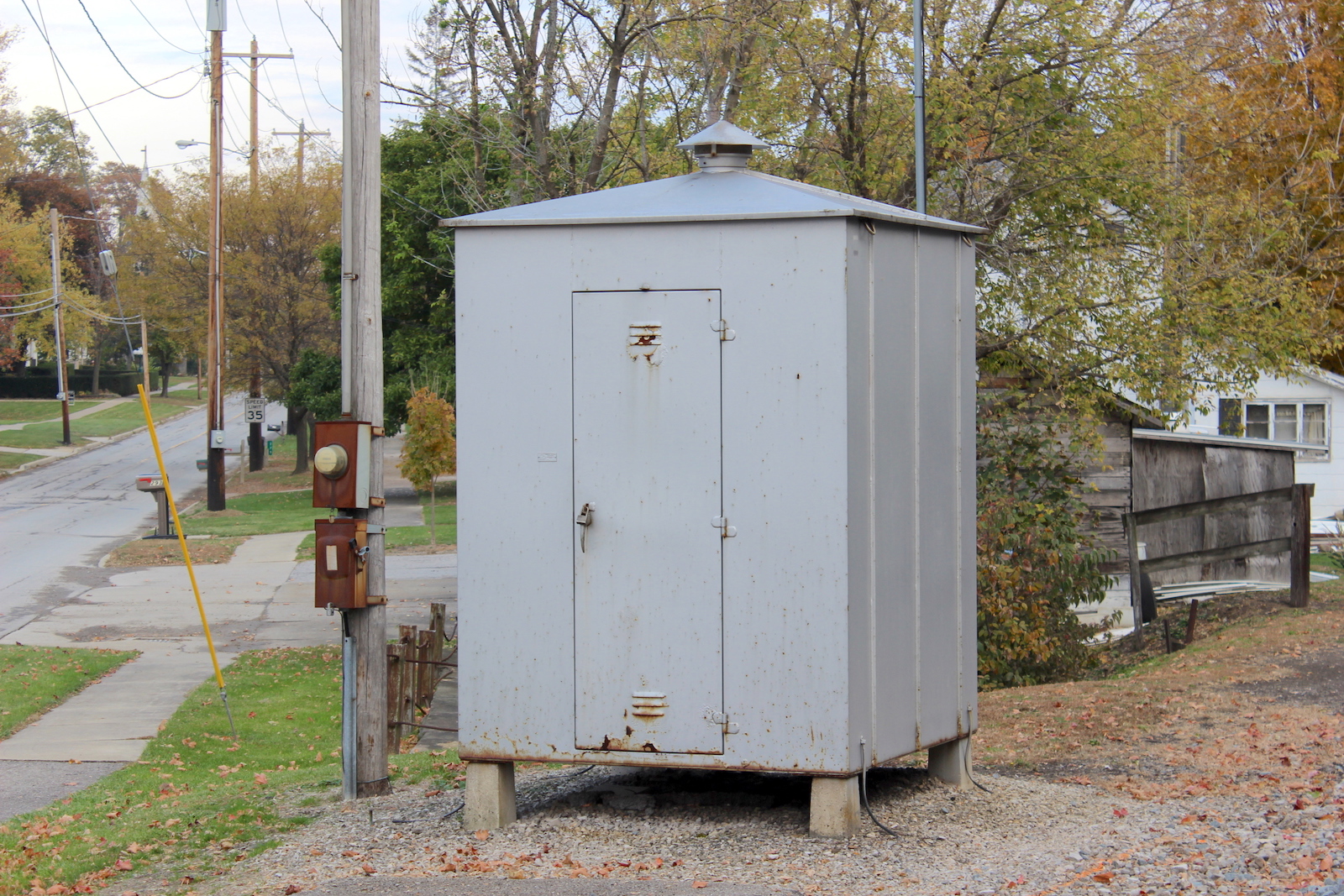

| The relay bungalow in the southeast quadrant. |

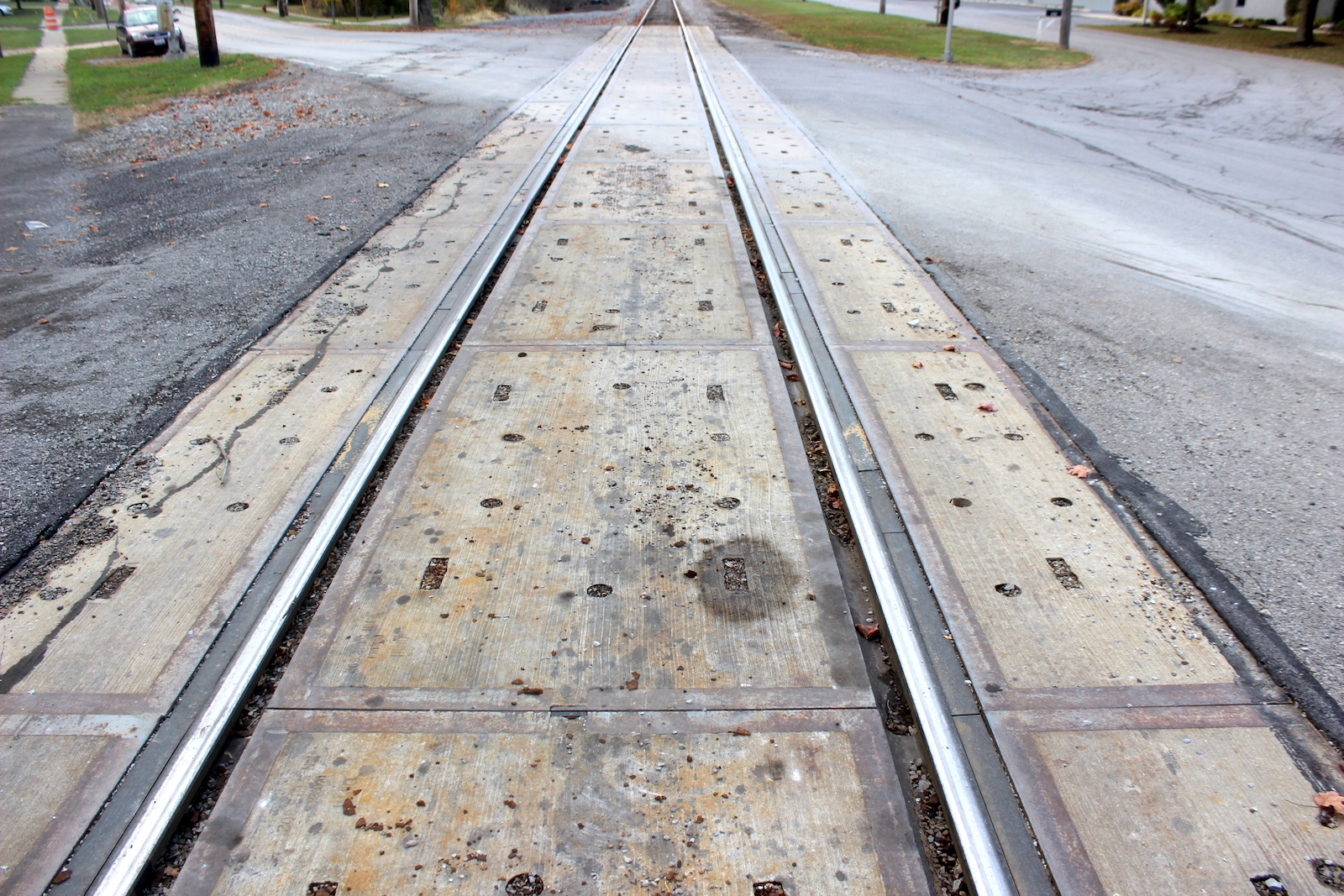

The grade is all concrete. |

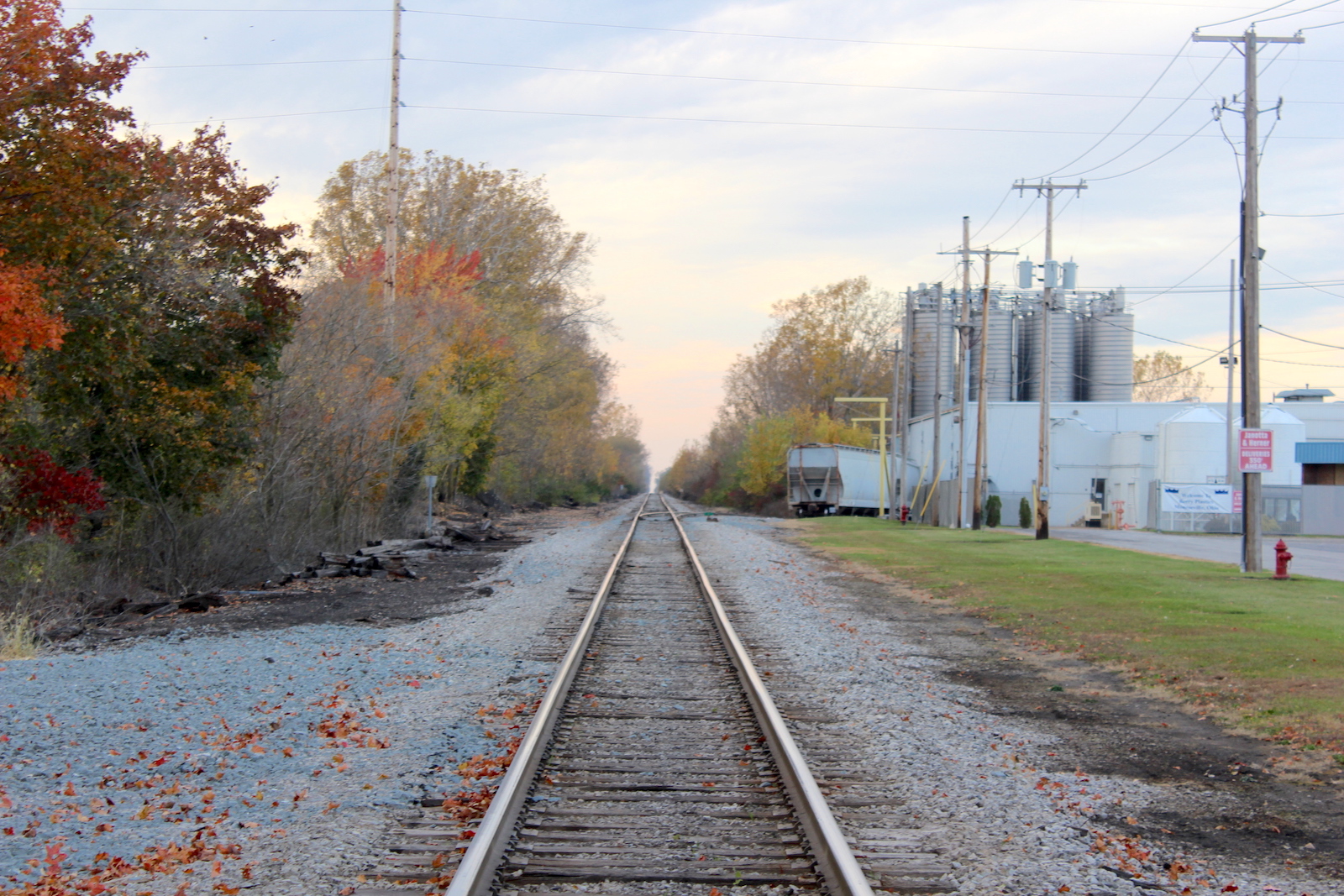

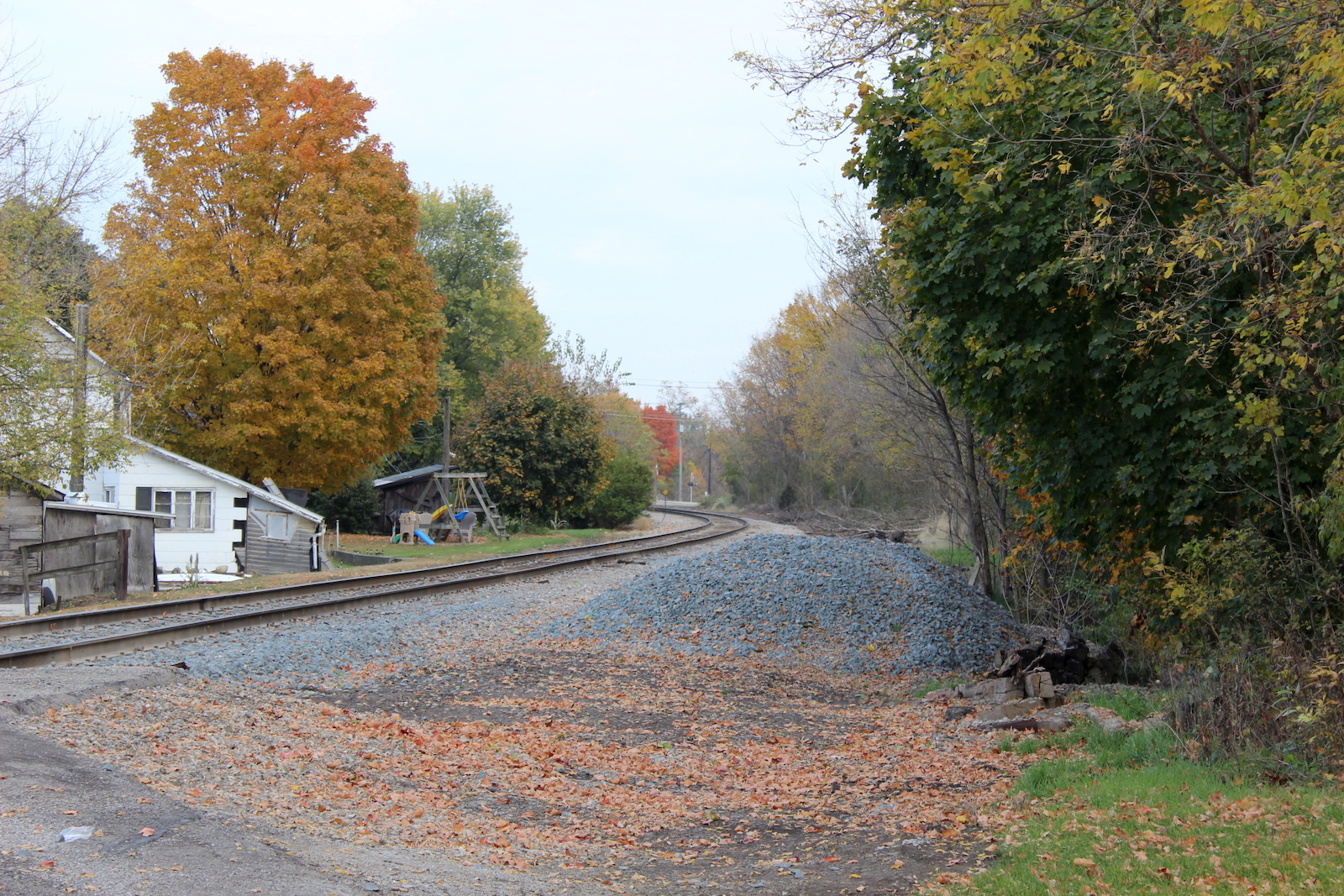

Track view facing east towards Jackson St. |
Track view facing west towards Williams Rd. |
34
| 35
| 36
| 37
|
| In September 2017, we see the DOT signs were replaced. Also, the gate lights on the eastern signal were replaced. |
