347.98


479951C

>>>>>>>>>>>>>> Northern Signal Southern Signal

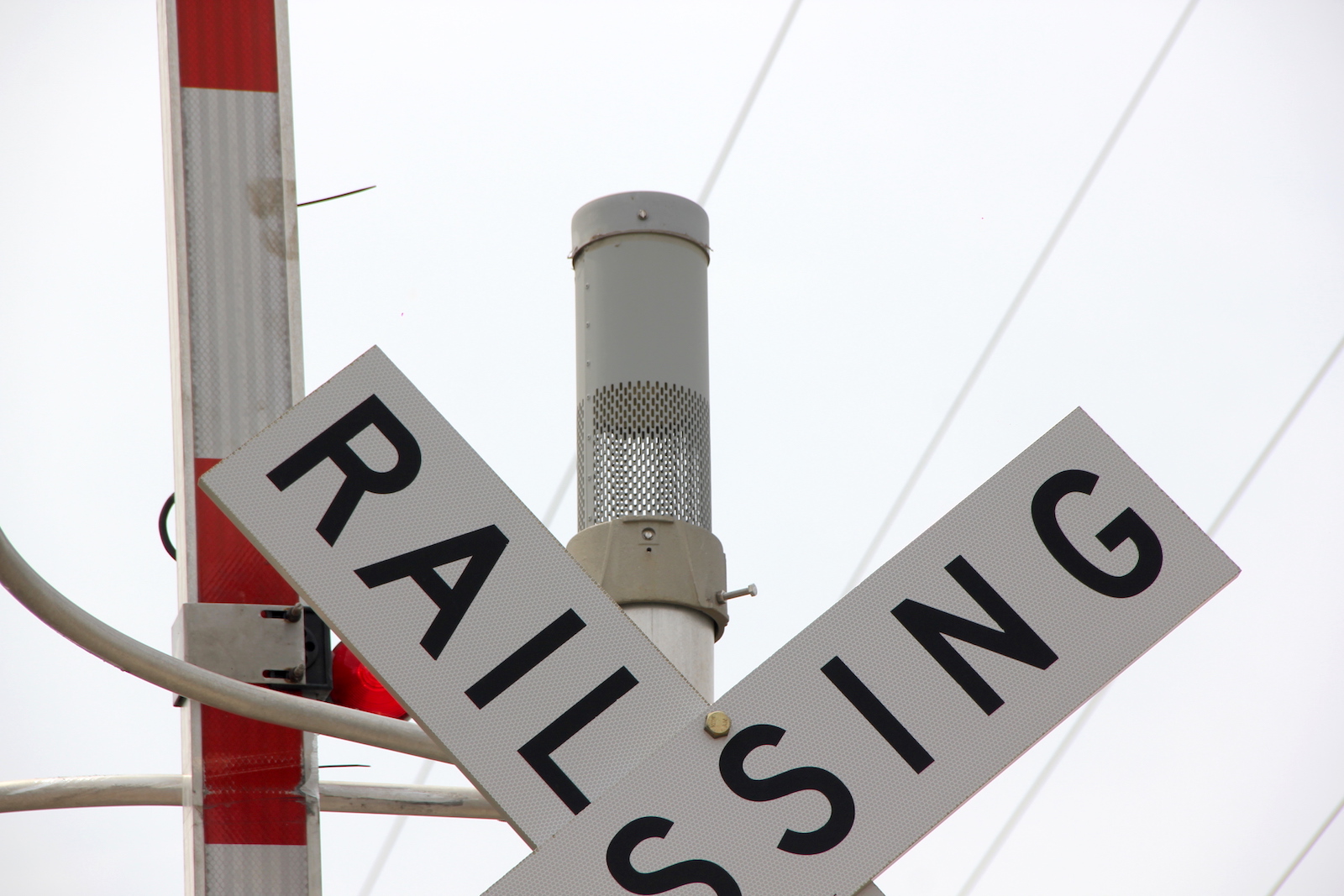

Bell: Siemens E-Bell None

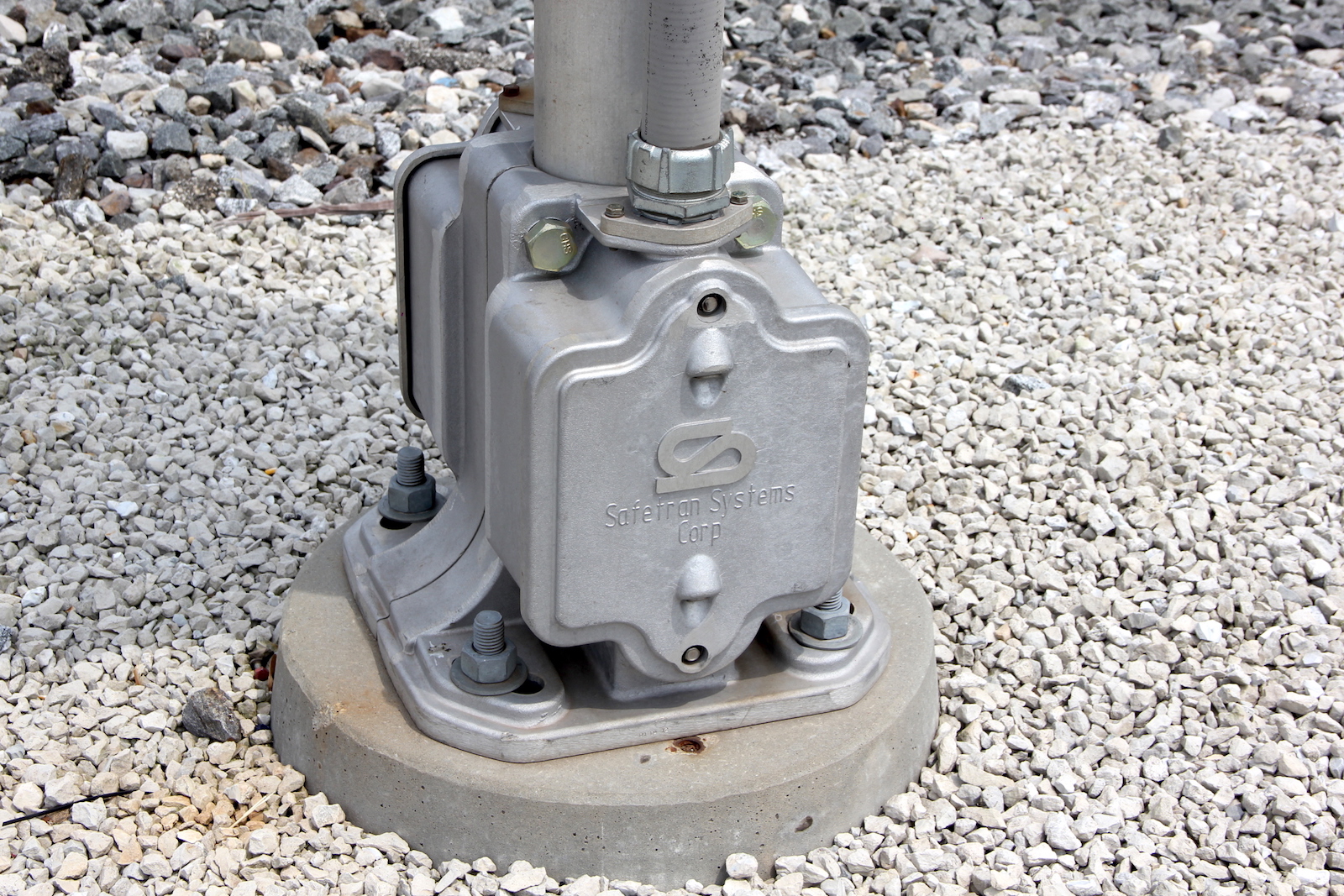

Base: Safetran 5" Double Sided ^ Safetran 5" Double Sided ^
Lights: 4 - 12"x20" Safetran w/ GE Uniform Look LEDs 4 - 12"x20" Safetran w/ GE Uniform Look LEDs
Junction Box: Safetran Safetran
Gate Lights: 4" RECO 4" RECO

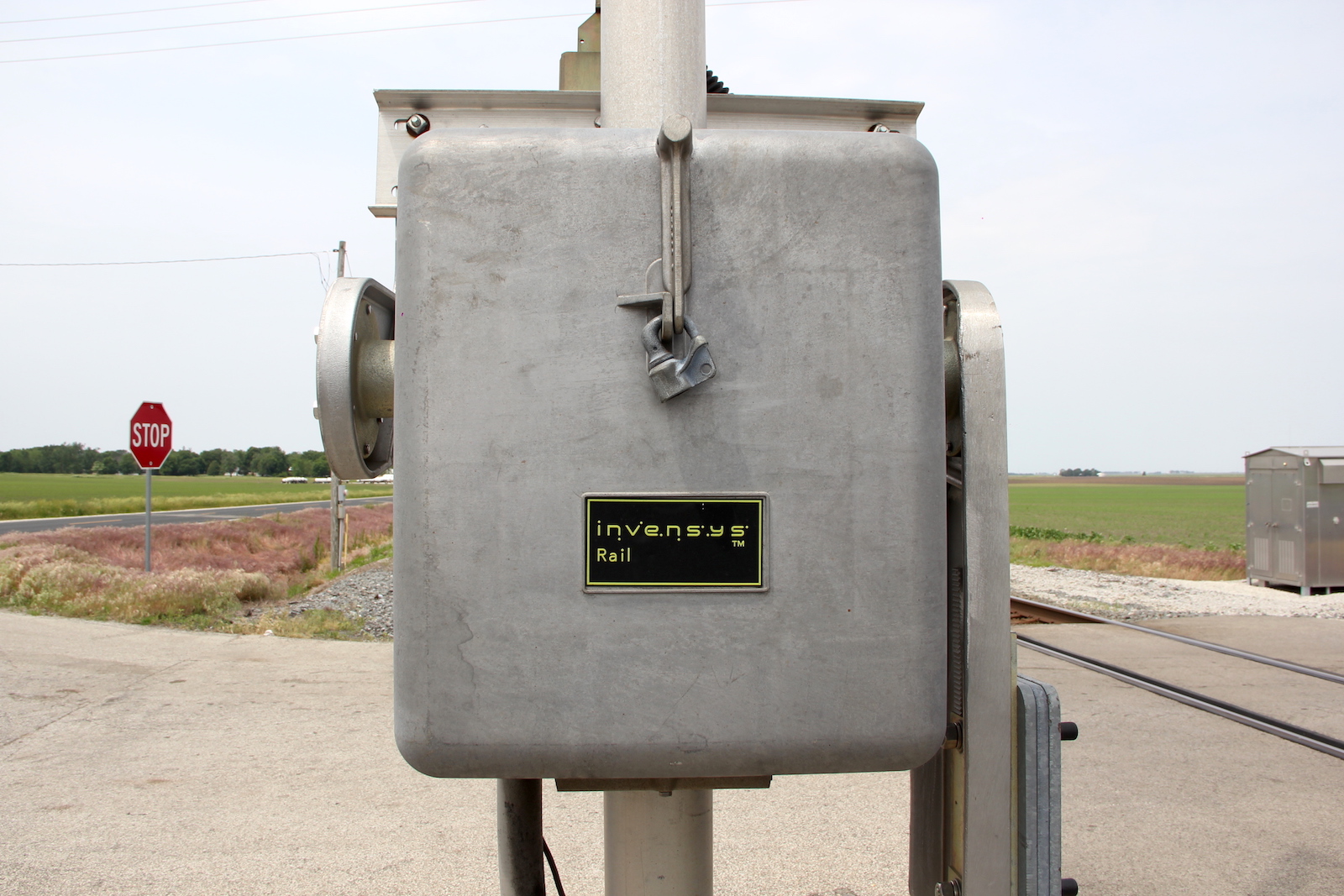

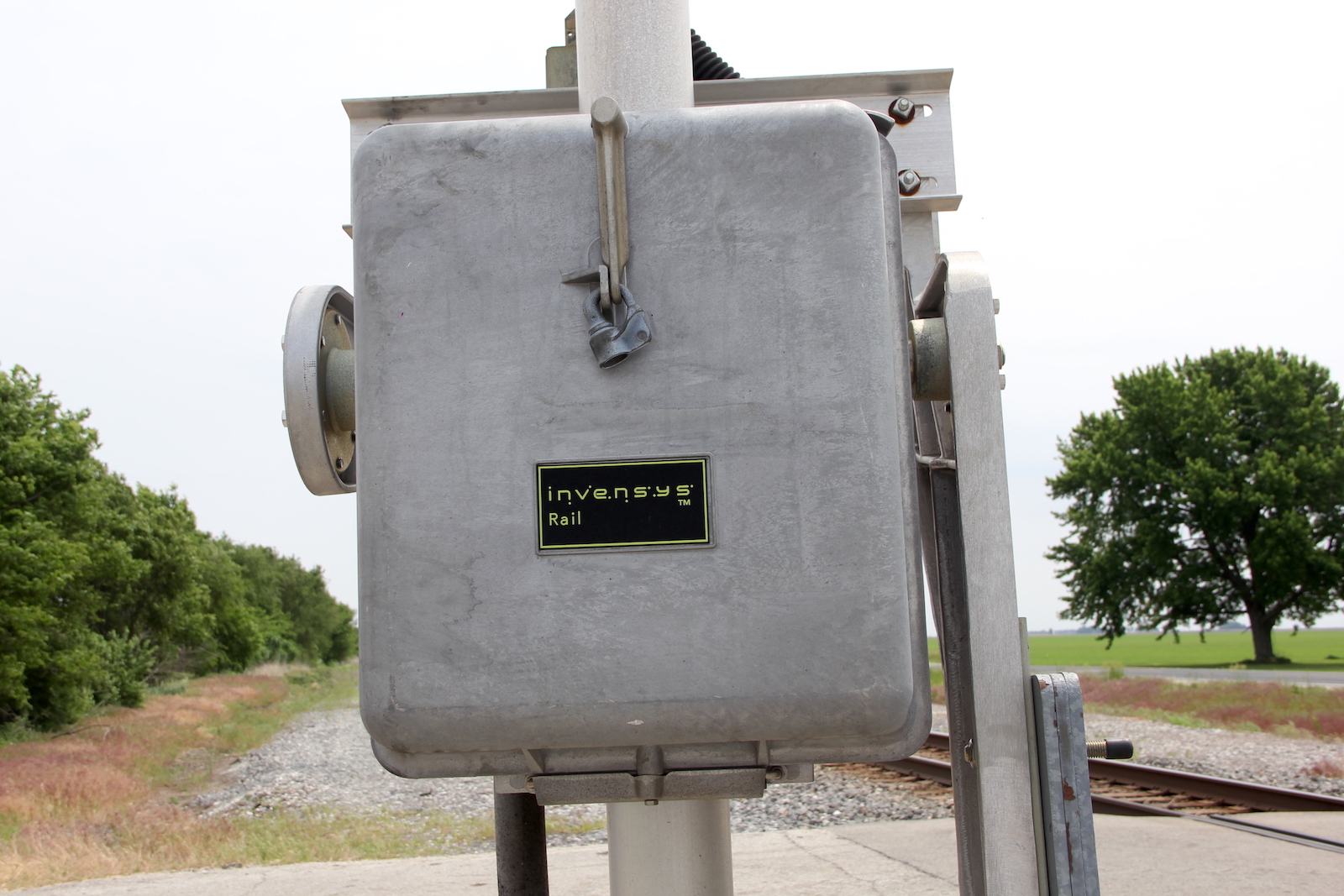

Gate Mechanism: Invensys Rail w/ NEG 1 Way Saver Invensys Rail w/ NEG 1 Way Saver
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-25 were taken on July 23, 2020.
Pictures 26-35 were taken on September 16, 2023.
All pictures were taken by Tommy McGowan.
This crossing is located on the NS Lafayette District.

1
 2

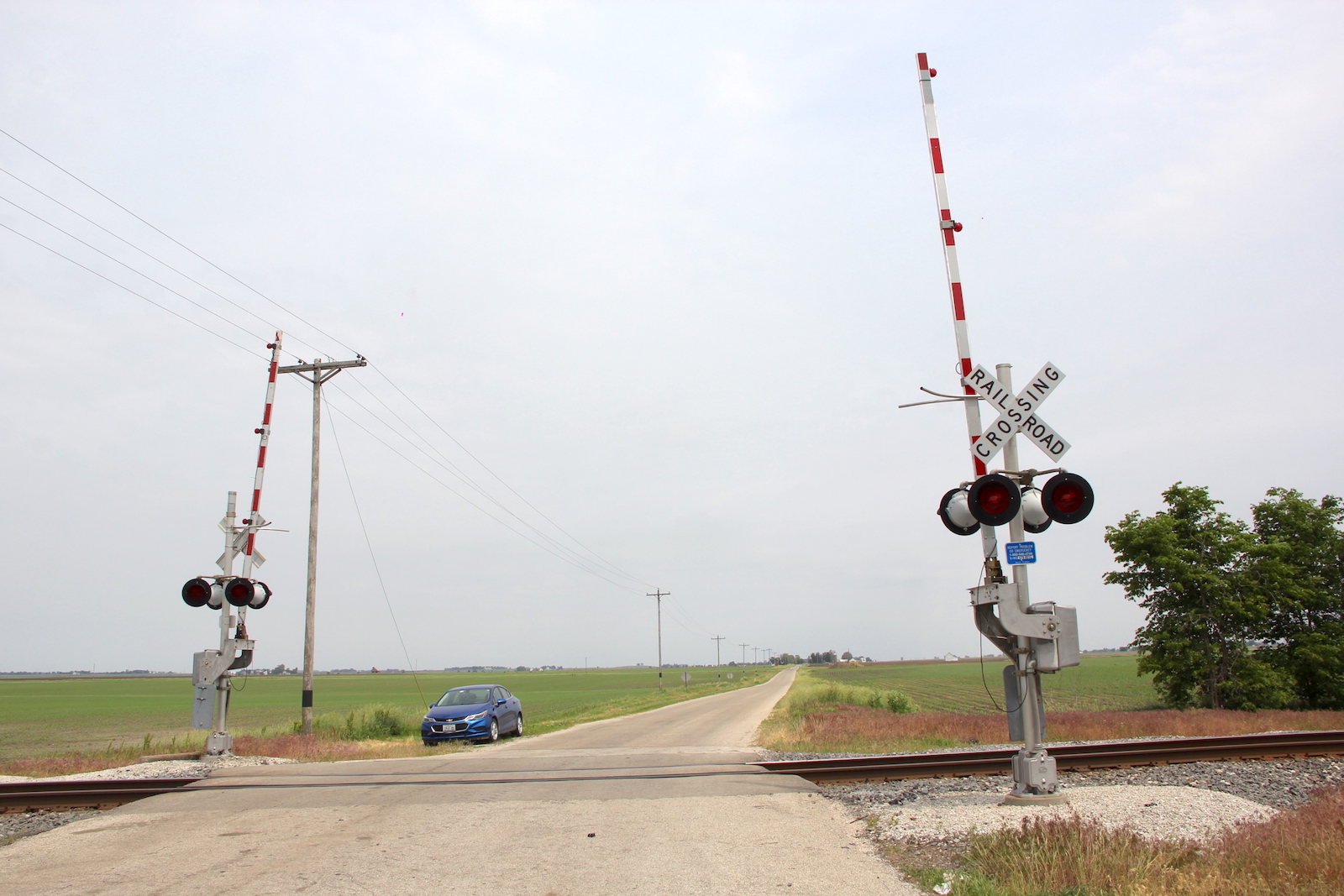

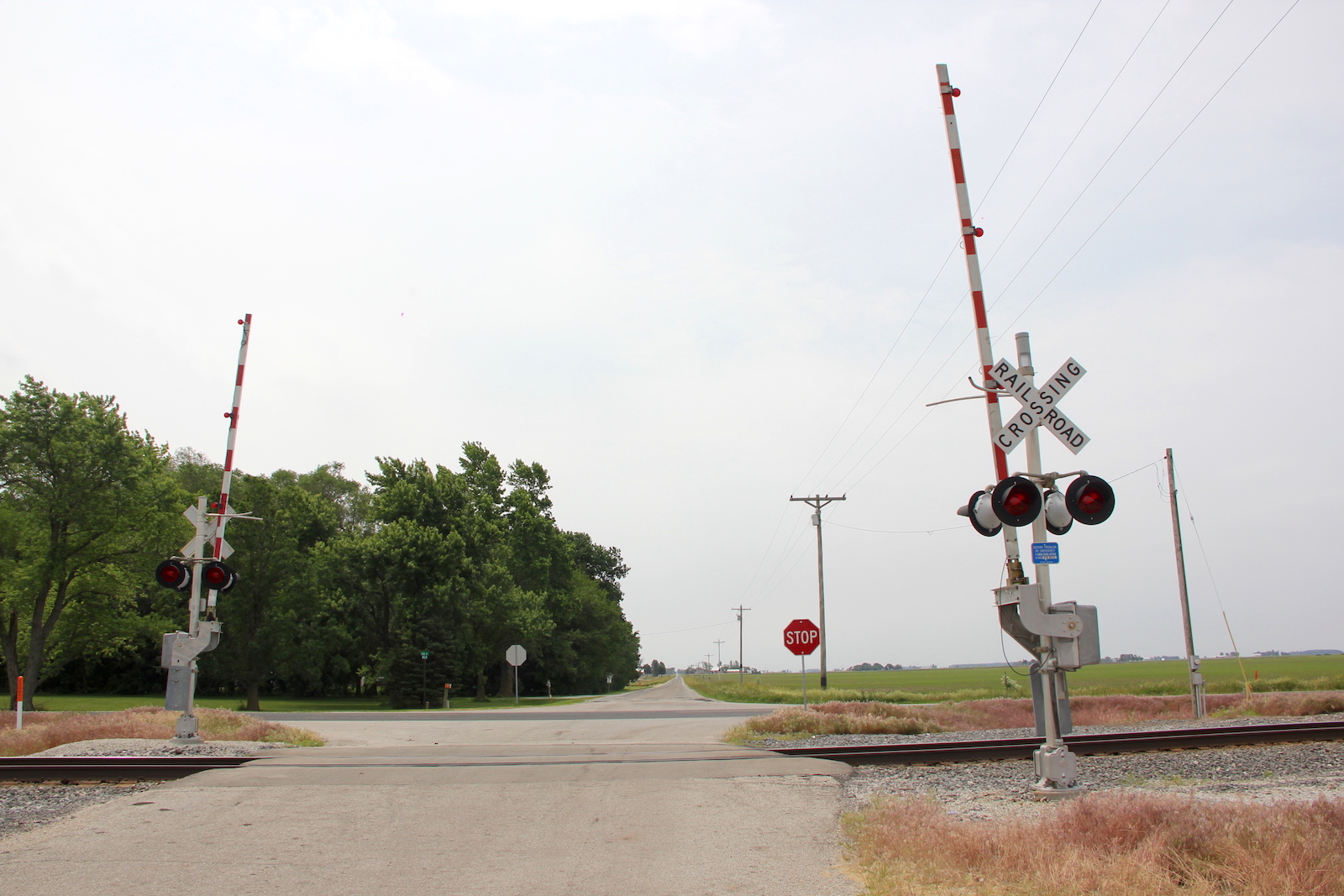

Overview of 2 gated signals facing north. Overview facing south.
3 4 5
6 7 8
9 10 11

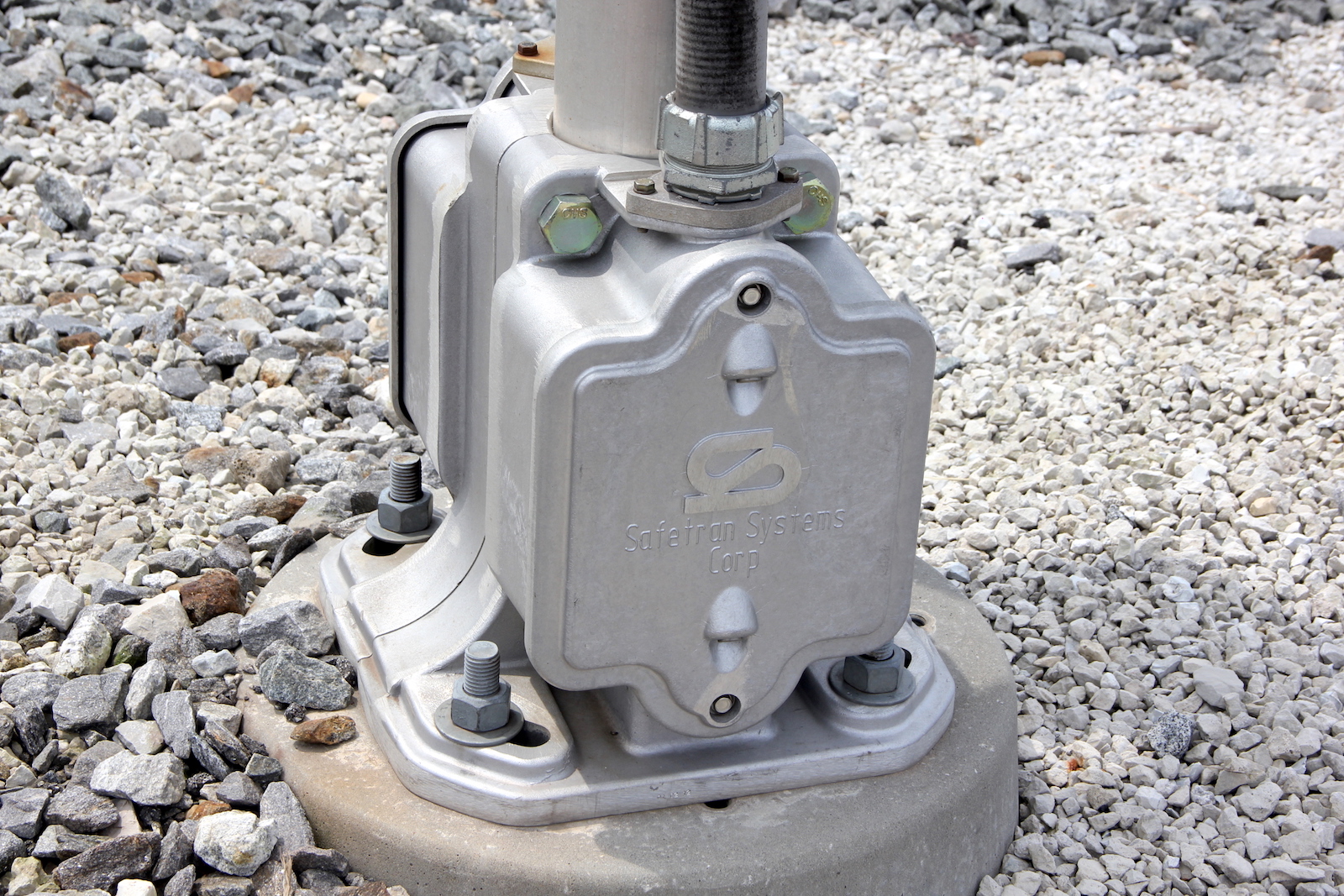

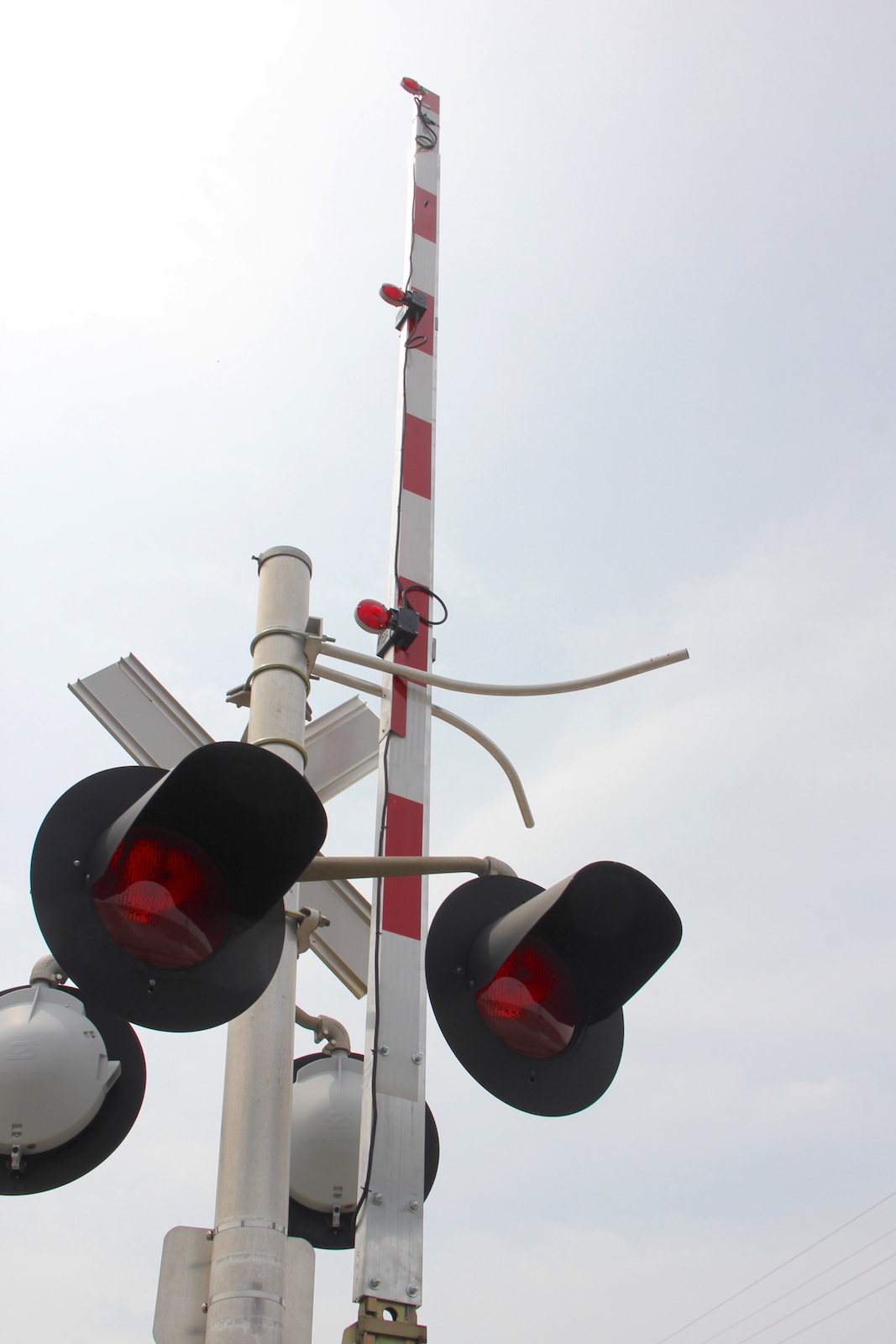

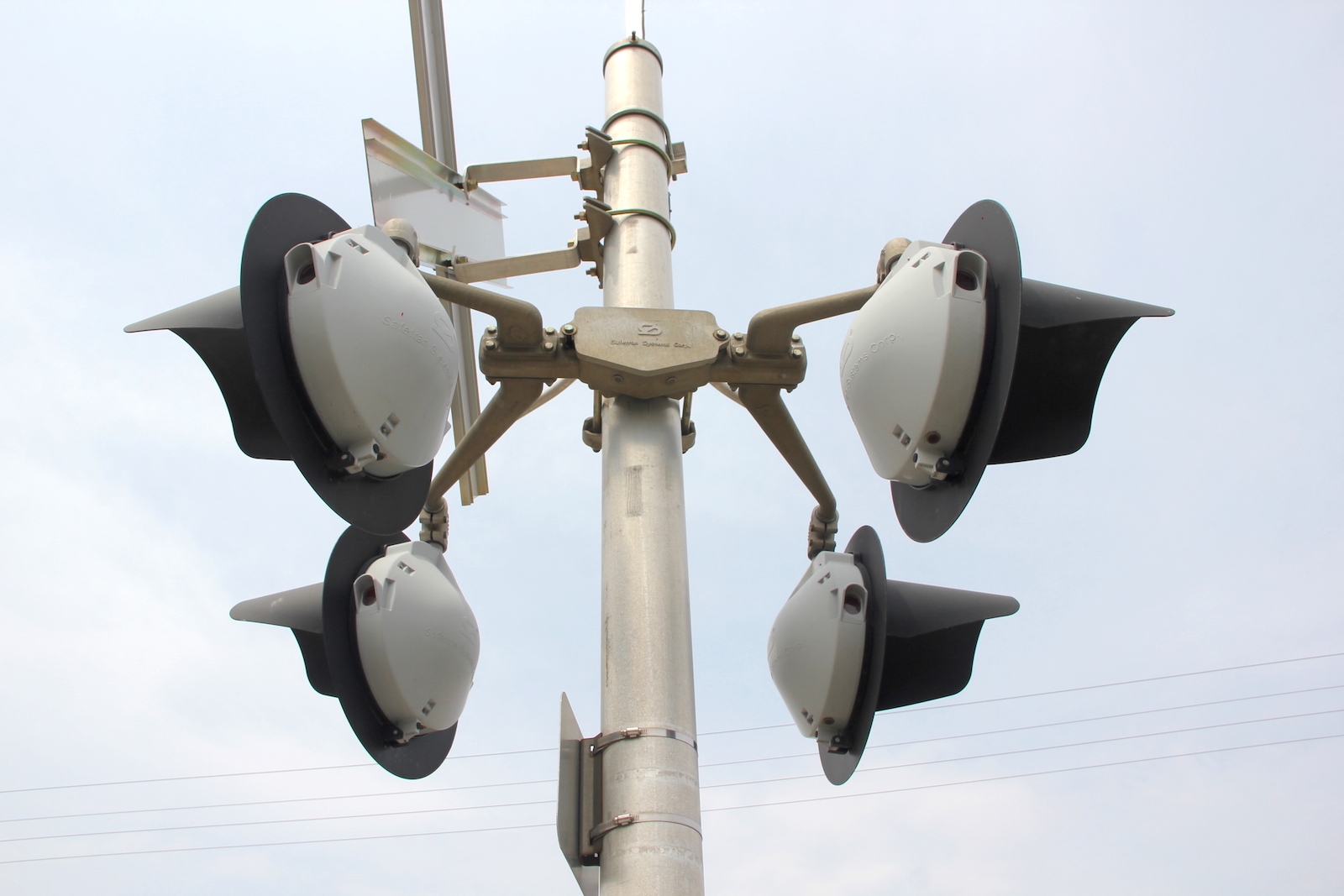

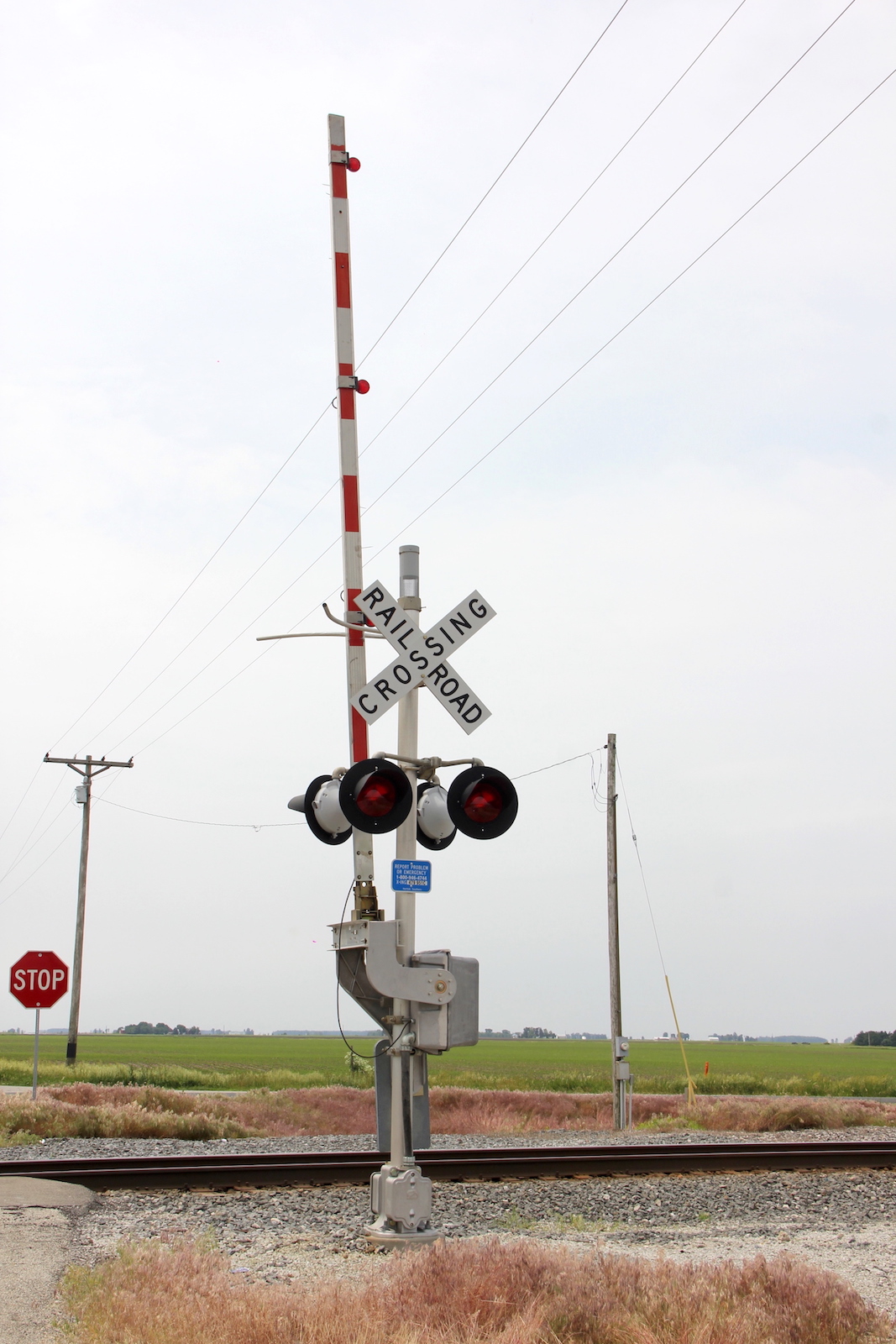

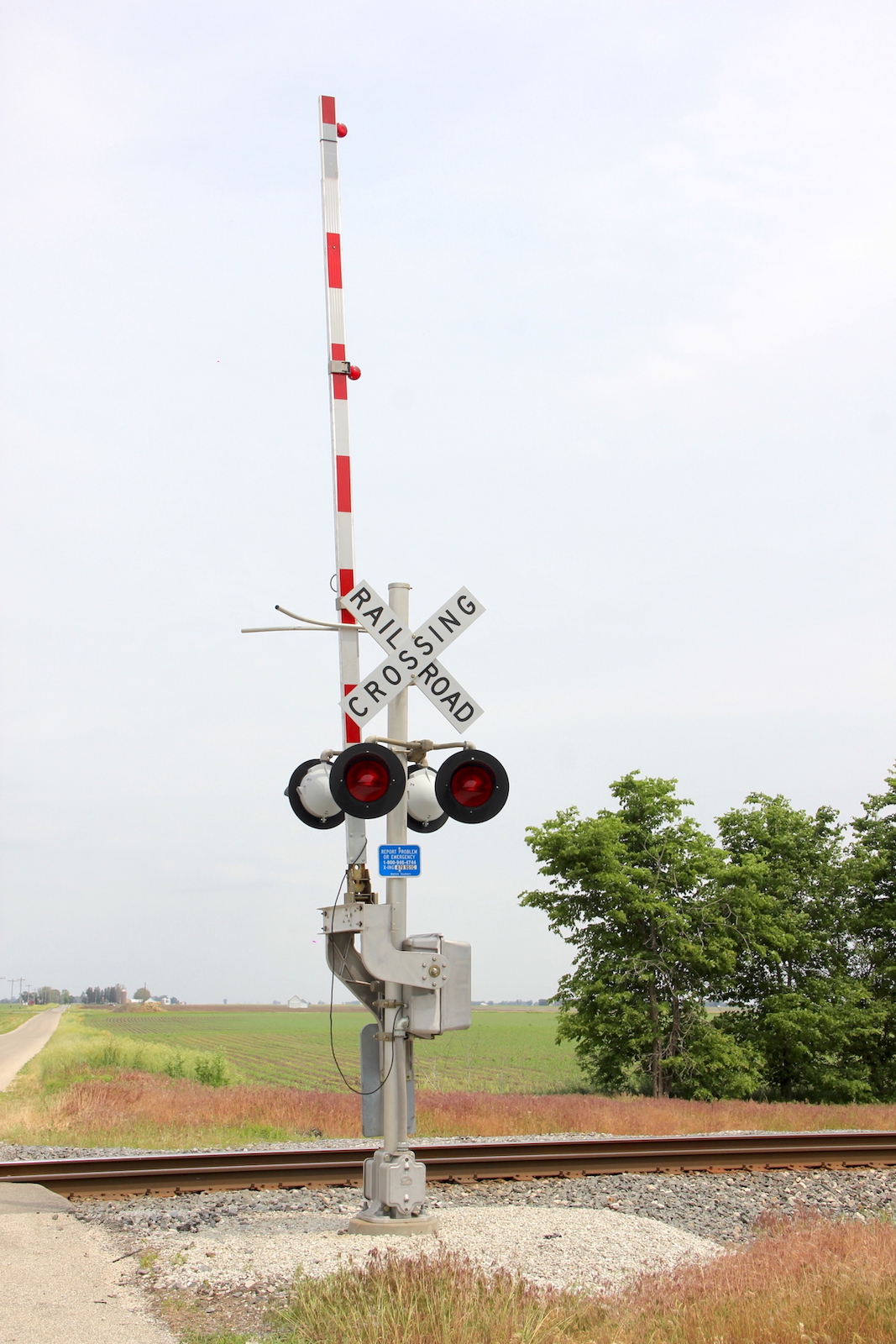

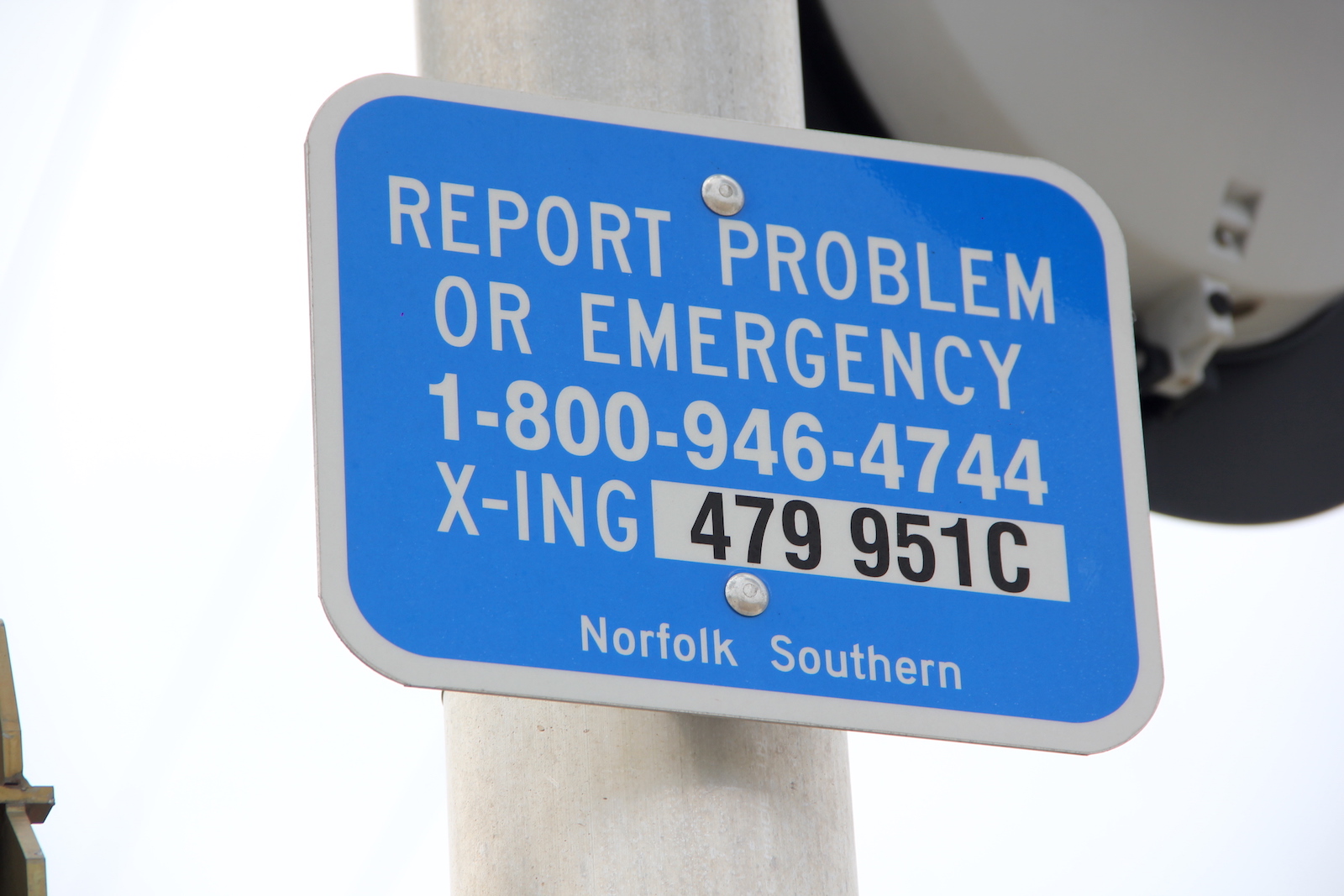

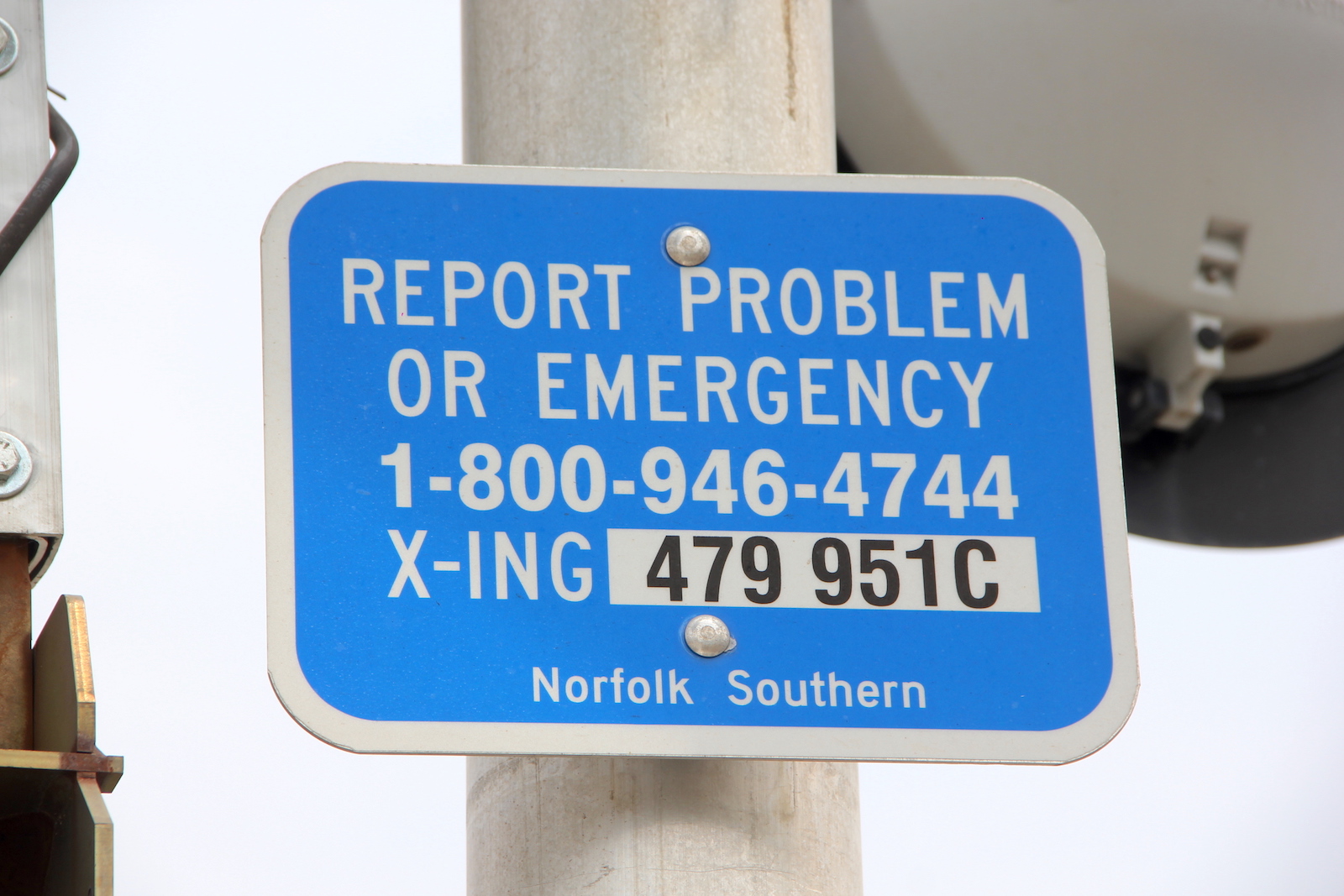

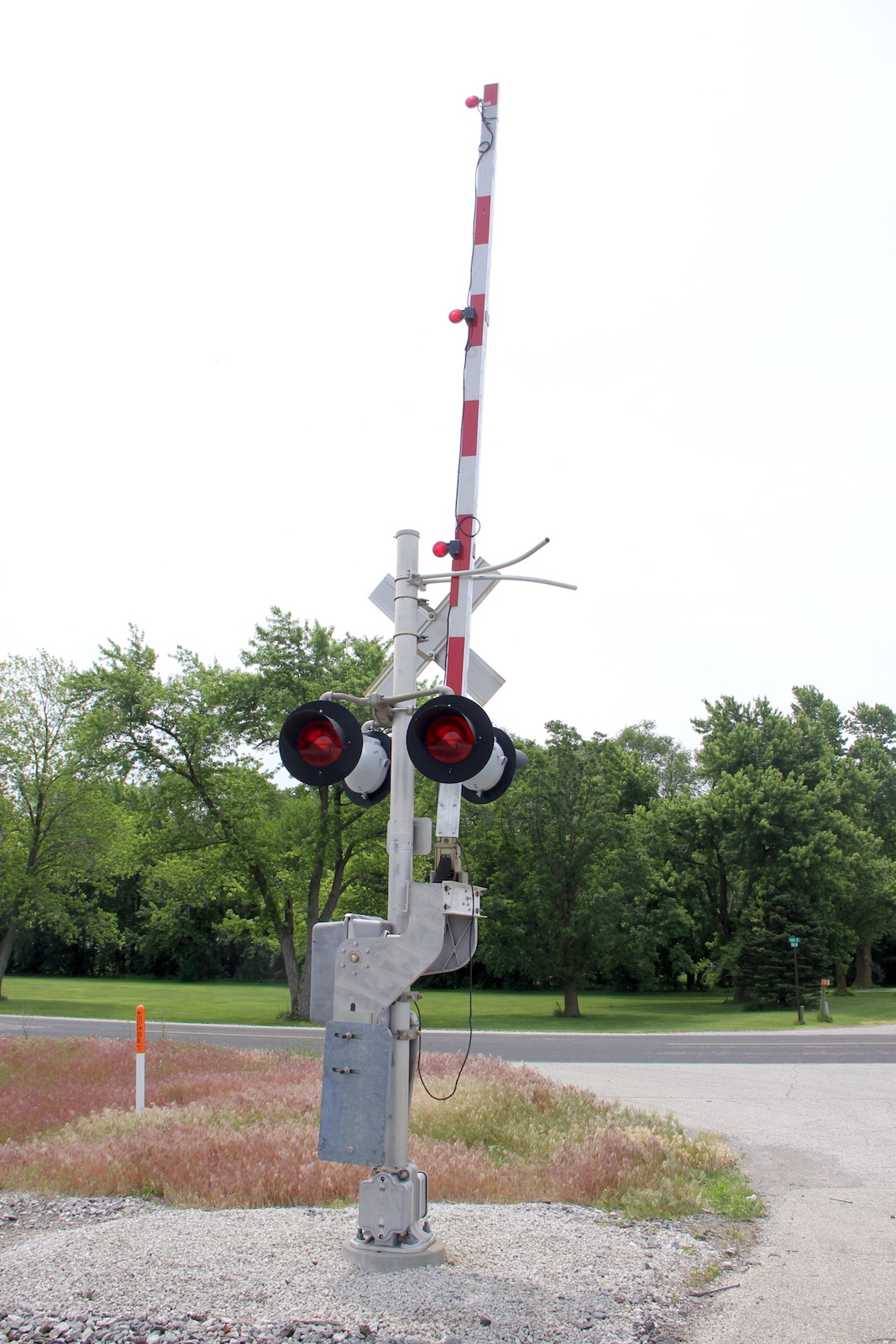

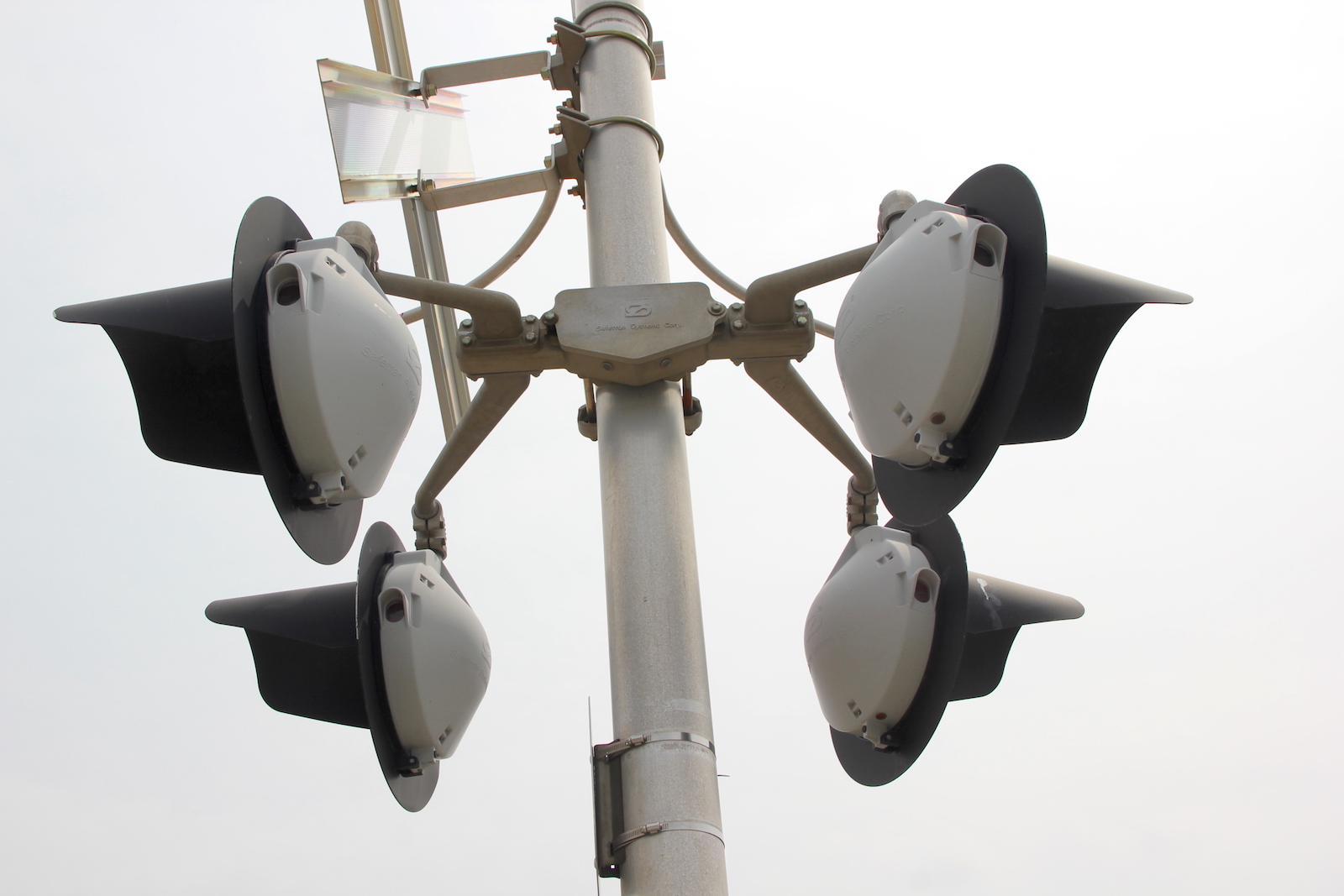

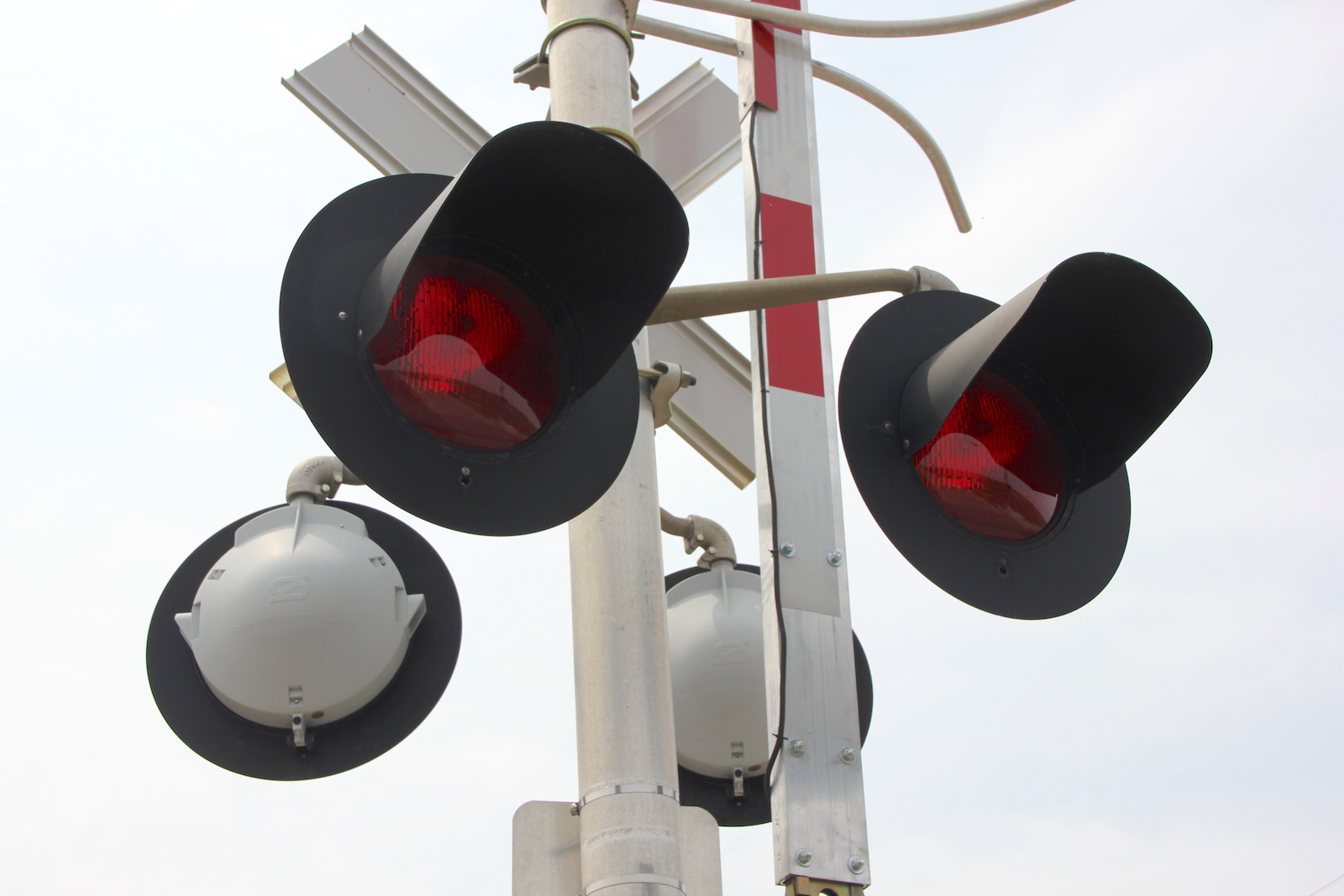

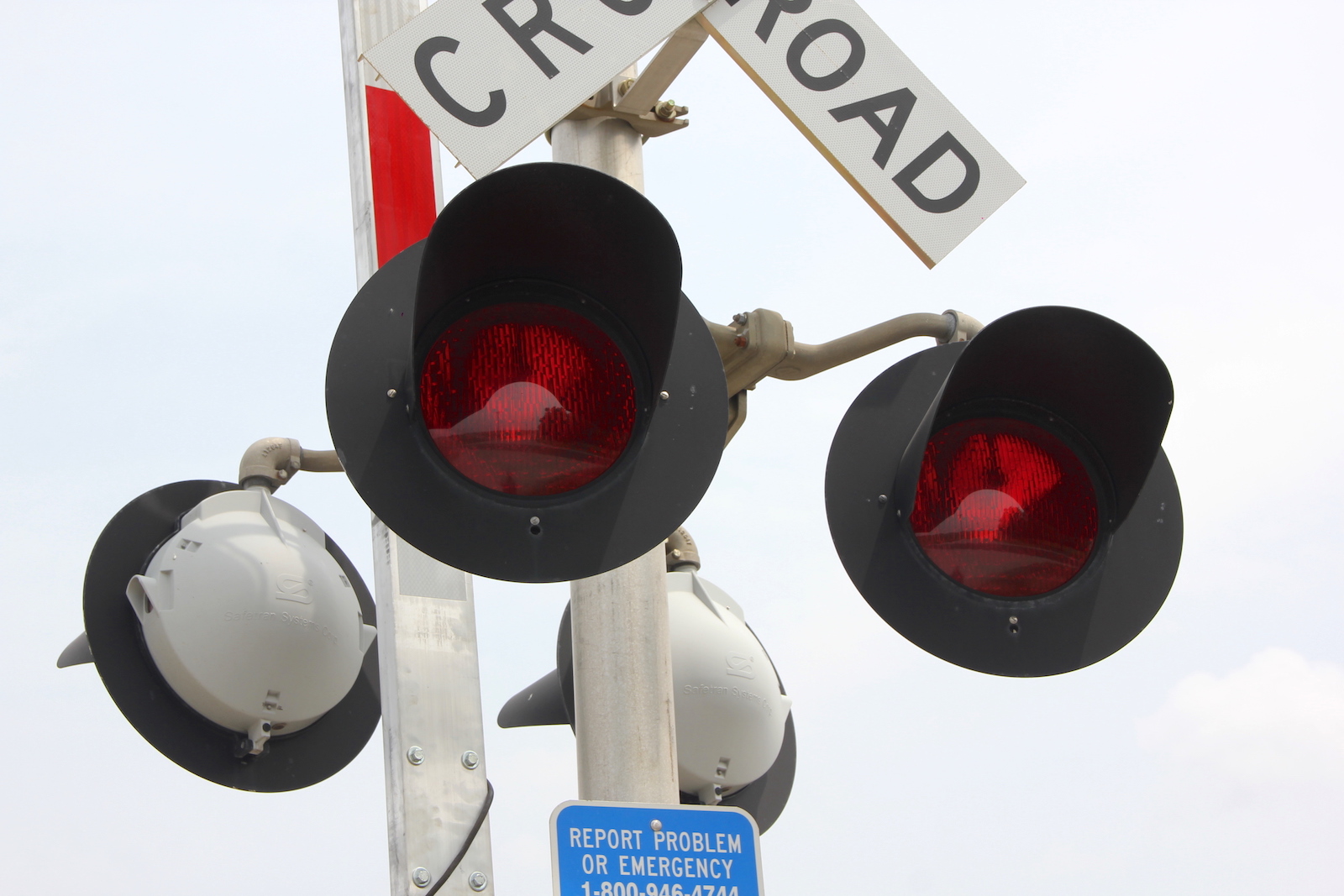

The southern signal. Both signals had all incandescent lights at the time with 12"x20" Safetran and 4" NEG incandescents.
12 13 14
15 16 17
18 19 20
21

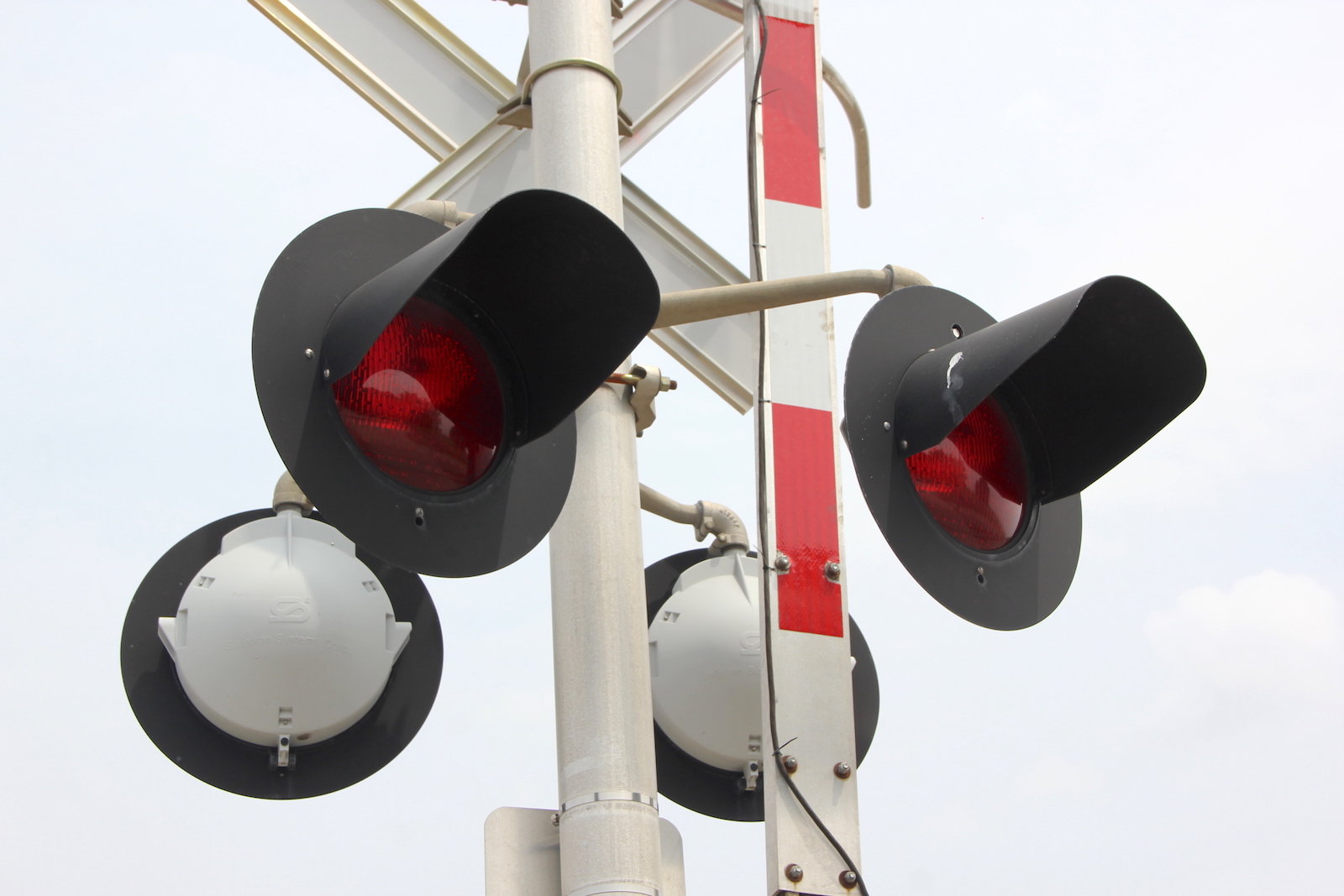

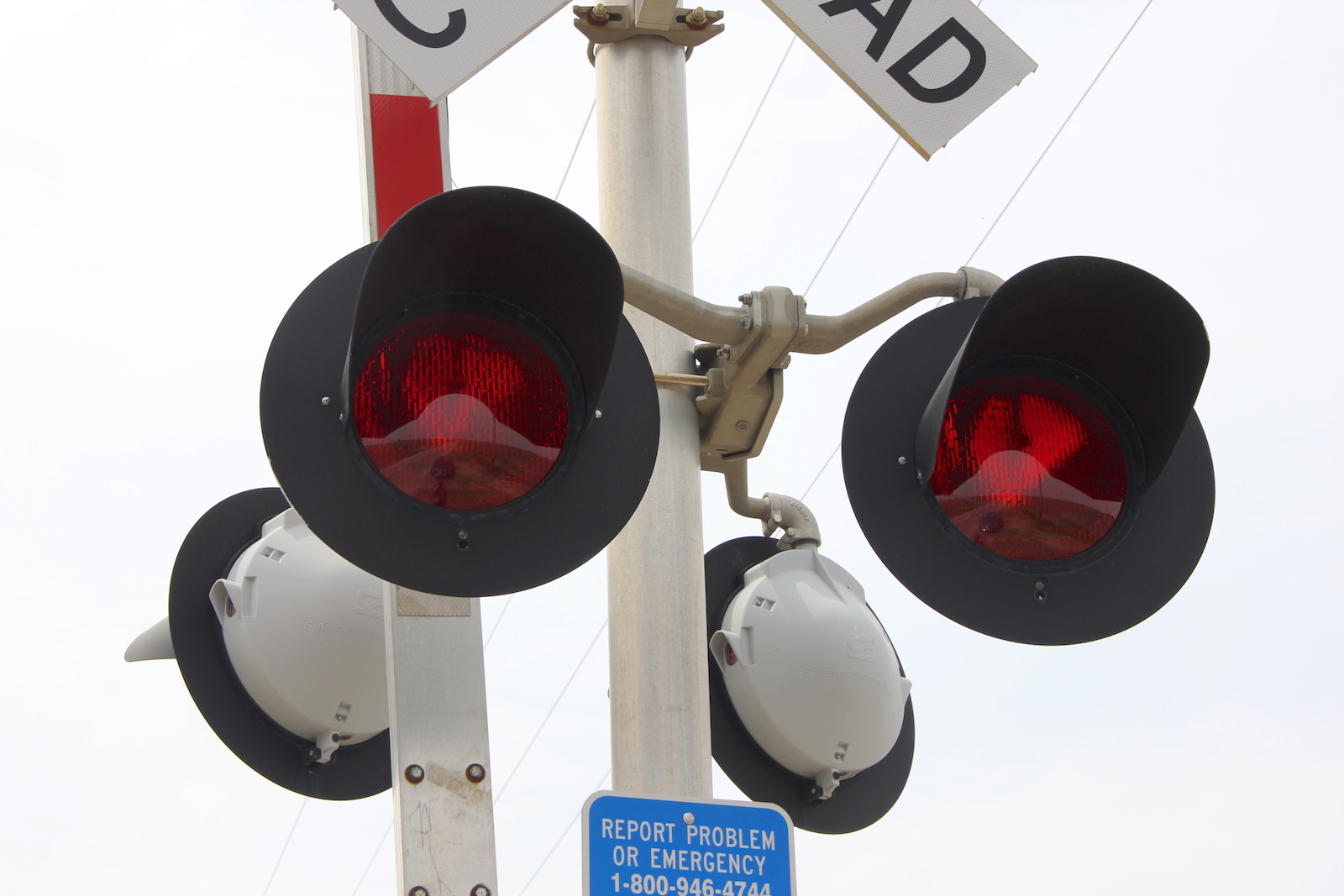

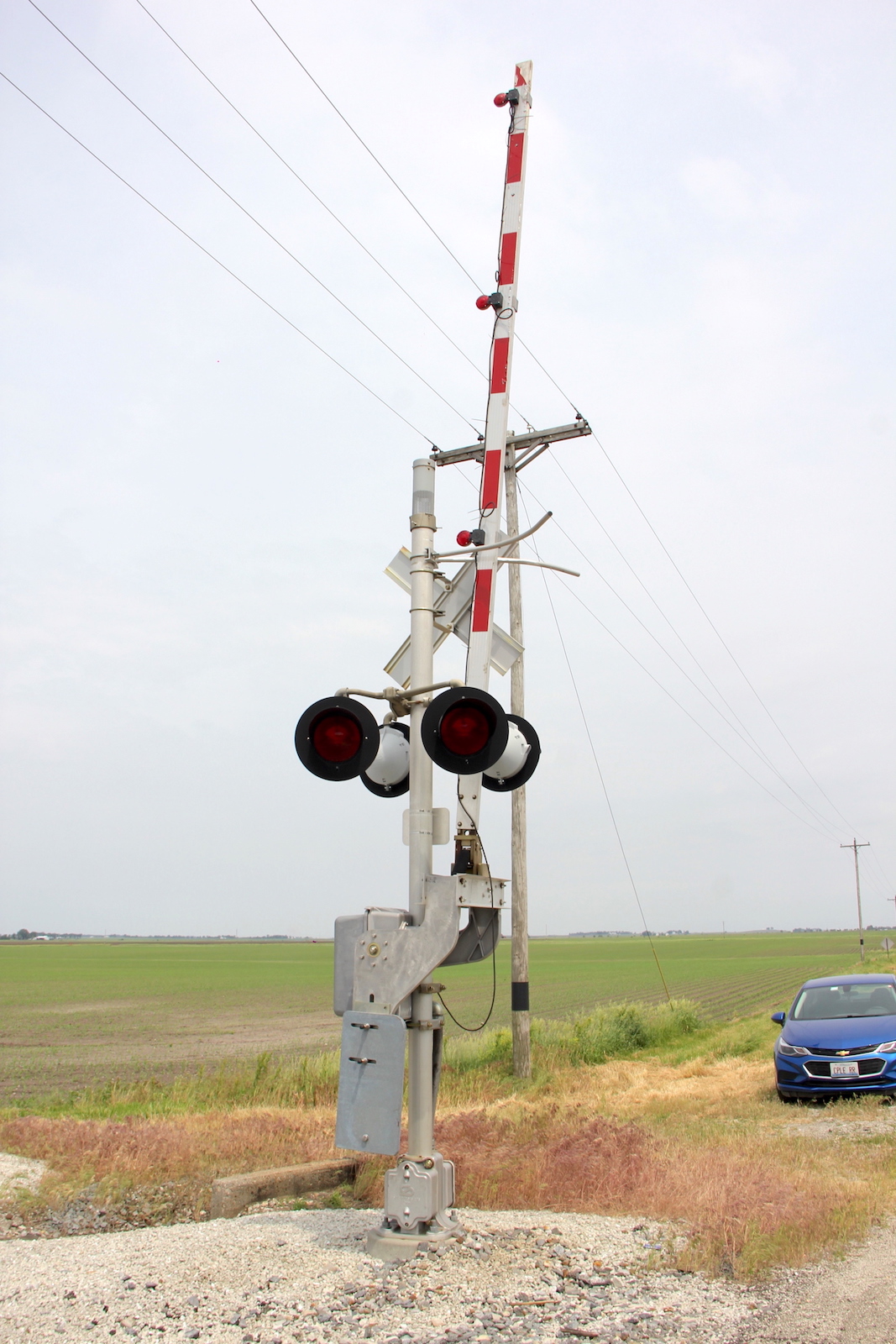

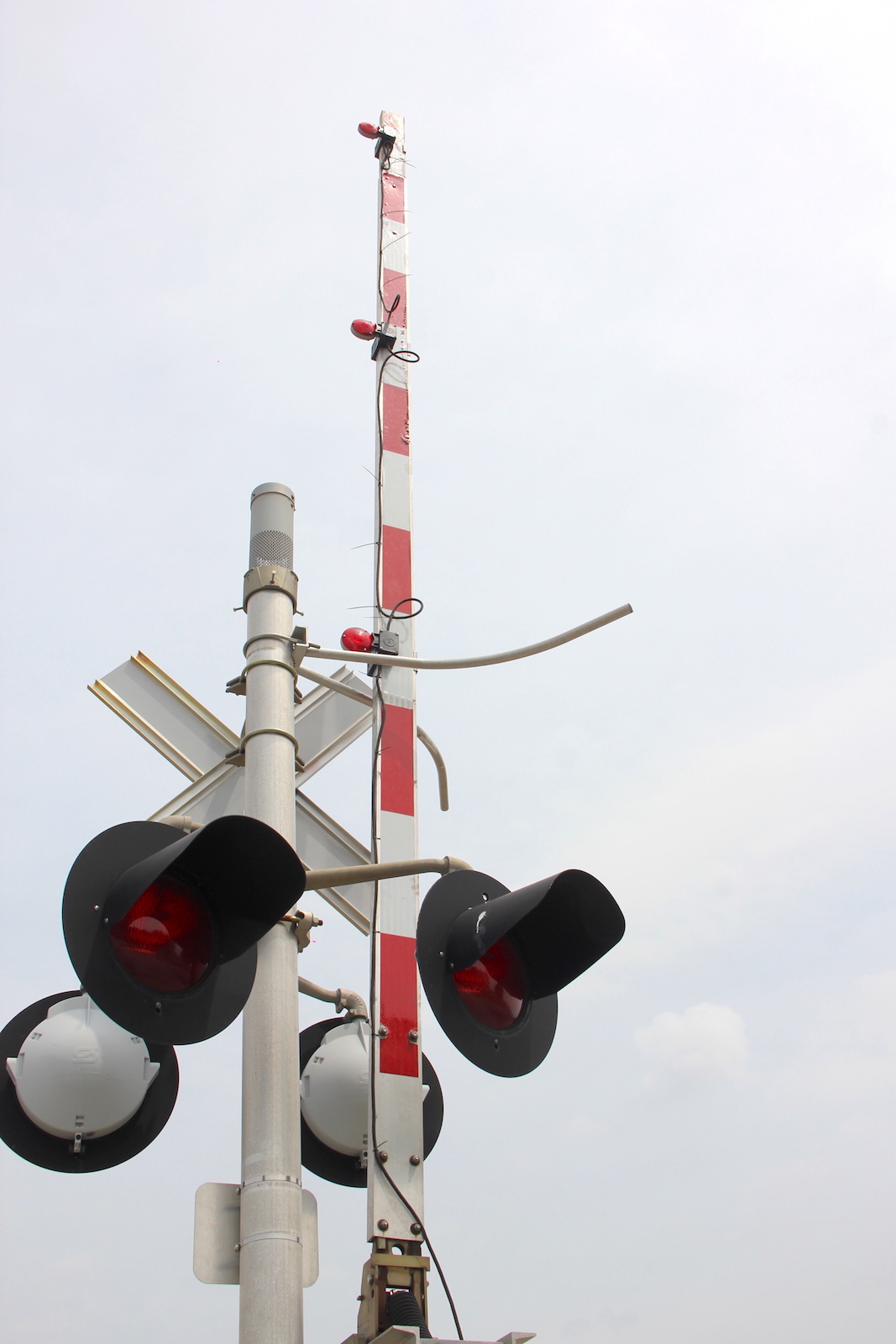

The northern signal.
22 23 24 25

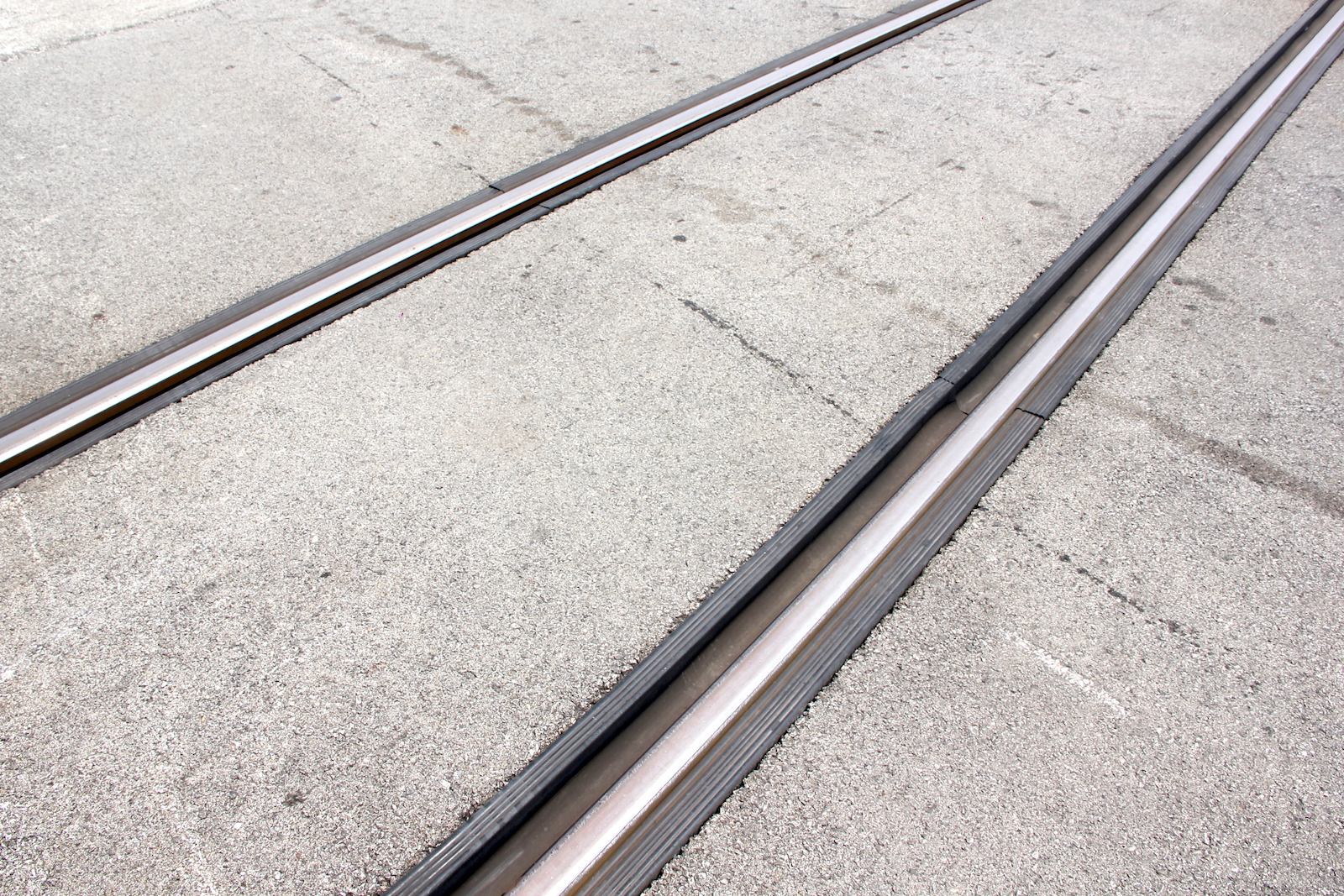

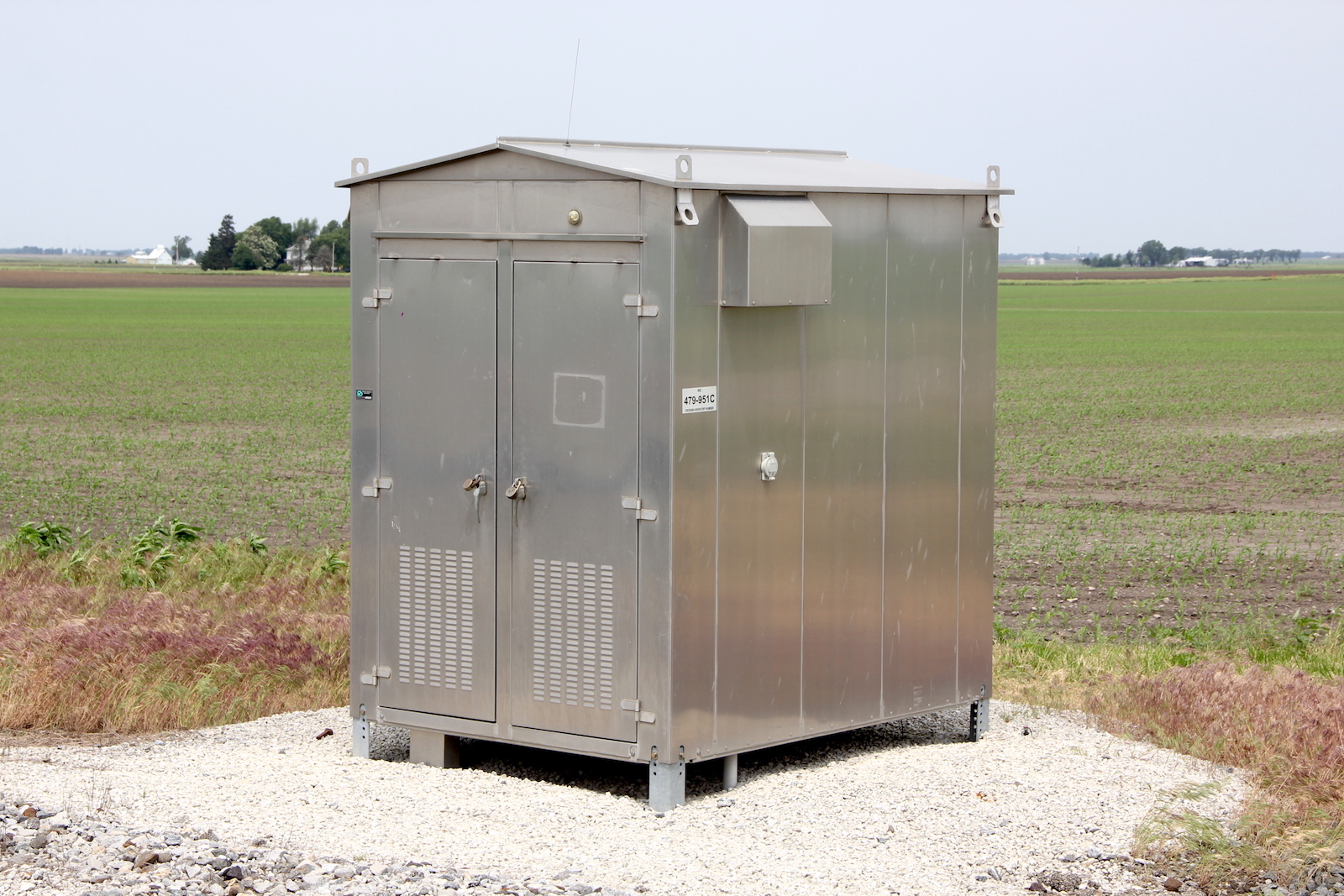

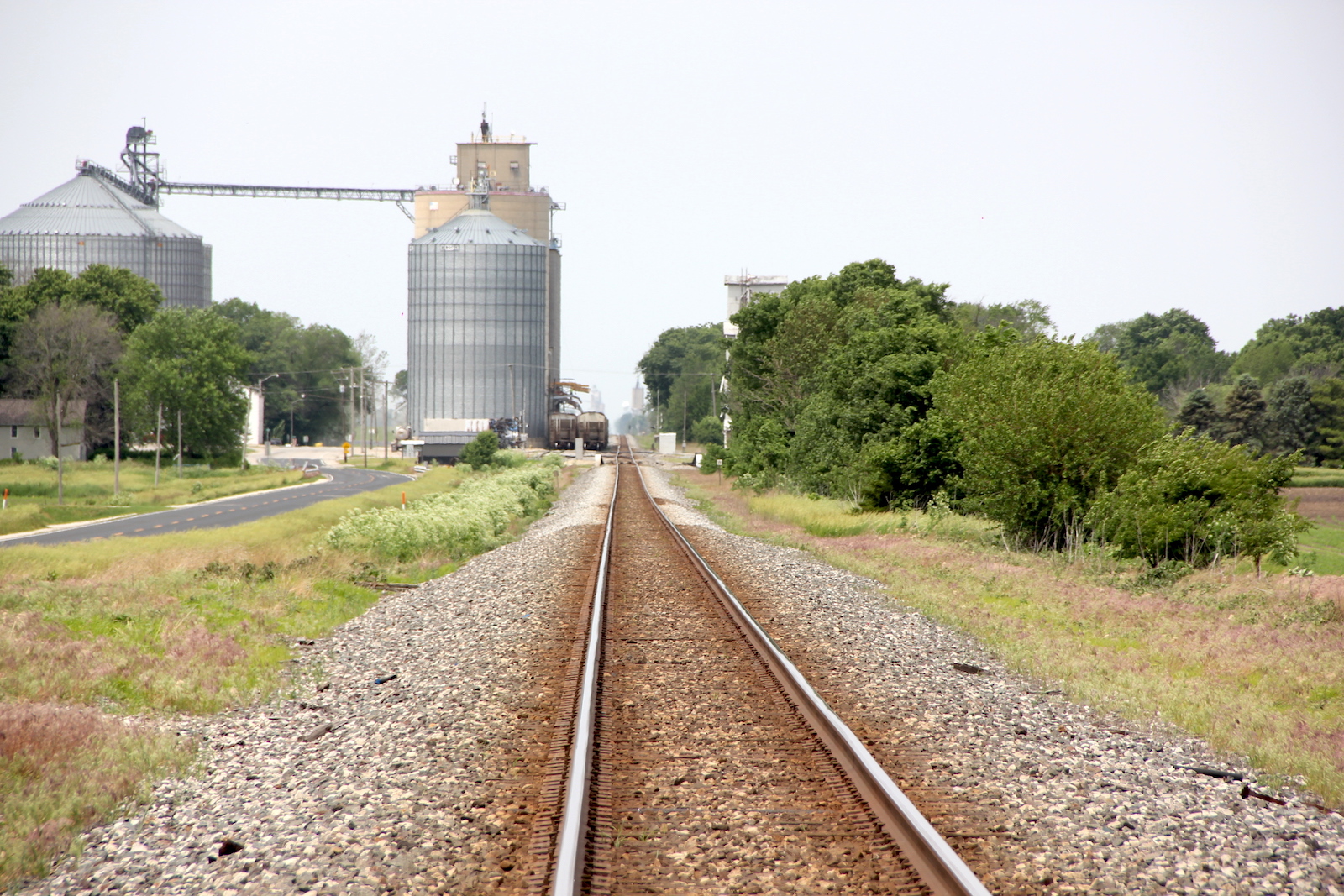

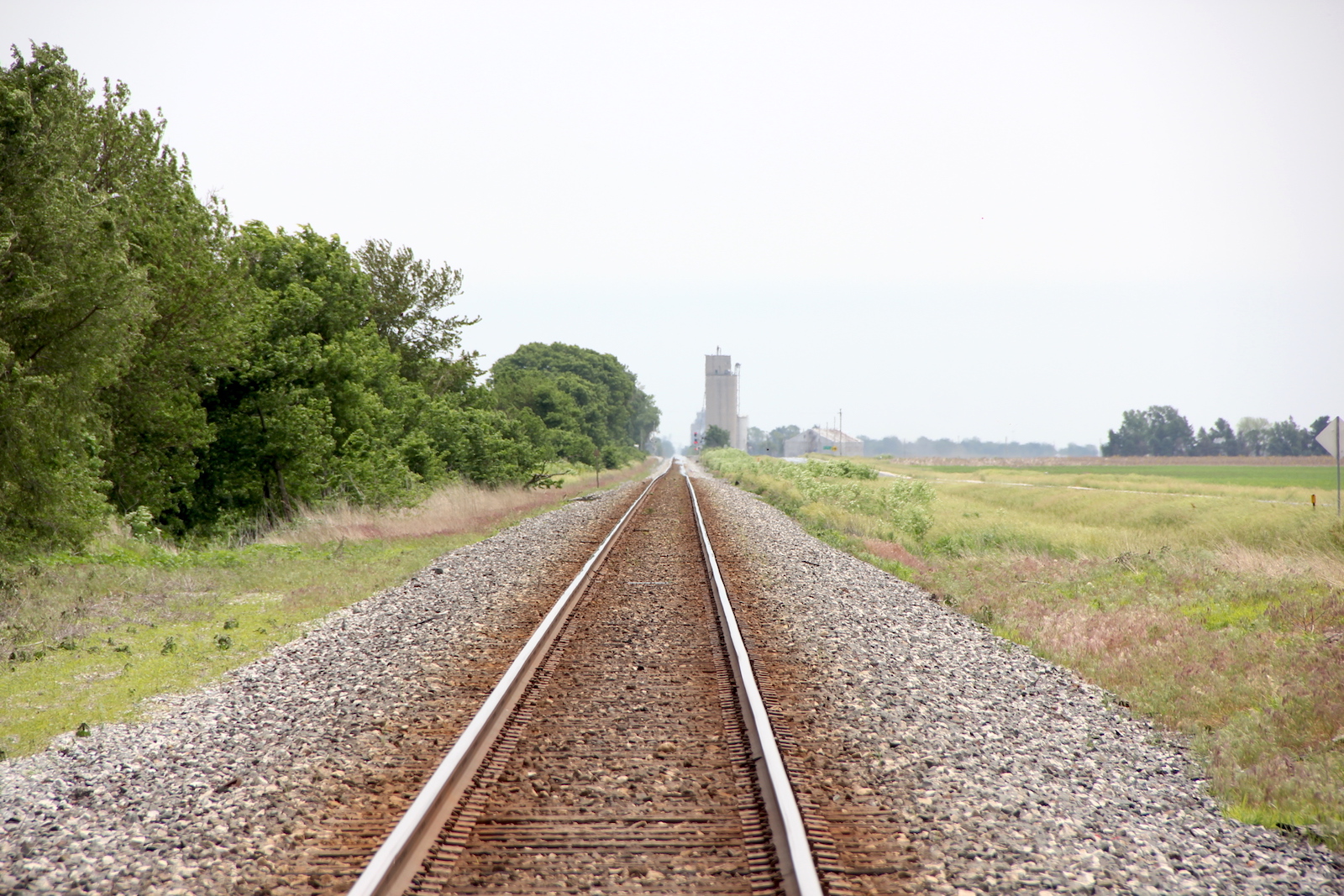

The relay bungalow in the northwest quadrant. The grade is rubber and asphalt. Track view facing west towards Sanford St. Track view facing east towards CR 200 E.
26
 27
28 29 30
 31
32 33 34
 35

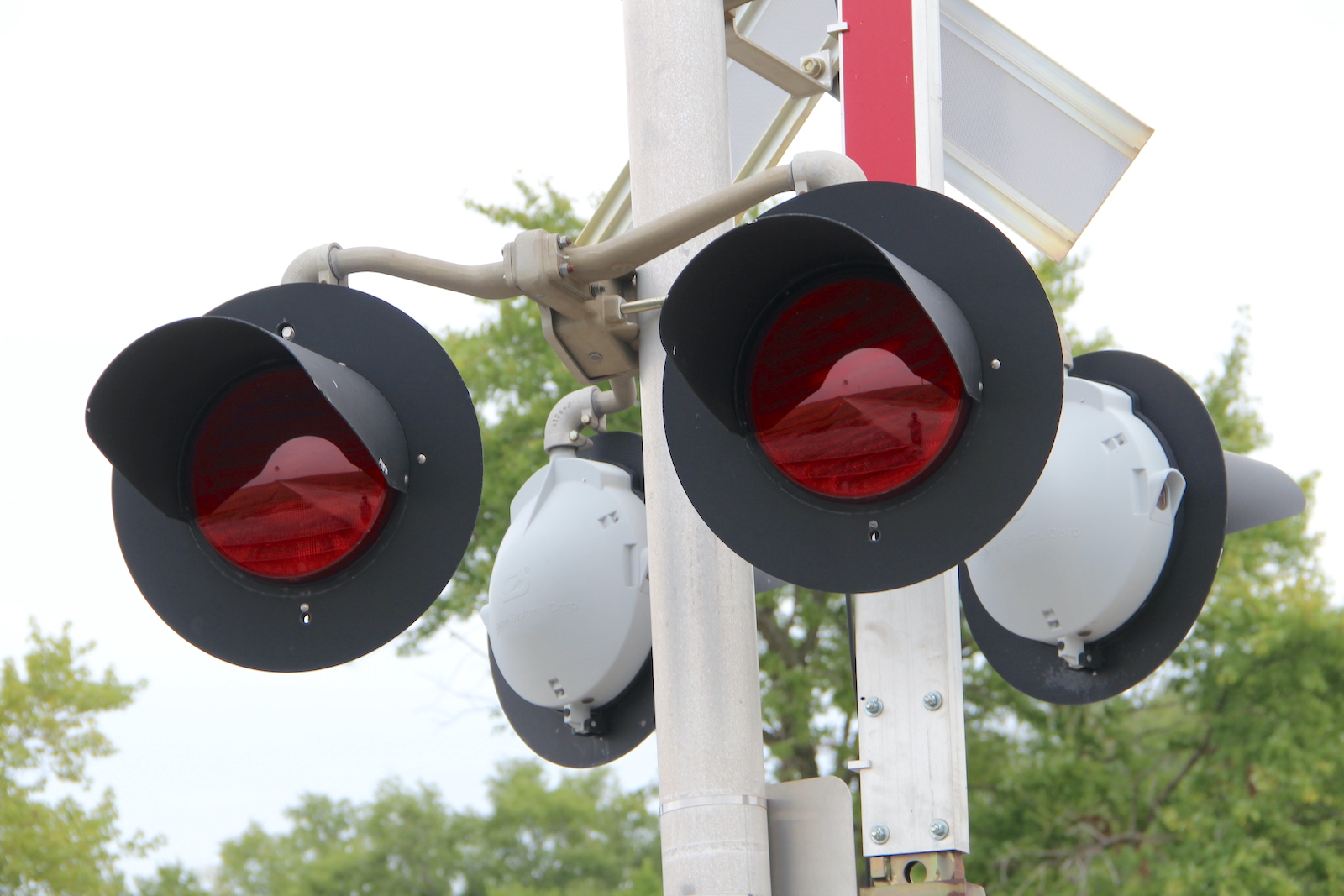

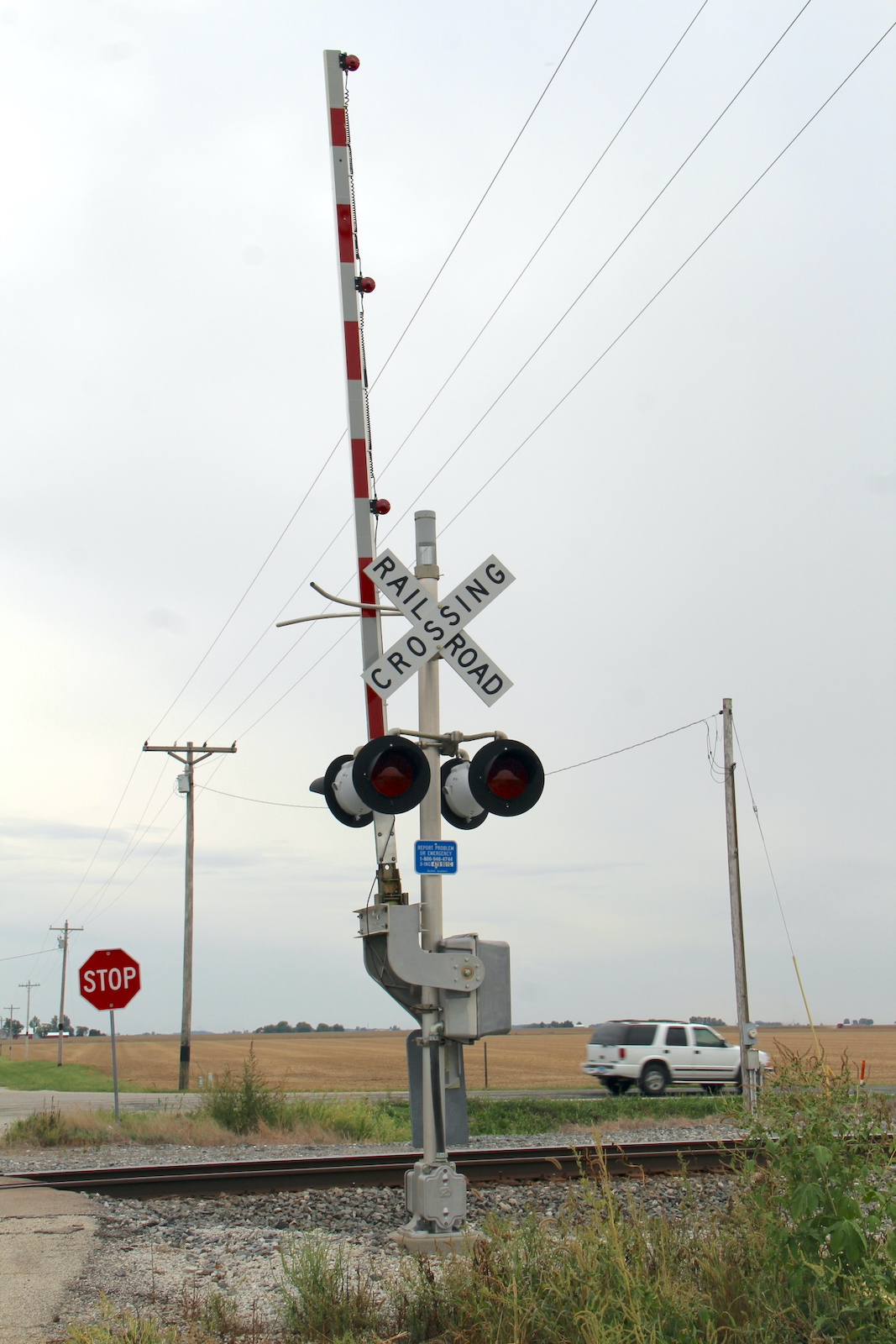

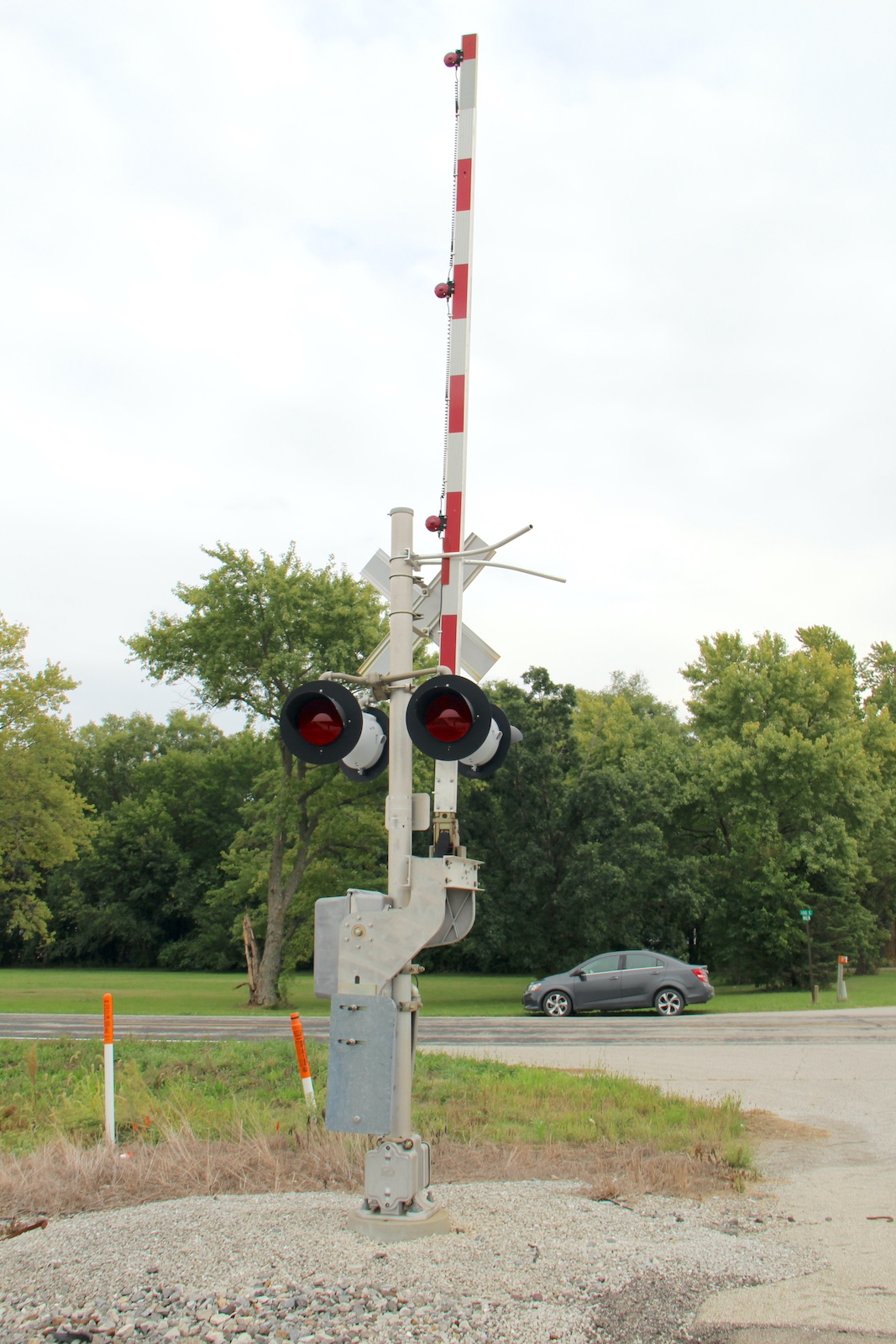

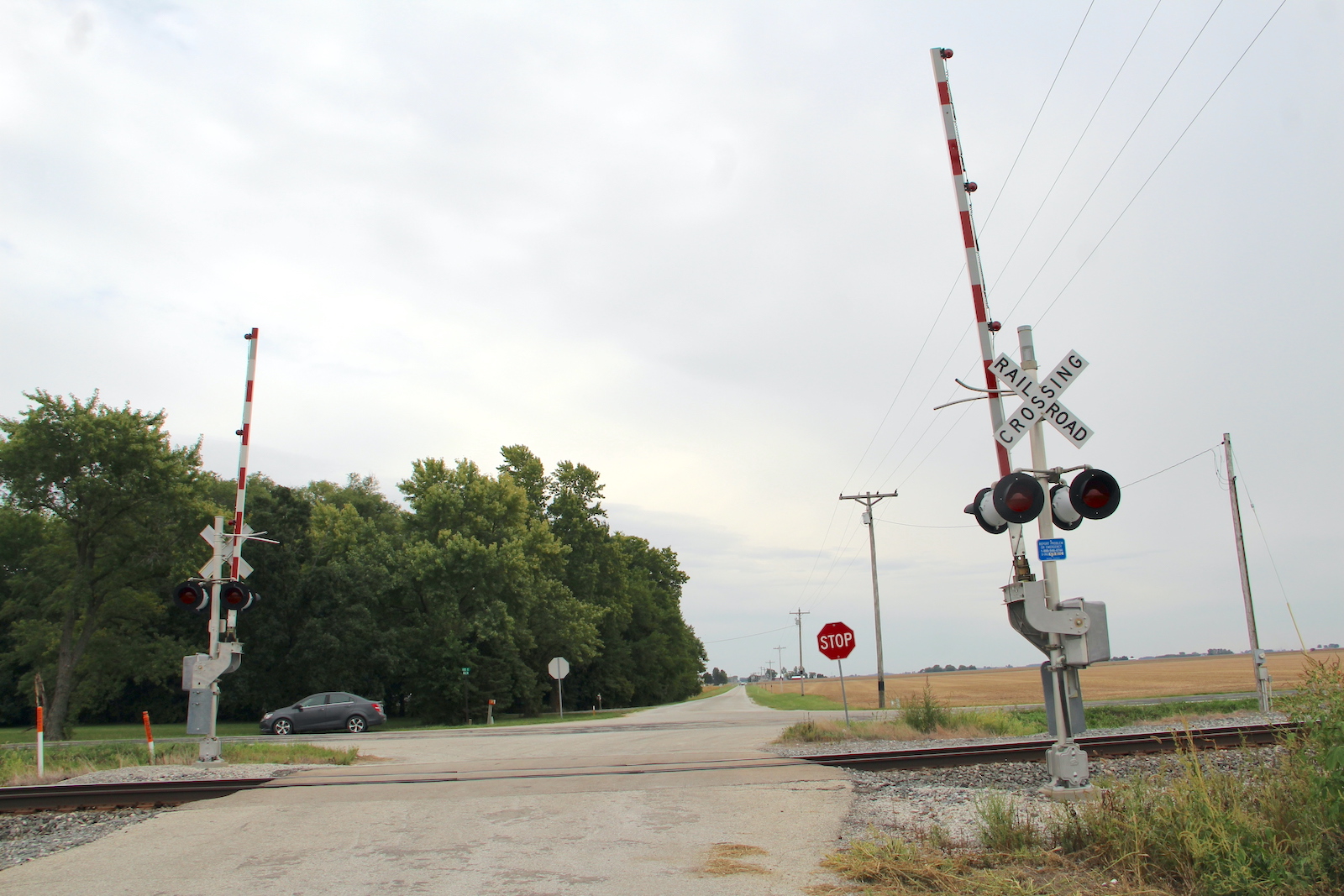

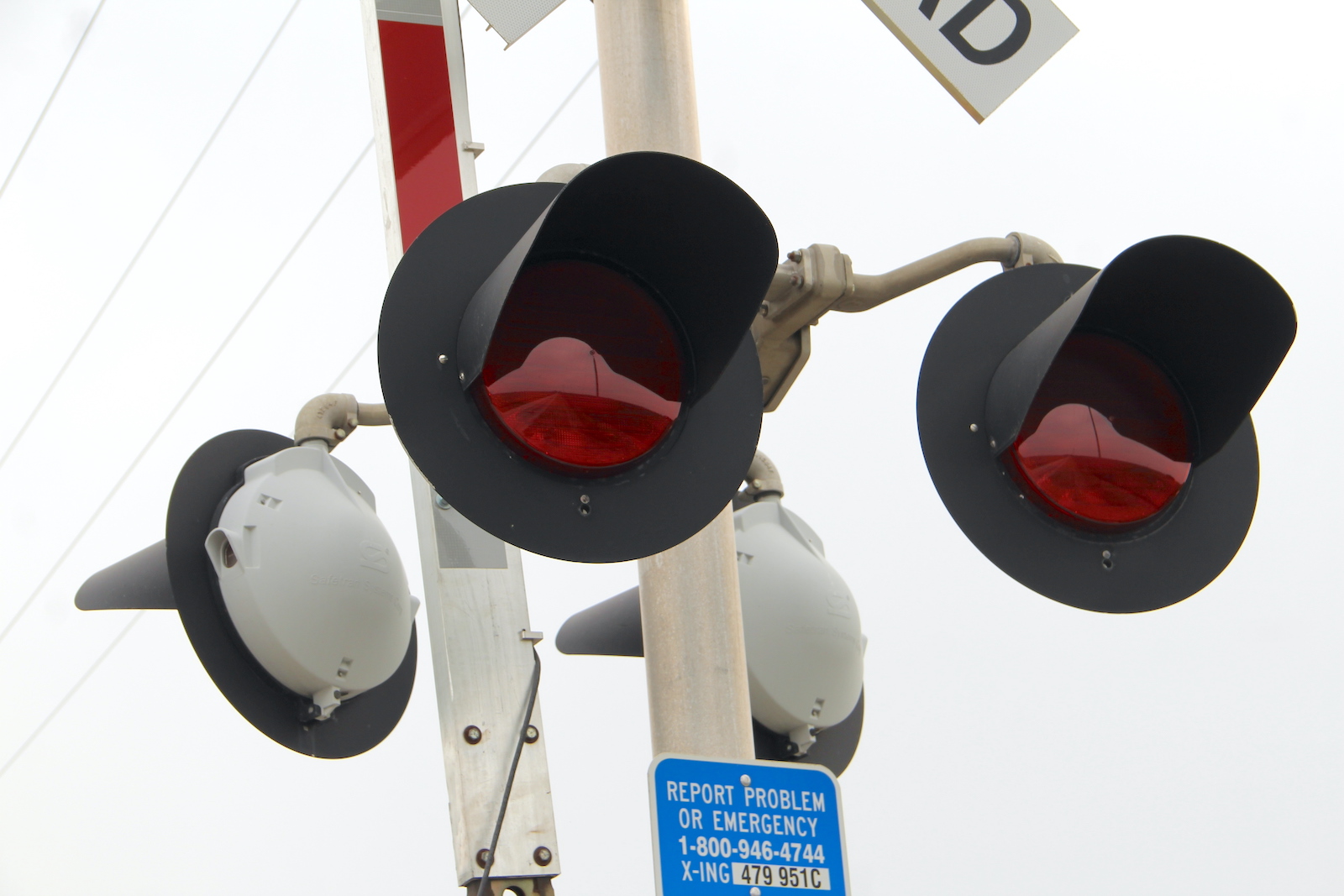

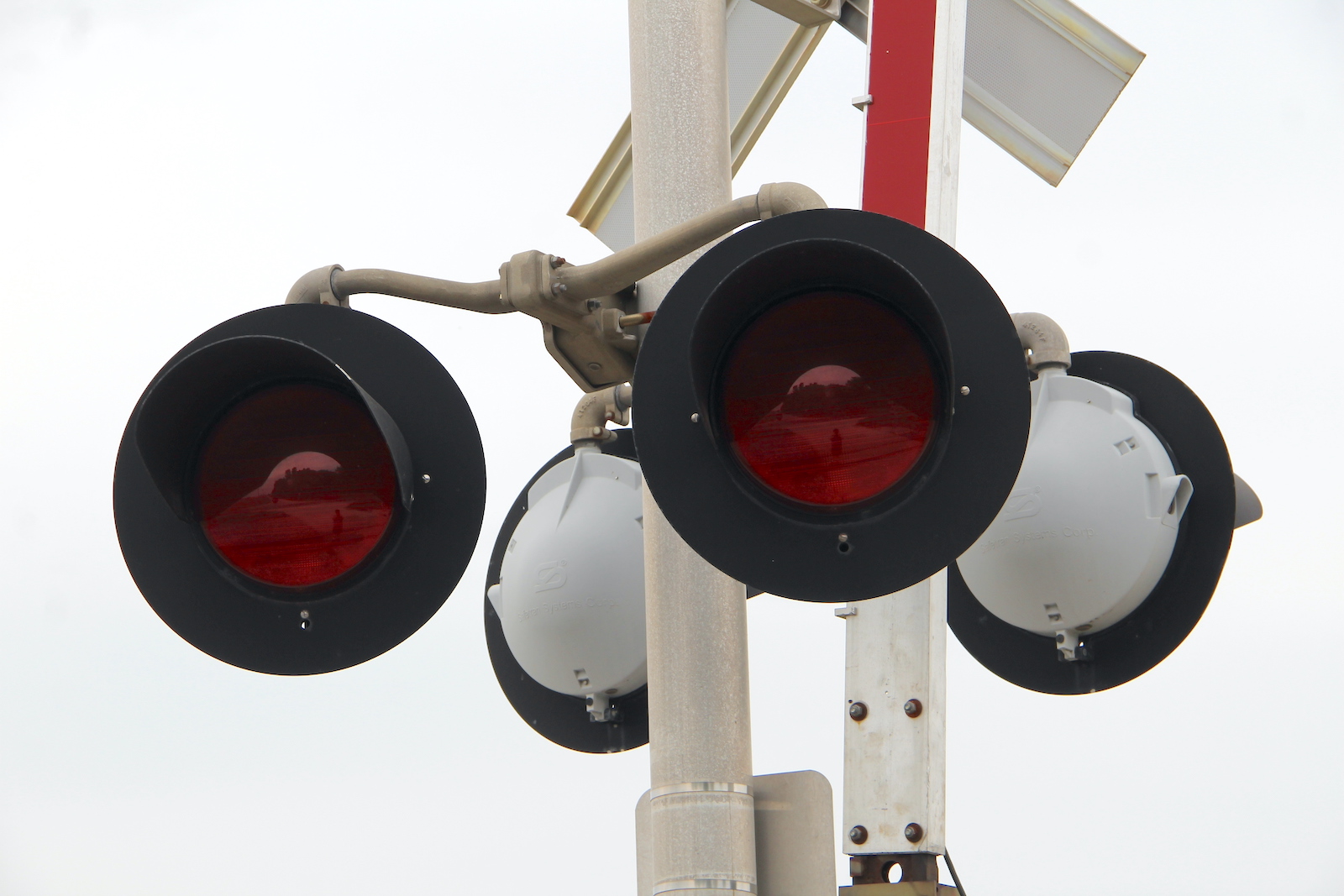

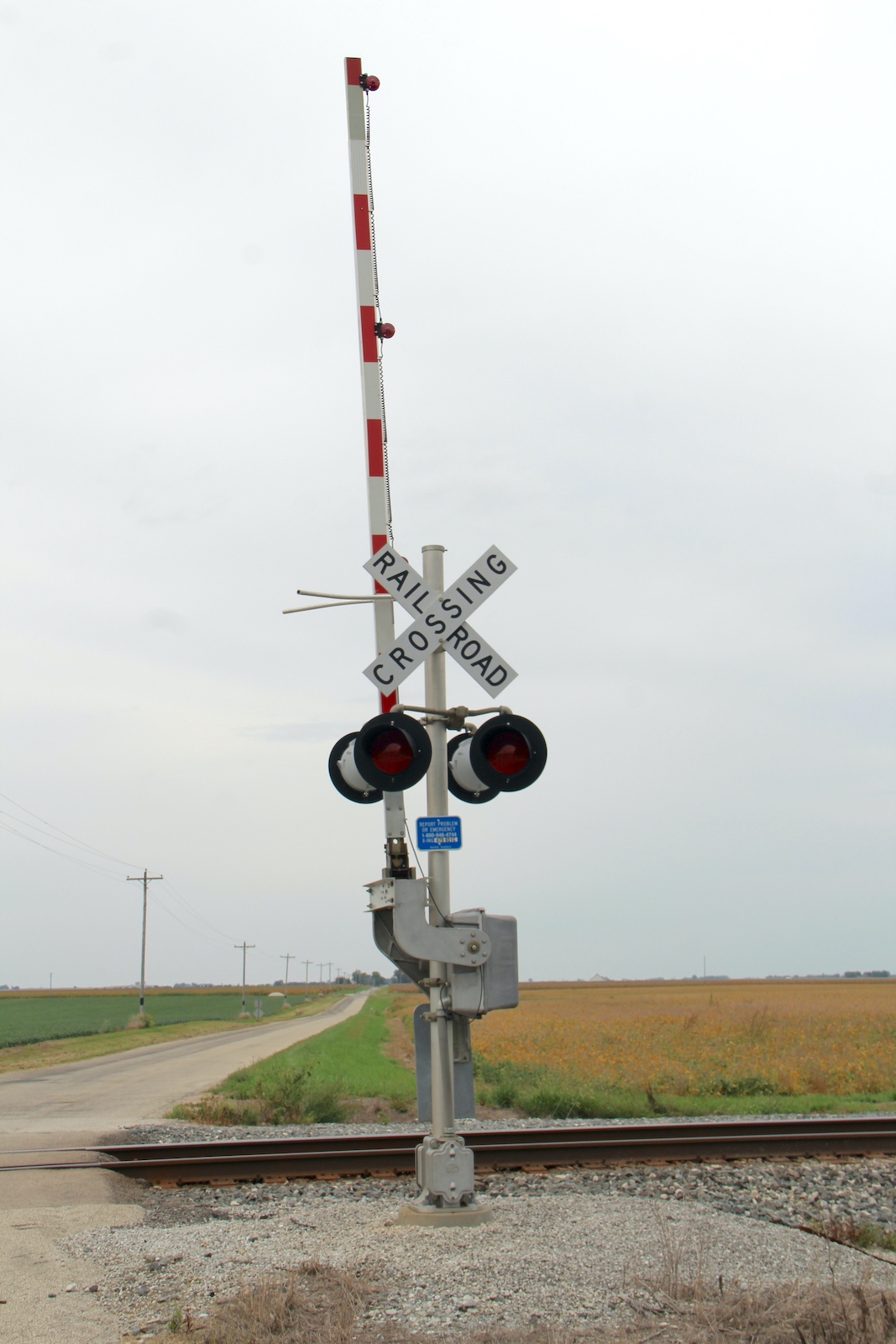

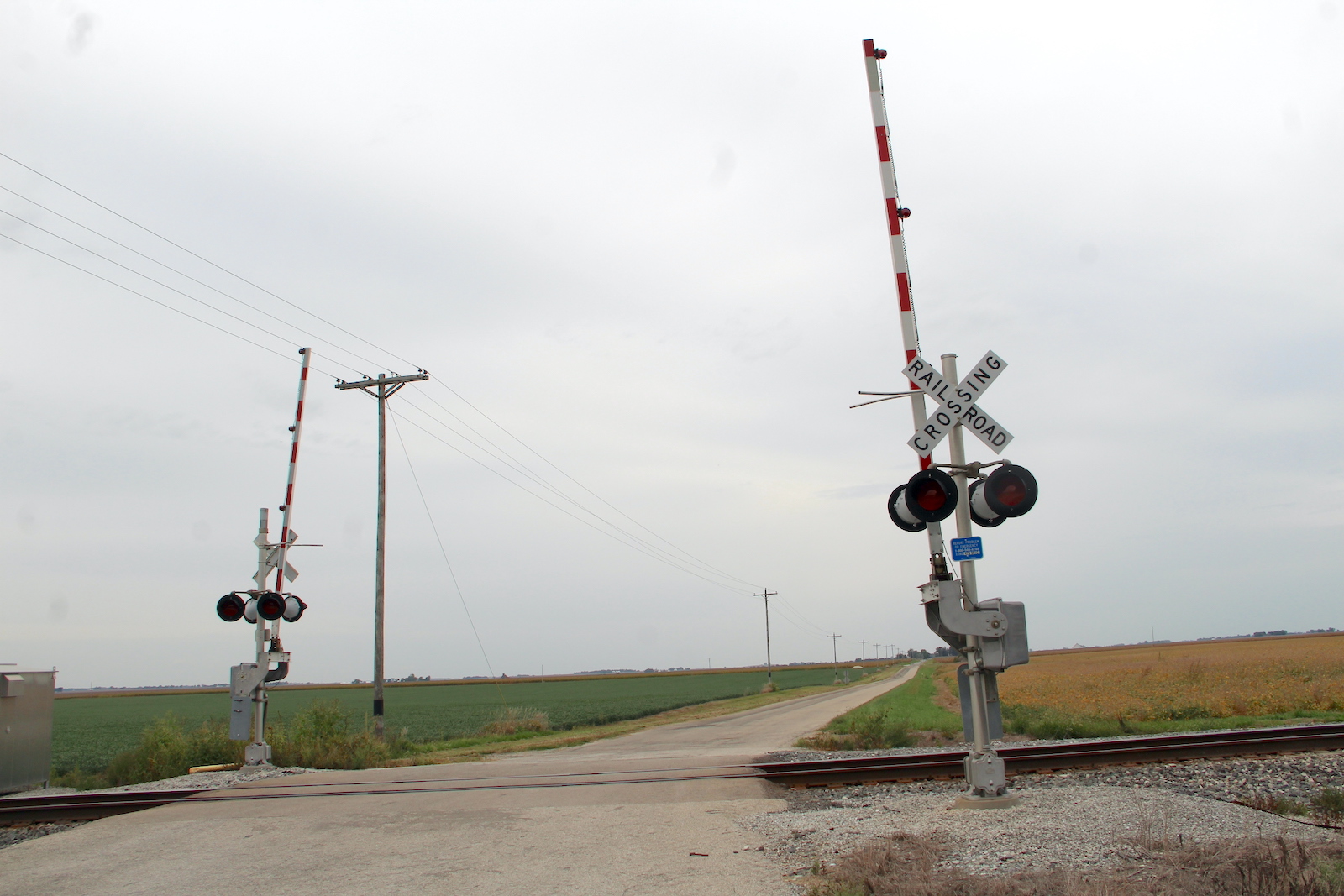

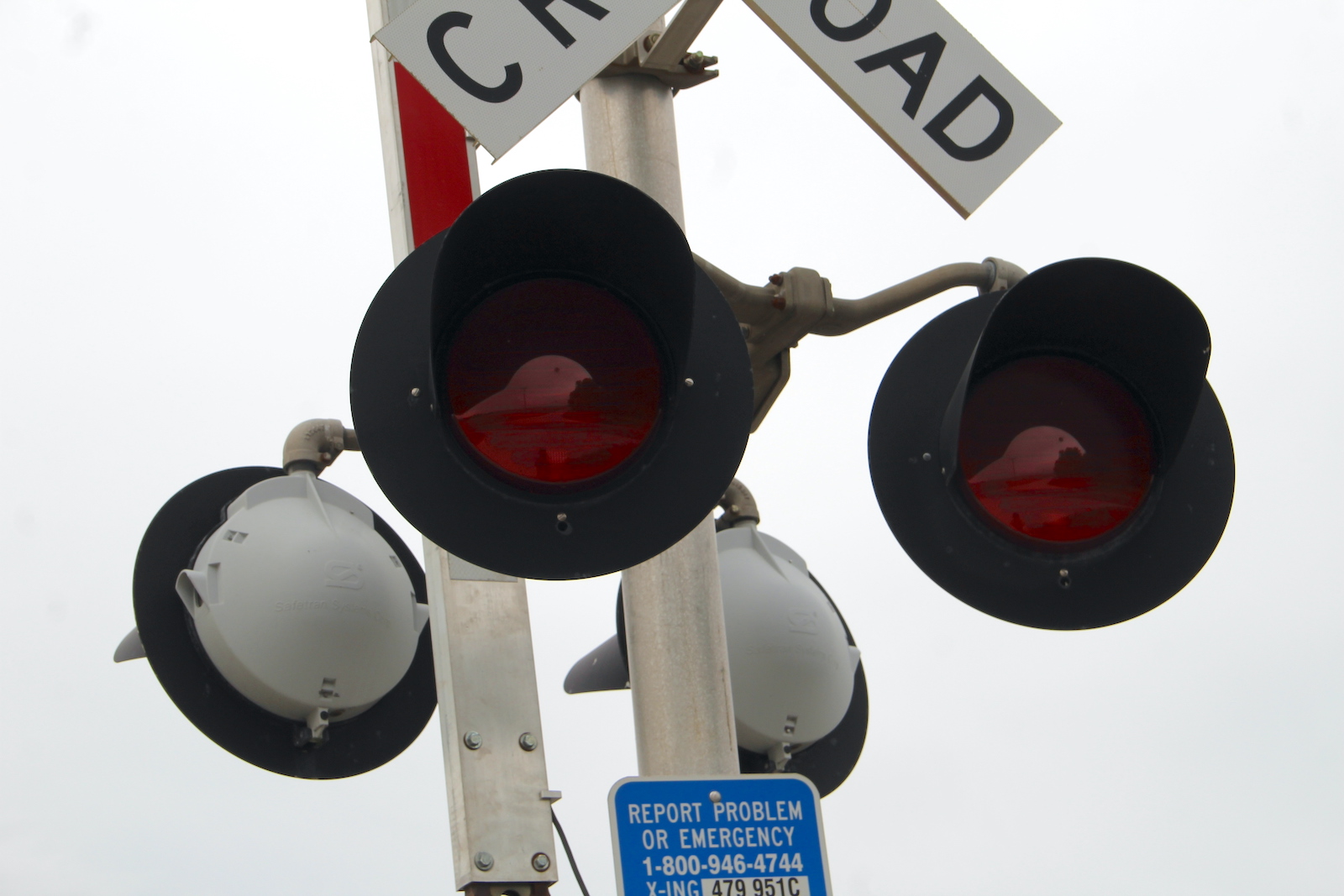

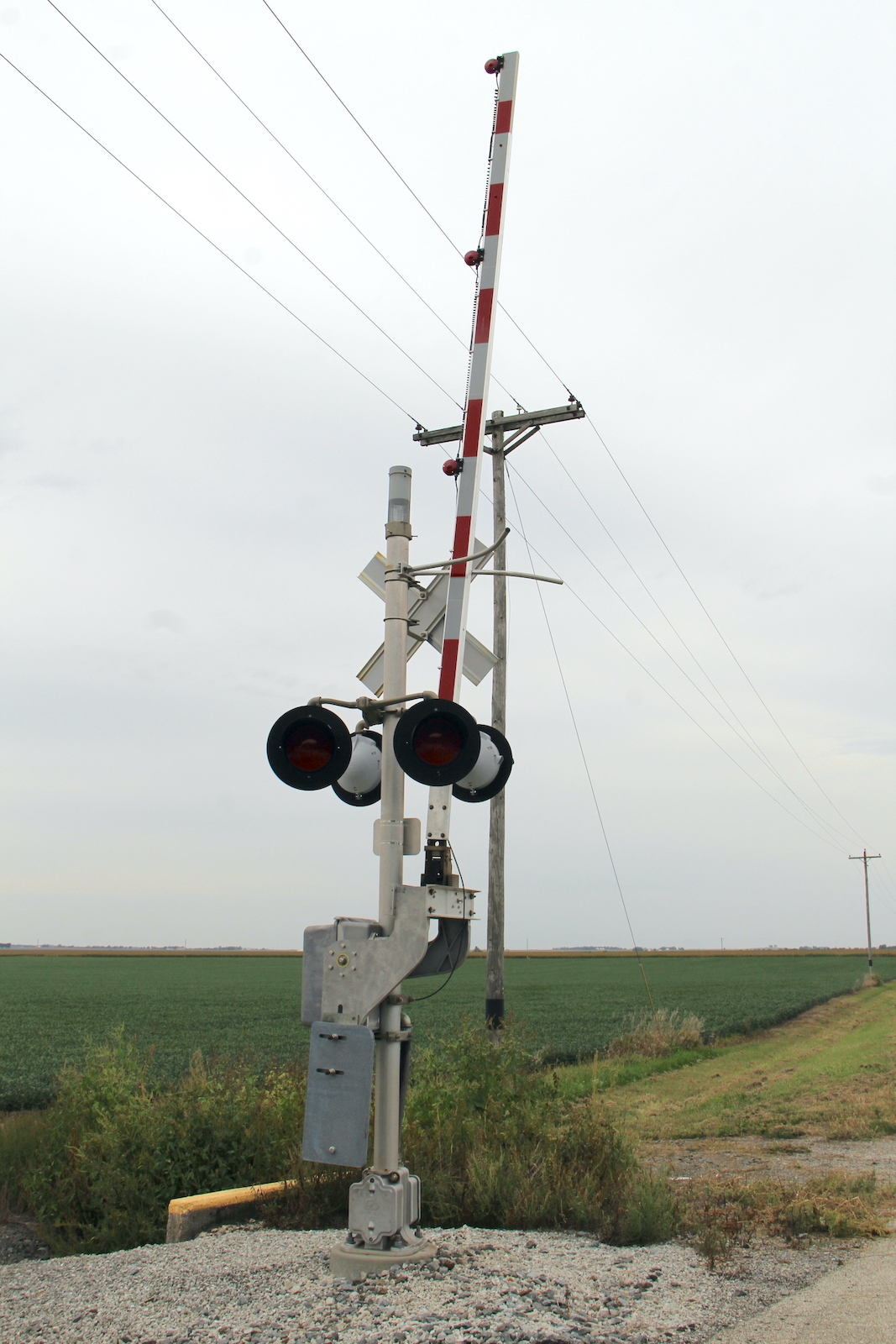

In September 2023, we see all of the lights were upgraded to LED.
