346.95


479950V

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: Siemens E-Bell None
Base: Safetran 5" Double Sided ^ Safetran 5" Double Sided ^
Lights: 4 - 12"x20" Safetran w/ GE Uniform Look LEDs 7 - 12"x20" Safetran w/ GE Uniform Look LEDs
1 - 12"x24" Safetran w/ GE Uniform Look LED
Junction Box: Safetran Safetran
Gate Lights: 4" RECO 4" RECO
Gate Mechanism: Invensys Rail w/ NEG 1 Way Saver Invensys Rail w/ NEG 1 Way Saver
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-27 were taken on July 23, 2020.
Pictures 28-39 were taken on September 16, 2023.
All pictures were taken by Tommy McGowan.
This crossing is located on the NS Lafayette District.

1
 2

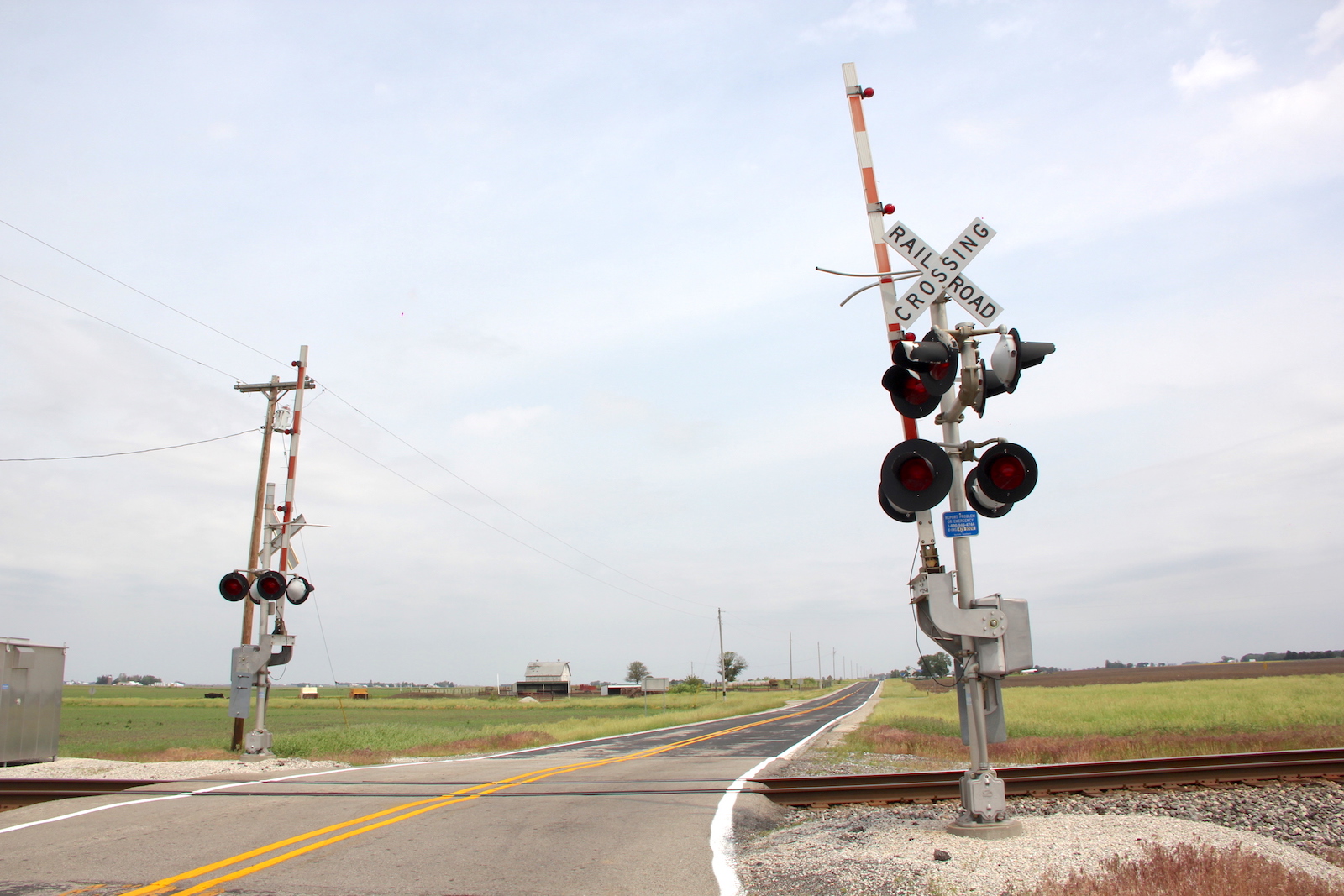

Overview of 2 gated signals facing south. Overview facing north.
3 4 5
6 7 8
9 10 11
12

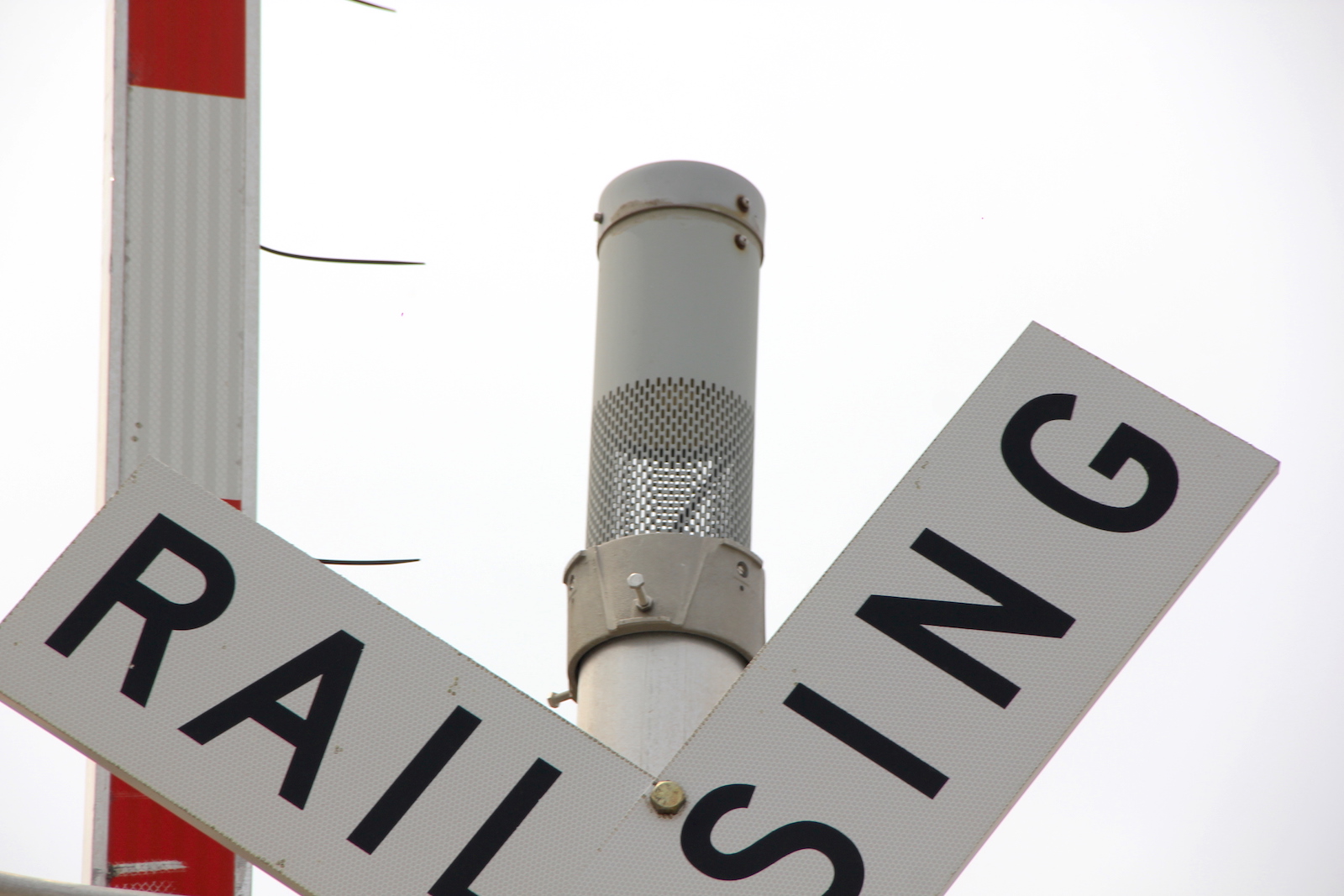

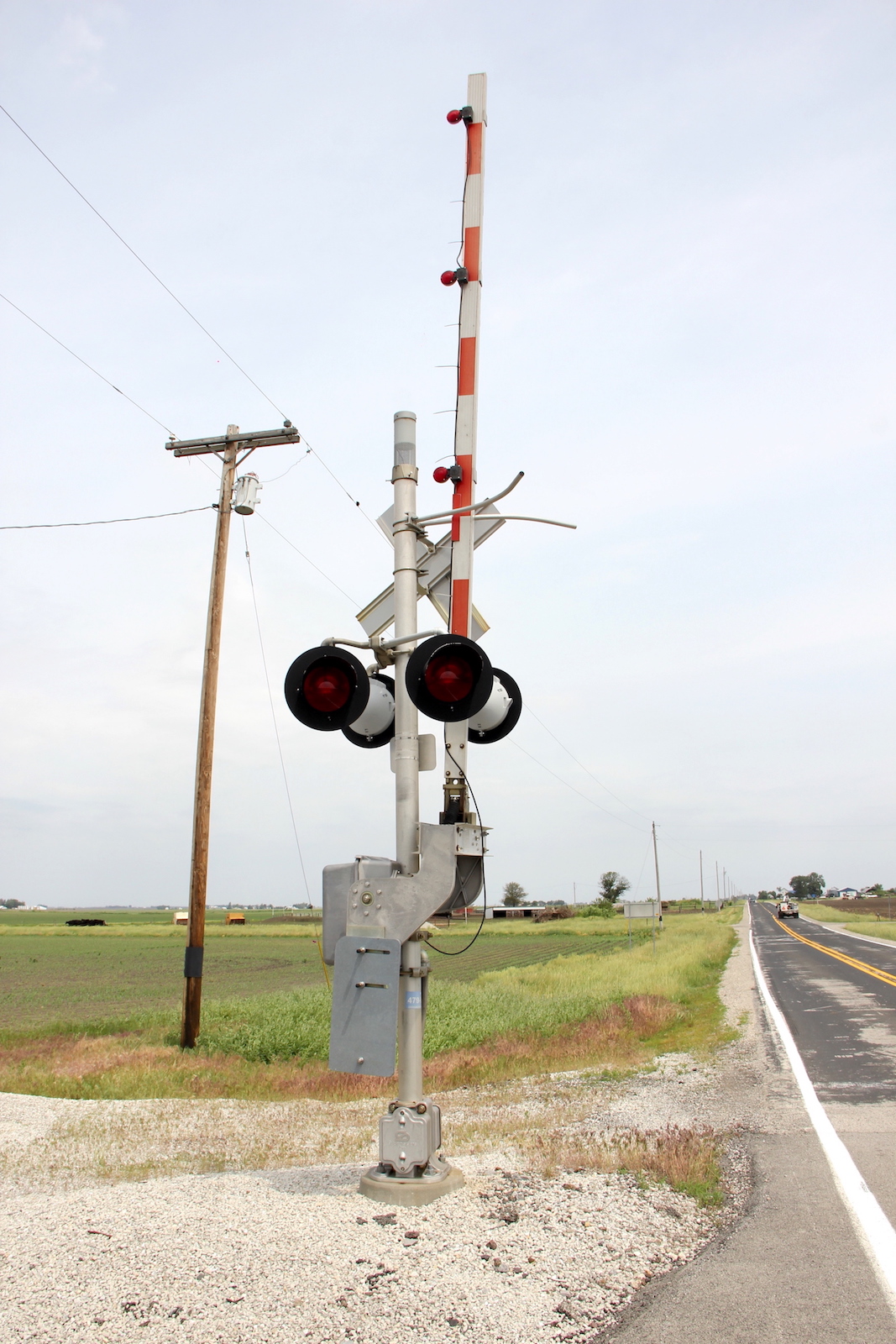

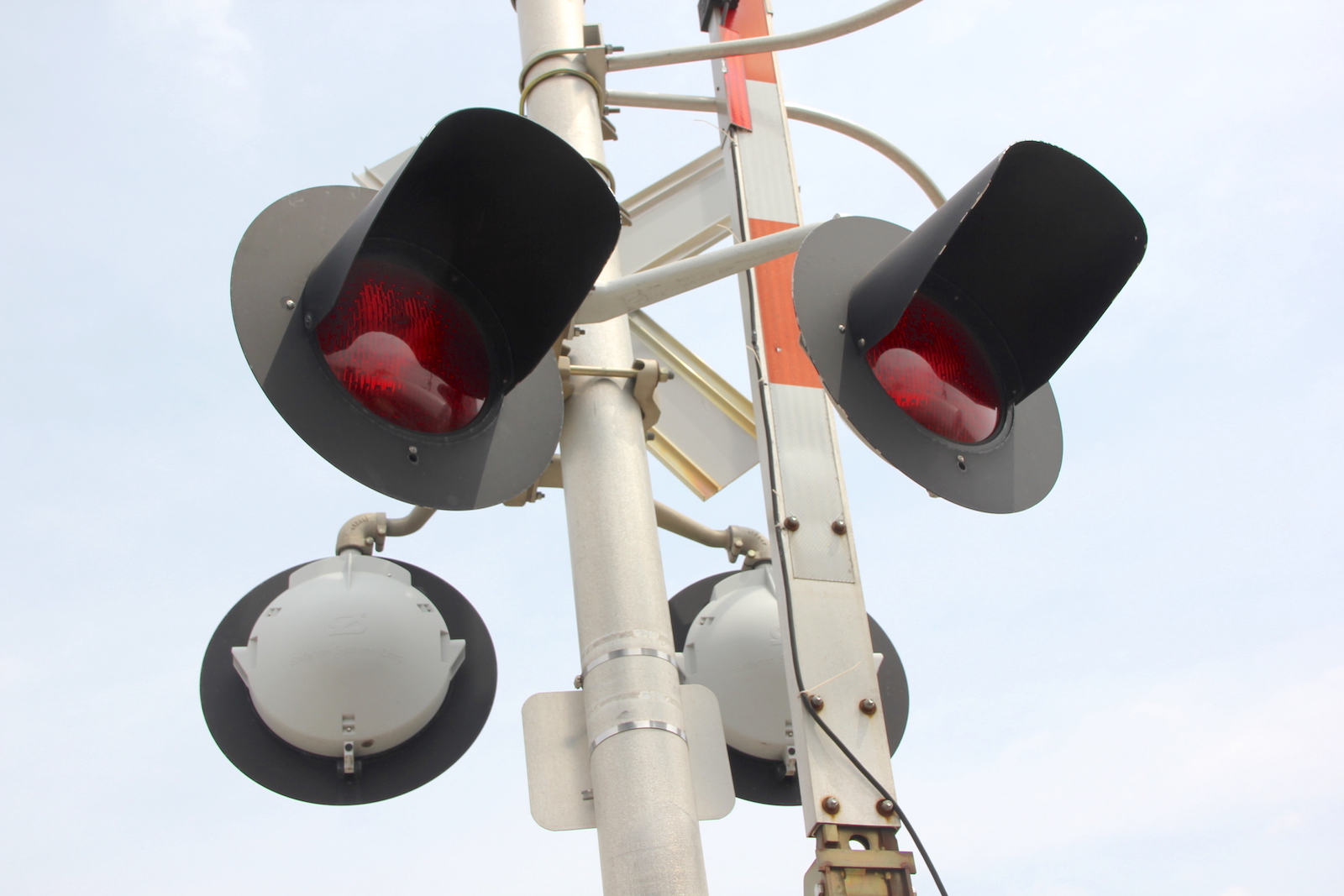

The northern signal. Both signals had mostly 12"x20" Safetran incandescents and 4" NEG incandescents at this time.
13 14 15
16 17 18 19
20 21 22
23

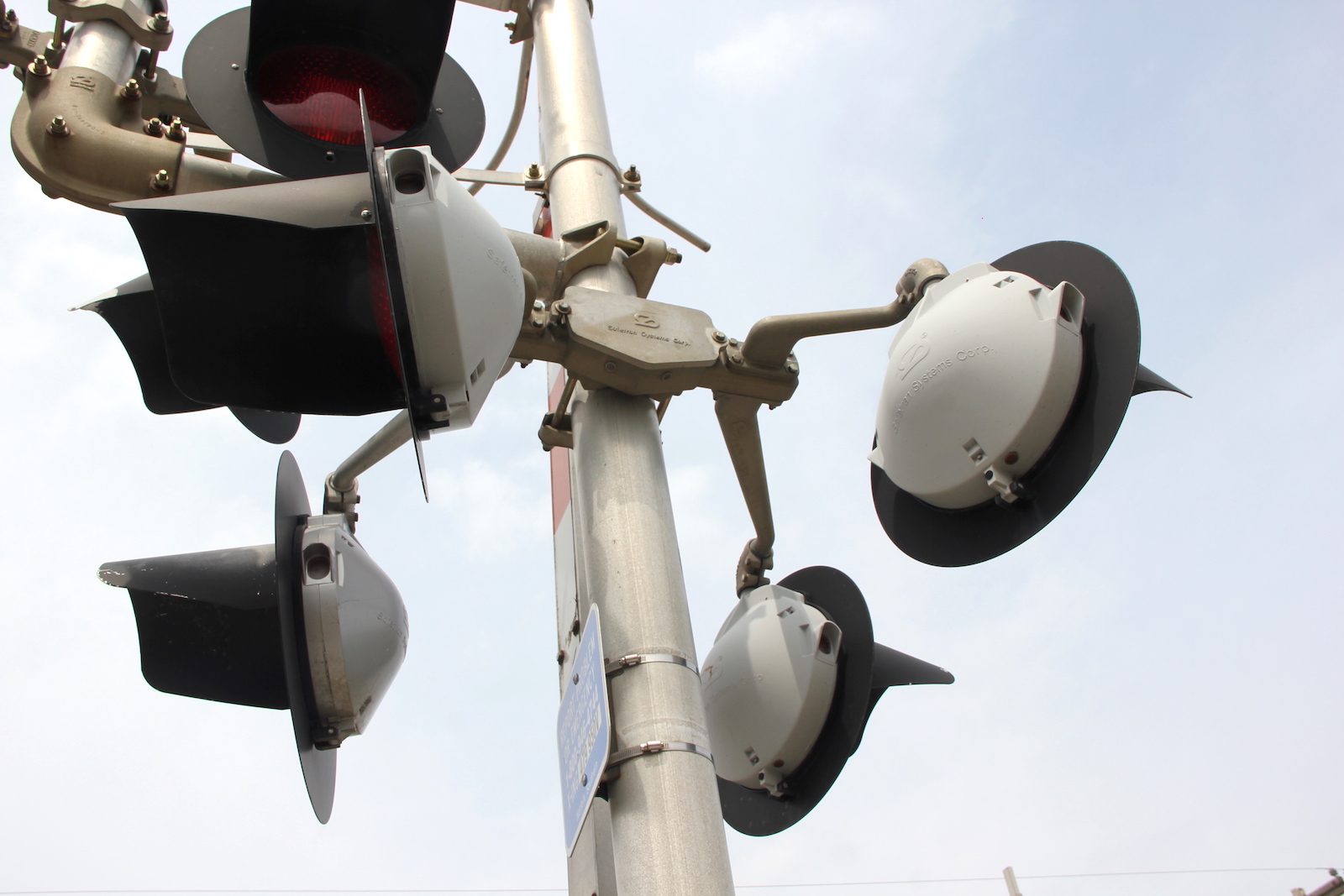

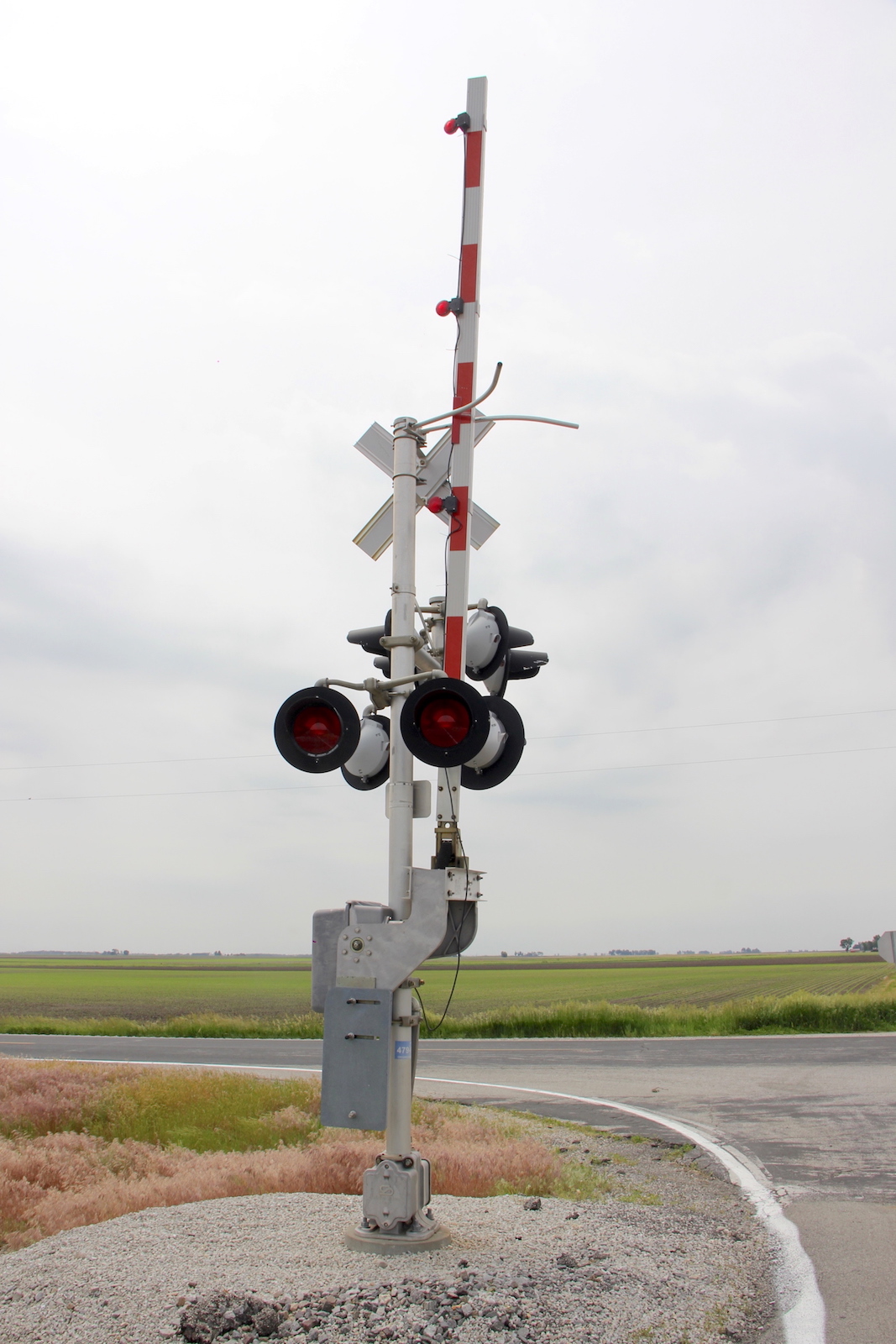

The southern signal. The 12"x24" frame replaced a 12"x20" one sometime between 2012 and 2018.
24 25 26 27

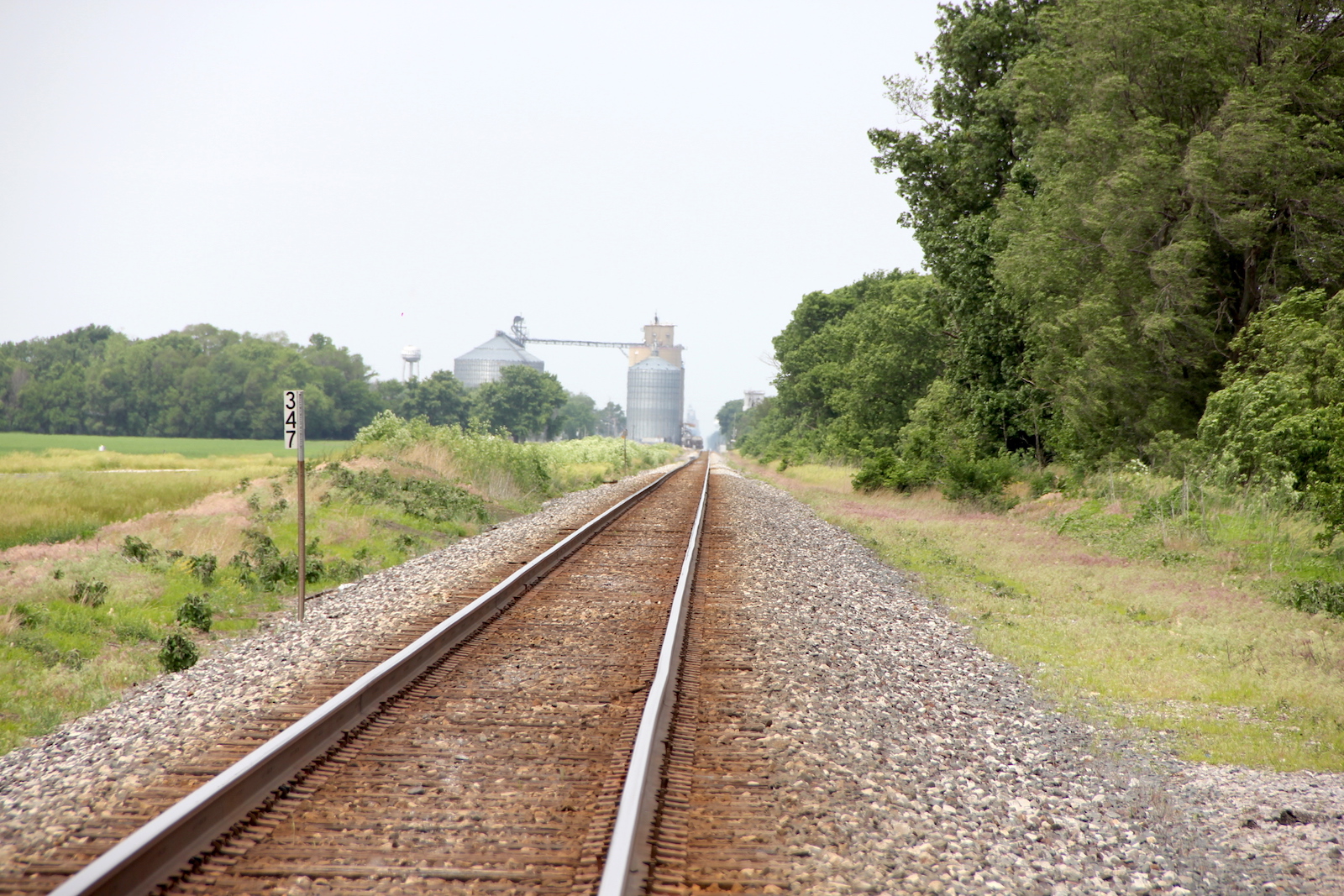

The relay bungalow in the northwest quadrant. The grade is rubber and asphalt. Track view facing west towards CR 100 E. Track view facing east towards CR 300 E.
28
 29
30 31 32
 33
34 35 36
37 38 39

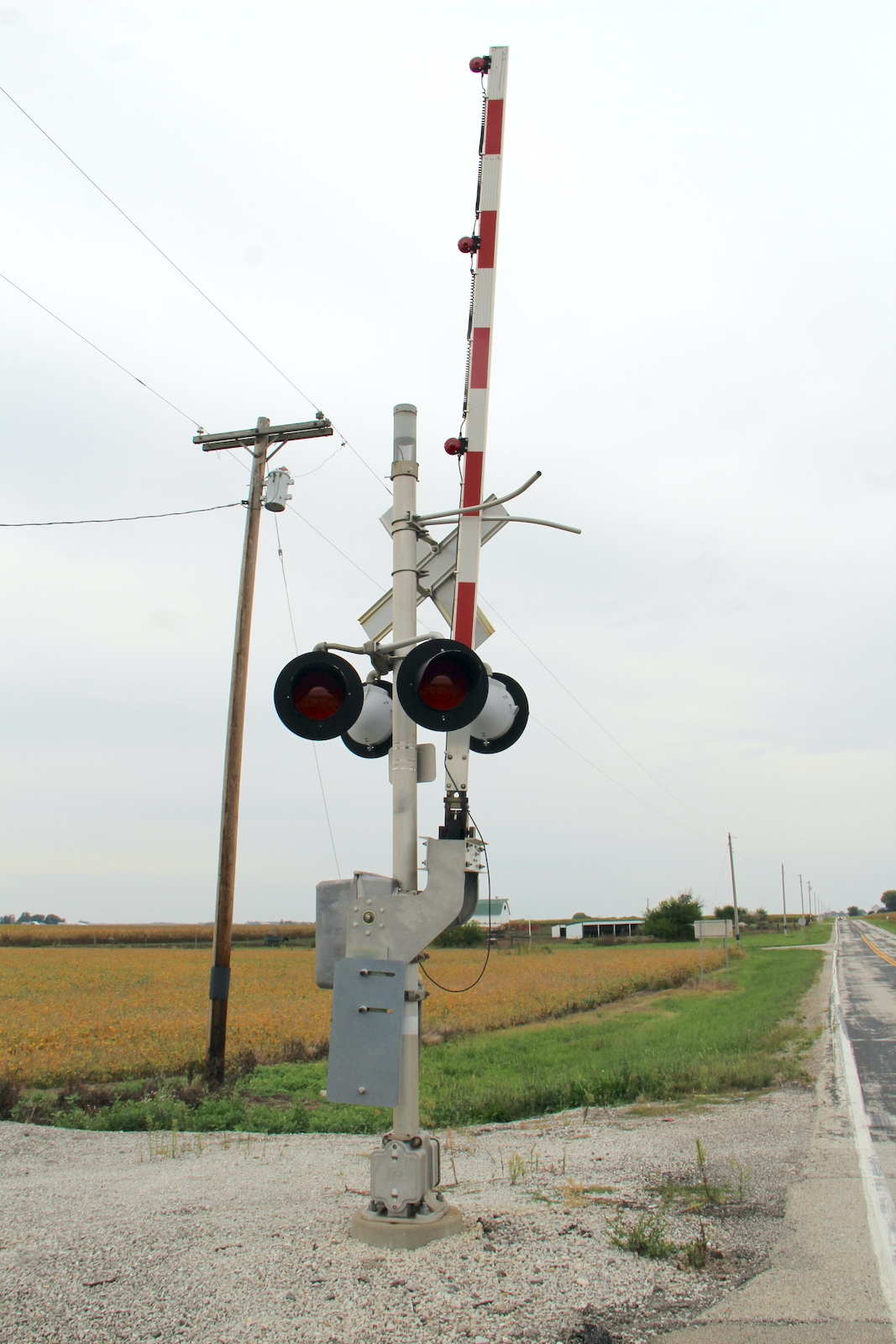

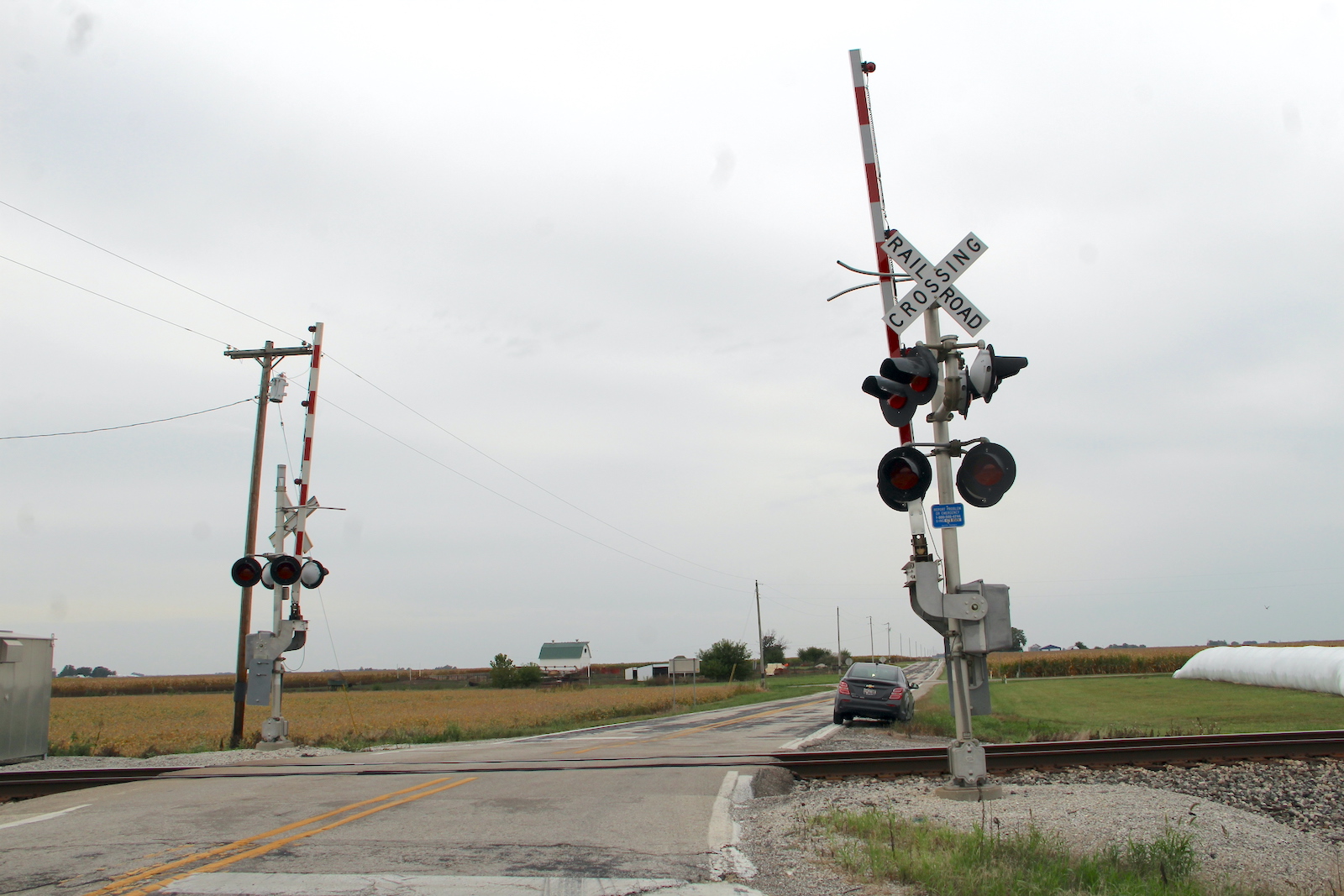

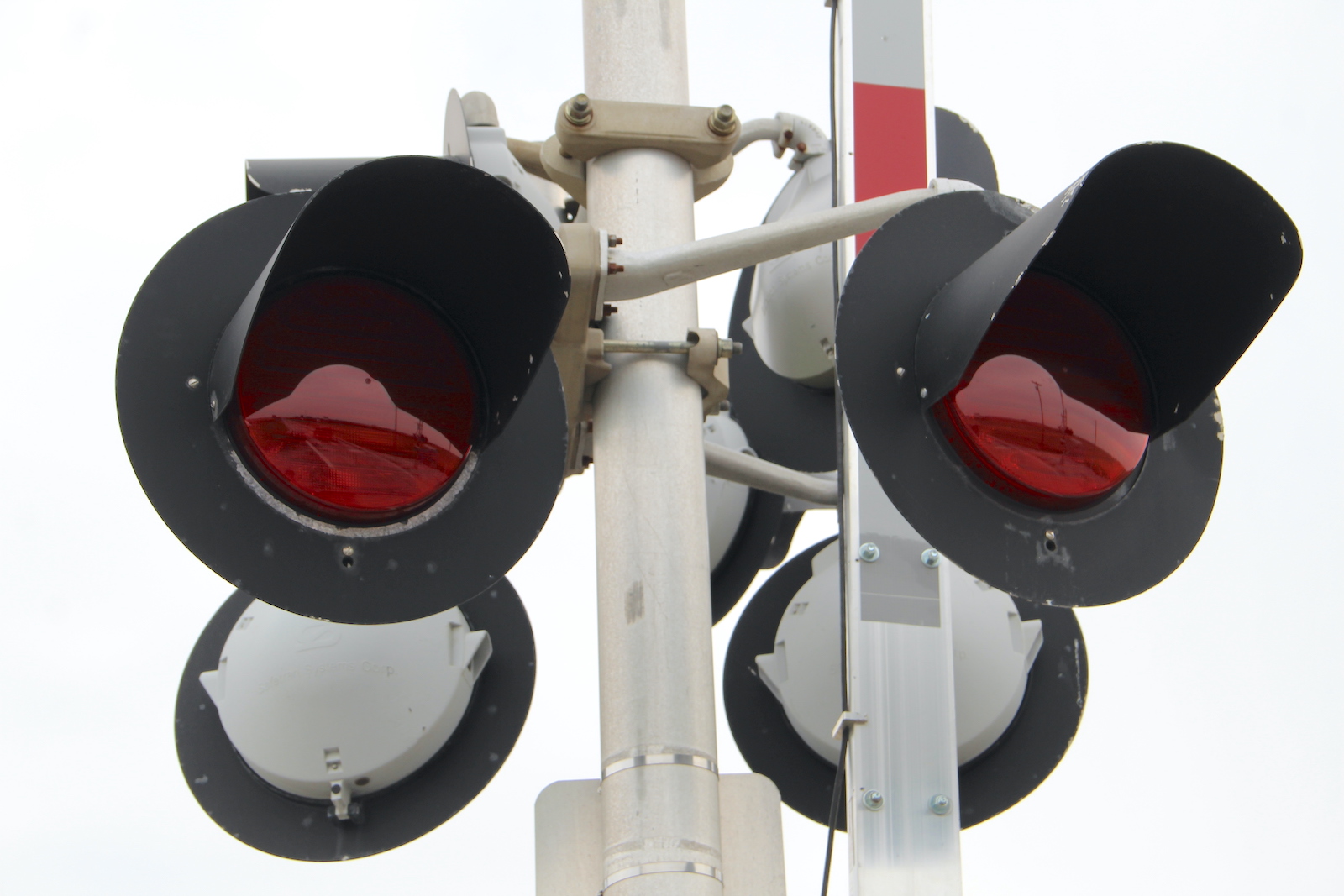

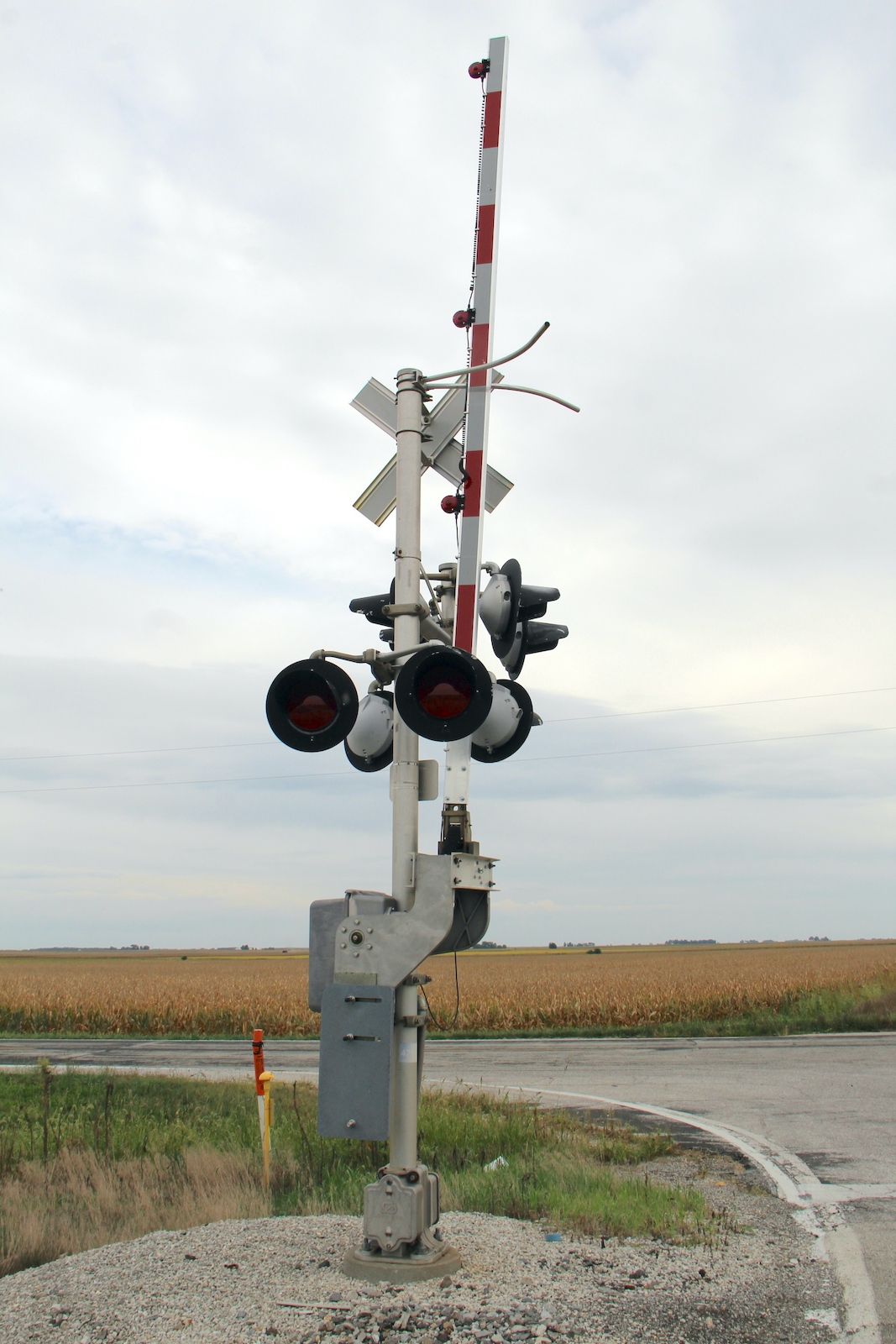

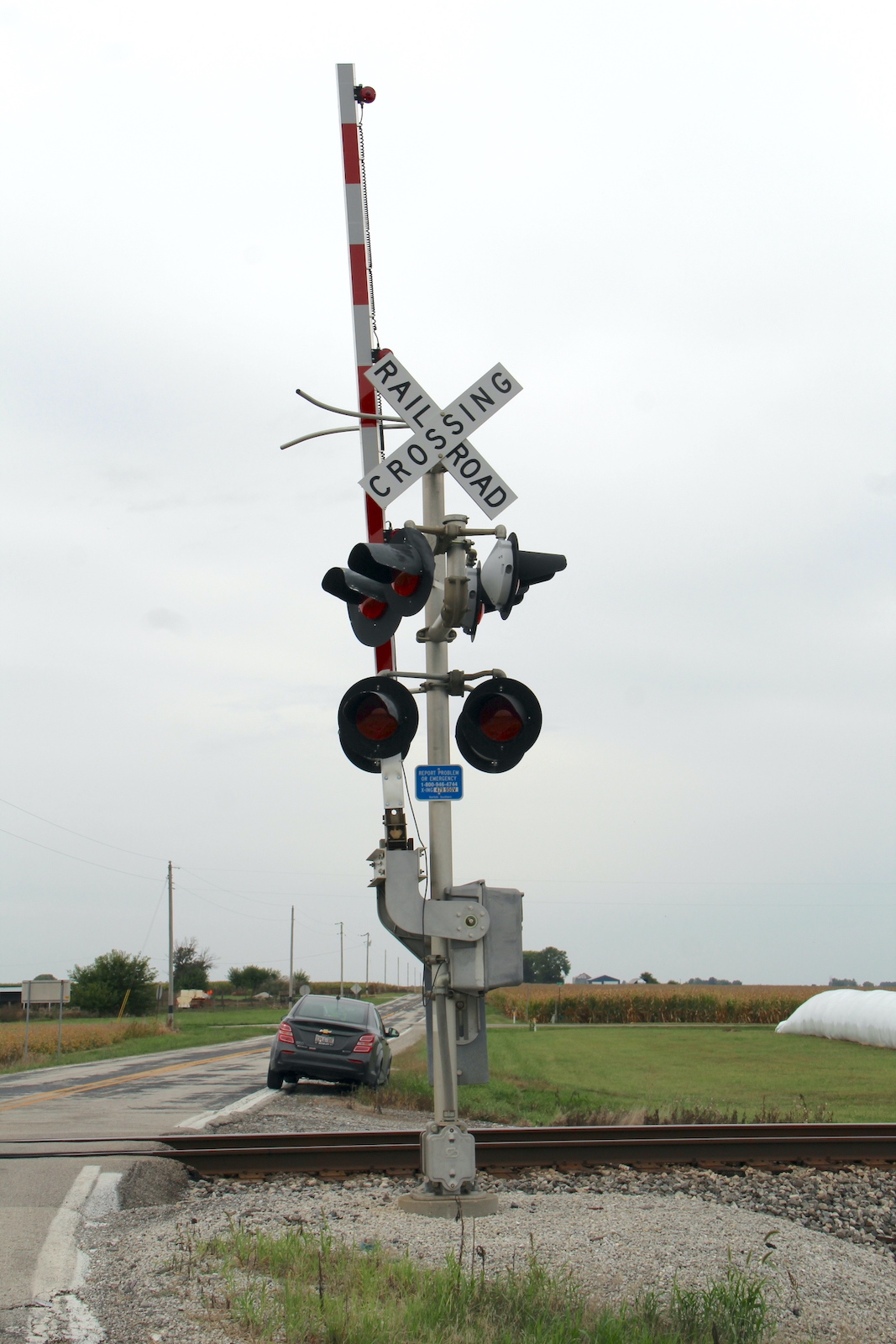

In September 2023, we see all of the lights were upgraded to LED. The one 24" background was retained.
