MP: 40.67
|
MP: 40.67 |
| Created November 2020 |
| Total Accidents:
0 Crossing DOT #: 175004L TOTAL DAILY TRAINS: 87 (AS OF 2020) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | WCH Type 3 E-Bell | WCH Type 4 E-Bell |
| Base: | WCH 5" Single Sided ^ | WCH 5" Single Sided ^ |
| Lights: | 4 - 12"x24" WCH w/ Electro-Tech's LEDs | 4 - 12"x24" WCH w/ Electro-Tech's LEDs |
| Junction Box: | WRRS | WRRS |
| Gate Lights: | 3 - 4" RECO LEDs | 3 - 4" RECO LEDs |
| Gate Mechanism: | WCH Style 3.5 w/ Old WCH Gate Saver | WCH Style 3.5 w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
1 |
2
|

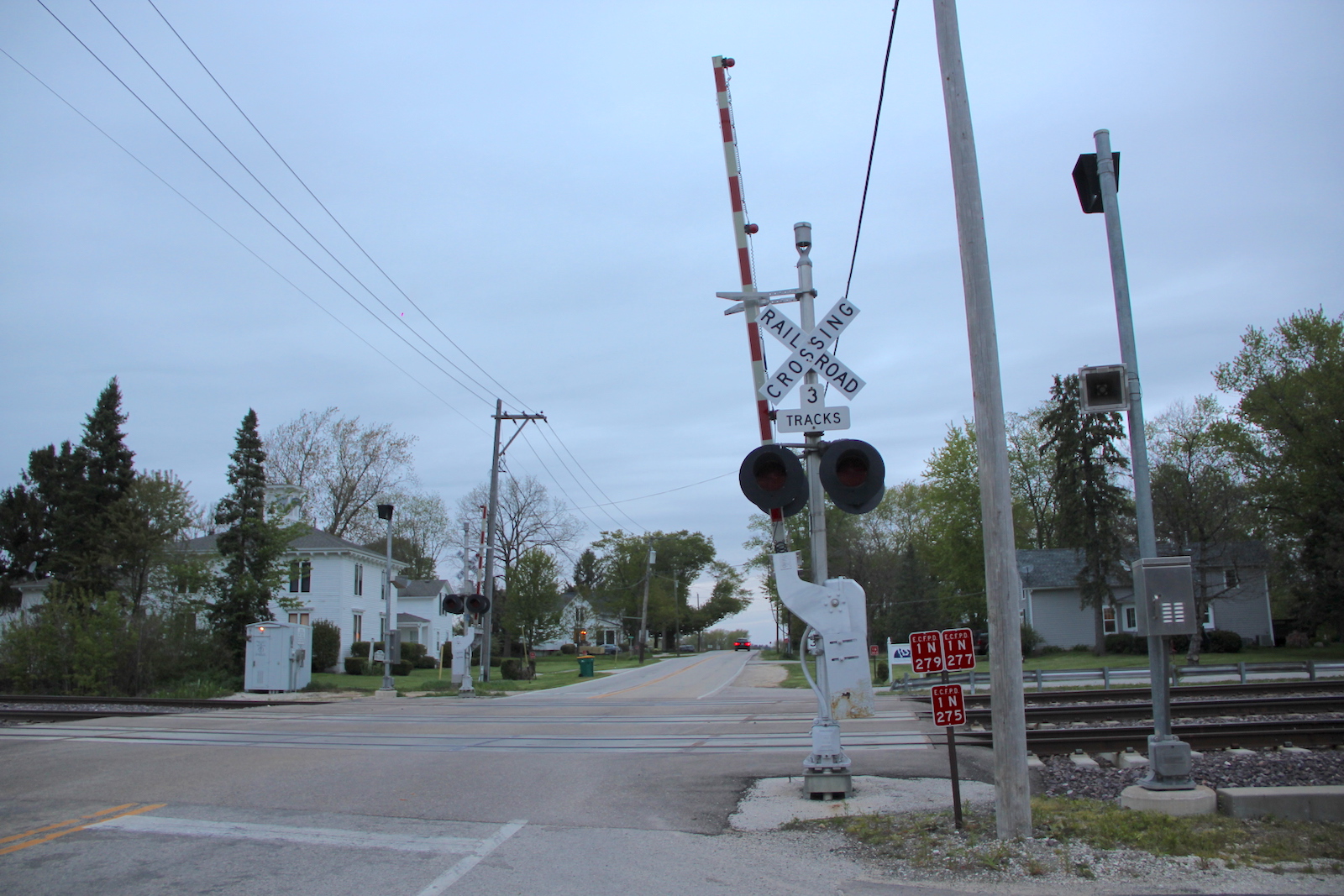

| Overview of 2 gated signals and 2 wayside horns facing south. | Overview facing north. |
3
| 4
| 5
|
6
| 7
| 8
|
9
| 10
| 11 | 12
|

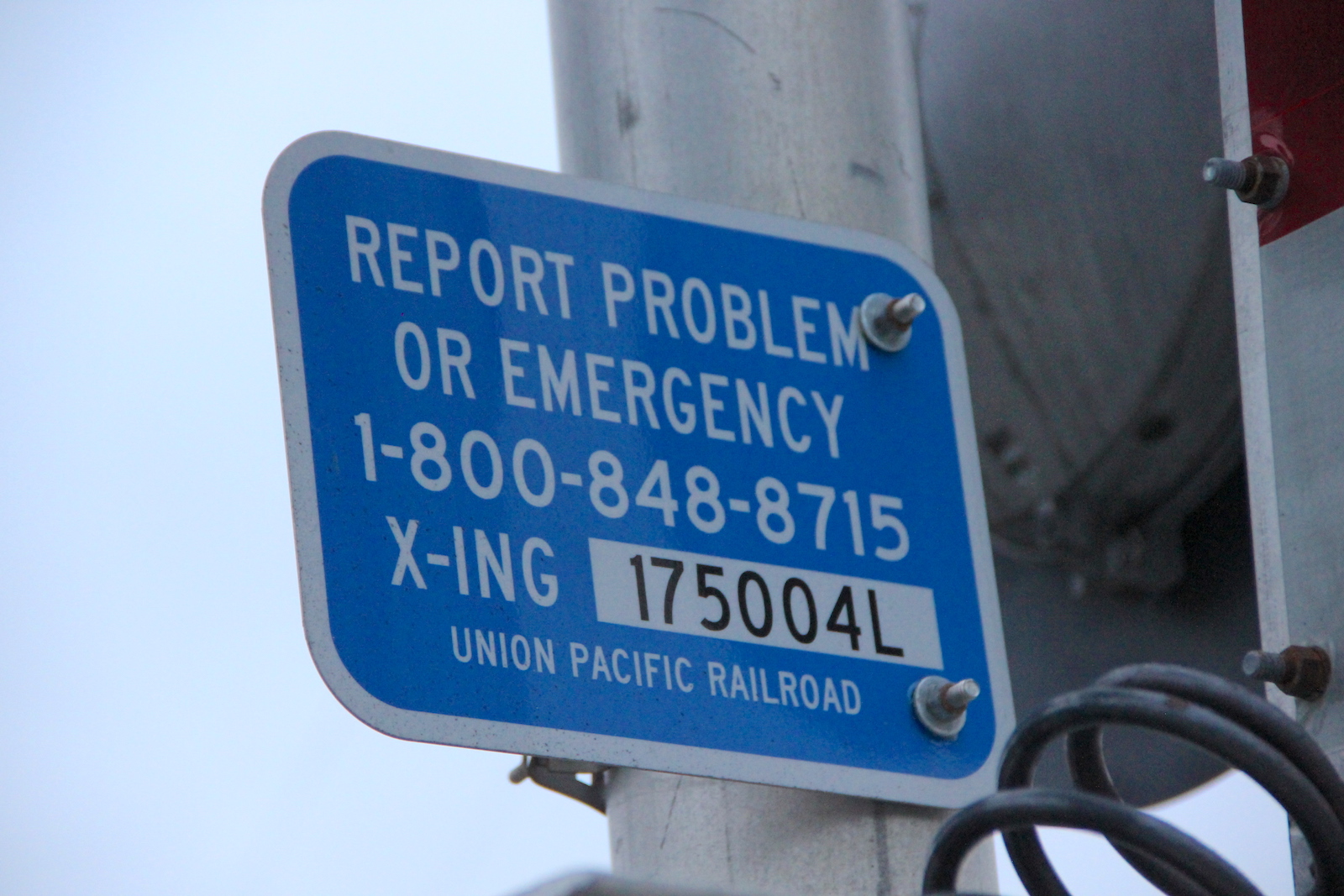

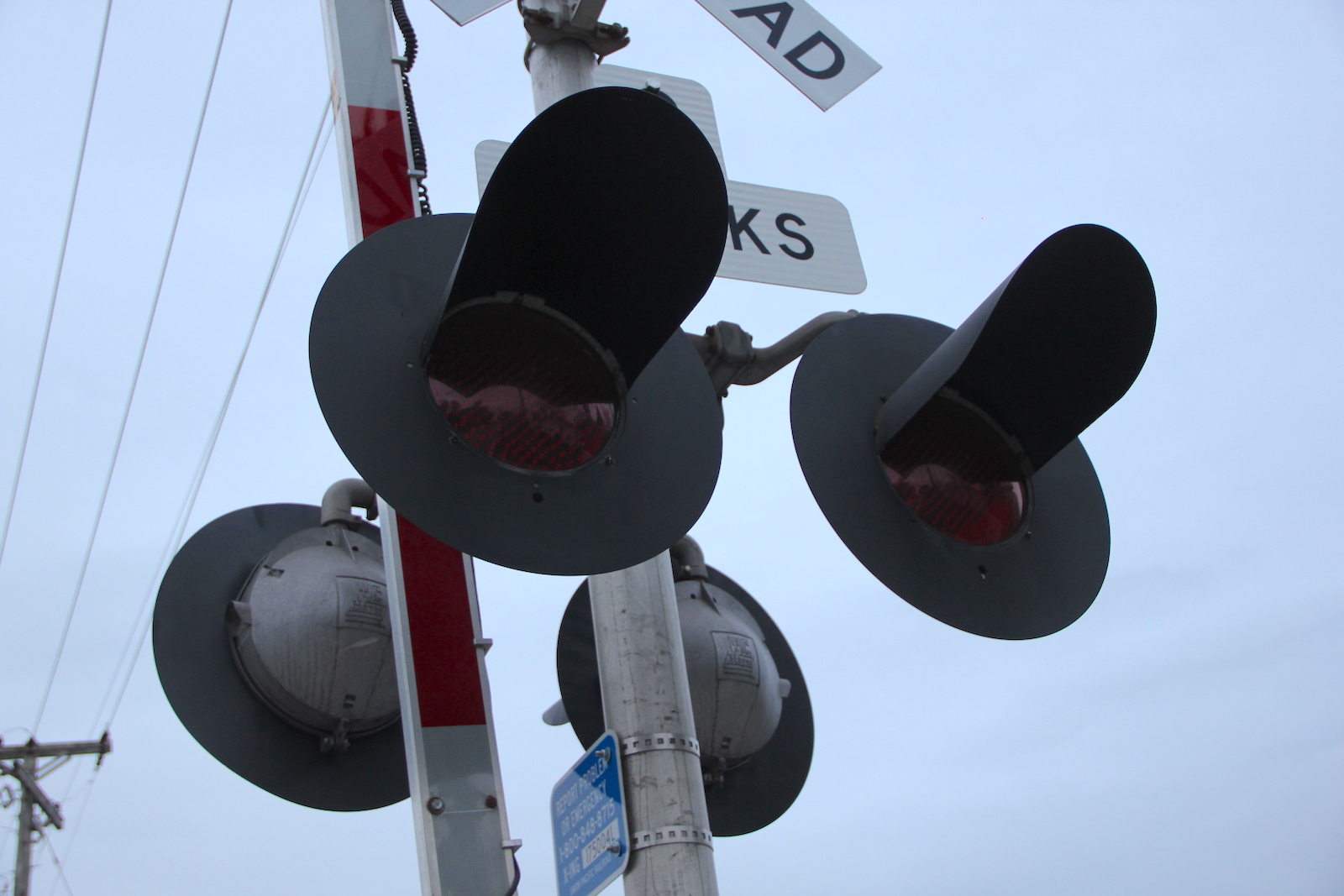

| The northern signal. |
13
| 14
| 15
|
16
| 17
| 18
|
19
| 20
| 21 | 22
|

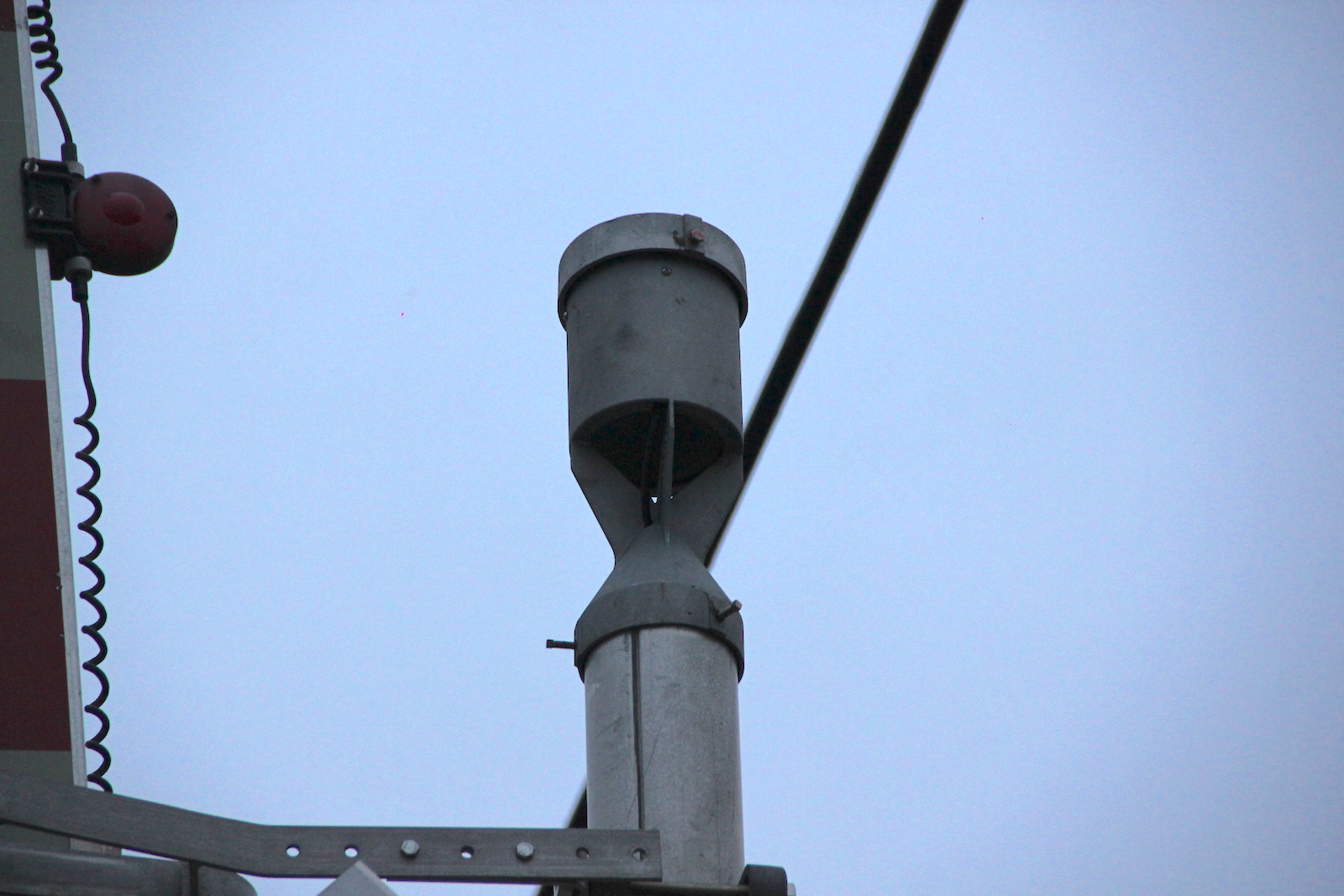

| The southern signal. |
23 |
24 |
25 |
26 |
27 |
28 |

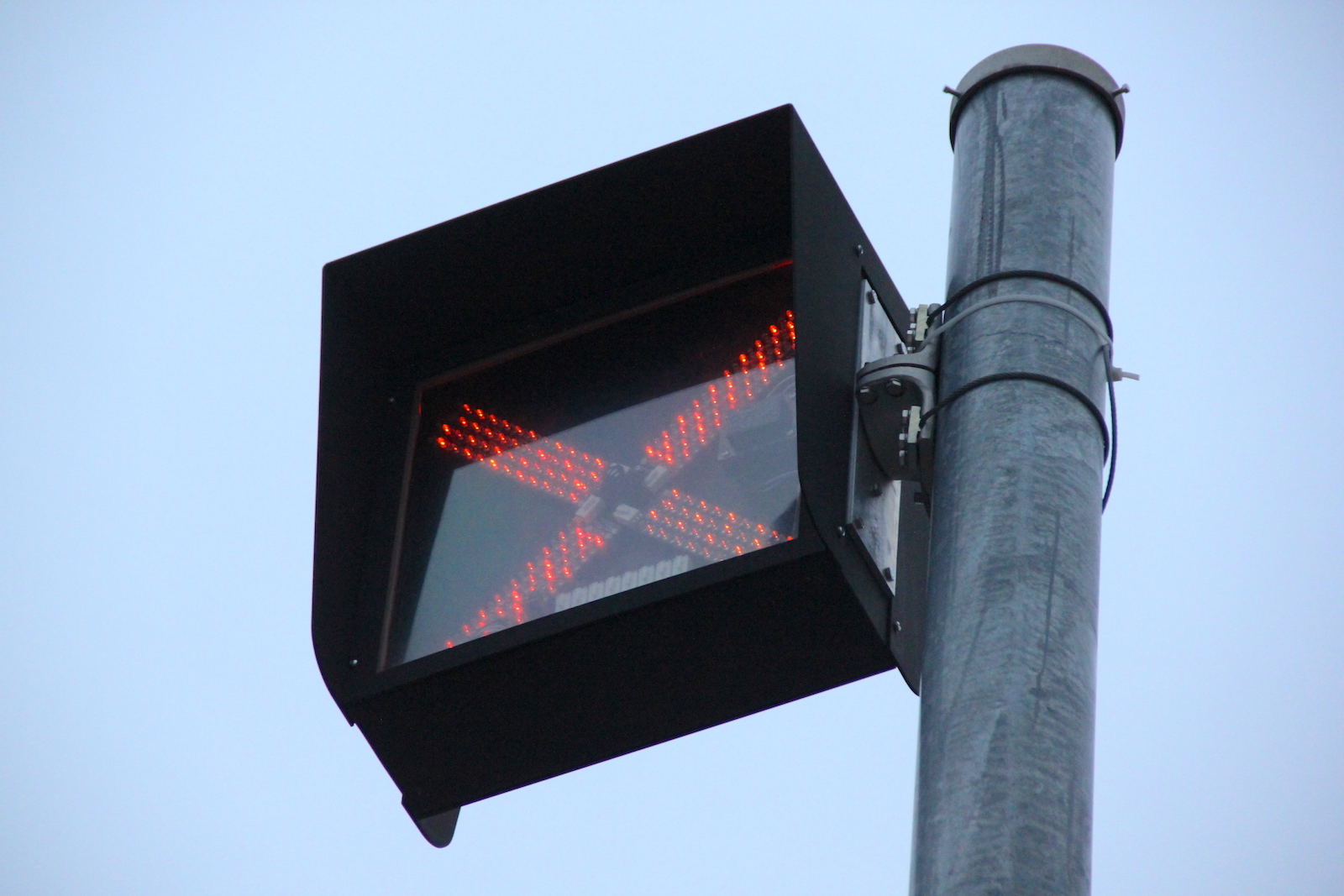

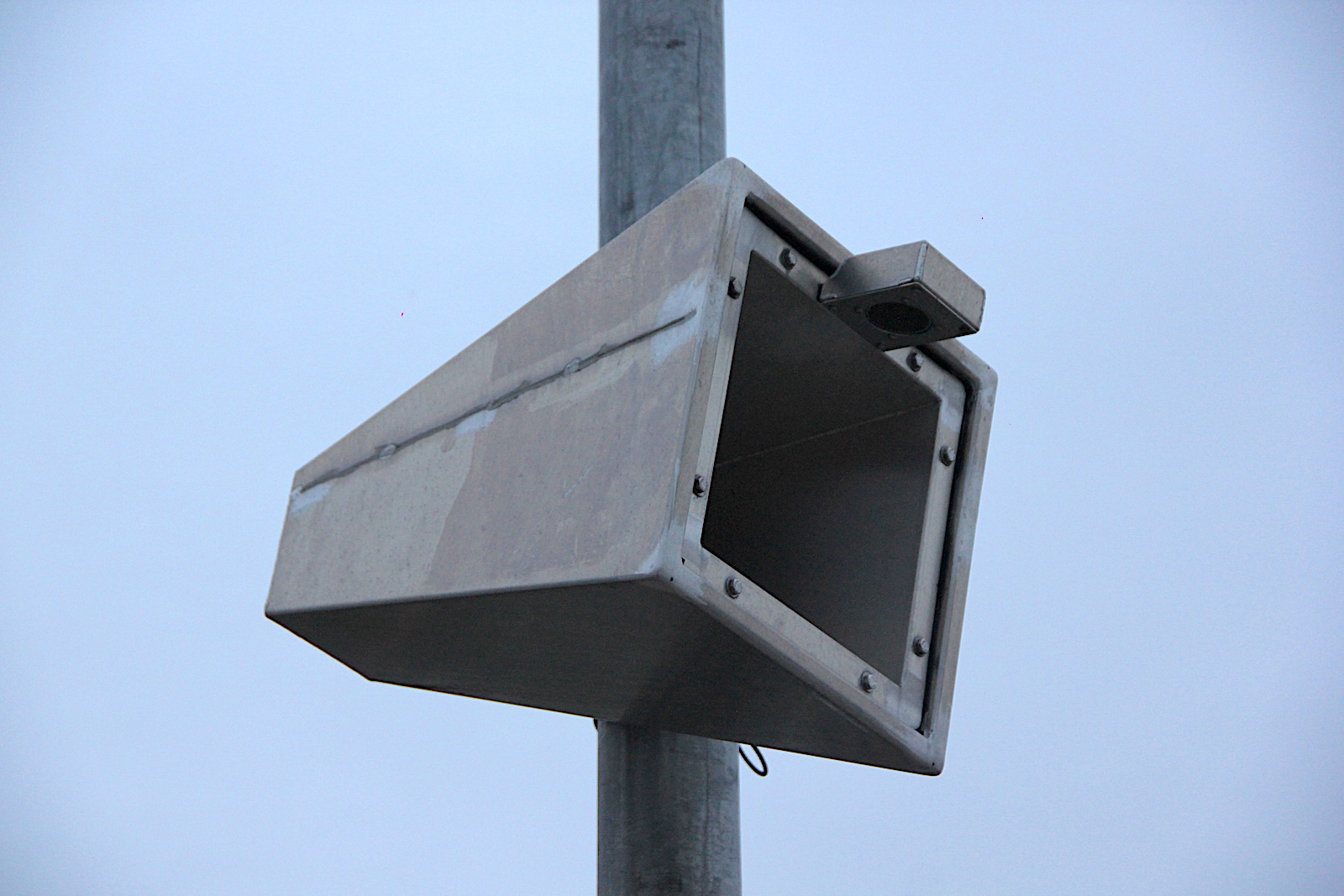

| The southern wayside horn. |
29 |
30 |
31 |
32 |
33 |
34 |

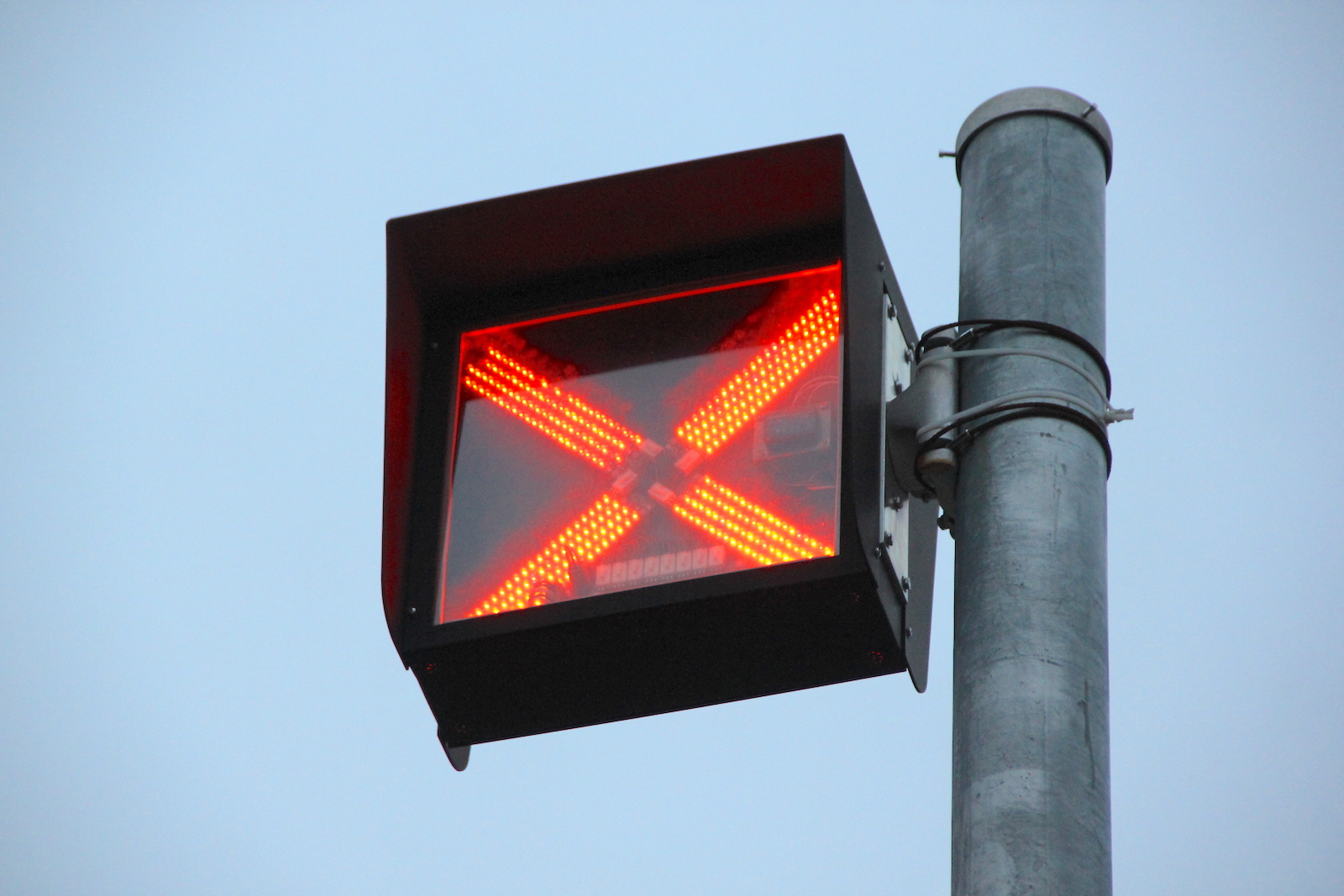

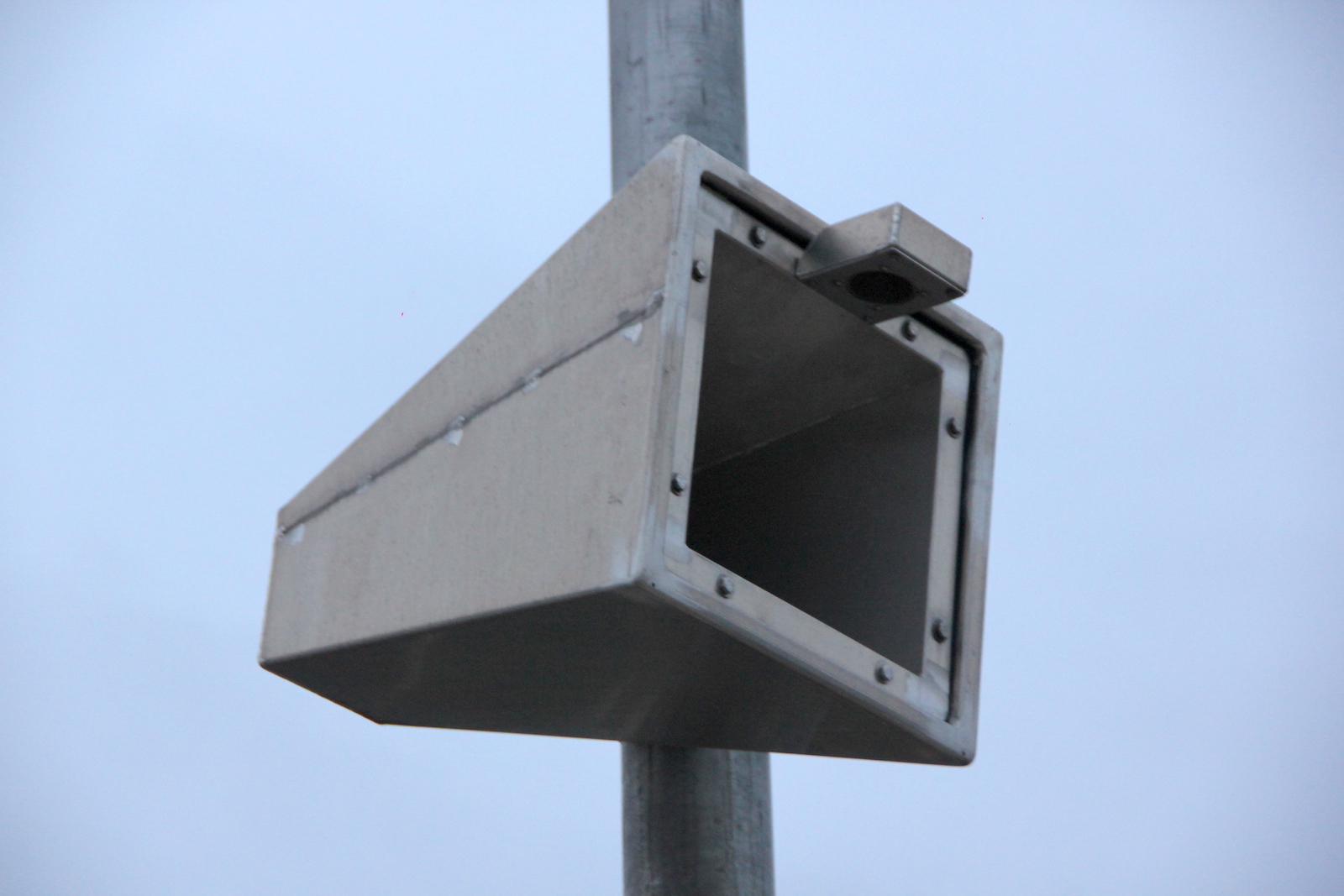

| The northern wayside horn. |
35
|
36
|
37
|
38
|

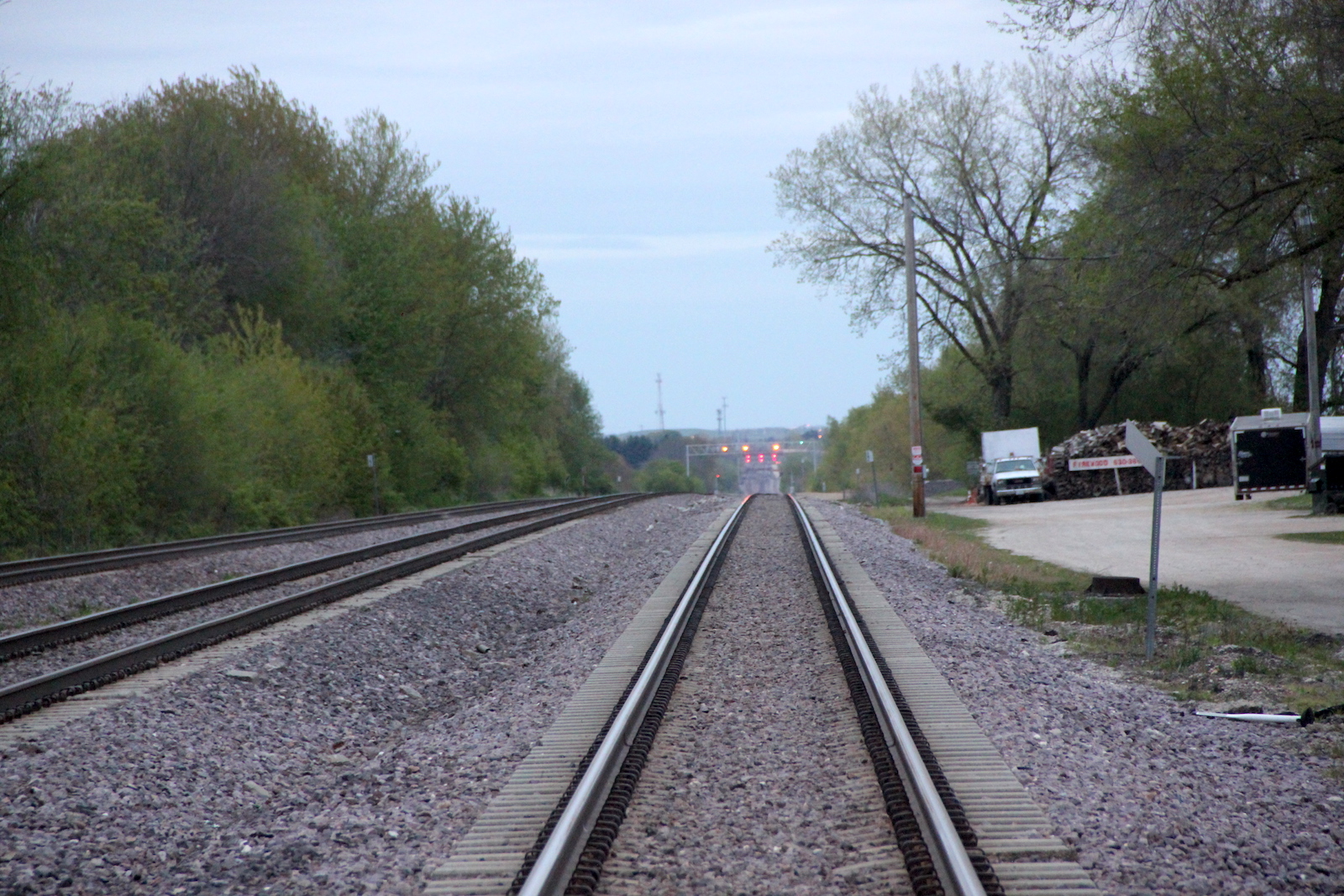

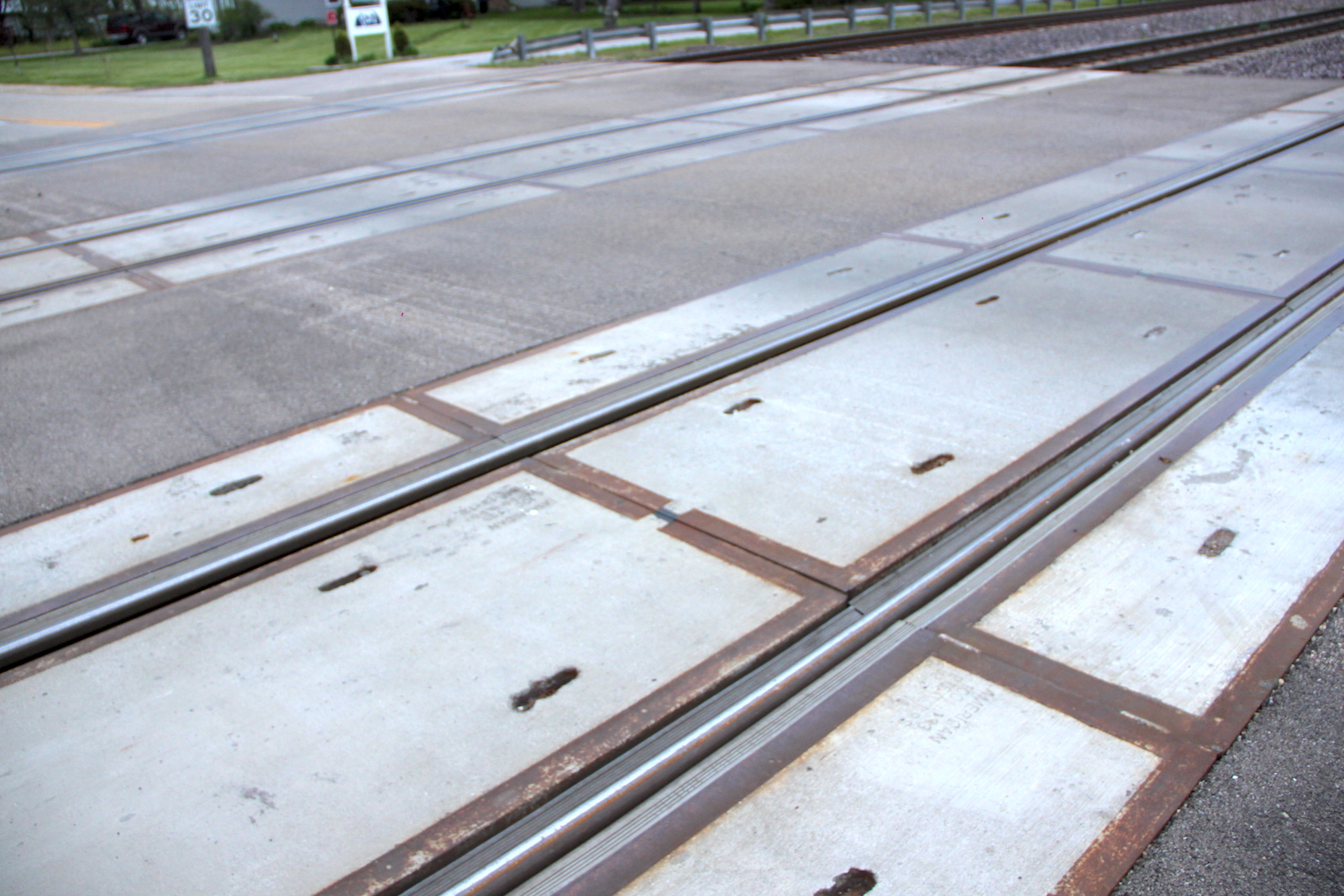

| The relay bungalow in the northwest quadrant. | The grade is all concrete. | Track view facing west towards 1st St. in Elburn. | Track view facing east towards Brundige Rd. |
