152.73


079787W

>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: GS Type 2 E-Bell GS Type 3 E-Bell

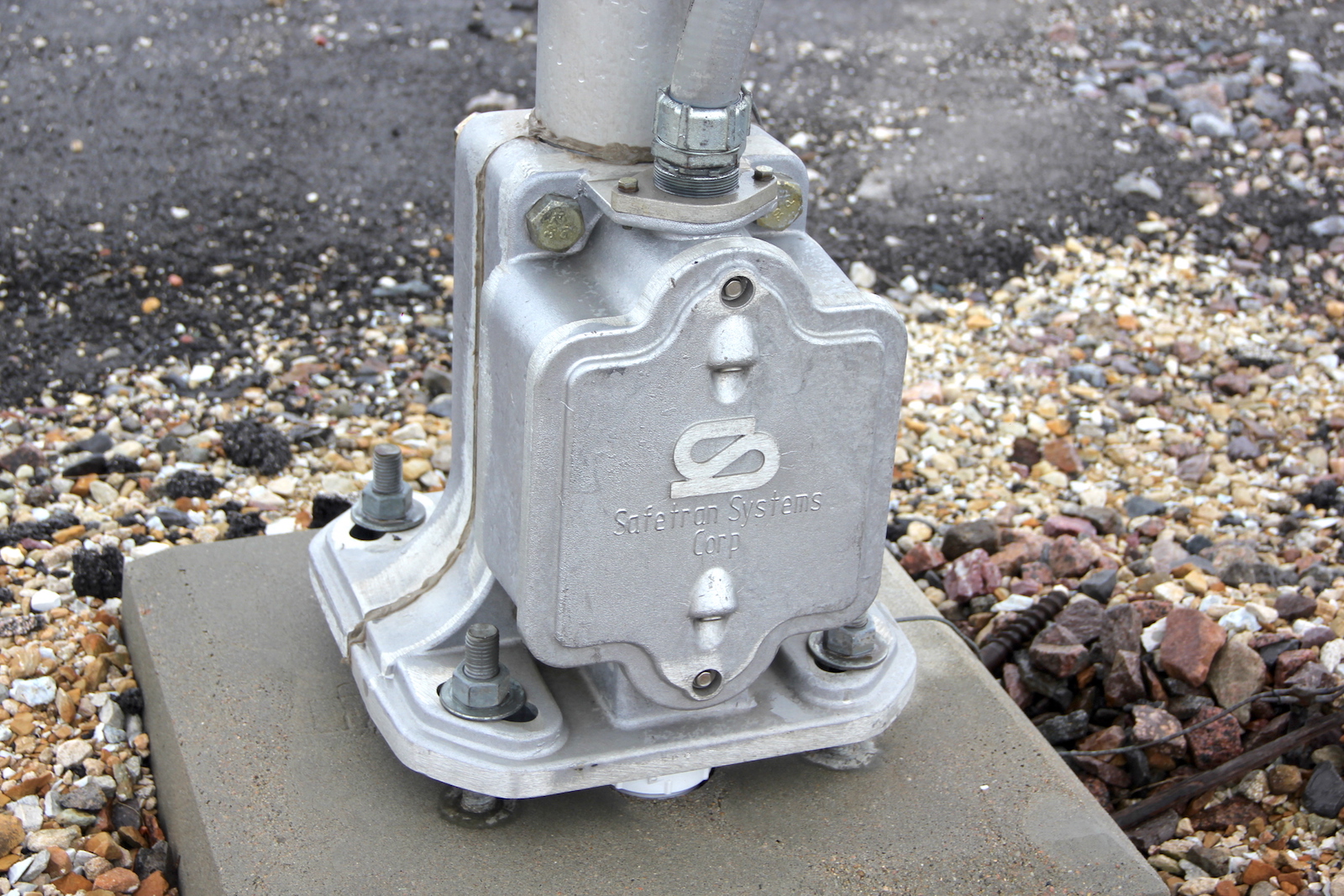

Base: Safetran 5" Single Sided > Safetran 5" Single Sided >
Lights: 8 - 12"x24" Safetran w/ Dialight Ball LEDs 4 - 12"x24" Safetran w/ Dialight Ball LEDs
Junction Boxes: Safetran Safetran
Gate Lights: 3 - 4" RECO LEDs 3 - 4" RECO LEDs

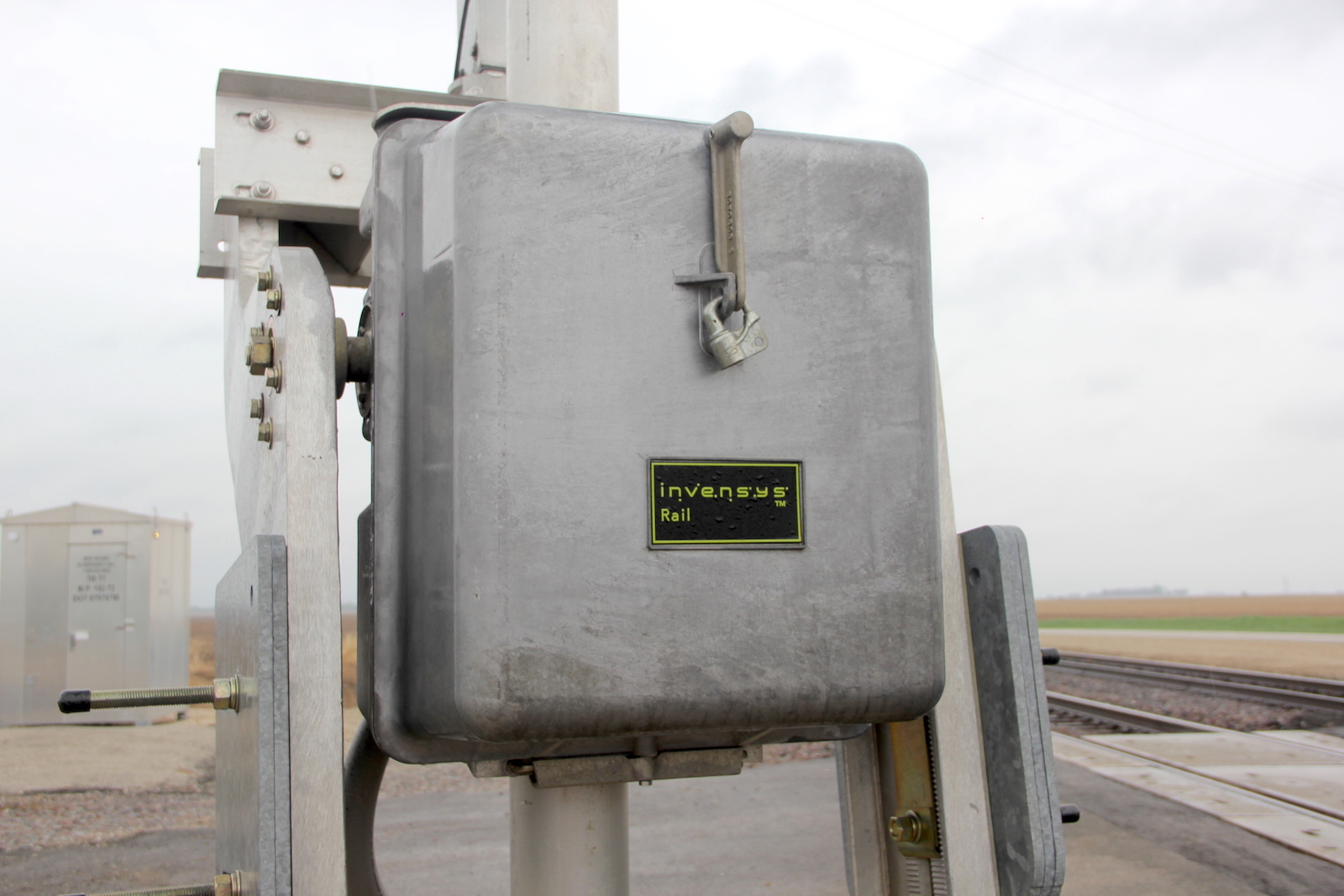

Gate Mechanism: Invensys Rail w/ GSI Gate Saver Invensys Rail w/ GSI Gate Saver
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on May 7, 2019.
The 1st video was taken on June 2, 2021.
The 2nd video was taken on May 17, 2022.
All pictures and videos were taken by Tommy McGowan.
This crossing is located on the BNSF Mendota Sub.

These signals were installed around 2011 replacing a pair of crossbucks.

1

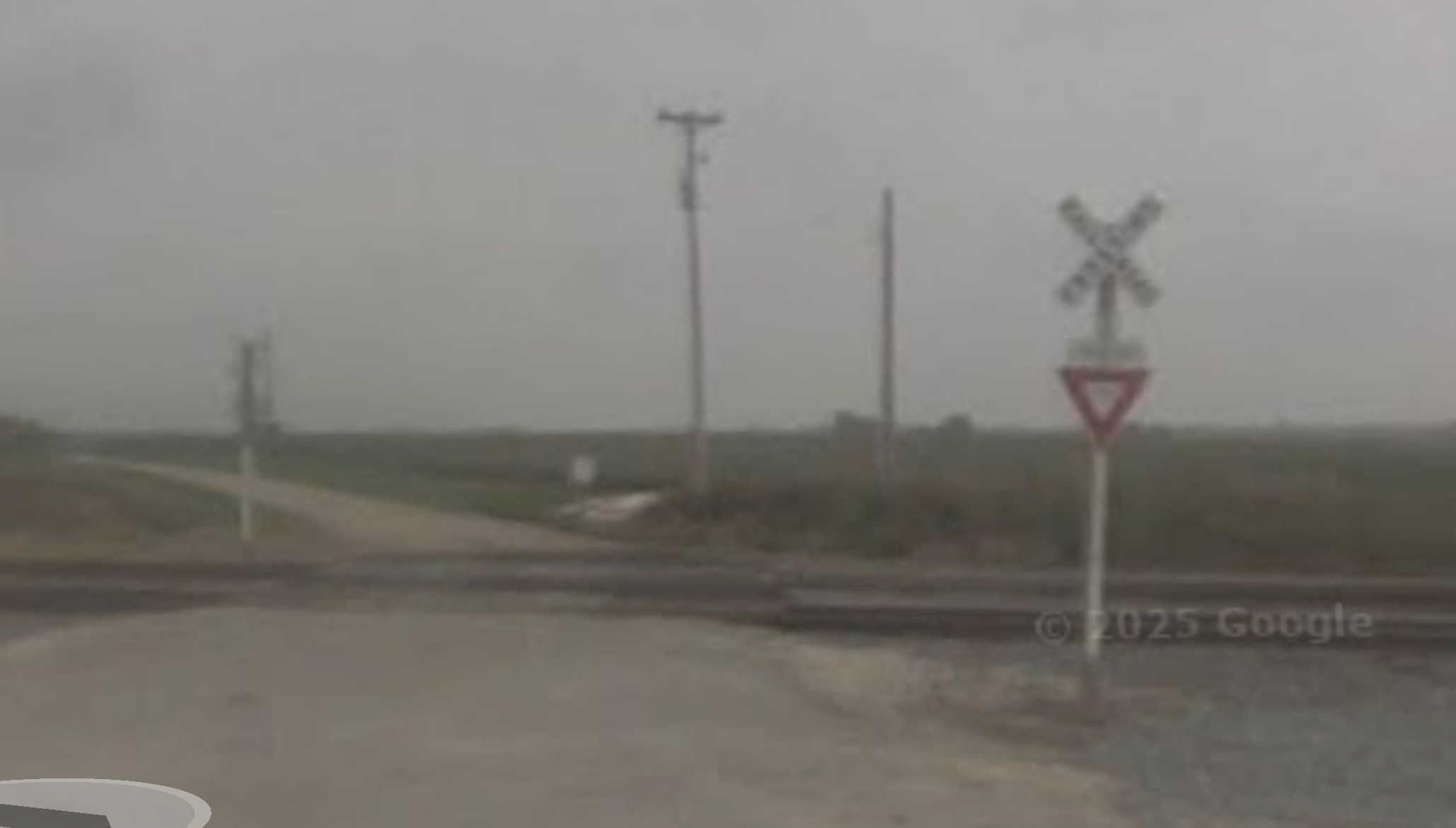

Streetview image from 2009 showing two crossbucks with yield signs. Around 2011, these were replaced with 2 new Safetran signals.
1 2

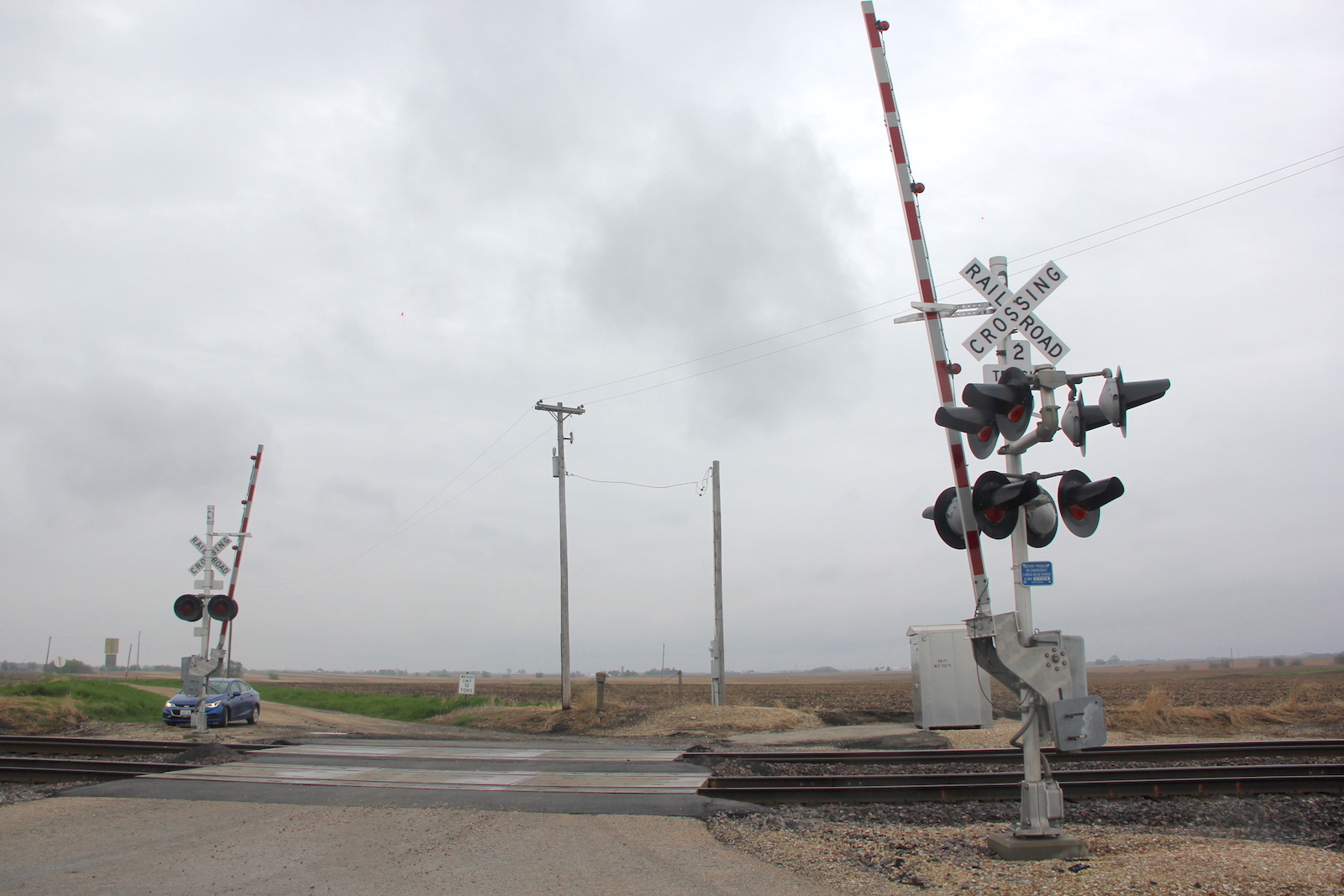

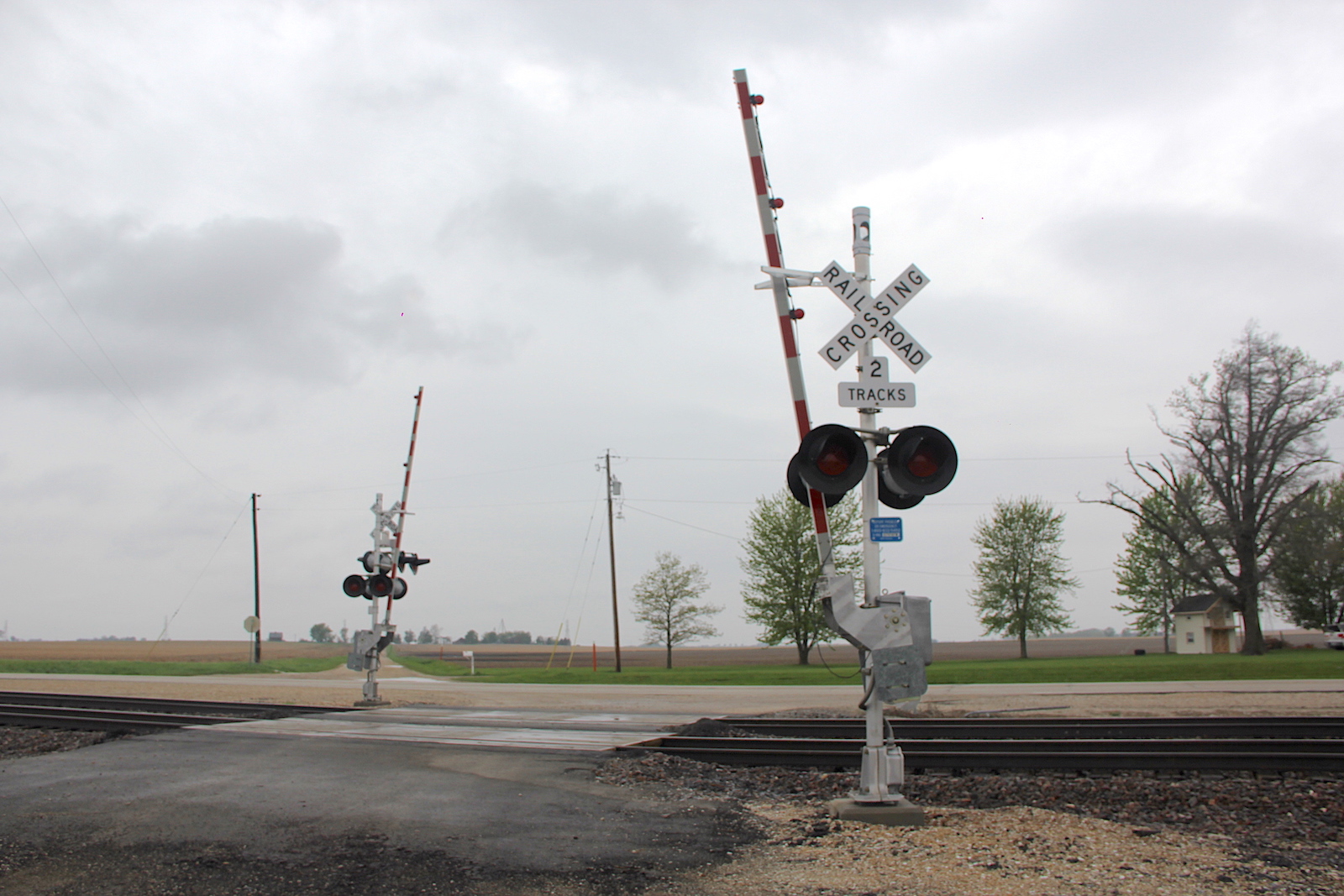

Overview of the newer gated signals facing east.
 Overview facing west.
3 4 5
6 7 8
9 10 11
12 13 14 15

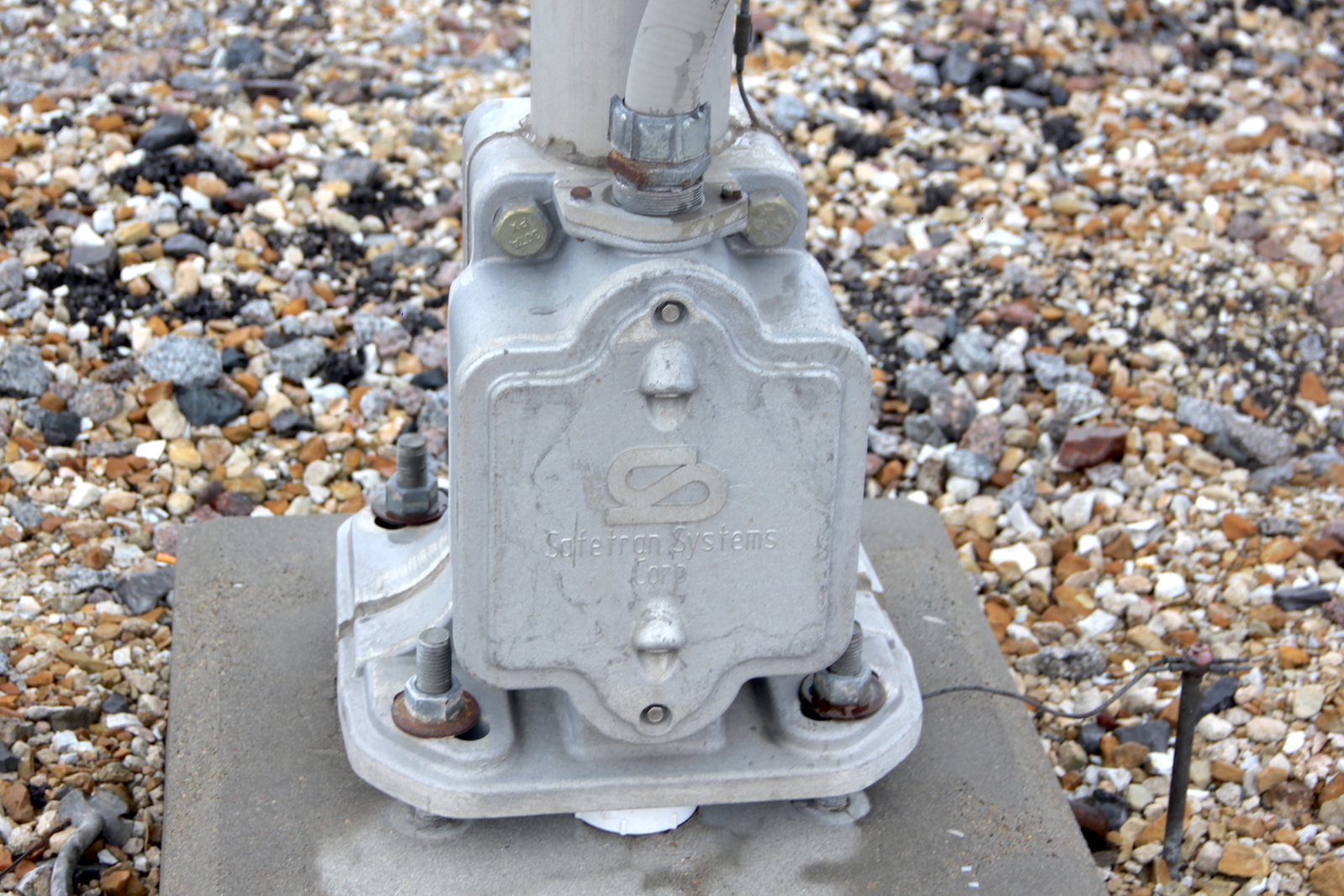

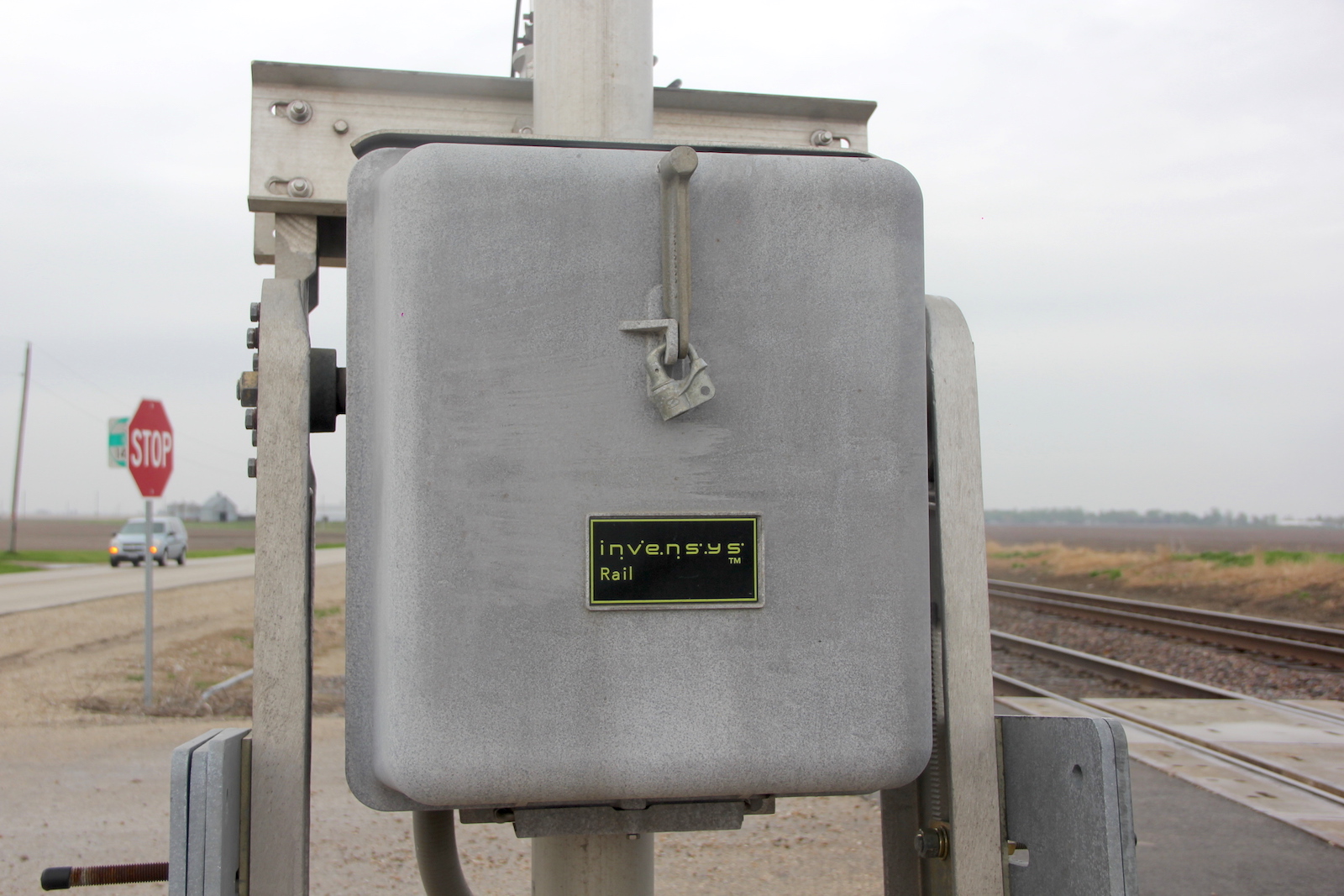

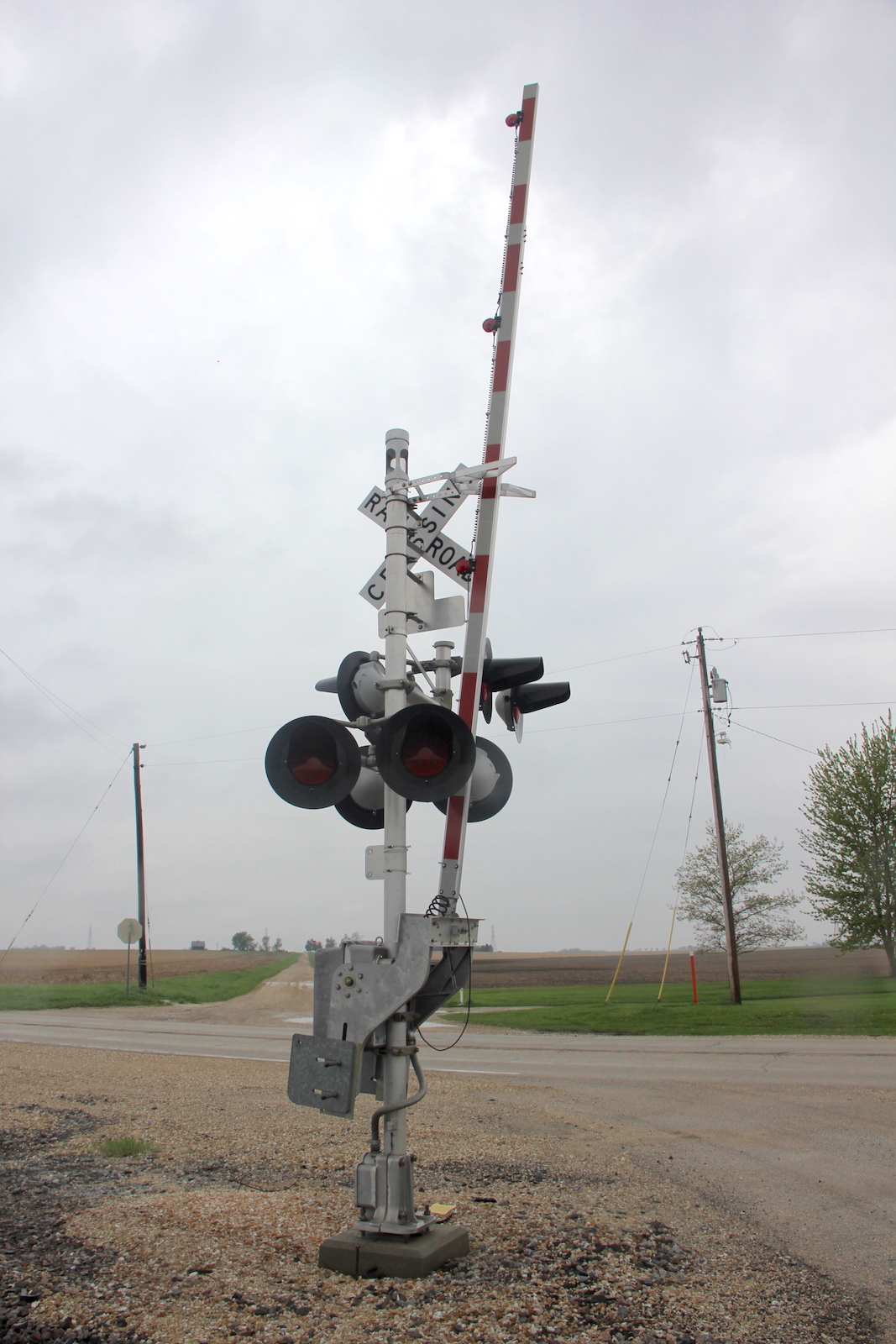

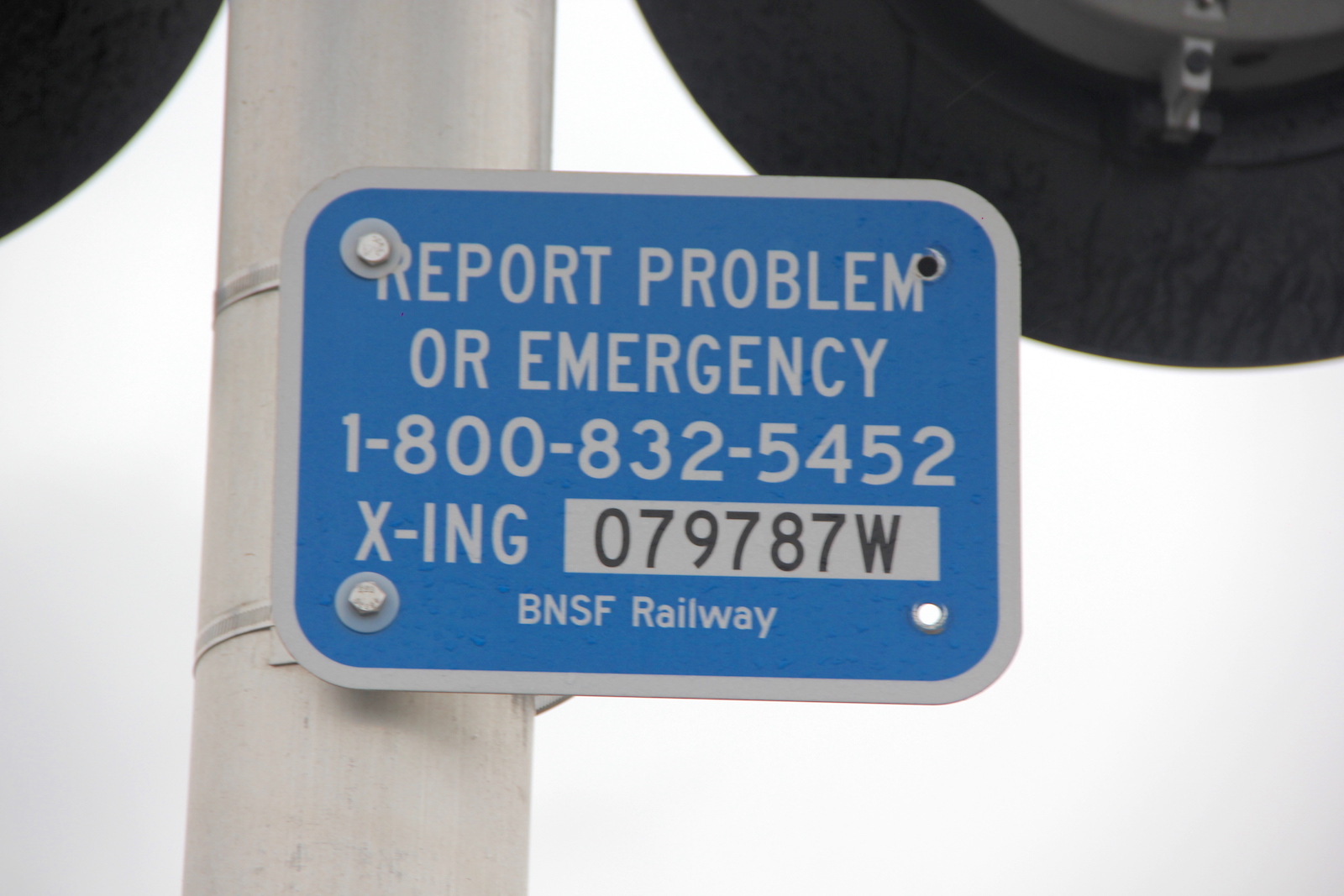

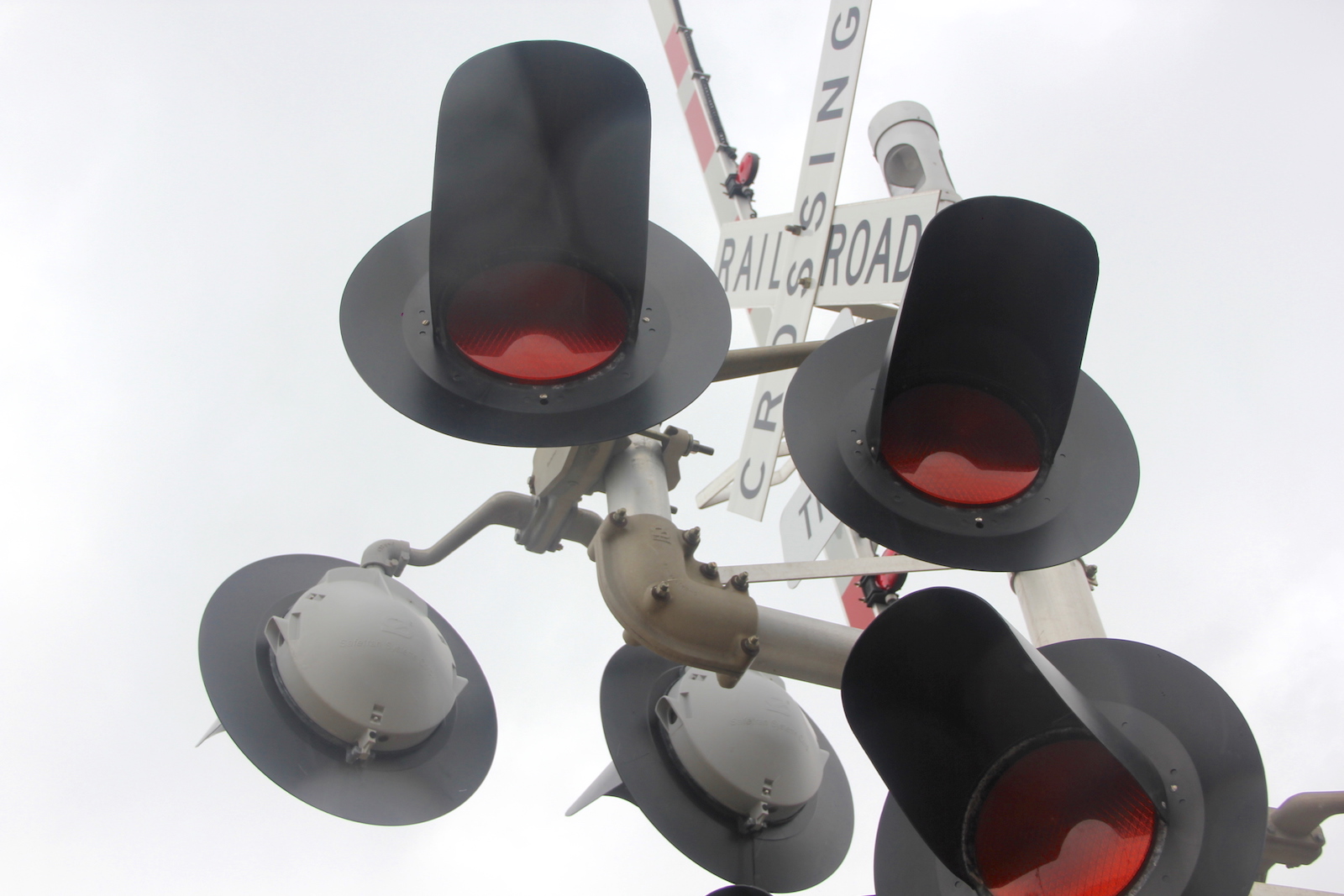

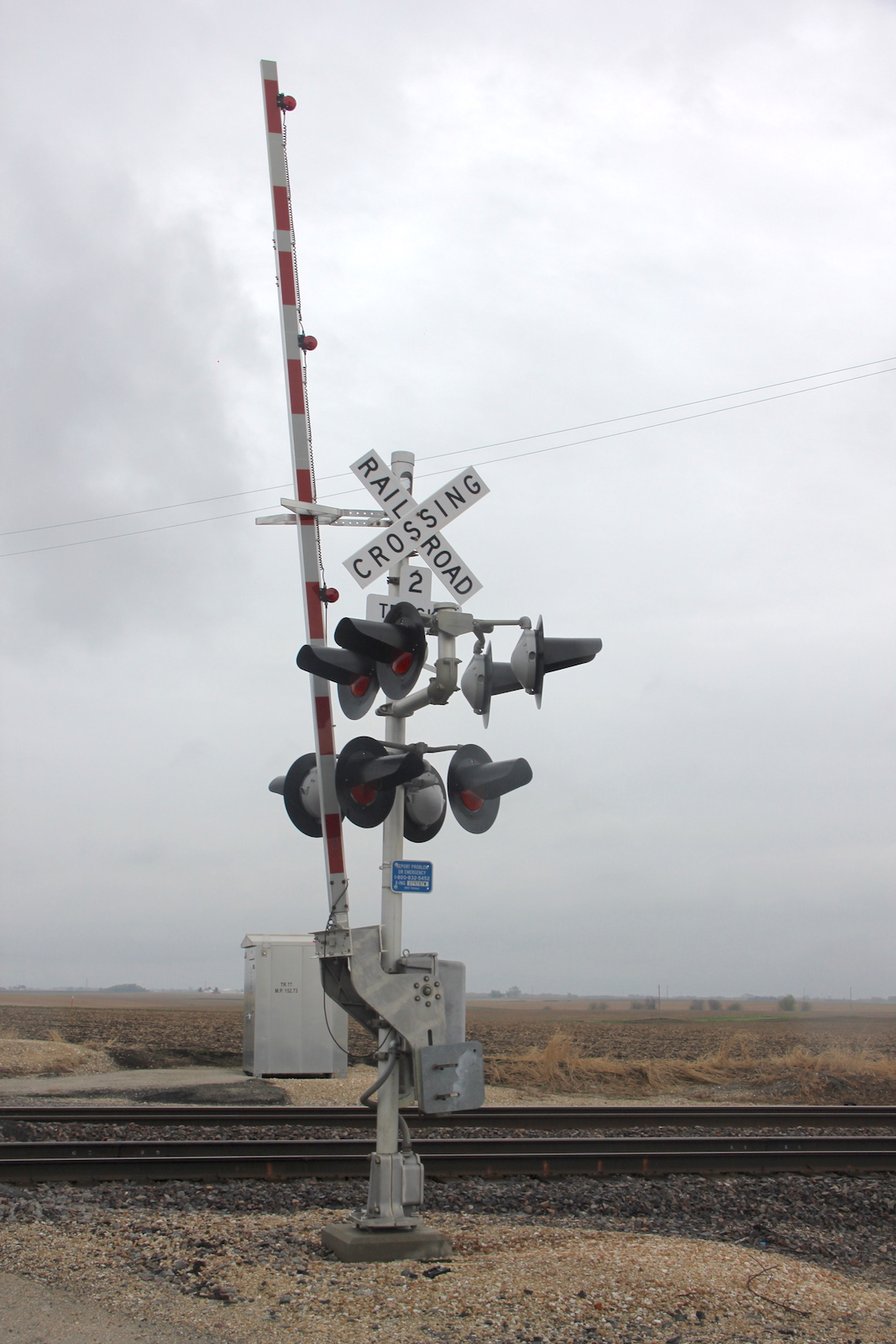

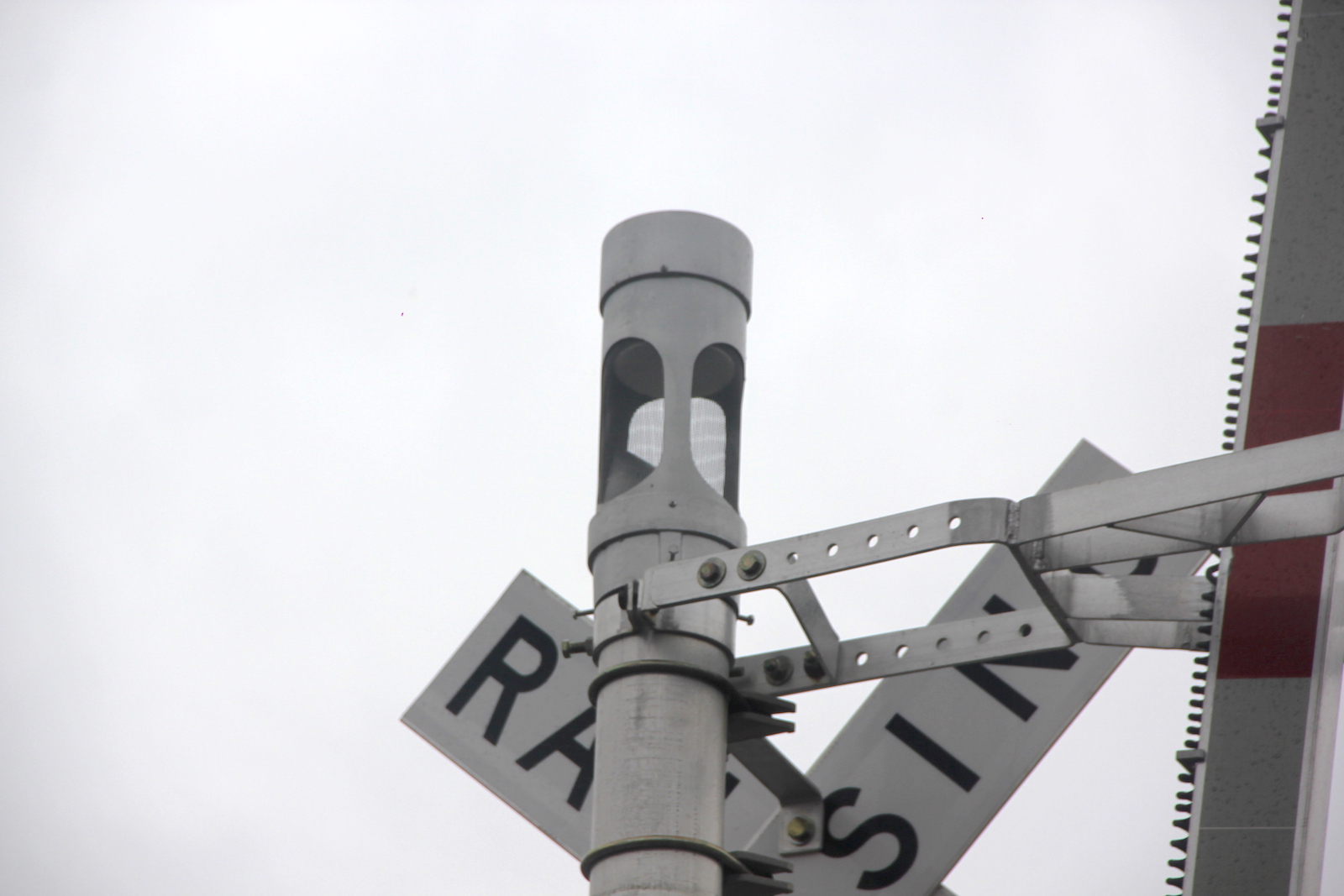

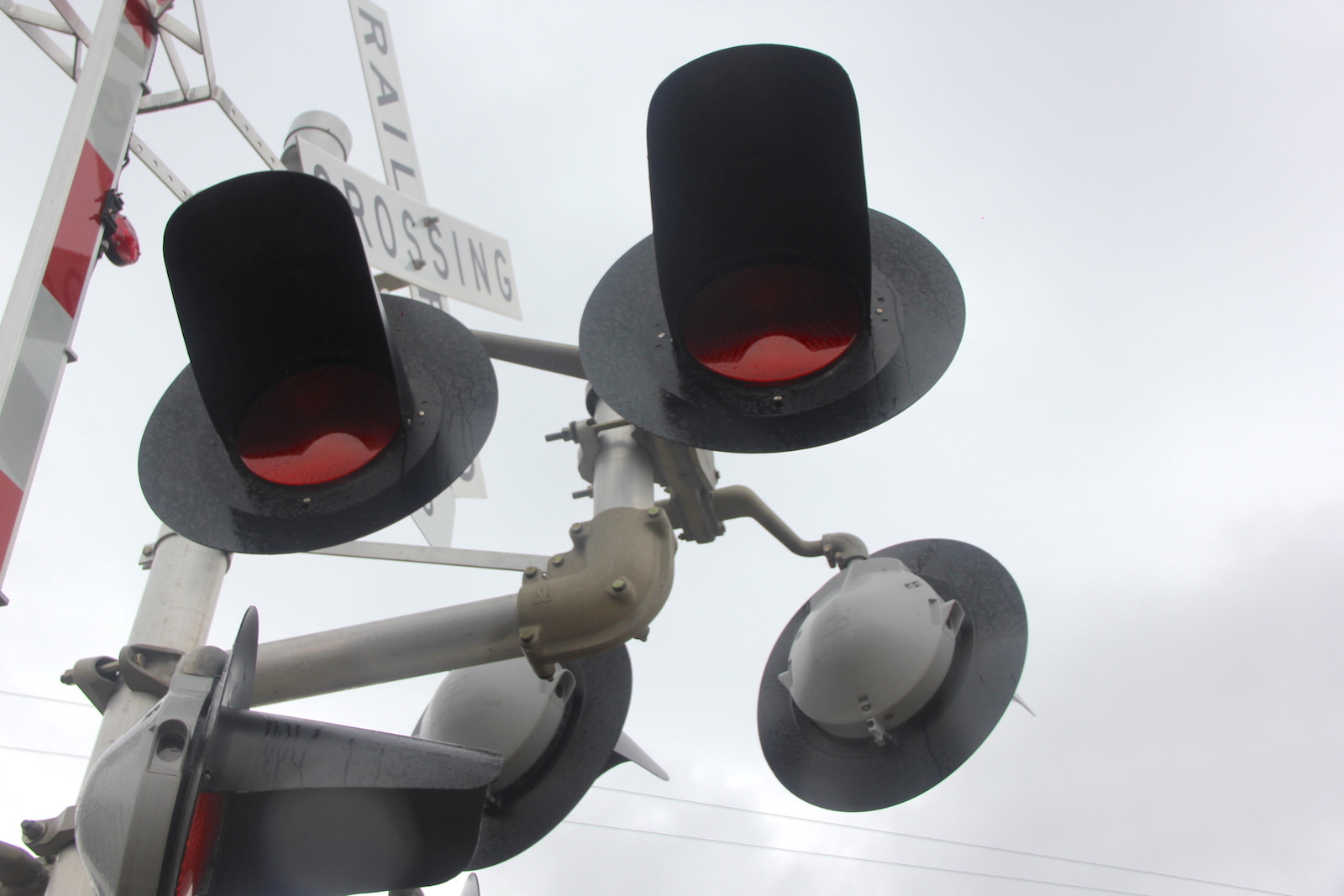

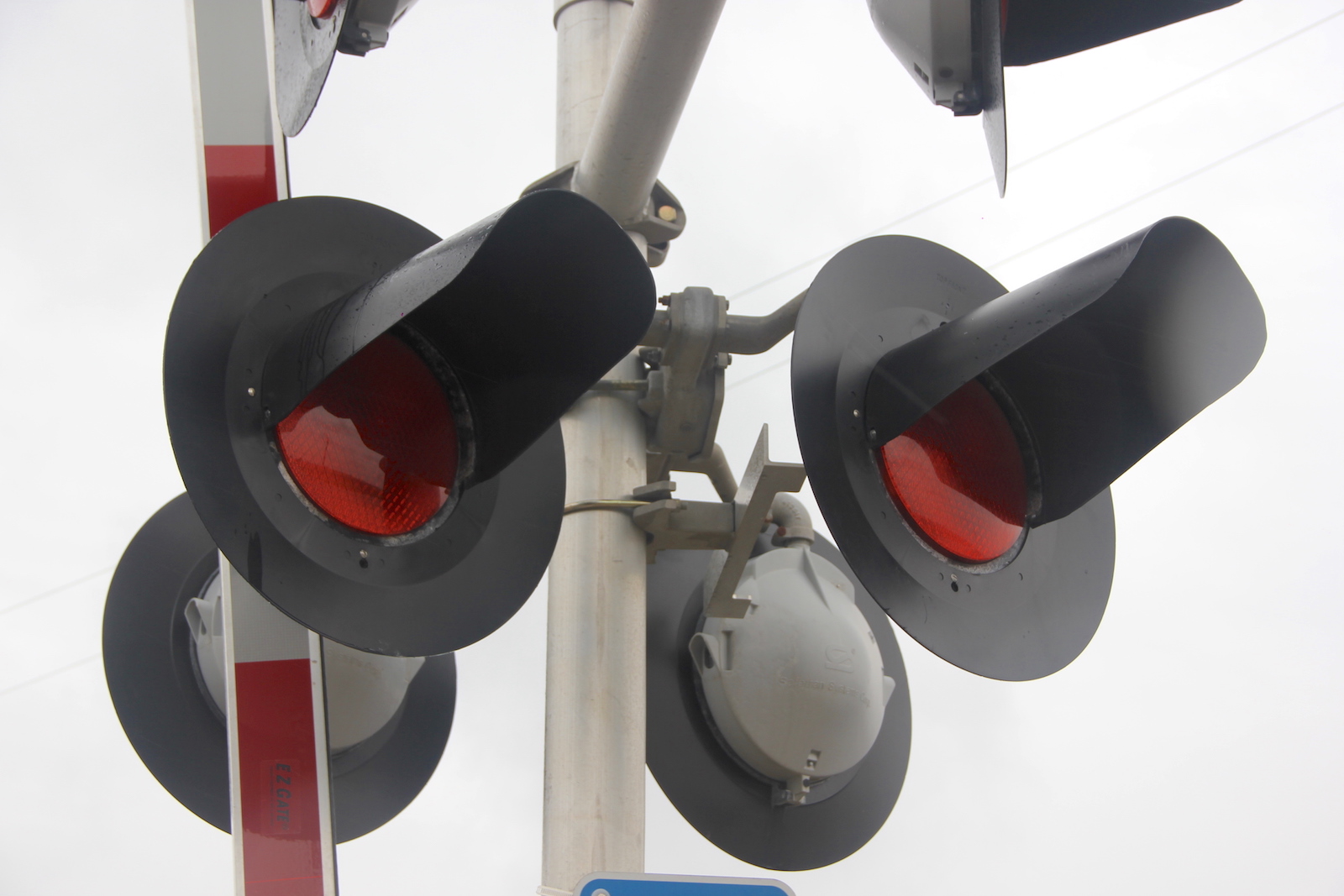

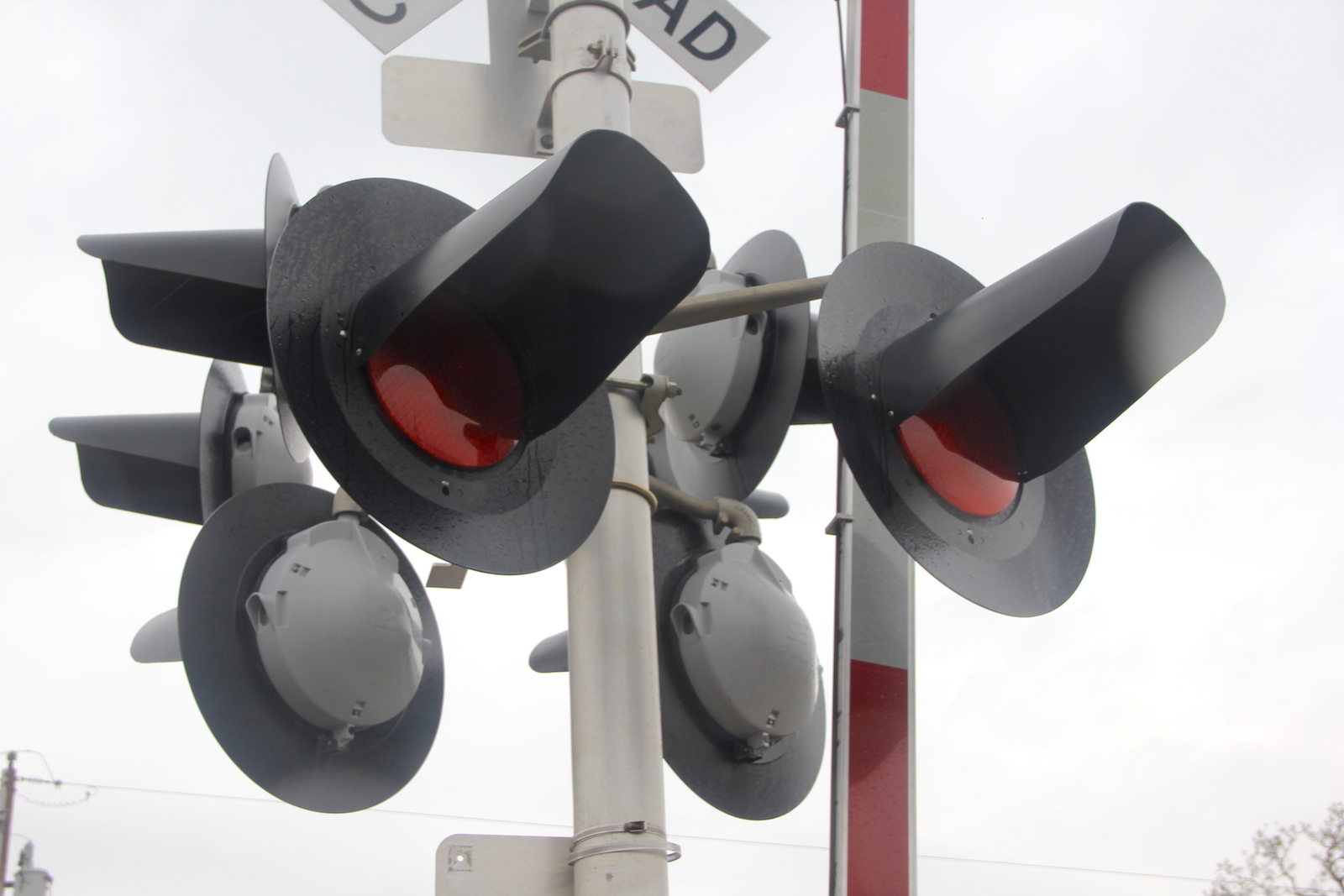

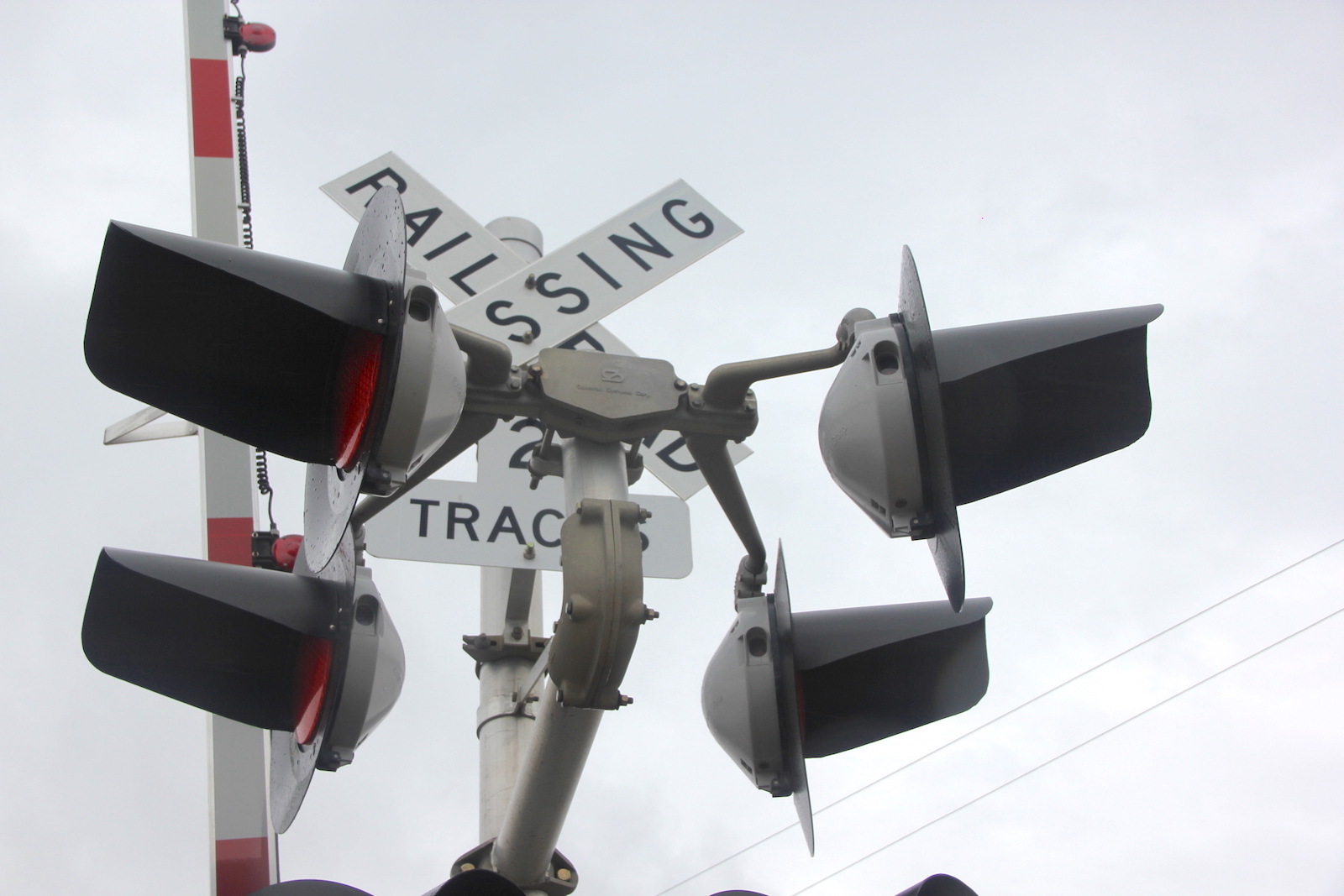

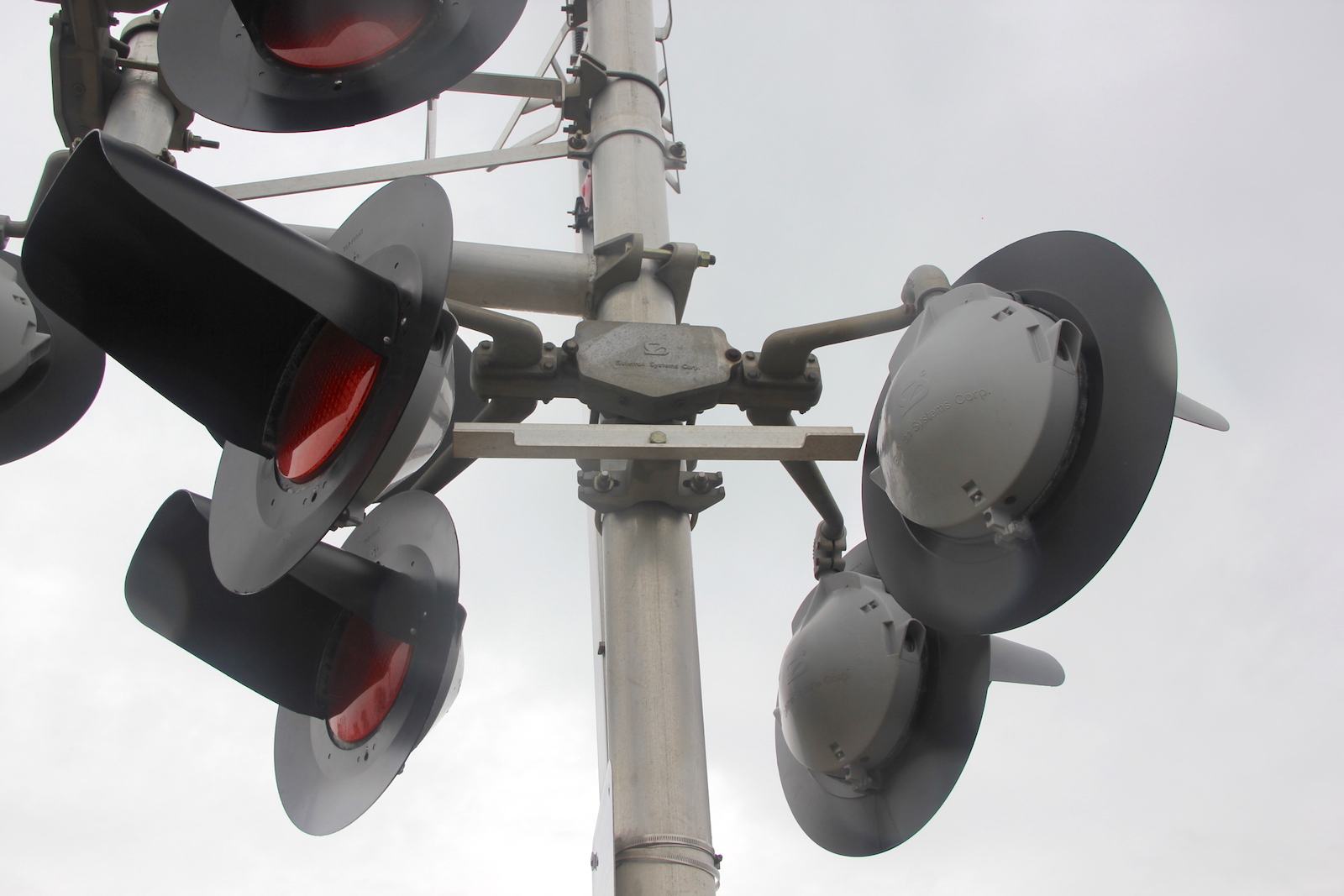

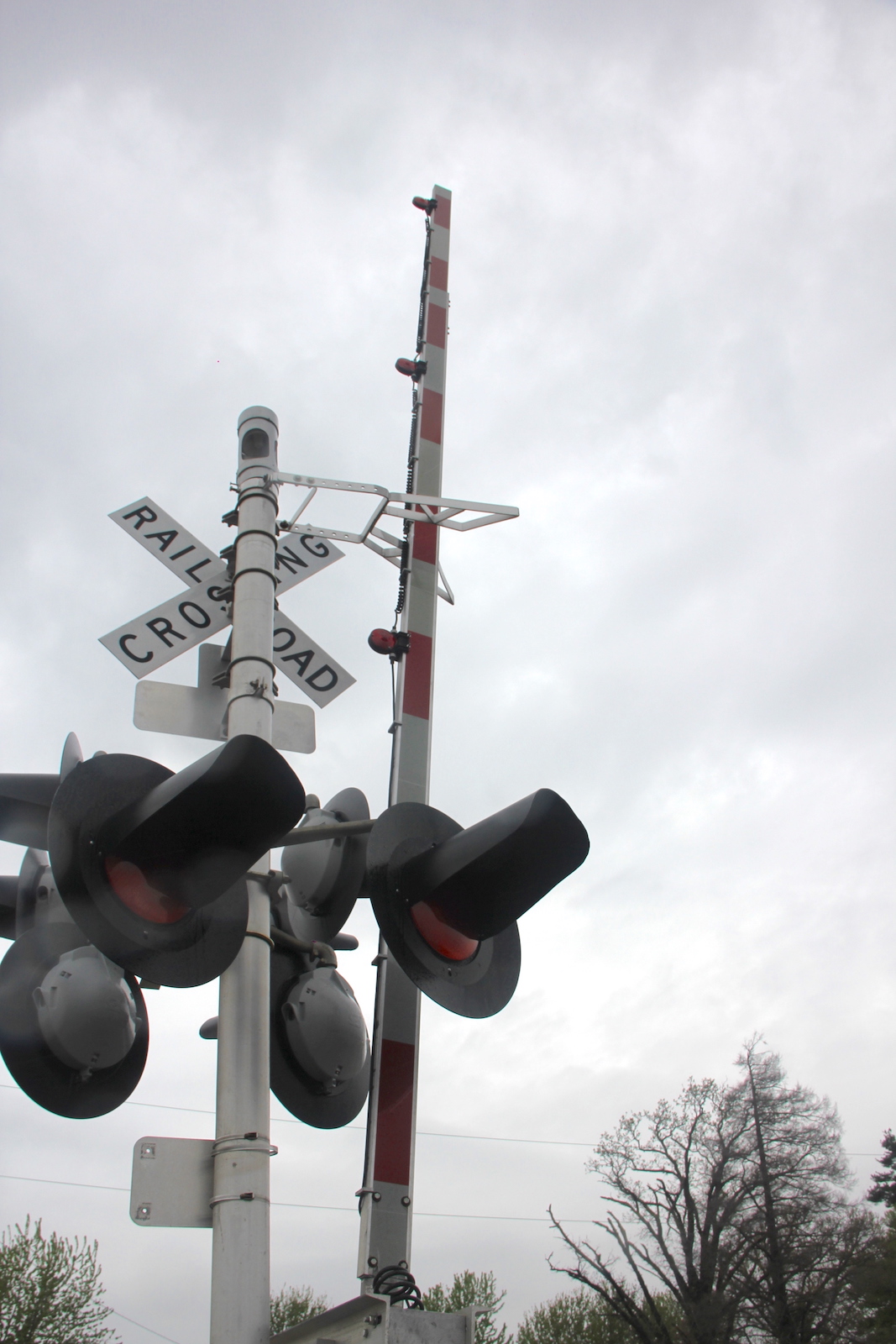

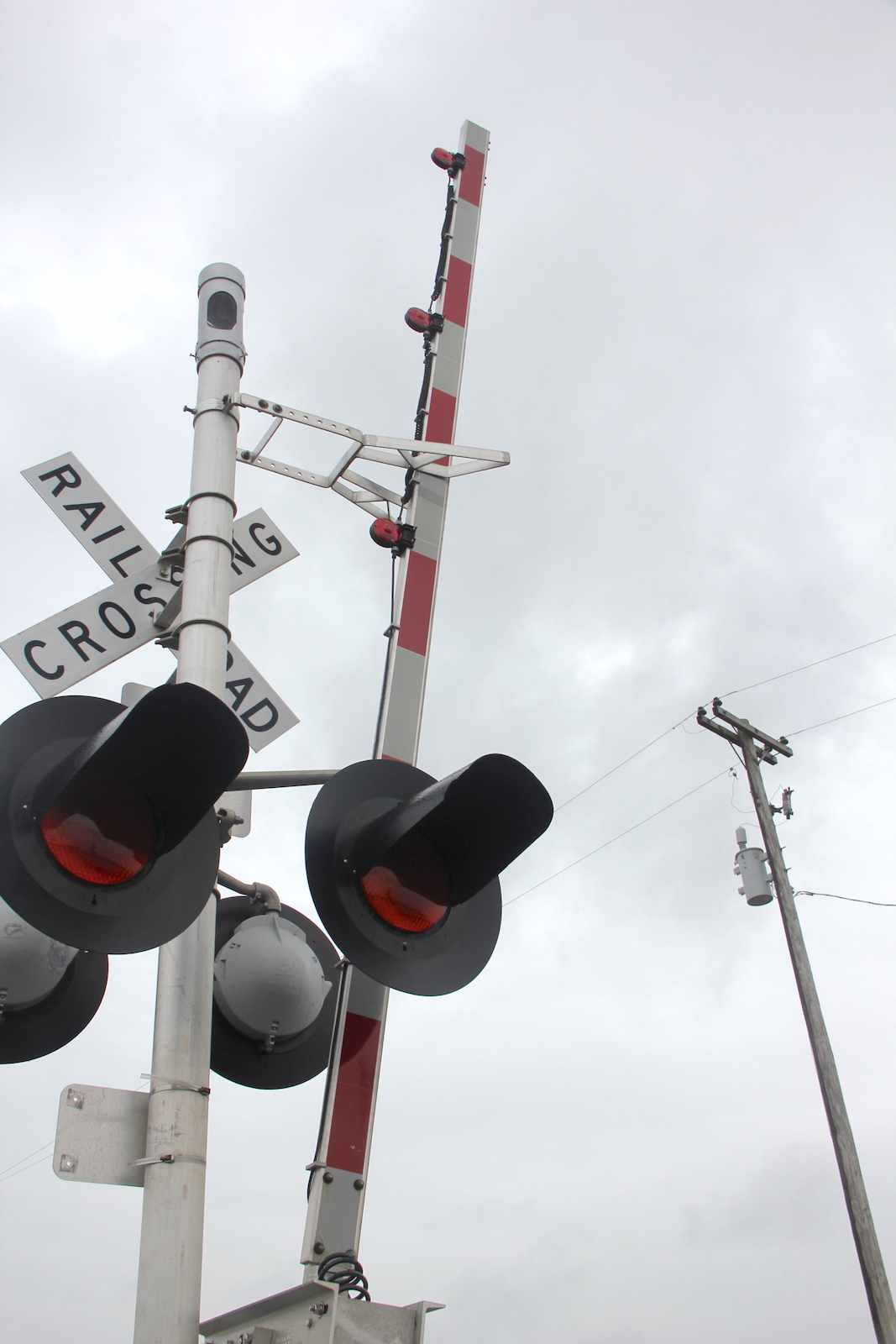

The western signal.
16 17 18
19 20 21
22 23 24 25

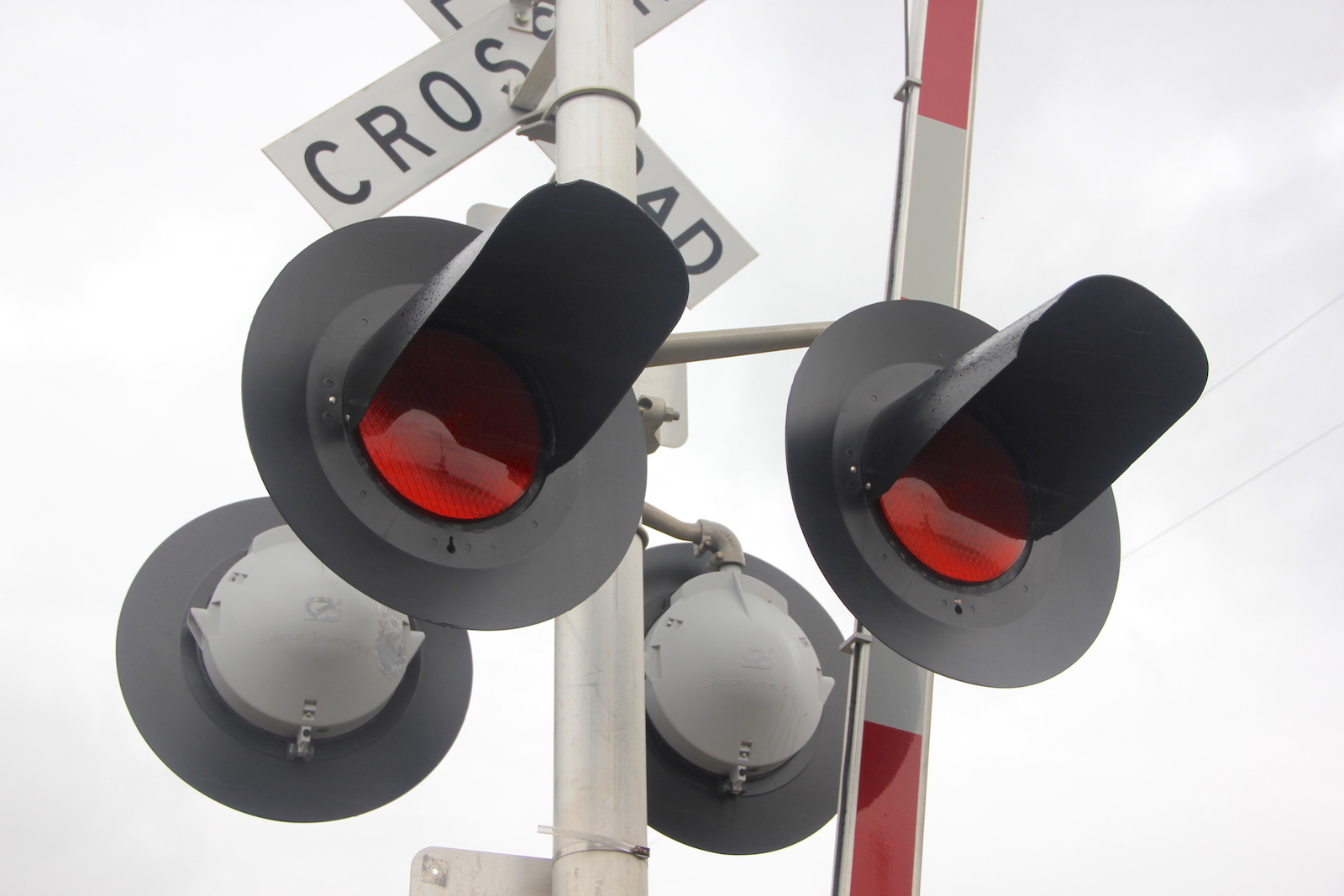

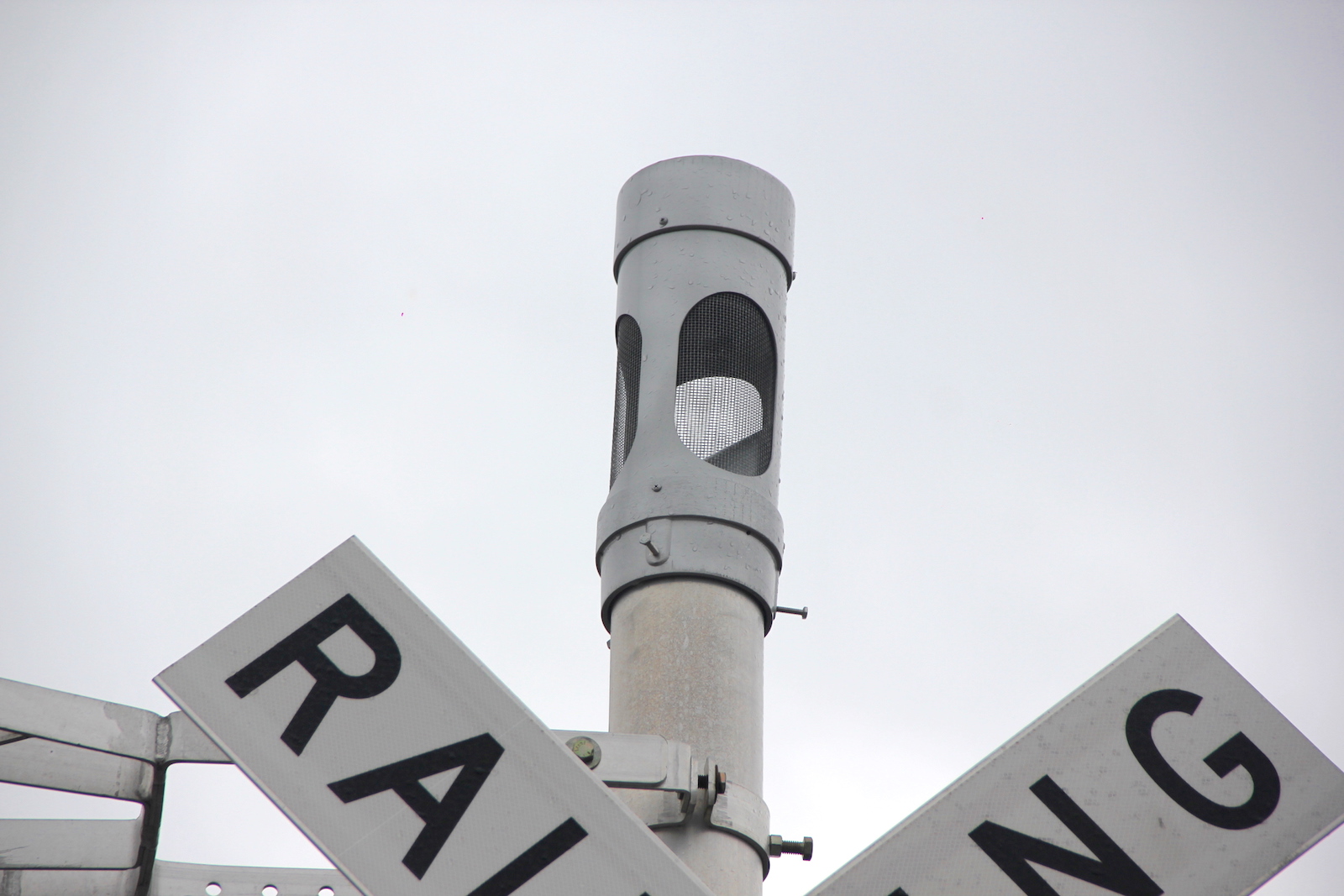

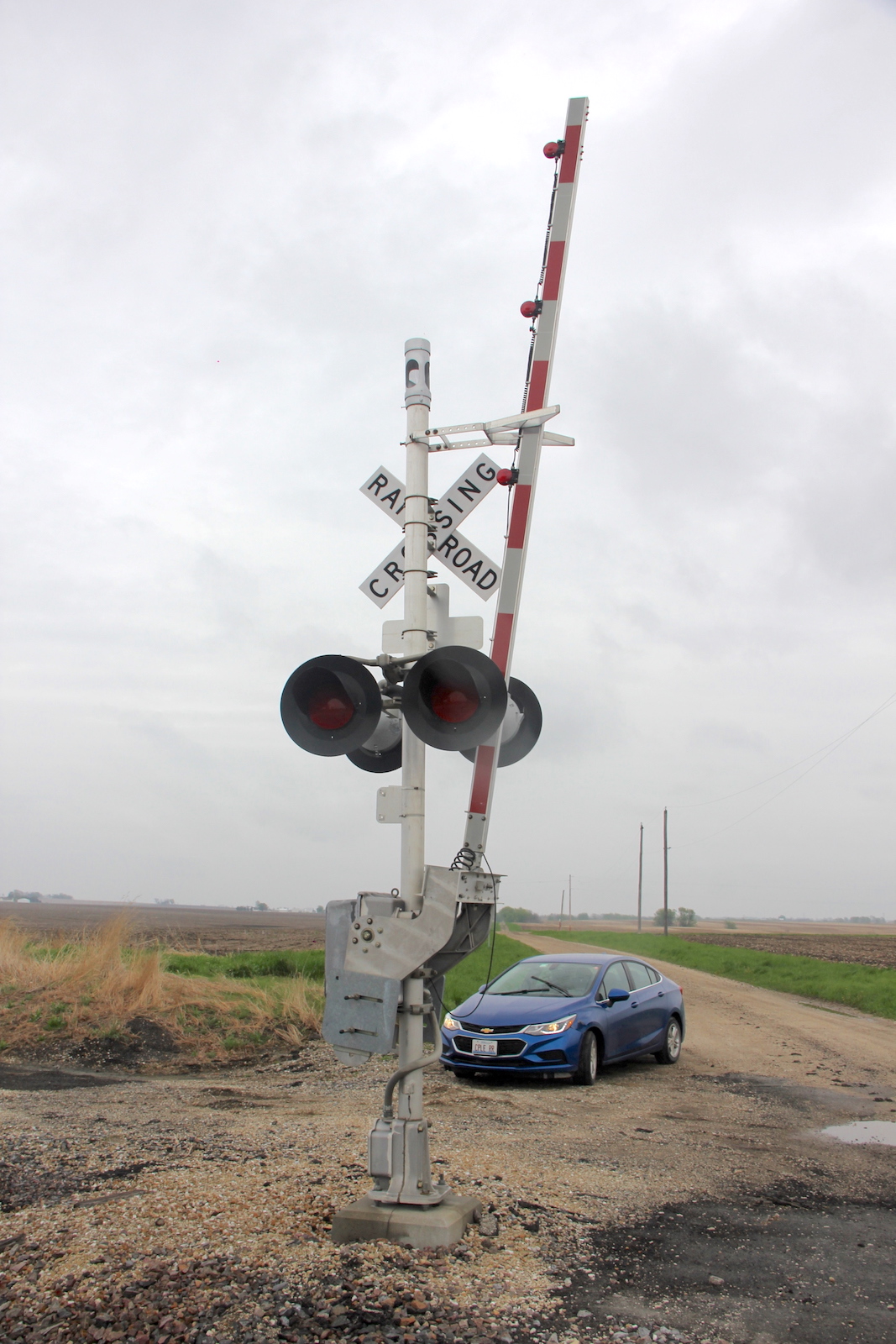

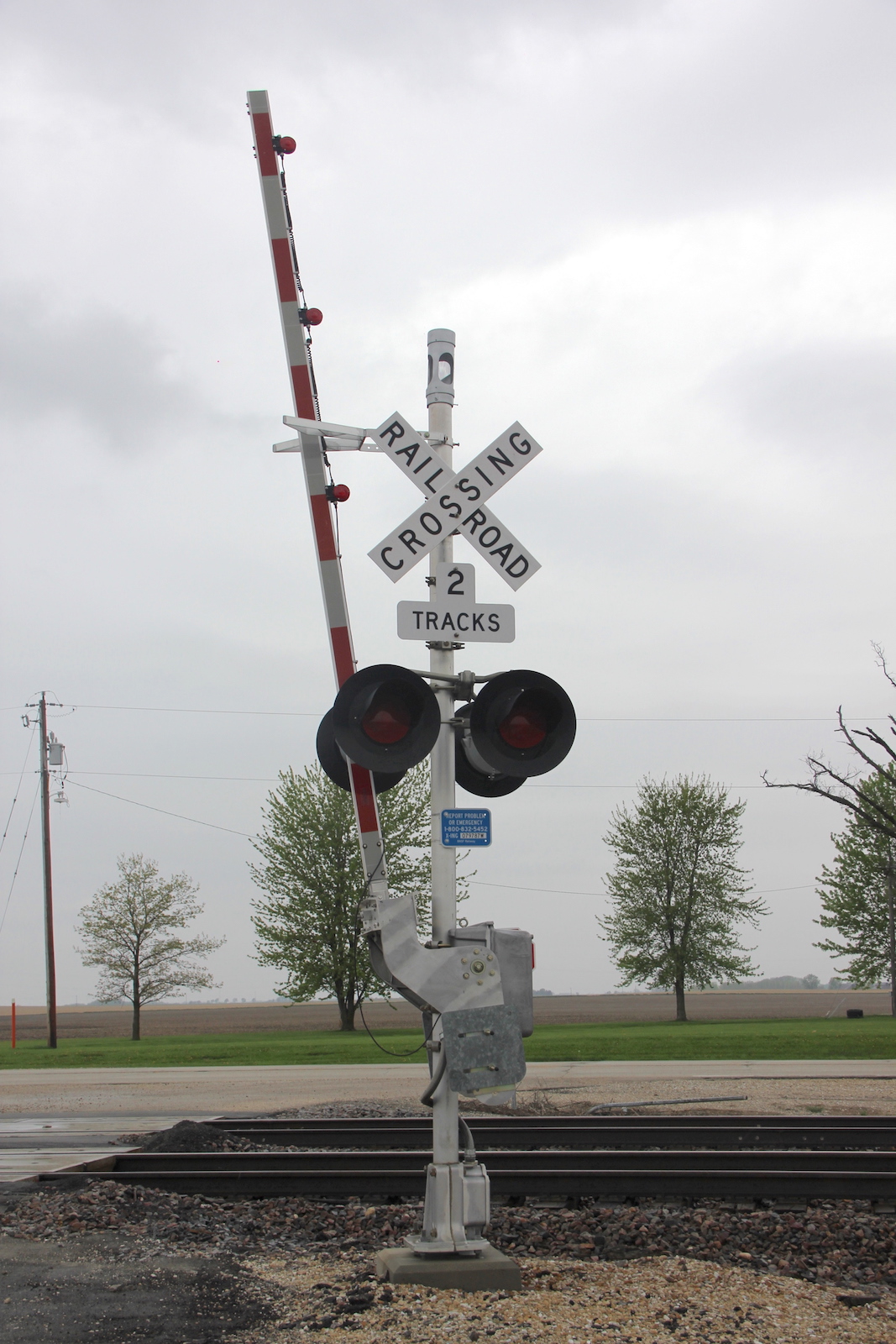

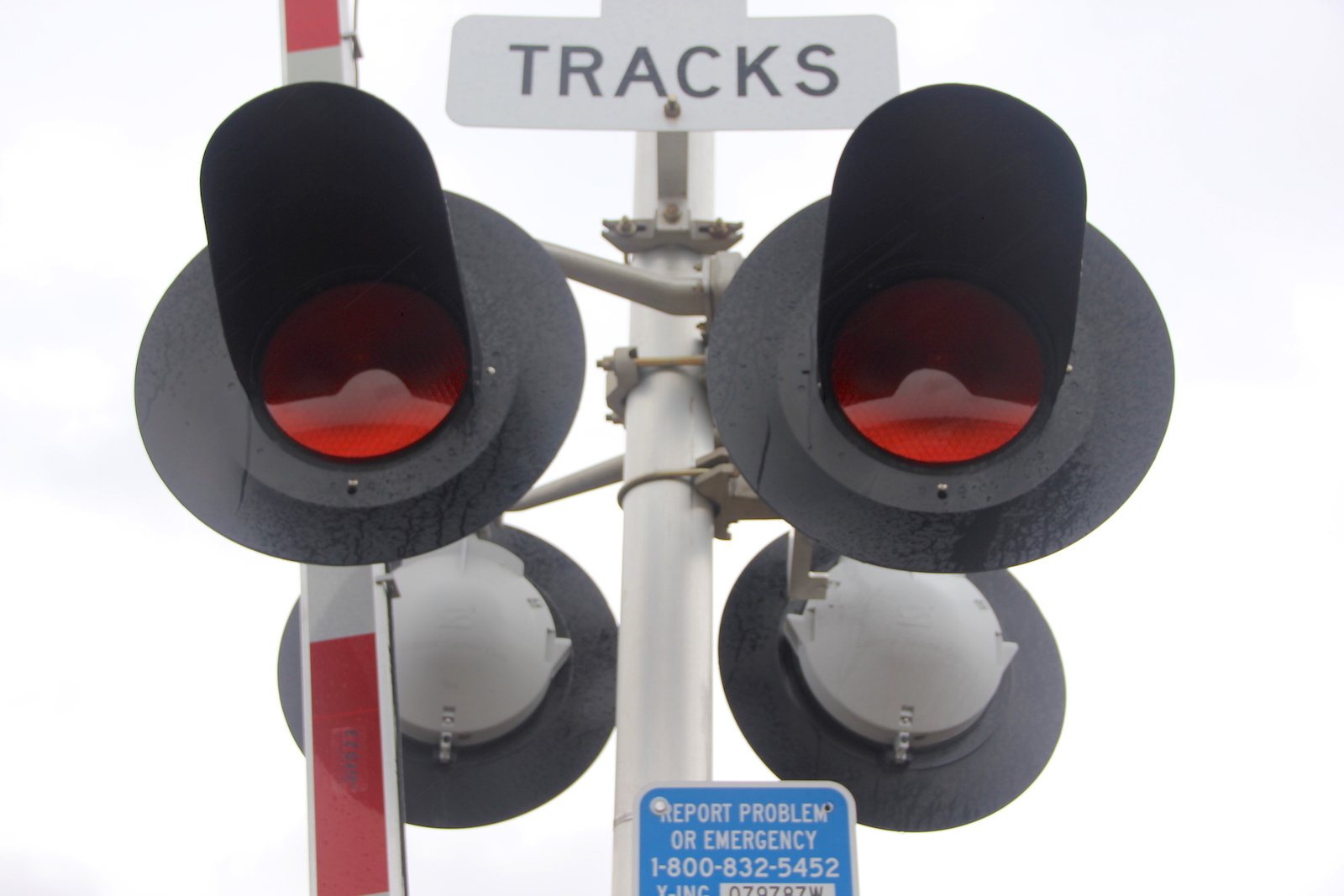

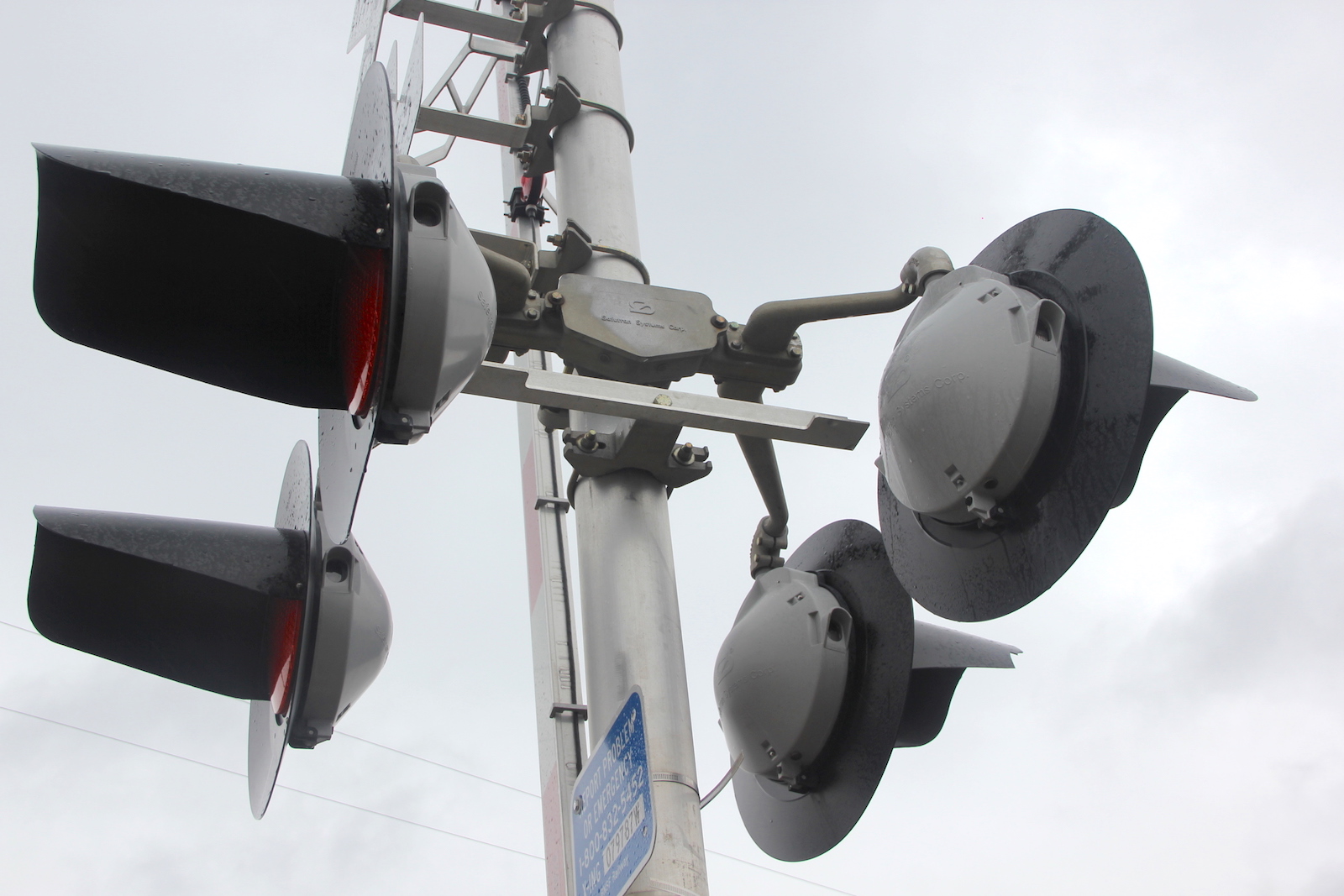

The eastern signal.
26 27 28 29

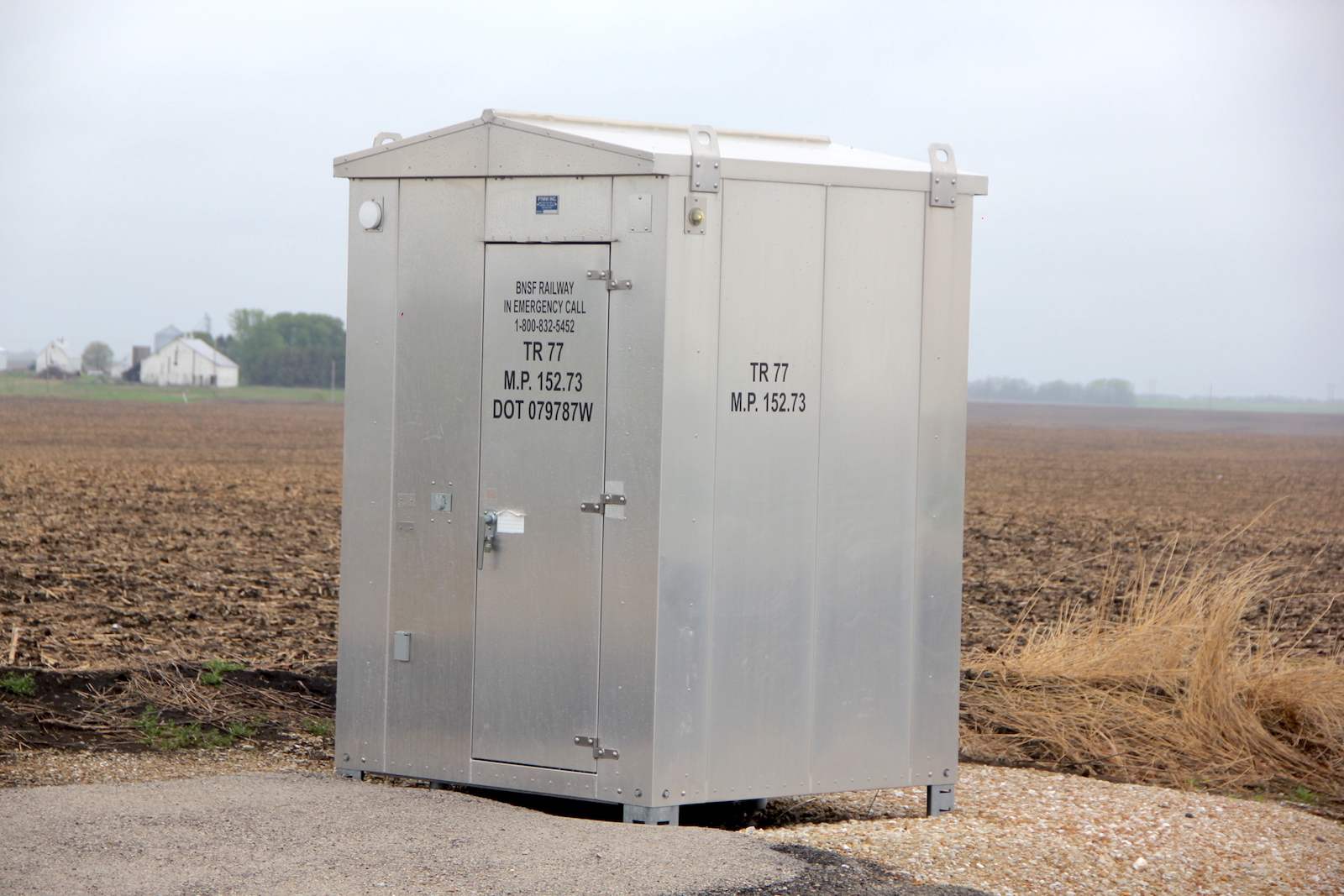

The relay bungalow in the southeast quadrant.

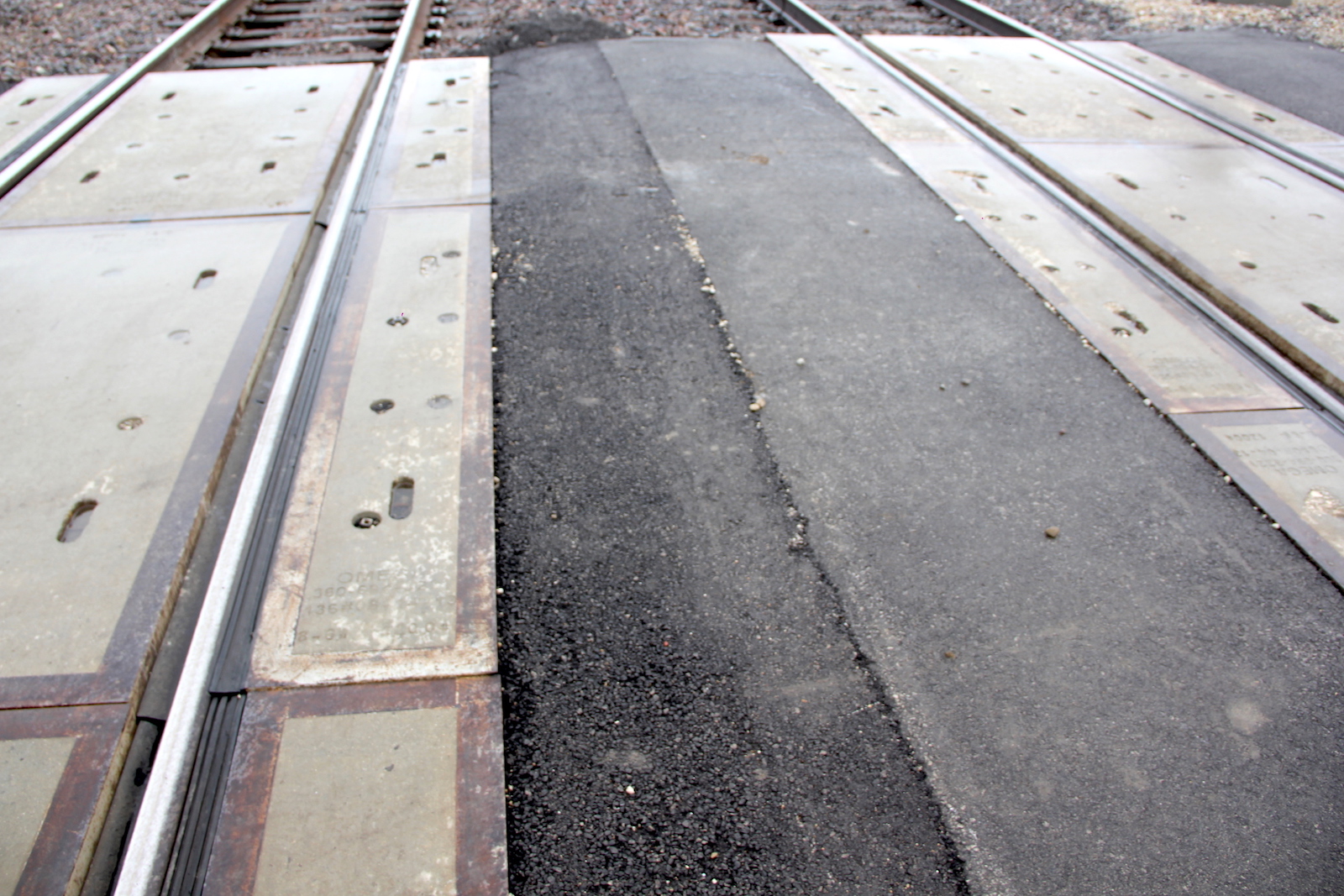

 The grade is all concrete.

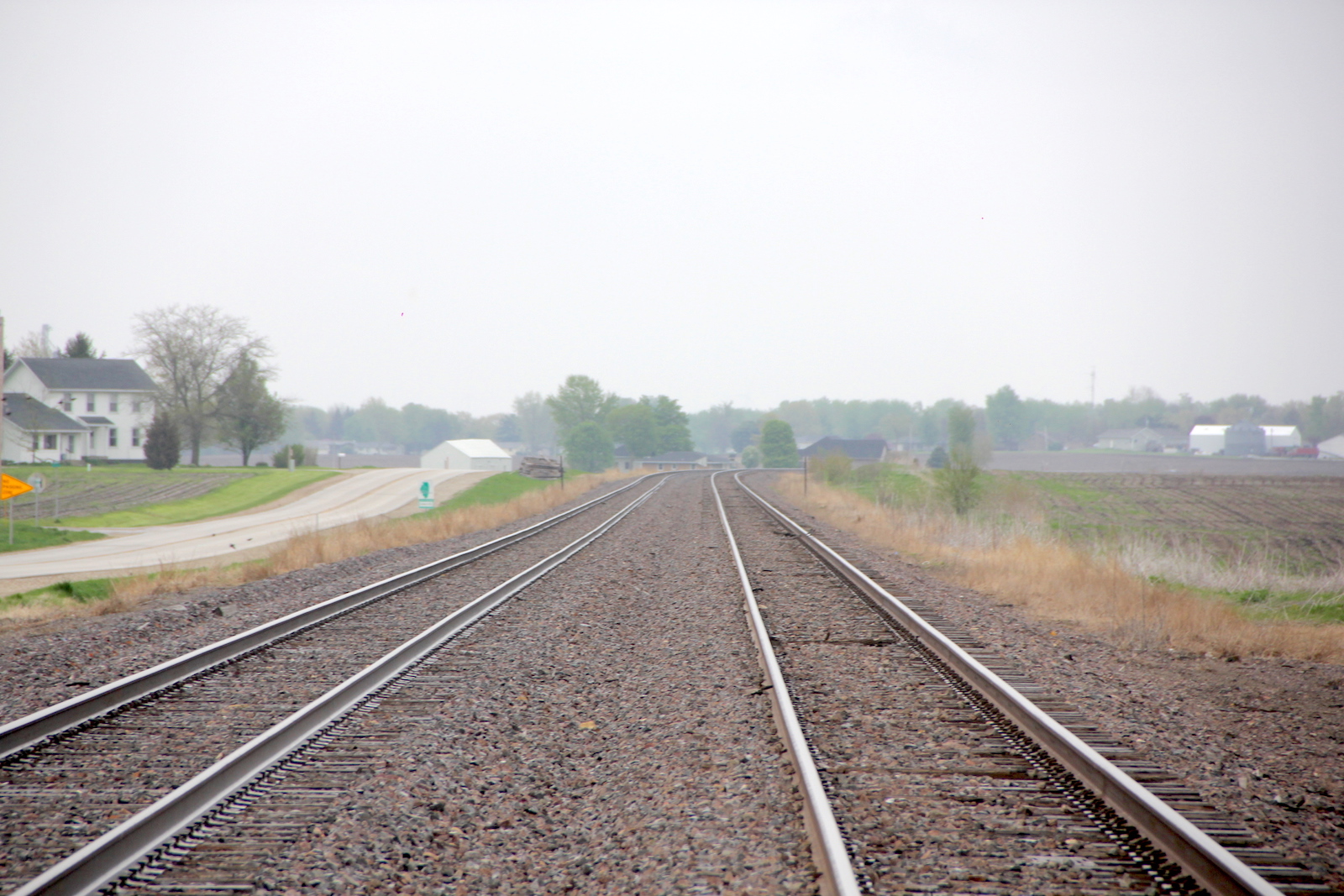

 Track view facing west towards Pedestrian Crossing in Wataga.

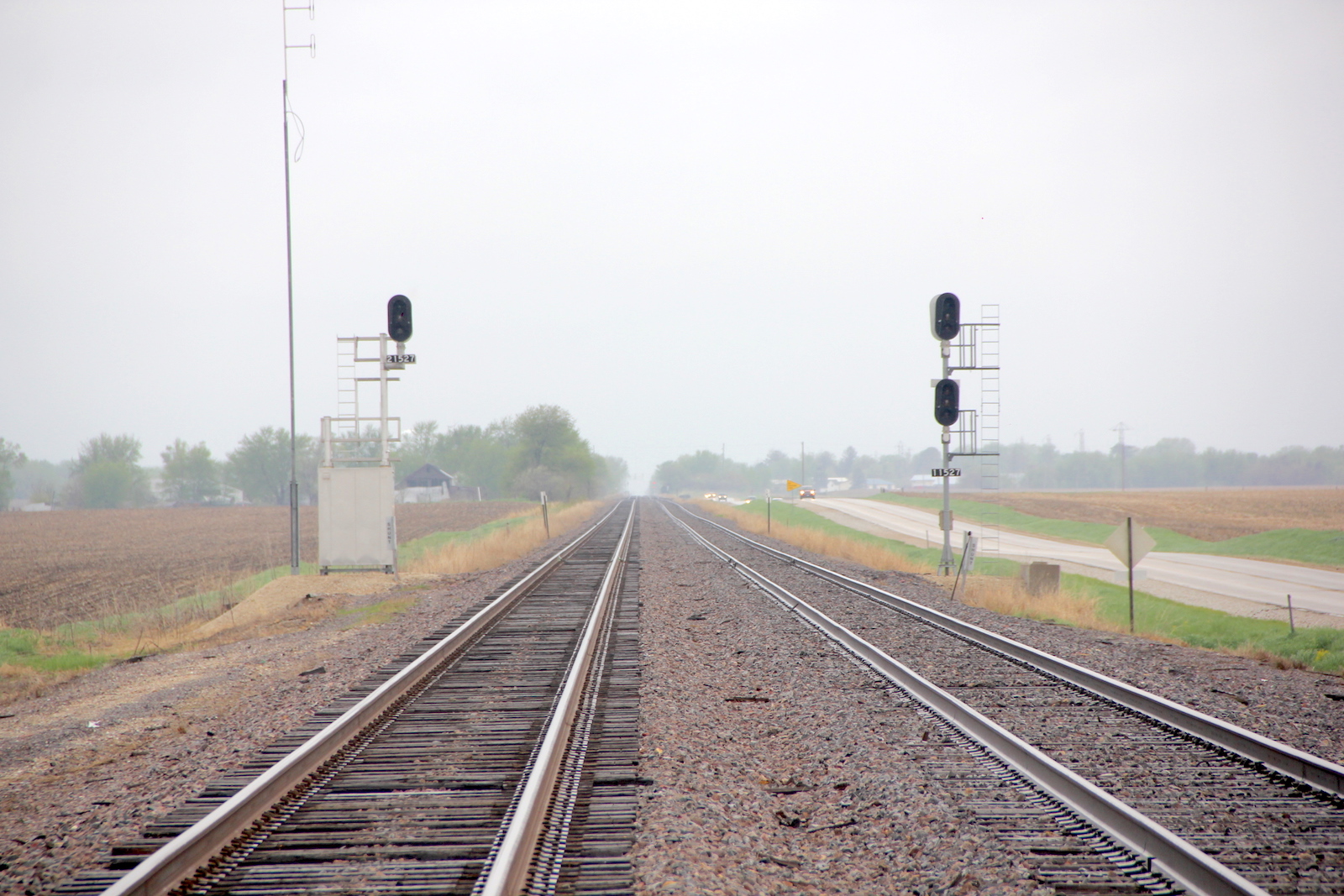

 Track view facing east towards Center St.
