29.18


260649C

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: GS Type 2 E-Bell Siemens E-Bell

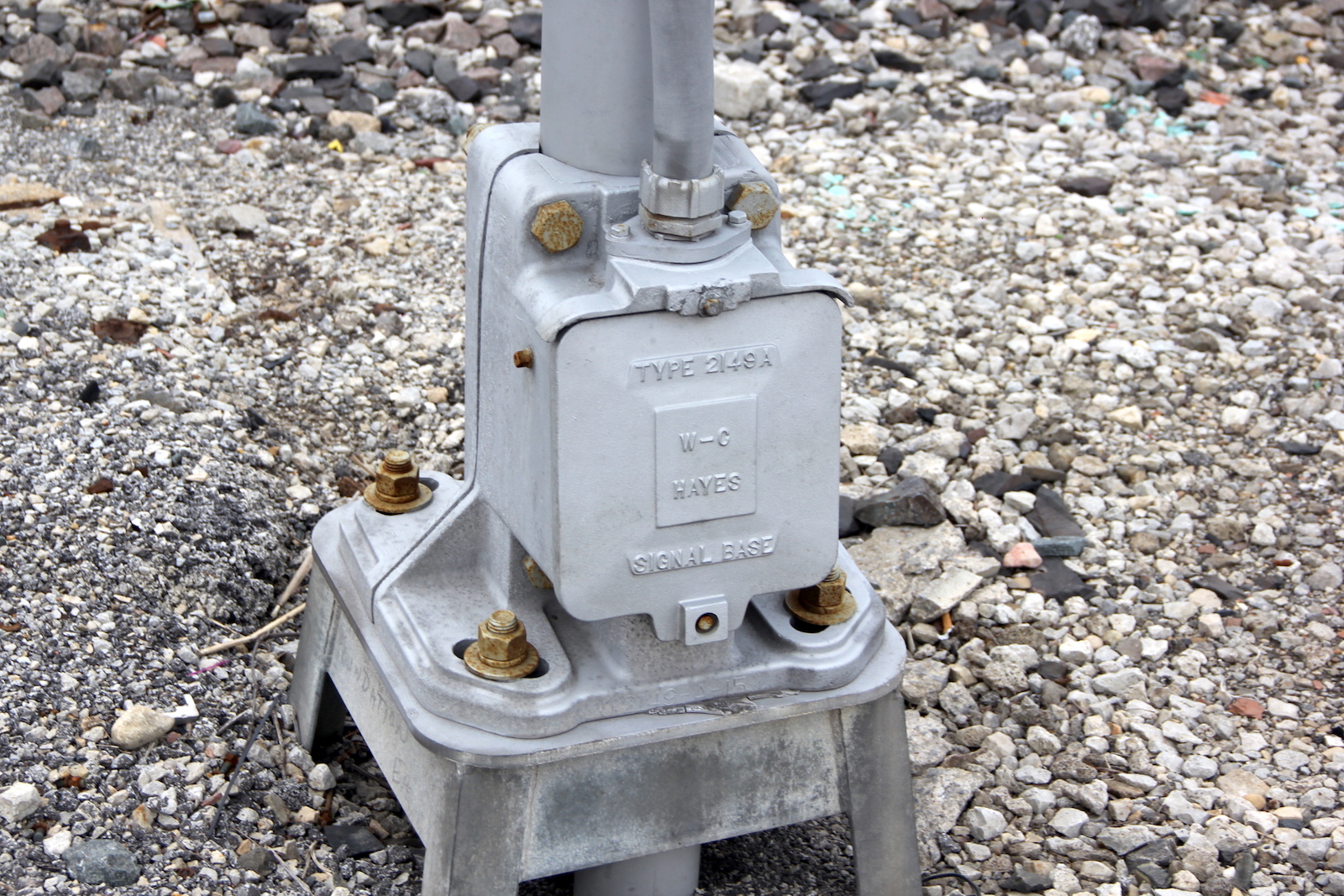

Base: WCH 5" Single Sided ^ WCH 5" Single Sided ^
Lights: 2 - 12"x24" Harmon w/ 1st Gen Harmon Dotted LEDs
2 - 12"x24" Safetran w/ GE Uniform Look LEDs		 3 - 12"x24" Harmon w/ 1st Gen Harmon Dotted LEDs
1 - 12"x24" Safetran w/ GE Uniform Look LED
Junction Box: Harmon Harmon
Gate Lights: 4" RECO LEDs 4" RECO LEDs
Gate Mechanism: US&S Model 95 Style 1 w/ Standard Mount US&S Model 95 Style 1 w/ Standard Mount
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-29 were taken on February 27, 2019.
The video was taken on February 23, 2019.
Pictures 30-38 were taken on October 9, 2023.
All pictures and video were taken by Tommy McGowan.
This crossing is located on the CN Matteson Sub.

1
 2

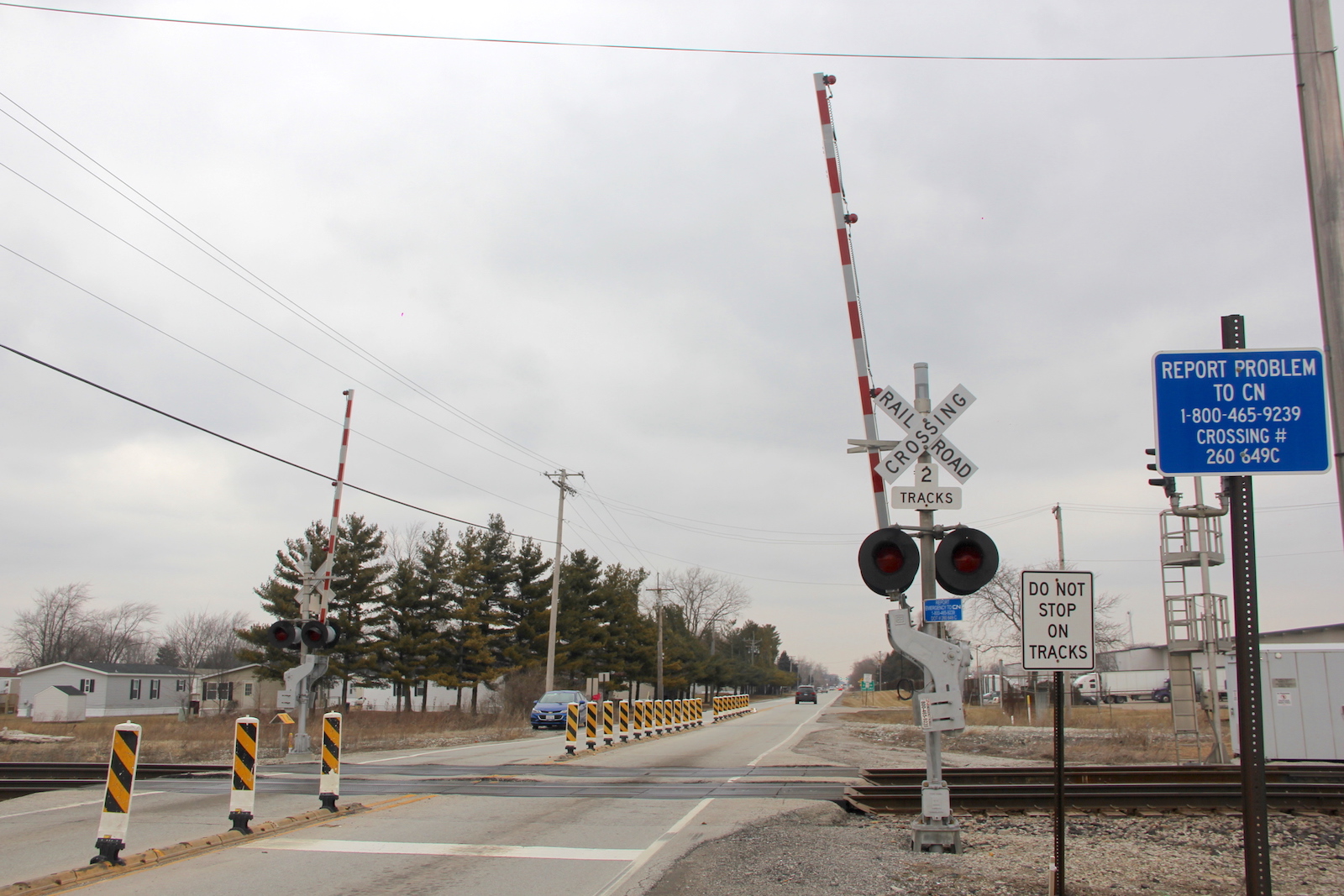

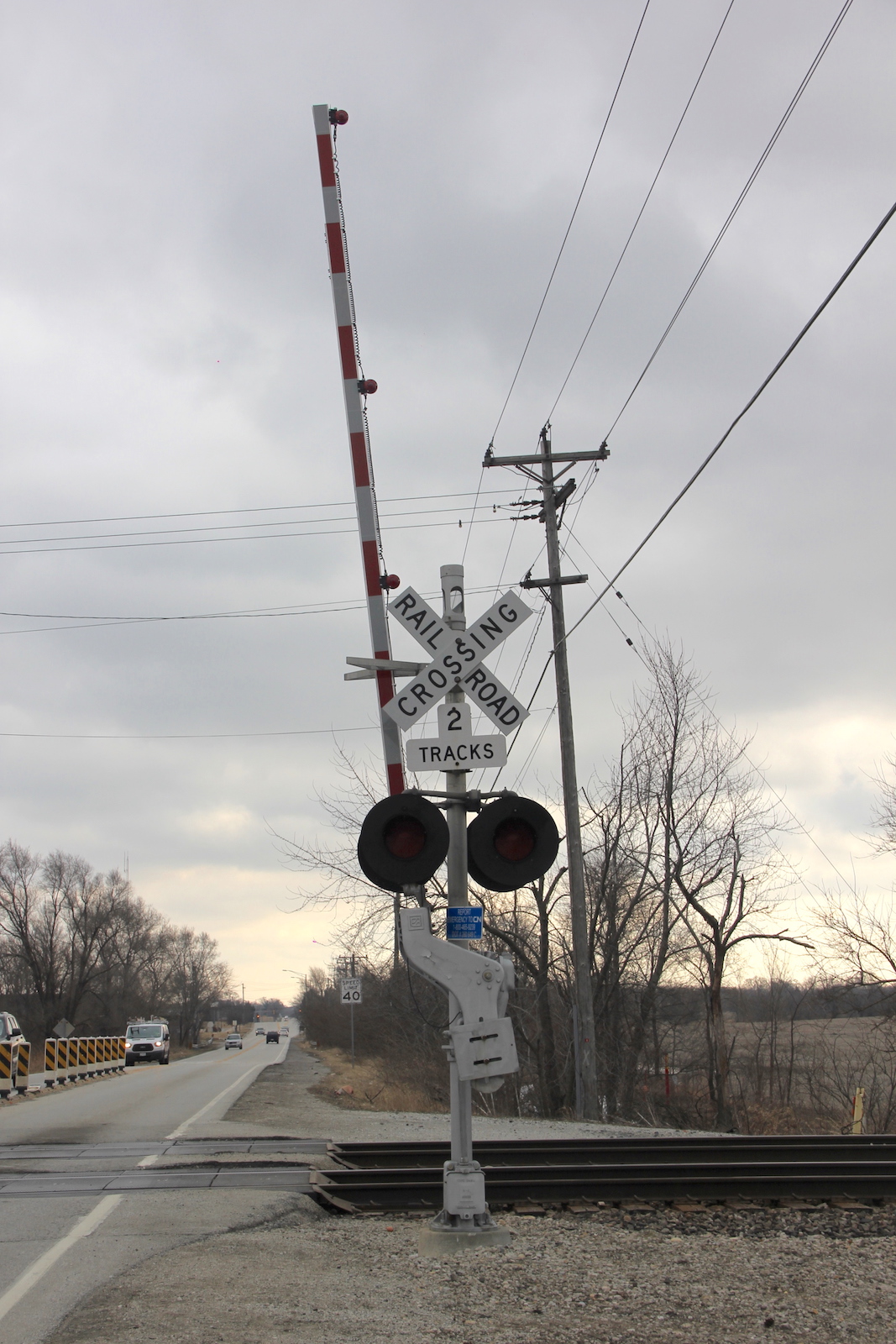

Overview of 2 early 2000s gated signals facing south.
 Overview facing north.
3 4 5
6 7 8 9
10 11 12 13

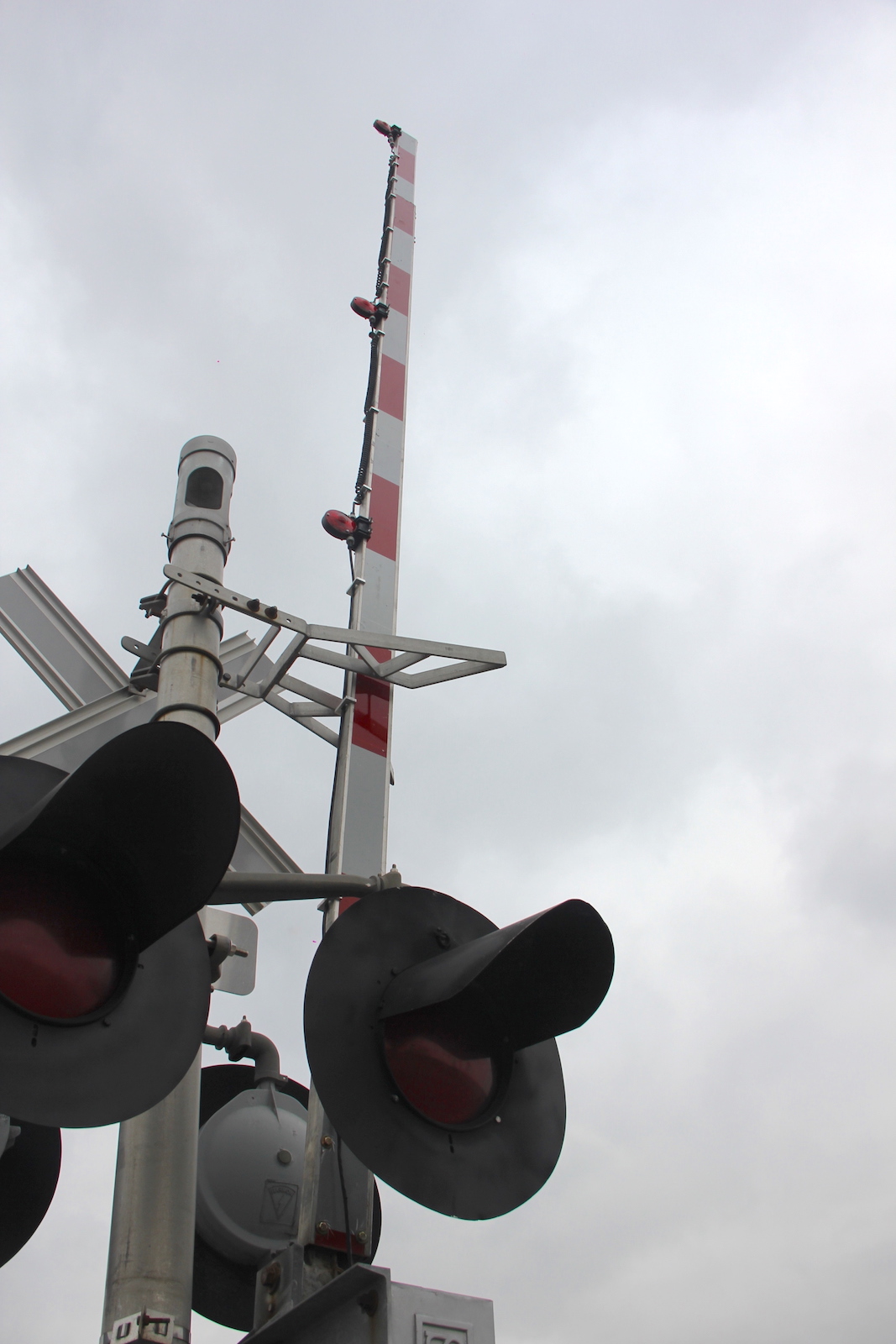

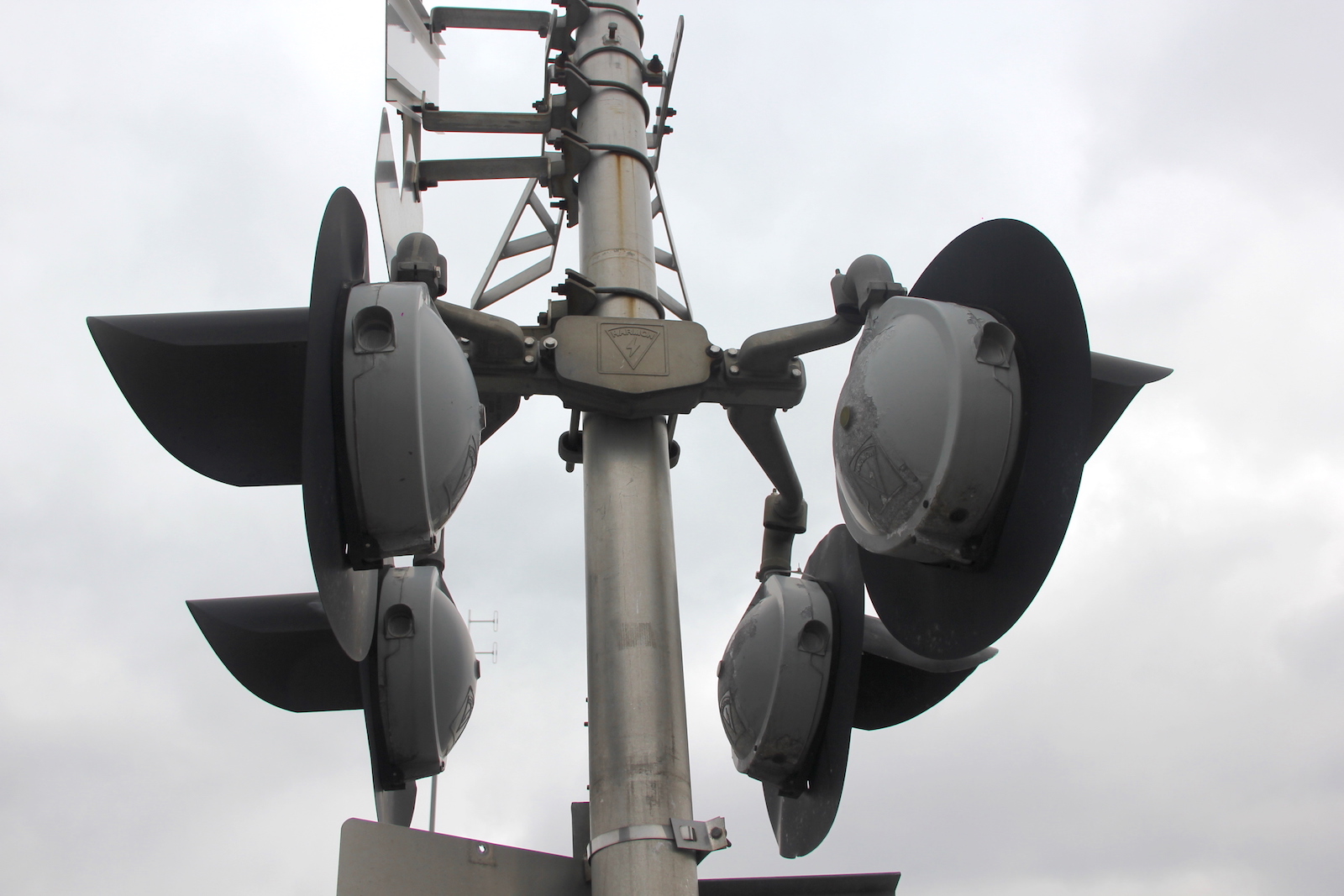

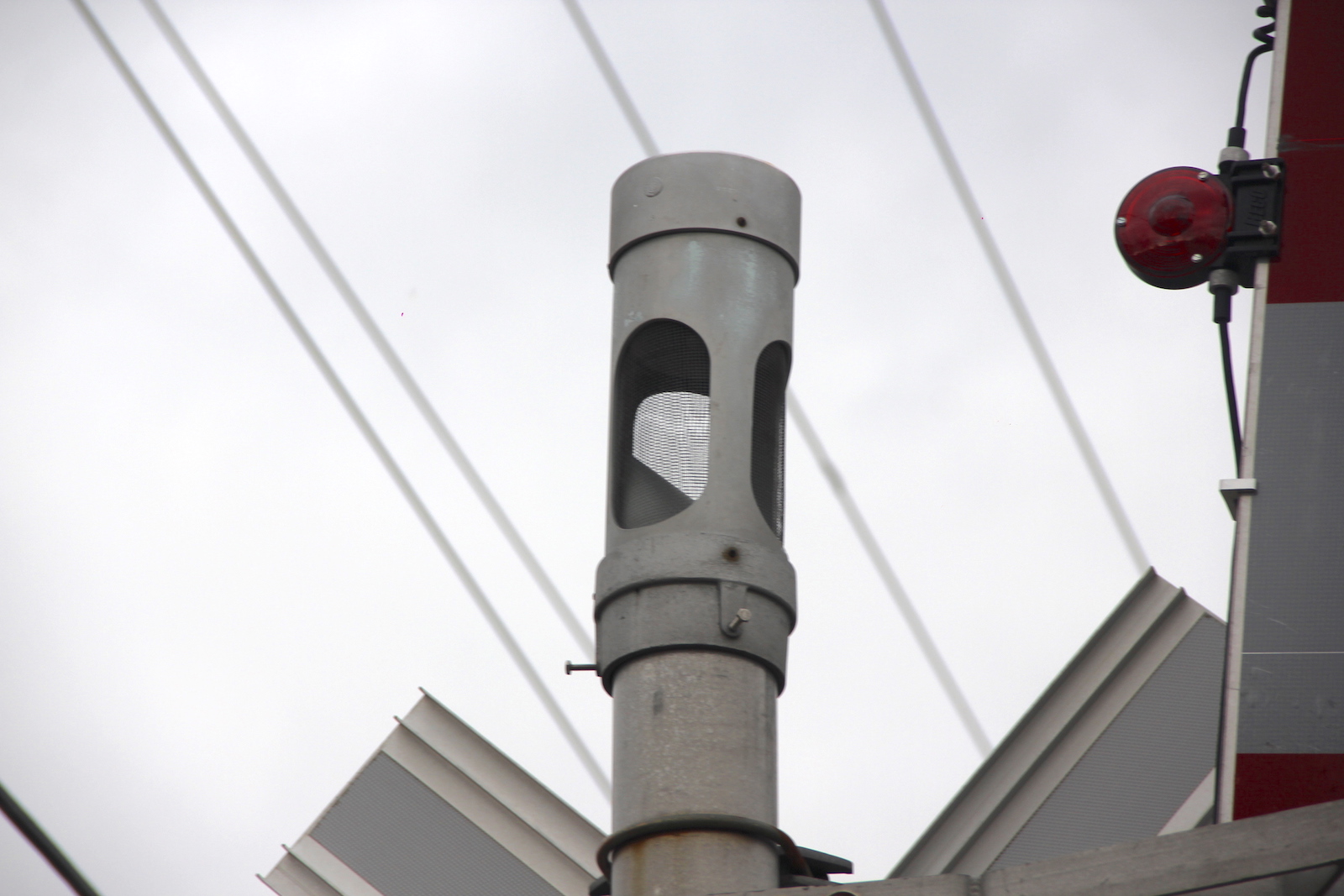

The northern signal. All of the lights on both signals were 1st Gen Harmon Dotted LEDs at this point.
14 15 16
17 18 19 20
21 22 23 24

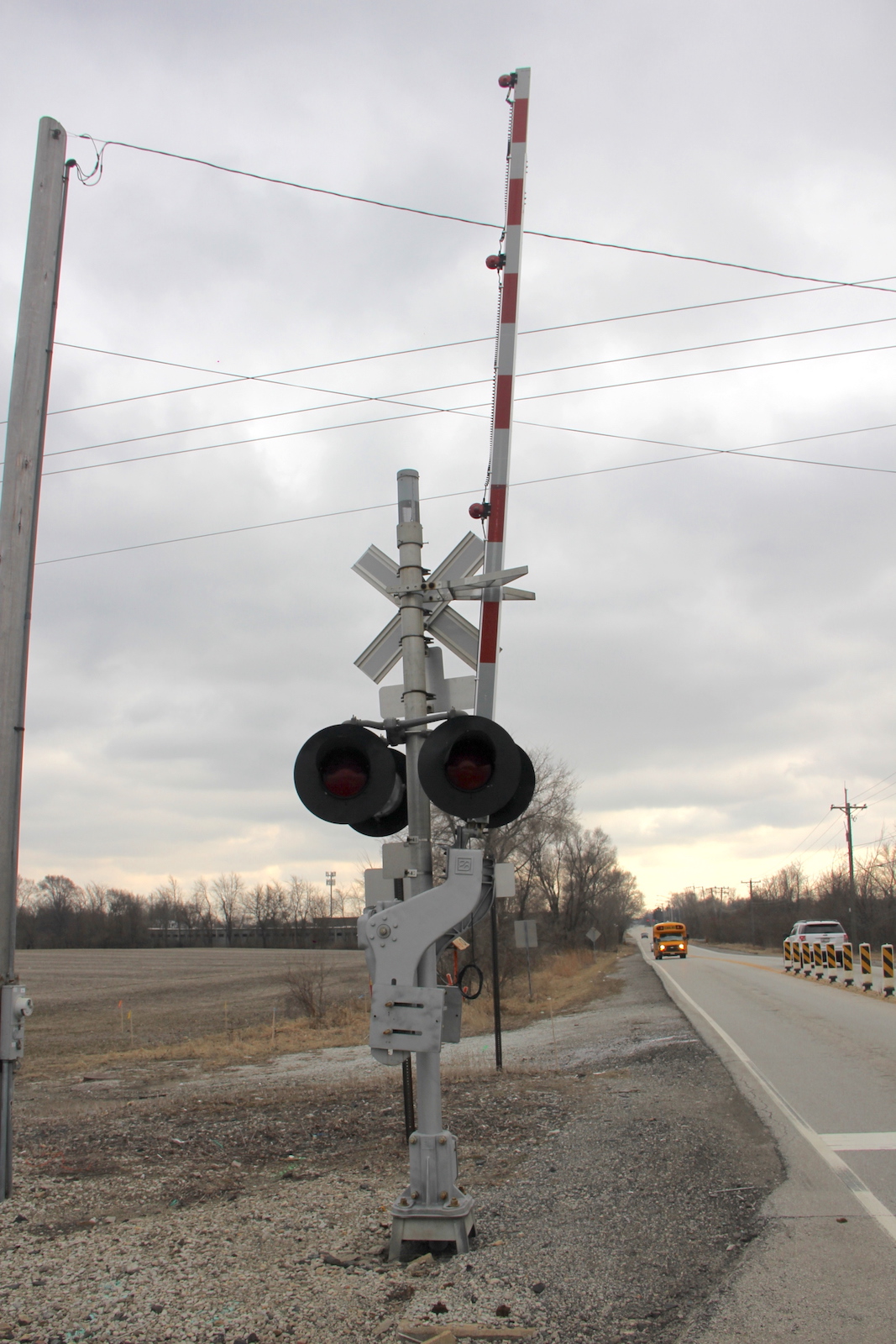

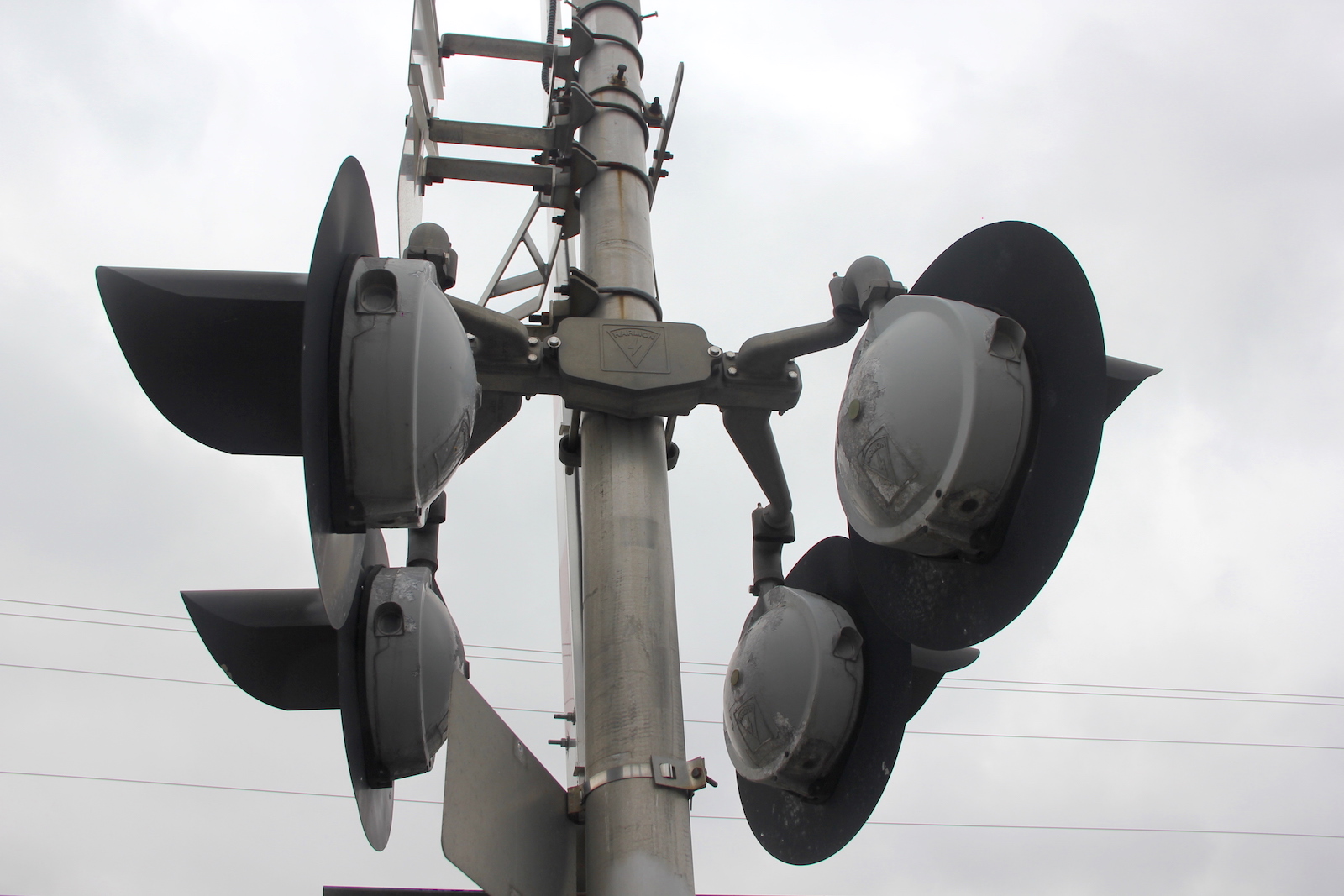

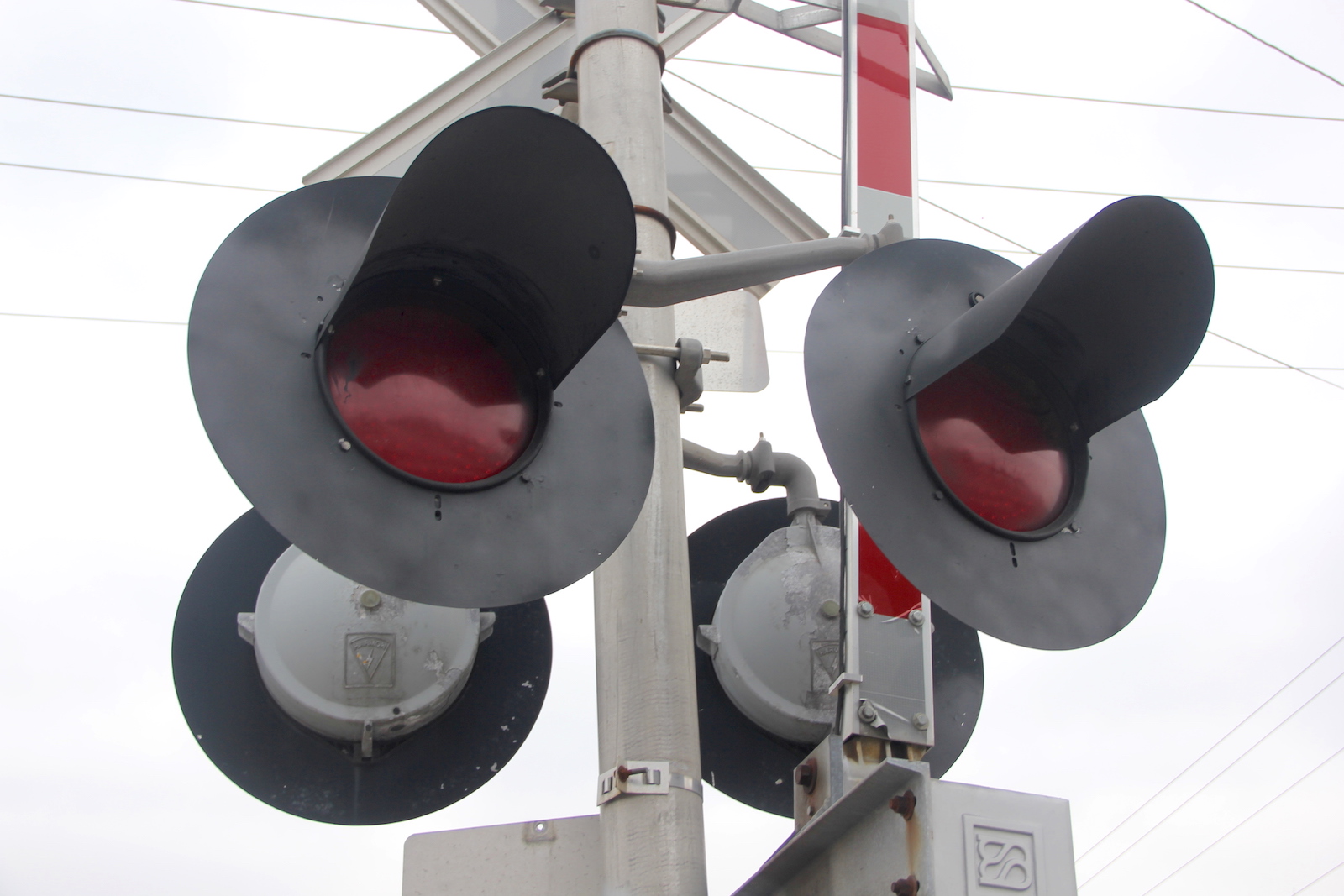

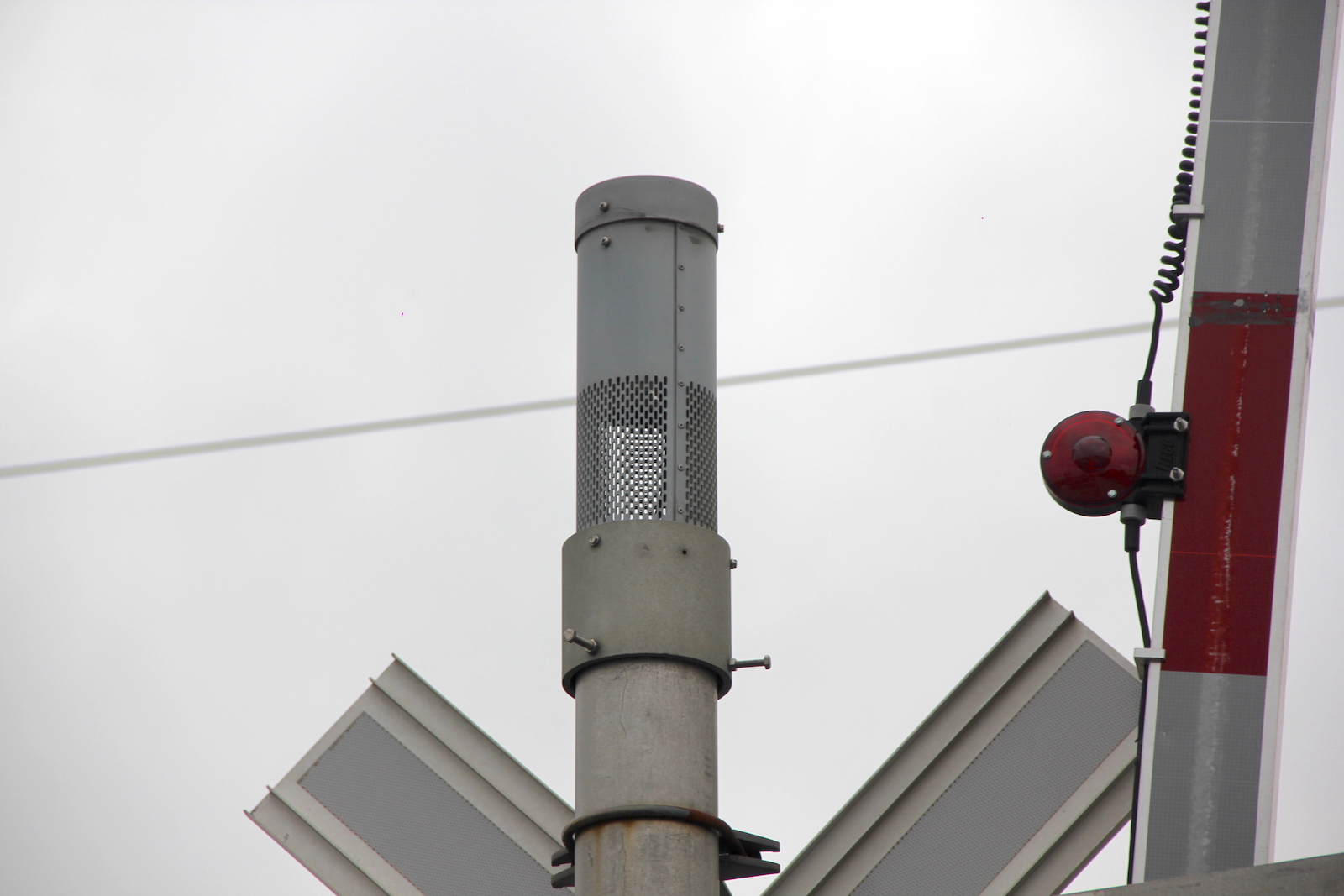

The southern signal. This had a dead Safetran Type 3 E-Bell at this time.
25 26 27 28

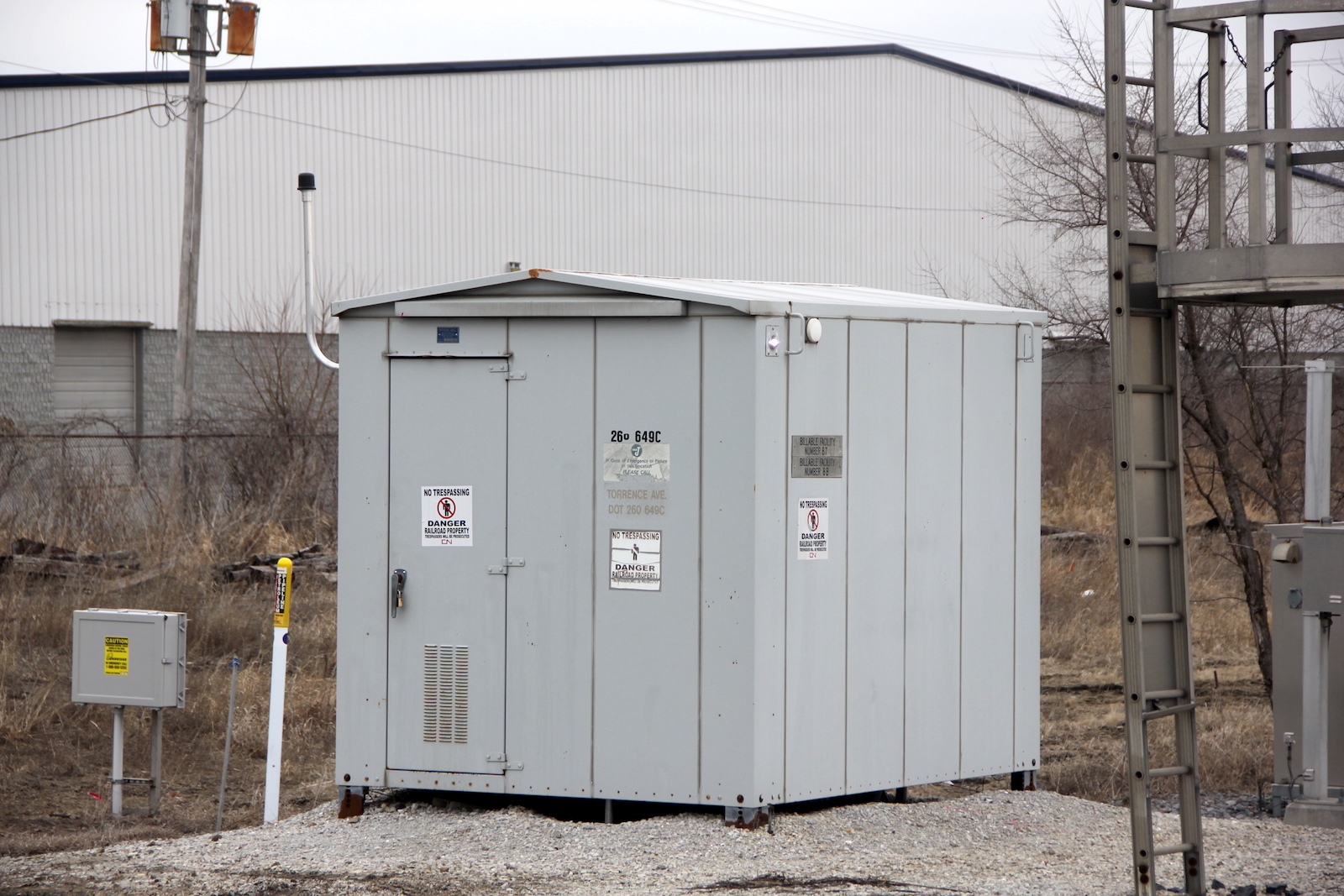

The relay bungalow in the northeast quadrant.
 The grade is all rubber.

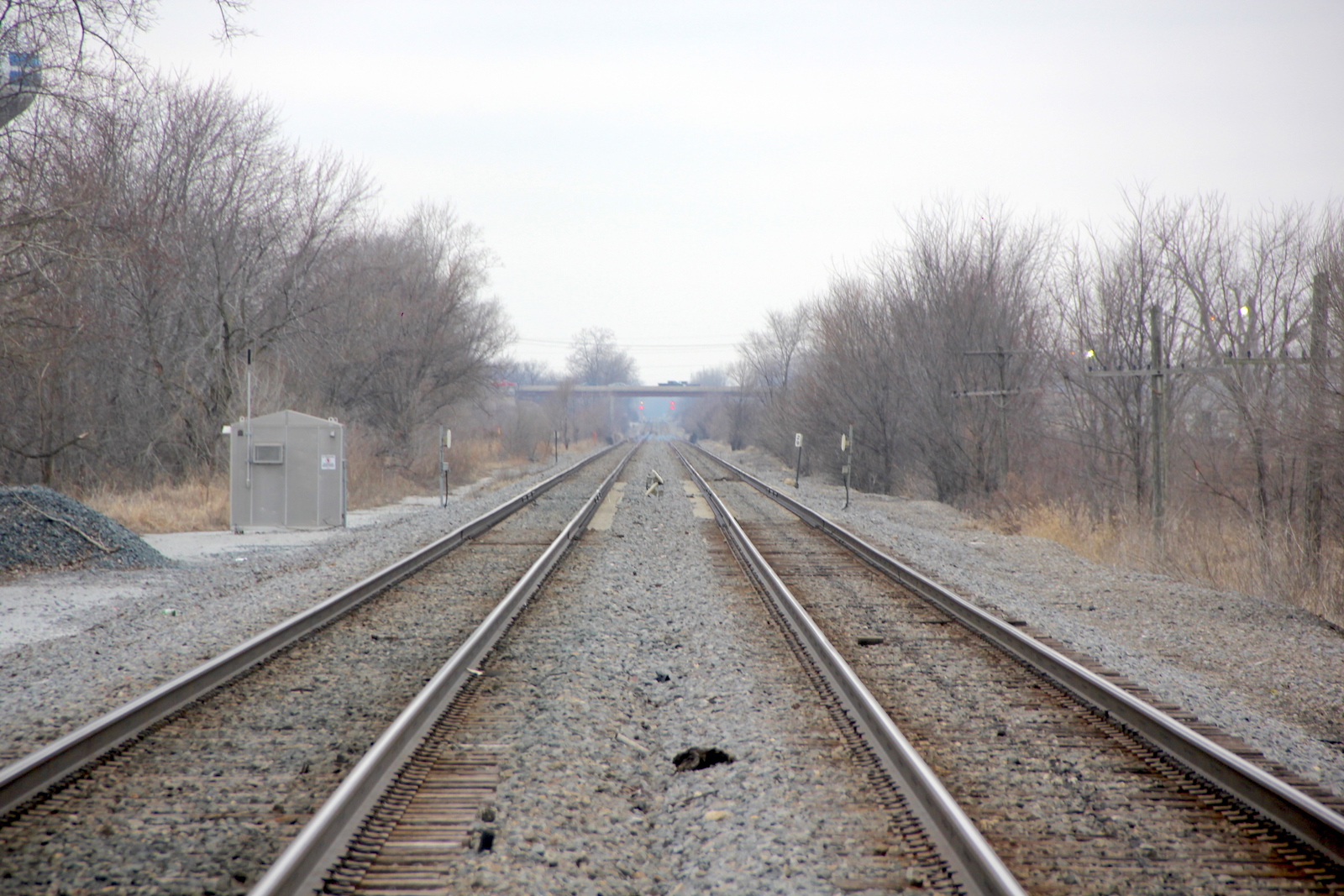

 Track view facing west towards Cottage Grove Ave. in Ford Heights.
 Track view facing east towards Lake St. #1 in
Dyer, IN.
29

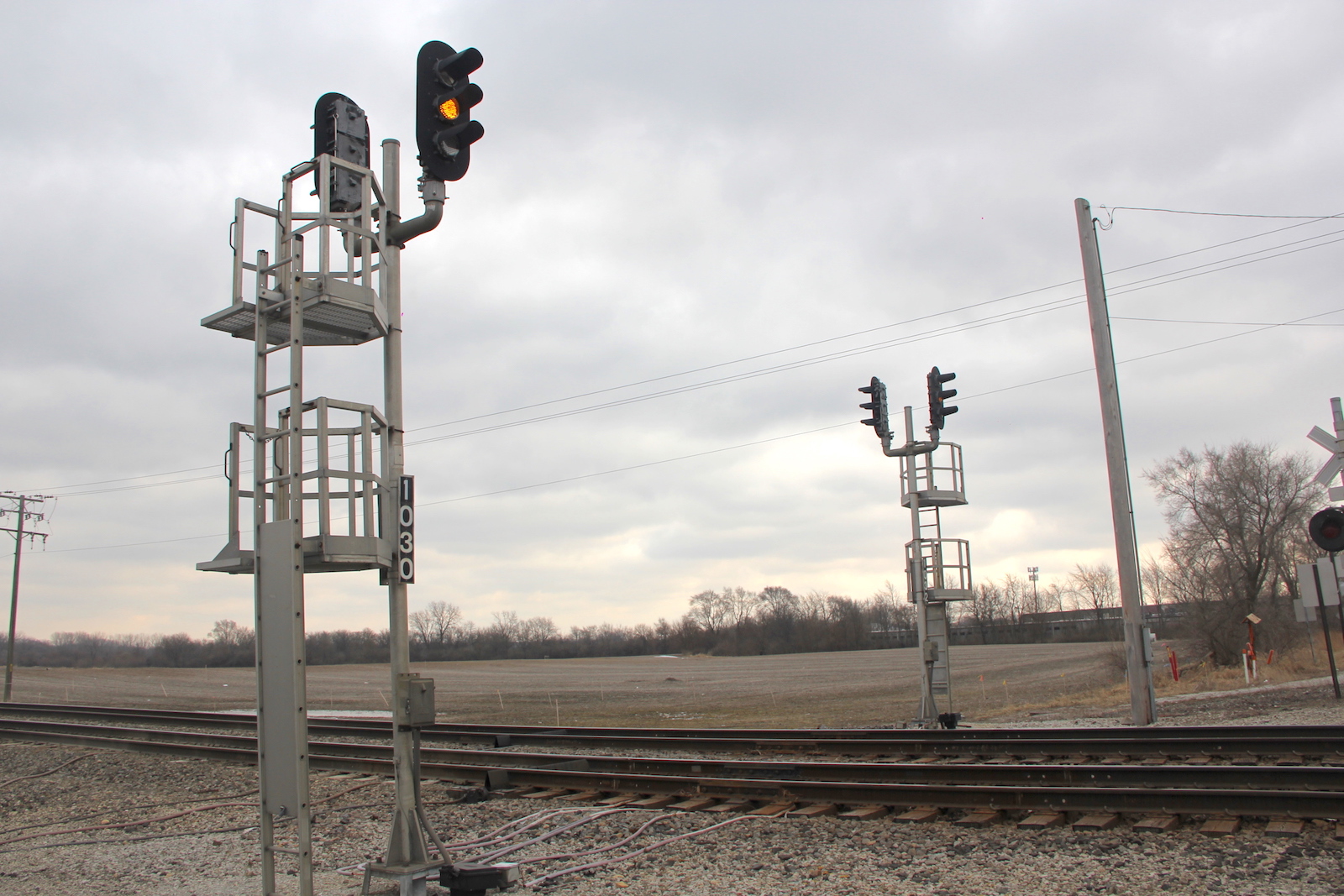

Wayside signals next to the crossing.
30
 31
32 33 34
35 36 37

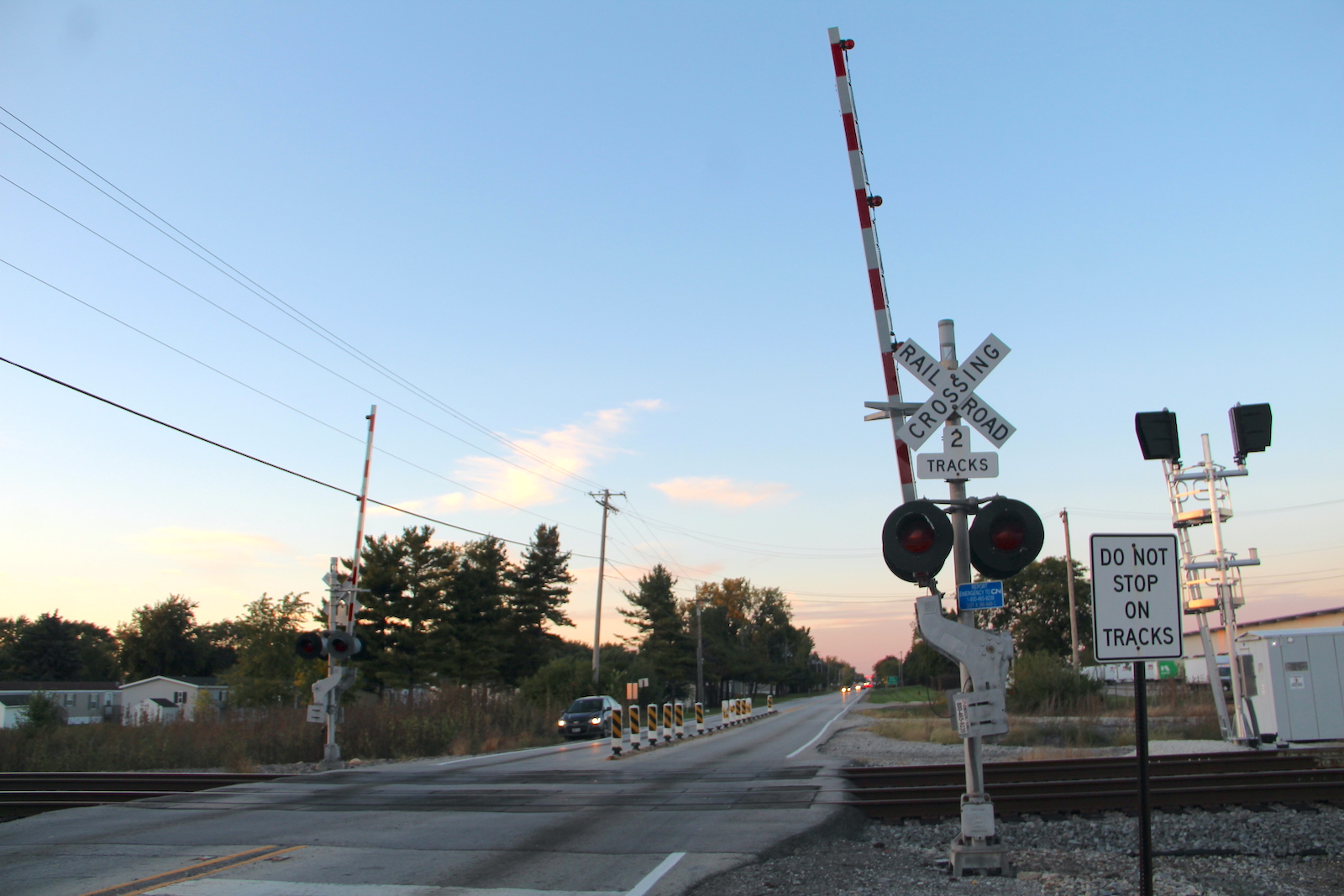

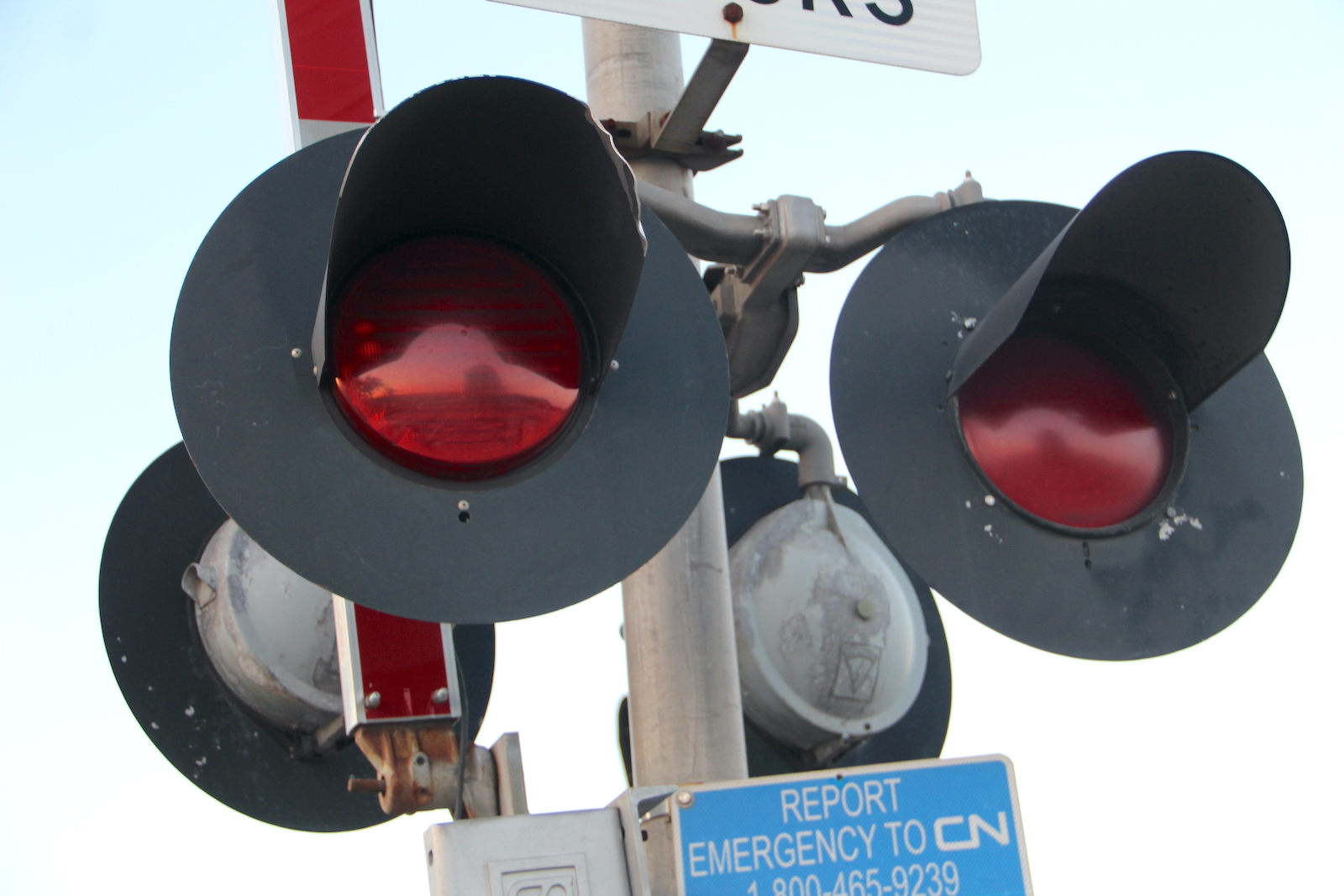

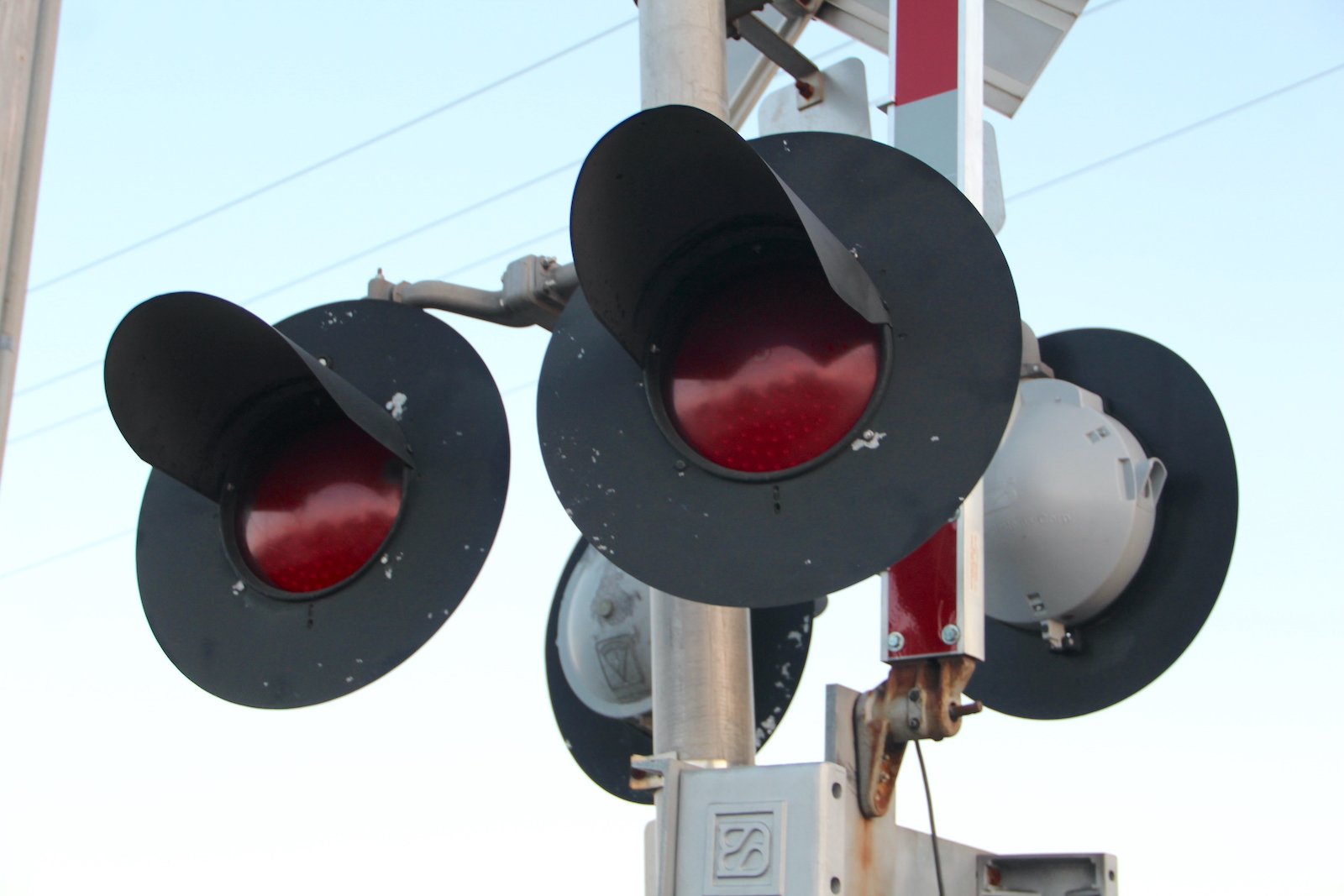

In October 2023, we see some of the lights were replaced with new GE Uniform Look LEDs, both gates were replaced, and the dead Safetran Type 3 was replaced with a Siemens E-Bell.
38
One of the wayside signals had also been replaced by this point.
