MP: 30.96

Updated December 2024

Total Accidents:  5
Crossing DOT #:  260652K
TOTAL DAILY TRAINS:  15   (AS OF 2016)

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: Siemens E-Bell Low Tone Siemens E-Bell High Tone

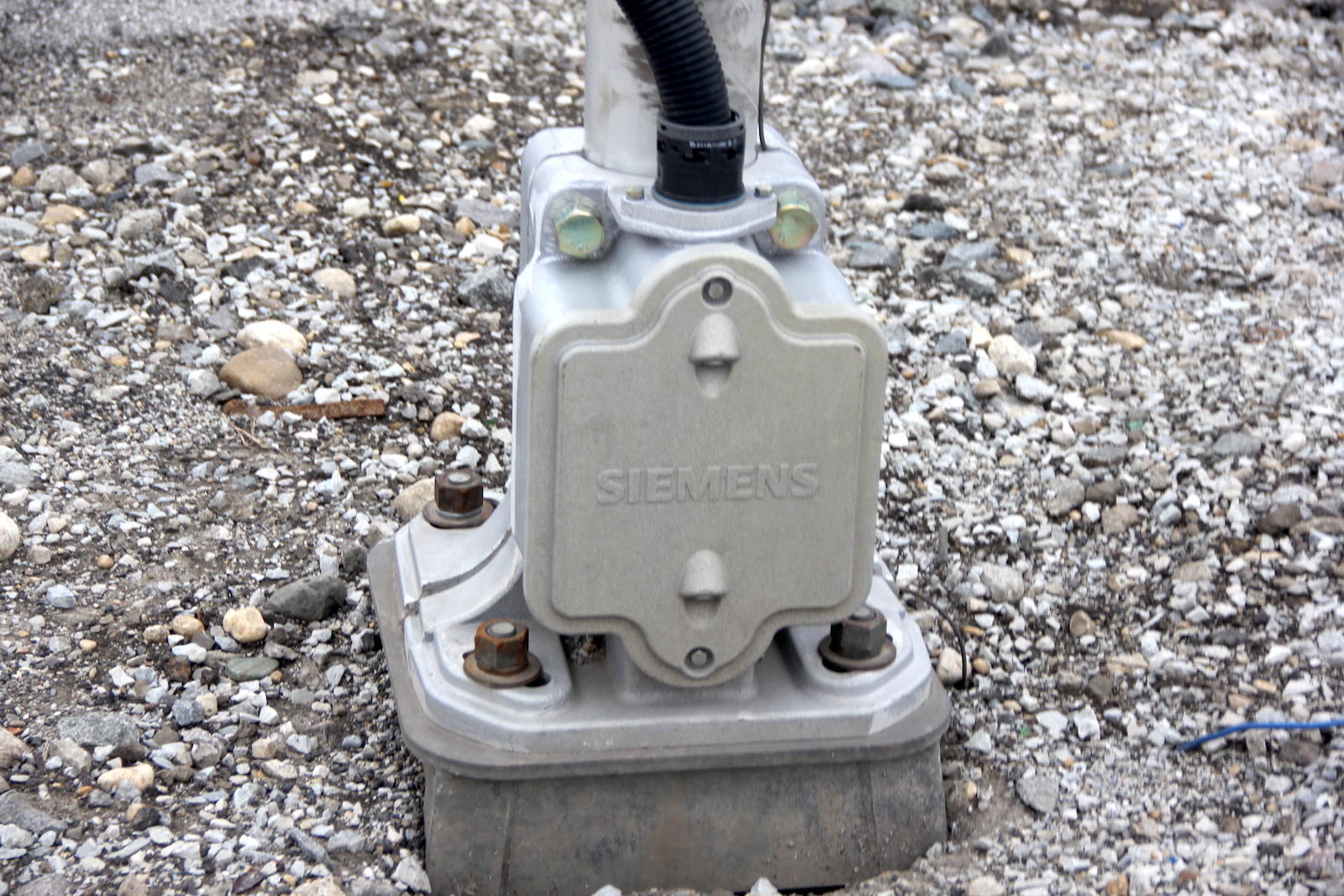

Base: Siemens 5" Single Sided ^ WCH 5" Single Sided ^
Lights: 4 - 12"x24" Safetran w/ GE Uniform Look LEDs 2 - 12"x24" Harmon w/ GE Uniform Look LEDs
1 - 12"x24" Harmon w/ Harmon Fading LED
1 - 12"x20" Safetran w/ GE Uniform Look LED
Junction Box: Safetran Harmon
Gate Lights: 3 - 4" RECO LEDs 3 - 4" RECO LEDs
Gate Mechanism: US&S Model 95 Style 1 w/ Standard Mount US&S Model 95 Style 1 w/ Standard Mount
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-32 were taken on February 27, 2019.
The 1st video was taken on March 2, 2019.
Pictures 33-36 and the 2nd video were taken on March 30, 2024.
This crossing is located on the CN Matteson Sub.

1 2

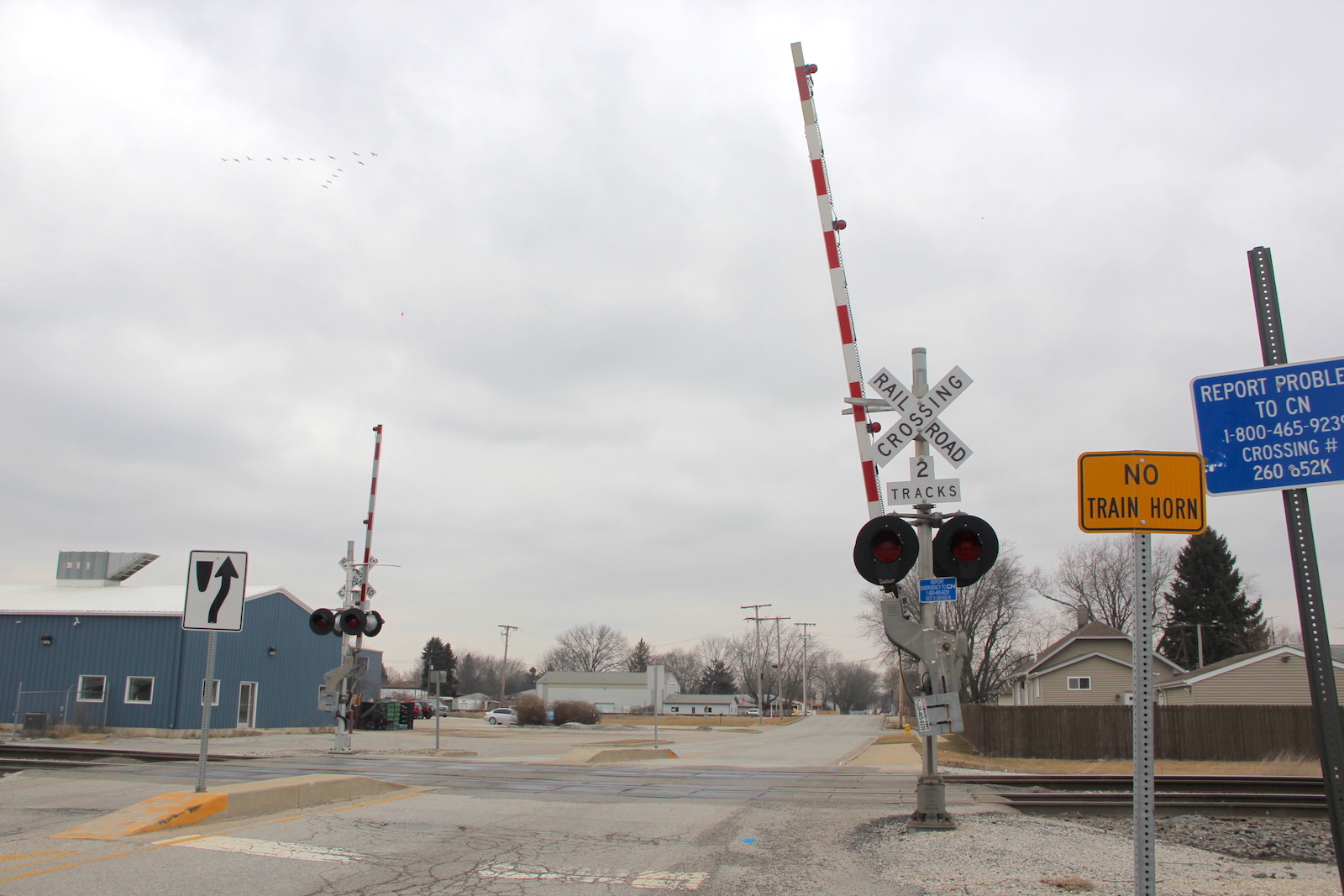

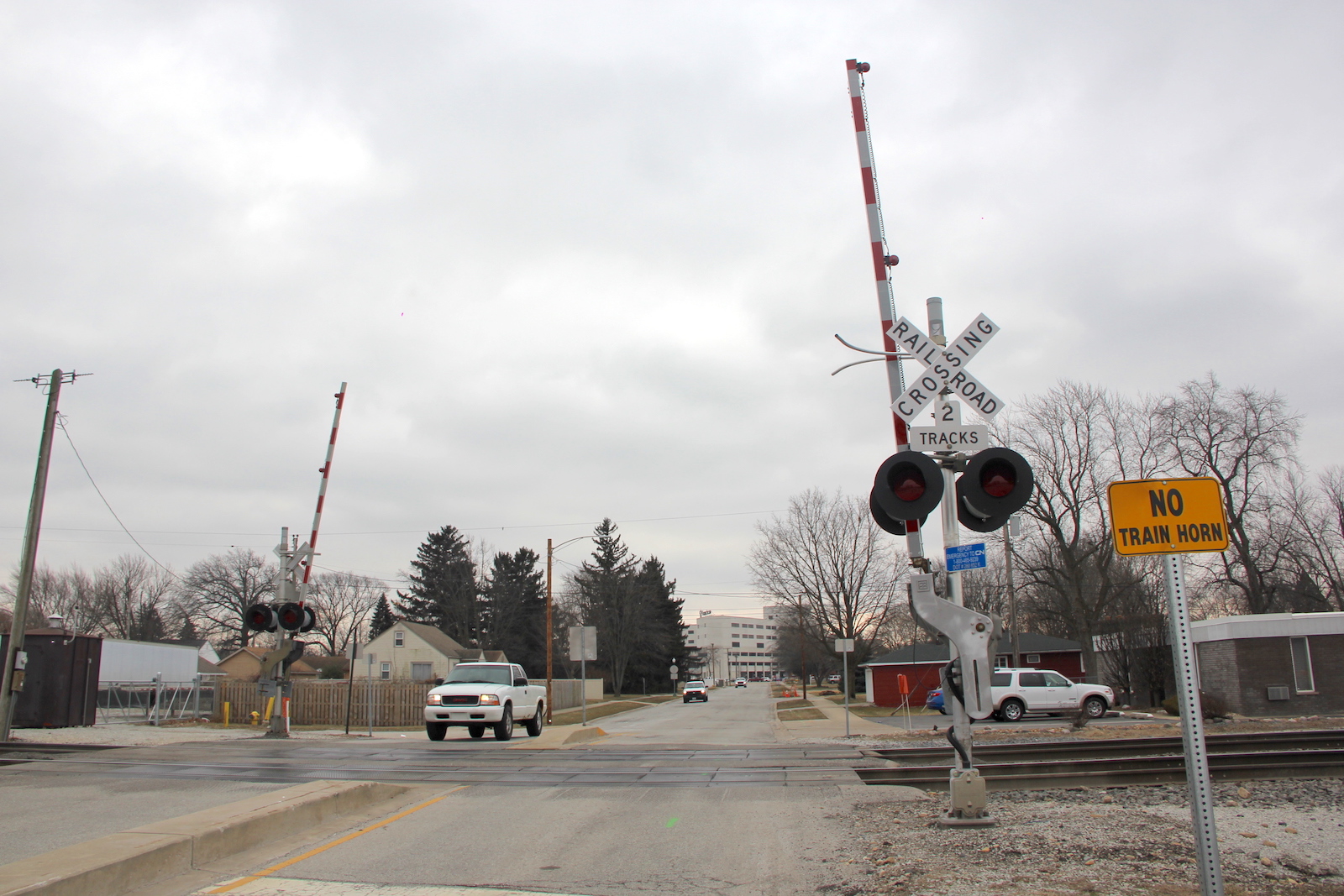

Overview of 2 gated signals facing south.
 Overview facing north.
3 4 5
6 7 8
9 10 11 12

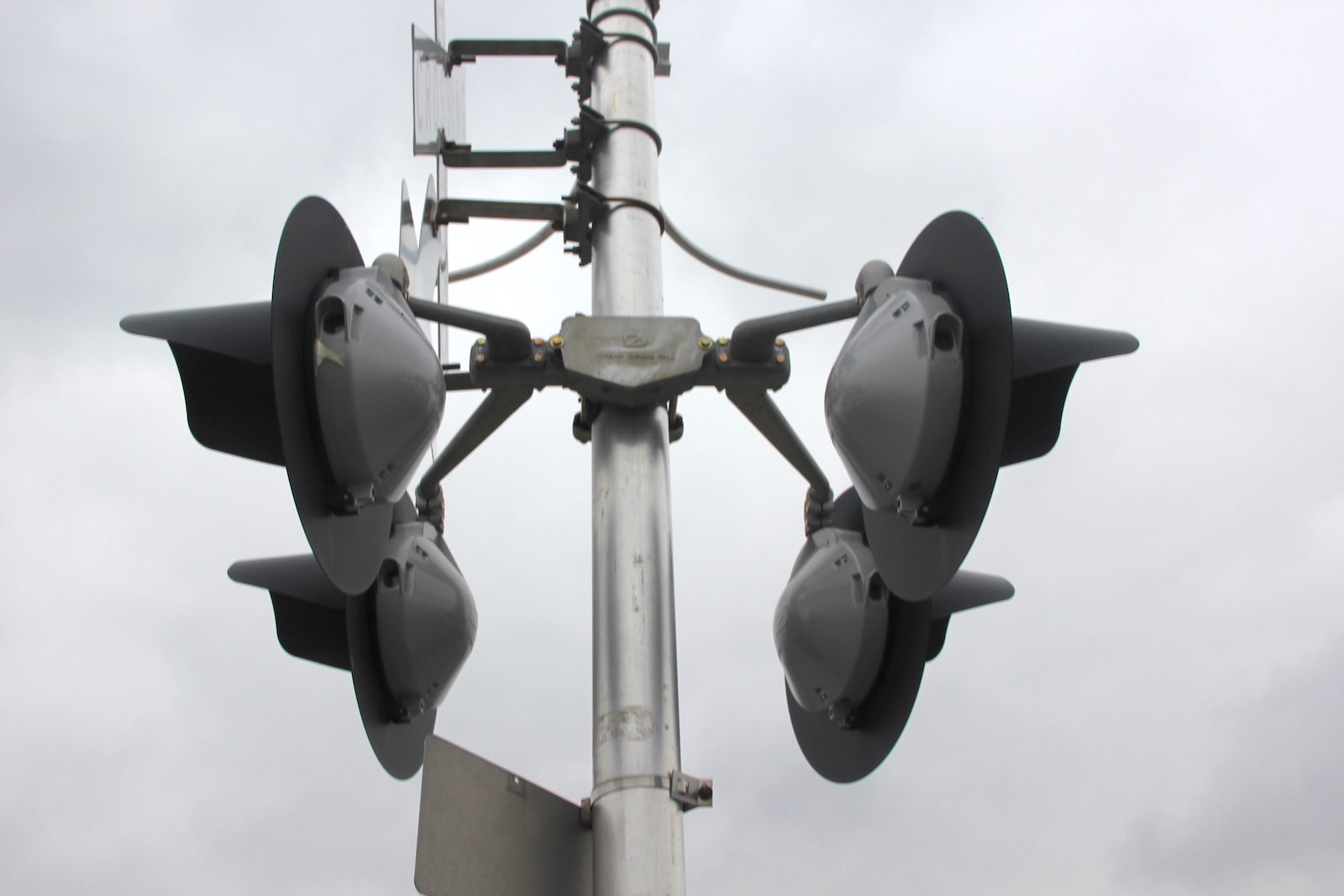

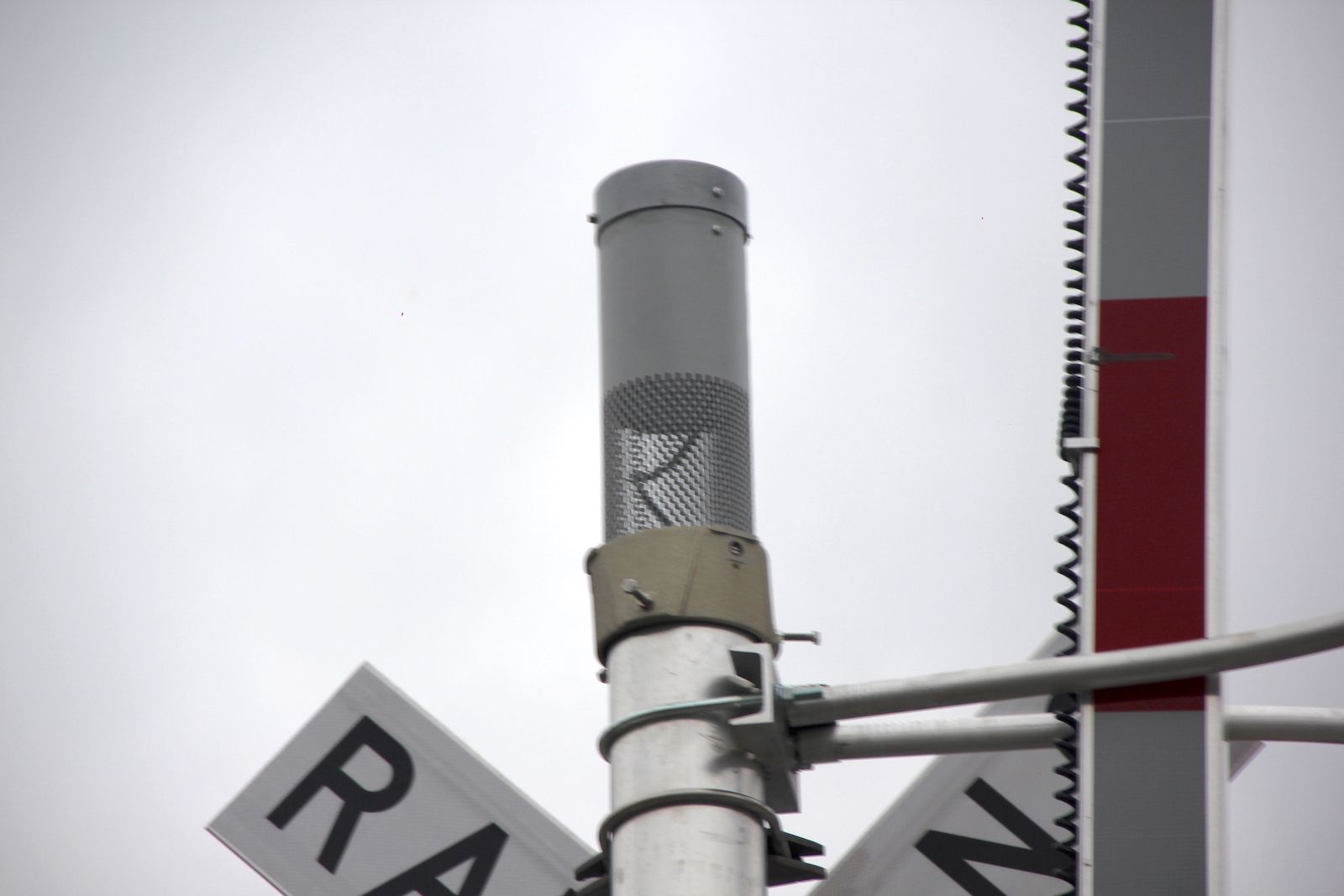

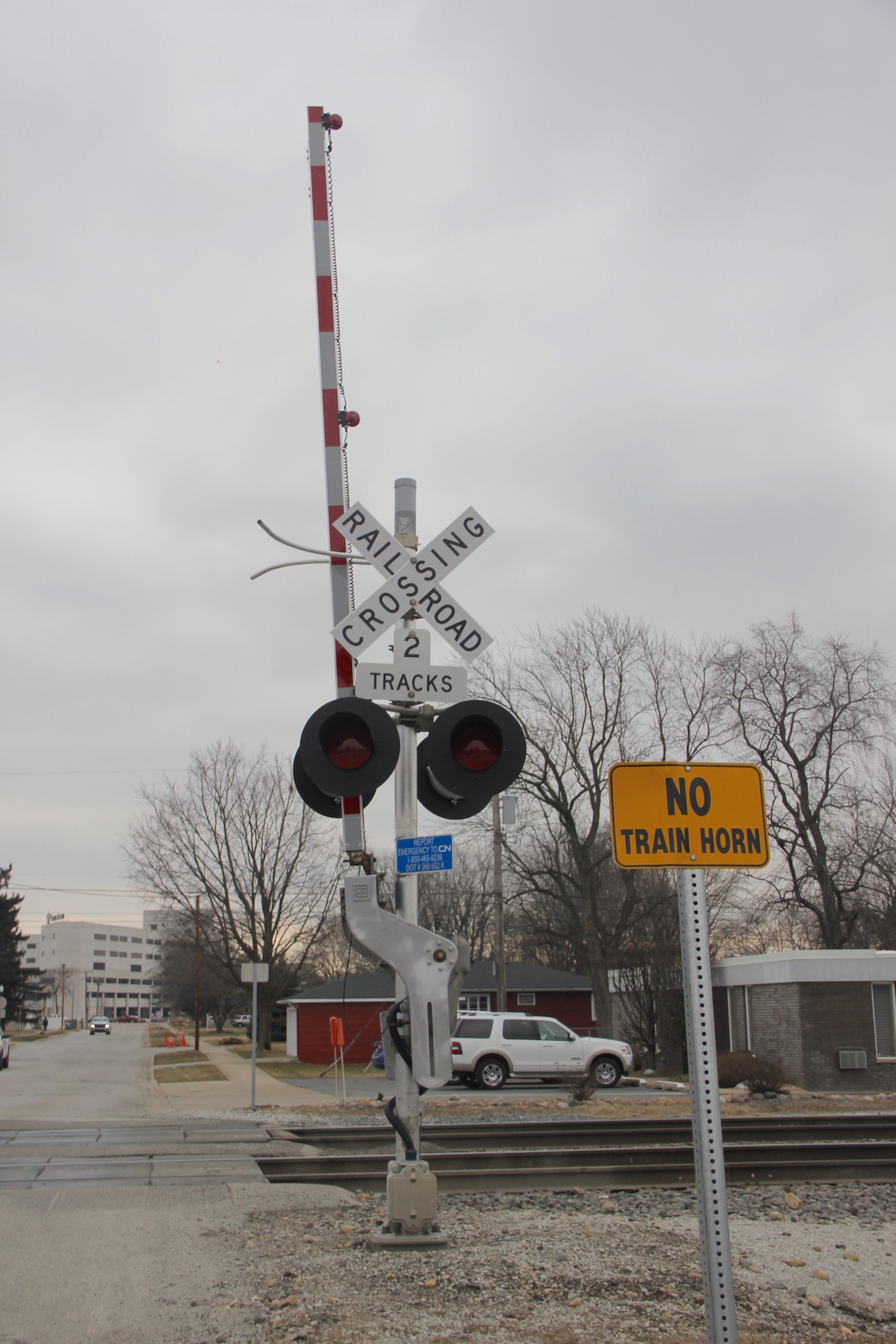

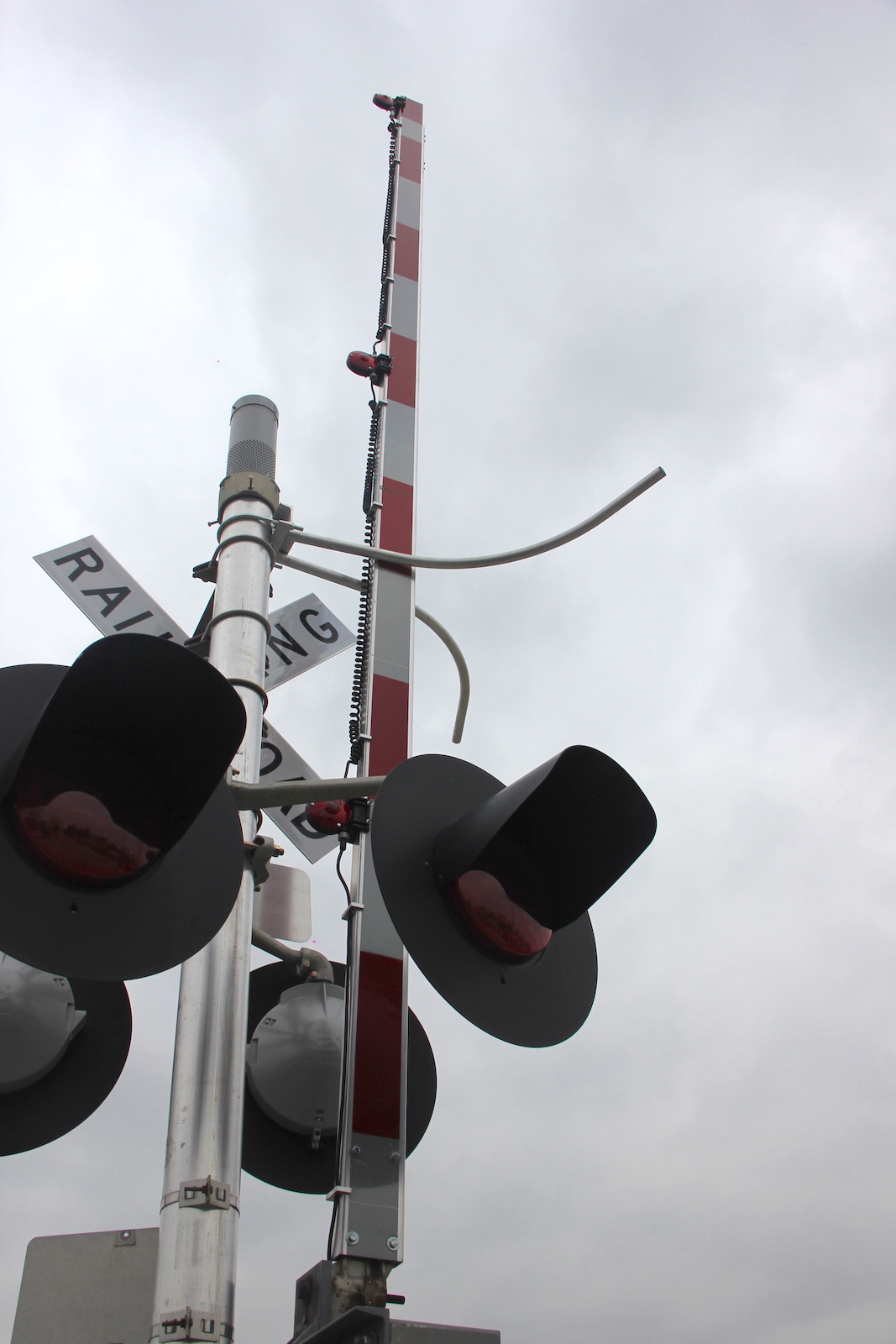

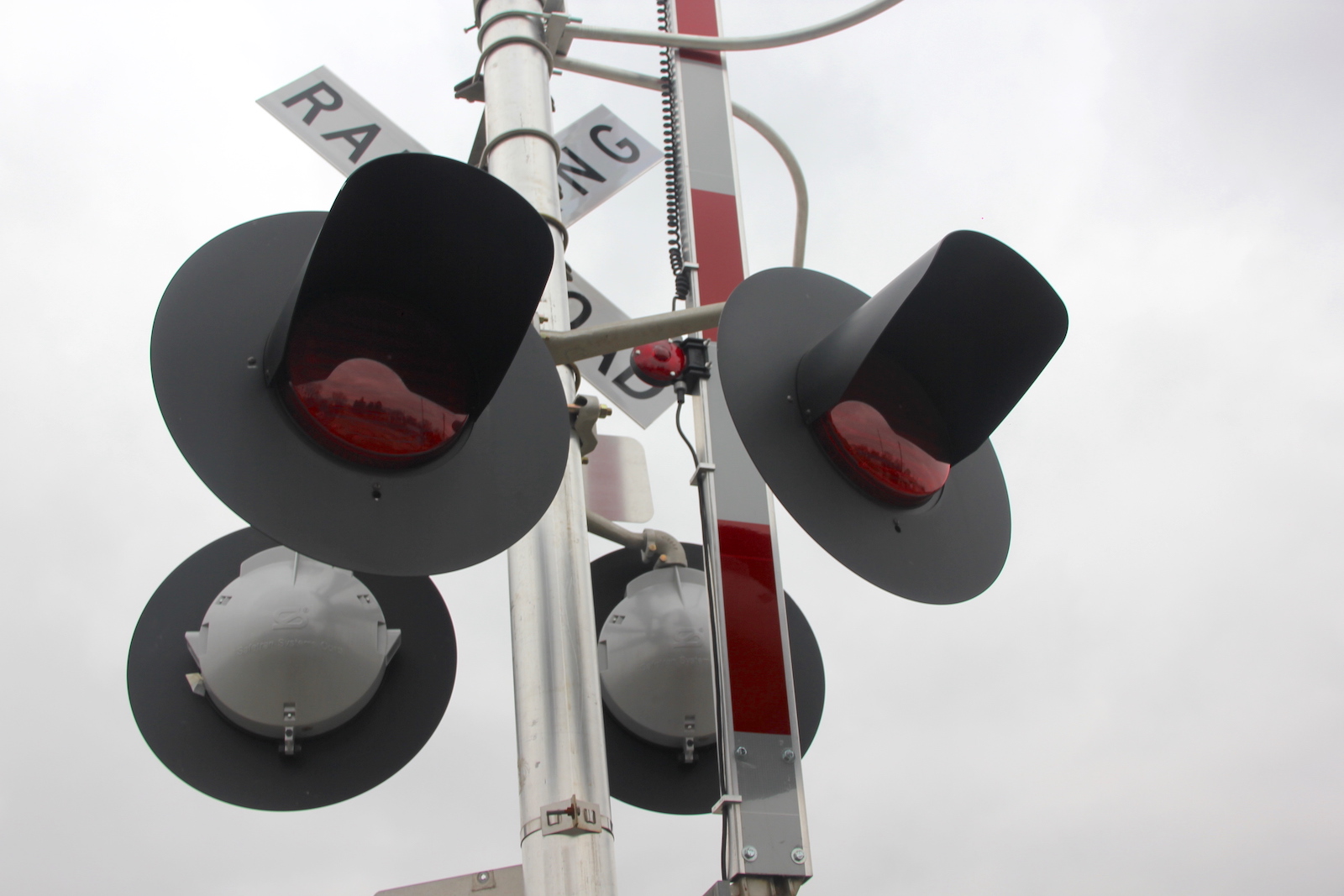

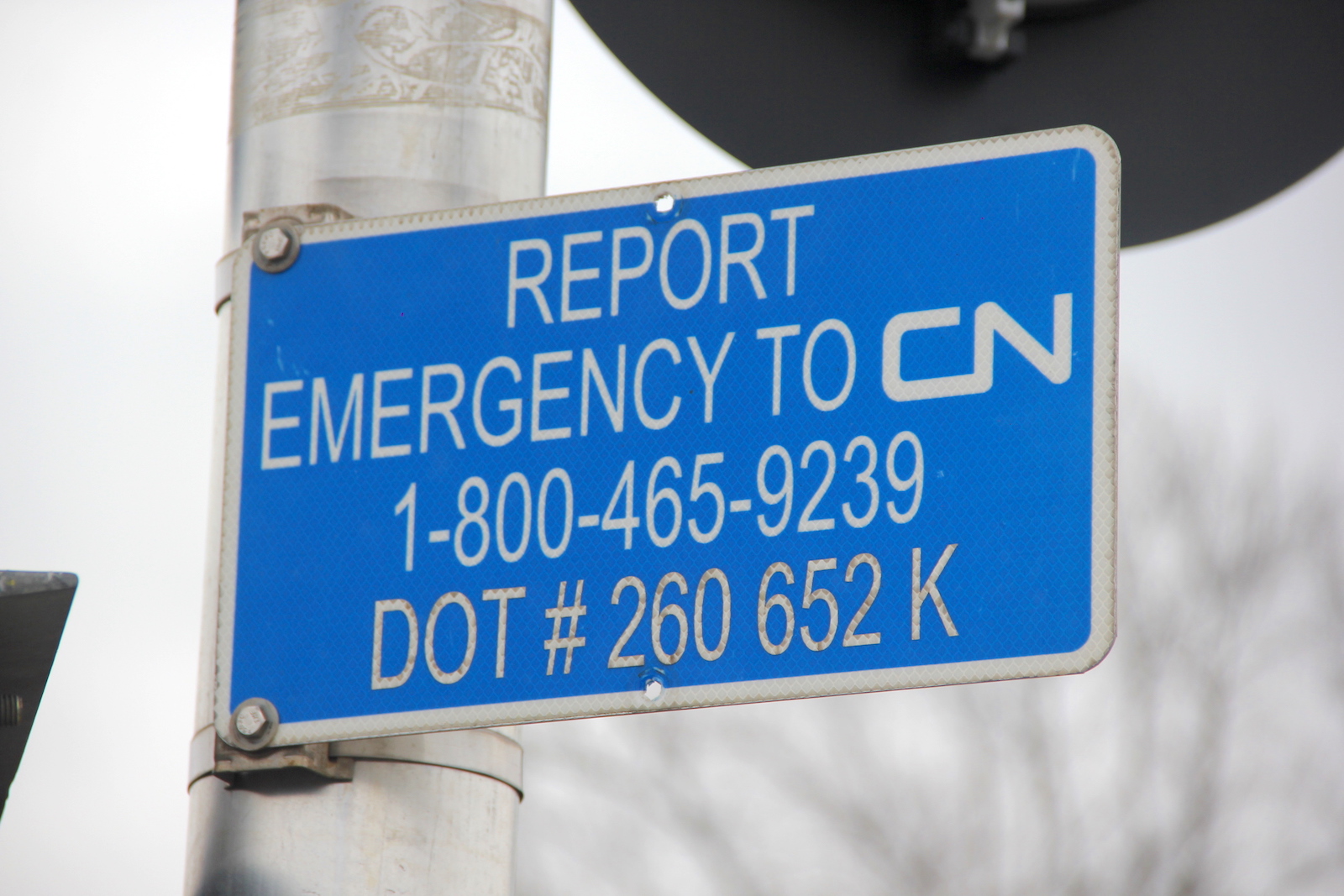

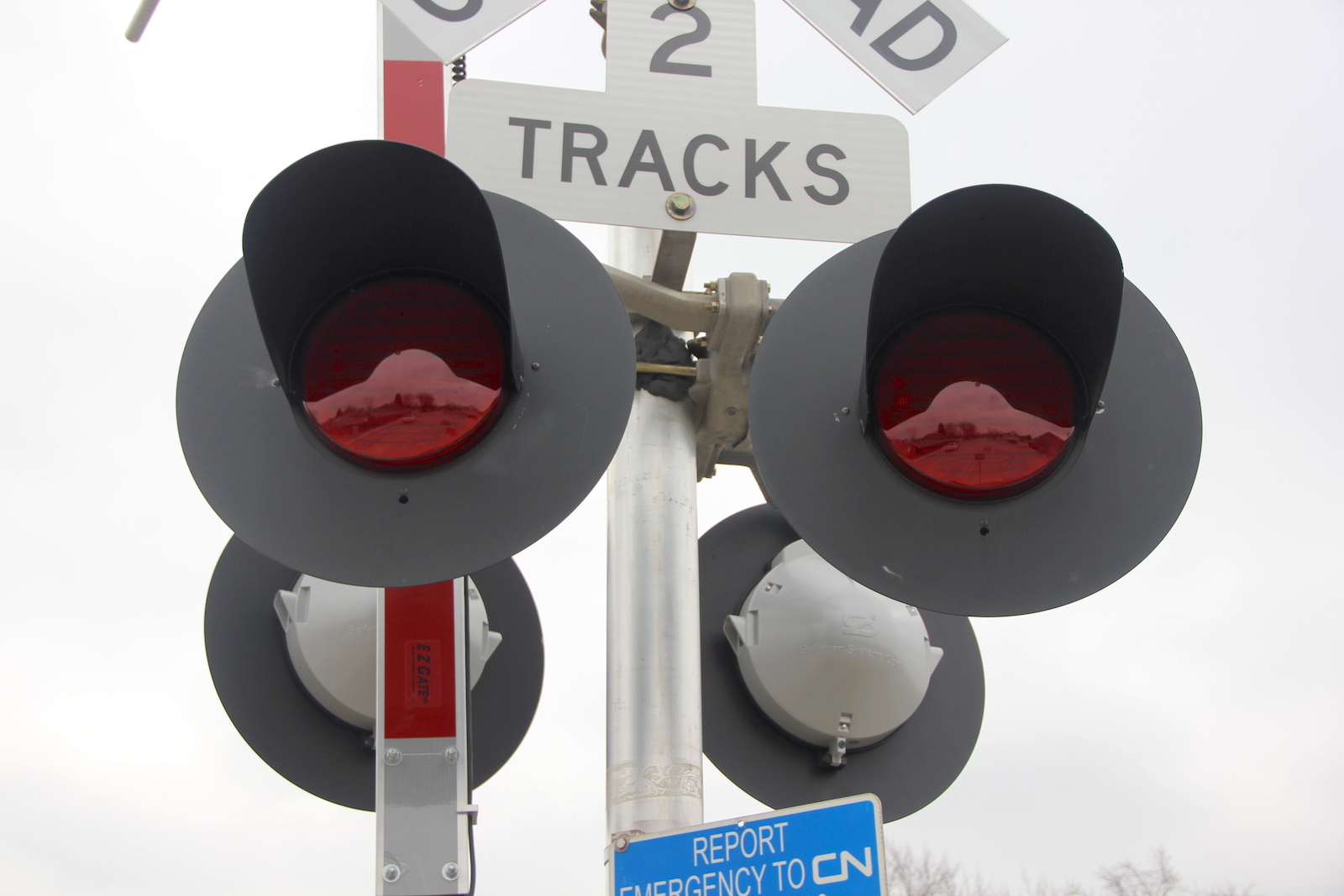

The northern signal.  This was installed recently replacing a signal similar to the southern signal.
13 14 15
16 17 18 19
20 21 22 23

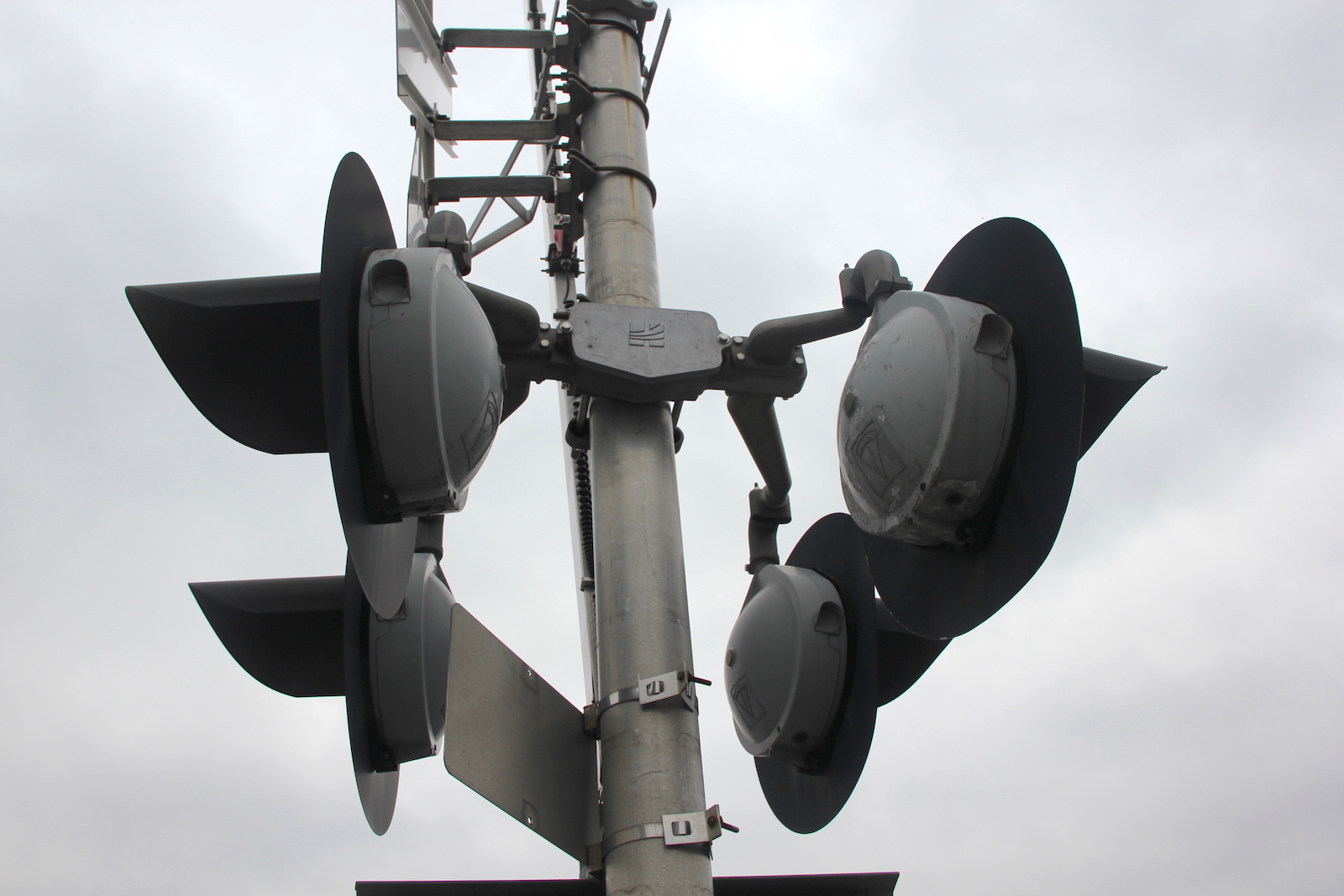

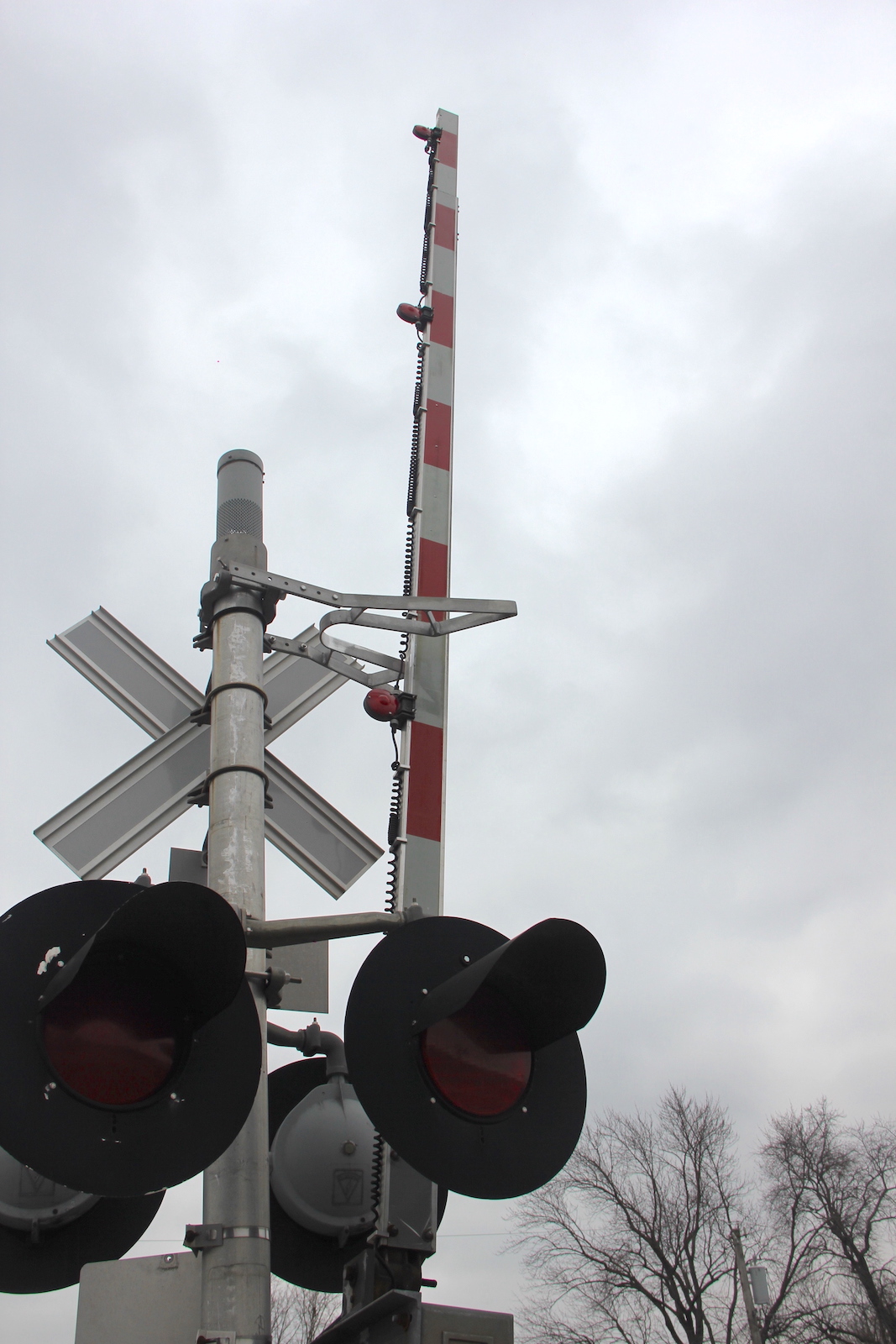

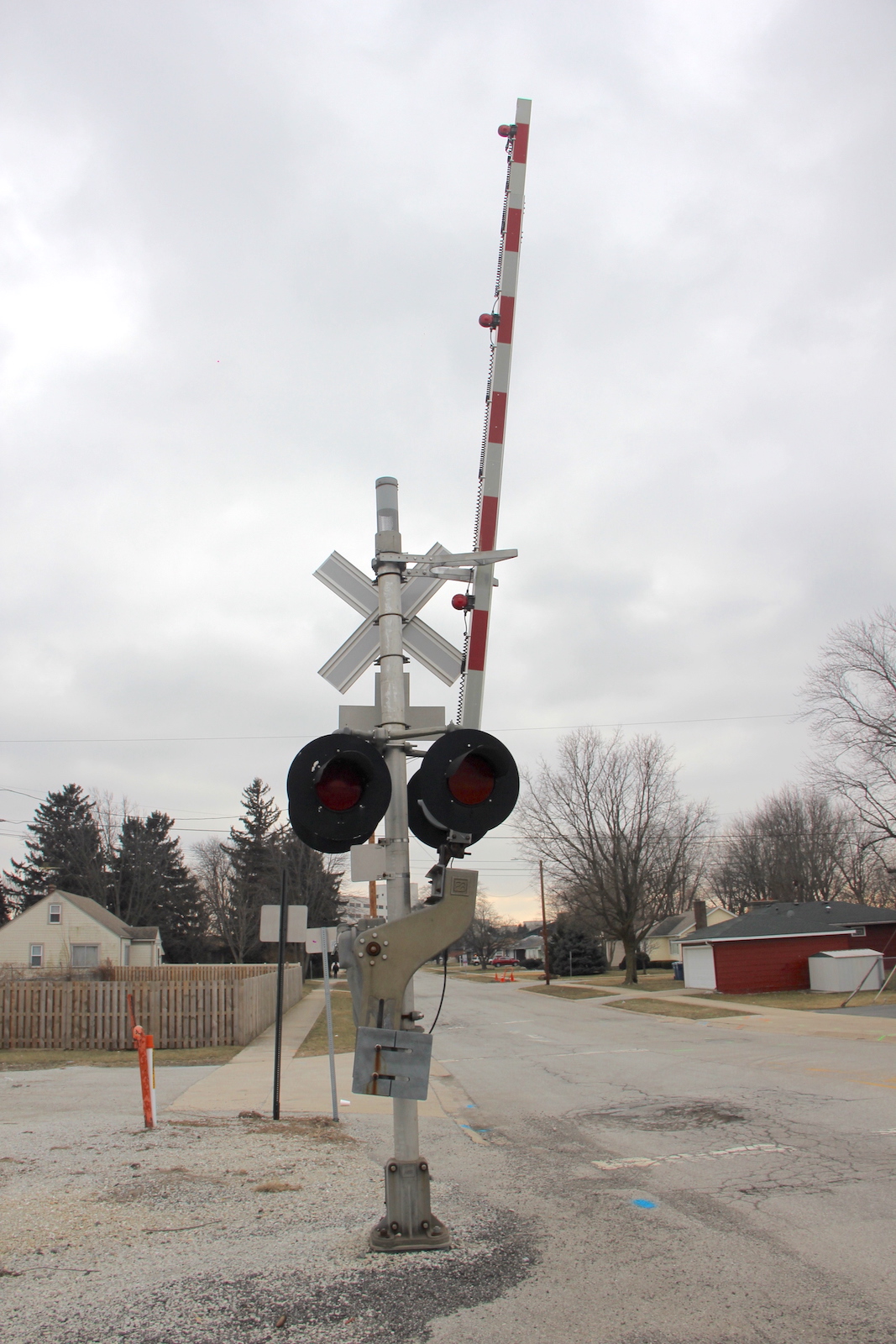

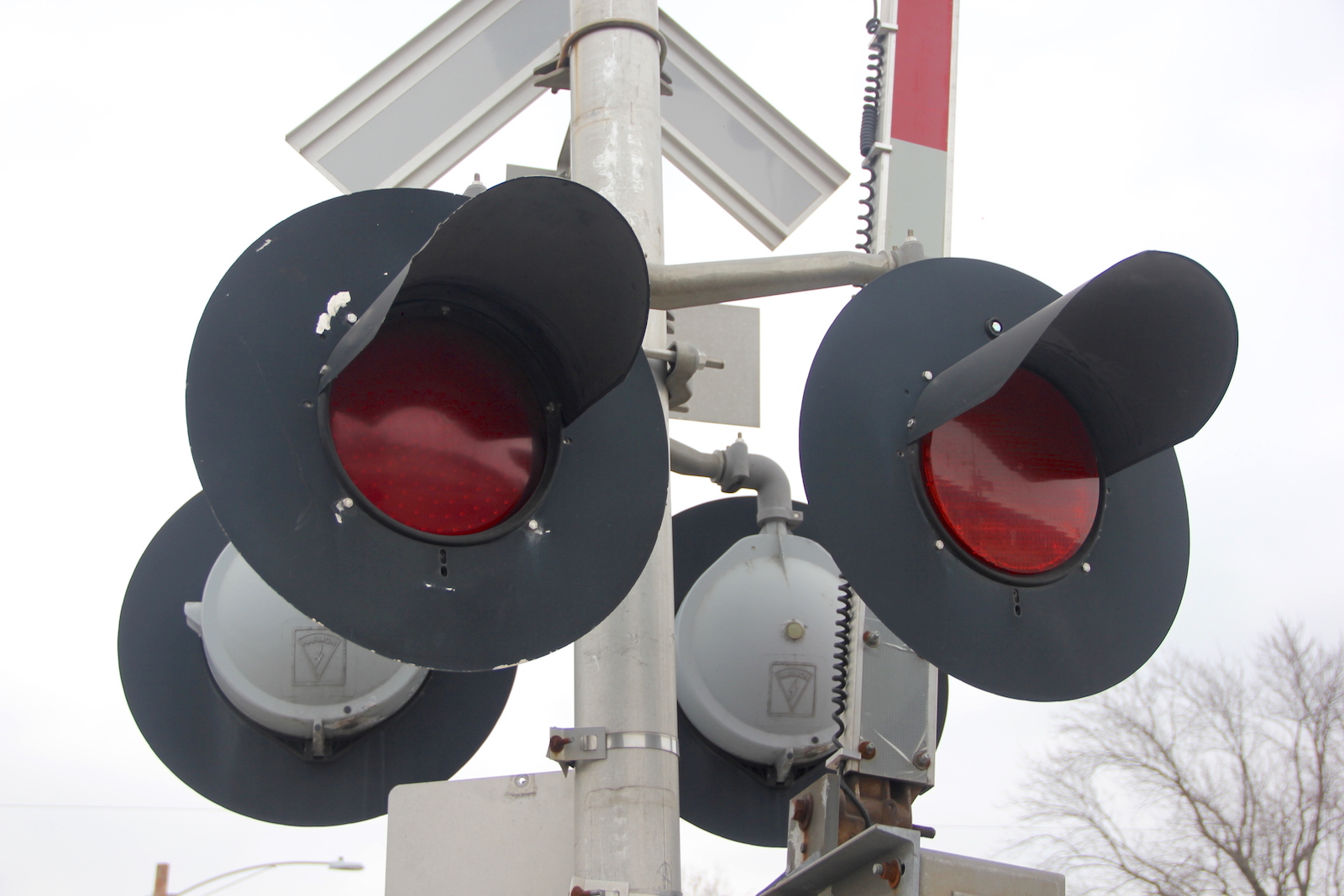

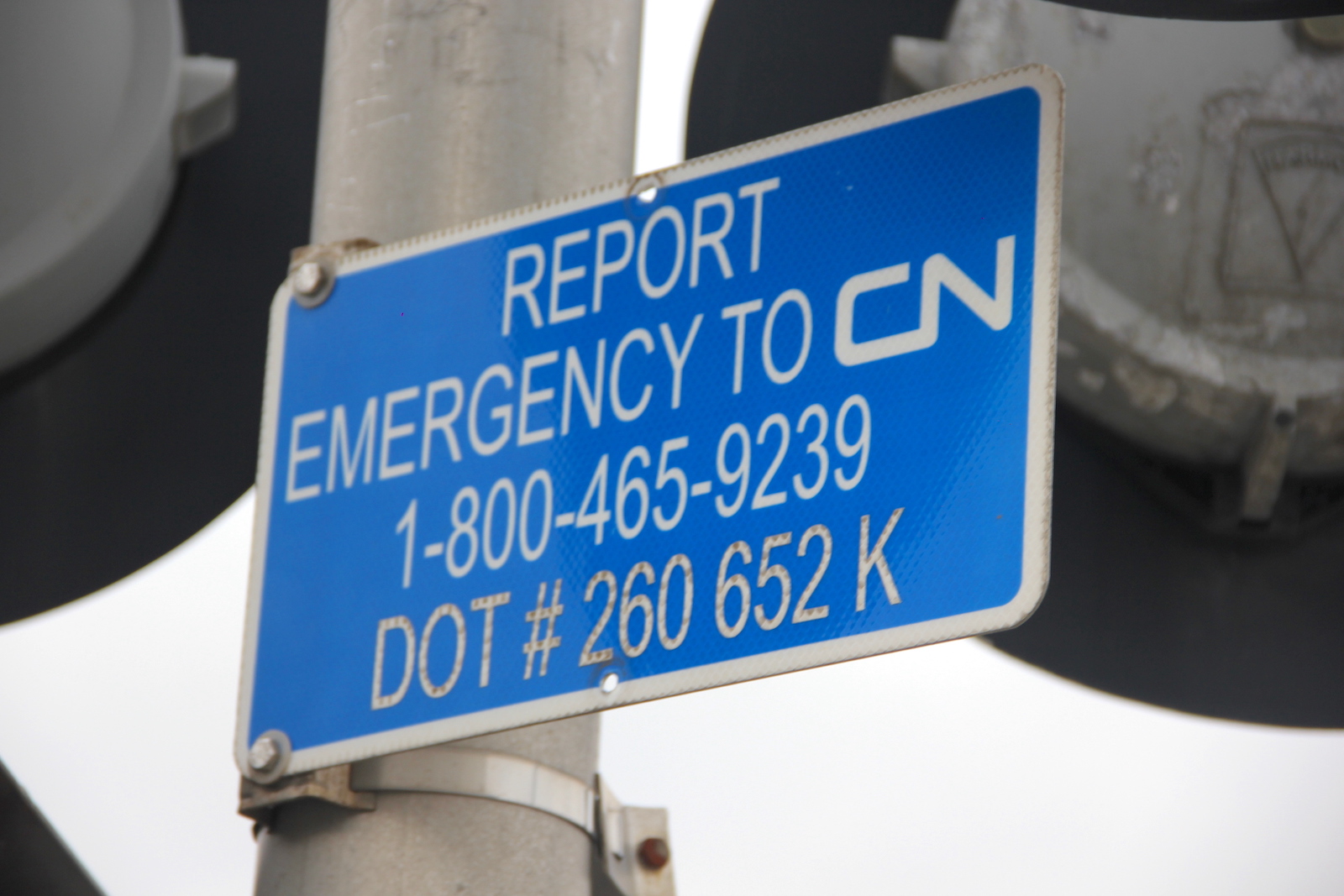

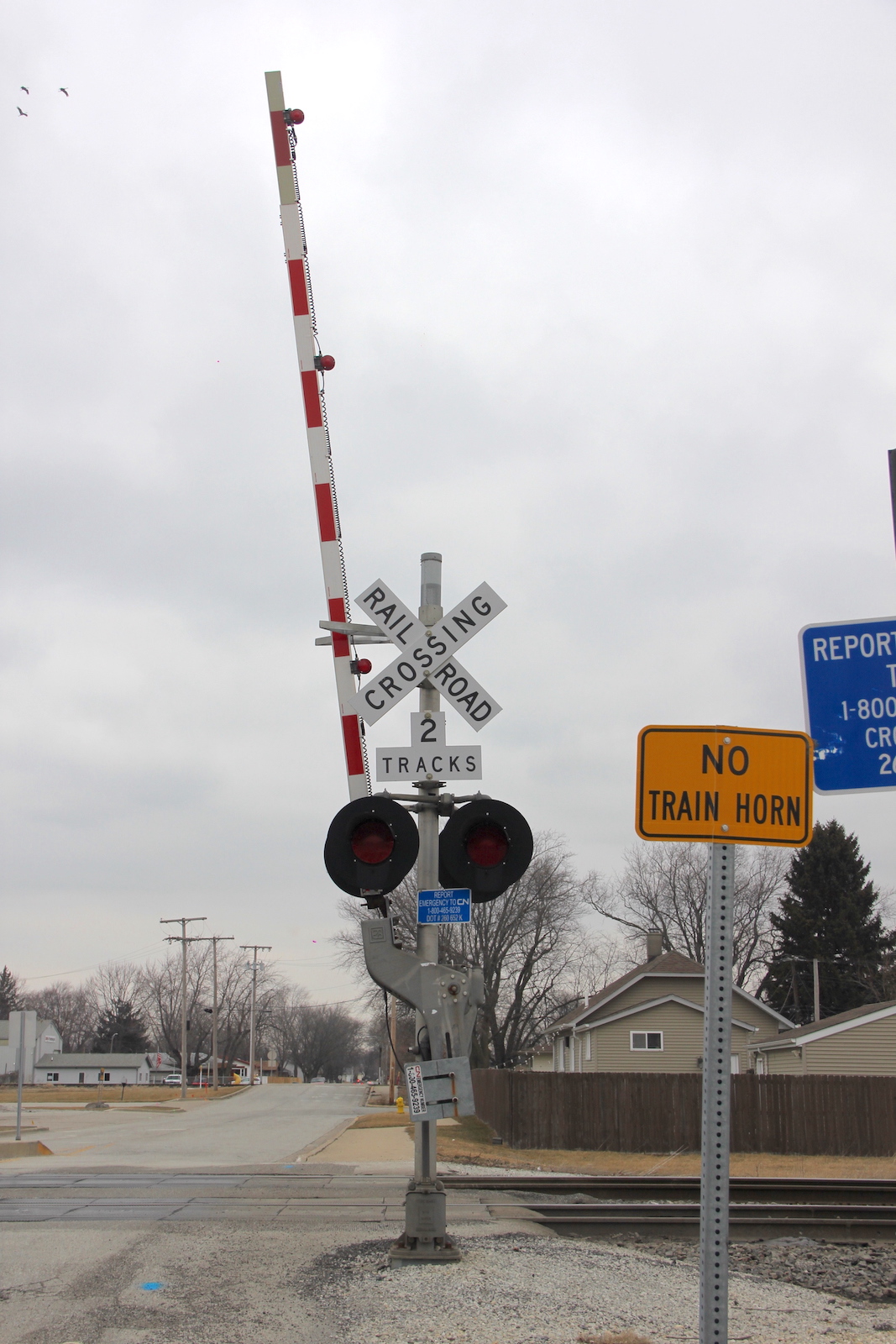

The southern signal.
24 25 26 27
The relay bungalow in the southeast quadrant.
 The grade is all rubber.

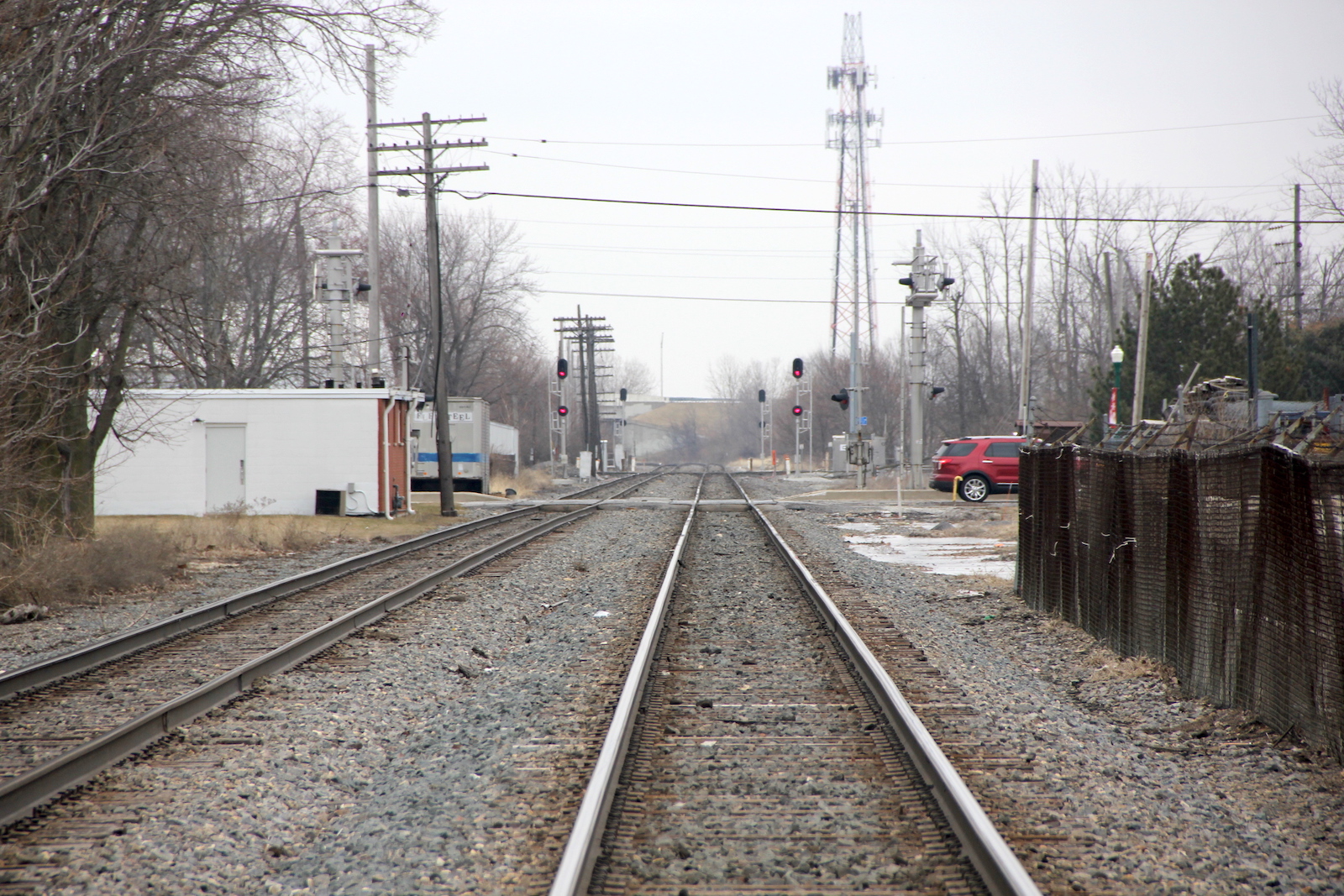

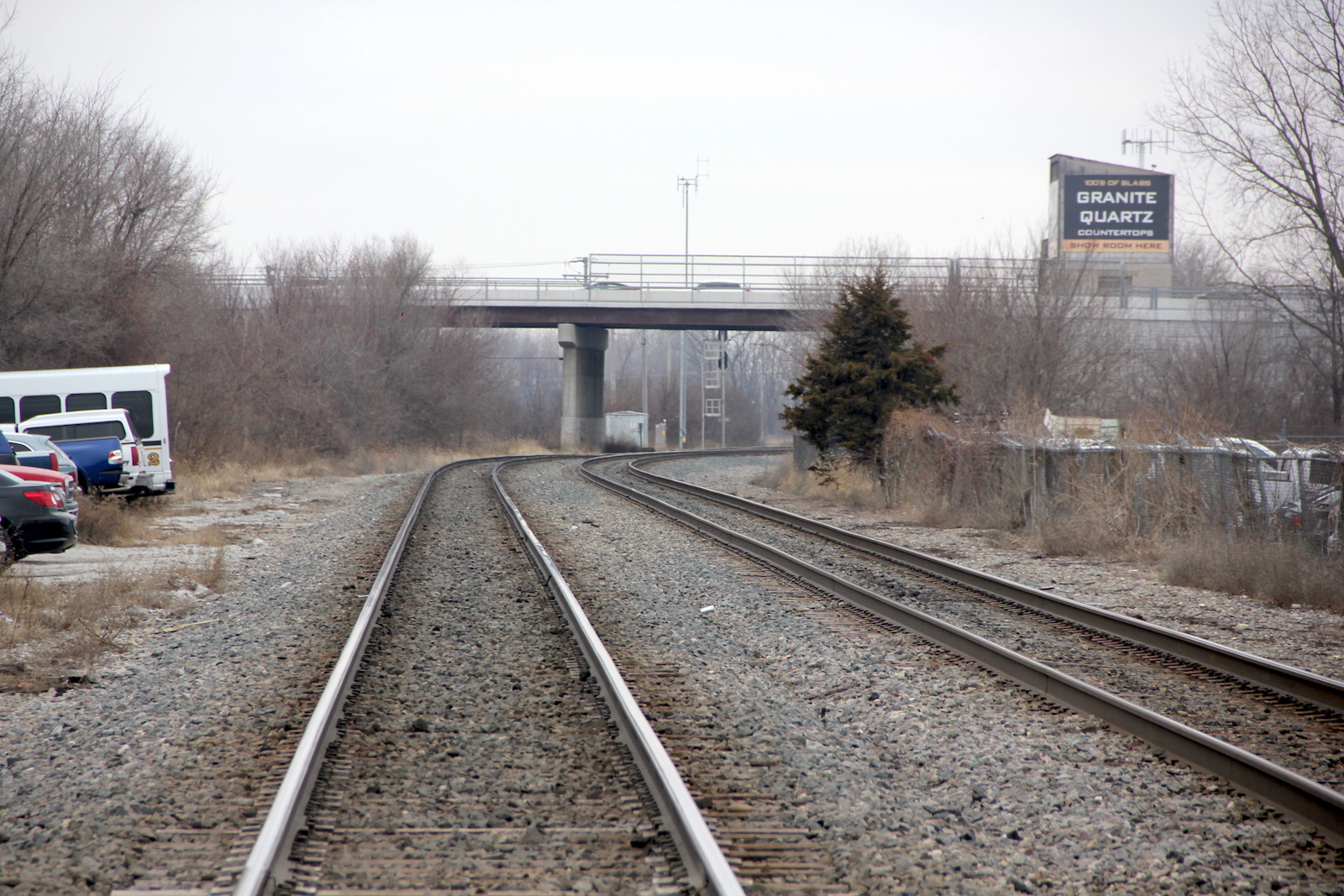

 Track view facing west towards Torrence Ave. in Sauk Village, IL.
 Track view facing east at Hart St.
28 29
30 31 32

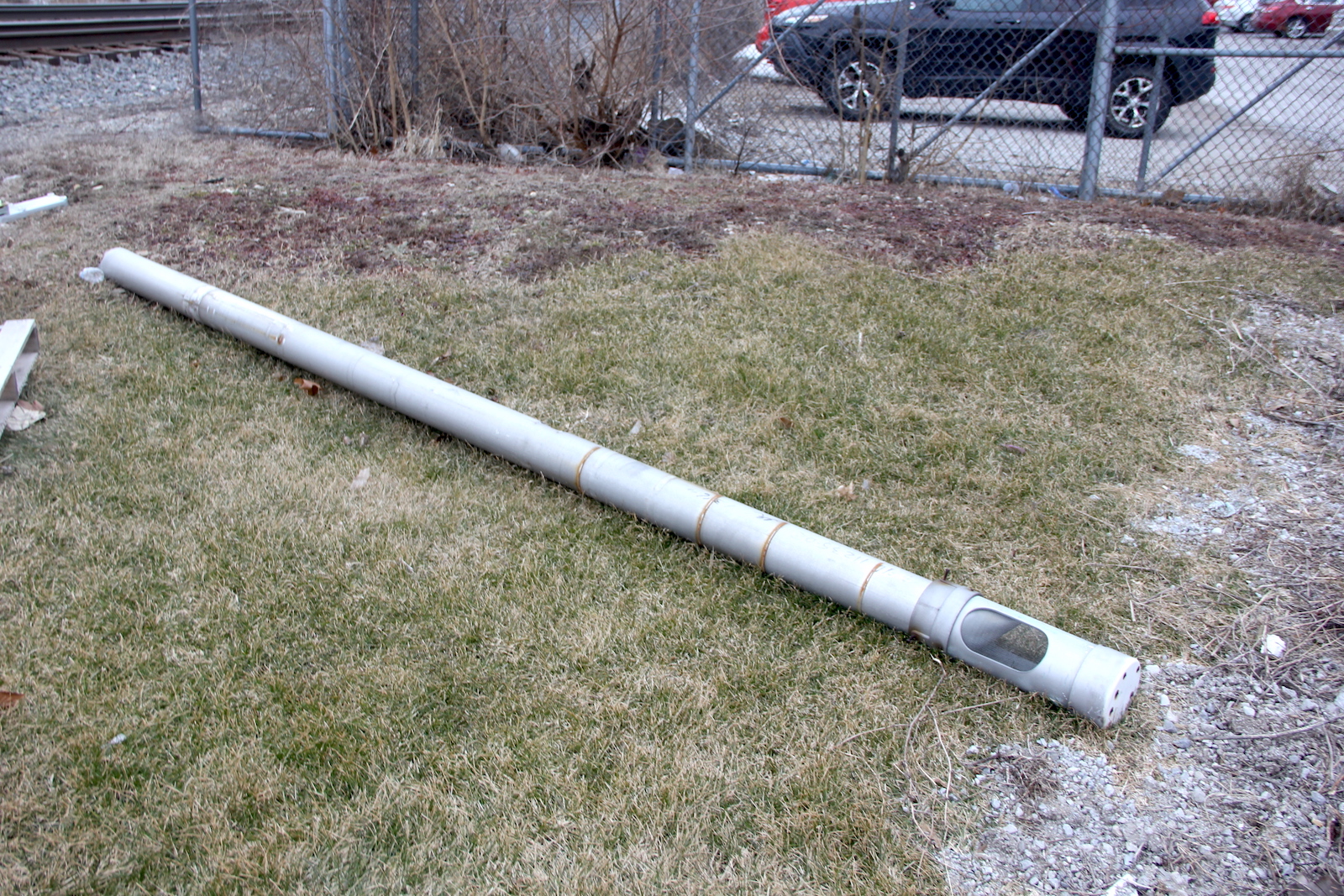

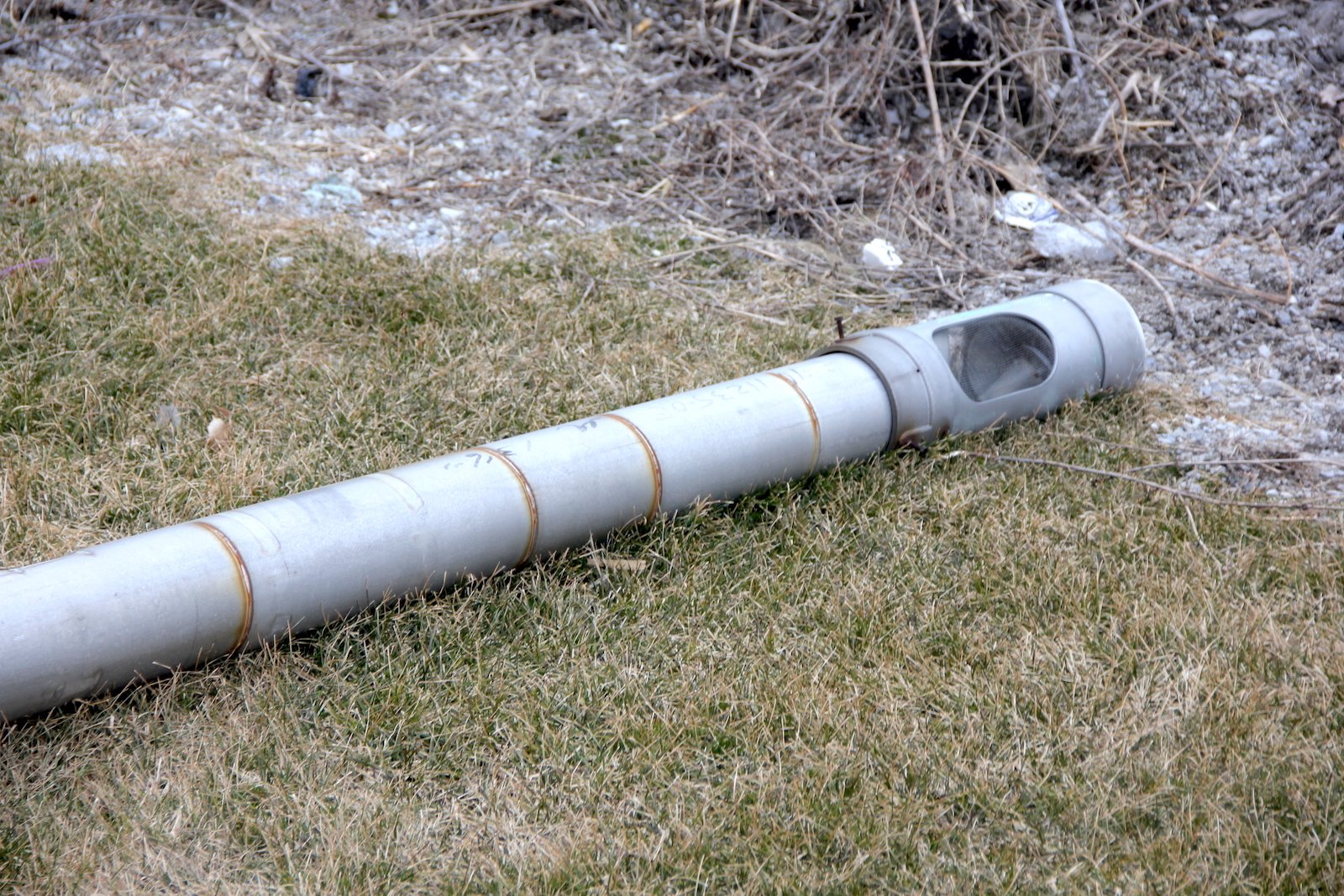

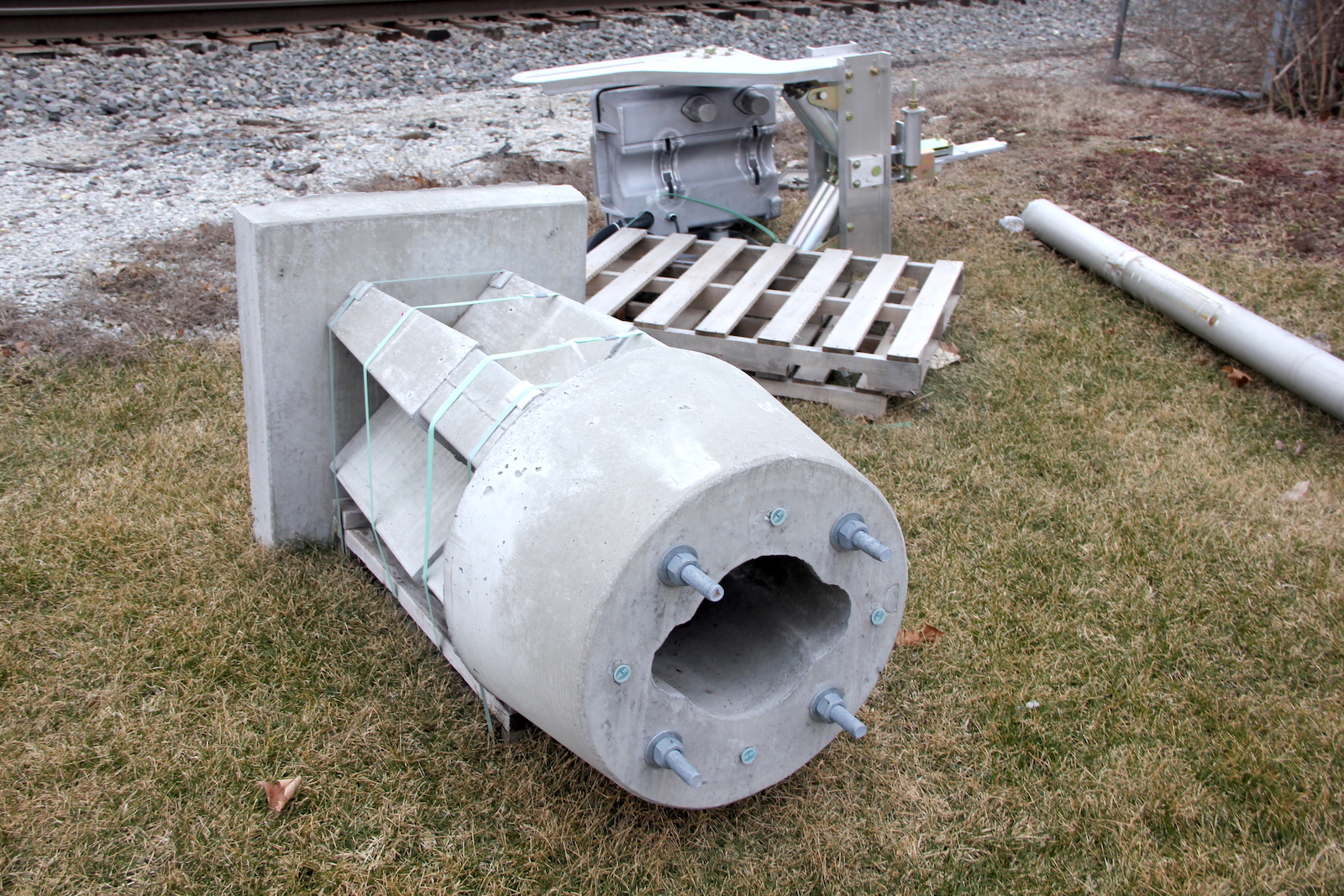

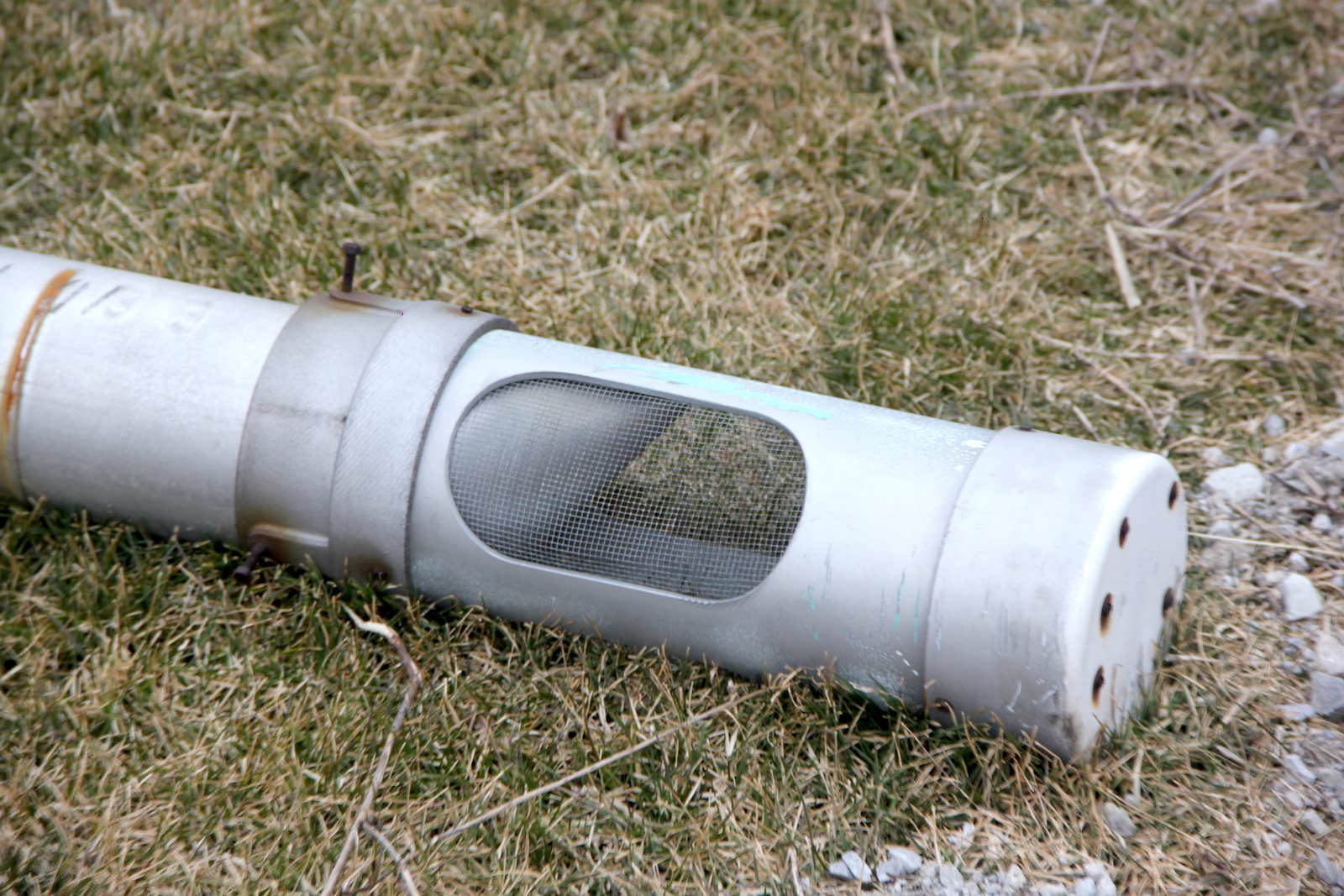

The mast from the previous northern signal is sitting off to the side.  It had a GS Type 2 E Bell.  There's also a concrete foundation and a Siemens gate mechanism. I thought maybe the other signal was being replaced too, but that never happened.
33 34 35 36

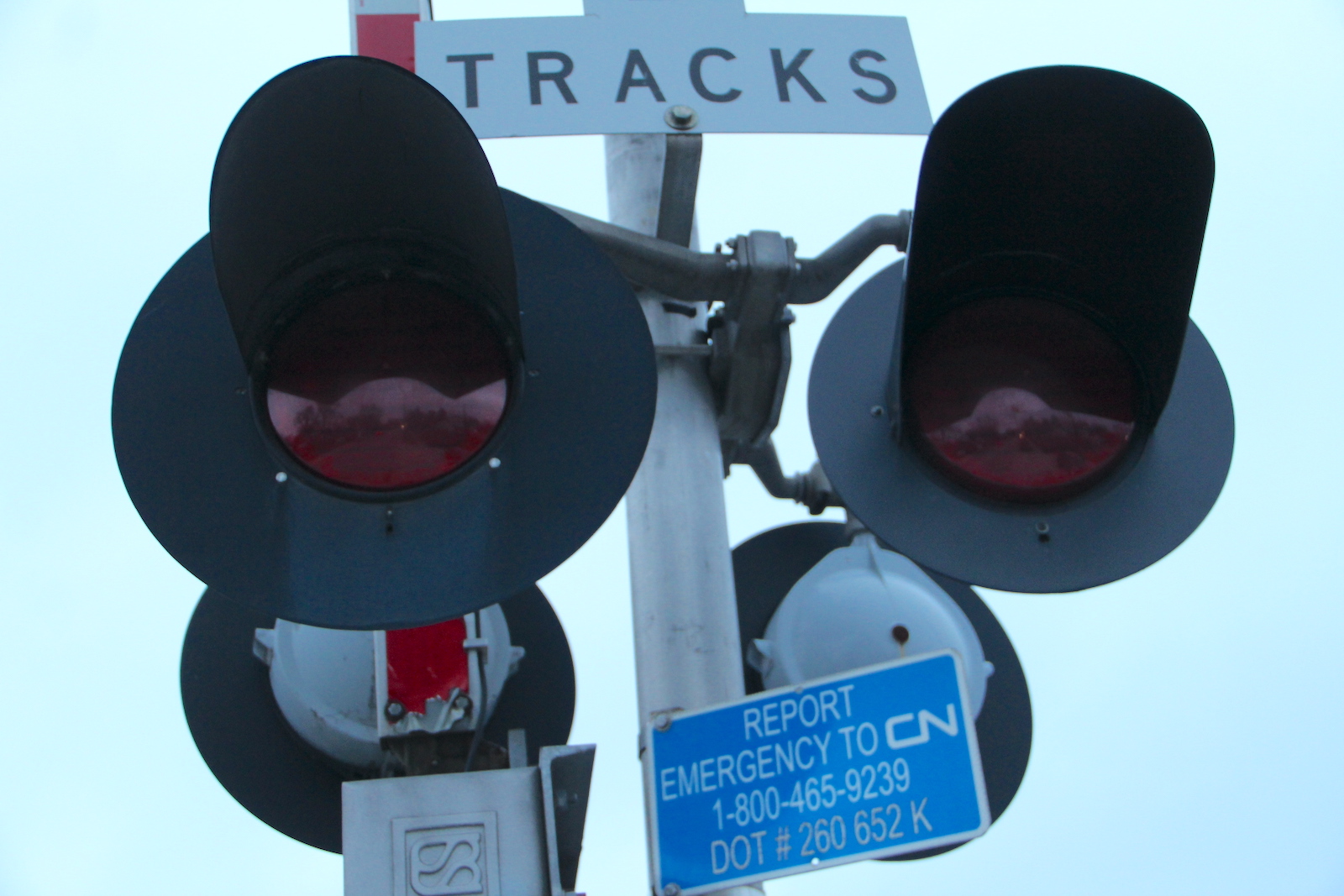

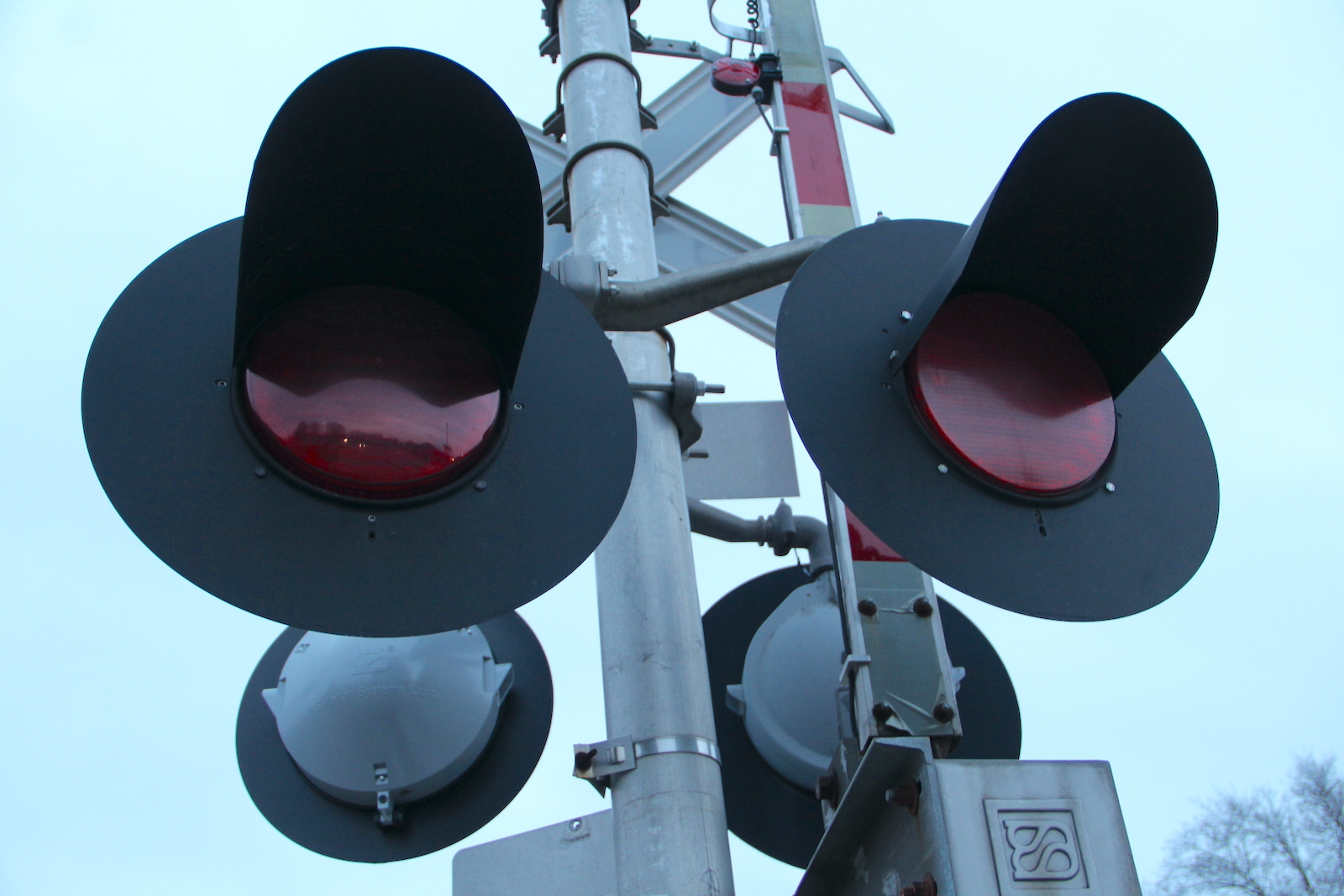

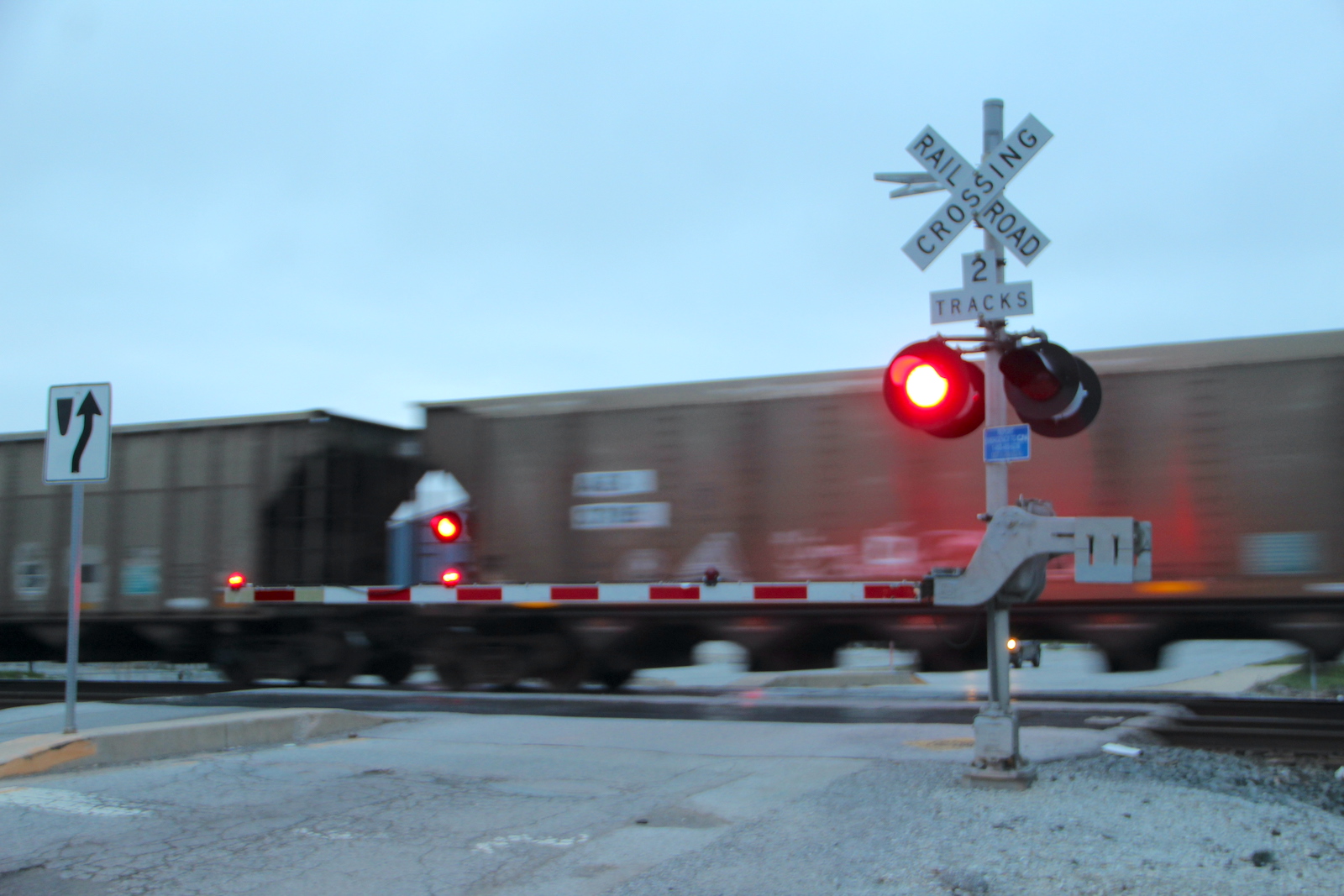

In March 2024, we see the remaining 1st Gen Harmon Dotted LEDs were replaced with GE Uniform Look LEDs, one in the existing frame and the other in a new 12"x20" Safetran frame. Also, the Safetran Type 3 was replaced with a new high tone Siemens E Bel.
