![]() MP: 479.22 |
| Created December 2024 |
| Total Accidents:

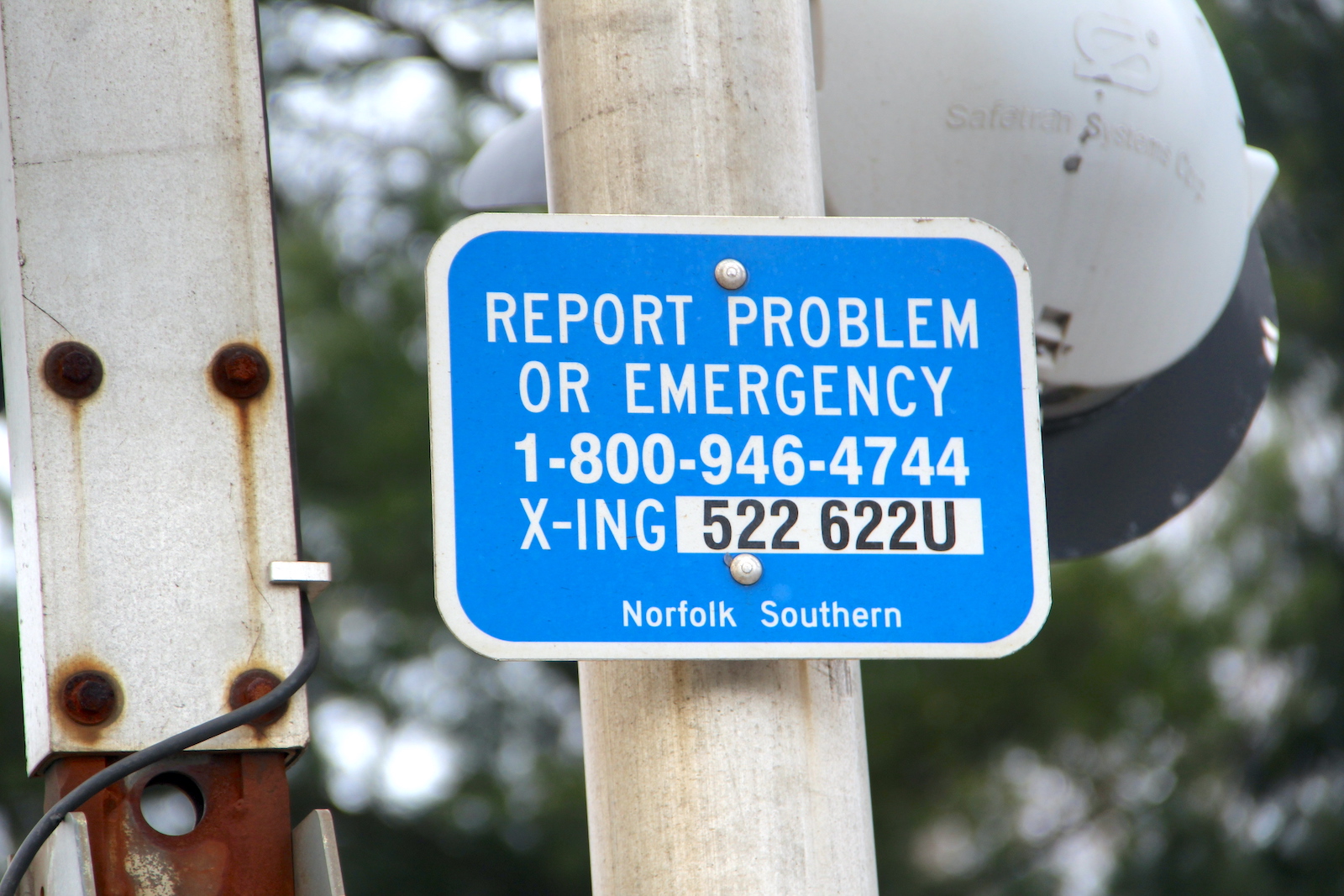

4 Crossing DOT #: 522622U TOTAL DAILY TRAINS: 60 (AS OF 2022) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | GS Type 2 E-Bell | None |

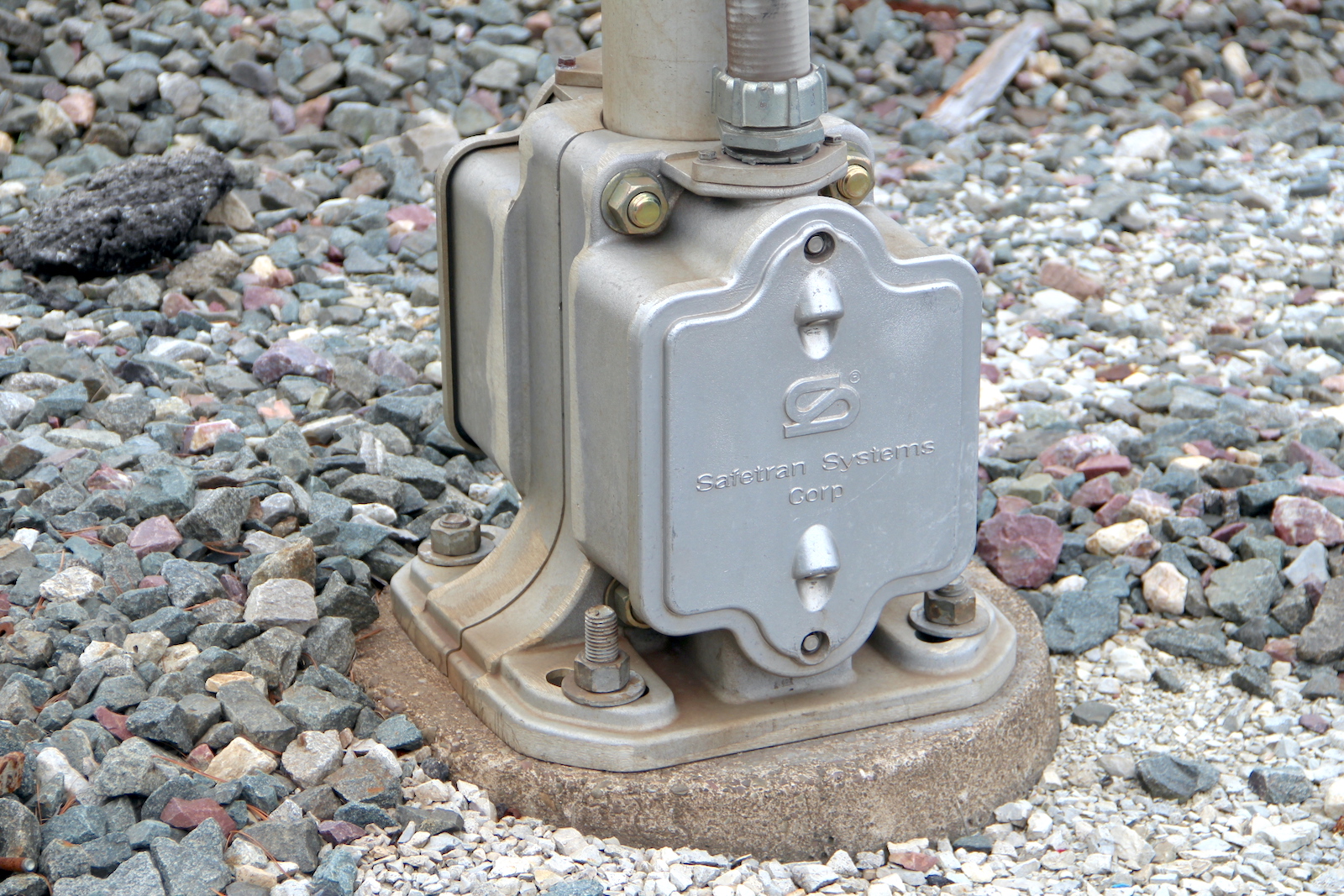

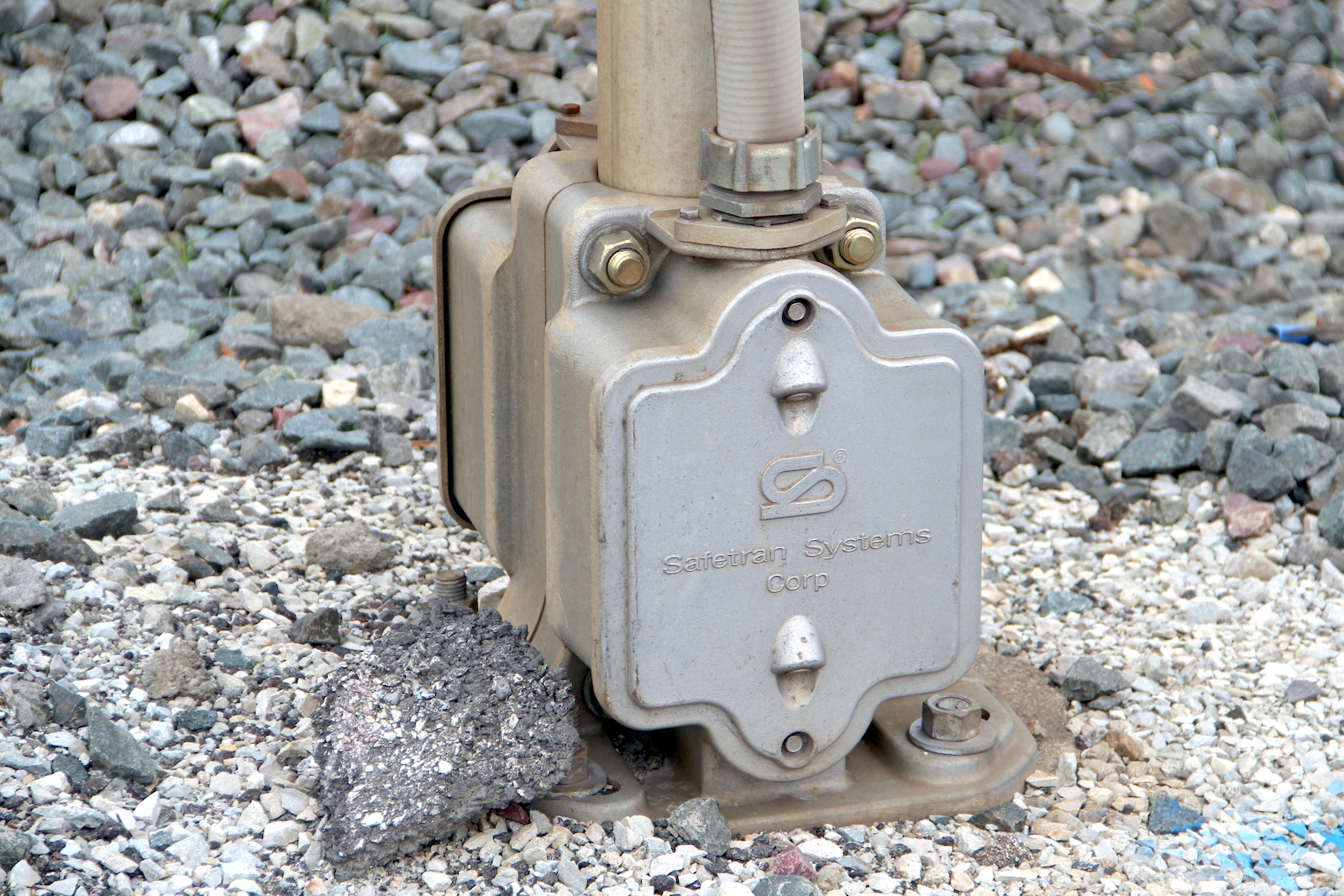

| Base: | Safetran 5" Double Sided ^ | Safetran 5" Double Sided ^ |
| Lights: | 4 - 12"x20" Safetran incandescents | 4 - 12"x20" Safetran incandescents |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 3 - 4" RECO incandescents | 3 - 4" RECO incandescents |
| Gate Mechanism: | Safetran 2000s w/ NEG 1 Way Saver | Safetran 2000s w/ NEG 1 Way Saver |
| Gate Striping: | Diagonal & Vertical Striping | Diagonal Striping | Str
| IN1 |
IN2 |
IN3 |
IN4 |

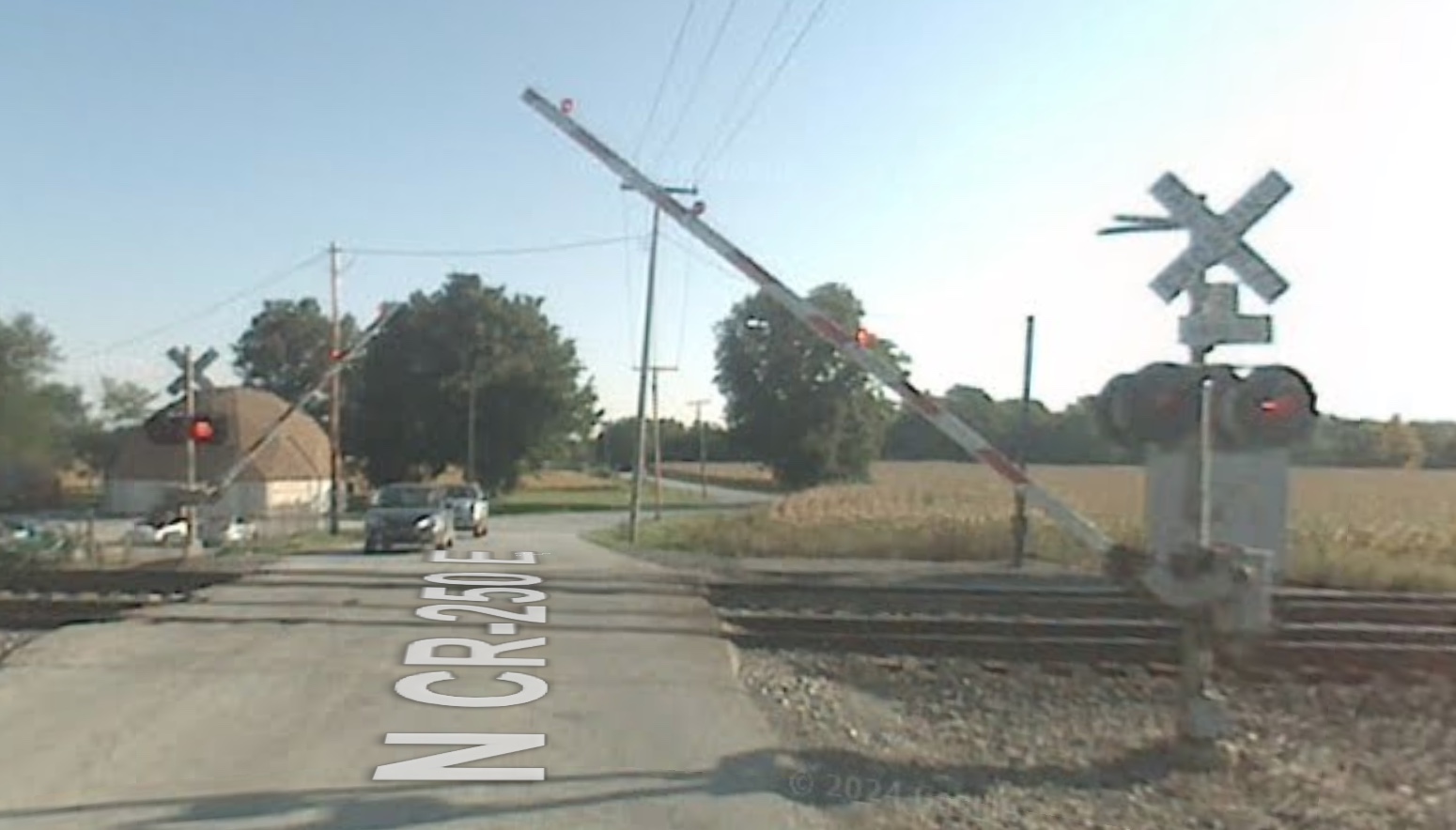

| INDOT pictures from the early 2000s showing two NYC signals with GRS or WRRS mechanisms, 8" lights, and no bells. |
G1![]() |
G2![]() |

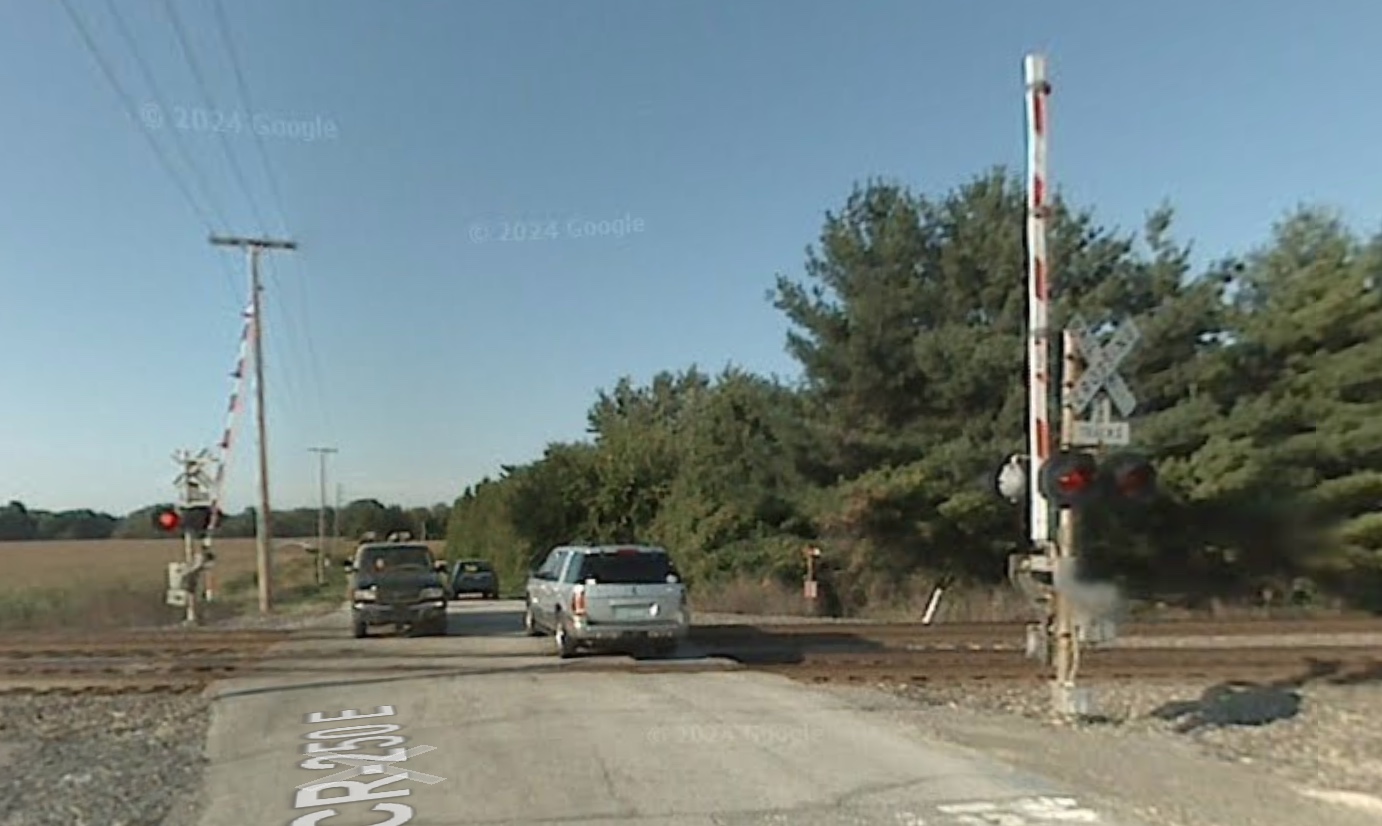

| By 2007, the 8" lights were replaced with 12"x24" incandescents. |
G3![]() |
G4![]() |

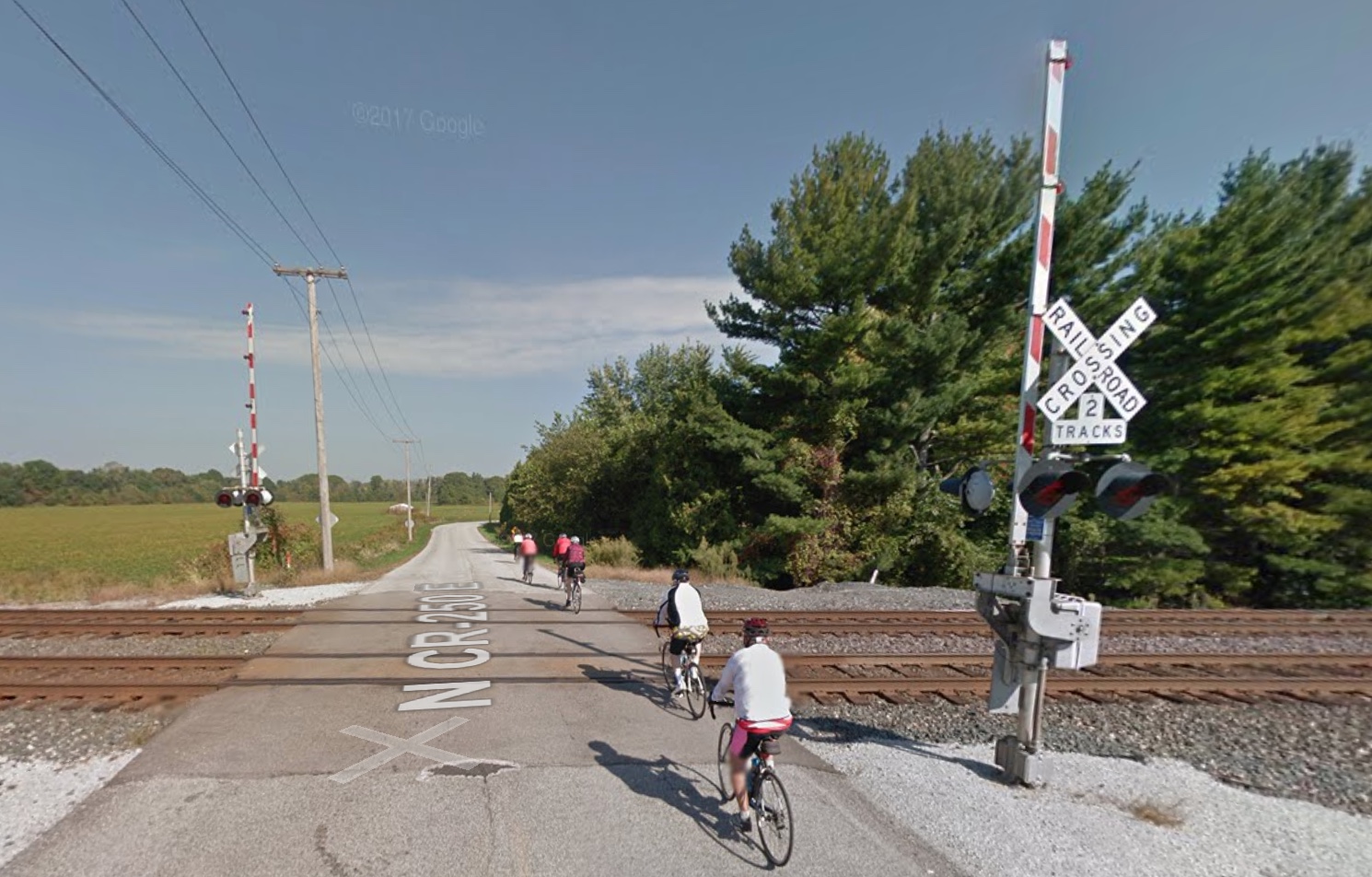

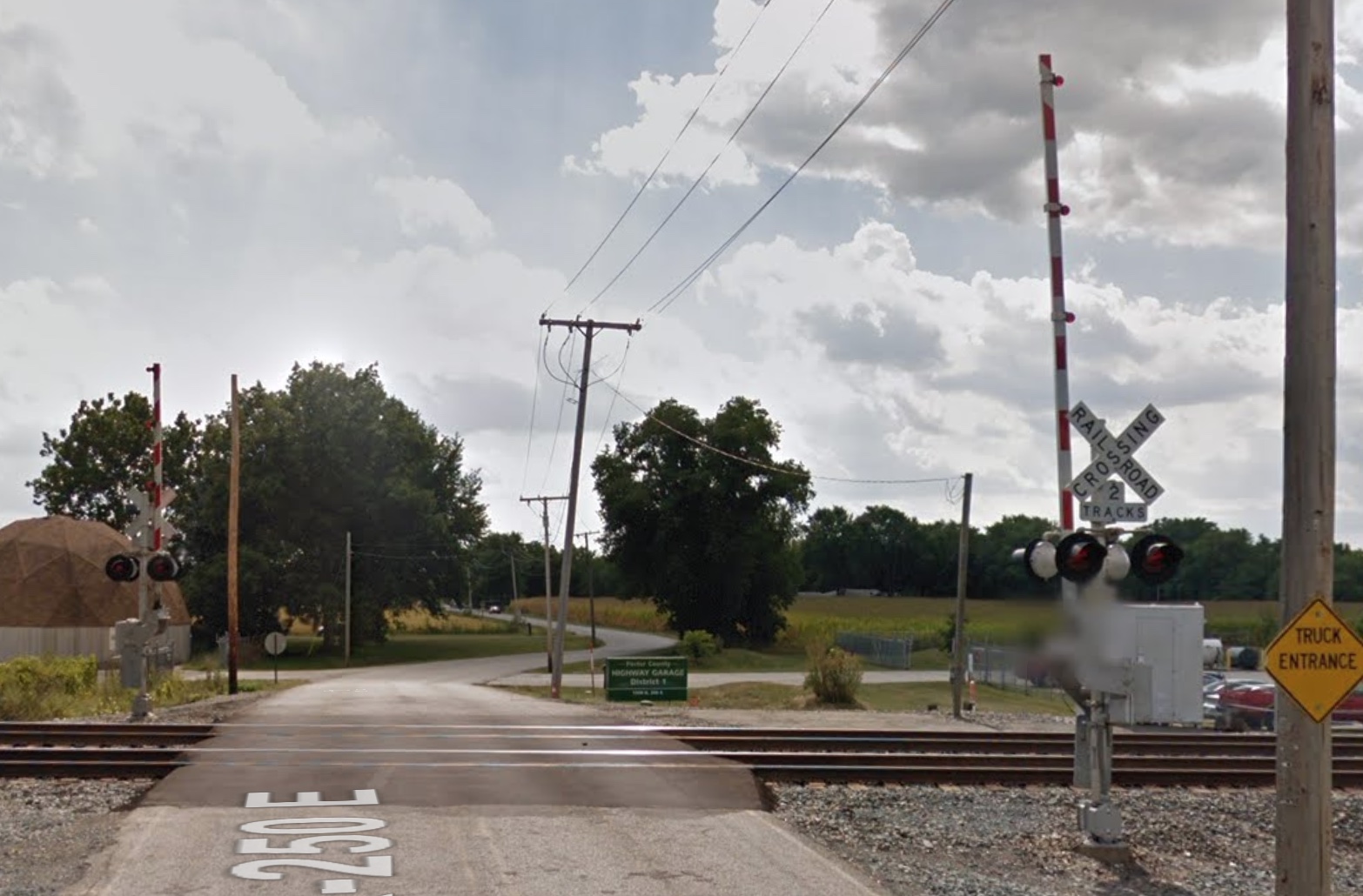

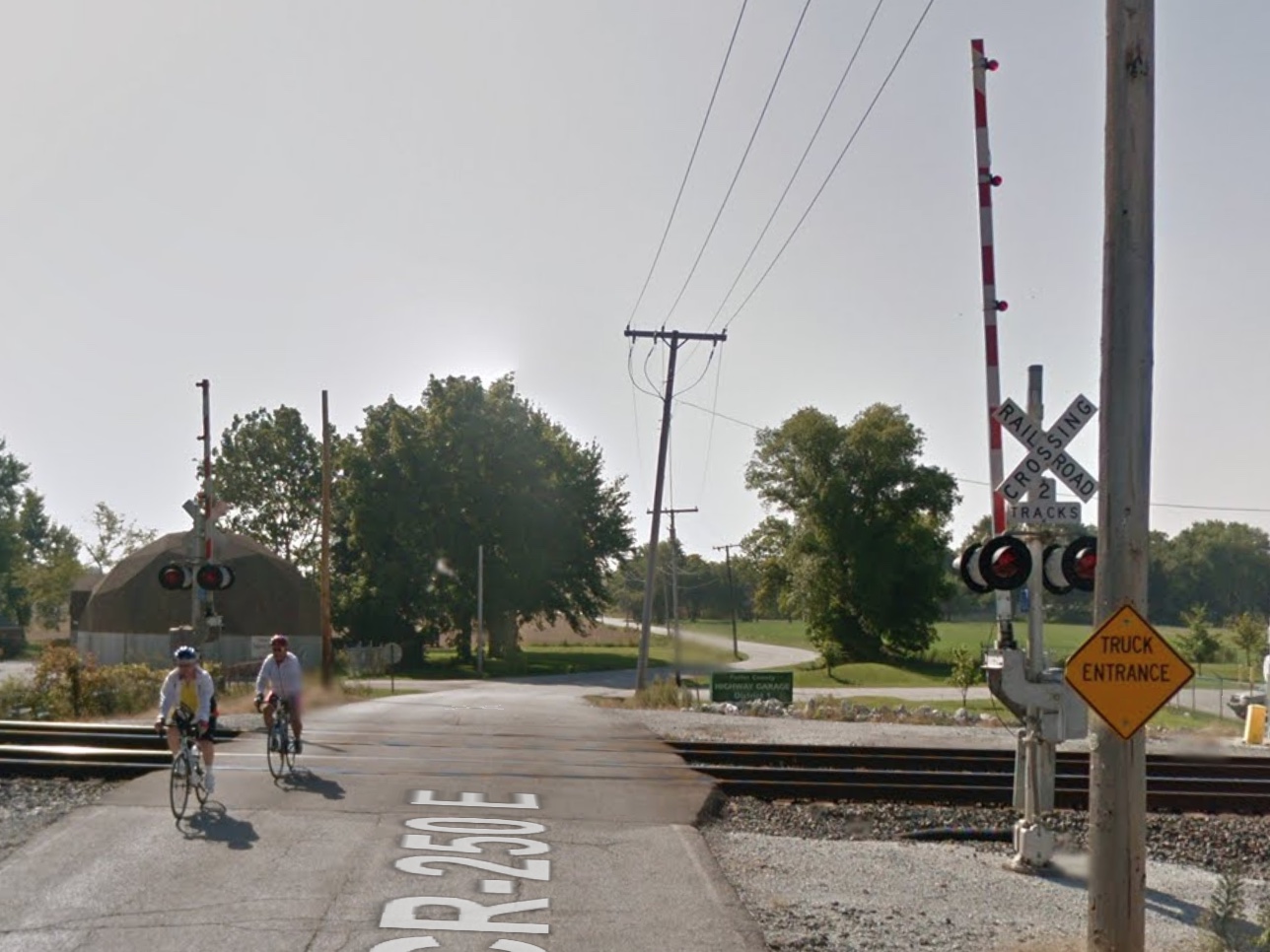

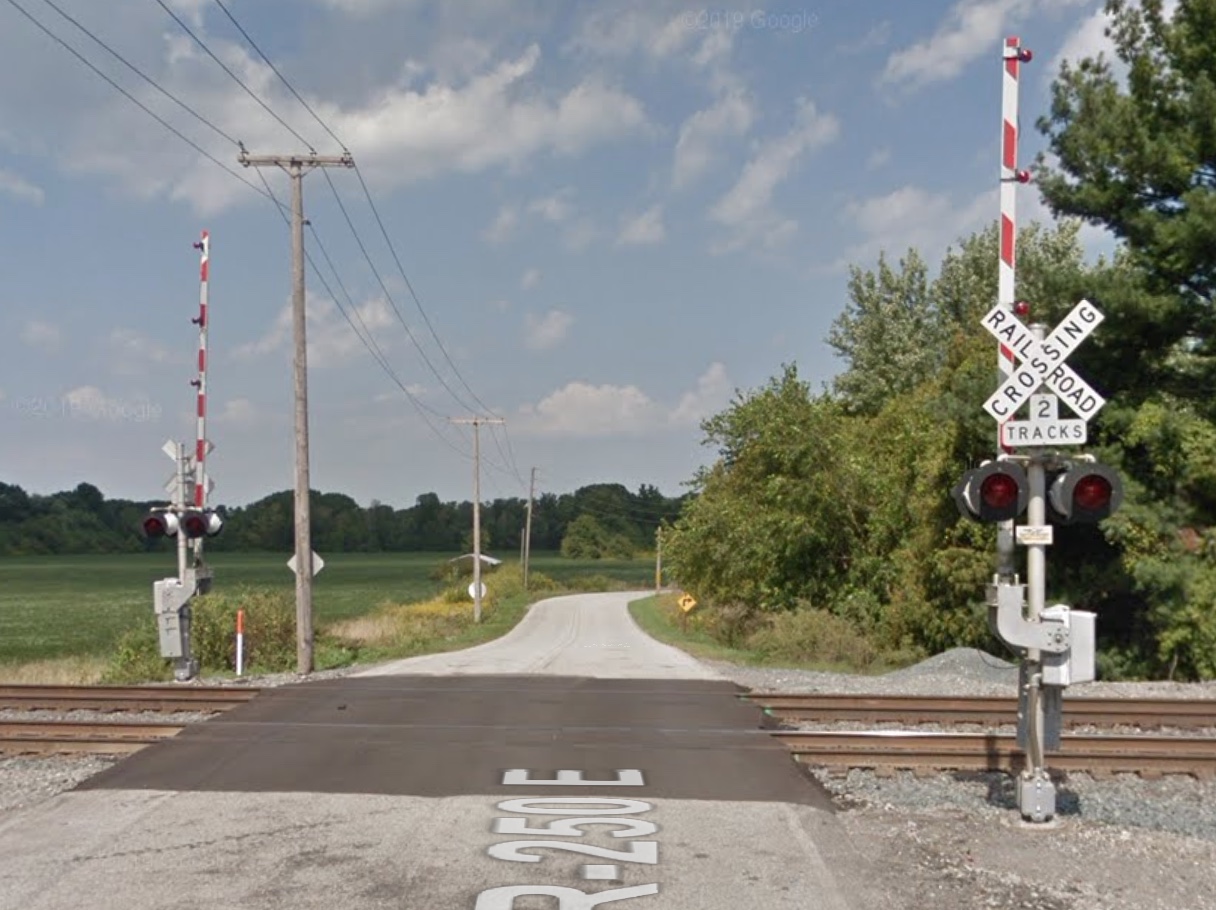

| By 2013, newer Safetran signals were installed, still having no bells. |
G5![]() |
G6![]() |
| By 2015, a new relay bungalow was installed, and a Safetran Type 3 was added and the white DOT tags were replaced with blue ones. Between 2019 and 2023, the Safetran Type 3 was replaced with a GS Type 2. |
| 1 |
2 |

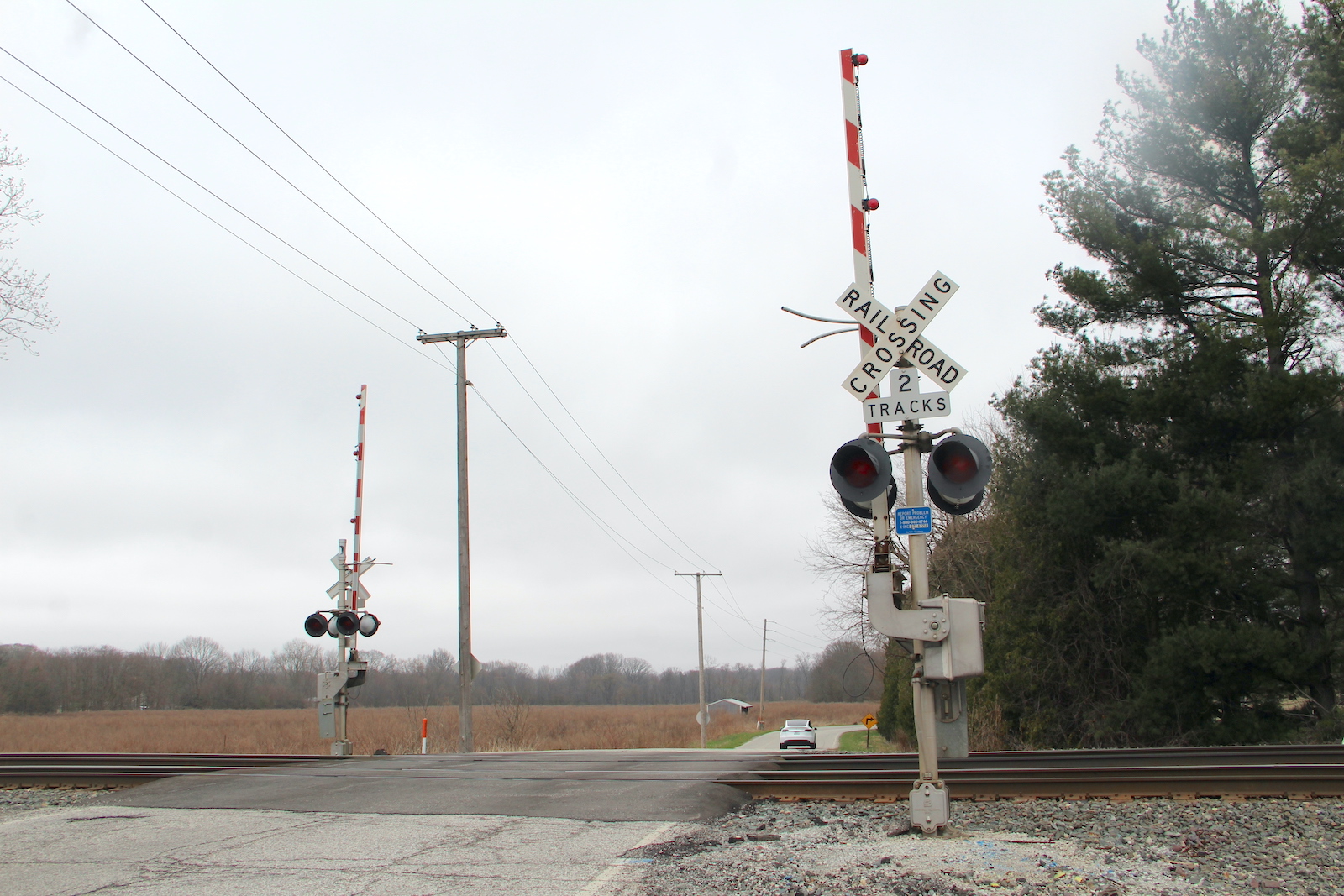

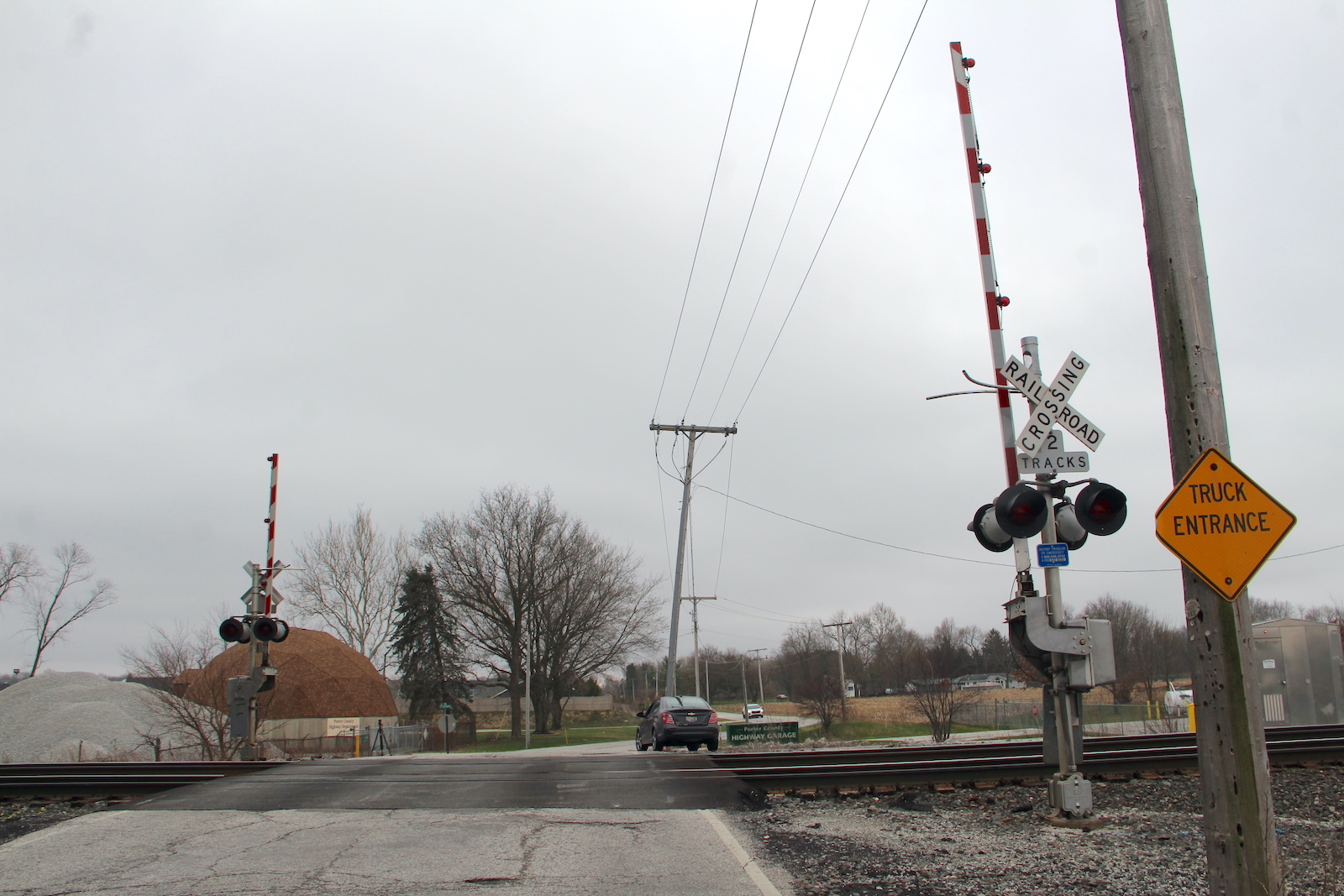

| Overview of the present setup facing south. | Overview facing north. |
| 3 |
4 |
5 |
6 |
| 7 |
8 |
9 |
10 |
| 11 |
12 |
13 |
14 |

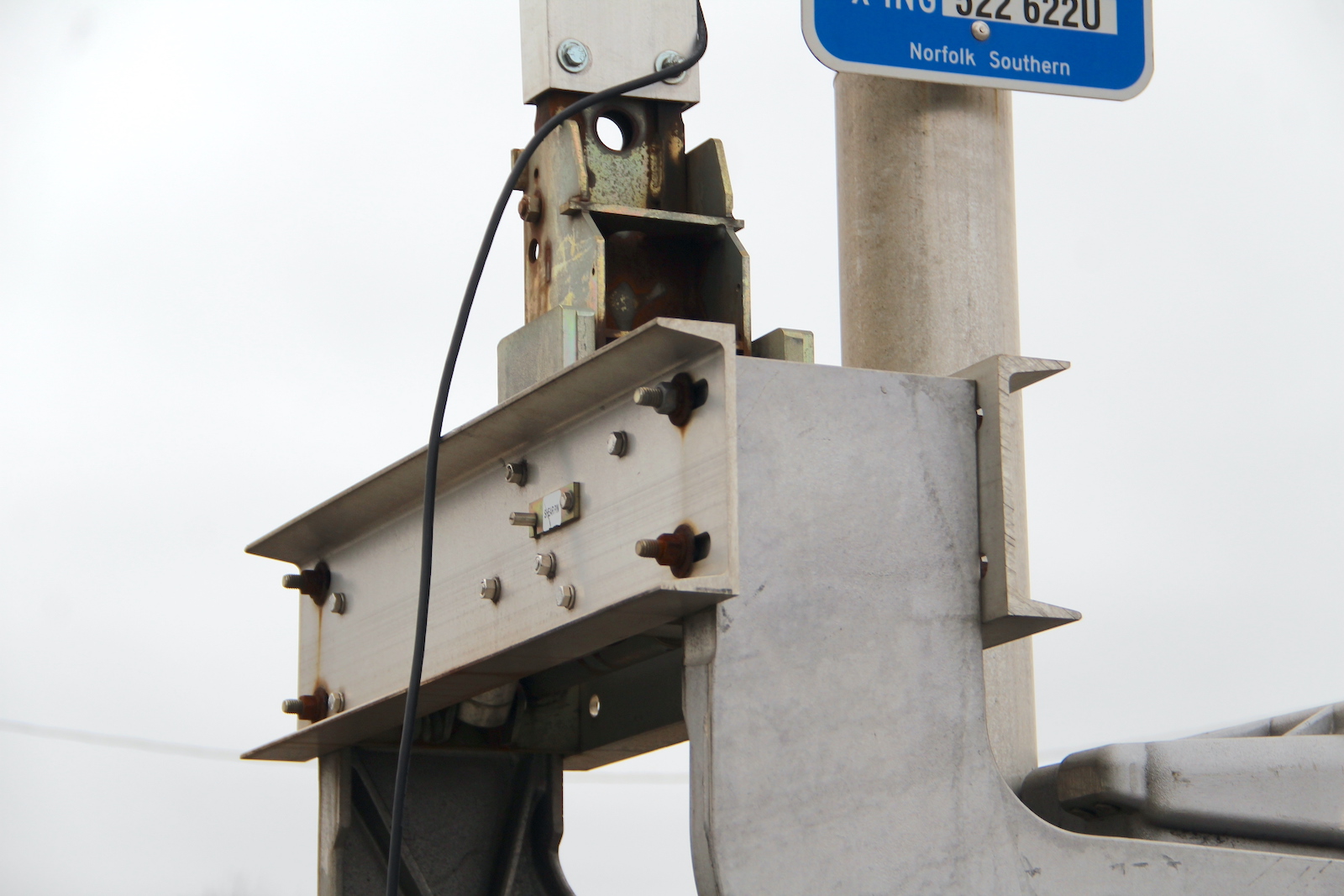

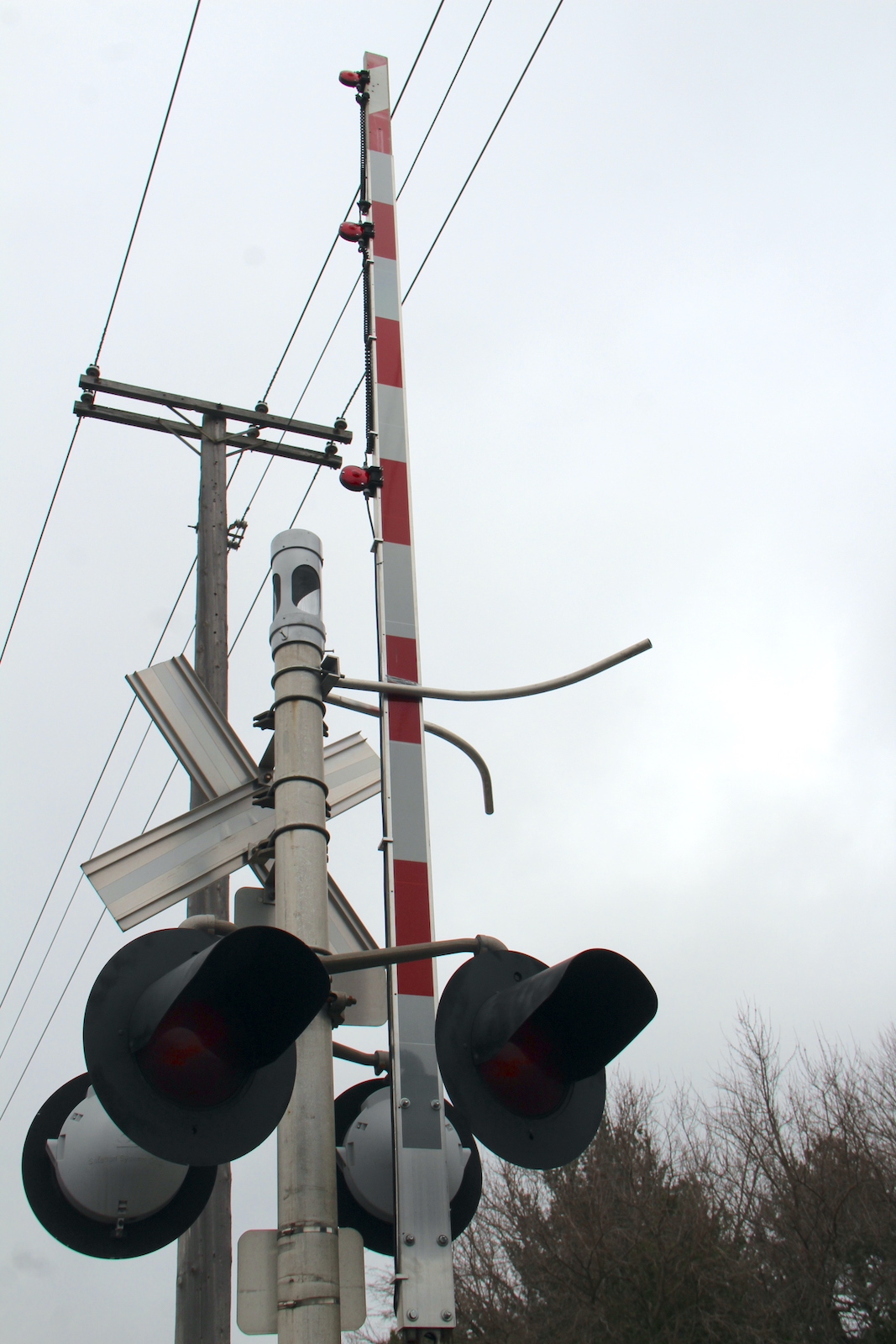

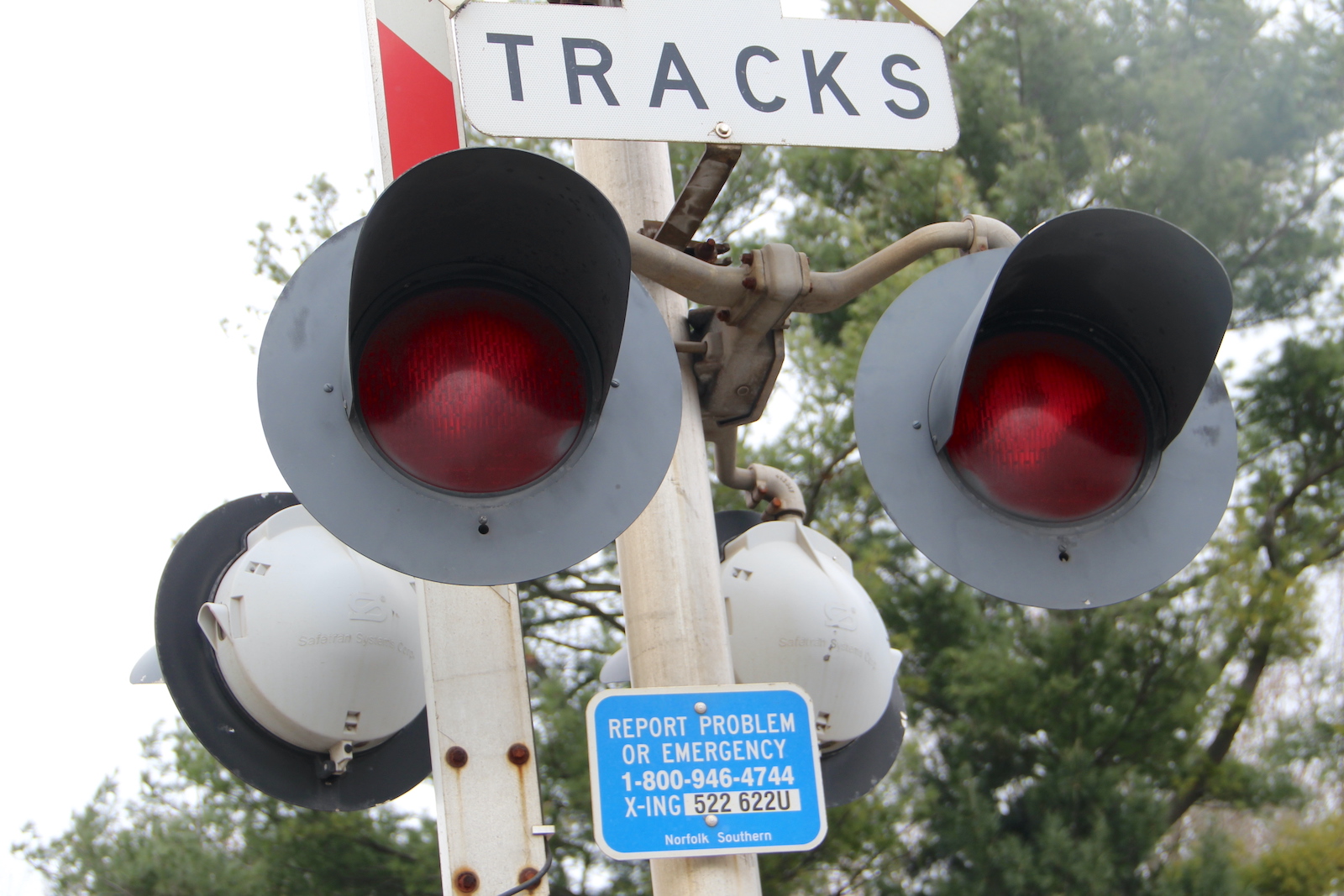

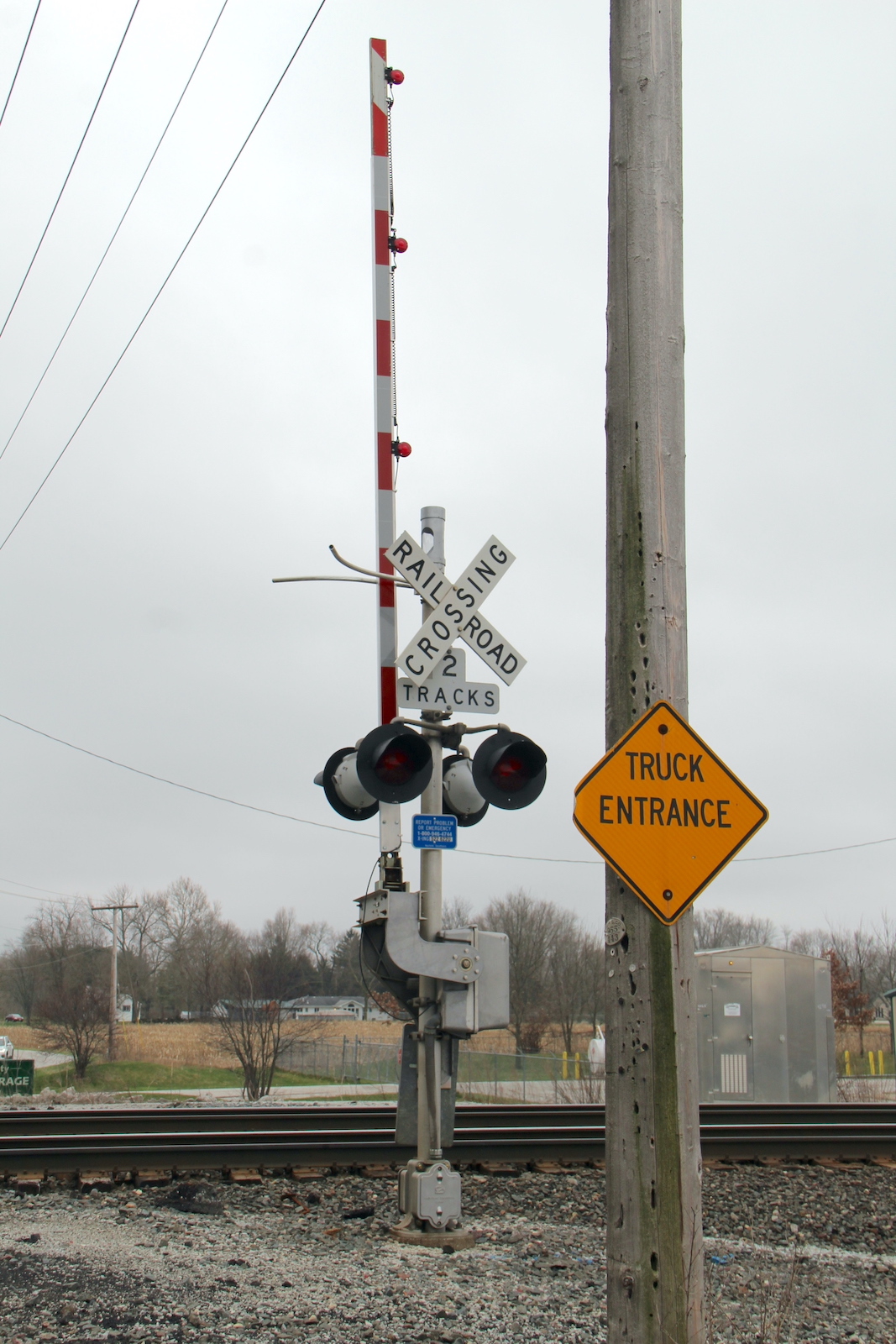

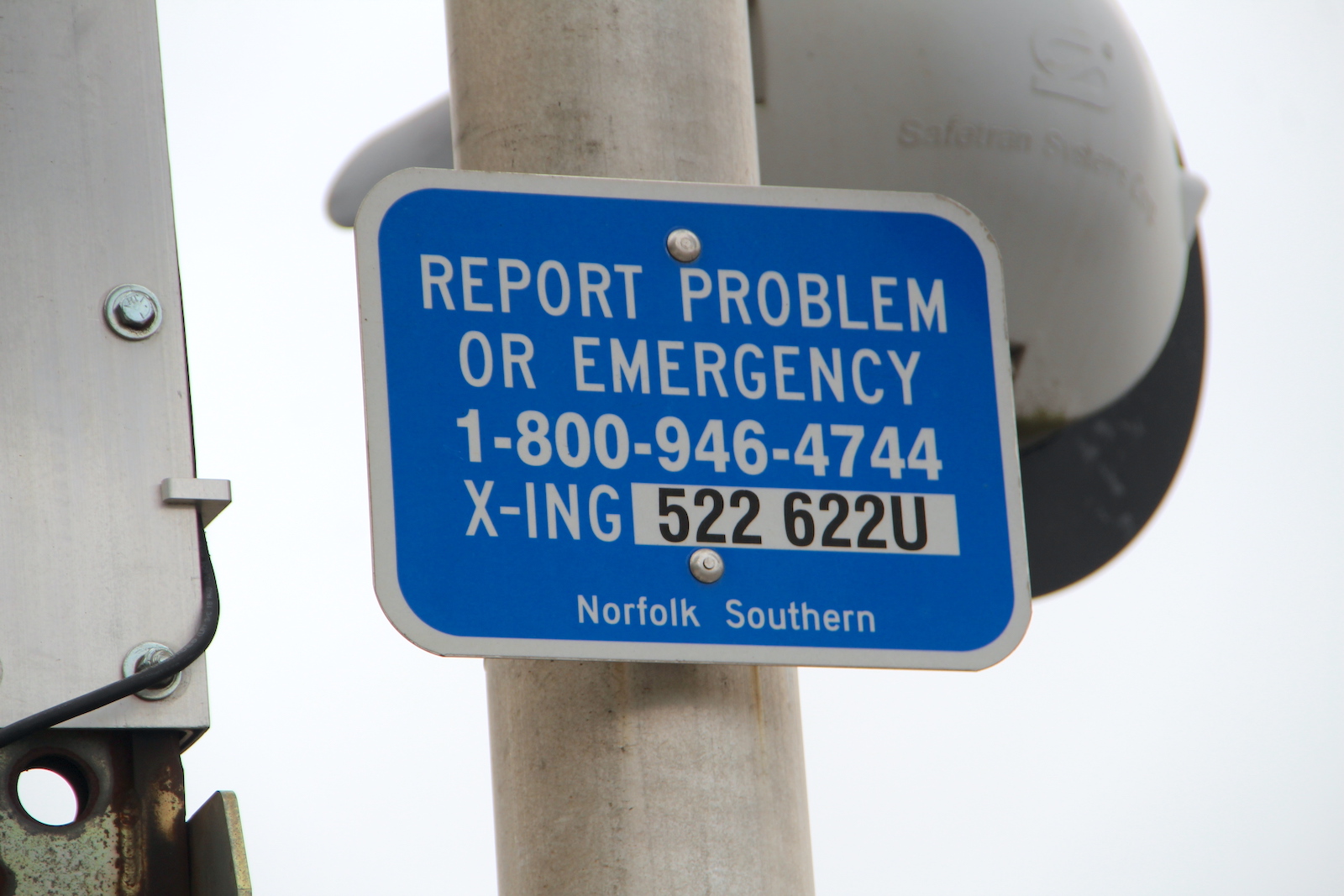

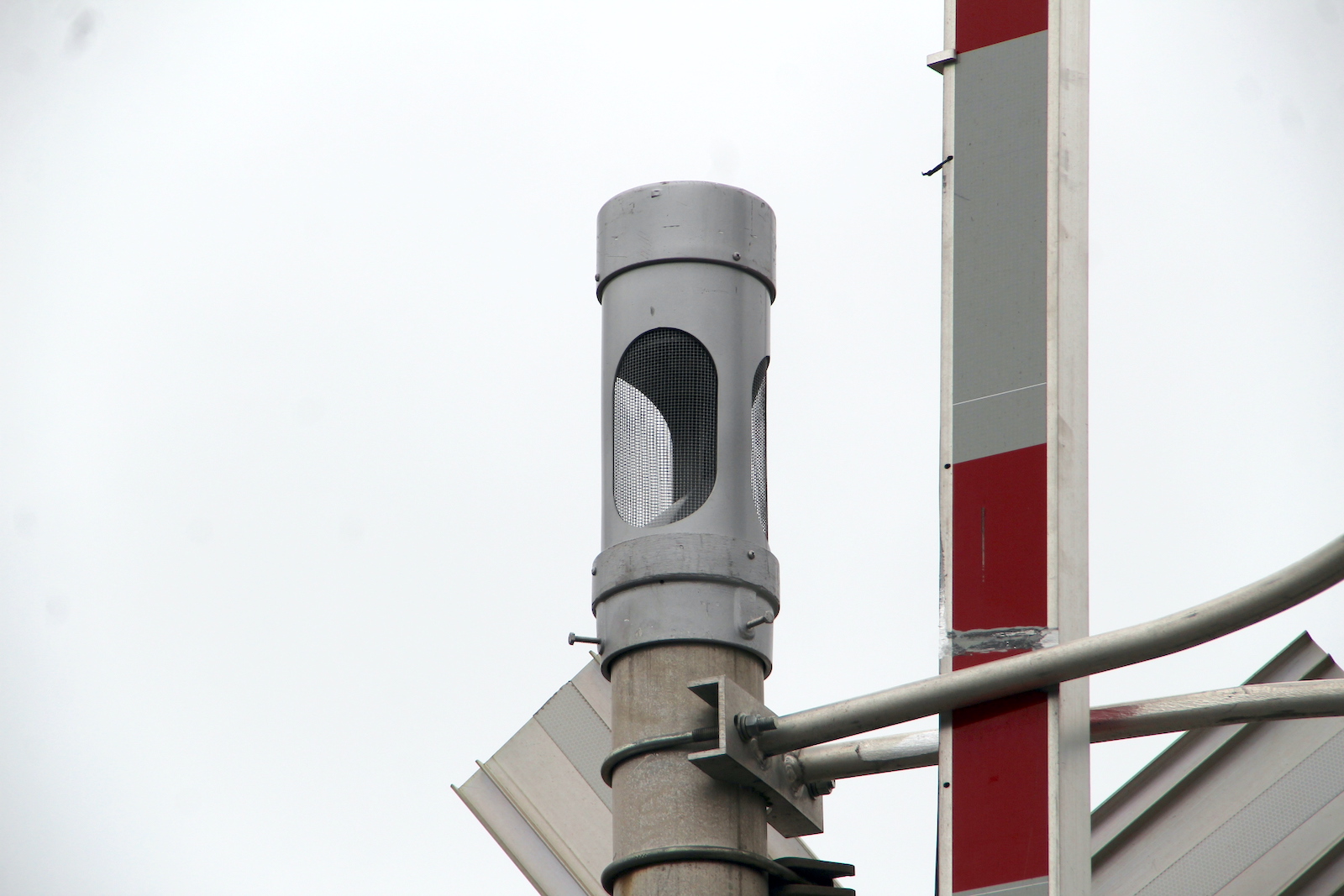

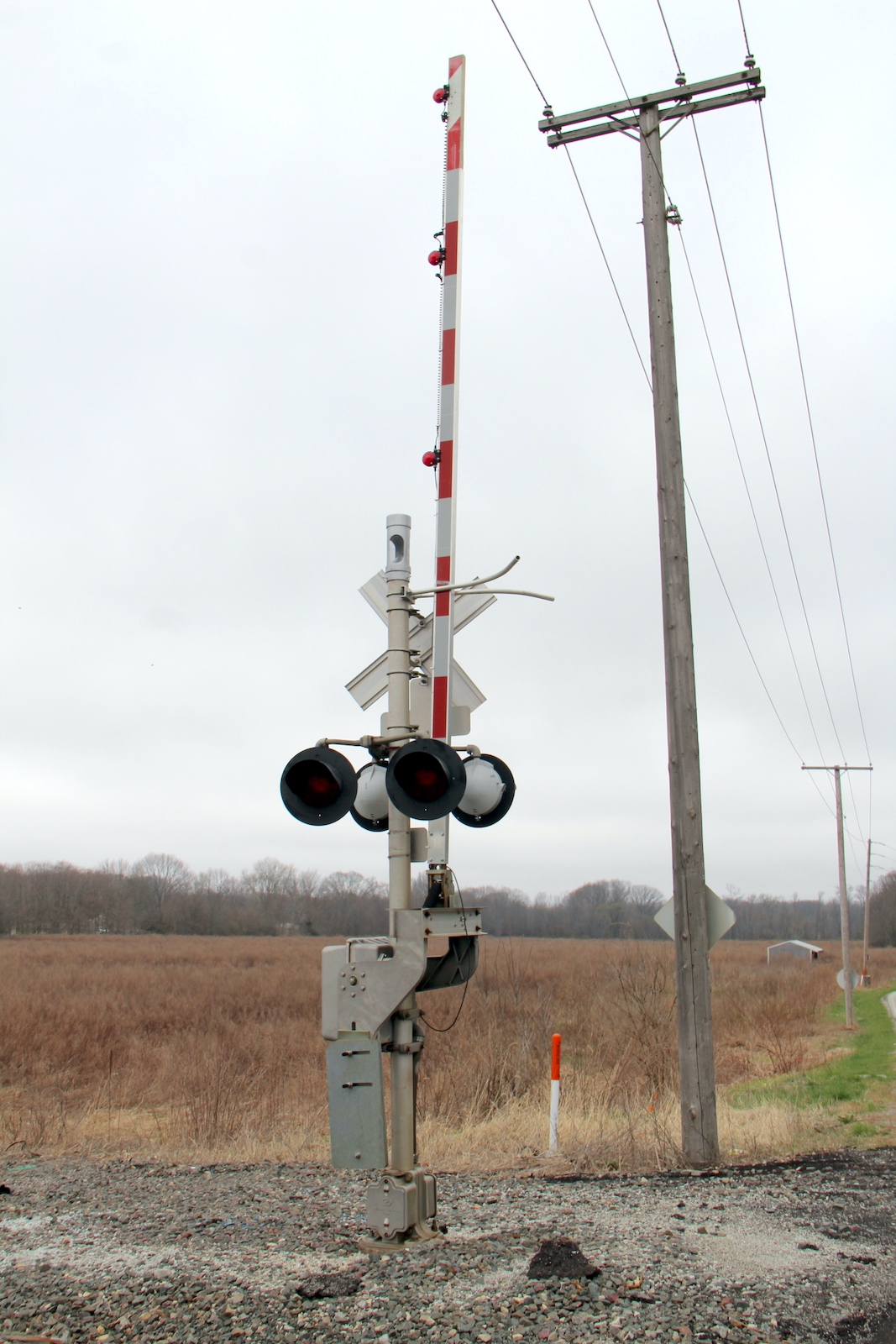

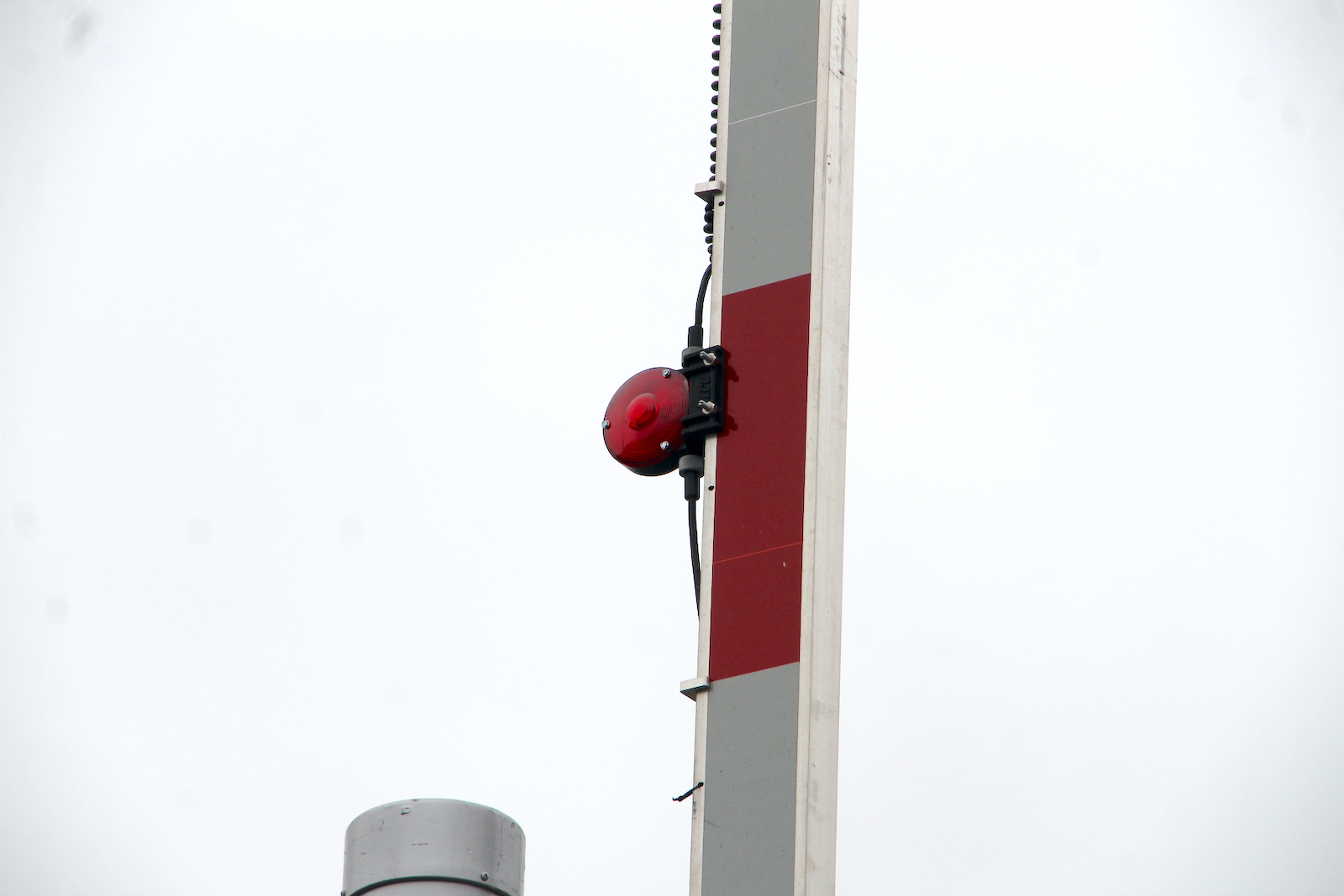

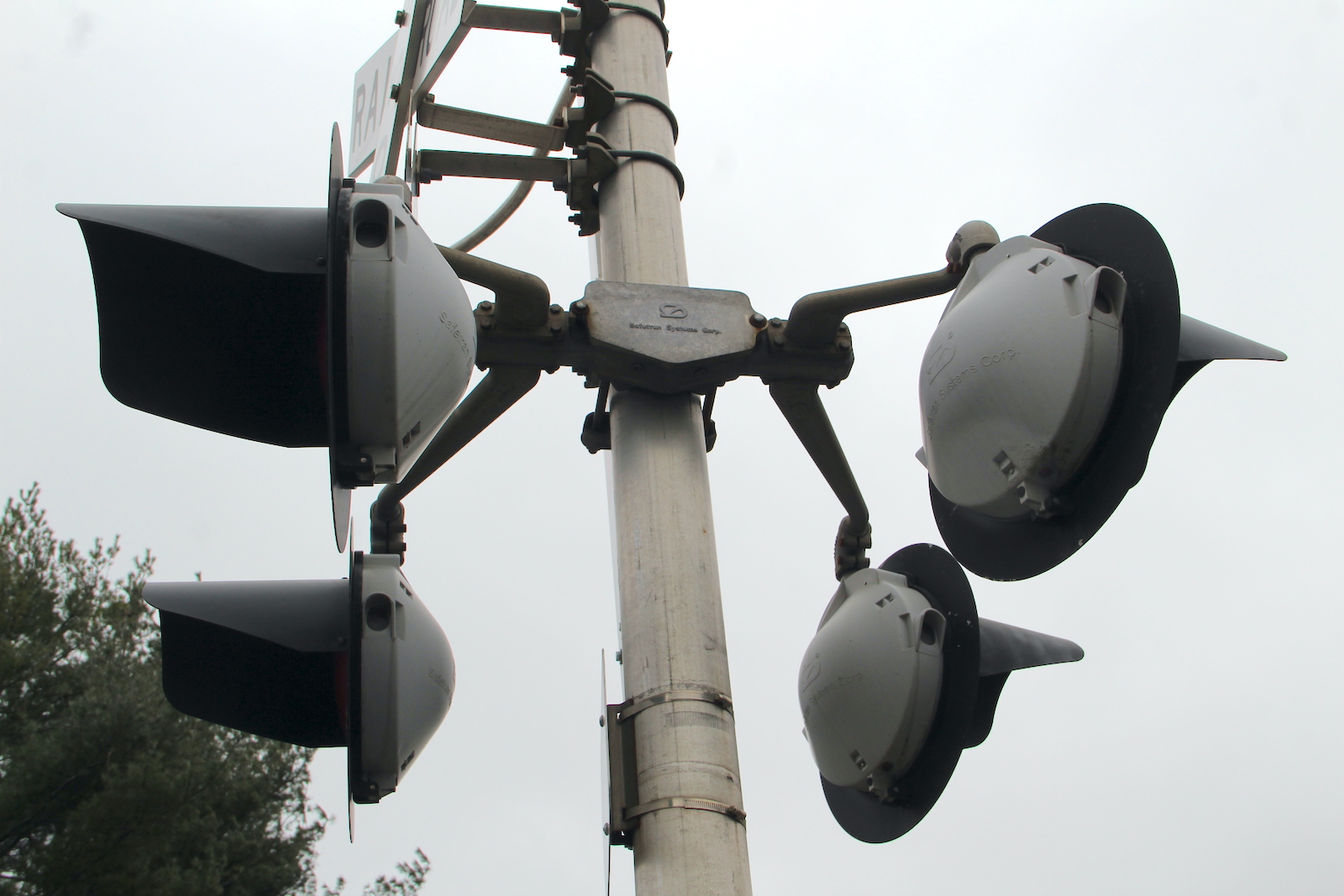

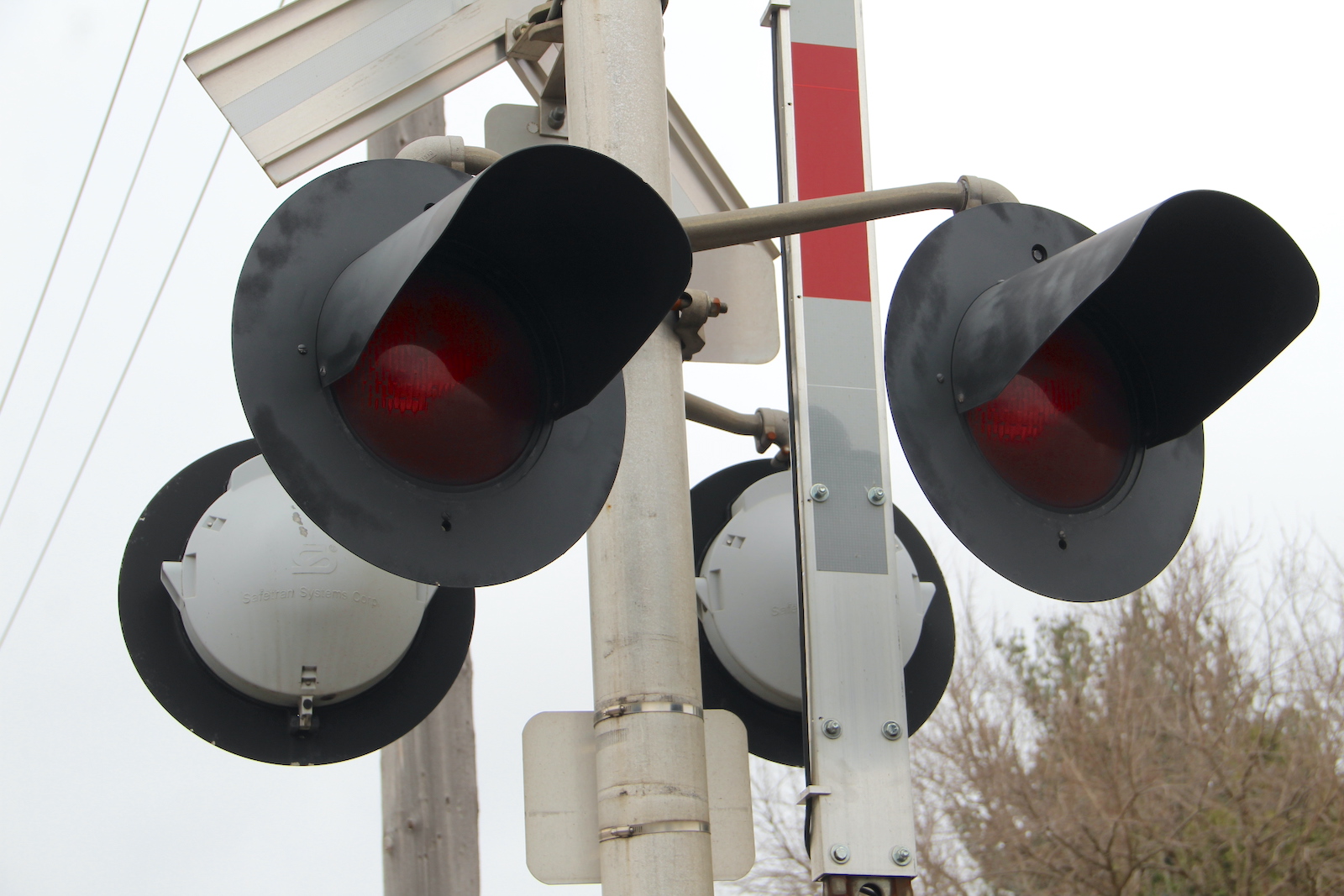

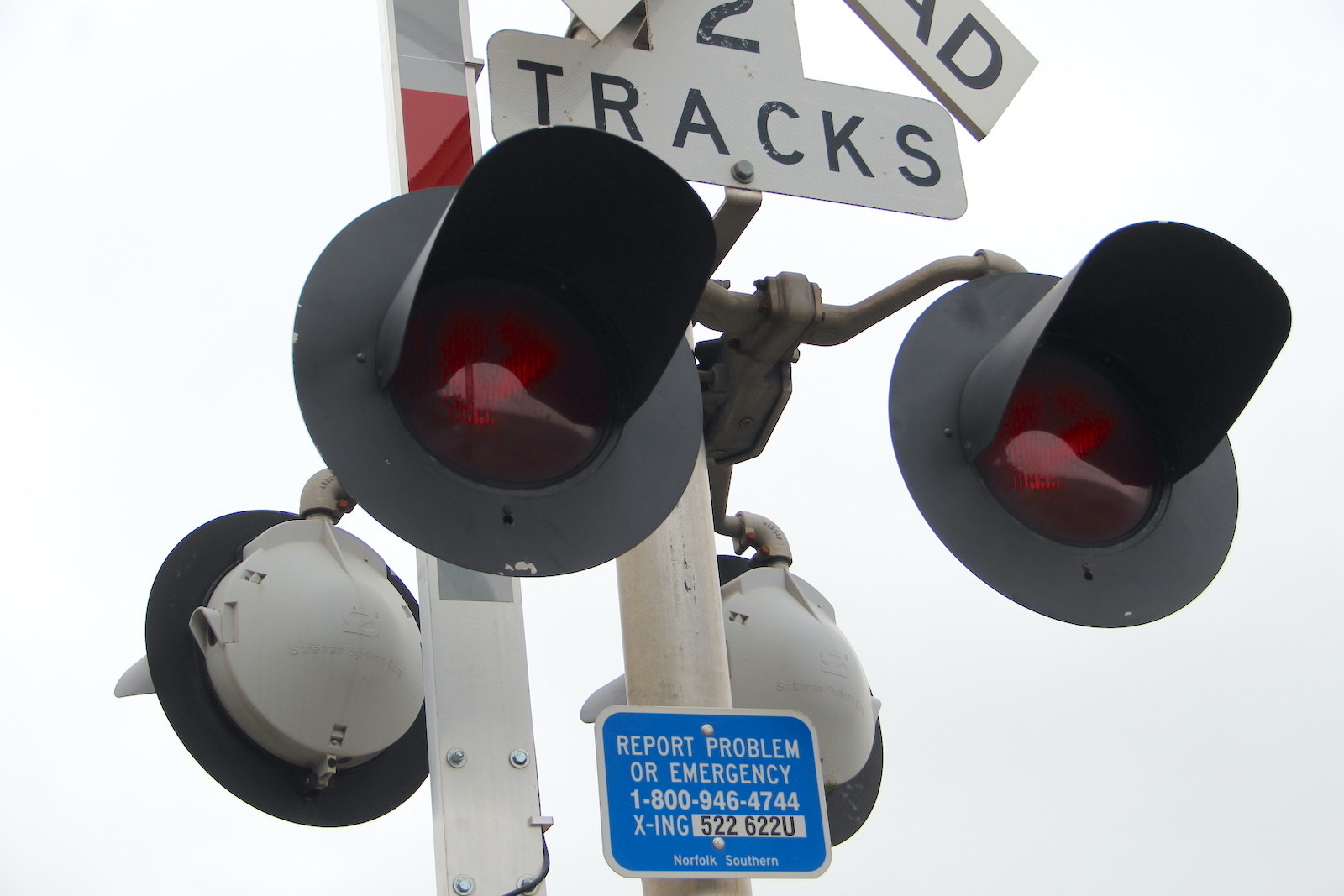

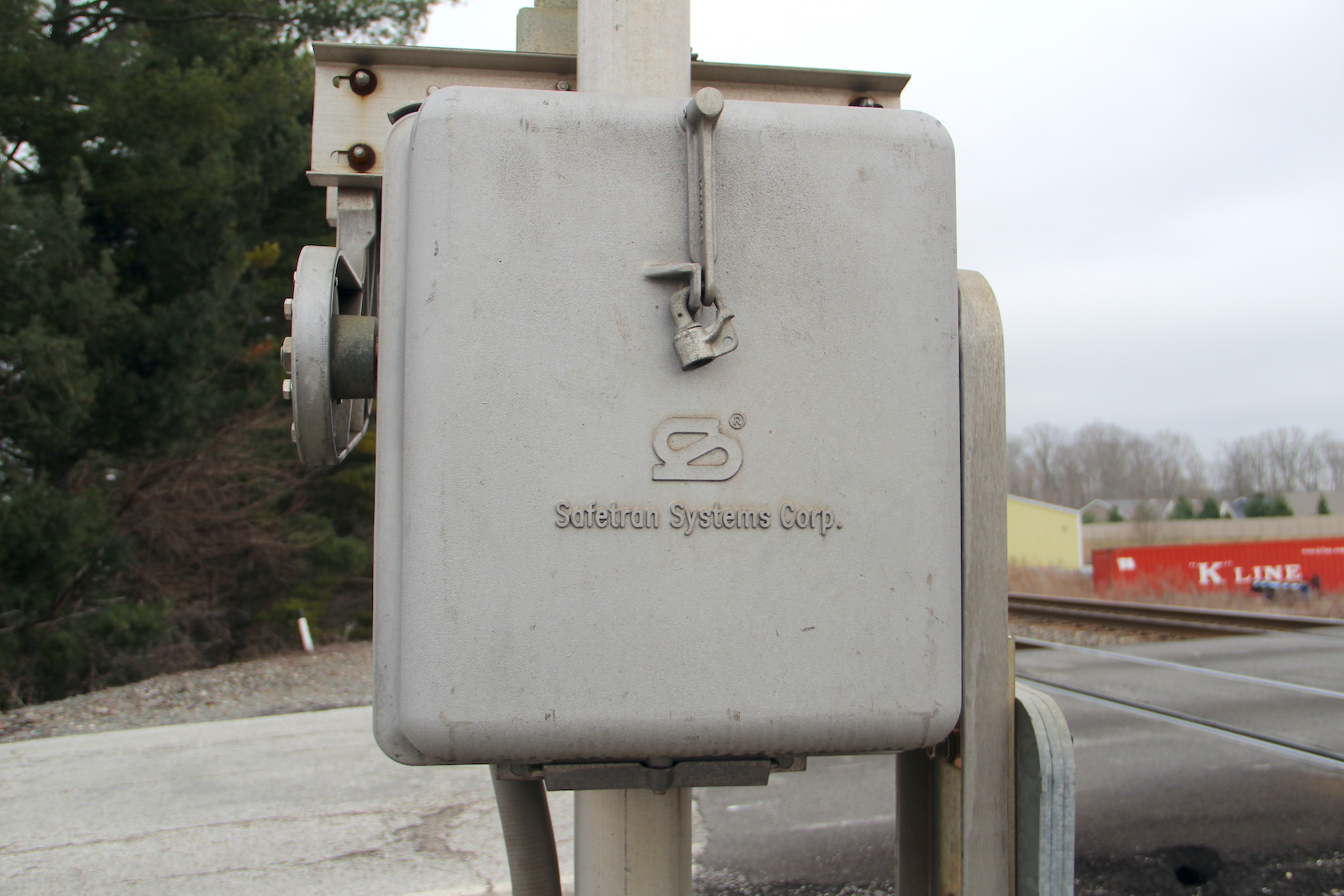

| The northern signal. |
| 15 |
16 |
17 |
| 18 |
19 |
20 |
21 |
| 22 |
23 |
24 |
25 |

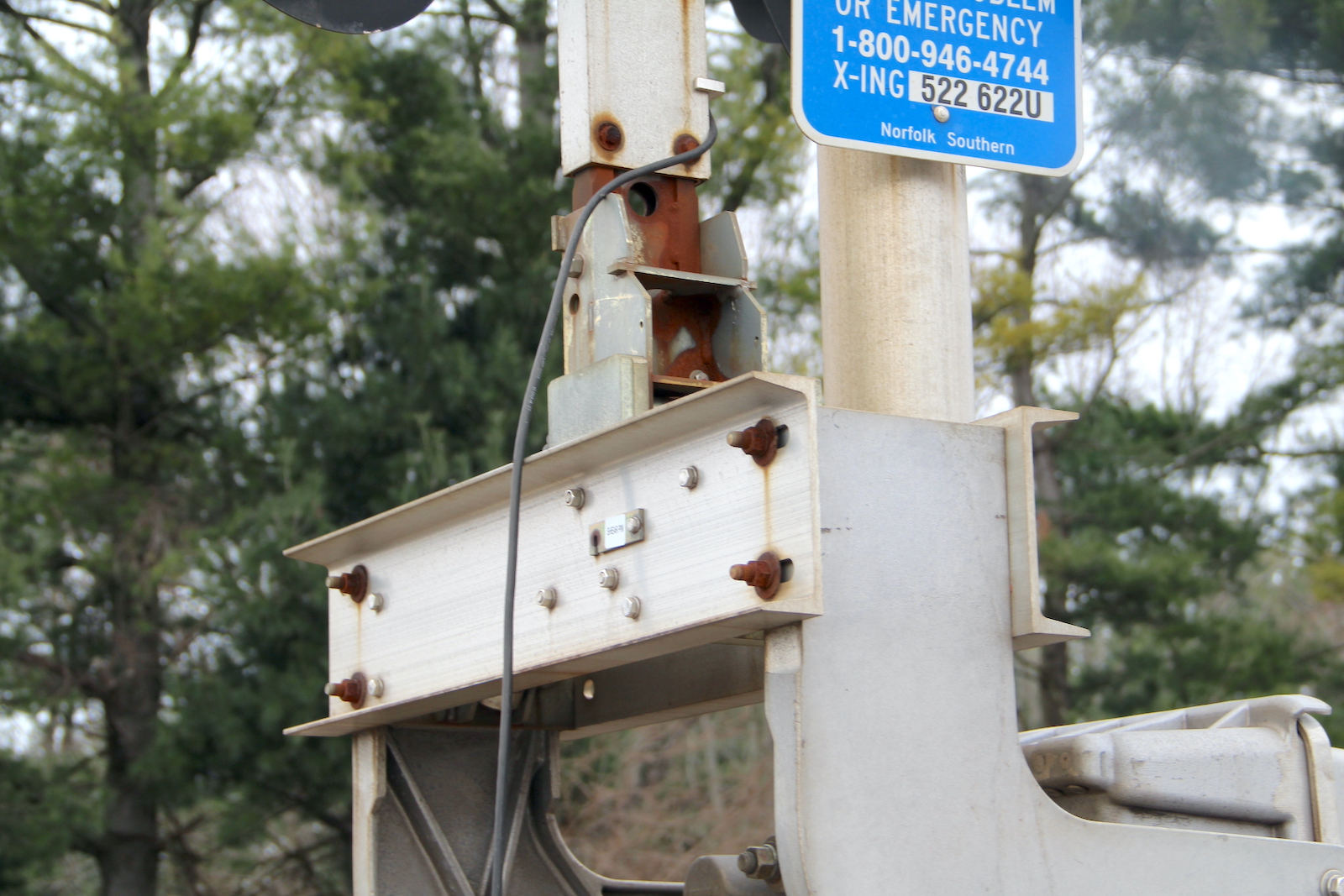

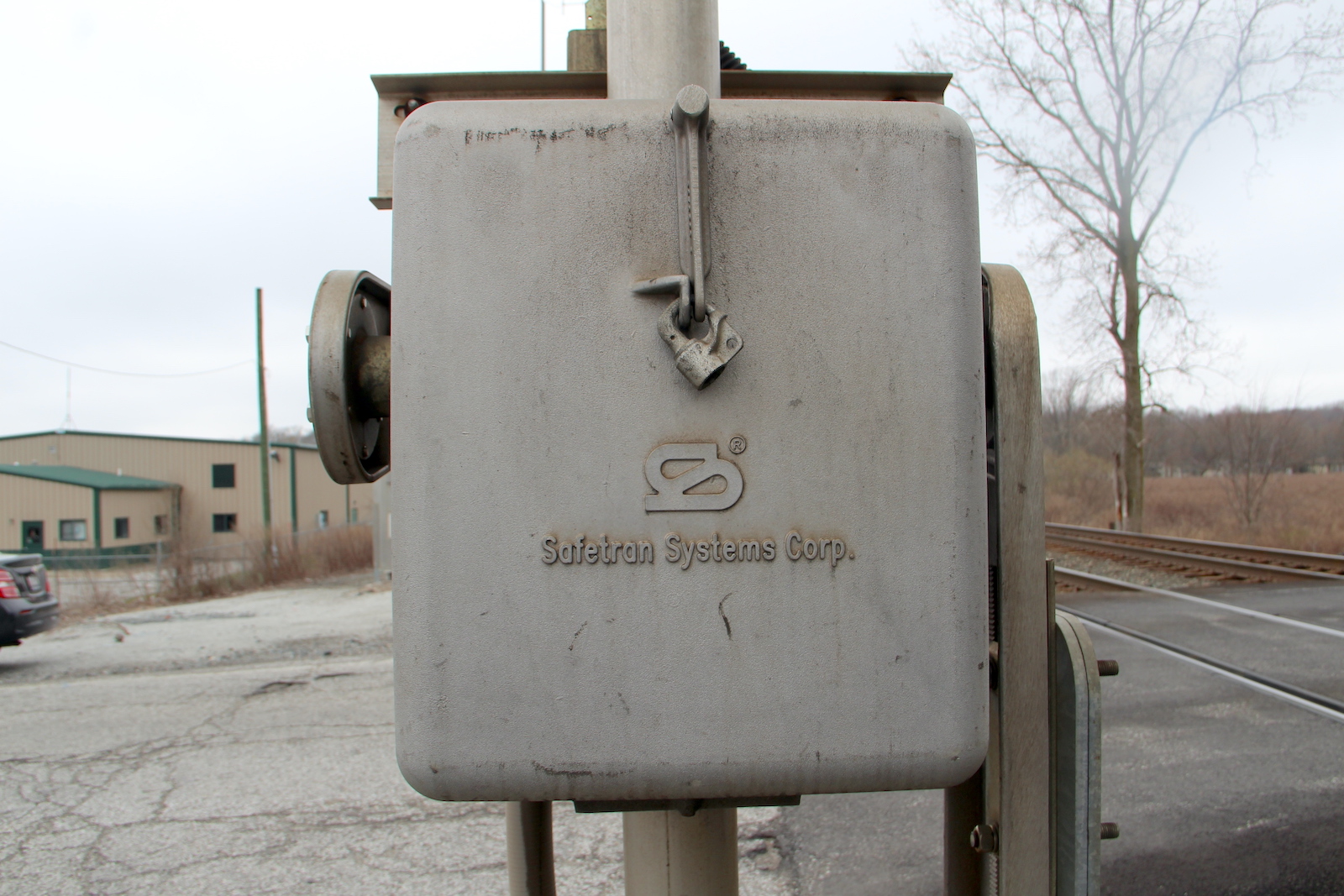

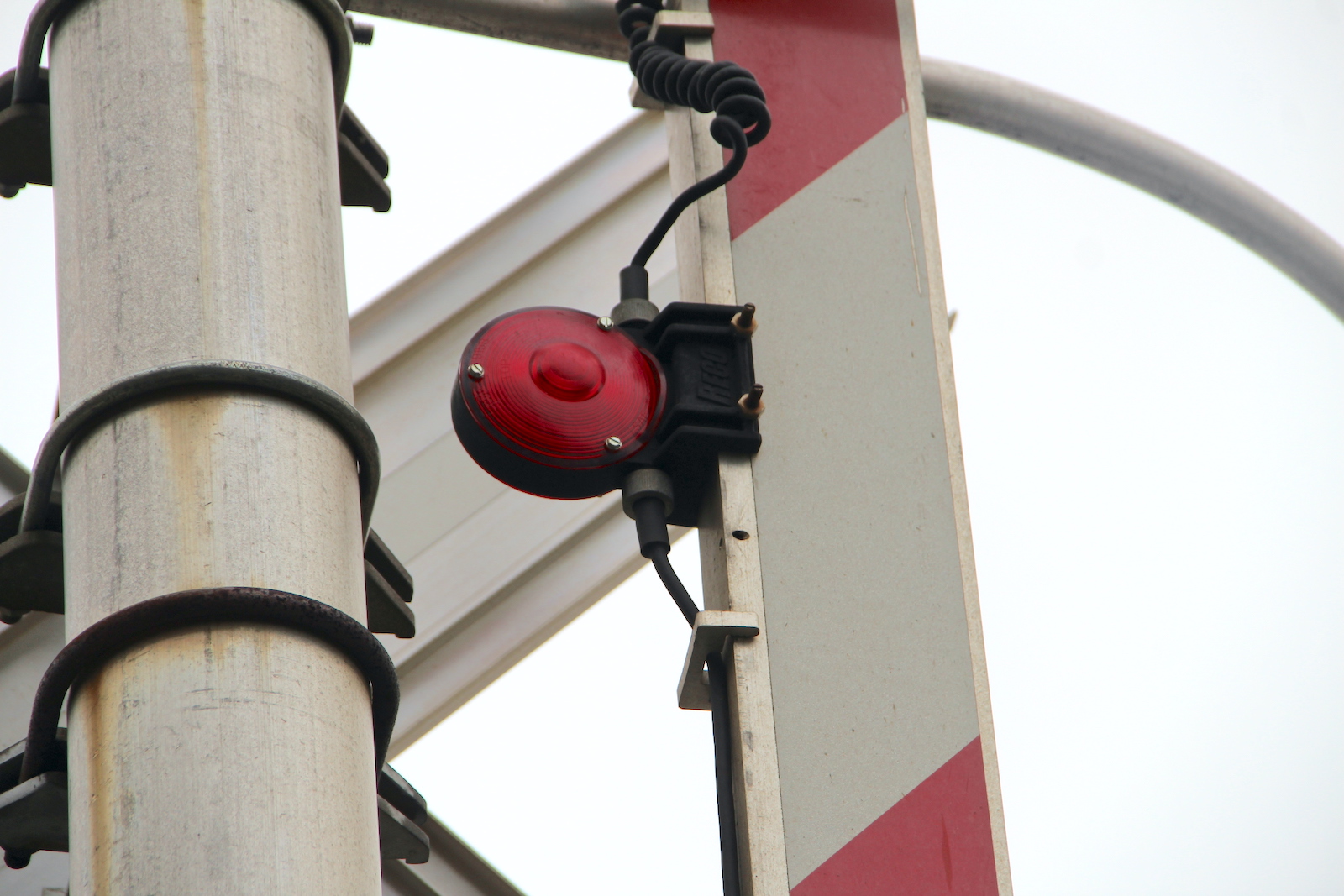

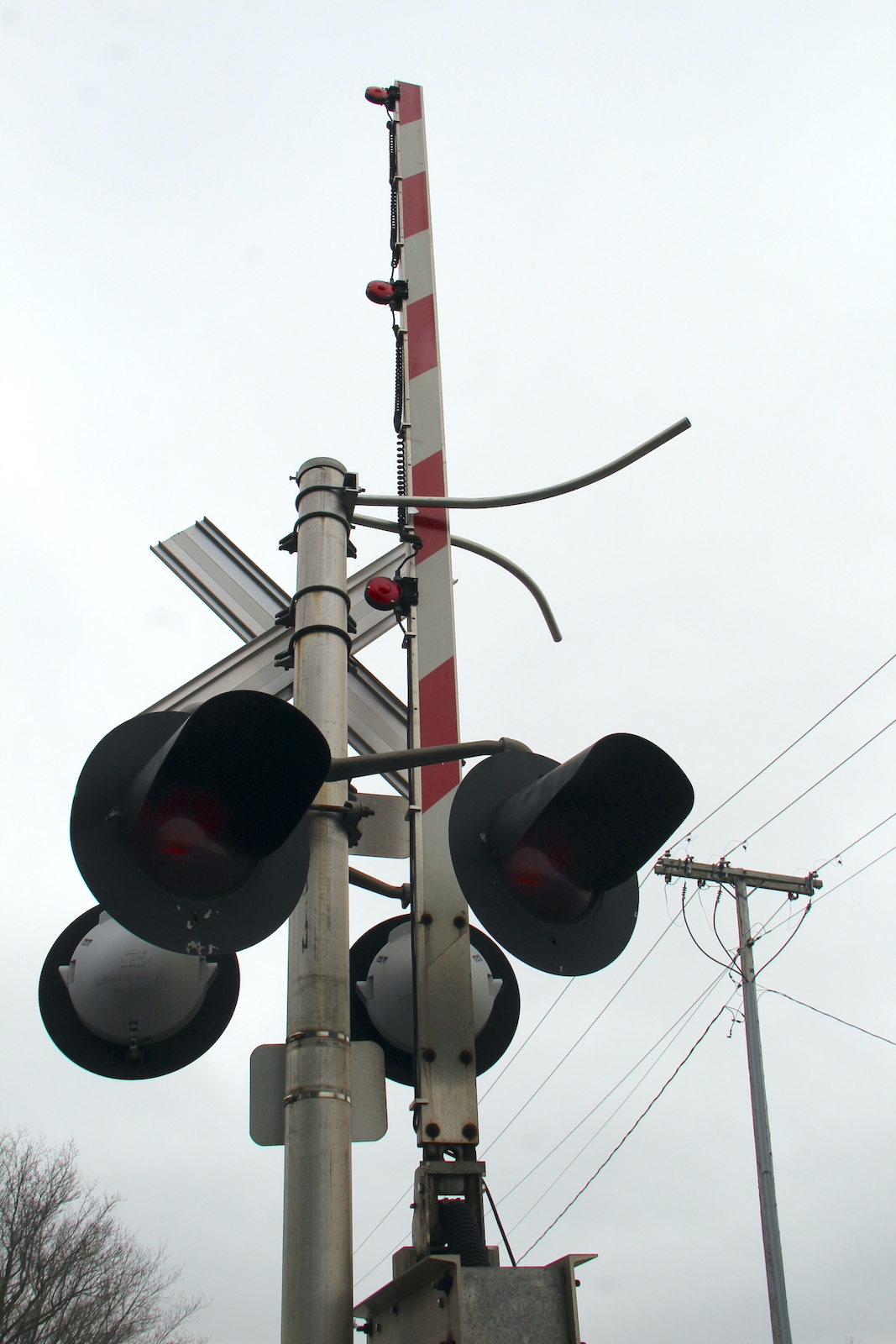

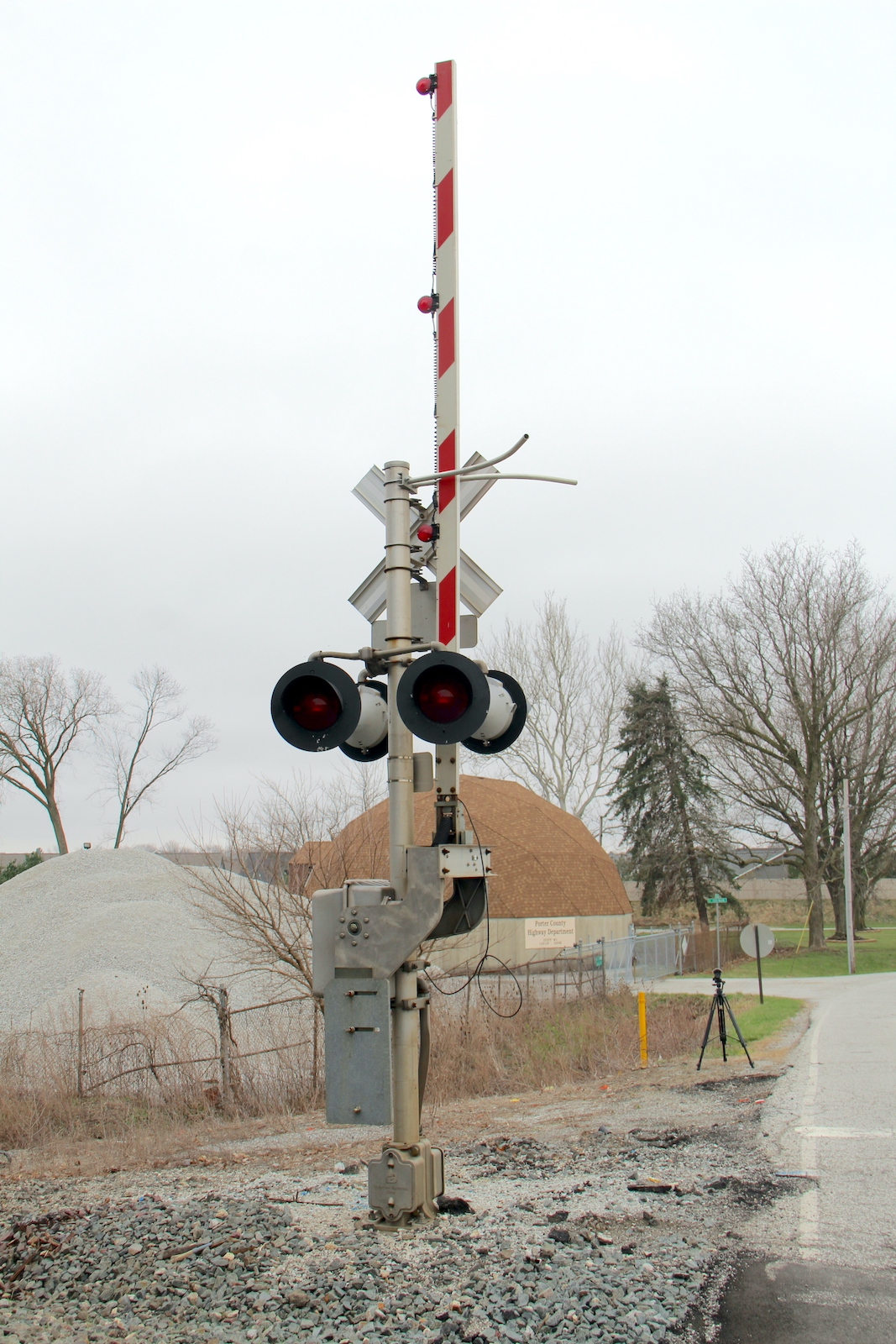

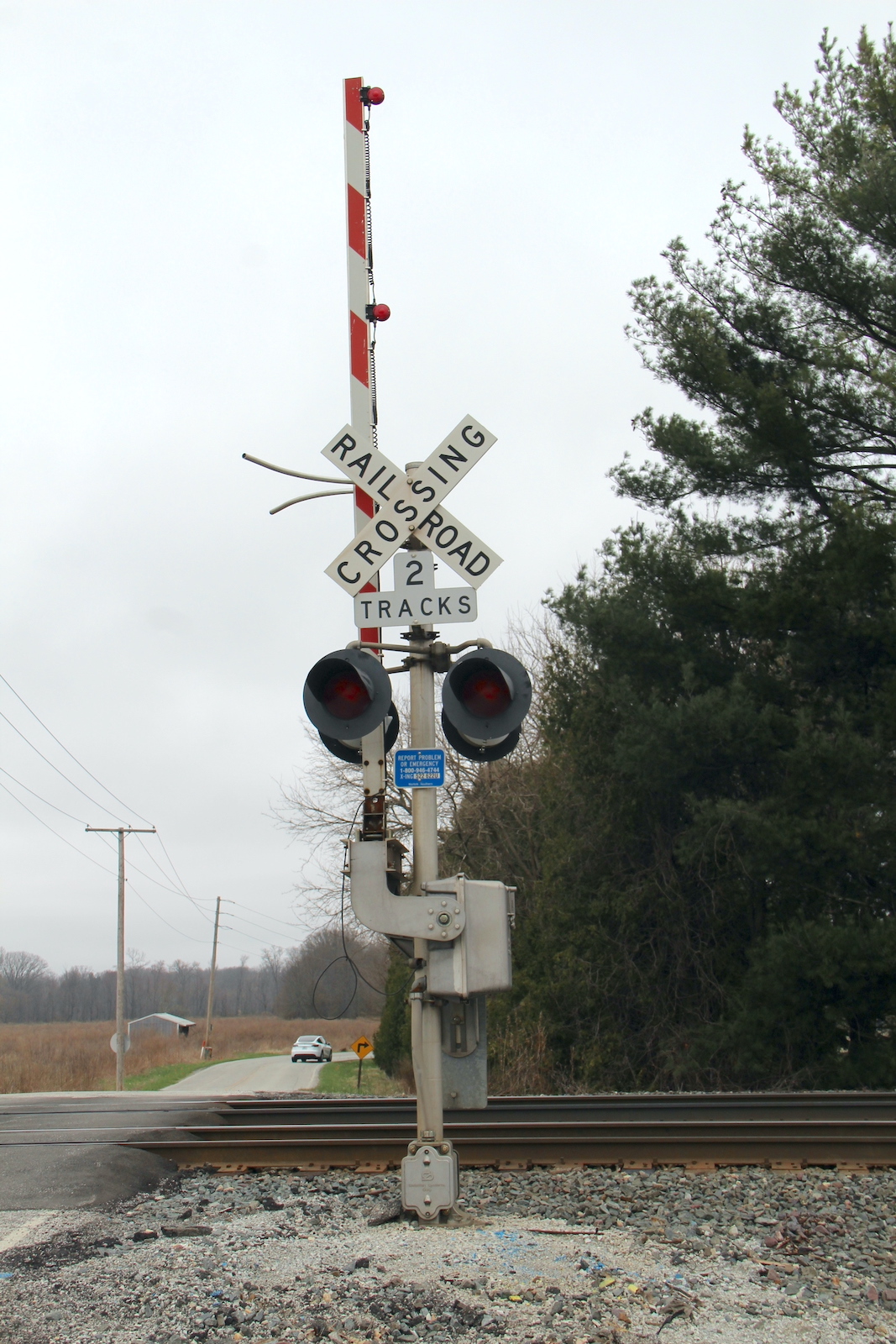

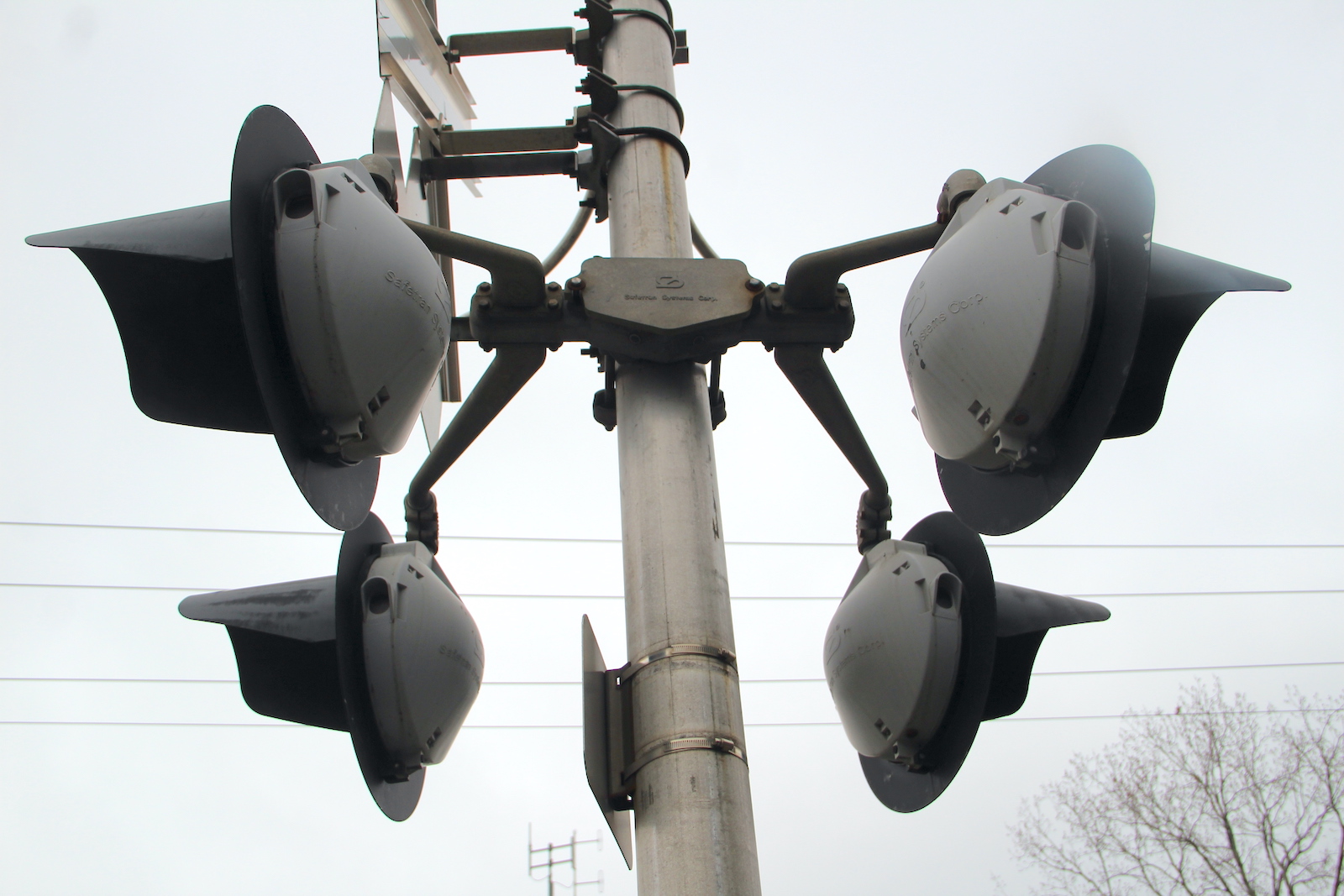

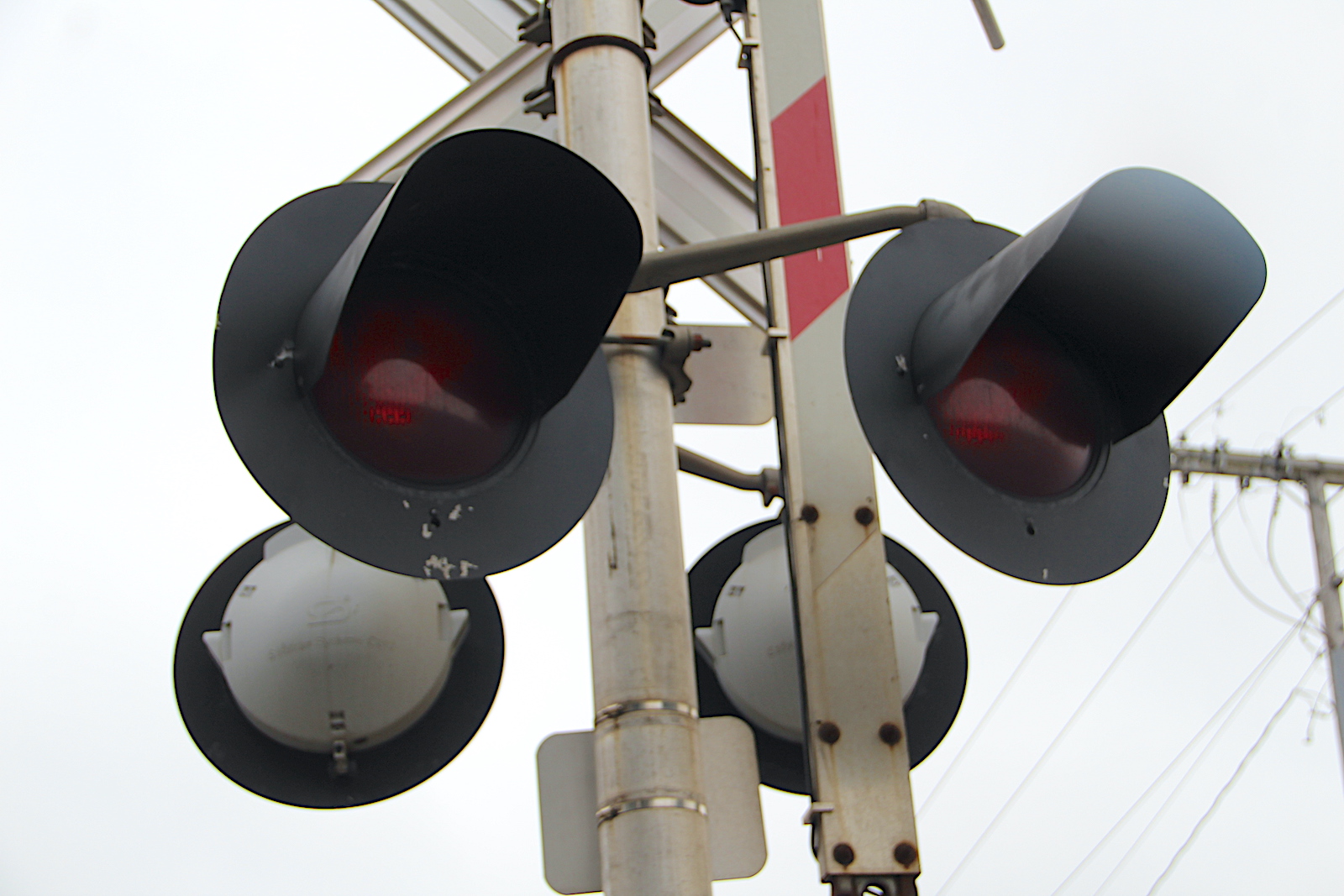

| The southern signal. |
| 26 |
27 |
28 |
29 |

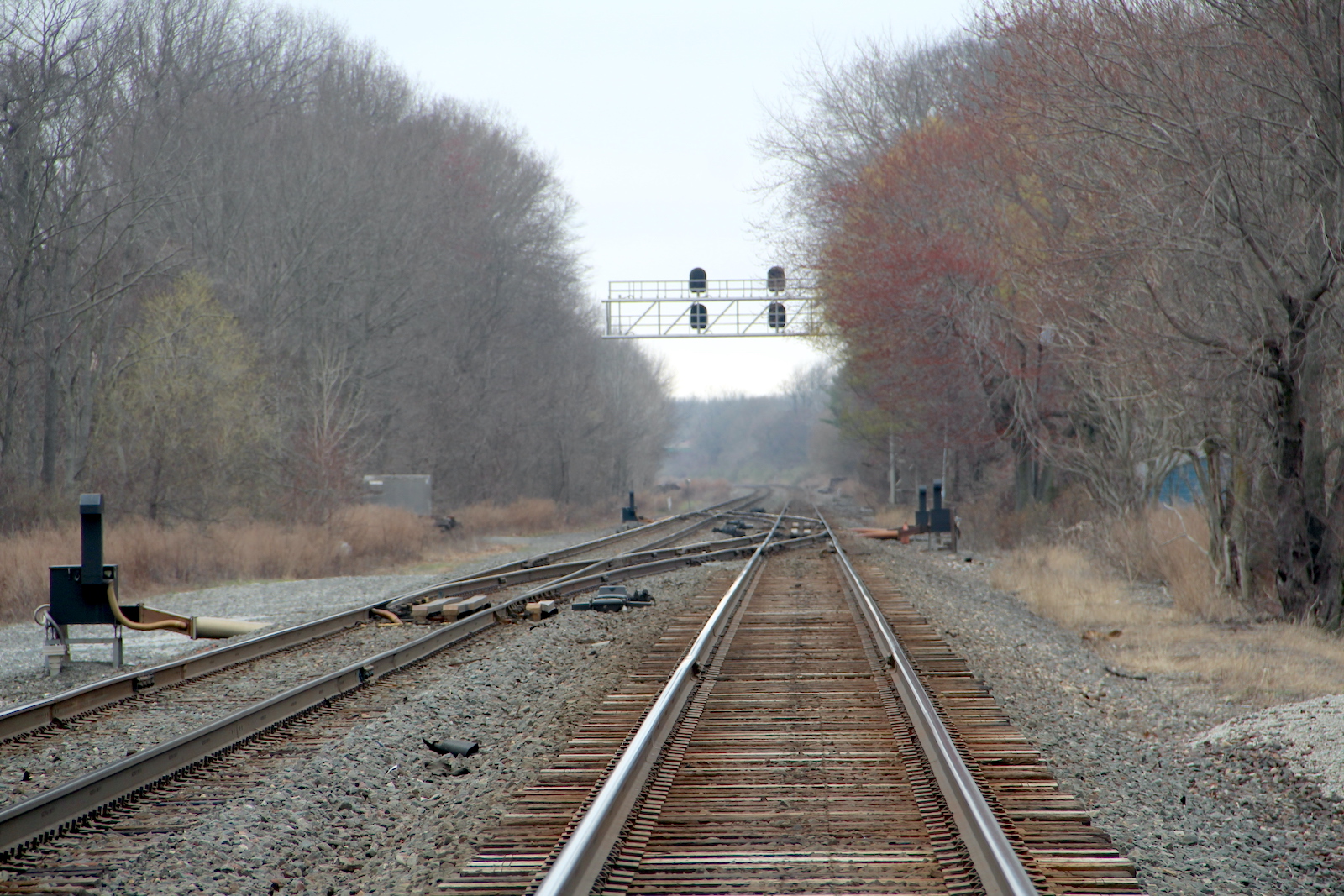

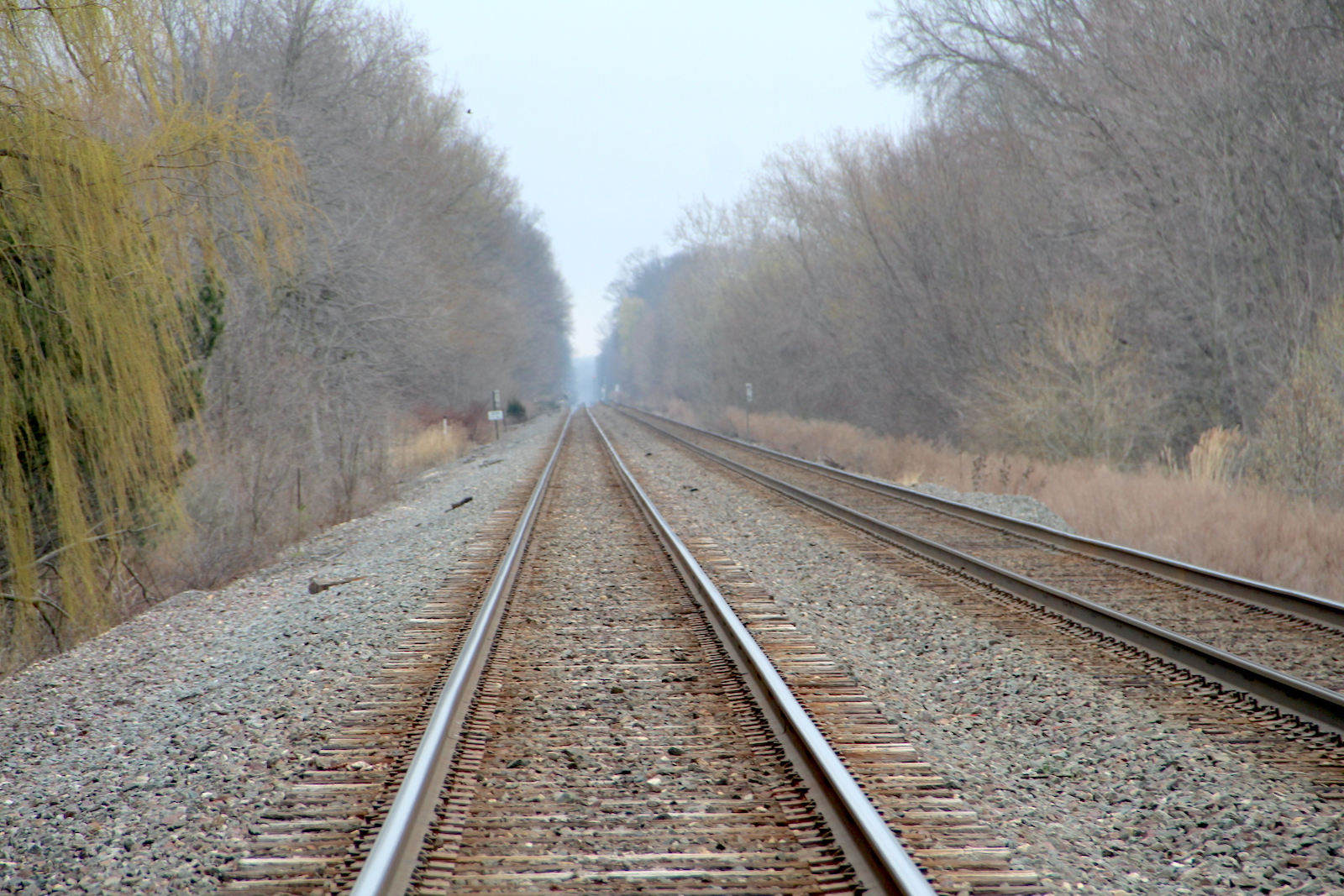

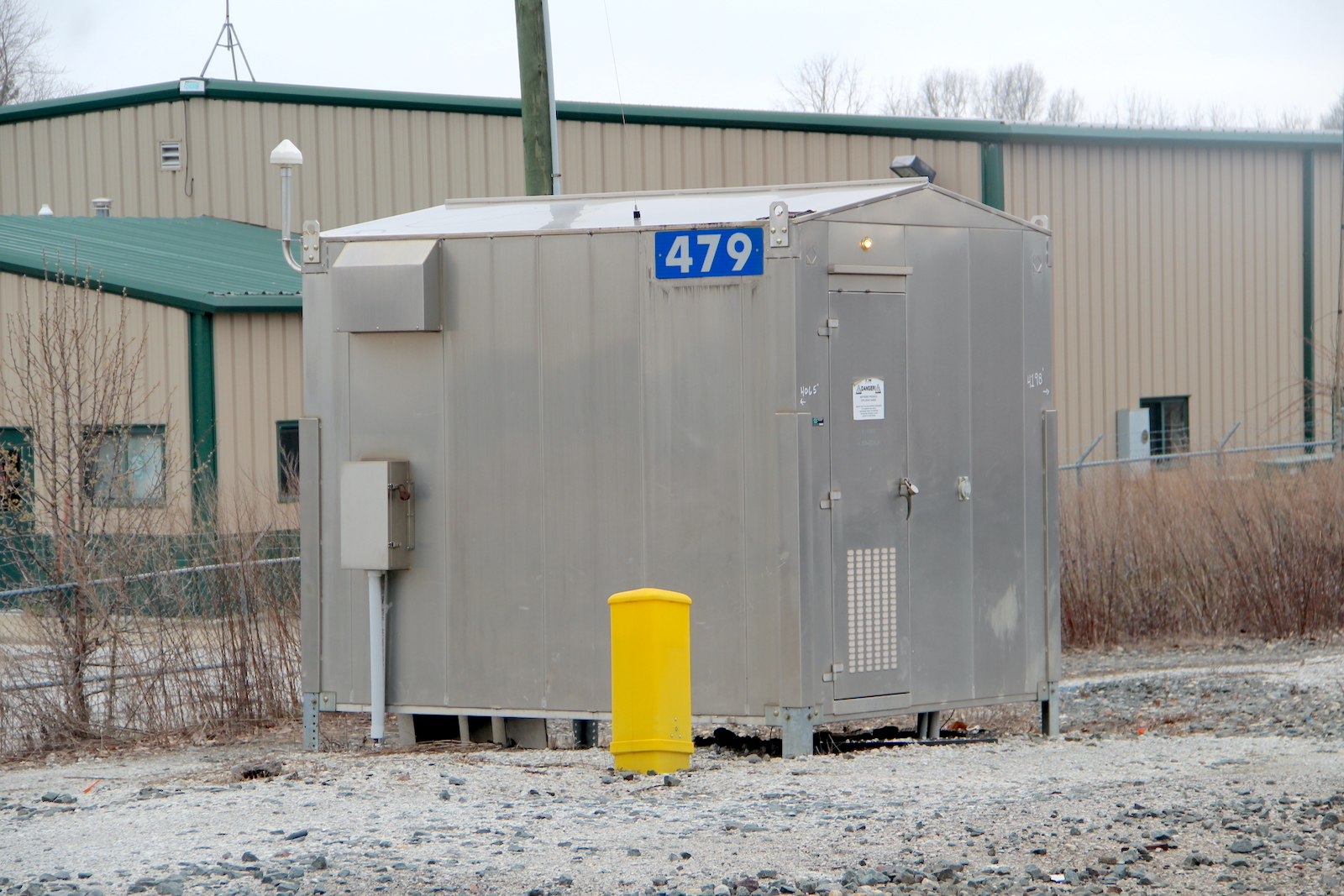

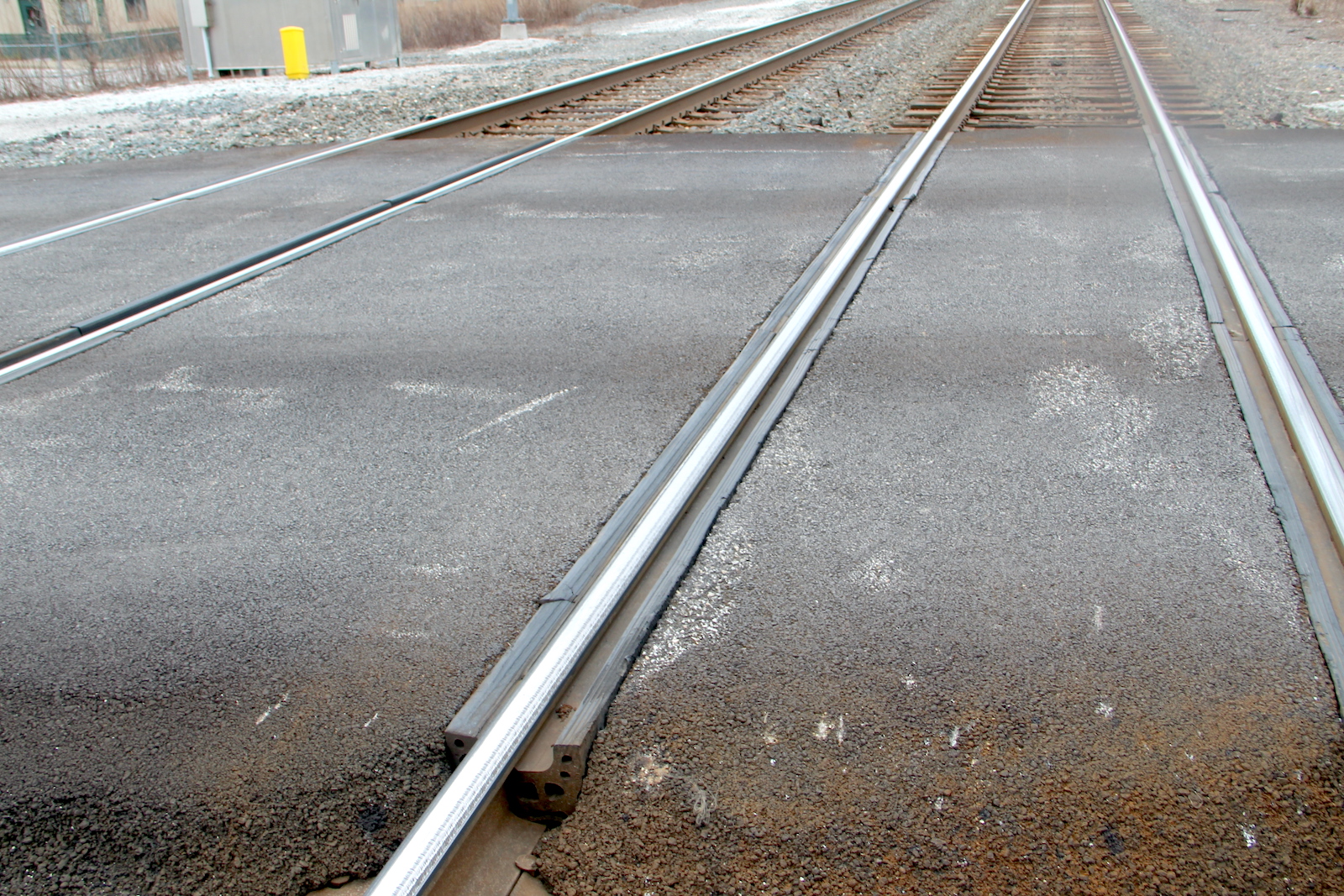

| The relay bungalow in the southwest quadrant. | The grade is rubber and asphalt. | Track view facing west towards Calumet Rd. | Track view facing east towards N. 400 E. Rd. |
| 30 |

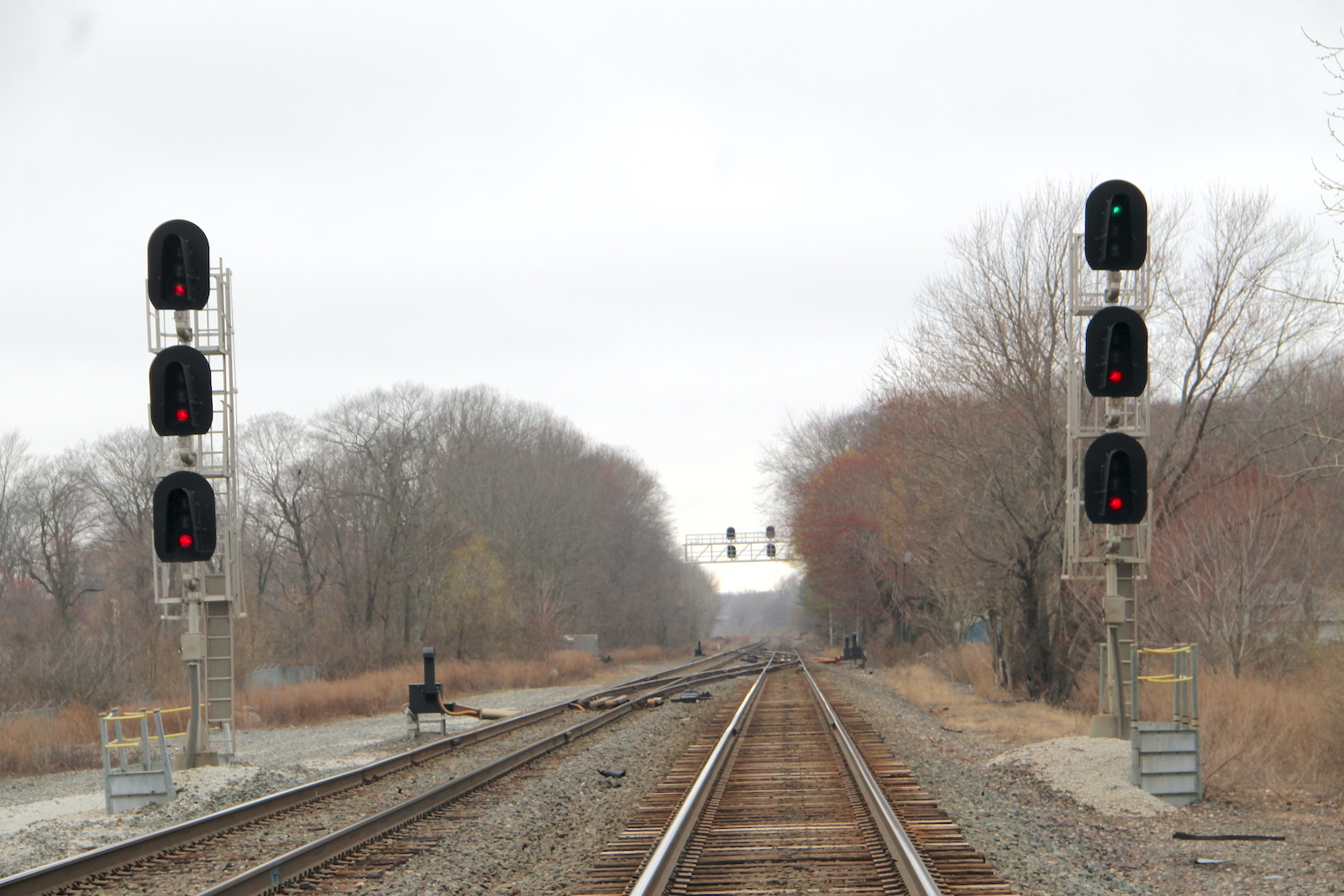

| Newer wayside signals that protect the crossovers just west of here. The bungalow in Picture 26 also controls these signals. |
