>>>>>>>>>>>>>> Western Signal Eastern Signal
Bell: NEG E Bell None

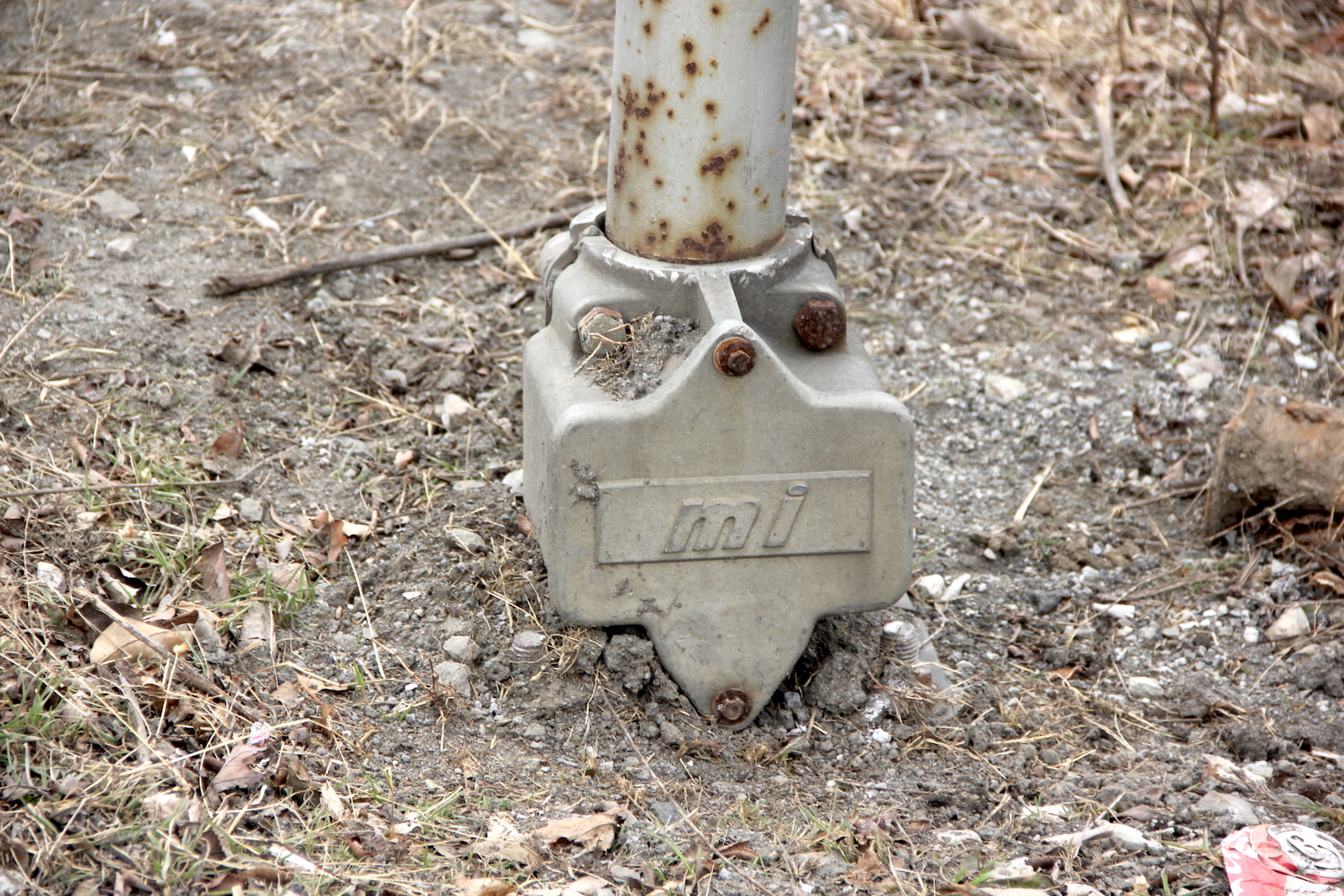

Base: MI 4" Single Sided ^ WRRS 4" Single Sided ^

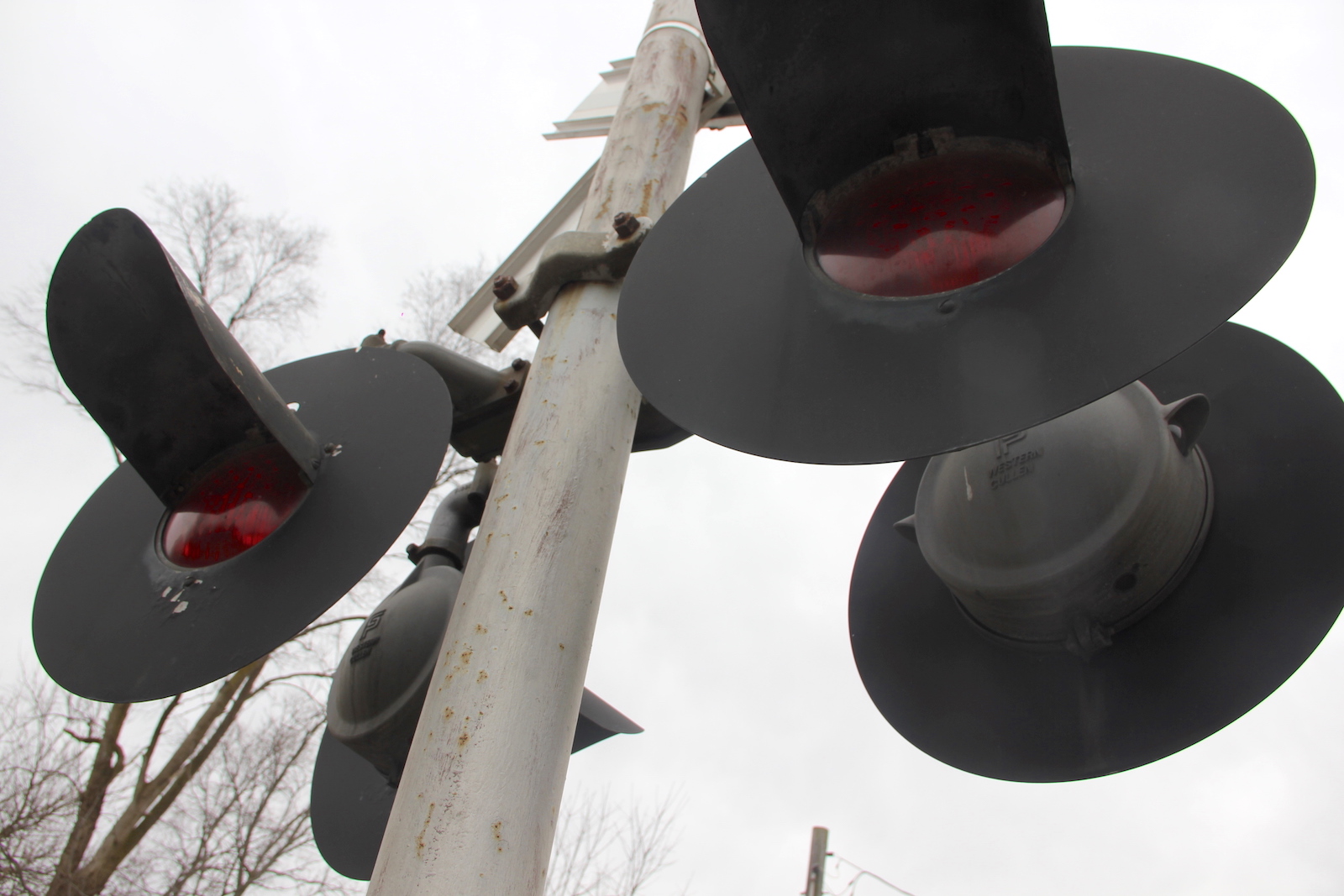

Lights: 4 - 8"x20" FS/WCH incandescents 2 - 8"x20" MI incandescents
1 - 8"x20" FS/WCH incandescent
1 - 8"x20" WRRS incandescent
Junction Box: MI MI

Pictures 1-25 were taken on February 4, 2017.
Pictures 26-28 were taken on February 1, 2020.
All pictures were taken by Tommy McGowan.
This crossing is located on the CSX Monon Sub.

1
 2

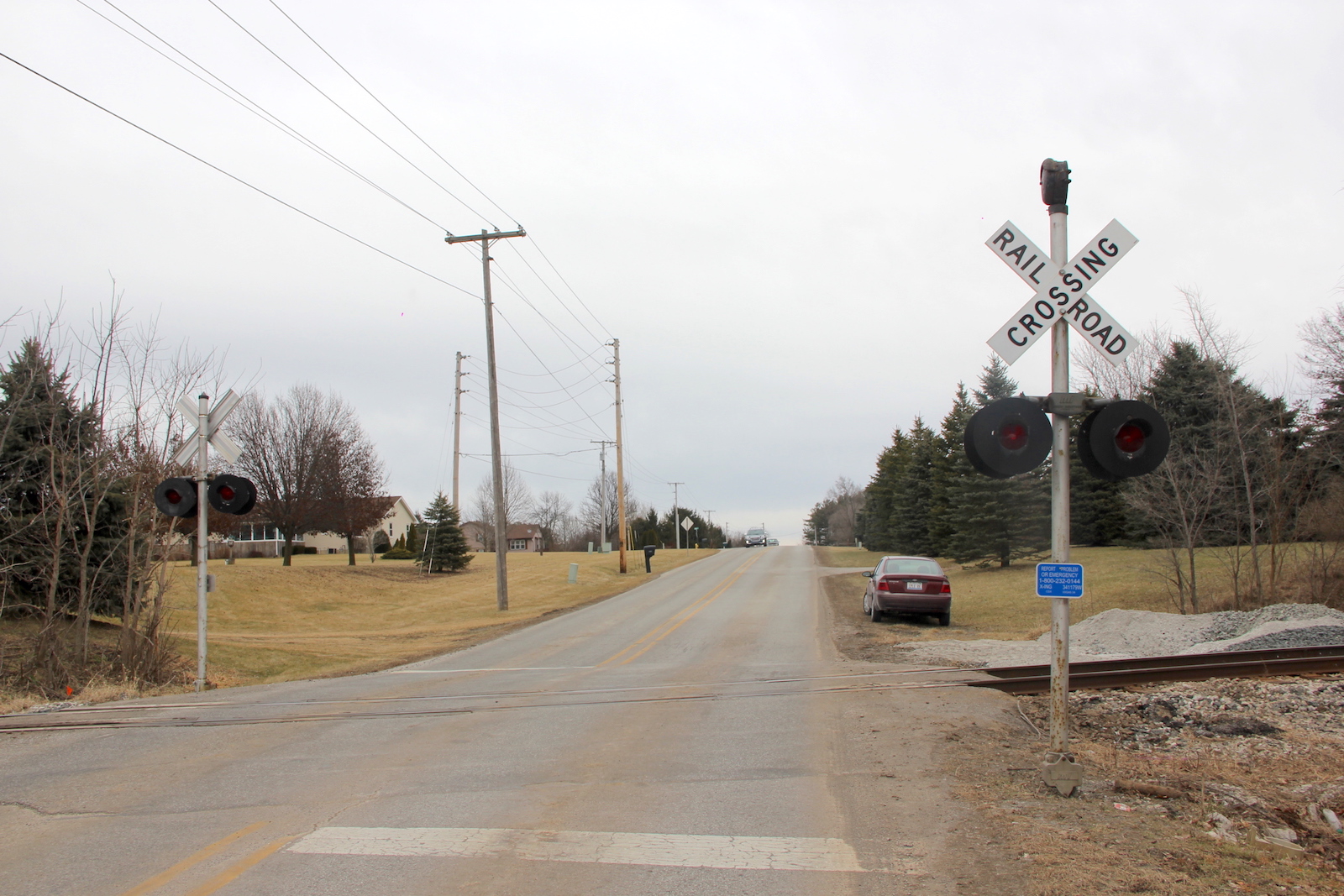

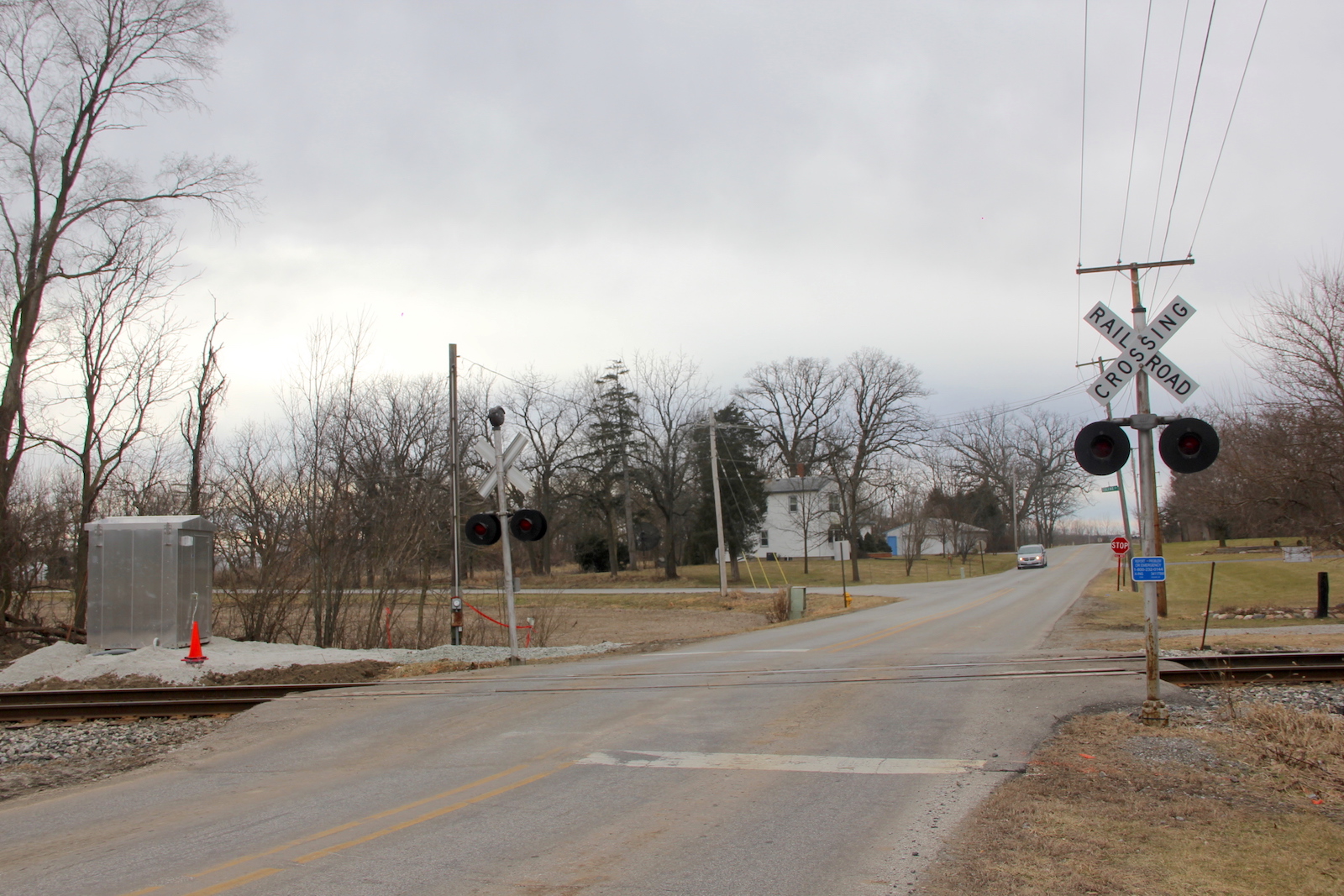

Overview of 2 classic gateless signals facing west. Overview facing east.
3 4 5
6 7 8
9 10 11

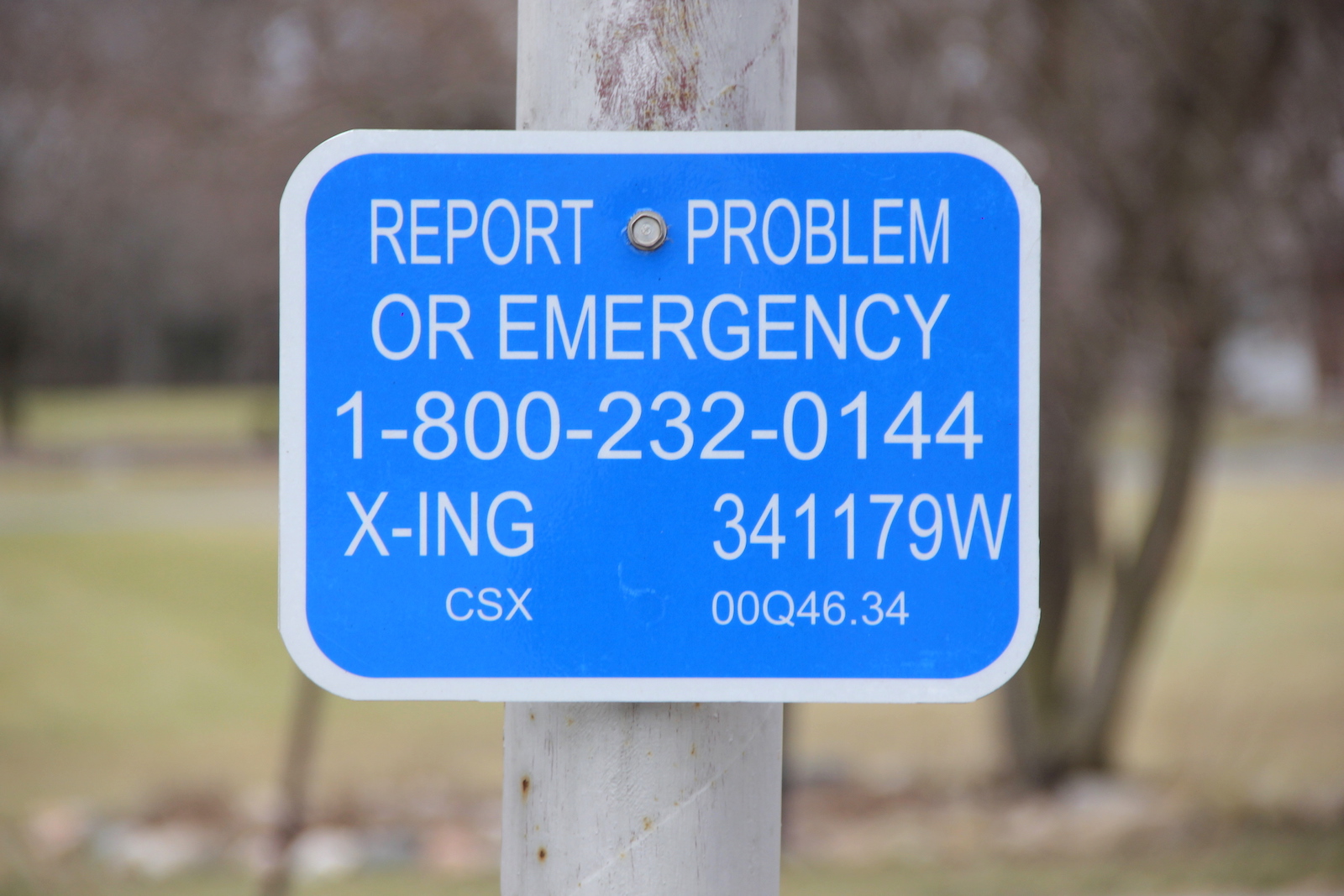

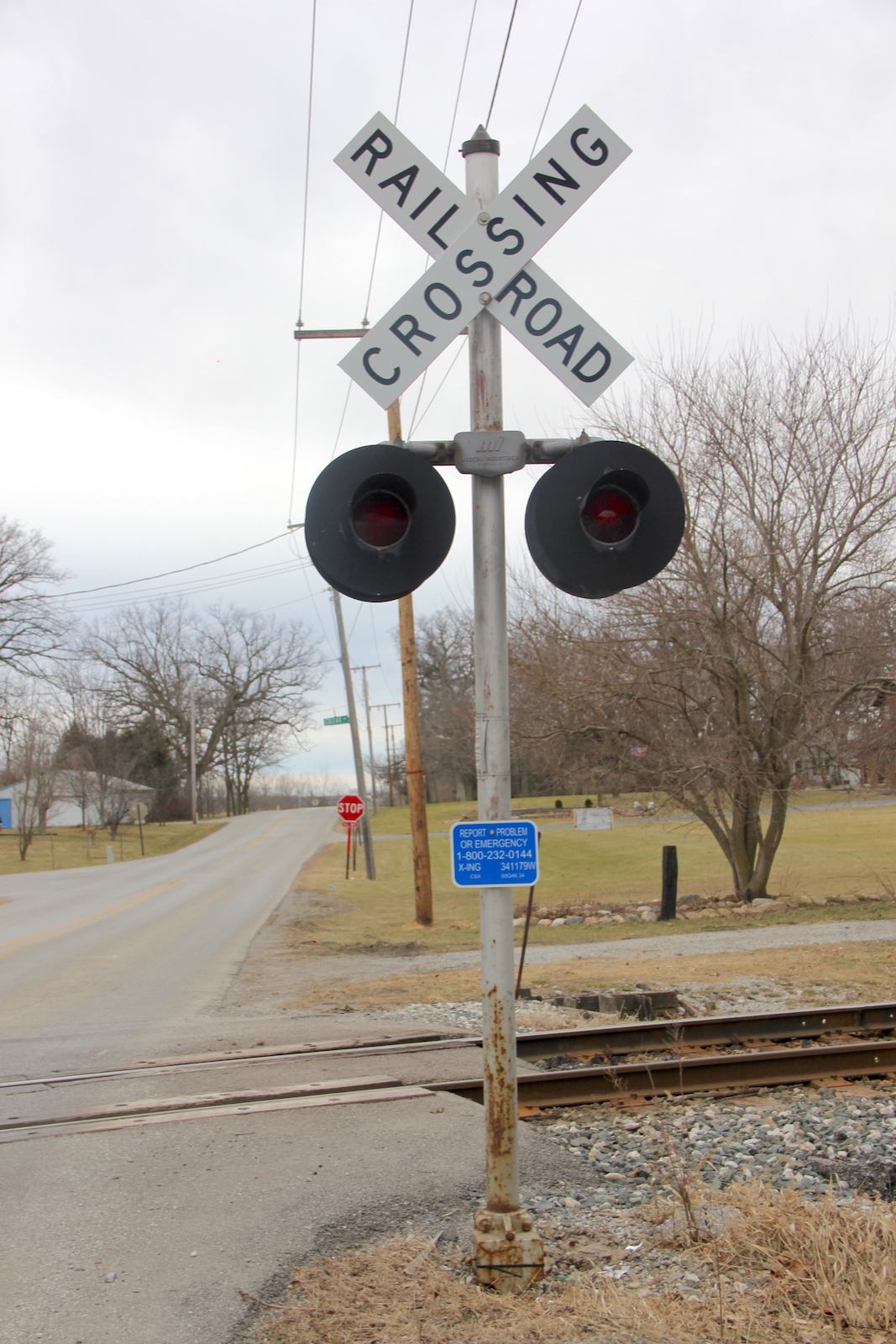

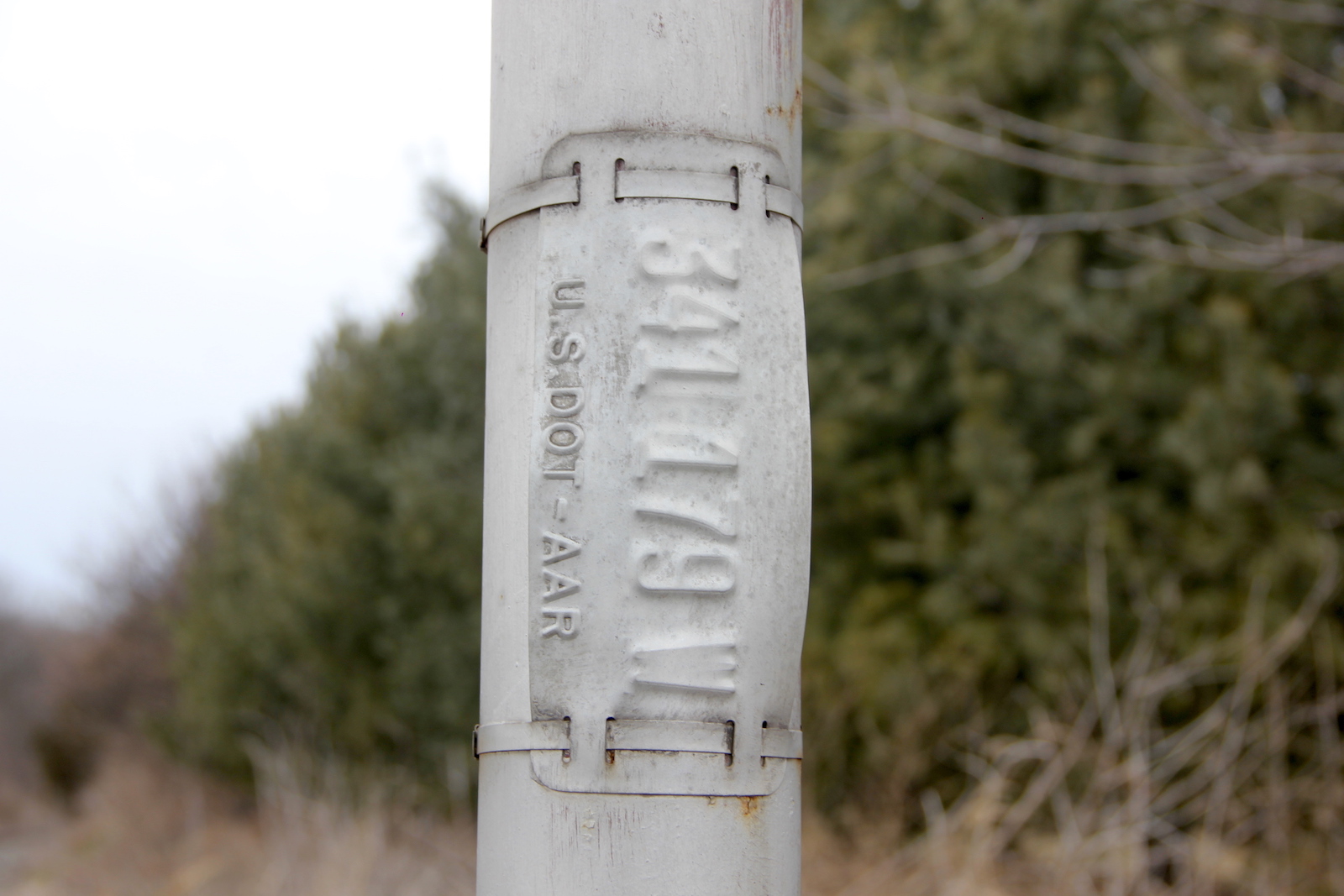

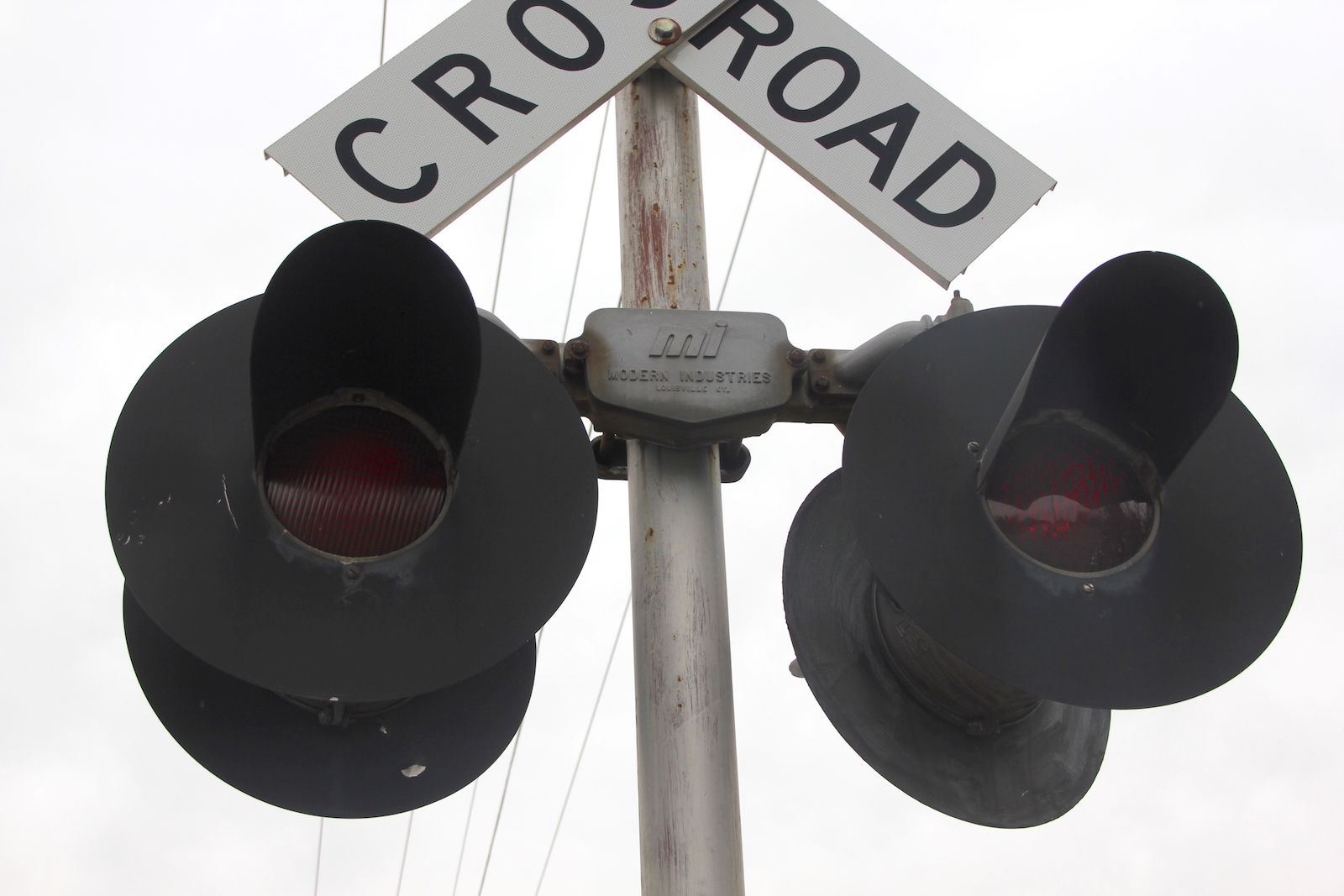

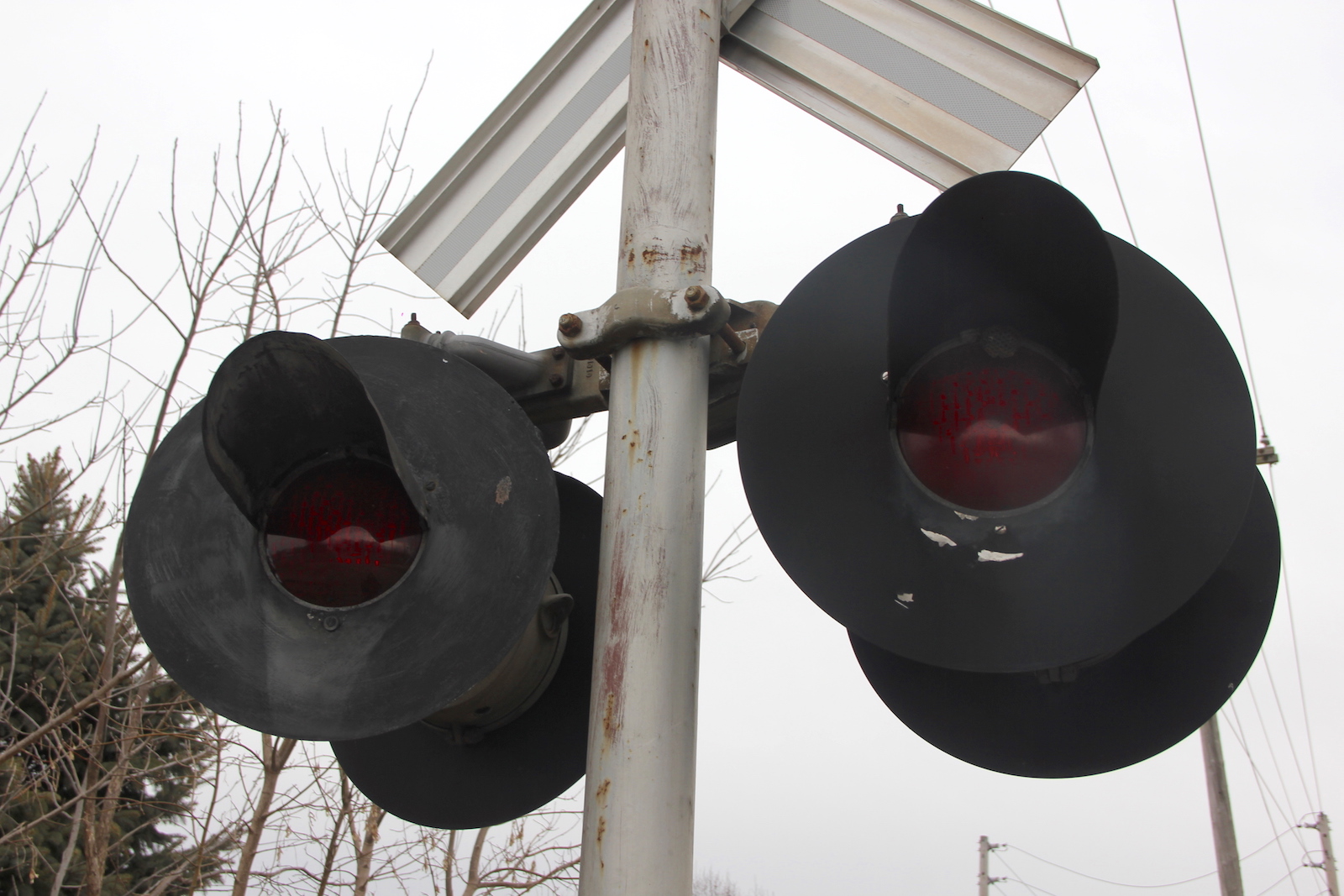

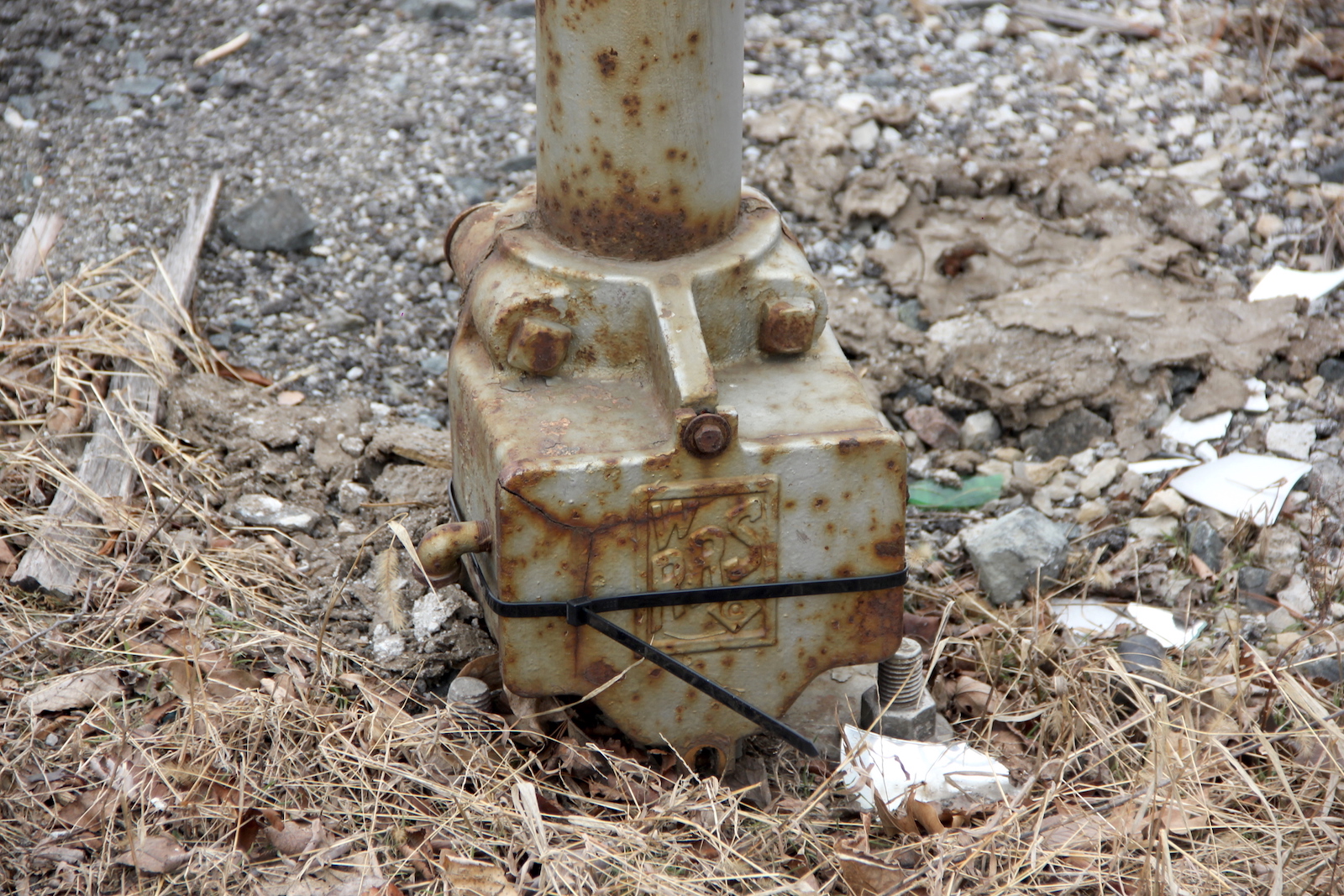

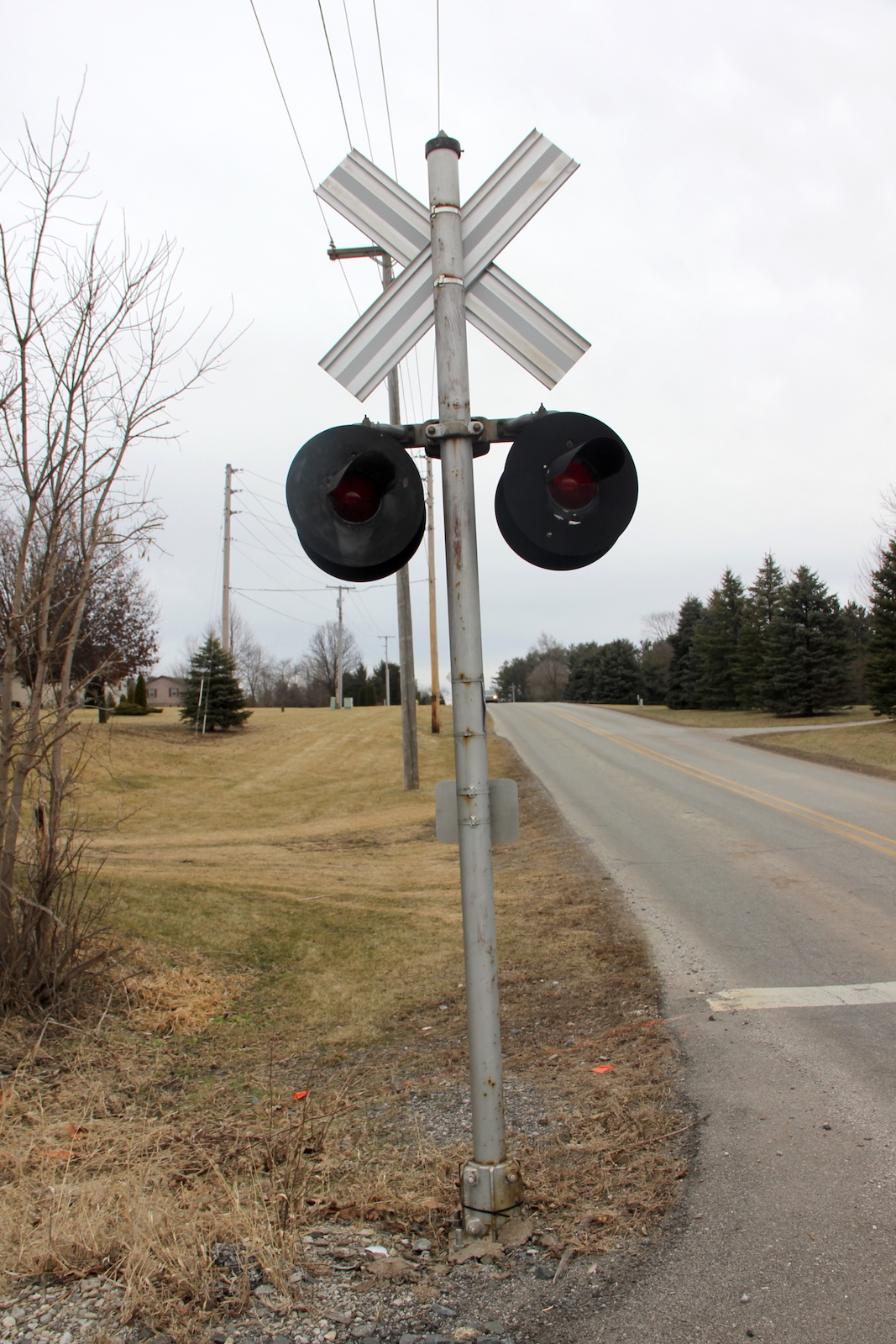

The eastern signal.
12 13 14
15 16 17
18 19 20

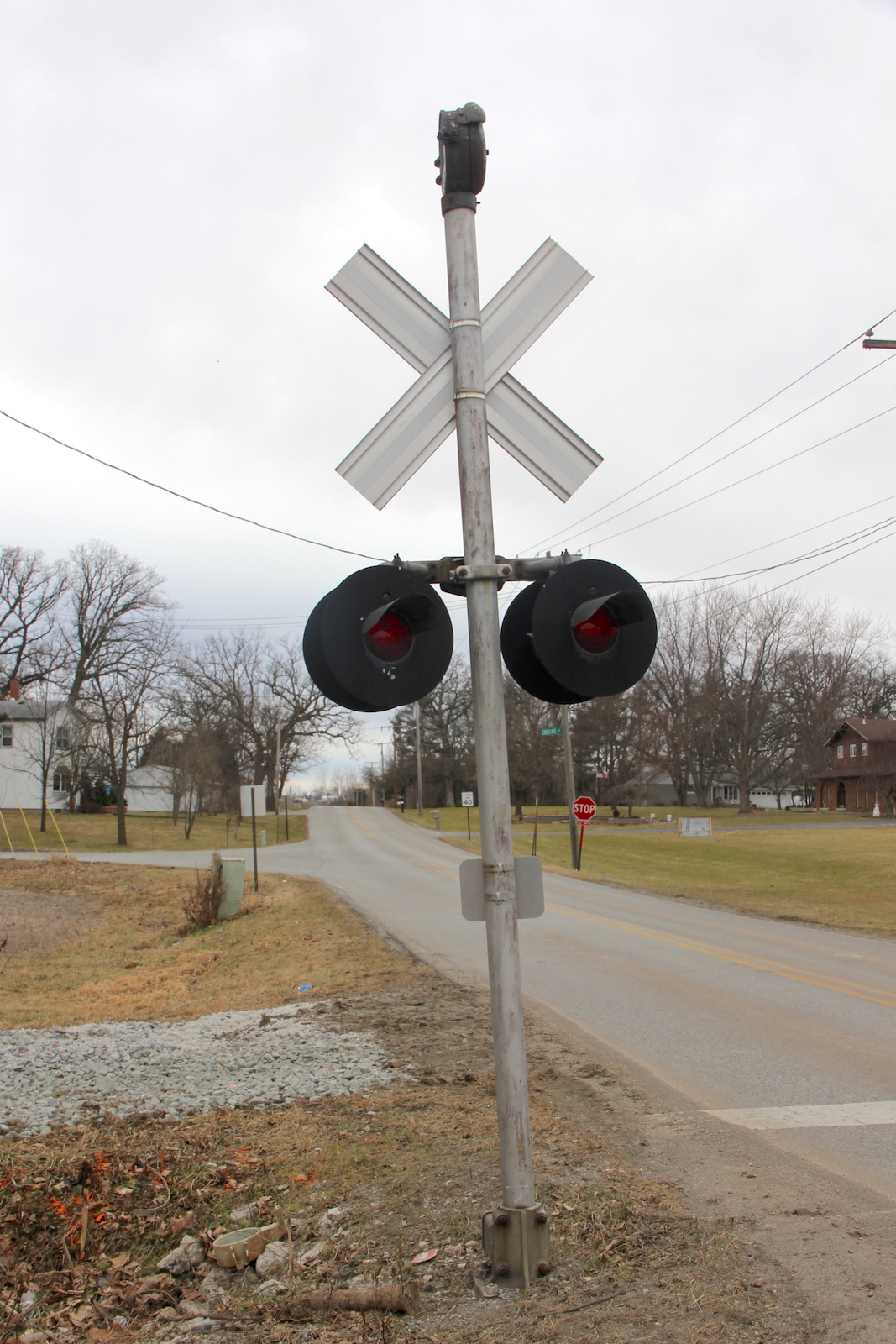

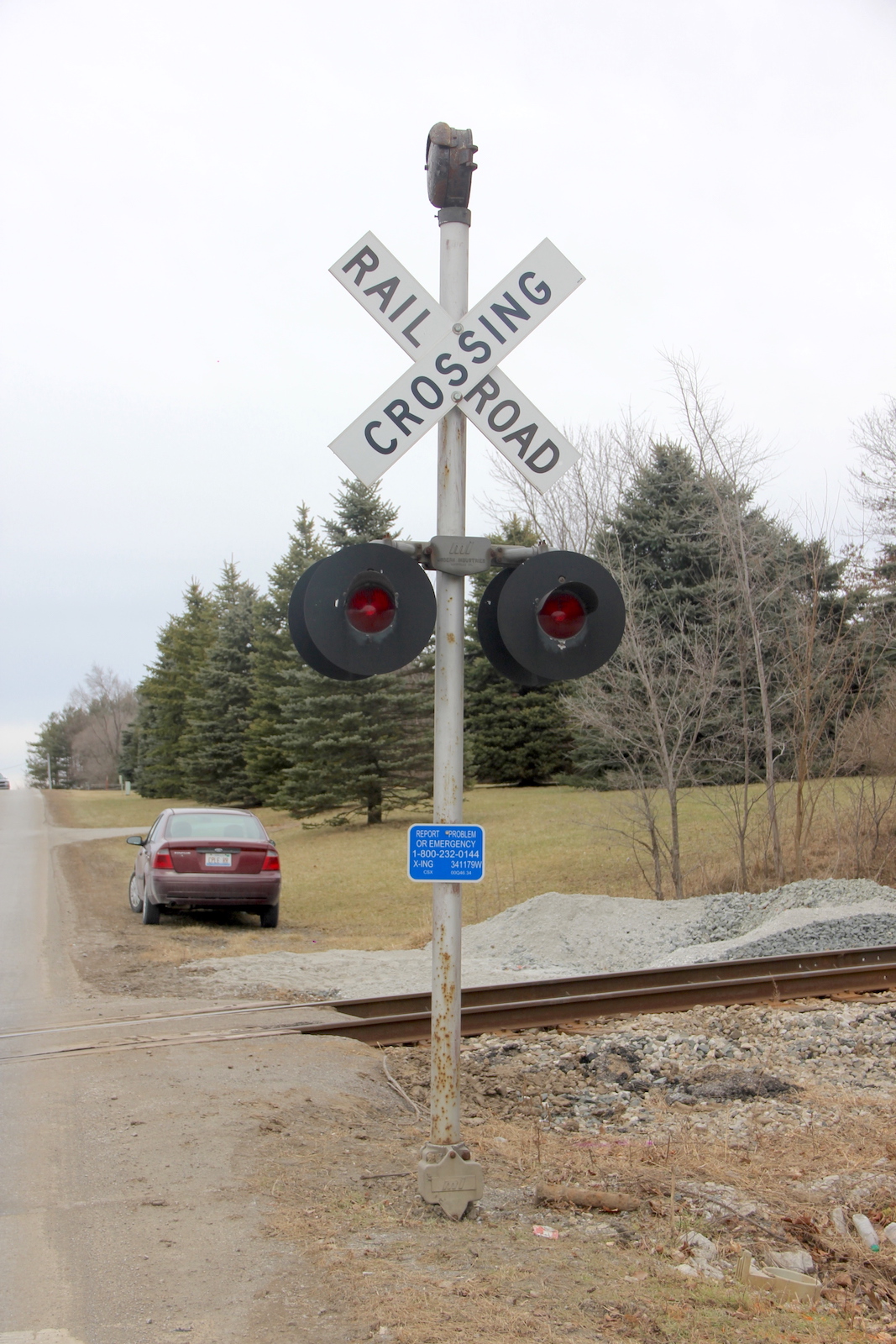

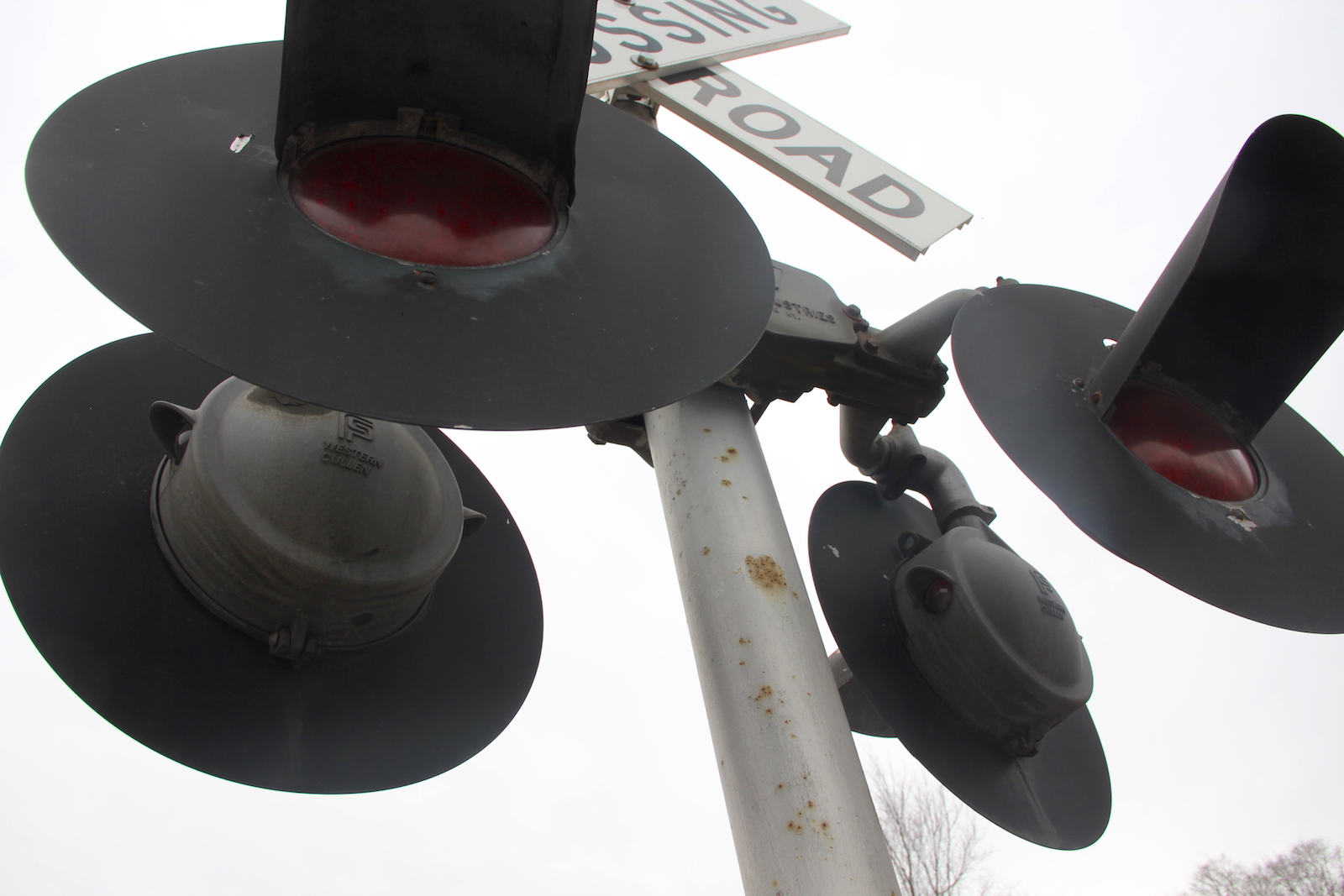

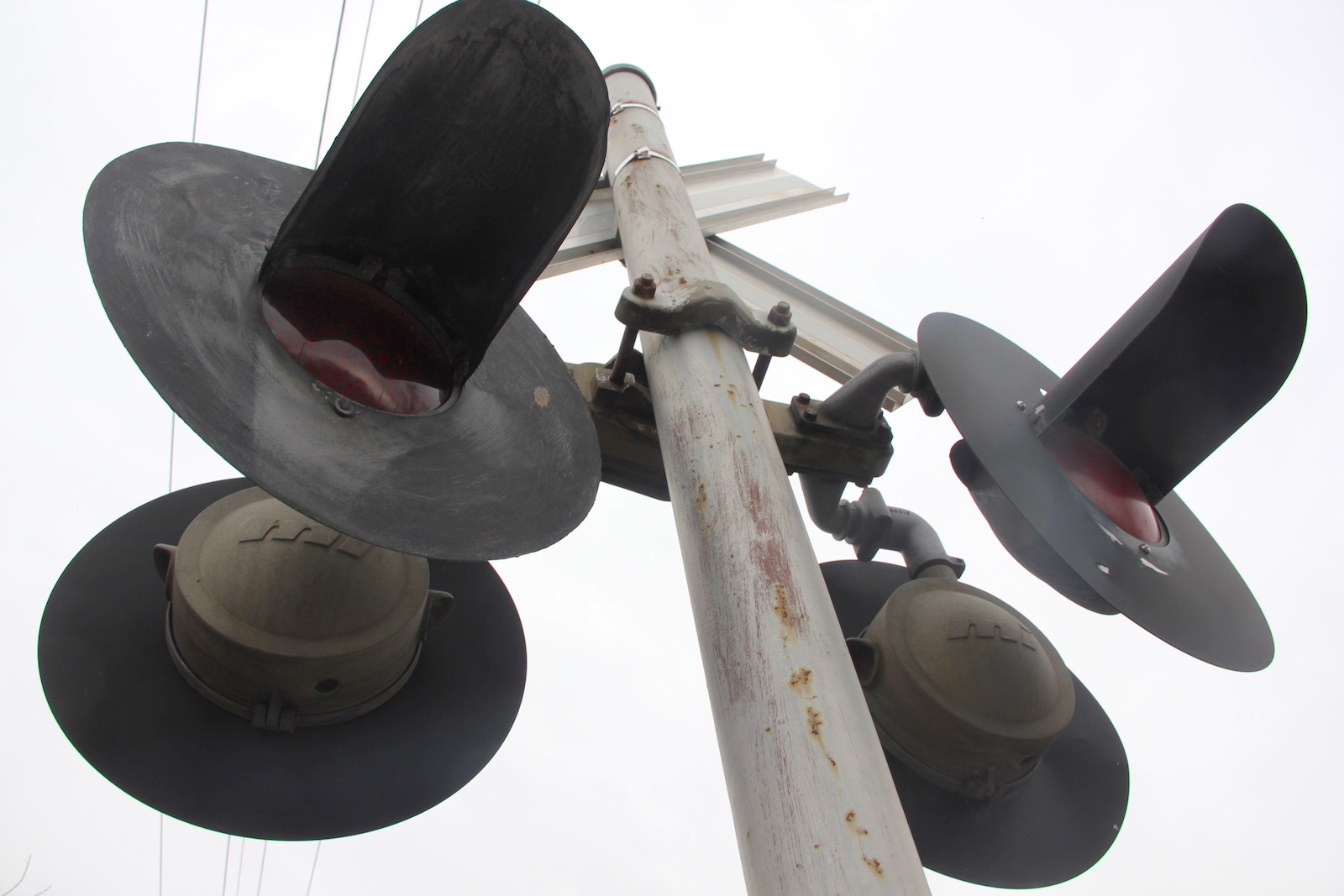

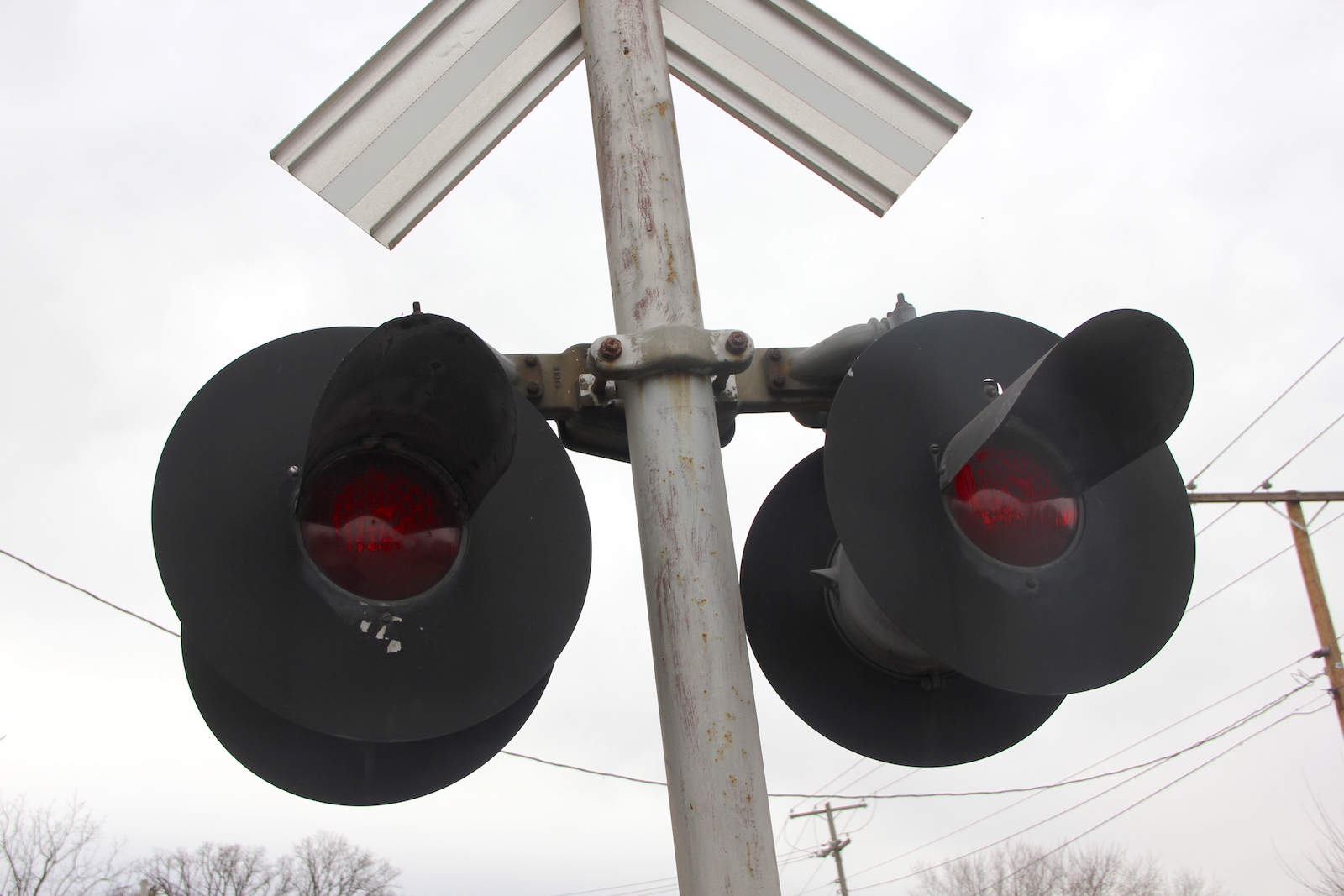

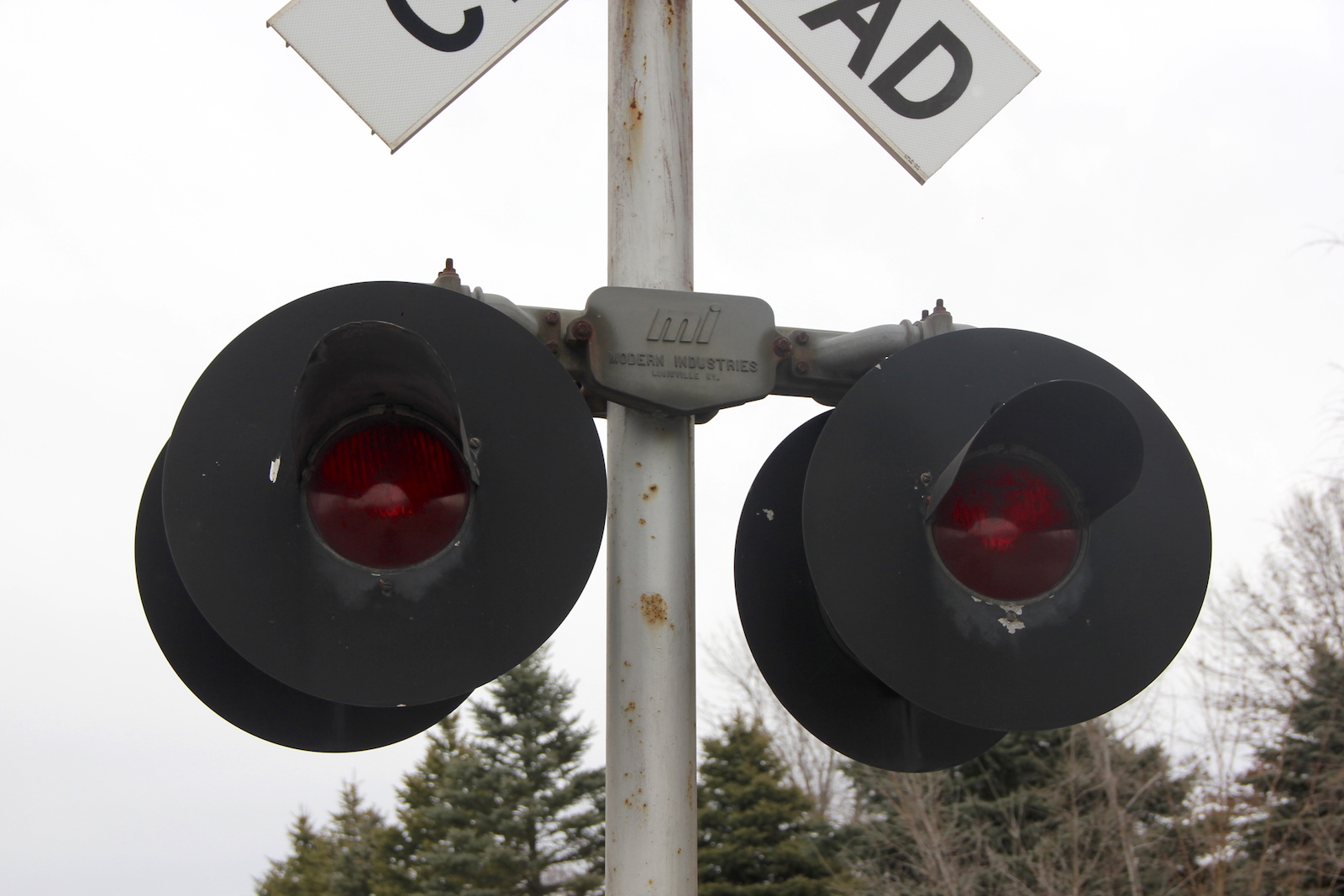

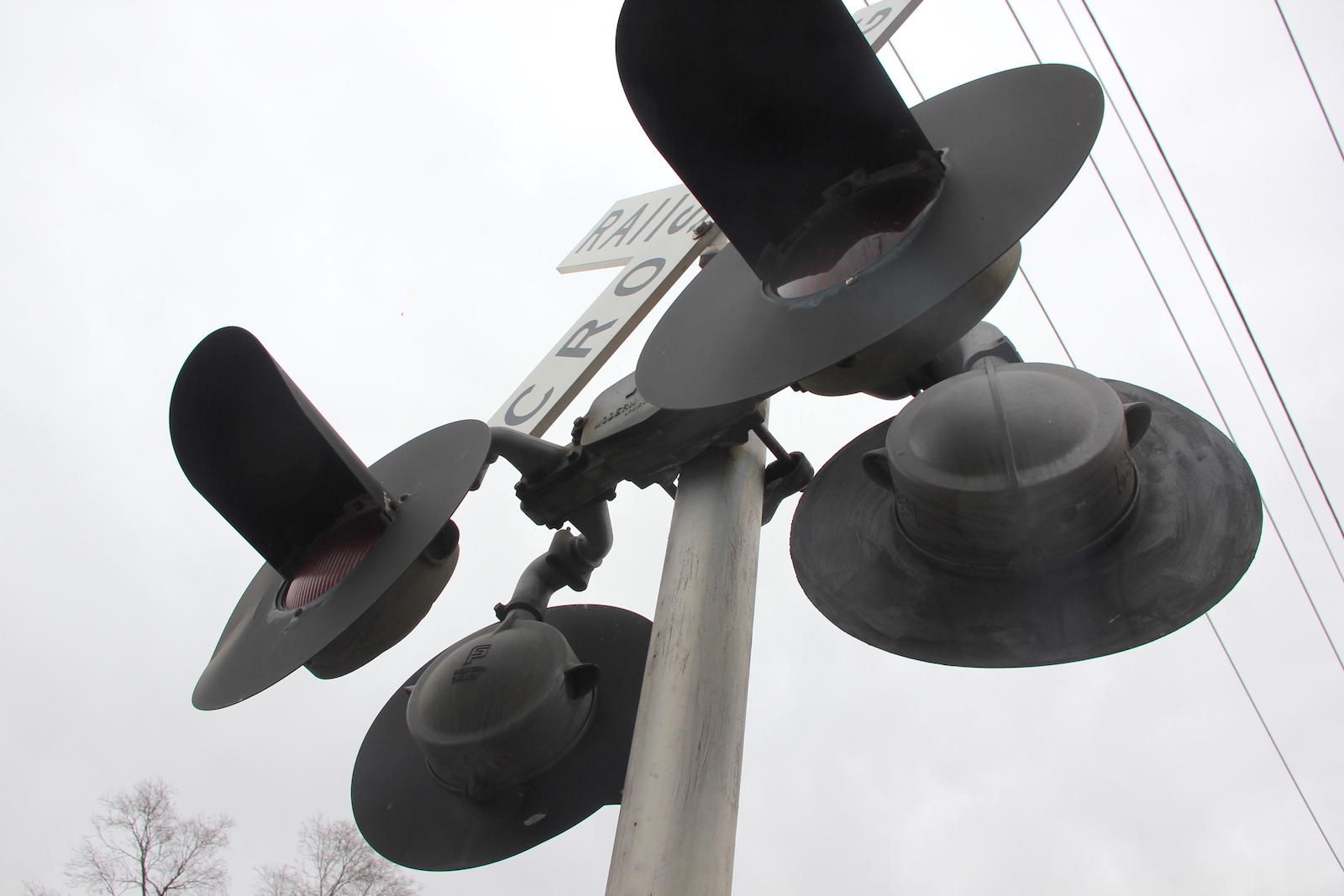

The western signal.
21 22 23 24

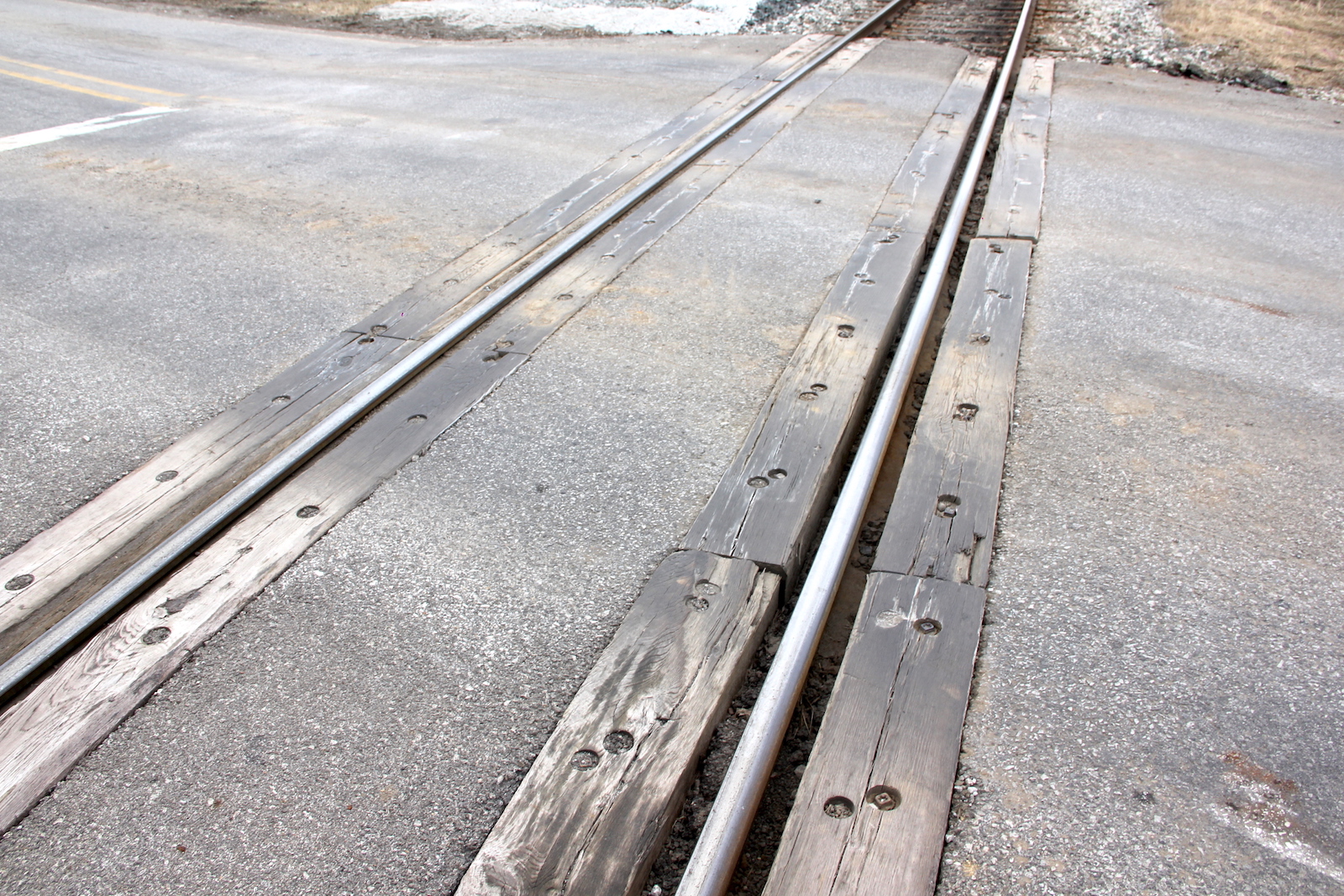

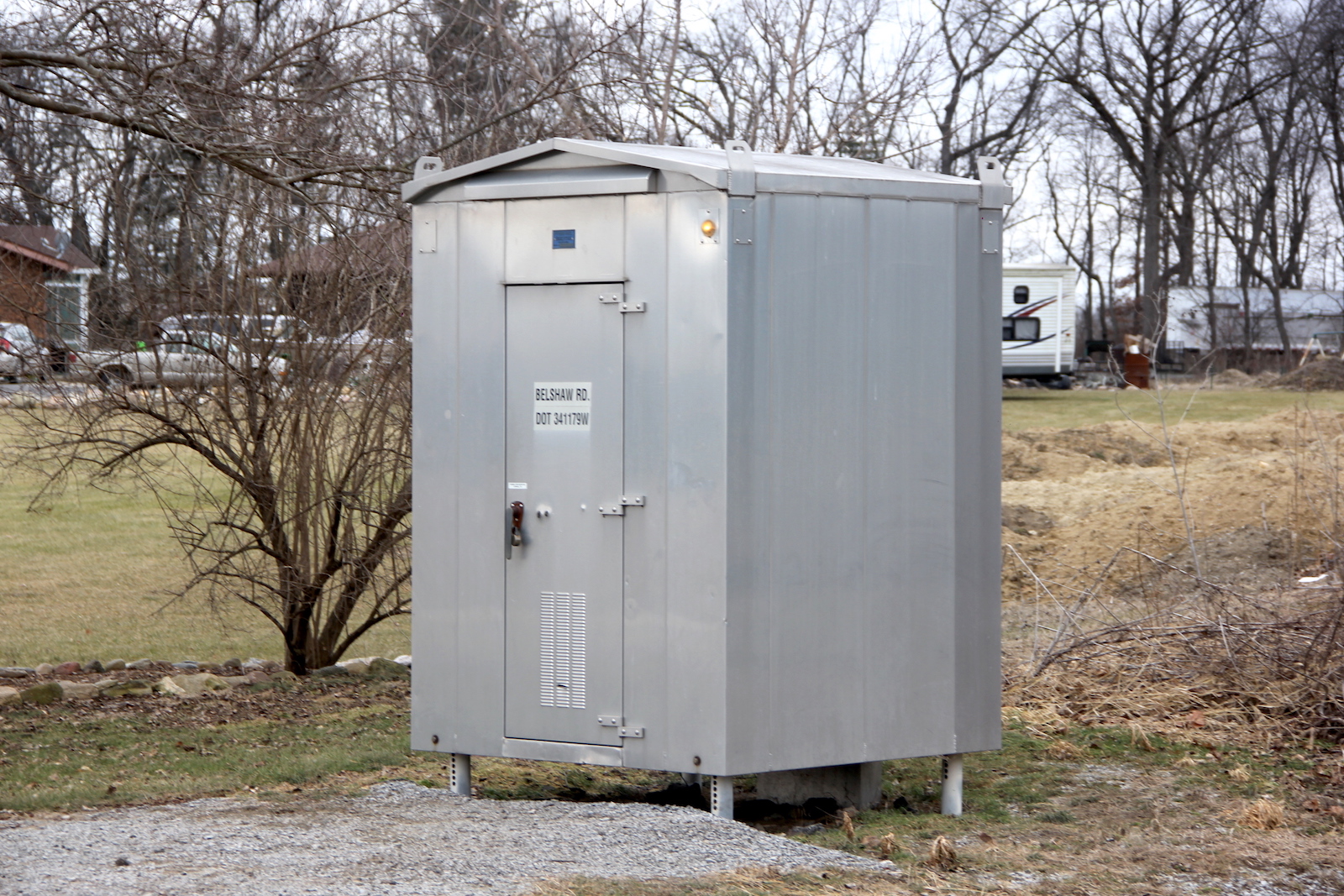

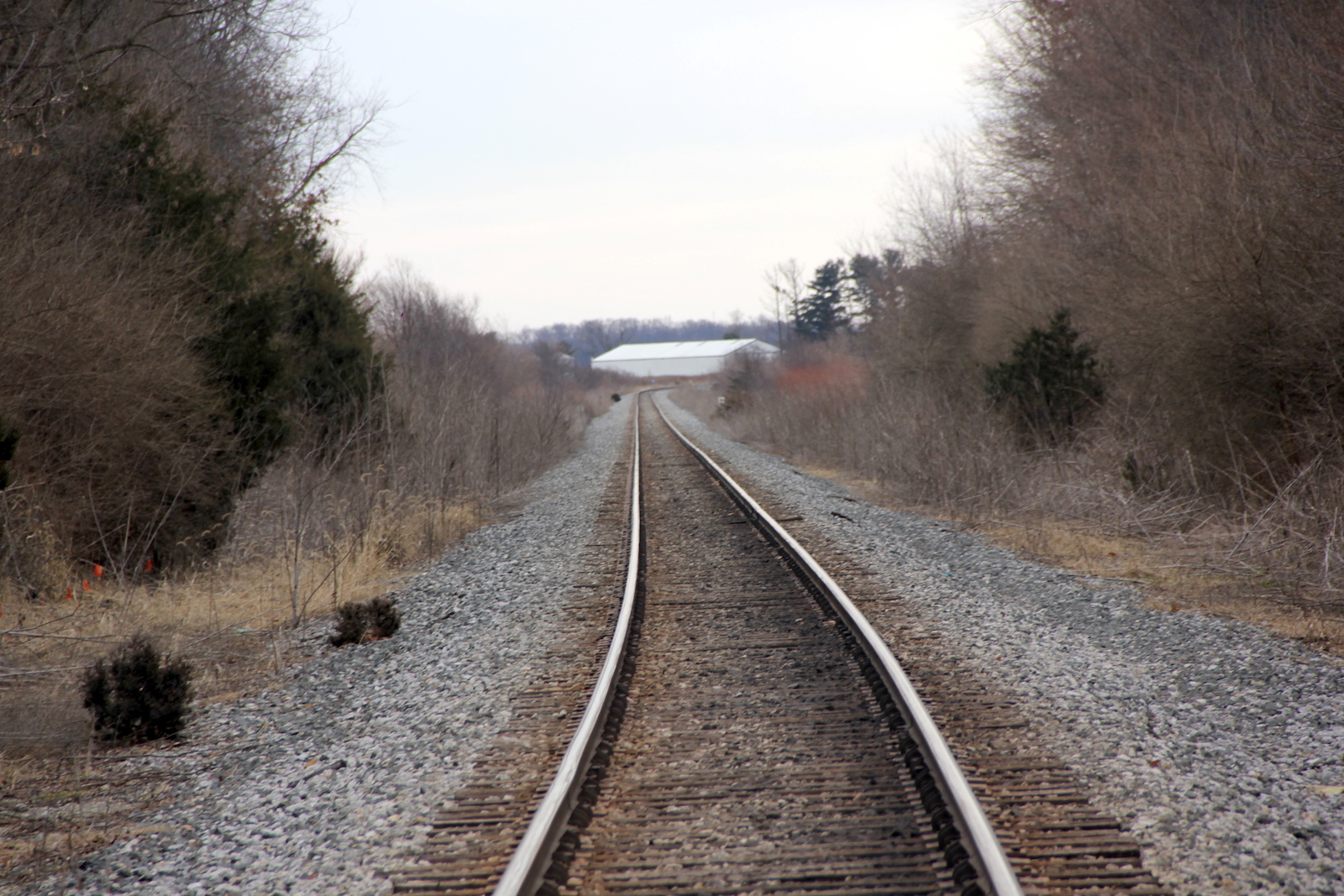

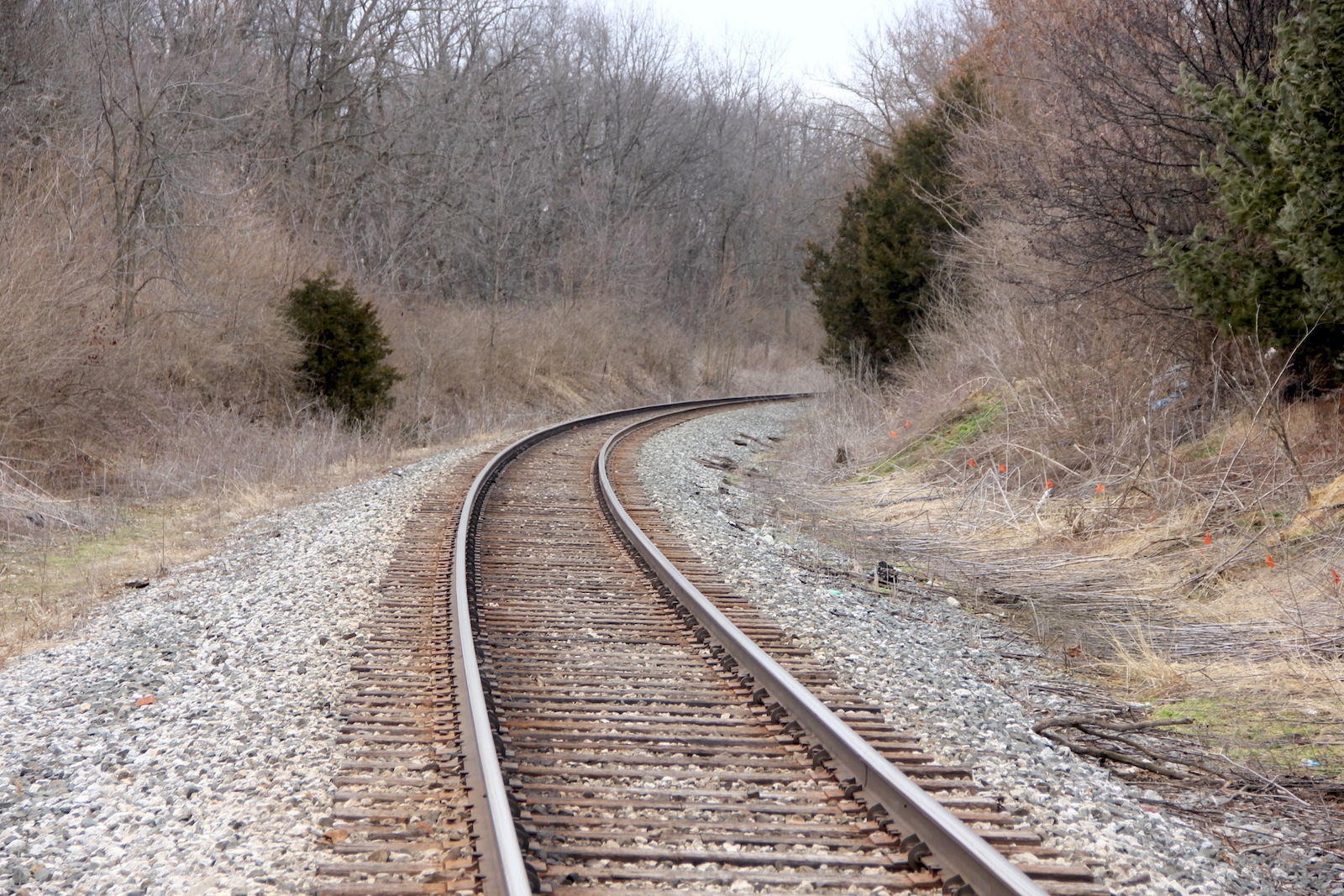

The relay bungalow in the northwest quadrant. The grade is wood and asphalt. Track view facing north towards Oakley Ave. Track view facing south towards 197th Ave.
25

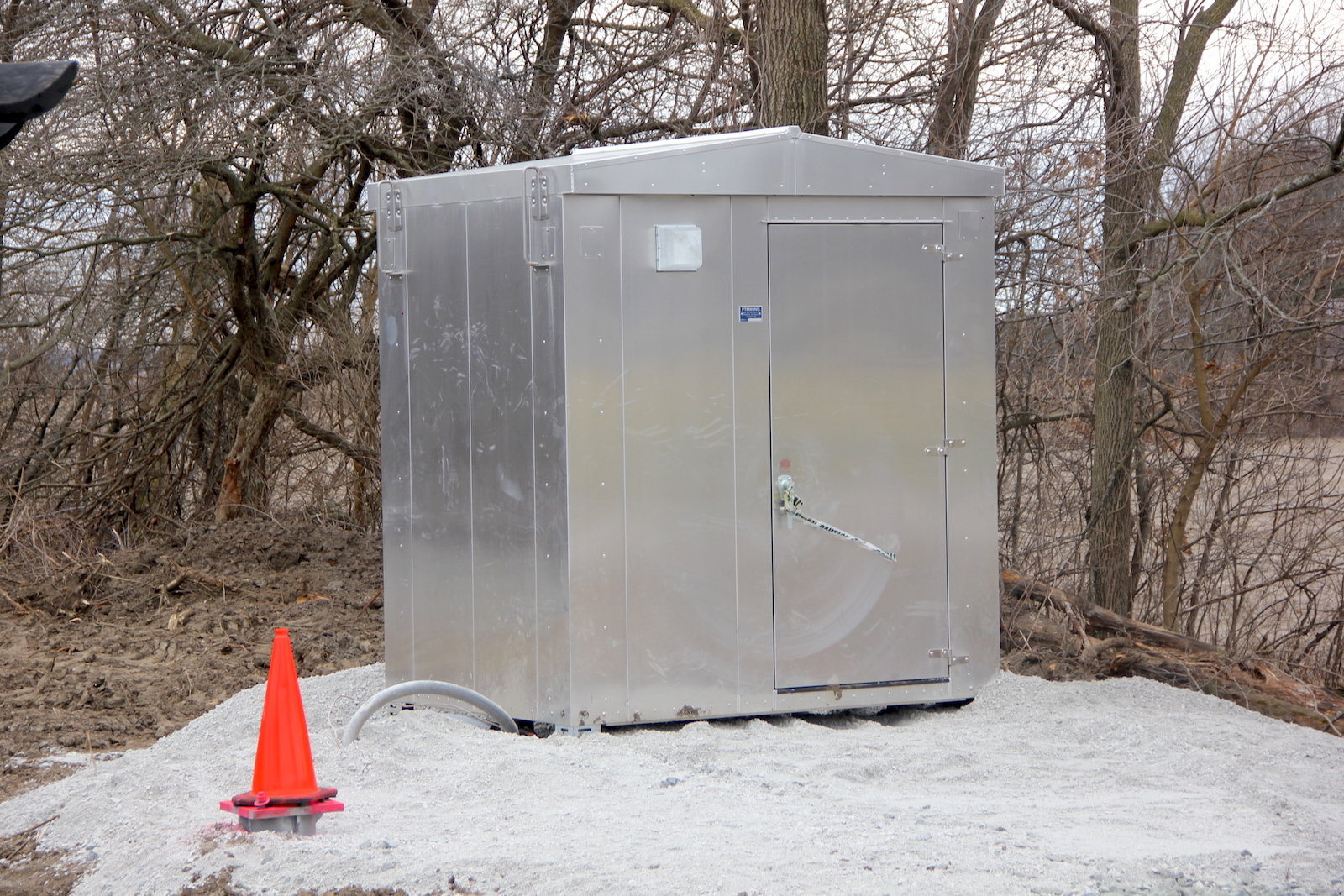

Another new bungalow in the southwest quadrant. I thought this was going to be for the crossing at the time.
26 27 28

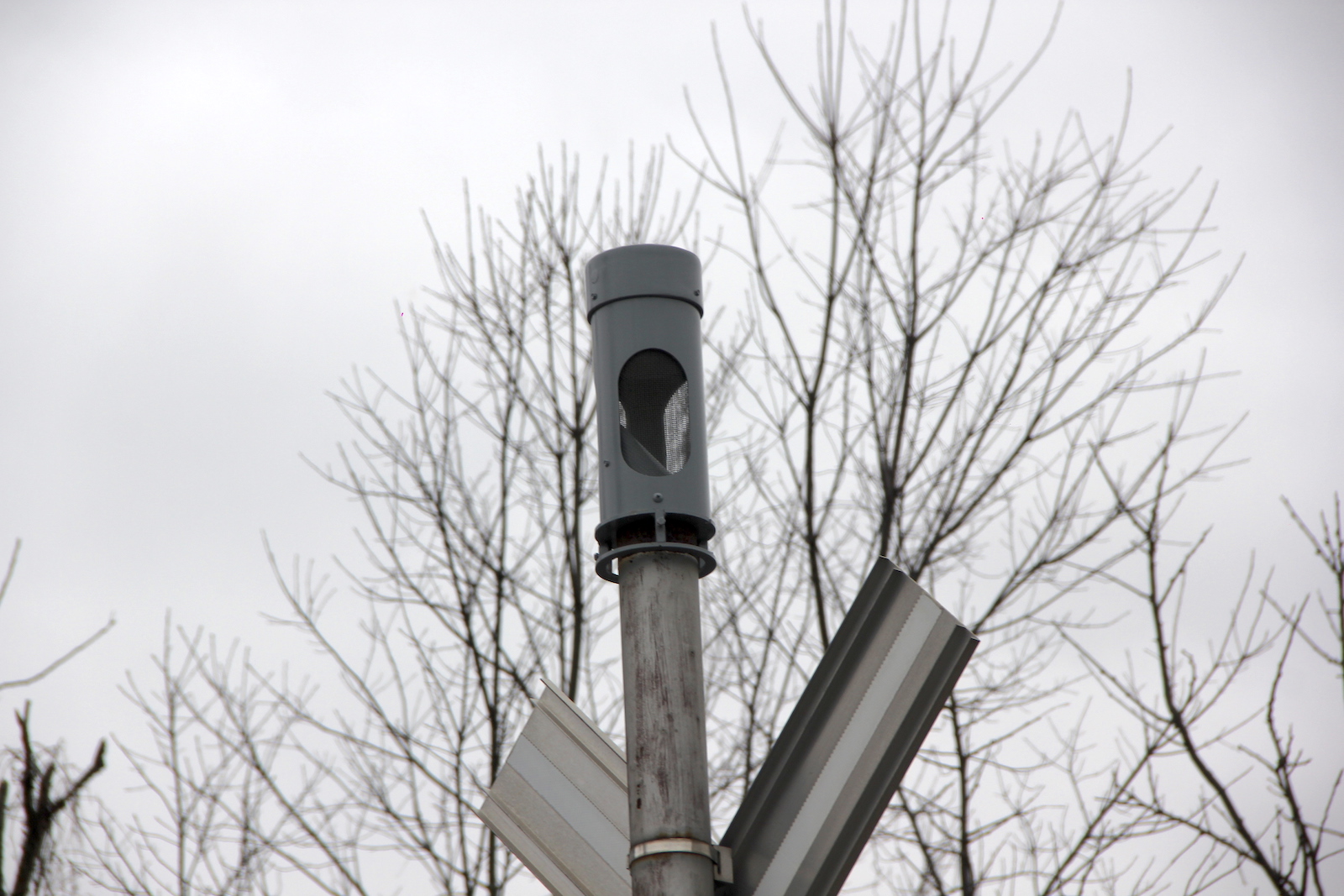

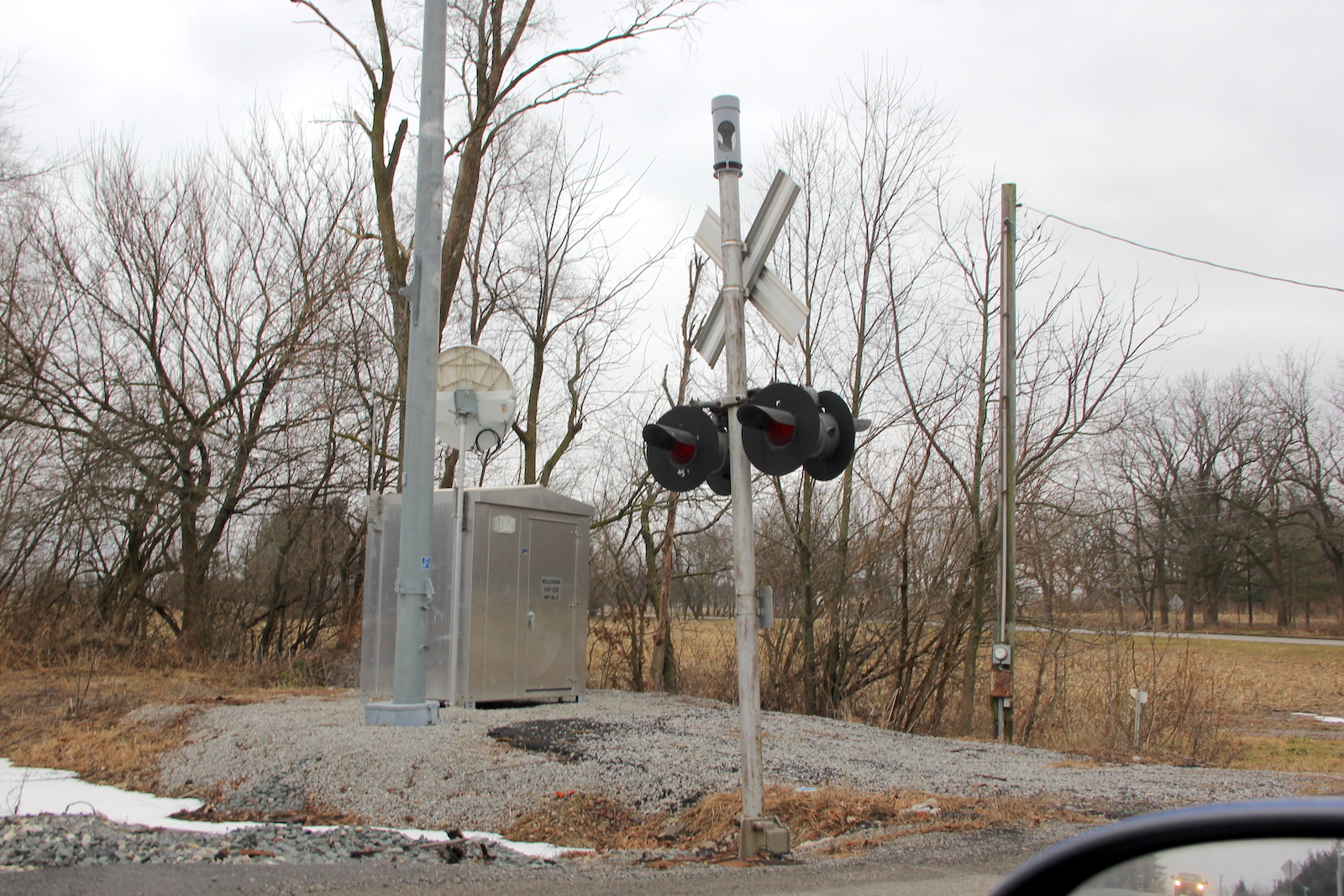

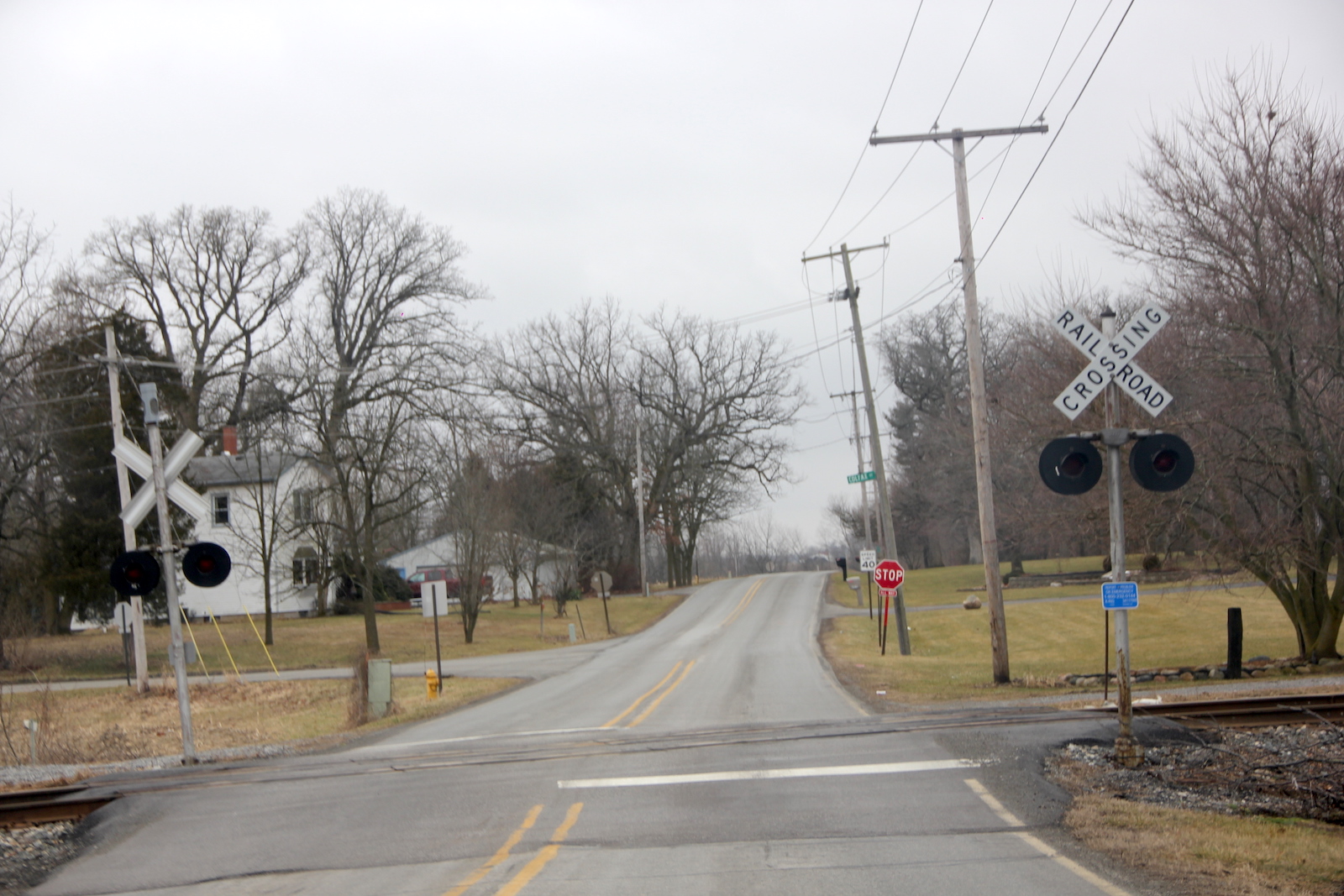

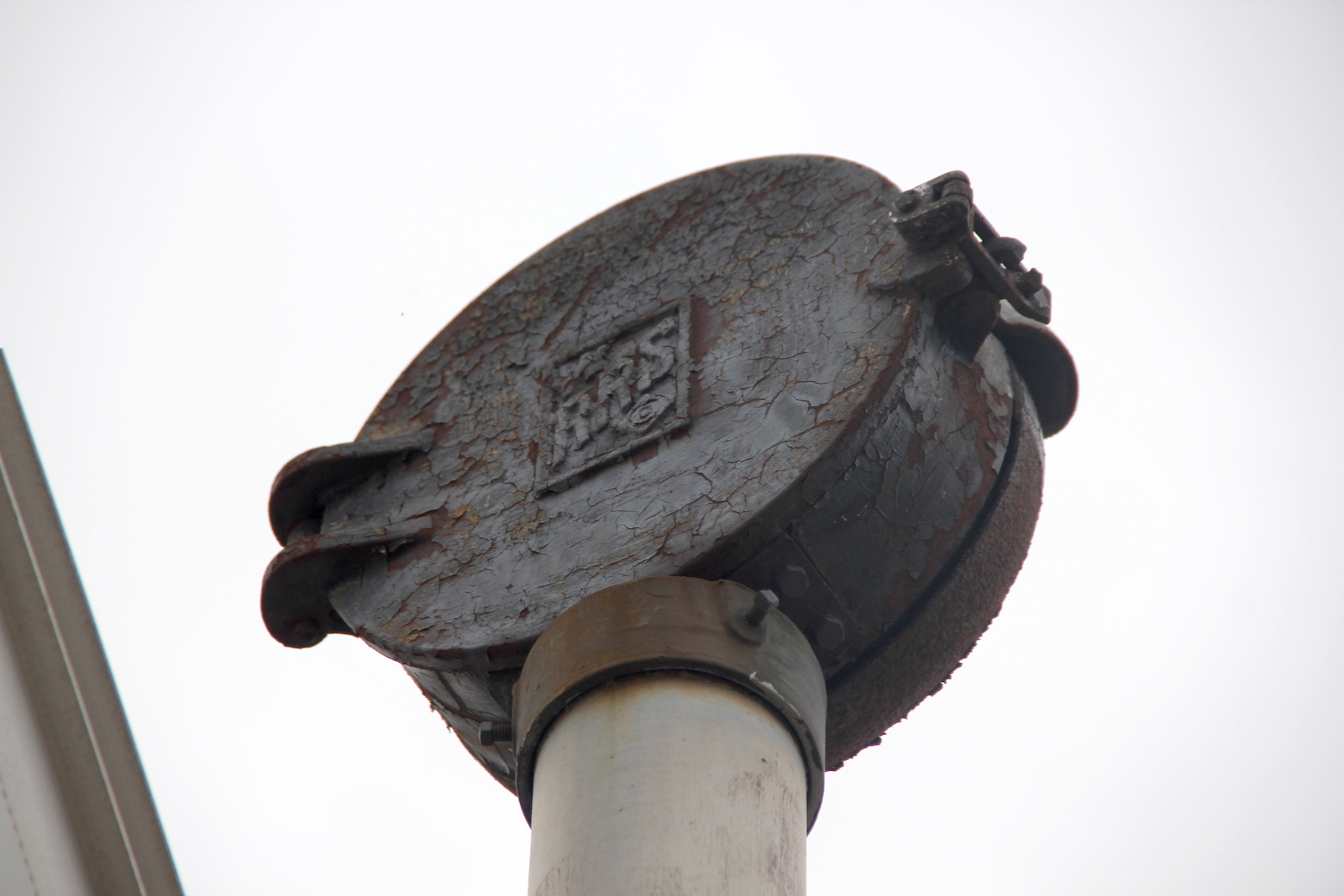

In February 2020, we see the WRRS bell was replaced by an NEG E Bell. The new bungalow is not for the crossing, but I'm not sure what exactly its purpose is.

.
