MP: 226.10
|
MP: 226.10 |
| Created February 2020 |
| Total Accidents:
3 Crossing DOT #: 545606A TOTAL DAILY TRAINS: 10 (AS OF 2019) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal | Side Signal |
| Bell: | Safetran Mechanical Bell 2nd Gen | Safetran Mechanical Bell 2nd Gen | None |
| Cantilever: | Harmon Cantilever | None | None |
| Mast Base: | Safetran 5" Single Sided ^ | GRS 5" Single Sided ^ | GRS 5" Single Sided ^ |
| Lights: | 2 - 12"x20" Harmon w/ 1st Gen Harmon Dotted LEDs 6 - 12"x20" Harmon w/ 2nd Gen Harmon Dotted LEDs |
4 - 12"x24" Hawker Safetran w/ General Signals LEDs | 2 - 12"x24" Hawker Safetran w/ General Signals LEDs |
| Junction Boxes: | Harmon | GRS | Safetran |
| Gate Lights: | 3 - 4" RECO LEDs | 3 - 4" RECO LEDs | 3 - 4" RECO LEDs |
| Gate Mechanism: | Safetran 1980s w/ Standard Mount | Safetran 1990s w/ Standard Mount | Invensys Rail w/ Standard Mount |
| Gate Striping: | Diagonal Striping | Diagonal Striping | Diagonal Striping |
1 |
2 |
| Overview of 2 gated mast signals (1 not shown here) and a gated cantilever facing south. |
Overview facing north. |
3 |
4 |
5 |
6 |

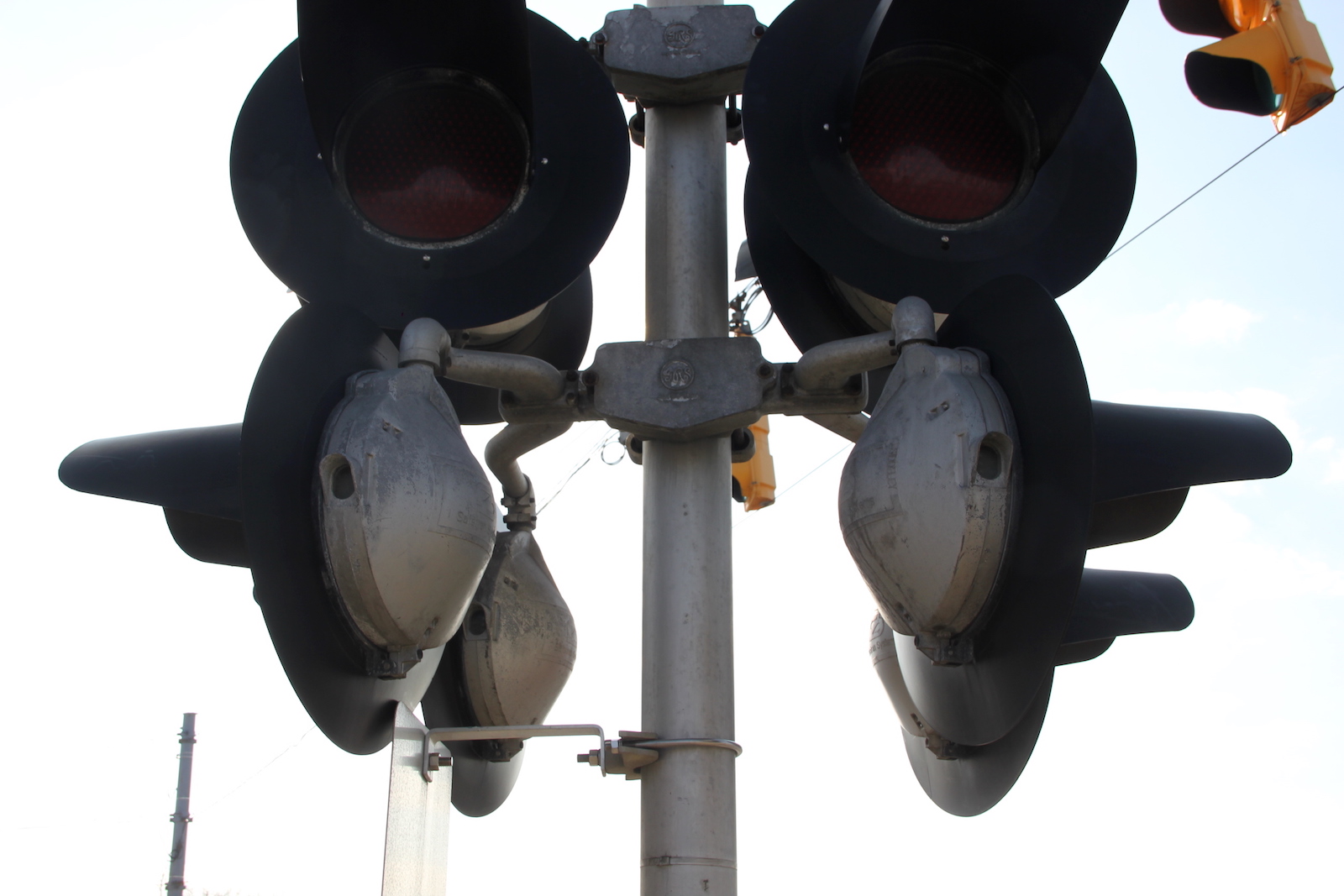

7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
| The northern signal. |
18 |
19 |
20 |
21 |
22 |
23 |
24 |

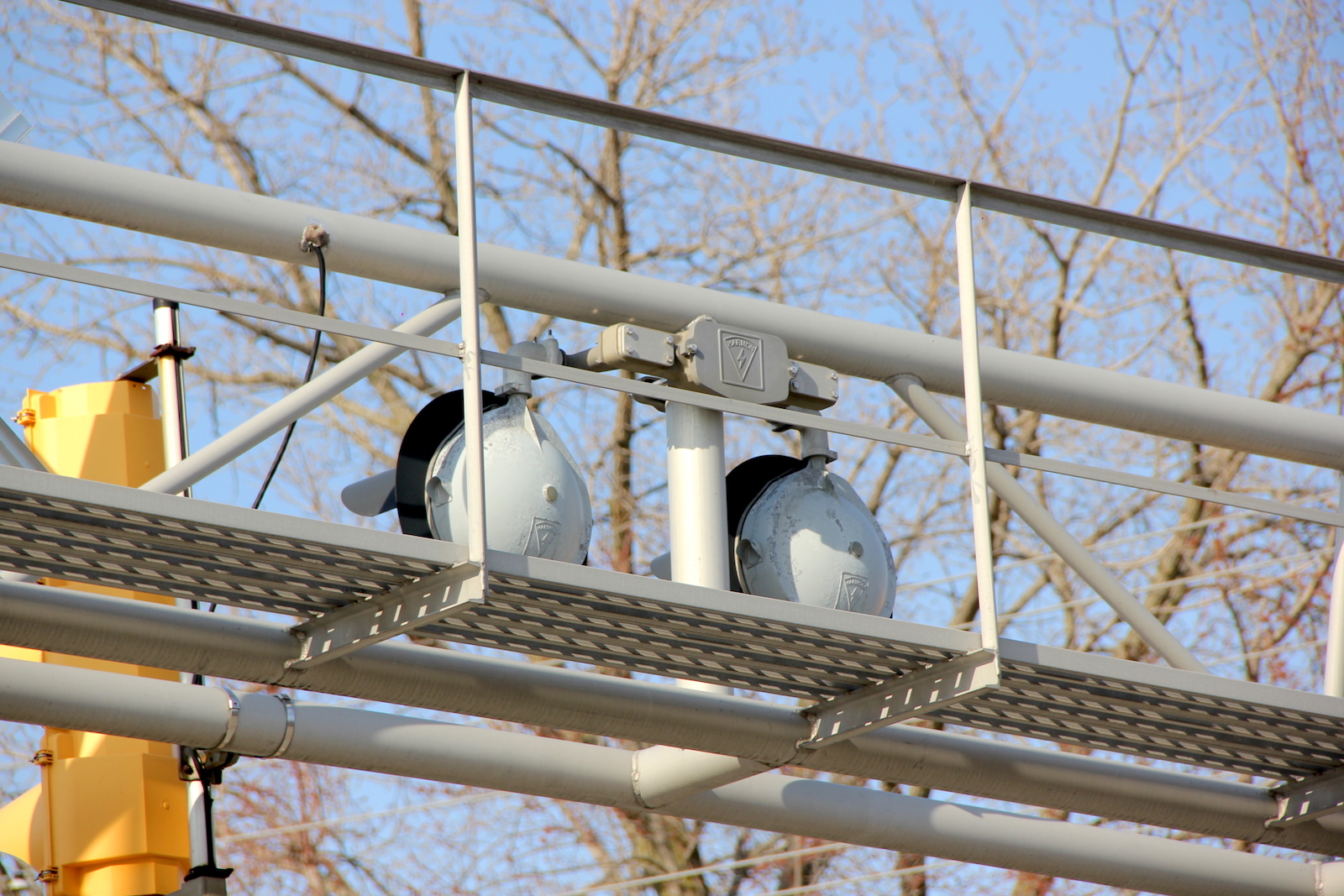

25 |
26 |
27 |
28 |
29 |
30 |
| The southern signal. |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
| This side signal protects traffic turning from west to north off of US 12 onto Karwick Rd. |
39 |
40 |
41 |
42 |
| The relay bungalow in the southwest quadrant. |

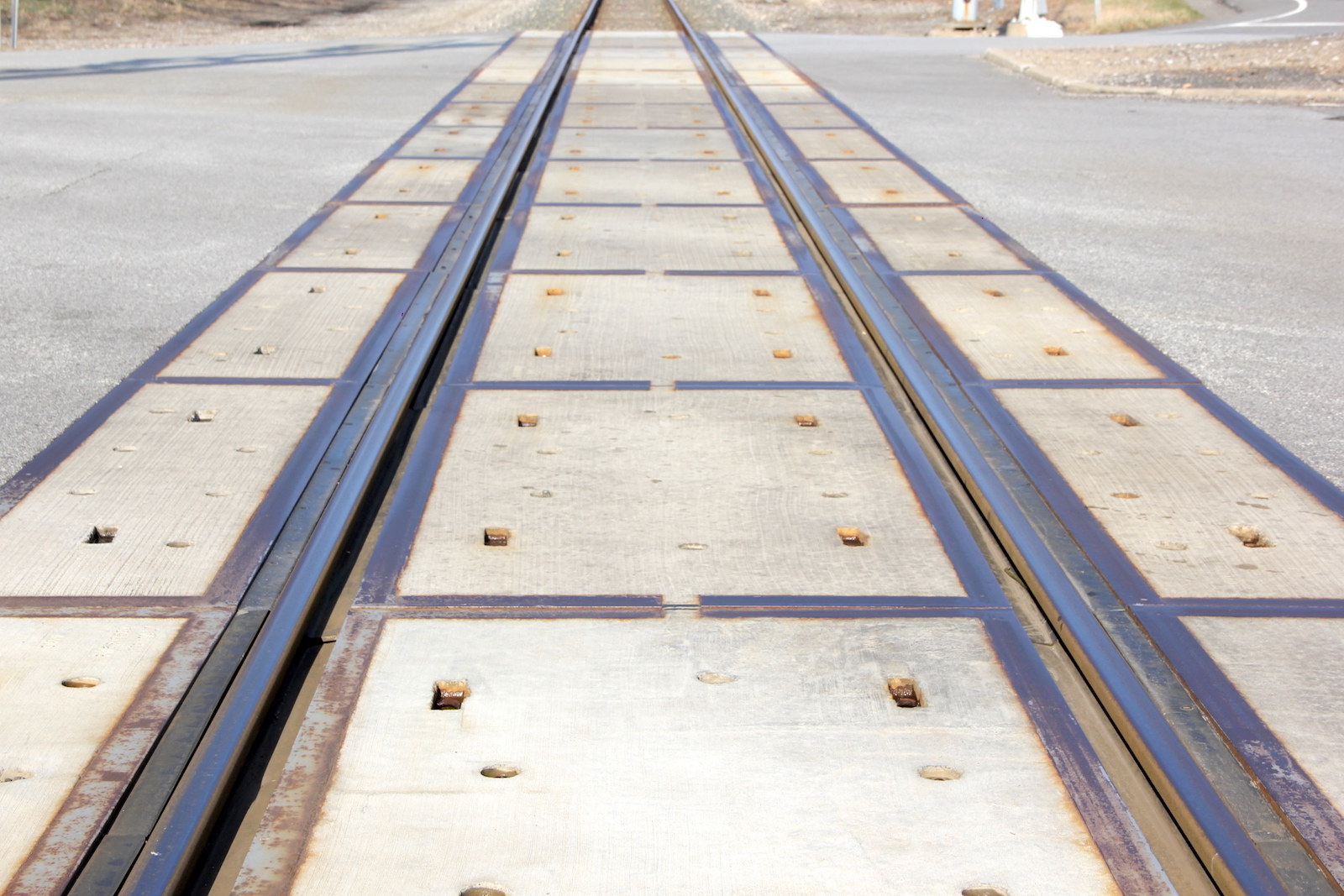

The grade is all concrete. |
Track view facing west towards Woodruff Rd. |
Track view facing east towards Moore Rd. |
