MP: 33.98

Updated December 2024

Total Accidents:  12

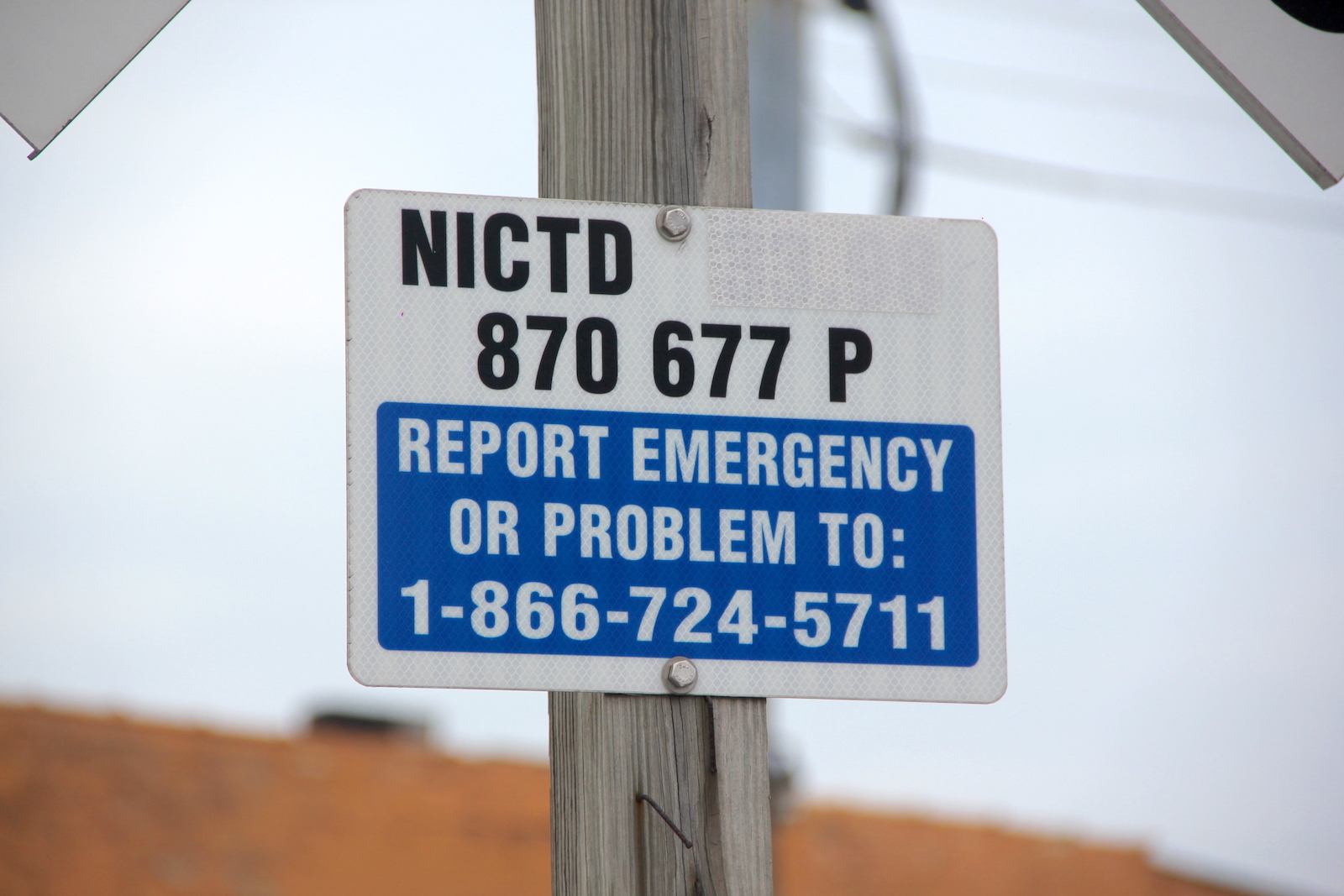

Crossing DOT #:  870677P
TOTAL DAILY TRAINS:  44   (AS OF 2017)

>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: WCH Type 2 E-Bell WCH Type 2 E-Bell
Cantilever: Traffic Pole Traffic Pole
Mast Base: WCH 5" Double Sided ^ WCH 5" Double Sided ^
Lights: 4 - 12"x24" WCH w/ GE Pixelated Look LEDs
4 - 12"x20" WCH w/ GE Pixelated Look LEDs		 4 - 12"x24" WCH w/ GE Pixelated Look LEDs
4 - 12"x20" WCH w/ GE Pixelated Look LEDs
Junction Box: WCH WCH
Gate Lights: 3 - 4" NEG LEDs 3 - 4" NEG LEDs
Gate Mechanism: WCH Style 4 w/ GSI Gate Saver WCH Style 4 w/ GSI Gate Saver
Gate Striping: Vertical Striping Vertical Striping


>>>>>>>>>>>>>> Northwestern Pedestrian Gate Northeastern Pedestrian Gate Southwestern Pedestrian Gate Southeastern Pedestrian Gate
Base: WCH 5" Double Sided ^ WCH 5" Double Sided ^ WCH 5" Double Sided ^ WCH 5" Double Sided ^
Lights: None None None 2 - 12"x24" WCH w/
GE Pixelated Look LEDs
Junction Box: None None None WCH
Gate Light: 1 - 4" NEG LED 1 - 4" NEG LED 1 - 4" NEG LED 1 - 4" NEG LED
Gate Mechanism: WCH Style 4 WCH Style 4 WCH Style 4 WCH Style 4
Gate Striping: Vertical Striping Vertical Striping Vertical Striping Vertical Striping

Pictures 1-11 were taken on February 2, 2019.
Pictures 12-62 were taken on February 24, 2024.
All pictures were taken by Tommy McGowan.
This crossing is located on the South Shore mainline and was along the 11th St. portion of street running in Michigan City.

1 2

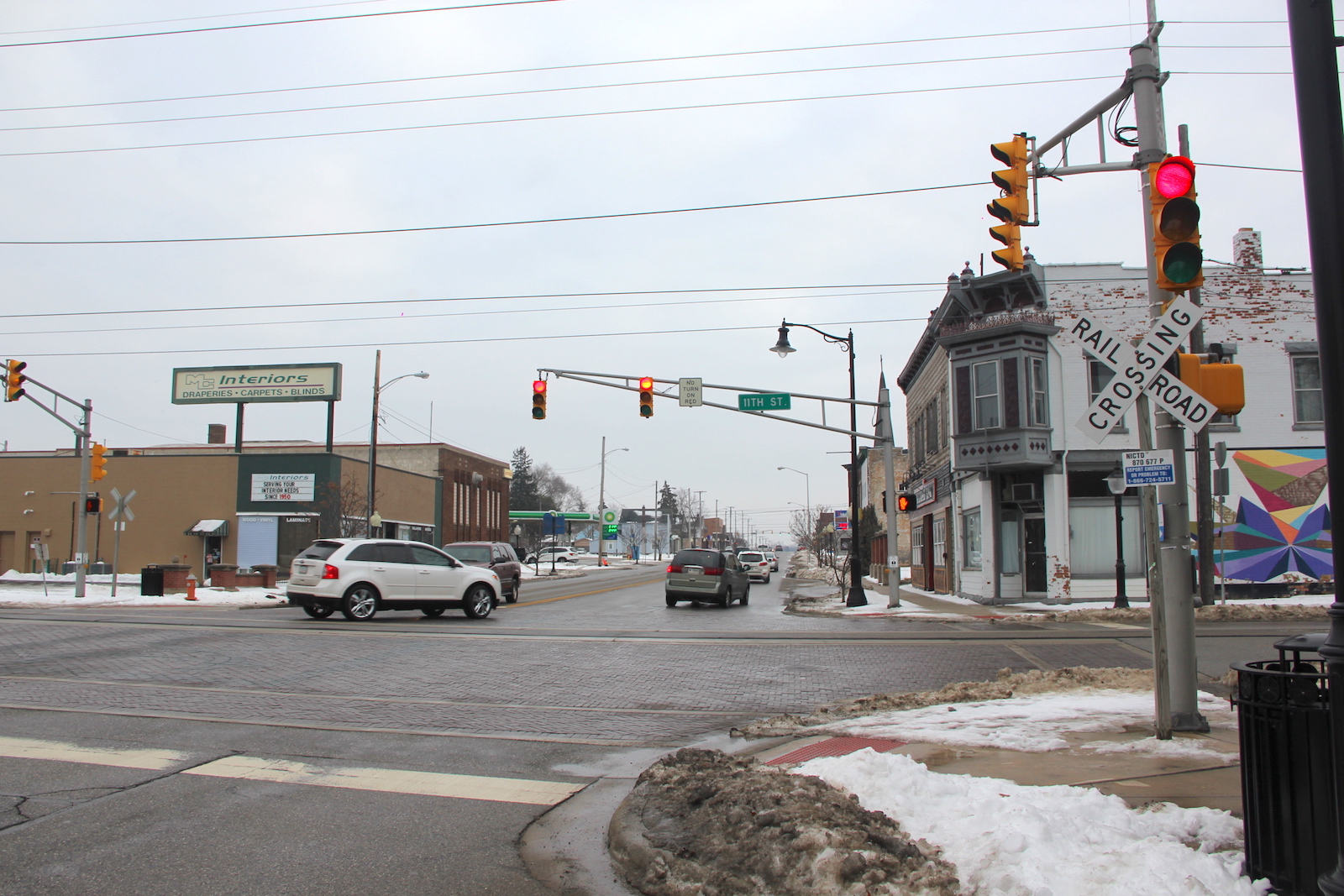

Overview of 2 crossbucks and a traffic light setup facing south.

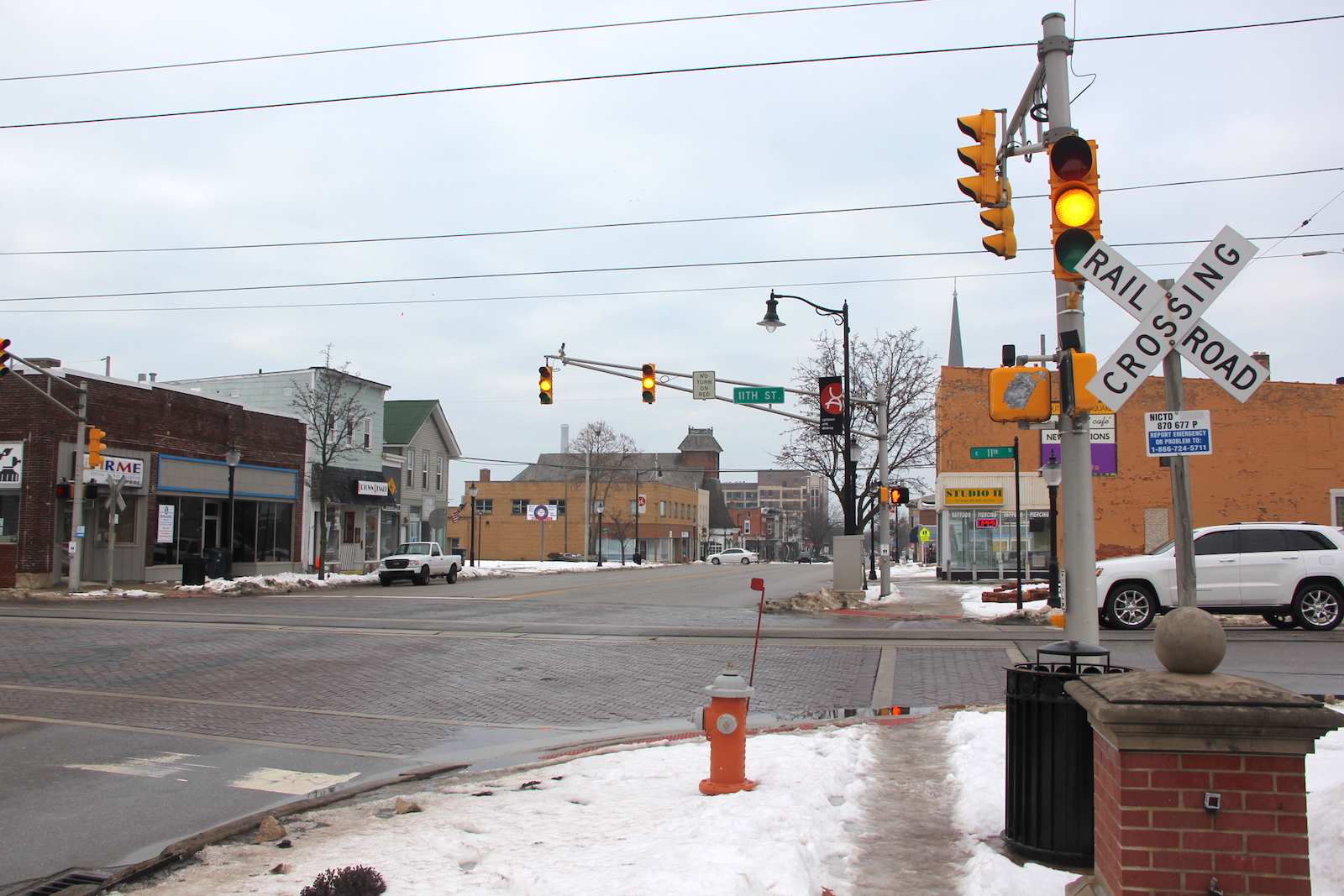

 Overview facing north.
3 4 5

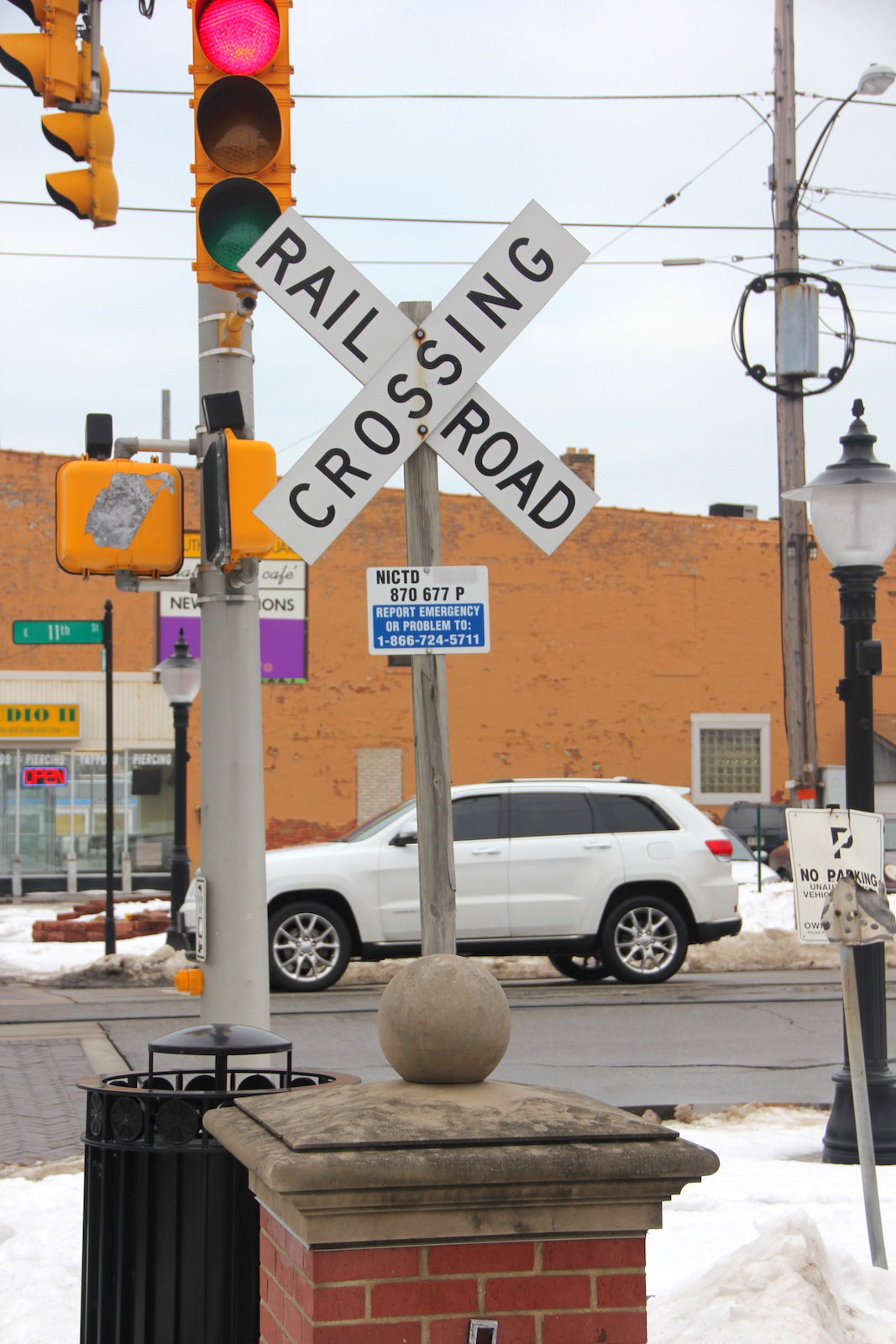

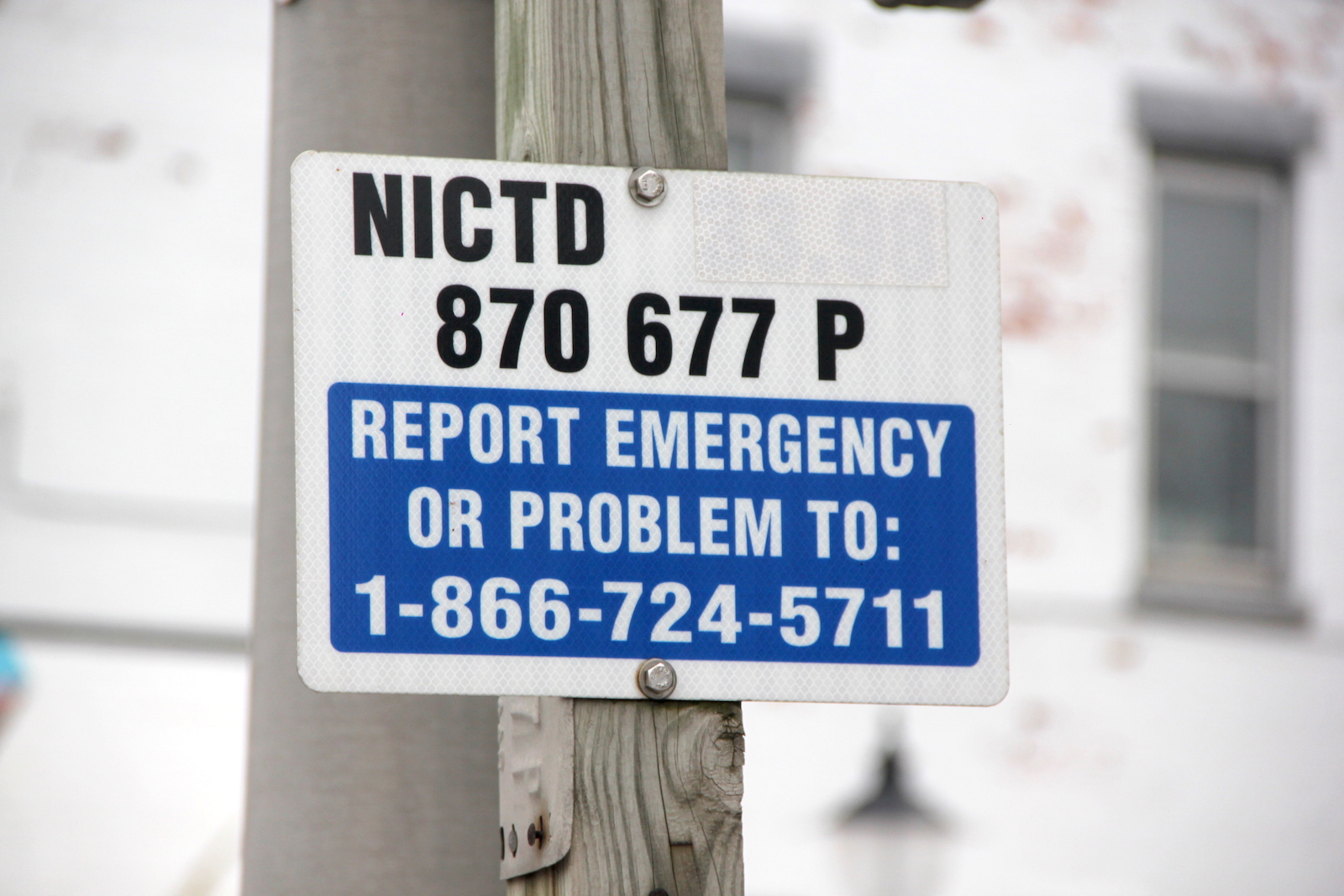

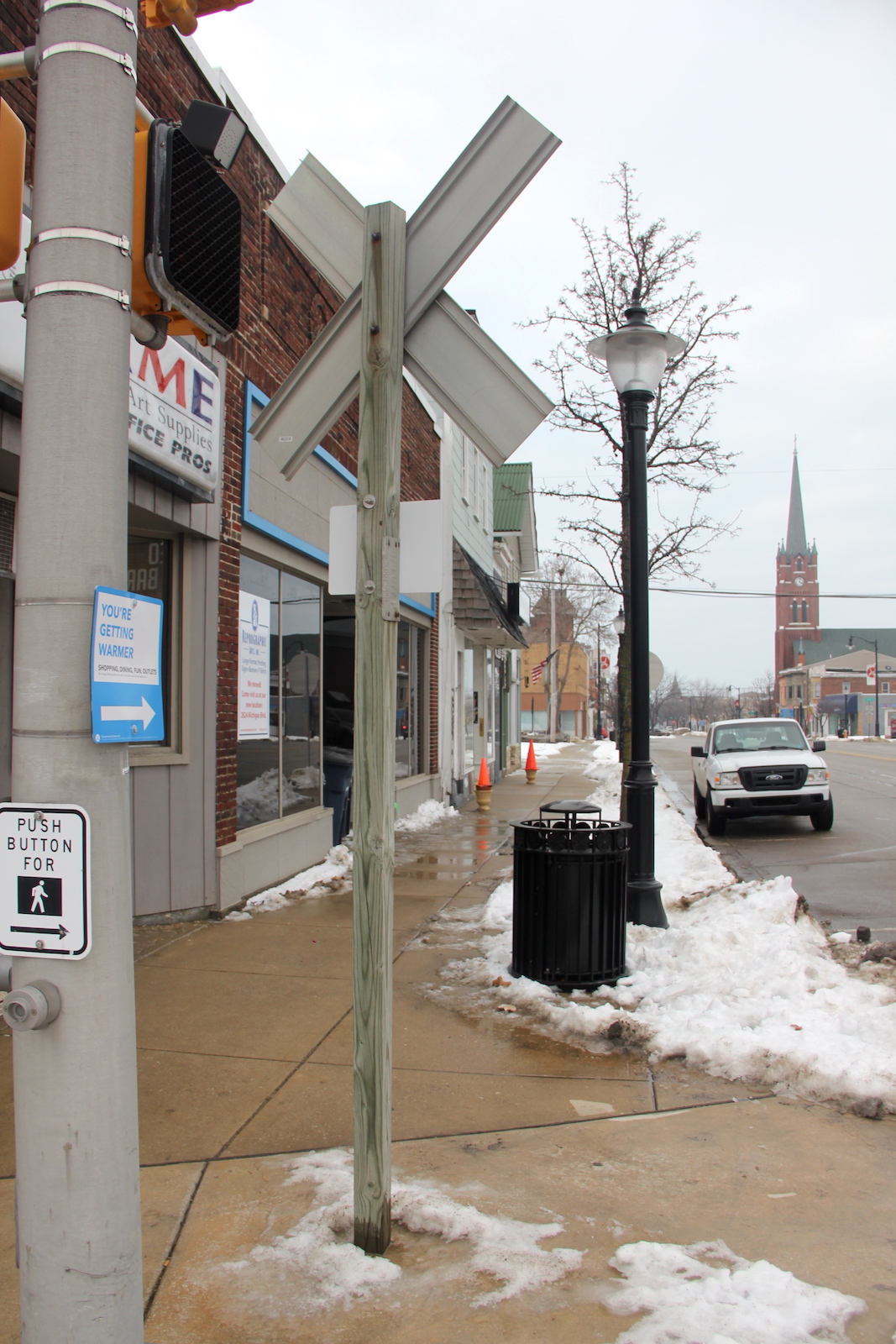

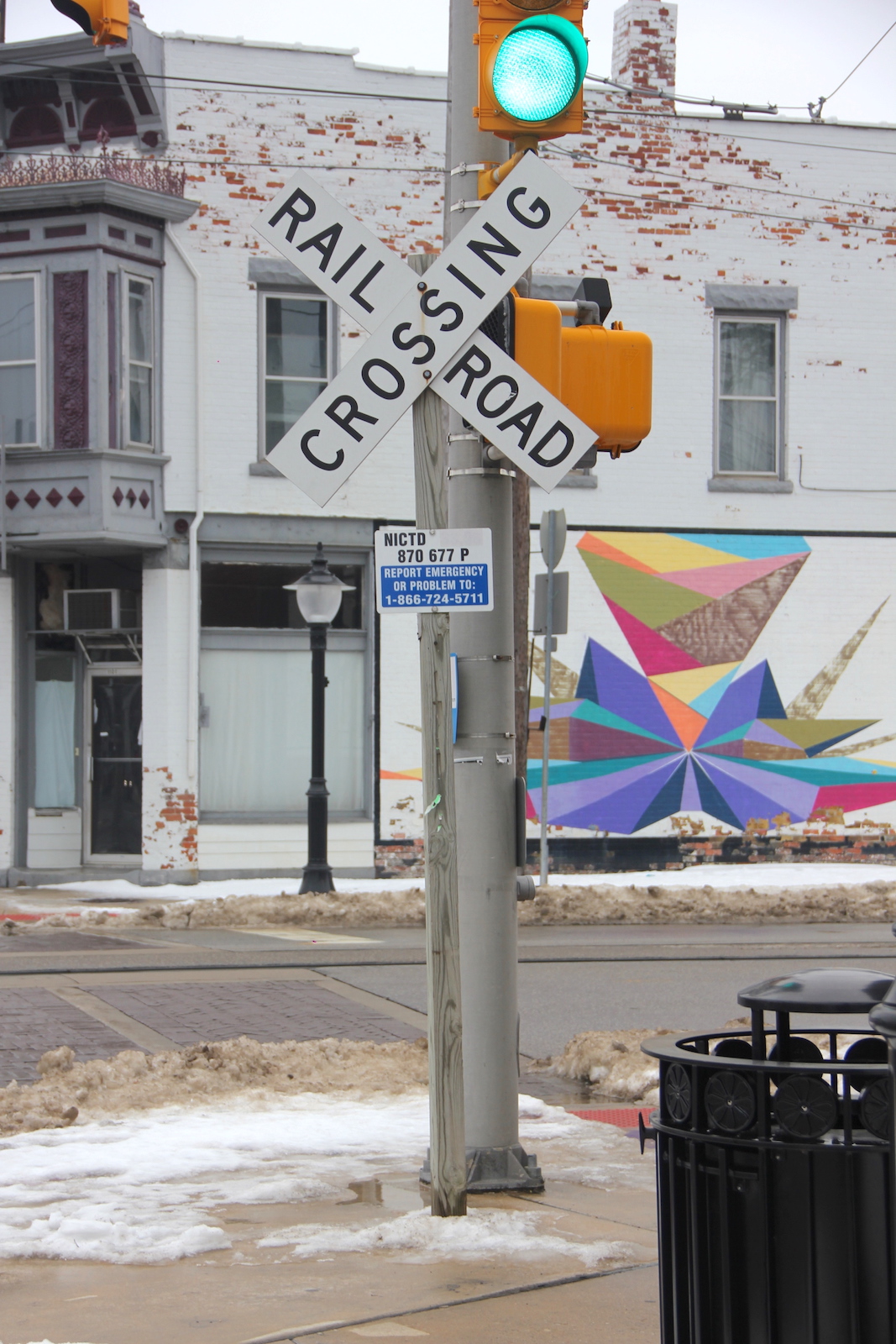

The northern crossbuck.
6 7 8

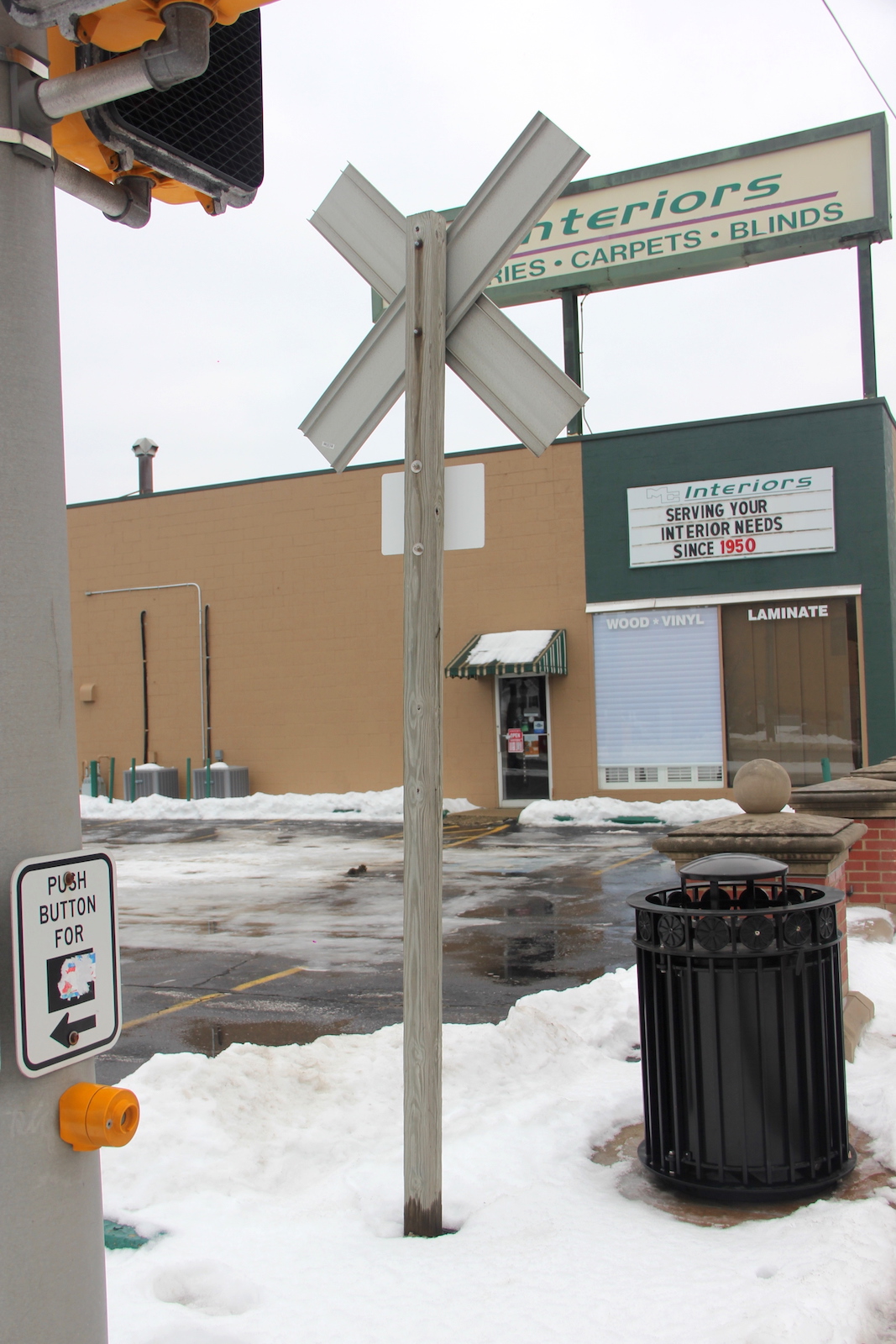

The southern crossbuck.
9 10 11
The grade is rubber and asphalt.
 Track view facing west at Washington St.
 Track view facing east at Pine St.

In 2022, this crossing was completely redone. The street running was removed, and the mainline was made double tracked. In the process, South Shore installed two brand new WCH signals with 4 pedestrian gates. They also installed traffic cantilevers with an extra set of crossing lights which looks really weird.

12 13
Overview of the new big setup facing south. Overview facing north.
14 15 16
17 18 19 20
21 22 23 24

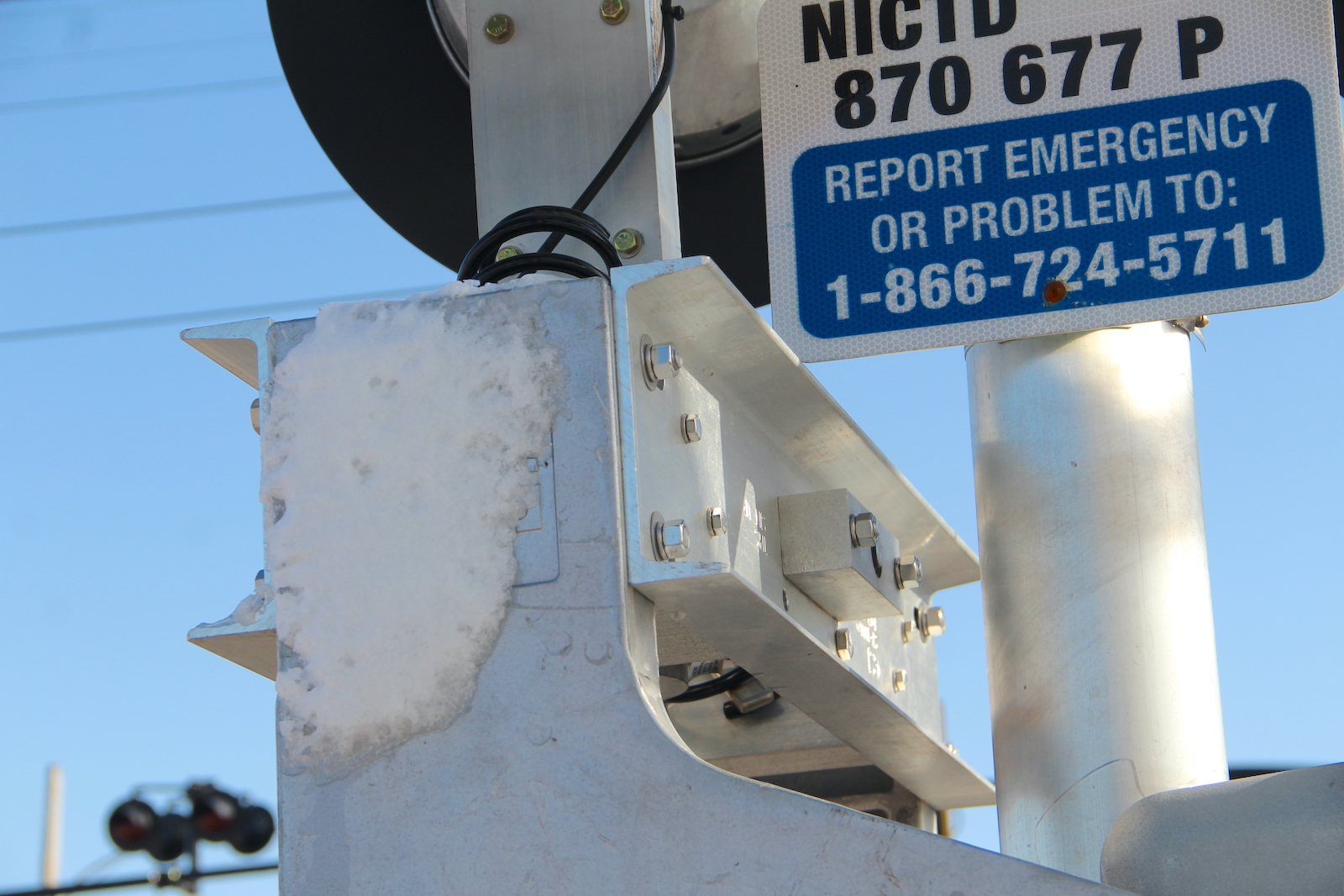

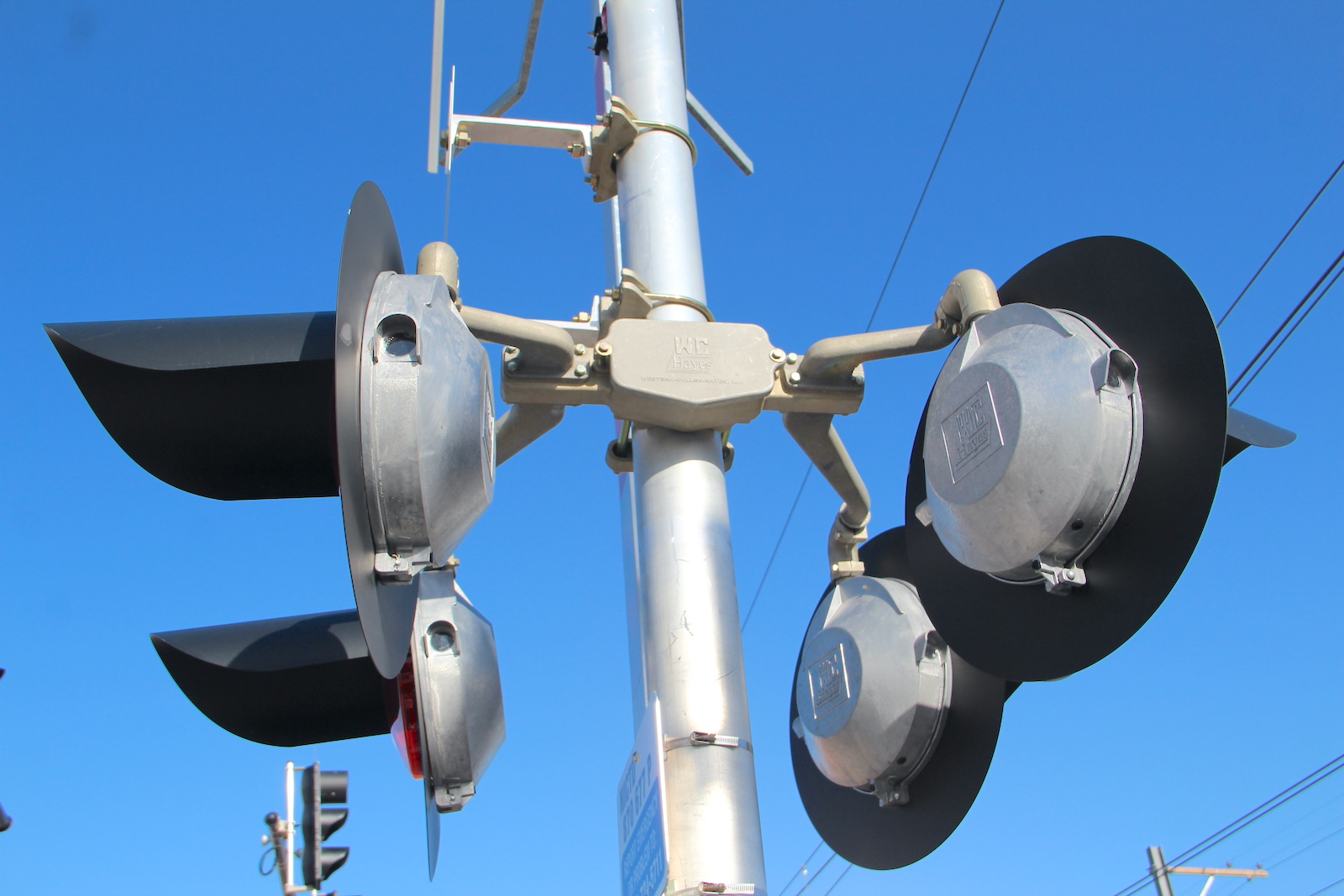

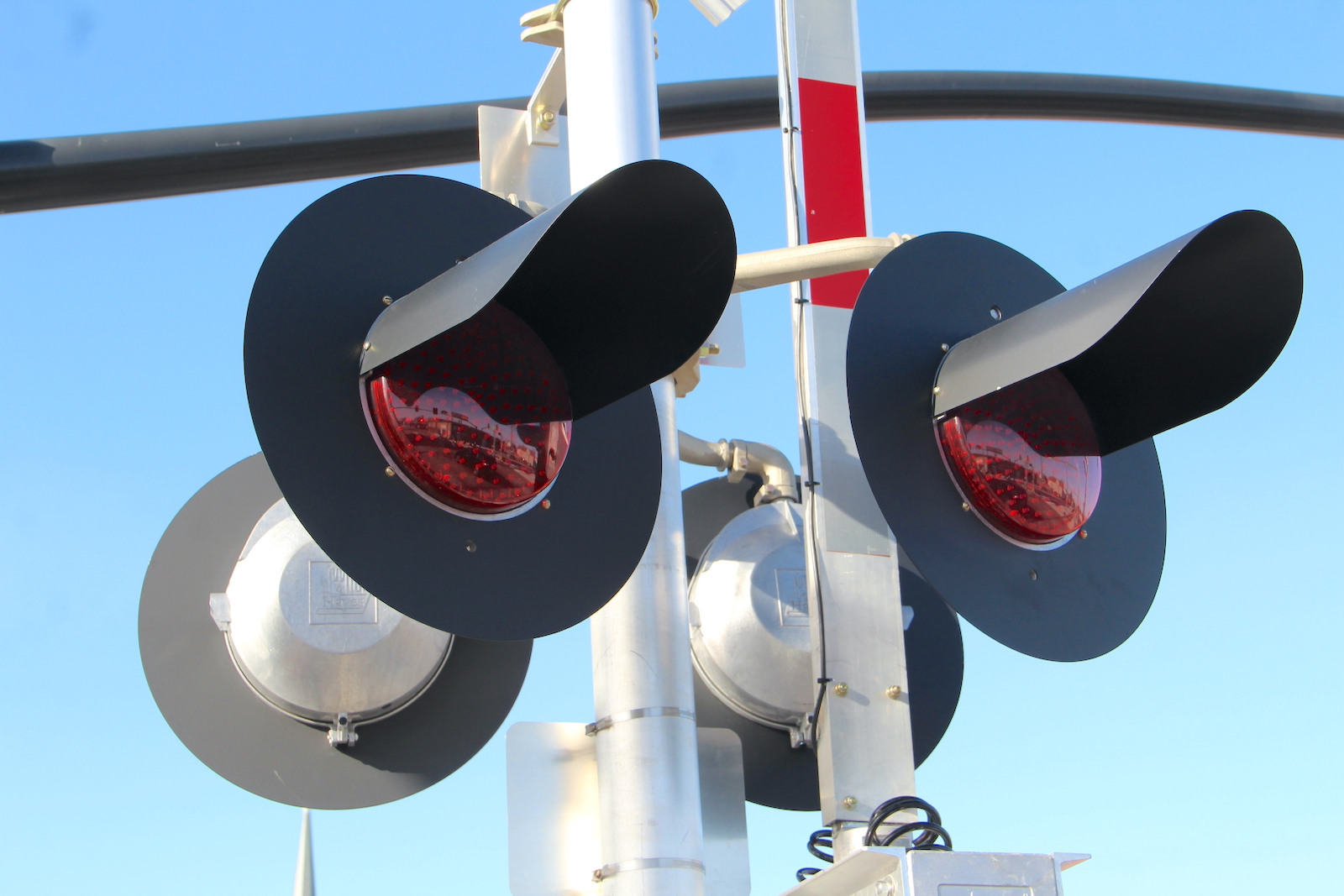

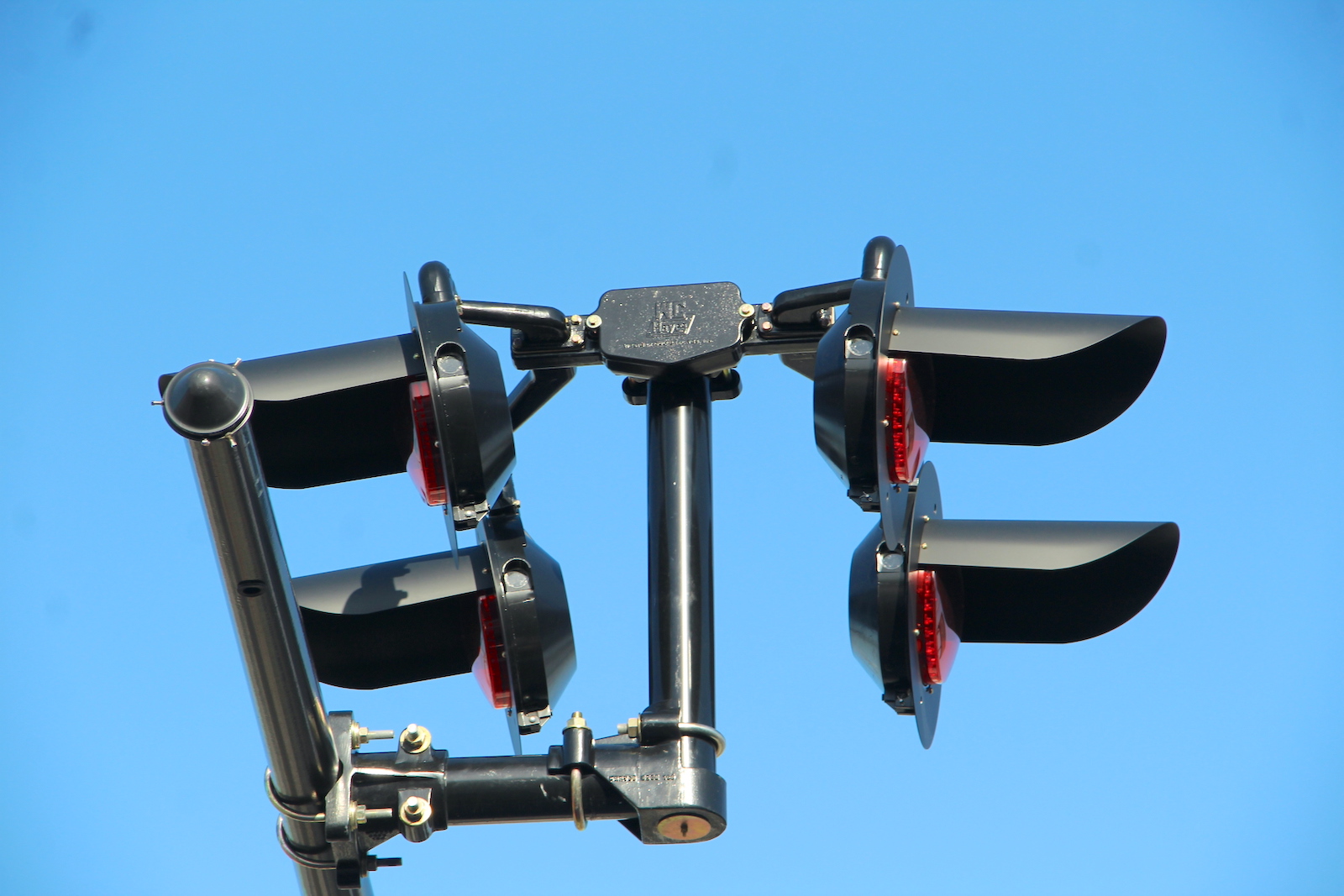

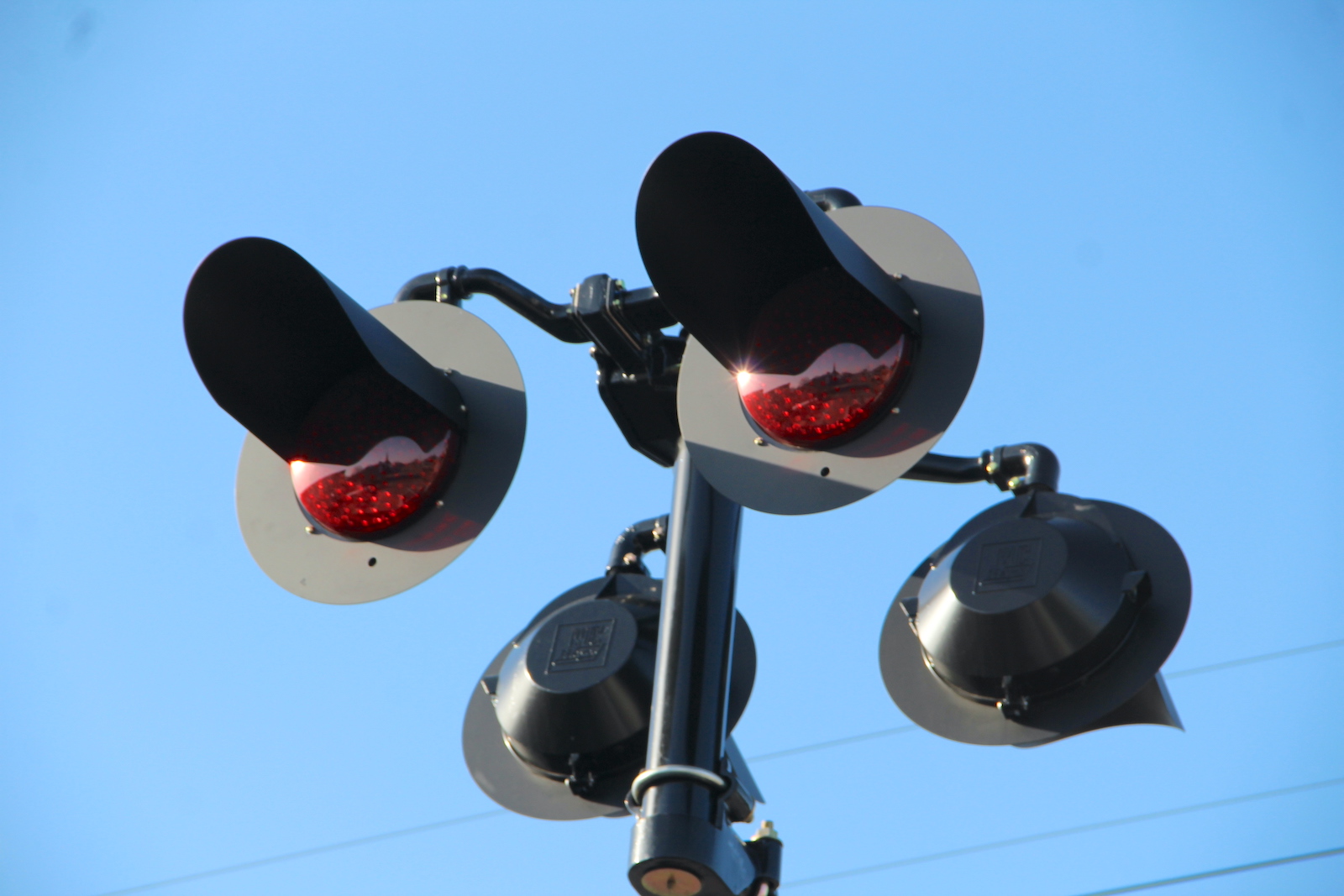

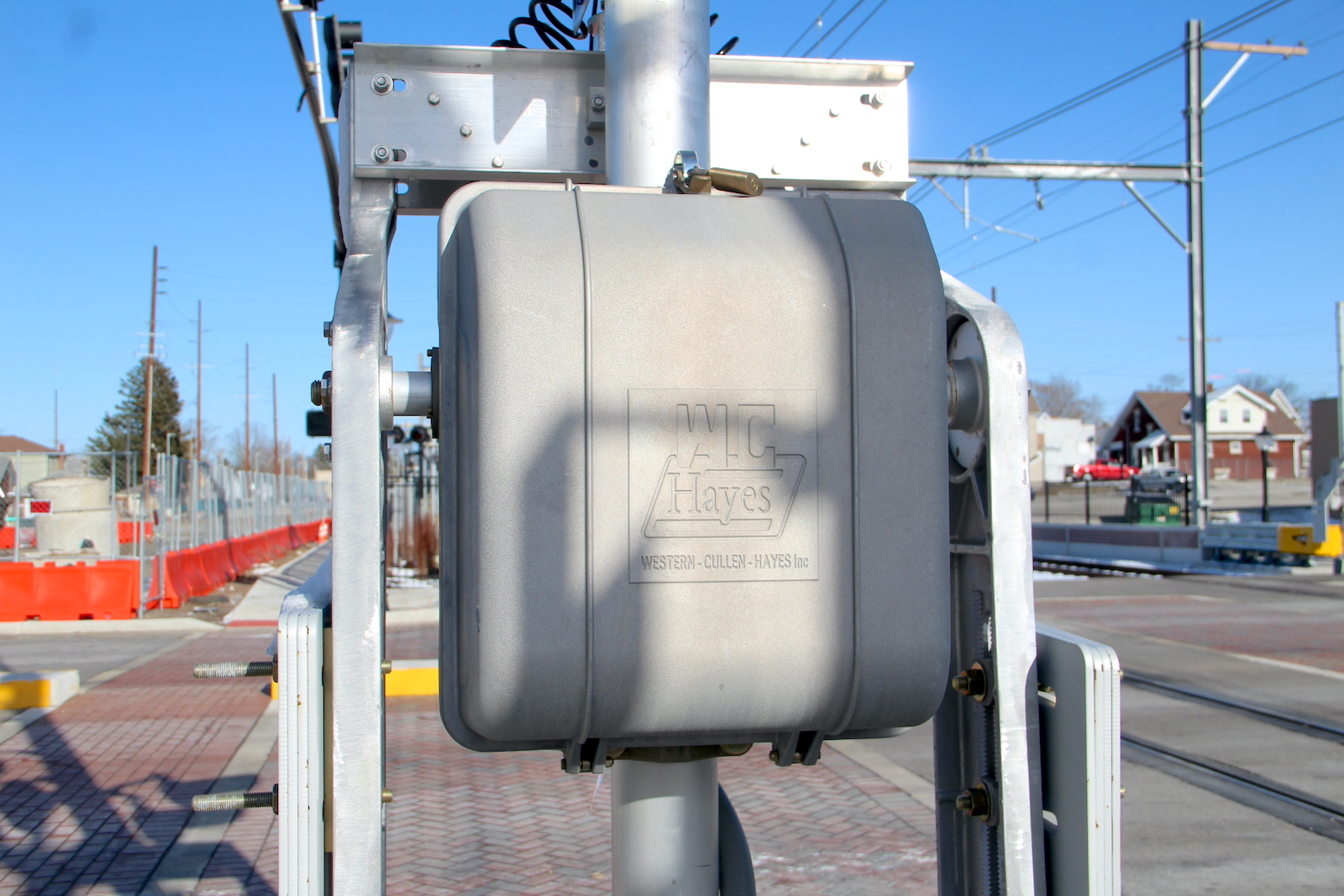

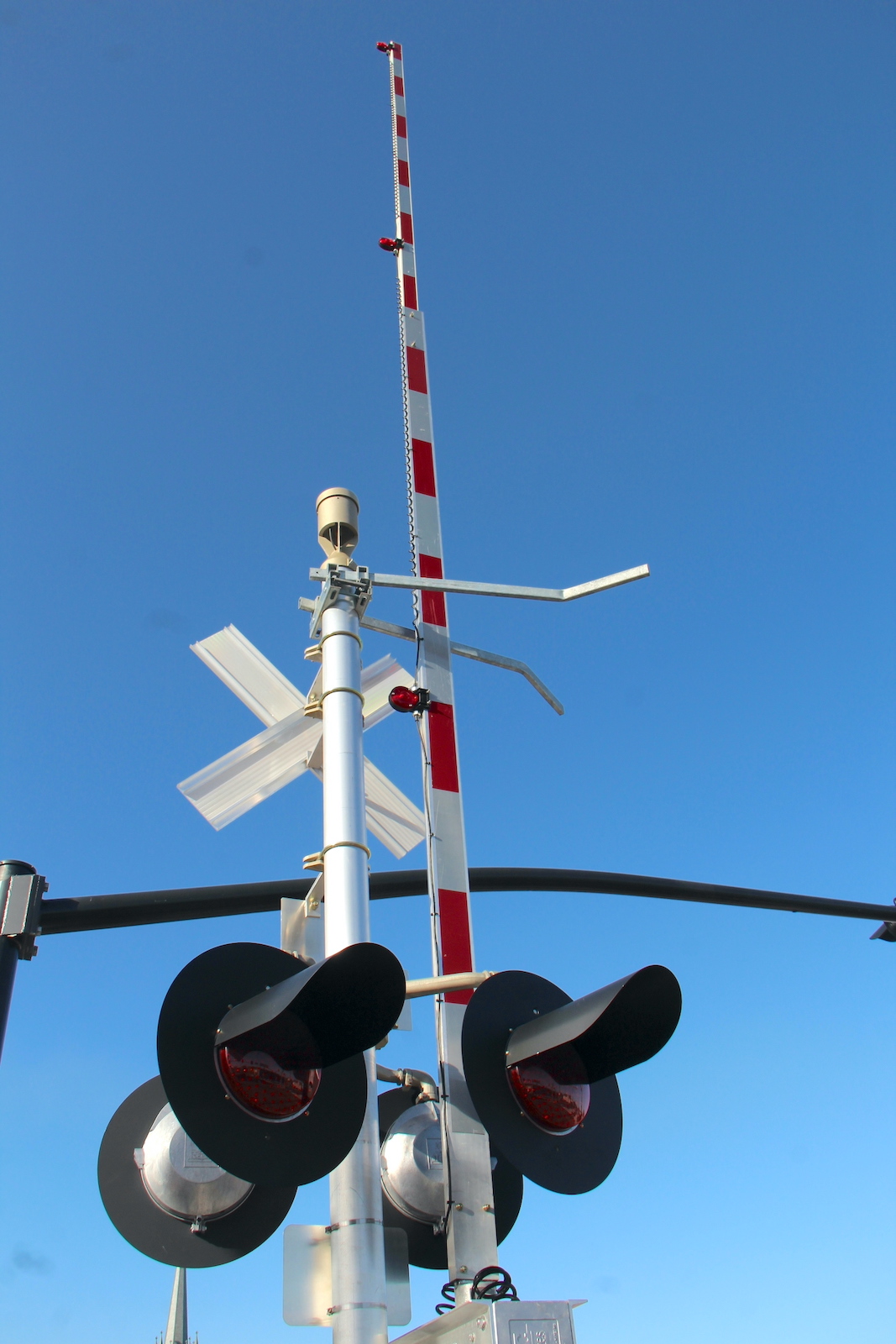

The new northern signal. I forgot to photograph the cantilever lights.
25 26 27
28 29 30
31 32 33 34
35 36 37 38

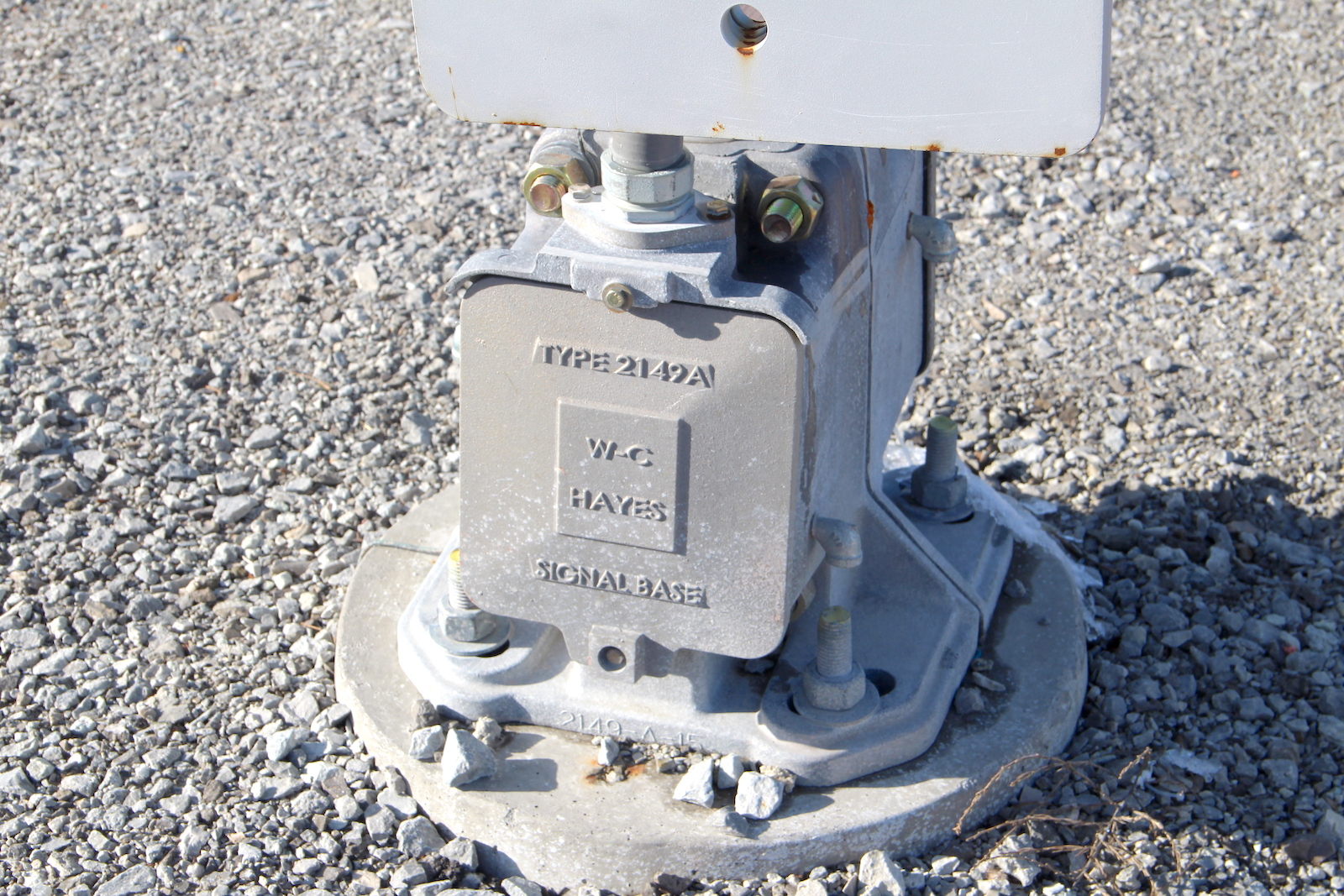

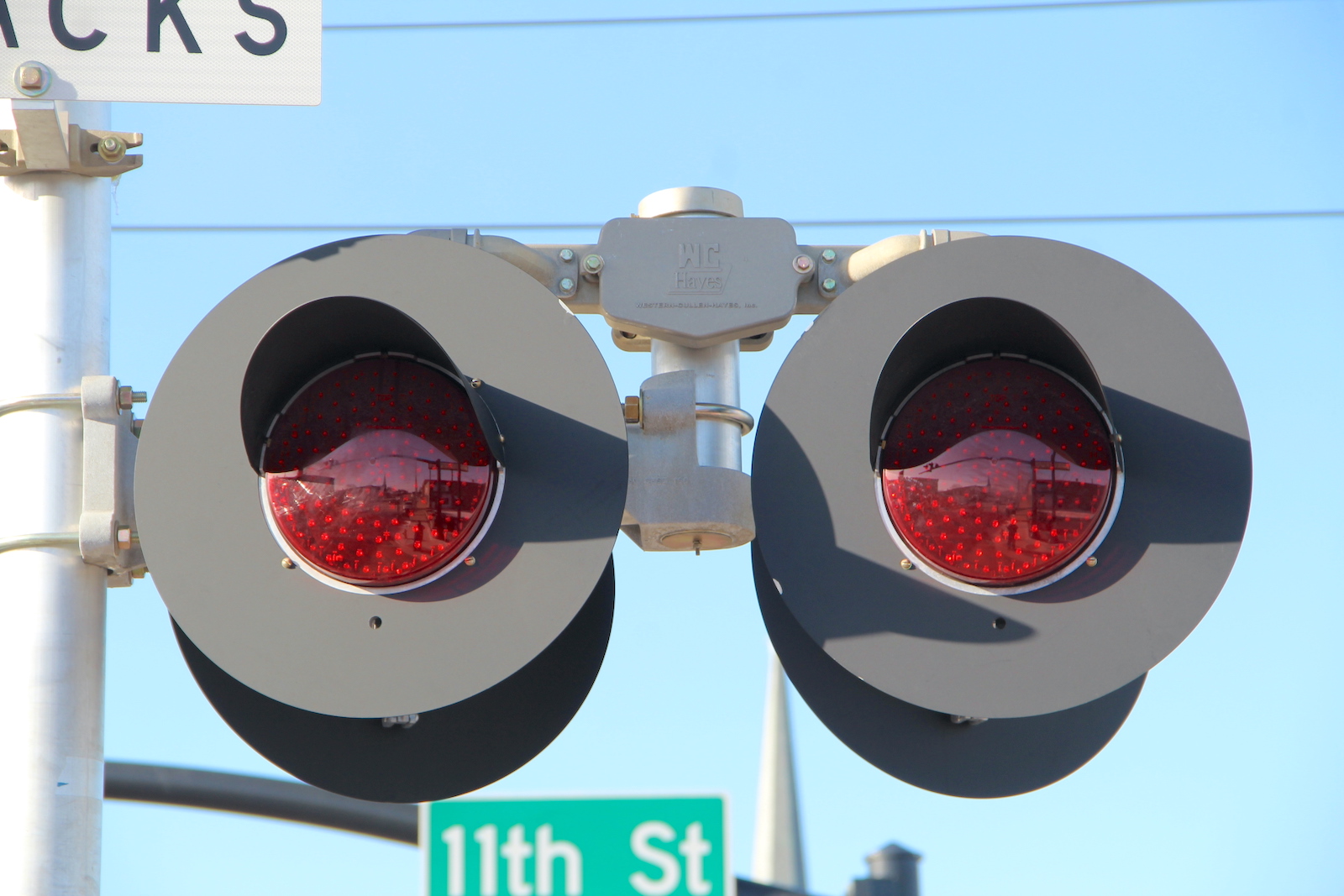

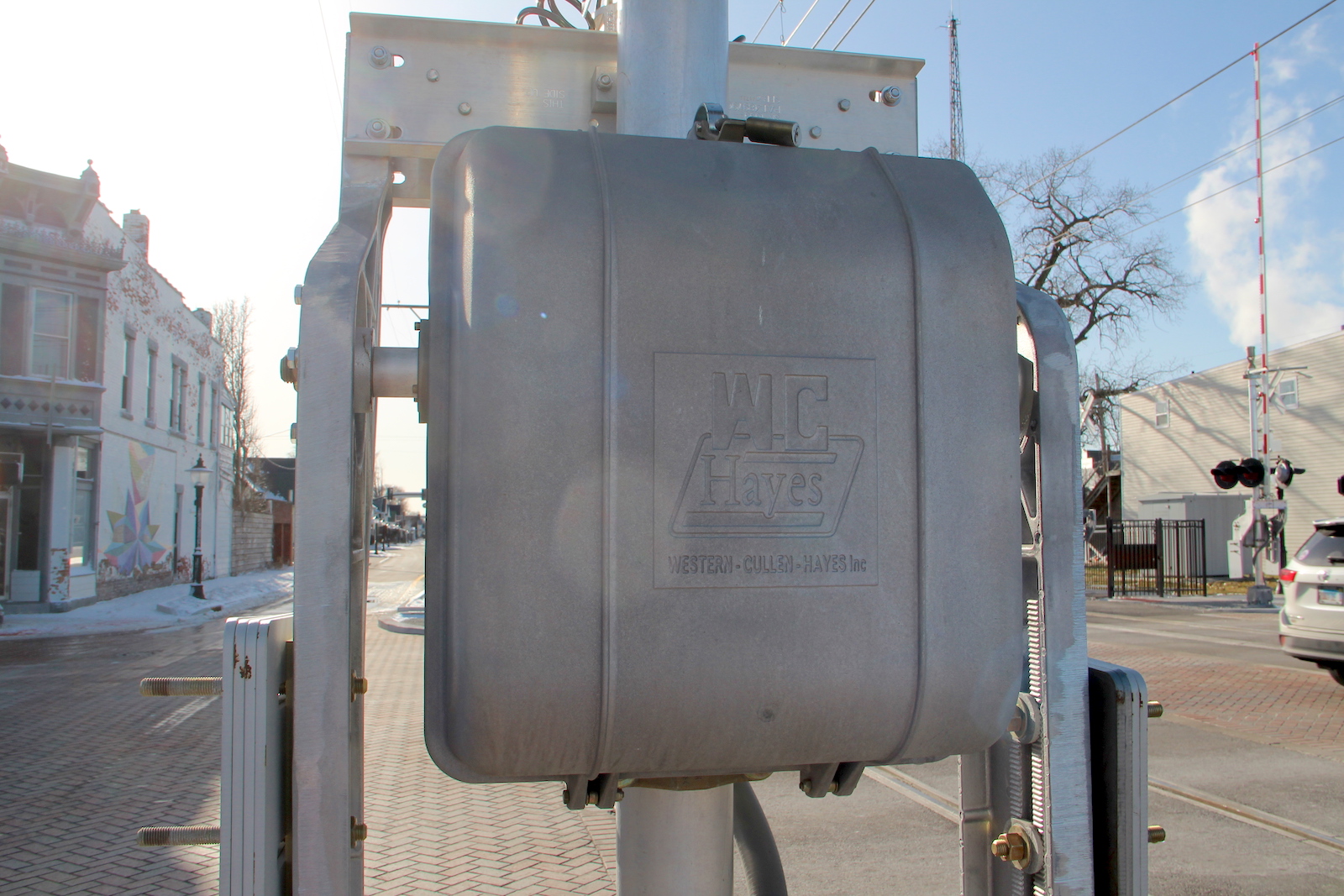

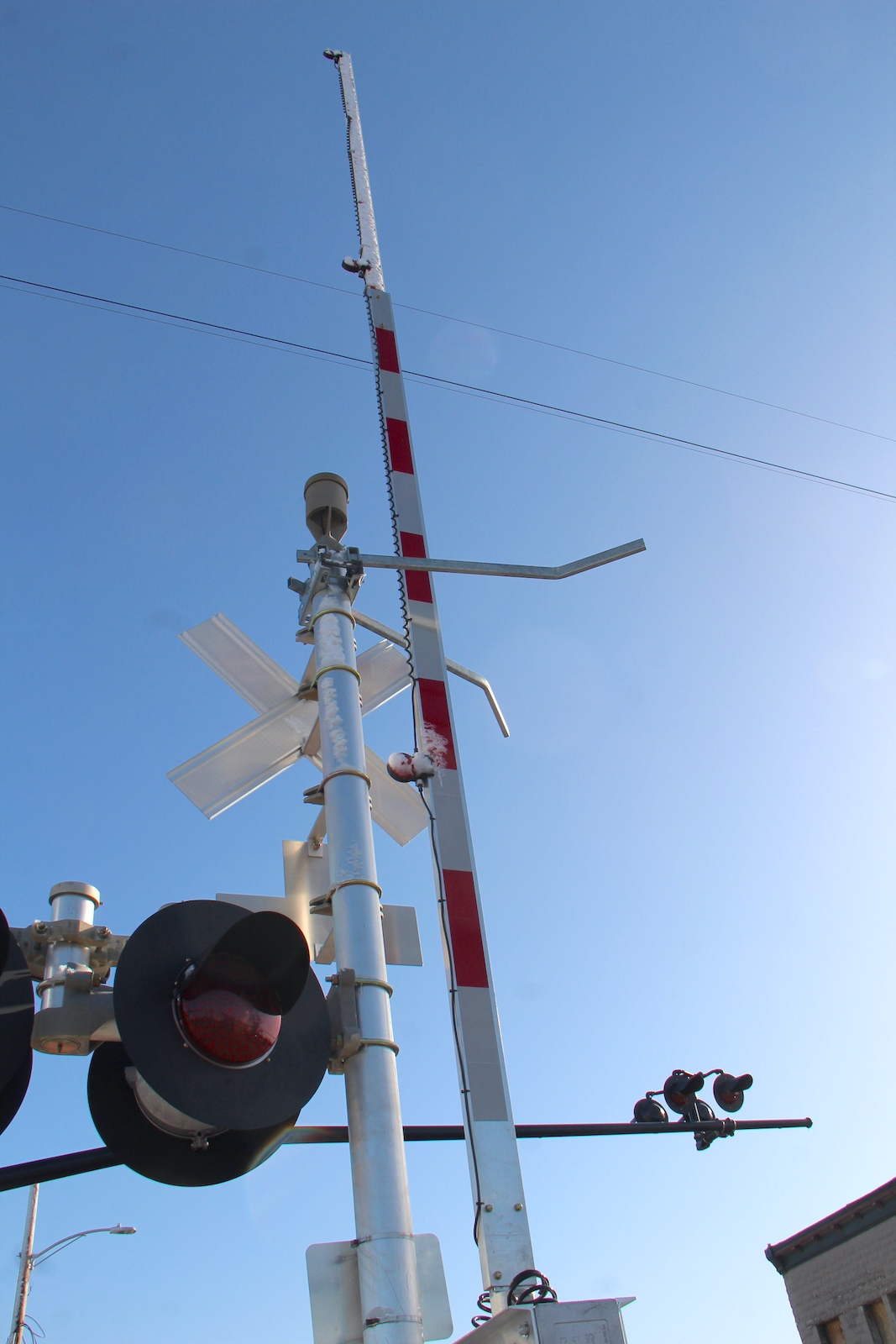

The southern signal and cantilever.
39 40 41 42

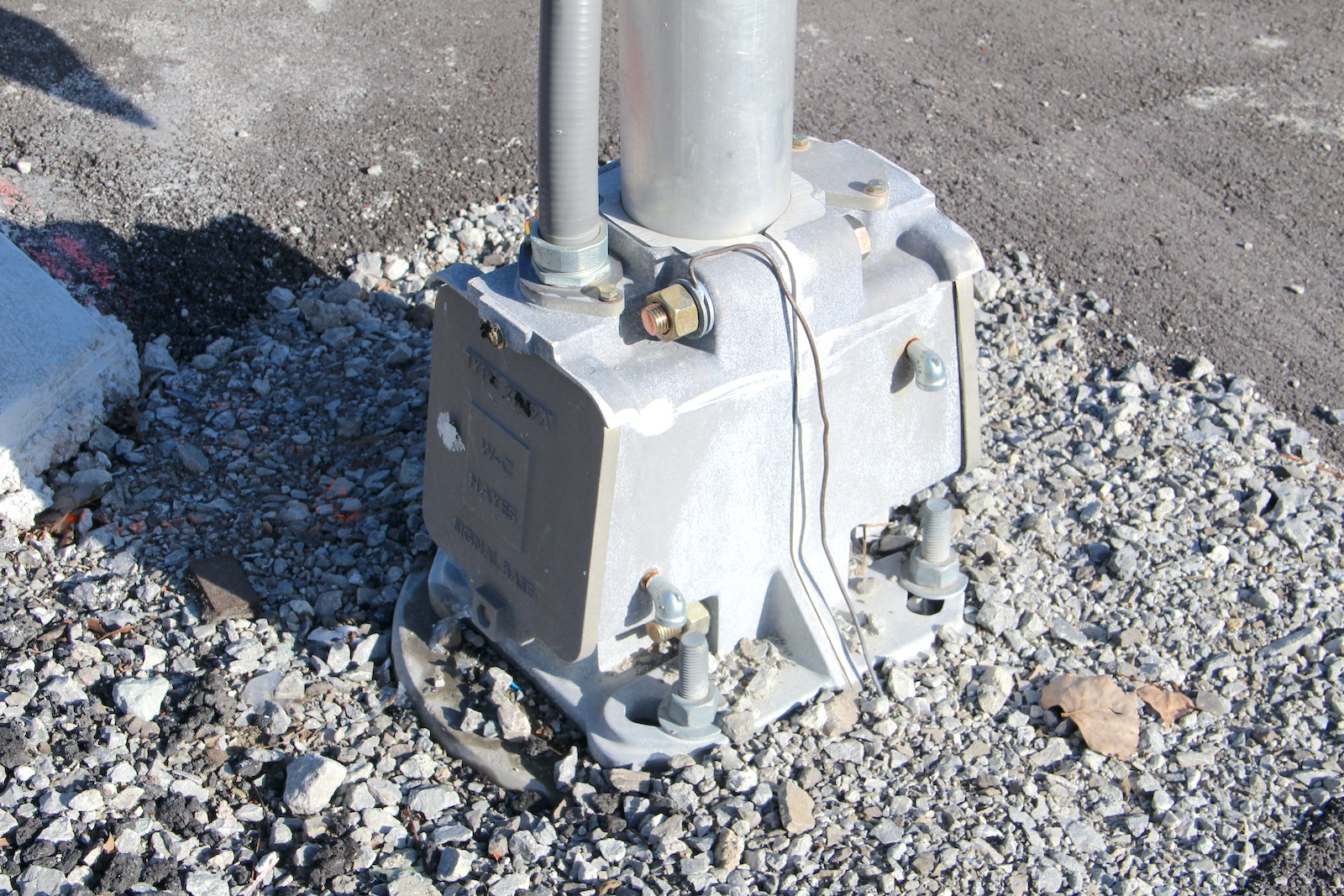

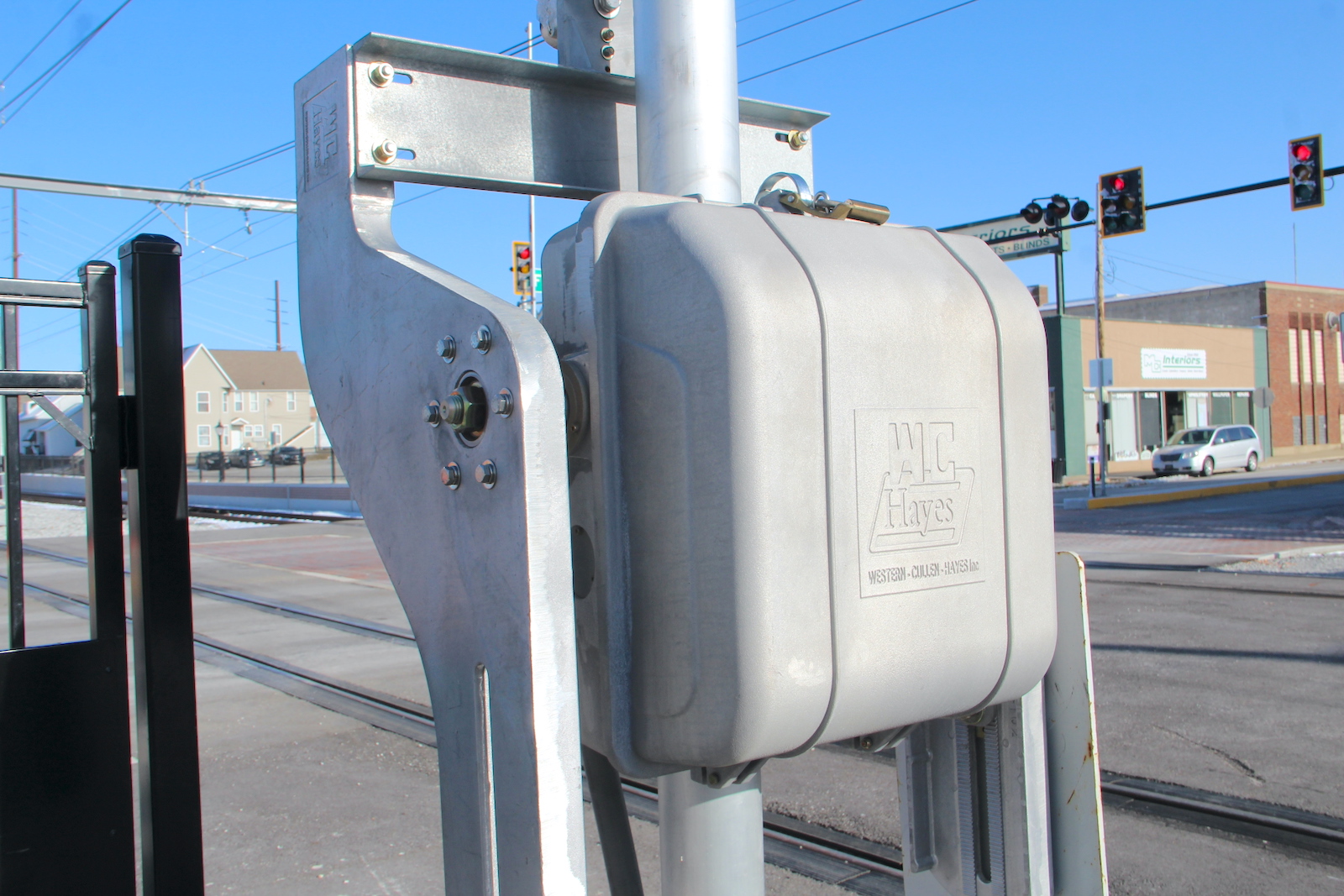

The northwestern pedestrian gate.
43 44 45 46

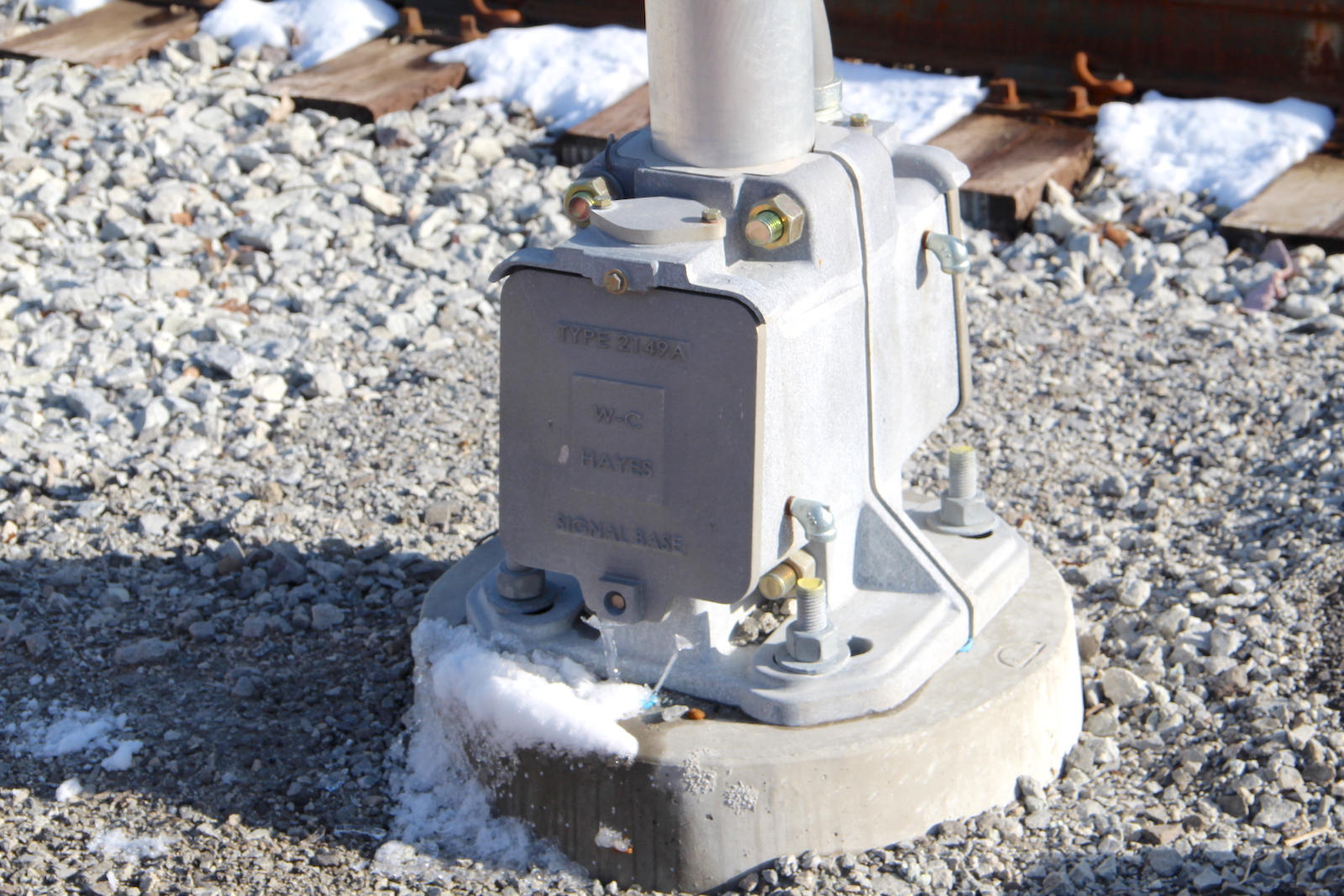

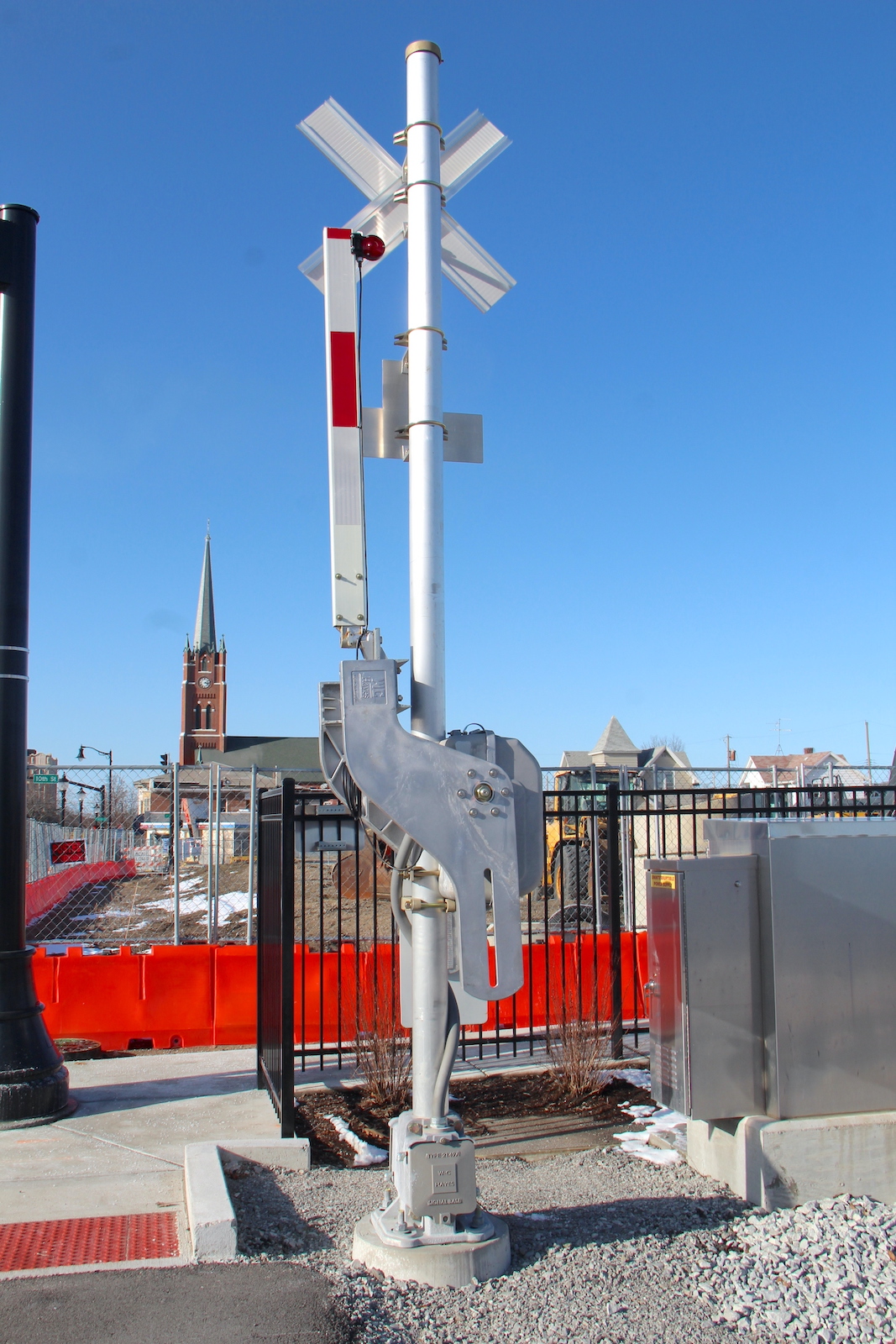

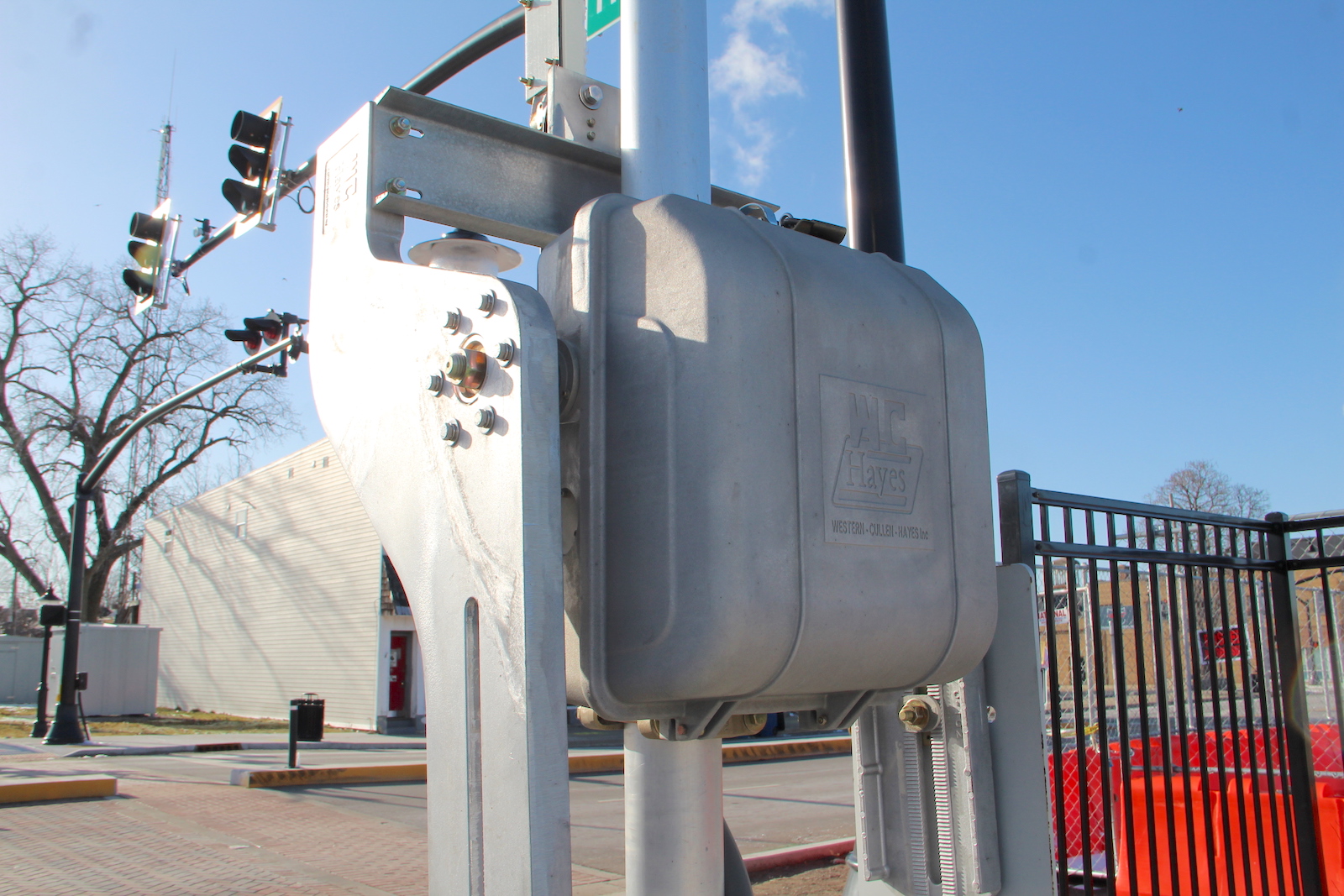

The northeastern pedestrian gate.
47 48 49
50 51 52

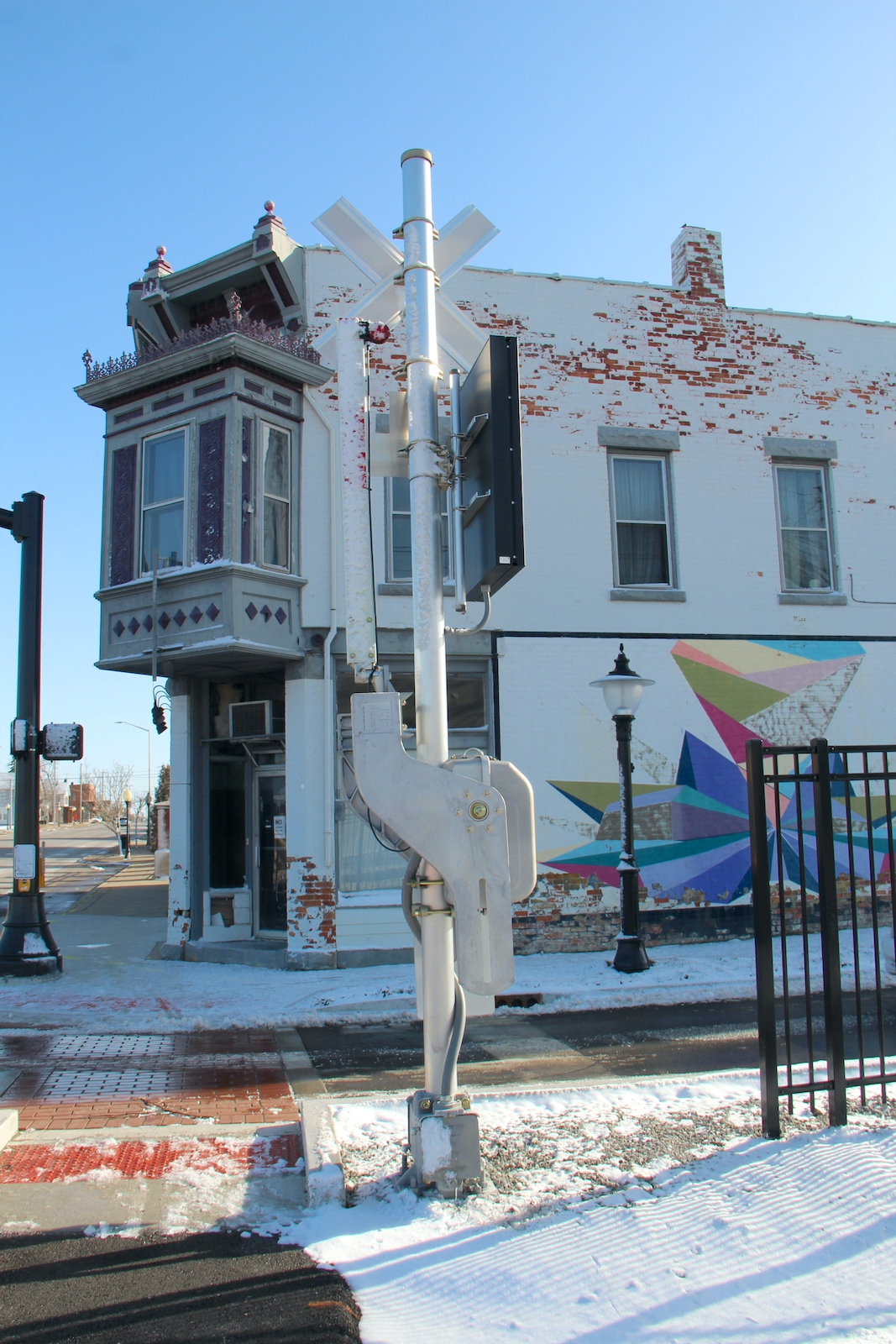

The southwestern pedestrian gate.
53 54 55
56 57 58
The southeastern pedestrian gate.
59 60 61 62
The relay bungalow in the northwest quadrant.

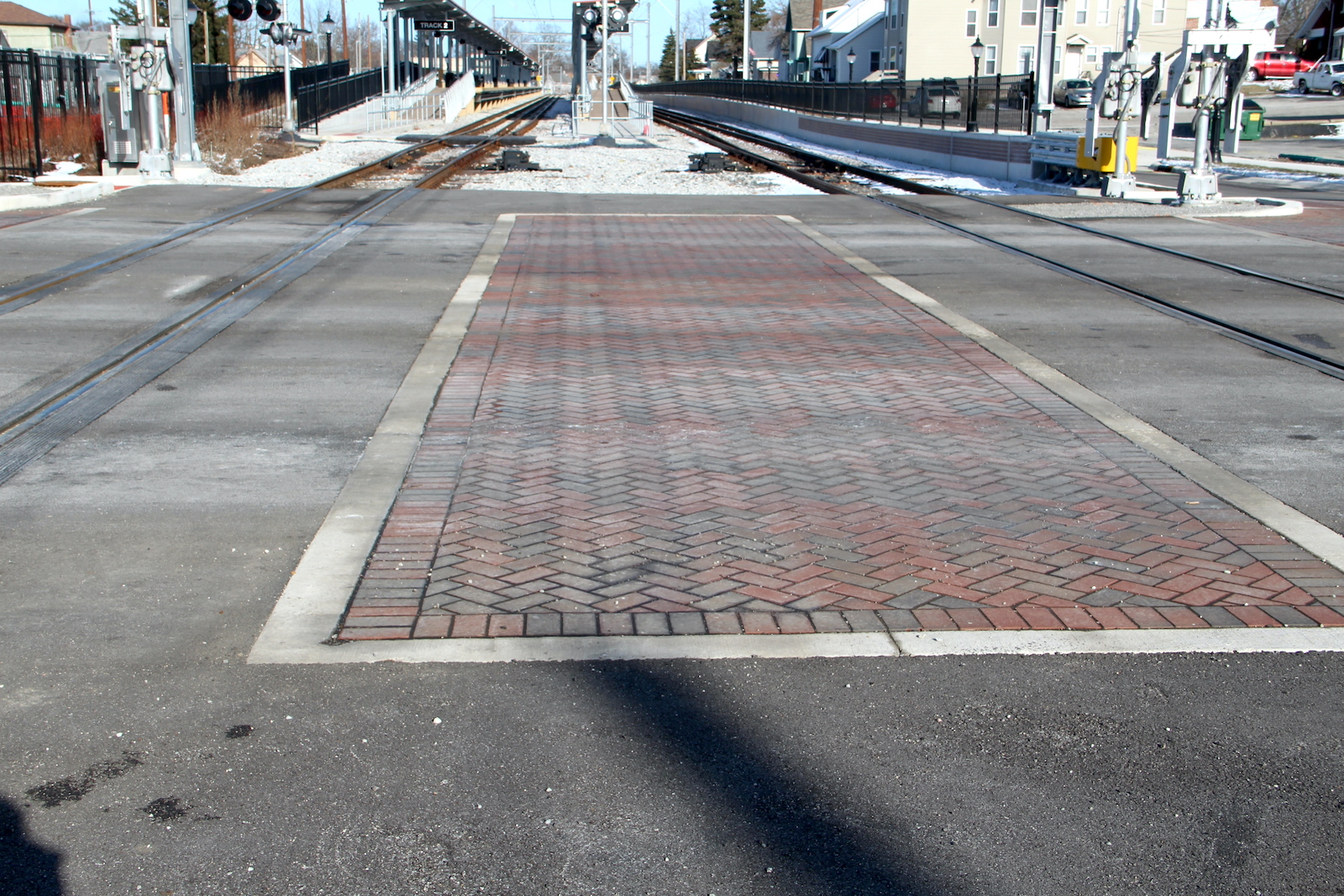

 The grade is rubber and asphalt.
 Track view facing west towards Washington St.

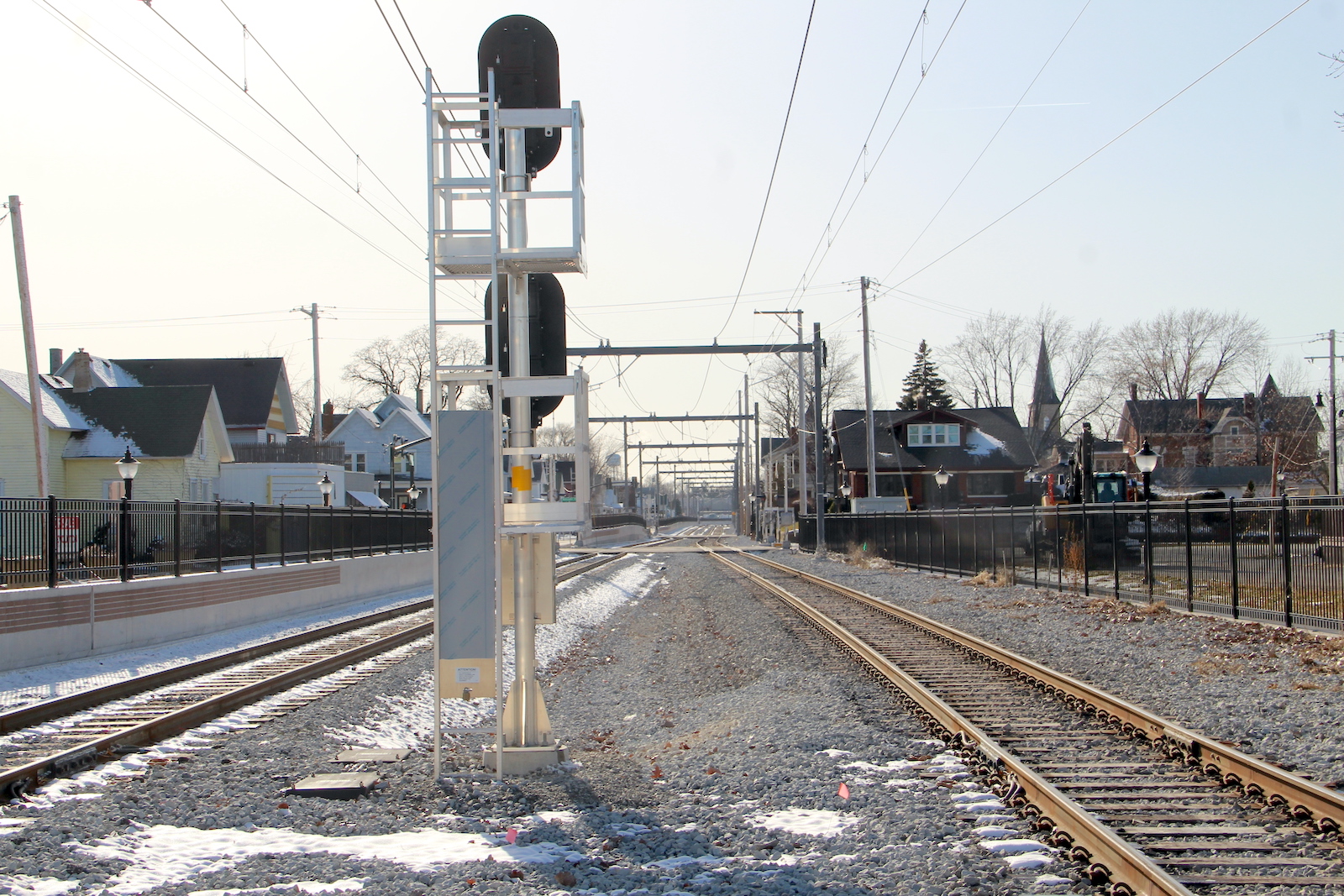

 Track view facing east at West Station.
