![]() MP: 29.65 |
| Created February 2020 |
| Total Accidents:
0 Crossing DOT #: 870436B TOTAL DAILY TRAINS: 18 (AS OF 2018) |
| >>>>>>>>>>>>>> | Northern Signal | Southern Signal |
| Bell: | NEG E-Bell | GS E-Bell |
| Base: | L&W 5" Single Sided ^ | L&W 5" Single Sided ^ |
| Lights: | 2 - 12"x20" Safetran w/ Safetran Fading LEDs 1 - 12"x20" WCH w/ Safetran Fading LED 1 - 12"x20" Safetran w/ Harmon Fading LED |
3 - 12"x20" Safetran w/ Safetran Fading LEDs 1 - 12"x20" WCH w/ Safetran Fading LED |
| Junction Box: | L&W | L&W |
| Gate Lights: | 3 - 4" RECO | 3 - 4" RECO |
| Gate Mechanism: | WCH Style 4 w/ GSI Gate Saver | WCH Style 4 w/ GSI Gate Saver |
| Gate Striping: | Vertical Striping | Vertical Striping |
| 1 |
2 |
| Overview of 2 gated signals facing south. | Overview facing north. |
| 3 |
4 |
5 |
| 6 |
7 |
8 |
| 9 |
10 |
11 |

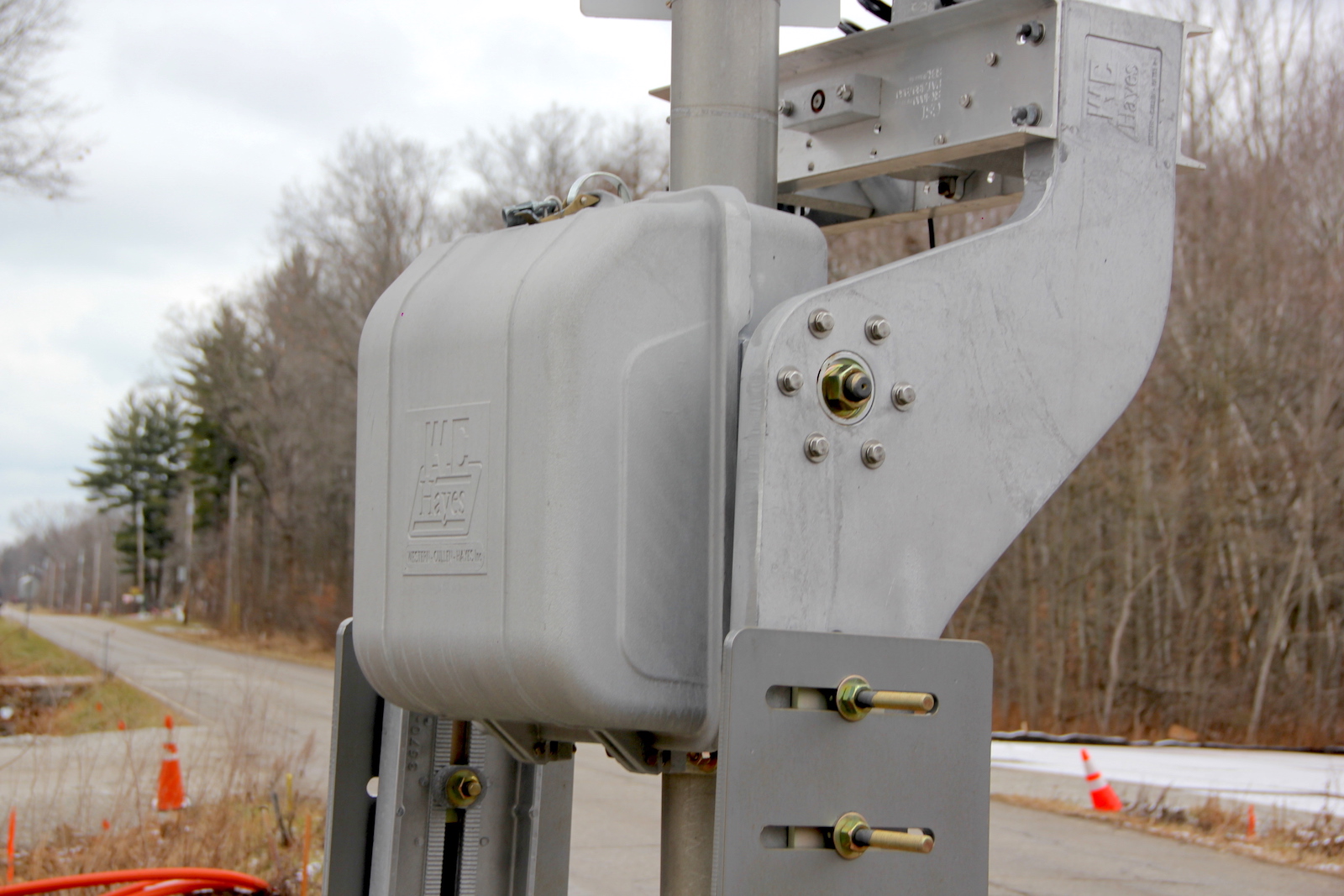

| The northern signal. |
| 12 |
13 |
14 |
| 15 |
16 |
17 |
| 18 |
19 |
20 |
| The southern signal. |
| 21 |
22 |
23 |
24 |
| The relay bungalow in the southwest quadrant. |
The grade is rubber and asphalt. |
Track view facing west towards Royal Rd. |
Track view facing east towards N. 500 W. Rd. |
| 25 |
| An LED wayside signal next to the crossing. |
