>>>>>>>>>>>>>> Northern Signal Southern Signal

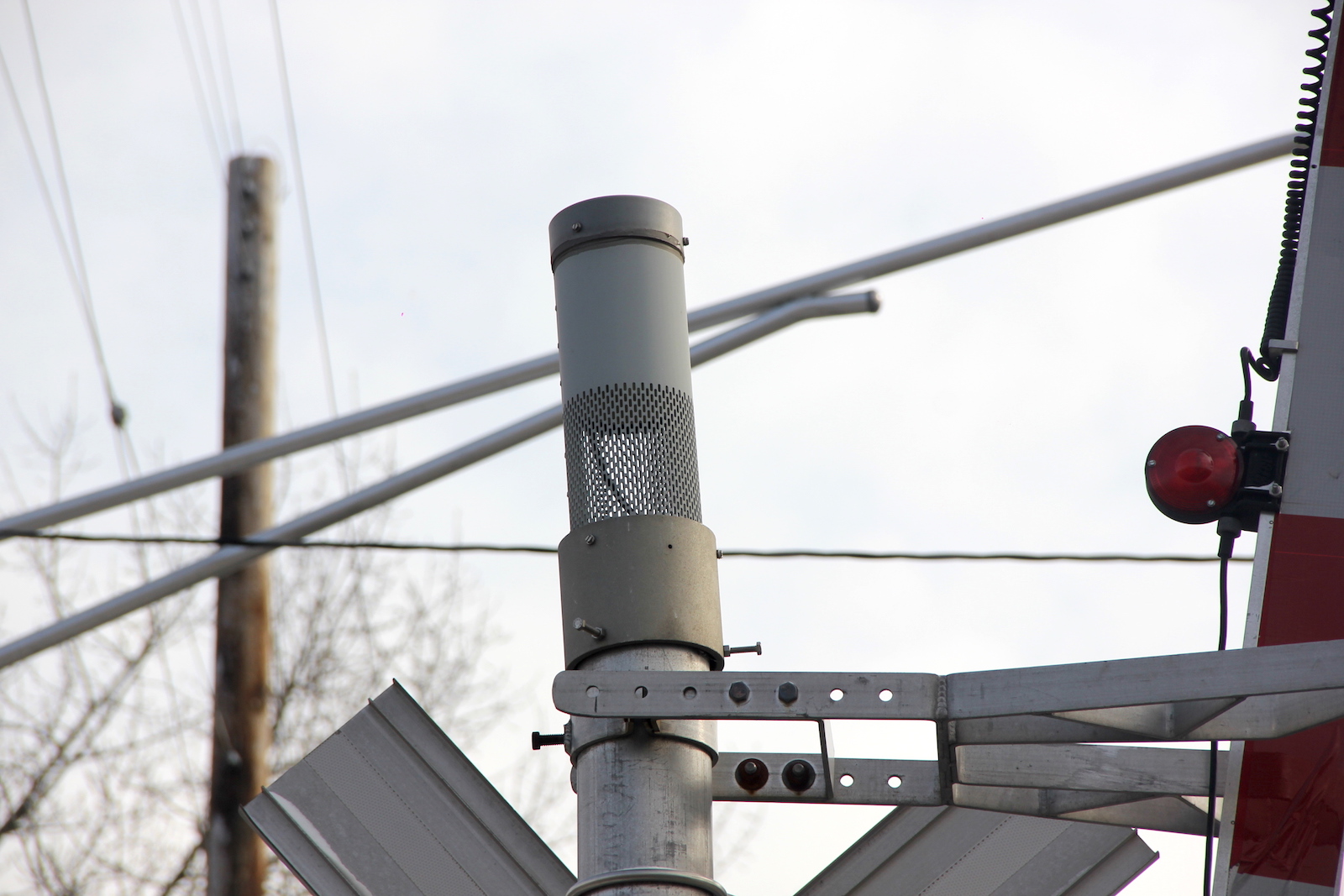

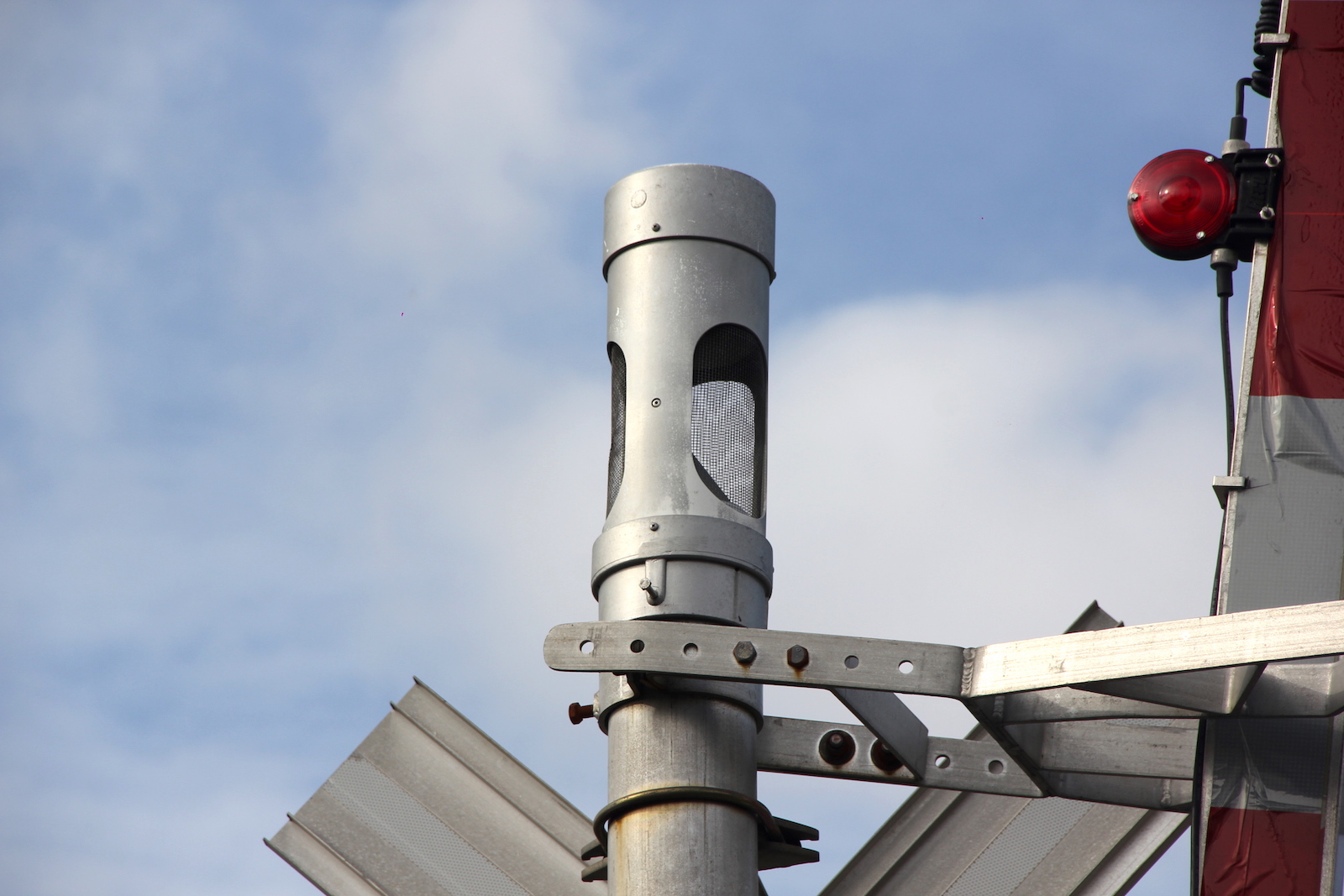

Bell: GS E Bell Safetran Type 3 E Bell

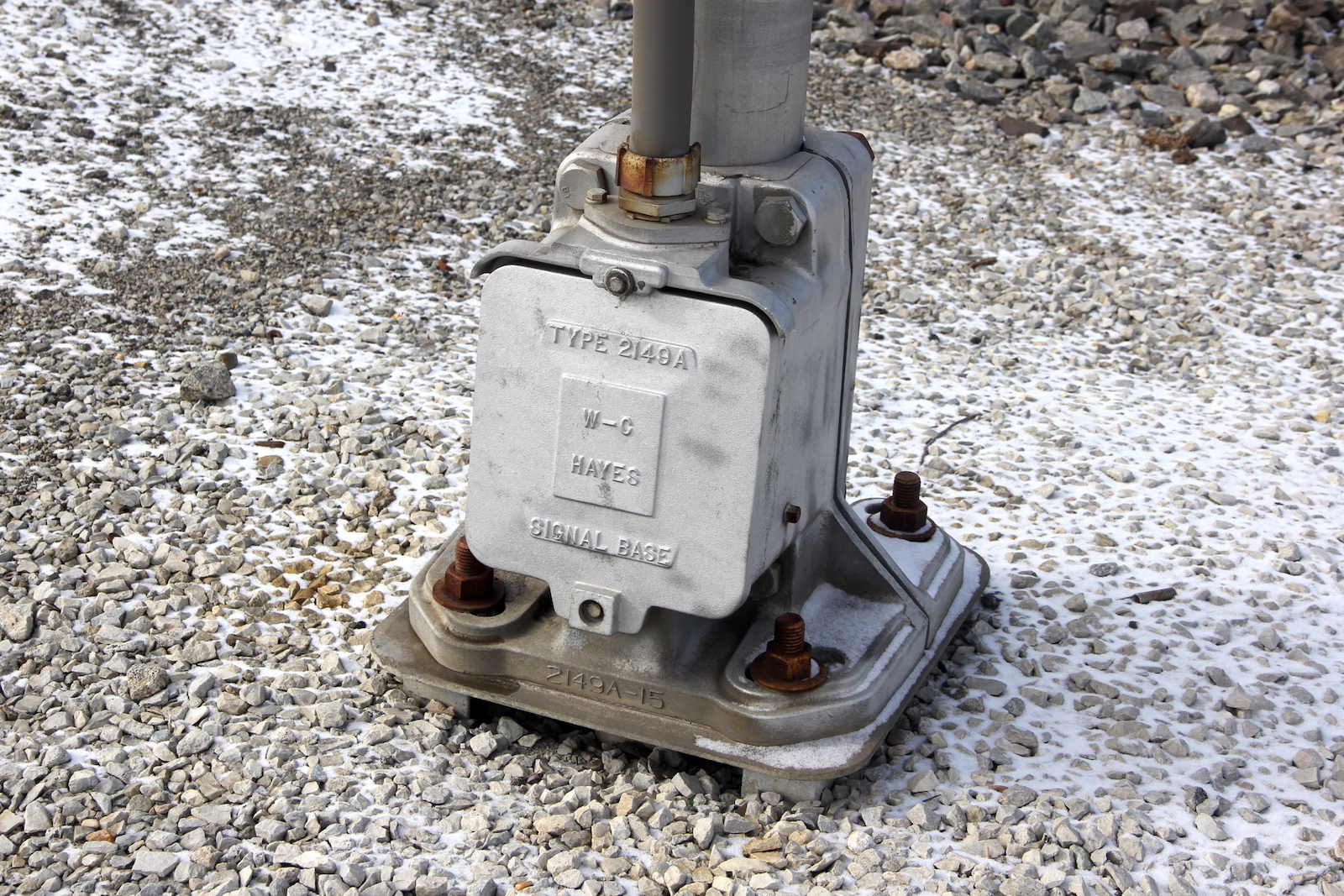

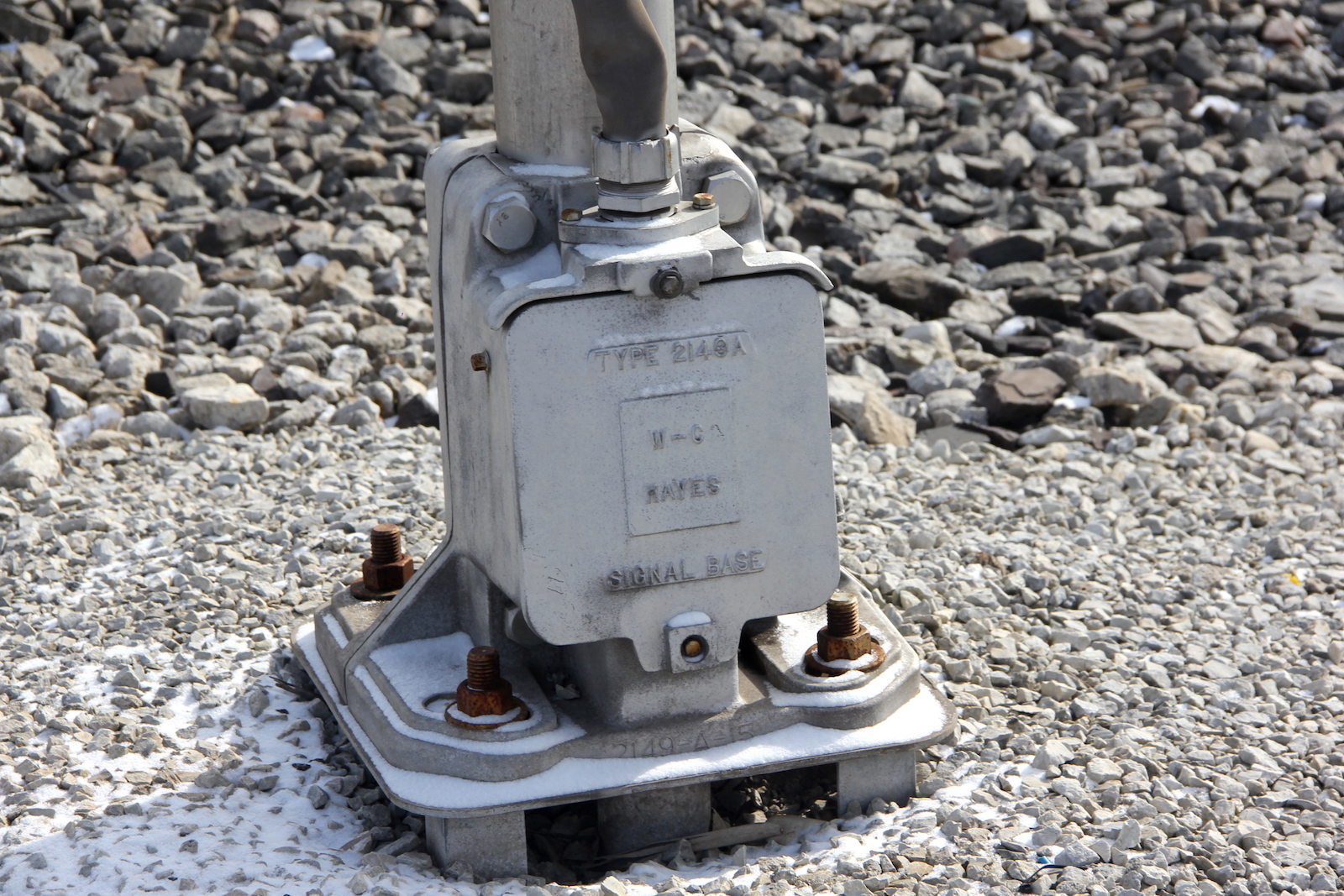

Base: WCH 5" Single Sided ^ WCH 5" Single Sided ^

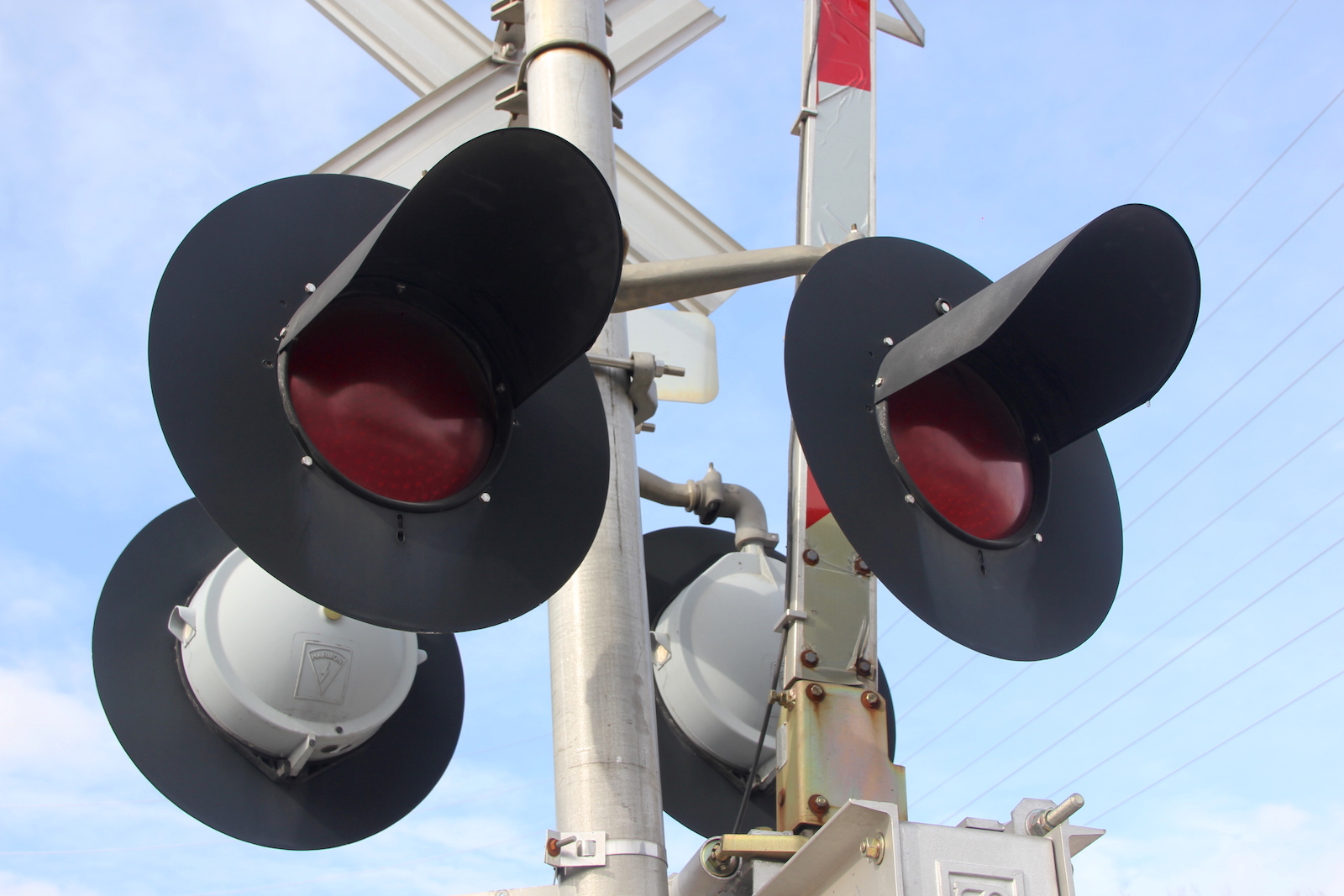

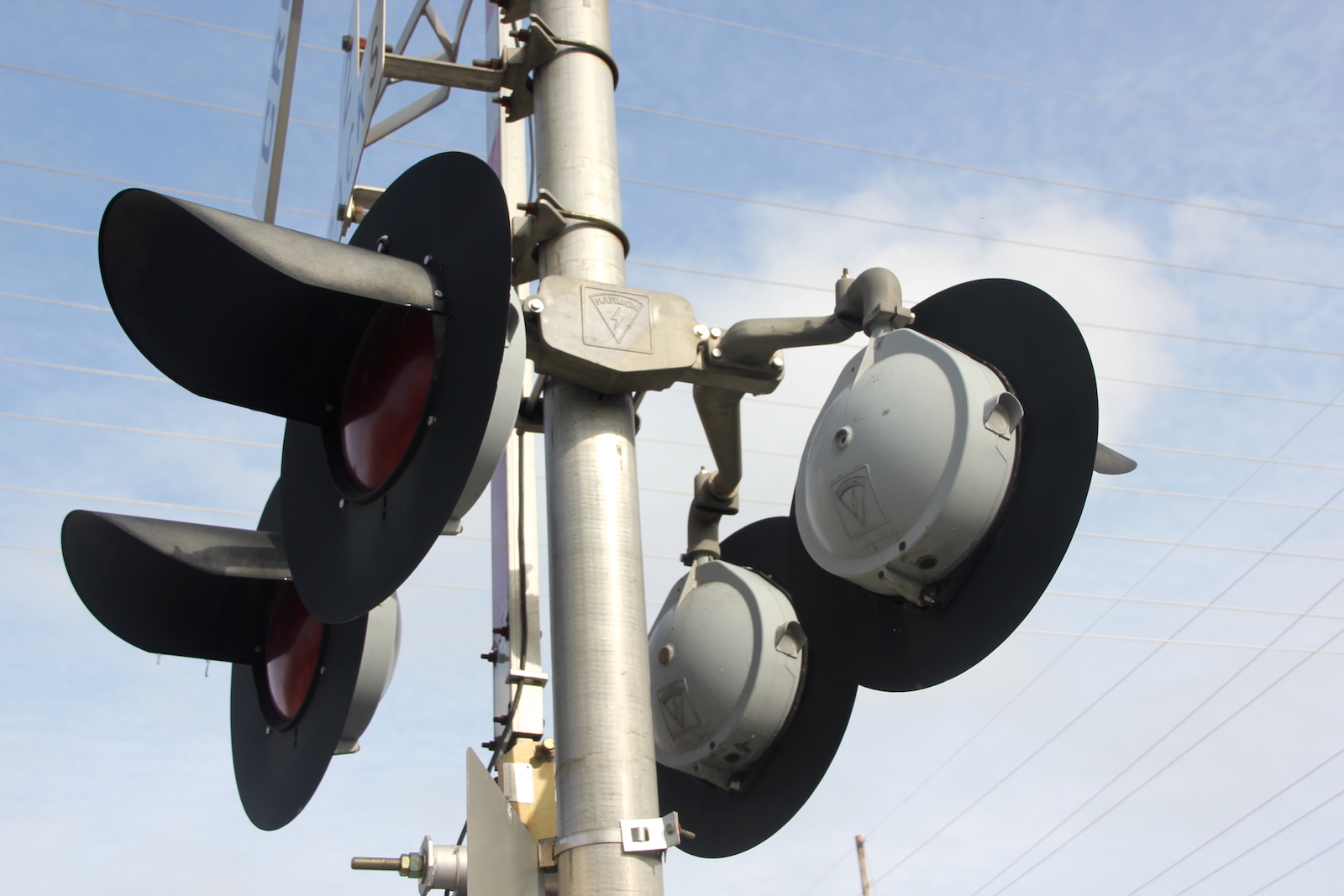

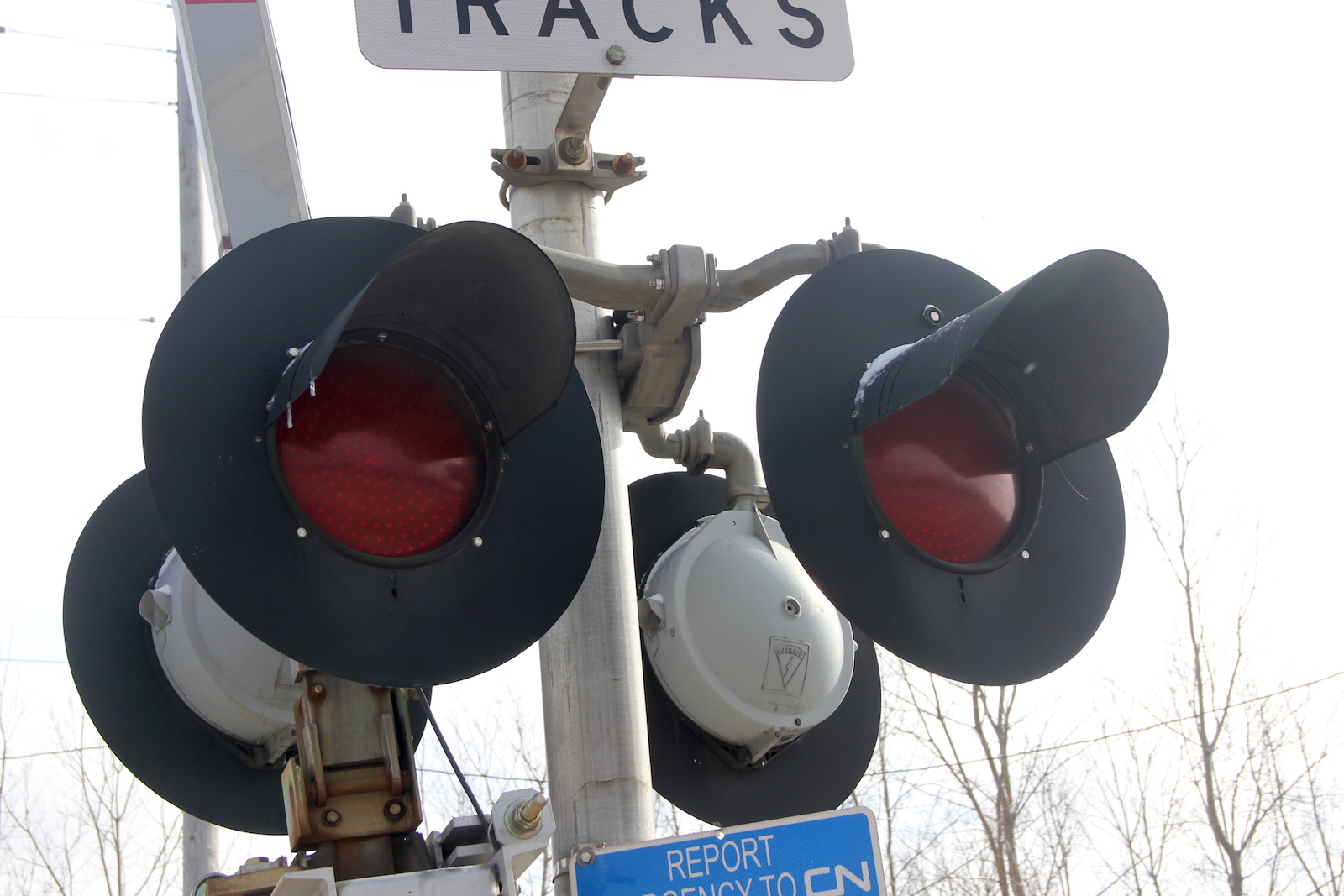

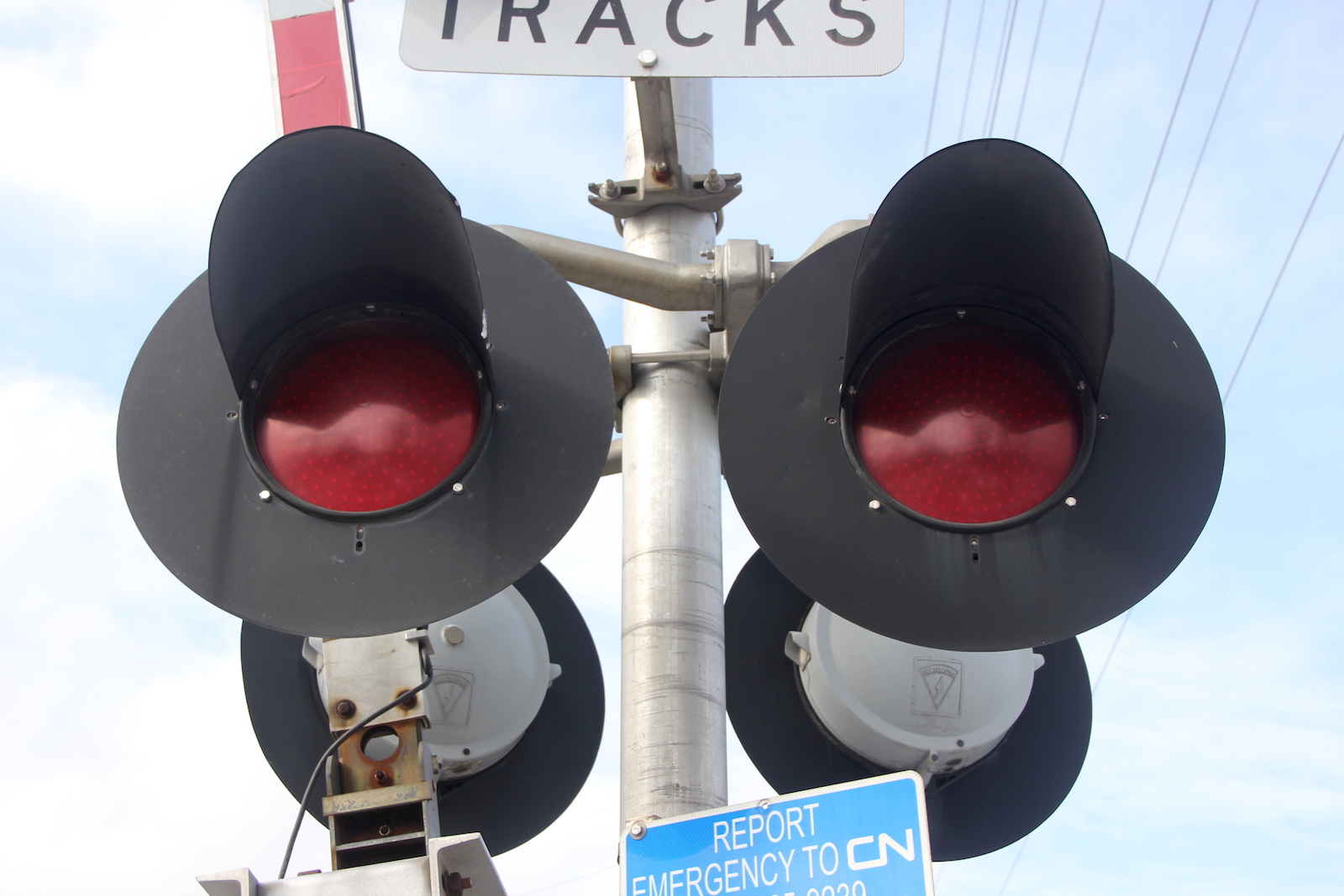

Lights: 4 - 12"x24" Harmon w/ 1st Gen Harmon Dotted LEDs 4 - 12"x24" Harmon w/ 1st Gen Harmon Dotted LEDs
Junction Box: Harmon Harmon
Gate Lights: 4" RECO 4" RECO

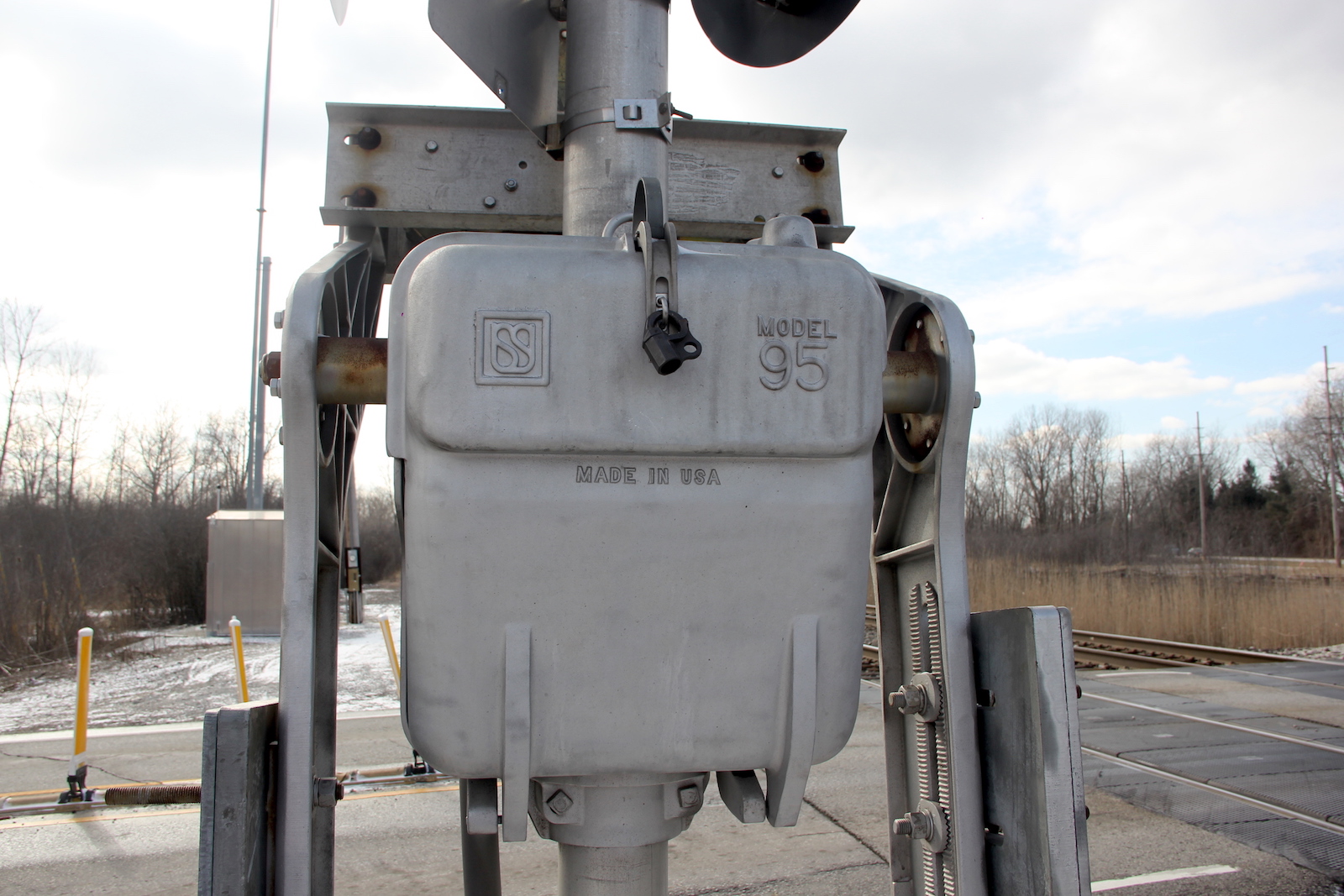

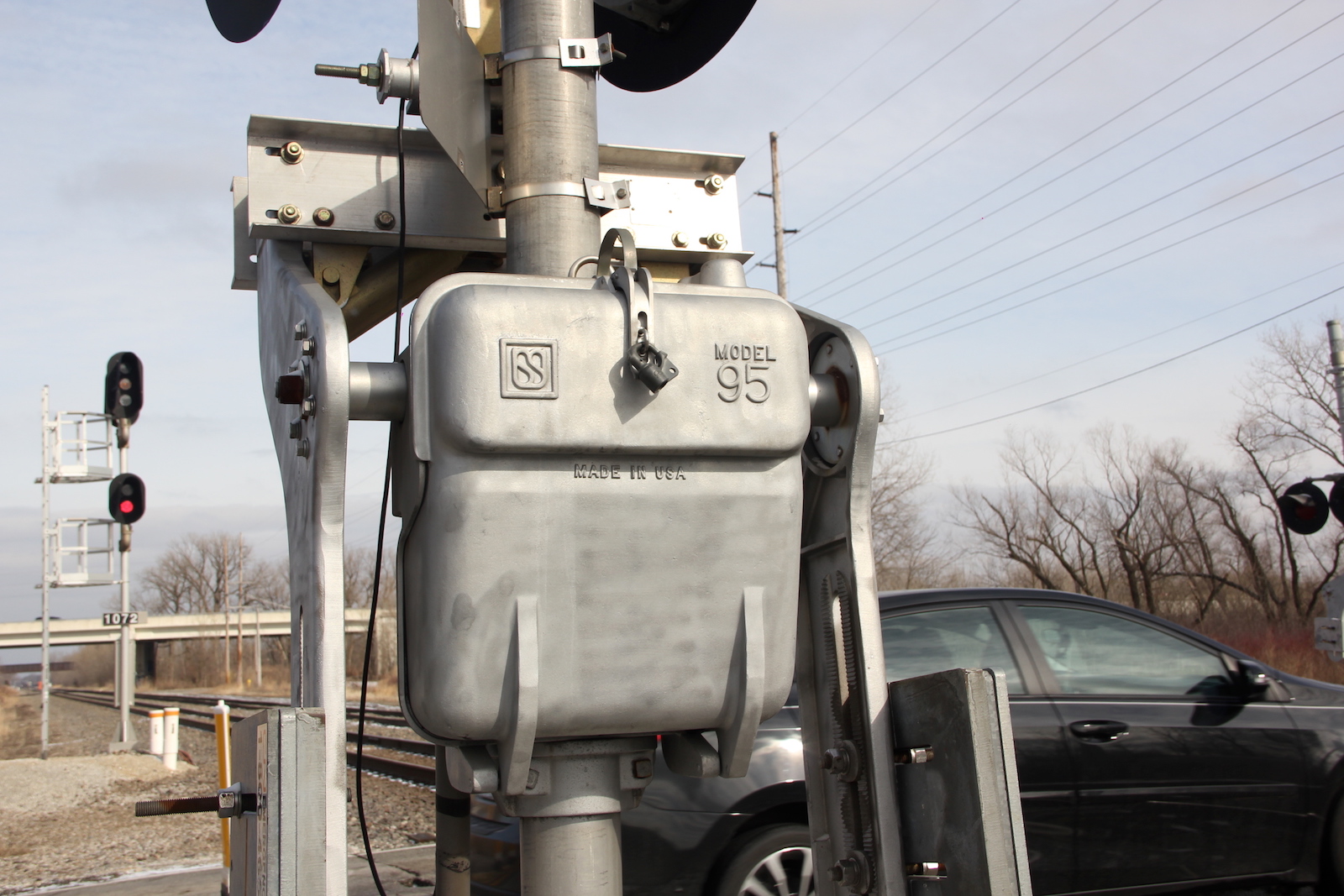

Gate Mechanism: US&S Model 95 Style 1 w/ WCH Gate Saver US&S Model 95 Style 1 w/ GSI Gate Saver
Gate Striping: Vertical Striping Vertical Striping

All pictures were taken on March 3, 2019, by Tommy McGowan.
This crossing is located on the CN Matteson Sub.

1
 2

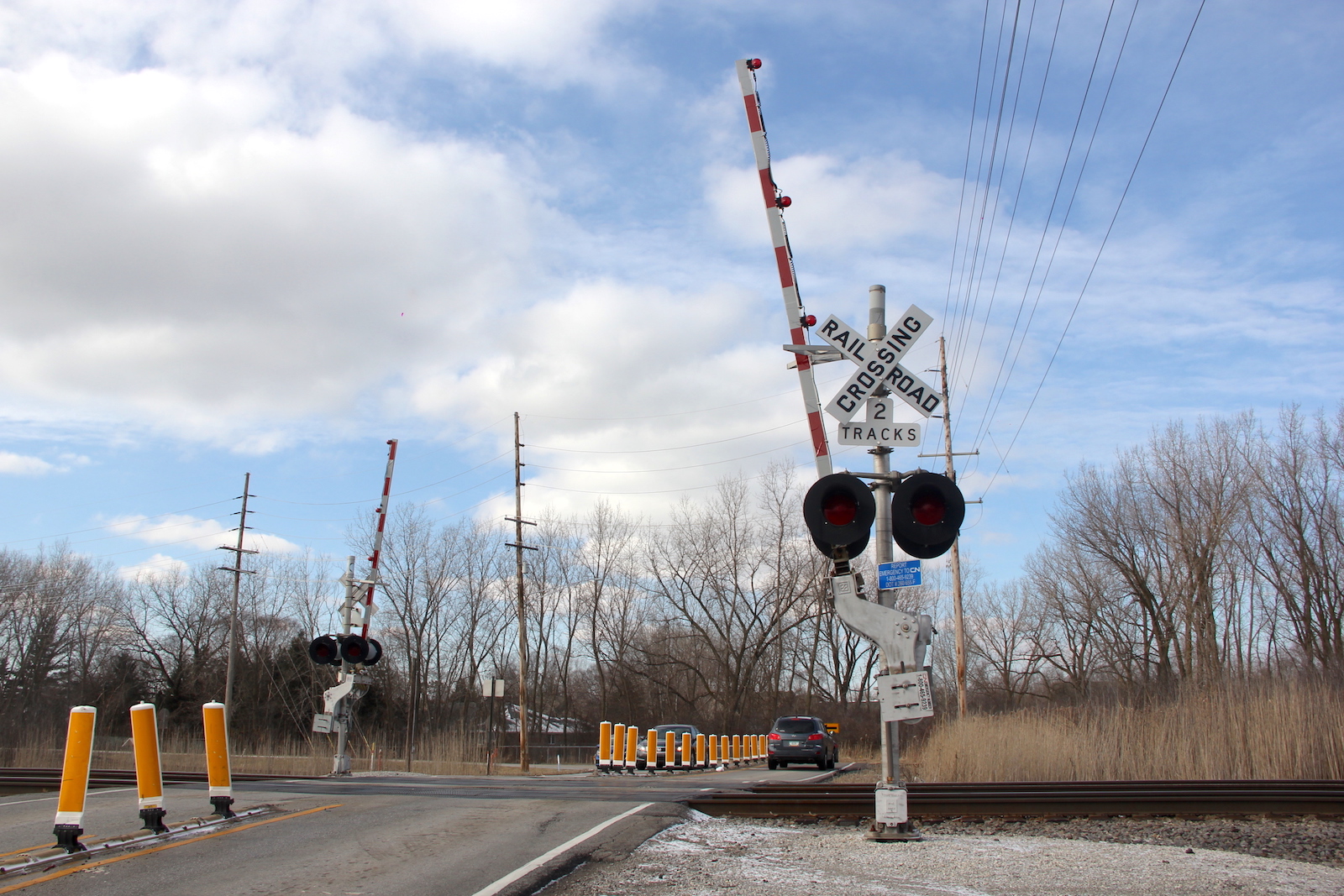

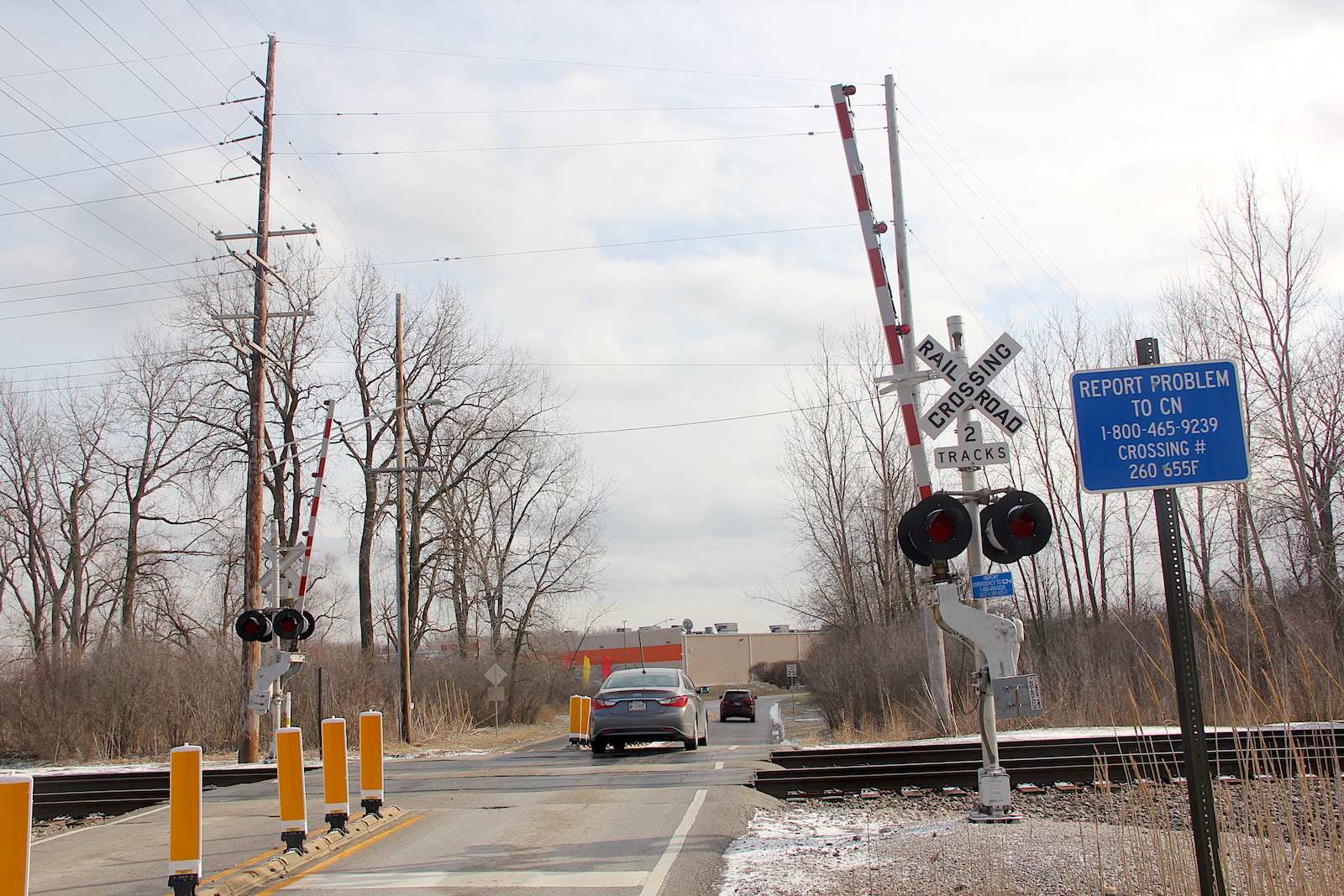

Overview of 2 gated signals facing north. Overview facing south.
3 4 5
6 7 8
9 10 11
12

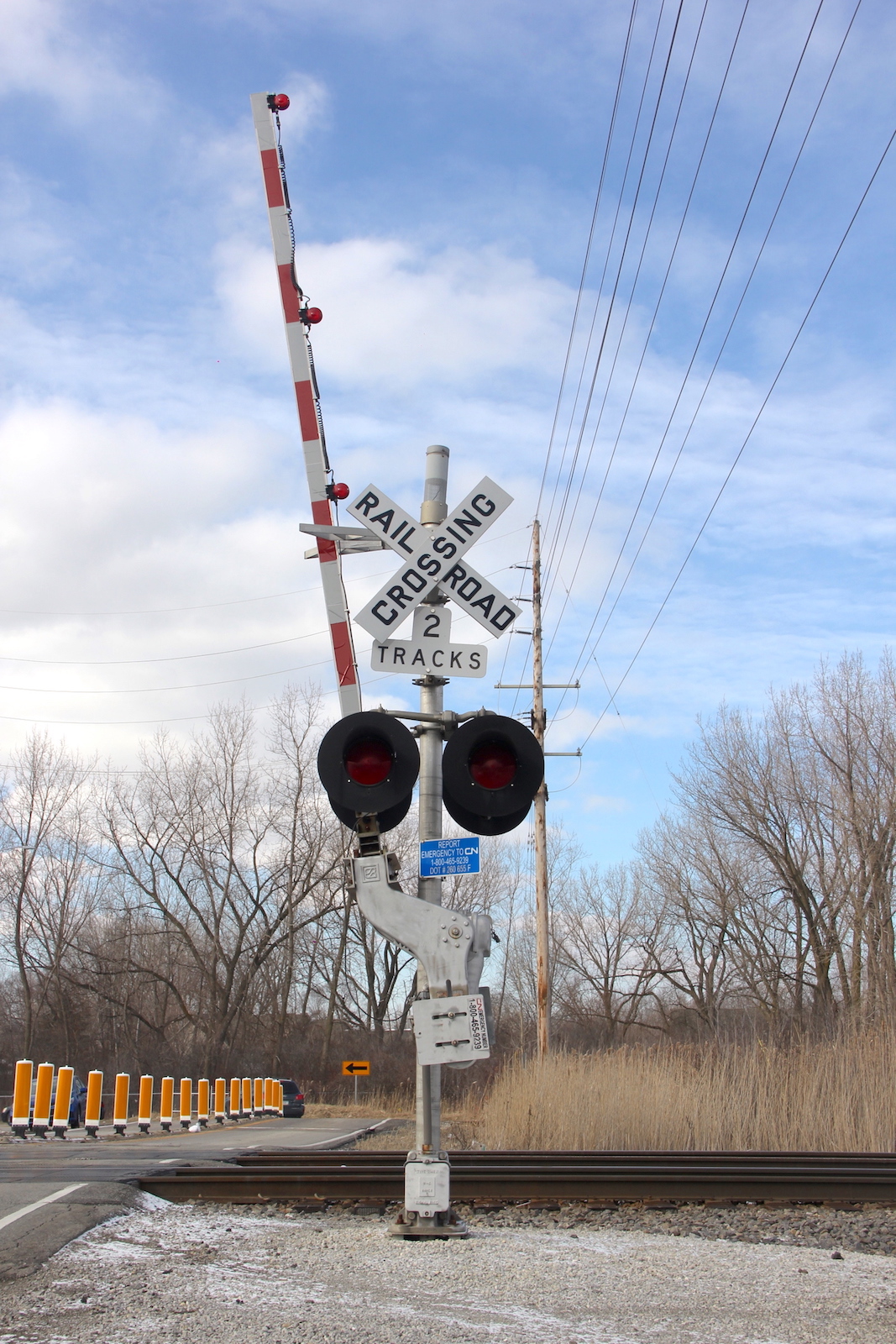

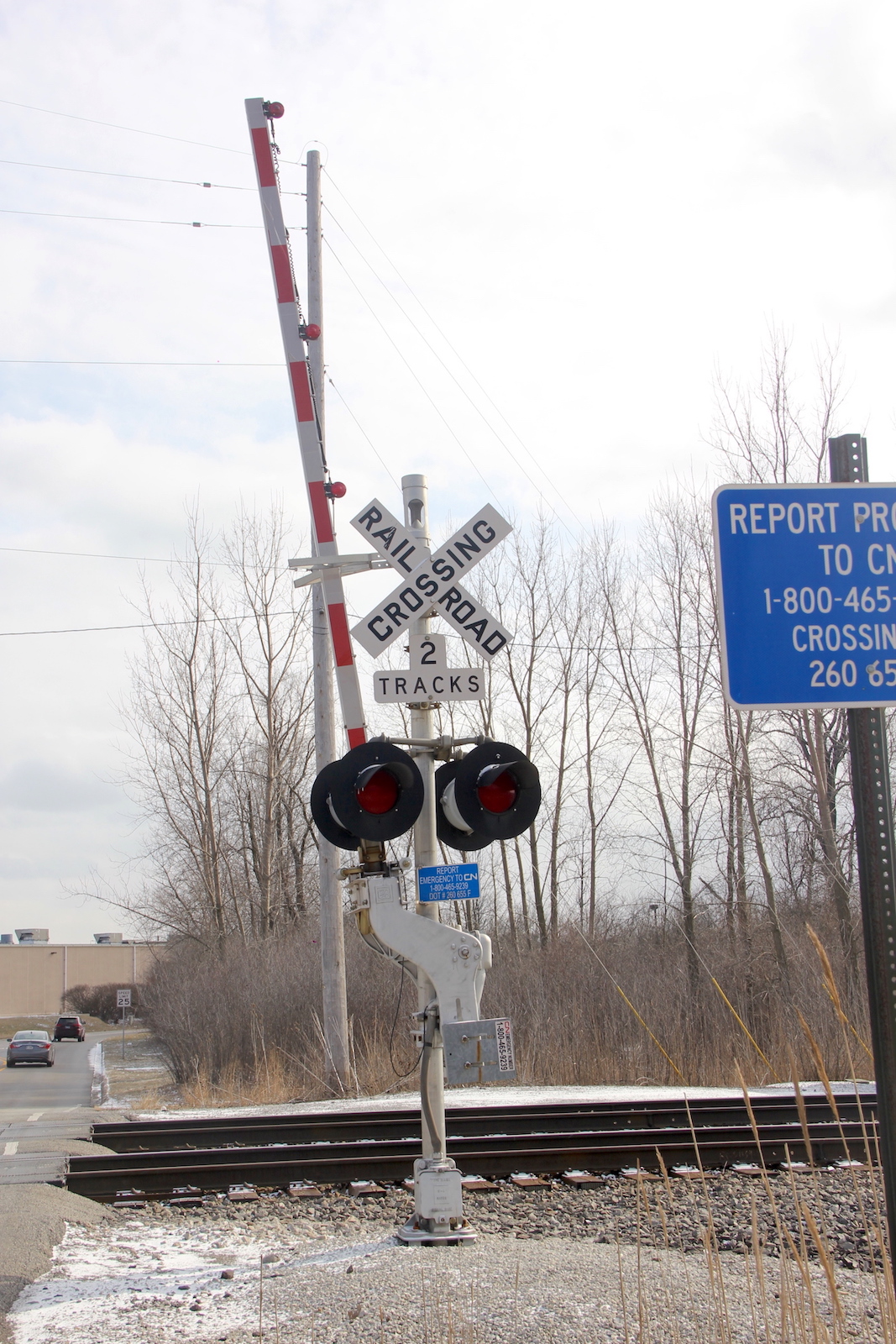

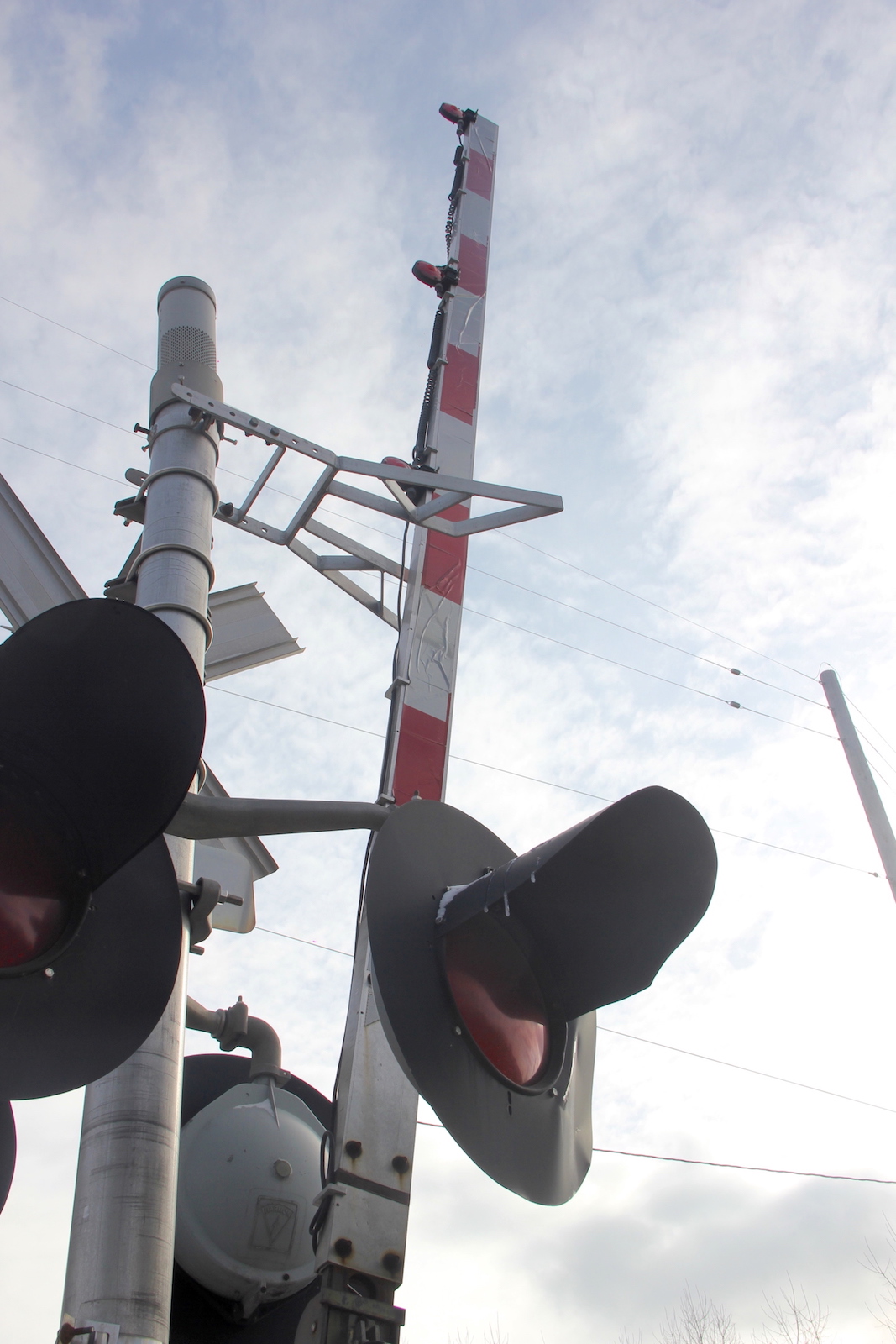

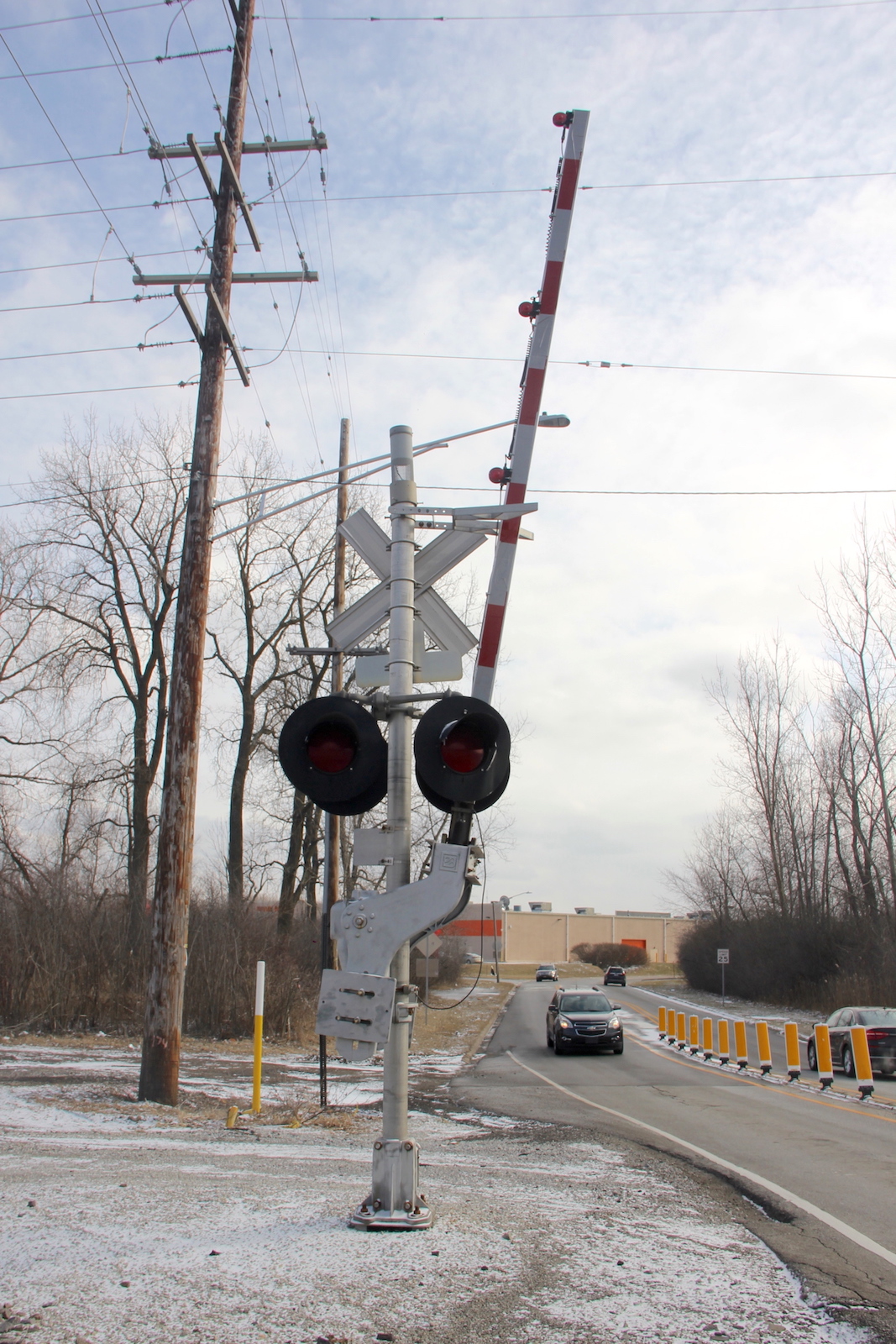

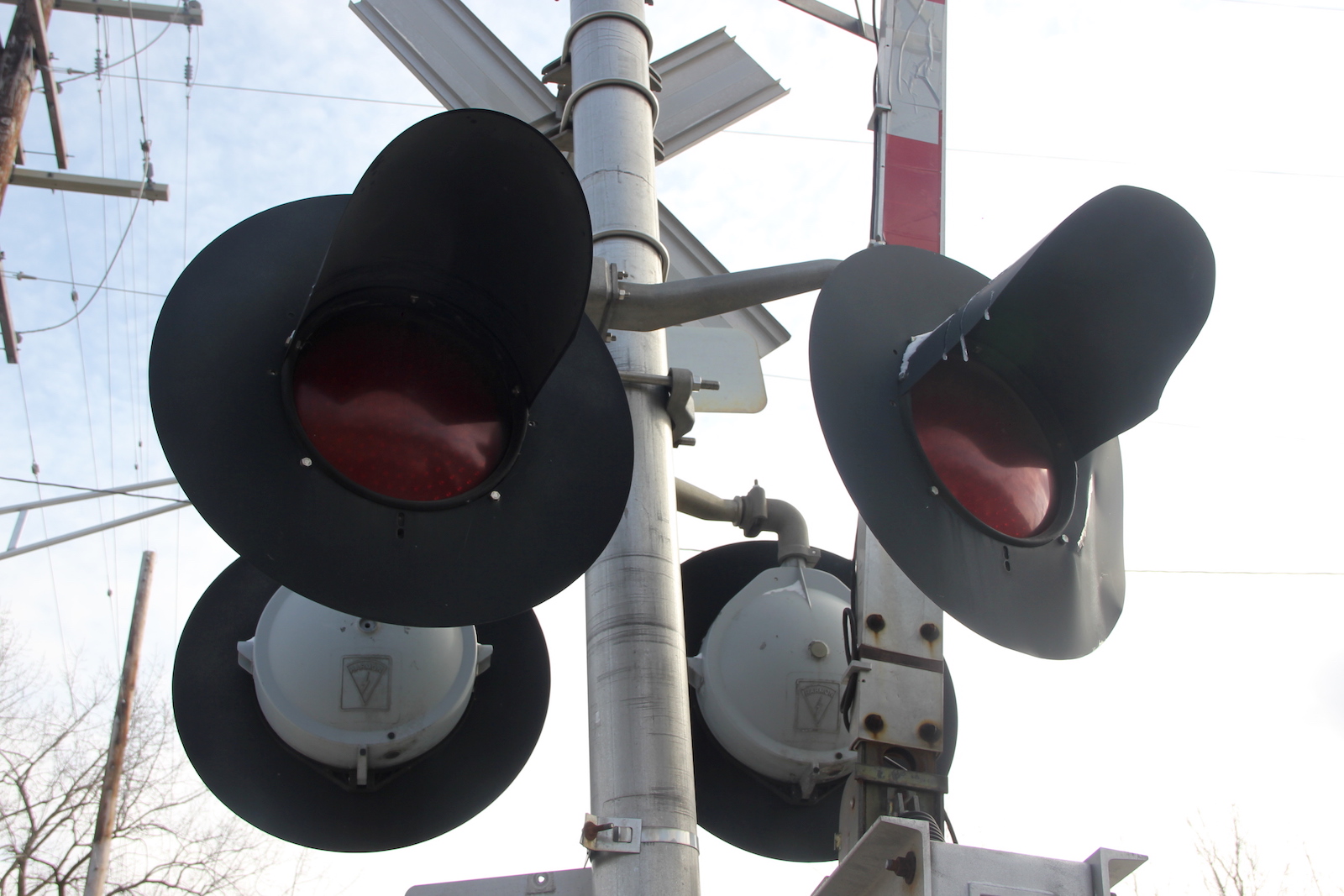

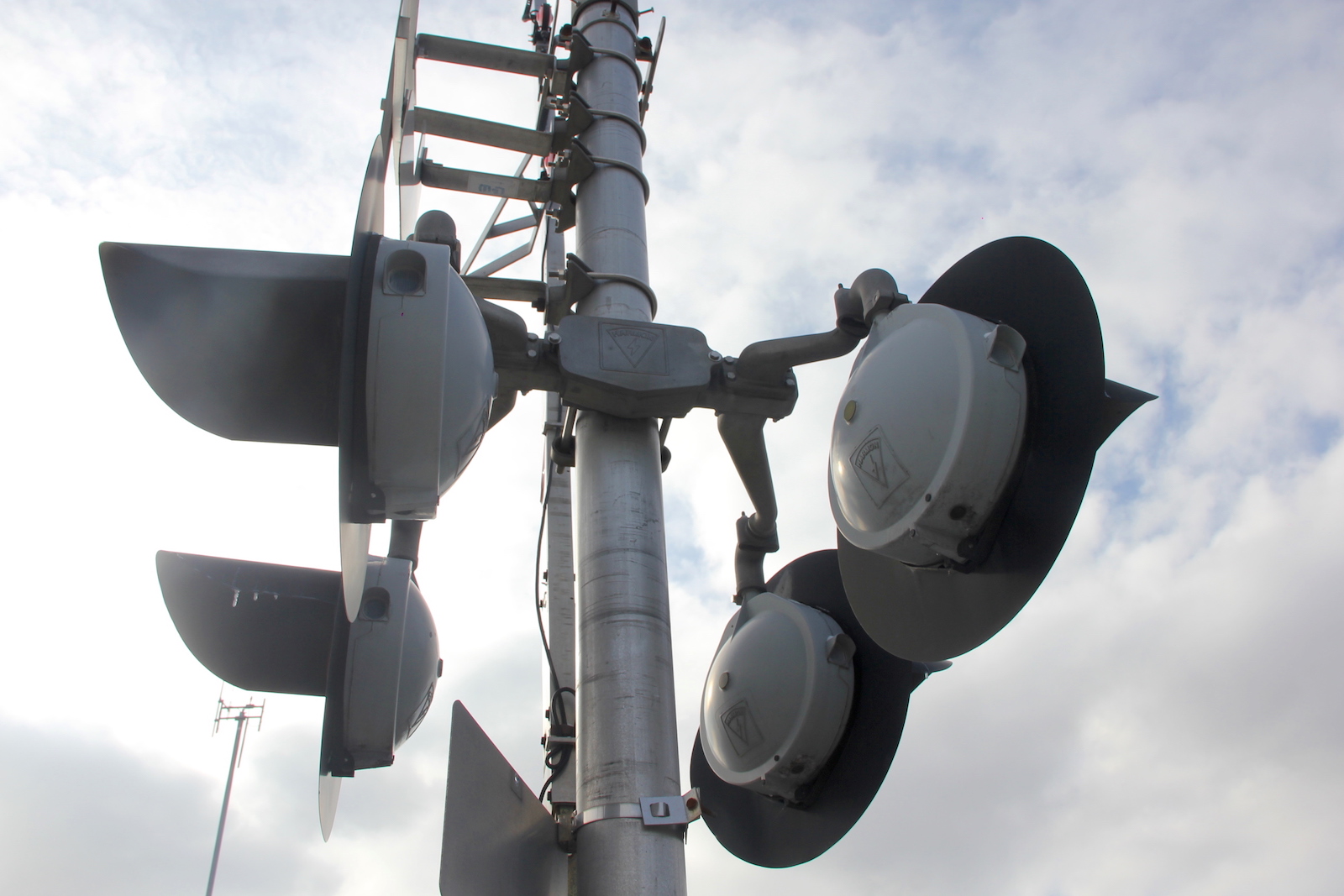

The southern signal.
13 14 15
16 17 18 19
20 21 22
23

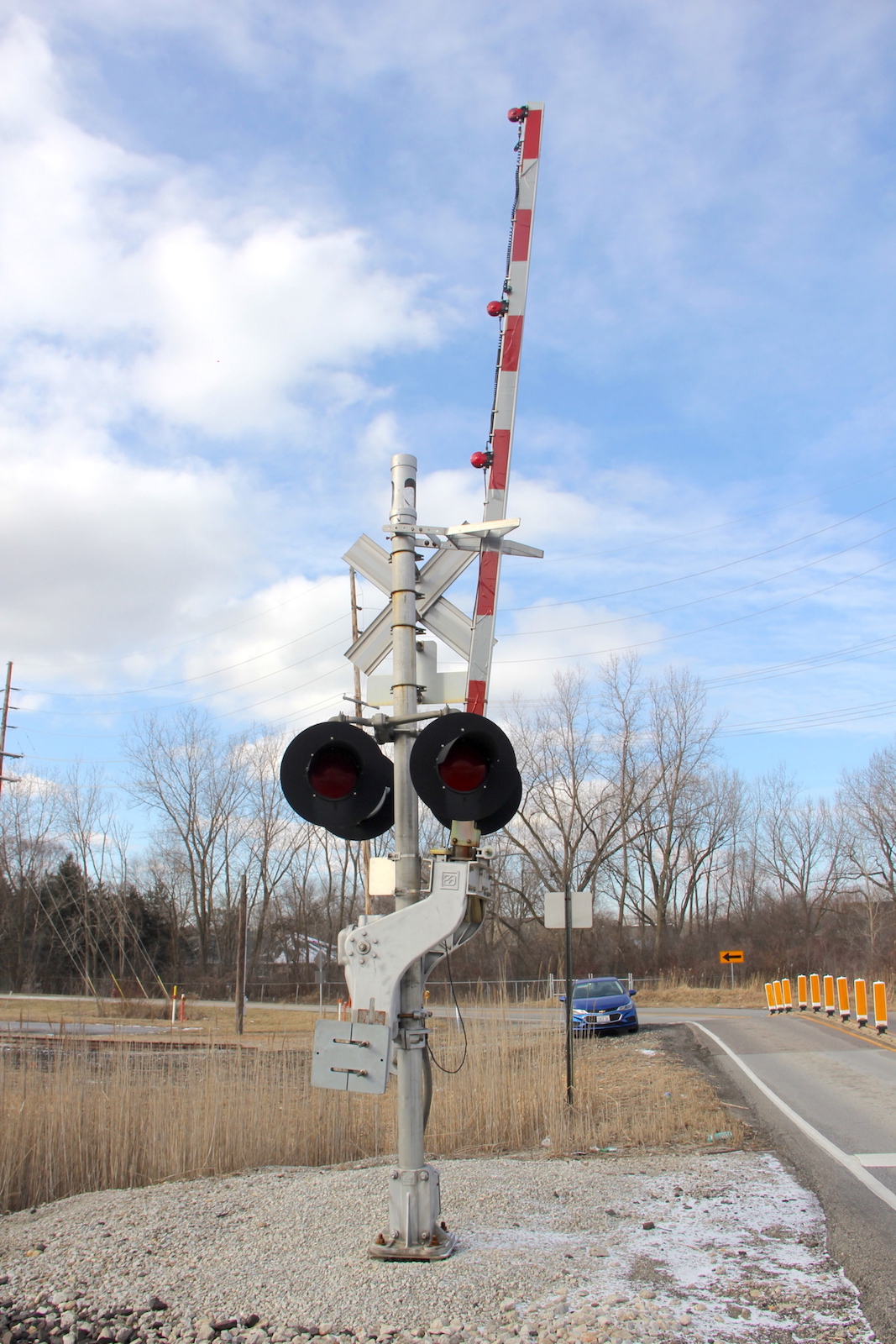

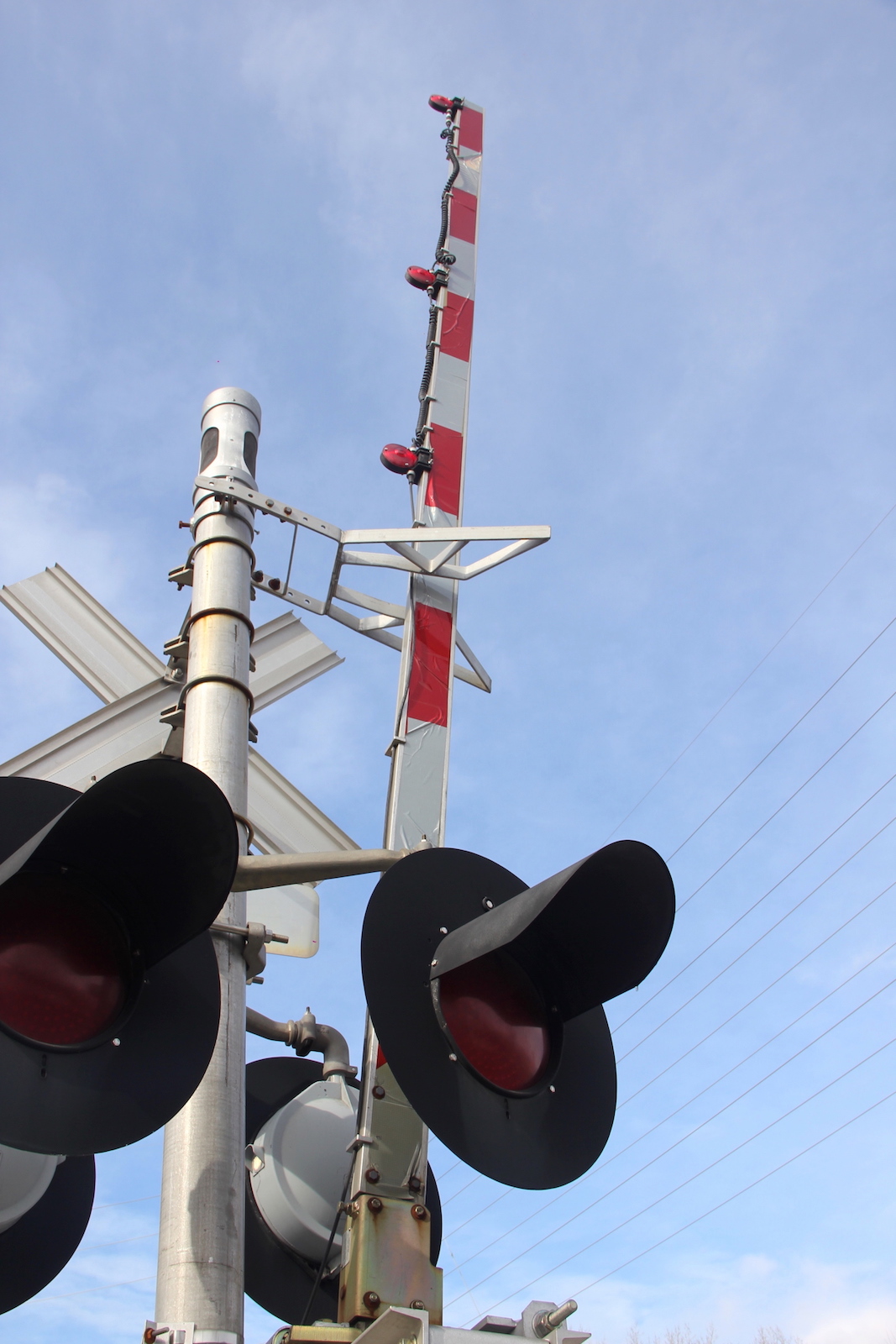

The northern signal.
24 25 26 27

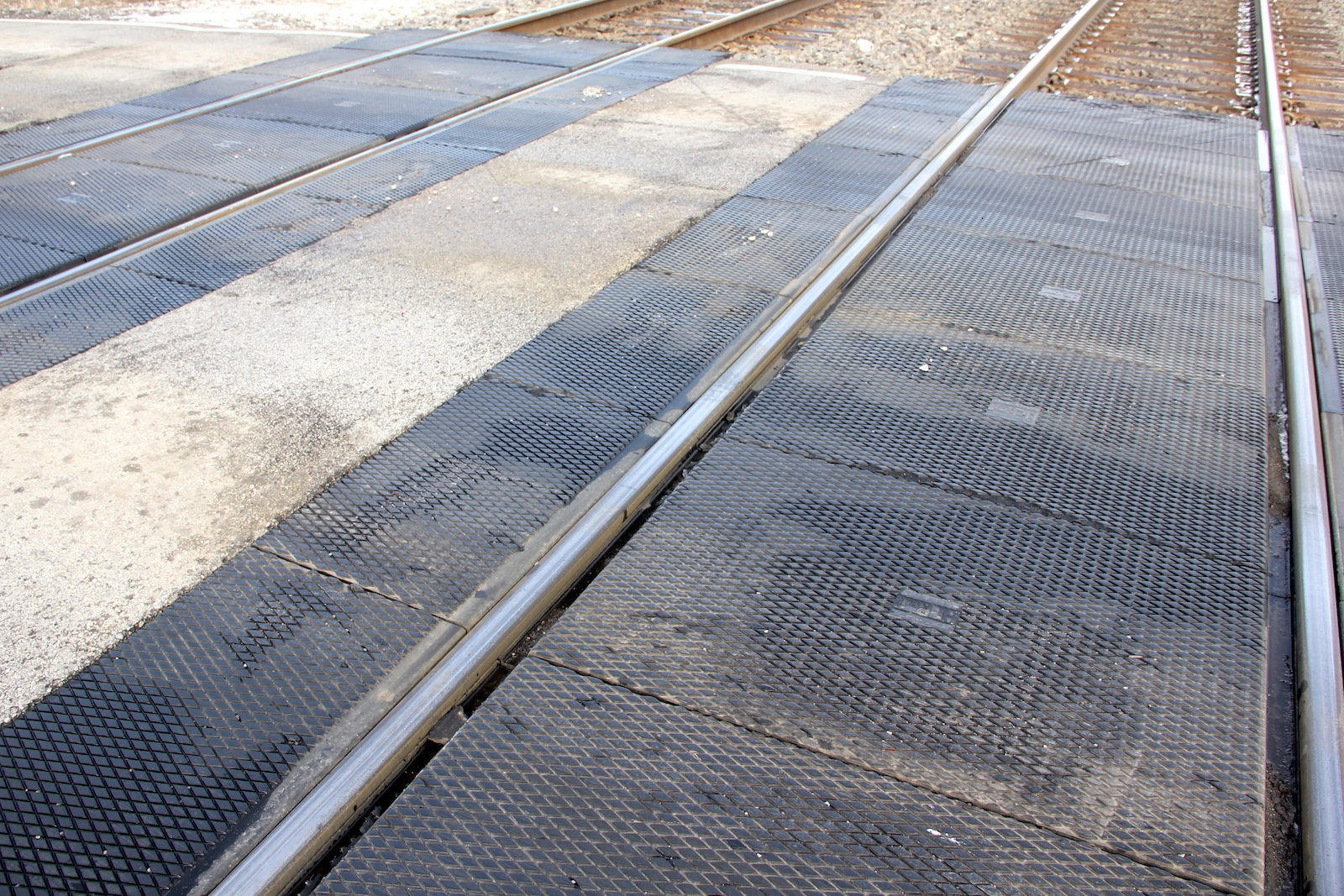

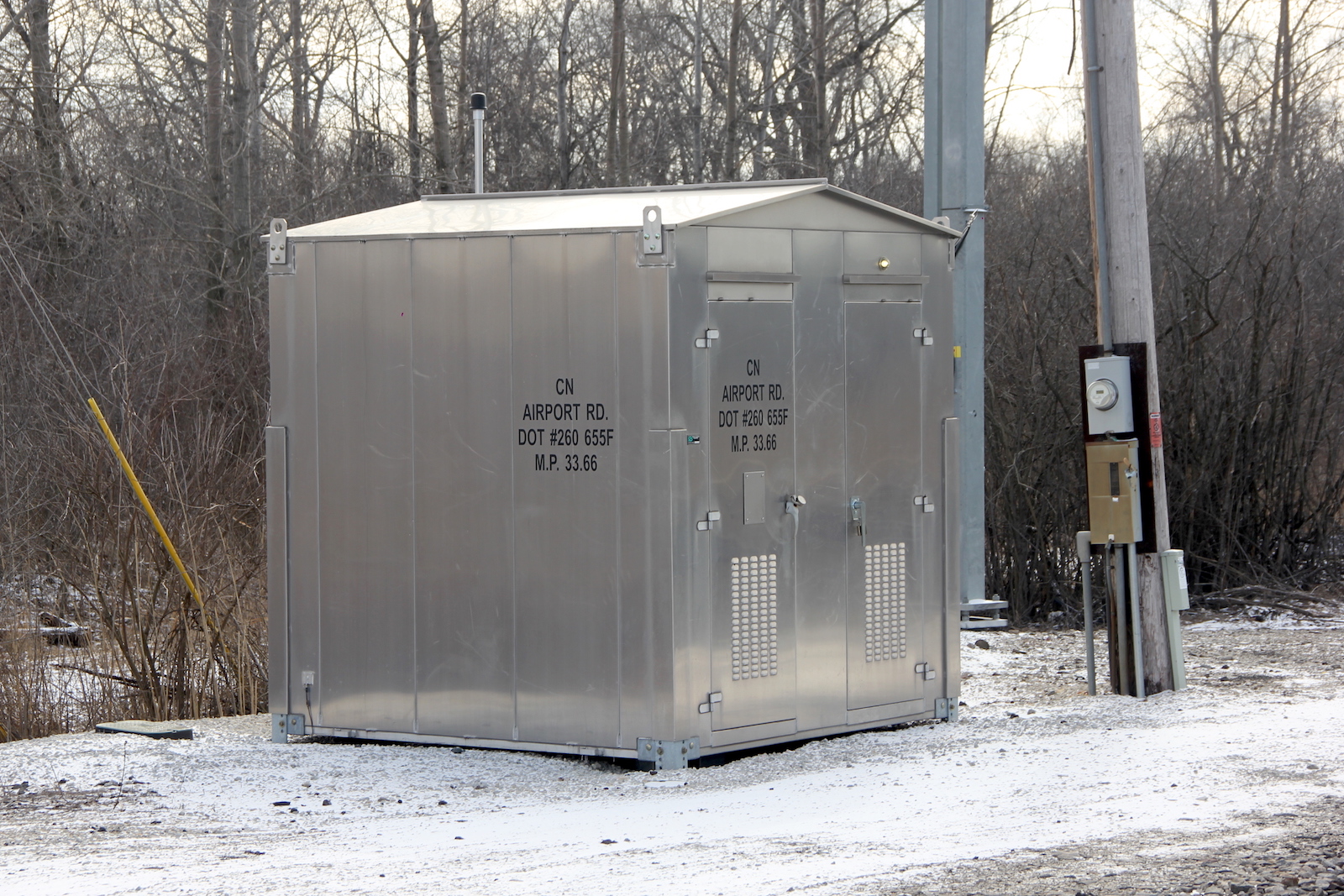

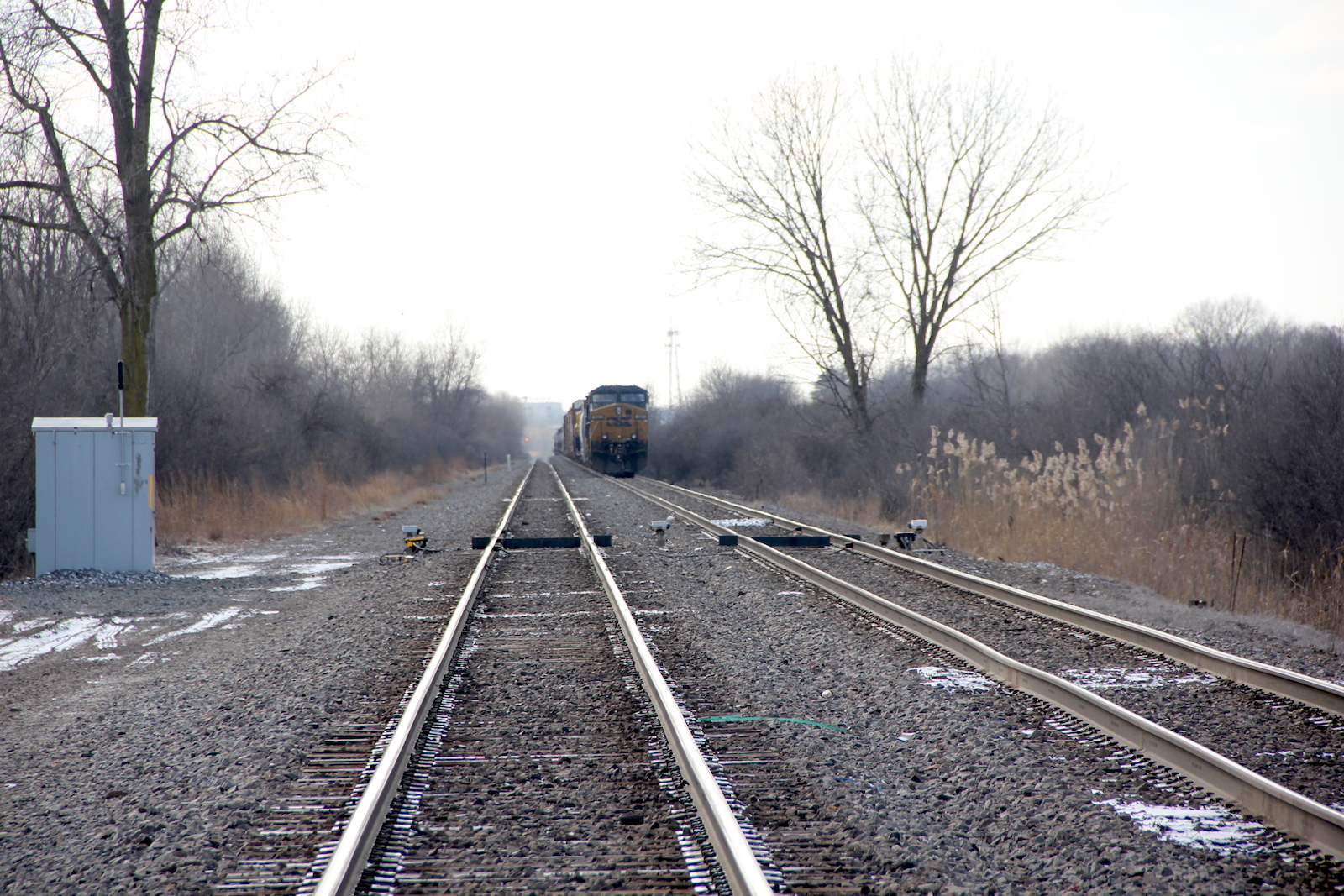

The relay bungalow in the southwest quadrant. The grade is all rubber. Track view facing west towards Hart St. in Dyer. Track view facing east towards Kennedy Ave. #1.
28

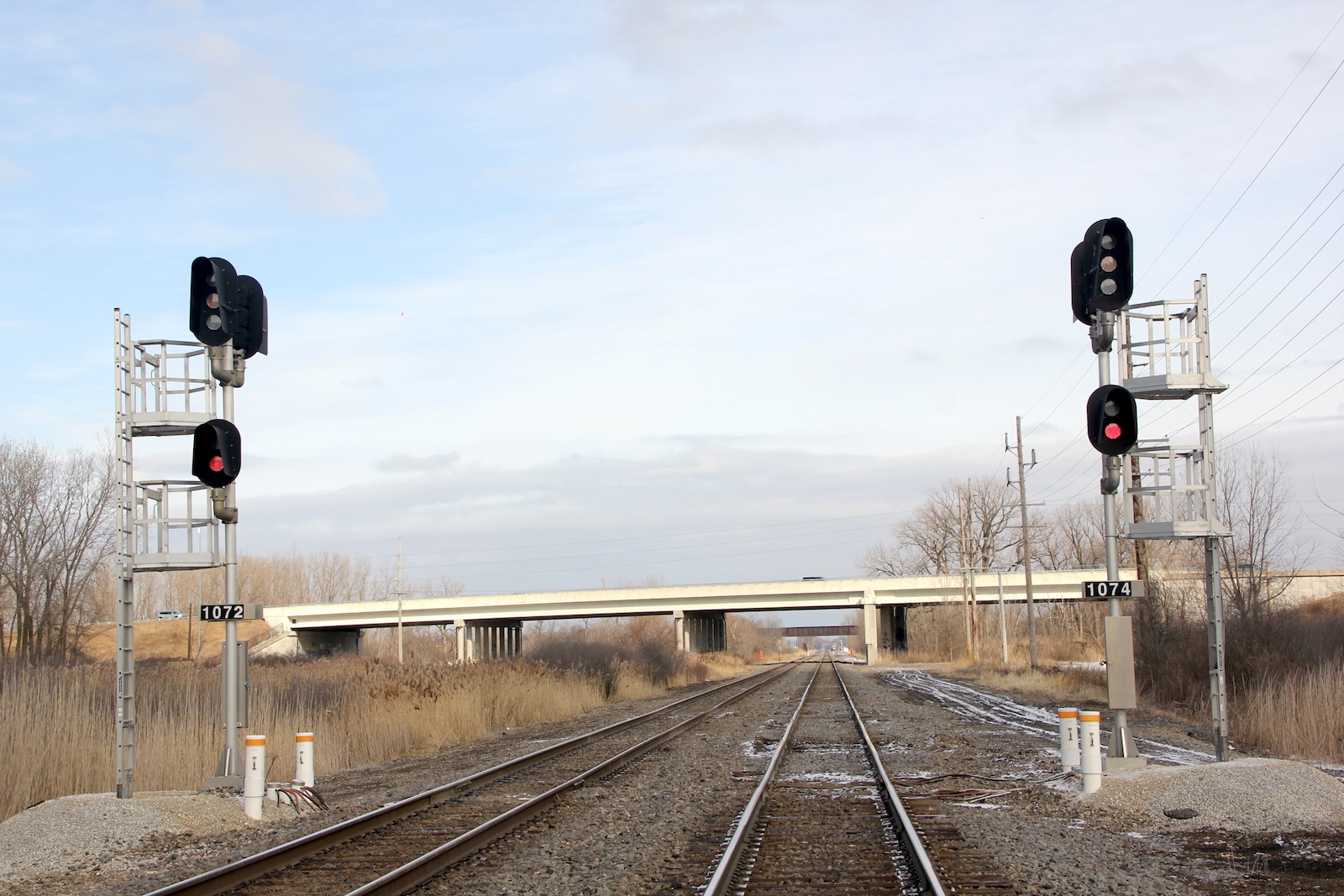

Newer wayside signals next to the crossing.

.
