>>>>>>>>>>>>>> Northern Signal Southern Signal
Bell: Safetran Type 3 E Bell Low Tone Siemens E Bell Low Tone
Cantilever: None Harmon Cantilever
Mast Base: WCH 5" Single Sided ^ WCH 5" Single Sided ^
Lights: 4 - 12"x24" Harmon w/ 1st Gen Harmon Dotted LEDs 8 - 12"x24" Harmon w/ 1st Gen Harmon Dotted LEDs
Junction Boxes: Harmon Harmon
Gate Lights: 4" RECO LEDs 4" RECO LEDs
Gate Mechanism: US&S Model 95 Style 1 w/ WCH Gate Saver US&S Model 95 Style 1 w/ NEG 1 Way Saver
Gate Striping: Diagonal Striping Vertical Striping

All pictures and the video were taken on March 3, 2019, by Tommy McGowan.
This crossing is located on the CN Matteson Sub, and functions as a double crossing with Kennedy Ave. #2.

1
 2
Overview of a gated cantilever and gated mast signal facing south. Overview facing north.
3 4 5
6 7 8 9
10 11 12 13

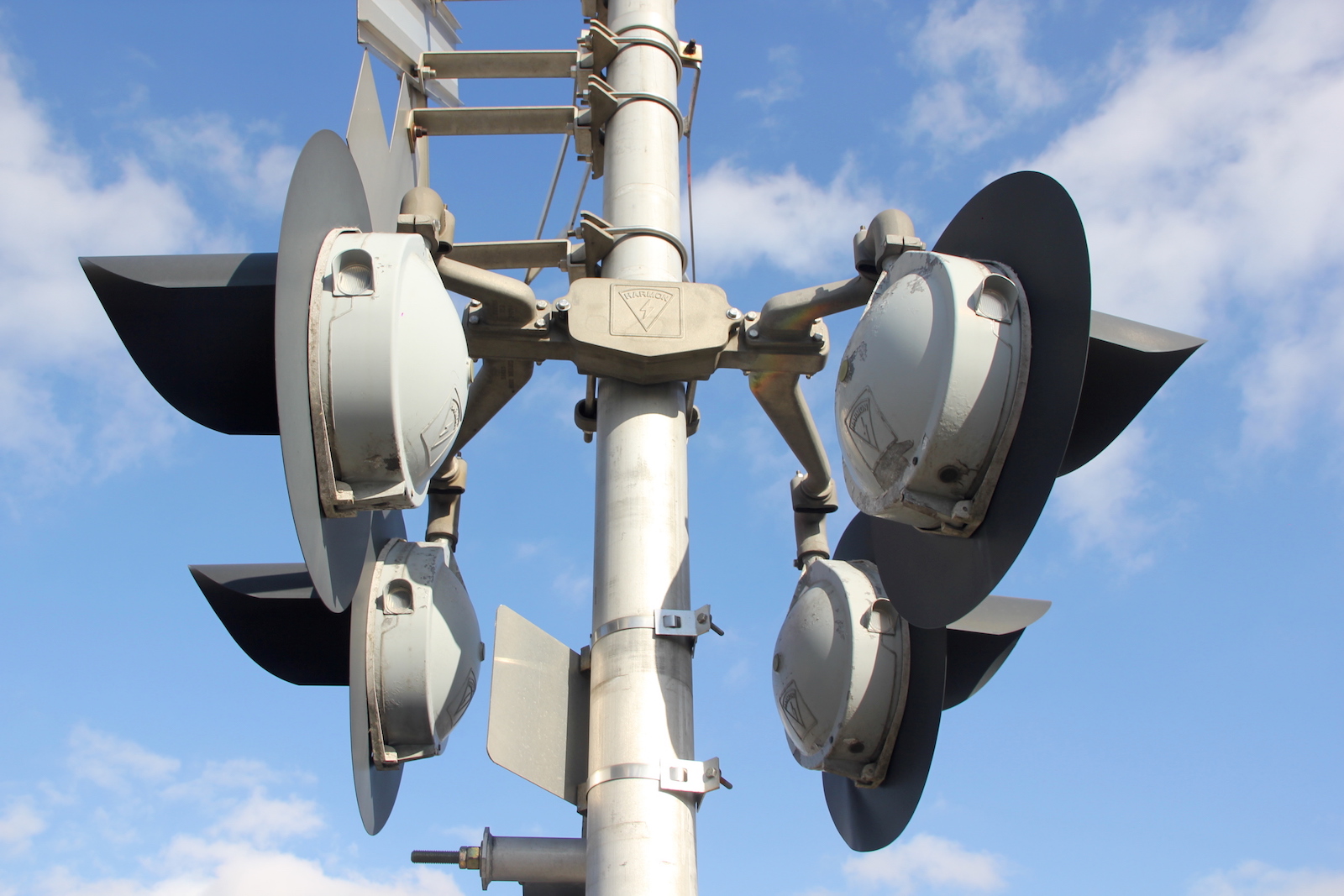

The northern signal.
14 15 16
17 18 19
20 21 22 23
24 25 26 27

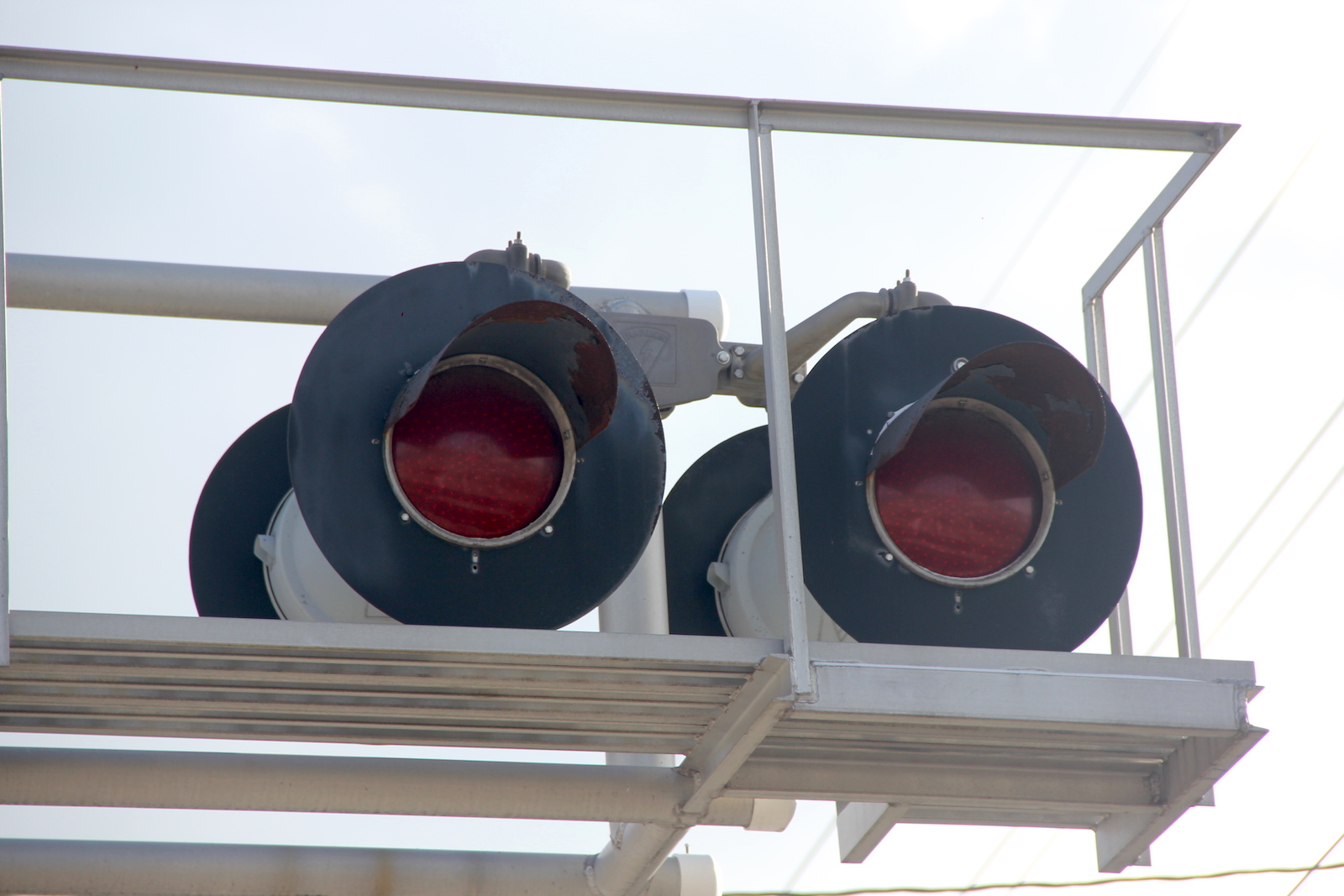

The southern signal.
28 29 30 31

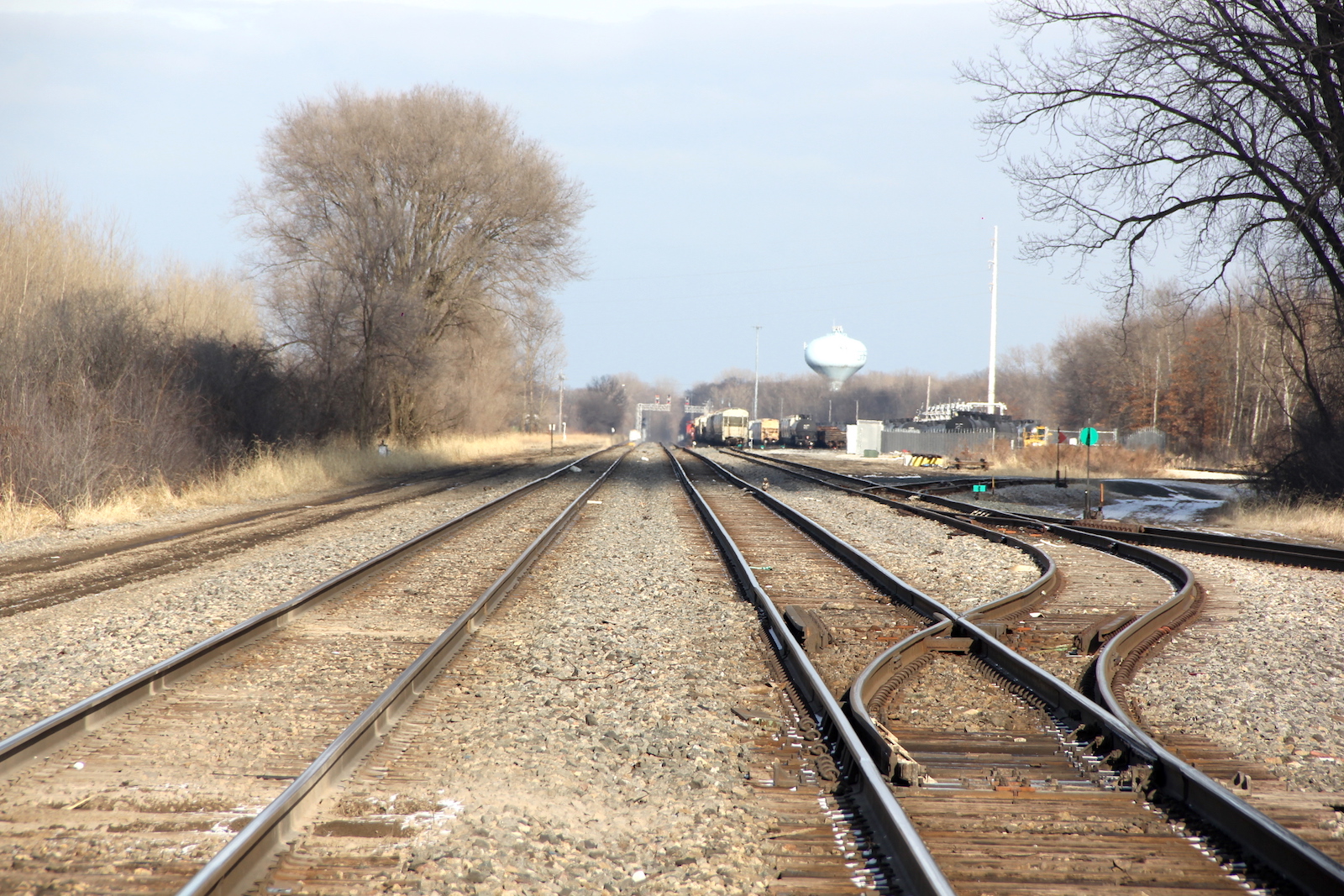

The relay bungalow in the southeast quadrant. The grade is all rubber. Track view facing west towards Airport Rd. Track view facing east towards Broad St. in Griffith.
