| >>>>>>>>>>>>>> | Western Signal | Eastern Signal | Eastern Exit Signal |

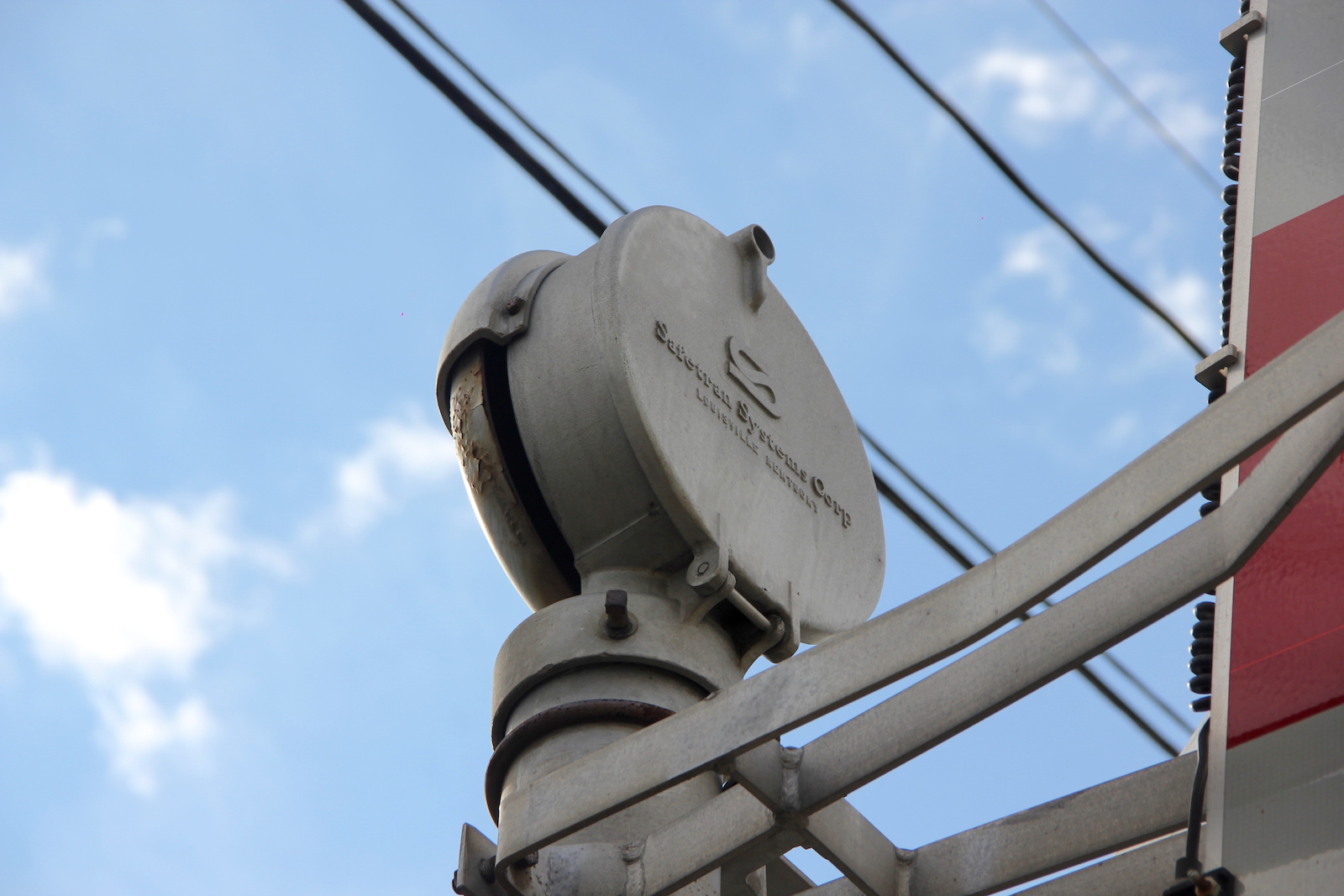

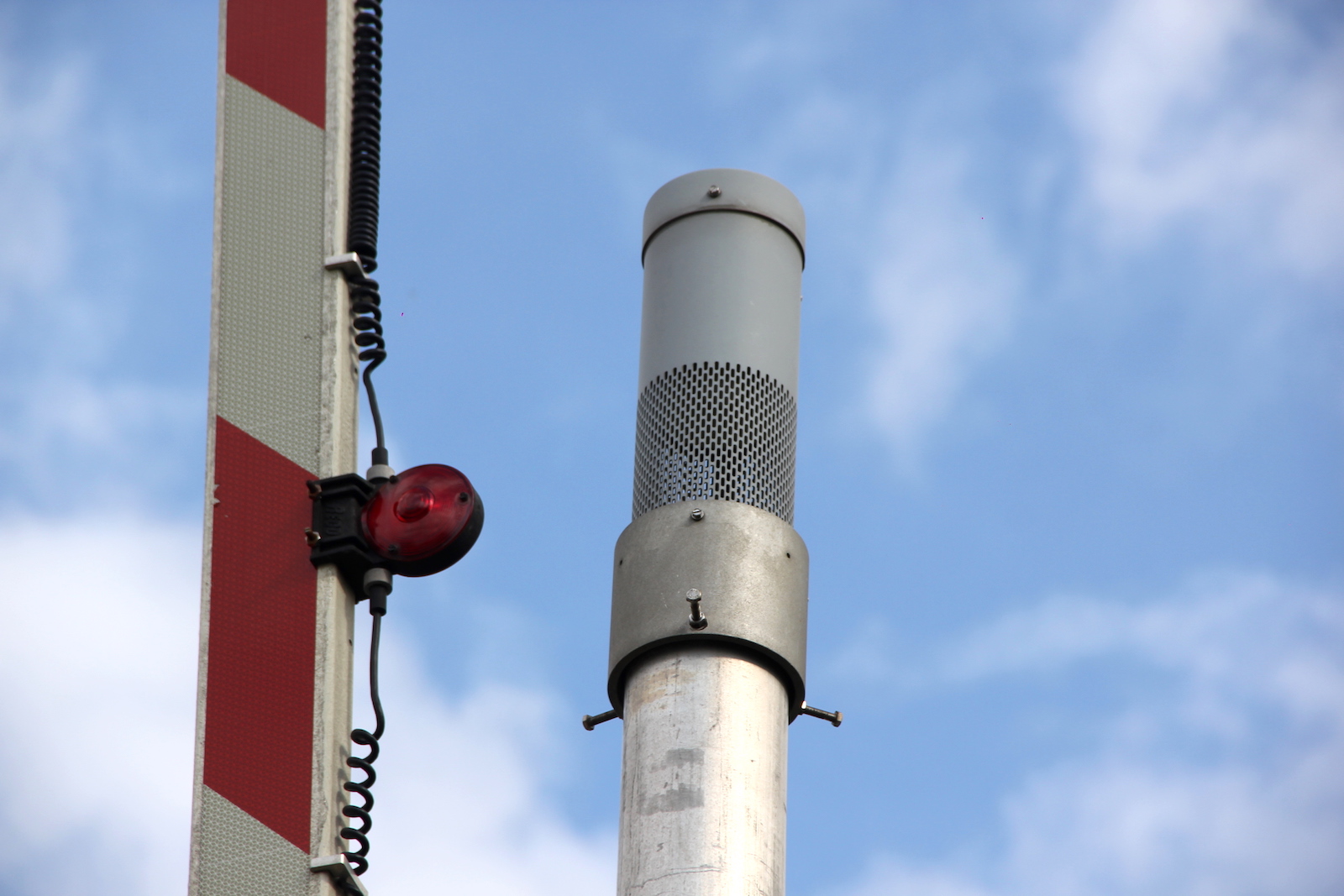

| Bell: | Safetran Mechanical Bell | None | Safetran Type 3 E Bell |

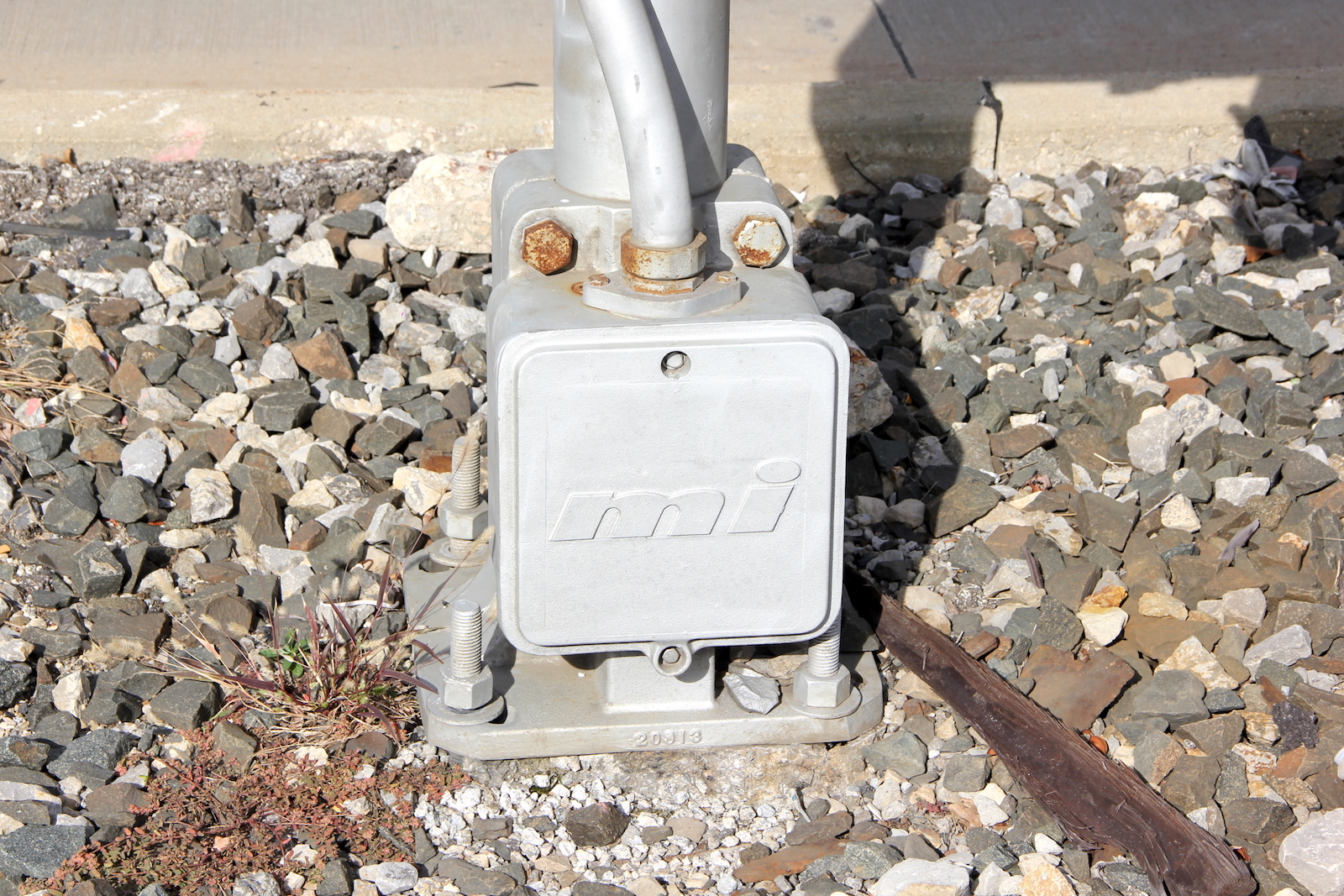

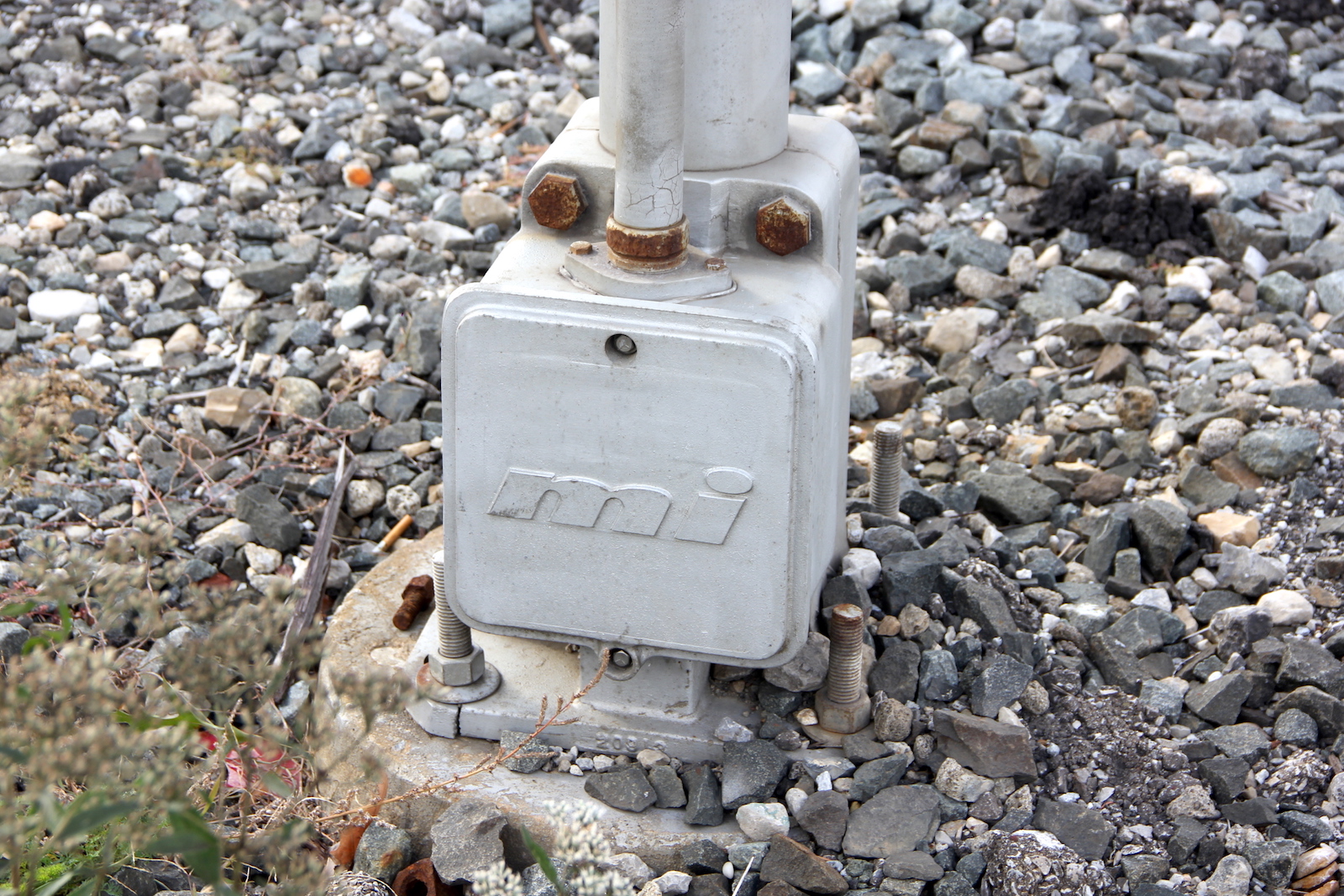

| Base: | MI 5" Single Sided > | MI 5" Single Sided ^ | Safetran 5" Double Sided ^ |
| Lights: | 4 - 12"x24" Safetran w/ Dialight Ball LEDs | 4 - 12"x24" Safetran w/ Dialight Ball LEDs | 4 - 12"x24" Safetran w/ Dialight Ball LEDs |
| Junction Box: | Safetran | Safetran | Safetran |
| Gate Lights: | 4" RECO | 4" RECO | 4" RECO |
| Gate Mechanism: | WCH Style 3 w/ Standard Mount | WCH Style 3 w/ Standard Mount | Safetran 2000s w/ NEG 1 Way Saver |
| Gate Striping: | Vertical Striping | Diagonal Striping | Diagonal Striping |
1 |
2
|

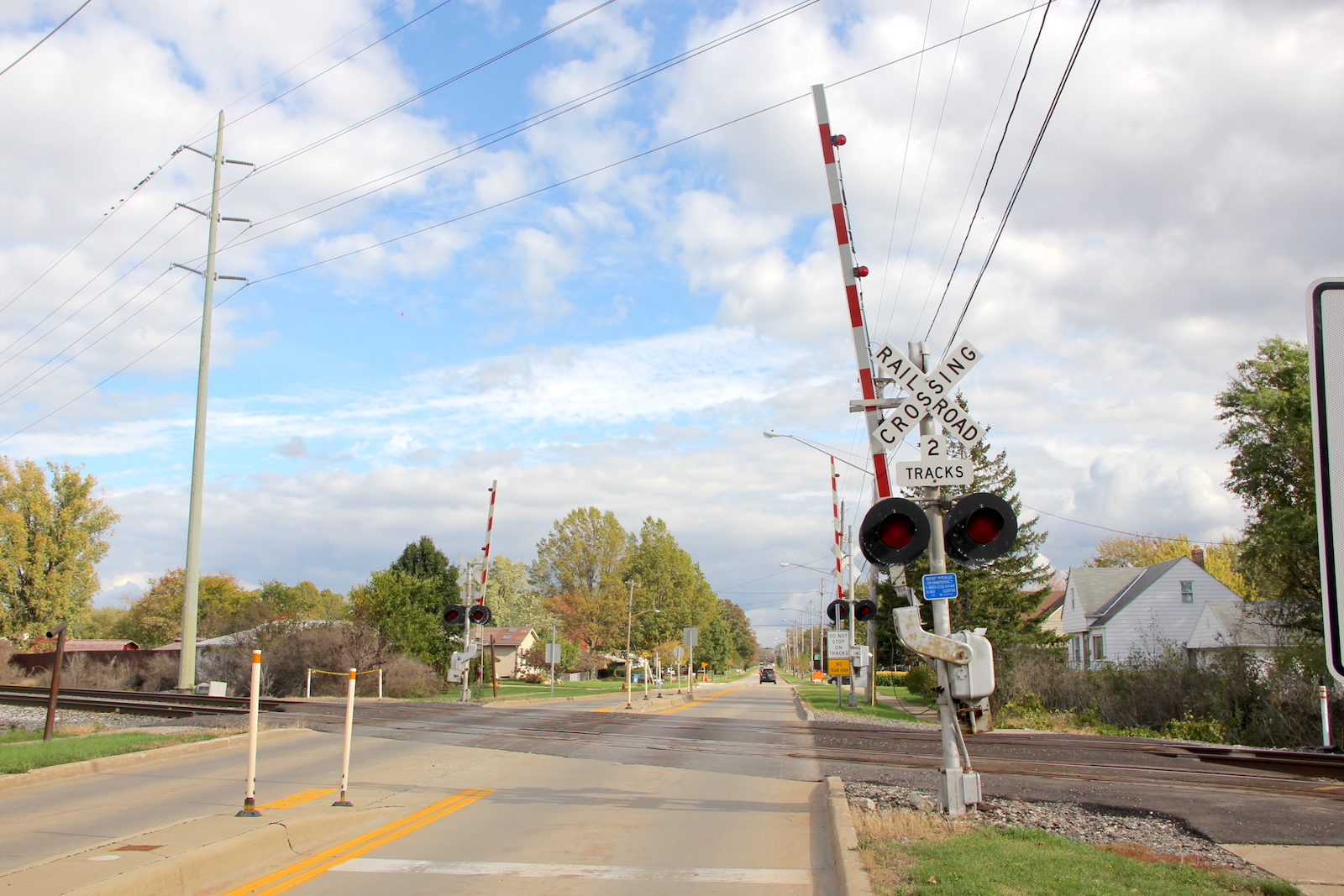

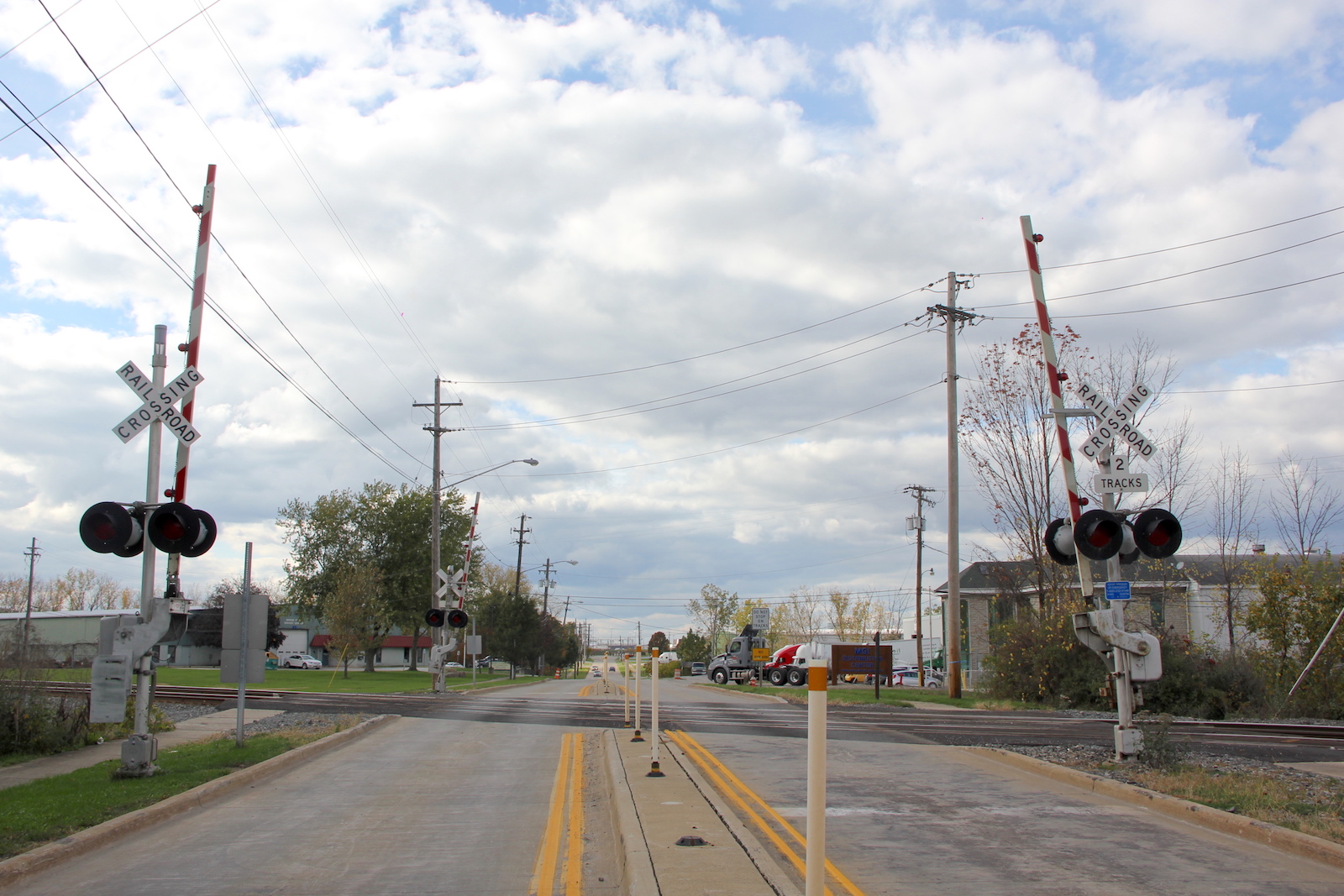

| Overview of an odd 3 gated setup facing west. |
Overview facing east. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

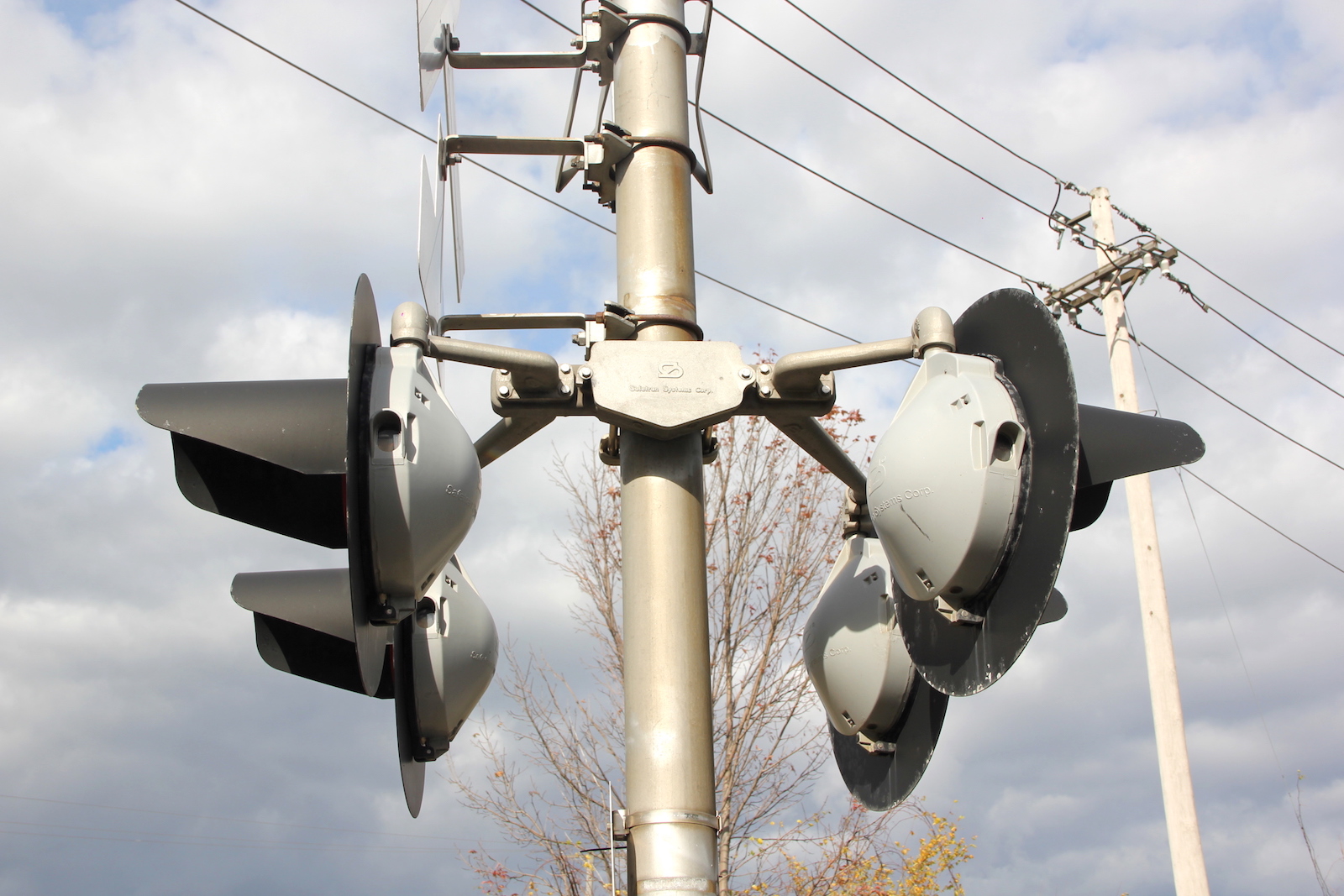

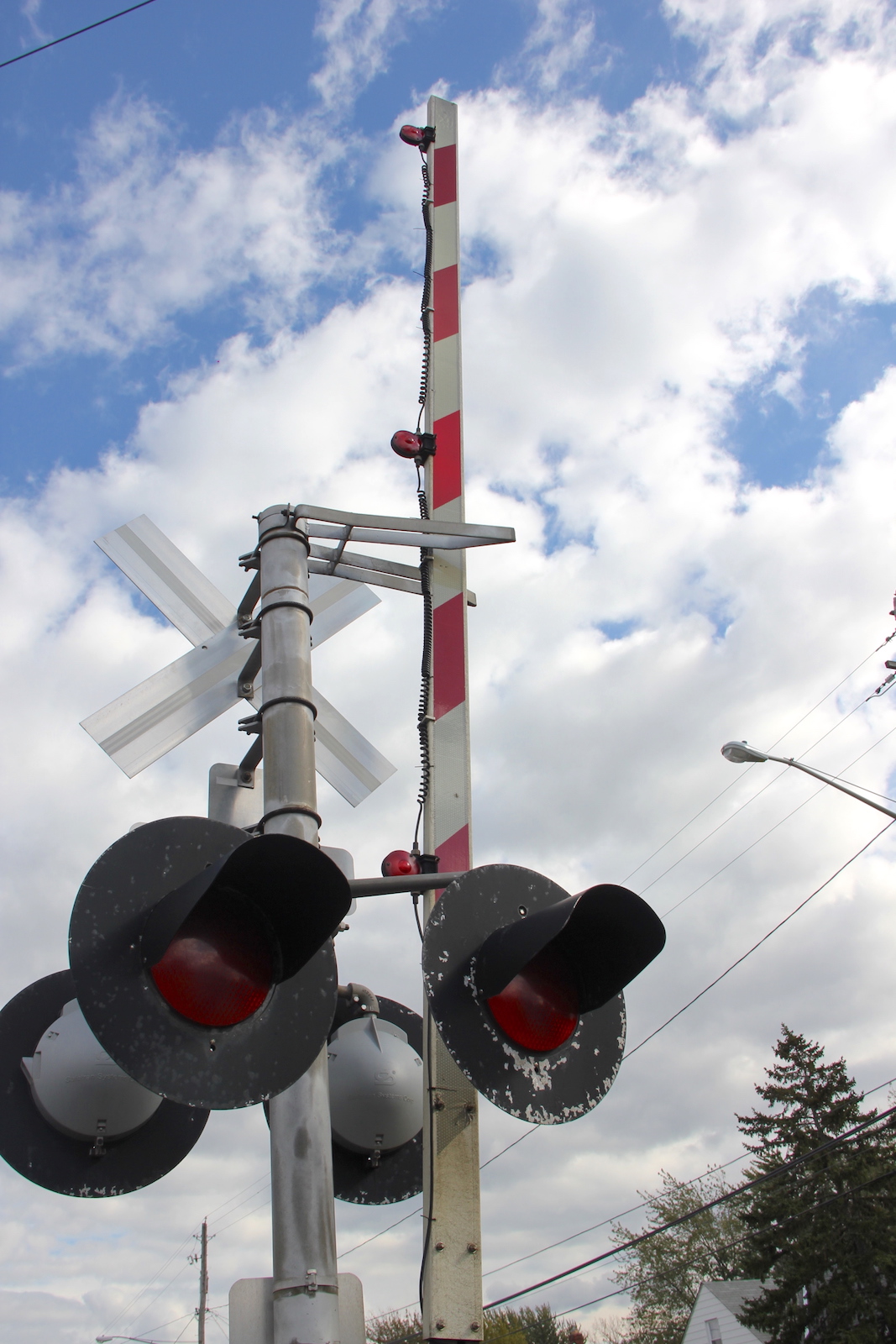

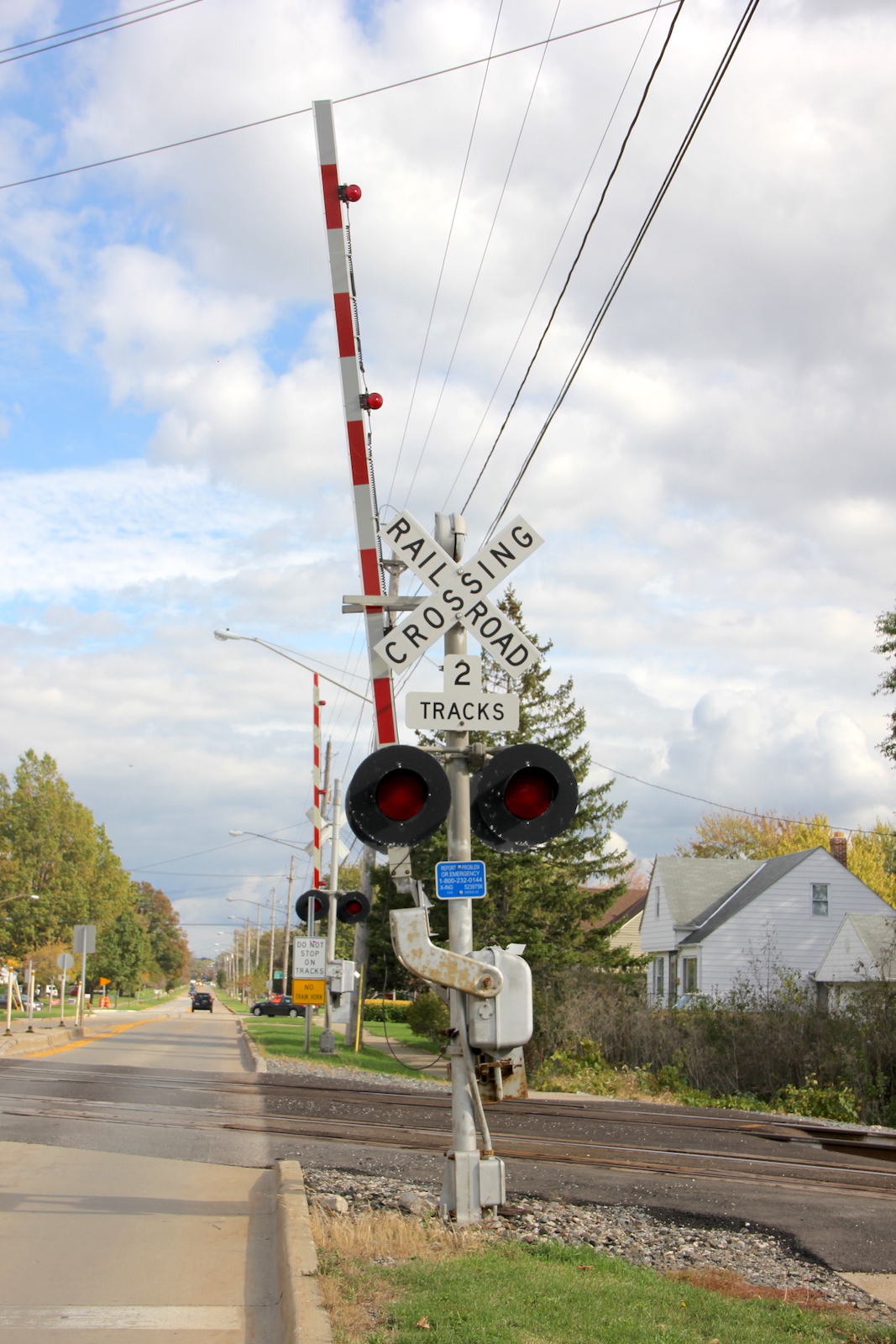

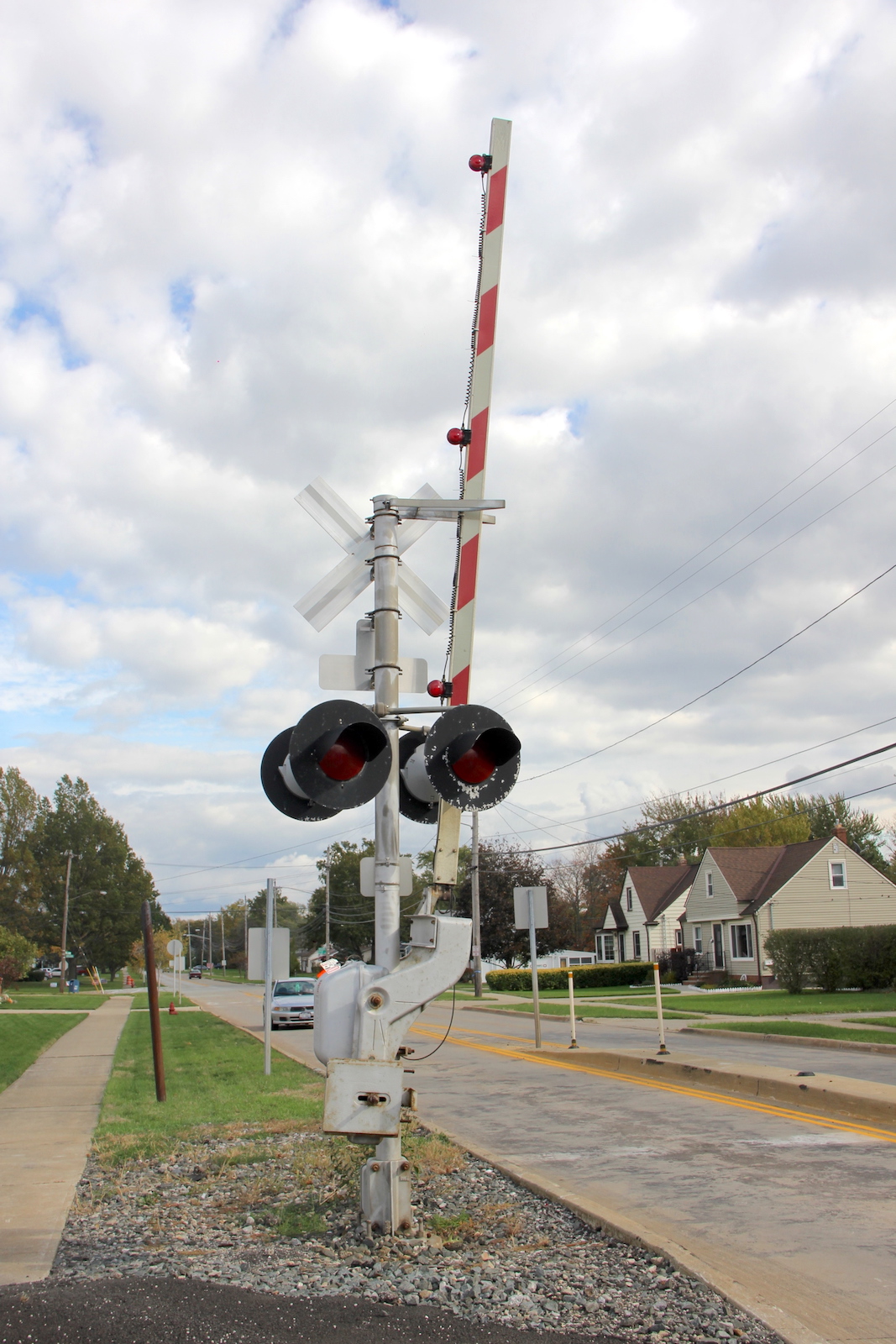

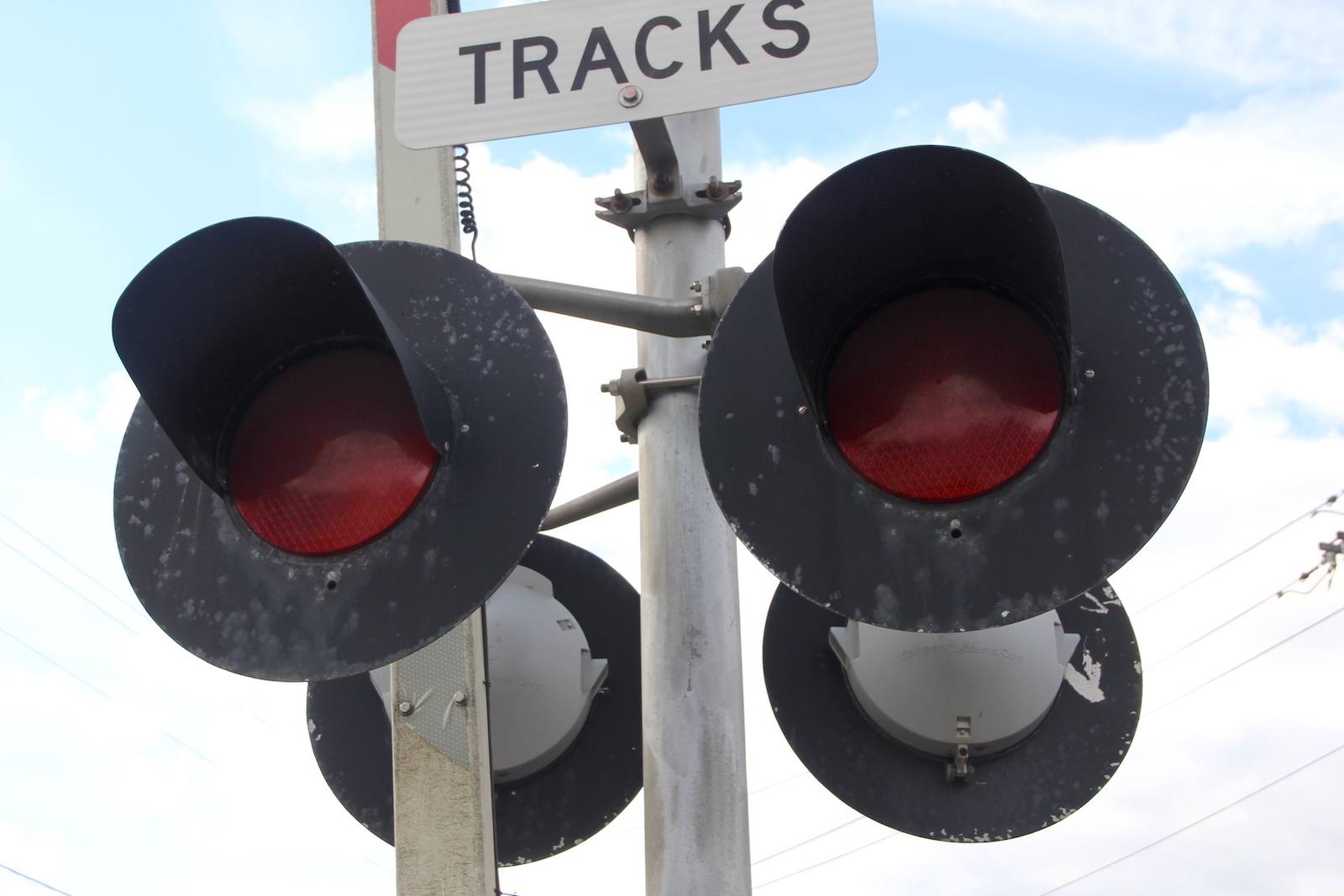

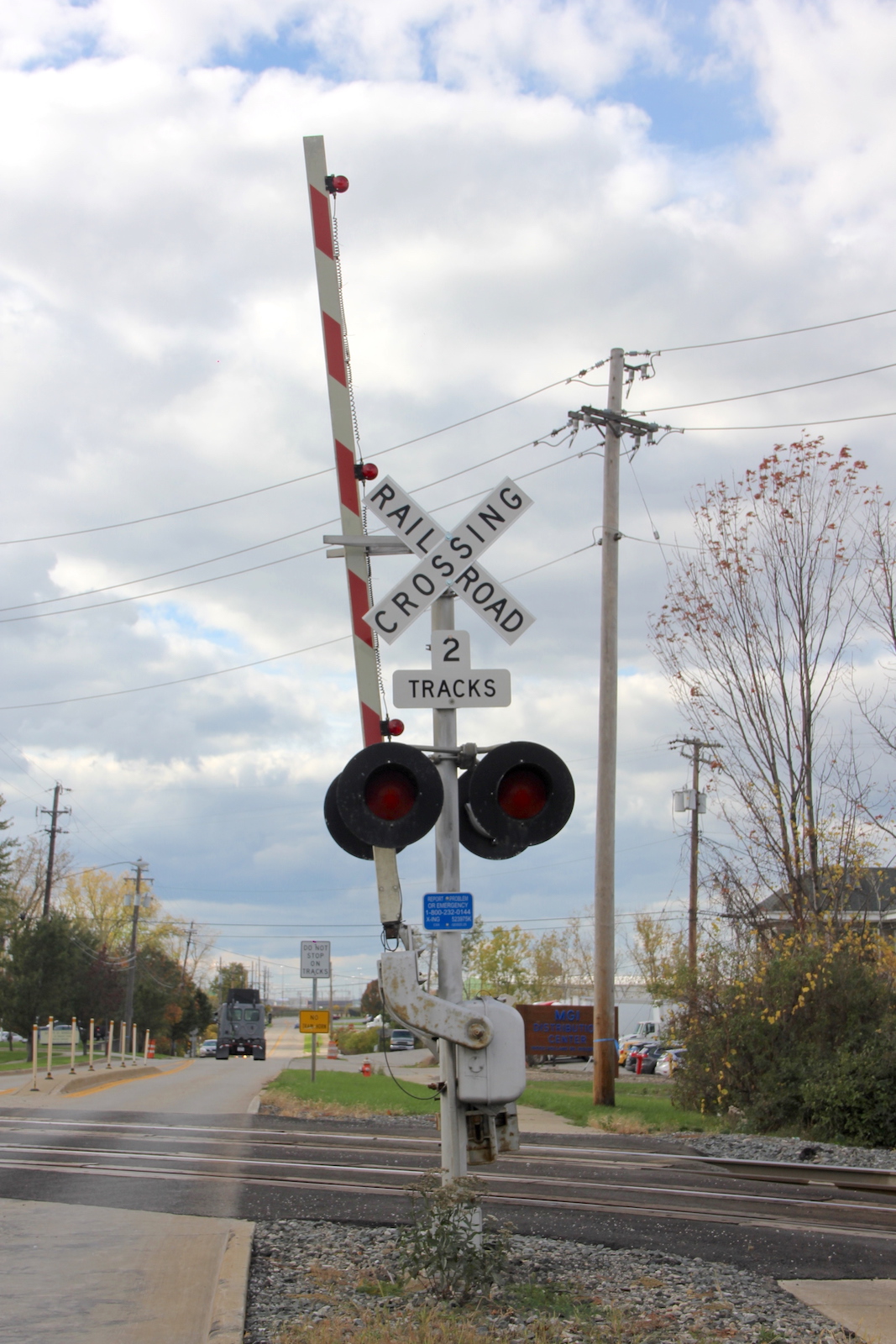

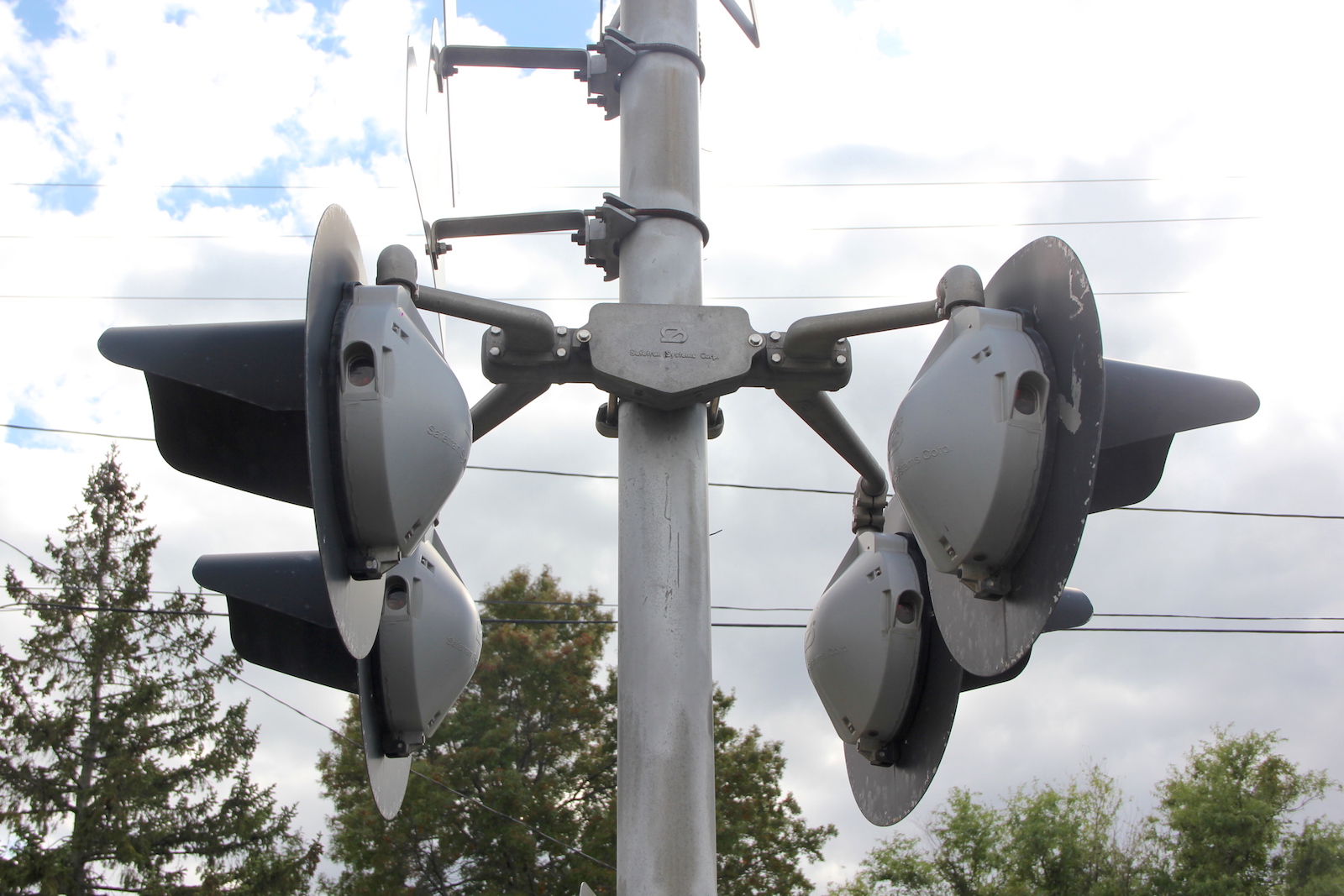

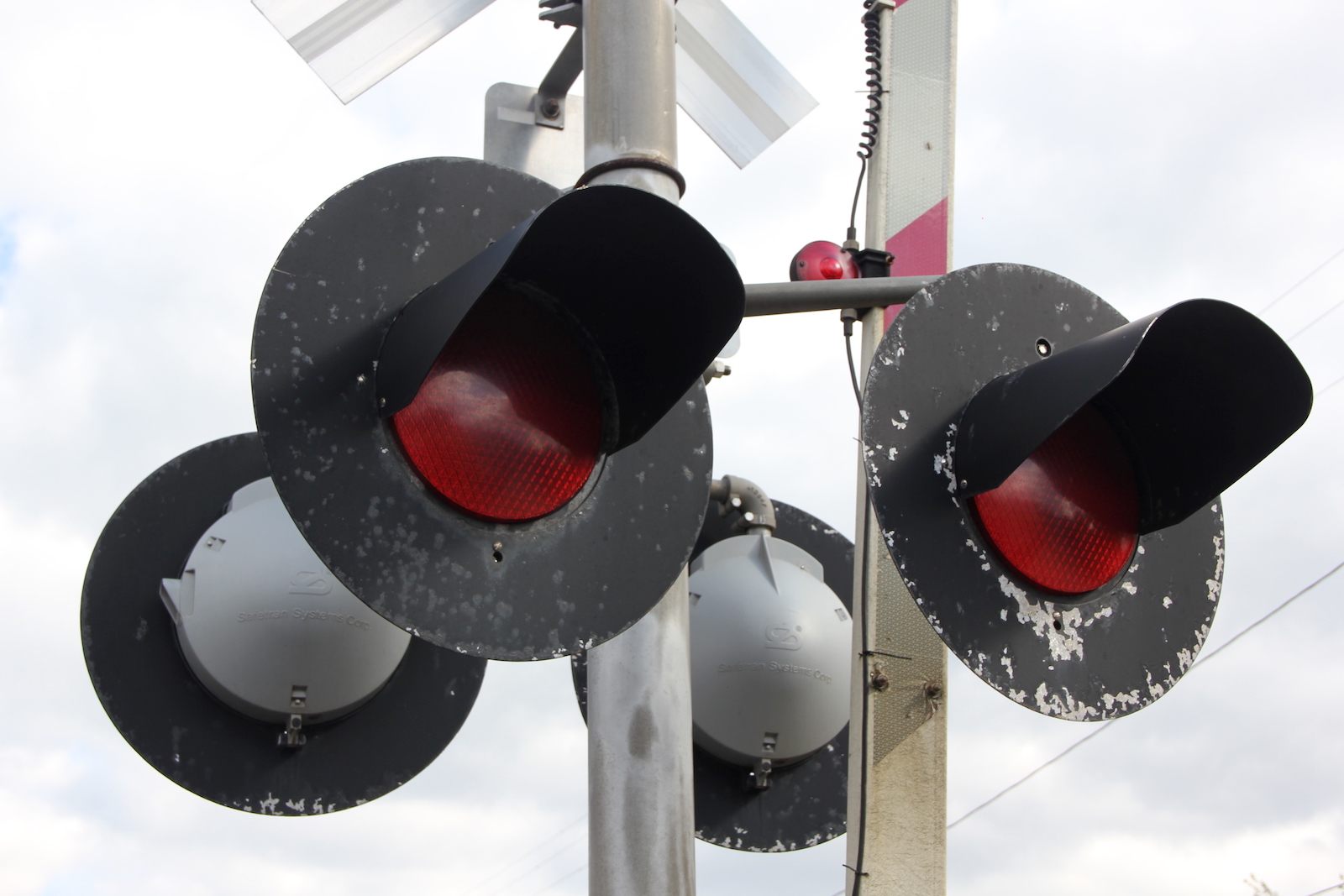

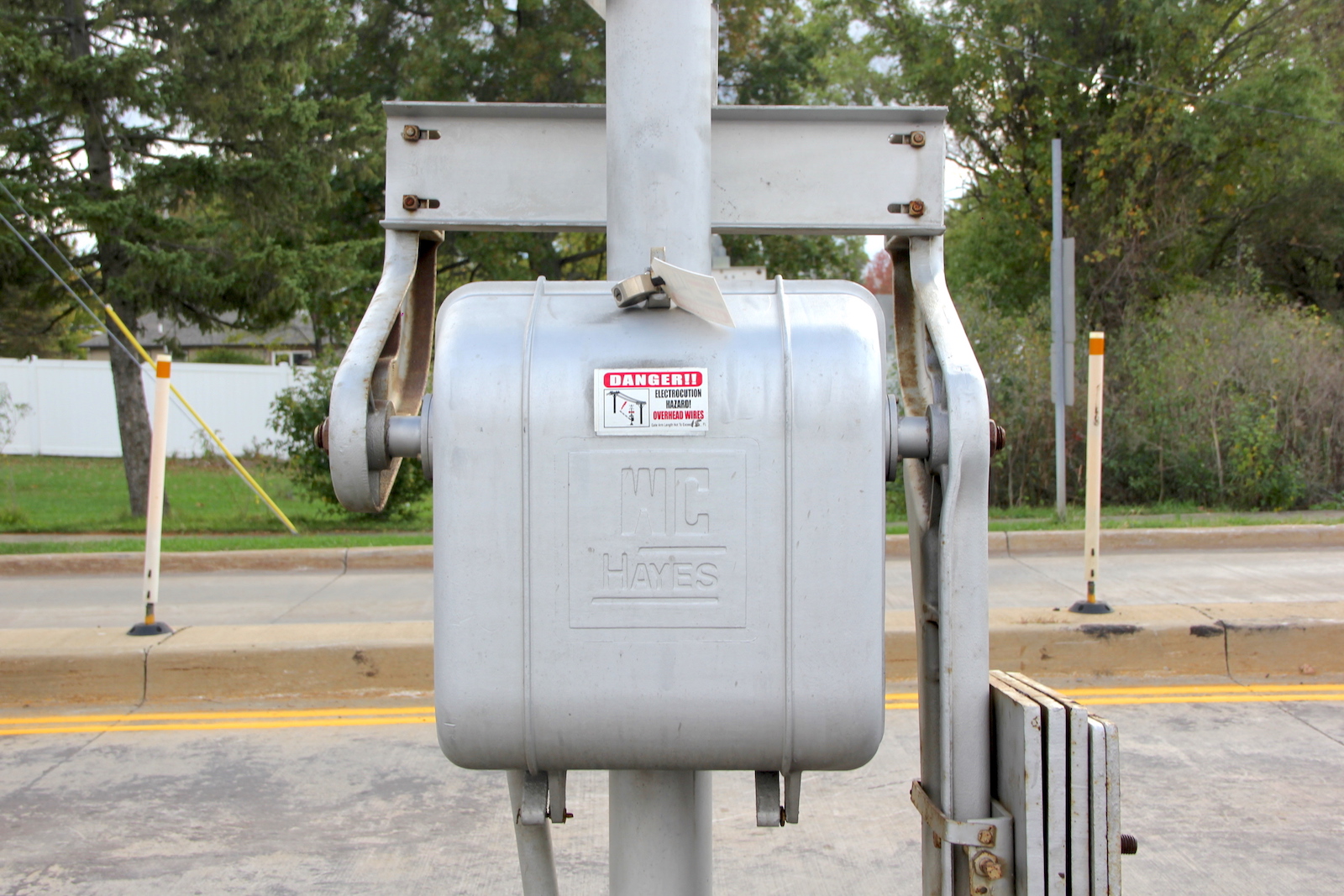

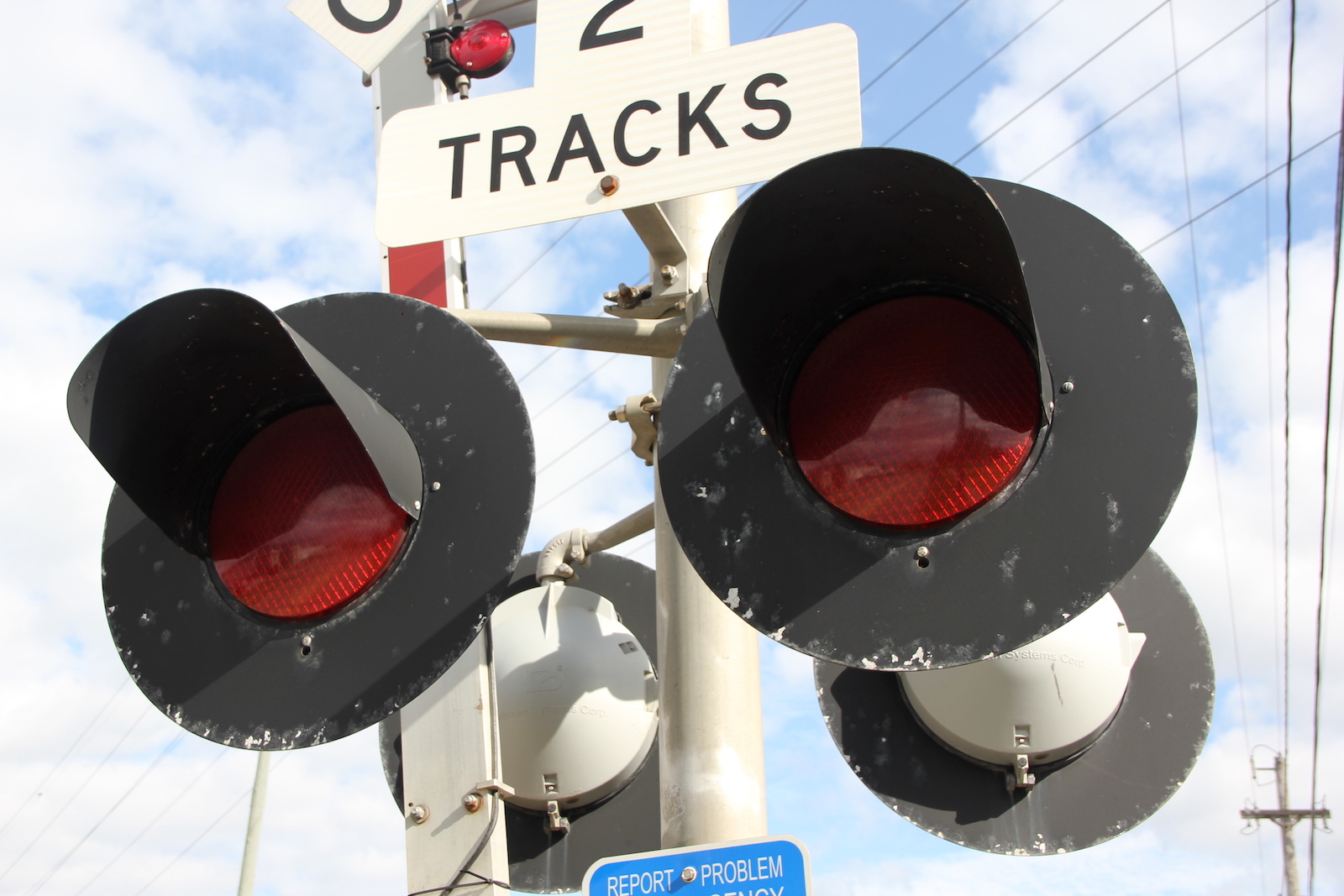

| The eastern signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20 | 21
|

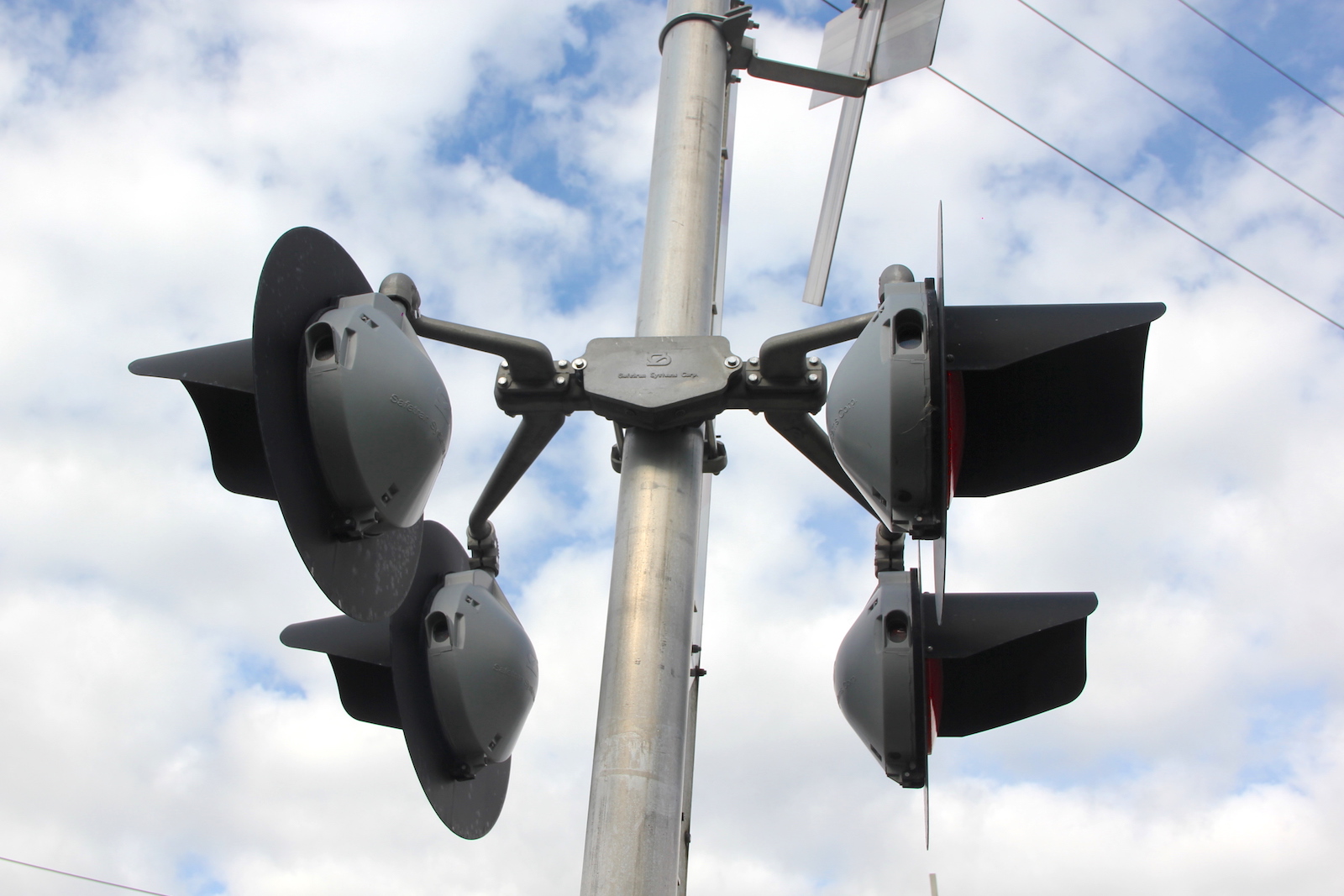

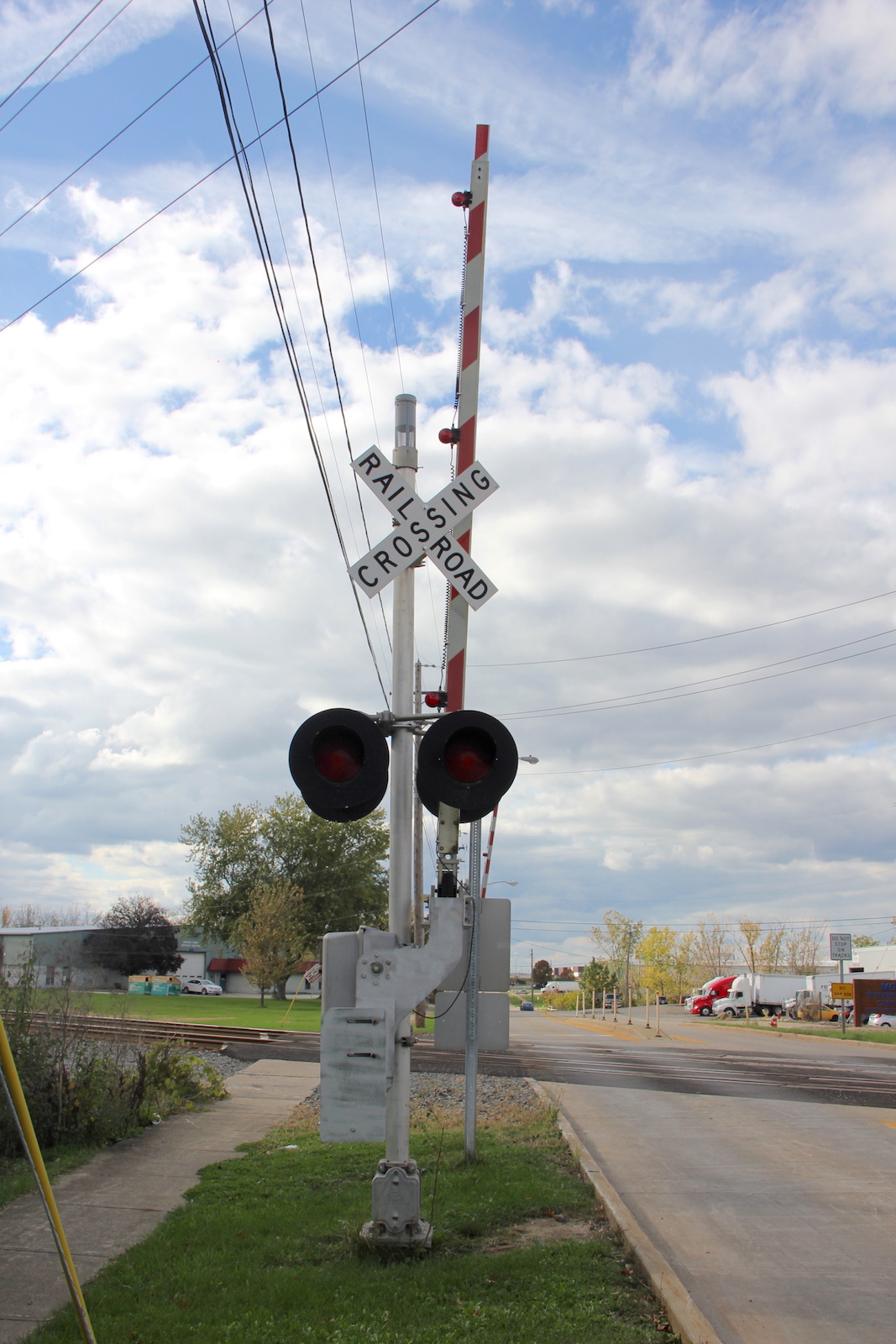

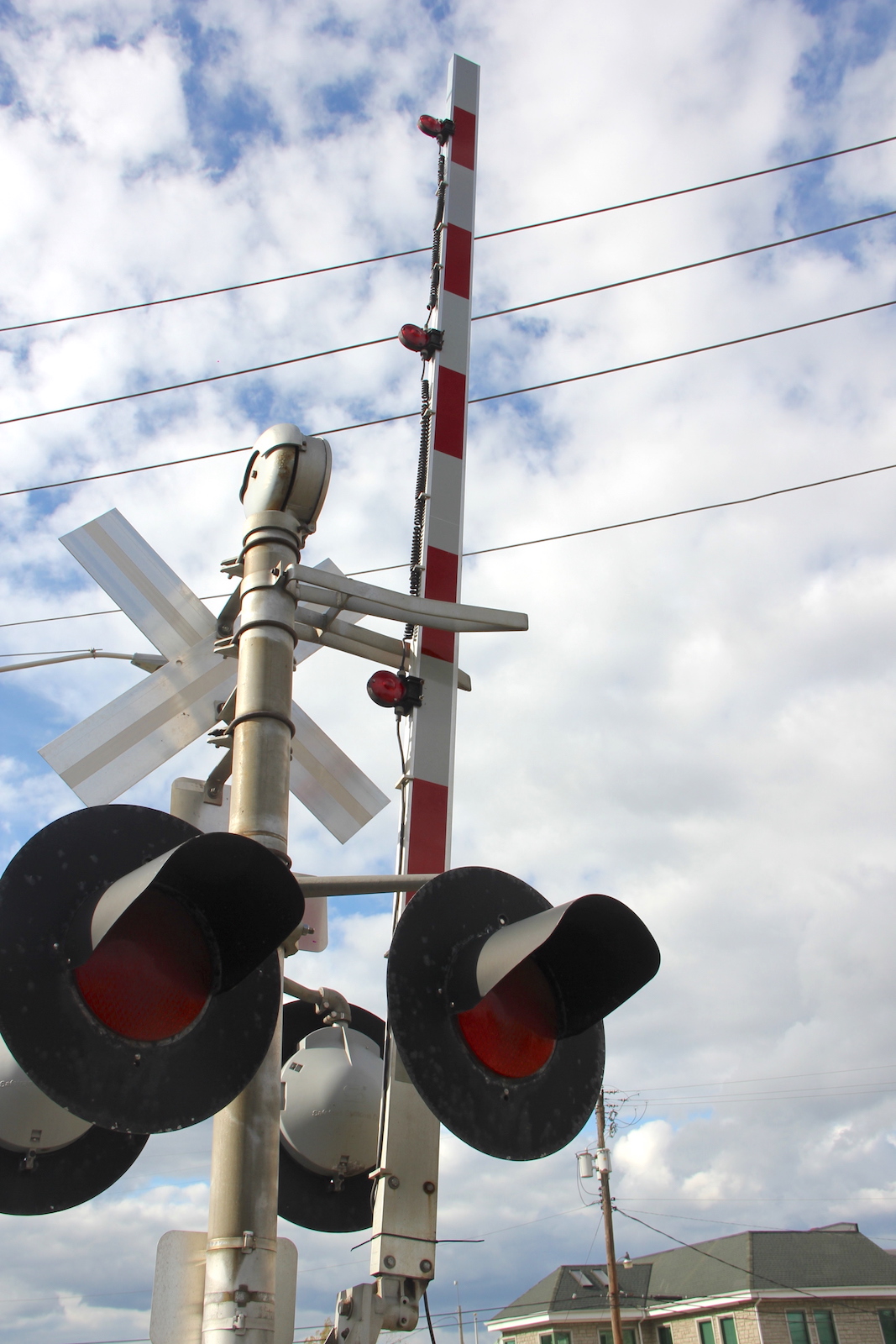

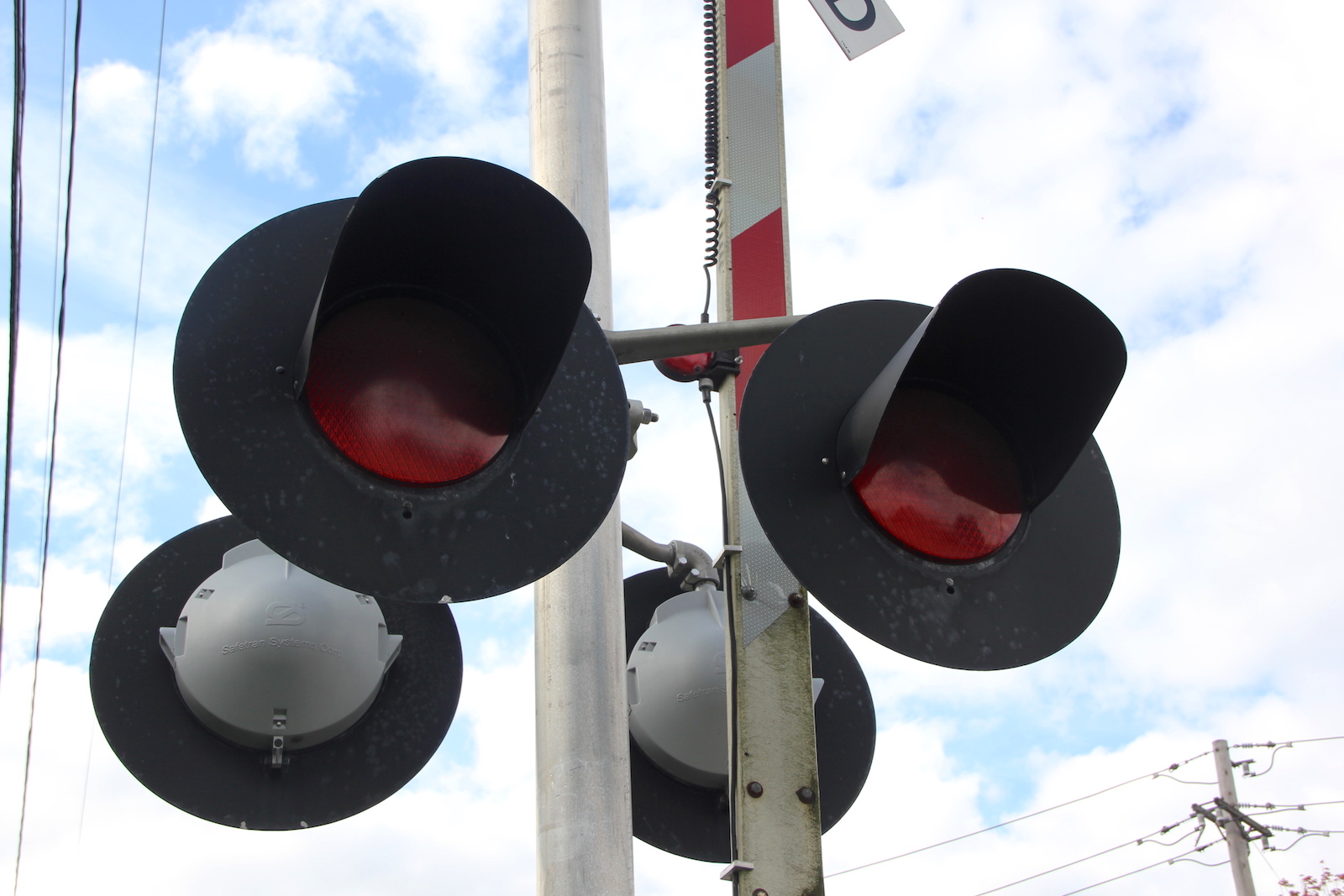

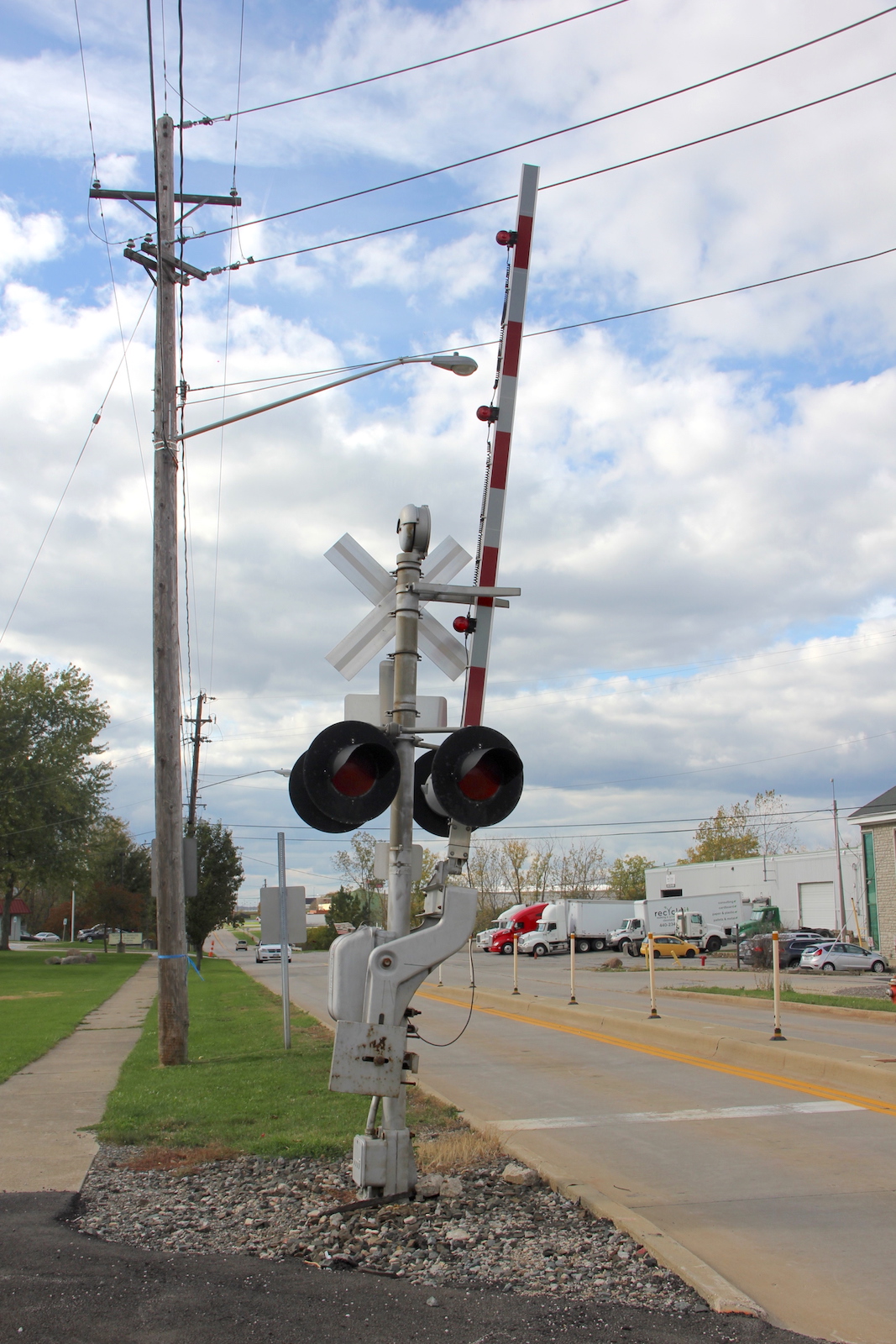

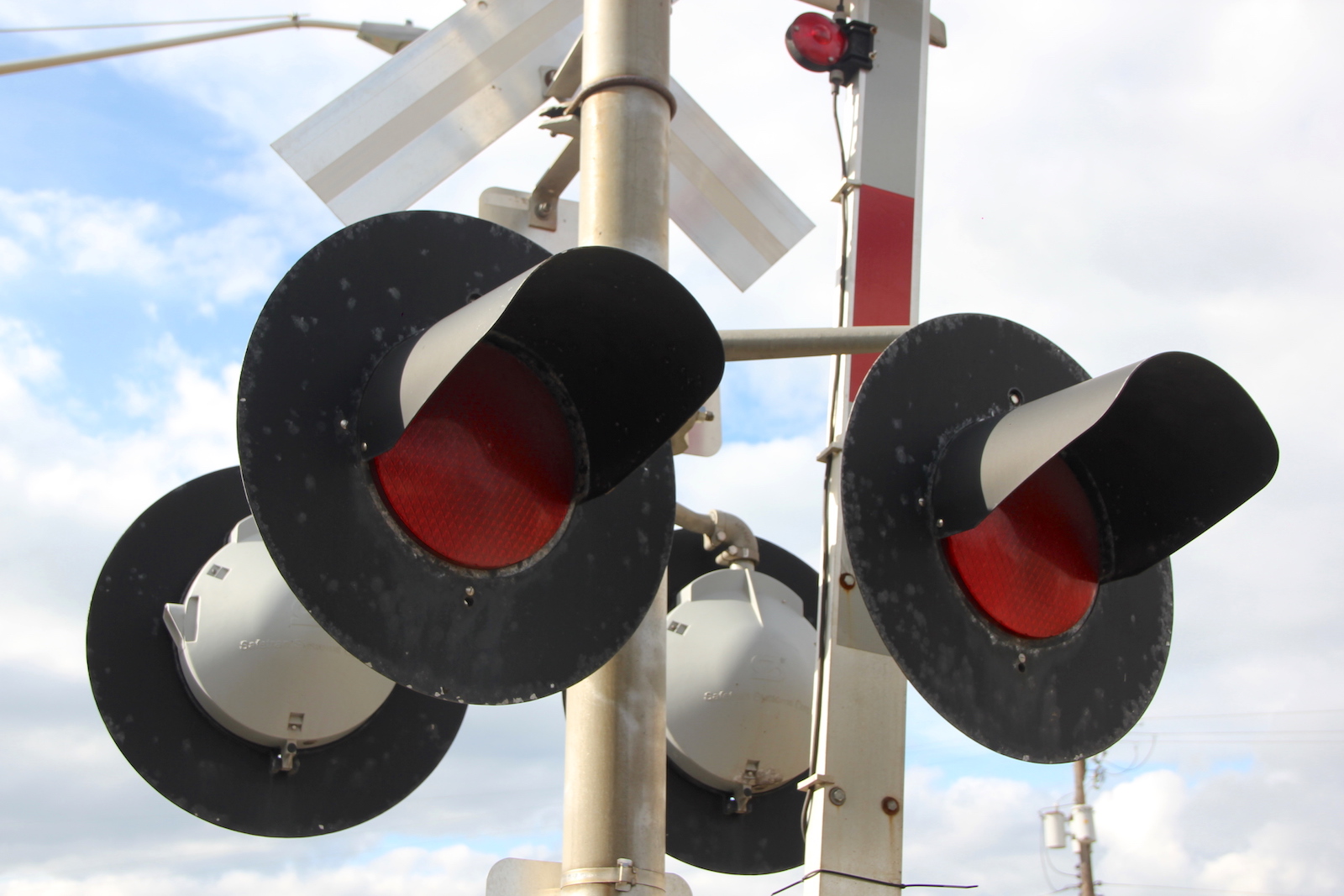

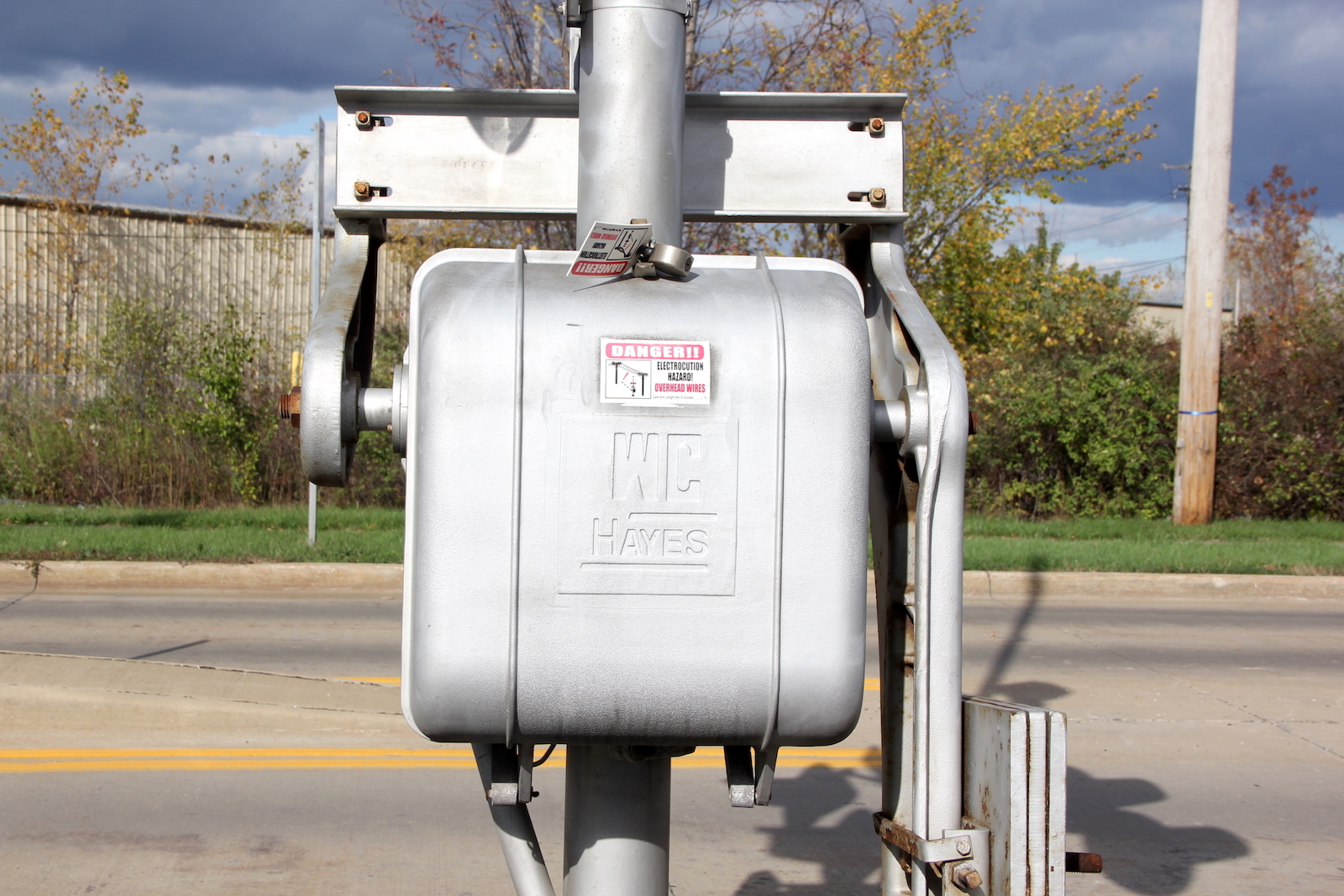

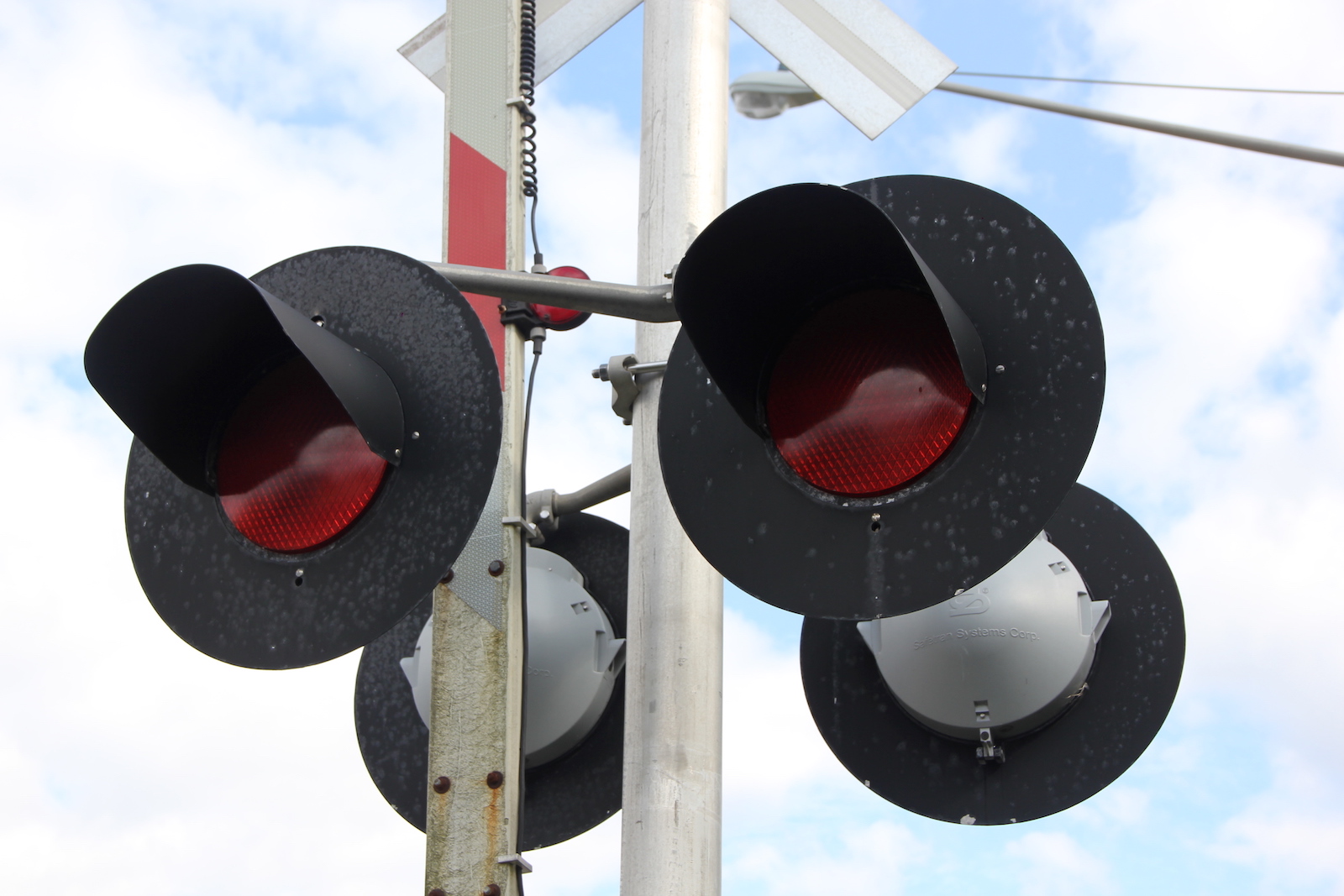

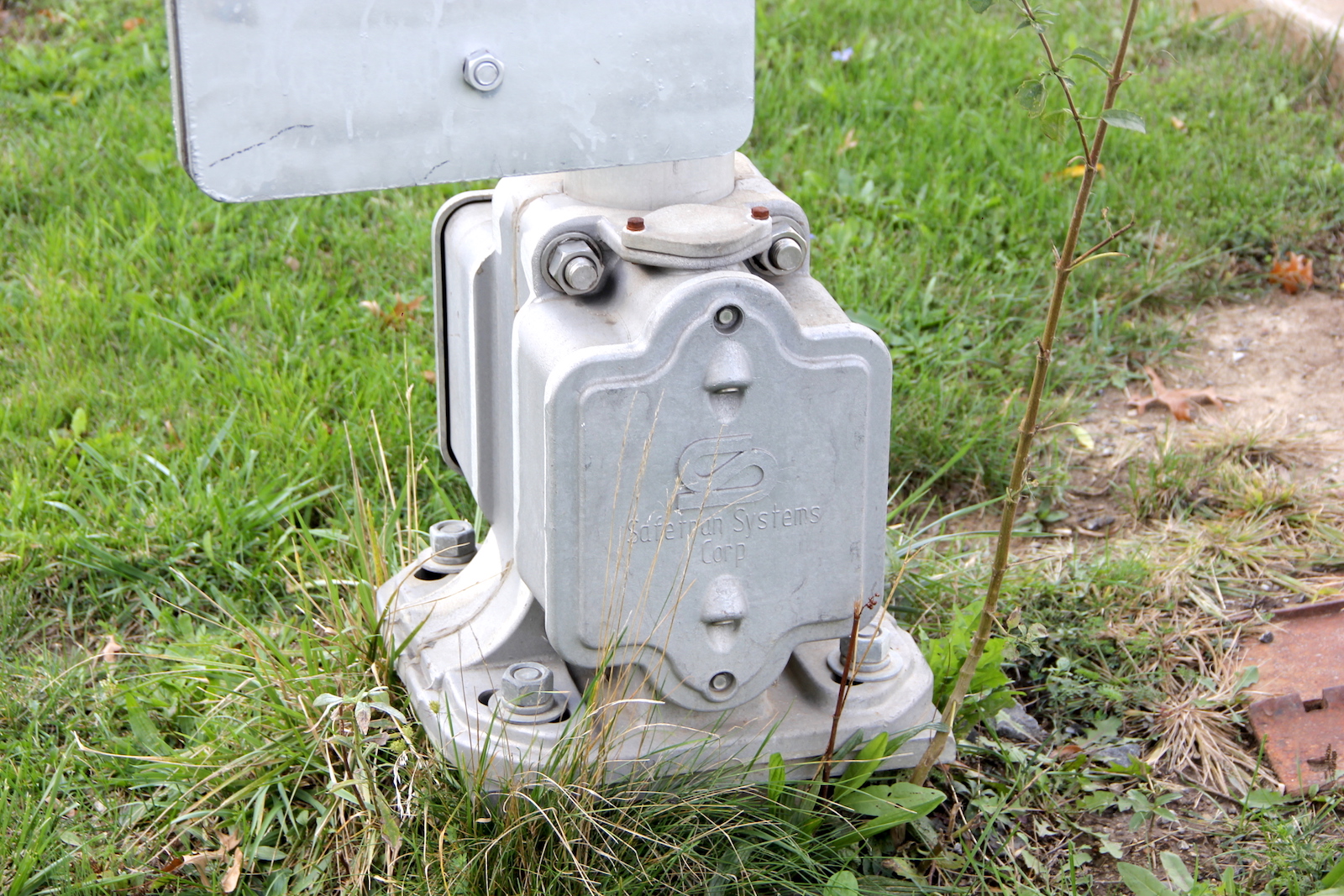

| The western signal. |
22
| 23
| 24
|
25
| 26
| 17
|
28
| 29
| 30
|

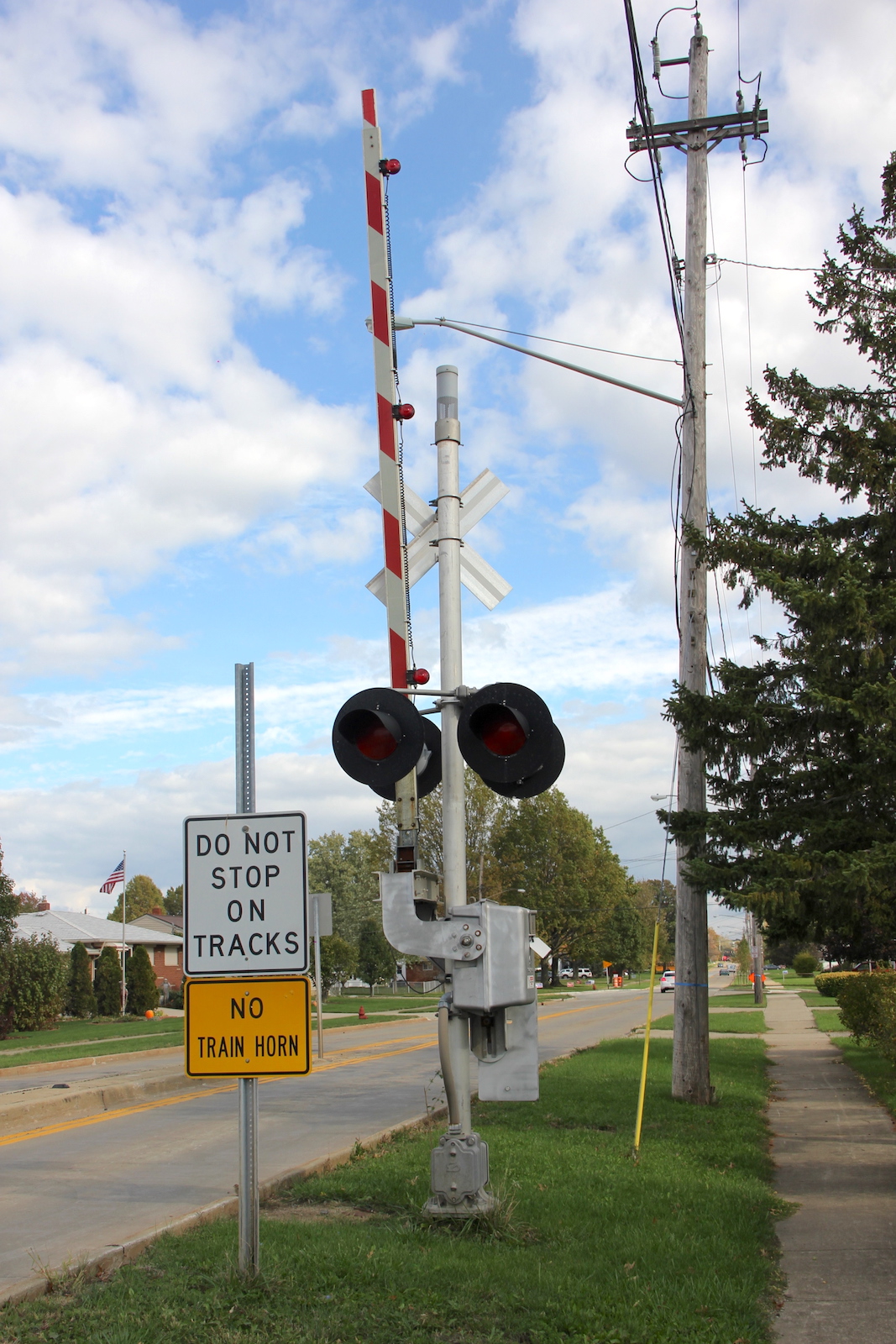

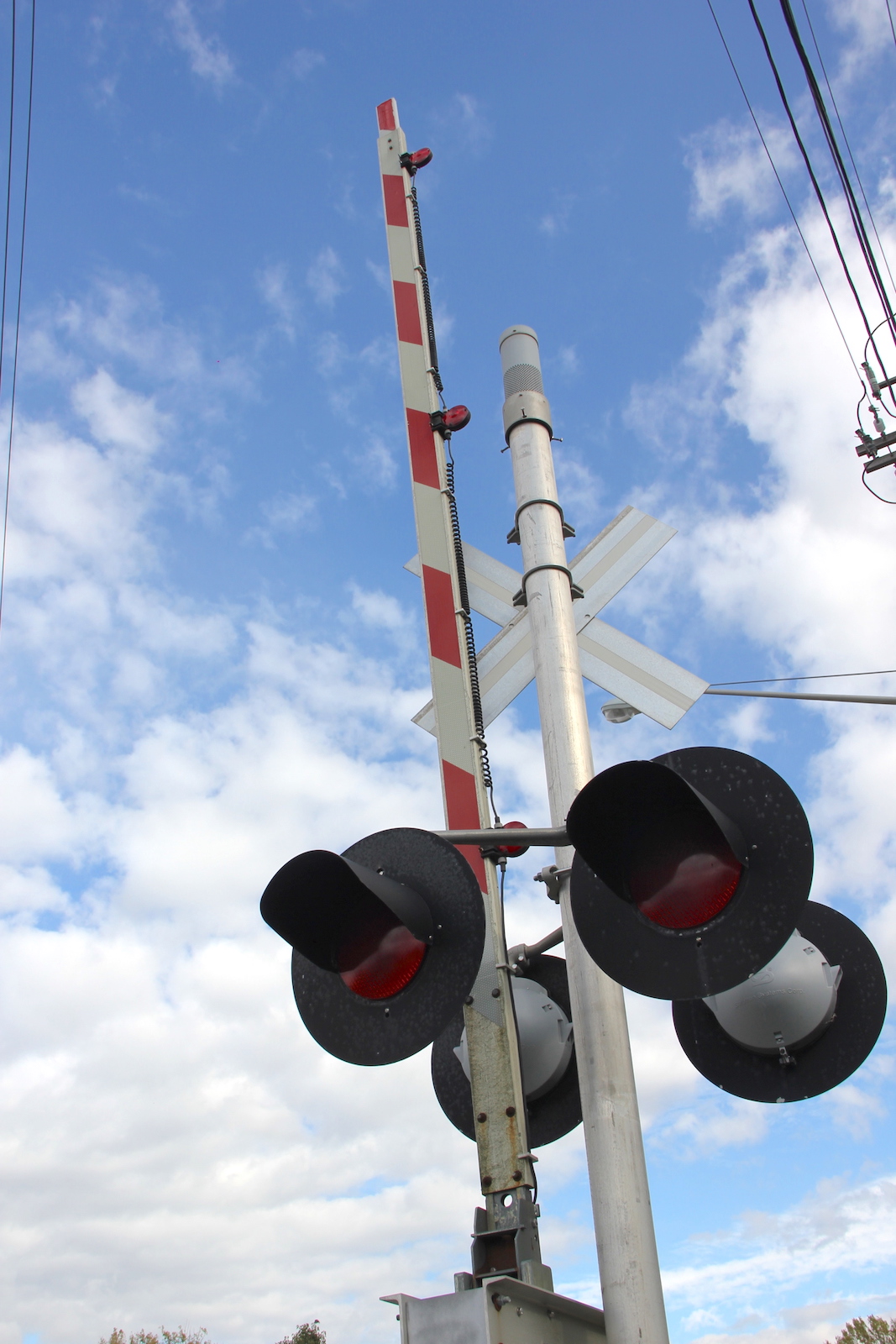

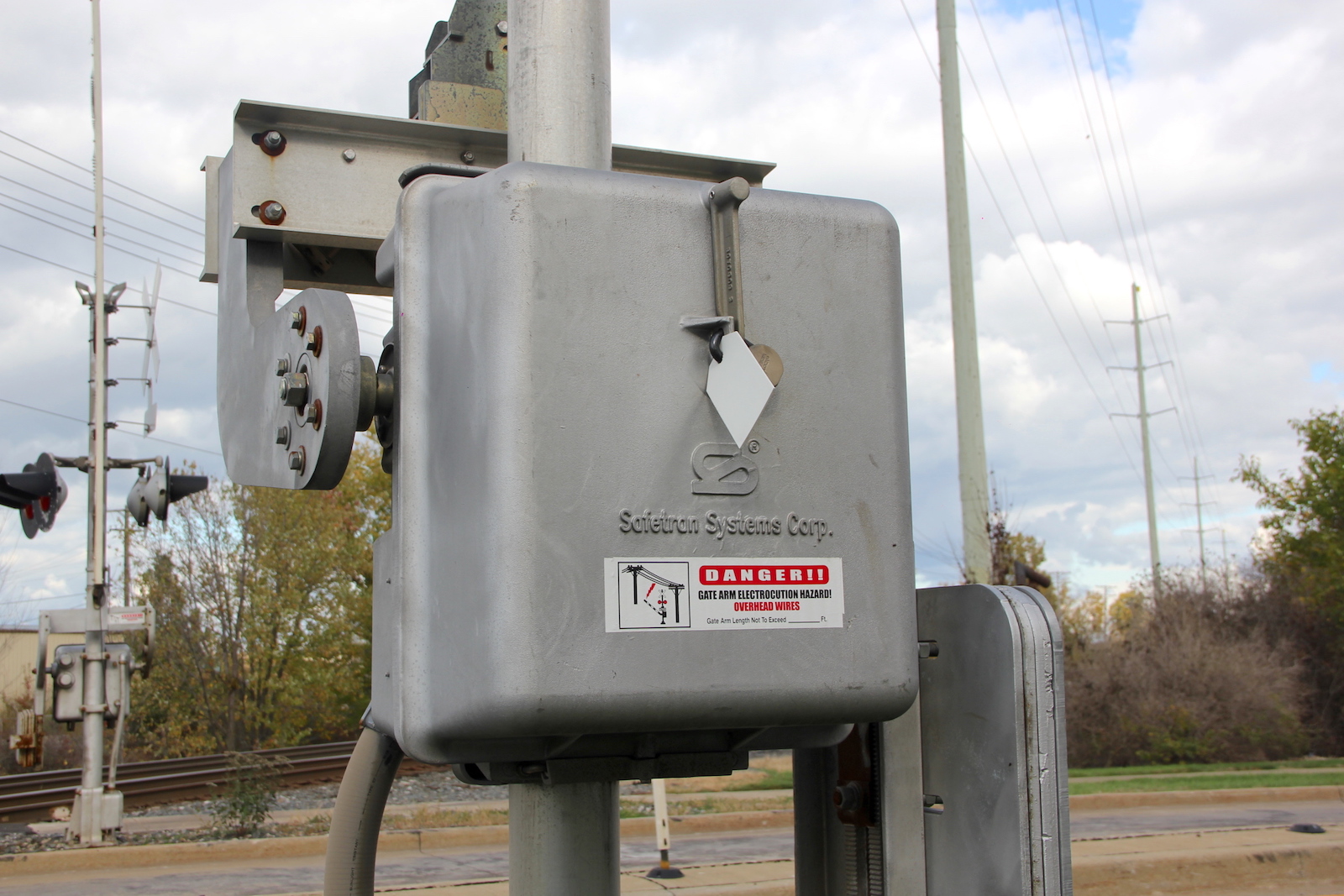

| The eastern exit
signal. This is one of three crossings in Brook Park to receive
an additional gate in the late 2000s. I have no idea why only one
gate was added, and the other side doesn't have an exit signal. |
31
|
32
|
33
|
34
|

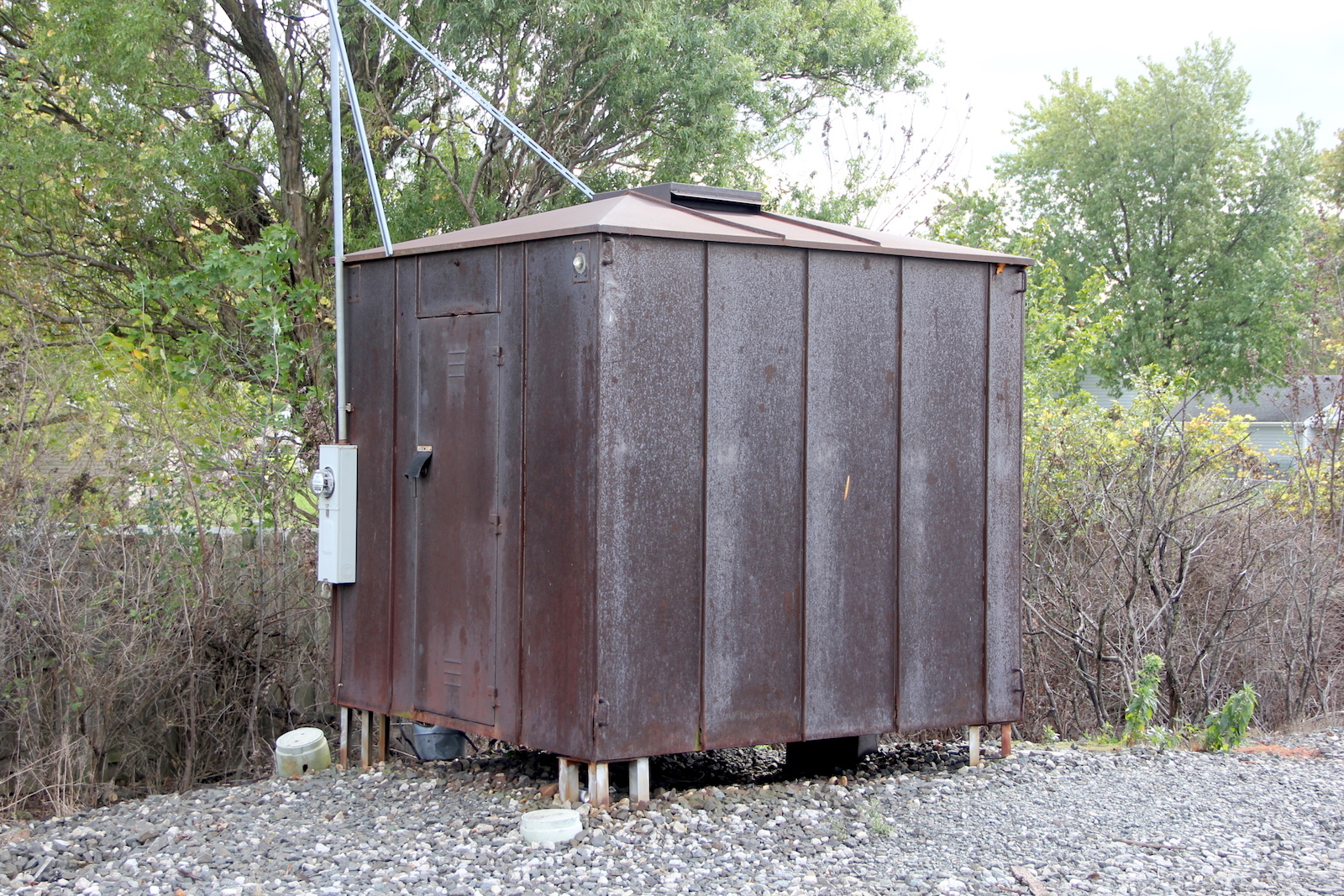

| The relay bungalow in the southeast quadrant. |

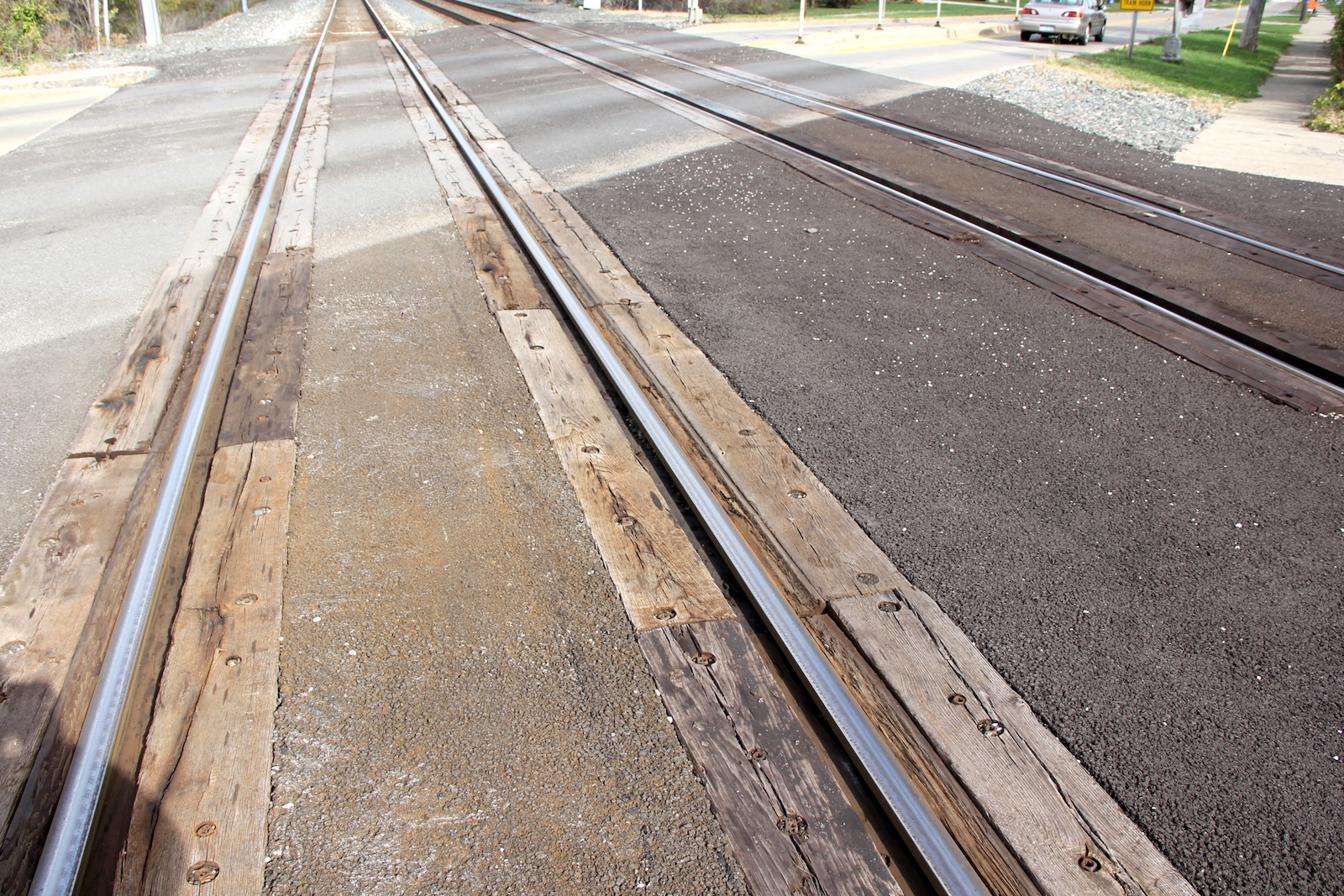

The grade is wood and asphalt. |

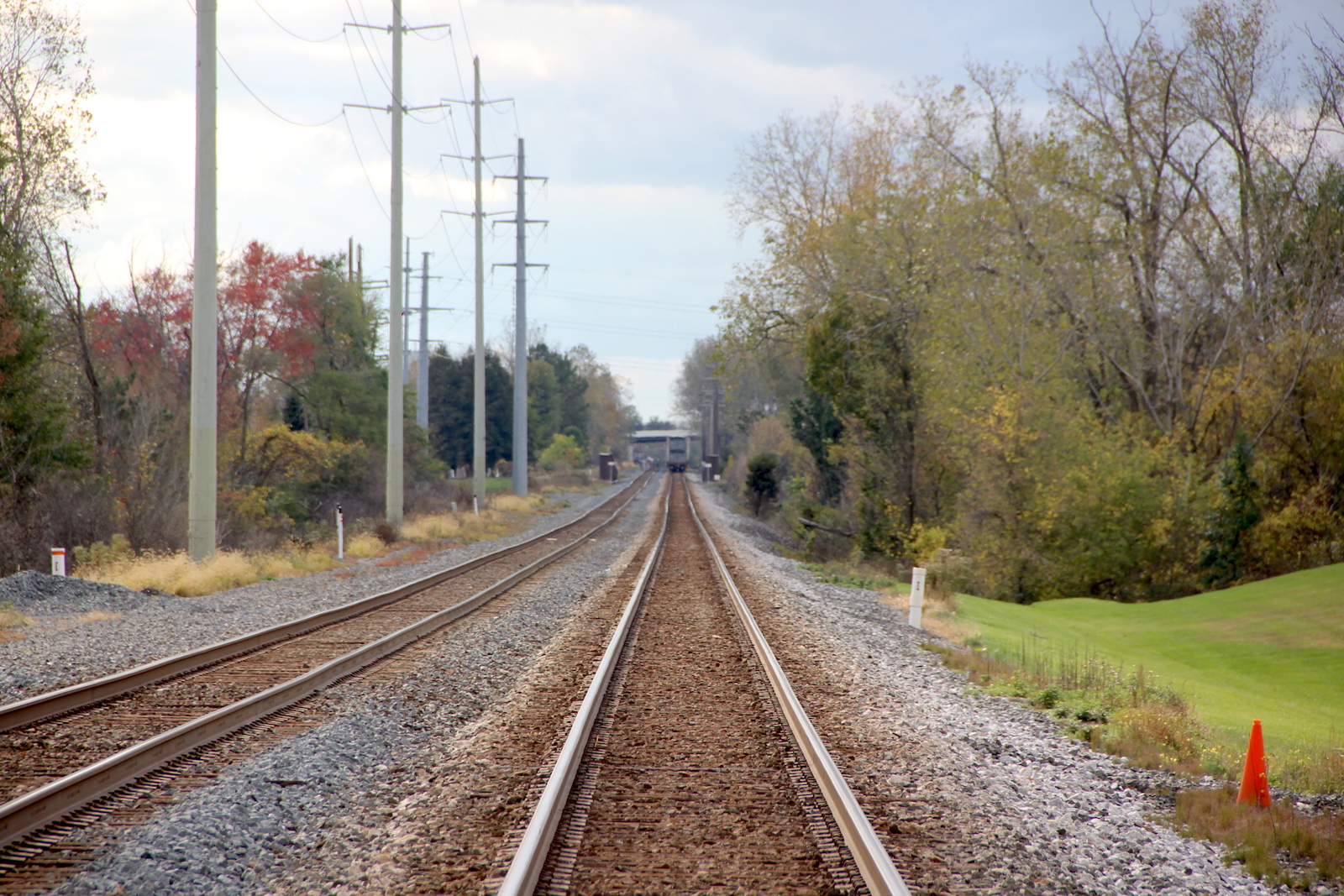

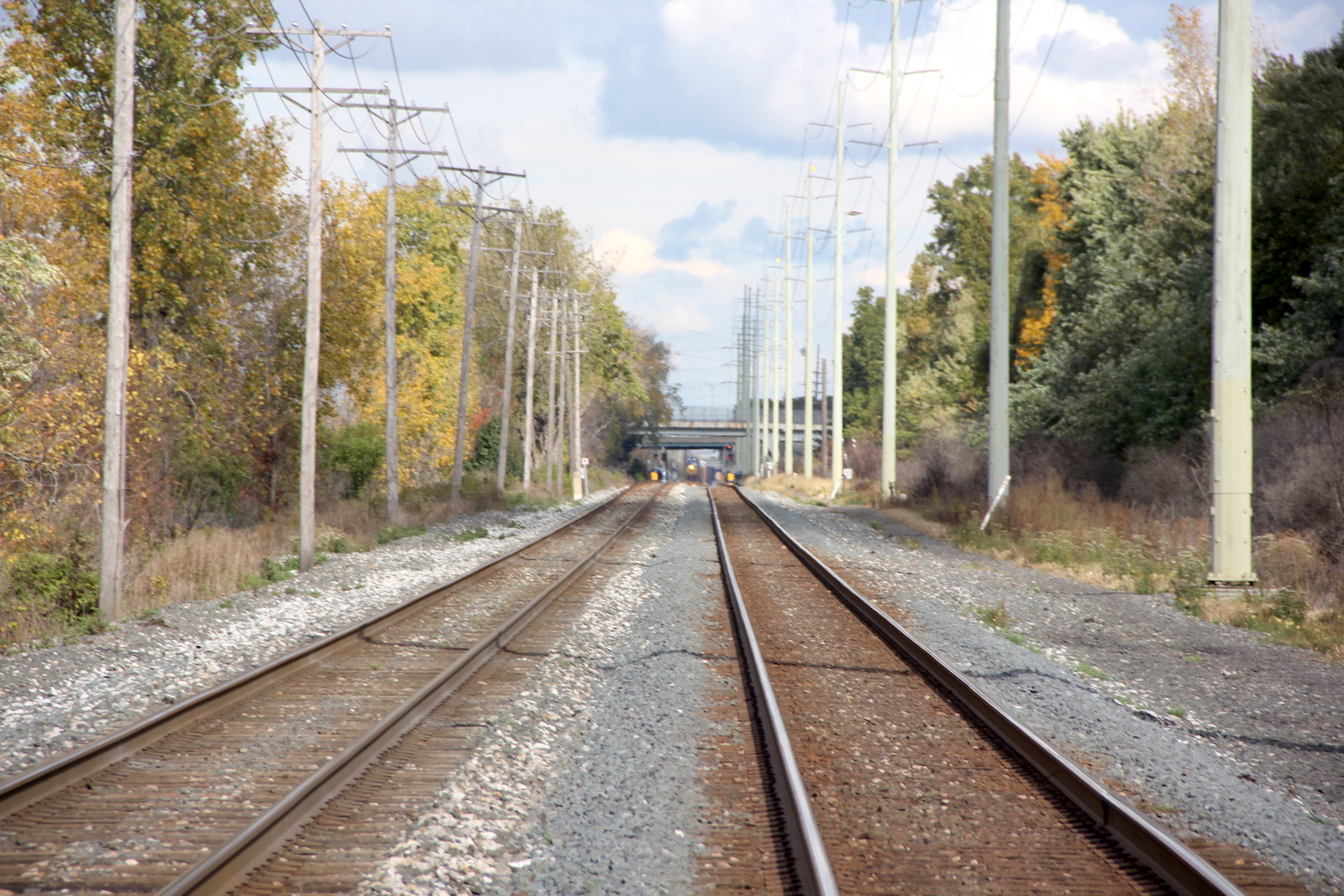

Track view facing west towards W Rd. in Olmsted Falls. | Track view facing east towards Route 291. |
