132.60


481470J,518245B

>>>>>>>>>>>>>> Western Signal (CSX) Eastern Signal (NS)
Bell: NEG E-Bell GS E-Bell
Base: WCH 5" Double Sided ^ Safetran 5" Double Sided ^
Lights: 4 - 12"x24" WCH w/ WCH/Miller 2nd Gen. LEDs 4 - 12"x20" Safetran incandescents
Junction Box: WCH w/ Bell Extension Safetran
Gate Lights: 2 - RECO 4" LEDs
1 - NEG 4" LEDs
 3 - RECO 4" LEDs

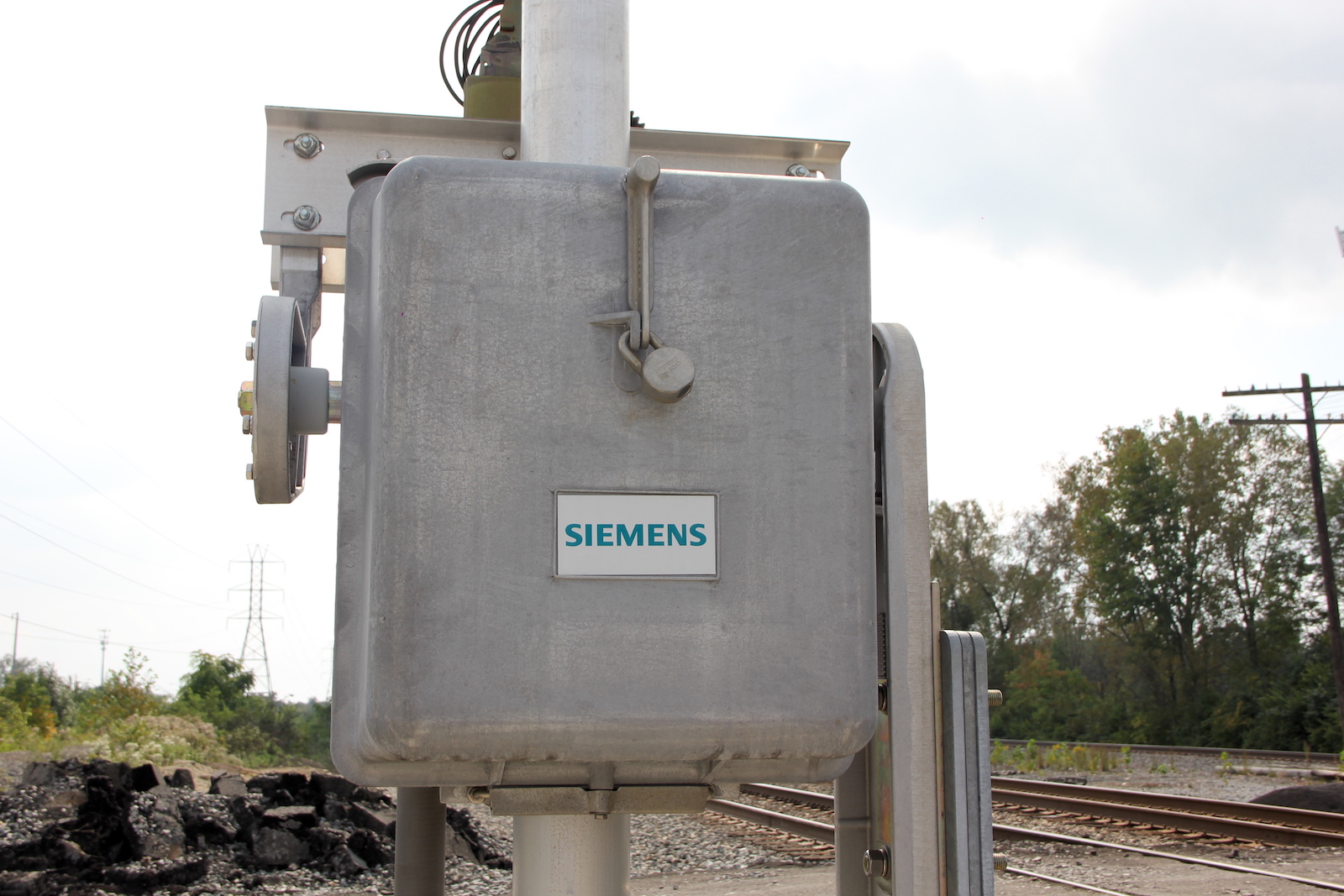

Gate Mechanism: Refurbished Safetran 2000s w/ Old NEG 2 Way Saver Siemens Sticker Style 2 w/ NEG 1 Way Saver
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-30 were taken on October 3, 2018, by Tommy McGowan.
Pictures 31-33 were taken on October 1, 2025, by Nicholas Miles/Northwestern Ohio Rail Productions.
This crossing is located on the NS Sandusky District and CSX Columbus Line, which parallel each other through this crossing.

O1 O2 O3
 O4
O5 O6

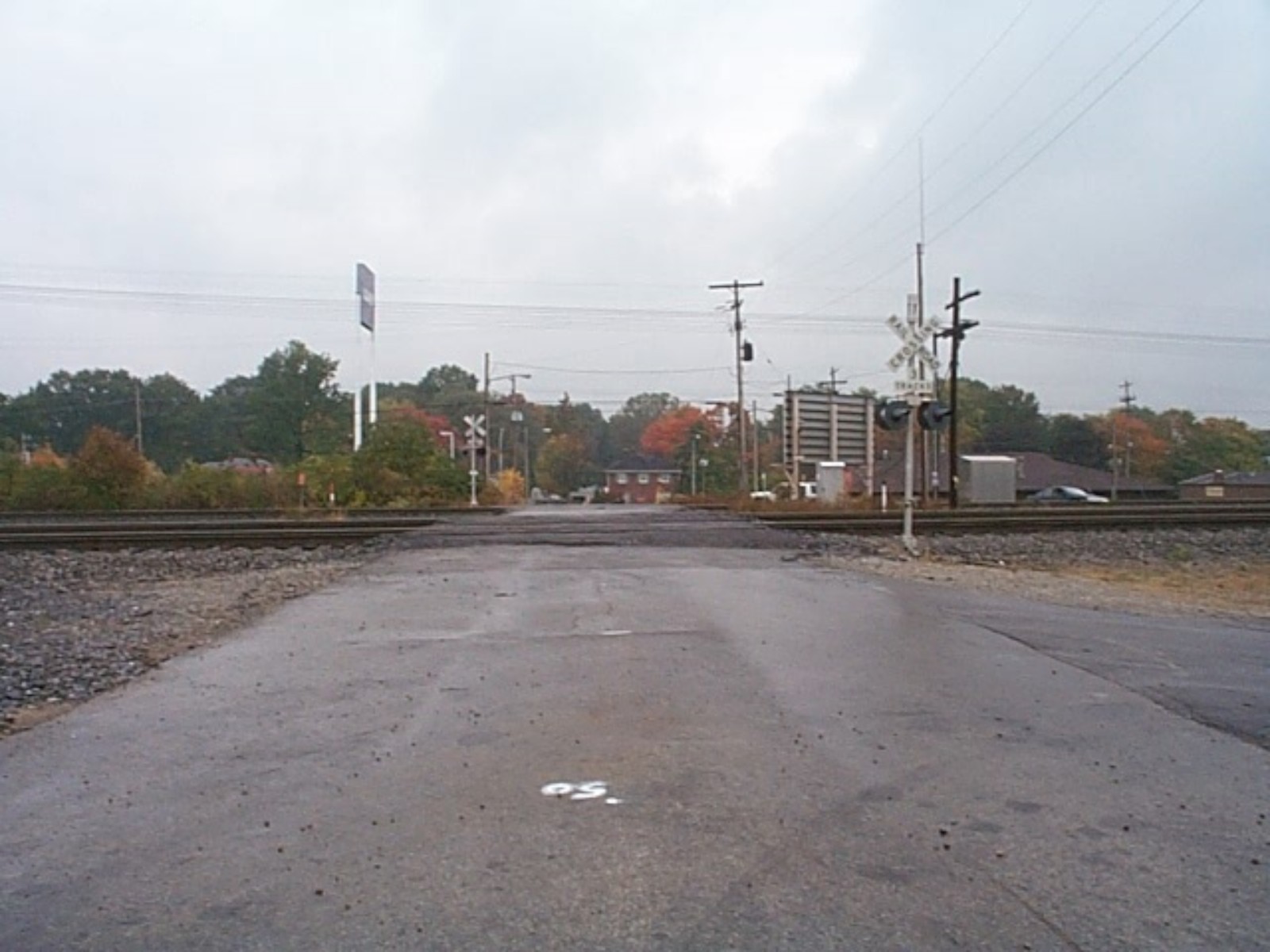

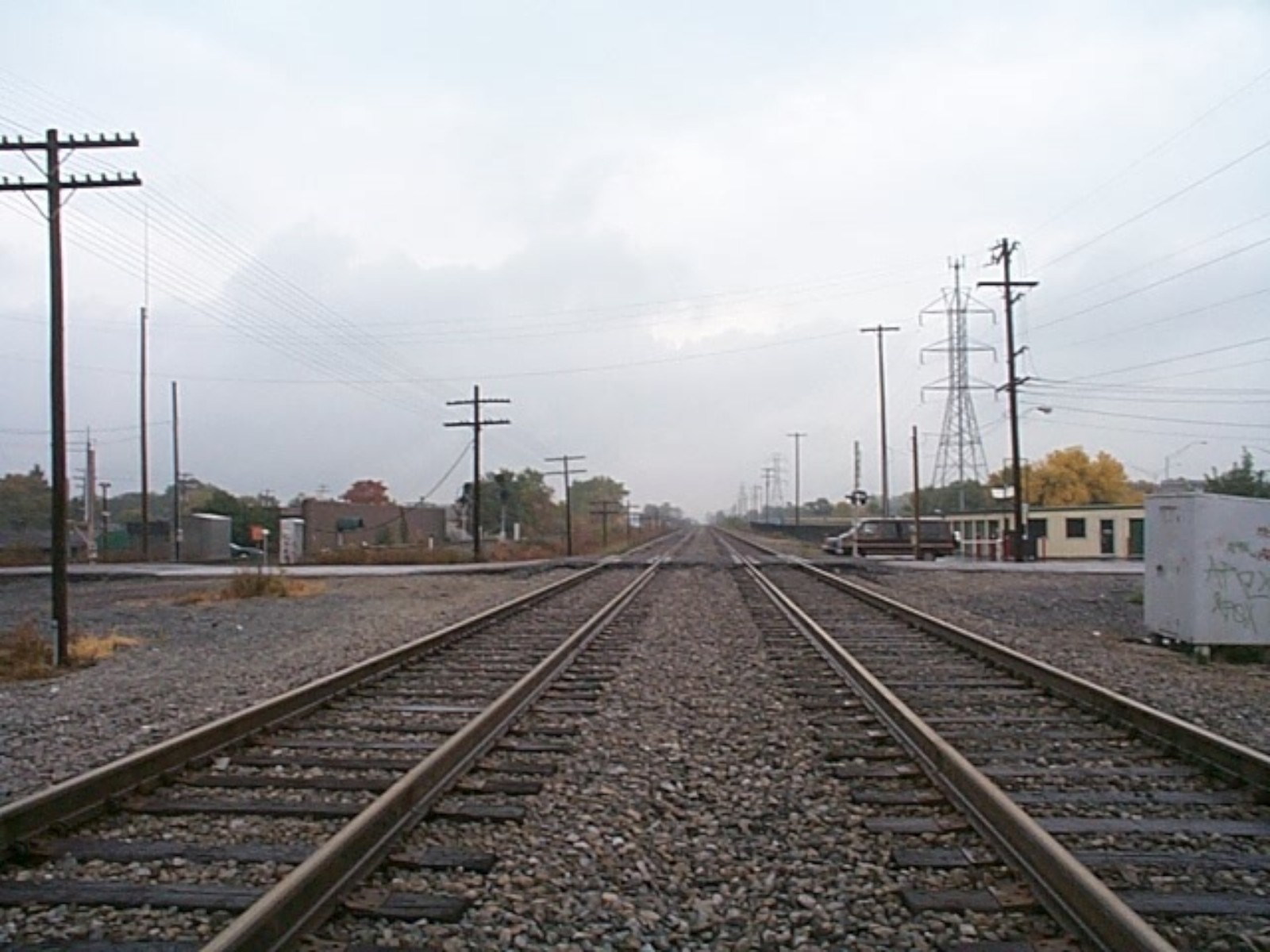

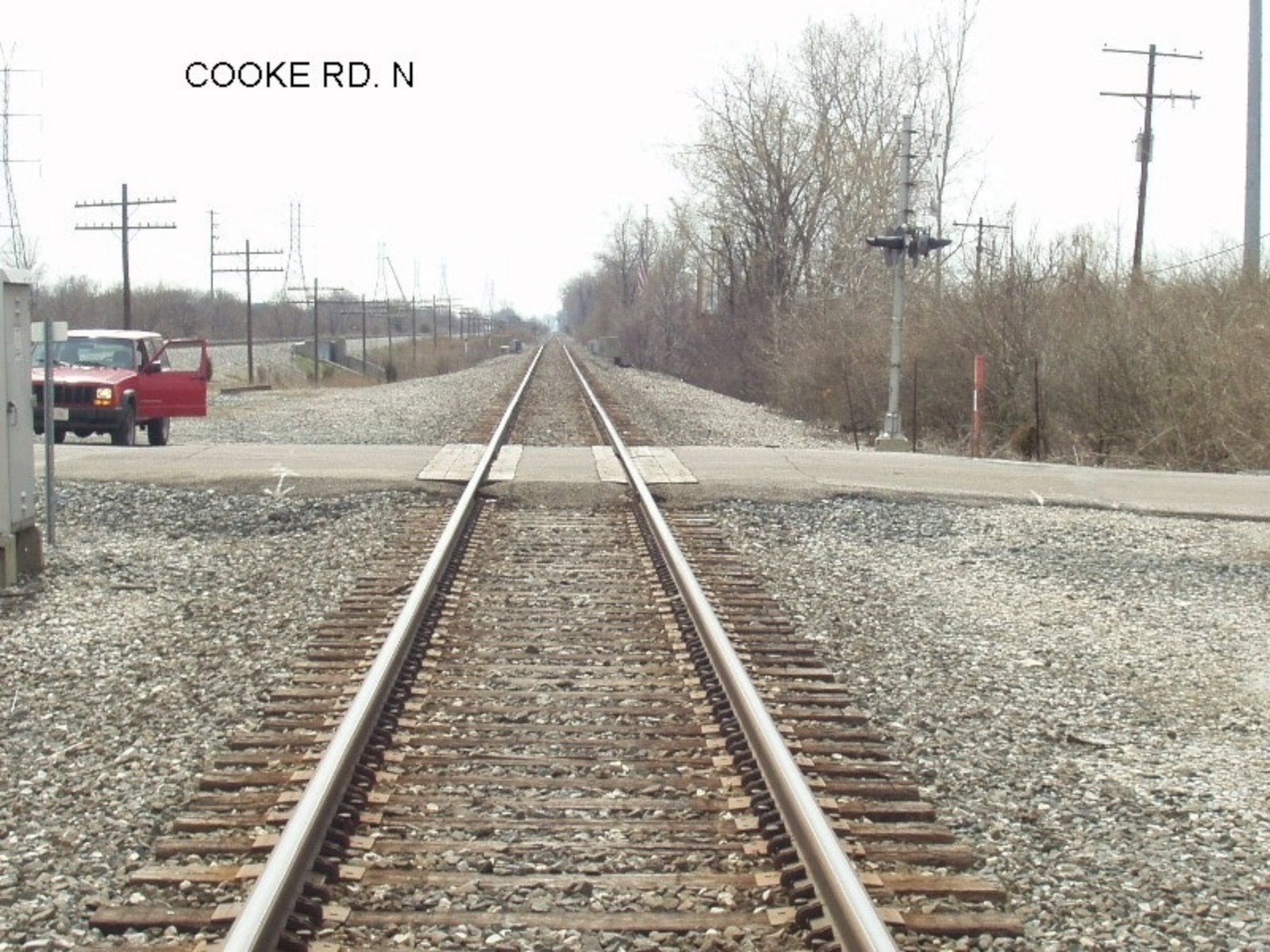

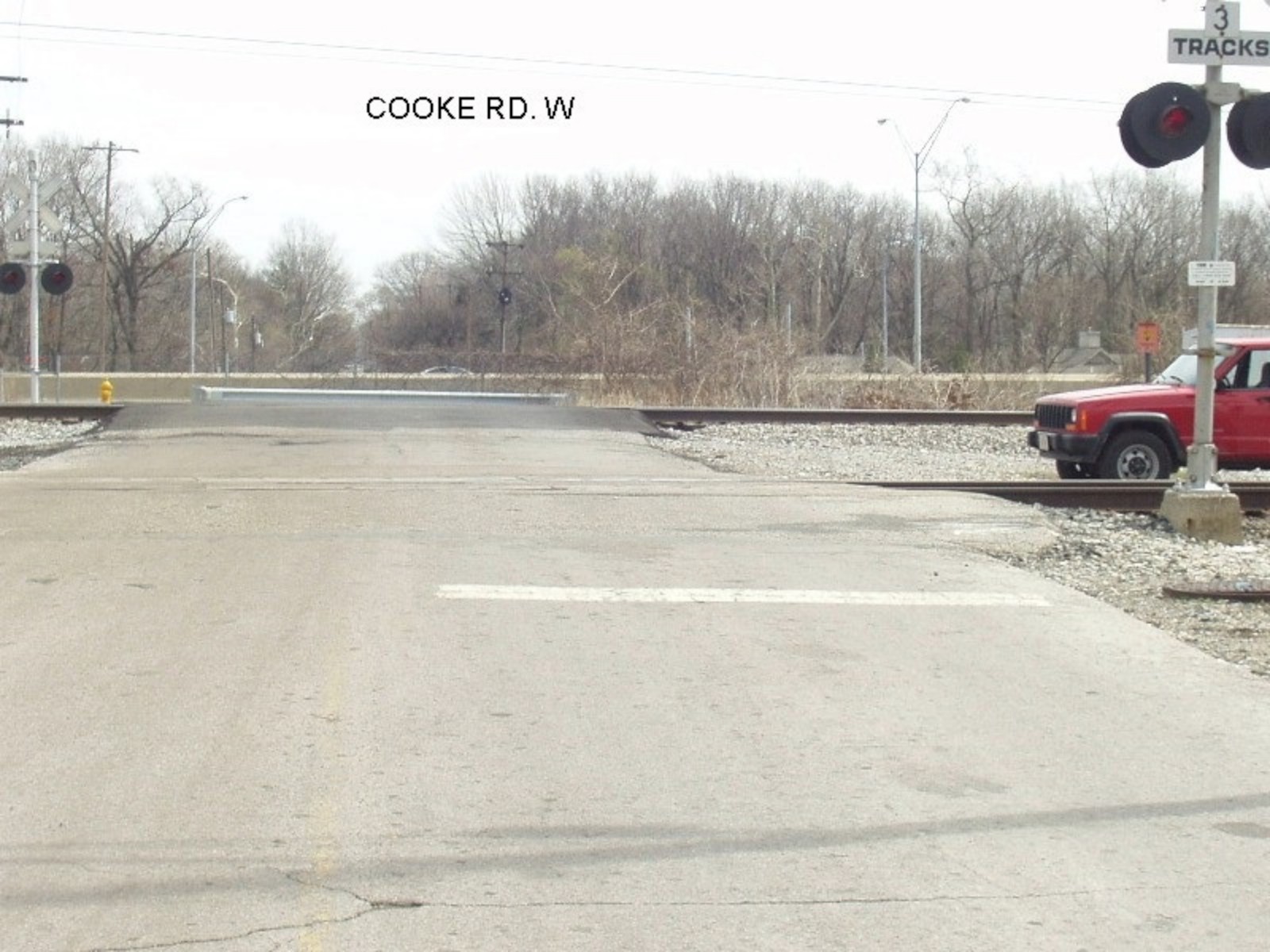

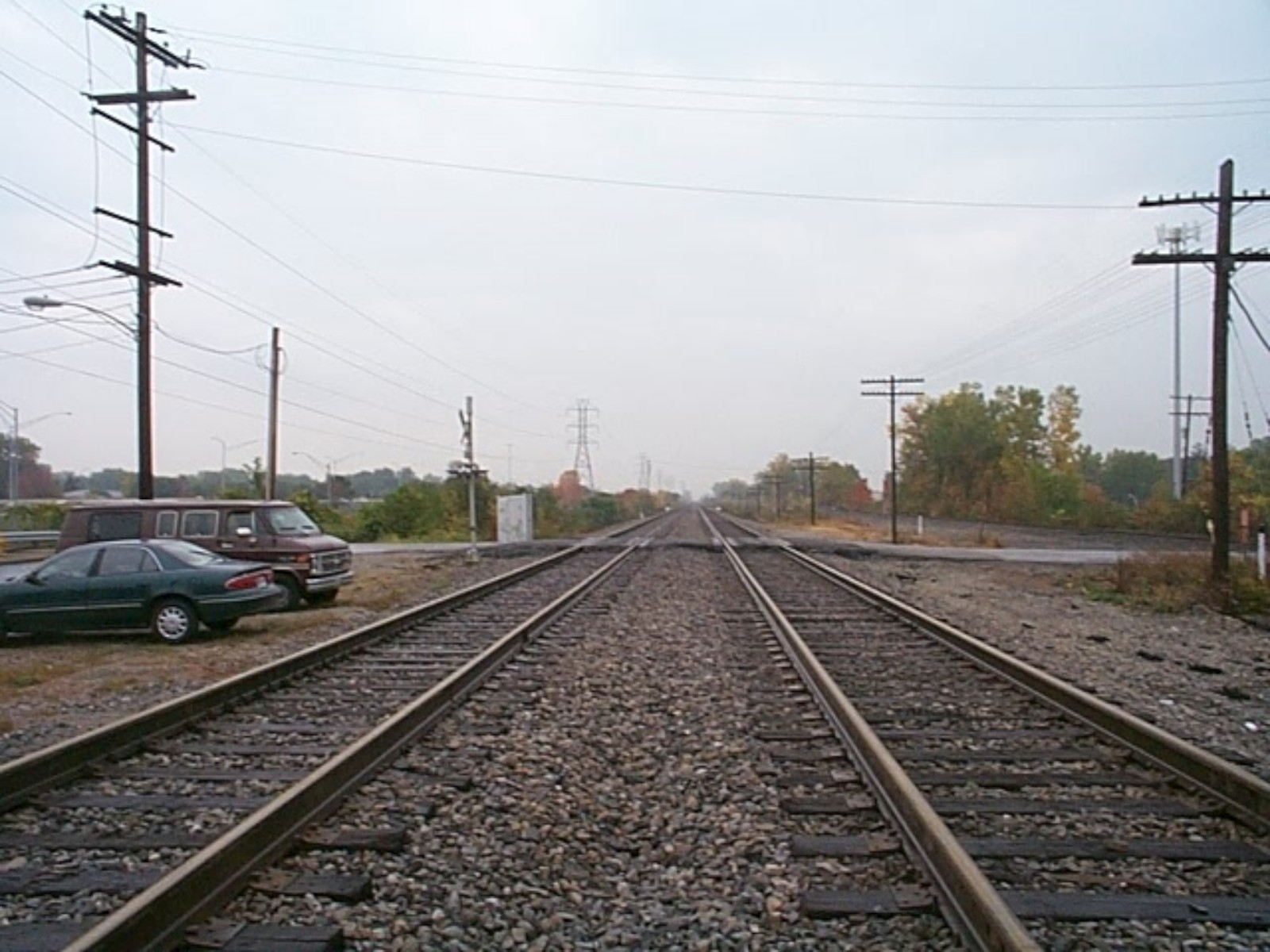

PUCO pictures from the late 90s and early 2000s shows a gateless setup. Both signals had 8"x20" incandescents, while one signal had a General Signals E-Bell, which replaced a WRRS? Mechanical Bell. Around the 2000s, the lights on the CSX signal were replaced with 12"x24" Safetran incandescents, then the crossing was entirely upgraded in the 2010s.
1
 2

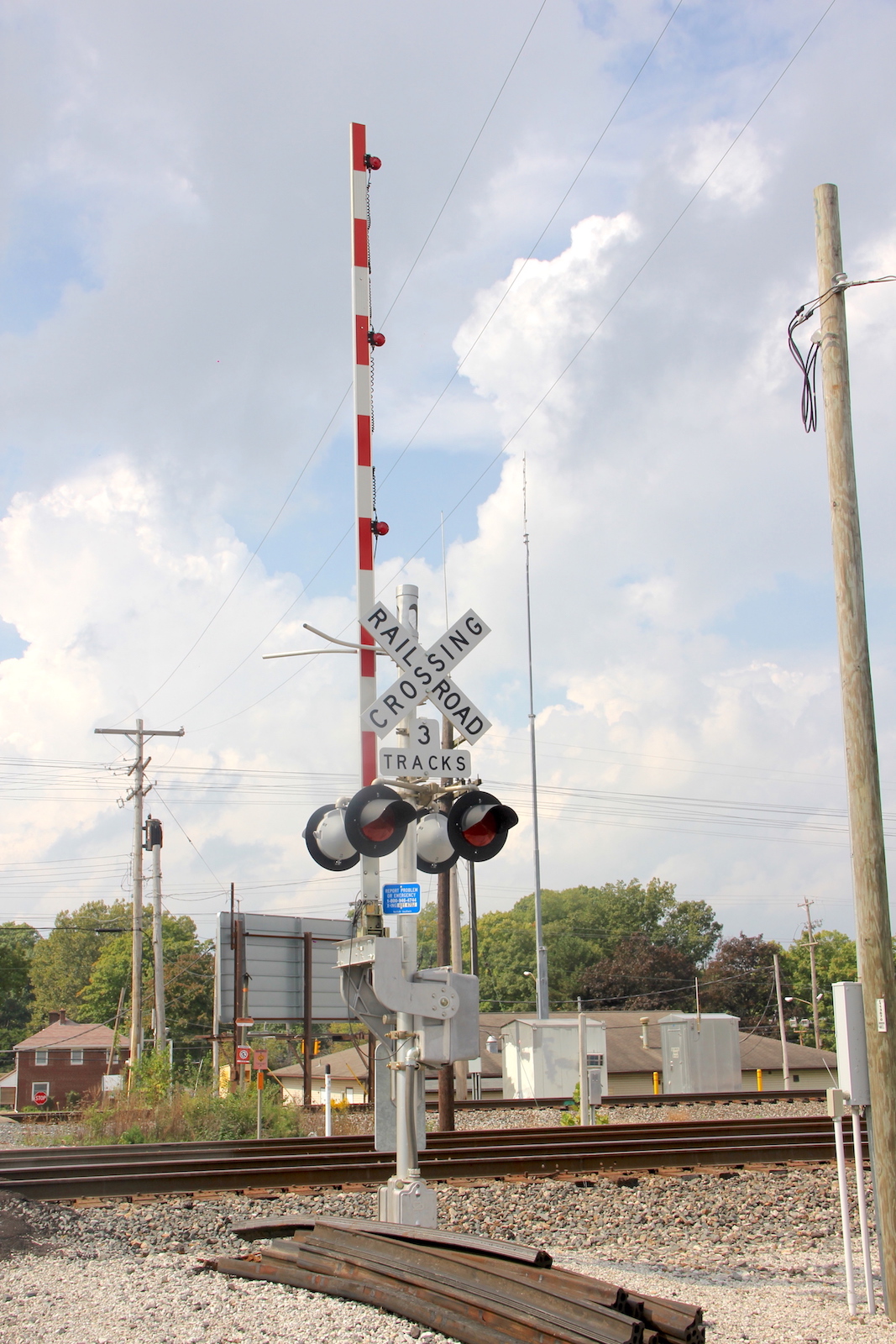

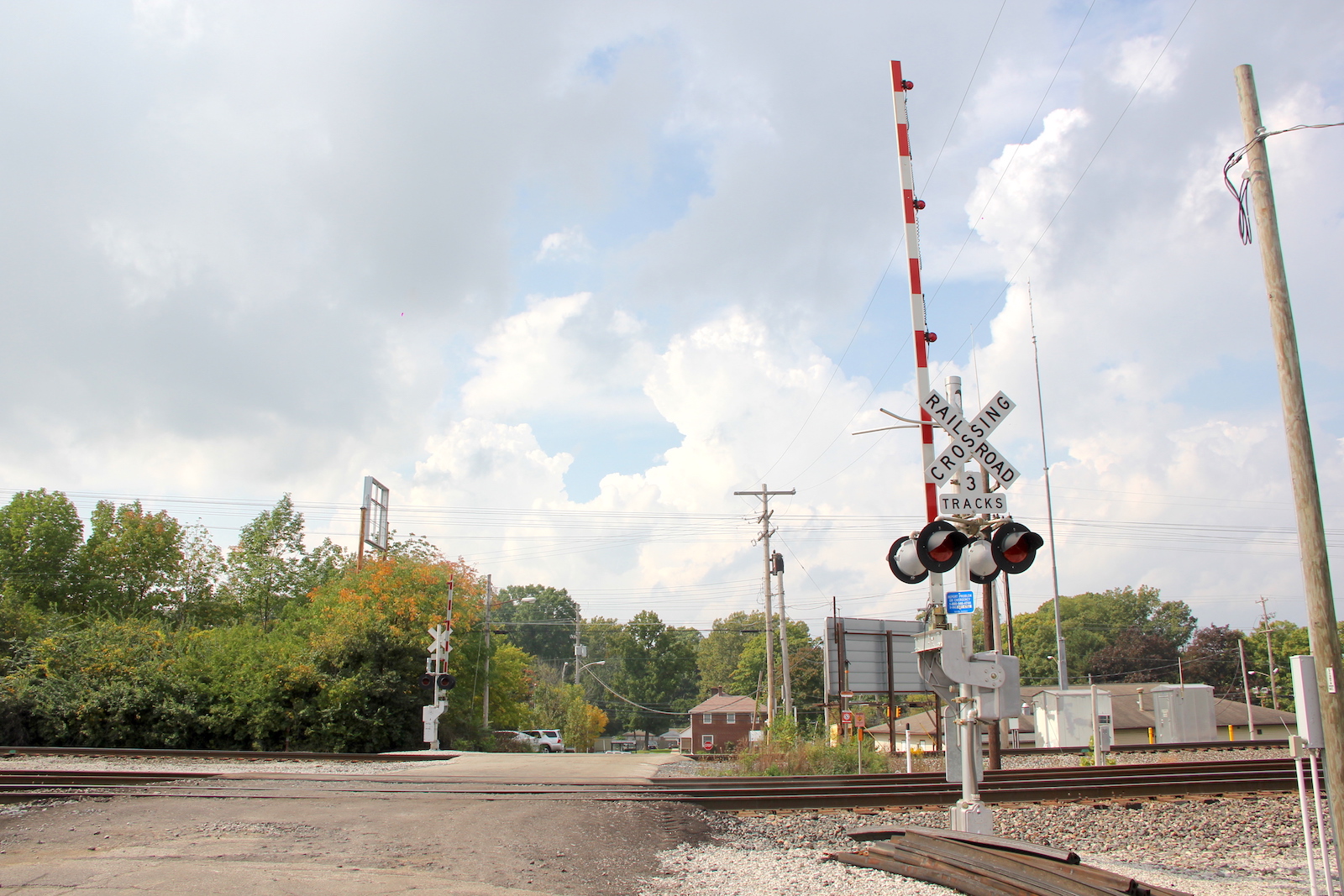

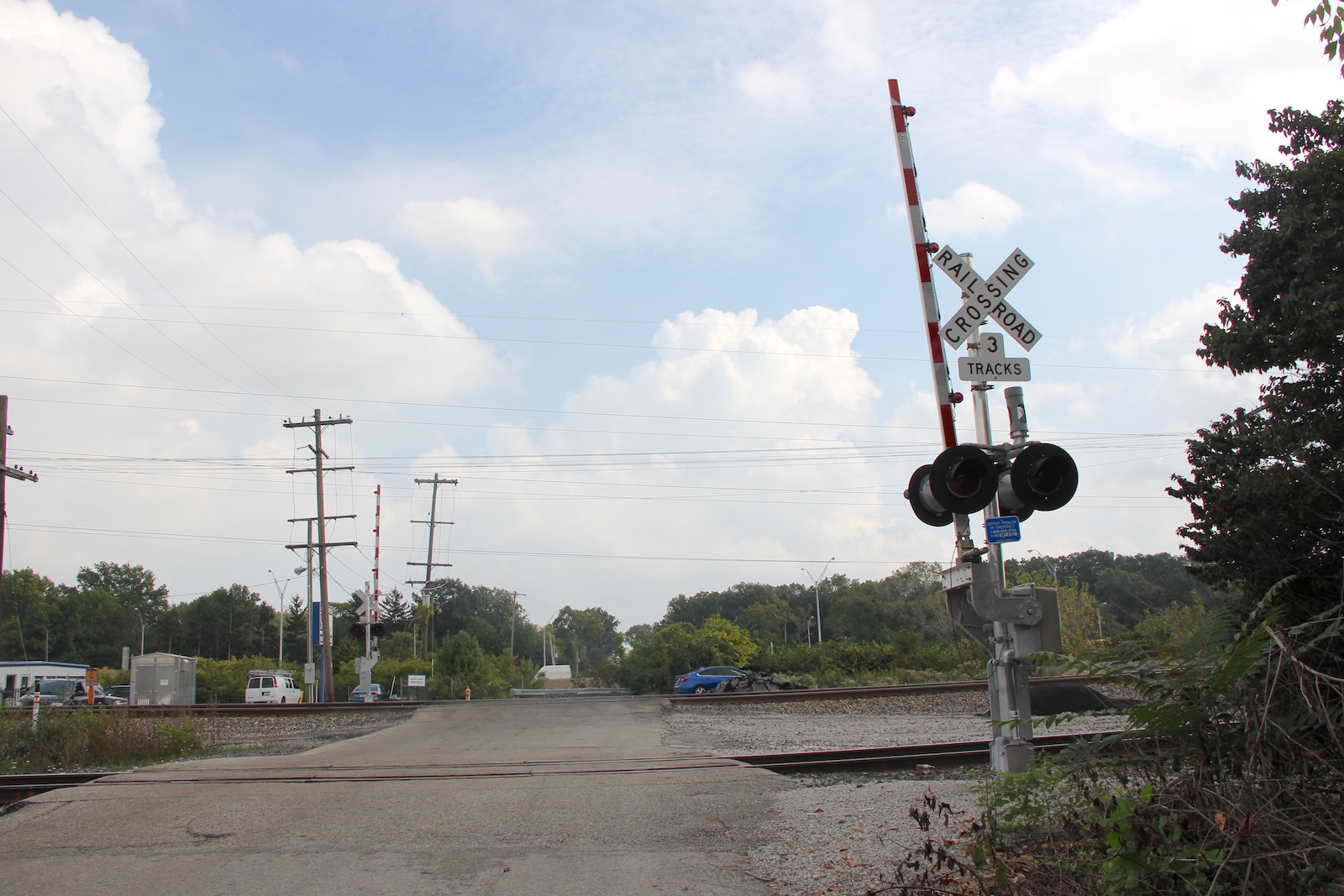

Overview of 2 different style gated signals facing west.
 Overview facing east.
3 4 5
6 7 8
9 10 11
 12

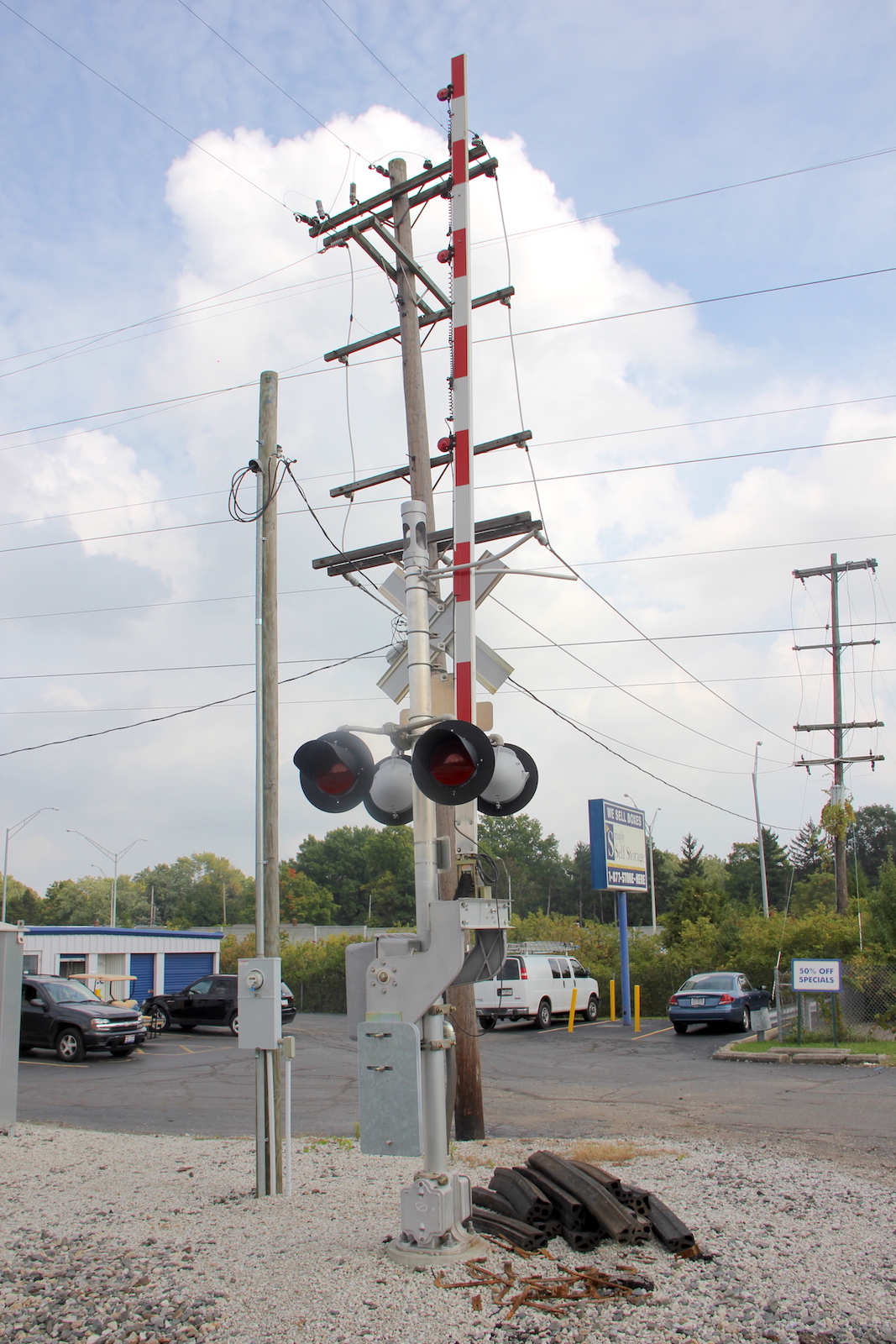

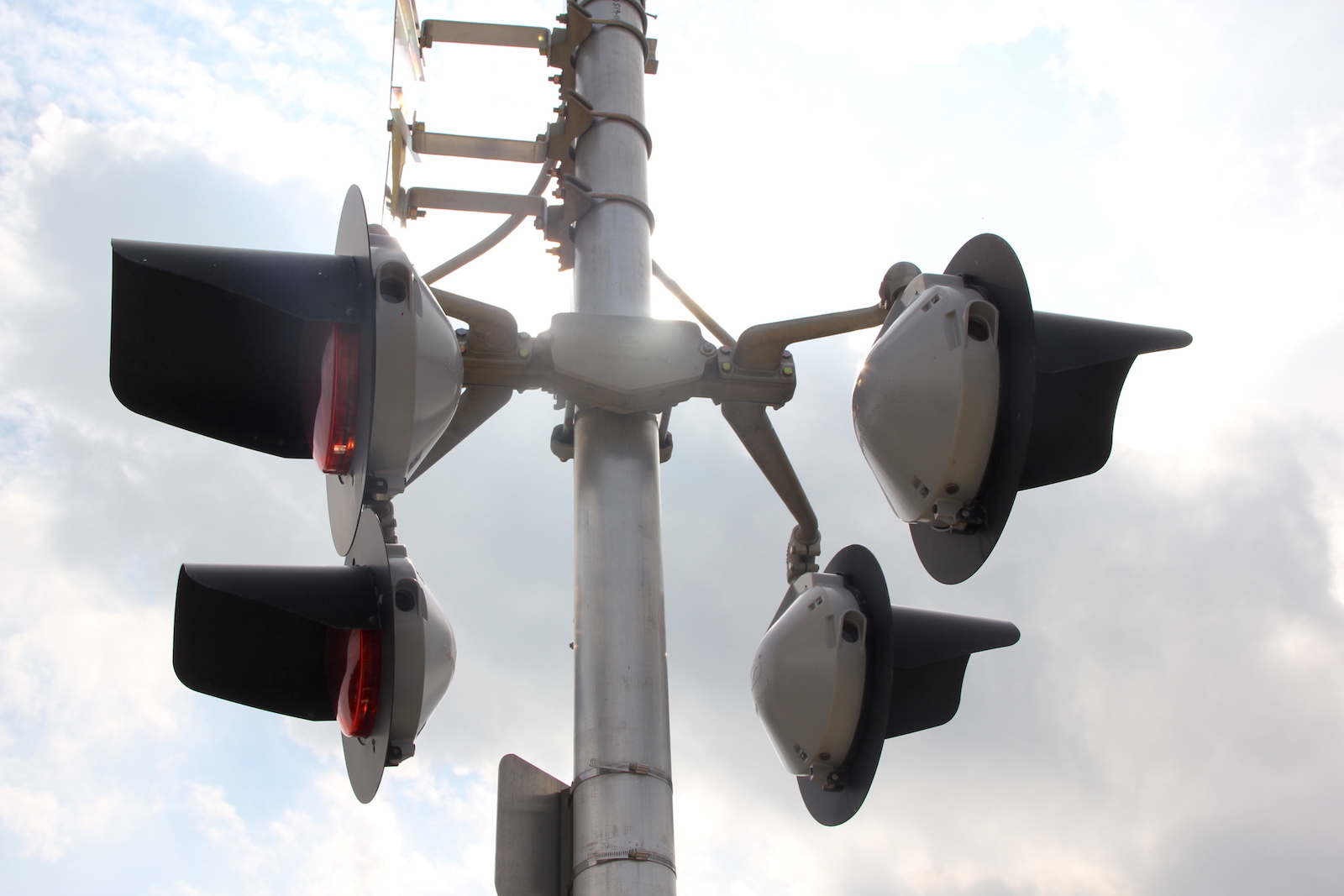

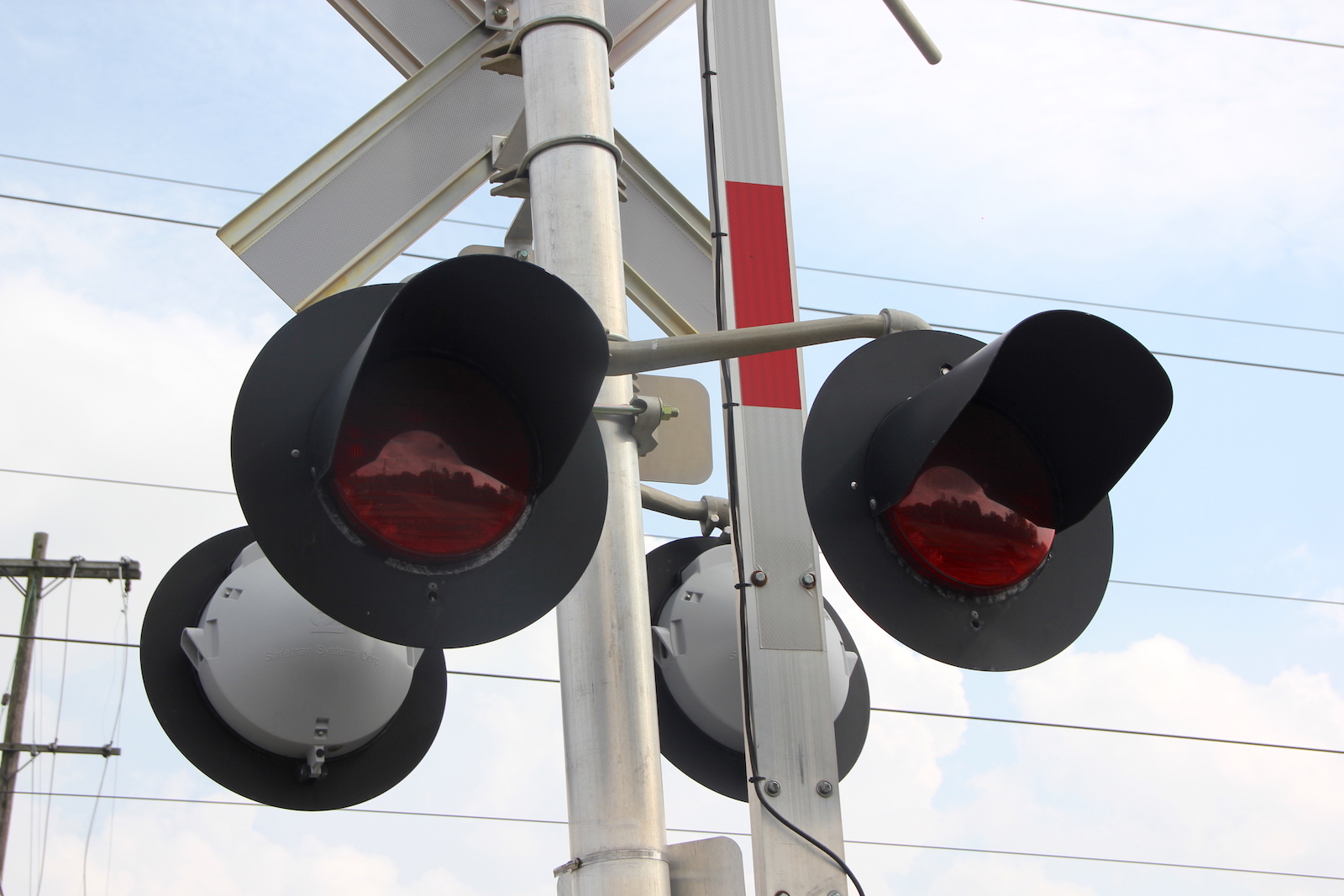

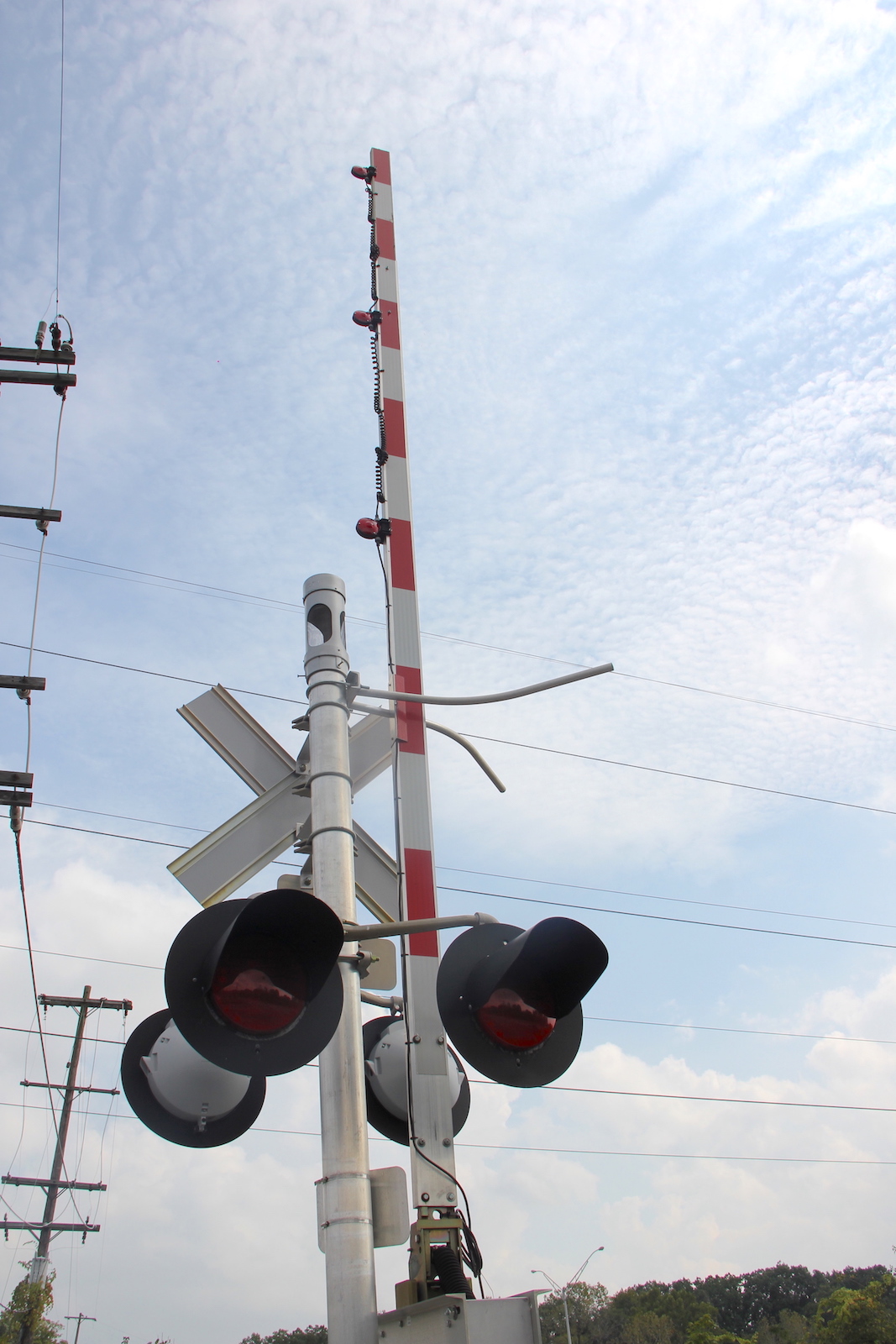

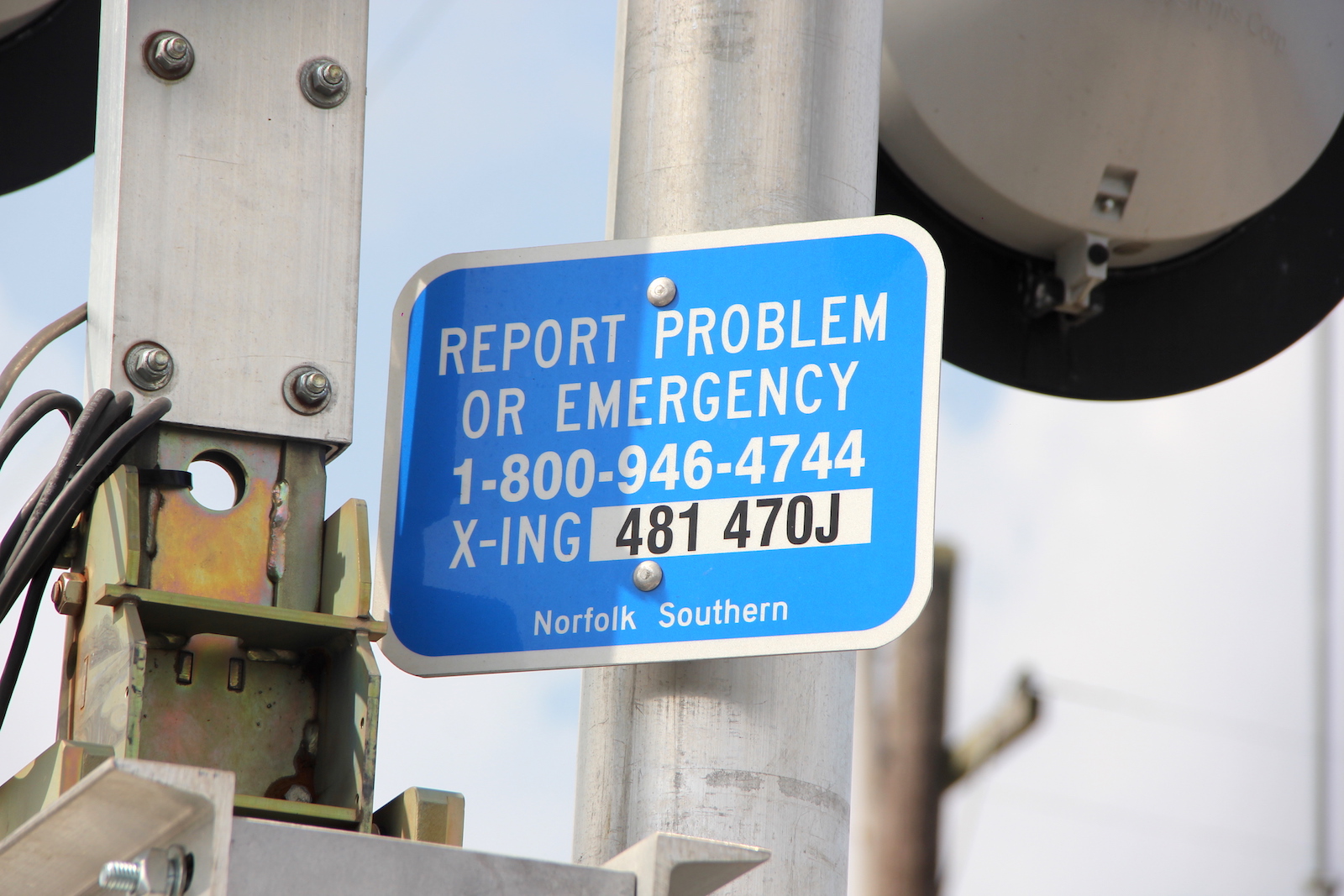

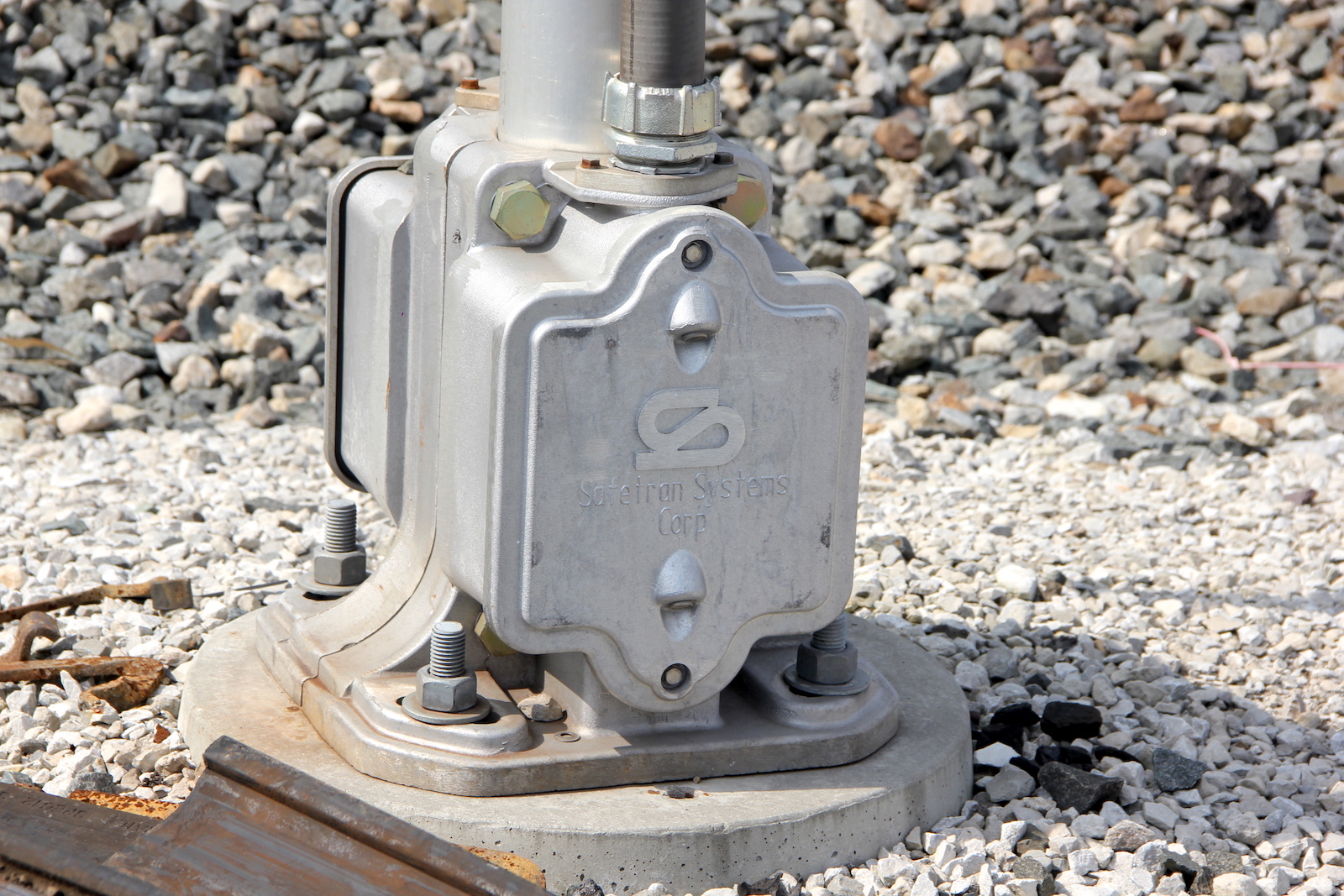

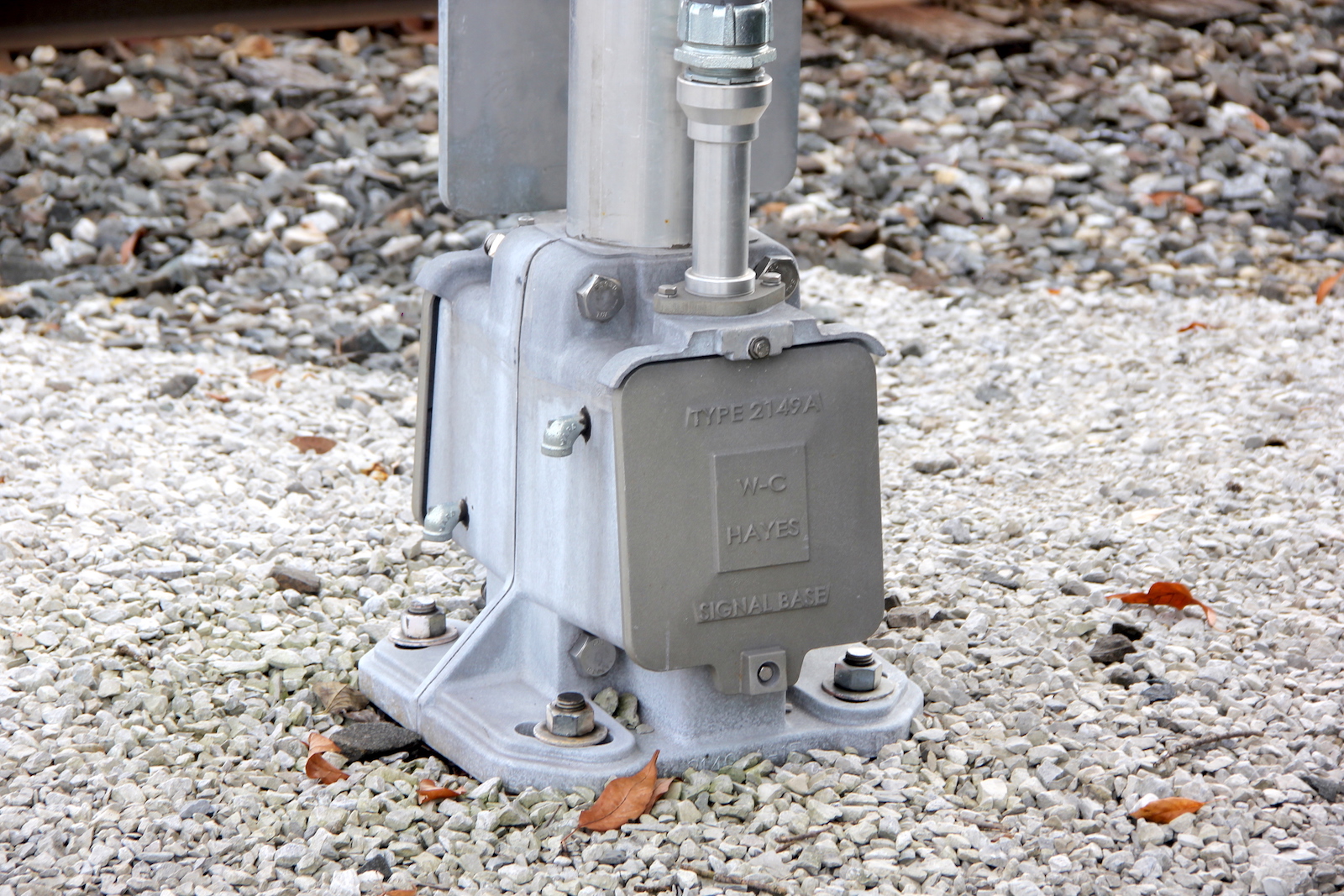

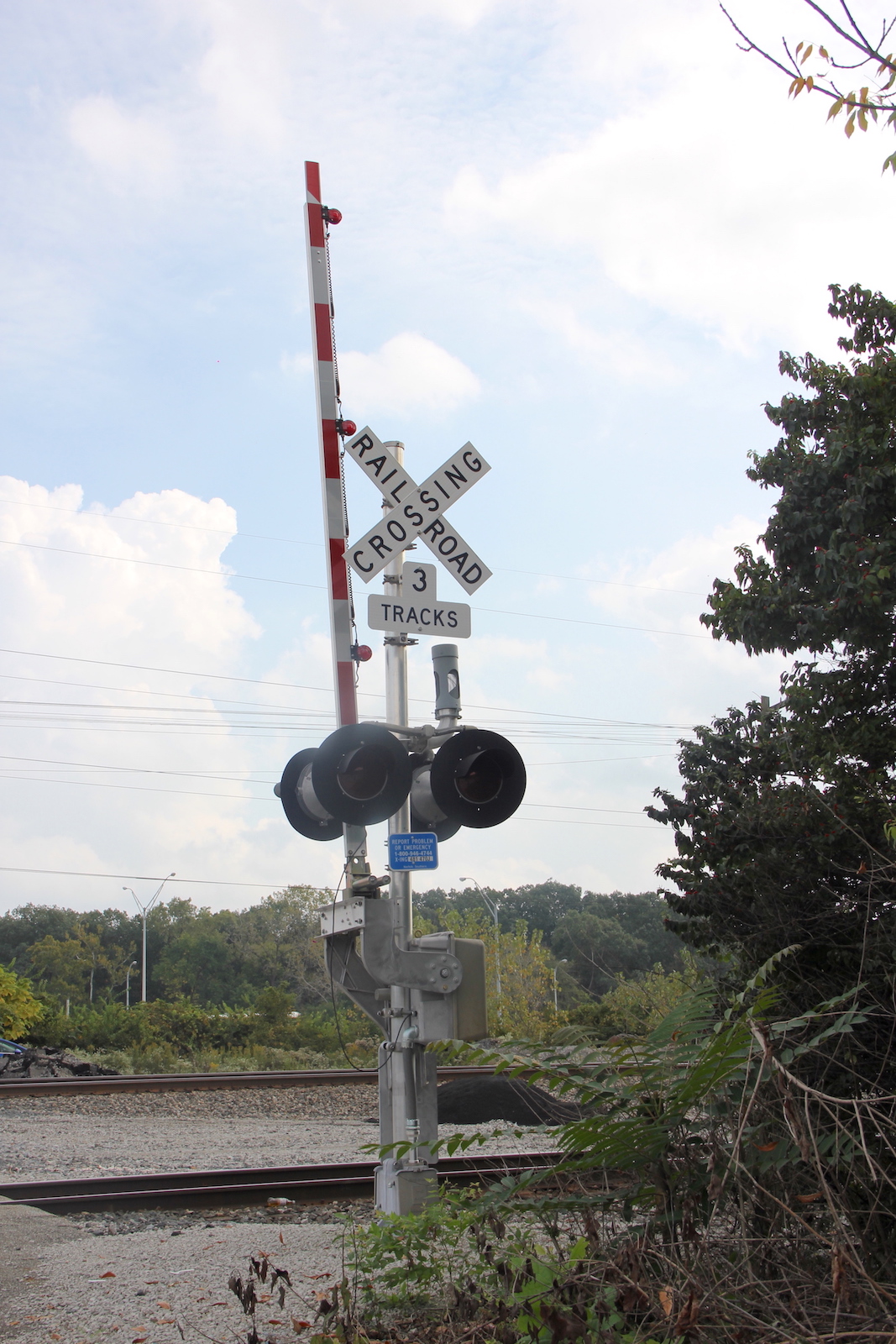

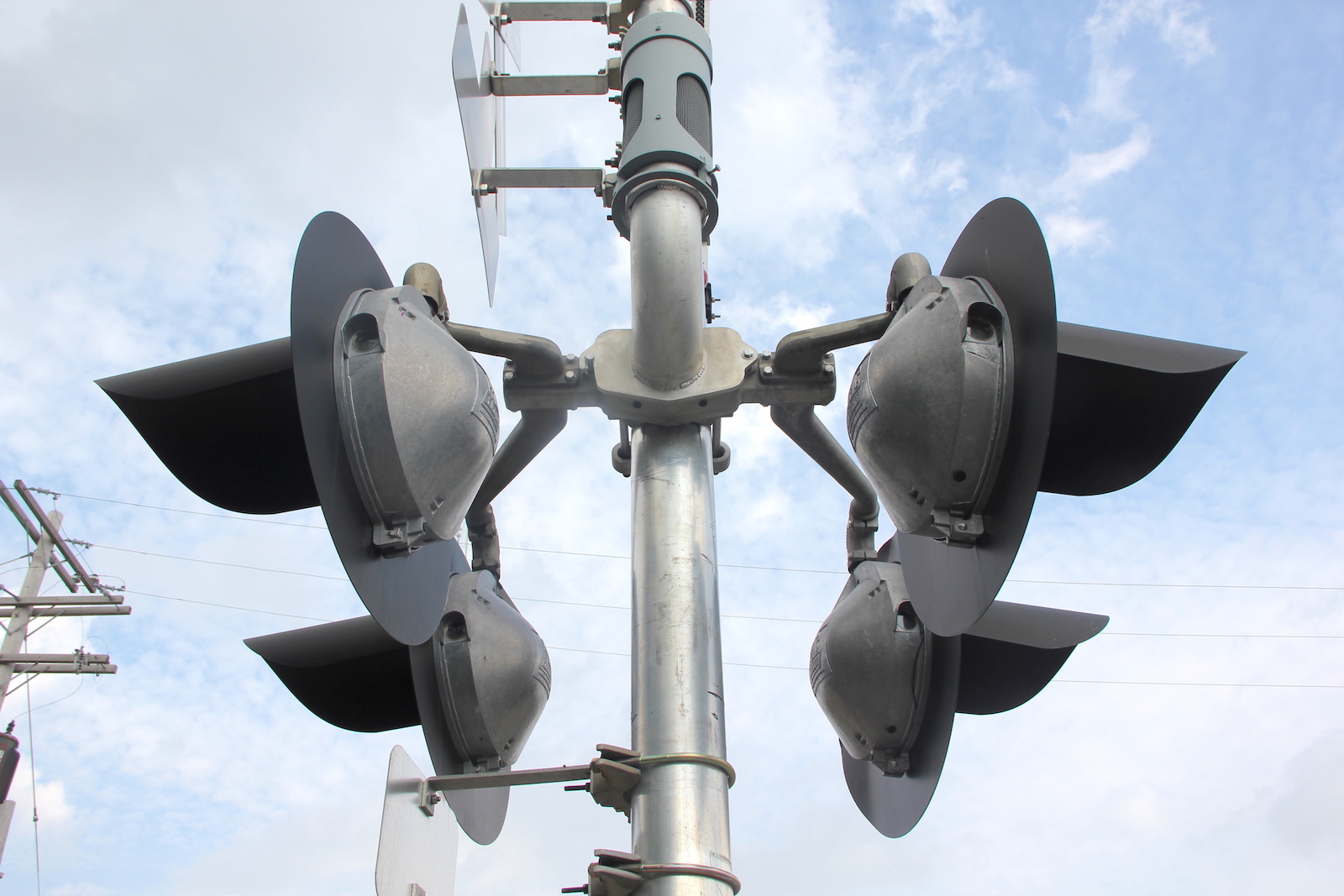

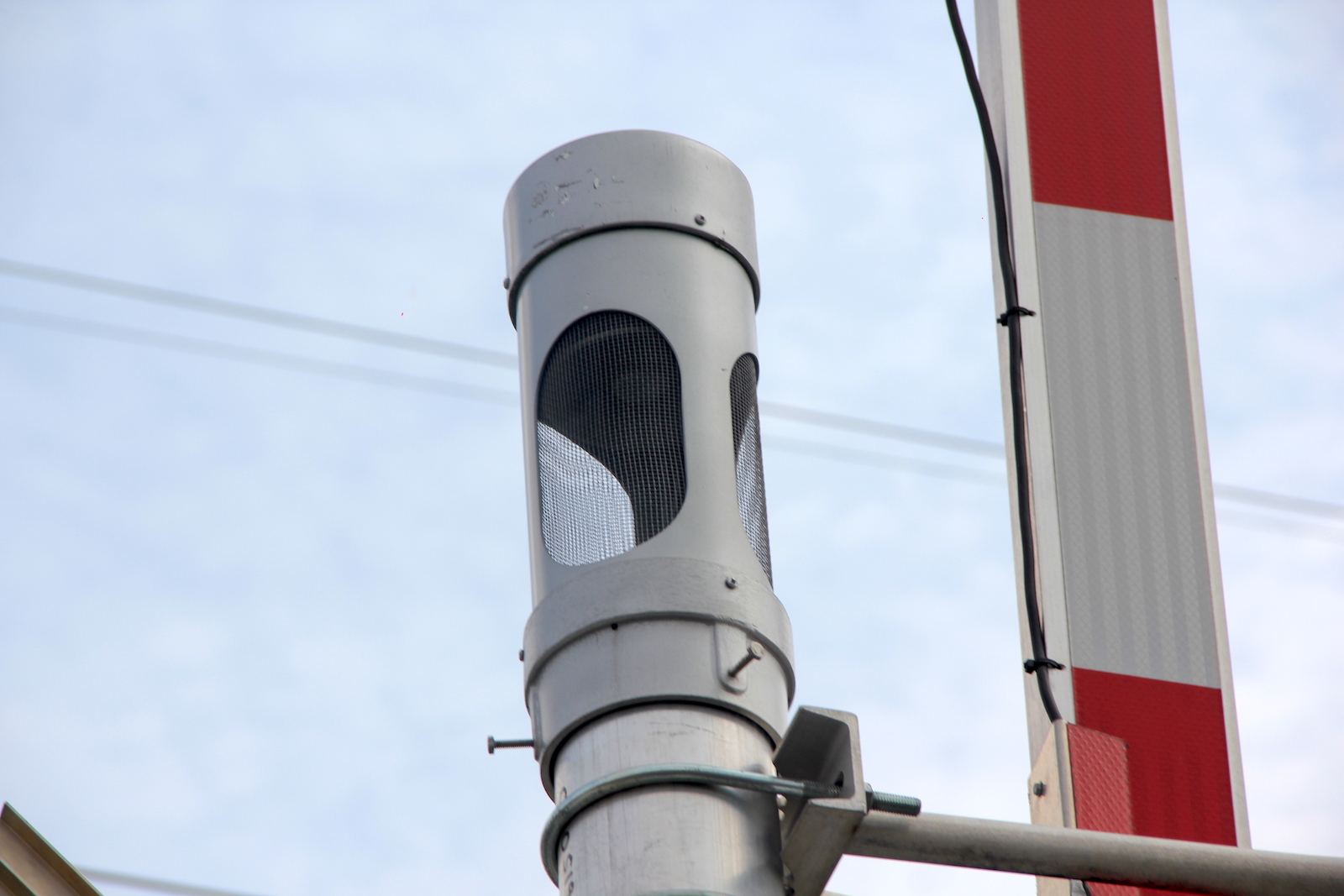

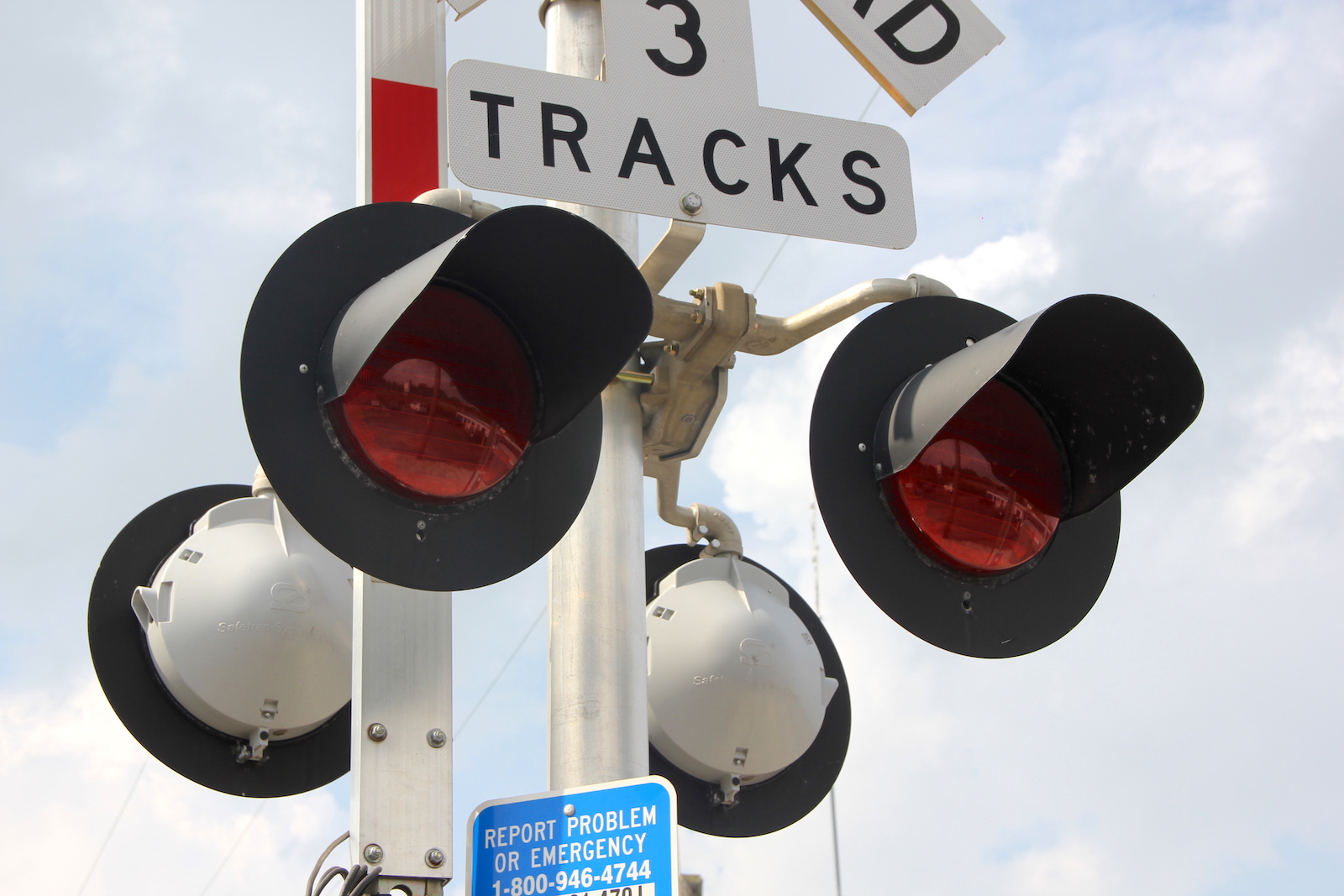

The eastern signal along the NS line.
13 14 15
16 17 18
19 20 21
 22

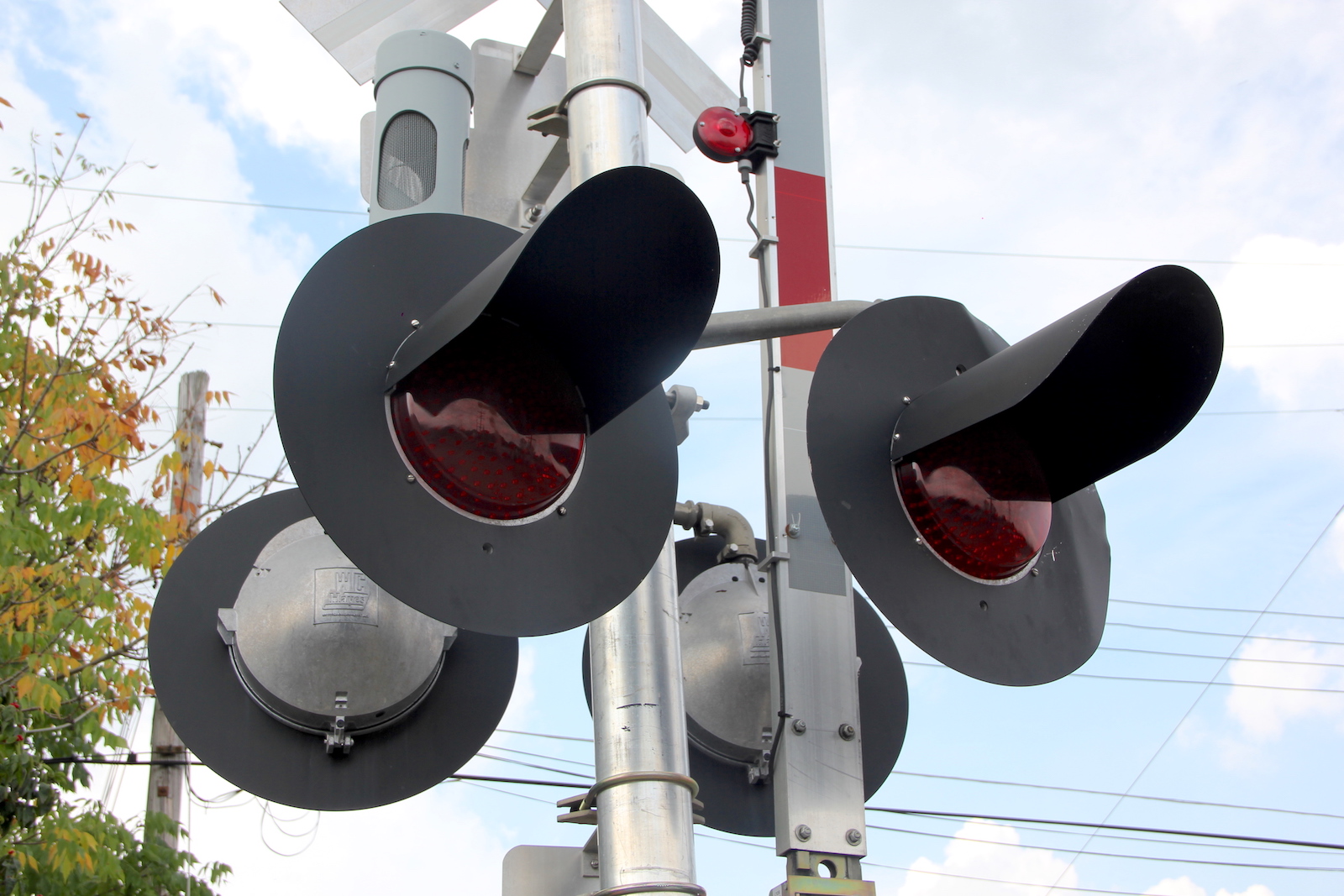

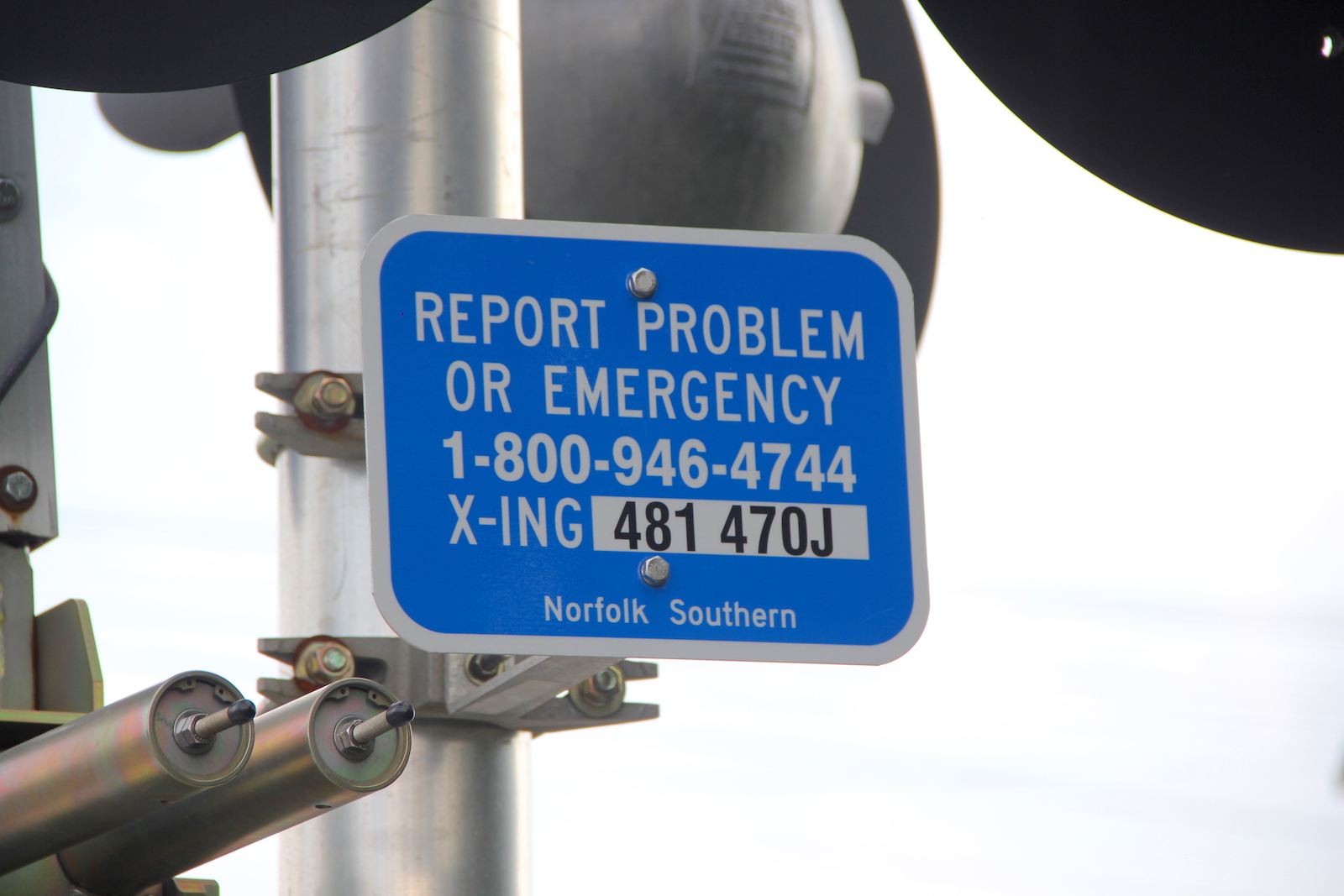

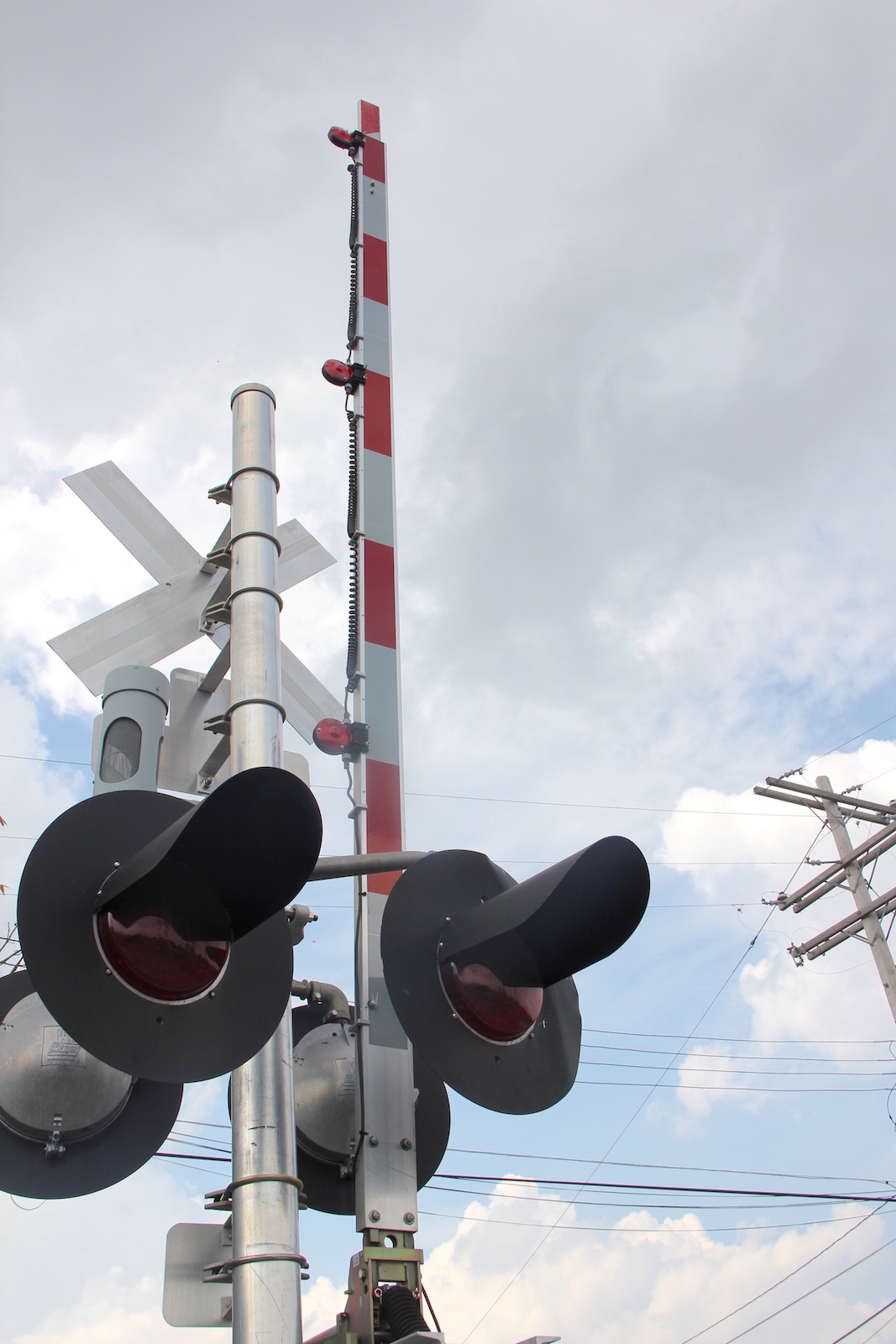

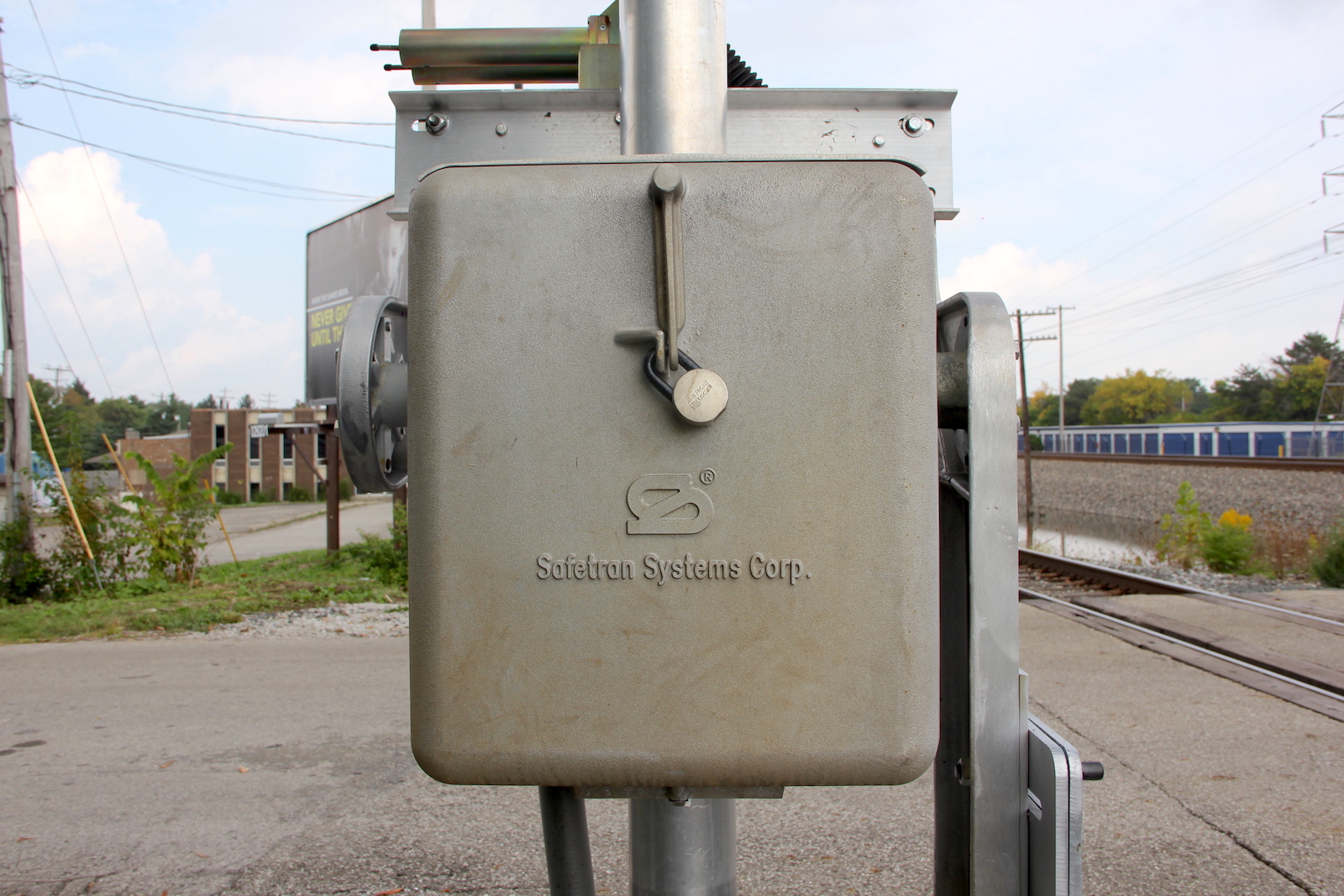

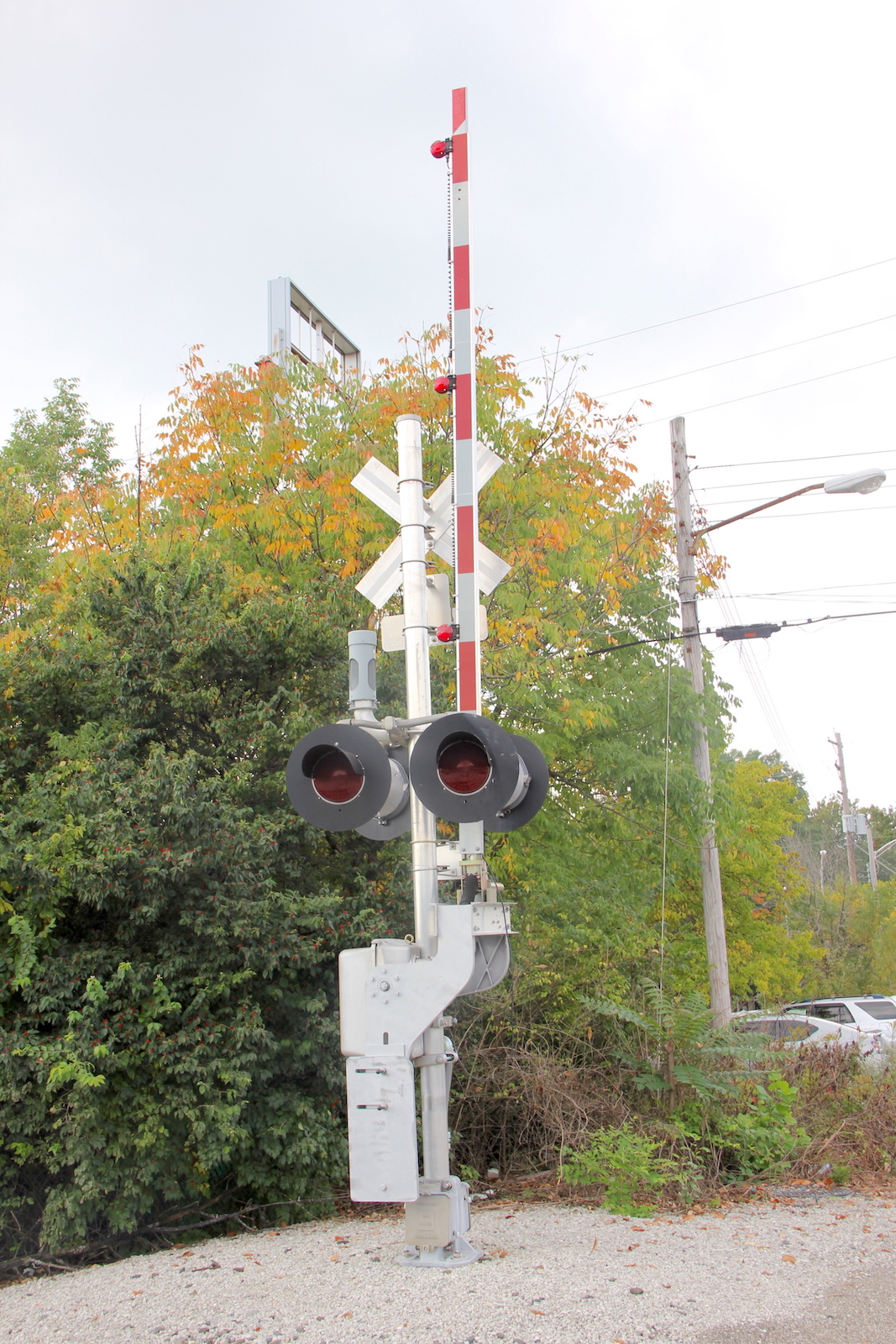

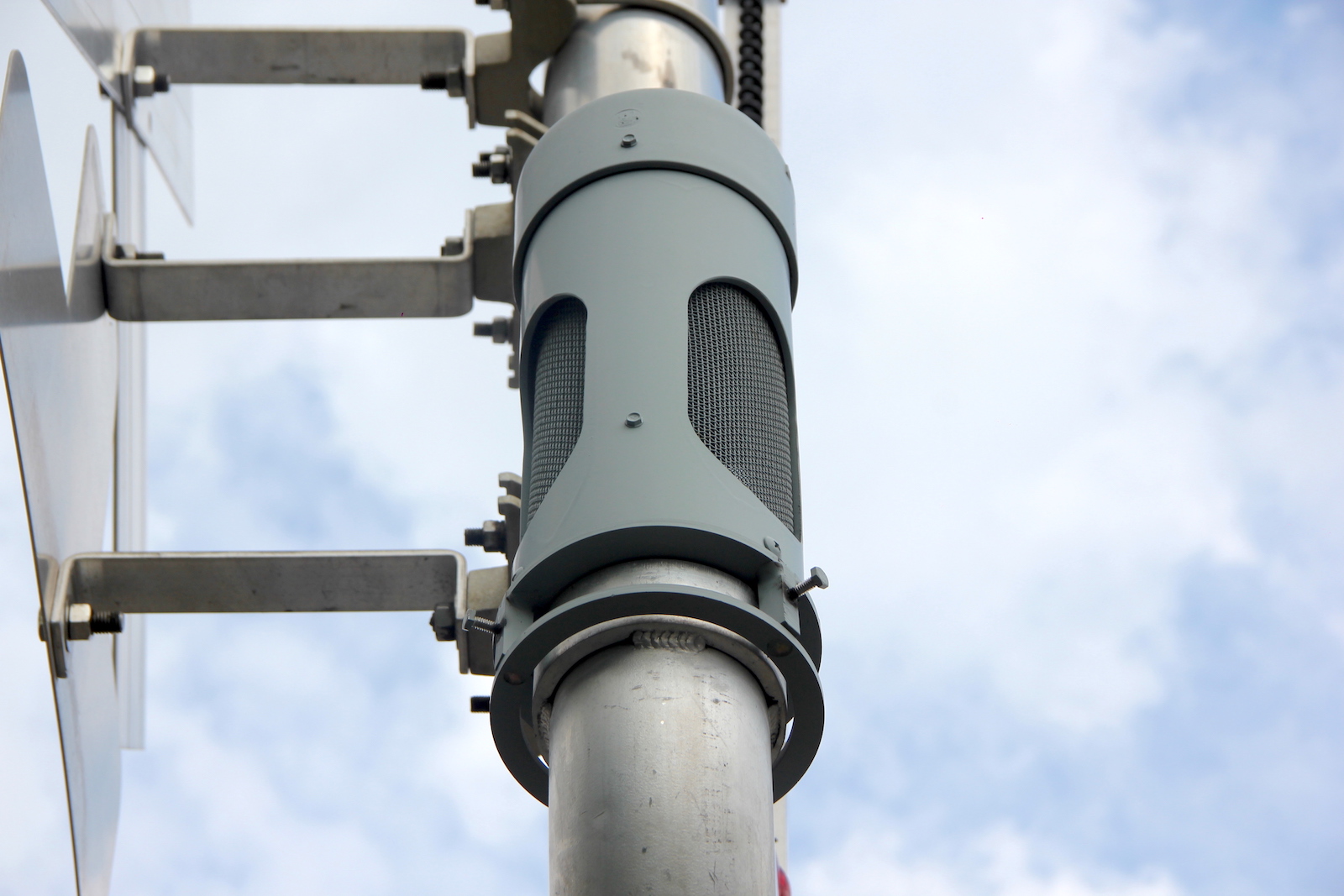

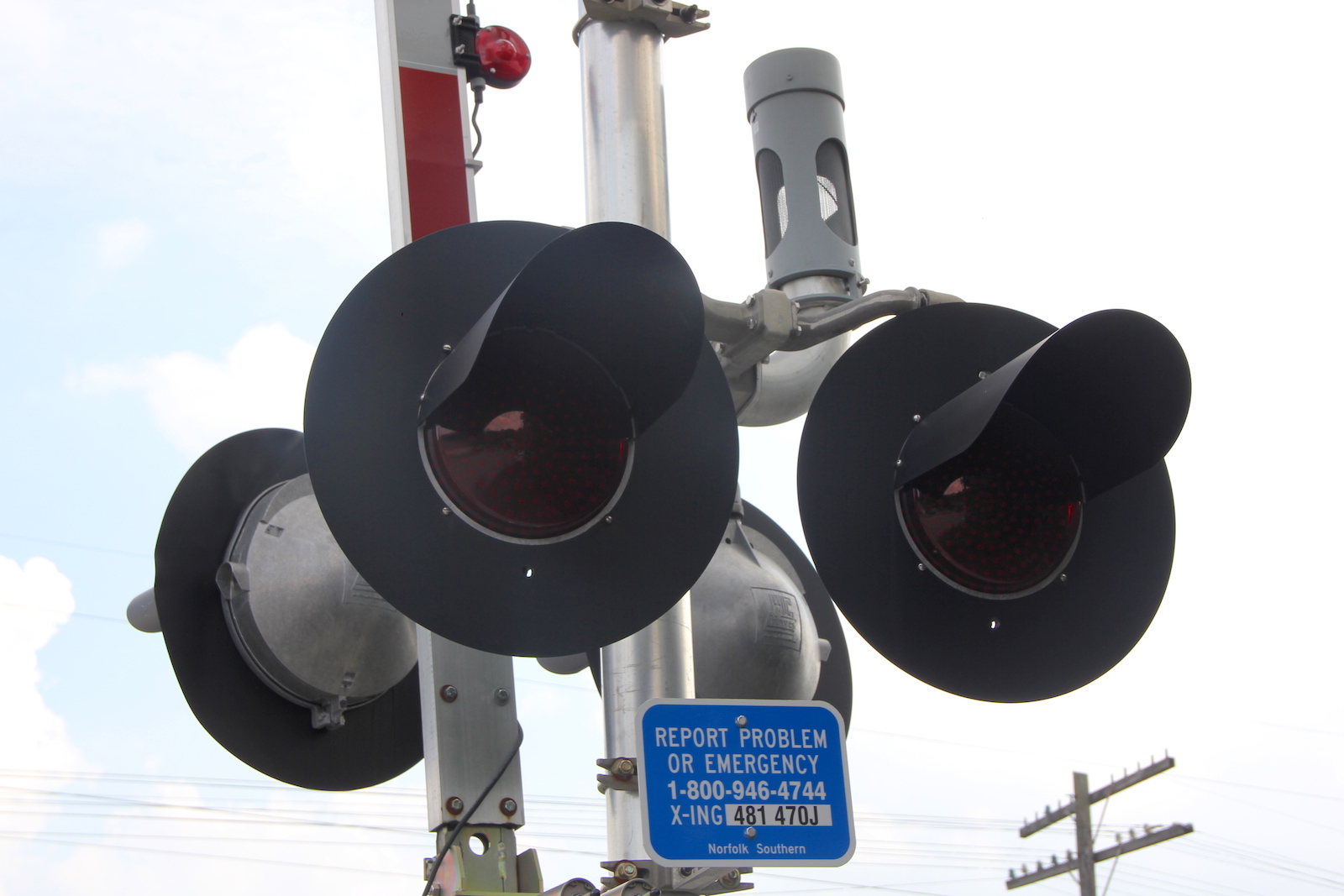

The western signal along the CSX line.  I don't know why it has the NS DOT tag though.
23 24 25 26

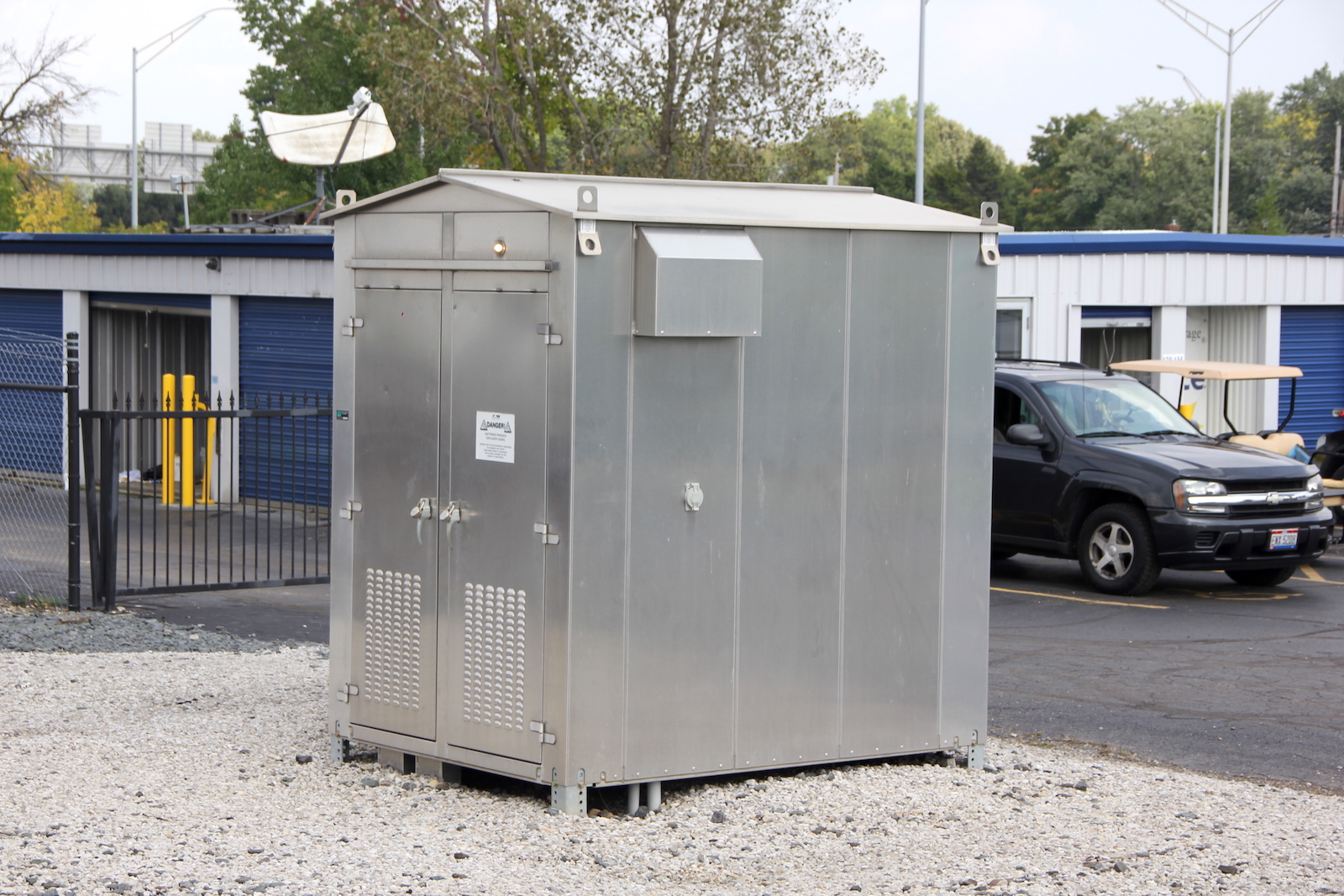

The NS relay bungalow in the northeast quadrant.

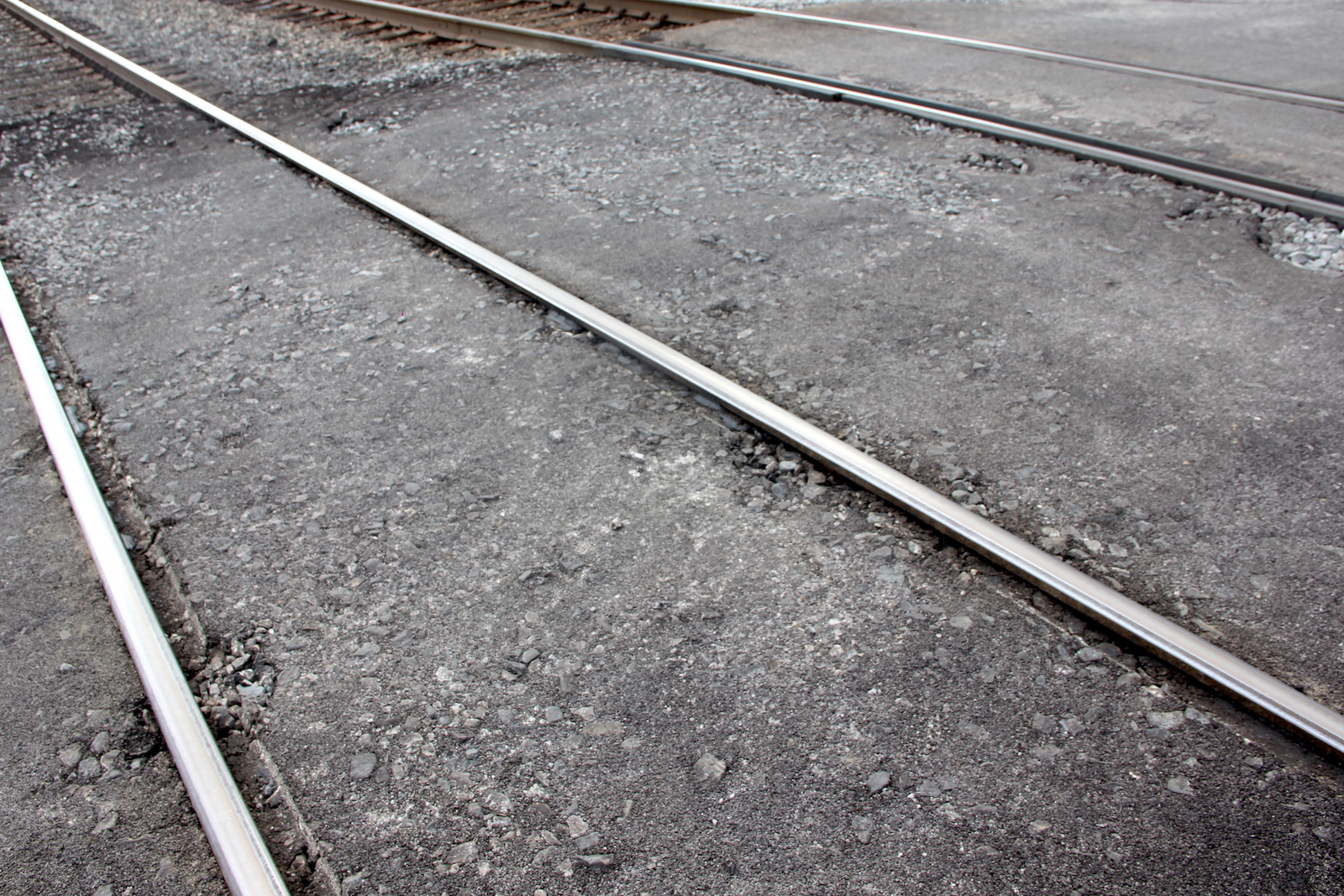

 The NS grade is asphalt, rubber, and gravel.

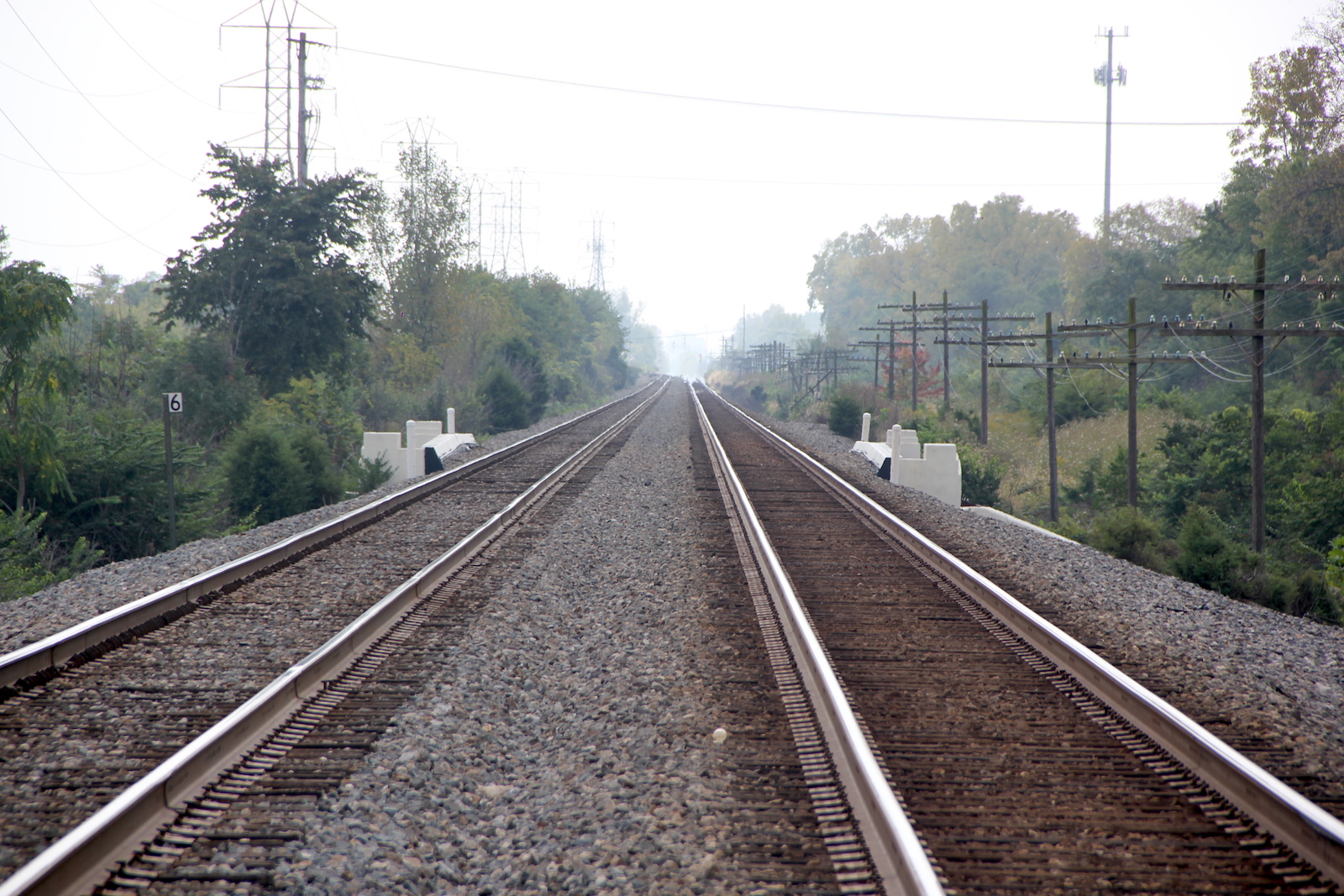

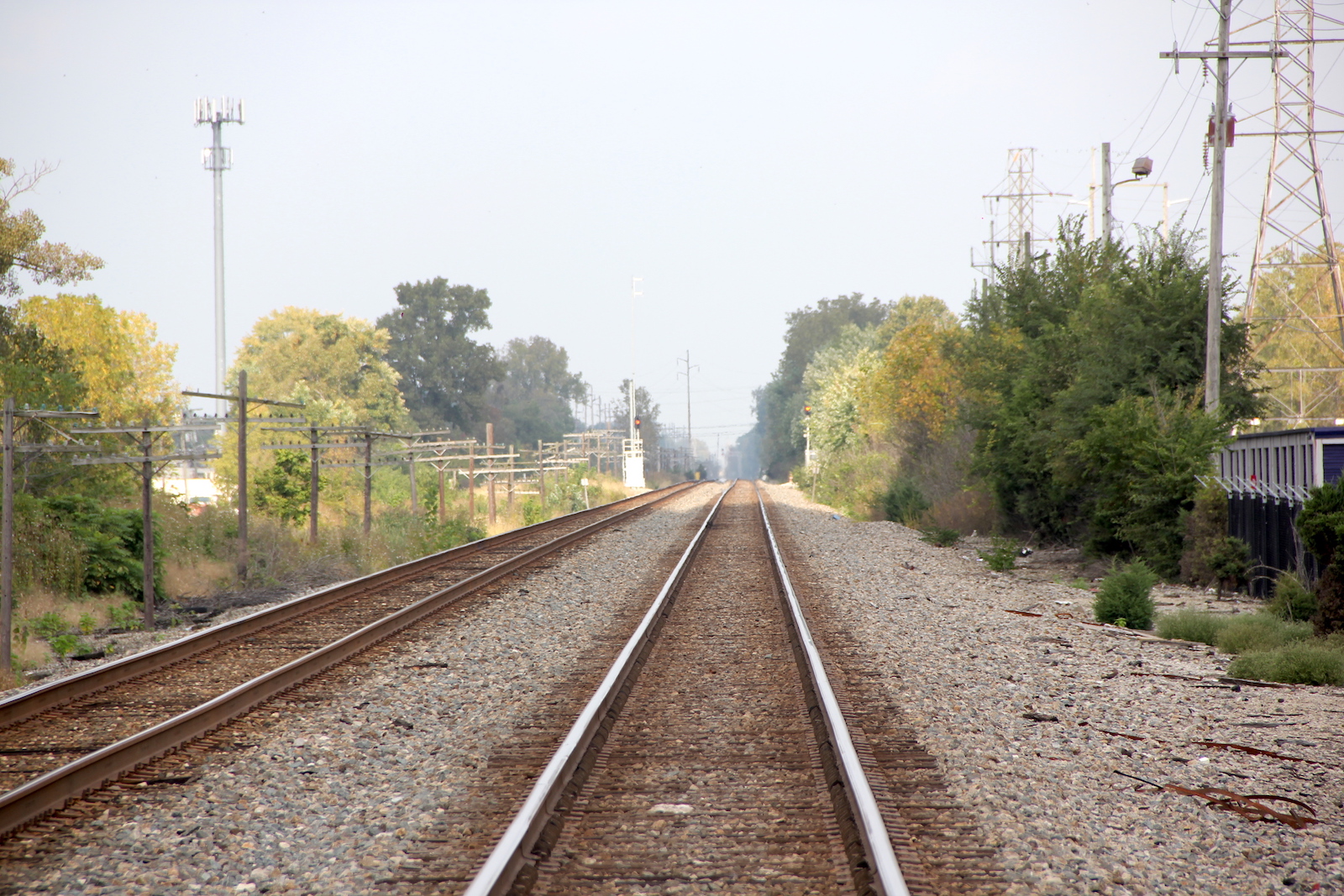

 Track view facing north towards Lincoln Ave.
 Track view facing south towards Weber Rd.
27 28 29 30

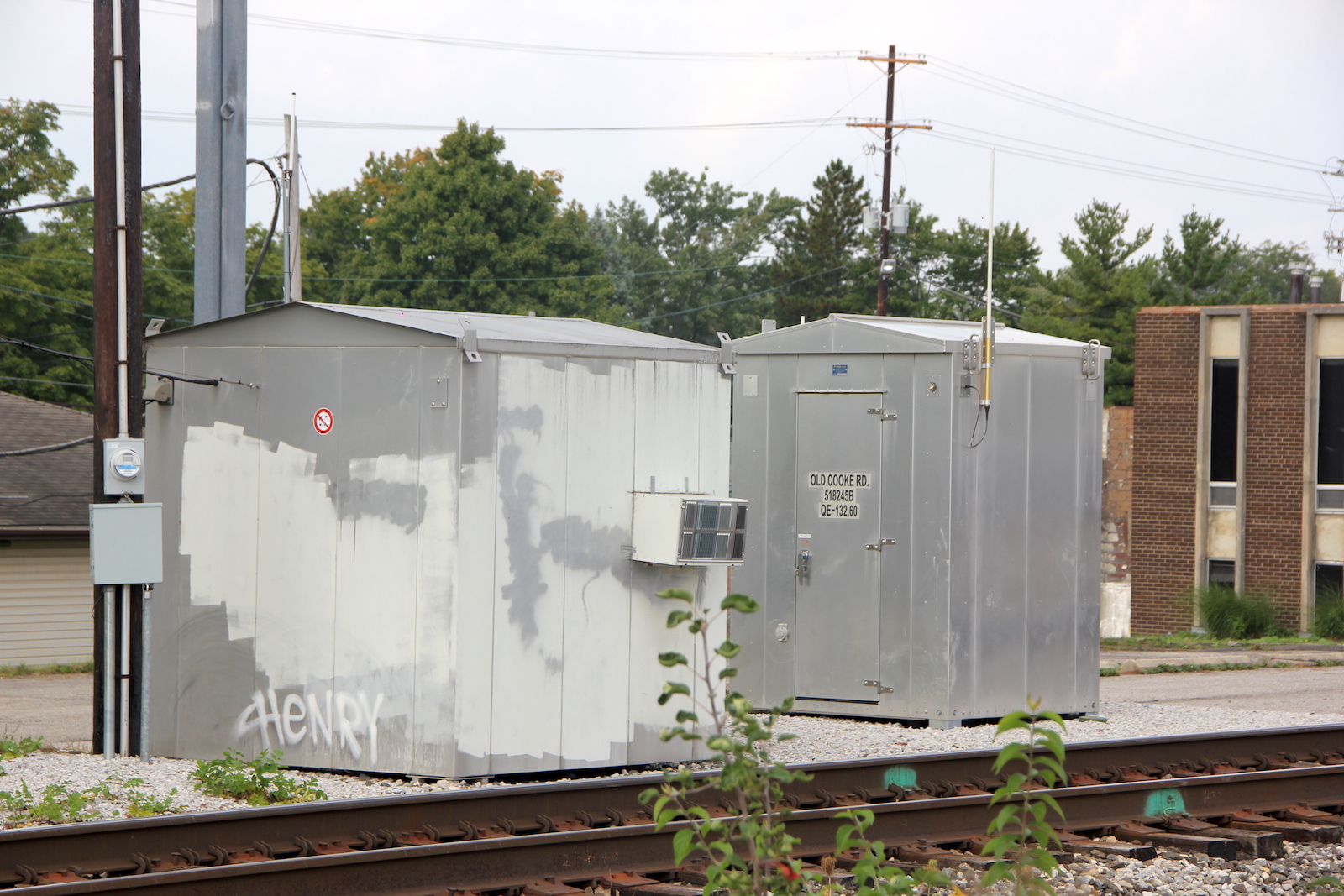

The CSX relay bungalows in the northwest quadrant.

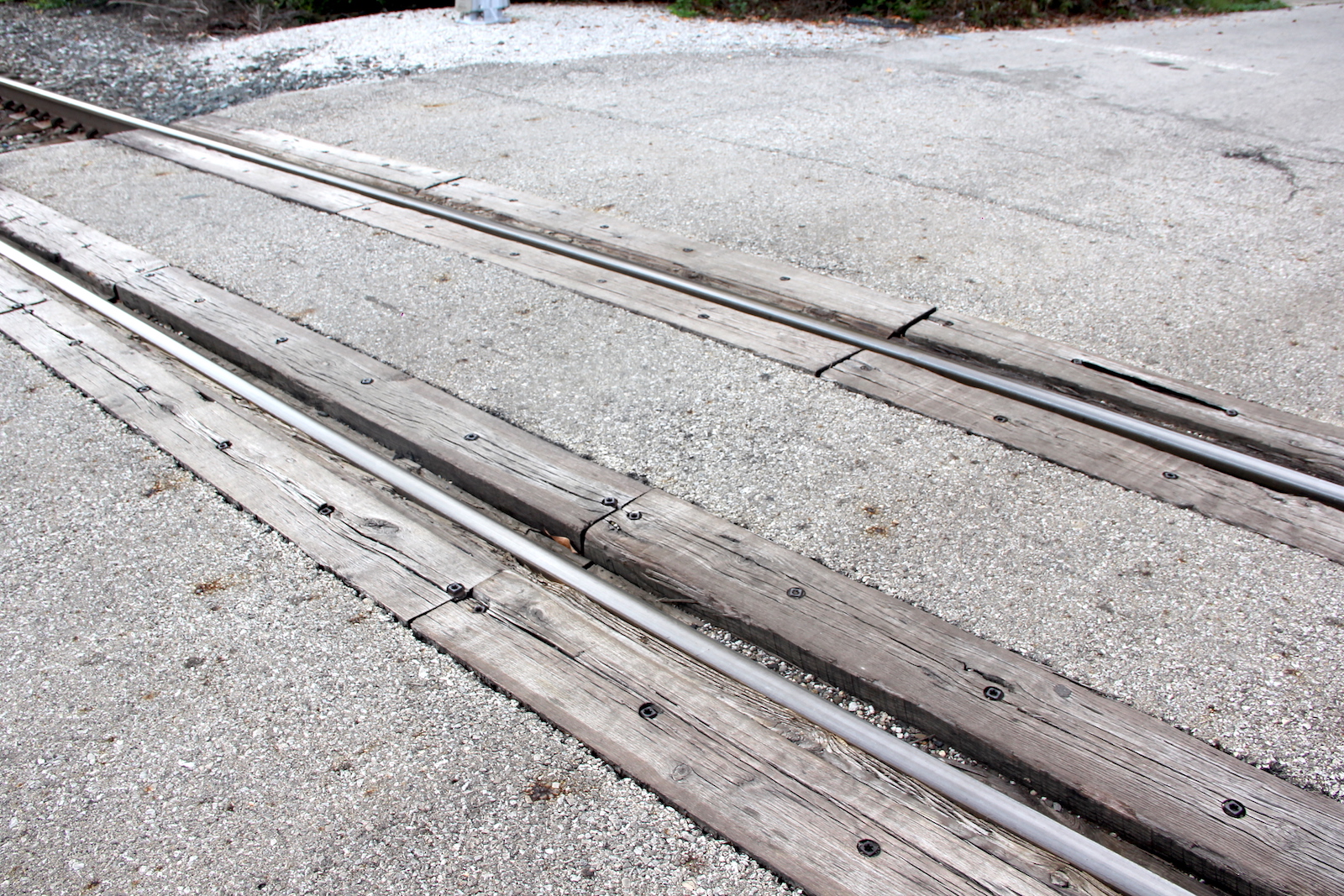

 The CSX grade is wood and asphalt.

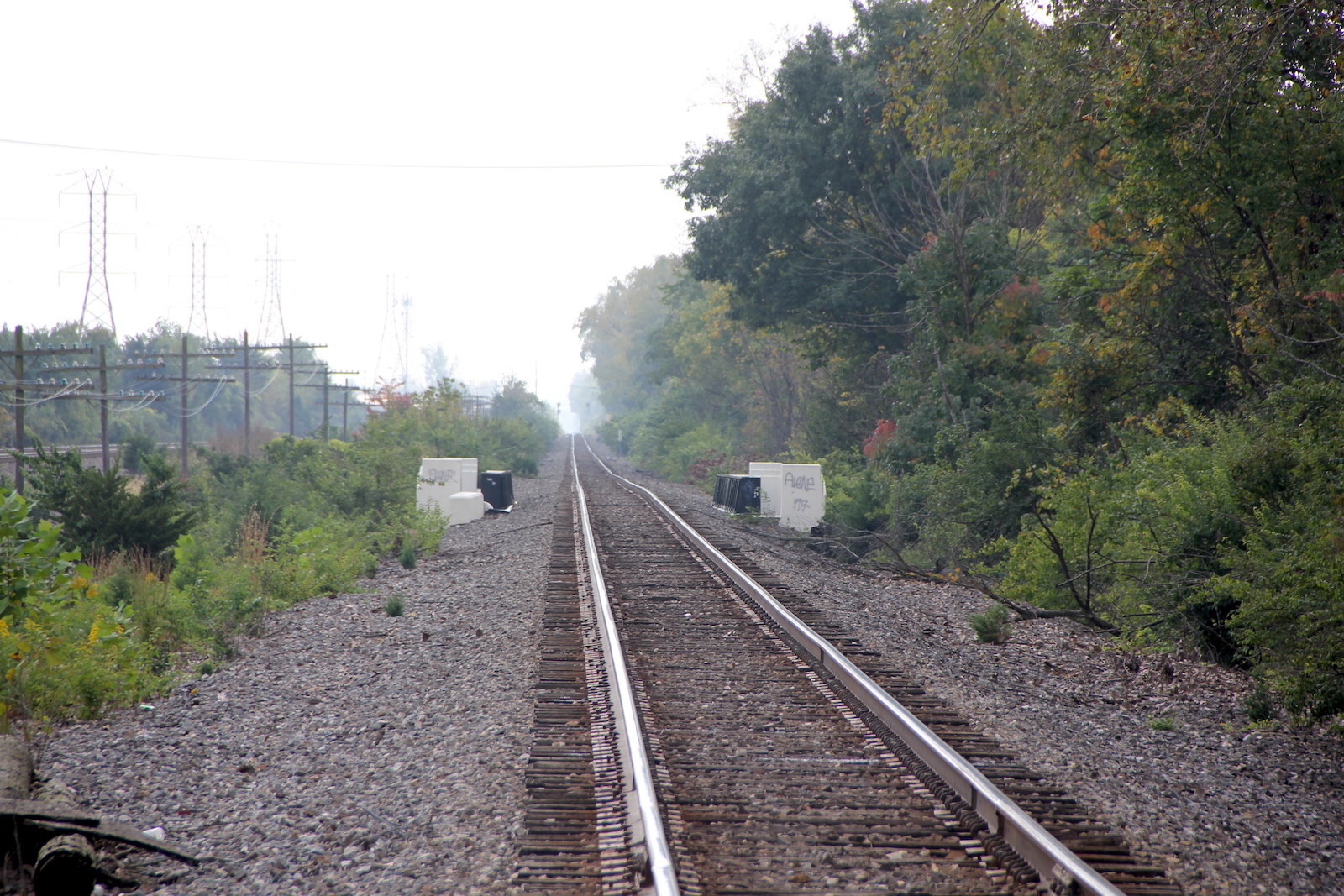

 Track view facing north towards Lincoln Ave.

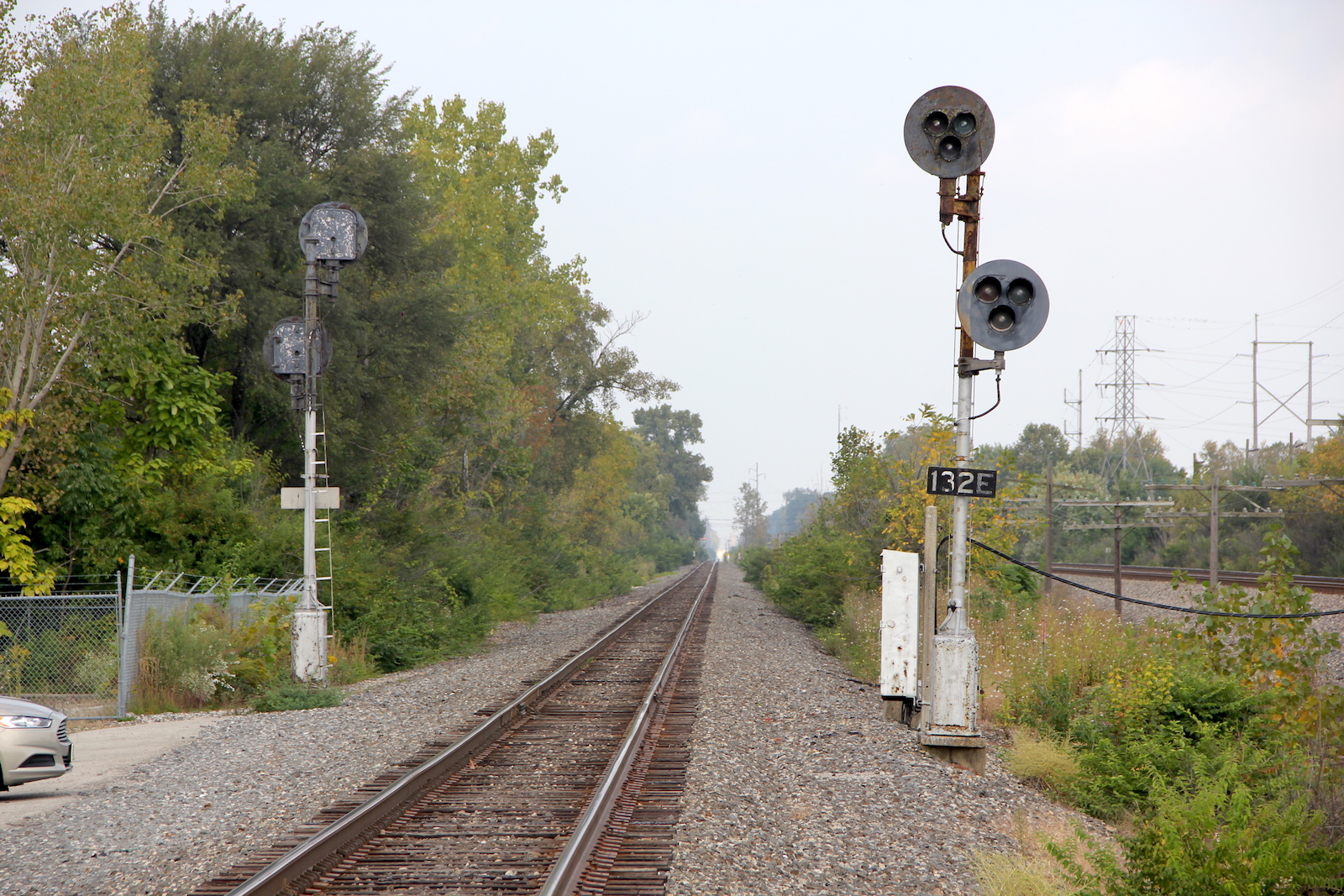

 Track view facing south towards Weber Rd.

NOVEMBER 2025 UPDATE: Sir Fluent here. Since Tommy was last out here, a minor change was made to the crossing.

31
 32 33

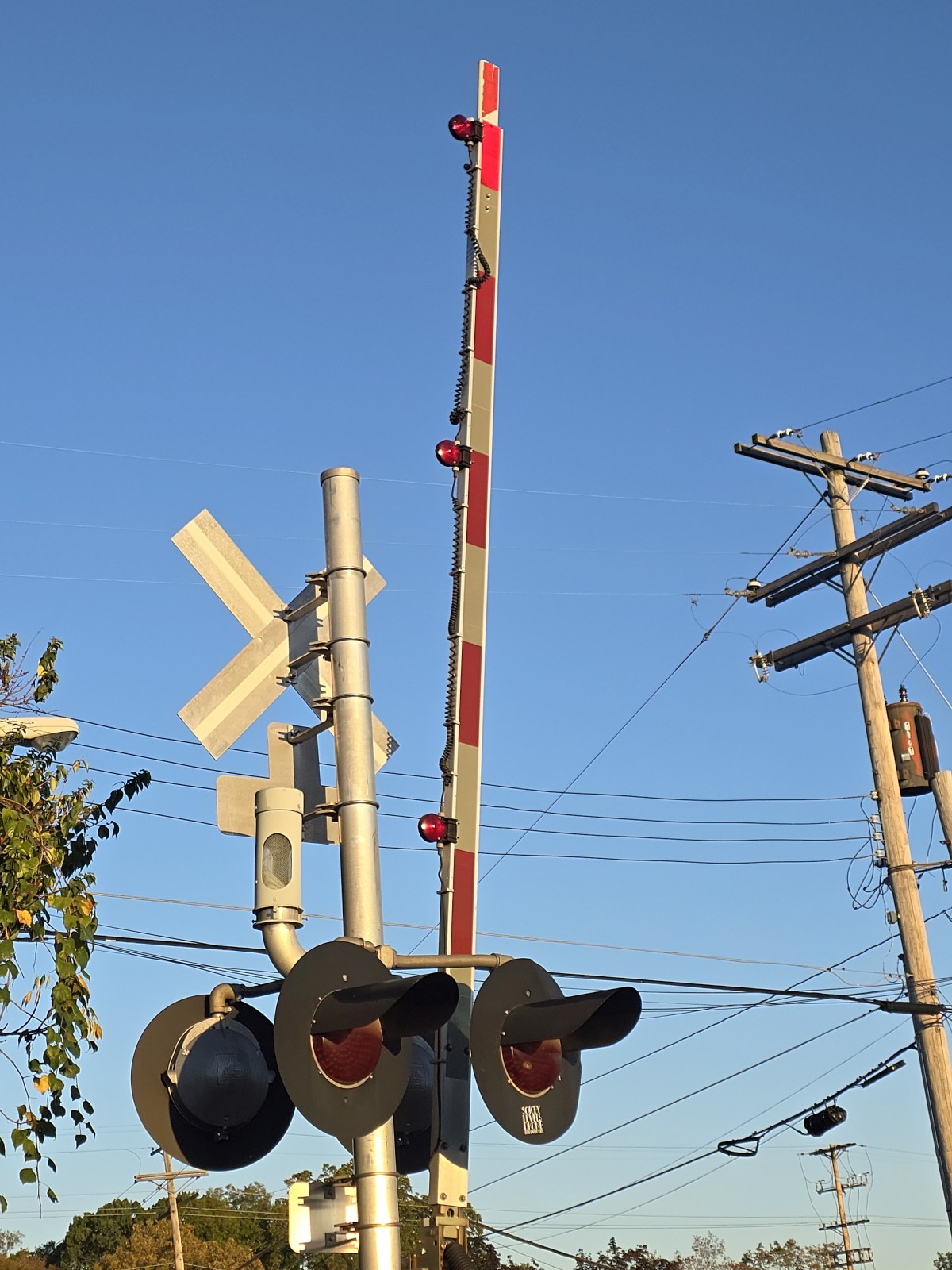

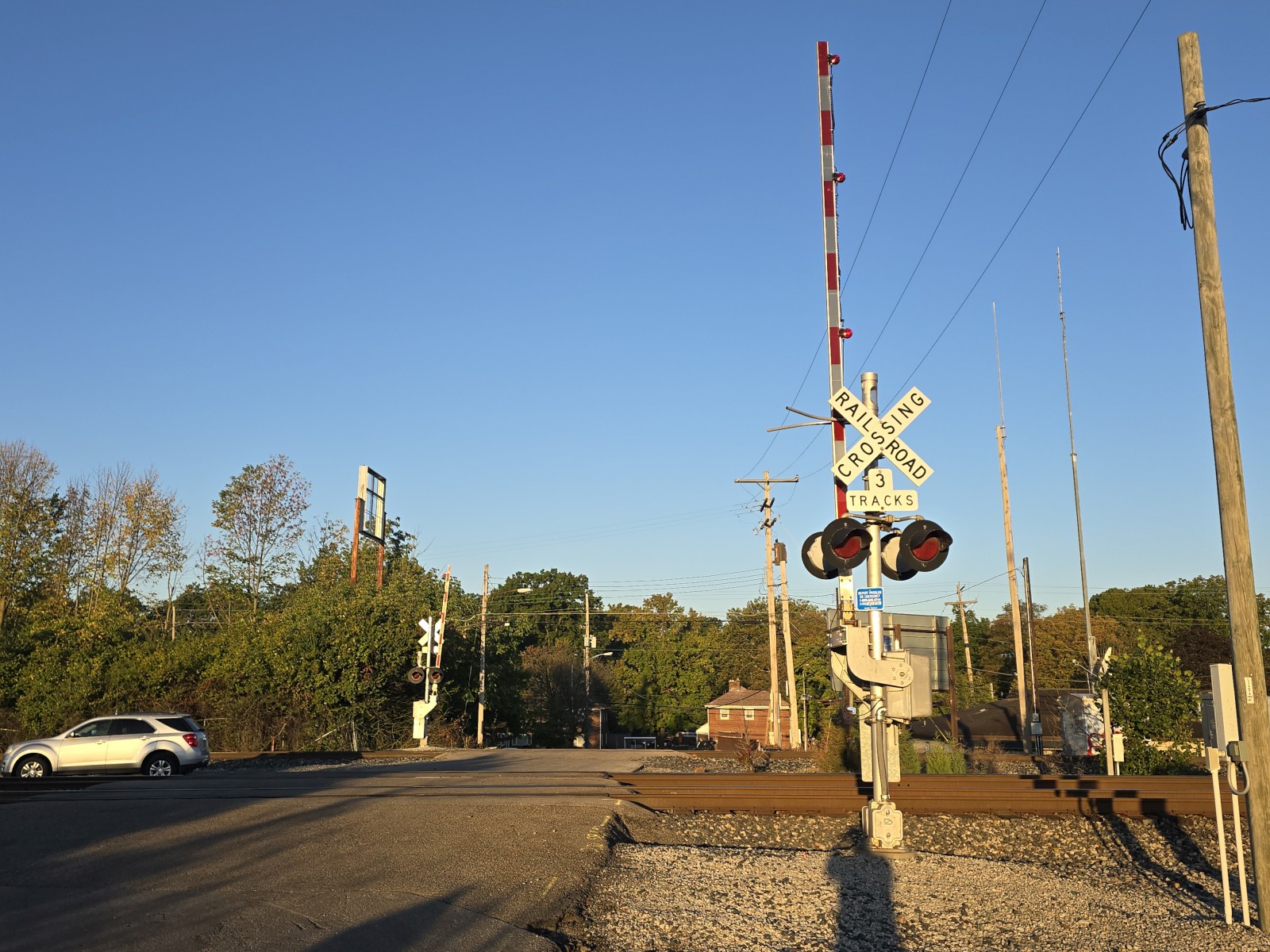

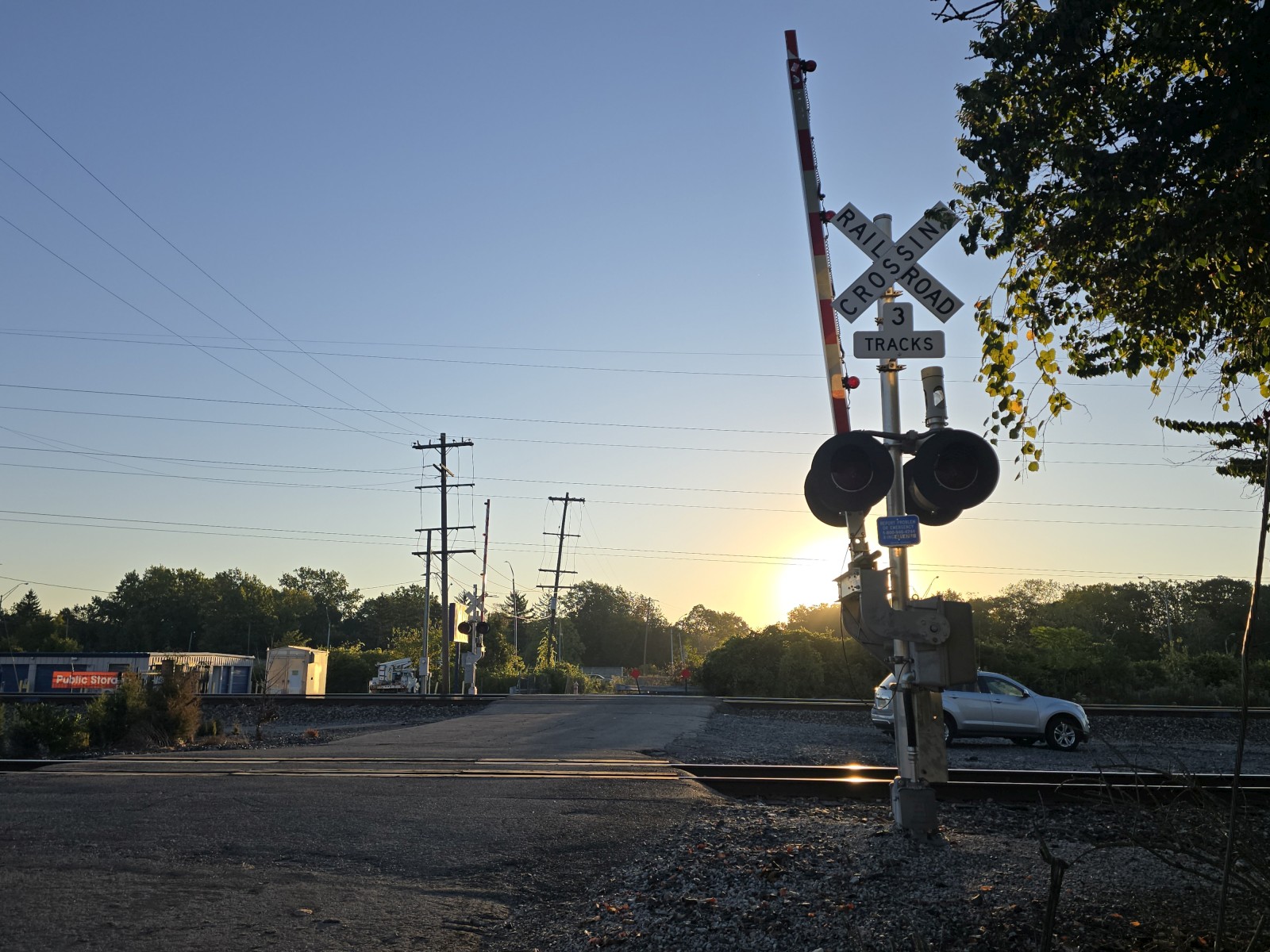

In October 2025, Nicholas Miles discovered that the tip gate light on the CSX signal was replaced with an NEG LED.
