130.77


481472X,518247P

>>>>>>>>>>>>>> Western Signal (CSX) Eastern Signal (NS)
Bell: GS E-Bell
 Siemens E-Bell

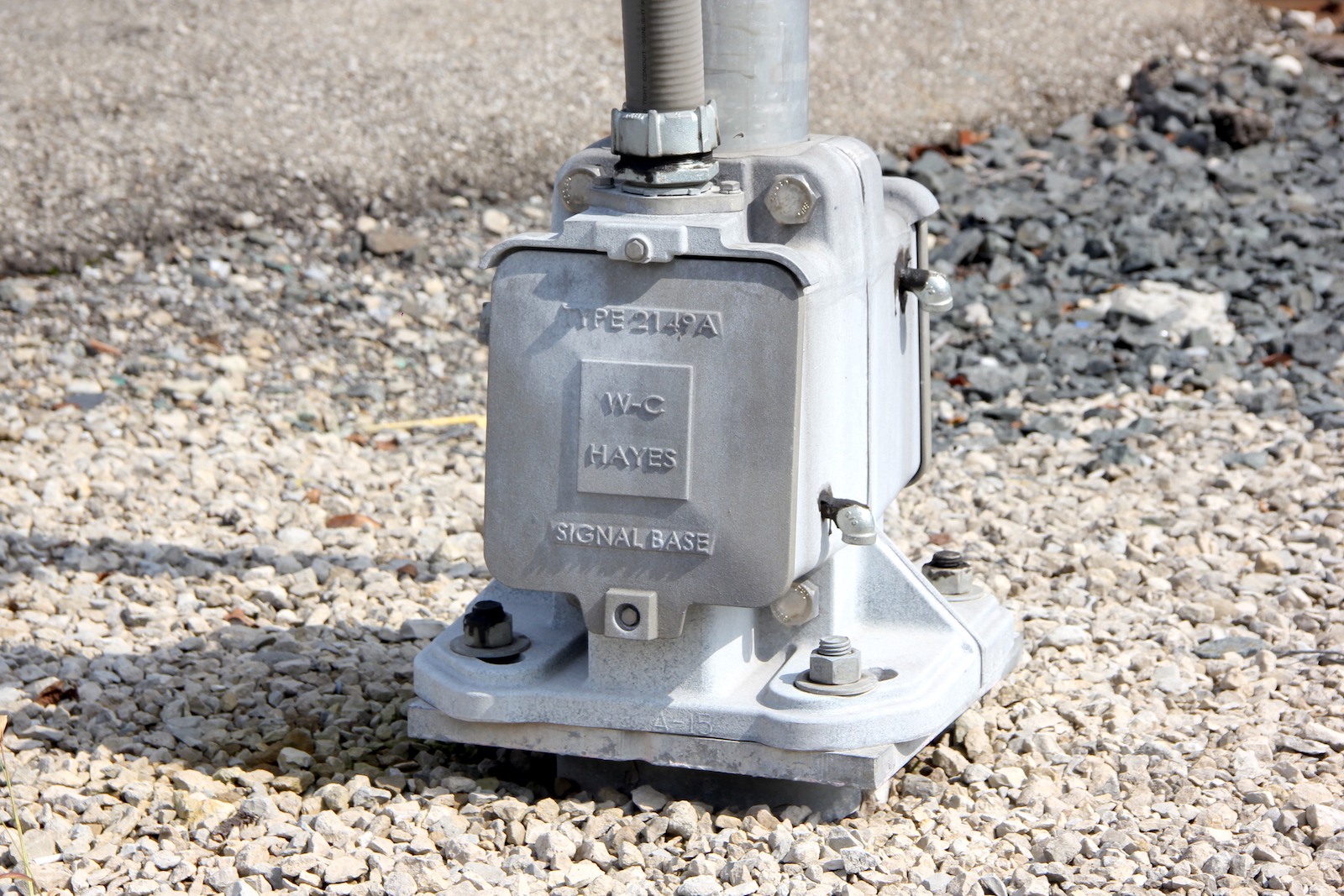

Base: WCH 5" Double Sided ^ Safetran 5" Double Sided ^
Lights: 3 - 12"x24" WCH w/ WCH/Miller 2nd Gen. LEDs
1 - 12"x24" WCH w/ Leotek EV Series LEDs
 4 - 12"x20" Safetran incandescents
Junction Box: WCH w/ Bell Extension Safetran
Gate Lights: 3 - RECO 4" LEDs
 3 - RECO 4" LEDs

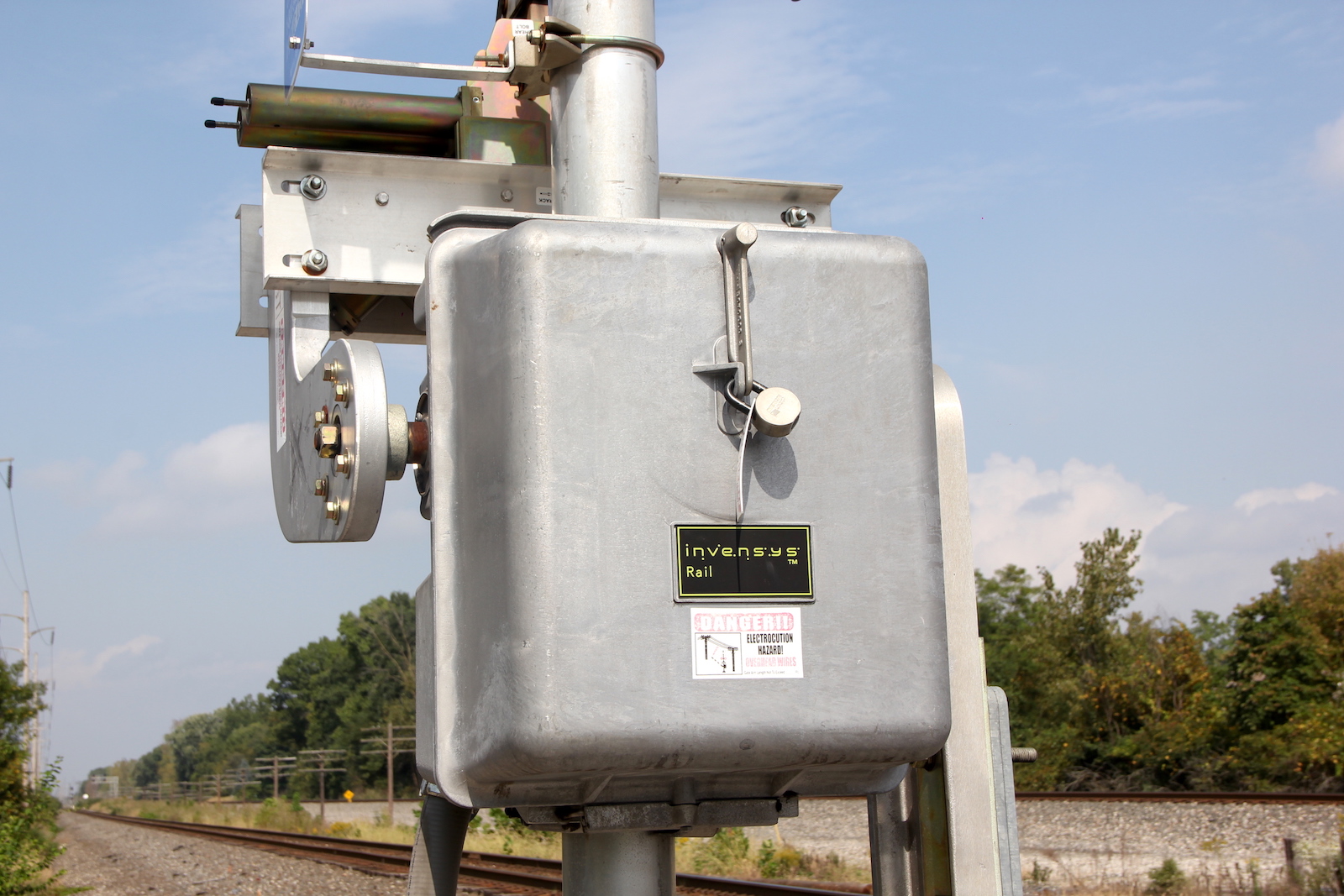

Gate Mechanism: Invensys Rail w/ Old NEG 2 Way Saver Invensys Rail w/ NEG 1 Way Saver
Gate Striping: Vertical Striping Vertical Striping

Pictures 1-30 were taken on October 3, 2018, by Tommy McGowan.
Pictures 31-35 were taken on October 1, 2025, by Nicholas Miles/Northwestern Ohio Rail Productions.
This crossing is located on the NS Sandusky District and CSX Columbus Line which parallel each other through this crossing.

O1 O2 O3
 O4
O5

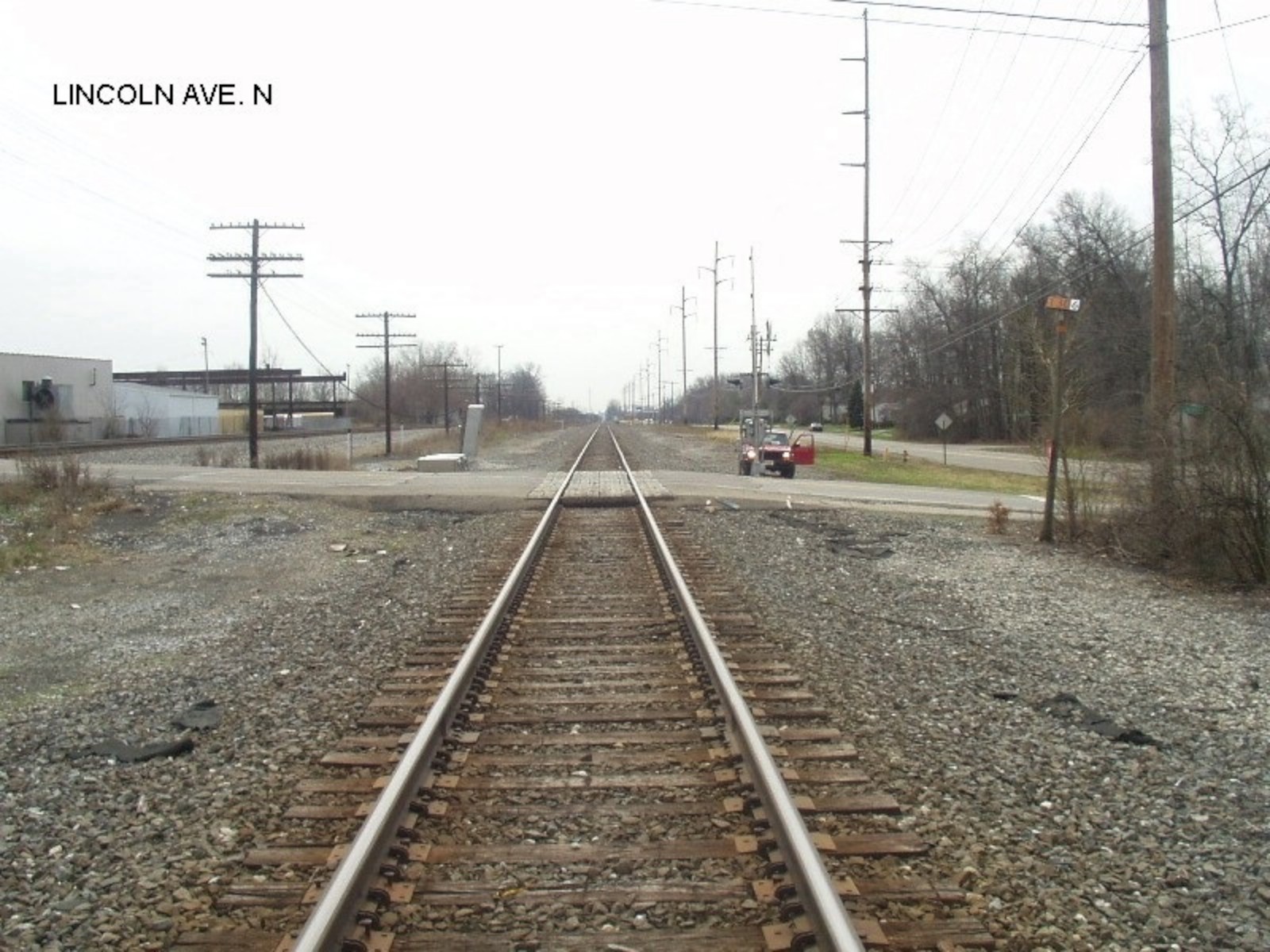

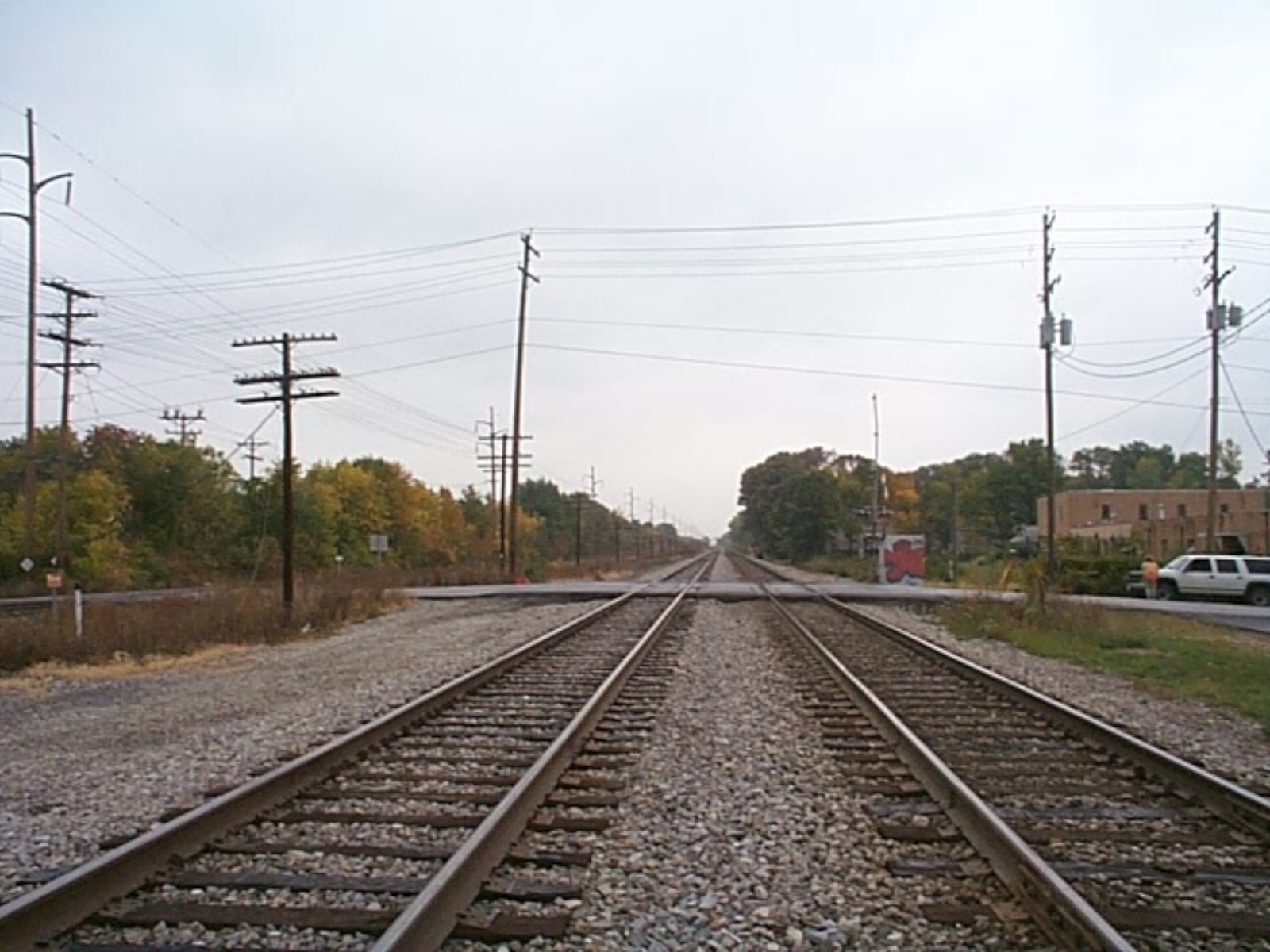

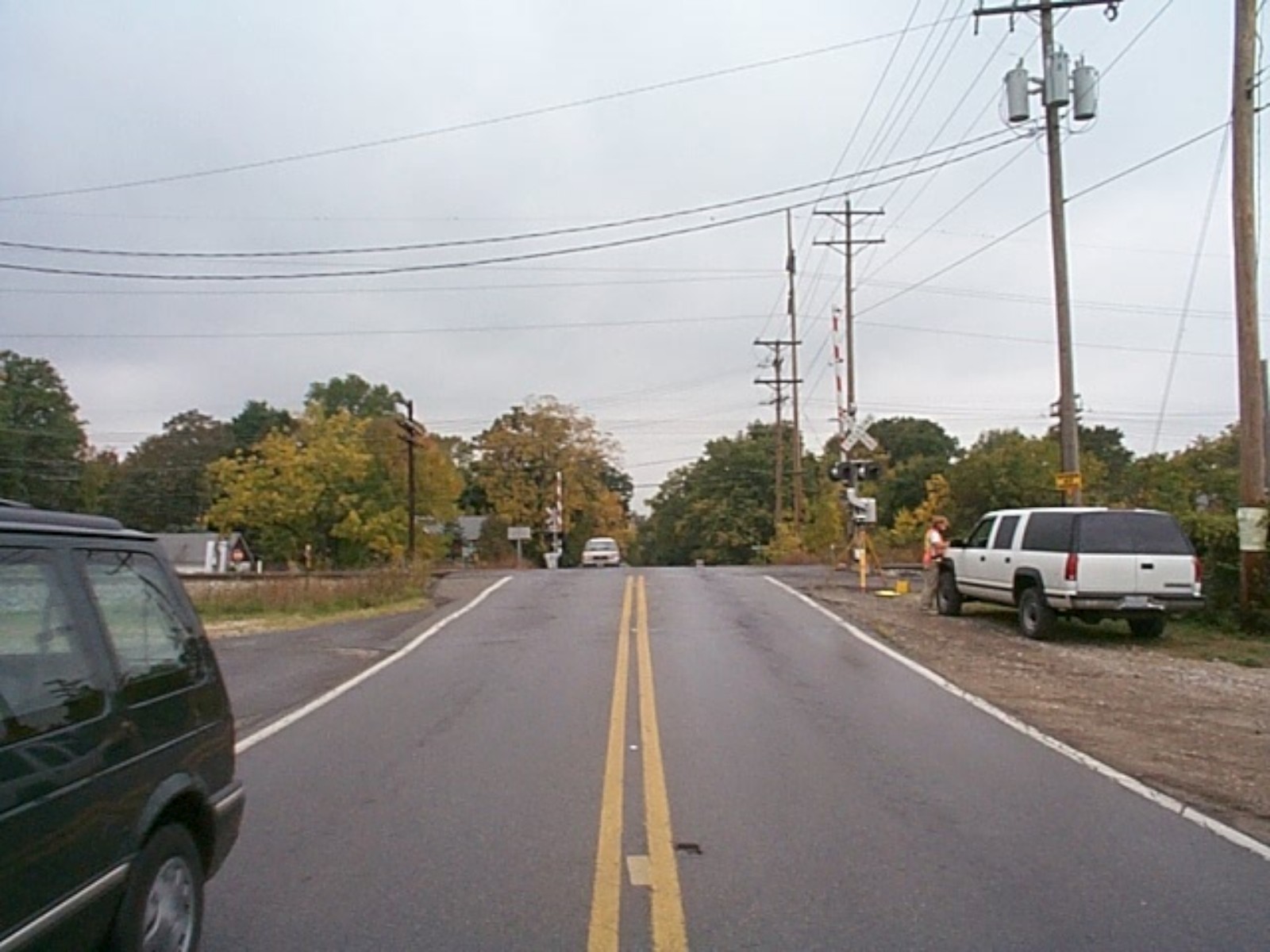

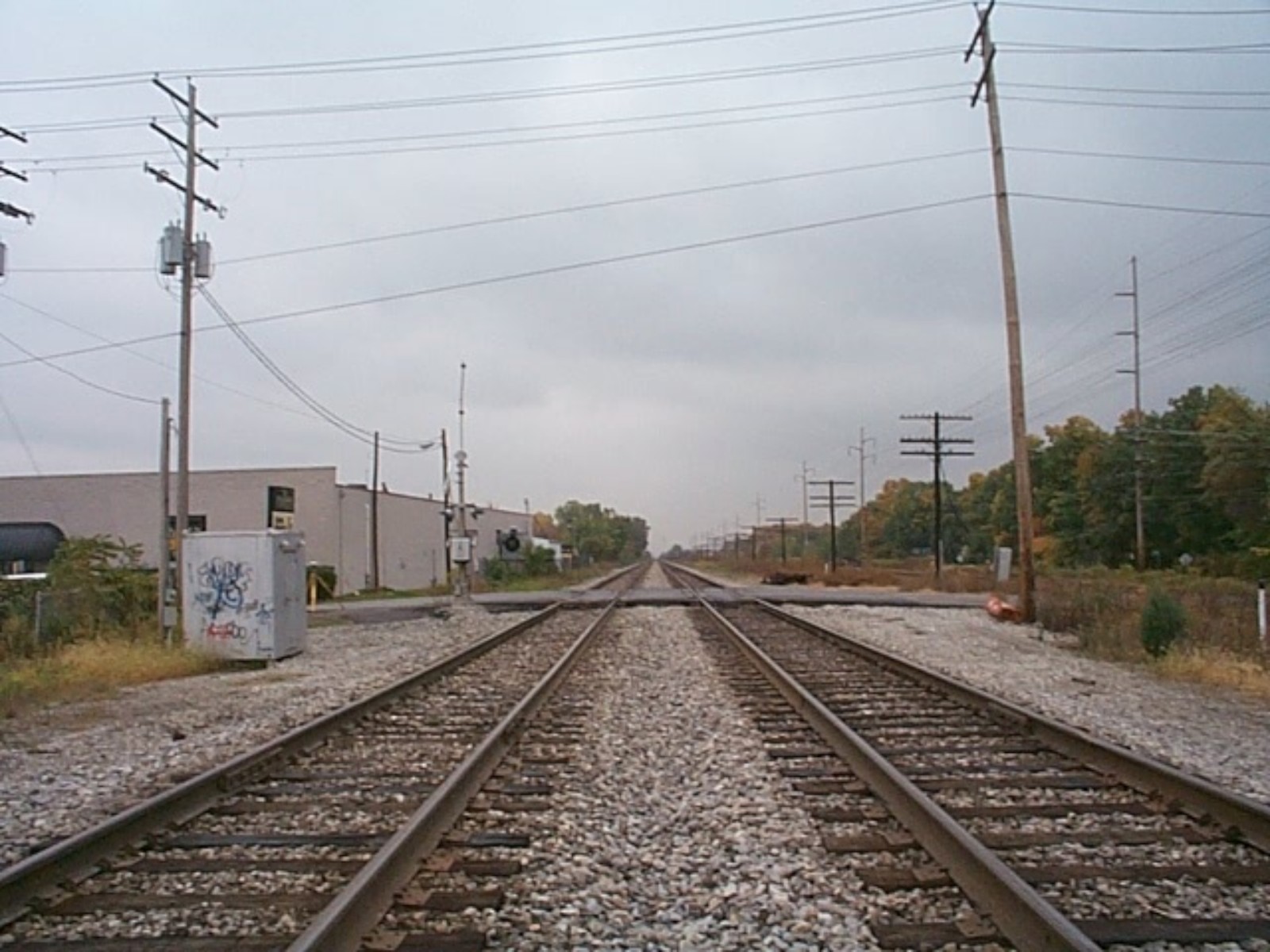

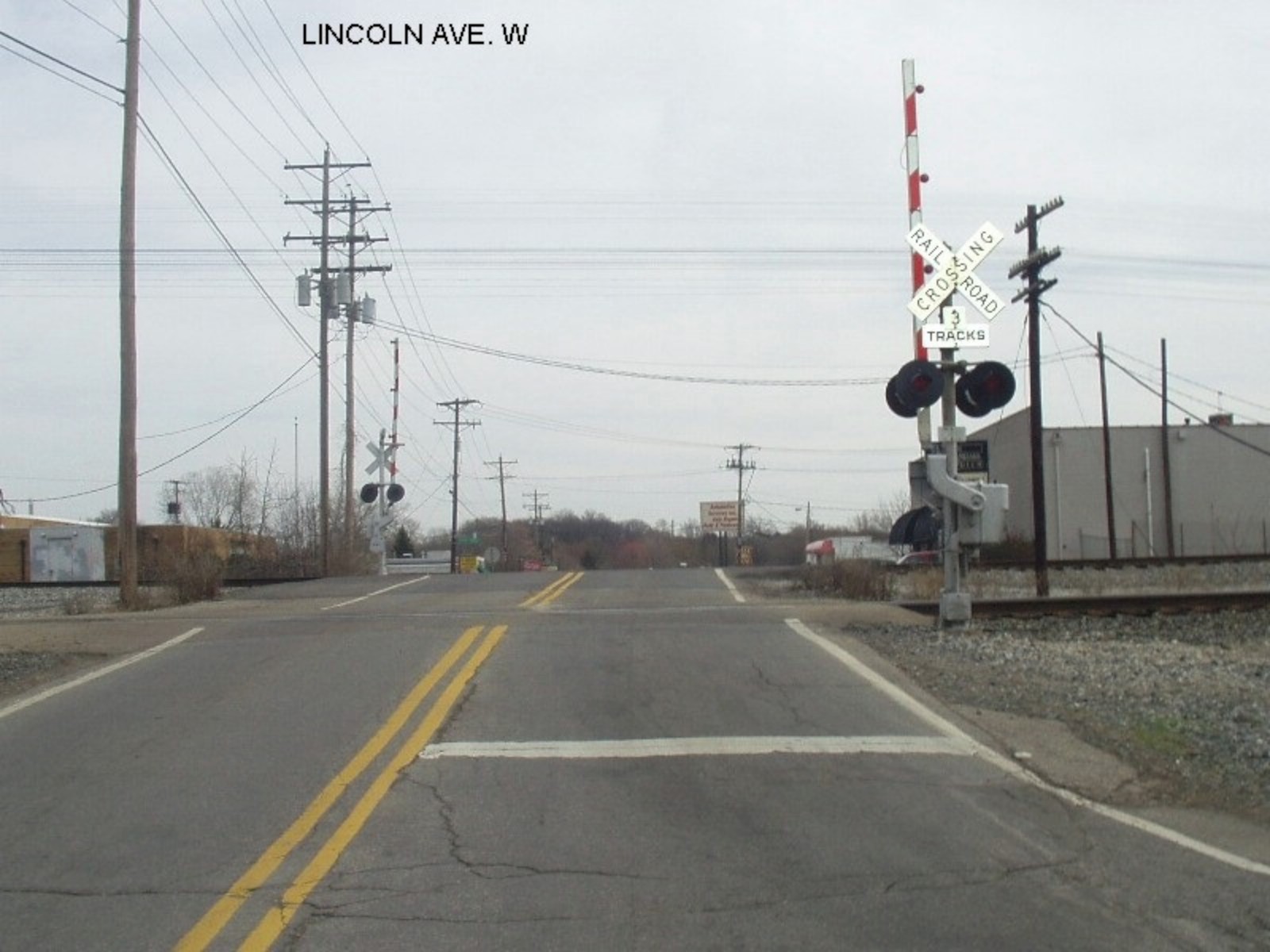

PUCO pictures from the late 90s and early 2000s shows one of those setups where one signal is maintained by one railroad and the other vice versa. The western signal was an NYC signal while the eastern signal might have been either an N&W or PRR signal. NS replaced their signal in the 2000s while the gate mechanism on the NYC signal was replaced with a Safetran one. By 2014, new signals were installed.
1
 2

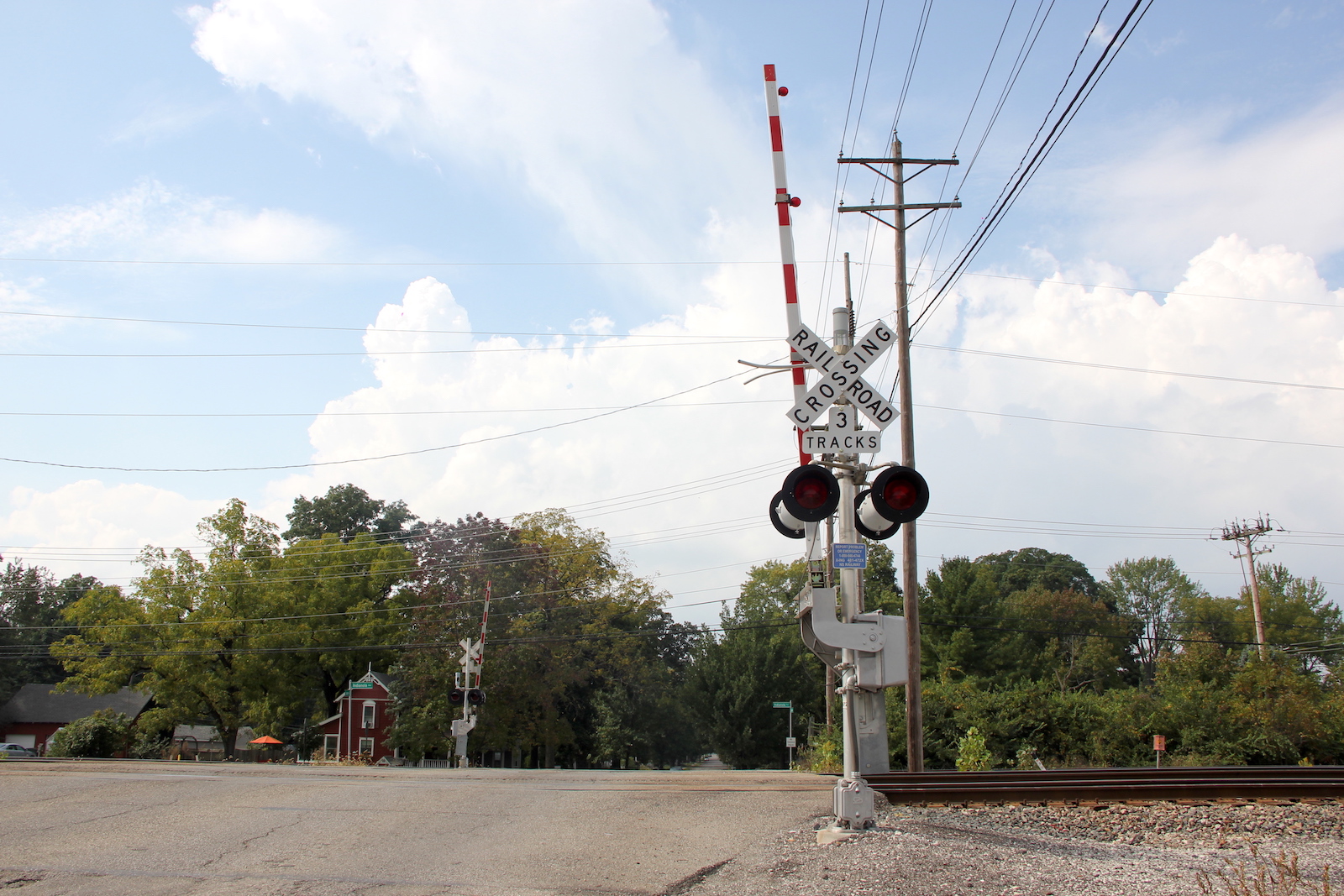

Overview of 2 different style gated signals facing west.

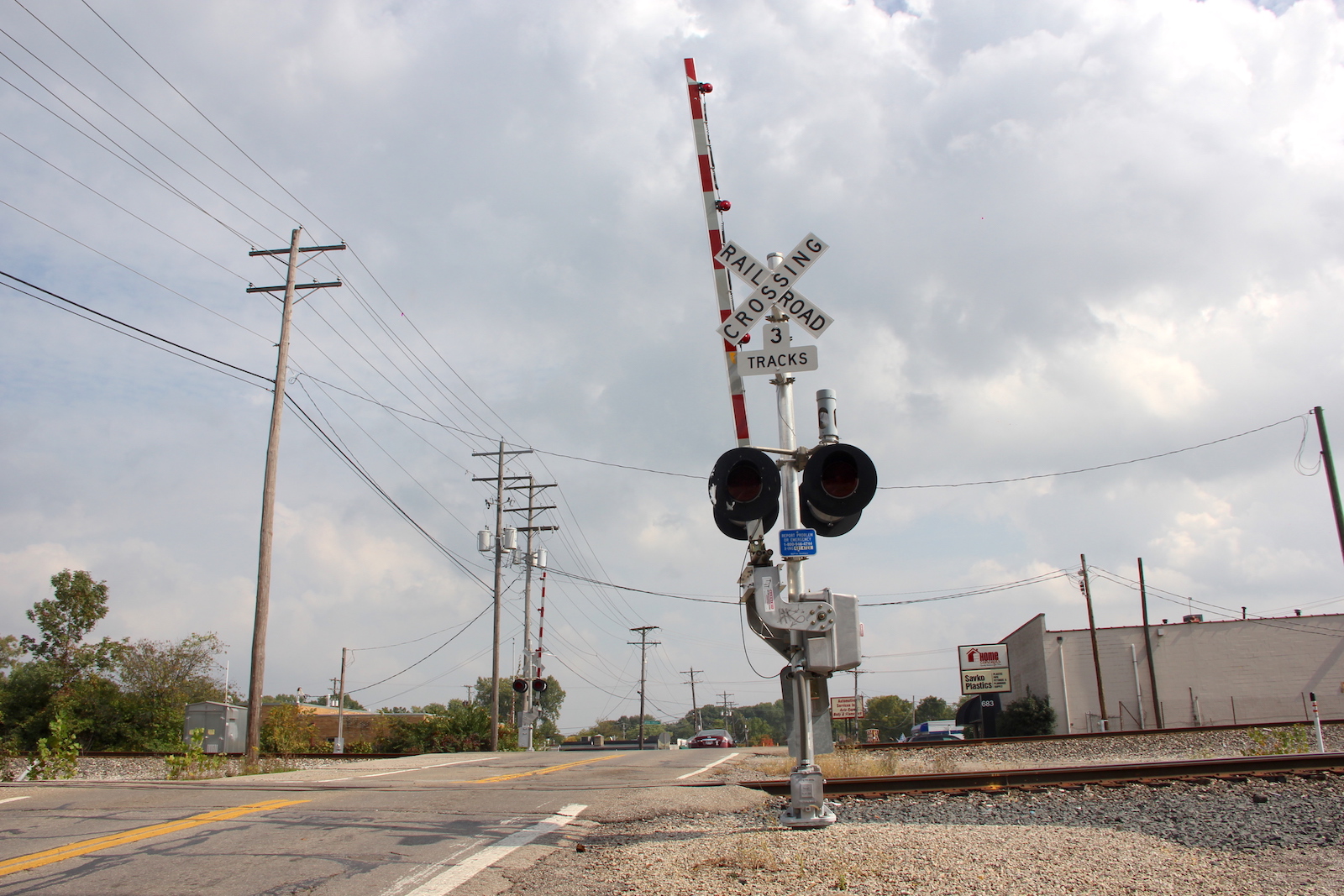

 Overview facing east.
3 4 5
6 7 8
9 10 11
 12

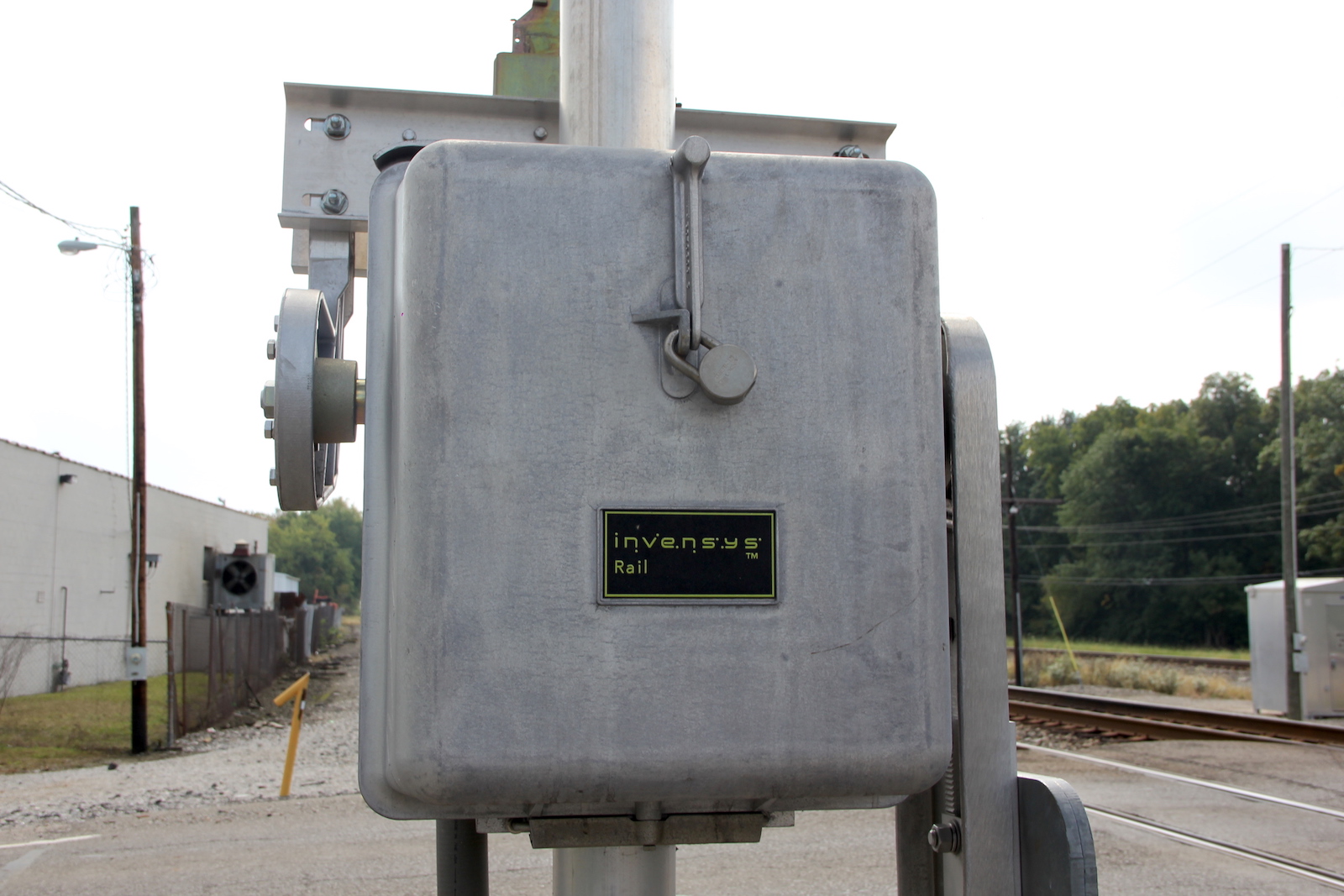

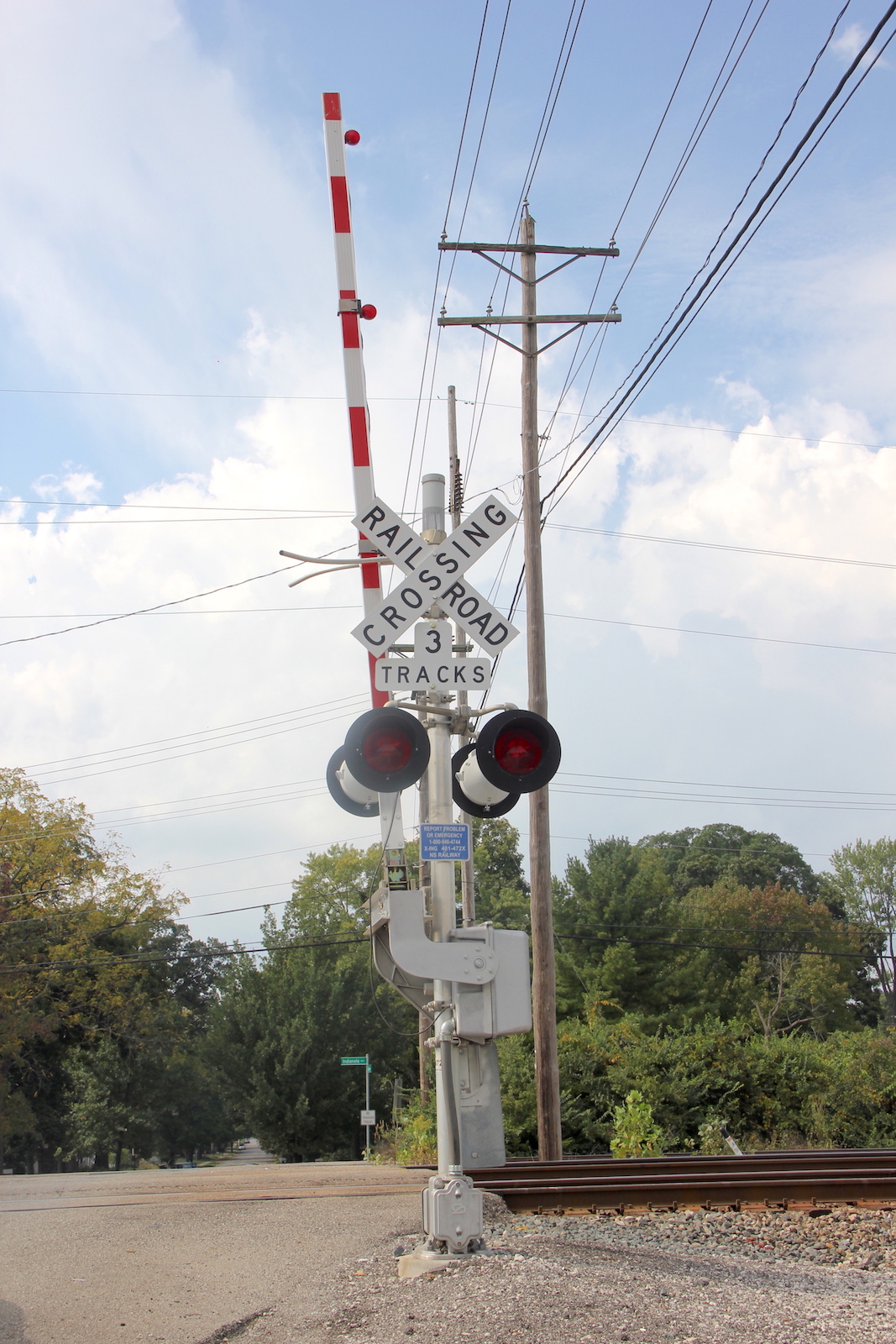

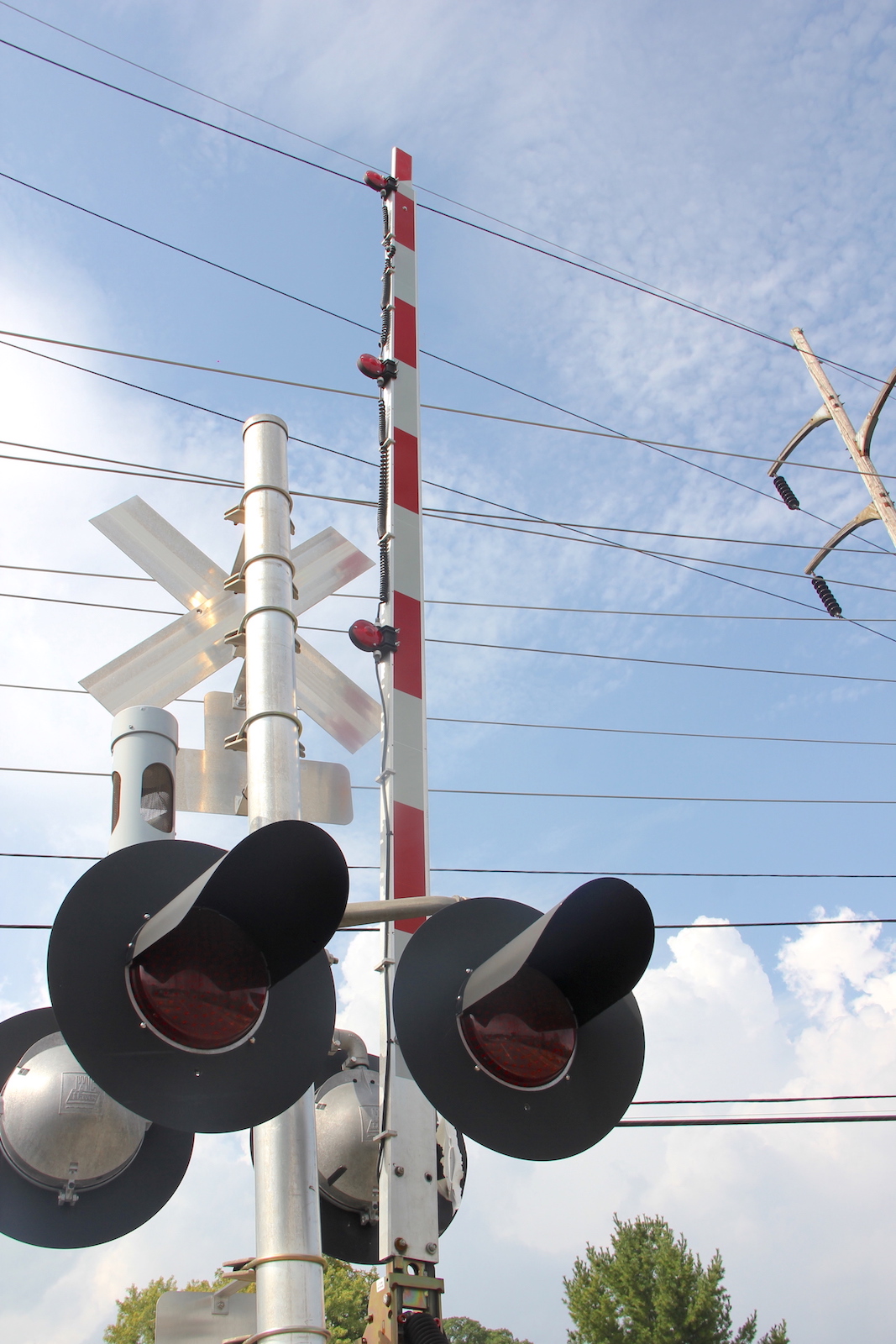

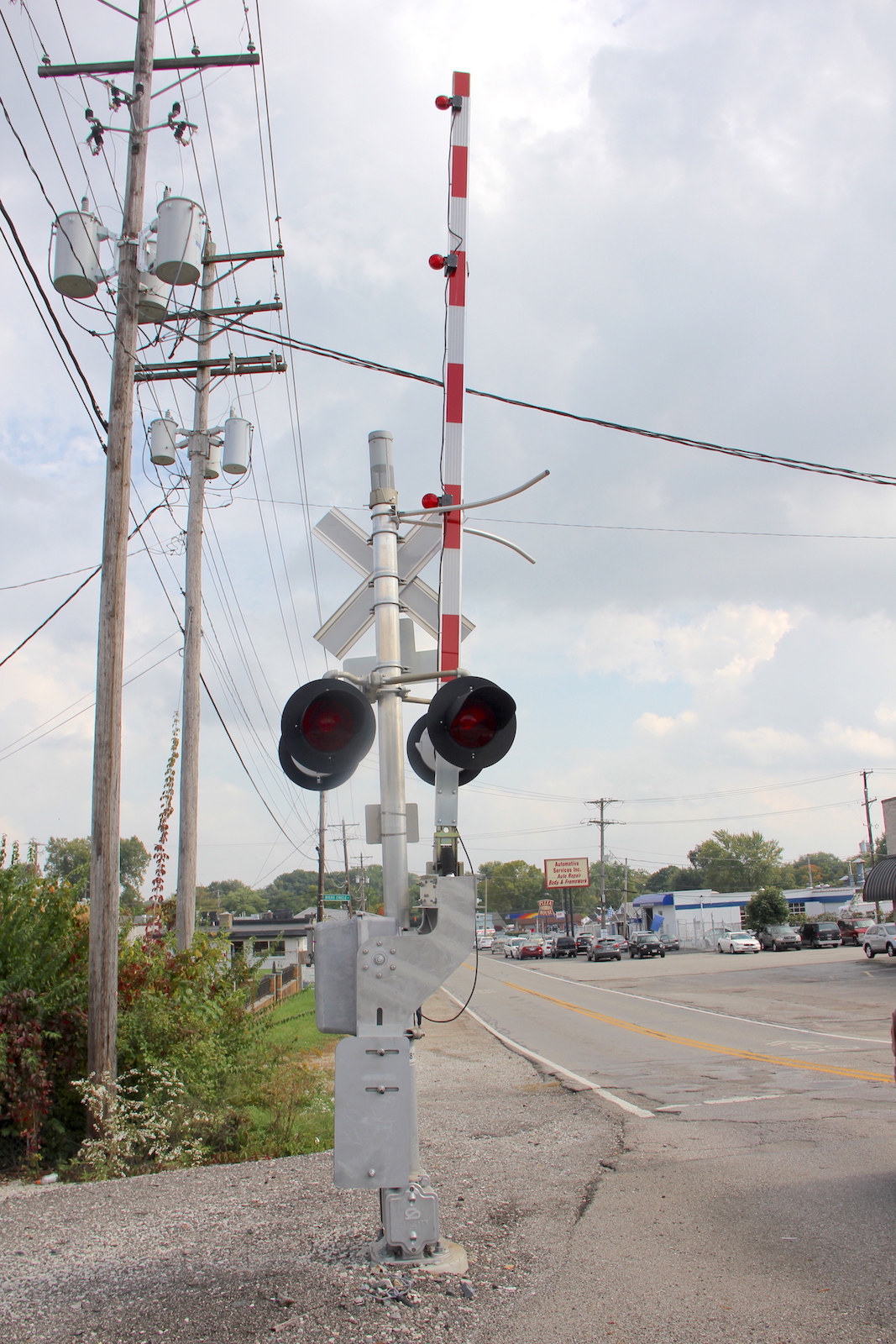

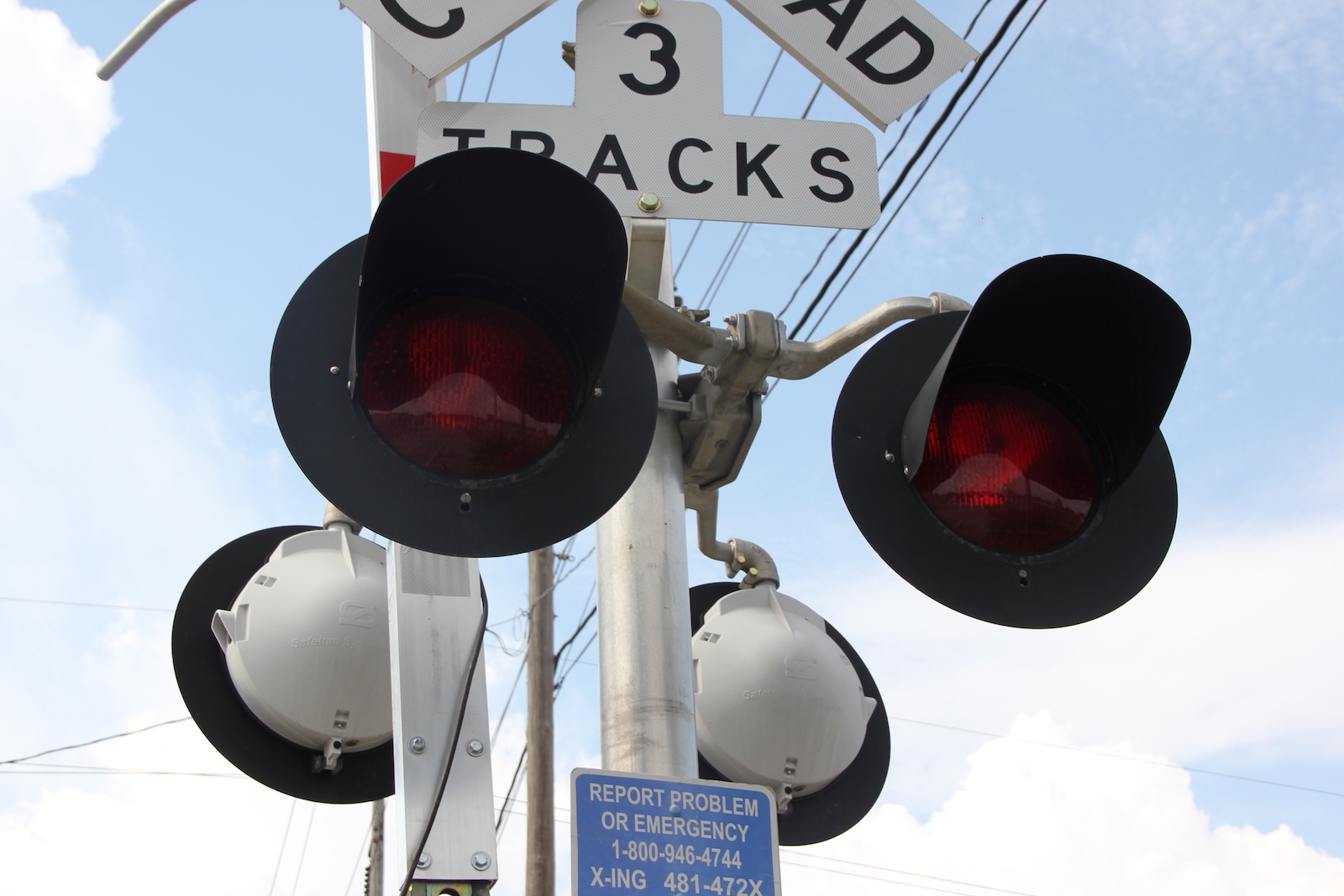

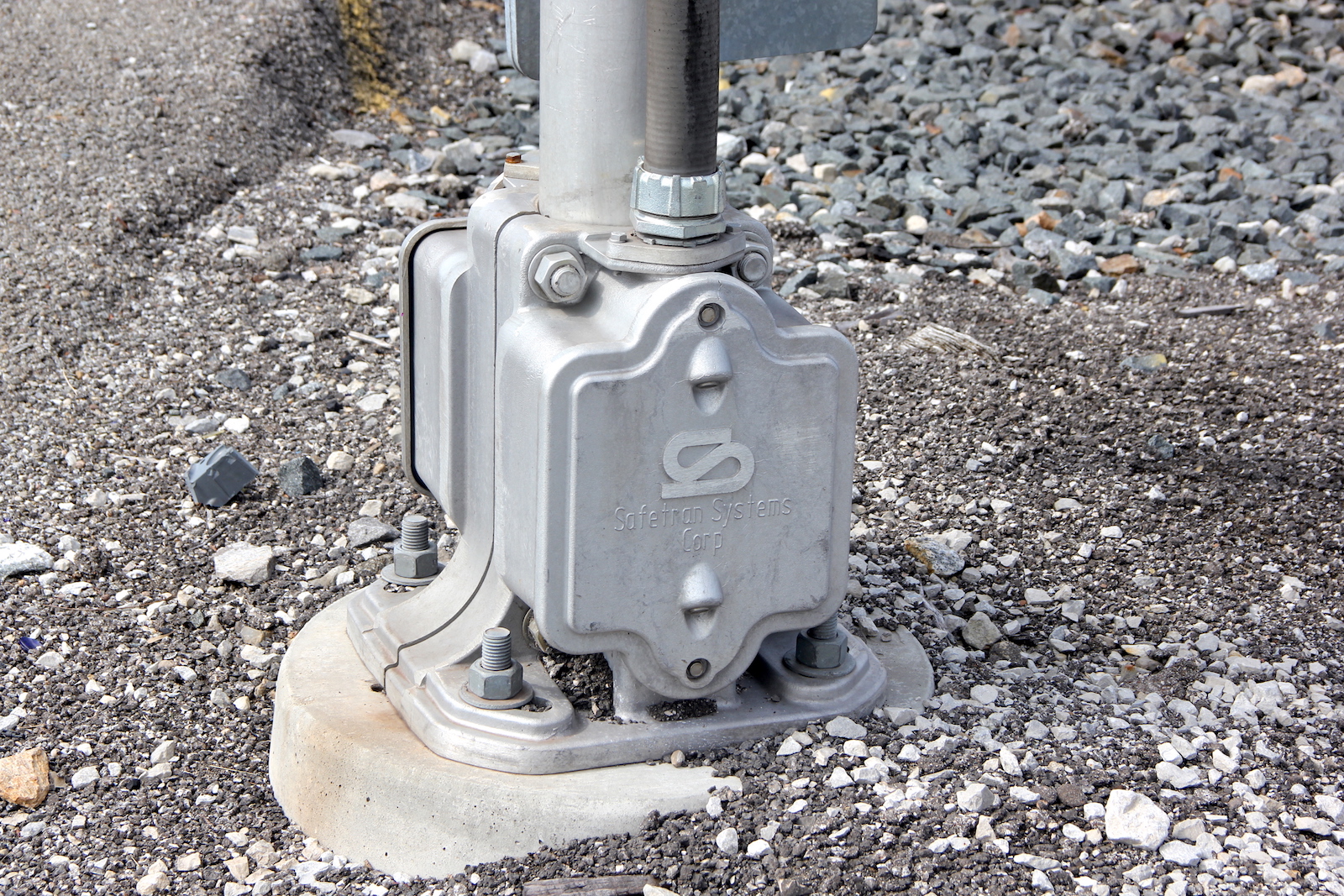

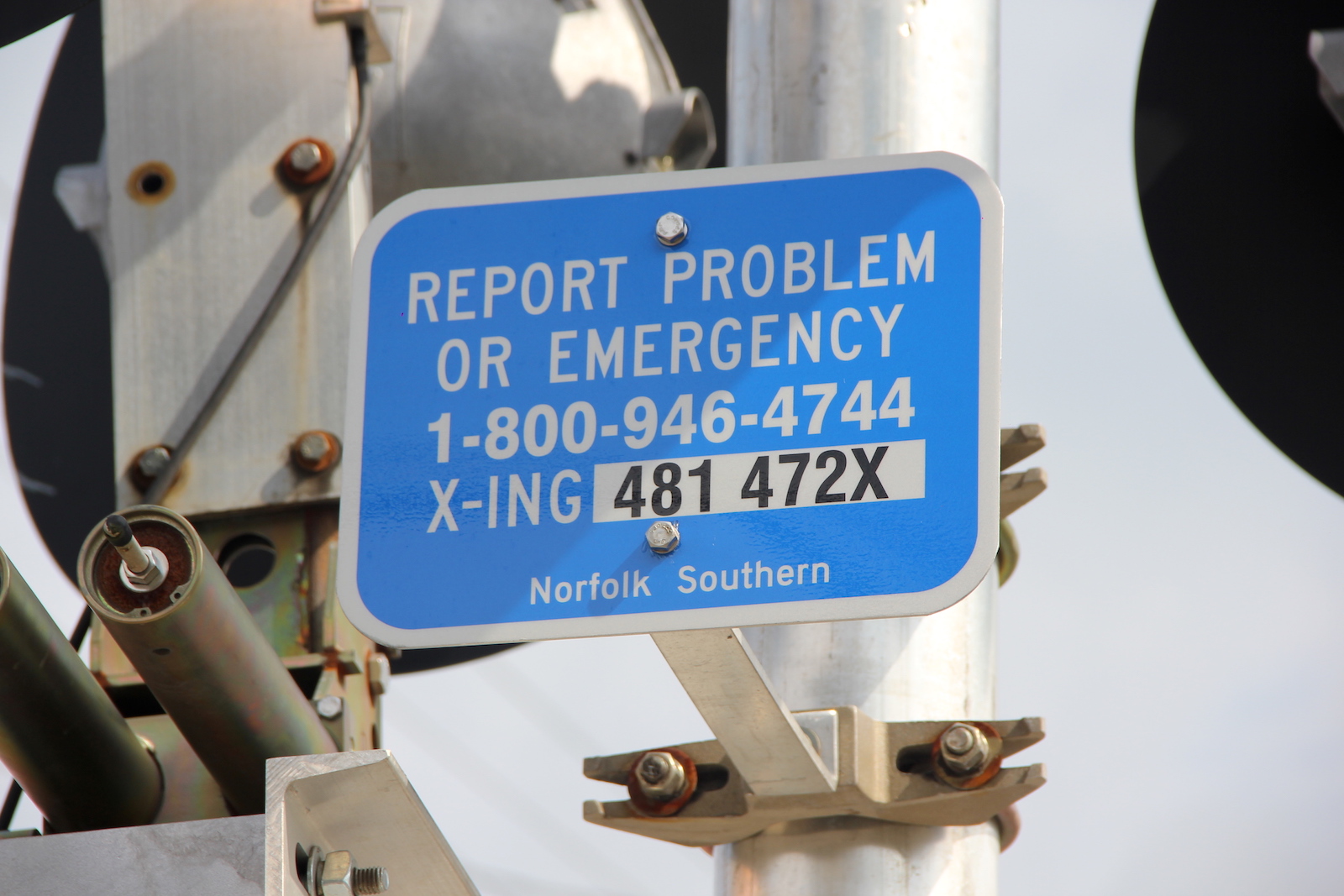

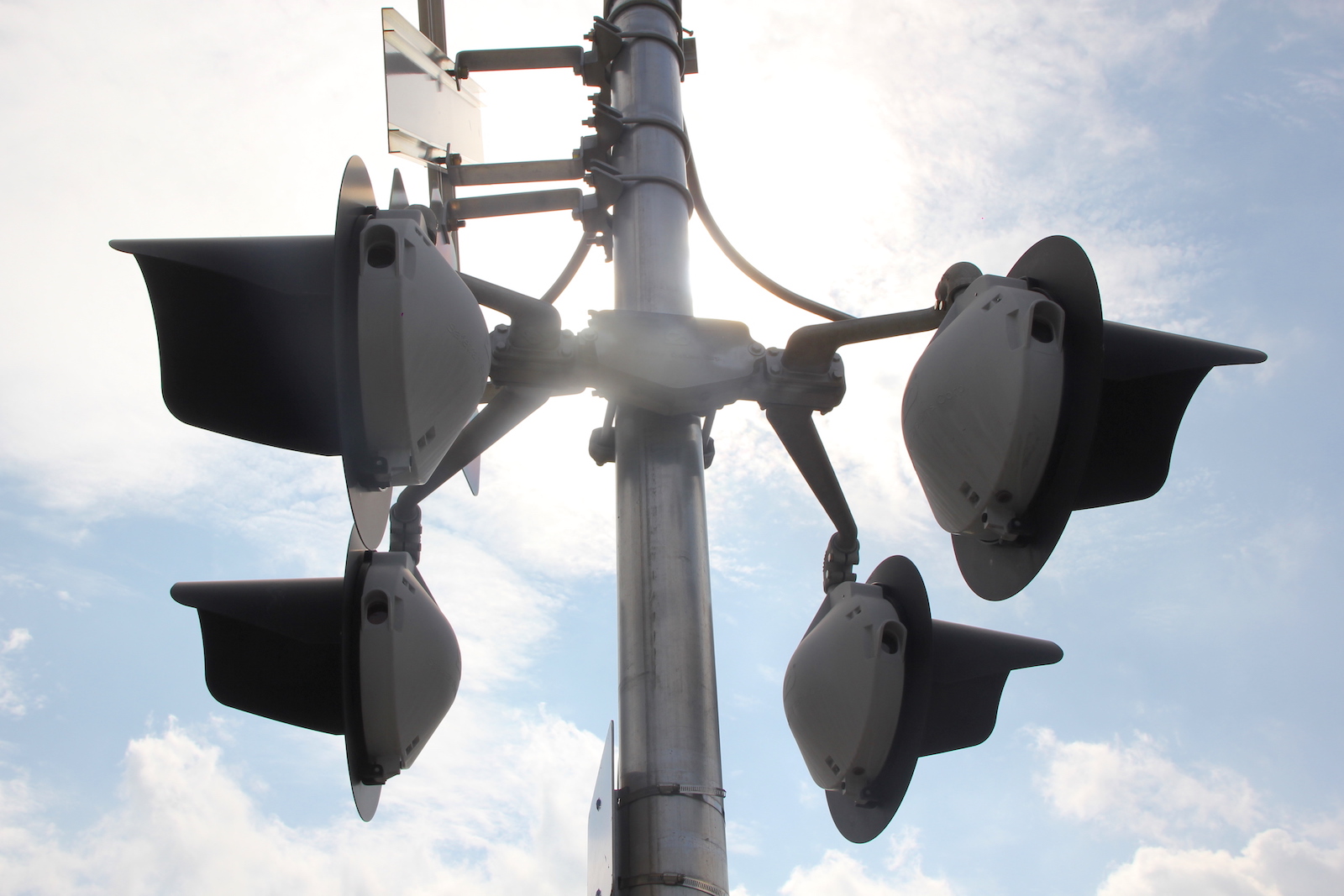

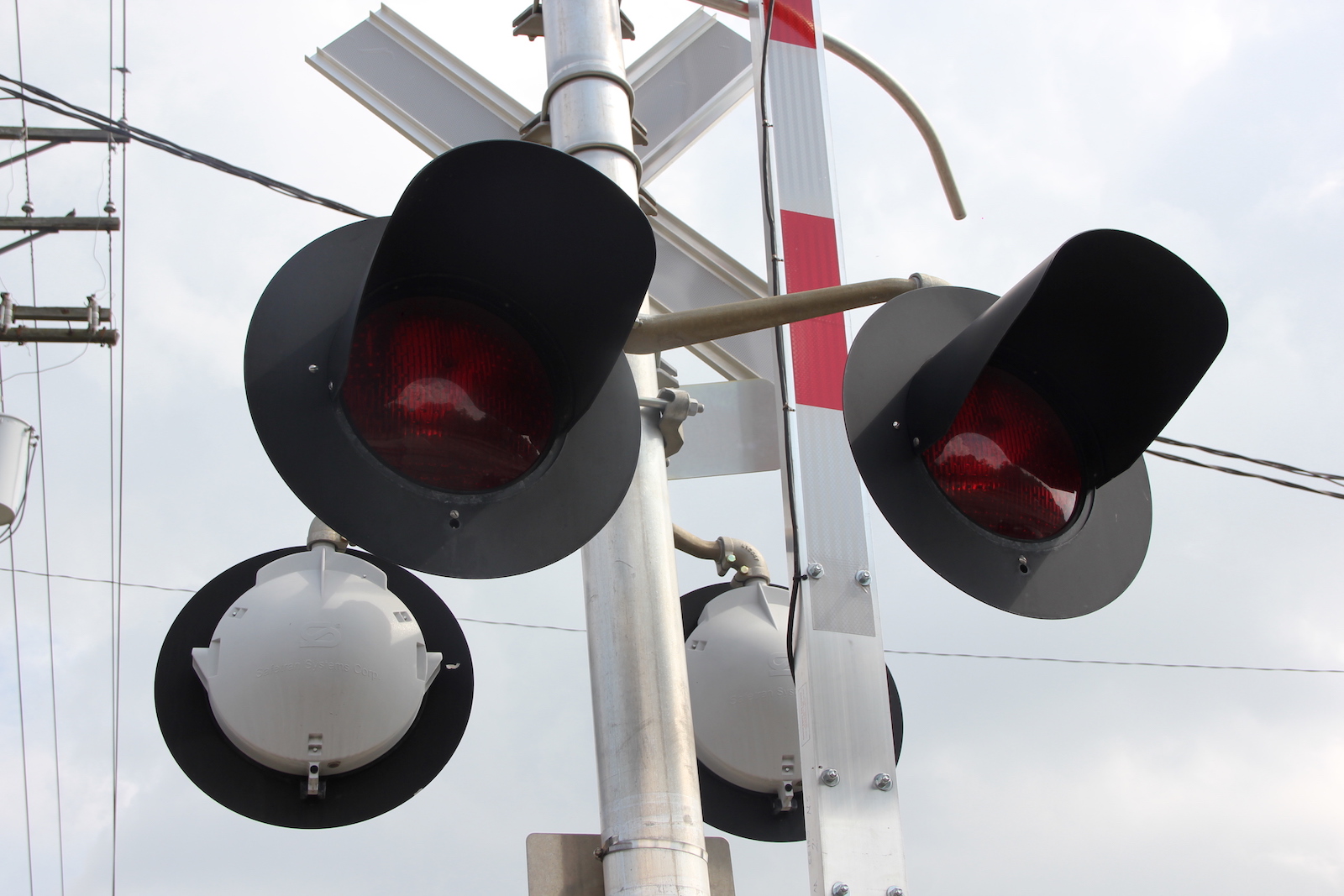

The eastern NS signal.
13 14 15
16 17 18
19 20 21
 22

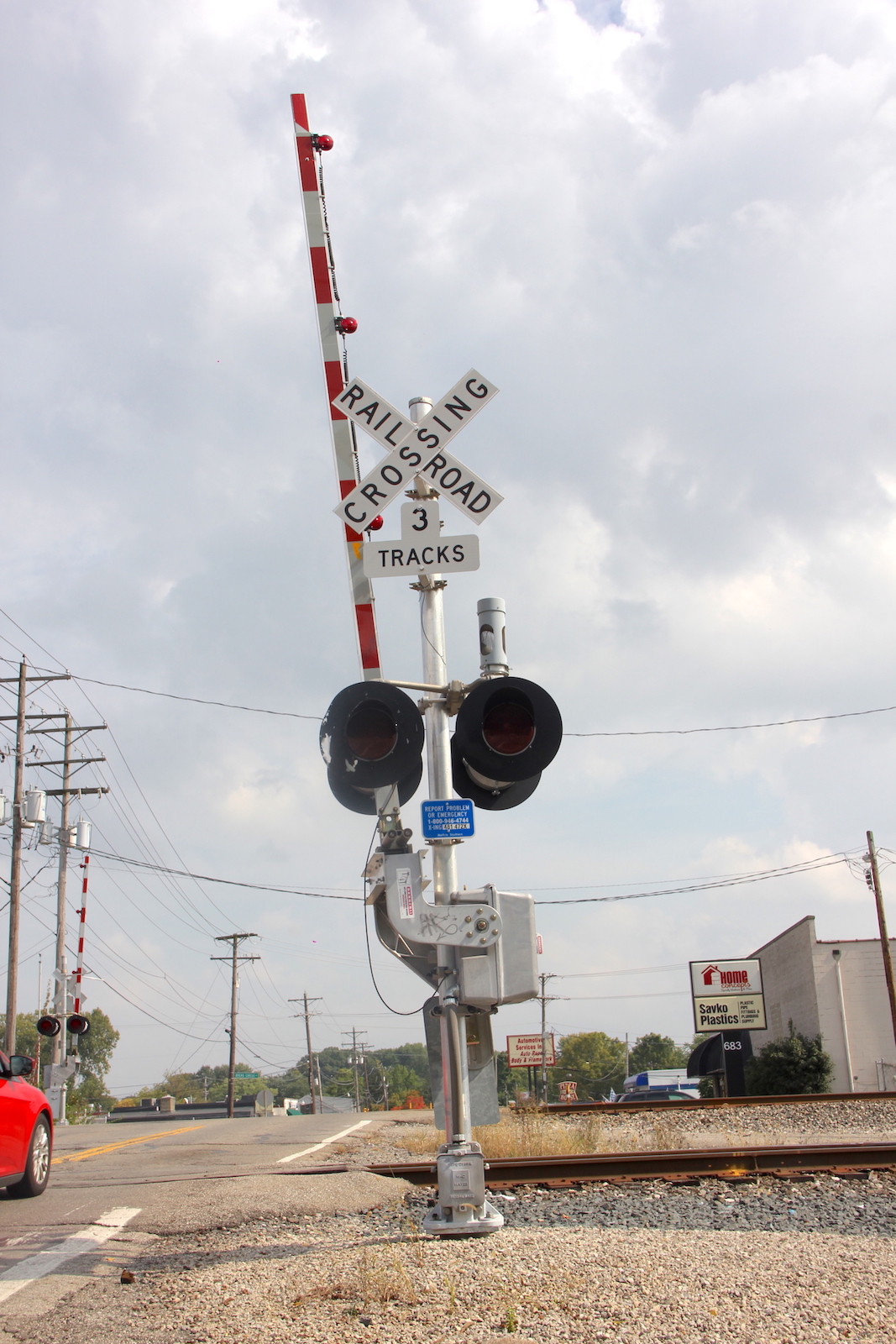

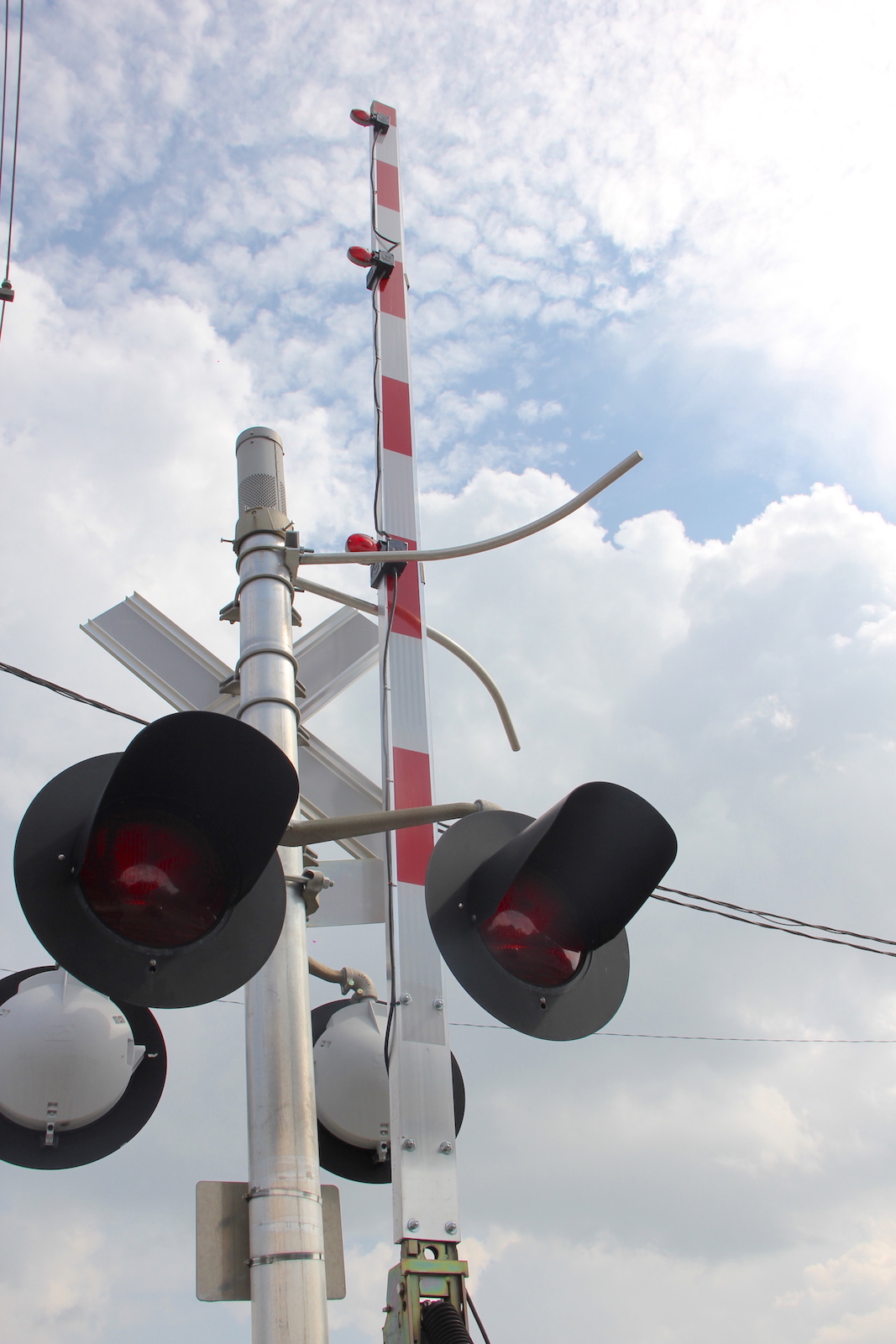

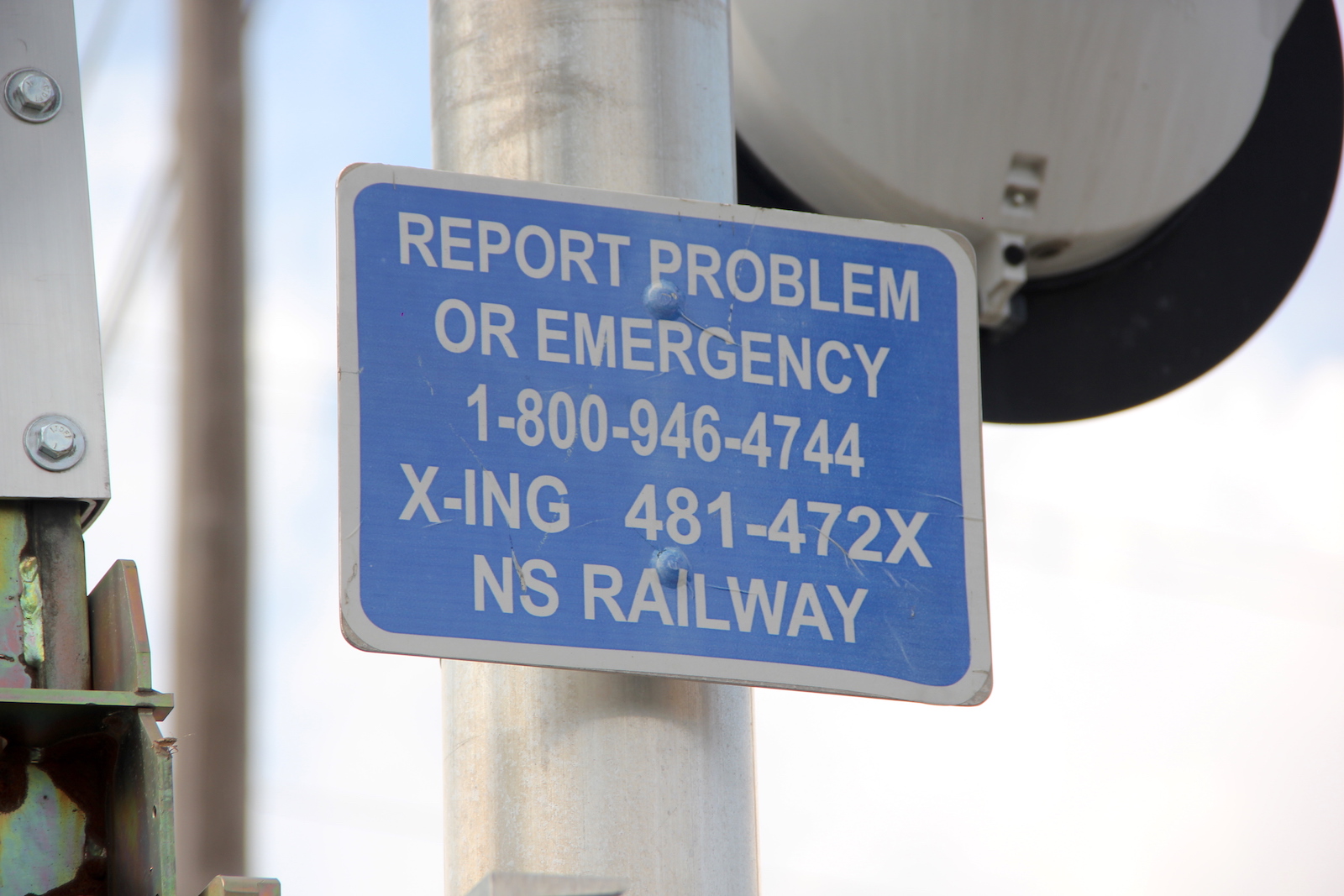

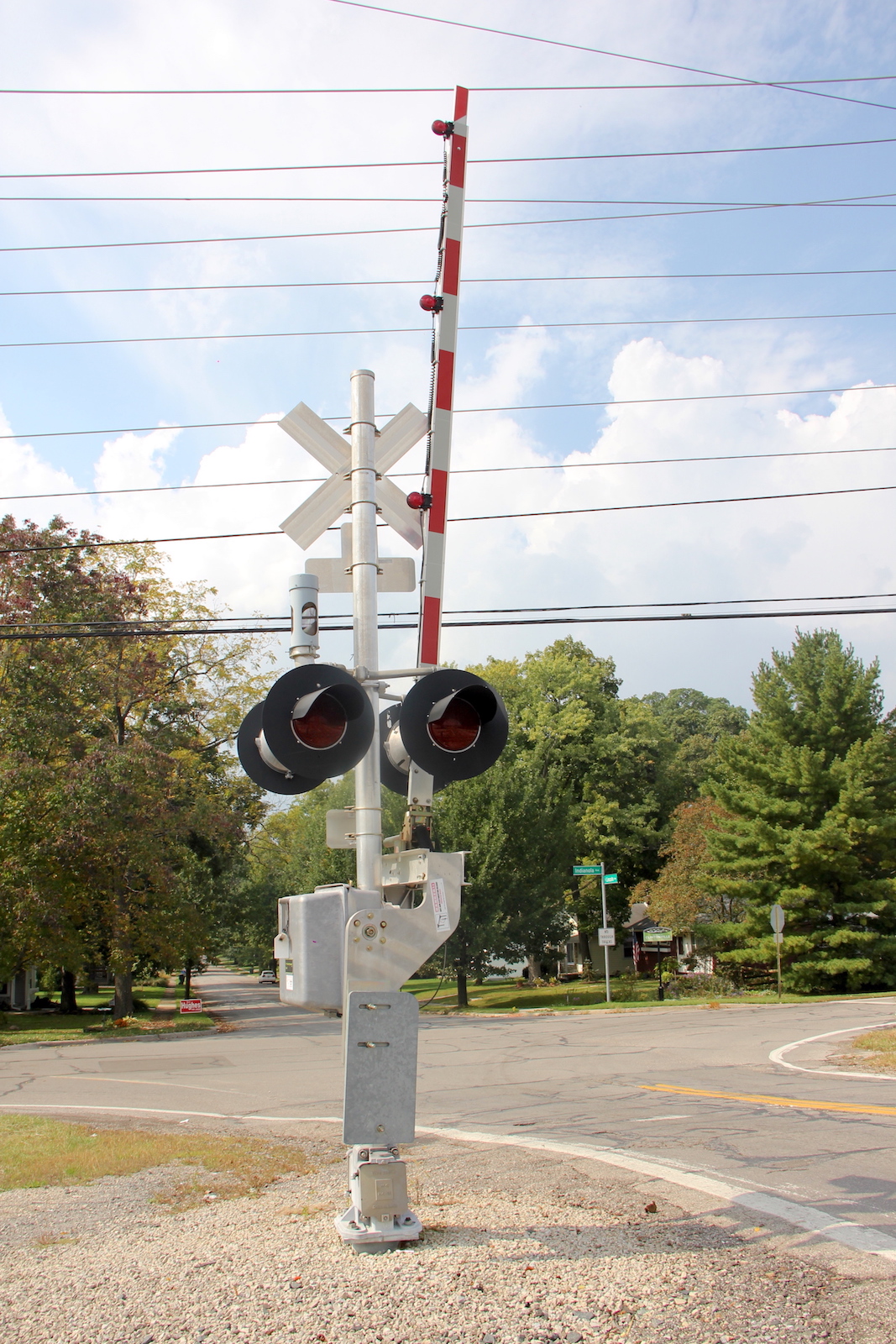

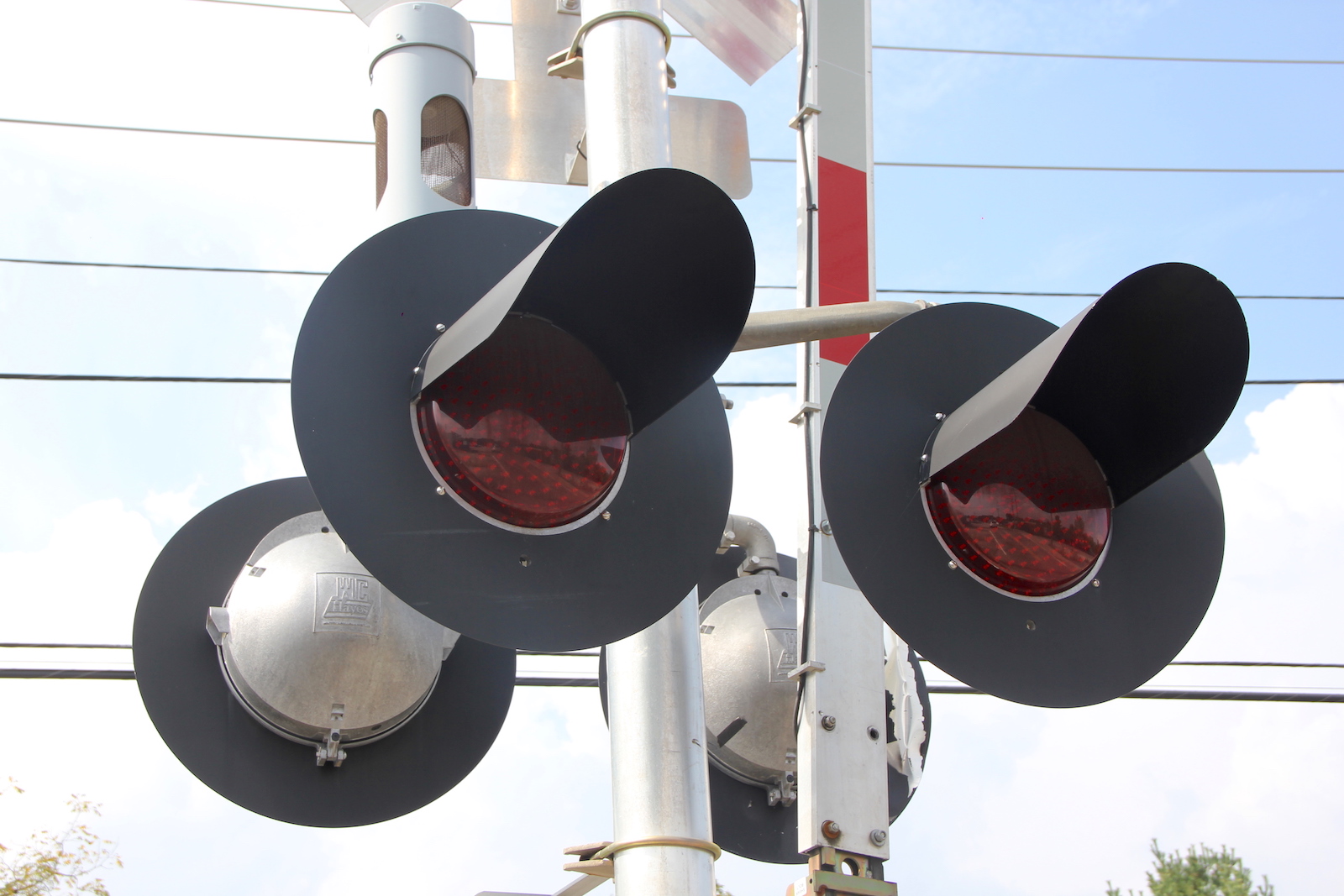

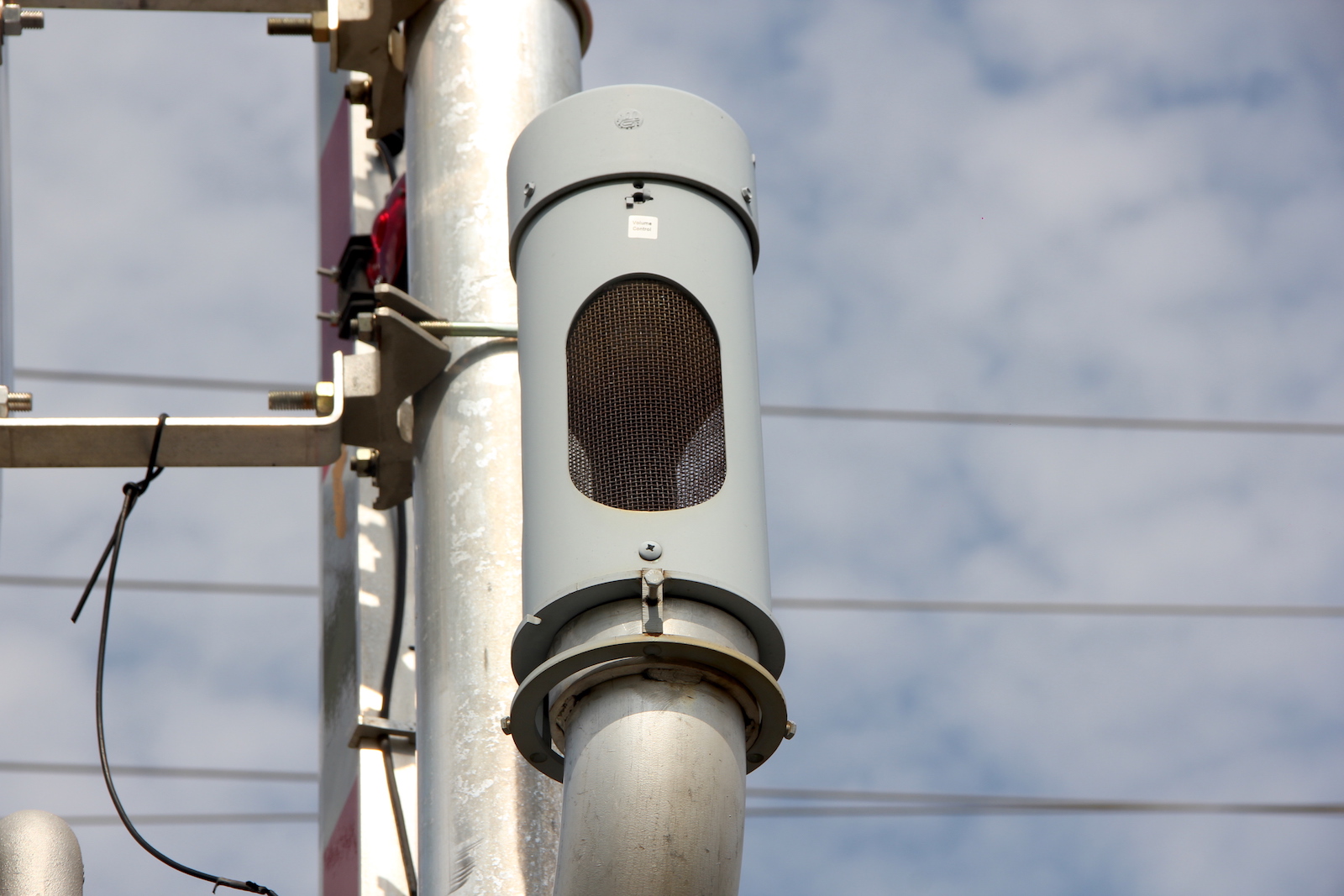

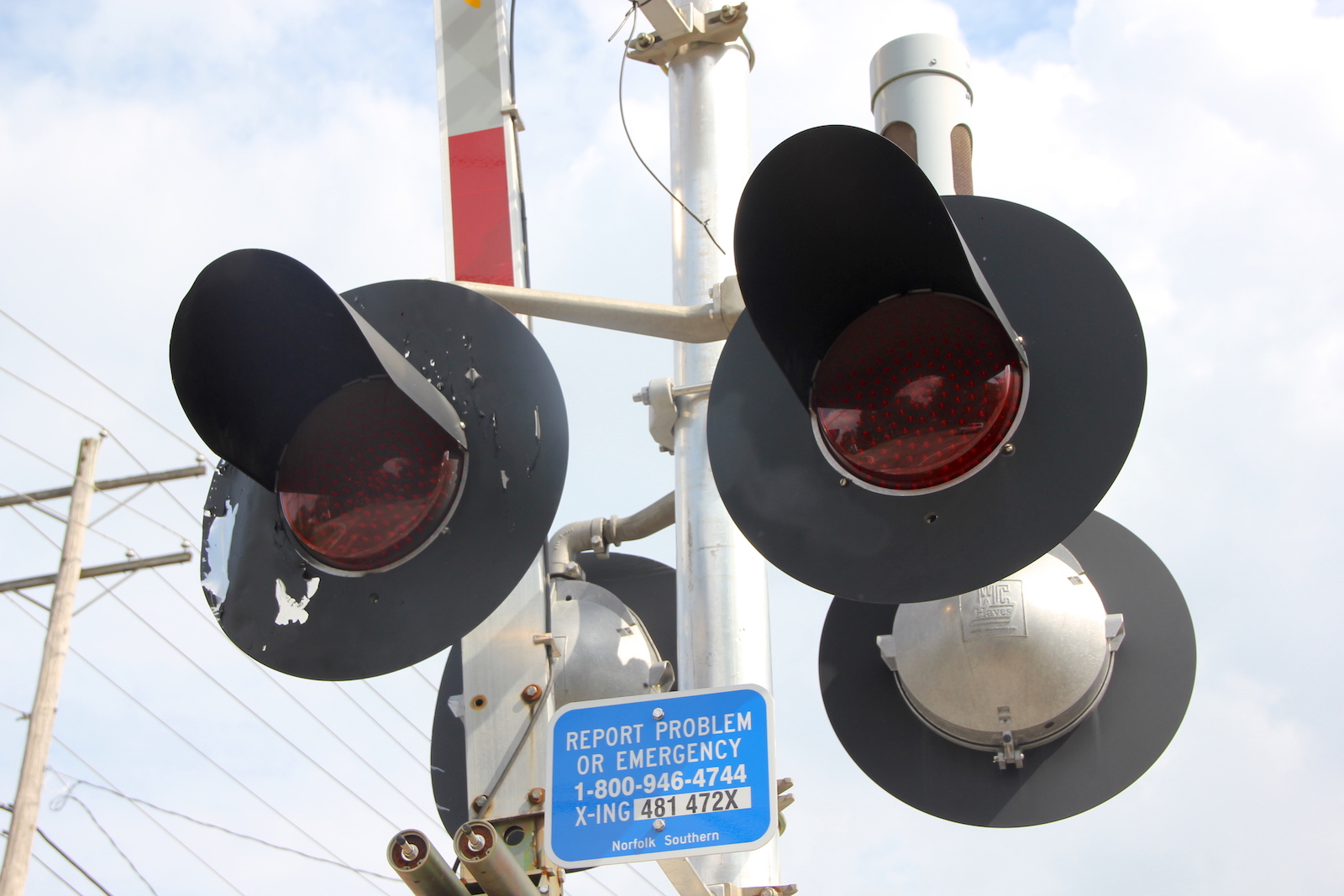

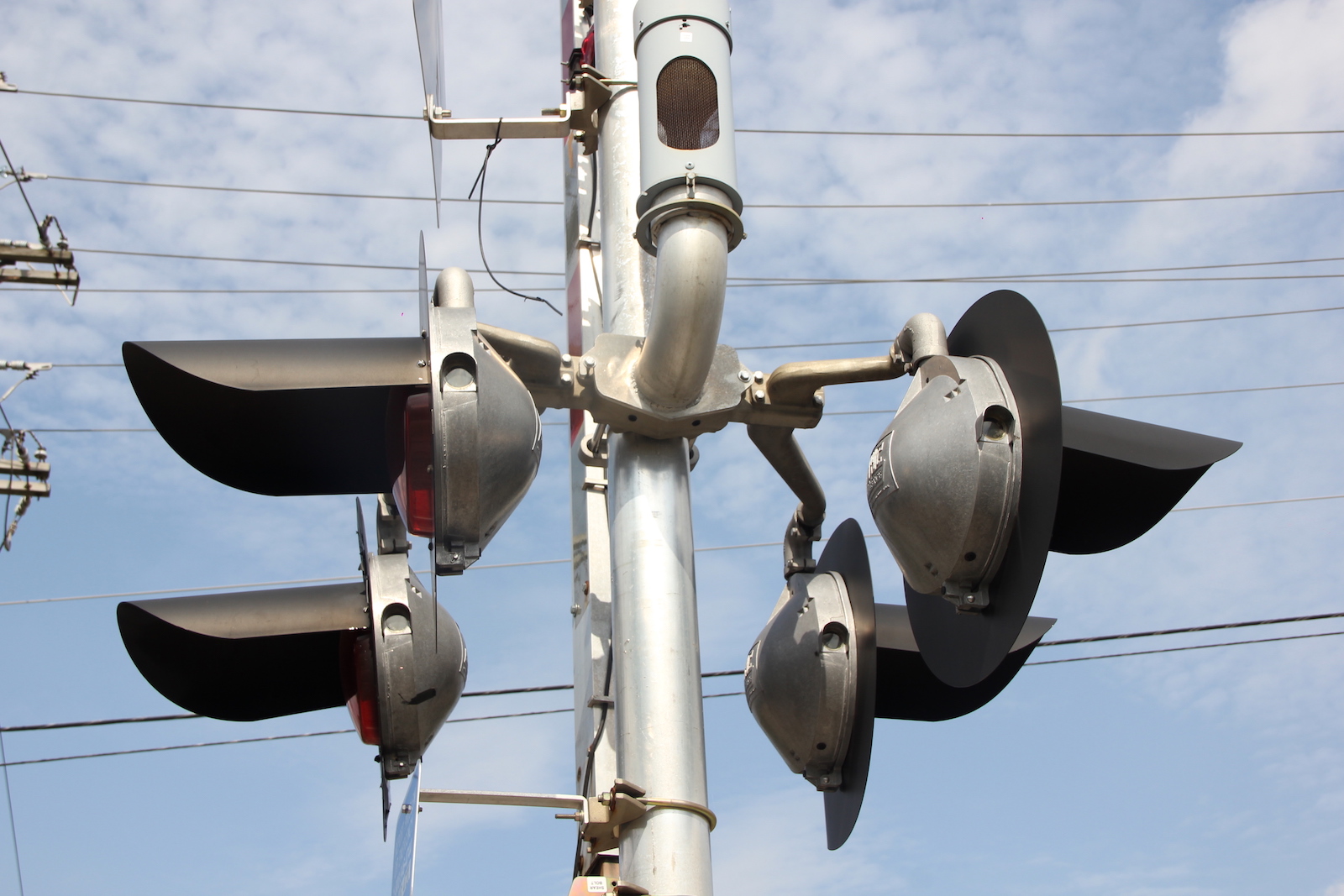

The western CSX signal.  For some reason, this has an NS DOT tag.
23 24 25 26

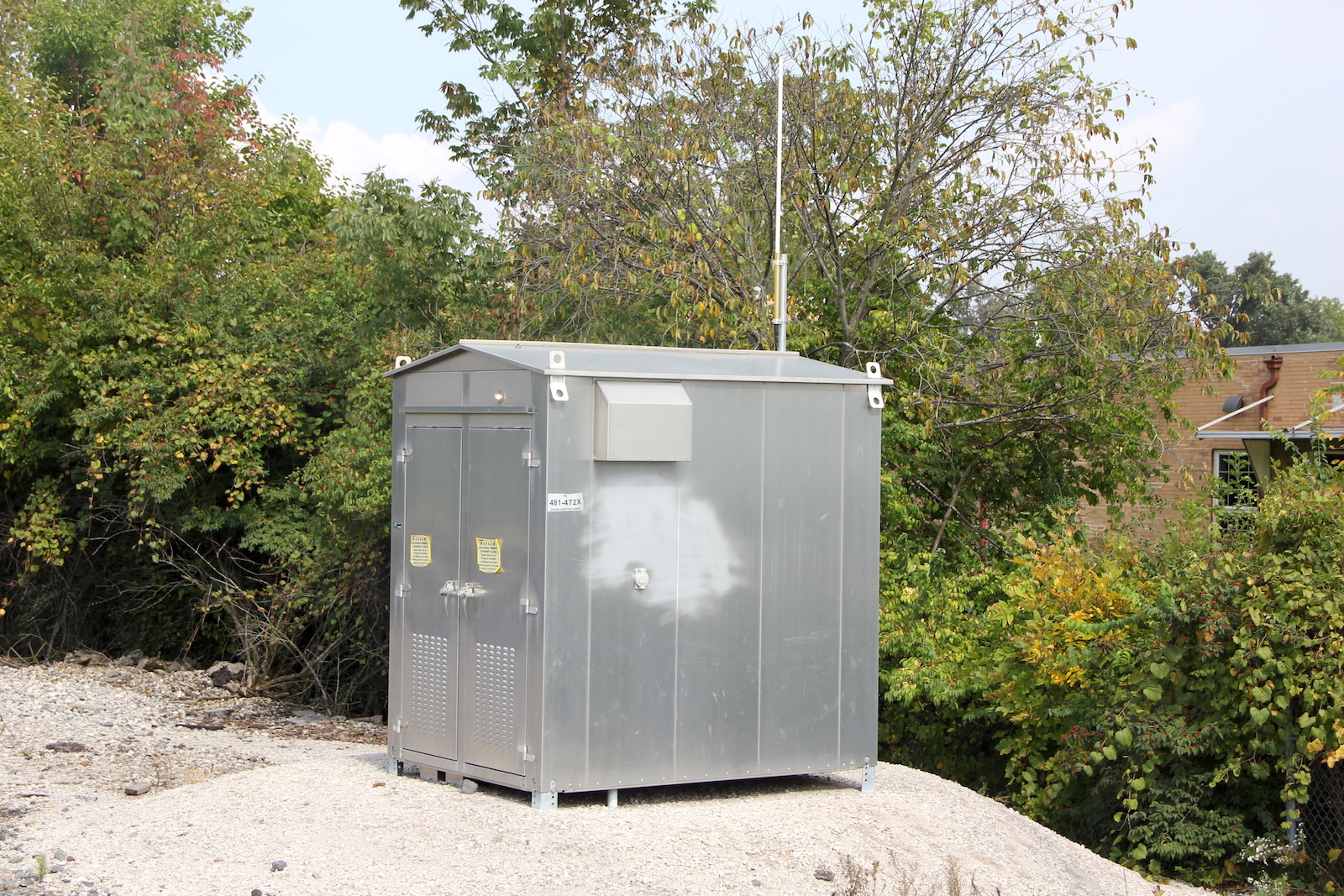

The NS relay bungalow in the northeast quadrant.

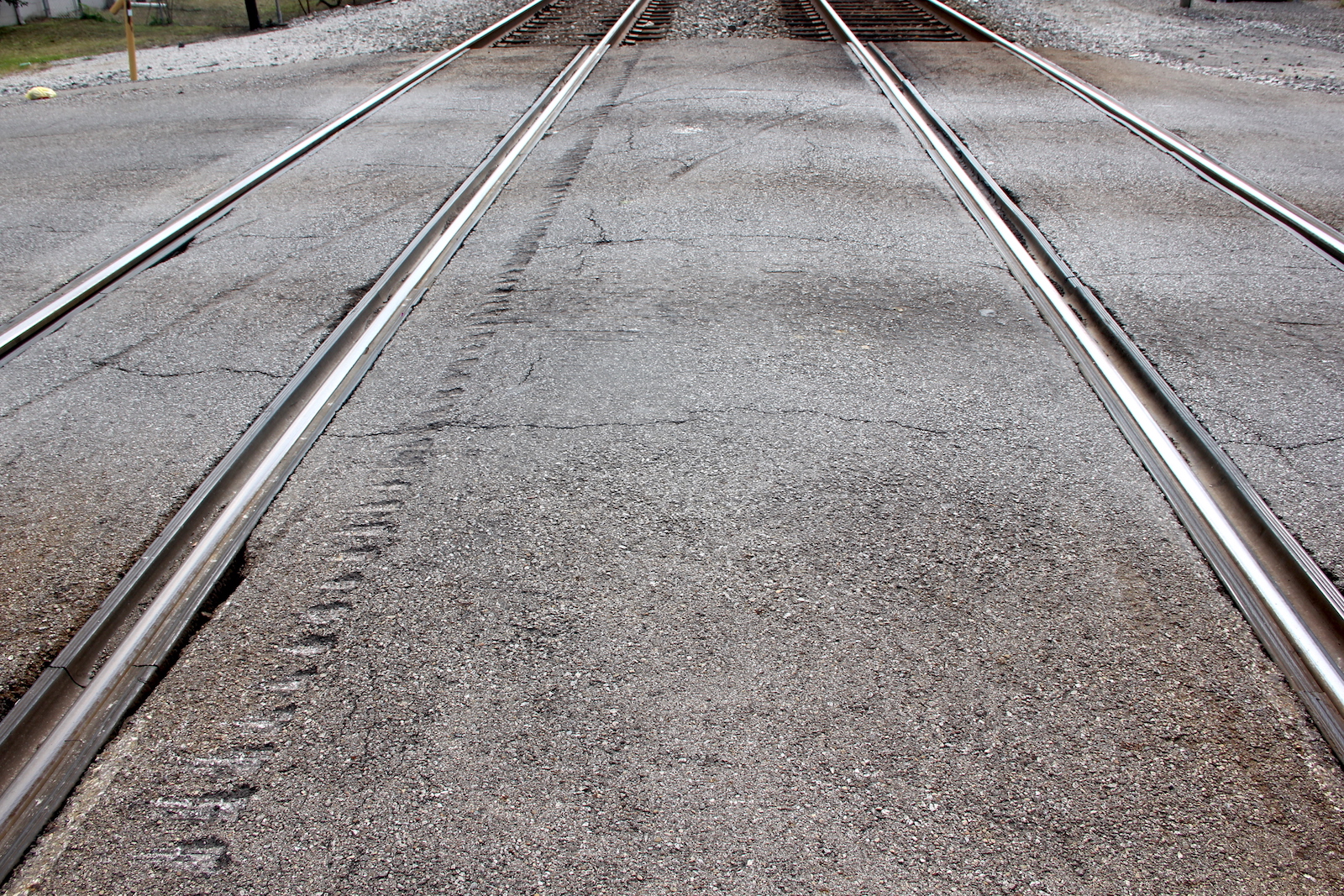

 The NS grade is rubber and asphalt.

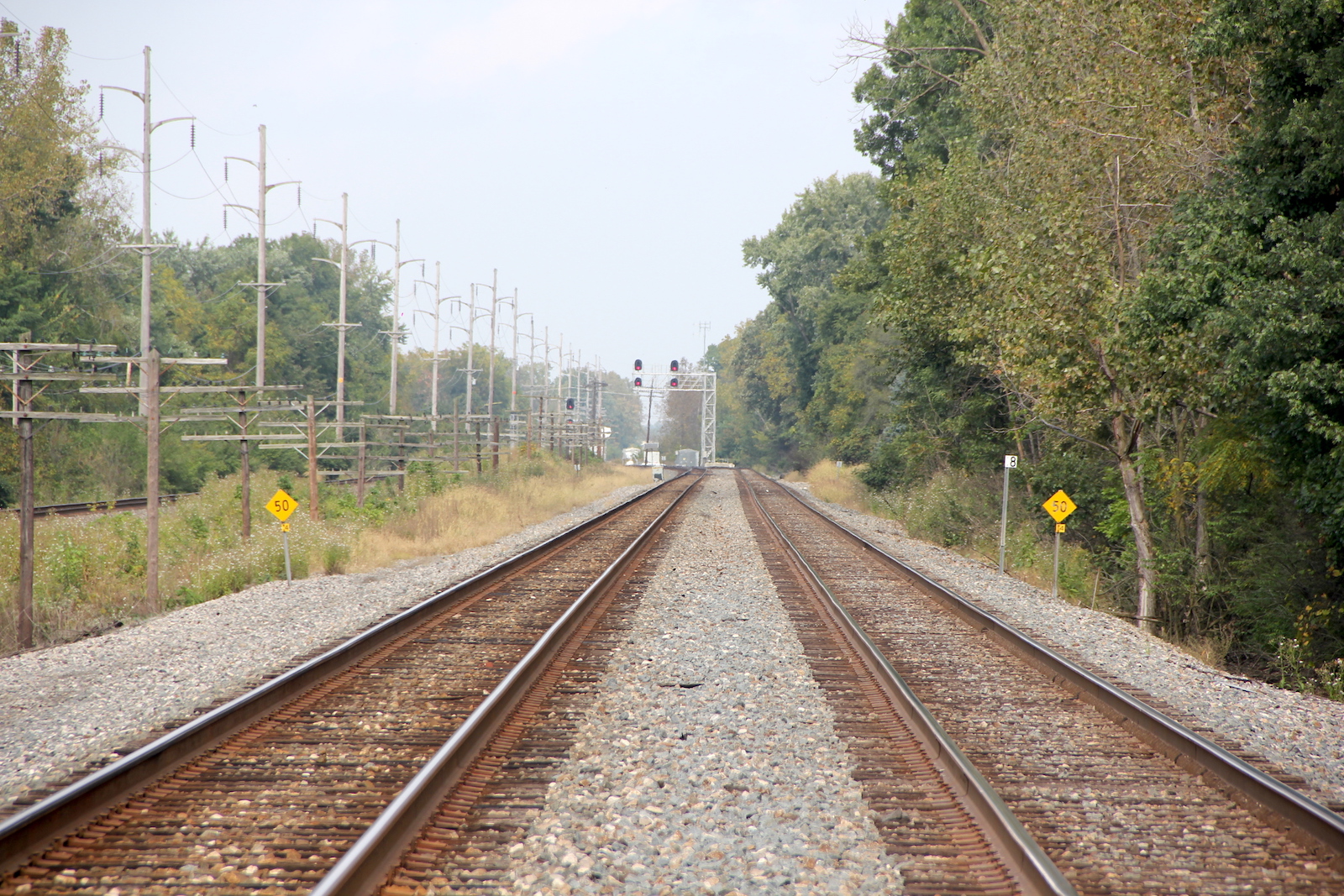

 Track view facing north towards Schrock Rd. in Worthington.

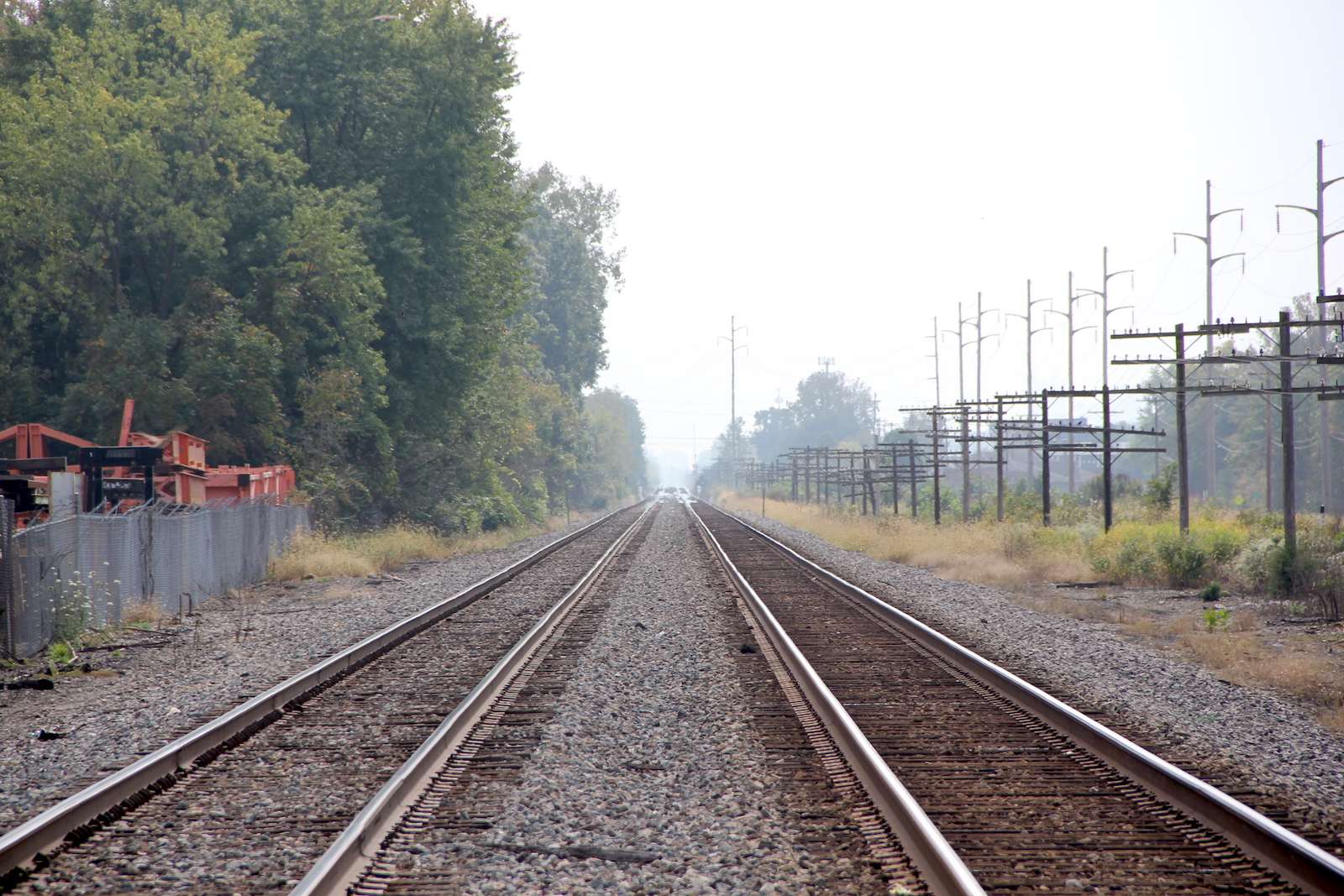

 Track view facing south towards Old Cooke Rd.
27 28 29 30

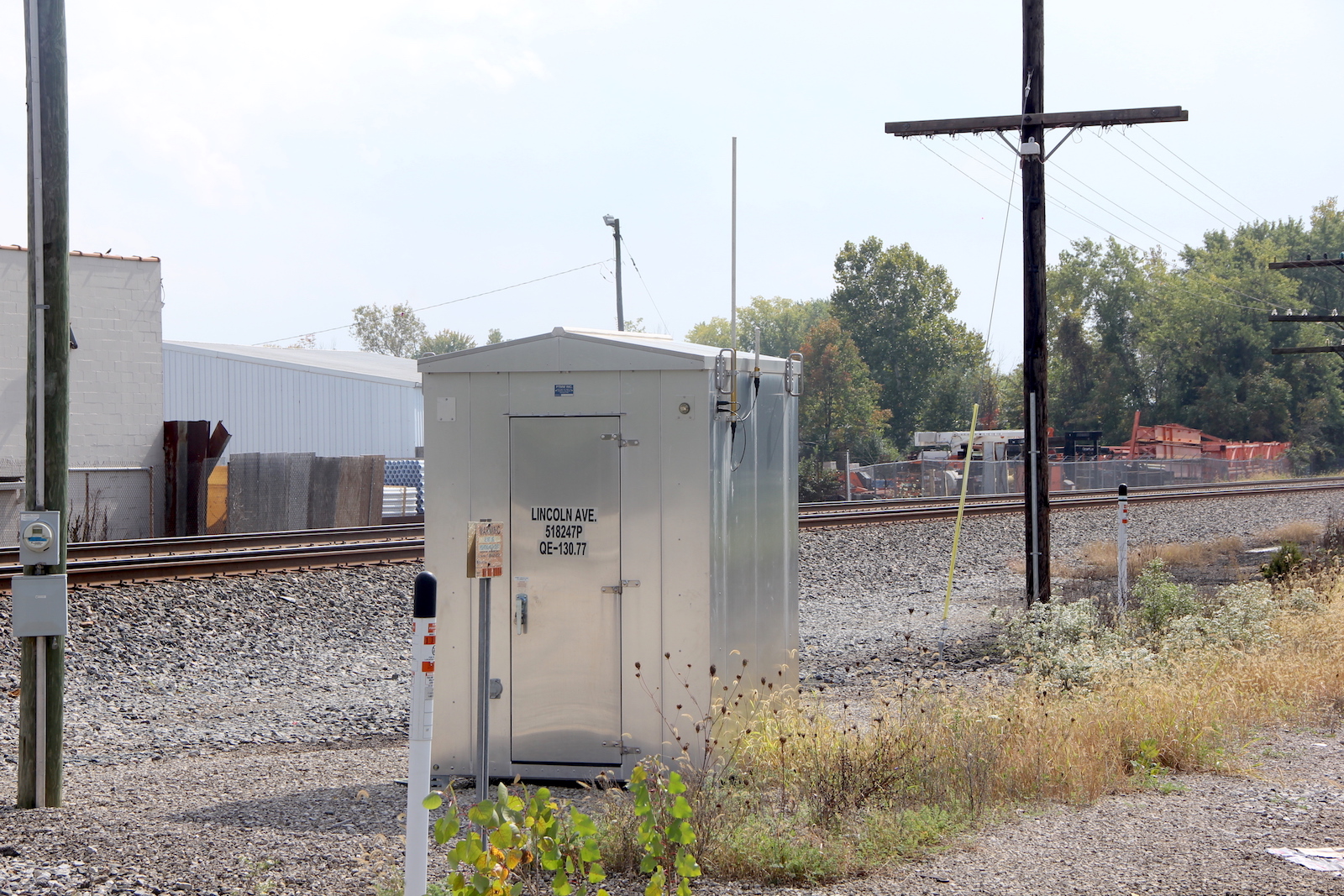

The CSX relay bungalow in the southeast quadrant.

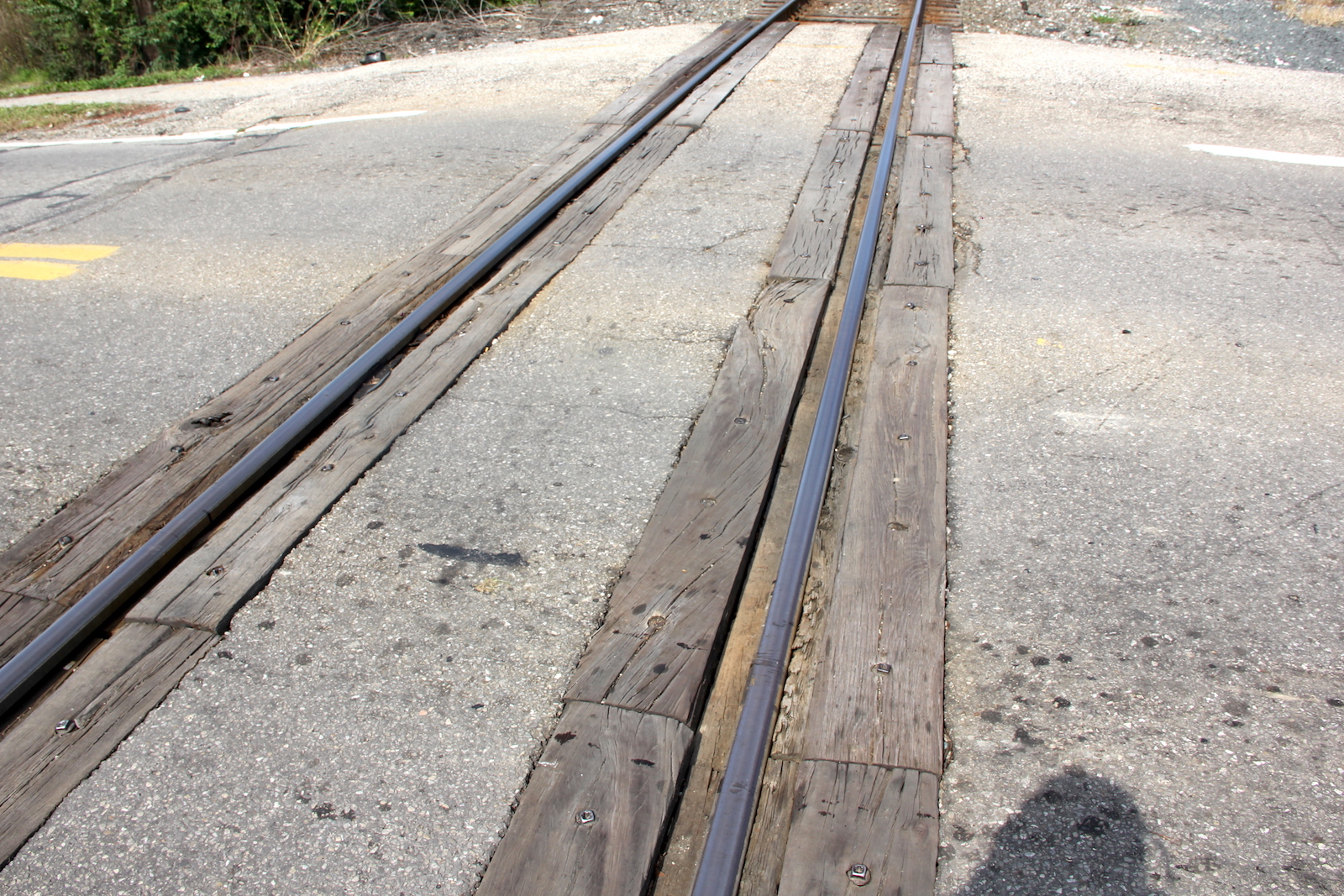

 The CSX grade is wood and asphalt.

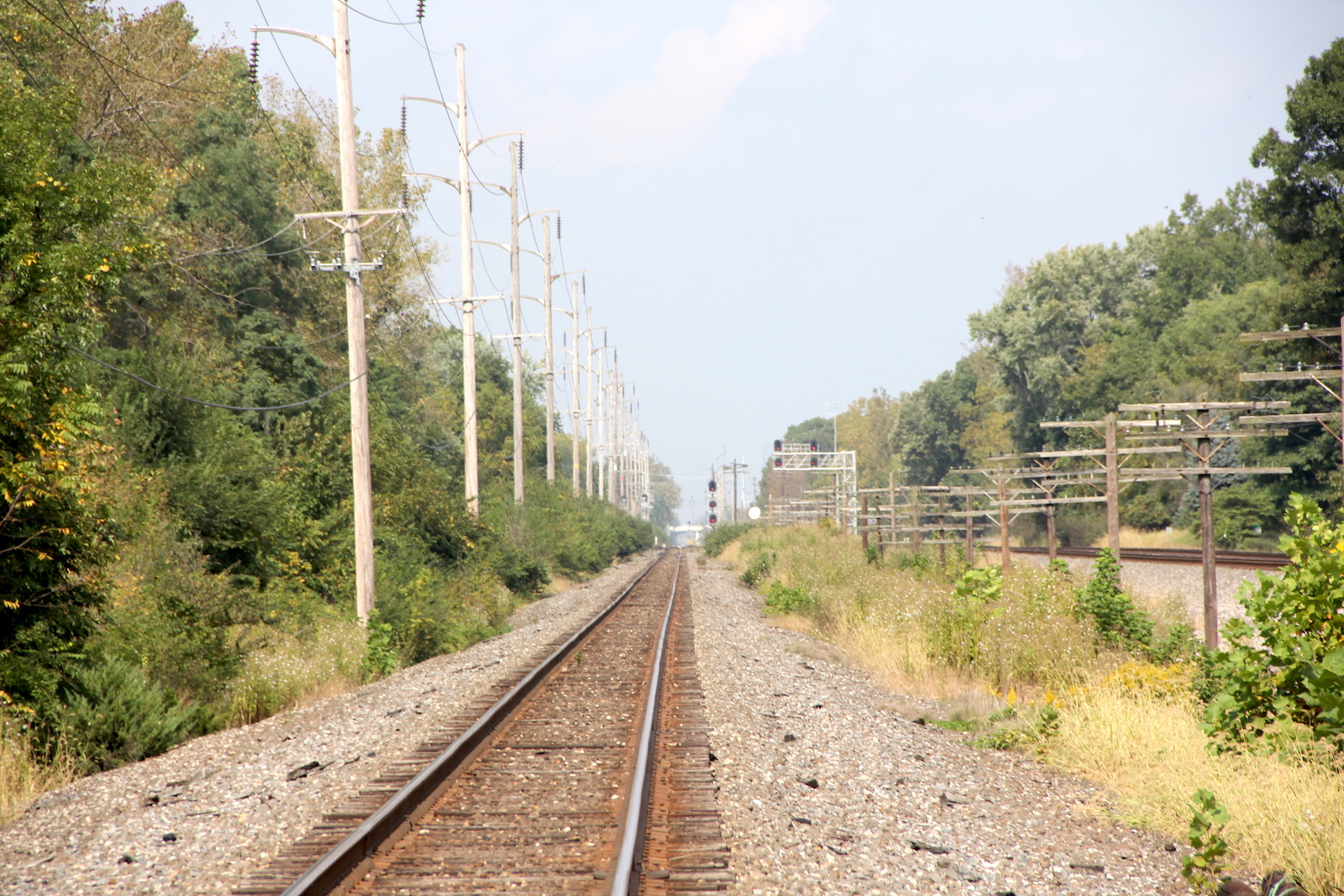

 Track view facing north towards Schrock Rd. in Worthington.

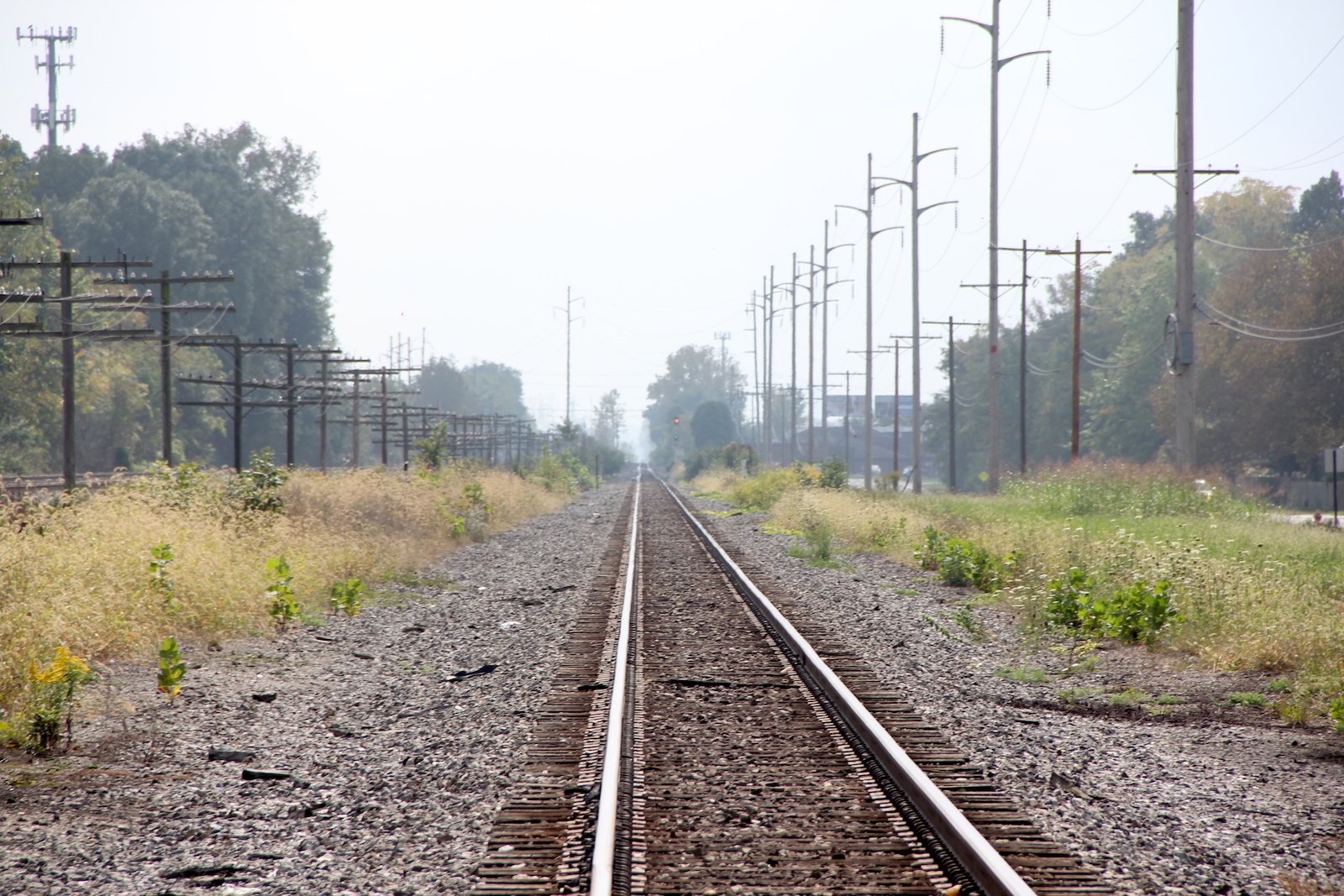

 Track view facing south towards Old Cooke Rd.

NOVEMBER 2025 UPDATE: Sir Fluent here. Since Tommy was last out here, a few minor changes were made to the crossing.

31
 32
33
 34 35

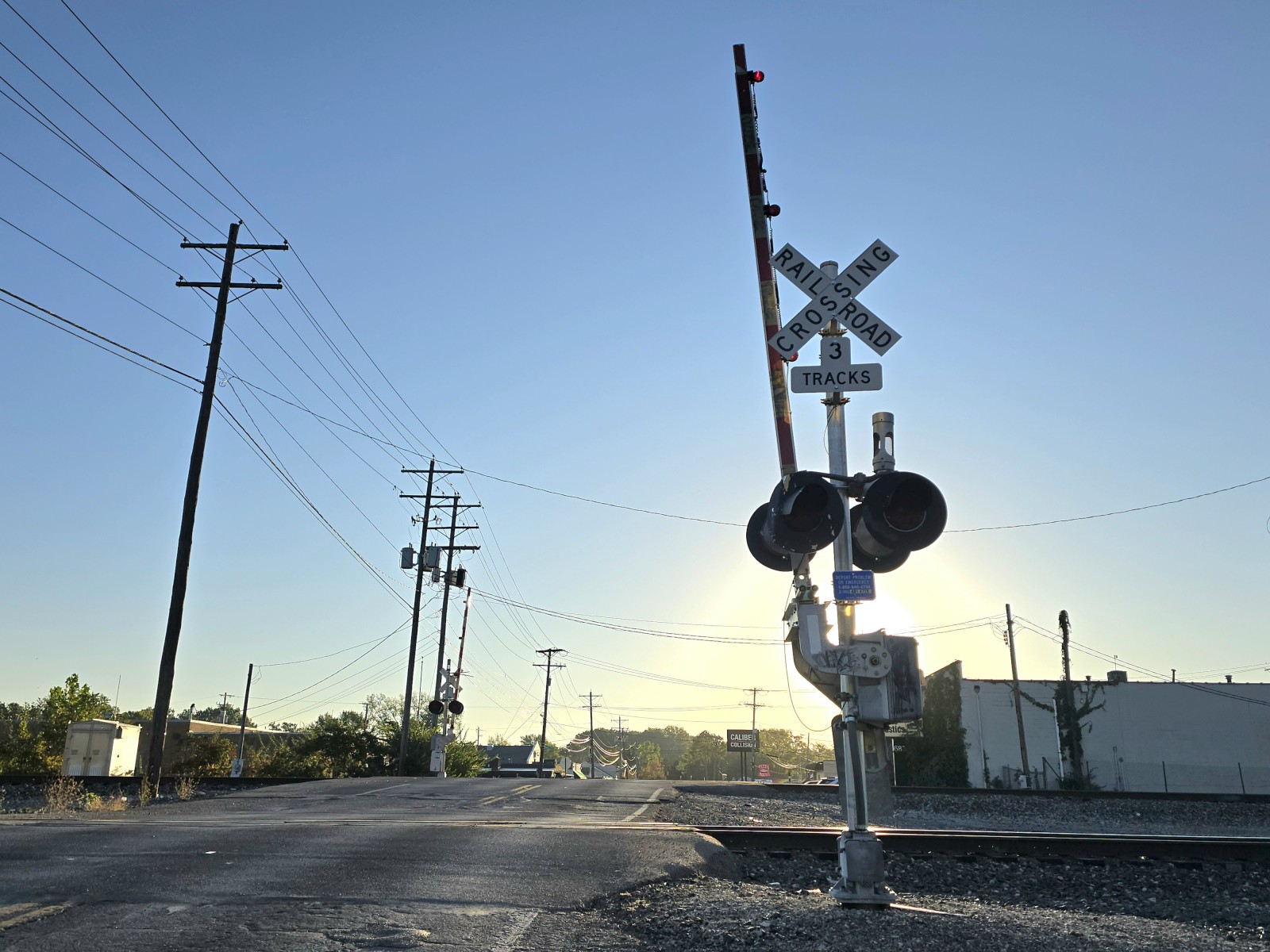

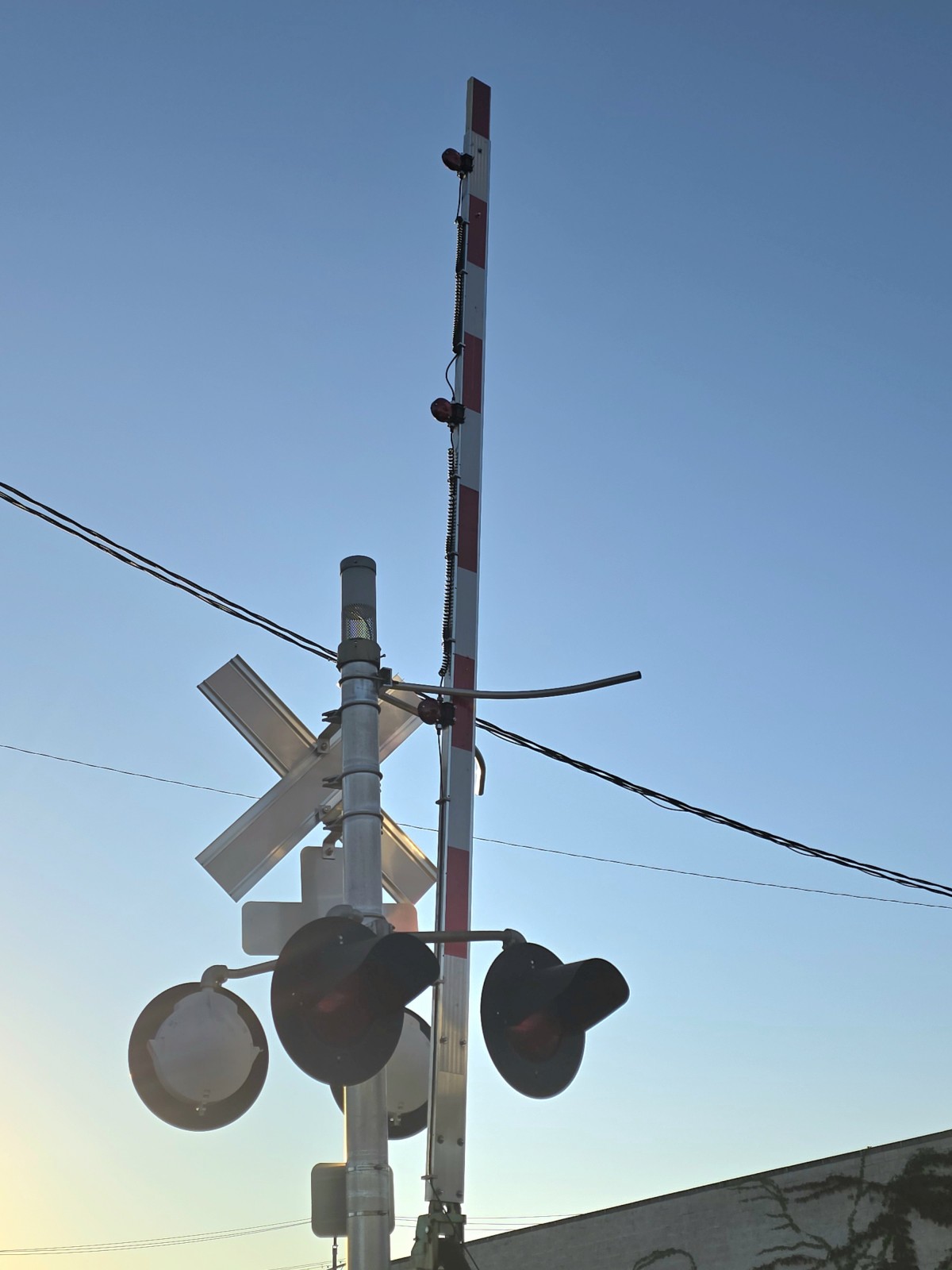

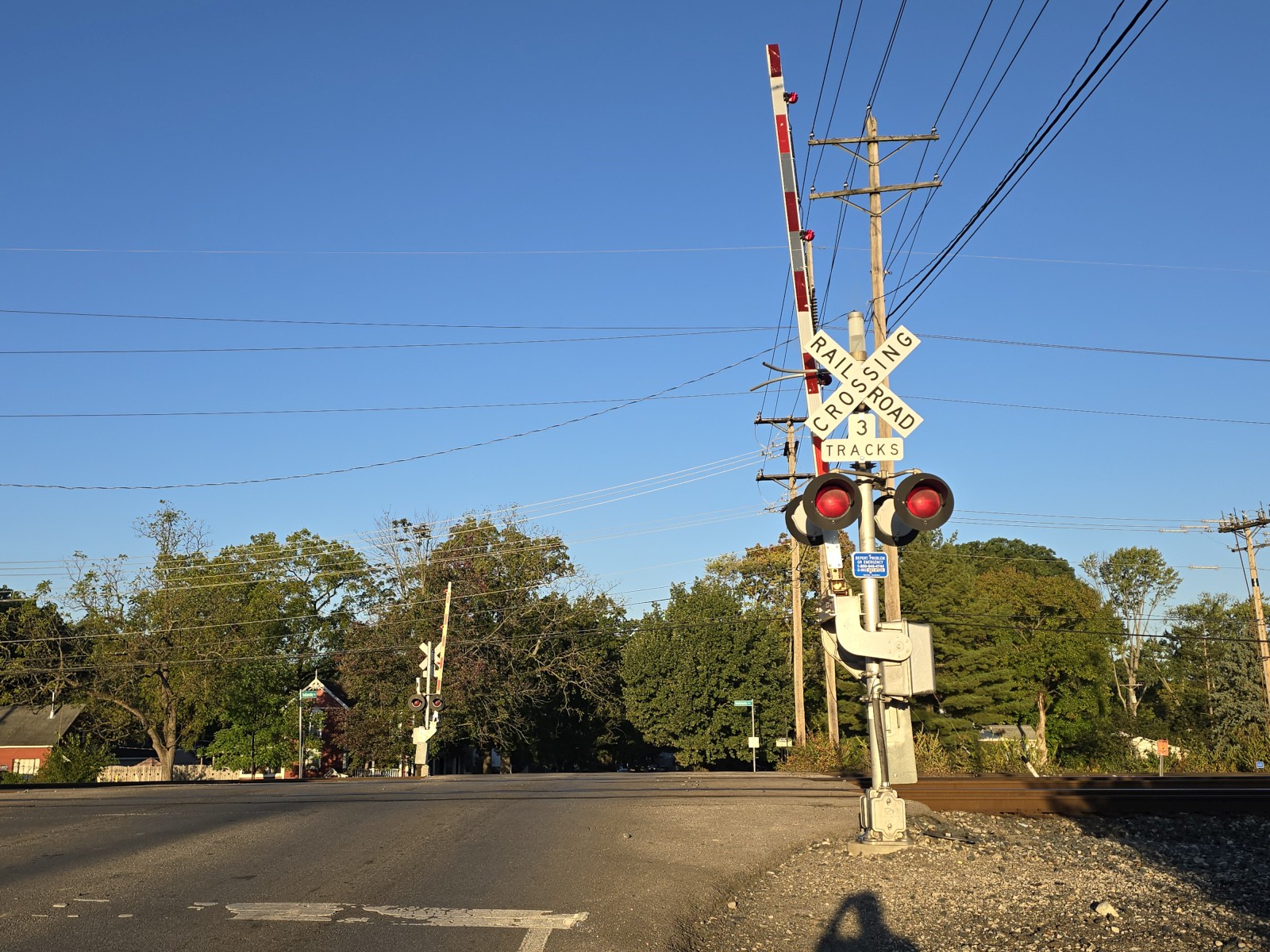

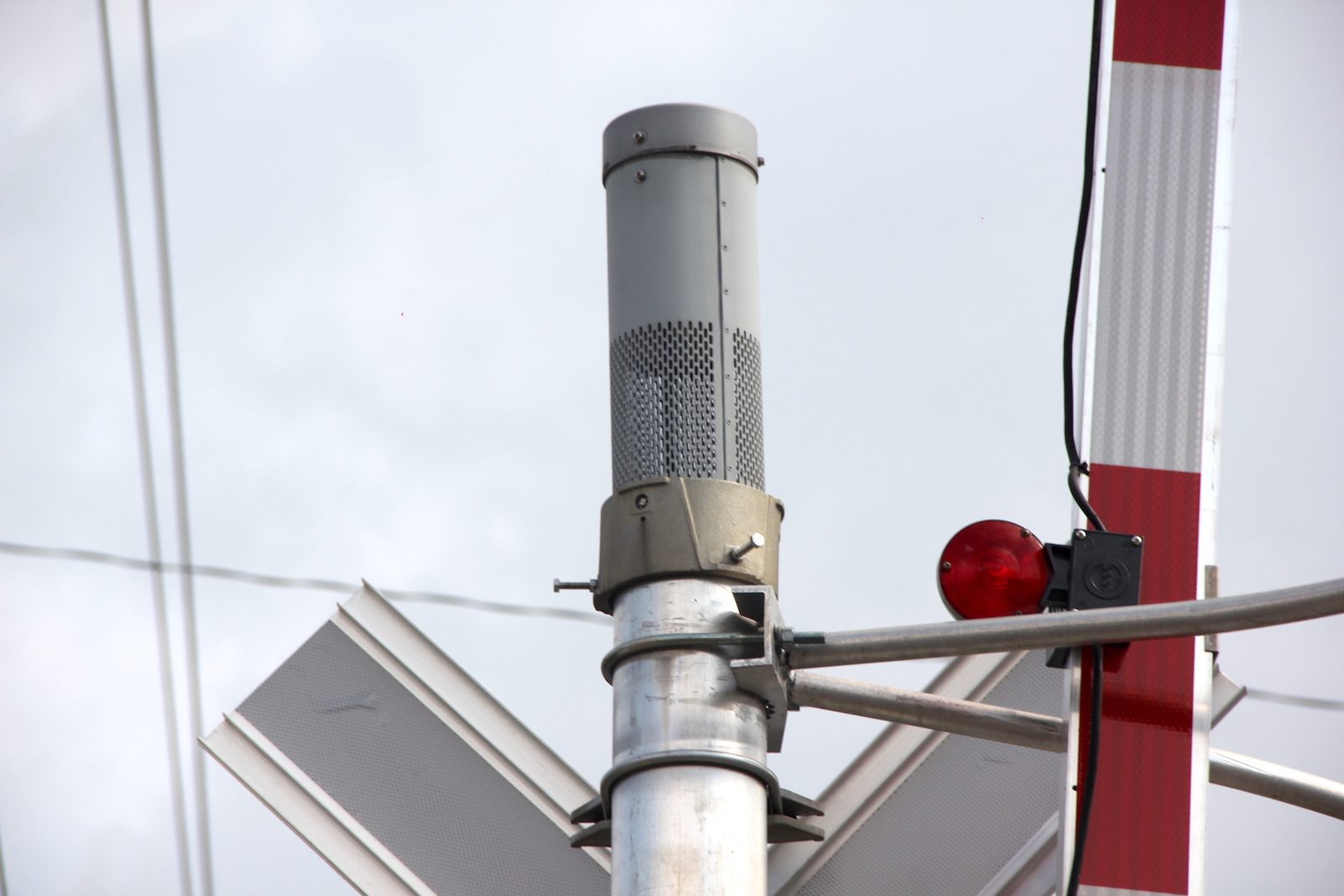

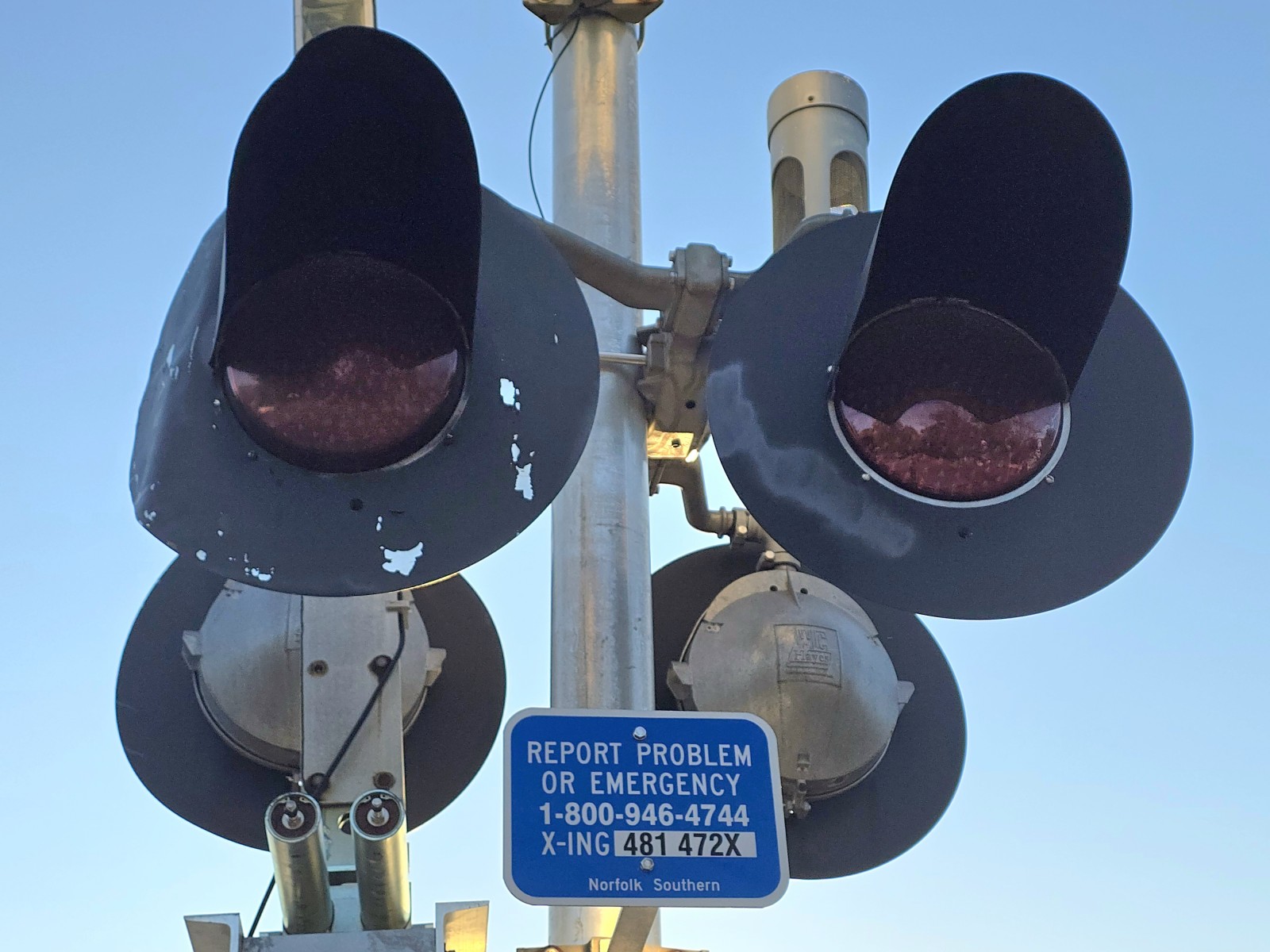

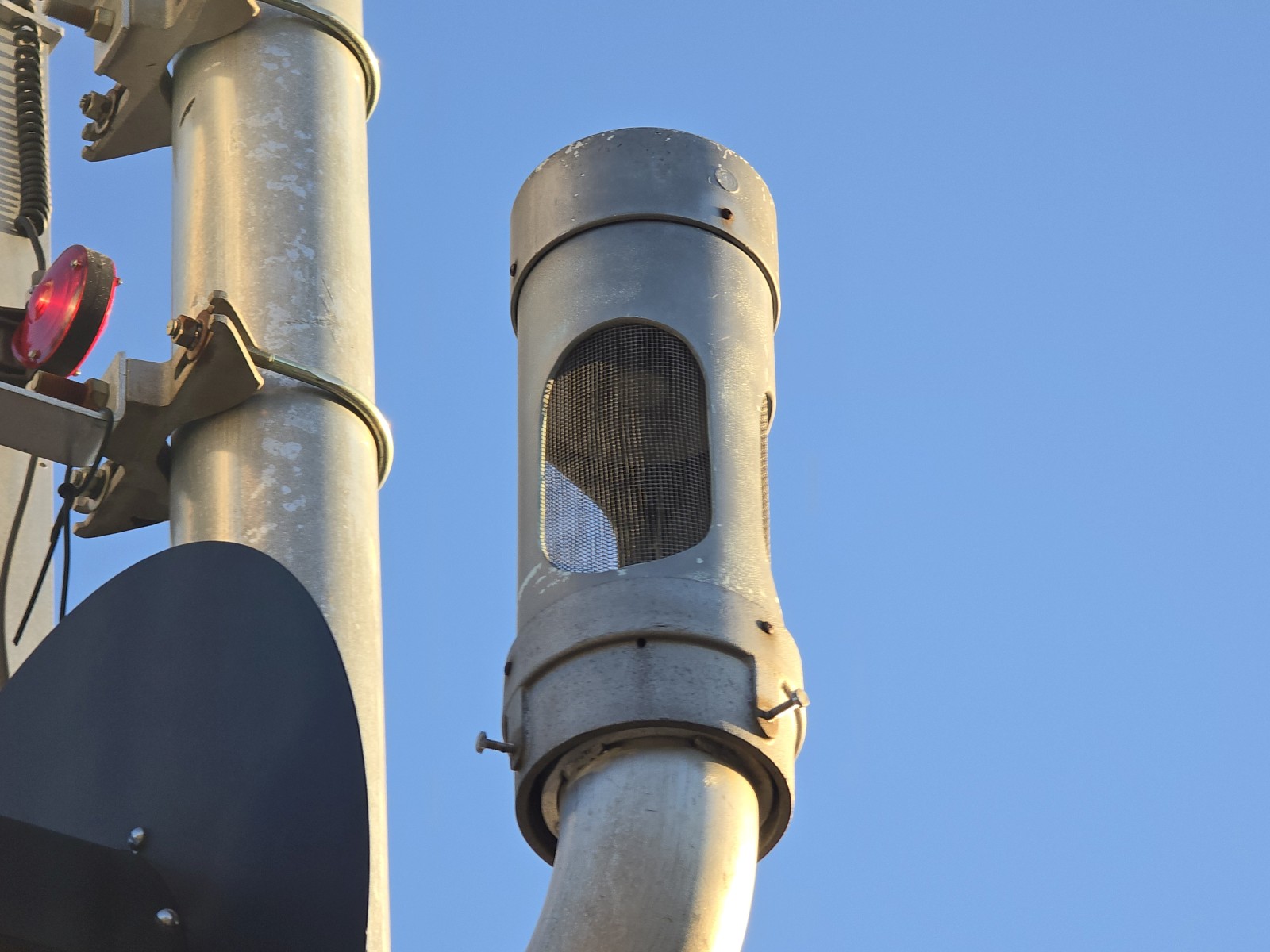

In October 2025, Nicholas Miles discovered that the gate lights on the NS signal were replaced with RECO LEDs, one of the lights on the CSX signal was replaced with a Leotek EV Series LED, and very interestingly, the bell on the CSX signal was replaced with a GS E-Bell, most likely a Type 3. These are mostly used on the St. Louis Line around Illinois and Indiana, but I wasn't expecting to see one land on a CSX signal in the state of Ohio.
