MP: CJ157.980 |
Updated June 2025
Total Accidents: 1

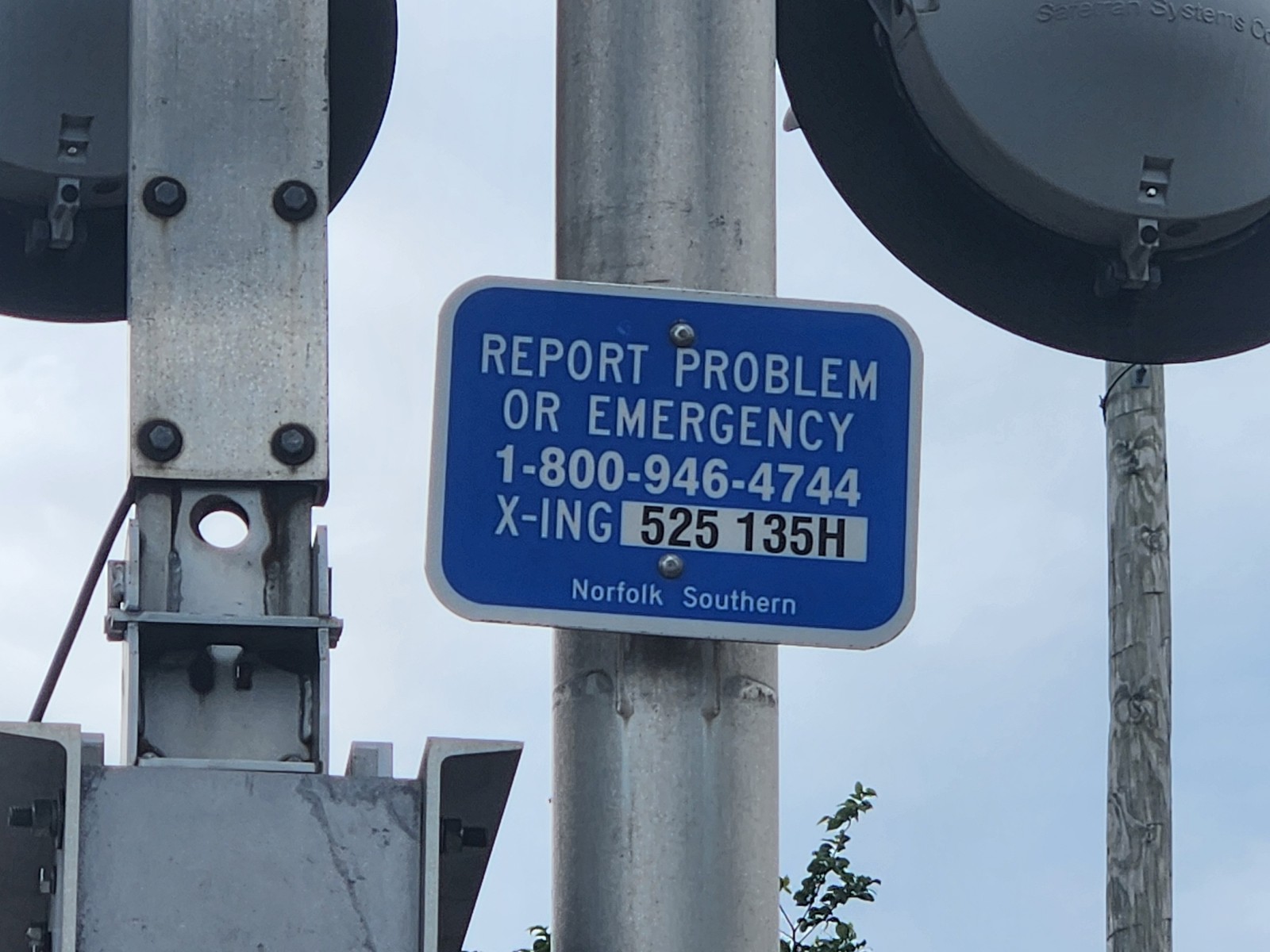

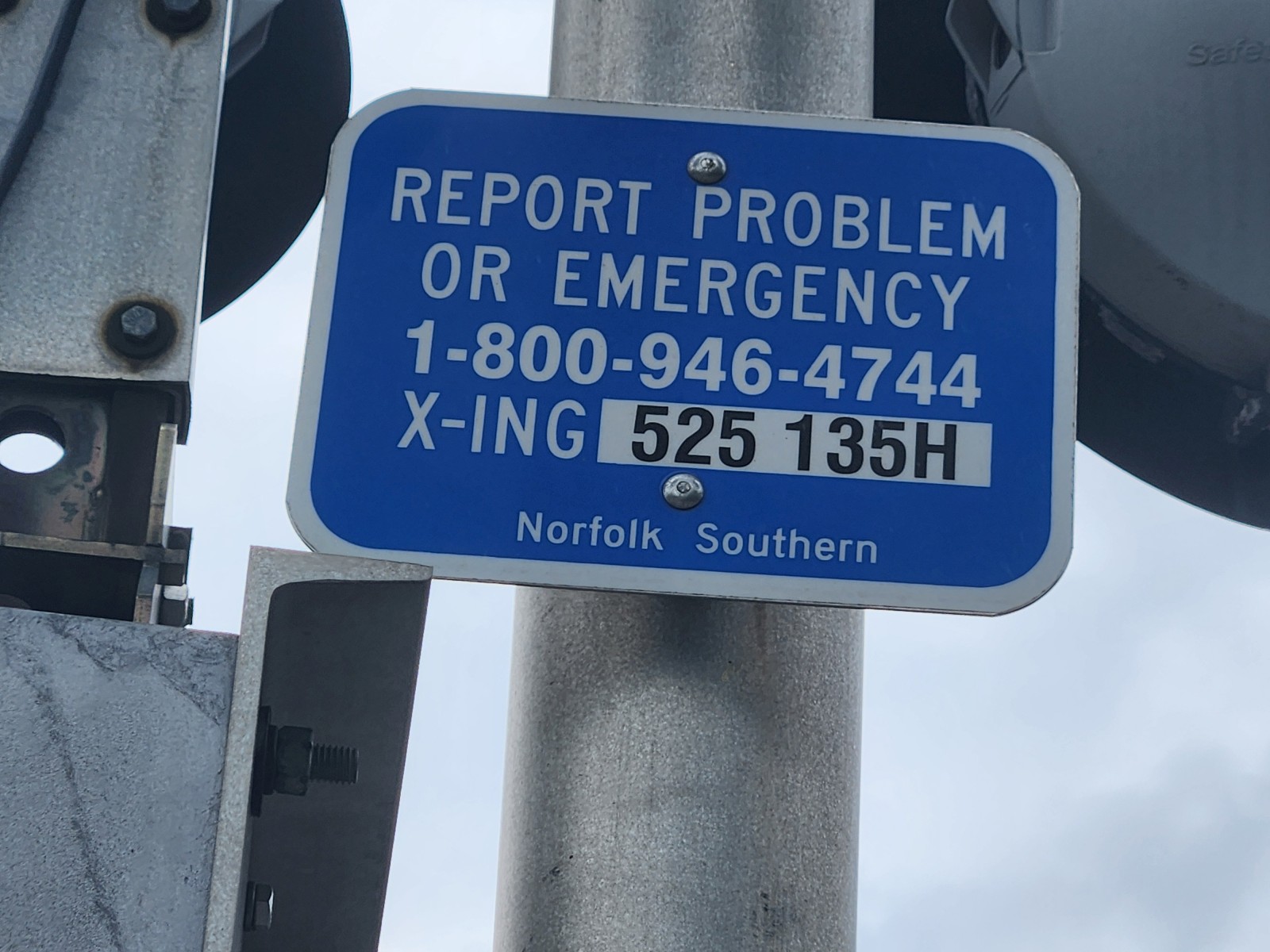

Crossing DOT #: 525135H
TOTAL DAILY TRAINS: 7
(AS OF 2024)
| >>>>>>>>>>>>> | Northern
Signal |
Southern
Signal |

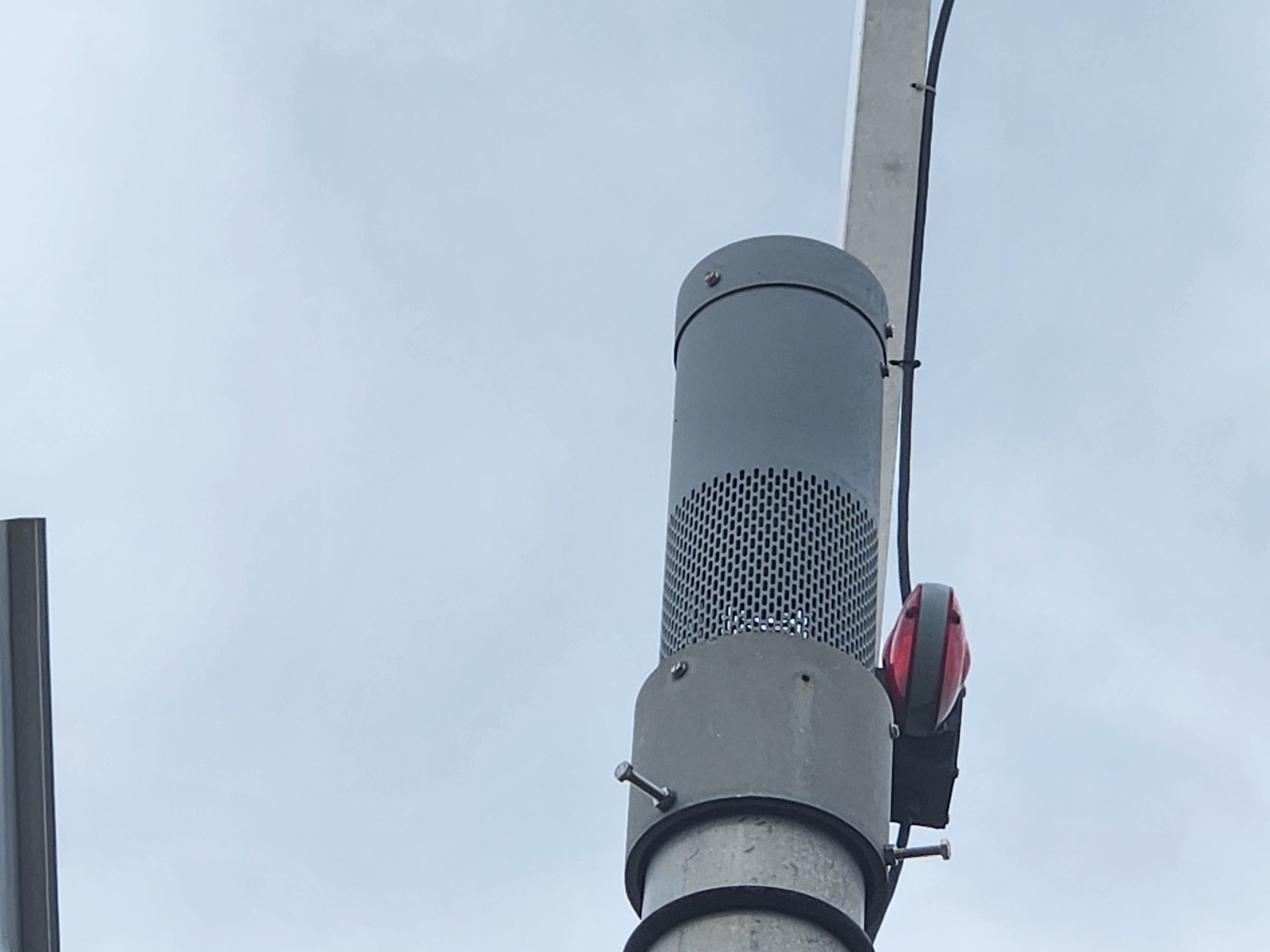

| Bell: | Safetran Type 3 E-Bell Low Tone |
N/A |

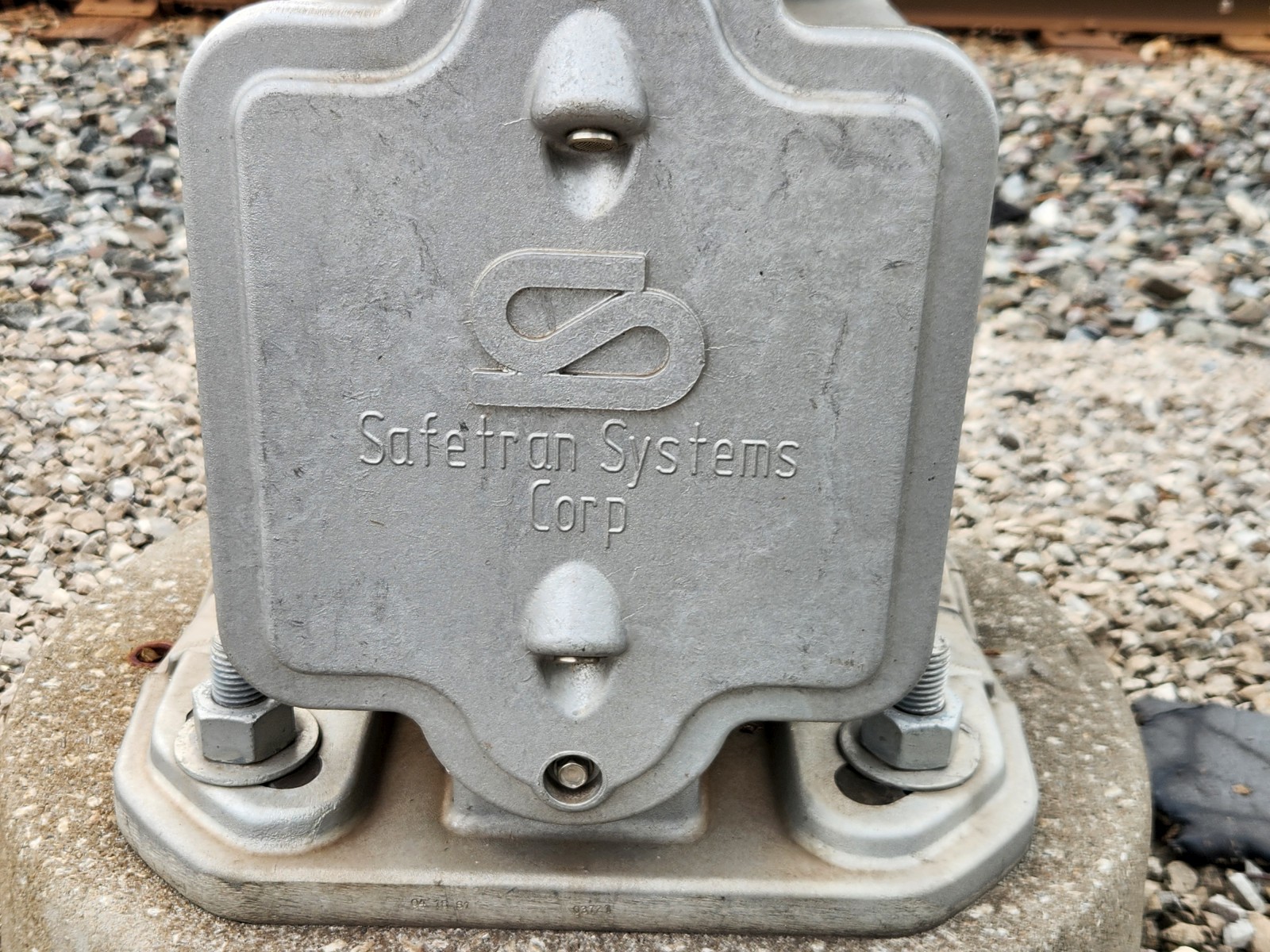

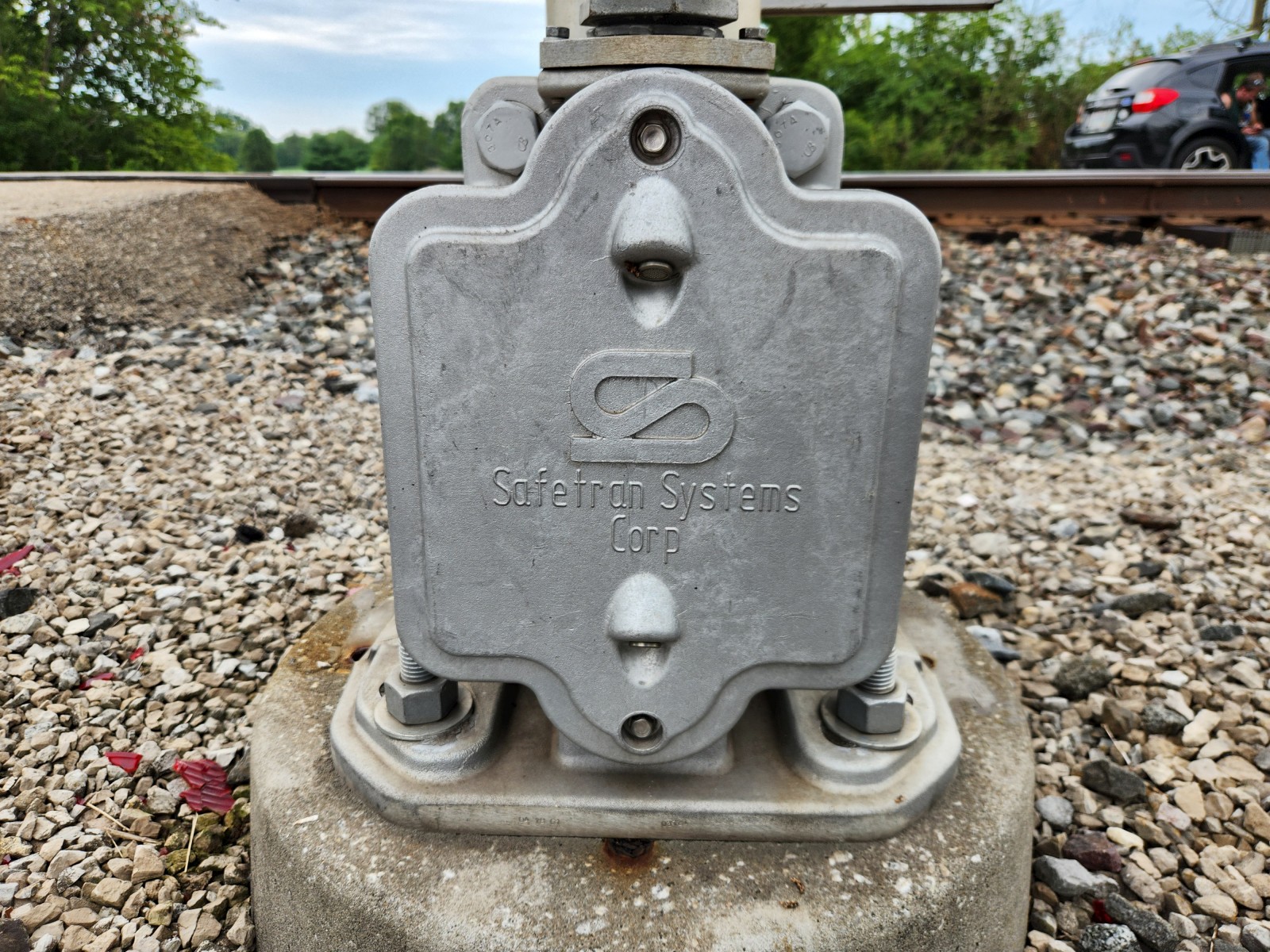

| Base: | Safetran 5" Double Sided |
Safetran 5" Double Sided |

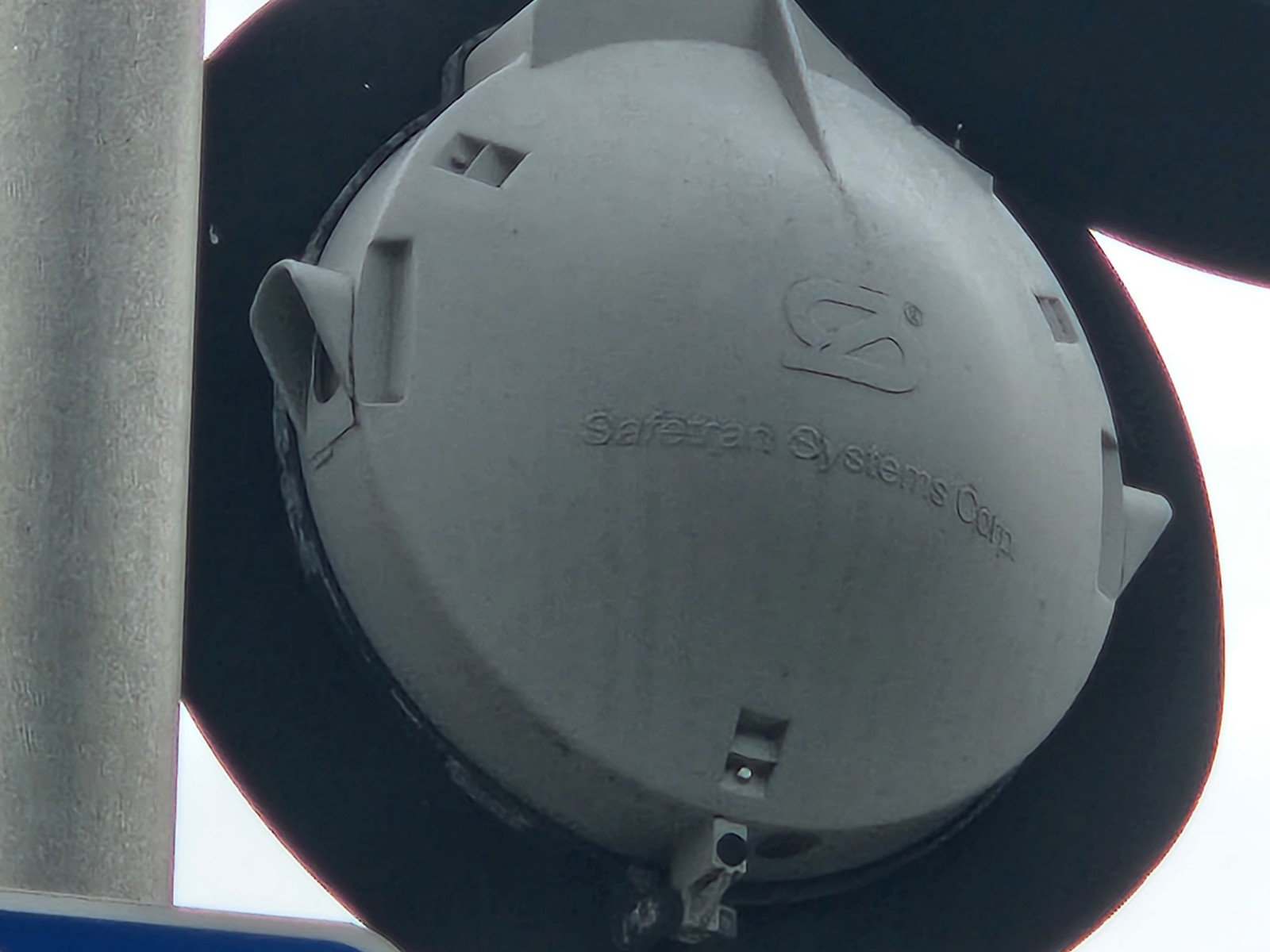

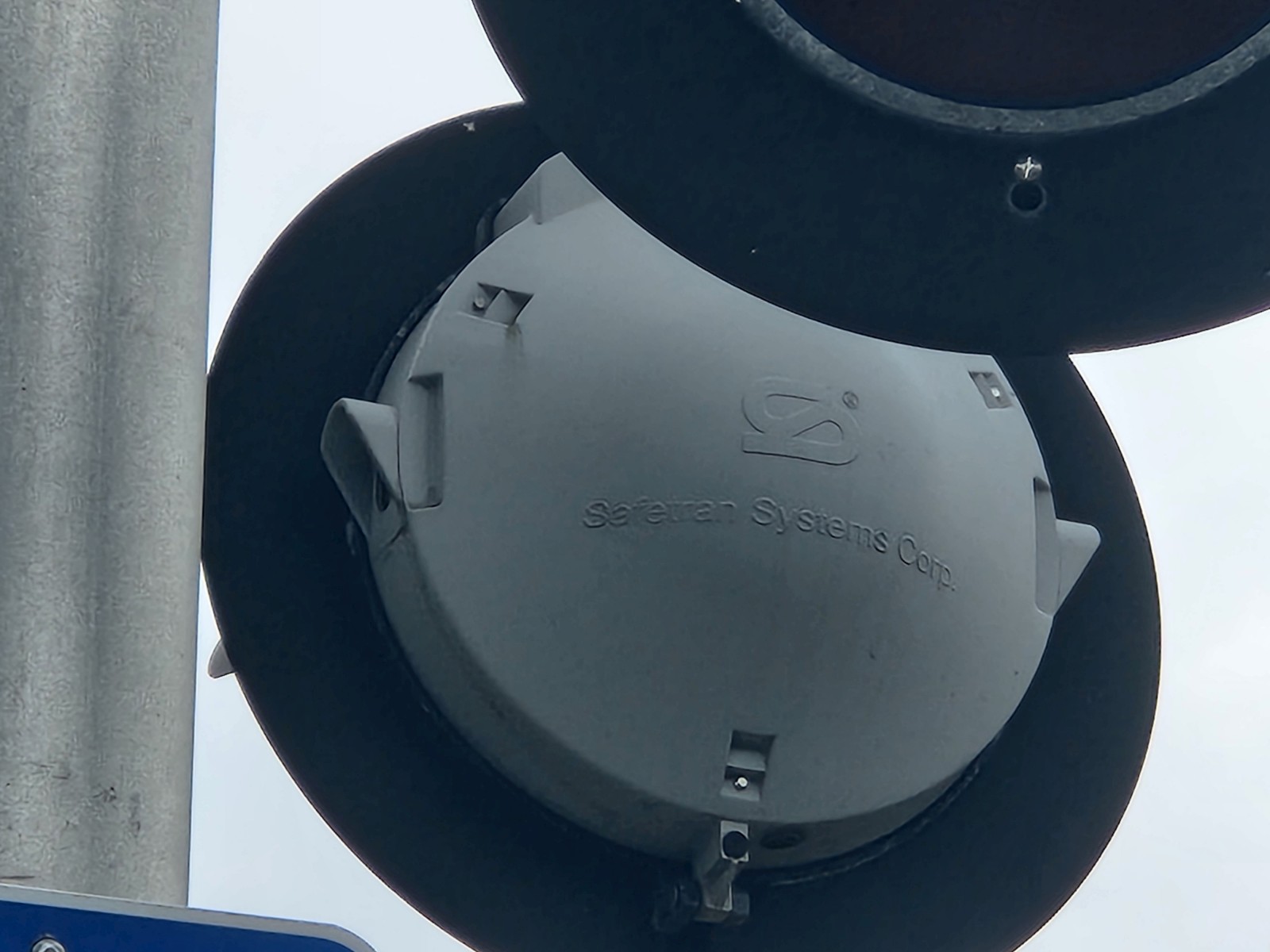

| Light Frames: | 4 - 12"x20" Safetran
incandescents |
4 - 12"x20" Safetran
incandescents |
| Light
Brackets: |
Safetran |
Safetran |

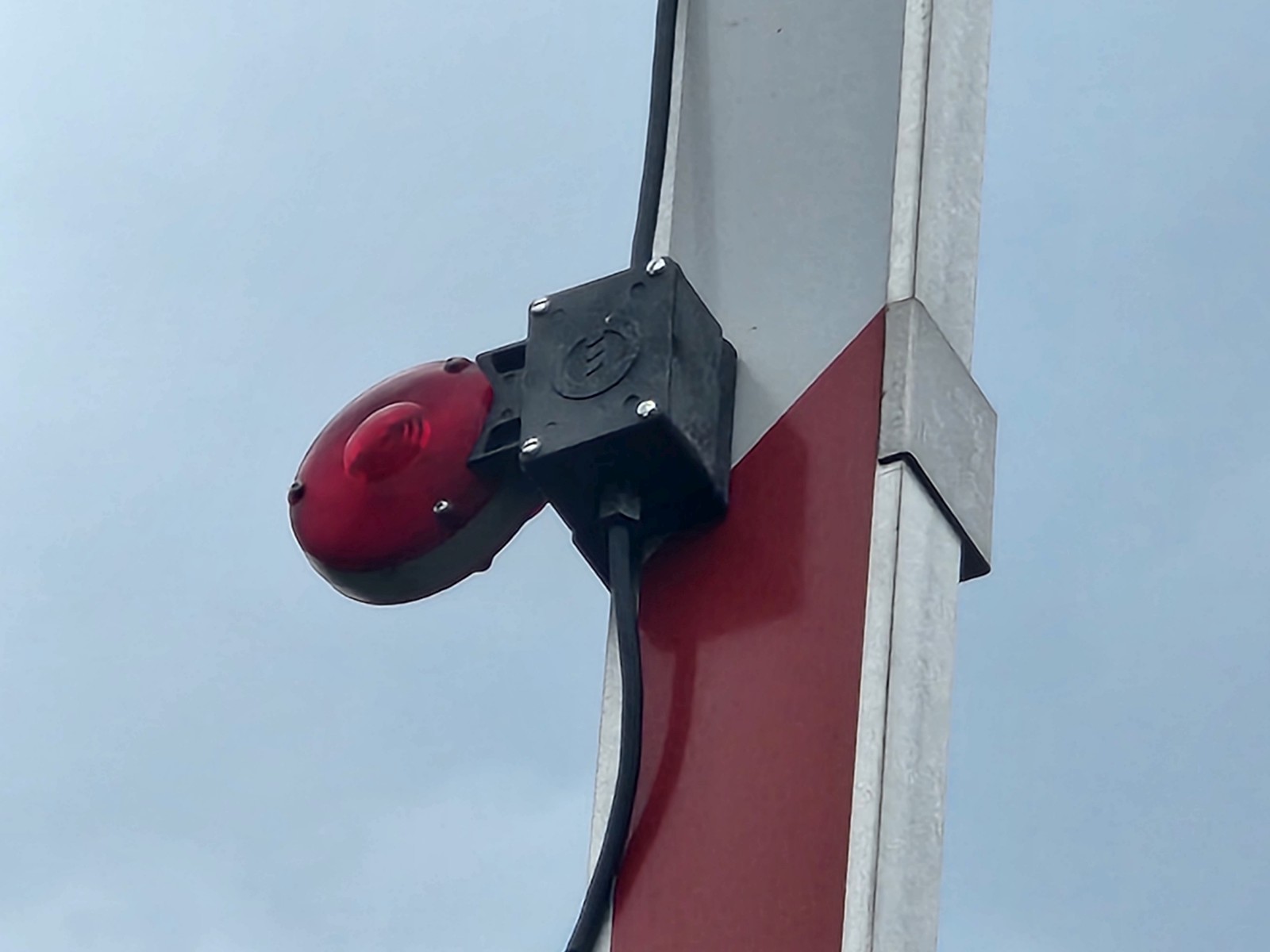

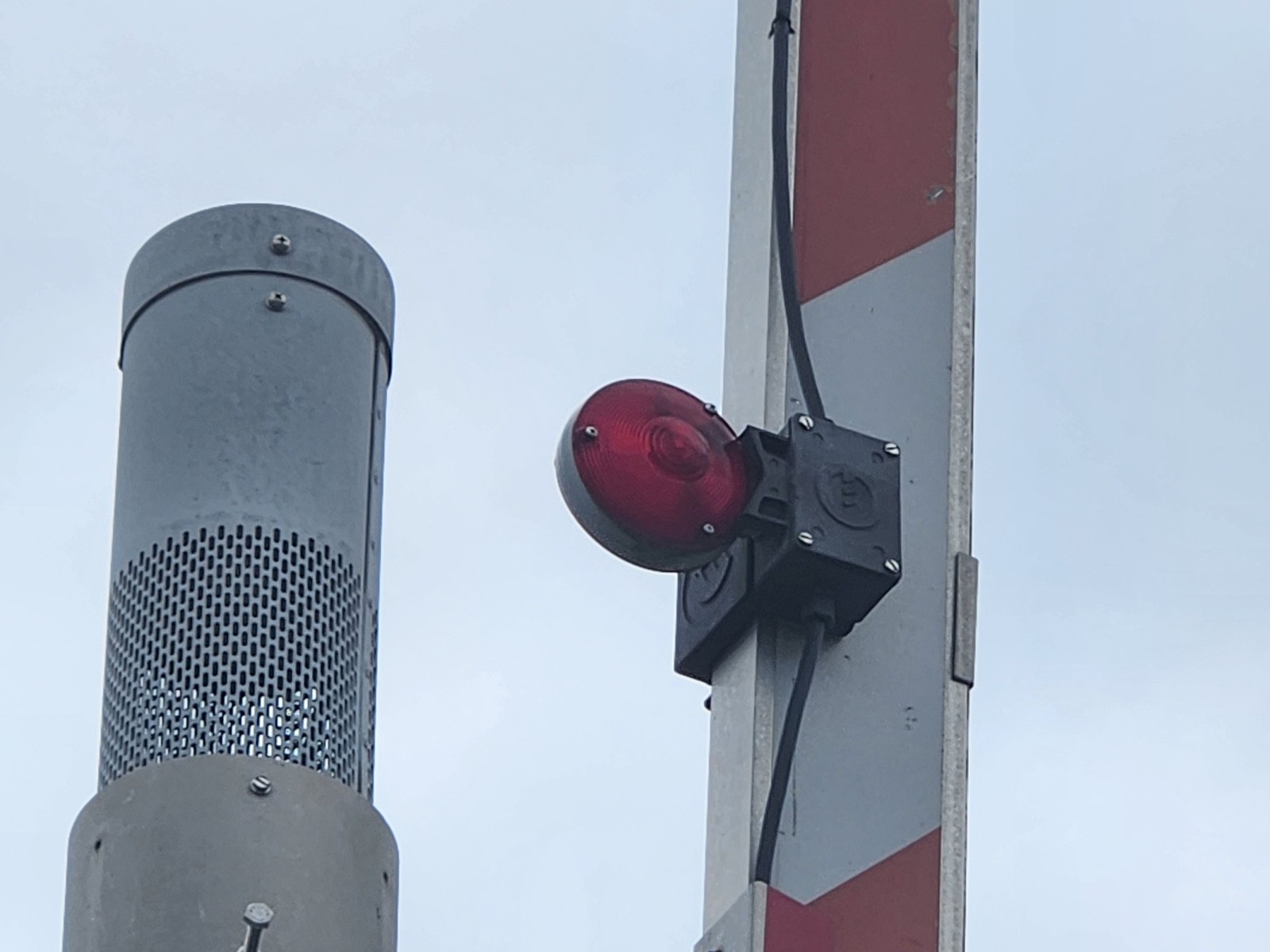

| Gate Lights: | 3 - NEG 4" incandescents |
3 - NEG 4" incandescents |
| Gate Mechanism: | Safetran 2000s w/ NEG 1 Way
Saver |
Safetran 2000s w/ NEG 1 Way
Saver |
| Gate Striping: | Diagonal Striping |
Diagonal Striping |
Page created by: Sir Fluent.
Pictures 1-27 were taken on June 29, 2024, by
Sir Fluent.
This crossing is located on the NS Dayton District.
These signals were installed in the late 2000s replacing a pair of crossbucks.
|
O1 |
O2 |
O3 |
O4 |
|

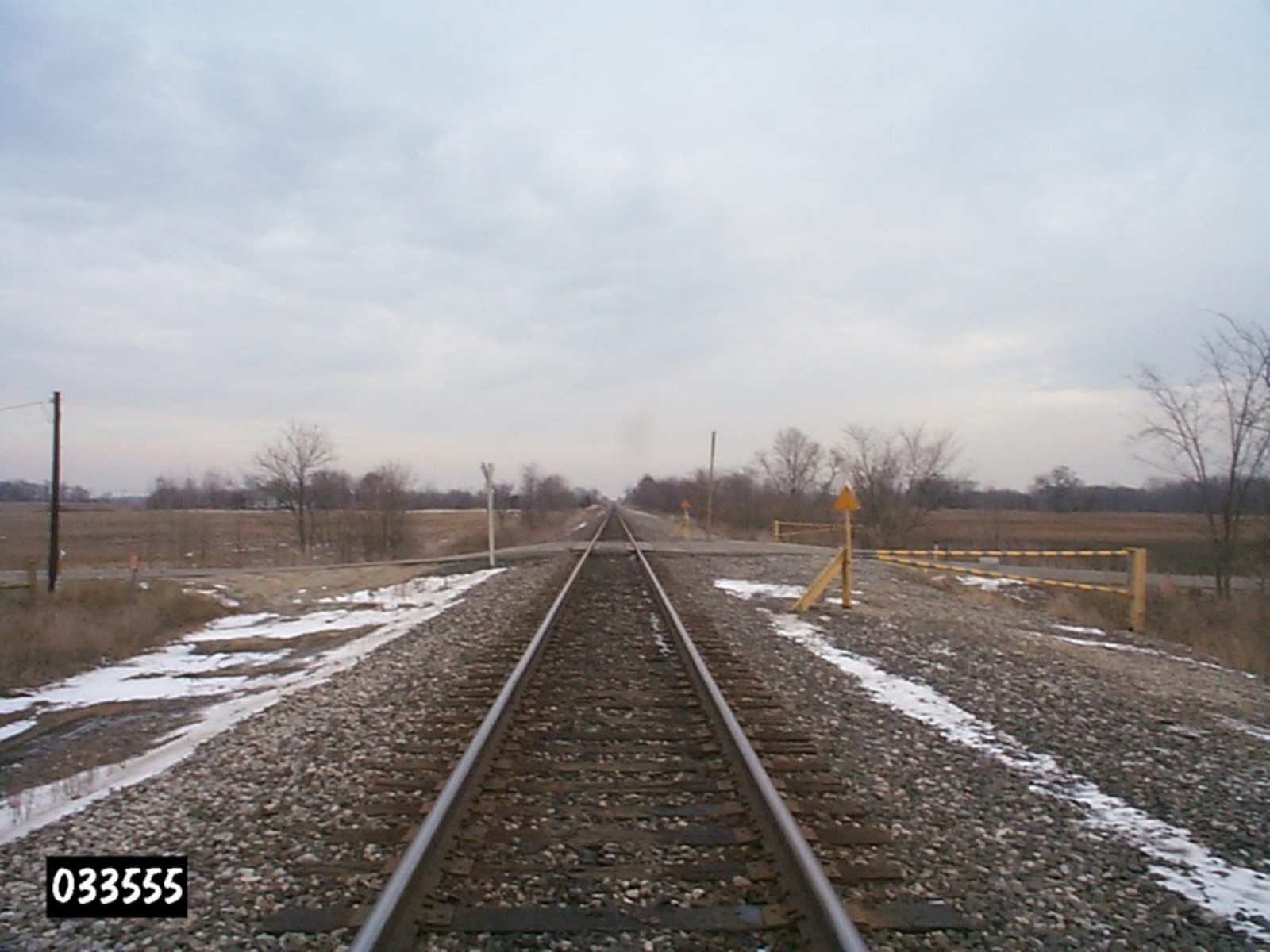

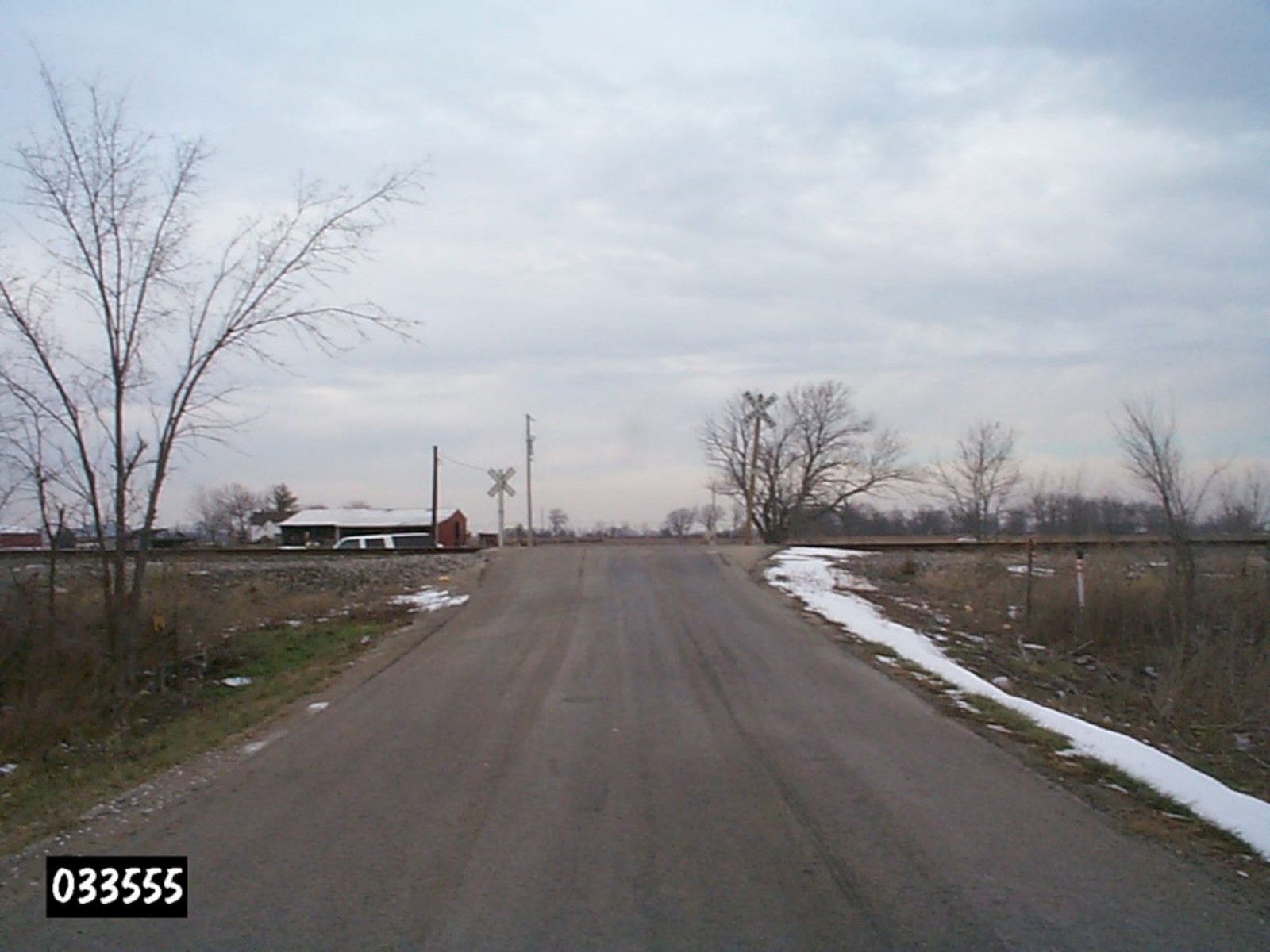

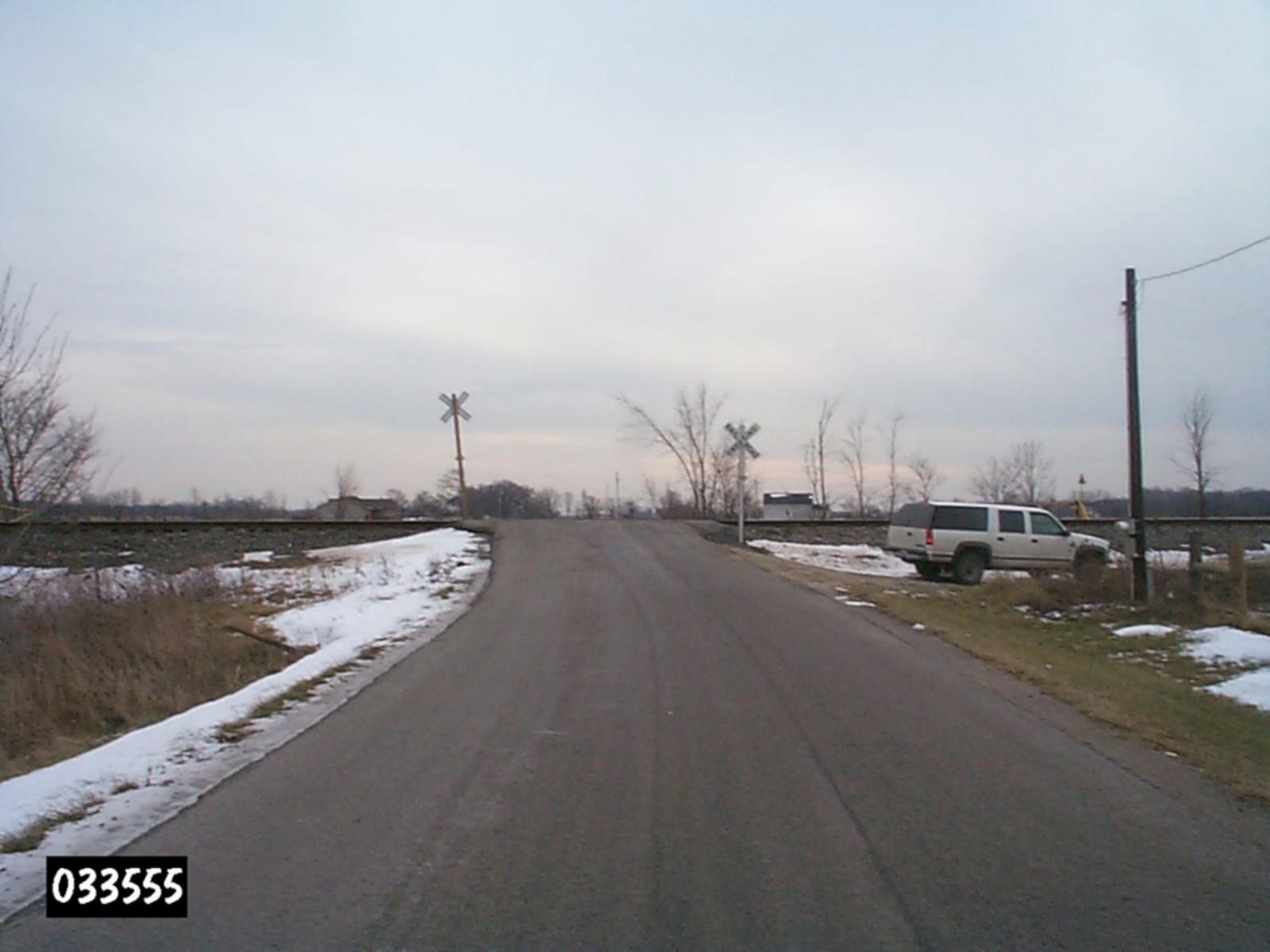

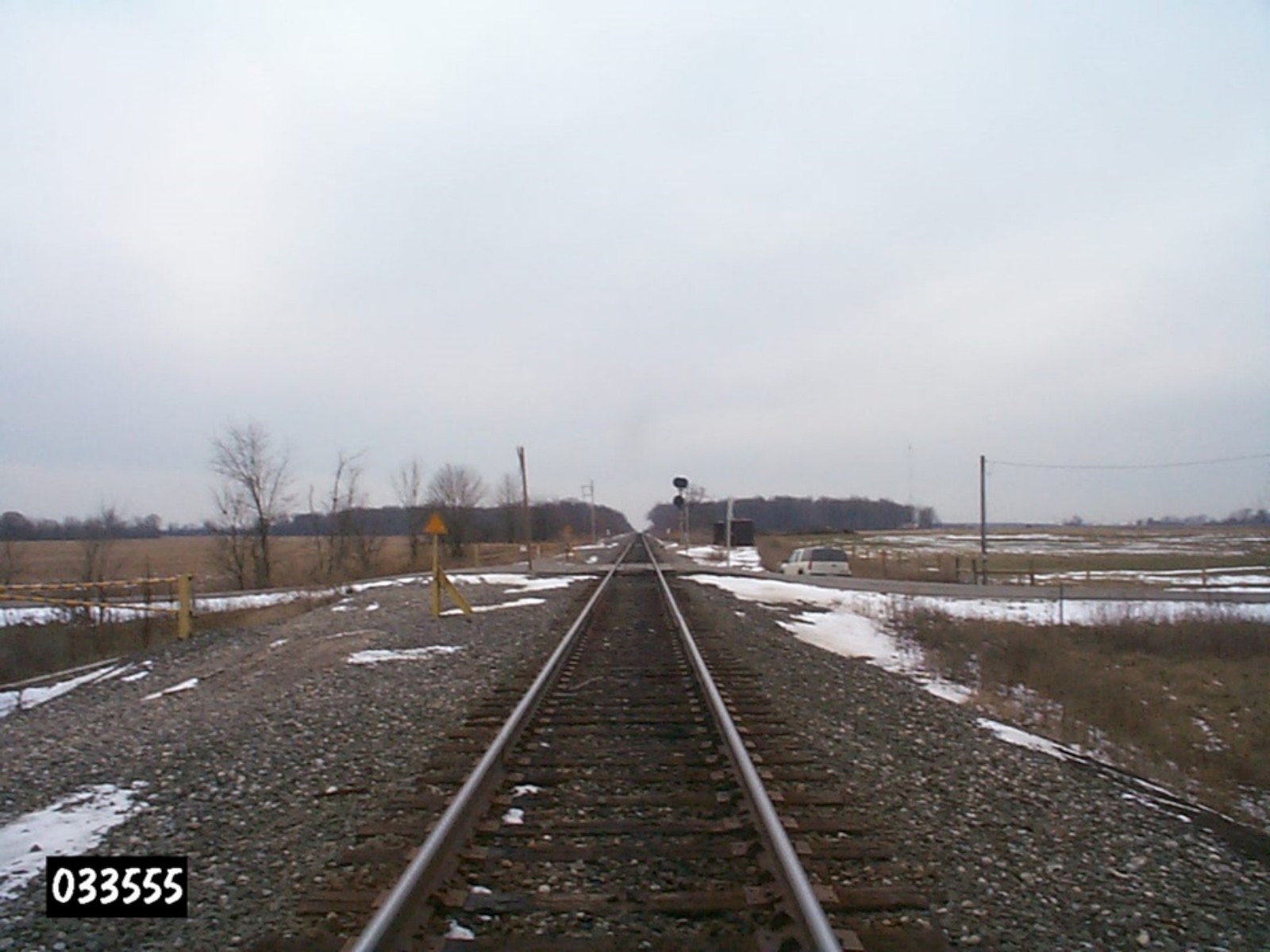

PUCO photos from the late 90s shows
two Conrail era crossbuck posts protecting the crossing.
In the late 2000s, both crossbucks were replaced with
the current setup.
|
|||
|
1 |
2 |
|

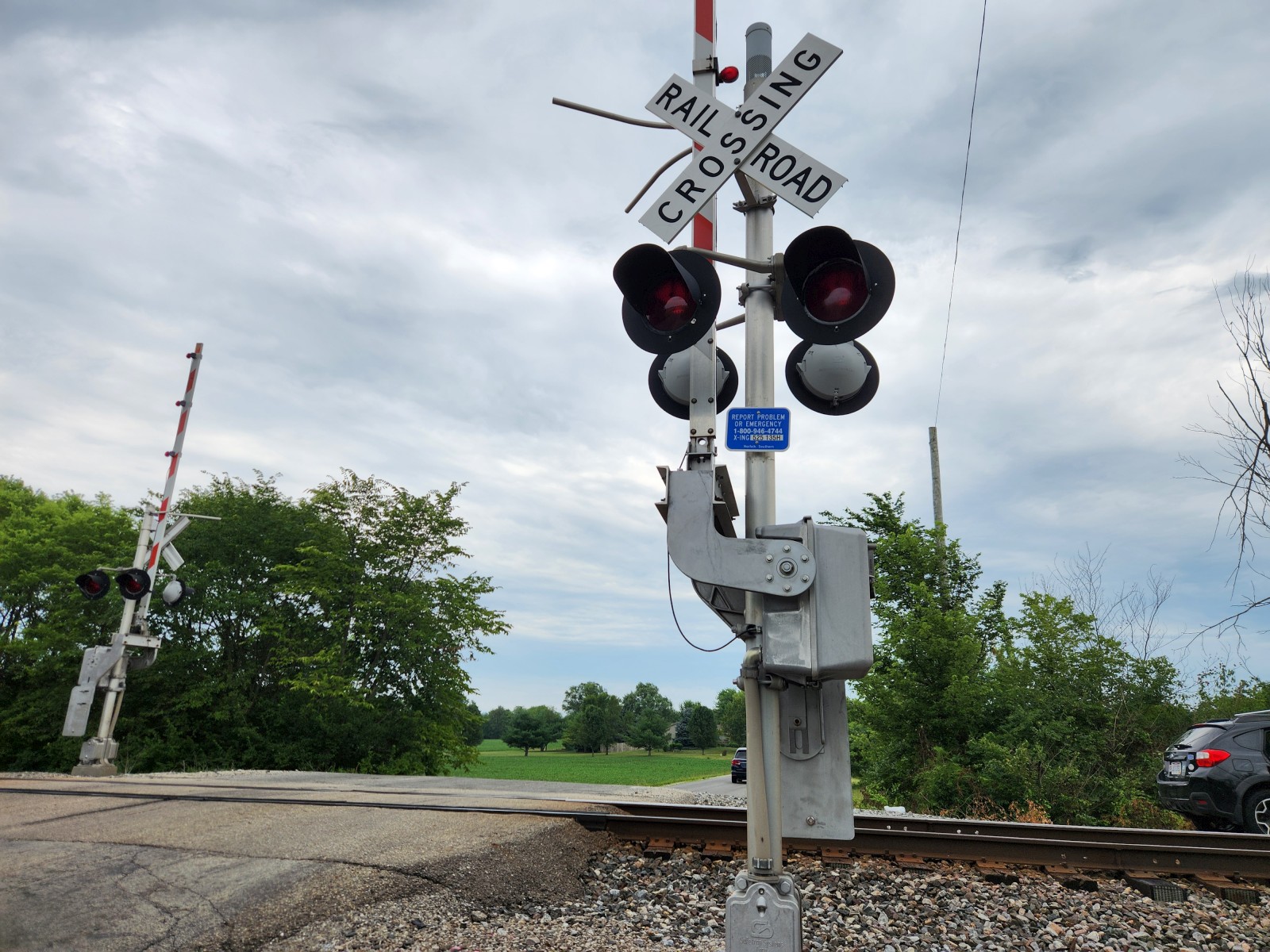

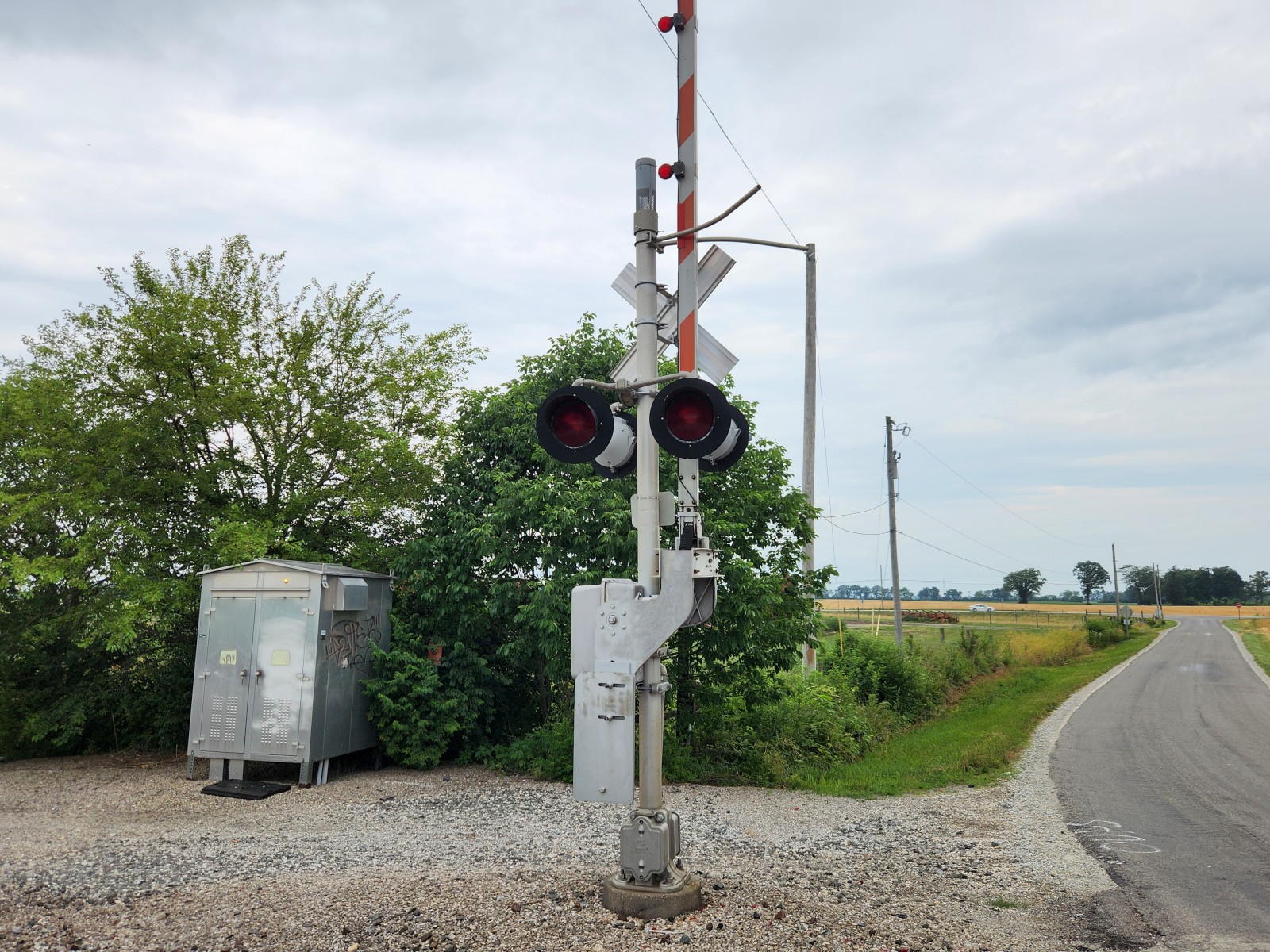

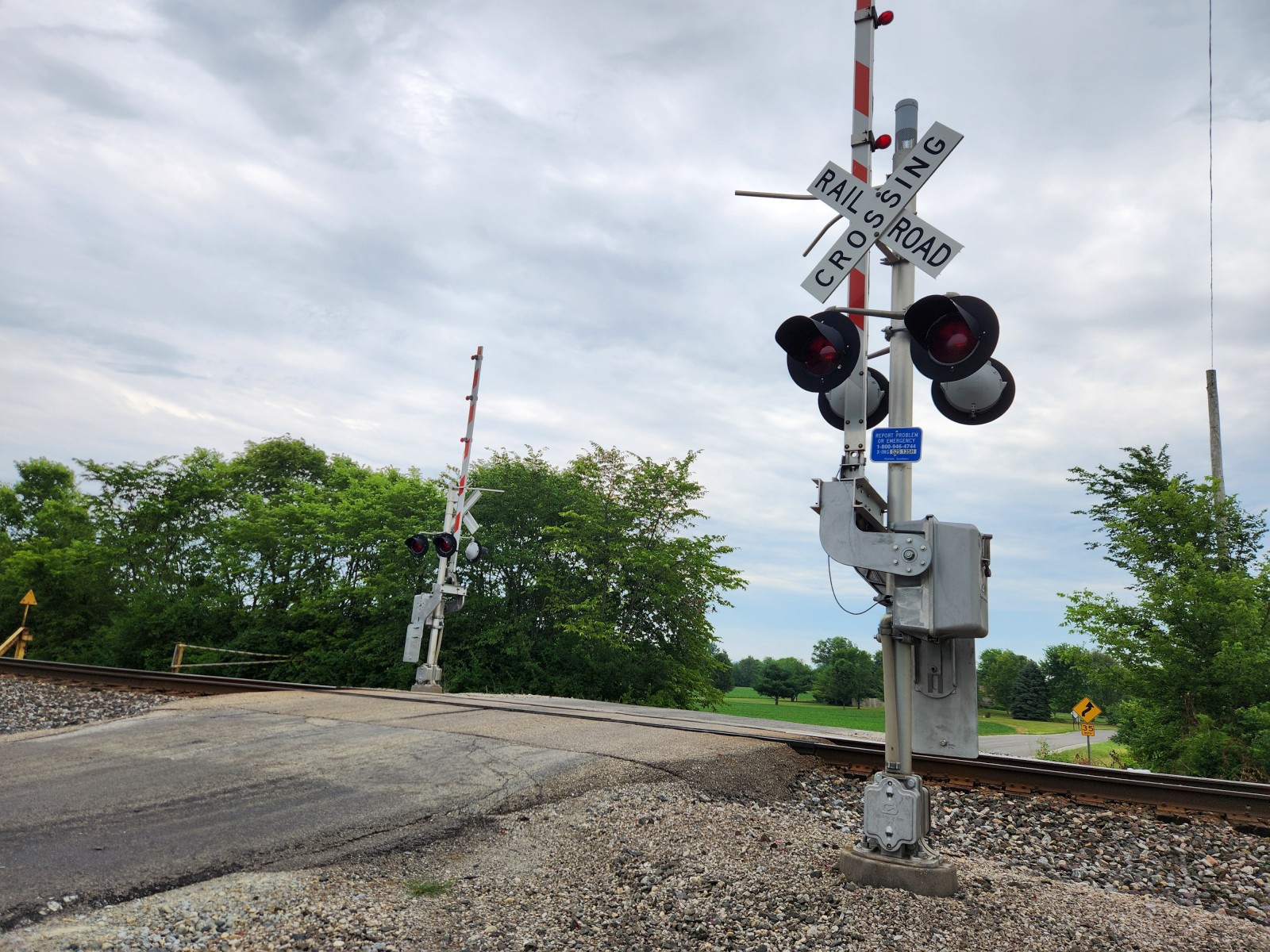

Overview of two gated signals facing
south.
|

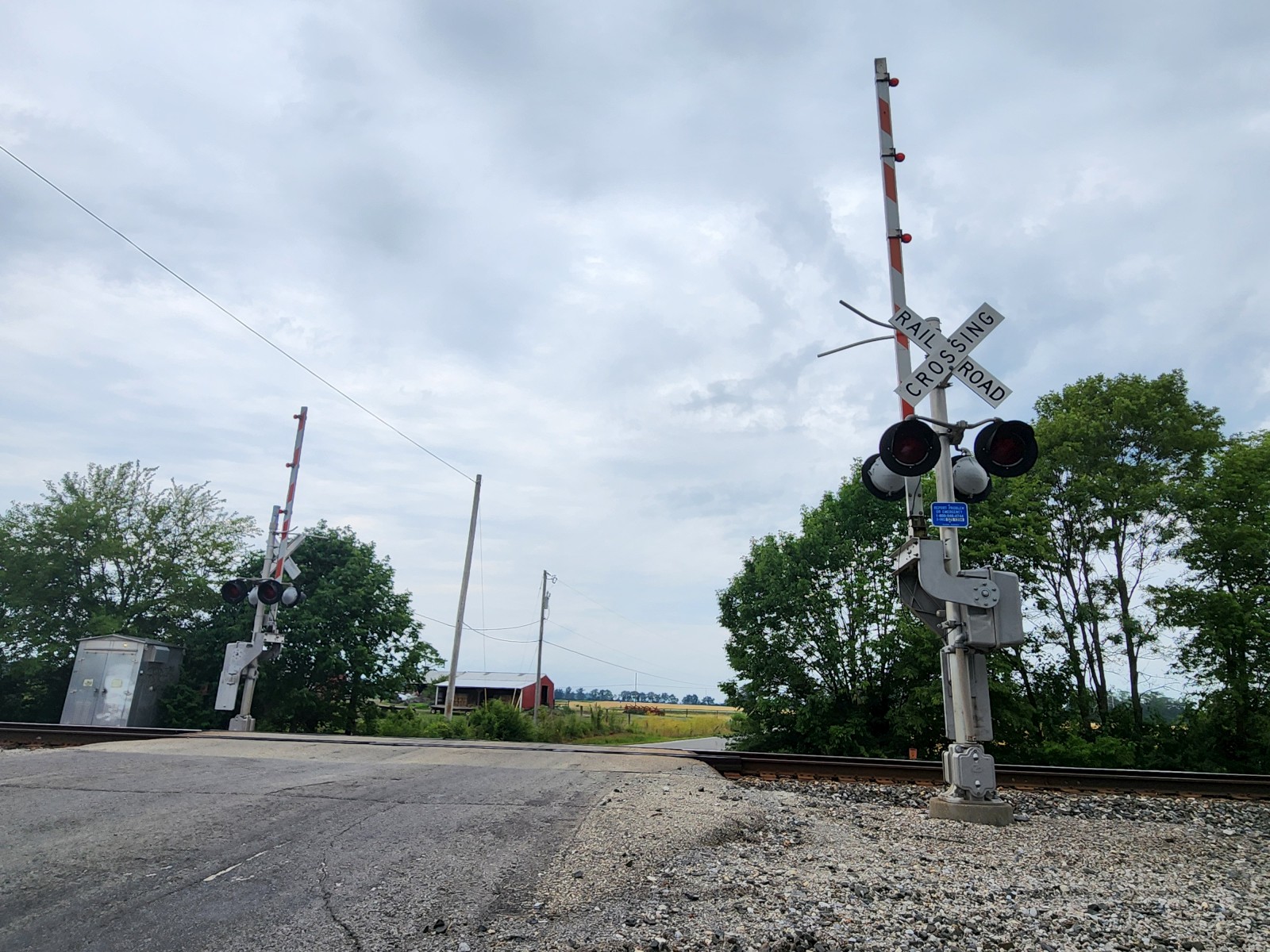

Overview
facing
north. |
|
3 |
4 |
|
5 |
6 |
7 |
8 |
|
9 |
10 |
11 |
12 |
|

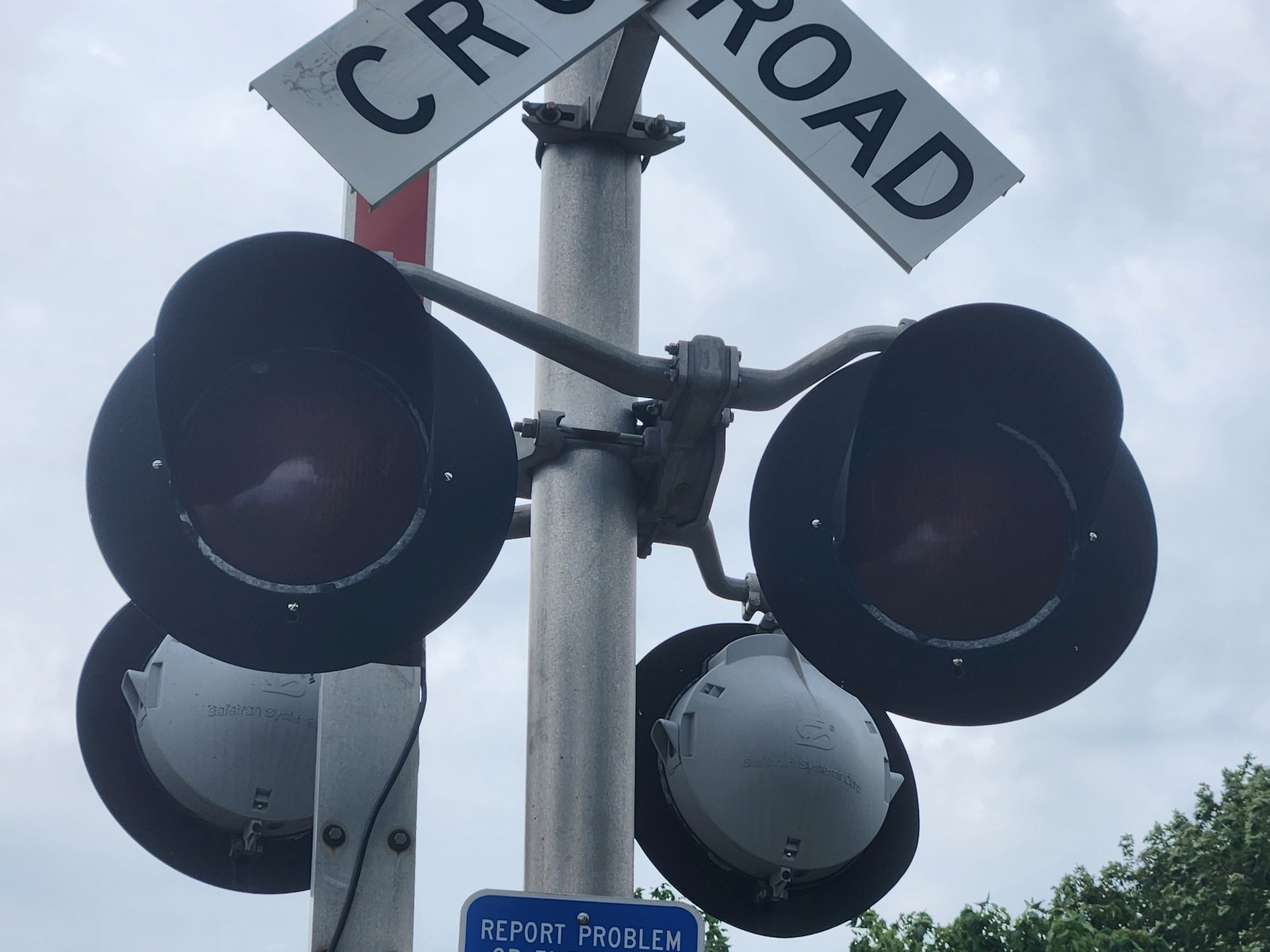

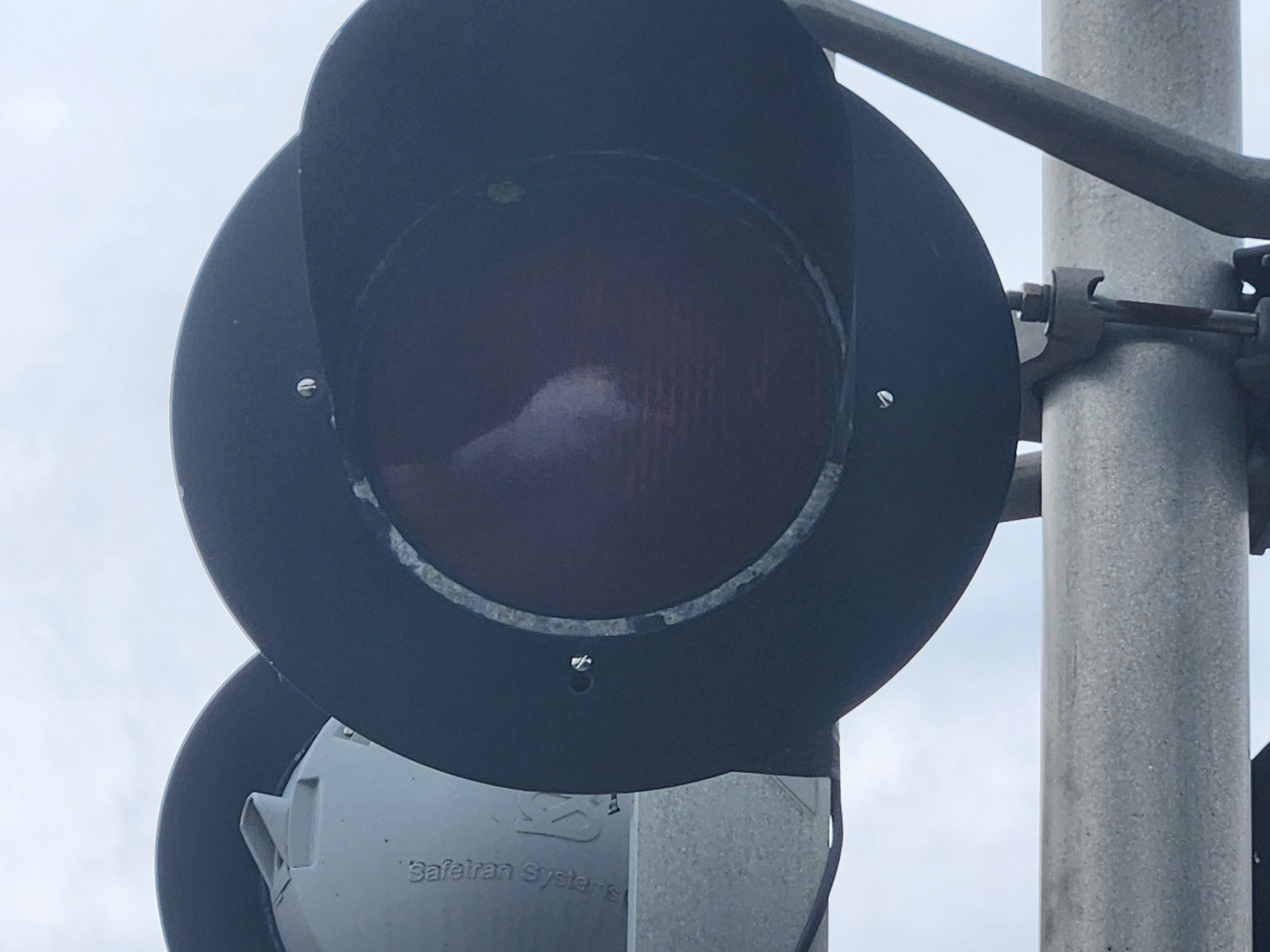

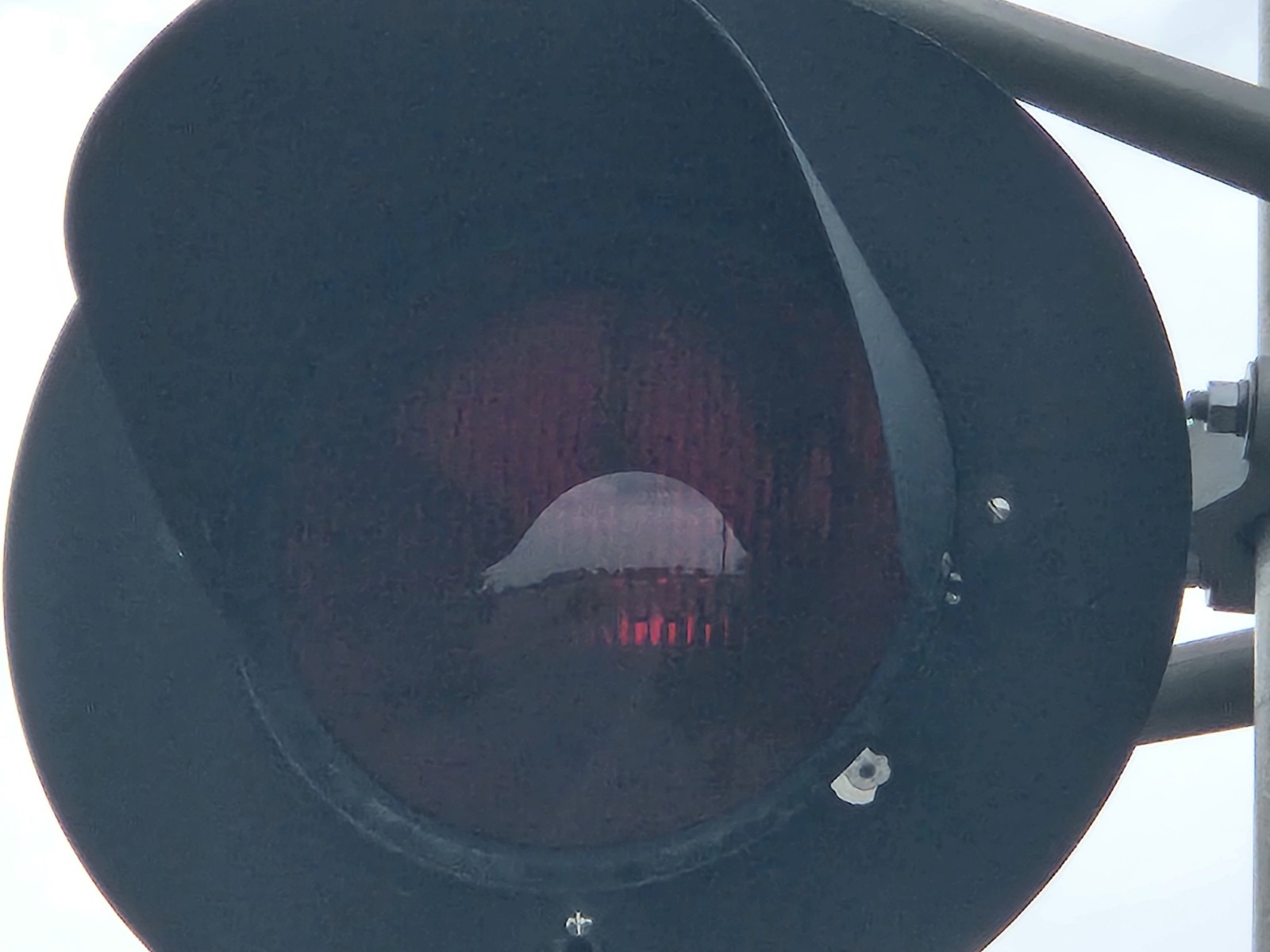

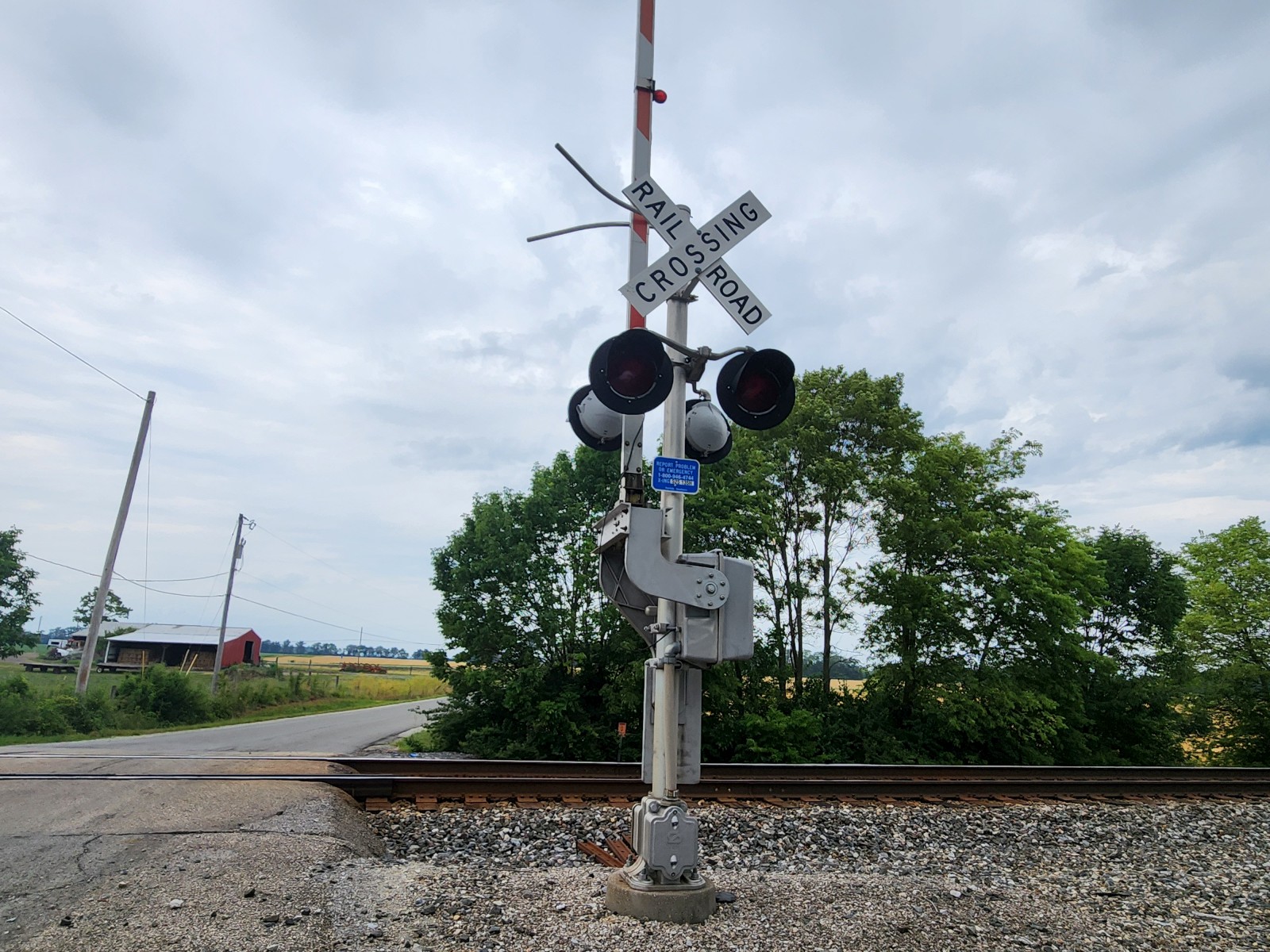

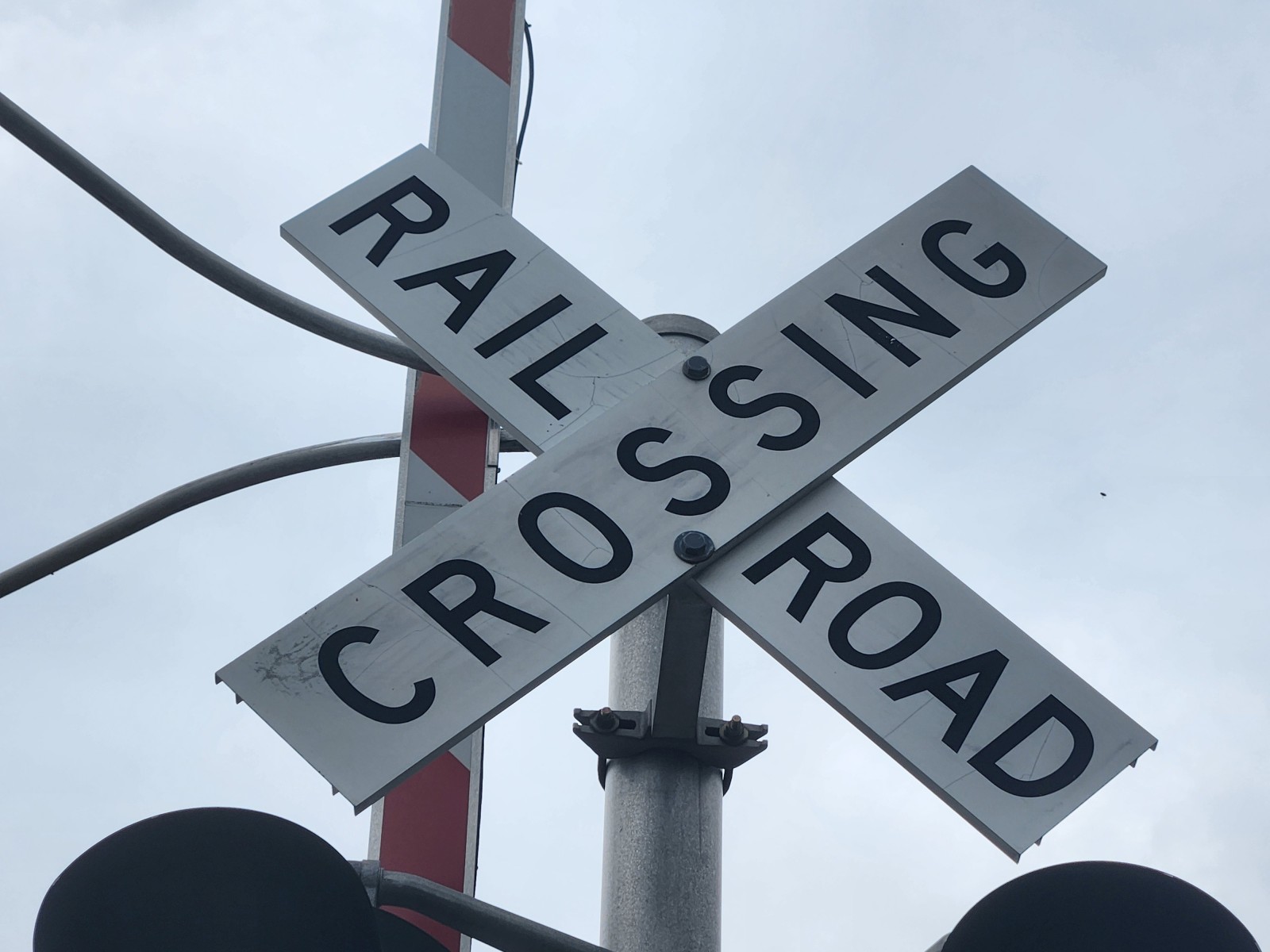

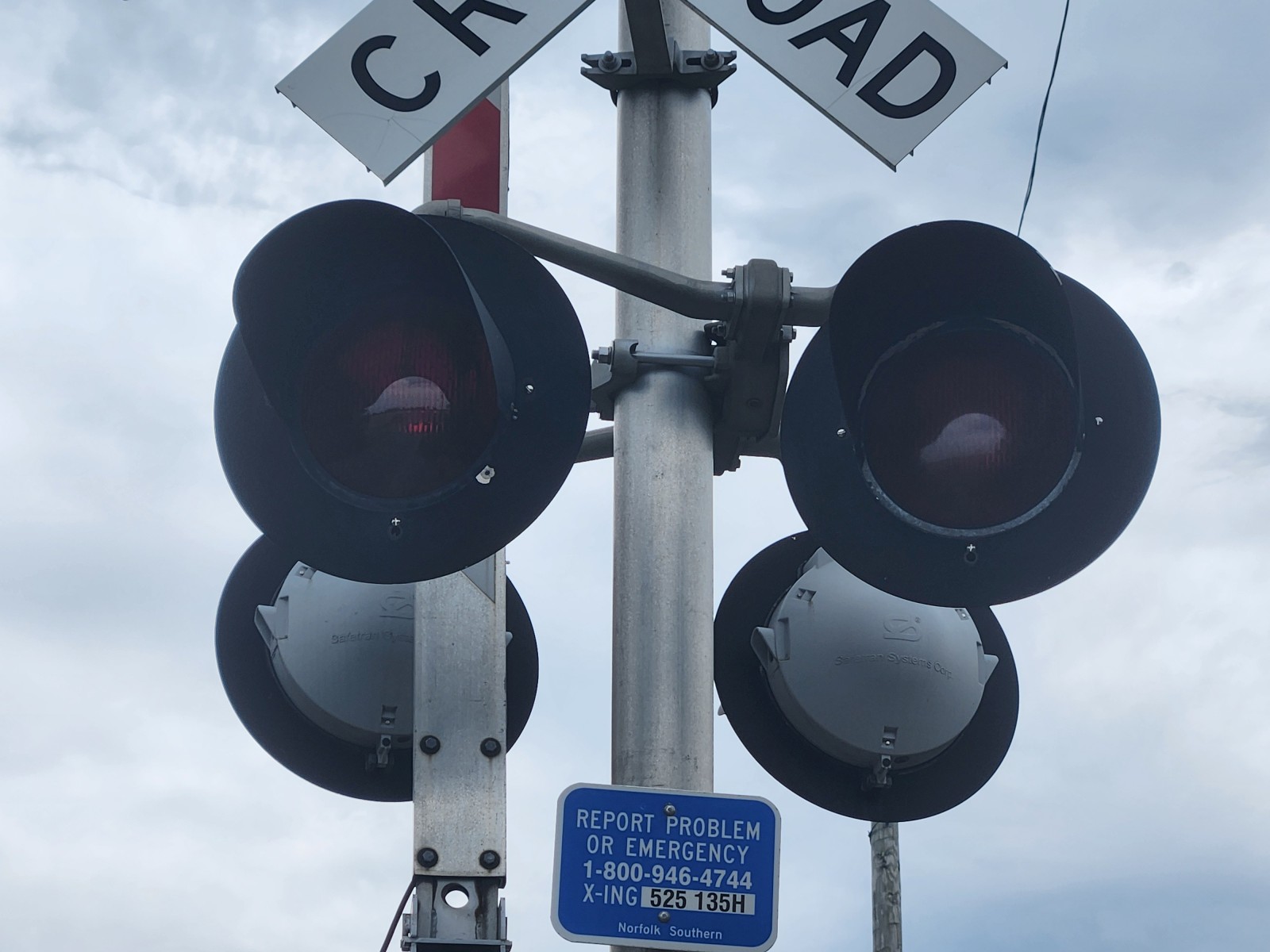

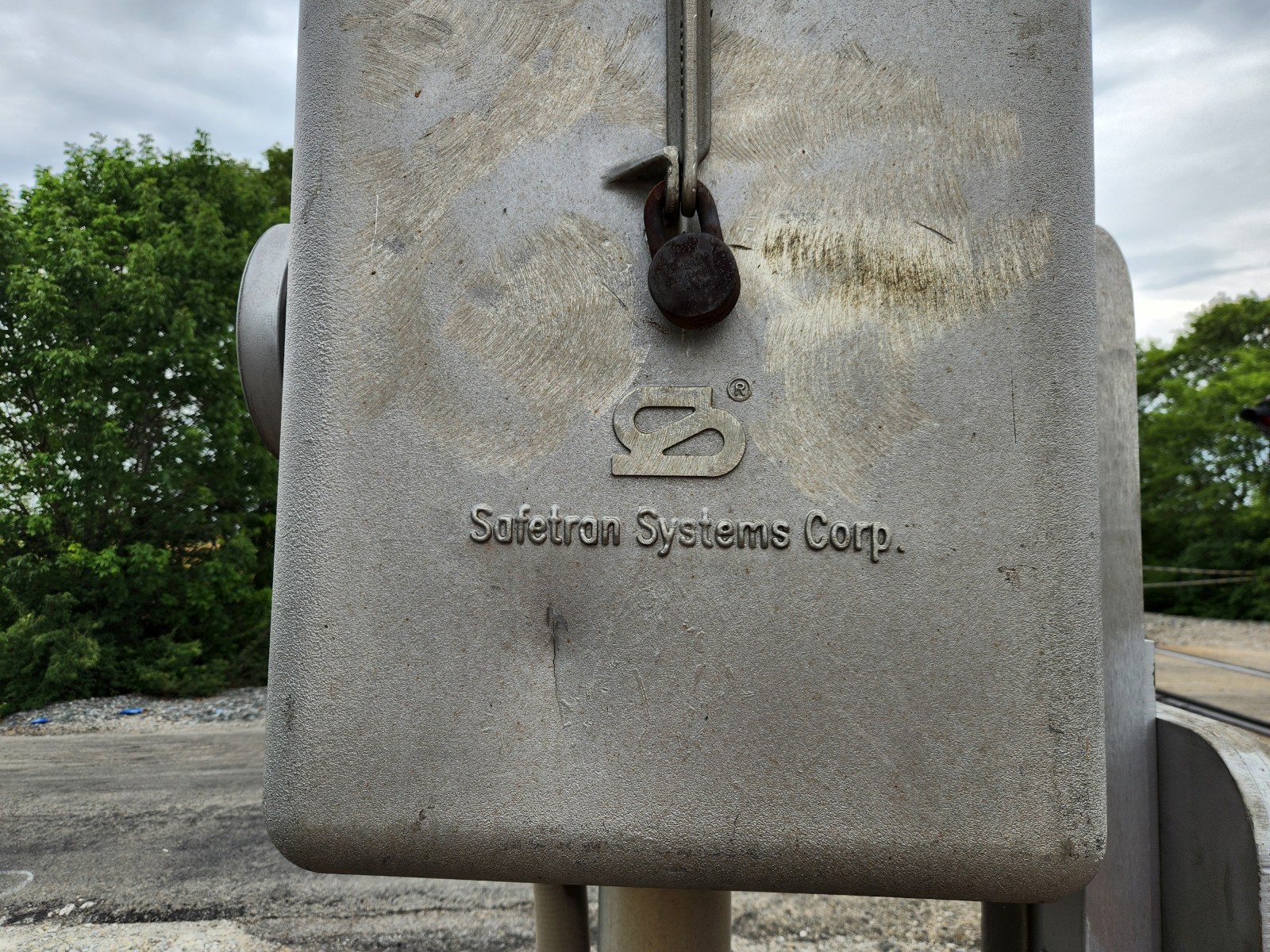

The northern signal.
|
|||
|
13 |
14 |
|
15 |
16 |
17 |
18 |
|
19 |
20 |
21 |
|
|

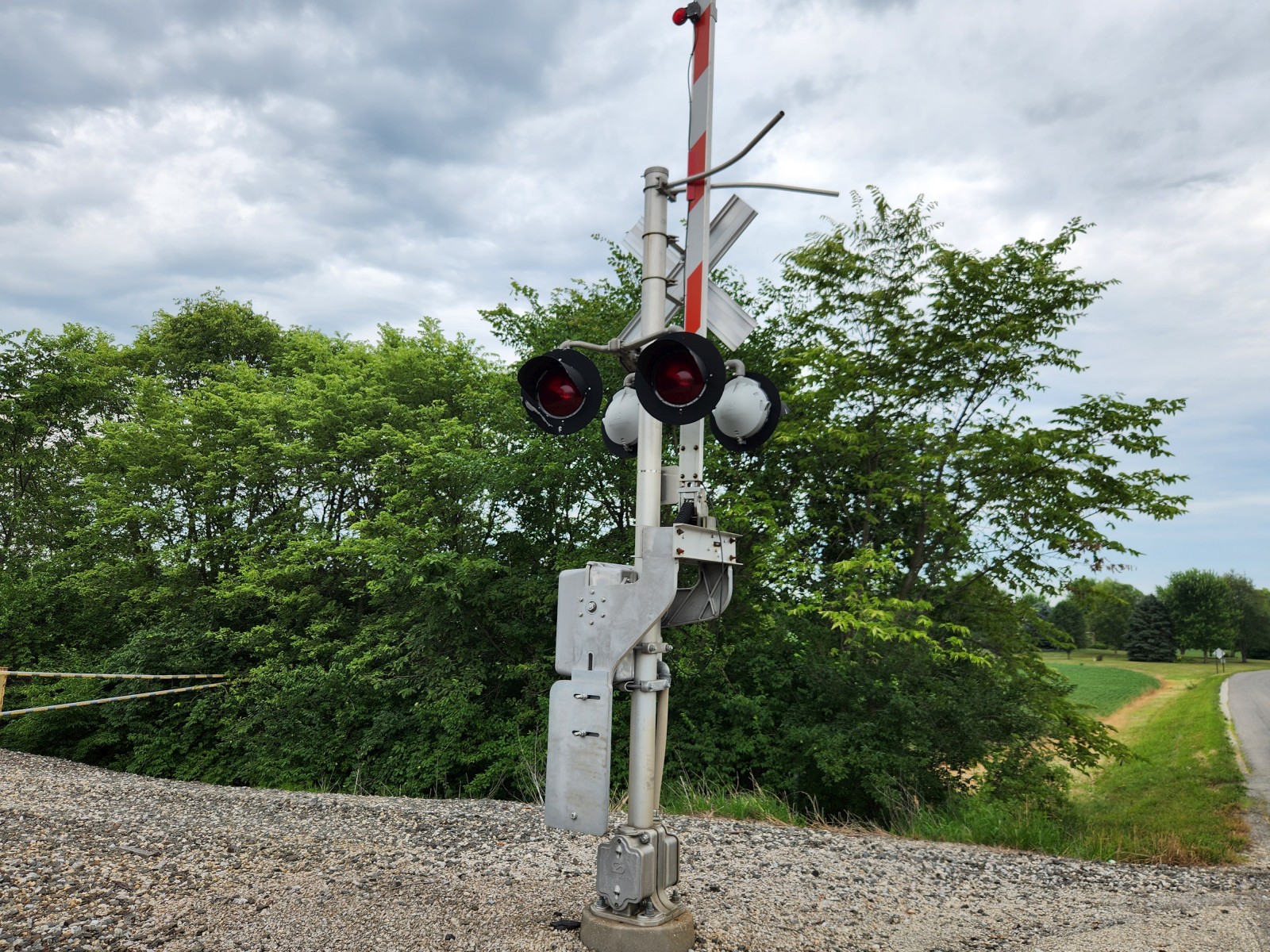

The southern signal. I forgot to get a
picture of the gate mechanism while I was here.
|
|||
|
22 |
23 |
24 |
|

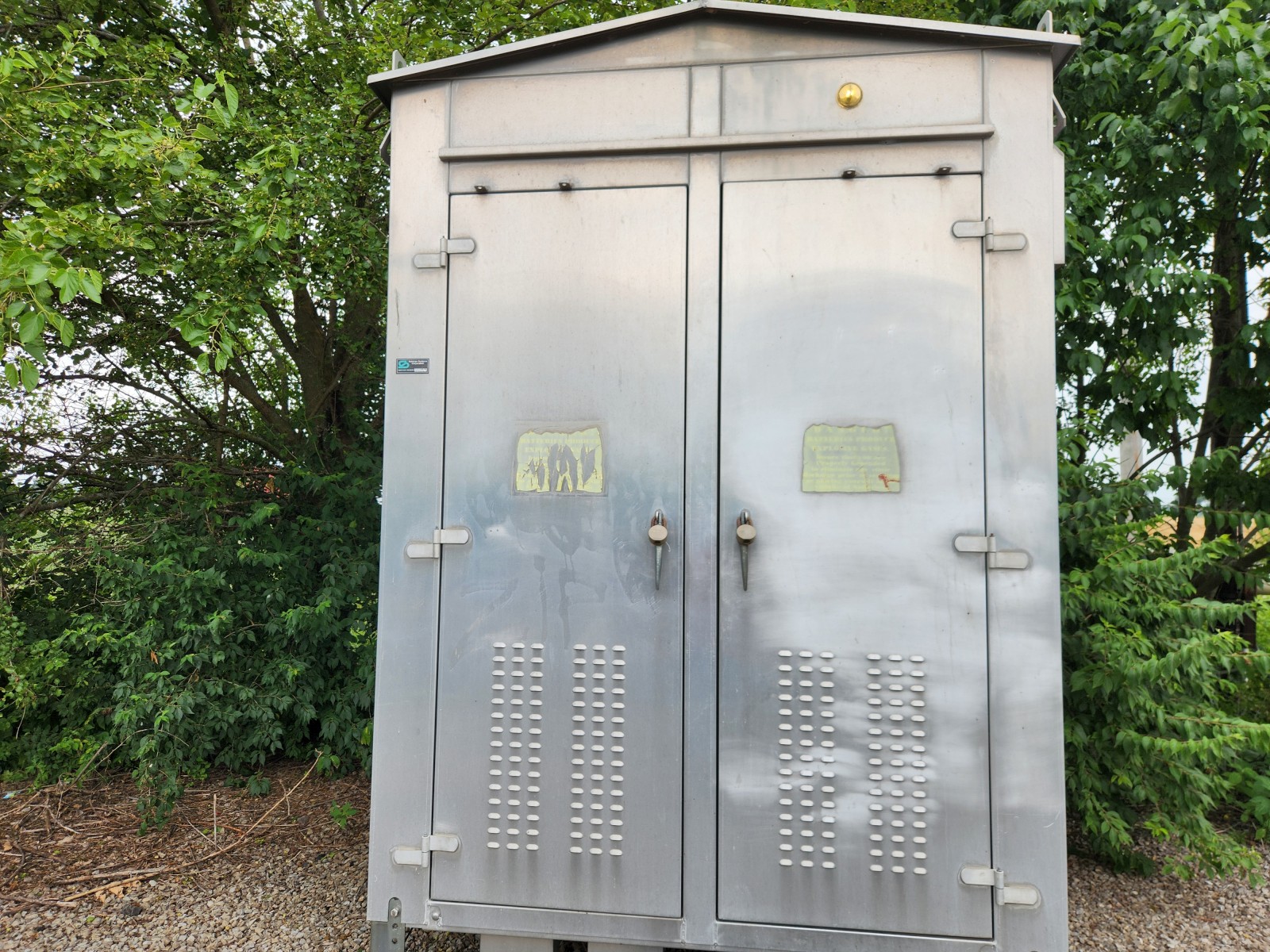

The relay bungalow.
|

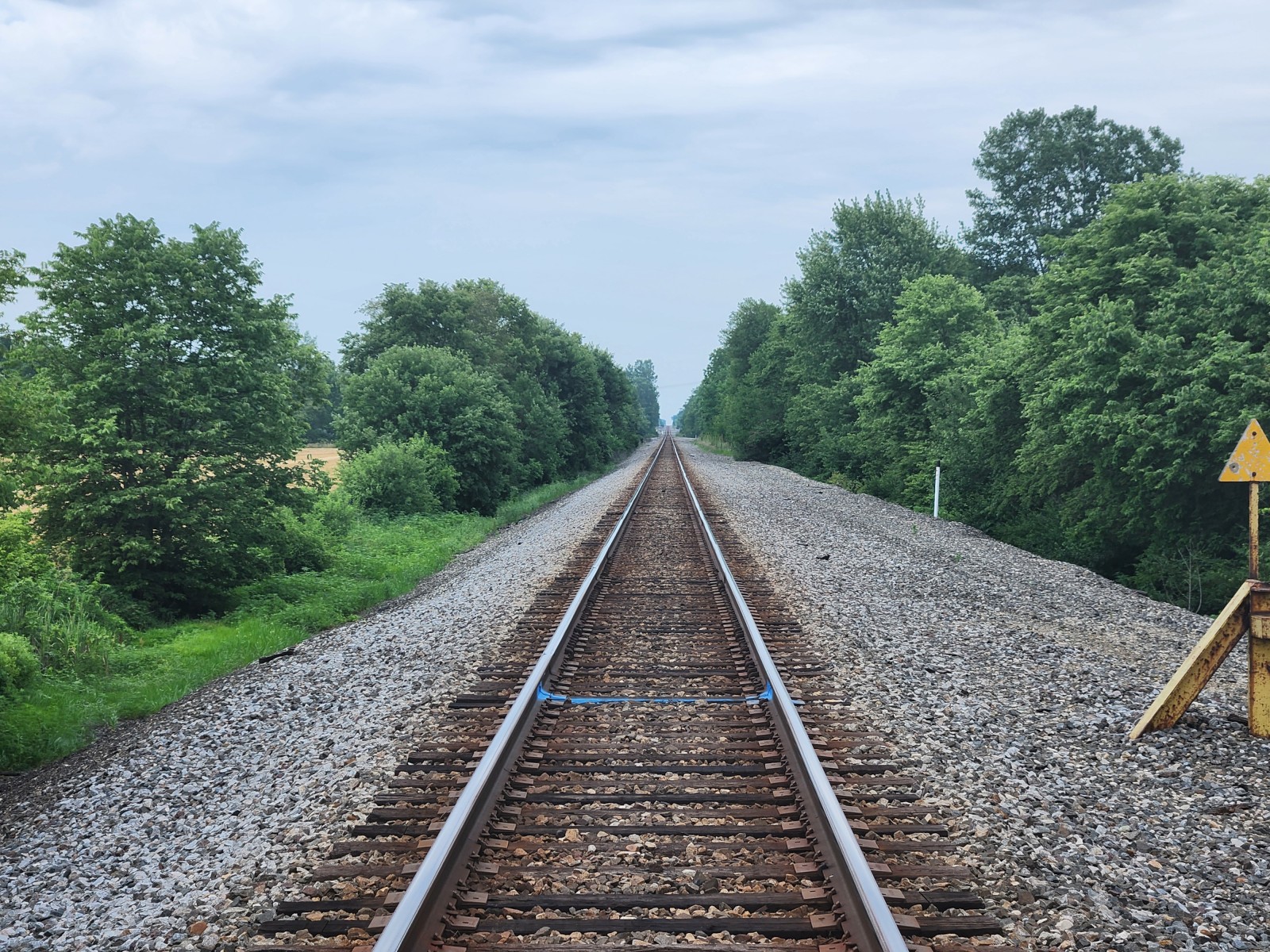

Track view facing west
towards Spring
Valley
Road. |

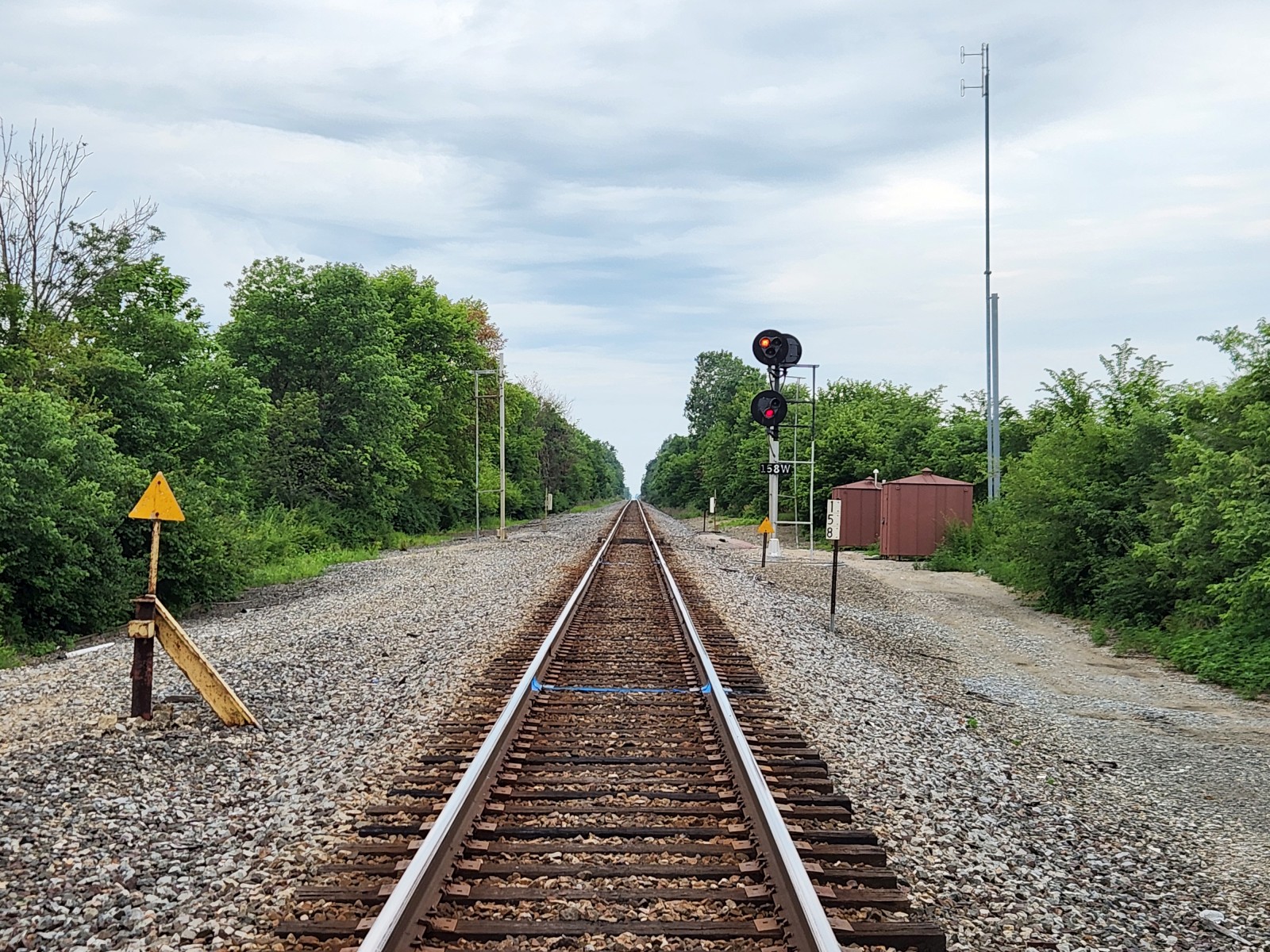

Track view facing east
towards Gregg
Road in West Jefferson. |
|
25 |
26 |
27 |

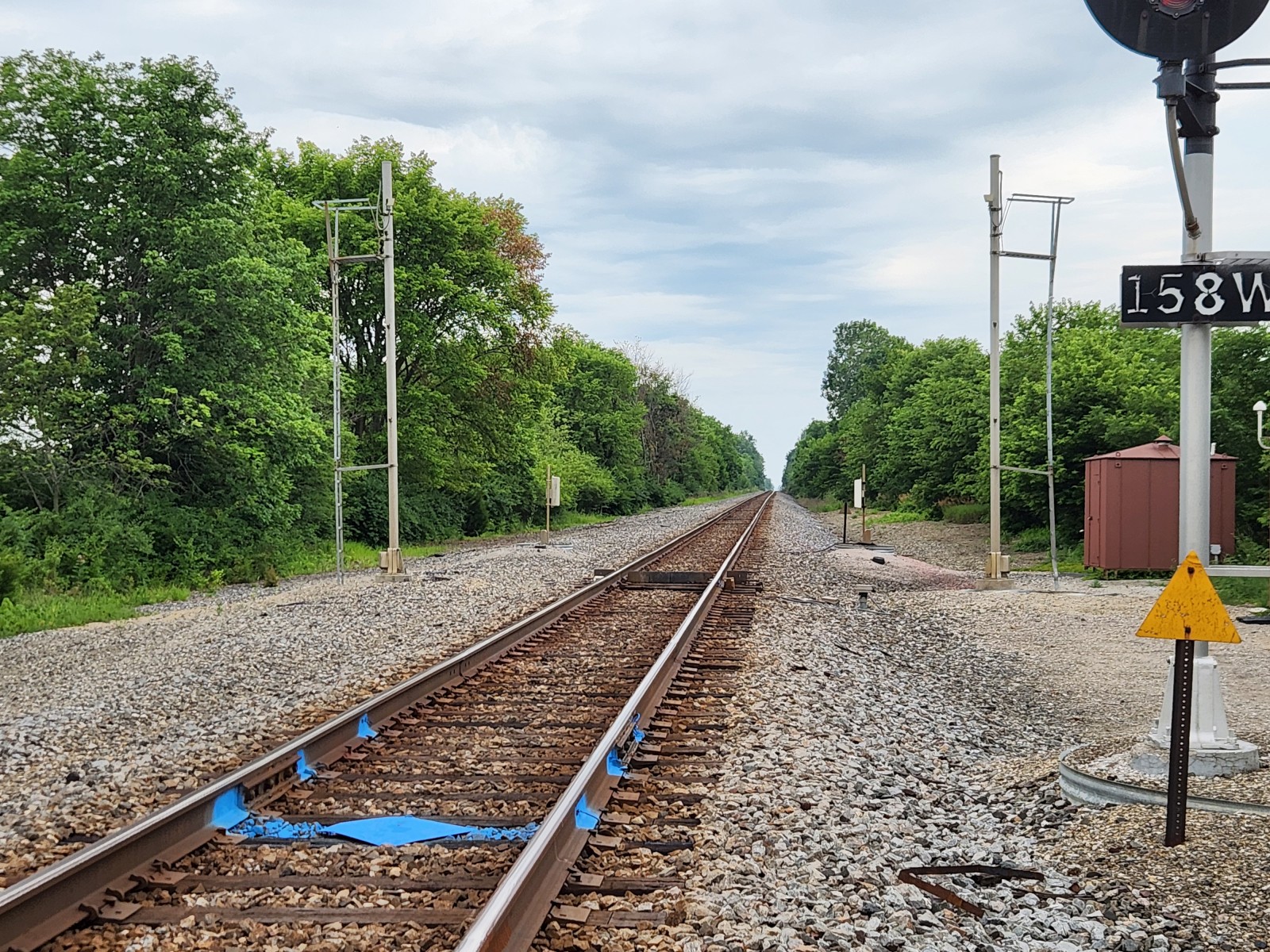

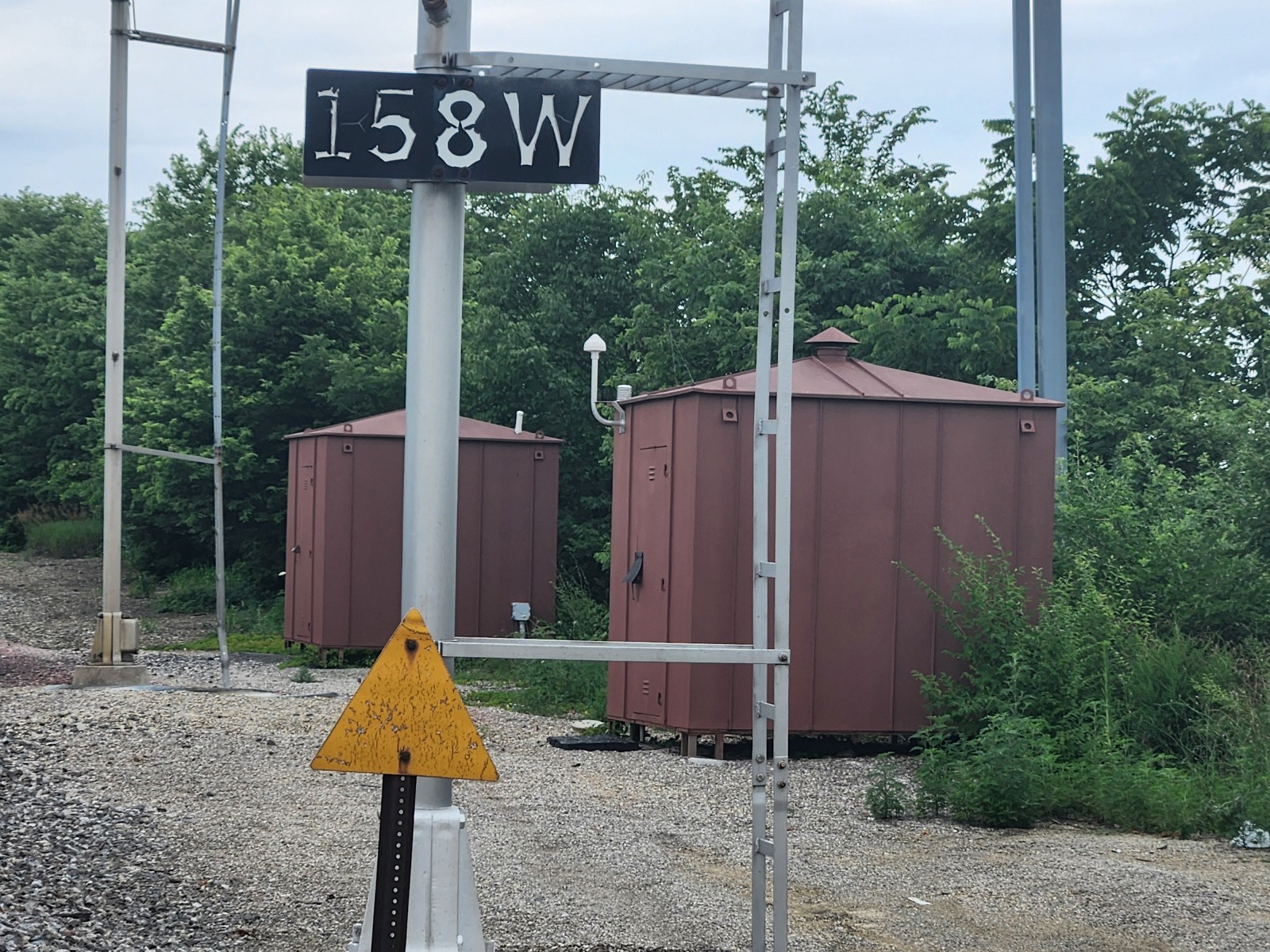

| There's a

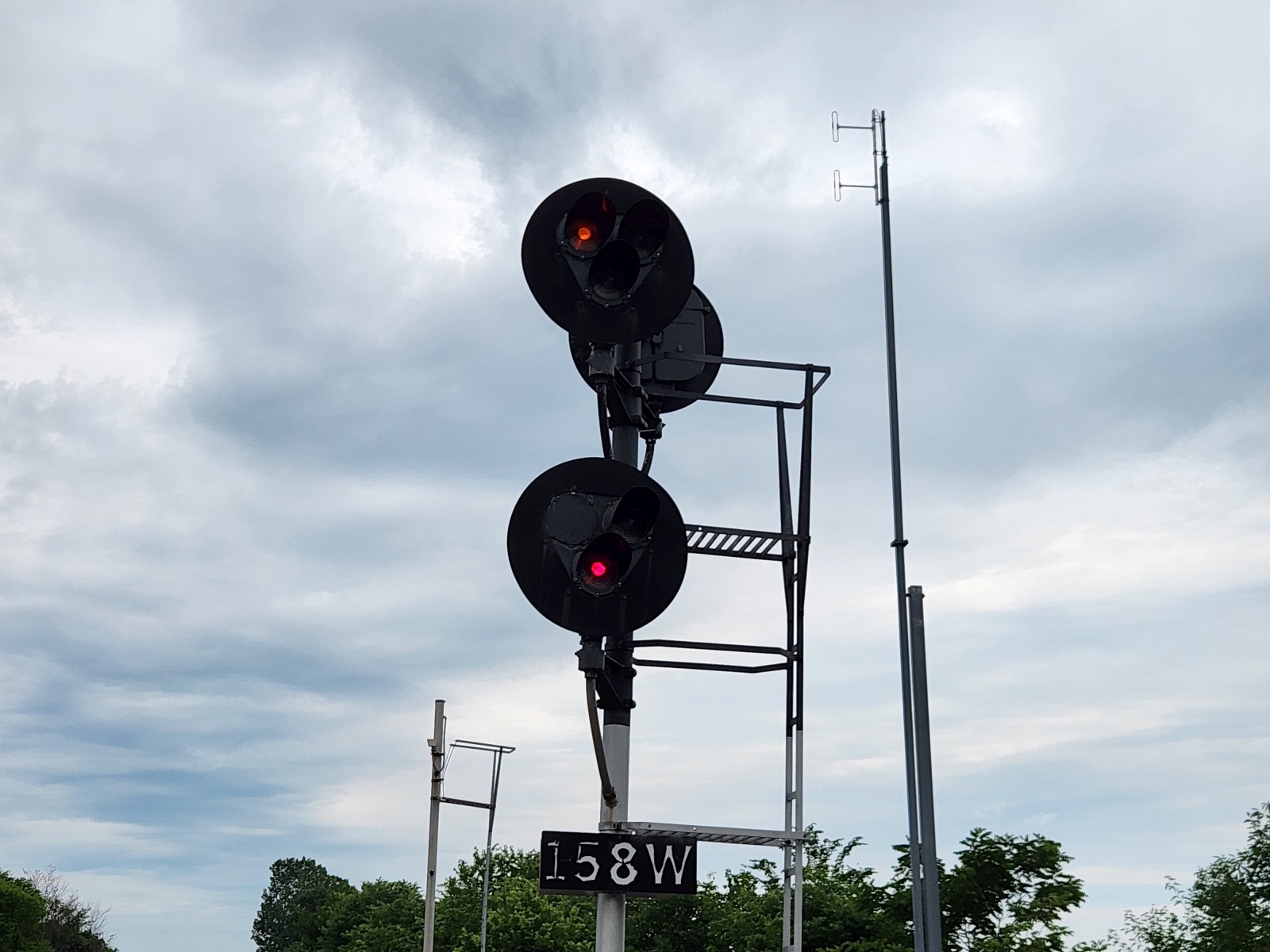

couple of things that stand near this crossing. Picture 26
shows the wayside signal with Picture 27 showing its relay
bungalows. Picture 28 shows the Defect Detector in the
distance. |
||
