| >>>>>>>>>>>>>> | Western Signal | Eastern Signal |

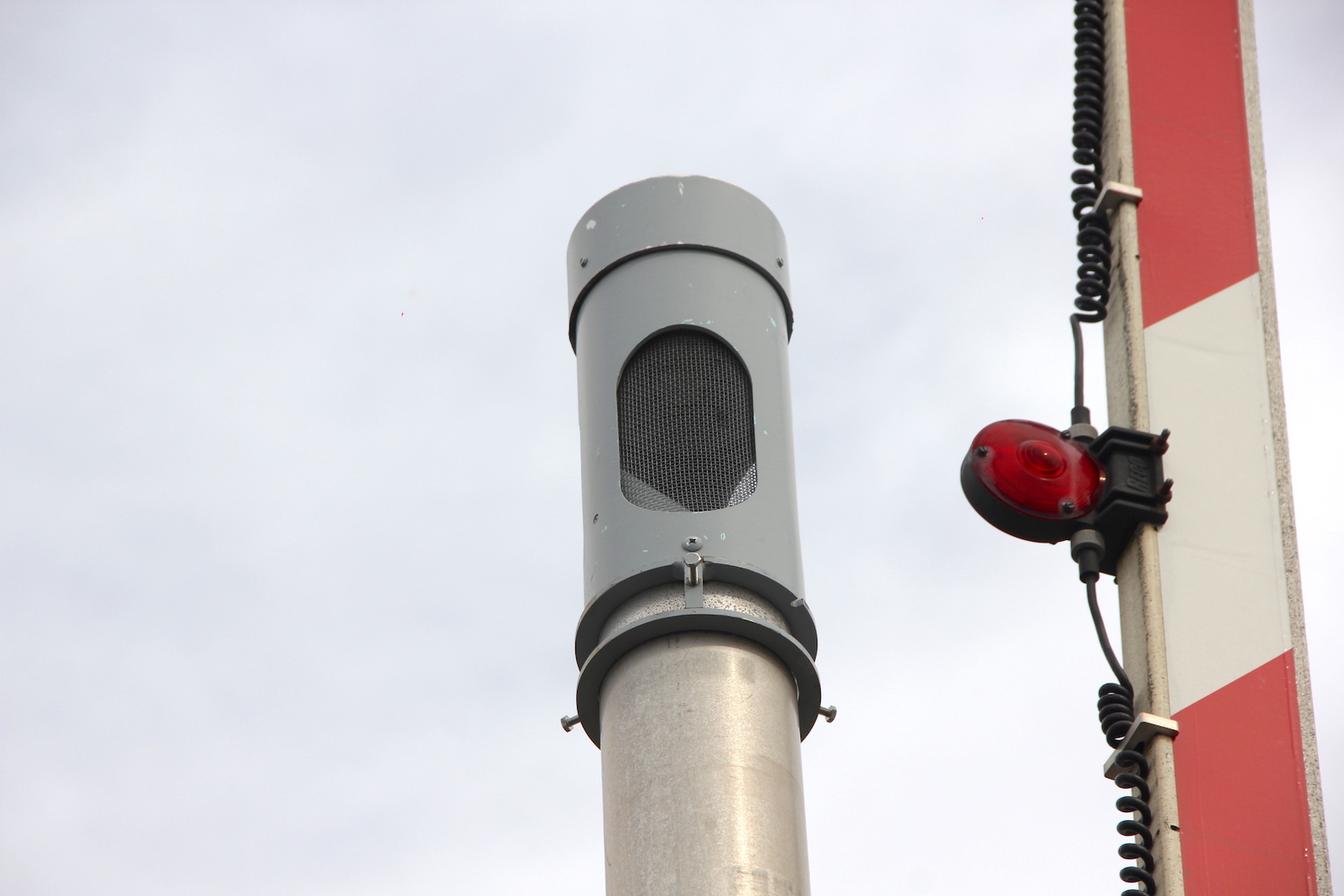

| Bell: | None | NEG E Bell |

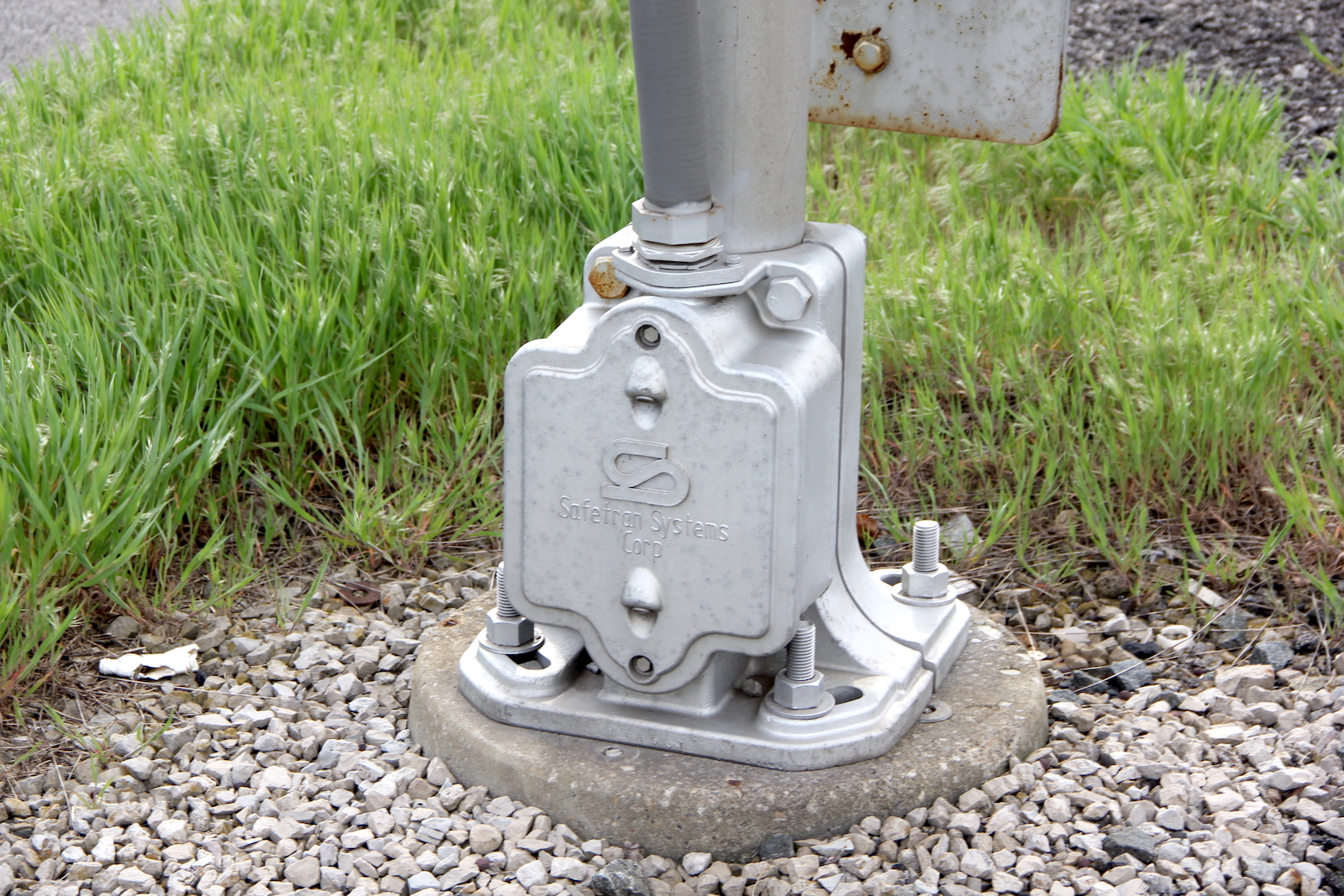

| Base: | Safetran 5" Single Sided | Safetran 5" Single Sided |

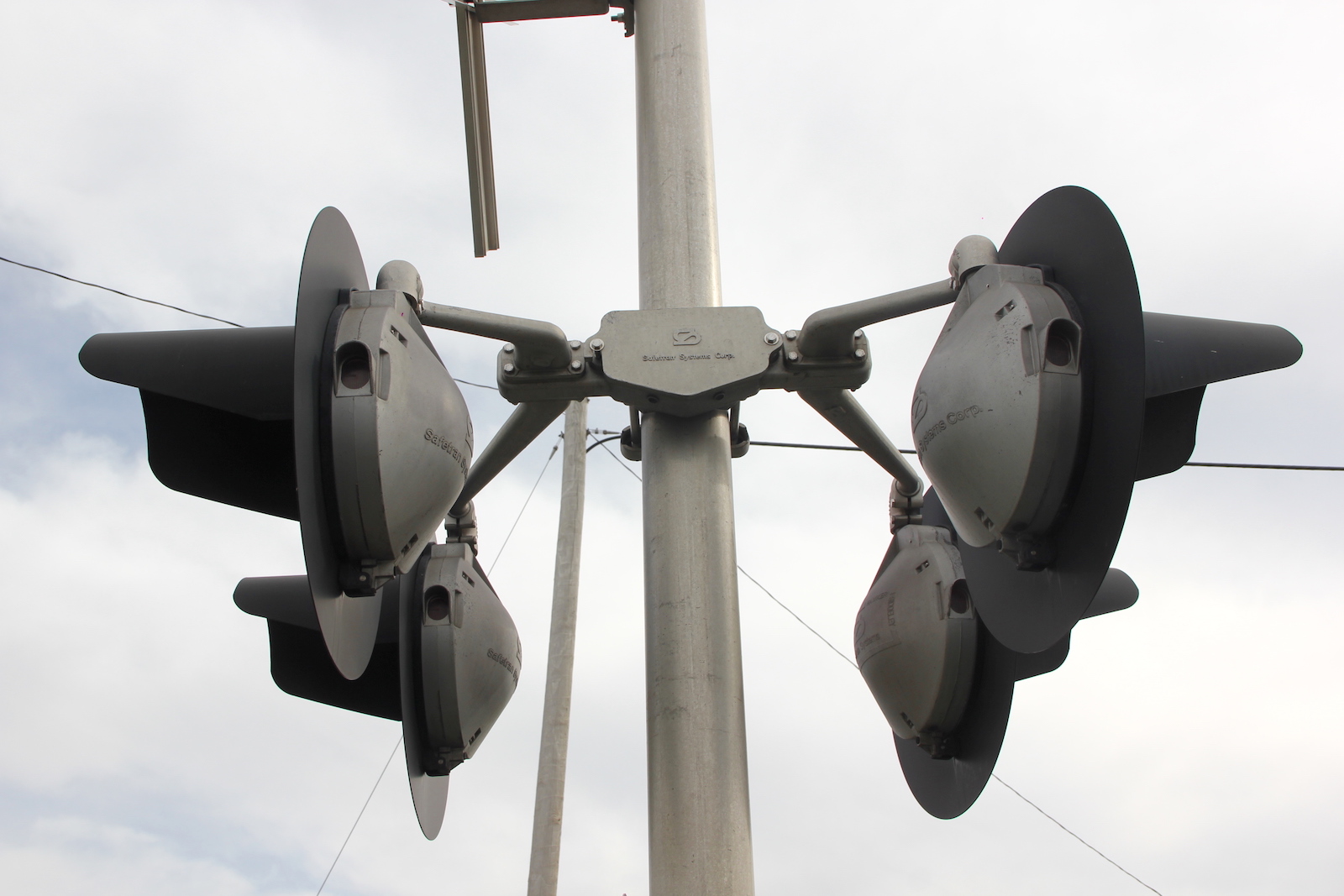

| Lights: | 4 - 12"x24" Safetran incandescents | 3 - 12"x24" Safetran incandescents 1 - 12"x24" Hawker Safetran incandescent |
| Junction Box: | Safetran | Safetran |
| Gate Lights: | 4" Safetran incandescents | 4" RECO |
| Gate Mechanism: | Safetran 1990s w/ Standard Mount | Safetran 1990s w/ Standard Mount |
| Gate Striping: | Diagonal Striping | Diagonal Striping |
1 |
2
|

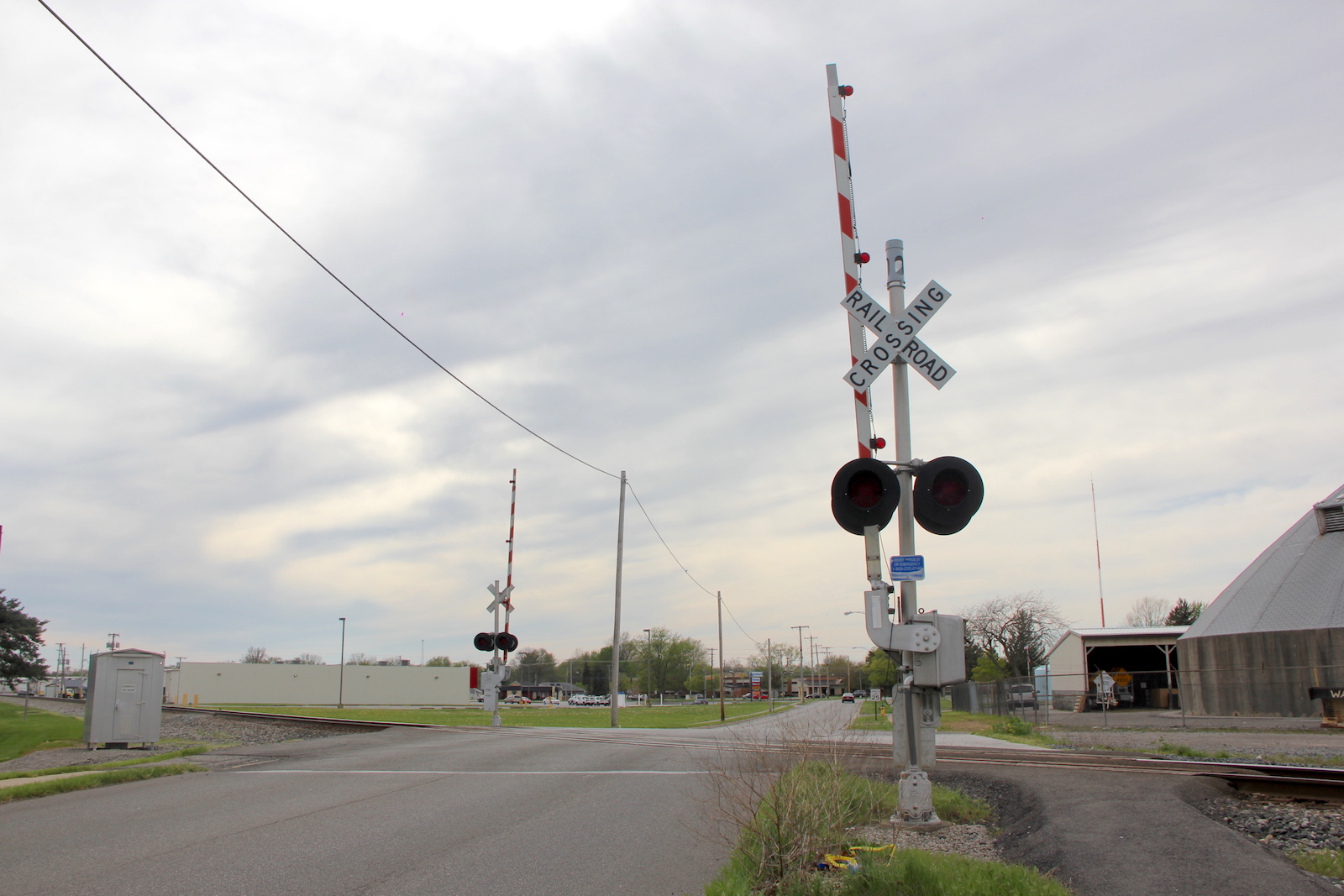

| Overview of 2 gated signals facing east. |
Overview facing west. |
3
| 4
| 5
|
6
| 7
| 8
|
9
|
10
|
11
|

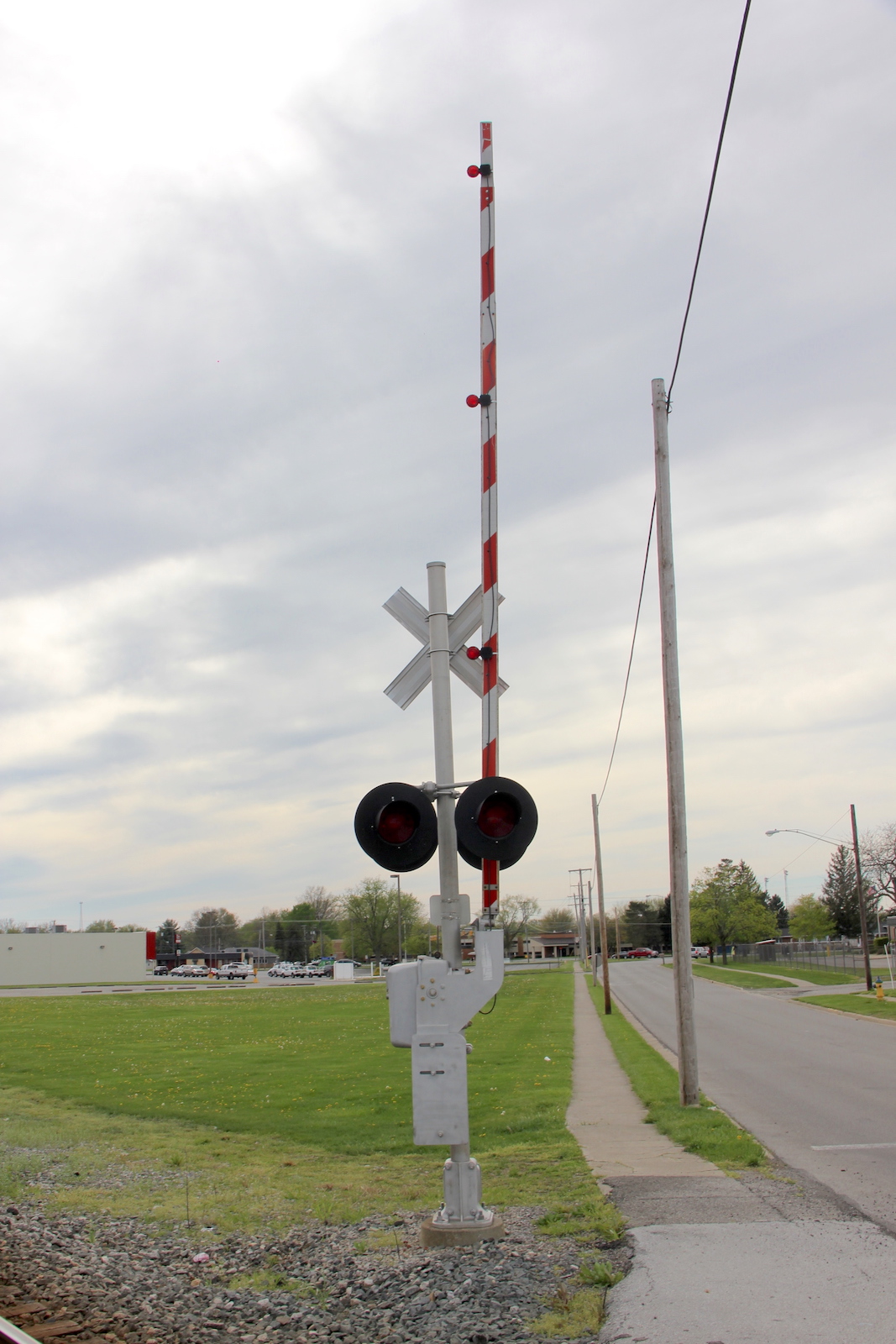

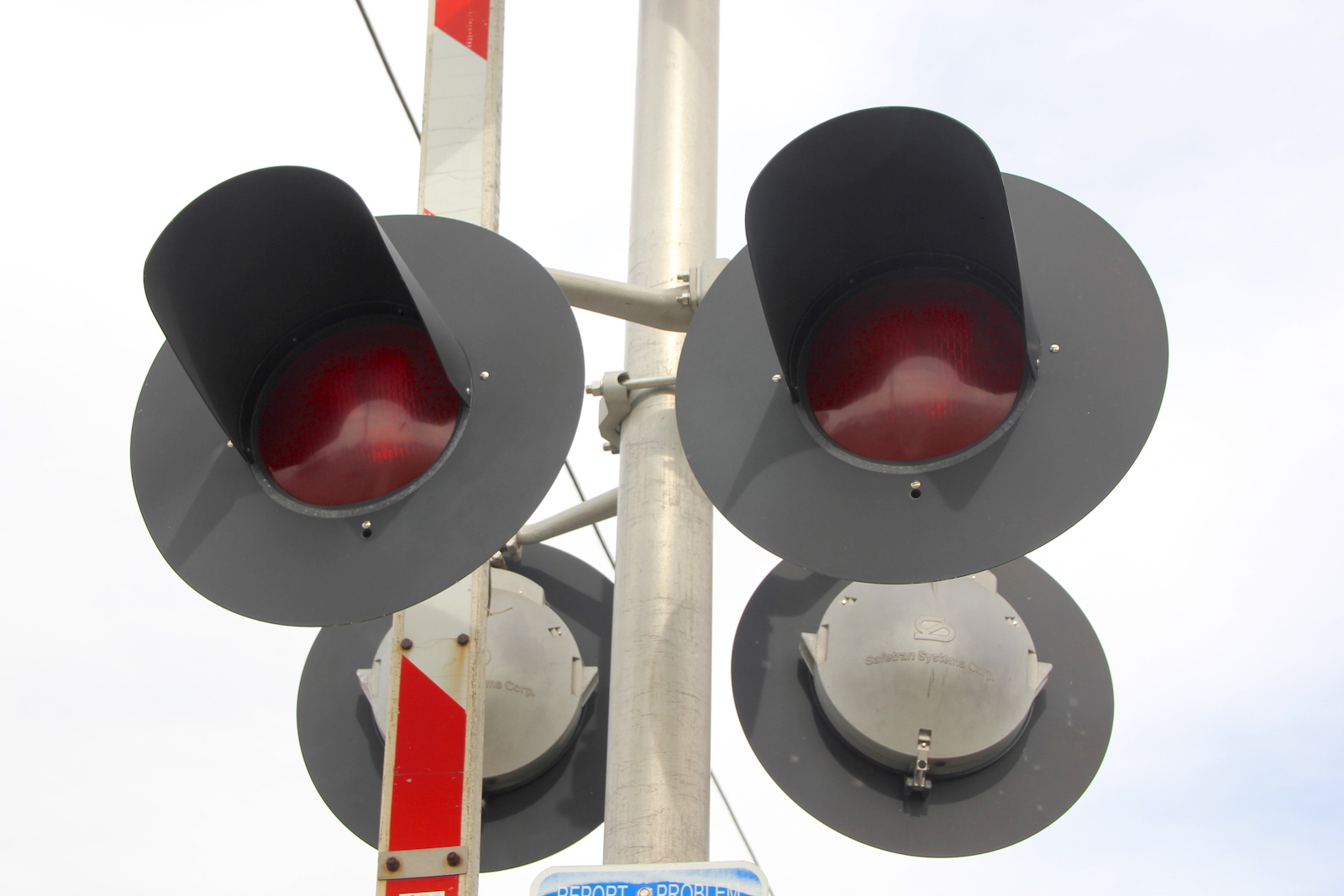

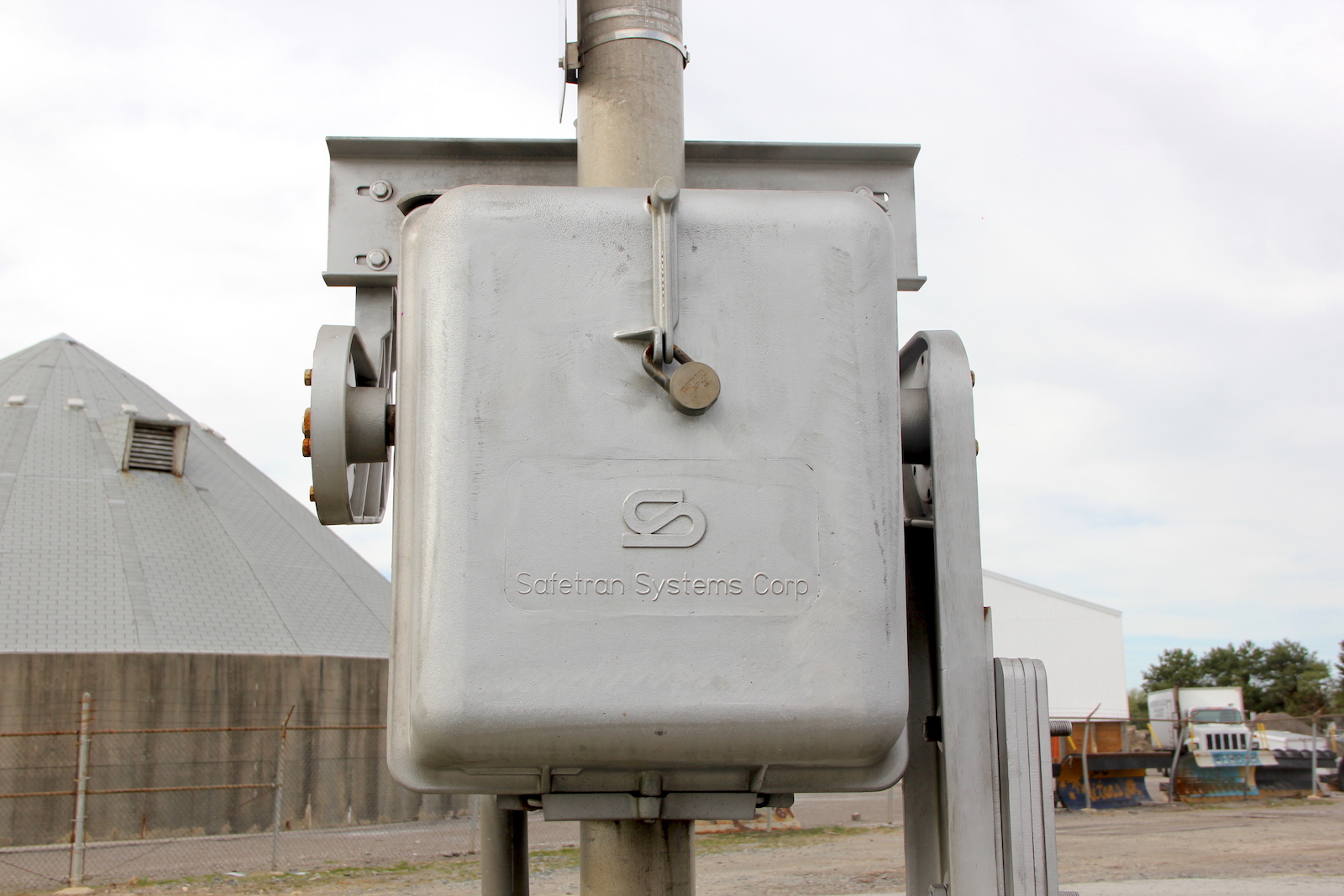

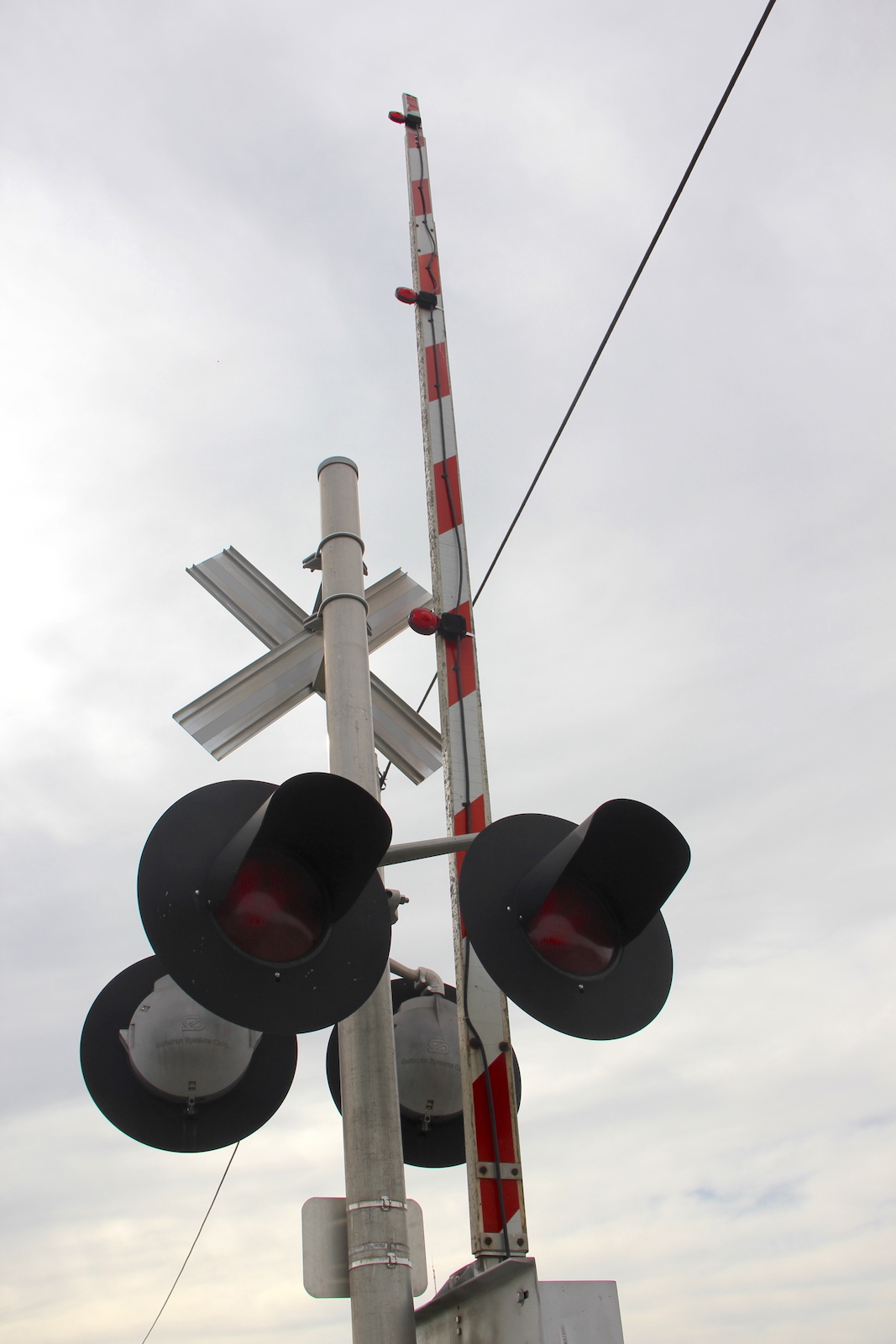

| The western signal. |
||
12
| 13
| 14
|
15
| 16
| 17
|
18
| 19
| 20 | 21
|

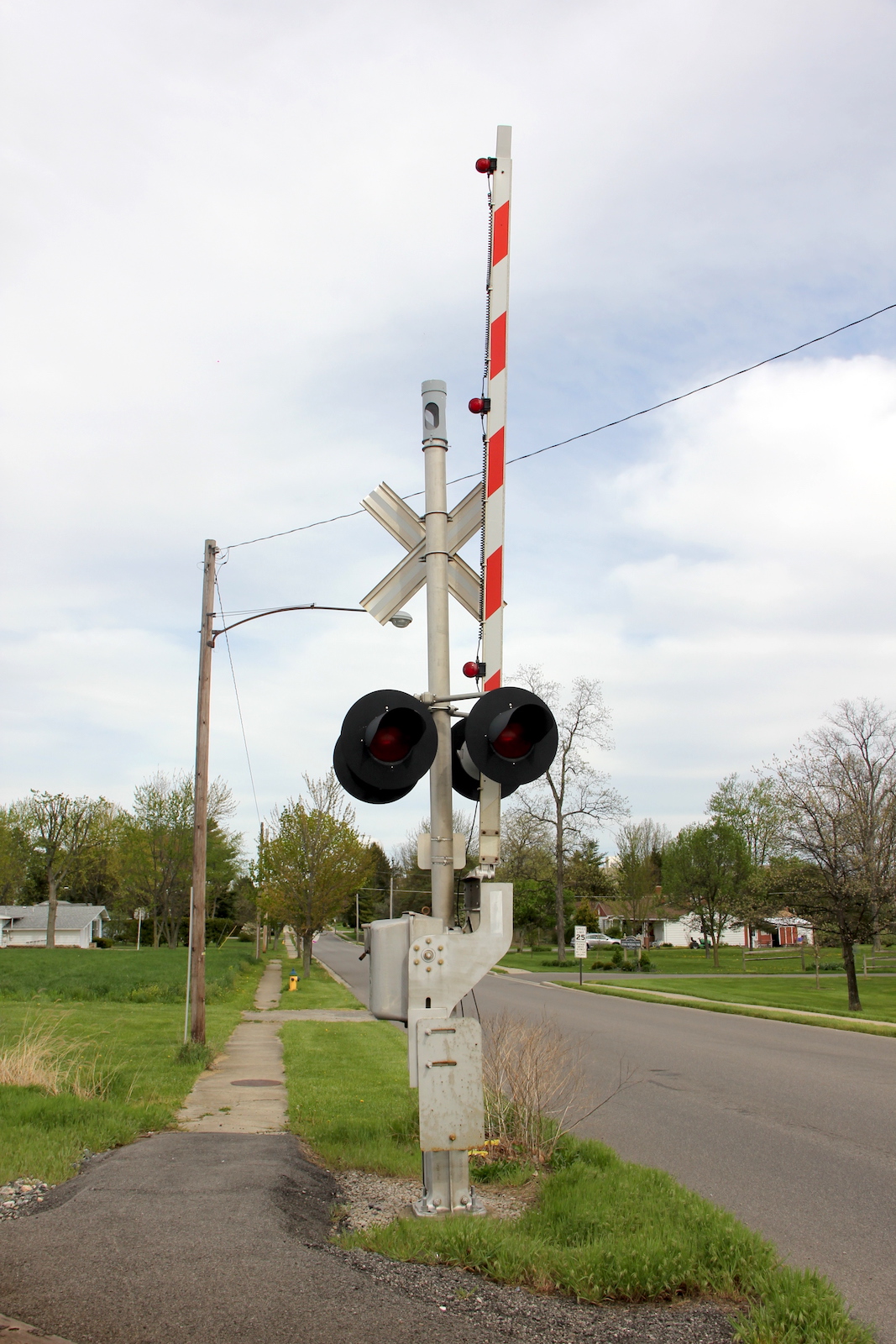

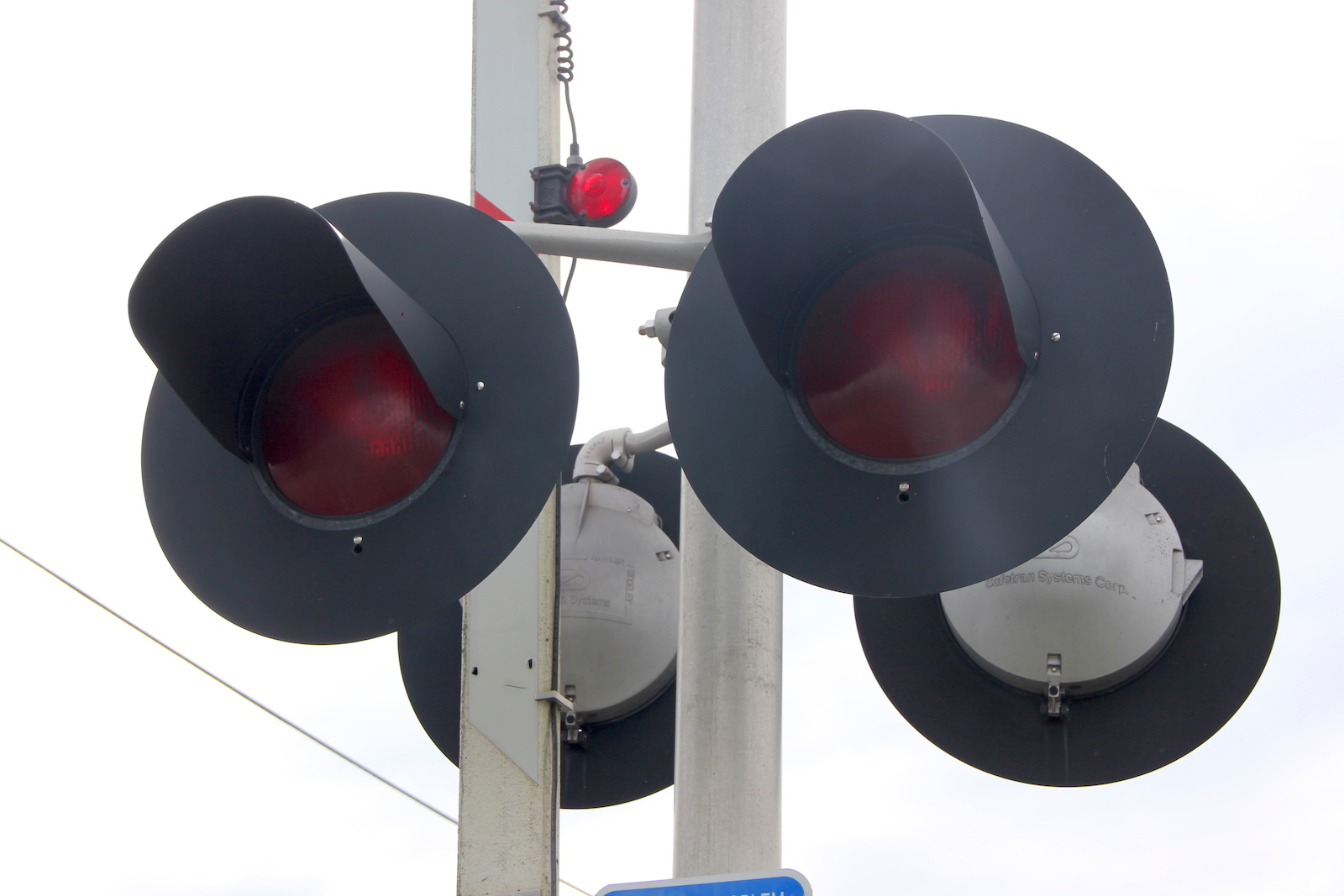

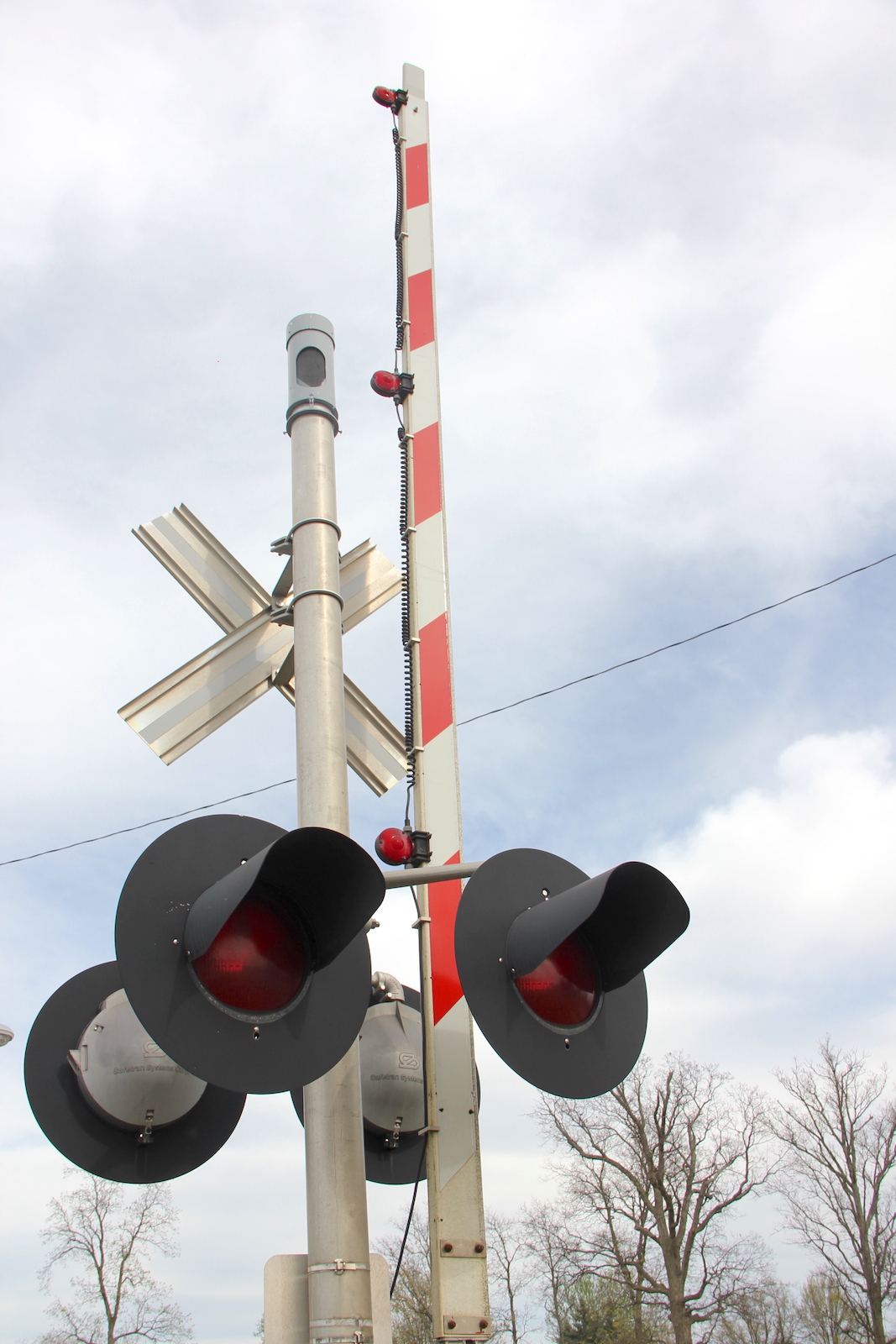

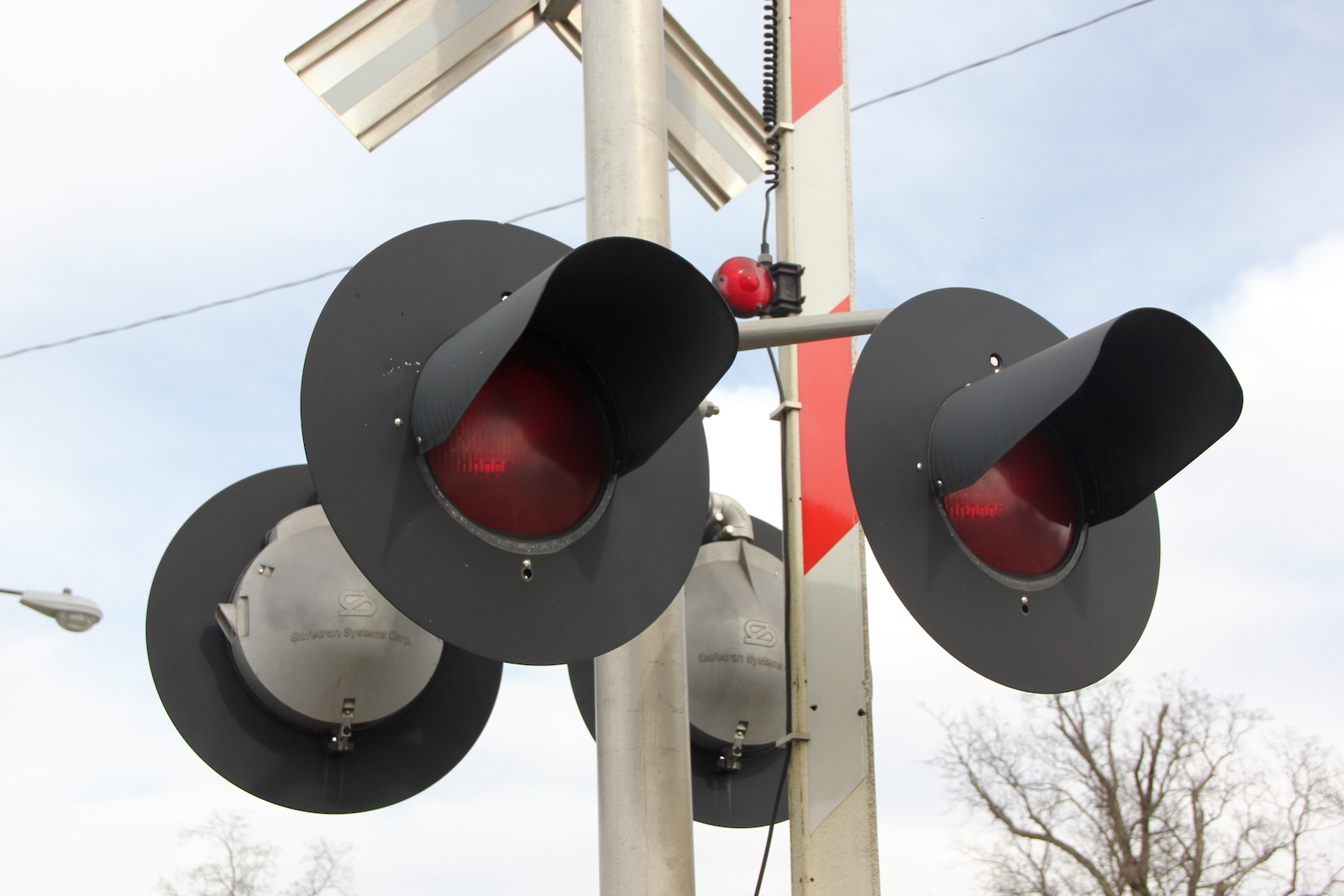

| The eastern signal. |
22
|
23
|
24
|
25
|

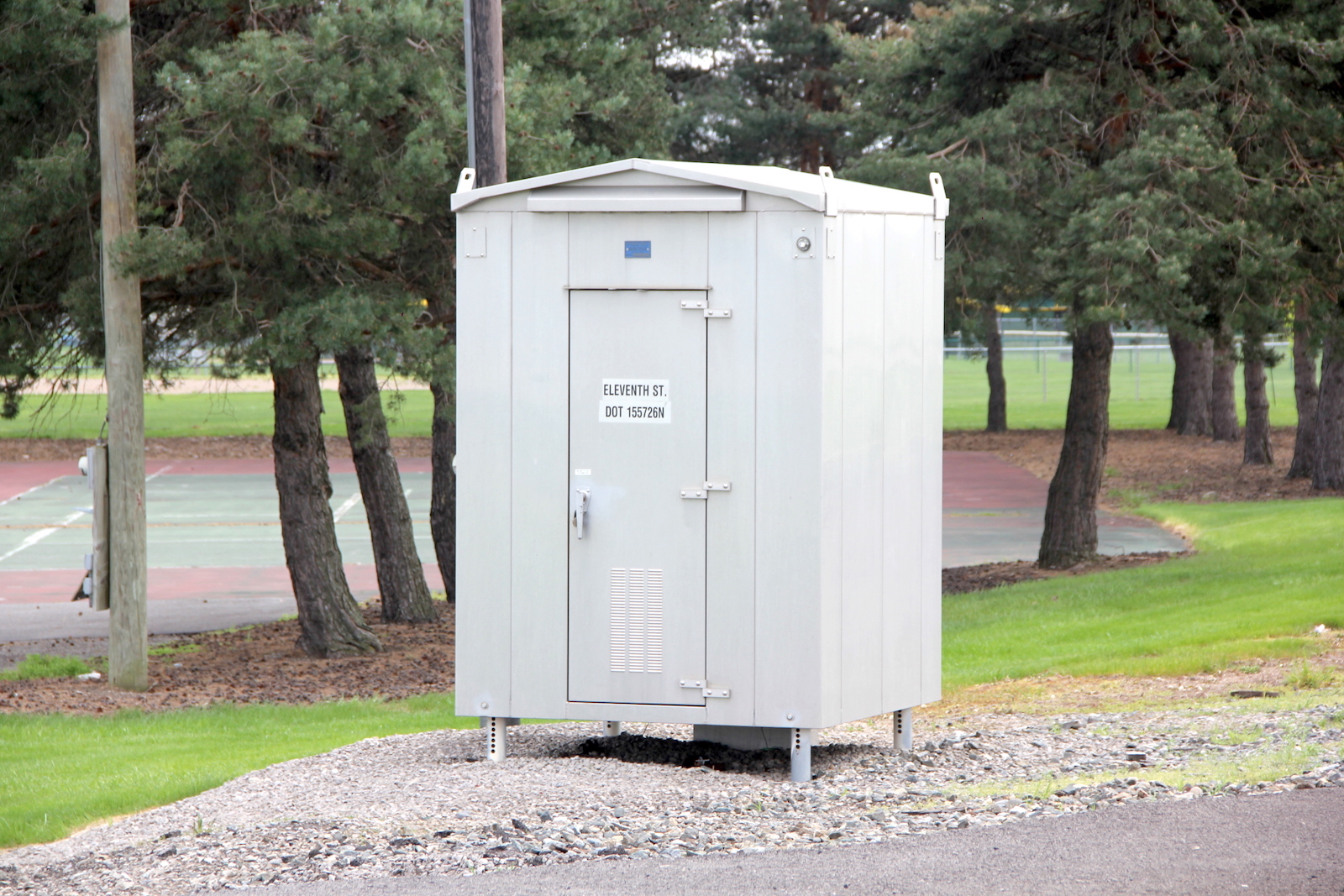

| The relay bungalow in the southeast quadrant. |

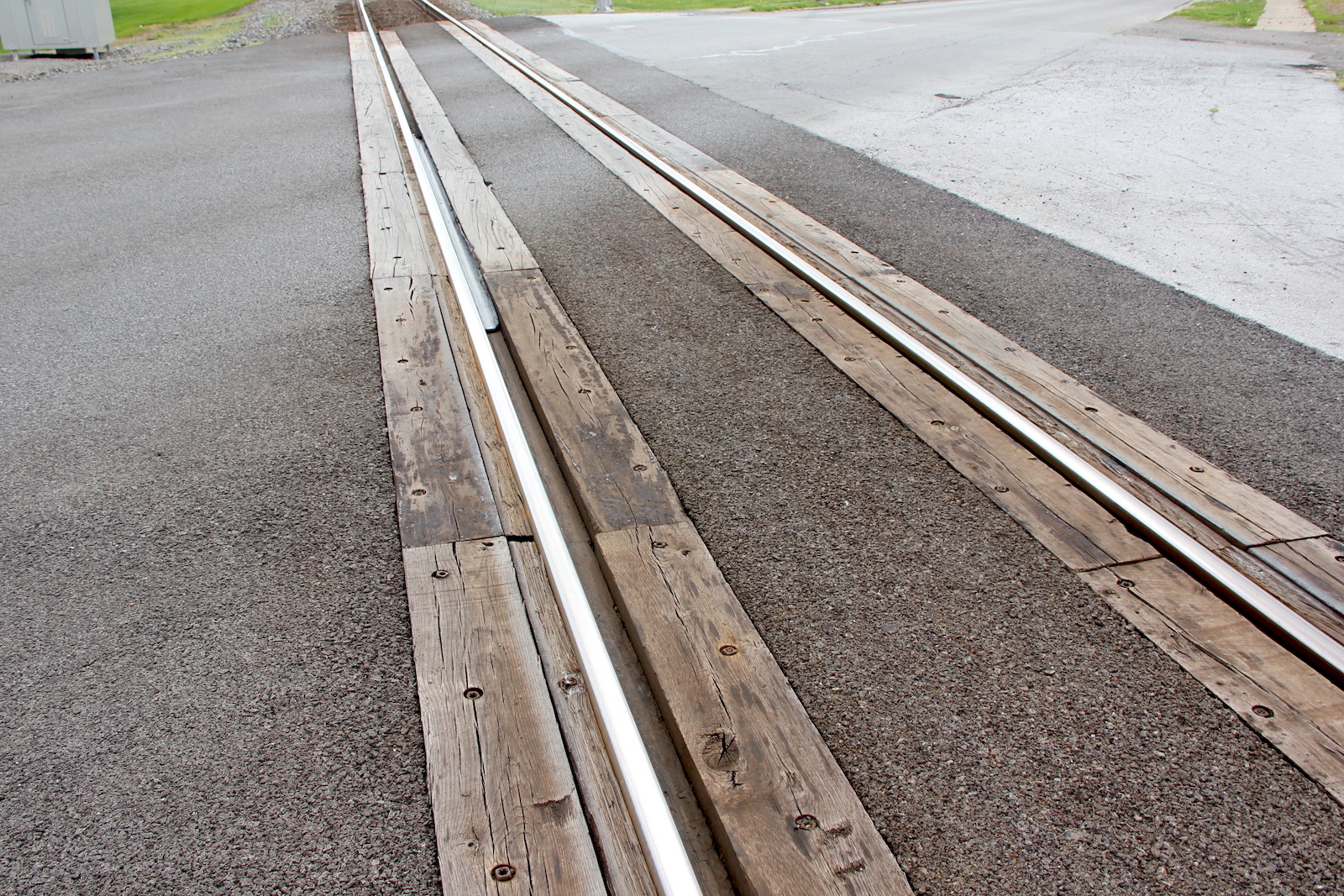

The grade is wood and asphalt. |

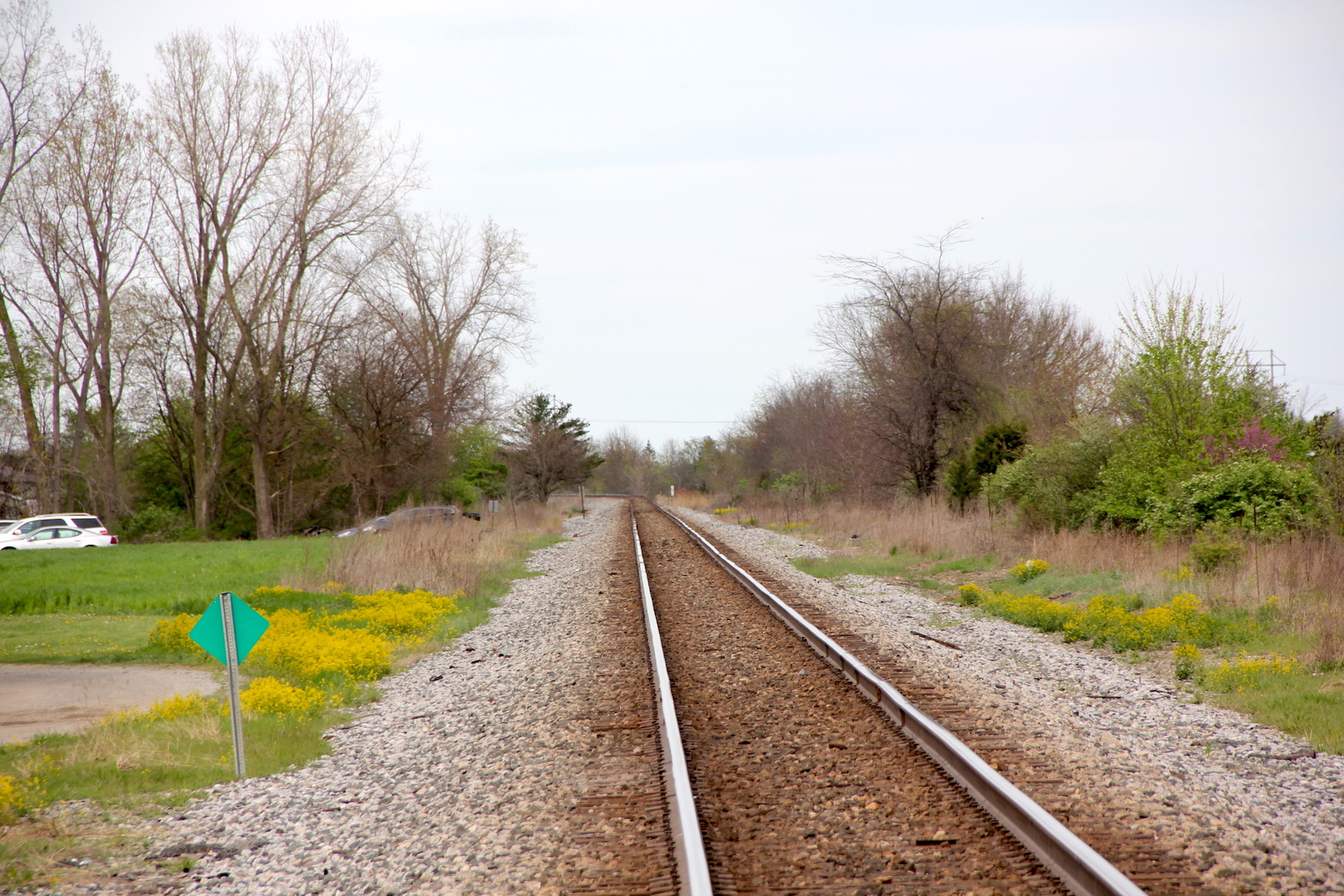

Track view facing north towards Road I-7. |
Track view facing south at Locust St. |
